OPERATING INSTRUCTIONS
FVH-E321
|
|
|
|
|
|
Video Cassette Recorder |
English |
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Videograbador |
|
Español |
|
|
|
|
|
|
|
|
|
Only cassettes marked
can be used with this video cassette recorder.
As an ENERGY STAR® Partner, FISHER has determined that this product or product model meets the ENERGY STAR® guidelines for energy efficiency.
|
|
PAUSE |
POWER |
STOP/ EJECT |
|
|
REW |
FF |
PLAY |
CHANNEL
POWER |
TAPE IN |
VCR |
REC |
TIMER |
REC |
Please read this manual carefully before connecting your VCR and operating it for the first time.
Keep the manual in a safe place for future reference.
NOTE: Locate serial number (shown on rear panel of unit) and record it here
WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
CAUTION |
RISK OF ELECTRIC SHOCK |
DO NOT OPEN |
CAUTION : TO REDUCE THE RISK |
OF ELECTRIC SHOCK, |
DO NOT REMOVE COVER (OR BACK); |
NO USER-SERVICEABLE PARTS INSIDE |
REFER SERVICING TO QUALIFIED SERVICE |
PERSONNEL. |
This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
CAUTION : TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE PLUG CAN BE FULLY INSERTED WITHOUT EXPOSING ANY PARTS OF THE BLADES.
WARNING : Do not drop the tying band of the power cord into the unit. Doing so might cause a fire or an electrical shock. (See page 11.)
IMPORTANT COPYRIGHT INFORMATION: Many television programs and films are copyrighted. In certain circumstances, copyright law may apply to private in-home video taping of copyrighted materials.
FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1)this device may not cause harmful interference, and
(2)this device must accept any interference received, including interference that may cause undesired operation.
MOISTURE CONDENSATION
If you pour a cold liquid into a glass, water vapor in the air will condense on the surface of the glass. This is moisture condensation. Moisture condensation on the head drum, one of the most crucial parts of the unit, will cause damage to the tape.
When the VCR is exposed to a rapid temperature change from cold to warm, some condensation will occur. Under this condition, connect the power cord to the AC line, press POWER on and allow at least two hours for the VCR to dry out.
The serial number is found on the back of this unit. This number is unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase.
Model No. |
FVH-E321 |
Serial No.
2
FEATURES CONTENTS
•Auto Clock set System
•Energy Save Function
•1Year/8 Event Timer with DAILY and WEEKLY Function
•Auto Power and Playback Functions
•Instant Timer Recording
•Real-Time Tape Counter, Tape Remaining Time
•Clean Still, Slow, Frame Advance, Advertisement Jump
•Auto Tracking Function/Auto Head Cleaner
•Onscreen Display of Function
•Trilingual Onscreen Programming (English/Spanish/French)
INTRODUCTION
Features/Contents/Accessories . . . . . . . . . . . . . . . . . .3
Important Safety Instructions . . . . . . . . . . . . . . . . . .4-5
PREPARATION |
|
Installation/VCR to TV Connection . . . . . . . . . . . |
. . . .6 |
Antenna to VCR Connections . . . . . . . . . . . . . . . . |
. . .7 |
Cable Antenna (CATV) Connections . . . . . . . . . . . |
. .8-9 |
VCR Output Channel Setting . . . . . . . . . . . . . . . . . |
. . .9 |
Control Names and Locations . . . . . . . . . . . . . . . . |
10-11 |
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . |
12-13 |
Onscreen Display (OSD) . . . . . . . . . . . . . . . . . . . . |
. .14 |
Setting the Onscreen Display . . . . . . . . . . . . . . . . |
. .15 |
Setting the Setup Menu . . . . . . . . . . . . . . . . . . . . . |
. .16 |
Channel Selection . . . . . . . . . . . . . . . . . . . . . . . . |
17-18 |
Viewing TV Only . . . . . . . . . . . . . . . . . . . . . . . . . . |
. .18 |
Video Cassette Tapes . . . . . . . . . . . . . . . . . . . . . . |
. .19 |
Setting the Clock . . . . . . . . . . . . . . . . . . . . . . . . . |
20-21 |
PLAYBACK |
|
Normal Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Special Effects Playback . . . . . . . . . . . . . . . . . . .23-24
RECORDING
Normal Recording . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Timer Recording . . . . . . . . . . . . . . . . . . . . . . . . . .26-28
Instant Timer Recording . . . . . . . . . . . . . . . . . . . . . .29

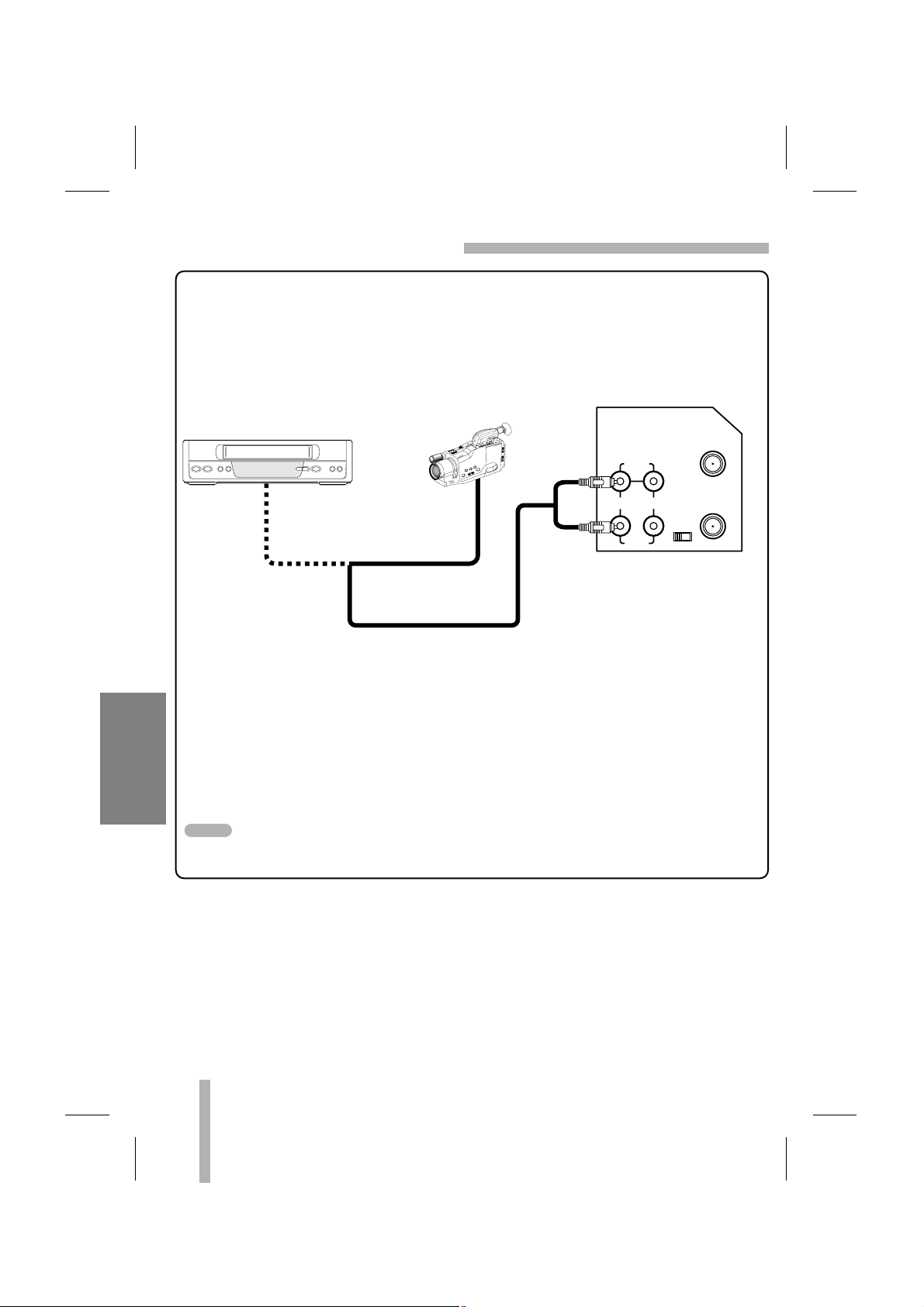

Dubbing and Editing . . . . . . . . . . . . . . . . . . . . . . . . .30
ADDITIONAL INFORMATION
Tape Counter Memory Feature . . . . . . . . . . . . . . . . .31
Editing a Recording . . . . . . . . . . . . . . . . . . . . . . . . . .32
Operating Hints . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Video Head Cleaning . . . . . . . . . . . . . . . . . . . . . . . .32
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
RECORDING PLAYBACK PREPARATION INTRODUCTION
ACCESSORIES
Remote Control |
RF Coaxial Cable |
|||
|
|
|
POWER |
|
1 |
2 |
3 |
|
|
|
|
|
TV/VCR |
|
4 |
5 |
6 |
|
|
|
|
|
Ad JUMP |
|
7 |
8 |
9 |
|
|
SLOW |
0 |
INPUT |
SP/SLP |
|
|
|
|
|
|
EJECT |
|
|
REC |
|
|
PAUSE |
|
|
|
REW |
PLAY |
FF |
|
|
|
STOP |
|
|
|
MENU |
|
ENTER |
|
|
|
CH |
|
|
|
|
TRACK |
|
|
|
|
|
CLEAR |
|
|
VOL |
VOL |
TV CH |
TV CH |
|
TV POWER |
TV INPUT |
|
||
Quick Setup
Guide
XXXXX |
|
|
Quick |
Setup |
|
|
|||
XXXXX |
|
XXXXX |
XXXXX |
|
Guide |
|
|||
XXXXX |
XXXXX |
|
|
|
|
||||
XXXXX |
|
XXXXX |
XXXXX |
|
XXXXX |
|
|
||
|
XXXXX |
XXXXX |
|
XXXXX |
|||||
XXXXX |
|
|
|
XXXXX |
XXXXX |
||||
XXXXX |
XXXXX |
XXXXX |
XXXXX |
||||||
XXXXX |
|
|
XXXXX |
|
XXXXX |
||||
XXXXX |
|
|
XXXXX |
|
|
||||
|
|
|
|
|
|
|
|||
|
|
|
|
|
XXXXX |
|
XXXXX |
|
|
|
|
|
|
|
|
|
|
XXXXX |
|
Check to make sure that all accessories listed left have been included with your VCR.
•Depending on your antenna system, you may need a different type of Combiner (Mixer) and Separator (Splitter). You can purchase them at most electronics stores. For further details, ask your nearest authorized service center.
INFORMATION ADDITIONAL
3
INTRODUCTION
IMPORTANT SAFETY INSTRUCTIONS
Important safeguards for you and your new product
Your product has been manufactured and tested with your safety in mind. However, improper use can result in potential electrical shock or fire hazards. To avoid defeating the safeguards that have been built into your new product, please read and observe the following safety points when installing and using your new product, and save them for future reference.
Observing the simple precautions discussed in this section of the operating guide can help you get many years of enjoyment and safe operation that are built into your new product.
1.Read Instructions
All the safety and operating instructions should be read before the product is operated.
2.Follow Instructions
All operating and use instructions should be followed.
3.Retain Instructions
The safety and operating instructions should be retained for future reference.
4.Heed Warnings
All warnings on the product and in the operating instructions should be adhered to.
5.Cleaning
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
6.Water and Moisture
Do not use this product near water – for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool.
7.Accessories
Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.
8.Transporting Product
A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
9.Attachments
Do not use attachments not recommended by the product manufacturer as they may cause hazards.
10.Ventilation
Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.
11.Power Sources
This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.
12.Grounding or Polarization
This product is equipped with a polarized alter- nating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
13.Power-Cord Protection
Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.
PORTABLE CART WARNING
4
IMPORTANT SAFETY INSTRUCTIONS (Cont’d)
14.Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code (U.S.A), ANSI/NFPA 70 provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
EXAMPLE OF GROUNDING ACCORDING TO NATIONAL ELECTRICAL CODE INSTRUCTIONS
Antenna Lead in Wire
Ground |
|
Clamp |
|
|
Antenna Discharge Unit |
|
(NEC Section 810-20) |
|
Grounding Conductors |
Electric Service |
(NEC Section 810-21) |
Equipment |
|
|
Ground Clamps |
|
Power Service Grounding |
|
Electrode System |
NEC - NATIONAL ELECTRICAL CODE |
(NEC Art 250, Part H) |
|
15.Lightning
For added protection for this product (receiver) during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.
16.Power Lines
An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
17.Overloading
Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.
18.Object and Liquid Entry
Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
19.Servicing
Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
20.Damage Requiring Service
Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:
a.If the power-supply cord or plug is damaged.
b.If liquid has been spilled, or objects have fallen into the product.
c.If the product has been exposed to rain or water.
d.If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.
e.If the product has been dropped or the cabinet has been damaged.
f.If the product exhibits a distinct change in performance.
21.Replacement Parts
When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
22.Safety Check
Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.
23.Heat
The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.
INTRODUCTION
5
INSTALLATION
Placing your VCR on the top of or under the TV receiver may result in interference appearing on the TV screen when the VCR is on. If this occurs, move the VCR to a position alongside the TV receiver.
PREPARATION
When using the RF coaxial cable (Supplied) |
TV set |
Connect the 75-ohm Coaxial Cable to VHF/UHF/CATV on the VCR. Connect the other end to the 75-ohm antenna input on back of the TV.
R-AUDIO-L VIDEO
OUT
OUT
IN |
IN |
Cable/ |
|
|
Antenna |
To AUDIO/VIDEO IN
AUDIO/VIDEO Cable (Not supplied)
From AUDIO/VIDEO OUT
|
|
|
|
ANT.IN |
|
LINE1(AUX1) |
|
AUDIO |
|
|
|
IN |
OUT |
|
VHF/UHF |
|
|
|
|
/CATV |
75 ohm Coaxial Cable (Supplied) |
||
|
|
|
|
||
|
|
|
|
|
|
|
|
|
3 |
4 |
|
|
|
VIDEO |
CH. |
To VHF/UHF/CATV |
|
VCR’s Back Panel |
|
||||
When using the Audio/Video cable (Not supplied)
If your TV has A/V input jacks, you may connect your VCR’s AUDIO/VIDEO jacks on back of your TV.
Direct audio/video connections usually result in a better picture and sound quality for tape playback. Please see your TV’s owner’s manual for details. Then set your TV to the VIDEO mode using the TV/VIDEO button on your TV.
6
UHF Antenna VHF Antenna |
|
VHF/UHF Antenna |
VHF/UHF Antenna |
||
300 ohm |
75 ohm |
|
|
|
|
Twin-Lead |
Coaxial |
|
|
|
|
Cable |
Cable |
|
|
|
|
VHF/UHF mixer |
|
|
|
|
|
(Not supplied) |
|
|
|
75 ohm |
|
|
|
|
|
Coaxial |
300 ohm |
|
|
|
|
Cable |
|
|
|
|
|
twin lead |
|
|
|
|
|
|
|
|
|
|
|
|
300/75 ohm |
|
|
|
|
|
Adaptor |
|
|
|
|
(Not supplied) |
|
|
|
|
|
OR OR |
|
|
|
|
|
ANT.IN |
|
|
LINE1(AUX1) |
|
AUDIO |
|
|
|
IN |
OUT |
VHF/UHF |
|
|
|
|
/CATV |
|
||
|
|
|
|
|
|
|
|
|
3 |
4 |
|
VIDEO CH.
VCR’s Back Panel
1Disconnect the antenna leads from the rear of the TV receiver.
2Identify the type of cable from your antenna. If it is a round cable as illustrated, it is a 75 ohm coaxial antenna cable. This cable will connect directly to the connector marked ANT.IN on your VCR.
If your antenna lead wire is a flat type antenna cable, connect it to a Antenna Adaptor (300-ohm to 75-ohm) (not supplied) and slip the Adaptor onto the ANT.IN connector. The Adaptor does not screw on to the VCR, it just slips over the connector.
PREPARATION
7
PREPARATION
TV set
CABLE CONVERTER
75 ohm |
|
Cable |
|
System |
IN OUT |
|
|
|
75 ohm |
|
Cable |
|
System |
Cable/
Antenna
|
|
|
|
OR |
|
|
|
|
|
ANT.IN |
|
LINE1(AUX1) |
|
AUDIO |
|
|
|
IN |
OUT |
|
VHF/UHF |
|
|
|
|
/CATV |
|
||
|
|
|
|
|
|
|
|
|
3 |
4 |
|
|
|
VIDEO |
CH. |
75 ohm Coaxial Cable (Supplied) |
|
VCR’s Back Panel
Without Cable Box
If your cable wire is connected to your TV without a converter or descrambler box, unscrew the wire from your TV and attach it to the ANT.IN connector on the VCR. Use the supplied round coaxial cable to connect between the VCR’s VHF/UHF/CATV connector and the 75 ohm antenna input connector on the TV. With this connection, you can receive all midband, super band, and hyperband channels.
With Cable Box
If a converter is required in your cable system, follow the instruction below: The cable hookup permits both TV and VCR operation.
To view or record CATV channel
1Set the TV channel to the video output channel as located on the back of the VCR (CH3 or CH4).
2Set the VCR channel selector to the output channel of the Cable Converter box by pressing the CH/TRACK (▲/▼) or number (0-9) of your VCR. (Example: CH3)
3Select the channel to view at the Cable Converter Box.
NOTES
•With this connection, you CANNOT record one program while viewing another.
•Channel memory programming is not needed when using the connection.
75 ohm Cable System
2-way Splitter (Not supplied)
This cable hookup allows you |
|
|
either to view and record the |
|
|
same channel (scrambled |
or |
|
non-scrambled signal), or |
to |
TV set |
view one channel (non-scram- |
|
|
bled signal) while recording |
|
|
another channel (scrambled or |
|
|
non-scrambled signal). |
|
|
CABLE CONVERTER
Cable/
Antenna
IN OUT
PREPARATION
LINE1(AUX1)
AUDIO |
|
|
A/B Switch |
|
|
|
(Not supplied) |
IN OUT |
|
|
75 ohm Coaxial |
|
VHF/UHF |
Cable (supplied) |
|
|
|
/CATV |
|
|
3 |
4 |
|
VIDEO |
CH. |
|
|
|
|
||
VCR’s Back Panel
Note to CATV system installer (USA only): This reminder is provided to call the CATV system installer’s attention to Section 820-40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
VCR OUTPUT CHANNEL SETTING
VCR’s BACK PANEL
|
|
|
ANT.IN |
LINE1(AUX1) |
|
AUDIO |
|
IN |
OUT |
VHF/UHF |
|
|
/CATV |
||
|
|
|
|
|
|
3 |
4 |
|
|
VIDEO |
|
VCR OUTPUT CHANNEL SWITCH
During playback of a video tape, and when press TV/VCR to set the VCR mode, the VCR OUTPUT converter changes the video and audio signals to the same type of signals that are used for TV broadcasts. Set the VCR OUTPUT channel switch (marked CH3, CH4 and located on the rear panel) to channel 3 or 4. Select the channel that is not used for TV broadcasts in your area.
This is your VCR OUTPUT channel. To play a tape, or to watch TV using the VCR’s built-in tuner, always set your TV’s channel selector to the same channel (3 or 4).
9
PREPARATION
CONTROL NAMES AND LOCATIONS
FRONT
CASSETTE COMPARTMENT |
|
PAUSE/STILL |
||
Where the video cassette is inserted. |
|
To put playback on still (page 23) or |
||
|
|
|
to pause recording (page 25). |
|
|
|
|||
|
|
|
|
|
|
|
|
REC (RECORD) |
|
STOP/EJECT |
|
|
To record normally (page 25) or to activate |
|
To stop the tape. |
|
|
Instant Timer Recording (page 29). |
|
To eject the tape in the VCR. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
INFRARED REMOTE SENSOR
Receives the signal from the infrared remote control.
POWER
EJECT
REW |
FF |
CHANNEL
POWER TAPE IN VCR |
REC |
TIMER |
CHANNEL (D/E)
To scan up or down through memorized channels (page 17) or to adjust manually the tape’s picture onscreen (page 22).
POWER ON/OFF
To turn the VCR on and off.
While plugged into an AC outlet, the VCR consumes 3W of electrical power in OFF condition.
VCR Function Indicator Panel
Details are on the next page.
REW (Rewind)
To rewind the tape during the STOP mode or for fast reverse picture search (page 23).
PLAY
To play back a recorded tape (page 22).
FF (Fast Forward)
To advance the tape during the STOP mode or for fast forward picture search (page 23).
10
CONTROL NAMES AND LOCATIONS (Cont’d)
|
REAR |
|
|
ANTENNA INPUT CONNECTOR |
|
|
|||
|
|
|
Connect the VHF/UHF/CATV antenna to this terminal. |
|
|
|
|
|
|
|
|
|
|
|
AUDIO OUT JACK; Connect this terminal to the audio input terminal on an external unit (Audio System, TV/Monitor, Another VCR).
VIDEO OUT JACK; Connect this terminal to the video input terminal on an external unit (TV/Monitor, Another VCR).
AUDIO IN JACK; Connect the audio output cable from an external unit (ex. Audio system, TV/Monitor, DVD player, Another VCR) to this terminal.
VIDEO IN JACK; Connect the video output cable from an external unit (ex. Audio system, TV/Monitor, DVD player, Another VCR) to this terminal.
NOTE
When using this AUDIO/VIDEO IN jacks, select the input channel “LINE” at the VCR. Press INPUT to select “LINE”.
|
|
|
ANT.IN |
LINE1(AUX1) |
IN |
OUT |
VHF/UHF |
/CATV |
|||
|
3 |
4 |
|
|
|
VIDEO |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
WARNING : Do not drop the tying |
|
|
|
|
|
|
|
|
|
VCR OUTPUT CHANNEL SELECT SWITCH |
|
|
|||||
band of the power cord into the |
|
|
Set this switch to channel 3 or 4. |
|
|
|||
unit. Doing so might cause a fire |
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
or an electrical shock. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
VHF/UHF/CATV ANTENNA OUTPUT CONNECTOR |
|||||
|
|
|
|
|
||||
|
|
|
|
|
||||
POWER CORD |
|
|
|
Connect this terminal to the VHF or UHF |
||||
Connect only to an AC 120V, 60Hz outlet. |
|
|
antenna terminals on the back of a TV. |
|||||
|
|
|
|
|
|
|
|
|
INDICATOR PANEL
POWER indicator |
TIMER indicator |
Lights while a VCR is turned on. |
|
POWER TAPE IN VCR |
REC |
TIMER |
TAPE IN indicator
Lights while a cassette is inserted, and flashes while ejecting a cassette.
REC (record) indicator
VCR indicator
Use TV/VCR on the remote control to turn this indicator ON or OFF.
ON: for playback, VCR programming or watching TV programs through the VCR tuner
OFF: for watching TV programs through TV tuner
PREPARATION
11
Loading...
