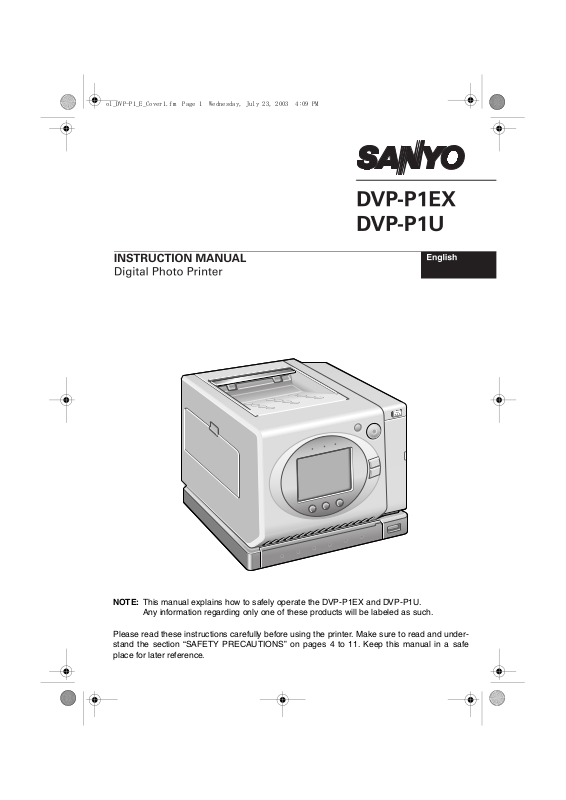

Sanyo DVP-P1U User Manual

NOTE: This manual explains how to safely operate the DVP-P1EX and DVP-P1U.

Any information regarding only one of these products will be labeled as such.

Please read these instructions carefully before using the printer. Make sure to read and under­stand the section “SAFETY PRECAUTIONS” on pages 4 to 11. Keep this manual in a safe
place for later reference.

Warning

TO PREVENT THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE

FOR AMERICAN USERS

i This equipment has been tested and found to comply with the limits for a Class B dig-

ital device, pursuant to Part 15 of the FCC Rules. These limits are designed to pro­vide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interfer­ence to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interfer­ence to radio or television reception, which can be determined by turning the equip­ment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:

h Reorient or relocate the receiving antenna.
h Increase the separation between the equipment and receiver.
h Connect the equipment to an outlet on a circuit different from that to which the

receiver is connected.

h Consult the dealer or an experienced radio/TV technician for help.

i Changes or modifications not expressly approved by the party responsible for compli-

ance could void the user’s authority to operate the equipment.

Tested To Comply With FCC Standards

FOR HOME OR OFFICE USE

Declaration of Conformity

Model Number : DVP-P1U
Trade Name : SANYO
Responsible party : SANYO FISHER COMPANY
Address : 21605 Plummer Street, Chatsworth, California 91311
Telephone No. : [phone]
This device complies with Part 15 of the FCC Rules. Operation is subject to the fol­lowing two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that

may cause undesired operation.

i English

FOR CANADIAN USERS

i This Class B digital apparatus complies with Canadian ICES-003.

English ii

BEFORE READING THE MANUAL

Design © 2003 SANYO Electric Co., Ltd.
Program © 2003 SANYO Electric Co., Ltd.
Documentation © 2003 SANYO Electric Co., Ltd.
Copyright 2003 SANYO Electric Co., Ltd. All rights reserved.
All other company and product names are registered trademarks or trademarks of their
respective owners.

Caution

i It is forbidden to copy this manual, whole or in part, without prior written permission.
i All images and illustrations given in this manual are for explanation purposes and

may differ slightly from that of the actual product. Also, actual specifications are sub­ject to change without prior notice and therefore may differ from the contents of this
manual.

i Sanyo Electric shall not be held responsible for any problems resulting from the use

of this printer.

i Sanyo Electric declines all responsibility for damages due to improper use of the

printer, failure to adhere to the instructions given in this manual, or repairs or changes
done by those other than a technician authorized by the manufacturer.

i Sanyo Electric shall not be held responsible for any damage caused by optional

devices or consumable items used with the printer other than those supplied with the
printer or those specified by Sanyo Electric.

i Sanyo Electric shall not be held responsible for any losses or loss of revenue result-

ing from the loss of data caused by the malfunction, or the repairing of a malfunction,
of the printer.

Symbols used in this manual

NOTE Points giving some extended instructions or special points to pay atten-

tion to.

HINT Points that may prove useful when using the DVP-P1.
HELP In case a problem occurs, this may help in certain situations.
CAUTION Points that require special attention.
see page xx Refer to the page indicated in brackets for detailed information.

i The numbers in the illustrations (2-1, 2-2 etc.) correspond to the numbered steps in

the procedures.

CONTENTS

BASIC OPERATION................................................................................................. 2

SAFETY PRECAUTIONS......................................................................................... 4

FOR CORRECT USE OF YOUR PRINTER........................................................... 12

CHECKING THE INCLUDED ACCESSORIES ...................................................... 15

SEPARATELY SOLD ACCESSORIES .................................................................. 16

OUTLINE

SPECIAL FEATURES OF THE PRINTER ............................................................. 17

PART NAMES ........................................................................................................ 18

SETUP

POWER CONNECTION ......................................................................................... 21

INSTALL THE INK RIBBON ................................................................................... 22

LOADING THE PAPER .......................................................................................... 24

INSERT THE CARD ............................................................................................... 27

PRINTING

SETTING THE PRINT MODE ................................................................................ 29

INDEX PRINTS....................................................................................................... 30

INDEX SELECT PRINTS........................................................................................ 32

ID-SIZE PRINTS..................................................................................................... 34

PRINT ONE IMAGE................................................................................................ 36

PRINT ALL IMAGES............................................................................................... 38

DPOF PRINTING.................................................................................................... 40

OTHER PRINT SETTINGS .................................................................................... 42

PRINTING FROM YOUR DIGITAL CAMERA (PictBridge printing)........................ 44

TROUBLESHOOTING

TROUBLESHOOTING............................................................................................ 45

APPENDIX

SPECIFICATIONS.................................................................................................. 48

English 1

BASIC OPERATION

Basic printing procedure

1 Install the ink ribbon (see page 22).

h The ink ribbon and paper are not supplied with this

printer. Please purchase them separately (see page

16).

2 Load the paper (see page 24).

3 Connect the AC adapter, and turn on the power

(see page 21).

4 Insert the card (see page 27).

5 Make an index print (see page 30).

h Each sheet of an index print contains up to 20

images.

h Once you are familiarized with the operation, you

can select the image to print by specifying its image
number (see page 36).

2 English

6 Index select printing (see page 32).

h Confirm the image number on the index print, spec-

ify the image number with the printer, and print.

h In addition, you can make ID-size prints, or you can

make prints according to the DPOF settings. And of
course you can print all the data in the card, or print
just one image.

h When not using the printer, remove the ink ribbon

and paper, and store them in the box in which they
were purchased in a place protected from heat and
light.

2003 05 04

2003 05 03

2003 05 02

2003 05 01

ID-size prints

(see page 34)

DPOF printing
(see page 40)

Print all images

(see page 38)

Print one image

(see page 36)

k Other print settings (see page 42).

i You can specify borderless prints, date imprint and sharpness printing (except for

Index prints).

k PictBridge compliant

This printer is PictBridge compliant. PictBridge is a standard that enables direct printing
from a digital still camera to the printer. With PictBridge printing, the print functions are
controlled by your camera’s print settings.

English 3

SAFETY PRECAUTIONS

About the printer

CAUTION

k If the printer makes a strange noise, emits a strange odor, or if smoke

comes out from it, immediately turn off the power and unplug it from
the power outlet.

i If the printer is used under these conditions, it may

cause a fire or electric shock. Immediately turn off the
printer, unplug it from the power outlet, and wait to
make sure no more smoke comes from the printer.
Then take it to the dealer for service. Do not try to
repair or open the printer yourself.

k Do not modify or open the cabinet.

i Do not touch any internal parts, as doing so may cause

a fire or electric shock.
Any internal check, setting, or repair should be per­formed by the dealer.

k Do not insert objects in the printer.

i Do not insert metallic or flammable objects into the

ventilation holes, card slots, or ink ribbon slot, or allow
such objects to fall in. It may cause a fire or electric
shock. Be especially careful with regard to this point
when children are present.

i In the event that an object was inserted in or has fallen

into the printer, turn off the printer, unplug it from the
power outlet, and contact the dealer. If the printer is
operated as is, it may cause a fire or electric shock.

4 English

k Do not place flower vases or other containers holding liquids on top of

the printer.

i In the event that water or other liquid has gotten inside

the printer, immediately turn off the printer, unplug it
from the power outlet, and contact the dealer. If the
printer is operated as is, it may cause a fire or electric
shock.

k Do not get the printer wet.

i Take care not to let the printer get wet or allow water to

get inside, as this may case a fire or electric shock.

k Do not use during a storm.

i To avoid the risk of electric shock, quickly turn off the

printer and unplug the power cord from the power out­let.

k Do not place on an unstable surface.

i The printer may fall, resulting in damage to the printer

or injury.

i If the printer has fallen and its body is damaged, turn it

off, unplug the power cord from the power outlet, and
take it to the dealer for repair. Using the printer after its
body has been damaged may cause a fire or electric
shock.

English 5

CAUTION

k Do not stand the printer on its side.

i The printer should be in its correct horizontal position

when in use.

i If the printer is operated while set on its side, the paper

feed and/or discharge may not work properly and
cause a malfunction.

k Do not use where there is risk of explosion.

i Do not use the printer in a location where there is

explosive gas or any other flammable material in the
air. Doing so may cause a fire or an explosion.

k Cautions when carrying the printer.

i Be careful not to drop the printer or subject it to strong

shock or vibration.

i Unplug the power cord from the power outlet, and dis-

connect any other equipment from the printer.

k If the printer is not going to be used for a long

period of time.

i For safety’s sake, unplug the power cord from the

power outlet, and remove the ink ribbon and paper
from the printer.

6 English

CAUTION

k Cautions during use and storage.

i This printer is a precision instrument. When using or

storing the printer, make sure to avoid the following
locations to avoid damage.

h Places in direct sunlight
h Places where humidity and temperature are high
h Places that may get wet
h Places close to an air conditioner or heater
h Inside a car
h Places where there is dust and dirt
h Places where there is a fire burning
h Places where volatile products are stored
h Places subject to vibration

Operating environment:

h For details about the optimum operating environment, please see “Specifications”

on page 48.

k Do not obstruct the ventilation holes.

i Do not obstruct the ventilation holes, for example by

placing the printer in a spot with poor ventilation, or
covering it with a table cloth. If the ventilation holes are
blocked, the inside of the printer may become over­heated and cause a fire.

k Do not place heavy objects on top of the printer.

i The printer may topple over and fall, possibly causing

injury. In addition, a heavy object on the printer may
damage it.

English 7

CAUTION

k Do not remove the paper tray during printing.

i During printing, the paper is moving back and forth

within the printer. If you attempt to touch the paper, it
may result in injury. Do not touch the paper tray until
printing is finished.
Do not remove the paper tray and put your fingers or
hands in the paper tray slot.

k Do not insert your fingers in the printer.

i Your fingers may be pinched or burned. Be especially

careful with regard to this point when children are
present.

8 English

About the AC adapter

CAUTION

k Make sure the rated voltage of AC adapter matches the line voltage in

your area.

i Fire and/or electrocution could result from connecting

the AC adapter to a line voltage other than that for
which it is rated.
DVP-P1EX: 220V to 240V
DVP-P1U: 100V to 120V

k Do not damage the power cord.

i Do not put heavy objects on the power cord or place

heat-producing appliances near it. Do not bend or
modify the power cord, or use staples to affix it, as
doing so may damage the power cord and cause a fire
or electric shock.

i If the power cord is damaged, consult with your dealer

about obtaining a replacement cord.

k When moving the printer, disconnect the AC adapter.

i If you attempt to move the printer without disconnecting

the AC adapter, the AC adapter or power cord may be
damaged.

0

0

0

0

1

1

0

0

0

2

2

2

V

V

V

V

0

0

V

V

2

2

1

1

~

~

0

0

V

V

4

4

2

2

~

~

k Do not allow dust etc. to build up on the power cord or power outlet.

i A build up of dust may cause a short circuit or generate

heat and cause a fire.

i Take special care when the printer is used in a humid

room, in a place where vapors are readily condensed,
in the kitchen, or in a place where dust easily accumu­lates.

i Periodically unplug the power cord from the power out-

let, and remove any dust or dirt adhering between the prongs.

k Do not wrap the AC adapter in cloth or the like.

i If the AC adapter is wrapped in cloth, the resulting heat

generated may cause a fire. Even when the printer is
not being operated, the AC adapter generates some
heat. For this reason, once the printer is set up, it
should never be covered with a cloth or the like.

English 9

CAUTION

k Caution when connecting the AC adapter.

i Securely plug the power cord all the way into the power

outlet. If the power cord is not fully plugged in, heat
may be generated and cause a fire.

i Do not use a bundled power cord, as the heat gener-

ated may cause a fire.

i When using an extension cord, make sure that the total

wattage of the connected devices does not exceed the rated value of the extension
cord. If the power load exceeds the rated value, it may cause a fire. Before using an
extension cord with the printer, make sure to read all its accompanying instructions.

i Do not leave the supplied AC adapter’s power cord plugged into the power outlet

while the other end is not plugged into the printer’s power socket. The loose end can
cause electrocution if touched with wet hands or if handled by children.

i Use only the supplied power cord. If a different power cord is used, it may be rated for

a different current load, and that may cause a fire.

i The supplied AC adapter is for exclusive use with this printer. Do not use it with other

devices, as doing so may cause a fire or electric shock.

CAUTION

k When unplugging the power cord, be sure to hold the power plug and

slowly pull it out of the power outlet.

i Pulling the cord portion may damage the power cord

and cause a fire or electric shock.

k Do not touch the power cord plug with wet hands, or you risk receiving

an electric shock.

10 English

CAUTION

Other items

k Caution concerning the card.

i The card may be warm immediately after use. Before

removing the card, turn off the power to the printer and
wait for it to cool down.

i Keep out of the reach of children. If the card is inserted

incorrectly, it may cause an accident to occur.

English 11

FOR CORRECT USE OF YOUR PRINTER

k Maintenance

i Cleaning

1 Turn off the power, and remove the power plug from the power outlet.
2 Use a soft cloth to gently wipe the printer clean.

To remove stains

3 Moisten a cloth with a solution of water and a mild detergent. Wring the cloth out

well before using it to wipe the printer. Follow by polishing with a soft, dry cloth.

4 Remove any dust from the ventilation holes on the front panel

h Dust entering the printer from the ventilation holes will adhere to the prints and

diminish their quality.

i Caution

h Never use benzine or thinner to clean the printer, as doing so may cause deforma-

tion or paint peeling. Also, before using a chemically treated dustcloth to clean the
printer, make sure to read all accompanying instructions.

h Do not allow pesticides or flammable substances to come into contact with the

printer or paper tray. Also, do not allow rubber or vinyl objects to contact the printer
for a long period. They may cause deformation, discoloration, or paint peeling.

k When not using the printer for a long period

h Remove the power cord.

However, when the power is interrupted for a long time, the printer functions may
begin to not work properly. Periodically turn on the printer and use it to maintain
the functions.

k Caution concerning condensation

h Using the printer or card with condensation inside it may damage it.

i If condensation seems likely to form

h Place the printer in a plastic bag and seal it, and then wait until the printer has

reached the ambient temperature.

i Be careful of condensation under the following conditions

h When moving the printer suddenly from a cold place to a warm place.
h When the ambient temperature changes drastically, such as when a heater is

turned on to quickly heat the room.

h When the printer is placed in the path of cool air from an air conditioner.
h When the printer is placed in a location of high humidity.

12 English

k Caution concerning undesired interference

h The printer may create undesired interference if used close to a television or radio.

To avoid this type of interference, make sure the cores on the supplied power cord
and AC adapter are not removed.

Core

Power cord

AC adapter

Core

k About the ink ribbon

h Use only the specified ink ribbon.
h If the ribbon in the ink ribbon is slack, turn the spindle in the direction indicated by

the arrow to make it taut before using.

h Keep unused ink ribbon in the package. Do not subject it to direct sunlight or high

temperatures or humidity.

h Do not touch or pull the ribbon. Doing so may cause the print quality to deteriorate.

k About the paper

h Use only paper specified for the printer.
h Hold the paper by the edges, and avoid touching the print surface. If the print sur-

face is scratched or smudged, the print quality may deteriorate.

h Once a paper is printed, do not reinsert it in the printer, as doing so may result in

damage.

h Do not use paper with bent edges, or wrinkled paper. If there is a curl to the paper,

take measures to flatten it before using it in the printer.

h Keep unused paper in the package. Do not subject it to direct sunlight or high tem-

peratures or humidity. Keep it flat to prevent folds or wrinkles.

k About the printing surface

h Water-based inks (paint stick, ink jet printing) will not adhere to the printing sur-

face. Please use a ball point pen or permanent marker.

English 13
