“Read this manual before assembling (or using) this product.”

Important Safety Instructions . . . . . . . . . . . . . . . 2

Welcome to the World of Sanyo . . . . . . . . . . . . . 3

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Basic Set-up and Connections . . . . . . . . . . . . . . . 4

Rear Panel Controls . . . . . . . . . . . . . . . . . . . . . . 5

Using the Audio / Video Input Jacks . . . . . . . . . 6

Connecting a VCR or DVD Player . . . . . . . . . . 6

Using the Component Audio/ Video Input Jacks . . . 7

Connecting a DVD . . . . . . . . . . . . . . . . . . . . . . 7

Using the Audio Output Jacks . . . . . . . . . . . . . . . 8

Connecting to a Stereo Amplifier . . . . . . . . . . . 8

Using the Multimedia Remote Control . . . . 8 ~ 10

Programming the Remote . . . . . . . . . . . . . . . 10

VCR / Cable Box / DVD Player Codes . . . . . 11

Keys Functions Chart . . . . . . . . . . . . . . . . . . . 12

TV Adjustment and Setup

How to Operate the On-Screen Menu . . . . . . . 13

Audio Mode . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Adjusting Picture/Sound . . . . . . . . . . . . . . . . 13

Resetting Antenna/Cable Mode . . . . . . . . . . . 13

Adding or Deleting a Channel . . . . . . . . . . . . 14

Aspect Ratio . . . . . . . . . . . . . . . . . . . . . . . . . 14

Closed-Captioning . . . . . . . . . . . . . . . . . . . . . . . 14

V-Guide Operation (Parental Control) . . . . 15 ~ 16

Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . 16

Helpful Hints (problems/solutions) . . . . . . . . . . 17

Warranty (Mexico) . . . . . . . . . . . . . . . . . . . . . . 18

Warranty (U.S.A. and Canada) . . . . . . . . . . . . . 19

Child Safety Matters . . . . . . . . . . . . . . . Back cover

Español . . . . . . . . . . . . . 20 ~ 40

Contenido . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Français . . . . . . . . . . . . 41 ~ 58

Table des matières . . . . . . . . . . . . . . . . . . . . 41

CONTENTS

DS32224

Printed in U.S.A. SMC, March 2004 Impreso en U.S.A. SMC, Marzo 2004 Imprimé aux É.-U. SMC, mars 2004 Part No. / No. de Parte/ Node pièce : 1JC6P1P0159–– Service Code/Código de Servicio/ Code de service : 610 312 0942

Importado Por : Comercializadora México Americana, S. DE R.L. DE C.V. Nextengo Nº 78 Col. Santa Cruz Acayucan Del. Azcapotzalco, México D.F. C.P. 02770, RFC CMA 9109119L0 Telefono: 55-5328-3500

“As an ENERGY STA R®Partner, Sanyo Manufacturing Corporation has determined that this product meets the ENERGY STAR

guidelines for energy efficiency.”

ENERGY STAR PARTNER

Positioning the appliance

1. Do not place your appliance on an unstable cart, stand, shelf or table. Serious injury to an individual, and damage to the appliance, may result if it should fall. Your salesperson can recommend approved carts and stands or shelf and wall mounting instructions. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

2. Slots and openings in the cabinet and in the back or bottom are provided for ventilation. To ensure reliable operation of the appliance and to protect it from overheating, these openings must not be blocked or covered. The openings should never be covered with a cloth or other material, and the bottom openings should not be blocked by placing the unit on a bed, sofa, rug, or other similar surface. This appliance should never be placed near or over a radiator or heat register. This appliance should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.

3. Do not expose the appliance to rain or use near water . . . for example, near a bathtub, swimming pool, kitchen sink, in a wet basement, etc.

Hooking Up Outdoor Antenna

LIGHTNING PROTECTION FOR YOUR ANTENNA AND SET AS PER NATIONAL ELECTRICAL CODE INSTRUCTIONS.

4. If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

Plug in the power cord

5. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. This product is equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of this polarized plug. Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

6. Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

Cleaning

7. Before cleaning, unplug the unit from the wall outlet. Do not apply liquid cleaners or aerosol cleaners directly to the unit. Use a dry cloth for cleaning.

Service & Repair

8. Unplug the appliance from the wall outlet and refer servicing to qualified service personnel under the following conditions:

A. If the power cord or plug is damaged or frayed. B. If liquid has been spilled into the appliance. C. If the appliance has been exposed to rain or water. D. If the appliance has been dropped or the cabinet has been damaged. E. If the appliance exhibits a distinct change in performance. F. If the appliance does not operate normally by following the operating

instructions, adjust only those controls that are covered in the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the appliance to normal operation.

9. Upon completion of any service or repair, request the service technician’s assurance that only Factory Authorized Replacement Parts that have the same characteristics as the original parts were used, and that routine safety checks have been performed to determine that the appliance is in safe operating condition. Unauthorized substitutions may result in fire, electrical shock, or other hazards.

10. Never add accessories that have not been specifically designed for use with this appliance as they may cause hazards.

11. For added protection during a lightning storm, or when the set is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to the set due to lightning or power line surges.

12. Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

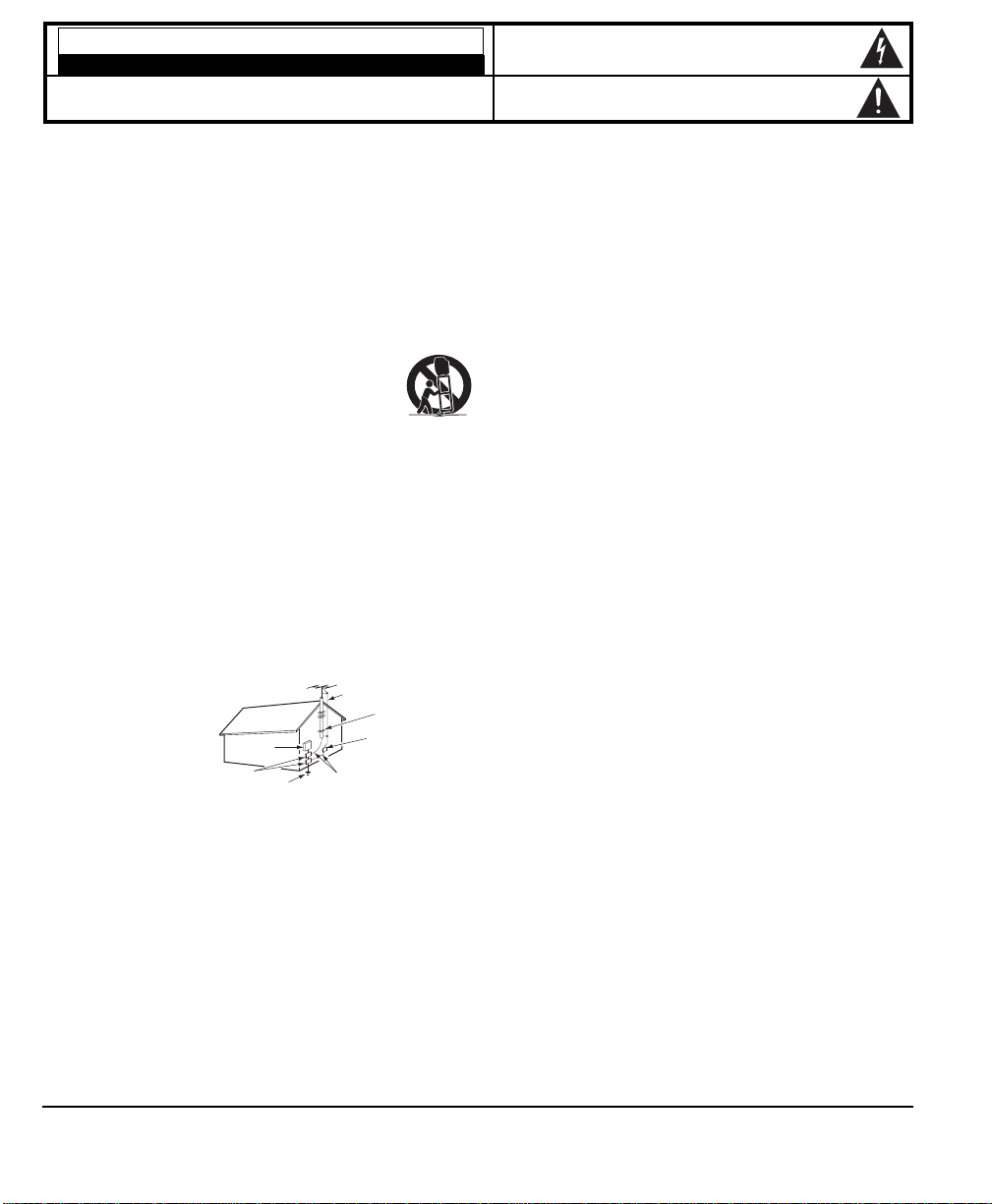

EXAMPLE OF ANTENNA GROUNDING ACCORDING TO NATIONAL ELECTRICAL CODE, ANSI/NFPA 70

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THIS SYMBOL INDICATES THA T DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THIS UNIT.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

IMPORTANT SAFETY INSTRUCTIONS

CAUTION: PLEASE ADHERE TO ALL WARNINGS ON THE PRODUCT AND IN THE OPERATING INSTRUCTIONS. BEFORE OPERATING THE PRODUCT, PLEASE READ ALL OF THE SAFETY AND OPERATING INSTRUCTIONS. RETAIN THIS LITERATURE FOR REFERENCE. Follow all instructions...

“Note to CATV system installer: This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.”

P E (

Important Safety Information

ELECTRIC SERVICE

GROUND CLAMPS

OWER SERVICE GROUNDING LECTRODE SYSTEM

NEC ART 250, PART H)

EQUIPMENT

ANTENNA LEAD IN WIRE

GROUND CLAMP

ANTENNA DISCHARGE UNIT (NEC SECTION 810-2

GROUNDING CONDUCTORS (NEC SECTION 810-21)

NEC

- NATIONAL ELECTRICAL COD

 Trilingual On-Screen Menu  Automatic Channel Search  Auto Shut Off  Closed-Captioning/Quikcap

 3-Line Digital Comb Filter  Aspect Ratio settings  Digital picture controls with

on-screen display

 MTS stereo/SAP Decoder  Auto Flesh Tone

 Color Enhancer  Factory preset adjustments for

picture/sound

 Front Surround Sound  Tone

 V-Guide (Parental Control)  480i Component AV Input Jacks

 Audio/Video In Jacks (2 sets, R/L)  Audio Out Jacks (Fixed)  S-Video In Jack  Sleep Timer (3 hours)  TV Reset

 181 Channel Tuning System

VHF Channels 2-13 UHF Channels 14-69 Cable TV (CATV) 1, 14-125

 Automatic Fine Tuning

VHF and Cable Channels

 Multimedia Remote Control

VCR/TV/AUX Large Glow-in-the-Dark basic operating keys

0~9 Numbered Channel Selection Channel Scanning Volume Mute Power Recall Display Sleep Caption Reset Menu V-Guide Input VCR/DVD keys

PICTURE TUBE SIZE

(Measured Diagonally) . . . . . . . . . . . . . . . . . . . . . . . . . 32-inches

PICTURE RESOLUTION . . . . . . . . . . . . . . . . . . . . . . . . 330 Lines

Video Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 700 Lines

ANTENNA INPUT . . . . . . . . . . . . . . . . . UHF/VHF/CATV 75Ω

POWER REQUIREMENT . . . . . . . . . . . . . . . . . . . . . 120VAC 60Hz

POWER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89 watts

HORIZONTAL DIM. (Width) . . . . . . . . . . . . . . . .29.7 in. ( 754mm)

VERTICAL DIM. (Height) . . . . . . . . . . . . . . . . . 28.8 in. (732mm)

DEPTH DIM. (Thickness) . . . . . . . . . . . . . . . . . 21.2 in. (538mm)

WEIGHT (Approx.) . . . . . . . . . . . . . . . . . . . 106.4 lbs. (48.3 Kg.)

SOUND (2 Speakers) . . . . . . . . . . . . . . . . . . . . . . . . Size: 10 cm

AMPLIFIER . . . . . . . . . . . . . . . . . . . . . . . . . . Built-in with 1W/ch

AUDIO/VIDEO INPUT JACKS . . . . . . . . . . . . . . . . . . . . . Video Input

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Audio Input (2 sets, R/L)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .S-Video Input

480i COMPONENT VIDEO

INPUT JACKS . . . . . Component Video Inputs (Y, Pb, Pr – R/L)

AUDIO OUTPUT JACKS . . . . . . . . . . . . . Fixed, Audio Out (R/L)

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .(RCA Connectors)

CAUTION: FCC Regulations state that improper modifications or unauthorized changes to this unit may void the

user’s authority to operate the unit.

Welcome to the World of Sanyo

Thank you for purchasing a Sanyo Color Television. You made an excellent choice for Performance, Styling,

Reliability, and Value. The TV is designed with easy to use on-screen set-up instructions and operating features. Please retain this owner’s manual for furture reference. Need assistance? Visit our Web site at

www.sanyoctv.com or call toll free 1-800-877-5032.

hank You / Features / Specifications

Specifications

Features

CATV FRANCHISE NOTE: Cable companies, like public utilities, are franchised by local government authorities. To receive cable programs, even with equipment which is capable of receiving cable channels, the consumer must subscribe to the cable company’s service.

QuickTips



The TV will automatically select the correct Antenna mode for the type of RF signal you connect.



TV will switch off automatically after 15 minutes if there is no signal reception (cable out or station not broadcasting).

Exception—When the

Video mode is selected, the TV will not automatically switch off when signal reception has stopped for 15 minutes.



If you move the TV to a new location, press the RESET key twice after connecting the signal and turning on the TV.

Need help?

Visit our Web site at

www.sanyoctv.com

or Call 1-800-877-5032

IN FROM

SAT.

CATV IN

OUT TO TV

S-VIDEO

CH3 CH4

L- -RAUDIOVIDEO

OUT

UHF/VHF/CATV

75Ω

VIDEO AUDIO INPUT

COMPONENT AV2 AV1

S-VIDEO

VIDEO

(MONO)

AUDIO

OUTPUT

FROM ANT.

OUT TO TV

OUT

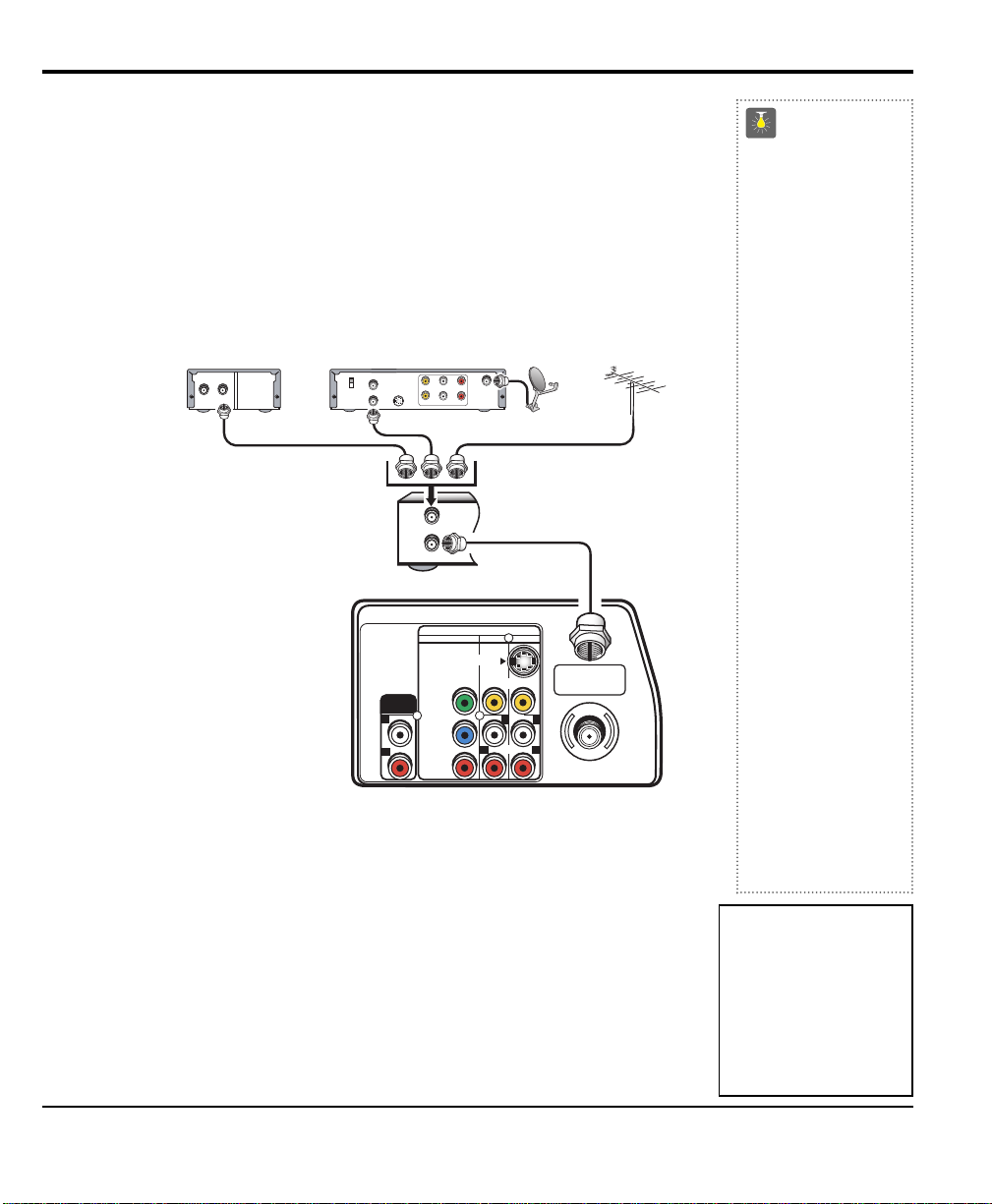

CONNECTING CABLE SERVICE, RF ANTENNA, OR SATELLITE DISH RECEIVER TO TV



Cable Box

RF Antenna

Satellite Receiver

TV Back

INITIAL SET-UP

Install batteries in remote control, see page 8.

Connect signal, see below.

Plug in AC power cord.

Press POWER key to turn on TV.

5. Follow on-screen instructions, see pages 13~14.

VCR Back

Note:

If you do not have a VCR connect signal directly to TV 75 ohm jack.

Basic Set-up and Connections

Operational Tip for No Signal Connection:

If the TV is used as a monitor only, with a DVD player or some other type of external equipment, and no cable or antenna signal is available, the following condition will occur:

–Your TV is designed to automatically search for available channels. Therefore, the

initial start up requires that you press the MENU key, enabling the TV to automatically go through the channel search process before you can operate the TV. After the initial channel search is completed, you must press the MENU key again to complete the channel search process. This may take several minutes.

– After the channel search process is complete (2 searches), you can press the INPUT

key on the remote control to use the TV as a monitor.

Basic Set-up and Connections

Note:

If you do not have a cable box connect cable directly to TV 75 ohm jack or VCR.

POSITIONING THE TV

Do not position the TV in a confined area. Allow space for normal air circulation around electronic parts.

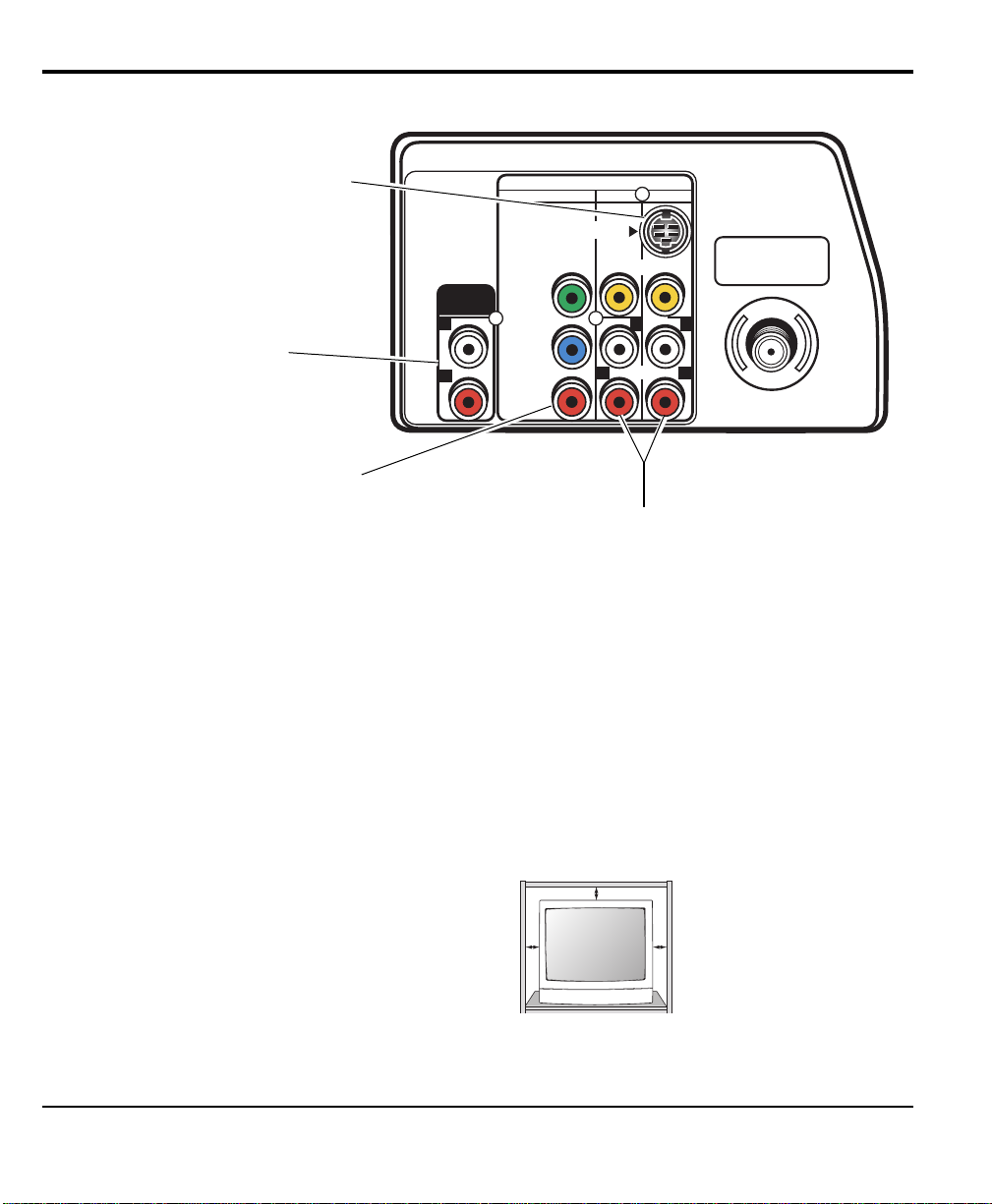

Audio/Video In Jacks (AV1 / AV2)

Connect video equipment here (see pages 6 ~ 7).

Note: S-Video connection will override an

AV1 video connection.

S-Video In Terminal

To enhance video detail use the AV1 S-Video jack instead of the AV1 Video jack, if available on your external equipment. (An S-Video connection will override connection to the AV1 video input jack. See page 6.)

Audio Out Jacks

Connect external audio equipment here (see page 8).

480i Component Video In Jacks (Component 2, Y, Pb, Pr)

Connect video equipment here (see page 7).

Note: Audio/Video Input (AV2)

and Component inputs share the same audio (R/L) input jacks.

Rear Panel

AUDIO

OUTPUT

VIDEO AUDIO INPUT

COMPONENT AV2 AV1

S-VIDEO

VIDEO

(MONO)

AUDIO

UHF/VHF/CATV

75Ω

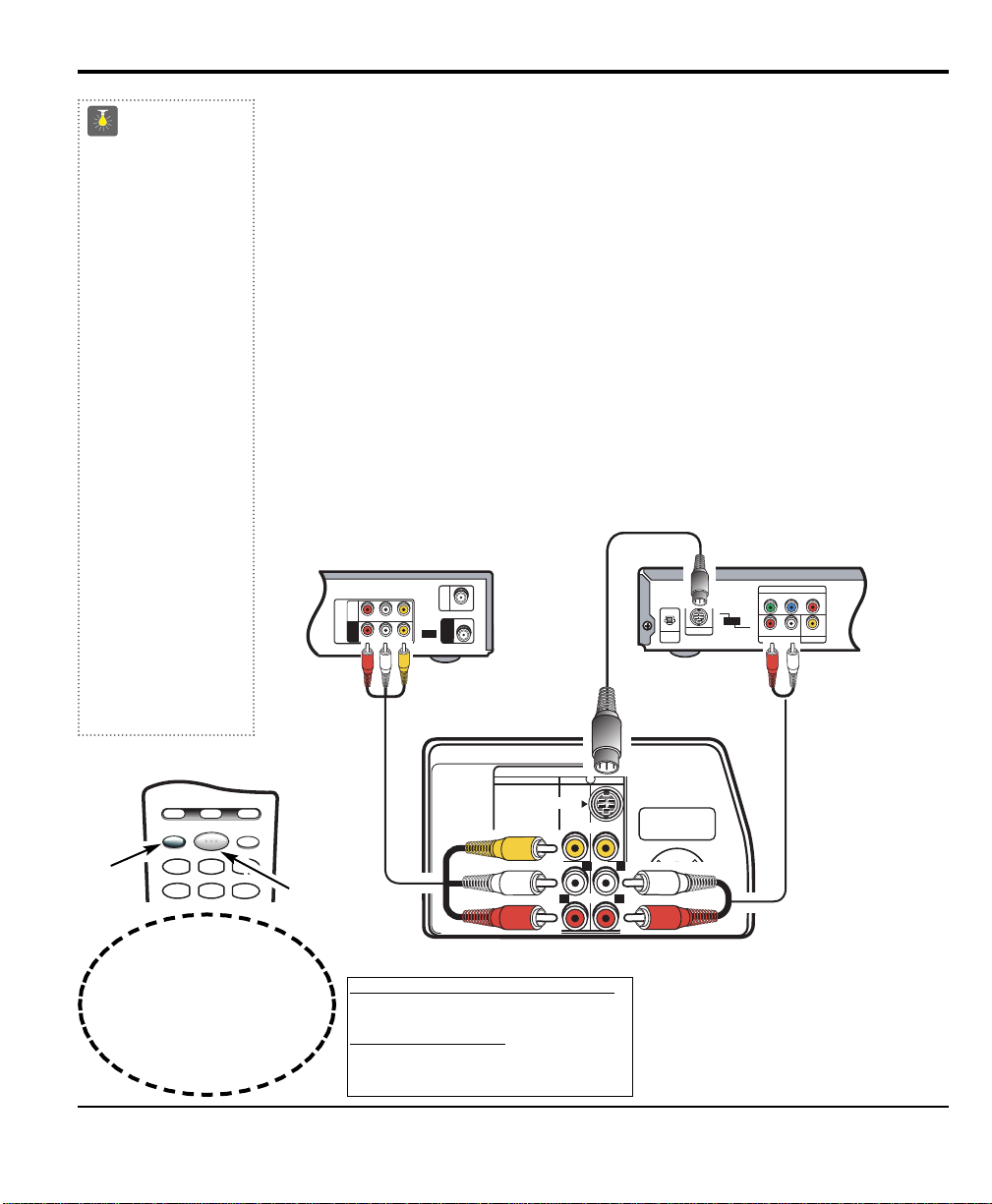

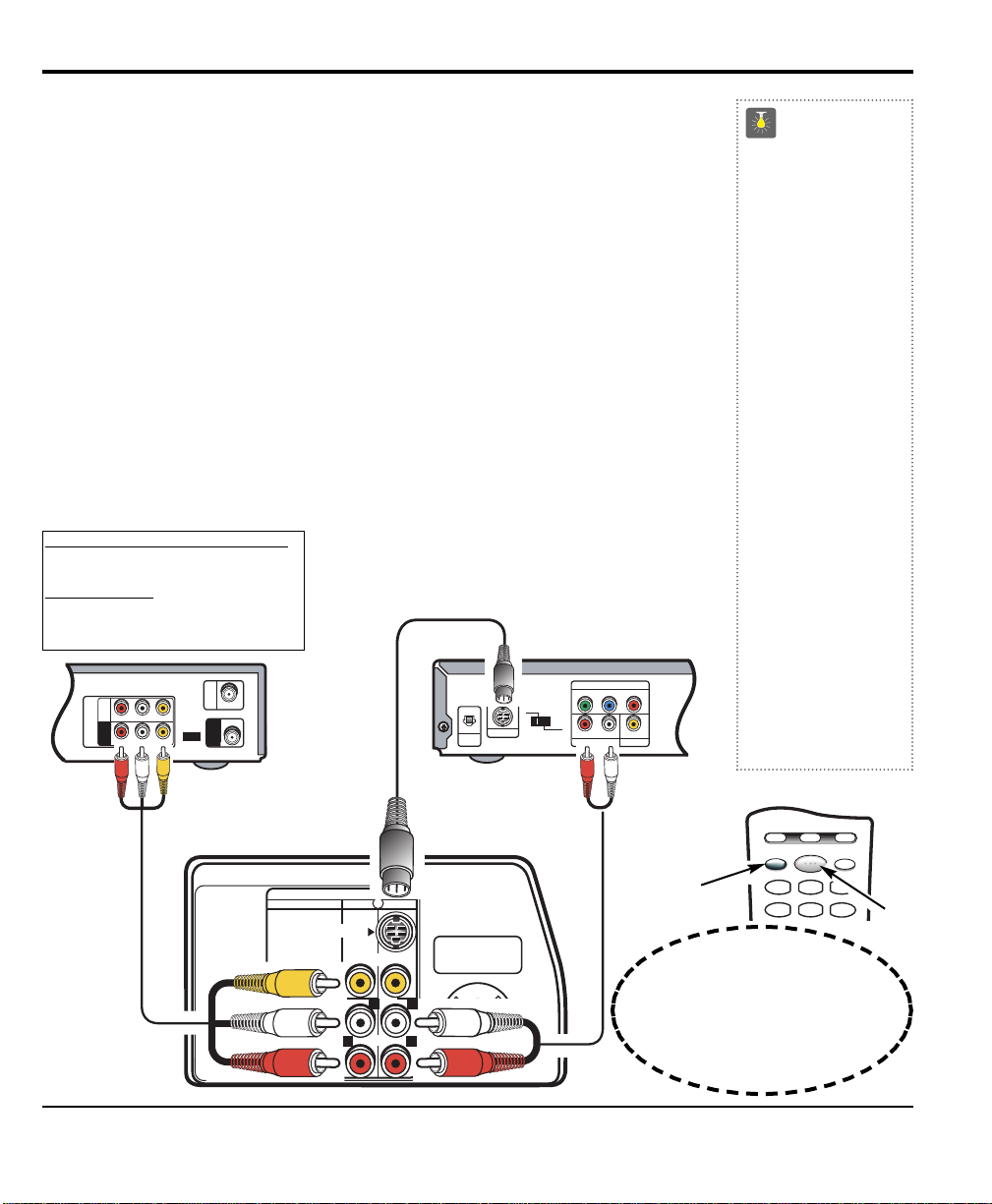

CONNECTING A VCR OR DVD PLAYER

Switch off TV and external equipment before connecting cables. (Cables are not supplied.)



Connect VCR, DVD Player, or other equipment’s Audio Video Out to the TV Audio Video Input.

For Mono VCR (Single Audio Jack) connect VCR Audio Out to TV Audio (L) Input.



Optional

Connect DVD Player or other equipment’s S-Video Out to the TV S-Video In Jack. Using the S-Video jack overrides the Video (AV1) jack.



Press POWER to turn on the TV. Turn on external equipment also.



To access Audio/Video inputs, press the INPUT key to select VIDEO1 or VIDEO2.

QuickTips



Make sure all cable connectors are fully seated on jacks.



Always match A/V cables according to the colors;

RED for right

audio,

WHITE for left

audio and

YELLOW for

video.



A solid Blue screen with the word VIDEO1 or VIDEO2, displayed means that the Video mode is selected, but no signal is being detected at the Video jacks. Check connections, turn on external equipment.

Need help?

Visit our Web site at

www.sanyoctv.com

or Call 1-800-877-5032

RESETINPUT

POWER

VCR TV AUX

123 456



What you will need for connections:



AV Cable – 1

OPTIONAL CONNECTION



S-Video Cable – 1



Audio Cable – 1

Press

INPUT key after

connecting cables to

access the A/V inputs.

There is NO need to tune

to a blank channel.



Using the Audio/ Video Input Jacks



Back View of VCR

Remote Control

Rear TV AV Input Jacks

DVD Player







Connect a VCR or DVD Player to AV Input Jacks



S-VIDEO OUT

VIDEO OUT SELECT

COPONENT

COMPONENT VIDEO OUT

B PR

AUDIO OUT

VIDEO OUT

OUT

R-AUDIO-L VIDEO

R-AUDIO-L

CHANNEL

3 4

VIDEO

OUT

FROM ANT.

VHF/UHF

TO TV

OPT.

DIGITAL OUT

VIDEO AUDIO INPUT

COMPONENT AV2 AV1

S-VIDEO

AUDIO

OUTPUT

(MONO)

UHF/VHF/CATV

75Ω

VIDEO

AUDIO

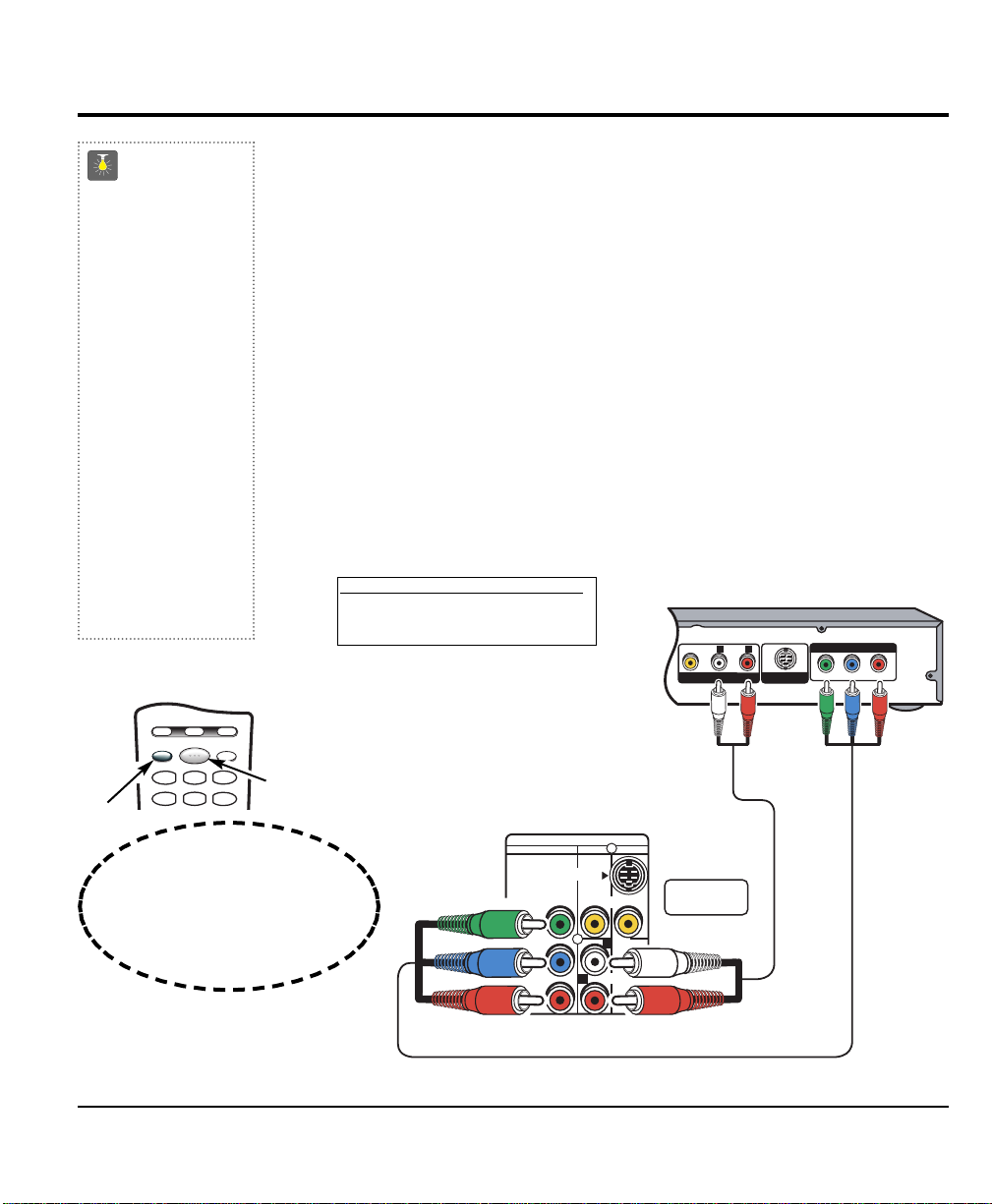

Connect a DVD Player to Component AV In

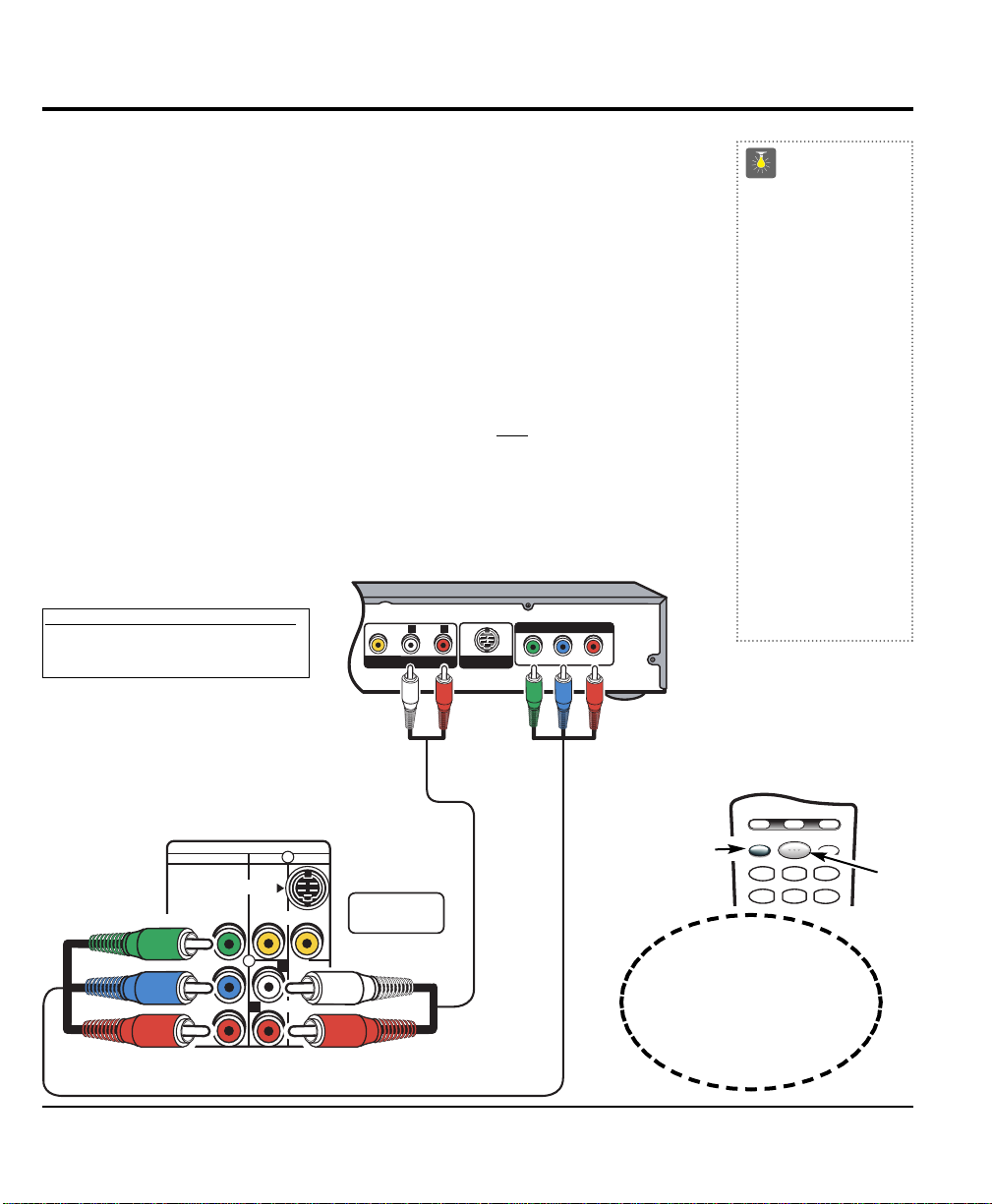

CONNECTING A DVD PLAYER

Switch off TV and external equipment before connecting cables. (Cables are not supplied.)



Connect a DVD Player or other equipment’s interlaced Component Video Out to the TV Component Video In (Y-Pb-Pr) Jacks.

Connect the DVD Player’s Audio Out to the TV A/V2 Audio In (L/R) Jacks. 

Press POWER to turn on the TV. Turn on external equipment also.

To access Audio/Video inputs, press the INPUT key to select COMPONENT2.

Notes: DVD Player component output must be set to Interlaced (480i).

Audio/Video Input (AV2) and Component inputs share the same audio (R/L) input jacks.

Connect equipment to the component video inputs or the A/V2 video input, but not both types at the same time.

DVD Player



TV BACK



QuickTips



You may be able to use the TV remote control to operate your DVD Player. (See pages 10~12.)



Asolid Blue screen with COMPONENT2 displayed means that the Video mode is selected, but no signal is being detected at the Component jacks. Check connection, and turn on external equipment.

Need help?

Visit our Web site at

www.sanyoctv.com

or Call 1-800-877-5032

What you will need for connections



Component video cable – 1

 Audio Cable – 1

Using the Component Audio/Video Input Jacks





Press

INPUT key after

connecting cables to

access the A/V inputs.

There is NO need to tune

to a blank channel.

RESETINPUT

POWER

VCR TV AUX

123 456





Remote Control

A/V OUT

AUDIOVIDEO

S-VIDEO OUT

COMPONENT VIDEO OUT

B PR

VIDEO AUDIO INPUT

COMPONENT AV2 AV1

S-VIDEO

VIDEO

(MONO)

AUDIO

UHF/VHF/CATV

75Ω



Back of TV

Stereo Amplifier

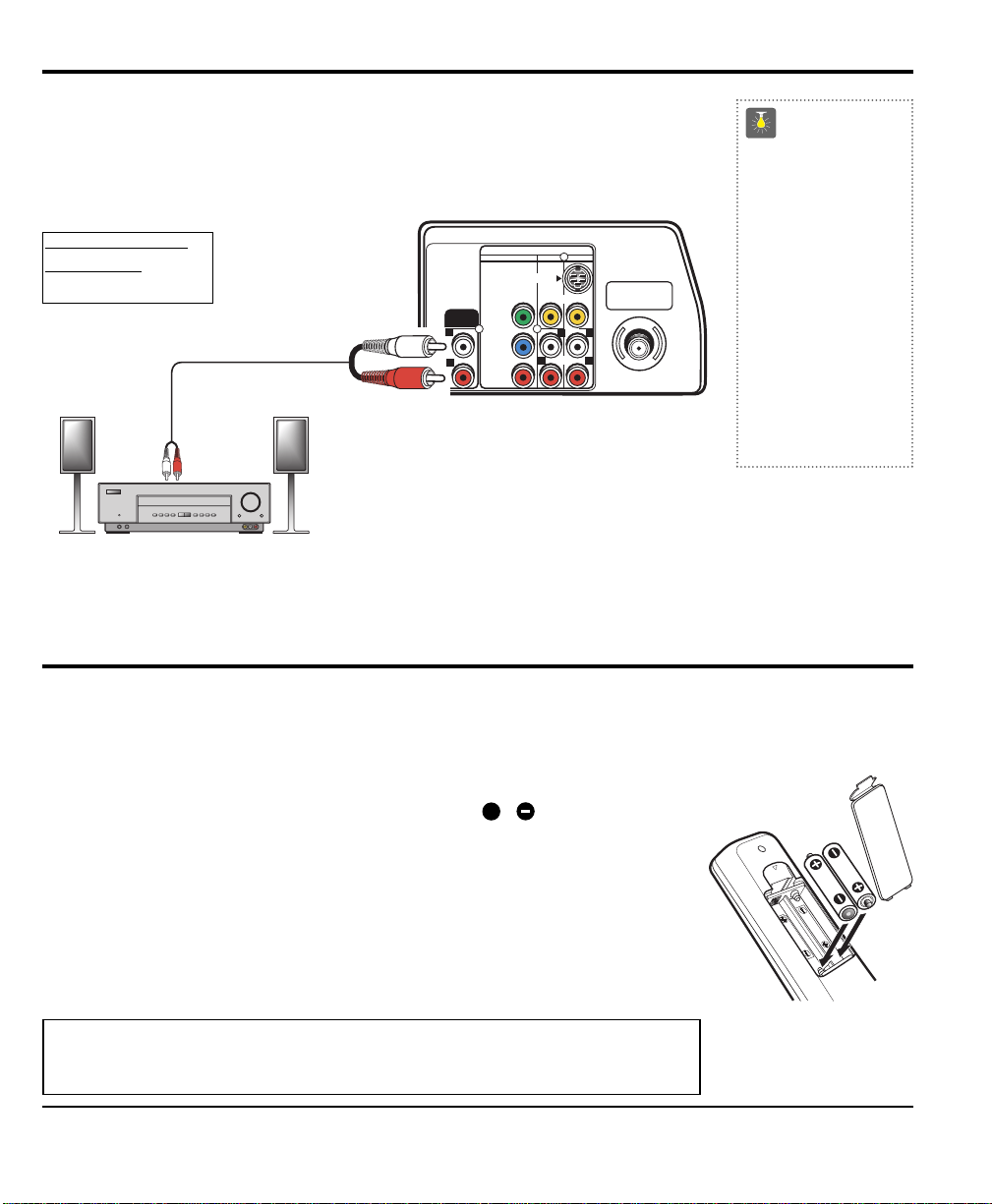

CONNECTING AUDIO OUT JACKS TO A STEREO AMPLIFIER

Switch off TV and external equipment before connecting cables. (Cables are not supplied.)



Connect the TV Audio Out (R/L) to the Stereo Amplifier In (R/L).

Press POWER to turn on the TV. Turn on external equipment also.

Note: DO NOT connect external speakers directly to the TV.

What you will need for connections:



Audio Cable – 1

Using the Audio Output Jacks

QuickTips



Position your TV at least 2 feet from stereo speakers. The magnets in the speakers may affect the picture quality.

Need help?

Visit our Web site at

www.sanyoctv.com

or Call 1-800-877-5032

Connect Stereo Amplifier to Audio Out / Remote Control

Operates your TV, VCR, and DVD Player, or Cable converter box. To program the remote control, see pages 10 ~ 12.

INSTALL BATTERIES AS SHOWN (2 AA, not included)

Notes:

– Do not mix old batteries with new ones or mix different types of

batteries together.

–Remove the batteries if the remote control will not be used for a

month or more. Weak batteries may leak and cause damage. (Normal battery life is roughly six months.)

IMPORTANT NOTE: Spent or discharged batteries must be recycled or disposed of properly in compliance with all applicable laws. For detailed information, contact your local County Solid Waste Authority.

Using the Multimedia Remote Control

AUDIO

OUTPUT

VIDEO AUDIO INPUT

COMPONENT AV2 AV1

S-VIDEO

VIDEO

AUDIO

UHF/VHF/CATV

75Ω

(MONO)

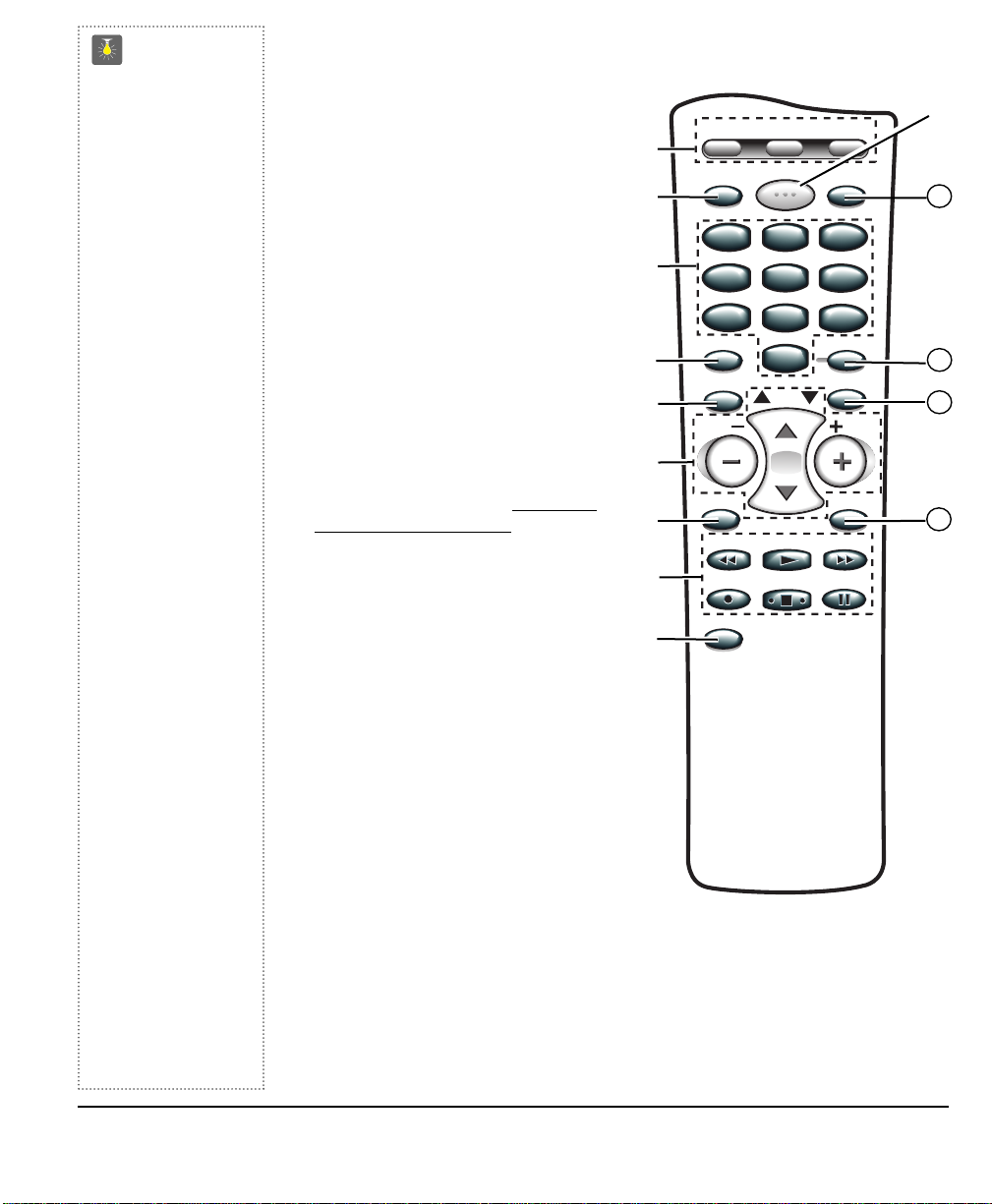

REMOTE CONTROL KEYS



Mode Keys—Use these keys to program the remote control and to select the operating mode (VCR, TV, or AUX). To Operate Your... VCR—Press the VCR key; Television—Press the TV key; Cable Box or DVD Player—Press the AUX key.

Note:

Make sure you hold

down the mode key while entering a code number, see page 10.



Input Key—Press to select the program source: TV signal or signal from the DVD Player or other equipment you have connected to the A/V jacks.



Number Keys—Two keys must be pressed to select a channel. Example:Press 0 then 6 to select channel 6. F

or cable channels 100 through 125, press and hold the 1 key until C1–– appears. Then press the other two numbers.



Caption Key—See page 14.



Menu Key—Use this key with the / and

– /+ keys to navigate and adjust features of the

on-screen menu system (see pages 13 ~ 14).



Channel Scanning (CH  / ) and Volume (VOL – /+) Keys—Press to scan through the

channels in memory and to adjust the volume.



Mute Key—Press once to minimize the volume. Press again to restore.

Note:

When using the audio out jacks this key

will not mute the sound.



VCR/DVD Keys—These keys control VCR or DVD functions for Fast Forward (

), Rewind

(

), Play (), Record (REC), Stop ( ), and

Pause.



V-Guide Key—See pages 15 ~ 16.

QuickTips



Be sure batteries are installed correctly.



Point the remote control toward the equipment you want to operate. Objects between the remote control and the equipment may cause misoperation of the remote control function.



If the remote control does not work: Press TV key (see item 1).



The remote control must be programmed before it will operate your VCR, DVD Player, or Cable Box. See pages 10~12.



Cannot select channel with number keys. Press “0” in front of numbers 1~9. Example: Channel 05.



Adjusting the volume level: Flashing Right

arrow indicates volume is increasing and flashing Left

arrow indicates volume is decreasing.

Need help?

Visit our Web site at

www.sanyoctv.com

or Call 1-800-877-5032

 







(Continued on page 10.)



Point towards TV

or Equipment











Remote Control Operation

VCR TV AUX

POWER

123

456

789

CAPTION SLEEP

VOL VOL

REC STOP

V-GUIDE

PLAY

RESETINPUT

RECALL

DISPLAYMUTE

PAUSE



Power Key—Press to turn TV on or off.

Reset Key—Press this key twice to restore factory set-

tings. The TV will automatically start Channel Search and clear all customized settings. These features will automatically reset:

•

Picture/Sound Adjustments: Color, Tint, Contrast, Brightness, Sharpness, Color Enhancer, Tone, and Surround Sound

•

Channel Memory

•

Audio to Stereo

•

Caption to OFF

•

V-Guide to OFF

•

Aspect Ratio to 4:3 (normal)

•

Menu Language to English

•

Sleep Timer (if previously set)

•

Video to TV (if previously set)

If desired, personal settings can be made again using the menu options.

` Sleep Key—Press this key, then press the “0”key to

set the Sleep Timer. The desired time can be set from 30 minutes up to 3 hours in 30 minutes increments. Sleep Timer will switch off the TV automatically.

Note: The Sleep Timer cancels when the TV is turned off or if a power failure occurs.

Recall Key—Select a channel then select another channel using the number keys. Press Recall to switch between the channels.

Display Key—Press once to display the channel number. Press twice to display the channel number continuously. Press again to remove the display.



REMOTE CONTROL KEYS (Continued)



Find your VCR, Cable Box, and DVD Player brand codes in the charts on page 11.



Press and hold the VCR or AUX (Auxiliary) mode key while entering a three-digit code number. Then release the mode key.

If the code was accepted, the mode key will flash 5 times after it is released. If you entered an invalid code, the mode key will not flash. Check the code number and repeat Step 2.

After entering each code number check the unit’s operation by pressing the POWER and/or CHANNEL keys. If these keys operate your equipment, you have probably entered the correct code number for that device. If not, follow Step 2 and enter another code, if available.

Perform Steps 1 and 2 for each piece of equipment you have.

The VCR mode will accept only VCR codes. The AUX mode will accept code types for DVD Players,

Cable Boxes, or a second VCR, but only one code at a time.

For programmed key functions, see chart on page 12.

After you have programmed the remote control and confirmed its operation, enter your codes in the spaces provided below for easy reference.

PROGRAMMING THE REMOTE CONTROL

VCR Code: Cable Box Code: DVD Player Code:

Programming the Remote Control

VCR TV AUX

POWER

RESETINPUT

123

456

789

CAPTION SLEEP

VOL VOL

RECALL

DISPLAYMUTE

PLAY

REC STOP

V-GUIDE

PAUSE

BRAND NAME . .CODES

ABC . . . . . . . . . . . 312, 304, 306, 308,309,

. . . . . . . . . . . . . . 311, 313, 314, 318,319,

. . . . . . . . . . . . . . 321, 322, 323, 324,

. . . . . . . . . . . . . . 327, 329

AIM . . . . . . . . . . . 321

Archer . . . . . . . . . 334

Bell & Howell . . . . 313, 314, 329

Contec . . . . . . . . . 305, 302, 307, 308,309,

. . . . . . . . . . . . . . 311, 318, 319, 320,

. . . . . . . . . . . . . . 322, 323, 324, 327

CPI . . . . . . . . . . . . 319, 308, 309, 311,

. . . . . . . . . . . . . . 322, 323

Diamond . . . . . . . 320

Eagle . . . . . . . . . . 313, 314, 329

Emerson . . . . . . . . 334

Gemini . . . . . . . . . 334

General

Instruments . . . . . 303, 300, 308, 309, 311,

. . . . . . . . . . . . . . 319, 320,321, 322, 323

Goldstar . . . . . . . . 312

Goodmind . . . . . . 334

BRAND NAME . .CODES

Hamlin . . . . . . . . . 330, 320

Hitachi . . . . . . . . . 309, 308, 311, 319,

. . . . . . . . . . . . . . 322, 323

Hytex . . . . . . . . . . 318

Jerrold . . . . . . . . . 300, 303, 308, 309,

. . . . . . . . . . . . . . 311, 313, 314, 319,

. . . . . . . . . . . . . . 320, 321, 322, 323, 329

Magnavox . . . . . . 325, 329, 301, 308,

. . . . . . . . . . . . . . 309, 311, 313, 314,

. . . . . . . . . . . . . . 319, 322, 323

Memorex . . . . . . . 331, 332, 313, 314, 329

Motorola . . . . . . . 338, 303, 300, 308,

. . . . . . . . . . . . . . 309, 311, 319, 320,

. . . . . . . . . . . . . . 321, 322, 323

Movie Time . . . . . 306, 310, 314, 313, 329

Northcoast . . . . . . 316

NSC . . . . . . . . . . . 305, 306, 314, 313, 329

Oak . . . . . . . . . . . 305, 318, 320

Paragon . . . . . . . . 331, 313, 314, 329

Panasonic . . . . . . . 331, 324, 302, 307,

. . . . . . . . . . . . . . 317, 327

BRAND NAME . .CODES

Philips . . . . . . . . . 325, 329, 301, 308,

. . . . . . . . . . . . . . 309, 311, 313, 314,

. . . . . . . . . . . . . . 319, 322, 323

Pioneer . . . . . . . . 312, 327, 335, 333,

. . . . . . . . . . . . . . 317, 324

Proscan . . . . . . . . 327

Quasar . . . . . . . . . 331, 302, 307, 317

RCA . . . . . . . . . . . 328, 302, 307

Regal . . . . . . . . . . 330, 307, 320

Rembrandt . . . . . . 305, 309, 308, 311,

. . . . . . . . . . . . . . 319, 322, 323

Radio Shack . . . . . 334

Samsung . . . . . . . 312, 310

Scientific Atlanta . . 335, 327, 307, 324

Signal . . . . . . . . . 310

Signature . . . . . . . 300, 309, 308, 311,

. . . . . . . . . . . . . . 319, 321, 322, 323

Sprucer . . . . . . . . 302, 307, 316

Starcom . . . . . . . . 332, 309, 308, 311,

. . . . . . . . . . . . . . 319, 321, 322, 323

BRAND NAME . .CODES

Stargate . . . . . . . . 309, 310, 311, 321,

. . . . . . . . . . . . . . 322, 334

Tel eview . . . . . . . . 310

Tocom . . . . . . . . . 300, 303, 305, 304,

. . . . . . . . . . . . . . 306, 307

Toshiba . . . . . . . . 331, 309, 308, 311,

. . . . . . . . . . . . . . 316, 319, 322, 323

Unika . . . . . . . . . . 314, 313, 329

United Artists . . . . 318

United Cable . . . . 309, 308, 311, 319,

. . . . . . . . . . . . . . 322, 323

U.S. Electronics . . . 309, 308, 311, 319,

. . . . . . . . . . . . . . 322, 323, 324, 327

Viewstar . . . . . . . . 326, 313, 315, 314, 329

Wards . . . . . . . . . 321, 322, 308, 309,

. . . . . . . . . . . . . . 311, 319, 323

Warner . . . . . . . . 312

Zenith . . . . . . . . . 331, 336, 337, 308, 309,

. . . . . . . . . . . . . . 311, 316, 319, 322, 323,

. . . . . . . . . . . . . . 324, 327

BRAND NAME . . CODES

Admiral . . . . . . . . 234, 239, 243, 247,

. . . . . . . . . . . . . . 224, 229, 222, 215

Adventura . . . . . . 228

Aiko . . . . . . . . . . . 240, 205

Aiwa . . . . . . . . . . . 228, 217

Akai . . . . . . . . . . . 209, 215

America Action . . . 205, 240

America High . . . . 232

Bell & Howell . . . . 203, 201

Broksonic . . . . . . . 234, 243, 247, 227, 204

Candle . . . . . . . . . 233, 240, 248, 222,

. . . . . . . . . . . . . . 223, 204, 205, 208,

. . . . . . . . . . . . . . 211, 216, 217

Canon . . . . . . . . . . 232, 216

CCE . . . . . . . . . . . . 240, 205

Cineral . . . . . . . . . 240, 205

Citizen . . . . . . . . . 233, 240, 222, 205,

. . . . . . . . . . . . . . 211, 216, 217

Craig . . . . . . . . . . 223, 235, 202, 219

Craver . . . . . . . . . 204

Curtis Mathes . . . . 232, 236, 238, 248,

. . . . . . . . . . . . . . 222, 228, 208, 209,

. . . . . . . . . . . . . . 211, 216, 217

Daewoo . . . . . . . . 205, 240, 211

Daytron . . . . . . . . 240, 205

Denon . . . . . . . . . 221, 230

Dynatech . . . . . . . 228

Emerex . . . . . . . . 214

Emerson . . . . . . . . 228, 243, 234, 236,

. . . . . . . . . . . . . . 240, 247, 223, 227,

. . . . . . . . . . . . . . 201, 203, 204, 205,

. . . . . . . . . . . . . . 206, 210, 211, 217

Fisher . . . . . . . . . . 200, 201, 202, 203, 211

Fuji . . . . . . . . . . . . 232

Funai . . . . . . . . . . 228, 233, 217

GE . . . . . . . . . . . . 222, 246, 248, 232,236,

. . . . . . . . . . . . . . 239, 226, 229, 224,

. . . . . . . . . . . . . . 208, 212, 213, 216

BRAND NAME . . CODES

Goldstar . . . . . . . . 223, 238, 248, 226,

. . . . . . . . . . . . . . 206, 208, 215, 217

Go Video . . . . . . . 248, 249, 208, 212,

. . . . . . . . . . . . . . 213, 219

Gradiente . . . . . . . 228

Garrard . . . . . . . . 228

Harley Davidson . . 228

Headquarter . . . . . 200

Hitachi . . . . . . . . . 228, 230, 246, 226,

. . . . . . . . . . . . . . 221, 222, 209, 217

Hughes . . . . . . . . . 221, 230

JBL . . . . . . . . . . . . 237

Jensen . . . . . . . . . 209

JVC . . . . . . . . . . . . 220, 225, 238, 226,

. . . . . . . . . . . . . . 201, 203, 209, 221, 230

KEC . . . . . . . . . . . 240, 205

Kenwood . . . . . . . 220, 225, 226, 238,

. . . . . . . . . . . . . . 201, 203, 209

Kodak . . . . . . . . . 232

Lloyd's . . . . . . . . . 228

Logik . . . . . . . . . . 235, 219

LXI . . . . . . . . . . . . 232, 221, 228, 230,201,

. . . . . . . . . . . . . . 202, 203, 206, 211,217

Magnasonic . . . . . 223, 235, 240, 205, 219

Magnavox . . . . . . 204, 232, 235, 228, 211,

. . . . . . . . . . . . . . 216, 217, 219, 220, 225

Marta . . . . . . . . . . 206

Matsushita . . . . . . 232, 216

MEI . . . . . . . . . . . 232

Memorex . . . . . . . 227, 232, 239, 243,245,

. . . . . . . . . . . . . . 223, 224, 228, 229,

. . . . . . . . . . . . . . 230, 221, 200, 201,

. . . . . . . . . . . . . . 202, 203, 206, 215

Minolta . . . . . . . . . 221, 230

Mitsubishi . . . . . . . 231, 239, 244, 224, 226,

. . . . . . . . . . . . . . 229, 210, 223

Motorola . . . . . . . 232, 239, 229, 224

MTC . . . . . . . . . . . 228, 235, 217, 219

BRAND NAME . . CODES

Multitech . . . . . . . 228, 217

NEC . . . . . . . . . . . 238, 208, 223, 226,

. . . . . . . . . . . . . . 201, 203, 206, 209,

. . . . . . . . . . . . . . 215, 217, 248

Olympus . . . . . . . . 232

Optimus . . . . . . . . 239, 245, 248, 223,224,

. . . . . . . . . . . . . . 229, 201, 203, 208

Orion . . . . . . . . . . 243, 227, 234, 240,

. . . . . . . . . . . . . . 205, 206, 210, 211

Panasonic . . . . . . . 245, 232, 235, 236,223,

. . . . . . . . . . . . . . 202, 211, 216, 219

Penny . . . . . . . . . . 230, 232, 235, 248,221,

. . . . . . . . . . . . . . 223, 208, 211, 216, 219

Pentax . . . . . . . . . 238, 221, 230

Philco . . . . . . . . . . 204, 232, 243, 228,

. . . . . . . . . . . . . . 216, 217

Philips . . . . . . . . . 204, 232, 228, 211,

. . . . . . . . . . . . . . 216, 217

Pioneer . . . . . . . . . 242, 204, 207, 220, 225

Proscan . . . . . . . . 222, 241, 246, 230,

. . . . . . . . . . . . . . 236, 221, 226

Proton . . . . . . . . . 219, 235,

Pulsar . . . . . . . . . . 233, 240, 248, 205,

. . . . . . . . . . . . . . 208, 216, 217

Quarter . . . . . . . . 200

Quartz . . . . . . . . . 200

Quasar . . . . . . . . . 245, 232, 236, 223, 216

Radio Shack . . . . . 228, 245, 223

RCA . . . . . . . . . . . 222, 241, 246, 248, 230,

. . . . . . . . . . . . . . 232, 236, 239, 224,226,

. . . . . . . . . . . . . . 229, 221, 201, 203,

. . . . . . . . . . . . . . 207, 208, 210, 216

Realistic . . . . . . . . 232, 239, 240, 248,

. . . . . . . . . . . . . . 223, 224, 228, 229,

. . . . . . . . . . . . . . 200, 201, 202, 203,

. . . . . . . . . . . . . . 206, 208, 216, 217

Samsung . . . . . . . 248, 208, 233, 211,

. . . . . . . . . . . . . . 217, 222

BRAND NAME . . CODES

Samtron . . . . . . . . 208, 248

Sansui . . . . . . . . . 243, 226, 228, 235,

. . . . . . . . . . . . . . 209, 219, 220, 225

Sanky . . . . . . . . . . 239, 229, 224

Sanyo . . . . . . . . . . 200, 201, 202, 203

Scott . . . . . . . . . . . 234, 247, 223, 227, 211

Sears . . . . . . . . . . 232, 223, 228, 230, 221,

. . . . . . . . . . . . . . 200, 201, 202, 203, 206,

. . . . . . . . . . . . . . 211, 216, 217

Semp . . . . . . . . . . 211

Shintom . . . . . . . . 219, 227, 235

Sharp . . . . . . . . . . 239, 229, 224

Signature . . . . . . . 228, 217, 239, 229,

. . . . . . . . . . . . . . 224, 200

Sony . . . . . . . . . . . 214, 218, 232, 237,

. . . . . . . . . . . . . . 226, 228

STS . . . . . . . . . . . . 221, 230

Sylvania . . . . . . . . 228, 232, 244, 204,

. . . . . . . . . . . . . . 216, 217

Symphonic . . . . . . 228, 217, 233, 226, 202

Yamaha . . . . . . . . 238, 226

Tatung . . . . . . . . . 226, 209

Teac . . . . . . . . . . . 228, 209, 214, 217

Technics . . . . . . . . 232

Teknika . . . . . . . . 232, 223, 228, 216, 217

Toshiba . . . . . . . . . 211, 240, 244, 202,

. . . . . . . . . . . . . . 205, 210

Tomas . . . . . . . . . . 228, 217

Vector . . . . . . . . . . 211

Video Concept . . . . 211

Wards . . . . . . . . . . 230, 232, 239, 248,

. . . . . . . . . . . . . . 223, 224, 228, 229,

. . . . . . . . . . . . . . 221, 202, 204, 208,

. . . . . . . . . . . . . . 211, 217

White

Westinghouse . . . . 240, 243, 205

XR-1000 . . . . . . . . 228, 232

Zenith . . . . . . . . . 206, 215, 237, 243, 220,

. . . . . . . . . . . . . . 223, 225, 228, 222

VCR CODES

BRAND NAME . .CODES

Akai . . . . . . . . . 529

Apex . . . . . . . . . 525, 527,

. . . . . . . . . . . . . 528, 523

Daewoo . . . . . . . 529

Denon . . . . . . . . 501, 520

Emerson . . . . . . 521, 524, 527

Fisher . . . . . . . . 500

BRAND NAME . .CODES

GE . . . . . . . . . . . 504

Harman/Kardon 513

Hitachi . . . . . . . . 530

JVC . . . . . . . . . . 515, 510

Kenwood . . . . . . 507

Koss . . . . . . . . . . 522

Magnavox . . . . . 508, 502

Marantz . . . . . . . 508

BRAND NAME . .CODES

Mitsubishi . . . . . 503

Onkyo . . . . . . . . 516, 502

Optimus . . . . . . . 511

Orion . . . . . . . . . 526

Oritron . . . . . . . 522

Panasonic . . . . . 501, 518

Philips . . . . . . . . 508, 502

BRAND NAME . .CODES

Pioneer . . . . . . . 511, 505, 518

Proscan . . . . . . . 504

RCA . . . . . . . . . . 504

Samsung . . . . . . 512

Sanyo . . . . . . . . 500, 526

Sharp . . . . . . . . 531, 517

Sherwood . . . . . 519

BRAND NAME . .CODES

Sony . . . . . . . . . 506

Sylvania . . . . . . 524

Symphonic . . . . . 524

Technics . . . . . . . 501

Theta Digital . . . 511

Toshiba . . . . . . . 502, 526

Yamaha . . . . . . . 501, 509

Zenith . . . . . . . . 521, 514, 502

DVD CODES

CABLE BOX CODES

VCR, Cable Box, and DVD Codes

MULTIMEDIA REMOTE CONTROL KEYS FUNCTIONS CHART

Notes:

– Many of the keys on this remote control are multi-

functional. Please refer to the chart for a generic description of the keys and their functions. Refer to your original operating manuals for specific feature operation.

– This remote control cannot add keys or features to your

equipment. Your equipment's manufacturer must have originally provided them.

– The CHANNEL (/) and VOLUME (- /+) keys

become CURSOR keys when the MENU key is pressed. This operating state remains active for 10 seconds after pressing the MENU key or either of the CHANNEL or VOLUME keys. After 10 seconds, these keys will revert to normal channel and volume operation.

– Some equipment brands use the CHANNEL and

VOLUME keys instead of CURSOR keys to navigate

through their menu system. If, after pressing the MENU key, the CHANNEL and VOLUME keys do not move the cursor, wait 10 seconds then try them again. If the menu leaves the screen, press the MENU key again then wait 10 seconds before pressing the CHANNEL and VOLUME keys.

– Operations in the chart that are marked with an asterisk (*)

work when the menu is displayed (after pressing the MENU key).

REMOTE KEYS TV MODE VCR MODE CABLE BOX MODE DVD MODE

POWER Turns unit On/Off Turns unit On/Off Turns unit On/Off Turns unit On/Off NUMBER KEYS (0 ~ 9) Used to Select Channels Used to Select Channels Used to Select Channels No Function

INPUT Selects TV/Video Selects TV/VCR No Function No Function RECALL Selects previous channel Selects previous channel Selects previous channel Select Repeat function MENU Displays Setup Menu Displays Setup Menu Displays Setup Menu Displays Setup Menu

CHANNEL  (UP) Channel/Cursor* Up Channel/Cursor* Up Channel/Cursor* Up Next/Cursor* Up CHANNEL  (DOWN) Channel/Cursor* Down Channel/Cursor* Down Channel/Cursor* Down Previous/Cursor* Down VOLUME – (DOWN) Audio Down/Cursor* Left Audio Down/Cursor* Left Audio Down/Cursor* Left Audio Down/Cursor* Left VOLUME + (UP) Audio Up/Cursor* Right Audio Up/Cursor* Right Audio Up/Cursor* Right Audio Up/Cursor* Right MUTE Switches TV sound Off/On Switches TV sound Off/On Switches TV sound Off/On Switches TV sound Off/On DISPLAY Shows/Clears display No Function No Function Zoom Function

RESET Operates TV ONLY No Function No Function No Function CAPTION Operates TV ONLY No Function No Function Accesses Audio Options

SLEEP Operates TV ONLY No Function No Function No Function V-GUIDE Operates TV ONLY No Function No Function No Function PLAY () Selects VCR/DVD Play Selects VCR Play Selects VCR/DVD Play Selects DVD Play FAST FORWARD () Operates VCR/DVD Operates VCR Operates VCR/DVD Operates DVD REWIND () Operates VCR/DVD Operates VCR Operates VCR/DVD Operates DVD STOP (  ) Selects VCR/DVD Stop Selects VCR Stop Selects VCR/DVD Stop Selects DVD Stop PAUSE (ll) Selects VCR/DVD Pause Selects VCR Pause Selects VCR/DVD Pause Selects DVD Pause RECORD (REC

•

) No Function Selects VCR Record No Function No Function

MODE KEYS Press these keys (VCR/TV/AUX) when programming the remote control and to choose an operating mode.



Programmed Remote Control Key Functions

(Continued on page 14.

)

TV Adjustment and Setup

The on-screen menu provides the viewer with easy access to adjustments and settings. Just use the keys on the remote control and follow the on-screen instructions.

HOW TO OPERATE THE ON-SCREEN MENU

1. Press the MENU key.

2. Use the  / keys to highlight the desired

feature.

3. Use the – /+ keys to choose desired

option. (



indicates selected item.)

4. Press the MENU key to exit. Items with submenus requires additional steps.

SETTING AUDIO MODE

Select desired sound setting, Stereo, Mono, or SAP (secondary audio program).

Note:

Stereo and SAP must be part of the broadcast signal.

1. Choose Stereo, Mono, or SAP from the Audio options.

Note:

The TV will automatically reset to stereo if

unplugged or a power failure occurs.

ADJUSTING PICTURE/SOUND

For automatic picture/sound adjustment

Choose Sports, Movie,orNews from the Picture/Sound options.

Adjust the picture/sound manually

1. Choose Manual from the Picture/Sound

options.

2. Press the MENU key to open the

picture/sound settings submenu.

3. Use the  / keys to highlight the picture or

sound setting you want to change.

4. Use the – /+ keys to adjust settings.

RESETTING THE ANTENNA/CABLE MODE AND CHANNEL SEARCH

Resetting the Antenna/Cable Mode or CH. (Channel) Search is required only if additional channels become available, such as moving to another city or having a cable service installed.

1. Choose Start from the Ch. Search menu options.

 keys – + keys

AAAAuuuuddddiiiioo

SSSStttteeeerrrreeeeoooo Mono SAP

 keys – + keys

Audio



Stereo Mono SAP

Picture/Sound



Sports Movie News Manual

Antenna



Cable VHF/UHF

CH. Search



NO Start CH. Scan Memory C 34 Added Aspect Ratio



4:3 16:9

Espanol

Menu Language



English Francais Press MENU key to exit

QuickTips



The menu will display on the screen for approximately 20 seconds. Press MENU again to redisplay.



Under weak stereo signal conditions, you may receive better quality sound in the “Mono” position.



To expand your viewing experience select Sports, Movie, or News to match the program you are watching.



Use the Color Enhancer feature to highlight the picture flesh tones and color highlights. Selecting warm will deepen the picture red tints and cool will highlight the picture blue tints.



Surround sound will be automatically on when Sports or Movie is selected. Surround expands the sound effect while receiving MTS stereo signals.



When setting the Antenna mode, choose Cable if your TV is connected to a cable system, otherwise choose VHF/ UHF.

Need help?

Visit our Web site at

www.sanyoctv.com

or Call 1-800-877-5032

 keys – + keys Audio

PPPPiiiiccccttttuuuurrrreeee////SSSSoooouuuunnnndddd

Sports Movie

News

MMMMaaaannnnuuuuaaaallll

 keys – + keys

Color Tint

Contrast Brightness Sharpness

Press MENU key to exit

TTTToooonnnnee

LLLL---------HH

CCCCoooolllloooorrrr EEEEnnnnhhhhaaaannnncccceeeerr

rr Normal

WWWWaaaarrrrmmmm



Cool

SSSSuuuurrrrrrrroooouuuunnnndd

dd OFF

OOOONNNN

CH. Scan Memory Aspect Ratio Menu Language

Press MENU key to exit

CCCCHHHH....SSSSeeeeaaaarrrrcccchh

hh NO

SSSSttttaaaarrrrtttt

TV Adjustment and Setup

ADDING OR DELETING CHANNELS

1. Press the MENU key.

2. Use the  / keys to highlight CH. Scan Memory.

3. Press the

+ key to highlight channel number entry area.

4. Enter the channel number you want to add or delete (example): C34. For cable channels

above 99, press and hold the 1 key until C1–– appears. Then enter the other two numbers.

Aspect Ratio Menu Language

SSSSeeeelllleeeecccctttt cccchhhhaaaannnnnnnneeeellll uuuussssiiiinnnngggg ,,,,0000~~~~9999 kkkkeeeeyyyyss

PPPPrrrreeeessssssss MMMMEEEENNNNUUUU kkkkeeeeyyyy ttttoooo eeeexxxxiiiitt

CH. Scan Memory CCCC 33334444 Deleted

5. Press the + key to change the present setting.

Example: Added will change to Deleted. This takes about three seconds. During that time, the word “Added” or “Deleted” will become yellow.

6. Use the 0~9 or  keys to choose other channels

to delete or add, or press the MENU key to exit.

ASPECT RATIO

Use this feature when equipment is connected to the component input jacks. The 4:3 setting is for normal viewing. The 16:9 setting changes the picture image to widescreen viewing with minimal portion of top and bottom compressed.

1. Press the MENU key.

2. Use the  / keys to highlight Aspect Ratio.

3. Press the – /+ keys to select 4:3 or 16:9.

Menu Language Press MENU key to exit

AAAAssssppppeeeecccctttt RRRRaaaattttiiiioo

4444::::3333 16:9

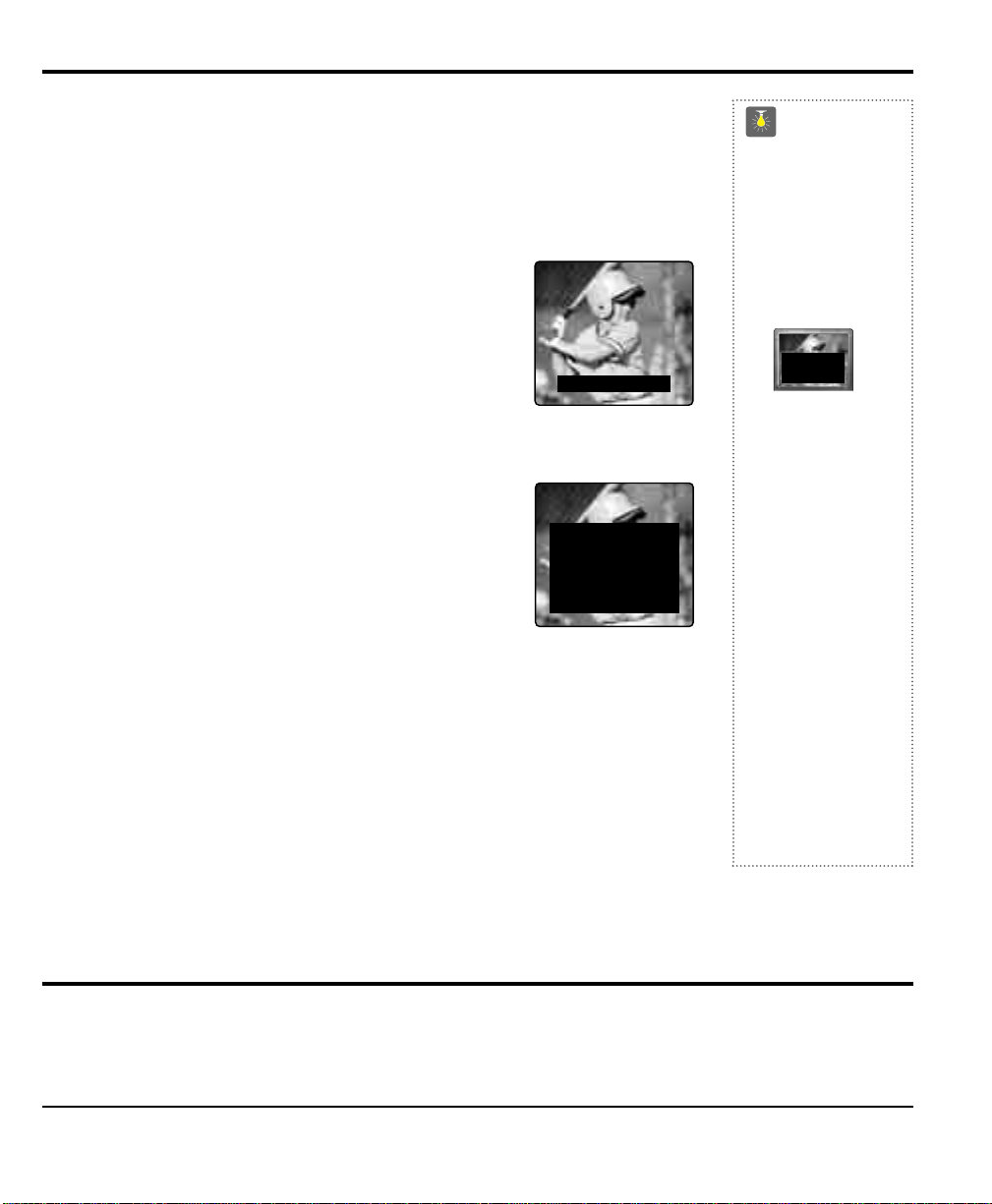

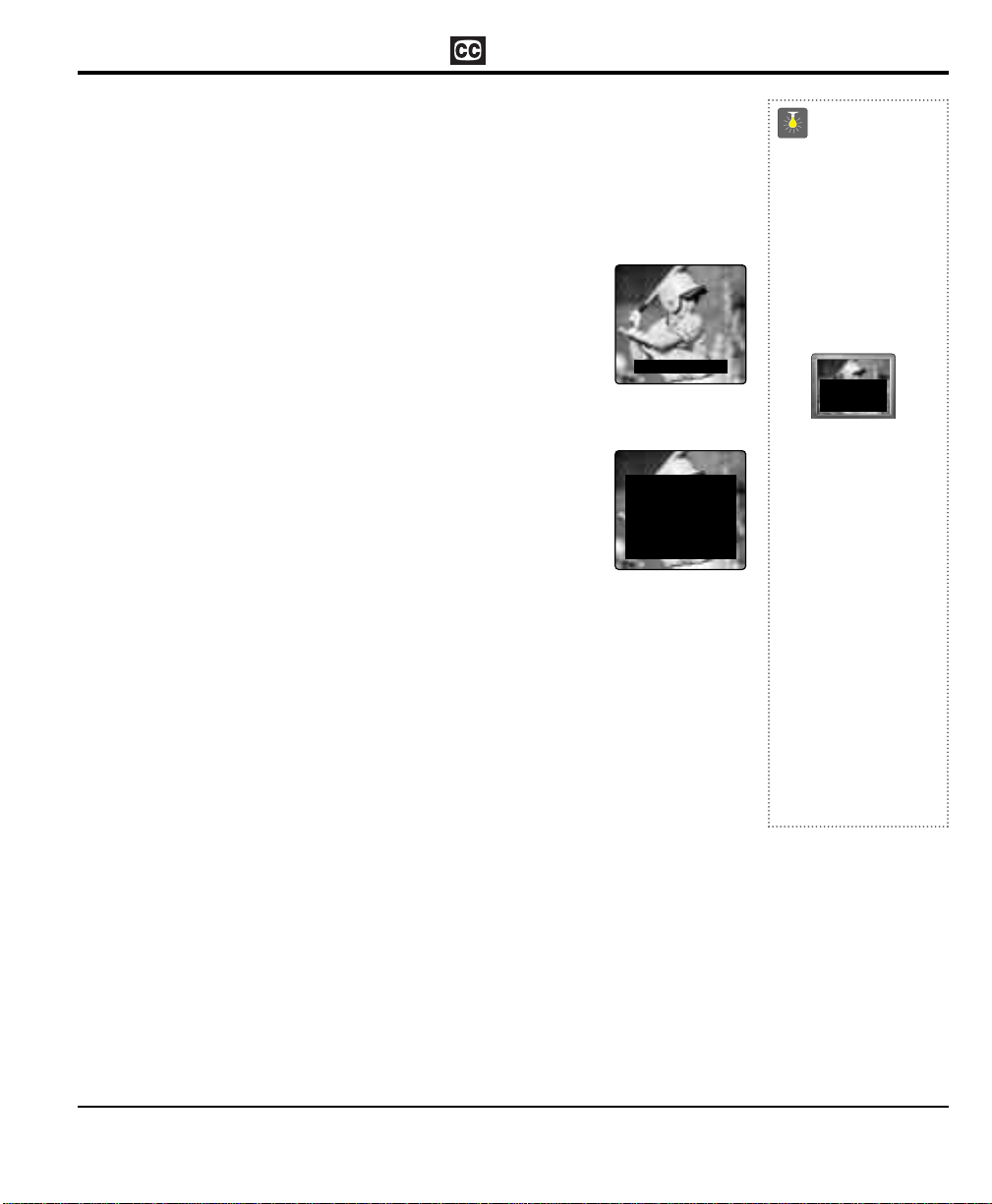

CAPTION1:The main mode used for program captioning (words match the program you are watching). These captions are generally one or two lines.

CAPTION2: An alternative mode for program captioning. Caption2 may be used by the broadcaster to provide captions in another language, such as, Spanish or French.

TEXT1:This mode is used to display large amounts of text. This text will appear within a black box that may be nearly as large as the TV screen. Text displayed in this manner does not generally relate to the program. Captions may be used by broadcasters to provide weather reports, community bulletins, etc.

TEXT2:Alternative mode used to display large amounts of text (same as Text1). QUIKCAP: Allows captions to toggle on and off with the Mute function.

Press the MUTE key on the remote control to block the TV sound; the captions display automatically. Press the MUTE key again to restore the sound, the captions will disappear. Quikcap displays program captions in the Caption1 mode.

SETTING CAPTIONS

1. Press the CAPTION key on the remote control.

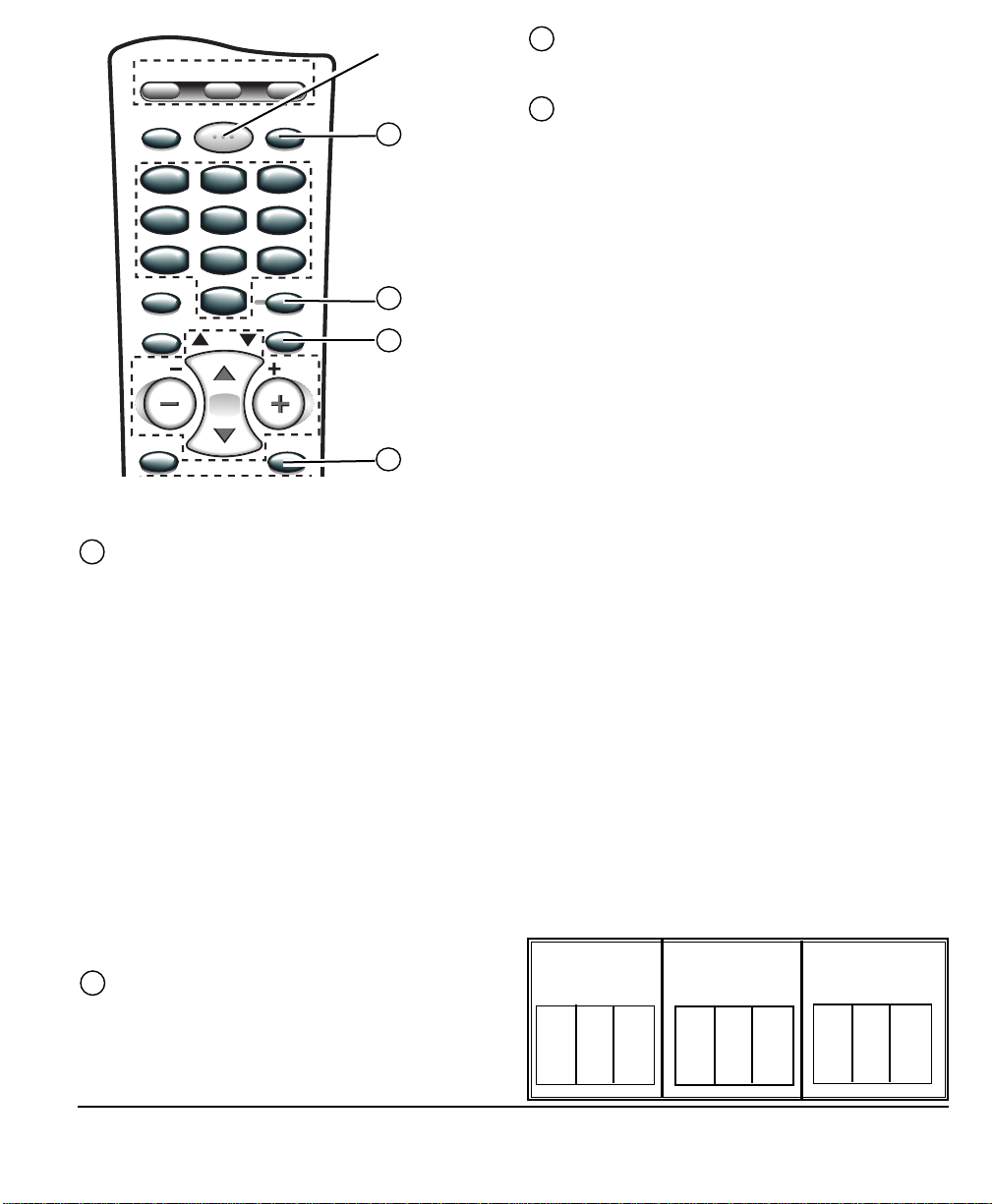

2. Press the 0 key on the remote control to select options: OFF, CAPTION1, CAPTION2,

TEXT1, TEXT2, or QUIKCAP.

Caption1/ 2

Text1/2

Captioning is text information transmitted along with the picture and sound so it can be displayed on the TV screen. Because different types of captions can be transmitted with the TV signal, separate captioning modes are provided. The captioning modes recognized by this model are: Caption1, Caption2, Text1, and Text2. Local broadcasters decide which caption signals to transmit.

QuickTips



Channels deleted from scan memory can be selected with the number keys.



Restoring deleted channels, use the on-screen menu to manually add channels or start CH. (Channel) Search from the menu. It may take a few minutes to search thru the available channels.



Press the RESET key twice.



If Caption Text mode is selected and NO captioned text is broadcasted, a black box may appear and remain on the TV screen as shown below.

To remove this black box, set captioning to any mode other than Text1 or Text2 or press the RESET key to cancel captioning and other customized settings.



Channel number will not display continuously when captioning is on.

Need help?

Visit our Web site at

www.sanyoctv.com

or Call 1-800-877-5032

Closed-Captioning

Adding/Deleting Channels, Aspect Ratio Setting and Closed-Captioning

TWO OUTS AND TWO STRIKES

TONIGHT: BECOMING MOSTLY CLOUDY WITH A 40 PERCENT CHANCE OF RAIN. COLD WITH A LOW IN THE UPPER 30's WEST WIND AROUND 20 MPH, SHIFTING TO NORTHWEST AROUND MIDNIGHT. FRIDAY: MOSTLY CLOUDY AND COLDER WITH A 50 PERCENT CHANCE OF RAIN. HIGH IN THE MID 50's.

ABOUT MPAA AND TV PARENTAL GUIDELINES

MPAA and TV Parental Guidelines are rating systems that provide advance cautionary information to parents about the content of movie and television programming.

The V-Guide system contain both age-based and content-based settings. This gives parents discretionary ways of choosing appropriate material for their children to view.

Content ratings are represented by the initials D (Suggestive Dialog), L (Adult Language), S (Sexual Situations), V (Violence), and FV (Fantasy Violence). When programming contains any or all of these conditions, these letters become part of the icon that is displayed on the TV screen.

A rating icon will generally appear in the upper left hand corner of the TV screen for about fifteen seconds at the beginning of a program and should be repeated at the beginning of the second hour of a long program. It may also appear when returning from commercials. There may be other instances when these icons will be displayed

as well. Parents are encouraged to become familiar with these icons and their meanings.

NOTE: THIS FEATURE IS DESIGNED TO COMPLY WITH THE UNITED STATES OF

AMERICA’S FCC V-CHIP REGULATIONS. THEREFORE, IT MAY NOT FUNCTION WITH BROADCASTS THAT ORIGINATE IN OTHER COUNTRIES.

Use this feature to supervise television viewing for young children. This television can be set to automatically block programs with content you deem as inappropriate for your children to view, including: suggestive dialog, adult language, sexual situations, violence, and fantasy violence.

The ability of the television to block the reception of specific programming content depends upon several conditions:

1) The program must be rated, 2) Networks must broadcast the rating code data, 3) Cable companies must transmit the rating code signal, and 4) The TV must be properly setup to decode the signal.

SETTING MPAA MOVIE RATING

1. Press the V-GUIDE key on the remote control to display menu.

2. Press the + key to switch V-Guide ON.

3. Press the + ke y again. Then use the  /  keys to highlight rating.

4. Press the MENU ke y to Block (B) or Unblock (U) selected rating.

( Arrow indicates selection.)

5. Press the – key to return to the V-Guide Options menu.

V-GUIDE

MPAA Movie Ratings

TV Parental Guidelines

Press MENU key to BLOCK Use , – + keys to select Press V-GUIDE key to exit

XB NC17 B



RRRB

PG13 U PG U GU

QuickTips



Use the CHANNEL  /  keys and the VOLUME – /+ keys to navigate through the menus.



V-Guide feature is accessible only from the remote control.



The V-Guide display remains on screen for approximately 20 seconds. If it disappears, press the

V-GUIDE key.

Need help?

Visit our Web site at

www.sanyoctv.com

or Call 1-800-877-5032

(Continued on page 16.)

V-Guide (Parental Control)

V-Guide Operation

QuickTips



When in the V-Guide menu system, the – /+ keys allow you to navigate between the ratings and the options menu.



The TV will automatically block (B) ratings above or unblock (U) ratings below selection. For example, if you block rating R, NC17 and X will be blocked as well.



Blocking TVY7 does not block higher ratings.



You can block a content rating such as TVPG-V and still be able to watch TVPG programs with ratings of S-L-D provided TVPG is unblocked (U).



To temporarily unblock or view Blocked (B) programs, set V-GUIDE to OFF, or press the RESET key twice to clear all Blocked (B) ratings and other customized settings

Need help?

Visit our Web site at

www.sanyoctv.com

or Call 1-800-877-5032

SETTING TV PARENTAL GUIDELINES

6. Use the  /  keys to highlight TV

Parental Guidelines.

7. Press the + ke y. Then use the  / 

keys to highlight rating.

8. Press the MENU ke y to Block (B) or

Unblock (U) selected rating. ( Arrow indicates selection.)

SETTING CONTENT-BASED GUIDELINES

9. Follow steps 6 and 7. Use the  / 

keys to highlight Content.

10. Press the MENU ke y to display the

Content Option menu.

11. Use the  /  keys to highlight a category

(D-Suggestive Dialog, L-Adult Language, S-Sexual Situations, V-Violence, FV-Fantasy Violence).

12. Press the + key. Then use the  /  keys

to highlight a rating.

13. Press the MENU ke y to Block (B) or

Unblock (U) selected rating. ( Arrow indicates selection.)

14. Press the V-GUIDE key to exit; or press the

– key to return to the Content Options menu.

15. Repeat steps 11 through 13 to Block (B) or

Unblock (U) additional content ratings, if desired.

TURNING OFF THE V-GUIDE

1. Press the V-GUIDE key.

2. Use the – /+ keys to select OFF.

Note: Networks and local stations may

or may not include the content ratings portion of the TV Parental Guidelines.

V-GUIDE MPAA Movie Ratings

TV Parental Guidelines

TVMA B TV14 B TVPG B



TTTVV--GGB

TVY7 U TV-Y U Content

Press MENU key to BLOCK Use , – + keys to select Press V-GUIDE key to exit

V-GUIDE MPAA Movie Ratings

TV Parental Guidelines

Press MENU key to set Use , – + keys to select Press V-GUIDE key to exit

TVMA B TV14 B TVPG B

TV-G B TVY7 U TV-Y U



CCCoonntteennt

D-Suggestive Dialog

L-Adult Language S-Sexual Situations V-Violence FV-Fantasy Violence



TTTVV1144B

TVPG B

Press MENU key to BLOCK Use , – + keys to select Press V-GUIDE key to exit

The surface of the cabinet can be damaged if not properly maintained. Many common household aerosol sprays, cleaning agents, solvents, and polishes will cause permanent damage to the fine surface.

1. Unplug the power cord before cleaning the television.

2. Clean the screen and cabinet with a soft dry cloth.

Note:

Never spray liquids on the screen because it can run down and drip onto the chassis. This may cause component failure not covered under Warranty.

V-Guide (Parental Control) / Care and Cleaning

Care and Cleaning

Before calling for assistance, please check the condition that most closely resembles your problem in the following chart, then try the solutions for that condition.Visit our Web site at

www.sanyoctv.com

or call toll free 1-800-877-5032.

Problem: Check these Conditions: Try these Solutions:



Press POWER key.



The sleep timer may have been set.



Unplug TV momentarily.



Adjust antenna.



Try a different channel.



Press RESET key.



Turn off Mixer, Drill, Blender, etc.



Press RESET key twice.



Switch OFF Captions (see page 14).



Try a different channel.



Adjust antenna.



Press RESET key twice.



Press INPUT key.



Switch on external equipment.



Set DVD component output to interlaced.



Try a different channel.



Adjust Volume.



Press RESET key twice.



Select Stereo from Audio on-screen menu.



Select SAP from Audio on-screen menu.



Select Cable from Antenna on-screen menu; then start CH. (channel) Search using the menu.



Select VHF/UHF from Antenna on-screen menu; then start CH. (channel) Search using the menu.



Select CH. Scan Memory and manually add channels or start CH. (channel) search.



Press RESET key to clear setting.



Set V-Guide to OFF or press RESET key.



Select Caption1 or Caption2 (see page 14).



Reselect menu language choice using the on-screen menu or press RESET key.



Replace batteries.



Aim remote control at front of TV.



Re-enter brand code (see pages 10 ~ 12).

TV turns off automatically.

No picture, poor picture, or wavy lines in picture.

Black box on screen.

Poor color or no color.

Blue Screen with Video1, Video2, or Component2 displayed.

No sound, poor sound. No sound on some channels.

No TV stereo sound.

No TV SAP sound No Cable channels

above number 13.

No UHF channels, VHF OK.

Cannot select or scan some channels.

No Captioning.

Menu System words seem misspelled

Remote Control will not work TV.

Remote Control will not operate VCR, Cable Box, and DVD.

Cabinet makes popping sound.



Check signal (Cable/Ant.) connection.



Power surge protection feature.



Check antenna connections.



May be station trouble.



Brightness or Contrast misadjusted.



Possible interference from household appliance.



Caption Text Mode without display information.



Check if program is in color.



Check antenna connections.



Color or Tint misadjusted.



May be station trouble.



Check Audio/ Video connections.



Check external equipment connections.



Check DVD setting.



May be station trouble.



May be MUTE function.



Check Audio/ Video connections.



Check if station is broadcasting a true MTS stereo signal.



Check if station is broadcasting a SAP signal.



Cable Channel Indicator C should appear next to channel number.



Cable Channel Indicator C should not appear next to channel number.



Channel may be removed from memory.



Check antenna connections.



V-Guide is set to block programming (see pages 15 ~ 16).

 Check if station is broadcasting a Closed-

Caption signal. Select another channel.



May be a different language is selected

 Check batteries; see if TV is plugged in.



Press TV key.



Press VCR, or AUX key.



Check external equipment.



This is a normal condition during warm-up and cool down of the plastic cabinet parts.

Helpful Hints (Problems and Solutions)

Helpful Hints (Problems/Solutions)

IMPORTADOR:

COMERCIALIZADORA MEXICO AMERICANA, S.DE R.L. DE C.V. AV. NEXTENGO N

78 COL. SANTA CRUZ ACAYUCAN DEL. AZCAPOTZALCO, MÉXICO, C.P.02770 RFC: CMA9109119L0

ARANTEE

THE APPARATUS THAT YOU HAVE ACQUIRED HAS A ONE YEAR GUARANTEE FOR MANUFACTURING DEFECTS AND A ONE YEAR SERVICE WARRANTY FROM THE DATE OF PURCHASE GRANTED BY:

COMERCIALIZADORA MEXICO-AMERICANA, S. DE R.L. DE C.V.

UNDER THE FOLLOWING CONDITIONS:

1. TO MAKE THE GUARANTEE EFFECTIVE, SIMPLY SHOW THIS POLICY FILLED OUT BY THE STORE OR SUPPLIER

UNIT OR THIS SALES INVOICE, WITH THE APPARATUS IN ANY OF THE SERVICE CENTERS INDICATED ON THIS GUARANTEE.

2. IF THE FAULT IS ATTRIB UTED T O A MANUFACTURING DEFECT, THE APPARATUS WILL BE REPLACED OR YOUR

MONEY REFUNDED.DURING THE 30 DAYS SUBSEQUENT TO THE PURCHASE THE GUARANTEE WILL BE VALID AT THE STORE WERE THE APPARATUS WAS PURCHASED, PRESENTING THE ABOVE DOCUMENTS.

3. REPAIR TIME WILL NEVER BE MORE THAN 30 DAYS. IF THIS TIME HAS ELAPSED, AND THE PRODUCT ISN’T

REPAIRED, COMERCIALIZADORA MEXICO AMERICANA, S.DE R.L. DE C.V.WILL PROCEED TO EFFECTUATE THE EXCHANGE FOR AN EQUIVALENT APPARATUS OR THE RETURN OF THE BUYING-SALE COST RESPECTIVELY.

4. THIS GUARANTEE WILL COVER ITS TOTALITY OF PIECES, COMPONENTS AND SERVICE REPAIR OF PRODUCT,

AND THE RESPECTIVE COST OF TRANSPORTATION.

THIS GUARANTEE WILL BE NULL AND VOID IN THE FOLLOWING CIRCUMSTANCES:

WHEN PRODUCT HAS BEEN USED IN A DIFFERENT CONDITION THAN ITS NORMAL USE.

WHEN PRODUCT HASN’T BEEN OPERATING CORRECTLY ACCORDING TO THE INSTRUCTIONS IN THIS MANUAL.

WHEN PRODUCT HAS BEEN CHANGED OR REPAIRED BY PERSONS NOT AUTHORIZED FROM THE MANUFACTURER, IMPORTER, OR MERCHANT RESPONSIBLE RESPECTIVE.

CENTRO DE SERVICIO Y LUGAR DONDE OBTENER PARTES, COMPONENTES, CONSUMIBLES Y ACCESORIOS:

SUCURSAL VALLEJO SUCURSAL MINERVA Poniente 126 N

288 B Silos No135, Col. Miner va Col. Nueva Vallejo Deleg. Iztapalapa México, D.F. México, D.F. 09810 Tels.5567-5378 Tels. 5646-4551 5368-0105, 8589-8033 5646-4550

DESCRIPTION: ________________________________ BRAND: __________________ MODEL:__________________

CLIENT’S NAME: __________________________________________________________________________________ ADDRESS: ______________________________________________________________________________________ EXTERIOR NUMBER: _______________________ INTERIOR NUMBER: _______________________ SUB DIVISION: ____________________________________________ STATE/DELEGATION:_______________________ TELEPHONE: _____________________________________________

STAMP, DATE AND SIGNATURE

STORE

DESCRIPTION: Television BRAND: SANYO MODEL: DS32224

Mexico Guarantee

+ 41 hidden pages
