INSTRUCTION MANUAL
Micro Hi-Fi System for iPod
DC-MX42i
TABLE OF CONTENTS
SAFETY PRECAUTIONS
Assembly Drawing of Unit and speaker
FEATURES AND CONTROLS
REMOTE CONTROL
PUTTING THE BATTERIES INTO THE REMOTE CONTROL UNIT
LCD DISPLAY WINDOW
COMPACT DISC
OPERATING THE UNIT
STANDBY/ON
CLOCK SETTING
TIMER SETTING
EQ CONTROL(on the remote control)
TO SET SLEEP FUNCTION (on the remote control)
FUNCTION SELEC T
RADIO OPERATION
CD/MP3/WMA OPERATION
ID3 OPERATION (on the remote control)
USB/SD CARD OPERATION
REPEAT PLAY FUNCTION (on the remote control)
RANDOM PLAY(on the remote control)
INTRO PLAY(on the remote control)
PROGRAM FUNCTION
iPod OPERATION
LINE IN PLAY
MUTE SETTING(on the remote control)
LISTEN TO THE MUSIC BY USING HEADPHONE
SPECIFICATION
MAINTENANCE
TROUBLESHOOTING
1
3
3
4
4
4
4
5
5
5
5
6
6
6
6
7
7
8
8
9
9
9
10
11
11
11
11
12
12
SAFETY PRECAUTIONS
To achieve the utmost in enjoyment and performance, please read this manual carefully before attempting
to operate the unit in order to become familiar with its features, and assure you years of faithful, trouble
free performance and listening pleasure.
* Read instructions - All the safety and operating instructions should be read before the apparatus is operated
* Retain instructions - The safety and operating instructions should be retained for future reference.
* Cleaning Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or
cleaners. Use a damp cloth for cleaning.
* Attachment Do not use attachment not recommended by the product manufacturer as they may cause hazards.
* Power Sources -The apparatus should be connected to a power supply only of the type described in the
operating instructions
* “To be completely d the power input, the mains plug of apparatus shall be disconnected
from the mains.” as the disconnect devices is the mains plug of apparatus.
* Power-Cord Protection - Power supply cords should be routed so that they
or pinched by items placed upon or against them, paying particular attention to cords at plugs,
convenience receptacles and the point where they exit from the apparatus
* During lntended Use - The mains plug of apparatus should be easily
* Nonuse Periods - The power cord of the apparatus should be unplugged from the outlet when left
unused for a long period of time.
* This apparatus shall not be exposed to dripping or splashing water and that no object filled with liquids
such as vases
* The apparatus should be situated so that its location or position does not interfere with its proper
ventilation. The ventilation should not be impeded by covering the ventilation openings with items
such as newspaper, table-cloths, curtains etc.
* Do
not install this apparatus in a confined space, such as a book case or built-in cabinet. Minimum
distance (about 100mm) around the apparatus for sufficient ventilation.
* No naked flame sources such as lighted candles should be placed on the apparatus.
* Do not use where there are extremes
* Sudden changes in the ambient temperature may cause condensation to form on the optical lens inside
the unit. lf this happens, take out the disc, leave the unit for about 1 hour, and then proceed to operate.
* Because of the CD
set the volume on the amplifier unnecessarily high.
* Excessive sound pressure from earphones and headphones can cause hearing loss.
* Battery shall not be exposed to excessive heat such as sunshine, fire or the
* Attention should be drawn to the environmental aspects of battery disposal.
* The caution marking was located at the back enclosure of the apparatus.
* The nameplate marking was located at the back enclosure of the apparatus.
* The use of apparatus in moderate climates.
ESD Remark:
(reconnect of power source may be required) to resume normal operation.
Should any trouble occur, remove the power source and refer servicing to qualified personnel.
Important Notes
of as marked on the apparatus.
isconnected
are not likely to be walked on
accessed.
shall be placed on the apparatus.
of temperature (below or exceeding 35 C).
player’s extremely low noise and wide dynamic range, there might be a tendency to
In case of malfunction due to electrostatic discharge, just reset the product
5°C °
like.
aerosol
WARNING : TO PREVENT FIRE OR SHOCK HAZARD, DO NOT
DRIPPING OR SPLASHING.
For safety reasons, do not remove any covers or attempt to gain access to the
Refer any servicing to qualified personnel.
Do not attempt to remove any screws, or open the casing of the unit; there are no user serviceable parts
inside, refer all servicing to qualified service personnel.
Note:
- This unit will become warm when used for a long
Problem with the unit.
- The CD player includes micro-processors which may malfunction as a result of external electrical Interference
or noise. If the CD player is not working properly, disconnect the power source and
- Excessive sound pressure from earphones and headphones can cause hearing loss.
- If an unusual conditions occurs in the display window or key button, switch the unit off, then turn on the unit
again.
period of time. This is normal and does not indicate a
1
EXPOSE THIS APPLIANCE TO
inside of the product.
then reconnect it.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: SHOCK HAZARD - DO NOT OPEN
AVIS:RISQUE DE CHOC ELECTRIQUE
You can see this carved picture on the
Back of the main unit.
NE PA S OUVRIR
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the information
accompanying this unit.
CLASS 1 LASER PRODUCT
KLASS 1 LASER APPARAT
LUOKAN 1 LASER LAITE
KLASSE 1 LASER PRODUKT
You can see this carved picture on the
back of the main unit.
LASER SAFETY
This unit employs a laser. Only qualified service personnel should attempt to repair.
You can see this
label in the CD
compartment.
POWER CONSUMPTION: 23W
POWER SOURCE: AC ~ 240V 50Hz
FREQUENCY RANGE: FM 87.50~ 108.00 MHz
SANYO Electric Co.,Ltd.
CAUTION: INVISIBLE LASER RADIATION WHEN OPEN AND
INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM.
CUIDADO: PRODUTO LASER DE CLASSE 1 RADIAÇÃO
LASER INVISÍVEL CUANDO ABERTO E SE O DE SEGURANÇA
ESTIVER DEFEITUOSO A EXPOSIÇÃO AOS RAIOS.
ADVARSEL: USYNLIG LASERSTRALING VED ÃBNING NÃR
SIKKERHEDSAFBRYDERE ER UDEAF FUNKTION UNDGA
UDSÆTTELSE FORSTRÃLING,
VARO: AVATESSA JA SUOJALUKITUS OHITETTAESSA OLET
ALTTIINA
NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE
ÄLÄ KATSO SÄTEESEENI
VARNING: OSYNLIG LASERSTRÄLNING NÄR DENNA DEL
ÄR ÖPPNAD OCHSPÄRREN ÄR URKOPPLAD. BETRAKTA
EJSTRÄLENI
WARNING: RISK OF INVISIBLE LASER RADIATION WHEN CD LID IS
OPEN OR INTERLOCKS FALL.AVOID DIRECT EXPOSURE TO THE
BEAM.
Model No.:DC-MX42i
MICRO HI-FI SYSTEM FOR iPod
MADE IN CHINA
CAUTION
CLASS 1 LASER PRODUCT
Operating the unit in a way other than specified herein,or
making adjustments to the unit may result
radiation exposure
You can see this label on the
back of the main unit.
AU
This label sticks inside of the unit.
in hazardous
2
Assembly Drawing of Unit and speaker
1. fixing the board for wall mounting
18 2mm
Fix the two nails(Size:3.5*25BA) into the wall
and they should parallel each other. (The distance
between the two nails should be182mm)
2. Speakers connection
Max connection distance is 2 metres
FEATURES AND CONTROLS
1
2
3
4
5
78
9
10
11
12
13
1415161718
192021
6
28
27
26
25
24
23
22
3. Universal Dock adapter connection
(iPod adaptors are not included)
1. SPEAKER
2. LINE IN JACK
3. FM ANTENNA
4. LCD DISPLAY
5. CD DOOR
6. IR SENSOR
7. USB DEVICE IN PORT
8. SD/MMC MEMORY CARD IN SLOT
9. PRESET/FOLDER DOWN BUTTON
10. iPod/MEM/C-ADJ. BUTTON
OPEN/CLOSE
11.
12. STANDBY/ON BUTTON
13. STANDBY LED INDICATOR
14 . FUNCTION BUTTON
15. TIMER BUTTON
16. VOLUME “-” BUTTON
17 . VOLUME “+” BUTTON
18 .
PRESET/FOLDER UP BUTTON
19. STOP/MENU BUTTON
20. SKIP/TUNE SEARCH UP BUTTON
21. iPod CONNECTOR
AC CORD
22.
23. SPEAKER OUT
24 .
HEADPHONES JACK
25.
PLAY/PAUSE/ENTER BUTTON
26. SKIP/TUNE SEARCH DOWN BUTTON
27 . AC POWER MAIN SWITCH
28 . HITCHING HOLE
BUTTON
(L & R) JACK
3
REMOTE CONTROL
1. STANDBY/ON BUTTON
MO./ .
2. ID3/ ST BUTTON
3. OPEN/CLOSE BUTTON
4. TIMER BUTTON
5. FUNCTION BUTTON
6. iPod/MEM/C-ADJ. BUTTON
7. SLEEP BUTTON
8. SKIP/TUNE SEARCH DOWN BUTTON
9. INTRO BUTTON
10.EQ BUTTON
11.REPEAT BUTTON
12.MUTE BUTTON
13.VOLUME “-” BUTTON
14 .VOLUME “+” BUTTON
15.RANDOM BUTTON
16.PRESET/FOLDER UP BUTTON
17 .PRESET/FOLDER
18 .SKIP/TUNE SEARCH UP BUTTON
19.PLAY/PAUSE/ENTER BUTTON
20.STOP/MENU BUTTON
PUTTING THE BATTERY INTO THE REMOTE CONTROL UNIT
Press down the compartment cover, and slide the cover off to open it.
Place the button battery (CR2032) into it according to the polarity
markings with the “+” sign facing up. Place the cover over the
compartment, push it upward until
unit no more than 6m from the remote sensor and at an angle of no
greater than 30°.
Note :When the batteries become weak, remote control will not
function and replace with new batteries.
LCD DISPLAY WINDOW
DOWN BUTTON
it snaps on. Point remote control
1
4
5
6
7
8
9
10
11
12
13
**BUTTON BATTERY INCLUDED**
Please remove safety strip before
using the unit
Change the button
battery
3
2
20
19
18
17
16
15
14
A. SLEEP INDICATOR
B. TIMER INDICATOR
C. ALBUM/RADIO MEMORY NUMBER INDICATOR
REPEAT 1 & ALL
D. INDICATOR
E. STEREO INDICATOR
F. VOLUME HIGH/LOW INDICATOR
G.TRACK/NUMBER/TIME INDICATOR
COMPACT DISC
1. Always use a compact discs bearing the mark as shown.
2. Notes on handling discs
Removing the disc from its storage case and
loading it.
* Do not touch the reflective recorded surface.
Do not stick paper or write anything on the
*
surface.
* Do not bend the disc.
3. Storage
* Store the disc in its case.
* Do not expose discs to direct sunlight or high temperatures,
high humidity or dusty places.
4. Cleaning a disc
* Should the disc become soiled, wipe off dust, dirt and
fingerprints with a soft cloth.
* The disc should be cleaned from the center to the edge.
* Never use benzene, thinners, record cleaner fluid or anti
static spray.
* Be sure to close the CD door so the lens is not
contaminated by dust.
* Do not touch the lens.
4
A
B
FROM THE CENTRE
TO THE EDGE
CORRECT
C
D
E
F
G
INCORRECT
OPERATING THE UNIT
When you first plug the unit into the AC outlet,
on the rear of the unit.
unit ON or STANDBY. Tu rn off the main switch of the unit and pull the AC
switch off completely.
STANDBY/ON
1. Press the STANDBY/ON button on the unit or on
2. Select the sound source (CD, USB, CARD, iPod, LINE IN or TUNER) by pressing the
FUNCTION button. The corresponding display will light up.
3. Adjust the volume with the VOLUME (+ or -) button on the unit or VOLUME
4. Press the STANDBY/ON button again to turn off the unit.
Note:
1. If there is no signal under the CD/USB DEVICES/ SD & MMC CARD/ mode, the main unit will be switched
off within 15 minutes automatically.
2. During
within 15 minutes automatically.
3. During in standby mode, press any button/key can make the display light for 10 seconds.
4. Please turn the main
in the iPod mode, if there is no iPod Player on the iPod deck bracket; the main unit will also turn off
You can press the STANDBY/ON button on the unit or on the remote control to switch the
switch off to save energy, when you do not use the unit.
the unit will be in standby mode before turn ON the main switch
plug out of the wall socket if you want to
the remote control to switch the unit on.
(+ or -) button on the remote control.
iPod
CLOCK SETTING
During in the STANDBY mode.
1. Press and hold the iPod/MEM/C-ADJ. button until the time displays will change to 12-hour(or 24-hour) digit
and flash.
2. Press the SKIP/TUNE SEARCH(UP or DOWN) button to adjust 12-hour or 24 -hour digit.
3. Press the
SEARCH (UP or DOWN) button to adjust HOUR digit.
4. Press the iPod/MEM/C-ADJ. button once more, the MINUTE digit will flash on the display, press the
SKIP/TUNE SEARCH (UP
5. Press the iPod/MEM/C-ADJ. button again to confirm the time.
6. Each enable state as shown above will be cleared if the key is not pushed in10 seconds.
iPod/MEM/C-ADJ. button again, the HOUR digit will flash on the display, press the SKIP/TUNE
or DOWN) button to adjust MINUTE digit.
TIMER SETTING
During in the STANDBY OFF/ON mode.
1. After adjusting clock, press the TIMER button for a few seconds, " ON" and "00:00" appears on the display
and the HOUR digit flashes.(F1)
2. Press the SKIP/TUNE SEARCH(UP or DOWN) button to adjust
3. Press the TIMER button again, the MINUTE digit will start flashing, adjust it by pressing the SKIP/TUNE
SEARCH (UP or DOWN) button.
4. Press the TIMER button once more to confirm and order TIMER ON time.
5. After adjusting "TIMER ON", "
6. Repeat the above steps 2 to 3, and then press the TIMER button once more to confirm and order TIMER OFF
time.
7. Now the "TUNER" appears on the display with flashing, adjust “TUNER,
the SKIP/TUNE SEARCH(UP or DOWN) button.
8. Press the TIMER button again, the timer "VOL" indicator appears on the display and flashes, adjust the timer
volume high or low by pressing the TUNING/SKIP (UP or DOWN) button.
9. Each enable state as shown above will be cleared if the button is not pushed in 10 seconds.
10. After adjusting "TIMER ON" and "TIMER OFF", press the TIMER button, " " appears on the display.
11. The unit will be switched on automatically at "TIMER ON"
automatically at "TIMER OFF" order.
Note: If the display shows "ERROR" while you set the “TIMER ON”, it means both “TIMER ON” and “TIMER OFF”
is the same. In this case, please go
OFF" appears on the display and the HOUR digit flashes.(F2)
to “TIMER OFF” to set the off time first.
F1 F2
it.
CD, USB, CARD or iPod" by pressing
order and start playing, the unit will be switched off
5
EQ CONTROL(on the remote control)
EQ shows the present sound tone. When you press the EQ button , the sound tone changes as below:
ROCK CLASSIC POP PAS S
TO SET SLEEP FUNCTION(on the remote contr ol)
1. If you want to fall asleep to music, press the SLEEP button .
2. You may select the TUNER, CD/MP3, USB, SD/MMC, iPod or LINE IN mode in sleep function to play from
90, 80, 70 up to10 minutes of music
before shutting itself off automatically.
NORMAL
JAZZ
FUNCTION SELECT
The function is that when it presses the button the mode is changed. Display changes as below:
RADIO OPERATION
1. Press the FUNCTION button on the main unit (or remote control) to select the TUNER mode that to select the
FM operation.
2. Select the desired frequency with the SKIP/TUNE SEARCH(UP or DOWN) button on the main unit
(or remote control).
Mono/Stereo
This unit can receive the FM mode only.
1. When you want to select FM stereo station, press the ID3/MO./ST. button once on the remote control only.
The " " indicator will appear on the display that the reception is at its
2. When you press the ID3/MO./ST. button once again, the FM STEREO indicator will turn off & switch to
MONO FM status.
Automatic Tuning
1. Press the SKIP/TUNE SEARCH (UP or DOWN) button for a few seconds, then release the button. The tuner
will automatically search the first station of sufficient signal strength.
2. Repeat above procedure if you wish to select another station.
Programming preset stations
You can also preset stations of your choice and store up to 30 FM stations in its memory.
1. Tune to the required station.
2. Press
3. Press the PRESET/FOLDER(UP or DOWN) button for your desired station number.
4. Press the iPod/MEM/C-ADJ. button again to confirm your selection.
5. To program more stations into memory, repeat the above steps 1 to 4 .
6. To change the stored preset stations, repeat
Notes:
1. Storing a new station into a preset location will erase the previously stored station in that location.
2. Power off will not erase the memory of preset stations. Perform the stations presetting procedures again to
store the stations.
During the unit in STANDBY mode, press the PLAY/PAUSE/ENTER button to erase all preset memory.
3.
Selecting the Preset Stations
1. Press the PRESET/FOLDER(UP or DOWN) button to select the desired preset station number.
2. The numeric location of that preset station is displayed along with the corresponding
FM Antenna
Extend the FM antenna for better FM reception.
Select
best.
the iPod/MEM/C-ADJ. button.
the above steps 1 to 4.
frequency.
6
CD/MP3/WMA OPERATION
Listening To Compact Disc (CD/MP3/WMA)
1. Press the FUNCTION button on the unit to select the CD mode.
2. Press the OPEN/CLOSE button on the
automatically.(F3)
3. Insert the CD/MP3 disc into the CD compartment, press the OPEN/CLOSE button again to close the CD door.
The main unit will read the CD/MP3 disc automatically.
NOTE: (1) This unit can play CD, CD-R, CD-RW, MP3 and WMA discs.
(2) It can read " 8 cm " and " Multi Section " MP3 DISC.
(3) The "Playback Transfer Rate" in MP3 and WMA. (a). In MP3, transfer bit
WMA, transfer bit rate : 8 - 192kbps.
(4 ) The "Max Readable 99 folders and 999 tracks".
(5)
If no disc or can`t read TOC, NO DISC will be displayed.(F4 )
main unit , and then the CD door will open
(or remote control)
rate : 8 - 256 kbps. (b). In
F3
Playing The Entire CD/MP3/WMA
- CD
1. Insert the CD disc into the CD compartment, the main unit will automatically read the total number of the
tracks at the same time.
2. Press the PLAY/PAUSE/ENTER button, the unit will play the first track of the CD
3. Press the PLAY/PAUSE/ENTER button once again, the time elapsed indicator will flash.(F6)
4. To resume playback, press the PLAY/PAUSE/ENTER button once more again.
5. Press SKIP/TUNE SEARCH(UP or DOWN) button once to change Track NO., press and hold the SKIP/TUNE
SEARCH (UP
6. To stop playback, press the STOP/MENU button once on the unit (or remote control).
IMPORTANT INFORMATIONS
- Copyright protection files cannot be played back.
- Copyright protection files on a disc are skipped automatically when played back.
- MP3/WMA
1. Insert the MP3/WMA disc into the CD compartment, the main unit will automatically read the total number of
the folders and tracks at the same time.
2. Press the PLAY/PAUSE/ENTER button, the unit will play the first track of the MP3/WMA disc
automatically.(F7)
3. Press the PLAY/PAUSE/ENTER button once again, the time elapsed indicator will flash.(F8)
4. To resume playback, press
5. To change Track NO., Press SKIP/TUNE SEARCH(UP or DOWN) button once. Press and hold the
SKIP/TUNE SEARCH (UP or DOWN) button once to skip fast forward or backward of each song.
6. To change the ALBUM NO., press
7. To stop playback, press the STOP button once on the unit (or remote control).
or DOWN) button once to skip fast forward or backward of each song.
F5 F6
the PLAY/PAUSE/ENTER button once more again.
the PRESET/FOLDER (UP or DOWN) button once.
F7
F4
disc automatically.(F5)
F8
Note: If the main unit is not working properly, disconnect the power source and then reconnect it again
ID3 OPERATION (on the remote control)
During in the MP3/WMA mode
1. Press the ID3/MO./ST. button once to open the ID3 function.
2. If the MP3/WMA file is written “ID3”, it will automatically search the information
NAME” and “ALBUM NAME” indicated on the display .
3. Press the ID3/MO./ST. button on the remote again. Then the unit will resume to play normally.
of “TITLE NAME”, “ARTIST
7
USB/SD CARD OPERATION
During in the STANDBY mode
1. Insert the USB DEVICE or SD/MMC CARD, and then press the STANDBY button on the main unit (or remote
control) to power"ON" the unit.
2. Press the FUNCTION button on the main unit (or remote control) to select
unit will automatically read the total number of the folders and tracks at the same time. (F9)
3. If the USB memory device more than one folder.
a. Press the PRESET/FOLDER (UP or DOWN) button to select each folder.
b. Press
4. If the MP3 and WMA are written in "ID3".
a. During the unit in the MP3 or WMA playing. Press the ID3/MO./ST. button once. The display will show
or "ALBUM NAME" which move from the right corner to the left corner on the display continuously.
b. Press the ID3/MO./ST. button once again.
will play normally.
Note:
2. This unit can support most of USB devices and SD/MMC/SDHC cards. The memory
32GB. It cannot access (or access a longer time) the memory capacity over 32GB. Otherwise, make
an others to access it.
3. It can support
4. Not support all kinds of “ dual voltage-MMC” card nor “MMC-Plus” card.
5. The main unit does not support the WMA file which is protected “DRM FILE”.
Playing The Entire flash disc
1. Playback will start by pressing the PLAY/PAUSE/ENTER button. Playback starts with the first track. The
display shows the current track number and its elapsed time.(F10)
2. To interrupt playback , press the PLAY/PAUSE/ENTER button. The time elapsed indicator will flash.(F11)
3. To resume playback, press the PLAY/PAUSE/ENTER button again.
4. To stop playback, press the STOP/MENU button.
the SKIP/TUNE SEARCH(UP or DOWN) button to select current track in desired folder.
a "ID3 ON", and then it will automatically search more than 6 4 letters for "TITLE NAME", "ARTIST NAME"
The display will show a "ID3 OFF", and then the main unit
1. The main unit can play MP3 and WMA only in this mode.
USB version 1.1 and 2.0.
the USB or CARD mode. The main
capacity up-to
F9
F10
Note : In any time, the USB DEVICE or SD CARD must be fixed well under in the STANDBY mode to avoid the
main unit and USB DEVICE or SD CARD were damaged.
F11
IMPORTANT INFORMATIONS
- Copyright protection files cannot be played back.
- Copyright protection files on the USB memory and SD/MMC card device are skipped automatically when
played back.
- Recommended use:
Flash memory type USB memory player
- Not recommended:
Hard disc memory type USB player
Some Flash memory player will not play successfully with this unit.
-
REPEAT PLAY(on the remote control)
- CD
1. Press the REPEAT button once , REPEAT is displayed. The main unit will play the current track
repeatedly.(F12)
2. Press the REPEAT button twice, REPEAT ALL is displayed. The main unit will play all tracks
repeatedly.(F13)
3. Press the REPEAT button thrice, REPEAT function will be off.
F12
F13
8

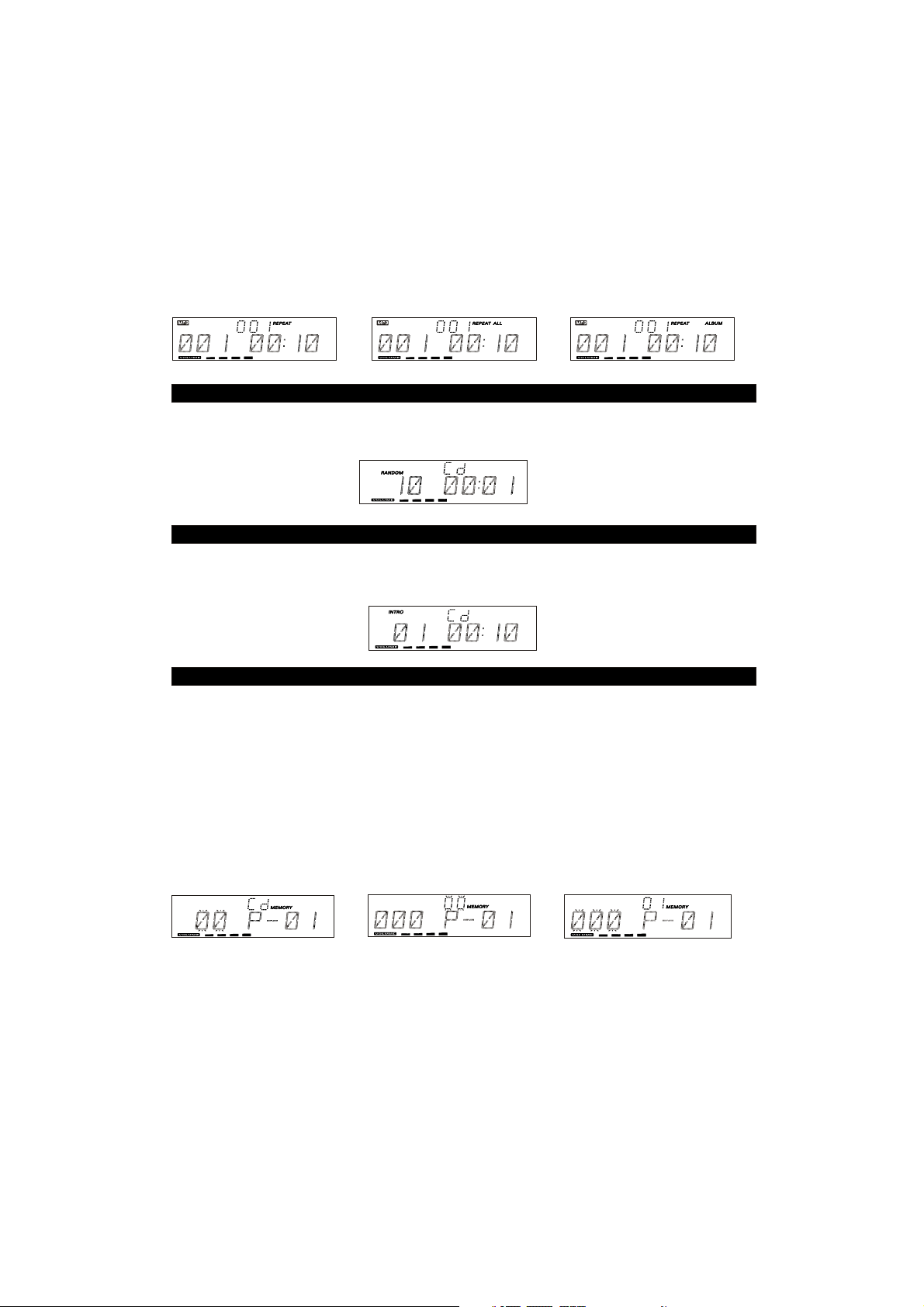

- MP3/WMA
1. Press the REPEAT button once , then REPEAT is displayed. It will play the current track repeatedly.(F14)
2. Press the REPEAT button twice, REPEAT ALL is displayed. It will play all tracks repeatedly.(F15)
3. Press the REPEAT button thrice, then REPEAT ALBUM
album. (F16)
4. Press the REPEAT button four times, then REPEAT function will be off.
is displayed. It will play repeatedly the current
F14
F15
RANDOM PLAY(on the remote contr ol)
1. Press the RANDOM button once , and then RANDOM is displayed.(F17)
2. Press the RANDOM button once again, and then resume to normally play.
F17
INTRO PLAY(on the remote contr ol)
1. Press the INTRO button once, and then
each track.(F18 )
2. Press the INTRO button twice, and then resume to normal play.
INTRO is displayed. The main unit will play the first 10 seconds of
F18
PROGRAM MODE
User can make the program up to 32 tracks in CD mode or 6 4 tracks in MP3/WMA/USB/SD CARD mode in any
desired order. Program mode is activated while in stop mode.
1. How to play the program
- CD
1) Press the iPod/MEM/C-ADJ.
2) Press the SKIP/TUNER SEARCH(UP or DOWN) button, the track number will be changed.
3) Press the iPod/MEM/C-ADJ. button to confirm the track number.
- MP3/WMA/USB/SD CARD
1) Press the iPod/MEM/C-ADJ. button, shift to PROGRAM mode. The album number is flashing.
2) Press the PRESET/FOLDER button, the album number will be changed.
3) Press the iPod/MEM/C-ADJ. button , the track number is flashing.(F21)
4) Press the SKIP/TUNER SEARCH button, the track number will be changed.
5) Press the iPod/MEM/C-ADJ. button to confirm the track number.
button, shift to PROGRAM mode.(F19)
(F20)
F16
F19
2. PROGRAM PLAY
Press the PLAY/PAUSE/ENTER button on the unit (or remote control), it will be play starting with the first track
of the program. When all tracks have been played, the unit display will show the number of tracks and the playing
time of the CD/MP3/WMA tracks.
3.
CANCEL PROGRAM
1. Press the STOP button twice, or open the CD tray door and close it again then the memory will be erased.
2. Set a new program, the existing one will be cleared.
F20
F21
9
Note : During in
1. Press the "REPEAT" button once, the "REPEAT" indicator will light on the display. Then the main unit will
repeat the current track.
2. Press the “REPEAT" button twice, the "REPEAT ALL" will light on the display. Then the main unit will
the total number of tracks.
3. Press the “REPEAT” button once more again. The main unit will return to play the program normally.
the program mode.
repeat all
iPod OPERATION
During the unit in STANDBY mode:
1. Insert the iPod players in the iPod deck bracket on the front panel of the main unit fixedly.
2. Power on the main unit, and then press the FUNCTION button to the iPod mode, the iPod indicator will appear
on the main unit display. (F22)
F22
During the unit in iPod mode:
1. Press the PLAY/PAUSE/ENTER (only ) button once to start the iPod playing. Adjust the volume control
by turning the To stop the current playing, press the STOP/MENU (only in iPod)
button once.
2. Press the PLAY/PAUSE/ENTER (only in iPod) button once to pause the current track.
To resume the playback, press the PLAY/PAUSE/ENTER(only in iPod) button once again.
3. To skip forwards or backwards, press the (UP or DOWN) button to select the desired
track.
4
. Press the REPEAT or RANDOM button to make the iPod playing repeatedly or randomly.
Note: 4
During the unit in iPod MENU mode:
1. During the unit in iPod mode, press the iPod/MEM/C-ADJ. button once, the unit will enter to the iPod MENU
mode. The
2. Press the STOP/MENU (only in iPod) button return to the iPod menu.
a. To select the current menu as belows :
Music > Extras > Photo Import (without this function display on
Backlight > Now Playing will show on the iPod Player display.
b. Press the (UP or DOWN) button on the unit (or remote control) to search the current
menu.
3. Press the PLAY/PAUSE/ENTER (only in iPod) button enter to the desired menu folder.
a. Press the (UP or DOWN) button on the unit (or remote control) to search the current
content in the each desired menu folder.
b. If you want return to the iPod menu, press the STOP/MENU (only in iPod) button again.
4. To resume playback, press the iPod/MEM/C-ADJ. button once again, the unit will return to iPod mode.
Charging the iPod Player battery through the main unit:
1. iPod Player has a internal nonremovable
while.
2. You can charge the iPod Player through the main unit automatically under the STANDBY or POWER ON mode.
Note : 1. The iPod Player battery is 80-percent charged in about an hour,
If you charge it while playing music, it may take longer.
2. It is not better to charge under the TUNER mode. It may interfere the reception.
3. In any time, you can control the iPod player on the main unit, remote control or iPod player itself while
the unit in the "iPod" or "iPod MENU" mode.
4. In any time, the iPod player must be fixed well under in the STANDBY mode to avoid the unit and iPod
5. During the unit in iPod mode . If the video function of the iPod with abnormal working normally. Update
VOLUME (+ or -) button.
iPod touch version 1.1. or above can support REPEAT or RANDOM function.
iPod MENU indicator will appear on the unit display. (F23)
SKIP/TUNE SEARCH
SKIP/TUNE SEARCH
player were damaged.
the latest version of
the iPod video function from the apple web-site.
iPod
in
SKIP/TUNE SEARCH
on the remote control
the iPod Mini) > Settings >Shuffle Songs >
battery, the battery may need to be charged that is not used for a
and fully charged in about a few hours.
10
F23
LINE IN PLAY
The LINE IN input is located of the unit. Use a 3.5mm stereo jack cable to connect audio
equipment through the LINE IN jack.
1. To select the LINE IN input function, repeatedly press
until the LINE IN is indicated on the display.
2. Press the VOLUME (+ or -) button to adjust the sound output level.
Note: LINE in cable not included.
MUTE SETTING(on the remote control)
1. When you press the MUTE button
will be temporarily terminated.(F24)
2. Press the MUTE button again, the volume level and the audio output will return to normal.
on the left hand side
the FUNCTION button on the unit (or remote control)
once on the remote control, the volume level will flash and the audio output
F24
LISTEN TO THE MUSIC BY USING HEADPHONE
Plug your headphones (3.5mm mini-stereo plug) into the headphones jack on the right hand side of the unit.
The sound will be heard through the headphones, not the speaker.
SPECIFICATION
POWER SUPPLY :
OUTPUT POWER :
UNIT DIMENSION : 232 (W) x 125 (D) x 1 86 (H) mm
SPEAKER BOX DIMENSION : 12 0 (W) x 80 (D) x 186 (H)
N. W. : 2.3kg
RADIO SECTION
FREQ
UENCY RANGE : FM 87.50-108.00 MHz
COMPACT DISC SECTION
CD Media CD-DA, CD-ROM, CD-R, CD-RW
Supported format
Type 2 channel stereo
Pickup Optical 3-beam semiconductor laser
Wow/Flutter
MP3 Decode File MPEG 3
Bit rate (kbps) 8-256 constant & Variable bit rate (VBR)
Max folder / file no. USB 99/999
Max files per folder 999
ID3 title / artist/album 64/64 /64 (maximum number of bytes)
WMA Decode File
Bit rate (kbps) 8-192
Max folder / file
CD-rom and SD card 99/999
Max files
Folder /file name 32/32 (maximum number of bytes)
ID3 title/artist/album 64 /64/64 (maximum number
LINE IN input Max voltage 500mV
Impedance 47 KΩ
Operating conditions
Humidity 5% to 90%
Operating position
Laser output 0.6mW (Maximum continuous wave)
ID3 tag Yes
AC 240V~ 50Hz
4 .5 Watts x 2
ISO 9660, UDF
Wave length
790nm
Below measurable limits
CD-rom and SD card 99/999
Folder /file name 32/32 (maximum number of bytes)
Windows media audio 9
no USB 99/999
per folder 999
Temperature: 5°C to 35°C
Horizontal
mm
of bytes)
11
SPECIFICATION SUBJECT TO CHANGE WITHOUT FURTHER NOTICE.
Ventilation warning : " The normal ventilation of the product shall not be impeded for intended use."
MAINTENANCE
Cleaning the unit
Clean the outside of the unit with a clean soft cloth, moistened with lukewarm water. Do not use benzene,
thinners, or alcohol since they will damage the finish of the surfaces.
Cleaning the CD player Iens
The lens should never be touched. If dust is on the
(Consult your dealer.)
lens, blow it off using a camera lens blower (F. A).
F. A
16
TROUBLE SHOOTING
SYMPTOM
POSSIBLE CAUSE CORRECTIVE ACTION
No power
No mains lead plug connection at the AC outlet.
Insert the plug into the AC outlet.
The power is on, but the CD player does not work.
No disc is loaded.
Load a disc.
Sound is heard from one speaker.
Faulty connection of speaker wires.
Connect the speaker wires firmly to the
speaker terminals.
The CD player does not start playback. No disc is
loaded.
Loaded a disc.
An unplayable disc is loaded. Load a playable disc.
The disc is not loaded correctly.
Load the disc with the label
The disc is dirty.
Clean the disc or replace it.
The CD player does not start playback and
“NO DISC” appears.
An unplayable disc is loaded. Load a playable disc.
The disc is not loaded correctly.
Load the disc with the label facing up on the disc tray.
The remote controller does
batteries in the remote controller are weak, or
installed incorrectly.
facing up on the disc tray.
not work properly. The
Check the battery polarity (+ or -). Replace the battery.
The remote controller is not aimed at the remote
sensor window.
Aim the remote controller at the remote sensor window.
No sound.
Volume control is set to minium.
Turn up the volume.
The wrong function is selected.
Select the correct function.
Faulty speaker connections.
Connect the speaker wires firmly to the
speaker terminals.
The operation of the unit or display is not normal.
The unit must be reset.
1. Disconnect the main lead and replug again.
2. Resume operations.
The file in USB or SD card cannot play back. USB
device is not connected.
Connect the USB device. SD card is not loaded.
Load the SD
The file is copyright protection file. Select the
correct playable files.
FM stereo broadcast is hard to hear due to much
noise.
Weak signal.
Press the ID3/MONO/ST. button on the remote control
to display “MONO”.
Reorient the FM aerial wire. Connect the speaker
wires firmly to the speaker terminals.
card.
12
The unit supports the listed iPods
**iPod charge and operation only**
***iPods shown are not included***
Made for iPod mini
(4 GB, 6GB only)
Made for iPod with
color display
(4 th generation)
(20GB, 30GB only)
Made for iPod with video
(5th generation)
(60GB, 8 0GB only)
Made for iPod nano
(3rd generation)(video)
(4 GB, 8 GB only)
Made for iPod
(4 th generation)
(20GB only)
Made for iPod with
color display
(4 th generation)
(4 0GB, 60GB only)
Made for iPod nano
(1st generation)
(1GB, 2GB, 4GB only)
Made for iPod nano
(4 th generation)
(8 GB, 16GB only)
Made for iPod
(4 th generation)
(4 0GB only)
Made for iPod with video
(5th generation)
(30GB only)
Made for iPod nano
(2nd generation)(aluminum)
(2GB, 4 GB, 8GB only)
Made for iPod classic
(8 0GB, 160GB only)
Made for iPod classic
(2nd generation)
(120GB only)
Made for iPod touch
(8 GB, 16GB, 32GB only)
Made for iPod touch
(2nd generation)
(8 GB, 16GB, 32GB only)
CODE NO.:112335100
SANYO Electric Co., Ltd.
Printed in China
Loading...
