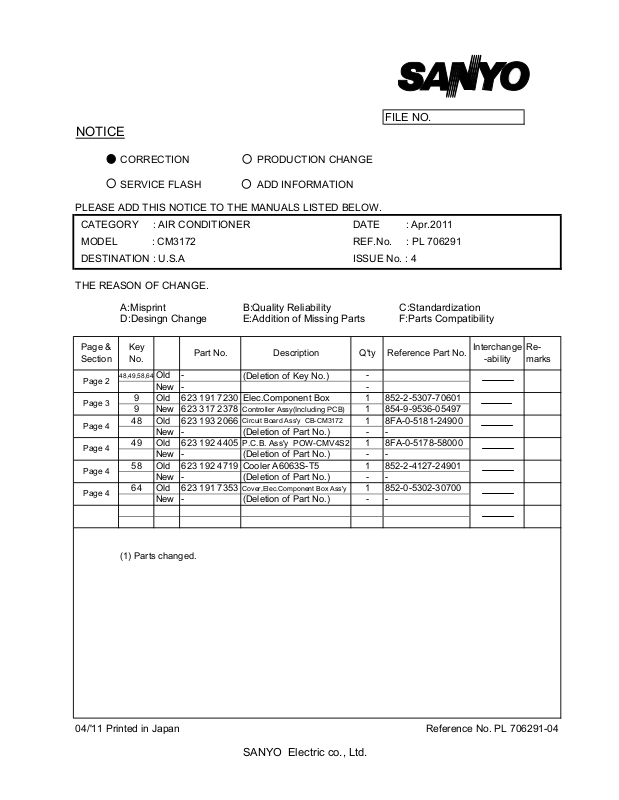

A
(
)
FILE NO.
NOTICE
CORRECTION PRODUCTION CHANGE
SERVICE FLASH ADD INFORMATION
PLEASE ADD THIS NOTICE TO THE MANUALS LISTED BELOW.
CATEGORY : AIR CONDITIONER DATE : Apr.2011
MODEL : CM3172 REF.No. : PL 706291
DESTINATION : U.S.A ISSUE No. : 4
THE REASON OF CHANGE.
:Misprint B:Quality Reliability C:Standardization
D:Desingn Change E:Addition of Missing Parts F:Parts Compatibility
Page &
Section
Page 2
Page 3
Page 4
Page 4
Page 4
Page 4
Key
No.
48,49,58,64 Old -
New - 9 Old 623 191 7230
9 New 623 317 2378
48 Old 623 193 2066
New - (Deletion of Part No.) - -
49 Old 623 192 4405
New - (Deletion of Part No.) - -
58 Old 623 192 4719
New - (Deletion of Part No.) - -
64 Old 623 191 7353
New - (Deletion of Part No.) - -
(1) Parts changed.
Part No.
Description Q'ty Reference Part No.
Deletion of Key No.
Elec.Component Box
Controller Assy(Including PCB) 1 854-9-9536-05497
Circuit Board Ass'y CB-CM3172
P.C.B. Ass'y POW-CMV4S2
Cooler A6063S-T5
Cover,Elec.Component Box Ass'y
-
1 852-2-5307-70601
1 8FA-0-5181-24900
1 8FA-0-5178-58000
1 852-2-4127-24901
1 852-0-5302-30700
Interchange
-ability
Remarks
04/'11 Printed in Japan Reference No. PL 706291-04
SANYO Electric co., Ltd.
Parts List
File No.
OUTDOOR UNIT
Air Conditioner
Model No. Prod.Code Volt-Phase-Hertz
CM3172 1 852 330 29 230-208-1-60
CM3172
REFERENCE No.PL 706291-04
CM3172
52
11
26
36
35
41
71
6
78
12
OUTDOOR UNIT
74
70
73
40
37
10
33
47
46
29
5
77
77
4
23
75
24
72
70
8
63
78
62
32
79
21
27
78
20
3
2
78
28
69
41
7
53
9
39
1
28
34
42
67
67
68
68
43
44
65
65
66
22
22
22
22
45
65
41
15
17
18
19
66
55
54
57
56
22
22
22
22
41
41
41
14
16
13
25
76
- 2 -
31
30
61
InstructionInstruction
80
51
38
60
50
59
ATTENTION !
To ensure correct parts supply,please let us know followings,
when you make service parts order:
1.Part No. 2.Description 3.Q'ty 4.Volts-Hz-Ph 5.Product Model No.
KeyNo. Part No. Description Q'ty Reference No.
* 1 623 192 4498 Comp Sub Ass'y 5JD420XAB22 1 852-0-4526-34000
2 623 313 6455 Bottom Plate Ass'y 1 852-0-2202-80602
3 623 192 4474 Accumulator Ass'y 1 852-0-4511-31200
* 4 623 191 5427 Fan Motor SIC-71FW-D490-1 1 1FA-4-M4A0-10400
5 623 193 1991 Heat Exch Cond Ass'y 1 852-0-4119-19000
6 623 192 4450 Mounting Plate, Fan Motor 1 852-2-2354-31200
7 623 193 8068 Nut Special 3 852-2-2226-15501
8 623 313 6448 Partition Plate Ass'y 1 852-0-2209-40800
* 9 623 317 2378 Controller Assy(Including PCB) 1 854-9-9536-05497
10 623 313 6486 Side Panel 1 852-2-1114-41602
11 623 313 6479 Side Panel 1 852-2-1114-41002
12 623 163 8074 Screw Special 4 852-2-2396-15401
13 623 191 7858 Guard 1 852-2-1321-24211
14 623 313 6462 Front Panel 1 852-2-1118-24602
15 623 192 4368 Valve Ass'y 1/4" 1 852-0-4515-43900
16 623 191 7186 Handle 1 852-2-2303-17811
17 623 192 4092 Valve Ass'y 1/4" 1 852-0-4515-44000
18 623 192 4085 Valve Ass'y 1/4" 1 852-0-4515-44100
19 623 192 4078 Valve Ass'y 1/4" 1 852-0-4515-44200
20 623 313 6417 Support Valve 1 852-2-2222-38301
21 623 191 7421 Cover Plate 1 852-2-5315-49101
22 623 314 7437 S Tite Screw 16 3-9204-61601
23 623 313 6271 Top Plate Ass'y 1 852-0-1103-23220
24 623 192 4047 Mark 1 852-2-1316-44002
25 623 161 1497 Label 1 854-2-1358-95900
26 623 171 9278 Mounting Thermostat 1 852-2-5303-24501
* 27 623 191 7902 Reactor R9020A-TE-COV 1 1FA-4-L5C0-13500
28 623 191 5618 Cushion Rubber 3 852-2-2390-30800
* 29 623 304 3500 Propeller Fan Ass'y 1 852-0-2502-18900
30 623 192 4115 Insulation 1 852-2-2476-69300
31 623 192 4542 Insulation 1 852-2-2476-71700
32 623 192 4535 Insulation 1 852-2-2476-71800
33 623 313 6318 Cover Ass'y 1 852-0-2309-25120
34 623 192 4573 Sheet 1 852-2-5328-49800
35 623 193 2059 Guard 1 852-2-1321-24600
36 623 191 5540 Mounting Plate 1 852-2-2385-15801
37 623 313 6424 Conduit Plate 1 852-2-1319-44921
* 38 623 172 7730 Power Relay EL200/240A1-F(M) 1 1FA-4-S2A0-10000
39 623 310 6328 Thermistor Ass'y CS-7L-2515 1 8FA-0-5155-00700
40 623 313 6493 Mounting Plate 1 852-2-2385-17702
NOTE: Metal and plastic parts will be supplied basically
with necessary heat insulation pads or packing.
Each key number with an asterisk (*) means the
recommended service parts.
OUTDOOR UNIT
CM3172
- 3 -
ATTENTION !
To ensure correct parts supply,please let us know followings,
when you make service parts order:
1.Part No. 2.Description 3.Q'ty 4.Volts-Hz-Ph 5.Product Model No.
OUTDOOR UNIT
KeyNo. Part No. Description Q'ty Reference No.
41 623 148 5876 Mounting Thermostat 10 852-2-5303-22401
* 42 623 192 4641 Magnetic Coil UKV-A009 5P A-MV 1 8FA-0-5251-15600
* 43 623 192 4634 Magnetic Coil UKV-A010 5P B-MV 1 8FA-0-5251-15700
* 44 623 192 4627 Magnetic Coil UKV-A011 5P C-MV 1 8FA-0-5251-15800
* 45 623 192 4610 Magnetic Coil UKV-A012 5P D-MV 1 8FA-0-5251-15900
46 623 194 7404 Washer Special 1 852-2-1318-10401
47 638 012 6705 Funa 6 SUS305 1 3-9275-06010
* 50 623 160 7445 Terminal Base JTU30-2U 1 1FA-4-J3A0-13300
* 51 623 193 1953 Terminal Base KTU15N-12J 1 1FA-4-J3A0-26600
* 52 623 192 4702 Thermistor Ass'y K TKS292B/295B 1 8FA-0-5259-22600
* 53 623 192 4696 Thermistor Ass'y K TKS293B 1 8FA-0-5259-17000
* 54 623 192 4689 Thermistor Ass'y K TKS292B/292B 1 8FA-0-5259-17800
* 55 623 192 4672 Thermistor Ass'y K TKS292B/292B 1 8FA-0-5259-17900
* 56 623 192 4665 Thermistor Ass'y K TKS292B/292B 1 8FA-0-5259-18000
* 57 623 192 4726 Thermistor Ass'y K TKS292B/292B 1 8FA-0-5259-18100
59 623 191 7346 Mounting Plate 1 852-2-2385-15601
60 623 193 1915 Mounting Plate 1 852-2-2385-15701
61 623 191 7292 Packing 1 852-2-2380-98210
62 623 192 6119 Elec. Wiring Diagram SELF DIAGNO 1 8FA-2-5257-68500
63 623 193 2073 Elec. Wiring Diagram 1 8FA-2-5257-89300
* 65 623 170 4267 Solenoid Control Valve UKV-18D13 4 854-2-4548-15000
66 623 155 2424 Strainer Ass'y 4 852-0-4506-19500
67 623 195 1210 Valve Ass'y 3/8" 2 852-0-4518-27000
68 623 195 1203 Valve Ass'y 1/2" 2 852-0-4522-21200
* 69 623 195 8097 Pressure Switch ACB-1UB42W 1 1FA-4-S1H0-08500
70 623 313 6370 Packing 2 852-2-2380-93710
71 623 313 6356 Packing 1 852-2-2528-17310
72 623 313 6349 Packing 1 852-2-2528-16510
73 623 313 6400 Packing 2 852-2-2528-16610
74 623 313 6394 Packing 1 852-2-2528-16710
75 623 313 6332 Packing 1 852-2-2528-19610
76 623 313 6363 Packing 2 852-2-2380-92810
77 623 313 6387 Screw Special 4 852-2-2396-22201
78 623 051 6519 Cushion Rubber 4 852-2-2390-19200
79 623 174 0593 Tube Ass'y 2 852-0-4207-18100
80 623 194 7459 Mounting Plate 1 852-2-2385-18701
NOTE: Metal and plastic parts will be supplied basically
with necessary heat insulation pads or packing.
Each key number with an asterisk (*) means the
recommended service parts.
CM3172
For Parts or Service Assistance please contact your local Sanyo HVAC Contractor or Distributor
United States: SCS, HVAC Solutions Canada: Sanyo Canada Inc.
Web: www.SanyoHVAC.com Web: www.SanyoHVAC.com
Parts: hvac.parts@sna.sanyo.com Parts/Service: hvac@sci.sanyo.com
Service: hvac.service@sna.sanyo.com
- 4 -
Apr / '11 Printed in Japan
