Page 1
Wall plate expansion range:
27"-42.25"
Dimension Range:
2"-40"
.90
[15.75]
26.00 with
extensions
3.00
Maximum Weight
Capacity: 280 lbs.
Universal mounting pattern
Including VESA 600
5
3.75
.70
.90
.33
5.00
.32
This product and/or its method of use is covered by
one or more of the following patent(s): U.S. Patent
numbers D405,988; D407,244; D405,630; 6,349,657;
D429,581; D446,053; D440,079; 6,098,822; D494,978;
D495,714; D496,367; D507,477; D494,596; D495,713;
and D493,800 and foreign equivalents; European
Patent number 000170717-0001; 000170717-0002;
1228942; and 106588 and foreign equivalents; and
other patents issued or patents pending in the U.S.
and other countries that are either assigned or
exclusively licensed to Sanus Systems.
4
PROPRIETARY AND CONFIDENTIAL
1.27
3
6.00 9.02
DRAWN
CHECKED
ENG APPR.
NAME
PFT
DATE
2.14.07
Tilt and Low profile
Wall mount
2
[17.00]
27.40 with
extensions
2.62
Tilt

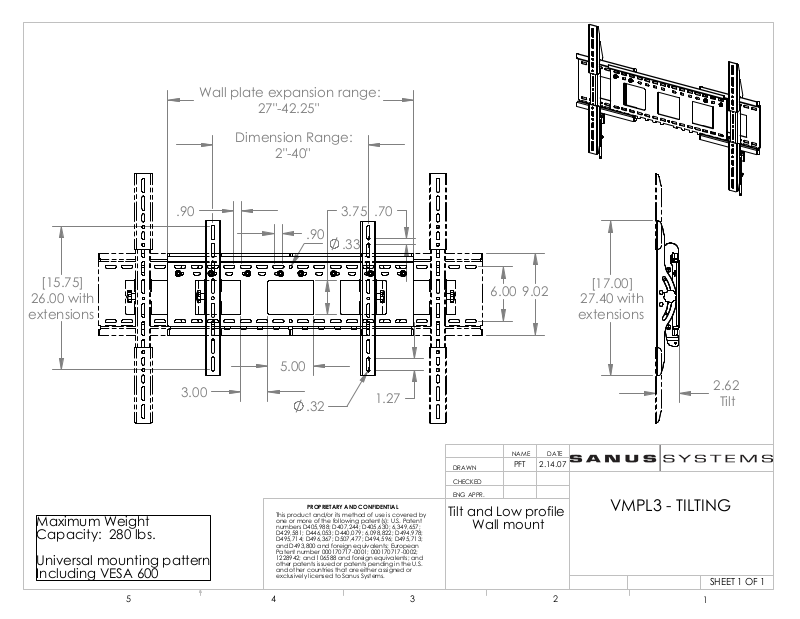

VMPL3 - TILTING
SHEET 1 OF 1
1
Page 2
Wall plate expansion range:
27"-42.25"
Dimension Range:
2"-40"
.90
[15.75]
26.00 with
extensions
Maximum Weight
Capacity: 280 lbs.
Universal mounting pattern
Including VESA 600
5
3.00
3.75
.70
.90
.33
5.00
1.27
.32
This product and/or its method of use is covered by
one or more of the following patent(s): U.S. Patent
numbers D405,988; D407,244; D405,630; 6,349,657;
D429,581; D446,053; D440,079; 6,098,822; D494,978;
D495,714; D496,367; D507,477; D494,596; D495,713;
and D493,800 and foreign equivalents; European
Patent number 000170717-0001; 000170717-0002;
1228942; and 106588 and foreign equivalents; and
other patents issued or patents pending in the U.S.
and other countries that are either assigned or
exclusively licensed to Sanus Systems.
4
PROPRIETARY AND CONFIDENTIAL
3
6.00 9.02
DRAWN
CHECKED
ENG APPR.
NAME
PFT
DATE
2.14.07
Tilt and Low profile
Wall mount
2
1.54
Low-profile
[17.00]
27.40 with
extensions
VMPL3 - LOW PROFILE
SHEET 1 OF 1
1
