OWNER’S MANUAL GUIDE D’UTILISATION

32” CLASS WIDE LCD TV WITH DVD PLAYER TÉLÉVISEUR ACL GRAND ÉCRAN CATÉGORIE 32 PO ET LECTEUR DVD

HDLCDVD328

FRANÇAIS ENGLISH

ATTENTION ATTENTION

If you purchase a universal remote control from your local retailer, please contact the remote manufacturer for the required programming code. Si vous utilisez avec cet appareil une télécommande universelle (autre que celle vendue avec ce téléviseur), consultez la documentation accompagnant la télécommande universelle afin de connaître le code numérique correspondant au téléviseur.

AIR/CABLE MODE SELECTION

When shipped from the factory, the Signal Type option is set to the “Cable” (Cable Television) mode. If not using Cable TV, set this menu option to the “Air” position. Lorsque l’appareil sort de l’usine, l’option « Signal Type » est en mode « Cable » (câblodistribution). Si vous n’utilisez pas la câblodistribution, sélectionnez l’option « Air ».

IF CONTACT WITH CUSTOMER SERVICE IS REQUIRED

PLEASE HAVE THE MODEL NUMBER READY PRIOR TO THE CALL

S’IL FAUT CONTACTER LE SERVICE CLIENTÈLE, PRENEZ SOIN D’ÊTRE MUNI

FOR INFORMATION ON OUR OTHER PRODUCTS AND RECYCLING INFORMATION, PLEASE VISIT OUR WEBSITE AT POUR OBTENIR DES INFORMATIONS SUR NOS AUTRES PRODUITS ET LE RECYCLAGE, VEUILLEZ VISITER NOTRE SITE WEB:

SÉLECTION DU MODE AIR/CABLE

DU NUMÉRO DE MODÈLE AVANT D’APPELER.

CUSTOMER SERVICE – 1-800-289-0980

SERVICE/SERVICE CLIENTÈLE: 1-800-289-0980

ORION WEBSITE

SITE WEB ORION

www.orionsalesinc.com

Before operating the unit, please read this manual thoroughly.

Avant de faire fonctionner l’appareil, veuillez lire le présent guide attentivement.

ENGLISH

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN

OR MOISTURE.

TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OPEN FLAMES AWAY

FROM THIS PRODUCT AT TIMES.

CAUTION: TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS POLARIZED PLUG WITH AN

EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help. CAUTION: Changes or modifications not expressly approved by the partly responsible for compliance with the FCC Rules

to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

could void the user’s authority to operate this equipment.

CAUTION:

THIS DIGITAL VIDEO PLAYER EMPLOYS A LASER SYSTEM. TO ENSURE PROPER USE OF THIS PRODUCT, PLEASE

READ THIS OWNER'S MANUAL CAREFULLY AND RETAIN FOR FUTURE REFERENCE. SHOULD THE UNIT REQUIRE MAINTENANCE, CONTACT AN AUTHORIZED SERVICE LOCATION-SEE SERVICE PROCEDURE.

USE OF CONTROLS, ADJUSTMENTS OR THE PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

TO PREVENT DIRECT EXPOSURE TO THE LASER BEAM, DO NOT TRY TO OPEN THE ENCLOSURE. RADIATION MAY BE PRESENT WHEN THE ENCLOSURE IS OPENED. DO NOT STARE INTO THE BEAM.

Record the model number and serial number.

Model number Serial number

CLASS 1 LASER PRODUCT

Location of the required Marking

The rating sheet and the safety caution are on the rear of the unit.

CERTIFICATION: COMPLIES WITH FDA RADIATION PERFORMANCE STANDARDS, 21 CFR SUBCHAPTER J.

Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.

15) Apparatus should not be exposed to dripping or splashing, and objects filled with liquids, such

NEC NATIONAL

as vases, should not be placed on the apparatus.

16) An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits, as contact with them might be fatal.

17) Do not overload wall outlets and extension cords, as this can result in a risk of fire or electric shock.

18) Do not push objects through any openings in this unit, as they may touch dangerous voltage points or short out parts that could result in fire or electric shock. Never spill or spray any type of liquid into the unit.

19) If an outside antenna or cable system is connected to the unit, be sure the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges, Section 810 of the National Electrical Code, ANSI/NFPA 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to

ELECTRIC SERVICE

ELECTRICAL CODE S2898A

EXAMPLE OF ANTENNA GROUNDING AS PER THE

NATIONAL ELECTRICAL CODE

ANTENNA LEAD IN WIRE

GROUND

CLAMP

EQUIPMENT

ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMPS POWER SERVICE GROUNDING

ELECTRODE SYSTEM (NEC ART 250, PART H)

grounding electrodes, and requirements for the grounding electrode.

20) When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or those that have the same characteristics as the original part.

Unauthorized substitutions may result in fire, electric shock or other hazards.

21) Upon completion of any service or repairs to this unit, ask the service technician to perform safety checks to determine that the unit is in proper operating condition.

22) Keep your fingers clear of the disc slot as it is closing. It may cause injury.

ENGLISH

IMPORTANT SAFETY INSTRUCTIONS

23) When you connect the product to other equipment, turn off the power and unplug all of the equipment from the wall outlet. Failure to do so may cause an electric shock and serious personal injury. Read the owner's manual of the other equipment carefully and follow the instructions when making any connections.

24) Reduce the volume to the minimum level before you turn on the product. Otherwise, sudden high volume sound may cause hearing or speaker damage.

25) Do not allow the product to output distorted sound for an extended period of time. It may cause speaker overheating and fire.

26) When you use the headphones, keep the volume at a moderate level. If you use the headphones continuously with high volume sound, it may cause hearing damage.

27) Do not look into the opening of the disc slot or ventilation opening of the product to see the source of the laser beam. It may cause eye damage.

28) Do not use a cracked, deformed, or repaired disc. These discs are easily broken and may cause serious personal injury and product malfunction.

29) This reminder is provided to call the cable TV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

30) The socket-outlet must be installed near the unit and easily accessible.

CONDENSATION

Moisture will form in the operating section of the player if the player is brought from cool surroundings into a warm room or if the temperature of the room rises suddenly. When this happens, player's performance will be impaired. To prevent this, let the player stand in its new surroundings for about an hour before switching it on, or make sure that the room temperature rises gradually. Condensation may also form during the summer if the player is exposed to the breeze from an air conditioner. In such cases, change the location of the player.

(continued)

HOW TO HANDLE THE LCD PANEL

Do not press hard or jolt the LCD panel. It may cause the LCD panel glass to break and injury may occur.

•

If the LCD panel is broken, make absolutely sure that you do not touch the liquid in the panel. This may cause skin inflammation. If the liquid gets in your mouth, immediately gargle and consult with your doctor. Also, if the liquid gets in your eyes or touches your skin, consult with your doctor after rinsing for at least 15 minutes or longer in clean water.

CHILD SAFETY: It Makes A Difference How and Where You Use Your Flat Panel Display

Congratulations on your purchase! As you enjoy your new product, please keep these safety tips in mind:

THE ISSUE

The home theater entertainment experience is a growing trend and larger flat panel displays are popular purchases. However, flat panel displays are not always supported on the proper stands or installed according to the manufacturer’s recommendations. Flat panel displays that are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests or carts may fall over and cause injury.

THIS MANUFACTURER CARES!

The consumer electronics industry is committed to making home entertainment enjoyable and safe.

TUNE INTO SAFETY

One size does NOT fit all. Follow the manufacturer’s recommendations for the safe installation and use of your flat panel display. Carefully read and understand all enclosed instructions for proper use of this product. Don’t allow children to climb on or play with furniture and television sets. Don’t place flat panel displays on furniture that can easily be used as steps, such as a chest of drawers. Remember that children can become excited while watching a program, especially on a “larger than life” flat panel display. Care should be taken to place or install the display where it cannot be pushed, pulled over, or knocked down. Care should be taken to route all cords and cables connected to the flat panel display so that they cannot be pulled or grabbed by curious children.

WALL MOUNTING: IF YOU DECIDE TO WALL MOUNT YOUR FLAT PANEL DISPLAY, ALWAYS:

Use a mount that has been recommended by the display manufacturer and/or listed by an independent laboratory (such as UL, CSA, ETL). Follow all instructions supplied by the display and wall mount manufacturers. If you have any doubts about your ability to safely install your flat panel display, contact your retailer about professional installation. Make sure that the wall where you are mounting the display is appropriate to support the weight of the unit/ product and wall mount. If you are unsure, contact a professional installer. A minimum of two people are required for installation. Flat panel displays can be heavy.

SAFETY PRECAUTIONS

The unit emits heat when in operation. Do not place any covers or blankets on the unit, this may cause overheating. Do not block ventilation holes, or set up near radiators. Do not place in direct sunshine. When placing on a shelf leave 10 cm (4 inches) free space around the entire unit.

10cm

Notes when mounting the LCD TV/DVD on a wall

If the unit is to be mounted on the wall, contact the retailer where you purchased the LCD TV/DVD for advice, and have the equipment professionally installed. Incomplete or improper installation may cause injury to you, and/or damage to the LCD TV/DVD.

ENGLISH

To hang the television on a wall, remove these screws and then remove a stand. Before performing work spread cushioning over the base area to lay the TV on.

IMPORTANT NOTICE

Possible Adverse Effects on LCD Panel: If a fixed (non-moving) pattern remains on the LCD Panel for

long periods of time, the image can become permanently engrained in the LCD Panel and cause subtle but permanent ghost images. This type of damage is NOT COVERED BY YOUR WARRANTY. Never leave your LCD Panel on for long periods of time while it is displaying the following formats or images:

•

Fixed Images, such as stock tickers, video game patterns, TV station logos, and websites.

•

Special Formats that do not use the entire screen. For example, viewing letterbox style (16:9) media on a normal (4:3) display (black bars at top and bottom of screen); or viewing normal style (4:3) media on a widescreen (16:9) display (black bars on left and right sides of screen).

The following symptoms are not signs of malfunction but technical limitation. Therefore we disclaim any responsibility for these symptoms.

•

LCD Panels are manufactured using an extremely high level of precision technology, however sometimes parts of the screen may be missing picture elements or have luminous spots.

This is not a sign of a malfunction.

•

Do not install the LCD Panel near electronic equipment that produces electromagnetic waves. Some equipment placed too near this unit may cause interference.

•

Effect on infrared devices – There may be interference while using infrared devices such as infrared cordless headphones.

How to attach the stand

NOTE:

• Unplug the AC cord from the AC INPUT terminal.

• Before beginning this process, assure that the TV is laid on a clean, safe, and cushioned surface to avoid

any damage to the unit.

• Do not touch or press the TV-screen, glass might break under pressure.

Place the TV on its front onto a table. Align the stand’s bottom-plate (supplied) as seen here. It will  t in only one direction. Hold the unit and attach the stand frame (a) slowly and secure the stand frame (a) with the 2 screws (supplied). (M4x35mm), as shown in Figure 1.

(b)

LCD PANEL SIDE

(a)

(b)

Figure 1

Figure 2

Finally secure the bottom-plate (b) with 3 screws (supplied) (M4x16mm) as indicated by the arrows in Figure 2.

Be sure to follow the instructions. Insufficient tightening or incorrect installation of the stand will not support

•

your unit correctly, and could result in damage or injury from tip-over.

How to remove the stand

When you transport this product, remove the stand and pack  at against the back of the unit in the carton. To remove the stand, perform these steps in reverse order.

For wall mounting, the base must be removed. To disconnect the base/stand remove the 2 screws from the back (see page 5).

Features

LCD color TV With DVD/CD player

Unique space saving design combines a 32” LCD color TV and a DVD/CD player. A DVD disc has much more capacity, but is the same size as an audio CD disc. The Picture/Audio quality of a DVD exceeds other software. The picture quality is higher than Super VHS video cassettes. The audio quality is higher than an audio CD. The DVD also has special options; audio language selection, subtitle language selection, or multi-angle, etc. The DVD PLAYER can playback both audio CDs and MP3/WMA/JPEG CDs.

Compatible with a wide range of DVD audio outputs

Digital Audio Jack (Coaxial)

•

When a component with a built-in Dolby Digital decoder is connected, Dolby Digital sound can produce the effect of being in a movie theater or a concert hall.

•

Surround standard is different from Dolby Digital. This format is already in use in many theaters. By connecting this unit to a DTS decoder or an AV amplifier with a built-in DTS decoder, the DTS audio of DVD discs recorded in this format can be enjoyed. However, audio will not be output from the analog audio output jacks.

•

By connecting this unit to an AV amplifier with a built-in MPEG decoder, the MPEG audio of DVD discs recorded in this format can be enjoyed. The Linear PCM sound of a 48 kHz/24 bit through 96 kHz/24 bit exceeds audio CD sound.

•

Convenience Features

Direct selection of your desired scenes using Title/Chapter/Time/Track  You can playback from the

desired scene.

Recalling Up to 12 Scenes  Frame Advance  The PAUSE moves one frame at a time. Slow Motion  The SLOW moves you back and forth through the program by 4 steps of 1/16-1/2 times. Repeat Playback  You can repeat chapter, track, title, sides or material between two selected points. Program Playback (Audio CD/MP3/WMA CD)  You can playback tracks in programmed sequences. Zoom  You can zoom in the selected subject on the screen during playback.

You can program up to 12 scenes in memory and recall the marked scenes.

ENGLISH

Note: Make sure that discs are suitable for the following functions. MultiLanguage  Maximum 32 language subtitles and maximum 8 language soundtracks can be played back

for movies or programs. MultiAngle  Pictures of Sports or a Live Concert are recorded with many cameras. When you play such a disc, you can change the angles during playback. Parental Control  You can limit the playback of scenes or sounds of DVD discs that have a rating level encoded on the disc.

Video Aspect Ratio  You can change the aspect ratio of the screen for your monitor.

TV Features

Integrated Digital Tuner  You can view digital broadcasts without using a Digital TV Set-Top Box. Closed Caption Decoder With Full Text Mode  Displays text captions or full screen text on the screen for

hearing impaired viewers. Picture Adjustments Using The Remote Control  The On-Screen display allows precise remote control adjustment of BRIGHTNESS, CONTRAST, COLOR, TINT and SHARPNESS. Programmable TV Sleep Timer  Operable from the remote control, the TV can be programmed for up to 120 minutes to turn off automatically. OnScreen 3 Language Display  You can select one of 3 languages, English, French or Spanish for onscreen programming. VChip  The V-Chip function can read the rating of a TV program or movie content if the program is encoded with this information. V-chip will allow you to set a restriction level.

* This item incorporates copy protection technology that is protected by U.S. patents and other intellectual

property rights of Rovi Corporation. Reverse engineering and disassembly is prohibited.

* * Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of

* HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks

is a trademark of DVD Format/Logo Licensing Corporation.

Dolby Laboratories.

of HDMI Licensing LLC in the United States and other countries

Contents

Before using your unit

IMPORTANT SAFETY INSTRUCTIONS ...........3

SAFETY PRECAUTIONS .................................5

IMPORTANT NOTICE .......................................5

How to attach the stand ....................................6

How to remove the stand ..................................6

Features ............................................................7

Contents ...........................................................8

Disc...................................................................9

Parts and functions .........................................11

Remote control ...............................................12

Power source ..................................................13

Antenna connections ......................................14

Cable TV connections .....................................14

TV operation

Starting setup .................................................15

TV operation ...................................................15

Quick guide for menu operation ......................16

Convenience functions ...................................17

Memorizing channels ......................................18

Checking the digital signal strength ................19

Labeling channels ...........................................19

Labeling video inputs ......................................19

Setting the V-Chip ...........................................20

Closed Caption ...............................................21

CC advanced ..................................................21

Setting the picture size ....................................22

DVD operation

Preparation .....................................................23

Status display of disc ......................................23

Playback procedure ........................................23

Special playback .............................................24

Zooming ..........................................................24

Locating desired scene ...................................24

A-B Repeat playback ......................................24

Marking desired scenes ..................................25

Changing angles .............................................25

Changing soundtrack language ......................25

Subtitles .......................................................... 25

Using HOME MENU .......................................26

Play mode .......................................................26

Audio Settings menu .......................................27

Video Adjust menu ..........................................28

Quick guide for DVD menu operation ..............28

Function Setup ................................................29

Parental Control ..............................................30

Additional information

Language Code List ........................................31

Country/Area Code List ..................................31

Connections to other equipment .....................32

Reception disturbances ..................................35

Problems and troubleshooting ........................36

Specifications ................................................38

limited WARRANTY .......................................39

Playable discs

Disc type and logo mark content

DVD Video

CDDA

The following discs are also available.

DVD-R/RW discs of DVD video format.

• CD-R/RW discs of MP3/WMA/JPEG.

•

Audio

Video

(moving

pictures)

Audio

CAUTION:

•

Only the left types of discs can be played on this unit. DVD-ROM, CD-ROM, SVCD, CVD, VCD, etc. cannot be played.

•

This unit cannot play an 8 cm disc. It cannot also be played even using a disc adapter.

•

If you insert an irregular shaped disc, it may get stuck and cause a malfunction.

•

The use of a ring protector or other disc accessories will cause errors.

•

This unit is to be used exclusively with the NTSC color system. PAL and SECAM system discs cannot be used with this unit.

•

Some CD-R/RWs and DVD-R/RW cannot be played back depending on the recording conditions.

Region Number

Region number (Regional restriction code) is built-in to the unit and DVD video discs. Region number “1” or “ALL” of DVD video discs can be used on this unit.

Title

When two or more movies are recorded on a disc, the disc is divided into two or more sections. Each section is called a “TITLE”.

TITLE 1 TITLE 2

CHAPTER 1

CHAPTER 2 CHAPTER 2 CHAPTER 3CHAPTER 1

DVD DISC

Chapter

The titles can be subdivided into many sections. Each section is called a “CHAPTER”.

Disc

ENGLISH

ALL

Track

An Audio CD can contain several items. These are assigned to the tracks.

TRACK 1 TRACK 2 TRACK 3 TRACK 4 TRACK 5

Removing Disc from Case

Be sure to hold the edge of disc. Do not touch the surface of the disc. Pick up the disc gently from the case.

•

Do not scratch the disc.

•

Do not get dirt on the surface of the disc.

•

Do not stick a label or adhesive tape on the disc.

•

Do not drop or bend the disc.

Storing Disc

•

Store the disc in the case to avoid risk of scratches, dirt or damage.

•

Do not leave disc exposed to direct sunlight or in hot or humid places.

Cleaning Disc

Wipe the disc with a clean, dry cloth from center to edge.

•

Do not wipe the disc in a circular motion.

•

Do not use liquid or aerosol cleaners.

Audio - CD

Disc (continued)

 Title/Chapter/Track PCcreated disc

• You may not be able to play discs recorded using a personal computer or recorder for disc compatibilities, scratches or marks on the disc, dirty lenses of the unit or condensation and so on.

• Discs recorded using a personal computer may not be playable in this unit due to the setting of the application software used to create the disc. In these particular instances, check with the software publisher for more detailed information.

 Playable files

• ISO 9660 Level 1 or 2 compliant.

Romeo and Joliet file systems are both compatible

with this player.

• DRM (Digital Rights Management) protected files will not play in this player.

For detailed information, please see the instruction

manuals or help files that came with your PC and/or software.

• File structure (may differ): Up to 299 folders on a disc; up to 648 files within each folder

• Folder and file names can be displayed as long as they are typed in alphabets and numbers. If folder and file names are other than alphabets and numbers, they may be replaced and displayed like as “ ”. Garbled characters may also be displayed in this case.

 Playing image files

JPEG files recorded in DVD-R/-RW and CD-R/-RW can be played.

 JPEG file compatibility

• Image files should be saved in JPEG format.

• Files recorded in Fuji Color CD, Kodak Picture CD or CD-R/-RW can be played.

• Compatible formats: Baseline JPEG and EXIF 2.2* still image files up to a resolution of 3072 x 2048.

*File format used by digital still cameras.

• Files with extensions .jpg or .JPG can be played.

• Progressive JPEG formatted files do not work.

• It may take some more time to start to play larger files than usual.

• JPEG files with different aspect ratio may be displayed with black bands (either vertical or horizontal).

 Windows Media Audio (WMA) compatibility

• WMA is an acronym for Windows Media Audio and refers to an audio compression technology developed by Microsoft Corporation.

• You can encode your files by using Windows Media Player Ver.7, 7.1, Windows Media Player for Windows XP or Windows Media Player 9 Series.

• When encoding your files, use only applications approved by Microsoft Corporation. If you use a non-approved application, it may not work properly.

• This unit is compatible with audio files recorded with the following sampling frequency: 32 kHz, 44.1 kHz and 48 kHz.

• It is not compatible with loss-less encoding.

• Files with extensions .wma or .WMA can be played.

 Playing MP3 (MPEG1 Audio Layer3) files

• This unit is compatible with audio files recorded with the following sampling frequency: 32 kHz, 44.1 kHz and 48 kHz.

• Files with extensions .mp3 or .MP3 can be played.

• For the best quality of sound, 128 kbps or higher bit rate is recommended.

 Copy Control CD (CCCD)

This product is designed to conform to CD-DA (Compact Disc Digital Audio). Any other discs than CD-DA are not guaranteed with their operation and performance in this product.

Note on copyright

• Unauthorized recording of copyrighted television programs, films, video cassettes and other materials may infringe the rights of copyright owners and be contrary to copyright laws.

 Playing Audio files

WMA and MP3 files recoded in DVD-R/-RW, CD-R/RW can be played.



POWER button

Parts and functions

Left side

CH (CHANNEL)

PLAY (

STOP (

VOL (VOLUME) +/– buttons

To display the menu screen. Press MENU button to display the menu screen.

CH (CHANNEL) /+ buttons and INPUT/ENTER button can be used

to select the desired setting during the menu screen operations.

) button/MENU 

CH (CHANNEL) /

) button/MENU 

/MENU /

INPUT/ENTER button

EJECT (

) button

/ buttons,

VOL (VOLUME)

Front

Indicator Red : Standby Green : On

ENGLISH

Remote sensor

Rear

AC INPUT jack

DIGITAL AUDIO COAXIAL OUT jack

PC/DVI AUDIO IN jack

PC MONITOR IN jack

VAR. AUDIO IN jack

VIDEO2 IN jacks

COMPONENT IN jacks

FOR SERVICE PERSONNEL USE ONLY

Do NOT insert ANY USB device into this port. Use of this port by other than Service Personnel may void this products warranty.

HDMI1/DVI IN jack HDMI2 IN jack

RF ANT. IN jack VIDEO1 IN jacks (VIDEO/AUDIO L MONO/R

Remote control

POWER Power On/Off DISPLAY Call TV information

Call DVD information

TV/DVD Switch between TV and DVD

(EJECT) Eject a disc

0-9/– Direct channel selection of TV

Input setting Enter a password

Input “–” for digital channels SLEEP Sleep timer SETUP/

TV MENU PICTURE SIZE Display Picture size menu  Cursor buttons ENTER Enter information in the menu MUTE Switch off the sound EXIT/

CANCEL VOL +/– Adjust volume of TV INPUT SELECT Display source selection menu RECALL/

ZOOM

CH DVD MENU Display DVD menu TOP MENU Select title CCD/

JUMP RETURN Remove DVD setup menu AUDIO Change sound track language SUBTITLE Set subtitle ANGLE Change playback angle PLAY MODE Select playback mode SLOW Forward/Reverse- slow motion MARKER Index REPEAT A-B Repeat playback between A and B SEARCH Fast Forward/Review playback PLAY Playback SKIP Skip chapter to forward or reverse direction PAUSE Pause CD sound

STOP Stop

DVD mode - Call up initial setup mode

TV mode - Display menu of TV

Exit from On-Screen menu

Reset information in the menu

Switch between present/last channel

Zoom

Select channel of TV

Closed Caption

Locating desired scene

Still picture of DVD

Remote control (continued)

Inserting Batteries

Open the battery compartment

cover in the direction of the arrow.

Operation

Aim the remote control at the remote sensor and press control

• buttons to operate. Operate the remote control within a 30° angle on either side of

• the remote sensor, up to a distance of approximately 15 feet.

NOTE:

•

Do not leave the remote control unit exposed to direct sunlight or in hot or humid places. The remote control unit uses infrared beams to transmit signals, so sunlight or fluorescent light on the remote

• sensor may shorten operating distance. Incorrect use of batteries may cause them to leak or burst. Read the battery warnings and use the batteries

• properly. Do not mix old and new batteries.

• Do not mix alkaline, standard (carbon-zinc), or rechargeable, (ni-cad, ni-mh, etc) batteries.

• Remove batteries if the remote control will not be operated for an extended period of time.

•

Install two “AA” batteries

(supplied), paying attention to the polarity diagram in the battery compartment.

Replace the compartment cover.

Approximately 15 feet

ENGLISH

Power source

TO USE AC POWER

Connect the AC cord plug into this unit’s AC INPUT jack.

1. Connect the AC cord into an AC outlet.

AC Outlet

Wider Hole and Blade

AC 120V, 60Hz

NOTE:

•

Please make sure to insert the cord securely at both the LCD TV/DVD and the wall outlet.

•

The AC Cord has a polarized type AC line plug. If the supplied AC cord does not match your AC outlet, contact a qualified electrician.

WARNING:

•

DO NOT CONNECT THIS UNIT TO THE POWER USING ANY DEVICE OTHER THAN THE SUPPLIED AC CORD. THIS COULD CAUSE FIRE, ELECTRICAL SHOCK, OR DAMAGE.

•

DO NOT USE WITH A VOLTAGE OTHER THAN THE POWER VOLTAGE SPECIFIED. THIS COULD CAUSE FIRE, ELECTRICAL SHOCK, OR DAMAGE.

CAUTION:

•

WHEN THIS UNIT IS NOT USED FOR A LONG TIME, (E.G., AWAY ON A TRIP) IN THE INTEREST OF SAFETY, BE SURE TO UNPLUG IT FROM THE AC OUTLET.

•

DO NOT PLUG/UNPLUG THE AC CORD WHEN YOUR HANDS ARE WET. THIS MAY CAUSE ELECTRICAL SHOCK.

•

IF YOU NEED TO REPLACE THE SUPPLIED AC ADAPTER OR AC CORD, THE SPECIFIED ONE IS RECOMMENDED. CONTACT CUSTOMER SERVICE AT 1-800-289-0980.

AC cord (supplied)

Antenna connections

If you are using an indoor or outdoor antenna, follow the instructions below that correspond to your antenna system. If you are using a Cable TV service, see “Cable TV connections”.

Combination VHF/UHF Antenna (Single 75 ohm cable)

Antenna

Jack

75 ohm Coaxial Cable

Connect the 75 ohm cable from the combination VHF/UHF antenna to the Antenna Jack.

Cable TV connections

This TV has an extended tuning range and can tune most cable channels without using a Cable TV Converter box. Some cable companies offer “premium pay channels” where the signal is scrambled. Descrambling these signals for normal viewing requires the use of a descrambler device which is generally provided by the Cable TV company.

For subscribers to basic Cable TV service

75 ohm

Antenna

Jack

Coaxial Cable

For subscribers to scrambled Cable TV service

If you subscribe to a Cable TV service which requires the use of a Converter/Descrambler box, connect the incoming 75 ohm Coaxial Cable to the Converter/Descrambler box. Using another 75 ohm Coaxial Cable, connect the output jack of the Converter/Descrambler box to the Antenna Jack on the TV. Follow the connections shown below. Set the TV to the output channel of the Converter/Descrambler box (usually channel 3 or 4) and use the Converter/Descrambler box to select channels.

For basic Cable TV service not requiring a Converter/ Descrambler box, connect the 75 ohm Coaxial Cable directly to the Antenna Jack on the back of the TV.

Incoming 75 ohm Cable TV Cable

Converter/

Descrambler

75 ohm Cable to TV

Antenna

Jack

For subscribers to unscrambled Cable TV service with scrambled premium channels

If you subscribe to a Cable TV service in which basic channels are unscrambled and premium channels require the use of a Converter/Descrambler box, you may wish to use a signal Splitter and an A/B Switch box (available from the Cable TV company or an electronics supply store). Follow the connections shown below. With the switch in the “B” position, you can directly tune any nonscrambled channels on your TV. With the switch in the “A” position, tune your TV to the output of the Converter/Descrambler box (usually channel 3 or 4) and use the Converter/Descrambler box to tune scrambled channels.

Incoming 75 ohm Cable TV Cable

Splitter

Converter/

Descrambler

A/B Switch

75 ohm Cable to TV

Antenna

Jack

Starting setup

)

The Auto Setup menu appears the first time you turn on the TV, and assists you to specify the Air/Cable setting, and program your channels automatically.

IMPORTANT: Make sure that the antenna or cable TV system connection is made!

To turn on the TV, press (POWER) (POWER

indicator on the front of the unit changes green. It may take approx. 10 seconds for a picture to appear on screen.). The Auto Setup function begins.

Auto Setup

TV Location Store Signal Type Cable Automatic Search Start

Press  or  to select “TV Location”, then press

 or  to select “Home” or “Store”. This product qualifies for ENERGY STAR In Home mode default setting.

NOTE:

This unit has been preset to STORE brightness.

• This setting does not qualify under ENERGY STAR. To reduce brightness and energy consumption, change setting to ‘HOME’. This setting does qualify under ENERGY STAR. The device may not conform to the ENERGY

• STAR standard after Reset is performed or the Backlight is adjusted.

Press  or  to select “Signal Type”, then press

 or  to select “Cable” or “Air”. Press  or  to select “Automatic Search”, then

press  or ENTER. “Auto Setup” will begin. After the Auto Setup

is completed, the TV channel appears on the screen.

Depending on the reception condition, it may

• take up to 30 minutes to complete memorizing digital cable channels. Please allow the process to complete without interruption.

NOTE:

•

If you press EXIT in the process of “Auto Setup”, the Auto Setup stops and changes to the normal screen.

•

When you make a menu selection, your changes occur immediately. You do not have to press EXIT to see your changes.

TV operation

To turn on the TV, press (POWER).

(POWER indicator on the front of the unit changes green. It may take approx. 10 seconds for a picture to appear on screen.)

Adjust the volume level by pressing VOL + or  .

The volume level will be indicated on the screen by green bars. As the volume level increases, so do the number of bars. If the volume decreases, the number of green bars also decreases.

Set the Signal Type option to the appropriate

position (see “Air/Cable selection” on page 18). Press the Direct Channel Selection (09, )

buttons to select the channel. (If you press only channel number, channel selection will be dela

ed for a few seconds.

TO SELECT ANALOG CHANNELS

1-9: Press 1-9 as needed. Example, to

select channel 2, press 2, then press ENTER.

10-99: Press the 2 digits in order. Example,

to select channel 12, press 1, 2, then press ENTER.

100-135: Press the 3 digits in order. Example, to

select channel 120, press 1, 2, 0, then press ENTER.

TO SELECT DIGITAL CHANNELS

Press the first 1-3 digits, then press the  button, followed by the remaining number. Example, to select channel 15-1, press 1, 5, , 1, then press ENTER.

•

If a channel is selected with only audio content, “Audio only” will be displayed on the screen.

•

If a channel is selected with a weak digital signal, “Digital channel signal strength is low” will be displayed on the screen.

The same program may be available on either

an analog channel or a digital channel. You may choose to watch either format.

•

If a channel is selected to which you have not subscribed, be displayed on the screen.

VHF/UHF/CABLE CHANNELS

Air Cable

VHF 2-13

UHF

14-69

NOTE:

If a channel with no broadcast is selected, the

• sound will automatically be muted. It may take a few seconds for a digital channel

• picture to appear on screen after being selected.

“Digital channel is encrypted” will

VHF 2-13

STD/HRC/IRC 14-36 (A) (W) 37-59 (AA) (WW) 60-85 (AAA) (ZZZ) 86-94 (86) (94) 95-99 (A-5) (A-1) 100-135 (100) (135) 01 (4A)

To select the video input source

To view a signal from another device connected to your LCD TV, such as a VCR player, press INPUT

SELECT, then press  or  or corresponding Number buttons (07), then press ENTER. You

can select TV, Video1, Video2, Component, HDMI1, HDMI2, PC or DVD depending on which input jacks you used to connect your devices.

Input Select

0.TV

1.Video1

2.Video2

3.Component

4.HDMI1

5.HDMI2

6.PC

7.DVD

[0 7]:Select

CH /

Press and release CH / . The channel automatically stops at the next channel set into memory. For proper operation, before selecting channels, they should be set into the memory. See “Memorizing channels” on page 18.

ENGLISH

DISPLAY

Press DISPLAY to display the current information on the screen.

When the TV receives a digital signal, the digital information will appear.

62 1 HDTV Moving Picture1

CH 1 TV MA

Digital Air

No Program Informat on is avalable

Full

1080i

Channel number• Station name• Channel label (if preset)• V-Chip rating• Signal type• Sleep timer• Audio language• Program guide• Picture size• Resolution•

When the TV receives an analog signal, the analog information will appear.

Analog Cable

Sleep Timer

Off

Eng ish

Sleep Timer

Off

Broadcast program name

•

Quick guide for menu operation

Call menu and for example: Select Language.

Press INPUT SELECT to select TV mode.

Press TV MENU. The TV menu screen will appear.

Main Menu

Picture Audio

Channel Lock Setup

Press  or  to select “Setup”, then press  or

ENTER.

Press  or  to select “Language”, then press 

or  to select the desired language. …on the following pages the menu can be called

in the same way as here.

Press EXIT to return to the normal screen.

ENTER :Set:Select

Mono

Full

480i

Channel number• Channel label (if preset)• V-Chip rating• Signal type• Sleep timer• Picture size• Audio information

• Resolution• (Stereo, SAP or Mono)

Press DISPLAY again to clear the call display.

NOTE:

•

After a few seconds, DISPLAY screen will return to normal TV operation automatically.

RECALL

This button allows you to go back to the last channel selected by pressing RECALL. Press RECALL again to return to the last channel you were watching.

MUTE

Press MUTE to switch off the sound. The TV’s sound will be silenced and “Mute” will appear on the screen. The sound can be switched back on by pressing this button again or the VOL + or .

SLEEP

To set the TV to turn off after a preset amount of time, press SLEEP on the remote control. The clock will count up 10 minutes for each press of the SLEEP button (Off, 0h 10m, 0h 20m, ..., 2h 0m). After the sleep time is programmed, the display will appear briefly every ten minutes to remind you that the sleep timer is operating. To confirm the sleep timer setting, press SLEEP and the remaining time will be displayed for a few seconds. To cancel the sleep timer, press SLEEP repeatedly until the display turns to Off.

NOTE:

If no buttons are pressed for more than about 60

• seconds, the menu screen will return to normal operation automatically.

Convenience functions

You can change the default settings by pressing the TV MENU button on your remote, then select the one of the icons at the left of the menu - follow the On-Screen prompts to set your preferences.

Icon Selected Items Setup hint

Picture Picture

Audio

Channel Add / Delete See page 18.

Lock See page 20. Setup Closed Caption See page 21.

Preference

Picture Setting Brightness /Contrast /

Dynamic

Gamma Picture Size See page 22. Film Mode On/Off A smoother motion may be obtained by setting the Film Mode to “On” when

PC Setting Hor Position /

DNR On/Off DNR (Digital Noise Reduction) can reduce the roughness of the picture. Equalizer Mode

Audio Setting Bass/Treble/Balance You can adjust the sound quality to your preference.

MTS Stereo / SAP / Mono The multi-channel TV sound (MTS) feature provides high-fidelity stereo

Surround On/Off The dynamic presence and sound created offers a thoroughly enjoyable

Auto Volume On/Off Volume level can be adjusted automatically by the motion of picture. Audio Language

HDMI1 Audio HDMI When you connect the HDMI device to the TV, select this setting.

Speakers On/Off Use this feature to turn the TV speakers off when you connect an audio

DTV Signal See page 19. Auto Ch Memory See page 18. Ch Label See page 19.

Language

Video Label See page 19. On Timer Off / 0h30m / 1h00m

Auto Shut Off*

Auto Setup PC Standby On/Off

Reset*

NOTE:

*¹ If there is no input signal in the PC mode, after 1 minute Auto Shut Off will be activated. In PC mode the “PC Standby”

setting takes precedence.

The device may not conform to the Energy Star standard after Reset is performed or the Backlight is adjusted.

Sports Bright and dynamic picture (factory-set) Standard Standard picture quality (factory-set) Movie Movie-like picture setting (factory-set) Memory Your personal preferences (set by you; see “Picture Setting”)

Sharpness / Color / Tint Color Temperature Bluish (Cool) / Neutral (Standard) / Reddish (Warm) Backlight

On/Off The Dynamic Gamma feature produces greater picture detail in dark or

Ver Position Clock Phase Auto Adjust To adjust the all PC settings automatically.

Standard/Music/Movie/ News/Memory/Flat

Equalizer Setting 100Hz/250Hz/500Hz/1kHz/2kHz/4kHz/10kHz

DVI When you connect the DVI device to the TV with analog audio cords, select

/ 1h30m / 2h00m / 3h00m12h00m

On/Off If the Auto Shut Off feature is On, a station being viewed stops broadcasting

*

You can adjust the picture quality to your preference.

The Backlight feature adjusts the screen brightness for improved picture clarity.

bright scene areas.

you view a DVD from the DVD player connected with the component or HDMI input (480i only).

To adjust the horizontal / vertical position of the image on the PC monitor screen. Each video standard will require a different value for this setting.

To minimize any vertical bars or stripes visible on the screen background. This must be adjusted after the frequency has been set optimize picture quality.

You can adjust the Equalizer Mode to your preference.

sound. MTS also can transmit a second audio program (SAP) containing a second language or other audio information. When the TV receives a stereo or SAP broadcast, the word “Stereo” or “SAP” displays on-screen every time you press DISPLAY.

listening experience.

When two or more audio languages are included in a digital signal, you can select one of the audio languages. (This function is available only for digital broadcast.)

this setting.

system.

You can choose from three different languages (English, Français (French) and Español (Spanish)) for the on-screen displays. Select the language you prefer first, then proceed with the other menu options.

You can set the On Timer to automatically turn on the TV. To cancel the On Timer select “Off”.

and the TV is not operated, the TV will automatically shut itself off after 15 minutes.

See page 15. If the PC Standby feature is On, In PC mode, if no signal is received or

no operation performed for 1 minute, the TV will turn to standby mode automatically (LED light will flash red). When an input signal is received or an operation performed on the PC, the TV will return to the On mode.

The Reset function returns your Picture/Audio settings to the factory settings. “Picture Size”, “MTS” , “Audio Language”, “HDMI1 Audio” and “Speakers” cannot be reset by this function.

ENGLISH

Memorizing channels

This TV is equipped with a channel memory feature which allows channels to skip up or down to the next channel set into memory, skipping over unwanted channels. Before selecting channels, they must be programmed into the TV’s memory. To use this TV with an antenna, set the Signal Type option to the Air mode. When shipped from the factory, this menu option is in the Cable mode.

Air/Cable selection

Select “Channel”, then press  or ENTER.

Press  or  to select “Auto Ch Memory”, then

press  or ENTER.

Press  or  to select “Signal Type”.

Press  or  to select “Air” or “Cable”.

Air - VHF/UHF channels Cable - CABLE TV channels

Auto Ch Memory

Signal Type Cable

Automatic Search Start

The TV will begin memorizing all the channels

available in your area.

It may take from 15 minutes to 30 minutes to

• complete memorizing digital cable channels.

Depending on the reception condition, a bar

display may not advance for several minutes, please be patient.

NOTE:

•

Memorizing channels is best accomplished during evening “PRIMETIME” hours, as more stations are broadcasting digital signals. Memorizing channels can only be accomplished while a station is broadcasting a digital signal to set that channel into memory.

•

If you are unsure of the digital channels available in your area, you may visit www.antennaweb.org to receive a list based on your address or zip code. Should you require further assistance you may call our toll-free customer service line at 1-800-289-0980. New digital channels may be added to your area

• periodically, it is recommended to perform the “Automatic Search” procedure regularly.

Adding Channel

If you find a new digital channel unregistered, you can add the new channel into the channel memory.

Tune in the new channel.

:Select

:Adjust

CABLE CHART

The chart below is typical of many cable system channel allocations.

NOTE:

It may take a few seconds for a digital channel

• picture to appear on screen after being selected.

Automatic Search

Select “Channel”, then press  or ENTER.

Press  or  to select

press



or ENTER.

Press  or  to select “Automatic Search”, then

press  or ENTER.

Auto Ch Memory

Signal Type Cable

Automatic Search Stop

Analog Channel Found 0

Dig tal Channel Found 0

Programming Now

ENTER :Cancel:Select

“Auto Ch Memory”, then

Select “Channel”, then press  or ENTER.

Press  or  to select “Add/Delete”, then press 

or ENTER.

Add/Delete

Adding Channel >> Add/Delete >> Clear All >>

ENTER :Set:Select

Press  or  to select “Adding Channel”, then

press  or ENTER. The new channel will be added into the channel memory.

Add/Delete channel

You can select the channel that you want to skip.

Select “Channel”, then press  or ENTER.

Press  or  to select “Add/Delete”, then press 

or ENTER.

Press  or  to select “Add/Delete”, then press 

or ENTER. Press  or  to select the channel that you want

to skip.

Add/Delete

Signal 2 Analog 3

31 32

4 Analog Delete

:Select

Press  or  to select “Add” or “Delete”,

whichever function you want to perform. Repeat steps 4 - 5 for other channels you want to

add or delete.

Add

Analog Add Digital Delete Digital Add

:Adjust

Clear All

All channels are deleted from the channel memory.

Select “Channel”, then press  or ENTER.

Press  or  to select “Add/Delete”, then press 

or ENTER.

Press  or  to select “Clear All”, then press  or

ENTER.

Add/Delete

Adding Channel >> Add/Delete >> Clear All >>

ENTER :Set:Select

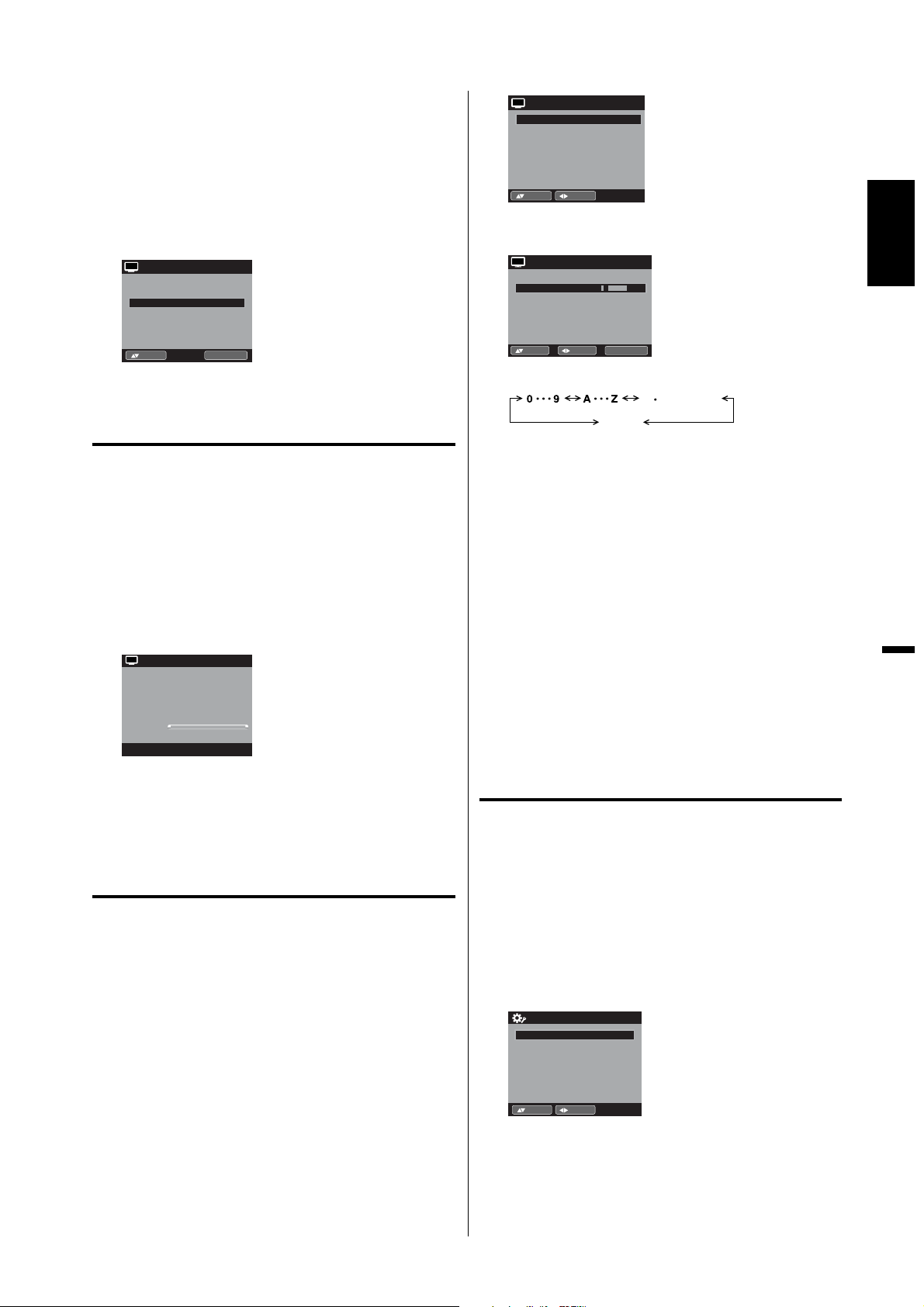

Checking the digital signal strength

This TV will allow you to view the digital signal meter for digital channels.

Select “Channel”, then press  or ENTER.

Press  or  to select “DTV Signal”.

Press  or ENTER to check the digital signal

strength. The digital signal strength screen will appear. If necessary, adjust the direction of the antenna to obtain the maximum signal strength.

DTV Signal

0 50 100

Signal Level

Ch Label

Channel Number Ch Label Label Clear

:Select

Press  or  repeatedly until the character you

:Adjust

15 1 CH 1

want appears in the first space.

Ch Label

Channel Number 15 1 Ch Label Label Clear >>

:Select

:Adjust

CH 1

ENTER :Set

The characters rotation as follows:

SPACE

, () @ / + =



If the character which you desire appears, press ENTER. Repeat this step to enter the rest of the characters. If you would like a blank space in the label name, you must choose the empty space from the list of characters.

Repeat steps 3-4 for other channel. You can

assign a label to each channel. When you finish inputting the label name, press

EXIT to return to the normal screen.

To clear a Ch Label

After step 3 above, press  or  to select “Label Clear”, then press  or ENTER.

NOTE:

The channel labels will be reset after “Automatic

• Search” on page 18.

ENGLISH

NOTE:

Signal meter feature is not available for analog

• channels. After 240 seconds, DTV Signal screen will return to

• normal TV operation automatically.

Labeling channels

Channel label appear with the channel number display each time you turn on the TV, select a channel, or press DISPLAY. You can choose any four characters to identify a channel.

To create channel labels

Select “Channel”, then press  or ENTER.

Press  or  to select “Ch Label”, then press 

or ENTER. The Ch Label menu will appear.

Press  or  to select a channel you want to

label, then press .

Labeling video inputs

The Video Label feature allows you to label each input source for your TV.

Select “Setup”, then press  or ENTER.

Press  or  to select “Video Label”, then press

 or ENTER. Press  or  to select an input which you want to

label. Press  or  to select the desired label for that

input source.

Video Label

Video1 Video2 Component HDMI1 HDMI2 PC

:Adjust

:Select

 / VCR / DVD / STB / Cable / Satellite / Receiver / Game / Camcorder / PC / DVI PC / Blu-ray

Setting the VChip

An age limitation can be set to restrict children from viewing or hearing violent scenes or pictures that you may choose to exclude. The restriction applies to “TV Rating” and “Movie Rating” if this data is transmitted. You may set this restriction separately. To use the VChip function, you must register a password.

To register a password

Select “Lock”, then press  or ENTER.

Select and enter your password (4 digits) using

Number buttons (09), then press ENTER.

Lock

New Password

[0 9]

:Enter Code

“ ” appears instead of the number.

Enter the same password again to confirm, then

press ENTER. The password is now registered.

NOTE:

If you forget the password, contact Customer

• Service at 1-800-289-0980 for assistance. Your original remote control will be required. To avoid forgetting the password, write it down and

• keep in a safe place.

To set the VChip

Select “Lock” menu, then press  or ENTER.

* * *

ENTER :Set

Genre: D : Dialogue L : Language S : Sex V : Violence FV : Fantasy Violence

Movie Rating

G PG PG 13 R NC 17 X

ENTER :Set:Select

G : All ages PG : Parental guidance PG13 : Parental guidance

R : Under 17 years old parental guidance

suggested

NC17 : 17 years old and above X : Adult only

Press  or  to select the desired rating, then

press ENTER.

Press EXIT to return to the normal screen.

V-Chip function is activated now.

To use the TV after the TV is protected.

When a program is received that is blocked by the V-Chip, press MUTE, then enter your password. The protection will be temporarily overridden. If the TV is turned off or the channel is changed, the V-Chip restriction will be reactivated.

NOTE:

•

The V-Chip function is activated only on programs and input sources that include a rating signal.

less than 13 years old

To change the password

Use Number buttons (09) to enter your

password, then press ENTER. The Lock menu will appear.

Press  or  to set “V-Chip” to “On”.

Press  or  to select “V-Chip Set”, then press 

or ENTER. The V-Chip Set menu appears.

Press  or  to select which rating will be used,

then press  or ENTER. Each rating below will appear.

TV Rating

TVY TVY7 TV G TV PG TV 14 TV MA

:Select

You can set the rating using age level and genre.

Age: TVY : All children TVY7 : 7 years old and above TVG : General audience TVPG : Parental guidance TV14 : 14 years old and above TVMA : 17 years old and above

When you select TV-Y7, TV-PG, TV-14 or TV-MA, press DISPLAY to explain the rating.

ENTER :Set

Select “Lock”, then press  or ENTER.

Use Number buttons (09) to enter your password,

then press ENTER. The Lock menu will appear.

Press  or  to select “Change Password”, then

press  or ENTER. The Change Password screen will appear.

Enter a new password using Number buttons

(09), then press ENTER.

Enter the same password again to confirm, then

press ENTER. The password is now registered.

Downloading the additional VChip rating system

As a supplement to the standard V-Chip rating system, your television will be able to download an additional rating system, if such a system becomes available in the future.

To download the additional VChip rating system (when available)

Select “Lock”, then press  or ENTER.

Use Number buttons (09) to enter your password,

then press ENTER. The Lock menu will appear.

Press  or  to set “V-Chip” to “On”.

Press  or  to select “V-Chip Set (DTV)”, then

press  or ENTER. If the TV is not storing the additional rating

system, the TV will begin downloading it, which may take some time to be completed.

Set your preferred content rating limits for the

additional rating system. You also need “Update” procedure to update

rating information.

NOTE:

•

You can only download the additional V-Chip rating system when your TV is receiving a digital signal.

•

When you download the additional rating system, it may take some time for the download to occur.

•

The V-Chip rating information and system are not determined or controlled by the TV.

•

The standard V-Chip rating system is available whether your TV is receiving a digital signal or not, and will block both analog and digital programs. To set the restriction level using the standard V-Chip rating system, select V-Chip Set in step 4.

•

The downloadable V-Chip rating system is an evolving technology, and availability, content, and format may vary.

•

You cannot select this feature if the TV is not receiving a digital signal for the current station.

To clear the all VChip settings

Select “Lock”, then press  or ENTER.

Use Number buttons (09) to enter your password,

then press ENTER. The Lock menu will appear. Press  or  to select “V-Chip Clear”, then press

 or ENTER. The V-Chip Clear screen will appear.

Use Number buttons (09) to enter your

password, then press ENTER. All of your settings return to the factory settings.

Closed Caption

WHAT IS CLOSED CAPTIONING?

This television has the capability to decode and display Closed Captioned television programs. Closed Captioning will display text on the screen for hearing impaired viewers or it will translate and display text in another language.

Press  or  to set “CC Setting” to “On”.

On: Captions will be displayed on the screen. Off: Captions will not be displayed on the screen.

Press  or  to select “Analog Caption” or “Digital

Caption”. When you select “Analog Caption”, you can

choose from C1, C2, C3, C4, T1, T2, T3 and T4. When you select “Digital Caption”, you can

choose from CS1, CS2, CS3, CS4, CS5 and CS6. Press  or  to select the desired Closed

Caption mode for both Digital and Analog Caption. Press  or  to select “CC Priority”, then press

 or  to select “Digital CC” or “Analog CC”.

NOTE:

Depending on the broadcast signal, some

• Analog Captions will function with a Digital broadcast signal. This step prevent that two kind of captions are overlapping.

NOTE:

If the program or video you selected is not closed-

• captioned, no captions will display on-screen. If text is not available in your viewing area, a black

• rectangle may appear on-screen. If this happens, set the CC Setting to “Off”. When selecting Closed Captions, the captioning will

• be delayed approx. 10 seconds.

•

If no caption signal is received, no captions will appear, but the television will remain in the Caption Mode.

•

Misspellings or unusual characters may occasionally appear during Closed Captioning. This is normal with Closed Captioning, especially with live programs. This is because during live programs, captions are also entered live. These transmissions do not allow time for editing.

•

When Captions are being displayed, on-screen displays, such as volume and mute may be seen but may interfere with Closed Captions.

•

Some cable systems and copy protection systems may interfere with the Closed Captioned signal.

•

If using an indoor antenna or if TV reception is very poor, the Closed Caption Decoder may not appear or may appear with strange characters or misspelled words. In this case, adjust the antenna for better reception or use an outdoor antenna.

•

Closed Caption menu also can be displayed by pressing CCD on the remote control.

CC advanced

ENGLISH

Captions: This Closed Caption Mode will display

text on the screen in English or another language. Generally, Closed Captions in English are transmitted on C1 and Closed Captions in other languages are transmitted on C2. Text: The Text Closed Caption Mode will usually fill 1/2 of the screen with a programming schedule or other information.

Select “Setup”, then press  or ENTER.

Press  or  to select “Closed Caption”, then

press  or ENTER. The Closed Caption menu will appear.

When you have selected Custom as the display method, you can adjust the various setting listed below as follows:

This feature is designed to customize Digital Captions only.

Select “Setup”, then press  or ENTER.

Press  or  to select “Closed Caption”, then

press  or ENTER. The Closed Caption menu will appear.

Press  or  to set “CC Setting” to “On”.

Press  or  to select “Digital CC Preset”, then

press  or  to select “Custom”.

Press  or  to select “CC Advanced”, then

press  or ENTER. The CC Advanced menu will appear.

Press  or  to select the desired item, then

press  or  to change the setting.

CC Advanced

Text Size Auto Text Type Auto Text Edge Auto Text Color Auto Text Opacity Auto Background Color Auto Background Opacity Auto

:Adjust

:Select

You can select from among the following items and parameters.

Text Size: Auto, Small, Standard, Large Text Type: Auto, Style1, Style2, Style3, Style4,

Style5, Style6, Style7

Text Edge: Auto, None, Raised, Depressed,

Uniform, Left Shadow, Right Shadow

Text Color: Auto, Black, White, Red, Green,

Blue, Yellow, Magenta, Cyan

Text Opacity: Auto, Solid, Transparent,

Translucent, Flashing

Background Color:

Background Opacity:

Auto, Black, White, Red, Green, Blue, Yellow, Magenta, Cyan

Auto, Solid, Transparent, Translucent, Flashing

NOTE:

•

You cannot set both “Text Color” and “Background Color” as a same color.

•

You cannot set both “Text Opacity” and “Background Opacity” to “Transparent”.

Cinema Wide1 (for 4:3 format programs)

To fill the screen, the right and left edges are extended, however; the center of the picture remains near its former ratio. The top and bottom edges of the picture may be hidden.

Cinema Wide2 (for letter box programs)

The entire picture is uniformly enlarged—it is stretched the same amount both wider and taller (retains its original proportion).

The top and bottom edges of the picture may be hidden.

Cinema Wide3 (for letter box programs with subtitles)

To fill the width of the screen, it is extended horizontally. However; it is only slightly extended at the top and the bottom.

The top and bottom edges of the picture may be hidden.

Setting the picture size

You can view 480i and 480p format programs in a variety of picture sizes— Natural, Cinema Wide1, Cinema Wide2, Cinema Wide3, Full and Native.

Selecting the picture size

Select “Picture”, then press  or ENTER.

Press

 or 

or ENTER to display Picture Size menu. Press or



or corresponding Number buttons (04) to

select the desired picture size, as described below.

Picture Size

0.Natural

1.Cinema Wide1

2.Cinema Wide2

3.Cinema Wide3

4.Full

[0 4] :Select

NOTE:

Selectable picture sizes may vary depending on the

• input source or broadcast signal. Picture Size menu also can be displayed by

• pressing PICTURE SIZE on the remote control.

Natural

In some cases, this image will display the size of standard 4:3 with a black side bar.

to select “Picture Size”, then press 



A B C D E F G

Full (for 16:9 source programs)

Full will display the picture at the maximum size.

Native (for PC mode only)

Detects the resolution of the signal of the image and it will be shown on the screen with same amount of pixels.

NOTE:

•

Some High Definition and/or Digital broadcasts may not allow you to change the picture size.

•

In HDMI or COMPONENT mode with a scanning rate of 720p, 1080i or 1080p (HDMI only) only the Cinema Wide2 and Full picture size feature are available.

•

In PC mode, only the Natural, Full and Native picture size features are available. In PC mode (WXGA), only the Full and Native picture size features are available.

Preparation

The following pages describe the setup/ operation in DVD mode.

Preparation

Before DVD/CD operation, please make the following preparations.

Insert the AC cord plug into a standard 120V

60Hz polarized AC outlet.

•

If the AC cord plug is plugged in for the first time, wait for about 5 seconds before pressing

POWER.

NOTE:

•

When connecting to other equipment, unplug the unit from the AC outlet.

Press POWER on the unit or on the remote

control to turn on the unit. The POWER indicator will change to green.

Each time you turn the unit ON, the TV/DVD

• starts from the TV mode. When using an amplifier, switch on the amplifier.

•

Press TV/DVD to select DVD mode.

The DVD startup screen will appear on the screen.

NOTE:

•

If the unit does not operate properly:

Static electricity, etc., may affect the player’s operation. Disconnect the AC power cord once, then connect it again.

About inserting disc:

•

If the unit is slanted or moved while inserting disc, the disc may get damage.

Status display of disc

Press DISPLAY. The status display of the disc will appear on the screen.

Display messages may change at every time when

•

you press DISPLAY for some discs or files.

To make the status display screen disappear, press DISPLAY again.

On the screen, “ ” changes to “Loading” and then

playback will commence.

A menu screen may appear on the TV screen,

• if the disc has a menu feature. In this case, press , , ,  or ENTER to operate a menu feature.

)

(

Press STOP

The unit can record where you stop a video, but it

• depends on a disc you are using. Press PLAY

( )

to resume a playback point. The unit can store a memory of stopped point of last five discs that you have played. When one of these discs is next loaded, you can resume playback from where you stopped playing last time. If you press STOP

• appears on the screen) the unit will clear the stopped point. You cannot save a stopped point for some discs.

• If a number of discs played and stored in the unit exceeds five, a new memory will overwrite the old stored memory.

Press (EJECT).

Remove the disc and then press POWER. The unit turns off.

When you eject the disc, you may hear

• mechanism noise, but it is not malfunction.

NOTE:

If a non-compatible disc is loaded, “Can’t play disc”

• or “Incompatible disc region number Can’t play disc” will appear on the TV screen according to the type of loaded disc. In this case, check your disc again (see page 9). Some discs may take a minute or so to start

• playback. A prohibition message “Depending on the disc, this

• operation may be prohibited” or “This operation can’t be performed” may appear at the screen. This message means either the feature you tried is not available on the disc, or the unit cannot access the feature at this time. This does not indicate a problem with the unit. When you set a single-faced disc label downwards

• (i.e. the wrong way up) “Loading” will appear on the display and then “Can’t play disc” will be displayed. Some playback operations of DVDs may be

• intentionally fixed by software producers. Since this unit plays DVDs according to the disc content recorded, some playback features may not be available. Also refer to the instructions supplied with the DVDs.

to end playback.

)

(

again (“Resume off”

ENGLISH

Playback procedure

Press TV/DVD to select DVD mode.

Place the disc in the

disc slot with the label side facing forward. (If the disc has a label.) Hold the disc without touching either of its surfaces, align it with the guides, and place it in position.

Special playback

Fast Forward Playback

Press SEARCH (XX) during normal playback. Each press of SEARCH (XX) will increase the speed of the search.

• To resume normal playback, press PLAY

Review Playback

Press SEARCH (WW) during normal playback. Each press of SEARCH (WW) will increase the speed of the search.

• To resume normal playback, press PLAY

Still Playback

(

Press PAUSE playback.

• To resume normal playback, press PLAY

PAUSE

Frame Advance

Press PAUSE One frame is advanced each time you press SEARCH (WW) or SEARCH (XX).

• To resume normal playback, press PLAY

Slowmotion Playback

Press SLOW ( playback or still playback. Each press of SLOW will change the speed of the slow.

• To resume normal playback, press PLAY

• To resume the still playback, press PAUSE

)

during normal playback to pause

()

during normal playback.

) or SLOW ( ) during normal

()

(

)

(

)

()

(

)

()

In the zoom mode press ZOOM repeatedly to

return to a 1:1 view.

NOTE:

•

You can select the Still Playback or Fast Forward (Review) Playback in the zoom mode.

•

Some discs may not respond to the zoom feature.

Locating desired scene

Use the title, chapter and time recorded on the disc to locate the desired point to playback.

Press JUMP during playback.

Press  or  to select the “Title Search”, “Chapter

Search”, “Time Search” or “Track Search”. Then press  or ENTER.

Press Number buttons (09) to input the number.

If you input a wrong number, press CANCEL.

• Refer to the package supplied with the disc to

• check the numbers.

Press ENTER.

•

Playback starts.

•

When you change the title, playback starts from Chapter 1 of the selected title.

•

Some discs may not work in the above operation.

Locating a chapter or track

Press SKIP( ) Forward or SKIP( ) Reverse during playback to locate a chapter/track that you want to watch. Each time you press the button, a chapter or track is skipped.

NOTE:

The TV/DVD is capable of holding a still video image

• or On screen display image on your television screen indefinitely. If you leave the still video image or On screen display image displayed on your TV for an extended period of time, you risk permanent damage to your television screen.

Zooming

This TV/DVD will allow you to zoom in on the frame image. You can then make selections by switching the position of the frame.

Press ZOOM during playback.

The center part of the image will be zoomed in. Each press of ZOOM will change the ZOOM magnification Zoom 2× and Zoom 4×.

AB Repeat playback

A-B repeat playback allows you to repeat material between two selected points.

Press REPEAT AB during playback.

The start point is selected.

Press REPEAT AB again.

The end point is selected. Playback starts at the point that you selected. Playback stops at the end point, returns to Point A automatically, then starts again.

To resume normal playback press REPEAT AB

• again.

NOTE:

In A-B Repeat mode, subtitles near the A or B

• locations may not be displayed. You may not be able to set A-B Repeat during

• certain scenes of the DVD. A-B Repeat does not work with an interactive DVD,

• MP3/WMA/JPEG-CD.

Press /// to view a different part of the

frame. You may move the frame from the center position UP, DOWN, LEFT or RIGHT.

Marking desired scenes

Changing soundtrack

The TV/DVD stores the points that you want to watch again up to 12 points. You can resume playback from each scene.

Marking the scenes

Press MARKER during playback.

Select the blank Marker using ///, then

press ENTER at the desired scene.

• Up to 12 scenes can be selected.

• Repeat this procedure to set the other 11 scenes.

Press MARKER to return to the normal screen.

Returning to the scenes

Press MARKER during playback or stop mode.

Press /// to select the Marker 1-12.

Press ENTER.

Playback starts from the marked scene.

To cancel the Marker Follow the above steps 1~2, then press CANCEL.

NOTE:

Some discs may not work with the marking

• operation. The marking is cancelled when you eject the disc or

• turn the power off. Some subtitles recorded around the marker may fail

• to appear.

Changing angles

language

You can select the language when you play a multilingual disc.

Press AUDIO during playback.

The current soundtrack language will appear.

Curren /Total

Aud o 1/2 Englsh Doby Dig tal 2/0CH

Press AUDIO repeatedly until the desired

language is selected. The on-screen display will disappear after a few seconds.

Curren /Total

Aud o 2/2 French Do by Dig tal 2/0CH

NOTE:

•

If the desired language is not heard after pressing AUDIO several times, the language is not recorded on the disc.

•

Changing soundtrack language is cancelled after “Resume off” has been selected.

•

The initial default language or available language will be heard if the disc is played back again.

Subtitles

Changing the subtitle language

You can select the language when playing back a disc recorded with multilingual subtitles.

ENGLISH

When playing back a disc recorded with multi-angle facility, you can change the view angle.

Press ANGLE during playback.

The current angle will appear.

Current/Total

Angle 1 2

Press ANGLE repeatedly until the desired angle is

selected.

NOTE:

•

In case of JPEG-playback, the JPEG-image is rotated 90 degrees to the right.

•

Depending on the DVD, you may not be able to change the angles even if multi-angles are recorded on the DVD.

Press SUBTITLE repeatedly during playback until

your desired language appears. The on-screen display will disappear after a few seconds.

Curren /Total

Subt tle 1/2 Englsh

Turning the subtitles off Press SUBTITLE during playback until “Off” appears.

NOTE:

• Changing subtitle language is cancelled after “Resume off” has been selected.

• Some functions may not work on some DVDs. You may not be able to turn subtitles on or off or change subtitles.

While playing the DVD, the subtitle may change

when:

- you eject or insert the disc.

- you change the title.

• In some cases, the subtitle language is not changed to the selected one immediately.

Using HOME MENU

Play mode

Playing a disc

Press SETUP during stop mode.

HOME MENU will appear.

HOME MENU

Press ///

to select “Disc Navigator”, then press ENTER

Press

/

desired option, then press ENTER.

Some discs may not work Disc Navigator.

• Depending on a disc, you can select Title,

• Chapter, or both.

Press

///

select Title, Chapter, Track or Time then press ENTER.

Press SKIP (

• previous page. Press RETURN to return to previous screen.

•

to select

or Number Buttons (09) to

) or SKIP ( ) to move next/

Audio Settings Video Adjust

Play Mode

Initial Settings

Disc Navigator Title Chapter

DVD

Playing a file

Press SETUP during stop mode.

HOME MENU will appear.

Disc Navigator

AB repeat playback

A-B repeat playback allows you to repeat selection between two selected points.

Press PLAY MODE

during playback. Play Mode screen will appear.

Press / to select “A-B Repeat”, then press  or

ENTER.

Press

/

ENTER. The start point is selected.

Press

ENTER. The end point is selected. Playback starts at the point that you selected. Playback stops at the end point and returns to Point A automatically, then starts again.

To resume normal playback

Select “Off” in step 3.

NOTE:

Some discs may not work Play mode function.

• A-B Repeat playback does not work with MP3/WMA

• CD.

Repeat playback

to select “A(Start Point)”, then press

/

to select “B(End Point)”, then press

Play Mode

A B Repeat

Repeat

Random

Program

Search Mode

A(Start Point)

B(End Point)

Off

Press

2 3

///

press ENTER.

Press

/

folder, then press ENTER.

Press

/

If you select JPEG file, unit shows the pictures

• one after another automatically. Press RETURN to go to previous step.

•

NOTE:

When music files and JPEG files are recorded

• in one disc, you can play simultaneously. Please select the music file then select the JPEG file.

to select “Disc Navigator”, then

to select

to select file, then press ENTER.

00:00/ 00:00 0kbps

Folder1 Folder2 Folder3 Folder4

Press PLAY MODE during playback.

Play Mode screen will appear.

Press

/

ENTER

Press

press ENTER. The unit automatically starts repeat playback after finishing the current title or chapter.

To resume normal playback

Select “Repeat Off” in step 3.

Random playback

Press PLAY MODE during playback.

Play Mode screen will appear.

Press

ENTER

Press

option, then press ENTER. The unit automatically starts random playback.

To resume normal playback

Select “Random Off” in step 3.

NOTE:

You cannot play Random for programmed contents

• (Random play is not permitted during Program playback). During Random playback, it may repeat the same

• title, chapter or track. Random playback does not work with MP3/WMA CD.

•

to select “Repeat”, then press  or

/

to select desired repeat option, then

/

to select “Random”, then press  or

/

to select desired random playback

Program playback

Press PLAY MODE during playback or stop mode.

Play Mode screen will appear.

Press

/

to select “Program”, then press or

ENTER. Press

/

“Create/Edit”, then press ENTER. “Create/Edit” display differs, depending on

to select

Program Current Ti le:02 Chapter 001

Program St p

01. 01

02.

03.

04.

05.

06.

07.

08.

Ti le 1 38

Ti le 01 Ti le 02 Ti le 03 Ti le 04 Ti le 05 Ti le 06 Ti le 07 Ti le 08

Chapter 1 004

Chapter 001 Chapter 002 Chapter 003 Chapter 004

discs or files. Press

///

to select Title, Chapter, Track or

File, then press ENTER.

When you add a program, find where you

• want to add it (Program Step) and select Title, Chapter or Track then press ENTER. (It will be added to the left if File is added.) To go to previous step, press RETURN.

• If RETURN is pressed while programming, the

• content will be deleted. To delete a program, select Program Step that

• you want to delete and press CANCEL.

Press PLAY ( ).

•

To play existing programmed contents, select “Playback Start” from Play Mode screen and press ENTER.

•

To resume normal playback, select “Playback Stop” in Play Mode screen and press ENTER. Your programmed contents are saved.

•

To delete all programmed contents, select “Program Delete” in Play Mode screen and press ENTER.

NOTE:

You can repeat the programmed contents. Select

• “Program Repeat” from “Repeat” in the Play Mode screen during Program playback.

•

You cannot play Random for programmed contents (Random play is not permitted during Program playback).

•

In stop mode, you can also enter Play Mode screen by selecting “Play Mode” in HOME MENU.

Locating desired scene

Press PLAY MODE during playback or stop mode.

Play Mode screen will appear. Press / to select “Search Mode”, then press 

or ENTER.

NOTE:

You can locate desired scene in Menu screen

• for some DVD video. In stop mode, you can also enter Play Mode

• screen by selecting “Play Mode” in HOME MENU.

Audio Settings menu

The Audio Settings menu offers features for adjusting the way discs sound.

Press SETUP during stop mode.

HOME MENU will appear.

HOME MENU

Off Rock Pop Live Dance Techno Classic Soft

DVD

Disc Navigator

Press

/// to select “Audio Settings”, then press ENTER.

Press

/// setting the option,

Audio Settings Video Adjust

Play Mode

Initial Settings

Audio Settings

Equa izer Audio DRC Dialog

then press ENTER.

Press SETUP to save the setting.

Equalizer

Select the most suitable setting to match a category of music that you are listening to.

Audio DRC

•

Adjusts loud sound levels down and quiet sound levels up while playing. This is useful, for instance, when you watch a film in the late night.

•

Audio DRC only works with Dolby Digital Sound.

•

The effect depends on your AV amplifier and speaker volume. Adjust the sound as you wish and find the most effective setting.

Dialog

Adjust setting when you cannot hear dialogs very well.

NOTE:

•

It may not be very effective for some discs or files.

ENGLISH

Press / to select desired search mode option,

then press  or ENTER.

Search Mode options differs, depending on

• discs or files.

Input Title, Chapter,

Track or Folder number or Time by using

Number buttons

Play Mode

A B Repeat

Repeat

Random

Program

Search Mode

Title Search

Chapter Search

Time Search

(09) and press ENTER.

For instance, if you want to enter 1hr 4min

• (64:00), input 6, 4, 0, 0.

Input Chapter

0 0 1

Video Adjust menu

Quick guide for DVD menu

From the Video Adjust menu you can adjust various settings that affect how the picture is presented.

Press SETUP during stop mode.

HOME MENU will appear.

HOME MENU

Press

///

select “Video Adjust”, then press ENTER.

Press

///

setting the option, then press ENTER.

Press SETUP to save the setting.

Sharpness Brightness Contrast Gamma Hue Chroma Level

Audio Settings Video Adjust

Play Mode

Initial Settings

Video Adjust

DVD

Fine Standard Soft

Disc Navigator

Sharpness

Adjust sharpness of images.

Brightness

Adjust brightness of images.

Contrast

Adjust a ratio of brightness between the brightest part and the darkest part.

operation

You can change the default settings to customize performance to your preference.

Setting procedure

Press SETUP in stop mode.

HOME MENU will appear.

HOME MENU

Press

///

select “Initial Settings”, then press ENTER.

Press

///

Audio Settings Video Adjust

Play Mode

Initial Settings

to select the desired option, then

press ENTER.

Change the selection using

///

by referring to the corresponding page 29.

Repeat steps 3 and 4 to change other option.•

To clear HOME MENU screen, press SETUP.

DVD

Disc Navigator

or ENTER,

Gamma

Emphasize dark part of images.

Hue

Adjust a balance between green and red.

Chroma Level

Adjust color density. It is effective with animation or something with high color density.

NOTE:

It may not be very effective for some discs or files.

•

Function Setup

Setting Option

Digital Audio Out settings

Digital Out On Digital audio is output when playing a disc.

Off Digital audio is not output when playing a disc.

Dolby Digital Out Dolby Digital Dolby Digital encoded digital audio is output when playing a

Dolby Digital DVD disc.

Dolby Digital > PCM Dolby Digital audio is converted to PCM audio before being

output.

DTS Out DTS DTS encoded digital audio is output when playing a DTS disc.

(Noise will be output if your amplifier/receiver is not compatible with DTS audio.)

Off DTS encoded digital audio is not output when playing a DTS

disc.

96kHz PCM Out 96kHz > 48kHz 96 kHz digital audio is converted to 48 kHz for digital output.

96kHz 96 kHz digital audio is output as is at 96 kHz.

MPEG Out MPEG MPEG encoded digital audio is output as is.

MPEG > PCM MPEG encoded digital audio is converted to PCM audio for

digital output.

Video Output settings

TV Screen 4:3 (Letter Box) Set Picture Size to Natural. Widescreen movies are shown with

black bars top and bottom.

4:3 (Pan & Scan) Set Picture Size to Natural. Widescreen movies are shown with

the sides cropped so that the image fills the screen.

16:9 (Wide) Set if you have a widescreen TV.

ENGLISH

Language settings

Audio Language English/French/Spanish If there is an English, French or Spanish soundtrack on the

disc, then it will be played.

Other Language Select to choose a language other than the ones displayed.

(See Language Code List on page 31.)

Subtitle Language English/French/Spanish If there is an English, French or Spanish subtitle on the disc,

then it will be displayed.

Other Language Select to choose a language other than the ones displayed. (see

Language Code List on page 31.)

DVD Menu Lang. w/Subtitle Lang. DVD disc menus will be displayed in the same language as

your selected subtitle language, if possible.

English/French/Spanish If there is an English, French or Spanish DVD menu language

on the disc, then it will be displayed.

Other Language Select to choose a language other than the ones displayed. (see

Language Code List on page 31.)

Subtitle Display On Subtitles are displayed according to your selected subtitle

language (see above).

Off Subtitles are always off by default when you play a DVD disc

(note that some discs override this setting).

Display settings

Angle Indicator On A camera icon is displayed on-screen during multi-angle

scenes on a DVD disc.

Off No multi-angle indication is shown.

Options settings

Parental Lock See page 30.

Parental Control

Some discs are specified as not suitable for children. Such discs can be limited not to playback with the unit.

Level Change

Press  or  to select

“Level Change”, then press ENTER.

Ini ial Set ings

Video Ou put

Language

Display

Op ions

Parental LockDigital Audio Out

Password Change

Level Change

Country Code

How to into the Parental Lock menu

Press SETUP in stop mode.

HOME MENU will appear.

Press

/// to select “Initial Settings”, then press ENTER.

Press

/

ENTER

Then press

to select “Options”, then press

 or ENTER

to enter the Parental

HOME MENU

Audio Settings Video Adjust

Play Mode

Initial Settings

Lock menu.

Set Password

Press  or  to

select “Password”, then press ENTER.

Press Number

buttons (09) to input the password, then press ENTER.

Initial Settings

Video Output Language Display Options

Initial Settings

Digital Audio Out Video Output Language Display Options

Parental LockDigital Audio Out

Parental Lock: Register Code Number

DVD

Disc Navigator

 or

Password

Level Change Country Code

Press Number

buttons (09) to input the current password, then press

Ini ial Set ings

Digital Audio Out

Video Ou put

Language

Display

Op ions

Parental Lock: Level Change

Password

1 2 3 4 5 6 7 8 Off

ENTER.

Press  or  to

select from the level 1 to level 8. The limitation will

Ini ial Set ings

Digital Audio Out

Video Ou put

Language

Display

Op ions

Parental Lock: Level Change

Password

1 2 3 4 6 7 8 Off

more severe as the level number is lower. Then press ENTER.

Level 1: DVD software for adults cannot be

played back.

Level 8: Virtually all DVD software can be

played back.

Level Off: The parental control setting does not

function.

Country Code

Press  or  to select

“Country Code”, then press ENTER.

Ini ial Set ings

Video Ou put

Language

Display

Op ions

Parental LockDigital Audio Out

Password Change

Level Change

Country Code

Change Password

Press  or  to

select “Password Change”, then press ENTER.

Press Number

buttons (09) to input the current password, then press ENTER.

Press Number

buttons (09) to input the new password. Press ENTER. Now your new password has been set. Be sure to

remember this

number!

Initial Settings

Video Output

Language

Display

Op ions

Initial Settings

Digital Audio Out

Video Output

Language

Display

Op ions

Initial Settings

Digital Audio Out

Video Ou put

Language

Display

Op ions

Parental LockDigital Audio Out

Parental Lock: Password Ch nge

Password

New Password

Password

New Password

Password Ch nge

Level Change

Coun ry Code

Press Number

buttons (09) to input the current password, then press

Initial Settings

Digital Audio Out

Video Output

Language

Display

Options

Parental Lock: Change Country Code

Password

Country Code List Code

ENTER.

Press  or  to

select the input mode from “Country Code List” or “Code”.

•

When you selected “Country Code List”: Press

Initial Settings

Digital Audio Out

Video Output

Language

Display

Options

Parental Lock: Change Country Code

Password

Country Code List Code

 or  to select Country Code, then press ENTER.

•

When you selected “Code”: Press  then use the Number buttons (09) to enter the 4-digit Country Code, then press ENTER. (see Country/Area Code List on page 31)

NOTE:

•

Depending on the discs, the unit cannot limit playback.

•

Some discs may not be encoded with specific rating level information though its disc jacket says “adult.” For those discs, the age restriction will not work.

•

If you input a wrong number, press , then input correct number.

1 1 9

Language (Language code letter), Language code

Language Code List

Japanese (ja), 1001 English (en), 0514 French (fr), 0618 German (de), 0405 Italian (it), 0920 Spanish (es), 0519 Chinese (zh), 2608 Dutch (nl), 1412 Portuguese (pt), 1620 Swedish (sv), 1922 Russian (ru), 1821 Korean (ko), 1115 Greek (el), 0512 Afar (aa), 0101 Abkhazian (ab), 0102 Afrikaans (af), 0106 Amharic (am), 0113 Arabic (ar), 0118 Assamese (as), 0119 Aymara (ay), 0125 Azerbaijani (az), 0126 Bashkir (ba), 0201 Byelorussian (be), 0205 Bulgarian (bg), 0207 Bihari (bh), 0208 Bislama (bi), 0209 Bengali (bn), 0214 Tibetan (bo), 0215 Breton (br), 0218 Catalan (ca), 0301 Corsican (co), 0315 Czech (cs), 0319 Welsh (cy), 0325 Danish (da), 0401

Bhutani (dz), 0426 Esperanto (eo), 0515 Estonian (et), 0520 Basque (eu), 0521 Persian (fa), 0601 Finnish (fi), 0609 Fiji (fj), 0610 Faroese (fo), 0615 Frisian (fy), 0625 Irish (ga), 0701 Scots-Gaelic (gd), 0704 Galician (gl), 0712 Guarani (gn), 0714 Gujarati (gu), 0721 Hausa (ha), 0801 Hindi (hi), 0809 Croatian (hr), Hungarian (hu), 0821 Armenian (h Interlingua (ia), 0901 Interlingue (ie), 0905 Inupiak (ik), 0911 Indonesian (in), 0914 Icelandic (is), 0919 Hebrew (iw), 0923 Yiddish (ji), 1009 Javanese (jw), 1023 Georgian (ka), 1101 Kazakh (kk), 1111 Greenlandic (kl), 1112 Cambodian (km), 1113 Kannada (kn), 1114 Kashmiri (ks), 1119 Kurdish (ku), 1121

0818

y), 0825

Kirghiz (ky), 1125 Latin (la), 1201 Lingala (ln), 1214 Laothian (lo), 1215 Lithuanian (lt), 1220 Latvian (lv), 1222 Malagasy (mg), 1307 Maori (mi), 1309 Macedonian (mk), 1311 Malayalam (ml), 1312 Mongolian (mn), 1314 Moldavian (mo), 1315 Marathi (mr), 1318 Malay (ms), 1319 Maltese (mt), 1320 Burmese (my), 1325 Nauru (na), 1401 Nepali (ne), 1405 Norwegian (no), 1415 Occitan (oc), 1503 Oromo (om), 1513 Oriya (or), 1518 Panjabi (pa), 1601 Polish (pl), 1612 Pashto, Pushto (ps), Quechua (qu), 1721 Rhaeto-Romance (rm), Kirundi (rn), 1814 Romanian (ro), 1815 Kinyarwanda (rw), 1823 Sanskrit (sa), 1901 Sindhi (sd), 1904 Sangho (sg), 1907 Serbo-Croatian (sh),

1619

1813

1908

Sinhalese (si), 1909 Slovak (sk), 1911 Slovenian (sl), 1912 Samoan (sm), 1913 Shona (sn), 1914 Somali (so), 1915 Albanian (sq), 1917 Serbian (sr), 1918 Siswati (ss), 1919 Sesotho (st), 1920 Sundanese (su), 1921 Swahili (sw), 1923 Tamil (ta), 2001 Telugu (te), 2005 Tajik (tg), 2007 Thai (th), 2008 Tigrinya (ti), 2009 Turkmen (tk), 2011 Tagalog (tl), 2012 Setswana (tn), 2014 Tonga (to), 2015 Turkish (tr), 2018 Tsonga (ts), 2019 Tatar (tt), 2020 Twi (tw), 2023 Ukrainian (uk), 2111 Urdu (ur), 2118 Uzbek (uz), 2126 Vietnamese (vi), 2209 Volapük (vo), 2215 Wolof (wo), 2315 Xhosa (xh), 2408 Yoruba (yo), 2515 Zulu (zu), 2621

ENGLISH

Country/Area Code List

Country/Area, Country/Area code, Country/Area code letter

Argentina, 0118, ar Australia, 0121, au Austria, 0120, at Belgium, 0205, be Brazil, 0218, br Canada, 0301, ca Chile, 0312, cl China, 0314, cn Denmark, 0411, dk

Finland, 0609, fi France, 0618, fr Germany, 0405, de Hong Kong, 0811, hk India, 0914, in Indonesia, 0904, id Italy, 0920, it Japan, 1016, jp Republic of Korea,

1118, kr

Malaysia, 1325, my Mexico, 1324, mx Netherlands, 1412, nl New Zealand, 1426, nz Norway, 1415, no Pakistan, 1611, pk Philippines, 1608, ph Portugal, 1620, pt Russian Federation, 1821, ru

Singapore, 1907, sg Spain, 0519, es Sweden, 1905, se Switzerland, 0308, ch Taiwan, 2023, tw Thailand, 2008, th United Kingdom, 0702, gb USA, 2119, us

Connections to other equipment

The exact arrangement you use to interconnect various video and audio components to this unit is dependent on the model and features of each component. Check the Owner’s Manual provided with each component for the location of video and audio inputs and outputs.

To connect the LCD TV/DVD to a VCR

Rear of the unit

To Audio/Video OUT

To VIDEO/AUDIO IN

Audio/Video cord (not supplied)

VCR

To connect the LCD TV/DVD to a DVD player with Component Video Input

You can enjoy a high quality picture by connecting the unit’s COMPONENT VIDEO OUT jacks of your DVD player with the COMPONENT video cables (not supplied).

Rear of the unit

To COMPONENT IN

To Component OUT

P Pr

DVD

To Audio OUT

To AUDIO IN

Audio cord (not supplied)

NOTE:

Component Video input of the unit are for use with a device which output 480i/1080i interlaced signals and

• 480p/720p progressive signals.

To connect the LCD TV/DVD to a camcorder, or a TV Game

To playback from a camcorder, connect the camcorder to the unit as shown. This unit can also be used as a display device for many video games. However, due to the wide variety of signals generated by these devices and subsequent hook-up variations required, they have not all been included in the suggested connection diagrams. You’ll need to consult each component’s Owner’s Manual for additional information.

Left of the unit

To VIDEO/AUDIO IN

Audio/Video cord (not supplied)

To Audio/Video OUT

Connections to other equipment (continued)

To connect an audio system

This connection allows you to use an audio amplifier and external speakers, and adjust the audio level using the TV’s remote control. To control the audio, turn on the TV and the stereo amplifier, and turn off the TV’s built-in speakers (see “Speakers” on page 17).

Rear of the unit

Amplifier

To VAR. AUDIO OUT

To Audio (L) Input

Audio cord (not supplied)

NOTE:

To hear sound when using an external audio amplifier, the volume of both the TV and the amplifier must be set above 0 (zero). For example, if the volume of the TV is set to 0, you will not be able to hear any sound, even if the volume of the amplifier is at its highest level.

To Audio (R) Input

To connect a HDMI or a DVI device to the unit

The HDMI1/DVI input receives digital audio and uncompressed video from a HDMI device or uncompressed digital video from a DVI device. When you connect to a DVI device with a HDMI-to-DVI adapter cable, it transfers only video signal. Separate analog audio cords required.

Rear and left of the unit

ENGLISH

To PC/DVI AUDIO IN

To HDMI1/DVI IN

NOTE:

•

When using HDMI 1/DVI IN to connect your HDMI or DVI devices, you must select the corresponding audio input source (HDMI or DVI) on the menu screen (see page 17). Otherwise you will only see the image with no sound.

•

If you connect an external component (cable box, satellite receiver, etc.) to this LCD TV using an HDMI cable or a DVI to HDMI cable, the image will not display if the output resolution of the component is set to 480i. To receive the picture you must change the output resolution on the external component.

•

Should you require further instruction, please contact the manufacturer of the external component.

Audio cord (not supplied)

HDMI - to - DVI adapter cable

(HDMI type A connector)

(not supplied)

HDMI cable (type A connector)

(not supplied)

To DVI output

DVI device

HDMI device

To HDMI out

Connections to other equipment (continued)

Using an AV Amplifier with builtin digital surround

If you are using an Amplifier with built-in digital surround sound, you can enjoy various audio systems including Dolby Digital Surround audio that sounds just like the movie.

Connect an AV amplifier with builtin Dolby Digital decoder, DTS decoder, or MPEG decoder etc. as shown below.

Rear of the unit

Subwoofer

Front Speaker (Right)

TV/DVD

Front

Speaker

(Left)

To DIGITAL AUDIO

COAXIAL OUT

Coaxial digital cable

(not supplied)

Digital Audio Input

To Coaxial

Surround Speaker (Left)

AV Amplifier with built-in digital surround decoder as listed above

Center Speaker

Surround Speaker (Right)

NOTE:

When you are viewing digital broadcast, this unit will not work in conjunction with DTS audio or MPEG audio.

•

There will be no sound output if connected to an AV amplifier with a built-in DTS decoder or MPEG decoder. Digital Audio Output terminal does not output the sounds from devices connected by HDMI.

•

To connect the LCD TV/DVD to a PC (Personal Computer)

BEFORE YOU CONNECT THIS TV TO YOUR PC, CHANGE THE ADJUSTMENT OF YOUR PC’S RESOLUTION AND REFRESH RATE 60 HZ.

Connect one end of a (male to male) VGA cable to the video cord of the computer and the other end to the

connector PC MONITOR IN on the rear of the

. Attach the connectors firmly with the screws on the plug. case of a Multimedia computer, connect the audio cord to the audio output of your Multimedia computer and to the AUDIO IN connector of the PC/DVI AUDIO IN jack of the TV. You can also connect the PC with HDMI cable. If you use HDMI cable, you don’t have to connect the audio cord. If you use DVI-to-HDMI cable, please connect audio cord as same way as VGA cable. Press INPUT SELECT on the remote control to select PC mode. Switch on the computer. The TV can operate as the computer monitor.

Rear and left of the unit

Monitor Display modes

MODE Resolution Refresh rate VGA 640x480 60/ 72/ 75 Hz

VGA 720x400 70Hz To PC/DVI AUDIO IN

To PC MONITOR IN

VGA cable (not supplied) Audio cord (not supplied)

To HDMI IN

HDMI cable (not supplied)

SVGA 800x600 56/ 60/ 72/ 75 Hz

XGA 1024x768 60/ 70/ 75 Hz

WXGA 1280x768 60Hz

WXGA 1280x720 60Hz

WXGA 1360x768 60Hz

To return to normal mode

Press INPUT SELECT again.

VGA

NOTE:

The on-screen displays will have a different appearance in PC mode than in TV mode.

•

If there is no video signal from the PC when the unit is in PC mode, “No signal” will appear on the TV-screen.

•

Reception disturbances

Most types of television interference can be remedied by adjusting the height and position of the VHF/ UHF antenna. Outdoor antennas are recommended for best results. The most common types of television interference are shown below. If one of these symptoms appear when the TV is connected to a Cable TV system, the disturbance may be caused by the local Cable TV company broadcast.

IGNITION

Black spots or horizontal streaks may appear, the picture may flutter or drift. Usually caused by interference from automobile ignition systems, neon lamps or AC powered tools and appliances such as drills or hair dryers.

GHOSTS

Ghosts are caused by the television signal following two paths. One is the direct path and the other is reflected by tall buildings, hills or other large objects. Changing the direction or position of the antenna may improve the reception.

SNOW

If the TV is located far from the TV station, in a fringe reception area where the signal is weak, small dots may appear in the picture. If the signal is extremely weak, the installation of a larger external antenna may be necessary.

ENGLISH

RADIO FREQUENCY INTERFERENCE (RFI)

Caused by two-way radios, this type of interference produces moving ripples or diagonal streaks in the picture. Some cases may cause a loss of contrast in the picture. Changing the direction and position of the antenna or installing an RFI filter may improve the picture.

PICTURE SIZE VARIATION

A slight picture size variation is normal when you adjust the CONTRAST or BRIGHTNESS settings.

CARE AND MAINTENANCE

To prevent fire or shock hazard, disconnect the TV from the power source before cleaning. The finish on the cabinet may be cleaned with mild soap and a soft, damp cloth and cared for as other furniture. Use caution when cleaning or wiping the plastic parts.

Problems and troubleshooting

Use the following check list for troubleshooting when you have problems with your TV/DVD. Consult your local dealer or service outlet if problems persist. Be sure all connections are properly made when using with other units.

SYMPTOMS POSSIBLE SOLUTIONS PAGE

POWER

Make sure the power cord is plugged in.

•

TV/DVD does not operate.

TV BROADCAST RECEPTION

Poor sound or no sound.

Poor picture or no picture.

Poor reception on some channels.

Poor color or no color.

Picture wobbles or drifts.

No Cable TV reception.

Horizontal or diagonal bars on screen.

No reception above channel 13.

TV shuts off.

Closed Caption is not activated.

Display is not shown in your language.

REMOTE CONTROL

The remote control does not function.

Power is off, check fuse or circuit breaker.

• Unplug unit, then plug it back in.

•

Station or Cable TV experiencing problems, tune to another station.

• Check Volume adjustments or muting.

• Check for sources of possible interference.

• Station or

• Check antenna or Cable TV connections, reorient antenna.

• Check for sources of possible interference.

• Check picture control adjustments.

• Station or Cable TV experiencing problems, tune to another station.

• Station signal is weak, reorient antenna to receive stronger station.

• Check for sources of possible interference.

• Station or

• Make sure channels are set into memory.

• Check picture control adjustments.

• Check antenna or Cable TV connections, reorient antenna.

• Check for sources of possible interference.

• Station or Cable TV experiencing problems, tune to another station.

• Make sure channels are set into memory.

•

Cable TV company is scrambling signal.

•

Check antenna orientation. Check all Cable TV connections.

• Set Signal Type option to the “Cable” mode.

• Station or Cable TV system problems, try another station.

• Check antenna connections, reorient antenna.

• Check for sources of possible interference.

• Make sure Signal Type option is in the appropriate mode.

• If using antenna, check UHF antenna connections.

• No broadcast on station tuned.

• Sleep Timer is set.

• Power interrupted.

•

TV station experiencing problems or program tuned is not closed captioned. Try another channel.

•

Check Cable TV connection or VHF/UHF antenna, reposition or rotate antenna.

•

Set Closed Caption in the menu.

Select proper language in the menu options.• 17

•

Aim at the remote control at the remote sensor.

•

Operate within Approx. 15 feet or reduce the light in the room.

•

Clear the path of the beam.

•

The batteries are weak. Replace the batteries.

•

Check the batteries are inserted correctly.

Cable TV

experiencing problems, tune to another station.

15, 16

35 15

14 35 17

15 14 35

15 18 17 14 35

15 18

–

14 14

18 15

14 35

18 14

15 16

–

The LCD panel is a very high technology product, giving you fine picture details. Occasionally, a few non-

• active pixels may appear on the screen as a fixed point of blue, green or red. Please note that this does not affect the performance of your product.

Problems and troubleshooting (continued)

SYMPTOMS POSSIBLE SOLUTIONS PAGE

DVD

No disc is inserted.

• The disc may be dirty. Clean up the disc.

Playback doesn’t start or disc ejects automatically.

No picture. TV/DVD selector is not set correctly.• 23

No sound.

Picture is distorted during CUE or REVIEW.

Stopping playback, search, slow-motion play, repeat play, or program play, etc. cannot be performed.

No surround sound. The setup does not match your stereo system.• 33 The unit or remote

operation key is not functioning.

Playback does not start when the title is selected.

Audio soundtrack and/or subtitle language is not changed when you play back a DVD.

No subtitle.

Angle cannot be changed. Multi-angles are not recorded on the DVD disc.• 25 “This operation can’t be

performed” appears on the screen.

• The disc is scratched or warped.

• The unit cannot play CD-ROMs, etc.

•

Check the input selector of the amplifier is set properly.

• The unit is in the Special playback mode.

• Select the correct Audio Output position on AV amplifier.

•

The picture will be distorted occasionally.• –

Some discs may not allow some functions.• –

Turn off the unit and unplug the AC power cord for several minutes,

• then replug it.

Check the Parental setup.• 30

Multilingual language is not recorded on the DVD disc.• 25

Some discs have no subtitles.

• Subtitles are cleared. Press SUBTITLE.

•

The function is prohibited with the unit or the disc.• 23

9 9 9

– 24 33

ENGLISH

Specifications

GENERAL

Power supply: AC 120V 60Hz Power consumption: Operation: 108W

Weight: 8.9 kg (19.6 lbs) Dimensions: Width: 760 mm (29-15/16 inches)

Operating temperature: 5C - 40C Operating humidity: Less than 80%

TELEVISION

Type: 80.04 cm (32” class/31.51” diagonal) Display method: Transmission TFT color LCD panel Number of Pixels: 1366 (H) x 768 (V) Tuner type: US system M

Receiving channels: VHF 2-13

Inputs: Video: (RCA) 1 V (p-p), 75 ohms

Outputs: Digital audio out: 0.5 V (p-p), 75 ohms terminated

Speakers: 40.6 mm x 121.9 mm (1-5/8 inches x 4-13/16 inches), 8 ohms x 2 Audio output power: 5.0W + 5.0W

DVD/CD player

Signal system: NTSC Applicable disc: 1.DVD (12 cm)

Pickup: CD: Wavelength: 790 nm

ACCESSORIES Remote control

Stand by: 0.3W

Height: 554.5 mm (21-13/16 inches) Depth: 213.3 mm (8-3/8 inches)

ATSC standard (8VSB), QAM

UHF 14-69 CATV 14-36 (A)-(W) 37-59 (AA)-(WW) 60-85 (AAA)-(ZZZ) 86-94 (86)-(94) 95-99 (A-5)-(A-1) 100-135 (100)-(135) 01 (4A)

Audio: (RCA) –8 dBm/50k ohms Component video: (Y) 1 V (p-p), 75 ohms (Pb)/(Pr) 0.7 V (p-p), 75 ohms HDMI: HDMI compliant (type A connector) HDCP compliant E-EDID compliant Suggested scan rates: 480p, 480i, 720p,1080i,1080p HDMI Audio: 2-channel PCM 32/44.1/48 kHz sampling frequency 16/20/24 bits per sample PC Monitor: Mini-Dsub 15pin x 1 Antenna: VHF/UHF In 75 ohms coaxial

Audio: 0-600 mV/1k ohm

2.CD (12 cm)

Maximum output power: 7 mW DVD: Wavelength: 655 nm Maximum output power: 5 mW

Batteries (AA) x 2 AC Cord Stand Screws x 5 Frame Stand

Designs and specifications are subject to change without notice.

FOR CUSTOMER SERVICE, ADDITIONAL SET-UP AND OPERATING ASSISTANCE, OR TO ORDER ACCESSORIES PLEASE CALL:

18002890980

WHEN CALLING CUSTOMER SERVICE  PLEASE HAVE YOUR MODEL NUMBER READY

OR WRITE TO:

ORION SALES, INC.

3471 N. UNION DR.

OLNEY, ILLINOIS 62450

FOR INFORMATION ON OUR OTHER PRODUCTS, OR TO ORDER ACCESSORIES ONLINE, PLEASE VISIT OUR WEBSITE AT

www.orionsalesinc.com

limited

WARRANTY

32” CLASS WIDE LCD TV WITH DVD PLAYER

ORION warrants this product to be free from manufacturing defects in material and workmanship under normal use and conditions for a period of 1 year from date of original purchase in the United States.

Should service be necessary under this warranty for any reason due to a manufacturing defect or malfunction during the first 12 months from date of original purchase, ORION will provide carry-in service only by an ORION authorized Independent Service Center at no charge. Also, if an original part fails due to manufacturing defect in material and workmanship within one year from date of original purchase we will replace the defective part, provided the defect or malfunction is verified along with dated proof of purchase.

There are ORION authorized Independent Service Centers located throughout the country. For the one nearest you, DIAL TOLL FREE: 1-800-289-0980 or visit our website at www.orionsalesinc.com. ORION will not be liable for damages incurred in shipment of the unit. If there are no ORION authorized Independent Service Centers in your area please call - 1-888-296-7466 for assistance.

Note: This warranty is void if the product is: (a) Damaged through negligence, misuse, abuse, or accident. (b) Used in a commercial application or rentals. (c) Modified or repaired by anyone other than an Independent Service Center authorized by ORION to effect warranty repairs to the class of product or by the ORION Factory Service Center. (d) Damaged because it is improperly connected to the equipment of other manufacturers.

ENGLISH

This warranty does not cover: (a) Damage to video disc. (b) Damage to equipment not properly connected to the product. (c) Costs incurred in the shipping of the product to an ORION authorized Independent Service Center or ORION Factory Service Center. (d) Damage or improper operation of unit caused by customer abuse, misuse, negligence, or failure to follow operating instructions provided with the product. (e) Ordinary adjustments to the product which can be performed by customer as outlined in the owner’s manual. (f) Signal reception problems caused by external antenna or cable systems.

THIS WARRANTY IS NON TRANSFERABLE AND APPLIES ONLY TO THE ORIGINAL PURCHASER AND DOES NOT EXTEND TO SUBSEQUENT OWNERS OF THE PRODUCT. ANY APPLICABLE IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED IN DURATION TO A PERIOD OF THE EXPRESS WARRANTY AS PROVIDED HEREIN BEGINNING WITH THE DATE OF ORIGINAL PURCHASE AT RETAIL AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED SHALL APPLY TO THIS PRODUCT THEREAFTER. ORION MAKES NO WARRANTY AS TO THE FITNESS OF THE PRODUCT FOR ANY PARTICULAR PURPOSE AND USE.

UNDER NO CIRCUMSTANCES SHALL ORION BE LIABLE FOR ANY LOSS, DIRECT, INDIRECT, INCIDENTAL, SPECIAL, OR CONSEQUENTIAL DAMAGE ARISING OUT OF OR IN CONNECTION WITH THE USE OF THIS PRODUCT.

THIS WARRANTY IS VALID ONLY IN THE UNITED STATES OF AMERICA. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, HOWEVER, YOU MAY HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE. SOME STATES DO NOT ALLOW LIMITATION ON IMPLIED WARRANTIES OR EXCLUSION OF CONSEQUENTIAL DAMAGE, THEREFORE THESE RESTRICTIONS MAY NOT APPLY TO YOU.

ORION SALES, INC.

3471 N. UNION DR.

OLNEY, ILLINOIS 62450

Sansui HD-LCD-VD328 Owners Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
