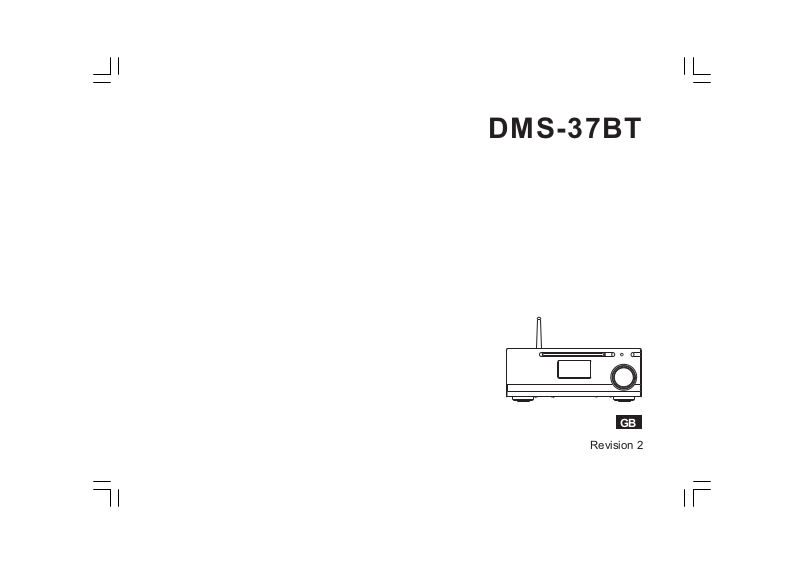

Sangean DMS-37BT User Manual

DMS-37BT

中文

Revision 2

"Made for iPod," "Made for iPhone," and "Made for iPad" mean that an electronic accessory has been designed to connect specically to iPod,

iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance.

Made for

● iPhone 4s

● iPhone 4

● iPhone 3GS

● iPad (3rd generation)

● iPad 2

● iPad

● iPod touch (4th generation)

● iPod touch (3rd generation)

The SangeanR App enables remote control of Sangean’s DMS-37BT running on your iPhone, iPod touch, iPad or Android smartphone, you can

experience control of the compatible app directly!

To use SangeanR App, simply download Sangean’s free SangeanR application onto your iPhone, iPod touch, iPad or Android smartphone and connect to your Sangean DMS-37BT receiver via Bluetooth. Then you can control your DAB or FM radio stations, selection and control of media including CD,

SD, USB or Aux-in with an intuitive interface, formatted and designed specically on your iPhone, iPod touch, iPad or Android smartphone.

Download SangeanR from Apple iTunes (Apple Store) and Google Play now!

Contents

Introduction .................................................................... 3-9

Controls and connections .............................................. 3-5

Remote control .............................................................. 6-7

Connect the speaker system ........................................... 8

Using the touch panel ...................................................... 8

Remote control functions ................................................. 8

Bluetooth remote control options ..................................... 9

Using the sound system for the rst time ......................... 9

DAB radio ................................................................... 10-16

Operating your sound system - DAB ............................. 10

Selecting a station - DAB ............................................... 11

Secondary services - DAB.............................................. 11

Display modes - DAB ..................................................... 12

Finding new stations - DAB ........................................... 13

Manual tuning – DAB .................................................... 14

Dynamic range control - DAB ........................................ 15

Prune station .................................................................. 16

Software version - DAB ................................................. 16

FM radio ...................................................................... 17-21

Operating your radio - search tuning FM ....................... 17

Manual tuning - FM ........................................................ 18

FM stereo / mono ........................................................... 18

Display modes - FM ....................................................... 19

Presetting stations ......................................................... 20

Recalling a preset station .............................................. 20

Software version ............................................................ 21

CD / MP3 / WMA ......................................................... 22-30

Compact discs .......................................................... 22-23

Playing a CD .................................................................. 24

CD search and repeat .................................................... 25

CD track programming ................................................... 26

MP3 / WMA CD mode .................................................... 27

MP3 / WMA le and folder selection ......................... 28-30

SD / USB playback and recording ............................ 31-37

SD / USB le and folder selection ..............................31-32

Recording to SD / USB ...............................................33-35

Deleting and formatting ..............................................36-37

Listening to Bluetooth music ................................... 38-39

Pairing your Bluetooth device ........................................ 38

Playing Bluetooth music ................................................ 39

Disconnecting your Bluetooth device ............................. 39

Timer Record .............................................................. 42-45

Timer recording ......................................................... 42-44

View record timer ........................................................... 45

Cancelling a recording ................................................... 45

Display and Auto ........................................................ 46-51

Standby brightness control ............................................ 46

Equalizer function .......................................................... 47

Bass and treble settings ........................................... 47-48

Mute function ................................................................. 48

Auxiliary input socket ..................................................... 49

Line output socket .......................................................... 49

Headphone socket ......................................................... 50

Aerial removal ................................................................ 50

Touch panel sensitivity control ....................................... 51

Information ................................................................. 52-55

System reset .................................................................. 52

Charging with USB socket ............................................. 53

Software upgrade .......................................................... 53

Cautions ......................................................................... 54

Specications ................................................................. 55

Controls and connections (Front)

1. Standby button

2. Remote control sensor

3. CD eject button

4. CD slot

5.Source button

6. Media button

7. Aux in button

8. EQ button / Bluetooth pairing button

9. Record button (for recording tracks)

10. Menu button / Sleep button

11. Info button

12.Rewind button

13. Fast-forward button

14. Stop button

15. Play / pause button

16. Repeat button

17. Volume button / Select button / Tuning button

18. SD / USB / Aux in 1 / Headphone socket (behind panel)

Controls and connections (Rear)

19. Headphone socket

20. Aux in 1 socket

21. USB socket (for playback / recording / charging)

22. SD card slot

Controls and connections (Rear)

23. Speaker output socket (left / right)

24. Bluetooth antenna

25. Line out socket

26. Aux in 2 / 3 / 4 socket

27. Micro USB for software upgrade

28. DAB / FM antenna

29. AC power cord socket

Controls and connections (Rear)

On / standby button

Mute button

Key pad buttons 1-100

Folder up / down button

Tuning down / Rewind button

Menu button

Timer record button

Aux in select button

Auto tune button

Media button (CD / SD / USB)

Record button (for recording tracks)

Source button (DAB / FM / Aux / Bluetooth)

Sleep / Clock set button

EQ / Bluetooth pairing button

Alarm button (function not available)

Repeat button

Random button

Play / pause button

Select / stop button

Tuning up / fast-forward button

Info button

Volume up / down button

CD eject button

Remote control battery replacement

1. Remove the battery cover on the rear of your remote control by applying pressure to the catch in the direction shown by the arrow in the diagram, and then lifting the cover.

2. Insert 2 x AAA size batteries into the compartment. Make sure the (+) and the (-) ends of the

batteries are positioned as shown inside the compartment.

3. Close the battery cover by inserting the retaining lugs rst, then apply pressure to the free end

such that the catch latches the cover securely.

4. If the remote is not to be used for an extended period of time it is recommended that the

batteries are removed.

IMPORTANT:

The batteries should not be exposed to excessive heat such as sunshine, re or the like. After

use, disposable batteries should if possible be taken to a suitable recycling centre. On no account should batteries be disposed of by incineration.

1. Battery compartment

2. Latch

3. Retaining lugs (inside)

Connect the speaker system

1. Extend the speaker wires and connect to the speaker output L and R.

NOTE:

On the supplied wires, the copper wires is dened as Positive in polarity

while the tin plated wire is Negative in polarity

2. Make sure the Channel (L and R) and also polarity (+ and -) are all

correctly connected.

IMPORTANT:

Do not switch on the power until the speaker system is connected.

Using the touch panel

The DMS-37BT sound system has a stylish touch panel instead of conventional buttons.

To operate the buttons simply touch the button area with the tip of a finger for about half a second. Sleep function and Bluetooth paring

function marked with a dot (●) are accessed by means of a long touch (2-3 seconds) on the appropriate button until the display on the sound

system shows that the command has been accepted.

You may find that at first, the sound system does not always detect that you have touched a button. If so, try touching with a little more pressure, or for slightly longer. You will soon find the optimum touch needed to control your sound system. (See also the section of” Touch Panel Sensitivity Control”)

Remote control functions

Most of the functions of the DMS-37BT sound system can be controlled using either the touch panel or the remote control.

However, there are a few functions which are only accessible using the remote control. These are:

DAB / FM radio station presets DAB / FM auto-tune DAB menu function CD / USB / SD CARD track access

by numbers

CD / USB / SD CARD random track control

As with the front panel, some operations require a longer operation of the button (explained in the relevant sections). In this case simply

keep your nger held on the remote control button for 2-3 seconds until

the display on the sound system shows that the command has been accepted.

Audio mute

The panel may be cleaned using a dry cloth. Do not use abrasives,

cleaning uids or solvents.

Bluetooth remote control options

Your radio has the option of being controlled by an application installed on an Apple iPhone, iPod touch or iPod. The Bluetooth facility allows you to ensure that your radio can only be controlled by your own Apple device rather than someone else’s.

Download the control application of 'Sangean R' on Apple store if you are using iOS system or Google play if Android system is used.

Details of how to link Bluetooth to you iPhone / iPod touch are explained

in the later section called “Listening to Bluetooth music”

Note:

Only support resolution of 400x800 pixel& 1080x1920 pixel of a Android

smartphone. Resolution other than the one mentioned above may result in different screen display.

Using the sound system for the rst time

1. Place your sound system on a at surface.

2. Fully extend the telescopic aerial. The aerial should be fully extended

and positioned vertically for optimum reception.

3. Plug the mains lead into the mains socket located on the back of your sound system ensuring that the plug is pushed fully into the socket.

IMPORTANT:

The mains plug is used as the means of connecting the sound system to the mains supply. The mains socket used for the sound system must remain accessible during normal use. In order to disconnect the sound system from the mains completely, the mains plug should be removed from the mains socket outlet completely.

5. When your sound system is first switched on the clock display will

show 12:00 and the unit will enter standby mode. It will then scan for

DAB radio stations and when stations have been found the clock and date should be set automatically. Note that the display will not show

any scanning message for this rst scan.

6. If no stations have been found then the clock will not set. You may need to relocate your sound system to a position giving better reception.

You should then carry out an auto-tune to nd DAB stations. See the

section of 'DAB operation' and also 'Finding New Stations' in the following pages. The clock will then be set from a DAB broadcast.

4. Plug the other end of the mains lead into the wall socket and switch

on the wall socket.

Operating your sound system - DAB

1. Fully extend the telescopic aerial. If your sound system is in standby mode, press and release the On / Standby button to switch it on.

2. Press and release the Source button to select DAB mode. The display will show “DAB” for a

few seconds.

3. If this is the first time the sound system is used a quick scan of the DAB channels may be carried out (depending on whether scanning was already completed in standby mode). If the radio has been used before, the last used station will be selected.

4. When rst switched on, the rst station in the list of stations will be shown. Press and release

the Select button to tune to this station or press the Tuning Up or Down buttons to select an alternative station. See selecting a station on the following page. The display will show the station name on the upper line of the text display and broadcast information on the lower line.

5. If the station list is still empty after the scan operation or if the selected station cannot be received your radio will display “Service not available”.

6. If no signals are found it may be necessary to relocate your sound system to a position giving better reception, and then repeat the scan using the Auto-tune facility (see the section of “Finding New Stations”).

Note that radio station name and frequency displays shown in this user guide may differ from those that you see on your radio. Broadcasters may change radio station names that are transmitted, and the frequencies used for DAB and FM radio stations may not be the same in all parts of the country.

Selecting a station - DAB

1. When the unit is in DAB mode the upper line of the text display normally shows the name of the station currently tuned.

2. Repeatedly press the Tuning Up or Down buttons to scroll through the list of available stations on the lower line of the text display. Stop pressing the Tuning buttons when you nd the station

that you wish to hear. If you keep pressing one of the tuning buttons then the unit will rapidly scroll through the list of available stations.

3. Press and release the Select button to cause the radio to tune to the chosen station. The display

may show “Now tuning” while your radio nds the new station. The use of memory presets is

described in the later section.

4. Adjust the Volume to the required setting. If after selecting a station the display shows “Service

not available” it may be necessary to relocate your radio to a position giving better reception.

Secondary services - DAB

1. Certain radio stations may have one or more secondary services associated with them. If a station has a secondary service associated with it the display will show “>>” next to the station name on the station list. The secondary service will then appear immediately after the primary service as you press the Tuning Up button.

2. Press and release the Select button to select the station.

Display modes - DAB

When in DAB mode your radio has a range of display options.

1. Press the Info button to cycle through the various modes. a. Scrolling text Displays scrolling text messages such as artist / track name, phone in

number, etc.

b. Signal strength Displays signal strength for the station being listened to. The clear

rectangle shows the minimum required signal strength for clear DAB reception.

c. Programme type Displays the type of station being listened to e.g. Pop, Classic, News,

etc.

d. Multiplex Name Displays the name of the multiplex to which the current station

belongs. e. Frequency Displays the frequency for the current DAB radio station. f . Signal error Displays the signal error for the station being listened to. The lower

the number the better the signal received. g. Bit rate audio type Displays the digital bit rate and audio type for the current DAB radio

station. h. Time Displays the current time. i . Date Displays the current date.

Finding new stations - DAB

As time passes new stations may become available. To nd new stations proceed as follows:

1. With the unit in DAB mode press and release the Auto-tune button. The display will then show “Scanning”. The radio will perform a scan of the DAB frequencies. As new stations are found the station counter on the right-hand side of the display will increase and stations will be added to the list.

2. Alternatively, press and release the Menu button.

3. Press the Tuning up or down button until ‘Full scan’ appears on the display.

4. Press and release the Select button. Your radio will perform a scan of the band III DAB channels.

As new stations are found the station counter on the right-hand side of the display will increase and stations will be added to the list.

Manual Tuning - DAB

Manual tuning allows you to tune directly to the various DAB channels.

1. Press and release the Menu button so that the display shows “Station list”.

2. Press the Tuning Up or Down buttons until “Manual tune” appears on the display. Press and

release the Select button.

3. Press the Tuning Up or Down buttons to select the required DAB channel.

4. Press and release the Select button to select the channel. A signal strength display will appear.

The clear rectangle shows the minimum required signal strength for clear DAB reception.

5. Any new stations that are found are automatically added to the stored list of stations.

6. Press and release the Select button to return to normal tuning mode.

Dynamic Range Control (DRC) settings – DAB only

DRC can make quieter sounds easier to hear when your radio is used in a noisy environment. This function is only for the DAB waveband.

1. Press the On / Standby button to switch on your sound system.

2. Press and release the Menu button so that “Station list” appears on the display.

3. Press and release the Tuning Up or Down buttons until the display shows “DRC”.

4. Press and release the Select button to enter the DRC adjustment mode.

5. Press and release the Tuning Up or Down buttons to select the required DRC setting (the default is off). DRC off - DRC is switched off, Broadcast DRC will be ignored.

DRC low - DRC level is set to 1/2 that sent by broadcaster.

DRC high - DRC is set as sent by broadcaster.

6. Press and release the Select button to conrm the setting. The display will then return to the

previous radio display mode.

Note: Not all DAB broadcasts are able to use the DRC function. If the broadcast does not support DRC, then the DRC setting in the radio will have no effect.

Prune station- DAB only

Over time, some DAB services may stop broadcasting, or you may change location and then not be able to receive a station. In order to remove such stations from the DAB station list, the Prune stations function will delete the DAB stations from your station list that can no longer be received.

1. Press and release the Menu button so that "Station list" appears on the display.

2. Press the Tuning Up or Down buttons until "Prune " appears on the display.

3. Press and release the Select button to cause the stations list to be pruned, eliminating unavailable stations.

Software version- DAB only

The software version display cannot be altered and is provided for reference only.

1. To view the DAB software version installed in your radio, press and release the Menu button so that "Station list" appears on display.

2. Press the Tuning Up or Down buttons until "Software version" appears on the display.

The software version will appear on the display.

+ 39 hidden pages

Sangean DMS-37BT User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
