SERVICE AND OPERATING MANUAL
Model MSA3, MSA3-C
II 2GD T5
Mine/Construction-Duty

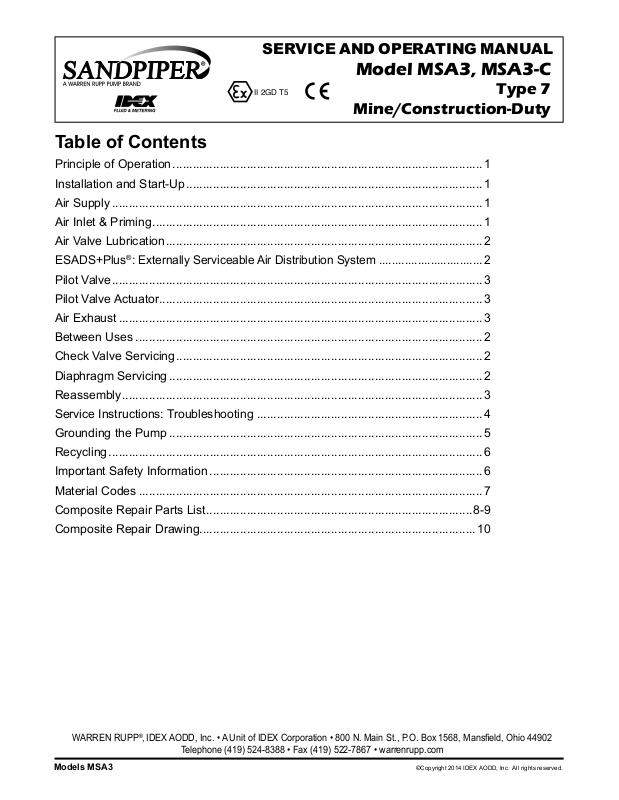

Table of Contents
Installation and Start-Up ........................................................................................ 1
Air Supply .............................................................................................................. 1
Air Valve Lubrication .............................................................................................. 2
ESADS+Plus
®
:
Externally Serviceable Air Distribution System ................................ 2
Type 7
Composite Repair Parts List ............................................................................... 8-9
WARREN RUPP®, IDEX AODD, Inc. • A Unit of IDEX Corporation • 800 N. Main St., P.O. Box 1568, Manseld, Ohio 44902
Telephone (419) 524-8388 • Fax (419) 522-7867 • warrenrupp.com
Models MSA3 ©Copyright 2014 IDEX AODD, Inc. All rights reserved.
Page 2
Page 3
SERVICE AND OPERATING MANUAL
Model MSA3, MSA3-C
II 2GD T5
Mine/Construction-Duty
PRINCIPLE OF PUMP OPERATION
This ap swing check valve pump is powered by compressed air and is a 1:1 pressure ratio design. It alternately pressurizes the inner side of one diaphragm chamber, while simultaneously exhausting the other inner chamber. This causes the diaphragms, which are connected by a common rod, to move endwise. Air pressure is applied over the entire surface of the diaphragm, while liquid is discharged from the opposite side. The diaphragm operates under a balanced condition during the discharge stroke, which allows the unit to be operated at discharge heads over 200 feet (61 meters) of water head.
Since the diaphragms are connected by a common rod, secured by plates to the center of the diaphragms, one diaphragm performs the discharge stroke, while the other is pulled to perform the suction stroke in the opposite chamber.
For maximum diaphragm life, keep the pump as close to the liquid being pumped as possible. Positive suction head in excess of 10 feet of liquid (3.048 meters) may require a back pressure regulating device. This will maximize diaphragm life.
Alternate pressuring and exhausting of the diaphragm chamber is performed by means of an externally mounted, pilot operated, four-way spool type air distribution valve. When the spool shifts to one end of the valve body, inlet air pressure is applied to one diaphragm chamber and the other diaphragm chamber exhausts. When the spool shifts to the opposite end of the valve body, the porting of chambers is reversed. The air distribution valve spool is moved by an internal pilot valve which alternately pressurizes one side of the air distribution valve spool, while exhausting the other side. The pilot valve is shifted at each end of the diaphragm stroke by the diaphragm plate coming in contact with the end of the pilot valve spool. This pushes it into position for shifting of the air distribution valve.
The chambers are manifolded together with a suction and discharge check valve for each chamber, maintaining ow in one direction through the pump.
Type 7
INSTALLATION & START-UP
Locate the pump as close to the product being pumped as possible, keeping suction line length and number of ttings to a minimum. Do not reduce line size.
For installations of rigid piping, short exible sections of hose should be installed between pump and piping. This reduces vibration and strain to the piping system. A Warren Rupp Tranquilizer pulsation in ow.
This pump was tested at the factory prior to shipment and is ready for operation. It is completely self-priming from a dry start for suction lifts of 20 feet (6.096 meters) or less. For suction lifts exceeding 20 feet of liquid, ll the chambers with liquid prior to priming.
®
Surge Suppressor is recommended to further reduce
AIR SUPPLY
Air supply pressures cannot exceed 125 psi (8.61 bar). Connect the pump air inlet to an air supply of sufcient capacity and pressure required for desired performance. When the air line is solid piping, use a short length of exible hose (not less than 3/4" (19mm) in diameter) between pump and piping to eliminate strain to pipes.
AIR INLET & PRIMING
For start-up, open an air valve approximately 1/2" to 3/4" turn. After the unit primes, an air valve can be opened to increase ow as desired. If opening the valve increases cycling rate, but does not increase ow rate, cavitation has occurred, and the valve should be closed slightly.
For the most efcient use of compressed air and the longest diaphragm life, throttle the air inlet to the lowest cycling rate that does not reduce ow.
AIR VALVE LUBRICATION
msa3dl7sm-REV0614 Models MSA3 Page 1
Page 4
The Sandpiper pump’s pilot valve and main air valve assemblies are designed to operate WITHOUT lubrication. This is the preferred mode of operation. There
may be instances of personal preference, or poor quality air supplies when lubrication of the compressed air supply is required. The pump air system will operate with properly lubricated compressed air supplies. Proper lubrication of the compressed air supply would entail the use of an air line lubricator (available from Warren Rupp) set to deliver one drop of 10 weight, non-detergent oil for every 20 SCFM of air the pump consumed at its point of operation. Consult the pump’s published Performance Curve to determine this.
It is important to remember to inspect the sleeve and spool set routinely. It should move back and forth freely. This is most important when the air supply is lubricated. If a lubricator is used, oil accumulation will, over time, collect any debris from the compressed air. This can prevent the pump from operating properly.
Water in the compressed air supply can create problems such as icing or freezing of the exhaust air causing the pump to cycle erratically, or stop operating. This can be addressed by using a point of use air dryer (available from Warren Rupp) to supplement a plant’s air drying equipment. This device will remove excess water from the compressed air supply and alleviate the icing or freezing problem.
Externally Serviceable Air Distribution System
Please refer to the exploded view drawing and parts list in the Service Manual supplied with your pump. If you need replacement or additional copies, contact your local Warren Rupp Distributor, or the Warren Rupp factory Literature Department at the number shown below. To receive the correct manual, you must specify the MODEL and TYPE information found on the name plate of the pump.
Models with 1" suction/discharge or larger and METAL center sections
The main air valve sleeve and spool set is located in the valve body mounted on the pump with four hex head capscrews. The valve body assembly is removed from the pump by removing these four hex head capscrews.
With the valve body assembly off the pump, access to the sleeve and spool set is made by removing four hex head capscrews (each end) on the end caps of the valve body assembly. With the end caps removed, slide the spool back and forth in the sleeve. The spool is closely sized to the sleeve and must move freely to allow for proper pump operation. An accumulation of oil, dirt or other contaminants from the pump’s air supply, or from a failed diaphragm, may prevent the spool from moving freely. This can cause the spool to stick in a position that prevents the pump from operating. If this is the case, the sleeve and spool set should be removed from the valve body for cleaning and further inspection.
Remove the spool from the sleeve. Using an arbor press or bench vise (with an improvised mandrel), press the sleeve from the valve body. Take care not to damage the sleeve. At this point, inspect the o-rings on the sleeve for nicks, tears or abrasions. Damage of this sort could happen during assembly or servicing. A sheared or cut o-ring can allow the pump’s compressed air supply to leak or bypass within the air valve assembly, causing the pump to leak compressed air from the pump air exhaust or not cycle properly. This is most noticeable at pump dead head or high discharge pressure conditions. Replace any of these o-rings as required or set up a routine, preventive maintenance schedule to do so on a regular basis. This practice should include cleaning the spool and sleeve components with a safety solvent or equivalent, inspecting for signs of wear or damage, and replacing worn components.
To re-install the sleeve and spool set, lightly lubricate the o-rings on the sleeve with an o-ring assembly lubricant or lightweight oil (such as 10 wt. air line lubricant). Press the set into the valve body easily, without shearing the o-rings. Re-install one end cap, gasket and bumper on the valve body. Using the arbor press or bench vise that was used in disassembly, press the sleeve back into the valve body. You may have to clean the surfaces of the valve body where the end caps mount. Material may remain from the old gasket. Old material not cleaned from this area may cause air leakage after reassembly. Take care that the bumper stays in place allowing the sleeve to press in all the way. Reinstall the spool, the opposite end cap, gasket and bumper on the valve body. After inspecting and cleaning the gasket surfaces on the valve body and intermediate, reinstall the valve body on the pump using new gaskets. Tighten the four hex head capscrews evenly and in an alternating cross pattern.
PILOT VALVE
Model MSA3 Page 2 msa3dl7sm-REV0614
Page 5
The pilot valve assembly is accessed by removing the main air distribution valve body from the pump and lifting the pilot valve body out of the intermediate housing.
Most problems with the pilot valve can be corrected by replacing the o-rings. Always grease the spool prior to inserting it into the sleeve. If the sleeve is removed from the body, reinsertion must be at the chamfered side. Grease the o-rings to slide the sleeve into the valve body. Securely insert the retaining ring around the sleeve. When reinserting the pilot valve, push both plungers (located inside the intermediate bracket) out of the path of the pilot valve spool ends to avoid damage.
PILOT VALVE ACTUATOR
Bushings for the pilot valve actuators are threaded into the intermediate bracket from the outside. The plunger may be removed for inspection or replacement. First remove the air distribution valve body and the pilot valve body from the pump. The plungers can be located by looking into the intermediate. It may be necessary to use a ne piece of wire to pull them out. The bushing can be turned out through the inner chamber by removing the outer chamber assembly. Replace the bushings if pins have bent.
AIR EXHAUST
If a diaphragm fails, the pumped liquid or fumes can enter the air end of the pump, and be exhausted into the atmosphere. When pumping hazardous or toxic materials, pipe the exhaust to an appropriate area for safe disposition.
This pump can be submerged if materials of construction are compatible with the liquid. The air exhaust must be piped above the liquid level. Piping used for the air exhaust must not be smaller than 1" (2.54 cm). Reducing the pipe size will restrict air ow and reduce pump performance. When the product source is at a higher level than the pump (ooded suction), pipe the exhaust higher than the product source to
prevent siphoning spills.
Freezing or icing-up of the air exhaust can occur under certain temperature and humidity conditions. Use of a Warren Rupp Extractor/Dryer unit should eliminate most icing problems.
BETWEEN USES
When used for materials that tend to settle out or transform to solid form, the pump should be completely ushed after each use, to prevent damage. Product remaining in the pump between uses could dry out or settle out. This could cause problems with valves and diaphragms at re-start. In freezing temperatures, the pump must be drained between uses in all cases.
CHECK VALVE SERVICING
For ap valve inspection or replacement, remove the ange bolts securing the suction and discharge elbows and loosen Dresser-type couplings. The ap valves are exposed for inspection or servicing upon removal of elbows.
DIAPHRAGM SERVICING
Diaphragms are serviced by removing the outer diaphragm chambers which are secured with 12 bolts. After removing the outer chamber, unbolt the diaphragm plate by removing 6 socket head capscrews (Allen wrench required). To remove the diaphragm rod, remove the inner diaphragm plate secured by a nut on the end of the diaphragm rod. The opposite diaphragm and rod can then be removed as a unit. The interior components consisting of sleeve bearings, rod seals, and pilot valve actuator bushings are now accessible for service if required.
REASSEMBLY
All procedures for reassembling the pump are the reverse of the above with these further instructions:
1. Install the diaphragms with their natural bulge outward. Make certain that the rubber diaphragm rod bumper is installed on the rod behind each inner diaphragm plate. Re-torque the 6 socket head capscrews that secure the diaphragm between the plates to 30 foot Ibs. (40.67 Newton meters) torque reading.
2. Caution should be used while reassembling the check valves. The valves are designed for some preload over the retainer and the hinge pad. This is done to insure proper face contact with the seat. After all parts are in place, tighten the lock nuts down on the assembly to the point where visual inspection shows that seat and valve face mate without gap. This is important for dry primes. However, after priming action has started, valves will function due to differential pressure without concern or trouble.
msa3dl7sm-REV0614 Models MSA3 Page 3
Page 6
TROUBLE SHOOTING
PROBLEM: Pump cycles but will not pump. (Note: higher suction lifts require faster
cycling speed for priming.)
POSSIBLE CAUSES:
A. Air leak in suction line. B. Excessive suction lift.
C. Check valve not closing.
D. Leakage at joint of suction manifold or elbow ange. E. Suction line plugged. F. Diaphragm ruptured.
PROBLEM: Pump will not cycle. (Note: Always disconnect air supply to relieve air pressure before disassembling any portion of pump.)
POSSIBLE CAUSES:
A. Discharge hose or line plugged, or discharge head requirement greater than air
pressure. (Disconnect discharge line to check.)
B. Spool in air distribution valve not shifting. (Remove end cap and check spool - must
slide freely.) C. Diaphragm ruptured. (Air will escape out discharge line in this case.) D. Blockage in diaphragm chamber preventing movement. (Shut off air supply and
reopen after pressure is relieved.) E. Plugged or dirty exhaust mufer.
PROBLEM: Uneven discharge ow. (Indicates one chamber not operating properly.) POSSIBLE CAUSES:
A. Check valve not sealing properly in one chamber. B. Diaphragm failure in one chamber. C. Air leak at suction manifold joint or elbow ange one side. For additional information, see the Warren Rupp Troubleshooting Guide.
WARRANTY
This pump is warranted for a period of ve years against defective material and workmanship. Failure to comply with the recommendations stated in this manual voids all factory warranty.
RECOMMENDED WARREN RUPP ACCESSORIES TO MAXIMIZE PUMP PERFORMANCE:
• Tranquilizer® Surge Suppressor. For nearly pulse-free ow.
• Warren Rupp Air Dryer. For clean, dry compressed air.
• Warren Rupp Filter/Regulator. For modular installation and service convenience.
• Warren Rupp Speed Control. For manual or programmable process control. Manual adjustment or 4-20mA reception.
For more detailed information on these accessories, contact your local Warren Rupp Factory-Authorized Distributor, or Warren Rupp corporate headquarters.
Model MSA3 Page 4 msa3dl7sm-REV0614
Page 7

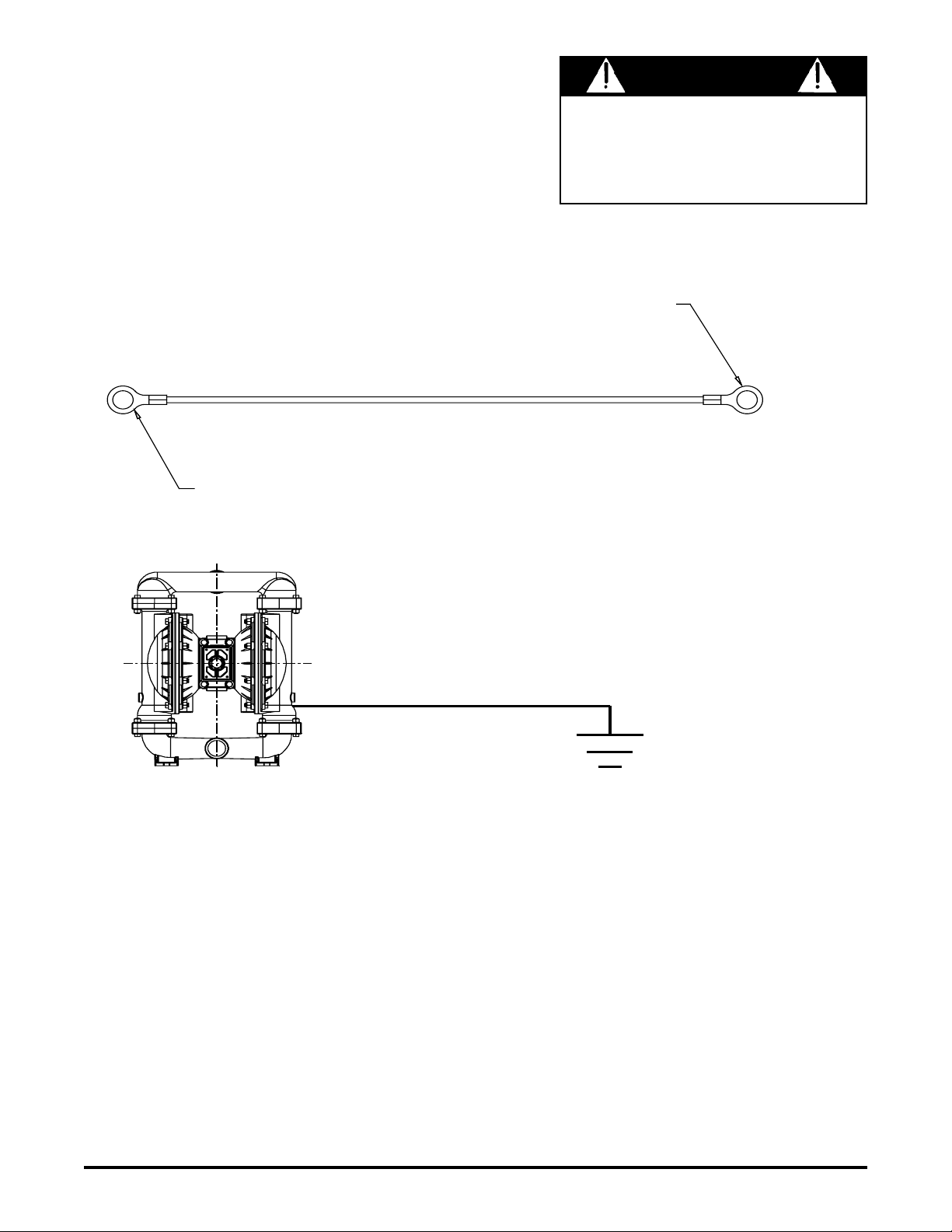

Grounding The Pump
One eyelet is fastened to the pump hardware.
One eyelet is installed to a true earth ground.
WARNING
Take action to prevent static spark­ing. Fire or explosion can result,
especially when handling ammable
liquids. The pump, piping, valves, containers or other miscellaneous equipment must be grounded.
This 8 foot long (244 centimeters) Ground Strap, part number 920.025.000 can be ordered as a service item.
To reduce the risk of static electrical sparking, this pump must be grounded. Check the local electrical code for detailed grounding instruction and the type of equipment required, or in the absence of local codes, an industry or nationally recognized code having jurisdiction over specic installations.
msa3dl7sm-REV0614 Models MSA3 Page 5
Page 8
Recycling
Many components of SANDPIPER® Metallic AODD pumps are made of recyclable materials. We encourage pump users to recycle worn out parts and pumps whenever possible, after any hazardous pumped uids are thoroughly ushed.
IMPORTANT
Read these safety warnings and instructions in this manual completely, before installation and start-up
of the pump. It is the responsibility of the purchaser to retain this manual for reference. Failure to comply with the recommendations stated in this manual will damage the pump, and void factory warranty.
WARNING
Before doing any main­tenance on the pump, be certain all pressure is completely vented from the
pump, suction, discharge, piping, and all other openings and connections. Be certain the air supply is locked out or made non-operational, so that it cannot be started while work is being done on the pump. Be certain that approved eye protection and protective clothing are worn all times in the vicinity of the pump. Failure to follow these recommendations may result in serious injury or death.
WARNING
In the event of diaphragm
rupture, pumped material
may enter the air end of the
pump, and be discharged
into the atmosphere. If pumping a product which is hazardous or toxic, the air exhaust must be piped to an appropriate area for safe disposition.
WARNING
Before maintenance or
repair, shut off the com-
pressed air line, bleed the
pressure, and disconnect
the air line from the pump.
The discharge line may be pressurized and must be bled of its pressure.
WARNING
Take action to prevent static sparking. Fire or explosion can result, especially when
handling ammable liquids.
The pump, piping, valves, containers or other miscellaneous equipment must be grounded. (See page 6).
CAUTION
Before pump operation,
inspect all gasketed
fasteners for looseness
caused by gasket creep. Re-
torque loose fasteners to prevent leakage. Follow recommended torques stated in this manual.
WARNING
POSSIBLE EXPLOSION HAZARD can result if 1, 1, ,-Trichloroethane,Methylene Chloride or other Halogenated Hy-
drocarbon solvents are used in
pressurized uid systems having Aluminum
or Galvanized wetted parts. Death, serious bodily injury and/or property damage could result. Consult with the factory if you have questions concerning Halogenated Hydrocarbon solvents.
WARNING
When used for toxic or
aggressive uids, the pump
should always be ushed
clean prior to disassembly.
WARNING
Airborne particles and loud
noise hazards.
Wear ear and eye protection.
CAUTION
Pump not designed,
tested or certied to be
powered by compressed natural gas. Powering the pump with natural
gas will void the warranty.
II 2GD T5
kg
Pump complies with EN809 Pumping Directive and
WARNING
Use safe practices
when lifting
Directive 98/37/EC Safety of Machinery, and ATEX 100a Directive 94/9/EC Equipment for use in Potentially Explosive Environments. For documentation consult the manufacturer or visit: www.warrenrupp.com
Model MSA3 Page 6 msa3dl7sm-REV0614
Page 9
Material Codes
The Last 3 Digits of Part Number
000 Assembly, sub-assembly;
and some purchased items
010 Cast Iron
012 Powered Metal 015 Ductile Iron 020 Ferritic Malleable Iron 025 Music Wire 080 Carbon Steel, AISI B-1112
100 Alloy 20
110 Alloy Type 316 Stainless Steel 111 Alloy Type 316 Stainless Steel
(Electro Polished)
112 Alloy C
113 Alloy Type 316 Stainless Steel
(Hand Polished) 114 303 Stainless Steel 115 302/304 Stainless Steel 117 440-C Stainless Steel
(Martensitic)
120 416 Stainless Steel
(Wrought Martensitic) 123 410 Stainless Steel
(Wrought Martensitic) 148 Hardcoat Anodized Aluminum 149 2024-T4 Aluminum 150 6061-T6 Aluminum 151 6063-T6 Aluminum 152 2024-T4 Aluminum (2023-T351) 154 Almag 35 Aluminum 155 356-T6 Aluminum 156 356-T6 Aluminum 157 Die Cast Aluminum Alloy #380 158 Aluminum Alloy SR-319 159 Anodized Aluminum 162 Brass, Yellow, Screw Machine
Stock
165 Cast Bronze, 85-5-5-5 166 Bronze, SAE 660 170 Bronze, Bearing Type,
Oil Impregnated 175 Die Cast Zinc
180 Copper Alloy
305 Carbon Steel, Black Epoxy
Coated
306 Carbon Steel, Black PTFE
Coated
307 Aluminum, Black Epoxy Coated 308 Stainless Steel, Black PTFE
Coated
309 Aluminum, Black PTFE Coated 310 PVDF Coated 330 Zinc Plated Steel 331 Chrome Plated Steel 332 Aluminum, Electroless Nickel
Plated
333 Carbon Steel, Electroless
Nickel Plated
335 Galvanized Steel 336 Zinc Plated Yellow Brass 337 Silver Plated Steel 340 Nickel Plated 342 Filled Nylon 353 Geolast; Color: Black 354 Injection Molded #203-40 Santo-
prene- Duro 40D +/-5; Color: RED 355 Thermal Plastic 356 Hytrel 357 Injection Molded Polyurethane 358 Urethane Rubber
(Some Applications) (Compression
Mold) 359 Urethane Rubber 360 Nitrile Rubber. Color coded: RED 361 FDA Accepted Nitrile 363 FKM (Fluorocarbon).
Color coded: YELLOW
364 E.P.D.M. Rubber. Color coded:
BLUE 365 Neoprene Rubber.
Color coded: GREEN
366 Food Grade Nitrile 368 Food Grade EPDM 370 Butyl Rubber. Color coded: BROWN 371 Philthane (Tuftane) 374 Carboxylated Nitrile 375 Fluorinated Nitrile 378 High Density Polypropylene 379 Conductive Nitrile 405 Cellulose Fibre
408 Cork and Neoprene
425 Compressed Fibre 426 Blue Gard 440 Vegetable Fibre 465 Fibre
500 Delrin 500
501 Delrin 570 502 Conductive Acetal, ESD-800 503 Conductive Acetal, Glass-Filled
505 Acrylic Resin Plastic 506 Delrin 150
520 Injection Molded PVDF
Natural color 521 Conductive PVDF
540 Nylon 541 Nylon 542 Nylon 544 Nylon Injection Molded 550 Polyethylene
551 Glass Filled Polypropylene 552 Unlled Polypropylene
553 Unlled Polypropylene
555 Polyvinyl Chloride 556 Black Vinyl
557 Conductive Polypropylene 558 Conductive HDPE 559 Glass-Filled Conductive
Polypropylene
570 Rulon II
580 Ryton
590 Valox 591 Nylatron G-S 592 Nylatron NSB 600 PTFE (virgin material)
Tetrauorocarbon (TFE) 601 PTFE (Bronze and moly lled) 602 Filled PTFE 603 Blue Gylon 604 PTFE 606 PTFE 607 Envelon 608 Conductive PTFE 610 PTFE Integral Silicon 611 PTFE Integral FKM 632 Neoprene/Hytrel 633 FKM (Fluorocarbon)/PTFE 634 EPDM/PTFE 635 Neoprene/PTFE 637 PTFE, FKM (Fluorocarbon)/PTFE 638 PTFE, Hytrel/PTFE 639 Nitrile/TFE 643 Santoprene/EPDM 644 Santoprene/PTFE 650 Bonded Santoprene and PTFE 654 Santoprene Diaphragm, PTFE Overlay
Balls and seals
656 Santoprene Diaphragm and
Check Balls/EPDM Seats 661 EPDM/Santoprene
Delrin and Hytrel are registered tradenames of E.I. DuPont.
Gylon is a registered tradename of Garlock, Inc.
Nylatron is a registered tradename of Polymer Corp.
Santoprene is a registered tradename of
Monsanto Corp.
Rulon II is a registered tradename of Dixion Industries Corp.
Ryton is a registered tradename of Phillips Chemical Co.
Valox is a registered tradename of
General Electric Co.
Warren Rupp, SANDPIPER, Portapump, Tranquilizers and SludgeMaser are registered tradenames of IDEX AODD, Inc.
msa3dl7sm-REV0614 Models MSA3 Page 7
Page 10
SERVICE AND OPERATING MANUAL
Model MSA3, MSA3-C
II 2GD T5
Mine/Construction-Duty
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 031.012.000 SLEEVE & SPOOL SET 1 2 060.096.000 BASE, PUMP 1 3 070.006.170 BEARING 2 4 095.043.156 BODY, AIR VALVE 1 5 095.073.001 ASSEMBLY, PILOT VALVE 1 5-A 095.070.558 BODY, PILOT VALVE 1 5-B 560.023.360 O-RING (SPOOL) 2 5-C 560.033.360 O-RING 4 5-D 675.037.080 RETAINING RING 1 5-E 755.025.000 SLEEVE, PILOT VALVE 1 5-F 775.026.000 SPOOL, PILOT VALVE 1
6 114.002.156 INTERMEDIATE 1
7 115.020.080 BRACKET, FOOT 2 8 115.021.080 BRACKET, FOOT 2 9 132.002.360 BUMPER, DIAPHRAGM PLATE 2 10 132.014.358 BUMPER, AIR VALVE 2 11 135.016.162 BUSHING, THREADED, W/ O-RING 560.001.360 2 12 165.011.157 CAP, END 2 13 170.012.330 CAPSCREW, HEX HEAD 1/2-13 UNC X 2.00 8 14 170.023.330 CAPSCREW, HEX HEAD 4 15 170.024.330 CAPSCREW, HEX HD, 7/16-14 X 1 8 16 170.032.330 CAPSCREW, HEX HEAD 1/4-20 X 3/4 8 17 170.034.330 CAPSCREW, HEX HEAD 1/2-13 UNC X 2.00 8 18 170.045.330 CAPSCREW, HEX HEAD 4 19 170.066.330 CAPSCREW, HEX, 1/2-13 X 2.25 36 20 172.001.330 CAPSCREW, SOCKET 12 21 196.003.155 CHAMBER, INNER 2 22 196.004.155 CHAMBER, OUTER 2 23 286.018.354 DIAPHRAGM 2
286.018.360 DIAPHRAGM 2
286.018.365 DIAPHRAGM 2 24 312.015.155 ELBOW, SUCTION 2 25 312.016.155 ELBOW, DISCHARGE 2 26 334.020.000 FLANGE, FOLLOWER 4 27 338.008.360 FLAP VALVE 4
338.008.365 FLAP VALVE 4
338.011.354 FLAP VALVE 4 28 360.010.425 GASKET, END CAP 2 29 360.013.379 GASKET, FLANGE 4
360.013.384 GASKET, FLANGE 4 30 360.014.379 GASKET, FLANGE 4
360.014.384 GASKET, FLANGE 4 31 360.021.000 GASKET 4 32 360.041.379 GASKET, VALVE BODY 1 33 360.048.425 GASKET, VALVE BODY 1 34 518.014.156 MANIFOLD 2 35 545.007.330 NUT, HEX - 7/16-14 20 36 545.008.330 NUT, HEX 1/2-13 32
545.008.330 NUT, HEX 1/2-13 24 37 547.002.110 NUT, STOP 8 38 547.006.330 NUT, STOP 2
*
*
*
Type 7
Model MSA3 Page 8 msa3dl7sm-REV0614
Page 11
ITEM NO. PART NUMBER DESCRIPTION QTY.
39 560.001.360 O-RING 2 40 560.020.360 O-RING 6 41 560.022.360 O-RING 2 42 570.002.360 PAD, HINGE 4
570.002.365 PAD, HINGE 4 43 570.012.371 PAD, WEAR 2 44 612.014.000 PLATE, DIAPHRAGM 2 45 612.015.156 PLATE, OUTER DIAPHRAGM 2 46 618.003.330 PLUG, PIPE, 1/4 2 47 618.004.330 PIPE, PLUG 2
48 620.011.114 PLUNGER, ACTUATOR 2
49 670.006.115 RETAINER, FLAP VALVE 4 50 685.008.120 ROD, DIAPHRAGM 1 51 720.004.360 SEAL, U-CUP 2 52 722.007.010 SEAT, FLAP VALVE 4 53 807.016.330 7/16-14 STUD 12 54 807.017.330 7/16-14 X 3 STUD 8 55 807.018.110 STUD, 1/4-20 8 56 900.003.330 WASHER, LOCK, 1/2 16
900.003.330 WASHER, LOCK, 1/2 8 57 900.006.330 WASHER, LOCK - 7/16 12 58 901.006.330 WASHER, FLAT, 1/2 12 59 901.011.180 WASHER 12 60 901.013.180 WASHER, SEALING 2 61 901.023.330 WASHER, FLAT 2
*
NOT USED ON MODEL MSA3
*
msa3dl7sm-REV0614 Models MSA3 Page 9
Page 12
Model MSA3-C
25
35
24
53
52
42
49
55
30
37
36
22
47
23
38
44
61
9
21
19
60
20
59
45
43
7
29
30
27
52
54
29
14 57
19
58
26
50
31
34
6
57
15
41
51
3
46
32
5-A
5-D
33
4
18
5-B
5-F
11
39
48
5-E
5-C
16
12
10
28
40
1
56
13
17
8
56
36
2
Model MSA3 Page 10 msa3dl7sm-REV0614
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
