SAMSUNG VP-D305 Reference

Samsung Electronics 3-1

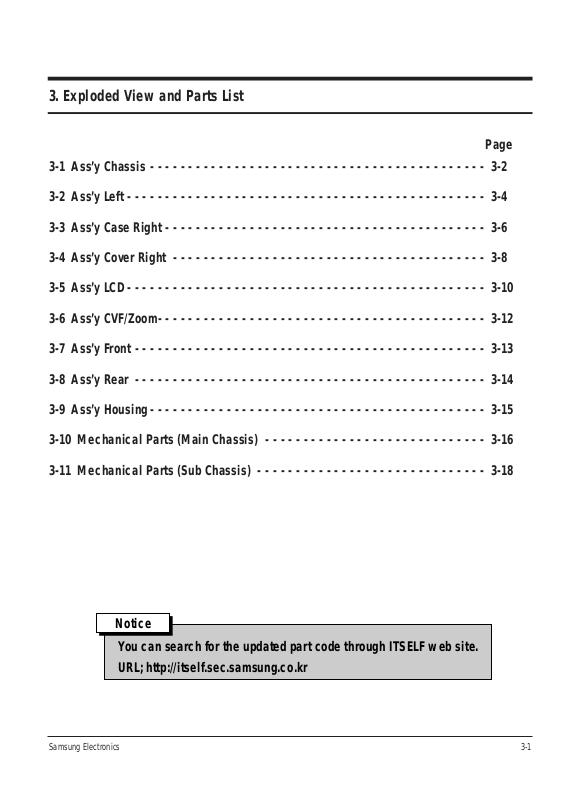

3. Exploded View and Parts List

3-1 Ass’y Chassis - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-2
3-2 Ass’y Left - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-4
3-3 Ass’y Case Right - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-6
3-4 Ass’y Cover Right - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-8
3-5 Ass’y LCD- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-10
3-6 Ass’y CVF/Zoom- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-12
3-7 Ass’y Front - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-13
3-8 Ass’y Rear - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-14
3-9 Ass’y Housing- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-15
3-10 Mechanical Parts (Main Chassis) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-16
3-11 Mechanical Parts (Sub Chassis) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-18

Page

You can search for the updated part code through ITSELF web site.
URL; http://itself.sec.samsung.co.kr

Notice

Exploded View and Parts List

3-2 Samsung Electronics

3-1 Ass’y Chassis

500

101

901

175

902

921

170

171

173

160

104

907

921

Exploded View and Parts List

3-3Samsung Electronics

Loc. No Parts No. Description ; Specification Remark

101 AD97-08593A ASSY-CHASSIS DECK;ASSY,THETA2-PJ,­104 AD61-01659A BRACKET-LENS;THETA2,SUS304 1/2H,T0.5,W40
160 AD97-08324A ASSY-LENS-ZOOM;PC,SHML,20X
170 AD97-08542A ASSY-CCD BOARD;-,THETA2,CCD BOARD,C
171 AD60-00053A SPACER-CCD;ALPHA_PJ,SILICON,-,-,-,BLK,0.
173 AD29-00019A FILTER-OPTICAL LPF;-,VP-D73,-,-,3.4X4.5X
175 AD97-08482D ASSY-MAIN BOARD;THETA2-PJ,VP-D303/XEU,PA VP-D303 Only

AD97-08482E ASSY-MAIN BOARD;THETA2-PJ,VP-D303I/XEU,P VP-D303I Only
AD97-08482F ASSY-MAIN BOARD;THETA2-PJ,VP-D305/XEU,PA VP-D305 Only
AD97-08482G ASSY-MAIN BOARD;THETA2-PJ,VP-D305I/XEU,P VP-D305I Only
AD97-08482H ASSY-MAIN BOARD;THETA2-PJ,VP-D307/XEU,PA VP-D307 Only

AD97-08482J ASSY-MAIN BOARD;THETA2-PJ,VP-D307I/XEU,P VP-D307I Only
500 AD97-07910A ASSY-DECK;-,DD-4,ASSY
901 6009-001284 SCREW-SPECIAL;SWRCH18A,-,CH,+,M1.4,L4.7(
902 6001-001526 SCREW-MACHINE;CH(0.3),+,M1.7,L3.0,NI PLT
907 6001-001385 SCREW-MACHINE;CH,+,M1.7,L2.5,ZPC(BLK),SW
921 6003-001300 SCREW-TAPTITE;CH,+,B,M1.7,L4,ZPC(BLK),SW

Exploded View and Parts List

3-4 Samsung Electronics

3-2 Ass’y Left

105

211

216

201

155

919

207

209

215

214

220

918

910

913

208

205

203

219

910

Exploded View and Parts List

3-5Samsung Electronics

Loc. No Parts No. Description ; Specification Remark

105 AD63-00594A COVER-JACK LEFT;THETA2-PJ,ABS+TPU,T2.0,W
155 AD61-12033A BRACKET-NUT;SV-D10,T0.8,-,-,-,-,T0.8
201 AD61-01665A HOLDER-TRIPOD;THETA2-PJ,PC,T12,W12,L30,L
203 AD97-04289A ASSY-SPEAKER;-,D5-PJ,G-17S08-0823
205 AD61-01661A CASE-LEFT;THETA2-PJ,ABS 94HB,T27.6,W75,L
207 AD64-01186A KNOB-SELECT;THETA2-PJ,ABS 94HB,T5,W7,L7,
208 AD61-01666A HOLDER-SELECT;THETA2-PJ,POM,T5,W3,L8,L/G
209 AD69-00263B PAD-HOUSING;D5-PJ,PORON(HH-48)L/GRAY,t0.
211 AD63-00590A COVER-LEFT;THETA2-PJ,ABS 94HB,T20,W100,L VP-D303(I) Only

AD63-00591A COVER-LEFT;THETA2-PJ,ABS 94HB,T20,W100,L VP-D305(I)/D307(I) Only
214 AD63-00555A COVER-DOOR M/S;DELTA2-PJ,ABS 94HB,T1.4,W VP-D303(I) Only

AD63-00555B COVER-DOOR-MULTI;DELTA2-PJ,ABS94HB,T1.0, VP-D305(I)/D307(I) Only
215 AD61-01667A HOLDER-DOOR MS;THETA2-PJ,ABS 94HB,T5,W5, VP-D303(I) Only

AD61-01668A HOLDER-DOOR MULTI;THETA2-PJ,ABS 94HB,T5, VP-D305(I)/D307(I) Only
216 AD61-01028A SPRING ETC-DOOR M/S;BETA-PJ,SUS304 WPB,- VP-D303(I) Only

AD61-01799A SPRING ETC-DOOR-MULTI;DELTA2-PJ,SWPB,0.2 VP-D305(I)/D307(I) Only
219 AD97-08483A ASSY-LEFT BOARD;THETA2-PJ,-,- VP-D303(I) Only

AD97-08483B ASSY-LEFT BOARD(20P);THETA2-PJ,-,- VP-D305(I)/D307(I) Only
220 AD97-08484B ASSY-FUNCTION BOARD;THETA2-PJ,-,­910 6003-001453 SCREW-TAPTITE;BH,+,B,M1.7,L4,ZPC(BLK)
913 6002-001085 SCREW-TAPPING;CH,+,2,M1.7,L5,ZPC(BLK),SW
918 6003-001292 SCREW-TAPTITE;CH(0.3),+,B,M1.7,L3,ZPC(BL
919 6001-001292 SCREW-MACHINE;PH,+,M1.7,L3.0,ZPC(BLK),SW

Exploded View and Parts List

3-6 Samsung Electronics

3-3 Ass’y Case Right

910

409

408

902

910

403

402

401

407

155

905

910

405

406
