UHD TV
Chassis : UWJ51
Model : UN75JU641DF
SERVICE Manual
UHD TV |
|
Contents |
|
|
|
1. Precautions
2. Product specifications
3. Disassembly and Reassembly
4. Troubleshooting
5. Wiring Diagram
UN75JU641DF
|
|
Contents |
|
1. Precautions.................................................................................................................... |
1-1 |
||
1-1. |
Safety Precautions............................................................................................................... |
1-1 |
|
|
1-1-1. Warnings................................................................................................................... |
1-1 |
|
|
1-1-2. Servicing the LED TV................................................................................................ |
1-1 |
|
|
1-1-3. |
Fire and Shock Hazard.............................................................................................. |
1-1 |
|
1-1-4. |
Product Safety Notices.............................................................................................. |
1-2 |
1-2. |
Servicing Precautions.......................................................................................................... |
1-3 |
|
|
1-2-1. |
General Servicing Precautions.................................................................................. |
1-3 |
1-3. |
Static Electricity Precautions................................................................................................ |
1-4 |
|
1-4. |
Installation Precautions........................................................................................................ |
1-5 |
|
2. Product Specifications................................................................................................. |
2-1 |
||
2-1. Product information.............................................................................................................. |
2-1 |
||
2-2. Product specification ........................................................................................................... |
2-2 |
||
|
2-2-1. Feature & Specifications........................................................................................... |
2-2 |
|
|
2-2-2. Detailed Specifications.............................................................................................. |
2-3 |
|
2-3. Accessories.......................................................................................................................... |
2-7 |
||
2-4. |
Viewing the Functions.......................................................................................................... |
2-8 |
|
2-5. |
NEW Key Features.............................................................................................................. |
2-9 |
|
|
2-5-1. |
15" New UI................................................................................................................ |
2-9 |
|
2-5-2. |
Multi Screen............................................................................................................ |
2-10 |
|
2-5-3. |
Instant On................................................................................................................ |
2-11 |
2-6. |
HDMI 60P Mode................................................................................................................. |
2-12 |
|
2-7. |
Supported Formats............................................................................................................ |
2-13 |
|
3. Disassembly and Reassembly..................................................................................... |
3-1 |
3-1. Disassembly and Reassembly............................................................................................. |
3-1 |
3-1-1. TV Disassembly........................................................................................................ |
3-1 |
4. Troubleshooting............................................................................................................ |
4-1 |
4-1. Troubleshooting.................................................................................................................... |
4-1 |
4-1-1. Previous Check......................................................................................................... |
4-1 |
4-2. How to Check Fault Symptom.............................................................................................. |
4-2 |
4-2-1. Video......................................................................................................................... |
4-2 |
4-2-2. Bluetooth / WIFI Module............................................................................................ |
4-4 |
4-2-3. Apps / Photos, Videos & Music................................................................................. |
4-8 |
4-3. Factory Mode Adjustments................................................................................................... |
4-9 |
4-3-1. Detail Factory Option................................................................................................. |
4-9 |
4-3-2. Entering Factory Mode............................................................................................ |
4-10 |
4-3-3. Factory Data............................................................................................................ |
4-11 |
4-4. White Balance.................................................................................................................... |
4-19 |
4-4-1. Calibration............................................................................................................... |
4-19 |
4-4-2. Service Adjustment.................................................................................................. |
4-19 |
4-4-3. Adjustment............................................................................................................... |
4-21 |
4-5. RS-232C............................................................................................................................ |
4-22 |
4-6. AV Control Tabe................................................................................................................. |
4-23 |
4-7. Updating the TV’s Software............................................................................................... |
4-29 |
5. Wiring Diagram.............................................................................................................. |
5-1 |
|
5-1. |
Wiring Diagram.................................................................................................................... |
5-1 |
5-2. |
Connector............................................................................................................................. |
5-2 |
ANNEX. Exploded View & Part List [UN75JU641DFXZA TD03]......................... |
ANNEX-1 |
|
1-1. |

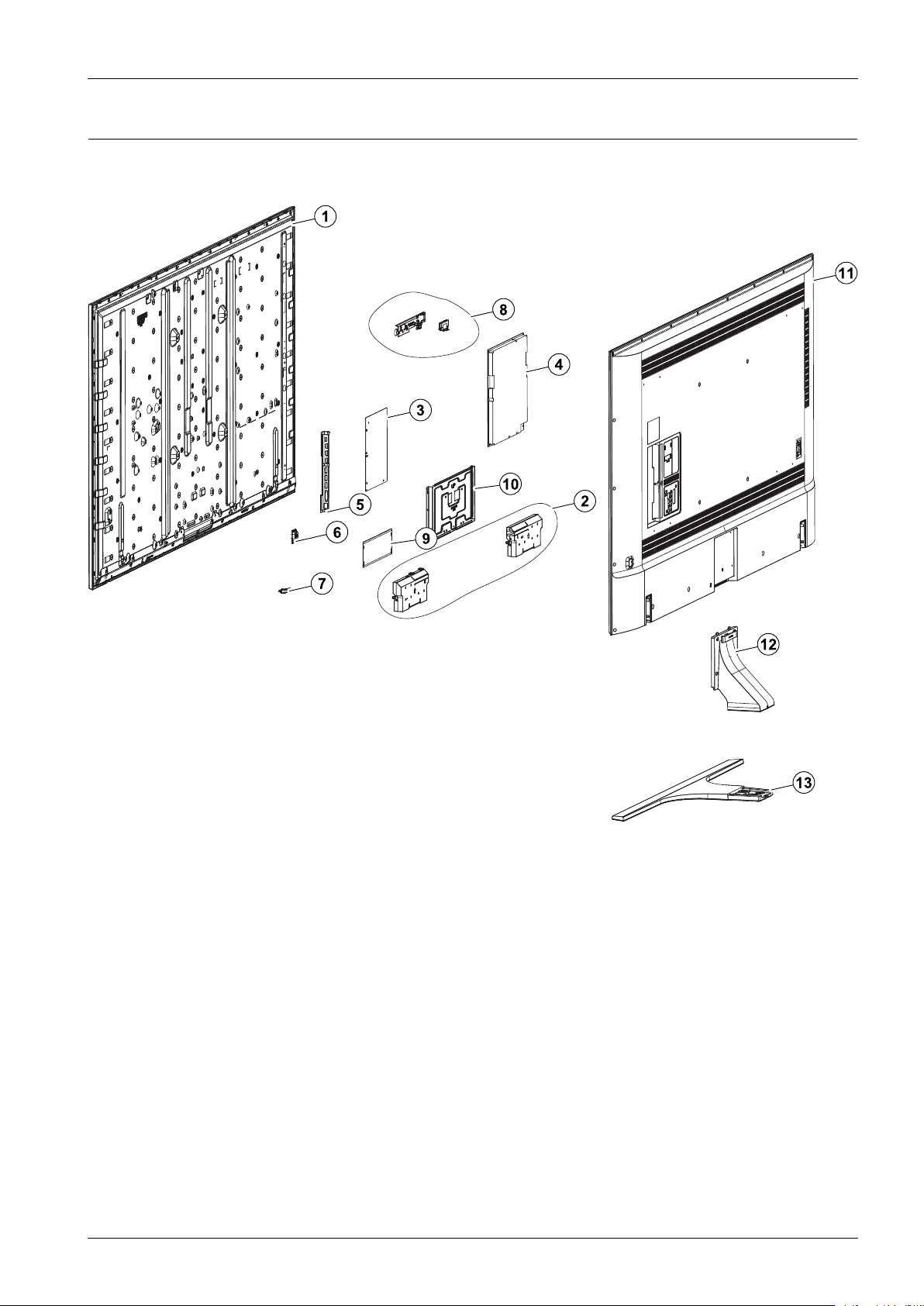

Exploded View.......................................................................................................... |
ANNEX-1 |
|
1-1-1. Parts List........................................................................................................ |
ANNEX-1 |
2-1. |
Electrical Parts List.................................................................................................... |
ANNEX-2 |
This Service Manual is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable International and/or domestic law.
© 2015 Samsung Electronics Co.,Ltd. All rights reserved.
Printed in Korea
1. Precautions
1. Precautions
1-1. Safety Precautions
Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as electrical shock.
1-1-1. Warnings
For continued safety, do not attempt to modify the circuit board.
WARNING |
Disconnect the AC power and DC power jack before servicing. |
|
1-1-2. Servicing the LED TV
1.When servicing the LED TV, Disconnect the AC line cord from the AC outlet.
2.It is essential that service technicians have an accurate voltage meter available at all times. Check the calibration of this meter periodically.
1-1-3. Fire and Shock Hazard
Before returning the monitor to the user, perform the following safety checks:
1.Inspect each lead dress to make certain that the leads are not pinched or that hardware is not lodged between the chassis and other metal parts in the monitor.
2.Inspect all protective devices such as nonmetallic control knobs, insulating materials, cabinet backs, adjustment and compartment covers or shields, isolation resistorcapacitor networks, mechanical insulators, etc.
3.Leakage Current Hot Check:
(READING SHOULD) |
|
|
NOT BE ABOVE 0.5mA |
LEAKAGE |
|
DEVICE |
||
CURRENT |
||
UNDER |
||
TESTER |
||
TEST |
||
|
||
TEST ALL |
|
|
EXPOSED METAL |
|
|
SURFACES |
|
|
2-WIRE CORD |
|
|
ALSO TEST WITH |
|
|
PLUG REVERSED |
EARTH |
|
(USING AC ADAPTER |
||
PLUG AS REQUIRED) |
GROUND |
Do not use an isolation transformer during this test.
|
Use a leakage current tester or a metering system that complies with American National Standards |
|
WARNING |
Institute (ANSI C101.1, Leakage Current for Appliances), and Underwriters Laboratories (UL |
|
Publication UL1410, 59.7). |
||
|
4.With the unit completely reassembled, plug theAC line cord directly into a 120VAC outlet. With the unit’sAC switch first in the ON position and then OFF, measure the current between a known earth ground (metal water pipe, conduit, etc.) and all exposed metal parts, including: metal cabinets, screwheads and control shafts.
The current measured should not exceed 0.5 milliamp.
Reverse the power-plug prongs in the AC outlet and repeat the test.
1-1
1. Precautions
1-1-4. Product Safety Notices
Some electrical and mechanical parts have special safetyrelated characteristics which are often not evident from visual inspection. The protection they give may not be obtained by replacing them with components rated for higher voltage, wattage, etc. Parts that have special safety characteristics are identified by
on schematics and parts lists. A substitute replacement that does not have the same safety characteristics as the recommended replacement part might create shock, fire and/or other hazards. Product safety is under review continuously and new instructions are issued whenever appropriate.
1-2
1. Precautions
1-2. Servicing Precautions
An electrolytic capacitor installed with the wrong polarity might explode.
WARNING
Before servicing units covered by this service manual, read and follow the Safety Precautions section of
this manual.
CAUTION
If unforeseen circumstances create conflict between the following servicing precautions and any of the
safety precautions, always follow the safety precautions.
NOTE
1-2-1. General Servicing Precautions
1.Always unplug the unit’s AC power cord from the AC power source and disconnect the DC Power Jack before attempting to: (a) remove or reinstall any component or assembly, (b) disconnect PCB plugs or connectors, (c) connect a test component in parallel with an electrolytic capacitor.
2.Some components are raised above the printed circuit board for safety. An insulation tube or tape is sometimes used. The internal wiring is sometimes clamped to prevent contact with thermally hot components. Reinstall all such elements to their original position.
3.After servicing, always check that the screws, components and wiring have been correctly reinstalled. Make sure that the area around the serviced part has not been damaged.
4.Check the insulation between the blades of the AC plug and accessible conductive parts (examples: metal panels, input terminals and earphone jacks).
5.Insulation Checking Procedure: Disconnect the power cord from the AC source and turn the power switch ON. Connect an insulation resistance meter (500 V) to theblades of the AC plug. The insulation resistance between each blade of the AC plug and accessible conductive parts (see above) should be greater than 1 megohm.
6.Always connect a test instrument’s ground lead to the instrument chassis ground before connecting the positive lead; always remove the instrument’s ground lead last.
1-3
1. Precautions
1-3. Static Electricity Precautions
Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly called Electrostatically Sensitive Devices (ESD). Examples of typical ESD are integrated circuits and some field-effect transistors. The following techniques will reduce the incidence of component damage caused by static electricity.
1.Immediately before handling any semiconductor components or assemblies, drain the electrostatic charge from your body by touching a known earth ground. Alternatively, wear a discharging wrist-strap device. To avoid a shock hazard, be sure to remove the wrist strap before applying power to the monitor.
2.After removing an ESD-equipped assembly, place it on a conductive surface such as aluminum foil to prevent accumulation of an electrostatic charge.
3.Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ESDs.
4.Use only a grounded-tip soldering iron to solder or desolder ESDs.
5.Use only an anti-static solder removal device. Some solder removal devices not classified as “anti-static” can generate electrical charges sufficient to damage ESDs.
6.Do not remove a replacement ESD from its protective package until you are ready to install it. Most replacement ESDs are packaged with leads that are electrically shorted together by conductive foam, aluminum foil or other conductive materials.
7.Immediately before removing the protective material from the leads of a replacement ESD, touch the protective material to the chassis or circuit assembly into which the device will be installed.
Be sure no power is applied to the chassis or circuit and observe all other safety precautions.
CAUTION
8.Minimize body motions when handling unpackaged replacement ESDs. Motions such as brushing clothes together, or lifting your foot from a carpeted floor can generate enough static electricity to damage an ESD.
1-4
1. Precautions
1-4. Installation Precautions
1.For safety reasons, more than a people are required for carrying the product.
2.Keep the power cord away from any heat emitting devices, as a melted covering may cause fire or electric shock.
3.Do not place the product in areas with poor ventilation such as a bookshelf or closet. The increased internal temperature may cause fire.
4.Bend the external antenna cable when connecting it to the product. This is a measure to protect it from being exposed to moisture. Otherwise, it may cause a fire or electric shock.
5.Make sure to turn the power off and unplug the power cord from the outlet before repositioning the product. Also check the antenna cable or the external connectors if they are fully unplugged. Damage to the cord may cause fire or electric shock.
6.Keep the antenna far away from any high-voltage cables and install it firmly. Contact with the highvoltage cable or the antenna falling over may cause fire or electric shock.
7.When installing the product, leave enough space (0.4m) between the product and the wall for ventilation purposes.
Arise in temperature within the product may cause fire.
8.If an equipment is provided with a replaceable battery, and if replacement by an incorrect type could result in an explosion (for example, with some lithium batteries), the following applies:
•Risk of explosion if battery is replaced by an incorrect type dispose of used batteries according to the instructions.
•Do not dispose of batteries in a fire.
•Do not short circuit, disassemble or overheat the batteries.
CAUTION • Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
•Do not be exposed to excessive heat such as sunshine, fire or the like.
1-5
2. Product specifications
2. Product Specifications
2-1. Product information
Model |
UN**JU641DF |
W
Front View |
H |
* W : Width H : High D : Depth |
|
D |
Detail View
Front Color |
|
|
Black |
|
|
|
|
|
|
Dimensions |
75" |
Body |
1688.9 X 972.2 X 66.0 mm |
|
|
|
|||
(W x H x D) |
With stand |
1688.9 X 1034.4 X 355.3 mm |
||
|
||||
|
|
|||
|
|
|
|
|
Weight |
75" |
Body |
36.5 Kg |
|
|
|
|||
With stand |
42.5 Kg |
|||
|
|
|||
|
|
|
|
|
Panel Type |
|
|
Ultra Clear Pro |
|
|
|
|
|
|
Internal Memory |
|
|
8GB |
|
|
|
|
|
|
DDR |
|
|
DDR3 2.5GB |
|
|
|
|
|
|
Feature |
|
|
Media Play (Movie, Photo, Music) |
2-1
2. Product specifications
2-2. Product specification
2-2-1. Feature & Specifications
Feature
•UHD TV, RF, 4-HDMI, 1-COMPONENT, 1-A/B(COMMON USE FOR COMPONENTY), 2-USB2.0, 1-USB3.0, HEADPHONE
Specifications
Model |
UN75JU641DF |
|
|
|
|
Item |
Description |
|
|
Screen Size (Diagonal) |
75 inches |
|
|
LCD Panel |
UHD 60Hz |
|
|
Scanning Frequency |
Horizontal : 60 kHz ~ 73 kHz (Automatic) |
|
Vertical : 47 Hz ~ 63 Hz (Automatic) |
|
|
Display Colors |
16.7M color |
|
|
Display Resolution |
3840 X 2160 |
|
|
Input Signal |
Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated |
|
|
Input Sync Signal |
H/V Separate, TTL, P. or N. |
|
|
Maximum Pixel Clock Rate |
74.25MHz |
|
|
AC Power Voltage & Frequency |
AC110-120V 50/60Hz |
|
|
Environmental Considerations |
Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C) |
|
Operating Humidity : 10% ~ 80%, non-condensing |
|
Storage Temperature : -4˚F ~ 113˚F (-20˚C ~ 45˚C) |
|
Storage Humidity : 5% ~ 95%, non-condensing |
|
|
Sound (Output) |
20 W (10 W X 2) |
|
|
Note : Dolby Digital Plus/Pulse, USB2.0/3.0, Film mode, Energy Saving
2-2
2. Product specifications
2-2-2. Detailed Specifications
NOTE
Design and specifications are subject to change without prior notice.
|
Item |
UN75JU641DFXZA |
|
|
|
General Information |
Product |
UHD |
|
|
|
|
Series |
6 |
|
|
|
|
Country |
UNITED STATES |
|
|
|
Display |
Inch |
75" |
|
|
|
|
Resolution |
3,840 x 2,160 |
|
|
|
|
Ultra Clear Panel |
Ultra Clear Pro |
|
|
|
Video |
Motion Refresh Rate |
120Hz |
|
|
|
|
Dynamic Contrast Ratio |
Mega Contrast |
|
|
|
|
Micro Dimming |
UHD Dimmng |
|
|
|
|
Precision Black (Local Dimming) |
N/A |
|
|
|
|
Nano Crystal Color |
N/A |
|
|
|
|
Wide Color Enhancer (Plus) |
N/A |
|
|
|
|
PurColor |
Yes |
|
|
|
|
Auto Depth Enhancer |
N/A |
|
|
|
|
Contrast Enhancer |
Yes |
|
|
|
|
Auto Motion Plus |
Yes |
|
|
|
|
Film Mode |
Yes |
|
|
|
|
Peak Illuminator |
N/A |
|
|
|
Audio |
Dolby Digital Plus |
Yes |
|
|
|
|
Virtual Surround |
DTS Studio Sound |
|
|
|
|
DTS Codec |
DTS Premium Sound 5.1 |
|
|
|
|
3D Sound |
N/A |
|
|
|
|
Sound Customizer |
N/A |
|
|
|
|
Sound Output (RMS) |
20W(L:10W, R:10W) |
|
|
|
|
Speaker Type |
2CH(Down Firing + Bass Reflex) |
|
|
|
|
Woofer |
N/A |
|
|
|
|
HD Audio |
Yes |
|
|
|
|
Wallmount Sound Mode |
Yes |
|
|
|
|
Multiroom Link |
Yes |
|
|
|
Smart TV |
Samsung SMART TV |
Yes |
|
|
|
|
Apps |
Yes |
|
|
|
|
Game |
Yes |
|
|
|
|
Multi-Link Screen |
Yes |
|
|
|
|
ACR (Advertisement) |
Yes |
|
|
|
2-3
2. Product specifications
|
Item |
UN75JU641DFXZA |
|
|
|
Smart TV |
Info Widget |
N/A |
|
|
|
|
Vertical Enhancement |
Yes |
|
|
|
Smart Interaction |
Voice Interaction |
N/A |
|
|
|
|
Voice Control |
N/A |
|
|
|
|
Face recognition |
Ready |
|
|
|
|
Motion control |
Ready |
|
|
|
Convergence |
TV to Mobile - Mirroring |
Yes |
|
|
|
|
Mobile to TV - Mirroring, DLNA |
Yes |
|
|
|
|
RVU |
Wired |
|
|
|
|
Samsung SMART View |
Yes |
|
|
|
|
Wireless TV On - Samsung WOL |
Yes |
|
|
|
|
Notification - BLE |
Yes |
|
|
|
|
Briefing On TV |
Yes |
|
|
|
|
WiDi |
N/A |
|
|
|
|
WiFi Direct |
Yes |
|
|
|
Tuner/Broadcasting |
Digital Broadcasting |
ASTC/Clear QAM |
|
|
|
|
2 Tuner |
N/A |
|
|
|
|
CI/CI+/2CI+ |
N/A |
|
|
|
|
Analog Tuner |
Yes |
|
|
|
|
MHP / MHEG / HbbTV / ACAP / GINGA / OHTV |
N/A |
|
|
|
Connectivity |
HDMI |
4 |
|
|
|
|
USB |
3 |
|
|
|
|
Component In (Y/Pb/Pr) |
1 |
|
|
|
|
Composite In (AV) |
1 (Common Use for Component Y) |
|
|
|
|
Ethernet (LAN) |
1 |
|
|
|
|
Headphone |
N/A |
|
|
|
|
Audio Out (Mini Jack) |
1 |
|
|
|
|
Digital Audio Out (Optical) |
1 |
|
|
|
|
RF In (Terrestrial / Cable input / Satellite input) |
1/1(Common Use for Terrestrial)/0 |
|
|
|
|
Ex-Link ( RS-232C ) |
1 |
|
|
|
|
IR Out |
N/A |
|
|
|
|
CI Slot |
N/A |
|
|
|
|
Scart |
N/A |
|
|
|
|
MHL |
Yes |
|
|
|
|
Dongle Ready (3G / LTE) |
N/A |
|
|
|
|
HDMI 3D Auto Setting |
N/A |
|
|
|
|
HDMI A / Return Ch. Support |
Yes |
|
|
|
|
HDMI Quick Switch |
N/A |
|
|
|
2-4
|
|
2. Product specifications |
|
|
|
|
|
|
|
Item |
UN75JU641DFXZA |
|
|
|
Connectivity |
Wireless LAN Adapter Support |
N/A |
|
|
|
|
Wireless LAN Built-in |
Yes |
|
|
|
|
Anynet+ (HDMI-CEC) |
Yes |
|
|
|
Design |
Design |
Metal Line |
|
|
|
|
Bezel Type |
VNB |
|
|
|
|
Slim Type |
Slim |
|
|
|
|
Front Color |
Dark Titan |
|
|
|
|
Light Effect (Deco) |
N/A |
|
|
|
|
Stand Type |
Plate T-Shape |
|
|
|
|
Swivel (Left/Right) |
N/A |
|
|
|
Additional Feature |
Samsung 3D |
N/A |
|
|
|
|
3D Converter |
N/A |
|
|
|
|
Instant On |
Yes |
|
|
|
|
Camera Built-in |
N/A |
|
|
|
|
Wireless Copy |
N/A |
|
|
|
|
Processor |
Quad-Core |
|
|
|
|
PX Ready |
N/A |
|
|
|
|
21:9 Immersive Picture Mode |
N/A |
|
|
|
|
SCSA Support |
Yes |
|
|
|
|
Accessibility |
Voice guide/ Enlarge/ High contrast |
|
|
|
|
Digital Clean View |
Yes |
|
|
|
|
One Connect (Jack) |
N/A |
|
|
|
|
Auto Channel Search |
Yes |
|
|
|
|
Auto Power Off |
Yes |
|
|
|
|
BD Wise Plus |
Yes |
|
|
|
|
Caption (Subtitle) |
Yes |
|
|
|
|
Channel List USB-Clone |
N/A |
|
|
|
|
Connect Share™ (HDD) |
Yes |
|
|
|
|
Connect Share™ Transfer |
N/A |
|
|
|
|
ConnectShare™ (USB 2.0) |
Yes |
|
|
|
|
AC/DC TV |
N/A |
|
|
|
|
Sports Mode |
Basic |
|
|
|
|
Embeded POP |
Yes |
|
|
|
|
EPG |
Yes |
|
|
|
|
Extended PVR |
N/A |
|
|
|
|
Game Mode |
Yes |
|
|
|
|
IP Video Closed Caption |
Yes |
|
|
|
|
OSD Language |
English, Spanish, French |
|
|
|
2-5
2. Product specifications
|
Item |
UN75JU641DFXZA |
|
|
|
Additional Feature |
Picture-In-Picture |
Yes |
|
|
|
|
BT HID Built-in |
Yes |
|
|
|
|
USB HID Support |
Yes |
|
|
|
|
Feature Upgrade (Evolution Kit Ready) |
N/A |
|
|
|
|
ATSC 3.0 Ready |
Yes |
|
|
|
|
Teletext (TTXT) |
N/A |
|
|
|
|
Time Shift |
N/A |
|
|
|
|
Analog Clean View |
N/A |
|
|
|
|
Ultra Clean View |
Yes |
|
|
|
Eco Feature |
Energy Star |
TBD |
|
|
|
|
Eco Sensor |
Yes |
|
|
|
Accessory |
3D Active Glasses (Included) |
N/A |
|
|
|
|
Remote Controller Model |
TM1260C |
|
|
|
|
Batteries (for Remote Control) |
Yes |
|
|
|
|
Samsung Smart Touch Control (Included) |
N/A |
|
|
|
|
PX (Included) |
N/A |
|
|
|
|
Ultra Slim Wall Mount Supported |
N/A |
|
|
|
|
Mini Wall Mount Supported |
N/A |
|
|
|
|
Vesa Wall Mount Supported |
Yes |
|
|
|
|
Floor Stand Support |
N/A |
|
|
|
|
TV Camera (Included) |
N/A |
|
|
|
|
IR Extender Cable (Included) |
N/A |
|
|
|
|
Wireless Keyboard (Included) |
N/A |
|
|
|
|
Wireless PC Mirroring Adaptor (Included) |
N/A |
|
|
|
|
Composite to Scart Gender (Included) |
N/A |
|
|
|
|
User Manual |
Yes |
|
|
|
|
E-Manual |
Yes |
|
|
|
|
ANT-Cable |
N/A |
|
|
|
|
Power Cable |
Yes |
|
|
|
|
Slim Gender Cable |
N/A |
|
|
|
2-6
2. Product specifications
2-3. Accessories
NOTE
•The items’ colors and shapes may vary depending on the model.
•Cables not included in the package contents can be purchased separately.
•The part code for some accessories may differ depending on your region.
|
Product |
Code. No |
|
Product |
Code. No |
|
|
|
|
|
|
• |
Remote Control |
BN59-01198X |
• |
Power Cord |
3903-000467 |
|
|
|
|
|
|
• |
Batteries (AAA x 2) |
4301-000121 |
• |
User Manual |
BN68-06965H |
|
|
|
|
|
|
2-7
2. Product specifications
2-4. Viewing the Functions
The Remote Control
Turns the TV on or off.
SPORTS: Enables/Disables Sports
Mode.
Selects additional digital channels being broadcast by the same digital station. For example, to select channel ‘54-3’, press ‘54’, then press ‘-’ and ‘3’.
Displays and selects the available video sources.
Returns to the previous channel.
Brings up Smart Hub applications.
(See the e-Manual chapter, Smart
Features > Smart Hub.) Displays frequently used functions.
(Enter): Press this button to
select or run a focused item.
Moves the cursor, selects the
onscreen menu items, and changes
the values seen on the TV's menu.
Use these buttons according to the
directions on the TV's screen.
Use these buttons with a specific
feature, according to the directions
on the TV's screen.
Displays the Electronic Program Guide (EPG).
Displays information on the TV screen.
E-MANUAL: Displays the e-Manual. EXTRA: Provides easy access to information services.
SEARCH: Launches the Search function.
PIC SIZE: Changes the picture size. MTS: Changes a program's audio to stereo, mono, or Separate Audio Program (SAP broadcast).
CC: Controls the caption decoder and displays captions on the screen.
2-8
2. Product specifications
2-5. NEW Key Features
2-5-1. 15" New UI
SMART HUB START
After Smart HUB setup
<Videos contents> |
<My Apps> |
<Web browser> |
<My contents> |
2-9
2. Product specifications
2-5-2. Multi Screen
Using Multi-Link Screen
NOTE
•UHD and FHD contents and channels cannot be viewed simultaneously.
•Launching Smart Hub while using Multi-Link Screen automatically terminates Multi-Link Screen.
•Certain TV features and apps may not be supported by Multi-Link Screen. If this is the case, exit from Multi-Link Screen and than use the feature.
Selecting a Feature
1.Press the Samsung Smart Control's M.SCREEN button while Multi-Link Screen is running. The Options menu appears.
2.Select a feature from the Options menu. This initializes the selected feature.
NOTE
Features supported by Multi-Link Screen very depending on the country.
<TV + Video clip> |
<TV + Web search> |
<TV + App> |
<TV +TV (dual tuner only)> |
Using Multiple Functions in a Single Screen(Multi-Link Screen)
Menu > Picture > Open Multi-Link Screen
This function may not be available depending on the country or region.
This allows you to search the Web, use apps, and much more simultaneously while watching TV.
NOTE
•Before using Multi-Link Screen, make sure the TV is connected to the lnternet. Using Multi-Link Screen requires an lnternet connection.
•Before using Smart Hub with Multi-Link Screen, go to the On TV Settings (Smart Hub > On TV Settings > On TV Setup) and finish configuring Smart Hub.
2-10
2. Product specifications
2-5-3. Instant On
Enabling the TV to Boot Faster
MENU > System > General > Samsung Instant On
Set Fast Boot on to have the TV boot up faster.
<Cold Boot>
Detachable power
<Instant On>
Remocon on
2-11
2. Product specifications
2-6. HDMI 60P Mode
HDMI UHD 60P MODE
If an external UHD player is connected to the TV, follow these steps to convert the TV's HDMI connector optimized to the UHD signals.
NOTE
Each HDMI connector can be individually optimized for HDMI UHD 60P MODE.
1.Turn off the external UHD player that is connected to the TV.
2.Navigate to Picture > Picture Options > HDMI UHD 60P MODE, and set the UHD-connected HDMI connector to On.
3.When done, turn on the external UHD player.
NOTE
•After setting the HDMI connector to On, It takes some time to complete the conversion.
•HDMI UHD 60P MODE is specific to a UHD source, and does not operate properly for any other source. If you want to play a non-UHD source in HDMI UHD 60P MODE, set the converted HDMI connector to Off.
2-12
|
|
|
|
|
2. Product specifications |
|
|
|
|
|
|
2-7. Supported Formats |
|
|
|||
Supported Image resolution |
|
|
|||
|
|
|
|
|
|
File Extension |
|
Type |
Resolution |
||
|
|
|
|
|
|
|
*.jpg |
|
JPEG |
15360x8640 |
|
|
*.jpeg |
|
|||
|
|
|
|
||
|
|
|
|
|
|
|
*.png |
|
PNG |
4096x4096 |
|
|
|
|
|
|
|
|
*.bmp |
|
BMP |
4096x4096 |
|
|
|
|
|
|
|
|
*.mpo |
|
MPO |
15360x8640 |
|
|
|
|
|
|
|
Supported Music File Formats |
|
|
|||
|
|
|
|
|
|
File Extension |
|
Type |
|
Codec |
Comments |
|
|
|
|
|
|
*.mp3 |
|
MPEG |
|
MPEG1 Audio Layer 3 |
- |
|
|
|
|
|
|
*.m4a |
|
|
|
|
|
*.mpa |
|
MPEG4 |
|
AAC |
- |
*.aac |
|
|
|
|
|
|
|
|
|
|
|
*.flac |
|
FLAC |
|
FLAC |
Supports up to two channels. |
|
|
|
|
|
|
*.ogg |
|
OGG |
|
Vorbis |
Supports up to two channels. |
|
|
|
|
|
|
|
|
|
|
|
WMA 10 Pro supports up to 5.1 channels. |
*.wma |
|
WMA |
|
WMA |
WMA lossless audio is not supported. |
|
|
|
|
|
Supports up to M2 profile. |
|
|
|
|
|
|
*.wav |
|
wav |
|
wav |
- |
|
|
|
|
|
|
*.mid |
|
midi |
|
midi |
Type 0, type 1 and supported. |
*.midi |
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
*.ape |
|
ape |
|
ape |
- |
|
|
|
|
|
|
•Sound or video may not work if they have standard bit rates/frame rates above the TV’s compatibility.
•If the Index Table is wrong, the Seek (Jump) function does not work.
•When playing video over a network connection, the video may not play smoothly because of data
•Some USB/digital camera devices may not be compatible with the player.
2-13
2. Product specifications
Supported Video Code
File |
Container |
Video Codecs |
Resolution |
Frame rate |
Bit rate |
Audio Codec |
|
Formats |
(fps) |
(Mbps) |
|||||
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
H.264 BP/MP/HP |
|
UHD: MAX 30 |
|
|
|
|
|
|
|
|
|
||
|
|
Motion JPEG |
4096x2160 |
FHD: MAX 30 |
60 |
|
|
|
|
HD : MAX 60 |
|
||||
|
|
|
|
|
|
||
|
|
HEVC(H.265) |
|
UHD: 60 |
|
|
|
|
|
|
|
|
|
||
*.avi |
|
|
|
|
|
|
|
|
DivX 3.11/4/5/6 |
|
|
|
|
||
*.mkv |
|
|
|
|
|
||
*.asf |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
*.wmv |
|
MPEG4 SP/ASP |
|
|
|
AC3 |
|
*.mp4 |
AVI |
|
|
|
|
LPCM |
|
|
|
|
|
||||
*.mov |
MKV |
Microsoft MPEG- |
|
|
|
ADPCM |
|
*.3gp |
ASF |
|
|
|
(IMA, MS) |
||
4 v1 , v2 , v3 |
|
|
|
||||
*.vro |
MP4 |
|
|
|
AAC |
||
|
|
|
|
||||
*.mpg |
3GP |
Window Media |
|
|
|
HE-AAC |
|
*.mpeg |
MOV |
|
|
|
WMA |
||
Video v7(WMV1), |
|
|
|
||||
*.ts |
FLV |
|
|
|
Dolby Digital |
||
v8(WMV2) |
|
|
|
||||
*.tp |
VRO |
|
|
|
Plus |
||
|
|
|
30 |
||||
*.trp |
VOB |
|
|
FHD: 30 |
MPEG(MP3) |
||
Window Media |
1920x1080 |
||||||
|
|||||||
*.mov |
PS |
HD : 60 |
|
DTS |
|||
Video v9(VC1) |
|
|
|||||
*.flv |
TS |
|
|
|
(Core, LBR) |
||
|
|
|
|
||||
*.vob |
SVAF |
|
|
|
|
G.711(A-Law, |
|
MPEG2 |
|
|
|
||||
*.svi |
|
|
|
|
μ-Law |
||
*.m2ts |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
*.mts |
|
MPEG1 |
|
|
|
|
|
*.divx |
|
|
|
|
|
|
|
|
VP6 |
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
H.263 Sorrenson |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
MVC |
|
|
60 |
|
|
|
|
|
|
|
|
|
|
*.webm |
WebM |
VP8 |
1920x1080 |
6~30 |
20 |
Vorbis |
|
|
|
|
|
|
|
|
Other Restrictions
NOTE
•Codecs may not function properly if there is a problem with the content data.
•Video content does not play or does not correctly if there is an error in the content or container.
•Sound or video may not work if they have standard bit rates/frame rates above the TV's compatibility.ratings
•If the Index Table is wrong, the Seek(Jump) function does not work.
•When playing video over a network connection, the video may not play smoothly because of datatransmission speeds.
•Some USB/digital camera devices may not be compatible with the player.
2-14
3. Disassembly and Reassemble
3. Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the LED TV.
This LED TV contains electrostatically sensitive devices. Use caution when handling these components.
WARNING
3-1. Disassembly and Reassembly
1.Disconnect the LED TV from the power source before disassembly.
2.Follow these directions carefully; never use metal instruments to pry apart the cabinet.
CAUTION 3. If there is no additional coment, it is same for all inches.
3-1-1. TV Disassembly
Description |
Picture Description |
Screws |
1 Place TV face down on cushioned table.
Remove 4 screws from the ASSY |
Torque : |
|
2 STAND P-BAS. |
||
7~ 8Kgf.cm. |
|
6003-001334 |
|
Remove the screws of ASSY COVER |
Torque : |
|
3 P-REAR. |
||
7~ 8Kgf.cm. |
•75": 22 EA/1 EA
6001-002755
Torque : 9~ 10Kgf.cm.
6003-000003
3-1
3. Disassembly and Reassemble
Description |
Picture Description |
Screws |
4 Remove the ASSY COVER P-REAR.
5 |
image.Remove the Electric tapes shown on the |
Filament Tape: EMI Point |
|
• EMI Point : After removing release |
|
|
paper from the LVDS Cable bottom, |
|
|
attach the LVDS Cable to the C/ |
|
|
Chassis and rub the attatched |
Cable Dressing Filament Tape: Dressing Point |
|
surface. |
CAUTION
When assembling the TV, the electric tapes must be applied on the same locations.
Please remember to take a picture of where the tapes were first applied.
6 RemoveCables. the Power Cables and Speaker
Power Cable
Power Cable
Speaker Cable
Remove the LVDS Cable, Panel Wire |
|
|
Cable and ASSY BOARD P-FUNCTION |
LVDS Cable |
|
ASSY Cable. |
Panel Wire Cable |
|
|
|
|
|
|
LVDS Cable |
|
ASSY BOARD |
|
|
P-FUNCTION ASSYCable |
|
Remove the NETWORK (BT/WIFI
COMBO) Cable.
NETWORK (BT/WIFI COMBO) Cable
3-2
|
|
3. Disassembly and Reassemble |
|
|
|
|
|
|
Description |
Picture Description |
Screws |
|
|
|
Remove the screws of ASSY PCB MAIN |
|
Torque : |
7 and DC VSS-LED TV PD BD. |
|
|
|
7~ 8Kgf.cm. |
|
• ASSY PCB MAIN : 4 EA |
|
|
• DC VSS-LED TV PD BD : 6 EA |
|
|
NOTE |
|
|
LVDS Cable |
|
6001-003016 |
|
|
8 Remove the ASSY SPEAKER (L/R).
|
ASSY SPEAKER (L/R) |
|
|
|
|
Remove the cables and 4 screws from |
Torque : |
|
9 the ASSY T CON. |
||
7~8Kgf.cm |
Finally carefully remove the ASSY T
CON.
6001-003075
Cables
10 Remove the NETWORK (BT/WIFI
COMBO).
•Remove the NETWORK (BT/WIFI COMBO) unit by moving it from left to right.
3-3
3. Disassembly and Reassemble
|
Description |
Picture Description |
Screws |
|
|
|
|
11 |
Remove the IR unit. |
|
|
• Remove the IR unit by moving it from |
|
|
|
|
up to down. |
|
|
|
|
IR Assy |
|
|
|
|
|
12 |
Remove the JOG unit. |
|
|
• Remove the JOG unit by moving it |
|
|
|
|
from bottom to top. |
|
|
13 Completed disassembly.
• Panel
NOTE
Reassembly procedures are in the reverse order of disassembly procedures.
3-4
4. Troubleshooting
4. Troubleshooting
4-1. Troubleshooting
4-1-1. Previous Check
Check list for initial operation
Bluetooth/WIFI Combo Module
Main Board
|
Power Board |
Power Cable |
|
LVDS Cable |
Panel Connectors |
T-CON Board |
|
Jog Function
Speaker
IR Sensor
4-1
4. Troubleshooting
4-2. How to Check Fault Symptom
4-2-1. Video
Customer Picture Test
Main Board |
Pre FRC |
Post FRC |
Problem |
Pass |
Pass |
Pass |
Check Signal Source and other inputs |
|
|
|
|
Fail |
Pass |
Pass |
Main Board or LVDS Cable |
|
|
|
|
Fail |
Fail |
Pass |
T-Con or Board |
|
|
|
|
Fail |
Fail |
Fail |
T-Con or Panel |
MAIN / FRC / T-CON
Troubleshooting
CHECK TEST PATTERNS
1Verify "Pattern Sel".
2Verify "FRC Pre Test Pattern".
3Verify "FRC Post Test Pattern".
•ENTER : Factory mode
SVC
Info
Test Pattern
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
FRC Pre Test Pattern |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
FRC Post Test Pattern |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
FRC2 Pre Test Pattern |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
FRC2 Post Test Pattern |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
FRC OSD Pre Test Pattern |
|
|
|
1 Scaler Pattern |
|
|
|
4 SoC TCON Test Pattern |
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
FRC OSD Post Test Pattern |
|||||||||
|
|
|
|
|
|
|
(Not available for UHD Models) |
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
SOC TCON Test Pattern |
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
Main Board |
|
|
|
UFT BOARD |
|
|
|
|
||||||||
|
|
|
|
|
|
|
SOC TCON Pattern Level |
||||||||||
|
|
|
|||||||||||||||
|
|
|
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
HAWK-M |
|
LVDS |
|
|
|
T-CON |
|
SOC TCON FRC Pattern |
||||||||
|
|
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
FRC |
|
SOC TCON2 Test Pattern |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
SOC TCON2 Pattern Level |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
SOC TCON2 FRC Pattern |
|
|
|
|
|
|
|
|
|
2 FRC Post Test Pattern |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
3 FRC Post Test Pattern |
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|||||||
4-2
4. Troubleshooting
Troubleshooting
Video Test
1Power TV ON.
2Verify initial Start Up Screens with Power On.
3Press Mute 147 Mute to view Test Pattern from the MAIN Board.
4Press Mute 369 Mute to view Test Pattern from T-CON Board.
12 Start Up Screens |
|
|
|
3 Mute 147 Mute |
|
|
|
4 Mute 369 Mute |
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
MAIN Board |
T-CON Board |
4-3
Loading...
