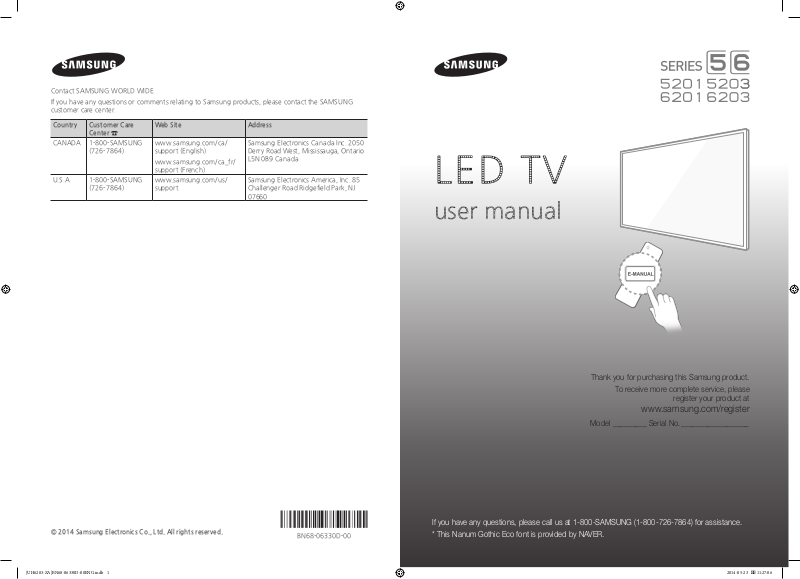

LED TV

user manual

Thank you for purchasing this Samsung product.

To receive more complete service, please

register your product at

www.samsung.com/register

Model _________ Serial No. __________________

If you have any questions, please call us at 1-800-SAMSUNG (1-800-726-7864) for assistance.

© 2014 Samsung Electronics Co., Ltd. All rights reserved.

[UH6203-ZA]BN68-06330D-00ENG.indb 1 2014-05-23  11:27:06

BN68-06330D-00

* This Nanum Gothic Eco font is provided by NAVER.

Warning! Important Safety Instructions

(Please read the Safety Instructions before using your TV.)

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK). THERE ARE NO USER
SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO
QUALIFIED PERSONNEL.

This symbol indicates that high voltage is
present inside. It is dangerous to make any
kind of contact with any internal part of this
product.

This symbol indicates that important literature
concerning operation and maintenance has
been included with this product.

• The slots and openings in the cabinet and in the back or bottom are provided for necessary ventilation. To
ensure reliable operation of this apparatus, and to protect it from overheating, these slots and openings
must never be blocked or covered.

‐ Do not place this apparatus in a confined space, such as a bookcase, or built-in cabinet, unless proper

ventilation is provided.

‐ Do not place this apparatus near or over a radiator or heat register, or where it is exposed to direct

sunlight.

‐ Do not place vessels (vases etc.) containing water on this apparatus, as this can result in a fire or

electric shock.

• Do not expose this apparatus to rain or place it near water (near a bathtub, washbowl, kitchen sink, or
laundry tub, in a wet basement, or near a swimming pool etc.). If this apparatus accidentally gets wet,
unplug it and contact an authorized dealer immediately.

• This apparatus uses batteries. In your community, there might be environmental regulations that require
you to dispose of these batteries properly. Please contact your local authorities for disposal or recycling
information.

• Do not overload wall outlets, extension cords or adaptors beyond their capacity, since this can result in fire
or electric shock.

• Power-supply cords should be placed so that they are not likely to be walked on or pinched by items
placed upon or against them. Pay particular attention to cords at the plug end, at wall outlets, and the
point where they exit from the appliance.

• To protect this apparatus from a lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will
prevent damage to the set due to lightning and power line surges.

• Before connecting the AC power cord to the DC adaptor outlet, make sure the voltage designation of the
DC adaptor corresponds to the local electrical supply.

• Never insert anything metallic into the open parts of this apparatus. Doing so may create a danger of
electric shock.

• To avoid electric shock, never touch the inside of this apparatus. Only a qualified technician should open
this apparatus.

English - 2

[UH6203-ZA]BN68-06330D-00ENG.indb 2 2014-05-23  11:27:06

• Make sure to plug the power cord in until it is firmly seated. When unplugging the power cord from a wall
outlet, always pull on the power cord's plug. Never unplug by pulling on the power cord. Do not touch the
power cord with wet hands.

• If this apparatus does not operate normally - in particular, if there are any unusual sounds or smells coming
from it - unplug it immediately and contact an authorized dealer or service center.

• Be sure to pull the power plug out of the outlet if the TV is to remain unused or if you are to leave the
house for an extended period of time (especially when children, elderly or disabled people will be left
alone in the house).

‐ Accumulated dust can cause an electric shock, an electric leakage or a fire by causing the power cord

to generate sparks and heat or the insulation to deteriorate.

• Be sure to contact an authorized service center for information if you intend to install your TV in a location
with heavy dust, high or low temperatures, high humidity, chemical substances, or where it will operate
24 hours a day such as in an airport, a train station, etc. Failing to do so may lead to serious damage to
your TV.

• Use only a properly grounded plug and wall outlet.

‐ An improper ground may cause electric shock or equipment damage. (Class l Equipment only.)

• To turn this apparatus off completely, you must disconnect it from the wall outlet. Consequently, the wall
outlet and power plug must be readily accessible at all times.

• Do not allow children to hang on the product.

• Store the accessories (battery, etc.) in a location safely out of the reach of children.

• Do not install the product in an unstable location such as a shaky self, a slanted floor, or a location
exposed to vibration.

• Do not drop or strike the product. If the product is damaged, disconnect the power cord and contact a
service center.

• To clean this apparatus, unplug the power cord from the wall outlet and wipe the product using a soft,
dry cloth. Do not use any chemicals such as wax, benzene, alcohol, thinners, insecticide, air fresheners,
lubricants, or detergent. These chemicals can damage the appearance of the TV or erase the printing on
the product.

• Do not expose this apparatus to dripping or splashing.

• Do not dispose of batteries in a fire.

• Do not short-circuit, disassemble, or overheat the batteries.

• There is danger of an explosion if you replace the batteries used in the remote with the wrong type of
battery. Replace only with the same or equivalent type.

• WARNING - TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER ITEMS WITH OPEN FL AMES
AWAY FROM THIS PRODUCT AT ALL TIMES.

• This product contains chemicals known to the State of California to cause cancer and
reproductive toxicity.

• Use care when touching the TV after it has been on for some time. Some parts can be
warm to the touch.

English - 3

[UH6203-ZA]BN68-06330D-00ENG.indb 3 2014-05-23  11:27:06

Internet Security

Samsung takes a number of steps to protect its Internet-compatible Smart TVs against unauthorized incursions
and hacking. For example, certain sensitive communications between the TV and the Internet servers
are encrypted. In addition, the TV’s operating system has adopted controls to prevent the installation of
unauthorized applications.

Although we take steps to protect your SmartTV and information, no Internet-connected device or
transmission is completely secure. We therefore encourage you to take additional steps to safeguard your TV,
secure your Internet connection, and minimize the risk of unauthorized access. These steps are listed below:

• When Samsung releases software updates to improve the security on your TV, you should promptly install
these updates. To automatically receive these updates, turn on “Auto Update” in the TV’s menu (Support
> Software Update > Auto Update). When an update is available, a popup message appears on the TV
screen. Accept the software download and update by selecting YES when prompted. Take steps to secure
your wireless router and network. Your router’s manual should provide additional details about how to
implement the following measures:

• Secure your wireless router’s management settings with a unique password to prevent unauthorized
changes to security related settings.

• Implement standard encr yption (e.g., WPA2 encryption) on your wireless router to secure your
wireless network signal.

• Secure access to your wireless network with a hard-to-guess password.

• Confirm your router’s firewall setting is enabled (if so equipped).

• Make sure all your Internet connected devices are behind your network’s firewall.

• If your router or modem has a standby mode button, use it to disconnect your home network from the
Internet when it is not in use.

• Use strong passwords for all your Internet accounts (Netflix, Facebook, Skype, etc.). If your TV has a
camera, recess the camera into the TV’s bezel when it is not in use. Recessing the camera makes it
inoperative.

• If any unexpected messages appear on your TV screen requesting permission to link a device or enable a
remote session, do NOT accept.

• Do not visit suspicious web sites and do not install any suspicious programs. We recommend users install
only those authorized apps provided by Samsung through Samsung Smart Hub.

English - 4

[UH6203-ZA]BN68-06330D-00ENG.indb 4 2014-05-23  11:27:07

Figures and illustrations in this User Manual are provided for reference only and may differ from the actual
product appearance. Product design and specifications may change without notice.

Features of your new TV

SMART HUB

Your TV features Smart Hub, a multi-purpose entertainment and family center. With Smart Hub, you can surf
the web and download applications.

Press the
Choose a service using the icons displayed in the top part of the screen.

Smart Hub services and functionality include:

SAMSUNG APPS: Samsung Apps offers an extensive collection of free and for-pay news, sports, weather,
and gaming content you can download directly to and enjoy on your TV.

On TV: View a listing of programs that are currently airing or are scheduled to air. Select a program to
watch.

e-Manual

Provides a detailed, on-screen user's manual built into your TV (page 14).

Device Manager

Use the TV features with a USB keyboard and mouse.

button to open the First Screen, and then select the Panel icon. The TV displays the Panel screen.

Screen Mirroring

Displays mobile device screens on the TV using a wireless connection.

English - 5

[UH6203-ZA]BN68-06330D-00ENG.indb 5 2014-05-23  11:27:07

Contents

01. Turning on the TV and
Cabling

7 Turning on and Controlling the TV

7 Arrange the cables using the Cable

Holder

02. Using the Remote Control

8 Using the Remote Control

10 Switching Between Video Sources

10 Using the Remote Control to Control

External Devices

10 Connecting the IR Extender Cable

11 Setting Up the Universal Remote

Control

03. Smart Hub

04. Using the e-Manual

14 Launching the e-Manual

14 Additional e-Manual Features

15 Updating the e-Manual to the Latest

Version

05. Troubleshooting and
Maintenance

16 Troubleshooting

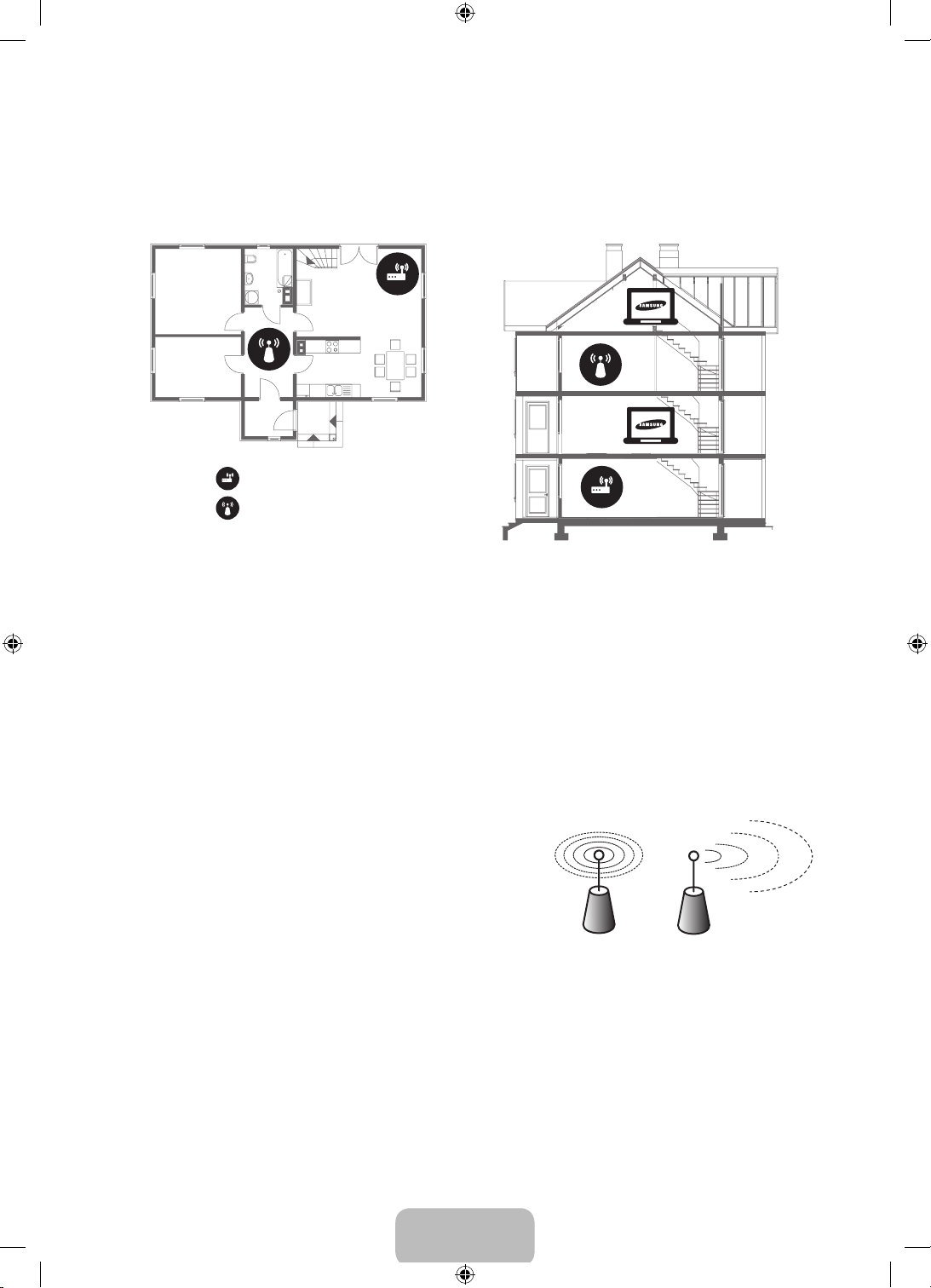

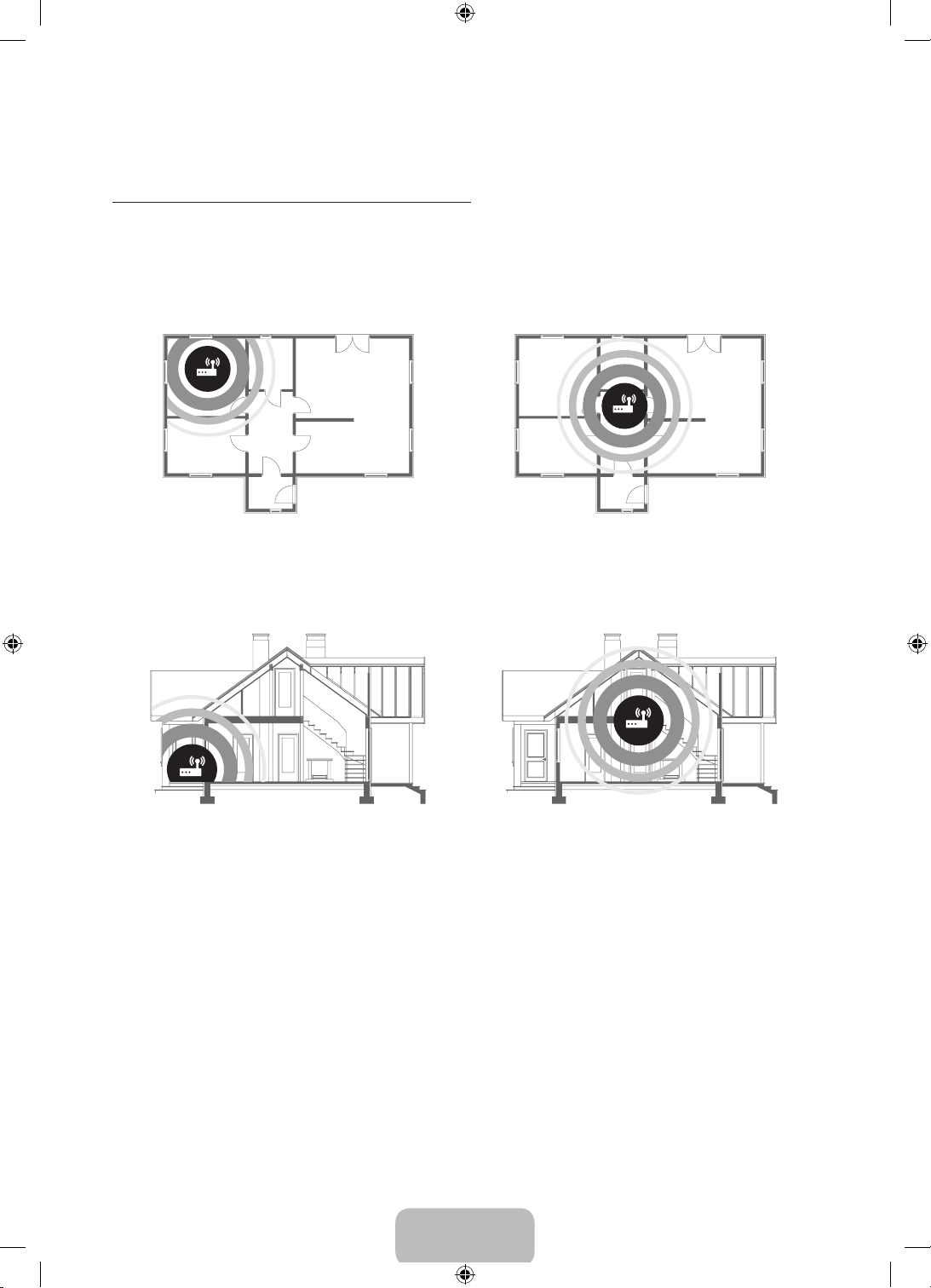

18 Network Troubleshooting

21 Eco Sensor and Screen Brightness

22 Getting Remote Support

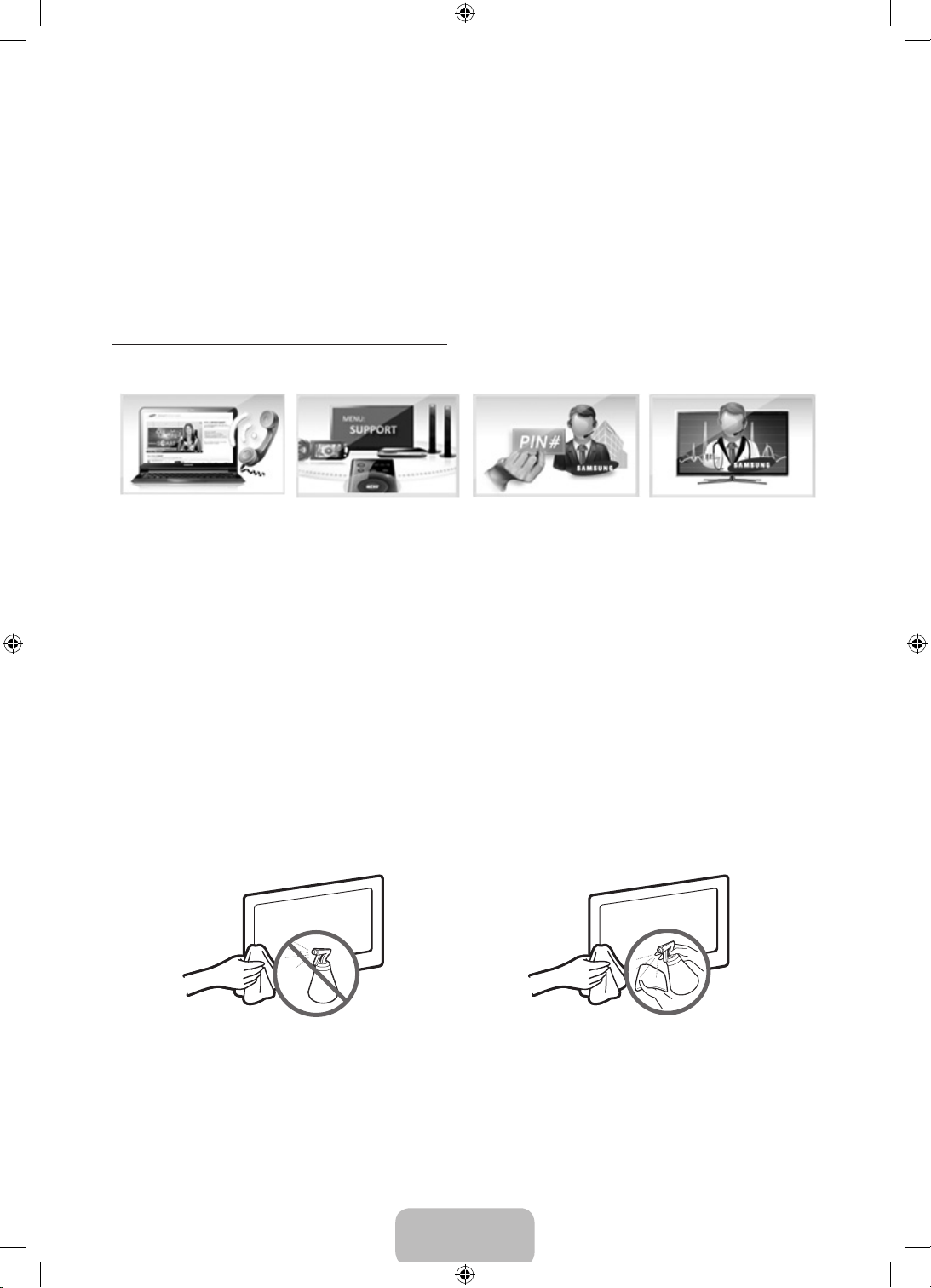

22 Caring for the TV

06. Specifications, wall
mounting, and other
information

23 Specifications

25 Dimensions

26 Licenses

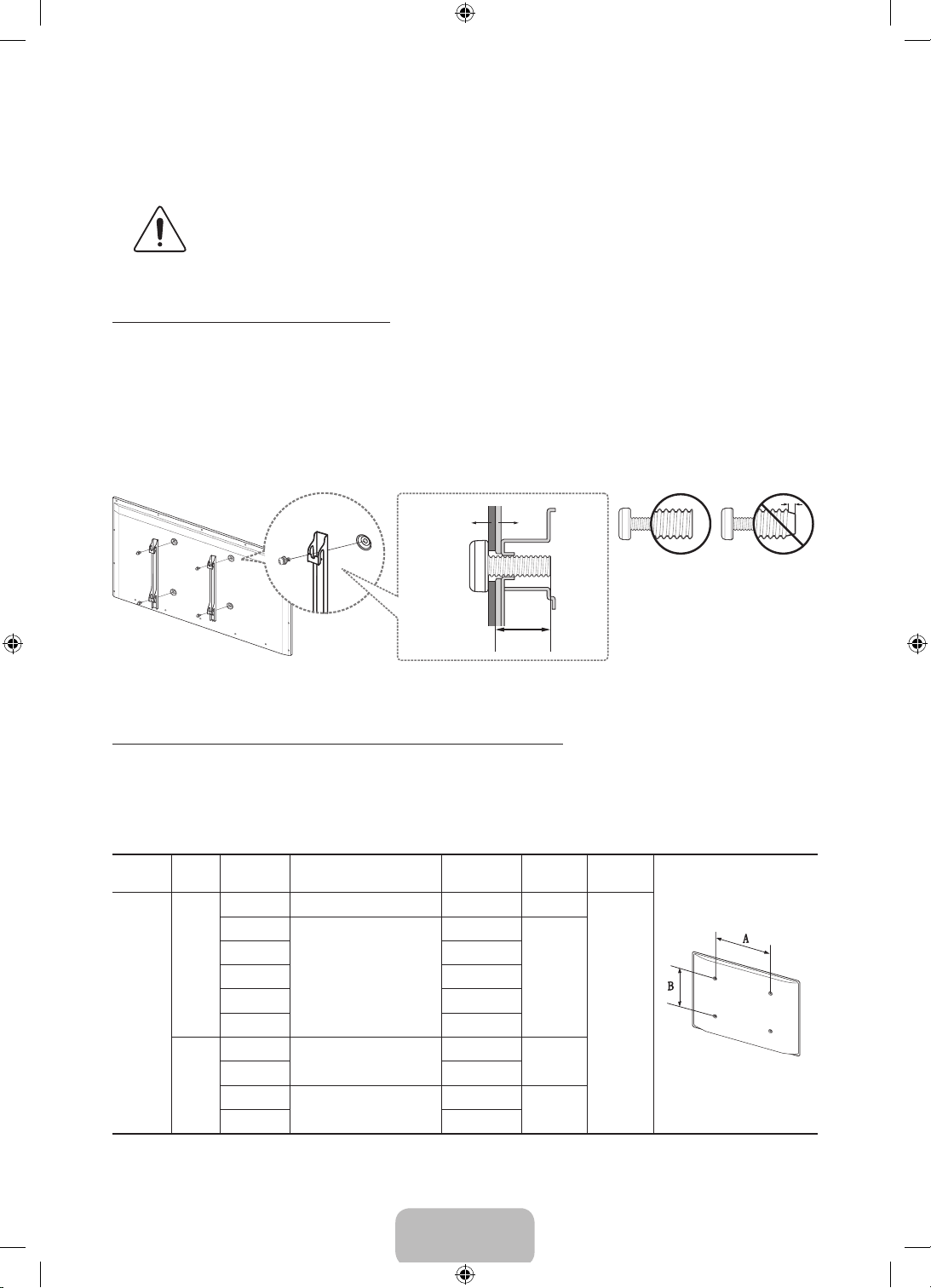

27 Mounting the TV on a Wall Using the

Wall Mount Kit (Optional)

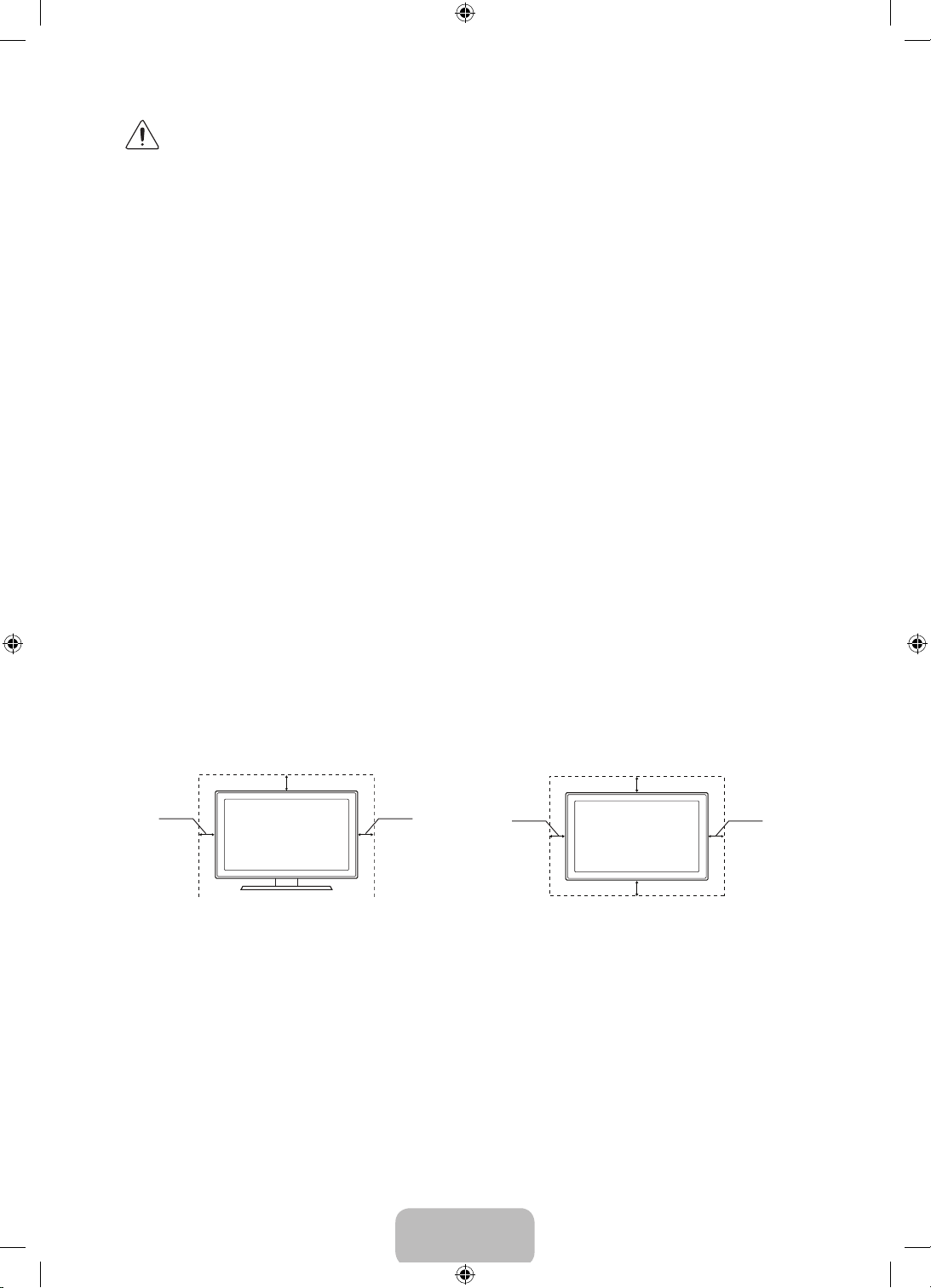

28 Providing Proper Ventilation for Your

TV

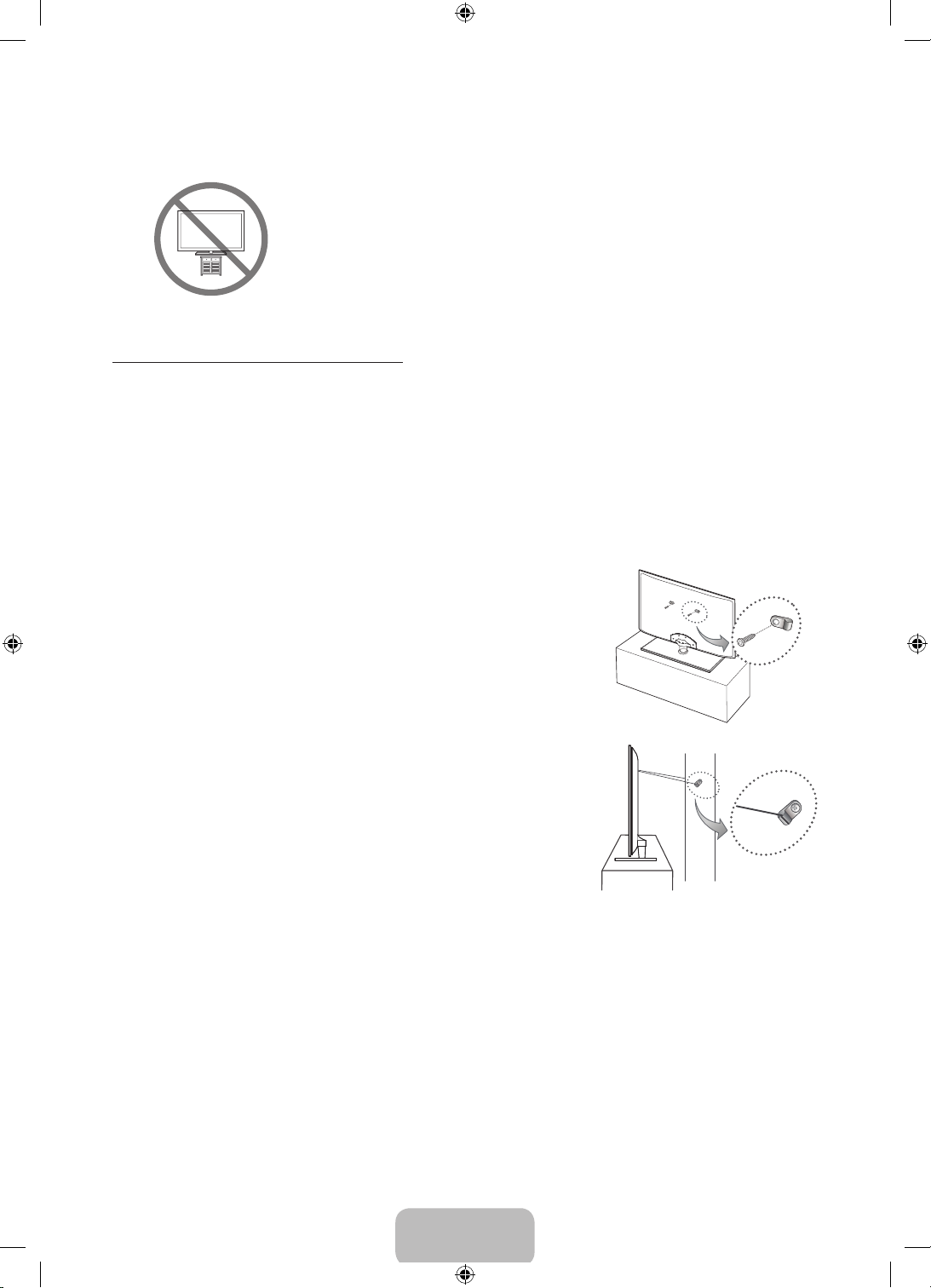

29 Securing the TV to the Wall

30 Warranty Information

31 SAMSUNG BRAND PRODUCTS

English - 6

[UH6203-ZA]BN68-06330D-00ENG.indb 6 2014-05-23  11:27:07

01. Turning on the TV and Cabling

Turning on and Controlling the TV

You can turn on the TV using the Remote Control or the TV’s Controller, a small joystick-like button on the back
lower-left corner of the TV. You can also use the TV's Controller to operate the TV without the Remote Control.

Open Smart Hub.

Open the menu.

The control stick is located on the

lower-left corner of the back of the TV.

Remote control sensor

When you use the Remote Control, the standby LED
does not light, except when you press the

mR

P

Turn off the TV.

TV Controller

Arrange the cables using the Cable Holder

Select a source.

P

button.

English - 7

[UH6203-ZA]BN68-06330D-00ENG.indb 7 2014-05-23  11:27:07

02. Using the Remote Control

Using the Remote Control

Turns the TV on and off.

Gives direct access to channels.

Press to select additional digital

channels being broadcast by

the same digital station. For

example, to select channel

‘54-3’, press ‘54’, then press ‘-’

and ‘3’.

Adjusts the volume.

Displays channel lists on the

screen.

Opens the OSD (Menu).

Displays frequently used

functions.

Moves the cursor, selects the

on-screen menu items, and

changes the values seen on the

TV's menu.

Returns to the previous menu.

STB: Turn the satellite or cable
set-top box connected to the
TV on and off.
Displays and selects the
available video sources.

Returns to the previous
channel.

Cuts off the sound temporarily.

Changes channels.

Brings up Smart Hub
applications. See the e-Manual
chapter, Smart Features > Smart
Hub.

Displays the EPG
(Electronic Program Guide).

Displays information on the TV
screen.

Exits the menu.

Use these buttons according

to the directions on the TV's

screen.

P.SIZE: Lets you choose the

picture size.

MTS: Press to choose stereo,

mono, or Separate Audio

Program (SAP broadcast).

CC: Controls the caption

decoder.

Use these buttons in a specific

feature.

Use these buttons according

to the directions on the TV's

screen.

E-MANUAL: Displays the
e-Manual.
SEARCH: Launches the Search

function.
KEYPAD: Displays a virtual
On-Screen Remote on the
screen. See the e-Manual
chapter, Using the Remote

Control and Peripherals > Using
the Samsung Smart Control >
Displaying and Using the On­Screen Remote

English - 8

[UH6203-ZA]BN68-06330D-00ENG.indb 8 2014-05-23  11:27:08

Installing Batteries into the Remote Control

Match the polarity of the batteries to the symbols in the battery compartment.







NOTE

‐ Use the remote control within 23 feet of the TV.

‐ Bright light may affect the performance of the remote control. Avoid using near bright fluorescent lights

or neon signs.

‐ The color and shape may vary depending on the model.

English - 9

[UH6203-ZA]BN68-06330D-00ENG.indb 9 2014-05-23  11:27:08

Switching Between Video Sources

Press the SOURCE button to switch between external devices connected to the TV. For example, to switch to
a game console connected to the second HDMI connector, press the SOURCE button. The Source List appears
across the top of the screen. From the Source list, select HDMI2.

‐ The connector names may vary depending on the product.

Using the Remote Control to Control External Devices

MENU > System > Universal Remote Setup

The universal remote control feature lets you control cable boxes, Blu-ray players, home theaters, and other
third-party external devices connected to the TV using the TV's remote control. For each external device you
want to control, you must run the universal remote set up process. The first step in the process is connecting
the IR extender cable (included) to the TV and positioning the transmitter end of the cable in front of the
device you want to control.

Connecting the IR Extender Cable

‐ The color and design of the IR extender cable may vary depending on the model.

4 inches

To begin the universal remote set up process, connect the IR extender cable (included) to the TV's IR output
connector as shown in the diagram, and then position the transmitter end within 4 inches (10 cm) of the
external device's remote control sensor, pointing in the direction of the sensor.

There can be no obstacles between the transmitter end of the IR extender cable and the external device. Any
obstacles will interfere with the transmission of the remote control signals.

English - 10

[UH6203-ZA]BN68-06330D-00ENG.indb 10 2014-05-23  11:27:08
