Samsung UN32J6300AF Schematic

LED TV

Chassis : UWK50
Model : UN32J6300AF

UN40J6300AF
UN48J6300AF
UN50J6300AF
UN55J6300AF
UN60J6300AF
UN65J6300AF
UN75J6300AF

SERVICE

LED TV Contents

1. Precautions

2. Product specications

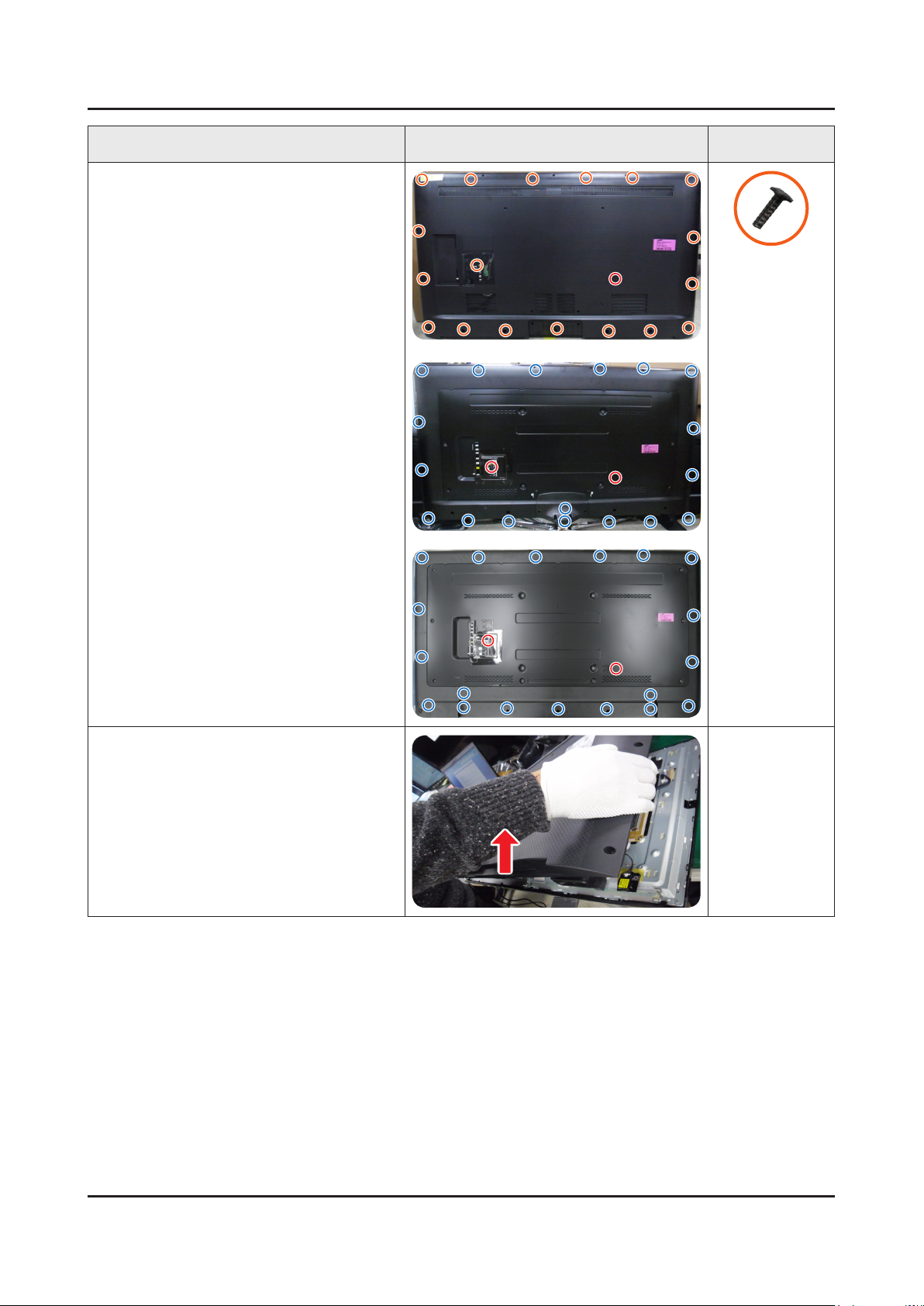

3. Disassembly and Reassembly

4. Troubleshooting

5. Wiring Diagram

Manual

UN**J6300AF

Contents

1. Precautions ...................................................................................................................1-1

1-1. Safety Precautions ..............................................................................................................1-1

1-1-1. Warnings ...................................................................................................................1-1

1-1-2. Servicing the LED TV ...............................................................................................1-1

1-1-3. Fire and Shock Hazard .............................................................................................1-1

1-1-4. Product Safety Notices .............................................................................................1-2

1-2. Servicing Precautions ..........................................................................................................1-3

1-2-1. General Servicing Precautions ................................................................................. 1-3

1-3. Static Electricity Precautions ...............................................................................................1-4

1-4. Installation Precautions .......................................................................................................1-5

2. Product Specications.................................................................................................2-1

2-1. Product information .............................................................................................................2-1

2-2. Product specication ..........................................................................................................2-5

2-2-1. Feature & Specications ........................................................................................... 2-5

2-2-2. Detailed Specications ............................................................................................. 2-7

2-3. Accessories ....................................................................................................................... 2-11

2-4. Viewing the Functions .......................................................................................................2-12

2-5. NEW Key Features ............................................................................................................2-13

2-5-1. 15" New UI ..............................................................................................................2-13

2-5-2. Instant On ...............................................................................................................2-14

2-6. Supported Formats ............................................................................................................2-15

3. Disassembly and Reassembly ....................................................................................3-1

3-1. Disassembly and Reassembly ............................................................................................3-1

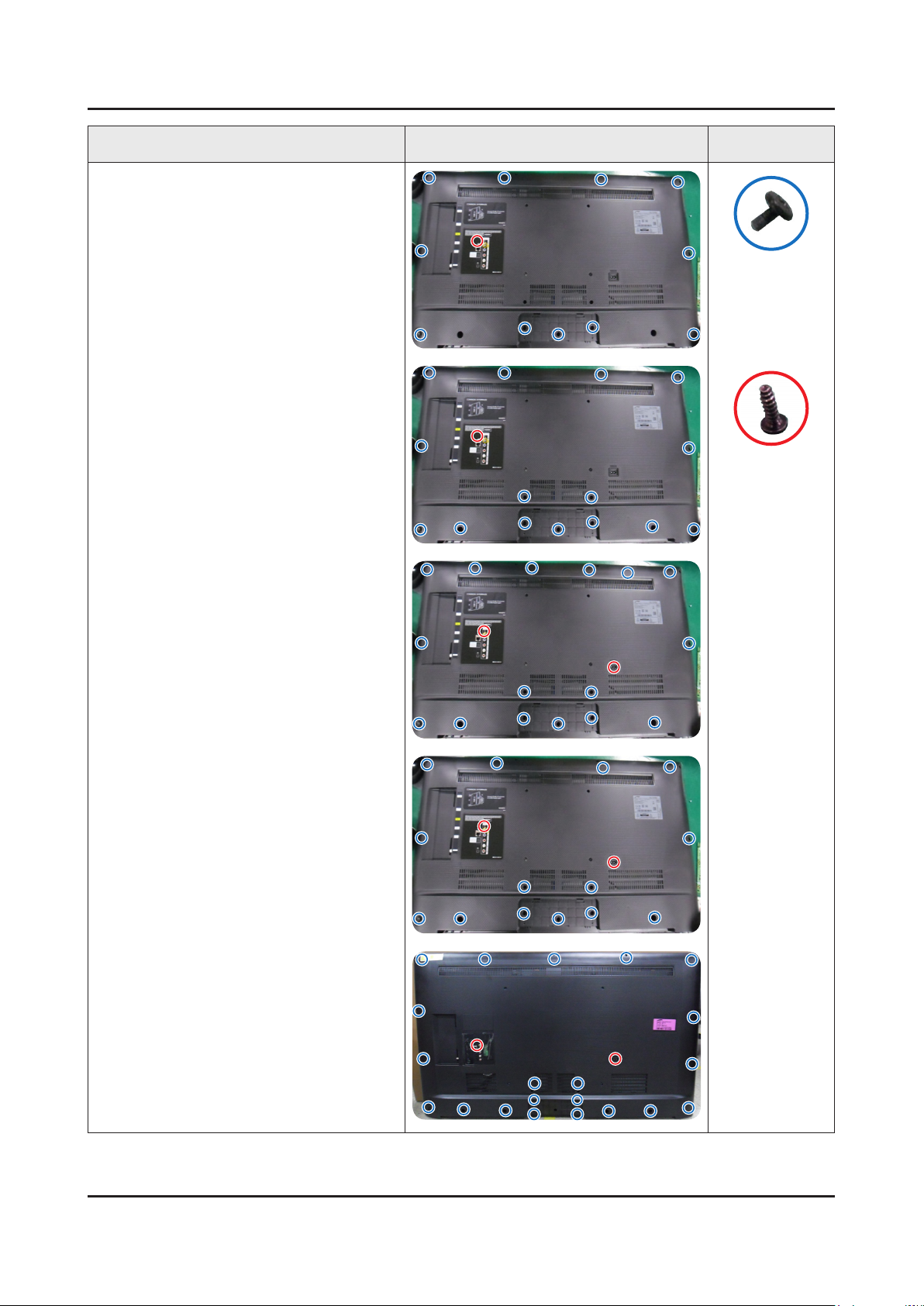

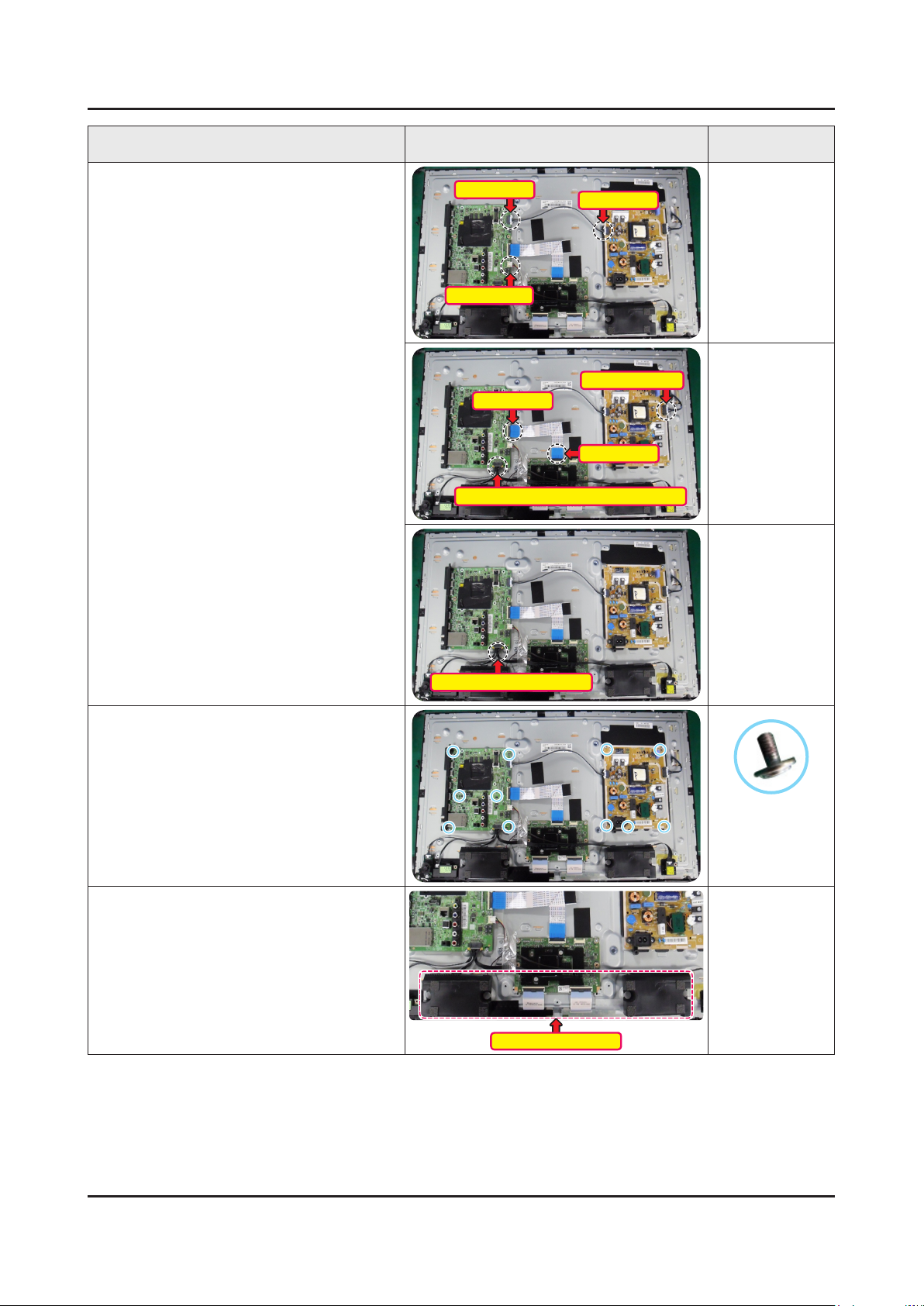

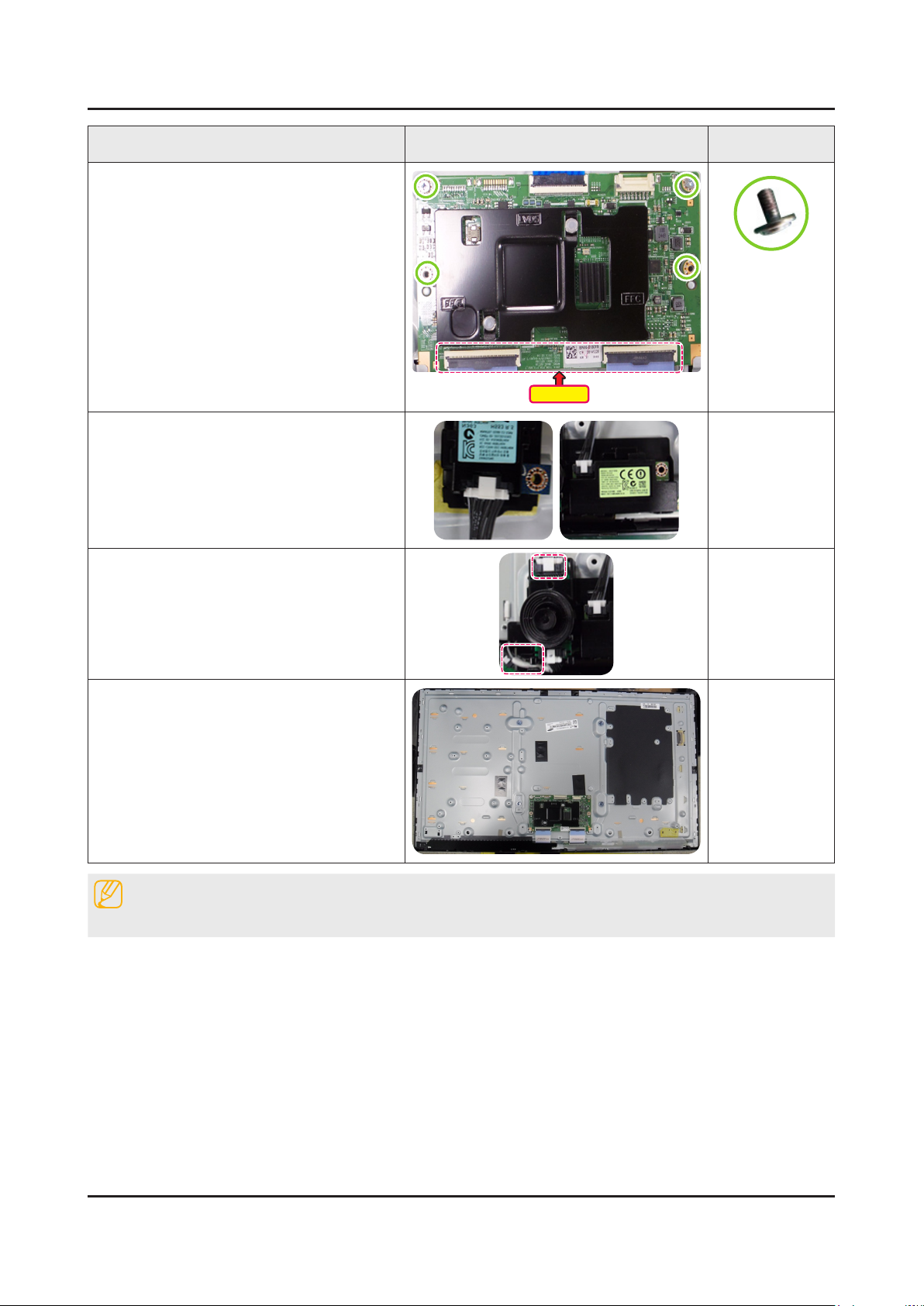

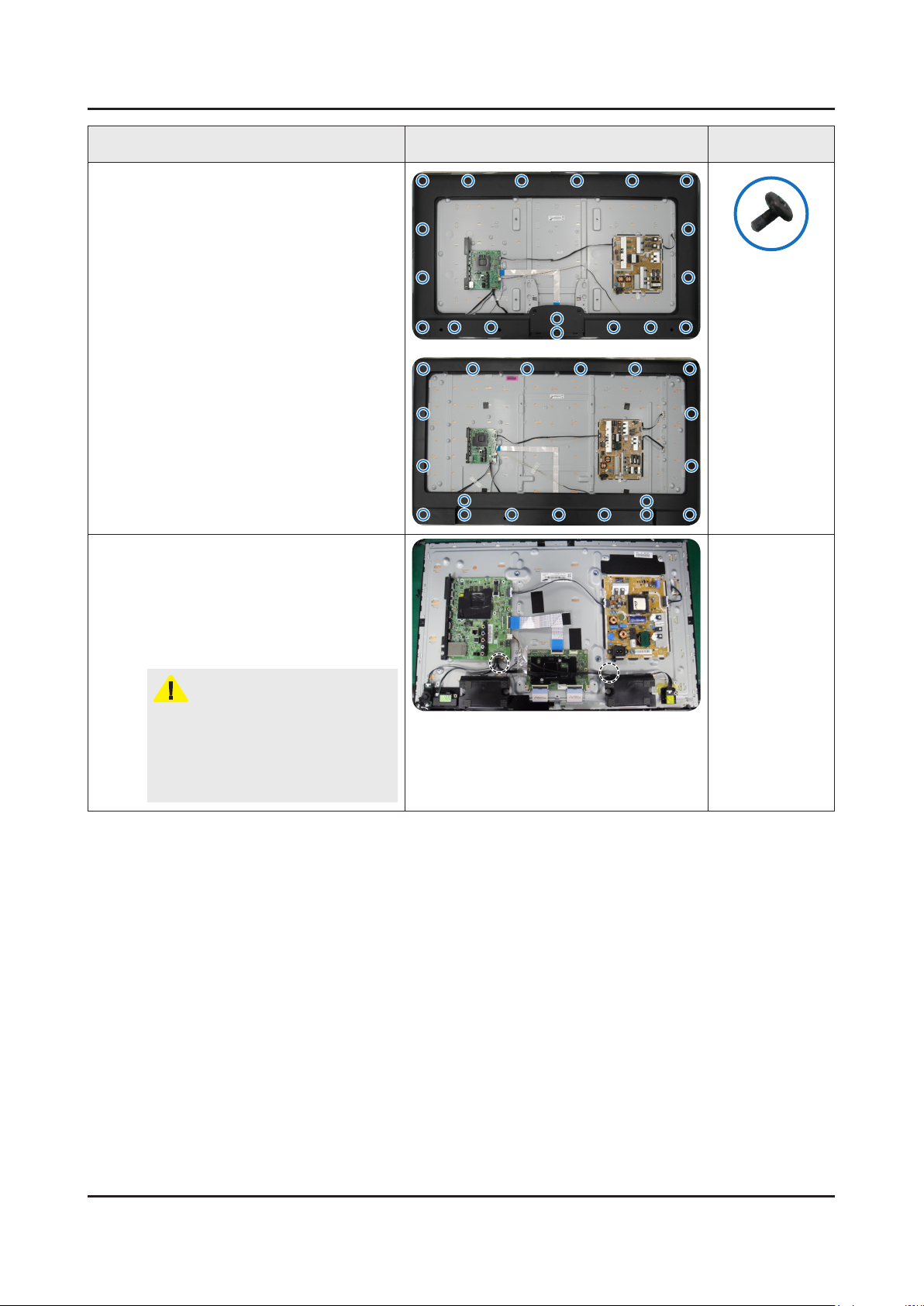

3-1-1. TV Disassembly ........................................................................................................ 3-1

4. Troubleshooting ...........................................................................................................4-1

4-1. Troubleshooting ...................................................................................................................4-1

4-1-1. Previous Check ........................................................................................................4-1

4-2. How to Check Fault Symptom .............................................................................................4-2

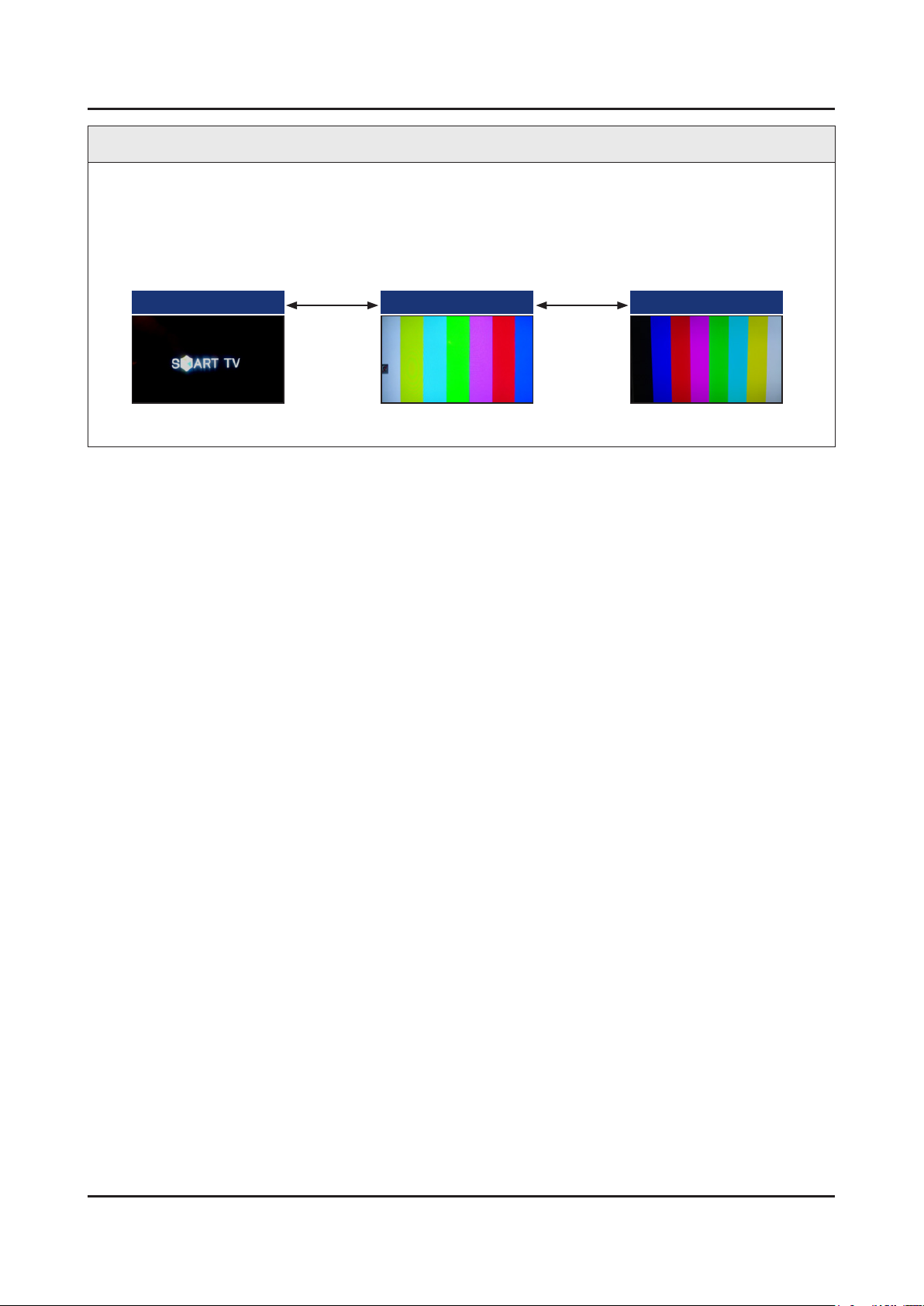

4-2-1. Video .........................................................................................................................4-2

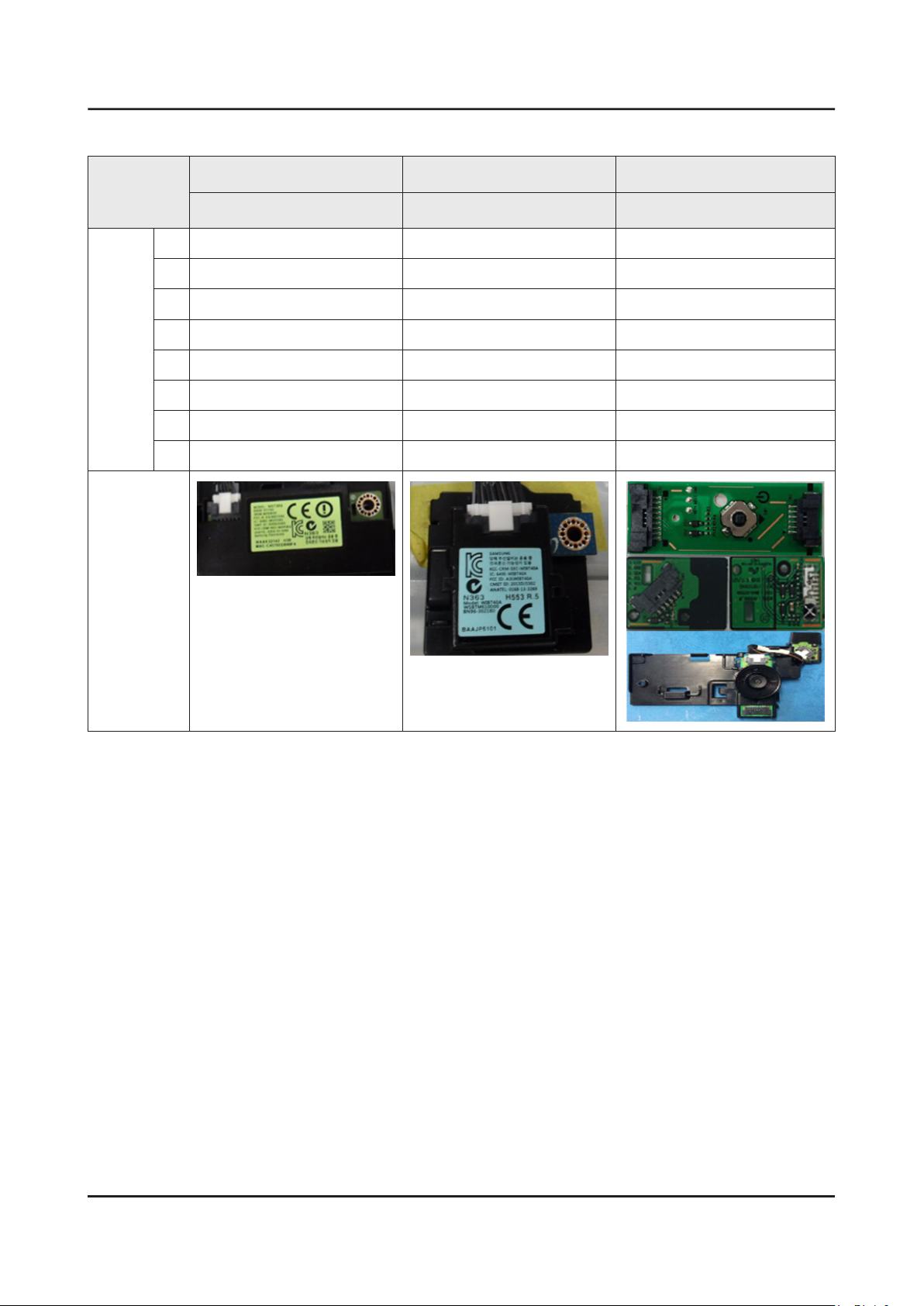

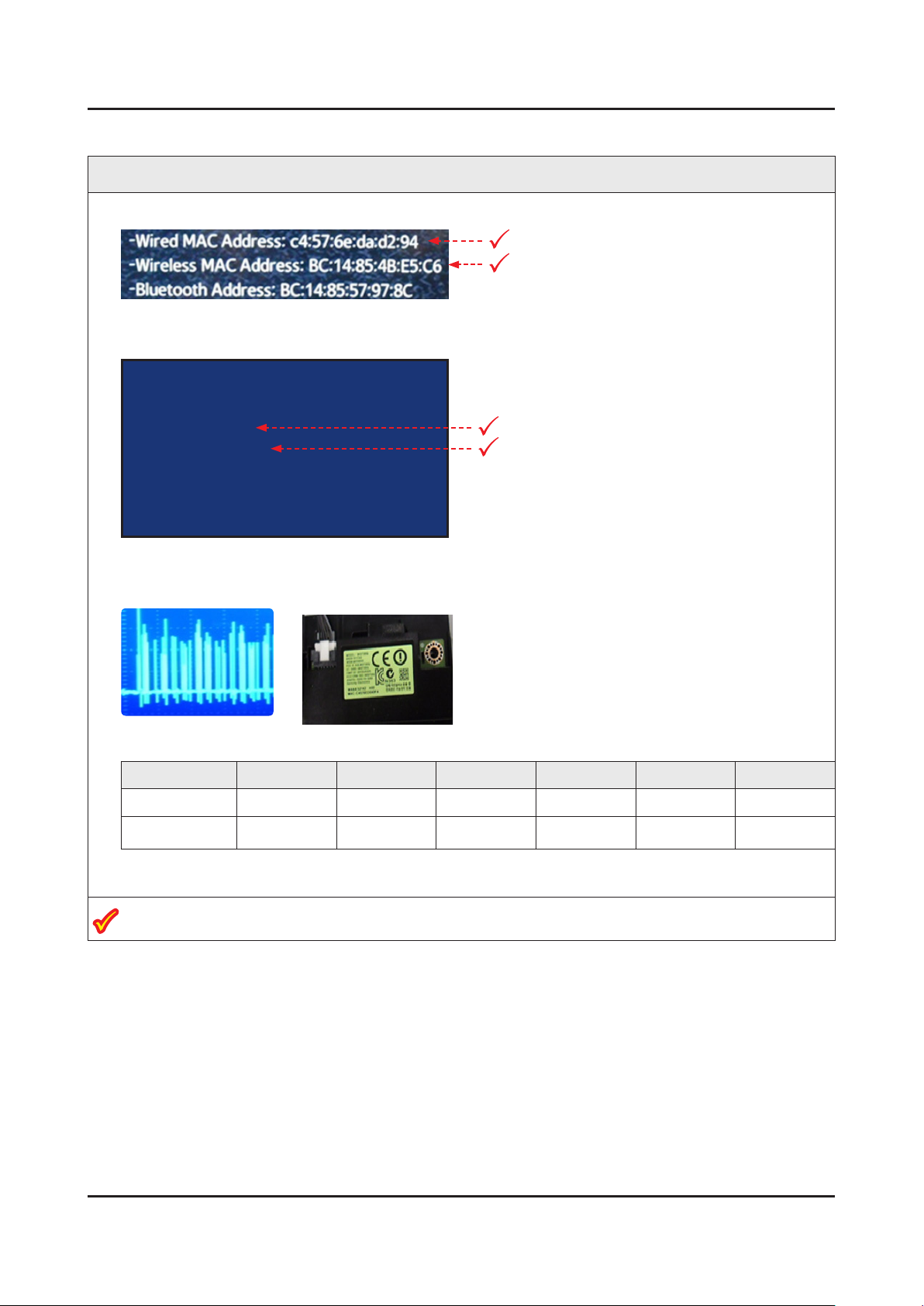

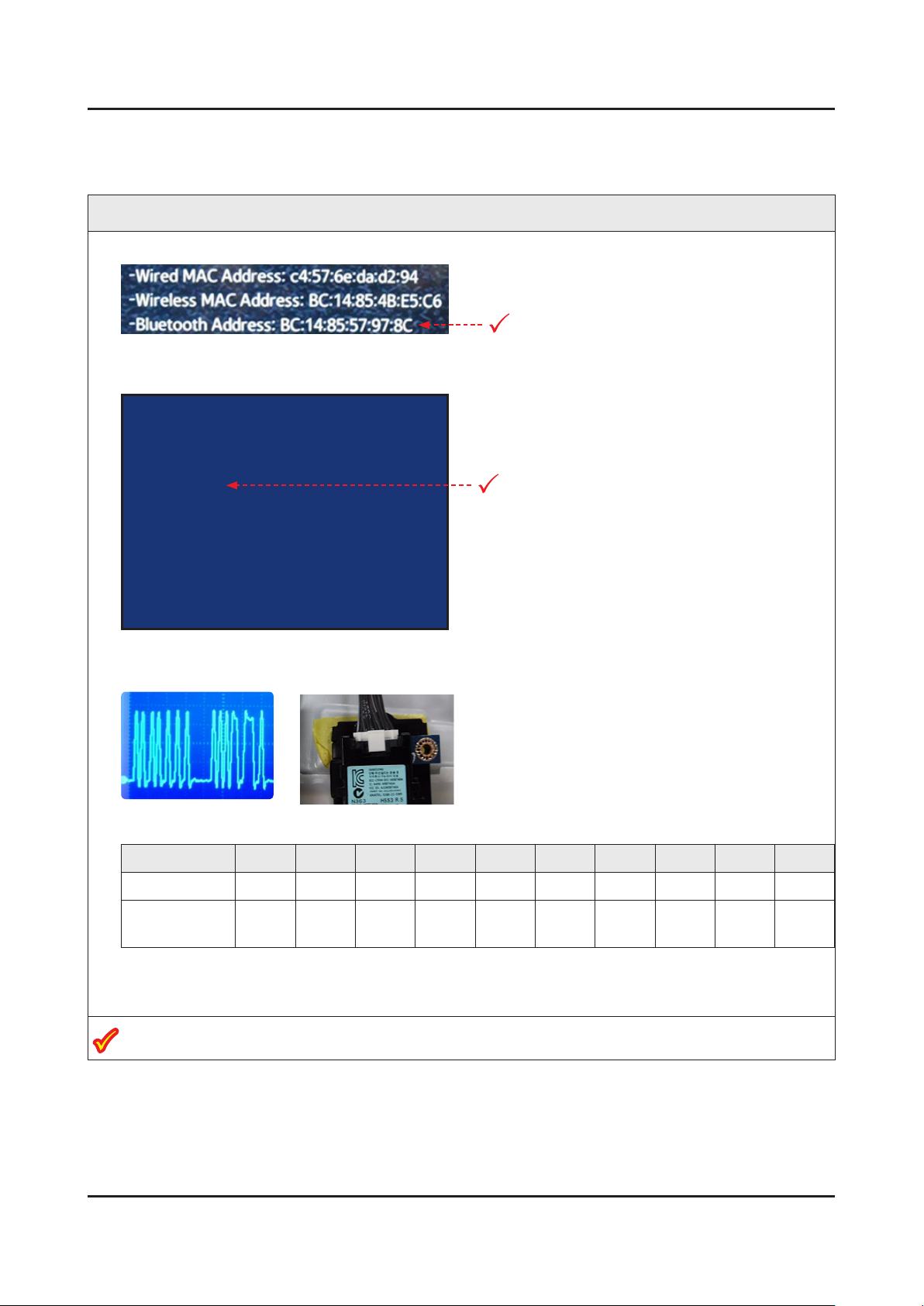

4-2-2. Bluetooth / WIFI Module ........................................................................................... 4-4

4-3. Factory Mode Adjustments ..................................................................................................4-6

4-3-1. Detail Factory Option ................................................................................................4-6

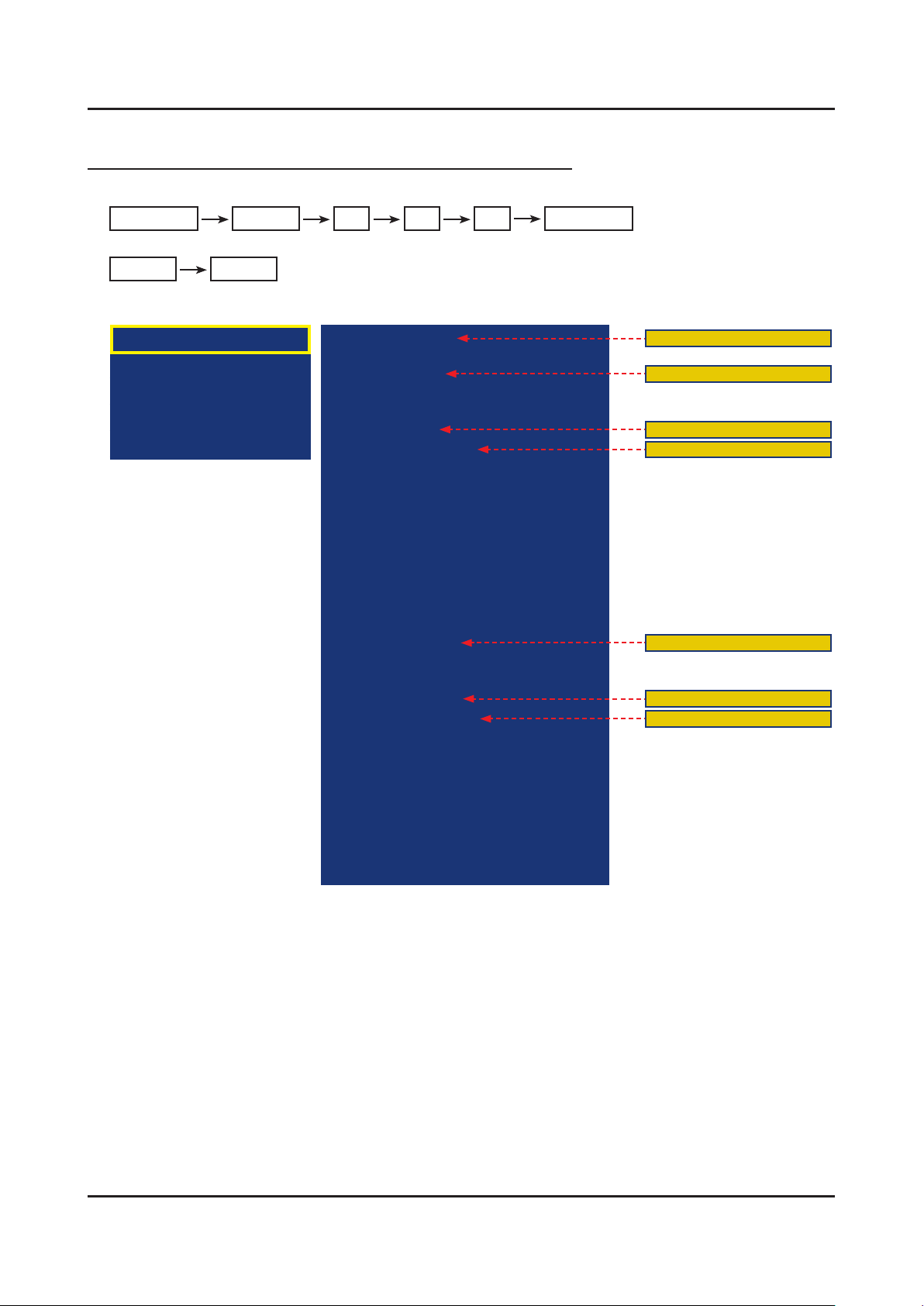

4-3-2. Entering Factory Mode ............................................................................................. 4-8

4-3-3. Factory Data .............................................................................................................4-9

4-4. White Balance ...................................................................................................................4-23

4-4-1. Calibration ..............................................................................................................4-23

4-4-2. Service Adjustment ................................................................................................. 4-23

4-4-3. Adjustment .............................................................................................................. 4-25

4-5. RS-232C ............................................................................................................................4-26

4-6. AV Control Tabe ................................................................................................................. 4-27

4-7. Updating the TV’s Software ...............................................................................................4-33

5. Wiring Diagram .............................................................................................................5-1

5-1. Wiring Diagram ....................................................................................................................5-1

5-2. Connector ............................................................................................................................5-2

5-3. Connector Functions ...........................................................................................................5-6

5-4. Cables and Module ..............................................................................................................5-7

ANNEX. Exploded View & Part List [UN32J6300AFXZA TD01] ......................... ANNEX-1

1-1. Exploded View .......................................................................................................... ANNEX-1

1-1-1. Parts List ........................................................................................................ ANNEX-2

2-1. Electrical Parts List ................................................................................................... ANNEX-3

ANNEX. Exploded View & Part List [UN40J6300AFXZA TS01].......................... ANNEX-1

1-1. Exploded View .......................................................................................................... ANNEX-1

1-1-1. Parts List ........................................................................................................ ANNEX-2

2-1. Electrical Parts List ................................................................................................... ANNEX-3

ANNEX. Exploded View & Part List [UN48J6300AFXZA TS01].......................... ANNEX-1

1-1. Exploded View .......................................................................................................... ANNEX-1

1-1-1. Parts List ........................................................................................................ ANNEX-2

2-1. Electrical Parts List ................................................................................................... ANNEX-3

ANNEX. Exploded View & Part List [UN50J6300AFXZA DH01] ......................... ANNEX-1

1-1. Exploded View .......................................................................................................... ANNEX-1

1-1-1. Parts List ........................................................................................................ ANNEX-2

2-1. Electrical Parts List ................................................................................................... ANNEX-3

ANNEX. Exploded View & Part List [UN55J6300AFXZA TH01] ......................... ANNEX-1

1-1. Exploded View .......................................................................................................... ANNEX-1

1-1-1. Parts List ........................................................................................................ ANNEX-2

2-1. Electrical Parts List ................................................................................................... ANNEX-3

ANNEX. Exploded View & Part List [UN60J6300AFXZA MS01] ......................... ANNEX-1

1-1. Exploded View .......................................................................................................... ANNEX-1

1-1-1. Parts List ........................................................................................................ ANNEX-2

2-1. Electrical Parts List ................................................................................................... ANNEX-3

ANNEX. Exploded View & Part List [UN65J6300AFXZA AH01] ......................... ANNEX-1

1-1. Exploded View .......................................................................................................... ANNEX-1

1-1-1. Parts List ........................................................................................................ ANNEX-2

2-1. Electrical Parts List ................................................................................................... ANNEX-3

ANNEX. Exploded View & Part List [UN75J6300AFXZA TH01] ......................... ANNEX-1

1-1. Exploded View .......................................................................................................... ANNEX-1

1-1-1. Parts List ........................................................................................................ ANNEX-2

2-1. Electrical Parts List ................................................................................................... ANNEX-3

This Service Manual is a property of Samsung Electronics Co.,Ltd.

Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.

© 2015 Samsung Electronics Co.,Ltd.

All rights reserved.

Printed in Korea

1. Precautions

1. Precautions

1-1. Safety Precautions

Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as
electrical shock.

1-1-1. Warnings

For continued safety, do not attempt to modify the circuit board.

WARNING

1-1-2. Servicing the LED TV

When servicing the LED TV, Disconnect the AC line cord from the AC outlet.1.

It is essential that service technicians have an accurate voltage meter available at all times. Check the calibration of this 2.
meter periodically.

1-1-3. Fire and Shock Hazard

Before returning the monitor to the user, perform the following safety checks:

Inspect each lead dress to make certain that the leads are not pinched or that hardware is not lodged between the 1.
chassis and other metal parts in the monitor.

Inspect all protective devices such as nonmetallic control knobs, insulating materials, cabinet backs, adjustment and 2.
compartment covers or shields, isolation resistorcapacitor networks, mechanical insulators, etc.

Leakage Current Hot Check:3.

Disconnect the AC power and DC power jack before servicing.

(READING SHOULD)

DEVICE
UNDER

TEST

ALSO TEST WITH
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED)

NOT BE ABOVE 0.5mA

2-WIRE CORD

TEST ALL

EXPOSED METAL

SURFACES

LEAKAGE
CURRENT

TESTER

EARTH

GROUND

Do not use an isolation transformer during this test.

Use a leakage current tester or a metering system that complies with American National Standards

WARNING

Institute (ANSI C101.1, Leakage Current for Appliances), and Underwriters Laboratories (UL
Publication UL1410, 59.7).

With the unit completely reassembled, plug the AC line cord directly into a 120V AC outlet. With the unit’s AC switch rst 4.

in the ON position and then OFF, measure the current between a known earth ground (metal water pipe, conduit, etc.)
and all exposed metal parts, including: metal cabinets, screwheads and control shafts.
The current measured should not exceed 0.5 milliamp.
Reverse the power-plug prongs in the AC outlet and repeat the test.

1-1

1-2

1. Precautions

1-1-4. Product Safety Notices

Some electrical and mechanical parts have special safetyrelated characteristics which are often not evident from visual
inspection. The protection they give may not be obtained by replacing them with components rated for higher voltage,
wattage, etc. Parts that have special safety characteristics are identied by on schematics and parts lists. A substitute
replacement that does not have the same safety characteristics as the recommended replacement part might create

shock, re and/or other hazards. Product safety is under review continuously and new instructions are issued whenever

appropriate.

1-3

1. Precautions

1-2. Servicing Precautions

An electrolytic capacitor installed with the wrong polarity might explode.

WARNING

Before servicing units covered by this service manual, read and follow the Safety Precautions section of

CAUTION

NOTE

1-2-1. General Servicing Precautions

Always unplug the unit’s AC power cord from the AC power source and disconnect the DC Power Jack before 1.
attempting to: (a) remove or reinstall any component or assembly, (b) disconnect PCB plugs or connectors, (c) connect
a test component in parallel with an electrolytic capacitor.

Some components are raised above the printed circuit board for safety. An insulation tube or tape is sometimes used. 2.
The internal wiring is sometimes clamped to prevent contact with thermally hot components. Reinstall all such elements
to their original position.

After servicing, always check that the screws, components and wiring have been correctly reinstalled. Make sure that 3.
the area around the serviced part has not been damaged.

Check the insulation between the blades of the AC plug and accessible conductive parts (examples: metal panels, input 4.
terminals and earphone jacks).

Insulation Checking Procedure: Disconnect the power cord from the AC source and turn the power switch ON. Connect 5.
an insulation resistance meter (500 V) to theblades of the AC plug. The insulation resistance between each blade of the
AC plug and accessible conductive parts (see above) should be greater than 1 megohm.

Always connect a test instrument’s ground lead to the instrument chassis ground before connecting the positive lead; 6.
always remove the instrument’s ground lead last.

this manual.

If unforeseen circumstances create conict between the following servicing precautions and any of the

safety precautions, always follow the safety precautions.

1-4

1. Precautions

1-3. Static Electricity Precautions

Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly

called Electrostatically Sensitive Devices (ESD). Examples of typical ESD are integrated circuits and some eld-effect

transistors. The following techniques will reduce the incidence of component damage caused by static electricity.

Immediately before handling any semiconductor components or assemblies, drain the electrostatic charge from your 1.
body by touching a known earth ground. Alternatively, wear a discharging wrist-strap device. To avoid a shock hazard,
be sure to remove the wrist strap before applying power to the monitor.

After removing an ESD-equipped assembly, place it on a conductive surface such as aluminum foil to prevent 2.
accumulation of an electrostatic charge.

Do not use freon-propelled chemicals. These can generate electrical charges sufcient to damage ESDs.3.

Use only a grounded-tip soldering iron to solder or desolder ESDs.4.

Use only an anti-static solder removal device. Some solder removal devices not classied as “anti-static” can generate 5.
electrical charges sufcient to damage ESDs.

Do not remove a replacement ESD from its protective package until you are ready to install it. Most replacement ESDs 6.
are packaged with leads that are electrically shorted together by conductive foam, aluminum foil or other conductive
materials.

Immediately before removing the protective material from the leads of a replacement ESD, touch the protective material 7.
to the chassis or circuit assembly into which the device will be installed.

Be sure no power is applied to the chassis or circuit and observe all other safety precautions.

CAUTION

Minimize body motions when handling unpackaged replacement ESDs. Motions such as brushing clothes together, or 8.

lifting your foot from a carpeted oor can generate enough static electricity to damage an ESD.

1-5

1. Precautions

1-4. Installation Precautions

For safety reasons, more than a people are required for carrying the product.1.

Keep the power cord away from any heat emitting devices, as a melted covering may cause re or electric shock.2.

Do not place the product in areas with poor ventilation such as a bookshelf or closet. The increased internal temperature 3.

may cause re.

Bend the external antenna cable when connecting it to the product. This is a measure to protect it from being exposed 4.

to moisture. Otherwise, it may cause a re or electric shock.

Make sure to turn the power off and unplug the power cord from the outlet before repositioning the product. Also check 5.

the antenna cable or the external connectors if they are fully unplugged. Damage to the cord may cause re or electric

shock.

Keep the antenna far away from any high-voltage cables and install it rmly. Contact with the highvoltage cable or the 6.
antenna falling over may cause re or electric shock.

When installing the product, leave enough space (0.4m) between the product and the wall for ventilation purposes. 7.

A rise in temperature within the product may cause re.

If an equipment is provided with a replaceable battery, and if replacement by an incorrect type could result in an 8.
explosion (for example, with some lithium batteries), the following applies:

Risk of explosion if battery is replaced by an incorrect type dispose of used batteries according to •
the instructions.

Do not dispose of batteries in a re.•

Do not short circuit, disassemble or overheat the batteries.•

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent •
type.

Do not be exposed to excessive heat such as sunshine, re or the like.•

2. Product Specications

2-1. Product information

Model UN**J6300AF

2. Product specications

W

Front View

Detail View

Front Color Black (PANEL)

32"

40"

48"

Dimensions

(W x H x D)

50"

With stand 722.1 X 473.4 X 207.6 mm

With stand 907.2 X 585.6 X 288.1 mm

With stand 1075.8 X 681.7 X 310.5 mm

With stand 1116.8 X 703.6 X 310.5 mm

H

* W : Width H : High D : Depth

Body 722.1 X 420.6 X 62.9 mm

Body 907.2 X 525.7 X 63.1 mm

Body 1075.8 X 620.4 X 63.5 mm

Body 1116.8 X 642.9 X 63.7 mm

D

55"

65"

Body 1230.6 X 707.4 X 64.0 mm

With stand 1230.6 X 770.6 X 310.5 mm

Body 1454.5 X 835.4 X 70.9 mm

With stand 1454.5 X 910.2 X 369.4 mm

2-1

2-2

2. Product specications

Model UN**J6300AF

32"

Body

With stand 5.5 Kg

Body 7.8 Kg

40"

With stand 8.7 Kg

Body 11.3 Kg

48"

With stand 12.3 Kg

Weight

Body 12.8 Kg

50"

With stand 13.8 Kg

Body

55"

With stand 16.7 Kg

Body 25.5 Kg

65"

With stand

Panel Type Ultra Clear

Internal Memory 4GB

DDR 1.5GB

Feature SMART HUB / BT,Wi-Fi

5.1 Kg

15.7 Kg

27.6 Kg

2-3

2. Product specications

Model UN60J6300AF

W

Front View

H

* W : Width H : High D : Depth

Detail View

Front Color Black (PANEL)

Dimensions

(W x H x D)

60"

Body 1365.0 X 786.4 X 64.4 mm

With stand 1365.0 X 859.8 X 369.4 mm

Body 23.5 Kg

Weight 60"

With stand 25.6 Kg

Panel Type Ultra Clear

Internal Memory 4GB

D

DDR 1.5GB

Feature SMART HUB / BT,Wi-Fi

2-4

2. Product specications

Model UN75J6300AF

W

Front View

H

* W : Width H : High D : Depth

Detail View

Front Color Black (PANEL)

Dimensions

(W x H x D)

75"

Body 1676.2 X 959.6 X 70.9 mm

With stand 1676.2 X 1045.6 X 318.4 mm

Body

Weight

75"

With stand 32.0 Kg

Panel Type Ultra Clear

Internal Memory 4GB

D

X

31.2 Kg

DDR 1.5GB

Feature SMART HUB / BT,Wi-Fi

2-5

2. Product specications

2-2. Product specication

2-2-1. Feature & Specications

Feature 

FHD TV, RF, 4-HDMI, 1-COMPONENT, 3-USB2.0, LAN, WIFI•

CMR 120•

Dolby Digital Plus, DTS Premium Sound 5.1, DTS Studio So und•

Specications 

Model UN**J6300AF

Item Description

Screen Size (Diagonal) 32 inches 40 inches 48 inches 50 inches

LCD Panel FHD 120Hz

Scanning Frequency Horizontal : 60 kHz ~ 73 kHz (Automatic)

Vertical : 47 Hz ~ 63 Hz (Automatic)

Display Colors 16.7M color

Display Resolution 1920 X 1080

Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated

Input Sync Signal H/V Separate, TTL, P. or N.

Maximum Pixel Clock Rate 74.25MHz

AC Power Voltage & Frequency AC110-120V 60Hz

Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)

Operating Humidity : 10% ~ 80%, non-condensing

Storage Temperature : -4˚F ~ 113˚F (-20˚C ~ 45˚C)

Storage Humidity : 5% ~ 95%, non-condensing

Sound (Output) 20 W (10 W X 2)

Note : AllShare, SMART Guide, Web Browser, USB HID, BT

2-6

2. Product specications

Model UN**J6300AF

Item Description

Screen Size (Diagonal) 55 inches 60 inches 65 inches 75 inches

LCD Panel FHD 120Hz

Scanning Frequency Horizontal : 60 kHz ~ 73 kHz (Automatic)

Vertical : 47 Hz ~ 63 Hz (Automatic)

Display Colors 16.7M color

Display Resolution 1920 X 1080

Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated

Input Sync Signal H/V Separate, TTL, P. or N.

Maximum Pixel Clock Rate 74.25MHz

AC Power Voltage & Frequency AC110-120V 60Hz

Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)

Operating Humidity : 10% ~ 80%, non-condensing

Storage Temperature : -4˚F ~ 113˚F (-20˚C ~ 45˚C)

Storage Humidity : 5% ~ 95%, non-condensing

Sound (Output) 20 W (10 W X 2)

Note : AllShare, SMART Guide, Web Browser, USB HID, BT

2-7

2. Product specications

2-2-2. Detailed Specications

NOTE

Design and specications are subject to change without prior notice.

Item UN**J6300AFXZA

General Information

Display

Video

Product FHD

Series 6

Country UNITED STATES

Inch 32" / 40" / 48" / 50" / 55" / 60" / 65" / 75"

Resolution 1920 x 1080

Ultra Clear Panel N/A

Motion Refresh Rate 120

Dynamic Contrast Ratio Mega Contrast

Micro Dimming Micro Dimming Pro

Precision Black (Local Dimming) N/A

Nano Crystal Color N/A

Wide Color Enhancer (Plus) Yes

PurColor N/A

Auto Depth Enhancer N/A

Contrast Enhancer N/A

Auto Motion Plus Yes

Film Mode Yes

Audio

Smart TV

Peak Illuminator N/A

Dolby Digital Plus Yes

Virtual Surround DTS Studio Sound

DTS Codec DTS Premium Sound 5.1

3D Sound N/A

Sound Customizer N/A

Sound Output (RMS) 20W (L:10W, R:10W)

Speaker Type 2CH (Down Firing + Base Reex)

Woofer N/A

HD Audio Yes

Wallmount Sound Mode Yes

Multiroom Link Yes

Samsung SMART TV Yes

Apps Yes

Game N/A

Multi-Link Screen N/A

ACR (Advertisement) Yes

2-8

2. Product specications

Item UN**J6300AFXZA

Smart TV

Smart Interaction

Convergence

Tuner/Broadcasting

Info Widget N/A

Vertical Enhancement Yes

Voice Interaction N/A

Voice Control N/A

Face recognition N/A

Motion control N/A

TV to Mobile - Mirroring Yes

Mobile to TV - Mirroring, DLNA Yes

RVU Wired

Samsung SMART View Yes

Wireless TV On - WOL Yes

Notication - BLE Yes

Brieng On TV Yes

WiDi N/A

WiFi Direct Yes

Digital Broadcasting ATSC / Clear QAM

2 Tuner N/A

Connectivity

CI/CI+/2CI+ N/A

Analog Tuner Yes

MHP / MHEG / HbbTV / ACAP / GINGA / OHTV N/A

HDMI 4

USB 3

Component In (Y/Pb/Pr) 1

Composite In (AV) 1 (Common Use for Component Y)

Ethernet (LAN) 1

Headphone N/A

Audio Out (Mini Jack) 1

Digital Audio Out (Optical) 1

RF In (Terrestrial / Cable input / Satellite input) 1/1(Common Use for Terrestrial)/0

Ex-Link ( RS-232C ) Yes

IR Out N/A

CI Slot N/A

Scart N/A

MHL Yes

Dongle Ready (3G / LTE) N/A

HDMI 3D Auto Setting N/A

HDMI A / Return Ch. Support Yes

HDMI Quick Switch N/A

2-9

2. Product specications

Item UN**J6300AFXZA

Connectivity

Design

Additional Feature

Wireless LAN Adapter Support N/A

Wireless LAN Built-in Yes

Anynet+ (HDMI-CEC) Yes

Design Wavy Line

Bezel Type VNB

Slim Type Slim

Front Color Black

Light Effect (Deco) N/A

Stand Type V-Shape

Swivel (Left/Right) N/A

Samsung 3D N/A

3D Converter N/A

Instant On Yes

Camera Built-in N/A

Wireless Copy N/A

Processor Quad

PX Ready N/A

21:9 Immersive Picture Mode N/A

SCSA Support N/A

Accessibility Voice guide/ Enlarge/ High contrast

Digital Clean View Yes

One Connect (Jack) N/A

Auto Channel Search Yes

Auto Power Off Yes

BD Wise Plus Yes

Caption (Subtitle) Yes

Channel List USB-Clone N/A

Connect Share™ (HDD) Yes

Connect Share™ Transfer N/A

ConnectShare™ (USB 2.0) Yes

AC/DC TV N/A

Sports Mode Basic

Embeded POP Yes

EPG Yes

Extended PVR N/A

Game Mode Yes

IP Video Closed Caption Yes

OSD Language English, Spanish, French

2-10

2. Product specications

Item UN**J6300AFXZA

Additional Feature

Eco Feature

Accessory

Picture-In-Picture Yes

BT HID Built-in Yes

USB HID Support Yes

Feature Upgrade (Evolution Kit Ready) N/A

ATSC 3.0 Ready N/A

Teletext (TTXT) N/A

Time Shift N/A

Analog Clean View N/A

Ultra Clean View Yes

Energy Star TBD

Eco Sensor Yes

3D Active Glasses (Included) N/A

Remote Controller Model TM1260C

Batteries (for Remote Control) Yes

Samsung Smart Touch Control (Included) N/A

PX (Included) N/A

Ultra Slim Wall Mount Supported N/A

Mini Wall Mount Supported Yes

Vesa Wall Mount Supported Yes

Floor Stand Support N/A

TV Camera (Included) N/A

IR Extender Cable (Included) N/A

Wireless Keyboard (Included) N/A

Wireless PC Mirroring Adaptor (Included) N/A

Composite to Scart Gender (Included) N/A

User Manual Yes

E-Manual Yes

ANT-Cable N/A

Power Cable Yes

Slim Gender Cable N/A

2-11

2. Product specications

2-3. Accessories

NOTE

The items’ colors and shapes may vary depending on the model.•

Cables not included in the package contents can be purchased separately.•

The part code for some accessories may differ depending on your region.•

Product Code. No Product Code. No

Remote Control• BN59-01223A Power Cord• 3903-000853

Batteries (AAA x 2)• 4301-000103 User Manual• BN68-07150H

2-12

2. Product specications

G
G
G

PIC SIZE PICTURE SOUND

MTS

2-4. Viewing the Functions

The Remote Control 

Displays and selects the available

video sources.

Turns the TV on or off.

SPORTS: Enables/Disables Sports

Mode.

SEARCH: Launches the Search

function.

EXTRA: Provides easy access to

information services.

Selects additional digital channels

being broadcast by the same digital

station. For example, to select

channel ‘54-3’, press ‘54’, then press

‘-’ and ‘3’.

Turns on the backlight for the buttons.
When on, the buttons become
illuminated for a moment when
pressed. (Using the remote control with
this button set to On will reduce the
battery life.)

Returns to the previous channel.

Brings up Smart Hub applications.

(See the e-Manual chapter, Smart

Features > Smart Hub.)

Displays frequently used functions.

(Enter): Press this button to
select or run a focused item.

Moves the cursor, selects the

onscreen menu items, and changes

the values seen on the TV's menu.

Use these buttons according to the

directions on the TV's screen.

Use these buttons with a specic

feature, according to the directions

on the TV's screen.

Displays the Electronic Program Guide
(EPG).

Displays information on the TV screen.

E-MANUAL: Displays the e-Manual.
S.MODE / SOUND: Displays a list of

sound modes and lets you change the

mode.

CC: Controls the caption decoder and
displays captions on the screen.

P.MODE / PICTURE: Selects the

Picture Mode.

P.SIZE / PIC SIZE: Changes the
picture size.
MTS: Changes a program's audio
to stereo, mono, or Separate Audio
Program (SAP broadcast).

2-13

2. Product specications

2-5. NEW Key Features

2-5-1. 15" New UI

SMART HUB START 

After Smart HUB setup 

<Videos contents> <My Apps>

<Web browser> <My contents>

2-14

2. Product specications

2-5-2. Instant On

Enabling the TV to Boot Faster 

MENU > System > General > Samsung Instant On

Set Fast Boot on to have the TV boot up faster.

<Cold Boot>

Detachable power

<Instant On>

Remocon on

2-15

2. Product specications

2-6. Supported Formats

Supported Image resolution 

File Extension Type Resolution



*.png PNG 4096x4096

*.bmp BMP 4096x4096

*.mpo MPO 15360x8640

JPEG 15360x8640

Supported Music File Formats 

File Extension Type Codec Comments

*.mp3 MPEG MPEG1 Audio Layer 3 -

*.m4a
*.mpa

*.aac

*.ac FLAC FLAC Supports up to two channels.

*.ogg OGG Vorbis Supports up to two channels.

*.wma WMA WMA

MPEG4 AAC -

WMA 10 Pro supports up to 5.1 channels.

WMA lossless audio is not supported.

Supports up to M2 prole.

*.wav wav wav -

*.mid

*.midi

*.ape ape ape -

Sound or video may not work if they have standard bit rates/frame rates above the TV’s compatibility.•

If the Index Table is wrong, the Seek (Jump) function does not work.•

When playing video over a network connection, the video may not play smoothly because of data•

Some USB/digital camera devices may not be compatible with the player.•

midi midi Type 0, type 1 and supported.

2. Product specications

Supported Video Code 

File

Formats

*.avi

*.mkv

*.asf

*.wmv

*.mp4

*.mov

*.3gp

*.vro

*.mpg

*.mpeg

*.ts
*.tp

*.trp

*.mov

*.v

*.vob

*.svi

*.m2ts

*.mts

*.divx

Container Video Codecs Resolution

H.264 BP/MP/HP

4096x2160

1920x1080

AVI

MKV

ASF

MP4
3GP

MOV

FLV
VRO
VOB

PS

TS

SVAF

Motion JPEG

HEVC(H.265)

DivX 3.11/4/5/6

MPEG4 SP/ASP

Microsoft MPEG-

4 v1 , v2 , v3

Window Media

Video v7(WMV1),

v8(WMV2)

Window Media
Video v9(VC1)

MPEG2

MPEG1

VP6

Frame rate

(fps)

UHD: MAX 30
FHD: MAX 30

HD : MAX 60

UHD: 60

FHD: 30

HD : 60

Bit rate

(Mbps)

60

30

Audio Codec

AC3

LPCM

ADPCM

(IMA, MS)

AAC

HE-AAC

WMA

Dolby Digital

Plus

MPEG(MP3)

DTS

(Core, LBR)

G.711(A-Law,

μ-Law

H.263 Sorrenson

MVC 60

*.webm WebM VP8 1920x1080 6~30 20 Vorbis

Other Restrictions 

NOTE

Codecs may not function properly if there is a problem with the content data.•

Video content does not play or does not correctly if there is an error in the content or container.•

Sound or video may not work if they have standard bit rates/frame rates above the TV's compatibility.ratings•

If the Index Table is wrong, the Seek(Jump) function does not work.•

When playing video over a network connection, the video may not play smoothly because of datatransmission •

speeds.

Some USB/digital camera devices may not be compatible with the player.•

2-16

3. Disassembly and Reassemble

3. Disassembly and Reassembly

This section of the service manual describes the disassembly and reassembly procedures for the LED TV.

This LED TV contains electrostatically sensitive devices. Use caution when handling these components.

WARNING

3-1. Disassembly and Reassembly

Disconnect the LED TV from the power source before disassembly.1.

Follow these directions carefully; never use metal instruments to pry apart the cabinet.2.

CAUTION

3-1-1. TV Disassembly

Place TV face down on cushioned table.

If there is no additional coment, it is same for all inches.3.

Description Picture Description Screws

1

Remove 4 screws from the ASSY

2

STAND P-BASE.

6003-001782

(32")

BN61-09494D

(40"/48"/50"/55"/

60"/65")

6002-001294

(75")

3-1

3-2

3. Disassembly and Reassemble

Description Picture Description Screws

Remove the screws of ASSY COVER

3

P-REAR.

32" : 11 EA / 1 EA•

40" : 15 EA / 1 EA•

6001-002755

6003-000003

48" : 16 EA / 2 EA•

50" : 18 EA / 2 EA•

55" : 20 EA / 2 EA•

3-3

3. Disassembly and Reassemble

Description Picture Description Screws

60" : 18 EA•

65" : 6 EA / 2 EA•

6003-001782

(60")

75" : 8 EA / 2 EA•

Remove the ASSY COVER P-REAR.

4

3-4

3. Disassembly and Reassemble

Description Picture Description Screws

Remove the screws of ASSY COVER

5

MIDDLE. (Only 65"/75")

65" : 18 EA•

75" : 19 EA •

Remove the ASSY COVER MIDDLE.

6001-002755

Remove the Electric tapes shown on the

6

image.

EMI Point• : After removing release
paper from the LVDS Cable bottom,
attach the LVDS Cable to the C/
Chassis and rub the attatched
surface.

CAUTION

When assembling the TV, the electric
tapes must be applied on the same
locations.

Please remember to take a picture of

wherethetapeswererstapplied.

3-5

3. Disassembly and Reassemble

Description Picture Description Screws

Remove the Power Cables and Speaker

7

Cables.

Remove the LVDS Cable, Panel Wire
Cable and ASSY BOARD P-FUNCTION
ASSY Cable.

Remove the NETWORK (BT/WIFI)
Cable.

Power Cable

Speaker Cable

LVDS Cable

ASSY BOARD P-FUNCTION ASSYCable

Power Cable

Panel Wire Cable

LVDS Cable

Remove the screws of ASSY PCB MAIN

8

and DC VSS-LED TV PD BD.

ASSY PCB MAIN : •
4 EA (32"/40"/48"/50"/55"/60"/65"),
6 EA (75")

DC VSS-LED TV PD BD : •
5 EA (32"/40"/48"/50"/55"/60"/65"),
5 EA (75")

Remove the ASSY SPEAKER (L/R).

9

NETWORK (BT/WIFI) Cable

6001-003016

ASSY SPEAKER (L/R)

3. Disassembly and Reassemble

Description Picture Description Screws

10

11

12

Remove the cables and 2 screws from
the ASSY T CON.

Finally carefully remove the ASSY
T CON.

6001-003075

Cables

Remove the NETWORK (BT/WIFI).

Remove the JOG/IR unit.

13

Reassembly procedures are in the reverse order of disassembly procedures.

Completed disassembly.

Panel•

NOTE

3-6

4. Troubleshooting

4-1. Troubleshooting

4-1-1. Previous Check

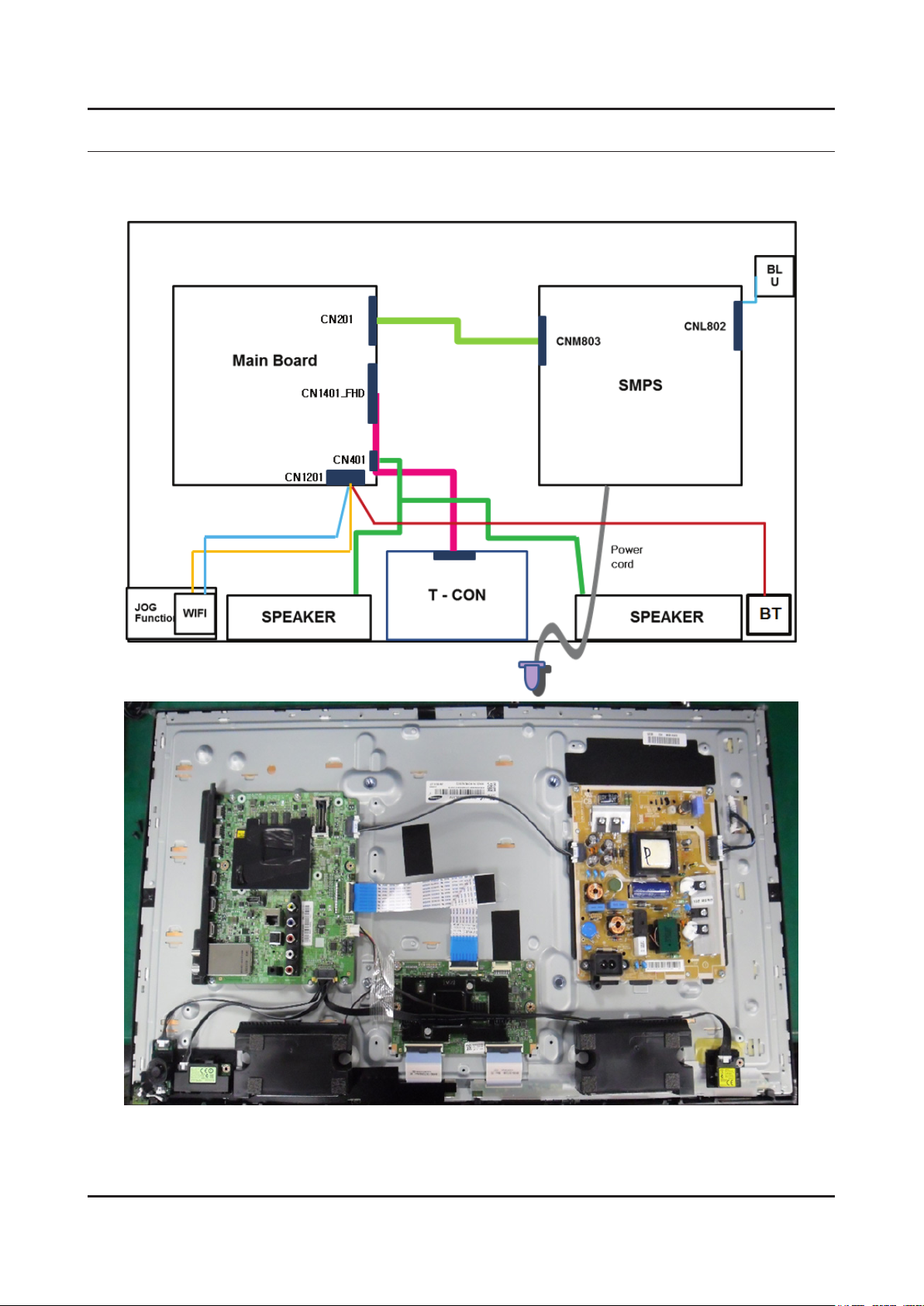

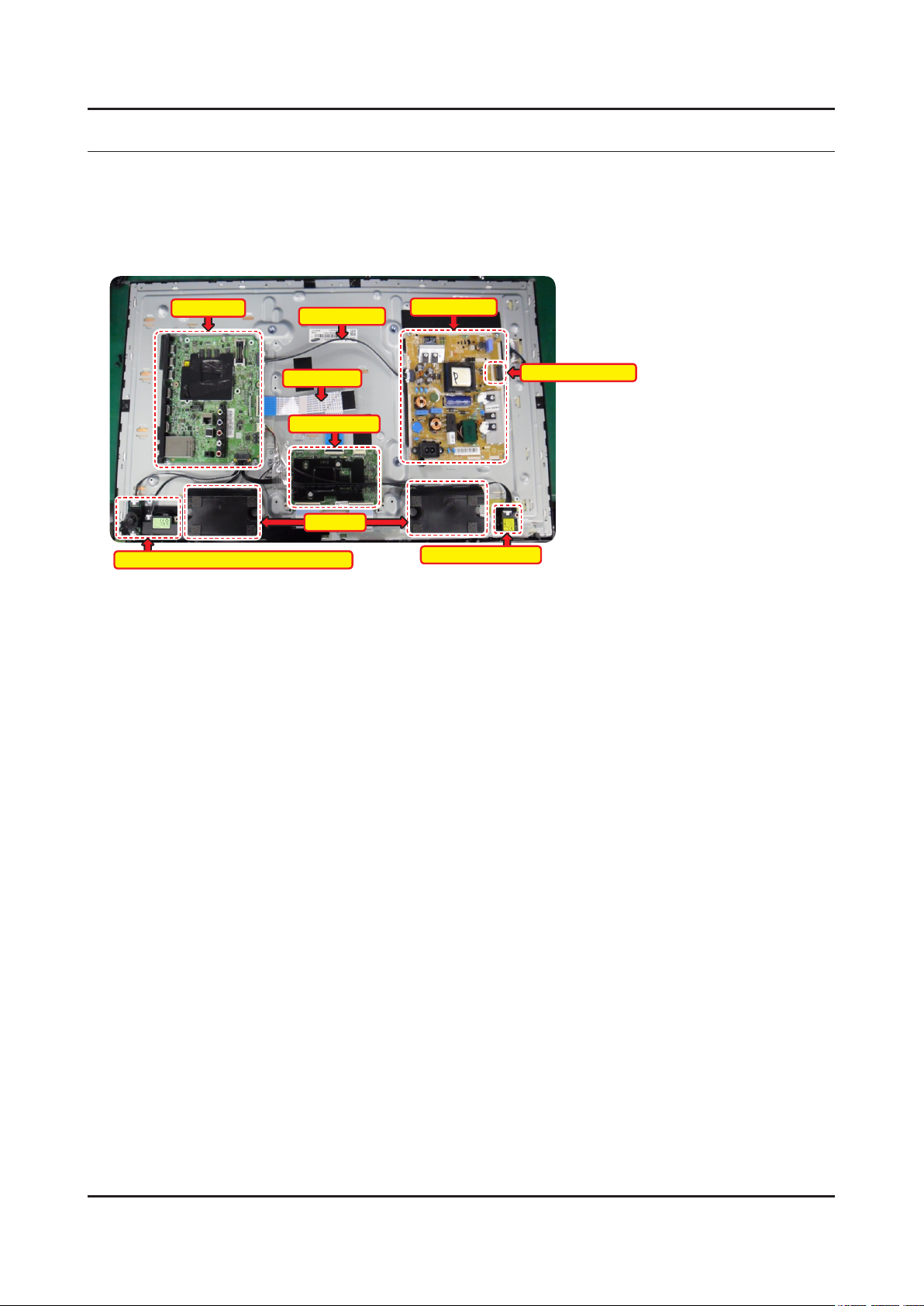

Check list for initial operation 

4. Troubleshooting

Main Board

JOG Function/IR Sensor/WIFI Module

Power Cable

LVDS Cable

T-CON Board

Speaker

Power Board

Panel Connectors

Bluetooth Module

4-1

4-2

4. Troubleshooting

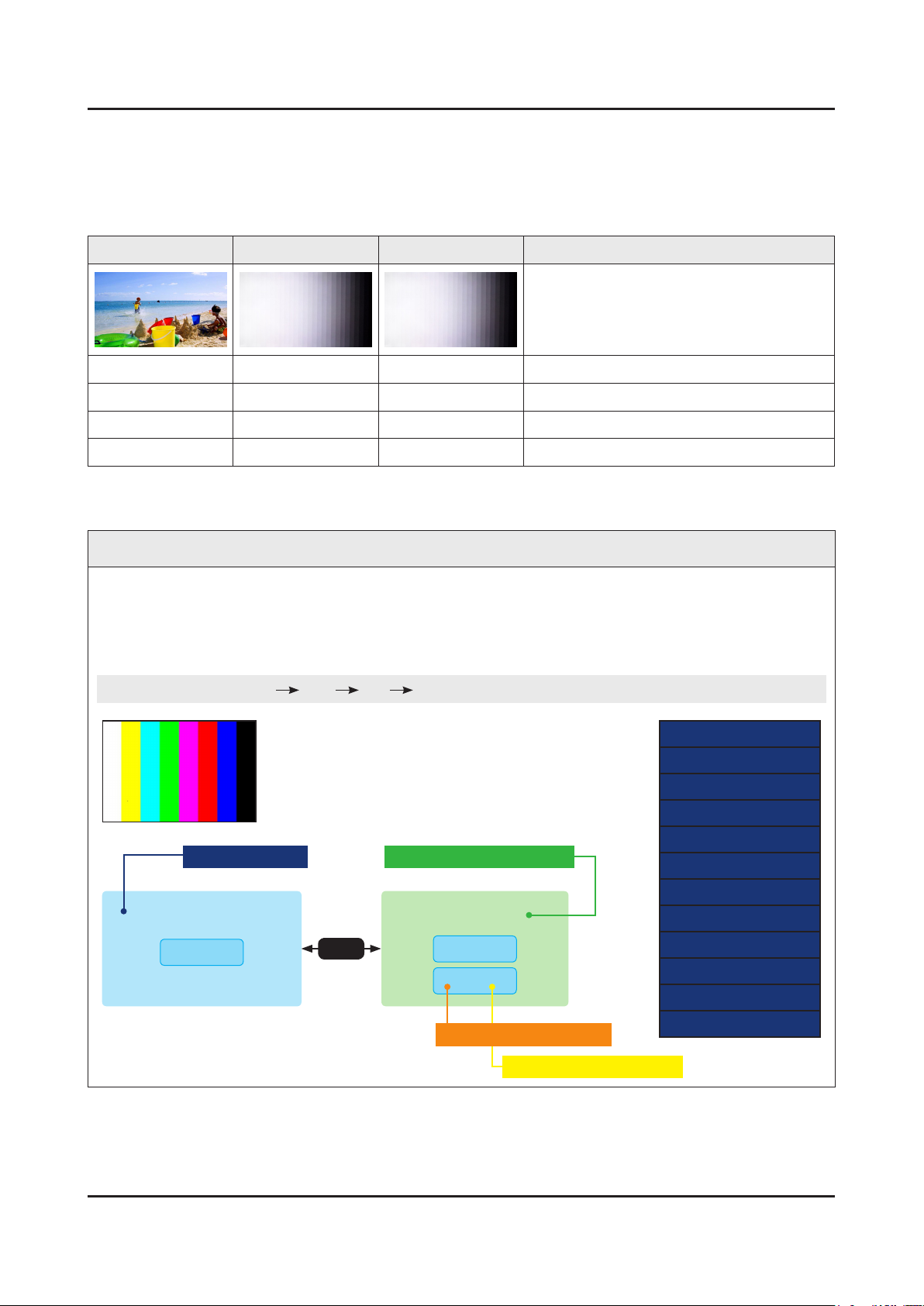

4-2. How to Check Fault Symptom

4-2-1. Video

Customer Picture Test 

Main Board Pre FRC Post FRC Problem

Pass Pass Pass Check Signal Source and other inputs

Fail Pass Pass Main Board or LVDS Cable

Fail Fail Pass T-Con or Board

Fail Fail Fail T-Con or Panel

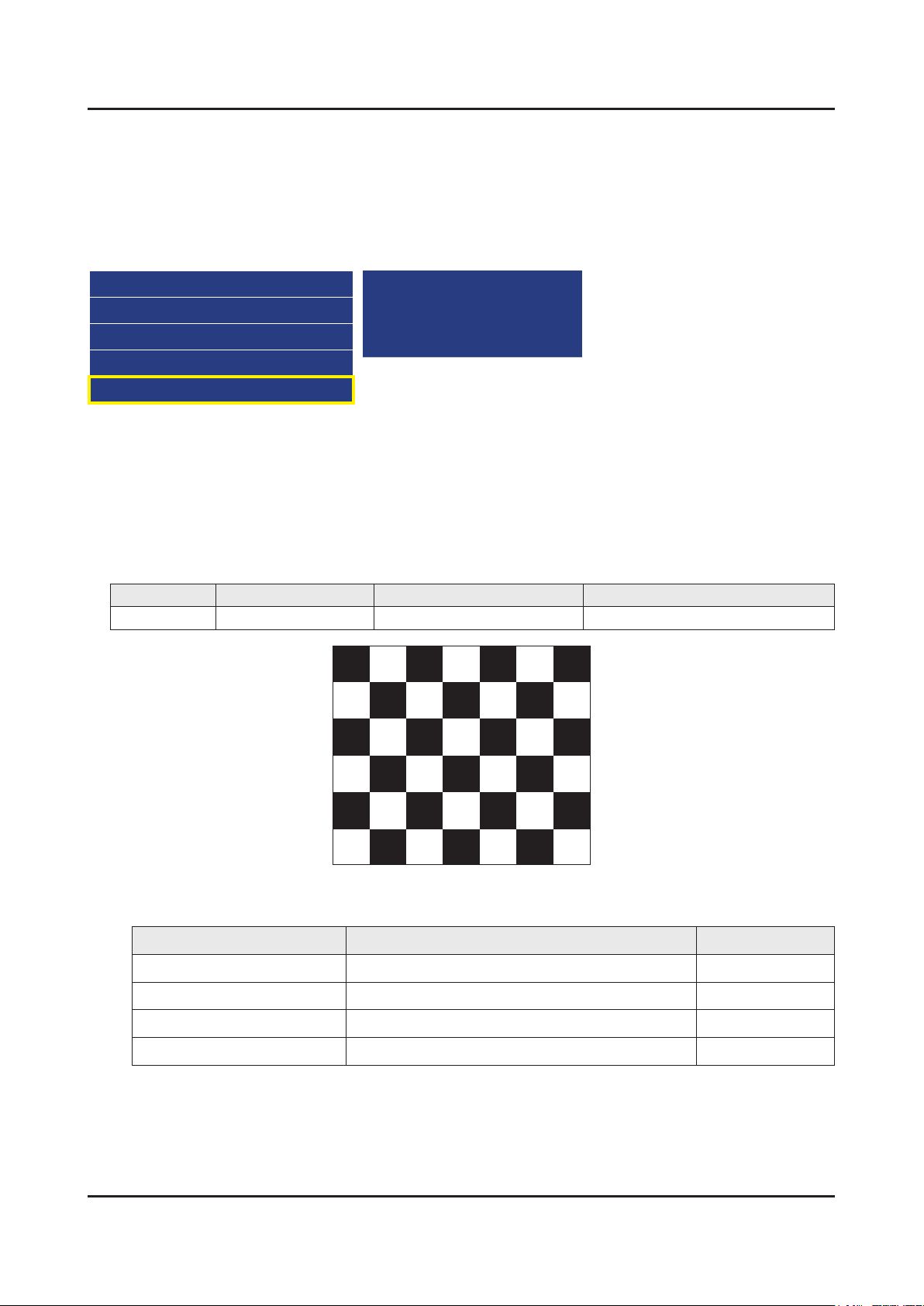

MAIN / FRC / T-CON 

Troubleshooting

CHECK TEST PATTERNS

1 Verify "Scaler Pattern".
2 Verify "US Post Pattern".
3 Verify "FRC Post Pattern".

ENTER• : Factory mode SVC Info Pattern

1 Scaler Pattern

Main Board

HAWK-MF

LVDS

4 SoC TCON Test Pattern

(Not available for UHD Models)

Tcon BOARD

T-CON

FRC

FRC Pre Pattern

FRC Post Pattern

FRC2 Pre Pattern

FRC2 Post Pattern

FRC OSD Pre Pattern

FRC OSD Post Pattern

SOC TCON Pattern

SOC TCON Pattern Level

SOC TCON FRC Pattern

SOC TCON2 Pattern

SOC TCON2 Pattern Level

2 US Post Pattern

3 FRC Post Pattern

SOC TCON2 FRC Pattern

Troubleshooting

4-3

4. Troubleshooting

Video Test

1 Power TV ON.
2 Verify initial Start Up Screens with Power On.
3 Press Mute 147 Mute to view Pattern from the MAIN Board.
4 Press Mute 369 Mute to view Pattern from T-CON Board.

12 Start Up Screens 3 Mute 147 Mute 4 Mute 369 Mute

MAIN Board

T-CON Board

4-4

4. Troubleshooting

4-2-2. Bluetooth / WIFI Module

Bluetooth Module 

Troubleshooting

1 Check Bluetooth Address at Contact Samsung.

2 Check BT Version at Factory Mode screen.

Might require upgrade. Check GSPN. -

T-HKMFAKUC-xxxx (T-HKMFUABC-xxxxx : AG***)

T-HKMFAKUC-xxxx

tztv-2.2.1-hawk-m-fhd_2015*****

BT Address

BT Version : xxxx

E-Manual : HMFxxxx-****

Camera Version : Not Support

Blaster Version :Not Support

.

.

3 Check the BT Connector voltage.

If the DC voltage supply is missing, check the - cable and the Main Board.

BT Signal

(4V P-P)

Pins 1 2 3 4 5 6 7 8 9 10

Standby

Power ON

0 3.3Vdc 0 0 0V 0 5 3.3Vdc 0 3.3Vdc

3.3Vdc 3.3Vdc 0 0

2V BT

Sig.

4V P-P

BT Version

1V BT

Sig.

4V P-P

5 3.3Vdc 3.3Vdc 3.3Vdc

All Measurements in the Chart are DC Volts with Multi Meter.•

Bluetooth Sig. & Sync Pulse are effective DC Readings.•

Voltage is normal, but BT Sig. pins (DC Ref.) If you do not measure, BT Module can possibly defective.

WIFI Module 

4-5

4. Troubleshooting

Troubleshooting

1 Check Bluetooth Address at Contact Samsung.

2 Check BT Version at Factory Mode screen.

Might require upgrade. Check GSPN. -

.

.

Model : *********

Wired MAC SUCCESS

Wireless MAC SUCCESS

WIFI : *******(5.0.1.41_0105)

.

.

Wired MAC Address

Wireless MAC Address

Wired (SUCCESS)

Wireless (SUCCESS)

3 Check the BT Connector voltage.

If the DC voltage supply is missing, check the - cable and the Main Board.

Wi-Fi Signal

(500mv P-P)

Pins 1 2 3 4 5 6

Standby

Power ON

0 0 0 0 .8 0

0

.04Vdc

Wi-Fi Sig.

.04Vdc

Wi-Fi Sig.

5.3Vdc 3.3Vdc 3.3Vdc

All Measurements in the Chart are DC Volts with Multi Meter.•

Voltage is normal, but BT Sig. pins (DC Ref.) If you do not measure, BT Module can possibly defective.

4-6

4. Troubleshooting

4-3. Factory Mode Adjustments

4-3-1. Detail Factory Option

NOTE

If you replace the main board with new one, please change the factory option as well.
The options you must change are "Type".

UN**J6300AFXZA 

Inches 32" 40" 48" 50"

Vendor SEC SEC KOHS AUO

PANEL

SMPS BOARD

MAIN BOARD

Byte Item

0 Factory Reset -

1 Type 32A1AF0V 40A1AF0V 48A1AF0V 50L1AF0VJ

2 Local set US US US US

3 SW Model UJ6200 UJ6200 UJ6200 UJ6200

4 BOM Model 6300 6300 6300 6300

5 Tuner AUTO AUTO AUTO AUTO

6 Ch table NONE NONE NONE NONE

Code BN95-01326A BN95-01318A BN95-01319A BN07-01361E

Spec.

Vendor DYREL SEM SEM HANSOE

Code BN44-00700C BN44-00703G BN44-00703G BN44-00704E

Spec. L32S1_FDY L48S1_FSM L48S1_FSM L55S1_FHS

Chassis Ass'y BN91-14265A BN91-14265B BN91-14265C BN91-15201R

PBA Ass'y BN94-09062X BN94-09062W BN94-09062U BN94-08977Q

CY-

GH032CSLV1H/V

CY-

GH040CSLV1V

-

CY-

GH048CSLV1V

-

GH050CSA-B3

-

4-7

4. Troubleshooting

Inches 55" 60" 65" 75"

Vendor KOHS KOHS SEC SEC

PANEL

Code BN95-01332A BN95-01333A BN95-01334A BN95-01335A

Spec.

CY-

GH055CSLV1H/V

CY-

HH060CSSV1V

CY-

GH065CSAV1H/V

CY-

GH075CSLV1H/V

Vendor HANSOE SEM HANSOE HANSOE

SMPS BOARD

Code BN44-00704E BN44-00705C BN44-00706C BN44-00723C

Spec. L55S1_FHS L60S1_FSM L65S1_FHS L75S1_FHS

Chassis Ass'y BN91-14265D BN91-14365R BN91-14365V BN91-15202K

MAIN BOARD

PBA Ass'y BN94-09062V BN94-09061G BN94-09061F BN94-09061E

Byte Item

0 Factory Reset -

-

-

1 Type 55A1AF0V 60H1AF0S 65L1AF0V 75A1AF0V

2 Local set US US US US

3 SW Model UJ6200 UJ6200 UJ6200 UJ6200

4 BOM Model 6300 6300 6300 6300

5 Tuner AUTO AUTO AUTO AUTO

6 Ch table NONE NONE NONE NONE

-

4-8

4. Troubleshooting

4-3-2. Entering Factory Mode

To enter ‘Service Mode’ Press the remote -control keys in this sequence :

If you do not have Factory remote control•

Power OFF MUTE 1 8 2 Power On

If you have Factory remote control•

INFO Factory

Some items are not available without a factory remote.•

Option

Control

Debug

SVC

ADC/WB

T-HKMFAKUC-xxxx
(T-HKMFUABC-xxxxx : AG***)

T-HKMFAKUC-xxxx

tztv-2.2.1-hawk-m-fhd_2015*****

BT Version : xxxx

E-Manual : HMFxxxx-****

Camera Version : Not Support

Blaster Version :Not Support

E-POP Version :HAWKNFH-****.**

EDID SUCCESS

HDCP SUCCESS

CALIB : AV/COMP/PC/HDMI/

Option : xxxx,xxxx,6300,NONE

DTCP Not Support

TCON Version : ------

Model : UNXXJ6300AF

Wired MAC SUCCESS

Wireless MAC SUCCESS

WIFI : *******(5.0.1.41_0105)

CO Nf/W/M/D/HO P / AO O S / M RO SC SiX

Factory Data Ver : 195 EERC Version : 34

Main SW Version

Sub Version (Main, Jak)

Bluetooth Version

E-Manual Version

TCON Version

Condition of Wired Mac

Condition of Wireless Mac

CPLD/HD :N/A

SmartControl : ****

Date of purchase : mm/dd/yyyy

4-3-3. Factory Data

4-9

4. Troubleshooting

Option 

Factory Menu Name Data Range

Factory Reset

Type

Local Set

SW Model

BOM Model

TUNER

Ch Table

-

32A1AF0V
40A1AF0V
48A1AF0V
50L1AF0VJ
55A1AF0V
60H1AF0S
65L1AF0V
75A1AF0V

US SD_MEXICO/CARRIBE/PERU_DTV/

PAR_DTV/URU_DTV/ARG_DTV/BRA_DTV/
CHILE_DTV

UJ6200

6300

AUTO "NORTH AMERICA : S_TC, LATIN AMERICA

: S_ISDB
BRAZIL : S_ISDB"

NONE

MRT Option

Front Color U-R-C-55 U-T-CL-M63

LVDS FORMAT JEIDA

Language_Arabic US

Region USA

PnP Language ENG_US

WIFI REGION B

OTN Support ON

OTA Support OFF

TTX OFF

China HD OFF

NT Conversion OFF

OPTION_NUM

BD Wise Support OFF

PVR Support

LEDMotionPlus Support

Natural Mode Support ON

HDMI/DVI SEL 4

HV Flip HV Flip / H Filp / OFF

Light Effect OFF

e-Pop Default ON

CAMERA Support OFF

4-10

4. Troubleshooting

Factory Menu Name Data Range

NETWORK Support Int-Wi

EcoSensor Support ON

Frameless Support

3D Support OFF

BT Support ON

BT ADDRESS Not support

HP LINE LineOut

Resolution Sel FHD

Multiview Support OFF

Local Dimming Panel OFF

WiVendor QCA

FAN Vendor OFF

Voice Recog OFF

Motion Recog OFF

TTV Support (21_9) OFF

PC Mode Dimming Support OFF

PX Support OFF

No Glass 3D support OFF

MLS Support OFF

MBR Support OFF

SmartView Support ON

Provider Setup Support OFF

Bezel Light Support OFF

Smart control Supoort OFF

Bendable Suppport OFF

Engineer Option

Type Of PANEL KEY None

5 Way Function Key R BACK

Power Panelkey Only

Contents Bar 0

Cable Modulation …

Standby led on/off ON

Recognition Support OFF

IF AGC 7

D AGC 0

PH BW 3

FQ BW 3

Factory Menu Name Data Range

4-11

4. Troubleshooting

PH RATE 4

PD EN 1

WF Scale

WF Type 0

Number of Network Stream 1

BT_AUDIO_ON_OFF OFF

Cong_AV_PATH

USING_PSI_UPDATE -

Fast Logo Delay 0

JP Tuner Reset Delay

Num of PANEL KEY 7

Panel lnit Time

Tcon lnit Time

Write MAC Address

data sync lnit

Common Source Support ON

OVD Support 0

EcoSensor Location 0

BENDABLE PEQ Inx 0

Control 

Factory Menu Name Data Range

EDID

EDID ON/OFF OFF

EDID WRITE ALL …

EDID WRITE HDMI …

EDID Ver …

EDID Port

Sub Option

RS-232 Jack UART Debug/UART

EXT Link Support OFF

Serial Log On/Off ON

Watchdog OFF

FRC Monitoring

Checksum 0x0000

Fast Boot in Production OFF

UART Enable OFF

4-12

4. Troubleshooting

Factory Menu Name Data Range

Eeprom Reset

ECO IC TYPE MC8121

Info Link Server Type development

Info Link Country None

TTX Group UserOSD

Visual Test -

OPTION_SWU

OTN Server Type operating

OTN Test Server OFF

SWU Reset

SWU Duration OFF

SWU Fail Test OFF

RF Remocon Support OFF

CDD mode -

DPMS Support OFF

T-CON Device

RM

Server Type Operating

RTS Mode OFF

LMN 1ST THRESHOLD 80

LMN 2ST THRESHOLD 60

LMN 3ST THRESHOLD 40

EOS Click OFF

BP PMS Reset 1

Fanet Thread 2

User InstantOn Default Value ON

CI CPLD Version

ACM_MC ON

HotkeyList

UNIQUE TRIPLET ON

FS_FAV OFF

Pricate Range USE ON

SCSA Support OFF

OCM Reboot ON

SPI Protection

Hotel Option

Hospitality Mode OFF

Factory Menu Name Data Range

4-13

4. Troubleshooting

Power On …

Menu OSD …

Operation …

Music Mode …

External Source …

Eco Solution …

Cloning …

Shop Option

Shop Mode OFF

Exhibition Mode OFF

3D Cube OFF

Asia Option

Unbalance OFF

AF Level adjust 3

TX Power Level 0

Mono Last Memory OFF

H Shaking OFF

SOUND

High Devi OFF

Carrier_Mute OFF

Pilot Level High Thld 0x70h

Pilot Level Low Thld 0x20h

Carrier2 Amp High THID 6

Carrier2 Amp Low THID 4

Amp Volume 0xc5h

Amp Scale

Amp EQ Check Sum

Subwoofer Support

Woofer Type 0

Woofer Volume 0xcbh

Woofer Scale 0x8ah

Woofer Check Sum NONE

Woofer Local EQ Checksum 0

PEQ lnx

PEQ Test

Amp Model NTP7415

4-14

4. Troubleshooting

Factory Menu Name Data Range

Bottom CheckSum NONE

Wall Filter Type 2

SRS Tuning Parm 0

SPDIF PCM Gain -9dB

AudioDock BT Delay

3D_Glass BT Delay

Mic Scale

India Sound

Specker Delay Normal

NTV CU Delay

Lipsync Inx

Lipsync CheckSum OK:0x9631

Lipsync USB Test Ready

LipSync BT CheckSum OK:0x696A

Debug 

Factory Menu Name Data Range

US LVDS Value 5

FRC Vx1 SSC ON/OFF OFF

FRC Vx1 SSC Period 0

FRC Vx1 SSC Modulation 1

FRC LVDS SSC ON/OFF OFF

FRC LVDS SSC MRR 3

FRC LVDS SSC MFR 2

FRC DDR SSC ON/OFF ON

FRC DDR SSC MRR 3

FRC DDR SSC MFR 4

FRC DDR SSC Period 0

FRC DDR SSC Modulation 2

DDR Margin

A CTRL_OFFSET_0_3 0x0

A CTRL_OFFSET_D 0x0

B CTRL_OFFSET_0_3 0x0

B CTRL_OFFSET_D 0x0

BT_ON_OFF

RF Mute Time

ON

600ms

4-15

4. Troubleshooting

Factory Menu Name Data Range

FRC

FRC FDISPLAY ON/OFF 0

3D FDISPLAY ON/OFF OFF

PC Mode ON/OFF OFF

Home Panel FRC OFF

DDR Test 0

FRC VX1 RX EQ SETTING OFF

NetlixOSDThreshold 1

Tuner Margin

MPEG Margin

H.264 Margin

CAM Wait Time

TCON_TEMP READ

TEMP LAST

DCC VERSION

DCC CHK SEL

DCC CHECK LOCAL

DCC CHECK TOTAL

Voice Debug

Power Management

Cert Option

RM_BIST_DTV

RM_BIST_ATV

RM_BIST_CABLE

SerDES_Check

3

20

15

0

0

6000

0x0

0

0x0

0x0

OFF

Wating

5

0

29

EU_CIS

Stress Mode

Log Analyzer

Error Popup On/off

DeadLock KILL

CES mode on/off

CES Option

CES convergence Option

TCON Demura Bypass

0

OFF

ON

ON

OFF

NONE

OFF

OFF

OFF

4-16

4. Troubleshooting

SVC 

Factory Menu Name Data Range

Self Test(for HW)

Loop Back

LAN Test

AV Audio Test

AV2 Audio Test

CVBS Test

CVBS2 Test

COMP Test

USB HUB Test

SPDIF Test

HDMI Test

SCART Audio

SCART Video

CPU …

DDR

FLASH

EEPROM

Tuner X-TAL

T-CON CheckSum Ready

T-CON2 Usb Download

T-CON2 CheckSum

PANEL EEPROM UPGRADE

PANEL FHASH UPGRADE

Logic Usb D/L

SUBMICOM UPGRADE ON

SUBMICOM JP USB UPGRADE

BT UPGRADE Failure

BT FREEPAIRING

Function Upgrade Failure

FRC3D FW Upgrade

FRC3D LD UPGRADE

FRC3D FW UPGRADE

Camera Upgrade

Mic Upgrade Failure

Jump Upgrade

IR Blaster Upgrade 0

Factory Menu Name Data Range

4-17

4. Troubleshooting

IR Blaster delay time

NTV CU UPDATE

UD LDC PROFILE UPGRADE

Pic Data USB Update 0

Audio Data USB Update

Eco Data USB Update 0

CI CPLD UPGRADE

SC ADK Upgrade

SC MCU Upgrade

TCON DEMURA FW UPGRADE

Reset

Apps Reset

SVC Reset 0

SPI Flash Reset

Data Sync Reset

0

OPTION_HDMI

DVI/HDMI SOUND Auto

HDMI HOT PLUG Disable

HOTPLUG SWITCHING Boot

HOT PLUG DURATION 1200ms

CLK TERM DURATION 1200ms

HDMI FLT CNT SIG 100ms

HDMI FLT CNT LOS 100ms

UNSTABLE BAN CNT 5000ms

HDMI ROBIN ON

HDMI Callback OFF

HDMI CTS THLD 8

HDMI CTS Cnt1 1

HDMI EQ AUTO

HDMI Write Type Combine

HDMI Switch NONE

DVI SET TIME 300ms

H Write

HDMI Sync

HDMI 3D DET 0

HOT PLUG OFF HOLD TIME

HDMI MUTE TIME

4-18

4. Troubleshooting

Factory Menu Name Data Range

REPEA AUDIO PKT

HDMI HDCP EN

HDMI HDCP EN FLAG

POWER ON FLT CNT LOS

HDCP UPDATE SPI

SPI VERSION 1

DVB CI

TS Clock delay TC 0

TS Clock delay S 0

CI Control Buf On ON

TS Clock delay CPU 1

TS Clock delay TC2 0

TS Clock delay S2 0

CI Control Buf On2 1

TS Clock delay CPU2 0

Test Pattern

Scaler Pattern

US Post Pattern

FRC Pre Pattern 0

FRC Post Pattern 0

SOC TCON Pattern 0

SOC TCON Pattern Level 255

FRC OSD Pre Pattern

FRC OSD Post Pattern

FRC2 Pre Pattern

FRC2 Post Pattern

SOC TCON2 Pattern

SOC TCON2 Pattern Level

Other Setting

Delete S/N 0

IPERF Stopped

Expert

CAL Data Backup …

CaL Data Restore

MICOM POWER OFF ON

NTV RF Region

NTV CU FW VER 0

Factory Menu Name Data Range

4-19

4. Troubleshooting

ATV IF AGC SPEED 0

Source Direct On/Off OFF

Apps Update

Auto Power LAST POWER

SMCE Control

Moter Test ORIGINAL

SVC Panel

Tizen

Export

Import

Verify

Flash Reset

Tizen EEPROM Reset

S/N

Serial number

Writing S/N

ADC/WB 

Factory Menu Name Data Range

G1_Gain …

R2_Gain …

B2_Gain …

G2_Gain …

R3_Gain …

B3_Gain …

G3_Gain …

R4_Gain …

B4_Gain …

G4_Gain …

R5_Gain …

B5_Gain …

G5_Gain …

R6_Gain …

B6_Gain …

G6_Gain …

R7_Gain …

4-20

4. Troubleshooting

Factory Menu Name Data Range

B7_Gain …

G7_Gain …

R8_Gain …

B8_Gain …

G8_Gain …

R9_Gain …

B9_Gain …

G9_Gain …

R10_Gain …

B10_Gain …

G10_Gain …

MGA On/Off OFF

R1_Gain …

B1_Gain …

G1_Gain …

R2_Gain …

B2_Gain …

G2_Gain …

R3_Gain …

B3_Gain …

G3_Gain …

R4_Gain …

B4_Gain …

G4_Gain …

R5_Gain …

B5_Gain …

G5_Gain …

R6_Gain …

B6_Gain …

G6_Gain …

R7_Gain …

B7_Gain …

G7_Gain …

R8_Gain …

B8_Gain …

G8_Gain …

R9_Gain …

Factory Menu Name Data Range

4-21

4. Troubleshooting

B9_Gain …

G9_Gain …

R10_Gain …

B10_Gain …

G10_Gain …

SPI White Balance …

SPI White Balance On/OFF …

SPI R-Offset …

SPI G-Offset …

SPI B-Offset …

SPI R-Gain …

SPI G-Gain …

SPI B-Gain …

SPI N Rgain …

SPI N Bgain …

SPI N Roffset …

SPI N Boffset …

SPI W2 Rgain …

SPI W2 Bgain …

SPI W2 Roffset …

SPI W2 Boffset …

SPI MGA …

SPI MGA On/OFF …

SPI R1_Gain …

SPI G1_Gain …

SPI B1_Gain …

SPI R2_Gain …

SPI G2_Gain …

SPI B2_Gain …

SPI R3_Gain …

SPI G3_Gain …

SPI B3_Gain …

SPI R4_Gain …

SPI G4_Gain …

SPI B4_Gain …

SPI R5_Gain …

SPI G5_Gain …

4-22

4. Troubleshooting

Factory Menu Name Data Range

SPI B5_Gain …

SPI R6_Gain …

SPI G6_Gain …

SPI B6_Gain …

SPI R7_Gain …

SPI G7_Gain …

SPI B7_Gain …

SPI R8_Gain …

SPI G8_Gain …

SPI B8_Gain …

SPI R9_Gain …

SPI G9_Gain …

SPI B9_Gain …

SPI R10_Gain …

SPI G10_Gain …

SPI B10_Gain …

WB Data to SPI …

4-4. White Balance

4-23

4. Troubleshooting

4-4-1. Calibration

Into the Factory Mode.1.

Select 2. ADC/WB menu.

Select 3. ADC menu.

Option

Control

Debug

SVC

ADC/WB

AV Calibration

Comp Calibration

PC Calibration

HDMI Calibration

4-4-2. Service Adjustment

You must perform Calibration in the Lattice Pattern before adjusting the White Balance.

Color Calibration 

AdjustSpecication•

Source Setting Mode Pattern Use Equipment

HDMI 1280 x 720@60 Hz Pattern #24 (Chess Pattern) CA210 & Master MSPG925 Generator

(Chess Pattern)

Use other equipment only after comparing the result with that of the Master equipment. -

Input mode Calibration Pattern

CVBS IN (Model_#1) Perform in NTSC B&W Pattern #24 Lattice

Component IN (Model_#6) Perform in 720p B&W Pattern #24 Lattice

PC Analog IN (Model_#21) Perfor m in VESA XGA (1024x768) B&W Pattern #24 Lattice

HDMI IN Perform in 720p B&W Pattern #24 Lattice

4-24

4. Troubleshooting

Method of Color Calibration (AV)

Apply the NTSC Lattice (N0. 3) pattern signal to the AV IN 1 port.1.

Press the Source key to switch to “AV1” mode.2.

Enter Service mode.3.

Select the “ADC” menu.4.

Select the “AV Calibration” menu.5.

In“AVCalibrationOff”status,pressthe“►”keytoperformCalibration.6.

When Calibration is complete, it returns to the high-level menu.7.

You can see the change of the “AV Calibration” status from Failure to Success. 8.

Method of Color Calibration (Component)

Apply the 720p Lattice (N0. 6) pattern signal to the Component IN 1 port.1.

Press the Source key to switch to “Component1” mode.2.

Enter Service mode.3.

Select the “ADC” menu.4.

Select the “Comp Calibration” menu.5.

In“CompCalibrationOff”status,pressthe“►”keytoperformCalibration.6.

When Calibration is complete, it returns to the high-level menu.7.

You can see the change of the “Comp Calibration” status from Failure to Success.8.

Method of Color Calibration (PC)

Apply the VESA XGA Lattice (N0. 21) pattern signal to the PC IN port.1.

Press the Source key to switch to “PC” mode.2.

Enter Service mode.3.

Select the “ADC” menu.4.

Select the “PC Calibration” menu.5.

In“PCCalibrationOff”status,pressthe“►”keytoperformCalibration.6.

When Calibration is complete, it returns to the high-level menu.7.

You can see the change of the “PC Calibration” status from Failure to Success.8.

Method of Color Calibration (HDMI)

Apply the 720p Lattice (N0. 6) pattern signal to the HDMI1/DVI IN port.1.

Press the Source key to switch to “HDMI1” mode.2.

Enter Service mode.3.

Select the “ADC” menu.4.

Select the “HDMI Calibration” menu.5.

In“HDMICalibrationOff”status,pressthe“►”keytoperformCalibration.6.

When Calibration is complete, it returns to the high-level menu.7.

You can see the change of the “HDMI Calibration” status from Failure to Success.8.

4-4-3. Adjustment

4-25

4. Troubleshooting

Into the Factory Mode.1.

Select 2. ADC/WB menu.

Select 3. White Balance menu.

Option

Control

Debug

SVC

ADC/WB

White Balance

(Low Light)

Sub Brightness

R offset

G offset

B offset

(Hight Light)

Sub Contrast

R gain

G gain

B gain

4-26

4. Troubleshooting

4-5. RS-232C

RS232C Control•

Port : COM#(Serial) -

Baud rate : 9600 -

Data Bit : 8 bit -

Parity : None -

Stop Bits : 1 -

Flow Control : None -

Description of RS232C•

Pin# Name Full Name Pin# Name Full Name Pin# Name Full Name

CD Carrier Detect

1

RxD Received Data

2

TxD Transmitted Data

3

DTR Data Terminal Ready

4

GND Signal Ground

5

DSR Data Set Ready

6

RTS Request To Send

7

CTS Clear To Send

8

RI Ring Indicator

9

4-6. AV Control Tabe

4-27

4. Troubleshooting

Control Item Cmd1 Cmd2 Cmd3 Value

General

Input

Power Power 0x00 0x00 0x00 0x00

Off 0x01

On 0x02

Volume Direct 0x01 0x00 0x00 (0~100)

Up 0x01 0x00

Down 0x02 0x00

Mute 0x02 0x00 0x00 0x00

Ch. Direct 0x04 -

Continuous Up

0x03 0x00

Down 0x02 0x00

0x01 0x00

Control Item Cmd1 Cmd2 Cmd3 Value

Source List TV TV 0x0a 0x00 0x00 0x00

AV AV1 0x01 0x00

AV2 0x01

AV3 0x02

S-Video S-Video1 0x02 0x00

S-Video2 0x01


S-Video3 0x02

Component Component1 0x03 0x00

Component2 0x01

Component3 0x02

PC PC1 0x04 0x00

PC2 0x01

PC3 0x02

HDMI HDMI1 0x05 0x00

HDMI2 0x01

HDMI3 0x02

HDMI4 0x03

DVI DVI1 0x06 0x00

DVI2 0x01

DVI3 0x02

RVU RVU 0x07 0x00

Control Item Cmd1 Cmd2 Cmd3 Value

Mode Dynamic(Entertain) 0x0b 0x00 0x00 0x00

Standard 0x01

Movie 0x02

4-28

4. Troubleshooting

Control Item Cmd1 Cmd2 Cmd3 Value


Mode Natural 0x03

CAL-NIGHT 0x04

CAL-DAY 0x05

BD Wise 0x06

BackLight
(CellLight)

Relax

0~20 0x01 0x00 (0~20)

0x07

Contrast 0~100 0x02 0x00 (0~100)

Brightness 0~100 0x03 0x00 (0~100)

Sharpness 0~100 0x04 0x00 (0~100)

Color 0~10 0x05 0x00 (0~100)

Tint G/R 0x06 0x00 (0~100)

Advanced
Settings

Black Tone

Off 0x07 0x00 0x00

Dark 0x01

Darker 0x02

Darkest 0x03

New function of 12"

(only PDP TV)

Dynamic Contrast Off 0x01 0x00

Low 0x01

Medium 0x02

HIgh 0x03

Shadow Detail

-2 ~ 2 0x02 (-2~2)

Gamma -3 ~ 3 0x03 (-3~3)

RGB Only Mode Off 0x05 0x00

Red 0x01

Green 0x02

Blue 0x03

Color Space Auto 0x06 0x00

Native 0x01

Custom 0x02

White Balance R-Offset(LCD) 0x07 (0~50)

White Balance G-Offset(LCD) 0x08 (0~50)

White Balance B-Offset(LCD) 0x09 (0~50)

White Balance R-Gain(LCD) 0x0a (0~50)

Not support

White Balance G-Gain(LCD) 0x0b (0~50)

White Balance B-Gain(LCD) 0x0c (0~50)

White Balance Reset(LCD) 0x0d 0x00

Flesh Tone -15 ~ 15 0x0e (-15~15)

Control Item Cmd1 Cmd2 Cmd3 Value

4-29

4. Troubleshooting


Advanced
Settings

Edge Enhancement

Off 0x0f 0x00

On 0x01

xvYCC Off 0x10 0x00

On 0x01

Motion Lighting Off 0x11 0x00

On 0x01

Color Space Custom
Color

Red 0x12 0x00

Green 0x01

Blue 0x02

Yellow 0x03

Cyan 0x04

Magenta 0x05

Color Space Custom
Color Red Value

Color Space Custom
Color Green Value

Color Space Custom
Color Blue Value

0~100 0x13 0~100

0~100 0x14 0~100

0~100 0x15 0~100

Not support

Only for active Color

Space Custom

Only for active Color

Space Custom

Only for active Color

Space Custom

Only for active Color

Space Custom

Option

LED Motion Plus Off 0x0a 0x07 0x00

On(Normal) 0x01

Cinema 0x02

Ticker 0x03

Color Tone

Cool 0x0a 0x00 0x00

Standard 0x01

Warm1 0x02

Warm2 0x03

Digital Noise Filter

Off 0x02 0x00

Low 0x01

Medium 0x02

High 0x03

Auto 0x04

MPEG Noise Filter

Auto
Visualization

Off 0x03 0x00

0x05

Low 0x01

Change Normal→

Standard mode

Medium 0x02

High 0x03

Auto 0x04

4-30

4. Troubleshooting

Control Item Cmd1 Cmd2 Cmd3 Value


Option

Screen
Adjustment

HDMI Black Level

Film Mode

Auto Motion Plus

Picture Size

Normal 0x04 0x00

Low 0x01

Off 0x05 0x00

Auto1 0x01

Auto2 0x02

Cinema
Smooth

0x03

Off 0x06 0x00

Clear 0x01

Standard 0x02

Smooth 0x03

Custom 0x04

Demo 0x05

16:9 0x0b 0x0a 0x01 0x00

Zoom1 0x01

Zoom2 0x02

Wide Fit 0x03

New function of 12"

(only PDP TV)

4:3 0x04

Screen Fit 0x05

Smart View I 0x06

Smart View II 0x07

Auto Wide 0x08

Wide Zoom 0x09

Zoom 0x0a

Reset

Reset Picture

0x0b 0x0b 0x00 0x00

3D 3D Mode Off 0x0b 0x0c 0x00 0x00

2D ⇢ 3D

0x01

Side By Side 0x02

Top Bottom 0x03

Line By Line 0x04

Vertical Line 0x05

Checker BD 0x06

Frame
Sequence

0x07

New function of 12"

(only DVB TV)

3D ⇢ 2D

Off 0x01 0x00

On 0x01

Control Item Cmd1 Cmd2 Cmd3 Value

4-31

4. Troubleshooting


Sound

3D 3D View Point

Depth

3D Auto View

Off 0x05 0x00

Message
Notice

On 0x02

0x02 (-5~5)

0x03 (1~10)

0x01

Control Item Cmd1 Cmd2 Cmd3 Value

Sound Mode Standard

Music 0x01

Movie 0x02

Clear Voice 0x03

Amplify 0x04

Equalizer Balance 0x01 0x00 (0~20)

100hz 0x01 (0~20)

300hz 0x02 (0~20)

1khz 0x03 (0~20)

3khz 0x04 (0~20)

0x0c 0x00 0x00 0x00

SRS
TruSurround
HD (echo)

Virtual
Surrond
(echo)

SRS
TruDialog
(echo)

Dialog
Clarify (X9)

Preferred
Language

Multi-Track
Sound

10khz 0x05 (0~20)

Reset 0x06 0x00

Off

On

Off

On

English

Spanish 0x01

French 0x02

Korean 0x03

Japanese 0x04

Mono

0x02 0x00 0x00

0x01

0x03 0x00 0x00

0x01

0x04 0x00 0x00

0x05 0x00 0x00

Stereo 0x01

SAP 0x02

Auto Volume Off 0x06 0x00 0x00

ON 0x01

4-32

4. Troubleshooting

Control Item Cmd1 Cmd2 Cmd3 Value

Sound

KEY

OSD

Auto Volume Night

Speaker
Select

Sound
Select

Sound
Reset

3D Audio Off 0x0a 0x00 0x00

Auto Stereo Manual 0x0b 0x00 0x00

TV Speaker

External Speaker 0x01

Main

Sub 0x01

Sound Reset

Low 0x01

Medium

High 0x03

Auto 0x01

0x07 0x00 0x00

0x08 0x00 0x00

0x09 0x00 0x00

0x02

0x02

Control Item Cmd1 Cmd2 Cmd3 Value

Key Generation

Show/Hide
Control

Show

0x0d 0x00 0x00

0x0e 0x00 0x00 0x00

refer to

table

Only for korea model

Get
Status

Hide 0x01

Power (On/Off) 0xf0 0x00 0x00 0x00

Volume(0~100) 0xf0 0x01 0x00 0x00

Mute (On/Off) 0xf0 0x02 0x00 0x00

Channel Number 0xf0 0x03 0x00 0x00

Source (TV/AV/…/HDMI/…) 0xf0 0x04 0x00 0x00

Picture Size 0xf0 0x05 0x00 0x00

3D (On/Off) 0xf0 0x06 0x00 0x00

Picture Mode 0xf0 0x07 0x00 0x00

Sound Mode 0xf0 0x08 0x00 0x00

4-33

4. Troubleshooting

4-7. Updating the TV’s Software

MENU/123• MENU Support Software Update

You can view your TV’s software version and update it if necessary.

Updating the TV’s software to the latest version 

MENU/123• MENU Support Software Update Update now

You can update your TV’s software by downloading the update from the Internet directly to your TV or copying the update
from a USB device that contains it to your TV.

This function requires an Internet connection.•

Save the update package in the USB device's top-level folder. Otherwise, the TV will not be able to locate the update •
package.

DO NOT turn off the TV’s power until the update is complete. The TV will turn off and on automatically
after completing the software update. All video and audio settings return to the default settings after a

CAUTION

Updating the TV automatically 

software update.

MENU/123• MENU Support Software Update Auto Update

If the TV is connected to the Internet, you can have the TV's software update itself automatically while you are watching
the TV. When the background update is completed, it is applied the next time the TV is turned on.

This function may take a longer time if a different networking function is running concurrently.•

This function requires an Internet connection.•

If you agree to the Smart Hub terms and conditions, Auto Update is set to On automatically. If you do not want the •
TV's software to update itself automatically, set Auto Update to Off.

5. Wiring Diagram

5-1. Wiring Diagram

5. Wiring Diagram

5-1

5-2

5. Wiring Diagram

5-2. Connector

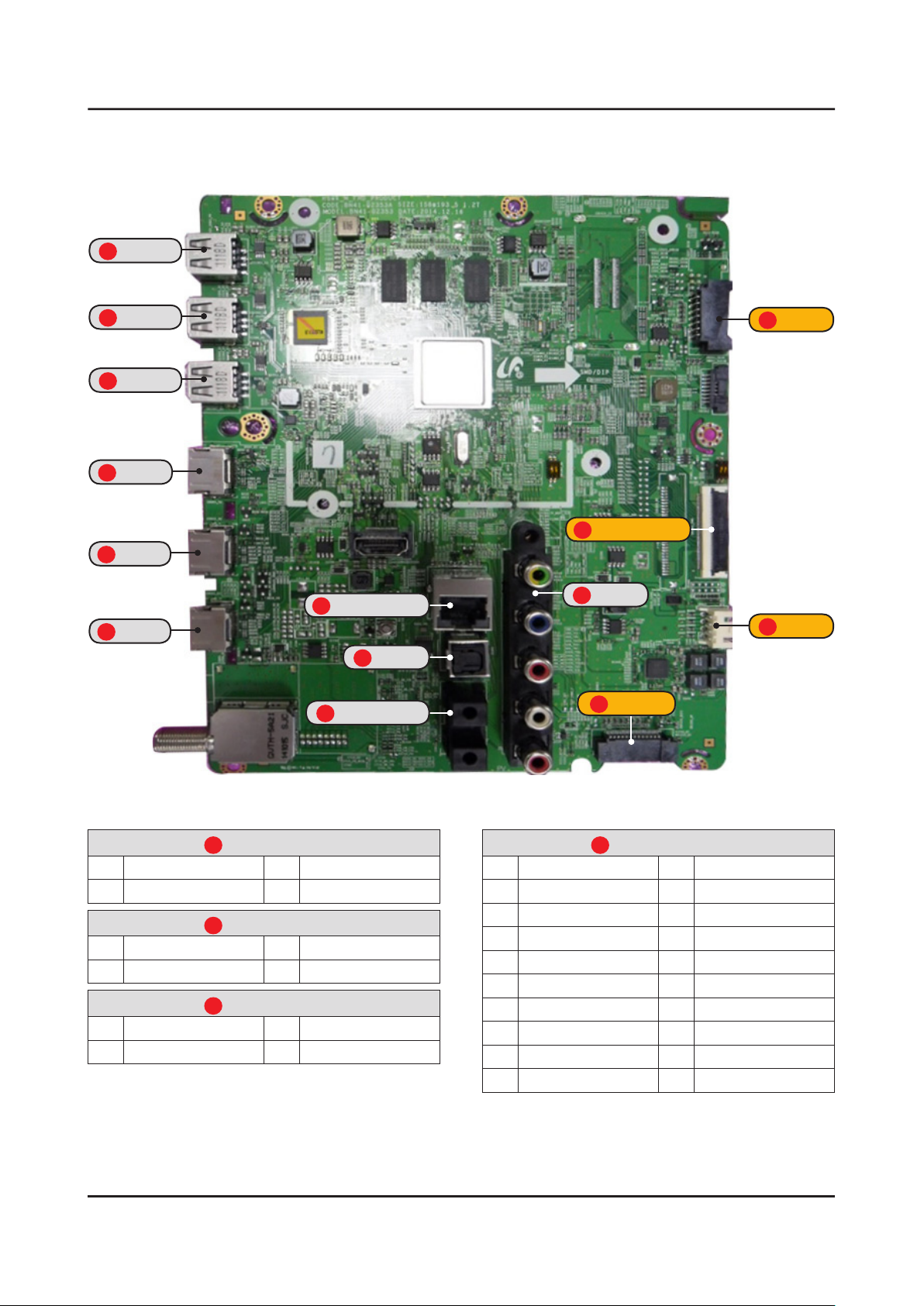

Main Board 

CN1503

1

CN1502

2

CN1501

3

CN601

4

CN602

5

CN1401_FHD

13

14

CN201

CN1402_LAN

7

CN603

6

OP301

8

CN504_NRS

9

Main Board Pin Map 

CN1503(USB2)

1

1 B5V_USB3_PW 3 USB3_DP

2 USB3_DM 4 GND

CN1502(USB2)

2

1 B5V_USB2_PW 3 USB2_DP

2 USB2_DM 4 GND

CN1501(USB1)

3

1 B5V_USB1_PW 3 USB1_DP

2 USB1_DM 4 GND

CN502

10

CN302

12

CN1201

11

CN601(to HDMI3)

4

1 HDMI1_RX2+ 11 GND

2 GND 12 HDMI1_RXCLK-

3 HDMI1_RX2- 13 CEC

4 HDMI1_RX1+ 14 NC

5 GND 15 HDMI1_SCL_DDC

6 HDMI1_RX1- 16 HDMI1_SDA_DDC

7 HDMI1_RX0+ 17 GND

8 GND 18 HDMI1_5V

9 HDMI1_RX0- 19 HDMI1_HOT_PLUG

10 HDMI1_RXCLK+

5-3

5. Wiring Diagram

CN602(to HDMI1)

5

1 HDMI2_RX2+ 11 GND

2 GND 12 HDMI2_RXCLK-

3 HDMI2_RX2- 13 CEC

4 HDMI2_RX1+ 14 ARC2_SIGLE

5 GND 15 HDMI2_SCL_DDC

6 HDMI2_RX1- 16 HDMI2_SDA_DDC

7 HDMI2_RX0+ 17 GND

8 GND 18 HDMI2_5V

9 HDMI2_RX0- 19 HDMI2_HOT_PLUG

10 HDMI2_RXCLK+

CN603(to HDMI2)

6

1 HDMI3_RX2+ 11 GND

2 GND 12 HDMI3_RXCLK-

3 HDMI3_RX2- 13 CEC

4 HDMI3_RX1+ 14 NC

5 GND 15 HDMI3_SCL_DDC

6 HDMI3_RX1- 16 HDMI3_SDA_DDC

7 HDMI3_RX0+ 17 GND

8 GND 18 HDMI3_5V

9 HDMI3_RX0- 19 HDMI3_HOT_PLUG

10 HDMI3_RXCLK+

CN1402_LAN

7

1 LAN_TXD+ 5 B2.5V

2 B2.5V 6 LAN_RXD-

3 LAN_TXD- 7 NC

4 LAN_RXD+ 8 GND

CN502(to Component&AV)

10

1 GND 9 TEST_PR

2 COMP2_Y_CVBS 10 GND

3 INDENT_VIEDO2 11 COMP_AV_SL_IN

4 GND 12 TEST_SL

5 COMP_PB 13 GND

6 IDENT_COMP 14 COMP_AV_SR_IN

7 GND 15 TEST_SR

8 COMP_PR

CN1201(to Function/IR)

11

1 IR 14 A5V

2 GND 15 LED_STB

3 GND 16 BT_WAKE

4 FRAME_SYNC_IN 17 GND

5 A3.3V 18 POWER_DET

6 BT_SYNC 19 NC

7 MSCL 20 BT_RESET

8 GND 21 GND

9 MSDA 22 WIFI_DP

10 USB_BT_DP 23 WIFI_DM

11 KEY_INPUT1 24 B5V_DC_PW

12 USB_BT_DM 25 WIFI_WOL

13 KEY_INPUT2 26 WIFI_RESET

CN302(to Speaker)

12

1 R+ 3 L+

2 R- 4 L-

OP301(to Optical Jack)

8

1 SPDIF_OUT 3 GND

2 B5V_DC_PW

CN504_NRS

9

1 GND 5 TEST_SR

2 HP_AUD_SL_OUT 6 IDENT_HP

3 HP_AUD_SR_OUT 7 GND

4 TEST_SL

5-4

5. Wiring Diagram

CN1401_FHD

13

1 NC 27 EVEN_TX0-

2 GND 28 GND

3 FRC_SDA 29 ODD_TX4+

4 FRC_PWM1 30 ODD_TX4-

5 FRC_SCL 31 ODD_TX3+

6 FRC_PWM3 32 ODD_TX3-

7 FRC_PWM2 33 GND

8 TCON_SDA 34 ODD_TXCLK+

9 PANEL_I2C_EN 35 ODD_TXCLK-

10 BT_SYNC 36 GND

11 UPDATE_CHK 37 ODD_TX2+

12 TCON_SCL 38 ODD_TX2-

13 GND 39 ODD_TX1+

14 EVEN_TX4+ 40 ODD_TX1-

15 EVEN_TX4- 41 ODD_TX0+

16 EVEN_TX3+ 42 ODD_TX0-

17 EVEN_TX3- 43 GND

18 GND 44 GND

19 EVEN_TXCLK- 45 GND

20 EVEN_TXCLK+ 46 FRC_PWM4

21 GND 47 PANEL_13V_PW

22 EVEN_TX2+ 48 PANEL_13V_PW

23 EVEN_TX2- 49 PANEL_13V_PW

24 EVEN_TX1+ 50 PANEL_13V_PW

25 EVEN_TX1- 51 PANEL_13V_PW

26 EVEN_TX0+

CN201(to Power board)

14

1 A13V_PW 7 A13V_PW

2 A13V_PW 8 SW_INVERTER

3 GND 9 A13V_PW

4 GND 10 OVD_LEVEL

5 A13V_PW 11

6 SW_POWER_OUT 12 ANA_DIMMING

SMPS_FET_FAIL_

DETECT

5-5

5. Wiring Diagram

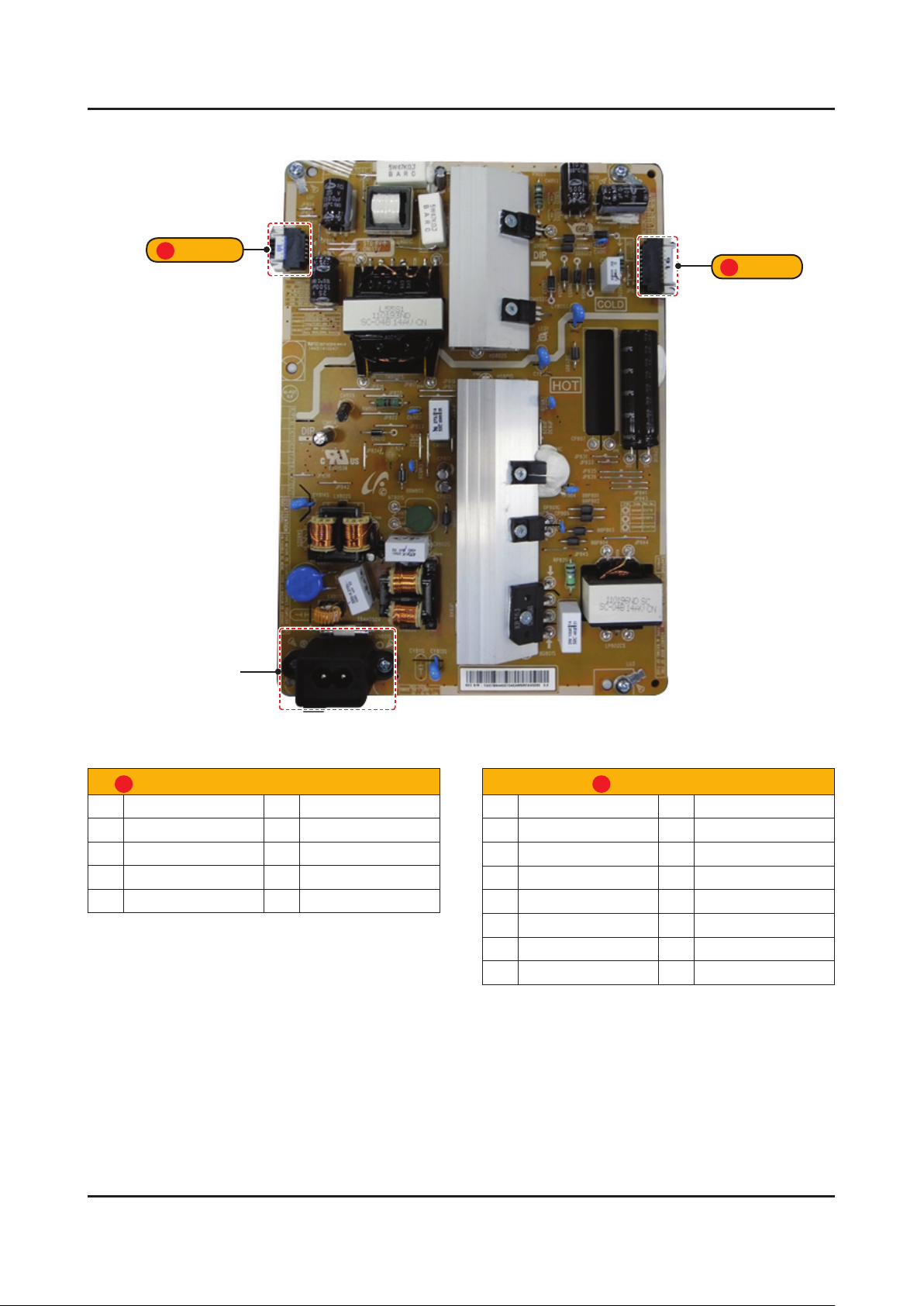

SMPS Board 

CNM803

1

CNL802

2

AC Line Fuse &
Power Connector

SMPS Board Pin Map 

CNM803 (P-Dim Control from Main Board)

1

1 A13V 6 PS_ON

2 UD 7 A13V

3 A13V 8 GND

4 PWM_BLU 9 GND

5 A13V 10 GND

CNL802 (to BLU)

2

1 N.C 9 N.C

2 3+ 10 1+

3 3- 11 1-

4 N.C 12 N.C

5 N.C 13 N.C

6 2+ 14 N.C

7 2- 15 IF2

8 N.C 16 IF1

5-6

5. Wiring Diagram

5-3. Connector Functions

Connector Function

CN201 ↔ CNM803 Supply main power and dimming signal from IP Board to Main Board.

CN1401 ↔ CON3 The LVDS signal transfered from Main Board to Panel .

5-7

5. Wiring Diagram

5-4. Cables and Module

Cables 

USE

32" BN39-02001A

40" BN39-02001E

48" BN39-02001B

Function-Main

LEAD CONNECTOR-FUNCTION

Code


50" BN39-02001C

55" BN39-02001D

60" BN39-02001D

65" BN39-02001G

75" BN39-02001H

5. Wiring Diagram

The Types of Module 

USE

32" BN96-30218F BN59-01174D BN96-30902C

40" BN96-30218F BN59-01174D BN96-30902Y

48" BN96-30218F BN59-01174D BN96-30902Y

Bluetooth module WiFi module Function module

ASSY BOARD P-BT-MODULE NETWORK-WIFI MODULE ASSY BOARD P-FUNCTION

Code


50" BN96-30218F BN59-01174D BN96-30902Y

55" BN96-30218F BN59-01174D BN96-30902C

60" BN96-30218F BN59-01174D BN96-30902D

65" BN96-30218F BN59-01174D BN96-30902E

75" BN96-30218F BN59-01174D BN96-30902E

5-8

ANNEX. Exploded View & Part List

ANNEX. Exploded View & Part List [UN32J6300AFXZA TD01]

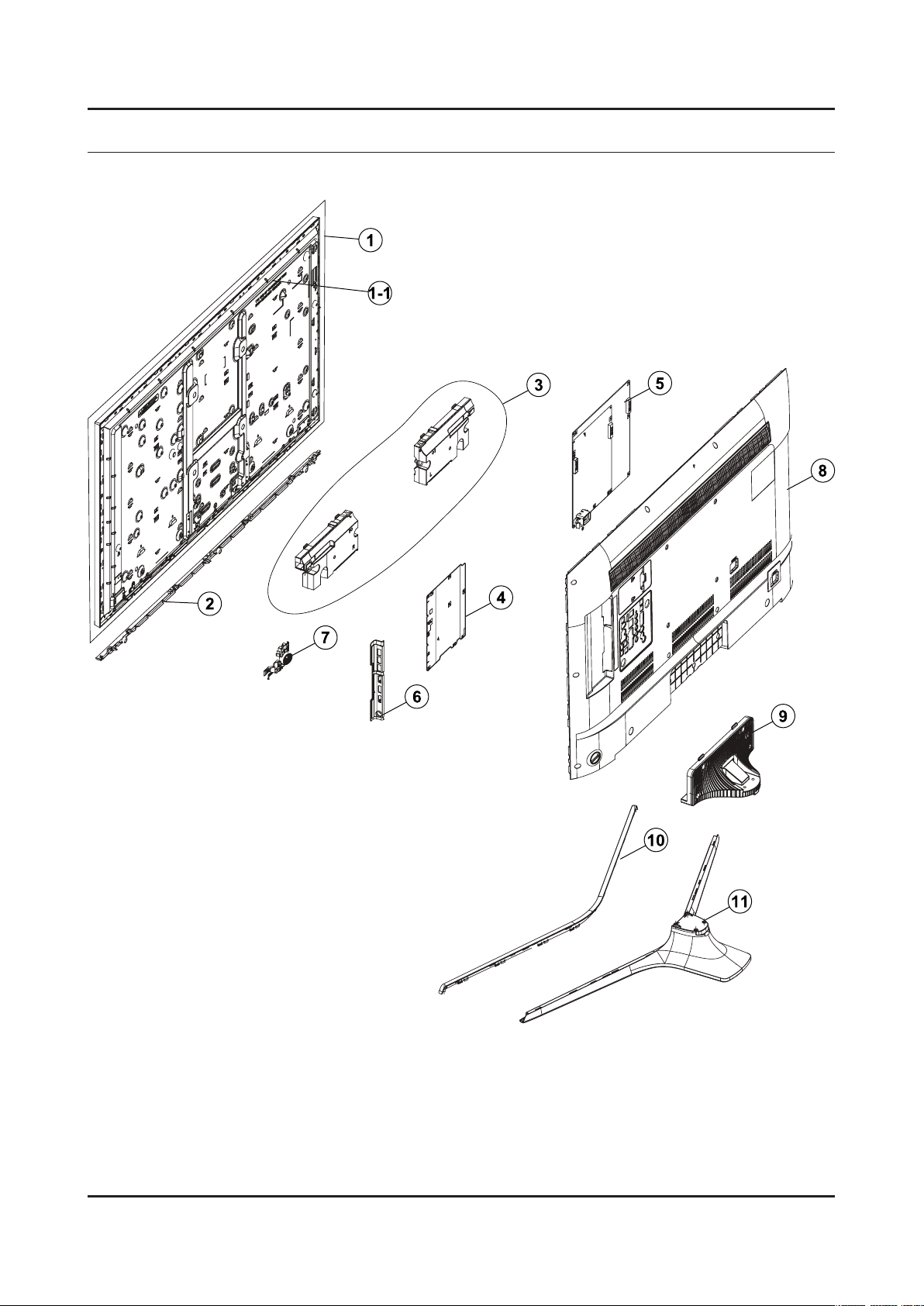

1-1. Exploded View

ANNEX-1

ANNEX-2

ANNEX. Exploded View & Part List

1-1-1. Parts List

No. Code No. Description & Specication Q’ty SA/SNA Remark

1 BN95-01326A PRODUCT LCD-AMLCD; LSF320HJ02-G,CY-GH032C 1 SA

1-1 BN96-30570D ASSY CHASSIS TOP P; Y14 VNB 32 6.3K,BN64- 1 SA

2 BN63-13945A COVER-HOLDER; J6200 32",PC+ABS+GF15%,V1 1 SNA

3 BN96-30336D ASSY SPEAKER P; 6ohm,10W,Enclosure_J5.5K 1 SA

4 BN94-08247D ASSY PCB MAIN; LED_J6K 1 SA

5 BN44-00700A DC VSS-LED TV PD BD; L32S1_EDY,L32S1_EDY, 1 SA

6 BN61-08813A HOLDER-SIDE AV; UF6100, 55,HIPS,BK0020,HB 1 SNA

7 BN96-30902C ASSY BOARD P-FUNCTION ASSY; UH5500,Functi 1 SA

8 BN96-36523A ASSY COVER P-REAR; 32J6300,BN63-13933V,HI 1 SA

9 BN96-30999E ASSY GUIDE P-STAND; J5500 32,ABS,NON-EU 1 SA

10 BN95-02139C ASSY COVER STAND SMT; J5500 32,32,LIGHT T 1 SNA

11 BN96-35221H ASSY STAND P-BASE; J5500 32,ABS+PC,V0,1 1 SA

ANNEX-3

ANNEX. Exploded View & Part List

2-1. Electrical Parts List

Service Bom (SA: SERVICE AVAILABLE, SNA: SERVICE NOT AVAILABLE)

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

UN32J6300AFXZA (TD01)

1 S001A BN90-06496A ASSY STAND;J5000 1 SNA

0.2 SG01A BN96-30999E ASSY GUIDE P-STAND;J5500 32,ABS,NON-EU 1 SA

..3 6902-001063 BAG PE;LDPE,T0.05,W180,L350,TRP,RECYCLE 1 SNA

..3 SG03 BN61-10357B GUIDE-STAND;J5100/500 32",ABS,HB,BLK,NON 1 SNA

..3 BN96-29120B ASSY ACCESSORY-SCREW;BN69-09241B,6003-00 1 SNA

...4 SCREW 6003-001782 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 7 SA

...4 6902-000341 BAG PE;LDPE,T0.05,L90,W70,TRP,,,PE MARK 1 SNA

0.2 SB04A BN96-35221H ASSY STAND P-BASE;J5500 32,ABS+PC,V0,1 1 SA

..3 0203-001602 TAPE-OPP MASKING;#232,0.14,15,50000,YEL 0 SNA

..3 6902-002485 BAG PE;HDPE/PE FOAM,T0.015/T0.5,W100,L30 1 SNA

..3 6902-002488 BAG PE;HDPE/PE FOAM,T0.015/T0.5,W200,L25 1 SNA

..3 BN63-13257A COVER-STAND BASE;Y15 F-LED J5100/5500 32 1 SNA

..3 BN67-00398P RUBBER-FOOT;RUBBER,SILICONE,15.5*8,2.5,G 5 SNA

..3 BN68-05381A LABEL-BASE;Art Paper 100G,T0.08,20mmX50m 1 SNA

..3 BN95-02139C ASSY COVER STAND SMT;J5500 32,32,LIGHT T 1 SNA

...4 0204-006861 COATING;SMT-L100,CLEAR,0.928 3 SNA

...4 BN01-00160A TARGET-CHROMIUM-CY;Chromium target,99.95 1 SNA

...4 BN01-00161A TARGET-CHROMIUM-PL;chromium target,over 1 SNA

...4 BN63-13261E COVER-DECORATION STAND;J5500,ABS,HB,BLK, 1 SNA

...4 BN63-14064B SHEET-COVER;PE+PP,0.068,W30,CLEAR,100g/i 1 SNA

...4 BN68-03682A LABEL-STICKER;Label,20mm,10mm 1 SNA

1 R001A BN90-06523B ASSY COVER REAR;LED_J6K 1 SNA

0.2 SCREW 6001-002755 SCREW-MACHINE;BH,+,M3,L6,ZPC(BLK),SWRCH1 11 SA

0.2 SCREW 6003-001782 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 1 SA

0.2 R001A BN96-36523A ASSY COVER P-REAR;32J6300,BN63-13933V,HI 1 SA

..3 R001 BN63-13933V COVER-REAR;J6200 32",HIPS,V0,BLK,US 1 SNA

..3 BN68-07096Q LABEL-TERMINAL SIDE;J6200,PET,0.03,14.7, 1 SNA

1 BN90-06667A ASSY W/I;LED_J6K 1 SNA

0.2 BN81-08159Z PART SET-ELEC W/I;UF**,UH**,UG**,ELEC 1 SNA

0.2 BN81-11260Q A/S PART SET-MECH W/I;UJ6L,U32JL* 1 SNA

1 BN91-12034A ASSY LCM-AMLCD;BN95-01326A,CY-GH032CSLV1 1 SNA

0.2 PANEL BN95-01326A PRODUCT LCD-AMLCD;LSF320HJ02-G,CY-GH032C 1 SA

..3 SCREW 6001-002757 SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH1 2 SA

..3 6001-002903 SCREW-MACHINE;CH,+,M3,L8,ZPC(BLK),SWRCH1 1 SNA

..3 BN62-00502C INSULATION-SOURCE PCB L;Y14 VNB 32,PC,0. 1 SNA

..3 BN62-00502D INSULATION-SOURCE PCB R;Y14 VNB 32,PC,0. 1 SNA

..3 M0131 BN63-00520A GASKET;APPOLO_PAL,Conductive Fabric,0.13 2 SNA

..3 BN68-05595A LABEL-STICKER;Art Paper 100G,T0.2,80mmX2 1 SNA

..3 BN90-05184B ASSY MISC-BLU;H6300 32",CY-GH032CSLV1V 1 SNA

...4 BN02-00163A TAPE ETC-SHEET FIXING;Y13 VNB,PET,0.1,W3 2 SNA

...4 BN02-00352A TAPE PET;Y12 F-LED,PET,T0.05,30,40,BLK,8 1 SNA

...4 BN61-10113A SUPPORT-PLATE;Y14 F-LED,PC,V2,WHT/CLEAR, 4 SNA

ANNEX-4

ANNEX. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

...4 BN61-10226A LGP-DIFFUSESR PLATE;32inch Diffuser Plat 1 SNA

...4 BN63-11544A SHEET-COMPLEX;Y14 VNB 32" FHD DMOP/UTA11 1 SNA

...4 BN63-11812A SHEET-REFLECTOR;Y14 32inch, SY95S / 188X 1 SNA

...4 BN96-30442A ASSY LED BAR P;32inch FHD Dire,FCPkg,7ea 4 SA

...4 BN96-30567E ASSY CHASSIS BOTTOM P;Y14 VNB 32,BN64-02 1 SNA

....5 SCREW 6001-002757 SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH1 1 SA

....5 BN02-00040C TAPE DOUBLE FACE-D-PLATE;F-LED ALL,MKT50 2 SNA

....5 BN02-00043D TAPE ETC-SHEET FIXING;Y13 slim F-LED,PET 4 SNA

....5 BN02-00074A TAPE PET;CCFL 32"/40",3M1360NH(B),T0.05, 4 SNA

....5 BN02-00324A TAPE-METAL FOIL;Y14 4K,T0.085,W25,NTR,3M 0 SNA

....5 BN02-00352A TAPE PET;Y12 F-LED,PET,T0.05,30,40,BLK,8 3 SNA

....5 BN61-10097A HOLDER-MIDDLE(U);Y14 F-LED 32" (5K),PC+G 1 SNA

....5 BN61-10114A BRACKET-WALL MOUNT;Y14 F-LED 32",EGI-SEC 1 SNA

....5 BN61-10146A HOLDER-MIDDLE(LR);Y14 F-LED 32" (5K),PC+ 2 SNA

....5 BN61-10187A HOLDER-MIDDLE(D);Y14 F-LED 32" (5K),PC+G 1 SNA

....5 BN61-10207A HOLDER-WALL RIVET;Y14 F-LED 32",SWRCH10A 3 SNA

....5 BN62-00501J INSULATION-PD BOARD;Y14 VNB 32" 6K,PC,0. 1 SNA

....5 T0073 BN63-03871A GASKET-EMI;58P9,Fabric,2,15,11 4 SNA

....5 CC02 BN64-02515A CHASSIS-BOTTOM;Y14 F-LED 32" (VNB),EGI-S 1 SNA

....5 BN96-30415A ASSY BOARD P-LED INTERFACE B'D;32inch FH 1 SNA

...4 BN96-30568A ASSY MISC P-MOLD MIDDLE;Y14 VNB 32,BN61- 1 SNA

....5 BN60-00735L SPACER-MIDDLE;Y14 VNB 32,PET,L262,NTR,T0 1 SNA

....5 BN60-00735M SPACER-MIDDLE;Y14 VNB 32,PET,L380,NTR,T0 1 SNA

....5 BN60-00744A SPACER-RUBBER;Y13 F-LED SLIM,SH-0140U+AT 2 SNA

....5 BN60-00815P SPACER-PANEL (UD);Y14 VNB 32,SI,L700,GRA 2 SNA

....5 BN60-00816D SPACER-PANEL (LR);Y14 VNB 32,SI,L399.3,G 2 SNA

....5 BN61-10076A FRAME-MOLD MIDDLE;Y14 F-LED 32" (5K),PC+ 1 SNA

..3 BN96-30046A ASSY OPEN CELL;LSF320HJ02-G,8bit,32 INCH 1 SA

...4 BN81-07434A A/S-ADHESIVE-A.C.F(CP);ADHESIVE-A.C.F,1- 1 SNA

...4 BN81-07943A A/S-ADHESIVE-A.C.F(TP500B);ADHESIVE-A.C. 1 SNA

...4 BN81-09604A A/S-IC DRIVER SOURCE;IC DRIVER SOURCE,LJ 1 SNA

...4 BN81-09605A A/S-POLARIZER-TFT;POLARIZER-TFT,SMLK41FP 1 SNA

...4 BN81-09606A A/S-POLARIZER-C/F;POLARIZER-C/F,SMLK41FP 1 SNA

...4 BN81-09619A A/S-ASSY PCB-SOURCE(L);ASSY PCB-SOURCE(L 1 SNA

...4 BN81-09620A A/S-ASSY PCB-SOURCE(R);ASSY PCB-SOURCE(R 1 SNA

..3 BN96-30142A ASSY PCB P-TCON;LSF320HJ02-G,32F120Hz VN 1 SA

...4 BN62-00371D HEAT SINK-PS;F6000,A1050,BLACK,110*61.1* 1 SNA

...4 BN62-00487A HEAT SINK-ES;F6K,A6063,BLACK,18*14*4.4,t 1 SNA

...4 T0527 BN68-00513A LABEL-E,PASS;ALL MODEL,YUPO(110G),BLACK, 1 SNA

...4 BN97-07972D ASSY SMD;BN95-01307B 1 SNA

....5 0202-001899 SOLDER-CREAM;M705-GRN360-K2-VT,20-38um,S 1 SNA

....5 0404-001640 DIODE-SCHOTTKY;SS1060HEWS,60V,1000mA,SOD 1 SA

....5 0404-001643 DIODE-SCHOTTKY;B360A,60V,3000mA,SMA,TP 1 SA

....5 0406-001317 DIODE-TVS;SMAJ14A,15.6/-/17.2V,400W,SMA 2 SNA

....5 0406-001445 DIODE-TVS;RClamp7512N,2.7/2.8/2.9,300W,S 2 SA

....5 0406-001578 DIODE-TVS;P4SMAJ40A,44.4,51.1,400W,SMA 1 SA

ANNEX-5

ANNEX. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....5 0502-001331 TR-POWER;NSS30100LT1G,PNP,310mW,SOT-23,T 1 SA

....5 0502-001345 TR-POWER;FCX491A,NPN,1000mW,SOT89,TR,900 2 SA

....5 0502-001346 TR-POWER;FCX591A,PNP,1000mW,SOT89,TR,30/ 2 SA

....5 0505-002660 FET-SILICON;Si2308BDS,N,60V,2.3A,0.156oh 1 SNA

....5 0505-003224 FET-SILICON;AO6405,P,-30V,-5A,0.052ohm,2 1 SA

....5 EL02 0601-002037 LED;SMD(TOP VIEW),BLUE,1.6x0.8mm,465/470 3 SA

....5 1105-002227 IC-DDR3 SDRAM;K4B1G1646G-BCK0,DDR3 SDRAM 1 SA

....5 1203-006130 IC-POSI.FIXED REG.;S-1172B25-U5T1G,SOT-8 1 SA

....5 1203-007956 IC-DC/DC CONVERTER;RT6917,QFN,48P,6x6x1m 1 SNA

....5 1203-007959 IC-DC/DC CONVERTER;RT6915,QFN,36P,6x6x0. 1 SNA

....5 1203-008082 IC-DC/DC CONVERTER;TPS54627DDAR,SOP 8P,8 1 SA

....5 1203-008103 IC-POSI.FIXED REG.;S-13A1D15-E8001,HSOP, 1 SNA

....5 1204-003472 IC-VIDEO PROCESS;SDP1209,PBGA-H,585P,23x 1 SA

....5 IS01 1209-002183 IC-SENSOR;S-5851AAA-M6T1U,SOT,6Z30,2.9x1 1 SA

....5 1404-001731 THERMISTOR-NTC;33Kohm,4050K,1mW/C,TP,1.6 1 SNA

....5 1405-001381 VARISTOR;11V,8VDC,30A,1.6x0.8x0.9mm,TP,2 6 SA

....5 1405-001382 VARISTOR;24.5V,16VDC,120A,2.0x1.25x1.1mm 2 SA

....5 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 6 SA

....5 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 3 SA

....5 2007-000063 R-CHIP;150Kohm,1%,1/10W,TP,1608 1 SNA

....5 2007-000066 R-CHIP;20Kohm,1%,1/10W,TP,1608 3 SNA

....5 2007-000067 R-CHIP;15Kohm,1%,1/10W,TP,1608 2 SNA

....5 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 16 SA

....5 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608 1 SA

....5 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 11 SA

....5 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 7 SA

....5 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 13 SA

....5 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 6 SA

....5 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 1 SNA

....5 2007-000159 R-CHIP;56Kohm,5%,1/16W,TP,1005 1 SA

....5 2007-000162 R-CHIP;100Kohm,5%,1/16W,TP,1005 2 SA

....5 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 10 SA

....5 2007-000239 R-CHIP;1.5Kohm,1%,1/10W,TP,1608 1 SNA

....5 2007-000265 R-CHIP;1.8Kohm,1%,1/10W,TP,1608 1 SA

....5 2007-000336 R-CHIP;120Kohm,1%,1/10W,TP,1608 2 SA

....5 2007-000455 R-CHIP;18Kohm,1%,1/10W,TP,1608 3 SA

....5 2007-000491 R-CHIP;2.2Kohm,1%,1/10W,TP,1608 1 SA

....5 2007-000614 R-CHIP;24Kohm,1%,1/10W,TP,1608 2 SNA

....5 2007-000651 R-CHIP;27Kohm,1%,1/10W,TP,1608 1 SA

....5 2007-000772 R-CHIP;33Kohm,1%,1/10W,TP,1608 2 SA

....5 2007-000779 R-CHIP;33ohm,1%,1/10W,TP,1608 10 SA

....5 2007-000803 R-CHIP;36Kohm,1%,1/10W,TP,1608 1 SA

....5 2007-001007 R-CHIP;51Kohm,1%,1/10W,TP,1608 1 SA

....5 2007-001125 R-CHIP;68Kohm,1%,1/10W,TP,1608 1 SA

....5 2007-001139 R-CHIP;7.5Kohm,1%,1/10W,TP,1608 1 SA

....5 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 1 SA

ANNEX-6

ANNEX. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....5 2007-001433 R-CHIP;12Kohm,1%,1/10W,TP,1608 1 SA

....5 2007-002899 R-CHIP;10ohm,1%,1/10W,TP,1608 3 SA

....5 2007-007136 R-CHIP;4.7Kohm,1%,1/16W,TP,1005 2 SNA

....5 2007-007238 R-CHIP;8.25Kohm,1%,1/10W,TP,1608 1 SA

....5 2007-007268 R-CHIP;0.39ohm,1%,1/4W,TP,2012 1 SNA

....5 2007-007306 R-CHIP;100ohm,1%,1/16W,TP,1005 14 SNA

....5 2007-007316 R-CHIP;3.3Kohm,1%,1/16W,TP,1005 2 SNA

....5 2007-007431 R-CHIP;91Kohm,1%,1/10W,TP,1608 1 SA

....5 2007-007517 R-CHIP;240ohm,1%,1/16W,TP,1005 3 SNA

....5 2007-007651 R-CHIP;9.1Kohm,1%,1/10W,TP,1608 1 SA

....5 2007-007733 R-CHIP;51ohm,1%,1/10W,TP,1608 5 SA

....5 2007-007736 R-CHIP;510Kohm,1%,1/10W,TP,1608 3 SA

....5 2007-007766 R-CHIP;2Kohm,1%,1/16W,TP,1005 2 SA

....5 2007-008622 R-CHIP;0.47ohm,1%,1/10W,TP,1608 1 SNA

....5 2007-010998 R-CHIP;0.3ohm,1%,1/8W,TP,1608,0.45 1 SNA

....5 2011-001264 R-NETWORK;10ohm,5%,1/16W,L,CHIP,8P,TP,2. 6 SNA

....5 AD480 2203-000236 C-CER,CHIP;0.1nF,5%,50V,C0G,TP,1608 1 SA

....5 AD480 2203-000257 C-CER,CHIP;10nF,10%,50V,X7R,TP,1608 1 SA

....5 AD480 2203-000332 C-CER,CHIP;0.012nF,5%,50V,C0G,TP,1608 2 SA

....5 AD480 2203-000357 C-CER,CHIP;0.15nF,5%,50V,C0G,TP,1608 1 SA

....5 AD480 2203-000489 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1005 2 SA

....5 AD480 2203-001697 C-CER,CHIP;0.082nF,5%,50V,NP0,TP,1608 2 SNA

....5 AD480 2203-002711 C-CER,CHIP;100nF,10%,25V,X7R,TP,1608 5 SA

....5 AD480 2203-003019 C-CER,CHIP;8.2nF,10%,50V,X7R,TP,1005 1 SNA

....5 AD480 2203-005138 C-CER,CHIP;1.8nF,10%,50V,X7R,TP,1005 3 SA

....5 AD480 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 6 SA

....5 AD480 2203-005344 C-CER,CHIP;22nF,10%,25V,X7R,TP,1005,0.5T 3 SNA

....5 AD480 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,TP,1005 5 SA

....5 AD480 2203-006088 C-CER,CHIP;330nF,10%,10V,X7R,TP,1608 1 SA

....5 AD480 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,TP,1005,0.5 59 SA

....5 AD480 2203-006320 C-CER,CHIP;2200nF,10%,16V,X7R,TP,2012 1 SNA

....5 AD480 2203-006324 C-CER,CHIP;2200nF,10%,10V,X5R,TP,1608 2 SA

....5 AD480 2203-006460 C-CER,CHIP;2200nF,10%,16V,X5R,TP,1608,- 2 SA

....5 AD480 2203-006474 C-CER,CHIP;22000nF,20%,6.3V,X5R,TP,2012 17 SA

....5 AD480 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 4 SNA

....5 AD480 2203-006698 C-CER,CHIP;1000nF,10%,25V,X7R,TP,1608,0. 4 SA

....5 AD480 2203-006841 C-CER,CHIP;1000nF,10%,16V,X5R,TP,1005 1 SNA

....5 AD480 2203-006844 C-CER,CHIP;470nF,10%,10V,X5R,TP,1005 2 SA

....5 AD480 2203-006890 C-CER,CHIP;10000nF,20%,6.3V,X5R,TP,1608 4 SNA

....5 AD480 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012,1 25 SNA

....5 AD480 2203-007306 C-CER,CHIP;10000nF,10%,25V,X5R,TP,2012,1 21 SNA

....5 AD480 2203-007513 C-CER,CHIP;10000nF,10%,10V,X5R,TP,1608,0 13 SA

....5 2703-003713 INDUCTOR-SMD;1.5uH,20%,7366,0.015ohm,700 1 SA

....5 2703-003747 INDUCTOR-SMD;22uH,20%,6060,0.135ohm,1300 3 SA

....5 2703-003862 INDUCTOR-SMD;10uH,20%,6060,0.065ohm,1900 1 SA

....5 2703-004199 INDUCTOR-SMD;10uH,20%,6.6x7.0mm,2.2mm,0. 1 SNA

ANNEX-7

ANNEX. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....5 2703-004847 INDUCTOR-SMD;4.7uH,20%,3838,1.8T,0.075Oh 1 SA

....5 2801-005324 CRYSTAL-SMD;27MHz,30ppm,Ceramic SMD(4pin 1 SA

....5 2901-001362 FILTER-EMI/ESD;5.5V,0A,50pF,2.05x1.25x0. 3 SNA

....5 3301-002039 BEAD-SMD;26ohm,1608,TP 21 SA

....5 3601-001386 FUSE-SURFACE MOUNT;125V,5A,FAST-ACTING,C 1 SA

....5 3708-003073 CONNECTOR-FPC/FFC/PIC;51P,0.5mm,SMD,AU,N 1 SA

....5 3708-003176 CONNECTOR-FPC/FFC/PIC;68P,0.5mm,SMD-A,AU 2 SA

....5 EH01 3711-005601 HEADER-BOARD TO CABLE;BOX,8P,1R,2mm,SMD- 1 SA

....5 6302-001290 GASKET;SMR-TS-4-4.5-3,4.0mm,Ni+Au+SUS+Mg 4 SNA

....5 BN41-02110A PCB-T CON;2014 FHD 120Hz,FR-4,4,1.2T,150 1 SNA

....5 BN68-04746A LABEL-SMD;all model,POLY*,25.4mm x 9.53m 1 SNA

....5 BN97-08161G ASSY MICOM-BN95-01307B;H32A1F610_3119_51 1 SNA

.....6 1107-002224 IC-FLASH MEM. MODULE;W25X40CLSSIG,4Mbit, 1 SNA

..3 TC01A BN96-30570D ASSY CHASSIS TOP P;Y14 VNB 32 6.3K,BN64- 1 SA

...4 BN60-00930C SPACER-TOP(UD);Y14 NNB/VNB 32",GASKET+PE 2 SNA

...4 BN60-00930D SPACER-TOP(LR);Y14 NNB/VNB 32",GASKET+PE 2 SNA

...4 BN60-01076A SPACER-GASKET;Y14,CONDUCTIVE FABRIC,L16, 3 SNA

...4 AS080 BN63-07229T SHEET-COVER;Y12 F-LED,SI,T0.052,W 18mm,1 2 SNA

...4 BN63-07229W SHEET-COVER;UE8000,PET+SI,T0.052,W27mm,1 2 SNA

...4 FW04 BN64-02480A WINDOW-RMC;UH5500 40",PC,V2,Violet, T25% 1 SNA

...4 AC157 BN64-02492D CHASSIS-TOP;Y14 F-LED 32" (6.3K),PC+ABS+ 1 SNA

...4 BN68-06250B LABEL-TPC MODEL;H6300/6350,ART PAPER*100 1 SNA

..3 OC-TC BN96-30720B ASSY CABLE P-FFC;H5000,FFC,No housing ty 2 SNA

1 M0017 BN91-14265A ASSY CHASSIS;LED_J6K 1 SNA

0.2 M0014 BN94-08247D ASSY PCB MAIN;LED_J6K 1 SA

..3 BN61-08813A HOLDER-SIDE AV;UF6100, 55,HIPS,BK0020,HB 1 SNA

..3 AH020 BN62-00724A HEAT SINK;AL,1.5T,83.48mm,71.92mm,BLACK, 1 SNA

..3 AH020 BN62-00725A HEAT SINK;AL,2T,73mm,60mm,BLACK,TAPE 1 SNA

..3 T0527 BN68-00513A LABEL-E,PASS;ALL MODEL,YUPO(110G),BLACK, 1 SNA

..3 BN97-09470A ASSY DRM;MAC, MIRACAST HDCP 1 SNA

...4 BN46-00109H KEY CODE-CERTIFI;MAC,TV/AV,General 1 SNA

...4 BN46-00110P KEY CODE-CERTIFI;MIRACAST(HDCP2.2), TV 1 SNA

..3 BN97-09529A ASSY SMD;J6K 1 SNA

...4 0202-001899 SOLDER-CREAM;M705-GRN360-K2-VT,20-38um,S 4 SNA

...4 DS01A 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 SA

...4 0403-001783 DIODE-ZENER;BZB84-C6V2,5.8/6.6V,300mW,SO 3 SNA

...4 0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200mA,SOT-23, 8 SA

...4 0406-001200 DIODE-TVS;RCLAMP0504F,6/-/-V,150W,SC-70 3 SA

...4 0406-001628 DIODE-TVS;AOZ8804ADI,6/-/-V,150W,SLP2510 1 SA

...4 0406-001635 DIODE-TVS;SMF5.0A,6.4V, 6.7V, 7V,200W,SM 7 SA

...4 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 3 SC

...4 0505-002560 FET-SILICON;AO6415,P,-20V,-3.3A,0.15ohm, 1 SA

...4 0505-002598 FET-SILICON;AP2317GN,P,-20V,-4.2A,0.052o 1 SA

...4 0505-002893 FET-SILICON;AO4801AS,P,-30V,-5A,2W,SOIC- 1 SA

...4 0505-003397 FET-SILICON;2N7002K,N,60V,380mA,1.19ohm, 2 SA

...4 0505-003507 FET-SILICON;AO3424,N,30V,3.8A,1.4W,SOT-2 4 SA

ANNEX-8

ANNEX. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

...4 0801-003330 IC-CMOS LOGIC;Octal buffer,DQFN,20P,4.5x 1 SA

...4 1001-001872 IC-ANALOG SWITCH;NLAS2750MUTAG,Dual SPDT 1 SA

...4 1006-001576 IC-DRIVER/RECEIVER;MAX3221ECPWR,TSSOP,16 1 SA

...4 1103-001564 IC-EEPROM;S-24C512CI-J800,512Kbit,64Kx8, 1 SA

...4 1105-002528 IC-DDR3 SDRAM;K4B4G1646D-BCMA,DDR3 1866, 3 SA

...4 1201-003891 IC-AUDIO AMP;NTP7415,MLF,48P,7x7mm,DUAL, 1 SA

...4 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, 1 SA

...4 1203-006330 IC-POWER SUPERVISOR;TPS2065DBV,SOT-23,5P 1 SA

...4 1203-007018 IC-DC/DC CONVERTER;TPS54821RHL,QFN,14P,3 1 SA

...4 1203-007238 IC-PWM CONTROLLER;TPS54427,DDA,8P,4.8x3. 1 SNA

...4 1203-007700 IC-DC/DC CONVERTER;TPS54527DDAR,DDA,8Z30 1 SA

...4 1203-008104 IC-POSI.FIXED REG.;S-13A1D18-E8001,HSOP, 2 SNA

...4 1203-008105 IC-POSI.FIXED REG.;S-13A1D33-E8001,HSOP, 1 SNA

...4 1203-008112 IC-POSI.ADJUST REG.;AOZ2002PI,SO-8,8P,4. 1 SA

...4 1203-008183 IC-DC/DC CONVERTER;AOZ3015PI-1,EPAD SO-8 1 SA

...4 1203-008392 IC-VOL. DETECTOR;S-6414AAB-L800X,TSOT-23 1 SA

...4 1203-008393 IC-DDR TERMINATION REG.;AP2303MTR-G1-89, 1 SA

...4 1203-008405 IC-DC/DC CONVERTER;AOZ3103DI,DFN3X3,8P,3 2 SA

...4 1203-008454 IC-DC/DC CONVERTER;TPS56528,HSOP8,8P,4,8 1 SA

...4 1204-003586 IC-DECODER;SDP1415,PBGA,631P,23x23mm,PLA 1 SA

...4 1205-004983 IC-SWITCH;BD82032FVJ,TSSOP-B8J,8P,3.0x4. 3 SA

...4 1405-001271 VARISTOR;35V,20Vdc,5A,1.0x0.5x0.6mm,TP,1 17 SA

...4 2007-000137 R-CHIP;2Kohm,5%,1/16W,TP,1005 16 SNA

...4 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 41 SA

...4 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 22 SNA

...4 2007-000166 R-CHIP;300Kohm,5%,1/16W,TP,1005 1 SA

...4 2007-000170 R-CHIP;1Mohm,5%,1/16W,TP,1005 1 SA

...4 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 25 SA

...4 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 26 SA

...4 2007-000695 R-CHIP;3.3ohm,5%,1/10W,TP,1608 4 SNA

...4 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 3 SA

...4 2007-001116 R-CHIP;680ohm,1%,1/10W,TP,1608 1 SA

...4 2007-001125 R-CHIP;68Kohm,1%,1/10W,TP,1608 1 SA

...4 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 5 SA

...4 2007-001308 R-CHIP;200ohm,5%,1/16W,TP,1005 5 SNA

...4 2007-001313 R-CHIP;330ohm,5%,1/16W,TP,1005 1 SNA

...4 2007-007107 R-CHIP;100Kohm,1%,1/16W,TP,1005 10 SNA

...4 2007-007132 R-CHIP;15Kohm,1%,1/16W,TP,1005 4 SA

...4 2007-007134 R-CHIP;39Kohm,1%,1/16W,TP,1005 1 SA

...4 2007-007135 R-CHIP;18Kohm,1%,1/16W,TP,1005 2 SNA

...4 2007-007136 R-CHIP;4.7Kohm,1%,1/16W,TP,1005 5 SNA

...4 2007-007138 R-CHIP;27Kohm,1%,1/16W,TP,1005 2 SA

...4 2007-007139 R-CHIP;47Kohm,1%,1/16W,TP,1005 3 SA

...4 2007-007142 R-CHIP;10Kohm,1%,1/16W,TP,1005 25 SA

...4 2007-007306 R-CHIP;100ohm,1%,1/16W,TP,1005 15 SNA

...4 2007-007307 R-CHIP;150ohm,1%,1/16W,TP,1005 1 SA

ANNEX-9

ANNEX. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

...4 2007-007309 R-CHIP;12Kohm,1%,1/16W,TP,1005,0.35T 2 SA

...4 2007-007311 R-CHIP;22Kohm,1%,1/16W,TP,1005 5 SA

...4 2007-007312 R-CHIP;20Kohm,1%,1/16W,TP,1005 3 SA

...4 2007-007313 R-CHIP;6.8Kohm,1%,1/16W,TP,1005 2 SA

...4 2007-007316 R-CHIP;3.3Kohm,1%,1/16W,TP,1005 2 SNA

...4 2007-007317 R-CHIP;2.2Kohm,1%,1/16W,TP,1005 1 SA

...4 2007-007318 R-CHIP;1Kohm,1%,1/16W,TP,1005 18 SA

...4 2007-007431 R-CHIP;91Kohm,1%,1/10W,TP,1608 1 SA

...4 2007-007470 R-CHIP;7.5Kohm,1%,1/16W,TP,1005 1 SNA

...4 2007-007488 R-CHIP;75Kohm,1%,1/16W,TP,1005 1 SNA

...4 2007-007517 R-CHIP;240ohm,1%,1/16W,TP,1005 4 SNA

...4 2007-007528 R-CHIP;1.5Kohm,1%,1/16W,TP,1005 2 SA

...4 2007-007766 R-CHIP;2Kohm,1%,1/16W,TP,1005 3 SA

...4 2007-007861 R-CHIP;62Kohm,1%,1/16W,TP,1005 1 SA

...4 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 14 SA

...4 2007-008213 R-CHIP;4.3Kohm,1%,1/16W,TP,1005 3 SA

...4 2007-008263 R-CHIP;3Kohm,1%,1/16W,TP,1005 2 SA

...4 2007-008275 R-CHIP;30Kohm,1%,1/16W,TP,1005 2 SNA

...4 2007-008298 R-CHIP;49.9ohm,1%,1/16W,TP,1005 4 SA

...4 2007-008429 R-CHIP;499ohm,1%,1/16W,TP,1005 1 SNA

...4 2007-008485 R-CHIP;22ohm,1%,1/16W,TP,1005 14 SC

...4 2007-008593 R-CHIP;750ohm,1%,1/16W,TP,1005 1 SA

...4 2007-008779 R-CHIP;0ohm,1%,1/16W,TP,1005 4 SA

...4 2007-009117 R-CHIP;49.9Kohm,1%,1/16W,TP,1005 1 SA

...4 2007-009777 R-CHIP;4.99Kohm,1%,1/16W,TP,1005 1 SA

...4 2011-001449 R-NETWORK;22ohm,5%,1/16W,L,4P,TP,1010 5 SA

...4 2011-001497 R-NETWORK;470ohm,5%,1/16W,L,CHIP,4P,TP,1 1 SNA

...4 2011-001587 R-NETWORK;100ohm,5%,1/16W,L,CHIP-V,4P,TP 2 SA

...4 AD480 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,TP,1005 6 SA

...4 AD480 2203-000278 C-CER,CHIP;0.01nF,0.5pF,50V,C0G,TP,1005 4 SA

...4 AD480 2203-000359 C-CER,CHIP;0.15nF,5%,50V,C0G,TP,1005,0.5 3 SA

...4 AD480 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,TP,1005 14 SA

...4 AD480 2203-000489 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1005 2 SA

...4 AD480 2203-000585 C-CER,CHIP;0.22nF,10%,50V,X7R,TP,1005 3 SA

...4 AD480 2203-000627 C-CER,CHIP;0.022nF,5%,50V,C0G,TP,1005 2 SNA

...4 AD480 2203-000679 C-CER,CHIP;0.027nF,5%,50V,C0G,TP,1005 2 SA

...4 AD480 2203-000714 C-CER,CHIP;3.3nF,10%,50V,X7R,TP,1005 7 SA

...4 AD480 2203-000812 C-CER,CHIP;0.033nF,5%,50V,C0G,TP,1005 5 SA

...4 AD480 2203-000854 C-CER,CHIP;0.039nF,5%,50V,C0G,TP,1005 1 SA

...4 AD480 2203-000940 C-CER,CHIP;0.47nF,10%,50V,X7R,TP,1005 2 SA

...4 AD480 2203-000995 C-CER,CHIP;0.047nF,5%,50V,C0G,TP,1005 3 SA

...4 AD480 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,TP,1005 10 SNA

...4 AD480 2203-003019 C-CER,CHIP;8.2nF,10%,50V,X7R,TP,1005 2 SNA

...4 AD480 2203-005083 C-CER,CHIP;220nF,10%,50V,X7R,TP,1608,0.8 2 SA

...4 AD480 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 13 SA

...4 AD480 2203-005968 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1005,0.5 1 SNA

ANNEX-10

ANNEX. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

...4 AD480 2203-006126 C-CER,CHIP;47nF,10%,16V,X7R,TP,1005 2 SNA

...4 AD480 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,TP,1005,0.5 124 SA

...4 AD480 2203-006257 C-CER,CHIP;470nF,10%,6.3V,X5R,TP,1005,0. 1 SNA

...4 AD480 2203-006348 C-CER,CHIP;1000nF,10%,25V,X5R,TP,1608,0. 7 SA

...4 AD480 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 25 SNA

...4 AD480 2203-006824 C-CER,CHIP;4700nF,10%,10V,X5R,TP,1608 2 SNA

...4 AD480 2203-006838 C-CER,CHIP;2200nF,10%,6.3V,X5R,TP,1005 11 SA

...4 AD480 2203-006890 C-CER,CHIP;10000nF,20%,6.3V,X5R,TP,1608 41 SNA

...4 AD480 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012,1 4 SNA

...4 AD480 2203-007240 C-CER,CHIP;22000nF,20%,6.3V,X5R,TP,1608( 31 SA

...4 AD480 2203-007269 C-CER,CHIP;22000nF,20%,10V,X5R,TP,2012(2 30 SA

...4 AD480 2203-007513 C-CER,CHIP;10000nF,10%,10V,X5R,TP,1608,0 32 SA

...4 AD480 2203-007544 C-CER,CHIP;100nF,10%,50V,X7R,TP,1005,0.5 64 SA

...4 2503-001051 C-NETWORK;100nFx4,20%,16V,2012 1 SA

...4 2703-000158 INDUCTOR-SMD;1uH,10%,2012,.4Ohm,50mA,45, 1 SA

...4 2703-000213 INDUCTOR-SMD;470nH,10%,1608,1.35Ohm,35mA 1 SA

...4 2703-001938 INDUCTOR-SMD;56nH,5%,1005,1.5Ohm,200mA,1 3 SA

...4 2703-003713 INDUCTOR-SMD;1.5uH,20%,7366,0.015ohm,700 1 SA

...4 2703-003937 INDUCTOR-SMD;1uH,20%,7.0x6.47x3.0mm,0.00 1 SA

...4 2703-004724 INDUCTOR-SMD;8.2uH,20%,5050,4mm,0.072Ohm 4 SA

...4 2703-005191 INDUCTOR-SMD;1.5uH,20%,6060,4.5,0.02ohm, 2 SA

...4 2703-005192 INDUCTOR-SMD;4.7uH,20%,6060,4.5,0.036ohm 2 SA

...4 2703-005194 INDUCTOR-SMD;3.3uH,20%,6060,4.5,0.03ohm, 1 SA

...4 2801-004477 CRYSTAL-SMD;24.576MHz,20ppm,SMD,18pF,20o 1 SA

...4 3301-000314 BEAD-SMD;120ohm,1608,TP,120ohm/100MHz 5 SNA

...4 3301-001364 BEAD-SMD;1000ohm,1608,TP,1085ohm/108MHz, 2 SNA

...4 3301-002039 BEAD-SMD;26ohm,1608,TP 42 SA

...4 3601-001374 FUSE-SURFACE MOUNT;32V,5A,FAST-ACTING,PL 2 SA

...4 3701-001856 CONNECTOR-HDMI;19P,FEMALE,AU,0.5mm,BLK,S 1 SA

...4 3701-001861 CONNECTOR-HDMI;19P,FEMALE,AU,0.5mm,BLK,S 3 SA

...4 3707-001106 CONNECTOR-OPTICAL;STRAIGHT W/L,SPDIF 1 SA

...4 3708-003073 CONNECTOR-FPC/FFC/PIC;51P,0.5mm,SMD,AU,N 1 SA

...4 3711-007585 CONNECTOR-HEADER;BOX,4P,1R,2.5mm,ANGLE-D 1 SA

...4 EH01 3711-008488 HEADER-BOARD TO CABLE;BOX,14P,2R,2mm,ANG 1 SA

...4 EH01 3711-008558 HEADER-BOARD TO CABLE;BOX,26P,2R,1.25mm, 1 SA

...4 3722-003229 JACK-MODULAR;8P/8C W/L,Y,STRAIGHT,N,Au,1 1 SA

...4 3722-003457 JACK-USB;4P/1C,NI,BLK,A 3 SA

...4 JACK PIN 3722-003546 JACK-PIN;5P+Screw hole,NI+SN,G,Y/BLU/RED 1 SA

...4 3722-003617 JACK-PHONE;14P/2C,SN,BLK,STRAIGHT,3.6PI, 1 SA

...4 6302-001376 GASKET;D-Q43-14-180,6mm,SI 1 SNA

...4 ET01 BN40-00312B TUNER;GVTH-5B31,GVTH-5B31,VSB-half,75ohm 1 SA

...4 BN41-02353A PCB MAIN;J6300/J5500,Hawk_M_FHD_W/W,FR-4 1 SNA

...4 BN68-04746A LABEL-SMD;all model,POLY*,25.4mm x 9.53m 1 SNA

...4 BN97-09451A ASSY MICOM;T-HKMFAKUC-XXXX 1 SNA

....5 1107-002341 IC-EMMC;THGBMBG5D1KBAIT,4GB,BGA,153P,11x 1 SNA

...4 BN97-09455A ASSY MICOM;HMMICOM_FHD_US 1 SNA

ANNEX-11

ANNEX. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....5 1107-002226 IC-NOR FLASH;W25Q40CLSSIP,4Mbit,SOIC,8P, 1 SA

1 BN91-14346A ASSY SHIELD;LED_J6K 1 SNA

0.2 SCREW 6001-003016 SCREW-MACHINE;PWH,+,M3.0,L5.0,ZPC(WHT),S 10 SA

0.2 BN02-00102B TAPE-FILAMENT;#8917,0.15,25,50,WHITE 0 SNA

0.2 EC13 BN39-01884C LEAD CONNECTOR;UN28H4200AF,Lead Connecto 1 SA

0.2 BN39-02001A LEAD CONNECTOR-FUNTION;32J5500,Flat Conn 1 SA

0.2 EC13 BN39-02036E LEAD CONNECTOR;32J5500,Flat Connector,UL 1 SA

0.2 P001A BN44-00700A DC VSS-LED TV PD BD;L32S1_EDY,L32S1_EDY, 1 SA

0.2 WIFI BN59-01174D NETWORK-WIFI MODULE;WIDT-30Q,Internal Wi 1 SA

0.2

0.2 BN63-13945A COVER-HOLDER;J6200 32",PC+ABS+GF15%,V1 1 SNA

0.2 BN96-30218F ASSY BOARD P-BT MODULE;BT Module + Holde 1 SA

0.2 SP01A BN96-30336D ASSY SPEAKER P;6ohm,10W,Enclosure_J5.5K 1 SA

0.2 FB01A BN96-30902C ASSY BOARD P-FUNCTION ASSY;UH5500,Functi 1 SA

0.2 FL06 BN96-31530F ASSY CABLE P-FFC;UN32H6350AFXZA,FFC,NH,2 1 SA

0.2 BH68-00697A LABEL BOX-00;ALL MODEL,ART PAPER 90G,60, 1 SNA

0.2 BN69-12017B BOX UNIT;32J6300-VS,CB,A-01,SW2,W891,D11 1 SNA

0.2 BN68-05050A LABEL RATING;ALL,SS,PET,T0.05,93,73,Dark 1 SNA

0.2 BN68-07054J LEAFLET-QSG;J6300,United States,ART* 1 SNA

0.2 BN68-07113U LABEL ENERGY;UN32J6300AFXZA,ZP,PET,T0.1, 1 SNA

0.2 BN74-00053G TAPE-PAPER;PAPER,3M2307,0.14T,W10,60M,WH 0 SNA

0.2 6902-002380 BAG ROLL;HDPE/PE FOAM+HDPE,T0.015/T0.5+T 2 SNA

0.2 6922-000013 BAND;PP,W18,L2300/L2900,TRP 1 SNA

0.2 BH69-00418A WRAP;762,1828M,SAMEX FACTORY 759 SNA

0.2 BN02-00319B TAPE OPP;OPP,T0.05,W75,L800m,CLEAR 2 SNA

0.2 BN68-02422B LABEL-WARNING SHIPPING;ALL MODEL,A/P,T0. 1 SNA

0.2 BN69-11438A PAD-ENGLE;all LED,PAPER,T3.5,2440,50,Yel 1 SNA

0.2 BN69-11801A CUSHION-SET;J6200 32",EPS,16.7g/l 1 SNA

0.2 BN96-35674A ASSY ACCESSORY MANUAL/CABLE;LED_J6K 1 SNA

HOLDER-LED

SCREW

..3 JOG BN96-30902A ASSY BOARD P-JOG SWITCH PBA;UH5000,Funct 1 SNA

..3 IR BN96-30904A ASSY BOARD P-IR PBA;UH5500,Function Assy 1 SNA

1 BN92-17066A ASSY BOX;LED_J6K 1 SNA

1 BN92-17127A ASSY LABEL;LED_J6K 1 SNA

1 BN92-17128A ASSY P/MATERIAL;LED_J6000 1 SNA

1 ACCE1 BN92-17153A ASSY ACCESSORY;LED_J6K 1 SNA

..3 T0268 3903-000853 CBF-POWER CORD;DT,UL/CSA,LP-11L,125V,7A, 1 SA

..3 4301-000103 BATTERY-ALKALINE;1.5V,750mAH,LR03,10.2x4 2 SNA

..3 6902-001962 BAG PE;LDPE,BIOBASED,T0.05,W400,L300,TRP 1 SNA

..3 BN59-01223A REMOCON-REMOCON;TM1260C,52,3.0V,TM1260C_ 1 SA

..3 HOLDER-WIRE BN61-08370A HOLDER-WIRE STAND;26UE4000 GUIDE STAND,P 1 SA

..3 BN68-04972E LEAFLET-03,REGULATORY GUIDE;ALL,SAMSUNG, 1 SNA

..3 BN68-05723A LABEL-ACCESSORY;ALL MODELS,YUPO,0.2,20,7 1 SNA

..3 BN68-07150A MANUAL USERS;J6300,United States,S/W* 1 SNA

BN61-09175B SCREW-MACHINE;BH,+,M3,L10,ZPC(WHT),SWRCH 2 SA

UN48J5500AFXZA, UN40J5500AFXZA, UN32J5500AFXZA,

PRODUCT: LED TV

BULLETIN

NUMBER:

BULLETIN

DATE:

MODELS:

ASC20150601001

06/01/2015
UN88JS9500FXZA, UN78JS9500FXZA, UN65JS9500FXZA, UN78JS9100FXZA,

UN65JS9000FXZA, UN55JS9000FXZA, UN48JS9000FXZA, UN78JS8600FXZA,
UN65JS8500FXZA, UN55JS8500FXZA, UN48JS8500FXZA, UN65JS850DFXZA ,
UN78JU7500FXZA, UN65JU7500FXZA, UN55JU7500FXZA, UN50JU7500FXZA,
UN48JU7500FXZA, UN40JU7500FXZA, UN65JU750DFXZA, UN65JU6700FXZA,
UN55JU6700FXZA, UN48JU6700FXZA, UN40JU6700FXZA, UN65JU670DFXZA,
UN55JU670DFXZA, UN75JU6500FXZA, UN65JU6500FXZA, UN60JU6500FXZA,
UN55JU6500FXZA, UN50JU6500FXZA, UN48JU6500FXZA, UN40JU6500FXZA,
UN75JU650DFXZA, UN65JU650DFXZA, UN60JU650DFXZA, UN55JU650DFXZA,
UN50JU650DFXZA, UN48JU650DFXZA, UN40JU650DFXZA, UN65JU6400FXZA,
UN55JU6400FXZA, UN48JU6400FXZA, UN40JU6400FXZA, UN75J6300AFXZA,
UN65J6300AFXZA, UN60J6300AFXZA, UN55J6300AFXZA, UN50J6300AFXZA,
UN48J6300AFXZA, UN40J6300AFXZA, UN32J6300AFXZA, UN50J5500AFXZA,

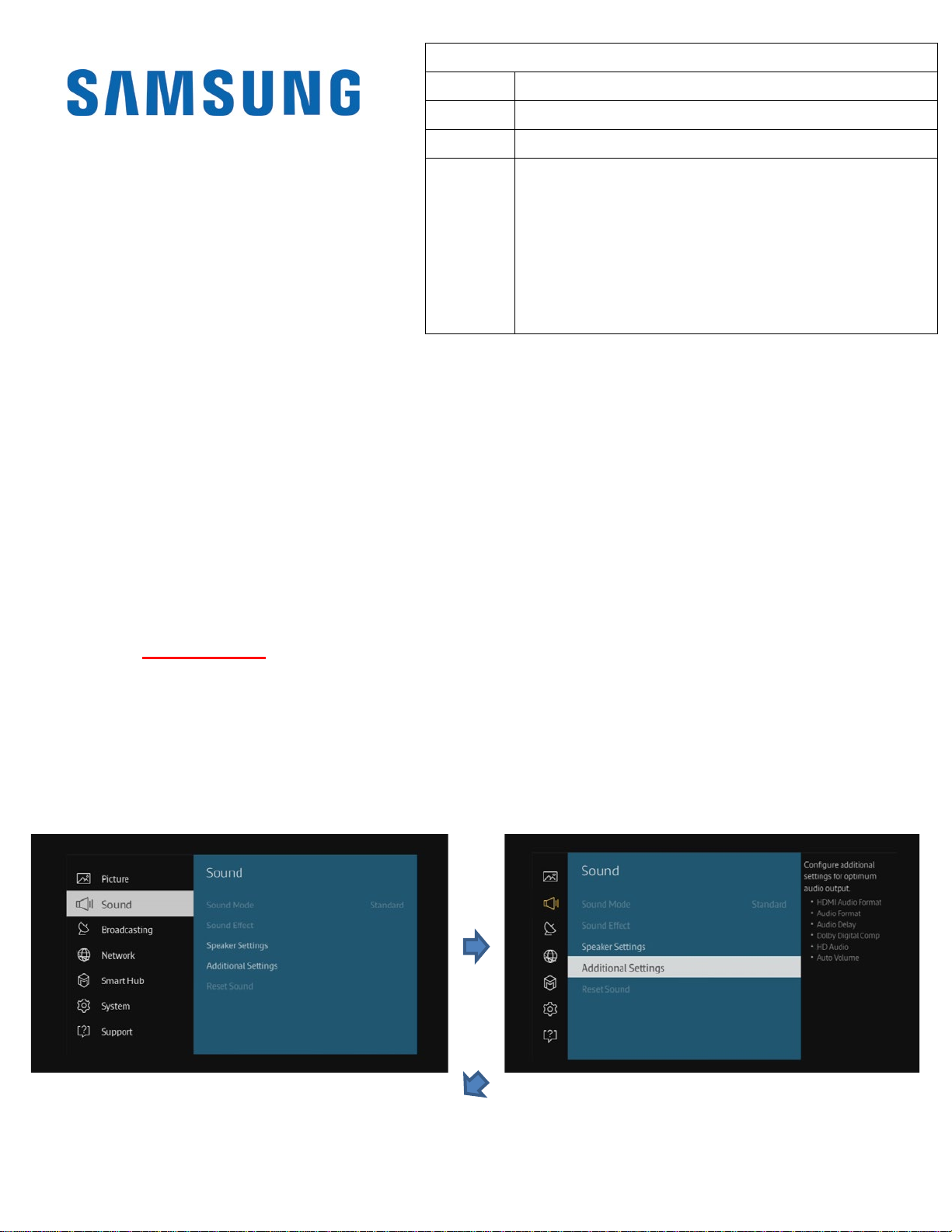

SERVICE BULLETIN

- SUBJECT: A Sound Bar or A/V receiver connected to the TV does not play audio when the T V is playing
video from a streaming application.

- Symptoms:

o The TV speaker has sound.
o The Sound Bar or A/V receiver has sound when the TV is set to a different source including HDMI,

but fails to play sound when the TV is playing video from a streaming application such as Netflix.

o The streaming application is outputting Dolby Digital sound. If the Sound Bar or A/V receiver

doesn’t support Dolby Digital or DTS, the Sound Bar or receiver will not play the audio.

- REPAIR GUIDE:

1) Do Not Change any parts.

2) Change the Audio Format in the TV’s menu to PC M while playing video from the video streaming
application.

- Play the video from the video streaming application.

- Go to Menu > Sound > Additional Settings and change the Audio Format to PCM. See t he
illustrations below and on the next page.

This information is published for experienced repair technicians only and is not intended for use by the public. It does not contain warnings to advise non-technical
individuals of possible dangers in attempting to service a product. Only experienced professional technic i ans should repair product s powered by electricity. Any
attempt to service or repair the product or products dealt with in this information by anyone else could result in serious injury or death. Information provided in this
bulletin is subject to change or update without notice.

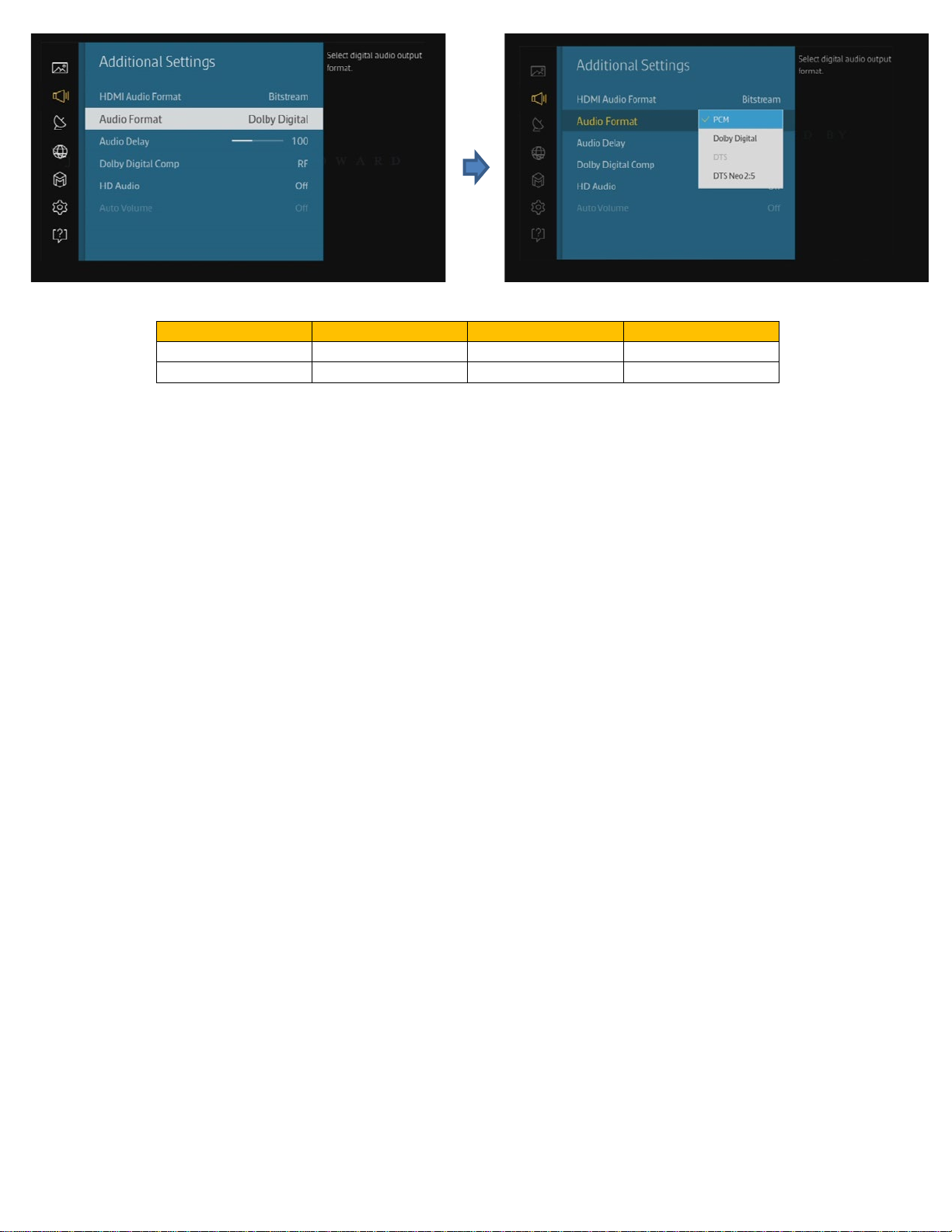

Symptom1

Symptom2

Symptom3

Symptom4

L4

13

01

L4

01

04

This information is published for experienced repair technicians only and is not intended for use by the public. It does not contain warnings to advise non-technical
individuals of possible dangers in attempting to service a product. Only experienced professional technic i ans should repair product s powered by electricity. Any
attempt to service or repair the product or products dealt with in this information by anyone else could result in serious injury or death. Information provided in this
bulletin is subject to change or update without notice.

Image 1: Reinstall

Image 2: View Details

Symptom1

Symptom2

Symptom3

Symptom4

L7

01

04

L7

01

01

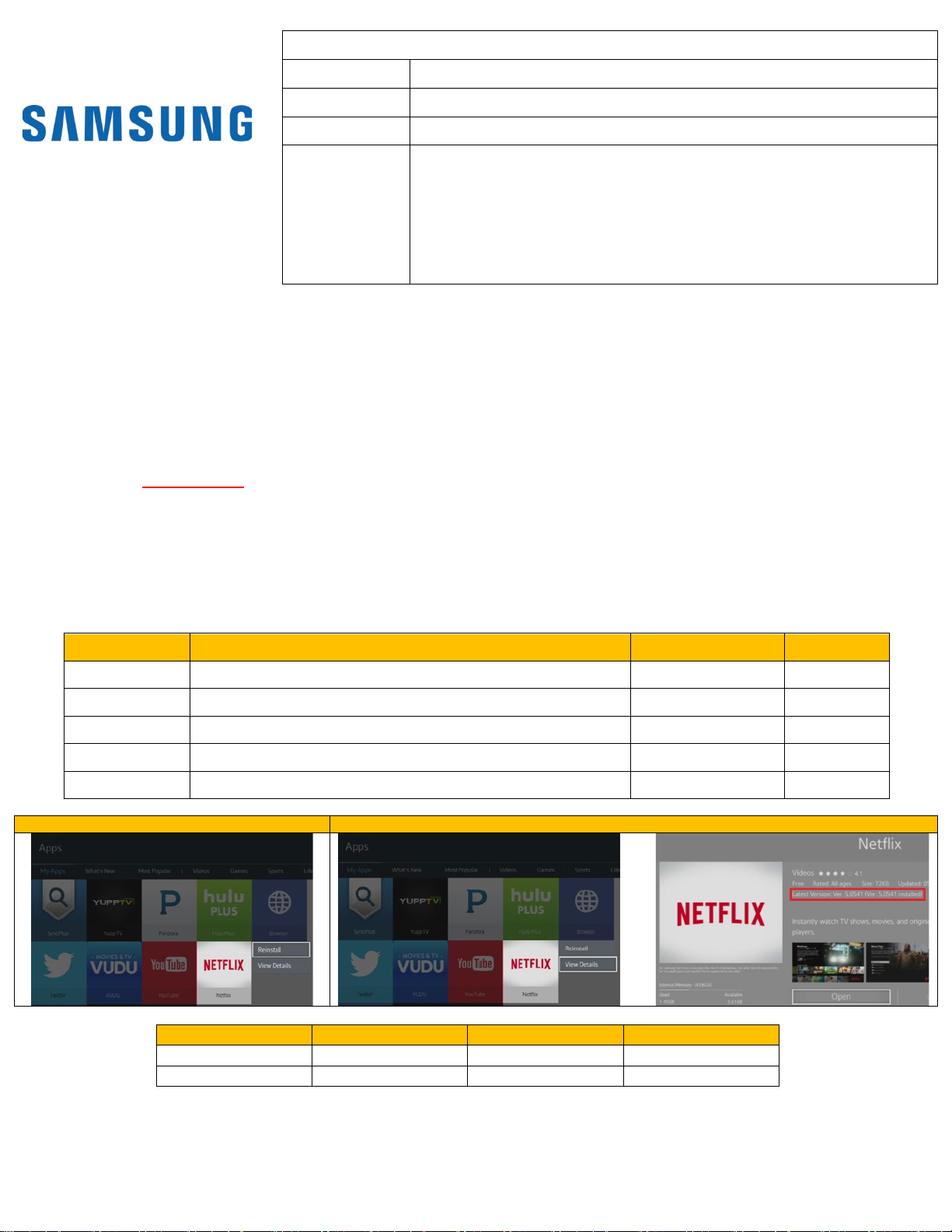

PRODUCT: LED TV

BULLETIN NUMBER: ASC20150601002

SERVICE BULLETIN

BULLETIN DATE: 06/01/2015

UN88JS9500FXZA, UN78JS9500FXZA, UN65JS9500FXZA, UN78JS9100FXZA, UN65JS9000FXZA,
UN55JS9000FXZA, UN48JS9000FXZA, UN78JS8600FXZA, UN65JS8500FXZA, UN55JS8500FXZA,
UN48JS8500FXZA, UN65JS850DFXZA, U
UN

50JU7500FXZA, UN48JU7500FXZA, UN40JU7500FXZA, UN65JU750DFXZA, UN65JU6700FXZA,

UN55JU6700FXZA, UN48JU6700FXZA, UN40JU6700FXZA, UN65JU670DFXZA, UN55JU670DFXZA,

MODELS:

UN75JU6500FXZA, UN65JU6500FXZA, UN60JU6500FXZA, UN55JU6500FXZA, UN50JU6500FXZA,
UN48JU6500FXZA, UN40JU6500FXZA, UN75JU650DFXZA, UN65JU650DFXZA, UN60JU650DFXZA,
UN55JU650DFXZA, UN50JU650DFXZA, UN48JU650DFXZA, UN40JU650DFXZA, UN65JU6400FXZA,
UN55JU6400FXZA, UN48JU6400FXZA, UN40JU6400FXZA, UN75J6300AFXZA, UN65J6300AFXZA,
UN60J6300AFXZA, UN55J6300AFXZA, UN50J6300AFXZA, UN48J6300AFXZA, UN40J6300AFXZA,
UN32J6300AFXZA, UN50J5500AFXZA, UN48J5500AFXZA, UN40J5500AFXZA, UN32J5500AFXZA,

N78JU7500FXZA, UN65JU7500FXZA, UN 55JU7500FXZA,

- SUBJECT: Abnormal Netflix Operation

- Symptoms:

o Netflix App freezes.
o Netflix App plays for a while. and then exits out to the TV source by itself.
o Netflix app is not available.
o Netflix app is not working.

- REPAIR GUIDE:

1) Do Not Change any parts.

2) Update the TV Software to the latest version. Refer to Table 1.

(Note: Make sure to download the S/W file from SAMSUNG.COM prior to customer visit.)

3) Verify the Netflix version in View Details, and then reinstall the application if needed. Refer to Image 1 and Image 2.
o Go to SmartHub> Apps > My Apps. Highlight Netflix, and then press and hold the Enter button on the remote for 3

seconds

o Select View Details to check the Netflix version number, and then select Reinstall to update/reinstall the application

if needed

[Table 1: Software Version Table]

Platform TV Models TV S/W Version App Version

Hawk-P JS9500, JS9000 1213.2 & Higher 5.0140

Hawk-M UHD JS8500, JU7500, JU750D, JU7100, JU6700, JU670D, JU650D 1210.6 & Higher 5.0140

Hawk-M FHD J6300, J5500 1205.5 & Higher 5.0540

NT14MJ J5205 1006.0 & Higher 4.1101

NT14M6 J6200 1006.0 & Higher 4.1101

▶

This information is published for experienced repair technicians only and is not intended for use by the public. It does not contain warnings to advise non-technical
individuals of possible dangers in attempting to service a product. Only experienced professional technicians should repair products powered by electricity. Any
attempt to service or repair the product or products dealt with in this information by anyone else could result in serious injury or death. Information provided in this
bulletin is subject to change or update without notice.
