Samsung UE40MU6122K Schematic

UHD TV

Chassis : UWU70
Model : UE40MU6122K

UE43MU6122K
UE50MU6122K
UE55MU6122K
UE65MU6122K

SERVICE

UHD TV Contents

1. Precautions

2. Product specications

3. Disassembly and Reassembly

4. Troubleshooting

5. Wiring Diagram

Manual

UE**MU6122K

Contents

1. Precautions ...................................................................................................................1-1

1-1. Safety Precautions .............................................................................................................1-1

1-1-1. Warnings ...................................................................................................................1-1

1-1-2. Servicing the LED TV ...............................................................................................1-1

1-1-3. Fire and Shock Hazard .............................................................................................1-1

1-1-4. Product Safety Notices .............................................................................................1-2

1-2. Servicing Precautions ..........................................................................................................1-3

1-2-1. General Servicing Precautions ................................................................................. 1-3

1-3. Static Electricity Precautions ...............................................................................................1-4

1-4. Installation Precautions .......................................................................................................1-5

2. Product Specications.................................................................................................2-1

2-1. Product information .............................................................................................................2-1

2-2. Product specication ...........................................................................................................2-3

2-3. Accessories .......................................................................................................................2-20

2-4. Viewing the Functions .......................................................................................................2-21

2-4-1. 2017' Concept .........................................................................................................2-21

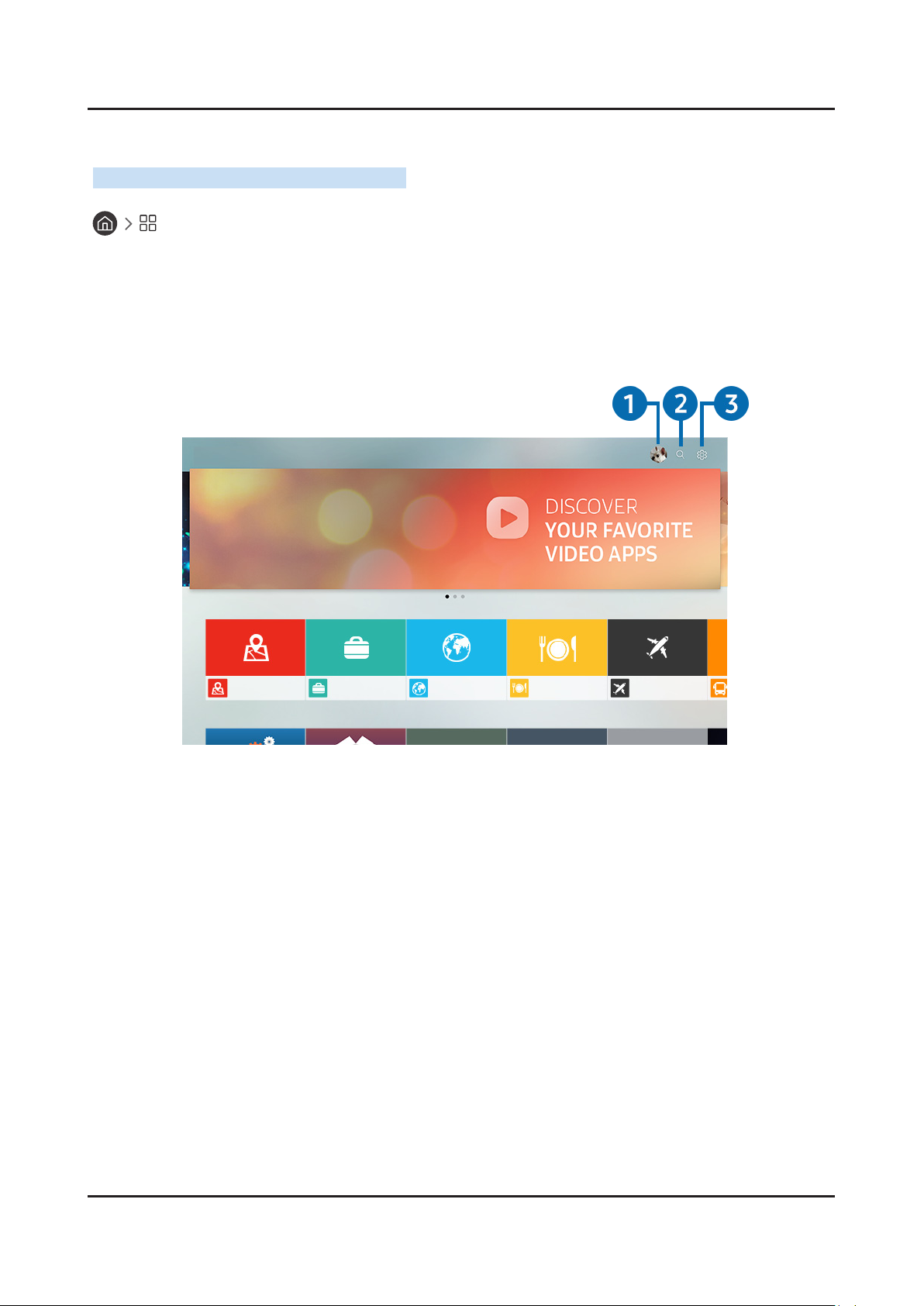

2-4-2. Smart Features .......................................................................................................2-22

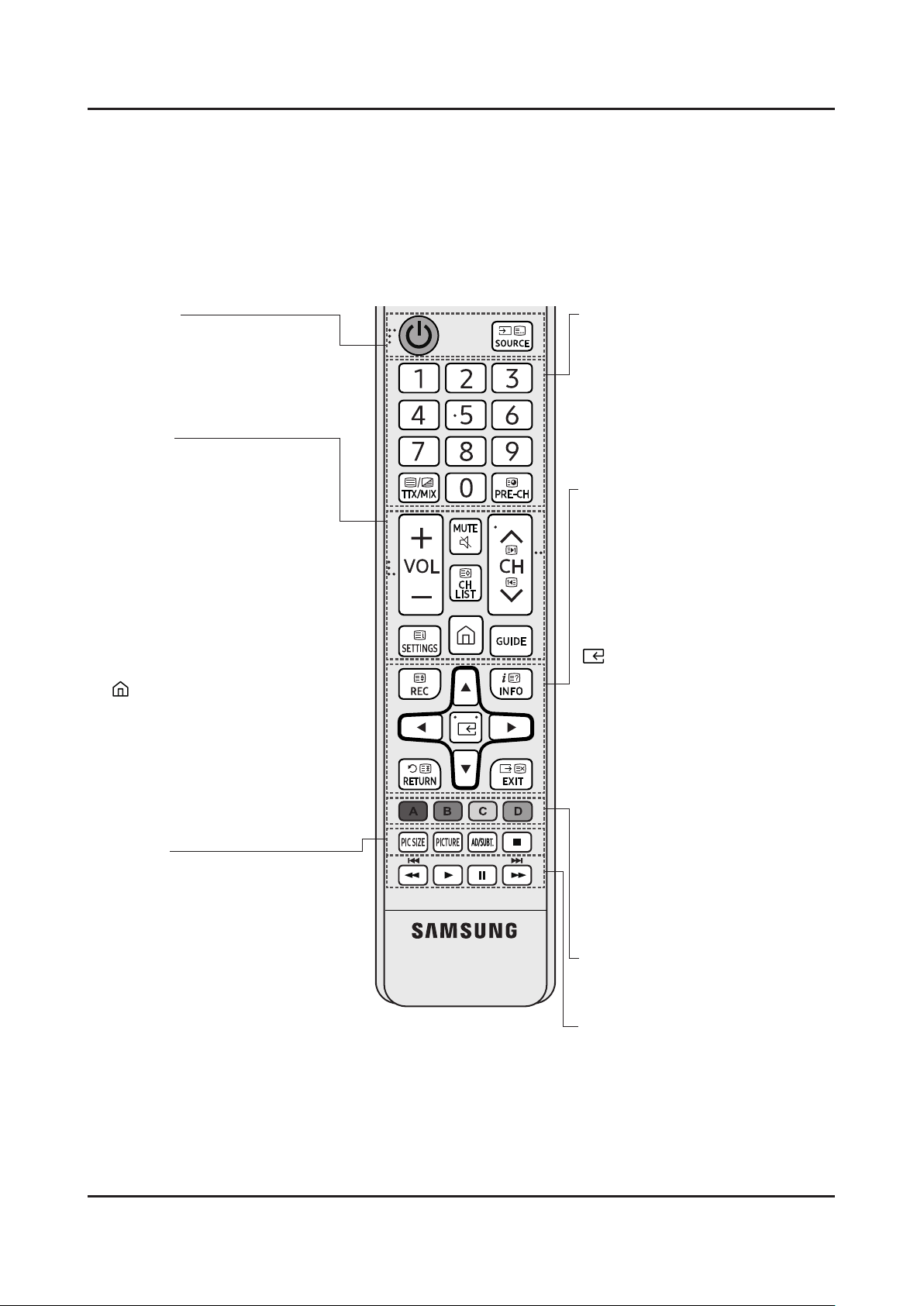

2-4-3. The Standard Remote Control ................................................................................ 2-28

2-4-4. Supported Resolutions for UHD Input Signals .......................................................2-29

2-4-5. HDMI black level ..................................................................................................... 2-30

2-4-6. Supported Formats .................................................................................................2-31

3. Disassembly and Reassembly ....................................................................................3-1

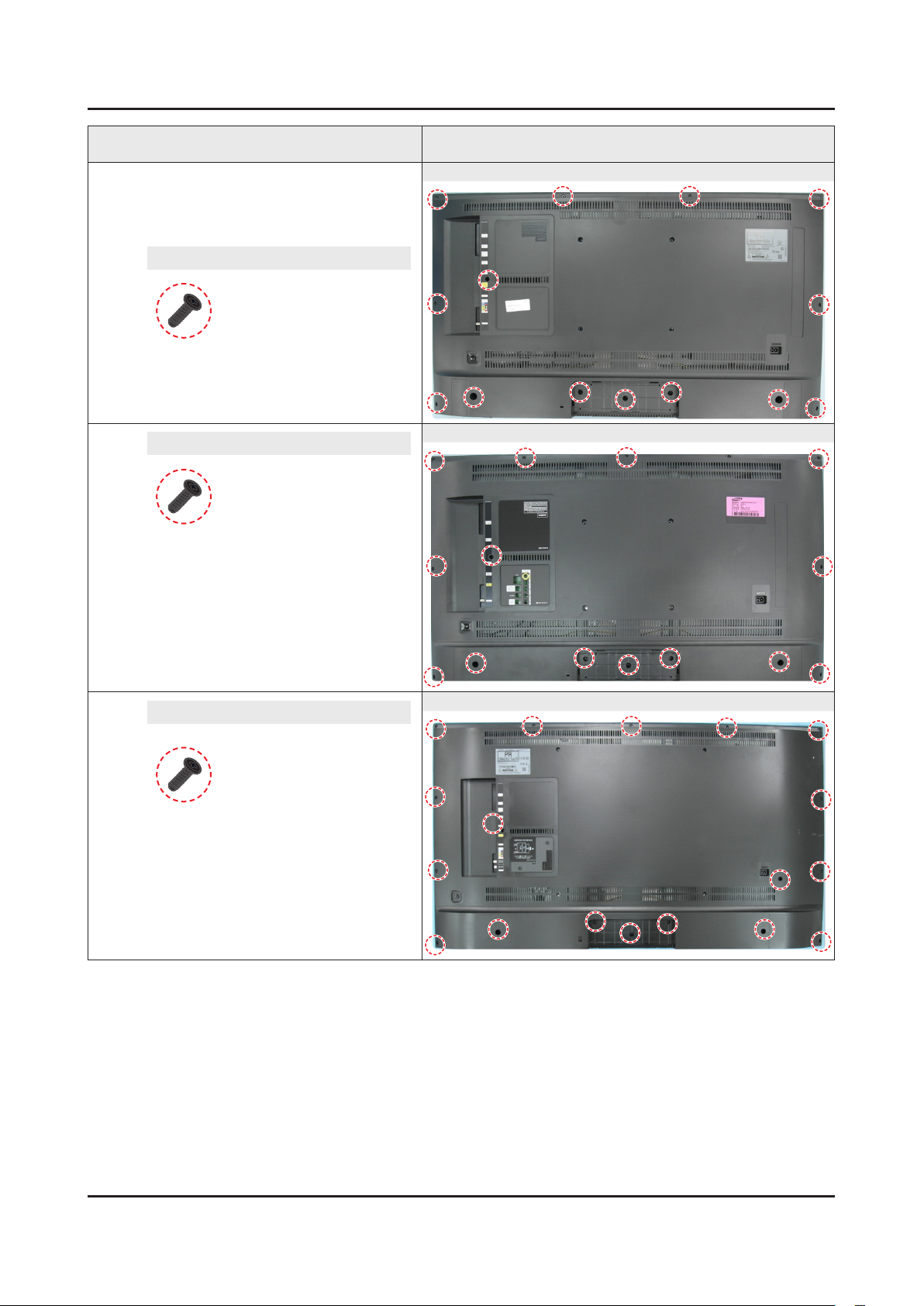

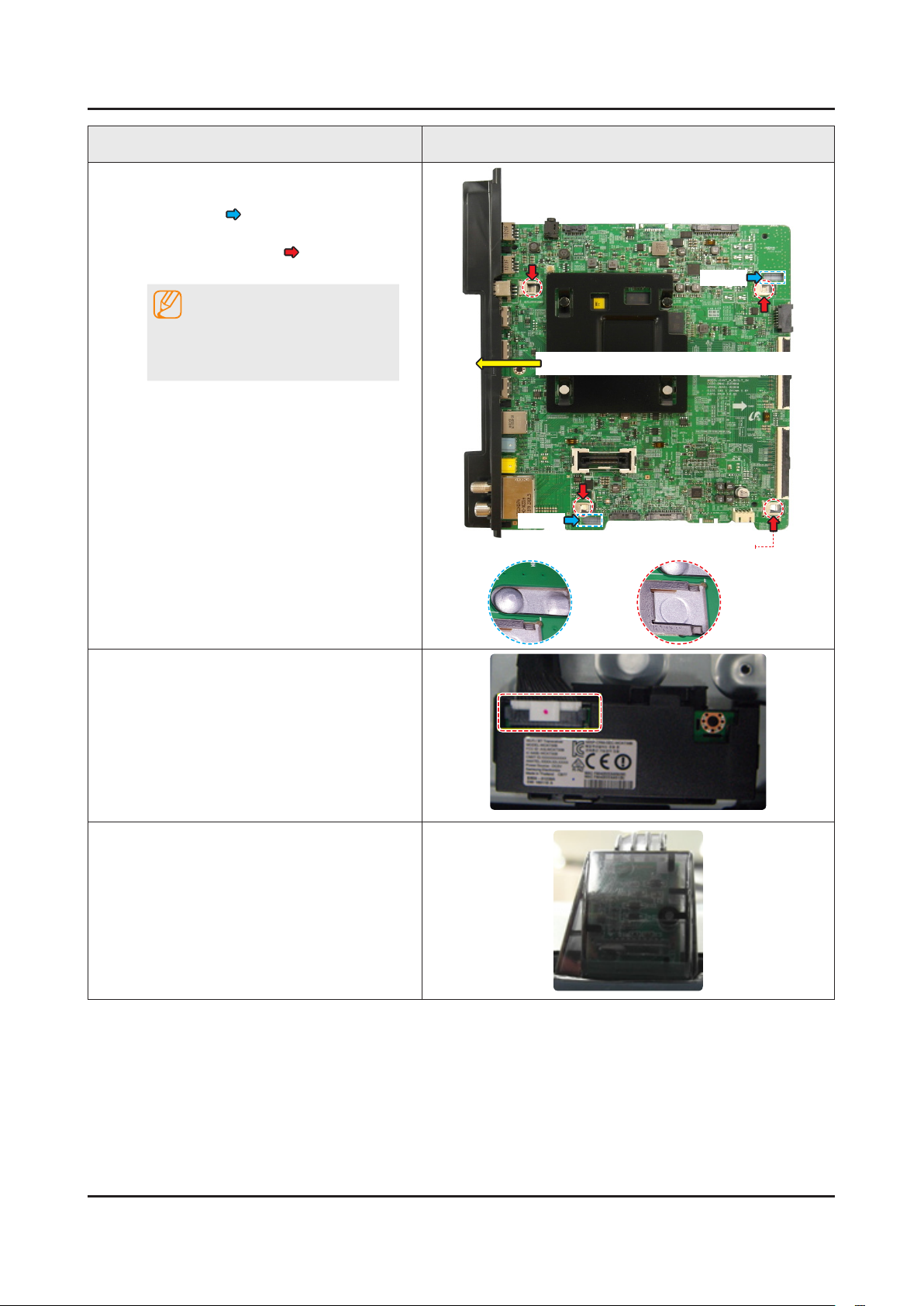

3-1. Disassembly and Reassembly ............................................................................................3-1

3-1-1. 40" ~65" MU6100 .....................................................................................................3-1

4. Troubleshooting ...........................................................................................................4-1

4-1. Previous Check ..................................................................................................................4-1

4-2. How to Check Fault Symptom .............................................................................................4-3

4-2-1. Power .......................................................................................................................4-3

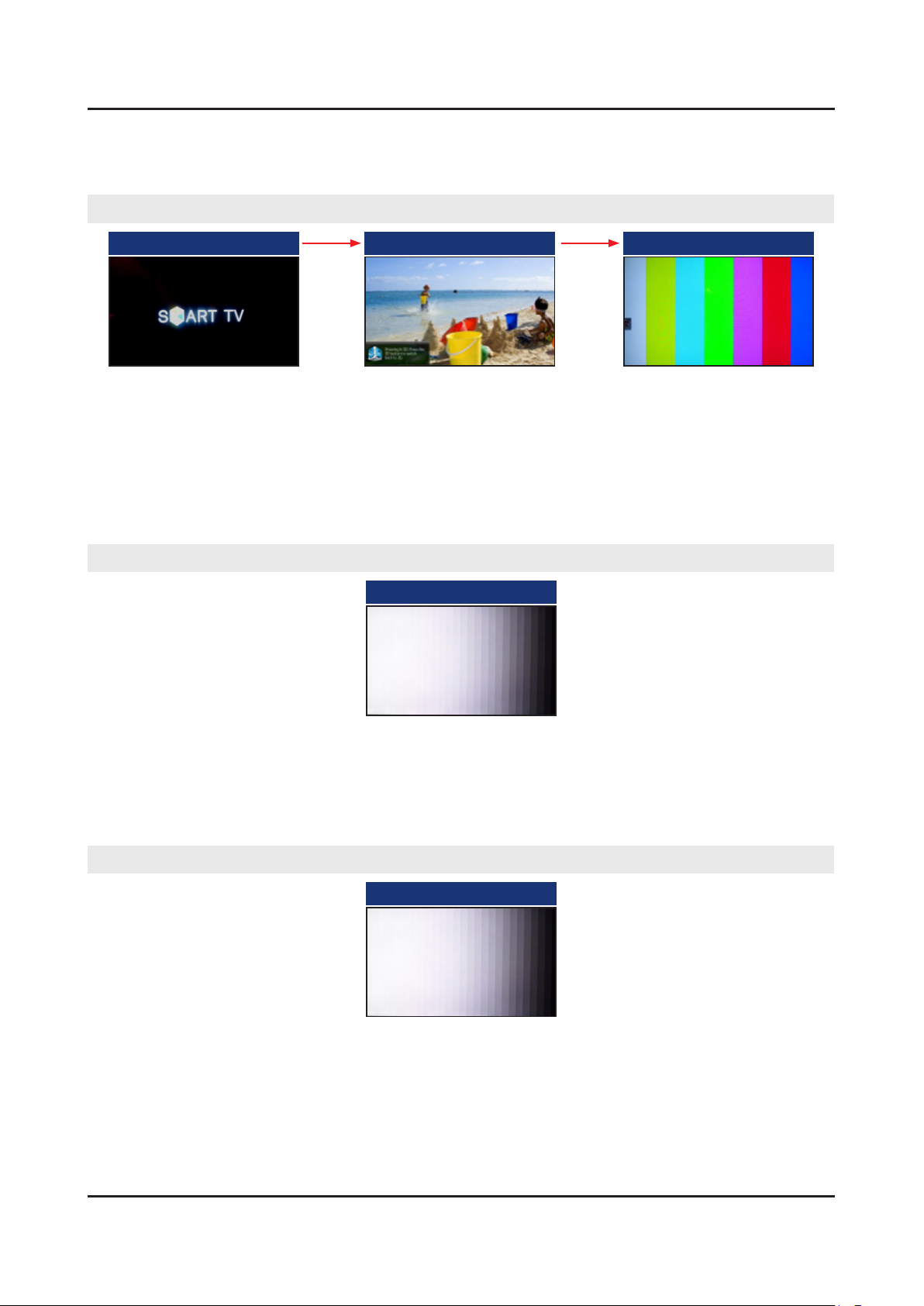

4-2-2. Video .........................................................................................................................4-7

4-2-3. Audio .......................................................................................................................4-10

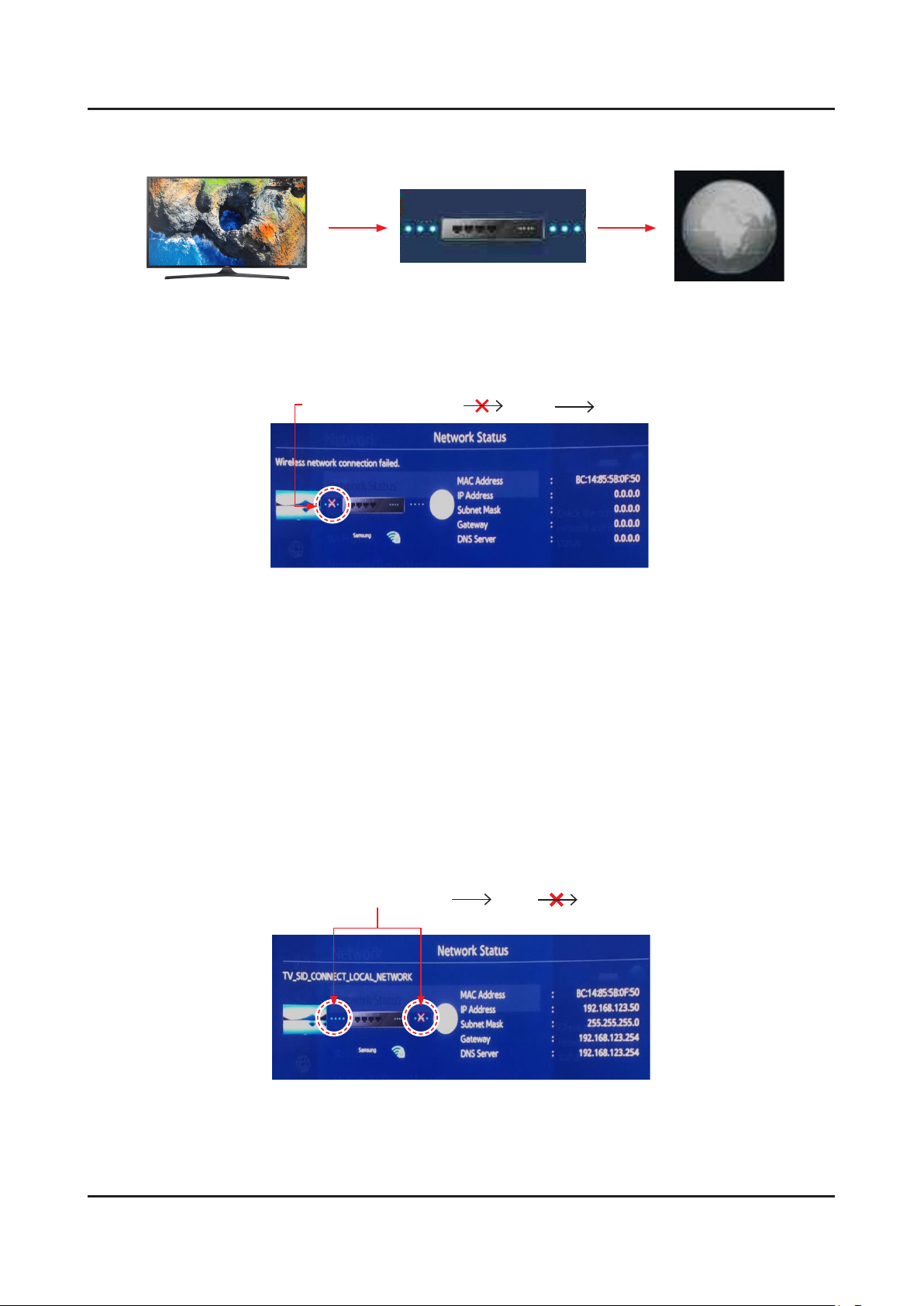

4-2-4. Network................................................................................................................... 4-11

4-2-5. Smart Hub ..............................................................................................................4-12

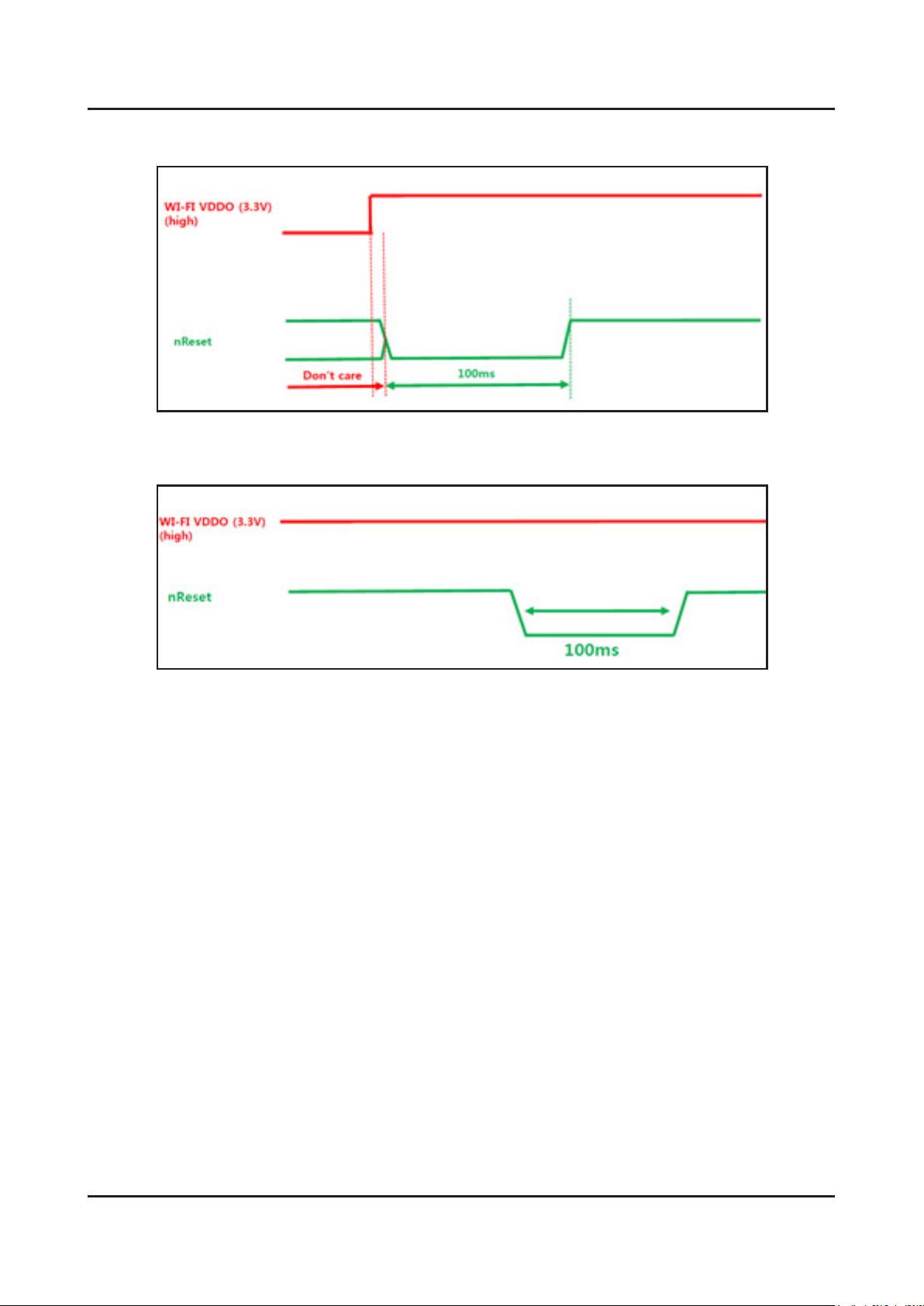

4-2-6. WiFi Module ............................................................................................................ 4-14

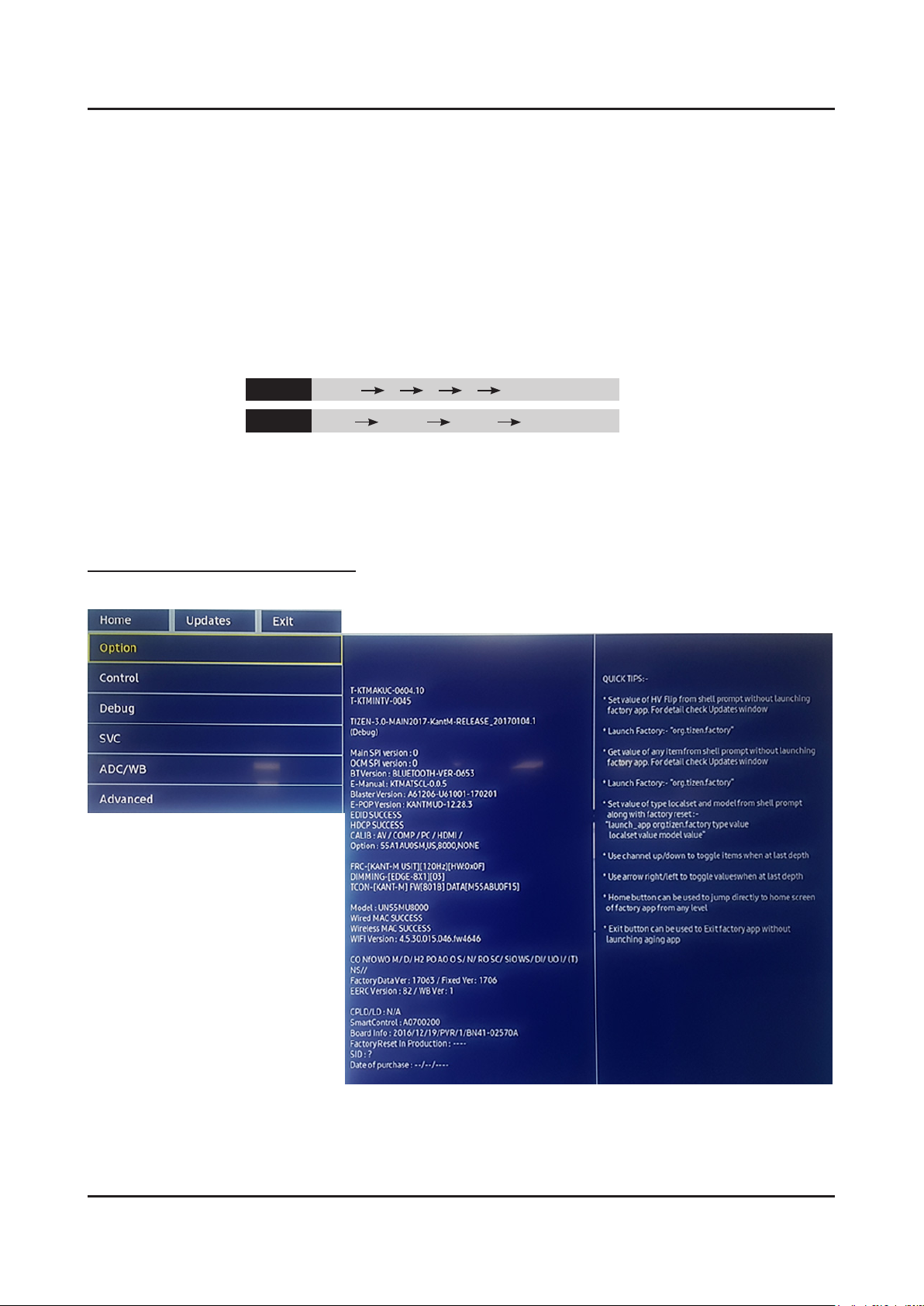

4-3. Factory Mode .....................................................................................................................4-16

4-4. Factory Mode Adjustments ................................................................................................4-21

4-4-1. Detail Factory Option ..............................................................................................4-21

4-4-2. Factory Data ...........................................................................................................4-26

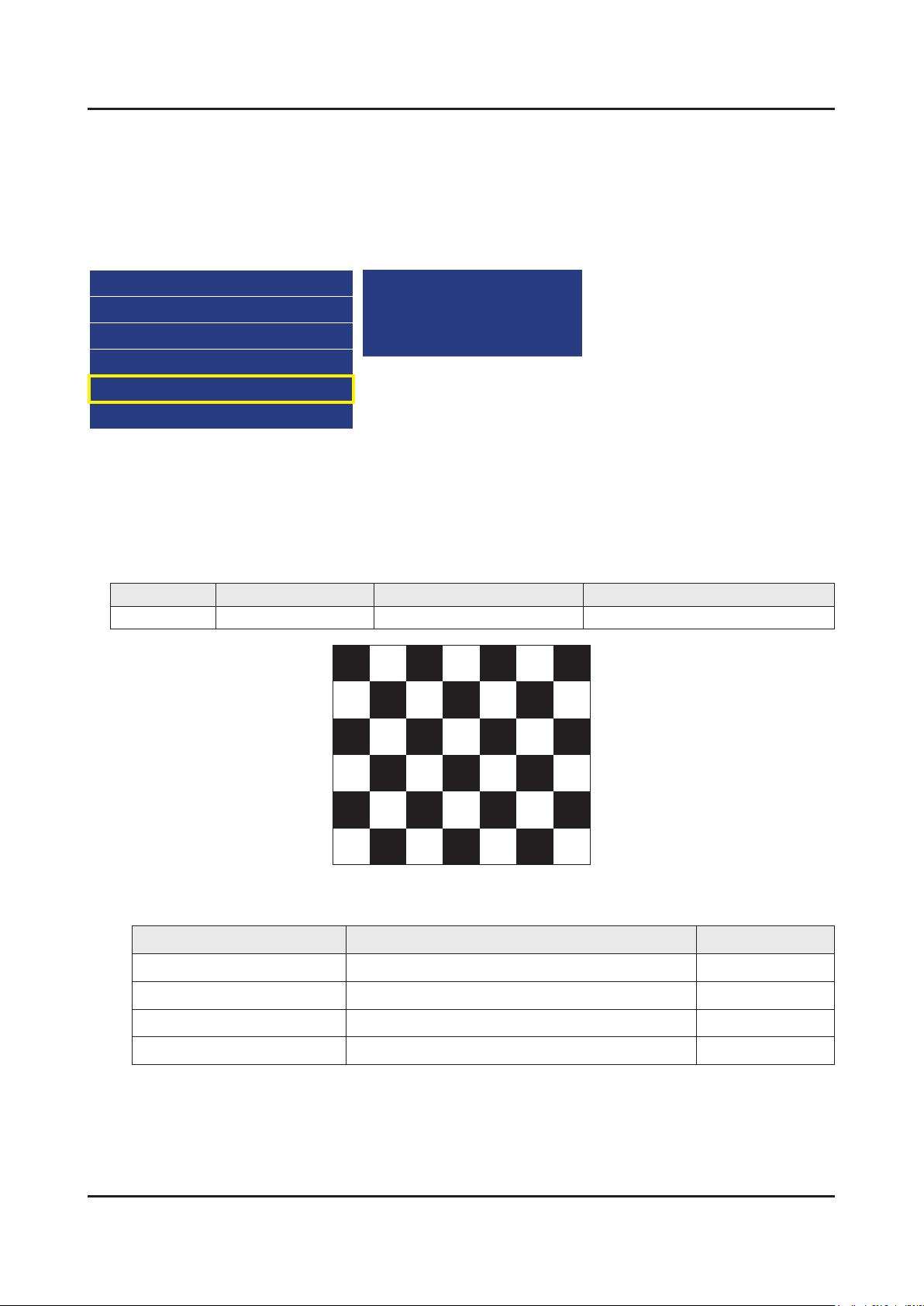

4-6. White Balance ...................................................................................................................4-34

4-6-1. Calibration ..............................................................................................................4-34

4-6-2. Service Adjustment ................................................................................................. 4-34

4-6-3. Adjustment .............................................................................................................. 4-36

4-7. Updating the TV’s Software ...............................................................................................4-37

5. Wiring Diagram .............................................................................................................5-1

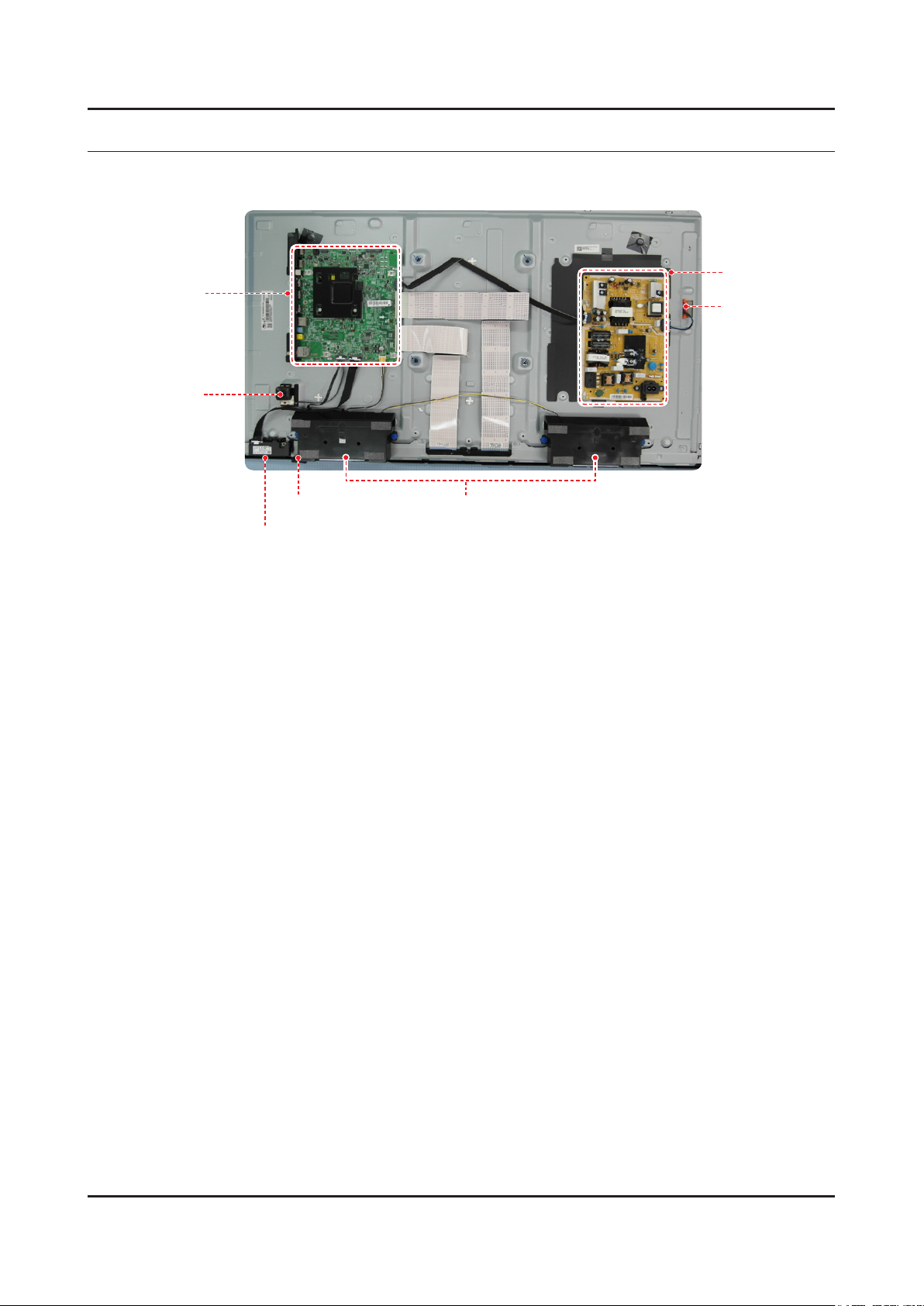

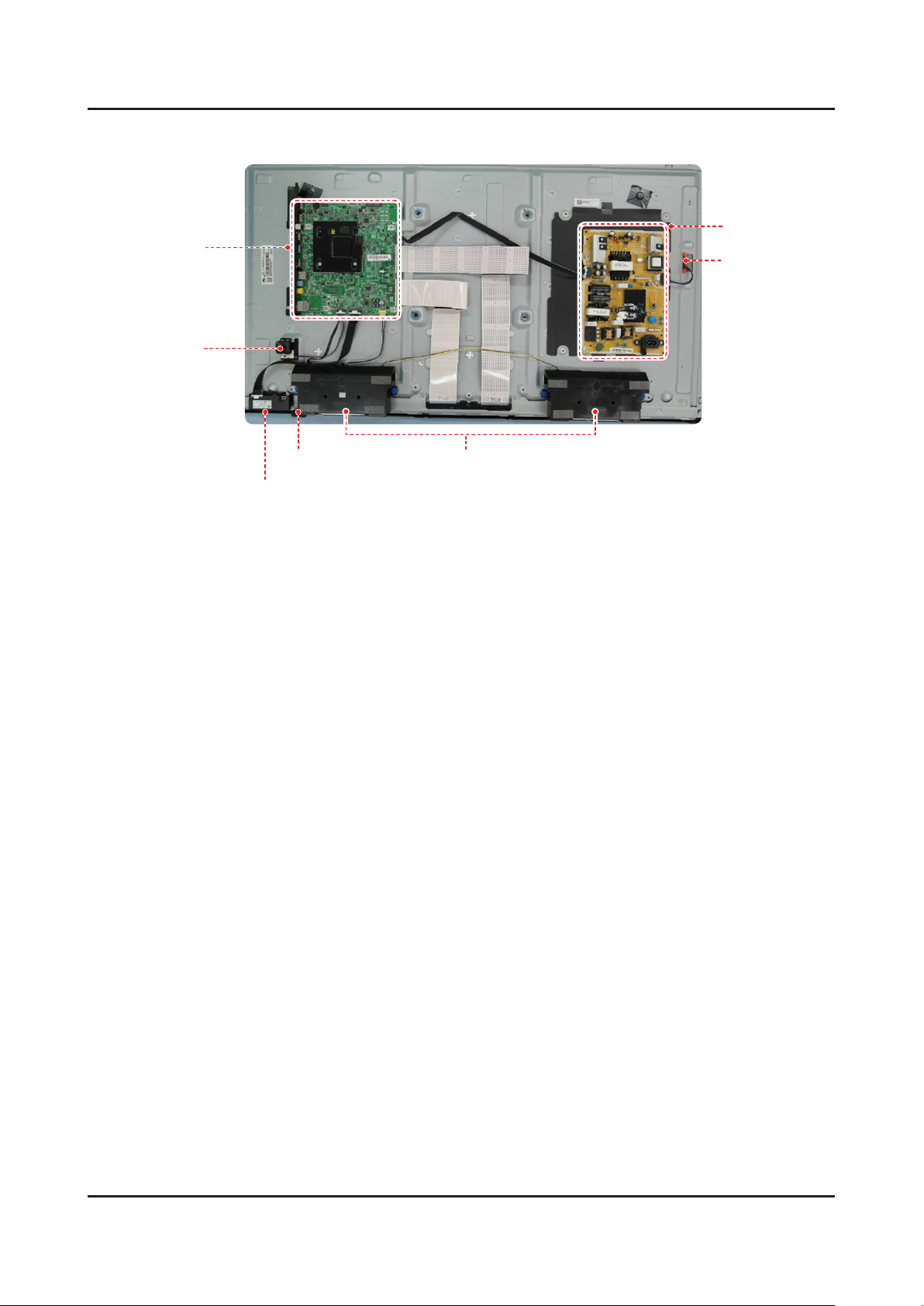

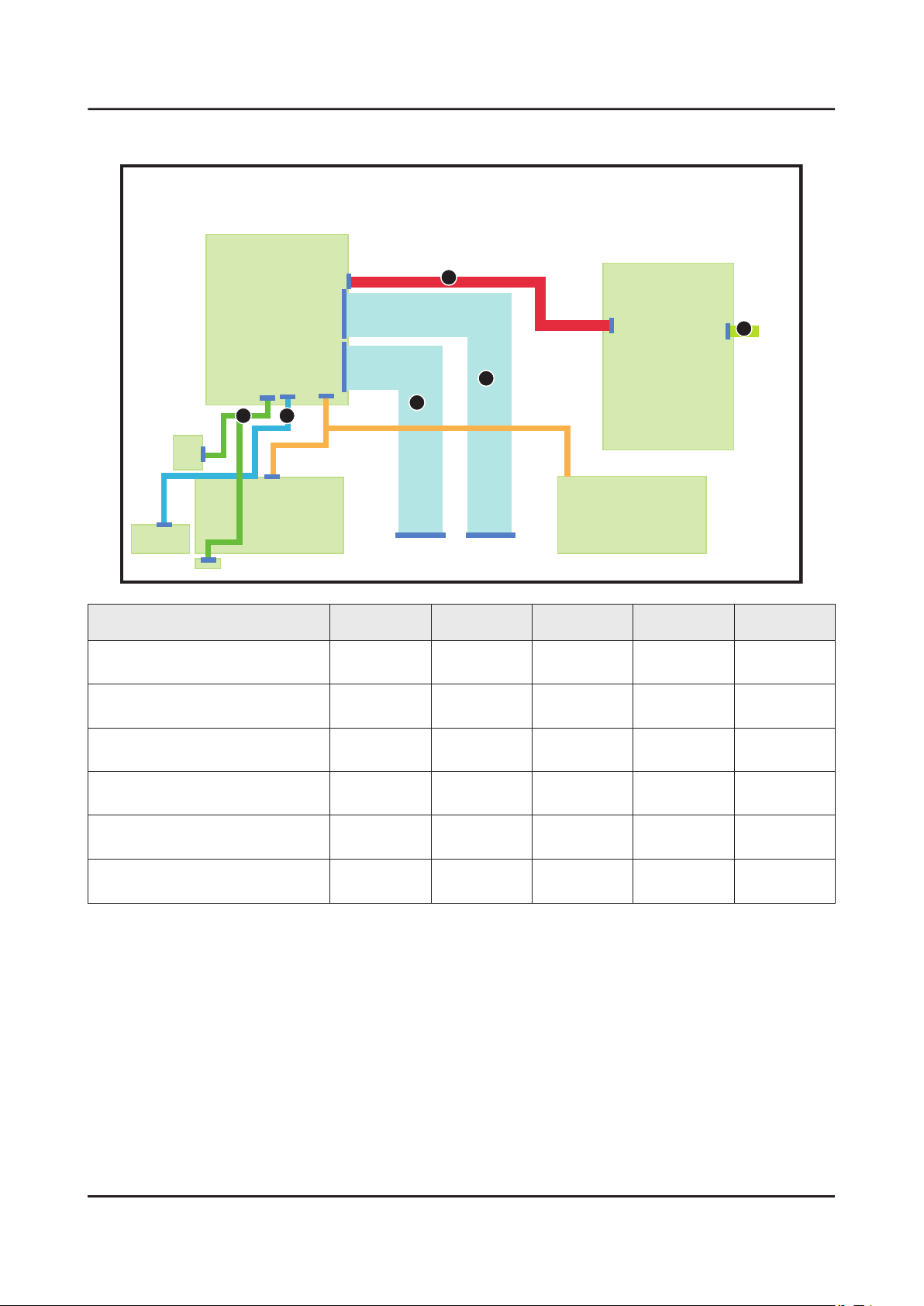

5-1. Layout ..................................................................................................................................5-1

5-2. Cable ...................................................................................................................................5-2

5-3. Connector ............................................................................................................................5-3

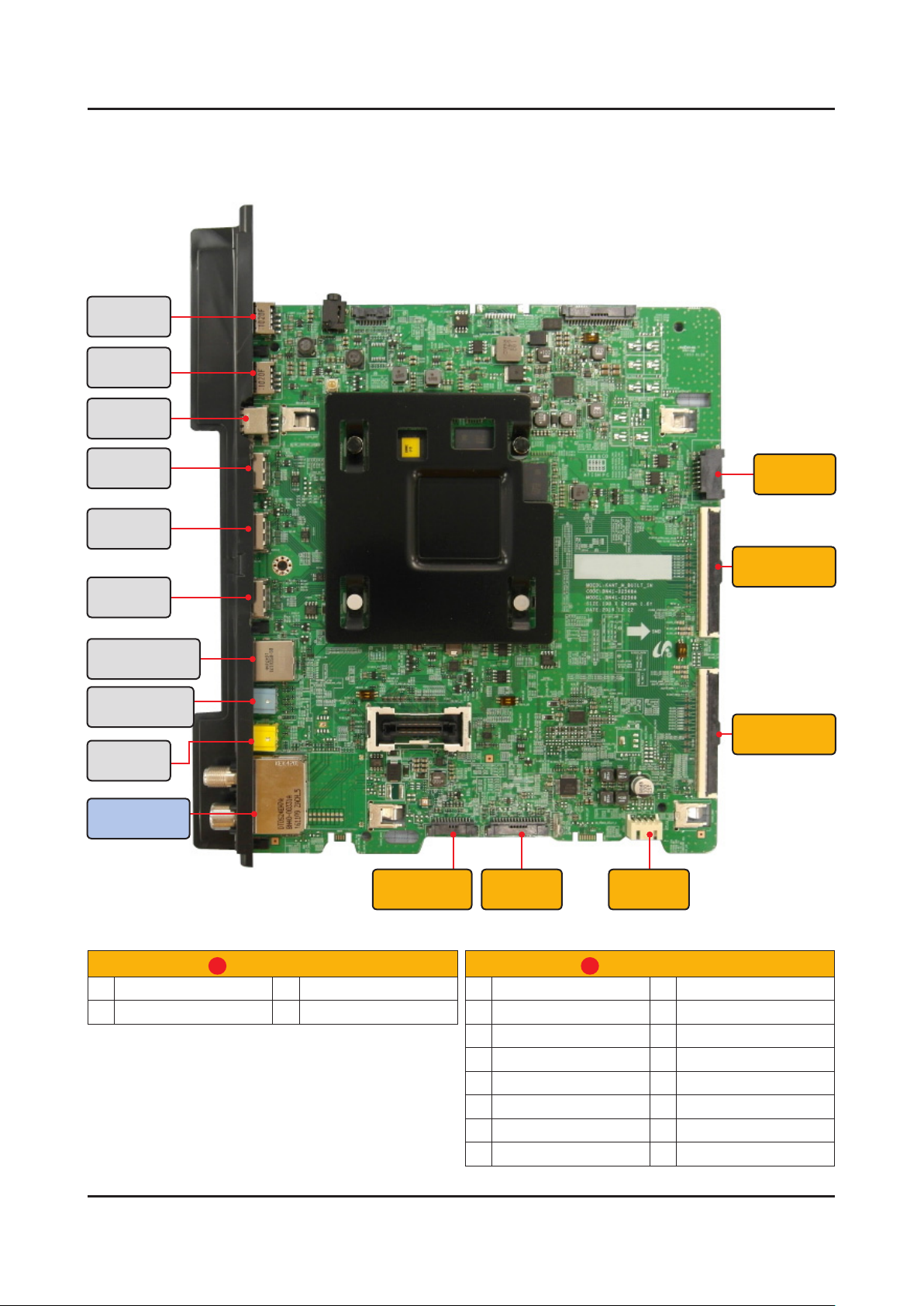

5-3-1. Main Board ............................................................................................................... 5-3

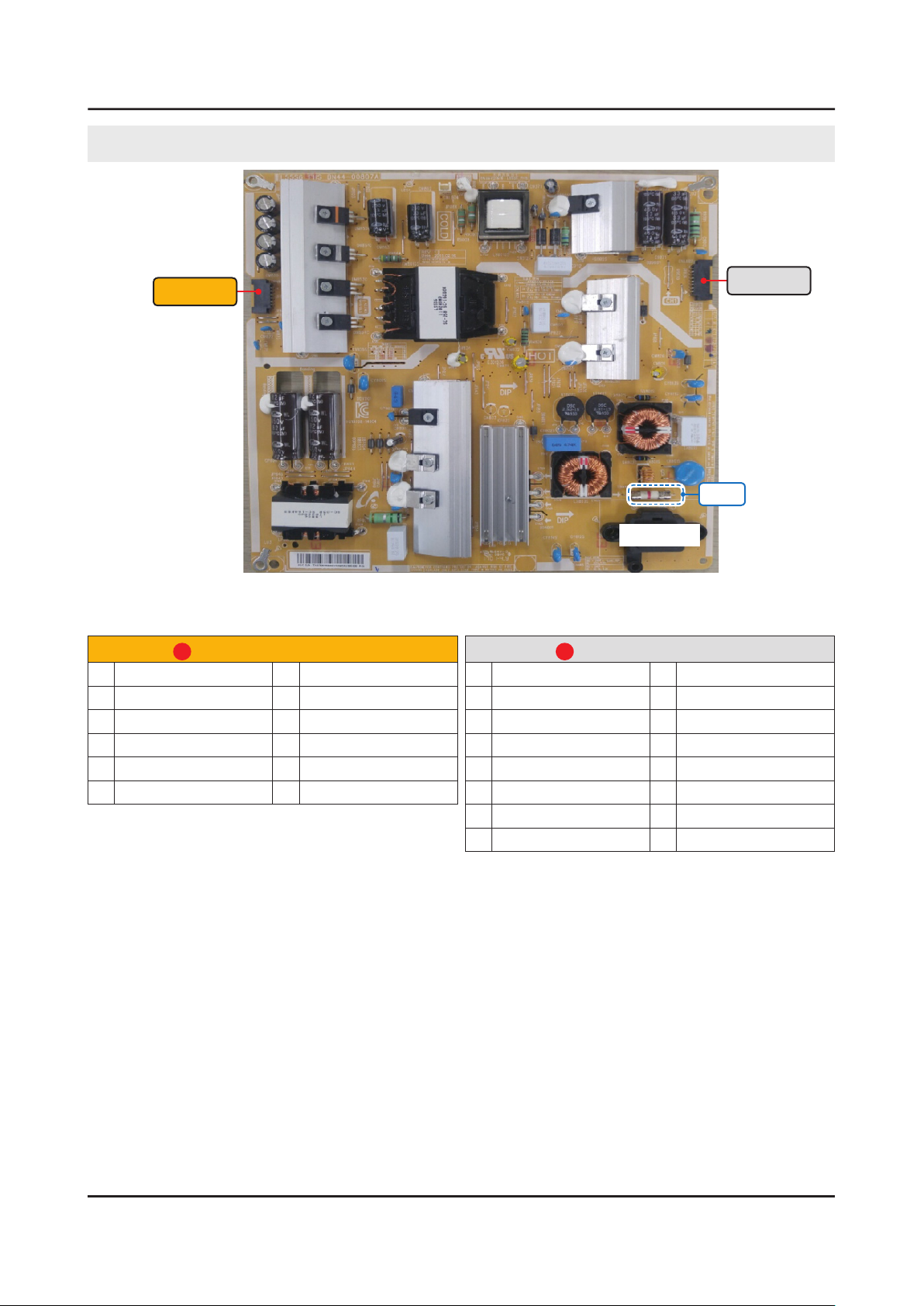

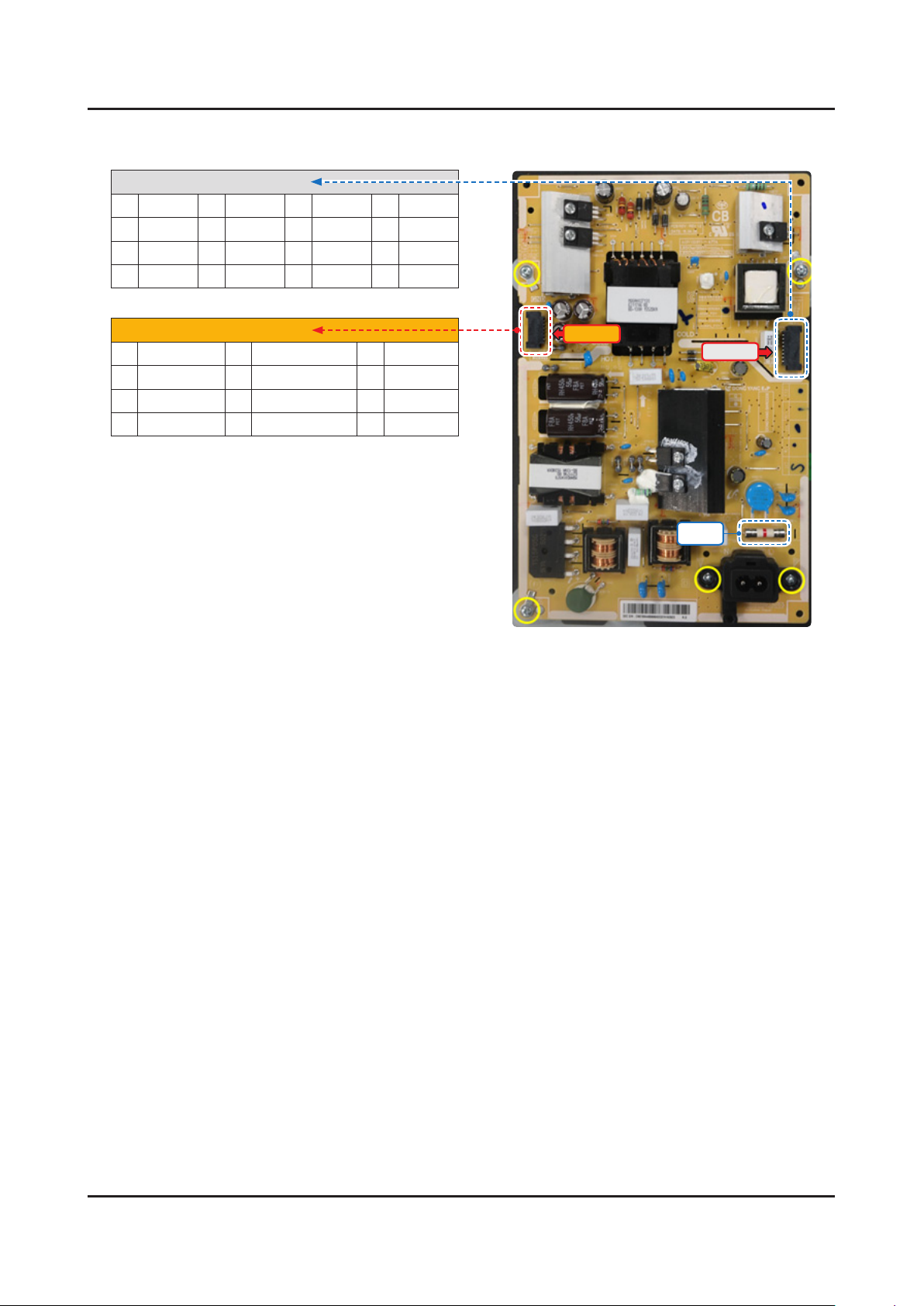

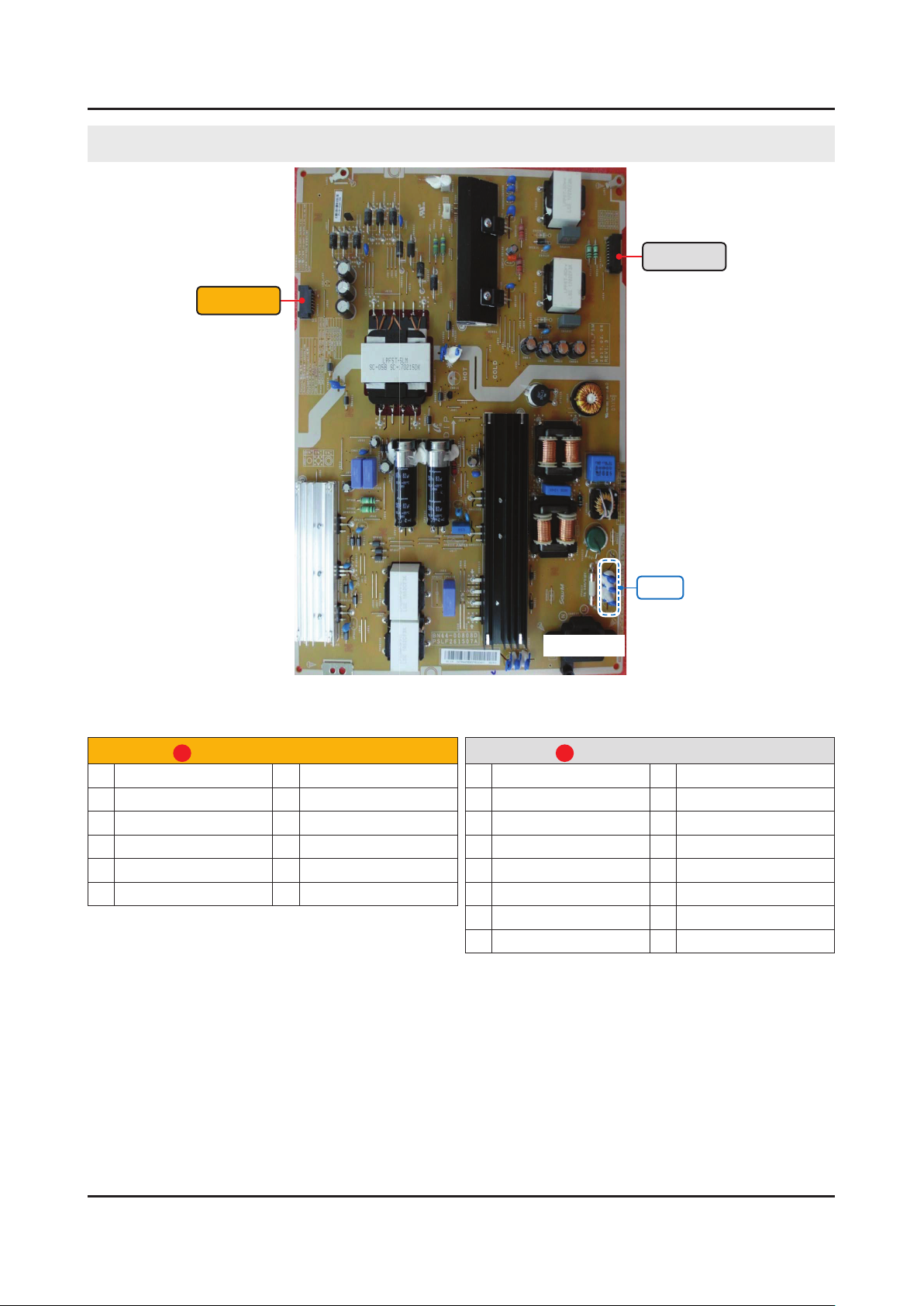

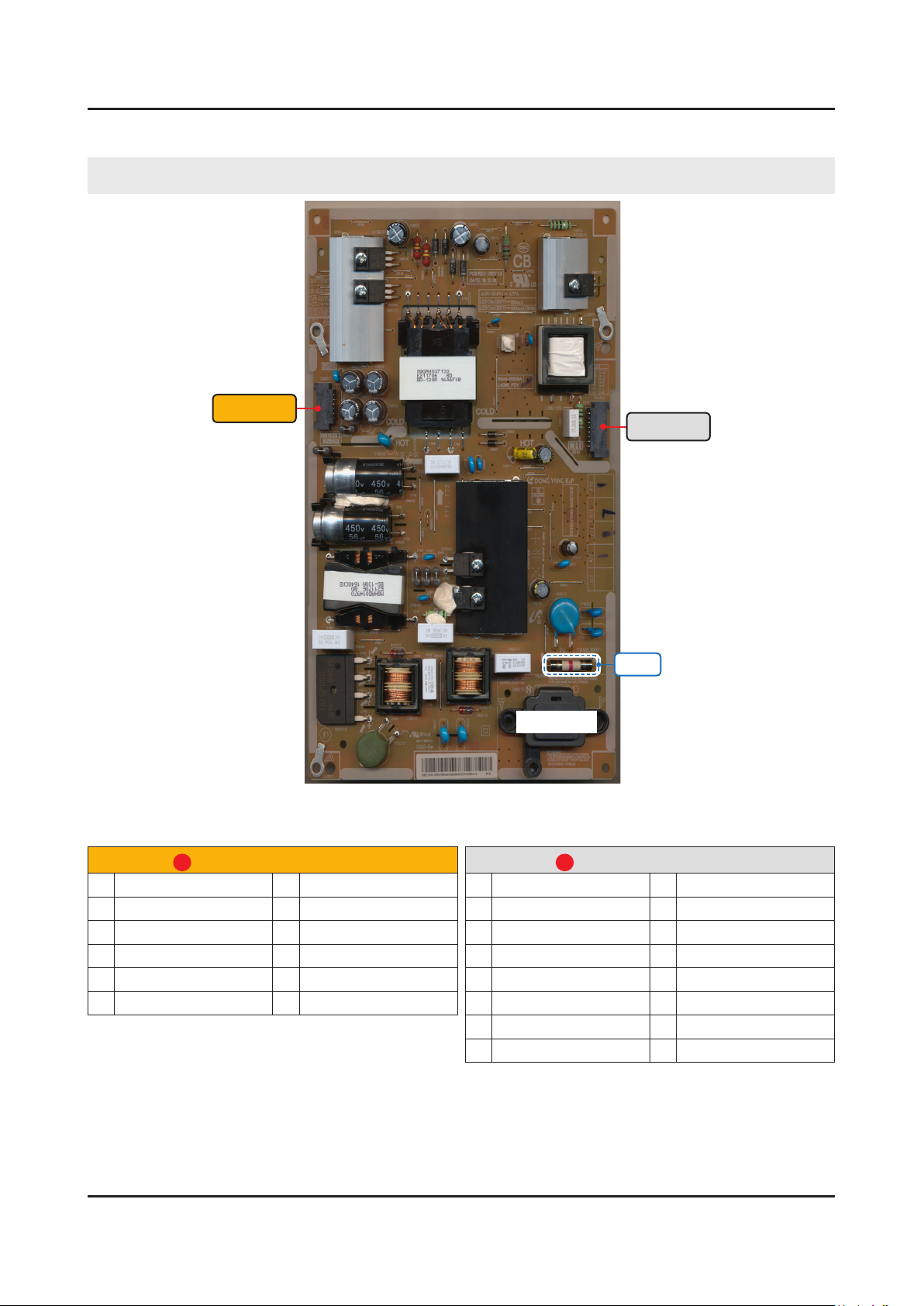

5-3-2. SMPS Board .............................................................................................................5-7

ANNEX. Exploded View & Part List [UE40MU6122KXXH FA01] ........................ ANNEX-1

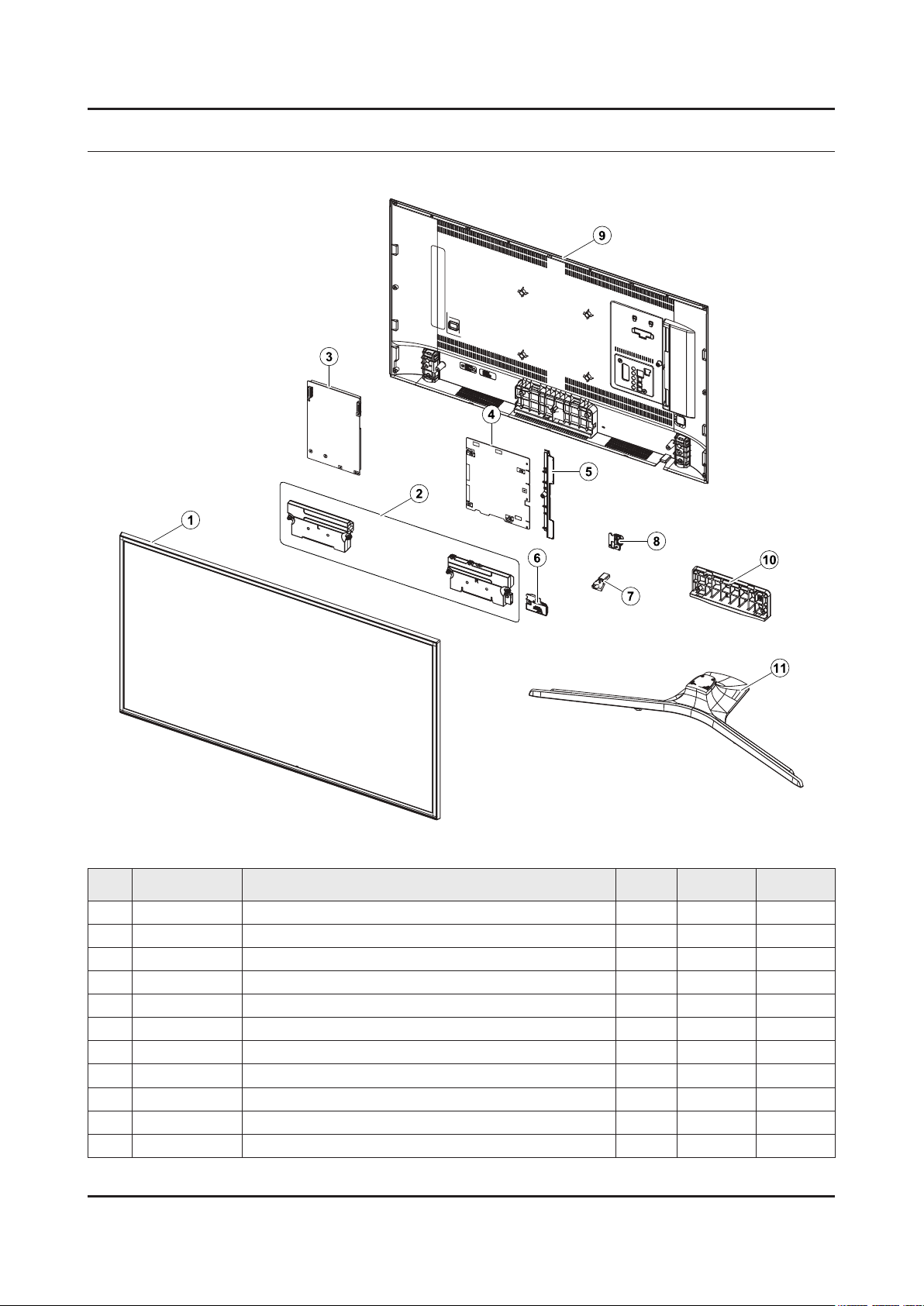

1-1. Exploded View .......................................................................................................... ANNEX-1

1-1-1. Parts List ........................................................................................................ ANNEX-1

2-1. Electrical Parts List ................................................................................................... ANNEX-2

ANNEX. Exploded View & Part List [UE43MU6122KXXH AA01]........................ ANNEX-1

1-1. Exploded View .......................................................................................................... ANNEX-1

1-1-1. Parts List ........................................................................................................ ANNEX-1

2-1. Electrical Parts List ................................................................................................... ANNEX-2

ANNEX. Exploded View & Part List [UE50MU6122KXXH DB02] ....................... ANNEX-1

1-1. Exploded View .......................................................................................................... ANNEX-1

1-1-1. Parts List ........................................................................................................ ANNEX-1

2-1. Electrical Parts List ................................................................................................... ANNEX-2

ANNEX. Exploded View & Part List [UE55MU6122KXXH FA01] ........................ ANNEX-1

1-1. Exploded View .......................................................................................................... ANNEX-1

1-1-1. Parts List ........................................................................................................ ANNEX-1

2-1. Electrical Parts List ................................................................................................... ANNEX-2

ANNEX. Exploded View & Part List [UE65MU6122KXXH DA01] ....................... ANNEX-1

1-1. Exploded View .......................................................................................................... ANNEX-1

1-1-1. Parts List ........................................................................................................ ANNEX-1

2-1. Electrical Parts List ................................................................................................... ANNEX-2

This Service Manual is a property of Samsung Electronics Co.,Ltd.

Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.

© 2017 Samsung Electronics Co.,Ltd.

All rights reserved.

Printed in Korea

1. Precautions

1. Precautions

1-1. Safety Precautions

Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as
electrical shock.

1-1-1. Warnings

For continued safety, do not attempt to modify the circuit board.

WARNING

1-1-2. Servicing the LED TV

When servicing the LED TV, Disconnect the AC line cord from the AC outlet.1.

It is essential that service technicians have an accurate voltage meter available at all times. Check the calibration of this 2.
meter periodically.

1-1-3. Fire and Shock Hazard

Before returning the monitor to the user, perform the following safety checks:

Inspect each lead dress to make certain that the leads are not pinched or that hardware is not lodged between the 1.
chassis and other metal parts in the monitor.

Inspect all protective devices such as nonmetallic control knobs, insulating materials, cabinet backs, adjustment and 2.
compartment covers or shields, isolation resistorcapacitor networks, mechanical insulators, etc.

Leakage Current Hot Check:3.

Disconnect the AC power and DC power jack before servicing.

(READING SHOULD)

DEVICE
UNDER

TEST

ALSO TEST WITH
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED)

NOT BE ABOVE 0.5mA

2-WIRE CORD

TEST ALL

EXPOSED METAL

SURFACES

LEAKAGE
CURRENT

TESTER

EARTH

GROUND

Do not use an isolation transformer during this test.

Use a leakage current tester or a metering system that complies with American National Standards

WARNING

Institute (ANSI C101.1, Leakage Current for Appliances), and Underwriters Laboratories (UL
Publication UL1410, 59.7).

With the unit completely reassembled, plug the AC line cord directly into a 120V AC outlet. With the unit’s AC switch rst 4.

in the ON position and then OFF, measure the current between a known earth ground (metal water pipe, conduit, etc.)
and all exposed metal parts, including: metal cabinets, screwheads and control shafts.
The current measured should not exceed 0.5 milliamp.
Reverse the power-plug prongs in the AC outlet and repeat the test.

1-1

1-2

1. Precautions

1-1-4. Product Safety Notices

Some electrical and mechanical parts have special safetyrelated characteristics which are often not evident from visual
inspection. The protection they give may not be obtained by replacing them with components rated for higher voltage,
wattage, etc. Parts that have special safety characteristics are identied by on schematics and parts lists. A substitute
replacement that does not have the same safety characteristics as the recommended replacement part might create

shock, re and/or other hazards. Product safety is under review continuously and new instructions are issued whenever

appropriate.

1-3

1. Precautions

1-2. Servicing Precautions

An electrolytic capacitor installed with the wrong polarity might explode.

WARNING

Before servicing units covered by this service manual, read and follow the Safety Precautions section of

CAUTION

NOTE

1-2-1. General Servicing Precautions

Always unplug the unit’s AC power cord from the AC power source and disconnect the DC Power Jack before 1.
attempting to: (a) remove or reinstall any component or assembly, (b) disconnect PCB plugs or connectors, (c) connect
a test component in parallel with an electrolytic capacitor.

Some components are raised above the printed circuit board for safety. An insulation tube or tape is sometimes used. 2.
The internal wiring is sometimes clamped to prevent contact with thermally hot components. Reinstall all such elements
to their original position.

After servicing, always check that the screws, components and wiring have been correctly reinstalled. Make sure that 3.
the area around the serviced part has not been damaged.

Check the insulation between the blades of the AC plug and accessible conductive parts (examples: metal panels, input 4.
terminals and earphone jacks).

Insulation Checking Procedure: Disconnect the power cord from the AC source and turn the power switch ON. Connect 5.
an insulation resistance meter (500 V) to theblades of the AC plug. The insulation resistance between each blade of the
AC plug and accessible conductive parts (see above) should be greater than 1 megohm.

Always connect a test instrument’s ground lead to the instrument chassis ground before connecting the positive lead; 6.
always remove the instrument’s ground lead last.

this manual.

If unforeseen circumstances create conict between the following servicing precautions and any of the

safety precautions, always follow the safety precautions.

1-4

1. Precautions

1-3. Static Electricity Precautions

Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly

called Electrostatically Sensitive Devices (ESD). Examples of typical ESD are integrated circuits and some eld-effect

transistors. The following techniques will reduce the incidence of component damage caused by static electricity.

Immediately before handling any semiconductor components or assemblies, drain the electrostatic charge from your 1.
body by touching a known earth ground. Alternatively, wear a discharging wrist-strap device. To avoid a shock hazard,
be sure to remove the wrist strap before applying power to the monitor.

After removing an ESD-equipped assembly, place it on a conductive surface such as aluminum foil to prevent 2.
accumulation of an electrostatic charge.

Do not use freon-propelled chemicals. These can generate electrical charges sufcient to damage ESDs.3.

Use only a grounded-tip soldering iron to solder or desolder ESDs.4.

Use only an anti-static solder removal device. Some solder removal devices not classied as “anti-static” can generate 5.
electrical charges sufcient to damage ESDs.

Do not remove a replacement ESD from its protective package until you are ready to install it. Most replacement ESDs 6.
are packaged with leads that are electrically shorted together by conductive foam, aluminum foil or other conductive
materials.

Immediately before removing the protective material from the leads of a replacement ESD, touch the protective material 7.
to the chassis or circuit assembly into which the device will be installed.

Be sure no power is applied to the chassis or circuit and observe all other safety precautions.

CAUTION

Minimize body motions when handling unpackaged replacement ESDs. Motions such as brushing clothes together, or 8.

lifting your foot from a carpeted oor can generate enough static electricity to damage an ESD.

1-5

1. Precautions

1-4. Installation Precautions

For safety reasons, more than a people are required for carrying the product.1.

Keep the power cord away from any heat emitting devices, as a melted covering may cause re or electric shock.2.

Do not place the product in areas with poor ventilation such as a bookshelf or closet. The increased internal temperature 3.

may cause re.

Bend the external antenna cable when connecting it to the product. This is a measure to protect it from being exposed 4.

to moisture. Otherwise, it may cause a re or electric shock.

Make sure to turn the power off and unplug the power cord from the outlet before repositioning the product. Also check 5.

the antenna cable or the external connectors if they are fully unplugged. Damage to the cord may cause re or electric

shock.

Keep the antenna far away from any high-voltage cables and install it rmly. Contact with the highvoltage cable or the 6.
antenna falling over may cause re or electric shock.

When installing the product, leave enough space (0.4m) between the product and the wall for ventilation purposes. 7.

A rise in temperature within the product may cause re.

If an equipment is provided with a replaceable battery, and if replacement by an incorrect type could result in an 8.
explosion (for example, with some lithium batteries), the following applies:

Risk of explosion if battery is replaced by an incorrect type dispose of used batteries according to •
the instructions.

Do not dispose of batteries in a re.•

Do not short circuit, disassemble or overheat the batteries.•

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent •
type.

Do not be exposed to excessive heat such as sunshine, re or the like.•

2. Product Specications

2-1. Product information

Model UE**MU6122K

2. Product specications

W

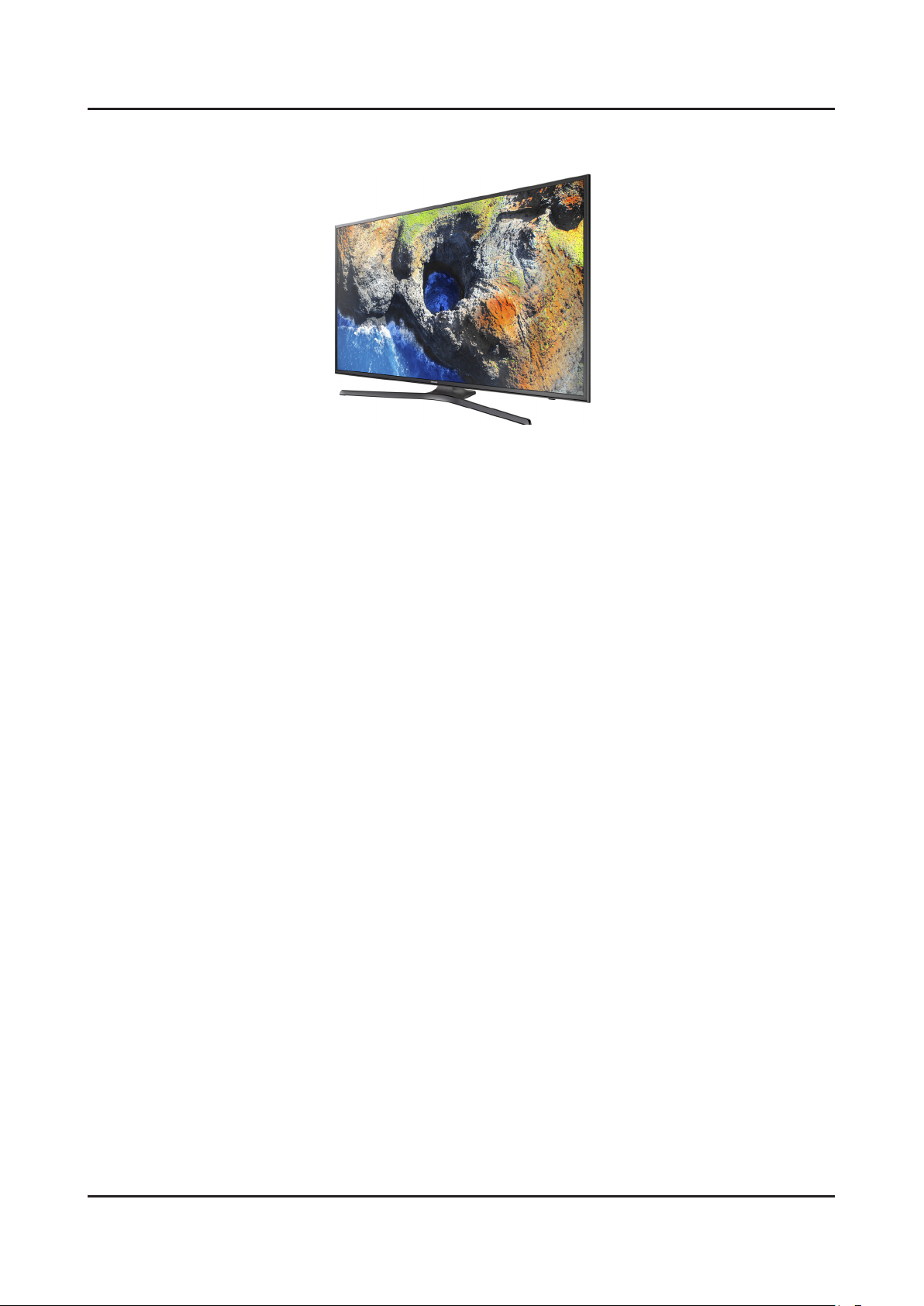

Front View

Detail View

Color Front : Black / Stand : Black+Silver

H

* W : Width H : High D : Depth

Body 917.7 x 535.7 x 62.6 mm

40"

With Stand 917.7 x 596.5 x 288.1 mm

Without Stand 975.8 x 569.0 x 62.6 mm

43"

With Stand 975.8 x 637.0 x 288.1 mm

D

Dimensions

(W x H x D)

50"

Without Stand 1128.9 x 654.4 x 63.2 mm

With Stand 1128.9 x 723.7 x 310.5 mm

Without Stand 1242.6 x 718.4 x 63.2 mm

55"

With Stand 1242.6 x 787.5 x 310.5 mm

Without Stand 1463.5 x 844.5 x 64.6 mm

65"

With Stand 1463.5 x 907.6 x 369.4 mm

2-1

2-2

2. Product specications

Model UE**MU6122K

Weight

40"

43"

50"

55"

65"

Without Stand

With Stand 8.7 kg

Without Stand 8.6 kg

With Stand 9.6 kg

Without Stand 11.5 kg

With Stand 12.7 kg

Without Stand 15.3 kg

With Stand 16.5 kg

Without Stand

With Stand 25.7 kg

7.7 kg

23.5 kg

2-3

2. Product specications

2-2. Product specication

NOTE

Design and specications are subject to change without prior notice.

Item UE40MU6122KXXH

General Information

Display

Video

Product LED

Series 6

Country HUNGARY

Platform(TV) SoC | KANT-M

Screen Size 40"

Resolution 3,840 × 2,160

Ultra Black N/A

Screen Curvature N/A

10 bit Support N/A

Picture Engine UHD Up-Scaling

PQI (Picture Quality Index) 1300

HDR (High Dynamic Range) HDR

Dynamic Contrast Ratio Mega Contrast

Micro Dimming UHD Dimming

Precision Black (Local Dimming) N/A

Dynamic Crystal Color N/A

Active Crystal Color N/A

Audio

Smart Service

Wide Color Enhancer (Plus) N/A

PurColor Yes

Auto Depth Enhancer N/A

Contrast Enhancer Yes

Auto Motion Plus Yes

Film Mode Yes

Peak Illuminator N/A

Dolby Digital Plus Yes

DTS Codec Yes

Sound Output (RMS) 20W

Speaker Type 2CH(Down Firing w/Bass Reex)

Woofer N/A

Multiroom Link Yes

Blutooth Audio N/A

Voice Interaction N/A

TV Plus Yes(DE Only, Channel)

Web Browser Yes

2-4

2. Product specications

Item UE40MU6122KXXH

Smart Service

Convergence

Tuner/Broadcasting

Connectivity

One App Support No

Smart View No

TV to Mobile - Mirroring Yes

Mobile to TV - Mirroring, DLNA Yes

360 Video Player Yes

360 Camera Support N/A

Bluetooth Low Energy N/A

RVU N/A

WiFi Direct Yes

TV as Hub Support N/A

TV as Things Support N/A

IoT Client Application (SmartThings App) N/A

Digital Broadcasting DVB-T2C

Analog Tuner Yes

2 Tuner N/A

CI (Common Interface) CI+(1.3)

HbbTV 1.5(CZ,SK,DE,AT,FR,ES,EE)/

Data Broadcasting

TV Key Support N/A

HDMI 3

HbbTV 1.0(PL,HU,CH,BE,NL,LU,PT,DK,FI

)/ MHEG 5(GB,IE)

Design

USB 2

Component In (Y/Pb/Pr) 1

Composite In (AV) 1(Common Use for Component Y)

Ethernet (LAN) Yes

Audio Out (Mini Jack) N/A

Digital Audio Out (Optical) 1

RF In (Terrestrial / Cable input / Satellite input) 1/1(Common Use for Terrestrial)/0

Ex-Link ( RS-232C ) N/A

CI Slot 1

HDMI A / Return Ch. Support Yes

HDMI Quick Switch Yes

Wireless LAN Adapter Support N/A

Wireless LAN Built-in Yes

Anynet+ (HDMI-CEC) Yes

Design KU6000 reuse

Bezel Type VNB

Slim Type Slim

Front Color Black

2-5

2. Product specications

Item UE40MU6122KXXH

Design

Additional Feature

Light Effect (Deco) N/A

Stand Type V-Shape(Silver)

Swivel (Left/Right) N/A

Décor Mode Picture Engine N/A

Décor Mode N/A

Low Power (Décor Mode) N/A

Instant On Yes

Processor Quad-Core

Voice guide(UK English, German, French,

Spanish, Italian, Dutch, Polish, Danish,

Swedish, Finnish, Norwegian, Portuguese,

Russian(only when connecting to Network

in EE,LV,LT))/ Enlarge/ High contrast/

Accessibility

One Connect N/A

Digital Clean View Yes

Learn TV Remote(UK English, German,

French, Spanish, Italian, Dutch, Polish,

Danish, Swedish, Finnish, Norwegian,

Portuguese, Russian(only when

connecting to Network in EE,LV,LT))/

Multi-output Audio

Eco Feature

Auto Channel Search Yes

Auto Power Off Yes

Caption (Subtitle) Yes

Connect Share™ (HDD) Yes

ConnectShare™ (USB 2.0) Yes

Embeded POP Yes

EPG Yes

Extended PVR Yes(*N/A for DE,AT,CH,SE,DK,NO,FI,IS)

Game Mode Yes

OSD Language

Picture-In-Picture N/A

BT HID Built-in N/A

USB HID Support Yes

Time Shift Yes(*N/A for DE,AT,CH,SE,DK,NO,FI,IS)

IPv6 Support N/A

MBR Support N/A

Ultra Clean View Yes

Eco Sensor Yes

27 European Languages + Russian(only

when connecting to Network in EE,LV,LT)

Power

Energy Efciency Class A

Power Supply AC220-240V 50/60Hz

Power Consumption (Max) 130 W

2-6

2. Product specications

Item UE43MU6122KXXH

General Information

Display

Video

Product LED

Series 6

Country HUNGARY

Platform(TV) SoC | KANT-M

Screen Size 43"

Resolution 3,840 × 2,160

Ultra Black N/A

Screen Curvature N/A

10 bit Support N/A

Picture Engine UHD Up-Scaling

PQI (Picture Quality Index) 1300

HDR (High Dynamic Range) HDR

Dynamic Contrast Ratio Mega Contrast

Micro Dimming UHD Dimming

Precision Black (Local Dimming) N/A

Dynamic Crystal Color N/A

Active Crystal Color N/A

Audio

Smart Service

Smart Service

Wide Color Enhancer (Plus) N/A

PurColor Yes

Auto Depth Enhancer N/A

Contrast Enhancer Yes

Auto Motion Plus Yes

Film Mode Yes

Peak Illuminator N/A

Dolby Digital Plus Yes

DTS Codec Yes

Sound Output (RMS) 20W

Speaker Type 2CH(Down Firing w/Bass Reex)

Woofer N/A

Multiroom Link Yes

Blutooth Audio N/A

Voice Interaction N/A

TV Plus Yes(DE Only, Channel)

Web Browser Yes

One App Support No

Smart View No

2-7

2. Product specications

Item UE43MU6122KXXH

Convergence

Tuner/Broadcasting

Connectivity

TV to Mobile - Mirroring Yes

Mobile to TV - Mirroring, DLNA Yes

360 Video Player Yes

360 Camera Support N/A

Bluetooth Low Energy N/A

RVU N/A

WiFi Direct Yes

TV as Hub Support N/A

TV as Things Support N/A

IoT Client Application (SmartThings App) N/A

Digital Broadcasting DVB-T2C

Analog Tuner Yes

2 Tuner N/A

CI (Common Interface) CI+(1.3)

HbbTV 1.5(CZ,SK,DE,AT,FR,ES,EE)/

Data Broadcasting

TV Key Support N/A

HDMI 3

HbbTV 1.0(PL,HU,CH,BE,NL,LU,PT,DK,FI

)/ MHEG 5(GB,IE)

Design

USB 2

Component In (Y/Pb/Pr) 1

Composite In (AV) 1(Common Use for Component Y)

Ethernet (LAN) Yes

Audio Out (Mini Jack) N/A

Digital Audio Out (Optical) 1

RF In (Terrestrial / Cable input / Satellite input) 1/1(Common Use for Terrestrial)/0

Ex-Link ( RS-232C ) N/A

CI Slot 1

HDMI A / Return Ch. Support Yes

HDMI Quick Switch Yes

Wireless LAN Adapter Support N/A

Wireless LAN Built-in Yes

Anynet+ (HDMI-CEC) Yes

Design KU6000 reuse

Bezel Type VNB

Slim Type Slim

Front Color Black

2-8

2. Product specications

Item UE43MU6122KXXH

Design

Additional Feature

Light Effect (Deco) N/A

Stand Type V-Shape(Silver)

Swivel (Left/Right) N/A

Décor Mode Picture Engine N/A

Décor Mode N/A

Low Power (Décor Mode) N/A

Instant On Yes

Processor Quad-Core

Voice guide(UK English, German, French,

Spanish, Italian, Dutch, Polish, Danish,

Swedish, Finnish, Norwegian, Portuguese,

Russian(only when connecting to Network

in EE,LV,LT))/ Enlarge/ High contrast/

Accessibility

One Connect N/A

Digital Clean View Yes

Learn TV Remote(UK English, German,

French, Spanish, Italian, Dutch, Polish,

Danish, Swedish, Finnish, Norwegian,

Portuguese, Russian(only when

connecting to Network in EE,LV,LT))/

Multi-output Audio

Eco Feature

Auto Channel Search Yes

Auto Power Off Yes

Caption (Subtitle) Yes

Connect Share™ (HDD) Yes

ConnectShare™ (USB 2.0) Yes

Embeded POP Yes

EPG Yes

Extended PVR Yes(*N/A for DE,AT,CH,SE,DK,NO,FI,IS)

Game Mode Yes

OSD Language

Picture-In-Picture N/A

BT HID Built-in N/A

USB HID Support Yes

Time Shift Yes(*N/A for DE,AT,CH,SE,DK,NO,FI,IS)

IPv6 Support N/A

MBR Support N/A

Ultra Clean View Yes

Eco Sensor Yes

27 European Languages + Russian(only

when connecting to Network in EE,LV,LT)

Energy Efciency Class A

2-9

2. Product specications

Item UE43MU6122KXXH

Power

Power Supply AC220-240V 50/60Hz

Power Consumption (Max) -

2-10

2. Product specications

Item UE50MU6122KXXH

General Information

Display

Video

Product LED

Series 6

Country HUNGARY

Platform(TV) SoC | KANT-M

Screen Size 50"

Resolution 3,840 × 2,160

Ultra Black N/A

Screen Curvature N/A

10 bit Support N/A

Picture Engine UHD Up-Scaling

PQI (Picture Quality Index) 1300

HDR (High Dynamic Range) HDR

Dynamic Contrast Ratio Mega Contrast

Micro Dimming UHD Dimming

Precision Black (Local Dimming) N/A

Dynamic Crystal Color N/A

Active Crystal Color N/A

Audio

Smart Service

Smart Service

Wide Color Enhancer (Plus) N/A

PurColor Yes

Auto Depth Enhancer N/A

Contrast Enhancer Yes

Auto Motion Plus Yes

Film Mode Yes

Peak Illuminator N/A

Dolby Digital Plus Yes

DTS Codec Yes

Sound Output (RMS) 20W

Speaker Type 2CH(Down Firing w/Bass Reex)

Woofer N/A

Multiroom Link Yes

Blutooth Audio N/A

Voice Interaction N/A

TV Plus Yes(DE Only, Channel)

Web Browser Yes

One App Support No

Smart View No

2-11

2. Product specications

Item UE50MU6122KXXH

Convergence

Tuner/Broadcasting

Connectivity

TV to Mobile - Mirroring Yes

Mobile to TV - Mirroring, DLNA Yes

360 Video Player Yes

360 Camera Support N/A

Bluetooth Low Energy N/A

RVU N/A

WiFi Direct Yes

TV as Hub Support N/A

TV as Things Support N/A

IoT Client Application (SmartThings App) N/A

Digital Broadcasting DVB-T2C

Analog Tuner Yes

2 Tuner N/A

CI (Common Interface) CI+(1.3)

HbbTV 1.5(CZ,SK,DE,AT,FR,ES,EE)/

Data Broadcasting

TV Key Support N/A

HDMI 3

HbbTV 1.0(PL,HU,CH,BE,NL,LU,PT,DK,FI

)/ MHEG 5(GB,IE)

Design

USB 2

Component In (Y/Pb/Pr) 1

Composite In (AV) 1(Common Use for Component Y)

Ethernet (LAN) Yes

Audio Out (Mini Jack) N/A

Digital Audio Out (Optical) 1

RF In (Terrestrial / Cable input / Satellite input) 1/1(Common Use for Terrestrial)/0

Ex-Link ( RS-232C ) N/A

CI Slot 1

HDMI A / Return Ch. Support Yes

HDMI Quick Switch Yes

Wireless LAN Adapter Support N/A

Wireless LAN Built-in Yes

Anynet+ (HDMI-CEC) Yes

Design KU6000 reuse

Bezel Type VNB

Slim Type Slim

Front Color Black

2-12

2. Product specications

Item UE50MU6122KXXH

Design

Additional Feature

Light Effect (Deco) N/A

Stand Type V-Shape(Silver)

Swivel (Left/Right) N/A

Décor Mode Picture Engine N/A

Décor Mode N/A

Low Power (Décor Mode) N/A

Instant On Yes

Processor Quad-Core

Voice guide(UK English, German, French,

Spanish, Italian, Dutch, Polish, Danish,

Swedish, Finnish, Norwegian, Portuguese,

Russian(only when connecting to Network

in EE,LV,LT))/ Enlarge/ High contrast/

Accessibility

One Connect N/A

Digital Clean View Yes

Learn TV Remote(UK English, German,

French, Spanish, Italian, Dutch, Polish,

Danish, Swedish, Finnish, Norwegian,

Portuguese, Russian(only when

connecting to Network in EE,LV,LT))/

Multi-output Audio

Eco Feature

Auto Channel Search Yes

Auto Power Off Yes

Caption (Subtitle) Yes

Connect Share™ (HDD) Yes

ConnectShare™ (USB 2.0) Yes

Embeded POP Yes

EPG Yes

Extended PVR Yes(*N/A for DE,AT,CH,SE,DK,NO,FI,IS)

Game Mode Yes

OSD Language

Picture-In-Picture N/A

BT HID Built-in N/A

USB HID Support Yes

Time Shift Yes(*N/A for DE,AT,CH,SE,DK,NO,FI,IS)

IPv6 Support N/A

MBR Support N/A

Ultra Clean View Yes

Eco Sensor Yes

27 European Languages + Russian(only

when connecting to Network in EE,LV,LT)

Energy Efciency Class A

2-13

2. Product specications

Item UE50MU6122KXXH

Power

Power Supply AC220-240V 50/60Hz

Power Consumption (Max) -

2-14

2. Product specications

Item UE55MU6122KXXH

General Information

Display

Video

Product LED

Series 6

Country HUNGARY

Platform(TV) SoC | KANT-M

Screen Size 55"

Resolution 3,840 × 2,160

Ultra Black N/A

Screen Curvature N/A

10 bit Support N/A

Picture Engine UHD Up-Scaling

PQI (Picture Quality Index) 1300

HDR (High Dynamic Range) HDR

Dynamic Contrast Ratio Mega Contrast

Micro Dimming UHD Dimming

Precision Black (Local Dimming) N/A

Dynamic Crystal Color Yes

Active Crystal Color N/A

Audio

Smart Service

Wide Color Enhancer (Plus) N/A

PurColor Yes

Auto Depth Enhancer N/A

Contrast Enhancer Yes

Auto Motion Plus Yes

Film Mode Yes

Peak Illuminator N/A

Dolby Digital Plus Yes

DTS Codec Yes

Sound Output (RMS) 20W

Speaker Type 2CH(Down Firing w/Bass Reex)

Woofer N/A

Multiroom Link Yes

Blutooth Audio N/A

Voice Interaction N/A

TV Plus Yes(DE Only, Channel)

Web Browser Yes

One App Support No

Convergence

Smart View No

TV to Mobile - Mirroring Yes

Mobile to TV - Mirroring, DLNA Yes

2-15

2. Product specications

Item UE55MU6122KXXH

Convergence

Tuner/Broadcasting

Connectivity

360 Video Player Yes

360 Camera Support N/A

Bluetooth Low Energy N/A

RVU N/A

WiFi Direct Yes

TV as Hub Support N/A

TV as Things Support N/A

IoT Client Application (SmartThings App) N/A

Digital Broadcasting DVB-T2C

Analog Tuner Yes

2 Tuner N/A

CI (Common Interface) CI+(1.3)

HbbTV 1.5(CZ,SK,DE,AT,FR,ES,EE)/

Data Broadcasting

TV Key Support N/A

HDMI 3

USB 2

HbbTV 1.0(PL,HU,CH,BE,NL,LU,PT,DK,FI

)/ MHEG 5(GB,IE)

Design

Component In (Y/Pb/Pr) 1

Composite In (AV) 1(Common Use for Component Y)

Ethernet (LAN) Yes

Audio Out (Mini Jack) N/A

Digital Audio Out (Optical) 1

RF In (Terrestrial / Cable input / Satellite input) 1/1(Common Use for Terrestrial)/0

Ex-Link ( RS-232C ) N/A

CI Slot 1

HDMI A / Return Ch. Support Yes

HDMI Quick Switch Yes

Wireless LAN Adapter Support N/A

Wireless LAN Built-in Yes

Anynet+ (HDMI-CEC) Yes

Design KU6000 reuse

Bezel Type VNB

Slim Type Slim

Front Color Black

Light Effect (Deco) N/A

Stand Type V-Shape(Silver)

Swivel (Left/Right) N/A

2-16

2. Product specications

Item UE55MU6122KXXH

Additional Feature

Décor Mode Picture Engine N/A

Décor Mode N/A

Low Power (Décor Mode) N/A

Instant On Yes

Processor Quad-Core

Voice guide(UK English, German, French,

Spanish, Italian, Dutch, Polish, Danish,

Swedish, Finnish, Norwegian, Portuguese,

Russian(only when connecting to Network

in EE,LV,LT))/ Enlarge/ High contrast/

Accessibility

One Connect N/A

Digital Clean View Yes

Auto Channel Search Yes

Auto Power Off Yes

Caption (Subtitle) Yes

Learn TV Remote(UK English, German,

French, Spanish, Italian, Dutch, Polish,

Danish, Swedish, Finnish, Norwegian,

Portuguese, Russian(only when

connecting to Network in EE,LV,LT))/

Multi-output Audio

Eco Feature

Power

Connect Share™ (HDD) Yes

ConnectShare™ (USB 2.0) Yes

Embeded POP Yes

EPG Yes

Extended PVR Yes(*N/A for DE,AT,CH)

Game Mode Yes

OSD Language

Picture-In-Picture N/A

BT HID Built-in N/A

USB HID Support Yes

Time Shift Yes(*N/A for DE,AT,CH)

IPv6 Support N/A

MBR Support N/A

Ultra Clean View Yes

Eco Sensor Yes

Energy Efciency Class A

Power Supply AC220-240V 50/60Hz

27 European Languages + Russian(only

when connecting to Network in EE,LV,LT)

Power Consumption (Max) 205 W

2-17

2. Product specications

Item UE65MU6122KXXH

General Information

Display

Video

Product LED

Series 6

Country HUNGARY

Platform(TV) SoC | KANT-M

Screen Size 65"

Resolution 3,840 × 2,160

Ultra Black N/A

Screen Curvature N/A

10 bit Support N/A

Picture Engine UHD Up-Scaling

PQI (Picture Quality Index) 1300

HDR (High Dynamic Range) HDR

Dynamic Contrast Ratio Mega Contrast

Micro Dimming UHD Dimming

Precision Black (Local Dimming) N/A

Dynamic Crystal Color N/A

Active Crystal Color N/A

Audio

Smart Service

Wide Color Enhancer (Plus) N/A

PurColor Yes

Auto Depth Enhancer N/A

Contrast Enhancer Yes

Auto Motion Plus Yes

Film Mode Yes

Peak Illuminator N/A

Dolby Digital Plus Yes

DTS Codec Yes

Sound Output (RMS) 20W

Speaker Type 2CH(Down Firing w/Bass Reex)

Woofer N/A

Multiroom Link Yes

Blutooth Audio N/A

Voice Interaction N/A

TV Plus Yes(DE Only, Channel)

Web Browser Yes

One App Support No

Convergence

Smart View No

TV to Mobile - Mirroring Yes

Mobile to TV - Mirroring, DLNA Yes

2-18

2. Product specications

Item UE65MU6122KXXH

Convergence

Tuner/Broadcasting

Connectivity

360 Video Player Yes

360 Camera Support N/A

Bluetooth Low Energy N/A

RVU N/A

WiFi Direct Yes

TV as Hub Support N/A

TV as Things Support N/A

IoT Client Application (SmartThings App) N/A

Digital Broadcasting DVB-T2C

Analog Tuner Yes

2 Tuner N/A

CI (Common Interface) CI+(1.3)

HbbTV 1.5(CZ,SK,DE,AT,FR,ES,EE)/

Data Broadcasting

TV Key Support N/A

HDMI 3

USB 2

HbbTV 1.0(PL,HU,CH,BE,NL,LU,PT,DK,FI

)/ MHEG 5(GB,IE)

Design

Component In (Y/Pb/Pr) 1

Composite In (AV) 1(Common Use for Component Y)

Ethernet (LAN) Yes

Audio Out (Mini Jack) N/A

Digital Audio Out (Optical) 1

RF In (Terrestrial / Cable input / Satellite input) 1/1(Common Use for Terrestrial)/0

Ex-Link ( RS-232C ) N/A

CI Slot 1

HDMI A / Return Ch. Support Yes

HDMI Quick Switch Yes

Wireless LAN Adapter Support N/A

Wireless LAN Built-in Yes

Anynet+ (HDMI-CEC) Yes

Design KU6000 reuse

Bezel Type VNB

Slim Type Slim

Front Color Black

Light Effect (Deco) N/A

Stand Type V-Shape(Silver)

Swivel (Left/Right) N/A

2-19

2. Product specications

Item UE65MU6122KXXH

Additional Feature

Décor Mode Picture Engine N/A

Décor Mode N/A

Low Power (Décor Mode) N/A

Instant On Yes

Processor Quad-Core

Voice guide(UK English, German, French,

Spanish, Italian, Dutch, Polish, Danish,

Swedish, Finnish, Norwegian, Portuguese,

Russian(only when connecting to Network

in EE,LV,LT))/ Enlarge/ High contrast/

Accessibility

One Connect N/A

Digital Clean View Yes

Auto Channel Search Yes

Auto Power Off Yes

Caption (Subtitle) Yes

Learn TV Remote(UK English, German,

French, Spanish, Italian, Dutch, Polish,

Danish, Swedish, Finnish, Norwegian,

Portuguese, Russian(only when

connecting to Network in EE,LV,LT))/

Multi-output Audio

Eco Feature

Power

Connect Share™ (HDD) Yes

ConnectShare™ (USB 2.0) Yes

Embeded POP Yes

EPG Yes

Extended PVR Yes(*N/A for DE,AT,CH)

Game Mode Yes

OSD Language

Picture-In-Picture N/A

BT HID Built-in N/A

USB HID Support Yes

Time Shift Yes(*N/A for DE,AT,CH)

IPv6 Support N/A

MBR Support N/A

Ultra Clean View Yes

Eco Sensor Yes

Energy Efciency Class A

Power Supply AC220-240V 50/60Hz

27 European Languages + Russian(only

when connecting to Network in EE,LV,LT)

Power Consumption (Max) 260 W

2-20

2. Product specications

2-3. Accessories

NOTE

The items’ colors and shapes may vary depending on the model.•

Cables not included in the package contents can be purchased separately.•

The part code for some accessories may differ depending on your region.•

The provided accessories may vary depending on the model.•

Image Product Inches Code. No

BN59-01268D

Remote Control & Batteries (AAA x 2)• All

4301-000121

Power Cord• All 3903-001118

User Manual• All BN68-07223K

Regulatory Guide• All BN68-04972E

Component In• All

AV IN Adapter• All BN39-02189A

CI Card Adapter• All 3709-001791

BN39-02190A

2-21

2. Product specications

2-4. Viewing the Functions

2-4-1. 2017' Concept

[Quick Setting] [Sources]

[Apps] [Live TV]

2-22

2. Product specications

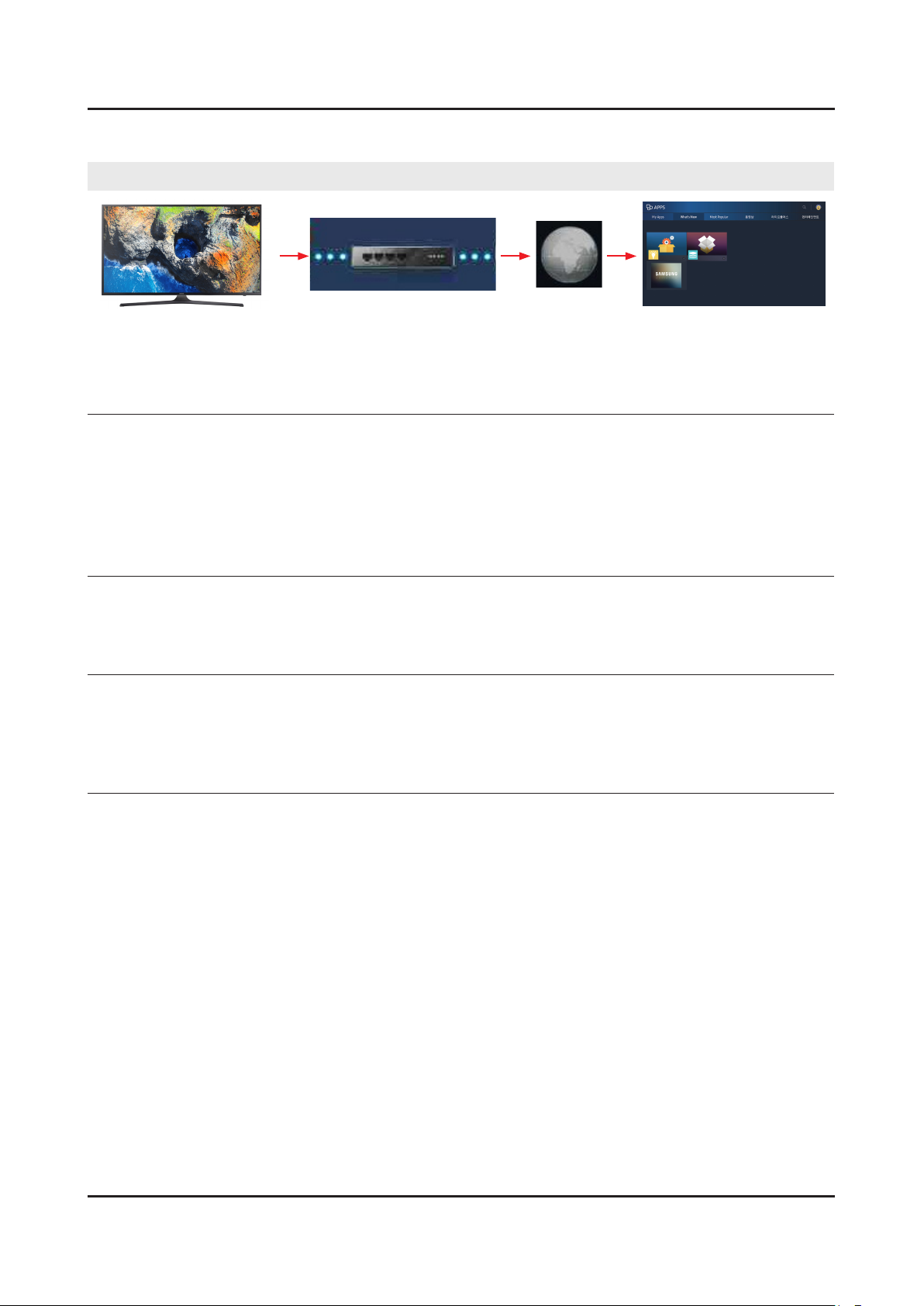

Smart Features

You can enjoy various apps with Smart Hub.

Smart Hub

View descriptions of Smart Hub's basic functions.

After pressing the

button on your remote control, you can surf the web and download apps with Smart Hub.

"

Some of the Smart Hub services are paid services.

" To use Smart Hub, the TV must be connected to the Internet.

" Some Smart Hub features may not be available depending on the service provider, language, or region.

" Smart Hub service outages can be caused by disruptions in your Internet service.

" You can view the entire text of the Terms and Privacy Policy document by navigating to Settings Support

Terms and Privacy Policy. If you want to stop using Smart Hub, you can cancel the agreement. Try Now

" To cancel the Smart Hub service agreement though it is a required one, select Settings General Start

Setup, and then press the right directional button at the Smart Hub Terms & Conditions, Privacy Policy step.

Smart Features

You can enjoy various apps with Smart Hub.

Smart Hub

View descriptions of Smart Hub's basic functions.

After pressing the

button on your remote control, you can surf the web and download apps with Smart Hub.

"

Some of the Smart Hub services are paid services.

" To use Smart Hub, the TV must be connected to the Internet.

" Some Smart Hub features may not be available depending on the service provider, language, or region.

" Smart Hub service outages can be caused by disruptions in your Internet service.

" You can view the entire text of the Terms and Privacy Policy document by navigating to Settings Support

Terms and Privacy Policy. If you want to stop using Smart Hub, you can cancel the agreement. Try Now

" To cancel the Smart Hub service agreement though it is a required one, select Settings General Start

Setup, and then press the right directional button at the Smart Hub Terms & Conditions, Privacy Policy step.

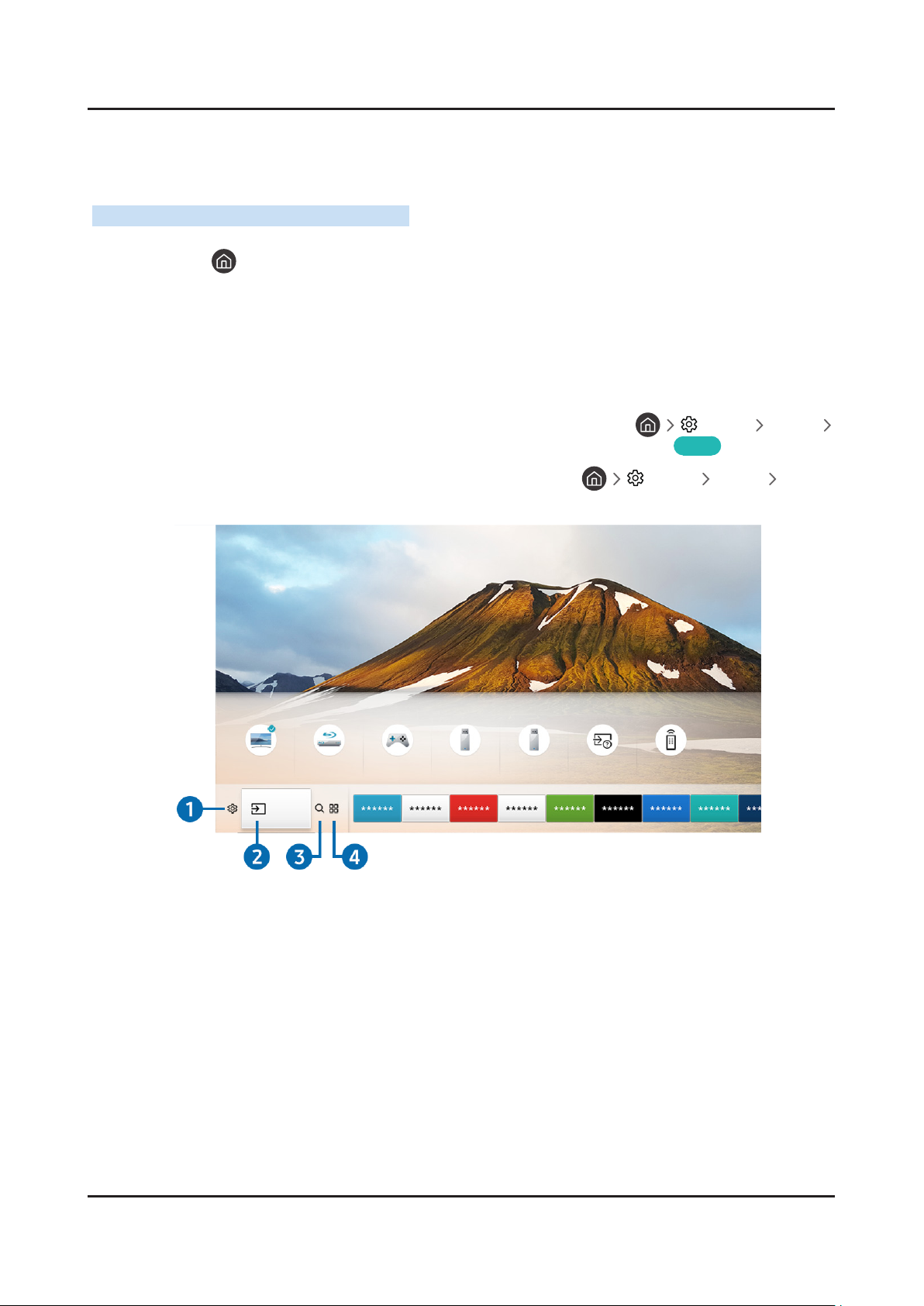

Displaying the Home Screen

Press the button.

Source

TV HDMI 1 HDMI 2 USB 1 USB 2

Connection

Guide

Universal

Remote

Source

" The image on your TV may differ from the image above depending on your model and geographical area.

2-4-2. Smart Features

Smart Hub 

2-23

2. Product specications

Viewing the user agreement and privacy policy

Settings General System Manager Samsung Account My Account Samsung

Account Privacy Policy

" To view the user agreement and privacy policy, you must be logged in to your Samsung account.

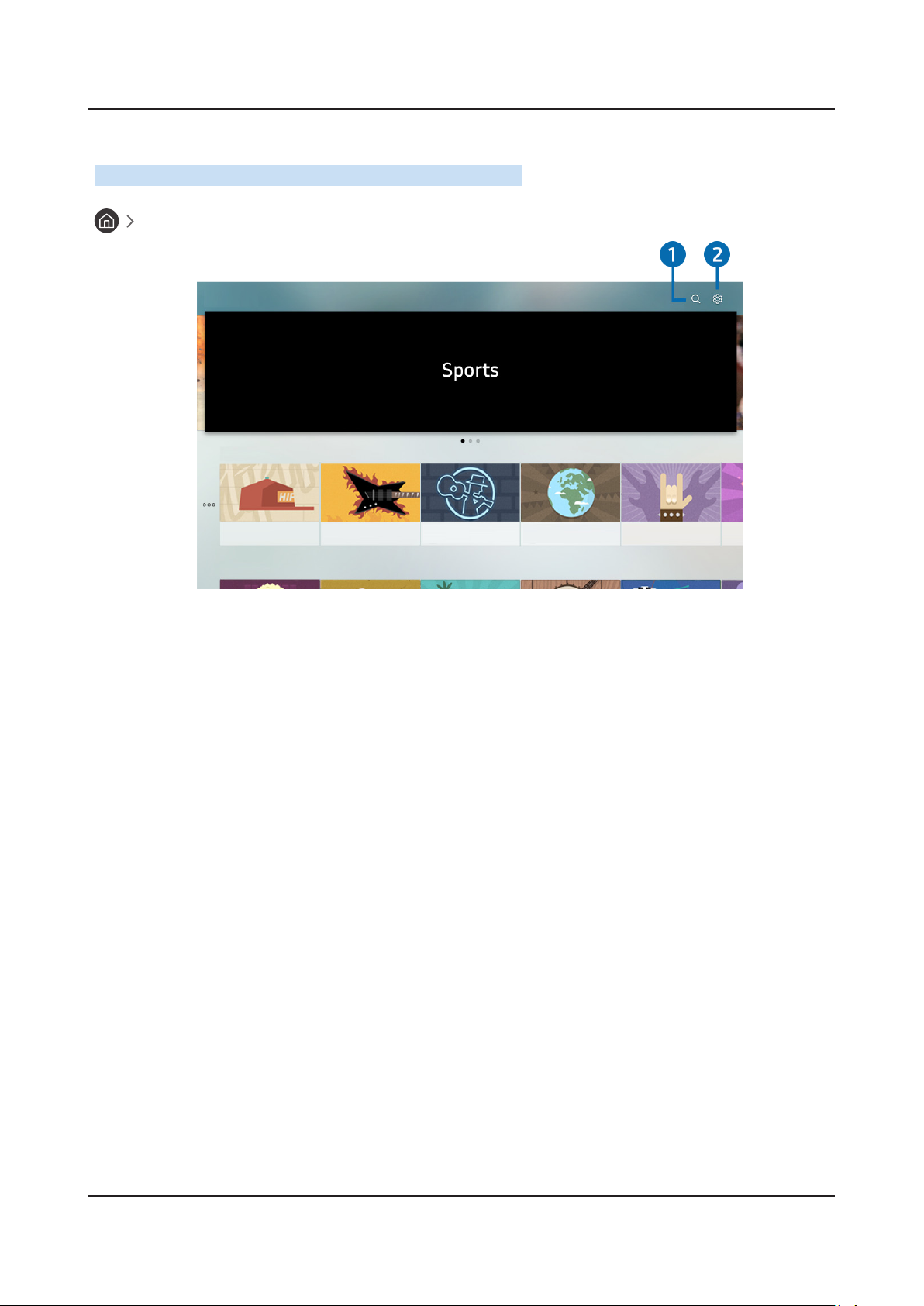

Using the Apps Service

Download and run various apps from Smart Hub.

Apps

You can enjoy a wide range of content including news, sports, weather, and games by installing the corresponding

apps on your TV.

"

To use this feature, the TV must be connected to the Internet.

" When Smart Hub is launched for the first time, the default apps are automatically installed. The default apps may differ

with the geographical area.

Apps

Editor's Choice

Most Popular

" The image on your TV may differ from the image above depending on your model and geographical area.

Using the Apps Service 

2-24

2. Product specications

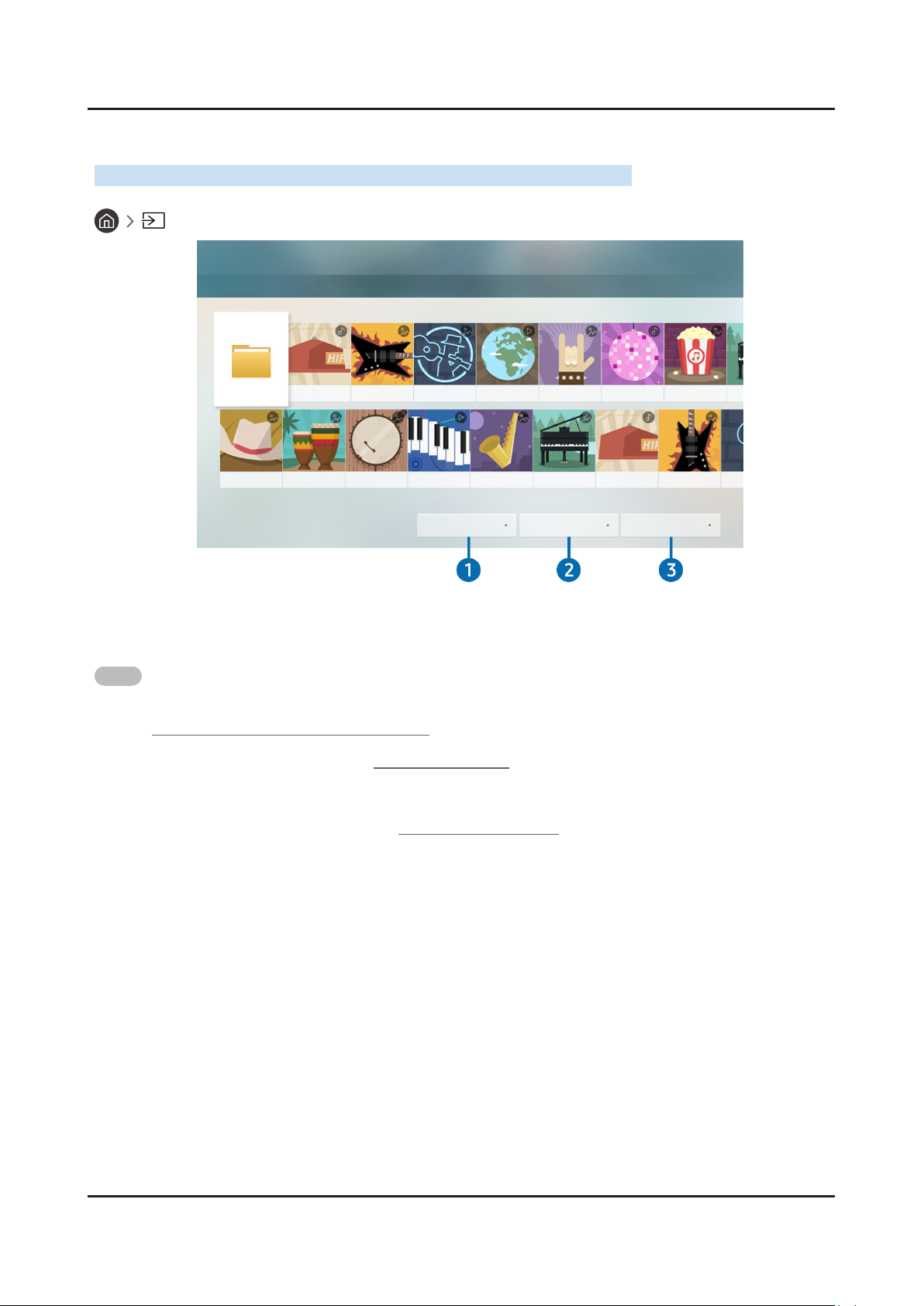

Playing pictures/video/music

Play media content stored on your TV, USB devices, smartphones, cameras, PCs, etc.

Source

Samsung USB

Samsung USB

Filter By : All Sort By : Title Options

" The image on your TV may differ from the image above depending on your model and geographical area.

You can play media content saved on storage devices, such as USB devices, mobile devices, and cameras, on the TV.

Try Now

" You cannot play media content if the content or the storage device is not supported by the TV. For more information, refer

to "Read Before Playing Photo, Video, or Music Files."

" To connect the TV to a computer, refer to "Connecting a Computer."

" Backup important files before connecting a USB device. Samsung is not responsible for damaged or lost files.

" To connect the TV to a mobile device, refer to "Connecting a Mobile Device."

You can use the following functions on the media content list screen of a storage device.

Playing pictures/video/music 

2-25

2. Product specications

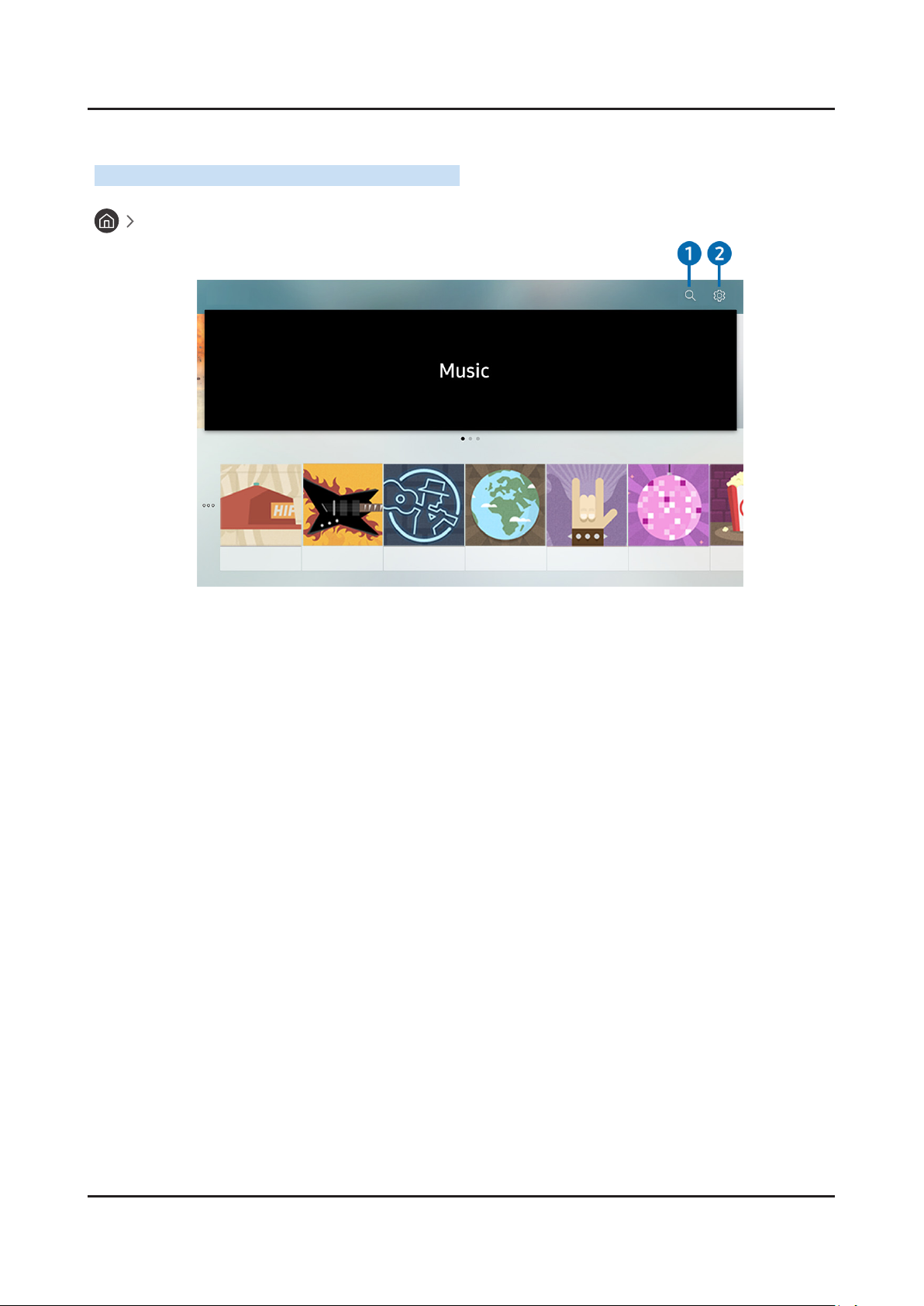

Using the Music Service

This service automatically recognizes background music.

Music

Music

Featured

" The image on your TV may differ from the image above depending on your model and geographical area.

This service automatically recognizes background music from the current program or external content and returns

related information.

"

This function may not be supported depending on the geographical region.

Using the Music Service 

2-26

2. Product specications

Using the Sports Service

This service displays information about your favorite sports teams.

Sports

Sports

On Now

Upcoming

" The image on your TV may differ from the image above depending on your model and geographical area.

This service displays the match or game schedules of your favorite sports teams and the results.

"

This function may not be supported depending on the geographical region.

Using the Sports Service 

2-27

2. Product specications

Using the TV PLUS Service

View movies, dramas, and TV shows.

TV PLUS

You can use the TV PLUS app to view movies, dramas, and TV shows.

Continue Watching

" The image on your TV may differ from the image above depending on your model and geographical area.

" To use this feature, the TV must be connected to the Internet.

Using the TV PLUS Service 

2-28

2. Product specications

03 The Standard Remote Control

Learn where the function buttons are on your remote, such as: SOURCE, TTX/MIX, PRE- CH, z, CH LIST,
SETTINGS, REC, INFO, RETURN and EXIT.

׃ This remote control has Braille points on the Power, Channel, Volume, and Enter buttons and can be used by

visually impaired persons.

׃ Depending on the country and model.

PIC SIZE

Changes the picture size.


Changes the picture mode.

AD/SUBT.
Displays the Accessibility Shortcuts.

´

Stops playing content.

y

Adjusts the volume.

MUTE

Turns the sound on/off.

z

Changes the current channel.

CH LIST
Launches the Channel List.

SETTINGS
Sets the Quick Settings the menu on the
Settings of the home screen.

(Smart Hub)

Launches Home Screen.

GUIDE

Displays the Electronic Programme Guide
(EPG).

P (Power)

Turns the TV on and off.

SOURCE

Displays and selects available video
sources.

A, B, C, D

Use these buttons according to the
directions on the TV screen.

REC

Records whatever you are currently
watching.

׃ Ɵ˵ϑ˙ЇʀϩͱϑͱϩɇЭɇɇɵʪϑΧʪʀѣʀ

geographical areas.

INFO

Displays information about the current
programme or content.

(Enter)

Selects or runs a focused item.

u d l r

Moves the cursor, selects the on-screen
menu items, and changes the values seen
on the TV's menu.

RETURN

Returns to the previous menu or channel.

EXIT

Exits the menu.

Ƭ § ³ µ

Ƹϑʪϩ˵ʪϑʪɵЇϩϩͱϑиϩ˵ϑΧʪʀѣʀ˙ʪɇϩЇθʪϑࢋ

Use these buttons according to the
directions on the TV screen.

Number

Gives direct access to channels.

TTX/MIX

Alternately selects Teletext ON, Double,
Mix or OFF.

PRE-CH

Returns to the previous channel.

׃ The button names above may be differ from the actual names.

2-4-3. The Standard Remote Control

2-29

2. Product specications

2-4-4. Supported Resolutions for UHD Input Signals

Supported Resolutions for UHD Input Signals

Check the supported resolution for UHD input signals.

Ɣ Resolution: 3840 x 2160p, 4096 x 2160p

"

An HDMI connection with HDMI UHD Color set to OffϑЇΧΧͱθϩϑЇΧϩͱƸ²UߦߡťࢥߧߡťߥࡏߣࡏߡΧЇϩϑ˝ɇϑࡡи˵ʪɇ²UđÃ

connection with HDMI UHD Color set to OnϑЇΧΧͱθϩϑЇΧϩͱƸ²UߦߡťࢥߧߡťߥࡏߥࡏߥɇʒߥࡏߣࡏߣΧЇϩϑ˝ɇϑࢋ

If HDMI UHD Color is set to Off

Frame rate (fps)

Color Depth /

Chroma Sampling

ŵ9ߥࡏߥࡏߥ ǽAɵAθߥࡏߥࡏߥ ǽAɵAθߥࡏߣࡏߣ ǽAɵAθߥࡏߣࡏߡ

50 / 60 8 bit - - - O

If HDMI UHD Color is set to On

Frame rate (fps)

Color Depth /

Chroma Sampling

ŵ9ߥࡏߥࡏߥ ǽAɵAθߥࡏߥࡏߥ ǽAɵAθߥࡏߣࡏߣ ǽAɵAθߥࡏߣࡏߡ

8 bit O O O O

50 / 60 10 bit - - O O

12 bit - - O O

2-30

2. Product specications

Setting the Viewing Environment for External Devices

You can optimize the TV for viewing specific video formats.

Playing games on an optimized screen

Settings General External Device Manager Game Mode

You can enable the game mode to optimize the TV's settings for playing video games with a gaming console, such as

a PlayStation™ or Xbox™.

"

The game mode is not available for normal TV viewing.

" The screen may shake somewhat.

" When Game Mode is enabled, Picture Mode and Sound Mode are switched to Game automatically.

" To use a different external device, first disconnect the game console and disable Game Mode.

Viewing UHD videos

Settings General External Device Manager HDMI UHD Color

If an external UHD player is connected to the TV, use the HDMI UHD Color function to convert the TV's HDMI

connector to a mode optimized for the UHD 50P/60P signals.

"

When you set the HDMI connection to On, the TV turns off and then on automatically.

" The HDMI connection with HDMI UHD Color set to OffϑЇΧΧͱθϩϑЇΧϩͱƸ²UߦߡťࢥߧߡťߥࡏߣࡏߡΧЇϩϑ˝ɇϑࡡи˵ʪϩ˵ʪ

HDMI connection with HDMI UHD Color set to OnϑЇΧΧͱθϩϑЇΧϩͱƸ²UߦߡťࢥߧߡťߥࡏߥࡏߥɇʒߥࡏߣࡏߣΧЇϩϑ˝ɇϑࢋͱθͱθʪ

information, refer to "Supported Resolutions for UHD Input Signals."

" When you connect the TV to an external device that supports only the UHD 24 or 30 Hz frequency or any FHD frequency, the

HDMI UHD Color function may not be available. In this case, set HDMI UHD Color to Off.

Using HDMI black level

Settings General External Device Manager HDMI Black Level

Use HDMI Black Level to adjust the black level to compensate for low black levels, low contrast, or dull colors

generated by external devices connected to the TV via an HDMI cable.

"

This function is only available when the input signal, connected to the TV via an HDMI connector, is set to RGB444.

2-4-5. HDMI black level

2-31

2. Product specications

2-4-6. Supported Formats

Supported external subtitles

Name Format

MPEG-4 Timed text .ttxt

SAMI .smi

SubRip .srt

SubViewer .sub

Micro DVD .sub or .txt

SubStation Alpha .ssa

Advanced SubStation Alpha .ass

Powerdivx .psb

SMPTE-TT Text .xml

Supported external subtitles

Name Format

MPEG-4 Timed text .ttxt

SAMI .smi

SubRip .srt

SubViewer .sub

Micro DVD .sub or .txt

SubStation Alpha .ssa

Advanced SubStation Alpha .ass

Powerdivx .psb

SMPTE-TT Text .xml

Supported internal subtitles

Name Container

Xsub AV I

SubStation Alpha MKV

Advanced SubStation Alpha MKV

SubRip MKV

VobSub MKV

MPEG-4 Timed text MP4

TTML in smooth streaming MP4

SMPTE-TT TEXT MP4

SMPTE-TT PNG MP4

Supported external subtitles 

Supported internal subtitles 

2-32

2. Product specications

Supported image formats and resolutions

File extension Format Resolution



JPEG 15360 x 8640

*.png PNG 4096 x 4096

*.bmp BMP 4096 x 4096

*.mpo MPO 15360 x 8640

" The MPO format is supported partly.

Supported image formats and resolutions

File extension Format Resolution



JPEG 15360 x 8640

*.png PNG 4096 x 4096

*.bmp BMP 4096 x 4096

*.mpo MPO 15360 x 8640

" The MPO format is supported partly.

Supported music formats and codecs

File extension Format Codec Note

*.mp3 MPEG MPEG1 Audio Layer 3

*.m4a

*.mpa

*.aac

MPEG4 AAC

*.flac FLAC FLAC

Supports up to 2 channels

*.ogg OGG Vorbis

Supports up to 2 channels

*.wma WMA WMA

Supports WMA 10 Pro up to 5.1 channels.

WMA lossless audio is not supported.

Supports up to the M2 profile.

*.wa v wav wav

*.mid

*.midi

midi midi

Supports type 0 and type 1.

Seek is not supported.

Supports USB device only.

*.ape ape ape

*.aif

*.aiff

AIFF AIFF

*.m4a ALAC ALAC

Supported image formats and resolutions 

Supported music formats and codecs 

2-33

2. Product specications

Supported video codecs 

Supported video codecs

File

format

Container Video codecs Resolution

Frame rate

(fps)

Bitrate
(Mbps)

Audio codecs

H.264 BP/MP/HP

4096 x 2160

ߥߡߪߧуߣߢߧߡࡏߤߡ

ߤߩߥߡуߣߢߧߡࡏߧߡ

60

HEVC (H.265 - Main, Main10) 60 80

*.avi

*.mkv

Motion JPEG 3840 x 2160 30 80

*.asf

*.wmv

MVC

*.mp4

*.mov

AVI

MKV

DivX 3.11 / 4 / 5 / 6

*.3gp

*.vro

ASF

MP4

MPEG4 SP/ASP 60

Dolby Digital

LPCM

*.mpg

*.mpeg

*.ts

3GP

MOV

FLV

Window Media Video v9 (VC1)

ADPCM(IMA, MS)

AAC

HE-AAC

*.tp

*.trp

VRO

VOB

MPEG2 1920 x 1080 20

WMA

Dolby Digital Plus

*.mov

*.flv

PS

TS

MPEG1 MPEG(MP3)

*.vo b

*.svi

SVA F

Microsoft MPEG-4 v1, v2, v3

DTS (Core, LBR,

HD_MA, HD_HRA,)

*.m2ts

*.mts

Window Media Video v7 (WMV1),

v8 (WMV2)

30

G.711(A-Law,

ڋࣗøɇи࣎

*.divx

H.263 Sorrenson

VP6

*.webm WebM

VP8 1920 x 1080 60 20

Vorbis

VP9 (Supported up to profile 2) 4096 x 2160 ߥߡߪߧуߣߢߧߡࡏߧߡ 40

*.rmvb RMVB RV8/9/10 (RV30/40) 1920 x 1080 60 20 RealAudio 6

2. Product specications

Other restrictions

Ɣ Codecs may not function properly if there is a problem with the content.

Ɣ Video content does not play or does not play correctly if there is an error in the content or container.

Ɣ Sound or video may not work if they have standard bit rates/frame rates above the TV’s compatibility ratings.

Ɣ If the Index Table is has an error, the Seek (Jump) function will not work.

Ɣ When playing video over a network connection, the video may not play smoothly because of data transmission

speeds.

Ɣ Some USB/digital camera devices may not be compatible with the TV.

Ɣ HEVC codec is only available in MKV / MP4 / TS containers.

Ɣ The MVC codec is supported partly.

Other restrictions

Ɣ Codecs may not function properly if there is a problem with the content.

Ɣ Video content does not play or does not play correctly if there is an error in the content or container.

Ɣ Sound or video may not work if they have standard bit rates/frame rates above the TV’s compatibility ratings.

Ɣ If the Index Table is has an error, the Seek (Jump) function will not work.

Ɣ When playing video over a network connection, the video may not play smoothly because of data transmission

speeds.

Ɣ Some USB/digital camera devices may not be compatible with the TV.

Ɣ HEVC codec is only available in MKV / MP4 / TS containers.

Ɣ The MVC codec is supported partly.

Video decoders

Ɣ H.264 FHD is supported up to Level 4.1. (TV does not support FMO / ASO / RS)

Ɣ H.264 UHD is supported up to Level 5.1.

Ɣ HEVC FHD is supported up to Level 4.1, and HEVC UHD is supported up to Level 5.1.

Ɣ VC1 AP L4 is not supported.

Ɣ GMC 2 or above is not supported.

Other restrictions

Ɣ Codecs may not function properly if there is a problem with the content.

Ɣ Video content does not play or does not play correctly if there is an error in the content or container.

Ɣ Sound or video may not work if they have standard bit rates/frame rates above the TV’s compatibility ratings.

Ɣ If the Index Table is has an error, the Seek (Jump) function will not work.

Ɣ When playing video over a network connection, the video may not play smoothly because of data transmission

speeds.

Ɣ Some USB/digital camera devices may not be compatible with the TV.

Ɣ HEVC codec is only available in MKV / MP4 / TS containers.

Ɣ The MVC codec is supported partly.

Video decoders

Ɣ H.264 FHD is supported up to Level 4.1. (TV does not support FMO / ASO / RS)

Ɣ H.264 UHD is supported up to Level 5.1.

Ɣ HEVC FHD is supported up to Level 4.1, and HEVC UHD is supported up to Level 5.1.

Ɣ VC1 AP L4 is not supported.

Ɣ GMC 2 or above is not supported.

Audio decoders

Ɣ Supports WMA 10 Pro up to 5.1 channels. Supports up to the M2 profile. WMA lossless audio is not supported.

Ɣ QCELP and AMR NB/WB are not supported.

Ɣ Vorbis is supported for up to 5.1 channels.

Ɣ Dolby Digital Plus is supported for up to 5.1 channels.

Ɣ The DTS LBR codec is only available for MKV / MP4 / TS containers.

Ɣ The supported sample rates are 8, 11.025, 12, 16, 22.05, 24, 32, 44.1, and 48 KHz, and differ with the codec.

Other Restrictions 

Video decoders 

Audio decoders 

2-34

3. Disassembly and Reassembly

3-1. Disassembly and Reassembly

Disconnect the LED TV from the power source before disassembly.1.

Follow these directions carefully; never use metal instruments to pry apart the cabinet.2.

CAUTION

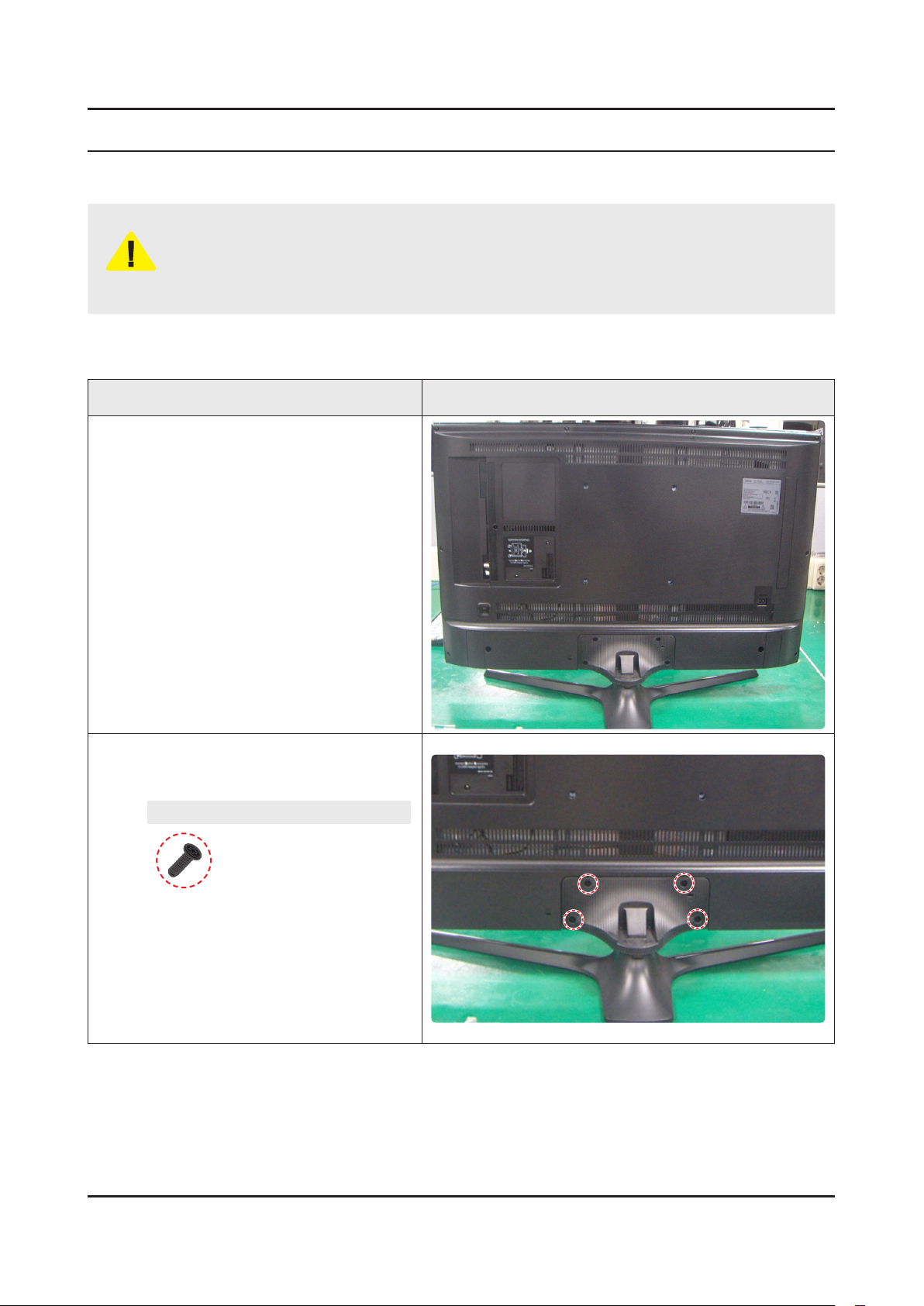

3-1-1. 40" ~65" MU6100

Carefully position the TV so that the screen

1

is facing downwards. Make sure to place
the TV upon a soft cushion or any material
that will prevent damage to the screen.

Recommend Torque : 22.0 ~ 26.5lbf -

A strength of Torque can be changed depending on the situation.•

Description Picture Description

3. Disassembly and Reassemble

Remove the screws connecting the stand

2

to the TV. Then carefully remove the stand.

Screws

BN61-09494D x 4 EA

TORQUE: 7~ 8Kgf.cm.

3-1

3-2

3. Disassembly and Reassemble

Description Picture Description

Remove the screws for the 'Assy Cover

3

Rear'. Then carefully remove the 'Assy
Cover Rear'.

Screws

6001-002755 x 14 EA

- C/R+PANEL: 13 EA

- C/R+MAIN: 1 EA

TORQUE: 7~ 8Kgf.cm.

Screws

6001-002755 x 15 EA

- C/R+PANEL: 14 EA

- C/R+MAIN: 1 EA

TORQUE: 7~ 8Kgf.cm.

40 inch•

43 inch•

Screws

50 / 55 inch•

6001-002755 x 18 EA

- C/R+PANEL : 16 EA

- C/R+MAIN : 1 EA

- C/R+SMPS : 1 EA

TORQUE: 7~ 8Kgf.cm.

3-3

3. Disassembly and Reassemble

Description Picture Description

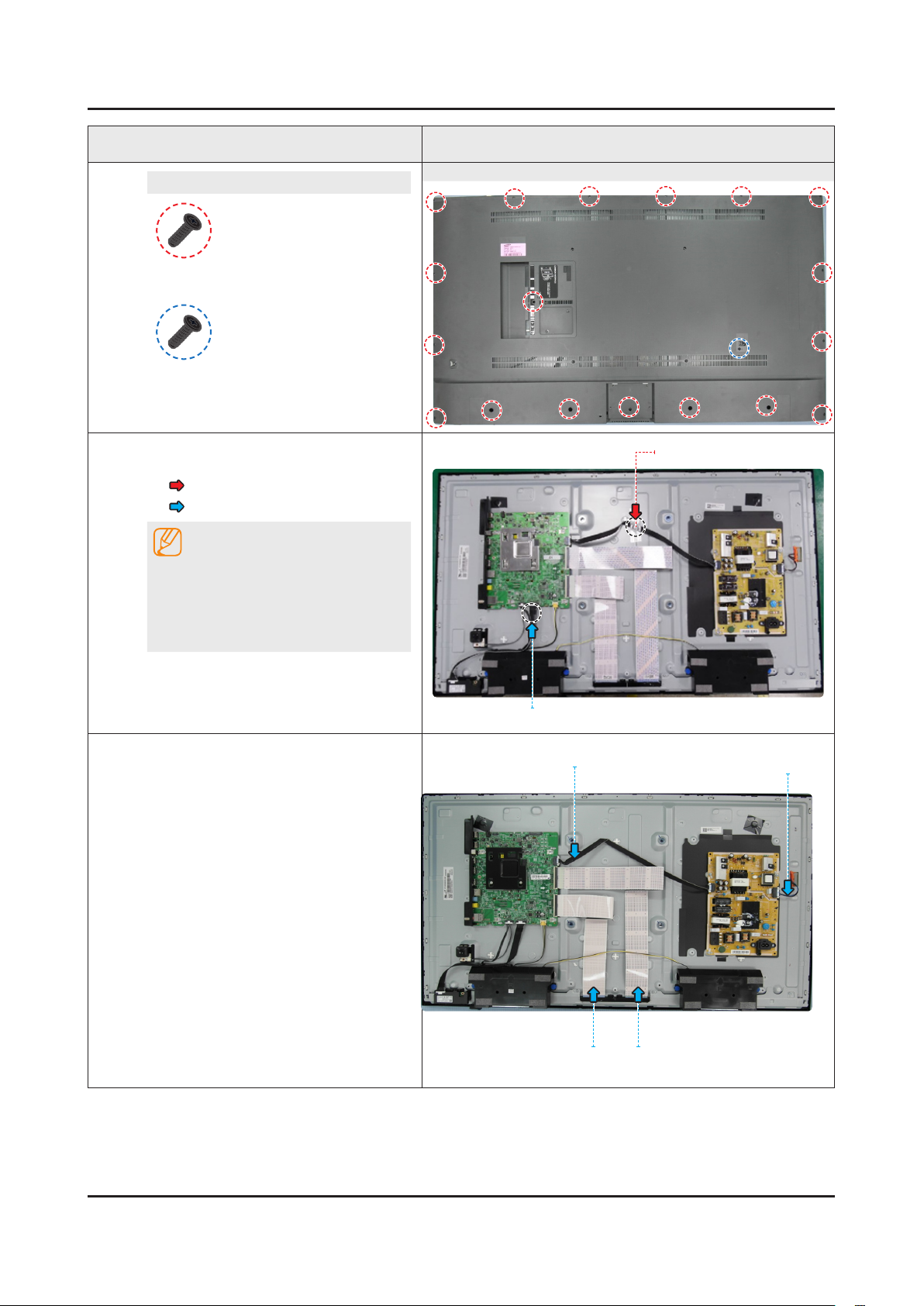

Screws

6001-002755 x 19 EA

- C/R+PANEL: 17 EA

- C/R+MAIN: 1 EA

TORQUE: 7~ 8Kgf.cm.

6003-000003 x 1 EA

- C/REAR+SMPS: 1 EA

TORQUE: 7~ 8Kgf.cm.

Remove the Electric tapes shown on the

4

images.

• Filament Tape

• Dressing

NOTE

When assembling the TV, the electric
tapes must be applied on the same
locations. Please remember to take a

pictureofwherethetapeswererst

applied.

65 inch•

Filament Tape

Remove the Harness Cable (Main B'd

5

Power), (BLU Power) and the FFC Cable
(Main-Source B'd).

Dressing

Harness Cable

(Main B'd Power)

FFC Cable

(Main-Source B'd)

Harness Cable

(BLU Power)

3-4

3. Disassembly and Reassemble

Description Picture Description

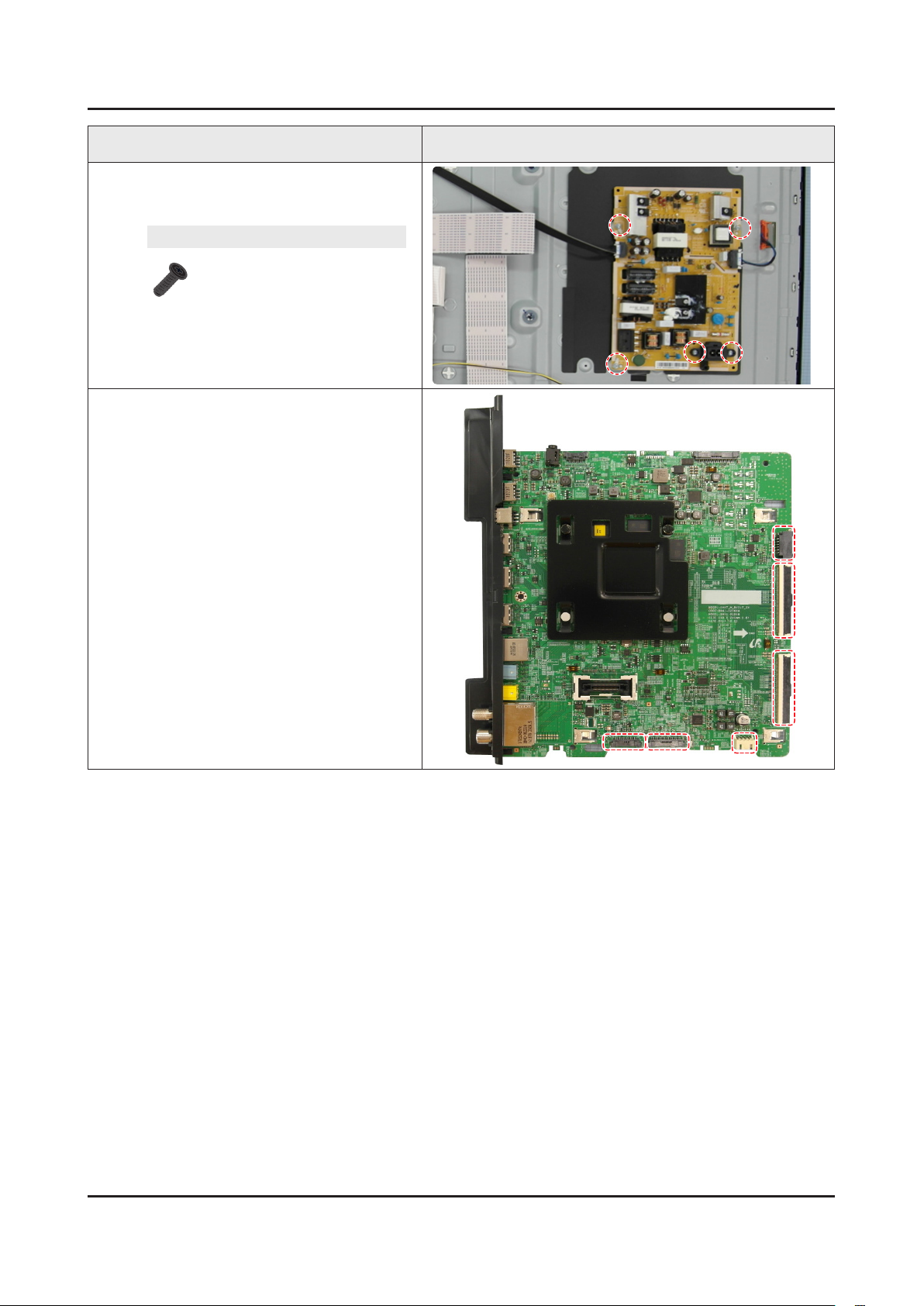

Remove 5 Screws on SMPS Board, and

6

then remove the board. (Power Cables
were already removed.)

Screws

6001-003016 5EA

- SMPS+PANEL : 5 EA

TORQUE: 7~ 8Kgf.cm.

Remove the cables from the 'TV Board'.

7

3-5

3. Disassembly and Reassemble

Description Picture Description

Remove the ASSY PCB MAIN BOARD.

8

Gently lift up to release the lock •
(Locking ).

Use both hands to hold (Bottom chassis •
Guide Fixing Hole ) the board and
slide to the left to release the board.

NOTE

When installing the ASSY PCB MAIN
BOARD, verify the board is properly
positioned in all 4 mounting slots.

Locking

Slide to the left to release the board

Locking

Bottom chassis Guide Fixing Hole

9

10

Locking Fixing Hole

Remove the BT/WIFI unit.

Remove the IR unit.

3. Disassembly and Reassemble

Description Picture Description

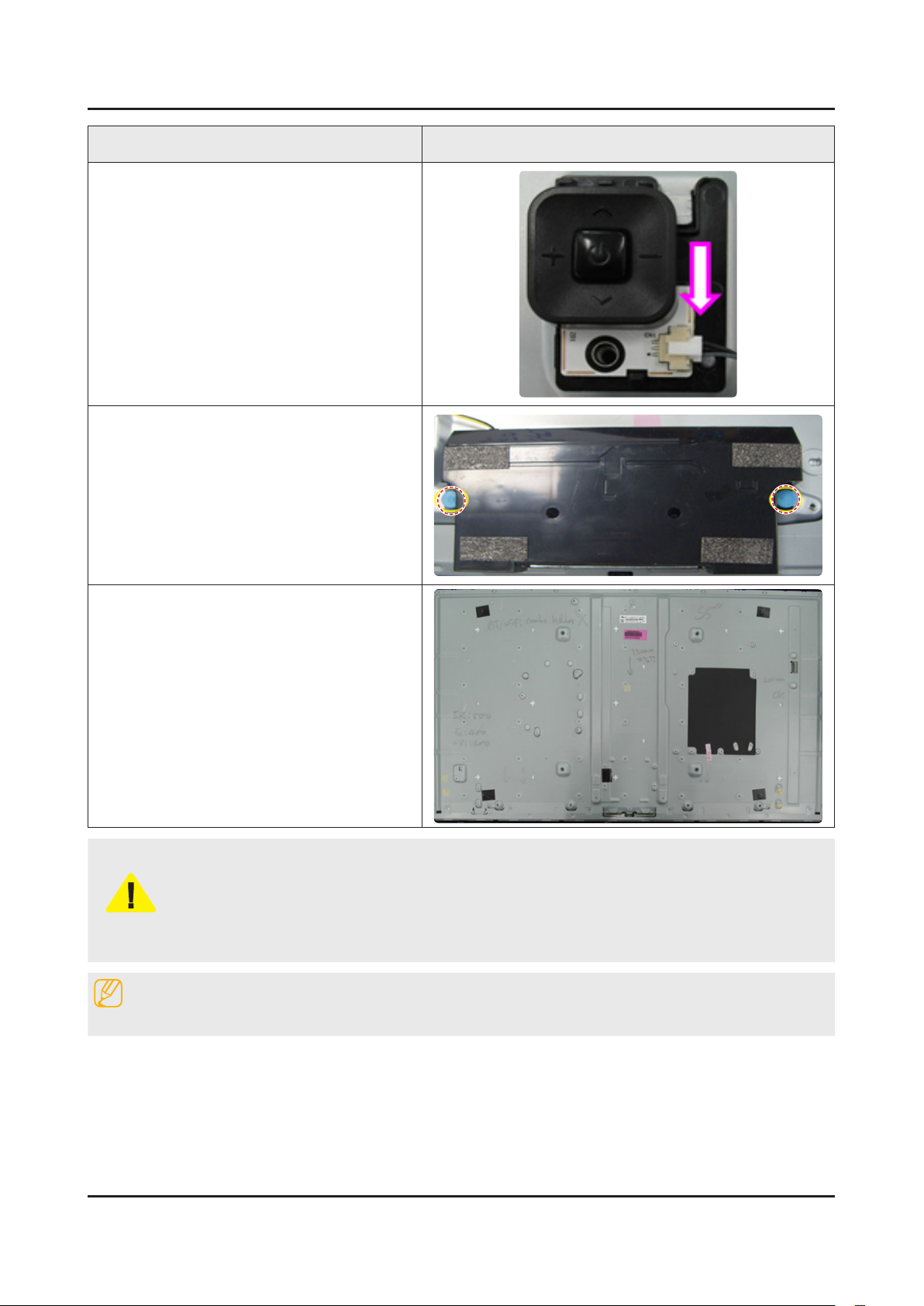

11

12

Remove the JOG unit.

Lastly, remove the speakers on both side.

* Panel

- Rear Side

Always remember to disconnect the Power Cord before assembling or disassembling the LED TV.1.

Always take precautions and follow the steps properly. Remember to take a picture before 2.
disassembling if possible.

CAUTION

NOTE

Reassembly procedures are in the reverse order of disassembly procedures.

3-6

Recommeded screwdriver torque : 22.0 ~ 26.5lbf3.

The torque may need to be adjusted accordingly. -

4. Troubleshooting

4-1. Previous Check

Check list for initial operation 

Check the various cable connections rst.1.

Check to see if there is a burnt or damaged cable. -

Check to see if there is a disconnected or loose cable connection. -

Check to see if the cables are connected according to the connection diagram. -

Check the power input to the Main Board.2.

How to distinguish if the problem is caused by Main Board.3.

No Video -

4. Troubleshooting

Symptom

Check Points Replace the Main Board.•

Distorted Picture : -

Check Points Check the inner patterns.•

If the problem is No Video but BLU is on and Indication LED is blinking repeatedly and faster

than nomal booting.

4-1

4-2

4. Troubleshooting

Inner View 

ASSY PCB MAIN

JOG

DC VSS-PD
BOARD

PANNEL

CONNECTORS

BT/WI

IR

ASSY SPEAKER P-FRONT

4-2. How to Check Fault Symptom

4-3

4. Troubleshooting

4-2-1. Power

TV POWER STANDBY 

TV in Standby1.

Standby LED Indicator

If Not Lit: -

AC 120Vac Line 9

If missing: -

120Vac Source and Power Cord 9

If OK: -

Resistance on SMPS 9 Fuse after rst removing AC power cord.

If fusses are open replace SMPS.2.

If fuses are OK: -

9 Standby: A13V (Always On) to Main Board. Should all be approx. 9 VDC

If any missing remove the SMPS connector to Main Board . -

Standby A13V again for 9VDC. 9

If OK replace • Main Board.

If still missing replace • SMPS.

4-4

4. Troubleshooting

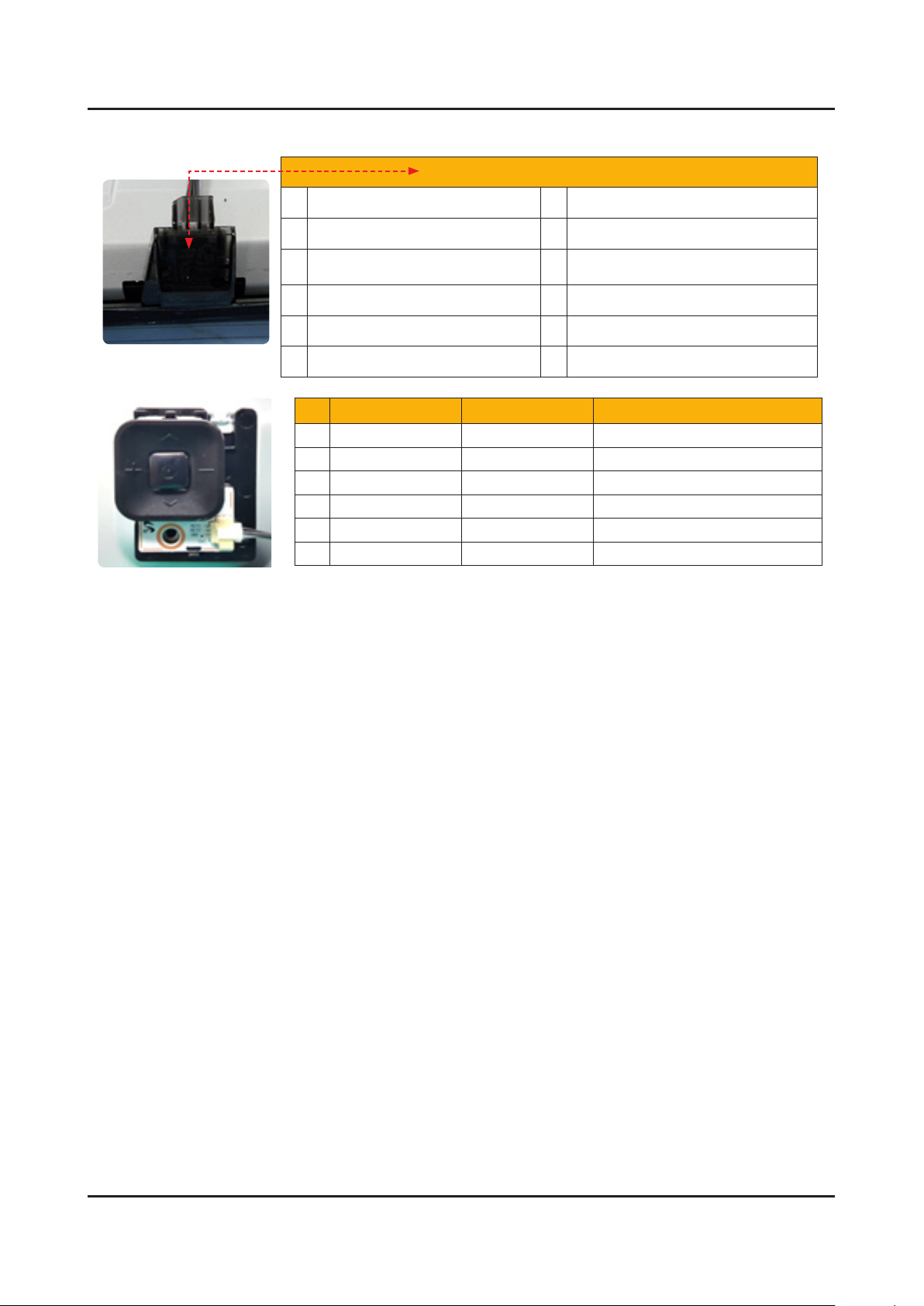

FUNCTION/IR Control 

Main Board - CN1101 (FUNCTION/IR)

1 IR 3.3Vdc to 2.5Vdc (Effective DC) 2 GND

3 A3.3V_PW 4 AMP_SCL_I2C 3.3Vdc (effective DC)

5

7 KEY_INPUT2 (1.8Vdc to command) 8 LED_STB_OUT 1.7Vdc STBY

9 N/C 10 N/C

AMP_SDA_I2C 3.3 Vdc

(effective DC)

6

(1.8dc to 0V with PWR On command)

KEY_INPUT1

<Function/IR>

<Jog Function Switch>

TV in Standby •

LED Status

If - LED is OFF

LED 1.7Vdc (pin 8) and VCC for 3.3Vdc 9

If missing suspect • Function Assy/Cable Assy/Main Assy.

If - LED is ON

Switch Operation activates on screen display. 9

If missing:

Check the STBY voltage from SMPS to Main Board. 1.

If STBY is OK suspect 9 Main Board.

Check Jog Shuttle 5 SW Operation (2. Key 1 & Key 2) for command changes. If incorrect suspect a stuck Jog switch
which also holds data to Main preventing operation.

Check 3. SDA, SCL for effective 3.3Vdc (after power on).

Check 4. IR with Standard Remote command changes. (3.3V to 2.5V effective DC)

11 N/C 12 N/C

P CMD Signal DC Voltage

1 Center Key 1 1.8V to 0 Vdc

2 Vol+ Key 2 1.8V to 1.0 Vdc

2 Vol- Key 2 1.8V to 1.5 Vdc

2 CH+ Key 2 1.8V to 0 Vdc

2 CH- Key 2 1.8V to 0.6 Vdc

3 GND

SMPS POWER 

4-5

4. Troubleshooting

CNL802

1 2+ 2 NC 3 NC 4 2-

5 NC 6 NC 7 NC 8 NC

9 1+ 10 NC 11 NC 12 1-

13 NC 14 NC 15 IF2 16 IF1

CNM803

1 Fail Count 2 ANA_DIM 3 A13V

4 OD_ON/OFF 5 A13V 6 BLU_PWM

7 A13V 8 POWER_On/Off 9 GND

10 GND 11 GND 12 GND

Power TV On.1.

PS_ON 9 . 2Vdc (when off) changes to 3.3Vdc (on)

PS_On stays active for approx 20 sec. after TV is placed in Standby. It also remains ON for approx 2 min. ­after initial AC Power Cord is connected, even though standby indicator is lit.

if voltage error or no change.2.

Jog Function Control Test 9

If OK replace Main Board.3.

All 9 A13V supplies to full voltage level 12.7VDC.

If any wrong voltage, remove the SMPS connector to Main Board.4.

A13V again for 12.7VDC. 9

If OK replace Main Board.5.

If still wrong voltage replace SMPS.6.

OD 9 (Over Voltage Detect) : 3.3Vdc (Operating Normal)

If 0V or changing, an SMPS or Panel error exists.7.

Perform Backlight Test.8.

BLU_PWM 9 0V- Off to approx 1 - 3.3 V pending Backlight dim level.

If missing/error replace 9 Main Board.

CNM803

CNL802

Fuse

4-6

4. Troubleshooting

BACKLIGHTS 

Activate Backlights Test1. :

Disconnect Lead Cable from Main Board to Power Supply. (CN202) -

TV Screen for active backlight LEDs. 9

If NO BACKLIGHTS2.

Plus (+) & Minus (-) pin voltages on the Panel Connector. 9

If no pin voltages replace SMPS. -

If voltages exist but no backlight: -

The highest pin voltage (BL Drive Supply ) 9

Remove Panel connector and measure again to compare. -

If the voltage was high and stays the same high reading a string of Panel LEDs are open. Replace the Panel. -

If the v - oltage was low and remains low the SMPS is defective.

If the voltage was low and goes high a string of panel LEDs are shorted replace the - Panel.

For BACKLIGHT DIMMING PROBLEMS:

Go to • Menu → Picture → Backlight and vary level (0 – 20)

If no backlight changes observed:•

Panel Connector pin voltages and BLU_PWM voltages (CNM801) while changing backlight level. 9

If Panel voltages don’t change, and BLU_PWM changes, replace • SMPS.

If BLU_PWM doesn’t change replace • Main/T-Con Board.

4-2-2. Video

4-7

4. Troubleshooting

MAIN / T-CON Board 

Main Board Section1.

1 Start Up Logo 2 Customer Picture Test 1 3 Mute - 147 - Mute

Video Operation : Generated on Main Section.

If OK:1.

Source & Input Cables. 9

Other inputs. 9

One Connect Cable/Box. 9

If Noisy:2.

T-CON Section Test Patterns. 9

PRE FRC of T-CON Section2.

Customer Picture Test 2

Video Operation : Generated at Pre FRC, of T-CON Section.

If OK:1.

Main Section. 9

If Noisy:2.

Post FRC Pattern. 9

POST FRC of T-CON Section3.

Customer Picture Test 3

Video Operation : Generated at Post FRC of T-CON Section.

If OK:1.

Main / T-CON Board (defective). 9

If Noisy:2.

Mute - 369 - Mute. 9

4-8

4. Troubleshooting

T-CON Section4.

Mute - 369 - Mute

NOTE

May not be available for Larger models over 70 inches.

Video Operation : Generated at T-CON Section.

If OK:1.

Main / T-CON Board (defective). 9

If Noisy:2.

Main / T-CON Board. 9

4-9

4. Troubleshooting

PANEL 

If Noisy:1.

Panel (defective). 9

4-10

4. Troubleshooting

4-2-3. Audio

AUDIO 

Source

No TV Sound•

Menu → Audio → Speaker Settings set to 9 TV Speaker

Noisy / Distorted TV Audio•

Customer Menu → Support → 9 Sound Test

If • Sound Test FAILS : (Missing / Noisy Audio)

Speakers (compare resistance/quality) 9

Compare audio level out to speakers with multi meter.•

Replace defective Speakers or Main Board or Cable. 9

IF • Sound Test OK :

Audio Source & External Cables. 9

With external Audio Generator (device or App). 9

Other Inputs. 9

One Connect Mini. 9

Optical Digital Out Errors•

Red light from Optical Digital Out. 9

If missing replace One Connect Mini•

No HDMI Audio •

Source / HDMI Cable & One Connect Mini Connectors. 9

Swap with other HDMI Inputs/Sources.•

Perform • EDID Write in Factory Mode (Can restore missing HDMI Audio).

Bulletins and Latest rmware on TV. 9

If not restored replace One Connect Mini/Main.•

Check Audio Format PCM/Dolby based on external Receiver.•

ARC Issues•

HDMI Cable is input to the ARC Designated HDMI port. 9

ARC (HDMI Control) is enabled on the external Receiver. 9

Bluetooth Audio "• Sound Share" Connection Issues

Sound Bar is in TV Mode. 9

To Connect, Press & Hold Play Button until Sound Bar pairing mode begins. •

4-2-4. Network

4-11

4. Troubleshooting

<TV> <Router> <Internet>

TV to Router "Failure" 

Check Network Status (TV Router Internet)

Wired & Wireless MAC Address• in Customer Support Menu.

No Wired MAC Address 9 : Replace Main Board.

No Wireless MAC Address 9 : Module cabling & voltages from Main Board.

If operating voltages are OK but signal missing. 9

Replace WiFi Module (WiFi/Bluetooth Module).•

Proper • security passcode

Check Wi-Fi signal strength at TV (use WiFi Analyzer or similar App). 9

Try another source (Hot spot or Test Router).•

Check related Bulletins. 9

Check 9 Factory Mode → SVC → Info → WiFi Error Count (replace module for high error counts).

Router to Network "Failure" 

Check Network Status (TV Router Internet)

Instruct the customer the TV has proper connection to the router and is likely OK.•

Check other devices using network are OK. If they test OK this does not mean the TV should be working. 9

Try another source (Hotspot) to test/show TV Network operation. •

4-12

4. Troubleshooting

4-2-5. Smart Hub

Go to Menu £ Support £ Self Diagnosis £ Smart Hub Connection Test

<TV> <Samsung Server><Router> <Internet>

Network / Gateway 1. If it Fails:•

TV to Router Connection Test in " 9 Network Trouble shooting"

DNS Test2. If it Fails:•

DNS setting in " 9 Network Settings"

If DNS is set manually:•

Settings are correct (may be set to 8.8.8.8 to prevent Netix issues) 9

If it still fails:•

DNS Test with setting to Auto Mode 9

If it fails both Manual & Auto problem is ISP or Router.•

ISP Blocking3. If it Fails:•

Samsung Server Test4. If it Fails:•

Samsung Apps5. If it Fails:•

Internet Service Provider is Active. 9

With DNS setting at 8888. 9

With Hot Spot. 9

Network Status. 9

If OK:•

Reset Smart Hub. 9

Terms of Agreement are accepted. 9

Reset Smart Hub. 9

Samsung Apps load correctly. 9

Perform " 9 Apps Reset" in Factory Mode.

Go to Smart Hub and complete Terms of Agreement and set up information. 9

Samsung Apps load correctly. 9

Before selecting an App, allow Apps to load or failure wilre-occur. 9

For Netix Operation/Connection Issues:

4-13

4. Troubleshooting

Check Certicate & Netix ESN Status in Factory Mode.•

If Certicate and ESN exists, " - CO", "NfO", change the DNS to 8.8.8.8

If Certicate is missing, " - C/" replace the TV’s Main Board.

If ESN number is missing: - NF/ do not replace the Main Board.

Reset TV Clock and check for correct Time & Date. Netix relies on correct settings.•

Reset Smart Hub. / Reset Apps In Factory Mode.•

For Streaming Issues:

Go to TV Web Browser / Go to speedof.me / testmy.net•

Check Speed 9 for at least 5 Mbps(HD streaming) / 25 Mbps (4K Streaming).

Check Latency 9 for less than 50ms.

4-14

4. Troubleshooting

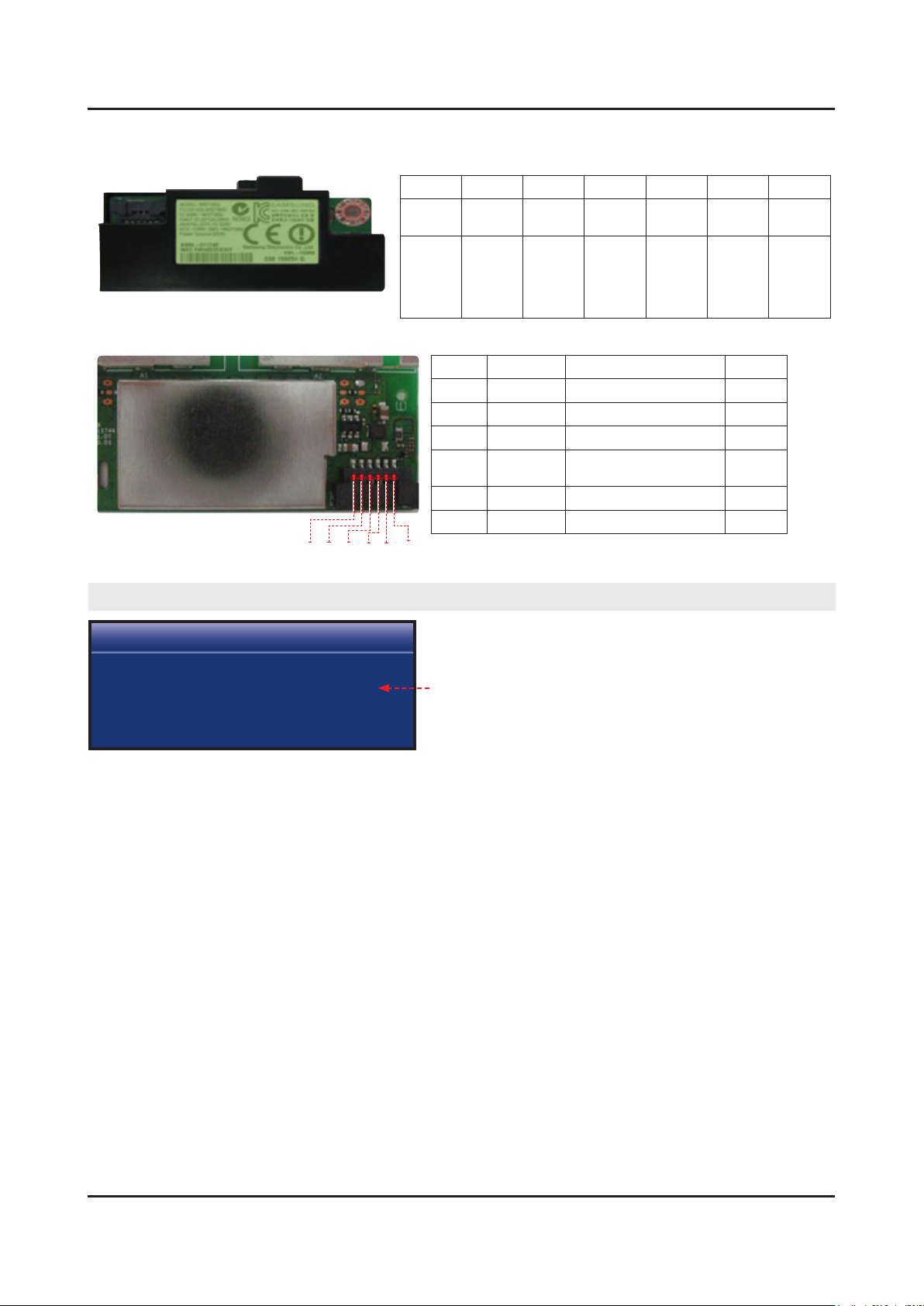

4-2-6. WiFi Module

Pins 1 2 3 4 5 6

Standby 0 3Vdc 0

Power

ON

0.02V

0

eff.dc

Wi Sig.

(DP)

0.5Vp-p

0.02V
eff.dc

Wi Sig.

(DM)

0.5Vp-p

5Vdc

VCC

5Vdc

VCC

3.3Vdc N.C

3.3Vdc

Pins # Pin Name Description Type

1

2

3

4

5

6

GND Ground G

USB_DP USB Interface I/O

USB_DN USB Interface I/O

B+_5V

Wake up Sleep/OFF to ON I/O

NC - -

+5V DC power supply for

SWL-R55

V

1 2 3 4 5 6

Go to Menu > Support > Contact Samsung

Contact Samsung

<

- Wired MAC Address : xx:xx:xx:xx:xx:xx

- Wireless MAC Address : xx:xx:xx:xx:xx:xx

- Bluetooth Address : xx:xx:xx:xx:xx:xx

Wired MAC Address (Missing or Error : Replace • Main Board.

Wireless MAC Address•

Bluetooth Address•

If • Bluetooth Address or Wireless MAC Address are missing or errors exist.

BT & Wi-Fi Connector Voltages• .

If Voltages are OK but no BT or Wi-Fi Signals voltage(s), replace defective Module. -

WI-FI VDDO OFF/ON reset timing

4-15

4. Troubleshooting

WI-FI VDD33 ON reset timing

4-16

4. Troubleshooting

4-3. Factory Mode

Factory Remote 

Power TV ON.1.

Select TV Source.2.

Info3. → Factory.

Use 4. MENU for return.

Samsung IR Remote (Limited Operation) 

TV Power Standby.1.

Press as follows. 2.

Remote Button :• NTSC : MUTE 1 8 2 POWER ON

PAL : INFO MENU MUTE POWER ON

Option• (must set Option Bytes when replacing Main Board.)

Option → • Factory Reset (returns TV to out of box condition. Does not reset Apps.)

SVC → • Test Patterns

SVC → Info → • ER Count (Important to check for errors.)

Resets to 0 with Factory Reset. -

First Screen Appearing in Factory Mode

Ex. SAMPLE Model•

Slide details•

4-17

4. Troubleshooting

Home Updates Exit

Option

Control

Debug

SVC

ADC/WB

Advanced

T-KTMDEUC-XXXX.XX

T-KTMINTV-XXXX

tztv-X.X.-main2017-kant-m__XXXXXXXX.X

BT Version : BLUETOOTH-VER-XXXX

E-Manual:----

CAMERA:****

Blaster Version : Not support

E-POP Version : KANTMUHD-XXXX.X

EDID SUCCESS

HDCP SUCCESS

CALIB : AV/COMP/PC/HDMI/

Option : NONE_17,NONE,6400,NONE

DTCP Not Support

FRC-[KANT-M/?][NON FRC][HW:0x00]

TCON Version:----

Model : UE**MU6xxxx

Wired MAC SUCCESS

Wireless MAC SUCCESS

WIFI Version : BCM43569_16210_WLC_E_STATUS_
ABORT

Testing Items 9

Micom Version 9
Sub Micom 9

Tizen 9

BT Version 9

E-Manual 9

Wired MAC Success 9

Wireless MAC Success 9

CO NfO WO MO D/ HX P/ AO O S/ N/ RO SC/ SiO(P)

NS//

Factory Data Ver : XXX / Fixed Ver : XX

EERC Version : 75 / WB Ver : 8

CPLD/LD : N/A

SmartControl : 0

Board Info : 2015/12/29/PV/12/BN41-02528A

Factory Reset In Production : ----

SID : ----

Date of purchase : --/--/----

CO Status 9

("O" Operational)

4-18

4. Troubleshooting

Factory Reset 

Ex. SAMPLE Model•

Factory Reset

Type 40A6AU2VK

Local Set EU

SW Model UMU6102

BOM Model 6122

TUNER -

Ch Table NONE

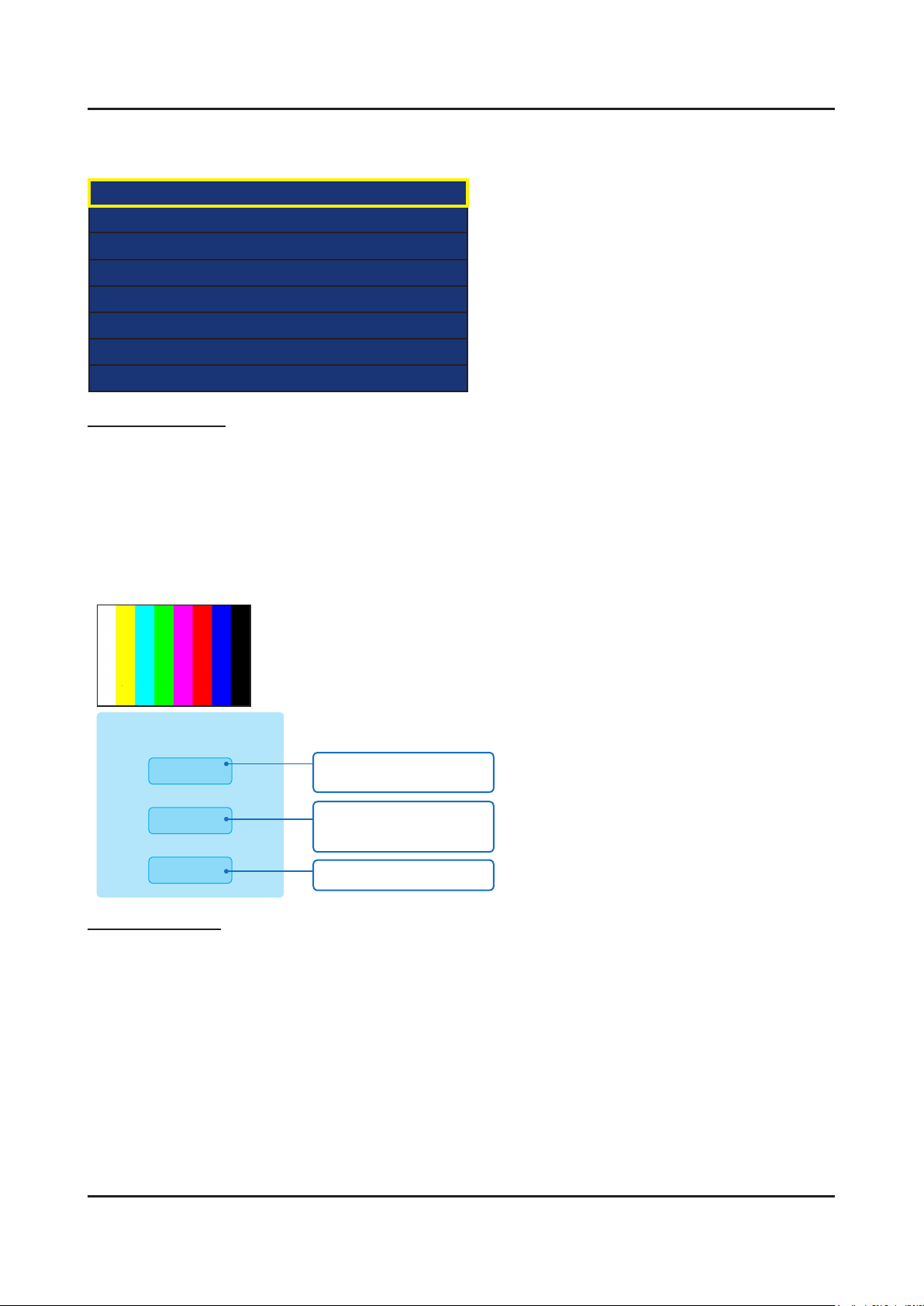

Setting Option Bytes

Enter Factory Mode with 1. Service Remote (only).

Check Option Byte Table located on 2. GSPN (Fast Track or Tips).

Select each item to change. 3.

Soft power TV Off to load.4.

SVC  £ Test Patterns

Main Board

KANT-M

FRC

T-CON

Check Test Patterns

Verify "1. Scaler Pattern" and "US Post Pattern".

Verify "2. FRC Pre Test Pattern".

Verify "3. FRC Post Test Pattern".

Verify "4. SoC TCON Test Pattern".

1 Scaler Pattern

US Post Pattern

2 FRC Pre Test Pattern
3 FRC Post Test Pattern

4 SoC TCON Test Pattern

SVC  £ Info £ ER Count

4-19

4. Troubleshooting

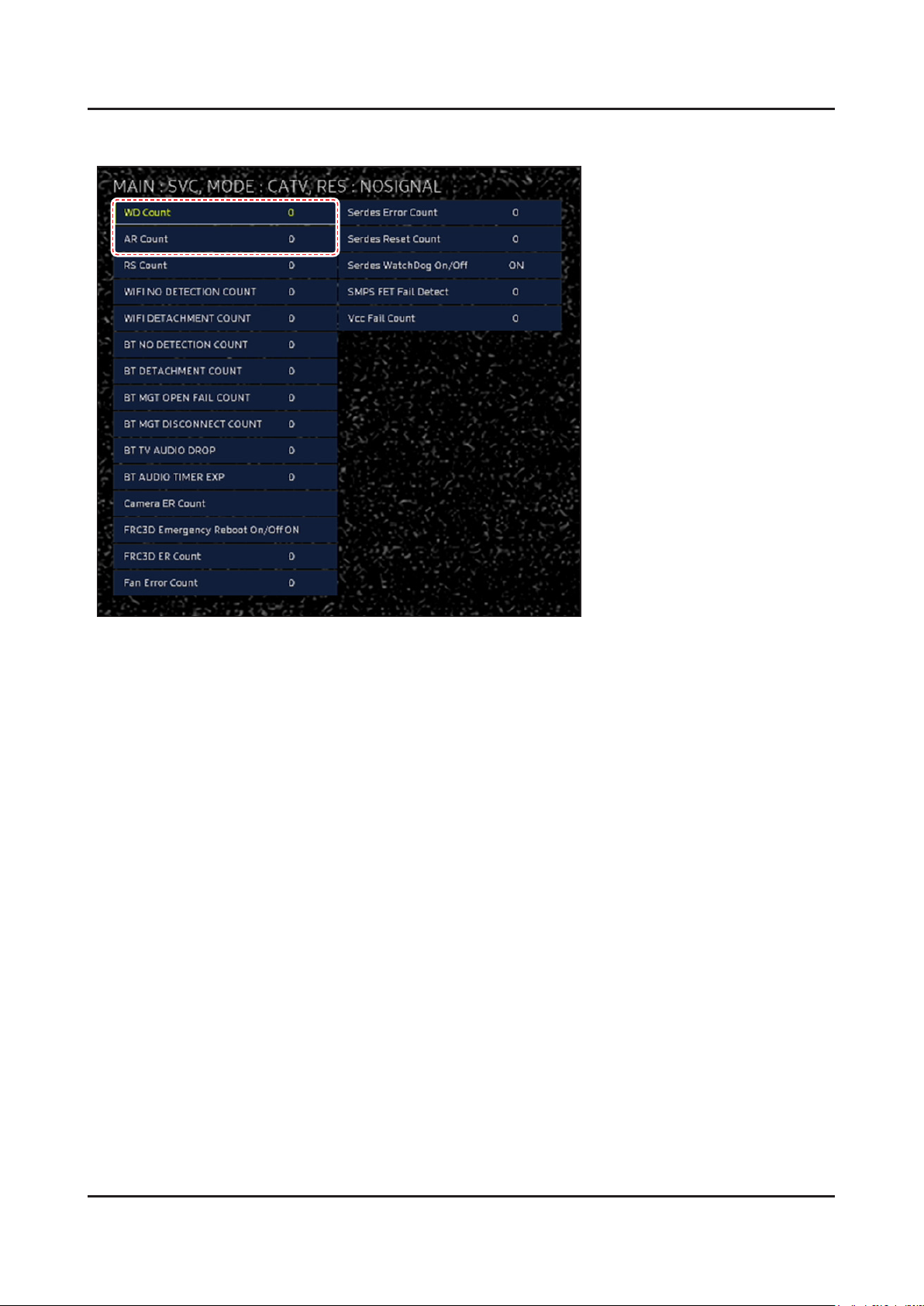

WD Count• : Watch Dog (Hardware related issue).

AR Count• : Auto Reset (software (i.e. Apps) related.

important Error Count - Status Screen.

Verify each item listed. •

4-20

4. Troubleshooting

Factory Mode  £ Control £ EDID

Remove ALL 1. HDMI connections.

Factory Mode → Control → 2. EDID. (→ Enter Key)

Option

Control

Debug

SVC

ADC/WB

Advanced

Select EDID/OFF to ON. (→ 3. Right Arrow Key)

EDID ON/OFF ON

Select EDID WRITE ALL. (→ 4. Enter Key)

EDID WRITE ALL Success

Wait to Success. (→ 5. Right Arrow Key)

EDID WRITE ALL Wait

Conrm EDID WRITE ALL Success. (→ 6. Menu Key)

EDID WRITE ALL Success

EDID

Sub Option

Hotel Option

Shop Option

Asia Option

Sound

4-4. Factory Mode Adjustments

4-21

4. Troubleshooting

4-4-1. Detail Factory Option

NOTE

If you replace the main board with new one, please change the factory option as well.
The options you must change are "Type".

UE40MU6122KXXH 

PANEL / SMPS / MAIN Information•

Multi

Bom

Vendor

FA01

Code Spec Type Code Spec

BN95-02634D CY-GK040HGLV4V 40A6AU2VK BN44-00806A L40S6_FDY BN91-19438E BN94-12695M

PANEL SMPS MAIN

SDC

Vendor

DYREL

ASSY

CHASSIS

ASSY

PCB MAIN

Vendor

FA02

Code Spec Type Code Spec

BN95-04560C CY-GK040HGLVDV 40A6AU2VK BN44-00806F L40S6R_MSM BN91-19438E BN94-12695M

Vendor

FB03

Code Spec Type Code Spec

BN95-02634D CY-GK040HGLV4V 40A6AU2VK BN94-10711A L40S5_KVD BN91-19438E BN94-12695M

SDC

SDC

Vendor

Vendor

SOLUM

SEC

ASSY

CHASSIS

ASSY

CHASSIS

Factory Option•

Local Set BOM Model Front Color S/W Model

EU 6122 U-F-MU61-40 UMU6102

ASSY

PCB MAIN

ASSY

PCB MAIN

4-22

4. Troubleshooting

UE43MU6122KXXH 

PANEL / SMPS / MAIN Information•

Multi

Bom

Vendor

AA01

Code Spec Type Code Spec

BN95-04115A CY-GM043HGAV1V 43L6AU0VM BN44-00806A L40S6_FDY BN91-19438H BN94-12643E

PANEL SMPS MAIN

AUO

Vendor

DYREL

ASSY

CHASSIS

ASSY

PCB MAIN

Vendor

BA02

Code Spec Type Code Spec

BN95-02697A CY-GK043HGEV1V 43B6AU0VK BN44-00806A L40S6_FDY BN91-19438J BN94-12643K

Vendor

AA03

Code Spec Type Code Spec

BN95-04115K CY-GM043HGAV5V 43L6AU0VM BN44-00806F L40S6R_MSM BN91-19438H BN94-12643E

Vendor

BA04

Code Spec Type Code Spec

BN95-02697D CY-GK043HGEV3V 43B6AU0VK BN44-00806F L40S6R_MSM BN91-19438J BN94-12643K

Vendor

DA05

Code Spec Type Code Spec

BN95-04801C CY-GK043HGNV3V 43D6AU0VM BN44-00806A L40S6_FDY BN91-19919H BN94-12643H

BOE

AUO

BOE

INX

Vendor

Vendor

Vendor

Vendor

DYREL

SOLUM

SOLUM

DYREL

ASSY

CHASSIS

ASSY

CHASSIS

ASSY

CHASSIS

ASSY

CHASSIS

Factory Option•

Local Set BOM Model Front Color S/W Model

EU 6122 U-F-MU61-43 UMU6102

ASSY

PCB MAIN

ASSY

PCB MAIN

ASSY

PCB MAIN

ASSY

PCB MAIN

4-23

4. Troubleshooting

UE50MU6122KXXH 

PANEL / SMPS / MAIN Information•

Multi

Bom

Vendor

DA01

Code Spec Type Code Spec

BN95-03677A CY-GK050HGNVHV 50D6AU2VK BN44-00807A L55S6_FHS BN91-19438S BN94-12644K

PANEL SMPS MAIN

INX

Vendor

HANSOE

ASSY

CHASSIS

ASSY

PCB MAIN

Vendor

DB02

Code Spec Type Code Spec

BN95-04311B CY-GK050HHNV7V 50D6AU6VK BN44-00807A L55S6_FHS BN91-19437K BN94-12640S

Vendor

DA03

Code Spec Type Code Spec

BN95-03677C CY-GK050HHNVAV 50D6AU2VK BN44-00807F L55S6R_MHS BN91-19438S BN94-12644K

Vendor

DB04

Code Spec Type Code Spec

BN95-04311D CY-GK050HHNVMV 50D6AU6VK BN44-00807F L55S6R_MHS BN91-19437K BN94-12640S

Vendor

AA05

Code Spec Type Code Spec

BN95-04284F CY-GK050HGAV6V 50L6AU0VK BN44-00807F L55S6R_MHS BN91-19420R BN94-12530S

INX

INX

INX

AUO

Vendor

Vendor

Vendor

Vendor

HANSOE

HANSOE

HANSOE

HANSOE

ASSY

CHASSIS

ASSY

CHASSIS

ASSY

CHASSIS

ASSY

CHASSIS

Factory Option•

Local Set BOM Model Front Color S/W Model

EU 6122 U-F-MU61-50 UMU6102

ASSY

PCB MAIN

ASSY

PCB MAIN

ASSY

PCB MAIN

ASSY

PCB MAIN

4-24

4. Troubleshooting

UE55MU6122KXXH 

PANEL / SMPS / MAIN Information•

Multi

Bom

Vendor

FA01

Code Spec Type Code Spec

BN95-02637F CY-GK055HGLV5V 55A6AU0VK BN44-00807A L55S6_FHS BN91-19438W BN94-12644V

PANEL SMPS MAIN

SDC

Vendor

HANSOE

ASSY

CHASSIS

ASSY

PCB MAIN

Vendor

BA02

Code Spec Type Code Spec

BN95-04114A CY-GM055HGEV1V 55B6AU0VM BN44-00807A L55S6_FHS BN91-19438V BN94-12644Q

Vendor

FB03

Code Spec Type Code Spec

BN95-02637M CY-GK055HGLVBV 55A6AU2VK BN44-00807A L55S6_FHS BN91-19438X BN94-12645A

Vendor

FA04

Code Spec Type Code Spec

BN95-04561A CY-GK055HGLVGV 55A6AU0VK BN44-00807F L55S6R_MHS BN91-19438W BN94-12644V

Vendor

BA05

Code Spec Type Code Spec

BN95-04114D CY-GM055HGEV3V 55B6AU0VM BN44-00807F L55S6R_MHS BN91-19438V BN94-12644Q

Vendor

CB07

Code Spec Type Code Spec

BN95-04562A CY-GM055HGHV3V 55S6AU0VM BN44-00807F L55S6R_MHS BN91-19680Z BN94-12765Z

BOE

SDC

SDC

BOE

CSOT

Vendor

Vendor

Vendor

Vendor

Vendor

HANSOE

HANSOE

HANSOE

HANSOE

HANSOE

ASSY

CHASSIS

ASSY

CHASSIS

ASSY

CHASSIS

ASSY

CHASSIS

ASSY

CHASSIS

ASSY

PCB MAIN

ASSY

PCB MAIN

ASSY

PCB MAIN

ASSY

PCB MAIN

ASSY

PCB MAIN

FB08

Factory Option•

Vendor

SDC

Vendor

Code Spec Type Code Spec

BN95-02637W CY-GK055HGLVJV 55A6AU2VK BN44-00807F L55S6R_MHS BN91-19438X BN94-12645A

HANSOE

ASSY

CHASSIS

ASSY

PCB MAIN

Local Set BOM Model Front Color S/W Model

EU 6122 U-F-MU61-55 UMU6102

4-25

4. Troubleshooting

UE65MU6122KXXH 

PANEL / SMPS / MAIN Information•

Multi
Bom

Vendor

DA01

Code Spec Type Code Spec

BN95-02641A CY-GK065HGNV1V 65D6AU0VK BN44-00808D L65S6N_FSM W BN91-19439U BN94-12647S

PANEL SMPS MAIN

INX

Vendor

SOLUM

ASSY

CHASSIS

ASSY

PCB MAIN

Vendor

DA02

Code Spec Type Code Spec

BN95-02641U CY-GK065HGNVBV 65D6AU0VK BN44-00808E L65S6NR_MSM BN91-19439U BN94-12647S

Vendor

FA04

Code Spec Type Code Spec

BN95-02640K CY-GK065HGLV6V 65A6AU0VK BN44-00808E L65S6NR_MSM BN91-19738W BN94-12810W

INX

SDC

Vendor

Vendor

SOLUM

SOLUM

ASSY

CHASSIS

ASSY

CHASSIS

Factory Option•

Local Set BOM Model Front Color S/W Model

EU 6122 U-F-MU61-65 UMU6102

ASSY

PCB MAIN

ASSY

PCB MAIN

4-26

4. Troubleshooting

4-4-2. Factory Data

Option 

Factory Menu Name Data Range

Factory Reset

Type

Local Set

SW Model

BOM Model

TUNER

Ch Table

-

40" 40A6AU2VK

43" 43L6AU0VM, 43B6AU0VK,

43D6AU0VM

50" 50D6AU2VK, 50D6AU6VK,

50L6AU0VK

55" 55S6AU0VM, 55A6AU0VK,

55B6AU0VM, 55A6AU2VK

65" 65D6AU0VK, 65A6AU0VK

EU

UMU6102

6122

-

NONE

MRT Option

Control 

Factory Menu Name Data Range

EDID

EDID ON/OFF OFF

EDID WRITE ALL …

EDID WRITE HDMI …

EDID WRITE PC …

HDMI EDID Ver …

HDMI EDID Port …

Sub Option

RS-232 Jack UART RS-232 mode setting

EXT Link Support ON

Serial Log On/Off ON

Watchdog ON

FRC Monitoring OFF

Checksum 0x0000

Fast Boot In Production ON

USB Serial OFF

ECO IC TYPE NONE

Info Link Server Type development

Factory Menu Name Data Range

4-27

4. Troubleshooting

Info Link Country None

TTX Group UserOSD

Visual Test Disable

OPTION_SWU

DPMS Support OFF

RF Remocon Support OFF

CDD mode

DPMS Support OFF

T-CON Device KantM

RM Server Type Operating

LMN LEAVE THRESHOLD 160

LMN TRIM THRESHOLD 80

LMN TERM THRESHOLD 60

EOS Click OFF

BP PMS Reset 1

FAnet Thread 2

CI CPSD Version 1

ACM_MC ON

UNIQUE TRIPLET ON

FS_FAV OFF

Private Range USE ON

SCSA Support ON

SPI Protection

FKP Server Type Default

OCM Support OFF

Preloading Support ON

Multitasking Support ON

Browser preloading Support GENERAL

EXT IR Boot Support OFF

APP BOOTING SUPPORT ON

NagSam Support OFF

EWBS Support OFF

MVPD MBR Provider COMCAST

Cloudscan Always Upload OFF

FirstScreen Cache Size 300

Hotel Option

Hospitality Mode OFF

4-28

4. Troubleshooting

Factory Menu Name Data Range

Power On

Menu OSD

Music Mode

External Source

Eco Solution

Cloning

Shop Option

Exhibition Mode OFF

Peak Mode OFF

Metadata ON

Shopmode Picture Reset ON

Asia Option

Unblance OFF

AF Level adjust 0

TX Power Level 0

Mono Last Memory OFF

H Shaking 0

SOUND

High Devi OFF

Carrier_Mute ON *If the broadcast signal is not good, TV will

Pilot Level High Thld 0x20h *If the noise comes from weakness-

Pilot Level Low 0x10h

Carrier2 Amp High ThLD 9

Carrier2 Amp Low THLD 6

Amp Volume 0xc9h

Amp Scale 0x35h

Amp EQ Check Sum 0xXXXXXXXX

Subwoofer Support 0

complement the characteristics of the signal
(most use when weak signal comes from the
growing area countries)

electromagnetic eld, TV will be set Mute

automatically (Only default on in North
America)

Woofer Type 0

Woofer Volume 0xc6h

Woofer Scale 0x56h

Woofer checksum NONE

PEQ Inx 1

PEQ Test Ready

Factory Menu Name Data Range

4-29

4. Troubleshooting

Speaker EQ ON

Bottom CheckSum NONE

Wall Filter Type 0

SRS Tuning Parm 0

SPDIF PCM Gain -9

AudioDock BT Delay 90

3D_Glass BT delay 50

Mic Scale OFF

India Sound 0

Speaker Delay Normal 0

NTV CU Delay Normal

Lipsync Inx 7

Lipsync Checksum 0x4D13

Lipsync USB Test Ready

Lipsync BT Checksum 0x0000

TP Volume 0xc9h

TP Scale 0x64h

TP EQ CheckSum NONE

Debug 

Factory Menu Name Data Range

Spread Spectrum

DDR Margin

BT_ON_OFF ON

RF Mute Time 600ms

Tuner Margin 3

FRC

TCON

MPEG Margin 20

H.264 Margin 15

CAM Wait Time 15

Voice Debug OFF

Power Mnangement

Cert Option Waiting

RM_BIST_DTV 0

RM_BIST_ATV 0

RM_BIST_CABLE 0

4-30

4. Troubleshooting

Factory Menu Name Data Range

SerDES Check

Stress Mode OFF

Log Analyzer ON

Error Popup On/Off OFF

Dead Lock KILL OFF

CES Option OFF

CES Convergence Option OFF

CES ATSC 3_0 OFF

CES OOBE MVPD SUPPROT OFF

BT DUT OFF

BT Throughput Fauilure

Reproduce Module ON

21_9

DB Download

Read Eco Sensor Data 0

No Signal Power OFF ON

Alert Option ON

Defualt HDMI1 Booting OFF

SVC 

Factory Menu Name Data Range

Self Test(for HW)

Info

Reset

OPTION_HDMI

DVB CI

Test Pattern

Upgrade

T-CON DATA UPGRADE NG

T-CON FW UPGRADE NG

T-CON CheckSum N/A

T-CON2 Usb Download Failure * UpgradeT-CON eeprom

T-CON2 CheckSum * virsion of T-CON eeprom

PANEL EEPROM UPGRADE Failure

PANEL FLASH UPGRADE Failure

Logic Usb D/L

SUBMICOM UPGRADE Ready * Upgrade Sub-Micom Program

Factory Menu Name Data Range

4-31

4. Troubleshooting

SUBMICOM JP USB UPGRADE Ready

BT UPGRADE * Upgarde BT(There is upgrade program in

BT FREEPAIRING ON

Function Upgrade Failure

FRC3D FW UPGRADE

FRC3D SRP UPGRADE

FRC2 3D LD UPGRADE

FRC2 3D FW UPGRADE

Camera Upgade * Upgarde Camera module(There is upgrade

Mic Upgrade * Upgarde MIC in Camera module(There is

Jump UPGRADE Failure

IR Blaster Upgrade Failure

IR Blaster delay time 50

NTV CU UPDATE Failure

UD LDC PROFILE UPGRADE Failure

Pic Data USB Update VER:0x000

Main-Image)

program in Main-Image)

upgrade program in Main-Image)

Eco Data USB Update VER:0x0035

CI CPLD Upgrade Failure

SC ADK Upgrade Failure

Other setting

SVC Panel

ORIGINAL

S/N

ADC/WB 

Factory Menu Name Data Range

ADC

AV Calibaration NA

Comp Calibration NA

PC Calibration NA

HDMI Calibration NA

ADC Result

1st_Y_GH 255

1st_Y_GL 246

1st_Cb_BH …

1st_Cb_BL …

4-32

4. Troubleshooting

Factory Menu Name Data Range

1st_Cr_RH …

1st_Cr_RL ..

2nd_R_L 129

2nd_G_L 129

2nd_B_L 129

2nd_R_H 109

2nd_G_H 109

2nd_B_H 109

White Balance

R-Offset 128

G-Offset 128

B-Offset 128

R-Gain 128

G-Gain 128

B-Gain 128

WB-W2_R_Offset 128

WB_W2_B_Offset 128

WB_W2_R_Gain 152

WB_W2_B_Gain 75

WB_N_R_Offset 128

WB_N_B_Offset 128

WB_N_R_Gain 140

WB_N_B_Gain 119

MGA

MGA On/Off OFF

R1_Gain 512

G1_Gain 512

B1_Gain 512

R2_Gain 512

G2_Gain 512

B2_Gain 512

R3_Gain 512

G3_Gain 512

B3_Gain 512

R4_Gain 512

G4_Gain 512

B4_Gain 512

Factory Menu Name Data Range

4-33

4. Troubleshooting

R5_Gain 512

G5_Gain 512

B5_Gain 512

R6_Gain 512

G6_Gain 512

B6_Gain 512

R7_Gain 512

G7_Gain 512

B7_Gain 512

R8_Gain 512

G8_Gain 512

B8_Gain 512

R9_Gain 512

G9_Gain 512

B9_Gain 512

R10_Gain 512

G10_Gain 512

B10_Gain 512

SPI White Balance

SPI MGA

WB Data to SPI

0

Advanced 

4-34

4. Troubleshooting

4-6. White Balance

4-6-1. Calibration

Into the Factory Mode.1.

Select 2. ADC/WB menu.

Select 3. ADC menu.

Option

Control

Debug

SVC

ADC/WB

Advanced

AV Calibration

Comp Calibration

PC Calibration

HDMI Calibration

4-6-2. Service Adjustment

You must perform Calibration in the Lattice Pattern before adjusting the White Balance.

Color Calibration 

Adjust Specication•

Source Setting Mode Pattern Use Equipment

HDMI 1280 x 720@60 Hz Pattern #24 (Chess Pattern) CA210 & Master MSPG925 Generator

(Chess Pattern)

Use other equipment only after comparing the result with that of the Master equipment. -

Input mode Calibration Pattern

CVBS IN (Model_#1) Perform in NTSC B&W Pattern #24 Lattice

Component IN (Model_#6) Perform in 720p B&W Pattern #24 Lattice

PC Analog IN (Model_#21) Perform in VESA XGA (1024x768) B&W Pattern #24 Lattice

HDMI IN Perform in 720p B&W Pattern #24 Lattice

Method of Color Calibration (AV)

4-35

4. Troubleshooting

Apply the NTSC Lattice (N0. 3) pattern signal to the AV IN 1 port.1.

Press the Source key to switch to “AV1” mode.2.

Enter Service mode.3.

Select the “ADC” menu.4.

Select the “AV Calibration” menu.5.

In “AV Calibration Off” status, press the “ ►” key to perform Calibration.6.

When Calibration is complete, it returns to the high-level menu.7.

You can see the change of the “AV Calibration” status from Failure to Success. 8.

Method of Color Calibration (Component)

Apply the 720p Lattice (N0. 6) pattern signal to the Component IN 1 port.1.

Press the Source key to switch to “Component1” mode.2.

Enter Service mode.3.

Select the “ADC” menu.4.

Select the “Comp Calibration” menu.5.

In “Comp Calibration Off” status, press the “ ►” key to perform Calibration.6.

When Calibration is complete, it returns to the high-level menu.7.

You can see the change of the “Comp Calibration” status from Failure to Success.8.

Method of Color Calibration (PC)

Apply the VESA XGA Lattice (N0. 21) pattern signal to the PC IN port.1.

Press the Source key to switch to “PC” mode.2.

Enter Service mode.3.

Select the “ADC” menu.4.

Select the “PC Calibration” menu.5.

In “PC Calibration Off” status, press the “ ►” key to perform Calibration.6.

When Calibration is complete, it returns to the high-level menu.7.

You can see the change of the “PC Calibration” status from Failure to Success.8.

Method of Color Calibration (HDMI)

Apply the 720p Lattice (N0. 6) pattern signal to the HDMI1/DVI IN port.1.

Press the Source key to switch to “HDMI1” mode.2.

Enter Service mode.3.

Select the “ADC” menu.4.

Select the “HDMI Calibration” menu.5.

In “HDMI Calibration Off” status, press the “ ►” key to perform Calibration.6.

When Calibration is complete, it returns to the high-level menu.7.

You can see the change of the “HDMI Calibration” status from Failure to Success.8.

4-36

4. Troubleshooting

4-6-3. Adjustment

Into the Factory Mode.1.

Select 2. ADC/WB menu.

Select 3. White Balance menu.

Option

Control

Debug

SVC

ADC/WB

Advanced

White Balance

(Low Light)

Sub Brightness

R offset

G offset

B offset

(Hight Light)

Sub Contrast

R gain

G gain

B gain

4-7. Updating the TV’s Software

4-37

4. Troubleshooting

View your TV's software version and update it if necessary.

Settings• Support Software Update

Updating the TV’s software to the latest version 

DO NOT turn off the TV’s power until the update is complete. The TV will turn off and on automatically
after completing the software update. All video and audio settings return to their default settings after a

CAUTION

Updating through the Internet

Settings • Support Software Update Update now

NOTE

Updating from the Internet requires an active Internet connection.

Updating through a USB device

software update.

Settings • Support Software Update Update now

After downloading the update le from the Samsung website and storing it on a USB device, connect the USB device to
the TV to update.

NOTE

To update using a USB ash drive, download the update package from Samsung.com to your computer.
Then, save the update package in the USB device's top-level folder. Otherwise, the TV will not be able to locate the
update package.

Updating the TV automatically 

Settings • Support Software Update Auto Update

If the TV is connected to the Internet, you can have the TV update its software automatically while you are watching the
TV. When the background update is completed, it is applied the next time the TV is turned on.

This function may take a longer time if another network function is running concurrently.•

This function requires an Internet connection.•

If you agree to the Smart Hub terms and conditions, • Auto Update is set to On automatically. If you want this function
disabled, use the Select button to turn it off.

5. Wiring Diagram

5-1. Layout

ASSY PCB MAIN

JOG

5. Wiring Diagram

DC VSS-PD
BOARD

PANNEL
CONNECTORS

BT/WI

IR

ASSY SPEAKER P-FRONT

5-1

5-2

5. Wiring Diagram

Main Board

SMPS

SPEAKERSPEAKER

IR

BT/WIFI

JOG

CN202

CN1802

CN1801

CN501

CNM803

CNL802

CN2301

CN1101

5-2. Cable

2

1

6

5

34

Cable Name 40" 43" 50" 55" 65"

1 LEAD CONNECTOR-BLU

Panel - SMPS Cable

2 LEAD CONNECTOR-POWER

SMPS - Main Cable

3 LEAD CONNECTOR-SUB ASSY

Main - WiFi Cable

4 LEAD CONNECTOR-SUB ASSY

Main - Function/IR Cable

5 FFC Cable

Main - Panel Cable

6 FFC Cable

Main - Panel Cable

BN39-02030E BN39-02030E BN39-02030E BN39-02030F BN39-02030C

BN39-02025G BN39-02025A BN39-02025A BN39-02025A BN39-02025G

BN39-02219D BN39-02219D BN39-02219D BN39-02219A BN39-02219B

BN39-02220A BN39-02220A BN39-02220C BN39-02220C BN39-02220D

BN96-39891A BN96-39891A BN96-39820B BN96-39820D BN96-39823B

BN96-39823C BN96-39823C BN96-39823D BN96-39903A BN96-39902A

5-3

5. Wiring Diagram

5-3. Connector

5-3-1. Main Board

@ CN2303

(USB)

! CN2304

(USB)

0 CN502

(OPTICAL)

9 CON_H4

(HDMI)

8 CON_H3

(HDMI)

7 CON_H2

(HDMI)

6 CN2401_LAN

(LAN)

5 CN601

(COMPONENT)

4 CN602

(AV)

TU802_DTMB

(TUNER)

3 CN1101

(Function/IR)

2 CN2301

(BT/WIFI)

# CN202

(Power)

$ CN1802_UT

(USI-T RIGHT)

% CN1801_UT

(USI-T LEFT)

1 CN501

(Sound)

Main Board Pin Map 

CN501 (SOUND)

1

1 OUT_C 3 OUT_A

2 OUT_D 4 OUT_B

CN2301 (BT/WIFI)

2

1 BT_NRESET 9 WIFI_PHY_ON

2 BT_MODULE_WAKE 10 GND

3 BT_WAKE 11 WIFI_D+_USB

4 GND 12 WIFI_D-_USB

5 BT_D-_USB 13 GND

6 BT_D+_USB 14 A5V_PW

7 GND 15 WIFI_WOL

8 BT_WELCOME 16 WIFI_NRESET

5-4

5. Wiring Diagram

CN1101 (FUNCTION/IR)

3

1 IR 7 KEY_INPUT2

2 GND 8 LED_STB_OUT

3 A3.3V_PW 9 NC

4 AMP_SCL_I2C 10 NC

5 AMP_SDA_I2C 11 NC

6 KEY_INPUT1 12 NC

CN602 (AV)

4

1 GND 5 TEST_SR

2 AV1_CVBS_IN 6 TEST_SL

3 COMP_AV1_SR_IN 7 COMP_AV1_SL_IN

4 IDENT_VIDEO 8

CN601 (COMPONENT)

5

1 GND 5 TEST_PR

2 COMP_PB 6 GND

3 COMP_PR 7 GND

4 IDENT_COMP

CN2401_LAN (LAN)

6

1 LAN_TXD+_LAN 5 GND

2 GND 6 LAN_RXD-_LAN

3 LAN_TXD-_LAN 7 NC

4 LAN_RXD+_LAN 8 GND

CON_H2 (HDMI)

7

1 HDMI2_RX2+_HDMI 11 GND

2 GND 12 HDMI2_RXC-_HDMI

3 HDMI2_RX2-_HDMI 13 CEC

4 HDMI2_RX1+_HDMI 14 GND

5 GND 15

6 HDMI2_RX1-_HDMI 16

7 HDMI2_RX0+_HDMI 17 GND

8 GND 18 HDMI2_IDENT

9 HDMI2_RX0-_HDMI 19 HDMI2_HPD

10 HDMI2_RXC+_HDMI 20

HDMI2_SCL_DDC_

BUFFER

HDMI2_SDA_DDC_

BUFFER

CON_H3 (HDMI)

8

1 HDMI3_RX2+_HDMI 11 GND

2 GND 12 HDMI3_RXC-_HDMI

3 HDMI3_RX2-_HDMI 13 CEC

4 HDMI3_RX1+_HDMI 14 GND

5 GND 15

6 HDMI3_RX1-_HDMI 16

7 HDMI3_RX0+_HDMI 17 GND

8 GND 18 HDMI3_IDENT

9 HDMI3_RX0-_HDMI 19 HDMI3_HPD

10 HDMI3_RXC+_HDMI 20

CON_H4 (HDMI)

9

1 HDMI4_RX2+_HDMI 11 GND

2 GND 12 HDMI4_RXC-_HDMI

3 HDMI4_RX2-_HDMI 13 CEC

4 HDMI4_RX1+_HDMI 14 GND

5 GND 15

6 HDMI4_RX1-_HDMI 16

7 HDMI4_RX0+_HDMI 17 GND

8 GND 18 HDMI4_IDENT

9 HDMI4_RX0-_HDMI 19 HDMI4_HPD

10 HDMI4_RXC+_HDMI 20

CN501 (OPTICAL)

10

1 SPDIF_OUT 3 GND

2 B5V_PW

CN2304 (USB)

11

1 B5V_USB1_PW 3 JACK_D+_USB1

2 JACK_D-_USB1 4 GND

CN2303 (USB)

12

1 B5V_USB2_PW 3 JACK_D+_USB2

2 JACK_D-_USB2 4 GND

CN202 (POWER)

13

1 GND 7 A13V_PW

2 GND 8 PWM_DIMMING_OUT1

3 A13V_PW 9 A13V_PW

4 GND 10 OVD_ON_OFF

5 A13V_PW 11 SMPS_FET_FAIL_DEFECT

6 SW_Power 12 ANA_DIMMING

HDMI3_SCL_DDC_

BUFFER

HDMI3_SDA_DDC_

BUFFER

HDMI4_SCL_DDC_

BUFFER

HDMI4_SDA_DDC_

BUFFER

5-5

5. Wiring Diagram

CN1802_UT (USI-T RIGHT)

14

1 FB_TRDY_E 2 GND 3 AVDD_17V_PW 4 AVDD_17V_PW

5 AVDD_17V_PW 6 AVDD_17V_PW 7 U_H_CELL 8 U_L_CELL

9 HAVDD_8.5V_PW 10 L_H_CELL 11 L_L_CELL 12 VCCB_1.8V_PW

13 VCCA_1.9V_PW 14 PI_DSF_MONITOR 15 PORTNUM 16 GND

17 - 18 - 19 - 20 GND

21 SFC1 22 GND 23 JM_USIT_TX_CH8_A+ 24 JM_USIT_TX_CH8_A-

25 GND 26 JM_USIT_TX_CH8_B+ 27 JM_USIT_TX_CH8_B- 28 GND

29 JM_USIT_TX_CH9_A+ 30 JM_USIT_TX_CH9_A- 31 GND 32 JM_USIT_TX_CH9_B+

33 JM_USIT_TX_CH9_B- 34 GND 35 JM_USIT_TX_CH10_A+ 36 JM_USIT_TX_CH10_A-

37 GND 38 JM_USIT_TX_CH10_B+ 39 JM_USIT_TX_CH10_B- 40 GND

41 JM_USIT_TX_CH11_A+ 42 JM_USIT_TX_CH11_A- 43 GND 44 JM_USIT_TX_CH11_B+

45 JM_USIT_TX_CH11_B- 46 GND 47 JM_USIT_TX_CH12_A+ 48 JM_USIT_TX_CH12_A-

49 GND 50 JM_USIT_TX_CH12_B+ 51 JM_USIT_TX_CH12_B- 52 GND

53 JM_USIT_TX_CH13_A+ 54 JM_USIT_TX_CH13_A- 55 GND 56 JM_USIT_TX_CH13_B+

57 JM_USIT_TX_CH13_B- 58 GND 59 JM_USIT_TX_CH14_A+ 60 JM_USIT_TX_CH13_A-

61 GND 62 JM_USIT_TX_CH13_B+ 63 JM_USIT_TX_CH14_B- 64 GND

65 JM_USIT_TX_CH15_A+ 66 JM_USIT_TX_CH13_A- 67 GND 68 JM_USIT_TX_CH13_B+

69 JM_USIT_TX_CH15_B- 70 GND 71 SFC2 72 GND

73 - 74 ASG_MON_R_MB4 75 STVP_MB4 76 CKVB4_MB4

77 CKVB3_MB4 78 CKVB2_MB4 79 CKVB1_MB4 80 CKV4_MB4

81 CKV3_MB4 82 CKV2_MB4 83 CKV1_MB4 84 -

85 VOFF_-11V_PW 86 VSS_-7.5V_PW 87 - 88 VCOM3_CELL

89 FB_VCOM3_CELL 90 VCOM2_CELL 91 VCOM1_CELL 92 FB_VCOM4_CELL

93 PANEL_3.3V_PW 94 PANEL_3.3V_PW 95 FB_TRDY_3 96 GND

5-6

5. Wiring Diagram

CN1801_UT (USI-T LEFT)

15

1 FB_TRDY_1 2 GND 3 PANEL_3.3V_PW 4 PANEL_3.3V_PW

5 FB_VCOM1_2CELL 6 VCOM1_CELL 7 VCOM2_CELL 8 VCOM3_CELL

9 VSS_-7.5V_PW 10 VOFF_-11V_PW 11 - 12 CKV1_MB4

13 CKV2_MB4 14 CKV3_MB4 15 CKV4_MB4 16 CKVB1_MB4

17 CKVB2_MB4 18 CKVB3_MB4 19 CKVB4_MB4 20 STVP_MB4

21 ASG_MON_L_MB4 22 - 23 GND 24 GND

25 DEMURA_SSPHOLD_SPI 26 DEMURA_SSPWP_SPI 27 DEMURA_SSPRXD_SPI 28 DEMURA_SSPTXD_SPI

29 DEMURA_SSPFRM_SPI 30 DEMURA_SSPCLK_SPI 31 GND 32 JM_USIT_TX_CH0_A+

33 JM_USIT_TX_CH0_A- 34 GND 35 JM_USIT_TX_CH0_B+ 36 JM_USIT_TX_CH0_B-

37 GND 38 JM_USIT_TX_CH1_A+ 39 JM_USIT_TX_CH1_A- 40 GND

41 JM_USIT_TX_CH1_B+ 42 JM_USIT_TX_CH1_B- 43 GND 44 JM_USIT_TX_CH2_A+

45 JM_USIT_TX_CH2_A- 46 GND 47 JM_USIT_TX_CH2_B+ 48 JM_USIT_TX_CH2_B-

49 GND 50 JM_USIT_TX_CH3_A+ 51 JM_USIT_TX_CH3_A- 52 GND

53 JM_USIT_TX_CH3_B+ 54 JM_USIT_TX_CH3_B- 55 GND 56 JM_USIT_TX_CH4_A+

57 JM_USIT_TX_CH4_A- 58 GND 59 JM_USIT_TX_CH4_B+ 60 JM_USIT_TX_CH4_B-

61 GND 62 JM_USIT_TX_CH5_A+ 63 JM_USIT_TX_CH5_A- 64 GND

65 JM_USIT_TX_CH5_B+ 66 JM_USIT_TX_CH5_B- 67 GND 68 JM_USIT_TX_CH6_A+

69 JM_USIT_TX_CH6_A- 70 GND 71 JM_USIT_TX_CH6_B+ 72 JM_USIT_TX_CH6_B-

73 GND 74 JM_USIT_TX_CH7_A+ 75 JM_USIT_TX_CH7_A- 76 GND

77 JM_USIT_TX_CH7_B+ 78 JM_USIT_TX_CH7_B- 79 GND 80 SFC1

81 GND 82 PI_DSF_MONITOR 83 PORTNUM 84 VCCA_1.9V_PW

85 VCCB_1.8V_PW 86 L_L_CELL 87 L_H_CELL 88 HAVDD_8.5V_PW

89 U_L_CELL 90 U_H_CELL 91 AVDD_17V_PW 92 AVDD_17V_PW

93 AVDD_17V_PW 94 AVDD_17V_PW 95 - 96 FB_TRDY_2

5-7

5. Wiring Diagram

5-3-2. SMPS Board

ȟ2.ୠԸѣ ݥז $1/ࢷ ࢺଟଞࡳ ؼଞȟ

40 / 43 inches•

1 CNM803

2 CNL802

SMPS Board Pin Map 

CNM803 (MAIN Connector)

1

1

3 A13V 4

5 A13V 6

7 A13V 8 Power ON/OFF

9 GND 10 GND

11 GND 12 GND

Fail Count

2

ANA_DIM

OD_ON/OFF

BLU_PWM

Fuse

AC INLET

CNL802 (LED Connector)

2

1 2+ 2 NC

3 NC 4 2-

5 NC 6 NC

7 NC 8 NC

9 1+ 10 NC

11 NC 12 1-

13 NC 14 NC

15 IF2 16 IF1

5-8

5. Wiring Diagram

50 / 55 inches•

1 CNM803

SMPS Board Pin Map 

CNM803 (MAIN Connector)

1

1

3 A13V 4

5 A13V 6

7 A13V 8 Power ON/OFF

9 GND 10 GND

11 GND 12 GND

Fail Count

2

ANA_DIM

OD_ON/OFF

BLU_PWM

2 CNL802

Fuse

AC INLET

CNL802 (LED Connector)

2

1 2+ 2 NC

3 NC 4 2-

5 NC 6 NC

7 NC 8 NC

9 1+ 10 NC

11 NC 12 1-

13 NC 14 NC

15 IF2 16 IF1

5-9

5. Wiring Diagram

65 inches•

2 CNL802

1 CNM803

SMPS Board Pin Map 

CNM803 (MAIN Connector)

1

1

3 A13V 4

5 A13V 6

7 A13V 8 Power ON/OFF

9 GND 10 GND

11 GND 12 GND

Fail Count

2

ANA_DIM

OD_ON/OFF

BLU_PWM

Fuse

AC INLET

CNL802 (LED Connector)

2

1 2+ 2 NC

3 NC 4 2-

5 NC 6 NC

7 NC 8 NC

9 1+ 10 NC

11 NC 12 1-

13 NC 14 NC

15 IF2 16 IF1

ANNEX. Exploded View & Part List

ANNEX. Exploded View & Part List [UE40MU6122KXXH FA01]

1-1. Exploded View

1-1-1. Parts List

No. Code No. Description & Specication Q’ty SA/SNA Remark

1 BN95-02634D PRODUCT LCD-SDC; CY-GK040HGLV4V/H,KU6000, 1 SA

2 BN96-35007D ASSY SPEAKER P-FRONT; TV-SPK,JU6400,6ohm, 1 SA

3 BN44-00806A DC VSS-PD BOARD; L40S6_FDY,AC/DC,139W,100 1 SA

4 BN94-12695M ASSY PCB MAIN; UMU6100/6300 B version 1 SA

5 BN63-16652A COVER-TERMINAL SIDE; 55MU6400,HIPS,HB,BK0 1 SA

6 BN59-01264A NETWORK-WLAN CLIENT; WCM730Q,78.3x29.3x7. 1 SA

7 BN96-39955A ASSY BOARD P-IR FUNCTION; KU6000,IR ASSY_ 1 SA

8 BN96-35345B ASSY BOARD P-FUNCTION JOG; JU7500,CT15SE8 1 SA

9 BN96-43323D ASSY COVER P-REAR; 40MU6100,PC+ABS,V-1,BK 1 SA

10 BN61-11465A GUIDE-STAND; 40J5100,PC+GF20%,V-2,BK0007, 1 SA

11 BN96-35224A ASSY STAND P-BOTTOM; J5500 40",PC+ABS+GF2 1 SA

ANNEX-1

ANNEX-2

ANNEX. Exploded View & Part List

2-1. Electrical Parts List

Service Bom (SA: SERVICE AVAILABLE, SNA: SERVICE NOT AVAILABLE)

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

UE40MU6122KXXH (FA01)

1 S001A BN90-06496D ASSY STAND;J5000 1 SNA

0.2 SG03 BN61-11465A GUIDE-STAND;40J5100,PC+GF20%,V-2,BK0007, 1 SA

..3 0103-007285 RESIN PC;HF3200H,K21294,BK0007,V-2,GF20% 280 SNA

0.2 SB04A BN96-35224A ASSY STAND P-BOTTOM;J5500 40",PC+ABS+GF2 1 SA

..3 SCREW 6003-001001 SCREW-TAPTYPE;FH,+,-,B,M3,L8,ZPC(BLK),SW 2 SA

..3 6902-002486 BAG PE;HDPE/PE FOAM,T0.015/T0.5,W100,L35 2 SNA

..3 6902-002487 BAG PE;HDPE/PE FOAM,T0.015/T0.5,W250,L35 1 SNA

..3 BN61-07463B TAPE-DOUBLE FACE;ACRYL,T0.25,W7,CLEAR 0 SNA

..3 HOLDER-BOLT BN61-09494D HOLDER-BOLT;KU6500,SWRCH18A,BLACK,B TYPE 2 SA

..3 BN61-11430A BRACKET-STAND BODY;HGI,T1.6,NATURAL,12.7 1 SNA

..3 BN63-13258A COVER-STAND TOP;40J5100,PC+ABS+GF20%,V-1 1 SNA

...4 0103-009946 RESIN PC ABS;HM-1200,BLACK,BK0007,V-1,GF 300 SNA

..3 RF01 BN67-00398L FOOT-RUBBER;UH6K,Si,GRAY,W8,L15.5,T2 1 SNA

..3 RF01 BN67-00538A FOOT-RUBBER;LED_J4000,Si,GRAY,W8,L15.5,T 4 SNA

..3 BN95-02140A ASSY COVER STAND SMT;J5500 STAND,40,Silv 1 SNA

...4 0204-007674 COATING;UVICHEM CVM93000(VOC) MATT(5)B,C 1 SNA

...4 BN01-00160A TARGET-CHROMIUM CY;Cr,99.95%,1800x132x80 0 SNA

...4 BN01-00336A TARGET-ALUMINIUM CY;Al,99.9%,1724mm,132d 0 SNA

...4 BN63-13262A COVER-STAND DECORATION;40J5100,PC+ABS,V- 1 SNA

....5 0103-005041 RESIN PC ABS;FR3200TV,901408,BK0008,1.2m 62 SNA

1 R001A BN90-09057D ASSY COVER REAR;UMU6100N,40 1 SNA

0.2 SCREW 6001-002755 SCREW-MACHINE;BH,+,M3,L6,ZPC(BLK),SWRCH1 14 SA

0.2 R001A BN96-43323D ASSY COVER P-REAR;40MU6100,PC+ABS,V-1,BK 1 SA

..3 R001 BN63-15583B COVER-REAR;40KU6000,PC+ABS,MOLD,V-1,BK00 1 SNA

...4 0103-010376 RESIN PC ABS;FR3012 / 901510,BLACK,BK000 1600 SNA

..3 BN64-03903A INLAY-TERMINAL SIDE;55MU6100,PET,T0.125, 1 SNA

..3 BN68-03518R LABEL-STICKER CI SLOT;55KU6000,PET,T0.12 1 SNA

1 BN90-09071A ASSY W/I;UMU6100N 1 SNA

0.2 BN81-08159Z A/S PART SET-ELEC W/I;LED TV ELEC spec-C 1 SNA

0.2 BN81-15300A A/S PART SET-MECH W/I;UMU6100N,U40MN* 1 SNA

1 BN91-18917A ASSY SHIELD;UMU6100N,40 1 SNA

0.2 SCREW 6001-003016 SCREW-MACHINE;PWH,+,M3,L5.0,ZPC(WHT),SWR 6 SA

0.2 BN02-00102B TAPE-SINGLE FACE;FILAMENT,#8917,T0.15,W2 0 SNA

0.2 BN39-02025G LEAD CONNECTOR-POWER;UN65KU6000,Flat Con 1 SA

0.2 BN39-02030E LEAD CONNECTOR-BLU;BLU,UL21016,16P,80mm, 1 SA

0.2 EC13 BN39-02219D LEAD CONNECTOR;40KU6300, 43KU6300, 50KU6 1 SA

0.2 BN39-02220A LEAD CONNECTOR-SUB ASSY;40KU6300,UL21016 1 SA

0.2 P001A BN44-00806A DC VSS-PD BOARD;L40S6_FDY,AC/DC,139W,100 1 SA

0.2 BN59-01264A NETWORK-WLAN CLIENT;WCM730Q,78.3x29.3x7. 1 SA

0.2 BN61-09637A HOLDER-WIFI;KU6000,ABS,BK0007,HB 1 SA

0.2 SP01A BN96-35007D ASSY SPEAKER P-FRONT;TV-SPK,JU6400,6ohm, 1 SA

0.2 JOG BN96-35345B ASSY BOARD P-FUNCTION JOG;JU7500,CT15SE8 1 SA

0.2 BN96-39955A ASSY BOARD P-IR FUNCTION;KU6000,IR ASSY_ 1 SA

ANNEX-3

ANNEX. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

1 M0017 BN91-19438E ASSY CHASSIS;UMU6100N/UMU6300P 1 SNA

0.2 M0014 BN94-12695M ASSY PCB MAIN;UMU6100/6300 B version 1 SA

..3 0202-001608 SOLDER-WIRE FLUX;LFC7-107,D0.8,99.3Sn/0. 0 SNA

..3 BN62-00834A HEAT SINK-PS;KANT_M heatsink,A1050,T1.5, 1 SNA

..3 BN63-16652A COVER-TERMINAL SIDE;55MU6400,HIPS,HB,BK0 1 SA

..3 BN97-12859A ASSY DRM;Kant_M,DVB,NagSam, MAC, HDCP, C 1 SNA

...4 BN46-00109H KEY CODE-CERTIFICATION;MAC,TV/AV,General 1 SNA

...4 BN46-00110P KEY CODE-CERTIFICATION;MIRACAST(HDCP2.2) 1 SNA

...4 BN46-00601A KEY CODE-CERTIFICATION;KANT-M,CI PLUS,Sa 1 SNA

...4 BN46-00604A KEY CODE-CERTIFICATION;KANT-M,Nagra CSC 1 SNA

..3 BN97-12957A ASSY MICOM;TCON DATA_40SDC_F,MU6100 1 SNA

...4 BN46-00662A S/W MICOM;M40A6U0F,40A6AU2VK,40SDC_F 1 SNA

..3 BN97-13470C ASSY SMD;LEDTV 6K 1 SNA

...4 0202-001976 SOLDER-CREAM;LST-309M-K21,D20~38um,96.5S 5 SNA

...4 DS01A 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 SA

...4 0403-001783 DIODE-ZENER;BZB84-C6V2,5.8~6.6V,300mW,SO 3 SNA

...4 0403-001831 DIODE-ZENER;KDZ12B,12~13.5V,1000mW,SOD-1 1 SA

...4 0403-002014 DIODE-ZENER;KDZ16B,16.2~18.3V,1000mW,SOD 1 SNA

...4 0404-001307 DIODE-SCHOTTKY;SSC54,40V,5000mA,DO-214AB 1 SA

...4 0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200mA,SOT-23, 2 SA

...4 0404-001640 DIODE-SCHOTTKY;SS1060HEWS,60V,1000mA,SOD 2 SA

...4 0404-001881 DIODE-SCHOTTKY;SS3040-HE,40V,3000mA,SOD- 1 SA

...4 0404-001953 DIODE-SCHOTTKY;MBRA340F-HAF,40V,3000mA,S 3 SA

...4 0406-001200 DIODE-TVS;RClamp0504F,6V,1MAV,TP 5 SA

...4 0406-001635 DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 1 SA

...4 0406-001718 DIODE-TVS;SMF36A,40V,44.2V,3.8MAV,1.25VP 1 SA

...4 0406-001778 DIODE-TVS;PUSB3FR4,6V,9V,0.2MAV,0.7VPA,0 1 SA

...4 0406-001786 DIODE-TVS;PJEC5V0V6TM,5V,7V,8V,0.1MAV,9V 1 SA

...4 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 4 SC

...4 0502-001345 TR-POWER;FCX491A,NPN,1000mW,SOT89,TR,900 1 SA

...4 0502-001346 TR-POWER;FCX591A,PNP,1000mW,SOT89,TR,30/ 1 SA

...4 0504-000126 TR-DIGITAL;KSR1101,NPN,200mW,4.7K/4.7K,S 1 SA

...4 0505-001844 FET-SILICON;SI4435DDY-T1-GE3,P,30V,-11.4 1 SA

...4 0505-002560 FET-SILICON;AO6415,P,20V,-3.3A,0.15ohm,1 1 SA

...4 0505-002598 FET-SILICON;AP2317GN,P,20V,-4.2A,0.052oh 1 SA

...4 0505-002660 FET-SILICON;Si2308BDS,N,60V,2.3A,0.156oh 1 SA

...4 0505-002893 FET-SILICON;AO4801AS,P,30V,-5A,2W,SOIC-8 1 SA

...4 0505-003205 FET-SILICON;DMG4435SSS-13,P,30V,-7.3A,1. 1 SA

...4 0505-003391 FET-SILICON;AOD2922,N,100V,8A,140Mohm,18 1 SA

...4 0505-003397 FET-SILICON;2N7002K,N,60V,0.38A,1.19ohm, 1 SA

...4 0505-003507 FET-SILICON;AO3424,N,30V,3.8A,1.4W,SOT-2 4 SA

...4 0801-003603 IC-CMOS LOGIC;MC74LCX244MN2TWG,Octal buf 1 SA

...4 1001-001998 IC-ANALOG MULTIPLEX;NX3DV221GM,USB switc 1 SA

...4 1003-002878 IC-LEVEL DRIVER;VLS1RO,QFN,46P,4.5x6.5x1 1 SA

...4 1103-001584 IC-EEPROM;M24512-DFMN6TP,512Kbit,64K x 8 1 SNA

...4 1105-002704 IC-DDR4 SDRAM;K4F8E304HB-MGCH,LPDDR4-SDR 2 SA

...4 1201-000166 IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10 1 SA

ANNEX-4

ANNEX. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

...4 1201-004117 IC-AUDIO AMP;TAS5749M,QFP,48P,7x7x1mm,DU 1 SA

...4 1203-004363 IC-VOL. DETECTOR;SOT-23,3Z30,2.9x1.6mm,P 1 SA

...4 1203-008082 IC-DC/DC CONVERTER;TPS54627DDAR,SOP 8P,8 1 SA

...4 1203-008104 IC-POSI.FIXED REG.;S-13A1D18-E800,HSOP,8 1 SNA

...4 1203-008105 IC-POSI.FIXED REG.;S-13A1D33-E800,HSOP,8 1 SNA

...4 1203-008392 IC-VOL. DETECTOR;S-6414AAB-L800X,TSOT-23 1 SA

...4 1203-008777 IC-DC/DC CONVERTER;TPS563201,SOT-23,6,1. 4 SA

...4 1203-008880 IC-DC/DC CONVERTER;VPM1RO,QFN,68P,8x8x1m 1 SA

...4 1203-008917 IC-DC/DC CONVERTER;G5334CQT1U,QFN4,23P,4 1 SA

...4 1203-008919 IC-DC/DC CONVERTER;SYD104AADC,TSOT23,6P, 1 SA

...4 1203-008921 IC-DC/DC CONVERTER;SYU236ARAC,QFN,20P,3x 1 SA

...4 1203-008933 IC-POSI.ADJUST REG.;G942F11U,SOP,8P,4.9x 1 SA

...4 1204-003741 IC-DECODER;SDP1601,FCPBGA,1147P,31x31x2. 1 SNA

...4 1205-004692 IC-SWITCH;TPS2069CDBVR,SOT-23,5P,2.9x2.8 2 SA

...4 1205-005519 IC-SWITCH;ET20163,SOT23-5,5P,2.95x3.02mm 1 SA

...4 1205-005749 IC-SWITCH;G2897KD1U,TDFN2X3-14,14P,2x3mm 2 SA

...4 1404-001731 THERMISTOR-NTC;33Kohm,4050K,1mW/C,TP,1.6 1 SNA

...4 1405-001232 VARISTOR;6.4V,5.6VDC,30A,1608,TP,19V,200 1 SNA

...4 1405-001271 VARISTOR;35V,20VDC,5A,1005,TP,100V,10pF 22 SA

...4 1405-001381 VARISTOR;11V,8VDC,30A,1608,TP,25V,500pF 5 SA

...4 1405-001382 VARISTOR;24.5V,16VDC,120A,2012,TP,42V,40 1 SA

...4 2007-000039 R-CHIP;0ohm,1%,1/10W,TP,1608 4 SA

...4 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 1 SA

...4 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 1 SA

...4 2007-000066 R-CHIP;20Kohm,1%,1/10W,TP,1608 1 SNA

...4 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 16 SA

...4 2007-000137 R-CHIP;2Kohm,5%,1/16W,TP,1005 4 SNA

...4 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 1 SA

...4 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 10 SNA

...4 2007-000146 R-CHIP;6.8Kohm,5%,1/16W,TP,1005 1 SNA

...4 2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 3 SA

...4 2007-000170 R-CHIP;1Mohm,5%,1/16W,TP,1005 1 SNA

...4 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 22 SNA

...4 2007-000343 R-CHIP;120ohm,1%,1/10W,TP,1608 1 SA

...4 2007-000683 R-CHIP;3.3Kohm,1%,1/10W,TP,1608 1 SA

...4 2007-000772 R-CHIP;33Kohm,1%,1/10W,TP,1608 1 SA

...4 2007-000779 R-CHIP;33ohm,1%,1/10W,TP,1608 2 SA

...4 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 3 SNA

...4 2007-000979 R-CHIP;5.6Kohm,1%,1/10W,TP,1608 1 SA

...4 2007-001125 R-CHIP;68Kohm,1%,1/10W,TP,1608 2 SA

...4 2007-001288 R-CHIP;18ohm,5%,1/16W,TP,1005 4 SA

...4 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 27 SNA

...4 2007-001298 R-CHIP;51ohm,5%,1/16W,TP,1005 9 SNA

...4 2007-002899 R-CHIP;10ohm,1%,1/10W,TP,1608 18 SA

...4 2007-002906 R-CHIP;200Kohm,1%,1/10W,TP,1608 1 SA

...4 2007-007107 R-CHIP;100Kohm,1%,1/16W,TP,1005 13 SNA

...4 2007-007131 R-CHIP;13Kohm,1%,1/16W,TP,1005 6 SA

ANNEX-5

ANNEX. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

...4 2007-007132 R-CHIP;15Kohm,1%,1/16W,TP,1005 3 SA

...4 2007-007136 R-CHIP;4.7Kohm,1%,1/16W,TP,1005 57 SNA

...4 2007-007137 R-CHIP;1.2Kohm,1%,1/16W,TP,1005 2 SA

...4 2007-007138 R-CHIP;27Kohm,1%,1/16W,TP,1005 1 SA

...4 2007-007139 R-CHIP;47Kohm,1%,1/16W,TP,1005,T0.35 12 SA

...4 2007-007142 R-CHIP;10Kohm,1%,1/16W,TP,1005 33 SNA

...4 2007-007305 R-CHIP;120ohm,1%,1/16W,TP,1005 1 SNA

...4 2007-007306 R-CHIP;100ohm,1%,1/16W,TP,1005 15 SNA

...4 2007-007308 R-CHIP;33Kohm,1%,1/16W,TP,1005 3 SA

...4 2007-007309 R-CHIP;12Kohm,1%,1/16W,TP,1005,T0.35 1 SA

...4 2007-007310 R-CHIP;8.2Kohm,1%,1/16W,TP,1005 5 SA

...4 2007-007311 R-CHIP;22Kohm,1%,1/16W,TP,1005 1 SA

...4 2007-007312 R-CHIP;20Kohm,1%,1/16W,TP,1005 16 SA

...4 2007-007313 R-CHIP;6.8Kohm,1%,1/16W,TP,1005 6 SA

...4 2007-007315 R-CHIP;3.9Kohm,1%,1/16W,TP,1005 1 SNA

...4 2007-007317 R-CHIP;2.2Kohm,1%,1/16W,TP,1005 2 SA

...4 2007-007318 R-CHIP;1Kohm,1%,1/16W,TP,1005 6 SNA

...4 2007-007334 R-CHIP;200Kohm,1%,1/16W,TP,1005 4 SNA

...4 2007-007488 R-CHIP;75Kohm,1%,1/16W,TP,1005 1 SA

...4 2007-007517 R-CHIP;240ohm,1%,1/16W,TP,1005 5 SNA

...4 2007-007520 R-CHIP;20ohm,1%,1/10W,TP,1608 1 SA

...4 2007-007528 R-CHIP;1.5Kohm,1%,1/16W,TP,1005 5 SA

...4 2007-007588 R-CHIP;1.8Kohm,1%,1/16W,TP,1005 1 SA

...4 2007-007697 R-CHIP;2.4Kohm,1%,1/16W,TP,1005 1 SNA

...4 2007-007736 R-CHIP;510Kohm,1%,1/10W,TP,1608 1 SA

...4 2007-007766 R-CHIP;2Kohm,1%,1/16W,TP,1005 21 SNA

...4 2007-007767 R-CHIP;200ohm,1%,1/16W,TP,1005 4 SA

...4 2007-007798 R-CHIP;10ohm,1%,1/16W,TP,1005 6 SA

...4 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 7 SA

...4 2007-008294 R-CHIP;33ohm,1%,1/16W,TP,1005 4 SA

...4 2007-008298 R-CHIP;49.9ohm,1%,1/16W,TP,1005 5 SA

...4 2007-008596 R-CHIP;0.1ohm,1%,1/4W,TP,3216 3 SC

...4 2007-008779 R-CHIP;0ohm,1%,1/16W,TP,1005 6 SA

...4 2007-009322 R-CHIP;1.3Kohm,1%,1/16W,TP,1005 5 SA

...4 2007-009777 R-CHIP;4.99Kohm,1%,1/16W,TP,1005 1 SA

...4 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8P,TP,2. 6 SA

...4 2011-001264 R-NETWORK;10ohm,5%,1/16W,L,CHIP,8P,TP,2. 17 SNA

...4 2011-001344 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,2 9 SA

...4 2011-001448 R-NETWORK;10ohm,5%,1/16W,L,4P,TP,1.0x1.0 1 SA

...4 2011-001506 R-NETWORK;10Kohm,5%,1/16W,L,CHIP,4P,TP,1 1 SNA

...4 2011-001527 R-NETWORK;4.7Kohm,5%,1/16W,L,CHIP,4P,TP, 4 SNA

...4 2011-001586 R-NETWORK;1Kohm,5%,1/16W,L,CHIP,4P,TP,1. 2 SNA

...4 2011-001587 R-NETWORK;100ohm,5%,1/16W,L,CHIP,4P,TP,1 3 SNA

...4 AD480 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,TP,1005 4 SA

...4 AD480 2203-000278 C-CER,CHIP;0.01nF,0.5pF,50V,C0G,TP,1005 6 SA

...4 AD480 2203-000359 C-CER,CHIP;0.15nF,5%,50V,C0G,TP,1005,T0. 3 SA

...4 AD480 2203-000425 C-CER,CHIP;0.018nF,5%,50V,C0G,TP,1005 2 SA
