Page 1
UHD TV
Chassis : UWP60
Model : UE40KU6092U
UE50KU6092U
UE55KU6092U
UE65KU6092U
SERVICE
UHD TV Contents
1. Precautions
2. Product specications
3. Disassembly and Reassembly
4. Troubleshooting
5. Wiring Diagram
Manual
UE**KU6092U
Page 2
Contents
1. Precautions ...................................................................................................................1-1
1-1. Safety Precautions ..............................................................................................................1-1
1-1-1. Warnings ...................................................................................................................1-1
1-1-2. Servicing the LED TV ...............................................................................................1-1
1-1-3. Fire and Shock Hazard .............................................................................................1-1
1-1-4. Product Safety Notices .............................................................................................1-2
1-2. Servicing Precautions ..........................................................................................................1-3
1-2-1. General Servicing Precautions ................................................................................. 1-3
1-3. Static Electricity Precautions ...............................................................................................1-4
1-4. Installation Precautions .......................................................................................................1-5
2. Product Specications.................................................................................................2-1

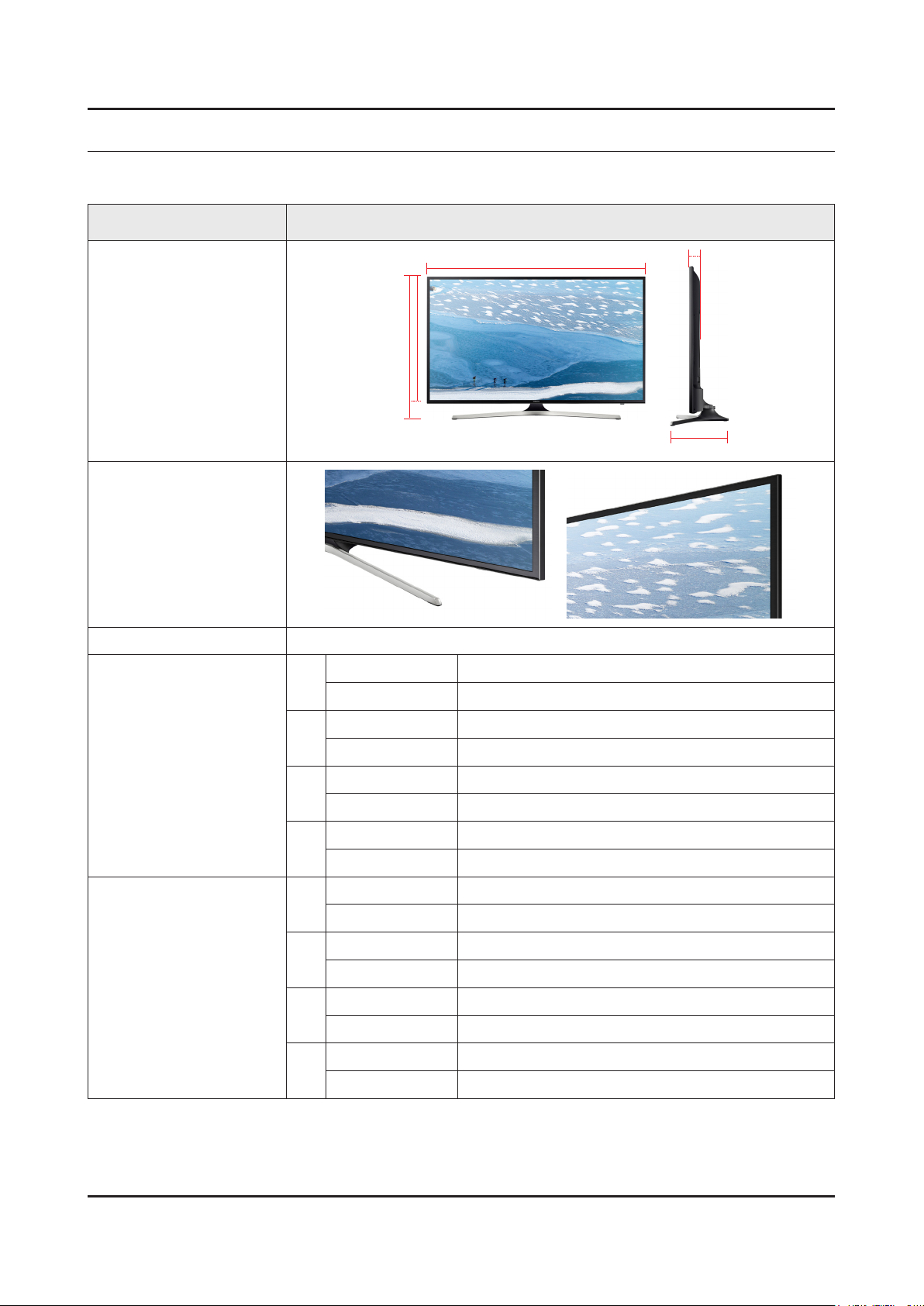

2-1. Product information .............................................................................................................2-1
2-2. Detail Specication ..............................................................................................................2-2
2-3. NEW Key Features ............................................................................................................2-14
2-3-1. 16" New UI ..............................................................................................................2-14
2-4. Smart Control ....................................................................................................................2-15

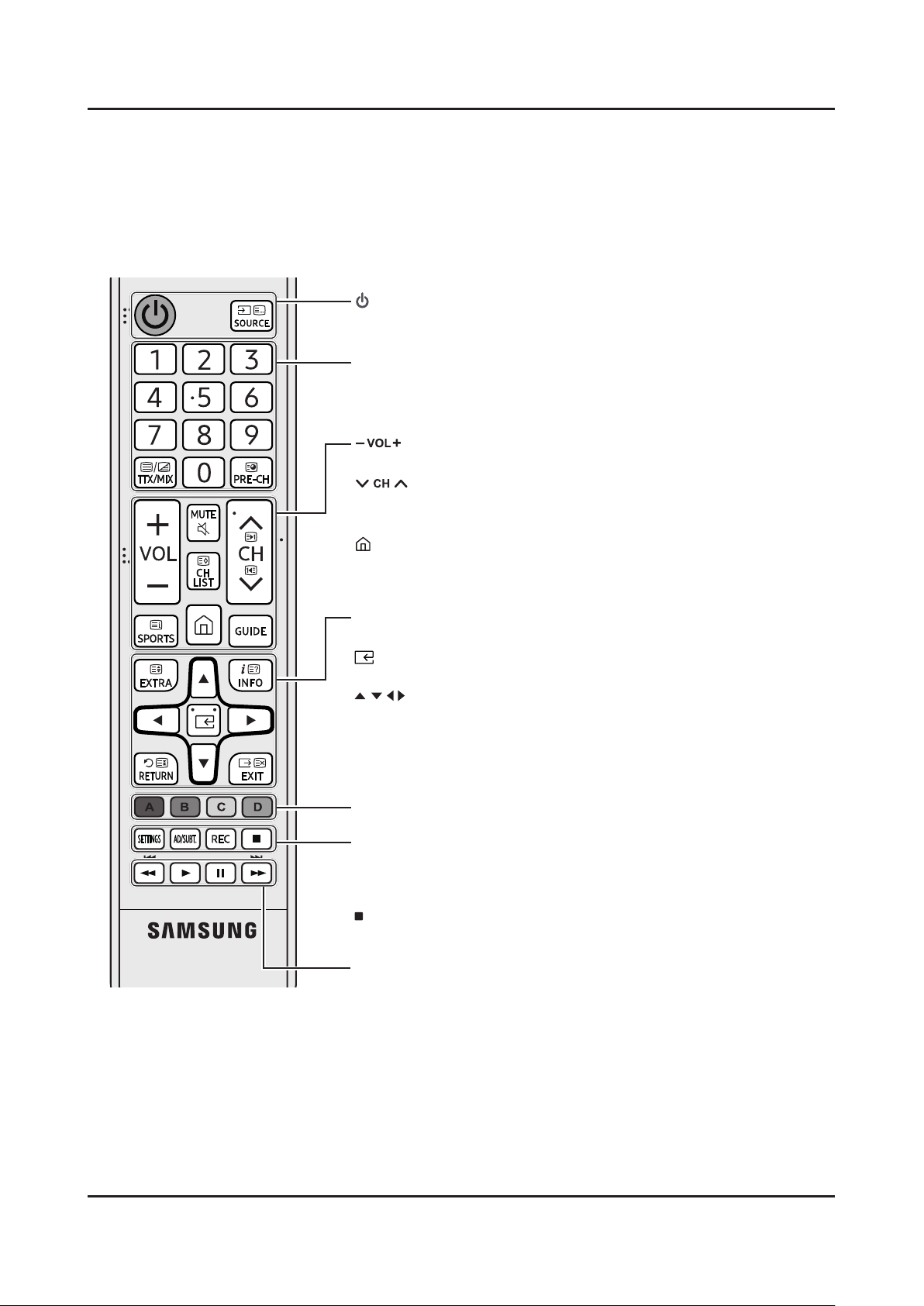

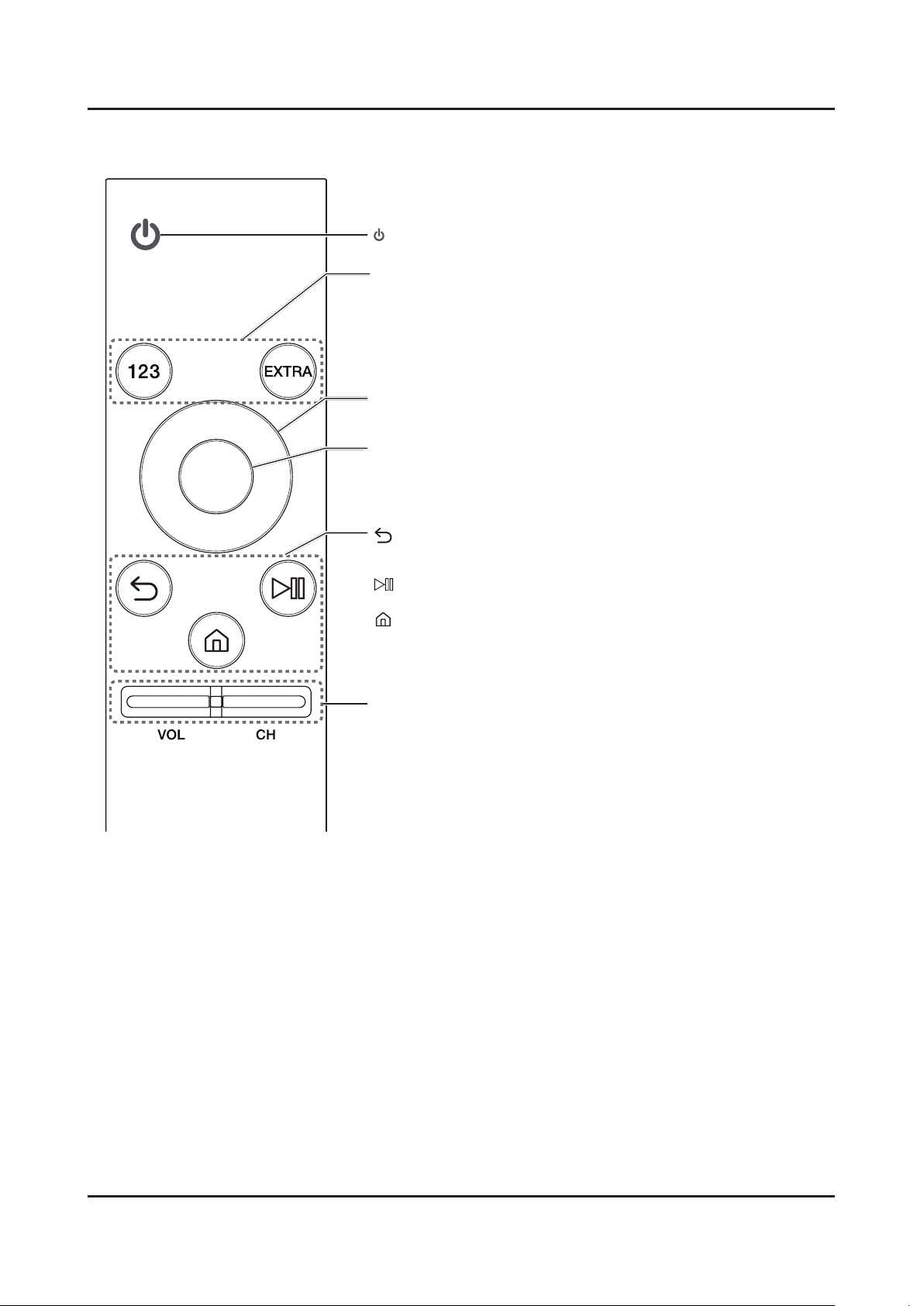

2-4-1. Remote Control (Europe except Turkey) ................................................................2-15
2-4-2. Remote Control (Turkey) ........................................................................................2-16

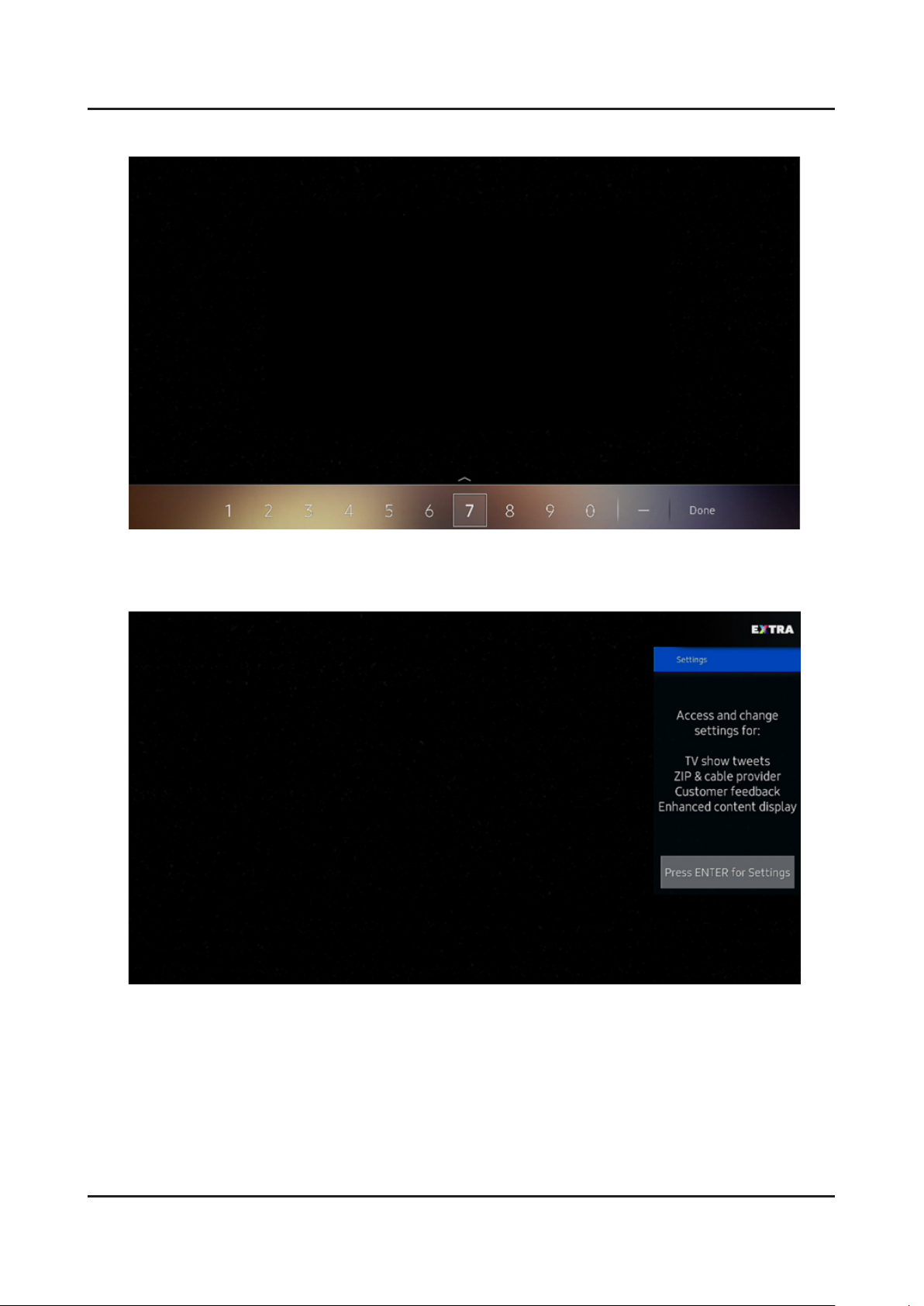

2-4-3. 123 Key ..................................................................................................................2-17
2-4-4. EXTRA Key .............................................................................................................2-17
2-5. HDMI Color ........................................................................................................................2-18
2-5-1. HDMI UHD Color ....................................................................................................2-18
2-5-2. HDMI Black Level ...................................................................................................2-18
2-6. Supported Formats ............................................................................................................2-19
2-6-1. Supported image formats and resolutions ..............................................................2-19
2-6-2. Supported music formats and codecs .................................................................... 2-19
2-6-3. Supported video codecs ......................................................................................... 2-20

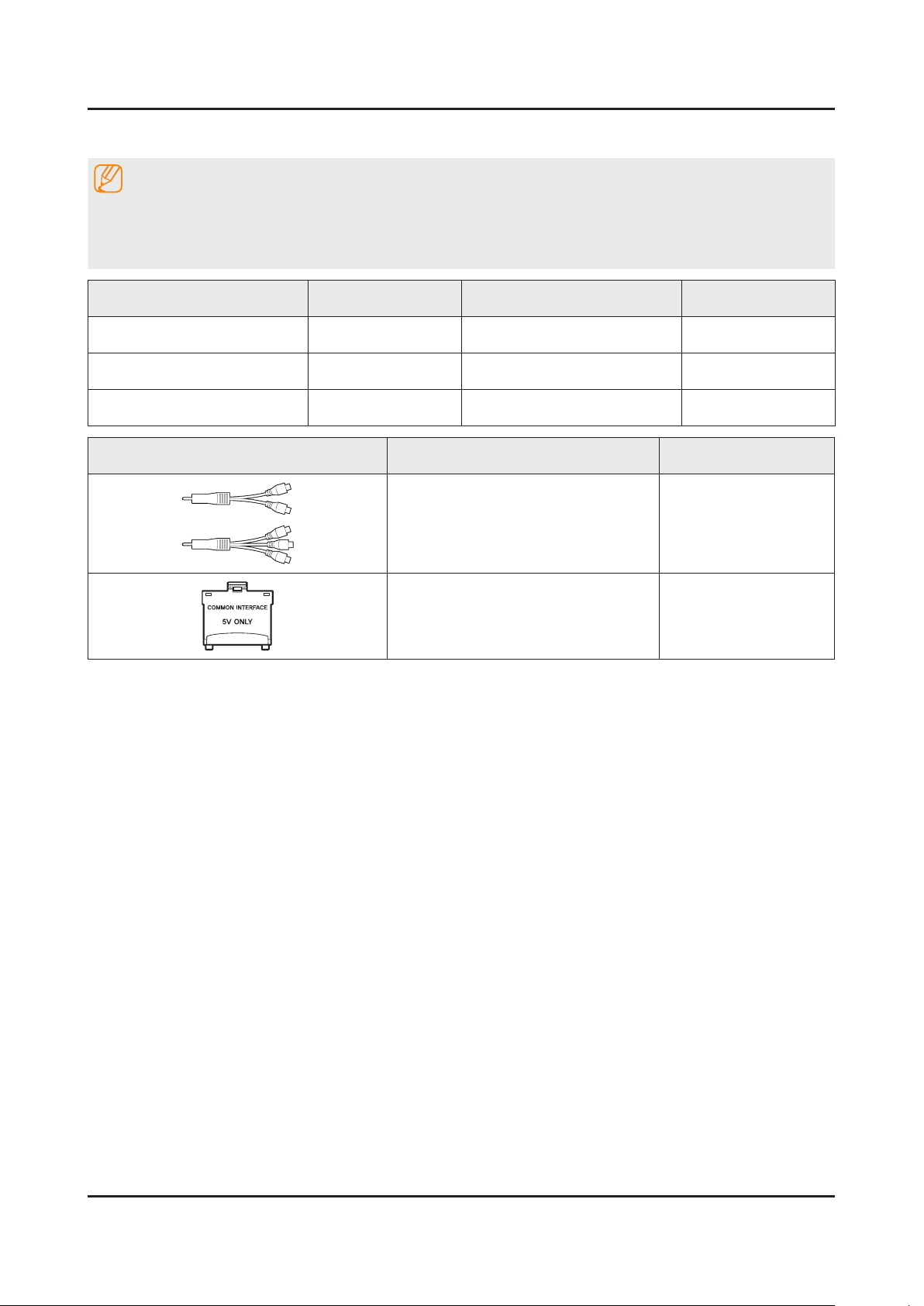

2-7. Accessories .......................................................................................................................2-21
3. Disassembly and Reassembly ....................................................................................3-1
3-1. Disassembly and Reassembly ............................................................................................3-1
4. Troubleshooting ...........................................................................................................4-1
4-1. Previous Check ..................................................................................................................4-1
4-2. How to Check Fault Symptom .............................................................................................4-2
4-2-1. Power .......................................................................................................................4-2
4-2-2. Video .........................................................................................................................4-6
4-2-3. Audio .......................................................................................................................4-10

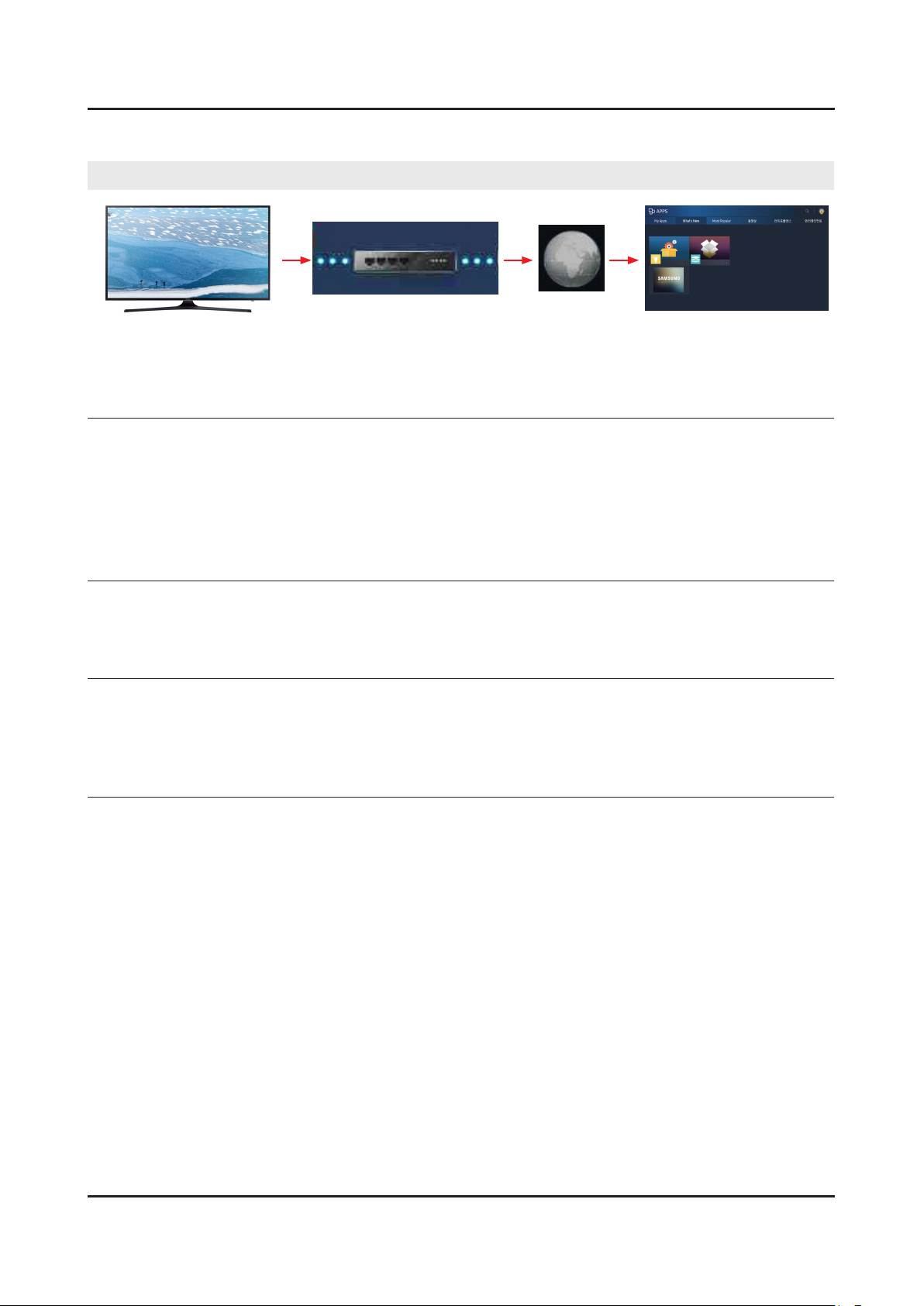

4-2-4. Network................................................................................................................... 4-11
4-2-5. Smart Hub ..............................................................................................................4-12

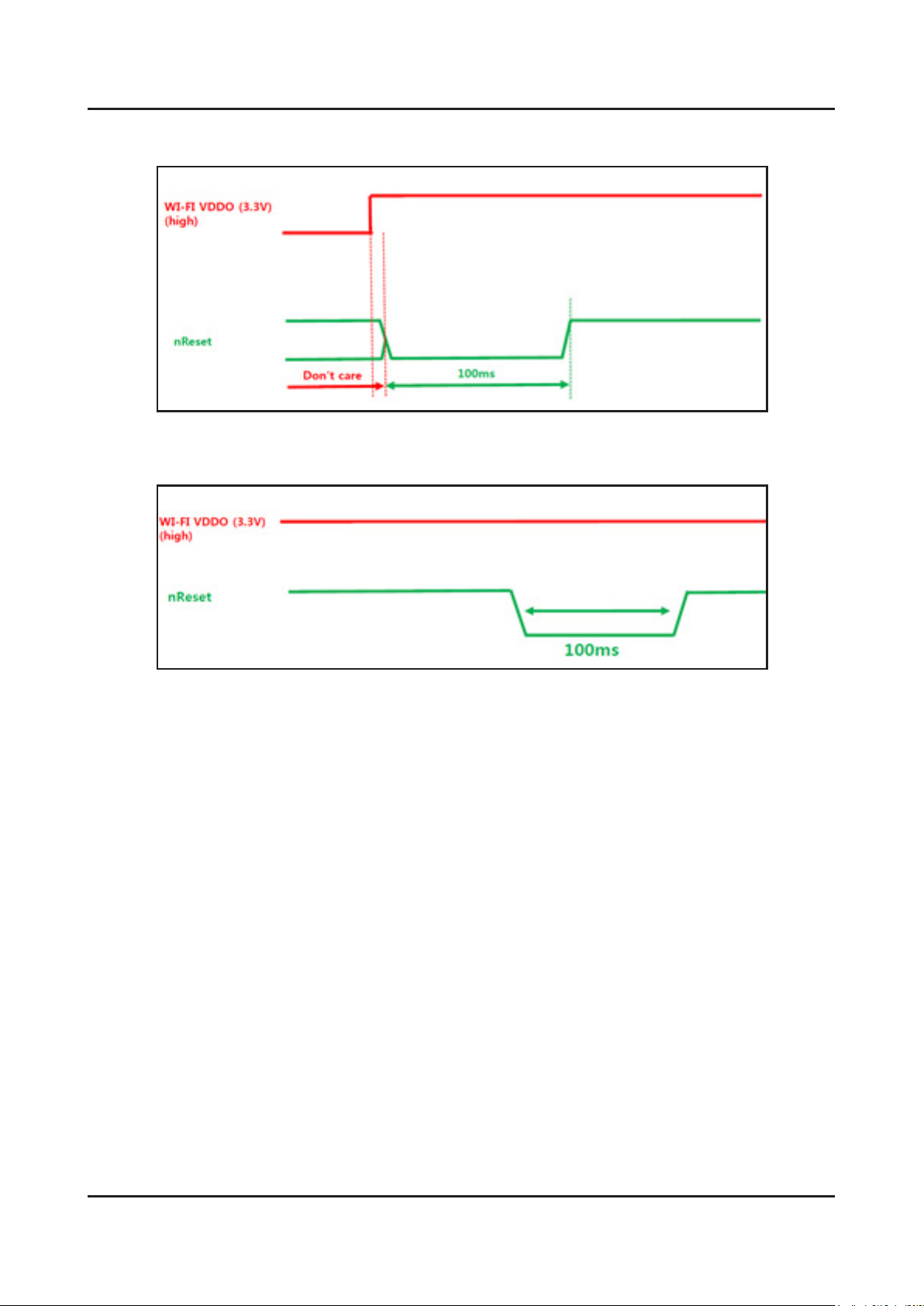

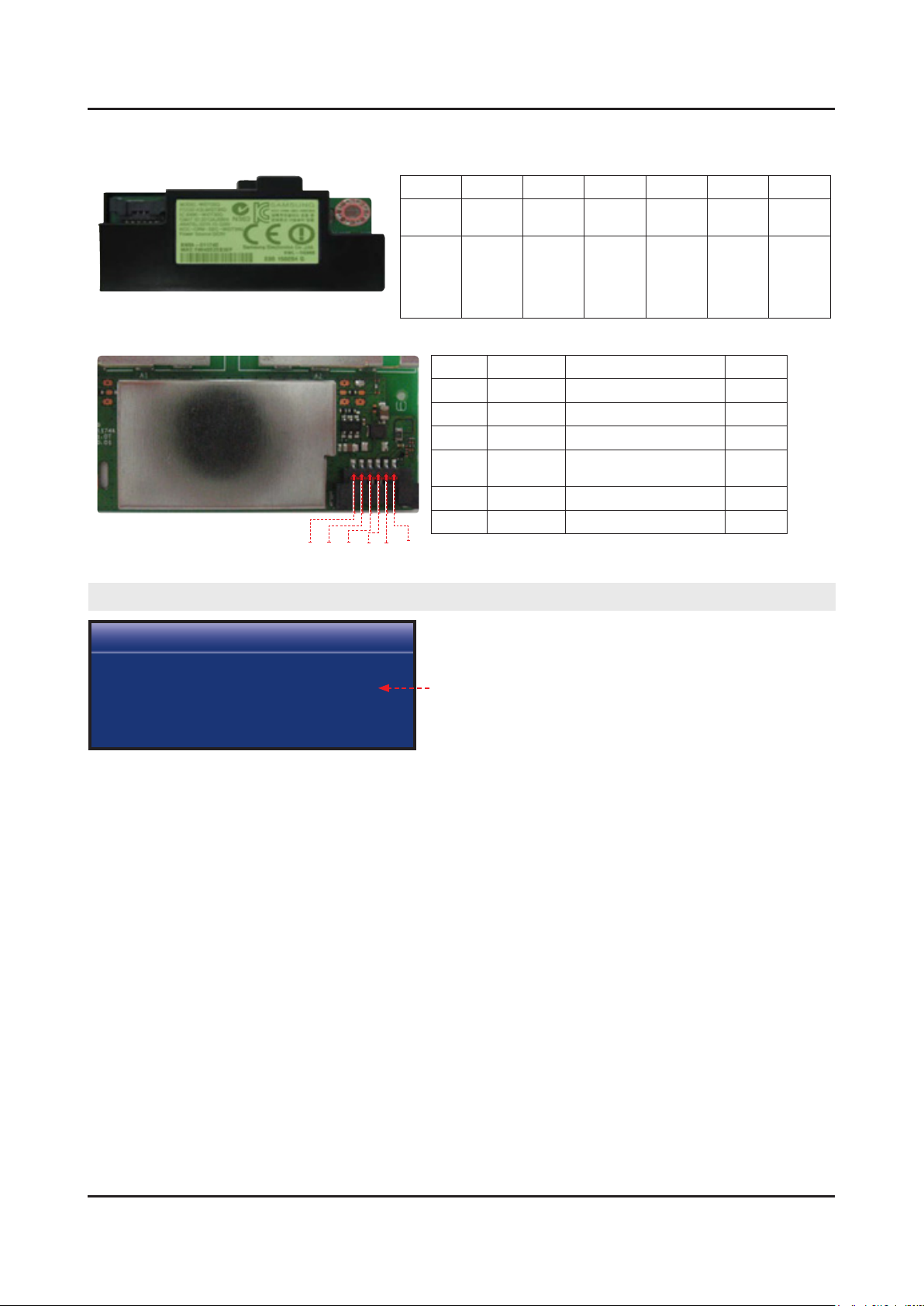

4-2-6. WiFi Module ............................................................................................................ 4-14
4-3. Factory Mode Adjustments ................................................................................................4-16
4-3-1. Entering Factory Mode ........................................................................................... 4-16
4-3-2. Detail Factory Option ..............................................................................................4-18
4-3-3. Factory Data ...........................................................................................................4-22
Page 3
4-4. White Balance ...................................................................................................................4-35
4-4-1. Calibration ..............................................................................................................4-35
4-4-2. Service Adjustment ................................................................................................. 4-35
4-4-3. Adjustment .............................................................................................................. 4-37
4-5. Updating the TV’s Software ...............................................................................................4-38
5. Wiring Diagram .............................................................................................................5-1
5-1. Layout ..................................................................................................................................5-1
5-2. Wiring Diagram ....................................................................................................................5-2
5-3. Connector ............................................................................................................................5-3
5-3-1. Main Board ............................................................................................................... 5-3

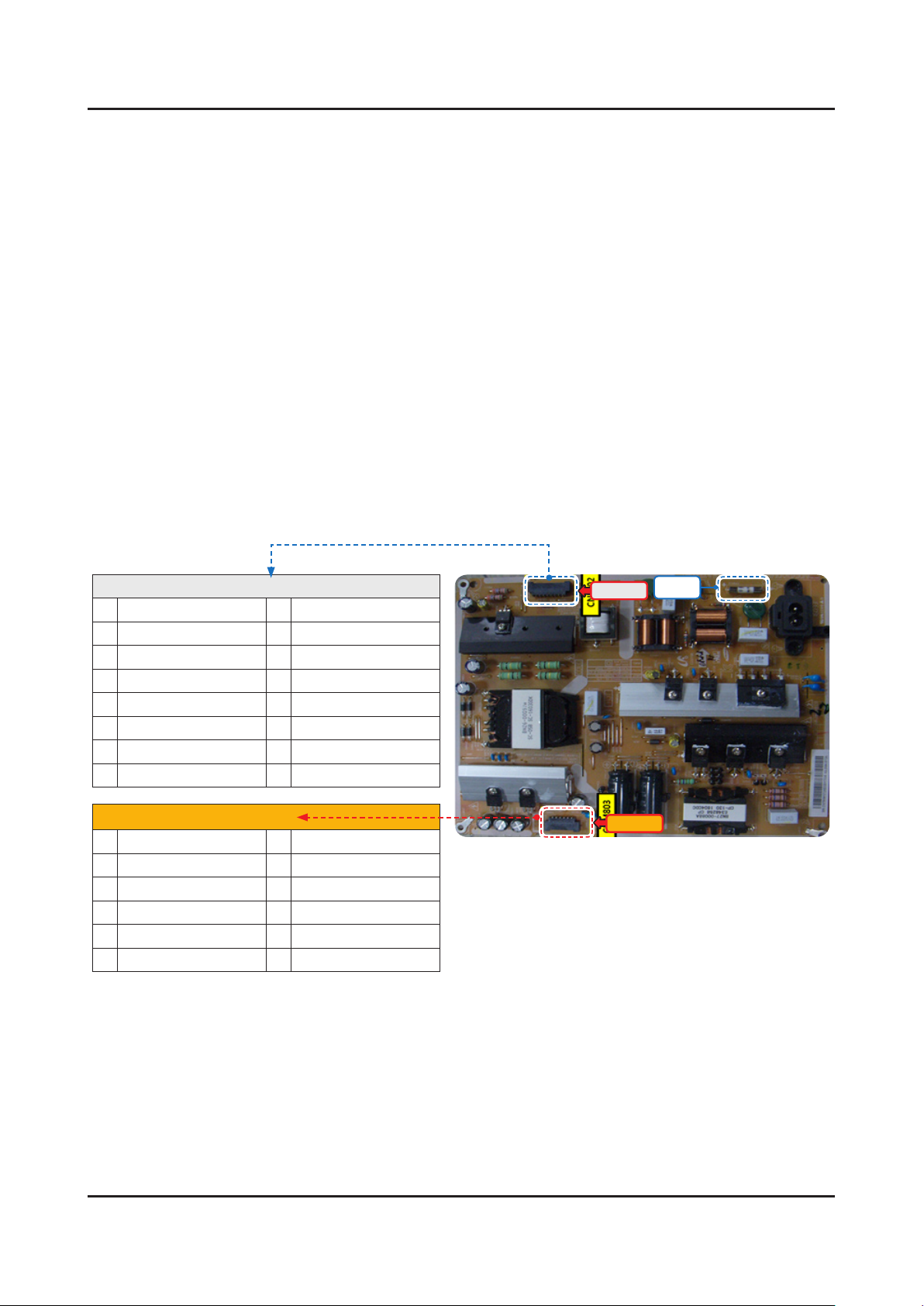

5-3-2. SMPS Board .............................................................................................................5-8
ANNEX. Exploded View & Part List [UE40KU6092UXXH FA01] ........................ ANNEX-1
1-1. Exploded View .......................................................................................................... ANNEX-1
1-1-1. Parts List ........................................................................................................ ANNEX-1
2-1. Electrical Parts List ................................................................................................... ANNEX-2
ANNEX. Exploded View & Part List [UE50KU6092UXXH DA01] ........................ ANNEX-1
1-1. Exploded View .......................................................................................................... ANNEX-1
1-1-1. Parts List ........................................................................................................ ANNEX-1
2-1. Electrical Parts List ................................................................................................... ANNEX-2
ANNEX. Exploded View & Part List [UE55KU6092UXXH AA01] ........................ ANNEX-1
1-1. Exploded View .......................................................................................................... ANNEX-1
1-1-1. Parts List ........................................................................................................ ANNEX-1
2-1. Electrical Parts List ................................................................................................... ANNEX-2
ANNEX. Exploded View & Part List [UE65KU6092UXXH DA01] ........................ ANNEX-1
1-1. Exploded View .......................................................................................................... ANNEX-1
1-1-1. Parts List ........................................................................................................ ANNEX-1
2-1. Electrical Parts List ................................................................................................... ANNEX-2
Page 4
This Service Manual is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
© 2016 Samsung Electronics Co.,Ltd.
All rights reserved.
Printed in Korea
Page 5
3. Disassembly and Reassembly
Disconnect the LED TV from the power source before disassembly.1.
Follow these directions carefully; never use metal instruments to pry apart the cabinet.2.
CAUTION
3-1. Disassembly and Reassembly
Carefully position the TV so that the screen
1
is facing downwards. Make sure to place
the TV upon a soft cushion or any material
that will prevent damage to the screen.
Recommend Torque : 22.0 ~ 26.5lbf -
A strength of Torque can be changed depending on the situation.•
Description Picture Description
3. Disassembly and Reassemble
Remove the screws connecting the stand
2
to the TV. Then carefully remove the stand.
Screws
6902-002474 x 4EA
TORQUE : 22.0 ~ 26.5lbf
Screw Qty in each model
40" : 4ea•
43" : 4ea•
50" : 4ea•
55" : 4ea•
60" : 4ea•
65" : 4ea•
3-1
Page 6
3-2
3. Disassembly and Reassemble
Description Picture Description
Remove the screws for the 'Rear Cover'.
3
Then carefully remove the 'Rear Cover'.
Screws
6001-002755 x 17EA
TORQUE : 22.0 ~ 26.5lbf
6003-001782 x 1EA
TORQUE : 22.0 ~ 26.5lbf
Screw Qty in each model
40" : 14ea•
43" : 15ea•
50" : 18ea•
55" : 18ea•
60" : 18ea•
65" : 18ea•
C/R+PANEL : 16EA
C/R+MAIN : 1EA
C/R+SMPS : 1EA
TORQUE : 22.0~26.5 lbf
Remove the Electric tapes shown on the
4
images.
• Filament Tape
• Dressing
NOTE
When assembling the TV, the electric
tapes must be applied on the same
locations. Please remember to take a
pictureofwherethetapeswererst
applied.
Remove the 'Lead Connectors' and screws
5
from the SMPS unit Then carefully remove
the SMPS unit.
Screws
6001-003016 5EA
TORQUE : 22.0 ~ 26.5lbf
Filament Tape
Dressing
Screw Qty in each model
40" : 5ea•
43" : 5ea•
50" : 5ea•
55" : 5ea•
60" : 9ea•
65" : 9ea•
Page 7
3-3
3. Disassembly and Reassemble
Description Picture Description
Remove the cables from the 'TV Board'.
6
Use both hands to hold the 'Main Board'
7
and gently lift up 2 point marked.
Slide the board to the Left side to release
8
the board.
Then carefully remove the 'TV Board'.
Page 8
3-4
3. Disassembly and Reassemble
Description Picture Description
Remove the BT/WIFI and IR unit.
9
10
11

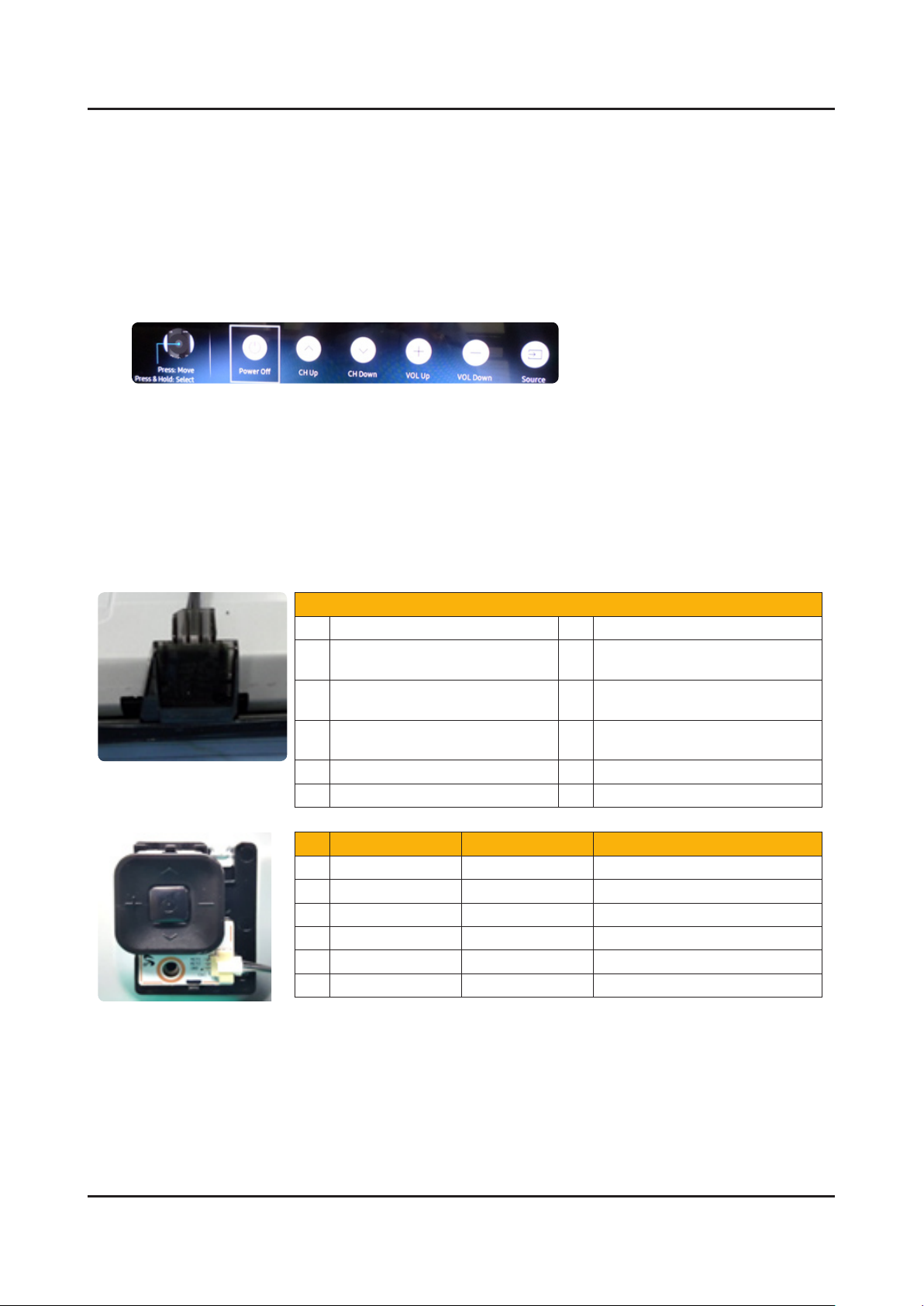

Remove the JOG unit.
Lastly, remove the speakers on both side.
Page 9
3-5
3. Disassembly and Reassemble
* Panel
- Rear Side
CAUTION
Description Picture Description
Always remember to disconnect the Poewr Cord before assembling or disassembling the LED TV.1.
Always take precautions and follow the steps properly. Remember to take a picture before 2.
disassenbling.
Recommeded screwdriver torque : 3.
The torque may need to be adjusted accordingly.•
NOTE
Reassembly procedures are in the reverse order of disassembly procedures.
Page 10
ANNEX. Exploded View & Part List
ANNEX. Exploded View & Part List [UE40KU6092UXXH FA01]

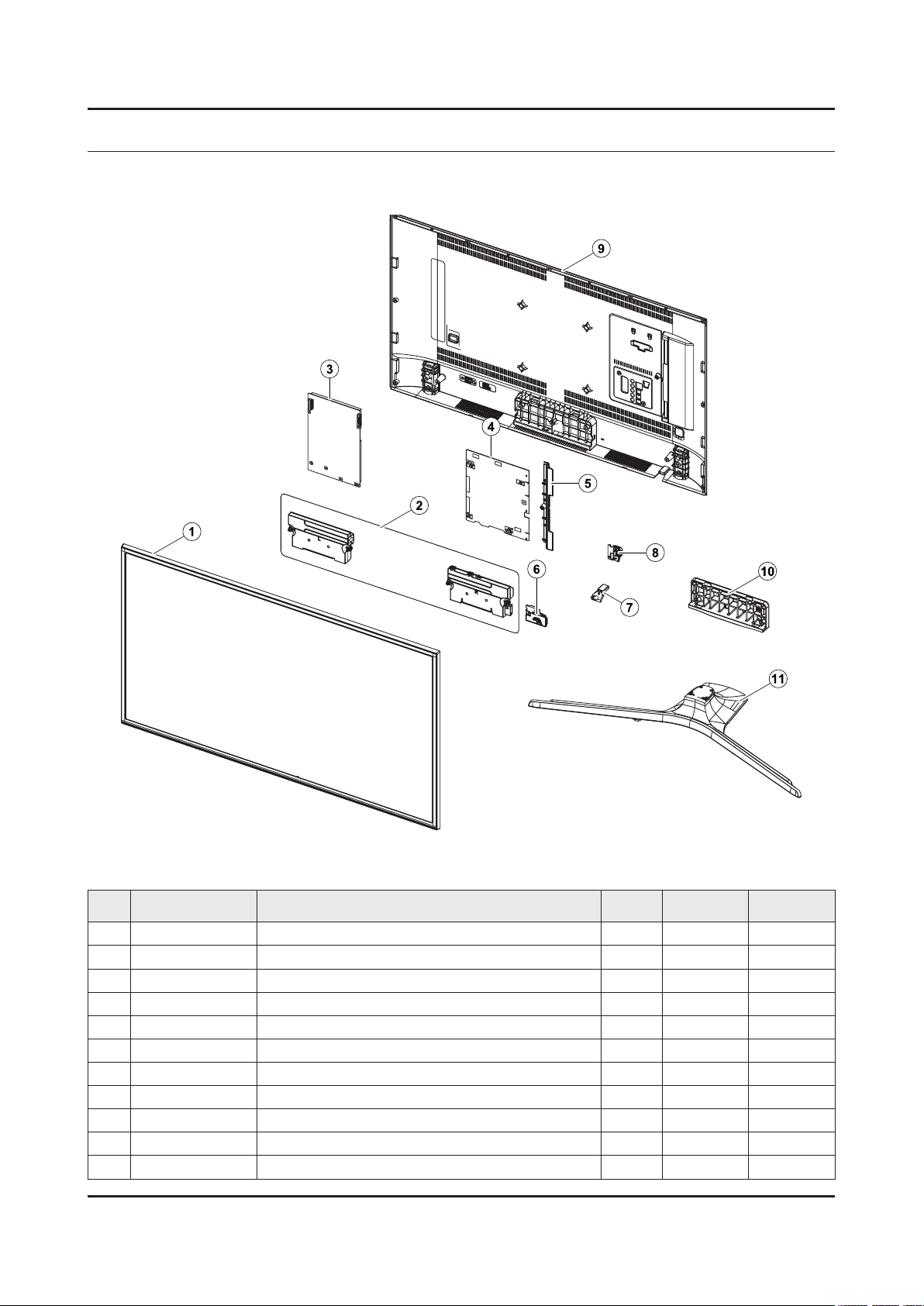

1-1. Exploded View
1-1-1. Parts List
No. Code No. Description & Specication Q’ty SA/SNA Remark
1 BN95-03221A PRODUCT LCD DP; DP,BN95-02634A,SEH ONLY 1 SA
2 BN96-35007D ASSY SPEAKER P-FRONT; TV-SPK,JU6400,6ohm, 1 SA
3 BN94-10711A ASSY PCB POWER; L40S5_KVD 1 SA
4 BN94-10798B ASSY PCB MAIN-SDC; LEDTV 6K 1 SA
5 BN63-15215A COVER-TERMINAL SIDE; 55KU6000,HIPS,MOLD,H 1 SA
6 BN59-01174D NETWORK-WLAN CLIENT; WIDT30Q,58x31.45x8.5 1 SA
7 BN96-39955A ASSY BOARD P-IR FUNCTION; KU6000,IR ASSY_ 1 SA
8 BN96-35345B ASSY BOARD P-FUNCTION JOG; JU7500,CT15 1 SA
9 BN96-39865D ASSY COVER P-REAR; 40KU6000,PC+ABS,V-1,BK 1 SA
10 BN61-11465A GUIDE-STAND; J5100/5500 40",PC+GF20%,MOLD 1 SA
11 BN96-35224A ASSY STAND P-BOTTOM; J5500 40",PC+ABS+GF2 1 SA
ANNEX-1
Page 11
ANNEX-2
ANNEX. Exploded View & Part List
2-1. Electrical Parts List
Service Bom (SA: SERVICE AVAILABLE, SNA: SERVICE NOT AVAILABLE)
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
UE40KU6092UXXH (FA01)
1 S001A BN90-06669M ASSY STAND;UJ5000,40'' 1 SNA
0.2 SG03 BN61-11465A GUIDE-STAND;J5100/5500 40",PC+GF20%,MOLD 1 SA
..3 0103-007285 RESIN PC;HF3200H,K21294,BK0007,V-2 280 SNA
0.2 SB04A BN96-35224A ASSY STAND P-BOTTOM;J5500 40",PC+ABS+GF2 1 SA
..3 SCREW 6003-001001 SCREW-TAPTYPE;FH,+,-,B,M3,L8,ZPC(BLK),SW 2 SA
..3 6902-002486 BAG PE;HDPE/PE FOAM,T0.015/T0.5,W100,L35 2 SNA
..3 6902-002487 BAG PE;HDPE/PE FOAM,T0.015/T0.5,W250,L30 1 SNA
..3 BN61-07463B TAPE-DOUBLE FACE;ACRYL,T0.25,W7,CLEAR 0 SNA
..3
..3 BN61-11430A BRACKET-STAND BODY;HGI,T1.6,NATURAL,12.7 1 SNA
..3 BN63-13258A COVER-STAND TOP;Y15 F-LED J5100/5500 40" 1 SNA
...4 0103-009946 RESIN PC ABS;HM-1200,BLACK,BK0007,V-1 300 SNA
..3 RF01 BN67-00398L FOOT-RUBBER;UH6K,Si,GRAY,W8,L15.5,T2 1 SNA
..3 RF01 BN67-00538A FOOT-RUBBER;LED_J4000,Si,GRAY,W8,L15.5,T 4 SNA
..3 BN95-02140A ASSY COVER STAND SMT;J5500 STAND,40,LIGH 1 SNA
...4 0206-001653 PAINT;CVM87100,SEMI GLOSS,UV Paint,N 4 SNA
...4 BN01-00160A TARGET-CHROMIUM CY;Chromium,99.95%,1800x 0 SNA
...4 BN63-13262A COVER-STAND DECORATION;J5100/5500 40",PC 1 SNA
....5 0103-005041 RESIN PC ABS;FR3200TV,901408,BK0008,1.2m 62 SNA
1 R001A BN90-07997B ASSY COVER REAR;LEDTV 6K 1 SNA
0.2 SCREW 6001-002755 SCREW-MACHINE;BH,+,M3,L6,ZPC(BLK),SWRCH1 14 SA
0.2 R001A BN96-39865D ASSY COVER P-REAR;40KU6000,PC+ABS,V-1,BK 1 SA
..3 R001 BN63-15583B COVER-REAR;40KU6000,PC+ABS,MOLD,V-1,BK00 1 SNA
...4 0103-010376 RESIN PC ABS;FR3012 / 901510,BLACK,BK000 1600 SNA
..3 BN68-03518R LABEL-WARNING;55KU6000,PET,T0.125,W66.5, 1 SNA
..3 BN68-07838E INLAY-TERMINAL SIDE;55KU6000,PET,T0.125, 1 SNA
1 BN90-08029A ASSY W/I;LEDTV 6K 1 SNA
0.2 BN81-08159Z A/S PART SET-ELEC W/I;LED TV ELEC spec-C 1 SNA
0.2 BN81-11282W A/S PART SET-MECH W/I;UKU6000P,U40KP* 1 SNA
1 M0017 BN91-17275B ASSY CHASSIS;LEDTV 6K 1 SNA
0.2 BN94-10798B ASSY PCB MAIN-SDC;LEDTV 6K 1 SA
..3 0202-001608 SOLDER-WIRE FLUX;LFC7-107,D0.8,99.3Sn/0. 0 SNA
..3 BN62-00817A HEAT SINK-PS;55KU6000,A1050,T1.5,W115,L1 1 SNA
..3 BN63-15215A COVER-TERMINAL SIDE;55KU6000,HIPS,MOLD,H 1 SA
..3 BN97-10648B ASSY SMD;LED TV 6K 1 SNA
...4 0202-001830 SOLDER-CREAM;LFM-48W TM-HP,D20~38um,96.5 5 SNA
...4 DS01A 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 SA
...4 0403-001164 DIODE-ZENER;MMSZ5232B,5.32~5.88V,500mW,S 1 SA
...4 0403-001783 DIODE-ZENER;BZB84-C6V2,5.8~6.6V,300mW,SO 3 SNA
...4 0403-001831 DIODE-ZENER;KDZ12B,12~13.5V,1000mW,SOD-1 1 SA
...4 0403-002014 DIODE-ZENER;KDZ16B,16.2~18.3V,1000mW,SOD 2 SNA
...4 0404-001307 DIODE-SCHOTTKY;SSC54,40V,5000mA,DO-214AB 1 SA
HOLDER-
BOLT
BN61-09494D HOLDER-BOLT;KU6500,SWRCH18A,BLK,PRESS,B 2 SA
Page 12
ANNEX-3
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
...4 0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200mA,SOT-23, 4 SA
...4 0404-001640
...4 0404-001881 DIODE-SCHOTTKY;SS3040-HE,40V,3000mA,SOD- 4 SA
...4 0404-001953 DIODE-SCHOTTKY;MBRA340F-HAF,40V,3000mA,S 3 SA
...4 0406-001200 DIODE-TVS;RClamp0504F,6V,1MAV,TP 2 SA
...4 0406-001290 DIODE-TVS;3.0SMCJ20A,22.2V,24.5V,5MAV,30 1 SNA
...4 0406-001628 DIODE-TVS;AOZ8804ADI,6V,1MAV,5A,TP 1 SA
...4 0406-001635 DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 1 SA
...4 0406-001643 DIODE-TVS;1SMA33AT3G,36.7V,38.65V,40.6V, 1 SNA
...4 0501-000002 TR-SMALL SIGNAL;KSA812,PNP,150mW,SOT-23, 1 SNA
...4 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 7 SC
...4 0504-000126 TR-DIGITAL;KSR1101,NPN,200mW,4.7K/4.7K,S 1 SA
...4 0505-001844 FET-SILICON;SI4435DDY-T1-GE3,P,30V,-11.4 1 SA
...4 0505-002560 FET-SILICON;AO6415,P,20V,-3.3A,0.15ohm,1 1 SA
...4 0505-002598 FET-SILICON;AP2317GN,P,20V,-4.2A,0.052oh 1 SA
...4 0505-002660 FET-SILICON;Si2308BDS,N,60V,2.3A,0.156oh 1 SNA
...4 0505-002893 FET-SILICON;AO4801AS,P,30V,-5A,2W,SOIC-8 2 SA
...4 0505-003205 FET-SILICON;DMG4435SSS-13,P,30V,-7.3A,1. 1 SA
...4 0505-003391 FET-SILICON;AOD2922,N,100V,8A,140Mohm,18 1 SA
...4 0505-003397 FET-SILICON;2N7002K,N,60V,0.38A,1.19ohm, 1 SA
...4 0505-003507 FET-SILICON;AO3424,N,30V,3.8A,1.4W,SOT-2 5 SA
...4 0801-003603 IC-CMOS LOGIC;MC74LCX244MN2TWG,Octal buf 1 SA
...4 1001-001998 IC-ANALOG MULTIPLEX;NX3DV221GM,USB switc 2 SA
...4 1103-001564 IC-EEPROM;S-24C512CI-J800,512Kbit,64Kx8, 1 SA
...4 1105-002704
...4 1201-000166 IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10 1 SA
...4 1201-003690 IC-AUDIO AMP;TAS5747PHPR,QFP,48P,DUAL,PL 1 SA
...4 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, 1 SA
...4 1203-008102 IC-POSI.FIXED REG.;S-13A1D12-E800,HSOP,8 1 SNA
...4 1203-008104 IC-POSI.FIXED REG.;S-13A1D18-E800,HSOP,8 1 SNA
...4 1203-008105 IC-POSI.FIXED REG.;S-13A1D33-E800,HSOP,8 1 SNA
...4 1203-008391 IC-DC/DC CONVERTER;AOZ1269QI-02,QFN-23L, 1 SA
...4 1203-008392 IC-VOL. DETECTOR;S-6414AAB-L800X,TSOT-23 1 SA
...4 1203-008448 IC-DC/DC CONVERTER;A8305SESTR-T,QFN,16,3 1 SNA
...4 1203-008454 IC-DC/DC CONVERTER;TPS56528,HSOP8,8,4,89 2 SA
...4 1203-008522 IC-DC/DC CONVERTER;SN1501019DDCR,SOT-23, 2 SNA
...4 1203-008551 IC-DC/DC CONVERTER;BM81244,QFN,40P,6x6mm 1 SNA
...4 1203-008655 IC-DC/DC CONVERTER;BM81249MWW,QFN,56,7x7 1 SA
...4 1203-008732 IC-DC/DC CONVERTER;SYD104ADC,TSOT-23,6,3 1 SA
...4 1203-008733 IC-DC/DC CONVERTER;AOZ1236QI-02,QFN,23,4 2 SA
...4 1204-003697 IC-DECODER;SDP1531,FCPBGA,1046P,31x31,GL 1 SA
...4 1205-004822 IC-SWITCH;TPS22965DSGR,SON,8P,2x2x0.75mm 3 SNA
...4 1205-005325 IC-REPEATER;PS8409QFN48GTR2-A1,QFN,48P,6 1 SA
...4 1205-005519 IC-SWITCH;ET20163,SOT23-5,5P,2.95x3.02mm 3 SA
...4 1404-001731 THERMISTOR-NTC;33Kohm,4050K,1mW/C,TP,1.6 2 SNA
...4 1405-001232 VARISTOR;6.4V,5.6Vdc,30A,1.6x0.8mm,TP,19 2 SNA
DIODE-SCHOTTKY;SS1060HEWS,60V,1000mA,S
OD
IC-DDR4 SDRAM;K4F8E304HB-MGCH,LPDDR4-
SDR
1 SA
2 SA
Page 13
ANNEX-4
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
...4 1405-001271 VARISTOR;35V,20VDC,5A,1.0x0.5mm,TP,100V, 15 SA
...4 1405-001381 VARISTOR;11V,8VDC,30A,1.6x0.8mm,TP,25V,5 2 SA
...4 1405-001382 VARISTOR;24.5V,16VDC,120A,2.0x1.25mm,TP, 2 SA
...4 2007-000039 R-CHIP;0ohm,1%,1/10W,TP,1608 8 SA
...4 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 2 SA
...4 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 12 SA
...4 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA
...4 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 17 SNA
...4 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 23 SNA
...4 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 3 SNA
...4 2007-000683 R-CHIP;3.3Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-000701 R-CHIP;3.6Kohm,1%,1/10W,TP,1608 1 SNA
...4 2007-000736 R-CHIP;30Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-000910 R-CHIP;43Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 3 SNA
...4 2007-001125 R-CHIP;68Kohm,1%,1/10W,TP,1608 2 SA
...4 2007-001288 R-CHIP;18ohm,5%,1/16W,TP,1005 4 SA
...4 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 29 SNA
...4 2007-001298 R-CHIP;51ohm,5%,1/16W,TP,1005 11 SNA
...4 2007-002899 R-CHIP;10ohm,1%,1/10W,TP,1608 10 SA
...4 2007-007107 R-CHIP;100Kohm,1%,1/16W,TP,1005 14 SNA
...4 2007-007131 R-CHIP;13Kohm,1%,1/16W,TP,1005 4 SA
...4 2007-007132 R-CHIP;15Kohm,1%,1/16W,TP,1005 2 SA
...4 2007-007136 R-CHIP;4.7Kohm,1%,1/16W,TP,1005 67 SNA
...4 2007-007137 R-CHIP;1.2Kohm,1%,1/16W,TP,1005 3 SA
...4 2007-007138 R-CHIP;27Kohm,1%,1/16W,TP,1005 3 SA
...4 2007-007139 R-CHIP;47Kohm,1%,1/16W,TP,1005,T0.35 14 SA
...4 2007-007142 R-CHIP;10Kohm,1%,1/16W,TP,1005 34 SNA
...4 2007-007231 R-CHIP;110Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-007306 R-CHIP;100ohm,1%,1/16W,TP,1005 32 SNA
...4 2007-007309 R-CHIP;12Kohm,1%,1/16W,TP,1005,T0.35 1 SA
...4 2007-007310 R-CHIP;8.2Kohm,1%,1/16W,TP,1005 1 SA
...4 2007-007312 R-CHIP;20Kohm,1%,1/16W,TP,1005 11 SA
...4 2007-007313 R-CHIP;6.8Kohm,1%,1/16W,TP,1005 3 SA
...4 2007-007318 R-CHIP;1Kohm,1%,1/16W,TP,1005 13 SNA
...4 2007-007334 R-CHIP;200Kohm,1%,1/16W,TP,1005 5 SNA
...4 2007-007488 R-CHIP;75Kohm,1%,1/16W,TP,1005 5 SA
...4 2007-007517 R-CHIP;240ohm,1%,1/16W,TP,1005 6 SNA
...4 2007-007520 R-CHIP;20ohm,1%,1/10W,TP,1608 9 SA
...4 2007-007528 R-CHIP;1.5Kohm,1%,1/16W,TP,1005 5 SA
...4 2007-007720 R-CHIP;300Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-007723 R-CHIP;75Kohm,1%,1/10W,TP,1608 2 SA
...4 2007-007766 R-CHIP;2Kohm,1%,1/16W,TP,1005 22 SNA
...4 2007-007767 R-CHIP;200ohm,1%,1/16W,TP,1005 7 SA
...4 2007-007798 R-CHIP;10ohm,1%,1/16W,TP,1005 8 SA
...4 2007-007830 R-CHIP;14Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-007847 R-CHIP;16Kohm,1%,1/10W,TP,1608 5 SA
Page 14
ANNEX-5
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
...4 2007-007942 R-CHIP;1Mohm,1%,1/16W,TP,1005 1 SNA
...4 2007-007981 R-CHIP;180Kohm,1%,1/16W,TP,1005 1 SNA
...4 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 9 SA
...4 2007-008263 R-CHIP;3Kohm,1%,1/16W,TP,1005 2 SA
...4 2007-008269 R-CHIP;51Kohm,1%,1/16W,TP,1005 3 SNA
...4 2007-008298 R-CHIP;49.9ohm,1%,1/16W,TP,1005 4 SA
...4 2007-008391 R-CHIP;6.34Kohm,1%,1/16W,TP,1005 2 SA
...4 2007-008596 R-CHIP;0.1ohm,1%,1/4W,TP,3216 3 SC
...4 2007-008779 R-CHIP;0ohm,1%,1/16W,TP,1005 3 SA
...4 2007-009117 R-CHIP;49.9Kohm,1%,1/16W,TP,1005 1 SA
...4 2007-009322 R-CHIP;1.3Kohm,1%,1/16W,TP,1005 2 SA
...4 2007-009777 R-CHIP;4.99Kohm,1%,1/16W,TP,1005 2 SA
...4 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8P,TP,2. 6 SA
...4 2011-001264 R-NETWORK;10ohm,5%,1/16W,L,CHIP,8P,TP,2. 8 SNA
...4 2011-001344 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,2 6 SA
...4 AD480 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,TP,1005 4 SA
...4 AD480 2203-000254 C-CER,CHIP;10nF,10%,16V,X7R,TP,1005 5 SA
...4 AD480 2203-000278 C-CER,CHIP;0.01nF,0.5pF,50V,C0G,TP,1005 2 SA
...4 AD480 2203-000359 C-CER,CHIP;0.15nF,5%,50V,C0G,TP,1005,0.5 3 SA
...4 AD480 2203-000386 C-CER,CHIP;0.015nF,5%,50V,C0G,TP,1005 3 SA
...4 AD480 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,TP,1005 12 SA
...4 AD480 2203-000489 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1005 2 SA
...4 AD480 2203-000585 C-CER,CHIP;0.22nF,10%,50V,X7R,TP,1005 3 SA
...4 AD480 2203-000812 C-CER,CHIP;0.033nF,5%,50V,C0G,TP,1005 9 SA
...4 AD480 2203-000940 C-CER,CHIP;0.47nF,10%,50V,X7R,TP,1005 1 SA
...4 AD480 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,TP,1005 6 SNA
...4 AD480 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,TP,1608 1 SNA
...4 AD480 2203-005054 C-CER,CHIP;0.0047nF,0.25pF,50V,NP0,TP,10 2 SA
...4 AD480 2203-005083 C-CER,CHIP;220nF,10%,50V,X7R,TP,1608,0.8 8 SA
...4 AD480 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 4 SNA
...4 AD480 2203-005968 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1005,0.5 2 SNA
...4 AD480 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,TP,1005 8 SA
...4 AD480 2203-006126 C-CER,CHIP;47nF,10%,16V,X7R,TP,1005 3 SNA
...4 AD480 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,TP,1005,T0. 107 SNA
...4 AD480 2203-006324 C-CER,CHIP;2200nF,10%,10V,X5R,TP,1608 16 SA
...4 AD480 2203-006348 C-CER,CHIP;1000nF,10%,25V,X5R,TP,1608,0. 1 SA
...4 AD480 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 27 SNA
...4 AD480 2203-006698 C-CER,CHIP;1000nF,10%,25V,X7R,TP,1608,0. 6 SA
...4 AD480 2203-006824 C-CER,CHIP;4700nF,10%,10V,X5R,TP,1608 5 SNA
...4 AD480 2203-006838 C-CER,CHIP;2200nF,10%,6.3V,X5R,TP,1005 9 SA
...4 AD480 2203-006844 C-CER,CHIP;470nF,10%,10V,X5R,TP,1005 2 SA
...4 AD480 2203-006890 C-CER,CHIP;10000nF,20%,6.3V,X5R,TP,1608 29 SA
...4 AD480 2203-006960 C-CER,CHIP;1000nF,10%,50V,X7R,TP,2012 1 SNA
...4 AD480 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012,1 19 SNA
...4 AD480 2203-007240 C-CER,CHIP;22000nF,20%,6.3V,X5R,TP,1608( 72 SA
...4 AD480 2203-007269 C-CER,CHIP;22000nF,20%,10V,X5R,TP,2012(2 13 SA
...4 AD480 2203-007270 C-CER,CHIP;10000nF,10%,10V,X5R,TP,1608,0 22 SNA
Page 15
ANNEX-6
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
...4 AD480 2203-007306 C-CER,CHIP;10000nF,10%,25V,X5R,TP,2012,1 43 SNA
...4 AD480 2203-007544 C-CER,CHIP;100nF,10%,50V,X7R,TP,1005,0.5 42 SA
...4 AD480 2203-008315 C-CER,CHIP;22000nF,20%,25V,X5R,TP,2012,T 10 SA
...4 2402-001268 C-AL,SMD;100uF,20%,25V,WT,TP,8x6.3mm 1 SA
...4 2409-001240 C-ORGANIC,SMD;33uF,20%,25V,LR,TP,7343(1. 1 SA
...4 2409-001338 C-POLYMER ,CHIP;47uF,20%,6.3V,TP,3.2x1.6 1 SA
...4 2703-000213 INDUCTOR-SMD;470nH,10%,1.35Ohm,35mA,15,M 1 SA
...4 2703-001938 INDUCTOR-SMD;56nH,5%,1005,1.5Ohm,200mA,1 7 SA
...4 2703-003149 INDUCTOR-SMD;2.2uH,20%,0.055Ohm,3000mA,W 1 SA
...4 2703-003747 INDUCTOR-SMD;22uH,20%,6060,0.135ohm,1300 2 SA
...4 2703-003862 INDUCTOR-SMD;10uH,20%,6060,0.065ohm,1900 3 SA
...4 2703-003913 INDUCTOR-SMD;2.2uH,20%,2520,1.2T,0.116Oh 1 SNA
...4 2703-003937 INDUCTOR-SMD;1uH,20%,7.0x6.47x3.0mm,0.00 3 SA
...4 2703-004630 INDUCTOR-SMD;2.2uH,20%,5.0T,0.0025Ohm,66 1 SNA
...4 2703-004724 INDUCTOR-SMD;8.2uH,20%,4T,0.072Ohm,2300m 4 SA
...4 2703-005191 INDUCTOR-SMD;1.5uH,20%,6060,T4.5,0.02Ohm 1 SA
...4 2703-005193 INDUCTOR-SMD;2.2uH,20%,4.5,0.024Ohm,5100 2 SA
...4 2703-005198 INDUCTOR-SMD;15uH,20%,3T,0.123Ohm,2500mA 1 SNA
...4 2703-005376 INDUCTOR-SMD;10uH,20%,10x10.7mm,4.0T,0.0 1 SA
...4 2801-004021 CRYSTAL-SMD;24.576MHz,20ppm,28-AAN,12pF, 1 SA
...4 3301-001364 BEAD-SMD;1000ohm,1608,TP,1085ohm/108MHz, 6 SNA
...4 3301-002039 BEAD-SMD;26ohm,1608,TP 32 SA
...4 3601-001374 FUSE-SURFACE MOUNT;32V,5A,FAST-ACTING,PL 3 SA
...4 3601-001376 FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,Hi 2 SNA
...4 3701-001967 CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5mm,BLK 3 SA
...4 3707-001103 CONNECTOR-OPTICAL;ANGLE,SPDIF,2.5PI 1 SA
...4 3708-003241 CONNECTOR-FPC/FFC/PIC;96P,0.5mm,SMD-A,AU 2 SNA
...4 3710-003908 CONNECTOR-SOCKET;64P,2R,0.5mm,SMD-S,AU,B 1 SA
...4 EH01 3711-007803 HEADER-BOARD TO CABLE;BOX,12P,1R,1.25mm, 1 SA
...4 EH01 3711-008098 HEADER-BOARD TO CABLE;BOX,20P,1R,1.25mm, 1 SNA
...4 EH01 3711-008131 HEADER-BOARD TO CABLE;BOX,4P,1R,2.5mm,AN 1 SA
...4 EH01 3711-008859 HEADER-BOARD TO CABLE;BOX,12P,2R,2mm,ANG 1 SA
...4 3711-009090 CONNECTOR-HEADER;BOX,16P,1R,1.25mm,SMD-A 1 SA
...4 3722-003199 JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT 1 SA
...4 3722-003457 JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1x1 2 SA
...4 3722-003814 JACK-PHONE;1P/7C,NI/SN,YEL,ANGLE,3.5PI,1 1 SA
...4 JACK 3722-003873 JACK-PHONE;1P/7C,AU/SN,BLU,ANGLE,3.5PI,1 1 SA
...4 6302-001376 GASKET-SMD;,,CONDUCTIVE FABRIC,T14,W43,L 7 SNA
...4 BN40-00323A TUNER-DTV AIR CABLE SAT;DTOS24EH6A,DTOS2 1 SA
...4 BN41-02528A PCB-MAIN;KU6000,FR-4,4L,1.6T,193x241mm,1 1 SNA
...4 CB07 BN61-13312B BRACKET-PCB;55KS8000,SK5,T0.3,13.7,11.4, 4 SNA
...4 BN97-10863B
....5 1107-002226 IC-NOR FLASH;W25Q40CLSSIP,4Mbit,SOIC,8P, 1 SA
...4 BN97-10865A ASSY MICOM-MAIN;T-JZL6DEUC,UWP60,KLM4G1F 1 SNA
....5 1107-002374 IC-EMMC;KLM4G1FEPD-B031,4Gbyte,BGA,153P, 1 SNA
...4 BN97-10918A ASSY MICOM;TCON,KU6k,W25Q80DVSSIG,1107-0 1 SNA
ASSY MICOM-SUB;JMMICOM_EU_
TV,UWP60,W25Q4
1 SNA
Page 16
ANNEX-7
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
....5 1107-002339 IC-NOR FLASH;W25Q80DV,8Mbit,SOP,5.28x5.2 1 SNA
....5 BN46-00515A S/W MICOM;Jazz M-L,TCON F/W 1 SNA
..3 BN97-10916A ASSY DRM;JAZZ-L,DVB,NagSam, MAC, HDCP, C 1 SNA
...4 BN46-00109H KEY CODE-CERTIFICATION;MAC,TV/AV,General 1 SNA
...4 BN46-00110P KEY CODE-CERTIFICATION;MIRACAST(HDCP2.2) 1 SNA
...4 BN46-00500A KEY CODE-CERTIFICATION;JAZZ-L,Nagra CSC 1 SNA
...4 BN46-00514A KEY CODE-CERTIFICATION;CI PLUS,Jazz M, J 1 SNA
..3 BN97-11319A ASSY MICOM;TCON DATA,KU6k,40-SDC-Flat,BN 1 SNA
...4 BN46-00516A S/W MICOM;K40A6U0F,SDC,40A6AU**K,Flat 1 SNA
1 BN91-17307D ASSY SHIELD;LEDTV 6K 1 SNA
0.2 SCREW 6001-003016 SCREW-MACHINE;PWH,+,M3,L5.0,ZPC(WHT),SWR 6 SA
0.2 BN02-00102B TAPE-FILAMENT;FILAMENT,#8917,T0.15,W25,L 0 SNA
0.2 BN39-02216B LEAD CONNECTOR-BLU;40KU6000,UL10368,16P, 1 SNA
0.2 EC13 BN39-02217A
0.2 EC13 BN39-02218A LEAD CONNECTOR-SUB ASSY;50KU6000,UL21016 1 SA
0.2 BN39-02220A LEAD CONNECTOR-SUB ASSY;40KU6300,UL21016 1 SA
0.2 WIFI BN59-01174D NETWORK-WLAN CLIENT;WIDT30Q,58x31.45x8.5 1 SA
0.2 BN61-10073B HOLDER-WIFI;55KU6000,ABS,MOLD,BK0007,HB 1 SNA
0.2 MP01A BN94-10711A ASSY PCB POWER;L40S5_KVD 1 SA
0.2 SP01A BN96-35007D ASSY SPEAKER P-FRONT;TV-SPK,JU6400,6ohm, 1 SA
0.2 JOG BN96-35345B ASSY BOARD P-FUNCTION JOG;JU7500,CT15SE8 1 SA
0.2 BN96-39823C FFC CABLE;40KU6000,43KU6000,Fold,L600,96 2 SA
0.2 BN96-39955A ASSY BOARD P-IR FUNCTION;KU6000,IR ASSY_ 1 SA
1 BN92-19874B ASSY LABEL;LEDTV 6K 1 SNA
0.2 BN68-06708G LABEL-RATING;Monitor,WW,PP,T0.161,W93,L7 1 SNA
0.2 BN68-07519A LABEL-ENERGY;ALL JORDAN,WW,PP,T0.135,W60 1 SNA
0.2 BN68-07873A LEAFLET-QUICK SETUP GUIDE;KU6000,EUROPE, 1 SNA
1 BN92-19934A ASSY P/MATERIAL;LEDTV 6K 1 SNA
0.2 0203-006958 TAPE-OPP;OPP,T0.065,W75,L1500M,CLEAR,#31 3 SNA
0.2 6902-002731 BAG ROLL;HDPE/PE FOAM,T0.015/T0.5,W1200, 1 SNA
0.2 6922-000013 BAND;PP,W18,L2300/L2900,TRP 0 SNA
0.2 6932-000004 WRAP;T0.023,W750,L1000m,non stretched 1 SNA
0.2 AS080 BN63-10787C SHEET-PROTECTION COVER;UE37EH5000,PE,T4, 1 SNA
0.2 BN69-11918A CUSHION-SET;JU6400_40_V_STAND,EPS,16.7g/ 1 SNA
..3 0103-005099 RESIN EPS;BASF303,Natural,Natural 352 SNA
0.2 BN69-13583J PAD-PACKING;LED,PAPER,T5,W50,L2600,H50,Y 1 SNA
0.2 BN69-14414A
1 BN92-19965B ASSY LABEL POP;LEDTV 6K 1 SNA
0.2 BN68-07971B LABEL POP-HIGHLIGHT;KU6000,PET,T0.1,W90, 1 SNA
1 BN92-20267K ASSY BOX;LEDTV 6K 1 SNA
0.2 BH68-00662A LABEL BOX;ALL,ART PAPER,W60,L110,WHT,NO 1 SNA
0.2 BN68-05640A LABEL BOX;ALL,ART PAPER,W110,L130,EUROPE 1 SNA
0.2 BN69-13522W BOX UNIT;40KU6020,CB,SW4,F1,L1155,W128,H 1 SNA
1 ACCE1 BN92-20388J ASSY ACCESSORY;UKU6000P 1 SNA
0.2 ACCE4 BN96-35101T ASSY ACCESSORY-MANUAL;LED_6K 1 SNA
..3 6902-001964 BAG PE;LDPE,BIOBASED,T0.03,W200,L300,TRP 1 SNA
PALLET-WOODEN;UE43KU6000,WOOD,W1000,L
LEAD CONNECTOR-SUB
ASSY;UN50KU6000,UL210
120
1 SA
1 SNA
Page 17
ANNEX-8
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
..3 BN68-03548J LEAFLET-WARRANTY;comm,Samsung,17Lang,Mid 1 SNA
..3 BN68-04972E
..3 BN68-07598A LEAFLET-FICHE;ALL,W/P,0 1 SNA
..3 BN68-08015T MANUAL USERS;KU6000,XH,W/P,EURO B5 1 SNA
0.2 ACCE2 BN96-39490A ASSY ACCESSORY-CABLE;UK6P 1 SNA
..3 3709-001791 CONNECTOR-CARD SLOT;64P,0.5mm,SMD-A,AU,P 1 SA
..3 T0268 3903-001118 CBF-POWER CORD;DT,EU,Angle,2P(C7),250V,2 1 SA
..3 4301-000121 BATTERY-MN;1.5V,R03,10.5x44.5m,7.5g,AAA 2 SNA
..3 6902-001965 BAG PE;LDPE,BIOBASED,T0.05,W200,L300,TRP 1 SNA
..3 EC03 BN39-02189A GENDER CABLE;DC to RCA Cable,3P,L100,UL2 1 SA
..3 EC03 BN39-02190A GENDER CABLE;DC to RCA Cable,2P,L100,UL2 1 SA
..3 BN59-01247A REMOCON-TV;2016 TV,Samsung,44KEY,3V,KU60 1 SA
..3 BN68-02989A LABEL ETC;ALL,ALL,PAPER,W30,L65,WHITE,SE 2 SNA
..3 BN96-35528A ASSY ACCESSORY-SCREW;JU7500,40 1 SNA
...4 6902-002474 BAG SCREW;LDPE,T0.05*,W70,L90,TRP,RECYCL 1 SNA
...4
1 BN95-03221A PRODUCT LCD DP;DP,BN95-02634A,SEH ONLY 1 SA
0.2 BN74-00053E TAPE-PAPER;PAPER,3M2307,T0.14,W20,L50M,W 0 SNA
0.2 BN92-18688A ASSY P/MATERIAL;CY-GJ040FLLV1H,Inhouse p 1 SNA
..3 BN69-12447A CUSHION-PANEL;40" COMMON,EPS,ESD,22g/l,W 1 SNA
...4 0103-005099 RESIN EPS;BASF303,Natural,Natural 2250 SNA
0.2 BN95-02634A PRODUCT LCD-SDC;CY-GK040HGLV1V,KU6000,Ba 1 SA
..3 SCREW 6001-003075 SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH1 4 SA
..3 BN68-05722A LABEL-E PASS;POLYPROPYLENE,NON-COATING 1 SNA
..3 BN90-08169Q ASSY MISC-BLU;2016_LCM 1 SNA
...4 BN61-12993A SUPPORT-PLATE;Y15 LED(SAMEX ONLY),PC,V-2 8 SNA
....5 0103-005036 RESIN PC;M2407,550115,TP0003,0.8 V-0 16 SNA
....5 0103-009493 RESIN PC;LH-1070W,W92853,WT0107,V-0 24 SNA
...4 BN61-13362A FRAME-MIDDLE TOP;40KU6300,TPV,HB,BK0008, 1 SNA
...4 BN61-13370A FRAME-MIDDLE BOTTOM;40KU6300,TPV,HB,BK00 1 SNA
...4 BN61-13378A FRAME-MIDDLE LEFT RIGHT;40KU6300,TPV,HB, 2 SNA
....5 0103-010669 RESIN TPE;5402PV/5409H,Black,BK0008,HB,T 70 SNA
...4 BN61-13692A OPTICAL SHEET-MLS;Y16_KU6000_40inch_PTD8 1 SNA
...4 BN61-13696A OPTICAL SHEET-REFLECTOR;Y16_KU6000_40inc 1 SNA
...4 BN61-13847A DIFFUSER PLATE;Y16_KU6K 40INCH_DIFFUSER 1 SNA
...4 BN63-14671A OPTICAL SHEET-COMPLEX;15Y JU6.0K 40inch 1 SNA
...4 BN96-35397N ASSY CHASSIS REAR P;40KU6000,EGI-SECC,SD 1 SNA
....5 BN02-00102B TAPE-FILAMENT;FILAMENT,#8917,T0.15,W25,L 0 SNA
....5 BN96-35397M ASSY CHASSIS REAR P;40KU6000,EGI-SECC,NA 1 SNA
.....6 SCREW 6001-003075 SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH1 1 SA
.....6 BN02-00040C TAPE DOUBLE FACE;F-LED ALL,PET,T0.3,W3,L 5 SNA
.....6 BN02-00173C TAPE-POLY;PET,T0.05,W40,BLACK 0 SNA
.....6 BN02-00303A TAPE-DOUBLE FACE;PET,T0.2,W8,CLEAR,DOUBL 0 SNA
.....6 BN02-00352E TAPE-POLY;PET,T0.05,W15,L50M,BLACK,ULNO. 0 SNA
.....6 BN61-09771A
HOLDER-
BOLT
BN61-09494D HOLDER-BOLT;KU6500,SWRCH18A,BLK,PRESS,B 8 SA
LEAFLET-REGULATORY
GUIDE;ALL,SAMSUNG,W/W
HOLDER-SCREW;Y13 OLED CURVED
55",SWRCH18
1 SNA
1 SNA
Page 18
ANNEX-9
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
.....6 BN61-11435B
.....6 BN61-11475B
.....6 BN61-11476B FRAME-CHASSIS REAR LEFT RIGHT;40KU6000,P 2 SNA
......7 0103-010898 RESIN PC;LS-3104G/G73077,Gray,GY0320,V-2 150 SNA
.....6 BN61-11477A HOLDER-SOURCE PCB;Y15 JU7K SDC,ABS,MOLD, 4 SNA
......7 0103-004609 RESIN ABS;HF-0680U,K21294,BK0007,HB,High 8 SNA
.....6 BN62-00690E INSULATOR-SMPS;40JU7000,PC,BLACK,L226.6, 1 SNA
.....6 BN63-14955A GASKET-EMI;GASKET,FABRIC,T8,W13,L20,BLAC 2 SNA
.....6 BN63-14962A GASKET-EMI;GASKET,FABRIC,T8,W15,L5,BLACK 2 SNA
.....6 CC04 BN64-02881F CHASSIS-REAR;40KU6000,EGI-SECC,T0.45,NAT 1 SNA
......7 BN01-00245A STEEL;EGI-SECC,L990,0.45mm,600mm,SECC,AG 1 SNA
......7 CB20 BN61-11982A BRACKET-WALL;Y15 F-LED,CR-SPCC,T1.2,L15. 4 SNA
.....6 RF01 BN67-00474B FOOT-RUBBER;PE400,Si,GRAY,W8,L30,T5 2 SNA
.....6 BN96-34707A ASSY PCB P-LED INTERFACE BOARD;40JU6400, 1 SNA
....5 BN96-39655A ASSY LED BAR P;40inch_KU6000_SDC_L,CEM3, 5 SNA
....5 BN96-39656A ASSY LED BAR P;40inch_KU6000_SDC_R,CEM3, 5 SNA
..3 BN96-35015B ASSY COVER P-SOURCE PCB;40KU6000,EGI-SEC 1 SNA
...4 BN62-00537E INSULATOR-SOURCE PCB COVER RIGHT;Y15 JU7 1 SNA
...4 BN62-00537F INSULATOR-SOURCE PCB COVER LEFT;Y15 JU7K 1 SNA
...4 BN63-13239B COVER-SOURCE PCB;40KU6000,EGI-SECC,T0.6, 1 SNA
..3 BN96-35593F ASSY CHASSIS FRONT P;40KU6000,PC+ABS+MF1 1 SA
...4 BN02-00112A TAPE-POLY;PET,L65.8M,T0.09,W10,ROLL,GREE 0 SNA
...4 BN02-00381A TAPE CONDUCTIVE;Y15 UHD Flat 40",CONDUCT 2 SNA
...4 BN02-00381B TAPE CONDUCTIVE;Y15 UHD Flat 40",CONDUCT 2 SNA
...4 BN60-00715A SPACER-CONDUCTIVE;Y13 Slim F-LED,CONDUCT 2 SNA
...4 BN60-01115A
...4 BN63-11875Q SHEET-PROTECTION COVER;Y14 SF-LED,AL,T0. 1 SNA
...4 FD01 BN63-13304C
...4 BN63-14373D SHEET-PROTECTION COVER;LED_JU7000,AL,T0. 2 SNA
...4 AC157 BN64-02893A CHASSIS-FRONT;JU6400_40,PC+ABS+MF15%,T1. 1 SNA
....5 0103-010326 RESIN PC ABS;HRM1530F/BK00749,Black,BK00 250 SNA
..3 BN96-39233A ASSY OPEN CELL;LSF400FN05-L,16:9,0.4T 1 SNA
...4 BN81-12946A A/S-ADHESIVE ACF;ADHESIVE ACF,0201-00232 1 SNA
...4 BN81-12952A A/S-ADHESIVE SIL;ADHESIVE SIL,0201-00237 1 SNA
...4 BN81-12960A A/S-IC DRIVER SOURCE;IC DRIVER SOURCE,LJ 1 SNA
...4 BN81-13042A A/S-POLARIZER CF;POLARIZER CF,LJ01-10786 1 SNA
...4 BN81-13043A A/S-POLARIZER TFT;POLARIZER TFT,LJ01-107 1 SNA
...4 BN81-13044A A/S-SOURCE PCB LEFT;SOURCE PCB LEFT,LJ94 1 SNA
...4 BN81-13045A A/S-SOURCE PCB RIGHT;SOURCE PCB RIGHT,LJ 1 SNA
0.2 BN96-39891A FFC CABLE;55KS7500,Fold,L400,96P 2 SA
SPACER-CONDUCTIVE;Y15 JU8K,CONDUCTIVE
DECORATION;JU5900_40,PC+ABS+MF17%,
FRAME-CHASSIS REAR
TOP;40KU6000,PC+GF10%
FRAME-CHASSIS REAR
BOTTOM;40KU6000,PC+GF
FA
COVER-
1 SNA
1 SNA
4 SNA
1 SNA
Page 19
ANNEX. Exploded View & Part List
ANNEX. Exploded View & Part List [UE55KU6092UXXH AA01]
1-1. Exploded View
1-1-1. Parts List
No. Code No. Description & Specication Q’ty SA/SNA Remark
1 BN95-02683A PRODUCT LCD-AUO; CY-GK055HGAV1V/H,KU60 1 SA
2 BN96-35006A ASSY SPEAKER P-FRONT; TV-SPK,JU7000,6ohm, 1 SA
3 BN94-10712A ASSY PCB POWER; L55S5_KVD 1 SA
4 BN94-10801C ASSY PCB MAIN-AUO; LEDTV 6K 1 SA
5 BN63-15215A COVER-TERMINAL SIDE; 55KU6000,HIPS,MOLD,H 1 SA
6 BN59-01174D NETWORK-WLAN CLIENT; WIDT30Q,58x31.45x8.5 1 SA
7 BN96-39955A ASSY BOARD P-IR FUNCTION; KU6000,IR ASSY_ 1 SA
8 BN96-35345B ASSY BOARD P-FUNCTION JOG; JU7500,CT15 1 SA
9 BN96-39868E ASSY COVER P-REAR; 55KU6000,PC+ABS+GF1 1 SA
10 BN96-35223A ASSY GUIDE P-STAND; J5500 40",PC+GF20%,V2 1 SA
11 BN96-38964A ASSY STAND P-BOTTOM; J5500 48,PC+ABS+GF20 1 SA
ANNEX-1
Page 20
ANNEX-2
ANNEX. Exploded View & Part List
2-1. Electrical Parts List
Service Bom (SA: SERVICE AVAILABLE, SNA: SERVICE NOT AVAILABLE)
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
UE55KU6092UXXH (AA01)
1 S001A BN90-06671C ASSY STAND;UJ5000,50'' 1 SNA
0.2 SG01A BN96-35223A ASSY GUIDE P-STAND;J5500 40",PC+GF20%,V2 1 SA
..3 SG03 BN61-11465A GUIDE-STAND;J5100/5500 40",PC+GF20%,MOLD 1 SA
...4 0103-007285 RESIN PC;HF3200H,K21294,BK0007,V-2 330 SNA
..3 BN96-35528A ASSY ACCESSORY-SCREW;JU7500,40 1 SNA
...4 6902-002474 BAG SCREW;LDPE,T0.05*,W70,L90,TRP,RECYCL 1 SNA
...4
0.2 SB04A BN96-38964A ASSY STAND P-BOTTOM;J5500 48,PC+ABS+GF20 1 SA
..3 0203-001499 TAPE-OPP;OPP,T0.04,W15,L50M,CLEAR,ROLL 0 SNA
..3 SCREW 6003-001001 SCREW-TAPTYPE;FH,+,-,B,M3,L8,ZPC(BLK),SW 2 SA
..3 SCREW 6003-001239 SCREW-TAPTYPE;FH,+,B,M4,L10,ZPC(WHT),SWR 4 SA
..3 SCREW 6003-001315 SCREW-TAPTYPE;BH,+,B,M4,L20,ZPC(WHT),SWR 4 SNA
..3 BN61-07463B TAPE-DOUBLE FACE;ACRYL,T0.25,W7,CLEAR 0 SNA
..3 BN61-11431B BRACKET-STAND BODY;Y15 F-LED J5100/5500 1 SNA
..3 BN61-13134A BRACKET-STAND BOTTOM;48J5500,HGI,T2 1 SNA
..3 AS080 BN63-04755H SHEET-PROTECTION COVER;52LC530,PE,T0.05, 1 SNA
..3 AS080 BN63-04755L SHEET-PROTECTION COVER;22LC350,PE,T0.05, 1 SNA
..3 BN63-13128E SHEET-PROTECTION COVER;LED,AL,T0.05,W13, 1 SNA
..3 BN63-13259E
...4 0103-009946 RESIN PC ABS;HM-1200,BLACK,BK0007,V-1 360 SNA
...4 BN68-00513D LABEL-RESIN;resin,-,ART,-,W10,L25,-,-,-, 1 SNA
..3 RF01 BN67-00327M FOOT-RUBBER;STAND,Si,GRAY,W10,L10,T1.5 2 SNA
..3 RF01 BN67-00398P FOOT-RUBBER;UH6K,Si,GRAY,W8,L15.5,T2.5 5 SNA
..3 BN95-02141A ASSY COVER STAND SMT;J5500 STAND,48",LIG 1 SA
...4 0203-001269 TAPE-OPP;#301,T0.06,W75,L50000,NTR 0 SNA
...4 0204-007315 COATING;UVICHEM CVM92000(VOC),13~15,CLEA 0 SNA
...4 AA69-07323C PACKING-SHEET SMT;HDPE,PE FOAM,T0.015,T1 1 SNA
...4 AA69-07325Q PAD-DP SHEET;CTV,CB,DW,W860,L520,YEL 1 SNA
...4 AA69-07416E MASTER BOX-DP;CB,DW,W325,H550 1 SNA
...4 AA69-07495D PAD-DP SHEET;CTV,CB,DW5,W860,L320,YEL 1 SNA
...4 AA69-07509A PAD-DP BOTTOM EPP;CTV,CB,W859,L520 1 SNA
...4 BN01-00337A TARGET-ALUMINIUM CY;Al,99.9%,1924mm, 132 0 SNA
...4 BN01-00340A TARGET-CHROMIUM CY;Cr,99.5%,1924mm, 132d 0 SNA
...4 BN63-13263A COVER-STAND DECORATION;J5100/5500 48",PC 1 SNA
....5 0103-005041 RESIN PC ABS;FR3200TV,901408,BK0008,1.2m 85 SNA
....5 BN63-07556C SHEET-PROTECTION COVER;TOC,PO,T0.068,W50 1 SNA
...4 BN68-03920A LABEL BOX;ALL,ART PAPER,W100,L75,W/W,100 1 SNA
..3 T0382 BP61-00495C TAPE PET;ACRYL,PJT,ACRYL FOAM,T0.25,W30, 0 SNA
1 R001A BN90-08001B ASSY COVER REAR;LEDTV 6K 1 SNA
0.2 SCREW 6001-003074 SCREW-MACHINE;BH,+,M3,L6,ZPC(BLK),SWRCH1 18 SA
0.2 R001A BN96-39868E ASSY COVER P-REAR;55KU6000,PC+ABS+GF15%, 1 SA
HOLDER-
BOLT
BN61-09494D HOLDER-BOLT;KU6500,SWRCH18A,BLK,PRESS,B 8 SA
COVER-STAND TOP;LED_
J5500,PC+ABS+GF20%,M
1 SNA
Page 21
ANNEX-3
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
..3 R001 BN63-15584A
...4 0103-010275 RESIN PC ABS;235GNH15/6919H,Black,BK0007 3500 SNA
..3 BN68-03518R LABEL-WARNING;55KU6000,PET,T0.125,W66.5, 1 SNA
..3 BN68-05603A LABEL-E PASS;ART PAPER 90G,W/W 3 SNA
..3 BN68-07838E INLAY-TERMINAL SIDE;55KU6000,PET,T0.125, 1 SNA
1 BN90-08029B ASSY W/I;LEDTV 6K 1 SNA
0.2 BN81-08159Z A/S PART SET-ELEC W/I;LED TV ELEC spec-C 1 SNA
0.2 BN81-11282Z A/S PART SET-MECH W/I;UKU6000P,U55KP* 1 SNA
1 M0017 BN91-17278B ASSY CHASSIS;LEDTV 6K 1 SNA
0.2 M0014 BN94-10801C ASSY PCB MAIN-AUO;LEDTV 6K 1 SA
..3 BN62-00817A HEAT SINK-PS;55KU6000,A1050,T1.5,W115,L1 1 SNA
..3 BN63-15215A COVER-TERMINAL SIDE;55KU6000,HIPS,MOLD,H 1 SA
..3 BN97-10648D ASSY SMD;LED TV 6K 1 SNA
...4 0202-001899 SOLDER-CREAM;M705-GRN360-K2-VT,20-38um,S 5 SNA
...4 DS01A 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 SA
...4 0402-000511 DIODE-SCHOTTKY;SS14,40V,1000mA,DO-214AC, 1 SNA
...4 0403-001164 DIODE-ZENER;MMSZ5232B,5.32~5.88V,500mW,S 1 SA
...4 0403-001783 DIODE-ZENER;BZB84-C6V2,5.8~6.6V,300mW,SO 3 SNA
...4 0403-001831 DIODE-ZENER;KDZ12B,12~13.5V,1000mW,SOD-1 1 SA
...4 0403-002014 DIODE-ZENER;KDZ16B,16.2~18.3V,1000mW,SOD 2 SNA
...4 0404-001307 DIODE-SCHOTTKY;SSC54,40V,5000mA,DO-214AB 1 SA
...4 0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200mA,SOT-23, 4 SA
...4 0404-001640
...4 0404-001881 DIODE-SCHOTTKY;SS3040-HE,40V,3000mA,SOD- 4 SA
...4 0404-001953 DIODE-SCHOTTKY;MBRA340F-HAF,40V,3000mA,S 3 SA
...4 0406-001200 DIODE-TVS;RClamp0504F,6V,1MAV,TP 2 SA
...4 0406-001290 DIODE-TVS;3.0SMCJ20A,22.2V,24.5V,5MAV,30 1 SNA
...4 0406-001628 DIODE-TVS;AOZ8804ADI,6V,1MAV,5A,TP 1 SA
...4 0406-001635 DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 1 SA
...4 0406-001643 DIODE-TVS;1SMA33AT3G,36.7V,38.65V,40.6V, 1 SNA
...4 0406-001718 DIODE-TVS;SMF36A,40V,44.2V,3.8MAV,1.25VP 2 SA
...4 0501-000002 TR-SMALL SIGNAL;KSA812,PNP,150mW,SOT-23, 1 SNA
...4 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 7 SC
...4 0504-000126 TR-DIGITAL;KSR1101,NPN,200mW,4.7K/4.7K,S 1 SA
...4 0505-001844 FET-SILICON;SI4435DDY-T1-GE3,P,30V,-11.4 1 SA
...4 0505-002560 FET-SILICON;AO6415,P,20V,-3.3A,0.15ohm,1 1 SA
...4 0505-002598 FET-SILICON;AP2317GN,P,20V,-4.2A,0.052oh 1 SA
...4 0505-002660 FET-SILICON;Si2308BDS,N,60V,2.3A,0.156oh 1 SNA
...4 0505-002790 FET-SILICON;ZXMP6A17G,P,60V,-4.3A,0.190o 1 SA
...4 0505-002893 FET-SILICON;AO4801AS,P,30V,-5A,2W,SOIC-8 2 SA
...4 0505-003205 FET-SILICON;DMG4435SSS-13,P,30V,-7.3A,1. 1 SA
...4 0505-003224 FET-SILICON;AO6405,P,30V,-5A,0.052ohm,2W 1 SA
...4 0505-003391 FET-SILICON;AOD2922,N,100V,8A,140Mohm,18 1 SA
...4 0505-003397 FET-SILICON;2N7002K,N,60V,0.38A,1.19ohm, 1 SA
...4 0505-003507 FET-SILICON;AO3424,N,30V,3.8A,1.4W,SOT-2 5 SA
...4 0801-003603 IC-CMOS LOGIC;MC74LCX244MN2TWG,Octal buf 1 SA
COVER-REAR;55KU6000,PC+ABS+GF15%,MOLD
,V-
DIODE-SCHOTTKY;SS1060HEWS,60V,1000mA,S
OD
1 SNA
1 SA
Page 22
ANNEX-4
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
...4 1001-001998 IC-ANALOG MULTIPLEX;NX3DV221GM,USB switc 2 SA
...4 1003-002786 IC-LEVEL DRIVER;AUO-S302.19,TQFN,32P,4mm 1 SA
...4 1103-001564 IC-EEPROM;S-24C512CI-J800,512Kbit,64Kx8, 1 SA
...4 1105-002704
...4 1201-000166 IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10 1 SA
...4 1201-003690 IC-AUDIO AMP;TAS5747PHPR,QFP,48P,DUAL,PL 1 SA
...4 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, 1 SA
...4 1203-008102 IC-POSI.FIXED REG.;S-13A1D12-E800,HSOP,8 1 SNA
...4 1203-008104 IC-POSI.FIXED REG.;S-13A1D18-E800,HSOP,8 1 SNA
...4 1203-008105 IC-POSI.FIXED REG.;S-13A1D33-E800,HSOP,8 1 SNA
...4 1203-008391 IC-DC/DC CONVERTER;AOZ1269QI-02,QFN-23L, 1 SA
...4 1203-008392 IC-VOL. DETECTOR;S-6414AAB-L800X,TSOT-23 1 SA
...4 1203-008448 IC-DC/DC CONVERTER;A8305SESTR-T,QFN,16,3 1 SNA
...4 1203-008454 IC-DC/DC CONVERTER;TPS56528,HSOP8,8,4,89 2 SA
...4 1203-008522 IC-DC/DC CONVERTER;SN1501019DDCR,SOT-23, 2 SNA
...4 1203-008551 IC-DC/DC CONVERTER;BM81244,QFN,40P,6x6mm 1 SNA
...4 1203-008655 IC-DC/DC CONVERTER;BM81249MWW,QFN,56,7x7 1 SA
...4 1203-008725 IC-POSI.ADJUST REG.;SC4508A,MLPQ,12,4x4m 1 SA
...4 1203-008732 IC-DC/DC CONVERTER;SYD104ADC,TSOT-23,6,3 1 SA
...4 1203-008733 IC-DC/DC CONVERTER;AOZ1236QI-02,QFN,23,4 2 SA
...4 1204-003697 IC-DECODER;SDP1531,FCPBGA,1046P,31x31,GL 1 SA
...4 1205-004822 IC-SWITCH;TPS22965DSGR,SON,8P,2x2x0.75mm 3 SNA
...4 1205-005325 IC-REPEATER;PS8409QFN48GTR2-A1,QFN,48P,6 1 SA
...4 1205-005519 IC-SWITCH;ET20163,SOT23-5,5P,2.95x3.02mm 3 SA
...4 1404-001731 THERMISTOR-NTC;33Kohm,4050K,1mW/C,TP,1.6 2 SNA
...4 1405-001232 VARISTOR;6.4V,5.6Vdc,30A,1.6x0.8mm,TP,19 2 SNA
...4 1405-001271 VARISTOR;35V,20VDC,5A,1.0x0.5mm,TP,100V, 15 SA
...4 1405-001381 VARISTOR;11V,8VDC,30A,1.6x0.8mm,TP,25V,5 2 SA
...4 1405-001382 VARISTOR;24.5V,16VDC,120A,2.0x1.25mm,TP, 2 SA
...4 2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 1 SC
...4 2007-000033 R-CHIP;0ohm,5%,1/4W,TP,3216 1 SA
...4 2007-000039 R-CHIP;0ohm,1%,1/10W,TP,1608 8 SA
...4 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 2 SA
...4 2007-000066 R-CHIP;20Kohm,1%,1/10W,TP,1608 1 SNA
...4 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 12 SA
...4 2007-000084 R-CHIP;4.7Kohm,5%,1/10W,TP,1608 1 SA
...4 2007-000090 R-CHIP;10Kohm,5%,1/10W,TP,1608 1 SA
...4 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 17 SNA
...4 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 21 SNA
...4 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 3 SNA
...4 2007-000219 R-CHIP;1.2Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-000265 R-CHIP;1.8Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-000308 R-CHIP;10ohm,5%,1/8W,TP,2012 4 SA
...4 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 3 SA
...4 2007-000516 R-CHIP;2.7Kohm,1%,1/10W,TP,1608 1 SNA
IC-DDR4 SDRAM;K4F8E304HB-MGCH,LPDDR4-
SDR
2 SA
Page 23
ANNEX-5
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
...4 2007-000683 R-CHIP;3.3Kohm,1%,1/10W,TP,1608 8 SA
...4 2007-000701 R-CHIP;3.6Kohm,1%,1/10W,TP,1608 1 SNA
...4 2007-000736 R-CHIP;30Kohm,1%,1/10W,TP,1608 2 SA
...4 2007-000816 R-CHIP;390Kohm,1%,1/10W,TP,1608 1 SNA
...4 2007-000881 R-CHIP;4.7ohm,5%,1/8W,TP,2012 16 SNA
...4 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 3 SNA
...4 2007-001125 R-CHIP;68Kohm,1%,1/10W,TP,1608 2 SA
...4 2007-001139 R-CHIP;7.5Kohm,1%,1/10W,TP,1608 2 SA
...4 2007-001288 R-CHIP;18ohm,5%,1/16W,TP,1005 4 SA
...4 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 29 SNA
...4 2007-001298 R-CHIP;51ohm,5%,1/16W,TP,1005 15 SNA
...4 2007-002899 R-CHIP;10ohm,1%,1/10W,TP,1608 1 SA
...4 2007-007107 R-CHIP;100Kohm,1%,1/16W,TP,1005 14 SNA
...4 2007-007131 R-CHIP;13Kohm,1%,1/16W,TP,1005 4 SA
...4 2007-007132 R-CHIP;15Kohm,1%,1/16W,TP,1005 2 SA
...4 2007-007136 R-CHIP;4.7Kohm,1%,1/16W,TP,1005 67 SNA
...4 2007-007137 R-CHIP;1.2Kohm,1%,1/16W,TP,1005 3 SA
...4 2007-007138 R-CHIP;27Kohm,1%,1/16W,TP,1005 3 SNA
...4 2007-007139 R-CHIP;47Kohm,1%,1/16W,TP,1005,T0.35 14 SA
...4 2007-007142 R-CHIP;10Kohm,1%,1/16W,TP,1005 35 SNA
...4 2007-007306 R-CHIP;100ohm,1%,1/16W,TP,1005 32 SNA
...4 2007-007309 R-CHIP;12Kohm,1%,1/16W,TP,1005,T0.35 1 SA
...4 2007-007310 R-CHIP;8.2Kohm,1%,1/16W,TP,1005 2 SA
...4 2007-007312 R-CHIP;20Kohm,1%,1/16W,TP,1005 11 SA
...4 2007-007313 R-CHIP;6.8Kohm,1%,1/16W,TP,1005 3 SA
...4 2007-007318 R-CHIP;1Kohm,1%,1/16W,TP,1005 13 SNA
...4 2007-007334 R-CHIP;200Kohm,1%,1/16W,TP,1005 5 SNA
...4 2007-007488 R-CHIP;75Kohm,1%,1/16W,TP,1005 5 SNA
...4 2007-007517 R-CHIP;240ohm,1%,1/16W,TP,1005 6 SNA
...4 2007-007528 R-CHIP;1.5Kohm,1%,1/16W,TP,1005 5 SA
...4 2007-007643 R-CHIP;2Mohm,1%,1/10W,TP,1608 1 SA
...4 2007-007720 R-CHIP;300Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-007723 R-CHIP;75Kohm,1%,1/10W,TP,1608 3 SA
...4 2007-007766 R-CHIP;2Kohm,1%,1/16W,TP,1005 22 SNA
...4 2007-007767 R-CHIP;200ohm,1%,1/16W,TP,1005 7 SA
...4 2007-007798 R-CHIP;10ohm,1%,1/16W,TP,1005 8 SA
...4 2007-007830 R-CHIP;14Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-007847 R-CHIP;16Kohm,1%,1/10W,TP,1608 5 SA
...4 2007-007942 R-CHIP;1Mohm,1%,1/16W,TP,1005 1 SNA
...4 2007-007981 R-CHIP;180Kohm,1%,1/16W,TP,1005 1 SNA
...4 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 9 SNA
...4 2007-008263 R-CHIP;3Kohm,1%,1/16W,TP,1005 2 SA
...4 2007-008269 R-CHIP;51Kohm,1%,1/16W,TP,1005 3 SA
...4 2007-008298 R-CHIP;49.9ohm,1%,1/16W,TP,1005 4 SA
...4 2007-008391 R-CHIP;6.34Kohm,1%,1/16W,TP,1005 2 SA
...4 2007-008596 R-CHIP;0.1ohm,1%,1/4W,TP,3216 2 SC
...4 2007-008779 R-CHIP;0ohm,1%,1/16W,TP,1005 3 SA
Page 24
ANNEX-6
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
...4 2007-009117 R-CHIP;49.9Kohm,1%,1/16W,TP,1005 1 SA
...4 2007-009322 R-CHIP;1.3Kohm,1%,1/16W,TP,1005 2 SA
...4 2007-009777 R-CHIP;4.99Kohm,1%,1/16W,TP,1005 2 SA
...4 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8P,TP,2. 6 SA
...4 2011-001264 R-NETWORK;10ohm,5%,1/16W,L,CHIP,8P,TP,2. 8 SNA
...4 2011-001344 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,2 6 SA
...4 AD480 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,TP,1005 4 SA
...4 AD480 2203-000254 C-CER,CHIP;10nF,10%,16V,X7R,TP,1005 5 SA
...4 AD480 2203-000278 C-CER,CHIP;0.01nF,0.5pF,50V,C0G,TP,1005 3 SA
...4 AD480 2203-000359 C-CER,CHIP;0.15nF,5%,50V,C0G,TP,1005,0.5 3 SNA
...4 AD480 2203-000386 C-CER,CHIP;0.015nF,5%,50V,C0G,TP,1005 3 SA
...4 AD480 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,TP,1005 13 SA
...4 AD480 2203-000489 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1005 2 SA
...4 AD480 2203-000585 C-CER,CHIP;0.22nF,10%,50V,X7R,TP,1005 3 SA
...4 AD480 2203-000812 C-CER,CHIP;0.033nF,5%,50V,C0G,TP,1005 9 SA
...4 AD480 2203-000940 C-CER,CHIP;0.47nF,10%,50V,X7R,TP,1005 1 SA
...4 AD480 2203-001428 C-CER,CHIP;470nF,10%,50V,X7R,TP,2012 1 SNA
...4 AD480 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,TP,1005 6 SNA
...4 AD480 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,TP,1608 1 SNA
...4 AD480 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,TP,2012 1 SNA
...4 AD480 2203-002525 C-CER,CHIP;0.56nF,10%,50V,X7R,TP,1005 1 SNA
...4 AD480 2203-005054 C-CER,CHIP;0.0047nF,0.25pF,50V,NP0,TP,10 2 SA
...4 AD480 2203-005083 C-CER,CHIP;220nF,10%,50V,X7R,TP,1608,0.8 8 SA
...4 AD480 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 7 SNA
...4 AD480 2203-005968 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1005,0.5 2 SNA
...4 AD480 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,TP,1005 8 SA
...4 AD480 2203-006088 C-CER,CHIP;330nF,10%,10V,X7R,TP,1608 1 SA
...4 AD480 2203-006126 C-CER,CHIP;47nF,10%,16V,X7R,TP,1005 3 SNA
...4 AD480 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,TP,1005,T0. 107 SNA
...4 AD480 2203-006324 C-CER,CHIP;2200nF,10%,10V,X5R,TP,1608 16 SA
...4 AD480 2203-006348 C-CER,CHIP;1000nF,10%,25V,X5R,TP,1608,0. 2 SA
...4 AD480 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 27 SNA
...4 AD480 2203-006698 C-CER,CHIP;1000nF,10%,25V,X7R,TP,1608,0. 3 SNA
...4 AD480 2203-006824 C-CER,CHIP;4700nF,10%,10V,X5R,TP,1608 5 SNA
...4 AD480 2203-006838 C-CER,CHIP;2200nF,10%,6.3V,X5R,TP,1005 9 SA
...4 AD480 2203-006844 C-CER,CHIP;470nF,10%,10V,X5R,TP,1005 2 SA
...4 AD480 2203-006890 C-CER,CHIP;10000nF,20%,6.3V,X5R,TP,1608 29 SNA
...4 AD480 2203-006960 C-CER,CHIP;1000nF,10%,50V,X7R,TP,2012 1 SNA
...4 AD480 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012,1 20 SNA
...4 AD480 2203-007240 C-CER,CHIP;22000nF,20%,6.3V,X5R,TP,1608( 72 SA
...4 AD480 2203-007269 C-CER,CHIP;22000nF,20%,10V,X5R,TP,2012(2 13 SA
...4 AD480 2203-007270 C-CER,CHIP;10000nF,10%,10V,X5R,TP,1608,0 24 SNA
...4 AD480 2203-007306 C-CER,CHIP;10000nF,10%,25V,X5R,TP,2012,1 49 SNA
...4 AD480 2203-007544 C-CER,CHIP;100nF,10%,50V,X7R,TP,1005,0.5 42 SA
...4 AD480 2203-008315 C-CER,CHIP;22000nF,20%,25V,X5R,TP,2012,T 19 SA
...4 2402-001268 C-AL,SMD;100uF,20%,25V,WT,TP,8x6.3mm 1 SA
...4 2409-001240 C-ORGANIC,SMD;33uF,20%,25V,LR,TP,7343(1. 1 SA
Page 25
ANNEX-7
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
...4 2409-001338 C-POLYMER ,CHIP;47uF,20%,6.3V,TP,3.2x1.6 1 SA
...4 2703-000213 INDUCTOR-SMD;470nH,10%,1.35Ohm,35mA,15,M 1 SA
...4 2703-001938 INDUCTOR-SMD;56nH,5%,1005,1.5Ohm,200mA,1 7 SA
...4 2703-003149 INDUCTOR-SMD;2.2uH,20%,0.055Ohm,3000mA,W 1 SA
...4 2703-003747 INDUCTOR-SMD;22uH,20%,6060,0.135ohm,1300 2 SA
...4 2703-003862 INDUCTOR-SMD;10uH,20%,6060,0.065ohm,1900 3 SA
...4 2703-003913 INDUCTOR-SMD;2.2uH,20%,2520,1.2T,0.116Oh 1 SNA
...4 2703-003937 INDUCTOR-SMD;1uH,20%,7.0x6.47x3.0mm,0.00 3 SA
...4 2703-004586 INDUCTOR-SMD;3.3uH,20%,5050,2T,0.063Ohm, 1 SA
...4 2703-004630 INDUCTOR-SMD;2.2uH,20%,5.0T,0.0025Ohm,66 1 SNA
...4 2703-004724 INDUCTOR-SMD;8.2uH,20%,4T,0.072Ohm,2300m 4 SA
...4 2703-005191 INDUCTOR-SMD;1.5uH,20%,6060,T4.5,0.02Ohm 1 SA
...4 2703-005193 INDUCTOR-SMD;2.2uH,20%,4.5,0.024Ohm,5100 2 SA
...4 2703-005198 INDUCTOR-SMD;15uH,20%,3T,0.123Ohm,2500mA 1 SNA
...4 2703-005376 INDUCTOR-SMD;10uH,20%,10x10.7mm,4.0T,0.0 1 SA
...4 2801-004021 CRYSTAL-SMD;24.576MHz,20ppm,28-AAN,12pF, 1 SA
...4 3301-001364 BEAD-SMD;1000ohm,1608,TP,1085ohm/108MHz, 6 SNA
...4 3301-002039 BEAD-SMD;26ohm,1608,TP 33 SA
...4 3601-001374 FUSE-SURFACE MOUNT;32V,5A,FAST-ACTING,PL 3 SA
...4 3601-001376 FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,Hi 2 SNA
...4 3701-001967 CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5mm,BLK 3 SA
...4 3707-001103 CONNECTOR-OPTICAL;ANGLE,SPDIF,2.5PI 1 SA
...4 3708-003241 CONNECTOR-FPC/FFC/PIC;96P,0.5mm,SMD-A,AU 2 SNA
...4 3710-003908 CONNECTOR-SOCKET;64P,2R,0.5mm,SMD-S,AU,B 1 SA
...4 EH01 3711-007803 HEADER-BOARD TO CABLE;BOX,12P,1R,1.25mm, 1 SA
...4 EH01 3711-008131 HEADER-BOARD TO CABLE;BOX,4P,1R,2.5mm,AN 1 SA
...4 EH01 3711-008859 HEADER-BOARD TO CABLE;BOX,12P,2R,2mm,ANG 1 SA
...4 3711-009090 CONNECTOR-HEADER;BOX,16P,1R,1.25mm,SMD-A 1 SA
...4 3722-003199 JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT 1 SA
...4 3722-003457 JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1x1 2 SA
...4 3722-003814 JACK-PHONE;1P/7C,NI/SN,YEL,ANGLE,3.5PI,1 1 SA
...4 JACK 3722-003873 JACK-PHONE;1P/7C,AU/SN,BLU,ANGLE,3.5PI,1 1 SA
...4 6302-001376 GASKET-SMD;,,CONDUCTIVE FABRIC,T14,W43,L 7 SNA
...4 BN40-00323A TUNER-DTV AIR CABLE SAT;DTOS24EH6A,DTOS2 1 SA
...4 BN41-02528A PCB-MAIN;KU6000,FR-4,4L,1.6T,193x241mm,1 1 SNA
...4 CB07 BN61-13312B BRACKET-PCB;55KS8000,SK5,T0.3,13.7,11.4, 4 SNA
...4 BN97-10863B
....5 1107-002226 IC-NOR FLASH;W25Q40CLSSIP,4Mbit,SOIC,8P, 1 SA
...4 BN97-10865A ASSY MICOM-MAIN;T-JZL6DEUC,UWP60,KLM4G1F 1 SNA
....5 1107-002374 IC-EMMC;KLM4G1FEPD-B031,4Gbyte,BGA,153P, 1 SNA
...4 BN97-10918A ASSY MICOM;TCON,KU6k,W25Q80DVSSIG,1107-0 1 SNA
....5 1107-002339 IC-NOR FLASH;W25Q80DV,8Mbit,SOP,5.28x5.2 1 SNA
....5 BN46-00515A S/W MICOM;Jazz M-L,TCON F/W 1 SNA
..3 BN97-10916A ASSY DRM;JAZZ-L,DVB,NagSam, MAC, HDCP, C 1 SNA
...4 BN46-00109H KEY CODE-CERTIFICATION;MAC,TV/AV,General 1 SNA
...4 BN46-00110P KEY CODE-CERTIFICATION;MIRACAST(HDCP2.2) 1 SNA
ASSY MICOM-SUB;JMMICOM_EU_
TV,UWP60,W25Q4
1 SNA
Page 26
ANNEX-8
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
...4 BN46-00500A KEY CODE-CERTIFICATION;JAZZ-L,Nagra CSC 1 SNA
...4 BN46-00514A KEY CODE-CERTIFICATION;CI PLUS,Jazz M, J 1 SNA
..3 BN97-11326A ASSY MICOM;TCON DATA,KU6k,55-AUO-Flat,BN 1 SNA
...4 BN46-00523A S/W MICOM;K55L6U0F,AUO,55L6AU**K,Flat 1 SNA
1 BN91-17310G ASSY SHIELD;LEDTV 6K 1 SNA
0.2 SCREW 6001-003081
0.2 BN02-00102B TAPE-FILAMENT;FILAMENT,#8917,T0.15,W25,L 0 SNA
0.2 BN39-02216C LEAD CONNECTOR-BLU;55KU6000,UL21016,16P, 1 SA
0.2 EC13 BN39-02217A
0.2 EC13 BN39-02218B LEAD CONNECTOR-SUB ASSY;55KU6000, 60KU60 1 SA
0.2 BN39-02220C LEAD CONNECTOR-SUB ASSY;55KU6300,UL21016 1 SA
0.2 WIFI BN59-01174D NETWORK-WLAN CLIENT;WIDT30Q,58x31.45x8.5 1 SA
0.2 BN61-10073B HOLDER-WIFI;55KU6000,ABS,MOLD,BK0007,HB 1 SNA
0.2 MP01A BN94-10712A ASSY PCB POWER;L55S5_KVD 1 SA
0.2 SP01A BN96-35006A ASSY SPEAKER P-FRONT;TV-SPK,JU7000,6ohm, 1 SA
0.2 JOG BN96-35345B ASSY BOARD P-FUNCTION JOG;JU7500,CT15SE8 1 SA
..3 AH240 BN61-11584A HOLDER-BUTTON;JU7500,ABS,MOLD,BK0007,HB 1 SNA
..3 AH297 BN63-11231B HOLDER-KNOB;HU7000,ABS,MOLD,BLACK,HB 1 SNA
..3 FK04 BN64-02406B BUTTON-FUNCTION;LED_HU7000,ABS,HB,BLACK, 1 SNA
...4 0103-004609 RESIN ABS;HF-0680U,K21294,BK0007,HB,High 8 SNA
0.2 BN96-39820D FFC CABLE;55KS7500,Fold,L500,96P 1 SA
0.2 BN96-39903A FFC CABLE;60KU6000,Fold,L650,96P 1 SA
0.2 BN96-39955A ASSY BOARD P-IR FUNCTION;KU6000,IR ASSY_ 1 SA
1 BN92-19874B ASSY LABEL;LEDTV 6K 1 SNA
0.2 BN68-06708G LABEL-RATING;Monitor,WW,PP,T0.161,W93,L7 1 SNA
0.2 BN68-07519A LABEL-ENERGY;ALL JORDAN,WW,PP,T0.135,W60 1 SNA
0.2 BN68-07873A LEAFLET-QUICK SETUP GUIDE;KU6000,EUROPE, 1 SNA
1 BN92-19937A ASSY P/MATERIAL;LEDTV 6K 1 SNA
0.2 0203-001598 TAPE-FILAMENT;FILAMENT,#8915,T0.15,W12,L 0 SNA
0.2 6902-001957 BAG ROLL;HDPE/PE FOAM,HDPE T0.018mm,T0.2 3 SNA
0.2 6902-002233 BAG AIR;LDPE,-,T0.2,W900,L1850,TRP,-,-,- 1 SNA
0.2 6922-000003 BAND;PP,T0.8,W18,L1650M,TRP,DA69-90145A 1 SNA
0.2 BN02-00319B TAPE-OPP;OPP,T0.05,W75,L800M,CLEAR,ROLL 3 SNA
0.2 BN68-02422B LABEL WARNING;ALL,ART PAPER,T0.05,W240,L 1 SNA
0.2 BN69-03982P PACKING ANGLE;ALL,PAPER,-,-,-,-,-,-,- 1 SNA
0.2 BN69-05418N WRAP;T0.017,750,2000000,2000000,750 21 SNA
0.2 BN69-06640E PAD-PACKING;TRUCK PAD,CB,-,,W410,L2500,, 1 SNA
0.2 BN69-06642A PAD-DP SHEET;PAD,CB,SW4,,W1300,L1050,,,, 1 SNA
0.2 BN69-12476L PALLET-DP WOODEN;UE55JU6800,WOOD,-,W1070 1 SNA
0.2 BN69-13284A CUSHION-SET SIDE;KU6000 55",EPS,16.7g/l, 1 SNA
0.2 BN69-13325A CUSHION-SET;KU6000 55",EPS,16.7g/l,WHT,W 1 SNA
..3 0103-005099 RESIN EPS;BASF303,Natural,Natural 722 SNA
0.2 BN69-13425A PAD-SHEET;55KS7000-BS,CB,DW2,W683,L1269, 1 SNA
1 BN92-19965B ASSY LABEL POP;LEDTV 6K 1 SNA
0.2 BN68-07971B LABEL POP-HIGHLIGHT;KU6000,PET,T0.1,W90, 1 SNA
1 BN92-20268P ASSY BOX;LEDTV 6K 1 SNA
SCREW-MACHINE;PWH,+,M3,L5,ZPC(WHT),SWR
CH
LEAD CONNECTOR-SUB
ASSY;UN50KU6000,UL210
5 SA
1 SA
Page 27
ANNEX-9
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
0.2 BH68-00662A LABEL BOX;ALL,ART PAPER,W60,L110,WHT,NO 1 SNA
0.2 BN68-05640A LABEL BOX;ALL,ART PAPER,W110,L130,EUROPE 1 SNA
0.2 BN69-13412X BOX UNIT;55KU6020,CB,DW3,F1,L1470,W139,H 1 SNA
1 ACCE1 BN92-20388J ASSY ACCESSORY;UKU6000P 1 SNA
0.2 ACCE4 BN96-35101T ASSY ACCESSORY-MANUAL;LED_6K 1 SNA
..3 6902-001964 BAG PE;LDPE,BIOBASED,T0.03,W200,L300,TRP 1 SNA
..3 BN68-03548J LEAFLET-WARRANTY;comm,Samsung,17Lang,Mid 1 SNA
..3 BN68-04972E
..3 BN68-07598A LEAFLET-FICHE;ALL,W/P,0 1 SNA
..3 BN68-08015T MANUAL USERS;KU6000,XH,W/P,EURO B5 1 SNA
0.2 ACCE2 BN96-39490A ASSY ACCESSORY-CABLE;UK6P 1 SNA
..3 3709-001791 CONNECTOR-CARD SLOT;64P,0.5mm,SMD-A,AU,P 1 SA
..3 T0268 3903-001118 CBF-POWER CORD;DT,EU,Angle,2P(C7),250V,2 1 SA
..3 4301-000121 BATTERY-MN;1.5V,R03,10.5x44.5m,7.5g,AAA 2 SNA
..3 6902-001965 BAG PE;LDPE,BIOBASED,T0.05,W200,L300,TRP 1 SNA
..3 EC03 BN39-02189A GENDER CABLE;DC to RCA Cable,3P,L100,UL2 1 SA
..3 EC03 BN39-02190A GENDER CABLE;DC to RCA Cable,2P,L100,UL2 1 SA
..3 BN59-01247A REMOCON-TV;2016 TV,Samsung,44KEY,3V,KU60 1 SA
..3 T0527 BN68-00513A LABEL-E PASS;ALL MODEL,WW,YUPO,W50,L15,W 2 SNA
1 PANEL BN95-02683A PRODUCT LCD-AUO;CY-GK055HGAV1V/H,KU6000, 1 SA
0.2 SCREW 6001-003075 SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH1 6 SA
0.2 AS080 BN63-07229A SHEET-PROTECTION COVER;rose70",PET,T0.05 2 SNA
0.2 BN68-05722A LABEL-E PASS;POLYPROPYLENE,NON-COATING 1 SNA
0.2 BN90-08250A ASSY MISC-BLU;Y16,LCM 1 SNA
..3 BN02-00102B TAPE-FILAMENT;FILAMENT,#8917,T0.15,W25,L 0 SNA
..3 BN61-11508A SUPPORT-PLATE;Y15 LED,PC,V-2,CLEAR,OD-19 17 SNA
..3 BN61-11751A DIFFUSER PLATE;15Y_J6.3K 55INCH_DIFFUSER 1 SNA
..3 BN61-13364A FRAME-MIDDLE TOP;55KU6300,TPV,HB,BK0008, 1 SNA
..3 BN61-13372A FRAME-MIDDLE BOTTOM;55KU6300,TPV,HB,BK00 1 SNA
..3 BN61-13380A FRAME-MIDDLE LEFT RIGHT;55KU6300,TPV,HB, 2 SNA
..3 BN61-13694A OPTICAL SHEET-MLS;Y16_KU6000_55inch_PTD8 1 SNA
..3 BN63-13508A OPTICAL SHEET-REFLECTOR;15Y JU7.0K 55inc 1 SNA
..3 BN63-14673A OPTICAL SHEET-COMPLEX;15Y JU6.0K 55inch 1 SNA
..3 BN96-35400R ASSY CHASSIS REAR P;55KU6300,EGI-SECC,BN 1 SNA
...4 0203-006897 TAPE-DOUBLE FACE;Si,T1,W10,L50,WHITE 1 SNA
...4 SCREW 6001-003075 SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH1 1 SA
...4 BN02-00040C TAPE DOUBLE FACE;F-LED ALL,PET,T0.3,W3,L 6 SNA
...4 BN02-00173C TAPE-POLY;PET,T0.05,W40,BLACK 0 SNA
...4 BN02-00352E TAPE-POLY;PET,T0.05,W15,L50M,BLACK,ULNO. 0 SNA
...4 BN61-09771A
...4 BN61-11401A FRAME-CHASSIS REAR TOP;Y15 JU7K 55",PC+G 1 SNA
...4 BN61-11402A FRAME-CHASSIS REAR BOTTOM;Y15 JU7K 55",P 1 SNA
...4 BN61-11403A FRAME-CHASSIS REAR LEFT RIGHT;Y15 JU7K 5 2 SNA
...4 BN61-11477A HOLDER-SOURCE PCB;Y15 JU7K SDC,ABS,MOLD, 4 SNA
....5 0103-004628 RESIN HIPS;HF-1690H,K2901,BK0020,1.5mm H 4 SNA
...4 BN62-00690H INSULATOR-SMPS;KU6000,PC,BLACK,L257,W207 1 SNA
LEAFLET-REGULATORY
GUIDE;ALL,SAMSUNG,W/W
HOLDER-SCREW;Y13 OLED CURVED
55",SWRCH18
1 SNA
1 SNA
Page 28
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
...4 BN63-14955A GASKET-EMI;GASKET,FABRIC,T8,W13,L20,BLAC 2 SNA
...4 BN63-14962A GASKET-EMI;GASKET,FABRIC,T8,W15,L5,BLACK 2 SNA
...4 BN63-15008A GASKET-ESD;GASKET,FABRIC,T8,W20,L20,BLAC 2 SNA
...4 CC04 BN64-02864F CHASSIS-REAR;55KU6000,EGI-SECC,T0.6,NATU 1 SNA
....5 CB20 BN61-11982B BRACKET-WALL;55KS7000,CR-SPCC,EXTRUSION, 4 SNA
...4 T0527 BN68-00513A LABEL-E PASS;ALL MODEL,WW,YUPO,W50,L15,W 1 SNA
...4 BN96-34710A ASSY PCB P-LED INTERFACE BOARD;55JU6400, 1 SNA
..3 BN96-40097A ASSY LED BAR P;55inch_KU6000_AUO_L,CEM3, 6 SNA
..3 BN96-40098A ASSY LED BAR P;55inch_KU6000_AUO_R,CEM3, 6 SNA
0.2 BN96-35018D ASSY COVER P-SOURCE PCB;55KU6000,EGI-SEC 1 SNA
..3 BN62-00537L INSULATOR-SOURCE PCB COVER RIGHT;Y15 JU7 1 SNA
..3 BN62-00537M INSULATOR-SOURCE PCB COVER LEFT;Y15 JU7K 1 SNA
..3 BN63-13204D COVER-SOURCE PCB;55KU6000,EGI-SECC,T0.6, 1 SNA
0.2 BN96-35596H ASSY CHASSIS FRONT P;55KU6000,PC+ABS+MF1 1 SA
..3 BN02-00381G TAPE CONDUCTIVE;Y15 UHD Flat 55",CONDUCT 2 SNA
..3 BN02-00381H TAPE CONDUCTIVE;Y15 UHD Flat 55",CONDUCT 2 SNA
..3 BN60-00715A SPACER-CONDUCTIVE;Y13 Slim F-LED,CONDUCT 2 SNA
..3 BN60-01042V SPACER-FOAM;JS9100 78",PU FOAM,L1220.2,B 1 SNA
..3 BN60-01115A
..3 FD01 BN63-13307C
..3 BN63-14373D SHEET-PROTECTION COVER;LED_JU7000,AL,T0. 4 SNA
..3 AC157 BN64-02896A CHASSIS-FRONT;JU6400_55,PC+ABS+MF15%,T1. 1 SNA
0.2 BN96-39235A ASSY OPEN CELL;T550QVR06.1,16:9,12 1 SNA
..3 BN81-12963A A/S-ADHESIVE ACF;ADHESIVE ACF,47.COF21.0 1 SNA
..3 BN81-12964A A/S-ADHESIVE SIL;ADHESIVE SIL,47.23T01.0 1 SNA
..3 BN81-12970A A/S-IC DRIVER SOURCE;IC DRIVER SOURCE,46 1 SNA
..3 BN81-12971A A/S-POLARIZER CF;POLARIZER CF,66.C4U57.3 1 SNA
..3 BN81-12972A A/S-POLARIZER TFT;POLARIZER TFT,66.T4U58 1 SNA
..3 BN81-12973A
..3 BN81-12974A A/S-SOURCE PCB FRONT RIGHT;SOURCE PCB FR 1 SNA
..3 BN81-12975A A/S-SOURCE PCB BACK LEFT;SOURCE PCB BACK 1 SNA
..3 BN81-12976A A/S-SOURCE PCB BACK RIGHT;SOURCE PCB BAC 1 SNA
SPACER-CONDUCTIVE;Y15 JU8K,CONDUCTIVE
FA
COVER-
DECORATION;JU5900_55,PC+ABS+MF17%,
A/S-SOURCE PCB FRONT LEFT;SOURCE PCB
FRO
3 SNA
1 SNA
1 SNA
ANNEX-10
Page 29
ANNEX. Exploded View & Part List
ANNEX. Exploded View & Part List [UE65KU6092UXXH DA01]
1-1. Exploded View
1-1-1. Parts List
No. Code No. Description & Specication Q’ty SA/SNA Remark
1 BN95-02641A PRODUCT LCD-INX; CY-GK065HGNV1V/H,KU6000, 1 SA
2 BN61-11517A BRACKET-STAND LINK; HGI-SGHC,T2,NATURAL 1 SA
3 BN96-35006C ASSY SPEAKER P-FRONT; TV-SPK,JU7000,6ohm, 1 SA
4 BN44-00808D DC VSS-PD BOARD; L65S6N_FSM W,AC/DC,262W, 1 SA
5 BN94-10803C ASSY PCB MAIN-INNOLUX; LEDTV 6K 1 SA
6 BN63-15215A COVER-TERMINAL SIDE; 55KU6000,HIPS,MOLD,H 1 SA
7 BN59-01174D NETWORK-WLAN CLIENT; WIDT30Q,58x31.45x8.5 1 SA
8 BN96-39955A ASSY BOARD P-IR FUNCTION; KU6000,IR ASSY_ 1 SA
9 BN96-35345B ASSY BOARD P-FUNCTION JOG; JU7500,CT15S 1 SA
10 BN96-39866E ASSY COVER P-REAR; 65KU6000,PC+ABS+GF 1 SA
11 BN96-38553A ASSY GUIDE P-STAND; 60JS6900,NORTH AMERIC 1 SA
12 BN96-37971A ASSY STAND P-BOTTOM; Y15 J6200 60",PC+ABS 1 SA
ANNEX-1
Page 30
ANNEX-2
ANNEX. Exploded View & Part List
2-1. Electrical Parts List
Service Bom (SA: SERVICE AVAILABLE, SNA: SERVICE NOT AVAILABLE)
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
UE65KU6092UXXH (DA01)
1 R001A BN90-08003C ASSY COVER REAR;LEDTV 6K 1 SNA
0.2 SCREW 6001-003074 SCREW-MACHINE;BH,+,M3,L6,ZPC(BLK),SWRCH1 18 SA
0.2 SCREW 6003-000003 SCREW-TAPTYPE;BH,+,-,B,M4,L10,ZPC(BLK),S 1 SA
0.2 R001A BN96-39866E ASSY COVER P-REAR;65KU6000,PC+ABS+GF15%, 1 SA
..3 R001 BN63-15587A
...4 0103-010275 RESIN PC ABS;235GNH15/6919H,Black,BK0007 4940 SNA
..3 BN68-03518R LABEL-WARNING;55KU6000,PET,T0.125,W66.5, 1 SNA
..3 BN68-07838E INLAY-TERMINAL SIDE;55KU6000,PET,T0.125, 1 SNA
1 BN90-08029C ASSY W/I;LEDTV 6K 1 SNA
0.2 BN81-08159Z A/S PART SET-ELEC W/I;LED TV ELEC spec-C 1 SNA
0.2 BN81-12184C A/S PART SET-MECH W/I;UKU6000P,U65KP* 1 SNA
1 S001A BN90-08063C ASSY STAND;LEDTV 6K 1 SNA
0.2 SB04A BN96-37971A ASSY STAND P-BOTTOM;Y15 J6200 60",PC+ABS 1 SA
..3 SCREW 6003-001001 SCREW-TAPTYPE;FH,+,-,B,M3,L8,ZPC(BLK),SW 2 SA
..3 AS080 BN63-04755H SHEET-PROTECTION COVER;52LC530,PE,T0.05, 1 SNA
..3 AS080 BN63-04755L SHEET-PROTECTION COVER;22LC350,PE,T0.05, 1 SNA
..3 RF01 BN67-00398P FOOT-RUBBER;UH6K,Si,GRAY,W8,L15.5,T2.5 2 SNA
..3 BN95-02371B ASSY COVER STAND SMT;J6200,60,LIGHT TITA 1 SNA
...4 0203-001269 TAPE-OPP;#301,T0.06,W75,L50000,NTR 0 SNA
...4 0204-007315 COATING;UVICHEM CVM92000(VOC),13~15,CLEA 0 SNA
...4 AA69-07494X PAD-DP SHEET;CTV,CB,DW,W990,L515,YEL 1 SNA
...4 AA69-07610E PAD-DP SHEET;CTV,CB,DW5,W515,L310 1 SNA
...4 AA69-07629P MASTER BOX-DP;CB,DW,L315,W525,H1020 1 SNA
...4 AA69-07707A PAD-DP BOTTOM EPP;CTV,CB,DW,W515,L35 1 SNA
...4 BN01-00337A TARGET-ALUMINIUM CY;Al,99.9%,1924mm, 132 0 SNA
...4 BN01-00340A TARGET-CHROMIUM CY;Cr,99.5%,1924mm, 132d 0 SNA
...4 BN63-14512A COVER-STAND DECORATION;15Y J6200 60",PC+ 1 SNA
....5 0103-005041 RESIN PC ABS;FR3200TV,901408,BK0008,1.2m 85 SNA
....5 BN63-07556C SHEET-PROTECTION COVER;TOC,PO,T0.068,W50 1 SNA
...4 BN68-03920A LABEL BOX;ALL,ART PAPER,W100,L75,W/W,100 1 SNA
...4 BN69-10617S PACKING SHEET;48" 6500 INHOUSE,HDPE/PE F 1 SNA
..3 SB02A BN96-38154A ASSY STAND P-BOTTOM;J6200 60",PC+ABS+GF2 1 SNA
...4 SCREW 6003-001119 SCREW-TAPTYPE;FH,+,S,M4,L10,ZPC(BLK),SWR 10 SA
...4 SCREW 6003-001355 SCREW-TAPTYPE;BH,+,S,M4,L20,ZPC(BLK),SWR 2 SNA
...4 BN61-12727A BRACKET-STAND BOTTOM;HGI,T3,NATURAL 1 SNA
...4 BN61-12728A BRACKET-STAND BODY;HGI,T1.9,NATURAL 1 SNA
...4 BN63-14511A COVER-STAND TOP;15Y J6200 60",PC+ABS+GF2 1 SNA
...4 RF01 BN67-00398P FOOT-RUBBER;UH6K,Si,GRAY,W8,L15.5,T2.5 3 SNA
...4 BN68-05603A LABEL-E PASS;ART PAPER 90G,W/W 1 SNA
0.2 SG01A BN96-38553A ASSY GUIDE P-STAND;60JS6900,NORTH AMERIC 1 SA
..3 SG03 BN61-12971A GUIDE-STAND;60JS6900,PC+GF20%,MOLD,V-2,B 1 SNA
..3 BN68-05603A LABEL-E PASS;ART PAPER 90G,W/W 2 SNA
COVER-REAR;65KU6000,PC+ABS+GF15%,MOLD
,V-
1 SNA
Page 31
ANNEX-3
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
..3 BN69-08751A PACKING SHRINKAGE;STAND,PLASTIC OTHERS,P 0 SNA
..3 BN96-32380B
...4
...4 BN69-10588A BAG SCREW;LDPE,0.05,70,90,TRP,LED TV,LDP 1 SNA
..3 BN96-38693A ASSY ACCESSORY-SCREW;JS7200 1 SNA
...4 6902-002601 BAG SCREW;LDPE,T0.05*,W70,90,TRP,RECYCLE 1 SNA
...4 SCREW BN61-09494B SCREW-TAPTYPE;BH,+,S,M4,L14,ZPC(BLK),SWR 4 SA
1 M0017 BN91-17280D ASSY CHASSIS;LEDTV 6K 1 SNA
0.2 BN94-10803C ASSY PCB MAIN-INNOLUX;LEDTV 6K 1 SA
..3 BN62-00817A HEAT SINK-PS;55KU6000,A1050,T1.5,W115,L1 1 SNA
..3 BN63-15215A COVER-TERMINAL SIDE;55KU6000,HIPS,MOLD,H 1 SA
..3 BN97-10649C ASSY SMD;LED TV 6K 1 SNA
...4 0202-001899 SOLDER-CREAM;M705-GRN360-K2-VT,20-38um,S 5 SNA
...4 DS01A 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 SA
...4 0403-001164 DIODE-ZENER;MMSZ5232B,5.32~5.88V,500mW,S 1 SA
...4 0403-001783 DIODE-ZENER;BZB84-C6V2,5.8~6.6V,300mW,SO 3 SNA
...4 0403-001831 DIODE-ZENER;KDZ12B,12~13.5V,1000mW,SOD-1 2 SA
...4 0404-001307 DIODE-SCHOTTKY;SSC54,40V,5000mA,DO-214AB 1 SA
...4 0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200mA,SOT-23, 4 SA
...4 0404-001640
...4 0404-001881 DIODE-SCHOTTKY;SS3040-HE,40V,3000mA,SOD- 4 SA
...4 0404-001953 DIODE-SCHOTTKY;MBRA340F-HAF,40V,3000mA,S 3 SA
...4 0406-001200 DIODE-TVS;RClamp0504F,6V,1MAV,TP 2 SA
...4 0406-001290 DIODE-TVS;3.0SMCJ20A,22.2V,24.5V,5MAV,30 1 SNA
...4 0406-001628 DIODE-TVS;AOZ8804ADI,6V,1MAV,5A,TP 1 SA
...4 0406-001635 DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 1 SA
...4 0406-001643 DIODE-TVS;1SMA33AT3G,36.7V,38.65V,40.6V, 1 SNA
...4 0501-000002 TR-SMALL SIGNAL;KSA812,PNP,150mW,SOT-23, 1 SNA
...4 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 7 SC
...4 0502-001346 TR-POWER;FCX591A,PNP,1000mW,SOT89,TR,30/ 1 SA
...4 0504-000126 TR-DIGITAL;KSR1101,NPN,200mW,4.7K/4.7K,S 1 SA
...4 0505-001844 FET-SILICON;SI4435DDY-T1-GE3,P,30V,-11.4 1 SA
...4 0505-002560 FET-SILICON;AO6415,P,20V,-3.3A,0.15ohm,1 1 SA
...4 0505-002598 FET-SILICON;AP2317GN,P,20V,-4.2A,0.052oh 1 SA
...4 0505-002660 FET-SILICON;Si2308BDS,N,60V,2.3A,0.156oh 1 SNA
...4 0505-002893 FET-SILICON;AO4801AS,P,30V,-5A,2W,SOIC-8 2 SA
...4 0505-003205 FET-SILICON;DMG4435SSS-13,P,30V,-7.3A,1. 1 SA
...4 0505-003391 FET-SILICON;AOD2922,N,100V,8A,140Mohm,18 1 SA
...4 0505-003397 FET-SILICON;2N7002K,N,60V,0.38A,1.19ohm, 1 SA
...4 0505-003507 FET-SILICON;AO3424,N,30V,3.8A,1.4W,SOT-2 5 SA
...4 0801-003603 IC-CMOS LOGIC;MC74LCX244MN2TWG,Octal buf 1 SA
...4 1001-001998 IC-ANALOG MULTIPLEX;NX3DV221GM,USB switc 2 SA
...4 1103-001564 IC-EEPROM;S-24C512CI-J800,512Kbit,64Kx8, 1 SA
...4 1105-002704
HOLDER-
BOLT
BN61-09494D HOLDER-BOLT;KU6500,SWRCH18A,BLK,PRESS,B 4 SA
ASSY ACCESSORY-SCREW;LED_H5000,BN69-
1058
DIODE-SCHOTTKY;SS1060HEWS,60V,1000mA,S
OD
IC-DDR4 SDRAM;K4F8E304HB-MGCH,LPDDR4-
SDR
1 SNA
1 SA
2 SA
Page 32
ANNEX-4
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
...4 1201-000166 IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10 1 SA
...4 1201-003690 IC-AUDIO AMP;TAS5747PHPR,QFP,48P,DUAL,PL 1 SA
...4 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, 1 SA
...4 1203-008102 IC-POSI.FIXED REG.;S-13A1D12-E800,HSOP,8 1 SNA
...4 1203-008104 IC-POSI.FIXED REG.;S-13A1D18-E800,HSOP,8 1 SNA
...4 1203-008105 IC-POSI.FIXED REG.;S-13A1D33-E800,HSOP,8 1 SNA
...4 1203-008319 IC-DC/DC CONVERTER;BM81233,QFN,32P,5x5mm 1 SNA
...4 1203-008391 IC-DC/DC CONVERTER;AOZ1269QI-02,QFN-23L, 1 SA
...4 1203-008392 IC-VOL. DETECTOR;S-6414AAB-L800X,TSOT-23 1 SA
...4 1203-008448 IC-DC/DC CONVERTER;A8305SESTR-T,QFN,16,3 1 SNA
...4 1203-008454 IC-DC/DC CONVERTER;TPS56528,HSOP8,8,4,89 2 SA
...4 1203-008522 IC-DC/DC CONVERTER;SN1501019DDCR,SOT-23, 2 SNA
...4 1203-008655 IC-DC/DC CONVERTER;BM81249MWW,QFN,56,7x7 1 SA
...4 1203-008732 IC-DC/DC CONVERTER;SYD104ADC,TSOT-23,6,3 1 SA
...4 1203-008733 IC-DC/DC CONVERTER;AOZ1236QI-02,QFN,23,4 2 SA
...4 1204-003697 IC-DECODER;SDP1531,FCPBGA,1046P,31x31,GL 1 SA
...4 1205-004822 IC-SWITCH;TPS22965DSGR,SON,8P,2x2x0.75mm 3 SNA
...4 1205-005325 IC-REPEATER;PS8409QFN48GTR2-A1,QFN,48P,6 1 SA
...4 1205-005519 IC-SWITCH;ET20163,SOT23-5,5P,2.95x3.02mm 3 SA
...4 1405-001232 VARISTOR;6.4V,5.6Vdc,30A,1.6x0.8mm,TP,19 2 SNA
...4 1405-001271 VARISTOR;35V,20VDC,5A,1.0x0.5mm,TP,100V, 15 SA
...4 1405-001381 VARISTOR;11V,8VDC,30A,1.6x0.8mm,TP,25V,5 2 SA
...4 1405-001382 VARISTOR;24.5V,16VDC,120A,2.0x1.25mm,TP, 1 SA
...4 2007-000039 R-CHIP;0ohm,1%,1/10W,TP,1608 7 SA
...4 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 2 SA
...4 2007-000066 R-CHIP;20Kohm,1%,1/10W,TP,1608 1 SNA
...4 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 6 SA
...4 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 16 SNA
...4 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 29 SNA
...4 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 3 SNA
...4 2007-000683 R-CHIP;3.3Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-000726 R-CHIP;300ohm,1%,1/10W,TP,1608 3 SA
...4 2007-000736 R-CHIP;30Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 3 SNA
...4 2007-000999 R-CHIP;510ohm,1%,1/10W,TP,1608 1 SA
...4 2007-001125 R-CHIP;68Kohm,1%,1/10W,TP,1608 2 SA
...4 2007-001288 R-CHIP;18ohm,5%,1/16W,TP,1005 4 SA
...4 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 29 SNA
...4 2007-001298 R-CHIP;51ohm,5%,1/16W,TP,1005 11 SNA
...4 2007-007107 R-CHIP;100Kohm,1%,1/16W,TP,1005 14 SNA
...4 2007-007131 R-CHIP;13Kohm,1%,1/16W,TP,1005 4 SA
...4 2007-007132 R-CHIP;15Kohm,1%,1/16W,TP,1005 2 SA
...4 2007-007136 R-CHIP;4.7Kohm,1%,1/16W,TP,1005 67 SNA
...4 2007-007137 R-CHIP;1.2Kohm,1%,1/16W,TP,1005 3 SA
...4 2007-007138 R-CHIP;27Kohm,1%,1/16W,TP,1005 3 SNA
...4 2007-007139 R-CHIP;47Kohm,1%,1/16W,TP,1005,T0.35 15 SA
Page 33
ANNEX-5
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
...4 2007-007142 R-CHIP;10Kohm,1%,1/16W,TP,1005 34 SNA
...4 2007-007306 R-CHIP;100ohm,1%,1/16W,TP,1005 33 SNA
...4 2007-007309 R-CHIP;12Kohm,1%,1/16W,TP,1005,T0.35 1 SA
...4 2007-007310 R-CHIP;8.2Kohm,1%,1/16W,TP,1005 1 SA
...4 2007-007312 R-CHIP;20Kohm,1%,1/16W,TP,1005 11 SA
...4 2007-007313 R-CHIP;6.8Kohm,1%,1/16W,TP,1005 4 SA
...4 2007-007318 R-CHIP;1Kohm,1%,1/16W,TP,1005 13 SNA
...4 2007-007334 R-CHIP;200Kohm,1%,1/16W,TP,1005 5 SNA
...4 2007-007488 R-CHIP;75Kohm,1%,1/16W,TP,1005 5 SNA
...4 2007-007517 R-CHIP;240ohm,1%,1/16W,TP,1005 6 SNA
...4 2007-007528 R-CHIP;1.5Kohm,1%,1/16W,TP,1005 5 SA
...4 2007-007720 R-CHIP;300Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-007723 R-CHIP;75Kohm,1%,1/10W,TP,1608 2 SA
...4 2007-007766 R-CHIP;2Kohm,1%,1/16W,TP,1005 22 SNA
...4 2007-007767 R-CHIP;200ohm,1%,1/16W,TP,1005 7 SA
...4 2007-007798 R-CHIP;10ohm,1%,1/16W,TP,1005 8 SA
...4 2007-007847 R-CHIP;16Kohm,1%,1/10W,TP,1608 5 SA
...4 2007-007942 R-CHIP;1Mohm,1%,1/16W,TP,1005 1 SNA
...4 2007-007981 R-CHIP;180Kohm,1%,1/16W,TP,1005 1 SNA
...4 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 9 SNA
...4 2007-008263 R-CHIP;3Kohm,1%,1/16W,TP,1005 2 SA
...4 2007-008269 R-CHIP;51Kohm,1%,1/16W,TP,1005 3 SA
...4 2007-008298 R-CHIP;49.9ohm,1%,1/16W,TP,1005 4 SA
...4 2007-008391 R-CHIP;6.34Kohm,1%,1/16W,TP,1005 2 SA
...4 2007-008596 R-CHIP;0.1ohm,1%,1/4W,TP,3216 2 SC
...4 2007-008779 R-CHIP;0ohm,1%,1/16W,TP,1005 3 SA
...4 2007-009117 R-CHIP;49.9Kohm,1%,1/16W,TP,1005 1 SA
...4 2007-009322 R-CHIP;1.3Kohm,1%,1/16W,TP,1005 2 SA
...4 2007-009777 R-CHIP;4.99Kohm,1%,1/16W,TP,1005 2 SA
...4 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8P,TP,2. 6 SA
...4 2011-001264 R-NETWORK;10ohm,5%,1/16W,L,CHIP,8P,TP,2. 8 SNA
...4 2011-001344 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,2 6 SA
...4 AD480 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,TP,1005 4 SA
...4 AD480 2203-000254 C-CER,CHIP;10nF,10%,16V,X7R,TP,1005 5 SA
...4 AD480 2203-000278 C-CER,CHIP;0.01nF,0.5pF,50V,C0G,TP,1005 2 SA
...4 AD480 2203-000359 C-CER,CHIP;0.15nF,5%,50V,C0G,TP,1005,0.5 3 SNA
...4 AD480 2203-000386 C-CER,CHIP;0.015nF,5%,50V,C0G,TP,1005 3 SA
...4 AD480 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,TP,1005 10 SA
...4 AD480 2203-000489 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1005 3 SA
...4 AD480 2203-000585 C-CER,CHIP;0.22nF,10%,50V,X7R,TP,1005 3 SA
...4 AD480 2203-000812 C-CER,CHIP;0.033nF,5%,50V,C0G,TP,1005 9 SA
...4 AD480 2203-000838 C-CER,CHIP;0.39nF,5%,50V,C0G,TP,1608 1 SNA
...4 AD480 2203-000940 C-CER,CHIP;0.47nF,10%,50V,X7R,TP,1005 1 SA
...4 AD480 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,TP,1005 6 SNA
...4 AD480 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,TP,1608 1 SNA
...4 AD480 2203-005054 C-CER,CHIP;0.0047nF,0.25pF,50V,NP0,TP,10 2 SA
...4 AD480 2203-005083 C-CER,CHIP;220nF,10%,50V,X7R,TP,1608,0.8 8 SA
Page 34
ANNEX-6
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
...4 AD480 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 4 SNA
...4 AD480 2203-005968 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1005,0.5 2 SNA
...4 AD480 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,TP,1005 8 SA
...4 AD480 2203-006126 C-CER,CHIP;47nF,10%,16V,X7R,TP,1005 3 SNA
...4 AD480 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,TP,1005,T0. 107 SNA
...4 AD480 2203-006324 C-CER,CHIP;2200nF,10%,10V,X5R,TP,1608 16 SA
...4 AD480 2203-006348 C-CER,CHIP;1000nF,10%,25V,X5R,TP,1608,0. 2 SA
...4 AD480 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 27 SNA
...4 AD480 2203-006698 C-CER,CHIP;1000nF,10%,25V,X7R,TP,1608,0. 7 SNA
...4 AD480 2203-006824 C-CER,CHIP;4700nF,10%,10V,X5R,TP,1608 5 SNA
...4 AD480 2203-006838 C-CER,CHIP;2200nF,10%,6.3V,X5R,TP,1005 9 SA
...4 AD480 2203-006844 C-CER,CHIP;470nF,10%,10V,X5R,TP,1005 2 SA
...4 AD480 2203-006890 C-CER,CHIP;10000nF,20%,6.3V,X5R,TP,1608 29 SNA
...4 AD480 2203-006960 C-CER,CHIP;1000nF,10%,50V,X7R,TP,2012 1 SNA
...4 AD480 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012,1 23 SNA
...4 AD480 2203-007240 C-CER,CHIP;22000nF,20%,6.3V,X5R,TP,1608( 72 SA
...4 AD480 2203-007269 C-CER,CHIP;22000nF,20%,10V,X5R,TP,2012(2 13 SA
...4 AD480 2203-007270 C-CER,CHIP;10000nF,10%,10V,X5R,TP,1608,0 22 SNA
...4 AD480 2203-007306 C-CER,CHIP;10000nF,10%,25V,X5R,TP,2012,1 37 SNA
...4 AD480 2203-007544 C-CER,CHIP;100nF,10%,50V,X7R,TP,1005,0.5 42 SA
...4 AD480 2203-008315 C-CER,CHIP;22000nF,20%,25V,X5R,TP,2012,T 10 SA
...4 2402-001268 C-AL,SMD;100uF,20%,25V,WT,TP,8x6.3mm 1 SA
...4 2409-001240 C-ORGANIC,SMD;33uF,20%,25V,LR,TP,7343(1. 1 SA
...4 2409-001338 C-POLYMER ,CHIP;47uF,20%,6.3V,TP,3.2x1.6 1 SA
...4 2703-000213 INDUCTOR-SMD;470nH,10%,1.35Ohm,35mA,15,M 1 SA
...4 2703-001938 INDUCTOR-SMD;56nH,5%,1005,1.5Ohm,200mA,1 7 SA
...4 2703-003149 INDUCTOR-SMD;2.2uH,20%,0.055Ohm,3000mA,W 1 SA
...4 2703-003747 INDUCTOR-SMD;22uH,20%,6060,0.135ohm,1300 2 SA
...4 2703-003862 INDUCTOR-SMD;10uH,20%,6060,0.065ohm,1900 3 SA
...4 2703-003913 INDUCTOR-SMD;2.2uH,20%,2520,1.2T,0.116Oh 1 SNA
...4 2703-003937 INDUCTOR-SMD;1uH,20%,7.0x6.47x3.0mm,0.00 3 SA
...4 2703-004630 INDUCTOR-SMD;2.2uH,20%,5.0T,0.0025Ohm,66 1 SNA
...4 2703-004724 INDUCTOR-SMD;8.2uH,20%,4T,0.072Ohm,2300m 4 SA
...4 2703-005191 INDUCTOR-SMD;1.5uH,20%,4.5,0.02Ohm,5300m 1 SA
...4 2703-005193 INDUCTOR-SMD;2.2uH,20%,4.5,0.024Ohm,5100 2 SA
...4 2703-005198 INDUCTOR-SMD;15uH,20%,3T,0.123Ohm,2500mA 1 SNA
...4 2703-005376 INDUCTOR-SMD;10uH,20%,10x10.7mm,4.0T,0.0 1 SA
...4 2801-004021 CRYSTAL-SMD;24.576MHz,20ppm,28-AAN,12pF, 1 SA
...4 3301-001364 BEAD-SMD;1000ohm,1608,TP,1085ohm/108MHz, 6 SNA
...4 3301-002039 BEAD-SMD;26ohm,1608,TP 32 SA
...4 3601-001374 FUSE-SURFACE MOUNT;32V,5A,FAST-ACTING,PL 3 SA
...4 3601-001376 FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,Hi 2 SNA
...4 3701-001967 CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5mm,BLK 3 SA
...4 3707-001103 CONNECTOR-OPTICAL;ANGLE,SPDIF,2.5PI 1 SA
...4 3708-003241 CONNECTOR-FPC/FFC/PIC;96P,0.5mm,SMD-A,AU 2 SNA
...4 3710-003908 CONNECTOR-SOCKET;64P,2R,0.5mm,SMD-S,AU,B 1 SA
...4 EH01 3711-007803 HEADER-BOARD TO CABLE;BOX,12P,1R,1.25mm, 1 SA
Page 35
ANNEX-7
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
...4 EH01 3711-008131 HEADER-BOARD TO CABLE;BOX,4P,1R,2.5mm,AN 1 SA
...4 EH01 3711-008859 HEADER-BOARD TO CABLE;BOX,12P,2R,2mm,ANG 1 SA
...4 3711-009090 CONNECTOR-HEADER;BOX,16P,1R,1.25mm,SMD-A 1 SA
...4 3722-003199 JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT 1 SA
...4 3722-003457 JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1x1 2 SA
...4 3722-003814 JACK-PHONE;1P/7C,NI/SN,YEL,ANGLE,3.5PI,1 1 SA
...4 JACK 3722-003873 JACK-PHONE;1P/7C,AU/SN,BLU,ANGLE,3.5PI,1 1 SA
...4 6302-001376 GASKET-SMD;,,CONDUCTIVE FABRIC,T14,W43,L 7 SNA
...4 BN40-00323A TUNER-DTV AIR CABLE SAT;DTOS24EH6A,DTOS2 1 SA
...4 BN41-02528A PCB-MAIN;KU6000,FR-4,4L,1.6T,193x241mm,1 1 SNA
...4 CB07 BN61-13312B BRACKET-PCB;55KS8000,SK5,T0.3,13.7,11.4, 4 SNA
...4 BN97-10863B
....5 1107-002226 IC-NOR FLASH;W25Q40CLSSIP,4Mbit,SOIC,8P, 1 SA
...4 BN97-10865A ASSY MICOM-MAIN;T-JZL6DEUC,UWP60,KLM4G1F 1 SNA
....5 1107-002374 IC-EMMC;KLM4G1FEPD-B031,4Gbyte,BGA,153P, 1 SNA
...4 BN97-10918A ASSY MICOM;TCON,KU6k,W25Q80DVSSIG,1107-0 1 SNA
....5 1107-002339 IC-NOR FLASH;W25Q80DV,8Mbit,SOP,5.28x5.2 1 SNA
....5 BN46-00515A S/W MICOM;Jazz M-L,TCON F/W 1 SNA
..3 BN97-10916A ASSY DRM;JAZZ-L,DVB,NagSam, MAC, HDCP, C 1 SNA
...4 BN46-00109H KEY CODE-CERTIFICATION;MAC,TV/AV,General 1 SNA
...4 BN46-00110P KEY CODE-CERTIFICATION;MIRACAST(HDCP2.2) 1 SNA
...4 BN46-00500A KEY CODE-CERTIFICATION;JAZZ-L,Nagra CSC 1 SNA
...4 BN46-00514A KEY CODE-CERTIFICATION;CI PLUS,Jazz M, J 1 SNA
..3 BN97-11330A ASSY MICOM;TCON DATA,KU6k,65-INX-Flat,BN 1 SNA
...4 BN46-00527A S/W MICOM;K65O6U0F,INX,65D6AU**K,Flat 1 SNA
1 BN91-17312B ASSY SHIELD;LEDTV 6K 1 SNA
0.2 SCREW 6001-003081
0.2 BN39-02025G LEAD CONNECTOR-POWER;UN65KU6000,Flat Con 1 SA
0.2 16P BN39-02030F LEAD CONNECTOR-BLU;BLU(75JU6400),UL21016 1 SNA
0.2 BN39-02218C LEAD CONNECTOR-SUB ASSY;65KU6000,UL21016 1 SA
0.2 BN39-02220D LEAD CONNECTOR-SUB ASSY;65KU6300,UL21016 1 SA
0.2 BN44-00808D DC VSS-PD BOARD;L65S6N_FSM W,AC/DC,262W, 1 SA
0.2 WIFI BN59-01174D NETWORK-WLAN CLIENT;WIDT30Q,58x31.45x8.5 1 SA
0.2 BN61-10073B HOLDER-WIFI;55KU6000,ABS,MOLD,BK0007,HB 1 SNA
0.2 CB18 BN61-11517A BRACKET-STAND LINK;HGI-SGHC,T2,NATURAL 1 SA
..3 BN61-09605A STUD-PEM;LED TV F6100,SUM24L,L8,PRESS 4 SNA
0.2 SP01A BN96-35006C ASSY SPEAKER P-FRONT;TV-SPK,JU7000,6ohm, 1 SA
0.2 JOG BN96-35345B ASSY BOARD P-FUNCTION JOG;JU7500,CT15SE8 1 SA
..3 AH240 BN61-11584A HOLDER-BUTTON;JU7500,ABS,MOLD,BK0007,HB 1 SNA
..3 AH297 BN63-11231B HOLDER-KNOB;HU7000,ABS,MOLD,BLACK,HB 1 SNA
..3 FK04 BN64-02406B BUTTON-FUNCTION;LED_HU7000,ABS,HB,BLACK, 1 SNA
...4 0103-004609 RESIN ABS;HF-0680U,K21294,BK0007,HB,High 8 SNA
0.2 BN96-39823B FFC CABLE;65KS7500,Fold,L600,96P 1 SA
0.2 BN96-39902A FFC CABLE;65KU6000,Fold,L750,96P 1 SA
0.2 BN96-39955A ASSY BOARD P-IR FUNCTION;KU6000,IR ASSY_ 1 SA
1 BN92-19849F ASSY BOX;LEDTV 6K 1 SNA
ASSY MICOM-SUB;JMMICOM_EU_
TV,UWP60,W25Q4
SCREW-MACHINE;PWH,+,M3,L5,ZPC(WHT),SWR
CH
1 SNA
9 SA
Page 36
ANNEX-8
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
0.2 BH68-00662A LABEL BOX;ALL,ART PAPER,W60,L110,WHT,NO 1 SNA
0.2 BN68-05640A LABEL BOX;ALL,ART PAPER,W110,L130,EUROPE 1 SNA
0.2 BN69-13369C BOX UNIT;65KU6000,CB,DW4,F1,L1720,W165,H 1 SNA
1 BN92-19874B ASSY LABEL;LEDTV 6K 1 SNA
0.2 BN68-06708G LABEL-RATING;Monitor,WW,PP,T0.161,W93,L7 1 SNA
0.2 BN68-07519A LABEL-ENERGY;ALL JORDAN,WW,PP,T0.135,W60 1 SNA
0.2 BN68-07873A LEAFLET-QUICK SETUP GUIDE;KU6000,EUROPE, 1 SNA
1 BN92-19939A ASSY P/MATERIAL;LEDTV 6K 1 SNA
0.2 0203-001598 TAPE-FILAMENT;FILAMENT,#8915,T0.15,W12,L 0 SNA
0.2 6902-001954 BAG ROLL;HDPE/PE FOAM,HDPE T0.018mm,T0.2 3 SNA
0.2 6902-002233 BAG AIR;LDPE,-,T0.2,W900,L1850,TRP,-,-,- 1 SNA
0.2 6922-000003 BAND;PP,T0.8,W18,L1650M,TRP,DA69-90145A 1 SNA
0.2 BN02-00319B TAPE-OPP;OPP,T0.05,W75,L800M,CLEAR,ROLL 2 SNA
0.2 BN68-02422B LABEL WARNING;ALL,ART PAPER,T0.05,W240,L 1 SNA
0.2 BN69-03982J PACKING ANGLE;ALL,PAPER,-,-,-,-,-,-,- 1 SNA
0.2 BN69-05418M WRAP;T0.017,500,2000000,2000000,500 0 SNA
0.2 BN69-06640A PAD-DP SHEET;PAD,CB,SW4,,W1120,L950,,,,, 1 SNA
0.2 BN69-06640E PAD-PACKING;TRUCK PAD,CB,-,,W410,L2500,, 1 SNA
0.2 BN69-13147F PALLET-WOODEN;65" KU6000,WOOD,-,W1070,L1 1 SNA
0.2 BN69-13282A CUSHION-SET;65KU6000,EPS,16.7g/l,WHT,V-S 1 SNA
..3 0103-005099 RESIN EPS;BASF303,Natural,Natural 1130 SNA
0.2 BN69-13286A CUSHION-SET SIDE;65KU6000,EPS,16.7g/l,WH 1 SNA
0.2 BN69-13751C PAD-CUSHION FRONT;65KU6000,CB,DW2+EPS,W7 1 SNA
1 BN92-19965B ASSY LABEL POP;LEDTV 6K 1 SNA
0.2 BN68-07971B LABEL POP-HIGHLIGHT;KU6000,PET,T0.1,W90, 1 SNA
1 ACCE1 BN92-20388J ASSY ACCESSORY;UKU6000P 1 SNA
0.2 ACCE4 BN96-35101T ASSY ACCESSORY-MANUAL;LED_6K 1 SNA
..3 6902-001964 BAG PE;LDPE,BIOBASED,T0.03,W200,L300,TRP 1 SNA
..3 T0527 BN68-00513A LABEL-E PASS;ALL MODEL,WW,YUPO,W50,L15,W 2 SNA
..3 BN68-03548J LEAFLET-WARRANTY;comm,Samsung,17Lang,Mid 1 SNA
..3 BN68-04972E
..3 BN68-07598A LEAFLET-FICHE;ALL,W/P,0 1 SNA
..3 BN68-08015T MANUAL USERS;KU6000,XH,W/P,EURO B5 1 SNA
0.2 ACCE2 BN96-39490A ASSY ACCESSORY-CABLE;UK6P 1 SNA
..3 3709-001791 CONNECTOR-CARD SLOT;64P,0.5mm,SMD-A,AU,P 1 SA
..3 T0268 3903-001118 CBF-POWER CORD;DT,EU,Angle,2P(C7),250V,2 1 SA
..3 4301-000121 BATTERY-MN;1.5V,R03,10.5x44.5m,7.5g,AAA 2 SNA
..3 6902-001965 BAG PE;LDPE,BIOBASED,T0.05,W200,L300,TRP 1 SNA
..3 EC03 BN39-02189A GENDER CABLE;DC to RCA Cable,3P,L100,UL2 1 SA
..3 EC03 BN39-02190A GENDER CABLE;DC to RCA Cable,2P,L100,UL2 1 SA
..3 BN59-01247A REMOCON-TV;2016 TV,Samsung,44KEY,3V,KU60 1 SA
1 PANEL BN95-02641A PRODUCT LCD-INX;CY-GK065HGNV1V/H,KU6000, 1 SA
0.2 SCREW 6001-003075 SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH1 6 SA
0.2 AS080 BN63-07229A SHEET-PROTECTION COVER;rose70",PET,T0.05 2 SNA
0.2 BN68-05722A LABEL-E PASS;POLYPROPYLENE,NON-COATING 1 SNA
0.2 BN90-08169X ASSY MISC-BLU;2016_LCM 1 SNA
LEAFLET-REGULATORY
GUIDE;ALL,SAMSUNG,W/W
1 SNA
Page 37
ANNEX-9
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
..3 BN02-00102B TAPE-FILAMENT;FILAMENT,#8917,T0.15,W25,L 0 SNA
..3 BN61-11508A SUPPORT-PLATE;Y15 LED,PC,V-2,CLEAR,OD-19 20 SNA
..3 BN61-11753A DIFFUSER PLATE;15Y_J6.3K 65INCH_DIFFUSER 1 SNA
..3 BN61-13368A FRAME-MIDDLE TOP;65KU6300,TPV,HB,BK0008, 1 SNA
..3 BN61-13376A FRAME-MIDDLE BOTTOM;65KU6300,TPV,HB,BK00 1 SNA
..3 BN61-13384A FRAME-MIDDLE LEFT RIGHT;65KU6300,TPV,HB, 2 SNA
..3 BN63-13519A OPTICAL SHEET-REFLECTOR;15Y JU7.0K 65inc 1 SNA
..3 BN63-14674A OPTICAL SHEET-COMPLEX;15Y JU6.0K 65inch 1 SNA
..3 BN63-14938A OPTICAL SHEET-MLS;15Y_JU6.4K_65inch_UTE2 1 SNA
..3 BN96-37658C ASSY CHASSIS REAR P;65KU6000,EGI-SECC,NA 1 SNA
...4 0203-006897 TAPE-DOUBLE FACE;Si,T1,W10,L50,WHITE 2 SNA
...4 SCREW 6001-003075 SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH1 1 SA
...4 BN02-00040C TAPE DOUBLE FACE;F-LED ALL,PET,T0.3,W3,L 6 SNA
...4 BN02-00173B TAPE PET;Y13 SNB F8K,PET,T0.05,W15,L40,B 1 SNA
...4 BN02-00173C TAPE-POLY;PET,T0.05,W40,BLACK 0 SNA
...4 BN61-11394A FRAME-CHASSIS REAR TOP;Y15 JU7K 65",PC+G 1 SNA
....5 0103-010237 RESIN PC;LS-3104G/W95265,White,WT0044,V- 259 SNA
...4 BN61-11395A FRAME-CHASSIS REAR BOTTOM;Y15 JU7K 65",P 1 SNA
...4 BN61-11396A FRAME-CHASSIS REAR LEFT RIGHT;Y15 JU7K 6 2 SNA
...4 BN61-11836A HOLDER-SOURCE PCB;Y15 JU7K INX,ABS,MOLD, 8 SNA
...4 BN62-00690C INSULATOR-SMPS;JU7500,PC,BLACK,L405,W255 1 SNA
...4 M0131 BN63-02627A GASKET-EMI;Oxford,Conductive Fabric,T8,W 2 SNA
...4 CC04 BN64-02980B CHASSIS-REAR;65KU6000,EGI-SECC,T0.8,NATU 1 SNA
....5 CB20 BN61-11982B BRACKET-WALL;55KS7000,CR-SPCC,EXTRUSION, 4 SNA
...4 T0527 BN68-00513A LABEL-E PASS;ALL MODEL,WW,YUPO,W50,L15,W 1 SNA
...4 BN74-00053J TAPE-PAPER;PAPER,3M2307,T0.14,W25,L50M,W 0 SNA
...4 BN96-34712A ASSY PCB P-LED INTERFACE BOARD;65JU6400, 1 SNA
...4 GL63-00004A GASKET-EMI;SMT-H3010,CONDUCTIVE FABRIC,T 1 SA
..3 BN96-39667A ASSY LED BAR P;65inch_KU6000_INX_L,CEM3, 8 SNA
..3 BN96-39668A ASSY LED BAR P;65inch_KU6000_INX_R,CEM3, 8 SNA
0.2 BN96-35638B ASSY COVER P-SOURCE PCB LEFT;65KU6000,EG 1 SNA
..3 BN62-00537X INSULATOR-SOURCE PCB COVER LEFT;Y15 JU7K 1 SNA
..3 BN63-13601B COVER-SOURCE PCB LEFT;65KU6000,EGI-SECC, 1 SNA
0.2 BN96-35639A ASSY COVER P-SOURCE PCB RIGHT;65JU7000,E 1 SNA
..3 BN62-00537W INSULATOR-SOURCE PCB COVER RIGHT;Y15 JU7 1 SNA
..3 BN63-13600A COVER-SOURCE PCB RIGHT;Y15 JU6.3K 65",EG 1 SNA
0.2 BN96-37657E ASSY CHASSIS FRONT P;65KU6300,PC+ABS+MF1 1 SA
..3 BN02-00381J TAPE CONDUCTIVE;Y15 UHD Flat 65",CONDUCT 2 SNA
..3 BN02-00381K TAPE CONDUCTIVE;Y15 UHD Flat 65",CONDUCT 2 SNA
..3 BN60-00715A SPACER-CONDUCTIVE;Y13 Slim F-LED,CONDUCT 2 SNA
..3 BN60-01115A
..3 CCM1 BN63-02183B SHEET-PROTECTION COVER;Rhcm,PE,T0.04,W15 5 SNA
..3 FD01 BN63-13309C
..3 BN63-14373E SHEET-PROTECTION COVER;LED_JU7000,AL,T0. 5 SNA
..3 AC155 BN64-02981C
SPACER-CONDUCTIVE;Y15 JU8K,CONDUCTIVE
FA
COVER-DECORATION
BOTTOM;JU5900_65,PC+ABS
CHASSIS-
FRONT;KU6000,PC+ABS+MF15%,MOLD,B
7 SNA
1 SNA
1 SNA
Page 38
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
0.2 BN96-39170A ASSY OPEN CELL;V650DJ5-QS2,16:9 1 SNA
..3 BN81-12985A A/S-IC DRIVER SOURCE;IC DRIVER SOURCE,61 1 SNA
..3 BN81-12986A A/S-IC DRIVER GATE;IC DRIVER GATE,6101B0 1 SNA
..3 BN81-12987A A/S-POLARIZER CF;POLARIZER CF,4101B0030B 1 SNA
..3 BN81-12988A A/S-POLARIZER TFT;POLARIZER TFT,4101B002 1 SNA
..3 BN81-13149A
..3 BN81-13150A A/S-SOURCE PCB FRONT RIGHT;SOURCE PCB FR 1 SNA
..3 BN81-13151A A/S-SOURCE PCB BACK LEFT;SOURCE PCB BACK 1 SNA
..3 BN81-13152A A/S-SOURCE PCB BACK RIGHT;SOURCE PCB BAC 1 SNA
A/S-SOURCE PCB FRONT LEFT;SOURCE PCB
FRO
1 SNA
ANNEX-10
Page 39
ANNEX. Exploded View & Part List
ANNEX. Exploded View & Part List [UE50KU6092UXXH DA01]
1-1. Exploded View
1-1-1. Parts List
No. Code No. Description & Specication Q’ty SA/SNA Remark
1 BN95-03223A PRODUCT LCD DP; DP,BN95-02636A,SEH ONLY 1 SA
2 BN96-35007A ASSY SPEAKER P-FRONT; TV-SPK,JU6400,6ohm, 1 SA
3 BN94-10712A ASSY PCB POWER; L55S5_KVD 1 SA
4 BN94-10800C ASSY PCB MAIN-INNOLUX; LEDTV 6K 1 SA
5 BN63-15215A COVER-TERMINAL SIDE; 55KU6000,HIPS,MOLD,H 1 SA
6 BN59-01174D NETWORK-WLAN CLIENT; WIDT30Q,58x31.45x8.5 1 SA
7 BN96-39955A ASSY BOARD P-IR FUNCTION; KU6000,IR ASSY_ 1 SA
8 BN96-35345B ASSY BOARD P-FUNCTION JOG; JU7500,CT15 1 SA
9 BN96-39864E ASSY COVER P-REAR; 50KU6000,PC+ABS,V-1,BK 1 SA
10 BN61-11465A GUIDE-STAND; J5100/5500 40",PC+GF20%,MOLD 1 SA
11 BN96-38964A ASSY STAND P-BOTTOM; J5500 48,PC+ABS+GF20 1 SA
ANNEX-1
Page 40
ANNEX-2
ANNEX. Exploded View & Part List
2-1. Electrical Parts List
Service Bom (SA: SERVICE AVAILABLE, SNA: SERVICE NOT AVAILABLE)
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
UE50KU6092UXXH (DA01)
1 S001A BN90-06671C ASSY STAND;UJ5000,50'' 1 SNA
0.2 SG03 BN61-11465A GUIDE-STAND;J5100/5500 40",PC+GF20%,MOLD 1 SA
..3 0103-007285 RESIN PC;HF3200H,K21294,BK0007,V-2 280 SNA
0.2 SB04A BN96-38964A ASSY STAND P-BOTTOM;J5500 48,PC+ABS+GF20 1 SA
..3 SCREW 6003-001001 SCREW-TAPTYPE;FH,+,-,B,M3,L8,ZPC(BLK),SW 2 SA
..3 SCREW 6003-001239 SCREW-TAPTYPE;FH,+,B,M4,L10,ZPC(WHT),SWR 4 SA
..3 SCREW 6003-001315 SCREW-TAPTYPE;BH,+,B,M4,L20,ZPC(WHT),SWR 4 SNA
..3 6902-002463 BAG PE;HDPE/PE FOAM,T0.015/T0.5,W100,L40 2 SNA
..3 6902-002487 BAG PE;HDPE/PE FOAM,T0.015/T0.5,W250,L30 1 SNA
..3 BN61-07463B TAPE-DOUBLE FACE;ACRYL,T0.25,W7,CLEAR 0 SNA
..3 BN61-11431B BRACKET-STAND BODY;Y15 F-LED J5100/5500 1 SNA
..3 BN61-13134A BRACKET-STAND BOTTOM;48J5500,HGI,T2 1 SNA
..3 BN63-13259E
...4 0103-009946 RESIN PC ABS;HM-1200,BLACK,BK0007,V-1 260 SNA
..3 RF01 BN67-00327M FOOT-RUBBER;STAND,Si,GRAY,W10,L10,T1.5 2 SNA
..3 RF01 BN67-00398P FOOT-RUBBER;UH6K,Si,GRAY,W8,L15.5,T2.5 1 SNA
..3 RF01 BN67-00538A FOOT-RUBBER;LED_J4000,Si,GRAY,W8,L15.5,T 4 SNA
..3 BN95-02141A ASSY COVER STAND SMT;J5500 STAND,48",LIG 1 SA
...4 0206-001653 PAINT;CVM87100,SEMI GLOSS,UV Paint,N 4 SNA
...4 BN01-00160A TARGET-CHROMIUM CY;Chromium,99.95%,1800x 0 SNA
...4 BN63-13263A COVER-STAND DECORATION;J5100/5500 48",PC 1 SNA
....5 0103-005041 RESIN PC ABS;FR3200TV,901408,BK0008,1.2m 85 SNA
1 R001A BN90-07999C ASSY COVER REAR;LEDTV 6K 1 SNA
0.2 SCREW 6001-002755 SCREW-MACHINE;BH,+,M3,L6,ZPC(BLK),SWRCH1 18 SA
0.2 R001A BN96-39864E ASSY COVER P-REAR;50KU6000,PC+ABS,V-1,BK 1 SA
..3 R001 BN63-15586A COVER-REAR;50KU6000,PC+ABS,MOLD,V-1,BK00 1 SNA
...4 0103-010376 RESIN PC ABS;FR3012 / 901510,BLACK,BK000 2500 SNA
..3 BN68-03518R LABEL-WARNING;55KU6000,PET,T0.125,W66.5, 1 SNA
..3 BN68-07838E INLAY-TERMINAL SIDE;55KU6000,PET,T0.125, 1 SNA
1 BN90-08029E ASSY W/I;LEDTV 6K 1 SNA
0.2 BN81-08159Z A/S PART SET-ELEC W/I;LED TV ELEC spec-C 1 SNA
0.2 BN81-11282Y A/S PART SET-MECH W/I;UKU6000P,U50KP* 1 SNA
1 M0017 BN91-17277C ASSY CHASSIS;LEDTV 6K 1 SNA
0.2 BN94-10800C ASSY PCB MAIN-INNOLUX;LEDTV 6K 1 SA
..3 0202-001608 SOLDER-WIRE FLUX;LFC7-107,D0.8,99.3Sn/0. 0 SNA
..3 BN62-00817A HEAT SINK-PS;55KU6000,A1050,T1.5,W115,L1 1 SNA
..3 BN63-15215A COVER-TERMINAL SIDE;55KU6000,HIPS,MOLD,H 1 SA
..3 BN97-10648M ASSY SMD;LED TV 6K 1 SNA
...4 0202-001830 SOLDER-CREAM;LFM-48W TM-HP,D20~38um,96.5 5 SNA
...4 DS01A 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 SA
...4 0403-001164 DIODE-ZENER;MMSZ5232B,5.32~5.88V,500mW,S 1 SA
...4 0403-001783 DIODE-ZENER;BZB84-C6V2,5.8~6.6V,300mW,SO 3 SNA
COVER-STAND TOP;LED_
J5500,PC+ABS+GF20%,M
1 SNA
Page 41
ANNEX-3
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
...4 0403-001831 DIODE-ZENER;KDZ12B,12~13.5V,1000mW,SOD-1 2 SA
...4 0404-001307 DIODE-SCHOTTKY;SSC54,40V,5000mA,DO-214AB 1 SA
...4 0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200mA,SOT-23, 4 SA
...4 0404-001640
...4 0404-001881 DIODE-SCHOTTKY;SS3040-HE,40V,3000mA,SOD- 4 SA
...4 0404-001953 DIODE-SCHOTTKY;MBRA340F-HAF,40V,3000mA,S 3 SA
...4 0406-001200 DIODE-TVS;RClamp0504F,6V,1MAV,TP 2 SA
...4 0406-001290 DIODE-TVS;3.0SMCJ20A,22.2V,24.5V,5MAV,30 1 SNA
...4 0406-001628 DIODE-TVS;AOZ8804ADI,6V,1MAV,5A,TP 1 SA
...4 0406-001635 DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 1 SA
...4 0406-001643 DIODE-TVS;1SMA33AT3G,36.7V,38.65V,40.6V, 1 SNA
...4 0501-000002 TR-SMALL SIGNAL;KSA812,PNP,150mW,SOT-23, 1 SNA
...4 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 7 SC
...4 0502-001346 TR-POWER;FCX591A,PNP,1000mW,SOT89,TR,30/ 1 SA
...4 0504-000126 TR-DIGITAL;KSR1101,NPN,200mW,4.7K/4.7K,S 1 SA
...4 0505-001844 FET-SILICON;SI4435DDY-T1-GE3,P,30V,-11.4 1 SA
...4 0505-002560 FET-SILICON;AO6415,P,20V,-3.3A,0.15ohm,1 1 SA
...4 0505-002598 FET-SILICON;AP2317GN,P,20V,-4.2A,0.052oh 1 SA
...4 0505-002660 FET-SILICON;Si2308BDS,N,60V,2.3A,0.156oh 1 SNA
...4 0505-002893 FET-SILICON;AO4801AS,P,30V,-5A,2W,SOIC-8 2 SA
...4 0505-003205 FET-SILICON;DMG4435SSS-13,P,30V,-7.3A,1. 1 SA
...4 0505-003391 FET-SILICON;AOD2922,N,100V,8A,140Mohm,18 1 SA
...4 0505-003397 FET-SILICON;2N7002K,N,60V,0.38A,1.19ohm, 1 SA
...4 0505-003507 FET-SILICON;AO3424,N,30V,3.8A,1.4W,SOT-2 5 SA
...4 0801-003603 IC-CMOS LOGIC;MC74LCX244MN2TWG,Octal buf 1 SA
...4 1001-001998 IC-ANALOG MULTIPLEX;NX3DV221GM,USB switc 2 SA
...4 1103-001564 IC-EEPROM;S-24C512CI-J800,512Kbit,64Kx8, 1 SA
...4 1105-002704
...4 1201-000166 IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10 1 SA
...4 1201-003690 IC-AUDIO AMP;TAS5747PHPR,QFP,48P,DUAL,PL 1 SA
...4 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, 1 SA
...4 1203-008102 IC-POSI.FIXED REG.;S-13A1D12-E800,HSOP,8 1 SNA
...4 1203-008104 IC-POSI.FIXED REG.;S-13A1D18-E800,HSOP,8 1 SNA
...4 1203-008105 IC-POSI.FIXED REG.;S-13A1D33-E800,HSOP,8 1 SNA
...4 1203-008319 IC-DC/DC CONVERTER;BM81233,QFN,32P,5x5mm 1 SNA
...4 1203-008391 IC-DC/DC CONVERTER;AOZ1269QI-02,QFN-23L, 1 SA
...4 1203-008392 IC-VOL. DETECTOR;S-6414AAB-L800X,TSOT-23 1 SA
...4 1203-008448 IC-DC/DC CONVERTER;A8305SESTR-T,QFN,16,3 1 SNA
...4 1203-008454 IC-DC/DC CONVERTER;TPS56528,HSOP8,8,4,89 2 SA
...4 1203-008522 IC-DC/DC CONVERTER;SN1501019DDCR,SOT-23, 2 SNA
...4 1203-008655 IC-DC/DC CONVERTER;BM81249MWW,QFN,56,7x7 1 SA
...4 1203-008732 IC-DC/DC CONVERTER;SYD104ADC,TSOT-23,6,3 1 SA
...4 1203-008733 IC-DC/DC CONVERTER;AOZ1236QI-02,QFN,23,4 2 SA
...4 1204-003697 IC-DECODER;SDP1531,FCPBGA,1046P,31x31,GL 1 SA
...4 1205-004822 IC-SWITCH;TPS22965DSGR,SON,8P,2x2x0.75mm 3 SNA
...4 1205-005325 IC-REPEATER;PS8409QFN48GTR2-A1,QFN,48P,6 1 SA
DIODE-SCHOTTKY;SS1060HEWS,60V,1000mA,S
OD
IC-DDR4 SDRAM;K4F8E304HB-MGCH,LPDDR4-
SDR
1 SA
2 SA
Page 42
ANNEX-4
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
...4 1205-005519 IC-SWITCH;ET20163,SOT23-5,5P,2.95x3.02mm 3 SA
...4 1405-001232 VARISTOR;6.4V,5.6Vdc,30A,1.6x0.8mm,TP,19 2 SNA
...4 1405-001271 VARISTOR;35V,20VDC,5A,1.0x0.5mm,TP,100V, 15 SA
...4 1405-001381 VARISTOR;11V,8VDC,30A,1.6x0.8mm,TP,25V,5 2 SA
...4 1405-001382 VARISTOR;24.5V,16VDC,120A,2.0x1.25mm,TP, 1 SA
...4 2007-000039 R-CHIP;0ohm,1%,1/10W,TP,1608 7 SA
...4 2007-000043 R-CHIP;1Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 2 SA
...4 2007-000066 R-CHIP;20Kohm,1%,1/10W,TP,1608 1 SNA
...4 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 6 SA
...4 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 16 SNA
...4 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 29 SNA
...4 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 3 SNA
...4 2007-000683 R-CHIP;3.3Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-000726 R-CHIP;300ohm,1%,1/10W,TP,1608 3 SA
...4 2007-000736 R-CHIP;30Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 3 SNA
...4 2007-000999 R-CHIP;510ohm,1%,1/10W,TP,1608 1 SA
...4 2007-001125 R-CHIP;68Kohm,1%,1/10W,TP,1608 2 SA
...4 2007-001288 R-CHIP;18ohm,5%,1/16W,TP,1005 4 SA
...4 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 29 SNA
...4 2007-001298 R-CHIP;51ohm,5%,1/16W,TP,1005 11 SNA
...4 2007-007107 R-CHIP;100Kohm,1%,1/16W,TP,1005 14 SNA
...4 2007-007131 R-CHIP;13Kohm,1%,1/16W,TP,1005 4 SA
...4 2007-007132 R-CHIP;15Kohm,1%,1/16W,TP,1005 2 SA
...4 2007-007136 R-CHIP;4.7Kohm,1%,1/16W,TP,1005 67 SNA
...4 2007-007137 R-CHIP;1.2Kohm,1%,1/16W,TP,1005 3 SA
...4 2007-007138 R-CHIP;27Kohm,1%,1/16W,TP,1005 3 SA
...4 2007-007139 R-CHIP;47Kohm,1%,1/16W,TP,1005,T0.35 15 SA
...4 2007-007142 R-CHIP;10Kohm,1%,1/16W,TP,1005 34 SNA
...4 2007-007306 R-CHIP;100ohm,1%,1/16W,TP,1005 33 SNA
...4 2007-007309 R-CHIP;12Kohm,1%,1/16W,TP,1005,T0.35 1 SA
...4 2007-007310 R-CHIP;8.2Kohm,1%,1/16W,TP,1005 1 SA
...4 2007-007312 R-CHIP;20Kohm,1%,1/16W,TP,1005 11 SA
...4 2007-007313 R-CHIP;6.8Kohm,1%,1/16W,TP,1005 4 SA
...4 2007-007318 R-CHIP;1Kohm,1%,1/16W,TP,1005 13 SNA
...4 2007-007334 R-CHIP;200Kohm,1%,1/16W,TP,1005 5 SNA
...4 2007-007488 R-CHIP;75Kohm,1%,1/16W,TP,1005 5 SA
...4 2007-007517 R-CHIP;240ohm,1%,1/16W,TP,1005 6 SNA
...4 2007-007528 R-CHIP;1.5Kohm,1%,1/16W,TP,1005 5 SA
...4 2007-007720 R-CHIP;300Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-007723 R-CHIP;75Kohm,1%,1/10W,TP,1608 2 SA
...4 2007-007766 R-CHIP;2Kohm,1%,1/16W,TP,1005 22 SNA
...4 2007-007767 R-CHIP;200ohm,1%,1/16W,TP,1005 7 SA
...4 2007-007798 R-CHIP;10ohm,1%,1/16W,TP,1005 8 SA
...4 2007-007847 R-CHIP;16Kohm,1%,1/10W,TP,1608 5 SA
...4 2007-007942 R-CHIP;1Mohm,1%,1/16W,TP,1005 1 SNA
Page 43
ANNEX-5
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
...4 2007-007981 R-CHIP;180Kohm,1%,1/16W,TP,1005 1 SNA
...4 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 9 SA
...4 2007-008263 R-CHIP;3Kohm,1%,1/16W,TP,1005 2 SA
...4 2007-008269 R-CHIP;51Kohm,1%,1/16W,TP,1005 3 SNA
...4 2007-008298 R-CHIP;49.9ohm,1%,1/16W,TP,1005 4 SA
...4 2007-008391 R-CHIP;6.34Kohm,1%,1/16W,TP,1005 2 SA
...4 2007-008596 R-CHIP;0.1ohm,1%,1/4W,TP,3216 2 SC
...4 2007-008779 R-CHIP;0ohm,1%,1/16W,TP,1005 3 SA
...4 2007-009117 R-CHIP;49.9Kohm,1%,1/16W,TP,1005 1 SA
...4 2007-009322 R-CHIP;1.3Kohm,1%,1/16W,TP,1005 2 SA
...4 2007-009777 R-CHIP;4.99Kohm,1%,1/16W,TP,1005 2 SA
...4 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8P,TP,2. 6 SA
...4 2011-001264 R-NETWORK;10ohm,5%,1/16W,L,CHIP,8P,TP,2. 8 SNA
...4 2011-001344 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,2 6 SA
...4 AD480 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,TP,1005 4 SA
...4 AD480 2203-000254 C-CER,CHIP;10nF,10%,16V,X7R,TP,1005 5 SA
...4 AD480 2203-000278 C-CER,CHIP;0.01nF,0.5pF,50V,C0G,TP,1005 2 SA
...4 AD480 2203-000359 C-CER,CHIP;0.15nF,5%,50V,C0G,TP,1005,0.5 3 SA
...4 AD480 2203-000386 C-CER,CHIP;0.015nF,5%,50V,C0G,TP,1005 3 SA
...4 AD480 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,TP,1005 10 SA
...4 AD480 2203-000489 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1005 3 SA
...4 AD480 2203-000585 C-CER,CHIP;0.22nF,10%,50V,X7R,TP,1005 3 SA
...4 AD480 2203-000812 C-CER,CHIP;0.033nF,5%,50V,C0G,TP,1005 9 SA
...4 AD480 2203-000838 C-CER,CHIP;0.39nF,5%,50V,C0G,TP,1608 1 SNA
...4 AD480 2203-000940 C-CER,CHIP;0.47nF,10%,50V,X7R,TP,1005 1 SA
...4 AD480 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,TP,1005 6 SNA
...4 AD480 2203-002398 C-CER,CHIP;22nF,10%,50V,X7R,TP,1608 1 SNA
...4 AD480 2203-005054 C-CER,CHIP;0.0047nF,0.25pF,50V,NP0,TP,10 2 SA
...4 AD480 2203-005083 C-CER,CHIP;220nF,10%,50V,X7R,TP,1608,0.8 8 SA
...4 AD480 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 4 SNA
...4 AD480 2203-005968 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1005,0.5 2 SNA
...4 AD480 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,TP,1005 8 SA
...4 AD480 2203-006126 C-CER,CHIP;47nF,10%,16V,X7R,TP,1005 3 SNA
...4 AD480 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,TP,1005,T0. 107 SNA
...4 AD480 2203-006324 C-CER,CHIP;2200nF,10%,10V,X5R,TP,1608 16 SA
...4 AD480 2203-006348 C-CER,CHIP;1000nF,10%,25V,X5R,TP,1608,0. 2 SA
...4 AD480 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 27 SNA
...4 AD480 2203-006698 C-CER,CHIP;1000nF,10%,25V,X7R,TP,1608,0. 7 SA
...4 AD480 2203-006824 C-CER,CHIP;4700nF,10%,10V,X5R,TP,1608 5 SNA
...4 AD480 2203-006838 C-CER,CHIP;2200nF,10%,6.3V,X5R,TP,1005 9 SA
...4 AD480 2203-006844 C-CER,CHIP;470nF,10%,10V,X5R,TP,1005 2 SA
...4 AD480 2203-006890 C-CER,CHIP;10000nF,20%,6.3V,X5R,TP,1608 29 SA
...4 AD480 2203-006960 C-CER,CHIP;1000nF,10%,50V,X7R,TP,2012 1 SNA
...4 AD480 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012,1 23 SNA
...4 AD480 2203-007240 C-CER,CHIP;22000nF,20%,6.3V,X5R,TP,1608( 72 SA
...4 AD480 2203-007269 C-CER,CHIP;22000nF,20%,10V,X5R,TP,2012(2 13 SA
...4 AD480 2203-007270 C-CER,CHIP;10000nF,10%,10V,X5R,TP,1608,0 22 SNA
Page 44
ANNEX-6
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
...4 AD480 2203-007306 C-CER,CHIP;10000nF,10%,25V,X5R,TP,2012,1 37 SNA
...4 AD480 2203-007544 C-CER,CHIP;100nF,10%,50V,X7R,TP,1005,T0. 42 SA
...4 AD480 2203-008315 C-CER,CHIP;22000nF,20%,25V,X5R,TP,2012,T 10 SA
...4 2402-001268 C-AL,SMD;100uF,20%,25V,WT,TP,8x6.3mm 1 SA
...4 2409-001240 C-ORGANIC,SMD;33uF,20%,25V,LR,TP,7343(1. 1 SA
...4 2409-001338 C-POLYMER ,CHIP;47uF,20%,6.3V,TP,3.2x1.6 1 SA
...4 2703-000213 INDUCTOR-SMD;470nH,10%,1.35Ohm,35mA,15,M 1 SA
...4 2703-001938 INDUCTOR-SMD;56nH,5%,1005,1.5Ohm,200mA,1 7 SA
...4 2703-003149 INDUCTOR-SMD;2.2uH,20%,0.055Ohm,3000mA,W 1 SA
...4 2703-003747 INDUCTOR-SMD;22uH,20%,6060,0.135ohm,1300 2 SA
...4 2703-003862 INDUCTOR-SMD;10uH,20%,6060,0.065ohm,1900 3 SA
...4 2703-003913 INDUCTOR-SMD;2.2uH,20%,2520,1.2T,0.116Oh 1 SNA
...4 2703-003937 INDUCTOR-SMD;1uH,20%,7.0x6.47x3.0mm,0.00 3 SA
...4 2703-004630 INDUCTOR-SMD;2.2uH,20%,5.0T,0.0025Ohm,66 1 SNA
...4 2703-004724 INDUCTOR-SMD;8.2uH,20%,4T,0.072Ohm,2300m 4 SA
...4 2703-005191 INDUCTOR-SMD;1.5uH,20%,6060,T4.5,0.02Ohm 1 SA
...4 2703-005193 INDUCTOR-SMD;2.2uH,20%,4.5,0.024Ohm,5100 2 SA
...4 2703-005198 INDUCTOR-SMD;15uH,20%,3T,0.123Ohm,2500mA 1 SNA
...4 2703-005376 INDUCTOR-SMD;10uH,20%,10x10.7mm,4.0T,0.0 1 SA
...4 2801-004021 CRYSTAL-SMD;24.576MHz,20ppm,28-AAN,12pF, 1 SA
...4 3301-001364 BEAD-SMD;1000ohm,1608,TP,1085ohm/108MHz, 6 SNA
...4 3301-002039 BEAD-SMD;26ohm,1608,TP 32 SA
...4 3601-001374 FUSE-SURFACE MOUNT;32V,5A,FAST-ACTING,PL 3 SA
...4 3601-001376 FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,Hi 2 SNA
...4 3701-001967 CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5mm,BLK 3 SA
...4 3707-001103 CONNECTOR-OPTICAL;ANGLE,SPDIF,2.5PI 1 SA
...4 3708-003241 CONNECTOR-FPC/FFC/PIC;96P,0.5mm,SMD-A,AU 2 SNA
...4 3710-003908 CONNECTOR-SOCKET;64P,2R,0.5mm,SMD-S,AU,B 1 SA
...4 EH01 3711-007803 HEADER-BOARD TO CABLE;BOX,12P,1R,1.25mm, 1 SA
...4 EH01 3711-008098 HEADER-BOARD TO CABLE;BOX,20P,1R,1.25mm, 1 SNA
...4 EH01 3711-008131 HEADER-BOARD TO CABLE;BOX,4P,1R,2.5mm,AN 1 SA
...4 EH01 3711-008859 HEADER-BOARD TO CABLE;BOX,12P,2R,2mm,ANG 1 SA
...4 3711-009090 CONNECTOR-HEADER;BOX,16P,1R,1.25mm,SMD-A 1 SA
...4 3722-003199 JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT 1 SA
...4 3722-003457 JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1x1 2 SA
...4 3722-003814 JACK-PHONE;1P/7C,NI/SN,YEL,ANGLE,3.5PI,1 1 SA
...4 JACK 3722-003873 JACK-PHONE;1P/7C,AU/SN,BLU,ANGLE,3.5PI,1 1 SA
...4 6302-001376 GASKET-SMD;,,CONDUCTIVE FABRIC,T14,W43,L 7 SNA
...4 BN40-00323A TUNER-DTV AIR CABLE SAT;DTOS24EH6A,DTOS2 1 SA
...4 BN41-02528A PCB-MAIN;KU6000,FR-4,4L,1.6T,193x241mm,1 1 SNA
...4 CB07 BN61-13312B BRACKET-PCB;55KS8000,SK5,T0.3,13.7,11.4, 4 SNA
...4 BN97-10863B
....5 1107-002226 IC-NOR FLASH;W25Q40CLSSIP,4Mbit,SOIC,8P, 1 SA
...4 BN97-10865A ASSY MICOM-MAIN;T-JZL6DEUC,UWP60,KLM4G1F 1 SNA
....5 1107-002374 IC-EMMC;KLM4G1FEPD-B031,4Gbyte,BGA,153P, 1 SNA
...4 BN97-10918A ASSY MICOM;TCON,KU6k,W25Q80DVSSIG,1107-0 1 SNA
ASSY MICOM-SUB;JMMICOM_EU_
TV,UWP60,W25Q4
1 SNA
Page 45
ANNEX-7
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
....5 1107-002339 IC-NOR FLASH;W25Q80DV,8Mbit,SOP,5.28x5.2 1 SNA
....5 BN46-00515A S/W MICOM;Jazz M-L,TCON F/W 1 SNA
..3 BN97-10916A ASSY DRM;JAZZ-L,DVB,NagSam, MAC, HDCP, C 1 SNA
...4 BN46-00109H KEY CODE-CERTIFICATION;MAC,TV/AV,General 1 SNA
...4 BN46-00110P KEY CODE-CERTIFICATION;MIRACAST(HDCP2.2) 1 SNA
...4 BN46-00500A KEY CODE-CERTIFICATION;JAZZ-L,Nagra CSC 1 SNA
...4 BN46-00514A KEY CODE-CERTIFICATION;CI PLUS,Jazz M, J 1 SNA
..3 BN97-11328A ASSY MICOM;TCON DATA,KU6k,50-INX-Flat,BN 1 SNA
...4 BN46-00525A S/W MICOM;K50O6U0F,INX,50D6AU**K,Flat 1 SNA
1 BN91-17309B ASSY SHIELD;LEDTV 6K 1 SNA
0.2 SCREW 6001-003016 SCREW-MACHINE;PWH,+,M3,L5.0,ZPC(WHT),SWR 5 SA
0.2 BN02-00102B TAPE-FILAMENT;FILAMENT,#8917,T0.15,W25,L 0 SNA
0.2 BN39-02216B LEAD CONNECTOR-BLU;40KU6000,UL10368,16P, 1 SNA
0.2 EC13 BN39-02217A
0.2 EC13 BN39-02218A LEAD CONNECTOR-SUB ASSY;50KU6000,UL21016 1 SA
0.2 BN39-02220C LEAD CONNECTOR-SUB ASSY;55KU6300,UL21016 1 SA
0.2 WIFI BN59-01174D NETWORK-WLAN CLIENT;WIDT30Q,58x31.45x8.5 1 SA
0.2 BN61-10073B HOLDER-WIFI;55KU6000,ABS,MOLD,BK0007,HB 1 SNA
0.2 MP01A BN94-10712A ASSY PCB POWER;L55S5_KVD 1 SA
0.2 BN96-35007A ASSY SPEAKER P-FRONT;TV-SPK,JU6400,6ohm, 1 SA
0.2 JOG BN96-35345B ASSY BOARD P-FUNCTION JOG;JU7500,CT15SE8 1 SA
0.2 BN96-39820B FFC CABLE;43KS7500,Fold,L500,96P 2 SA
0.2 BN96-39955A ASSY BOARD P-IR FUNCTION;KU6000,IR ASSY_ 1 SA
1 BN92-19874B ASSY LABEL;LEDTV 6K 1 SNA
0.2 BN68-06708G LABEL-RATING;Monitor,WW,PP,T0.161,W93,L7 1 SNA
0.2 BN68-07519A LABEL-ENERGY;ALL JORDAN,WW,PP,T0.135,W60 1 SNA
0.2 BN68-07873A LEAFLET-QUICK SETUP GUIDE;KU6000,EUROPE, 1 SNA
1 BN92-19936A ASSY P/MATERIAL;LEDTV 6K 1 SNA
0.2 0203-006958 TAPE-OPP;OPP,T0.065,W75,L1500M,CLEAR,#31 3 SNA
0.2 6902-002505 BAG ROLL;HDPE/PE FOAM,T0.5*,W800,L300M,T 3 SNA
0.2 6922-000013 BAND;PP,W18,L2300/L2900,TRP 1 SNA
0.2 6932-000004 WRAP;T0.023,W750,L1000m,non stretched 2 SNA
0.2 AS080 BN63-11097A SHEET-PROTECTION COVER;UF5F,PE,T4,W1100, 1 SNA
0.2 BN69-11261A CUSHION-SET FRONT;50"/55" Model,EPS,16.7 1 SNA
0.2 BN69-11920A CUSHION-SET;JU6400_50_V_STAND,EPS,16.7g/ 1 SNA
..3 0103-005099 RESIN EPS;BASF303,Natural,Natural 572 SNA
0.2 BN69-13583G PAD-PACKING;LED,PAPER,T5,W50,L2400,H50,Y 1 SNA
0.2 BN69-13619A
1 BN92-19965B ASSY LABEL POP;LEDTV 6K 1 SNA
0.2 BN68-07971B LABEL POP-HIGHLIGHT;KU6000,PET,T0.1,W90, 1 SNA
1 BN92-20284M ASSY BOX;LEDTV 6K 1 SNA
0.2 BH68-00662A LABEL BOX;ALL,ART PAPER,W60,L110,WHT,NO 1 SNA
0.2 BN68-05640A LABEL BOX;ALL,ART PAPER,W110,L130,EUROPE 1 SNA
0.2 BN69-13465W BOX UNIT;50KU6020,CB,DW2,F1,L1347,W137,H 1 SNA
1 ACCE1 BN92-20388J ASSY ACCESSORY;UKU6000P 1 SNA
0.2 ACCE4 BN96-35101T ASSY ACCESSORY-MANUAL;LED_6K 1 SNA
PALLET-WOODEN;UE50KU6000,WOOD,W1060,L
LEAD CONNECTOR-SUB
ASSY;UN50KU6000,UL210
136
1 SA
1 SNA
Page 46
ANNEX-8
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
..3 6902-001964 BAG PE;LDPE,BIOBASED,T0.03,W200,L300,TRP 1 SNA
..3 BN68-03548J LEAFLET-WARRANTY;comm,Samsung,17Lang,Mid 1 SNA
..3 BN68-04972E
..3 BN68-07598A LEAFLET-FICHE;ALL,W/P,0 1 SNA
..3 BN68-08015T MANUAL USERS;KU6000,XH,W/P,EURO B5 1 SNA
0.2 ACCE2 BN96-39490A ASSY ACCESSORY-CABLE;UK6P 1 SNA
..3 3709-001791 CONNECTOR-CARD SLOT;64P,0.5mm,SMD-A,AU,P 1 SA
..3 T0268 3903-001118 CBF-POWER CORD;DT,EU,Angle,2P(C7),250V,2 1 SA
..3 4301-000121 BATTERY-MN;1.5V,R03,10.5x44.5m,7.5g,AAA 2 SNA
..3 6902-001965 BAG PE;LDPE,BIOBASED,T0.05,W200,L300,TRP 1 SNA
..3 EC03 BN39-02189A GENDER CABLE;DC to RCA Cable,3P,L100,UL2 1 SA
..3 EC03 BN39-02190A GENDER CABLE;DC to RCA Cable,2P,L100,UL2 1 SA
..3 BN59-01247A REMOCON-TV;2016 TV,Samsung,44KEY,3V,KU60 1 SA
..3 BN68-02989A LABEL ETC;ALL,ALL,PAPER,W30,L65,WHITE,SE 2 SNA
..3 BN96-35528A ASSY ACCESSORY-SCREW;JU7500,40 1 SNA
...4 6902-002474 BAG SCREW;LDPE,T0.05*,W70,L90,TRP,RECYCL 1 SNA
...4
1 BN95-03223A PRODUCT LCD DP;DP,BN95-02636A,SEH ONLY 1 SA
0.2 BN74-00053E TAPE-PAPER;PAPER,3M2307,T0.14,W20,L50M,W 0 SNA
0.2 BN92-18686A ASSY P/MATERIAL;CY-GJ050HGNV1H,Inhouse p 1 SNA
..3 0203-006893 TAPE-OPP;OPP,T0.05,W100,L50M,CLEAR,RUBBE 0 SNA
..3 BN69-12331A CUSHION-PANEL;48" / 50" COMMON,EPS,ESD,2 1 SNA
...4 0103-005099 RESIN EPS;BASF303,Natural,Natural 3900 SNA
0.2 PANEL BN95-02636A PRODUCT LCD-INX;CY-GK050HGNV1V/H,KU6000, 1 SA
..3 SCREW 6001-003075 SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH1 4 SA
..3 BN02-00114A TAPE PET;NNB 56",PET,T0.07,W12,L20,GREEN 8 SNA
..3 BN02-00152E TAPE PET;Y14 SF-LED,PET,T0.07,W12,L21,GR 3 SNA
..3 BN68-05722A LABEL-E PASS;POLYPROPYLENE,NON-COATING 1 SNA
..3 BN90-08169S ASSY MISC-BLU;2016_LCM 1 SNA
...4 BN61-12967A DIFFUSER PLATE;15Y_J6.9K 50INCH_DIFFUSER 1 SNA
...4 BN61-12993A SUPPORT-PLATE;Y15 LED(SAMEX ONLY),PC,V-2 15 SNA
....5 0103-005036 RESIN PC;M2407,550115,TP0003,0.8 V-0 30 SNA
....5 0103-009493 RESIN PC;LH-1070W,W92853,WT0107,V-0 45 SNA
...4 BN61-13363A FRAME-MIDDLE TOP;50KU6300,TPV,HB,BK0008, 1 SNA
...4 BN61-13371A FRAME-MIDDLE BOTTOM;50KU6300,TPV,HB,BK00 1 SNA
...4 BN61-13379A FRAME-MIDDLE LEFT RIGHT;50KU6300,TPV,HB, 2 SNA
....5 0103-010669 RESIN TPE;5402PV/5409H,Black,BK0008,HB,T 95 SNA
...4 BN61-13698A OPTICAL SHEET-REFLECTOR;Y16_KU6000_50inc 1 SNA
...4 BN63-14905A OPTICAL SHEET-COMPLEX;15Y_JU6.4K_50inch_ 1 SNA
...4 BN63-14911A OPTICAL SHEET-MLS;15Y_JU6.4K_50inch_PTD8 1 SNA
...4 BN96-35399F ASSY CHASSIS REAR P;50KU6000,EGI-SECC,IN 1 SNA
....5 BN02-00102B TAPE-FILAMENT;FILAMENT,#8917,T0.15,W25,L 0 SNA
....5 BN96-35399D ASSY CHASSIS REAR P;50KU6000,EGI-SECC,NA 1 SNA
.....6 SCREW 6001-003075 SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH1 1 SA
.....6 BN02-00040C TAPE DOUBLE FACE;F-LED ALL,PET,T0.3,W3,L 5 SNA
.....6 BN02-00173C TAPE-POLY;PET,T0.05,W40,BLACK 0 SNA
HOLDER-
BOLT
BN61-09494D HOLDER-BOLT;KU6500,SWRCH18A,BLK,PRESS,B 8 SA
LEAFLET-REGULATORY
GUIDE;ALL,SAMSUNG,W/W
1 SNA
Page 47
ANNEX-9
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark
.....6 BN02-00303A TAPE-DOUBLE FACE;PET,T0.2,W8,CLEAR,DOUBL 0 SNA
.....6 BN02-00352E TAPE-POLY;PET,T0.05,W15,L50M,BLACK,ULNO. 0 SNA
.....6 BN61-11437B
.....6 BN61-11473B
.....6 BN61-11474B FRAME-CHASSIS REAR LEFT RIGHT;50KU6000,P 2 SNA
......7 0103-010898 RESIN PC;LS-3104G/G73077,Gray,GY0320,V-2 175 SNA
.....6 BN61-11836A HOLDER-SOURCE PCB;Y15 JU7K INX,ABS,MOLD, 4 SNA
......7 0103-007505 RESIN ABS;HF-0680U,W95080,WT0044,1.5mm H 8 SNA
.....6 BN62-00690H INSULATOR-SMPS;KU6000,PC,BLACK,L257,W207 1 SNA
.....6 BN63-14962A GASKET-EMI;GASKET,FABRIC,T8,W15,L5,BLACK 2 SNA
.....6 BN63-15007A GASKET-ESD;GASKET,FABRIC,T7,W15,L20,BLAC 2 SNA
.....6 CC04 BN64-02883B CHASSIS-REAR;50KU6000,EGI-SECC,T0.6,NATU 1 SNA
......7 BN01-00247A STEEL;EGI-SECC,L1185,0.6mm,705mm,SECC,AG 1 SNA
......7 CB20 BN61-11982A BRACKET-WALL;Y15 F-LED,CR-SPCC,T1.2,L15. 4 SNA
.....6 BN96-34709A ASSY PCB P-LED INTERFACE BOARD;50JU6400, 1 SNA
....5 BN96-39657A ASSY LED BAR P;50inch_KU6000_INX_L,CEM3, 6 SNA
....5 BN96-39658A ASSY LED BAR P;50inch_KU6000_INX_R,CEM3 6 SNA
..3 BN96-35017C ASSY COVER P-SOURCE PCB;50KU6000,EGI-SEC 1 SNA
...4 BN62-00537J INSULATOR-SOURCE PCB COVER RIGHT;Y15 JU7 1 SNA
...4 BN62-00537K INSULATOR-SOURCE PCB COVER LEFT;Y15 JU7K 1 SNA
...4 BN63-07441A GASKET-EMI;FABRIC GASKET,Conductive Fabr 2 SNA
...4 BN63-13241C COVER-SOURCE PCB;50KU6000,EGI-SECC,T0.6, 1 SNA
..3 BN96-35595E ASSY CHASSIS FRONT P;50KU6300,PC+ABS+MF1 1 SA
...4 BN02-00112A TAPE-POLY;PET,L65.8M,T0.09,W10,ROLL,GREE 0 SNA
...4 BN02-00381E TAPE CONDUCTIVE;Y15 UHD Flat 50",CONDUCT 2 SNA
...4 BN02-00381F TAPE CONDUCTIVE;Y15 UHD Flat 50",CONDUCT 2 SNA
...4 BN60-00715A SPACER-CONDUCTIVE;Y13 Slim F-LED,CONDUCT 2 SNA
...4 BN60-01115A
...4 BN63-11875Q SHEET-PROTECTION COVER;Y14 SF-LED,AL,T0. 1 SNA
...4 FD01 BN63-13306E
...4 BN63-14373D SHEET-PROTECTION COVER;LED_JU7000,AL,T0. 3 SNA
...4 AC157 BN64-02895A CHASSIS-FRONT;JU6400_50,PC+ABS+MF15%,T1. 1 SNA
....5 0103-010326 RESIN PC ABS;HRM1530F/BK00749,Black,BK00 320 SNA
..3 BN96-39603A ASSY OPEN CELL;V500DJ5-QE1,16:9,12 1 SNA
...4 BN81-12981A A/S-IC DRIVER SOURCE;IC DRIVER SOURCE,61 1 SNA
...4 BN81-12982A A/S-IC DRIVER GATE;IC DRIVER GATE,6101B0 1 SNA
...4 BN81-12983A A/S-POLARIZER CF;POLARIZER CF,4101B003ZA 1 SNA
...4 BN81-12984A A/S-POLARIZER TFT;POLARIZER TFT,4101B003 1 SNA
...4 BN81-13145A A/S-SOURCE PCB LEFT;SOURCE PCB LEFT,6B01 1 SNA
...4 BN81-13146A A/S-SOURCE PCB RIGHT;SOURCE PCB RIGHT,6B 1 SNA
0.2 BN96-39823D FFC CABLE;50KU6000,Fold,L600,96P 2 SA
SPACER-CONDUCTIVE;Y15 JU8K,CONDUCTIVE
COVER-DECORATION;PC+ABS+MF17%,MOLD,V-
FRAME-CHASSIS REAR
TOP;50KU6000,PC+GF10%
FRAME-CHASSIS REAR
BOTTOM;50KU6000,PC+GF
FA
1,B
1 SNA
1 SNA
5 SNA
1 SNA
Page 48
1. Precautions
1. Precautions
1-1. Safety Precautions
Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as
electrical shock.
1-1-1. Warnings
For continued safety, do not attempt to modify the circuit board.
WARNING
1-1-2. Servicing the LED TV
When servicing the LED TV, Disconnect the AC line cord from the AC outlet.1.
It is essential that service technicians have an accurate voltage meter available at all times. Check the calibration of this 2.
meter periodically.
1-1-3. Fire and Shock Hazard
Before returning the monitor to the user, perform the following safety checks:
Inspect each lead dress to make certain that the leads are not pinched or that hardware is not lodged between the 1.
chassis and other metal parts in the monitor.
Inspect all protective devices such as nonmetallic control knobs, insulating materials, cabinet backs, adjustment and 2.
compartment covers or shields, isolation resistorcapacitor networks, mechanical insulators, etc.

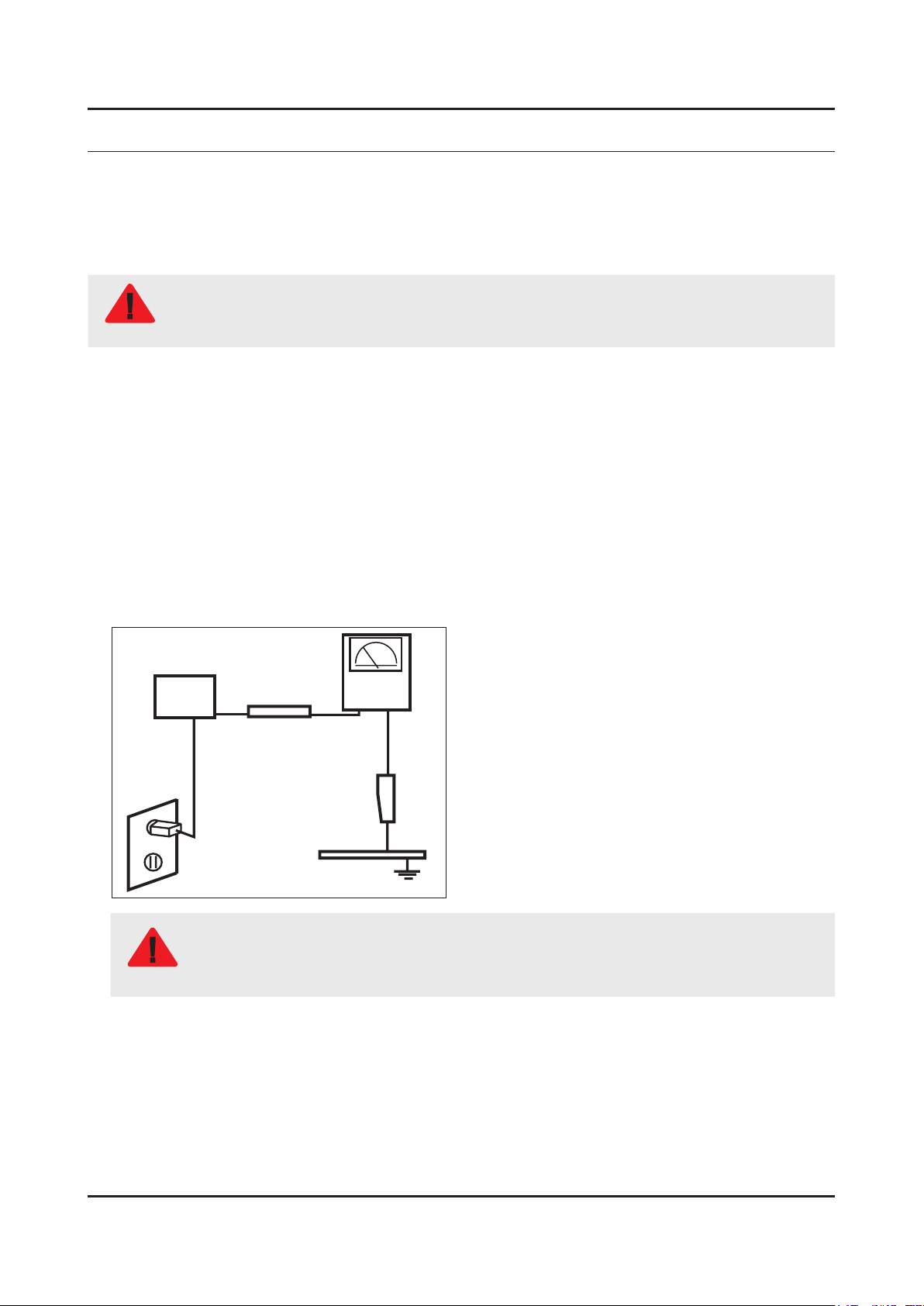

Leakage Current Hot Check:3.
Disconnect the AC power and DC power jack before servicing.
(READING SHOULD)
DEVICE
UNDER
TEST
ALSO TEST WITH
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED)
NOT BE ABOVE 0.5mA
2-WIRE CORD
TEST ALL
EXPOSED METAL
SURFACES
LEAKAGE
CURRENT
TESTER
EARTH
GROUND
Do not use an isolation transformer during this test.
Use a leakage current tester or a metering system that complies with American National Standards
WARNING
Institute (ANSI C101.1, Leakage Current for Appliances), and Underwriters Laboratories (UL
Publication UL1410, 59.7).
With the unit completely reassembled, plug the AC line cord directly into a 120V AC outlet. With the unit’s AC switch rst 4.
in the ON position and then OFF, measure the current between a known earth ground (metal water pipe, conduit, etc.)
and all exposed metal parts, including: metal cabinets, screwheads and control shafts.
The current measured should not exceed 0.5 milliamp.
Reverse the power-plug prongs in the AC outlet and repeat the test.
1-1
Page 49
1-2
1. Precautions
1-1-4. Product Safety Notices
Some electrical and mechanical parts have special safetyrelated characteristics which are often not evident from visual
inspection. The protection they give may not be obtained by replacing them with components rated for higher voltage,
wattage, etc. Parts that have special safety characteristics are identied by on schematics and parts lists. A substitute
replacement that does not have the same safety characteristics as the recommended replacement part might create
shock, re and/or other hazards. Product safety is under review continuously and new instructions are issued whenever
appropriate.
Page 50
1-3
1. Precautions
1-2. Servicing Precautions
An electrolytic capacitor installed with the wrong polarity might explode.
WARNING
Before servicing units covered by this service manual, read and follow the Safety Precautions section of
CAUTION
NOTE
1-2-1. General Servicing Precautions
Always unplug the unit’s AC power cord from the AC power source and disconnect the DC Power Jack before 1.
attempting to: (a) remove or reinstall any component or assembly, (b) disconnect PCB plugs or connectors, (c) connect
a test component in parallel with an electrolytic capacitor.
Some components are raised above the printed circuit board for safety. An insulation tube or tape is sometimes used. 2.
The internal wiring is sometimes clamped to prevent contact with thermally hot components. Reinstall all such elements
to their original position.
After servicing, always check that the screws, components and wiring have been correctly reinstalled. Make sure that 3.
the area around the serviced part has not been damaged.
Check the insulation between the blades of the AC plug and accessible conductive parts (examples: metal panels, input 4.
terminals and earphone jacks).
Insulation Checking Procedure: Disconnect the power cord from the AC source and turn the power switch ON. Connect 5.
an insulation resistance meter (500 V) to theblades of the AC plug. The insulation resistance between each blade of the
AC plug and accessible conductive parts (see above) should be greater than 1 megohm.
Always connect a test instrument’s ground lead to the instrument chassis ground before connecting the positive lead; 6.
always remove the instrument’s ground lead last.
this manual.
If unforeseen circumstances create conict between the following servicing precautions and any of the
safety precautions, always follow the safety precautions.
Page 51
1-4
1. Precautions
1-3. Static Electricity Precautions
Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly
called Electrostatically Sensitive Devices (ESD). Examples of typical ESD are integrated circuits and some eld-effect
transistors. The following techniques will reduce the incidence of component damage caused by static electricity.
Immediately before handling any semiconductor components or assemblies, drain the electrostatic charge from your 1.
body by touching a known earth ground. Alternatively, wear a discharging wrist-strap device. To avoid a shock hazard,
be sure to remove the wrist strap before applying power to the monitor.
After removing an ESD-equipped assembly, place it on a conductive surface such as aluminum foil to prevent 2.
accumulation of an electrostatic charge.
Do not use freon-propelled chemicals. These can generate electrical charges sufcient to damage ESDs.3.
Use only a grounded-tip soldering iron to solder or desolder ESDs.4.
Use only an anti-static solder removal device. Some solder removal devices not classied as “anti-static” can generate 5.
electrical charges sufcient to damage ESDs.
Do not remove a replacement ESD from its protective package until you are ready to install it. Most replacement ESDs 6.
are packaged with leads that are electrically shorted together by conductive foam, aluminum foil or other conductive
materials.
Immediately before removing the protective material from the leads of a replacement ESD, touch the protective material 7.
to the chassis or circuit assembly into which the device will be installed.
Be sure no power is applied to the chassis or circuit and observe all other safety precautions.
CAUTION
Minimize body motions when handling unpackaged replacement ESDs. Motions such as brushing clothes together, or 8.
lifting your foot from a carpeted oor can generate enough static electricity to damage an ESD.
Page 52
1-5
1. Precautions
1-4. Installation Precautions
For safety reasons, more than a people are required for carrying the product.1.
Keep the power cord away from any heat emitting devices, as a melted covering may cause re or electric shock.2.
Do not place the product in areas with poor ventilation such as a bookshelf or closet. The increased internal temperature 3.
may cause re.
Bend the external antenna cable when connecting it to the product. This is a measure to protect it from being exposed 4.
to moisture. Otherwise, it may cause a re or electric shock.
Make sure to turn the power off and unplug the power cord from the outlet before repositioning the product. Also check 5.
the antenna cable or the external connectors if they are fully unplugged. Damage to the cord may cause re or electric
shock.
Keep the antenna far away from any high-voltage cables and install it rmly. Contact with the highvoltage cable or the 6.
antenna falling over may cause re or electric shock.
When installing the product, leave enough space (0.4m) between the product and the wall for ventilation purposes. 7.
A rise in temperature within the product may cause re.
If an equipment is provided with a replaceable battery, and if replacement by an incorrect type could result in an 8.
explosion (for example, with some lithium batteries), the following applies:
Risk of explosion if battery is replaced by an incorrect type dispose of used batteries according to •
the instructions.
Do not dispose of batteries in a re.•
Do not short circuit, disassemble or overheat the batteries.•
CAUTION
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent •
type.
Do not be exposed to excessive heat such as sunshine, re or the like.•
Page 53
2. Product Specications
2-1. Product information
Model UE**KU6092U
2. Product specications
W
Front View
Detail View
Design Front Color : Black / Stand Type : V-Shape
40"
50"
Dimension (WxHxD)
55"
H
* W : Width H : High D : Depth
with Stand 917.7 x 596.5 x 288.1 mm
without Stand 917.7 x 535.7 x 62.6 mm
with Stand 1128.9 x 723.7 x 310.5 mm
without Stand
with Stand 1242.6 x 787.5 x 310.5 mm
without Stand 1242.6 x 718.4 x 63.2 mm
1128.9 x 654.4 x 63.2 mm
D
Weight
65"
40"
50"
55"
65"
with Stand
without Stand 1463.5 x 844.5 x 64.6 mm
with Stand 8.6 kg
without Stand 7.7 kg
with Stand 13.2 kg
without Stand 12.2 kg
with Stand 16 kg
without Stand
with Stand
without Stand 23.7 kg
1463.5 x 907.6 x 369.4 mm
15.0 kg
25.8 kg
2-1
Page 54
2-2
2. Product specications
2-2. Detail Specication
Item UE40KU6092UXXH
General Information
Display
Video
Product LED
Series 6
Country HUNGARY
Platform(TV) SoC | Jazz-L
Screen Size 40"
Screen Size (cm) 101 cm
Resolution 3,840 × 2,160
Quantum Dot Display N/A
Ultra Black N/A
Screen Curvature N/A
10 bit Support N/A
Picture Engine UHD Up-Scaling
Motion Rate N/A
PQI (Picture Quality Index) 1300
HDR (High Dynamic Range) HDR
Dynamic Contrast Ratio Mega Contrast
Micro Dimming UHD Dimming
Audio
Precision Black (Local Dimming) N/A
Quantum Dot Color N/A
Active Crystal Color N/A
Wide Color Enhancer (Plus) N/A
PurColor Yes
Auto Depth Enhancer N/A
Contrast Enhancer Yes
Auto Motion Plus Yes
Film Mode Yes
Peak Illuminator N/A
Dolby Digital Plus Yes
DTS Codec Yes
Sound Output (RMS) 20W
Speaker Type 2CH(Down Firing w/Bass Reex)
Woofer N/A
Wallmount Sound Mode Yes
Multiroom Link Yes
TV SoundConnect N/A
BT Headset Support N/A
Page 55
2-3
2. Product specications
Item UE40KU6092UXXH
Smart TV
Smart Interaction
Convergence
IoT Service
Tuner/Broadcasting
Samsung SMART TV Yes
Apps Yes
Games N/A
Cloud Game Yes
Billing Yes(RO,BG,CZ,SK,LV,LT,EE)
Automated Content Recognition (ACR) N/A
Web Browser Yes
Voice Recognition N/A
TV to Mobile - Mirroring Yes
Mobile to TV - Mirroring, DLNA Yes
Samsung SMART View Yes
Bluetooth Low Energy N/A
RVU N/A
WiFi Direct Yes
TV as Hub Support N/A
TV as Things Support N/A
IoT Client Application N/A
Digital Broadcasting DVB-T2CS2
Connectivity
Analog Tuner Yes
2 Tuner N/A
CI (Common Interface) CI+(1.3)
Data Broadcasting
HDMI 3
USB 2
Component In (Y/Pb/Pr) 1
Composite In (AV) 1(Common Use for Component Y)
Ethernet (LAN) Yes
Headphone N/A
Audio Out (Mini Jack) N/A
Digital Audio Out (Optical) 1
RF In (Terrestrial / Cable input / Satellite input) 1/1(Common Use for Terrestrial)/1
Ex-Link ( RS-232C ) N/A
CI Slot 1
Scart N/A
HDMI A / Return Ch. Support Yes
HbbTV 1.5(FR,ES,EE,HU) / HbbTV1.0(C
Z,SK,PT,DE,AT,SZ,PL,BE,NL,LU)
HDMI Quick Switch Yes
Wireless LAN Adapter Support N/A
Wireless LAN Built-in Yes
Page 56
2-4
2. Product specications
Item UE40KU6092UXXH
Connectivity
Design
Additional Feature
Anynet+ (HDMI-CEC) Yes
Design JU6000 Concept modied
Bezel Type VNB
Slim Type Slim
Front Color Black
Light Effect (Deco) N/A
Stand Type V-Shape
Swivel (Left/Right) N/A
Instant On Yes
Processor Quad-Core
Accessibility
Digital Clean View Yes
One Connect (Jack) N/A
Auto Channel Search Yes
Auto Power Off Yes
BD Wise Plus N/A
Caption (Subtitle) Yes
Voice guide(EU 17 countries)/ Enlarge/
High contrast
Eco Feature
Power
Channel List USB-Clone Yes
Connect Share™ (HDD) Yes
ConnectShare™ (USB 2.0) Yes
Embeded POP Yes
EPG Yes
Extended PVR Yes
Game Mode Yes
OSD Language 27 European Languages
Picture-In-Picture Yes
BT HID Built-in N/A
USB HID Support Yes
Time Shift Yes
MBR Support N/A
Ultra Clean View Yes
Eco Sensor Yes
Energy Efciency Class A
Power Supply AC220-240V 50/60Hz
Power Consumption (Max) 62 W
Page 57
2-5
2. Product specications
Item UE50KU6092UXXH
General Information
Display
Video
Product LED
Series 6
Country HUNGARY
Platform(TV) SoC | Jazz-L
Screen Size 50"
Screen Size (cm) 125 cm
Resolution 3,840 × 2,160
Quantum Dot Display N/A
Ultra Black N/A
Screen Curvature N/A
10 bit Support N/A
Picture Engine UHD Up-Scaling
Motion Rate N/A
PQI (Picture Quality Index) 1300
HDR (High Dynamic Range) HDR
Dynamic Contrast Ratio Mega Contrast
Micro Dimming UHD Dimming
Audio
Precision Black (Local Dimming) N/A
Quantum Dot Color N/A
Active Crystal Color N/A
Wide Color Enhancer (Plus) N/A
PurColor Yes
Auto Depth Enhancer N/A
Contrast Enhancer Yes
Auto Motion Plus Yes
Film Mode Yes
Peak Illuminator N/A
Dolby Digital Plus Yes
DTS Codec Yes
Sound Output (RMS) 20W
Speaker Type 2CH(Down Firing w/Bass Reex)
Woofer N/A
Wallmount Sound Mode Yes
Multiroom Link Yes
TV SoundConnect N/A
Smart TV
BT Headset Support N/A
Samsung SMART TV Yes
Apps Yes
Page 58
2-6
2. Product specications
Item UE50KU6092UXXH
Smart TV
Smart Interaction
Convergence
IoT Service
Tuner/Broadcasting
Games N/A
Cloud Game Vari.
Billing Vari.
Automated Content Recognition (ACR) N/A
Web Browser Yes
Voice Recognition N/A
TV to Mobile - Mirroring Yes
Mobile to TV - Mirroring, DLNA Yes
Samsung SMART View Yes
Bluetooth Low Energy N/A
RVU N/A
WiFi Direct Yes
TV as Hub Support N/A
TV as Things Support N/A
IoT Client Application N/A
Digital Broadcasting DVB-T2CS2
Analog Tuner Yes
Connectivity
2 Tuner N/A
CI (Common Interface) CI+(1.3)
Data Broadcasting Vari.
HDMI 3
USB 2
Component In (Y/Pb/Pr) 1
Composite In (AV) 1(Common Use for Component Y)
Ethernet (LAN) Yes
Headphone N/A
Audio Out (Mini Jack) N/A
Digital Audio Out (Optical) 1
RF In (Terrestrial / Cable input / Satellite input) 1/1(Common Use for Terrestrial)/1
Ex-Link ( RS-232C ) N/A
CI Slot 1
Scart N/A
HDMI A / Return Ch. Support Yes
HDMI Quick Switch Yes
Wireless LAN Adapter Support N/A
Wireless LAN Built-in Yes
Anynet+ (HDMI-CEC) Yes
Page 59
2-7
2. Product specications
Item UE50KU6092UXXH
Design
Additional Feature
Design JU6000 Concept modied
Bezel Type VNB
Slim Type Slim
Front Color Black
Light Effect (Deco) N/A
Stand Type V-Shape
Swivel (Left/Right) N/A
Instant On Yes
Processor Quad-Core
Accessibility
Digital Clean View Yes
One Connect (Jack) N/A
Auto Channel Search Yes
Auto Power Off Yes
BD Wise Plus N/A
Caption (Subtitle) Yes
Channel List USB-Clone Yes
Voice guide(EU 17 countries)/ Enlarge/
High contrast
Eco Feature
Power
Connect Share™ (HDD) Yes
ConnectShare™ (USB 2.0) Yes
Embeded POP Yes
EPG Yes
Extended PVR Yes
Game Mode Yes
OSD Language 27 European Languages
Picture-In-Picture Yes
BT HID Built-in N/A
USB HID Support Yes
Time Shift Yes
MBR Support N/A
Ultra Clean View Yes
Eco Sensor Yes
Energy Efciency Class A
Power Supply AC220-240V 50/60Hz
Power Consumption (Max) 190 W
Page 60
2-8
2. Product specications
Item UE55KU6092UXXH
General Information
Display
Video
Product LED
Series 6
Country HUNGARY
Platform(TV) SoC | Jazz-L
Screen Size 55"
Screen Size (cm) 138 cm
Resolution 3,840 × 2,160
Quantum Dot Display N/A
Ultra Black N/A
Screen Curvature N/A
10 bit Support N/A
Picture Engine UHD Up-Scaling
Motion Rate N/A
PQI (Picture Quality Index) 1300
HDR (High Dynamic Range) HDR
Dynamic Contrast Ratio Mega Contrast
Micro Dimming UHD Dimming
Audio
Precision Black (Local Dimming) N/A
Quantum Dot Color N/A
Active Crystal Color N/A
Wide Color Enhancer (Plus) N/A
PurColor Yes
Auto Depth Enhancer N/A
Contrast Enhancer Yes
Auto Motion Plus Yes
Film Mode Yes
Peak Illuminator N/A
Dolby Digital Plus Yes
DTS Codec Yes
Sound Output (RMS) 20W
Speaker Type 2CH(Down Firing w/Bass Reex)
Woofer N/A
Wallmount Sound Mode Yes
Multiroom Link Yes
TV SoundConnect N/A
Smart TV
BT Headset Support N/A
Samsung SMART TV Yes
Apps Yes
Page 61
2-9
2. Product specications
Item UE55KU6092UXXH
Smart TV
Smart Interaction
Convergence
IoT Service
Tuner/Broadcasting
Games N/A
Cloud Game Vari.
Billing Vari.
Automated Content Recognition (ACR) N/A
Web Browser Yes
Voice Recognition N/A
TV to Mobile - Mirroring Yes
Mobile to TV - Mirroring, DLNA Yes
Samsung SMART View Yes
Bluetooth Low Energy N/A
RVU N/A
WiFi Direct Yes
TV as Hub Support N/A
TV as Things Support N/A
IoT Client Application N/A
Digital Broadcasting DVB-T2CS2
Analog Tuner Yes
Connectivity
2 Tuner N/A
CI (Common Interface) CI+(1.3)
Data Broadcasting Vari.
HDMI 3
USB 2
Component In (Y/Pb/Pr) 1
Composite In (AV) 1(Common Use for Component Y)
Ethernet (LAN) Yes
Headphone N/A
Audio Out (Mini Jack) N/A
Digital Audio Out (Optical) 1
RF In (Terrestrial / Cable input / Satellite input) 1/1(Common Use for Terrestrial)/1
Ex-Link ( RS-232C ) N/A
CI Slot 1
Scart N/A
HDMI A / Return Ch. Support Yes
HDMI Quick Switch Yes
Wireless LAN Adapter Support N/A
Wireless LAN Built-in Yes
Anynet+ (HDMI-CEC) Yes
Page 62
2-10
2. Product specications
Item UE55KU6092UXXH
Design
Additional Feature
Design JU6000 Concept modied
Bezel Type VNB
Slim Type Slim
Front Color Black
Light Effect (Deco) N/A
Stand Type V-Shape
Swivel (Left/Right) N/A
Instant On Yes
Processor Quad-Core
Accessibility
Digital Clean View Yes
One Connect (Jack) N/A
Auto Channel Search Yes
Auto Power Off Yes
BD Wise Plus N/A
Caption (Subtitle) Yes
Channel List USB-Clone Yes
Voice guide(EU 17 countries)/ Enlarge/
High contrast
Eco Feature
Power
Connect Share™ (HDD) Yes
ConnectShare™ (USB 2.0) Yes
Embeded POP Yes
EPG Yes
Extended PVR Yes
Game Mode Yes
OSD Language 27 European Languages
Picture-In-Picture Yes
BT HID Built-in N/A
USB HID Support Yes
Time Shift Yes
MBR Support N/A
Ultra Clean View Yes
Eco Sensor Yes
Energy Efciency Class A
Power Supply AC220-240V 50/60Hz
Power Consumption (Max) 195 W
Page 63
2-11
2. Product specications
Item UE65KU6092UXXH
General Information
Display
Video
Product LED
Series 6
Country HUNGARY
Platform(TV) SoC | Jazz-L
Screen Size 65"
Screen Size (cm) 163 cm
Resolution 3,840 × 2,160
Quantum Dot Display N/A
Ultra Black N/A
Screen Curvature N/A
10 bit Support N/A
Picture Engine UHD Up-Scaling
Motion Rate N/A
PQI (Picture Quality Index) 1300
HDR (High Dynamic Range) HDR
Dynamic Contrast Ratio Mega Contrast
Micro Dimming UHD Dimming
Audio
Precision Black (Local Dimming) N/A
Quantum Dot Color N/A
Active Crystal Color N/A
Wide Color Enhancer (Plus) N/A
PurColor Yes
Auto Depth Enhancer N/A
Contrast Enhancer Yes
Auto Motion Plus Yes
Film Mode Yes
Peak Illuminator N/A
Dolby Digital Plus Yes
DTS Codec Yes
Sound Output (RMS) 20W
Speaker Type 2CH(Down Firing w/Bass Reex)
Woofer N/A
Wallmount Sound Mode Yes
Multiroom Link Yes
TV SoundConnect N/A
Smart TV
BT Headset Support N/A
Samsung SMART TV Yes
Apps Yes
Page 64
2-12
2. Product specications
Item UE65KU6092UXXH
Smart TV
Smart Interaction
Convergence
IoT Service
Tuner/Broadcasting
Games N/A
Cloud Game Vari.
Billing Vari.
Automated Content Recognition (ACR) N/A
Web Browser Yes
Voice Recognition N/A
TV to Mobile - Mirroring Yes
Mobile to TV - Mirroring, DLNA Yes
Samsung SMART View Yes
Bluetooth Low Energy N/A
RVU N/A
WiFi Direct Yes
TV as Hub Support N/A
TV as Things Support N/A
IoT Client Application N/A
Digital Broadcasting DVB-T2CS2
Analog Tuner Yes
Connectivity
2 Tuner N/A
CI (Common Interface) CI+(1.3)
Data Broadcasting Vari.
HDMI 3
USB 2
Component In (Y/Pb/Pr) 1
Composite In (AV) 1(Common Use for Component Y)
Ethernet (LAN) Yes
Headphone N/A
Audio Out (Mini Jack) N/A
Digital Audio Out (Optical) 1
RF In (Terrestrial / Cable input / Satellite input) 1/1(Common Use for Terrestrial)/1
Ex-Link ( RS-232C ) N/A
CI Slot 1
Scart N/A
HDMI A / Return Ch. Support Yes
HDMI Quick Switch Yes
Wireless LAN Adapter Support N/A
Wireless LAN Built-in Yes
Anynet+ (HDMI-CEC) Yes
Page 65
2-13
2. Product specications
Item UE65KU6092UXXH
Design
Additional Feature
Design JU6000 Concept modied
Bezel Type VNB
Slim Type Slim
Front Color Black
Light Effect (Deco) N/A
Stand Type V-Shape
Swivel (Left/Right) N/A
Instant On Yes
Processor Quad-Core
Accessibility
Digital Clean View Yes
One Connect (Jack) N/A
Auto Channel Search Yes
Auto Power Off Yes
BD Wise Plus N/A
Caption (Subtitle) Yes
Channel List USB-Clone Yes
Voice guide(EU 17 countries)/ Enlarge/
High contrast
Eco Feature
Power
Connect Share™ (HDD) Yes
ConnectShare™ (USB 2.0) Yes
Embeded POP Yes
EPG Yes
Extended PVR Yes
Game Mode Yes
OSD Language 27 European Languages
Picture-In-Picture Yes
BT HID Built-in N/A
USB HID Support Yes
Time Shift Yes
MBR Support N/A
Ultra Clean View Yes
Eco Sensor Yes
Energy Efciency Class A
Power Supply AC220-240V 50/60Hz
Power Consumption (Max) 260 W
Page 66
2-14
2. Product specications
2-3. NEW Key Features
2-3-1. 16" New UI

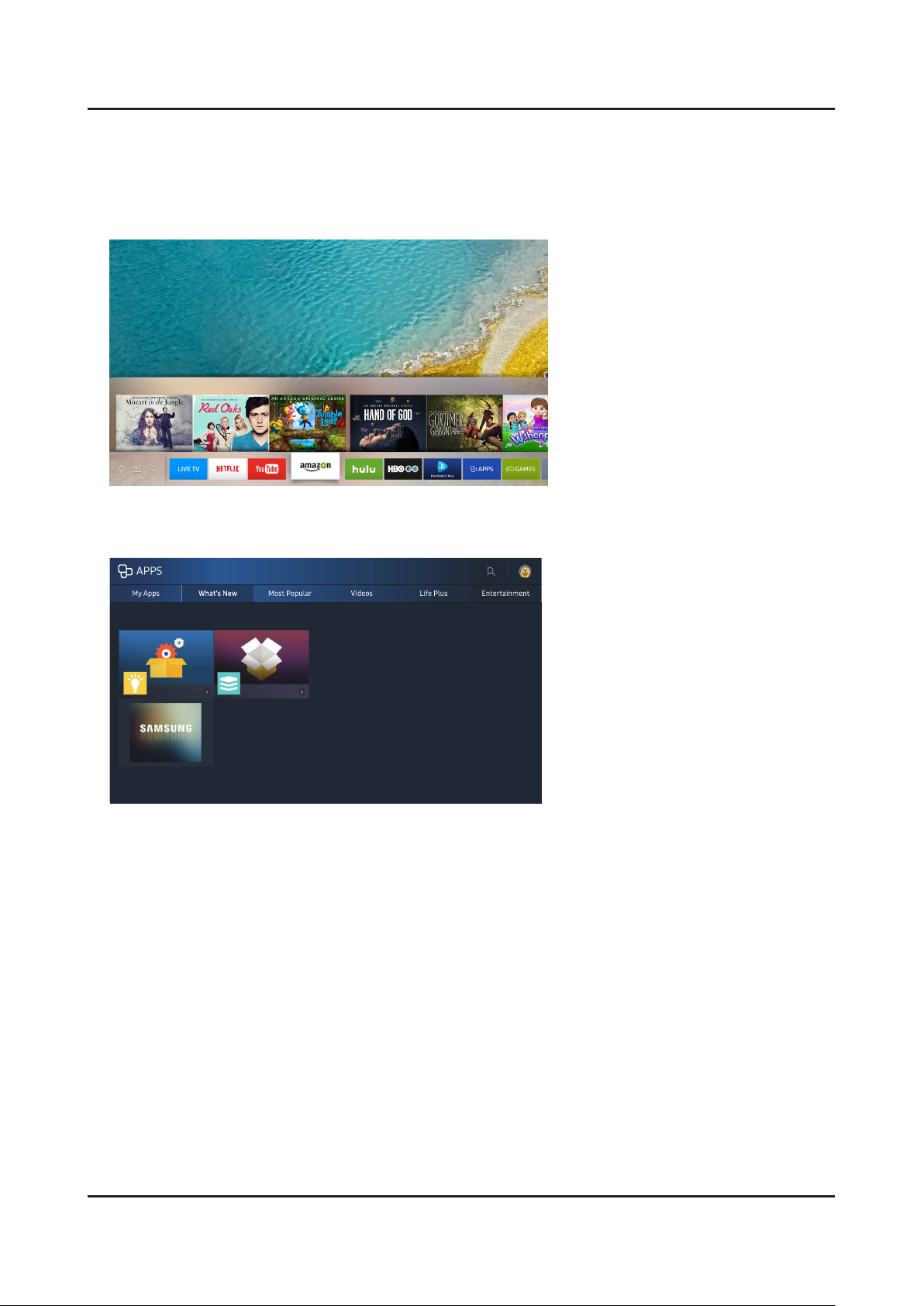

Smart Hub
APPS Service
Page 67
2-15
2. Product specications
2-4. Smart Control
2-4-1. Remote Control (Europe except Turkey)
This remote control has Braille points on the Power, Channel, Volume and Enter buttons and can be used by visually •
impaired persons.
The button names above may be differ from the actual names.•
(Power): Turns the TV on and off.
SOURCE
: Displays and selects the available video sources.
Number
TTX/MIX
PRE-CH
MUTE
CH LIST
SPORTS
GUIDE
EXTRA
INFO
- Press and hold to display the Guide.
values shown on the TV's menu.
RETURN
EXIT
Use these buttons according to the directions on the TV screen.
: Gives direct access to channels.
: Alternately selects Teletext ON, Double, Mix or OFF.
: Returns to the previous channel.
: Adjusts the volume.
: Turns the sound on and off.
: Changes the current channel.
: Launches the Channel List.
: Turns the Soccer Mode on or off.
(Smart Hub): Launches Home Screen.
: Displays the Electronic Programme Guide (EPG).
: Displays related information about the current programme.
: Displays information about the current programme or content.
(Enter): Selects or runs a focused item.
: Moves the cursor, selects the on-screen menu items, and changes the
: Returns to the previous menu or channel.
: Exits the menu.
SETTINGS
screen.
AD/SUBT.
REC
: Stops playing content.
Use these buttons with specic features. Use these buttons according to the
directions on the TV screen.
: Sets the Quick Settings the menu on the Settings of the home
: Displays the Accessibility Shortcuts.
: Records whatever you are currently watching.
Page 68
2-16
2. Product specications
G
2-4-2. Remote Control (Turkey)
(Power): Press to turn the TV on or off.
123
(Number pad): When pressed, a number strip appears on the bottom of the screen.
Select numbers and then select Done to enter a numeric value. Use to change the
channel, enter a PIN, enter a ZIP code, etc.
EXTRA
provider.
: While watching content, press to display extra information from the content
Directional pad (up/down/left/right): Moves the focus and changes the
values seen on the TV's menu.
Select: Selects or runs a focused item. When pressed while you are
watching content, detailed program information appears. When pressed
again, you can select or run any of the functions displayed.
(Return): Returns to the previous menu. When pressed for 1 second or more, the
running function is terminated. When pressed while you are watching a program, the
previous channel appears.
(Play/pause): When pressed, the playback controls appear. Using these controls,
you can control the media content that is playing.
(Smart hub): Returns to the Home Screen.
VOL
(Volume): Move the button up or down to adjust the volume. To mute the sound,
press the button. When pressed for 1 second or more, the Accessibility Shortcuts menu
appears.
CH
(Channel): Move the button up or down to change the channel. To see the Guide
screen, press the button.
Page 69
2-17
2. Product specications
2-4-3. 123 Key
2-4-4. EXTRA Key
Page 70
2-18
2. Product specications
2-5. HDMI Color
2-5-1. HDMI UHD Color
When you set the HDMI connection to On, the TV turns off and then on automatically.•
The HDMI connection with HDMI UHD Color set to Off supports up to UHD 50P/60P 4:2:0 input signals, while the •
HDMI connection with HDMI UHD Color set to On supports up to UHD 50P/60P 4:4:4 and 4:2:2 input signals. For
more information, refer to "Supported Resolutions for UHD Input Signals.
Each HDMI connection can be individually optimized for HDMI UHD Color. When you connect the TV to an external •
device that supports only the UHD 24 or 30 Hz frequency or any FHD frequency, the HDMI UHD Color function may
not be available. In this case, set HDMI UHD Color to Off.
2-5-2. HDMI Black Level
This function is only available when the input signal, connected to the TV via an HDMI connector, is set to RGB444.•
Page 71
2-19
2. Product specications
2-6. Supported Formats
2-6-1. Supported image formats and resolutions
File Extension Type Resolution
*.png PNG 4096x4096
*.bmp BMP 4096x4096
*.mpo MPO 15360x8640
JPEG 15360x8640
2-6-2. Supported music formats and codecs
File Extension Type Codec Note
*.mp3 MPEG MPEG1 Audio Layer 3 -
*.m4a
*.mpa
*.aac
*.ac FLAC FLAC Supports up to two channels.
*.ogg OGG Vorbis Supports up to two channels.
*.wma WMA WMA
MPEG4 AAC
WMA 10 Pro supports up to 5.1 channels.
WMA lossless audio is not supported.
Supports up to M2 prole.
*.wav wav wav
*.mid
*.midi
*.ape ape ape
*.aif
*.aiff
*.m4a ALAC ALAC
midi midi
AIFF AIFF
Supports type 0 and type 1.
Seek is not supported.
Supports USB device only.
Page 72
2-20
2. Product specications
2-6-3. Supported video codecs
File
Formats
*.avi
*.mkv
*.asf
*.wmv
*.mp4
*.mov
*.3gp
*.vro
*.mpg
*.mpeg
*.ts
*.tp
*.trp
*.mov
*.v
*.vob
*.svi
*.m2ts
*.mts
*.divx
Container Video Codecs Resolution
H.264 BP/MP/HP
4096 x 2160
1920x1080
AVI
MKV
ASF
MP4
3GP
MOV
FLV
VRO
VOB
PS
TS
SVAF
HEVC (H.265 - Main,
Main10,
Main4:2:2 10)
Motion JPEG 3584 x 2160 30 80
MVC
DivX 3.11 / 4 / 5 / 6
MPEG4 SP/ASP
Window Media Video v9
(VC1)
MPEG2
MPEG1
Microsoft MPEG-4 v1,
v2, v3
Frame rate
(fps)
4096 x 2160: 30
3840 x 2160: 60
60 80
60
Bit rate
(Mbps)
60
20
Audio Codec
Dolby Digital
LPCM
ADPCM(IMA, MS)
AAC
HE-AAC
WMA
Dolby Digital Plus
MPEG(MP3)
DTS(Core, LBR)
G.711(A-Law,
μ-Law)
*.webm WebM
Other Restrictions
NOTE
Codecs may not function properly if there is a problem with the content data.•
Video content does not play or does not correctly if there is an error in the content or container.•
Sound or video may not work if they have standard bit rates/frame rates above the TV's compatibility.ratings•
If the Index Table is wrong, the Seek(Jump) function does not work.•
When playing video over a network connection, the video may not play smoothly because of datatransmission •
speeds.
Some USB/digital camera devices may not be compatible with the player.•
HEVC codec is only available in MKV / MP4 / TS containers.•
Window Media Video v7
(WMV1), v8 (WMV2)
H.263 Sorrenson
VP6
VP8 1920 x 1080 60 20 Vorbis
VP9 4096 x 2160 4096 x 2160: 60 40
30
Page 73
2-21
2. Product specications
2-7. Accessories
NOTE
The items’ colors and shapes may vary depending on the model.•
Cables not included in the package contents can be purchased separately.•
The part code for some accessories may differ depending on your region.•
Product Code. No Product Code. No
Remote Control• BN59-01247A User Manual• BN68-08015T
Batteries (AAA x 2)• 4301-000121 Regulatory Guide• BN68-04972E
Power Cord• 3903-001118 Warranty Card• BN68-03548J
Image Product Code. No
COMPONENT IN / AV IN Adapter•
CI Card Adapter• 3709-001791
BN39-02189A
BN39-02190A
Page 74
4. Troubleshooting
4-1. Previous Check
Check list for initial operation
Check the various cable connections rst.1.
Check to see if there is a burnt or damaged cable. Check to see if there is a disconnected or loose cable connection. -
Check to see if the cables are connected according to the connection diagram. Check the power input to the Main Board.2.
How to distinguish if the problem is caused by Main Board or T-CON Board.3.
No Video -
4. Troubleshooting
Symptom
Check Points Replace the T-CON Board.•
Distorted Picture : -
Check Points Check the inner patterns.•
I f the problem is No Video but BLU is on and Indication LED is blinking repeatedly and faster
than nomal booting.
4-1
Page 75
4-2
4. Troubleshooting
4-2. How to Check Fault Symptom
4-2-1. Power
TV POWER STANDBY
TV in Standby1.
Standby LED Indicator √
If Not Lit:2.
AC 120Vac Line √
If missing:3.
120Vac Source and Power Cord √
If OK:4.
Resistance on SMPS √ Fuse after rst removing AC power cord.
If fusses are open replace SMPS.5.
If fuses are OK:6.
√ Standby: A13V (Always On) to Main Board. Should all be approx. 9 VDC
If any missing remove the SMPS connector to Main Board .7.
Standby A13V again for 9VDC. √
If OK replace - Main Board.
If still missing replace - SMPS.
Page 76
4-3
4. Troubleshooting
FUNCTION/IR Control
TV in Standby 1.
LED Status √
If 2. LED is OFF
LED 1.7Vdc (pin 8)and VCC for 3.3Vdc √
If missing suspect Function Assy/Cable/Main board.•
If 3. LED is ON
Switch Operation activates on screen display. √
<On Screen Selections with Function Control>
If missing:
Check the STBY voltage from SMPS to Main Board. If STBY is OK suspect 1. Main Board.
Check Jog Shuttle 5 SW Operation (2. Key 1 & Key 2) for command changes. If incorrect suspect a stuck Jog switch
which also holds data to Main preventing operation.
Check 3. SDA, SCL for effective 3.3Vdc (after power on)
Check 4. IR with Standard Remote command changes. (3.3V to 2.5V effective DC)
<Function/IR>
<Jog Function Switch>
CN1101 (FUNCTION/IR)
1 IR 3.3Vdc to 2.5Vdc (Effective DC) 2 GND
3 A3.3V_PW 4
AMP_SDA_I2C 3.3 Vdc (effective
5
KEY_INPUT2 1.8Vdc to command
7
9 N/C 10 N/C
11 N/C 12 N/C
P CMD Signal DC Voltage
1 Center Key 1 1.8V to 0 Vdc
2 Vol+ Key 2 1.8V to 1.0 Vdc
2 Vol- Key 2 1.8V to 1.5 Vdc
2 CH+ Key 2 1.8V to 0 Vdc
2 CH- Key 2 1.8V to 0.6 Vdc
3 GND
DC)
Voltage
AMP_SCL_I2C 3.3Vdc (effective
DC)
KEY_INPUT1 1.8dc to 0V with
6
8 LED_STB_OUT 1.7Vdc STBY
PWR On command
Page 77
4-4
4. Troubleshooting
SMPS POWER
Power TV On.1.
PS_ON √ . 2Vdc (when off) changes to 3.3Vdc (on)
May already be On if IoT USB is loaded or TV Smart Things Hub mode is active. if voltage error or no change.2.
Jog Function Control Test. √
If OK replace Main Board.3.
All √ A13V supplies to full voltage level 12.7VDC.
If any wrong voltage, remove the SMPS connector to Main Board.4.
A13V again for 12.7VDC. √
If OK replace Main Board.5.
If still wrong voltage replace SMPS.6.
OD √ (Over Voltage Detect) : 3.3Vdc (Operating Normal)
If 0V or changing, an SMPS or Panel error exists. Perform Backlight Test.7.
BLU_PWM √ 0V- Off to approx 1 – 3.3 V pending Backlight dim level
If missing/error replace √ Main Board.
CNL802
1 2+ 9 1+
2 NC 10 NC
3 NC 11 NC
4 2- 12 1-
5 NC 13 NC
6 NC 14 NC
7 NC 15 IF2
8 NC 16 IF1
CNM803
1 Fail Count 7 A13V
2 ANA-DIM 8 POWER_ON/OFF
3 A13V 9 A13V
4 OD_ON/OFF 10 GND
5 A13V 11 GND
6 BLU_PWM 12 GND
CNL802
CNM803
Fuse
Page 78
BACKLIGHTS
4-5
4. Troubleshooting
Activate Backlights Test1. :
Disconnect Lead Cable from Main Board to Power Supply. (CN202) -
TV Screen for active backlight LEDs. √
If NO BACKLIGHTS2.
Plus (+) & Minus (-) pin voltages on the Panel Connector. √
If no pin voltages replace SMPS. -
If voltages exist but no backlight: -
The highest pin voltage (BL Drive Supply ) √
Remove Panel connector and measure again to compare. -
If the voltage was high and stays the same high reading a string of Panel LEDs are open. Replace the Panel. -
If the v - oltage was low and remains low the SMPS is defective.
If the voltage was low and goes high a string of panel LEDs are shorted replace the - Panel.
For BACKLIGHT DIMMING PROBLEMS:
Go to • Menu → Picture → Backlight and vary level (0 – 20)
If no backlight changes observed:•
Panel Connector pin voltages and BLU_PWM voltages (CNM801) while changing backlight level. √
If Panel voltages don’t change, and BLU_PWM changes, replace • SMPS.
If BLU_PWM doesn’t change replace • Main/T-Con Board.
Page 79
4-6
4. Troubleshooting
4-2-2. Video

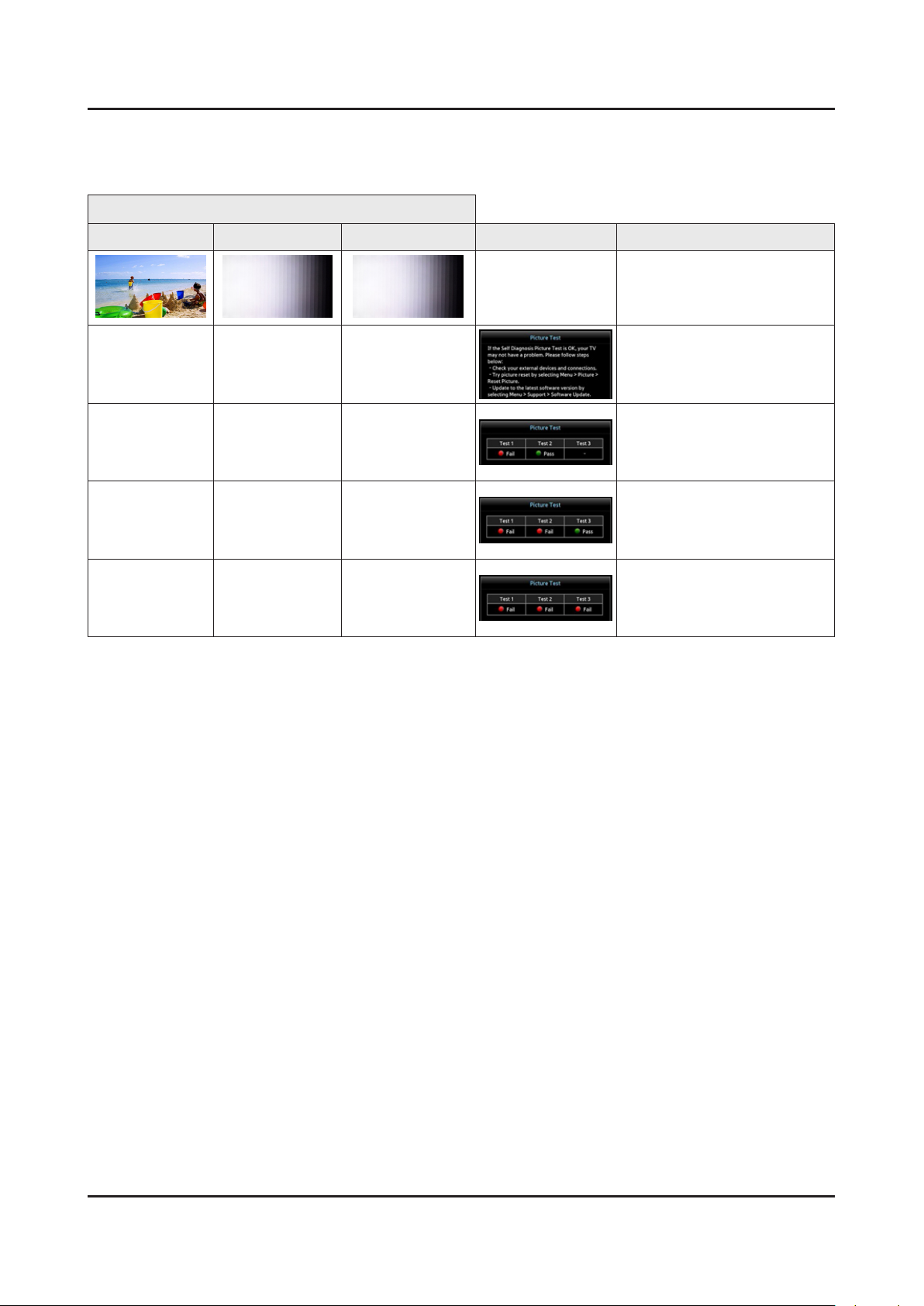

Customer Picture Test
MAIN/TCON BOARD
Main Section Pre- FRC (T-CON) Post FRC ( T-CON) Test Result Problem
Pass Pass Pass
Fail Pass Pass Replace Main/T-CON Board
Fail Fail Pass Replace Main/T-CON Board
Fail Fail Fail
Check Signal Source and other
inputs to One Connect
Replace Main/T-CON Board or
Panel
Page 80
MAIN / T-CON Board
4-7
4. Troubleshooting

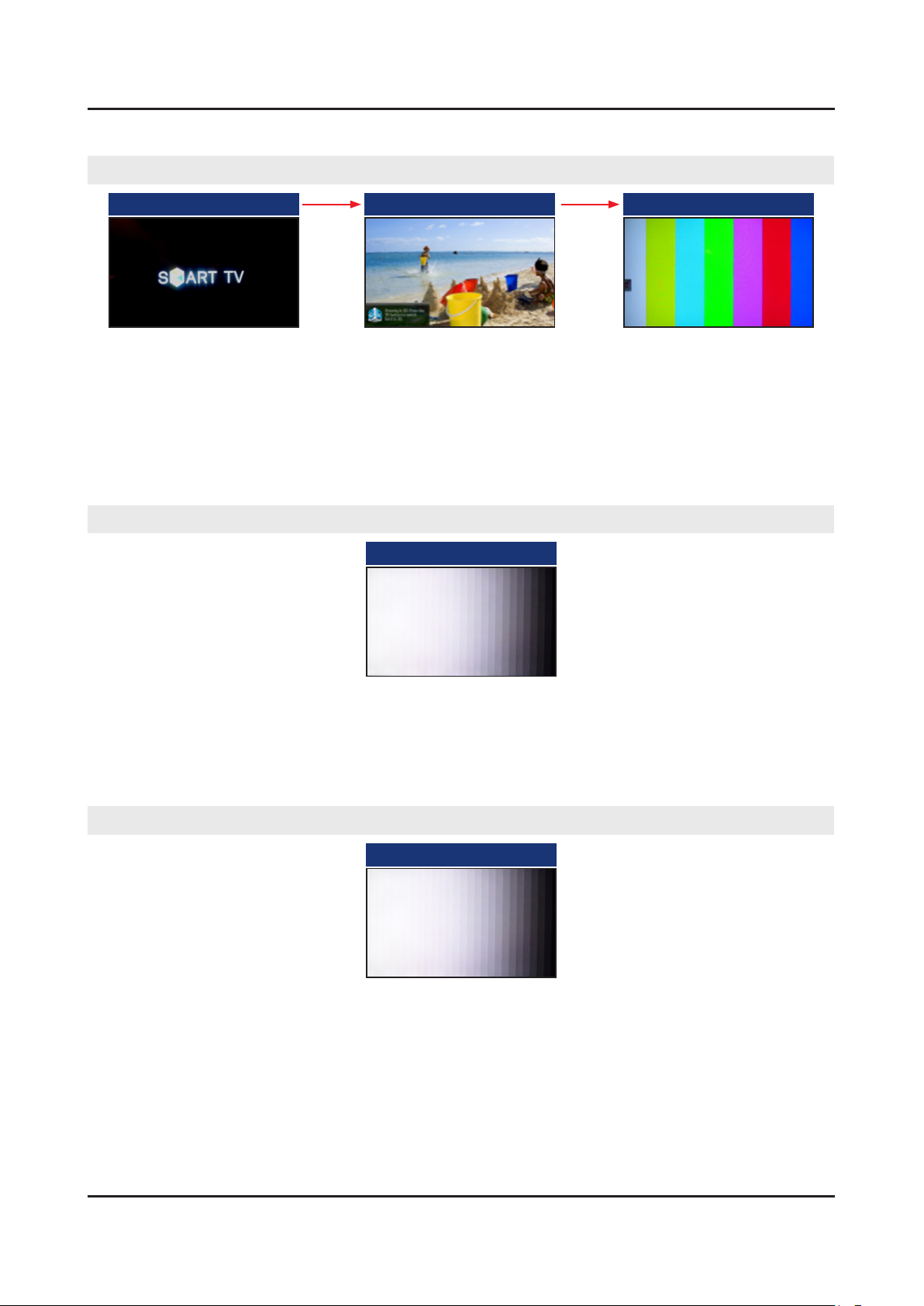

Main Board Section1.
1 Start Up Logo 2 Customer Picture Test 1 3 Mute - 147 - Mute
Video Operation : Generated on Main Section.
If OK:1.
Source & Input Cables. √
Other inputs. √
One Connect Cable/Box. √
If Noisy:2.
T-CON Section Test Patterns. √
PRE FRC of T-CON Section2.
Customer Picture Test 2
Video Operation : Generated at Pre FRC, of T-CON Section.
If OK:1.
Main Section. √
If Noisy:2.
Post FRC Pattern. √
POST FRC of T-CON Section3.
Customer Picture Test 3
Video Operation : Generated at Post FRC of T-CON Section.
If OK:1.
Main / T-CON Board (defective). √
If Noisy:2.
Mute - 369 - Mute. √
Page 81
4-8
4. Troubleshooting
T-CON Section4.
Mute - 369 - Mute
NOTE
May not be available for Larger models over 70 inches.
Video Operation : Generated at T-CON Section.
If OK:1.
Main / T-CON Board (defective). √
If Noisy:2.
Main / T-CON Board. √
Page 82
4-9
4. Troubleshooting
PANEL
If Noisy:1.
Panel (defective). √
Page 83
4-10
4. Troubleshooting
4-2-3. Audio
AUDIO
Source
No TV Sound•
Menu → Audio → Speaker Settings set to √ TV Speaker
Noisy / Distorted TV Audio•
Customer Menu → Support → √ Sound Test
If • Sound Test FAILS : (Missing / Noisy Audio)
Speakers (compare resistance/quality) √
Compare audio level out to speakers with multi meter.•
Replace defective Speakers or Main Board or Cable. √
IF • Sound Test OK :
Audio Source & External Cables. √
With external Audio Generator (device or App). √
Other Inputs. √
One Connect Mini. √
Optical Digital Out Errors•
Red light from Optical Digital Out. √
If missing replace One Connect Mini•
No HDMI Audio •
Source / HDMI Cable & One Connect Mini Connectors. √
Swap with other HDMI Inputs/Sources.•
Perform • EDID Write in Factory Mode (Can restore missing HDMI Audio).
Bulletins and Latest rmware on TV. √
If not restored replace One Connect Mini/Main.•
Check Audio Format PCM/Dolby based on external Receiver.•
ARC Issues•
HDMI Cable is input to the ARC Designated HDMI port. √
ARC (HDMI Control) is enabled on the external Receiver. √
Bluetooth Audio "• Sound Share" Connection Issues
Sound Bar is in TV Mode. √
To Connect, Press & Hold Play Button until Sound Bar pairing mode begins. •
Page 84
4-2-4. Network
4-11
4. Troubleshooting

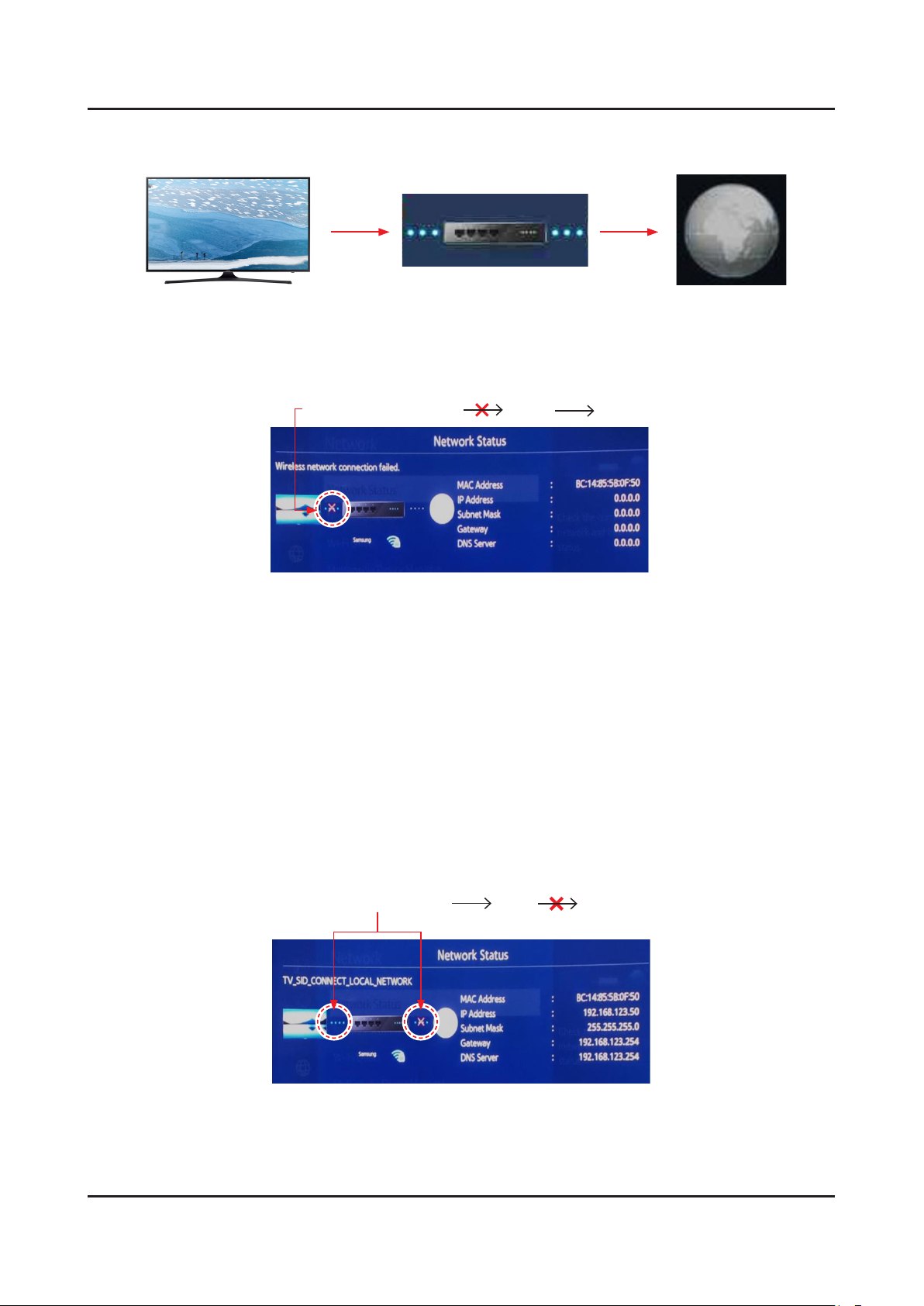

<TV> <Router> <Internet>
TV to Router "Failure"
Check Network Status (TV Router Internet)
Wired & Wireless MAC Address• in Customer Support Menu.
No Wired MAC Address √ : Replace Main Board.
No Wireless MAC Address √ : Module cabling & voltages from Main Board.
If operating voltages are OK but signal missing. √
Replace WiFi Module (WiFi/Bluetooth Module).•
Proper • security passcode
Check Wi-Fi signal strength at TV (use WiFi Analyzer or similar App). √
Try another source (Hot spot or Test Router).•
Check related Bulletins. √
Check √ Factory Mode → SVC → Info → WiFi Error Count (replace module for high error counts).
Router to Network "Failure"
Check Network Status (TV Router Internet)
Instruct the customer the TV has proper connection to the router and is likely OK.•
Check other devices using network are OK. If they test OK this does not mean the TV should be working. √
Try another source (Hotspot) to test/show TV Network operation. •
Page 85
4-12
4. Troubleshooting
4-2-5. Smart Hub
Go to Menu > Support > Self Diagnosis > Smart Hub Connection Test
<TV> <Samsung Server><Router> <Internet>
Network / Gateway 1. If it Fails:•
TV to Router Connection Test in " √ Network Trouble shooting"
DNS Test2. If it Fails:•
DNS setting in " √ Network Settings"
If DNS is set manually:•
Settings are correct (may be set to 8.8.8.8 to prevent Netix issues) √
If it still fails:•
DNS Test with setting to Auto Mode √
If it fails both Manual & Auto problem is ISP or Router.•
ISP Blocking3. If it Fails:•
Samsung Server Test4. If it Fails:•
Samsung Apps5. If it Fails:•
Internet Service Provider is Active. √
With DNS setting at 8888. √
With Hot Spot. √
Network Status. √
If OK:•
Reset Smart Hub. √
Terms of Agreement are accepted. √
Reset Smart Hub. √
Samsung Apps load correctly. √
Perform " √ Apps Reset" in Factory Mode.
Go to Smart Hub and complete Terms of Agreement and set up information. √
Samsung Apps load correctly. √
Before selecting an App, allow Apps to load or failure wilre-occur. √
Page 86
For Netix Operation/Connection Issues:
4-13
4. Troubleshooting
Check Certicate & Netix ESN Status in Factory Mode.•
If Certicate and ESN exists, " - CO", "NfO", change the DNS to 8.8.8.8
If Certicate is missing, " - C/" replace the TV’s Main Board.
If ESN number is missing: - NF/ do not replace the Main Board.
Reset TV Clock and check for correct Time & Date. Netix relies on correct settings.•
Reset Smart Hub. / Reset Apps In Factory Mode.•
For Streaming Issues:
Go to TV Web Browser / Go to speedof.me / testmy.net•
Check Speed √ for at least 5 Mbps(HD streaming) / 25 Mbps (4K Streaming).
Check Latency √ for less than 50ms.
Page 87
4-14
4. Troubleshooting
4-2-6. WiFi Module
Pins 1 2 3 4 5 6
Standby 0 3Vdc 0
Power
ON
0.02V
0
eff.dc
Wi Sig.
(DP)
0.5Vp-p
0.02V
eff.dc
Wi Sig.
(DM)
0.5Vp-p
5Vdc
VCC
5Vdc
VCC
3.3Vdc N.C
3.3Vdc
Pins # Pin Name Description Type
1
2
3
4
5
6
GND Ground G
USB_DP USB Interface I/O
USB_DN USB Interface I/O
B+_5V
Wake up Sleep/OFF to ON I/O
NC - -
+5V DC power supply for
SWL-R55
V
1 2 3 4 5 6
Go to Menu > Support > Contact Samsung
Contact Samsung
<
- Wired MAC Address : xx:xx:xx:xx:xx:xx
- Wireless MAC Address : xx:xx:xx:xx:xx:xx
- Bluetooth Address : xx:xx:xx:xx:xx:xx
Wired MAC Address (Missing or Error : Replace • Main Board.
Wireless MAC Address•
Bluetooth Address•
If • Bluetooth Address or Wireless MAC Address are missing or errors exist.
BT & Wi-Fi Connector Voltages• .
If Voltages are OK but no BT or Wi-Fi Signals voltage(s), replace defective Module. -
Page 88
WI-FI VDDO OFF/ON reset timing
4-15
4. Troubleshooting
WI-FI VDD33 ON reset timing
Page 89
4-16
4. Troubleshooting
4-3. Factory Mode Adjustments
4-3-1. Entering Factory Mode
To enter ‘Service Mode’ Press the remote-control keys in this sequence :
Factory Remote
Power TV ON.1.
Select TV Source.2.
Info3. → Factory.
Use 4. MENU for return.
Samsung IR Remote (Limited Operation)
TV Power Standby.1.
Press as follows. 2.
Remote Button :• Power OFF INFO MENU MUTE Power ON
Option• (must set Option Bytes when replacing Main Board.)
Option → • Factory Reset (returns TV to out of box condition. Does not reset Apps.)
SVC → • Test Patterns
SVC → Info → • ER Count (Important to check for errors.)
Resets to 0 with Factory Reset. -
Page 90
First Screen Appearing in Factory Mode (SAMPLE)
4-17
4. Troubleshooting
Testing Items
√
T-JZL6DEUC-XXXX.XX
T-JZMDEUS-XXXX
tztv-X.X.-main2016-jazz-m__XXXXXXXX.X
BT Version : BLUETOOTH-VER-XXXX
E-Manual:----
CAMERA:****
Blaster Version : Not support
E-POP Version : JAZZLUHD-XXXX.X
EDID SUCCESS
HDCP SUCCESS
CALIB : AV/COMP/PC/HDMI/
Option : NONE_16,NONE,6000,NONE
DTCP Not Support
FRC-[JAZZ-L/?][NON FRC][HW:0x00]
TCON Version:----
Model : NNN0O6000
Wired MAC SUCCESS
Wireless MAC SUCCESS
WIFI Version : BCM43569_16210_WLC_E_
STATUS_ABORT
CO NfO WO MO D/ HX P/ AO O S/ N/ RO SC/ SiO(P)
NS//
Factory Data Ver : XXX / Fixed Ver : XX
EERC Version : 75 / WB Ver : 8
CPLD/LD : N/A
SmartControl : 0
Board Info : 2015/12/29/PV/12/BN41-02528A
Factory Reset In Production : ----
SID : ----
Date of purchase : --/--/----
Main SW Version √
Sub √
Wired MAC (Status) √
Wireless MAC (Wi-Fi Module) √
CO NFO WO. etc. √
Certicate•
Netx•
Wide Vine•
etc. Status•
SW Version
Page 91
4-18
4. Troubleshooting
4-3-2. Detail Factory Option
NOTE
If you replace the main board with new one, please change the factory option as well.
The options you must change are "Type".
UE40KU6092UXXH
Multi Bom FA01 FB02 FC03
Panel Type 40A6AU0VK 40A6AU2VK 40A6AU0VK
Vendor SDC SDC SDC
PANEL
SMPS
MAIN
Code BN95-02634A BN95-02634D BN95-02634A
Specication CY-GK040HGLV1V CY-GK040HGLV4V CY-GK040HGLV1V
Vendor SANSUI SANSUI DYREL
Code BN94-10711A BN94-10711A BN44-00806A
Specication L40S5_KVD L40S5_KVD L40S6_FDY,AC/DC
Chassis Ass’y BN91-17275B BN91-18304M BN91-17275B
PBA Ass’y BN94-10798B BN94-11233M BN94-10798B
Multi Bom FD04 FE05 FF06
Panel Type 40A6AU2VK 40A6AU3VK 40A6AU3VK
Vendor SDC SDC SDC
PANEL
SMPS
MAIN
Local set EU BOM Model 6092 Front Color U-F-KU60 SW Model UKU6000
Code BN95-02634D BN95-02634S BN95-02634S
Specication CY-GK040HGLV4V CY-GK040HGLV8V CY-GK040HGLV8V
Vendor DYREL SANSUI DYREL
Code BN44-00806A BN94-10711A BN44-00806A
Specication L40S6_FDY,AC/DC L40S5_KVD L40S6_FDY,AC/DC
Chassis Ass’y BN91-18304M BN91-15499W BN91-15499W
PBA Ass’y BN94-11233M BN94-11378M BN94-11378M
Page 92
UE50KU6092UXXH
4-19
4. Troubleshooting
Multi Bom DA01 DB02 DK03
Panel Type 50D6AU0VK 50D6AU2VK 50D6AU0VK
Vendor INX INX INX
PANEL
SMPS
MAIN
Multi Bom DJ04 DH05
Panel Type 50D6AU2VK 50D6AU4VK
PANEL
SMPS
MAIN
Code BN95-02636A BN95-02636J BN95-02636W
Specication CY-GK050HGNV1V CY-GK050HGNV5V CY-GK050HGNVD
Vendor SEC SEC HANSOE
Code BN94-10712A BN94-10712A BN44-00807A
Specication L55S5_KVD L55S5_KVD L55S6_FHS,AC/DC
Chassis Ass’y BN91-17277C BN91-18336C BN91-17277C
PBA Ass’y BN94-10800C BN94-11256C BN94-10800C
Vendor INX INX
Code BN95-03677A BN95-03990A
Specication CY-GK050HGNVH CY-GK050HGNVTV
Vendor HANSOE HANSOE
Code BN44-00807A BN44-00807A
Specication L55S6_FHS,AC/DC L55S6_FHS,AC/DC
Chassis Ass’y BN91-18336C BN91-18633W
PBA Ass’y BN94-11256C BN94-11834W
Local set EU BOM Model 6092 Front Color U-F-KU60 SW Model UKU6000
Page 93
4-20
4. Troubleshooting
UE55KU6092UXXH
Multi Bom AA01 AB02 BA03
Panel Type 55L6AU0VK 55L6AU0VK 55B6AU0VK
Vendor AUO AUO BOE
PANEL
SMPS
MAIN
Local set EU BOM Model 6092 Front Color U-F-KU60 SW Model UKU6000
Code BN95-02683A BN95-02683B BN95-02638A
Specication CY-GK055HGAV1V/K CY-GK055HGAV2V/H CY-GK055HGEV1V/H
Vendor SEC SEC SEC
Code BN94-10712A BN94-10712A BN94-10712A
Specication L55S5_KVD L55S5_KVD L55S5_KVD
Chassis Ass’y BN91-17278B BN91-17278B BN91-17370E
PBA Ass’y BN94-10801C BN94-10801C BN94-10832C
Page 94
4-21
4. Troubleshooting
UE65KU6092UXXH
Multi Bom DA01
Panel Type 65D6AU0VK
Vendor INX
PANEL
SMPS
MAIN
Local set EU BOM Model 6092 Front Color U-F-KU60 SW Model UKU6000
Code BN95-02641A
Specication CY-GK065HGNV1V/H
Vendor SOLUM
Code BN44-00808D
Specication L65S6N_FSM W,AC/DC
Chassis Ass’y BN91-17280D
PBA Ass’y BN94-10803C
Page 95
4-22
4. Troubleshooting
4-3-3. Factory Data
Option
Factory Menu Name Data Range
Factory Reset
Type
Local Set
SW Model
BOM Model
TUNER
Ch Table
-
40" 40A6AU0VK, 40A6AU2VK,
40A6AU3VK
50" 50D6AU0VK, 50D6AU2VK,
50D6AU4VK
55" 55L6AU0VK, 55B6AU0VK
65" 65D6AU0VK
EU
UKU6000
6092
- S_T2C
NONE
MRT Option

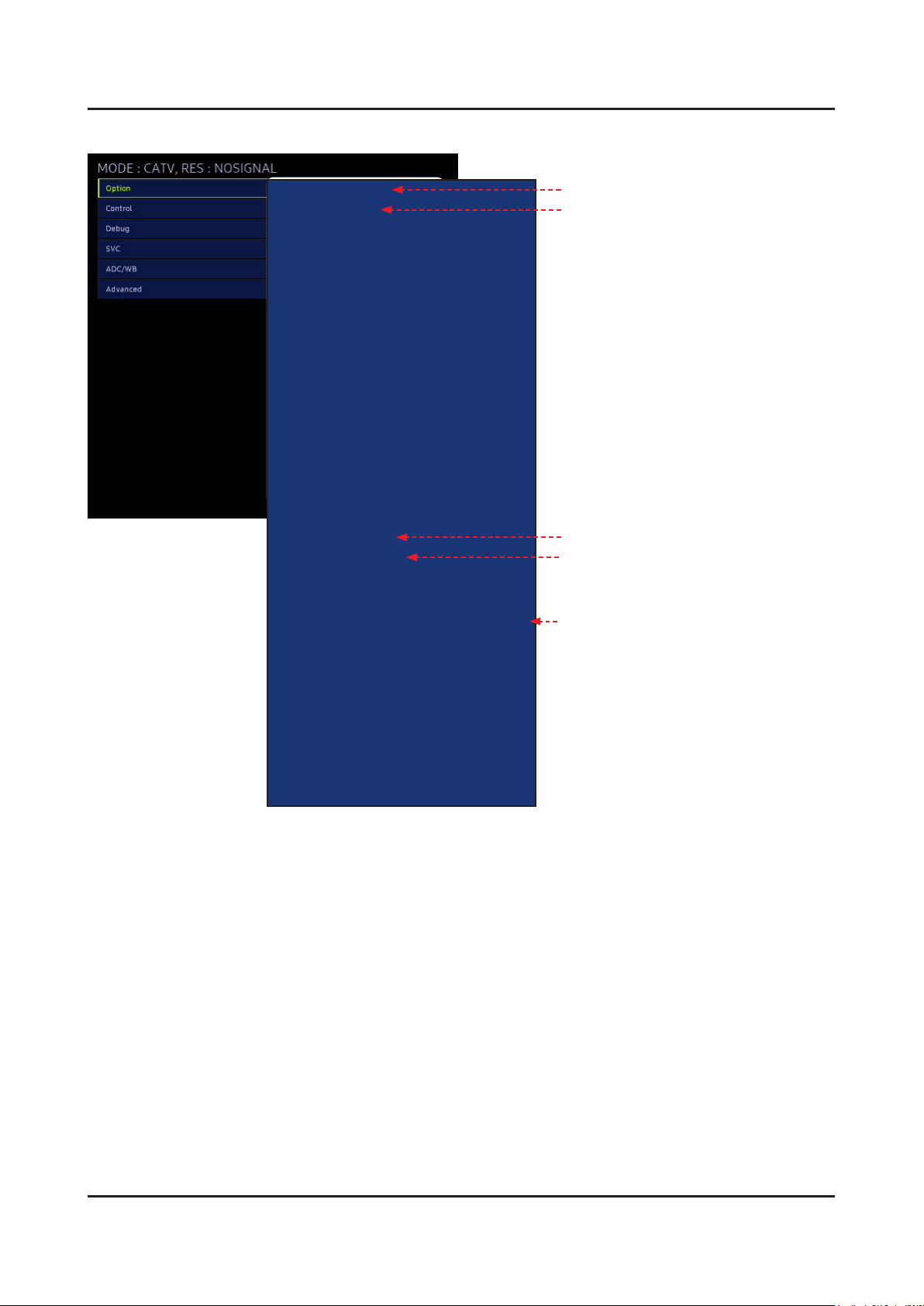

Control
Factory Menu Name Data Range
EDID
EDID ON/OFF OFF
EDID WRITE ALL …
EDID WRITE HDMI …
EDID WRITE PC …
HDMI EDID Ver …
HDMI EDID Port …
Sub Option
RS-232 Jack UART
EXT Link Support ON
Serial Log On/Off OFF
Watchdog ON
FRC Monitoring OFF
Checksum 0x0000
Fast Boot In Production ON
USB Serial OFF
ECO IC TYPE MC8121
Info Link Server Type development
Info Link Country None
Page 96
Factory Menu Name Data Range
4-23
4. Troubleshooting
TTX Group UserOSD
Visual Test Diable
OPTION_SWU
RF Remocon Support OFF
CDD mode …
DPMS Support OFF
T-CON Device JazzFT
RM Server Type Operating
LMF LEAVE THRESHOLD 160
LMF TRIM THRESHOLD 120
LMF TERM THRESHOLD 80
EOS Click OFF
BP PMS Reset 1
FAnet Thread 2
CI CPLD Version 1
ACM_MC ON
UNIQUE TRIPLET ON
FS_FAV OFF
Private Range USE ON
SCSA Support OFF
OCM Reboot ON
SPI Protection
FKP Server Type Default
OCM Support ON
Preloading Support ON
Multitasking Support ON
Browser preloading Support FULL
EXT IR Boot Support OFF
APP BOOTING SUPPORT ON
NagSam Support OFF
EWBS Support OFF
MVPD MBR Provider COMCAST
cloudscan Always Upload OFF
FirstScreen Cach Size 300
Hotel Option
Hospitality Mode OFF
Power On
Page 97
4-24
4. Troubleshooting
Factory Menu Name Data Range
Menu OSD
Operation
Music Mode
External Source
Eco Solution
Cloning
Shop Option
Exhibition Mode OFF
Peak Mode ON
Metadata ON
Shopmode Picture Reset ON
Asia Option
Unbalance OFF
AF Level adjust 0
TX Power Level 0
Mono Last Memory OFF
H Shaking 0
SOUND
High Devi OFF
Carrier_Mute ON
Pilot Level High Thld 0x20h
Pilot Level Low THLD 0x10h
Carrier2 Amp High ThLD 9
Carrier2 Amp Low THLD 6
Amp Volume 0xc4h
Amp Scale 0x3ch
Amp EQ Check Sum 0x000057B5
*If the broadcast signal is not good, TV will
complement the characteristics of the signal (most
use when weak signal comes from the growing area
countries)
*If the noise comes from weakness-electromagnetic
eld, TV will be set Mute automatically(Only default
on in North America)
* The High threshold value of stereo signal(If Pilot
level is greather than High threshold value, recognize
Stereo signal)
* The Low threshold value of stereo signal(If Pilot
level is less than Low threshold value, recognize
Mono signal)
Subwoofer Support 3
Woofer Type 0
Woofer Volume 0xc7h
Woofer Scale 0x3fh
Woofer Check sum 0x0000A273
Page 98
Factory Menu Name Data Range
4-25
4. Troubleshooting
PEQ Inx 76
PEQ Test Ready
Speaker EQ ON
Bottom Checksum NONE
Wall Filter Type 3
SRS Tuning Parm 0
SPDIF PCM Gain -9
AudioDock BT Delay 90
3D_Glass BT delay 50
Mic Scale OFF
India Sound 0
Speaker Delay Normal 0
NTV CU Delay NORMAL
Lipsync Inx 1
Lipsync Checksum 0x4972
Lipsync USB Test Ready
Lipsync BT Checksum 0x0000
TP volume 0xc4h
TP Scale 0x6ch
TP EQ CheckSum NONE
Debug
Factory Menu Name Data Range
Spread Spectrum
LVDS Spread 0
DDR Spread 0
Period 0
Amplitude 0
HD DDR SSC ON OFF OFF
HD DDR SSC Value 0
FHD DDR SSC ON OFF OFF
FHD DDR SSC Value 4
UHD DDR SSC ON OFF ON
UHD DDR SSC Value 0
P eBus SSC ON/OFF OFF
P eBus Value 0
LVDS SSC ON/OFF OFF
Page 99
4-26
4. Troubleshooting
Factory Menu Name Data Range
LVDS SSC Value 0
AP Vx1 SSC ON/OFF ON
AP Vx1 Value 12
N Vx1 SSC ON/OFF ON
N Vx1 Value 0
FRC Vx1 SSC ON/OFF OFF
FRC Vx1 SSC Period 0
FRC Vx1 SSC Modulation 0
FRC LVDS ON/OFF ON
FRC LVDS SSC MFR 3
FRC LVDS SSC MRR 2
FRC DDR SSC ON/OFF ON
FRC DDR SSC Period 1
FRC DDR SSC Modulation 2
ADV7619 Data strength 1
ADV7619 Clock strength 1
ADV7619 H_V_DE strength 1
AP DDR SSC ON/OFF OFF
AP DDR SSC Value 0
AP USIT SSC ON/OFF ON
AP USIT SSC Value 13
OCM Vx1 SSC ON/OFF OFF
OCM Vx1 SSC Value 0
TCON USIT SSC ON/OFF BYPASS
DDR Margin
A CTRL_OFFSET_0_3 0
A CTRL_OFFSET_D 0
B CTRL_OFFSET_0_3 0
B CTRL_OFFSET_D 0
BT_ON_OFF
RF Mute Time
Tuner Margin
ON
600ms
3
European specications
FRC
FRC FDISPLAY ON/OFF OFF
3D FDISPLAY ON/OFF OFF
PC Mode ON/OFF OFF
FRC VX1 RX EQ SETTING OFF
Page 100
Factory Menu Name Data Range
4-27
4. Troubleshooting
FRC VX1 TX Pre_emphasis setting 0
Netix OSD Threshold 179
TCON
TCON_TEMP READ 34
TEMP LAST 6000
DCC VERSION 0x0
TCON Demura Bypass OFF
TCON FDisplay OFF
Panel Code 1
Panel Code 2
Panel Revision
Panel Menu Week
Panel S/N 1
Panel S/N 2
Panel S/N 3
Panel S/N 4
MPEG Margin
H.264 Margin
CAM Wait Time
Voice Debug
20
15
15
OFF
Power Management
Cert Option
RM_BIST_DTV
RM_BIST_ATV
RM_BIST_CABLE
Waiting
0
0
0
SerDES Check
SerDES Tuner Failure
HDMI SW Failure
HDMI Rx Failure
MP Failure
Main SerDES Failure
Jack SerDES Failure
Stress Mode
Log Analyzer
Error Popup On/Off
DeadLock KILL
CES Option
OFF
ON
OFF
OFF
OFF
Loading...
