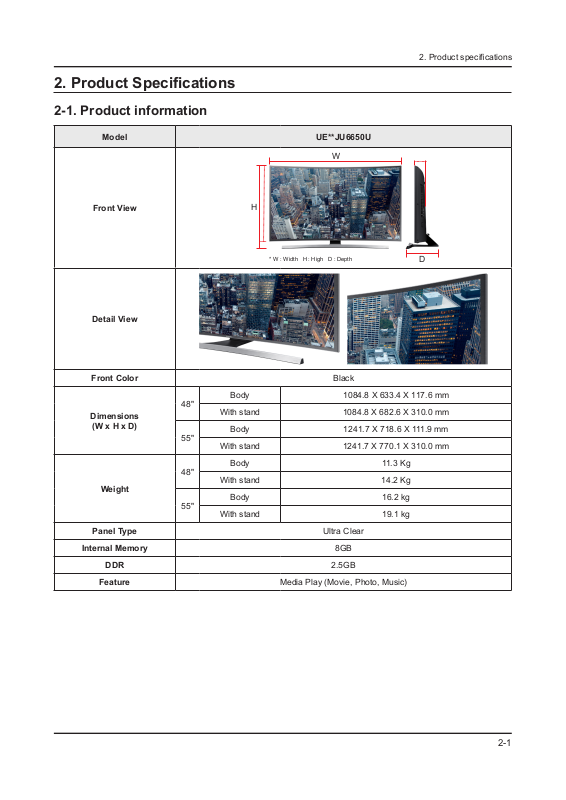

2. Product Specifications
Model |
UE**JU6650U |
W
Front View |
H |
|
|
* W : Width H : High D : Depth |
D |
Detail View
Front Color |
|
|
Black |
|
|
|
|
|
|
|
48" |
Body |
1084.8 X 633.4 X 117.6 mm |
|
|
|
|
||
Dimensions |
With stand |
1084.8 X 682.6 X 310.0 mm |
||
|
||||
|
|
|
||
(W x H x D) |
55" |
Body |
1241.7 X 718.6 X 111.9 mm |
|
|
||||
|
|
|
||
|
With stand |
1241.7 X 770.1 X 310.0 mm |
||
|
|
|||
|
|
|
|
|
|
48" |
Body |
11.3 Kg |
|
|
|
|
||
Weight |
With stand |
14.2 Kg |
||
|
||||
|
|
|
||
55" |
Body |
16.2 kg |
||
|
||||
|
|
|
||
|
With stand |
19.1 kg |
||
|
|
|||
|
|
|
|
|
Panel Type |
|
|
Ultra Clear |
|
|
|
|
|
|
Internal Memory |
|
|
8GB |
|
|
|
|
|
|
DDR |
|
|
2.5GB |
|
|
|
|
|
|
Feature |
|
|
Media Play (Movie, Photo, Music) |
2-1
2. Product specifications
Feature
•UHD TV, RF, 4-HDMI, 1-COMPONENT, 1-A/B(COMMON USE FOR COMPONENTY), 2-USB2.0, 1-USB3.0, HEADPHONE
Specifications
Model |
|
UE**JU6650U |
|
|
|
|
|
|
|
|
|
Item |
|
Description |
|
|
|
|
|
Screen Size (Diagonal) |
48 inches |
|
55 inches |
|
|
|
|
LCD Panel |
|
UHD 60Hz |
|
|
|
||
Scanning Frequency |
Horizontal : 60 kHz ~ 73 kHz (Automatic) |
||
|
Vertical : 47 Hz ~ 63 Hz (Automatic) |
||
|
|
|
|
Display Colors |
|
16.7M color |
|
|
|
|
|
Display Resolution |
|
3840 X 2160 |
|
|
|
||
Input Signal |
Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated |
||
|
|
|
|
Input Sync Signal |
|
H/V Separate, TTL, P. or N. |
|
|
|
|
|
Maximum Pixel Clock Rate |
|
74.25MHz |
|
|
|
|
|
AC Power Voltage & Frequency |
|
AC220-240V 50/60Hz |
|
|
|
||
Environmental Considerations |
Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C) |
||
|
Operating Humidity : 10% ~ 80%, non-condensing |
||
|
Storage Temperature : -4˚F ~ 113˚F (-20˚C ~ 45˚C) |
||
|
Storage Humidity : 5% ~ 95%, non-condensing |
||
|
|
|
|
Sound (Output) |
|
20 W (10 W X 2) |
|
|
|
|
|
Note : Dolby Digital Plus/Pulse, USB2.0/3.0, Film mode, Energy Saving
2-2
2. Product specifications
NOTE
Design and specifications are subject to change without prior notice.
|
Item |
UE**JU6650UXXC |
|
|
|
General Information |
Product |
UHD |
|
|
|
|
Series |
6 |
|
|
|
|
Country |
SPAIN |
|
|
|
Display |
Inch |
48" / 55" |
|
|
|
|
Resolution |
3,840 x 2,160 |
|
|
|
|
Ultra Clear Panel |
Ultra Clear |
|
|
|
Video |
Picture Engine |
UHD Up-Scaling |
|
|
|
|
PQI (Picture Quality Index) |
1200 |
|
|
|
|
Dynamic Contrast Ratio |
Mega Contrast |
|
|
|
|
Micro Dimming |
UHD Dimmng |
|
|
|
|
Precision Black (Local Dimming) |
N/A |
|
|
|
|
Nano Crystal Color |
N/A |
|
|
|
|
Wide Color Enhancer (Plus) |
N/A |
|
|
|
|
PurColor |
Yes |
|
|
|
|
Auto Depth Enhancer |
Yes |
|
|
|
|
Contrast Enhancer |
N/A |
|
|
|
|
Auto Motion Plus |
Yes |
|
|
|
|
Film Mode |
Yes |
|
|
|
|
Natural Mode Support |
Yes |
|
|
|
|
Peak Illuminator |
N/A |
|
|
|
Audio |
Dolby Digital Plus |
Yes |
|
|
|
|
Virtual Surround |
DTS Studio Sound |
|
|
|
|
DTS Codec |
DTS Premium Sound 5.1 |
|
|
|
|
3D Sound |
N/A |
|
|
|
|
Sound Customizer |
N/A |
|
|
|
|
Sound Output (RMS) |
20W(L:10W, R:10W) |
|
|
|
|
Speaker Type |
2CH(Down Firing + Bass Reflex) |
|
|
|
|
Woofer |
N/A |
|
|
|
|
HD Audio |
Yes |
|
|
|
|
Wallmount Sound Mode |
Yes |
|
|
|
|
Multiroom Link |
Yes |
|
|
|
|
TV SoundConnect |
Yes |
|
|
|
Smart TV |
Samsung SMART TV |
Yes |
|
|
|
|
Apps |
Yes |
|
|
|
2-3
2. Product specifications
|
Item |
UE**JU6650UXXC |
|
|
|
Smart TV |
Game |
Yes (15 Countries) |
|
|
|
|
Multi-Link Screen |
Yes |
|
|
|
|
ACR (Advertisement) |
N/A |
|
|
|
|
Info Widget |
N/A |
|
|
|
|
Vertical Enhancement |
Yes |
|
|
|
|
Connected EPG |
yes |
|
|
|
Smart Interaction |
Voice Interaction |
Yes(Spain,Portugal,France,Swiss, |
|
Austria,German) |
|
|
|
|
|
Voice Control |
Yes |
|
|
|
|
Face recognition |
N/A |
|
|
|
|
Motion control |
N/A |
|
|
|
Convergence |
TV to Mobile - Mirroring |
Yes |
|
|
|
|
Mobile to TV - Mirroring, DLNA |
Yes |
|
|
|
|
RVU |
N/A |
|
|
|
|
Samsung SMART View |
Yes |
|
|
|
|
Wireless TV On - Samsung WOL |
Yes |
|
|
|
|
Notification - BLE |
Yes |
|
|
|
|
Briefing On TV |
Yes |
|
|
|
|
WiDi |
N/A |
|
|
|
|
WiFi Direct |
yes |
|
|
|
Tuner/Broadcasting |
Digital Broadcasting |
DVB-T2/C/S2 |
|
|
|
|
2 Tuner |
N/A |
|
|
|
|
CI/CI+/2CI+ |
CI+(1.3) |
|
|
|
|
Analog Tuner |
Yes |
|
|
|
|
MHP / MHEG / HbbTV / ACAP / GINGA / OHTV |
HbbTV 1.5(FR) / HbbTV1.0 |
|
(ES,PT, DE,AT,SZ) |
|
|
|
|
Connectivity |
HDMI |
4 |
|
|
|
|
USB |
3 |
|
|
|
|
Component In (Y/Pb/Pr) |
1 |
|
|
|
|
Composite In (AV) |
1 (Common Use for Component Y) |
|
|
|
|
Ethernet (LAN) |
1 |
|
|
|
|
Headphone |
Yes |
|
|
|
|
Audio Out (Mini Jack) |
N/A |
|
|
|
|
Digital Audio Out (Optical) |
1 |
|
|
|
|
RF In (Terrestrial / Cable input / Satellite input) |
1/1(Common Use for Terrestrial)/1 |
|
|
|
|
Ex-Link ( RS-232C ) |
N/A |
|
|
|
|
IR Out |
N/A |
|
|
|
|
CI Slot |
1 |
|
|
|
|
Scart |
N/A |
|
|
|
2-4
|
|
2. Product specifications |
|
|
|
|
|
|
|
Item |
UE**JU6650UXXC |
|
|
|
Connectivity |
MHL |
Yes |
|
|
|
|
HDMI 3D Auto Setting |
N/A |
|
|
|
|
HDMI A / Return Ch. Support |
Yes |
|
|
|
|
HDMI Quick Switch |
N/A |
|
|
|
|
Wireless LAN Adapter Support |
N/A |
|
|
|
|
Wireless LAN Built-in |
Yes |
|
|
|
|
Anynet+ (HDMI-CEC) |
Yes |
|
|
|
Design |
Design |
Mold Shirring |
|
|
|
|
Bezel Type |
VNB |
|
|
|
|
Slim Type |
Slim |
|
|
|
|
Front Color |
Black |
|
|
|
|
Light Effect (Deco) |
N/A |
|
|
|
|
Stand Type |
Arc T-Shape |
|
|
|
|
Swivel (Left/Right) |
N/A |
|
|
|
Additional Feature |
Samsung 3D |
N/A |
|
|
|
|
3D Converter |
N/A |
|
|
|
|
Camera Built-in |
N/A |
|
|
|
|
Instant On |
Yes |
|
|
|
|
Processor |
Quad-Core |
|
|
|
|
21:9 Immersive Picture Mode |
N/A |
|
|
|
|
SCSA Support |
Yes |
|
|
|
|
Accessibility |
Voice guide(EU 17 countries)/ Enlarge/ |
|
High contrast |
|
|
|
|
|
Digital Clean View |
Yes |
|
|
|
|
One Connect (Jack) |
N/A |
|
|
|
|
Auto Channel Search |
Yes |
|
|
|
|
Auto Power Off |
Yes |
|
|
|
|
BD Wise Plus |
Yes |
|
|
|
|
Caption (Subtitle) |
Yes |
|
|
|
|
Channel List USB-Clone |
Yes |
|
|
|
|
Connect Share™ (HDD) |
Yes |
|
|
|
|
ConnectShare™ (USB 2.0) |
Yes |
|
|
|
|
Sports Mode |
Advanced |
|
|
|
|
Embeded POP |
Yes |
|
|
|
|
EPG |
Yes |
|
|
|
|
Extended PVR |
Yes |
|
|
|
|
Game Mode |
Yes |
|
|
|
|
OSD Language |
27 European Languages |
|
|
|
|
Picture-In-Picture |
Yes |
|
|
|
2-5
2. Product specifications
|
Item |
UE**JU6650UXXC |
|
|
|
Additional Feature |
BT HID Built-in |
Yes |
|
|
|
|
USB HID Support |
Yes |
|
|
|
|
Smart Evolution Support |
N/A |
|
|
|
|
Teletext (TTXT) |
Yes |
|
|
|
|
Time Shift |
Yes |
|
|
|
|
Ultra Clean View |
Yes |
|
|
|
Eco Feature |
Eco Mark |
N/A |
|
|
|
|
Eco Label |
N/A |
|
|
|
|
Eco Sensor |
Yes |
|
|
|
|
Energy Efficiency Class |
A |
|
|
|
Accessory |
3D Active Glasses (Included) |
N/A |
|
|
|
|
Remote Controller Model |
TM1560A, TM1240A |
|
|
|
|
Batteries (for Remote Control) |
Yes |
|
|
|
|
Samsung Smart Touch Control (Included) |
Yes |
|
|
|
|
Ultra Slim Wall Mount Supported |
N/A |
|
|
|
|
Mini Wall Mount Supported |
Yes |
|
|
|
|
Vesa Wall Mount Supported |
Yes |
|
|
|
|
Floor Stand Support |
N/A |
|
|
|
|
TV Camera (Included) |
N/A |
|
|
|
|
IR Extender Cable (Included) |
N/A |
|
|
|
|
Wireless Keyboard (Included) |
N/A |
|
|
|
|
Composite to Scart Gender (Included) |
N/A |
|
|
|
|
User Manual |
Yes |
|
|
|
|
E-Manual |
Yes |
|
|
|
|
ANT-Cable |
N/A |
|
|
|
|
Power Cable |
Yes |
|
|
|
|
Slim Gender Cable |
N/A |
|
|
|
2-6
2. Product specifications
NOTE
•The items’ colors and shapes may vary depending on the model.
•Cables not included in the package contents can be purchased separately.
•The part code for some accessories may differ depending on your region.
Product |
Code. No |
|
Product |
Code. No |
||
• Smart Touch Control & |
BN59-01220D / |
• |
Power Cord |
3903-000950 |
||
Batteries (AA x 2) |
4301-000101 |
|||||
|
|
|
||||
• Remote Control & |
BN59-01175N / |
• |
User Manual |
BN68-07201A |
||
Batteries (AAA x 2) |
4301-000121 |
|||||
|
|
|
||||
Image |
|
|
|
Product |
Code. No |
|
|
• |
CI Card Adapter |
3709-001791 |
|||
|
• |
Holder-Wire Stand |
BN96-36071D |
• Wall Mount Adapter |
BN61-11938A |
2-7
2. Product specifications
The Remote Control
Turns the TV on/off.
Gives direct access to channels.
Displays and selects available video sources.
Returns to the previous channel.
Turns the sound on/off.
Alternately selects Teletext ON, Double Mix or OFF.
Adjusts the volume.
Launches the Channel List.
Displays the menu on the screen.
Changes the current channel.
Launches Smart Hub applications.
Refer to the e-Manual chapter, Smart
Features > Smart Hub.
Displays the Electronic Programme
Guide (EPG).
Quickly selects frequently used functions.
Moves the focus, and changes the values seen on the TV's menu.
Returns to the previous menu or channel.
Use these buttons according to the directions on the TV screen.
Use these buttons with specific features. Use these buttons according to the directions on the TV screen.
Displays information about the current
programme or content.
(Enter): Selects or runs a focused item.
• Press and hold to display the
Guide.
Exits the menu.
REC: Records whatever you are
currently watching.
E-MANUAL: Opens the e-Manual.
AD/SUBT.: Displays the Accessibility
Shortcuts.
: Stops playing content.
2-8
2. Product specifications
2-4. Viewing the Functions
The Samsung Smart Control
: Press this button to mute the sound temporarily.
- AD: Press and hold this button to bring up the Accessibility Shortcuts panel.
MIC: Use the microphone with the Voice Recognition and Voice functions.
: Turns the TV on or off.
SOURCE: Displays and selects the available video sources.
MENU/123: Displays numeric buttons, content control button, and other function buttons on the screen so that you can run a function conveniently.
- Press and hold this button to run the Voice Recognition function.
: Changes the volume.
P
: Changes the channel.
POINTER: Place a finger on the POINTER button and move the Samsung Smart Control. The pointer on the screen moves in the
direction you moved the Samsung Smart Control.
Press the POINTER button to select or run a focused item.
G
G
G
: Moves the focus and changes the values seen on the TV's menu.
(Enter): Press this button to select or run a focused item.
• Press and hold this button to launch the Guide while you are watching the TV.
RETURN: Press this button to return to the previous menu.
• EXIT: Press and hold this button to exit the currently running function on the TV's screen.
: Use these buttons with a specific feature according to the directions on the TV's screen.
EXTRA: Displays related information about the current program.
SMART HUB: Press this button to bring up Smart Hub applications.
2-9
2. Product specifications
Pairing the TV to the Samsung Smart Control
If your Samsung Smart Control is not paired to your TV, press and hold the buttons labeled and
simultaneously for 3 seconds or more to pair the Samsung Smart Control to the TV.
NOTE
The Samsung Smart Control can only be paired to one TV at a time.
Using the SOURCE button to switch between video sources
Press the SOURCE button to switch between external devices connected to the TV. For example, to switch to a game console connected to the second HDMI connector, press the SOURCE button. The Source list appears across the top of the screen. From the Source list, select HDMI2.
NOTE
The connector names may differ with the product chosen.
2-10
2. Product specifications
2-5-1. 15" New UI
SMART HUB START
After Smart HUB setup
<Videos contents> |
<My Apps> |
<Web browser> |
<My contents> |
2-11
2. Product specifications
Using Multi-Link Screen
NOTE
•UHD and FHD contents and channels cannot be viewed simultaneously.
•Launching Smart Hub while using Multi-Link Screen automatically terminates Multi-Link Screen.
•Certain TV features and apps may not be supported by Multi-Link Screen. If this is the case, exit from Multi-Link Screen and than use the feature.
Selecting a Feature
1.Press the Samsung Smart Control's M.SCREEN button while Multi-Link Screen is running. The Options menu appears.
2.Select a feature from the Options menu. This initializes the selected feature.
NOTE
Features supported by Multi-Link Screen very depending on the country.
<TV + Video clip> |
<TV + Web search> |
<TV + App> |
<TV +TV (dual tuner only)> |
Using Multiple Functions in a Single Screen(Multi-Link Screen)
Menu > Picture > Open Multi-Link Screen
This function may not be available depending on the country or region.
This allows you to search the Web, use apps, and much more simultaneously while watching TV.
NOTE
•Before using Multi-Link Screen, make sure the TV is connected to the lnternet. Using Multi-Link Screen requires an lnternet connection.
•Before using Smart Hub with Multi-Link Screen, go to the On TV Settings (Smart Hub > On TV Settings > On TV Setup) and finish configuring Smart Hub.
2-12
2. Product specifications
Enabling the TV to Boot Faster
MENU > System > General > Samsung Instant On
Set Fast Boot on to have the TV boot up faster.
<Cold Boot>
Detachable power
<Instant On>
Remocon on
2-13
2. Product specifications
HDMI UHD 60P MODE
If an external UHD player is connected to the TV, follow these steps to convert the TV's HDMI connector optimized to the UHD signals.
NOTE
Each HDMI connector can be individually optimized for HDMI UHD 60P MODE.
1.Turn off the external UHD player that is connected to the TV.
2.Navigate to Picture > Picture Options > HDMI UHD 60P MODE, and set the UHD-connected HDMI connector to On.
3.When done, turn on the external UHD player.
NOTE
•After setting the HDMI connector to On, It takes some time to complete the conversion.
•HDMI UHD 60P MODE is specific to a UHD source, and does not operate properly for any other source. If you want to play a non-UHD source in HDMI UHD 60P MODE, set the converted HDMI connector to Off.
2-14
|
|
|
|
|
2. Product specifications |
|
|
|
|
|
|
2-7. Supported Formats |
|
|
|||
Supported Image resolution |
|
|
|||
|
|
|
|
|
|
File Extension |
|
Type |
Resolution |
||
|
|
|
|
|
|
|
*.jpg |
|
JPEG |
15360x8640 |
|
|
*.jpeg |
|
|||
|
|
|
|
||
|
|
|
|
|
|
|
*.png |
|
PNG |
4096x4096 |
|
|
|
|
|
|
|
|
*.bmp |
|
BMP |
4096x4096 |
|
|
|
|
|
|
|
|
*.mpo |
|
MPO |
15360x8640 |
|
|
|
|
|
|
|
Supported Music File Formats |
|
|
|||
|
|
|
|
|
|
File Extension |
|
Type |
|
Codec |
Comments |
|
|
|
|
|
|
*.mp3 |
|
MPEG |
|
MPEG1 Audio Layer 3 |
- |
|
|
|
|
|
|
*.m4a |
|
|
|
|
|
*.mpa |
|
MPEG4 |
|
AAC |
- |
*.aac |
|
|
|
|
|
|
|
|
|
|
|
*.flac |
|
FLAC |
|
FLAC |
Supports up to two channels. |
|
|
|
|
|
|
*.ogg |
|
OGG |
|
Vorbis |
Supports up to two channels. |
|
|
|
|
|
|
|
|
|
|
|
WMA 10 Pro supports up to 5.1 channels. |
*.wma |
|
WMA |
|
WMA |
WMA lossless audio is not supported. |
|
|
|
|
|
Supports up to M2 profile. |
|
|
|
|
|
|
*.wav |
|
wav |
|
wav |
- |
|
|
|
|
|
|
*.mid |
|
midi |
|
midi |
Type 0, type 1 and supported. |
*.midi |
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
*.ape |
|
ape |
|
ape |
- |
|
|
|
|
|
|
•Sound or video may not work if they have standard bit rates/frame rates above the TV’s compatibility.
•If the Index Table is wrong, the Seek (Jump) function does not work.
•When playing video over a network connection, the video may not play smoothly because of data
•Some USB/digital camera devices may not be compatible with the player.
2-15
2. Product specifications
Supported Video Code
File |
Container |
Video Codecs |
Resolution |
Frame rate |
Bit rate |
Audio Codec |
|
Formats |
(fps) |
(Mbps) |
|||||
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
H.264 BP/MP/HP |
|
UHD: MAX 30 |
|
|
|
|
|
|
|
|
|
||
|
|
Motion JPEG |
4096x2160 |
FHD: MAX 30 |
60 |
|
|
|
|
HD : MAX 60 |
|
||||
|
|
|
|
|
|
||
|
|
HEVC(H.265) |
|
UHD: 60 |
|
|
|
|
|
|
|
|
|
||
*.avi |
|
|
|
|
|
|
|
|
DivX 3.11/4/5/6 |
|
|
|
|
||
*.mkv |
|
|
|
|
|
||
*.asf |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
*.wmv |
|
MPEG4 SP/ASP |
|
|
|
AC3 |
|
*.mp4 |
AVI |
|
|
|
|
LPCM |
|
|
|
|
|
||||
*.mov |
MKV |
Microsoft MPEG- |
|
|
|
ADPCM |
|
*.3gp |
ASF |
|
|
|
(IMA, MS) |
||
4 v1 , v2 , v3 |
|
|
|
||||
*.vro |
MP4 |
|
|
|
AAC |
||
|
|
|
|
||||
*.mpg |
3GP |
Window Media |
|
|
|
HE-AAC |
|
*.mpeg |
MOV |
|
|
|
WMA |
||
Video v7(WMV1), |
|
|
|
||||
*.ts |
FLV |
|
|
|
Dolby Digital |
||
v8(WMV2) |
|
|
|
||||
*.tp |
VRO |
|
|
|
Plus |
||
|
|
|
30 |
||||
*.trp |
VOB |
|
|
FHD: 30 |
MPEG(MP3) |
||
Window Media |
1920x1080 |
||||||
|
|||||||
*.mov |
PS |
HD : 60 |
|
DTS |
|||
Video v9(VC1) |
|
|
|||||
*.flv |
TS |
|
|
|
(Core, LBR) |
||
|
|
|
|
||||
*.vob |
SVAF |
|
|
|
|
G.711(A-Law, |
|
MPEG2 |
|
|
|
||||
*.svi |
|
|
|
|
μ-Law |
||
*.m2ts |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
*.mts |
|
MPEG1 |
|
|
|
|
|
*.divx |
|
|
|
|
|
|
|
|
VP6 |
|
|
|
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
H.263 Sorrenson |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
MVC |
|
|
60 |
|
|
|
|
|
|
|
|
|
|
*.webm |
WebM |
VP8 |
1920x1080 |
6~30 |
20 |
Vorbis |
|
|
|
|
|
|
|
|
Other Restrictions
NOTE
•Codecs may not function properly if there is a problem with the content data.
•Video content does not play or does not correctly if there is an error in the content or container.
•Sound or video may not work if they have standard bit rates/frame rates above the TV's compatibility.ratings
•If the Index Table is wrong, the Seek(Jump) function does not work.
•When playing video over a network connection, the video may not play smoothly because of datatransmission speeds.
•Some USB/digital camera devices may not be compatible with the player.
2-16

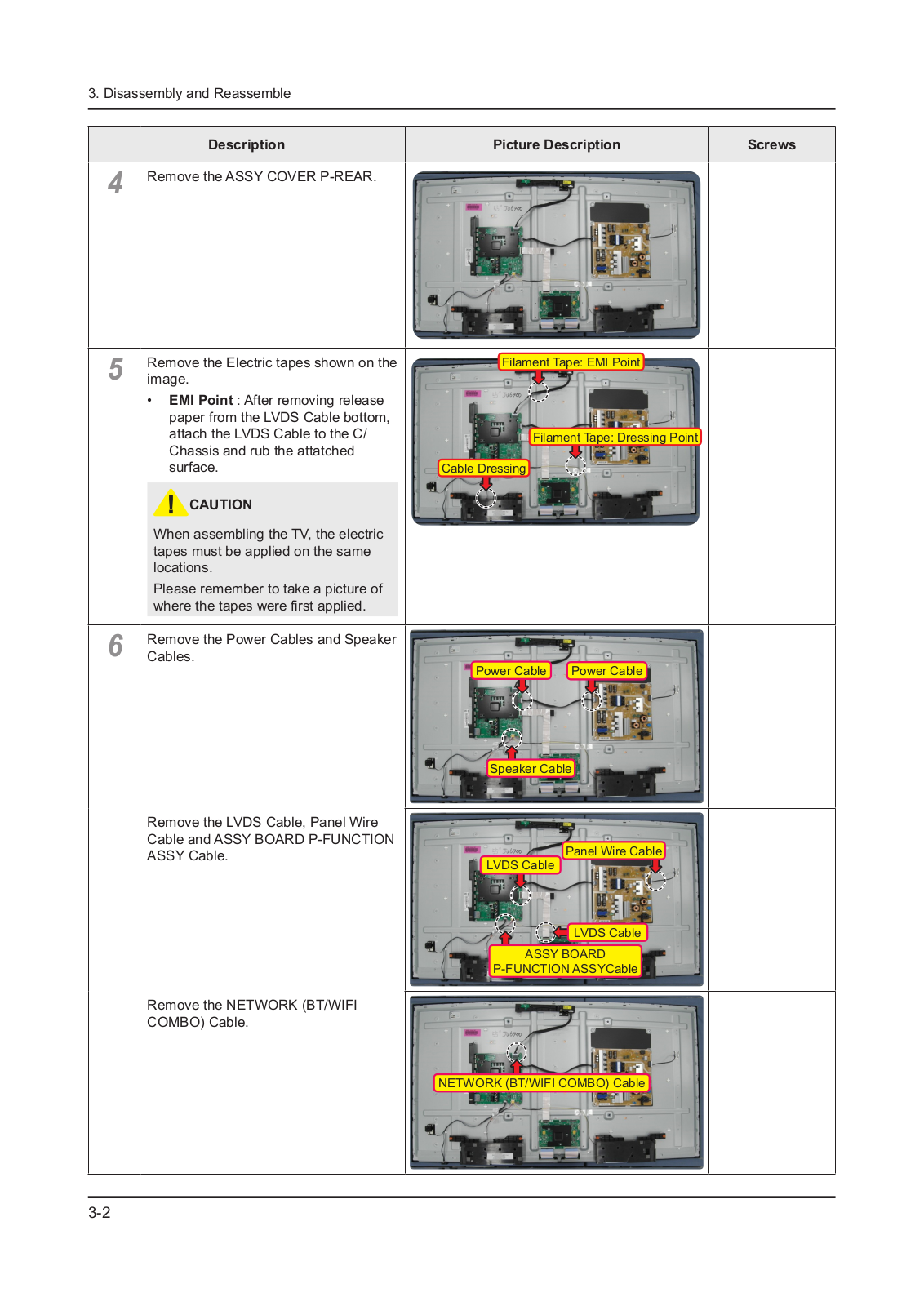

3. Disassembly and Reassemble
This section of the service manual describes the disassembly and reassembly procedures for the LED TV.
This LED TV contains electrostatically sensitive devices. Use caution when handling these components.
WARNING
1.Disconnect the LED TV from the power source before disassembly.
2.Follow these directions carefully; never use metal instruments to pry apart the cabinet.
CAUTION 3. If there is no additional coment, it is same for all inches.
Description |
Picture Description |
Screws |
1 Place TV face down on cushioned table.
Remove 4 screws from the ASSY |
Torque : |
|
2 STAND P-BAS. |
||
7~ 8Kgf.cm. |
|
BN61-09494D |
|
Remove the screws of ASSY COVER |
Torque : |
|
3 P-REAR. |
||
7~ 8Kgf.cm. |
•48" : 15 EA
• 55" : 17 EA
6001-002755
3-1
