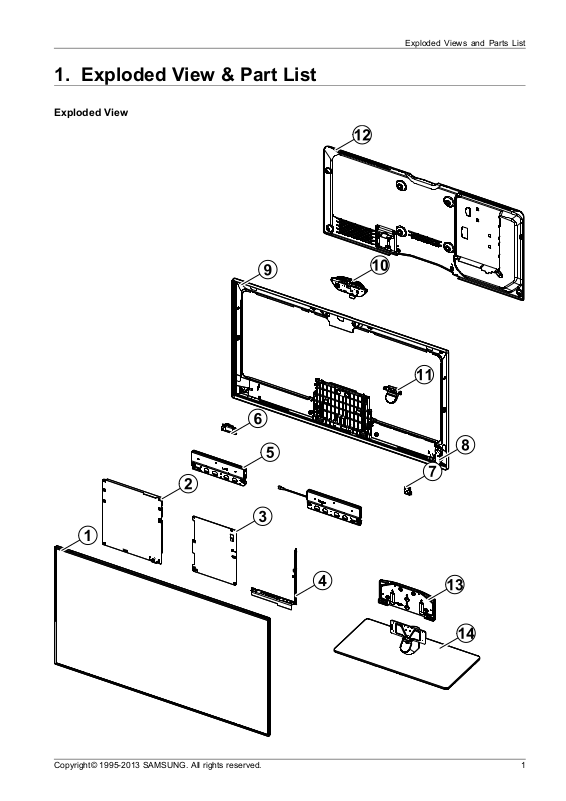

1.ExplodedView&PartList

ExplodedView
ExplodedViewsandPartsList
Copyright©1995-2013SAMSUNG.Allrightsreserved.1
Page 2
Page 3
ExplodedViewsandPartsList
PartsList
No.Lvl.Loc.MaterialCodeDescription&SpecicationSNAQty.
12PANELBN95-00947APRODUCTLCD-AMLCD;
LSF400HL01,CY-SF400DSL
22P001ABN44-00632BDCVSS-LEDTVPDBD;
L46F2P_DDY ,L46F2P_DD
32M0014BN94-06186AASSYPCBMAIN;UF7KSA1
43CB01BN61-08963BBRACKET-A V;UF750046",PCM,T0.4,EOSNA1
52SP01ABN96-16798NASSYSPEAKERP;6ohm,10W,Enclosure_F7kSA1
62NW01BN59-01161ANETWORK;WIDT-30Q,InternalWiFi,USB,IEEE8SA1
72BTBN96-25376AASSYBOARDP-RF-MODULE;Bluetooth
Module,
83BN96-26507BASSYBOARDP-5WAYSWITCHFUNCTION;
UE40F7
92M001ABN96-26366AASSYCOVERP-MIDDLE;UF700040,COPOLY
V2/
102BN96-26579AASSYMISCP-AQUILA-7;AQUILA-7,TV
camera,
113BN96-27137AASSYBLUP-LOGO;
UF7000,M13-FS7000,GRAY&
122R001ABN96-26357HASSYCOVERP-REAR;UF750040,PCMT0.4SA1
132SG01ABN96-26382AASSYGUIDEP-STAND;UF700040,PC+G/F
20%
142SB04ABN96-26380BASSYST ANDP-BASE;UF700040,SQUARE,ALSA1
Copyright©1995-2013SAMSUNG.Allrightsreserved.3
Page 4
ExplodedViewsandPartsList

2.ElectricalPartsList

LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA
UE40F7000SLXZF(TE02)
1R001ABN90-03766AASSYCOVERREAR;PE8000641SNA
.2SCREW6003-001782SCREW-T APTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR2SA
.2R001ABN96-26357HASSYCOVERP-REAR;UF750040,PCMT0.41SA
..3BN63-08178BSHEET -INSULA TORSMPS;UD650040"46"55",PP1SNA
..3R001BN63-10481BCOVER-REAR;UF700040,PCM,T0.4,BKN-P8241SNA
..3BN68-03518ALABEL-STICKER;WW,ALL,70.6,72,LABEL-CI1SNA
..3BN68-04094ALABEL-EVOLUTIONKIT;WW,Echo-P ,-,A/P ,-,71SA
..3BN68-04741HLABEL-TERMINALBOTTOM;UF7000,PET ,T0.05,61SNA
..3BN68-04742CLABEL-TERMINALSIDE;UF7000,PET ,T0.05,19.1SNA
1S001ABN90-04386CASSYST AND;UF7000461SNA
.2SB04ABN96-26380BASSYSTANDP-BASE;UF700040,SQUARE,AL1SA
..3SCREW6003-000133SCREW-TAPTYPE;BH,+,-,S,M4,L8,ZPC(BLK),SW3SA
..3SCREW6003-001806SCREW-TAPTYPE;BH,S,M4,L10,NIPLT,SWRCH186SNA
..3SCREW6003-001807SCREW-TAPTYPE;BH,S,M4,L10,ZPC(BLK),SWRCH4SA
..3BN61-04692ABOSS-PRIMER;#94,SHEET,clear,35cps0SNA
..3BN61-05728ABOSS-TAPE;UB7000,TAPE,T0.4,W10,DARKGRAY1SNA
..3BN61-05728DBOSS-TAPE;UB7000,acryl,T0.4,W18,DARKGRA1SNA
..3BN61-09099ABRACKET-NECK;UF700046",HGI1SNA
..3BN61-09100ABRACKET-NECKSUPPORT;UF700046",EGI-SECC1SNA
..3AH328BN61-09109AHOLDER-NECK;UF700046,HIPS1SNA
...40103-004628RESIN-HIPS;HF-1690H,K2901,BK0020,1.5mmH20SNA
..3BN61-09130ABRACKET-STANDBASE;UF700040",EGI-SECC1SNA
..3BN63-01474FFELT;VENICE20",FELT,T0.35,10,50,NTR2SNA
..3BN63-04755HCOVER-SHEET;52LC530,PE,T0.05,W275mm,200M1SNA
..3BN63-10531ACOVER-NECK-TOP;UF700046,ABS1SNA
..3BN63-10532BCOVER-NECK-BOTTOM;UF700046,ABS+PC1SNA
..3BN63-10594ACOVER-STNADBASE;UF700040,ALCOT ,T0.61SNA
..3BN73-00313ARUBBER-FOOT;UD400019,RUBBER,13*13,T2.0,6SNA
.2SG01ABN96-26382AASSYGUIDEP-STAND;UF700040,PC+G/F20%1SA
..36001-002621SCREW-MACHINE;BH,+,M4,L8,ZPC(BLK),SWRCH14SA
..3SG03BN61-09067AGUIDE-ST AND;UF700046",PC+GF ,G/F20%1SNA
...40103-007285RESIN-PC;MW32020GFU,K032202GFV ,BK0007,V2280SNA
..3BN61-09097ABRACKET-GUIDESTAND;UF700046",HGI,T3.01SNA
..3BN69-08751AWRAPVINYL-SHRINK;STAND,PLASTICOTHERS,P0SNA
..3BN96-18013EASSYACCESSORY -SCREW;6003-001782,4EA,ALL1SNA
...4SCREW6003-001782SCREW -TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR4SA
...4BN69-08203EPACKING-BAG-SCREW;LDPE,0.05,70,90,TRP ,Vi1SNA
4Copyright©1995-2013SAMSUNG.Allrightsreserved.
Page 5
ExplodedViewsandPartsList
LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA
..3BN96-26942AASSYACCESSORY-SCREW;6003-001788,3EA,LE1SNA
...4SCREW6003-001788SCREW -TAPTYPE;BH,+,S,M4,L8,NIPL T ,SWRCH13SNA
...4BN69-08203HPACKING-BAG-SCREW;6003-00133"C"M4L8,LD1SNA
1BN90-04580CASSYW/I;UF7K1SNA
.2BN81-08159ZPARTSET -ELECW/I;UF4*~UF8*ELEC1SNA
.2BN81-08174APARTSET-MECHW/I;UF7W,U40FW*1SNA
1BN90-04638AASSYCOVERMIDDLE;UF7K1SNA
.26001-002755SCREW-MACHINE;BH,+,M3,L6,ZPC(BLK),SWRCH117SA
.2M001ABN96-26366AASSYCOVERP-MIDDLE;UF700040,COPOLYV2/1SA
..30203-001598TAPE-FILAMENT;#8915,0.15,12,55000,CLR0SNA
..3SCREW6003-000115SCREW-TAPTYPE;BH,+,B,M3,L6,ZPC(BLK),SWRC4SNA
..3BN63-07229LCOVER-SHEET;rose70",PET+SILICONE,T0.052,3SNA
..3BN63-08608BCOVER-SHEET;Rhcm,PEVinyl,T0.04,80MM,203SNA
..3R002ABN63-10541ACOVER-MIDDLE;UF700040,COPOL YV2/NHPC+A1SNA
...40103-007678RESIN-PCABS;CF210M,6209G,BK0007,V0(1.5825SNA
...40103-009551RESIN-COPOLYESTER;W100/TR100,TP0010,V2400SNA
...4BN63-10879ACOVER-HOT-STAMPING(FOIL);UF7000,UF7500,2846SNA
...4BN68-00513DLABEL-RESIN;resin,-,artpaper,-,10,25,-,1SNA
..3BN63-11152ACOVER-SHEET;UF700040,Polyethylene,T0.01SNA
..3BN63-11152BCOVER-SHEET;UF700040,Polyethylene,T0.01SNA
..3BN63-11152CCOVER-SHEET;UF700040,Polyethylene,T0.01SNA
..3BN63-11152DCOVER-SHEET;UF700040,Polyethylene,T0.01SNA
..3BN63-11152ECOVER-SHEET;UF700040,Polyethylene,T0.01SNA
..3BN63-11152JCOVER-SHEET;UF700040,Polyethylene,T0.01SNA
..3T0527BN68-00513ALABEL-E,P ASS;ALLMODEL,YUPO(110G),50X15,1SNA
..3BN74-00052ATAPE-PAPER;LB550,CrepePaper,0.18mm,10m0SNA
..3BN96-26507BASSYBOARDP-5WAYSWITCHFUNCTION;UE40F71SA
..3BN96-27137AASSYBLUP-LOGO;UF7000,M13-FS7000,GRA Y&1SA
1BN91-08773JASSYSHIELD;PF450511SNA
.2BN02-00102BT APEFILAMENT;UE7000,#893,0.15,25,50,WHI0SNA
.2EC13BN39-01773GLEADCONNECTOR;UN40F7500,LeadConnector,1SA
.2NW01BN59-01161ANETWORK;WIDT-30Q,InternalWiFi,USB,IEEE81SA
.2SP01ABN96-16798NASSYSPEAKERP;6ohm,10W,Enclosure_F7k1SA
.2FL06BN96-23839WASSYCABLEP-FFC;UE40F7000,FFC,2H,305mm,1SA
.2BTBN96-25376AASSYBOARDP-RF-MODULE;BluetoothModule,1SA
..3BN81-08545AA/S-BT;BluetoothModuleSCREW1SNA
..3BN97-07275AASSYMICOM-BLUETOOTHF/W;BN81-08385A1SNA
...4BN81-08385AAS-BLUETOOTHF/W;BLUETOOTHF/W1SNA
.2BN96-26579AASSYMISCP-AQUILA-7;AQUILA-7,TVcamera,1SA
..3BN97-07305AASSYMICOM-CAMERA/MIC;MICV esion:2.80.1SNA
Copyright©1995-2013SAMSUNG.Allrightsreserved.5
Page 6
ExplodedViewsandPartsList
LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA
...4BN81-08423AAS-MICF/W;MICF/W1SNA
..3BN97-07306AASSYMICOM-CAMERAF/W;CameraV ersion:11SNA
...4BN81-08422AAS-CAMERAF/W;CAMERAF/W1SNA
.2FL06BN96-26671SASSYCABLEP-FFC;UE40F7000STXXU,FFC,NH,21SA
1M0017BN91-10335AASSYCHASSIS;UF7K1SNA
.2M0014BN94-06186AASSYPCBMAIN;UF7K1SA
..3CB01BN61-08963BBRACKET -A V;UF750046",PCM,T0.4,EO1SNA
..3HDP01BN61-09541AHOLDER-PCB;UF7500,NYLON66,BLK,V02SNA
..3BN62-00365AHEATSINK-PS;UN46ESF8000AF ,A1050,ANODIZI2SNA
..3BN62-00413AHEATSINK-PS;60F8000,A5052*,ANODIZING,121SNA
..3BN97-07052AASSYSMD;UF7K,UF70001SNA
...40202-001899SOLDER-CREAM;M705-GRN360-K2-VT,25-36um,S0SNA
...4DS01A0401-001056DIODE-SWITCHING;MMBD4148SE,100V ,200mA,SO6SA
...4DS01A0401-001283DIODE-SWITCHING;BA V70S_SG,100V ,250mA,SOT2SA
...4DR01A0402-001614DIODE-RECTIFIER;S1G,400V ,1A,DO-214AC,TP2SA
...40404-001404DIODE-SCHOTTKY;BA T721C,40V ,200mA,SOT -23,4SA
...40404-001787DIODE-SCHOTTKY;SS3P4,40V ,3000mA,DO-220AA4SA
...40406-001200DIODE-TVS;RCLAMP0504F,6/-/-V ,150W ,SC-705SA
...40406-001290DIODE-TVS;3.0SMCJ20A,22.2/-/24.5V ,3000W ,2SNA
...40501-000279TR-SMALLSIGNAL;KSA1182-Y,PNP ,150mW ,SOT -2SA
...40501-000445TR-SMALLSIGNAL;KTC3875S-Y ,NPN,150mW,SOT6SC
...40504-000126TR-DIGITAL;KSR1101,NPN,200mW ,4.7K/4.7Koh2SA
...40505-000110FET-SILICON;2N7002,N,60V ,115mA,7.5ohm,0.2SA
...40505-002598FET-SILICON;AP2317GN,P ,-20V ,-4.2A,0.052o1SA
...40801-002701IC-CMOSLOGIC;74VHCT125A,BUFFER,TSSOP ,141SA
...40801-003330IC-CMOSLOGIC;Octalbuffer,DQFN,20P ,4.5x4SA
...40801-003424IC-CMOSLOGIC;74VHCV541,Octalschmittbu1SA
...40904-002631IC-USC;QFN,28P ,5.0mmX5.0mm,12MHz,TP,PL1SA
...40904-002803IC-USC;AU6258S-JKF,QFN,28Z30,5.0mmX5.01SNA
...41001-001545IC-ANALOGMUL TIPLEX;TS3USB221ERSER,R-PQF2SA
...41001-001686IC-ANALOGMUL TIPLEX;74L V4052,CMOS,TTSOP ,1SA
...41001-001823IC-VIDEOSWITCH;SiI9687ACNUTR,QFN,76P ,9X1SNA
...41103-001564IC-EEPROM;S-24C512CI-J800,512Kbit,64Kx8,1SA
...41105-002227IC-DDR3SDRAM;K4B1G1646G-BCK0,DDR3SDRAM2SA
...41105-002371IC-DDR3SDRAM;K4B4G1646B-HCK0,DDR31600,1SA
...41105-002393IC-DDR3SDRAM;K4B8G1646B-MCK0,DDR31600,1SNA
...41201-003183IC-AUDIOAMP;DR V612,HTSSOP ,14P ,5x4.4mm,D1SA
...41201-003528IC-AUDIOAMP;NTP7412S2,MLF ,48Z30,7x7mm,D1SNA
...41203-006109IC-POSI.FIXEDREG.;S-1206B33-M3T1G,SOT -21SA
...41203-006130IC-POSI.FIXEDREG.;S-1172B25-U5T1G,SOT-81SA
6Copyright©1995-2013SAMSUNG.Allrightsreserved.
Page 7
ExplodedViewsandPartsList
LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA
...41203-006135IC-POSI.FIXEDREG.;AP1117D-33-GZ-13-89,T1SA
...41203-006136IC-POSI.FIXEDREG.;AP1117D-18-GZ-13-89,T2SA
...41203-007238IC-PWMCONTROLLER;TPS54427,DDA,8P ,4.8x3.1SNA
...41203-007242IC-POSI.ADJUSTREG.;G2992BP11U,SOP-8,8P,1SA
...41203-007502IC-DC/DCCONVERTER;AOZ3011PI,SO-8,8Z30,45SA
...41203-007547IC-DC/DCCONVERTER;SN1202033DAPR,HTSSOP ,1SA
...41203-007552IC-DC/DCCONVERTER;TPS56921PWPR,HTSSOP ,21SA
...41203-007697IC-DC/DCCONVERTER;LNBH26SPQR,QFN,24Z30,1SNA
...41203-007706IC-DC/DCCONVERTER;TPS62060DSGR,WSON,8Z31SNA
...41203-007728IC-VOL.DETECTOR;R T9831GQW ,QW:WQFN-20L1SA
...41203-007757IC-POSI.ADJUSTREG.;TPS7A7001DDAR,SOIC-81SA
...41204-003401IC-VIDEOPROCESS;SDP1201,FBGA,756Z30,27x1SA
...41204-003402IC-DECODER;SDP1202,FCBGA,784Z30,27x27mm,1SA
...41205-003231IC-BUFFER;DS90LV804,LLP ,32P ,5x5mm,PLASTI3SA
...41205-004155IC-SWITCH;AOZ1360AIL,SO-8,8P ,4.9X3.9mm,P2SA
...41205-004385IC-ETHERNETCONTROLLER;RTL8201F-VB-CGT,Q1SA
...41205-004447IC-SWITCH;TPS2051CDBVR,SOT23-5,5P ,3x1.652SA
...41205-004692IC-SWITCH;TPS2069CDBVR,SOT-23,8Z30,5.0x32SNA
...41205-004703IC-ETHERNETCONTROLLER;TS3L4892RHHR,VQFN1SA
...41205-004704IC-SWITCH;AP2151W-7,SOT25,5Z30,3.1*3.0mm2SA
...4IS011209-002183IC-SENSOR;S-5851AAA-M6T1U,SOT,6Z30,2.9x11SA
...41301-002110IC-CPLD;EPM240M100C4N,100Z30,6x6mm,3.3V ,1SNA
...41405-001271V ARISTOR;35V ,20Vdc,5A,1.0x0.5x0.6mm,TP ,16SA
...42007-000070R-CHIP;0ohm,5%,1/10W,TP ,16081SA
...42007-000143R-CHIP;4.7Kohm,5%,1/16W,TP ,100567SNA
...42007-000153R-CHIP;22Kohm,5%,1/16W,TP ,10054SNA
...42007-000170R-CHIP;1Mohm,5%,1/16W,TP ,10055SNA
...42007-000171R-CHIP;0ohm,5%,1/16W,TP ,100586SNA
...42007-000172R-CHIP;10ohm,5%,1/16W,TP ,10057SNA
...42007-000173R-CHIP;22ohm,5%,1/16W,TP ,100533SNA
...42007-000174R-CHIP;47ohm,5%,1/16W,TP ,100526SNA
...42007-000208R-CHIP;1.1Kohm,1%,1/10W,TP ,16081SA
...42007-000336R-CHIP;120Kohm,1%,1/10W,TP ,16081SA
...42007-000669R-CHIP;2Kohm,1%,1/10W,TP ,16081SNA
...42007-000683R-CHIP;3.3Kohm,1%,1/10W,TP ,16082SA
...42007-000695R-CHIP;3.3ohm,5%,1/10W,TP ,16086SNA
...42007-000726R-CHIP;300ohm,1%,1/10W,TP ,16081SA
...42007-000772R-CHIP;33Kohm,1%,1/10W,TP ,16084SA
...42007-000857R-CHIP;4.3Kohm,1%,1/10W,TP ,16084SNA
...42007-000869R-CHIP;4.7Kohm,1%,1/10W,TP ,16085SA
Copyright©1995-2013SAMSUNG.Allrightsreserved.7
Page 8
ExplodedViewsandPartsList
LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA
...42007-000932R-CHIP;470ohm,5%,1/16W,TP ,10051SNA
...42007-001116R-CHIP;680ohm,1%,1/10W,TP,16082SA
...42007-001168R-CHIP;75ohm,5%,1/4W,TP ,32162SA
...42007-001298R-CHIP;51ohm,5%,1/16W,TP ,10052SNA
...42007-001313R-CHIP;330ohm,5%,1/16W,TP ,10051SNA
...42007-001335R-CHIP;36Kohm,5%,1/16W,TP ,10051SA
...42007-003015R-CHIP;2.2ohm,5%,1/16W,TP ,10051SNA
...42007-007095R-CHIP;390ohm,5%,1/16W,TP ,10051SA
...42007-007107R-CHIP;100Kohm,1%,1/16W,TP ,100520SNA
...42007-007132R-CHIP;15Kohm,1%,1/16W,TP ,10053SA
...42007-007134R-CHIP;39Kohm,1%,1/16W,TP ,10053SA
...42007-007135R-CHIP;18Kohm,1%,1/16W,TP ,10051SNA
...42007-007137R-CHIP;1.2Kohm,1%,1/16W,TP ,10052SA
...42007-007138R-CHIP;27Kohm,1%,1/16W,TP ,10052SNA
...42007-007139R-CHIP;47Kohm,1%,1/16W,TP ,100516SA
...42007-007142R-CHIP;10Kohm,1%,1/16W,TP ,100535SNA
...42007-007156R-CHIP;1ohm,5%,1/16W,TP ,100514SNA
...42007-007238R-CHIP;8.25Kohm,1%,1/10W,TP ,16081SA
...42007-007306R-CHIP;100ohm,1%,1/16W,TP ,100523SNA
...42007-007312R-CHIP;20Kohm,1%,1/16W,TP ,10053SA
...42007-007313R-CHIP;6.8Kohm,1%,1/16W,TP ,10052SA
...42007-007314R-CHIP;5.6Kohm,1%,1/16W,TP ,10051SA
...42007-007315R-CHIP;3.9Kohm,1%,1/16W,TP ,10052SNA
...42007-007317R-CHIP;2.2Kohm,1%,1/16W,TP ,10051SA
...42007-007318R-CHIP;1Kohm,1%,1/16W,TP ,100529SNA
...42007-007470R-CHIP;7.5Kohm,1%,1/16W,TP ,10052SNA
...42007-007517R-CHIP;240ohm,1%,1/16W,TP ,100511SNA
...42007-007617R-CHIP;2.49Kohm,1%,1/10W,TP ,16081SA
...42007-007651R-CHIP;9.1Kohm,1%,1/10W,TP ,16081SA
...42007-007671R-CHIP;11Kohm,1%,1/16W ,TP ,10051SA
...42007-007698R-CHIP;5.1Kohm,1%,1/16W,TP ,10058SNA
...42007-007720R-CHIP;300Kohm,1%,1/10W,TP ,16081SA
...42007-007766R-CHIP;2Kohm,1%,1/16W,TP ,100526SNA
...42007-007767R-CHIP;200ohm,1%,1/16W,TP ,10054SA
...42007-007981R-CHIP;180Kohm,1%,1/16W,TP ,10051SNA
...42007-007992R-CHIP;1ohm,1%,1/10W,TP ,16085SA
...42007-008015R-CHIP;75ohm,1%,1/16W,TP ,100518SNA
...42007-008117R-CHIP;2.7Kohm,1%,1/16W,TP ,10051SA
...42007-008133R-CHIP;56.2Kohm,1%,1/10W,TP ,16081SA
...42007-008137R-CHIP;24Kohm,1%,1/16W,TP ,10052SNA
8Copyright©1995-2013SAMSUNG.Allrightsreserved.
Page 9
ExplodedViewsandPartsList
LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA
...42007-008213R-CHIP;4.3Kohm,1%,1/16W,TP ,10051SNA
...42007-008275R-CHIP;30Kohm,1%,1/16W,TP ,10052SNA
...42007-008294R-CHIP;33ohm,1%,1/16W,TP ,10058SA
...42007-008332R-CHIP;11.5Kohm,1%,1/16W ,TP ,10052SA
...42007-008391R-CHIP;6.34Kohm,1%,1/16W,TP ,10051SA
...42007-008426R-CHIP;12.4Kohm,1%,1/10W,TP ,16081SA
...42007-008593R-CHIP;750ohm,1%,1/16W,TP ,10051SA
...42007-008779R-CHIP;0ohm,1%,1/16W,TP ,100512SA
...42007-008807R-CHIP;53.6Kohm,1%,1/16W,TP ,10051SA
...42007-009853R-CHIP;1.6Kohm,1%,1/16W,TP ,10052SNA
...42011-001261R-NETWORK;33ohm,5%,1/16W,L,CHIP ,8P ,TP ,2.6SA
...42011-001262R-NETWORK;22ohm,5%,1/16W,L,CHIP ,8P ,TP ,2.2SA
...42011-001344R-NETWORK;100ohm,5%,1/16W,L,CHIP ,8P ,TP ,24SA
...42011-001345R-NETWORK;10Kohm,5%,1/16W,L,CHIP ,8P ,TP ,21SA
...42011-001396R-NETWORK;4.7Kohm,5%,1/16W,L,CHIP ,8P ,TP ,1SA
...42011-001402R-NETWORK;56ohm,5%,1/16W,L,CHIP ,8P ,TP ,2.4SA
...42011-001449R-NETWORK;22ohm,5%,1/16W,L,4P ,TP ,101019SA
...42011-001497R-NETWORK;470ohm,5%,1/16W,L,CHIP ,4P ,TP ,14SNA
...42011-001506R-NETWORK;10Kohm,5%,1/16W,L,CHIP ,4P ,TP ,15SNA
...42011-001527R-NETWORK;4.7Kohm,5%,1/16W,L,CHIP ,4P ,TP ,7SNA
...42011-001585R-NETWORK;47ohm,5%,1/16W,L,CHIP-V ,4P ,TP ,1SNA
...42011-001587R-NETWORK;100ohm,5%,1/16W,L,CHIP-V ,4P ,TP6SNA
...42011-001590R-NETWORK;47Kohm,5%,1/16W,L,CHIP-V ,4P ,TP1SNA
...4AD4802203-000233C-CER,CHIP;0.1nF ,5%,50V ,C0G,TP,10059SA
...4AD4802203-000278C-CER,CHIP;0.01nF ,0.5pF ,50V ,C0G,TP,10056SA
...4AD4802203-000330C-CER,CHIP;0.012nF ,5%,50V ,C0G,TP,10053SA
...4AD4802203-000386C-CER,CHIP;0.015nF ,5%,50V ,C0G,TP,10057SA
...4AD4802203-000425C-CER,CHIP;0.018nF ,5%,50V ,C0G,TP,10055SA
...4AD4802203-000438C-CER,CHIP;1nF ,10%,50V ,X7R,TP,10058SA
...4AD4802203-000489C-CER,CHIP;2.2nF ,10%,50V ,X7R,TP,10056SA
...4AD4802203-000530C-CER,CHIP;2.7nF ,10%,50V ,X7R,TP,1005,-2SNA
...4AD4802203-000585C-CER,CHIP;0.22nF ,10%,50V ,X7R,TP,10054SA
...4AD4802203-000714C-CER,CHIP;3.3nF ,10%,50V ,X7R,TP,10057SA
...4AD4802203-000812C-CER,CHIP;0.033nF ,5%,50V ,C0G,TP,100510SA
...4AD4802203-000995C-CER,CHIP;0.047nF ,5%,50V ,C0G,TP,10055SA
...4AD4802203-001554C-CER,CHIP;1.8nF ,10%,50V ,X7R,TP,16087SA
...4AD4802203-001634C-CER,CHIP;33nF ,10%,50V ,X7R,TP,16083SNA
...4AD4802203-002050C-CER,CHIP;47nF ,10%,50V ,X7R,TP,16085SA
...4AD4802203-002285C-CER,CHIP;10nF ,10%,50V ,X7R,TP,100519SNA
...4AD4802203-002982C-CER,CHIP;6.8nF ,10%,50V ,X7R,TP,10051SA
Copyright©1995-2013SAMSUNG.Allrightsreserved.9
Page 10
ExplodedViewsandPartsList
LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA
...4AD4802203-005083C-CER,CHIP;220nF ,10%,50V ,X7R,TP,1608,0.86SA
...4AD4802203-005344C-CER,CHIP;22nF ,10%,25V ,X7R,TP,1005,0.5T13SNA
...4AD4802203-005642C-CER,CHIP;0.22nF ,5%,50V ,NP0,TP,10051SNA
...4AD4802203-006088C-CER,CHIP;330nF ,10%,10V ,X7R,TP,16082SA
...4AD4802203-006126C-CER,CHIP;47nF ,10%,16V ,X7R,TP,10054SNA
...4AD4802203-006158C-CER,CHIP;100nF ,10%,16V ,X7R,TP,1005,0.5332SNA
...4AD4802203-006324C-CER,CHIP;2200nF ,10%,10V ,X5R,TP,16082SA
...4AD4802203-006348C-CER,CHIP;1000nF ,10%,25V ,X5R,TP,1608,0.3SA
...4AD4802203-006562C-CER,CHIP;1000nF ,10%,10V ,X5R,TP,100539SNA
...4AD4802203-006741C-CER,CHIP;470nF ,10%,25V ,X5R,TP,1608,0.81SNA
...4AD4802203-006824C-CER,CHIP;4700nF ,10%,10V ,X5R,TP,1608,-20SNA
...4AD4802203-006992C-CER,CHIP;0.33nF ,5%,50V ,C0G,TP,10052SNA
...4AD4802203-007176C-CER,CHIP;10000nF ,10%,16V ,X5R,TP,2012,14SNA
...4AD4802203-007240C-CER,CHIP;22000nF ,20%,6.3V ,X5R,TP,1608,32SA
...4AD4802203-007269C-CER,CHIP;22000nF ,20%,10V ,X5R,TP,2012,012SNA
...4AD4802203-007401C-CER,CHIP;10000nF ,10%,50V ,X5R,TP,32254SA
...4AD4802203-007513C-CER,CHIP;10000nF ,10%,10V ,X5R,TP,1608,0128SA
...4AD4802203-007544C-CER,CHIP;100nF ,10%,50V ,X7R,TP,100594SA
...4AD4802203-008096C-CER,CHIP;2200nF ,10%,50V ,X5R,TP,2012,1.2SA
...42409-001118C-POLYMER,CHIP;47uF,20%,10V ,WT ,TP ,3.5X28SA
...42703-000158INDUCTOR-SMD;1uH,10%,2012,.4Ohm,50mA,45,3SA
...42703-000408INDUCTOR-SMD;3.3uH,20%,3225,.28ohm,500mA2SA
...42703-001229INDUCTOR-SMD;2.2uH,10%,1608,1.15Ohm,15mA1SC
...42703-001938INDUCTOR-SMD;56nH,5%,1005,1.5Ohm,200mA,13SA
...42703-003135INDUCTOR-SMD;4.7uH,20%,6965,0.04ohm,55002SNA
...42703-003263INDUCTOR-SMD;3.3uH,20%,10.0x10.0mm,0.0111SNA
...42703-003713INDUCTOR-SMD;1.5uH,20%,7366,0.015ohm,7004SA
...42703-003718INDUCTOR-SMD;2.2uH,20%,3.8x3.8x2.0mm1SA
...42703-003719INDUCTOR-SMD;6.8uH,20%,10x11x3.8mm,.026o2SA
...42703-003930INDUCTOR-SMD;4.7uH,20%,5050,0.072Ohm,2454SA
...42703-003937INDUCTOR-SMD;1uH,20%,7.0x6.47x3.0mm,0.001SA
...42703-004145INDUCTOR-SMD;2.2uH,20%,6.5x6.9mm,0.20o1SNA
...42801-000102CRYST AL-SMD;12MHz,30ppm,12pF ,100ohm,TP1SA
...42801-003856CRYST AL-SMD;0.032768MHz,20ppm,28-ACP ,7pF1SNA
...42801-003948CRYST AL-SMD;12MHz,30ppm,28-AAN,12pF ,60oh1SA
...42801-004021CRYST AL-SMD;24.576MHz,20ppm,28-AAN,12pF ,1SA
...42801-004734CRYST AL-SMD;25.000000MHz,20ppm,28-AAN,121SA
...42801-004774CRYST AL-SMD;24MHz,30ppm,14pF ,30ohm,TP2SA
...42801-004775CRYST AL-SMD;12MHz,30ppm,16pF ,30ohm,TP1SNA
...42806-001308OSCILLA TOR-VCXO;27MHZ,-,30PF ,TP ,3.3V ,50M1SA
10Copyright©1995-2013SAMSUNG.Allrightsreserved.
Page 11
ExplodedViewsandPartsList
LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA
...43301-000314BEAD-SMD;120ohm,1608,TP ,120ohm/100MHz5SNA
...43301-001560BEAD-SMD;80ohm,1.6X0.8X0.8mm,TP ,85ohm/102SNA
...43301-001727BEAD-SMD;120ohm,1005,TP ,100MHz,-3SA
...43301-002039BEAD-SMD;26ohm,1608,TP78SA
...43601-001374FUSE-SURFACEMOUNT;32V,5A,FAST-ACTING,PL2SA
...43701-001861CONNECTOR-HDMI;19P ,2ROW ,FEMALE,SMD-A,AU4SA
...43707-001104CONNECTOR-OPTICAL;SMD-A(UltraSlim),SPDI1SA
...43708-003140CONNECTOR-FPC/FFC/PIC;20P ,0.5mm,SMD-A+DI1SA
...43710-002276SOCKET-INTERFACE;24P,1R,0.5mm,SMD-A,AU,B1SC
...43710-003374CONNECTOR-SOCKET;64P,2R,0.5mm,ANGLE,NI+S1SA
...43710-003839CONNECTOR-SOCKET;92P,2R,0.5mm,ANGLE,AU/N1SA
...4EH013711-005925HEADER-BOARDTOCABLE;BOX,51P ,1R,0.5mm,S1SA
...4EH013711-008131HEADER-BOARDTOCABLE;BOX,4P ,1R,2.5mm,AN1SA
...4EH013711-008441HEADER-BOARDTOCABLE;BOX,24P ,2R,2mm,ANG1SA
...4EH013711-008445HEADER-BOARDTOCABLE;BOX,26P ,2R,1.25mm,1SA
...43722-003151JACK-PIN;5P(ULTRASLIM),NI,BLK,ANGLE(SSR1SA
...43722-003199JACK-MODULAR;8P/8C,ANGLE,AU,1P1SA
...43722-003457JACK-USB;4P/1C,NI,BLK,A3SA
...43722-003657JACK-PHONE;1P/7C,P-BRONZE,BLK,ANGLE3SA
...4ET01BN40-00266ATUNER;DNST243IH145A,DNST243IH145A,DVB-TC1SA
...4BN41-01973APCBMAIN-PCBMAIN;F7000/7500W orldWide,1SNA
...4BN97-07130AASSYMICOM;T-FOXDEUS2-1002,2013.03.041SNA
....50903-001863IC-MICROCONTROLLER;WT61P807-RG48,LQFP ,481SNA
...4BN97-07159AASSYMICOM;T -FXPDEUC-XXXX,U90A,2012.12.01SNA
....51107-002077IC-NANDFLASH;KLM4G1FE3B-B001,4Gbyte,32G1SNA
...4BN97-07387AASSYMICOM-BLASTER;Blaster-V ersion:3.03,1SNA
....5BN13-00063APLD;MAXQ610J,QFN,441SNA
..3BN97-07160AASSYDRM-KEYCODE-ASS`Y ;U90A1SNA
...4BN46-00109HKEYCODE-CERTIFI;MAC,TV/A V ,General1SNA
...4BN46-00110NKEYCODE-CERTIFI;MIRACAST,TV ,X12/X131SNA
...4BN46-00334AKEYCODE-CERTIFI;CI+,TV,FOX,Euro1SNA
1BN91-10634AASSYLCM-AMLCD;BN95-00947A,CY -SF400DSL V21SNA
.26001-003016SCREW-MACHINE;PWH,+,M3.0,L5.0,ZPC(WHT),S5SA
.2P001ABN44-00632BDCVSS-LEDTVPDBD;L46F2P_DDY ,L46F2P_DD1SA
.2PANELBN95-00947APRODUCTLCD-AMLCD;LSF400HL01,CY -SF400DSL1SA
..36001-002685SCREW-MACHINE;CH,+,M3,L2,Cr3+Red,SWRCH20SNA
..36001-002757SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH19SA
..3BN02-00102BT APEFILAMENT;UE7000,#893,0.15,25,50,WHI0SNA
..3BN02-00145ATAPEPET-MASKKING;#8170,PET,0.1,25,BLK,Y3SNA
..3BN63-09331APROTECTOR-TAPE;TAPE,3M2307,-,15X50X0.14T0SNA
Copyright©1995-2013SAMSUNG.Allrightsreserved.11
Page 12
ExplodedViewsandPartsList
LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA
..3BN68-02471ALABEL-STICKER;WW,ArtPaper,80,40,A V1SNA
..3BN90-04446AASSYMISC-BLU;SNB,8K1SNA
...46001-002759SCREW-MACHINE;CH,+,M3,L4,ZPC(BLK),SWRCH16SA
...4BN02-00102BT APEFILAMENT;UE7000,#893,0.15,25,50,WHI0SNA
...4BN02-00191ATAPEETC-SHEETFIXING;Y13SNB,3M1360C,03SNA
...4BN61-07382AHOLDER-SHEET;SNB40/46/55,SUS416,0.2,32,5SNA
...4BN61-09046ALGP-LED;40"SNB,Lenticular,PMMA,886.6x1SNA
...4BN63-10439ASHEET-DIFFUSER;CH273M,SHEET*,0.22,886.4,1SNA
...4BN63-10440ASHEET-PRISM;MAS670F,SHEET*,0.3,886.2,5001SNA
...4BN63-10441ASHEET-DBEF;DBEFD2400,SHEET*,0.4,886.2,1SNA
...4BN63-10442ASHEET-REFLECTOR;SRG980C,SHEET*,0.31,885.1SNA
...4BN96-25406AASSYFRAMEP-MOLDMIDDLEU;Y13SNB8K401SNA
....5BN61-08757AFRAME-MOLDMIDDLEU;SNB40,PC+GF,WHT ,7.01SNA
...4BN96-25407AASSYFRAMEP-MOLDMIDDLED;Y13SNB8K401SNA
....5BN02-00046ATAPEDOUBLEFACE-MIDDLE;SNB55",SK2100HE1SNA
....5BN60-00674ASPACER-PANELUDA;SNB40",SSP400.2TBL2SNA
....5BN60-00675ASPACER-PANELUDB;SNB40",SSP400.2TBL2SNA
....5BN60-00683ASPACER-LGPUD;SNB40",SI(SH0140U)0.4T+A T2SNA
....5BN61-08759AFRAME-MOLDMIDDLED;SNB40,PC+GF,WHT ,7.01SNA
...4BN96-25408AASSYFRAMEP-MOLDMIDDLELR;Y13SNB8K42SNA
....5BN60-00676ASPACER-PANELLR;SNB40",SSP400.2TBLK2SNA
....5BN60-00684ASPACER-LGPLR;SNB40",SB00.188T+MKT -Z1002SNA
....5BN61-08758AFRAME-MOLDMIDDLELR;SNB40,PC+GF,WHT ,7.2SNA
...4BN96-25443AASSYMISCP-LEDBAR;40inchSNBLEDBarL1SNA
...4BN96-25444AASSYMISCP-LEDBAR;40inchSNBLEDBarR1SNA
...4BN96-25512AASSYMISCP-CHASSISBOTTOM;Y13SNB7K401SNA
....56001-002759SCREW-MACHINE;CH,+,M3,L4,ZPC(BLK),SWRCH18SA
....5BN02-00040BT APEDOUBLEFACE-DIFFUSERFIXING;NNB32/1SNA
....5BN02-00102BT APEFILAMENT;UE7000,#893,0.15,25,50,WHI0SNA
....5BN02-00113ATAPEETC-FIXINGWIRE;Y12NNB2,PET ,0.05T,1SNA
....5BN02-00153ATAPETHERMAL-GRAPHITEL;Y13F7KSNB40",1SNA
....5BN02-00160ATAPETHERMAL-GRAPHITER;Y13F7KSNB40",1SNA
....5BN39-01746ALEADCONNECTOR-LEDSNB;7KSNB40inchLL1SNA
....5BN39-01747ALEADCONNECTOR-LEDSNB;SNB40inchRLED1SNA
....5BN61-07432AHOLDER-LGP;SNB,EGI,3.0,3.92SNA
....5BN61-08345ABRACKET-WALLMOUNT;NNB,SNB32/40/46/55,S4SNA
....5BN62-00353AINSULATIONCABI-S-PCBL;SNB40",MTU-100,1SNA
....5BN62-00353BINSULA TIONCABI-S-PCBR;SNB40",MTU-100,1SNA
....5BN62-00356AINSULATIONCABI-PDBOARD;SNB40",PC-FILM1SNA
....5CC02BN64-02278ACHASSIS-BOTTOM;SNB40,AL3104,1.0,896.4,1SNA
12Copyright©1995-2013SAMSUNG.Allrightsreserved.
Page 13
ExplodedViewsandPartsList
LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA
..3TCONBN95-00963AASSYTCON;LSF400HL01,40FHD240Hz7K1SA
...4BN62-00371AHEATSINK-PS;F6000,A1050,ANODIZING,110*61SNA
...4BN62-00372AHEATSINK-PS;F7000/8000,A5052*,BLACK,30*1SNA
...4BN97-06997AASSYSMD;BN95-00859A1SNA
....50202-001899SOLDER-CREAM;M705-GRN360-K2-VT,25-36um,S2SNA
....5DS01A0401-001192DIODE-SWITCHING;MMBD7000L T1,100V ,200mA,S2SA
....50403-001172DIODE-ZENER;UDZ6.8B,6.65-6.93V ,200MW ,SOD1SNA
....50404-001640DIODE-SCHOTTKY;SS1060HEWS,60V ,1000mA,SOD2SA
....50404-001643DIODE-SCHOTTKY;B360A,60V ,3000mA,SMA,TP1SA
....50406-001317DIODE-TVS;SMAJ14A,15.6/-/17.2V ,400W ,SMA1SNA
....50406-001324DIODE-TVS;RClamp1502B,16.7/-/-V ,200W ,SOT1SNA
....50406-001438DIODE-TVS;SMCJ14A,15.6/-/17.2V ,1500W ,DO-1SA
....50406-001445DIODE-TVS;RClamp7512N,2.7/2.8/2.9,300W,S2SA
....50406-001483DIODE-TVS;ESD5B5.0ST1G,5,8V/-/7.8V ,50W,2SA
....50406-001556DIODE-TVS;NUP4114UCW1,6/-/-V ,180W,SC-883SA
....50406-001578DIODE-TVS;P4SMAJ40A,44.4,51.1,400W,SMA1SA
....50501-000465TR-SMALLSIGNAL;MMBT3904,NPN,350mW ,SOT -21SA
....50502-001331TR-POWER;NSS30100LT1G,PNP ,310mW ,SOT -23,T2SA
....50502-001345TR-POWER;FCX491A,NPN,1000mW,SOT89,TR,9004SA
....50502-001346TR-POWER;FCX591A,PNP ,1000mW ,SOT89,TR,30/4SA
....50505-002826FET-SILICON;ZXMN6A07F,N,60V ,1A,0.4ohm,0.1SNA
....50505-003224FET-SILICON;AO6405,P ,-30V ,-5A,0.052ohm,21SA
....5EL020601-002037LED;SMD(TOPVIEW),BLUE,1.6x0.8mm,465/4703SA
....50801-003292IC-CMOSLOGIC;7WB66,BusSwitch,MAB08A,8P1SA
....51105-002227IC-DDR3SDRAM;K4B1G1646G-BCK0,DDR3SDRAM2SA
....51201-003130IC-OPAMP;iML2811SEC,TDFN-EP,TP,8P ,3x3mm1SA
....51203-006130IC-POSI.FIXEDREG.;S-1172B25-U5T1G,SOT-81SA
....51203-006138IC-POSI.ADJUSTREG.;AP1117DGZ-13-89,TO-21SA
....51203-007193IC-DC/DCCONVERTER;RT6905BGQW ,QFN,48P ,7x1SNA
....51203-007552IC-DC/DCCONVERTER;TPS56921PWPR,HTSSOP ,21SA
....51203-007608IC-DC/DCCONVERTER;ISL24827,QFN,48Z30,7x1SA
....51204-003406IC-VIDEOPROCESS;SDP1203,HSFCBGA,756Z30,1SA
....5IS011209-002183IC-SENSOR;S-5851AAA-M6T1U,SOT,6Z30,2.9x11SA
....52007-000040R-CHIP;150ohm,1%,1/10W,TP ,16081SNA
....52007-000043R-CHIP;1Kohm,1%,1/10W,TP ,16082SA
....52007-000052R-CHIP;10Kohm,1%,1/10W,TP ,16083SA
....52007-000060R-CHIP;100Kohm,1%,1/10W,TP ,16081SNA
....52007-000066R-CHIP;20Kohm,1%,1/10W,TP ,16081SNA
....52007-000067R-CHIP;15Kohm,1%,1/10W,TP ,16084SNA
....52007-000070R-CHIP;0ohm,5%,1/10W,TP ,160816SA
Copyright©1995-2013SAMSUNG.Allrightsreserved.13
Page 14
ExplodedViewsandPartsList
LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA
....52007-000109R-CHIP;1Mohm,5%,1/10W,TP ,16081SA
....52007-000138R-CHIP;100ohm,5%,1/16W,TP ,100511SA
....52007-000140R-CHIP;1Kohm,5%,1/16W,TP ,10053SNA
....52007-000141R-CHIP;2.2Kohm,5%,1/16W,TP ,10051SNA
....52007-000143R-CHIP;4.7Kohm,5%,1/16W,TP ,100511SNA
....52007-000148R-CHIP;10Kohm,5%,1/16W,TP ,100513SA
....52007-000168R-CHIP;470Kohm,5%,1/16W,TP ,10051SNA
....52007-000170R-CHIP;1Mohm,5%,1/16W,TP ,10051SNA
....52007-000171R-CHIP;0ohm,5%,1/16W,TP ,10058SNA
....52007-000219R-CHIP;1.2Kohm,1%,1/10W,TP ,16082SA
....52007-000231R-CHIP;1.3Kohm,1%,1/10W,TP ,16081SA
....52007-000265R-CHIP;1.8Kohm,1%,1/10W,TP ,16081SA
....52007-000287R-CHIP;100ohm,1%,1/10W,TP ,16081SNA
....52007-000336R-CHIP;120Kohm,1%,1/10W,TP ,16083SA
....52007-000455R-CHIP;18Kohm,1%,1/10W,TP ,16081SA
....52007-000491R-CHIP;2.2Kohm,1%,1/10W,TP ,16081SA
....52007-000516R-CHIP;2.7Kohm,1%,1/10W,TP ,16081SNA
....52007-000570R-CHIP;220ohm,1%,1/10W,TP ,16081SA
....52007-000726R-CHIP;300ohm,1%,1/10W,TP ,16081SA
....52007-000763R-CHIP;330ohm,1%,1/10W,TP ,16081SNA
....52007-000772R-CHIP;33Kohm,1%,1/10W,TP ,16082SA
....52007-000779R-CHIP;33ohm,1%,1/10W,TP ,16086SA
....52007-000831R-CHIP;39Kohm,5%,1/16W,TP ,10052SA
....52007-000962R-CHIP;5.1Kohm,1%,1/10W,TP ,16082SA
....52007-000999R-CHIP;510ohm,1%,1/10W,TP ,16081SA
....52007-001038R-CHIP;56Kohm,1%,1/10W,TP ,16081SA
....52007-001090R-CHIP;620ohm,1%,1/10W,TP ,16081SA
....52007-001139R-CHIP;7.5Kohm,1%,1/10W,TP ,16083SA
....52007-001153R-CHIP;750ohm,1%,1/10W,TP ,16081SA
....52007-001175R-CHIP;8.2Kohm,1%,1/10W,TP ,16081SA
....52007-001298R-CHIP;51ohm,5%,1/16W,TP ,10056SNA
....52007-001433R-CHIP;12Kohm,1%,1/10W,TP ,16082SA
....52007-002768R-CHIP;6.2Kohm,1%,1/10W,TP ,16081SA
....52007-002797R-CHIP;560ohm,5%,1/16W,TP ,10051SA
....52007-002900R-CHIP;11Kohm,1%,1/10W ,TP ,16081SNA
....52007-007107R-CHIP;100Kohm,1%,1/16W,TP ,10051SNA
....52007-007136R-CHIP;4.7Kohm,1%,1/16W,TP ,100511SNA
....52007-007156R-CHIP;1ohm,5%,1/16W,TP ,10052SNA
....52007-007306R-CHIP;100ohm,1%,1/16W,TP ,100518SNA
....52007-007309R-CHIP;12Kohm,1%,1/16W,TP ,1005,0.352SA
14Copyright©1995-2013SAMSUNG.Allrightsreserved.
Page 15
ExplodedViewsandPartsList
LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA
....52007-007312R-CHIP;20Kohm,1%,1/16W,TP ,10051SA
....52007-007316R-CHIP;3.3Kohm,1%,1/16W,TP ,10052SNA
....52007-007318R-CHIP;1Kohm,1%,1/16W,TP ,100513SNA
....52007-007352R-CHIP;130Kohm,1%,1/10W,TP ,16081SA
....52007-007517R-CHIP;240ohm,1%,1/16W,TP ,10055SNA
....52007-007651R-CHIP;9.1Kohm,1%,1/10W,TP ,16082SA
....52007-007698R-CHIP;5.1Kohm,1%,1/16W,TP ,10051SNA
....52007-007766R-CHIP;2Kohm,1%,1/16W,TP ,10055SNA
....52007-007798R-CHIP;10ohm,1%,1/16W,TP ,100532SA
....52007-008015R-CHIP;75ohm,1%,1/16W,TP ,100518SNA
....52007-008117R-CHIP;2.7Kohm,1%,1/16W,TP ,10051SA
....52007-008596R-CHIP;0.1ohm,1%,1/4W,TP ,32161SC
....5AD4802203-000257C-CER,CHIP;10nF,10%,50V ,X7R,TP ,16083SA
....5AD4802203-000489C-CER,CHIP;2.2nF,10%,50V ,X7R,TP ,10053SA
....5AD4802203-000783C-CER,CHIP;0.33nF,5%,50V ,C0G,TP ,16083SA
....5AD4802203-000995C-CER,CHIP;0.047nF,5%,50V ,C0G,TP ,10052SA
....5AD4802203-001697C-CER,CHIP;0.082nF,5%,50V ,NP0,TP ,16082SA
....5AD4802203-001851C-CER,CHIP;0.016nF,5%,50V ,NP0,TP ,16082SNA
....5AD4802203-002711C-CER,CHIP;100nF ,10%,25V ,X7R,TP,16083SA
....5AD4802203-002982C-CER,CHIP;6.8nF,10%,50V ,X7R,TP ,10051SA
....5AD4802203-005138C-CER,CHIP;1.8nF,10%,50V ,X7R,TP ,10053SA
....5AD4802203-005249C-CER,CHIP;100nF,10%,50V ,X7R,TP ,160810SNA
....5AD4802203-005344C-CER,CHIP;22nF,10%,25V ,X7R,TP ,1005,0.5T3SNA
....5AD4802203-005918C-CER,CHIP;1000nF,10%,6.3V ,X7R,TP ,16082SNA
....5AD4802203-006048C-CER,CHIP;100nF,10%,10V ,X7R,TP ,10059SA
....5AD4802203-006158C-CER,CHIP;100nF,10%,16V ,X7R,TP ,1005,0.563SNA
....5AD4802203-006348C-CER,CHIP;1000nF,10%,25V ,X5R,TP ,1608,0.3SA
....5AD4802203-006427C-CER,CHIP;4700nF,10%,16V ,X5R,TP ,20121SA
....5AD4802203-006474C-CER,CHIP;22000nF,20%,6.3V ,X5R,TP ,20126SA
....5AD4802203-006562C-CER,CHIP;1000nF,10%,10V ,X5R,TP ,10052SNA
....5AD4802203-006698C-CER,CHIP;1000nF,10%,25V ,X7R,TP ,1608,0.10SNA
....5AD4802203-006890C-CER,CHIP;10000nF,20%,6.3V ,X5R,TP ,16088SNA
....5AD4802203-006960C-CER,CHIP;1000nF,10%,50V ,X7R,TP ,20121SNA
....5AD4802203-007240C-CER,CHIP;22000nF,20%,6.3V ,X5R,TP ,1608,3SA
....5AD4802203-007270C-CER,CHIP;10000nF,10%,10V ,X5R,TP ,1608,013SNA
....5AD4802203-007306C-CER,CHIP;10000nF,10%,25V ,X5R,TP ,2012,132SNA
....52409-001118C-POLYMER,CHIP;47uF,20%,10V ,WT ,TP ,3.5X21SA
....52409-001240C-ORGANIC,SMD;33uF,20%,25V ,LR,TP ,7343(1.1SA
....52703-003747INDUCTOR-SMD;22uH,20%,6060,0.135ohm,13002SA
....52703-003803INDUCTOR-SMD;4.7uH,20%,6060,0.031ohm,2701SA
Copyright©1995-2013SAMSUNG.Allrightsreserved.15
Page 16
ExplodedViewsandPartsList
LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA
....52703-003862INDUCTOR-SMD;10uH,20%,6060,0.065ohm,19001SA
....52703-003867INDUCTOR-SMD;22uH,20%,4040,1.8T,0.29Ohm,1SA
....52703-003937INDUCTOR-SMD;1uH,20%,7.0x6.47x3.0mm,0.001SA
....52703-004199INDUCTOR-SMD;10uH,20%,7066,2.2mm,0.101Oh1SNA
....52801-003954CRYST AL-SMD;27MHz,30ppm,28-AAN,16pF ,50oh1SA
....53301-002039BEAD-SMD;26ohm,1608,TP24SA
....53601-001386FUSE-SURFACEMOUNT;125V,5A,FAST-ACTING,C1SA
....53708-002157CONNECTOR-FPC/FFC/PIC;80P ,0.5mm,SMD-A,AU2SNA
....5EH013711-005601HEADER-BOARDTOCABLE;BOX,8P,1R,2mm,SMD-1SA
....5EH013711-005925HEADER-BOARDTOCABLE;BOX,51P,1R,0.5mm,S1SA
....56302-001290GASKET;SMR-TS-4-4.5-3,4.0mm,Ni+Au+SUS+Mg4SNA
....5BN41-01939BPCBMAIN;2013FHD120Hz/240Hz,FR-4,4,1.21SNA
....5BN97-07134AASSYMICOM;F40A2F707_0022_130212,2013.021SNA
.....61107-002224IC-FLASHMEMORY;W25X40CLSSIG,4Mbit,SOP,81SNA
..3TC-OCBN96-24429AASSYCABLEP-FFC;E6K(3D),E7K(3D),FFC,572SNA
..3BN96-24843AASSYOPENCELL;LSF400HL01-A,8bit,40INCH1SNA
...4BN81-07437AA/S-ADHESIVE-A.C.F;ADHESIVE-A.C.F,4-ADHE1SNA
...4BN81-07881AA/S-ICDRIVERSOURCE;ICDRIVERSOURCE,131SNA
...4BN81-07923BA/S-ASSYPCB-SOURCELEFT;ASSYPCB-SOURCE1SNA
...4BN81-07924BA/S-ASSYPCB-SOURCERIGHT;ASSYPCB-SOURC1SNA
...4BN81-07943AA/S-ADHESIVE-A.C.F(TP500B);ADHESIVE-A.C.1SNA
...4BN81-07944AA/S-ICDRIVERGA TE;ICDRIVERGATE1SNA
...4BN81-08408AA/S-POLARIZER-C/F;8-POLARIZER-C/F1SNA
...4BN81-08409AA/S-POLARIZER-TFT;POLARIZER-TFT1SNA
..3BN96-25679AASSYCOVERP-SOURCE;Y13,SNB7.1K40",BN1SNA
...4BN60-00554ASPACER-SOURCE;SNB40/46/55,Silicone-Rubb4SNA
...4BN61-02932NBRACKET-STOPPERNUT;LEDTV ,M3,D7,L6.6,BR4SNA
...4BN61-09363ABRACKET-STOPPERNUT;LEDTV ,B:7H:0.4M31SNA
...4BN62-00262BINSULA TIONCABI-S-COVERL;Y2013SNB40",1SNA
...4BN62-00263BINSULA TIONCABI-S-COVERR;Y2013SNB40",1SNA
...4BN63-09244CSHIELD-SOURCECOVER;SNB40",EGI-SECC,0.81SNA
..3TC01ABN96-26311AASSYMISCP-CHASSISTOP;Y13SNB7K40",B1SNA
...4BN60-00752ASPACER-TOP;Y13F7/7.1K40"~55",PORON*,BL3SNA
...4BN63-07229JCOVER-SHEET ;rose70",SILICONE,T0.052,W7mm3SNA
...4AC157BN64-01964CCHASSIS-TOP;SNB40",STAINLESS-STS430,T0.1SNA
1BN92-11729DASSYBOX;PF8000641SNA
.2BH68-00662ALABELBOX-00;ALLMODEL,paper,60,110,WHT,1SNA
.2BN69-08686BBOX-SET;40UF7000-SS,CB,A-01,SW3,YEL,W1091SNA
1BN92-11998AASSYLABEL;UF7K1SNA
.2T0527BP68-00052BLABEL-00,RATING;FPTV ,PET,T0.05,93,731SNA
16Copyright©1995-2013SAMSUNG.Allrightsreserved.
Page 17
ExplodedViewsandPartsList
LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA
1ACCE1BN92-12006FASSYACCESSORY ;UF7K1SNA
.2BN68-04921GLABEL-STICKER;UF7W,EDC,PET,T0.1,60,125,E1SNA
.23DGLABN96-25614AASSYACCESSOR Y3DGLASSES;SSG-5100GB,In1SA
.2BN96-26244DASSYACCESSORYMANUAL/CABLE;UF7K1SNA
..33709-001732CONNECTOR-CARDSLOT;68P ,0.5mm,PCMCIA(onl1SA
..3T02683903-000742CBF-POWERCORD;DT ,CEE,LP-21LR,250V ,2.5A,1SA
..34301-000103BA TTERY-ALKALINE;1.5V ,750mAH,LR03,10.2x44SNA
..3AA59-00759AREMOCON-SMAR TTOUCHCONTROL;TM1390,14,801SA
..3REMO2AA59-00786AREMOCON;TM1240,45,3.0V ,F6800,F6700,EU1SA
..3EC03BN39-01154ACBFSIGNAL;ChelseaSlim,24P/20P,30AWG,201SA
..3BN61-08370AHOLDER-WIRESTAND;26UE4000GIUDEST AND,N1SNA
..3BN68-00514KMANUALFL YER-02,W ARRANTYCARD;comm,Samsu1SNA
..3BN68-04735ALABEL-E,PASS;ALLMODEL,ARTPAPER90G,50,1SNA
..3BN68-04851FMANUALUSERS-01;UF7000,SAMSUNG,ENG/FRA/D1SNA
..3BN68-04972AMANUALFL YER-01,REGULA TORYGUIDE;ALL,SAM1SNA
..3BN68-05115LLEAFLET-FICHE(F8000);UF8000,ENG,EUROPE,W1SNA
..3BN68-05118BLEAFLET -01,QSG;UF7000UF7500,EUN.AFRICA1SNA
..3BN69-08226ABOX-05,ACCESSORY ;E7000,P APER,CCP400g,NO1SNA
..3BN69-08472APAD-02,TYPE;ACCESSORY ,CB,BlackPaper4001SNA
..3BN69-08751DWRAPVINYL-SHRINK;ACCESSORYBOX,PLASTIC0SNA
..3EH03ABN96-18153AASSYHOLDERP-RING;11LED-TV1SNA
...46902-001404BAGZIPPER;LDPE,T0.05,W80,L100,TRP1SNA
...4AH365BN61-07295AHOLDER-RING;40UD5500,ABS,BK0007,HB4SNA
..3FL06BN96-26652AASSYCABLEP;IRBLASTER,IRBLASTERCABL,1SA
1BN92-12195AASSYP/MA TERIAL;UF6K1SNA
.26902-000379BAGAIR;LDPE,T0.2,W1000,L1800,TRP ,1260.01SNA
.26922-000003BANDPP;PP ,T0.8,W18,L1650M,TRP ,DA69-90140SNA
.2BN68-02422BLABEL-W ARNINGSHIPPING;ALLMODEL,A/P1001SNA
.2BN69-00257XPACKING-SHEETP ALLET;PACKINGSHEETP ALLE1SNA
.2BN69-03982MP ADP ACKING-EDGE;EDGE,P APER,-,T5,W120,L21SNA
.2BN69-05418APACKING-BAGWRAPPING;-,LDPE,-,0,019,500,2SNA
.2BN69-06640APACKING-PAD;PAD,PAPER,-,-,CB-SW4,1120,951SNA
.2BN69-06680APACKING-BAGSHEETROLL;-,CB,-,FOAM0,5mm2SNA
.2BN69-08430ACUSHION-FRONT;UF700040,EPS,EXPORT1SNA
.2BN69-08508ACUSHION-SET;40UF7000-SS,EPS,16.7g/l1SNA
..30103-005099RESIN-EPS;BASF303,Natural,Natural505SNA
.2BN69-09013MP ALLET;F700040",WOOD,20mm,1110,1110,1401SNA
.2BN74-00008DTAPE-OPPMASKING;OPP ,T0.05,W75,L800M,CLR3SNA
Copyright©1995-2013SAMSUNG.Allrightsreserved.17
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
