Samsung UE32F5500, UE40F5500 Schematic

LED TV

Chassis : U85A

Model : UE32F45****

UE**F53****

UE**F55****

UE**F5700AW

SERVICE Manual

LED TV		Contents

1. Precautions

2. Product specifications

3. Disassembly and Reassembly

4. Troubleshooting

5. Wiring Diagram

UE**F5500AW

		Contents
1. Precautions....................................................................................................................		1-1
1-1.	Safety Precautions...............................................................................................................	1-1
1-2.	Servicing Precautions..........................................................................................................	1-3
1-3.	Static Electricity Precautions................................................................................................	1-4
1-4.	Installation Precautions........................................................................................................	1-5

2. Product Specifications.................................................................................................		2-1
2-1.	Product Information..............................................................................................................	2-1
2-2.	Specification Comparison to Old Models...........................................................................	2-22

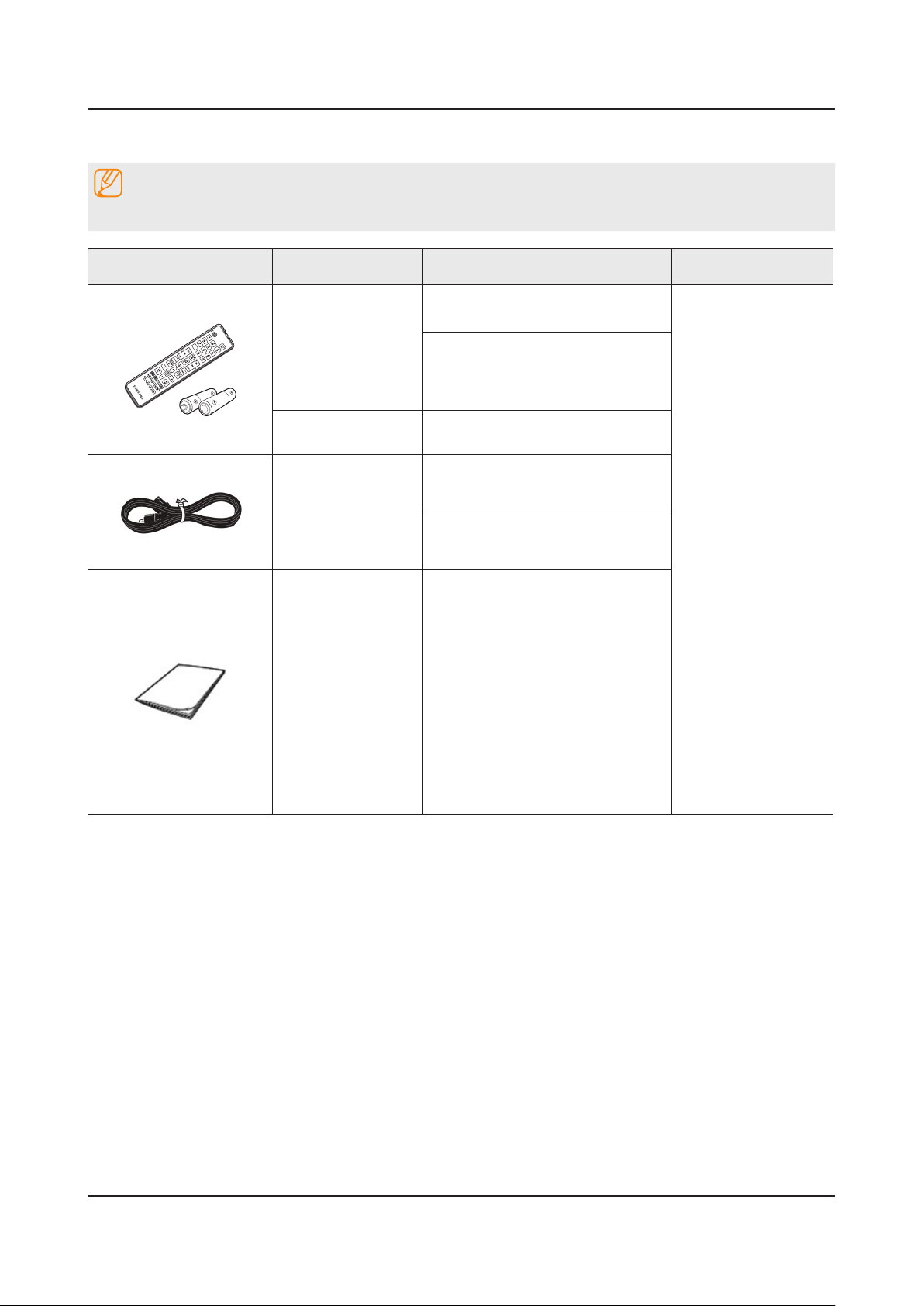

2-3. Accessories........................................................................................................................		2-23

3. Disassembly and Reassembly		.....................................................................................3-1
3-1.	Disassembly and Reassembly.............................................................................................	3-1
3-2. Assy Board P-Jog Switch & Ir..............................................................................................		3-9
3-3.	Disassembly(PTC).............................................................................................................	3-11

4. Troubleshooting............................................................................................................		4-1
4-1. Troubleshooting....................................................................................................................		4-1
4-2. How to Check Fault Symptom..............................................................................................		4-3
4-3. Factory Mode Adjustments.................................................................................................		4-23
4-4. White Balance....................................................................................................................		4-39
4-5.	White Ratio (Balance) Adjustment.....................................................................................	4-42
4-6.	Detail Specifications...........................................................................................................	4-44
4-7.	Software Upgrade............................................................................................................	4-106
4-8.	Rear Cover Dimension.....................................................................................................	4-109

5. Wiring Diagram..............................................................................................................		5-1
5-1.	Wiring Diagram....................................................................................................................	5-1
5-2.	Connector ............................................................................................................................	5-2
5-3.	Connector Functions............................................................................................................	5-6
5-4.	Cables..................................................................................................................................	5-7

This Service Manual is a property of Samsung Electronics Co.,Ltd.

Any unauthorized use of Manual can be punished under applicable International and/or domestic law.

© 2013 Samsung Electronics Co.,Ltd. All rights reserved.

Printed in Korea

3. Disassembly and Reassemble

3. Disassembly and Reassembly

This section of the service manual describes the disassembly and reassembly procedures for the LED TV.

This LED TV contains electrostatically sensitive devices. Use caution when handling these components.

WARNING

3-1. Disassembly and Reassembly

1.Disconnect the LED TV from the power source before disassembly.

2.Follow these directions carefully; never use metal instruments to pry apart the cabinet.

CAUTION 3. If there is no additional coment, it is same for all inches.

UE32F53**/55**/57**

Description

Picture Description

Screws

1 Place TV face down on cushioned table.

2	Remove 3 screws from the Stand and
	Remove Stand.

6003-001782

3 Remove stand.

3-1

3. Disassembly and Reassemble

Description

Picture Description

Screws

4 Remove 10 screws of Rear Cover.

6003-002755

5 RemoveCable. the Cover Jack and Function Assy

6 Remove the Rear Cover.

7	Remove 9 screws of Main Board and
	Power Board.

6001-003016

3-2

		3. Disassembly and Reassemble
Description	Picture Description	Screws

8 Remove the Speakers and Power Cables.

9 RemoveCable. the LVDS Cable and Panel Drive

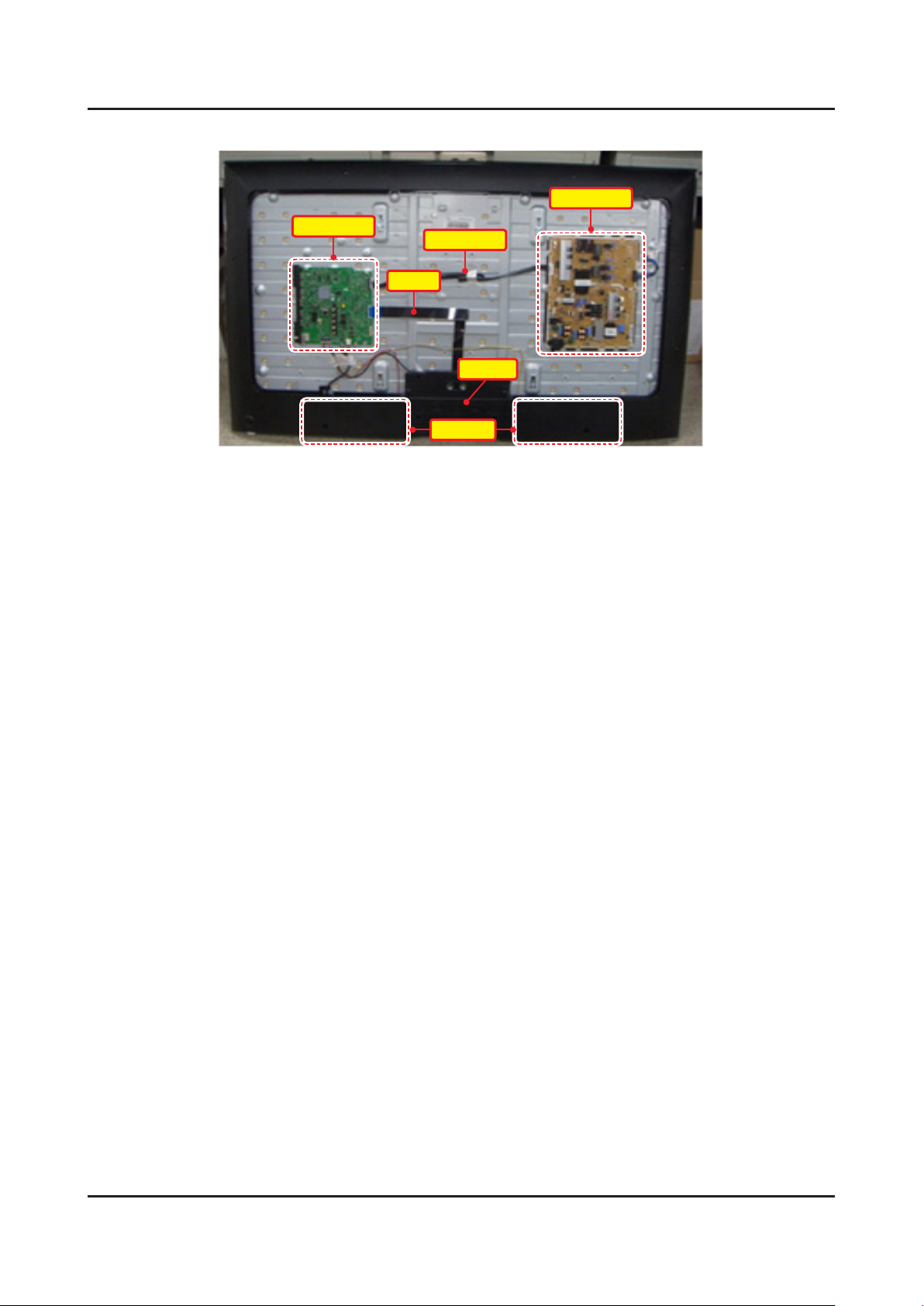

10 Completed disassembly.

3-3

3. Disassembly and Reassemble

UE40F53**/55**/57**

Description

Picture Description

Screws

1 Place TV face down on cushioned table.

2	Remove 4 screws from the Stand and
	Remove Stand.

6003-001782

3 Remove 15 screws of Rear Cover.

6003-002755

3-4

3. Disassembly and Reassemble

Description

Picture Description

Screws

4 Remove the Cover Jack.

5	Lift up Rear Cover slightly from the bottom.

6 Disconnect the Function Assy Cable.

7 Remove the Rear Cover.

3-5

3. Disassembly and Reassemble

	Description	Picture Description	Screws
8	Remove 9 screws of Main Board and
	Power Board.

6001-003016

9 Remove the Speakers and Power Cables.

10 RemoveCable. the LVDS Cable and Panel Drive

3-6

3. Disassembly and Reassemble

Description

Picture Description

Screws

11 Completed disassembly.

NOTE

Reassembly procedures are in the reverse order of disassembly procedures.

3-7

3. Disassembly and Reassemble

Screw Size

Code No.	COLOR	A (mm)	B (mm)	C (mm)	Q'ty
					[F4500] 32" : 15EA
					[F5300/5500/5700]
6003-001782	BLACK	7.80~8.30	11.20~12.00	3.81~3.91	32/39" : 17EA,
					40" : 17EA,
					42" : 18EA,
					46/50" : 20EA
					32" : 2EA,
6001-002755	BLACK	7.1~7.5	5.7~6.0	2.98~3.02	39/40/42/46/50" :
					4EA
6001-003016	WHITE	7.1~7.5	4.7~5.0	2.92 ~ 2.9	32/39/40/42/46/50"
					: 9EA
					[F4500] 32" : 6EA
6003-000115	BLACK	5.8~6.3	5.5~6.0	2.95~3.05	[F5300/5500/5700]
					32/39/42/46/50" :
					2EA

3-8

3. Disassembly and Reassemble

3-2. Assy Board P-Jog Switch & Ir

How to disassembly

Description

Picture Description

Refer

1 Remove the screw.

2 Remove the Function Assy.

3-9

3. Disassembly and Reassemble

How to assembly

Description

Picture Description

Refer

1 Check the locking hole.

2 Combine the function assy to locking hole.

When you want to ignore the funtion key actions

Option
Control		Config Option		Navigation Key Func		0	: New Function (Naviagtion) Key		[ Default ]
Debug						1	: Old Function (Touch) Key
						2	: Do not work Function key
SVC

ADC/WB

Advanced

3-10

3. Disassembly and Reassemble

3-3. Disassembly(PTC)

How to disassembly

Description

Picture Description

Refer

1 Place TV face up on cushioned table.

2	Products at the top of the central TOP-
	CHASSIS is rotated by 45 degrees outward

and pulls.

3-11

3. Disassembly and Reassemble

Description

Picture Description

Refer

3 Pulltop. in the same way from the center of the

4	Pull the left part of the product as shown
	while holding the raised portion on figure 3.

5	Pull the bottom part of the product as
	figure 2 while holding the raised portion on

figure 4.

3-12

			3. Disassembly and Reassemble
	Description	Picture Description	Refer
6	As shown in the picture, Lift the bottom of
	the TOP-CHASSIS.

7	Pull the products at the bottom of the right
	side of the chassis.

3-13

3. Disassembly and Reassemble

	Description	Picture Description	Refer
8	Lift the bottom of the chassis with one
	hand and holding the bottom of the product
	after you pull the right side of the product
	chassis.

9 Disassembly is complete.

CAUTION

To use JIG : Does not lift the chassis by hand, JIG using the lift.

NOTE

Reassembly procedures are in the reverse order of disassembly procedures.

3-14

1. Precautions

1. Precautions

1-1. Safety Precautions

Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as electrical shock.

1-1-1. Warnings

For continued safety, do not attempt to modify the circuit board.

WARNING	Disconnect the AC power and DC power jack before servicing.

1-1-2. Servicing the LED TV

1.When servicing the LED TV, Disconnect the AC line cord from the AC outlet.

2.It is essential that service technicians have an accurate voltage meter available at all times. Check the calibration of this meter periodically.

1-1-3. Fire and Shock Hazard

Before returning the monitor to the user, perform the following safety checks:

1.Inspect each lead dress to make certain that the leads are not pinched or that hardware is not lodged between the chassis and other metal parts in the monitor.

2.Inspect all protective devices such as nonmetallic control knobs, insulating materials, cabinet backs, adjustment and compartment covers or shields, isolation resistorcapacitor networks, mechanical insulators, etc.

3.Leakage Current Hot Check:

	(READING SHOULD)
	NOT BE ABOVE 0.5mA	LEAKAGE
	DEVICE
		CURRENT
	UNDER
		TESTER
	TEST
	TEST ALL
	EXPOSED METAL
	SURFACES
	2-WIRE CORD
	ALSO TEST WITH
	PLUG REVERSED	EARTH
	(USING AC ADAPTER
	PLUG AS REQUIRED)	GROUND

Do not use an isolation transformer during this test.

		Use a leakage current tester or a metering system that complies with American National Standards
	WARNING	Institute (ANSI C101.1, Leakage Current for Appliances), and Underwriters Laboratories (UL
		Publication UL1410, 59.7).

4.With the unit completely reassembled, plug the AC line cord directly into a 120V AC outlet. With the unit’s AC switch first in the ON position and then OFF, measure the current between a known earth ground (metal water pipe, conduit, etc.) and all exposed metal parts, including: metal cabinets, screwheads and control shafts.

The current measured should not exceed 0.5 milliamp.

Reverse the power-plug prongs in the AC outlet and repeat the test.

1-1

1. Precautions

1-1-4. Product Safety Notices

Some electrical and mechanical parts have special safetyrelated characteristics which are often not evident from visual inspection. The protection they give may not be obtained by replacing them with components rated for higher voltage, wattage, etc. Parts that have special safety characteristics are identified by on schematics and parts lists. A substitute replacement that does not have the same safety characteristics as the recommended replacement part might create shock, fire and/or other hazards. Product safety is under review continuously and new instructions are issued whenever appropriate.

1-2

1. Precautions

1-2. Servicing Precautions

An electrolytic capacitor installed with the wrong polarity might explode.

WARNING

Before servicing units covered by this service manual, read and follow the Safety Precautions section of

this manual.

CAUTION

If unforeseen circumstances create conflict between the following servicing precautions and any of the

safety precautions, always follow the safety precautions.

NOTE

1-2-1. General Servicing Precautions

1.Always unplug the unit’s AC power cord from the AC power source and disconnect the DC Power Jack before attempting to: (a) remove or reinstall any component or assembly, (b) disconnect PCB plugs or connectors, (c) connect a test component in parallel with an electrolytic capacitor.

2.Some components are raised above the printed circuit board for safety. An insulation tube or tape is sometimes used. The internal wiring is sometimes clamped to prevent contact with thermally hot components. Reinstall all such elements to their original position.

3.After servicing, always check that the screws, components and wiring have been correctly reinstalled. Make sure that the area around the serviced part has not been damaged.

4.Check the insulation between the blades of the AC plug and accessible conductive parts (examples: metal panels, input terminals and earphone jacks).

5.Insulation Checking Procedure: Disconnect the power cord from the AC source and turn the power switch ON. Connect an insulation resistance meter (500 V) to theblades of the AC plug. The insulation resistance between each blade of the AC plug and accessible conductive parts (see above) should be greater than 1 megohm.

6.Always connect a test instrument’s ground lead to the instrument chassis ground before connecting the positive lead; always remove the instrument’s ground lead last.

1-3

1. Precautions

1-3. Static Electricity Precautions

Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly called Electrostatically Sensitive Devices (ESD). Examples of typical ESD are integrated circuits and some field-effect transistors. The following techniques will reduce the incidence of component damage caused by static electricity.

1.Immediately before handling any semiconductor components or assemblies, drain the electrostatic charge from your body by touching a known earth ground. Alternatively, wear a discharging wrist-strap device. To avoid a shock hazard, be sure to remove the wrist strap before applying power to the monitor.

2.After removing an ESD-equipped assembly, place it on a conductive surface such as aluminum foil to prevent accumulation of an electrostatic charge.

3.Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ESDs.

4.Use only a grounded-tip soldering iron to solder or desolder ESDs.

5.Use only an anti-static solder removal device. Some solder removal devices not classified as “anti-static” can generate electrical charges sufficient to damage ESDs.

6.Do not remove a replacement ESD from its protective package until you are ready to install it. Most replacement ESDs are packaged with leads that are electrically shorted together by conductive foam, aluminum foil or other conductive materials.

7.Immediately before removing the protective material from the leads of a replacement ESD, touch the protective material to the chassis or circuit assembly into which the device will be installed.

Be sure no power is applied to the chassis or circuit and observe all other safety precautions.

CAUTION

8.Minimize body motions when handling unpackaged replacement ESDs. Motions such as brushing clothes together, or lifting your foot from a carpeted floor can generate enough static electricity to damage an ESD.

1-4

1. Precautions

1-4. Installation Precautions

1.For safety reasons, more than a people are required for carrying the product.

2.Keep the power cord away from any heat emitting devices, as a melted covering may cause fire or electric shock.

3.Do not place the product in areas with poor ventilation such as a bookshelf or closet. The increased internal temperature may cause fire.

4.Bend the external antenna cable when connecting it to the product. This is a measure to protect it from being exposed to moisture. Otherwise, it may cause a fire or electric shock.

5.Make sure to turn the power off and unplug the power cord from the outlet before repositioning the product. Also check the antenna cable or the external connectors if they are fully unplugged. Damage to the cord may cause fire or electric shock.

6.Keep the antenna far away from any high-voltage cables and install it firmly. Contact with the highvoltage cable or the antenna falling over may cause fire or electric shock.

7.When installing the product, leave enough space (0.4m) between the product and the wall for ventilation purposes.

A rise in temperature within the product may cause fire.

8.If an equipment is provided with a replaceable battery, and if replacement by an incorrect type could result in an 8. explosion (for example, with some lithium batteries), the following applies:

•Risk of explosion if battery is replaced by an incorrect type dispose of used batteries according to the instructions.

•Do not dispose of batteries in a fire.

•Do not short circuit, disassemble or overheat the batteries.

CAUTION • Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

•Do not be exposed to excessive heat such as sunshine, fire or the like.

1-5

2. Product specifications

2. Product Specifications

2-1. Product Information

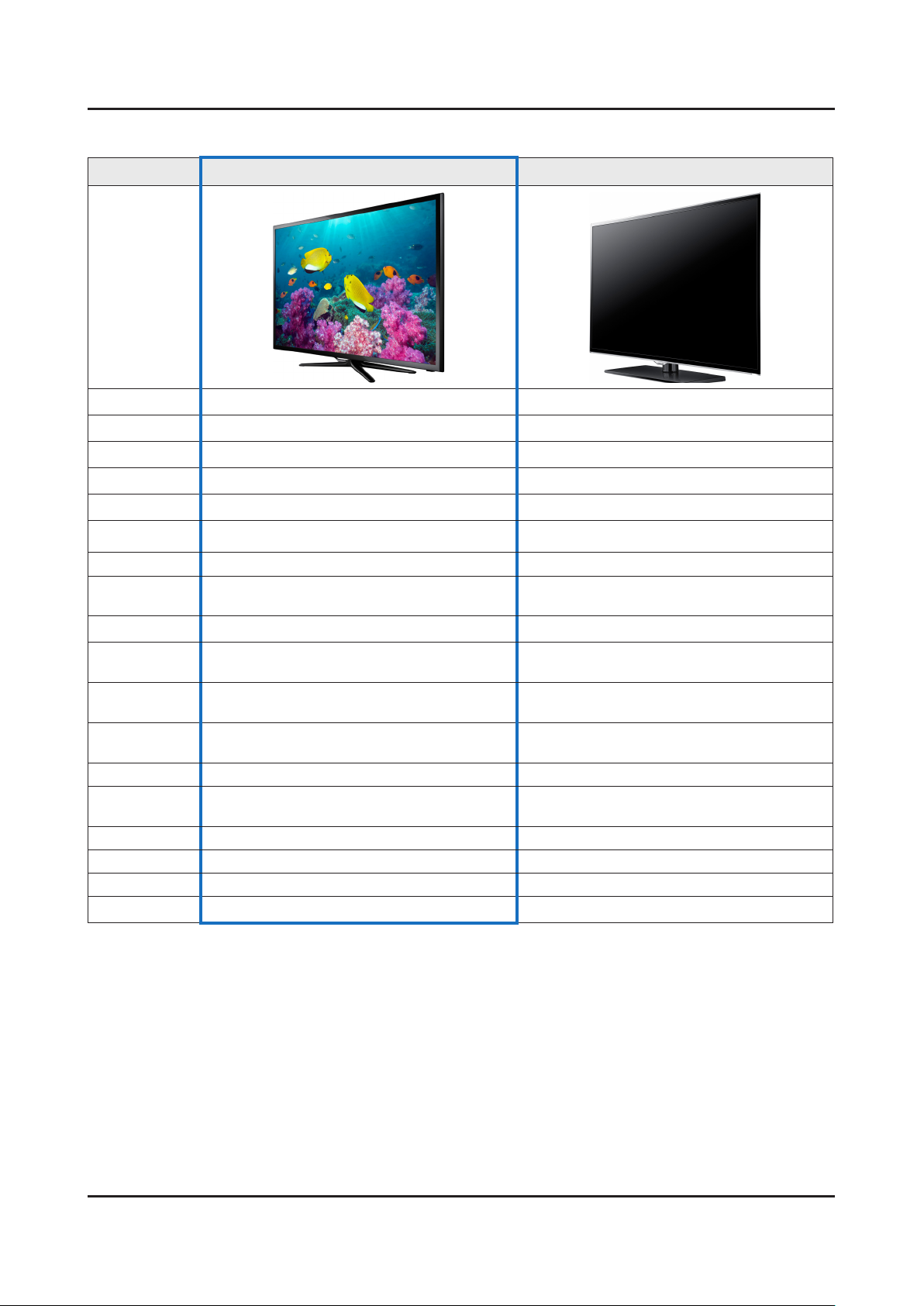

2-1-1. Model Comparison

Model	UE**F5500
	W

Front View		H

D

* W : Width H : High D : Depth

Detail View

Front Color			Black (Panel)
		Set with	750.9 x 476.9 x 207.8 mm / 29.6 x 18.8 x 8.2 inches
		Stand
	32F45
		Set without	750.9 x 456.6 x 59.3 mm / 29.6 x 18.0 x 2.3 inches
		Stand
	32F53	Set with	738.0 x 509.6 x 265.0 mm / 29.1 x 20.1 x 10.4 inches
		Stand
	32F55
		Set without
	32F57		738.0 x 445.4 x 49.0 mm / 29.1 x 17.5 x 1.9 inches
		Stand
	39F53	Set with	895.6 x 596.2 x 265.0 mm / 35.3 x 23.5 x 10.4 inches
		Stand
	39F55
		Set without
	39F57		895.6 x 533.0 x 49.4 mm / 35.3 x 21.0 x 1.9 inches
		Stand
Dimensions
(W x H x D)	42F53	Set with	971.8 x 640.4 x 265.0 mm / 38.3 x 25.2 x 10.4 inches
		Stand
	42F55
		Set without
	42F57		971.8 x 626.2 x 49.4 mm / 38.3 x 24.7 x 1.9 inches
		Stand
	46F53	Set with	1059.6 x 700.0 x 307.3 mm / 41.7 x 27.6 x 12.1 inches
		Stand
	46F55
		Set without
	46F57		1059.6 x 626.2 x 49.4 mm / 41.7 x 24.7 x 1.9 inches
		Stand
		Set with	1135.4	x 741.8 x 307.3 mm / 44.7 x 29.2 x 12.2 inches
	50F55	Stand
	50F57	Set without	1135.4	x 668.0 x 49.8 mm / 44.7 x 26.3 x 2.0 inches
		Stand

2-1

2. Product specifications

			Set with	5.6 kg / 12.3 lbs
			Stand
		32F45
			Set without	5.3 kg / 11.7 lbs
			Stand
		32F53	Set with	5.7 kg / 12.6 lbs
			Stand
		32F55
			Set without
		32F57		5.0 kg / 11.0 lbs
			Stand
		39F53	Set with	8.5 kg / 18.7 lbs
			Stand
		39F55
			Set without
		39F57		7.6 kg / 16.8 lbs
			Stand
	Weight
		42F53	Set with	9.6 kg / 21.2 lbs
			Stand
		42F55
			Set without
		42F57		8.4 kg / 18.5 lbs
			Stand
		46F53	Set with	11.5 kg / 25.4 lbs
			Stand
		46F55
			Set without
		46F57		10.8 kg / 23.8 lbs
			Stand
			Set with	14.7 kg / 32.4 lbs
		50F55	Stand
		50F57	Set without	13.0 kg / 28.7 lbs
			Stand
	Panel Type			Anti Glare
	Internal Memory			4 GByte
	DDR			1 GByte
	Feature			Smart TV

2-2

2. Product specifications

Model	UE40F5500
	W

Front View		H

D

* W : Width H : High D : Depth

Detail View

	Front Color			Black (Panel)
			Set with	928.2 x 612.2 x 235.0 mm / 36.5 x 24.1 x 9.3 inches
			Stand
		40F53
			Set without	928.2 x 552.3 x 49.4 mm / 36.5 x 21.7 x 1.9 inches
			Stand
			Set with	928.2 x 615.5 x 265.0 mm / 36.5 x24.2 x 10.4 inches
			Stand
	Dimension	40F55
			Set without	928.2 x 552.3 x 49.4 mm / 36.5 x 21.7 x 1.9 inches
			Stand
			Set with	928.2 x 615.5 x 265.0 mm / 36.5 x24.2 x 10.4 inches
			Stand
		40F57
			Set without	928.2 x 552.3 x 49.4 mm / 36.5 x 21.7 x 1.9 inches
			Stand
			Set with	9.5 kg / 20.9 lbs
			Stand
		40F53
			Set without	8.0 kg / 17.6 lbs
			Stand
			Set with	8.9 kg / 19.6 lbs
			Stand
	Weight	40F55
			Set without	8.0 kg / 17.6 lbs
			Stand
			Set with	8.9 kg / 19.6 lbs
			Stand
		40F57
			Set without	8.0 kg / 17.6 lbs
			Stand
	Panel Type			Anti Glare
	Internal Memory			4 GByte
	DDR			1 GByte
	Feature			Smart TV

2-3

2. Product specifications

2-1-2. Feature & Specifications

(x : W=DVB-TC / K=DVB-T2C / Y=DVB-T2C+MHP)

Model	UE32F450*Ax / UE32F451*Ax
	UE32F4570/4580S (DVB-TCS2)
	Feature

•Digital-TV, RF, 3-HDMI, 1-Component, 1-A/V, 1-Scart, 2-USB2.0, 1-LAN

•Brightness : 250 cd/m2

•Response Time : 6.5 ms

•CMR : 100

•Dolby Digital+, DTS Studio Sound, DTS Premium Audio 5.1

•No Portable USB HDD Supported

			Specifications
	Item			Description
	LCD Panel	32 inch FHD 60Hz
	Scanning Frequency	Horizontal : 60 kHz ~ 73 kHz (Automatic)
		Vertical : 47 Hz ~ 63 Hz (Automatic)
	Display Colors	16.7M colors
	Maximum Resolution	Horizontal : 1366 Pixels
		Vertical : 768 Pixels
	Input Signal	Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated
	Input Sync Signal	H/V Separate, TTL, P. or N.
	Maximum Pixel Clock Rate	74.25 MHz
	Active Display (H x V)*	703.4(H) X 397.8(V) (mm) / 28.7(H) X 16.2(V) (inches)
	* Horizontal x Vertical
	AC Power Voltage & Frequency	[EU : AC 220~240V, CIS : AC 110~240V], 50/60 Hz
	Power Consumption	68 W (Under 0.3 W, Stand by) , (AC 220~240V, EU)
		70 W (Under 0.3 W, Stand by) , (AC 100~240V, CIS)
	Dimensions Set (W x H x D)*	Set with Stand		750.9 x 476.9 x 207.8 mm / 29.6 x 18.8 x 8.2 inches
	* Width x High x Depth
		Set without		750.9 x 456.6 x 59.3 mm / 29.6 x 18.0 x 2.3 inches
		Stand
	Weight	Set with Stand		5.6 kg / 12.35 lbs
		Set without		5.3 kg / 11.68 lbs
		Stand
	TV System	Tuning		Frequency Synthesize (Refer to detailed Frequency Table)
		System		DVB-TC/T2C/TCS2(depend on country), PAL , SECAM , NT4.43
		Sound		PAL-B/G/I/D/K, Dolby Digital Plus/Pulse

2-4

2. Product specifications

	Specifications
Item	Description
Environmental Considerations	Operating Temperature : 32˚F ~ 122˚F (0˚C ~ 50˚C)
	Operating Humidity : 20% ~ 90%
	Storage Temperature : -4˚F ~ 140˚F (-20˚C ~ 60˚C)
	Storage Humidity : 10% ~ 90%
Audio Specifications	MAX Internal Audio Output Power : Each 10 W(Left/Right)
	Equalizer : 5 Band
	Output Frequency :
	• RF : 20 Hz ~ 15.4 kHz
	• AV/Componet/HDMI : 20 Hz ~ 20 kHz

Note : Dolby Digital +, DTS Studio Sound, Game Mode, Film Mode, SmartTV

2-5

2. Product specifications

Model

UE32F530*Ax / UE32F550*Ax / UE32F5700Ax

UE32F5370S / UE32F5570S (DVB-TCS2)

Feature

•Digital-TV, RF, 3-HDMI, 1-Component, 1-A/V, 1-Scart, 2-USB2.0, 1-LAN, WiFi Built-in(Excepted for UF53xx models)

•Brightness : 300 cd/m2

•Response Time : 6.5 ms

•CMR : 100

•Dolby Digital+, DTS Studio Sound, DTS Premium Audio 5.1

•No Portable USB HDD Supported

			Specifications
	Item			Description
	LCD Panel	32 inch FHD 60Hz
	Scanning Frequency	Horizontal : 60 kHz ~ 73 kHz (Automatic)
		Vertical : 47 Hz ~ 63 Hz (Automatic)
	Display Colors	16.7M colors
	Maximum Resolution	Horizontal : 1920 Pixels
		Vertical : 1080 Pixels
	Input Signal	Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated
	Input Sync Signal	H/V Separate, TTL, P. or N.
	Maximum Pixel Clock Rate	74.25 MHz
	Active Display (H x V)*	698.4(H) X 392.9(V) (mm) / 28.5(H) X 16.0(V) (inches)
	* Horizontal x Vertical
	AC Power Voltage & Frequency	[EU : AC 220~240V, CIS : AC 110~240V], 50/60 Hz
	Power Consumption	85 W (Under 0.3 W, Stand by) , (AC 220~240V, EU)
		86 W (Under 0.3 W, Stand by) , (AC 100~240V, CIS)
	Dimensions Set (W x H x D)*	Set with Stand		738.0 x 509.6 x 265.0 mm / 29.1 x 20.1 x 10.4 inches
	* Width x High x Depth
		Set without		738.0 x 445.4 x 49.0 mm / 29.1 x 17.5 x 1.9 inches
		Stand
	Weight	Set with Stand		5.70 kg / 12.57 lbs
		Set without		5.00 kg / 11.02 lbs
		Stand
	TV System	Tuning		Frequency Synthesize (Refer to detailed Frequency Table)
		System		DVB-TC/T2C/TCS2(depend on country), PAL , SECAM , NT4.43
		Sound		PAL-B/G/I/D/K, Dolby Digital Plus/Pulse

2-6

2. Product specifications

	Specifications
Item	Description
Environmental Considerations	Operating Temperature : 32˚F ~ 122˚F (0˚C ~ 50˚C)
	Operating Humidity : 20% ~ 90%
	Storage Temperature : -4˚F ~ 140˚F (-20˚C ~ 60˚C)
	Storage Humidity : 10% ~ 90%
Audio Specifications	MAX Internal Audio Output Power : Each 10 W(Left/Right)
	Equalizer : 5 Band
	Output Frequency :
	• RF : 20 Hz ~ 15.4 kHz
	• AV/Componet/HDMI : 20 Hz ~ 20 kHz

Note : Dolby Digital +, DTS Studio Sound, DTS premium sound, Game Mode, Film Mode, Eco Sensor, SmartTV

2-7

2. Product specifications

Model

UE39F5300Ax / UE39F5500Ax /UE39F5700Ax

UE39F5370S / UE39F5570S (DVB-TCS2)

Feature

•Digital-TV, RF, 3-HDMI, 1-Component, 1-A/V, 1-Scart, 2-USB2.0, 1-LAN, WiFi Built-in(Excepted for UF53xx models)

•Brightness : 300 cd/m2

•Response Time : 6.5 ms

•CMR : 100

•Dolby Digital+, DTS Studio Sound, DTS Premium Audio 5.1

•No Portable USB HDD Supported

			Specifications
	Item			Description
	LCD Panel	39 inch FHD 60Hz
	Scanning Frequency	Horizontal : 60 kHz ~ 73 kHz (Automatic)
		Vertical : 47 Hz ~ 63 Hz (Automatic)
	Display Colors	16.7M colors
	Maximum Resolution	Horizontal : 1920 Pixels
		Vertical : 1080 Pixels
	Input Signal	Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated
	Input Sync Signal	H/V Separate, TTL, P. or N.
	Maximum Pixel Clock Rate	74.25 MHz
	Active Display (H x V)*	895.6(H) X 523.7(V) (mm) / 36.6(H) X 21.4(V) (inches)
	* Horizontal x Vertical
	AC Power Voltage & Frequency	[EU : AC 220~240V, CIS : AC 110~240V], 50/60 Hz
	Power Consumption	105 W (Under 0.3 W, Stand by) , (AC 220~240V, EU)
		107 W (Under 0.3 W, Stand by) , (AC 100~240V, CIS)
	Dimensions Set (W x H x D)*	Set with Stand		895.6 x 596.2 x 265.0 mm / 35.3 x 23.5 x 10.4 inches
	* Width x High x Depth
		Set without		895.6 x 533.0 x 49.4 mm / 35.3 x 21.0 x 1.9 inches
		Stand
	Weight	Set with Stand		8.50 kg / 18.74 lbs
		Set without		7.60 kg / 16.76 lbs
		Stand
	TV System	Tuning		Frequency Synthesize (Refer to detailed Frequency Table)
		System		DVB-TC/T2C/TCS2(depend on country), PAL , SECAM , NT4.43
		Sound		PAL-B/G/I/D/K, Dolby Digital Plus/Pulse

2-8
