Samsung UE55ES8000U, UE40ES8000U, UE46ES8000U User Manual

E-MANUAL

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Country

EIRE 0818 717100 www.samsung.com

U.K 0330 SAMSUNG (7267864) www.samsung.com

Customer Care Centre

Web Site

LED TV

user manual

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/register

Model _____________ Serial No. _____________

BN68-04061J-03

A detailed User’s Manual is built into your TV.

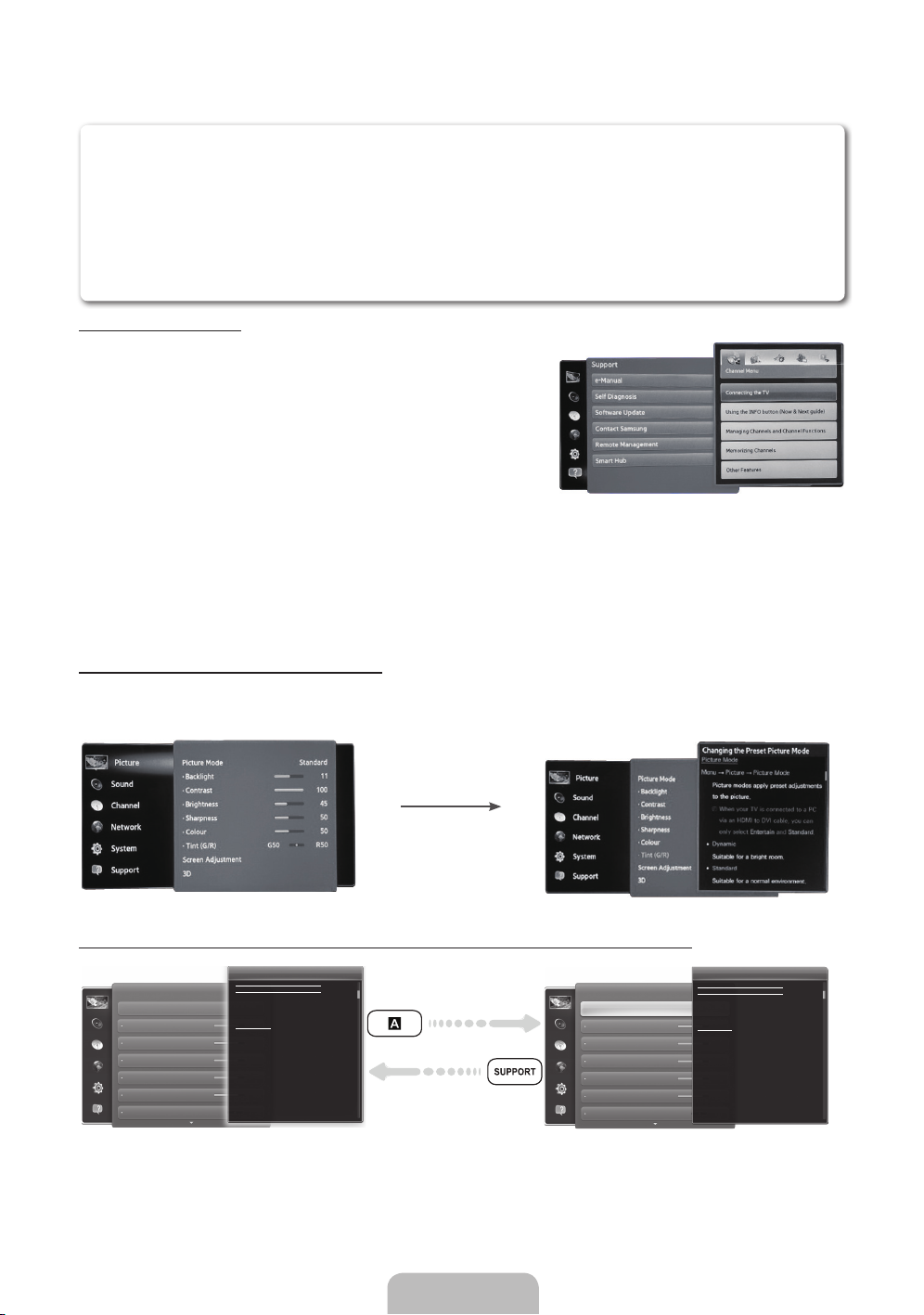

For more information about how to view this e-Manual see page 32.

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and speciﬁcations may be changed without notice.

Digital TV notice

1. Functionalities related to Digital TV (DVB) are only available in countries/areas where DVB-T (MPEG2 and MPEG4 AVC) digital terrestrial signals are broadcasted or where you are able to access to a compatible DVB-C (MPEG2 and MPEG4 AAC) cable-TV service. Please check with your local dealer the possibility to receive DVB-T or DVB-C signal.

2. DVB-T is the DVB European consortium standard for the broadcast transmission of digital terrestrial television and DVB-C is that for the broadcast transmission of digital TV over cable. However, some differentiated features like EPG (Electric Programme Guide), VOD (Video On Demand) and so on, are not included in this speciﬁcation. So, they cannot be workable at this moment.

3. Although this TV set meets the latest DVB-T and DVB-C standards, as of [August, 2008], the compatibility with future DVB-T digital terrestrial and DVB-C digital cable broadcasts cannot be guaranteed.

4. Depending on the countries/areas where this TV set is used some cable-TV providers may charge an additional fee for such a service and you may be required to agree to terms and conditions of their business.

5. Some Digital TV functions might be unavailable in some countries or regions and DVB-C might not work correctly with some cable service providers.

6. For more information, please contact your local Samsung customer care centre.

The reception quality of TV may be affected due to differences in broadcasting method between

✎

the countries. Please check the TV performance in the local SAMSUNG Authorized Dealer, or the Samsung Call Centre whether it can be improved by reconfiguring TV setting or not.

Still image warning

Avoid displaying still images (like jpeg picture ﬁles) or still image element (like TV programme logo, panorama or 4:3 image format, stock or news bar at screen bottom etc.) on the screen. Constant displaying of still picture can cause ghosting of LED screen, which will affect image quality. To reduce risk of this effect, please follow below recommendations:

• Avoid displaying the same TV channel for long periods.

• Always try do display any image on full screen, use TV set picture format menu for best possible match.

• Reduce brightness and contrast values to minimum required to achieve desired picture quality,

exceeded values may speed up the burnout process.

• Frequently use all TV features designed to reduce image retention and screen burnout, refer to e-Manual for details.

WARNINGS: Image retention, commonly known as screen burn-in, can occur on most types of

✎

television if the same image is displayed continuously. The most common causes of image retention are logos that remain stationary on the TV screen. These logos are common on many programmes received via a Set-top Box. To reduce this risk, avoid displaying still images for long durations and lower the brightness or contrast settings to decrease the intensity of the picture. Extended viewing of movies and programmes in aspect ratios that are different from the aspect ratio of the TV may cause image retention. Always endeavour to avoid black borders top or bottom by using the zoom function. This will help eliminate the black borders and fit the picture to the entire area of the screen. Using a video game console may cause image retention and is not recommended. When using a PC input, avoid displaying still images for long durations and reduce the brightness or contrast settings to decrease the intensity of the picture.

IMPORTANT: Image retention issues are not covered by your Samsung® warranty.

✎

English - 2

Providing Proper Ventilation for Your TV

When you install your TV, maintain a distance of at least 4 inches between the TV and other objects (walls, cabinet sides, etc.) to ensure proper ventilation. Failing to maintain proper ventilation may result in a ﬁre or a problem with the product caused by an increase in its internal temperature.

Whether you install your TV using a stand or a wall-mount, we strongly recommend you use parts

✎

provided by Samsung Electronics only.

• If you use parts provided by another manufacturer, it may cause difﬁculties with the product or result in injury caused by the product falling.

Installation with a stand. Installation with a wall-mount.

10 cm

10 cm10 cm

Other Warnings

[

The actual appearance of the TV may differ from the images in this manual, depending on the model.

✎

Be careful when you touch the TV. Some parts can be somewhat hot.

✎

Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate

collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government ofﬁce, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product (Applicable in the European Union and other European countries with separate battery

return systems)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment. To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

• An administration fee may be charged if either

− (a) an engineer is called out at your request and there is no defect in the product (i.e. where you have failed to read this user manual)

− (b) you bring the unit to a repair centre and there is no defect in the product (i.e. where you have failed to read this user manual).

• The amount of such administration charge will be advised to you before any work or home visit is carried out.

10 cm

English - 3

List of Features

• 3D: This exciting new feature enables you to view 3D content.

• SMART HUB: Using Smart Hub, you can stream movies, videos, and music from the Internet, access various for pay or free-of-charge applications and view them on your TV.

− Application content includes news, sports, weather forecasts, stock market quotes, maps, photos, and games.

• AllShare Play: Lets you access, view, or play photos, videos, or music located on USB devices, digital cameras, mobile phones, and PCs. PCs and mobile phones can be accessed wirelessly, through your wireless network.

• Anynet+ (HDMI-CEC): Allows you to control all connected Samsung devices that support Anynet+ with your Samsung TV’s remote.

• e-Manual: Provides a detailed, on-screen user's manual that's built into your TV. (p. 32)

• SMART Interaction: Using this function, you can access and control menu options and functions using speech or gestures. (p. 17)

English - 4

Accessories

Please make sure the following items are included with your TV. If any items are missing, contact your

✎

dealer.

The items’ colours and shapes may vary depending on the models.

✎

Cables not included in the package contents can be purchased separately.

✎

Check that there is no accessory hidden behind packing materials when you open the box.

✎

CAUTION: INSERT SECURELY LEST SHOULD BE DETACHED IN SET

[

• Smart Touch Control & Batteries (AA x 2)

• Remote Control & Batteries (AAA x 2)

• User Manual

Scart Adapter Holder-Wire stand Holder Ring x 4

CI Card Adapter IR Blaster & Batteries (AA x 4)

Assembling the Stand Wire Holder

• Power Cord

• Cleaning-Cloth

• Samsung 3D Active Glasses

Wireless Keyboard (Sold Separately)

Wireless Keyboard

English - 5

Using the TV's Controller (Panel Key)

The TV's Controller, a small joy stick like button on the rear right side of the TV, lets you control the TV without the remote control.

The product colour and shape may vary depending on the model.

✎

Angle adjustment wheel

Remote control sensor

When you use the Smart Touch Control, the standby LED does not work (except P button).

Camera rear

Function menu

TV Controller

Follow these instructions facing the front of your TV.

✎

When selecting the function by moving the controller to the up/down/left/right directions, be sure

✎

not to press the controller. If you press it first, you cannot operate it to move the up/down/left/right directions.

Before you use the TV camera for the first time you should check whether tape is attached at the rear

✎

of the TV camera. TV camera can be then used after adjusting the camera angle. If you do not intend to use the TV camera, move the camera lens upwards so that the lens is not revealed. In this case,

Face recognition and Motion control are not available.

Power on Turn the TV on by pressing the Controller when the TV is in standby

mode.

Adjusting the volume Adjust the volume by moving the Controller from side to side when the

power is on.

Selecting a channel Select a channel by moving the Controller upwards and downwards

when the power is on.

Using the Function menu To view and use the Function menu, press and release the Controller

when the power is on. To close the Function menu, press and release the Controller again.

Selecting the MENU (m) With the Function menu visible, select the MENU (m) by moving the

Controller to the left. The OSD (On Screen Display) Menu appears. Select an option by moving the Controller to the right. Move the Controller to the right or left, or backwards and forwards to make additional selections. To change a parameter, select the it, and then press the Controller.

Selecting the SMART HUB (™)

Selecting a Source (s) With the Function menu visible, open the Source (s) by moving the

Power off (P) With the Function menu visible, select Power off (P) by moving the

With the Function menu visible, select SMART HUB (™) by moving the Controller upwards. The SMART HUB main screen appears. Select an application by moving the Controller, and then pressing the Controller.

Controller to the right. The Source screen appears. To select a Source, move the Controller back and forth. When the source you want is highlighted, press the Controller.

Controller downwards, and then press the Controller.

To close the Menu, Smart Hub, or Source, press the Controller for more than 1 second.

✎

English - 6

Standby mode

Your TV enters Standby mode when you turn it off and continues to consume a small amount of electric power. To be safe and to decrease power consumption, do not leave your TV in standby mode for long periods of time (when you are away on vacation, for example). It is best to unplug the power cord.

Connecting to an Aerial

Plug the power cord into a wall outlet only after you have made all other connections.

✎

If you are connecting your TV to a cable or satellite box using HDMI, Component, or Composite

✎

connections, you do not need to connect the ANT IN jack to an aerial or a cable connection.

Using two-way radio mobile and portable units or amateur radio or AM radio near your TV may cause

✎

the TV to malfunction.

Use caution when you move or swivel the TV if the aerial cable is tightly connected. You could break

✎

the aerial jack off the TV.

VHF/UHF

Aerial

Satellite

Cable

English - 7

Viewing the Remote Control

This is a special remote control for the visually impaired persons and has Braille points on the Power,

✎

Channel and Volume buttons.

Turns the remote control light on or off. When on, the buttons become illuminated for a moment when pressed. (Using the remote control

Turns the TV on and off.

Displays and selects the available

video sources. (p. 16)

with this button set to On will reduce the battery usage time.)

Returns to the previous channel.

Have direct access to channels.

Alternately select Teletext ON,

Double, Mix or OFF.

Adjusts the volume.

Brings up the Smart Hub

applications. See e-Manual

chapter Advanced Features →

Smart Hub.

Opens the OSD.

Quickly select frequently used

functions.

Use this button in a speciﬁc

feature.

Returns to the previous menu.

Use these buttons according to

the direction on screen.

Use these buttons in a speciﬁc

feature. For details, refer to

e-Manual.

HISTORY CAMERA

AD/SUBT.

Cuts off the sound temporarily.

Changes channels.

Displays channel lists on the screen.

Displays the EPG (Electronic Programme Guide).

Displays information on the TV screen.

u/d/l/r: Move the cursor

on-screen menu item.

E: Selects the menu and

changes the corresponding item value.

Exits the menu.

HISTORY: Displays a list of

recently used functions.

Family Story: Connect to

Family Story application. See

e-Manual chapter Advanced Features → Family Story.

CAMERA: Connect to

Camera application.

SUPPORT: Lets you use

various support functions including e-Manual. (p. 32)

AD/SUBT.: Turns the audio

description on and off (not available in some locations). / Displays digital subtitles. See e-Manual chapter Other Features → Subtitle.

W: Turns the 3D image on

or off. See e-Manual chapter Advanced Features → Using the 3D function.

English - 8

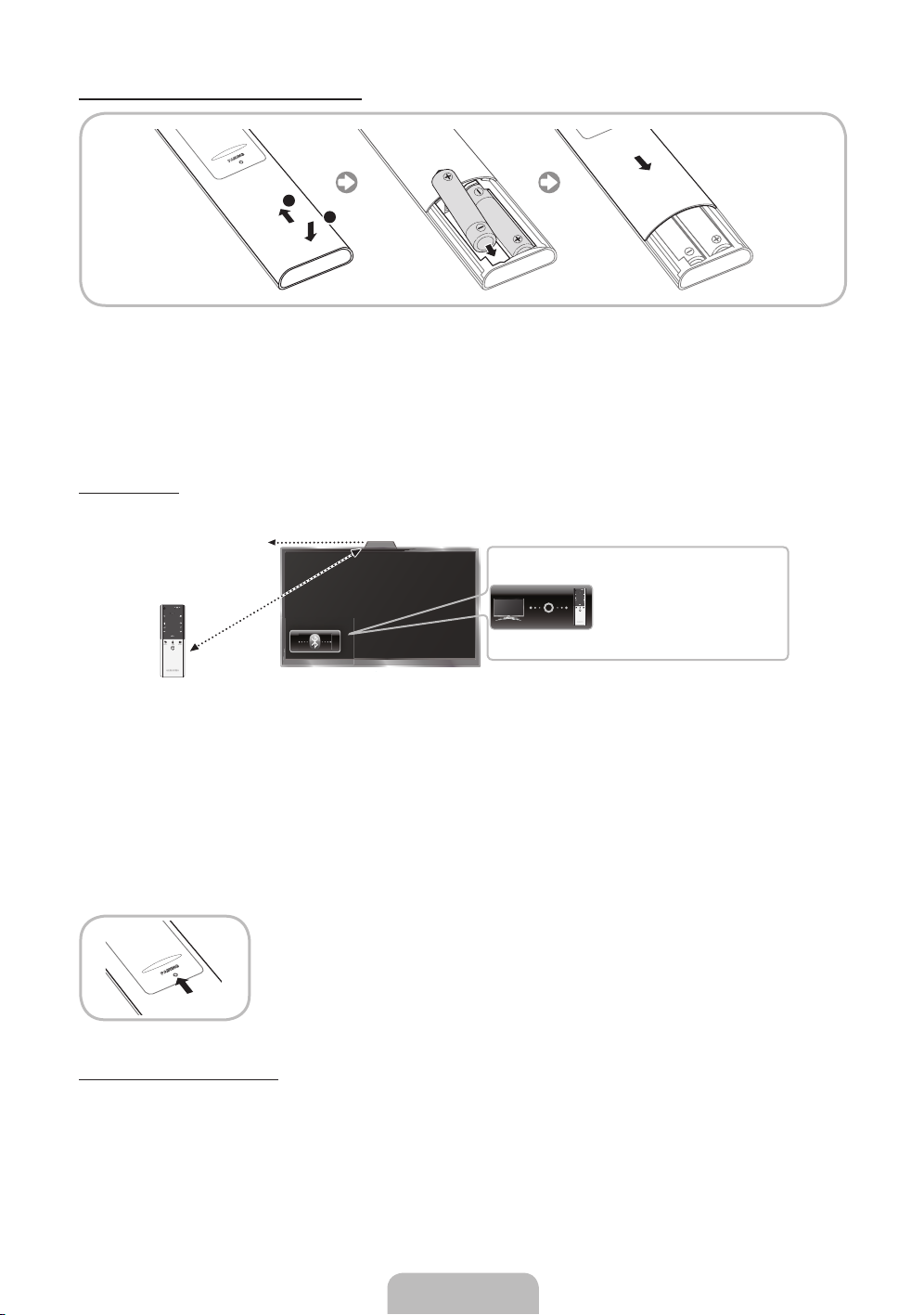

Installing batteries (Battery size: AAA)

Match the polarity of the batteries to the symbols in the battery compartment.

NOTE

✎

• Install the batteries so that the polarity of the batteries (+/-) matches the illustration in the battery compartment.

• Use the remote control within 23 feet of the TV.

• Bright light may affect the performance of the remote control. Avoid using when near special ﬂuorescent lights or neon signs.

• The colour and shape may vary depending on the model.

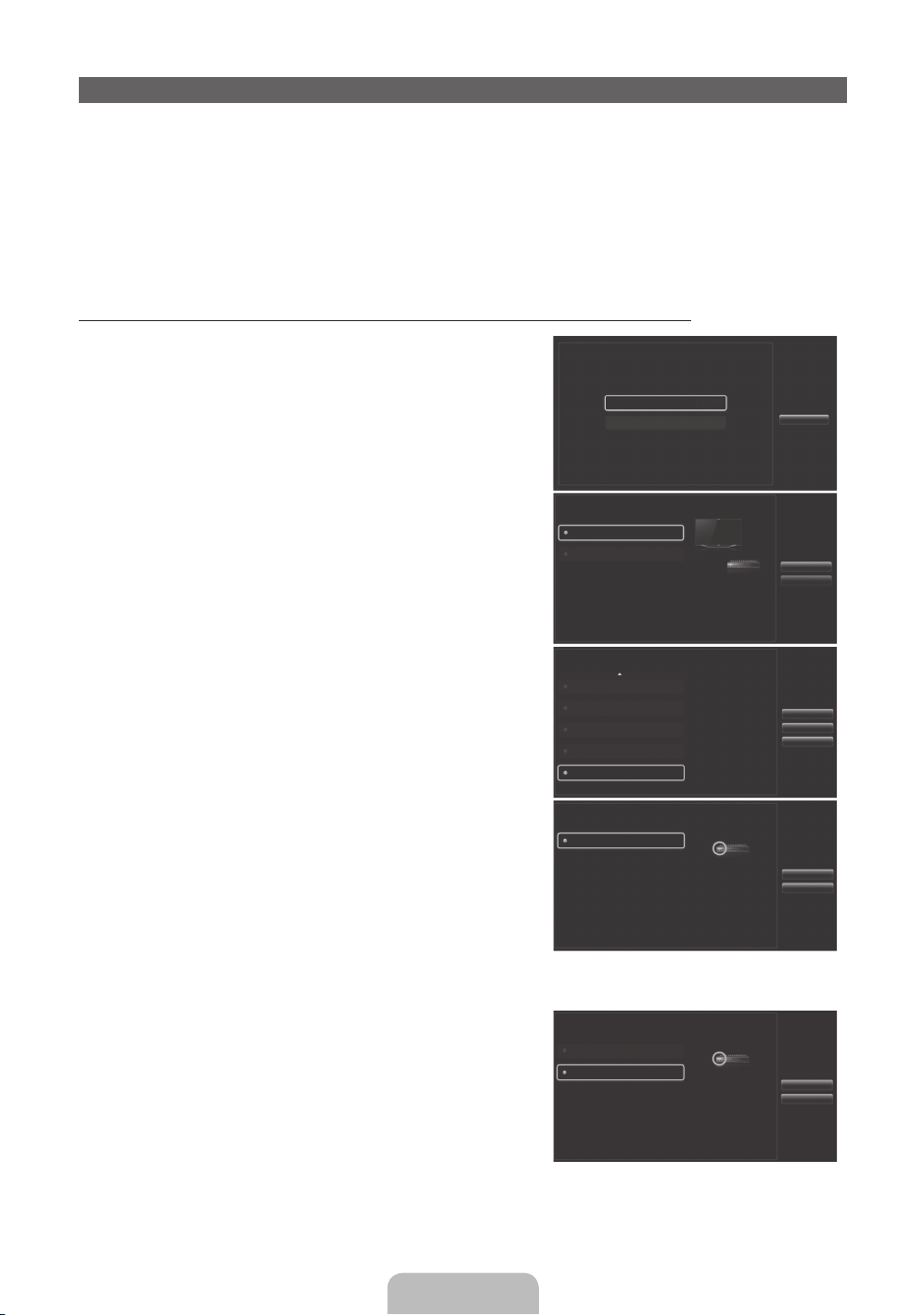

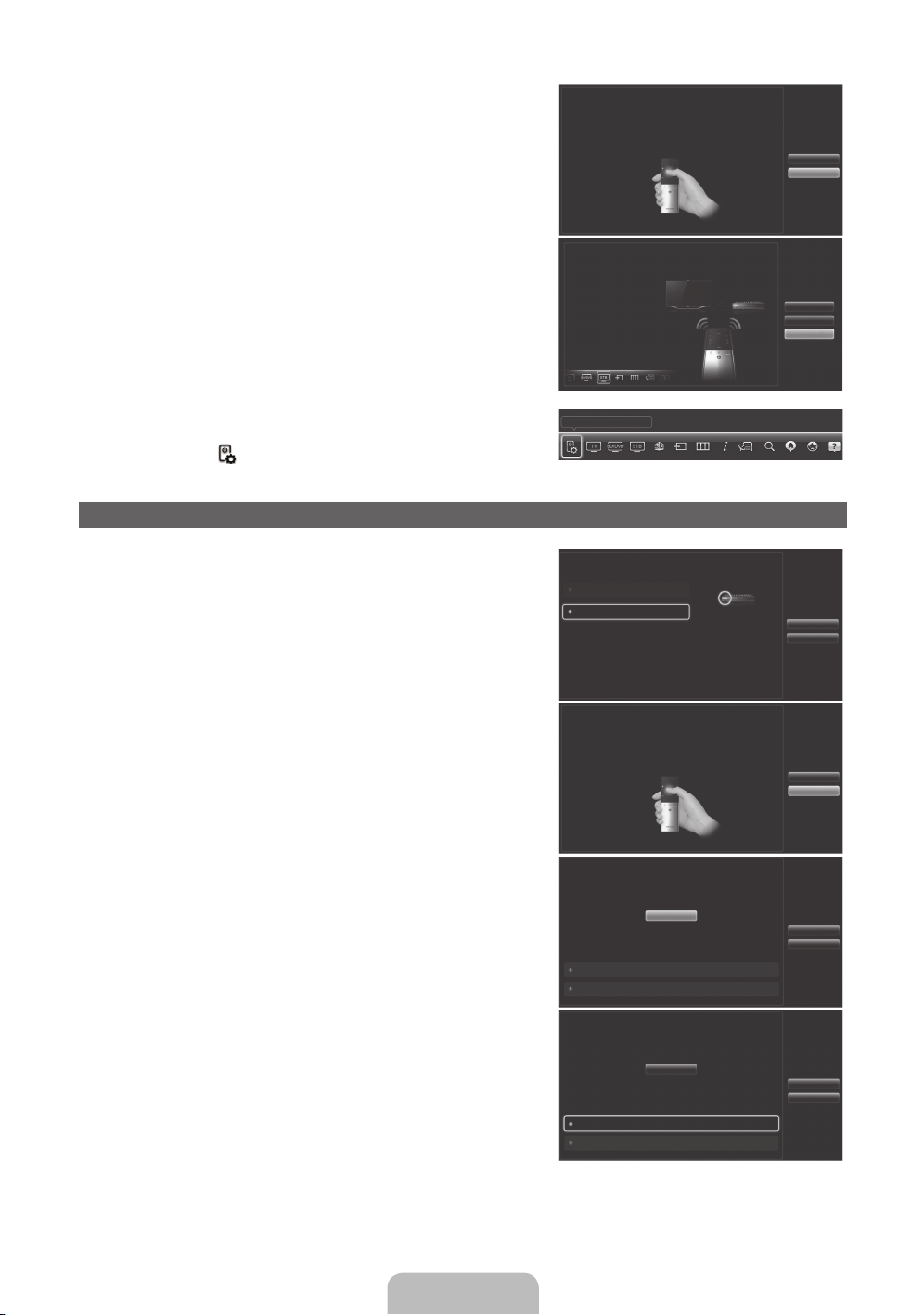

Setup (Initial Setup)

When you turn the TV on for the ﬁrst time, a sequence of prompts and screens will assist you in conﬁguring basic settings. To begin Setup, press the P button on your remote.

Setup is available only when the input source is set to TV. See "Changing the Input Source" (p. 16).

✎

To return to the previous step in the Setup sequence, Select Previous.

✎

Before you begin, make sure you have connected the TV to an aerial or a cable connection and that

✎

the TV is plugged in. (p. 7).

To start the Setup select Start.

✎

Menu Language:

Select a Language.

Use Mode: Select the

Home Use Mode.

Network Settings:

Conﬁgure network settings

To connect later,

✎

select Skip.

Software Upgrade:

Upgrading the software to latest version

To upgrade later,

✎

select Skip.

Select a menu language you want using your remote, and then select Next. The TV will display a menu using the selected language after next step.

Select Home Use using your remote, and then select Next.

Store Demo mode is for retail environments.

To set up your network connection, select Next using your remote. If you do not know your network set up information or want to set to it later, select Skip. For more detailed information, refer to “Setting up the Wired or Wireless Network” in the e-Manual for set up requirements and instructions, and the Network Connection section of this manual (p. 24). You can set up the network connection later using the Network menu.

Select Next to upgrade TV software. Your TV will automatically upgrade, if your TV need a software upgrade. If you want to upgrade later, select the Skip. For more information, refer to Software Upgrade (Preference Features → Support Menu) in the e-Manual.

This may take some time, depending on network status.

✎

English - 9

8 9

11 12

Select Country.

(Depending on the country)

Auto Tuning (1): Selecting how you watch your TV

Auto Tuning (2): Selecting a search options and Region Selection (Depending on the country)

Clock: Setting the Clock Mode

Time Zone

(Depending on the country): Setting the your Time Zone

Voice and motion control: Setting the

Voice and motion control function.

Setup Complete Select Close to ﬁnish.

Set the Universal Remote

Select the appropriate country.

After selecting the country in the Country menu, some models

✎

may proceed with an additional option to setup the pin number.

Let’s ﬁnd and store channels on your TV. Do you need to search for channels?

• Yes, I need to.: All the channels available will be found and stored on your TV.

• No, I don’t need to.: My set-top box provides all the channels that are available, so I don't need to search for channels.

Select the channel source to memorise. When setting the aerial source to Cable, a step appears allowing you to assign numerical values (channel frequencies) to the channels. For more information, refer to Auto Tuning (Channel Menu → Memorizing Channels) in the e-Manual.

When Air or Cable is selected first: After all Air or Cable channels

✎

are stored, the step for storing Satellite channels is displayed.

When Satellite is selected first: After all Satellite channels are

✎

stored, the step for storing Air or Cable channels is displayed.

Select Stop at any time to interrupt the memorization process.

✎

• Auto: Set the current time automatically.

• Manual: Allows you to manually set the current date and time.

This step is only available when the clock mode is set to Auto.

• Auto: Set the time zone automatically.

• Manual: Set the time zone manually. If you selected Manual, you can select whether to turn DST

✎

(Daylight Savings Time) On or Off. (Depending on the country)

You can turn the Voice and motion control function On or

✎

Off. Select Off or On, and then select Next. For more detailed information, refer to “SMART Interaction” (p.17)

The completed settings are displayed.

✎

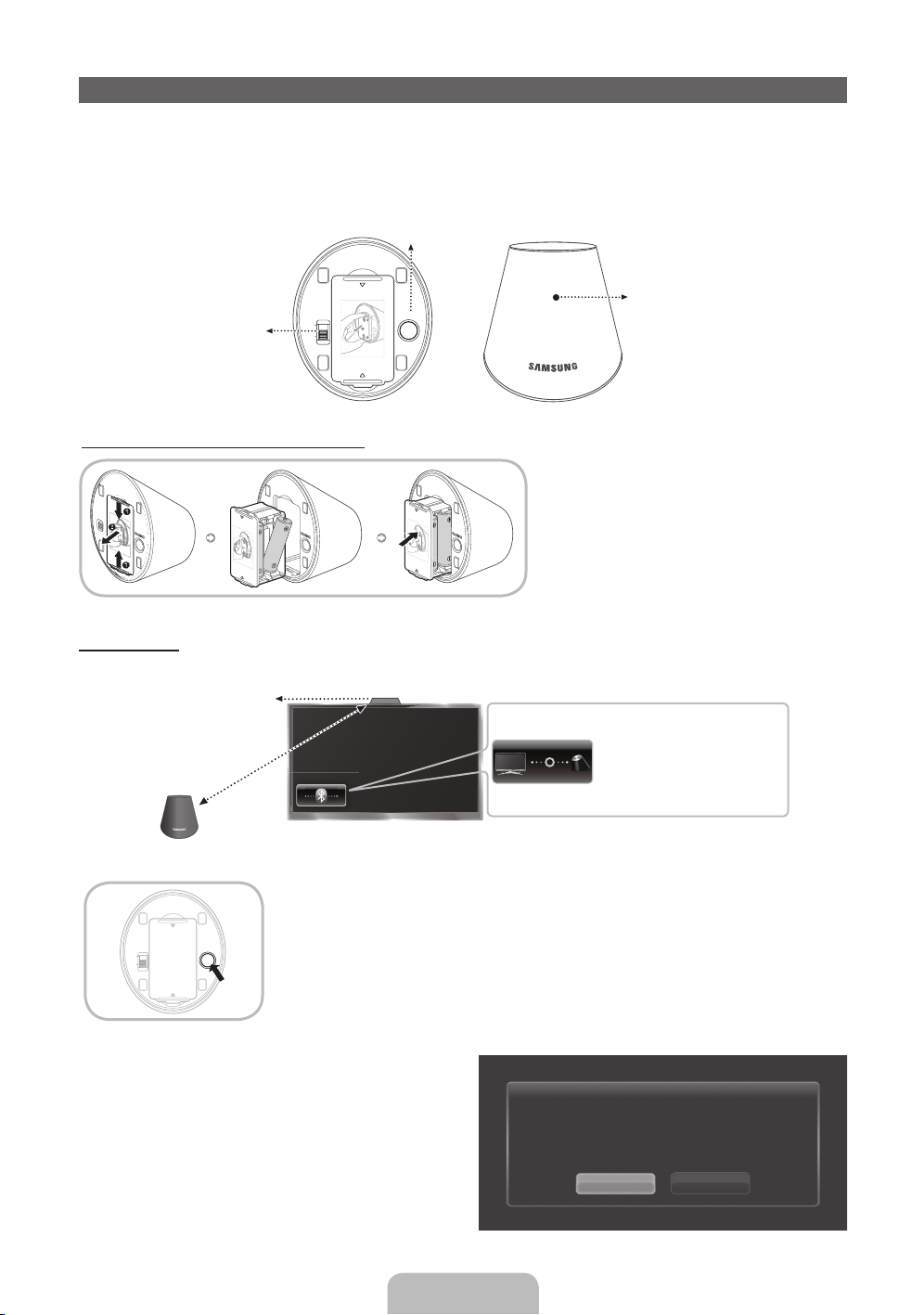

1. Turn on the POWER button on the bottom of the IR Blaster, and then press the PAIRING button.

2. Select Ye s to start the Universal Remote Setup.

For more detailed information about the Universal Remote Setup,

✎

refer to "Setting up the Universal Remote Control" section in the manual (page 30).

If You Want to Reset This Feature...

Menu → System →Setup

Select System - Setup (Initial Setup). Enter your 4 digit PIN number. The default PIN number is “0-0-0-0”. If you want to change the PIN number, use the Change PIN function.

You should do Setup (Menu → System) again at home although you did in shop.

If you forget the PIN code, press the remote control buttons in the following sequence in Standby

✎

mode, which resets the PIN to “0-0-0-0”: MUTE → 8 → 2 → 4 → POWER (on).

English - 10

Connecting to AV Devices (Blu-ray Players, DVD Players, etc.)

Using an HDMI Cable for an HD connection (up to 1080p, HD digital signals)

For the best quality HD picture, we recommend using an HDMI connection.

Use with DVD players, Blu-ray players, HD cable boxes, and HD Set-Top-Box satellite receivers.

HDMI connection

BD Player

HDMI OUT

HDMI Cable (Not Supplied)

HDMI to DVI connection

BD Player

HDMI Cable (Not Supplied)

DVI OUT

AUDIO Cable

AUDIO OUT

(Not Supplied)

R-AUDIO-L

HDMI IN 1 (DVI), HDMI IN 2 (ARC), HDMI IN 3 (MHL)

✎

• For the best picture and audio quality, connect digital devices to the TV using HDMI cables.

• An HDMI cable supports digital video and audio signals, and does not require an audio cable.

− To connect the TV to a digital device that does not support HDMI output, use an HDMI to DVI cable and audio cables.

• If you connect an external device to the TV that uses an older version of HDMI, the video and audio may not work. If this occurs, ask the manufacturer of the device about the HDMI version and, if it is out of date, request an upgrade.

• Be sure to purchase a certiﬁed HDMI cable. Otherwise, the picture may not display or a connection error may occur.

• We recommend using a basic high-speed HDMI cable or an HDMI cable that is Ethernet compatible. Note that this product does not support the Ethernet function via HDMI.

• This product supports the 3D and ARC (Audio Return Channel) functions via an HDMI cable. Note that the ARC function is supported by the HDMI IN 2 (ARC) port only.

− If 3D Auto View is set to On, some functions such as SMART HUB may be disabled. In this case, set 3D Auto View or 3D Mode to Off.

English - 11

• The ARC function allows digital audio to output via the HDMI IN 2 (ARC) port on the TV. It can be enabled only when the TV is connected with an audio receiver that supports the ARC function.

• This product supports the Mobile High-Deﬁnition Link (MHL) function via an HDMI-MHL cable. Note that the MHL function is supported by the HDMI IN 3 (MHL) port only.

• The MHL function lets you display a mobile device's screen via the HDMI IN 3 (MHL) port on the TV. It can be enabled only when the TV is connected with a mobile device that supports the MHL function. For more detailed information, see "Using the MHL function" in e-Manual.

• When you use MHL devices via a MHL cable, Picture Size is set to Screen Fit automatically. But if you use MHL devices via an HDMI cable, Picture Size is not set to Screen Fit automatically. To view an original size, select Screen Fit in the Picture Size menu (Menu → Picture → Picture Size).

• If you use MHL devices via an HDMI cable, The TV will be recognized as the HDMI input. In this case, the TV may work differently than when you use MHL devices via a MHL cable.

For best cable connection to this product, be sure to use cables with a maximum thickness as

✎

below:

• Maximum thickness - 0.55 inches (14mm)

English - 12

Using a Component (up to 1080p) or an Audio/Video (480i only) and a Scart Cable

Scart Adapter (Supplied)

SERVICE: Connector for service only.

Component Cable (Not Supplied)

Scart Cable (Not Supplied)

Audio Cable (Not Supplied)

EXT

VCR or DVD

SCART connection

In Ext. mode, DTV Out supports MPEG SD Video and Audio only.

✎

When you connect a Video cable to AV IN 1, the Colour of the AV IN 1 [VIDEO] jack (green) will not

✎

COMPONENT OUT

PRPBY

BD Player

Component connection

AUDIO OUT

R-AUDIO-L

Audio Cable (Not Supplied)

AUDIO OUT

R-AUDIO-L

VIDEO OUT

BD Player

AV connection

Video Cable (Not Supplied)

match the video cable (yellow).

To obtain the best picture quality, the Component connection is recommended over the A/V

✎

connection.

English - 13

Connecting to a PC

Using an HDMI cable or an HDMI to DVI cable

Your PC may not support an HDMI connection.

✎

Use your PC speakers for audio.

✎

PC connection

HDMI OUT

DVI OUT

AUDIO OUT

HDMI Cable

(Not Supplied)

HDMI to DVI Cable (Not Supplied)

Audio Cable

(Not Supplied)

The optimal resolution is 1920 X 1080 @ 60 Hz. See the Display Resolution page for all available resolutions (page 38).

NOTE

✎

• For an HDMI to DVI cable connection, you must use the HDMI IN 1 (DVI) jack.

• For PCs with DVI video out jacks, use an HDMI to DVI cable to connect the DVI out on the PC to the HDMI IN 1 (DVI) jack on the TV. Use the PC's speakers for audio.

• PC (D-Sub) input is not supported.

English - 14

+ 32 hidden pages
