LED TV

user manual

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/register

Model _____________Serial No. _____________

A detailed User’s Manual is built into your TV. For more information about how to view this e-Manual see page 19.

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and speciﬁcations may be changed without notice.

Digital TV notice

1. Functionalities related to Digital TV (DVB) are only available in countries/areas where DVB-T (MPEG2 and MPEG4 AVC) digital terrestrial signals are

broadcasted or where you are able to access to a compatible DVB-C (MPEG2 and MPEG4 AAC) cable-TV service. Please check with your local dealer the possibility to receive DVB-T or DVB-C signal.

2. DVB-T is the DVB European consortium standard for the broadcast transmission of digital terrestrial television and DVB-C is that for the broadcast

transmission of digital TV over cable. However, some differentiated features like EPG (Electric Programme Guide), VOD (Video On Demand) and so on, are not included in this speciﬁcation. So, they cannot be workable at this moment.

3. Although this TV set meets the latest DVB-T and DVB-C standards, as of [August, 2008], the compatibility with future DVB-T digital terrestrial and

DVB-C digital cable broadcasts cannot be guaranteed.

4. Depending on the countries/areas where this TV set is used some cable-TV providers may charge an additional fee for such a service and you may

be required to agree to terms and conditions of their business.

5. Some Digital TV functions might be unavailable in some countries or regions and DVB-C might not work correctly with some cable service providers.

6. For more information, please contact your local Samsung customer care centre.

The reception quality of TV may be affected due to differences in broadcasting method between the countries. Please check the TV

✎

performance in the local SAMSUNG Authorized Dealer, or the Samsung Call Centre whether it can be improved by reconfiguring TV setting or not.

Still image warning

Avoid displaying still images (like jpeg picture ﬁles) or still image element (like TV programme logo, panorama or 4:3 image format, stock or news bar at screen bottom etc.) on the screen. Constant displaying of still picture can cause ghosting of LED screen, which will affect image quality. To reduce risk of this effect, please follow below recommendations:

• Avoid displaying the same TV channel for long periods.

• Always try do display any image on full screen, use TV set picture format menu for best possible match.

• Reduce brightness and contrast values to minimum required to achieve desired picture quality, exceeded values may speed up the burnout process.

• Frequently use all TV features designed to reduce image retention and screen burnout, refer to e-Manual for details.

English - 2

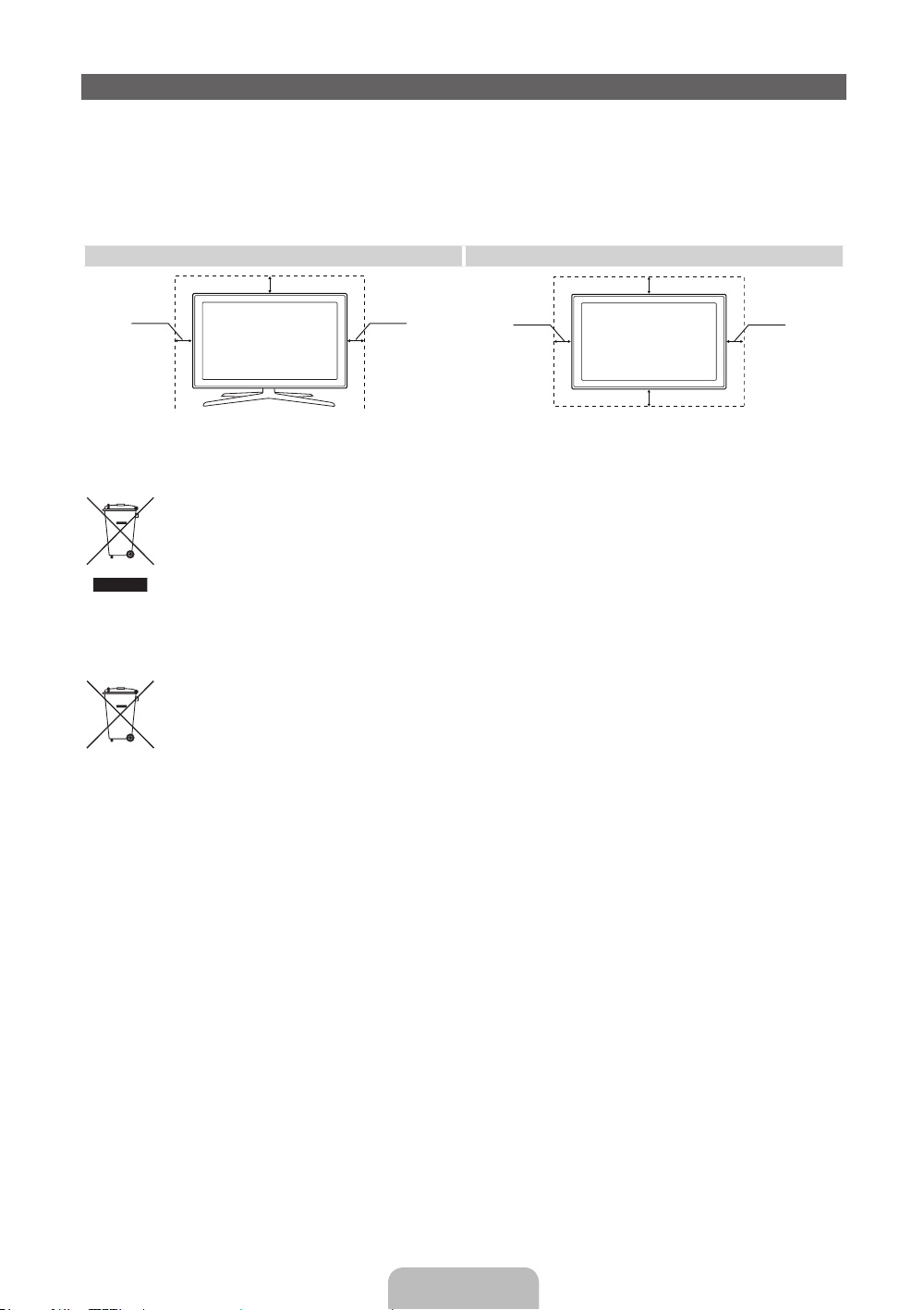

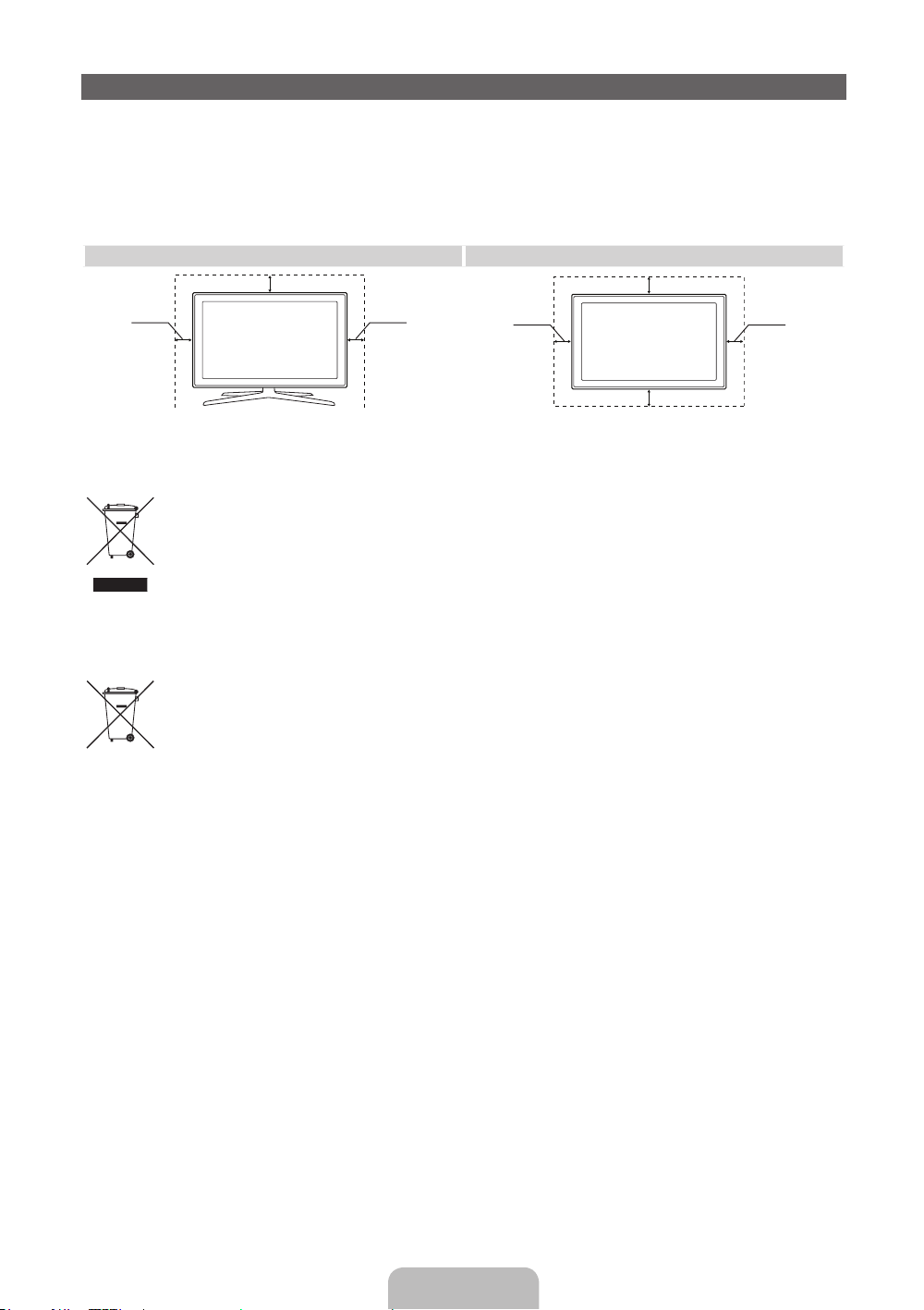

Providing Proper Ventilation for Your TV

When you install your TV, maintain a distance of at least 4 inches between the TV and other objects (walls, cabinet sides, etc.) to ensure proper ventilation. Failing to maintain proper ventilation may result in a ﬁre or a problem with the product caused by an increase in its internal temperature.

Whether you install your TV using a stand or a wall-mount, we strongly recommend you use parts provided by Samsung Electronics only.

✎

• If you use parts provided by another manufacturer, it may cause difﬁculties with the product or result in injury caused by the product falling.

Installation with a stand. Installation with a wall-mount.

10 cm

10 cm10 cm

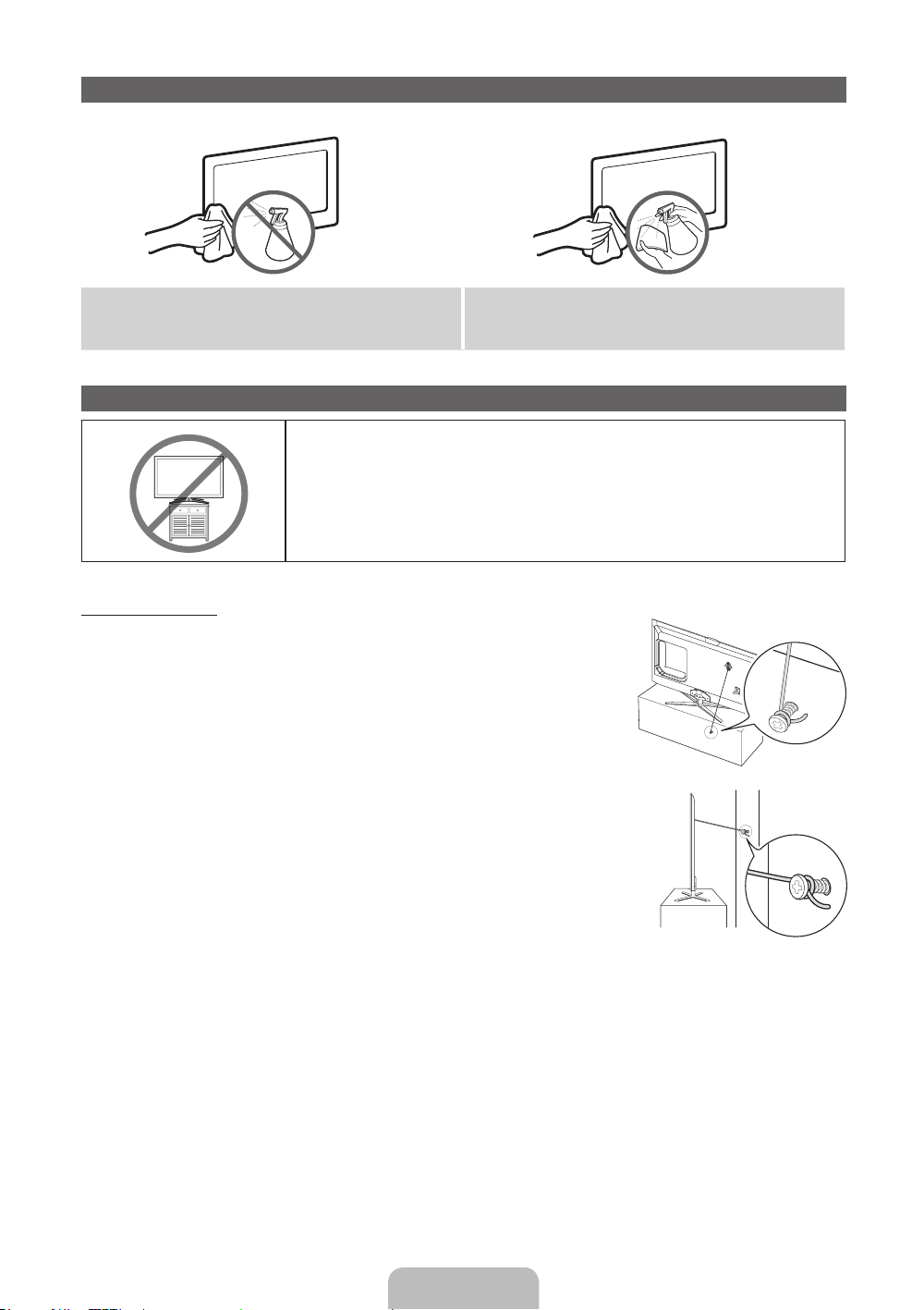

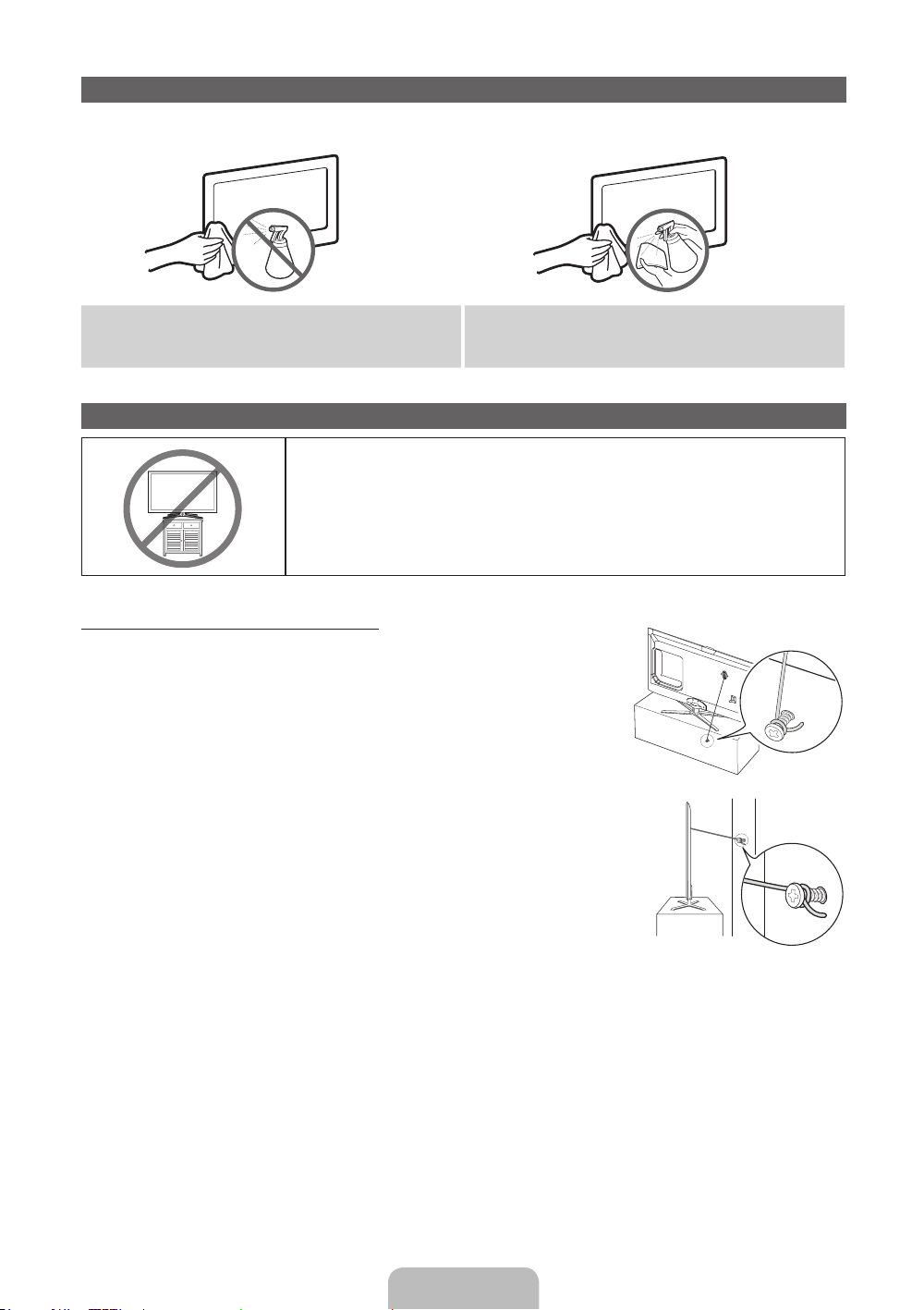

Other Wa rnings

[

The actual appearance of the TV may differ from the images in this manual, depending on the model.

✎

Be careful when you touch the TV. Some parts can be somewhat hot.

✎

Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government ofﬁce, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product (Applicable in the European Union and other European countries with separate battery return systems)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment. To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

10 cm

• An administration fee may be charged if either

− (a) an engineer is called out at your request and there is no defect in the product

(i.e. where you have failed to read this user manual)

− (b) you bring the unit to a repair centre and there is no defect in the product

(i.e. where you have failed to read this user manual).

• The amount of such administration charge will be advised to you before any work or home visit is carried out.

English - 3

List of Features

• 3D: This exciting new feature enables you to view 3D content from some broadcasting or 3D BD players.

• SMART HUB: The Gateway to all content integrated in one place

− It’s all integrated to guide you to easier and diverse entertainment choices

− Control your entertainment life with easy and simple user friendly UI

− Access to diverse Apps that are adding up every day

− Customize your TV, by App grouping & sorting to your taste

• AllShare Play: AllShare Play lets you access, view, or play photos, videos, or music located on USB devices, digital cameras, cell phones, and

PCs. PCs, cell phones, and other compatible devices can be accessed wirelessly, through your wireless network.

• Anynet+ (HDMI-CEC): Allows you to control all connected Samsung devices that support Anynet+ with your Samsung TV’s remote.

• e-Manual: Allows you to read on screen full manual. (p. 19)

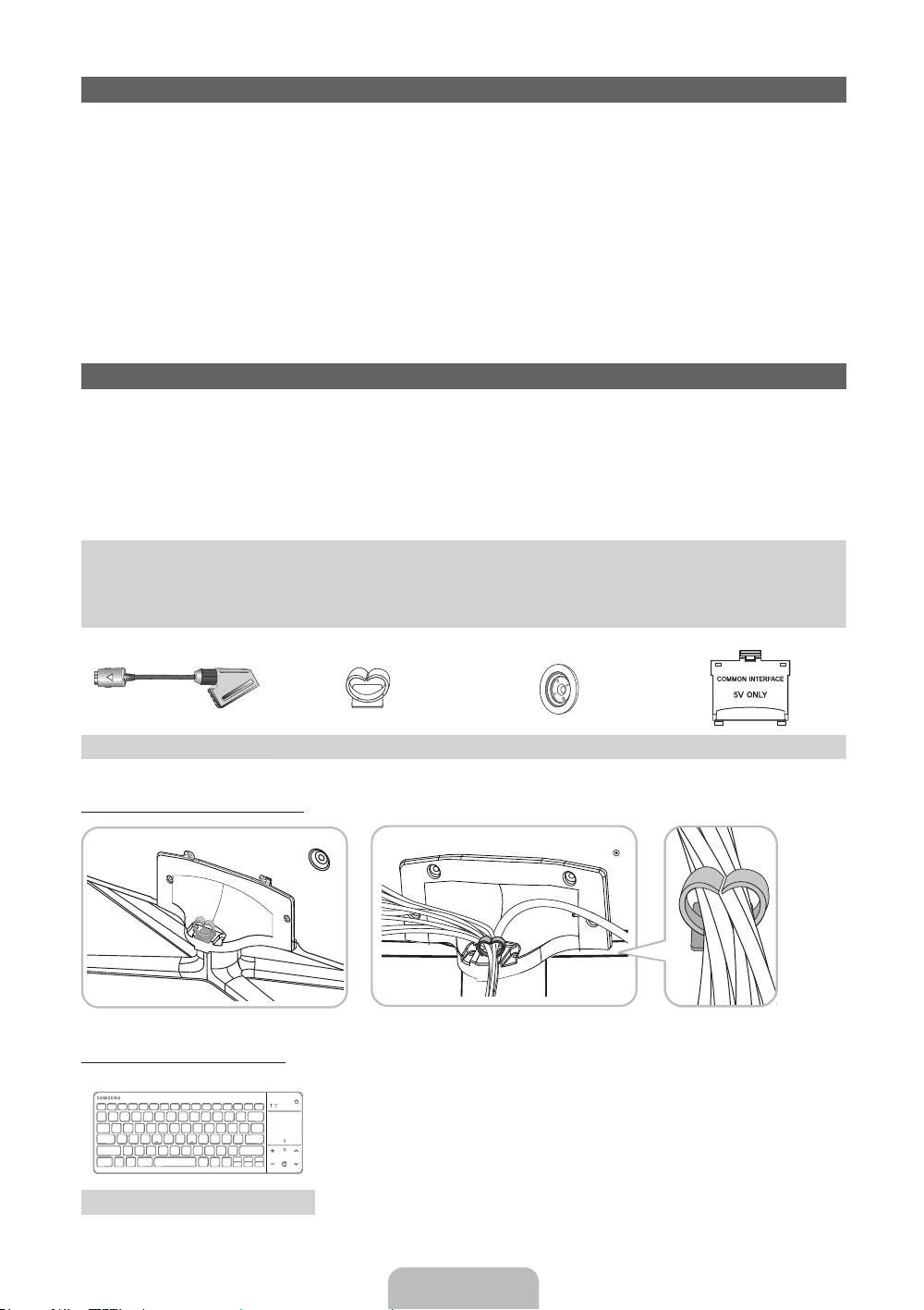

Accessories

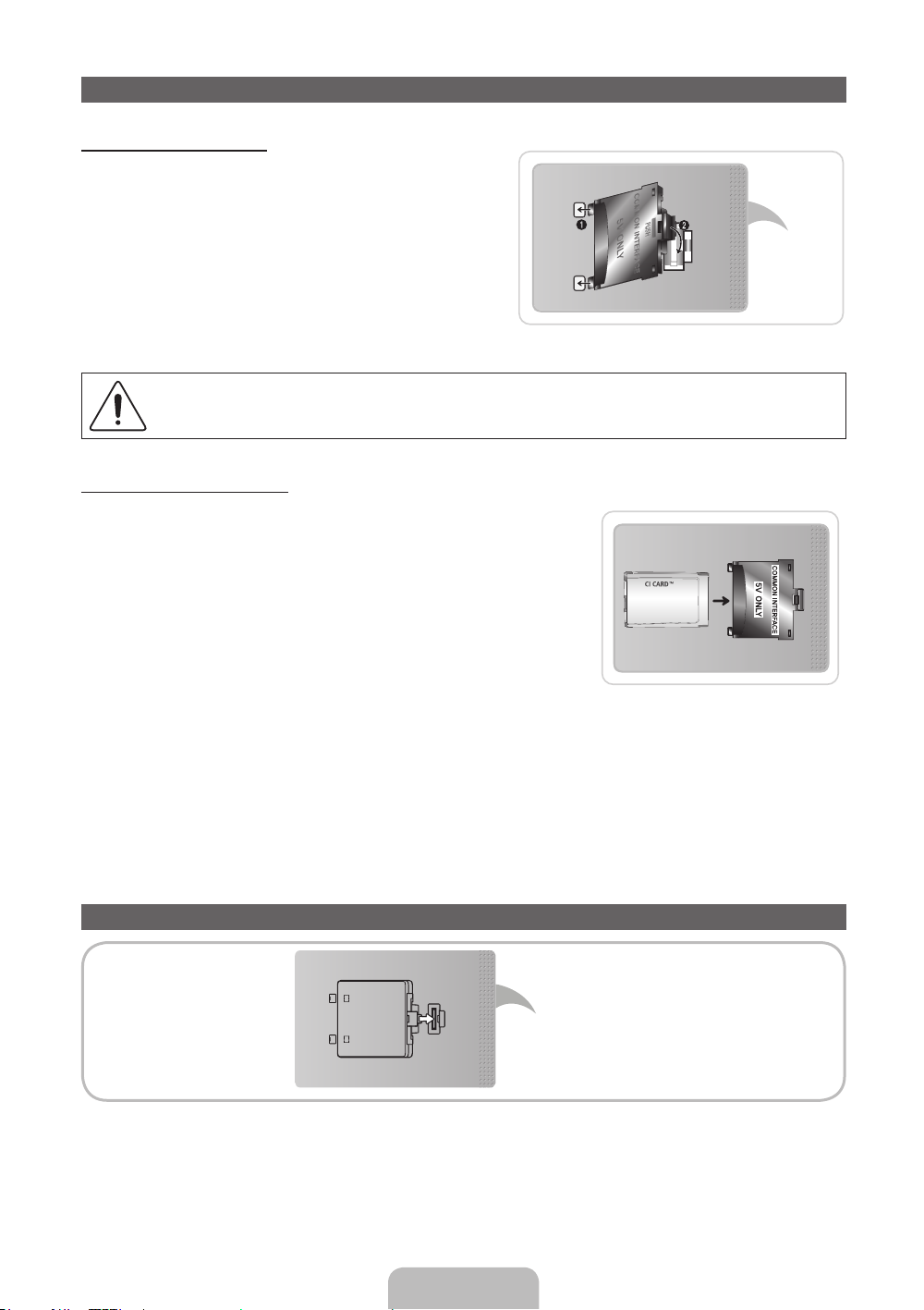

Please make sure the following items are included with your TV. If any items are missing, contact your dealer.

✎

The items’ colours and shapes may vary depending on the models.

✎

Cables not included in the package contents can be purchased separately.

✎

Check that there is no accessory hidden behind packing materials when you open the box.

✎

CAUTION: INSERT SECURELY LEST SHOULD BE DETACHED IN SET

[

• Smart Touch Control & Batteries (AA x 2)

• IR Blaster & Batteries (AA x 4)

• Remote Control & Batteries (AAA x 2)

• Warranty Card (Not available in some locations) / Safety Guide

• Power Cord

• Cleaning-Cloth

• Samsung 3D Active Glasses

• User Manual

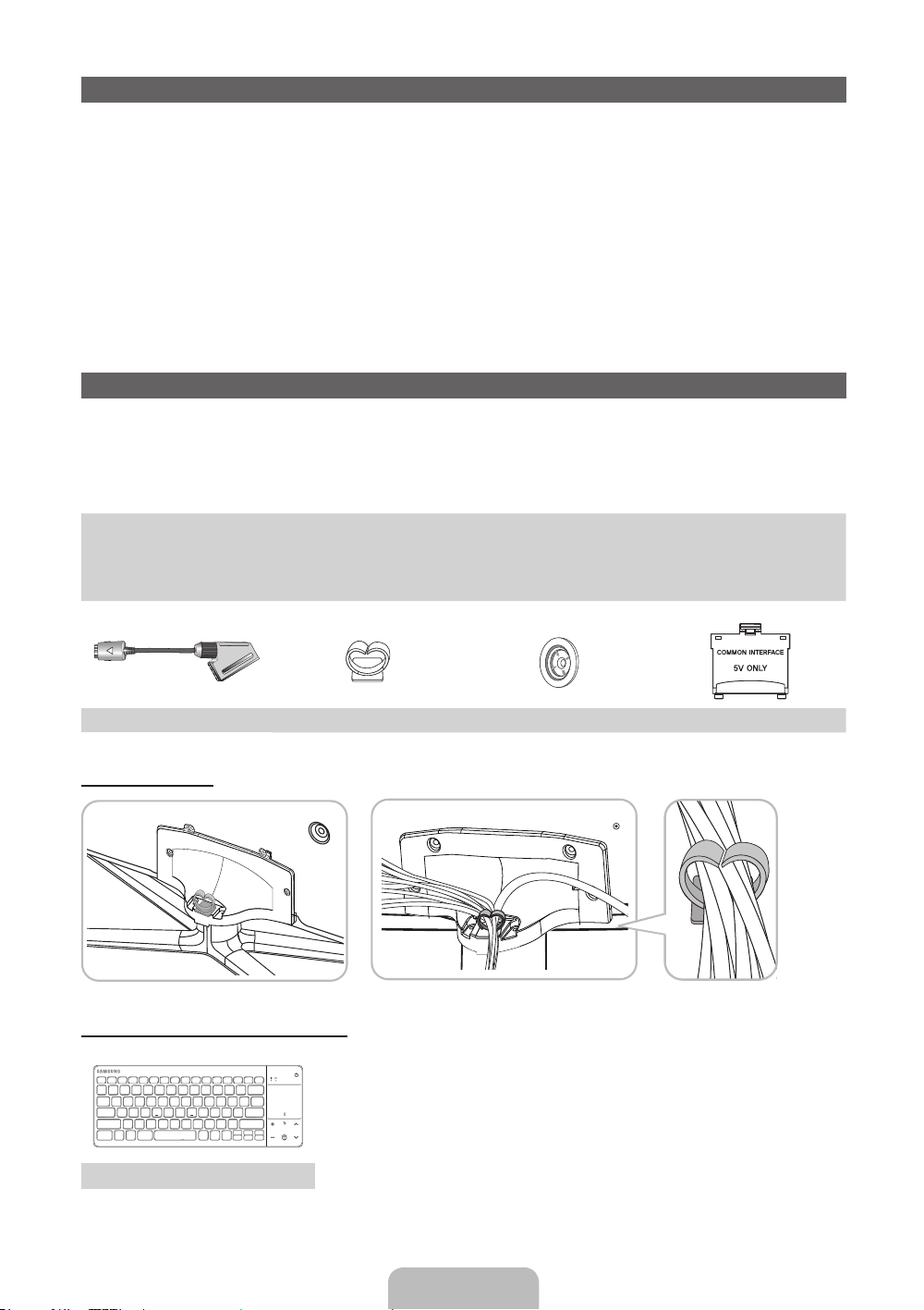

Scart Adapter Holder-Wire stand Holder Ring x 4 CI Card Adapter

Assembling the Stand Wire Holder

Wireless Keyboard (Sold Separately)

Wireless Keyboard

English - 4

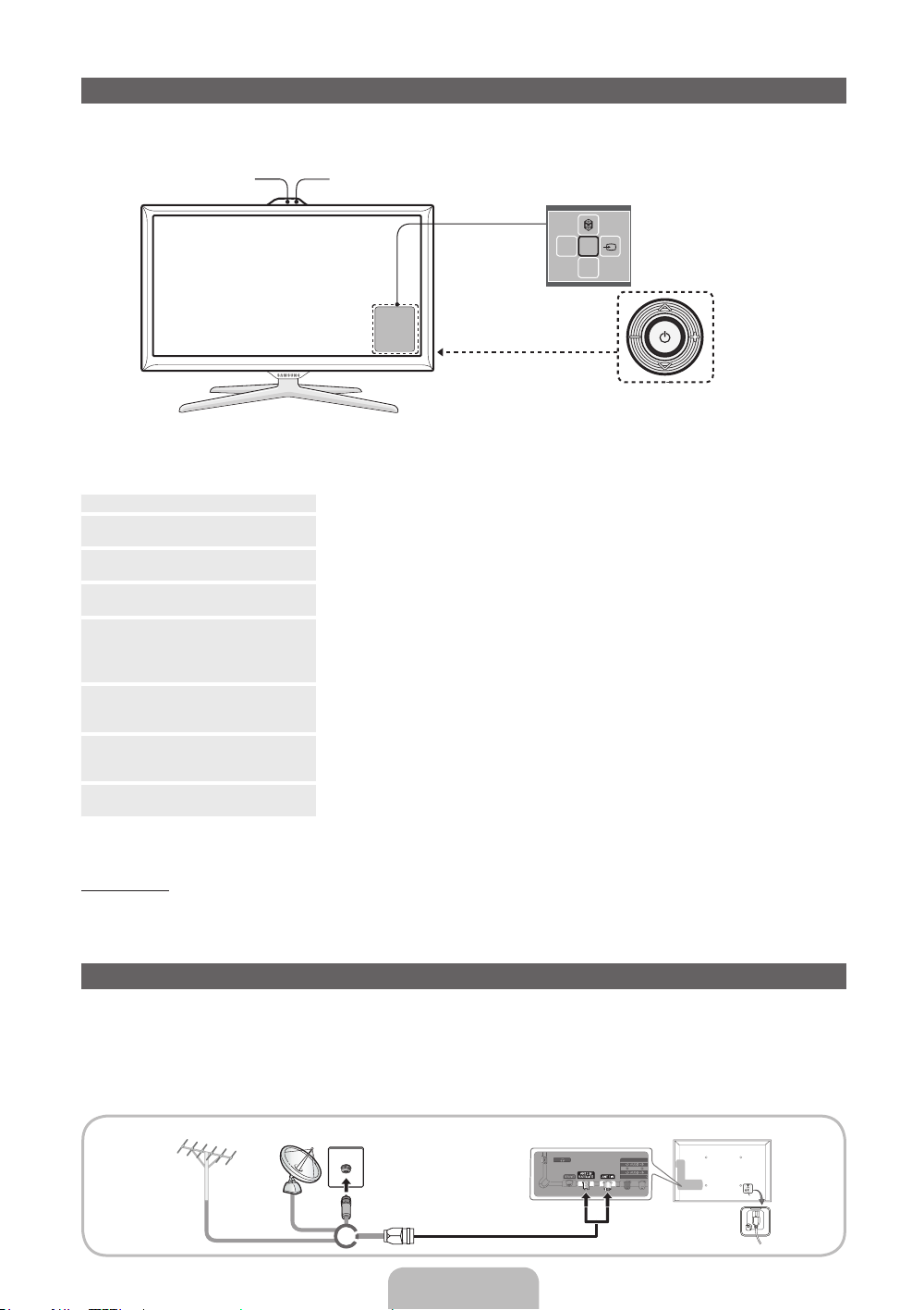

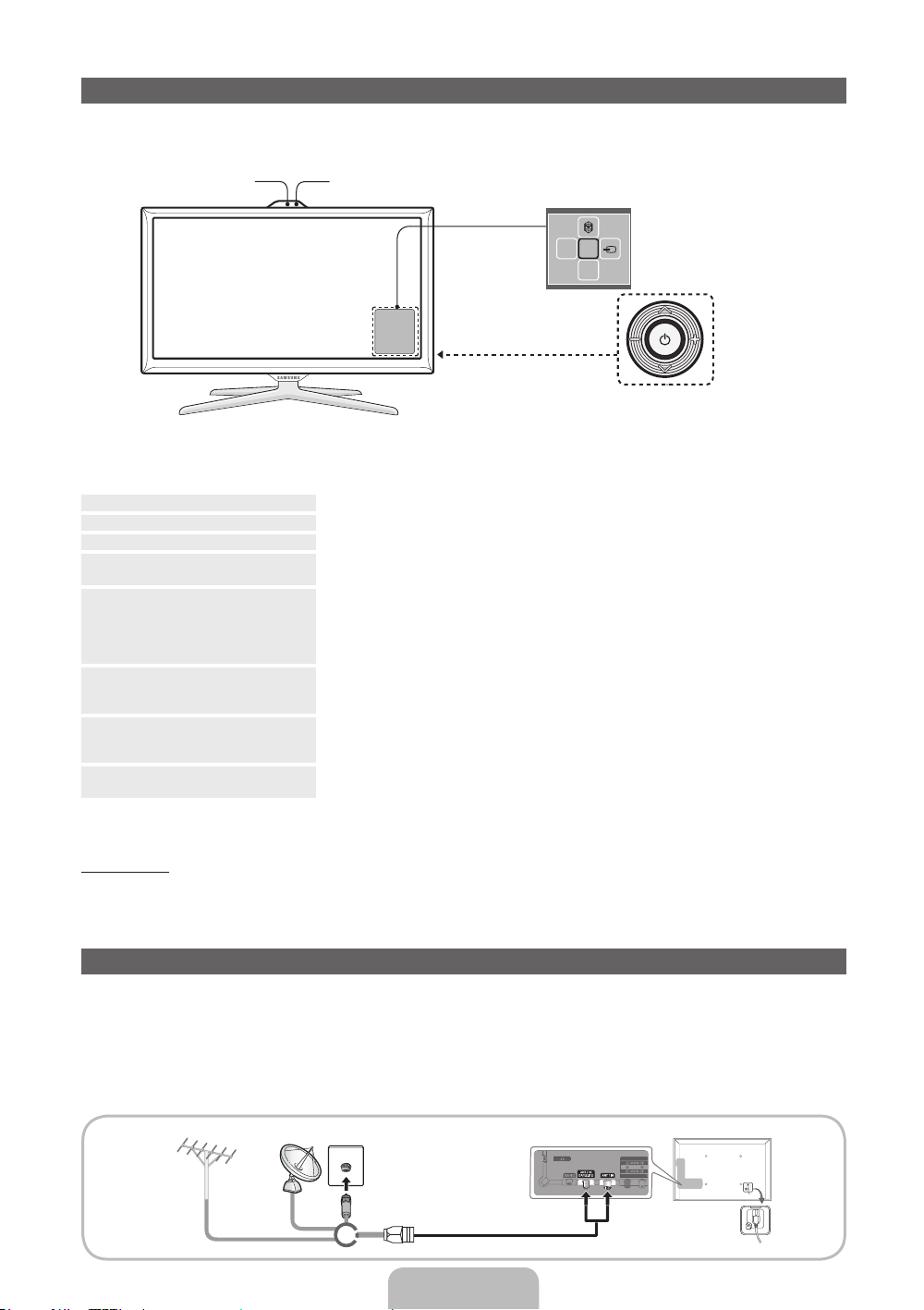

Using the TV's Controller (Panel Key)

The TV's Controller, a small joy stick like button on the rear right side of the TV, lets you control the TV without the remote control.

The product colour and shape may vary depending on the model.

✎

Camera

Follow these instructions facing the front of your TV.

✎

When you use a TV camera, you should check whether a tape attached or not in rear of the TV camera, and then you can use a TV camera

✎

after adjust a camera angle. When you don't want to use a TV camera, we recommend to use after a camera lens fixes to upwards. In this case, Face recognition and Motion control are not available.

Power on Turn the TV on by pressing the Controller when the TV is in standby mode. Adjusting the volume Adjust the volume by moving the Controller from side to side when the power is on.

Selecting a channel Select a channel by moving the Controller upwards and downwards when the power is on. Using the Function menu To view and use the Function menu, press and release the Controller when the power is on. To close

Selecting the MENU (

Selecting the SMART HUB (

Selecting a Source (

Power off (

) With the Function menu visible, select Power off (P) by moving the Controller downwards, and then

) With the Function menu visible, select the MENU (m) by moving the Controller to the left. The OSD

™

) With the Function menu visible, select SMART HUB (™) by moving the Controller upwards. The

) With the Function menu visible, open the Source (s) by moving the Controller to the right. The

Remote control sensor

Function menu

TV Controller

the Function menu, press and release the Controller again.

(On Screen Display) Menu appears. Select an option by moving the Controller to the right. Move the Controller to the right or left, or backwards and forwards to make additional selections. To change a parameter, select the it, and then press the Controller.

additional selections. To change a parameter, select the it, and then press the Controller.

SMART HUB main screen appears. Select an application by moving the Controller, and then pressing the Controller.

Source screen appears. To select a Source, move the Controller back and forth. When the source you want is highlighted, press the Controller.

press the Controller.

To close the Menu, Smart Hub, or Source, press the Controller for more than 1 second.

✎

Standby mode

Your TV enters Standby mode when you turn it off and continues to consume a small amount of electric power. To be safe and to decrease power consumption, do not leave your TV in standby mode for long periods of time (when you are away on vacation, for example). It is best to unplug the power cord.

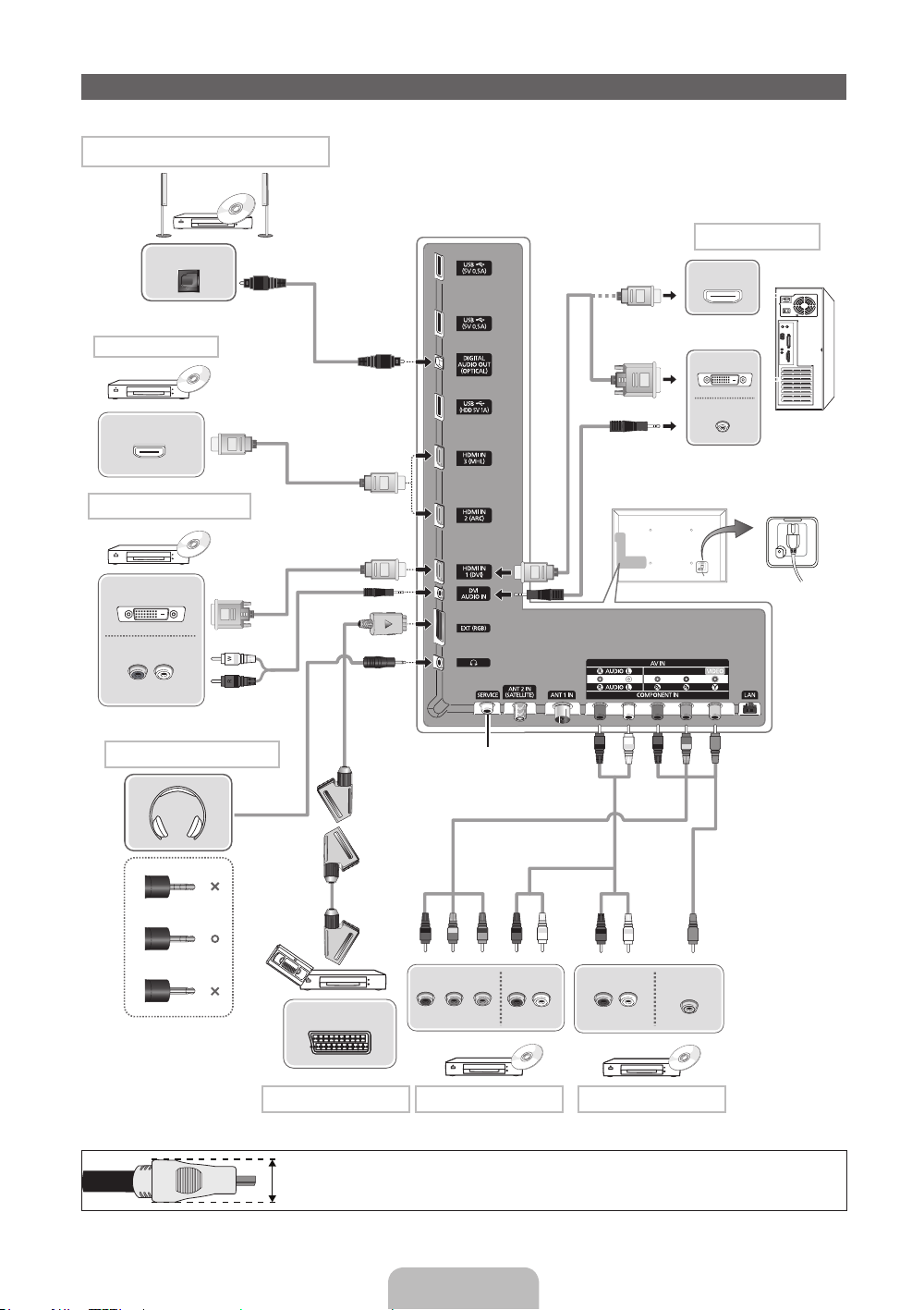

Connecting to an Aerial

Plug the power cord into a wall outlet only after you have made all other connections.

✎

If you are connecting your TV to a cable or satellite box using HDMI, Component, or Composite connections, you do not need to connect the

✎

ANT IN jack to an aerial or a cable connection. Using two-way radio mobile and portable units or amateur radio or AM radio near your TV may cause the TV to malfunction.

✎

Use caution when you move or swivel the TV if the aerial cable is tightly connected. You could break the aerial jack off the TV.

✎

VHF/UHF Aerial CableSatellite

English - 5

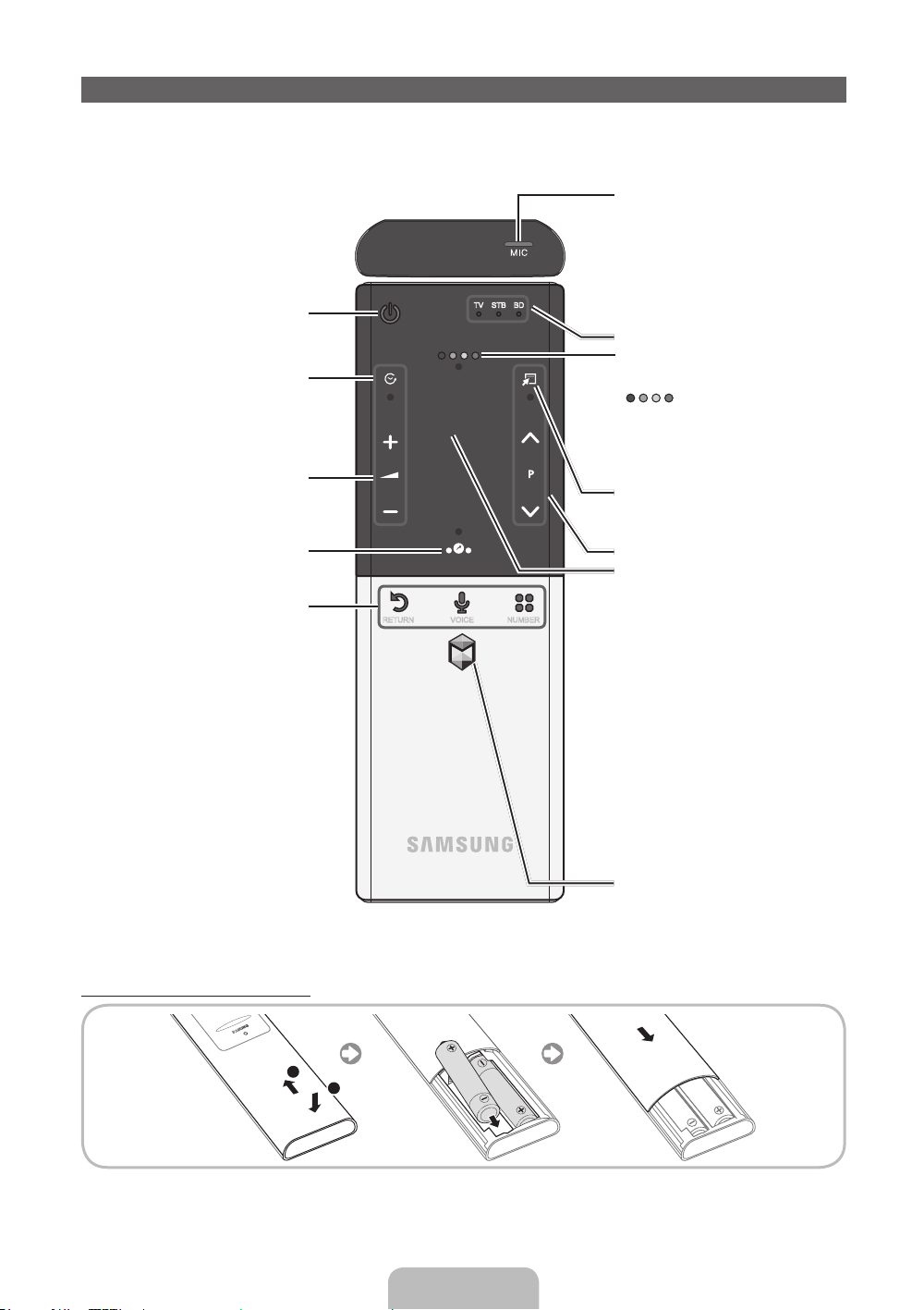

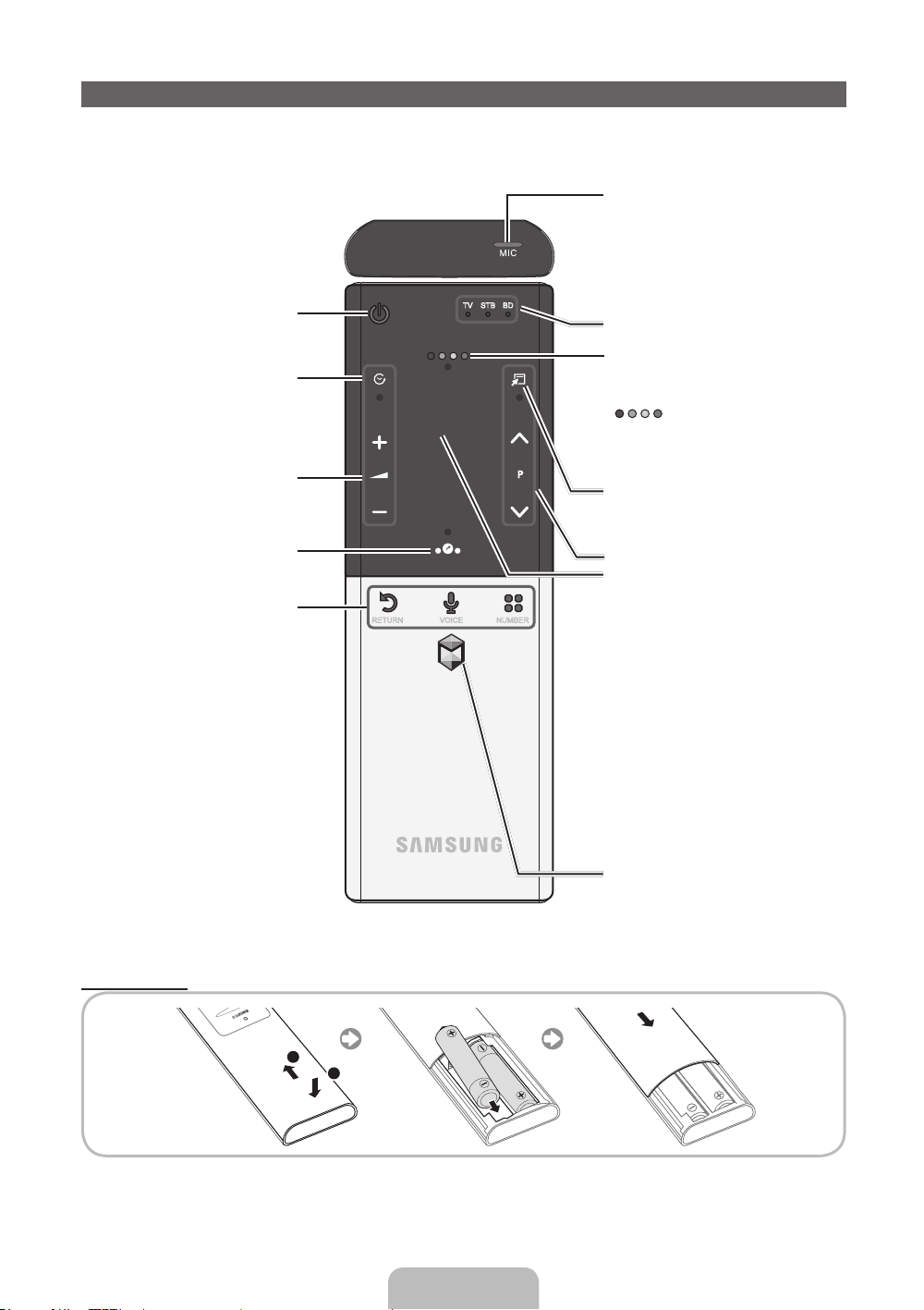

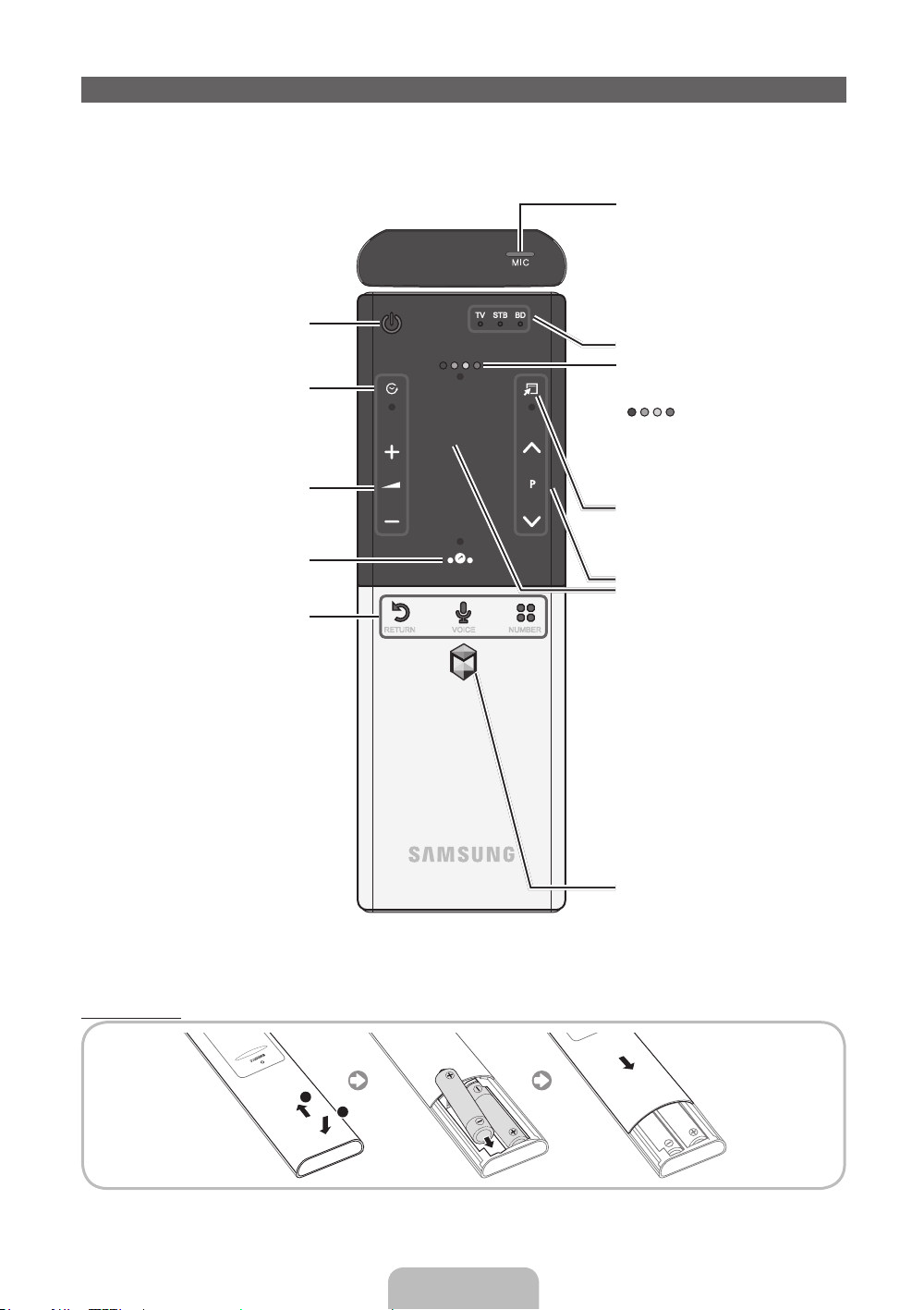

The Smart Touch Control / IR Blaster Guide

For more detailed information about Smart Touch Control, see "Using the Smart Touch Control" in e-Manual.

✎

Smart Touch Control

Turns the TV on and off.

: Displays a list of recently used

functions. You can select a function again

using the Touch Pad easily and quickly.

: Adjusts the Volume.

TV STB BD

You can speak a voice command that displayed to the TV using MIC. To use MIC, press the VOICE remote.

Voice Control function can be

✎

affected recognition by unclear pronunciation, voice level, or surrounding noise.

LED to show the active device.

Displays Colour and playing control functions. You can select a function using the Touch Pad.

: Use these buttons according to

the directions on screen. playing control buttons: Use these buttons

in a speciﬁc feature. For details, refer to the e-Manual.

: Quickly select frequently used functions. Use this button in a speciﬁc feature. For details, refer to e-Manual.

button on your

Displays the shortcut functions list. You can

select a function using the Touch Pad.

RETURNR: Returns to the previous menu.

VOICE

: Lets you access the Voice

Control function. When you press the

button, the TV displays the command

list. You can speak using the microphone

embedded in your remote.For more

detailed information about the Voice

Control function, see "SMART Interaction"

in the e-manual or see page 14.

NUMBER

screen. You can select a number using the

: Displays the Number button

Touch Pad.

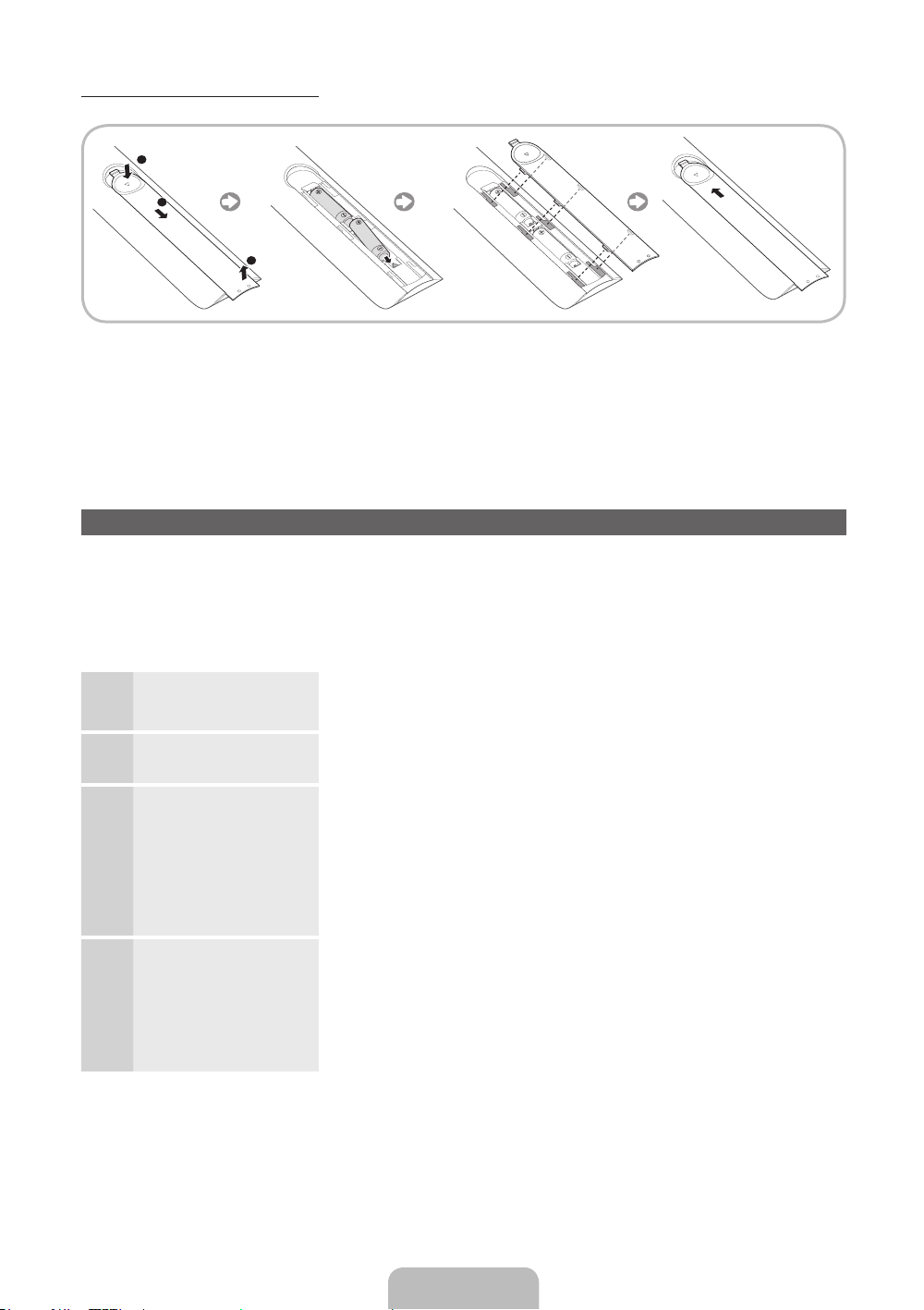

Installing batteries (Battery size : AA)

< P >

: Changes channels.

Touch Pad

• You can use the Touch Pad in the

RETURN VOICE NUMBER

same way you use the Touch Pad on a laptop.

• If you don't press any button within 30 seconds, the Smart Touch Control is set to Sleep mode automatically.

• To wake up the Smart Touch Control, press the Touch Pad.

• If you press the Touch Pad for 2 seconds, it has the same effect as pressing the MUTE

button on

your remote. (Available only when Source is set to TV.)

Brings up the Smart Hub applications. See the e-Manual chapter Advanced Features → Smart Hub.

To exit an application that is running

✎

easily, press the

™

button.

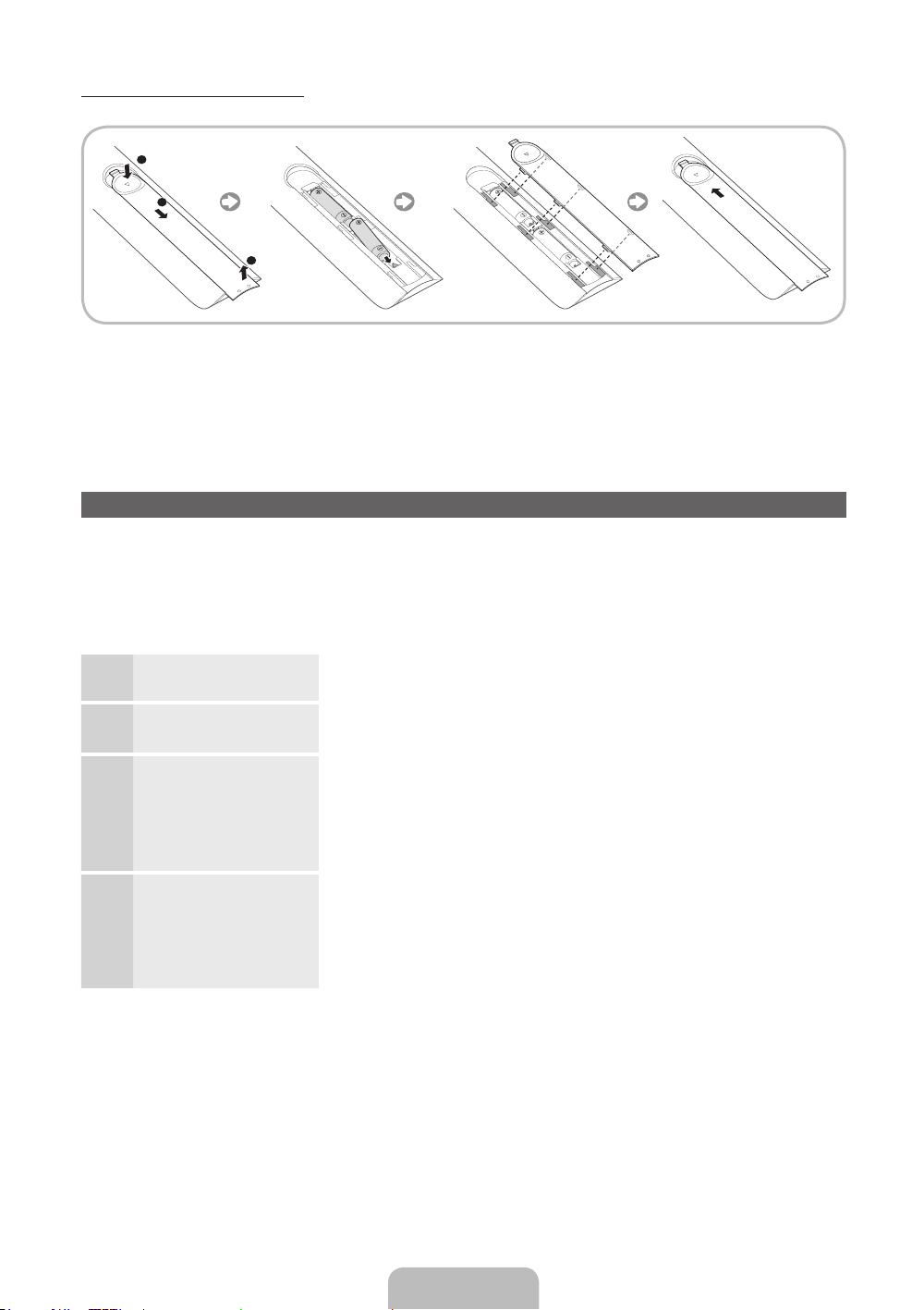

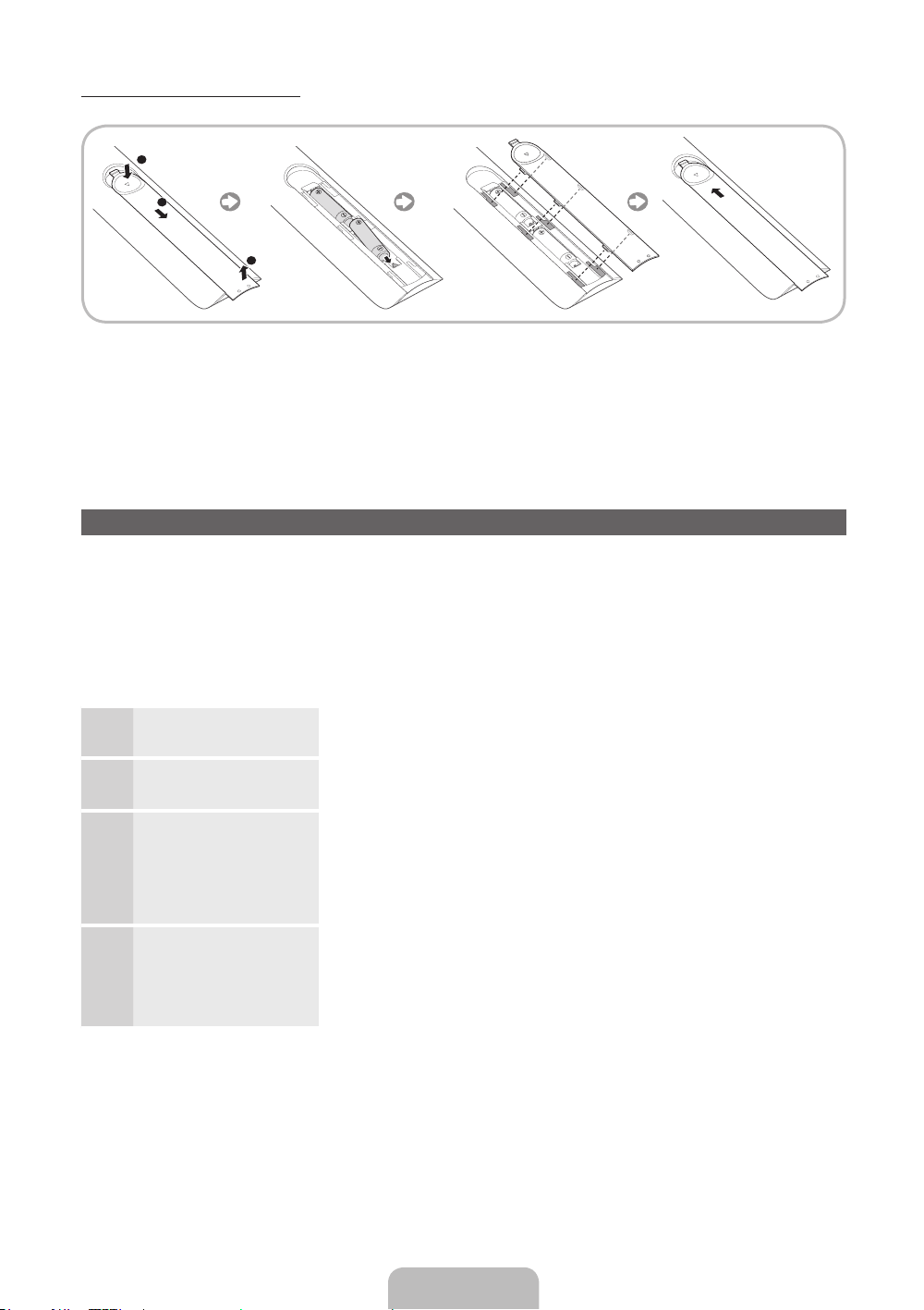

1. Press the back of the remote at the very bottom with both thumbs, and then slide the battery cover up in the direction of the arrow.

2. Install two batteries so that the polarity of the batteries (+/-) matches the illustration in the battery compartment.

3. Slide the cover down in the direction of the arrow to close the battery cover.

English - 6

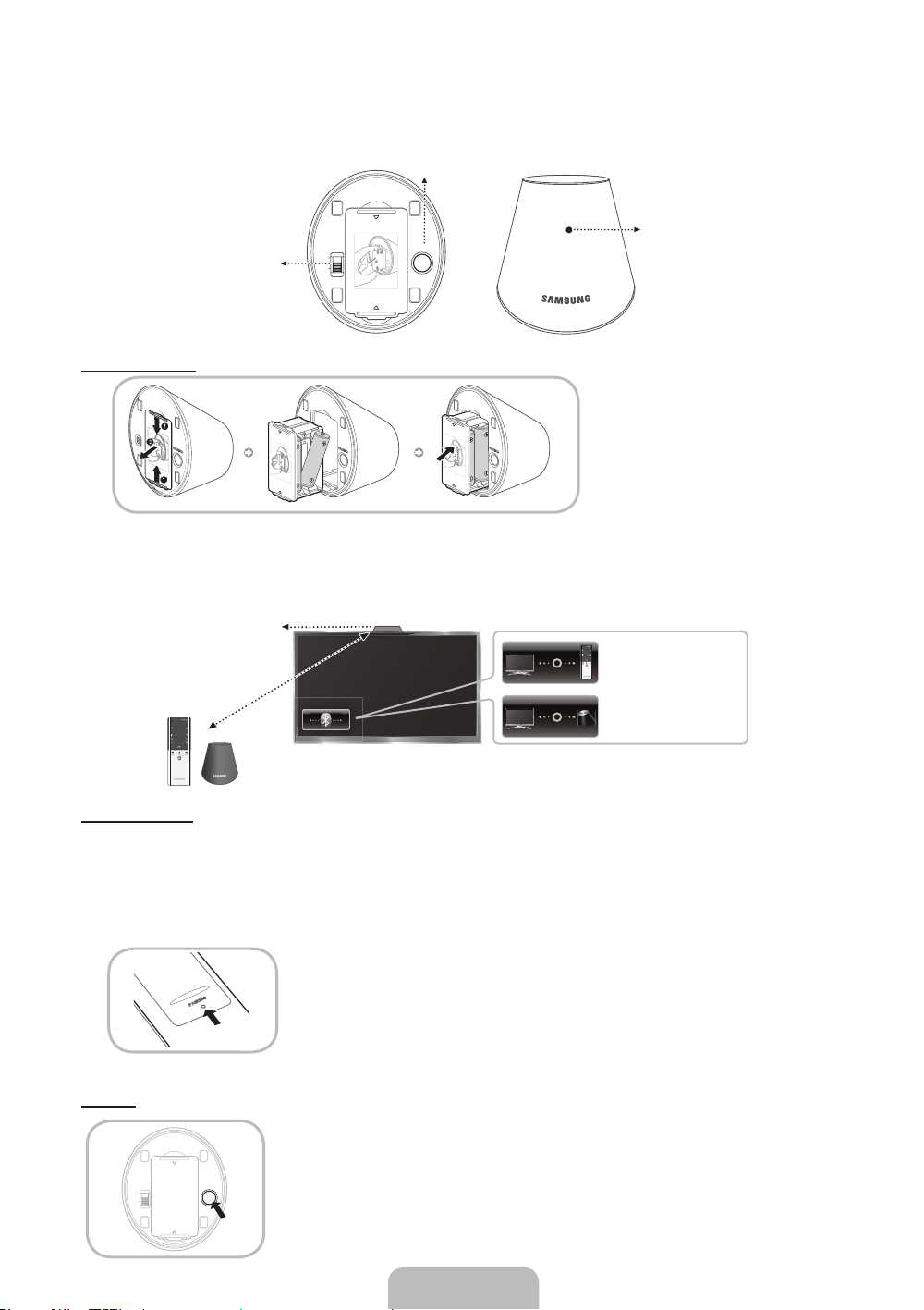

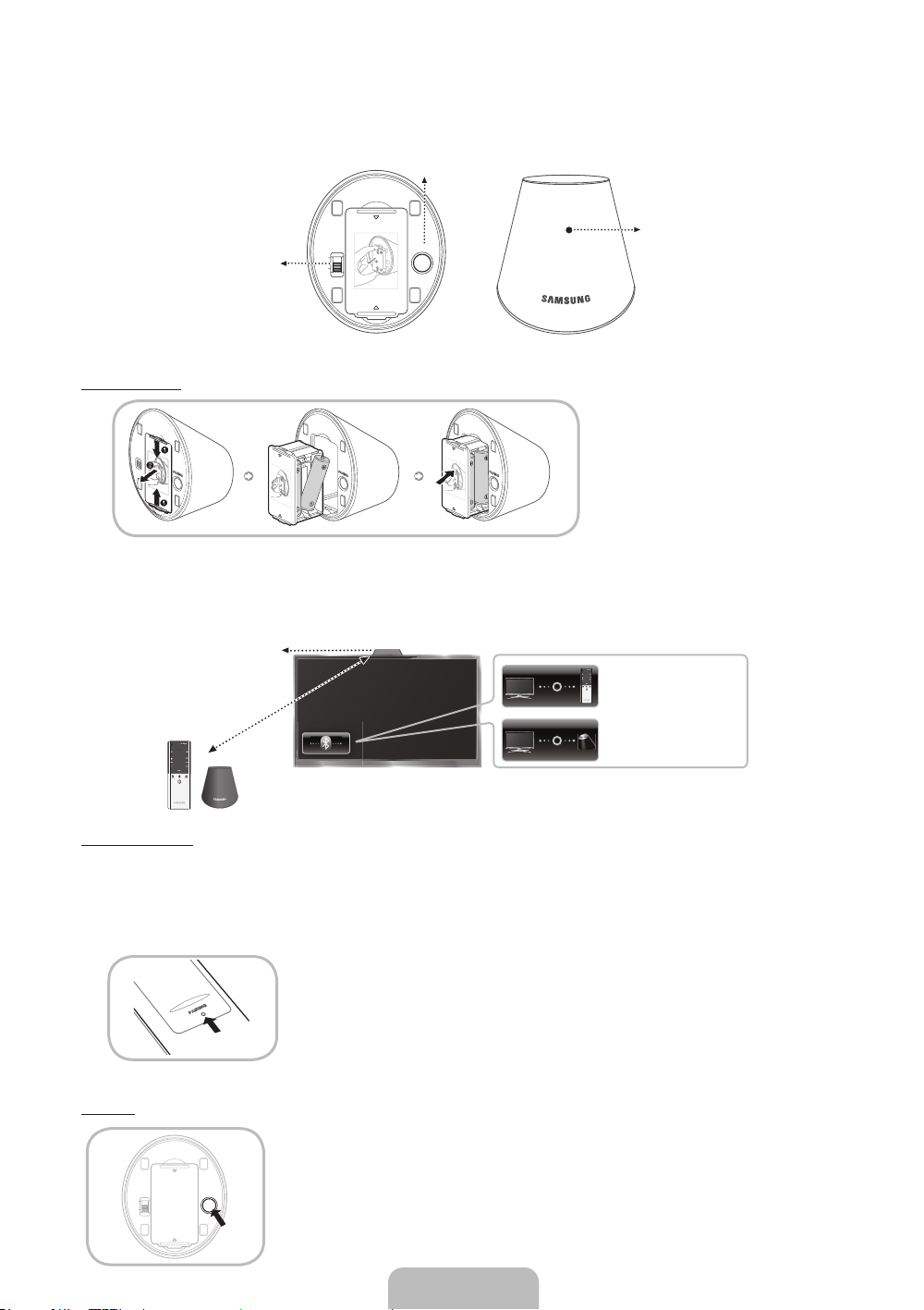

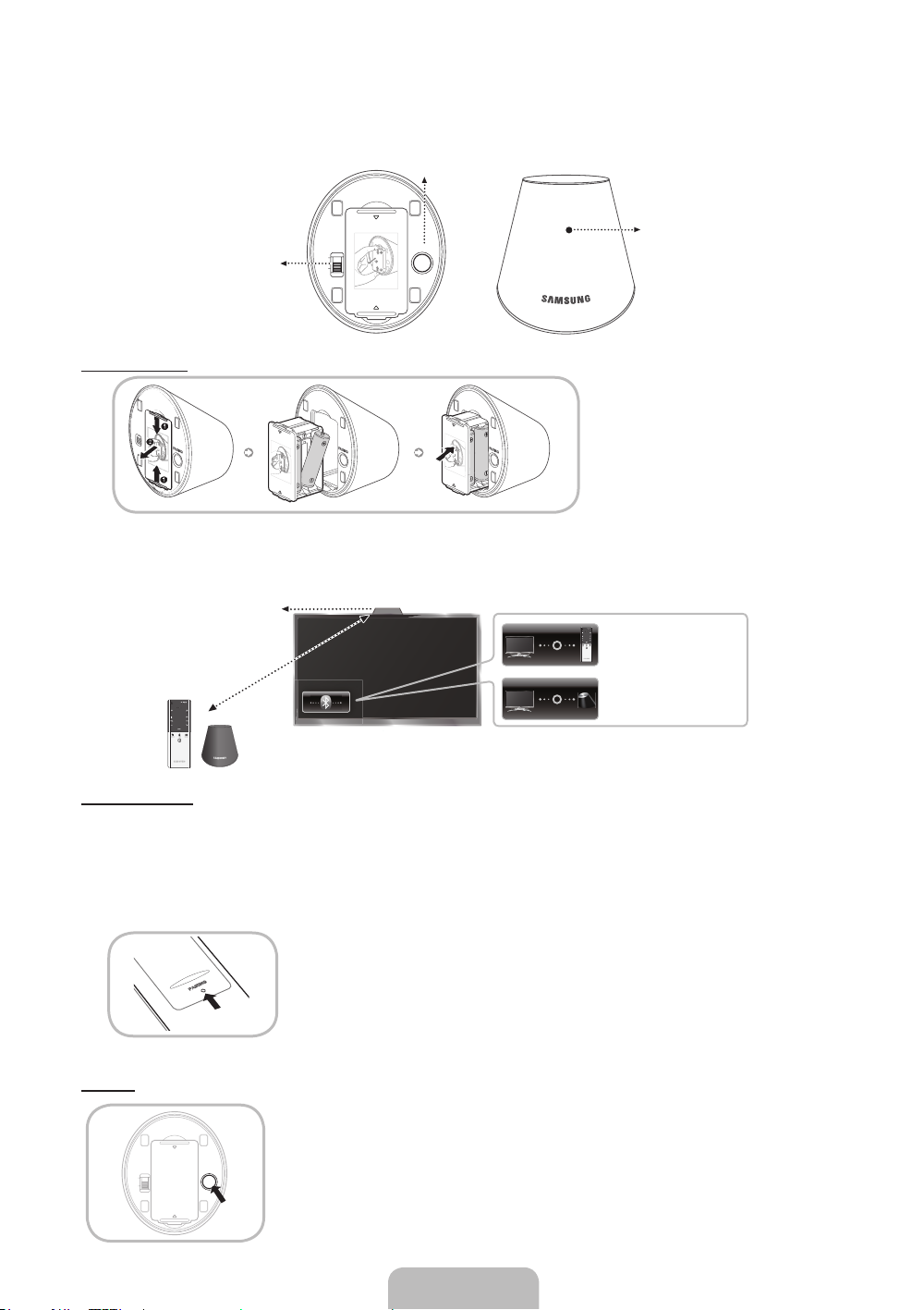

IR Blaster

To control to external devices connected to your TV, setting up the Universal Remote. If you control Smart Touch Control to adjust to the external device, the IR Blaster will send the IR signal to an external device.

Pairing Button

Power Switch

OPEN

PAIRING

OFF

OPEN

Device Indicator LED

IR Blaster shows the pairing state.

Inserting the Battery

1. Hold the both sides of the battery holder

OPEN

and pull it out.

2. Insert the 4 AA into the battery

compartment.

3. Push it back.

OPEN

Initial Pairing

When you connect an IR Blaster with your TV, you can control connected external devices with your TV using the Smart Touch Control.

30cm ~ 4m

TVSTB BD

RETURN VOICE NUMBER

IR receiver

TVSTBBD

RETURN VOICE NUMBER

• Smart Touch Control

• IR Blaster

Smart Touch Control

After you have run the Initial Setup on your TV, you should connect your Smart Touch Control to your TV.

1. Turn the TV on by pressing the

button on.

2. The connection icons appear on the bottom left of the screen, and the TV connects to your Smart Touch Control automatically.

If you want to perform the pairing process again, press the reset button in the centre of the back cover using a pin or the tip of an unbent

✎

paper clip. The Smart Touch Control will be initialized.

• Smart Touch Control PAIRING Reset button

IR Blaster

1. Turn on the IR Blaster. When Indicator LED blinks, you should connect IR Blaster to TV.

2. Move the IR Blaster to the direction of your TV's IR receiver, and then press the PAIRING button once

OPEN

OFF

PAIRING

OPEN

shortly on the bottom of the IR Blaster.

3. The connection icons appear on the bottom left of the screen, and the TV connects to IR Blaster

automatically. If the connection process failed, please turn off and on the IR Blaster, try again from step2.

✎

English - 7

Calibrating the Touch Pad

To calibrate the touch pad on the Smart Touch Control, follow these steps:

1. Press the NUMBER

2. When done, all the LEDs on the top of the Smart Touch Control blink twice simultaneously.

While calibrating, don't touch the touch pad.

✎

If the touch pad looses accuracy, re-calibrate the touch pad by repeating Steps 1 and 2.

✎

button for 3 seconds. The calibration starts.

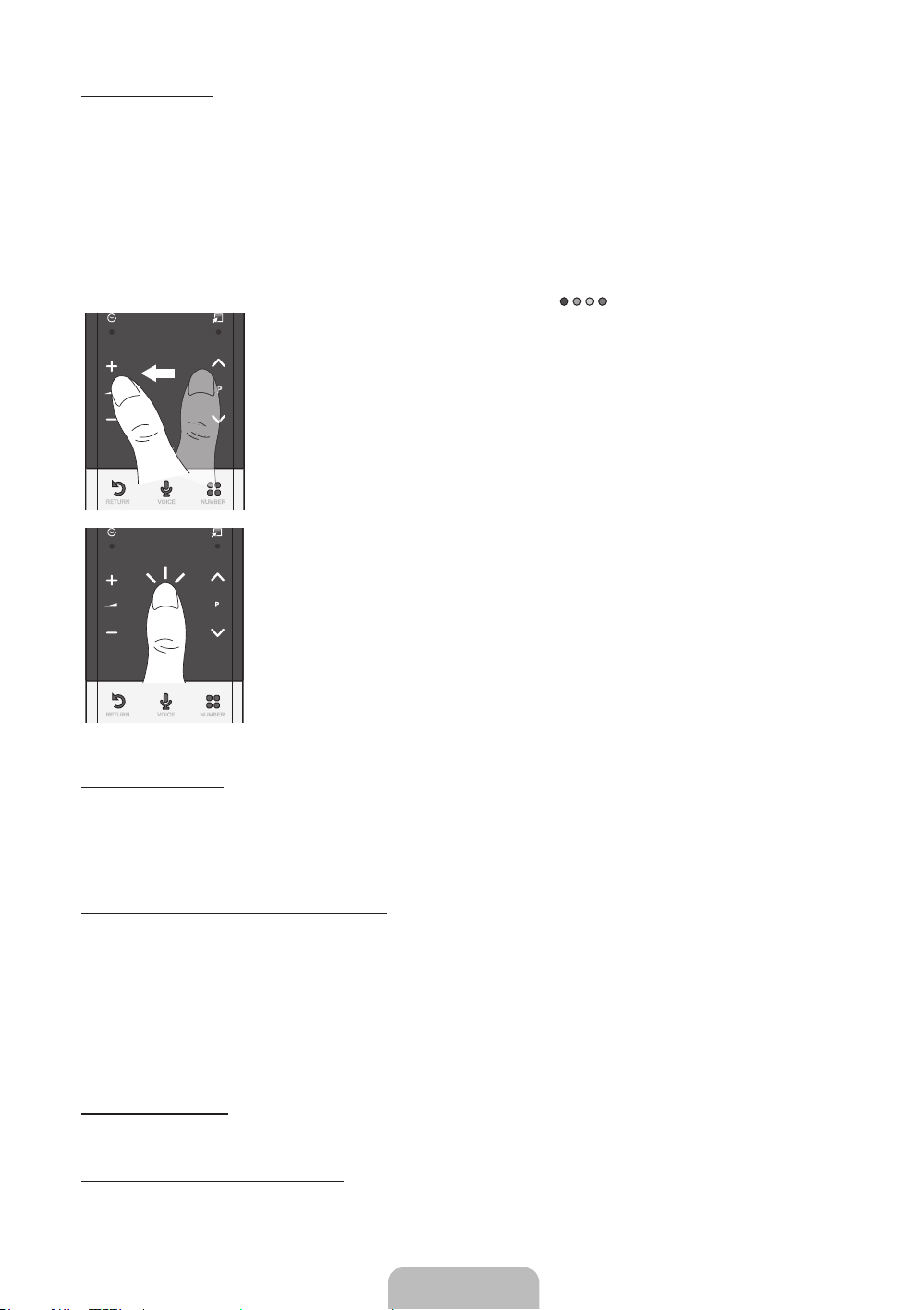

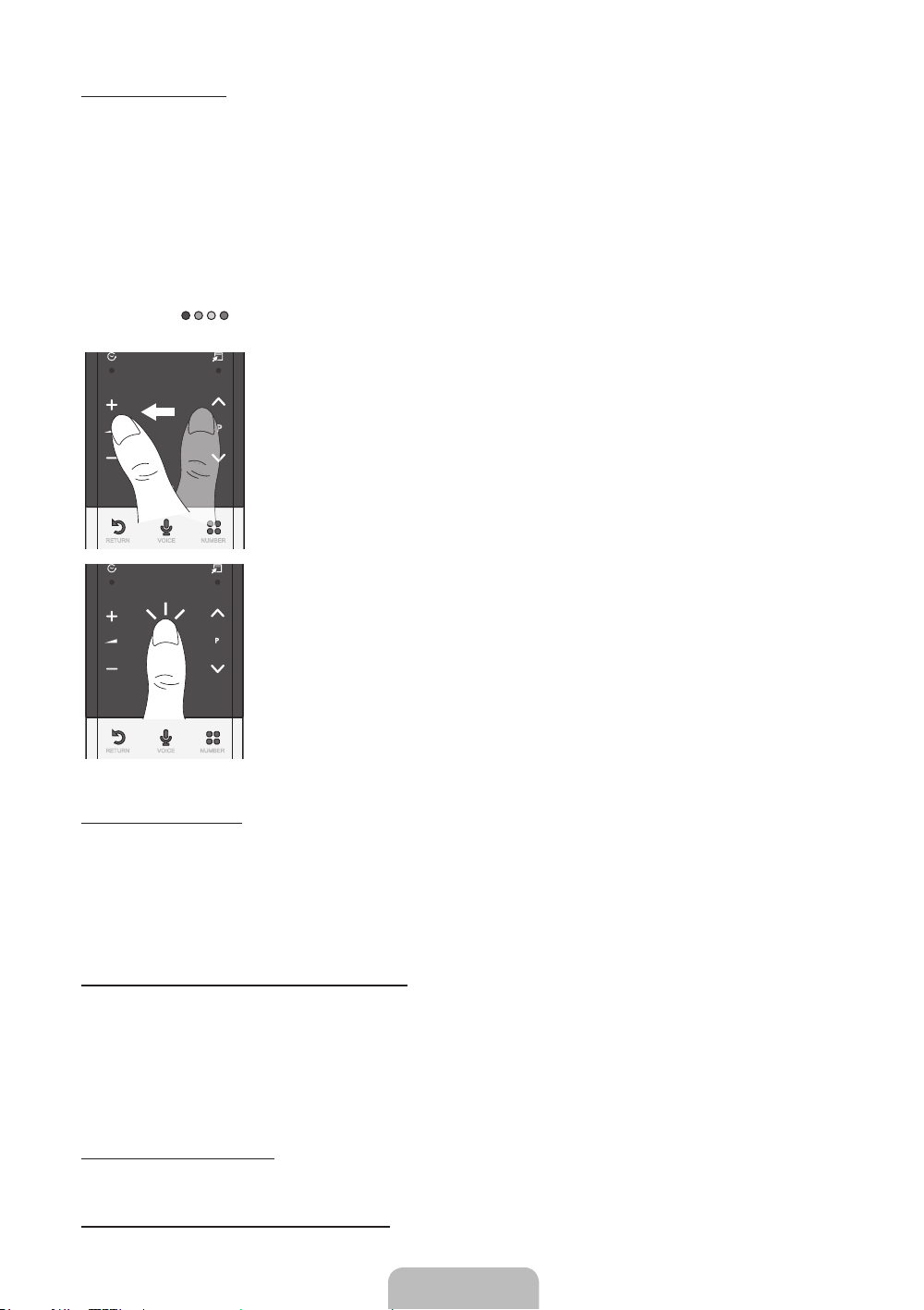

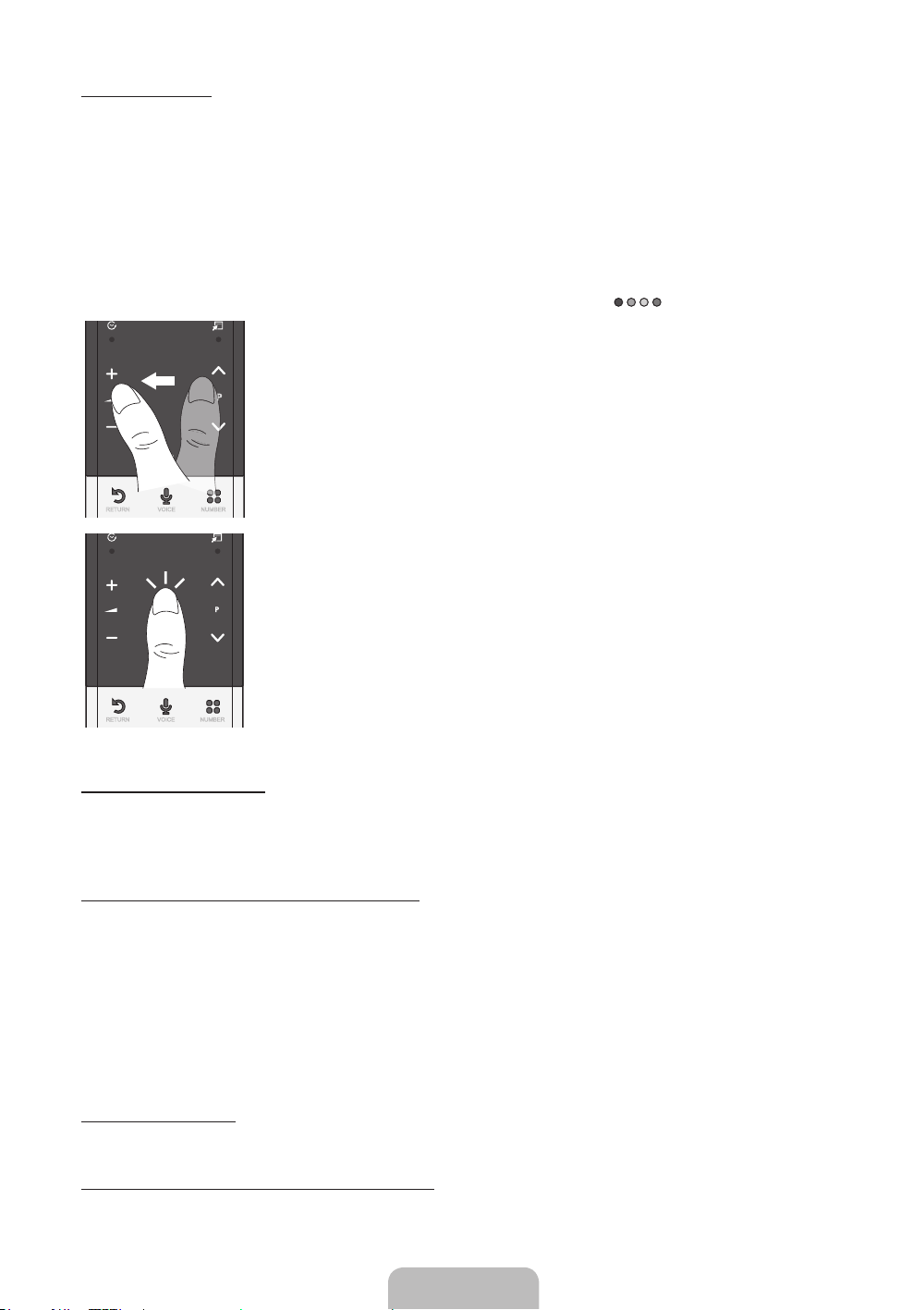

Using the Touch Pad

To display the shortcut functions list on the bottom of the screen, press the ‹ button at the bottom of the touch pad. This list includes Menu, Source, CH List, 3D, AllShare Play, Support, and a number of other functions.

To display the colour and playing control functions on the top of the screen, press the

To Move the Highlight: Rest your ﬁnger on the touch pad, and then slide it from one side to the other, from top to bottom, or bottom to top.

To move the Highlight continuously, flick your finger across the touch pad from right to left, left to right,

✎

top to bottom, or bottom to top.

RETURN VOICE NUMBER

To Select an item: Press the Touch Pad.

button on the top of the touch pad.

RETURN VOICE NUMBER

Using the Scroll mode

If you press the Touch Pad when using Smart Hub, Web Browser, and AllShare Play, the Touch Pad switches to the Scroll mode. In the Scroll mode, slide your ﬁnger in the Touch Pad from one side to the other, the highlight moves page units.

To return to the general mode of the Touch Pad, press the Touch Pad or RETURNR button on your Smart Touch Control.

✎

To Enter a channel number through Smart Touch Control

1. While watching a broadcast, press the NUMBER

2. Using the touch pad, highlight a number, and then press the touch pad. The TV displays a list of channels that start with the number you

selected.

3. Using the touch pad, highlight the channel in the list you want, and then press the touch pad.

You can also change the channel by touching the up or down channel icon on the touch pad. If you touch the touch pad immediately after, the

✎

TV displays the list of memorized channels. Select a channel by moving or flicking your finger up or down, and then pressing the touch pad.

To Display the Tools Menu

Press the

button on the right side of the touch pad.

To Display a History of the Channels You Watched

Press the

button on the left side of the touch pad.

button on the Smart Touch Control. The TV displays the number button screen.

English - 8

Setting up Smart touch control to use as a Universal Remote Control

Lets you control a Set-Top-Box (STB) or a BD player or both connected to the TV using your Smart Touch Control. After you connect the device to the TV, the Smart Touch Control can control the navigation, number, and other keys needed to operate and control the device.

The Universal Remote Control can adjust TV's volume, but STB's volume cannot be adjusted. Watch STB after adjusting STB's volume to

✎

appropriate level. Depending on the version of an application, the Universal remote setup instructions may differ. In this case, please follow the instructions on

✎

the screen.

To connect the external device to your Smart Touch Control, follow these steps:

1. Select Set up a device to control, and then press the Touch Pad.

2. Select an external device from the connected devices, and then press the Touch Pad.

3. Select the port used to connect the external device, and then press the Touch Pad.

Make sure that the selected device is on. If it is turned off, turn the power on and press Refresh.

✎

4. Select Search brands/TV service providers, and then press the Touch Pad. A keyboard and an entry ﬁ eld appear. Enter the ﬁ rst few letters of the brand name of your device using the Smart Touch Control, and then select Done at the bottom of the keyboard. In the list that appears below the entry ﬁ eld, select the brand name of your device, and then press the Touch Pad.

If you want to search the brand of STB (Set-Top box), you can search the STB by using the brand name or a cable provider.

5. Select Search model, and then press the Touch Pad. A keyboard and an entry ﬁ eld appear. Enter the ﬁ rst few letters and numbers of the model

name of your device using the Touch Control, and then select Done at the bottom of the keyboard. In the list that appears below the entry ﬁ eld, select the model name of your device, and then press the Touch Pad.

If the search for model name does not work properly, search with a part of the model name or use the search for recommended model

✎

code.

6. Select Download, and then press the Touch Pad. Download the conﬁ guration data for the IR Blaster in the same way.

7. When all the settings are complete, select the Complete button and press the Touch Pad.

To reset IR Blaster and Smart Touch Control, press the ‹ button on Smart Touch Control, and then select Universal remote setup.

✎

Using the Search for recommended model code.

1. In the Search model name step in the integrated remote control setup, select the Recommended model and press the Touch Pad.

2. Select Download to download the recommended model code.

3. Point the Smart Touch Control forward to the IR sensor of the external device and press the Touch Pad to test if the device works.

4. If the downloaded recommended model code does not work, repeat the steps from step 3.

When you use the BD home theater by using Universal Remote, some buttons may not be supported. In this case, we recommend to use

✎

Anynet+ (HDMI-CEC) function.

English - 9

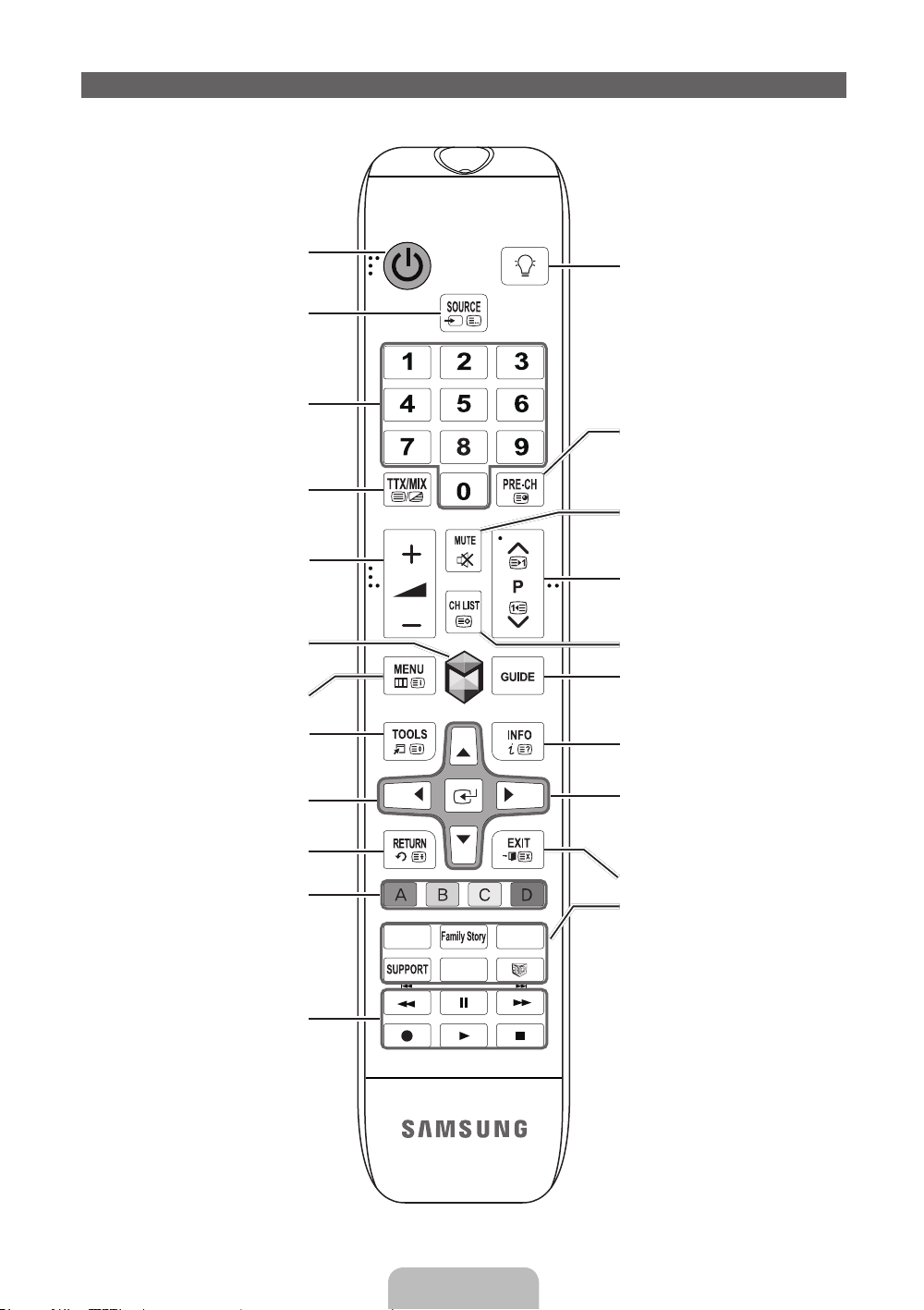

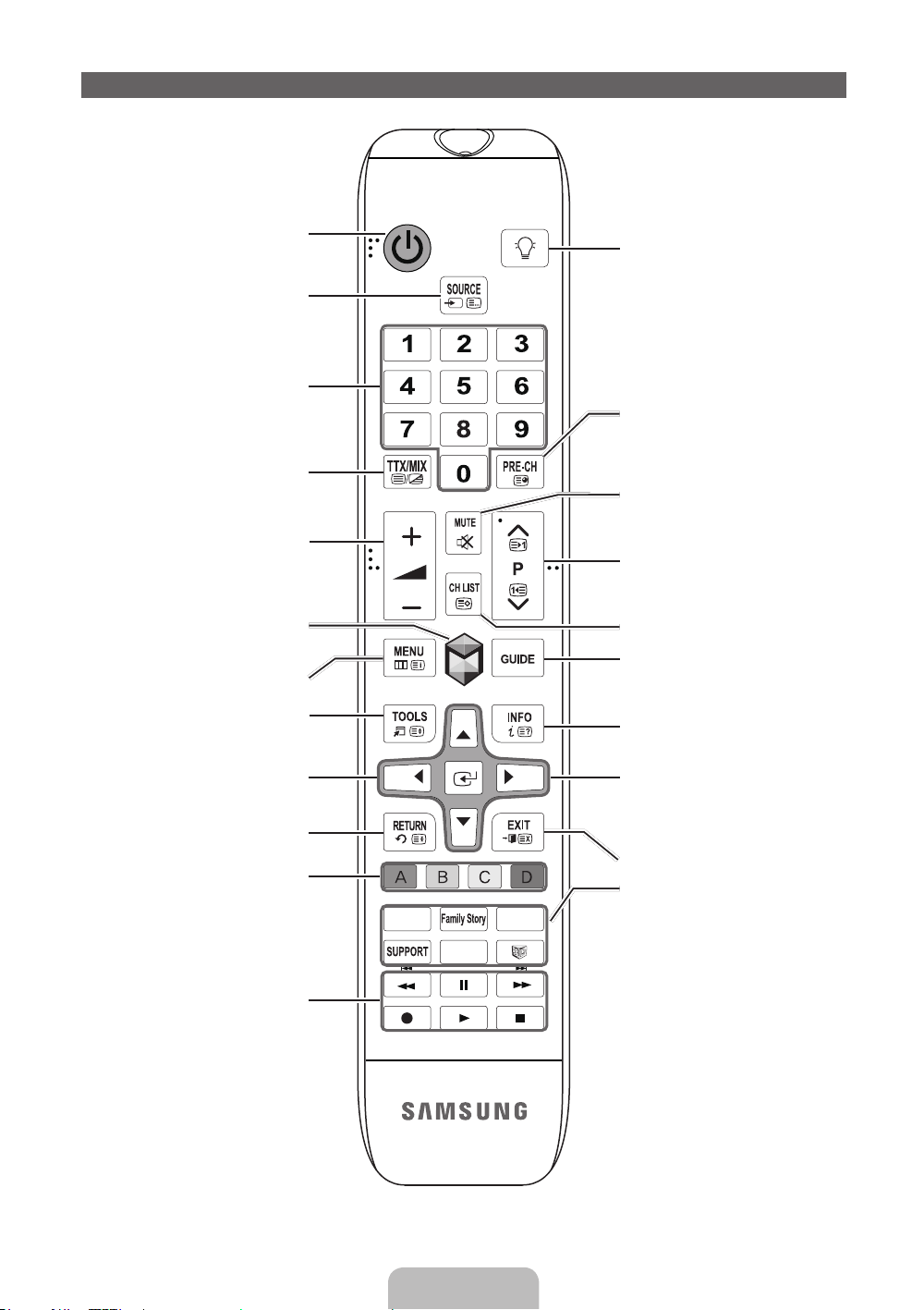

Viewing the Remote Control

This is a special remote control for the visually impaired persons and has Braille points on the Power, Channel and Volume buttons.

✎

Turns the TV on and off.

Displays and selects the available video

sources. (p. 14)

Have direct access to channels.

Alternately select Teletext ON, Double, Mix

or OFF.

Adjusts the volume.

Brings up the Smart Hub applications. See

e-Manual chapter Advanced Features →

Smart Hub.

Opens the OSD.

Quickly select frequently used functions.

Use this button in a speciﬁc feature.

Turns the remote control light on or off. When on, the buttons become illuminated for a moment when pressed. (Using the remote control with this button set to On will reduce the battery usage time.)

Returns to the previous channel.

Cuts off the sound temporarily.

Changes channels.

Displays channel lists on the screen.

Displays the EPG (Electronic Programme Guide).

Displays information on the TV screen.

Selects the on-screen menu items and changes the values seen on the menu.

Returns to the previous menu.

Use these buttons according to the

direction on screen.

Use these buttons in a speciﬁc feature. For

details, refer to e-Manual.

HISTORY CAMERA

AD/SUBT.

English - 10

u/d/l/r

menu item.

corresponding item value.

Exits the menu.

HISTORY: Displays a list of recently used

functions.

Family Story: Connect to Family Story

application. See e-Manual chapter Advanced Features → Family Story.

CAMERA: Connect to Camera application. SUPPORT: Lets you use various support

functions including e-Manual. (p. 19)

AD/SUBT.: Turns the audio description on

and off (not available in some locations). / Displays digital subtitles. See e-Manual chapter Other Features → Subtitle.

e-Manual chapter Advanced Features → 3D.

: Move the cursor on-screen

: Selects the menu and changes the

: Turns the 3D image on or off. See

Installing batteries (Battery size: AAA)

Match the polarity of the batteries to the symbols in the battery compartment.

NOTE

✎

• Install the batteries so that the polarity of the batteries (+/-) matches the illustration in the battery compartment.

• Use the remote control within 23 feet of the TV.

• Bright light may affect the performance of the remote control. Avoid using when near special ﬂuorescent lights or neon signs.

• The colour and shape may vary depending on the model.

Setup (Initial Setup)

When you turn the TV on for the ﬁrst time, a sequence of prompts and screens will assist you in conﬁguring basic settings. To begin Setup, press the

button on your remote.

Setup is available only when the input source is set to TV. See "Changing the Input Source" (p. 14).

✎

To return to the previous step in the Setup sequence, Select Previous.

✎

Before you begin, make sure you have connected the TV to an aerial or a cable connection and that the TV is plugged in. (p. 5).

✎

To start the Setup select Start.

✎

Menu Language:

Select a Language.

Use Mode: Select the Home

Use Mode.

Network Settings: Conﬁgure

network settings

To connect later, select

✎

Skip.

Software Upgrade: Upgrading

the software to latest version

To upgrade later, select

✎

Skip.

Select a menu language you want using your remote, and then select Next. The TV will be displayed a menu using the selected language since next step.

Select Home Use using your remote, and then select Next. Store Demo mode is for retail environments.

To set up your network connection, select Start using your remote. If you do not know your network set up information or want to set to it later, select Skip. For more detailed information, refer to “Setting up the Wired or Wireless Network” in the e-Manual for set up requirements and instructions, and the Network Connection section of this manual (p. 18). You can set up the network connection later using the Network menu.

Select Next to upgrade TV software. Your TV will automatically upgrade, if your TV need a software upgrade. If you want to upgrade later, select the Skip. For more information, refer to Software Upgrade (Preference Features → Support Menu) in the e-Manual.

This may take some time, depending on network status.

✎

English - 11

Select Country.

(Depending on the country)

The screen can take a few seconds to appear.

✎

The General Disclaimer screen appears. Select Agree. The Privacy policy screen appears. Select Agree.

To use the Smart Hub, you should select Agree from the Terms of Service Agreement.

✎

Select the appropriate country.

After selecting the country in the Country menu, some models may proceed with an

✎

additional option to setup the pin number.

11 12

Auto Tuning (1): Selecting how

you watch your TV

Auto Tuning (2): Selecting a search options and Region Selection (Depending on the country)

Clock: Setting the Clock Mode • Auto: Set the current time automatically.

Time Zone

(Depending on the country): Setting the your Time Zone

Voice and motion control: Setting the Voice and Motion Control function.

Setup Complete Select Close to ﬁnish.

Let’s ﬁnd and store channels on your TV. Do you need to search for channels?

• Yes, I need to.: All the channels available will be found and stored on your TV.

• No, I don’t need to.: My set-top box provides all the channels that are available, so I don't

need to search for channels.

Select the channel source to memorise. When setting the aerial source to Cable, a step appears allowing you to assign numerical values (channel frequencies) to the channels. For more information, refer to Auto Tuning (Channel Menu → Memorizing Channels) in the e-Manual.

When Air or Cable is selected first: After all Air or Cable channels are stored, the step for

✎

storing Satellite channels is displayed. When Satellite is selected first: After all Satellite channels are stored, the step for storing

✎

Air or Cable channels is displayed. Select Stop at any time to interrupt the memorization process.

✎

• Manual: Allows you to manually set the current date and time.

This step is only available when the clock mode is set to Auto.

• Auto: Set the time zone automatically.

• Manual: Set the time zone manually. If you selected Manual, you can select whether to turn DST (Daylight Savings Time) On or

✎

Off. (Depending on the country) You can turn the Voice and motion control function On or Off. Select Off or On, and then

✎

select Next. For more detailed information, refer to “SMART Interaction” (p.14)

The completed settings are displayed.

✎

If You Want to Reset This Feature... Menu → System →Setup

Select System - Setup (Initial Setup). Enter your 4 digit PIN number. The default PIN number is “0-0-0-0” (except France). If you want to change the PIN number, use the Change PIN function.

You should do Setup (Menu → System) again at home although you did in shop.

If you forget the PIN code, press the remote control buttons in the following sequence in Standby mode, which resets the PIN to “0-0-0-0”

✎

(Fran ce: “1-1-1-1”): MUTE → 8 → 2 → 4 → POWER (on).

English - 12

Connections

For more information, refer to Connecting the TV in the e-Manual.

✎

DVD home theatre connection

OPTICAL

HDMI Cable (Not Supplied)

PC connection

HDMI OUT

HDMI connection

BD Player

HDMI OUT

HDMI to DVI connection

BD Player

DVI OUT

AUDIO OUT

R-AUDIO-L

Headphones connection

Not Supplied

HDMI Cable (Not Supplied)

AUDIO Cable (Not Supplied)

Optical Cable (Not Supplied)

Scart Adapter (Supplied)

Scart Cable (Not Supplied)

SERVICE: Connector for service only.

Component Cable (Not Supplied)

Audio Cable (Not Supplied)

HDMI to DVI Cable (Not Supplied)

Audio Cable (Not Supplied)

TV Rear

DVI OUT

AUDIO OUT

Video Cable (Not Supplied)

Power Input

COMPONENT OUT

EXT

VCR or DVD

SCART connection

For best cable connection to this product, be sure to use cables with a maximum thickness as below:

✎

PRPBY

Component connection

BD Player

AUDIO OUT

R-AUDIO-L

AUDIO OUT

R-AUDIO-L

• Maximum thickness - 0.55 inches (14mm)

English - 13

VIDEO OUT

BD Player

AV connection

Changing the Input Source

Using this function, you can access and control menu options and

Source

™

→ Source

When you are watching TV and you want to watch a movie on your DVD player or Blu-ray player or switch to your cable box or STB satellite receiver, you need to change the Source.

■ TV / Ext. / HDMI1/DVI / HDMI2 / HDMI3 / AV / Component

1. Press the

2. Select Source. The Source screen appears.

3. Select a desired external input source.

✎

How to Use Edit Name Edit Name lets you associate a device name to an input source. To

access Edit Name, open the Tools menu when the Source list is displayed. The following selections appear under Edit Name:

■ VCR / DVD / Cable STB / Satellite STB / PVR STB / AV

✎

Information

You can see detailed information about the selected external device.

Refresh If the external devices are not displayed in the Source list, open the

Tools menu, and then select Refresh. The list will display all connected

devices.

✎

™

appears.

Alternatively, you can access the Source screen by selecting the Source s button on your standard remote or selecting Source with the Smart Touch Control (see page 6).

You can only choose external devices that are connected to the TV. In the displayed Source list, connected inputs are highlighted.

Receiver / Game / Camcorder / PC / DVI PC / DVI Devices / TV / IPTV / Blu-ray / HD DVD / DMA: Select an input jack, and

then select the name of the device connected to that jack from the list that appears. For example, if you have your Blu-ray player attached to HDMI IN 2, select Blu-ray for that input.

If you connect a PC to the HDMI IN 1 (DVI) port with an HDMI cable, assign PC to HDMI1/DVI in Edit Name.

If you connect a PC to the HDMI IN 1 (DVI) port with an HDMI to DVI cable, assign DVI PC to HDMI1/DVI in Edit Name.

If you connect an AV device to the HDMI IN 1 (DVI) port with an HDMI to DVI cable, assign DVI Devices to HDMI1/DVI in Edit Name.

Alternatively, you can refresh the Source list screen by selecting

button on your remote. The Smart Hub screen

using your remote.

functions using speech, gestures or face recognition.

INFORMATION BOOKLET DISCLAIMER

• Face Recognition Log-in

In order for Face recognition to function, a thumbnail image of your face will be stored in your TV for logging-in purposes.

Logging into the Smart Hub using Face recognition may be less secure than using an ID and password.

• TV Camera Usage

Before using the TV Camera, you should be aware that under some circumstances and under certain legal conditions your misuse of the TV Camera can result in legal liability for you. By using the TV Camera, you agree that you will not use the camera (i) in locations where cameras are generally prohibited (such as bathrooms, locker rooms or changing rooms), (ii) in any manner that will result in an invasion of a person’s privacy or (iii) in violation of any applicable laws, regulations or statutes.

Voice Control

Menu → System → Voice and motion control → Voice Control

Enable or disable the voice recognition function. Lets you access and control menu options and functions using speech.

Voice Control function can be affected recognition by unclear

✎

pronunciation, voice level, or surrounding noise. To use Voice Control, you must pronounce words and phrases

✎

clearly and correctly in the language you selected in Language. Ambient noise may cause Voice Control to malfunction.

✎

Your TV can "hear" your voice commands in two ways:

− Using the TV’s microphone. (Distant Recognition) We are recommended using Voice Control function within about

✎

13 ft with your TV. You can check the usable distance by using

Voice Control Environment Test (System → Voice and motion control → Voice Control → Voice Control Environment Test).

− Using the VOICE Recognition)

When you use the TV's microphone, the words may not be

✎

recognized because of ambient noise. If this occurs, try using the

VOICE˜ button on your remote. The TV will be able to recognize

a voice command more easily. The VOICE˜ button on your remote is always activated. If you

✎

want to use the TV's microphone, turn on Voice Control (System → Voice and motion control → Voice Control).

If a menu option or function is not supported by the Voice

✎

Control function, we suggest trying the Motion control function. To use gestures, spread your hand in the direction of the camera, and shake it three or four times from a side to side.

■ Voice Control Turns the Voice Control function on or off.

✎

■ Language Select the recognition language you want to use.

SMART Interaction

button on your remote. (Close Proximity

The VOICE˜ button on your remote is always activated.

English - 14

■ Trigger words You can select the Trigger words that start the Voice Control

function. Alternatively you can turn on your TV using the Trigger words if Voice Control function is set to On.

If the Trigger words is set to Hi TV, say Hi TV Power On. If the Trigger words is set to Smart TV, say Smart TV Power On.

■ Voice command bar size Set the Voice command bar size mode to Minimum or Full. Minimum displays the least number of words and phrases you

can use. Full displays all the words and phrases.

■ Voice Sensitivity Set the sensitivity of Voice recognition.

− Howling: Set echo level.

− Recognition responsiveness: Set the responsiveness level

of Voice recognition.

■ Voice Control Environment Test You can test the noise level on the TV microphone.

− Noise Test: This test checks the noise level of the TV microphone. Select Next using your remote. The test will start and should only take a few seconds. Please keep as quiet as possible during the test.

− Mic & Speaker Test: This test checks the noise level of the TV microphone and speaker. Select Start using your remote. The test will start and should only take a few seconds. Please keep as quiet as possible during the test.

Available only when Speaker Select is set to TV

✎

Speaker.

− Voice Control Test: This test checks the volume level and clarity of your voice when using Voice Control. Select Start using your remote. The test will start. Please say a guide message as loud and clearly as you can to complete this test.

If the test is not completed, select Retest, and then say

✎

a guide message loudly and clearly again.

To use the Voice Control function, follow these steps:

If Voice Control function is set to On, the TV may be turned on

✎

automatically by effect of the ambient environment.

1. Speak the Trigger words that you selected using the microphone embedded in the TV or press and hold the VOICE your remote. The TV displays the Voice Control Environment Test.

If you use the Voice Control, the volume will be set to 5

✎

automatically.

2. Speak a word or phrase listed in the Voice Control Environment Test. If you use the VOICE

button.

Pronounce the word or phrase clearly and correctly in the

✎

language you selected in Language.

3. Wait until recognition is complete, and then speak the next command.

To exit the Voice Control mode, speak a Trigger words or

✎

"Cancel" using the TV's microphone, or press the VOICE˜ button on your remote again.

Using the Voice Text Input Mode

1. Speak "Search All" while in the Voice Control mode.

When you use a QWERTY keypad screen, you can use the

✎

Voice Text Input Mode. Speak the Trigger words that you selected using the microphone embedded in the TV or press and hold the VOICE˜ button on your remote.

button on your remote, release the

button on

2. Say the word or phrase you wish to search for.

3. The TV executes the spoken function. Voice Control performance levels will vary based on the

✎

language spoken.

Motion control

Menu → System → Voice and motion control → Motion control

Enable or disable the Motion control function. Lets you control your TV by moving the TV cursor using speciﬁc gestures.

Some applications may not support Motion control.

✎

We are recommended using Motion control function within

✎

about 5 - 13 ft with your TV. TV Camera's recognition range may differ depending on the angle of camera or other conditions. You can check the recognition range of TV camera by using Motion

control environment test (System → Voice and motion control → Motion control → Motion control environment test).

■ Motion control Turns the Motion control function on or off.

■ Motion guide bar size Set the Motion guide bar size mode between Minimum or Full.

■ Motion control environment test You can test the brightness of room and the camera angle.

− Brightness Test: This test checks to see if your room is bright enough for Motion control to work properly. Select Start using your remote. The test will start and should take only a few seconds.

− Camera Angle Test: Start Camera Angle Test Select Start using your remote. Please put yourself in the rectangle on the screen by adjusting the camera or moving around. If you are not located in the correct position, the test may not work properly. When done, please spread your hand in the direction of the camera, and shake it three or four times from a side to side.

To use the Motion control function, follow these steps:

1. To use the Motion control, raise your hand while opening it toward

the screen, hold it for a moment and then wave it 3 – 4 time to the left and right. Motion control starts. If the Motion control starts, the cursor is displayed at the center of the screen and the Motion

guide bar size is at the bottom of the screen.

2. Control the TV using your hands.

Note that the Motion control function closes if your hands go out

✎

of the camera range. While using the Motion control, if you use the other device (i.e.

✎

remote control, keyboard, etc.), Motion control closes.

Controlling the TV with your hands using Motions

■ Access Motion Control

− Action: Spread your hand in the direction of the camera, and shake it three or four times from a side to side.

■ Pointing Navigation

Moves the cursor to the position you want.

− Action: Spread your hand and guide the cursor to position you want.

■ Run

Selects an item or executes a command that is indicated by the cursor or is highlighted.

− Action: Clench your ﬁst.

English - 15

■ Back

Return to the previous menu.

− Action: Spread your hand and rotate it counter clockwise.

■ Channel / Volume Control

Changes the channel or adjust the volume.

If you use the Motion control function while watching a

✎

channel, the channel / volume control screen appears.

− Action: Use the Pointing Navigation gesture to move the

cursor to the channel or volume controller, and then uses the Run gesture to adjust the channel or volume.

If you use the Run gesture once, it has the same effect

✎

as pressing a button on your remote. If you hold the Run gesture, it has the same effect as pressing and holding a button on your remote.

■ Scroll

Scroll the page in the direction you want. For example, suppose that you want to scroll down.

Some applications may not support this function.

✎

1. Move the cursor to the bottom of the screen (page scroll zone) using the Pointing Navigation gesture.

2. Move the cursor to the centre of the screen using the Pointing Navigation gesture.

3. The page will move down.

To log in to your Samsung account using Face recognition, follow these steps:

If you use Face recognition to log into Smart Hub, it may be less secure than logging in with a password.

1. With the Smart Hub screen displayed, select

2. Select Face Recognition Mode. The Face recognition screen

3. The TV starts Face recognition. Face the front of the TV screen.

4. The TV logs you into your Samsung account automatically.

Face recognition

™

→ Tools → Settings → Account Manager → Change account

information → Register face

Enable or disable the Face recognition function. Lets you register your face in your Samsung account. Also, you can log in to the Samsung account using the Face recognition function without inputting your account ID or your account password.

You can register your face in only one account.

✎

remote. The ID/password screen appears.

appears.

To return to the ID/password screen, select Password

✎

mode.

The TV will recognize your face automatically.

If the TV fails to recognize your face, try again.

✎

If the TV recognizes two or more registered faces, the

✎

Samsung account list appears. Select your account to log in. If your face is unregistered, you can register your face in

✎

your Samsung account. Follow steps 4 through 5 in the “To register your face to your Samsung account” procedure above.

If you have no account, you can create one. For more

✎

detailed information, refer to “Creating an Account” (Advanced Features → Smart Hub) in the e-Manual.

using your

To register your face in your Samsung account, follow these steps:

To use this function, you must log into Smart Hub. If you don't

✎

have a Samsung Account, you should create one before using this function. To create your Samsung Account, refer to “Creating an Account” (Advanced Features → Smart Hub) in the e-Manual.

1. On the Smart Hub screen, open the Tools menu using your remote, and then select Settings.

2. Select Account Manager. The Account Manager screen appears.

3. Select Change account information. The Change account information screen appears.

4. Select Register face. If you agree to use facial recognition, select OK.

5. Enter your account password.

6. Move your face into the facial lines at the centre of the screen, and

then wait until the facial lines changes from red to green.

If Face recognition fails, select Retry and try again.

✎

7. When ﬁnished, your face is now registered in your Samsung account.

English - 16

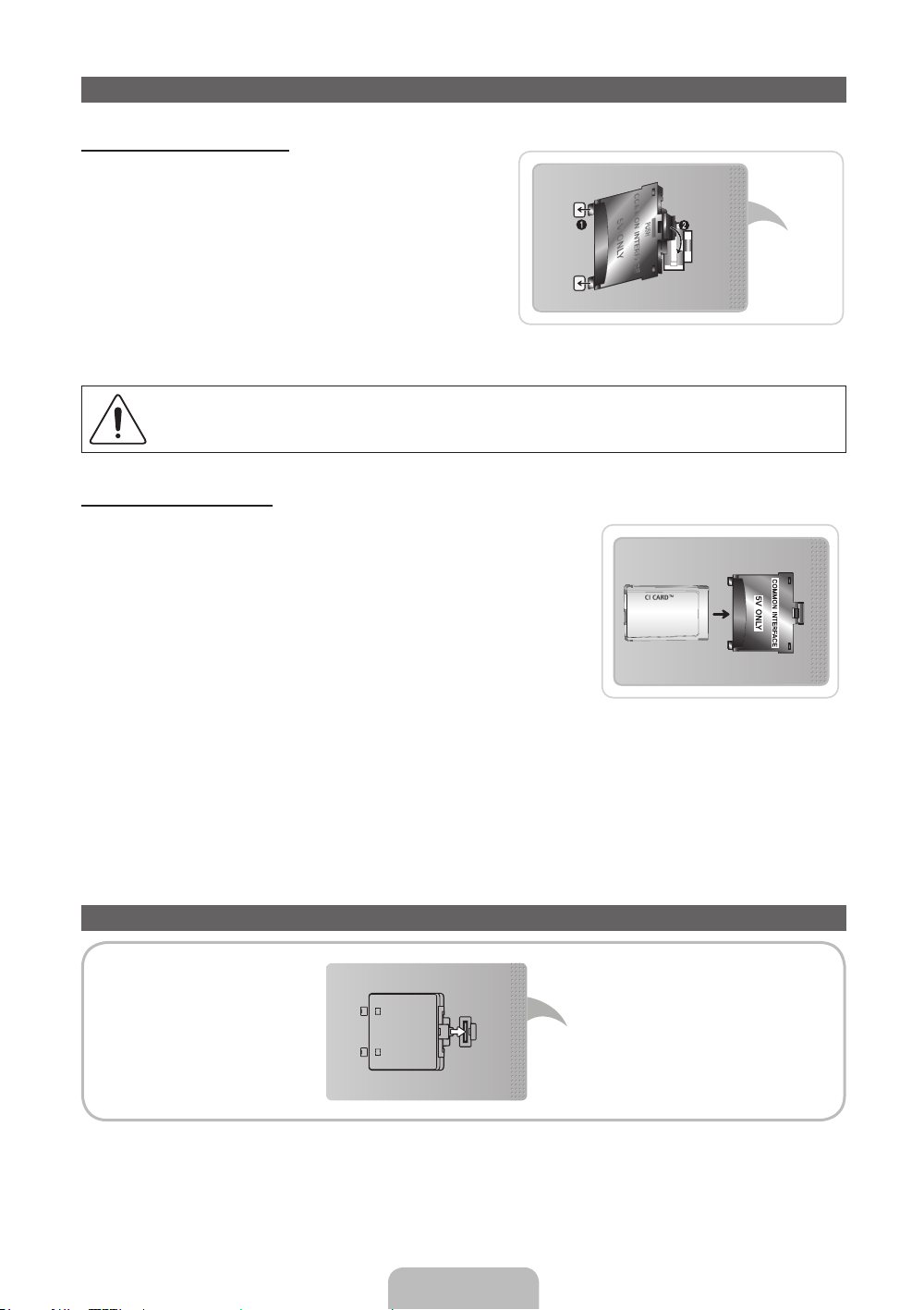

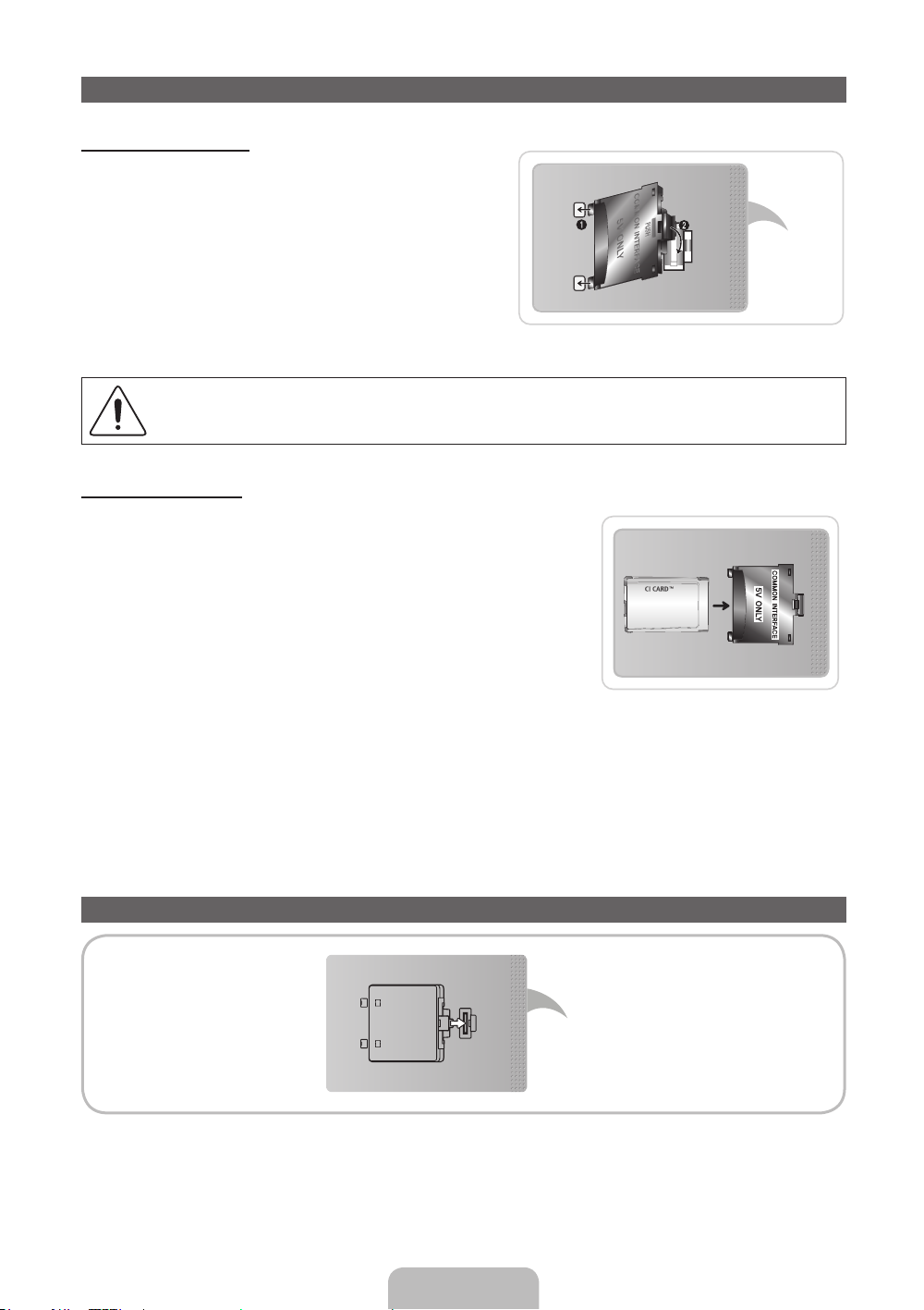

Connecting to a COMMON INTERFACE slot (Your TV viewing Card Slot)

Attaching the CI Card Adapter

Attach the adapter as shown below. To connect the CI CARD Adapter, follow these steps.

We recommend attaching the adapter before installing the wall mount, or

✎

inserting the “CI or CI+ CARD”. To install the CI card adapter, please remove the sticker attached to the TV.

✎

1. Insert the CI CARD Adapter into the two holes on the product 1.

Please find a two holes on the rear of the TV. A two holes is beside

✎

the COMMON INTERFACE port.

2. Connect the CI CARD Adapter into the COMMON INTERFACE port on the product 2.

3. Insert the “CI or CI+ CARD”.

We recommend that you insert the CI card before you mount the TV on a wall. It may be difﬁcult to insert after the mounting. Insert the card after attaching the CI Card Adapter on TV. It is difﬁcult to attach the module if you insert the card before attaching.

Using the “CI or CI+ CARD”

To watch paid channels, the “CI or CI+ CARD” must be inserted.

• If you don’t insert the “CI or CI+ CARD”, some channels will display the message “Scrambled Signal”.

• The pairing information containing a telephone number, the “CI or CI+ CARD” ID the Host ID and other information will be displayed in about 2~3 minutes. If an error message is displayed, please contact your service provider.

• When the conﬁguration of channel information has ﬁnished, the message “Updating Completed” is displayed, indicating the channel list is updated.

NOTE

✎

• You must obtain a “CI or CI+ CARD” from a local cable service provider.

• When removing the “CI or CI+ CARD”, carefully pull it out with your hands since dropping the “CI or CI+ CARD” may cause damage to it.

• Insert the “CI or CI+ CARD” in the direction marked on the card.

• The location of the COMMON INTERFACE slot may be different depending on the model.

• “CI or CI+ CARD” is not supported in some countries and regions; check with your authorized dealer.

• If you have any problems, please contact a service provider.

• Insert the “CI or CI+ CARD” that supports the current aerial settings. The screen will be distorted or will not be seen.

To install the CI card adapter, please remove the sticker attached to the TV.

TV Rear

The Evolution Kit Slot (Kit Sold Separately)

TV Rear

This socket is designed to accept an extension device called Evolution Kit. The Evolution Kit enables the TV to run a variety of the latest applications for a better user experience.

The Evolution Kit, which may not be available depending on the product, will be sold separately in 2013 or later.

English - 17

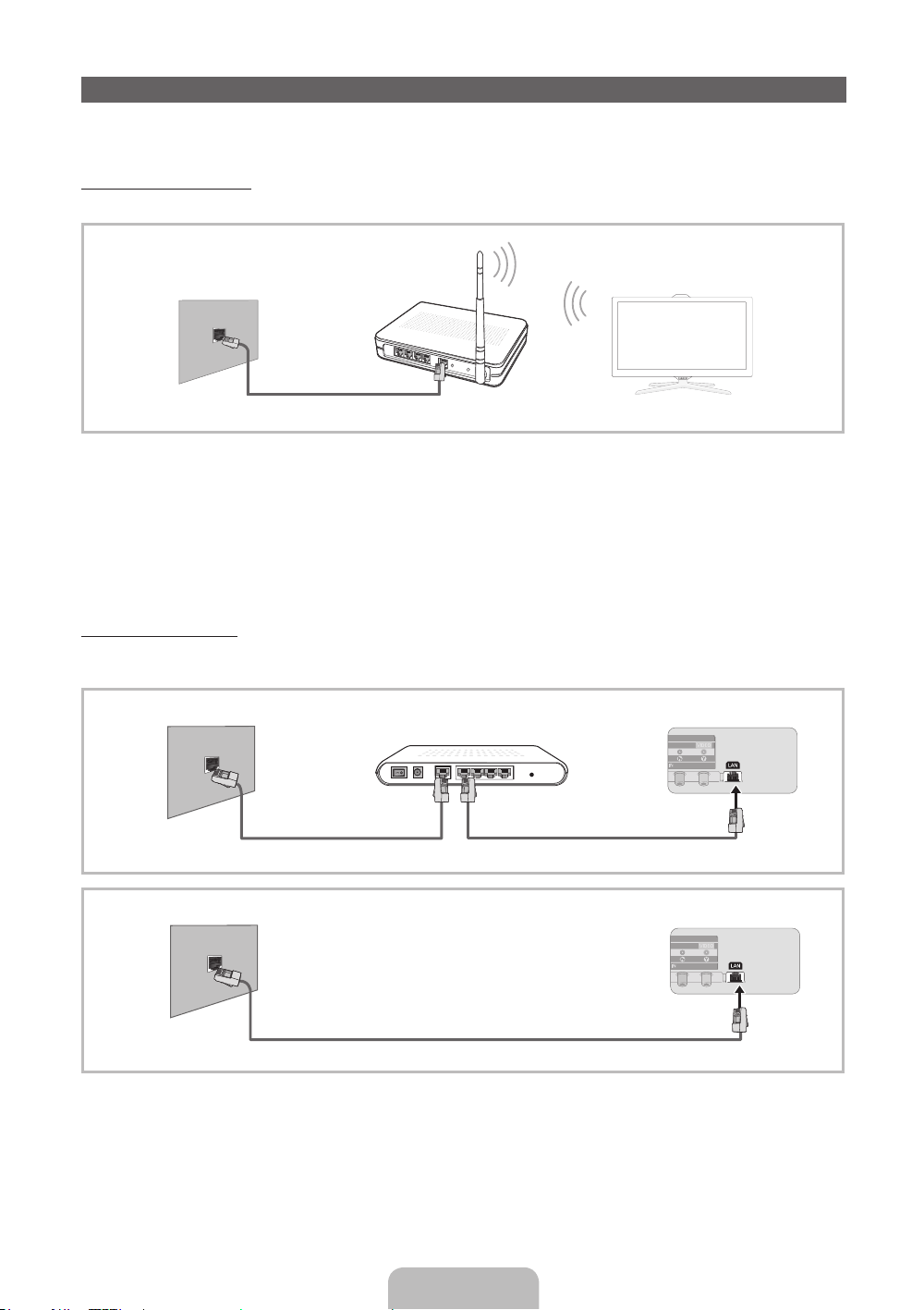

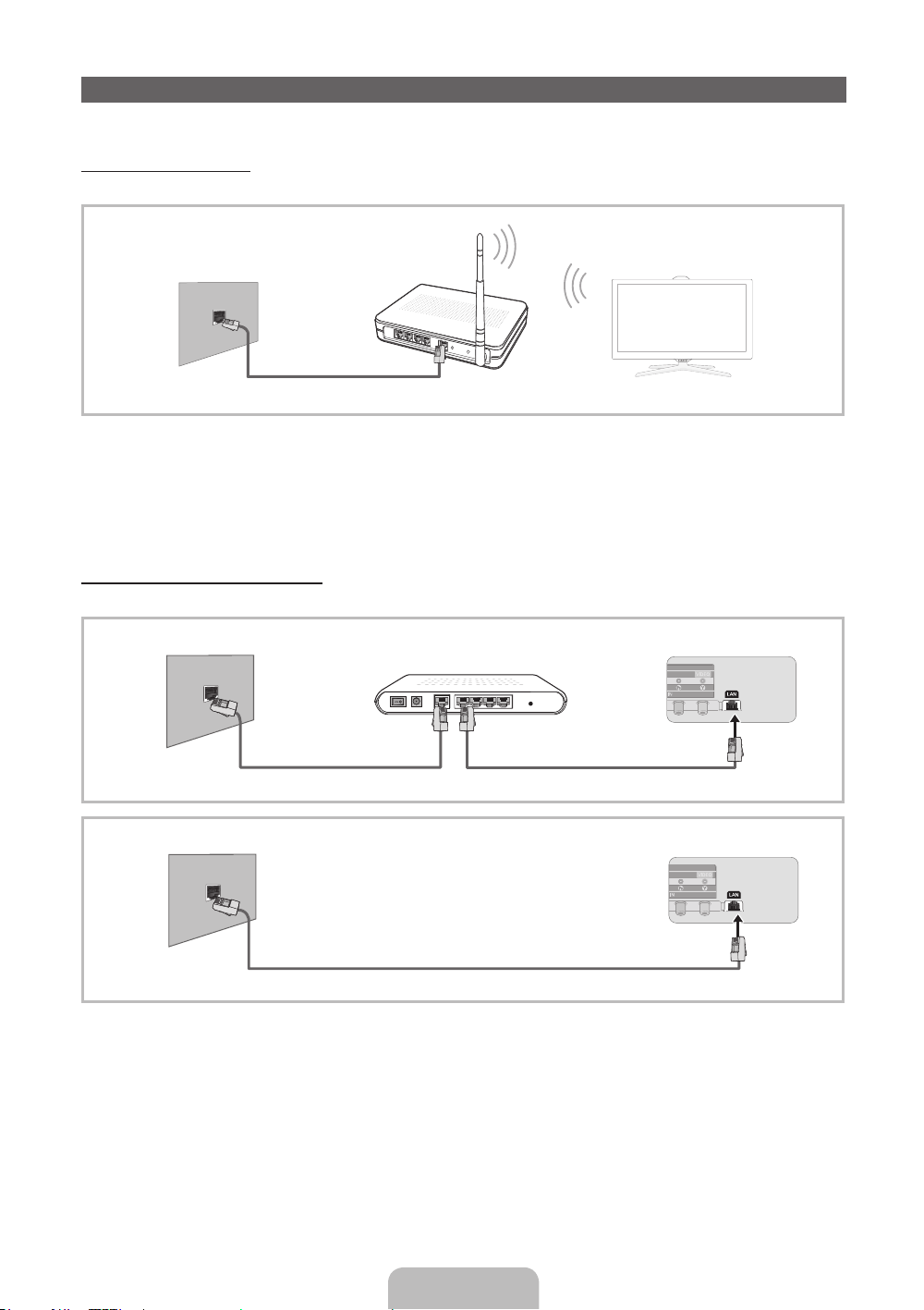

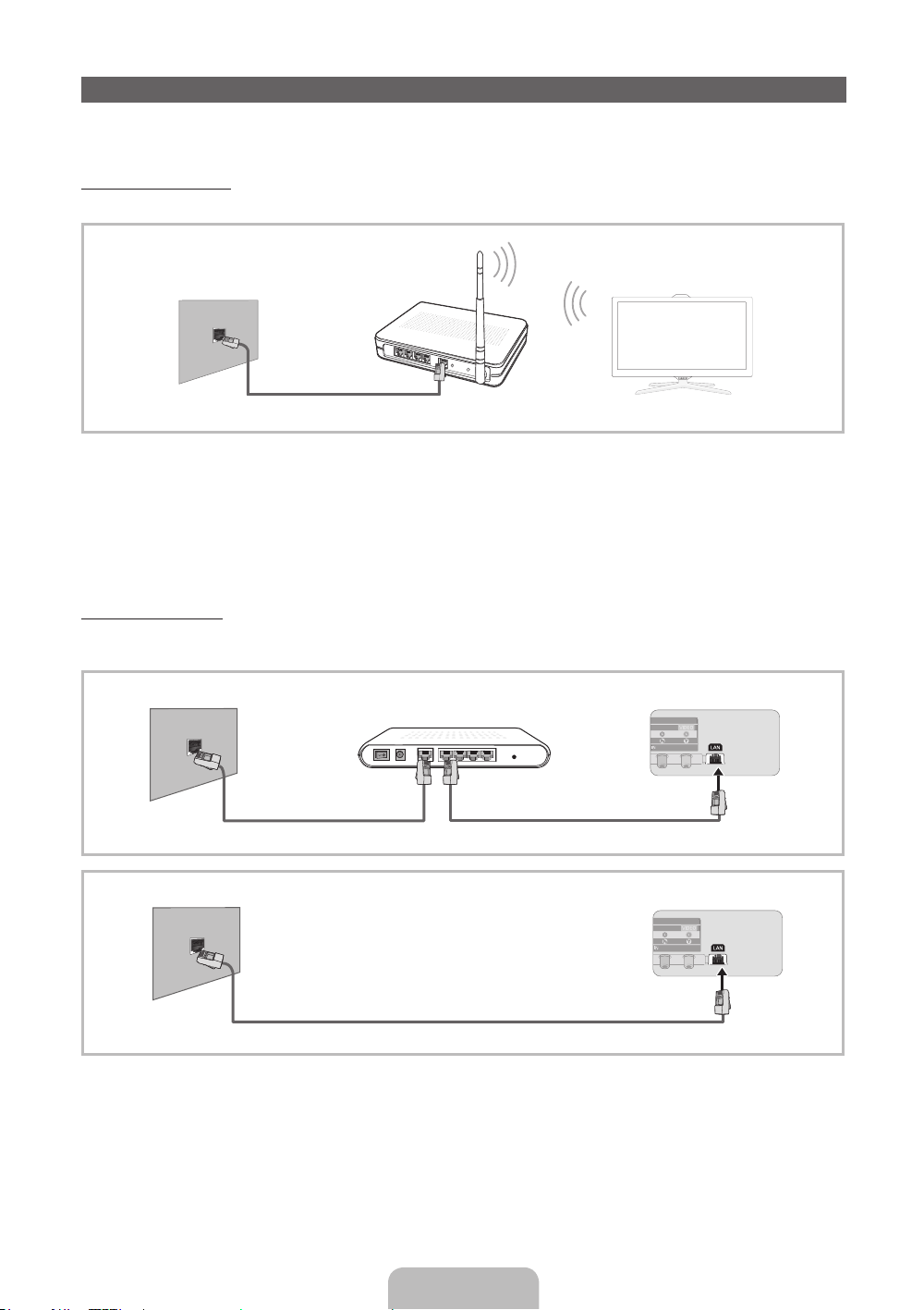

Network Connection

You can set up your TV so that it can access the SMART TV applications. through your local area network (LAN) using a wired or wireless connection.

Network Connection - Wireless

You can connect your TV to your LAN through a standard wireless router or modem.

The LAN Port on

the Wall

Wireless IP sharer

(Router having DHCP server)

LAN Cable

Samsung’s Wireless LAN adapter supports the IEEE 802.11a/b/g and n communication protocols. Samsung recommends using IEEE 802.11n. When you play the video over a IEEE 802.11b/g connection, the video may not play smoothly.

Most wireless network systems incorporate a security system that requires devices that access the network through an access point or wireless router (typically a wireless IP Sharer) to transmit an encrypted security code called an access key.

If Pure High-throughput (Greenﬁeld) 802.11n mode is selected and the Encryption type is set to WEP, TKIP or TKIP AES (WPS2Mixed) for your wireless router, Samsung TVs will not support a connection in compliance with new Wi-Fi certiﬁcation speciﬁcations.

Network Connection - Wired

There are two main ways to connect your TV to your network using cable, depending on your network setup. They are illustrated below:

The Modem Port on the Wall

External Modem

(ADSL / VDSL / Cable TV)

TV Rear Panel

The LAN Port on the Wall

LAN Cable

The TV does not support network speeds less than or equal to 10Mbps.

✎

Use Cat 5 or 6 (STP Type*) cable for the connection. (*Shielded Twisted Pair)

✎

English - 18

LAN CableModem Cable

TV Rear Panel

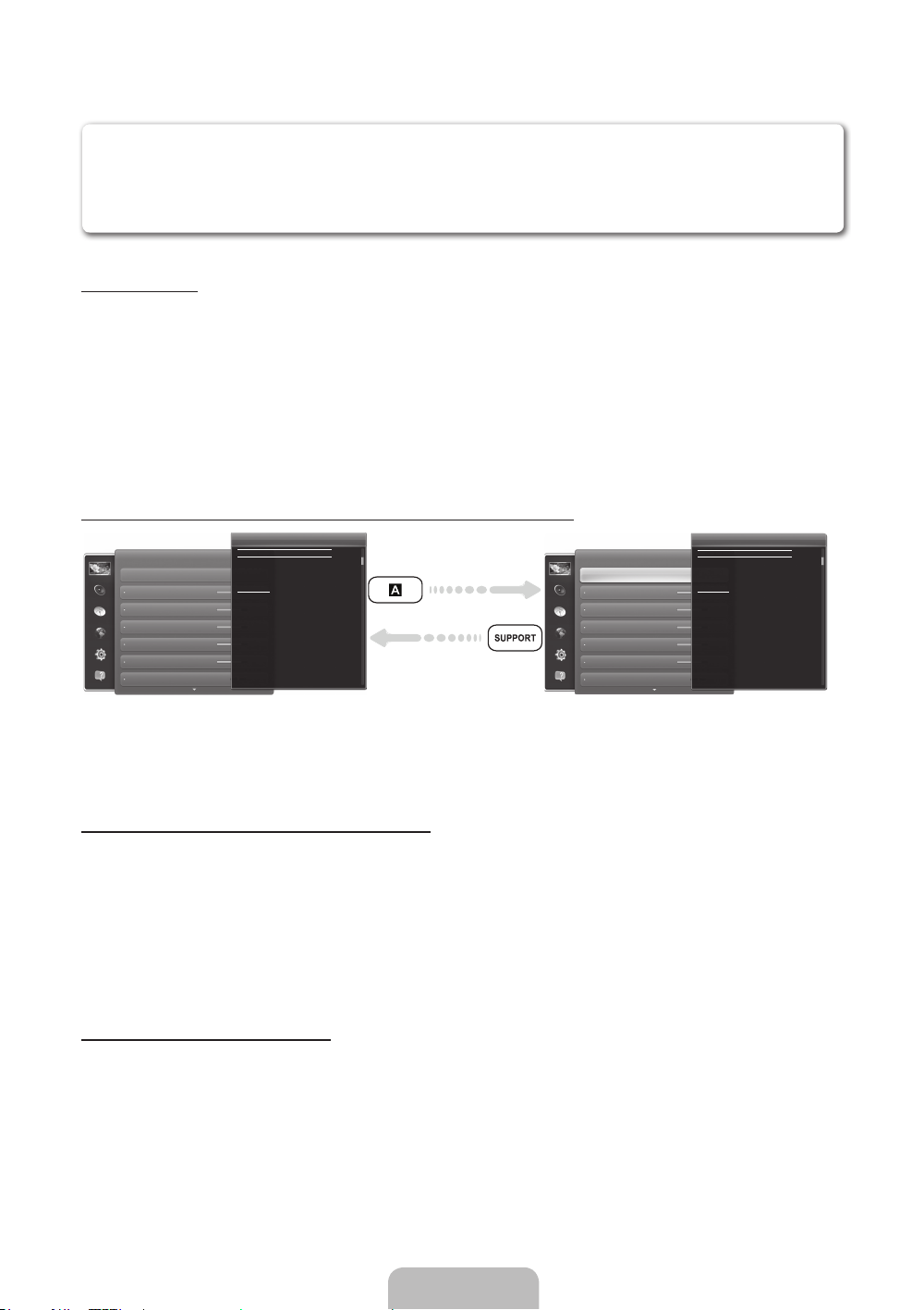

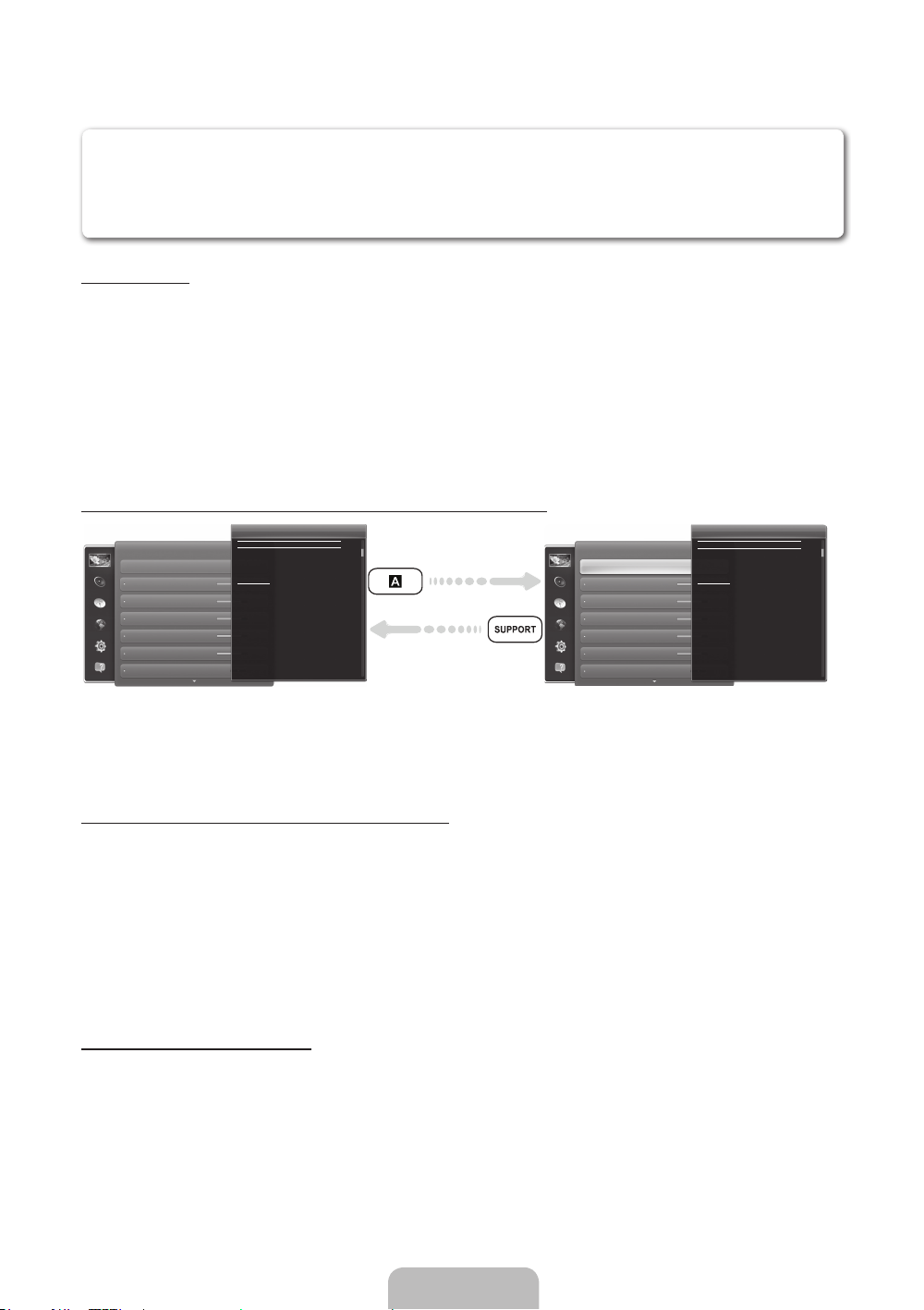

How to view the e-Manual

You can ﬁ nd instructions for your TV’s features in the e-Manual. To open the e-Manual, press the SUPPORT button on your standard remote or select Support using the Smart Touch Control.

You can also access it through the menu:

Menu → Support → e-Manual

Access the e-Manual To use the e-Manual, follow these steps:

1. When you need to help, select Support using your remote. The Support screen appears.

2. Select e-Manual using your remote. The e-Manual screen appears.

3. Select a desired category.

4. Select a desired topic. The e-Manual displays the page you want to see.

Blue words in e-Manual refer to menu options or selections in the TV's on screen menu.

✎

Green icons in the e-Manual refers to a button on your remote.

✎

Arrow steps (e.g. Menu → Support → e-Manual) in the e-Manual signify the sequence of steps required to access an option or activate a

✎

function.

How to toggle between an e-Manual topic and the corresponding OSD menu(s).

Changing the Preset Picture Mode


Picture Mode

Back Light

Contrast

Brightness

Sharpness

Colour

Tint (G/R) G50

This function is not enabled in some menus.

✎

You can’t use the Try now function if the menu is not available.

✎

1. To go to the topic's corresponding menu option, select

Changing the Preset Picture Mode

Picture Mode

Menu → Picture → Picture Mode

Picture modes apply preset adjustments to the picture.

N When connecting a PC using the HDMI-DVI cable, you can only select Entertain and Standard.

• Dynamic

Suitable for a bright room.

• Standard

Suitable for a normal environment.

using your remote.

2. To return to the e-Manual screen, select Support using your remote.


Picture Mode

Back Light

Contrast

Brightness

Sharpness

Colour

Tint (G/R)

Changing the Preset Picture Mode

Picture Mode

Menu → Picture → Picture Mode

Picture modes apply preset adjustments to the picture.

N When connecting a PC using the HDMI-DVI cable, you can only select Entertain and Standard.

• Dynamic

Suitable for a bright room.

• Standard

Suitable for a normal environment.

Using the coloured and function buttons with the e-Manual

• Scroll bar: Scroll the e-Manual screen up or down.

l / r

: Moves to the previous or next chapter.

•

Try now: Move the OSD menu that corresponds to the topic. To return to the e-Manual screen, select Support using your remote.

•

Home: Moves to the e-Manual home screen.

•

{

Position: Each time you select {, using your remote, you change the position of the e-Manual screen.

•

}

Index: Displays the Index screen.

•

Return: Return to the previous screen.

How to search for a topic on the index page

1. Select

}

using your remote. The Index screen appears.

2. To search for a topic, select a letter. The Index displays a list of topics and keywords that begin with the letter you selected.

3. Select a topic or keyword you want.

4. The e-Manual page with the topic appears.

To close the Index screen, press the RETURNR button.

✎

English - 19

To Change the screen position of the e-Manual If the e-Manual screen is not invisible well because the OSD Menus screen, you can change the e-Manual screen's position.

1. Move the Highlight to the e-Manual screen by pressing the SUPPORT button on your standard remote or select Support using the Smart Touch

Control.

{

2. Press the position of the e-Manual will change.

button on your standard remote, or select { using the Smart Touch Control. Each time you select { using your remote, the

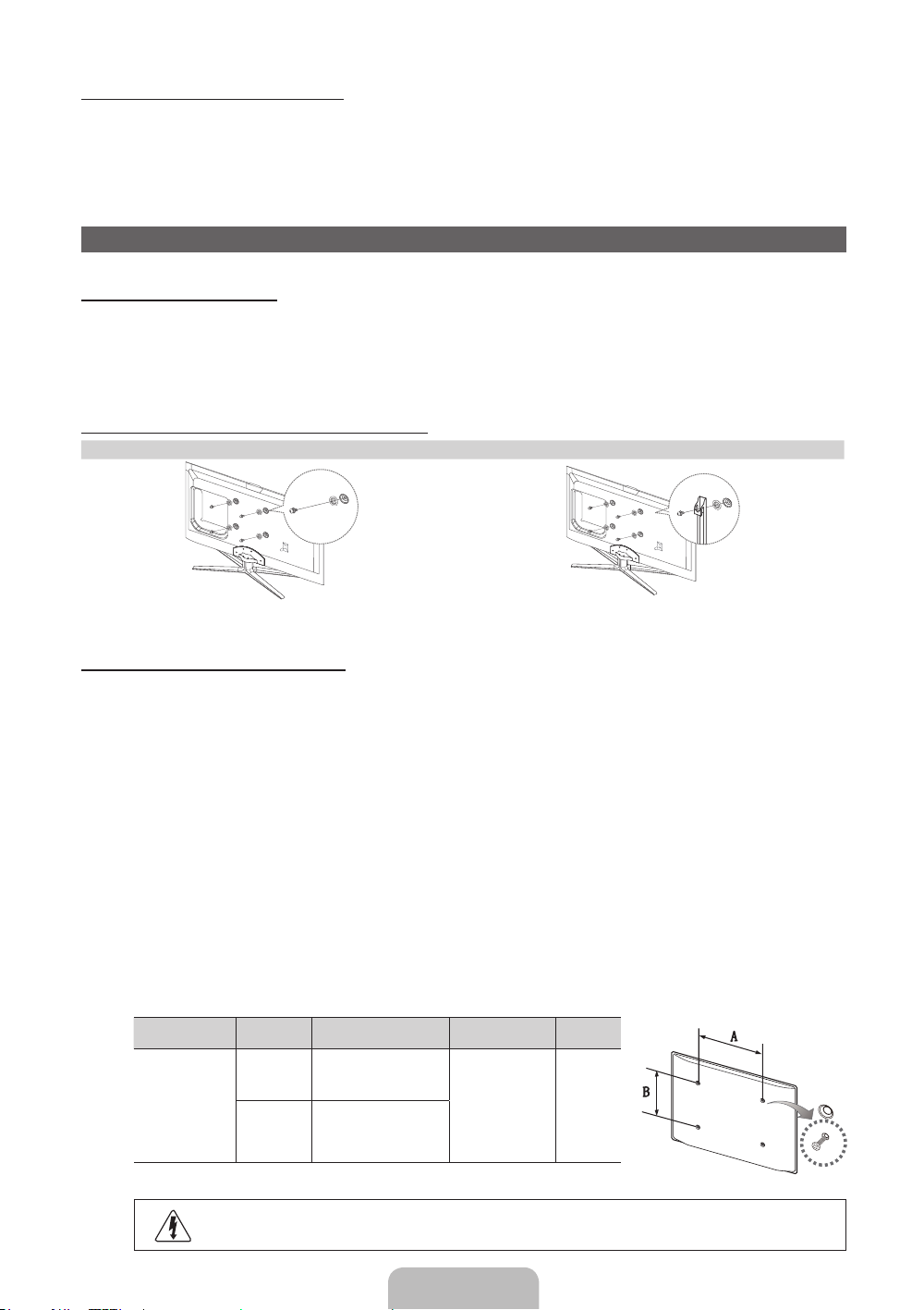

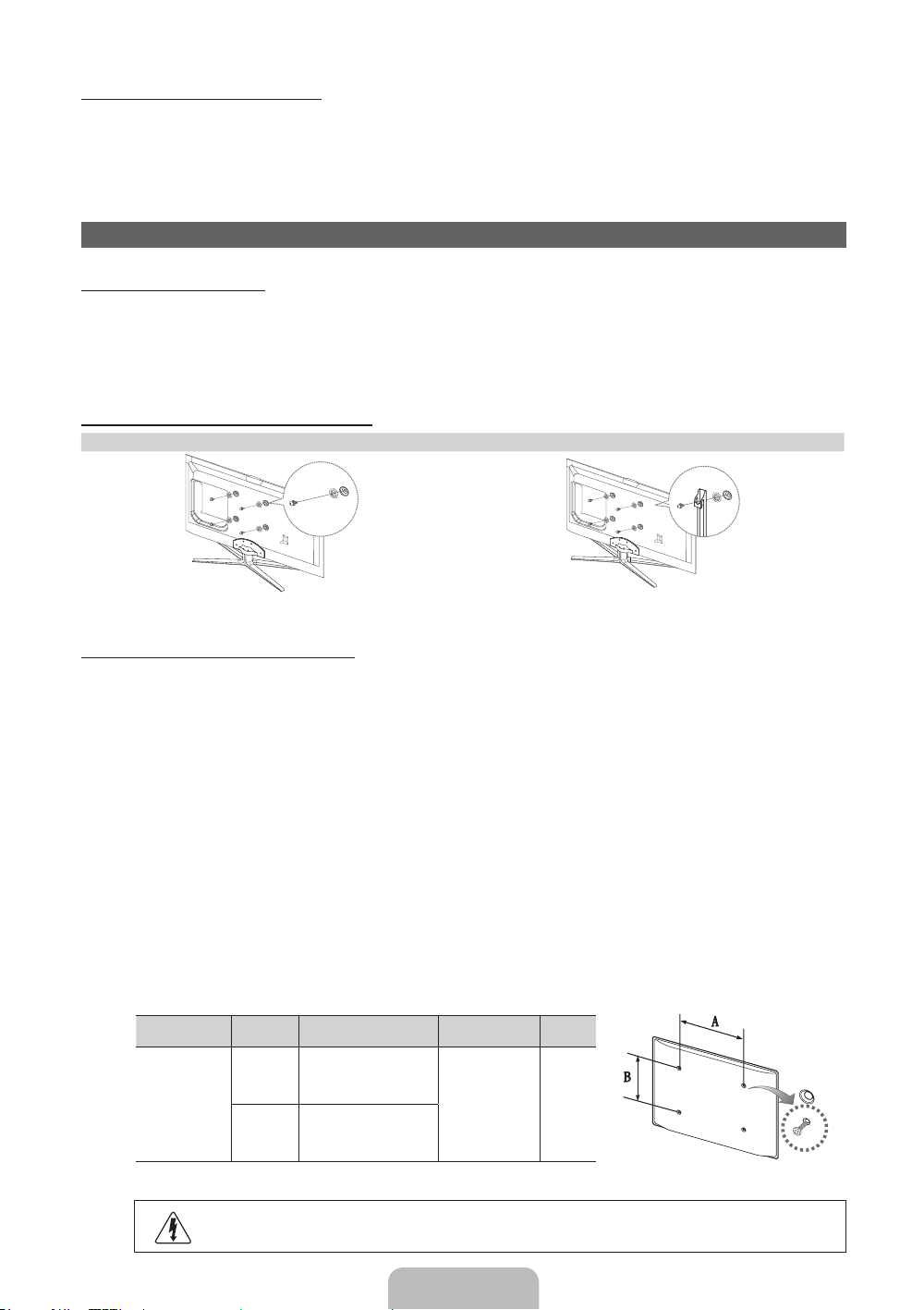

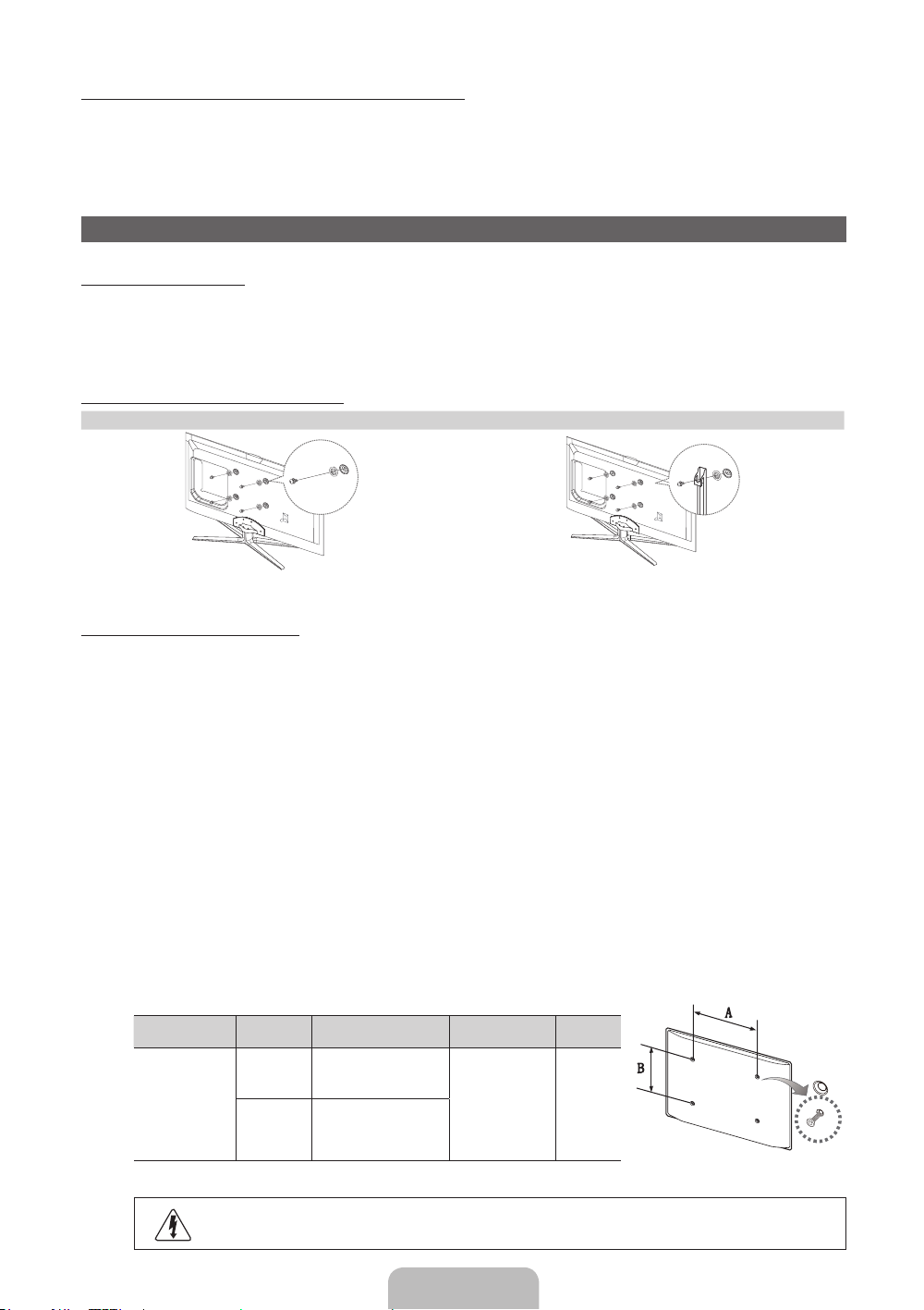

Installing the Wall Mount

Installing the Wall Mount Kit

The wall mount kit (sold separately) allows you to mount the TV on the wall. For detailed information on installing the wall mount, see the instructions provided with the wall mount. Contact a technician for assistance when

installing the wall mount bracket. We do not advice you to do it yourself. Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own.

Preparing before installing Wall-Mount

Case A. Installing the SAMSUNG Wall-Mount Case B. Installing another company’s Wall-Mount

To install a wall-mount, use the Holder-Ring 1.

Wall Mount Kit Speciﬁ cations (VESA)

The wall mount kit is not supplied, but sold separately.

✎

Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materials, please contact your nearest dealer.

✎

If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.

NOTE

✎

• Standard dimensions for wall mount kits are shown in the table below.

• When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided.

• Do not use screws that do not comply with the VESA standard screw speciﬁ cations.

• Do not use screws that are longer than the standard dimension or do not comply with the VESA standard screw speciﬁ cations. Screws that are too long may cause damage to the inside of the TV set.

• For wall mounts that do not comply with the VESA standard screw speciﬁ cations, the length of the screws may differ depending on the wall mount speciﬁ cations.

• Do not fasten the screws that are too strongly; this may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents.

• Samsung is not liable for product damage or personal injury when a non-VESA or non-speciﬁ ed wall mount is used or the consumer fails to follow the product installation instructions.

• Do not mount the TV at more than a 15 degree tilt.

• Always have two people mount the TV on a wall.

Product Family inches VESA Spec. (A * B) Standard Screw Quantity

40 200 X 200

LED-TV

46~60 400 X 400

Unscrew the hole around before installing Wall-Mount on the wall.

✎

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock.

M8 4

English - 20

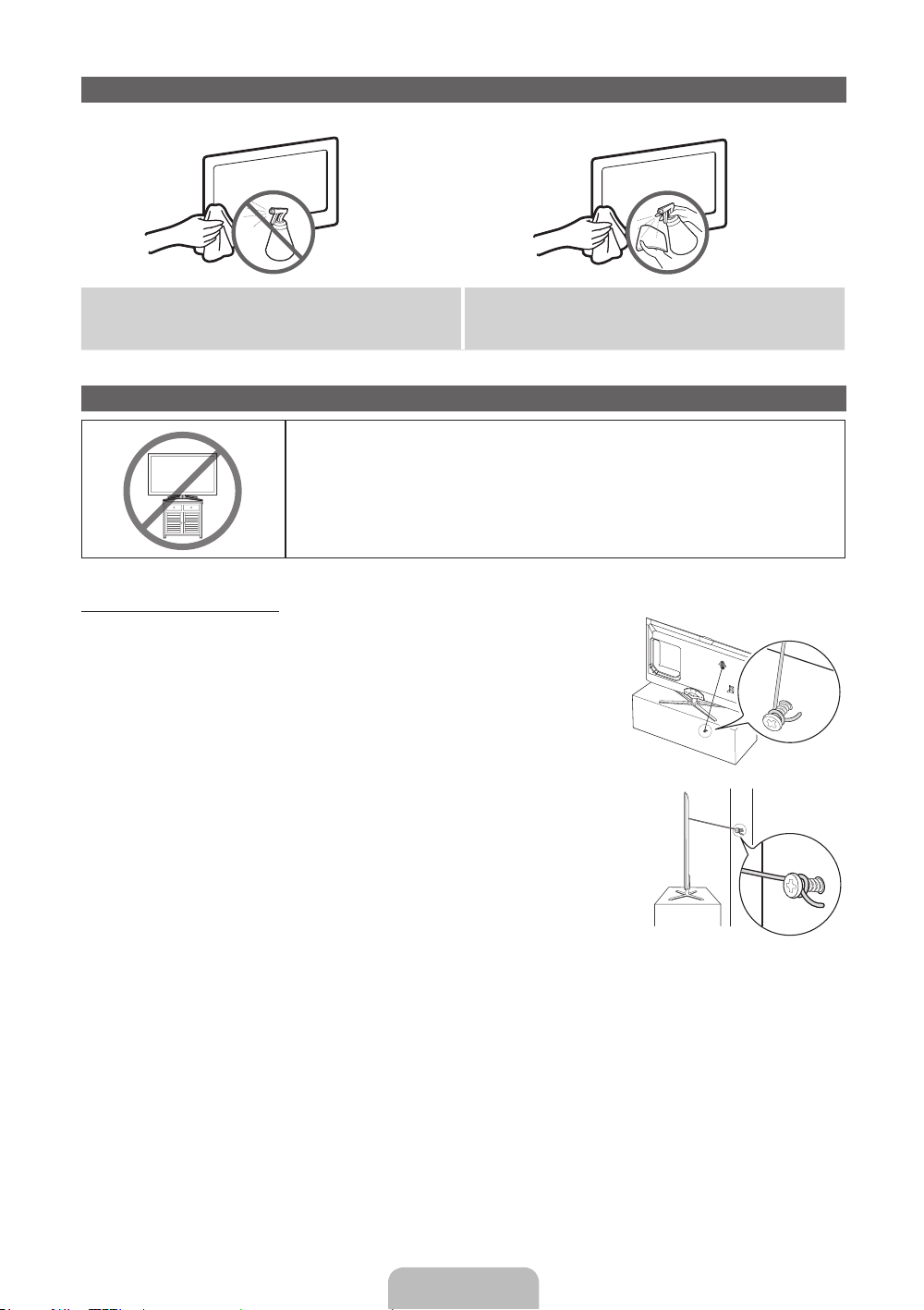

Storage and Maintenance

If you attached some stickers on the TV screen, it remains some debris after removing the sticker. Please clean it to watch TV.

✎

Do not spray water directly onto the product. Any liquid that goes into the product may cause a failure, ﬁ re, or electric shock.

Clean the product with a soft cloth dapped in a small amount of water. Do not use a ﬂ ammable liquid (e.g. benzene, thinners) or a cleaning agent.

Securing the TV to the Wall

Caution: Pulling, pushing, or climbing on the TV may cause the TV to fall. In particular, ensure your children do not hang over or destabilize the TV. Doing so may cause the TV to tip over, causing serious injuries or death. Follow all safety precautions provided in the included Safety Flyer with your TV. For added stability and safety, you can purchase and install the anti fall device as described below.

To Avoid the TV from Falling

1. Put the screws into the clamps and ﬁ rmly fasten them onto the wall. Conﬁ rm that the screws have

been ﬁ rmly installed onto the wall.

You may need additional material such as an anchor depending on the type of wall.

✎

Since the necessary clamps, screws, and string are not supplied, please purchase these

✎

additionally.

2. Remove the screws from the back centre of the TV, put the screws into the clamps, and then

fasten the screws onto the TV again.

Screws may not be supplied with the product. In this case, please purchase the screws of

✎

the following specifications. Screw Specifications

✎

• For a 19 ~ 27 inch: M4

• For a 32 ~ 75 inch: M8

3. Connect the clamps ﬁ xed onto the TV and the clamps ﬁ xed onto the wall with a strong cable and

then tie the string tightly.

NOTE

✎

• Install the TV near to the wall so that it does not fall backwards.

• It is safe to connect the string so that the clamps ﬁ xed on the wall are equal to or lower than the clamps ﬁ xed on the TV.

• Untie the string before moving the TV.

4. Verify all connections are properly secured. Periodically check connections for any sign of fatigue for failure. If you have any doubt about the

security of your connections, contact a professional installer.

English - 21

Troubleshooting

If you have any questions about the TV, ﬁrst refer to this list. If none of these troubleshooting tips apply, please visit “www.samsung.com,” then click on Support, or contact the call centre listed on the back-cover of this manual.

Issues Solutions and Explanations

The TV won’t turn on. • Make sure the AC power cord is securely plugged in to the wall outlet and the TV.

There is no picture/video. • Check cable connections (remove and reconnect all cables connected to the TV and external

The remote control does not work. • Replace the remote control batteries with the poles (+/–) in the right direction.

The cable/set top box remote control doesn’t turn the TV on or off, or adjust the volume.

Some of above pictures and functions are available at specific models only.

✎

You can keep your TV as optimum condition to upgrade the latest firmware on web site (samsung.com → Support → Downloads) by USB.

✎

• Make sure the wall outlet is working.

• Try pressing the POWER button on the TV to make sure the problem is not the remote. If the TV turns

on, refer to “Remote control does not work” below.

devices).

• Set your external device’s (Cable/Sat Box, DVD, Blu-ray etc) video outputs to match the connections to the TV input. For example, if an external device’s output is HDMI, it should be connected to an HDMI input on the TV.

• Make sure your connected devices are powered on.

• Reboot the connected device by reconnecting the device’s power cable.

• Clean the sensor’s transmission window on the remote.

• Try pointing the remote directly at the TV from 5~6 feet away.

• Programme the Cable/Set remote control to operate the TV. Refer to the Cable/Set user manual for

the SAMSUNG TV code.

Display Resolution

Mode Resolution

IBM

MAC

VESA DMT

NOTE

✎

640 x 350 720 x 400 640 x 480 832 x 624

1152 x 870

640 x 480 640 x 480 640 x 480 800 x 600 800 x 600

800 x 600 1024 x 768 1024 x 768 1024 x 768 1152 x 864 1280 x 720 1280 x 800

1280 x 1024 1280 x 1024

1366 x 768 1440 x 900

1600 x900RB

1680 x 1050 1920 x 1080

Horizontal Frequency

(KHz)

31.469

35.000

49.726

68.681

31.469

37.861

37.500

37.879

48.077

46.875

48.363

56.476

60.023

67.500

45.000

49.702

63.981

79.976

47.712

55.935

60.000

65.290

67.500

Vertical Frequency

(Hz)

70.086

70.087

66.667

74.551

75.062

59.940

72.809

75.000

60.317

72.188

75.000

60.004

70.069

75.029

75.000

60.000

59.810

60.020

75.025

59.790

59.887

60.000

59.954

60.000

• The interlace mode is not supported.

• The set might operate abnormally if a non-standard video format is selected.

Pixel Clock Frequency

(MHz)

25.175

28.322

30.240

57.284

100.000

25.175

31.500

40.000

50.000

49.500

65.000

75.000

78.750

108.000

74.250

83.500

108.000

135.000

85.500

106.500

108.000

146.250

148.500

Sync Polarity

(H / V)

+/-

-/+

-/-

-/+/+ +/+ +/+

-/-

-/+/+ +/+ +/+

-/+ +/+ +/+ +/+

-/+ +/+

English - 22

Speciﬁcations

Display Resolution 1920 x 1080 Environmental Considerations

Operating Temperature Operating Humidity Storage Temperature Storage Humidity

TV System Analogue: B/G, D/K, L, I (Depending on your country selection)

Colour/Video System Analogue: PAL, SECAM, NTSC-4.43, NTSC-3.58, PAL60

Sound System BG, DK, L, NICAM, MPEG1, DD, DD+, HEAAC. HDMI IN Video: 1080 24p, 1080p, 1080i, 720p, 576p, 480p

Stand Swivel (Left / Right) -20˚ ~ 20˚ Model Name UE40ES7000 UE46ES7000 UE55ES7000 Screen Size 40 inches (101 cm) 46 inches (116 cm) 55 inches (138 cm) Sound (Output) 10 W X 2 Dimensions (WxHxD) Body With stand Weight Without Stand With Stand

914.4 X 545.7 X 29.7 mm

914.4 X 611.2 X 241.3 mm

Digital: MPEG-2 MP@ML, MPEG-4, H.264/AVC MP@L3, MP@L4.0, HP@L4.0

Audio: 2Ch Linear PCM 32/44.1/48kHz, 16/20/24bits.

9.5 kg

10.9 kg

10°C to 40°C (50°F to 104°F)

10% to 80%, non-condensing

-20°C to 45°C (-4°F to 113°F) 5% to 95%, non-condensing

Digital: DVB-T/DVB-C/DVB-S2

1046.8 X 620.2 X 29.7 mm

1046.8 X 691.2 X 276.7 mm

11.9 kg

13.8 kg

1238.4 X 728 X 29.7 mm

1238.4 X 790.4 X 276.7 mm

16.4 kg

18.3 kg

Smart Control

Model Name RMCTPE1

Power Source

Input

Output

Features

MBR

Voice

Bluetooth

Setup

Operating

Compatibility

Dimension Set (mm) 154x52x19.5

Weight

Button 14 Keys Touch Pad Capacitive Touch Sensor (45mmx55mm) Indicator Device Indicator LED x 3 IR Infrared Emitting Diode x 1 Touch Control Absolute Coordinate MBR Universal Control Voice Voice Transfer via Bluetooth Bluetooth Bluetooth 2.1 Supported MBR Database Coverage Global Supported Device Mode 3 Mode (TV, STB, BD) Maximum Working Distance 12m Voice Transfer Bluetooth HID protocol Supported Audio Data Rate 16KHz, 16bit Suggested Sound Level -15.5dB (from 0dB Full-scale) RF 2.4GHz, CSM Band Pairing Method IR Triggered Standard Pairing Maximum Pairing Distance 4m (Line of Sight, Targeting IR Receiver on TV) Maximum Working Distance 10m (Line of Sight) Pairing with TV Yes Programming MBR TV Widget needed Operating Temperature 32°F to 104°F (0°C to 40°C) Working Distance IR : Normal 10m, Max 12m / BT : 10m Working Hours 3 month (200 times button pressed / day) LED TV Above LED E7000 PDP TV E8000

Set (without Batteries)(g) 119 Set (Including Batteries)(g) 165

Accessory Batteries (AAx2)

Battery (AA x 2) To extend the battery life, use of alkaline battery is recommended

English - 23

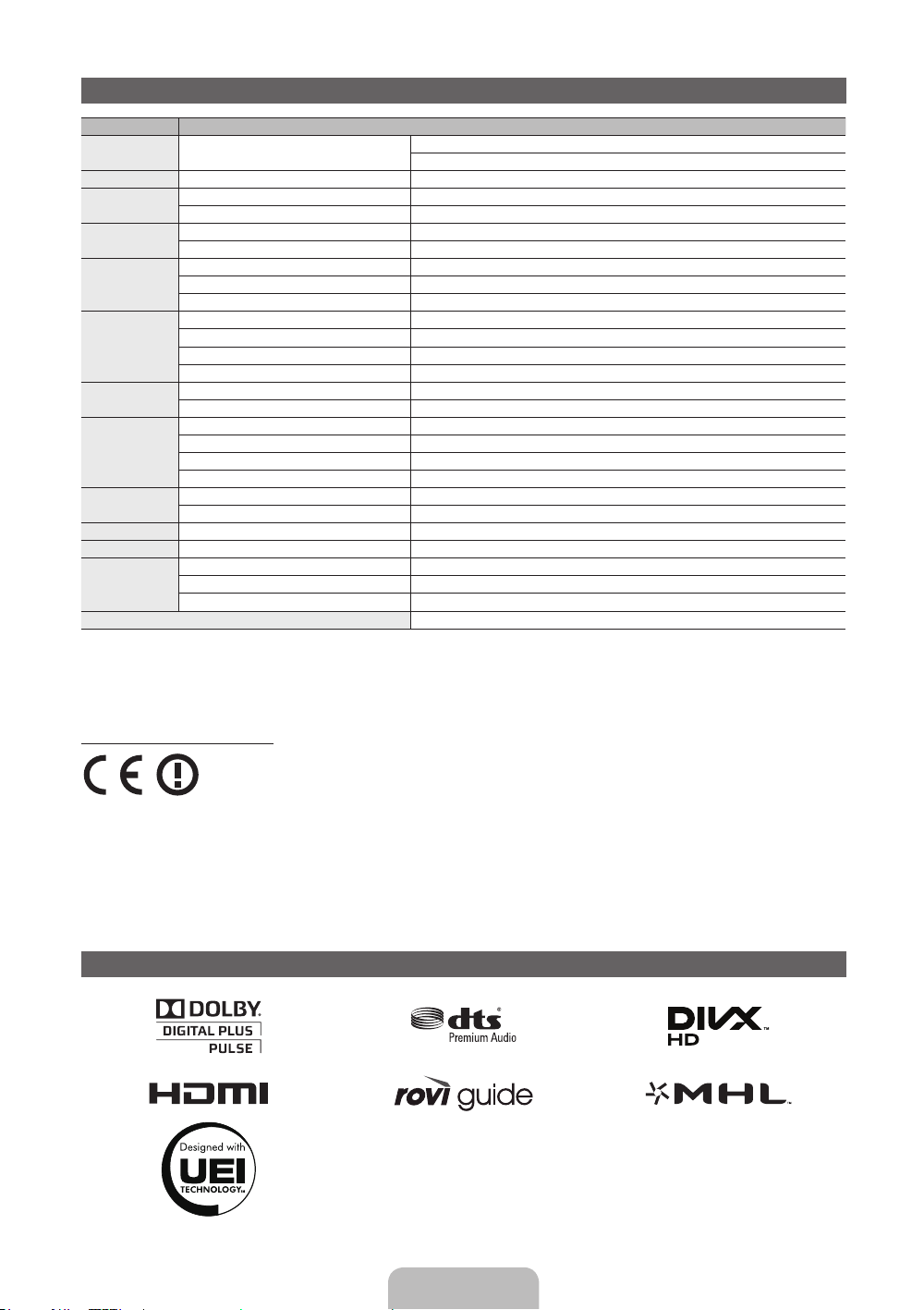

IR Blaster

Model Name VG-IRB2000

Power Source

Input Button 2 Keys (Pairing, Power on/off)

Output

Features

MBR

Bluetooth

Setup

Operating

Compatibility

Dimension Set (mm) W95×D79×H65 (WxDxH) Package (mm) W88×D71×H102

Weight

Design and specifications are subject to change without prior notice.

✎

For information about power supply, and more about power consumption, refer to the label attached to the product.

✎

Typical power consumption is measured according to IEC 62087 Ed.2

✎

Indicator Indicator LED x 1 IR Infrared Emitting Diode x 5 MBR Universal Control Bluetooth Bluetooth 2.1 Supported MBR Database Coverage Global Supported Device Mode 3 Mode (TV, STB, BD) Maximum Working Distance 8m RF 2.4GHz, CSM Band Pairing Method IR Triggered Standard Pairing Maximum Pairing Distance 4m (Line of Sight, Targeting IR Receiver on TV) Maximum Working Distance 10m (Line of Sight) Pairing with TV Ye s Programming MBR TV Widget needed Operating Temperature 32°F to 104°F (0°C to 40°C) Working Distance IR : Normal 10m, Max 12m / BT : 10m Working Angle 360 degree Working Hours 3 month (200 times button pressed / day) LED TV Above LED E7000 PDP TV E8000

Set (without Batteries)(g) 86.5 Set (Including Batteries)(g) 178.5 Package(g) 30.6

Accessory Batteries (AAx4)

Battery (AA x 4) To extend the battery life, use of alkaline battery is recommended

Recommendation - EU Only

• Hereby, Samsung Electronics, declares that this LED TV is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

• The ofﬁcial Declaration of Conformity may be found at http://www.samsung.com, go to Support > Search Product Support and enter the model name.

• This equipment may only be used indoors.

• This equipment may be operated in all EU countries.

Licence

English - 24

Un mode d'emploi détaillé est intégré à votre téléviseur. Pour savoir comment consulter ce mode d'emploi, reportez-vous à la page19.

Les schémas et illustrations contenus dans ce mode d'emploi sont fournis uniquement à titre de référence. Elles l'aspect réel du produit peut être différent. La conception et les spéciﬁcations du produit sont susceptibles d'être modiﬁées sans préavis.

Avis concernant le téléviseur numérique

1. Les fonctions relatives à la télévision numérique (DVB) ne sont disponibles que dans les pays ou régions où des signaux terrestres numériques

de type DVB-T (MPEG2 et MPEG4 AVC) sont diffusés ou dans lesquels vous avez accès à un service de télévision par câble compatible DVB-C (MPEG2 et MPEG4 AAC). Consultez votre distributeur local pour connaître les possibilités en matière de réception des signaux DVB-T ou DVB-C.

2. DVB-T est la norme du consortium européen DVB pour la diffusion de signaux terrestres de télévision numérique. La norme DVB-C est, quant à

elle, prévue pour la diffusion des signaux de télévision numérique par câble. Certaines fonctions particulières, telles que le guide électronique des programmes (Electric Program Guide - EPG) ou encore la vidéo à la demande (Video On Demand - VOD), ne sont toutefois pas incluses dans cette spéciﬁcation. Dès lors, elles ne seront pas traitées pour l'instant.

3. Bien que ce téléviseur soit conforme aux dernières normes DVB-T et DVB-C (août 2008), il n'est pas garanti qu'il soit compatible avec les futures

diffusions de signaux numériques terrestres DVB-T et par câble DVB-C.

4. En fonction du pays ou de la région où vous vous trouvez, certains opérateurs de télévision par câble peuvent facturer des frais supplémentaires

pour un tel service. Il se peut également que vous deviez accepter les termes et conditions de ces sociétés.

5. Il se peut que certaines fonctions de TV numérique ne soient pas disponibles dans certains pays ou certaines régions et que la réception des

signaux DVB-C ne soit pas correcte avec tous les opérateurs.

6. Pour plus d'informations, contactez votre service client Samsung.

Les différentes méthodes de diffusion adoptées en fonction des pays peuvent af fecter la qualité de réception du téléviseur. Vérifiez le

✎

fonctionnement du téléviseur chez votre revendeur agréé SAMSUNG ou contactez le centre d'appel de Samsung pour savoir s'il est possible d'en améliorer les performances en reconfigurant les réglages.

Avertissement d'image ﬁxe

Evitez d'afﬁcher sur l'écran des images ﬁxes (telles que des photos au format JPEG) ou des éléments d'images ﬁxes (tels que des logos de programmes TV, un format d'image 4:3 ou panoramique, des bandeaux d'actualités ou d'informations boursières au bas de l'écran, etc.). L'afﬁchage permanent d'images ﬁxes risque, en effet, d'entraîner l'apparition d'images fantôme à l'écran, ce qui peut se traduire par une dégradation de la qualité d'image. Pour atténuer les risques, suivez scrupuleusement les recommandations suivantes:

• Evitez d'afﬁcher longuement la même chaîne de télévision.

• Essayez toujours d'afﬁcher l'image en plein écran; pour obtenir une correspondance optimale, utilisez le menu de format d'image du téléviseur.

• Réduisez les valeurs de luminosité et de contraste sur le minimum requis pour obtenir la qualité d'image souhaitée. L'utilisation de valeurs trop

élevées risque d'accélérer le processus de brûlure.

• Utilisez fréquemment toutes les fonctions du téléviseur conçues pour réduire le phénomène de rémanence et la brûlure d'écran. Pour plus d'informations à ce sujet, consultez la section appropriée du mode d'emploi.

Français - 2

Ventilation adaptée de votre téléviseur

Lorsque vous installez votre téléviseur, maintenez une distance d'au moins 10cm entre le téléviseur et d'autre objets (murs, côtés d'armoire, etc.) pour permettre une ventilation adéquate. Dans le cas contraire, un incendie ou un problème avec le produit pourrait survenir en raison d'une augmentation de sa température interne.

Lors de l'installation de votre téléviseur sur un pied ou un support mural, nous vous conseillons fortement d'utiliser uniquement des pièces

✎

fournies par Samsung Electronics.

• L'utilisation de pièces fournies par un autre fabricant peut occasionner un problème au niveau du produit ou la chute de celui-ci, ce qui pourrait vous blesser.

Installation avec un pied. Installation avec un support de montage mural.

10cm

10 cm10cm

Autres avertissements

[

L'apparence actuelle du téléviseur peut différer des images contenues dans ce manuel, selon le modèle.

✎

Faites très attention lorsque vous touchez le téléviseur. Certaines pièces peuvent être chaudes.

✎

Instructions de mise au rebut de ce produit (Déchets d'équipements électriques et électroniques) (Applicable dans les pays de l'Union européenne et dans d'autres pays européens pratiquant la collecte sélective de

déchets)

Ce symbole sur le produit, ses accessoires ou sa documentation indique que ni le produit, ni ses accessoires électroniques usagés (chargeur, casque audio, câble USB, etc.) ne peuvent être jetés avec les autres déchets ménagers. La mise au rebut incontrôlée des déchets présentant des risques pour l'environnement et la santé publique, veuillez séparer vos produits et accessoires usagés des autres déchets. Vous favoriserez ainsi le recyclage de la matière qui les compose dans le cadre d'un développement durable. Les particuliers sont invités à contacter le magasin leur ayant vendu le produit ou à se renseigner auprès des autorités locales pour connaître les procédures et les points de collecte de ces produits en vue de leur recyclage. Les utilisateurs professionnels doivent contacter leur fournisseur et consulter les conditions générales du contrat d'achat. Ce produit et ses accessoires ne peuvent être jetés avec les autres déchets professionnels et commerciaux.

Élimination des piles de ce produit (Applicable aux pays de l'Union européenne et aux autres pays européens dans lesquels des systèmes de collecte sélective

sont mis en place)

Le symbole sur le manuel, l'emballage ou les piles indique que celles-ci ne doivent pas être éliminées en ﬁn de vie avec les autres déchets ménagers. L'indication éventuelle des symboles chimiques Hg, Cd ou Pb signiﬁe que la pile ou l'accumulateur contient des quantités de mercure, de cadmium ou de plomb supérieures aux niveaux de référence stipulés dans la directive CE2006/66. Si les piles ne sont pas correctement éliminées, ces substances peuvent porter préjudice à la santé humaine ou à l'environnement. Aﬁn de protéger les ressources naturelles et de favoriser la réutilisation du matériel, veillez à séparer les piles des autres types de déchets et à les recycler via votre système local de collecte gratuite des piles et accumulateurs.

10cm

• Des frais d'administration peuvent vous être facturés si:

− (a) un technicien intervient à votre demande et que le produit ne comporte aucun défaut

(c.-à-d. si vous n'avez pas pris la peine de lire le présent manuel d'utilisation).

− (b) vous amenez le produit dans un centre de réparation alors qu'il ne comporte aucun défaut

(c.-à-d. si vous n'avez pas pris la peine de lire le présent manuel d'utilisation).

• Le montant de ces frais d'administration vous sera signiﬁé avant la réalisation de toute prestation ou visite à domicile.

Français - 3

Liste des fonctions

• 3D: cette incroyable nouvelle fonction vous permet de regarder du contenu 3D à partir de diffusion ou de lecteur BD 3D.

• SMART HUB: la Passerelle vers tous les contenus intégrés en un seul lieu

− Tout est intégré pour faciliter et diversiﬁer les possibilités de loisirs

− Contrôlez vos loisirs avec une interface simple et conviviale

− Accédez à diverses applications tous les jours

− Personnalisez votre téléviseur, en regroupant ou en triant vous applications en fonction de vos goûts

• AllShare Play: AllShare Play vous permet d'accéder à des photos, vidéos ou ﬁchiers audio situés sur des périphériques USB, appareils photos numériques, téléphones portables ou PC. Tous les périphériques compatibles sont accessible en Wi-Fi, via votre réseau sans ﬁl.

• Anynet+ (HDMI-CEC): vous permet de contrôler tous les appareils Samsung connectés compatibles Anynet+ à l'aide de votre télécommande Samsung.

• e-Manual: vous permet de lire à l'écran le manuel complet. (p. 19)

Accessoires

Vérifiez que les éléments suivants sont inclus avec votre téléviseur. S'il manque des éléments, contactez votre revendeur.

✎

Les couleurs et les formes des éléments peuvent varier en fonction des modèles.

✎

Les câbles qui ne se trouvent pas dans le contenu de l'emballage peuvent être achetés séparément.

✎

Vérifiez qu'aucun accessoire n'est caché dans l'emballage lorsque vous ouvrez la boîte.

✎

ATTENTION: INSÉREZ FERMEMENT DE MANIÈRE A CE QU'IL NE SE DÉTACHE PAS

[

• Smart Touch Control et Piles (AA x 2)

• IR Blaster et Piles (AA x 4)

• Télécommande et piles (AAAx2)

• Carte de garantie(non disponible dans certains pays) /Manuel de sécurité

• Câble d'alimentation

• Tissu de nettoyage

• Lunettes 3D actives

• Mode d'emploi

Adaptateur péritel Support du serre-câble Anneau de support x 4 Adaptateur de carte CI

Installation du support du serre-câble

Clavier sans ﬁl (vendu séparément)

Clavier sans ﬁl

Français - 4

Utilisation du contrôleur du téléviseur (touche de panneau)

Le contrôleur du téléviseur, un petit bouton de type manette de jeu situé sur le côté droit, arrière, du téléviseur, vous permet de commander le téléviseur sans télécommande.

La couleur et la forme du produit peuvent varier en fonction du modèle.

✎

Caméra

Face au téléviseur, suivez les instructions suivantes.

✎

Lorsque vous utilisez une caméra TV, vérifiez si une cassette est présente à l'arrière de celle-ci. Vous pourrez alors utiliser la caméra TV après

✎

en avoir réglé l'angle. Si vous ne souhaitez pas utiliser de caméra TV, nous vous recommandons d'utiliser une lentille orientée vers le haut. Dans ce cas, les options Reconnaissance faciale et Commande par mouv. ne sont pas disponibles.

Mise sous tension Mettez le téléviseur sous tension en appuyant sur le contrôleur lorsque le téléviseur est en mode veille. Réglage du volume Réglez le volume en déplaçant le contrôleur de gauche à droite lorsque le téléviseur est allumé. Sélection d'une chaîne Utilisation du menu Fonction Pour afﬁcher et utiliser le menu de fonction, appuyez brièvement sur le contrôleur lorsque le téléviseur

Sélection du MENU (

Sélection du SMART HUB (

Sélection d'une Source (

Mise hors tension (

) Lorsque le menu de fonction est visible, sélectionnez le MENU (m) en déplaçant le contrôleur vers la

™

) Lorsque le menu de fonction est visible, sélectionnez le SMART HUB (™) en déplaçant le contrôleur

) Lorsque le menu de fonction est visible, sélectionnez la liste Source (s) en déplaçant le contrôleur

) Lorsque le menu de fonction est visible, sélectionnez Eteindre (P) en déplaçant le contrôleur vers le

Capteur de la télécommande

Menu de fonction

Contrôleur du téléviseur

Sélectionnez une chaîne en déplaçant le contrôleur vers le haut et le bas lorsque le téléviseur est allumé.

est allumé. Pour fermer le menu de fonction, appuyez de nouveau brièvement sur le contrôleur.

gauche. Le menu à l'écran (OSD) s'afﬁche. Sélectionnez une option en déplaçant le contrôleur vers la droite. Déplacez le contrôleur vers la droite ou la gauche, ou vers l'arrière et l'avant, pour procéder

à d'autres sélections. Pour modiﬁer un paramètre, sélectionnez-le, puis appuyez sur le contrôleur.

vers le haut. L'écran principal SMART HUB apparaît. Sélectionnez une application en déplaçant le contrôleur, puis en appuyant sur celui-ci.

vers la droite. L'écran Source apparaît. Pour sélectionner une Source, déplacez le contrôleur d'avant en arrière. Lorsque la source de votre choix est en surbrillance, appuyez sur le contrôleur.

bas, puis appuyez sur celui-ci.

Pour fermer le Menu, Smart Hub, ou Source, appuyez sur le contrôleur pendant plus de 1 seconde.

✎

Mode veille

Votre téléviseur entre en mode Veille lorsque vous l'éteignez et continue de consommer une petite quantité d'alimentation électrique. Pour éviter les risques et réduire la consommation électrique, ne laissez pas le téléviseur en mode Veille pendant de longues périodes (lorsque vous partez en vacances, par exemple). Il est préférable de débrancher le cordon d'alimentation.

Raccordement à une antenne

Branchez le cordon d'alimentation sur une prise murale, une fois tous les autres raccordements faits.

✎

Si vous connectez votre téléviseur à un boîtier de télédistribution ou satellite à l'aide de connexions HDMI, Composante ou Composite, il n'est

✎

pas nécessaire que vous raccordiez la prise ANT IN à un raccordement à une antenne ou un câble. L'utilisation de radios portables ou mobiles, d'émetteurs-récepteurs, ainsi que de radios amateur ou AM près de votre téléviseur pourrait

✎

engendrer des dysfonctionnements de l'appareil. Si le raccordement du câble de l'antenne est court, faites preuve de prudence en déplaçant ou en pivotant le téléviseur. Vous pourriez

✎

arracher la prise de l'antenne du téléviseur.

Antenne VHF/UHF coaxialSatellite

Français - 5
