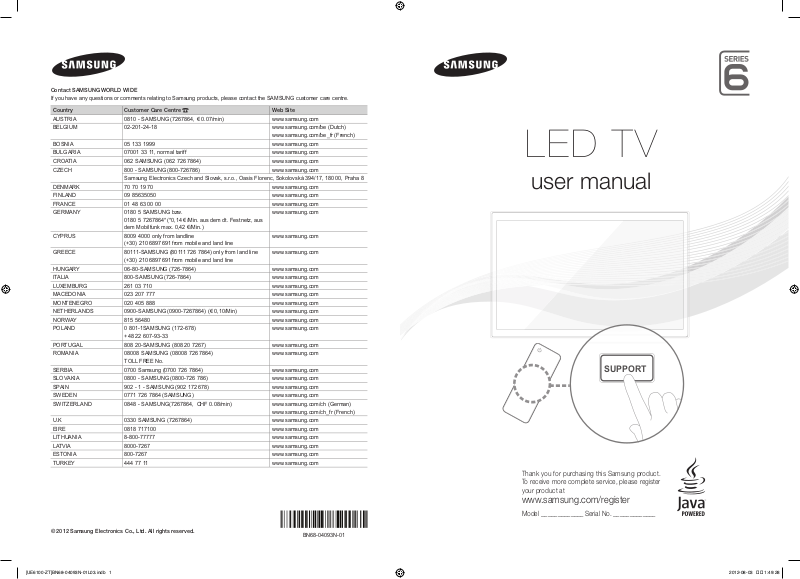

Samsung UE40ES6100PXZT User manual

SUPPORT

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Country

AUSTRIA 0810 - SAMSUNG (7267864, € 0.07/min) www.samsung.com

BELGIUM 02-201-24-18 www.samsung.com/be (Dutch)

BOSNIA 05 133 1999 www.samsung.com

BULGARIA 07001 33 11, normal tariff www.samsung.com

CROATIA 062 SAMSUNG (062 726 7864) www.samsung.com

CZECH 800 - SAMSUNG (800-726786) www.samsung.com

DENMARK 70 70 19 70 www.samsung.com

FINLAND 09 85635050 www.samsung.com

FRANCE 01 48 63 00 00 www.samsung.com

GERMANY 0180 5 SAMSUNG bzw.

CYPRUS 8009 4000 only from landline

GREECE 80111-SAMSUNG (80111 726 7864) only from land line

HUNGARY 06-80-SAMSUNG (726-7864) www.samsung.com

ITALIA 800-SAMSUNG (726-7864) www.samsung.com

LUXEMBURG 261 03 710 www.samsung.com

MACEDONIA 023 207 777 www.samsung.com

MONTENEGRO 020 405 888 www.samsung.com

NETHERLANDS 0900-SAMSUNG (0900-7267864) (€ 0,10/Min) www.samsung.com

NORWAY 815 56480 www.samsung.com

POLAND 0 801-1SAMSUNG (172-678)

PORTUGAL 808 20-SAMSUNG (808 20 7267) www.samsung.com

ROMANIA 08008 SAMSUNG (08008 726 7864)

SERBIA 0700 Samsung (0700 726 7864) www.samsung.com

SLOVAKIA 0800 - SAMSUNG (0800-726 786) www.samsung.com

SPAIN 902 - 1 - SAMSUNG (902 172 678) www.samsung.com

SWEDEN 0771 726 7864 (SAMSUNG) www.samsung.com

SWITZERLAND 0848 - SAMSUNG(7267864, CHF 0.08/min) www.samsung.com/ch (German)

U.K 0330 SAMSUNG (7267864) www.samsung.com

EIRE 0818 717100 www.samsung.com

LITHUANIA 8-800-77777 www.samsung.com

LATVIA 8000-7267 www.samsung.com

ESTONIA 800-7267 www.samsung.com

TURKEY 444 77 11 www.samsung.com

Customer Care Centre

Samsung Electronics Czech and Slovak, s.r.o., Oasis Florenc, Sokolovská 394/17, 180 00, Praha 8

0180 5 7267864* (*0,14 €/Min. aus dem dt. Festnetz, aus dem Mobilfunk max. 0,42 €/Min.)

(+30) 210 6897691 from mobile and land line

+48 22 607-93-33

TOLL FREE No.

Web Site

www.samsung.com/be_fr (French)

www.samsung.com

www.samsung.com/ch_fr (French)

BN68-04093N-01

LED TV

user manual

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/register

Model _____________Serial No. _____________

For more information on how to view the e-Manual (p. 14)

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and speciﬁcations may be changed without notice.

CIS languages (Russian, Ukrainian, Kazakhs) are not available for this product, since this is manufactured for customers in EU region.

Digital TV notice

1. Functionalities related to Digital TV (DVB) are only available in countries/areas where DVB-T (MPEG2 and MPEG4 AVC) digital terrestrial signals are

broadcasted or where you are able to access to a compatible DVB-C (MPEG2 and MPEG4 AAC) cable-TV service. Please check with your local dealer the possibility to receive DVB-T or DVB-C signal.

2. DVB-T is the DVB European consortium standard for the broadcast transmission of digital terrestrial television and DVB-C is that for the broadcast

transmission of digital TV over cable. However, some differentiated features like EPG (Electric Programme Guide), VOD (Video On Demand) and so on, are not included in this speciﬁcation. So, they cannot be workable at this moment.

3. Although this TV set meets the latest DVB-T and DVB-C standards, as of [August, 2008], the compatibility with future DVB-T digital terrestrial and

DVB-C digital cable broadcasts cannot be guaranteed.

4. Depending on the countries/areas where this TV set is used some cable-TV providers may charge an additional fee for such a service and you may

be required to agree to terms and conditions of their business.

5. Some Digital TV functions might be unavailable in some countries or regions and DVB-C might not work correctly with some cable service providers.

6. For more information, please contact your local Samsung customer care centre.

The reception quality of TV may be affected due to differences in broadcasting method between the countries. Please check the TV

✎

performance in the local SAMSUNG Authorized Dealer, or the Samsung Call Centre whether it can be improved by reconfiguring TV setting or not.

Still image warning

Avoid displaying still images (like jpeg picture ﬁles) or still image element (like TV programme logo, panorama or 4:3 image format, stock or news bar at screen bottom etc.) on the screen. Constant displaying of still picture can cause ghosting of LED screen, which will affect image quality. To reduce risk of this effect, please follow below recommendations:

• Avoid displaying the same TV channel for long periods.

• Always try do display any image on full screen, use TV set picture format menu for best possible match.

• Reduce brightness and contrast values to minimum required to achieve desired picture quality, exceeded values may speed up the burnout process.

• Frequently use all TV features designed to reduce image retention and screen burnout, refer to e-Manual for details.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government ofﬁce, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product (Applicable in countries with separate collection systems)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

English - 2

Securing the Installation Space

Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation.

Failing to do so may result in ﬁre or a problem with the product due to an increase in the internal temperature of the product.

When using a stand or wall-mount, use parts provided by Samsung Electronics only.

✎

• If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling.

The appearance may differ depending on the product.

✎

• Be careful when you contact the TV because some parts can be somewhat hot.

Installation with a stand. Installation with a wall-mount.

English

10 cm

10 cm10 cm

10 cm

List of Features

• 3D: This exciting new feature enables you to view 3D content from some broadcasting or 3D BD

players.

• SMART HUB: The Gateway to all content integrated in one place.

− It’s all integrated to guide you to easier and diverse entertainment choices.

− Control your entertainment life with easy and simple user friendly UI.

− Access to diverse Apps that are adding up every day.

− Customize your TV, by App grouping & sorting to your taste.

• AllShare Play: AllShare Play lets you access, view, or play photos, videos, or music located on USB

devices, digital cameras, cell phones, and PCs. PCs, cell phones, and other compatible devices can be accessed wirelessly, through your wireless network.

• Anynet+(HDMI-CEC): Allows you to control all connected Samsung devices that support Anynet+ with

your Samsung TV’s remote.

• e-Manual: Allows you to read on screen full manual. (p. 14)

English - 3

Accessories

Please make sure the following items are included with your TV. If any items are missing, contact your

✎

dealer. The items’ colours and shapes may vary depending on the models.

✎

Cables not included in the package contents can be purchased separately.

✎

Check that there is no accessory hidden behind packing materials when you open the box.

✎

CAUTION: INSERT SECURELY LEST SHOULD BE DETACHED IN SET

[

• Remote Control & Batteries (AAA x 2) • Power Cord

• User Manual • Cleaning-Cloth

• Warranty Card (Not available in some locations) / Safety Guide

Holder-Ring x 4 Holder-Wire stand

• An administration fee may be charged if either

− (a) an engineer is called out at your request and there is no defect in the product

(i.e. where you have failed to read this user manual)

− (b) you bring the unit to a repair centre and there is no defect in the product

(i.e. where you have failed to read this user manual).

• The amount of such administration charge will be advised to you before any work or home visit is carried out.

• Samsung 3D Active Glasses (40 inch model and above)

Assembling the Holder-Wire stand

English - 4

Using the TV's Controller (Panel Key)

TV Controller is a multi directional button that helps navigate without remote control.

Some functions which require a PIN code may not be available.

✎

The product colour and shape may vary depending on the model.

✎

The TV's Controller, a small joy stick like button on the rear right side of the TV, lets you control the TV

✎

without the remote control.

Function menu

Remote control sensor

TV Controller

The image is drawn by facing

the front side of the TV.

Follow these instructions facing the front of your TV.

✎

When selecting the function by moving the controller to the upwards/downwards/left/right directions,

✎

be sure not to press the controller. If you press it first, you cannot operate it to move the upwards/ downwards/left/right directions.

Power on Adjusting the volume Adjust the volume by moving the Controller from side to side when the

Selecting a channel Select a channel by moving the Controller upwards and downwards

Using the Function menu To view and use the Function menu, press and release the Controller

Selecting the MENU (m) With the Function menu visible, select the MENU (m) by moving the

Selecting the SMART HUB (™)

Selecting a Source (s) With the Function menu visible, open the Source (s) by moving the

Power off (P) With the Function menu visible, select Power off (P) by moving the

Turn the TV on by pressing the Controller when the TV is in standby mode.

power is on.

when the power is on.

when the power is on. To close the Function menu, press and release the Controller again.

Controller to the left. The OSD (On Screen Display) Menu appears. Select an option by moving the Controller to the right. Move the Controller to the right or left, or upwards and downwards to make additional selections. To change a parameter, select it, and then press the Controller.

With the Function menu visible, select SMART HUB (™) by moving the Controller upwards. The SMART HUB main screen appears. Select an application by moving the Controller, and then pressing the Controller.

Controller to the right. The Source screen appears. To select a source, move the Controller upwards and downwards. When the source you want is highlighted, press the Controller.

Controller downwards, and then press the Controller.

English

To close the Menu, Smart Hub, or Source, press the Controller for more than 1 second.

✎

Standby mode

Your TV enters Standby mode when you turn it off and continues to consume a small amount of electric power. To be safe and to decrease power consumption, do not leave your TV in standby mode for long periods of time (when you are away on vacation, for example). It is best to unplug the power cord.

English - 5

Remote Control Buttons

This is a special remote control for the visually impaired persons and has Braille points on the Power,

✎

Channel and Volume buttons.

Turns the TV on and off.

Displays and selects the available video sources. (p. 12)

Selects the HDMI mode directly.

, . ;

a b c

d e f

j k l

Have direct access to channels.

Alternately select Teletext ON, Double,

Mix or OFF.

g h i

p q r s

TEXT

m n o

w x y z

t u v

Returns to the previous channel.

Cuts off the sound temporarily.

Adjusts the volume.

Brings up the Smart Hub applications.

See e-Manual chapter Advanced

Features → Smart Hub.

Opens the OSD.

Quickly select frequently used functions.

Use this button in a speciﬁc feature.

Returns to the previous menu.

Use these buttons according to the

direction on screen.

Use these buttons in a speciﬁc feature.

For details, refer to e-Manual.

BACK

"#$%

Family Story

Changes channels.

Displays channel lists on the screen.

Displays the EPG (Electronic Programme Guide).

Displays information on the TV screen.

u/d/l/r

: Move the cursor on-screen

menu item.

: Selects the menu and changes the

corresponding item value.

Exits the on-screen menu.

Family Story: Connect to Family Story

application. See e-Manual chapter Advanced Features → Family Story.

SEARCH: Support to recommendation

search word and search function. See e-Manual chapter Advanced Features → Search.

: Turns the 3D image on or off. See

e-Manual chapter Advanced Features → 3D.

SUPPORT: Lets you use various support

functions including e-Manual. (p. 14)

D: Use this button when using data

broadcast service.

AD/SUBT.: Turns the audio description

on and off. This is not available in some locations. / Displays digital subtitles. See e-Manual chapter Other Features → Subtitle.

English - 6

Installing batteries (Battery size: AAA)

NOTE

✎

• Use the remote control within 23 feet of the TV.

• Bright light may affect the performance of the remote control Avoid using when near special ﬂuorescent lights or neon signs.

• The colour and shape may vary depending on the model.

Connecting to an Aerial

When the TV is initially powered on, basic settings proceed automatically.

Plug the power cord into a wall outlet only after you have made all other connections.

✎

If you are connecting your TV to a cable or satellite box using HDMI, Component, or Composite

✎

connections, you do not need to connect the ANT IN jack to an aerial or a cable connection. Use caution when you move or swivel the TV if the aerial cable is tightly connected. You could break

✎

the aerial jack off the TV.

English

VHF/UHF Aerial Cable

Aerial Cable (Not supplied)

Power Input

English - 7

Setup (Initial Setup)

When you turn the TV on for the ﬁrst time, a sequence of prompts and screens will assist you in conﬁguring basic settings. To begin Setup, press the P button on your remote.

Setup is available only when the input source is set to TV. See "Changing the Input Source" (p. 12).

✎

To return to the previous step in the Setup sequence, Select Previous.

✎

Before you begin, make sure you have connected the TV to an aerial or a cable connection and that

✎

the TV is plugged in (p. 7). To start the Setup select Start.

✎

2 3

Menu Language:

Selecting a menu language

Use Mode: Select the Home Use Mode.

Network Settings: Conﬁgure network settings

To connect later,

✎

select Skip.

Software Upgrade: Upgrading the software to latest version

To upgrade later,

✎

select Skip.

Select Country (Depending on the country)

Auto Tuning (1): Selecting how you watch your TV

Select a menu language you want using your remote, and then select Next. The TV will be displayed a menu using the selected language since next step.

Select Home Use using your remote, and then select Next. Store Demo mode is for retail environments.

To set up your network connection, select Next using your remote. If you do not know your network set up information or want to set to it later, select Skip. For more detailed information, refer to “Setting up the Wired or Wireless Network” in the e-Manual for set up requirements and instructions, and the Network Connection section of this manual (p. 13). You can set up the network connection later using the Network menu.

Select Next to upgrade TV software. Your TV will automatically upgrade, if your TV need a software upgrade. If you want to upgrade later, select the Skip. For more information, refer to Software Upgrade (Preference Features → Support Menu) in the e-Manual.

This may take some time, depending on network status.

✎

Select the appropriate country.

After selecting the country in the country menu, some models may

✎

proceed with an additional option to setup the pin number.

Let’s ﬁnd and store channels on your TV. Do you need to search for channels?

• Yes, I need to.: All the channels available will be found and stored on

your TV.

• No, I don’t need to.: My set-top box provides all the channels that

are available, so I don't need to search for channels.

Auto Tuning (2):

(Depending on the country) Selecting a search options

Select the channel source to memorise. When setting the aerial source to Cable, a step appears allowing you to assign numerical values (channel frequencies) to the channels. For more information, refer to Auto Tuning (Channel Menu → Memorizing Channels) in the e-Manual.

Select Stop at any time to interrupt the memorization process.

✎

English - 8

Clock: Setting the

Clock Mode

• Auto: Set the current time automatically.

• Manual: Allows you to manually set the current date and time.

English

If You Want to Reset This Feature...

Select System - Setup (Initial Setup). Enter your 4 digit PIN number. The default PIN number is “1-1-1-1”. If you want to change the PIN number, use the Change PIN function.

You should do Setup (Menu → System) again at home although you did in shop.

Time Zone

(Depending on the country): Setting the your Time Zone

Setup Complete Select Close to ﬁnish.

If you forget the PIN code, press the remote control buttons in the following sequence in Standby

✎

mode, which resets the PIN to “1-1-1-1”: MUTE → 8 → 2 → 4 → POWER (on).

This step is only available when the clock mode is set to Auto.

• Auto: Set the time zone automatically.

• Manual: Set the time zone manually. If you selected Manual, you can select whether to turn DST

✎

(Daylight Savings Time) On or Off. (Depending on the country)

The completed settings are displayed.

✎

English - 9

Connections

For more information, refer to Connecting the TV in the e-Manual.

✎

The displayed image may differ depending on the model.

✎

Headphone Cable

(Not Supplied)

Headphones connection

BD Player

HDMI OUT

HDMI connection

HDMI Cable (Not Supplied)

PC connection

BD Player

VIDEO OUT

AUDIO OUT

R-AUDIO-L

AV connection

HDMI OUT

DVI OUT

AUDIO OUT

Video Cable (Not Supplied)

Audio Cable (Not Supplied)

HDMI Cable (Not Supplied)

HDMI to DVI Cable (Not Supplied)

Audio Cable (Not Supplied)

Component Cable (Not Supplied)

BD Player

COMPONENT OUT

PRPBY

AUDIO OUT

R-AUDIO-L

SERVICE: Connector for service only.

OPTICAL

Optical Cable (Not Supplied)

Scart Cable (Not Supplied)

SCART connectionDVD home theatre connection

Power Input

EXT

Component connection

English - 10

VCR or DVD

Connecting to a COMMON INTERFACE slot (Your TV viewing Card Slot)

Using the “CI or CI+ CARD”

To watch paid channels, the “CI or CI+ CARD” must be inserted.

• If you don’t insert the “CI or CI+ CARD”, some channels will display the message “Scrambled Signal”.

• The pairing information containing a telephone number, the “CI or CI+ CARD” ID the Host ID and other information will be displayed in about 2~3 minutes. If an error message is displayed, please contact your service provider.

• When the conﬁguration of channel information has ﬁnished, the message “Updating Completed” is displayed, indicating the channel list is updated.

NOTE

✎

• You must obtain a “CI or CI+ CARD” from a local cable service provider.

• When removing the “CI or CI+ CARD”, carefully pull it out with your hands since dropping the “CI or CI+ CARD” may cause damage to it.

• Insert the “CI or CI+ CARD” in the direction marked on the card.

• The location of the COMMON INTERFACE slot may be different depending on the model.

• “CI or CI+ CARD” is not supported in some countries and regions; check with your authorized dealer.

• If you have any problems, please contact a service provider.

• Insert the “CI or CI+ CARD” that supports the current aerial settings. The screen will be distorted or will not be seen.

English

English - 11

Changing the Input Source

Source

™ → Source

Use to select TV or an external input source such as a DVD player / Blu-ray player / cable box / STB satellite receiver.

■ TV / Ext. / HDMI1/DVI / HDMI2 / HDMI3 / AV / Component

1. Press the ™ button on your remote. The Smart Hub screen appears.

2. Select Source. The Source screen appears.

3. Select a desired external input source.

You can only choose external devices that are connected to the TV. In the displaying Source list,

✎

connected inputs will be highlighted. In the Source, Ext. is always stays activated.

✎

How to use Edit Name

Edit Name lets you associate a device name to an input source. To access Edit Name, open the Tools

menu when the Source is displayed. The following selections appear under Edit Name:

■ VCR / DVD / Cable STB / Satellite STB / PVR STB / AV Receiver / Game / Camcorder / PC / DVI PC / DVI Devices / TV / IPTV / Blu-ray / HD DVD / DMA: Name the device connected to the input jacks to make your input source selection easier.

If you have connected a PC to the HDMI IN 1(DVI) port with an HDMI cable, select PC under Edit

✎

Name to enter a device name. If you have connected a PC to the HDMI IN 1(DVI) port with an HDMI to DVI cable, select DVI PC

✎

under Edit Name to enter a device name. If you connected an AV device to the HDMI IN 1(DVI) port with an HDMI to DVI cable, select DVI

✎

Devices under Edit Name to enter a device name.

Information

You can see detailed information about the selected external device.

Refresh

In Source, if the external devices are not displayed, open the Tools menu, and then select Refresh, then search for the connected devices.

Alternatively, You can refresh the Source list screen by selecting a using your remote.

✎

This function is only available if Anynet+ (HDMI-CEC) function is set to On.

✎

English - 12

Network Connection

You can set up your TV so that it can access the SMART TV applications through your local area network (LAN) using a wired or wireless connection.

Network Connection - Wireless

You can connect your TV to your LAN through a standard wireless router or modem.

English

The LAN Port on

the Wall

Wireless IP sharer

(Router having DHCP server)

LAN Cable (Not Supplied)

This TV supports the IEEE 802.11a/b/g and n communication protocols. Samsung recommends using IEEE 802.11n. When you play video over a network connection, the video may not play smoothly.

Most wireless network systems incorporate a security system that requires devices that access the network through an access point or wireless router (typically a wireless IP Sharer) to transmit an encrypted security code called an access key.

If Pure High-throughput (Greenﬁeld) 802.11n mode is selected and the Encryption type is set to WEP or TKIP for your wireless router, Samsung TVs will not support a connection in compliance with new Wi-Fi certiﬁcation speciﬁcations.

Network Connection - Wired

There are two main ways to connect your TV to your network using cable, depending on your network setup. They are illustrated below:

The Modem Port on the Wall TV Rear Panel

External Modem

(ADSL / VDSL / Cable TV)

LAN Cable (Not Supplied)Modem Cable (Not Supplied)

The LAN Port on the Wall TV Rear Panel

LAN Cable (Not Supplied)

It is not supported when the network speed is below or equal to 10Mbps.

✎

Use Cat 6 (*STP Type) cable for the connection.

✎

*Shielded Twist Pair

English - 13

How to view the e-Manual

SUPPORT

You can ﬁ nd instructions for your TV’s features in the e-Manual. To open the e-Manual, press the SUPPORT button on your remote.

You can also access it through the menu:

Menu → Support → e-Manual

Access the e-Manual

To use the e-Manual, follow these steps:

1. When you need help, select Support using your remote. The e-Manual screen appears.

2. Select a desired category.

3. Select a desired topic. The e-Manual displays the page you want to see.

Blue word in e-Manual means menu list on TV screen.

✎

Green icon in e-Manual means a button on your remote.

✎

Arrow steps (e.g. Menu → Support → e-Manual) in e-Manual signifies that a sequence of steps is

✎

required for the function.

How to toggle between an e-Manual topic and the corresponding OSD menu(s).

Changing the Preset Picture Mode

Picture Mode

Menu → Picture → Picture Mode

Picture modes apply preset adjustments to the picture.

N When connecting a PC using the HDMI-DVI cable, you can only select Entertain and Standard.

• Dynamic

Suitable for a bright room.

• Standard

Suitable for a normal environment.

• Natural

for LED TV / Relax for PDP 6500 Series

Suitable for reducing eye strain.

• Movie

Suitable for watching movies in a dark room.


Picture Mode

Backlight

Contrast

Brightness

Sharpness

Colour

Tint (G/R) G50

Changing the Preset Picture Mode

Picture Mode

Menu → Picture → Picture Mode

Picture modes apply preset adjustments to the picture.

N When connecting a PC using the HDMI-DVI cable, you can only select Entertain and Standard.

• Dynamic

Suitable for a bright room.

• Standard

Suitable for a normal environment.

• Natural

for LED TV / Relax for PDP 6500 Series

Suitable for reducing eye strain.

• Movie

Suitable for watching movies in a dark room.


Picture Mode

Backlight

Contrast

Brightness

Sharpness

Colour

Tint (G/R) G50

‘ Back to e-Manual

This function is not enabled in some menus.

✎

You can’t use the Tr y N ow function if the menu is not available.

✎

1. If you want to execute the corresponding menu(s), press the a using your remote.

2. To return to the e-Manual screen, select Support using your remote.

English - 14

Using the coloured and function buttons with e-Manual

• Scroll bar: Scroll the e-Manual screen up or down.

• l / r: Moves the previous or next chapter.

• a Try Now: Move the OSD menu that corresponds to the topic. To return to the e-Manual screen, select Support using your remote.

• b Home: Moves to the e-Manual home screen.

• { Position: Each time you select {, change a position for the e-Manual screen.

• } Index (depending on the country): Displays the Index screen.

• R Return: Return to the previous screen.

How to search for a topic on the index page

1. Select } using your remote. The Index screen appears.

2. To search for a topic, select a letter. The Index displays a list of topics and keywords that begin with the

letter you selected.

3. Select a topic or keyword you want.

4. The e-Manual page with the topic appears.

To close the Index screen, press the RETURNR button.

✎

To Change the screen position of the e-Manual

English

If the e-Manual screen is not invisible well because the OSD Menus screen, you can change the e-Manual screen's position.

1. Move the Highlight to the e-Manual screen by pressing the SUPPORT button on your remote.

2. Press the { button on your remote. Each time you select { using your remote, the position of the

e-Manual will change.

English - 15

Installing the Wall Mount

Installing the Wall Mount Kit

The wall mount kit (sold separately) allows you to mount the TV on the wall. For detailed information on installing the wall mount, see the instructions provided with the wall mount.

Contact a technician for assistance when installing the wall mount bracket. We do not advice you to do it yourself.

Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own.

Preparing before installing Wall-Mount

Case A. Installing the SAMSUNG Wall-Mount Case B. Installing another company’s Wall-Mount

To install a wall-mount, use the Holder-Ring 1.

English - 16

Wall Mount Kit Speciﬁcations (VESA)

The wall mount kit is not supplied, but sold separately.

✎

Install your wall mount on a solid wall perpendicular to the ﬂoor. When attaching to other building materials, please contact your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.

NOTE

✎

• Standard dimensions for wall mount kits are shown in the table below.

• When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided.

• Do not use screws that do not comply with the VESA standard screw speciﬁcations.

• Do not use screws that are longer than the standard dimension or do not comply with the VESA standard screw speciﬁcations. Screws that are too long may cause damage to the inside of the TV set.

• For wall mounts that do not comply with the VESA standard screw speciﬁcations, the length of the screws may differ depending on the wall mount speciﬁcations.

• Do not fasten the screws that are too strongly; this may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents.

• Samsung is not liable for product damage or personal injury when a non-VESA or non-speciﬁed wall mount is used or the consumer fails to follow the product installation instructions.

• Do not mount the TV at more than a 15 degree tilt.

Product Family inches VESA Spec. (A * B) Standard Screw Quantity

English

LED-TV

32~40 200 X 200

M8 4

46~60 400 X 400

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock.

English - 17

Securing the TV to the Wall

Caution: Pulling, pushing, or climbing on the TV may cause the TV to fall. In particular, ensure your children do not hang over or destabilize the TV. Doing so may cause the TV to tip over, causing serious injuries or death. Follow all safety precautions provided in the included Safety Flyer with your TV. For added stability and safety, you can purchase and install the anti fall device as described below.

To Avoid the TV from Falling

1. Put the screws into the clamps and ﬁrmly fasten them onto the wall.

Conﬁrm that the screws have been ﬁrmly installed onto the wall.

You may need additional material such as an anchor depending

✎

on the type of wall. Since the necessary clamps, screws, and string are not

✎

supplied, please purchase these additionally.

2. Remove the screws from the back centre of the TV, put the screws

into the clamps, and then fasten the screws onto the TV again.

Screws may not be supplied with the product. In this case,

✎

please purchase the screws of the following specifications. Screw Specifications

✎

• For a 32 ~ 60 inches: M8

3. Connect the clamps ﬁxed onto the TV and the clamps ﬁxed onto the

wall with a strong cable and then tie the string tightly.

NOTE

✎

• Install the TV near to the wall so that it does not fall backwards.

• It is safe to connect the string so that the clamps ﬁxed on the wall are equal to or lower than the clamps ﬁxed on the TV.

• Untie the string before moving the TV.

4. Verify all connections are properly secured. Periodically check connections for any sign of fatigue for

failure. If you have any doubt about the security of your connections, contact a professional installer.

Wall

English - 18

Troubleshooting

If you have any questions about the TV, ﬁrst refer to this list. If none of these troubleshooting tips apply, please visit “www.samsung.com,” then click on Support, or contact the call centre listed on the back-cover of this manual.

Issues Solutions and Explanations

The TV won’t turn on. • Make sure the AC power cord is securely plugged in to the wall outlet

and the TV.

• Make sure the wall outlet is working.

• Try pressing the P button on the TV to make sure the problem is not

the remote. If the TV turns on, refer to “The remote control does not work.” below.

There is no picture/video. • Check cable connections (remove and reconnect all cables connected

to the TV and external devices).

• Set your external device’s (Cable/Sat Box, DVD, Blu-ray etc.) video outputs to match the connections to the TV input. For example, if an external device’s output is HDMI, it should be connected to an HDMI input on the TV.

• Make sure your connected devices are powered on.

• Be sure to select the correct input source.

• Reboot the connected device by reconnecting the device’s power cable.

The remote control does not work.

The cable/set top box remote control doesn’t turn the TV on or off, or adjust the volume.

• Replace the remote control batteries with the poles (+/–) in the right direction.

• Clean the sensor’s transmission window on the remote.

• Try pointing the remote directly at the TV from 5~6 feet away.

• Programme the Cable/Set remote control to operate the TV. Refer to the Cable/Set user manual for the SAMSUNG TV code.

English

Some of above pictures and functions are available at specific models only.

✎

You can keep your TV as optimum condition to upgrade the latest firmware on web site (samsung.

✎

com → Support → Downloads) by USB.

English - 19

Licence

Storage and Maintenance

If you attached some stickers on the TV screen, it remains some debris after removing the sticker.

✎

Please clean it to watch TV.

Do not spray water directly onto the product. Any liquid that goes into the product may cause a failure, ﬁre, or electric shock.

Clean the product with a soft cloth dapped in a small amount of water. Do not use a ﬂammable liquid (e.g. benzene, thinners) or a cleaning agent.

Speciﬁcations

Display Resolution 1920 x 1080 Environmental Considerations

Operating Temperature Operating Humidity Storage Temperature Storage Humidity

TV System Analogue: B/G, D/K, L, I (Depending on your country selection)

Colour/Video System Analogue: PAL, SECAM, NTSC-4.43, NTSC-3.58, PAL60

Digital: MPEG-2 MP@ML, MPEG-4, H.264/AVC MP@L3, MP@L4.0, HP@L4.0 Sound System BG, DK, L, NICAM, MPEG1, DD, DD+, HEAAC HDMI IN Video: 1080 24p, 1080p, 1080i, 720p, 576p, 480p

Audio: 2Ch Linear PCM 32/44.1/48kHz, 16/20/24bits.

Stand Swivel (Left / Right) -20˚ ~ 20˚

10°C to 40°C (50°F to 104°F)

10% to 80%, non-condensing

-20°C to 45°C (-4°F to 113°F) 5% to 95%, non-condensing

Digital: DVB-T/DVB-C

English - 20

Model Name UE32ES6100 / UE32ES6140 UE37ES6100 Screen Size 32 inches 37 inches Sound

(Output) 10 W X 2 Dimensions (WxHxD)

Body With stand

Weight Without Stand With Stand

Model Name UE40ES6100 / UE40ES6140 UE46ES6100 / UE46ES6140 Screen Size 40 inches 46 inches Sound

(Output) 10 W X 2 Dimensions (WxHxD)

Body With stand

Weight Without Stand With Stand

Model Name UE50ES6100 UE55ES6100 / UE55ES6140 Screen Size 50 inches 55 inches Sound

(Output) 10 W X 2 Dimensions (WxHxD)

Body With stand

Weight Without Stand With Stand

Model Name UE60ES6100 Screen Size 60 inches Sound

(Output) 10 W X 2 Dimensions (WxHxD)

Body With stand

Weight Without Stand With Stand

739.6 x 448.0 x 46.9 mm

739.6 x 514.8 x 241.3 mm

6.5 Kg

7.7 Kg

926.8 x 553.4 x 46.9 mm

926.8 x 619.1 x 241.3 mm

10.3 Kg

11.6 Kg

1139.3 x 672.7 x 46.9 mm

1139.3 x 743.3 x 276.6 mm

14.5 Kg

16.3 Kg

861.4 x 516.9 x 46.9 mm

861.4 x 582.7 x 241.3 mm

9 Kg

10.3 Kg

1062.2 x 629.8 x 46.9 mm

1062.2 x 700.8 x 276.6 mm

12.9 Kg

14.7 Kg

1252.8 x 736.6 x 46.9 mm

1252.8 x 807.6 x 276.6 mm

16.2 Kg 18 Kg

1372.9 x 804.1 x 46.9 mm

1372.9 x 875.3 x 309.6 mm

19.7 Kg 23 Kg

English

Design and specifications are subject to change without prior notice.

✎

For information about power supply, and more about power consumption, refer to the label attached

✎

to the product. Typical power consumption is measured according to IEC 62087 Ed.2

✎

English - 21

+ 48 hidden pages
