SAMSUNG UE22C4000, UE22C4010, UE26C4000 User Manual [en, fr, es, pt, sl, tr]

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Country

AUSTRIA 0810 - SAMSUNG (7267864, € 0.07/min) www.samsung.com/at
BELGIUM 02-201-24-18 www.samsung.com/be (Dutch)

CZECH 800 - SAMSUNG (800-726786) www.samsung.com/cz

DENMARK 70 70 19 70 www.samsung.com/dk
FINLAND 030 - 6227 515 www.samsung.com/
FRANCE 01 48 63 00 00 www.samsung.com/fr
GERMANY 01805 - SAMSUNG (726-7864 € 0,14/Min) www.samsung.de
HUNGARY 06-80-SAMSUNG (726-7864) www.samsung.com/hu
ITALIA 800-SAMSUNG (726-7864) www.samsung.com/it
LUXEMBURG 261 03 710 www.samsung.com/lu
NETHERLANDS 0900-SAMSUNG (0900-7267864) (€ 0,10/Min) www.samsung.com/nl
NORWAY 815-56 480 www.samsung.com/no
POLAND 0 801 1SAMSUNG (172678)

PORTUGAL 80820-SAMSUNG (726-7864) www.samsung.com/pt
SLOVAKIA 0800-SAMSUNG (726-7864) www.samsung.com/sk
SPAIN 902 - 1 - SAMSUNG (902 172 678) www.samsung.com/es
SWEDEN 0771 726 7864 (SAMSUNG) www.samsung.com/se
TURKEY 444 77 11 www.samsung.com/tr
U.K 0845 SAMSUNG (7267864) www.samsung.com/uk
EIRE 0818 717100 www.samsung.com/ie
SWITZERLAND 0848 - SAMSUNG (7267864, CHF 0.08/min) www.samsung.com/ch

LITHUANIA 8-800-77777 www.samsung.com/lt
LATVIA 8000-7267 www.samsung.com/lv
ESTONIA 800-7267 www.samsung.com/ee

Customer Care Centre

Samsung Zrt., česká organizační složka, Oasis Florenc, Sokolovská394/17, 180 00, Praha 8

022-607-93-33

Web Site

www.samsung.com/be_fr (French)

www.samsung.com/pl

www.samsung.com/ch_fr/(French)

LED TV user manual

LED TV

user manual

© 2010 Samsung Electronics Co., Ltd. All rights reserved.

imagine the possibilities

Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at

www.samsung.com/register

Model _____________ Serial No. _____________

BN68-02655A-00

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.
Product design and specifications may be changed without notice.

Digital TV notice

1. Functionalities related to Digital TV (DVB) are only available in countries/areas where DVB-T (MPEG2 and MPEG4 AVC) digital terrestrial signals are

broadcasted or where you are able to access to a compatible DVB-C (MPEG2 and MPEG4 AAC) cable-TV service. Please check with your local
dealer the possibility to receive DVB-T or DVB-C signal.

2. DVB-T is the DVB European consortium standard for the broadcast transmission of digital terrestrial television and DVB-C is that for the broadcast

transmission of digital TV over cable. However, some differentiated features like EPG (Electric Programme Guide), VOD (Video On Demand) and so
on, are not included in this specification. So, they cannot be workable at this moment.

3. Although this TV set meets the latest DVB-T and DVB-C standards, as of [August, 2008], the compatibility with future DVB-T digital terrestrial and

DVB-C digital cable broadcasts cannot be guaranteed.

4. Depending on the countries/areas where this TV set is used some cable-TV providers may charge an additional fee for such a service and you may

be required to agree to terms and conditions of their business.

5. Some Digital TV functions might be unavailable in some countries or regions and DVB-C might not work correctly with some cable service providers.

6. For more information, please contact your local Samsung customer care centre.

The reception quality of TV may be affected due to differences in broadcasting method between the countries. Please check the TV

✎

performance in the local SAMSUNG Authorized Dealer, or the Samsung Call Centre whether it can be improved by reconfiguring TV setting or
not.

Still image warning

Avoid displaying still images (like jpeg picture files) or still image element (like TV programme logo, panorama or 4:3 image format, stock or news bar at
screen bottom etc.) on the screen. Constant displaying of still picture can cause ghosting of LED screen, which will affect image quality. To reduce risk of
this effect, please follow below recommendations:

• Avoid displaying the same TV channel for long periods.

• Always try do display any image on full screen, use TV set picture format menu for best possible match.

• Reduce brightness and contrast values to minimum required to achieve desired picture quality, exceeded values may speed up the burnout process.

• Frequently use all TV features designed to reduce image retention and screen burnout, refer to proper user manual section for details.

Securing the Installation Space

Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation.
Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature of the product.

When using a stand or wall-mount, use parts provided by Samsung Electronics only.

✎

If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling.

x

The appearance may differ depending on the product.

✎

Installation with a stand. Installation with a wall-mount.

2

10 cm

English

10 cm

10 cm

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger,
headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible
harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste
and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the
retailer where they purchased this product, or their local government office, for details of where and how they can take these items
for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase
contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product
(Applicable in the European Union and other European countries with separate battery return systems)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other
household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery
contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of,
these substances can cause harm to human health or the environment. To protect natural resources and to promote material
reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

10 cm

10 cm

10 cm

10 cm

Contents

Getting Started

4

Connections

8

Basic Features

11

Advanced Features

23

Other Information

34

4 Accessories
5 Viewing the Control Panel
6 Viewing the Remote Control
7 Connecting to an Antenna
7 Plug & Play (Initial Setup)

8 Connecting to an AV Device
9 Connecting to an Audio Device
10 Changing the Input Source

11 How to Navigate Menus
11 Using the INFO button (Now & Next guide)
11 Planning Your Viewing
13 Channel Menu
15 Picture Menu
17 Sound Menu
19 Setup Menu
21 Support Menu

23 Connecting to a PC
24 Media Play
30 Anynet+

ENGLISH

34 Analogue Channel Teletext Feature
35 Assembling the Cables
35 Installing the Wall Mount
37 Anti-theft Kensington Lock
37 Securing the TV to the wall
38 Troubleshooting
41 Specifications
42 Index



TOOLS

This function can be used by

pressing the TOOLS button on the

remote control.

Check the Symbol!

Note One-Touch Button

English

3

Getting Started

Accessories

✎

Please make sure the following items are included with your LED TV. If any items are missing, contact your dealer.

✎

The items’ colours and shapes may vary depending on the models.

✎

Cables not included in the package contents can be purchased separately.

y Remote Control & Batteries (AAA x 2)
y Owner’s Instructions
y Warranty Card / Safety Guide (Not available in some locations)

(M4 X L8)

y Blanking Bracket & Screw (X1)

(26 inch model Only)

y Cable Tie y Holder-Wire (3ea)

y Holder-Ring (4ea)

(26 inch model Only)

y Cleaning Cloth
y Power Cord

y Holder-Wire stand

(26 inch model Only)

y AV Adapter y Component Adapter y SCART Adapter

UE19C4000, UE22C4000 / UE22C4010

See separate guide for installing the stand.

y Stand Base y Stand Body

UE26C4000

See separate guide for installing the stand.

s

s

s

y Stand (1EA) y Guide Stand (1EA) y Screws (10EA)

✎

For best cable connection to this product, be sure to use cables with a maximum thickness as below:

y Maximum thickness - 0.55 inches (14mm)

s

s

(A)

(B)

5EA (M4 X L12)

5EA (M4 X L8)

4

English

Viewing the Control Panel

✎

The product colour and shape may vary depending on the model.

01 Getting Started

Power Indicator

Speakers

Remote control sensor Aim the remote control towards this spot on the TV.

SOURCE

MENU Displays an on-screen menu, the OSD (on screen display) of your TV’s features.





Power Indicator Blinks and turns off when the power is on and lights up in standby mode.



Standby mode

Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example). A small amount
of electric power is still consumed even when the power button is turned off. It is best to unplug the power cord.



(Power)

Toggles between all the available input sources. In the on-screen menu, use this
button as you would use the ENTER button on the remote control.

Adjusts the volume. In the OSD, use the
◄ and ► buttons on the remote control.

Changes the channels. In the OSD, use the
▼ and ▲ buttons on the remote control.

Turns the TV on or off.

Remote control sensor



buttons as you would use the



buttons as you would use the

English

5

Getting Started

Viewing the Remote Control

✎

This is a special remote control for the visually impaired persons and has Braille points on the Power, Channel and
Volume buttons.

POWER SOURCE

Turns the TV on and off.

Selects the HDMI mode directly.

Have direct access to channels.

Alternately selects Teletext, Double or

Mix.

Adjusts the volume.

Opens the OSD.

Displays Media Play (p. 24).

Quickly select frequently used functions.

Selects the on-screen menu items and
changes the values seen on the menu.

Returns to the previous menu.

These buttons are for the Channel Manager,

Media Play(USB) menu, etc.

Use these buttons in Media Play(USB)

and Anynet+(HDMI-CEC) modes

(p. 24, 30).

(: Controls recording for Samsung

recorders that have the Anynet+ feature)

HDMI

TTX/MIX

PRE-CH

CH LIST

MENU

MEDIA.P

TOOLS

RETURN

A B C D

P.MODE

AD

S.MODE

P.SIZE

GUIDE

INFO

EXIT

DUAL

SUBT.

Displays and selects the available video
sources. (p. 10)

Returns to the previous channel.

Cuts off the sound temporarily.
Changes channels.

Displays channel lists on the screen
(p. 13).
Displays the EPG (Electronic Programme
Guide) (p. 11).

Displays information on the
TV screen.

Exits the menu.

P.MODE: Press to select the picture

mode (p. 15).

S.MODE: Press to select the sound

mode (p. 17).

DUAL I-II: Sound effect selection (p. 19).
AD: Turns the audio description on and

off (p. 18). This is not available in some
locations.

P.SIZE: Selects the picture size (p. 16).
SUBT.: Displays digital subtitles (p. 20).

Installing batteries (Battery size: AAA)

English

6

✎

NOTE

Use the remote control within 23 feet from the TV.

x

Bright light may affect the performance of the remote

x

control. Avoid using nearby special fluorescent light or neon
signs.

The colour and shape may vary depending on the model.

x

Connecting to an Antenna

When the TV is initially powered on, basic settings proceed automatically.

✎

Preset: Connecting the mains and antenna.

✎

If the size of the cable mold part was an abnormal shape, the part may not be connected to the input port properly.

VHF/UHF Antenna

Cable

or

Power Input

Plug & Play (Initial Setup)

When the TV is initially powered on, a sequence of on-screen prompts will assist in configuring basic settings. Press the

POWERP button. Plug & Play is available only when the Input source is set to TV.

✎

To return to the previous step, press the Red button.

Selecting a language

1

Selecting Store Demo

2

or Home Use

Selecting a country

3

Selecting an antenna

Press the ▲ or ▼ button, then press the ENTER
Select the desired OSD (On Screen Display) language.
Press the ◄ or ► button, then press the ENTER

y Select the Home Use mode. Store Demo Mode is for retail

environments.

y Return the unit’s settings from Store Demo to Home Use

(standard): Press the volume button on the TV. When you see the

volume OSD, press and hold MENU for 5 sec.
Press the ▲ or ▼ button, then press the ENTER
Select the appropriate country. If the desired country does not exist on the menu, select Others.

✎

After selecting the country in the Country menu, some models may proceed with an

additional option to setup the pin number.

✎

When you input the PIN number, 0-0-0-0 is not available.
Press the ▲ or ▼ button, then press the ENTER

E

button.

E

button.

E

button.

E

button. Select Air or Cable.

ANT OUT

POWER

P

4

Selecting a channel

5

Setting the

6

Clock Mode
Time Zone

7

Viewing the HD

8

Connection Guide.
Enjoy your TV.

Press the ▲ or ▼ button, then press the ENTERE button.
Select the channel source to memorise. When setting the antenna source to Cable, a step

appears allowing you to assign numerical values (channel frequencies) to the channels. For
more information, refer to Channel → Auto Store (p.13).

Press the ENTER
Set the Clock Mode automatically or manually.
Press the ▲ or ▼ button to select Auto, then press the ENTER
Press the ▲ or ▼ button to select the your time zone, then press the ENTER

(depending on the country).
The connection method for the best HD screen quality is displayed.

Press the ENTER

E

button at any time to interrupt the memorization process.

E

button.

E

button.

E

button

9

01 Getting Started

If You Want to Reset This Feature...

Select Setup - Plug & Play (Initial Setup). Enter your 4 digit PIN number. The default PIN number is “0-0-0-0.” If you want to
change the PIN number, use the Change PIN function.

English

7

Connections

Connecting to an AV Device

Using an HDMI or HDMI/DVI Cable: HD connection (up to 720p/1080i)

Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver, cable box, satellite receiver
(STB)

W

R

Red White

DVD

DVD

HDMI OUT

✎

HDMI IN 1(DVI), 2, PC/DVI AUDIO IN

When using an HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack. For the DVI cable

x

connection, use a DVI to HDMI cable or DVI-HDMI (DVI to HDMI) adapter for video connection and the

PC/DVI AUDIO IN jacks for audio.

If an external device such as a DVD / Blu-ray player / cable box / STB satellite receiver supporting a HDMI

x

versions older than 1.3 is connected, the TV may operate abnormally (e.g. no screen display / no sound /
annoying flicker / abnormal Colour).

If there is no sound after connecting an HDMI cable, check the HDMI version of the external device. If you

x

suspect the version is older than 1.3, contact the provider of the device to confirm the HDMI version and
request an upgrade.

It is recommended you purchase an HDMI-certified cable. Otherwise, the screen may appear blank or a

x

connection error may occur.

Using a Component (up to 720p/1080i) or Audio/Video (480i only) and Scart Cable

Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR

Blu-ray player

COMPONENT OUT

PR PB Y

AUDIO OUT

R-AUDIO-L

AUDIO OUT

R-AUDIO-L

DVI OUT

DVD

VIDEO OUTAUDIO OUT

R-AUDIO-L

R

B

VCR

EXT

R

B

W

W

RGB

✎

In Ext. mode, DTV Out supports MPEG SD Video and Audio only.

✎

To obtain the best picture quality, the Component connection is recommended over the A/V connection.

✎

If the size of the cable mold part was an abnormal shape, the part may not be connected to the input port

R

R

Y

RedRed WhiteRedBlue Green Yellow

White

G

W R

Y

G

properly.

English

8

WRWR

Y

Connecting to an Audio Device

USB

USB

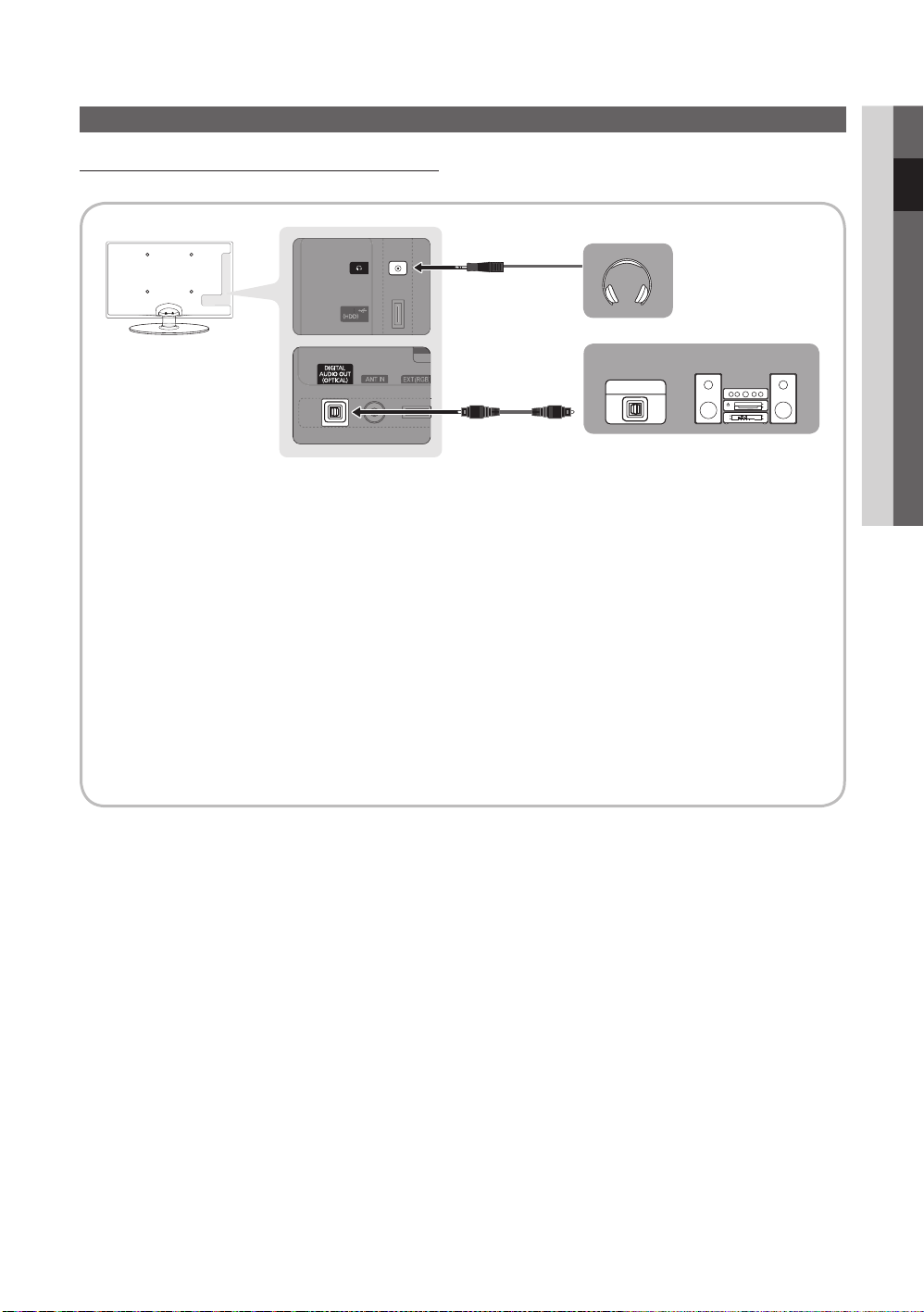

Using an Optical (Digital) or Headphone Connection

Available devices: digital audio system, amplifier, DVD home theatre

OPTICAL

✎

DIGITAL AUDIO OUT (OPTICAL)

When a Digital Audio System is connected to the DIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume

x

of both the TV and the system.

5.1 CH (channel) audio is available when the TV is connected to an external device supporting 5.1 CH.

x

When the receiver (home theatre) is set to on, you can hear sound output from the TV’s optical jack. When the

x

TV is receiving a DTV signal, the TV will send 5.1 CH sound to the home theatre receiver. When the source is
a digital component such as a DVD / Blu-ray player / cable box / STB (Set-Top-Box) satellite receiver and is
connected to the TV via HDMI, only 2 CH audio will be heard from the home theatre receiver. If you want to
hear 5.1 CH audio, connect the digital audio out jack from your DVD / Blu-ray player / cable box / STB satellite
receiver directly to an amplifier or home theatre.

✎

Headphones : You can connect your headphones to the headphones output on your set. While the
headphones are connected, the sound from the built-in speakers will be disabled.

Sound function may be restricted when connecting headphones to the TV.

x

Headphone volume and TV volume are adjusted separately.

x

02 Connections

digital audio system

English

9

Connections

CONNECTIONS COMMON INTERFACE Slot

To watch paid channels, the “CI or CI+ CARD” must be inserted.

y If you don’t insert the “CI or CI+ CARD,” some channels will

display the message “Scrambled Signal”.

y The pairing information containing a telephone number, the “CI or

CI+ CARD” ID the Host ID and other information will be displayed
in about 2~3 minutes. If an error message is displayed, please
contact your service provider.

y When the configuration of channel information has finished, the

message “Updating Completed” is displayed, indicating the
channel list is updated.

✎

NOTE

You must obtain a “CI or CI+ CARD” from a local cable service provider.

x

When removing the “CI or CI+ CARD”, carefully pull it out with your hands since dropping the “CI or CI+ CARD” may

x

cause damage to it.
Insert the “CI or CI+ CARD” in the direction marked on the card.

x

The location of the COMMON INTERFACE slot may be different depending on the model.

x

“CI or CI+ CARD” is not supported in some countries and regions; check with your authorized dealer.

x

If you have any problems, please contact a service provider.

x

Insert the “CI or CI+ CARD” that supports the current antenna settings. The screen will be distorted or will not be

x

seen.

Changing the Input Source

Source List

Use to select TV or an external input
sources such as a DVD / Blu-ray player /
cable box / STB satellite receiver.

■ TV / Ext. / PC / AV / Component /

HDMI1/DVI / HDMI2 / USB

✎

In the Source List, connected
inputs will be highlighted.

✎

Ext. and PC always stay
activated.

SOURCE

Edit Name

■ VCR / DVD / Cable STB / Satellite STB / PVR STB /
AV Receiver / Game / Camcorder / PC / DVI PC /
DVI Devices / TV / IPTV / Blu-ray / HD DVD / DMA:

Name the device connected to the input jacks to make
your input source selection easier.

✎

When connecting an HDMI/DVI cable to the

HDMI IN 1(DVI) port, you should set to DVI PC or

DVI Devices mode under Edit Name.

10

English

Basic Features

C

H LIST

MUTE

P

OWER

SOURCE

O

N/OF

F

P

RE-CH

MEDIA.P

S

INFO

TTX/MIX

MENU

How to Navigate Menus

Before using the TV, follow the steps below to learn how to
navigate the menu and select and adjust different functions.

GUIDE

TOOL

1









RETURN

The main menu options appear on
the screen:

Picture, Sound, Channel, Setup,
Input, Application, Support.

button.
Press ENTER to access the

sub-menu.
Select the desired submenu with

the ▲ or ▼ button.
Adjust the value of an item with the

◄ or ► button. The adjustment in
the OSD may differ depending on
the selected menu.

Press ENTER to complete the
configuration.

Press EXIT.

2

1 ENTER / Direction button: Move the cursor and

select an item. Confirm the setting.

2 RETURN button: Returns to the previous menu.
3 MENU button: Displays the main on-screen menu.
4 EXIT button: Exits the on-screen menu.

How to Operate the OSD (On Screen Display)

The access step may differ depending on the selected menu.

MENU

1

▲ / ▼ Select an icon with the ▲ or ▼

2

ENTER

3

▲ / ▼

4

◄ / ►

5

ENTER

6

EXIT

EXIT

3

4

7

Using the INFO button (Now & Next guide)

The display identifies the current
channel and the status of certain
audio-video settings.

The Now & Next guide shows
daily TV programme information
for each channel according to the
broadcasting time.

y Scroll ◄, ► to view information

for a desired programme while watching the current
channel.

y Scroll ▲, ▼ to view information for other channels. If you

want to move to the currently selected channel, press
the ENTERE button.

DEF

DTV Air

15

Life On Venus Avenu e

Unclass ified

No Det aild Inform ation

18:00 ~ 6:00

INFO

18:11 Thu 6 Jan

E

Watch

Informa tion

Planning Your Viewing

Guide

The EPG (Electronic Programme
Guide) information is provided by
broadcasters. Using programme
schedules provided by broadcasters,
you can specify programmes you
want to watch in advance so that the
channel automatically changes to the
selected programme channel at the
specified time. Programme entries
may appear blank or out of date depending on a channel
status.

GUIDE

03 Basic Features

English

11

Basic Features

B

Using Channel View

Guide

800 five

Channel View - TV

Today

27
28
800
24
16
6

DTV Air 800 five

Home and Away
18:00 - 18:30

Drama

Dani is devastated when scott makes clear his views on marriage...

Discovery
DiscoveryH&L
five
price-drop.tv
QVC
R4DTT

View Mode +24 Hours Ch. Mode Information  Page

18:00 - 19:00 19:00 - 20:00

American Chopper

Programmes resume at 06:00
Home and...
No Information
QVC Selection
No Information

)

Family Affairs

Tine Team

Fiv...

)

1 2 3 4 5 6

Using Scheduled View

Guide

)

Family Affairs

)

Dark Angel

View Mode Information

1 4 6



button again and

800
800

DTV Air 800 five

Family Affairs
18:00 - 18:30

Drama

800 five

Scheduled View

18:30

Today

18:30

Today

19:15

19:15

1

Red (View Mode): View the list of programmes that

Tanya confesses all to a stunned Babs. Conrad is anxious to hear...

are playing now or coming up.

2

Yellow (+24 Hours): Viewing the list of programmes to

be broadcasted after 24 hours.

3

Blue (Ch. Mode): Select the type of channels you
want to display on the Channel View window. (All, TV,
Radio, Data/Other, My Channel 1~4)

4 Information: Displays details of the selected

programme.

5



(Page): Move to next or previous page.

6 ENTER



button

− When selecting the current programme, you can
watch the selected programme.

− When selecting the future programme, you can
reserve to watch the selected programme. To cancel
the schedule, press the ENTER
select Cancel Schedules.

2:10 Tue 1 Jun

Dark Angel



Watch

2:10 Tue 1 Jun

five
five



Cancel

Channel Manager

Delete or set favourites channels and use the programme
guide for digital broadcasts. Select a channel in the
Channels, My Channels or Scheduled screen.

Channels

All

TV

Radio
Data/Other
Analogue

Air Antenna B Zoom Select Sort  Page

Channels: Shows the channel list according to

■
channel type.



My Channels: Shows the group of the channel.

■

■

Scheduled: Shows all the currently reserved

programmes.

✎

Using the colour buttons with the Channel Manager

Red (Antenna): Toggle among Air or Cable.

x

Green (Zoom): Enlarges or shrinks a channel

x

number.

Yellow (Select): Select desired channels and press

x

the Yellow button to set all the selected channels at
the same time. The  mark appears to the left of
the selected channels.

Blue (Sort): Change the list ordered by channel

x

name or channel number.



(Page): Move to next or previous page.

x



(Tools): Displays the Channel Manager option

x

menu. (The options menus may differ depending on
the situation.)

Channel Status Display Icons

Icons Operations

An analogue channel.



A channel selected.



A channel set as a Favourite.



A programme currently being broadcast.



A locked channel.



A reserved programme.



c 1 1futech
2 * 24ore.tv

15 abc1

3 BBC World
23 bid-up.tv
33 Boonerang
32 Cartoon Nwk

5 Class News
4 \ Coming Soon
27 Discovery



r

Tools

English

12

 Using Favourite Channels



My Channels

(in Channel Manager)
Shows all favourite channels.

■ Edit My Channels

channels to desired my channels group.

✎

The “” symbol will be displayed and the channel will
be set as a my channel.

1. Select a channel and press the TOOLS button.

2. Add or delete a channel in the my channel groups

you want among 1, 2, 3 and 4.

One or more groups can be selected.

x

3. After you have changed the settings, the channel list

for each group can be viewed in my channels.

Channels

Air Antenna B Zoom Select Sort  Page



All

TV

Radio
Data/Other
Analogue

: You can set the selected

c 1 1futech
2 * 24ore.tv

Edit My Channels

15 abc1

Lock

3 BBC World

Timer Viewing

23 bid-up.tv

Edit Channel Number

33 Boonerang

Delete

32 Cartoon Nwk

Select All

5 Class News
4 \ Coming Soon
27 Discovery





Tools

Channel List

You can see all the channels searched.

CH LIST

Country

03 Basic Features

The PIN input screen appears. Enter your 4 digit PIN number.

■ Digital Channel: Change the country for digital channels

■ Analogue Channel: Change the country for analogue
channels.

Auto Store

Scans for a channel automatically and stores in the TV.

✎

Automatically allocated programme numbers may not
correspond to actual or desired programme numbers. If
a channel is locked using the Child Lock function, the
PIN input window appears.

■ Antenna Source (Air / Cable): Select the antenna
source to memorise.

■ Channel Source (Digital & Analogue / Digital /
Analogue): Select the channel source to memorise.

When selecting Cable → Digital & Analogue or Digital:
Provide a value to scan for cable channels.

Search Mode (Full / Network / Quick): Scans for all

r

channels with active broadcast stations and stores them
in the TV.

✎

If you select Quick, you can set up the Network,

Network ID, Frequency, Modulation and
Symbol Rate manually by pressing the button on

the remote control.

Network (Auto / Manual): Selects the Network ID
setting mode among Auto or Manual.

Network ID: When Network is Manual, you can set up
Network ID using the numeric buttons.

Frequency: Displays the frequency for the channel.

(differs in each country)

Modulation: Displays available modulation values.
Symbol Rate: Displays available symbol rates.

Channel Menu

 Retuning Channels

Antenna (Air / Cable)

Before your television can begin memorizing the available
channels, you must specify the type of signal source that is
connected to the TV (i.e. an Air or a Cable system).

Manual Store

Scans for a channel manually and stores in the TV.

✎

If a channel is locked using the Child Lock function,
the PIN input window appears.

■ Digital Channel: When scanning has finished, channels
are updated in the channel list.

✎

When selecting Antenna → Air: Channel,
Frequency, Bandwidth

✎

When selecting Antenna → Cable: Frequency,
Modulation, Symbol Rate

■ Analogue Channel (Programme, Colour System,
Sound System, Channel, Search): If there is abnormal
sound or no sound, reselect the sound standard
required.

English

13

Basic Features

✎

Channel mode

P (programme mode): When tuning is complete,

x

the broadcasting stations in your area have been
assigned to position numbers from P0 to P99. You
can select a channel by entering the position number
in this mode.

C (aerial channel mode) / S (cable channel mode):

x

These two modes allow you to select a channel
by entering the assigned number for each aerial
broadcasting station or cable channel.

 Editing Channels

Channel Manager Option Menu
(in Channel Manager)

1. Select a channel and press the TOOLS button.

2. Edit the channel name or number using the Edit
Channel Name or Edit Channel Number menu.

■ Edit Channel Name (analogue channels only): Assign

your own channel name.

■ Edit Channel Number (digital channels only): Edit the

number by pressing the number buttons desired.

 Other Features

Cable Search Option

(depending on the country)
Sets additional search options such as the frequency and

symbol rate for a cable network search.

■ Freq.Start / Freq.Stop: Set the start or stop frequency

(differs in each country)

■ Symbol Rate: Displays available symbol rates.

■ Modulation: Displays available modulation values.

Channel Manager

Channel Manager Option Menu

Set each channel using the Channel Manager menu options
(Lock / Unlock, Timer Viewing, Sort, Delete, Select All /
Deselect All). Option menu items may differ depending on
the channel status.

1. Select a channel and press the TOOLS button.

2. Select a function and change its settings.

■ Lock / Unlock: Lock a channel so that the channel

cannot be selected and viewed.

✎

NOTE

This function is available only when the Child Lock

x

is set to On.
The PIN input screen appears. Enter your 4-digit PIN,

x

the default of which is “0-0-0-0”. Change the PIN
using the Change PIN option.

■ Timer Viewing: You can set a desired channel to be

displayed automatically at the reserved time. Set the
current time first to use this function.

✎

When a digital channel is selected, press the ►
button to view the digital Programme.

■ Sort: (analogue channels only): This operation allows

you to change the programme numbers of the stored
channels. This operation may be necessary after using
the auto store.

■ Delete: You can delete a channel to display the channels

you want.

■ Select All / Deselect All: Select all the channels

or deselect all the selected channels in the channel
manager.

Channel List Transfer

The PIN input screen appears. Enter your 4 digit PIN number.
Imports or exports the channel map. You should connect a
USB storage to use this function.

■ Import from USB: Import channel list from USB.

■ Export to USB: Export channel list to USB. this function

is available when USB is connected.

Scheduled

(in Channel Manager)
You can view, modify or delete a show you have reserved to

watch.

■ Change Info: Change a show you have reserved to

watch.

■ Cancel Schedules: Cancel a show you have reserved

to watch.

■ Information: Display a show you have reserved

to watch. (You can also change the reservation
information.)

■ Select All / Deselect All: Select or deselect all reserved

programmes.

Fine Tune

(analogue channels only)
If the signal is weak or distorted, fine tune the channel

manually.

✎

Fine tuned channels are marked with an asterisk “*”.

✎

To reset the fine-tuning, select Reset.

14

English

Picture Menu

 Changing the Picture Options

03 Basic Features

 Changing the Preset Picture Mode

Mode

Select your preferred picture type.



■ Dynamic: Suitable for a bright

room.

■ Standard: Suitable for a normal

environment.

■ Movie: Suitable for watching

movies in a dark room.

P.MODE

 Adjusting Picture Settings

Backlight / Contrast / Brightness /
Sharpness / Colour / Tint (G/R)

Your television has several setting options for picture quality
control.

✎

NOTE

In analogue TV, Ext., AV modes of the PAL system,

x

the Tint (G/R) function is not available.
In PC mode, you can only make changes to

x

Backlight, Contrast and Brightness.
Settings can be adjusted and stored for each

x

external device connected to the TV.

 Economical Solutions

Eco Solution

■ Energy Saving (Off / Low / Medium / High / Picture
Off / Auto)

the TV in order to reduce power consumption. If you
select Picture Off, the screen is turned off, but the
sound remains on. Press any button except volume
button to turn on the screen.

■ No-Signal Power Off (Off / 15 min / 30 min / 60 min):
To avoid unnecessary energy consumption, set how long
you want the TV to remain on if it's not receiving a signal.



✎

Disabled when the PC is in power saving mode.

: This adjusts the brightness of

Advanced Settings

(available in Standard / Movie mode)
You can adjust the detailed setting for the screen including

colour and contrast.

✎

In PC mode, you can only make changes to Dynamic
Contrast, Gamma and White Balance.

Advanced Settings

Black Tone : Off ►
Dynamic Contrast : Medium
Shadow Detail : -2
Gamma : 0
RGB Only Mode : Off
Colour Space : Native
White Balance

■ Black Tone (Off / Dark / Darker / Darkest): Select the

black level to adjust the screen depth.

■ Dynamic Contrast (Off / Low / Medium / High): Adjust

the screen contrast.

■ Shadow Detail (-2~+2): Increase the brightness of dark

images.

■ Gamma: Adjust the primary colour intensity.

■ RGB Only Mode (Off / Red / Green / Blue): You can
adjust Colour or Tint (G/R) of Red, Green or Blue for
the picture from an external device (DVD player, home
theatre, etc.).

■ Colour Space (Auto / Native): Adjust the range of
colours available to create the image.

■ White Balance: Adjust the colour temperature for a
more natural picture.

R-Offset / G-Offset / B-Offset: Adjust each colour’s
(red, green, blue) darkness.

R-Gain / G-Gain / B-Gain: Adjust each colour’s (red,
green, blue) brightness.

Reset: Resets the White Balance to it’s default settings.

■ Flesh Tone: Emphasize pink “Flesh Tone.”

■ Edge Enhancement (Off / On): Emphasize object
boundaries.

▼



Move



Enter



Return

English

15

Basic Features

Picture Options

✎

In PC mode, you can only make changes to the Colour
Tone, Size and Auto Protection Time.

Picture Options

Colour Tone : Normal ►
Size : Auto Wide
Screen Mode : 16:9
Digital Noise Filter : Auto
MPEG Noise Filter : Auto

HDMI Black Level : Normal

Film Mode : Off

■ Colour Tone (Cool / Normal / Warm1 / Warm2)

✎

Warm1 or Warm2 will be deactivated when the
picture mode is Dynamic.

✎

Settings can be adjusted and stored for each
external device connected to an input on the TV.

■ Size: Your cable box/satellite

receiver may have its own set of
screen sizes as well. However, we
highly recommend you use 16:9
mode most of the time.

Auto Wide: Automatically adjusts
the picture size to the 16:9 aspect
ratio.

16:9 : Adjusts the picture size to 16:9 for DVDs or wide
broadcasting.

Wide Zoom: Magnifies the picture size more than 4:3.

✎

Adjusts the Position by using ▲, ▼ buttons.

Zoom: Magnifies the 16:9 wide pictures vertically to fit
the screen size.

✎

Adjusts the Position or Size by using ▲, ▼
button.

4:3 : The default setting for a movie or normal
broadcasting.

✎

Do not watch in 4:3 format for a long time. Traces
of borders displayed on the left, right and centre
of the screen may cause image retention(screen
burn) which are not covered by the warranty.

Screen Fit: Displays the full image without any cut-off
when HDMI (720p / 1080i / 1080p) or Component
(1080i / 1080p) signals are inputted.

▼



Move



Enter



Return

P.SIZE

✎

NOTE

Depending on the input source, the picture size

x

options may vary.
The available items may differ depending on the

x

selected mode.
In PC mode, only 16:9 and 4:3 modes can be

x

adjusted.
Settings can be adjusted and stored for each

x

external device connected to an input on the TV.
After selecting Screen Fit in HDMI (1080i / 1080p)

x

or Component (1080i / 1080p) mode: Adjusts the
Position or Size by using ▲, ▼, ◄, ► button.

If you use the Screen Fit function with HDMI 720p

x

input, 1 line will be cut at the top, bottom, left and
right as in the overscan function.

■ Screen Mode (16:9 / Wide Zoom / Zoom / 4:3):
Available only when picture size is set to Auto Wide. You
can determine the desired picture size at the 4:3 WSS
(Wide Screen Service) size or the original size. Each
European country requires different picture size.

✎

Not available in PC, Component or HDMI mode.

■ Digital Noise Filter (Off / Low / Medium / High / Auto
/ Auto Visualisation): When the broadcast signal is
weak, some static and ghosting may appear. Select one
of the options until the best picture is displayed.

Auto Visualisation: When changing analogue channels,
displays the intensity of the current signal and defines
the screen noise filter.

✎

Only available for analogue channels.

■ MPEG Noise Filter (Off / Low / Medium / High /
Auto): Reduces MPEG noise to provide improved
picture quality.

■ HDMI Black Level (Normal / Low): Selects the black
level on the screen to adjust the screen depth.

✎

Available only in HDMI mode (RGB signals).

■ Film Mode (Off / Auto1 / Auto2): Sets the TV to
automatically sense and process film signals from all
sources and adjust the picture for optimum quality.

✎

Available in TV, AV, COMPONENT (480i / 1080i)
and HDMI (480i / 1080i).

■ Auto Protection Time (2 hours / 4 hours / 8 hours /
10 hours / Off): If the screen remains idle with a still
image for a certain period of time defined by the user,
the screen saver is activated to prevent the formation of
ghost images on the screen.

16

English

Picture Reset (OK / Cancel)

Resets your current picture mode to its default settings.

 Setting up the TV with Your PC

Sound Menu

03 Basic Features

 Changing the Preset Sound Mode

Set the input source to PC.

Auto Adjustment

Adjust frequency values/positions and fine tune the settings
automatically.

✎

Not available when connecting with an HDMI/DVI cable.



Screen

■ Coarse / Fine: Removes or reduces picture noise. If the

noise is not removed by Fine-tuning alone, then adjust
the frequency as best as possible (Coarse) and Fine­tune again. After the noise has been reduced, readjust
the picture so that it is aligned to the centre of screen.

■ Position: Adjust the PC screen position with direction

button (▲ / ▼ / ◄ / ►).

■ Image Reset: Resets the image to default settings.

Using Your TV as a Computer (PC) Display

Setting Up Your PC Software (Based on Windows XP)
Depending on the version of Windows and the video card,

the actual screens on your PC may differ in which case the
same basic set-up information will almost always be applied.
(If not, contact your computer manufacturer or Samsung
Dealer.)

1. Click on “Control Panel” on the Windows start menu.

2. Click on “Appearance and Themes” in the “Control

Panel” window and a display dialog-box will appear.

3. Click on “Display” and a display dialog box will appear.

4. Navigate to the “Settings” tab on the display dialog-box.

y The correct size setting (resolution) [Optimum: 1360 x

768 pixels]

y If a vertical-frequency option exists on your display

settings dialog box, the correct value is “60” or “60 Hz”.
Otherwise, just click “OK” and exit the dialog box.

Mode



■ Standard: Selects the normal
sound mode.

■ Music: Emphasizes music over
voices.

■ Movie: Provides the best sound for
movies.

■ Clear Voice: Emphasizes voices over other sounds.

■ Amplify: Increase the intensity of high-frequency sound
to allow a better listening experience for the hearing
impaired.

S.MODE

 Adjusting Sound Settings

Equalizer

Adjusts the sound mode (standard sound mode only).

■ Balance L/R: Adjusts the balance between the right and
left speaker.

■ 100Hz / 300Hz / 1kHz / 3kHz / 10kHz (Bandwidth
Adjustment): Adjusts the level of specific bandwidth
frequencies.

■ Reset: Resets the equalizer to its default settings.

 Sound Systems, Etc.

Virtual Surround (Off / On)

(standard sound mode only)
This function provides a virtual 5.1 channel surround sound

experience through a pair of speakers or headphones using
HRTF (Head Related Transfer Function) technology.

Dialog Clarity (Off / On)

(standard sound mode only)
This function allows you to increase the intensity of a voice

over background music or sound effects so that dialog can
be heard more clearly.

English

17

Basic Features

Audio Language

(digital channels only)
Change the default value for audio languages.

✎

The available language may differ depending on the
broadcast.

Audio Format

(digital channels only)
When sound is emitted from both the main speaker and the

audio receiver, a sound echo may occur due to the decoding
speed difference between the main speaker and the audio
receiver. In this case, use the TV Speaker function.

✎

Audio Format option may differ depending on the
broadcast. 5.1ch Dolby digital sound is only available
when connecting an external speaker through an
optical cable.

Audio Description

(not available in all locations) (digital
channels only)

This function handles the Audio Stream
for the AD (Audio Description) which is
sent along with the Main audio from the
broadcaster.

■ Audio Description (Off / On): Turn

the audio description function on
or off.

■ Volume: Adjust the audio description volume.

Auto Volume (Off / Normal / Night)

To equalize the volume level on each channel, set to Normal.

■ Night: This mode provides an improved sound
experience compared to Normal mode, making almost
no noise. It is useful at night.

Speaker Select (External Speaker / TV
Speaker)

A sound echo may occur due to a difference in decoding
speed between the main speaker and the audio receiver. In
this case, set the TV to External Speaker.

✎

When Speaker Select is set to External Speaker, the
volume and MUTE buttons will not operate and the
sound settings will be limited.

✎

When Speaker Select is set to External Speaker

TV Speaker: Off, External Speaker: On

x

AD

✎

When Speaker Select is set to TV Speaker

TV Speaker: On, External Speaker: On

x

✎

If there is no video signal, both speakers will be mute.

Additional Setting

(digital channels only)

■ DTV Audio Level (MPEG / HE-AAC): This function

allows you to reduce the disparity of a voice signal
(which is one of the signals received during a digital TV
broadcast) to a desired level.

✎

According to the type of broadcast signal, MPEG
/ HE-AAC can be adjusted between -10dB and
0dB.

✎

To increase or decrease the volume, adjust
between the range 0 and -10 respectively.

■ SPDIF Output: SPDIF (Sony Philips Digital InterFace)

is used to provide digital sound, reducing interference
going to speakers and various digital devices such as a
DVD player.

Audio Format: During the reception of a digital TV
broadcast, you can select the Digital Audio output
(SPDIF) format from the options PCM or Dolby Digital.

✎

By connecting to 5.1ch speakers in a Dolby
Digital setup, maximize your interactive 3D sound
experience.

Audio Delay: Correct audio-video sync problems, when
watching TV or video, and when listening to digital audio
output using an external device such as an AV receiver
(0ms ~ 250ms).

■ Dolby Digital Comp (Line / RF): This function minimizes

signal disparity between a dolby digital signal and a
voice signal (i.e. MPEG Audio, HE-AAC, ATV Sound).

✎

Select Line to obtain dynamic sound, and RF
to reduce the difference between loud and soft
sounds at night time.

Line: Set the output level for signals greater or less than

-31dB (reference) to either -20dB or -31dB.
RF: Set the output level for signals greater or less than

-20dB (reference) to either -10dB or -20dB.

18

English

Sound Reset (OK / Cancel)

Reset all sound settings to the factory defaults.

 Selecting the Sound Mode

When you set to Dual -, the current
sound mode is displayed on the screen.

DUAL

Time Zone (depending on the country): Select your time
zone.

✎

When Country is set to Others, you can use this
function.

✎

This function is only available when the Clock

Mode is set to Auto.

 Using the Sleep Timer

03 Basic Features

Audio

Type

A2

Stereo

NICAM
Stereo

✎

If the stereo signal is weak and an automatic switching
occurs, then switch to the mono.

✎

Only activated in stereo sound signal.

✎

Only available when the Input source is set to TV.

Mono Mono

Stereo

Dual

Mono Mono

Stereo

Dual

Dual -



Stereo  Mono



 Dual

Dual

Mono  Stereo
Mono  Dual



 Dual  

Automatic

change



Automatic

change



Setup Menu

 Setting the Time

Time

■ Clock: Setting the clock is for using various timer
features of the TV.



The current time will appear every time you press
the INFO button.

✎

If you disconnect the power cord, you have to set
the clock again.

Clock Mode (Auto / Manual)

✎

Depending on the broadcast station and signal,
the auto time set up may not be correct. In this
case, set the time manually.

✎

The antenna must be connected in order to set
the time automatically.

Clock Set: Set the Day, Month, Year, Hour and Minute
manually.

✎

Available only when Clock Mode is set to
Manual.

Default

Dual

Dual

■ Sleep Timer

after a preset period of time. (30, 60, 90, 120, 150 and
180 minutes).

✎



To cancel Sleep Timer, select Off.

: Automatically shuts off the TV

 Setting the On / Off Timer

■ Timer 1 / Timer 2 / Timer 3: Three different on / off

timer settings can be made. You must set the clock first.



On Time

▲

Inactivate

▼



Off Time

Inactivate

Volume

10 TV ATV 1

Repeat

Once

On Time / Off Time: Set the hour, minute, and activate
/ inactivate. (To activate timer with the setting you’ve
chosen, set to Activate.)

Volume: Set the desired volume level.
Source: Select TV or USB content to be played when

the TV is turned on automatically. (USB can be selected
only when a USB device is connected to the TV)

Antenna (when the Source is set to TV): Select ATV or
DTV.

Channel (when the Source is set to TV): Select the

desired channel.
Contents (when the Source is set to USB): Select a

folder in the USB device containing music or photo files
to be played when the TV is turned on automatically.

✎

NOTE

If there is no music file on the USB device or the

x

folder containing a music file is not selected, the
Timer function does not operate correctly.

When there is only one photo file in the USB

x

device, the Slide Show will not play.
If a folder name is too long, the folder cannot be

x

selected.
Each USB you use is assigned its own folder.

x

When using more than one of the same type of
USB, make sure the folders assigned to each
USB have different names.

Timer 1

00 00

00 00

Source Antenna Channel

Sun Mon Tue Wed Thu Fri Sat



Move



Adjust



Enter



Return

English

19

Basic Features

Repeat: Select Once, Everyday, Mon~Fri, Mon~Sat,
Sat~Sun or Manual to set at you convenience. If you

select Manual, you can set up the day you want to
activate the timer.

✎

The  mark indicates the day is selected.

✎

Auto Power Off (available only when the TV is turned on
by Timer): The TV will be automatically turned off after 3
hours of being left idle to prevent overheating.

 Locking Programmes

Security

✎

The PIN input screen appears before the setup screen.

✎

Enter your 4-digit PIN, the default of which is “0-0-0-0”.
Change the PIN using the Change PIN option.

■ Child Lock (Off / On): Lock channels in Channel
Manager, to prevent unauthorized users, such as
children, from watching unsuitable programme.

✎

Available only when the Input source is set to TV.

■ Parental Lock (depending on the country): Prevent
unauthorized users, such as children, from watching
unsuitable programme with a user-defined 4-digit PIN
code. If the selected channel is locked, the “
will be displayed.

Allow All: Unlock All TV ratings (Not supported in
France).

✎

When Parental Lock is set to 18, the PIN input
screen appears before changing the channels
(France only).

✎

You can block TV programs by set up rating in
Parental Lock as the I (children), T (All public), SC
(Unclassified) and X (X rated). When Parental Lock
is set to X, the PIN input screen always before
changing the channels (Spain only).

■ Change PIN: Change your personal ID number required
to set up the TV.

✎

If you forget the PIN code, press the remote
control buttons in the following sequence, which
resets the PIN to “0-0-0-0”: POWER (off) →

MUTE → 8 → 2 → 4 → POWER (on).

 Other Features



” symbol

■ Preference (Primary Audio Language / Secondary

Audio Language / Primary Subtitle Language /
Secondary Subtitle Language / Primary Teletext
Language / Secondary Teletext Language): Select

a language, which will be the default language when a
channel is selected.

Subtitle

Use this menu to set the Subtitle
mode.

■ Subtitle (Off / On): Switches

subtitles on or off.

■ Mode (Normal / Hearing
Impaired): Sets the subtitle mode.

■ Subtitle Language: Sets the
subtitle language.

✎

If the programme you are watching does not
support the Hearing Impaired function, Normal
automatically activates even if the Hearing
Impaired mode is selected.

✎

English is the default in cases where the selected
language is unavailable in the broadcast.

SUBT.

Digital Text (Disable / Enable)

(UK only)
If the programme broadcasts with digital text, this feature is

enabled.

Auto Run Data Service

Sets whether or not to automatically run data service. Auto
Run Data Service automatically runs data service without

user intervention.

✎

If any other secondary function is under way, Auto Run

Data Service may not work.

General

■ Game Mode (Off / On): When connecting to a game
console such as PlayStation™ or Xbox™, you can enjoy
a more realistic gaming experience by selecting game
mode.

Language

■ Menu Language: Set the menu language.

■ Teletext Language: Set a desired language for teletext.

✎

English is the default in cases where the selected
language is unavailable in the broadcast.

English

20

✎

NOTE

Precautions and limitations for game mode

x

− To disconnect the game console and connect

another external device, set Game Mode to Off in
the setup menu.

− If you display the TV menu in Game Mode, the

screen shakes slightly.

Game Mode is not available when the input source

x

is set to TV or PC.
After connecting the game console, set Game Mode

x

to On. Unfortunately, you may notice reduced picture
quality.

If Game Mode is On:

x

− Picture mode is set to Standard and Sound
mode is set to Movie.

− Equalizer is not available.

■ Menu Transparency (Bright / Dark): Se t the

Transparency of the menu.

■ Melody (Off / Low / Medium / High): Set so that a

melody plays when the TV is turned on or off.

Common Interface

■ CI Menu: This enables the user to select from the CAM-

provided menu. Select the CI Menu based on the menu
PC Card.

■ Application Info: View information on the CAM inserted

into the CI slot and on the “CI or CI+ CARD” which is
inserted into the CAM. You can install the CAM anytime
whether the TV is on or off.

1. Purchase a CI CAM module at your nearest dealer or by

phone.

2. Firmly insert the “CI or CI+ CARD” into the CAM in the

direction of the arrow.

3. Insert the CAM with the “CI or CI+ CARD” into the

common interface slot, in the direction of the arrow so
that it aligns parallel with the slot.

4. Check if you can see a picture on a scrambled signal

channel.

 Picture In Picture (PIP)



PIP

You can watch the TV tuner and one external video source
simultaneously. PIP (Picture-in-Picture) does not function in
the same mode.

✎

NOTE

For PIP sound, refer to the Sound Select

x

instructions.
If you turn the TV off while watching in PIP mode, the

x

PIP window will disappear.
You may notice that the picture in the PIP window

x

becomes slightly unnatural when you use the main
screen to view a game or karaoke.

PIP settings

x

Main picture Sub picture
Component, HDMI1/DVI,

HDMI2, PC

■ PIP (Off / On): Activate or deactivate the PIP function.

■ Channel: Select the channel for the sub-screen.



■ Size (

■ Position (

sub-picture.

■ Sound Select (Main / Sub): You can choose the
desired sound (Main / Sub) in PIP mode.

/ ): Select a size for the sub-picture.



/  /  / ): Select a position for the

TV

Support Menu

Self Diagnosis

✎

Self Diagnostic might take few seconds, this is part of
the normal operation of the TV

■ Picture Test (Yes / No): Use to check for picture
problems.

■ Sound Test (Yes / No): Use the built-in melody sound to
check for sound problems.

✎

If you hear no sound from the TV’s speakers,
before performing the sound test, make sure

Speaker Select is set to TV Speaker in the
Sound menu.

✎

The melody will be heard during the test even if
Speaker Select is set to External Speaker or the
sound is muted by pressing the MUTE button.

■ Signal Information: (digital channels only) HDTV
channel’s reception quality is either perfect or the
channels are unavailable. Adjust your antenna to
increase signal strength.

■ Troubleshooting: If the TV seems to have a problem,
refer to this description.

✎

If none of these troubleshooting tips apply,
contact the Samsung customer service centre.

03 Basic Features

English

21

Basic Features

Software Upgrade

Software Upgrade can be performed via a broadcasting

signal or downloading the latest firmware from “www.
samsung.com,” to a USB memory device.

Current Version the software already installed in the TV.

✎

Software is represented as “Year/Month/Day_Version”.

Software Upgrade

Current Version 2010/01/18_000001

By USB ►
By Channel
Standby Mode Upgrade : Off

Alternative Software 2010/01/15_00000



Move



Enter



Return

Installing the Latest Version

■ By USB: Insert a USB

drive containing the
firmware upgrade file,
downloaded from
“www.samsung.com,”
into the TV. Please
be careful not to
disconnect the power
or remove the USB
drive until upgrades are complete. The TV will be turned
off and on automatically after completing the firmware
upgrade. When software is upgraded, video and audio
settings you have made will return to their default
settings. We advise you to to write down your settings
so that you can easily reset them after the upgrade.

■ By Channel: Upgrade the software using the

broadcasting signal.

✎

If the function is selected during the software
transmission period, software will be automatically
searched and downloaded.

✎

The time required to download the software is
determined by the signal status.

TV Rear Panel

USB

USB Drive

■ Standby Mode Upgrade: A manual upgrade will be
automatically performed at selected time. Since the
power of the unit is turned on internally, the screen
may be turned on slightly for the LED product. This
phenomenon may continue for more than 1 hour until
the software upgrade is complete.

■ Alternative Software (backup): If there is an issue with
the new firmware and it is affecting operation, you can
change the software to the previous version.

✎

If the software was changed, existing software is
displayed.

HD Connection Guide

Refer to this information when connecting external devices
to the TV.

Contact Samsung

View this information when your TV does not work properly
or when you want to upgrade the software. You can find
information regarding our call centres, and how to download
products and software.

22

English

Advanced Features

Using an HDMI/DVI Cable or a D-sub Cable

Connecting to a PC

04 Advanced Features

AUDIO OUT

AUDIO OUT

PC OUT

Display Modes (D-Sub and HDMI/DVI Input)

Optimal resolution is 1360 x 768 @ 60 Hz.

Mode Resolution

IBM

MAC

VESA CVT

VESA DMT

VESA GTF

640 x 350
720 x 400

640 x 480
832 x 624

720 x 576

1280 x 720

640 x 480
640 x 480
640 x 480
800 x 600
800 x 600

800 x 600
1024 x 768
1024 x 768
1024 x 768
1280 x 720
1360 x 768

1280 x 720 52.500 70.000 89.040 -/+

Horizontal Frequency

(KHz)

31.469

31.469

35.000

49.726

35.910

56.456

31.469

37.500

37.861

37.879

46.875

48.077

48.363

56.476

60.023

45.000

47.712

Vertical Frequency

(Hz)

70.086

70.087

66.667

74.551

59.950

74.777

59.940

75.000

72.809

60.317

75.000

72.188

60.004

70.069

75.029

60.000

60.015

Pixel Clock
Frequency

(MHz)

25.175

28.322

30.240

57.284

32.750

95.750

25.175

31.500

31.500

40.000

49.500

50.000

65.000

75.000

78.750

74.250

85.500

DVI OUT

Sync Polarity

(H / V)

+/-

-/+

-/-

-/-

-/+

-/+

-/-

-/-

-/­+/+
+/+
+/+

-/-

-/­+/+
+/+
+/+

✎✎

NOTE

For HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack.

x

The interlace mode is not supported.

x

The set might operate abnormally if a non-standard video format is selected.

x

Separate and Composite modes are supported. SOG(Sync On Green) is not supported.

x

English

23

Advanced Features

SUM

Media Play

MediaPlay

Videos

Change Device

View Devices

MEDIA.P

Enjoy photos, music and/or movie fi les saved on
a USB Mass Storage Class (MSC) device.

 Connecting a USB Device

1. Turn on your TV.

2. Connect a USB device containing photo, music and/or movie fi les to the

USB (HDD)

3. When USB is connected to the TV, popup window appears. Then you can select
Media Play .

✎

It might not work properly with unlicenced multimedia files.

✎

Need-to-Know List before using Media Play (USB)

MTP (Media Transfer Protocol) is not supported.

x

The file system supports FAT16, FAT32 and NTFS.

x

Certain types of USB Digital camera and audio devices may not be compatible with this TV.

x

Media Play only supports USB Mass Storage Class (MSC) devices. MSC is a Mass Storage Class Bulk-Only

x

Transport device. Examples of MSC are Thumb drives, Flash Card Readers and USB HDD (USB HUB are not
supported). Devices should be connected directly to the TV’s USB port.

Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data.

x

SAMSUNG is not responsible for any data file damage or data loss.
Connect a USB HDD to the dedicated port, USB (HDD) port.

x

Do not disconnect the USB device while it is loading.

x

The higher the resolution of the image, the longer it takes to display on the screen.

x

The maximum supported JPEG resolution is 15360X8640 pixels.

x

For unsupported or corrupted files, the “Not Supported File Format” message is displayed.

x

If the files are sorted by Basic View, up to 1000 files can be displayed in each folder.

x

MP3 files with DRM that have been downloaded from a non-free site cannot be played. Digital Rights Management

x

(DRM) is a technology that supports the creation of content, the distribution and management of the content in an
integrated and comprehensive way, including the protection of the rights and interests of the content providers, the
prevention of the illegal copying of contents, as well as managing billings and settlements.

If more than 2 PTP devices are connected, you can only use one at a time.

x

If more than two MSC devices are connected, some of them may not be recognized. A USB device that requires high

x

power (more than 500mA or 5V) may not be supported.
If an over-power warning message is displayed while you are connecting or using a USB device, the device may not

x

be recognized or may malfunction.
If the TV has been no input during time set in Auto Protection Time , the Screensaver will run.

x

The power-saving mode of some external hard disk drives may be released automatically when connected to the TV.

x

If a USB extension cable is used, the USB device may not be recognized or the files on the device may not be read.

x

If a USB device connected to the TV is not recognized, the list of files on the device is corrupted or a file in the list is

x

not played, connect the USB device to the PC, format the device and check the connection.
If a file deleted from the PC is still found when Media Play is run, use the “Empty the Recycle Bin” function on the PC

x

to permanently delete the file.

TV Rear Panel

USB



Enter



Return

USB Drive

24

English

 Screen Display

B

Movie 01.avi

00:04:03 / 00:07:38 1/1

SUM

Move to the file you desired using the up/down/right/left buttons and then press the ENTER or  (Play) button. The file is
played.

✎

Supports the View Devices and Home in Media Play homepage.

04 Advanced Features

You can ascertain the selected

Information:

file name and the number of files

and page.

Sort List Section:

Displays sorting standard.

Sorting standard is

✎

different depending on the
contents.

Videos

SUM

Change Device

/Movie 01.avi 1/1

Movie 01.avi

Movie 03.avi

Movie 05.avi

Movie 07.avi

Movie 09.avi

Jan.10.2010

Jan.10.2010

Jan.10.2010

Jan.10.2010

Jan.10.2010

Movie 02.avi

Movie 04.avi

Movie 06.avi

Movie 08.avi

Movie 10.avi



Select Sorting

Operation Buttons

Red (Change Device): Selects a connected device.
Green (Preference): Sets the file preference. (not supported in Basic view)
Yellow (Select): Selects multiple files from file list. Selected files are marked with a symbol.
Blue (Sorting): Selects the sort list.



Tools: Displays the option menu.

Using the  (REW) or  (FF) button, file list can move to next or previous page.

✎

Videos

Playing Video

1. Press the ◄ or ► button to select Videos, then press the ENTER

2. Press the ◄/►/▲/▼ button to select the desired file in the file list.

3. Press the ENTER



button or  (Play) button.

− The selected file is displayed on the top with its playing time.

− If video time information is unknown, play time and progress bar are not displayed.

− During playing the video, you can search using the ◄ and ► button.

✎

In this mode, you can enjoy movie clips contained on a Game,
but you cannot play the Game itself.

y Supported Subtitle Formats

Name File extension Format

MPEG-4 time-based text .ttxt XML

SAMI .smi HTML

SubRip .srt string-based
SubViewer .sub string-based
Micro DVD .sub or .txt string-based



button in the Media Play menu.

Jan.10.2010

Jan.10.2010

Jan.10.2010

Jan.10.2010

Jan.10.2010



Tools

Page

File List Section:
You can confirm the files and
groups that is sorted by each
category.



Pause



Jump



Tools



Return

English

25

Advanced Features

y Supported Video Formats

File Extension Container Video Codec Resolution

Divx 3.11 / 4.x / 5.1 / 6.0 1920x1080 6 ~ 30 8

*.avi

*.mkv

*.asf ASF

*.wmv ASF Window Media Video v9 1920x1080 6 ~ 30 25 WMA

*.mp4 MP4

*.3gp 3GPP

*.vro

*.mpg

*.mpeg

*.ts
*.tp

*.trp

AVI

MKV

VRO
VOB

PS

TS

XviD 1920x1080 6 ~ 30 8

H.264 BP / MP / HP 1920x1080 6 ~ 30 25

MPEG4 SP / ASP 1920x1080 6 ~ 30 8

Divx 3.11 / 4.x / 5.1 / 6.0 1920x1080 6 ~ 30 8

XviD 1920x1080 6 ~ 30 8

H.264 BP / MP / HP 1920x1080 6 ~ 30 25

MPEG4 SP / ASP 1920x1080 6 ~ 30 8

H.264 BP / MP / HP 1920x1080 6 ~ 30 25

XVID 1920x1080 6 ~ 30 8

H.264 BP / MP / HP 1920x1080 6 ~ 30 25

MPEG4 SP / ASP 1920x1080 6 ~ 30 8

MPEG1 1920x1080 24 / 25 / 30 30
MPEG2 1920x1080 24 / 25 / 30 30
MPEG1 1920x1080 24 / 25 / 30 30

H.264 1920x1080 6 ~ 30 25

MPEG2 1920x1080 24 / 25 / 30 30

H.264 1920x1080 6 ~ 30 25

VC1 1920x1080 6 ~ 30 25

Frame rate

(fps)

Bit rate
(Mbps)

Audio Codec

MP3 / AC3 / LPCM /

ADPCM / DTS Core

MP3 / AC3 / LPCM /

ADPCM / WMA

MP3 / ADPCM / AACMPEG4 SP / ASP 1920x1080 6 ~ 30 8

ADPCM / AAC / HE-AAC

AC3 / MPEG / LPCM

AC3 / MPEG / LPCM / AACMPEG2 1920x1080 24 / 25 / 30 30

AC3 / AAC / MP3 / DD+ /

HE-AAC

Other Restrictions

✎

NOTE

If there are problems with the contents of a codec, the codec will not be supported.

x

If the information for a Container is incorrect and the file is in error, the Container will not be able to play

x

correctly.
Sound or video may not work if the contents have a standard bitrate/frame rate above the compatible Frame/sec

x

listed in the table above.
If the Index Table is in error, the Seek (Jump) function is not supported.

x

Video Decoder Audio Decoder

• Supports up to H.264, Level 4.1

• H.264 FMO / ASO / RS, VC1 SP / MP / AP L4 and AVCHD are not
supported.

• GMC is not supported.

• H.263 is not supported.

English

26

• Supports up to WMA 7, 8, 9, STD

• WMA 9 PRO does not support 2 channel excess multi channel or
lossless audio.

• WMA sampling rate 22050Hz mono is not supported.

Playing movie file continuously (Resume Play)

Movie 01.avi

00:04:03 / 00:07:38 1/1

SUM

3/15

I Love you

Jhon

Music 1

No Singer

Music 2

No Singer

Music 3

No Singer

Music 4

No Singer

Music 5

No Singer

I Love You

Jhon

1st Album
Pop
2010

4.2MB

01:10 / 04:02

SUM

Image1024.jpg 1024x768 2010/2/1 3/15

SUM

If you exit the playing Videos function, it can be played later from the point where it was stopped.

1. Select the movie file you want to play continuously by pressing

the ◄ or ► button to select it from the file list section.

2. Press the



(Play) / ENTER button.

3. Select Play Continuously (Resume Play) by pressing the Blue

button. The Movie will begin to play from where it was stopped.

✎

The Blue button is available when resuming play.

✎

If the Cont. movie play help function is set to On in the
Settings menu, a pop-up message will appear when you
resume play a movie file.

Play continuously

Resumes playing from the last viewed
scene.

Play continuously



Pause



Jump

Music

Playing Music

1. Press the ◄ or ► button to select Music, then press the

ENTER



button in the Media Play menu.

2. Press the ◄/►/▲/▼ button to select the desired file in the file

list.

3. Press the ENTER



button or  (Play) button.

− During playing the music, you can search using the ◄ and ►
button.

−



(REW) and  (FF) buttons do not function during play.

✎

Only displays the files with MP3 and PCM file extension. Other
file extensions are not displayed, even if they are saved on the



same USB device.

✎

If the sound is strange when playing MP3 files, adjust the Equalizer in the Sound menu. (An over-modulated MP3 file
may cause a sound problem.)

Pause



Playlist

Jump





Tools

Tools

04 Advanced Features



Return



Return

Photos

Viewing a Photo (or Slide Show)

1. Press the ◄ or ► button to select Photos, then press the

ENTER



button in the Media Play menu.

2. Press the ◄/►/▲/▼ button to select the desired file in the file

list.

3. Press the ENTER

✎
✎

− While a photo list is displayed, press the

ENTER button on the remote control to start slide show.

− All files in the file list section will be displayed in the slide show.

− During the slide show, files are displayed in order from
currently being shown.

Music files can be automatically played during the Slide Show if
the Background Music is set to On.

The BGM Mode cannot be changed until the BGM has finished
loading.



button or  (Play) button.



(Play) /

Normal



Pause



Previous/Next



Tools

English



Return

27

Advanced Features

1/1

/Movie 01.avi

SUM

Movie 01.avi

Jan.10.2010

Jan.10.2010

Jan.10.2010

Jan.10.2010

Jan.10.2010

Jan.10.2010

Jan.10.2010

Jan.10.2010

Jan.10.2010

Jan.10.2010

Movie 03.avi

Movie 05.avi

Movie 07.avi

Movie 09.avi

Movie 02.avi

Movie 04.avi

Movie 06.avi

Movie 08.avi

Movie 10.avi

 Playing the Multiple Files

Playing the selected video/music/photo files

1. Press the Yellow button in the file list to select the desired file.

Videos

2. Repeat the above operation to select multiple files.

✎

NOTE

The  mark appears to the left of the selected files.

x

To cancel a selection, press the Yellow button again.

x

To deselect all selected files, press the TOOLS button

x

and select Deselect All.

3. Press the TOOLS button and select Play Selected Contents.

Playing the video/music/photo file group

Change Device

1. While a file list is displayed, move to the any file in desired group.

2. Press the TOOLS button and select Play Current Group.

 Media Play Additional Function

Sorting the file list

Press the Blue button in the file list to sort the files.

Category Operations Videos Music Photos

Basic View

Title

Preference

Latest Date

Earliest Date
Artist
Album
Genre
Mood

Monthly

Anynet+

It shows whole folder. You can view the photo by selecting the folder.
It sorts and displays the file title in Symbol/Number/Alphabet/Special order.
It sorts and displays the file by preference. You can change the file preference in the file

list section using the Green button.
It sorts and shows files by latest date.

It sorts and shows files by earliest date.
It sorts the music file by artist in alphabetical.
It sorts the music file by album in alphabetical order.
It sorts music files by the genre.
It sorts music files by the mood. You can change the music mood information.

It sorts and shows photo files by month. It sorts only by month (from January to
December) regardless of year.

  

  

  

 

 

2 les selected Page

Select Sorting













Tools

28

English

Videos/Music/Photos Play Option menu

During playing a file, press the TOOLS button.

Category Operations Videos Music Photos
Title You can move the other file directly.
Repeat Mode You can play movie and music files repeatedly.
Picture Size You can adjust the picture size for preference.
Picture Setting You can adjust the picture setting (p. 15, 16, 17).
Sound Setting You can adjust the sound setting (p. 17, 18, 19).
Subtitle Setting You can play the video file with Subtitle. This function only works if the subtitles are

Stop Slide Show /
Start Slide Show

Slide Show Speed You can select the slide show speed during the slide show.
Background Music You can set and select background music when watching a slide show.
Zoom You can zoom into images in full screen mode.
Rotate You can rotate images in full screen mode.
Information You can see detailed information about the played file.

the same file name as the video file.
You can start or stop a slide show.


 

 
  










  

Settings

Using the Setup Menu

■ Cont. movie play help (Resume Play) (On / Off): Select to display the help pop-up message for continuous movie

playback.

■ Get the DivX® VOD registration code: Shows the registration code authorized for the TV. If you connect to the DivX web

site and register the registration code with a personal account, you can download VOD registration file. If you play the VOD
registration using Media Play, the registration is completed.

✎

For more information on DivX® VOD, visit “www.DivX.com.”

■ Get the DivX® VOD deactivation code: When DivX® VOD is not registered, the registration deactivation code is

displayed. If you execute this function when DivX® VOD is registered, the current DivX® VOD registration is deactivated.

■ Information: Select to view information about the connected device.

04 Advanced Features

English

29

Advanced Features

Anynet+

What is Anynet+?

Anynet+ is a function that enables you to control all connected Samsung devices that support Anynet+ with your Samsung
TV’s remote. The Anynet+ system can be used only with Samsung devices that have the Anynet+ feature. To be sure your
Samsung device has this feature, check if there is an Anynet+ logo on it.

To connect to Home Theatre

1. Connect the HDMI IN (1(DVI) or 2) jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using an

HDMI cable.

2. Connect the HDMI IN jack of the home theatre and the HDMI OUT jack of the corresponding Anynet+ device using an

HDMI cable.

✎

NOTE

Connect the Optical cable between the DIGITAL AUDIO OUT (OPTICAL) jack on your TV and the Digital Audio Input

x

on the Home Theatre.
When following the connection above, the Optical jack only outputs 2 channel audio. You will only hear sound from

x

the Home Theatre’s Front, Left and Right speakers and the subwoofer. If you want to hear 5.1 channel audio, connect
the DIGITAL AUDIO OUT (OPTICAL) jack on the DVD / Satellite Box (i.e. Anynet Device 1 or 2) directly to the
Amplifier or Home Theatre, not the TV.

Connect only one Home Theatre.

x

You can connect an Anynet+ device using the HDMI cable. Some HDMI cables may not support Anynet+ functions.

x

Anynet+ works when the AV device supporting Anynet+ is in the standby or on status.

x

Anynet+ supports up to 12 AV devices in total. Note that you can connect up to 3 devices of the same type.

x



TV Rear Panel

Anynet+

Device 1

HDMI Cable

Anynet+ Device 2

HDMI Cable

Home Theatre

HDMI Cable

Optical Cable

30

English
