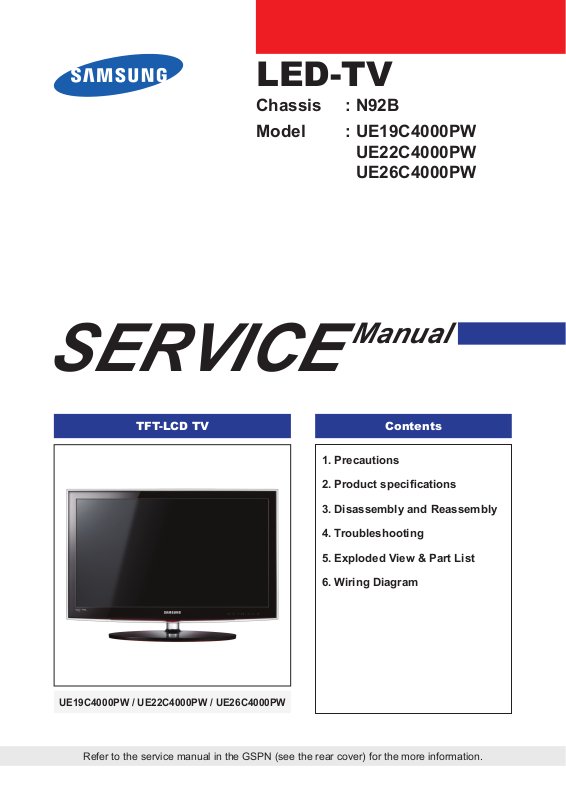

Samsung UE19C4000PW, UE22C4000PW, UE26C4000PW Schematic

LED-TV

Chassis : N92B

Model : UE19C4000PW

UE22C4000PW
UE26C4000PW

Manual

SERVICE

TFT-LCD TV Contents

1. Precautions

2. Product specications

3. Disassembly and Reassembly

4. Troubleshooting

5. Exploded View & Part List

6. Wiring Diagram

UE19C4000PW / UE22C4000PW / UE26C4000PW

Refer to the service manual in the GSPN (see the rear cover) for the more information.

Contents

1. Precautions .............................................................................................................. 1-1

1-1. Safety Precautions ......................................................................................................... 1-1

1-2. Servicing Precautions ..................................................................................................... 1-2

1-3. Electrostatically Sensitive Devices (ESD) Precautions .................................................. 1-2

1-4. Installation Precautions .................................................................................................. 1-3

2. Product specications ............................................................................................ 2-1

2-1. Feature & Specications ................................................................................................. 2-1

2-2. Detail Factory Option ...................................................................................................... 2-4

2-3. Accessories .................................................................................................................... 2-5

2-4. New Features explanation .............................................................................................. 2-8

3. Disassembly and Reassembly ............................................................................... 3-1

3-1. Disassembly and Reassembly ....................................................................................... 3-1

4. Troubleshooting ...................................................................................................... 4-1

4-1. Troubleshooting .............................................................................................................. 4-1

4-2. Alignments and Adjustments ........................................................................................ 4-25

4-3. Factory Mode Adjustments ........................................................................................... 4-26

4-4. White Balance - Calibration .......................................................................................... 4-34

4-5. White Ratio (Balance) Adjustment ................................................................................4-34

4-6. Servicing Information .................................................................................................... 4-35

4-7. How To Upgrade Sub Micom With Ddc Manager .........................................................4-36

4-8. PCB diagram ................................................................................................................ 4-38

5. Exploded View & Part List ...................................................................................... 5-1

5-1. Exploded View ................................................................................................................ 5-1

5-2. Parts List ......................................................................................................................... 5-2

6. Wiring Diagram ........................................................................................................ 6-1

6-1. Wiring Diagram ............................................................................................................... 6-1

6-2. Connector ....................................................................................................................... 6-3

6-3. Connector Functions ...................................................................................................... 6-5

6-4. Cables ............................................................................................................................ 6-5

GSPN (Global Service Partner Network)

Area Web Site

North America http://service.samsungportal.com

Latin America http://latin.samsungportal.com

CIS http://cis.samsungportal.com

Europe http://europe.samsungportal.com

China http://china.samsungportal.com

Asia http://asia.samsungportal.com

Mideast & Africa http://mea.samsungportal.com

This Service Manual is a property of Samsung Electronics Co.,Ltd.

Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.

© 2010 Samsung Electronics Co.,Ltd.
All rights reserved.

Printed in Korea
P/N: BN82-00754A-00

1. Precautions

1. Precautions

1-1. Safety Precautions

Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as
electrical shock.

1-1-1. Warnings

For continued safety, do not attempt to modify the circuit board.1.

Disconnect the AC power and DC power jack before servicing.2.

1-1-2. Servicing the LED TV

When servicing the LED TV, Disconnect the AC line cord from the AC outlet.1.

It is essential that service technicians have an accurate voltage meter available at all times. 2.
Check the calibration of this meter periodically.

1-1-3. Fire and Shock Hazard

Before returning the LED TV to the user, perform the following safety checks:

Inspect each lead dress to make certain that the leads are not pinched or that hardware is not lodged between the 1.
chassis and other metal parts in the LED TV.

Inspect all protective devices such as nonmetallic control knobs, insulating materials, cabinet backs, adjustment and 2.
compartment covers or shields, isolation resistorcapacitor networks, mechanical insulators, etc.

Leakage Current Hot Check (Figure 1-1): 3.
WARNING : Do not use an isolation transformer during this test.
Use a leakage current tester or a metering system that complies with American National Standards Institute (ANSI
C101.1, Leakage Current for Appliances), and Underwriters Laboratories (UL Publication UL1410, 59.7).

(READING SHOULD)
NOT BE ABOVE 0.5mA

DEVICE
UNDER
TEST

2-WIRE CORD

*ALSO TEST WITH

PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED)

TEST ALL

EXPOSED METAL

SURFACES

LEAKAGE
CURRENT
TESTER

EARTH

GROUND

Figure 1-1. Leakage Current Test Circuit

With the unit completely reassembled, plug the AC line cord directly into a 120V AC outlet. With the unit’s AC switch 4.

rst in the ON position and then OFF, measure the current between a known earth ground (metal water pipe, conduit,

etc.) and all exposed metal parts, including: metal cabinets, screwheads and control shafts.
The current measured should not exceed 0.5 milliamp.
Reverse the power-plug prongs in the AC outlet and repeat the test.

1-1-4. Product Safety Notices

Some electrical and mechanical parts have special safetyrelated characteristics which are often not evident from visual
inspection. The protection they give may not be obtained by replacing them with components rated for higher voltage,

wattage, etc. Parts that have special safety characteristics are identied by

replacement that does not have the same safety characteristics as the recommended replacement part might create

shock, re and/or other hazards. Product safety is under review continuously and new instructions are issued whenever

appropriate.

on schematics and parts lists. A substitute

1-1

1-2

1. Precautions

1-2. Servicing Precautions

WARNING: An electrolytic capacitor installed with the wrong polarity might explode.
Caution: Before servicing units covered by this service manual, read and follow the Safety Precautions section of

this manual.

Note: If unforeseen circumstances create conict between the following servicing precautions and any of the

safety precautions, always follow the safety precautions.

1-2-1 General Servicing Precautions

Always unplug the unit’s AC power cord from the AC power source and disconnect the DC Power Jack before 1.
attempting to:
(a) remove or reinstall any component or assembly, (b) disconnect PCB plugs or connectors, (c) connect a test
component in parallel with an electrolytic capacitor.

Some components are raised above the printed circuit board for safety. An insulation tube or tape is sometimes 2.
used. The internal wiring is sometimes clamped to prevent contact with thermally hot components. Reinstall all such
elements to their original position.

After servicing, always check that the screws, components and wiring have been correctly reinstalled. Make sure that 3.
the area around the serviced part has not been damaged.

Check the insulation between the blades of the AC plug and accessible conductive parts (examples: metal panels, 4.
input terminals and earphone jacks).

Insulation Checking Procedure: Disconnect the power cord from the AC source and turn the power switch ON. 5.
Connect an insulation resistance meter (500 V) to theblades of the AC plug.
The insulation resistance between each blade of the AC plug and accessible conductive parts (see above) should be
greater than 1 megohm.

Always connect a test instrument’s ground lead to the instrument chassis ground before connecting the positive lead; 6.
always remove the instrument’s ground lead last.

1-3. Electrostatically Sensitive Devices (ESD) Precautions

Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly

called Electrostatically Sensitive Devices (ESD). Examples of typical ESD are integrated circuits and some eld-effect

transistors. The following techniques will reduce the incidence of component damage caused by static electricity.

Immediately before handling any semiconductor components or assemblies, drain the electrostatic charge from your 1.
body by touching a known earth ground. Alternatively, wear a discharging wrist-strap device. To avoid a shock hazard,
be sure to remove the wrist strap before applying power to the LED TV.

After removing an ESD-equipped assembly, place it on a conductive surface such as aluminum foil to prevent 2.
accumulation of an electrostatic charge.

Do not use freon-propelled chemicals. These can generate electrical charges sufcient to damage ESDs.3.

Use only a grounded-tip soldering iron to solder or desolder ESDs.4.

Use only an anti-static solder removal device. Some solder removal devices not classied as “anti-static” can generate 5.
electrical charges sufcient to damage ESDs.

Do not remove a replacement ESD from its protective package until you are ready to install it. Most replacement ESDs 6.

are packaged with leads that are electrically shorted together by conductive foam, aluminum foil or other conductive
materials.

Immediately before removing the protective material from the leads of a replacement ESD, touch the protective 7.
material to the chassis or circuit assembly into which the device will be installed.
Caution: Be sure no power is applied to the chassis or circuit and observe all other safety precautions.

Minimize body motions when handling unpackaged replacement ESDs. Motions such as brushing clothes together, 8.
or lifting your foot from a carpeted oor can generate enough static electricity to damage an ESD.

1-3

1. Precautions

1-4. Installation Precautions

For safety reasons, more than a people are required for carrying the product.1.

Keep the power cord away from any heat emitting devices, as a melted covering may cause re or electric shock.2.

Do not place the product in areas with poor ventilation such as a bookshelf or closet. The increased internal 3.

temperature may cause re.

Bend the external antenna cable when connecting it to the product. This is a measure to protect it from being exposed 4.

to moisture. Otherwise, it may cause a re or electric shock.

Make sure to turn the power off and unplug the power cord from the outlet before repositioning the product. Also check 5.
the antenna cable or the external connectors if they are fully unplugged. Damage to the cord may cause re or electric

shock.

Keep the antenna far away from any high-voltage cables and install it rmly. Contact with the highvoltage cable or the 6.
antenna falling over may cause re or electric shock.

When installing the product, leave enough space (0.4m) between the product and the wall for ventilation purposes. 7.

A rise in temperature within the product may cause re.

1. Precautions

Memo

1-4

2. Product specications

2-1. Feature & Specications

Model UE19C4000PW

Feature

DTV/ATV, 2-HDMI, 1-Component, 1-A/V, D-SUB, 1-SCART, 1-USB2.0, CI Slot ሪ
Brightness : 400cd/m ሪ
High Contrast Ratio : 40,000:1 ሪ
Response Time : 4.5ms ሪ

Item Description

LCD Panel 19inch HD 60Hz

Scanning Frequency Horizontal : 30 kHz ~ 80 kHz (Automatic)

Display Colors 16.7M color

Maximum resolution Horizontal : 1366 Pixels

2

Specications

Vertical : 47 Hz ~ 75 Hz (Automatic)

Vertical : 768 Pixels

2. Product specications

Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated

Input Sync Signal H/V Separate, TTL, P. or N.

Maximum Pixel Clock rate 74.25MHz

Active Display
Horizontal/Vertical

AC power voltage & Frequency AC 100V ~ 240V, 50/60Hz

Power Consumption Under 40W (Under 0.3W, Stand by)

Dimensions
Set (W x D x H)

Weight 8.64 Ibs (3.92kg)_with stand

TV System Tuning Frequency Synthesize (Refer to detailed Frequency Table)

Environmental Considerations Operating Temperature: 32˚F ~ 122˚F (0˚C ~ 50˚C)

16.13 x 9.07 inches (409.8(H) x 230.4(V) mm)

18.8 x 7.5 x 14.7 inchs (477.6 x 189.6 x 374.1 mm)_with stand

18.8 x 1.2 x 12.6 inchs (477.6 x 29.9 x 320.6 mm)_without stand

7.89 Ibs (3.58kg)_without stand

System DVB-T/C, PAL, SECAM, NT4.43

Sound BG, DK, L/L’, NICAM, MPEG1, DD, DD+, HE-AAC

Operating Humidity: 10% ~ 90%

Storage Temperature: -4˚F ~ 140˚F (-20˚C ~ 60˚C)
Storage Humidity: 10% ~ 90%

Audio Spec. - MAX Internal speaker Out : Right => 10W, Left => 10W

- BASS Control Range : -8 dB ~ + 8dB

- TREBLE Control Range : -8 dB ~ +8 dB

- Headphone Out : 10 mW MAX

- Output Frequency : RF : 80 Hz ~ 15 kHz A/V : 80 Hz ~ 20 kHz

Note: Dolby Digital +, Game Mode, Film Mode, Energy Saving, Anynet

+

2-1

2-2

2. Product specications

Model UE22C4000PW

Feature

DTV/ATV, 2-HDMI, 1-Component, 1-A/V, D-SUB, 1-SCART, 1-USB2.0, CI Slot ሪ
Brightness : 400 cd/m ሪ

2

High Contrast Ratio : 40,000:1 ሪ
Response Time : 4.5ms ሪ

Specications

Item Description

LCD Panel 22inch HD 60Hz

Scanning Frequency Horizontal : 30 kHz ~ 80 kHz (Automatic)

Vertical : 47 Hz ~ 75 Hz (Automatic)

Display Colors 16.7M color

Maximum resolution Horizontal : 1366 Pixels

Vertical : 768 Pixels

Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated

Input Sync Signal H/V Separate, TTL, P. or N.

Maximum Pixel Clock rate 74.25MHz

Active Display
Horizontal/Vertical

18.80 x 10.57 inches (477.417(H) x 268.416(V) mm)

AC power voltage & Frequency AC 100V ~ 240V, 50/60Hz

Power Consumption Under 50W (Under 0.3W, Stand by)

Dimensions
Set (W x D x H)

21.5 x 7.5 x 16.2 inches (545.2 x 189.5 x 411.1 mm)_with stand

21.5 x 1.2 x 14.1 inches (545.2 x 29.9 x 359.0 mm)_without stand

Weight 12.6 Ibs (5.7kg)_with stand

9.0 Ibs (4.1kg)_without stand

TV System Tuning Frequency Synthesize (Refer to detailed Frequency Table)

System DVB-T/C, PAL, SECAM, NT4.43

Sound BG, DK, L/L’, NICAM, MPEG1, DD, DD+, HE-AAC

Environmental Considerations Operating Temperature: 32˚F ~ 122˚F (0˚C ~ 50˚C)

Operating Humidity: 10% ~ 90%

Storage Temperature: -4˚F ~ 140˚F (-20˚C ~ 60˚C)
Storage Humidity: 10% ~ 90%

Audio Spec. - MAX Internal speaker Out : Right => 10W, Left => 10W

- BASS Control Range : -8 dB ~ + 8dB

- TREBLE Control Range : -8 dB ~ +8 dB

- Headphone Out : 10 mW MAX

- Output Frequency : RF : 80 Hz ~ 15 kHz A/V : 80 Hz ~ 20 kHz

Note: Dolby Digital +, Game Mode, Film Mode, Energy Saving, Anynet+

2-3

2. Product specications

Model UE26C4000PW

Feature

DTV/ATV, 2-HDMI, 1-Component, 1-A/V, D-SUB, 1-SCART, 1-USB2.0, CI Slot ሪ
Brightness : 400 cd/m ሪ

2

High Contrast Ratio : 40,000:1 ሪ
Response Time : 4.5ms ሪ

Specications

Item Description

LCD Panel 26inch HD 60Hz

Scanning Frequency Horizontal : 30 kHz ~ 80 kHz (Automatic)

Vertical : 47 Hz ~ 75 Hz (Automatic)

Display Colors 16.7M color

Maximum resolution Horizontal : 1366 Pixels

Vertical : 768 Pixels

Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated

Input Sync Signal H/V Separate, TTL, P. or N.

Maximum Pixel Clock rate 74.25MHz

Active Display

Horizontal/Vertical

22.67 x 12.74 inches (575.769(H) x 323.712(V) mm)

AC power voltage & Frequency AC 100V ~ 240V, 50/60Hz

Power Consumption Under 65W (Under 0.3W, Stand by)

Dimensions
Set (W x D x H)

25.7 x 8.7 x 18.9 inches (652.8 x 222.0 x 479.8 mm)_with stand

25.7 x 1.2 x 16.6 inches (652.8 x 29.9 x 422.8 mm)_without stand

Weight 21.4 Ibs (9.7kg)_with stand

13.7 Ibs (6.2kg)_without stand

TV System Tuning Frequency Synthesize (Refer to detailed Frequency Table)

System DVB-T/C, PAL, SECAM, NT4.43

Sound BG, DK, L/L’, NICAM, MPEG1, DD, DD+, HE-AAC

Environmental Considerations Operating Temperature: 32˚F ~ 122˚F (0˚C ~ 50˚C)

Operating Humidity: 10% ~ 90%

Storage Temperature: -4˚F ~ 140˚F (-20˚C ~ 60˚C)
Storage Humidity: 10% ~ 90%

Audio Spec. - MAX Internal speaker Out : Right => 10W, Left => 10W

- BASS Control Range : -8 dB ~ + 8dB

- TREBLE Control Range : -8 dB ~ +8 dB

- Headphone Out : 10 mW MAX

- Output Frequency : RF : 80 Hz ~ 15 kHz A/V : 80 Hz ~ 20 kHz

Note: Dolby Digital +, Game Mode, Film Mode, Energy Saving, Anynet+

2-4

2. Product specications

2-2. Detail Factory Option

If you replace the main board with new one, please change the factory option as well. ※
The options you must change are "Type" and "Front Color".

Model Name0

Panel

SMPS

1

Factory Reset - - - -

Vendor INL CMO CMO

CODE BN07-00837A BN07-00865A BN07-00847A

Vendor SEM DYREL DYREL

CODE BN44-00345A BN44-00347B BN44-00349B

2 Type 19D6THOC ~ 52L6AFOC/ 19O6TH0E 22P6TH0E 26P6AH0E

3 Local set

4 Model

EU/EU_ltaly//NORDIG/AD_au/

CIS

UC4000/UC5000/UC5100/

UC6000

5 TUNER DRXKSEMCO/DRXKALPS/..... DRXKSEMCO DRXKSEMCO DRXKSEMCO

6 DDR SAMSUNG / Etron SAMSUNG SAMSUNG SAMSUNG

7 Light Effect On/Off Off Off Off

8 Ch Table

SUWON/SESK/SHE/TTSEC/

SDMA/

SERK/SEIN/SAVINA/SIEL/TSE

9 Country ... ... ... ...

10 Front Color S-BLK/S-R-BLK/S-C-Gray/... T-R-BLK T-R-BLK T-R-BLK

UE19C4000PW UE22C4000PW UE26C4000PW

EU EU EU

UC4000 UC4000 UC4000

SEH SEH SEH

2-5

2. Product specications

2-3. Accessories

Product Description Code. No Remark

Remote Control & Batteries

(AAA x 2)

Power Cord 3903-000525

Cover-Bottom

Stand

Screw

(for the stand - M4, L6)

Owner’s Instructions BN68-02655A

26" : BN59-01014A

26" : BN63-06542B

22"/19" : BN96-10168C

26" : BN96-13156A

22"/19" : BN96-10168C

6003-000133

Samsung Electronics

Service center

Warranty Card / Registration

Card / Safety Guide Manual

(Not available in all locations)

2-6

2. Product specications

OSD CH NO AIR CH NO CH NO CH NO

Air-DTV Air-NTSC BAND Cable STD BAND Cable HRC Cable IRC
1 1 A-8 72. 00 A-8 73. 25
2 2 57 55. 25 V-L 2 55. 25 V-L 2 54. 00 2 55. 25
3 3 63 61.25 V-L 3 61.25 V-L 3 60.00 3 61.25
4 4 69 67.25 V-L 4 67.25 V-L 4 66.00 4 67.25
5 5 79 77. 25 V-L 5 77. 25 V-L A-7 78. 00 A-7 79. 25
6 6 85 83.25 V-L 6 83.25 V-L A-6 84.00 A-6 85.25
7 7 177 175. 25 V-H 7 175. 25 V-H 7 174. 00 7 175. 25
8 8 183 181.25 V-H 8 181.25 V-H 8 180.00 8 181.25
9 9 189 187.25 V-H 9 187.25 V-H 9 186.00 9 187.25

10 10 195 193.25 V-H 10 1

93.25 V-H 10 192.00 10 193.25
11 11 201 199.25 V-H 11 199.25 V-H 11 198.00 11 199.25
12 12 207 205.25 V-H 12 205.25 V-H 12 204.00 12 205.25
13 13 213 211.25 V-H 13 211.25 V-H 13 210.00 13 211.25
14 14 473 471. 25 UHF A 121. 25 MID A 120. 00 A 121. 25
15 15 479 477.25 UHF B 127.25 MID B 126.00 B 127.25
16 16 485 483.25 UHF C 133.25 MID C 132.00 C 133.25
17 17 491 489.25 UHF D 139.25 MID D 138.00 D 139.25
18 18 497 495.25 UHF E 145.25 MID E 144.00 E 145.25
19 19 503 501.25 UHF F 151.25 MID F 150.00 F 151.25
20 20 509

507.25 UHF G 157.25 MID G 156.00 G 157.25
21 21 515 513.25 UHF H 163.25 MID H 162.00 H 163.25
22 22 521 519.25 UHF I 169.25 MID I 168.00 I 169.25
23 23 527 525.25 UHF J 217. 25 SUPER J 216. 00 J 217. 25
24 24 533 531.25 UHF K 223.25 SUPER K 222.00 K 223.25
25 25 539 537.25 UHF L 229.25 SUPER L 228.00 L 229.25
26 26 545 543.25 UHF M 235.25 SUPER M 234.00 M 235.25
27 27 551 549.25 UHF N 241.25 SUPER N 240.00 N 241.25
28 28 557 555.25 UHF O 247.25 SUPER O 246.00 O 247.25
29 29 563 561.25 UHF P 253.25 SUPER P 252.00

P 253.25
30 30 569 567.25 UHF Q 259.25 SUPER Q 258.00 Q 259.25
31 31 575 573.25 UHF R 265.25 SUPER R 264.00 R 265.25
32 32 581 579.25 UHF S 271.25 SUPER S 270.00 S 271.25
33 33 587 585.25 UHF T 277.25 SUPER T 276.00 T 277.25
34 34 593 591.25 UHF U 283.25 SUPER U 282.00 U 283.25
35 35 599 597.25 UHF V 289.25 SUPER V 288.00 V 289.25
36 36 605 603.25 UHF W 295.25 SUPER W 294.00 W 295.25
37 37 611 609.25 UHF AA 301.25 HYPER AA 300.00 AA 301.25
38 38 617 615.25 UHF BB 307.25 HYPER BB 306.00 BB 307.25
39 39 623 62

1.25 UHF CC 313.25 HYPER CC 312.00 CC 313.25
40 40 629 627.25 UHF DD 319.25 HYPER DD 318.00 DD 319.25
41 41 635 633.25 UHF EE 325.25 HYPER EE 324.00 EE 325.25
42 42 641 639.25 UHF FF 331.25 HYPER FF 330.00 FF 331.25
43 43 647 645.25 UHF GG 337.25 HYPER GG 336.00 GG 337.25
44 44 653 651.25 UHF HH 343.25 HYPER HH 342.00 HH 343.25
45 45 659 657.25 UHF II 349.25 HYPER II 348.00 II 349.25
46 46 665 663.25 UHF JJ 355.25 HYPER JJ 354.00 JJ 355.25
47 47 671 669.25 UHF KK 361.25 HYPER KK 360.00 KK 361.25
48 48

677 675.25 UHF LL 367.25 HYPER LL 366.00 LL 367.25
49 49 683 681.25 UHF MM 373.25 HYPER MM 372.00 MM 373.25
50 50 689 687.25 UHF NN 379.25 HYPER NN 378.00 NN 379.25
51 51 695 693.25 UHF OO 385.25 HYPER OO 384.00 OO 385.25
52 52 701 699.25 UHF PP 391.25 HYPER PP 390.00 PP 391.25
53 53 707 705.25 UHF QQ 397.25 HYPER QQ 396.00 QQ 397.25
54 54 713 711.25 UHF RR 403.25 HYPER RR 402.00 RR 403.25
55 55 719 717.25 UHF SS 409.25 HYPER SS 408.00 SS 409.25
56 56 725 723.25 UHF TT 415.25 HYPER TT 414.00 TT 415.2

5
57 57 731 729.25 UHF UU 421.25 HYPER UU 420.00 UU 421.25
58 58 737 735.25 UHF VV 427.25 HYPER VV 426.00 VV 427.25
59 59 743 741.25 UHF WW 433.25 HYPER WW 432.00 WW 433.25
60 60 749 747.25 UHF XX 439.25 HYPER XX 438.00 XX 439.25
61 61 755 753.25 UHF YY 445.25 HYPER YY 444.00 YY 445.25
62 62 761 759.25 UHF ZZ 451.25 HYPER ZZ 450.00 ZZ 451.25
63 63 767 765.25 UHF AAA 457.25 HYPER AAA 456.00 AAA 457.25
64 64 773 771.25 UHF BBB 463.25 HYPER BBB 462.00 BBB 463.25
65 65 779 777.25 UHF CCC 469.25 ULTRA CCC

468.00 CCC 469.25
66 66 785 783.25 UHF DDD 475.25 ULTRA DDD 474.00 DDD 475.25
67 67 791 789.25 UHF EEE 481.25 ULTRA EEE 480.00 EEE 481.25
68 68 797 795.25 UHF FFF 487.25 ULTRA FFF 486.00 FFF 487.25
69 69 803 801.25 UHF GGG 493.25 ULTRA GGG 492.00 GGG 493.25

CHANNEL FREQUENCY TABLE 

1. OUTPUT FREQUENCY : ANALOG fv:45.75MHz, fs:41.25MHz DIGITAL Fc:44MHz

2. TUNING STEP SIZE : FIRST PLL 250KHz SECOND PLL 62.5KHz

2-7

2. Product specications

OSD CH NO AIR CH NO CH NO CH NO

Air-DTV Air-NTSC BAND Cable STD BAND Cable HRC Cable IRC

70 70 HHH 499.25 ULTRA HHH 498.00 HHH 499.25
71 71 III 505.25 ULTRA III 504.00 III 505.25
72 72 JJJ 511.25 ULTRA JJJ 510.00 JJJ 511.25
73 73 KKK 517.25 ULTRA KKK 516.00 KKK 517.25
74 74 LLL 523.25 ULTRA LLL 522.00 LLL 523.25
75 75 MMM 529.25 ULTRA MMM 528.00 MMM 529.25
76 76 NNN 535.25 ULTRA NNN 534.00 NNN 535.25
77 77 OOO 541.25 ULTRA OOO 540.00 OOO 541.25
78 78 PPP 547.25 ULTRA PPP 546.00 PPP 547.25
79 79 79 553.25 ULTRA 79 552.00 79 553.25
80 80 80 559.25 ULTRA 80 558.00 80 559.25
81 81 81 565.25 ULTRA 81 564.00 81 565.25
82 82 82 571.25 ULTRA 82 570.00 82 571.25
83 83 83 577.25 ULTRA 83 576.00 83 577.25
84 84 84 583.25 ULTRA 84 582.00 84 583.25
85 85 85 589.25 ULTRA 85 588.00 85 589.25
86 86 86 595.25 ULTRA 86 594.00 86 595.25
87 87 87 601.25 ULTRA 87 600.00 87 601.25
88 88 88 607.25 ULTRA 88 606.00 88 607.25
89 89 89 613.25 ULTRA 89 612.00 89 613.25
90 90 90 619.25 ULTRA 90 618.00 90 619.25
91 91

91 625.25 ULTRA 91 624.00 91 625.25
92 92 92 631.25 ULTRA 92 630.00 92 631.25
93 93 93 637.25 ULTRA 93 636.00 93 637.25
94 94 94 643.25 ULTRA 94 642.00 94 643.25
95 95 A-5 91. 25 FM A-5 90. 00 A-5 91. 25
96 96 A-4 97.25 FM A-4 96.00 A-4 97.25
97 97 A-3 103.25 FM A-3 102.00 A-3 103.25
98 98 A-2 109.25 MID A-2 108.00 A-2 109.25
99 99 A-1 115.25 MID A-1 114.00 A-1 115.25

100 100 100 649. 25 ULTRA 100 648. 00 100 649. 25
101 101 101 655.25 ULTRA 101 654.00 101 655.25
102 102 102 661.25 ULTRA 102 660.00 102 661

.25
103 103 103 667.25 ULTRA 103 666.00 103 667.25
104 104 104 673.25 ULTRA 104 672.00 104 673.25
105 105 105 679.25 ULTRA 105 678.00 105 679.25
106 106 106 685.25 ULTRA 106 684.00 106 685.25
107 107 107 691.25 ULTRA 107 690.00 107 691.25
108 108 108 697.25 ULTRA 108 696.00 108 697.25
109 109 109 703.25 ULTRA 109 702.00 109 703.25
110 110 110 709.25 ULTRA 110 708.00 110 709.25
111 111 111 715.25 ULTRA 111 714.00 111 715.25
112 112 112 721.25 ULTRA 112 720.00 112 721.25
113 113 113 727.25 UL

TRA 113 726.00 113 727.25
114 114 114 733.25 ULTRA 114 732.00 114 733.25
115 115 115 739.25 ULTRA 115 738.00 115 739.25
116 116 116 745.25 ULTRA 116 744.00 116 745.25

. .

. . .

. . . .

. .

. . .

. . . .

125 125 125 799.25 ULTRA 125 798.00 125 799.25

. . . . . . . . .

2-8

2. Product specications

2-4. New Features explanation

2-4-1. Connecting Anynet+ Devices

Anynet+ is a function that enables you to control all connected Samsung devices that support Anynet+ with your
Samsung TV’s remote.
The Anynet+ system can be used only with Samsung devices that have the Anynet+ feature. To be sure your Samsung
device has this feature, check if there is an Anynet+ logo on it.

To connect to a TV

1. Connect the HDMI IN 1(DVI), 2 jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device
using an HDMI cable.

To connect to Home Theater

1. Connect the HDMI IN 1(DVI), 2 jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device
using an HDMI cable.

2. Connect the HDMI IN jack of the home theater and the HDMI OUT jack of the corresponding Anynet+ device
using an HDMI cable.

- Connect the Optical cable between the DIGITAL AUDIO OUT (OPTICAL) jack on your TV and the Digital Audio
Input on the Home Theater.

- When following the connection above, the Optical jack only outputs 2 channel audio. You will only hear sound
from the Home Theater’s Front Left and Right speakers and the subwoofer. If you want to hear 5.1 channel
audio, connect the DIGITAL AUDIO OUT (OPTICAL) jack on the DVD / Satellite Box (ie Anynet Device 1 or 2)
directly to the Ampli er or Home Theater, not the TV.

- Connect only one Home Theater.

- You can connect an Anynet+ device using the HDMI 1.3 cable. Some HDMI cables may not support Anynet+
functions.

- Anynet+ works when the AV device supporting Anynet+ is in the Standby or On status.

- Anynet+ supports up to 12 AV devices in total. Note that you can connect up to 3 devices of the same type.

2-9

2. Product specications

2-4-2. Media Play

Advanced Features

Media Play

¦ Connecting a USB Device

1 . Turn on your TV.

2. Connect a USB device containing photo, music and/or movie  les to the USB 1

(HDD) or USB 2 jack on the side of the TV.

3. When USB is connected to the TV, popup window appears. Then you can select
Media Play .

¦ Connecting to the PC through network

You can play pictures, music and videos saved on your PC through a network connection in the Media Play mode.

✎

If you use Media Play through saved file on your PC, you should download “PC Share Manager” and users manual from
“www.samsung.com.”

1 . For more information on how to con gure your network, refer to “Network Connection.”

– You are recommended to locate both TV and PC in same subnet. The  rst 3 parts of the subnet address of the TV and

the PC IP addresses should be the same and only the last part (the host address) should be changed. (e.g. IP Address:

123.456.789.**)

2 . Using a LAN cable, connect between the external modem and the PC onto which the Samsung PC Share Manager

programme will be installed.

– You can connect the TV to the PC directly without connecting it through a Sharer (Router).

Enjoy photos, music and/or movie  les saved on
a USB Mass Storage Class (MSC) device and/or
your PC.

LAN Cable

PC

External Modem

(ADSL/VDSL/Cable TV)

LAN

Samsung

Wireless

LAN

Adapter

Wireless IP sharer

TV Rear Panel

or

MEDIA.P

USB Drive

TV Rear Panel

or

SUM

Change Device

View Device

E

Enter

R

Return

MediaPlay

Videos

2-10

2. Product specications

04 Advanced Features

✎

No supported functions when connecting to the PC through network:

x

The Background Music and Background Music Setting functions.

x

Sorting files by preference in the Photos, Music, and Videos folders.

x

The � (REW) or µ (FF) button while a movie is playing.

✎

The Divx DRM, Multi-audio, embedded caption does not supported.

✎

Samsung PC Share manager should be permitted by the firewall programme on your PC.

✎

When you use Media Play mode through a network connection, According to functions of the provided ser ver:

x

The sorting method may vary.

x

The scene search function may not be supported.

x

The Play Continuously function, which resumes playing of a video, may not be supported.

– The Play Continuously function does not support multiple users. (It will have only memorized the point where the

most recent user stopped playing.)

x

The l or r button may not work depending on the content information.

x

If you experience any file stuttering issue while playing a video over a wireless network, we recommend using a wired
network.

✎

It might not work properly with unlicensed multimedia files.

✎

Need-to-Know List before using Media Play

x

MTP (Media Transfer Protocol) is not supported.

x

The file system supports FAT16, FAT32 and NTFS.

x

Certain types of USB Digital camera and audio devices may not be compatible with this TV.

x

Media Play only supports USB Mass Storage Class (MSC) devices. MSC is a Mass Storage Class Bulk-Only
Transport device. Examples of MSC are Thumb drives, Flash Card Readers and USB HDD (USB HUB are not
supported). Devices should be connected directly to the TV’s USB port.

x

Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data.
SAMSUNG is not responsible for any data file damage or data loss.

x

Connect a USB HDD to the dedicated port, USB 1 (HDD) port.

x

Do not disconnect the USB device while it is loading.

x

The higher the resolution of the image, the longer it takes to display on the screen.

x

The maximum supported JPEG resolution is 15360X8640 pixels.

x

For unsupported or corrupted files, the “Not Supported File Format” message is displayed.

x

If the files are sorted by Basic View, up to 1000 files can be displayed in each folder.

x

MP3 files with DRM that have been downloaded from a non-free site cannot be played. Digital Rights Management
(DRM) is a technology that supports the creation of content, the distribution and management of the content in an
integrated and comprehensive way, including the protection of the rights and interests of the content providers, the
prevention of the illegal copying of contents, as well as managing billings and settlements.

x

If more than 2 PTP devices are connected, you can only use one at a time.

x

If more than two MSC devices are connected, some of them may not be recognized. A USB device that requires high
power (more than 500mA or 5V) may not be supported.

x

If an over-power warning message is displayed while you are connecting or using a USB device, the device may not
be recognized or may malfunction.

x

If the TV has been no input during time set in Auto Protection Time, the Screensaver will run.

x

The power-saving mode of some external hard disk drives may be released automatically when connected to the TV.

x

If a USB extension cable is used, the USB device may not be recognized or the files on the device may not be read.

x

If a USB device connected to the T V is not recognized, the list of files on the device is corrupted or a file in the list is
not played, connect the USB device to the PC, format the device and check the connection.

x

If a file deleted from the PC is still found when Media Play is run, use the “Empty the Recycle Bin” function on the PC
to permanently delete the file.

2-11

2. Product specications

Advanced Features

¦ Screen Display

Move to the le you desired using the up/down/right/left buttons and then press the ENTERE or  (Play) button. The le is
played.

✎

Supports the View Devices and Home in Media Play homepage.

Videos

Playing Video

1. Press the ◄ or ► button to select Videos, then press the ENTER

E

button in the Media Play menu.

2. Press the ◄/►/▲/▼ button to select the desired le in the le list.

3. Press the ENTER

E

button or  (Play) button.

– The selected le is displayed on the top with its playing time.
– If video time information is unknown, play time and progress bar are not displayed.
– During playing the video, you can search using the ◄ and ► button.

✎

In this mode, you can enjoy movie clips contained on a Game,
but you cannot play the Game itself.

y Supported Subtitle Formats

Name File extension Format

MPEG-4 time-based text .ttxt XML

SAMI .smi HTML

SubRip .srt string-based

SubViewer .sub string-based

Micro DVD .sub or .txt string-based

Jan.10.2010

Jan.10.2010

Jan.10.2010

Jan.10.2010

Jan.10.2010

Jan.10.2010

Jan.10.2010

Jan.10.2010

Jan.10.2010

Jan.10.2010

/Movie 01.avi 1/1

Movie 01.avi

SUM

Movie 03.avi

Movie 05.avi

Movie 07.avi

Movie 09.avi

Movie 02.avi

Movie 04.avi

Movie 06.avi

Movie 08.avi

Movie 10.avi

Select Sorting

T

Tools

Information:

You can ascertain the selected

le name and the number of les

and page.

Sort List Section:

Displays sorting standard.

✎

Sorting standard is
different depending on the
contents.

Operation Buttons

Red (Change Device): Selects a connected device.

B

Green (Preference): Sets the le preference. (not supported in Basic view)
Yellow (Select): Selects multiple les from le list. Selected les are marked with a symbol.
Blue (Sorting): Selects the sort list.

T

Tools: Displays the option menu.

✎

Using the  (REW) or µ (FF) button, le list can move to next or previous page.

File List Section:
You can conrm the les
and groups that is sorted by
each category.

Videos

Page

Change Device

Movie 01.avi

00:04:03 / 00:07:38 1/1

SUM

E

Pause

L

Jump

T

Tools

R

Return

2-12

2. Product specications

04 Advanced Features

y Supported Video Formats

File Extension Container Video Codec Resolution

Frame rate

(fps)

Bit rate
(Mbsp)

Audio Codec

*.avi

*.mkv

AVI

MKV

Divx 3.11 / 4.x / 5.1 / 6.0 1920x1080 6 ~ 30 8

MP3 / AC3 / LPCM /

ADPCM / DTS Core

XviD 1920x1080 6 ~ 30 8

H.264 BP / MP / HP 1920x1080 6 ~ 30 25

MPEG4 SP / ASP 1920x1080 6 ~ 30 8

*.asf ASF

Divx 3.11 / 4.x / 5.1 / 6.0 1920x1080 6 ~ 30 8

MP3 / AC3 / LPCM /

ADPCM / WMA

XviD 1920x1080 6 ~ 30 8

H.264 BP / MP / HP 1920x1080 6 ~ 30 25

MPEG4 SP / ASP 1920x1080 6 ~ 30 8

*.wmv ASF Window Media Video v9 1920x1080 6 ~ 30 25 WMA

*.mp4 MP4

H.264 BP / MP / HP 1920x1080 6 ~ 30 25

MP3 / ADPCM / AACMPEG4 SP / ASP 1920x1080 6 ~ 30 8

XVID 1920x1080 6 ~ 30 8

*.3gp 3GPP

H.264 BP / MP / HP 1920x1080 6 ~ 30 25

ADPCM / AAC / HE-AAC

MPEG4 SP / ASP 1920x1080 6 ~ 30 8

*.vro

VRO
VOB

MPEG1 1920x1080 24 / 25 / 30 30

AC3 / MPEG / LPCM

MPEG2 1920x1080 24 / 25 / 30 30

*.mpg

*.mpeg

PS

MPEG1 1920x1080 24 / 25 / 30 30

AC3 / MPEG / LPCM / AACMPEG2 1920x1080 24 / 25 / 30 30

H.264 1920x1080 6 ~ 30 25

*.ts
*.tp

*.trp

TS

MPEG2 1920x1080 24 / 25 / 30 30

AC3 / AAC / MP3 / DD+ /

HE-AAC

H.264 1920x1080 6 ~ 30 25

VC1 1920x1080 6 ~ 30 25

Other Restrictions

✎

NOTE

x

If there are problems with the contents of a codec, the codec will not be supported.

x

If the information for a Container is incorrect and the file is in error, the Container will not be able to play
correctly.

x

Sound or video may not work if the contents have a standard bitrate/frame rate above the compatible Frame/sec
listed in the table above.

x

If the Index Table is in error, the Seek (Jump) function is not supported.

Video Decoder Audio Decoder

• Supports up to H.264, Level 4.1

• H.264 FMO / ASO / RS, VC1 SP / MP / AP L4 and AVCHD are not

supported.

• GMC is not supported.

• H.263 is not supported.

• Supports up to WMA 7, 8, 9, STD

• WMA 9 PRO does not support 2 channel excess multi channel or

lossless audio.

• WMA sampling rate 22050Hz mono is not supported.

2-13

2. Product specications

Advanced Features

Playing movie le continuously (Resume Play)

If you exit the playing Videos function, it can be played later from the point where it was stopped.

1. Select the movie le you want to play continuously by pressing
the ◄ or ► button to select it from the le list section.

2. Press the



(Play) / ENTERE button.

3. Select Play Continuously (Resume Play) by pressing the Blue
button. The Movie will begin to play from where it was stopped.

✎

The Blue button is available when resuming play.

✎

If the Cont. movie play help function is set to On in the
Settings menu, a pop-up message will appear when you
resume play a movie file.

Music

Playing Music

1. Press the ◄ or ► button to select Music, then press the

ENTER

E

button in the Media Play menu.

2. Press the ◄/►/▲/▼ button to select the desired le in the le

list.

3. Press the ENTER

E

button or  (Play) button.

– During playing the music, you can search using the ◄ and ►

button.

–



(REW) and µ (FF) buttons do not function during play.

✎

Only displays the files with MP3 and PCM file extension. Other
file extensions are not displayed, even if they are saved on the
same USB device.

✎

If the sound is strange when playing MP3 files, adjust the
Equalizer in the Sound menu. (An over-modulated MP3 file
may cause a sound problem.)

Photos

Viewing a Photo (or Slide Show)

1. Press the ◄ or ► button to select Photos, then press the

ENTER

E

button in the Media Play menu.

2. Press the ◄/►/▲/▼ button to select the desired le in the le

list.

3. Press the ENTER

E

button or  (Play) button.

– While a photo list is displayed, press the



(Play) /

ENTERE button on the remote control to start slide show.

– All les in the le list section will be displayed in the slide show.
– During the slide show, les are displayed in order from

currently being shown.

✎

Music files can be automatically played during the Slide Show if
the Background Music is set to On.

✎

The BGM Mode cannot be changed until the BGM has finished loading.

Movie 01.avi

00:04:03 / 00:07:38 1/1

SUM

Play continuously

E

Pause

L

Jump

T

Tools

R

Return

Resumes playing from the last viewed
scene.

Play continuously

3/15

I Love you

Jhon

Music 1

No Singer

Music 2

No Singer

Music 3

No Singer

Music 4

No Singer

Music 5

No Singer

I Love You

Jhon

1st Album
Pop
2010

4.2MB

01:10 / 04:02

SUM

E

Pause

L

Jump

T

Tools

R

Return

Playlist

Image1024.jpg 1024x768 2010/2/1 3/15

SUM

E

Pause

L

Previous/Next

T

Tools

R

Return

Normal

2-14

2. Product specications

04 Advanced Features

¦ Playing the Multiple Files

Playing the selected video/music/photo les

1. Press the Yellow button in the le list to select the desired le.

2. Repeat the above operation to select multiple les.

✎

NOTE

x

The c mark appears to the left of the selected files.

x

To cancel a selection, press the Yellow button again.

x

To deselect all selected files, press the TOOLS button
and select Deselect All.

3. Press the TOOLS button and select Play Selected Contents.

Playing the video/music/photo le group

1. While a le list is displayed, move to the any le in desired group.

2. Press the TOOLS button and select Play Current Group.

¦ Media Play Additional Function

Sorting the le list

Press the Blue button in the le list to sort the les.

Category Operations Videos Music Photos

Basic View

It shows whole folder. You can view the photo by selecting the folder.

> > >

Title

It sorts and displays the le title in Symbol/Number/Alphabet/Special order.

> > >

Preference

It sorts and displays the le by preference. You can change the le preference
in the le list section using the Green button.

> > >

Latest Date

It sorts and shows les by latest date.

> >

Earliest Date

It sorts and shows les by earliest date.

> >

Artist

It sorts the music le by artist in alphabetical.

>

Album

It sorts the music le by album in alphabetical order.

>

Genre

It sorts music les by the genre.

>

Mood

It sorts music les by the mood. You can change the music mood information.

>

Monthly

It sorts and shows photo les by month. It sorts only by month (from January
to December) regardless of year.

>

1/1

/Movie 01.avi

SUM

Movie 01.avi

Jan.10.2010

Jan.10.2010

Jan.10.2010

Jan.10.2010

Jan.10.2010

Jan.10.2010

Jan.10.2010

Jan.10.2010

Jan.10.2010

Jan.10.2010

Movie 03.avi

Movie 05.avi

Movie 07.avi

Movie 09.avi

Movie 02.avi

Movie 04.avi

Movie 06.avi

Movie 08.avi

Movie 10.avi

Change Device

Select Sorting

T

Tools

Videos

2 les selected Page

2-15

2. Product specications

Advanced Features

Videos/Music/Photos Play Option menu

During playing a le, press the TOOLS button.

Category Operations Videos Music Photos

Title You can move the other le directly.

>

Repeat Mode You can play movie and music les repeatedly.

> >

Picture Size You can adjust the picture size for preference.

>

Picture Setting You can adjust the picture setting. (p. 15, 16, 17)

> >

Sound Setting You can adjust the sound setting. (p. 17, 18, 19)

> > >

Subtitle Setting You can play the video le with Subtitle. This function only works if the

subtitles are the same le name as the video le.

>

Audio You can enjoy video in one of supported languages as required. The function

is only enabled when stream-type les which support multiple audio formats
are played.

>

Stop Slide Show /
Start Slide Show

You can start or stop a slide show.

>

Slide Show Speed You can select the slide show speed during the slide show.

>

Slide Show Effect You can set variously the slide show effect.

>

Background Music You can set and select background music when watching a slide show.

>

Zoom You can zoom into images in full screen mode.

>

Rotate You can rotate images in full screen mode.

>

Home Background You can move the le to the Media Play desktop.

>

Information You can see detailed information about the played le.

> > >

Settings

Using the Setup Menu

■ Cont. movie play help (Resume Play) (On / Off): Select to display the help pop-up message for continuous movie

playback.

■ Get the DivX® VOD registration code: Shows the registration code authorized for the TV. If you connect to the DivX web

site and register the registration code with a personal account, you can download VOD registration le. If you play the VOD
registration using Media Play, the registration is completed.

✎

For more information on DivX® VOD, visit “www.DivX.com.”

■ Get the DivX® VOD deactivation code: When DivX® VOD is not registered, the registration deactivation code is

displayed. If you execute this function when DivX® VOD is registered, the current DivX® VOD registration is deactivated.

■ Information: Select to view information about the connected device.

3. Disassembly and Reassembly

3. Disassembly and Reassembly

This section of the service manual describes the disassembly and reassembly procedures for the UE19/22/26C4000PW LED TV.

WARNING: This LED TV contains electrostatically sensitive devices. Use caution when handling these components.

3-1. Disassembly and Reassembly

Cautions: 1. Disconnect the LED TV from the power source before disassembly.

2. Follow these directions carefully; never use metal instruments to pry apart the cabinet.

Description Picture Description Screws

1. To remove the stand
Place monitor face down on cushioned table.
Remove 5 (19"/22" 3 screws) screws from the
stand.
Remove stand.

For 19"/22"
You can take the rear cover off without

removing stand.

2. 26" C4000 :
Remove the 11 screws of rear-cover.

19"/22" C4000 :

Remove the 10 screws of rear-cover.

: You can take the rear cover off without

removing these screws.

6003-000133

6003-000133

6003-001003

3-1

3-2

3. Disassembly and Reassembly

Description Picture Description Screws

3. Lift up the rear-cover.

4. Remove the left and right speaker.

5. Lift up the stand link.
Remove the 4 screws of bracket stand link.

6. Remove the 4 screws of main board and
5 screws of IP board.

7. Lift up the panel.

6003-000133

6001-002283

6001-000321

Reassembly procedures are in the reverse order of disassembly procedures. ※

3-3

3. Disassembly and Reassembly

Screw Size

Code No. A (mm) B (mm) C (mm) Q’ty

6003-001003 8.3~8.4 12~ 12.4 4~4.15 19"/22"/26" : 10EA

6003-000133 8.3~8.4 7.9~8.3 3.70~3.83 26" : 5EA, 22"/19" : 4EA

6001-002283 6.3~6.5 5.0~5.6 2.87~2.98 19"/22"/26" : 7EA

6001-000321 5.5~6.5 9.5~10.0 2.89~2.98 19"/22"/26" : 2EA

4. Troubleshooting

4-1. Troubleshooting

4-1-1. Previous check

Check the various cable connections rst. 1.

• Check to see if any cables are damaged or burnt.

• Check to see if there is a disconnected or loose cable connection.

• Check to see if the cables are connected according to the connection diagram.

Check the power input to the Main Board.2.

4. Troubleshooting

4-1

4-2

4. Troubleshooting

4-1-2. No Power

Symptom

The IP relay or the LEDs on the front panel does not work when connecting the power cord if the cables are
improperly connected or the Main Board or SMPS is not functioning. In this case, check the following:

Major

checkpoints

The LEDs on the front panel do not work when connecting the power cord. ­The SMPS relay does not work when connecting the power cord. ­The units appears to be dead. -

Check the internal cable connection status inside the unit. ­Check the fuses of each part. ­Check the output voltage of SMPS. ­Replace the Main Board. -

Diagnostics

Lamp(Backlight) Off,

power indicator LED on?

Yes

Does proper Stand-By DC A5V

appear at TP - A5V?

Yes

Does proper Main DC B13V, B5V

appear at TP - B13V, B5V?

Yes

Does proper DC A3.3V

appear at TP - A3.3V?

Yes

Does proper B3.3V,B1.8V,

SPI_A3.3 appear at BD216(B3.3V).

BD212(DDR B1.8V) TP-SPI_A3.3

Yes

Does proper DC B13V

appear at LVDS connector

Pin #1~5 of T-con b'd?

Yes

No

No

No

No

No

No

Change 18p power cable.

Change the Main Assy.

Change the LVDS cable.

No

A power is supplied to set?

Caution Make sure to disconnect the power before working on the IP board.

Check a other function.

(No picture part)

Replace a LCD Panel.

4-3

4. Troubleshooting

4-4

4. Troubleshooting

4-1-3. No Video (Analog PC signal)

Symptom Audio is normal but no picture is displayed on the screen. -

Major

checkpoints

Check the PC source ­Check the Main Chipset. -

This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected. -

Power indicator LED is off.

Lamp(Backlight) on, no video ?

Yes

Check the PC source and

check the connection of D-SUB ?

Yes

Does the signal appear at

1

TP - PC_R, PC_G, PC_B, PC_HS, PC_VS

(R, G, B, H, V) ?

Yes

2

Does the digital data appear at
TP - O_TXCLK+, O_TXCLK- ?

No

No

No

No

Check a set in the 'Stand-by mode'

or 'DPMS mode'.

Input the analog PC signal properly.

Check CN901, PC cable.

Change the Main Assy.

Check IC1102 (SX1)

Change the Main Assy.

Diagnostics

Yes

Check the LVDS cable?

Check the T-Con B'd?

Replace the LCD panel?

No

Please, Contact Tech support.

Caution Make sure to disconnect the power before working on the IP board.

4-5

4. Troubleshooting

4-6

4. Troubleshooting

WAVEFORMS

1

2

PC input (V-sink , H-sink , R/G/B)

LVDS output

4-7

4. Troubleshooting

4-1-4. No video (HDMI1, 2 - Digital signal)

Symptom Audio is normal but no picture is displayed on the screen. -

Major

checkpoints

Check the HDMI source. ­Check the HDMI switch, - Check the Main Chipset.
This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected. -

Power indicator LED is off.

Lamp(Backlight) on, no video ?

Yes

Check the HDMI source and

check the connection of HDMI cable ?

Yes

Does the signal appear at

3

2

CN1001 (Pin#12 , #7 )(HDMI1)
CN1002 (Pin#12 , #7 )(HDMI2)

(HDMI RX_Clk , RX_Data) ?

Yes

Does the digital data appear at
TP - O_TXCLK+, O_TXCLK- ?

No

No

No

No

Check a set in the 'Stand-by mode'

Input the HDMI signal properly.

Check CN1001, CN1002.

Check HDMI cable.

Change the Main Assy.

Check IC1102 (SX1)

Change the Main Assy.

Diagnostics

Yes

Check the LVDS cable?

Check the T-Con B'd?

Replace the LCD panel?

No

Please, Contact Tech support.

Caution Make sure to disconnect the power before working on the IP board.

4-8

4. Troubleshooting

4-9

4. Troubleshooting

WAVEFORMS

3

2

HDMI input (RX_Data, RX_Clk)

LVDS output

4-10

4. Troubleshooting

4-1-5. No Video (Tuner_CVBS)

Symptom Audio is normal but no picture is displayed on the screen. -

Major

checkpoints

Check the Tuner CVBS source. ­Check the Tuner, - Check the Main Chipset.
This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected. -

Power indicator LED is off.

Lamp(Backlight) on, no video ?

Yes

Check the RF source and

check the connection of RF cable ?

Yes

Does the DC TU5V_PW, TU33V_PW

appear at TP - TUNER_33V, B 5V

Pin of Tuner ?

Yes

2

Does the digital data appear at
TP - O_TXCLK+, O_TXCLK- ?

No

No

No

No

Check a set in the 'Stand-by mode'

Input the RF source properly.

Change the Main Assy.

Check IC1102 (SX1).

Change the Main Assy.

Diagnostics

Yes

Check the LVDS cable?

Check the T-Con B'd?

Replace the LCD panel?

No

Please, Contact Tech support.

Caution Make sure to disconnect the power before working on the IP board.

4-11

4. Troubleshooting

4-12

4. Troubleshooting

WAVEFORMS

LVDS output

2

4-13

4. Troubleshooting

4-1-6. No Video (Tuner DTV)

Symptom Audio is normal but no picture is displayed on the screen. -

Major

checkpoints

Check the DTV source. ­Check the Tuner, - Check the Main Chipset.
This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected. -

Power indicator LED is off.

Lamp(Backlight) on, no video ?

Yes

Check the RF source and

check the connection of RF cable ?

Yes

Check the 'signal strength' in Self Diagnosis

menu Strength is enough ?

Yes

Does the DC TU5V_PW, TU33V_PW

appear at TP - TUNER_33V, B 5V

Pin of Tuner ?

Yes

No

No

No

No

Check a set in the 'Stand-by mode'

Input the RF source properly.

Check the D-TV source.

Change the Main Assy.

Diagnostics

2

Does the digital data appear at
TP - O_TXCLK+, O_TXCLK- ?

Yes

Check the LVDS cable?

Check the T-Con B'd?

Replace the LCD panel?

No

No

Check IC1102(SX1).

Change the Main Assy.

Please, Contact Tech support.

Caution Make sure to disconnect the power before working on the IP board.

4-14

4. Troubleshooting

4-15

4. Troubleshooting

WAVEFORMS

2

LVDS output

4-16

4. Troubleshooting

4-1-7. No Video (Video CVBS)

Symptom Audio is normal but no picture is displayed on the screen. -

Major

checkpoints

2

Check the Video CVBS source ­Check the Main Chipset. -

This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected. -

Power indicator LED is off.

Lamp(Backlight) on, no video ?

Yes

Check the video source and

check the connection of video cable?

Yes

Does the CVBS data appear at

TP - AV_CVBS ?

Yes

Does the digital data appear at
TP - O_TXCLK+, O_TXCLK- ?

No

No

No

No

Check a set in the 'Stand-by mode'

Input the video source properly.

Check CN801.

Change the Main Assy.

Check IC1102 (SX1).

Change the Main Assy.

Diagnostics

Yes

Check the LVDS cable?

Check the T-Con B'd?

Replace the LCD panel?

No

Please, Contact Tech support.

Caution Make sure to disconnect the power before working on the IP board.

4-17

4. Troubleshooting

4-18

4. Troubleshooting

WAVEFORMS

CVBS OUT (Grey Bar)

4

LVDS output

2

4-19

4. Troubleshooting

4-1-8. No Video (Component)

Symptom Audio is normal but no picture is displayed on the screen. -

Major

checkpoints

5

2

Check the Component source ­Check the Main Chipset. -

This may happen when the LVDS cable connecting the Main Board and the Panel is disconnected. -

Power indicator LED is off.

Lamp(Backlight) on, no video ?

Yes

Check the component source and

check the connection of component

cables(Y,Pb,Pr)?

Yes

Does the component data appear at

TP-COMP_Y, COMP_PB, COMP_PR

(Comp / Y, Pb, Pr) ?

Yes

Does the digital data appear at
TP - O_TXCLK+, O_TXCLK- ?

No

No

No

No

Check a set in the 'Stand-by mode'

Input the component source properly.

Check CN802.

Change the Main Assy.

Check IC1102 (SX1).

Change the Main Assy.

Diagnostics

Yes

Check the LVDS cable?

Check the T-Con B'd?

Replace the LCD panel?

No

Please, Contact Tech support.

Caution Make sure to disconnect the power before working on the IP board.

4-20

4. Troubleshooting

4-21

4. Troubleshooting

WAVEFORMS

5

2

Compnent_Y (Gray scale) / Pb / Pr (Color bar)

LVDS output

4-22

4. Troubleshooting

4-1-9. No Sound

Symptom Video is normal but there is no sound.. -

Major

checkpoints

When the speaker connectors are disconnected or damaged. ­When the sound processing part of the Main Board is not functioning. ­Speaker defect. -

Check the source and

check the connection of sound cable

(Comp/PC/DVI to HDMI) ?

Yes

Does the sound data appear at

TP-AV_SR_IN, AV_SL_IN (COMPOENT R/L)

TP-PC_SR_IN, PC_SL_IN (PC R/L)

TP-SC_SR_IN, SC_SL_IN (SCART R/L ?

Yes

Does the DC B3.3V, B12VS

appear at BD202, TP- B13VS?

Yes

No

No

No

Input the sound source properly.

Check CN801, CN901, JA701.

Change the Main Assy.

Change the Main Assy.

Diagnostics

7

Does the sound data appear at

TP - L-, L+, R-, R+ ?

Yes

Replace speaker ?

No

No

Check IC1102 (SX1).

Check IC1302 (Sound AMP).

Change the Main Assy.

Please, Contact Tech support.

Caution Make sure to disconnect the power before working on the IP board.

4-23

4. Troubleshooting

4-24

4. Troubleshooting

WAVEFORMS

Speaker out

7

4-25

4. Troubleshooting

4-2. Alignments and Adjustments

4-2-1. General Alignment Instuction

Usually, a color LED-TV needs only slight touch-up adjustment upon installation. 1.
Check the basic characteristics such as height, horizontal and vertical sync.

Use the specied test equipment or its equivalent.2.

Correct impedance matching is essential.3.

Avoid overload. Excessive signal from a sweep generator might overload the front-end 4.
of the TV. When inserting signal markers, do not allow the marker generator to distort test result.

Connect the TV only to an AC power source with voltage and frequency as specied on 5.
the backcover nameplate.

Do not attempt to connect or disconnect any wire while the TV is turned on. Make sure 6.
that the power cord is disconnected before replacing any parts.

To protect against shock hazard, use an isolation transformer.7.

4-26

4. Troubleshooting

4-3. Factory Mode Adjustments

4-3-1 Entering Factory Mode

To enter ‘Service Mode’ Press the remote -control keys in this sequence :

- If you do not have Factory remote - control

Power OFF MENU MUTE Power On

INFO

4-3-2 How to Access Service Mode

Using the Customer Remote

Turn the power off and set to stand-by mode.1.

Press the remote buttons in this order; POWER OFF- INFO - MENU - MUTE to turn the set on.2.

The set turns on and enters service mode. This may take approximately 20 seconds.3.

Press the Power button to exit and store data in memory. 4.

- If you fail to enter service mode, repeat steps 1 and 2 above.

Initial SERVICE MODE DISPLAY State 5.

T-TDT5DEUC (SX1) T-MSX5DEUC (X4)

Option Option

Control Control

SVC SVC

Expert Expert

ADC/WB ADC/WB

Advanced Advanced

T-TDT5DEUC-XXXX

T-TDT5DEUS-XXXX

EDID SUCCESS

CALIB : AV X COMP X PC X HDMI X

Option : XXXX XXXX XXXX X

T-MSX5DEUC-XXXX

T-MSX5DEUS-XXXX

EDID SUCCESS

CALIB : AV X COMP X PC X HDMI X

Option : XXXX XXXX XXXX X

T-TDTDEU-XXX

SDAL-XXX

RFS : P0155 T-TDT5DEUC

20XX-XX-XX

TYPE : XX

MODEL : XXXXX

MAC Not Available

FACTORY DATA VER : XXX

EERC VERSION : XXX

DTP-AP-COMP-XXX-XX

DTP-HIIG-XXXX-X

DTP-BP-XXXX

DATE OF PURCHASE : XX/XX/XX

* How to enter the hidden factory mode.

a. into the factory mode
b. move the tap to Advanced
c. key input : 0 + 0 + 0 + 0

** hidden menu : Advanced

6. Buttons operations withn Service Mode

Menu Full Menu Display/Move to Parent Menu

Direction Keys

Direction Keys

Source

Item Selection by Moving the Cursor

/

Data Increase / Decrease for the Selected Item

/

Cycles through the active input source that are connected to the unit

T-MSX5DEUCIP-XXXX

SDAL-XXX

RFS : P0155 T-TDT5DEUC

20XX-XX-XX

TYPE : XX

MODEL : XXXXX

MAC Not Available

FACTORY DATA VER : XXX

EERC VERSION : XXX

DTP-AP-COMP-XXX-XX

DTP-HIIG-XXXX-X

DTP-BP-XXXX

DATE OF PURCHASE : XX/XX/XX

4-27

4. Troubleshooting

4-3-3 Factory Data

Option 

OPTION

Factory

Name

Factory Reset

Type

Local Set EU EU/EU_Italy/EU_Africa/EU_Israel/NORDIG/AD_Au/CIS Select Area

Model UC4000

TUNER DRXKSEMCO

DDR

Front Color

Data Range Use

NONE/19O6TH0C/19A6TH0C/22I6TH0C/22A6TH0C/22D6
TH0C/22P6TH0C/26A6AH0C/26D6AH0C/26L6AH0C/26P6

AH0C/32A6AH0C32D6AH0C/32L6AH0C32P6AH0C/32A6A

F0C/32L6AF0C/32A1AF0C/32L1AF0C/37L6AF0C/37L1AF

0C/40A6AF0C/40D6AF0C/40L6AF0C/40A1AF0C/40L1AF0

C/40A1UF0C/40D1UF0C/40L1UF0C/46A6AF0C/46D6AF0

C/46L6AF0C/46A1AF0C/46L1AF0C/46A1UF0C/46D1UF0C

/46L1UF0C/55A1UF0C/55L1UF0C/65L1UF0C/19R6TH0E/

22D6TH0E/26D6AH0E/32D6AH0E32D6UF0E/32A1UF0E/
32D1UF0E/37L6UF0E/37D1UF0E/37L1UF0E/40D6UF0E/4
0A1UF0E/40D1UF0E/46D6UF0E/46L6UF0E/46A1UF0E/46

D1UF0E/46L1UF0E/55A1UF0E/55D1UF0E/55L1UF0E/65L

1UF0E/42HHcD3/50HHcD450FArN4/50FArV458FArN1/58F

ArV163FArN1/

LC350/LC450/LC450H/LC451/LC452/LC457HLC459H/LC480/

LC530/LC530H/LC539H/LC540/LC550/LC560/LC580/LC570/

LC610/LC620/LC630/LC631/LC632/LC633/LC640/LC650/

LC652/LC653/LC654/LC670/

UC400/UC400H/UC4010/UC5000/UC5100/UC6000/UC6200/

UC6300/UC6400/UC6400H/UC6500/UC6510/UC6530/

UC6540/UC6550/UC6600/UC6620/UC6630/UC6700/UC6720/

UC6730/UC6740/UC6800/UC6830/UC6900/UC6900H/

UC8000/
PC420/PC430/PC431/PC432/PC450/PC451/PC480/PC520/
PC530/PC531/PC540/PC541/PC550/PC551/PC560/PC580/

PC590/PC670/PC6100/PC6400/PC6500/PC7000/PC7700/

PC8000

DRXKSEMCO/S2Semco/T2CXD/DRXKSEM_E/

DRXKALPS/DRXKSEN_2/DRXKXG

SAMSUNG /

Etron

NONE/W-MILKY/T-M-Brn/T-W-Brn/T-W-Gray/W-D-Gray/W-M-

Whit/W-Violet/T-C-Gray/T-R-BLK/S-BLK/S-RBLK/S-C-Gray/

SAMSUNG SAMSUNG

Select Panel

Type

12 : inch
3 : vendor
4 : refresh

5 : POL

6 : resolution

7 : multi
8 : BLU

Select Model

EU :

DRXKSEMCO

AU :

DRXKALPS

satellite :

S2Semco

Select Design

for Illuminance

Sensor

4-28

4. Troubleshooting

Control 

Control

EDID

Factory Name Data Range

EDID

Sub Option

Shop Option

Sound

Factory Name Data Use

EDID ON/OFF OFF

EDID WRITE ALL …

EDID WRITE PC …

EDID WRITE

HDMI

EDID WRITE

HDMI1

EDID WRITE

HDMI2

EDID WRITE

HDMI3

EDID WRITE

HDMI4

EDID 1.2 PORT …

…

…

…

…

…

Download EDID data to EEPROM.

1. Set "ON" of EDID ON/OFF.

2. Go EDID WRITE ALL and Push Enter or ► button.

3. If You See Success message, SET "OFF" of EDID ON/OFF.

Sub Option

EDID WRITE DVI …

Factory Name Data RANGE Use

RS-232 Jack UART Debug/Logic/UART

Watchdog ON ON/OFF

WD Count 0 255

Dimm Type EXT xed

Lvds Format JEIDA JEIDA/VESA/19INCH

OTN Server Type operating operating/development

OTN Test Server OFF OFF/ A/B/C/D/E Zone

OTN Support ON ON/OFF

OTN Reset not modifyed

OTN Duration OFF ON/OFF

OTN Fail Test OFF ON/OFF

T-CON USB

Download

View Log not modifyed

Failure xed

Select Setting of UART port.
Initial value is "UART"

Select Watchdog.
Initial value is "ON"

Watchdog Count.
Read Only.

Select Dimming Type.
Initial value is "EXT"

Select LVDS format.
19inch : VESA"
other inch : "JEIDA"

4-29

4. Troubleshooting

Hotel Option

Shop Option

Sound

Factory Name Data Range

Hotel Mode OFF

SI Vender …

Power On

Channel

Channel Type …

Power On Volume …

Min Volume …

Max Volume …

Panel Button Lock …

Power On Source …

Factory Name Data Range

Shop Mode OFF ON/OFF

Exhibition Mode OFF ON/OFF

Factory Name Data Range Use

High Devi OFF ON/OFF

…

Carrier_Mute ON ON/OFF

Speaker Delay

Normal

Pilot Level High Thld 0x70h 0x00~0xff Control for ATV sound of stereo / multiplex

Pilot Level Low Thld 0x20h 0x00~0xff Control for ATV sound of stereo / multiplex

Speaker EQ ON ON/OFF Control for sound precision

10 0~255 Audio delay for Lipsync

4-30

4. Troubleshooting

SVC 

SVC

Test Pattern

TUNER STATUS

Factory Name Data Range

Test Pattern

Panel Auto Setting

Panel Display

Time

Logic Usb D/L off

Tuner Status

Factory Name Data Range Use

Pattern Sel OFF

FRC PC Mode … ON/OFF

Logic Pattern Sel … Not modied

Logic Level Sel … Not modied

Factory Name Factory Name Range

0Hr

OFF/ White/Grey/Black

Red/Green/Blue

SNR Not modied

BER Not modied

xed

Test for Input of Scaler.
If you can see pattern well, there is
problem at input of Scaler.

DVB

Singal Strength Not modied

Bandwidth Not modied

Frequency Not modied

LNA Status Not modied

FFT Not modied

Modulation Not modied

Code Rate Not modied

GI Not modied

Hier Modulation Not modied

Frequency Offset Not modied

Timing Offset Not modied

AGC Not modied

UCB Not modied

PLL Type Not modied

DEMOD Type Not modied

TPS LOCK Not modied

RS Lock Not modied

SSI Not modied

SQI Not modied

4-31

4. Troubleshooting

ISDB-T

FFT Size_1 Not modied

Guard Interval_1 Not modied

Freq. Offset_1 Not modied

SNR_1 Not modied

IF AGC_1 Not modied

TMCC Lock_1 Not modied

TS Packet_1 Not modied

Master Lock_1 Not modied

A_Modulation_1 Not modied

A_Code Rate_1 Not modied

A_Timer

InterLeave_1

A_Segments

Num_1

A_Ber_1 Not modied

B_Modulation_! Not modied

B_Code Rate_1 Not modied

B_Timer

InterLeave_1

B_Segments

Num_1

B_BER_1 Not modied

Not modied

Not modied

Not modied

Not modied

SVC

C_Modulation_1 Not modied

C_Code Rate_1 Not modied

C_Timer

InterLeave_1

C_Segments

Num_1

C_BER_1 Not modied

Not modied

Not modied

Expert 

Factory Name Data Range

N / D ADJ Off Off / On / FIX

SOURCE ... Not modied

4-32

4. Troubleshooting

ADC/WB 

ADC/WB

ADC

ADC Target

Factory Name Data Range

ADC

ADC Target

ADC RESULT

WB

Factory Name Data Range

AV Calibration Success Success / Failure

Comp Calibration Success Success / Failure

PC Calibration Success Success / Failure

HDMI Calibration Success Success / Failure

Factory Name Data Range

1st_AV_Low 64 0 ~ 1023

1st_AV_High 880 0 ~ 1023

1st_AV_Delta 2 0 ~ 7

1st_COMP_Y_Low 64 0 ~ 1023

1st_COMP_Y_High 940 0 ~ 1023

1st_COMP_Delta 2 0 ~ 7

1st_PC_R_Low 16 0 ~ 1023

1st_PC_R_High 1004 0 ~ 1023

1st_PC_Delta 2 0 ~ 7

2nd_AV_R_Low 4 -

2nd_AV_G_Low 4 0 ~ 1023

2nd_AV_B_Low 4 -

2nd_AV_R_High 940 -

2nd_AV_G_High 940 0 ~ 1023

2nd_AV_B_High 940 -

2nd_AV_Delta 2 0 ~ 7

2nd_COMP_R_Low 4 -

2nd_COMP_G_Low 4 0 ~ 1023

2nd_COMP_B_Low 4 -

2nd_COMP_R_High 940 -

2nd_COMP_G_High 940 0 ~ 1023

2nd_COMP_B_High 940 -

2nd_COMP_Delta 2 0 ~ 7

2nd_PC_R_Low 4 -

2nd_PC_G_Low 4 0 ~ 1023

2nd_PC_B_Low 4 -

4-33

4. Troubleshooting

2nd_PC_R_High 940 -

2nd_PC_G_High 940 0 ~ 1023

2nd_PC_B_High 940 -

2nd_PC_Delta 2 0 ~ 7

2nd_HDMI_R_Low 4 -

2nd_HDMI_G_Low 4 0 ~ 1023

2nd_HDMI_B_Low 4 -

2nd_HDMI_R_High 940 -

2nd_HDMI_G_High 940 0 ~ 1023

2nd_HDMI_B_High 940 -

2nd_HDMI_Delta 2 0 ~ 7

ADC RESULT

WB

Factory Name Data Range

1st_Y_GH 0 0 ~ 255

1st_Y_GL 0 0 ~ 255

1st_Cb_BH 0 0 ~ 255

1st_Cb_BL 0 0 ~ 255

1st_Cr_RH 0 0 ~ 255

1st_Cr_RL 0 0 ~ 255

2nd_R_L 132 0 ~ 255

2nd_G_L 132 0 ~ 255

2nd_B_L 132 0 ~ 255

2nd_R_H 50 0 ~ 255

2nd_G_H 50 0 ~ 255

2nd_B_H 50 0 ~ 255

Factory Name Data Range

Sub Brightness 128 0 ~ 255

R_Offset 512 0 ~ 1023

G_Offset 512 0 ~ 1023

B_Offset 512 0 ~ 1023

Sub Contrast 128 0 ~ 255

R_Gain 512 0 ~ 1023

G_Gain 512 0 ~ 1023

B_Gain 512 0 ~ 1023

Movie R Offset - 0 ~ 1023

Movie B Offset - 0 ~ 1023

Movie R Gain - 0 ~ 1023

Movie B Gain - 0 ~ 1023

4-34

4. Troubleshooting

4-4. White Balance - Calibration

4-4-1 White Balance -Calibration

1. Calibration

AV Calibration

Comp Calibration

PC Calibration

HDMI Calibration

4-4-2 White Balance - Adjustment

(low light) (hight light)

3. W/B

Sub Bright

R offset

G offset

B offset

Sub Contrast

R gain

G gain

B gain

(W/B adjustment Condition refer next page)

4-5. White Ratio (Balance) Adjustment

You can adjust the white ratio in factory mode (1:Calibration, 3:White-Balance).1.

Since the adjustment value and the data value vary depending on the input source, you have to adjust these in CVBS, 2.
Component 1 and HDMI 1 modes.

The optimal values for each mode are congured by default. (Refer to Table 1, 2) 3.
It varies with Panel’s size and Specication.

- Equipment : CS-210

- Pattern: MIK K-7256 #92 "Flat W/B Pattern" as standard

- Use other equipment only after comparing the result with that of the Master equipment.

- Set Aging time : 60min

- Calibration and Manual setting for WB adjustment.

HDMI : Calibration at #24 Chessboard Pattern Manual adjustment #92 pattern (720p)

COMP: Calibration at #24 Chessboard Pattern

CVBS: Calibration at #24 Chessboard Pattern

Manual adjustment at #92 pattern (720p)

Manual adjustment at #92 pattern (PAL)

- If nishing in HDMI mode, adjustment coordinate is almost same in AV/COMP mode.

- White Balance Manual Adjustment

P-Mode

CVBS

(PAL)

COMP
(720P)

HDMI

(720P)

x y Y (Luminance) T(K) + MPCD

H/L 272 278

L/L 272 278

H/L 272 278

L/L 272 278

H/L 272 278

L/L 272 278

Adjustment Coordinate

-

(Sub_CT:130)

12.6cd/m

(Sub_CT:130)

13.0cd/m

(Sub_CT:130)

13.0cd/m

2

(3.7 Ft)

-

2

(3.8 Ft)

-

2

(3.8 Ft)

- Adjustment Specication

White Balance : High light (±1), Low light (±3)
Luminance : High light (Don’t care), Low light (±0.2 Ft/L)

12,000 (

12,000 (

12,000 (

12,000 (

12,000 (

12,000 (

±0)

±0)

±0)

±0)

±0)

±0)

4-35

4. Troubleshooting

4-6. Servicing Information

4-6-1 USB Download Method

Samsung may offer upgrades for TV’s rmware in the future. Please contact the Samsung call center to receive
information about downloading upgrades and using a USB drive.
Upgrades will be possible by connecting a USB drive to the USB port located on your TV.

Insert a USB drive containing the rmware (T-TDT5DEUC / 1.
T-MSX5DEUC) upgrade into the USB port on the rear of the
TV.

Press the 2. MENU button to display the menu.
Press the
ENTER button.

Press the 3.
the ENTER button.

The message "Scanning for USB. It may take up to 30
seconds." is displayed.

The message "Upgrade version XXXX to version XXXX? 4.
The system will be reset after upgrade." is displayed.

Press the
button.

Please be careful to not disconnect the power or remove the
USB drive while upgrades are being applied. The TV will turn off
and turn on automatically after completing the rmware upgrade.
Please check the rmware version after the upgrades are
complete. When software is upgraded, video and audio settings
you have made will return to their default (factory) settings.
We recommend you write down your settings so that you can
easily reset them after the upgrade.

or button to select "Support", then press the

or button to select "SW Upgrade", then press

or to select the "OK", then press the ENTER

4-36

4. Troubleshooting

4-7. How To Upgrade Sub Micom With Ddc Manager

4-7-1. TV Sub S/W

Order Description

1 Connect DDC MANAGER to the TV Set with D-SUB cable.

And Power on.
(USB type : MTI-2510 / parallel type : MTI-2059)

2 Enter the factory mode.

Control - EDID - EDID ON/OFF Select ON.

3 Open the DDC tool.

(Parallel type & USB type)

Check the setting.

TRIDENT(SX1) MSTAR(X4)

Manufacture TRIDENT WELTREND

Device Type Trident_SX WT61P8

Communication Port DSUB1(Analog) DSUB1(Analog)

External Memory MX25L4005 -

4

Load the sub micom program le.
(T-TDT5DEUS-XXXX.BIN / T-MSX5DEUS-XXXX.hex)

4-37

4. Troubleshooting

Order Description

5 Push the ‘Program’ Button.

(It takes quite a bit of time. You can wait or close the DDC
tool by force and open tool and load le again.)

6 Push the ‘Program’ Button again.

(It takes about 100 seconds.)

7 If update completes, TV set will booting automatically.

Disconnect the JIG.

4-38

4. Troubleshooting

4-8. PCB diagram

PCB layout_ TRIDENT(SX1) 

PCB layout_ MSTAR(X4) 

4-39

4. Troubleshooting

Main TOP_TRIDENT(SX1) 

Main TOP_MSTAR(X4) 

4-40

4. Troubleshooting

Main Inner(2)_TRIDENT(SX1) 

Main Inner(2)_MSTAR(X4) 

4-41

4. Troubleshooting

Main Inner(3)_TRIDENT(SX1) 

Main Inner(3)_MSTAR(X4) 

4-42

4. Troubleshooting

Main Bottom_TRIDENT(SX1) 

Main Bottom_MSTAR(X4) 

4-43

4. Troubleshooting

Power_19" SMPS 

Power_22" SMPS 

4. Troubleshooting

Power_26” SMPS 

4-44

5. Exploded View & Part List

F001A

CB01

PA NEL

M0525

M0014

R001A

SB04A

P001A

5-1. UE19C4000PW Exploded View

5. Exploded View & Part List

5-1-1. UE19C4000PW Parts List

Location No. Code No. Description & Specication Q’ty SA/SNA Remark

F001A BN96-13378B ASSY COVER P-FRONT;UC4000 19,EO,PC+PC,V2 1 SA

M0014 BN94-02758D ASSY PCB MAIN;UE19C4000PWXXC,BN94-02758C 1 SA

PANEL BN07-00837A LCD-PANEL;MT185GW01 V3,6bit Hi-FRC,18.5, 1 SA

CB01 BN61-06208A BRACKET-AV;UC 4000,PCM,0.5,BKN-P824,EO 1 SNA

P001A BN44-00345A DC VSS-LED TV PD BD;PD19AF0E_ZSM,PSLF500 1 SA

R001A BN96-13379B ASSY COVER P-REAR;UC4000 19,EO,PCM,BKN-P 1 SA

M0525 BN96-13413A ASSY COVER P-GUIDE STAND;UC4000 19/22,PC 1 SA

SB04A BN96-11163D ASSY STAND P-BASE;UC4000 19/22,PC+ABS,V0 1 SA

5-1

5-2

5. Exploded View & Part List

5-2. UE19C4000PW Parts List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

UE19C4000PWXXH

0.1

..2

..2

0.1

..2

0.1

..2

..2

0.1

..2

...3

...3

...3

...3

...3

...3

...3

...3

...3

...3

...3

....4

....4

....4

...3

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

S001A

MASB1

SB04A

F001A

R001A

SCREW

R001A

M0017

M0014

JA330

JA330

JA330

ET01

HDP01

T0066

T0073

CB01

M0131

DS01A

D0254

D0254

T0139

T0139

SD3

KQ1

Q101

CEQ2

Q409

IC104

ND51C2

IC104

IC104

IC106

IC112

T0124

BN90-02602A ASSY STAND;UC4000 22 1 SNA

BN96-10168C ASSY STAND P-BODY;UC4000 22,PC 1 SA

BN96-11163D ASSY STAND P-BASE;UC4000 19/22,PC+ABS,V0 1 SA

BN90-02621B ASSY COVER FRONT;UC4000 19 1 SNA

BN96-13378B ASSY COVER P-FRONT;UC4000 19,EO,PC+PC,V2 1 SA

BN90-02622B ASSY COVER REAR;UC4000 19 1 SNA

6003-001782 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 9 SA

BN96-13379B ASSY COVER P-REAR;UC4000 19,EO,PCM,BKN-P 1 SA

BN91-05038D ASSY CHASSIS;UE19C4000PWXXC 1 SNA

BN94-02758D ASSY PCB MAIN;UE19C4000PWXXC,BN94-02758C 1 SA

0202-001608 SOLDER-WIRE FLUX;LFC7-107,D0.8,99.3Sn/0. 0.25 SNA

3701-001698 CONNECTOR-DSUB;15P,3ROW,FEMALE,ANGLE,NI 1 SA

3709-001603 CONNECTOR-CARD SLOT;68P(U/SLIM 60mm) W/L 1 SA

3711-007302 HEADER-BOARD TO BOARD;BOX,18P,2R,2mm,ANG 1 SA

3722-002844 JACK-PHONE;1/7P,NI,LAUREL-GREEN,ANGLE 1 SA

3722-002845 JACK-PHONE;1/7P,NI,YELLOW,ANGLE 1 SA

3722-002846 JACK-PHONE;1/6,NI,BLACK,ANGLE 2 SNA

BN40-00172A TUNER;DTOS40CVH081A,DVB-T/C,164CH,38.9MH 1 SA

BN61-06644A HOLDER-PCB;LC750,NYNOL66,V0 1 SNA

BN62-00042A HEAT SINK-ES;30*30*5,Ceramic,T1.5,TAPE 1 SNA

BN96-14859D ASSY BRACKET P-AV;UC4000 19,SO(DTV),PCM, 1 SNA

AA63-01332A GASKET-EMI;42P5,Conductive Fabric,1.5mm, 1 SNA

BN61-06208A BRACKET-AV;UC 4000,PCM,0.5,BKN-P824,EO 1 SNA

BN63-03888A GASKET;LS24HUC,Polyester+Cu+Ni+Hotmelt,1 1 SNA

BN97-04055D ASSY SMD;UE19C4000PWXXC,BN94-02758D 1 SNA

0202-001767 SOLDER-CREAM;LST-5710,D20~38,42Sn/57Bi/1 1.69 SNA

0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 14 SA

0402-000553 DIODE-SCHOTTKY;SS24/B240,40V,2000mA,DO-2 2 SA

0403-001164 DIODE-ZENER;MMSZ5232B,5.32-5.88V,500MW,S 1 SA

0403-001180 DIODE-ZENER;BZX84C6V2,5.8-6.6V,350mW,SOT 1 SA

0403-001783 DIODE-ZENER;BZB84-C6V2,5.8/6.6V,300mW,SO 15 SNA

0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200mA,SOT-23, 1 SA

0406-001200 DIODE-TVS;RCLAMP0504F,6/-/-V,150W,SC-70 1 SA

0406-001271 DIODE-TVS;RCLAMP0524P,6/-/-V,150W,SLP251 4 SNA

0407-000114 DIODE-SWITCHING;KDS184,80V,100mA,SOT-23, 2 SNA

0501-000279 TR-SMALL SIGNAL;KSA1182-Y,PNP,150mW,SOT- 1 SA

0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 12 SA

0505-000110 FET-SILICON;2N7002,N,60V,115mA,7.5ohm,0. 5 SA

0505-000274 FET-SILICON;AO4435L,P,-30V,-11A,0.014ohm 1 SNA

0801-002630 IC-CMOS LOGIC;74AHCT1G08,2-INPUT AND GAT 1 SA

0801-002780 IC-CMOS LOGIC;74LVC1G17,SCHMITT-TRIGGER 1 SA

0801-003330 IC-CMOS LOGIC;Octal buffer,DQFN,20P,4.5x 3 SA

0802-001012 IC-CMOS LOGIC;74LCX245,TRANSCEIVER,DQFN, 1 SNA

1001-001573 IC-VIDEO SWITCH;SiI9287BCNUTR,QFN,72P,10 1 SNA

1006-001474 IC-LINE DRIVER;DRV604PWP,HPSSOP,28P,9.8x 1 SA

1103-000129 IC-EEPROM;24C02,2Kbit,256x8,SOP,8P,5x4mm 2 SA

1201-002992 IC-POWER AMP;STA369BWS,PSSO,36P,10.3x7.5 1 SA

5-3

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

T0087

T0087

T0087

T0087

T0087

IC012

J914

KAR21

PR6

R105

AR49

MR306

R319

R104

R102

HDR2

MR36

AR43

MR13

R123

DR39

MR16

R509

R111

HDR17

R338

UR23

R726

R124

HR3

DR37

OTR1

DR43

R326

1203-001815 IC-POSI.FIXED REG.;78M09,TO-252,3P,PLAST 1 SA

1203-002835 IC-POSI.FIXED REG.;KIA7805AF,DPAK,3P,6.6 1 SA

1203-002898 IC-POSI.FIXED REG.;G950T45R,T0-252,3P,6. 1 SA

1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, 1 SA

1203-005538 IC-DC/DC CONVERTER;AOZ1021HAIL,SOP,8P,4. 1 SA

1203-006013 IC-DC/DC CONVERTER;AOZ1031AI,SO-8,8P,4.9 1 SA

1203-006017 IC-VOL. DETECTOR;RT9824GJ8,TSOT23,8P,2.9 1 SA

1203-006135 IC-POSI.FIXED REG.;AP1117D-33-GZ-13-89,T 1 SA

1203-006136 IC-POSI.FIXED REG.;AP1117D-18-GZ-13-89,T 1 SA

1203-006138 IC-POSI.ADJUST REG.;AP1117DGZ-13-89,TO-2 1 SA

1203-006142 IC-DC/DC CONVERTER;BD8924G,5P,2.9x1.6x1. 1 SA

1203-006288 IC-VOL. DETECTOR;RT9818B-18GV,SOT-23-3,3 1 SA

1203-006337 IC-POSI.FIXED REG.;G9091-330T11U,SOT-23- 1 SA

1204-003088 IC-DEMODULATOR;DRX39XYK,PQFN,64P,9x9x0.8 1 SA

1204-003096 IC-VIDEO DECODER;HIDTVPRO-SX,PBGA,580P,P 1 SA

1205-003201 IC-BUS SWITCH;TC7WB125FK,SSOP,8P,2x2.3mm 2 SA

1205-003479 IC-SWITCH;TPS2051BDBVR,SOT-23,5P,2.9x1.6 1 SA

1205-003733 IC-SWITCH;AP2191MPG-13,MSOP-8L-EP,8P,2.9 1 SA

1405-001185 VARISTOR;24Vdc,1.6x0.8x0.36mm,TP 1 SA

1405-001271 VARISTOR;20Vdc,5A,1.0x0.5x0.6mm,TP 22 SA

2007-000029 R-CHIP;0ohm,5%,1/8W,TP,2012 1 SC

2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 1 SA

2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 4 SA

2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 29 SA

2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 5 SA

2007-000141 R-CHIP;2.2Kohm,5%,1/16W,TP,1005 14 SA

2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 46 SNA

2007-000146 R-CHIP;6.8Kohm,5%,1/16W,TP,1005 2 SA

2007-000148 R-CHIP;10Kohm,5%,1/16W,TP,1005 49 SA

2007-000149 R-CHIP;12Kohm,5%,1/16W,TP,1005 6 SA

2007-000151 R-CHIP;15Kohm,5%,1/16W,TP,1005 1 SNA

2007-000153 R-CHIP;22Kohm,5%,1/16W,TP,1005 7 SNA

2007-000155 R-CHIP;27Kohm,5%,1/16W,TP,1005 2 SNA

2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 6 SA

2007-000159 R-CHIP;56Kohm,5%,1/16W,TP,1005 2 SNA

2007-000162 R-CHIP;100Kohm,5%,1/16W,TP,1005 1 SA

2007-000168 R-CHIP;470Kohm,5%,1/16W,TP,1005 1 SNA

2007-000170 R-CHIP;1Mohm,5%,1/16W,TP,1005 1 SA

2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 17 SA

2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 10 SA

2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 14 SA

2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 2 SA

2007-000695 R-CHIP;3.3ohm,5%,1/10W,TP,1608 1 SNA

2007-000775 R-CHIP;33Kohm,5%,1/16W,TP,1005 3 SA

2007-000903 R-CHIP;430ohm,1%,1/10W,TP,1608 1 SA

2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 1 SA

2007-001285 R-CHIP;5.6ohm,5%,1/16W,TP,1005 2 SA

2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 9 SA

2007-001298 R-CHIP;51ohm,5%,1/16W,TP,1005 1 SA

2007-001325 R-CHIP;3.3Kohm,5%,1/16W,TP,1005 9 SA

2007-002768 R-CHIP;6.2Kohm,1%,1/10W,TP,1608 1 SA

5-4

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

MR316

PR24

TR30

DR4

MR11

ZRN10

DAR09

DRP9

DC30

PC43

MC302

C254

AC139

MC9

DC374

AD480

DC25

CK40B

KFC6

HDC5

C101

DC87

AD480

AD480

AD480

C711

AAC1

AD480

AD480

AD480

C102

JC10

AD480

2007-002796 R-CHIP;510ohm,5%,1/16W,TP,1005 1 SA

2007-002970 R-CHIP;56ohm,5%,1/16W,TP,1005 2 SA

2007-007009 R-CHIP;75ohm,5%,1/16W,TP,1005 13 SA

2007-007134 R-CHIP;39Kohm,1%,1/16W,TP,1005 1 SA

2007-007135 R-CHIP;18Kohm,1%,1/16W,TP,1005 1 SNA

2007-007142 R-CHIP;10Kohm,1%,1/16W,TP,1005 2 SA

2007-007156 R-CHIP;1ohm,5%,1/16W,TP,1005 8 SA

2007-007306 R-CHIP;100ohm,1%,1/16W,TP,1005 1 SNA

2007-007312 R-CHIP;20Kohm,1%,1/16W,TP,1005 2 SA

2007-007316 R-CHIP;3.3Kohm,1%,1/16W,TP,1005 1 SNA

2007-007317 R-CHIP;2.2Kohm,1%,1/16W,TP,1005 1 SA

2007-007318 R-CHIP;1Kohm,1%,1/16W,TP,1005 10 SNA

2007-007334 R-CHIP;200Kohm,1%,1/16W,TP,1005 2 SA

2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 11 SA

2007-008134 R-CHIP;12.4Kohm,1%,1/16W,TP,1005 1 SC

2007-008275 R-CHIP;30Kohm,1%,1/16W,TP,1005 1 SNA

2007-008563 R-CHIP;270ohm,1%,1/16W,TP,1005 1 SA

2007-008593 R-CHIP;750ohm,1%,1/16W,TP,1005 1 SA

2007-008649 R-CHIP;220ohm,1%,1/16W,TP,1005 3 SNA

2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8P,TP,2. 6 SA

2011-001262 R-NETWORK;22ohm,5%,1/16W,L,CHIP,8P,TP,2. 5 SA

2011-001449 R-NETWORK;22ohm,5%,1/16W,L,4P,TP,1010 6 SA

2011-001474 R-NETWORK;47ohm,5%,1/16W,L,CHIP,8P,TP,2. 1 SA

2011-001519 R-NETWORK;33OHM,5%,1/16W,L,CHIP,4P,TP,1. 2 SA

2011-001527 R-NETWORK;4.7Kohm,5%,1/16W,L,CHIP,4P,TP, 7 SNA

2011-001589 R-NETWORK;0ohm,5%,1/16W,L,CHIP-V,4P,TP,1 8 SNA

2203-000138 C-CER,CHIP;1.5nF,10%,50V,X7R,TP,1005,- 2 SA

2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,TP,1005 4 SA

2203-000425 C-CER,CHIP;.018nF,5%,50V,C0G,TP,1005 2 SA

2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,TP,1005 13 SNA

2203-000491 C-CER,CHIP;2.2nF,10%,50V,X7R,1608 2 SNA

2203-000627 C-CER,CHIP;.022nF,5%,50V,C0G,TP,1005 2 SNA

2203-000659 C-CER,CHIP;0.27nF,5%,50V,C0G,1608 1 SA

2203-000679 C-CER,CHIP;0.027nF,5%,50V,C0G,1005 1 SA

2203-000812 C-CER,CHIP;.033nF,5%,50V,C0G,TP,1005 11 SNA

2203-000838 C-CER,CHIP;.39nF,5%,50V,C0G,1608 2 SNA

2203-000872 C-CER,CHIP;0.0030nF,0.25pF,50V,C0G,1608 2 SNA

2203-001072 C-CER,CHIP;0.056nF,5%,50V,NP0,1005 4 SA

2203-001124 C-CER,CHIP;.68nF,10%,50V,X7R,1005 1 SA

2203-001153 C-CER,CHIP;.068nF,5%,50V,NP0,1005 2 SA

2203-001428 C-CER,CHIP;470nF,10%,50V,X7R,TP,2012 2 SNA

2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,1005 15 SNA

2203-002525 C-CER,CHIP;0.56nF,10%,50V,X7R,TP,1005 6 SNA

2203-002982 C-CER,CHIP;6.8nF,10%,50V,X7R,1005 1 SA

2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 7 SA

2203-005511 C-CER,CHIP;27nF,10%,10V,X7R,TP,1005 1 SA

2203-005968 C-CER,CHIP;4.7nF,10%,50V,X7R,1005 1 SNA

2203-006126 C-CER,CHIP;47nF,10%,16V,X7R,TP,1005 3 SNA

2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,TP,1005 114 SA

2203-006324 C-CER,CHIP;2200nF,10%,10V,X5R,1608 2 SA

2203-006336 C-CER,CHIP;10000nF,10%,25V,X5R,3216 25 SA

5-5

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

....4

.....5

....4

.....5

....4

....4

...3

....4

...3

0.1

..2

..2

..2

..2

..2

..2

..2

..2

..2

..2

..2

..2

..2

..2

..2

C125

HE4

AD480

AD480

AD480

T0052

T0052

VL6

T0052

L607

T0052

X202

X202

F103

T0568

T0568

T0568

CN906

AC510

HB01A

HB01A

T0066

CIS1

T0081

M0081

W392

M2893

P001A

M0131

T0531

CCMM1

FL06

M0525

CB06A

SCREW

2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 37 SA

2203-006474 C-CER,CHIP;22000nF,20%,6.3V,X5R,2012 3 SA

2203-006841 C-CER,CHIP;1000nF,10%,16V,X5R,TP,1005 26 SNA

2203-006992 C-CER,CHIP;0.33nF,5%,50V,C0G,TP,1005 2 SNA

2203-007233 C-CER,CHIP;22000nF,10%,16V,X5R,TP,3216 1 SA

2703-000158 INDUCTOR-SMD;1uH,10%,2012 3 SA

2703-000296 INDUCTOR-SMD;680nH,10%,1608 1 SA

2703-000398 INDUCTOR-SMD;10uH,10%,3225 3 SA

2703-001239 INDUCTOR-SMD;3.3uH,10%,1608 3 SA

2703-001254 INDUCTOR-SMD;1.8uH,10%,2012 1 SA

2703-003149 INDUCTOR-SMD;2.2uH,20%,5050 2 SA

2703-003890 INDUCTOR-SMD;47uH,10%,3225 1 SA

2801-003326 CRYSTAL-SMD;24MHz,30ppm,28-ABX,20pF,50oh 1 SA

2801-004004 CRYSTAL-SMD;20.25MHz,20ppm,28-AAN,13pF,2 1 SA

2901-001506 FILTER-EMI SMD;5V,0.13A,0pF,2x1x0.5mm,TP 2 SA

3301-001186 BEAD-SMD;600ohm,3216,2500mA,TP,553ohm/93 5 SA

3301-001236 BEAD-SMD;60ohm,1608 5 SNA

3301-002039 BEAD-SMD;26ohm,1608,TP 40 SA

3701-001293 CONNECTOR-HDMI;19P,2R,FEMALE,SMD-A,AU 2 SA

3707-001095 CONNECTOR-OPTICAL;SMD-A(Ultra Slim),SPDI 1 SA

3708-001150 CONNECTOR-FPC/FFC/PIC;30P,1mm,SMD-A,SN,Y 1 SA

3710-002276 SOCKET-INTERFACE;24P,1R,0.5mm,SMD-A,AU,B 1 SA

3711-005601 HEADER-BOARD TO CABLE;BOX,8P,1R,2mm,SMD- 1 SNA

3711-007336 HEADER-BOARD TO CABLE;B0X,4P,1R,2.5mm,SM 1 SA

3722-003044 JACK-USB;4P/1C,NI,BLK,SMD-A,A-TYPE 1 SA

BN41-01379A PCB MAIN;SX1 4000 DVB,FR-4,4,1.0,1.2T,19 1 SNA

BN97-04023A ASSY MICOM-MAIN;N82A,2009.11.10,T-TDT5DE 1 SNA

1107-001940 IC-NAND FLASH;KFG1G16U2D-HIB6,1Gbit,64Mx 1 SNA

BN97-04024A ASSY MICOM-SUB;N82A,2009.11.10,T-TDT5DEU 1 SNA

1107-001938 IC-FLASH MEMORY;W25X40BVSSIG,4Mbit,SOP,8 1 SNA

1103-001487 IC-EEPROM;AT24C256C-SSHL-T,256Kbit,32Kx8 1 SA

1105-002153 IC-DDR2 SDRAM;K4T1G164QF-BCF8,DDR2,1Gbit 2 SNA

BN97-04098A ASSY CI PLUS;BN46-00025A,LC5F,SX1 platfo 1 SNA

BN46-00025A KEY CODE-CI PLUS KEY;CI PLUS KEY,TCTC,SE 1 SNA

BP62-00047A HEAT SINK-ES;DLP,A6063S,T2.5,13,13,TAPE 2 SNA

BN91-05039A ASSY SHIELD;UE19C4000PFXXC 1 SNA

0203-001586 TAPE-FILAMENT;#893,0.15,30,55 0.1 SNA

6001-000321 SCREW-MACHINE;FH,+,M3,L10,NI PLT,SWRCH18 2 SA

6003-000115 SCREW-TAPTYPE;BH,+,B,M3,L6,ZPC(BLK),SWRC 4 SNA

6003-000282 SCREW-TAPTYPE;BH,+,-,B,M3,L8,ZPC(BLK),SW 1 SA

BN39-01267B LEAD CONNECTOR;LA32C450,UL 2651 #26,18P, 1 SA

BN44-00345A DC VSS-LED TV PD BD;PD19AF0E_ZSM,PSLF500 1 SA

BN63-00209A GASKET;RS24NS,CONDUCTIVE FAB,4mm,10mm,30 4 SNA

BN63-06768A COVER-BOTTOM;UC4K-19,HIPS,V0,BK500,BLK 1 SNA

BN73-00264A SILICON/RUBBER;LE32C530F1WXXC,SILICON+PO 1 SNA

BN73-00283A SILICON/RUBBER-GAPPAD;UA32C5000,SILICON+ 1 SNA

BN74-00111A TAPE;DTS-204K,15mm*50M,BLACK 0.05 SNA

BN96-12447X ASSY CABLE P-FFC;UE19C4000,FFC,0.5mm,105 1 SA

BN96-13413A ASSY COVER P-GUIDE STAND;UC4000 19/22,PC 1 SA

BN96-14673A ASSY BRACKET P-PANEL;UC4000 19,SECC,T1.0 1 SNA

6003-001782 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 5 SA

5. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

0.1

..2

0.1

..2

..2

0.1

..2

...3

...3

...3

...3

...3

...3

...3

...3

...3

...3

..2

...3

...3

...3

...3

...3

...3

0.1

..2

..2

..2

0.1

..2

..2

..2

..2

..2

..2

..2

..2

..2

PANEL

T0527

ACCE1

ACCE2

EC11

T0120

T0524

EC08

M0114

EC07

REMO2

M9889

T0527

ACCE4

T0524

T0527

T0077

M0245

T0524

T0246

BN91-05472A ASSY LCD-INNOLUX;BN07-00837A 1 SNA

BN07-00837A LCD-PANEL;MT185GW01 V3,6bit Hi-FRC,18.5, 1 SA

BN92-05764A ASSY LABEL;UE19C4000PFXXC 1 SNA

BN68-02700A LABEL-LED-POP;Highlight Sticker Color,PE 1 SNA

BP68-00052B LABEL-00,RATING;CCTV,TETRON PAPER,T0.05, 1 SNA

BN92-05765K ASSY ACCESSORY;UE22C4000PWXXH 1 SNA

BN96-13189E ASSY ACCESSORY-CABEL;UE26C4000PFXXC 1 SNA

3903-000525 CBF-POWER CORD;DT,CEE,LP-21L,250V,2.5A,B 1 SA

4301-000121 BATTERY-MN;1.5V,R03,10.5x44.5m,HOLDER,7. 2 SNA

6902-001107 BAG PE;LDPE,T0.05,W450,L400,TRP,0,3Separ 1 SNA

BN39-01154C CBF SIGNAL;Chelsea Slim, STEREO Plug to 1 SA

BN39-01154F CBF SIGNAL;UE40B7000WWXXC,24P/20P,30AWG, 1 SA

BN39-01154H CBF SIGNAL;UE40B7000WWXXC,RCA 3PIN,30AWG 1 SA

BN59-01014A REMOCON;TM1050,SAMSUNG,20PIN SINGLE,48KE 1 SA

BN61-05596A HOLDER-WIRE CABLE;LED TV,LDPE,T0.8,L150, 1 SNA

BN63-01798B CLOTH-CLEAN;cloth,180,200,sea blue,ToC 1 SNA

BN68-00513A LABEL-E,PASS;ALL MODEL,YUPO(110G),50X15, 1 SNA

BN96-13189K ASSY ACCESSORY-MANUAL;UE19C4000PWXXH 1 SNA

6902-000110 BAG PE;LDPE,T0.05,W250,L400,TRP,28,2,9.2 1 SNA

BN68-00513A LABEL-E,PASS;ALL MODEL,YUPO(110G),50X15, 1 SNA

BN68-00514E LEAFLET-05,WARRANTY CARD;comm,Samsung,17 1 SNA

BN68-02655C MANUAL USERS-01;C4000,SAMSUNG,10LANGS,XH 1 SNA

BN68-03019A LEAFLET-SAFETY GUIDE;ALL,SAMSUNG,28LENGS 1 SNA

BN68-03019B LEAFLET-TOC GUIDE;ALL,SAMSUNG,36LENGS,W/ 1 SNA

BN92-05874B ASSY BOX;UC4000 19 1 SNA

BH68-00329D LABEL BAR CODE-02;NO CE,NO WT`Y,MPRII,LA 1 SNA

BN69-04851C BOX-01,SET;19UC4000,CB,A-01,SW2,W537,D37 1 SNA

BN96-02895A ASSY MISC P-01,HANDLE PACKING;ALL MODEL, 1 SNA

BN92-05875A ASSY P/MATERIAL;UC4000 19 1 SNA

6902-000604 BAG WRAPPING;LDPE,T0.02,W500,L10000,TRP, 1.77 SNA

6902-000609 BAG ROLL;LDPE,T0.05,W2400,L1000,TRP,30.0 0.02 SNA

6902-001067 BAG PE;HDPE/NITRON,T0.015/T0.5,W700,L600 1 SNA

AA69-03332Y PAD-PLATE;1100,1165 1 SNA

BH69-00457A PACKING INNER-00,PAD;COMM,OTHER,T3.0,113 1 SNA

BH69-40307B PACKING-PALLET;CTG5427,WOOD,-,-,-,-,-,-, 1 SNA

BN69-00391Y PAD-ANGLE;CB,T5,W2100,L50,YEL,403g 1 SNA

BN69-04487A CUSHION-SET;UC 4000 19inch,EPS 1 SNA

BN74-00008D TAPE-OPP MASKING;OPP,T0.05,W75,L800M,CLR 1.38 SNA

5-6

6. Wiring Diagram

T-CON

Main Board

Speaker

(behind Function)

IP Board

CNM802

Speaker

CN401

CN1302

CN1402_26

CN210

CNL801

Panel

6-1. Wiring Diagram

19"/22" 

6. Wiring Diagram

6-1

6-2

6. Wiring Diagram

T-CON

Main Board

Speaker

(behind Function)

IP Board

CNM802

Speaker

CN401

CN1302

CN1403_22

CN210

CNL801

Panel

26" 

6-3

6. Wiring Diagram

6-2. Connector

CN1403_HD (to Panel) UC4000

1 Panel_VCC 16 ODD[CLK]+

2 Panel_VCC 17 ODD[CLK]-

3 Panel_VCC 18 GND

4 Panel_VCC 19 ODD[2]+

5 Panel_VCC 20 ODD[2]-

6 GND 21 GND

7 GND 22 ODD[1]+

8 GND 23 ODD[1]-

9 TCON_WP 24 GND

10 FORMAT 25 ODD[0]+

11 NC 26 ODD[0]-

12 GND 27 GND

13 ODD[3]+ 28 SDA_TCON

14 ODD[3]- 29 SCL_TCON

15 GND 30 NC

CN210 (to Powr board)

1 B13VS 10 GND

2 SW_POWER 11 GND

3 B13VS 12 H_OUT

4 A5V 13 B13V

5 B5V 14 PWM_DIMMING

6 B5V 15 B13V

7 B5V 16 SW_INVERTER

8 GND 17 B13V

9 GND 18 LAMP_DET

CN401(FUNCTION)

1 IR 6 KEY_INPUT1

2 GND 7 KEY_INPUT2

3 A3.3V 8 LED_STB

4 MSCL 9 GND

5 MSDA 10 A3.3V

CN801 (AV)

1 GND 5 NC

2 CVBS 6 NC

3 AV_IDENT 7 SL_IN

4 SR_IN

CN902(PC)

1 PC_RED 9 PC_5V

2 PC_GREEN 10 IDENT_PC

3 PC_BLUE 11 R_FANET

4 T_FANET 12 SDA_DOWN

5 GND 13 PC_HS

6 GND 14 PC_VS

7 GND 15 SCL_DOWN

8 GND

CN901(PC/DIV SOUND)

1 GND 4 NC

2 PC_SL_IN 5 NC

3 PC_SR_IN 6 NC

CN802(COMPONENT)

1 GND 6 -

2 COMP1_Y 7 COMP1_PR

3 IDENT_COMP1 8 GND

4 COMP1_PB 9 GND

5 -

JA701 (SCART)

1 GND 13 NC

2 GND 14 SC_G

3 GND 15 GND

4 GND 16 NC

5 SC_CVBS_IN 17 IDENT_SC

6 GND 18 SC_B

7 SC_CVBS_OUT 19 GND

8 GND 20 SC_SL_IN

9 SC_FB 21 SC_SR_IN

10 GND 22 GND

11 SC_R 23 SC_SL_OUT

12 GND 24 SC_SR_OUT

CN1204 (USB1)

1 USB_VCC 3 USB_DP

2 USB_DM 4 GND

6-4

6. Wiring Diagram

CN1001 (HDMI1)

1 HDMI1_RX2+ 11 GND

2 GND 12 HDMI1_RXCLK-

3 HDMI1_RX2- 13 HDMI_CEC

4 HDMI1_RX1+ 14 GND

5 GND 15 SCL

6 HDMI1_RX1- 16 SDA

7 HDMI1_RX0+ 17 GND

8 GND 18 5V

9 HDMI1_RX0- 19 HPD

10 HDMI1_RXCLK+

CN1002_H2 (HDMI2)

1 HDMI2_RX2+ 11 GND

2 GND 12 HDMI2_RXCLK-

3 HDMI2_RX2- 13 HDMI_CEC

4 HDMI2_RX1+ 14 GND

5 GND 15 SCL

6 HDMI2_RX1- 16 SDA

7 HDMI2_RX0+ 17 GND

8 GND 18 5V

9 HDMI2_RX0- 19 HPD

10 HDMI2_RXCLK+

OP1301 (SPDIF)

1 SPDIF_OUT 3 GND

2 B5V

CN1301 (HEADPHONE)

1 GND 4 GND

2 HP_SL 5 HP_IDENT

3 HP_SR 6 NC

CN1302 (SPEAKER)

1 R+ 3 L+

2 R- 4 L-

6-5

6. Wiring Diagram

6-3. Connector Functions

Connector Functions

CN210  IP CNM802

CN1403_22/CN1402_26  T-CON

6-4. Cables

Use LEAD (Main-IP 18P) LVDS (Main - TCON)

26" C4000 : BN39-01267A (SX1)
22" C4000 : BN39-01267L (SX1)

Code


19" C4000 : BN39-01267B (SX1)

19"/26": BN39-01267A (X4)

22": BN39-01267L (X4)

Supply main power and dimming signal from IP board to Main Board.

The LVDS signal transfered from Main Board to Panel.

26" C4000 : BN96-12469L

22" C4000 : BN96-13722A
19" C4000 : BN96-12447X
