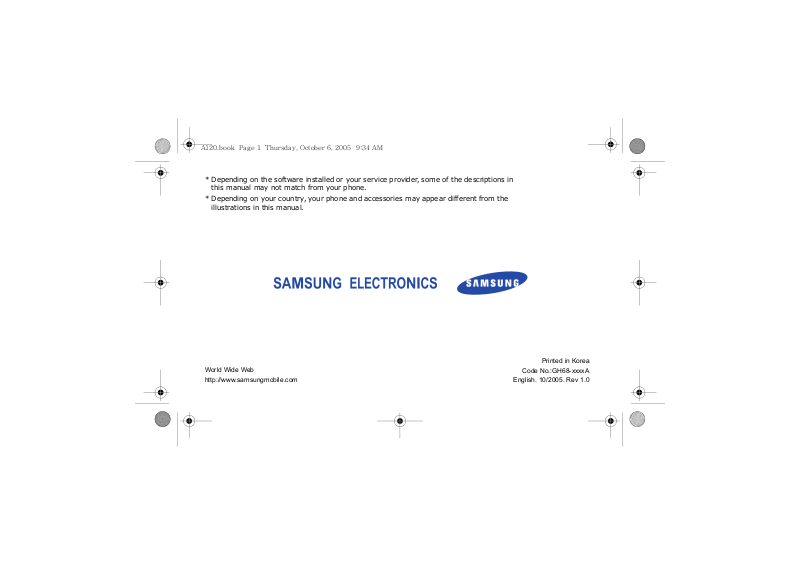

Samsung SPHA120 Users Manual

* Depending on the software installed or your service provider, some of the descriptions in

this manual may not match from your phone.

* Depending on your country, your phone and accessories may appear different from the

illustrations in this manual.

World Wide Web http://www.samsungmobile.com

Printed in Korea

Code No.:GH68-xxxxA

English. 10/2005. Rev 1.0

SPH-A120 User’s Guide For Draft Version

Important

safety

precautions

Failure to comply with the following precautions may be dangerous or illegal.

Use road safety at all times

Do not use a hand-held phone while driving. Park the vehicle first.

Switch off the phone when refuelling

Do not use the phone at a refuelling point (service station) or near fuels or chemicals.

Switch off in an aircraft

Wireless phones can cause interference. Using them in an aircraft is both illegal and dangerous.

Switch off the phone near all medical equipment

Hospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force.

Interference

All wireless phones may be subject to interference, which could affect their performance.

Be aware of special regulations

Meet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger.

Water resistance

Your phone is not water-resistant. Keep it dry.

Sensible use

Use only in the normal position (held to the ear). Avoid unnecessary contact with the antenna when the phone is switched on.

Emergency call

Key in the emergency number for your present location, then press .

Keep your phone away from small children

Keep the phone and all its parts, including accessories, out of the reach of small children.

Accessories and batteries

Use only Samsung-approved accessories and batteries. Use of any unauthorized accessories could damage your phone and may be dangerous.

• The phone could explode if the battery is replaced with an incorrect type.

• Dispose of used batteries according to the manufacturer’s instructions.

Qualified service

Only qualified service personnel may repair your phone.

For more detailed safety information, see "Health and safety information" on page 9.

Important safety precautions

Contents

Unpack 3

Get Started 3

Install and charge the phone ................................... 3

Power on or off ...................................................... 4

Basic Operation 5

Menu Function 5

Health and safety information 9

Unpack

Phone Travel Adapter

Battery User Manual

You can obtain various accessories from your local Samsung dealer.

The items supplied with your phone and the accessories at your Samsung dealer may vary, depending on your country or service provider.

Get Started

Install and charge the phone

To install the

batt er y,place th e batter y so that the tabs on the end align with the slots at the bottom of the phone. down until it clicks into place.

Plug the travel adapter

2 3

Press the

into the phone.

When the phone is completely charged (the battery icon stops blinking), unplug the adapter from the power outlet.

Remove the adapter from the phone.

battery

To remove the

battery. Slide the battery lock towards the top of the phone and hold it in that position. battery, as

Plug the adapter into a

standard AC wall

outlet.

Lift

shown.

away the

Get Started

Low battery indicator

When the battery is low:

• a warning tone sounds,

• the battery low message displays, and

• the empty battery icon blinks.

If the battery level becomes too low, the phone automatically turns off. Recharge your battery.

Power on or off

Switch on

Do not turn on the phone when mobile phone use is prohibited.

Switch off

1. Open the phone.

2. Press On/Off key to turn on the phone.

1. Open the phone.

2. Press On/Off key.

Basic Operation

Menu Function

This phone support an interactive operation instead of a normal menu.

You can select the next operation with pressing ‘YES’ or ‘NO’ key for a simple question.

1. If you want to make a call with a recent call log, just press ‘YES’ key in the ‘All Recent’ screen.

2. If you want to delete a SMS, press ‘YES’ key in the ‘Read Msg’ screen.

3. If you want to reply to a SMS, just press ‘YES’ key when you see the ‘Reply?’ Question.

4. If you want to check a new voicemail, just press ‘YES’ key in ‘Voicemail’ screen.

Engineer Menu

You can find various engineer function in this menu(e.g. Nam Programming, Field Debug Screen, Akey, Channel Preset Mode, etc).

1. Open the flip You can see the ‘Phonebook’ screen.

2. Press ‘NO’ key 4~5 times until you meet ‘My pictures’ screen(No SMS inbox case: ‘NO’ 4 times).

3. In ‘My pictures’ screen, press ‘Volume Up’ key on the Flip 7 times ‘Service Code’ screen ( Volume Up key : The upper side key on the flip when you close the flip ).

4. Enter code:000000 with key pad Engineer menu

5. Use number keys to select menu : Only number keys(1, 2, 3,…, 9) can activate the menu press ‘2’key to select ‘2. Field Service’ menu)

To go back to previous menu, just press ‘#’ key.

There are eight menus as following.

(eg.

•System Program

• Filed Service

•Test CDMA

•SIO Mode

• Sounds

•LCD Contrast

• Phone Info

•TTY Settings

Originating voice calls

1. Enter the number sequence with pressing number keys.

2. To setup a voice call, just press ‘YES’ key for ‘Call?’ question.

NAM programming

Programming of all NAM parameters, e.g. NAM 1 Phone Number, Home SID, Service Sec.Code, MCC, SVC OPT, Slot Cycle Index, etc.

1. Activate the ‘Engineer Menu’. (Refer to ‘Engineer Menu’)

2. Press ‘1’ key to select ‘1. System Program’.

3. Press ‘2’ key to select ‘2. Edit’.

4. Use number keys to edit a parameter.

5. Press STAR(‘*’) key to save and go to next parameter.

Field Debug Screen

1. Activate the ‘Engineer Menu’. (Refer to ‘Engineer Menu’)

2. Press ‘2’ key to select ‘2. Field Service’

3. Press ‘1’ key to select ‘1. Debug Screen’

Repeat above sequence to exit Debug screen

(Debug Screen appears when a mobile stays in

‘Phonebook’ idle screen or in the conversation

state.)

Changing The DM/HANDSFREE Mode

1. Activate the ‘Engineer Menu’. (Refer to ‘Engineer Menu’)

2. Press ‘4’ key to select ‘4. SIO Mode’

3. Use navigation keys(‘UP’/’DOWN’) to change the selection.

4. Press STAR(‘*’) key to save and reboot the mobile. There are three modes as following

• DS/HFK : Normal mode

• DS/DM : UART Qualcomm DM mode

• DS&DMUSB : USB Qualcomm DM mode

Channel Preset mode

1. Activate the ‘Engineer Menu’.(Refer to ‘Engineer Menu’)

2. Press ‘3’ key to select ‘3. Test CDMA’.

3. Press ‘012’ to enter Channel input mode with key pad.

4. Enter channel number with key pad.

5. Press STAR(‘*’) to save channel number.

6. After saving, press “002” to exit test mode

(Input ‘.’ between the command with pressing ‘#’

key)

• Channel number setting 00000 : PRL based or Standard system 2XXXX : 800 MHz CDMA, XXXX is CDMA channel

number.

3XXXX : 1.9 GHz CDMA, XXXX is PCS channel number.

Making Markov Test Calls

1. Originate with a desired phone number to create an outgoing call list.

2. Activate the ‘Engineer Menu’ (Refer to ‘Engineer Menu’)

3. Press ‘2’ key to select ‘2. Field Service’.

4. Press ‘2’ key to Select ‘2. Test Calls’.

5. Use navigation keys(‘UP’/’DOWN’) to change the selection with ‘Markov Call’.

6. Select ‘Markov Call’ with STAR‘*’ key, then MS will originate the Markov call using the first entry in outgoing call logs

(If the outgoing call list is empty, the MS will

originate to a default number, ‘1234567’.)

Using The Sounds Menu

1. Activate the ‘Engineer Menu’.(Refer to ‘Engineer Menu’)
