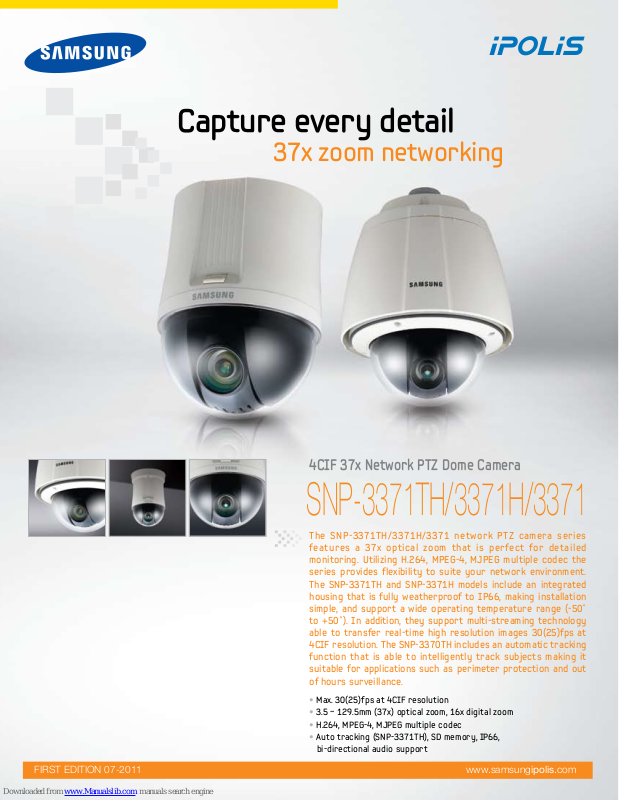

Page 1
Capture every detail
37x zoom networking
4CIF 37x Network PTZ Dome Camera
SNP-3371TH/3371H/3371
The SNP-3371TH/3371H/3371 network PTZ camera series
features a 37x optical zoom that is perfect for detailed
monitoring. Utilizing H.264, MPEG-4, MJPEG multiple codec the
series provides flexibility to suite your network environment.
The SNP-3371TH and SNP-3371H models include an integrated
housing that is fully weatherproof to IP66, making installation
simple, and support a wide operating temperature range (-50°
to +50°). In addition, they support multi-streaming technology
able to transfer real-time high resolution images 30(25)fps at
4CIF resolution. The SNP-3370TH includes an automatic tracking
function that is able to intelligently track subjects making it
suitable for applications such as perimeter protection and out
of hours surveillance.
• Max. 30(25)fps at 4CIF resolution
• 3.5 ~ 129.5mm (37x) optical zoom, 16x digital zoom
• H.264, MPEG-4, MJPEG multiple codec
• Auto tracking (SNP-3371TH), SD memory, IP66,
bi-directional audio support
FIRST EDITION 07-2011
www.samsungipolis.com
Page 2
37x
4CIF
128x
D&N ICR
215.7 (8.49")
243.4 (9.58")
155 (6.1")
155 (6.1")
331 (13.03")
248 (9.76")
162 (6.38")
248 (9.76")
SNP-3371TH/3371H
Dimensions
SNP-3371TH/3371H
The Eco mark represents
Samsung Techwin’s will to create
environment-friendly products,and indicates
that the product satisfies the EU RoHS Directive.
SNP-3371
SNP-3371
Unit : mm (inch)
4CIF 37x Network PTZ Dome Camera
SNP-3371TH/3371H/3371
Specifications
VIDEO
Imaging Device 1/4" Vertical Double Density Interline Transfer CCD
Total Pixels 811(H) x 508(V) 795(H) x 596(V)
Effective Pixels 768(H) x 494(V) 752(H) x 582(V)
Scanning System Progressive (VPS ON), (If WDR on, Interlaced Scan)
Min. Illumination Color : 0.7 Lux/F1.6(50IRE), B/W : 0.07 Lux/F1.6(50IRE)
S / N Ratio 52dB
Video Output CVBS : 1.0 Vp-p / 75Ω composite, 704x480(N), 704x576(P), for installation
LENS
Focal Length (Zoom Ratio)
Max. Aperture Ratio F1.6(Wide) / F3.9(Tele)
Angular Field of View H : 55.5˚(Wide) ~ 1.59˚(Tele) / V : 42.5˚(Wide) ~ 1.19˚(Tele)
Min. Object Distance 1.5m (4.92ft)
Focus Control AF / One-Shot AF / Manual
Lens Type DC Auto Iris
Mount Type Board-in type
PAN / TILT / ROTATE
Pan Range 360˚ Endless
Pan Speed Preset : 500˚/sec, Manual : 0.024˚/sec ~120˚/sec
Tilt Range 190˚(-5˚ ~185˚ )
Tilt Speed Preset : 500˚/sec, Manual : 0.024˚/sec ~ 120˚/sec
Preset 255ea
Preset Accuracy ±0.1˚
Auto Tracking SNP-3371TH Only (* SNP-3371H/3371 not available)
OPERATIONAL
Camera Title Off / On (Displayed up to 15 characters)
Day & Night Auto (ICR) / Color / B/W
Backlight Compensation
Wide Dynamic Range 128x , 52dB 160x, 52dB
Contrast Enhancement SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction
Digital Image Stabilization
Motion Detection Yes
Privacy Masking
Sens-up (Frame Integration)
Gain Control Off / Low / Medium / High / Manual
White Balance
Electronic Shutter Speed
Digital Zoom
Flip / Mirror
Intelligent Video Analytics
Alarm I/O
Remote Control Interface
RS-485 Protocol Samsung-T, Samsung-E, Pelco-D, Pelco-P, Panasonic, Honeywell, AD, Vicon
NETWORK
Ethernet RJ-45 (10/100BASE-T)
Video Compression Format
Resolution 704 x 480, 640 x 480, 352 x 240, 320 x 240 704 x 576, 640 x 480, 352 x 288, 320 x 240
Max. Framerate 30fps 25fps
Video Quality Adjustment
Bitrate Control Method H.264/MPEG4 : CBR or VBR, MJPEG : VBR
Streaming Capability Multiple streaming (Up to 10 profiles)
Audio I/O Line in / Line out
Audio Compression Format
Audio Communication Bi-directional audio
IP IPv4, IPv6
Protocol
Security
Streaming Method Unicast / Multicast
Max. User Access 10 users at unicast mode
Memory Slot SD/SDHC memory slot
ONVIF Conformance Yes
Webpage Language
Web Viewer
Central Management Software
ENVIRONMENTAL
Operating Temperature / Humidity
Ingress Protection IP66 (SNP-3371TH/3371H only)
ELECTRICAL
Input Voltage / Current 24V AC, PoE+ (IEEE 802.3at)
Power Consumption
MECHANICAL
Color / Material SNP-3371 : Ivory / Plastic, SNP-3371H/TH : Ivory / Aluminum / Plastic Sun-Shield
Dimensions (WxH) SNP-3371 : H155 x Ø243.4 mm (6.1" x 9.58") , SNP-3371H/TH : H331 x Ø248 mm (13.03" x 9.76")
Weight SNP-3371 : 2.2kg (4.85 lb), SNP-3371H/TH : 4.6Kg (10.14 lb)
SNP-3371THN/3371HN/3371N SNP-3371THP/3371HP/3371P
3.5 ~ 129.5mm (37x)
Off / BLC / WDR / HLC
SSNRIII (2D+3D Noise Filter) (Off / On)
Off / On
Off / On (8 Polygonal programmable zones)
Off / Auto (2x ~ 512x)
AWC, Manual, Indoor, Outdoor, ATW (1,700°K ~ 11,000°K)
ESC / FLK / Manual (1/60 ~ 1/120,000) ESC / FLK / Manual (1/50 ~ 1/120,000)
16x
Off / On
Virtual Line, Enter / Exit, Appear / Disappear
Input 4ea / Output 2ea
RS-485/422
H.264, MPEG4, MJPEG
H.264/MPEG4 : Compression Level, Target Bitrate Level Control
MJPEG : Quality Level Control
G.711 u-law
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPOE, FTP, SMTP, ICMP, IGMP, SNMPV1/
V2C/V3(MIB-2), ARP, DNS, DDNS, ONVIF
HTTPS(SSL) Login Authentication, Digest Login Authentication, IP Address Filtering, User access Log, 802.1x Authentication
English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish,
Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek
Supported OS : Windows XP / VISTA / 7, MAC OS, Supported Browser : Internet Explorer 7.0 or 8.0, Firefox, Google Chrome, Apple Safari
NET-i viewer
SNP-3371 : -10°C ~ +50°C (+14°F ~ +122°F) / 20% ~ 80% RH, SNP-3371H/TH : -50°C ~ +50°C (-58°F ~ +122°F) / ~ 90% RH
SNP-3371 : Max. 21W, SNP-3371H/3371TH : Max. 25W (Heater Off), Max. 60W (Heater On), * Heater works only at AC power input.
Design and specifications are subject to change without notice.
