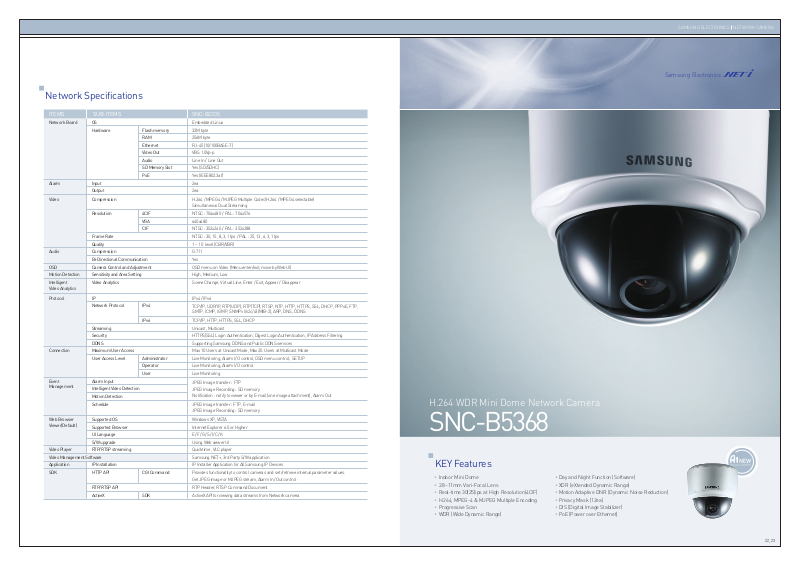

SAMSUNG ELECTRONICS NETWORK CAMERA
H.264 WDR Mini Dome Network Camera
SNC-B5368
Indoor Mini Dome
2.8~11mm Vari-Focal Lens
Real-time 30(25)ips at High Resolution(4CIF)
H.264, MPEG-4 & MJPEG Multiple Encoding
Progressive Scan
Day and Night Function (Software)
XDR (eXtended Dynamic Range)
Motion Adaptive DNR (Dynamic Noise Reduction)
Privacy Mask (12ea)
DIS (Digital Image Stabilizer)
PoE (Power over Ethernet)
KEY Features
22_23
Samsung Electronics
Network Specifications
ITEMS SUB-ITEMS SNC-B2335
JPEG Image transfer : FTP JPEG Image Recording : SD memory Notification : notify to viewer or by E-mail (one image attachment), Alarm Out
Network Board OS Embedded Linux
Hardware Flash memory 32M byte
RAM 256M byte Ethernet RJ-45 (10/100BASE-T) Video Out VBS 1.0Vp-p Audio Line In / Line Out SD Memory Slot Yes (SD/SDHC) PoE Yes (IEEE802.3af)
Alarm Input 2ea
Output 2ea
Video Compression H.264 / MPEG4 / MJPEG Multiple Codec(H.264 / MPEG4 selectable)
Simultaneous Dual Streaming
Resolution 4CIF NTSC : 704x480 / PAL : 704x576
VGA 640x480
CIF NTSC : 352x240 / PAL : 352x288 Frame Rate NTSC : 30, 15, 8, 3, 1 fps / PAL : 25, 13, 6, 3, 1 fps Quality 1 ~ 10 level (CBR/VBR)
Audio Compression G.711
Bi-Directional Communication Yes
OSD Camera Control and Adjustment OSD menu on Video (Menu enter/exit, move by Web UI) Motion Detection Sensitivity and Area Setting High, Medium, Low
Intelligent Video Analytics Scene Change, Virtual Line, Enter / Exit, Appear / Disappear Video Analytics
Protocol IP IPv4 / IPv6
Network Protocol IPv4
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS
IPv6 TCP/IP, HTTP, HTTPS, SSL, DHCP Streaming Unicast, Multicast Security HTTPS(SSL) Login Authentication, Digest Login Authentication, IP Address Filtering DDNS Supporting Samsung DDNS and Public DDNS services
Connection Maximum User Access Max 10 Users at Unicast Mode, Max 20 Users at Multicast Mode
User Access Level Administrator Live Monitoring, Alarm I/O control, OSD menu control, SETUP
Operator Live Monitoring, Alarm I/O control
User Live Monitoring
Event Alarm Input Management
Intelligent Video Detection Motion Detection Schedule
JPEG Image transfer : FTP, E-mail JPEG Image Recording : SD memory
Web Browser Supported OS Windows XP, VISTA Viewer(Default)
Supported Browser Internet Explorer 6.0 or Higher UI Language E/F/G/S/I/C/K S/W upgrade Using Web viewer UI
Video Player RTP/RTSP streaming Quicktime, VLC player Video Management Software Samsung NET-i, 3rd Party S/W application Application IP Installation IP Installer Application for All Samsung IP Devices
SDK HTTP API CGI Command Provides functionality to control cameras and set/retrieve internal parameter values.
Get JPEG image or MJPEG stream, Alarm In/ Out control
RTP/RTSP API RTP Header, RTSP Command Document ActiveX SDK ActiveX API for viewing data streams from Network camera
SAMSUNG ELECTRONICS NETWORK CAMERA
24_25
Camera Type Color/BW Color Image Device Super-HAD PS CCD
Size 1/3 inch Scan Progressive Scan (When WDR ON, Interlaced Scan) Pixels Total NTSC : 811 x 508 / PAL : 795 x 596
Effective NTSC : 768 x 494 / PAL : 752 x 582
Scanning Horizontal Frequency Internal Mode NTSC : 15,734 Hz / PAL : 15,625 Hz
Line-lock Mode NTSC : 15,750 Hz / PAL : 15,625 Hz Vertical Frequency Internal Mode NTSC : 59.94 Hz / PAL : 50 Hz
Line-lock Mode NTSC : 60 Hz / PAL : 50 Hz
Min. Scene Color Sens Off 0.12 Lux(15 IRE), 0.2 Lux(30 IRE), 0.4Lux(50 IRE) Illumination@F1.2
Sens Up 512x 0.00023 Lux(15 IRE), 0.0005 Lux(30 IRE), 0.0008Lux(50 IRE) B/W Sens Off 0.12 Lux (15 IRE), 0.2 Lux(30 IRE), 0.4Lux (50 IRE)
Sens Up 512x 0.00023 Lux(15 IRE), 0.0005 Lux(30 IRE), 0.0008Lux(50 IRE)
Functions Number of Privacy Zone 12 (Polygonal Method) (OSD Menu)
Day/Night Color/ BW/ AUTO(Soft Method) eXtended Dynamic Range(XDR) Off/On (Level Setting) Wide Dynamic Range(WDR) NTSC : Off/On (128x) / PAL : Off/ On (160x) D-Zoom 1x ~ 16x (0.1x STEP) PIP Off/On High Speed Shutter NTSC : 1/60 ~ 1/10Ksec / PAL : 1/50 ~ 1/10Ksec Flickerless Off/On Sens Up 2x ~ 512x
BLC Off/On (Area Setting) AGC Off/On (Max.Level Setting) White Balance ATW1 / ATW2 / AWC / MANUAL Digital Noise Reduction(DNR) Off/On (Adaptive 3D+2D) Digital Image Stabilizer (DIS) Off/On Camera ID Off/On (Max.54ea /2Line) Etc. Function Detail, Reverse(H/V), Posi /Nega
Resolution Horizontal 600 TV Lines
Vertical 350 TV Lines
Video Output VBS 1.0Vp-p VBS 1.0Vp-p S/N Ratio S/N Ratio 52 dB Lens Focal Length 2.8~11mm
Zoom Ratio 3.9x
Aperature Ratio F1.2
Viewing Angle Tele 28.8˚(H) x 21.6˚(V)
Wide 94.6˚(H) x 68.4˚(V) Lens Drive Type AI(DC) Mount Type Board Type
Environmental Operating Temperature
-10˚C ~ 50˚C
Conditions
Operating Humidity Less than 90%
Power Power Requirement AC24V, DC12V, PoE
Power Consumption 8 W
Physical Dimensions (WxHxD) Net 129.4(H) x 133(ø) mm Specification
Package 178 x 161 x 178 mm Weight Net 523 g
Package 840.2 g Color Body White
Case Plastic
ITEMS SUB-ITEMS SNC-B5368
Camera Specifications
Network Specifications
ITEMS SUB-ITEMS SNC-B5368
Network Board OS Embedded Linux
Hardware Flash memory 32M byte
RAM 256M byte Ethernet RJ-45 (10/100BASE-T) Video Out VBS 1.0Vp-p PoE Yes (IEEE802.3af)
Alarm Input 2 ea
Output 2 ea
Video Compression H.264 / MPEG4 / MJPEG Multiple Codec (H.264 / MPEG4 selectable)
Simultaneous Dual Streaming
Resolution 4CIF NTSC : 704x480 / PAL : 704x576
VGA 640x480
CIF NTSC : 352x240 / PAL : 352x288 Frame Rate NTSC : 30, 15, 8, 3, 1 fps / PAL : 25, 13, 6, 3, 1 fps Quality 1 ~ 10 level (CBR/ VBR)
Audio Compression N/A
Bi-Directional Communication N/A
OSD Camera Control and Adjustment OSD menu on Video (Menu enter /exit, move by Web UI) Motion Detection Sensitivity and Area Setting High, Medium, Low
Protocol IP IPv4 / IPv6
Network Protocol IPv4
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS
IPv6 TCP/IP, HTTP, HTTPS, SSL, DHCP Streaming Unicast, Multicast Security HTTPS(SSL) Login Authentication, Digest Login Authentication DDNS Supporting Samsung DDNS and Public DDNS services
Connection Maximum User Access Max 10 Users at Unicast Mode, Max 20 Users at Multicast Mode
User Access Level Administrator Live Monitoring, Alarm I/O control, OSD menu control, SETUP
Operator Live Monitoring, Alarm I/O control
User Live Monitoring
Event Alarm Input JPEG Image transfer : FTP Management
Motion Detection
Notification : notify to viewer or by E-mail (one image attachment), Alarm Out
Schedule JPEG Image transfer : FTP
Web Browser Supported OS Windows XP, VISTA Viewer(Default)
Supported Browser Internet Explorer 6.0 or Higher UI Language E/F/G/S/I/C/K S/W upgrade Using Web viewer UI
Video Player RTP/RTSP streaming Quicktime, VLC player Video Management Software Samsung NET-i, 3rd Party S/W application Application IP Installation IP Installer Application for All Samsung IP Devices
SDK HTTP API CGI Command Provides functionality to control cameras and set/retrieve internal parameter values.
Get JPEG image or MJPEG stream, Alarm In/ Out control
RTP/RTSP API RTP Header, RTSP Command Document ActiveX SDK ActiveX API for viewing data streams from Network camera
