8/16 Channel DVR user manual

8/16 Channel DVR

SHR-5080/5082 SHR-5160/5162

user manual

Correct Disposal of This Product

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government ofﬁce, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

(Waste Electrical & Electronic Equipment)

Code No. AB68-00686B-04

imagine the possibilities

Thank you for purchasing a Samsung product. To receive a more complete service, please

www.samsung.com/global/register

key features of your DVR

The Digital Video Recorder (DVR) compresses the acquired images of 8/16 video channels from cameras using MPEG-4 technologies, and compresses the 4 channel audio inputs into ADPCM audio ﬁ le to record them on the hard disk or retrieve them from the hard disk simultaneously.

In addition, it transfers the video and audio data through a network and allows you to remotely monitor them using your PC.

8/16 channel Composite Input connectors



NTSC/PAL video source compatible



With Dual Codec, can change the FPS (frames per second) according to the bandwidth and send live



pictures regardless of the recording condition Picture quality improvement by adopting the De-interlace chip



Can display HDD information and status using the HDD SMART function



Can convert the CIF (NTSC: 352*240, PAL: 352*288) images to 120 IPS images for NTSC or 100 IPS



images for PAL 8/16 channel loop through video connectors



Hard disk overwrite mode



USB 2.0 hard disk backup capability for large quantities of data



Backup function using USB 2.0 memory and external CD/DVD writer (SHR-5162 and SHR-5082 include



built-in DVD writer) Can record, play, and transmit audio/video data to Windows Network Viewer (Smart Viewer/Web Viewer)



simultaneously Can record or play 8/16 channel video data



Various search modes (time/date, event, schedule)



Various recording modes (time lapse, event, schedule)



Extended hard disk connection (USB 2.0)



Alarm interface function (Input: 8/16, Output: 4, Reset: 1)



Remote monitoring function using Windows Network Viewer (Smart Viewer/Web Viewer)



WHAT’S INCLUDED WITH YOUR DVR

Upon delivery of this product, you shall unwrap and put it on the even ﬂ oor or where you want to use it. Then you must check if the following items are in it.



Remote control unit (RCU)

Special screws SHR-5162/5082: 4 ea SHR-5160/5080: 12 ea

Net I CD and POS manual supported only in SHR-5082N, 5162N/GVI.



One power cord Smart Viewer,

2 EA of RS-485/ Alarm terminal block

Two brackets

Brackets are used to attach the product to the rack

2 EA of AAA batteries

Net I Software CD(PDF manual included)



User manual, POS manual, Quick Guide

safety regulations

Please be sure to keep the following in mind for the right use of the product to prevent proprietary risk or damage.

Do not use multiple plugs at once.



This may cause abnormal heat generation or fire

Do not put a vase, flowerpot, cup, cosmetics, medicine, or vessel with water around you.



This may cause fire.

Do not bend the power cord forcibly nor put a heavy material on it.



This may cause fire.

Do not touch the power plug with wet hands.



This may cause electric shock.

Insert the power plug firmly enough not to shake.



This imperfect connection may cause fire.

Keep the product off humidity, dust, or soot.



This may cause fire or electric shock.

Do not put metals (coin, hair pin, metal piece, etc.) or inflammable materials (match,



paper, etc.) in the ventilation hole.

This may cause fire.

Keep the surrounding temperature between 0°C to 40°C and keep the product off



humidity.

This may cause breakdown.

Secure sufficient ventilation.



This may cause abnormal operation due to high temperature.

Keep the product off direct ray of light or heat from the heating device.



This may cause fire.

Do not disassemble, repair, or remodel the product.



This may cause fire, electric shock, or injury due to abnormal operation.

Do not pull out the power cord.



This may destroy the power cord, eventually, cause fire or electric shock.

Plug out in the event of thunder or lightning.



If your children swallow it, please see the doctor immediately.

This may injure people.

This may cause fire.

Keep your children off the battery after you take it out of the product. They tend to



swallow it unconsciously.

Install the product at a safe place or attach the product to the wall or ceiling with a stand



firmly enough not to fall to the ground.

before start

This user’s manual provides Information for using DVR such as brief introduction, part names, functions, connection to other equipment, menu setup, and the like.

You have to keep in mind the following notices:

SEC retains the copyright on this manual.



This manual cannot be copied without SEC’s prior written approval.



We are not liable for any or all losses to the product incurred by your use of non-standard



product or violation of instructions mentioned in this manual. If you want to open the case of your system for checking problems, please consult the expert



from the shop where you bought the product. You may download open source codes from the following website: www.samsungsecurity.com.



Before installing any external device such as external memory or HDD, please check the



compatibility of the device with Samsung DVR. The list of the compatible devices with Samsung DVR can be obtained from your vendor. Apparatus shall not be exposed to dripping or splashing and no objects ﬁ lled with liquids, such



as vases, shall be placed on the apparatus. The Mains plug is used as a disconnect device and shall stay readily operable at any time.



WARNING

Battery

Exchanging a wrong battery in your product may cause an explosion. Therefore you must use the same type of battery as the one being used in the product. The following are the speciﬁ cations of the battery you are using now.

Normal voltage: 3V



Normal capacity: 170mAh



Continuous standard load: 0.2mA



Operating temperature: -20°C ~ +85°C



(-4°F ~ +185°F)

CALIFORNIA USA ONLY

This Perchlorate warning applies only to primary CR (Manganese Dioxide) Lithium coin cells in the product sold or distributed ONLY in California USA.

“Perchlorate Material - special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.”

System Shutdown

Turning off the power while the product is in operation, or taking not permitted actions may cause damage to the hard drive or the product. Also it can cause a dysfunction to the hard disk while using the product. Please turn off the power using the Power button on the front of your DVR. After selecting OK in the pop-up menu, you can pull off the power cord. You may want to install a UPS system for safe operation in order to prevent damage caused by an unexpected power stoppage. (Any questions concerning UPS, consult your USP retailer.)

Operating Temperature

The guaranteed operating temperature range of this product is 0°C ~ 40°C (32°F ~ 104°F). This product may not work properly if you run right after a long period of storage at a temperature below the guaranteed one. When using the device after a long period of storage at low temperature, place the product at room temperature for a while and run it. Especially for the built-in HDD in the product, its guaranteed temperature range is 5°C ~ 55°C (41°F ~ 131°F). Likewise, the hard drive may not work at a temperature below the guaranteed one.

STANDARDS APPROVALS

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

contents

continued next page

INTRODUCING YOUR 8/16

CHANNEL DVR

INSTALLATION

CONNECTING WITH OTHER

DEVICES

LIVE

03 Controls on the DVR 05 Rear panel jacks 06 Remote control

08 Checking installation environment 08 Hdd addition

14 Connecting video, audio, and monitor 14 Connecting the network 15 Connecting the USB 15 Connecting the alarm input/output 16 Connecting the RS-485 device

17 Operating the system 17 Live screen mode 19 Setting audio on/off 20 Freezing and zooming 20 Event monitoring 21 Spot-out monitoring

MENU SETUP

BACKUP

PTZ CAMERA CONTROL

RECORDING

22 Before use 22 System 27 Camera 28 Monitoring 29 Record mode 31 Event record mode 32 Schedule 33 Network 36 Configuring network

37 Backup

38 PTZ camera control mode 38 Basic PTZ operations 39 Preset setup 39 Camera menu setup 40 Preset view 40 Other view

41 Rec (normal recording) 41 Record schedule

contents _01

SEARCH AND PLAY

42 Before use 42 Calendar search 42 Event search 43 Date time search 43 Go to first search 44 Go to last search 44 Backup search 44 Playback

SMART VIEWER

WEB VIEWER

APPENDIX

46 Introduction 46 Main features 46 PC specification (recommended) 46 Smart Viewer installation 47 Smart Viewer program execution 48 Smart Viewer initial screen 48 Setup mode 59 Monitoring mode 66 Search mode

70 Introducing Web Viewer 71 Connecting Web Viewer 72 Using Live Viewer 77 Using Search Viewer 81 About

82 Product specification 85 Outline drawings 89 Factory default 92 Troubleshooting (FAQ) 95 Open source license report on the product

02_ contents

Introducing your 8/16 Channel DVR

CONTROLS ON THE DVR

5080

5082

5160

1 3 4

7 69 5

1 2 43

79 8 6

3 4

01 INTRODUCING

5162

7 69 5

1 3 4

7 689 5

introducing _03

1. ALARM LED

Lights when an event occurs.

HDD LED

Lights when the hard disk is operating. When the HDD is accessed, LED repeatedly blinks.

NETWORK LED

Lights when the data is transferred through the network.

BACKUP LED

Lights when a backup is in progress.

REC LED

Lights when a recording is in progress.

2. PTZ Button

Toggles PTZ mode On and Off.

ZOOM(TELE)

Implements the digital zoom (x2). Performs the TELE function in PTZ mode.

FREEZE(WIDE)

Performs the FREEZE function in live mode. Performs the WIDE function in PTZ mode.

SEARCH(VIEW)

Goes to the Search function window. Performs the Preset View function in PTZ mode.

MENU(PRESET)

Goes to the system menu screen or moves to the upper menu. Performs the Preset Setup function in PTZ mode.

Button

3. REC Button

Starts or ends the recording

(Step Rewind/Fast)

- Step Rewind: Used for backward scene-by-scene search while at pause.

- Fast Rewind: Used for quick backward search while in play. (-x2, -x4, -x8, -x16, -x32, -x64) Button

(STOP)

Ends search while in play.

(PLAY/PAUSE)

Pauses and resumes the screen play.

(Fast/Step Forward)

- Fast Forward: Used for quick forward search while in play. (x2, x4, x8, x16, x32, x64)

- Step Forward: Used for forward scene-by-scene search while at pause.

Button

4. Direction Buttons

Used for changing settings or for moving the cursor up/down/left/right.

5. MODE Button

When and single sequence.

When pressed in playback mode for playback-exclusive channels (16, 9, 4), it sequentially displays single channel, 1 playback channel with 1 live channel, 1 playback channel with 8 live channels, 1 playback channel with 12 live channels, and 1 playback channel with 15 live channels.

AUDIO Button Toggles Audio On and Off. ALARM Button Turns off the alarm LED and stops the sound when an alarm is issued. Alarm icon disappears when the alarm button is used. BACKUP Button Press it for backup operation.

6. USB Port

Use it to connect USB type devices.

7. Channel Button

Select a single channel (1 to 16) while in live mode.

8. OPEN Button

Opens the DVD-RW tray (SHR-5162/5082 only).

9. Power LED

Displays power On/Off state. Power Button Press to turn on the power or shut down your DVR in live mode.

Do not install DVR on the carpet or other soft material to prevent clogging of the air ventilator.

CAUTION

To install DVR on the cabinet or rack, be sure to check the ventilation condition.

04_ introducing

01 INTRODUCING

introducing _05

REAR PANEL JACKS

5080/5082 REAR

5160/5162 REAR

VIDEO OUT Composite video output port (BNC type connector)

AUDIO OUT Audio output port (RCA jack)

VGA

S-VIDEO S-VIDEO video output port

NETWORK Network connection port

VGA video output port

AUDIO IN Audio input port (RCA jack)

SPOT

USB USB connection port

SPOT1: 1 channel exclusive SPOT output SPOT2: The same output as the Main VIDEO OUT (OSG is not displayed)

- ALARM IN 1~16(SHR-5160/5162): Alarm input port

- ALARM IN 1~8(SHR-5080/5082): Alarm input port

ALARM

- ALARM RESET IN: Alarm reset port

- ALARM OUT 1~4: Alarm output port

- TX+, TX-, RX+, RX-: RS~485 communication

THROUGH

VIDEO IN Composite video input port (BNC type connector)

AC-IN

You may use THROUGH port to transmit a video signal to the other video equipment.

AC 100 ~ 230V (PAL) AC 110 ~ 220V (NTSC)

REMOTE CONTROL

OPEN/CLOSE

Used to open and

close the DVD-RW tray

(SHR-5162, SHR-5082

only).

BACKUP

Press it for backup

operation.

ALARM

Cancels sending alarms.

MODE

Select a split screen.

FF (fast forward)

Used for quick forward

search while in play. (x2,

x4, x8, x16, x32, x64)

Press the 0(10+) button, release, and press the 0 button again within 3 seconds.Or press the 0(10+) button,

release, and wait 3 seconds.

CHANNEL 1–9 Press the 1 to 9 button respectively.

CHANNEL 10

Using the NUMERIC Buttons

06_ introducing

CHANNEL 11–16 Press the 0(10+) button, release, and press the 1 (or 2, 3, 4, 5, 6) button again within 3 seconds.

RECORD

recording.

Starts or ends the

0~9

values.

for inputting numeric

Selects a single channel

while in live mode. Used

Off.

AUDIO

REC LOCK

Toggles Audio On and

Locks the record function.

FR (fast rewind)

-x8, -x16, -x32, -x64)

while in play. (-x2, -x4,

quick backward search

FR (fast reverse): Used for

01 INTRODUCING

introducing _07

Play/Pause

Pauses or resumes

playing.

FREEZE

Performs the FREEZE

function in live mode.

Goes to the search select

screen.

ENTER

Shows the cursor for

channel selection in live

mode or used as the

selection button for menu

configuration.

SYS ID

Use for inputting or

confirming system or

remote control ID.

PRESET

Performs the PRESET

function in PTZ mode.

VIEW

Performs the VIEW

function in PTZ mode.

STOP

Ends playing.

ZOOM

Implements the digital

zoom (x2).

screen or moves to the

Goes to the system menu





LEFT

RIGHT



upper menu.

DOWN



PTZ

and Off.

Used for changing

Toggles PTZ mode On

cursor up/down/left/right.

settings or for moving the

TELE

WIDE

Performs the TELE

Performs the WIDE

function in PTZ mode.

Changing the Remote Control ID

As you press the SYS ID button, input the desired 2-digit ID in order (Remote control default ID: 00).

For instance, to change the remote control ID to 08, press the SYS ID button, and then input 0 and 8 buttons in order.

After the input completes, press the SYS ID button again in order to confirm the setting.

installation

You should pay attention to the following before you use the product.

Do not use it outdoor.



Do not place water or liquid near the connection part or the product.



Do not impose excessive shock or force.



Do not pull out the power cord unreasonably.



Do not disassemble the product on your own.



Do not exceed the rated input or output voltage range.



Use the certiﬁed power cord only.



For the product with an input ground, use a power plug with a ground pin.



CHECKING INSTALLATION ENVIRONMENT

Samsung Digital Video Recorder (hereinafter referred to “DVR”) is a high-tech security equipment that contains a high-capacity HDD and top-notch circuits. High temperature inside or outside of the product may reduce the product life, deteriorate performance (see the graph below; it explains the correlation between temperature and product life), and lead to a malfunction.

Temperature Unit: ºC

Figure 1

One Year: 24HR X 365 DAY =8,760 HR

Life (Unit: HOURS)

Please keep the following instructions for rackmounting the Samsung DVRs to proceed with the installation.

1. The rack on which the DVR is mounted

should not be sealed off.

2. And it also can allow air circulation through

the vent.

3. As shown in the Figure 2, we recommend

you to heap the product with other DVRs or use rack-mount devices at a certain space, or install a vent system to accommodate airﬂow.

4. For forming a natural convection, the air

intake hole should be positioned at the bottom and the emission at the top.

5. We recommend you to install each of the air

intake and emission holes with fan motors for sufﬁcient airﬂow. (The air intake fan should be equipped with a ﬁlter to prevent possible inﬂow of dust and other impurities.

As shown in the Figure 1, the temperature inside the rack and around the DVR should maintain between 0°C ~ 40°C (32°F ~ 104°F).

08_ installation

HDD ADDITION

The user can add hard disks to this product. (SHR-5162/5082: up to 2 hard disks, SHR-5160/5080: up to 3 hard disks). However, there are many factors that can cause electric shock, accidents, and malfunctioning of the device inside of the product. When the user does not correctly install or apply the proper settings, the device may not recognize the hard disks or the device will not properly run. Therefore, before adding any hard disks, it is recommended that you consult the specialist from the site where you purchased the product.

Figure 2

02 INSTALLATION

installation _09

[Checking HDD Data]

CAUTION

Please, pay attention to Following information to minimize the chance of losing HDD data.

Remember that you should protect



HDD from any impact or misuse as this may cause damaged. The Manufacturer is not responsible



for missing data or defects caused by the user’s mishandling.

Note: Adding Extra HDD. Check

in advance that the HDD is compatible with the manufacturer’s DVR.

Examples that can cause loss of data or damage HDD.

Any outside Impact on the case



which could happen whilst disassembling or setting up the DVR. Power cut or incorrect shutdown



whilst the DVR is operating. Moving or causing any impact on



the DVR during operation. Please, back up events as soon as possible to minimize disappointment should HDD data be lost.

Things to consider when adding a hard disk

Setting the jumper

The jumper setting method is illustrated on the surface of the purchased HDD.

Using SAMSUNG hard disk, the jumper setting method is as follows:

HDD jumper for Primary Master and Primary



Slave.

Jumper setting for Secondary Master (DVD-RW)



and Secondary Slave.

How to add hard disks SHR-5082, SHR-5162

Before starting this work, remove the power cord from the outlet.

1. Take out the screws on the left and right sides (5 spots for each side) and on the rear (1 spot).

When adding a hard disk, pay attention so



that the cable doesn’t get caught between unsuitable places or the cable’s insulation is not damaged. (This may cause a malfunction or fire.) When adding a hard disk, be careful not to



have any injury by the pointed edges inside the product. Pay attention not to lose screws or



accessories.

If the screws or accessories are not put together, the product may malfunction or not properly operate.

If you contact the RTC battery while adding



hard disks, the battery failure may happen. In this case, you will encounter failures when setting the time and operating DVR. If you don’t connect fan power cables after



adding hard disks, the fan failure message appears on the screen. This can cause operation failures because it raises the temperature inside your DVR. Check the compatibility list of HDDs before



installing additional HDDs. The list of the compatible devices with Samsung DVR can be obtained from your vendor.

2. Remove the cover from the product. (Slide the cover slightly backward, lift it upward and remove it.)

3. There are brackets (Bracket-HDD) mounted on the right and left sides where you can mount HDDs. Remove the screws holding each bracket to mount an HDD onto.

BRACKETHDD(B)

5. To add a hard disk, the built-in HDD (Primary Master) should have been installed. Basically a built-in HDD has been installed as the Primary Master and a DVD-RW driver as the Secondary Master. Before adding a hard disk, set the jumper for master and slave. The jumper setting method is illustrated on the surface of the purchased hard disk. Fix the hard disk to the Bracket using the (A)SCREW-SPECIAL (BWH, 6-32UNC, L10.

5). Align the 5 spots on the bottom and mounting holes of the Bracket, insert the HDD, and then fix it using the screws.

BRACKETHDD(A)

4. If you want to add a hard disk, remove Bracket-HDD(A), power supply cable, signal transmission cable (IDE Cable), and fan cable.

BRACKET-HDD(A)

SCREW-SPECIAL

Screwdriver

10_ installation

Screwdriver

02 INSTALLATION

installation _11

6. To add another hard disk after adding a hard

disk completes, remove the Bracket-HDD(B) on the DVD-RW driver.

BRACKET-HDD(B)

7. Fix the hard disk to the Bracket using 4 (B)SCREW-MACHINE (6-32UNC, L4. 2) provided when purchasing the HDD. The screws should be fastened not to come loose. Fix the Bracket-HDD(B) using screws after aligning 4 spots on the bottom and mounting holes.

8. When adding hard disks completes, connect the power supply cable, signal transmission cable (IDE Cable), and fan cable to the hard disks.

Primary HDD IDE Connector

Secondary HDD IDE Connector

9. After checking whether or not the connections have no problem, close the cover.

10. Fix the cover using screws. (Each of left and right sides has 5 spots and the back side has 1 spot.)

SHR-5080, SHR-5160

Before starting this work, remove the power cord from the outlet.

1. Take out the screws on the left and right sides (5 spots for each side) and on the rear (1 spot).

4. If you want to add a hard disk, remove BracketHDD, power supply cable, signal transmission cable (IDE Cable), and fan cable.

2. Remove the cover from the product. (Slide the cover slightly backward, lift it upward and remove it.)

3. There are brackets (Bracket-HDD) mounted on the right and left sides where you can

mount HDDs. Remove the screws holding each bracket to mount an HDD onto.

Bracket-HDD

12_ installation

02 INSTALLATION

installation _13

5. To add a hard disk, the built-in HDD (Primary

Master) should have been installed. Basically a built-in HDD has been installed as the Primary Master. Before adding a hard disk, set the jumper for master and slave. The jumper setting method is illustrated on the surface of the purchased hard disk. Fix the hard disk to the Bracket using the (A)SCREW-SPECIAL (BWH, 6-32UNC, L10. 5).

7. When adding hard disks completes, connect the power supply cable, signal transmission cable (IDE Cable), and fan cable to the hard disks.

8. After checking whether or not the connections have no problem, close the cover.

6. Re-mount the bracket-HDD mounted with the HDD’s to the place where it was separated from. Place the bracket-HDD so that all five mounting spots on the bottom and the bracket-HDD’s mounting holes are perfectly aligned, then slide it toward the outside of the product and tighten the screws.

9. Fix the cover using screws. (Each of left and right sides has 5 spots and the back side has 1 spot.)

connecting with other devices

The illustrations are described based on SHR-5162.

CONNECTING VIDEO, AUDIO, AND MONITOR

CONNECTING THE NETWORK

Connecting to Internet through Ethernet (10/100BaseT)

14_ connecting

03 CONNECTING

connecting _15

Connecting to Internet through ADSL

CONNECTING THE USB

1. There are two USB connecting ports on the front and rear panels of the product.

2. USB Hard Disk, USB CD/DVD, and USB Memory can be connected through any of those ports.

3. If the USB HDD is connected to the system, it should be detected and set through Menu > System > Storage Setup before operation.

4. The product provides the HOT PLUG feature that allows the connection/removal of USB devices during system operation.

The USB type of hard disk



CAUTION

should be set to Master. If the backup USB device cannot



be formatted in the DVR, format it as FAT32 using your PC.

For more details, refer to the System section in Chapter 5 Menu Setup.

CONNECTING THE ALARM INPUT/OUTPUT

The Alarm IN/OUT ports on the rear of the product have the following elements:

5080/5082 Alarm IN/OUT Ports



5160/5162 Alarm IN/OUT Ports



ALARM IN 1 to 8 (SHR-5080/5082): Alarm



input port ALARM IN 1 to 16 (SHR-5160/5162): Alarm



input Port ALARM RESET: When receiving an ALARM



RESET signal, the system clears the current ALARM input or output signal and resumes alarm sensing. ALARM OUT 1 to 4: Alarm output ports



CONNECTING THE RS-485 DEVICE

You can connect an RS-485 device through a rear port of the product. For example, you can connect and control PTZ cameras supporting the RS-485 communication. You can also adopt either Half Duplex or Full Duplex method for exchanging data.

PTZ device

Half Duplex Type

Data (–)

Data (+)

Full Duplex Type

Rx(+)

Rx(–)

Tx(–)

Tx(+)

Rear

Tx(–)

Tx(+)

Rx(–)

Rx(+)

Supportable baud rates are 600, 1200, 2400, 4800, 9600, 19200, and 38400.

Check if the RS-485 device is



CAUTION

compatible with the product first. Then pay attention not to change



the polarity (+/-) of RS-485 when connecting it.

16_ connecting

live

OPERATING THE SYSTEM

Turn on the power and the following Samsung logo appears.

Upon completion of initializing procedure, the live screen appears with a beep sound. (It takes about one minute until a live screen comes up.)

If a new HDD is installed, the initialization



may take much more time because it includes a new HDD initialization. If the live screen does not appear or



the LEDs on the front panel repeat flickering, please check the connections. If the system does not operate normally, contact the expert from the shop where you bought the product.

LIVE SCREEN MODE

Live screen icons

The live screen icons display the status of current setup or function.

CAM 01

04 LIVE

The live screen does not affect the earlier MENU settings. If you reboot the system when a recording is in progress, the recording will start again.

CAM 01

: Recording icon

Each icon represents Normal/Event (Alarm+Motion)/Schedule Recording.

: Recording Video Size icon

Each icon represents the recording size of Normal or CIF.

Normal: Half D1—(NTSC) 720x240, (PAL)



720x288 CIF: CIF— (NTSC) 352x240, (PAL) 352x288



Half D1 is an MPEG-4 video encoding



mode in which half the horizontal resolution is sampled.

: Record Lock icon It indicates that the record lock is activated. This icon appears when you are recording video images while the record lock is set. To cancel the recording, enter the preset password.

live _17

: PTZ icon

CAM_01

CAM_01 CAM_01

CAM_05 CAM_06 CAM_07 CAM_08

CAM_02

CAM_03

CAM_04

CAM_01

CAM_0

CAM_04 CAM_0

CAM_06 CAM_0

CAM_02

CAM_03

CAM_02

CAM_03 CAM_04

CAM_02 CAM_03

CAM_04 CAM_05 CAM_06

CAM_07 CAM_08 CAM_09

CAM_01 CAM_02 CAM_03 CAM_04

CAM_05 CAM_06 CAM_07 CAM_08

CAM_09 CAM_10 CAM_11 CAM_12

CAM_13 CAM_14 CAM_15 CAM_16

CAM_01

CAM_0

CAM_04 CAM_0

CAM_06 CAM_0

CAM_02

CAM_03

CAM_02

CAM_03 CAM_04

CAM_02 CAM_03

CAM_04 CAM_05 CAM_06

CAM_07 CAM_08 CAM_09

CAM_01 CAM_02 CAM_03 CAM_04

CAM_05 CAM_06 CAM_07 CAM_08

CAM_09 CAM_10 CAM_11 CAM_12

CAM_13 CAM_14 CAM_15 CAM_16

This icon appears when setting the PTZ device and it changes to yellow when operating the PTZ.

: Audio icon

This icon represents the ON/OFF status of audio and it changes to yellow when the audio is set to ON. It does not appear in Video mode or when the audio is disabled.

: Sensor Active icon This icon appears in the channel linked with the external sensor signal when the sensor is active.

: Motion Event icon This icon appears in the Motion Event channel when the motion detection is set to ON.

: Zoom icon This icon appears while the Zoom operation is active and disappears by canceling the operation.

: Freeze icon This icon appears in Freeze mode and disappears by canceling the freeze operation.

: Recording Hard Disk Full icon This icon appears when the hard disk space is not sufficient when recording.

: Auto Sequence icon

This icon appears in Auto Sequence mode.

: Backup Play icon

This icon appears when the backup data is now played.

: Fan Error icon

This icon appears when the fan does not work properly.

: No HDD icon This icon appears when there is a dysfunctional hard disk.

When the Fan Error icon or No HDD icon appears, please contact the service center.

V.Loss/V.Off: Video input status When there is no video data input while the video is active, V.Loss appears in the channel. When you set the Video On/Off to OFF, V.Off appears.

Live screen modes

The SHR-5162/5160 models receive 16 live images and displays them in the following 9 modes as shown in the picture. To see each mode in order, repeatedly press the MODE button on the front panel or remote control. But the SHR-5082/5080 models have no 16-split mode.

18_ live

16 Split Mode

8 Split Mode PIP Mode Single Mode

9 Split Mode 6 Split Mode4 Split Mode 7 Split Mode

Auto Sequence Mode

04 LIVE

live _19

Full Screen (Single) mode:



Displays the selected channel in full screen. 4, 6, 7, 8, and 9 Split mode:



Displays 4, 6, 7, 8, 9 channels in each split screen. You can select channel numbers on your own using the MODE button on the front panel or remote control. In 4-channel and 9-channel split modes, the screen page is changed using the Direction buttons. 16 Split mode:



Displays 16 live channels on a 16-split screen. The Auto Sequence is not available. PIP (Picture in picture) mode:



Displays a small screen on a full screen. You can change the channel number on a full screen or small screen by pressing the ENTER button and inputting the NUMERIC button. To switch between main and sub screens, press the ENTER button and press the LEFT or RIGHT direction button. You can move the sub screen to 5 different stages using the

UP/DOWN direction buttons. Auto Sequence mode:



Sequentially displays all the channels at an interval of auto sequence time. The auto sequence time is set in Camera Configuration on the menu.

In the 9-split screen mode, the first screen



shows 9 channels (CH 1 to CH 9) and the

second screen shows the rest 7 channels

(CH 10 to CH 16) after pressing the RIGHT

direction button. If you press the RIGHT

direction button again, it changes to the Auto

Sequence mode.

Likewise, in the 4-split screen mode, the first



screen shows 4 channels (CH 1 to CH 4),

the second screen shows CH 5 to CH 8, the

third screen shows CH 9 to CH 12, the fourth

screen shows CH 13 to CH 16. If you press

the RIGHT direction button again, it changes to

the Auto Sequence mode.

Every time you press the MODE button, the



modes change in the following sequence:

16-split mode  9-split mode



6-split mode mode  PIP mode  Auto Sequence mode  16-split mode. Press the CH 1 to CH 16 button to see a full



screen of each channel after pressing the ENTER button. Press the MODE button after entering a full



screen channel in a split screen mode to return to the previous split mode screen.



7-split mode  8-split



4-split mode

Selecting live screen mode

Available modes are switched using the MODE button and the NUMERIC buttons on the front panel or remote control. The following figure is the live modes transition diagram in the SHR-5162/5160 models.

The initial live screen shows the 16-split screen



mode at first. The SHR-5082/5080 models start from the 9-split mode.

SETTING AUDIO ON/OFF

In other split modes except full screen mode, 16-split mode, and auto sequence mode, you can choose a channel to be displayed by pressing the ENTER and NUMERIC buttons. If you set the selected channel to Audio On, you can turn the Audio On and Off in live mode.

Audio On/Off setting in full screen mode

In full screen mode, the audio of the selected channel automatically turns on. You can turn the audio On and Off by toggling the AUDIO button. Depending on the audio On/Off setting condition, the Audio icon of the channel changes to yellow and white.

Audio On/Off setting in 16-split mode

When pressing the ENTER button in the 16-split mode, the selection cursor appears for you to select a channel. When you select a channel and press the AUDIO button on the front panel or remote control, the audio of the selected channel is changed to On or Off. Depending on the audio On/Off setting condition, the Audio icon of the selected channel changes to yellow and white. You can have audio settings on channel 1 to 4 in 16-split mode.

Audio On/Off setting in 4, 6, 7, 8, and 9-split modes and PIP mode

As in 16-split mode, when pressing the ENTER button in 4, 6, 7, 8, and 9-split modes and PIP mode, the selection cursor appears for you to select a channel. After selecting a channel, you can set the Audio to On or Off using the AUDIO button. According to the audio On/Off setting condition, the Audio icon of the selected channel changes to yellow and white.

FREEZING AND ZOOMING

Freeze function

The freeze function pauses the video image on the live screen and it is only available in the live mode. You can set this function to On or Off using the FREEZE button on the front panel or remote control.

Zoom function

The zoom function enlarges the selected area to double size, and it is only available in the single screen mode. When you press the ZOOM button on the front panel or remote control, the zooming area appears. Use the UP/DOWN/LEFT/RIGHT direction buttons to adjust the position for zooming. After selecting the Zoom area, press the ENTER button to enlarge the selected area in double size. To cancel the zooming function, press the ZOOM button again.

EVENT MONITORING

The event monitoring is used to display the channel that is synchronized with an event on the screen when a special event (Sensor/Motion/ Video Loss) occurs. The settings for event monitoring activation and event duration setup are done in the Monitoring on the menu. If you set the event monitoring interval to 5 seconds and an event occurs at CH 2 as shown in the picture, the system will display CH 2 in full screen for 5 seconds. If another event occurs within 5 seconds, it is also displayed together with the existing event. As shown in the picture, if we assume that both CH 1 and CH 3 events occur within 5 seconds (for example, after 4 seconds), after CH 2 event, these three events are displayed with split into 4 screens. If a new event does not occur during the event duration, the system will return to the previous live mode. Pressing the ALARM button during the event duration makes the event monitoring stop. When an event occurs, the ALARM LED is turned on. Press the ALARM button again to turn ALARM LED Off. At this time, the alarm setup is initialized, the event icon disappears, and the event monitoring is cancelled while in event monitoring. After alarming, the event recording resumes.

20_ live

[ Event-driven screen changes in Event Monitoring ]

04 LIVE

live _21

SPOT-OUT MONITORING

Spot-out monitoring has nothing to do with the live screen output. It monitors a speciﬁc channel in full screen. After selecting Monitoring on the MENU, you can select a channel for monitoring in Spot Out Channel. You can also monitor all the channels at an interval of auto sequence time. In case of spot-out monitoring, the live screen icons do not appear. If the Spot Out Event Monitor is set to On, you can see the event channels. When the events occur sequentially, the channel of the camera that the last event has been issued is displayed. (In case of alarms, multiple channels are enabled.) When multiple cameras are connected, the camera with the smallest number is output on Spot-out channel.

In the live screen, you can select a spot-out channel when using SPOT1 output as described below:

Press the STOP button on the front



panel or remote control and press a button out of 16 channels. The selected channel is set to a spot-out channel. When you press the STOP button



and then the MODE button within 2 seconds, the spot-out channel mode is changed to the change screen mode. SPOT2 output is the same output as the



main video out. (OSG is not displayed).

CAUTION

If the built-in HDD is not connected



or it is out of order, the system displays an error ( ) saying “built-

in HDD error” at the top-left corner. In this case, you cannot perform recording, playback, and backup. So please contact the service personnel. If the fans in the product do not



properly operate or have some problem, the fan error message appears on the live screen as shown in the following picture. In this case, check whether the fans normally run or not. When the fans are recovered,

the Failure icon ( ) that is displayed at the top-left corner disappears. In

case of a fan failure, it can shorten the life of the product so please contact the service personnel.

Fan Information

A error occurs in the fan. Refer to the manual.

menu setup

BEFORE USE

The menu structure is as follows:



MENU SETUP

System

Camera

Monitoring

Record Mode

Event Record

Schedule

Backup

Network

Move/Control Select Exit

Selection



The yellow cursor is the selection bar. Use the Direction buttons on the front panel or remote control to move the cursor to a desired menu. If you press the ENTER button when the cursor is located in a desired menu, the screen displays the sub window. To select an item from the menu, press the ENTER button. On a drop-down menu, use the UP/DOWN direction buttons to move the cursor on your desired item. OK and Cancel in each Setup window



Once any changes are made in a setup window, they can be applied by selecting OK. When Cancel is selected, the changed settings are not applied and it returns to the upper menu. MENU button



When the MENU button is pressed in any of the Setup menus, it changes to the upper menu. If you press the MENU button in Live mode, the password window appears for user validation.

Date/Time/Language Password Load Factory Default System Log Event Log System Information and Setup Storage Setup Export/Import the Configuration Remote Control Device

SEARCH, BACKUP, PTZ, POWER buttons in



Live mode To perform the search, backup, PTZ controls, or shutdown function, press the following button in Live mode. Then the window asking for an ID and password appears for user validation.

Enter ID and Password

Password

The direction sign (► or ▼) right next to the



Admin

OK Cancel

title of menu or item leads you to press the displayed button on the front panel or remote control to go for sub item.

SYSTEM

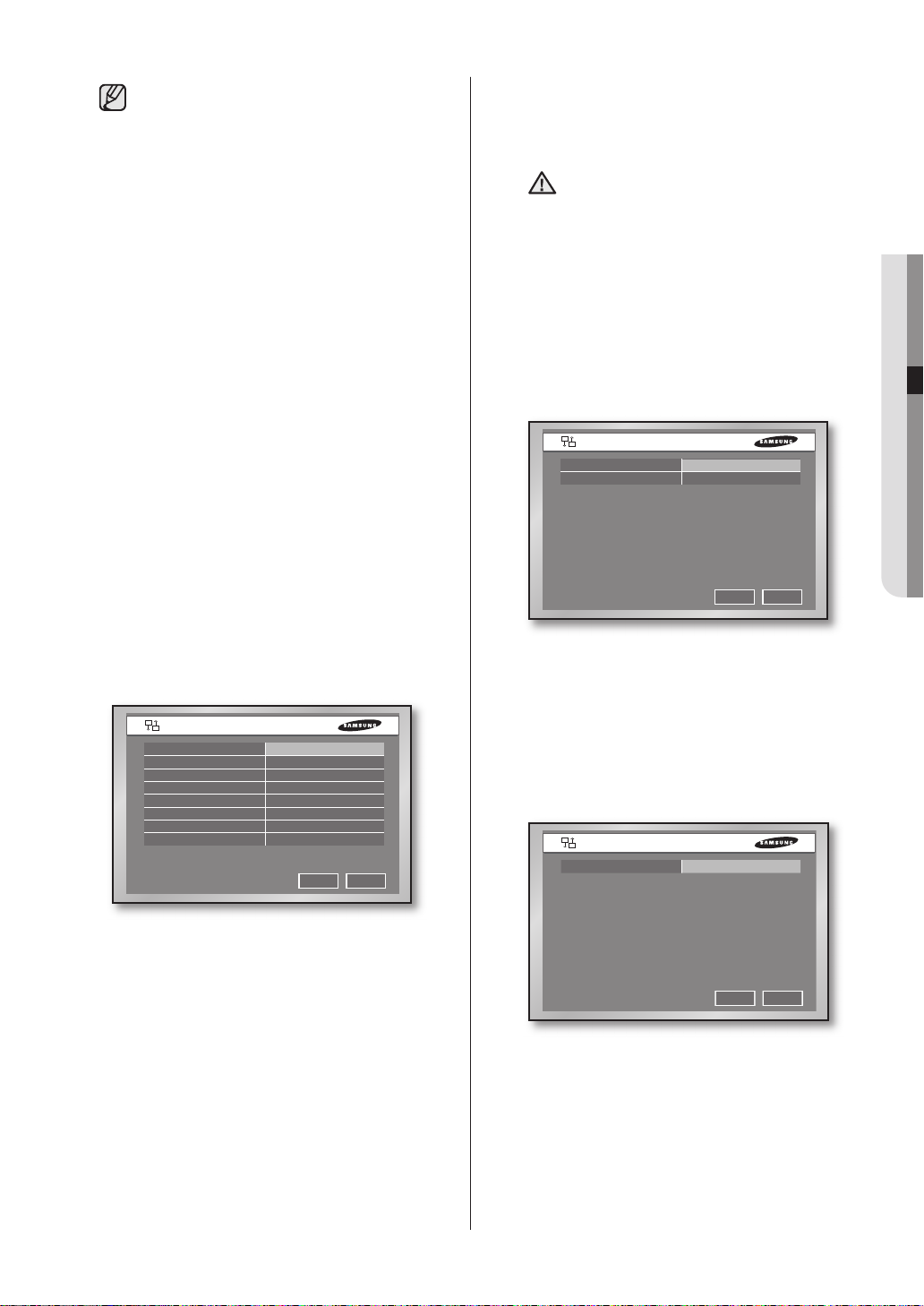

Date/Time/Language Setup

Date Time Time Zone Time Synchronization Date Format Time Format Language DST Off

2007-08-01

10:00:00 (GMT+01:00) Setup YYYY-MM-DD 24 Hours English Mar-last-Sun 01H ~ Oct-last-Sun 01H

OK Cancel

Admin Password

22_ menu setup

OK Cancel

Date



Press the ENTER button and use the LEFT or RIGHT direction button to move to year, month, and day. To change the value, use the UP or DOWN button. Press the ENTER button to confirm the setting.

Time



Press the ENTER button and use the LEFT or RIGHT direction button to move to hour, minute, and second. To change the value, use the UP or DOWN button. Press the ENTER button to confirm the setting.

05 MENU SETUP

menu setup _23

[Date/Time Change]

CAUTION

After the date and time has been changed, the data recorded before the change can be removed. For example, if the current time is changed from 8 to 7, all the data recorded between 7 and 8 will be deleted.

Time Zone



Set the local time zone based on the Greenwich Mean Time (GMT).

Time Synchronization



The time of your DVR can be synchronized by a specified server. For this purpose, enter the IP address of the time server and determine the initiator of this activity.

- Automatic Time Synchronization Synchronizes while gathering time information from the Time Server (IP)

- Activate by Server(Master) Time Synchronization is executed while more than two DVR devices are connected, and the operating DVR device connected to the server is set as standard.

Time Synchronization Setup

Automatic Time Synchronization Off Time Server(IP) 203.248.240.103 Activate by Server(Master) Off Last Synchronization Time 2007-01-26 12:39:12 Fail

OK Cancel

Date Format



The system supports 3 types of formats: YYYY-MM-DD, DD-MM-YYYY, and MM-DDYYYY.

Time Format



The system supports 2 type of formats: 24 Hours and 12 Hours(AM/PM).

Language



After selecting a language, on-screen display (OSD) menus are displayed in the selected language.

DST (Daylight Saving Time)



DST sets the clock one hour ahead the local standard time. This setting enables the system to display the time adjusted for DST. If the DST is set to Off, it does not apply. To set the DST, enter the start time and end time on the right. It allows you to set month, week (e.g. 1st, 2nd,

3rd, 4th, last), date, and time only.

Password

The factory default password for Admin and user privileges is “4321.” The Menu Setup window cannot be accessed by user privileges but by the Admin privilege. The Admin user can give users (User1 to User5) access rights to the selected functions. If you press Setup in User Authority, all the access rights are selected.

Password

Admin Password New Password Password Lock On Record Lock Off User Password User Setup User1 New Password User Authority Setup Search Backup PTZ Shutdown

All Key Lock On

New Password





Confirm

OK Cancel



You can change the password by entering a new password value in this field. The input password is allowed up to 8 digits. Press the ENTER button and enter numbers using the NUMERIC buttons on the front panel or remote control. Press the ENTER button again for confirmation. Then the cursor moves to the

New Password Confirm field. Confirm



It confirms that the newly input password is correct. Enter the new password again in the field.

Password Lock



If it is set to On, a pop-up window for asking the password appears every time you select a menu. If it is set to Off, you can enter menus without entering the password.

Record Lock



If the Record Lock is set to On, a pop-up window, asking for the password appears while disabling the recording.

User Authority



You can select any of Search, Backup, PTZ, and Shutdown. If the user has no access right for Search, the user cannot enter the Search menu.

All Key Lock On



If you select this, the system will enter the live mode immediately. If you press any button on the front panel or remote control, the password input window appears. If the correct password is input, the lock function is deactivated.

[All Key Lock On] If you select this, the system immediately switches to the live mode and all buttons are locked.

If the user enters the selected function, he or she has to input the password first.

Load Factory Default

It is used to initialize all the settings to the factory default values. The recorded video data will not be removed. Select OK to start initialization.

MENU SETUP

System

Camera

Monitoring

Record Mode

Event Record

Schedule

Backup

Network

Move/Control Select Exit

Date/Time/Language Password Load Factory Default System Log

Sure to default setting?

Event Log System Information and Setup

Cancel

Storage Setup HDD Mode Setup Remote Control Device

System Log

The System Log is used to check the important history records by an administrator. The log data includes the system-related logs such as system start, system termination, menu setup change, and the like.

System Log

No. System Log List Date/Time

46 Setup Start (Local) 2007-08-01 10:00:29 45 Setup End (Local) 2007-08-01 10:00:29 44 Setup Start (Local) 2007-08-01 10:00:29 43 Setup End (Local) 2007-08-01 10:00:29 42 Setup Start (Local) 2007-08-01 10:00:29 41 Setup End (Local) 2007-08-01 10:00:09 40 Setup Start (Local) 2007-08-01 09:59:38 39 Setup End (Local) 2007-08-01 09:59:30

First Prev Next Last Exit

Time Change Changes the Date/Time.

Load Factory Default Initializes the system.

System Upgrade Changes the system S/W.

Disk Full No Space in the HDD

Backup Start Starts the backup.

Backup End Ends the backup.

Backup Stop Stops the backup.

Backup Fail Backup Failure

ATA HDD Erase Erases the ATA Data.

USB HDD Erase

USB MEMORY

Erases the USB HDD data.

Erases the USB MEMORY data.

Erase

Overwrite Playback Stop

Backup Stop(Overwrite)

Stops the playback by overwrite.

Stops the backup by overwrite.

Event Log

It is used to check the recorded events like alarm, motion, video loss, and such.

Event Log

No. Event Log List Date/Time

4 Video Loss CH[2] 2007-08-01 10:00:29 3 Video Loss CH[1] 2007-08-01 10:00:29 2 Video Loss CH[2] 2007-08-01 10:00:29 1 Video Loss CH[1] 2007-08-01 10:00:29

Available action buttons are:

First: Moves to the first log page.



Prev: Moves to the previous log page.



Next: Moves to the next log page.



Last: Moves to the recent log page.



The system logs are as follows:

System Start Starts the system.

Logout(Admin) Viewer Logout (Admin)

Logout(User) Viewer Logout (User)

Setup Start (Local)

Setup End (Local)

Setup (Remote):

Enters into the menu.

Comes out of menu.

Sets the menu.

Viewer

Play Back Start Starts the playback.

Play Back End Ends the playback.

Power Failure Recovery

Returns the system after power interruption.

24_ menu setup

First Prev Next Last Exit

The log data contains the event execution data and time.

First: Moves to the first log page.



Prev: Moves to the previous log page.



Next: Moves to the next log page.

 

Moves to the recent log page.

Last:

The event logs are as follows:

Video Loss CH[N] Means the occurrence

of Channel [N] Video Loss.

Alarm Detection CH[N] Means the occurrence

of Channel [N] alarm.

Motion Detection CH[N]

Means the occurrence of Channel [N] Motion.

05 MENU SETUP

menu setup _25

System Information and Setup

System Information Software Version Broadcast Format NTSC Mac Address 00:16:6C:22:28:EF

USB S/W Upgrade Version

B3.09-K1.53-V2.20_0707051455

B3.09-K1.53-V2.20_0707071230

OK Cancel

This setup window provides the following setting items:

Software Version: Displays the current



software version. The value cannot be changed. Broadcast Format: Displays the current



broadcast format (NTSC/PAL). The value cannot be changed. Mac Address: 6-Byte hardware address. The



value cannot be changed. USB S/W Upgrade



You can update the software using a USB device. If there is no device, None is displayed. If the USB memory has an upgrade software, its version is displayed. To upgrade the software stored in the USB device, select the check box on the right and press OK.

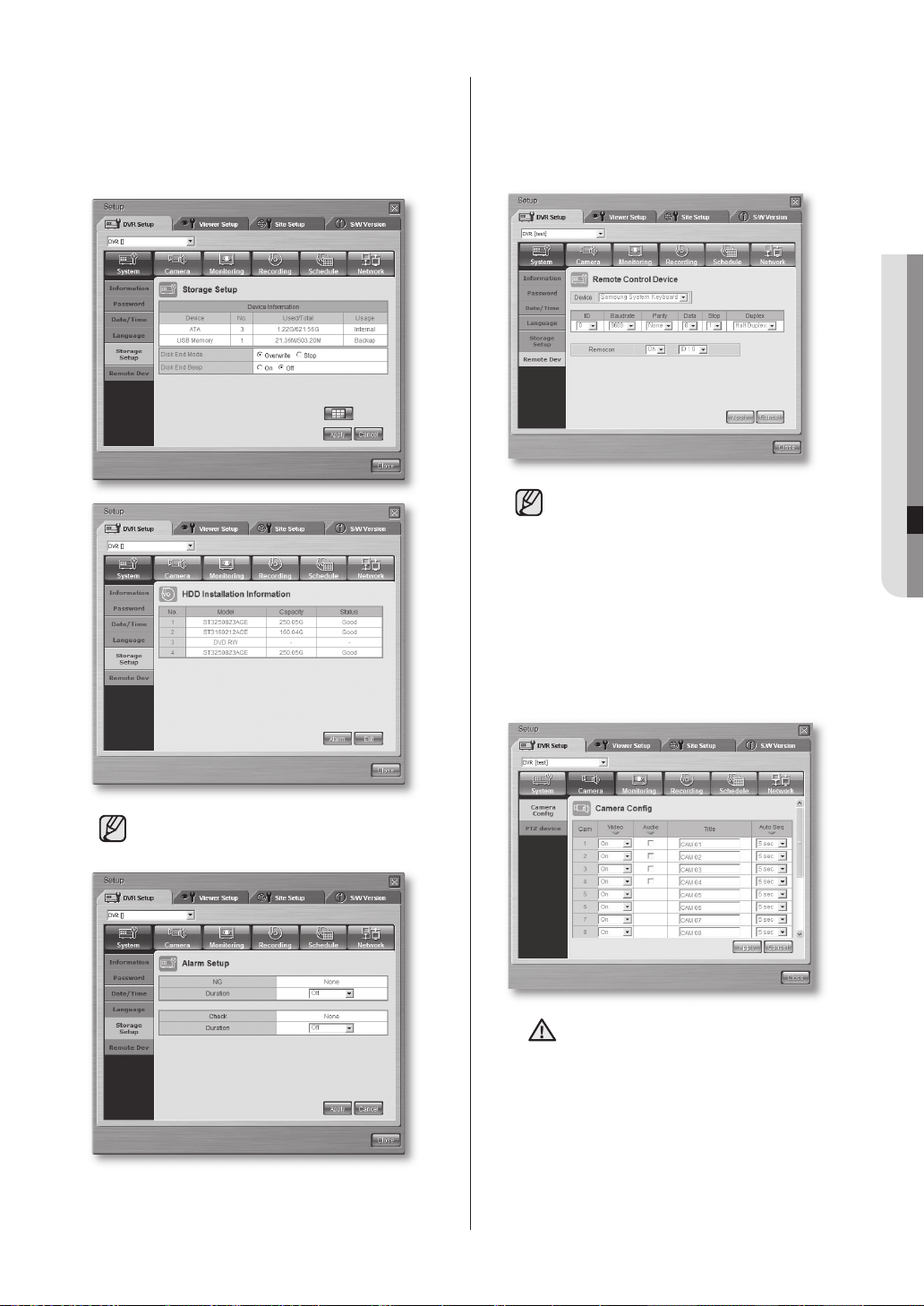

Storage Setup

Disk End Mode



- Stop: Stops recording when the disk is full while recording is still in progress.

- Overwrite: Deletes the previously recorded data to store new data when the disk is full during recording.

Disk End Beep



- On: Beeps when the disk is full while recording.

- Off: Although the disk is full while recording, it doesn’t make beep sound.

HDD Installation Information



When you click ( ), The HDD Installation Information displays on the screen. Then you can

see the model name, the capacity, and the status of the HDD in your DVR. The status displays Good, Not good, and Check. In the status of Not good, you should replace the HDD. In the status of Check, you should replace the HDD or check periodically. After clicking the Alarm Setup, you can set the alarm and the duration while the status is Not good or Check. If you click the HDD location map, it displays the information about the HDD installation. When a problem occurs, you can see which HDD has a problem.

The capacity of the HDD may differently



appear in the Storage Setup menu and HDD Installation Information menu. In case of SHR-5160/5080, the model



name of HDD appears instead of DVD RW.

HDD Installation Information

No. Model Capacity Status

1 ST3250823ACE 250.05G Good 2 ST3160212ACE 160.04G Good 3 DVD RW - 4 ST3250823ACE 250.05G Good

You can conﬁgure the storage device related settings.

Storage Setup

Device Information Device No Used/Total Erase Usage ATA 1 0.00/235.66G Internal USB Memory 1 0.00/494.98M Backup

Disk End Mode Disk End Beep Off

Device Information



OverWrite

Cancel

Displays the number, capacity, and usage of ATA and USB devices. (The total capacity displayed may be lower than the actual capacity because the DVR uses some portion of it for internal purpose.) After selecting Erase for each device, you can remove the data on it. In case of USB device, you can set the usage for extension or backup. If you change the usage of the device, the stored data will be removed.

Alarm Setup HDD Location Map

Alarm Setup

NG None

Duration 10 sec

Check None

Duration 10 sec

HDD Location Map

Exit

Cancel

Exit

When the Disk end mode is set to

CAUTION

Overwrite and the HDD overwrites

the data that was previously backed up, the backup start time may be changed or the backup process may be cancelled. [Disk Overwrite] When Overwrite is selected, the previous event data is to be deleted and the mode is also changed.

[Built-in HDD] This is a physical hard disk connected to the IDE cable inside the main body, and it stores data.

[External HDD] This is a physical hard disk connected to the port and jack on the rear of the main body, and it also stores data. This can be used as an extended hard disk or backup hard disk.

Extended HDD: Supplements the built-



in HDD. It is located on the top of the built-in HDD. Backup HDD: Used for backup of the



data recorded on the HDD.

[ATA]: Built-in HDD This is a disk drive implementation that integrates the controller on the HDD itself. It is a physical hard disk connected to the IDE cable inside the main body.

[USB]: External HDD

(Extension HDD or backup HDD) This is used for external HDD connection. The external HDD is connected through this USB port on the front or rear panel.

Export/Import the Configuration

This menu is used to export or import the DVRrelated settings to/from the USB memory.

Export/Import the Configuration

Export the Configurations to USB Memory Mode File Name 07011000 Include N/W Settings

Export

Apply

Cancel

The related settings are as the following:

Mode: You can select any of Import and



Export. File Name: In case of Export, the file name



is displayed. The file naming convention is YYMMDD00. “00” is the serial number so it increases by 1. To change the file name, press the ENTER button. You can change the name using the virtual keyboard. File Open: In case of Import, you can select



the file that you want to import from the USB memory after pressing the ENTER button. When the importing completes, your DVR automatically reboots. Include N/W Settings: In case of Export, this



flag is selected by default. But with Import, you can decide whether or not to copy the network settings. Be careful when you select this because it will remove the previous

network settings.

Remote Control Device

Device None

ID Baudrate Parity Date Stop Duplex

000 9600 None 8 1 Half Duplex

Remocon On ID:00

Cancel

This menu enables you to use the Samsung system keyboard or remote control.

Device



It indicates a remote control device that is connected to the RS485 port.



This is a unique ID of the device. This ID is necessary to control multiple DVRs.

Baudrate



Baud rate for communicating with cameras. It should be the same as the baud rate of cameras for communication.

Parity



Select one of None, Even, and Odd.

Data



Select one of 7 and 8.

Stop



Select 1 or 2 for stop bit.

Duplex



Select one of Half Duplex and Full Duplex. (Data exchanging method)

Remocon



Set the remote control to On or Off. You can set the ID of remote control to any of 0 to 99.

26_ menu setup

05 MENU SETUP

menu setup _27

You cannot use the PTZ device and remote control device together at the same time due to communication problem. In PTZ control mode, the PTZ mode of DVR is canceled when the remote control is connected. On the contrary, the remote control is disconnected when the DVR switches to PTZ mode. Refer to the user manual of remote control to learn how to handle the PTZ device using the remote control.

Video



- On: The camera image from the selected channel appears.

- Off: The camera image from the selected channel disappears.

- Covert1: Displays the information except for the video information on the selected channel.

- Covert2: Does not display any information.

The settings for audio, camera name, and auto sequence are not allowed for the channel whose video is set to Off.

CAMERA

The detailed items for camera menu are as shown in the picture:

MENU SETUP

System

Camera

Monitoring

Record Mode

Event Record

Schedule

Backup

Network

Move/Control Select Exit

Camera Configuration

Camera Config

Cam Video Audio Title Auto Seq 1 On Off CAM 01 5sec 2 On Off CAM 02 5sec 3 On Off CAM 03 5sec 4 On Off CAM 04 5sec 5 On Off CAM 05 5sec 6 On Off CAM 06 5sec 7 On Off CAM 07 5sec 8 On Off CAM 08 5sec

Camera Configuration PTZ Device Screen Setup

CancelOK9-16

In case of SHR-5082/5080, only 8 channels are displayed.

Audio



- On: You can hear the sound in the selected channel.

- Off: You cannot hear the sound in the selected channel.

You can select only the number 1 to 4 channels to hear sound.

Title



You can name the camera of the selected channel. If you press the ENTER button, the virtual keyboard appears.

Virtual keyboard Use the Direction buttons to select a character and use the ENTER button to type the selected character. You can type up to 15 characters. No space is allowed for input. If you select CapsLock, the virtual keyboard switches between upper case mode and lower case mode.

CapsLock Delete Back Space

CancelOK

Auto Seq



You can set the auto sequencing interval for each channel. The setting applies in the live mode. When the value of a channel is set to Off, the channel is not displayed in the auto sequence mode.

PTZ Device

Screen Setup

You can configure the PTZ device related settings.

PTZ Device

Cam ID Protocol Baudrate Parity Data Stop 1 000n None 9600 None 8 1 2 001 None 9600 None 8 1 3 002 None 9600 None 8 1 4 003 None 9600 None 8 1 5 004 None 9600 None 8 1 6 005 None 9600 None 8 1 7 006 None 9600 None 8 1 8 007 None 9600 None 8 1



Serial Mode :

Half Duplex

CancelOK9-16

ID for PTZ camera. It can have any number among 0 to 255.

Protocol



Protocol that is supported by the PTZ device. Available protocols are Samsung, Vic., Pan., AD, Phi., Ern., Pel-D, Pel-P, Vcl., Dia., Kal., and Tech.

Baudrate



Available baud rates are 600, 1200, 2400, 4800, 9600, 19200, and 38400.

Parity



Select one of None, Even, and Odd.

Data



Select 7 or 8 for data bit.

Stop



Select 1 or 2 for stop bit.

Serial Mode



Select Half Duplex or Full Duplex for data exchanging method.

In case of SHR-5082/5080, only 8 channels are displayed.

The above setting values must be the

CAUTION

same as the ones of the PTZ device. For more details, please refer to the user manual for the PTZ device.

It is used to set the brightness, contrast, and color for the camera image of each channel.

Brightness 050

Contrast 050

Color 050

ExitDefault

Place the cursor on the channel that you want to set the values for brightness, contrast, and color. When a channel is selected, its image appears on the right. For selection, press the ENTER button. Use the UP/DOWN direction buttons to change the value from 0 to 100. When Default is selected, the value 50 is to be assigned for each item of the selected channel.

In case of SHR-5082/5080, only 8 channels are displayed.

MONITORING

You can configure the monitoring-related settings.

Monitoring

Event Monitoring Duration Off OSG Display Date On Time On Title On Status On Spot Out Channel CH1 Spot Out Event Monitor Off Monitor Out Dual Out PB Channel Position Right Down Multi Channel Seq. 5sec

CancelOK

28_ menu setup

Event Monitoring



You can select any of Off, 3sec, 5sec, 10sec, 20sec, 30sec, and Continuous.

- Off: Event monitoring does not work.

- 3sec, 5sec, 10sec, 20sec, and 30sec: Sets the screen duration period in the Auto Sequence (or auto sequence) mode.

- Continuous: The event monitoring screen remains alive until you press the ALARM button.

05 MENU SETUP

menu setup _29

OSG Display



- Date: The date is displayed on the screen when it is set to On.

- Time: The time is displayed on the screen when it is set to On.

- Title: The camera name is displayed on the screen when it is set to On.

- Status: Recording and event information, Audio sign, and PTZ sign are displayed on the screen when it is set to On.

Spot Out Channel



This is used to monitor a specific channel by connecting a monitor to the SPOT jack on the rear of the product. When you are using two monitors, one monitor can be set for spot out monitoring. This provides two kinds of functions: Displaying the spot out channel only and auto sequencing of all channels.

- Auto sequence setup ranges from Ch 1 to Ch 16.

- In the auto sequence mode, channels are changed in turn.

- Duration period for auto sequence is the same as the one set in Camera Setup.

Spot Out Event Monitor



This is set for monitoring events from multiple channels.

- Off: The event monitoring does not operate in the Spot Out channel.

- 3sec, 5sec, 10sec, 20sec, and 30sec: Sets the screen duration period in the Auto Sequence mode.

- Continuous: Once the event monitoring starts, the screen remains alive until you press the ALARM button.

Monitor Out



Video output methods can be selected from Composite, VGA, and Dual output modes. System restarts after changing the Video output methods.

- Composite video output: transfers the composite output signal.

- VGA video output: transfers VGA output signal.

- Dual video output: both the Composite and VGA video outputs are available to use.

PB Channel Position



You can designate the playback (PB) channel location in 9-split mode. Right Down: The playback channel is displayed at the lower right side of the screen. Center: The playback channel is displayed in the center of the screen.

Multi Channel Seq.



You can set the Auto Sequence interval for split screens. Available intervals are 3, 5, 10, 20, and 30 seconds.

[Video Out]

CAUTION

You may experience low display quality while the dual video output is in use. In this case, please switch it to the composite or VGA video output. VGA video output port is not available while the composite video output is set to use and vice versa. If the MODE and ZOOM buttons are pressed and hold for 5 seconds, the system restarts while alarming beep sound. The LED blinks while restarting and the video output mode is changed. (Composite output VGA output).

VGA output: 640x480 (60Hz)



RECORD MODE

The detailed list for record mode settings is as follows:

MENU SETUP

System

Camera

Monitoring

Record Mode

Event Record

Schedule

Backup

Network

Move/Control Select Exit

Record Quality & Auto Deletion

Cam Normal Event Cam Normal Event 1 Level4 Level4 9 Level4 Level4 2 Level4 Level4 10 Level4 Level4 3 Level4 Level4 11 Level4 Level4 4 Level4 Level4 12 Level4 Level4 5 Level4 Level4 13 Level4 Level4 6 Level4 Level4 14 Level4 Level4 7 Level4 Level4 15 Level4 Level4 8 Level4 Level4 16 Level4 Level4

Auto Deletion:

Off

01 Day

Record Quality & Auto Deletion Record Rate & Video Size Event Record Duration

CancelOK

Record Quality



You can set the recording picture quality selecting of Level8(High) ~ Level1(Low).

Auto Deletion



If you select On, you can set the number of days for access restriction. If it is set to 3, you cannot search the data recorded at the time less than 3 days before.

In case of SHR-5082/5080, only 8 channels are displayed.

Record Rate & Video Size

NTSC

Record Rate & Video Size

Cam Normal Event Cam Normal Event 1 7.5 ips 7.5 ips 9 7.5 ips 7.5 ips 2 7.5 ips 7.5 ips 10 7.5 ips 7.5 ips

7.5 ips 7.5 ips 11 7.5 ips 7.5 ips

3 4

7.5 ips 7.5 ips 12 7.5 ips 7.5 ips

7.5 ips 7.5 ips 13 7.5 ips 7.5 ips

7.5 ips 7.5 ips 14 7.5 ips 7.5 ips

6 7

7.5 ips 7.5 ips 15 7.5 ips 7.5 ips

7.5 ips 7.5 ips 16 7.5 ips 7.5 ips

Video Size:

CIF(C)

CancelOK

- If the resolution is set to CIF and the number of Video On cameras is 1 to 4, the IPS limit is 30 ips for NTSC and 25 ips for PAL.

- If the resolution is set to Half D1 and the number of Video On cameras is 9 to 16, the IPS limit is 3.7 ips for NTSC and 3.1 ips for PAL.

- If the resolution is set to Half D1 and the number of Video On cameras is 5 to 8, the IPS limit is 7.5 ips for NTSC) and 6.2 ips for PAL.

- If the resolution is set to Half D1 and the number of Video On cameras is 1 to 4, the IPS limit is 15 ips for NTSC and 12.5 ips for PAL.

Video Size



Select any of CIF and Half D1 (Half the horizontal resolution is sampled).

In case of SHR-5082/5080, only 8 channels are displayed.

Event Record Duration

You can set the duration for event recording.

PAL

Record Rate & Video Size

Cam Normal Event Cam Normal Event 1 6.2 ips 6.2 ips 9 6.2 ips 6.2 ips 2 6.2 ips 6.2 ips 10 6.2 ips 6.2 ips

6.2 ips 6.2 ips 11 6.2 ips 6.2 ips

3 4

6.2 ips 6.2 ips 12 6.2 ips 6.2 ips

6.2 ips 6.2 ips 13 6.2 ips 6.2 ips

5 6

6.2 ips 6.2 ips 14 6.2 ips 6.2 ips

6.2 ips 6.2 ips 15 6.2 ips 6.2 ips

6.2 ips 6.2 ips 16 6.2 ips 6.2 ips

Video Size:

CIF(C)

CancelOK

When you press the RECORD button, the record-related settings are applied.

IPS (Images per second)



You can set the image recording speed using this unit. This rate indicates how many images are recorded per second. With NTSC, you can select any of 30, 15, 7.5,

3.7, 1.8, 0.9 ips, and Off. In case of PAL, you can select any of 25, 12.5, 6.2, 3.1, 1.5, 0.7 ips, and Off. Available IPS limits vary depending on the



number of Video On cameras. Video On/Off settings are enabled in Camera Configuration.

- If the resolution is set to CIF (Common Intermediate Format) and the number of Video On cameras is 9 to 16, the IPS limit is

7.5 ips for NTSC and 6.2 ips for PAL.

- If the resolution is set to CIF and the number of Video On cameras is 5 to 8, the IPS limit is 15 ips for NTSC and 12.5 ips for PAL.

Event Record Duration

Cam PreEve. PostEve. Cam PreEve. PostEve. 1 Off 1min 9 Off 1min 2 Off 1min 10 Off 1min

Off 1min 11 Off 1min

3 4

Off 1min 12 Off 1min Off 1min 13 Off 1min

5 6

Off 1min 14 Off 1min

Off 1min 15 Off 1min Off 1min 16 Off 1min

CancelOK

PreEve.



Pre-Event Section

Event time

If the time is set in this field, it records the image from the time before an alarm to the event time. Available values are Off, 5, 10, 20, and 30sec.

PostEve.



Event time

Post-Event Section

If the time is set in this field, it records the image from the event time to the time after an alarm. Available values are Off, 5, 10, 20, 30sec, 1min, 3min, 10min, and 20min.

30_ menu setup

05 MENU SETUP

menu setup _31

EVENT RECORD MODE

Motion Detection Setup

The detailed list for event mode settings is as follows:

MENU SETUP

System

Camera

Monitoring

Record Mode

Event Record

Schedule

Backup

Network

Move/Control Select Exit

Alarm Detection Setup Motion Detection Setup Video Loss Detection Setup

Alarm Detection Setup

Sensor State Cam Alarm-Out Duration 1 Off 1 None 10sec 2 Off 2 None 10sec 3 Off 3 None 10sec 4 Off 4 None 10sec

5 None 10sec

5 Off 6 Off

6 None 10sec

7 Off 7 None 10sec 8 Off 8 None 10sec

9-16

Sensor State



- Off: Sensor does not operate.

- N.O (Normal Open): Sensor remains open all the time. But if it gets closed, an alarm is issued. (A Contact)

- N.C (Normal Close): Sensor remains closed all the time. But if it gets open, an alarm is issued. (B Contact)

Cam



It is used to set a camera that synchronizes with the current sensor. The default setting follows the sensor number. A sensor can synchronize with multiple cameras so multiple values can be selected. You can set a preset for each camera to synchronize sensors with cameras. If a sensor triggers the corresponding camera, the camera can show you the preset location.

Alarm-Out



It is used to set the Alarm-Out location when any alarm occurs. Currently 5 Alarm Outs are available. Select an alarm-out to synchronize with the current sensor. But multiple values can be selected.

Duration



It is used to set the Alarm-Out duration. When an alarm occurs, the alarm is output for the preset time. You can select any of Off, 3sec, 5sec, 10sec, 20sec, 30sec, and Continuous.

CancelOK

You can configure the motion detection related settings. When the detection area is set, the system detects any motion in that area.

Motion Detection Setup

Cam M.D State Area Sensitivity Alarm-Out Duration 1 Off Set Very High None 10sec 2 Off Set Very High None 10sec 3 Off Set Very High None 10sec 4 Off Set Very High None 10sec 5 Off Set Very High None 10sec 6 Off Set Very High None 10sec 7 Off Set Very High None 10sec 8 Off Set Very High None 10sec

CancelOK

M.D State



9-16

- Off: Motion detection does not operate.

- On: Motion detection is active.

Area



This is used to set the motion detection area. It is not allowed to set 4 extreme rows (Up, Down, Left, Right) because the display boundary regions can vary according to the monitor specification.

- Select All: Selects the whole area.

- Select One: Selects a block unit for each time.

- Select Quarter: Selects a quarter unit of the screen for each time.

- Clear All: Clears the whole selection.

- Save & Exit: Saves the setting and exits.

- Exit: Exits without saving.

Select All

Select One

Select Quarter

Clear All

Save & Exit

Exit

In case of SHR-5082/5080, only 8 channels are displayed.

Sensitivity



This is used to set the sensitivity for motion detection. Available values are Low, Medium, and Very High.

Alarm-Out



It is used to set the Alarm-Out location when any alarm occurs. Currently 4 Alarm Outs are available. Select an alarm-out to synchronize with the current sensor. But multiple values can be selected.

Duration



It is used to set the Alarm-Out duration. When an alarm occurs, the alarm is output for the preset time. You can select any of Off, 3sec, 5sec, 10sec, 20sec, 30sec, and Continuous.

In case of SHR-5082/5080, only 8 channels are displayed.

Video Loss Detection Setup

You can configure the video loss related settings. If any video loss is detected, the corresponding alarm will be issued.

Video Loss Detection Setup

Cam Video Loss State Alarm-Out Duration 1 Off 1 10sec 2 Off 2 10sec 3 Off 3 10sec 4 Off 4 10sec 5 Off None 10sec 6 Off None 10sec 7 Off None 10sec 8 Off None 10sec

CancelOK

Video Loss State



9-16

- Off: Video loss detection does not operate.

- On: Video loss detection is active.

Alarm-Out



It is used to set the Alarm-Out location when any video loss is detected. Currently 4 Alarm Outs are available.

Duration



It is used to set the Alarm-Out duration. When an alarm occurs, the alarm is output for the preset time. You can select any of Off, 3sec, 5sec, 10sec, 20sec, 30sec, and Continuous.

In case of SHR-5082/5080, only 8 channels are displayed.

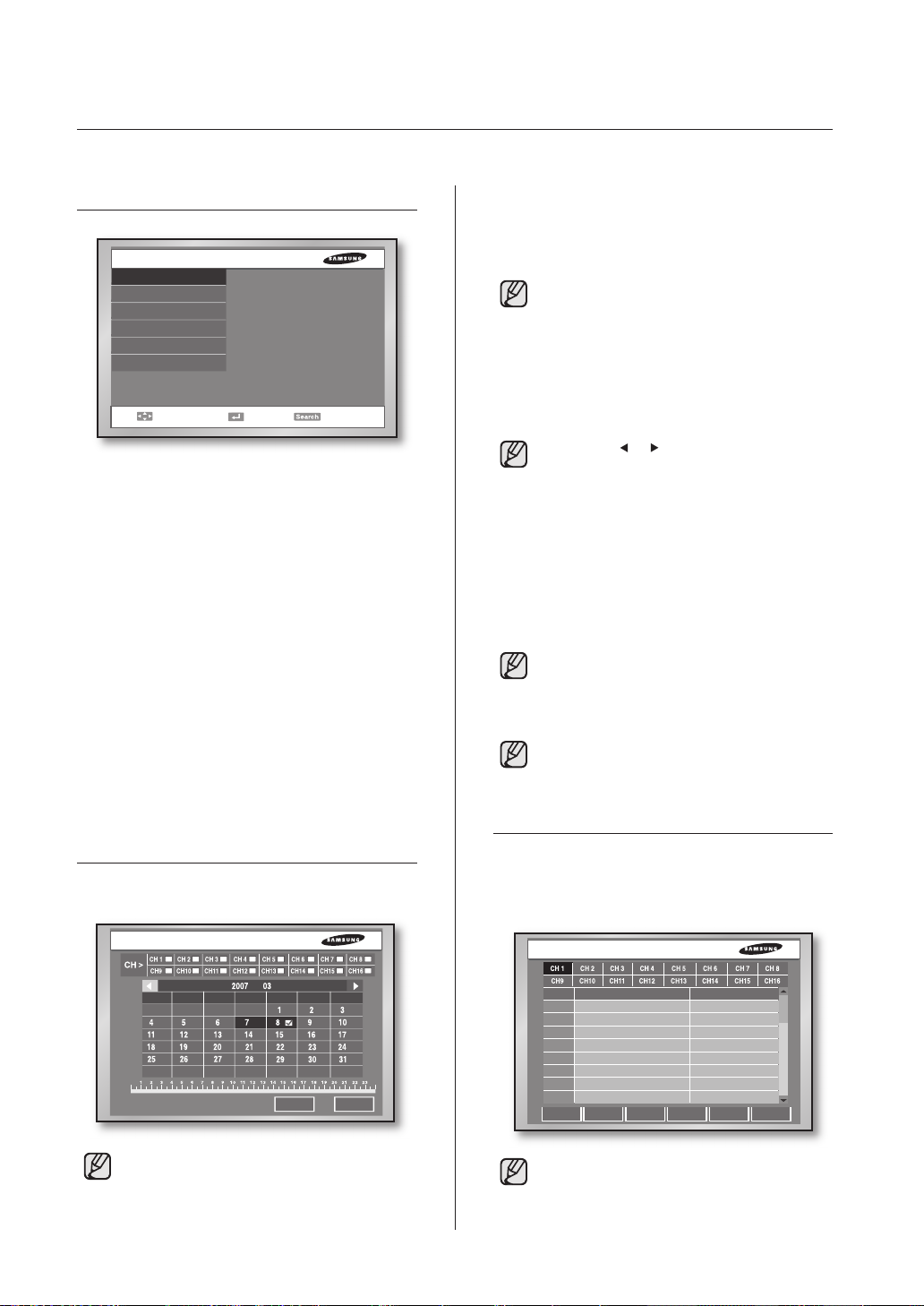

SCHEDULE

Record Schedule

The scheduling is enabled by selecting days and time blocks. The default setting is Event Recording. Recording automatically starts according to the schedule.

Record Schedule

All S

M T W T F S H

Continuous Recording Event Recording Both(Continuous, Event)

CH >: Copies the value of Channel 1 to all the



Holiday

channels after this is pressed.

0 to 23: Time values for horizontal row.



S to H: Days (Sunday to Saturday) and Holiday (H).



ALL: Press this and it changes the overall



settings in the current window to Continuous, Event Record, and Both in order.

Continuous Recording



Recording follows the settings configured in Record Mode. For furthermore information, see “Schedule Recording” in Chapter 7. It is displayed in yellow, while the event recording is displayed in blue and both recording in red. When nothing is assigned, it is displayed in gray.

Event Recording



Recording automatically starts when an event (alarm, motion detection, and video loss) occurs within a setup time. Recording follows the settings configured in Event Record. For more information, see “Event Recording” in Chapter 7.

Both(Continuous, Event)



Both recordings are applied at the same time.

Holiday



If you press Holiday, a calendar window appears for you to designate holidays. Place the cursor to a date and press the ENTER button, then you can set the date or Nth day of the month as a holiday. (You can also set both options as holidays

Holiday Setup

Sun Mon Tue Wed Thu Fri Sat 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29

Feb

Feb / 08

Feb / 2nd / Thu

CancelOK

You can configure the scheduling-related settings here.

32_ menu setup

CancelOK

In case of SHR-5082/5080, only 8 channels are displayed.

05 MENU SETUP

menu setup _33

Alarm Out Schedule

You can schedule the automatic output for alarms.

Alarm Out Schedule

AO Alarm 1 Alarm 2 Alarm 3 Alarm 4 Beep

All S

M T W T F S H

Off On Event Driven

Holiday

CancelOK

The scheduling is enabled by selecting alarms, days and time blocks. The default setting is Event Driven. For each alarm or beep, you can activate or deactivate alarming. In case of Event Driven, the alarm can be sent only when an event is issued.

AO >:



It indicates Alarm Out. All alarms are

changed according to Alarm1 when it pressed.

0 to 23: Time values for horizontal row.



S to H:



ALL: Press this and it changes the overall



Days (Sunday to Saturday) and Holiday (H).

settings in the current window to Off, On, and Event Driven.

Off: Sets not to issue an alarm during the



setting time.

On:

Sets to issue an alarm during the setting time.



Event Driven: Sets to issue an alarm when an



event occurs during the setting time.

Holiday



If you press Holiday, a calendar window appears for you to designate holidays. Place the cursor to a date and press the ENTER button to complete designation. (When pressing the ENTER button again, the setting is cancelled.)

NETWORK

You can configure the network related settings for network connection.

IP Settings

Connection Mode Static IP Bandwidth 2 Mbps Admin Password User Password IP 192.168.001.201 Gateway 192.168.001.001 Subnet Mask 255.255.255.000 DNS 168.126.036.001 ADSL User ID ID Password

 



CancelOK

Connection Mode



Select a network type that is connected to the main body of the product.

- Static IP: When the main body is connected to the network using the static IPs.

- Dynamic IP: When the main body is connected to the network using the dynamic IPs supplied by DHCP.

- ADSL(PPPoE): When the main body is connected to the ADSL network using Pointto-Point Protocol over Ethernet (PPPoE).

Bandwidth



Select a network speed among Unlimited, 2 Mbps, 1.5 Mbps, 1 Mbps, 800 Kbps, 600 Kbps, 500 Kbps, 400 Kbps, 300 Kbps, and 128 Kbps. If the connection is made via ADSL, you can only select the bandwidth of 600 kbps or less.

Admin Password



It is used for connection between Smart Viewer and this product using the Admin privilege. The password can be input up to 8 digits. Press the ENTER button and type the numbers you want using the NUMERIC buttons. The default Admin password is “4321.”

User Password



It is used for connection between Smart Viewer and this product using the user privilege. The password can be input up to 8 digits. Press the ENTER button and type the numbers you want using the NUMERIC buttons. The default user password is “4321.” With the user privilege, you cannot access to both Menu Setup window in DVR and DVR Setup screen in Smart Viewer.

1. If the main body of the product is

CAUTION

connected to a high-speed network like LAN, it is recommended to set the higher bandwidth than 1 Mbps.

2. If the device is connected to a network using ADSL or low bandwidth, set the bandwidth not to exceed 600Kbps, and set the recording mode not to exceed CIF (standard). Setting up to a higher bandwidth or higher recording mode for the network environment supporting a low bandwidth may cause a network overload, therefore the connection to Smart Viewer or image monitoring may not operate properly.

3. When the connection mode is set to ADSL, the bandwidth is fixed to 300Kbps.



Set the IP address for the main body of the product for connecting to the network. If the connection mode is set to Static IP, type the IP address. If the connection mode is Dynamic IP or ADSL(PPPoE), the IP address allocated by the DHCP server or ADSL company automatically appears. In case of DHCP or ADSL connection failure, the value “000.000.000.000” is displayed. Then, press OK to retry connection for getting the IP address. If the connection failure continues, turn off the power for a while and reboot the system for retry. Gateway



In case of Static IP, set the gateway address assigned. With Dynamic IP or ADSL, the address is automatically allocated. Subnet Mask



Set the subnet mask address assigned. DNS



Set the DNS address. The default value is “168.126.63.1.” If you have hard time to connect to the network when you are using DHCP or ADSL, contact the network manager or ADSL company personnel to set up a new DNS address. ADSL User ID



If the product is connected to the ADSL network, input the user ID subscribed to the ADSL company. You can input the user ID using the virtual keyboard up to 40 letters irrespective of alphabets, numbers, and symbols. Password



If the product is connected to the ADSL network, input the user password subscribed to the ADSL company. You can input the password using the virtual keyboard up to 40 letters irrespective of alphabets, numbers, and symbols.

In case of ADSL, the audio is not

CAUTION

played on Smart Viewer. Be sure to set the IP, port, Subnet mask, gateway, and DNS to make Smart Viewer connected to the product. Wrong settings may result in not being connected to the product. Please contact the network manager or ADSL company personnel to get the correct setting values.

Transfer Protocol Settings

You have to conﬁgure the data transfer protocol related settings to use network for transferring data.

Transfer Protocol Settings

Protocol Type UDP Port(TCP) 0554.0555.0556.0557 Port(UDP) 8000-8159 Unicast/Multicast Unicast Multicast IP 224.126.063.001

TTL 005 DDNS Site Off Host Name

User Name User Password

Protocol type.





CancelOK

Select any of TCP and UDP. If you have selected ADSL in IP Setup, only TCP is available. In this case, audio transmission is not available. Port(TCP)



Select a number ranging from 554 to 2046 using the UP/DOWN direction buttons and the port number will change by 4. Once the ﬁrst port number is determined, the following 3 numbers will change. Port(UDP)



Select a number ranging from 8000 to 9760 using the UP/DOWN direction buttons and the port number will change by 160. Once the ﬁrst number is determined, the following number will change. Unicast/Multicast



Select any of Unicast and Multicast. Unicast is set by default. When you select Multicast, the multicast IP is activated and you can input the address ranging from 224.0.0.0 to 239.255.255.255 using the UP/DOWN direction buttons. TTL



Enter a number ranging from 0 to 255. You can input it only when Multicast is selected. The default value is “5.” DDNS Site



Select a DDNS site. This DDNS setup is necessary to see the monitoring screens from the remote computer that is running Smart Viewer. Available values are Off, Samsung DDNS, dyndns.com, no-ip.com, and changeip. com. If you select Off, the IP will not be registered in DDNS.

- If you select Samsung DDNS, register

the TCP IP in DDNS that is operated by Samsung. To conﬁgure the DDNS-related settings in Smart Viewer, select Setup > Site Setup > DVR Registration and set the address type with MAC Address, and then register the MAC address that is displayed in the System Information and Setup menu. (or you can get the Ethernet address on the side label attached on the product.)

- Using the free public DDNS web sites such as dyndns.com, no-ip.com, and changeip. com, you can acquire an URL by registering a dynamic IP. After this action completes, enter the host name, user name, and password in this window.

34_ menu setup

If you set up the public DDNS (dyndns.



com, no-ip.com, or changeip.com), it will take approximately 30 to 60 seconds to get the IP address for the host name (URL) to be updated in the DNS. To connect this product to an IP



router, you have to designate a port for this product in the setup menu of the router. This product has 4 ports for TCP communication. To use the DHCP function provided by the IP router to allocate the dynamic IP to the product, designate a port for the IP that has been allocated by the IP router setup menu. When using the IP router, it is recommended to use the fixed IP. For that purpose, set the IP address and port number to be allocated to the product, select Static IP in the connection mode and enter the IP address assigned to the IP router. For more information about using the IP router, see the user manual of the IP router or contact the manufacturer.

Callback Settings

Transfer Video Loss: Set it to On to display



video loss events on Smart Viewer. Transfer System Log: Set it to On to display



system logs such as critical system failures.

Even if this function is set to On, any

CAUTION

callback message will not be created unless the settings for alarm, motion detection, and video loss are set in Event Record. To get the callback messages from Smart Viewer, click Callback.

Transfer Picture Settings

You can configure the video size and quality for transferring pictures.

Transfer Picture Settings

Video Size CIF Quality Very High

05 MENU SETUP

This configuration is used to forward the callback messages to the IP where Smart Viewer is running. When any alarm, motion, or video loss events occur, the system automatically connects to the corresponding DVR to show the callback messages.

Callback Settings

On/Off On IP Address 192.168.001.010 Port(UDP) 7900 Retry 05 Transfer Alarm In Off Transfer Motion Detection Off Transfer Video Loss Off Transfer System Log Off

Cancel

On/Off: Off is default. To use the callback



function, choose On. IP Address: Use the UP/DOWN direction



buttons to set the TCP IP address of the PC where Smart Viewer is running. Port(UDP): Use the UP/DOWN direction



buttons to set a port number ranging from 7900 to 7999. The number changes by 1. You have to also set the port value in the Callback Connection menu for Smart Viewer setup. Retry: Select a number ranging from 1 to 20.



The number changes by 1. Transfer Alarm In: Set it to On to display



alarms on Smart Viewer. Transfer Motion Detection: Set it to On



to display motion detection events on Smart Viewer.

Cancel

Video Size: Select any of CIF and Half D1.



Quality: Select any of Very High, High,



Standard, and Low.

Web Viewer Port Setting

You can configure the port number for Web Viewer.

Webviewer Port Setting

Port 080

Cancel

The available ports are those from 80 through 60080.



If you set the port number instead of



80(default), it is needed to type the port number into the address bar of the Web browser. (e.g. http://218.209.27.130:500)

menu setup _35

CONFIGURING NETWORK

Port configuration for connecting Smart Viewer

To set the TCP port for DVR registration into



Smart Viewer, the value should be the same as that of this product. To use the IP router, you must forward the



activated ports.

- For TCP, set the assigned 4 ports in the IP Router.

- For UDP, set the assigned 4 TCP ports and 160 UDP ports that is set in the IP Router.

In case of TCP transfer protocol

The ports allocated to the TCP will be used for connection control and stream transfer of Smart Viewer.

In case of UDP transfer protocol

The TCP ports will be used for Smart Viewer



connection and the UDP ports will be used for stream transfer. When Multicast is set



- Both MultiCast IP and TTL fields are activated.

- MultiCast IP is the group address (D-Class IP Address: 224.0.0.0 to 239.255.255.255) for multicast transfer.

- TTL(Time To Live) indicates how many routers will pass for multicast transfer.

- When you are not allowed to use multicast through the Network (LAN or ADSL) as both Set and Smart Viewer are installed, the message, “Not Connected” will be displayed on the Smart Viewer screen. Please change it to the setting for TCP or UDP.

Poor image problem in Smart Viewer



- When the bandwidth of the network is smaller than the quantity of transfer stream packets, the displayed image is sometimes poor. Set the bandwidth in IP Settings to the value lower than the current setting. (In case of ADSL, it is recommended to set 300Kbps or 600Kbps for the bandwidth.)

- If this effort is of no use, change the protocol type to TCP.

36_ menu setup

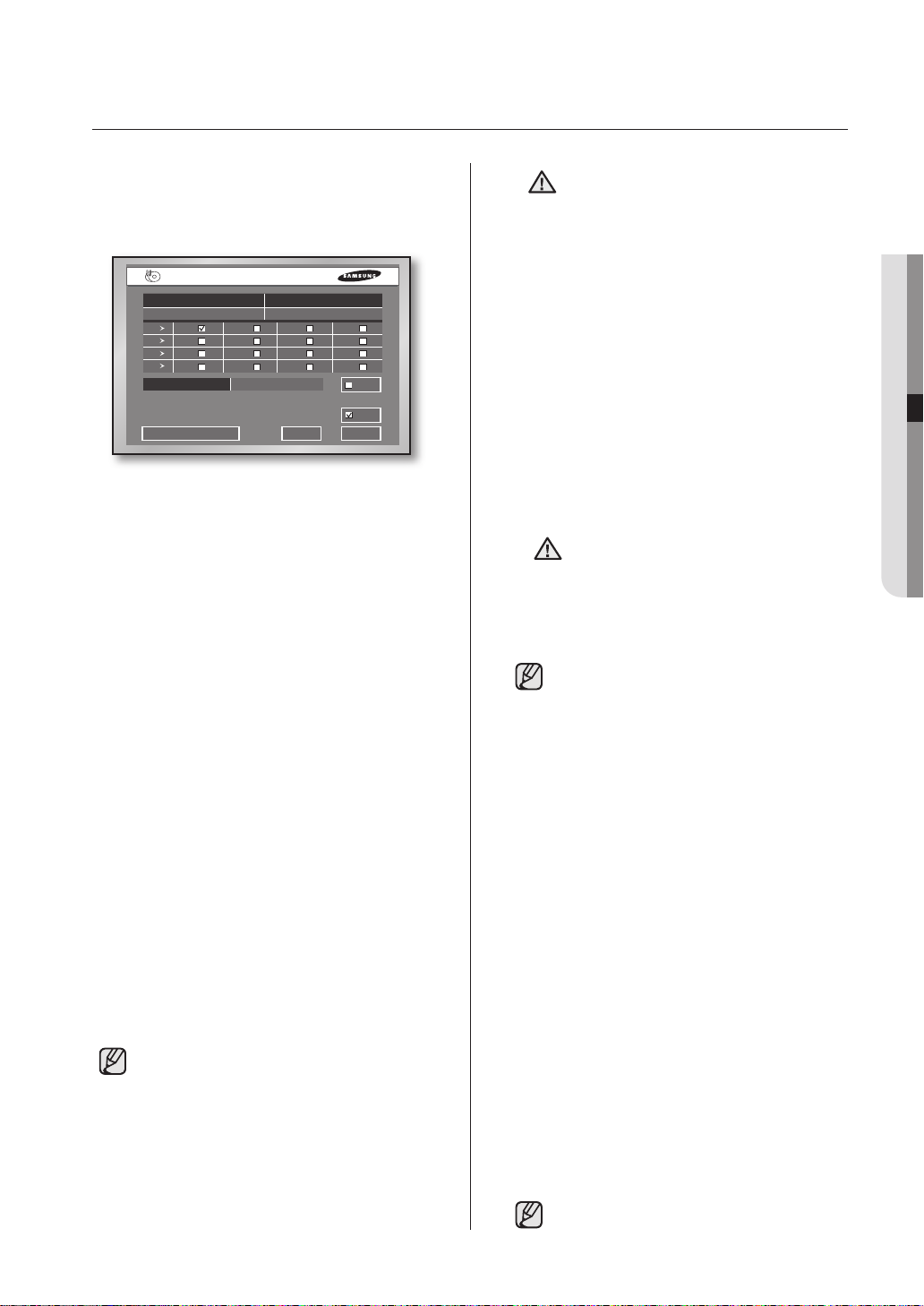

backup

If there is a predefined device connected, the window displays the device information like the free space and such. You can also use the BACKUP button on the front of your DVR.

Backup

Start Date / Time End Date / Time

2007-01-31 10:17:10 2007-03-31 10:17:20

CH CH 1 CH 2 CH 3 CH 4 CH CH 5 CH 6 CH 7 CH 8 CH CH 9 CH 10 CH 11 CH 12 CH CH 13 CH 14 CH 15 CH 16

Folder/Filename 20070131/ 1017

Select / Free : 0.00/410.91M(0.00%) Backup Dev : CD/DVDW SH-S182D

CD/DVD

Start

AVI

Check

Cancel

To configure the related settings

1. Set the start date and time using the Direction buttons and the ENTER button.

2. Set the end date and time using the Direction buttons and the ENTER button.

3. Select a channel for backup using the Direction buttons and the ENTER button.

4. Optional: If you want to change the current

file name, use the virtual keyboard. The file name format is HHMM (maximum 4 digits) and the format of folder is YYYYMMDD.

5. When multiple devices are connected, press USB Memory at the bottom-left corner to

select a backup device. If you select the built-in CD or USB CD/DVD, the recording format is fixed to AVI. When Check is selected, the file size of the selected time and channel, and residual memory size of the device are displayed.

6. When all settings are complete, press Start

to begin the backup process. When the backup starts, the backup progress is displayed. If you select Stop on the progress window, the backup stops. If you select Exit, the screen changes to the upper menu without stopping the backup.

In case of SHR-5160 and SHR-5080, they do not include the built-in DVD writer so that backup function is not available for built-in CD/DVD.

[In Backup Process]

CAUTION

If you press Exit while the backup is in progress, the screen goes to the upper menu but it does not affect the backup process. The running speed of the product may be lowered while the backup is in progress. When performing backup on USB CD/ DVD or memory, you cannot use the actual capacity of the device because a part of the capacity is used for the system. This device doesn’t support the backup for memory cards, ﬂash cards, and memory sticks such as SD, CF, MMC, etc. The virtual keyboard does not support the input of special characters or space. When the CD or DVD is malfunctioning, its tray frequently opens and closes, and then the backup fails. In this case, retry the backup after exchanging the media.

The backup data could be damaged by

WARNING

the surface state of the disk when using CD or DVD. The DVR may restart if you attempt to eject the backup device while the backup is in progress.

The ﬁle name is created with the start time of backup data. (YYYYMMDD)/(HHMM+ four digits of the serial number) The backup ﬁle can be separated in the following conditions:

- Different units in ﬁle size (1GB for DVD, 2GB for others)

- Change in recording conditions

- Discontinuous recording data

Codec is required to play an AVI backup ﬁle, which is also copied along with the installation ﬁle in the AVI backup process. Run a codec setup ﬁle, “MP4Codec.exe”, to install the codec on the PC. “INDEX.xml” is included in the AVI backup ﬁle, which enables you to check and enjoy a desired ﬁle at your convenient time. In case of USB external HDD and USB Flash Memory, the backup is available only with formatting FAT32 partition. To format FAT32, Format the device as FAT32 in the PC or erase the device in the Storage Setup menu, which enable to backup ﬁles.

In case of back-up devices, please check the compatibility list of the storage devices. The list of the compatible devices with Samsung DVR can be obtained from your vendor.

The backup of the AVI format may take longer depend on a number of the channel and the DVR operation environment (e.g. recording, network)

06 BACKUP

In case of SHR-5082

/5080

are displayed.

, only 8 channels

backup _37

PTZ camera control

PTZ CAMERA CONTROL MODE

You have to check that proper PTZ camera settings are allocated for PTZ device setup in the Camera menu.

PTZ Device

Cam ID Protocol Baudrate Parity Data Stop 1

000 Samsung 38400 None 8 1

2 001 Vic 38400 None 8 1 3 002 Pan. 19200 None 8 1 4 003 AD 38400 None 8 1 5 004 Phi. 38400 None 8 1 6 005 Ern. 38400 None 8 1 7 006 Pel-D 19200 None 8 1 8 007 Pel-P 19200 None 8 1

Serial Mode:

Half Duplex

9-16

In case of SHR-5082/5080, only 8 channels are displayed.

When the PTZ configuration is complete, the PTZ

PTZ

sign (

If you press the ENTER button in the split



) appears on the live screen.

screen, a blue bar appears for selection handling. Use the Direction buttons to move this bar until you reach the channel having the PTZ sign, and press the PTZ button on the front panel or remote control to enter the PTZ Camera Control Mode. In PTZ Camera Control Mode, the color of the PTZ sign changes to yellow from white. In this mode, you can pan and tilt the camera, and zoom in the screen.

CancelOK

the PTZ button. In Single Screen PTZ Camera Control Mode, the PTZ sign changes to yellow from white. You can pan and tilt the camera, and zoom in the screen. It also supports the miscellaneous functions like Preset, Camera Menu, and etc.

2007 - 03 - 11 09:27:16

CAM 01

Press the PTZ button in the live mode to



cancel the PTZ camera control function. After cancellation, the PTZ sign on the Auto Sequences to white from yellow.

You cannot use the PTZ device and



remote control device at the same time due to communication problems.

In PTZ control mode, the PTZ mode



of DVR is canceled when the remote control is connected. When the remote control is disconnected, it changes to PTZ mode. Refer to the user manual for the remote control to control the PTZ device using the remote control.

When using the remote control that is



run by Samsung protocol, the direct camera control is enabled.

If there is no PTZ control activity within



maximum 5 minutes, the PTZ mode is automatically cancelled. Then it is controlled by the Smart Viewer.

PTZ

TELE

Another PTZ camera control is executed in



WIDE

VIEW

PRESET

a single screen. Press the channel number button on the front panel or remote control to select the PTZ-enabled channel and press

38_ PTZ camera control

BASIC PTZ OPERATIONS

When using a remote control, it is possible to control the camera with the remote control run by Samsung protocol. If there is no PTZ control for 5 minutes from the DVR, this mode is automatically cancelled. Then it is controlled by the Smart Viewer.

PTZ

TELE

WIDE

VIEW

PRESET

PTZ camera control _39

07 PTZ camera control

PAN



Use the LEFT/RIGHT buttons on the front panel or remote control in PTZ Camera Control Mode to control the camera horizontally.

TILT



Use the UP/DOWN buttons on the front panel or remote control in PTZ Camera Control Mode to control the camera vertically.

ZOOM



Press the TELE/WIDE buttons on the front panel or remote control in PTZ Camera Control Mode to zoom in or out the image displayed.

PRESET SETUP

A preset is a specific position of the PTZ camera and you can store the positions up to 20.

3. Press the RIGHT direction button to move the cursor rightward and press the ENTER button. Now perform the PTZ operations to get the wanted position screen and press the ENTER button again to exit from the PTZ motion mode.

4. Press the ENTER button in the Position Name field to open the virtual keyboard.

Now enter the position name using the virtual keyboard and press OK to confirm the input.

If you want to delete both position and position name, select Del that is located in the same row. If you press Del, all positions and position names are removed.

For AD Protocol PTZ camera, you can store up to 7 presets only.

To set a preset

1. Press the PRESET button on the front panel or remote control in Single Screen PTZ Camera Control Mode ad select Preset.

PTZ

TELE WIDE

Preset Camera Menu Exit

2. Press the ENTER button.

No. Position Name Del 1 Del 2 3 4 Del 5 Del 6 Del 7 8

Del Del

ExitNextPrev

VIEW

PRESET

PTZ Control

CAMERA MENU SETUP

The PTZ camera provides its own menu. This menu enables you to define several conditions for PTZ control.

Only the Pan. and Samsung protocol cameras are authorized for this setup.

To move to the menu screen, press the PRESET button on the front panel or remote control in Single Screen PTZ Camera Control Mode.

PTZ

TELE WIDE

Preset Camera Menu Exit

** MAIN MENU V2.0 **

CAMERA...

VIDEO SET... PRESET... AUTO SET... OTHER SET...

VIEW

PRESET

To return to the upper menu, press the PRESET button.

PRESET VIEW

The preset setup allows you to move to a preset position using the PTZ camera. Press the VIEW button on the front panel or remote control in Single Screen PTZ Camera Control Mode to select Preset.

PTZ

TELE WIDE

VIEW

PRESET

PTZ

TELE WIDE

Auto Pan Scan Pattern

Preset

VIEW

PRESET

Exit

(Example: Samsung Protocol)

Scroll down the cursor until it reaches the preset position that you want and you can check it from the screen to the right.

No. Position Name 1 2 3 4 5 6 7 8

ExitNextPrev

Preset Auto Pan Scan Pattern EXIT

Samsung

Preset Auto Pan Sequence Sort EXIT

Pan.

Preset Auto Scan Frame Scan Pattern EXIT

Pel.

After you select an operation, press the ENTER button. Then the selected operation is marked and starts moving. If you select the other operation during operation, the previous operation is unchecked and the selected operation is marked.

OTHER VIEW

Press the VIEW button on the front panel or remote control in Single Screen PTZ Camera Control Mode to use other viewing controls.

Samsung, Pan., Pel.-P, and Pel.-D protocol PTZ cameras support the following operations:

Samsung: Auto Pan/Scan/Pattern



Pan.: Auto Pan/Sequence/Sort



Pel.(P,D): Auto Scan/Frame Scan/



Pattern

40_ PTZ camera control

Preset

ExitAuto Pan Scan Pattern

(For example, Samsung Protocol)

If you perform PTZ operations while an operation is in progress, or enter the Preset Setup or Camera Menu Setup mode, the current operation is stopped and unchecked. Even though the system is restarted during operation, the set operation starts and remains marked.

recording

REC (NORMAL RECORDING)

Pressing the RECORD button starts recording as set in the Record Mode. Then the REC LED lights and the Recording icon appears on the screen. While recording on HDD is in progress, the HDD LED blinks. During recording, you can stop it by pressing the RECORD button again. If the recording stops, the REC LED goes out.

If the work that needs to stop the

WARNING

recording (time change, file deletion, HDD connection/disconnection, etc.) is executed during recording, the current recording process stops.

RECORD SCHEDULE

While the Schedule Recording or Schedule/Event Recording is active, the schedule recording automatically starts. When a schedule recording is in progress, the Recording icon appears on the screen.

Record Schedule

All S

M T W T F S H

Continuous Recording Event Recording Both(Continuous, Event)

Holiday

CancelOK

If Event Recording is active, the recording starts at each event. In this case, the recording is executed according to the settings (video size, recording quality, frame rate, pre-alarm, and post-alarm).

Even in case of an event, the event recording does not start when the event recording or schedule/event recording is set together with the schedule recording.

In case of SHR-5082/5080, only 8 channels are displayed.

EVENT RECORDING

The followings are event recording cases:

Alarm Detection



Recording starts when the sensor state is set to N.O or N.C (MENU SETUP > Event

Record > Alarm Detection Setup). Motion Detection



Recording starts when the motion detection state is set to On (MENU SETUP > Event

Record > Motion Detection Setup). Video Loss Detection



Recording starts when the video loss state is set to On (MENU SETUP > Event Record >

Video Loss Detection Setup). Event Recording Mode



When an event occurs, this configures the recording pattern. When the Pre event is set to On, the system records images before any event. Likewise, when the Post-event is set to On, images are recorded after any event. For more information, refer to page 30, “Event Record Duration”

08 RECORDING

recording _39

search & play _4342_ search & play

09 SEARCH & PLAY

search and play

BEFORE USE

Calendar

Event

Date/Time

Go to First

Go to Last

Backup

Move/Control Select Exit

When you press the SEARCH button, the Search window appears after user validation checkup. Available menus are like the following:

Calendar: Searches the recorded video



images using the calendar to select the wanted time. Event: Searches the recorded video images



using events. Date/Time: Searches the recorded video



images using the input date and time. Go To First: Searches the first recorded video



image. Go To Last: Searches the latest video image.



Backup: Searches the backup video images.



It searches the images recorded on the USB HDD or USB memory. The AVI format backup files recorded on USB CD/DVD or built-in CD can be played on PC.

CALENDAR SEARCH

You can search the recorded video images using the calendar as shown in the picture.

To perform a calendar search

1. Use the Direction buttons to select each channel, then press the ENTER button.

If you press CH >, all channels are selected.

2. Use the Direction buttons and ENTER button to select the wanted year and month. If any recordings are stored for the selected month, the corresponding dates are highlighted in the calendar.

If you press or , the year value changes.

3. Use the Direction buttons and ENTER button to mark the wanted dates.

4. Use the DOWN direction button to move to the time bar, and use the LEFT and RIGHT direction buttons to place the cursor to the wanted time block. Then press the ENTER button for selection.

The scales of time bar are displayed at 30 minutes each.

5. Press OK to search the wanted image data.

If the selected time block has no images, the system displays no picture.

EVENT SEARCH

This function searches recorded results such as normal recording, schedule recording, alarm recording, motion recording, and video loss recording on the channel and time basis.

Calendar

Sun Mon Tue Wed Thu Fri Sat

CancelOK

In case of SHR-5082/5080, only 8 channels are displayed.

Event Search (Can Select 1 Event)

No. Date/Time Event Mode

PrevFirst LastNext CancelStart

In case of SHR-5082/5080, only 8 channels are displayed.

search & play _4342_ search & play

09 SEARCH & PLAY

search & play _4342_ search & play

09 SEARCH & PLAY

To perform an event search

1. Use the UP/DOWN direction buttons to place the cursor to the wanted channel and press the ENTER button. Then the recorded events are displayed below. Each event contains the date/time and event mode (normal recording, schedule recording, etc.).

2. Use the DOWN direction button to move to the time box. To set the time you want, press the ENTER button. Then the year value is highlighted for change. To change the value, use the UP/DOWN direction buttons. You can also change values for month, date, hour, minute, and second using the UP/ DOWN direction buttons. To move between items, use the LEFT/RIGHT buttons.

Only one channel can be selected.

2. Use the DOWN direction button to move to the event table and press the ENTER button to select an event. The selected event is marked. Selection of multiple items is not allowed.

3. Use the Direction buttons to select Start then press the ENTER button. Then the recorded images are played on the screen.

To cancel the search, select Cancel



and press the ENTER button. If events are listed in multiple pages, select First, Prev, Next, and Last to move to the corresponding page. If you press the SEARCH button while



an event recording is played. It returns to the Event Search menu. This lets you search other events easier and faster.

DATE TIME SEARCH

This function is used to search the video images for the specific time you want. Up to 16 channels can be searched at once.

3. Now use the RIGHT direction button to move to Start and press the ENTER button. If the designated time has any recorded images, they are played on the screen. If multiple cameras are selected, they are played on 4, 9, or 16-split screen.

If you want to cancel the search, select Cancel and press the ENTER button.

GO TO FIRST SEARCH

This function is used to search the oldest recorded files for cameras. Up to 16 channels can be searched at once.

Go to First

Cam. Start Date Start Time

2007-03-10 08:38:58 2007-03-10 08:38:58 2007-03-10 08:38:58 2007-03-10 08:38:58 2007-03-10 08:38:58 2007-03-10 08:38:58 2007-03-10 08:38:58 2007-03-10 08:38:58

Start

9-16

Cancel

Date/Time

Cam. Start Date/Time End Date/Time

2007-03-10 08:38:58 2007-03-11 09:43:51 2007-03-10 08:38:58 2007-03-11 09:43:51 2007-03-10 08:38:58 2007-03-11 09:43:51 2007-03-10 08:38:58 2007-03-11 09:43:51 2007-03-10 08:38:58 2007-03-11 09:43:51 2007-03-10 08:38:58 2007-03-11 09:43:51 2007-03-10 08:38:58 2007-03-11 09:43:51 2007-03-10 08:38:58 2007-03-11 09:43:51

9-162007-03-10 08:38:58

CancelStart

In case of SHR-5082/5080, only 8 channels are displayed.

To perform a date/time search

1. Use the UP/DOWN direction buttons to place the cursor to the wanted camera and press the ENTER button. The selected camera is marked. Selection of multiple items is possible.

In case of SHR-5082/5080, only 8 channels are displayed.

To perform this function

1. Use the UP/DOWN direction buttons to place the cursor to the wanted camera and press the ENTER button. The selected camera is marked. Selection of multiple items is possible. If you want to move to the next page for selecting the other cameras, press

9-16.

2. Now press Start to play the oldest images.

If multiple cameras are selected, they are played on 4, 9, or 16-split screen.

If you want to cancel the search, select Cancel and press the ENTER button.

search & play _4544_ search & play

09 SEARCH & PLAY

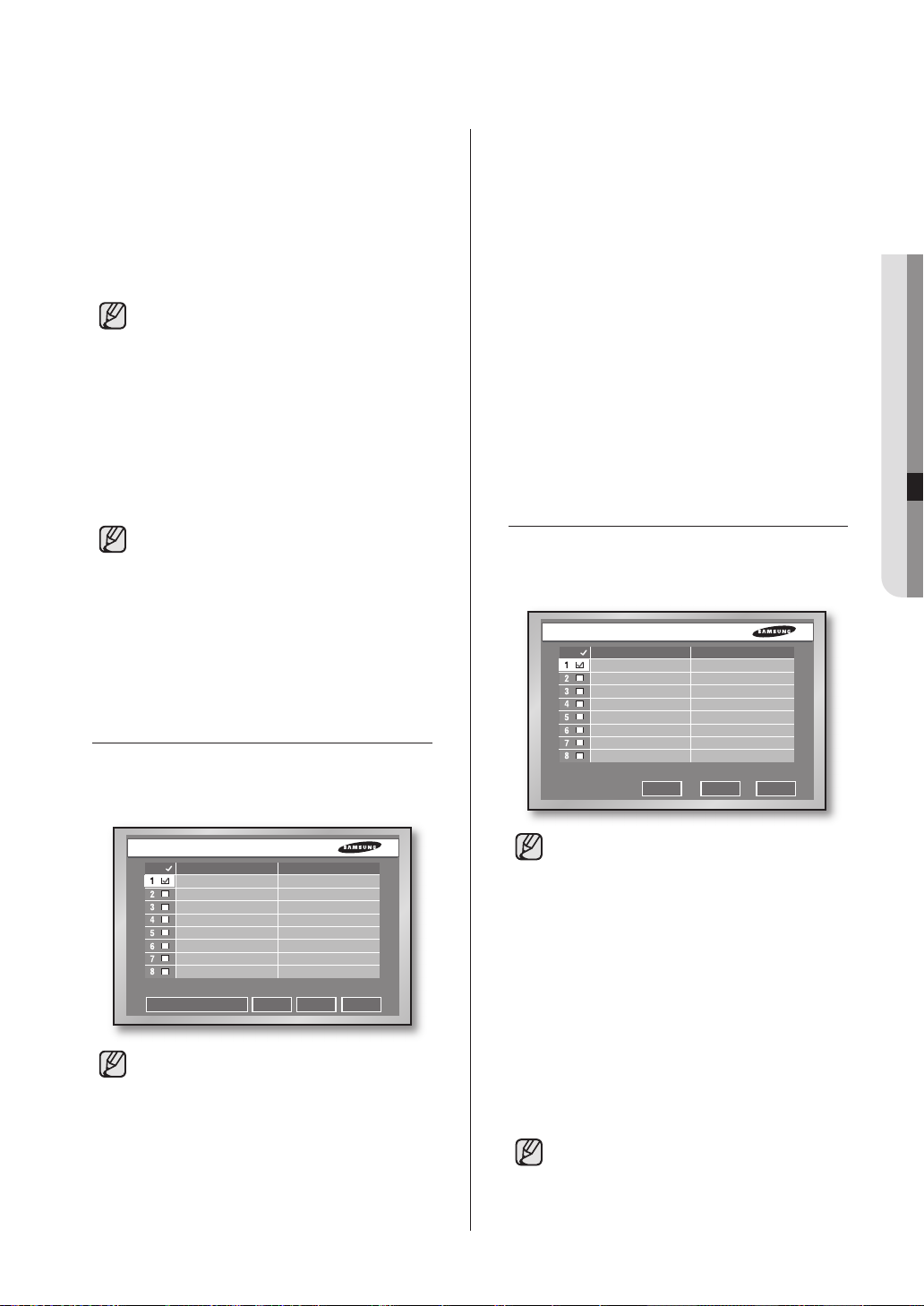

GO TO LAST SEARCH

To perform this function

Go to Last

Cam. End Date End Time

2007-03-11 09:43:51 2007-03-11 09:43:51 2007-03-11 09:43:51 2007-03-11 09:43:51 2007-03-11 09:43:51 2007-03-11 09:43:51 2007-03-11 09:43:51 2007-03-11 09:43:51

9-16

Start

Cancel

In case of SHR-5082/5080, only 8 channels are displayed.

To perform this function

9-16.

2. Now press Start to play the latest images.

If multiple cameras are selected, they are played on 4, 9, or 16-split screen.

If you want to cancel the search, select

Cancel and press the ENTER button.

1. Use the UP/DOWN direction buttons to

place the cursor to the wanted backup file and press the ENTER button. The selected backup file is marked. Selection of multiple items is possible.

2. After selections are made, use the DOWN direction button to select Start.

If multiple pages are available,



select Prev or Next to move to the corresponding page.

In case of SHR-5160 and SHR-5080,



they do not include the built-in DVD writer so that backup function is not available for built-in CD/DVD.

AVI-format backup files cannot be

CAUTION

played back on this DVR but only the PC Media Player can play the files.

PLAYBACK

In order to play the recorded file stored on the HDD, press the PLAY/PAUSE button. If you have played back a file by using the SEARCH button just before, the system would keep the playback information. Press the PLAY/PAUSE button again, the channel kept in memory is played. If you press the PLAY/PAUSE button when no playback is tried, the Search menu appears.

BACKUP SEARCH

This function is used to search the backup files on the backup devices. First of all, you have to select a back device from the pop-up menu.

Backup Search

No. Folder/Filename

(Can Select 1)

20070302/1104 20070303/1412 20070304/1645 20070304/1705 20070304/1905

Prev Next ExitStart

2007-03-02 11:04:34

When the MENU SETUP window is displayed, pressing the PLAY/PAUSE button does not bring any operation. For playback operation, exit from the MENU first.

To stop playing a recorded file, press the STOP button. If you press the PLAY/PAUSE button again, the playback will resume from the point where the previous playback has stopped. When the data position reaches the end of HDD during playback, the playback will pause.

2007-03-10 08:38:59

CAM 01

search & play _4544_ search & play

09 SEARCH & PLAY

search & play _4544_ search & play

09 SEARCH & PLAY

Playback mode



You can change the screen display method using the MODE button and NUMERIC buttons as shown in the figure. The 16-split, 12+1 split, and 15+1 split screens are shown only in SHR-5162/5160.

- Single screen: Comes up when you select and play only 1 channel using the Search menu.

- 4-split screen: Comes up when you select and play 2 to 4 channels using the Search menu.

- 9-split screen: Comes up when you select and play 5 to 9 channels using the Search menu.

- 16-split screen: Comes up when you select and play 16 channels using the Search menu.

- PIP screen: Comes up when you press the MODE button while playing on a single screen. (The main screen displays the playback channel, and the sub screen displays the live channel.) You can move the sub screen up or down using the UP/ DOWN direction buttons. When you press the ENTER button, a blue bar appears on the live screen. To change the channel in the sub screen, press the desired channel number using the NUMERIC buttons on the front panel or remote control.

- N+1 split screen: Shows x number of (N) live channels and 1 play channel on the screen. In the case of 9+1 split screen, you

can set the location of the play channel from the menu.

Speed play



To play the recorded images at a faster speed, press the Fast Forward () or Fast Rewind



) button during playback to see the screen at

( x2, x4, x8, x16, x32, and x64 speed forwardly or reversely. Viewing still images



If you press the Fast Forward () or Fast Rewind (



) button while the screen is paused, you can see still images forwardly or reversely. During reverse search, the interval between cuts may vary depending on the recording specification. Audio playback



Audio data can be played or recorded only in 4 channels (CH1, CH2, CH3, and CH4). So to hear the sound of the recorded file, change the channel to any of CH1, CH2, CH3, and CH4. In a split screen (5, 9, or 16-split screen), to select an audio channel, press the ENTER button and move the displayed blue bar to any of four channels. Using the AUDIO button, you can activate or deactivate the audio playback. When the audio function is active, the audio sign on the screen turns yellow. When the audio function is disabled, the audio sign on the screen turns white.

16/9/4 split

Single PIP 8 +1 split 12 +1 split 15 +1 split

Live channel

Play channel

Mode button

Number buttons

Smart Viewer

INTRODUCTION

Smart Viewer is a program to be installed on your PC. Using this program, you can monitor the video and audio data through the network environment without accessing the site where the product is installed.

MAIN FEATURES

MPEG-4 Video Compression: It provides



good video quality. G.711 Voice Compression: It provides good



audio quality and use of directional MIC can improve the quality of remote voice.

Transmission of video/audio streams



through RTP (Real-Time Transport Protocol): The video playback feature is

excellent and the transmission speed is not lowered abruptly even in multi-user connection.

Commands & controls by RTSP (Real-Time



Streaming Protocol): It enables safety control through the network. Multiple transport protocols are supported



(TCP/IP and UDP (Unicast, Multicast)). Access to video and audio data by entering



IP address only. Local recording (*.dvr format) on PC and



recorded video data conversion into frame unit (JPEG format). Up to 3 users can connect to the DVR



simultaneously. (If the multicast is used, up to 6 users can connect.) A Smart Viewer can connect to 16 DVRs



simultaneously. The Smart Viewer is optimized for the



resolution of 1024x768.

Smart Viewer INSTALLATION

1. Insert the Smart Viewer program CD into the CD ROM drive.

2. Open the Smart Viewer folder.

3. Execute the “Setup.exe” file.

4. Click Next >.

PC SPECIFICATION (RECOMMENDED)

OS: Win2000 and WinXP



Recommendation



- CPU Pentium 3, 1GHz or higher

- RAM 256 MB or higher

- VGA RAM 32Mb or higher

- DirectX 8.1 or higher

The number of playback frames may vary depending on the recording rate, video size, and PC specification. For the detailed specification, refer to Appendix 5.

46_ Smart Viewer

10 SMART VIEWER

5. After reading the license agreement, click Yes to proceed to next step.

6. Set the destination folder to install the Smart Viewer program and click Next.

8. When installation is complete, click Finish to

exit from the process.

Smart Viewer PROGRAM EXECUTION

Double-click the Smart Viewer icon on the Desktop to execute the program.

7. The installation process proceeds with setup file installation and system setup.

Smart Viewer _47

Smart Viewer INITIAL SCREEN

2 3

1. This screen shows the monitoring sites.

2. Using these buttons, you can enter the Search mode in which you can search and play the remote video file that has been recorded on your DVR and enter the Monitoring mode for monitoring.

3. These buttons minimize and exit the program.

4. It displays the current date, day, and time.

5. This button is used for connection to the preset DVR or site.

6. These buttons let you select the event message display window and camera connection state display window.

7. This window displays the event messages from the DVR.

12. These buttons enable you to perform the PTZ-related operations.

13. These buttons display the status of the current channels.

14. These buttons let you adjust the audio volume and video brightness/contrast, and save the video images.

SETUP MODE

8. These buttons let you select the wanted split screen or auto sequencing screen.

9. This button opens the Setup Mode window to change the Smart Viewer settings. (Refer to “Setup Mode.”)

10. This button lets you choose a favorite function when connecting to a site.

11. This button is used for connecting to Callback.

48_ Smart Viewer

Smart Viewer _49

10 SMART VIEWER

1. These buttons enable you to select setup items for DVR Setup, Viewer Setup, Site Setup, and S/W Version.

2. In this box, you can set the details on each setup item.

You can access to DVR Setup with the Admin privilege. The button will not be activated when you are connected to the DVR with a user privilege.

3. Using this button, you can exit from the current window.

4. You can use buttons for saving the modified data, returning the previous settings, and exiting from the setup window.

Setup Item Selection buttons



- DVR Setup: Allows you to modify the settings of the DVR.

- Viewer Setup: Allows you to configure the settings of Smart Viewer.

- Site Setup: Allows you to set the DVR information which includes the name, IP address, ID, and password for connection. It can also allow you to register DVRs into a site.

- S/W Version: Shows the software information such as Smart Viewer version, system requirement, and the DVR system S/W version. You can remotely upgrade the system software.

Save/Cancellation of Revised Information



Click Apply to save the revised information and click Cancel to return the previous settings.

Closing the setup window



- Click X or Close to exit from the setup window.

- If any setting is revised, the following message box appears. If you press OK, the revised information is saved and the setup window exits. If you press CANCEL, the revised information is lost and the setup window exits.

1. The DVR names connected with the Admin privilege will be listed here. When connected to a DVR, the DVR name is displayed. When connected to a site, the names of DVRs with the Admin privilege are displayed. You can select a DVR to configure the settings of it.

2. It displays the setup menu for the selected DVR.

System



You can configure the system-related settings. For more details, see Chapter 5, “Menu Setup.”

- System Information It shows the information of the selected DVR.

DVR Setup

Click DVR Setup for configuring DVR-related settings. It means that you can remotely configure the settings of DVR using Smart Viewer. The DVR setup items are System, Camera/Audio, Monitoring, Recording, and Network.

For more details, see Chapter 5, “Menu Setup.”

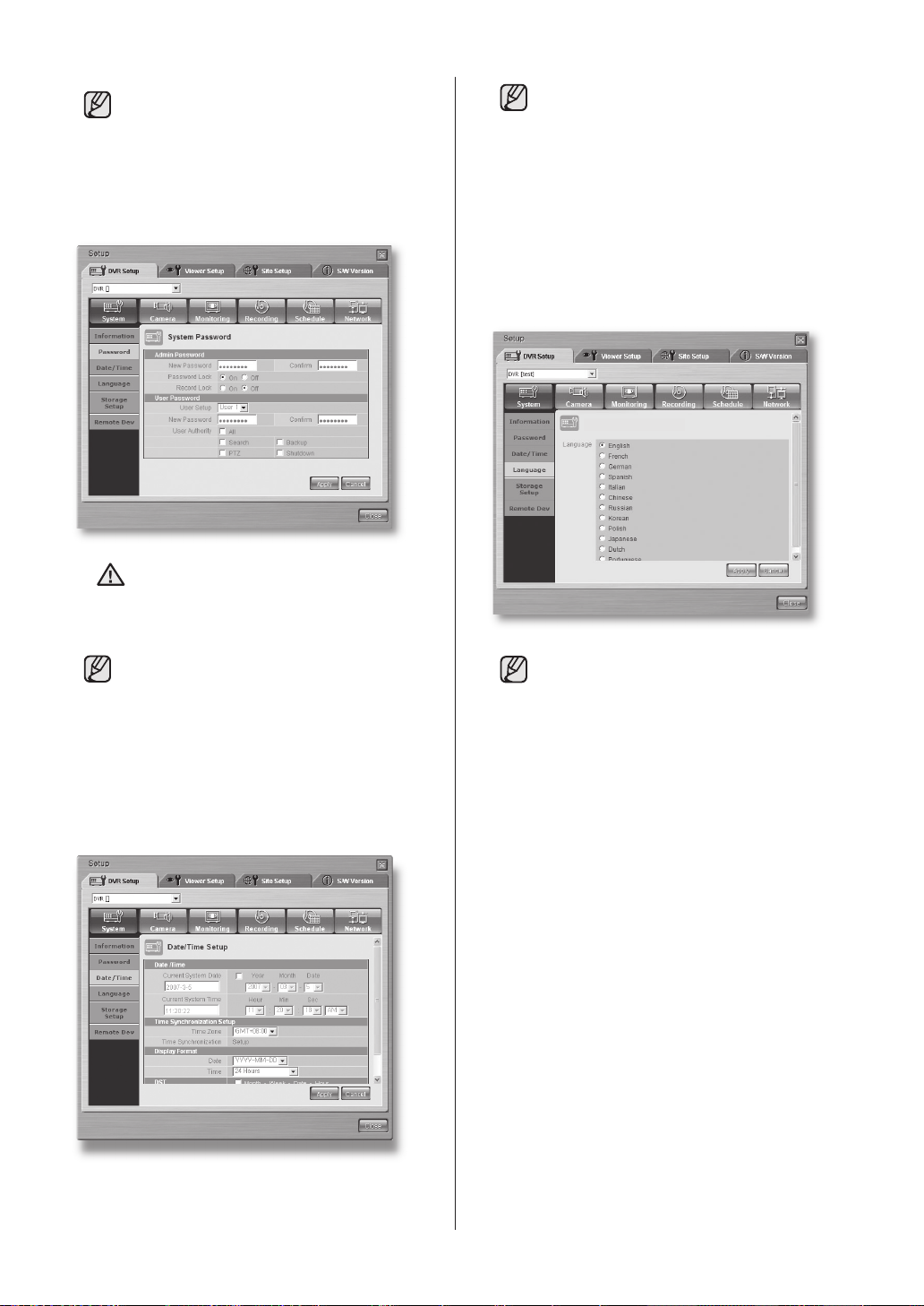

- Admin Password You can change the Admin password related settings for control of DVR.

- User Password You can change the user password related settings for control of DVR.

For the system password, you can

CAUTION

input numeric values only up to 8 digits.

If you change the values for date and



time, the DVR automatically disconnects the communication with Smart Viewer to apply the settings. When updating the date and time for



the DVR completes, you can connect Smart Viewer. But, the values for display format and



DST can be set without disconnection.

- System Language You can set the display language for the DVR.

System Language

The Delete key and key combinations



like CTRL+C and CTRL+V in the keyboard are not supported for input of system password. For deletion of any input value, use the



BACKSPACE key. The default system password is “4321.”



- Date/Time Setup Date/Time is used to set the information of DVR such as date, time, format, and DST.

This change results in modification



of display language on the DVR. The language of Smart Viewer is not changed. Language specification is subject to



change.

50_ Smart Viewer

Smart Viewer _51

10 SMART VIEWER

- Storage Setup

It displays the information of the HDD that is contained in your DVR. Also you can determine whether or not to repeat recording and make a beep sound when any disk failure happens.

- Remote Control Device You can configure the settings for the remote control that is installed in the DVR system. You can toggle between On and Off. The remote control ID can be set among 0 to 99.

If you have directly installed the remote control in the DVR system and activated the setup, PTZ controls are not enabled using Smart Viewer.

Camera



In case of SHR-5160/5080, the model name of HDD appears instead of DVD RW.

You can configure the camera-related settings. For more details, see Chapter 5, “Menu Setup.”

- Camera Configuration. This configures the camera-related settings such as video/audio availability, camera title, and auto sequencing interval for the DVR.

Only English is available for the title.



CAUTION

If you enter the title in your local language and apply it, a warning message appears to ask you to retype it. You can input the title up to 15



digits. If you leave the title blank, a warning



message appears to ask you to retype it.

The Delete key and key combinations



like CTRL+C and CTRL+V in the keyboard are not supported for input of camera title. For deletion of any input value, use the



BACKSPACE key.

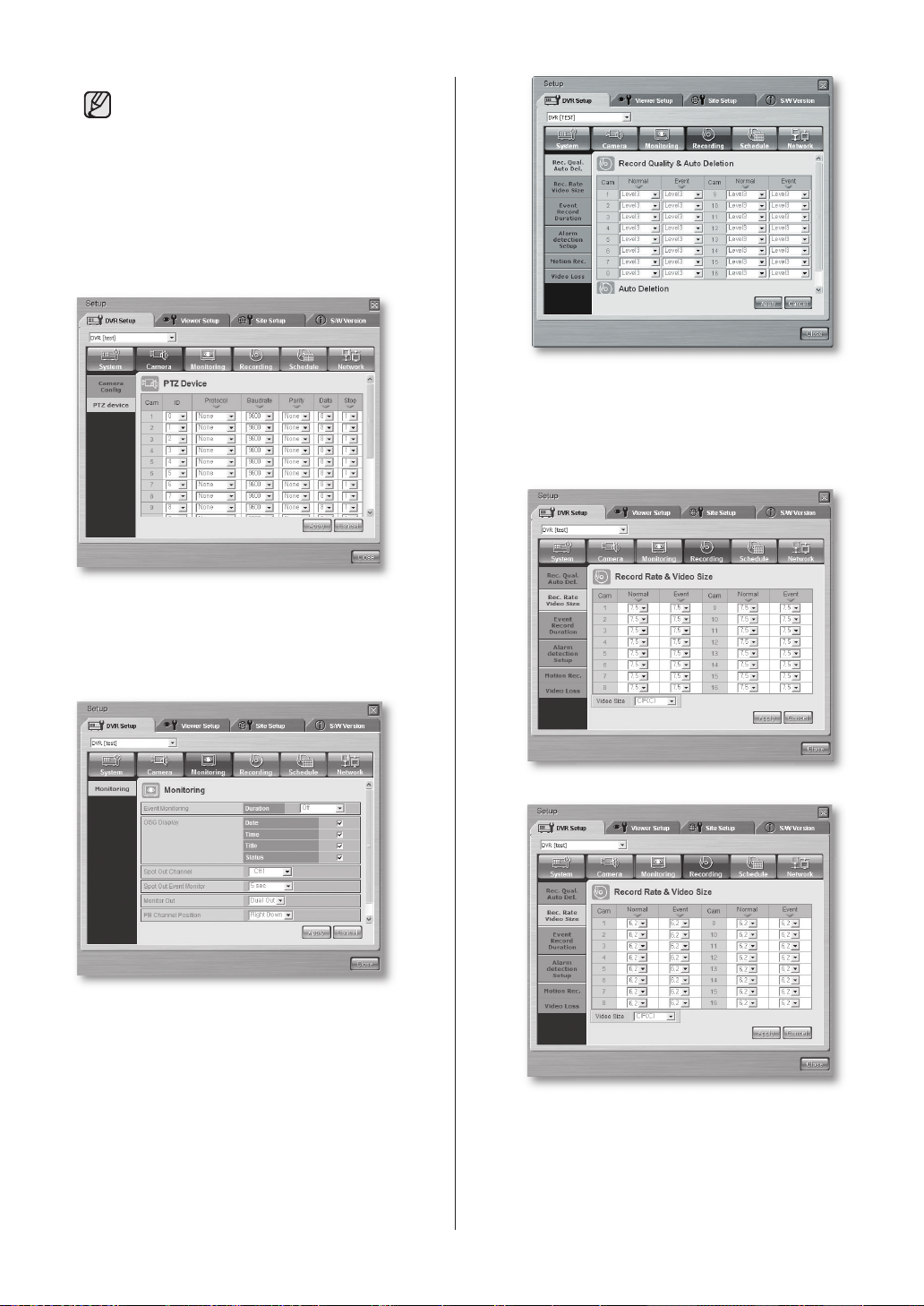

- PTZ Device You can configure the settings for PTZ cameras, which include camera ID, protocol, baud rate, parity, data bit, and stop bit.

Monitoring Setup



- Record Rate & Video Size You can configure the settings for record rate (recording speed) and video size (resolution).

NTSC

You can configure the monitoring-related settings. For more details, see Chapter 5, “Menu Setup.”

Recording



You can configure the recording-related settings. For more details, see Chapter 5, “Menu Setup.”

- Record Quality and Auto Deletion You can configure the settings for recording quality and auto deletion.

PAL

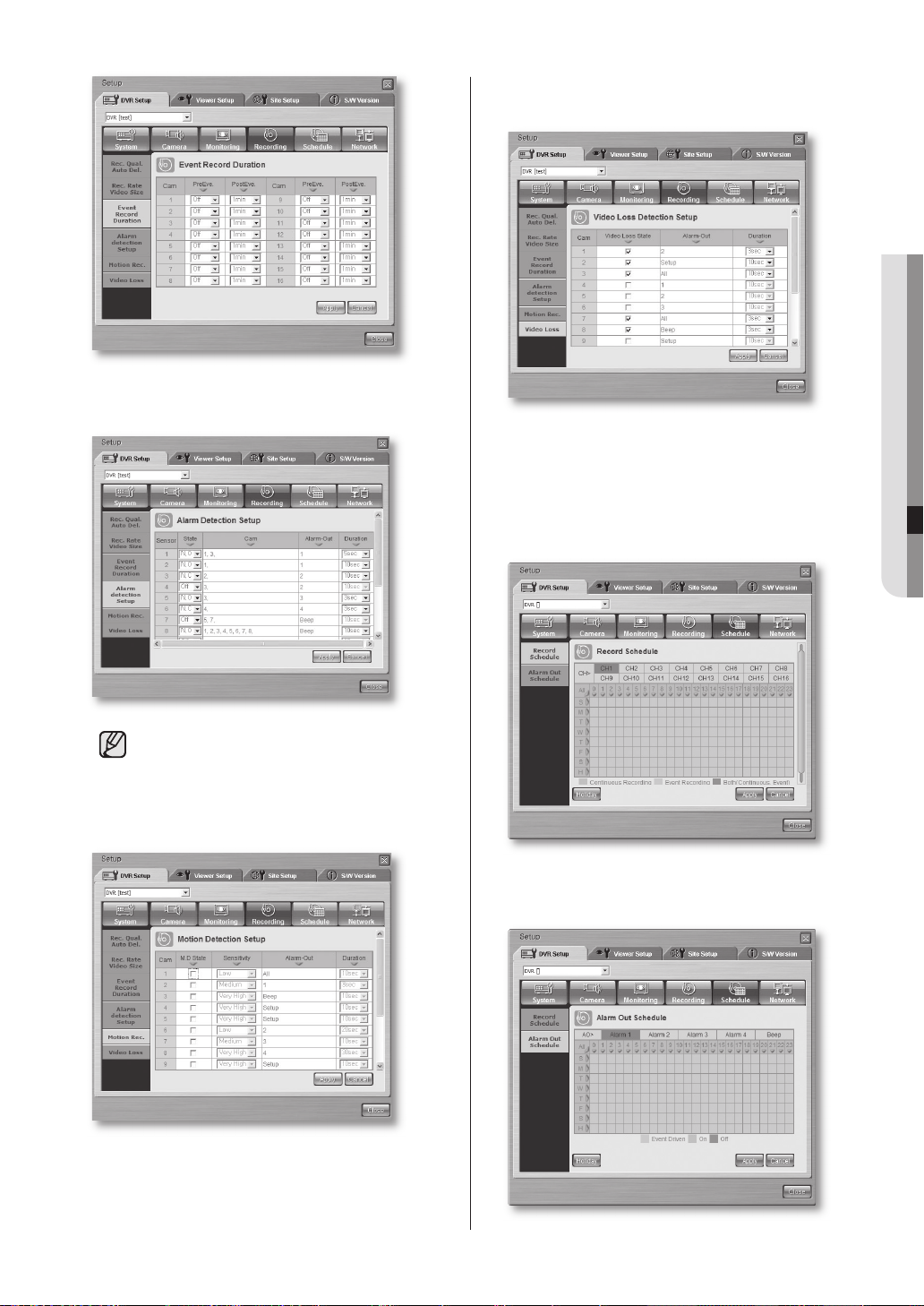

- Event Record Duration You can configure the pre-event and postevent settings for event recording.

52_ Smart Viewer

Smart Viewer _53

10 SMART VIEWER

- Alarm Detection Setup It configures the settings for alarm recording.

- Video Loss Setup It configures the video loss related settings.

Schedule



You can configure schedule-related settings. For more details, see Chapter 5, “Menu Setup.”

- Record Schedule

You can change the schedule recordingrelated settings.

More than one camera should be selected to apply the alarm.

- Motion Detection Setup It configures the settings for recording through motion detection.

- Alarm Out Schedule You can change the alarming schedulerelated settings.

Network



You can configure the network-related settings. For more details, see Chapter 5, “Menu Setup.”

- Network Password You can set both Admin password and user password for connecting to the DVR system through the network using Smart Viewer.

For the network password, you can



CAUTION

input numeric values only up to 8 digits. If you leave the password blank



and apply it, a warning message appears to ask you to retype it.

Be sure to inquire of the network



CAUTION

manager about the settings. Both ADSL ID and password can



be input up to 40 letters including alphabets, numbers, and special characters.

- Transfer Protocol Settings You can change the transfer protocol-related settings

- Callback Settings You can configure the callback-related settings for DVR.

The Delete key and key combinations



like CTRL+C and CTRL+V in the keyboard are not supported for input of password. For deletion of any input value, use the



BACKSPACE key. The default Admin password is “4321.”



The default user password is also



“4321.”

- IP Settings It configures the network IP settings for the DVR.

- Picture Settings This configuration is used to set the video size and quality for transferring pictures.

54_ Smart Viewer

Smart Viewer _55

10 SMART VIEWER

- Web Viewer Port Setting You can conﬁgure the port number for Web Viewer.

Video Recording



- Naming convention



When recording the currently displayed video data into DVR ﬁles, you can assign the ﬁle naming rule to DVR ﬁles.

- Location



Set the directory for saving the DVR ﬁles.

- Recording Time

Viewer Setup

Click Viewer Setup for conﬁguring the Smart Viewer related settings. This Viewer Setup consists of 5 different items: Video Recording, File Converting, Sequence Time, OSD Display, and Auto Connection.

1. The currently displayed video data can be saved in a DVR format (*.dvr) ﬁle. The related settings are made here.

2. A DVR ﬁle can be converted into a JPEG or AVI ﬁle. The destination folders are determined here.

3. You can set the sequence time (or screen change time) interval for the auto sequence mode.

4. The OSD display on Smart Viewer can be decided here.

5. You can decide whether Smart Viewer automatically connects to the designated DVR or site when it starts running.

6. You can enable/disable alarming and set the alarming duration.

7. You can set the port for callback connection.

8. You can set the language for display.

You can set the maximum recording time when saving the video data. You can set the time ranging from 1 to 10 minutes. If the recording time exceeds the preset value, the program stops recording.

File Converting





You can convert a DVR ﬁle saved on your PC into JPEG or AVI. The default destination folder for ﬁle conversion is < Smart Viewer directory>\ frame.” You can change it on your own.

Sequence Time

 

In monitoring mode, when the screen change (auto sequence) mode is active, the camera channels change at an interval of this time. You can set the time ranging from 5 to 30 seconds.

OSD Display

 

You can set if OSD shall be displayed on each channel of Smart Viewer. However, Audio icon will not be affected by the OSD condition.

Callback Connection





Set the port for callback connection.

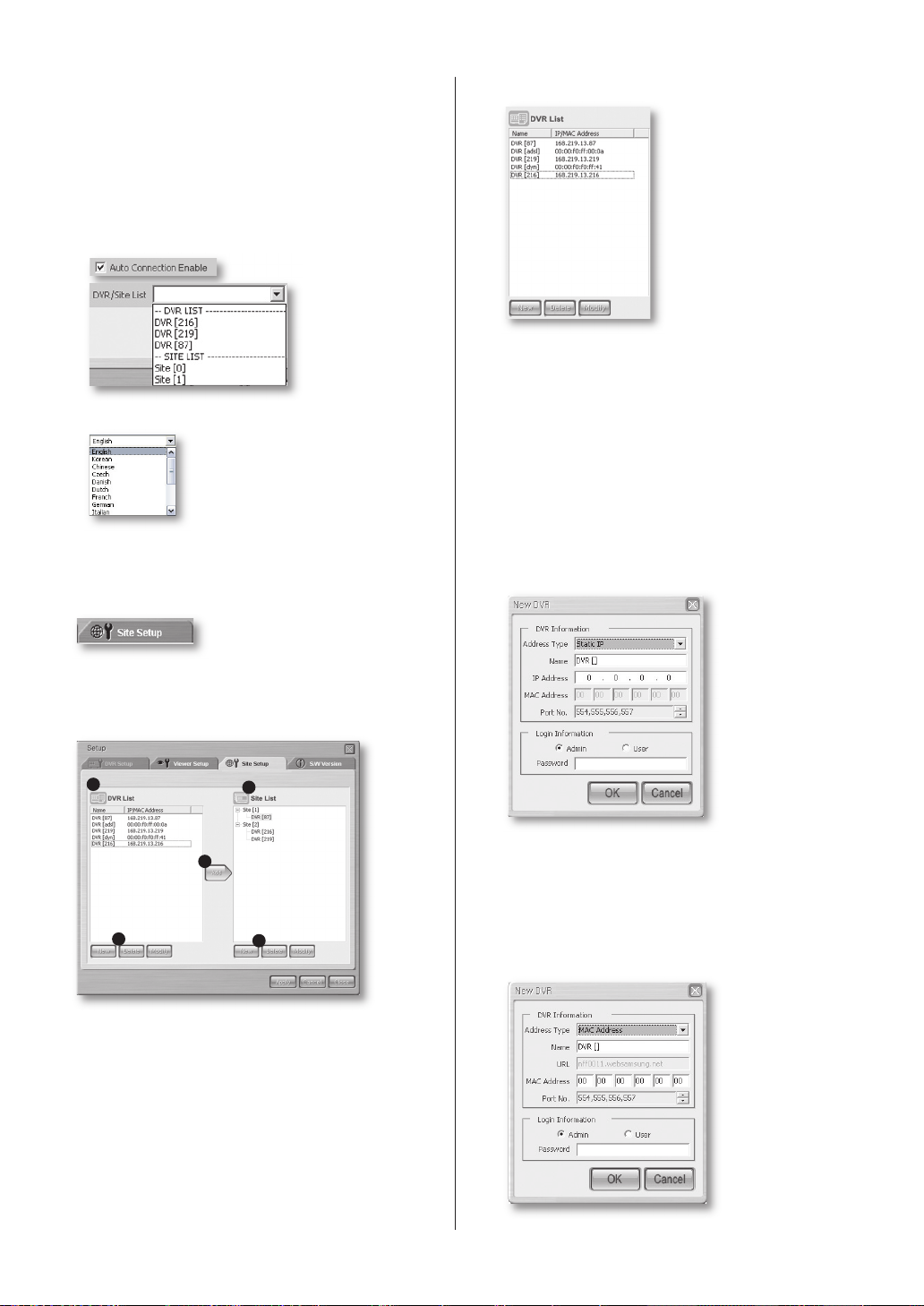

Auto Connection



You can set if Smart Viewer is automatically connected to the selected DVR or site when starting the program. If you check Auto Connection Enable, available DVRs and sites are displayed in the pull-down list. After selecting one from the list, Smart Viewer connects to the selected DVR or site whenever it is started.

Language



You can set the language to be displayed on Smart Viewer.

Site Setup

DVR List



The DVRs that you want to connect using Smart Viewer are listed in DVR List. You can register a new DVR, or delete/edit the selected DVR. The name and IP/MAC address of the registered DVR are displayed. If the DVR uses a static IP, select Static IP in Address Type, enter the name of DVR in Name, and the IP address in IP Address. Set the port number in Port No. so that it matches the port number that you’ve set in the network menu of DVR. For connecting to the DVR, you need to set both Admin password and user password.

Click Site Setup for configuring the site-related settings. Smart Viewer connects to the DVR or site that has been registered here. A site can have multiple DVRs.

1. The registered DVRs are displayed.

2. You can use the buttons for adding/deleting/ editing DVRs.

3. Use the button to move the selected DVR to the selected site. But, if the selected DVR is set to ADSL Network, it cannot be moved to the site.

4. The registered sites are displayed.

5. You can use the buttons for adding/deleting/ editing sites.

56_ Smart Viewer

If your DVR uses a dynamic IP such as in a cable modem, VDSL, and PPPoE for ADSL, set the address in MAC Address. Set the port number in Port No. so that it matches the port number that you’ve set in the network menu of DVR.

If you have selected Use DDNS in the

Smart Viewer _57

10 SMART VIEWER

Network Settings menu of DVR or used an IP splitter to register a URL using DDNS, you can connect through the designated URL. If you want to connect through the URL, select URL in Address Type and enter the URL set in URL Set the port number in Port No. so that it matches the port number that you’ve set in the network menu of DVR.

The MAC address of DVR is written on



the side label of the product. It is also found in the system information on the DVR setup menu. If the DVR is connected to ADSL, a



low network bandwidth is available. Accordingly, the transfer rate becomes low and Smart Viewer limitedly operates. Smart Viewer can monitor up to 16



channels at the same time. Smart Viewer can search or play one



channel only. The audio does not play.



The playback frame speed is 0.5 ips in



average and it may vary depending on the number of channels and video size.

To delete an existing DVR, click Delete.

When the DVR to be modified is connected to Smart Viewer, the following message appears. If you really want to modify the DVR, disconnect the DVR and retry to modify it.

Site List



To delete a DVR from the list, click Delete. Then the following message appears. Click OK to confirm it.

When the DVR to be deleted is connected to Smart Viewer, the following message also appears. If you really want to delete the DVR, disconnect the DVR and retry to delete it.

To edit the existing DVR, click Modify.

After modifying the settings, click OK.

You can assign multiple DVRs (up to 16) to a site for control. You can register a new site and delete or edit the selected site in the registered list. After sites are correctly constructed, you can add or delete DVRs for the selected site.

To add a new site, click New.

After pressing New, the following window appears. You can enter the name of site and click OK.

The site name can be input up to 15 characters in English or number and 7 characters in Korean.

To delete an existing site or DVR, use Delete.

After selecting a site or DVR and click Delete, the following message appears. Click OK to confirm it. After this action, the DVR name is deleted but the information of DVR is not removed.

When the site to be deleted is connected to Smart Viewer, the following message appears. If you really want to delete the site, disconnect the site and retry to delete it.

To edit an existing site, click Modify.

Change the site name.

To add a DVR to the site, select a DVR and click Add.

If you click Add, the selected DVR is added to the selected site. But the ADSL-enabled DVR cannot be added to the site. If you click Add to add a DVR while any site is not selected, a new site named “Site [0]” is created by default and the selected DVR is added in it. When you select the connected DVR and click Add, the following message appears. If you really want to add the DVR, disconnect the DVR and retry to add it.

S/W Version

When you click S/W Version, the program displays the software-related information such as Smart Viewer version, system requirements, and the version information on the connected DVRs.

You can also upgrade the DVR system software remotely, and import and export the DVR-related settings. Only the Admin user can perform these functions.

When the site is connected to Smart Viewer, the following message appears. If you really want to modify the name of site, disconnect the site and retry to modify it.

When you select a DVR in the site list and click Modify, the following message appears. To edit the DVR, go to the DVR list.

58_ Smart Viewer

1. Displays the version and system requirements of Smart Viewer.Depending on the software version, screen images shown here may be different from the actual product.

2. Displays the version and name of DVR if any DRV is connected to Smart Viewer. This area can also provide functions for remotely upgrading the DVR software, extracting, and recovering the DVR settings.

Smart Viewer _59

10 SMART VIEWER

If a DVR is not connected to Smart



Viewer, it is displayed in gray and “Not Connected” appears in the Status column.

For software upgrade, click the following button to open the DVR firmware file.

After selecting a firmware file, click Open and select Upgrade.

Smart Viewer enables you to extract the menu settings for the connected DVR. After selecting a DVR, click Export.

The DVR settings are stored into a data file (*.dat).

By clicking Import, the stored data file can be copied to your DVR to recover the settings.

If you want to recover the network settings also, check the following check box.

Be sure to stop all the DVR



CAUTION

operations such as recording, Menu setup, backup, and playback before upgrading the DVR software. During the software upgrade, don’t



turn off the power of DVR. The software upgrade takes about 5 minutes. If the software upgrade is



accidentally suspended, the previous software is left intact.

The progress of the upgrade is displayed at the bottom of the screen.

You can download the upgraded DVR firmware from the CCTV part at www.samsung.com.

MONITORING MODE

To connect a DVR or site, select a DVR or site from the list and click the connection button as shown in the picture.

For this connection, you should have set the DVR information such as name, IP, and password in the Setup Mode. If you select a site, it enables connection to multiple DVRs contained in the site.

Connection Failure Cases

1. Password certification failure

If the network password of a DVR differs from the connection password set in Smart Viewer, a login message appears to let you input the correct password manually.

2. Duplicate Admin user connection

When the DVR that you want to connect to has been already occupied by an Admin user but you retry connection with the Admin privilege, the previously connected session is automatically disconnected.

If you change the settings such as

CAUTION

video size and color quality while Smart Viewer is running, Smart Viewer may fall into an unexpected state. In this case, you must terminate Smart Viewer.

Mode Conversion Button

These buttons enables you to switch between Monitoring mode and Search mode.

Time Information

When Smart Viewer is connected to a DVR, the current date, day, and time of the DVR are displayed. Otherwise, the current date, day, and time of your PC are displayed.

Connection Information

The system allows simultaneous access to DVR by up to 3 users, which include one Admin privilege user and 2 user privilege users. (But in case of Multicast, up to 5 users are allowed.)

Once occupied by 3 users, the DVR

CAUTION

does not permit more connection.

Connection Screen

When Smart Viewer is connected to DVR, the connection button will display the connection status. If you click the connection button again, the DVR is disconnected.

OSD Information Display

2 3

1. The channel number, camera name, and video size are displayed. Available video sizes are (C)CIF, (N)Normal, and (L)Large.

2. If the video data of the current channel is being recorded on your PC, REC appears on the screen.

60_ Smart Viewer

Smart Viewer _61

10 SMART VIEWER

3. When audio signal is available, the audio mark appears.

4. It displays whether the PTZ controls are active.

5. The current channel alarm status is displayed.

6. The name and IP address of the connected DVR are displayed.

Clicking the speaker icon changes the



audio On and Off.

: Audio Off : Audio On

When the audio function is disabled, the



following icon is displayed.

: Audio Disabled

When the alarm or motion is detected,



its status is displayed on the screen in real time with the corresponding icon.

: Motion Detection : Alarm Event

If you have set PTZ cameras for the



DVR, the PTZ icon is displayed on the screen. Select a PTZ camera channel and use the PTZ buttons for control. (For more information, refer to Chapter 5, “PTZ Camera Control.”)

Event Log Display Window

The displayed events are:

Connecting..: When trying to connect



to a DVR is in progress. Connected..: When connection is



made to a DVR. Connection Failed: When connection



to a DVR fails. Disconnected..: When the DVR is



disconnected. Setup (Remote): When any DVR



settings are changed by Smart Viewer. Setup Start/End (Local): When the



Menu Setup window for the DVR is started or ended. Video Loss CH[N]: When a video loss



in a channel is detected. Time Change: When the date and time



of the DVR are changed. Load Factory Default: When the DVR



system is initialized. Network Change: When the DVR



network setup is changed. System Shutdown: When the DVR



system is terminated. HDD Format: When the HDD



formatting is initialized. Disk Full: When there is no more space



in the HDD of DVR. Power Failure Recovery: When the



DVR resumes after power failure. Backup Start/End/Fail/Stop: Backup



for the DVR is started, finished, failed, or stopped. Network Traffic Busy: Data transport



through the network is not smoothly going. Access Denied (Limit Over): No



more access is allowed because the connection limit is over.

Click Log to activate the log display window. It displays the events such as alarms, connection events, and setup change events in real time.

CAUTION

When specific events such as time change, load factory default, network change, system shutdown, or HDD format are detected, Smart Viewer automatically terminates the connection.

Camera Connection Indication Window

The window displays the connection state of DVR and the connected cameras.

Yellow: When Smart Viewer is



successfully connected to a DVR. When the camera is connected for monitoring. Black: When Smart Viewer cannot be



connected to a DVR. Blue: When Smart Viewer can connect



to a DVR but it is disconnected now.

Monitoring State Display

The screen split status and playing status are displayed on the screen.

: When monitoring in Quad Mode

: When monitoring in Single Mode

Screen Split Selection Buttons

The buttons present modes like full screen, single, 4-split, 9-split, and 16-split modes. You can change to any of them under monitoring.

Sequence Mode Button

When this button is selected, screens are switched at a preset interval. The interval can be set in Monitoring of Setup Menu. In Single Mode, the channel numbers are sequentially switched from 1 to 16. In Quad (4-split) Mode, the screens are changed like 1st 4 channels (1,2,3,4) --> 2nd 4 channels (5,6,7,8) --> 3rd 4 channels (9,10,11,12) --> 4th 4 channels (13,14,15,16). In 9-split Mode, the screens are changed from 9 channels (1,2,3,4,5,6,7,8,9) to 7 channels (10,11,12,13,14,15,16). In 16-split Mode, the screen refreshes at the preset interval.

: Cameras are turned Off

The numbers in the screen icons indicate the screen positions in Smart Viewer.

: The orange icon indicates that the current

channel is connected to a specific camera.

: The gray icon indicates that the current

channel is connected to a camera but not displayed in the screen.

: The black icon with a slash indicates that

the current channel is not connected to any camera.

62_ Smart Viewer

Smart Viewer _63

10 SMART VIEWER

NEXT Button

FAVORITE Button

When this button is clicked, next screen follows. In Single Mode, the channel numbers are sequentially switched from 1 to 16. In Quad (4-split) Mode, the screens are changed like 1st 4 channels (1,2,3,4) --> 2nd 4 channels (5,6,7,8) --> 3rd 4 channels (9,10,11,12)

--> 4th 4 channels (13,14,15,16). In 9-split

Mode, the screens are changed from 9 channels (1,2,3,4,5,6,7,8,9) to 7 channels (10,11,12,13,14,15,16). In 16-split Mode, the screen is refreshed.

CALLBACK Button

If you press this button, the callback window is activated to receive event messages. When receiving a message, Smart Viewer automatically connects to the corresponding DVR. The messages are video loss events, alarm events, and motion detection events. You can decide whether the received event will bring up alarming sound or not.

If you press this button, the favorite window is activated.

1. The cameras set for Favorite are displayed on the screen.

2. Clicking Delete removes a favorite setting. Clicking Delete All removes all the favorite settings.

3. Click this button to save the new favorite number and name.

4. Change favorites at the preset interval.

The FAVORITE button is available only



when you connect to a site. The FAVORITE settings are saved in the



Config file even after you disconnect the site. When you change the DVR list that



makes the site in Setup, the FAVORITE settings are initialized.

Video Recording Button

If you select a channel and click REC, the video data will be saved in a DVR file on your PC. The directory, file naming convention, and recording time can be configured in Viewer Setup for Setup Mode. The saved video file can be played in Search mode. To stop recording, click this button again. But this action is possible in 10 seconds after the recording starts.

Audio Volume Control Button

You can adjust the audio volume level (0 to 10) of a channel or mute it.

The PTZ (Pan/Tilt/Zoom) controls are available in all cameras. But, this Power Zoom controls are supported by Samsung smart dome cameras only, and they support the tilting operation below 45°.

Video Brightness/Contrast Control Button

After selecting a channel, you can adjust the brightness and contrast levels (0 to 10) of video image using the control buttons (+,-). The default value is 5. To return the default settings, press the button on the right.

The adjusted audio volume, brightness,



and contrast values are saved on your PC and remain unchanged even if Smart Viewer restarts. The brightness and contrast adjustment



may not work depending on the model.

PTZ Camera Control Buttons

You can handle the following PTZ operations after selecting a PTZ-enabled channel.

Panning Left/Right



Tilting Up/Down



Diagonal controls



The channel number is displayed at the center of PTZ control buttons.

31 2



Power Zoom

After the Power Zoom button is clicked, you can use the Zoom In and Out functions.



Zoom In/Out

PRESET

If you press this button, the Preset setup window appears.

a. If you select a preset, the camera moves

to the preset position.

b. You can delete the selected preset or all

presets.

c. You can save the new preset number

and name.

AUTOPAN: The camera moves between

starting and ending points.

SCAN: The camera moves circulating the

preset positions.

PATTERN: The camera moves following the

route that you have defined.

64_ Smart Viewer

Smart Viewer _65

10 SMART VIEWER

The preset function is supported by all cameras. You can set up to 20 presets. But an active directory (AD) protocol camera can have 7 presets. The names of 2,3, and 4 may vary depending on the camera vendor. And those functions may not be supported by some product.

Samsung cameras support those



functions.

In case of Panasonic cameras, the



names of AUTOPAN, SCAN, and PATTERN are as following:

SEQUENCE 3 AUTOPAN 4 SORT.

In case of PELCO cameras, the names



of AUTOPAN, SCAN, and PATTERN are as following:

FRAME SCAN 3 AUTO SCAN

PATTERN.

The other cameras do not support



those functions.

Self Menu Setup of PTZ device

1. You can configure the camera-related settings using the PTZ camera menu.

1. This is the camera self menu screen. The screen can be shown on Smart Viewer.

2. Use the Direction buttons for movement between menus.

3. The button operates the same as the ENTER button.

The Camera Menu Setup function is supported for Samsung and Panasonic cameras only.

CAUTION

When a DVR is using the PTZ camera controls, Smart Viewer cannot control the PTZ camera. The PTZ camera controls can be used by the Admin user.

SEARCH MODE

The Search mode has two separate modes such as Remote mode to search/play the DVR video data, and Local mode to play the DVR files that have been saved in the designated directory on your PC.

10 11

1. The screen shows the playback channels.

2. Click this to move to the Search mode for searching and playing the video files recorded.

3. Click this to move to the Remote mode for playing back the recorded DVR video images remotely.

4. Click this to move to the Local mode for playing back the DVR files recorded on your PC.

5. Use this calendar to select year, month, and date for search.

6. Use buttons for adjusting the audio volume and video brightness/contrast.

7. Click any of screen display modes.

8. Use buttons for recording, converting, printing, and setup.

9. Use buttons for playback of searched video file.

10. Use the button to display the next screens in order.

11. Use this button to renew the information about changing to channel/DVR, calendar, and time line.

12. It shows the time line for displaying the time information for search of the recorded video data.

When connecting to a site, select a DVR



for search. With a user privilege, you cannot access



the Search mode.

Select a site or DVR first and click the connection button.

You can also select a DVR.

66_ Smart Viewer

Smart Viewer _67

10 SMART VIEWER

Remote Mode

Screen Split Selection Buttons

This mode transfers the video data recorded on DVR through the network for playback. Up to 4 channels are allowed for simultaneous search and playback. The video data is played at the position where the time bar is located.

When clicking this button, it changes to the Remote mode.

Calendar Window

You can use any of full screen, single, quad (4-split), 9-split, and 16-split modes.

In the Remote mode, 9-split mode is not available while in the Local mode, quad and 9-split modes are not available.

Video Save (Backup)/Video Conversion/Print/Setup

3 4

1. Video Save button During playback (play/reverse play/fast forward/fast backward), if you select a channel and click this button, the video data is saved in a DVR file. (It is saved in the designated folder on your PC.) The directory, file naming convention, and recording time can be configured in Viewer Setup for Setup Mode. You can set the recording duration ranging from one minute to 10 minutes. To stop recording, click this button again. But this action is possible in 10 seconds after the recording starts. If the video file is not playing, this button enables you to perform backup, which brings up the following window.

If the video data has been recorded on a date, the date is distinguished in red. If you click the date, the recorded video information is displayed in the time line. If you select a date, it turns in red. Clicking  changes to the previous month and clicking  changes to the next month.

Audio Volume, Video Brightness/ Contrast Buttons

Those buttons operate the same as the controls in Monitoring Mode. The brightness and contrast adjustment may not work depending on the model.

You can set the starting and ending times for backup and select a file format for saving. Clicking Start begins the backup process. The backup file is saved in the folder which was defined by Setup > Viewer Setup > Video Recording > Video Location. To stop the backup process, click Stop.

This function is enabled only when the playback actions are in progress.

2. File Conversion button When this button is clicked, the system converts a DVR file into JPEG or AVI format.

To perform this function

a. Click

Open to select a DVR file to be

converted.

b. Select JPEG Frame or AVI Video.

c. Click

Start to convert the file. To stop

conversion, click Stop.

If JPEG Frame is selected, the file is



converted to “*.jpg” file after clicking Start. The converted JPG file is saved according to the preset route: Setup

> Viewer Setup > File Converting > Jpeg Location. If AVI Video is selected, the file is



converted to the “*.avi” file after clicking Start. The converted AVI file is saved according to the preset route: Setup

> Viewer Setup > File Converting > AVI Location.

In case of AVI backup, you need the



divX codec for playing saved files. The divX codec can be found at www.divx. com.

3. Print button This button prints the playback screen that is now being displayed.

4. Setup Mode button This button brings up the Setup Mode window.

5. Play buttons

3 4

6 7

1. Reverse Play: Performs Reverse Play

2. Play: Performs playback

3. Fast Backward: Reverse-plays faster

4. Stop: Stops playing

5. Fast Forward: Plays faster

6. Go to Last: Plays the latest (last) image

in the time line

7. Step Backward: Performs one step

reverse-play by one second

68_ Smart Viewer

8. Step Forward: Performs one step

forward by one second

9. Go to First: Plays the first image in the

time line

During play (Play/RevPlay/FF/FB), disconnection or change to both Monitoring and Local modes is not permitted. Click Stop first before any change.

Smart Viewer _69

10 SMART VIEWER

6. Time Line It displays the recorded video data status on DVR after a date is selected. The normal mode displays the time ranging from 0 to 24 O’clock while the extension mode displays the time every 2 hours.

7. Next button

It operates the same as the Next button in the Monitoring mode.

[Normal mode]



The channels that are being displayed on

the playback screen are distinguished on white background.



The highlighted time bar displays the

time range of the video image.



The time lines display the time division.

If you double-click an area of a time bar,



it changes to the extension mode. One column of time line represents one



hour. The colors of time lines change



depending on the recording state: Green (normal), Red (Panic), Orange (Alarm), Blue (Motion), Yellow (Schedule), and Purple (Video Loss).

You cannot change the channel while playing an image (Play/Reverse Play/Fast Forward/Fast Backward).

8. Reload button

It renews the recording time information in both the calendar and time line.

9. Local Mode This mode is used to play the DVR file recorded in the directory on your PC. You can search and play only one channel. You can access the recorded files regardless of connection to DVR. Other functions than Calendar are the same as those of the Remote mode. The time information of local files is displayed at the first channel position in the time line together with the file name.

: Click this button to change to

the Local mode.

[Extension Mode]



Displays the time line of one hour before



Displays the time line of one hour after

If you double-click an area of a time bar,



it changes to the normal mode. Each time line represents 5 minutes.



The colors of time line change



depending on the recording state: Green (normal), Red (Panic), Orange (Alarm), Blue (Motion), Yellow (Schedule), and Purple (Video Loss).

Only the DVR files saved with the audio being activated can be played with audio sound in the Local mode.

Web Viewer

INTRODUCING Web Viewer

WHAT IS Web Viewer?

Web Viewer allows remote access to your DVRs. You have access to live video, archived video, PTZ control (if configured), etc.

PRODUCT FEATURES

Remote access from a standard browser



Supports PTZ camera controls



Supports 1, 4, 8, 16 camera viewing formats



(maximum of 16 cameras in the list). Gets JPEG format images to print and save



to “Print or Save JPEG format images”. Record video in AVI format—compatible



with popular media players. (needed the Divx codec)

SYSTEM REQUIREMENTS

The following lists the minimum suggested hardware and operating system requirements needed to run the Web Viewer.

Windows XP Professional

Web Browser

CPU

MEMORY

Monitor

HDD

Windows 2000 Windows Vista Home Basic / Premium

Internet Explorer

6.0.2900.2180 or higher

Intel Pentium 4 with 2 GHz processor

512 MB

High Color 16-bit 1024 x 768

50 MB(Installation space required) * Additional HDD space required for recording. Recorded file size will vary depending on recording quality settings.

70_ Web Viewer

Web Viewer _71

11 WEB VIEWER

CONNECTING Web Viewer

1. Ope n yo ur w eb b rows er a nd t yp e th e IP address or URL of DVR into the URL address box.

The basic URL of the DVR is as following in case of MAC address :

00-00-F0-ab-cd-ef :



nabcdef.websamsung.net

00-16-6c-ab-cd-ef :



mabcdef.websamsung.net

00-68-36-ab-cd-ef :



pabcdef.websamsung.net You can also use registered URL which setups up in the Setup menu of your DVR.

2. For Administrator, type “ADMIN”, and then type the password that DVR is set up to. Nonadmin users type “USER” and password.

• The DVR allows simultaneous access to DVR by up to 3 users, which include one Admin privilege user and 2 user privilege users.

• The factory default password for Administrator privileges is “4321.”

• Non-admin user can not access to SEARCH and SETUP menu.

• You can change the password for Administrator and user privileges in IP Settings menu of the DVR.

4. Click “Install”.

5. Click “Install”.

6. You may have “Windows Security Alert” that attempts to block this with the Windows Firewall. In that case, click “

Unblock” to start

Web Viewer.

SAMSUNG DVR

3. Click “Install ActiveX Control…”

7. Installation is complete. Now you can see the main screen of Live Viewer.

USING Live Viewer

The Live Viewer screen consists of following :

1 This displays the IP address and the model

name of the connected DVR.

2 These menus consist of LIVE, SEARCH

SETUP,

ABOUT.

3 These buttons are used for the screen split

and full screen mode.

4 This displays the IP address and the status

of the connecting DVR.

5 These buttons are used for sequence and

changing the screen channel.

6 These buttons are used for capture, print,

and save the image.

7 These buttons display the current channel.

8 These buttons are use d for PTZ related

functions.

9 T his displ ays the s creen for con necte d

camera with DVR.

• The resolution is at 1024 x 768 pixels.

• The initial screen split mode is according to the channel numbers of the connected DVR. You can change the screen split mode by clicking buttons for splitting screen.

• Non-admin users do not have acce ss to SEARCH and SETUP menu.

OSD INFORMATION DISPLAY

1 The channel number, video si ze , and IP

address of the connected DVR are displayed.

2 If the video data of the current channel is

being recorded on your PC, “REC” appears on the screen.

3 The current date and time of the DVR are

displayed.

4 Alarm icon appears when alarm is issued.

It disappears when pressed the ALRAM button of the DVR.

5 M o t i on ic o n ap p ears w h e n mo t ion i s

detected. It disappears when pressed the ALRAM button of the DVR.

REC

72_ Web Viewer

Web Viewer _73

11 WEB VIEWER

6 It displays whether the PTZ controls are

active.

If you have set PTZ cameras for the DVR, “PTZ” is displayed on the screen. Select a PTZ camera channel and use the PTZ button for camera control.

FULL SCREEN MODE

•

Click button.

The screen displays the selected camera

connected to the DVR in “FULL SCREEN MODE”. To back to the previous mode, press the ESC key.

SPLIT-SCREEN

You can change the split mode by clicking each number icon.

SINGLE MODE

QUAD MODE NINE MODE

SIXTEEN MODE

CONNECTED DVR

This displays the IP address and the status of the connecting DVR.

•

Click button.

The screen displays the selected camera

connected to the DVR in “SINGLE MODE”.

•

Click button.

The screen displays the selected camera

connected to the DVR in “QUAD MODE”.

•

Click button.

The screen displays the selected camera

connected to the DVR in “NINE MODE”.

•

Click button.

The screen displays the selected camera

connected to the DVR in “SIXTEEN MODE”.

• Connection failure message No Response : Appears when the DVR does not respond.

Wrong ID

wrong. Wrong Password : Appears when the input password is wrong.

Wrong Port Number

number is wrong. Collision : Appears when Admin mode is already in use or simultaneous access to the same DVR from the PC. User Full : Appears when the maximum number of users is exceeded.

• The numbers of simultaneous connection are 3 which includes the users for SmartViewer.

: Appears when the input ID is

: Appears when the port

CHANGING THE LIVE SCREEN MODE

• If 16-channel DVR is connected , clicking “NEXT” in QUAD MODE is to change the screen as shown in the picture.

•

SEQUENCE: When this button is clicked, screens are switched at a preset interval. In SINGLE MODE, the channel numbers are sequentially switched from 1 to 16. In QUAD MODE, the screens are changed like 1st 4 channels (1~4)  2nd 4 channels(5~8)  3rd 4 channels(9~12)

4th 4 channels (13~16).



In NINE MODE, the screens are changed from 9 channels (1~9) to 7 channels (10~16). In SIXTEEN MODE, the screen refreshes at the preset interval

Preset interval (10 seconds)

•

PREVIOUS: When this button is clicked, previous screen follows. In SINGLE MODE, the channel numbers are switched in reverse order. In QUAD MODE, the screens are changed like 1st 4 channels (1~4)  2nd 4 channels (13~16)

3rd 4 channels (9~12)  4th 4 channels (5~8).



In NINE MODE, the screens are changed from 9 channels (1~9) to 7 channels (10~16). In SIXTEEN MODE, the screen is refreshed.

(CH1 to CH4)

(CH5 to CH8)

16-channel DVR

(CH9 to CH12)

(CH13 to CH16)

SAVING THE LIVE SCREEN ON THE PC

•

CAPTURE: Captures the current picture on the screen and saves it as a jpg or bmp image file.

•

The default saving path is “C:\Program Files\ Samsung\Dvr Web Viewer\SnapShot\Live”. To change the saving path, click “SAVE PATH” button( ) and then select the path you want. For Windows Vista, the saving path is “C:\users\(user ID)\AppData\LocalLow\Samsung\DVR Web Viewer\Snapshot\” and it cannot be modified.

• The file is automatically named as following: “IP address_Port number_YYMMDD_camera number_index” Ex) 192.168.130.12_554_20 070615_101530_01_00

•

PRINT: Prints the live screen that is now being displayed.It also prints IP address, time, camera number, and current event state.

•

NEXT: When this button is clicked, next screen follows. In SINGLE MODE, the channel numbers are sequentially switched from 1 to 16. In QUAD MODE, the screens are changed like 1st 4 channels (1~4)  2nd 4 channels (5~8)  3rd 4 channels (9~12)

4th 4 channels (13~16).



In NINE MODE, the screens are changed from 9 channels (1~9) to 7 channels (10~16). In SIXTEEN MODE, the screen is refreshed.

74_ Web Viewer

Web Viewer _75

11 WEB VIEWER

•

RECORD: Saves the current image on the screen and saves it as a avi video file.

• To record it, it is required at least 1GB of available space.

• The default saving path is “C:\Program Files\Samsung\Dvr Web Viewer\VideoClip\ Live”. To change the saving path, click “SAVE PATH” button( ) and then select the path you want. For Windows Vista, the saving path is “C:\users\(user ID)\AppData\LocalLow\Samsung\DVR Web Viewer\VideoClip\” and it cannot be modified.

• The file is automatically named as following: “IP address_Port number_YYMMDD_camera number_index” Ex) 192.168.130.12_554_20 070615_101530_01_00

• For AVI Save, you need the DivX codec for playing saved files. You can download the free version of the Divx codec at http://sourceforge.net/projects/ffdshow/.

USING PTZ CAMERA

CHANGING THE LIVE SCREEN CHANNEL

Each number indicates the screen positions in Web Viewer.

•

Blue numbers : Indicates that the current channel is connected to a camera.

•

Gray numbers : Indicates that the current channel is not connected to any camera.

Click the direction buttons to control the camera.

Click the + or - buttons to zoom in or out the image displayed.

MENU: Appears the camera menu screen.

PRESET: Moves the lens direction to a preset

direction.

• When a DVR is using the PTZ camera controls, Web Viewer cannot control the PTZ camera.

• The PTZ camera controls can be used by the admin user.

• The Camera Menu Setup function is available only supported cameras.

• All function of PTZ is same as one of DVR.

• Power pan/tilt function operates only with supported camer as. (Example: Samsung SCC-6475)

• Drag down to zoom in or drag up to zoom out by power pan/tilt function.

1. If you click PRESET, the camera moves to the preset position.

2. You can delete the selected preset or all presets.

3. You can save the new preset number and name.

You can save the preset up to 20.

AUTOPAN: Moves the camera lens direction between 2 points set for the camera.

SCAN: Moves the camera lens direction between 2 preset points of the camera.

PATTERN: You can set camera various movement patterns such as zoom, move, etc. so that a camera automatically moves according to the pattern.

76_ Web Viewer

Web Viewer _77

11 WEB VIEWER

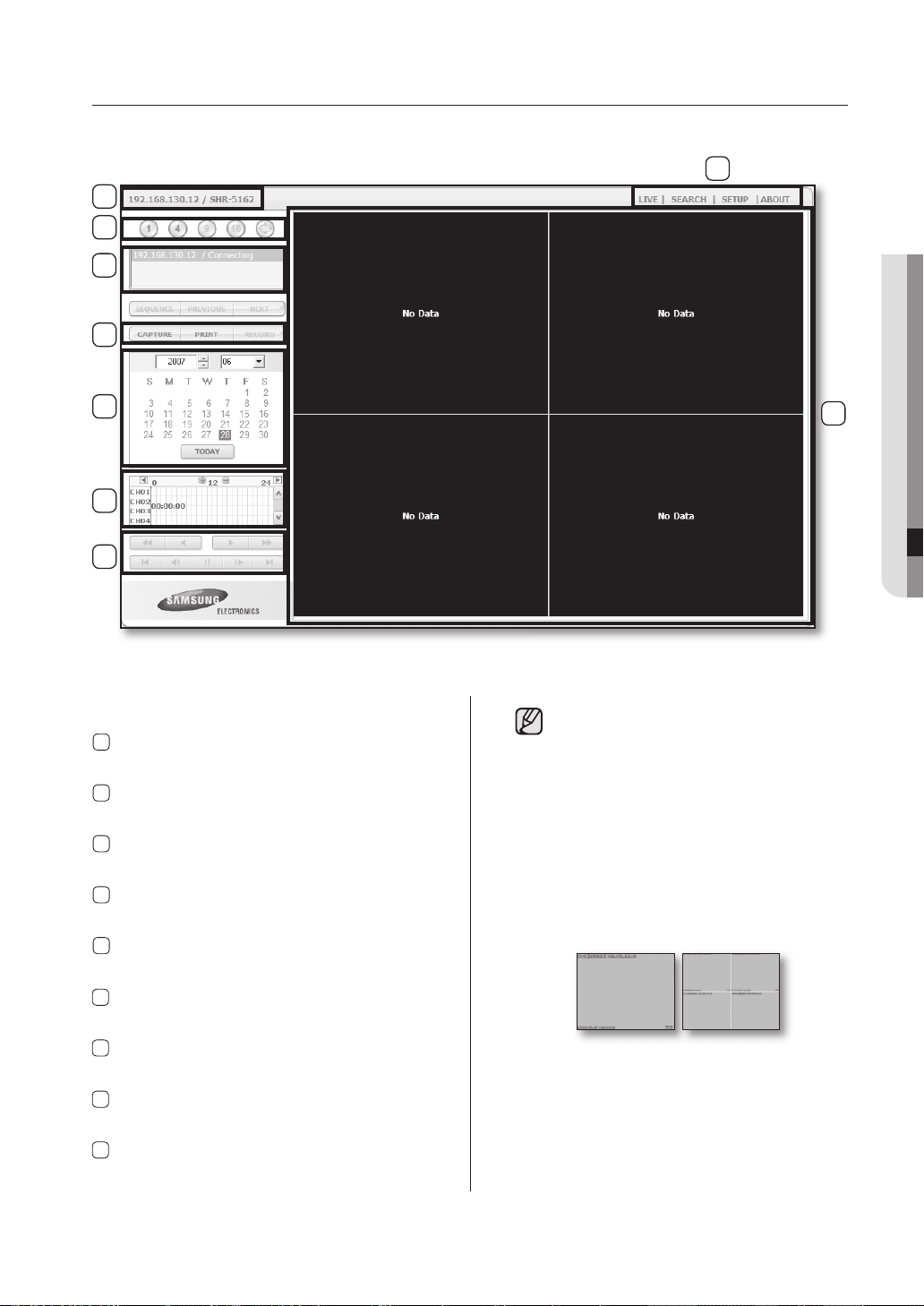

USING Search Viewer

The Search Viewer screen consists of following:

1 This displays the IP address and the model

name of the connected DVR.

2 These menus consist of LIVE, SEARCH

SETUP, ABOUT.

3 These buttons are used for the screen split

and full screen mode.

4 This displays the IP address and the status

of the connected DVR.

5 These buttons are used for capture, print,

and save the image.

•

SEQUENCE, PREVIOUS, NEXT buttons are not available in SEARCH menu.

• Non-admin users do not have access to SEARCH and SETUP menu.

SPLIT-SCREEN

You can change the split mode by clicking each number icon.

6 This displays a calendar at which you can

search the recorded video.

7 This displays a timeline at which you can

search the recorded video by the time.

8 T hes e but ton s are u sed f or cont ro lli ng

playback.

9 This displays the screen for playback of

recorded video.

QUAD MODESINGLE MODE

•

Click button.

The scree n d ispl ays the se lec t ed ca mer a connected to the DVR in “SINGLE MODE”.

•

Click button.

The scree n d ispl ays the se lec t ed ca mer a connected to the DVR in “QUAD MODE”.

• Only SINGLE and QUAD MODE are available in SEARCH menu.

• Om 16-kanals DVR är ansluten, kan du välja kanalerna som ligger från 1 till 16.

CONNECTED DVR

This displays the IP address and the status of the connecting DVR.

• Connection failure message No Response : Appears when the DVR does not respond. Wrong ID : Appears when the input ID is wrong. Wrong Password : Appears when the input password is wrong. Wrong Port Number : Appears when the port number is wrong. Collision : Appears when Admin mode is already in use or simultaneous access to the same DVR from the PC. User Full : ber of users is exceeded.

• The numbers of simultaneous connection are 3 which includes the users for SmartViewer.

Appears when the maximum num-

SAVING THE LIVE SCREEN ON THE PC

•

CAPTURE: Captures the current picture on the screen and saves it as a jpg or bmp image file.

• The default saving path is “C:\Program Files\Samsung\Dvr Web Viewer\SnapShot\ Search”. To change the saving path, click “SAVE PATH” button( ) and then select the path you want. For Windows Vista, the saving path is “C:\users\(user ID)\AppData\ LocalLow\Samsung\DVR Web Viewer\Snapshot\” and it cannot be modified.

• The file is automatically named as following: “IP address_Port number_YYMMDD_camera number_index” Ex) 192.168.130.12_554_20 070615_101453_01_00

78_ Web Viewer

Web Viewer _79

11 WEB VIEWER

•

PRINT: Prints the playback screen that is now being displayed. It also prints IP address, time, camera number, and current event state.

•

RECORD: If you select a channel and click this button during playback (only play), the video data is saved in a DVR file. (It is saved in the designated folder on your PC.) To stop recording, click this button again.

SEARCHING THE RECORDED VIDEO IN THE CALENDAR

• To record it, it is required at least 1GB of available space.

• The default saving path is “C:\Program Files\Samsung\Dvr Web Viewer\VideoClip\ Search”. To change the saving path, click “SAVE PATH” button( ) and then select the path you want. For Windows Vista, the saving path is “C:\users\(user ID)\AppData\ LocalLow\Samsung\DVR Web Viewer\VideoClip\” and it cannot be modified.

• The file is automatically named as following: “IP address_Port number_YYMMDD_camera number_index” Ex) 192.168.130.12_554_20 070615_101530_01_00

• For AVI save, you need the DivX codec for playing saved files. You can download the free version of the Divx codec at http://sourceforge.net/projects/ffdshow/.

If the video data has been recorded on a date, the date is distinguished in green. If you click the date, the recorded video information is displayed in the time line. When you click “TODAY”, it is changed to today’s date.

SEARCHING THE RECORDED VIDEO IN THE TIMELINE

CONTROLLING PLAYBACK

It displays the recorded video data status on the DVR after a date is selected. The normal mode displays the time ranging from 0 to 24 Hours while the extension mode displays the time every 2 hours.

[Normal Mode]

• If you click button, it changes to the extension mode.

• Each time line represents 1 hour.

[Extension Mode]

• If you click button, it changes to the normal mode.

• Each time line represents 5 minutes.

• The cha nnels are ra nging from CH01 to CH16.

1 Fast Backward: Reverse-plays faster(2x).

2 Reverse Play: Performs Reverse Play.

3 Play: Performs playback.

4 Fast Forward: Plays faster(2x).

5 Go to First: Moves the beginning time of

recorded video in the time line.

6 Step Backward: Performs one step reverse-

play by one frame.

7 Stop: Stops playing.

8 Step Forward: Performs one step forward by

one frame.

9 Go to Last: Moves the last time of recorded

video in the time line.

80_ Web Viewer

Web Viewer _81

11 WEB VIEWER

ABOUT

Click “ABOUT”. Displays the model name of connected DVR and the version of Web Viewer.

appendix

PRODUCT SPECIFICATION

Specs Details Notes

Operating System

Broadcasting

Input Voltage

Power Usage

Video Video Input

Video Output

Audio Audio Input

Audio Output

Embedded OS

NTSC / PAL System

AC 100 ~ 230V (PAL) AC 110 ~ 220V (NTSC)

60W

Composite 16(8) Channel

- 1.0Vp-p

- 75Ω Hi Z Termination BNC Type Loop Through Out 16(8) Channel

- Auto Termination

Composite 3 Channel

- Normal Video Output 1 Channel

- Spot Output 2 Channel

- BNC Type S-Video 1 Channel

- 1.0Vp-p VGA 1 Channel

Mono 4 Channel

- -5dBm, 600 RCA Type

Mono 1 Channel

- -6dBm RCA Type

Live Screen Resolution &

Frame Speed

Display Mode

82_ appendix

NTSC PAL

Resolution 720X480 720X576

Frame Rate

Single Screen Split Mode: SHR-5160/5162 : 4, 6, 7, 8, 9, 16 split SHR-5080/5082 : 4, 6, 7, 8, 9 split Mode sequence Freeze 2 X Zoom

480ips(16Ch)/ 240ips(8Ch)

400ips(16Ch)/ 200ips(8Ch)

12 APPENDIX

appendix _83

Specs Details Notes

Recording Compression

Method

Resolution & Recording Specs

Recording Mode

Recording ips

Save Internal

Video : MPEG4 Audio : ADPCM

Resolution

CIF(C) 352X240(NTSC) /352X288(PAL)

Half D1(N) 720X240(NTSC) /720X288(PAL)

Recording Specs

(Picture quality)

Level8(High) ~ Level1(Low)

Highest Image Recording Speed

30ips(NTSC)/ 25ips(PAL)

Normal Record  REC Key Programmed Recording  Schedule Table Event Recording

-Alarm Detection

-Motion Detection

-Video Loss

-Pre & Post Recording

NTSC : 0.9 / 1.8 / 3.7 / 7.5 / 15 / 30ips (True Recording ips: 0.938/1.875/3.75/7.5/15/30ips) PAL : 0.7 / 1.5 / 3.1 / 6.2 / 12.5 / 25ips (True Recording ips: 0.781/1.563/3.125/6.25/12.5/25ips)

SHR-5162/5082 : ATA HDD x 3(MAX)

MAX HDD Size : 500GB x 3 = 1.5TB

SHR-5160/5080 : ATA HDD x 4(MAX)

MAX HDD Size : 500GB x 4 = 2TB

External

Play Back Search Mode

Resolution & Recording Specs

USB HDD

-MAX 1 (Not support USB hub)

-MAX HDD Size : 500GB

Calendar search Event search

- Alarm, Motion, Video Loss Date/time search Initial search Latest search Backup search

Resolution Recording Specs

8Ch 16Ch

CIF

Half D1(N)

15ips(NTSC)/12.5ips(PAL)

7.5ips(NTSC)/6.2ips(PAL) 3.7ips(NTSC)/3.1ips(PAL)

7.5ips(NTSC)/6.2ips(PAL)

Total 120/100 ips(CIF) 60/50ips (Half D1)

Specs Details Notes

Display Mode

Play Back Play Mode

Backup

Network

Serial Communication

Alarm

Single  1Channel Decoding 16 split (played cameras10-16) 9 split (played cameras 5-9) 4 split (played cameras 2-4) PIP  1 Channel Decoding + 1Channel Live Triplex 9 split  8 Channel Live + 1Channel PB Triplex 16 split 

15 Channel Live +1Channel PB

Play, Pause, Stop, 2x Digital Zoom Fast Forward/Fast Reverse

- 2x, 4x, 8x, 16x, 32x, 64x

USB External HDD USB CD/DVD Writer, Internal DVD (SHR-5162/5082 only) USB memory USB HDD

-MAX 1 (Not support USB hub)

Ethernet : 10/100 Base T, ADSL(PPPoE), DHCP

RS-485  PTZ Device Control, Remote Control Device

Input : SHR-5160/5162 : 16 Channel SHR-5080/5082 : 8 Channel Output : 4 Channel Support external alarm reset

Remote Viewer

PC Detailed Specs

CPU : Pentium III, 1GHz or higher RAM : SDRAM 256MB or higher Graphic Accelerator : Graphic Memory 32MB or higher DirectX : 8.1 or higher

Supported Operating

Win2000, WinXP

Systems

Function

Live Image Monitoring Mode Local File Search & Play Back Mode Remote File Search & Play Back Mode

Operating Temperature

Storage Temperature

Operating Humidity

Storage Humidity

Size (W x H x D)

Weight

0°C ~ 40°C (32°F ~ 104°F)

-20°C ~ +60°C (-4°F ~ +140°F)

20% to 85% RH

430 x 88 x 400mm (16.93 x 3.46 x 15.75 inch)

SHR-5162/5082 : ~ 7.6kg(16.75 lb) SHR-5080 : ~6.7kg(14.77 lb) SHR-5160 : ~6.8kg(14.99 lb)

It needs extra software to support ATM/POS function. So please contact your vendor to obtain software.

84_ appendix

12 APPENDIX

appendix _85

OUTLINE DRAWINGS

5080 Outline Drawings



5082 Outline Drawings



86_ appendix

12 APPENDIX

appendix _87

5160 Outline Drawings



5162 Outline Drawings



88_ appendix

12 APPENDIX

appendix _89

FACTORY DEFAULT

This returns the factory default settings.

The settings are made as follows;

Use System/Load Factory Default in MENU



In Live mode, press and hold down MODE and then PTZ on the front panel for 6 seconds to reset the



settings.

Classification

System Setup

Camera Setup

Detailed Items Factory Setup

Time/Date/Language Date Format YYYY-MM-DD

Time Format 24 Hours

Language English

DST Off

Password Password 4321

Password Lock On

Record Lock Off

HDD Mode HDD repeat record Overwrite

HDD ending alarm Off

Camera Config Video On

Audio Off

Title CAM_01 to

CAM_16 (SHR-5082/5080 : 8)

Auto Seq. 5 sec

PTZ Device ID Camera No.

Protocol None

Baudrate 9600

Parity None

Data 8

Stop 1

Serial Mode Half Duplex

Screen Setup Brightness 50

Contrast 50

Color 50

Classification

Detailed Items Factory Setup

Monitoring

Record Mode Setup

Event Monitoring Duration Off

Date On

Time On

OSD Display

Title On

Status On

Spot Out Channel CH1

Spot Out Event Monitor Off

Monitor Out Dual Out

Play channel location Lower right-hand corner

Multi-channel change 5 seconds

Record Quality & Auto

Normal Quality Level4

Deletion

Event Quality Level4

Auto Deletion Off

Record Rate & Video

Normal Rate

7.5ips(NTSC)/6.2ips(PAL)

Size

Event Rate

7.5ips(NTSC)/6.2ips(PAL)

Video Size CIF

Record Schedule

Event Record Setup

Event Record Duration PreEvent Off

PostEvent 1 min.

Continuous Recording Off

Event Recording On

Alarm

Sensor State Off

Detection Setup

Camera Camera No.

Alarm-Out None

Duration 10 sec

Motion Detection Setup M.D State Off

Area All Area

Sensitivity Very High

Alarm-Out None

Duration 10 sec

Video Loss Detection Setup

Off

Alarm-Out None

90_ appendix

Duration 10 sec

12 APPENDIX

appendix _91

Classiﬁcation

Detailed Items Factory Setup

Connection Mode Static IP

Bandwidth 2Mbps

Admin Password 4321

Network

IP Settings

Transfer Protocol Settings

User Password 4321

IP 192.168.001.200

Gateway 192.168.001.001

Subnet Mask 255.255.255.000

DNS 168.126.063.001

ADSL User ID ID

Password -

Protocol type UDP

Port(TCP) 0554.0555.0556.0557

Port(UDP) 8000-8159

Unicast / Multicast Unicast

Multicast IP 224.126.063.001

TTL 005

DDNS Site Off

Host Name -

User Name

Callback Settings

Transfer Picture Settings

Web Viewer Port Setting

User Password

On / Off Off

IP Address 192.168.001.010

Port(UDP) 7900

Retry 05

Transfer Alarm In Off

Transfer Motion Detection Off

Transfer Video Loss Off

Transfer System Log Off

Video Size

Quality Low

Port

CIF

TROUBLESHOOTING (FAQ)

PROBLEM SOLUTION

The system power is dead and LEDs on the front of the set do not operate at all.

Video data remains in the system but some channels display no video data but turns all blue.

The RECORD button is pressed but the REC LED does not light and recording is not active.

Although all the LED operate on the front panel, the screen is blink or the display quality is low.

Please check the power connection.



Check the power voltage.



If all your efforts as above end up with nothing, check



or exchange the power supply.

Check the image of the camera connected to the



system. Improper input of camera may cause this symptom. Check the camera power supply.



Sometimes, you see this symptom when the video



data is connected with multisystems and the video signal from the video data distributor in use is weak. If it’s the case, you shall connect the camera images with your DVR directly to check or correct the symptom.

Please check the HDD space.



Please check the Record Mode setup in MENU.



It should be On.

Please make sure the cable is connected. Video



out may come out differently with the connected monitor. In short, Video Out is set to Composite Output but connected to VGA Input Monitor or vice versa. Then, keep pressing both the MODE button and the ZOOM button for 5 seconds to change the Video Out mode. You may experience low display quality while the dual video output is in use. In this case, please switch it to the composite or VGA video output.

The LEDs blink and the logo screen repeatedly appears.

You cannot enter MENU by forgotten password.

The channel button does not operate in Live mode.

The cursor cannot reach the starting point during Calendar Search.

92_ appendix

This symptom may be resulted from the failure



of HDD connection inside the DVR. Take off the cover and check HDD connection status. If HDD connection has no problem, please consult with the dealer.

If you forget the password, you shall reset the DVR to



the values set at the factory. Keep pressing both the MODE button and the PTZ button for 5 seconds. The default password is “4321.”

If the current screen is in Event Monitoring, the



channel button does not operate. Then, press the ALARM button to terminate the current screen and select a channel.

Please check both the channel and date are left



checked. Both shall be checked for play with Start. The cursor cannot reach the unrecorded date.

12 APPENDIX

appendix _93

PROBLEM SOLUTION

Alarms keep continuously issued so you cannot cancel using the ALARM button.

Pressing the PTZ button in Live mode receives no response.

When you connect several IEEE1394 armored HDDs to the DVR through Menu, the DVR cannot recognize all the HDDs.

“CLOCK BATTERY HAS FAILED” is displayed on the screen.

You cannot connect to the DVR through Smart Viewer.

Press the MENU button and do the following:



1) To cancel Event Monitoring:

Monitoring > Event

Monitoring Duration Off

2) To cancel Buzzer: Event Record > Alarm (Motion Detection/Video Loss) > Alarm-Out.

3) To cancel Event: Event Record > Alarm (Motion Detection/Video Loss) > State Off.

Check the Protocol and other setup values through



Menu > Camera > PTZ Device match with the PTZ camera.

It requires time to recognize several armored HDDs.



Please try again in a few minutes. If retrial makes no improvement, HDD could be abnormal. Please exchange the HDD.

This message is displayed if the internal clock in



DVR has problem.

recorded data in HDDs. Please consult with an expert who works for the shop where you bought the product.

Check if 3 Smart Viewer users are in connection with



DVR will not work in order to protect

your DVR. The DVR allows no more than 3 users’ connection with Smart Viewer at a time. Check the Network setup of your DVR.



Check Network cable connection.



When you use DHCP/ADSL(PPPoE) for connection,



please check if you get the right DVR MAC Address. If your DVR is connected to the ADSL network,



please check if the bandwidth is set below 600 Kbps. If the Bandwidth for ADSL is set to high, the connection with Smart Viewer may be instable due to the heavy network load because the ADSL speed is low.

Smart Viewer in operation is disconnected.

If you change information such as time, network



setup, HDD format, Default Setup, or HDD attachment or detachment for your DVR, the current Smart Viewer will be automatically disconnected. Check the network connection. Smart Viewer, if



disconnected from the network, will try reconnection up to 5 times. If it remains unconnected after 5 time trials, it will automatically give up connection. As far as your DVR is connected to the ADSL



network, you may be disconnected from Smart Viewer when the network conditions go

worse.

PROBLEM SOLUTION

The Audio icon of Smart Viewer is left deactivated in Live mode. Setting Audio to On in the Camera menu of your DVR will make no difference.

When selecting the channel which PTZ Camera is connected to in the Live mode of Smart Viewer, click the “Menu Control” button among PTZ setup buttons to enter the Function Menu mode in PTZ Camera, and return from the other channel, the PTZ related buttons have been initialized.

No Time Bar in the Search

“NO HDD” icon and error message pops up.

DVR device does not show what has been upgraded after adding a hard disk.

If your PC has no Audio driver or has some problem



with Audio play by an Audio driver, the Audio icon will be deactivated. Please check Audio driver installation status.

PTZ control is available in both Smart Viewer and



your DVR. Other user might control the PTZ for your DVR to terminate the PTZ Camera Menu or Auto Pan/Scan/Pattern motions while you select the other channel. This may cause the initialization.

Time Line can be converted into 2 modes, General



(24 Hour Display) and Extension (2 Hour Display). In Extension mode, Time Bar may not be seen in the current time. Please enter General mode or click the LEFT or RIGHT button to search Time Bar.

Please check the HDD connection status. If this



problem persist without connection failure, contact the technical support for checking hard disk.

Make sure that the additional external HDD installed



is one of the devices listed on the compatibility list of HDDs. The list of the compatible devices with Samsung DVR can be obtained from your vendor.

The connection status is not shown after connecting the external storage device, USB memory, USB HDD and such.

Pressing the ESC key in “FULL SCREEN MODE” of WebViewer does not work to change into normal split mode.

94_ appendix

Make sure that the external storage device installed is



one of the storage devices listed on the compatibility list of storage devices. The list of the compatible devices with Samsung DVR can be obtained from your vendor.

Press the ALT+TAB key to select ‘ACTIVE MOVIE’,



and then press ESC key again. It will be changed into normal split mode.

12 APPENDIX

appendix _95

OPEN SOURCE LICENSE REPORT ON THE PRODUCT

This product uses software provided under the name of GPL and LGPL. You can receive the following GPL and LGPL source codes by email request to www.sec.co.kr.

GPL Software



Kernel, Busybox, Sysvinit, dvd+rw-tools, cdrtools, dosfstools LGPL Software



gLibc, Inetutils

GNU GENERAL PUBLIC LICENSE

Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation’s software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Lesser General Public License instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things.

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.

We protect your rights with two steps:

(1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software.

Also, for each author’s protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors’ reputations. Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone’s free use or not licensed at all. The precise terms and conditions for copying, distribution and modification follow.

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The “Program”, below, refers to any such program or work, and a “work based on the Program” means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term “modification”.) Each licensee is addressed as “you”.

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents

constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.

1. You may copy and distribute verbatim copies of the Program’s source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program. You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

a) You must cause the modified files to carry

prominent notices stating that you changed the files and the date of any change.

b) You must cause any work that you distribute

or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.

c) If the modified program normally reads

commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim

rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program.

In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following:

a) Accompany it with the complete

corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,

b) Accompany it with a written offer, valid for

at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,

c) Accompany it with the information you

received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.)

The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

If distribution of executable or object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.

4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt

96_ appendix

Samsung SHR-5162P, SHR-5082P5 Operating Instructions

Specifications and Main Features

Frequently Asked Questions

User Manual

Introducing your 8/16 Channel DVR

CONTROLS ON THE DVR

REAR PANEL JACKS

REMOTE CONTROL

installation

CHECKING INSTALLATION ENVIRONMENT

HDD ADDITION

connecting with other devices

CONNECTING VIDEO, AUDIO, AND MONITOR

CONNECTING THE NETWORK

CONNECTING THE USB

CONNECTING THE ALARM INPUT/OUTPUT

CONNECTING THE RS-485 DEVICE

live

OPERATING THE SYSTEM

LIVE SCREEN MODE

SETTING AUDIO ON/OFF

FREEZING AND ZOOMING

EVENT MONITORING

SPOT-OUT MONITORING

menu setup

BEFORE USE

System

CAMERA

MONITORING

RECORD MODE

EVENT RECORD MODE

SCHEDULE

NETWORK

CONFIGURING NETWORK

backup

PTZ camera control

PTZ CAMERA CONTROL MODE

BASIC PTZ OPERATIONS

PRESET SETUP

CAMERA MENU SETUP

PRESET VIEW

OTHER VIEW

recording

REC (NORMAL RECORDING)

RECORD SCHEDULE

search and play

BEFORE USE

CALENDAR SEARCH

EVENT SEARCH

DATE TIME SEARCH

GO TO FIRST SEARCH

GO TO LAST SEARCH

PLAYBACK

BACKUP SEARCH

Smart Viewer

INTRODUCTION

MAIN FEATURES

Smart Viewer INSTALLATION

PC SPECIFICATION (RECOMMENDED)

Smart Viewer PROGRAM EXECUTION

Smart Viewer INITIAL SCREEN

SETUP MODE

MONITORING MODE

SEARCH MODE

Web Viewer

INTRODUCING Web Viewer

CONNECTING Web Viewer

USING Live Viewer

USING Search Viewer

ABOUT

appendix

PRODUCT SPECIFICATION

OUTLINE DRAWINGS

FACTORY DEFAULT

TROUBLESHOOTING (FAQ)

OPEN SOURCE LICENSE REPORT ON THE PRODUCT
