Real Time DVR

user manual

Thank you for purchasing a Samsung product. To receive a more complete service, please

www.samsung.com/global/register

imagine the possibilities

SHR-5082 SHR-5162

Code No. AB68-00644A-00

Real Time DVR user manual

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life.

To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government ofﬁce, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

SHR-5162_Eng.indb 44 2007-06-18 ｿﾀﾀ・11:46:52

key features of your DVR

The Digital Video Recorder (DVR) compresses the acquired images of 8/16 video channels from cameras using MPEG-4 technologies, and compresses the 4 channel audio inputs into ADPCM audio file in real time to record them on the hard disk or retrieve them from the hard disk simultaneously.

In addition, it transfers the video and audio data through a network in real time and allows you to remotely monitor them using your PC.



8/16 channel Composite Input connectors



NTSC/PAL video source compatible



With Dual Codec, can change the FPS (frames per second) accord

ing to the bandwidth and send live

pictures regardless of the recording condition



Picture quality improvement by adopting the De-interlace chip



Can display HDD information and status using the HDD SMART func

tion



Can convert the CIF (NTSC: 352*240, PAL: 352*288) images to 120

IPS images for NTSC or 100 IPS

images for PAL



8/16 channel loop through video connectors



Hard disk overwrite mode



USB 2.0 hard disk backup capability for large quantities of data



Backup function using USB 2.0 memory and external CD/DVD writer

(Built-in DVD-RW included)



Can record, play, and transmit audio/video data to Windows Netw

ork Viewer (Smart Viewer) simultaneously



Can record or play 8/16 channel video data



Various search modes (time/date, event, schedule)



Various recording modes (time lapse, event, schedule)



Extended hard disk connection (USB 2.0)



Alarm interface function (Input: 8/16, Output: 4, Reset: 1)



Remote monitoring function using Windows Network Viewer (Smart

Viewer)

WHAT’S INCLUDED WITH YOUR DVR

Upon delivery of this product, you shall unwrap and put it on the even floor or where you want to use it. Then you must check if the following items are in it.

Remote control unit (RCU)

One power cord Smart Viewer

software CD (PDF manual included)

Two brackets

Brackets are used to attach the product to the rack

Special 4 screws 2 EA of RS-485/

Alarm terminal block

User manual2 EA of AAA batteries

SHR-5162_Eng.indb 2 2007-06-18 ｿﾀﾀ・11:46:56

safety regulations

Please be sure to keep the following in mind for the right use of the product to prevent proprietary risk or damage.



Do not use multiple plugs at once.

This may cause abnormal heat generation or fire



Do not put a vase, flowerpot, cup, cosmetics, medicine, or vessel with water around you.

This may cause fire.



Do not bend the power cord forcibly nor put a heavy material on it.

This may cause fire.



Do not touch the power plug with wet hands.

This may cause electric shock.



Insert the power plug firmly enough not to shake.

This imperfect connection may cause fire.



Keep the product off humidity, dust, or soot.

This may cause fire or electric shock.



Do not put metals (coin, hair pin, metal piece, etc.) or inflammable materials (match, paper, etc.) in the ventilation hole.

This may cause fire.



Keep the surrounding temperature between 0°C to 40°C and keep the product off humidity.

This may cause breakdown.



Secure sufficient ventilation.

This may cause abnormal operation due to high temperature.



Keep the product off direct ray of light or heat from the heating device.

This may cause fire.



Do not disassemble, repair, or remodel the product.

This may cause fire, electric shock, or injury due to abnormal operation.



Do not pull out the power cord.

This may destroy the power cord, eventually, cause fire or electric shock.



Plug out in the event of thunder or lightning.

This may cause fire.



Keep your children off the battery after you take it out of the product. They tend to swallow it unconsciously.

If your children swallow it, please see the doctor immediately.



Install the product at a safe place or attach the product to the wall or ceiling with a stand firmly enough not to fall to the ground.

This may injure people.

SHR-5162_Eng.indb 3 2007-06-18 ｿﾀﾀ・11:46:59

before start

This user’s manual provides Information for using DVR such as brief introduction, part names, functions, connection to other equipment, menu setup, and the like.

You have to keep in mind the following notices:



SEC retains the copyright on this manual.



This manual cannot be copied without SEC’s prior written approv

al.



We are not liable for any or all losses to the product incurred by your use of non-standard product or violation of instructions mentioned in this manual.



If you want to open the case of your system for checking problems, please consult the expert from the shop where you bought the product.



You may download open source codes from the following website: http://www.samsung.com.



Before installing any external device such as external memory or HDD, please check the compatibility of the device with Samsung DVR. The list of the compatible devices with Samsung DVR can be obtained from your vendor.



Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.



The Mains plug is used as a disconnect device and shall stay readily operable at any time.

WARNING

Battery

Exchanging a wrong battery in your product may cause an explosion. Therefore you must use the same type of battery as the one being used in the product. The following are the specifications of the battery you are using now.



Normal voltage: 3V



Normal capacity: 170mAh



Continuous standard load: 0.2mA



Operating temperature:

-20 to +85°C (-4 to +185°F)

System Shutdown

Turning off the power while the product is in operation, or taking not permitted actions may cause damage to the hard drive or the product. Also it can cause a dysfunction to the hard disk while using the product. Please turn off the power using the Power button on the front of your DVR. After selecting OK in the pop-up menu, you can pull off the power cord. You may want to install a UPS system for safe operation in order to

prevent damage caused by an

unexpected power stoppage. (Any questions concerning UPS, consult your USP retailer.)

Operating Temperature

The guaranteed operating temperature range of this product is 0°C to 40°C (32°F to 104 °F). This product may not work properly if you run right after a long period of storage at a temperature below the guaranteed one. When using the device after a long period of storage at low temperature, place the product at room temperature for a while and run it. Especially for the built-in HDD in the product, its guaranteed temperature range is 5°C to 55°C (41°F to 131 °F). Likewise, the hard drive may not work at a temperature below the guaranteed one.

STANDARDS APPROVALS

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency ene

rgy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

CALIFORNIA USA ONLY

This Perchlorate warning applies only to primary CR (Manganese Dioxide) Lithium coin cells in the product sold or distributed ONLY in California USA.

“Perchlorate Material - special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.”

SHR-5162_Eng.indb 4 2007-06-18 ｿﾀﾀ・11:47:00

contents _01

INTRODUCING YOUR REAL

TIME DVR

INSTALLATION

CONNECTING WITH OTHER

DEVICES

LIVE

MENU SETUP

BACKUP

PTZ CAMERA CONTROL

RECORDING

03 Controls on the DVR 05 Rear panel jacks 06 Remote control

08 Checking installation envir

onment

08 Hdd addition

12 Connecting video, audio, and monitor 12 Connecting the network 13 Connecting the USB 13 Connecting the alarm input/output 14 Connecting the RS-485 device

15 Operating the system 15 Live scr

een mode

17 Setting audio on/off 18 Freezing and zooming 18 Event monitoring 19 Spot-out monitoring

20 Befor

e use

20 System 25 Camera 26 Monitoring 27 Record mode 29 Event record mode 30 Schedule 31 Network 34 Configuring network

35 Backup

36 PTZ camera control mode 36 Basic PTZ operations 37 Pr

eset setup

37 Camera menu setup 38 Preset view 38 Other view

39 Rec (normal r

ecording)

39 Record schedule

contents

continued next page

SHR-5162_Eng.indb 1 2007-06-18 ｿﾀﾀ・11:47:00

02_ contents

SEARCH AND PLAY

Smart Viewer

APPENDIX

40 Before use 40 Calendar search 40 Event search 41 Date time search 41 Go to first search 42 Go to last search 42 Backup search 42 Playback

44 Intr

oduction

44 Main features 44 PC specification (recommended) 44 Smart Viewer installation 45 Smart Viewer program execution 46 Smart Viewer initial screen 46 Setup mode 57 Monitoring mode 64 Search mode

68 Pr

oduct specification

71 Outline drawings 73 Factory default 76 Troubleshooting (FAQ) 79 Open source license report on the product

SHR-5162_Eng.indb 2 2007-06-18 ｿﾀﾀ・11:47:00

01 INTRODUCING

introducing _03

CONTROLS ON THE DVR

introducing your real time DVR

1. ALARM LED

Lights when an event occurs.

HDD LED

Lights when the hard disk is operating. When the HDD is accessed, LED repeatedly blinks.

NETWORK LED

Lights when the data is transferred through the network.

BACKUP LED

Lights when a backup is in progress.

REC LED

Lights when a recording is in progress.

2. PTZ Button

Toggles PTZ mode On and Off.

ZOOM(TELE)

Button

Implements the digital zoom (x2). Performs the TELE function in PTZ mode.

FREEZE(WIDE)

Button

Performs the FREEZE function in live mode. Performs the WIDE function in PTZ mode.

SEARCH(VIEW)

Button

Goes to the Search function window. Performs the Preset View function in PTZ mode.

MENU(PRESET)

Button

Goes to the system menu screen or moves to the upper menu. Performs the Preset Setup function in PTZ mode.

9 8 7

32 4

9 8 7

32 4

5162

5082

SHR-5162_Eng.indb 3 2007-06-18 ｿﾀﾀ・11:47:02

04_ introducing

3. REC Button

Starts or ends the recording

(Fast/Step Rewind)

Button

- Step Rewind: Used for backward scene-by-scene search while at pause.

- Fast Rewind: Used for quick backward search while in play. (-x2, -x4, -x8, -x16, -x32, -x64)

(STOP)

Button

Ends search while in play.

(PLAY/PAUSE)

Button

Pauses and resumes the screen play.

(Fast/Step Forward)

Button

- Fast Forward: Used for quick forward search while in play. (x2, x4, x8, x16, x32, x64)

- Step Forward: Used for forward scene-by-scene search while at pause.

4. Direction Buttons

Used for changing settings or for moving the cursor up/down/left/right.

5. MODE Button

When pressed in live mode, it sequentially display 16-split, 9-split, 4-split, 6-split, 7-split, 8-split, Picture in Picture (PIP), and single sequence.

When pressed in playback mode for playback-exclusive channels (16, 9, 4), it sequentially displays single channel, 1 playback channel with 1 live channel, 1 playback channel with 8 live channels, 1 playback channel with 12 live channels, and 1 playback channel with 15 live channels.

AUDIO Button Toggles Audio On and Off. ALARM Button Turns off the alarm LED and stops the sound when an alarm is issued. Alarm icon disappears when the alarm button is used. BACKUP Button Press it for backup operation.

6. USB Port

Use it to connect USB type devices.

7. Channel Button

Select a single channel (1 to 16) while in live mode.

8. Eject Button

Opens the DVD-RW tray.

9. Power LED

Displays power On/Off state. Power Button Press to turn on the power or shut down your DVR in live mode.

CAUTION

Do not install DVR on the carpet or other soft material to prevent clogging of the air ventilator. To install DVR on the cabinet or rack, be sure to check the ventilation condition.

SHR-5162_Eng.indb 4 2007-06-18 ｿﾀﾀ・11:47:03

01 INTRODUCING

introducing _05

REAR PANEL JACKS

5082 REAR

5162 REAR

VIDEO OUT Composite video output port (BNC type connector)

AUDIO OUT Audio output port (RCA jack)

VGA

VGA video output port

S-VIDEO S-VIDEO video output port

NETWORK Network connection port

AUDIO IN Audio input port (RCA jack)

SPOT

SPOT1: 1 channel exclusive SPOT output SPOT2: The same output as the Main VIDEO OUT (OSG is not displa

yed)

USB USB connection port

ALARM

- ALARM 1–16: Alarm input port

- ALARM RESET IN: Alarm reset port

- ALARM OUT 1–4: Alarm output port

- TX+, TX-, RX+, RX-: RS-485 communication

THROUGH

You may use THROUGH port to transmit a video signal to the other video equipment.

VIDEO IN Composite video input port (BNC type connector)

AC-IN

AC 100 ~ 230V (PAL) AC 110 ~ 220V (NTSC)

SHR-5162_Eng.indb 5 2007-06-18 ｿﾀﾀ・11:47:07

06_ introducing

REMOTE CONTROL

RECORD

Starts or ends the

recording.

OPEN/CLOSE

Used to open and close

the DVD-RW tray.

0~9

Selects a single channel

while in live mode. Used

for inputting numeric

values.

REC LOCK

Locks the record function.

AUDIO

Toggles Audio On and

Off.

BACKUP

Press it for backup

operation.

ALARM

Cancels sending alarms.

MODE

Select a split screen.

FR (fast rewind)

FR (fast reverse): Used for

quick backward search

while in play. (-x2, -x4,

-x8, -x16, -x32, -x64)

STOP

FF (fast forward)

Used for quick forward

search while in play. (x2,

x4, x8, x16, x32, x64)

Play/Pause

Using the NUMERIC Buttons

CHANNEL 1–9 Press the 1 to 9 button respectively.

CHANNEL 10

Press the 0(10+) button, release, and press the 0 button again with

in 3 seconds.Or press the 0(10+) button,

release, and wait 3 seconds.

CHANNEL 11–16 Press the 0(10+) button, release, and press the 1 (or 2, 3, 4, 5, 6) button

again within 3 seconds.

SHR-5162_Eng.indb 6 2007-06-18 ｿﾀﾀ・11:47:08

01 INTRODUCING

introducing _07

STOP

Ends playing.

Play/Pause

Pauses or resumes

playing.

Goes to the system menu

screen or moves to the

upper menu.

ZOOM

Implements the digital

zoom (x2).

Goes to the search select

screen.

FREEZE

Performs the FREEZE

function in live mode.



DOWN



LEFT



RIGHT



Used for changing

settings or for moving the

cursor up/down/left/right.

ENTER

Shows the cursor for

channel selection in live

mode or used as the

selection button for menu

configuration.

PTZ

Toggles PTZ mode On

and Off.

TELE

Performs the TELE

function in PTZ mode.

WIDE

Performs the WIDE

function in PTZ mode.

SYS ID

Use for inputting or

confirming system or

remote control ID.

PRESET

Performs the PRESET

function in PTZ mode.

VIEW

Performs the VIEW

function in PTZ mode.

Changing the Remote Control ID

As you press the SYS ID button, input the desired 2-digit ID in order (Remote control default ID: 00).

For instance, to change the remote control ID to 08, press the SYS ID button, and then input 0 and 8 buttons in order.

After the input completes, press the SYS ID button again in order to confirm the setting.

SHR-5162_Eng.indb 7 2007-06-18 ｿﾀﾀ・11:47:09

Figure 1

One Year: 24HR X 365 DAY =8,760 HR

Temperature Unit: ºC

Life (Unit: HOURS)

Figure 2

08_ installation

installation

You should pay attention to the following before you use the product.



Do not use it outdoor.



Do not place water or liquid near the connection part or the prod

uct.



Do not impose excessive shock or force.



Do not pull out the power cord unreasonably.



Do not disassemble the product on your own.



Do not exceed the rated input or output voltage range.



Use the certified power cord only.



For the product with an input ground, use a power plug with a g

round pin.

CHECKING INSTALLATION ENVIRONMENT

Samsung Digital Video Recorder (hereinafter referred to “DVR”) is a high-tech security equipment that contains a high-capacity HDD and top-notch circuits. High temperature inside or outside of the product may reduce the product life, deteriorate performance (see the graph below; it explains the correlation between temperature and product life), and lead to a malfunction.

Please keep the following instructions for rackmounting the Samsung DVRs to proceed with the installation.

1. The rack on which the DVR is mounted

should not be sealed off.

2. And it also can allow air circulation through

the vent.

3. As shown in the Figure 2, we recommend

you to heap the product with other DVRs or use rack-mount devices at a certain space, or install a vent system to accommodate airflow.

4. For forming a natural convection, the air

intake hole should be positioned at the bottom and the emission at the top.

5. We recommend you to install each of the air

ntake and emission holes with fan motors for sufficient airflow. (The air intake fan should be equipped with a filter to prevent possible inflow of dust and other impurities.

As shown in the Figure 1, the temperature inside the rack and around the DVR should maintain between 0 and 40°C (32 and 104°F).

HDD ADDITION

The user can add up to two hard disks to this product. However, there are many factors that can cause electric shock, accidents, and malfunctioning of the device inside of the product. When the user does not correctly install or apply the proper settings, the device may not recognize the hard disks or the device will not properly run. Therefore, before adding any hard disks, it is recommended that you consult the specialist from the site where you purchased the product.

SHR-5162_Eng.indb 8 2007-06-18 ｿﾀﾀ・11:47:44

02 INSTALLATION

installation _09

CAUTION

[Checking HDD Data] Please, pay attention to Following information to minimize the chance of losing HDD data.



Remember that you should protect HDD from any impact or misuse as this may cause damaged.



The Manufacturer is not responsible for missing data or defects caused by the user’s mishandling.

Note:

Adding Extra HDD. Check in advance that the HDD is compatible with the manufacturer’s DVR.

Examples that can cause loss of data or damage HDD.



Any outside Impact on the case which could happen whilst disassembling or setting up the DVR.



Power cut or incorrect shutdown whilst the DVR is operating.



Moving or causing any impact on the DVR during operation. Please, back up events as soon as possible to minimize disappointment should HDD data be lost.

Things to consider when adding a hard disk



When adding a hard disk, pay attention so that the cable doesn’t get caught between unsuitable places or the cable’s insulation is not damaged. (This may cause a malfunction or fire.)



When adding a hard disk, be careful not to have any injury by the pointed edges inside the product.



Pay attention not to lose screws or accessories.

If the screws or accessories are not put together, the product may malfunction or not properly operate.



If you contact the RTC battery while adding hard disks, the battery failure may happen. In this case, you will encounter failures when setting the time and operating DVR.



If you don’t connect fan power cables after adding hard disks, the fan failure message appears on the screen. This can cause operation failures because it raises the temperature inside your DVR.



Check the compatibility list of HDDs before installing additional HDDs. The list of the compatible devices with Samsung DVR can be obtained from your vendor.

Setting the jumper

The jumper setting method is illustrated on the surface of the purchased HDD.

Using SAMSUNG hard disk, the jumper setting method is as follows:



HDD jumper for Primary Master and Primary Slave.



Jumper setting for Secondary Master (DVD-RW) and Secondary Slave.

How to add hard disks

Before starting this work, remove the power cord from the outlet.

1. Take out the screws on the left and right

sides (5 spots for each side) and on the rear (1 spot).

2. Remove the cover from the product. (Slide

he cover slightly backward, lift it upward and

remove it.)

SHR-5162_Eng.indb 9 2007-06-18 ｿﾀﾀ・11:47:46

BRACKETHDD(A)

BRACKETHDD(B)

BRACKET-HDD(A)

SCREW-SPECIAL

Screwdriver

10_ installation

3. There are brackets (Bracket-HDD) mounted

on the right and left sides where you can mount HDDs. Remove the screws holding each bracket to mount an HDD onto.

4. If you want to add a hard disk, remove

Bracket-HDD(A), power supply cable, signal transmission cable (IDE Cable), and fan cable.

5. To add a hard disk, the built-in HDD (Primary

Master) should have been installed. Basically a built-in HDD has been installed as the Primary Master and a DVD-RW driver as the Secondary Master. Before adding a hard disk, set the jumper for master and slave. The jumper setting method is illustrated on the surface of the purchased hard disk. Fix the hard disk to the Bracket using the (A)SCREW-SPECIAL (BWH, 6-32UNC, L10.

5). Align the 5 spots on the bottom and mounting holes of the Bracket, insert the HDD, and then fix it using the screws.

SHR-5162_Eng.indb 10 2007-06-18 ｿﾀﾀ・11:47:50

BRACKET-HDD(B)

Secondary HDD IDE Connector

Primary HDD IDE Connector

02 INSTALLATION

installation _11

6. To add another hard disk after adding a hard

disk completes, remove the Bracket-HDD(B) on the DVD-RW driver.

7. Fix the hard disk to the Bracket using 4

(B)SCREW-MACHINE (6-32UNC, L4. 2) provided when purchasing the HDD. The screws should be fastened not to come loose. Fix the Bracket-HDD(B) using screws after aligning 4 spots on the bottom and mounting holes.

8. When adding hard disks completes, connect

the power supply cable, signal transmission cable (IDE Cable), and fan cable to the hard disks.

9. After checking whether or not the

connections have no problem, close the cover.

10. Fix the cover using screws. (Each of left and

right sides has 5 spots and the back side has 1 spot.)

SHR-5162_Eng.indb 11 2007-06-18 ｿﾀﾀ・11:47:52

CONNECTING THE NETWORK

Connecting to Internet through Ethernet (10/100BaseT)

12_ connecting

connecting with other devices

The illustrations are described based on SHR-5162.

CONNECTING VIDEO, AUDIO, AND MONITOR

SHR-5162_Eng.indb 12 2007-06-18 ｿﾀﾀ・11:47:55

03 CONNECTING

connecting _13

Connecting to Internet through ADSL

CONNECTING THE USB

1. There are two USB connecting ports on the

front and rear panels of the product.

2. USB Hard Disk, USB CD/DVD, and USB

Memory can be connected through any of those ports.

3. If the USB HDD is connected to the system,

it should be detected and set through Menu > System > Storage Setup before operation.

4. The product provides the HOT PLUG feature

that allows the connection/removal of USB devices during system operation.

CAUTION



The USB type of hard disk should be set to Master.



If the backup USB device cannot be formatted in the DVR, format it as FAT32 using your PC.

For more details, refer to the System section in Chapter 5 Menu Setup.

CONNECTING THE ALARM INPUT/OUTPUT

The Alarm IN/OUT ports on the rear of the product have the following elements:



ALARM IN 1 to 16: Alarm input ports



ALARM RESET: When receiving an ALARM RESET signal, the system clears the current ALARM input or output signal and resumes alarm sensing.



ALARM OUT 1 to 4: Alarm output ports



5162 Alarm IN/OUT Ports



5082 Alarm IN/OUT Ports

SHR-5162_Eng.indb 13 2007-06-18 ｿﾀﾀ・11:47:58

14_ connecting

CONNECTING THE RS-485 DEVICE

You can connect an RS-485 device through a rear port of the product. For example, you can c

onnect and control PTZ cameras supporting the RS-485 communication. You can also adopt either Half Duplex or Full Duplex method for exchanging data.

Supportable baud rates are 600, 1200, 2400, 4800, 9600, 19200, and 38400.

CAUTION



Check if the RS-485 device is compatible with the product first.



Then pay attention not to change the polarity (+/-) of RS-485 when connecting it.

PTZ device

Half Duplex Type

Data (–)

Data (+)

Full Duplex Type

Rx(+)

Rx(–)

Tx(–)

Tx(+)

Rear

Tx(–)

Tx(+)

Rx(–)

Rx(+)

SHR-5162_Eng.indb 14 2007-06-18 ｿﾀﾀ・11:48:00

CAM_01

V.Loss

04 LIVE

live _15

live

OPERATING THE SYSTEM

Turn on the power and the following Samsung logo appears.

Upon completion of initializing procedure, the live screen appears with a beep sound. (It takes about one minute until a live screen comes up.)



If a new HDD is installed, the initialization may take much more time because it includes a new HDD initialization.



If the live screen does not appear or the LEDs on the front panel repeat f

lickering, please check the connections. If the system does not operate normally, contact the expert from the shop where you bought the product.

The live screen does not affect the earlier MENU settings. If you reboot the system when a recording is in progress, the recording will start again.

LIVE SCREEN MODE

Live screen icons

The live screen icons display the status of current setup or function.

: Recording icon

Each icon represents Normal/Event (Alarm+Motion)/Schedule Recording.

: Recording Video Size icon

Each icon represents the recording size of Normal or CIF.



Normal: Half D1—(NTSC) 720x240, (PAL) 720x288



CIF: CIF— (NTSC) 352x240, (PAL) 352x288



Half D1 is an MPEG-4 video encoding mode in which half the horizontal resolution is sampled.

: Record Lock icon

It indicates that the record lock is activated. This icon appears when you are recording video i

mages while the record lock is set. To cancel the

recording, enter the preset password.

SHR-5162_Eng.indb 15 2007-06-18 ｿﾀﾀ・11:48:02

16_ live

: PTZ icon

This icon appears when setting the PTZ device and it changes to yellow when operating the PTZ.

: Audio icon

This icon represents the ON/OFF status of audio and it changes to yellow when the audio is set to ON. It does not appear in Video mode or when the audio is disabled.

: Sensor Active icon

This icon appears in the channel linked with the external sensor signal when the sensor is active.

: Motion Event icon

This icon appears in the Motion Event channel when the motion detection is set to ON.

: Zoom icon

This icon appears while the Zoom operation is active and disappears by canceling the operation.

: Freeze icon

This icon appears in Freeze mode and disappears by canceling the freeze operation.

: Recording Hard Disk Full icon

This icon appears when the hard disk space is not sufficient when recording.

: Auto Sequence icon

This icon appears in Auto Sequence mode.

: Backup Play icon

This icon appears when the backup data is now played.

: Fan Error icon

This icon appears when the fan does not work properly.

: No HDD icon

This icon appears when there is a dysfunctional hard disk.

When the Fan Error icon or No HDD icon appears, please contact the service center.

V.Loss/V.Off: Video input status When there is no video data input while the video is active, V.Loss appears in the channel. When you set the Video On/Off to OFF, V.Off appears.

Live screen modes

The SHR-5162 model receives 16 live images and displays them in the following 9 modes as shown in the picture. To see each mode in order, repeatedly press the MODE button on the front panel or remote control. But the SHR-5082 model has no 16-split mode.

CAM_01

CAM_01 CAM_01

CAM_05 CAM_06 CAM_07 CAM_08

CAM_02

CAM_03

CAM_04

CAM_01

CAM_03

CAM_02

CAM_04 CAM_05

CAM_06 CAM_07

CAM_02

CAM_03

CAM_02

CAM_03 CAM_04

CAM_02 CAM_03

CAM_04 CAM_05 CAM_06

CAM_07 CAM_08 CAM_09

CAM_01 CAM_02 CAM_03 CAM_04

CAM_05 CAM_06 CAM_07 CAM_08

CAM_09 CAM_10 CAM_11 CAM_12

CAM_13 CAM_14 CAM_15 CAM_16

8 Split Mode PIP Mode Single Mode

Auto Sequence Mode

16 Split Mode

9 Split Mode 6 Split Mode4 Split Mode 7 Split Mode

CAM_01

CAM_03

CAM_02

CAM_04 CAM_05

CAM_06 CAM_07

CAM_02

CAM_03

CAM_02

CAM_03 CAM_04

CAM_02 CAM_03

CAM_04 CAM_05 CAM_06

CAM_07 CAM_08 CAM_09

CAM_01 CAM_02 CAM_03 CAM_04

CAM_05 CAM_06 CAM_07 CAM_08

CAM_09 CAM_10 CAM_11 CAM_12

CAM_13 CAM_14 CAM_15 CAM_16

SHR-5162_Eng.indb 16 2007-06-18 ｿﾀﾀ・11:48:03

04 LIVE

live _17



Full Screen (Single) mode: Displays the selected channel in full screen.



4, 6, 7, 8, and 9 Split mode: Displays 4, 6, 7, 8, 9 channels in each split screen. You can select channel numbers on your own using the MODE button on the front panel or remote control. In 4-channel and 9-channel split modes, the screen page is changed using the Direction buttons.



16 Split mode: Displays 16 live channels on a 16-split screen. The Auto Sequence is not available.



PIP (Picture in picture) mode: Displays a small screen on a full screen. You can change the channel number on a full screen or small screen by pressing the ENTER button and inputting the NUMERIC button. To switch between main and sub screens, press the ENTER button and press the LEFT or RIGHT direction button. You can move the sub screen to 5 different stages using the UP/DOWN direction buttons.



Auto Sequence mode: Sequentially displays all the channels at an interval of auto sequence time. The auto sequence time is set in Camera Configuration on the menu.

Selecting live screen mode

Available modes are switched using the MODE button and the NUMERIC buttons on the front panel or remote control. The following figure is the live modes transition diagram in the SHR-5162 model.



The initial live screen shows the 16-split screen mode at first. The SHR-5082 model starts from the 9-split mode.



In the 9-split screen mode, the first screen shows 9 channels (CH 1 to CH 9) and the second screen shows the rest 7 channels (CH 10 to CH 16) after pressing the RIGHT direction button. If you press the RIGHT direction button again, it changes to the Auto Sequence mode.



Likewise, in the 4-split screen mode, the first screen shows 4 channels (CH 1 to CH 4), the second screen shows CH 5 to CH 8, the third screen shows CH 9 to CH 12, the fourth screen shows CH 13 to CH 16. If you press the RIGHT direction button again, it changes to the Auto Sequence mode.



Every time you press the MODE button, the modes change in the following sequence: 16-split mode



9-split mode



4-split mode



6-split mode



7-split mode  8-split

mode



PIP mode  Auto Sequence mode 

16-split mode.



Press the CH 1 to CH 16 button to see a full screen of each channel after pressing the ENTER button.



Press the MODE button after entering a full screen channel in a split screen mode to return to the previous split mode screen.

SETTING AUDIO ON/OFF

In other split modes except full screen mode, 16-split mode, and auto sequence mode, you can choose a channel to be displayed by pressing the ENTER and NUMERIC buttons. If you set the selected channel to Audio On, you can turn the Audio On and Off in live mode.

Audio On/Off setting in full screen mode

In full screen mode, the audio of the selected channel automatically turns on. You can turn the audio On and Off by toggling the AUDIO button. D

epending on the audio On/Off setting condition,

the Audio icon of the channel changes to yellow and white.

Audio On/Off setting in 16-split mode

When pressing the ENTER button in the 16-split mode, the selection cursor appears for you to select a channel. When you select a channel and press the AUDIO button on the front panel or remote control, the audio of the selected channel is changed to On or Off. D

epending on the audio On/Off setting condition,

the Audio icon of the selected channel changes to yellow and white. You can have audio settings on channel 1 to 4 in 16-split mode.

SHR-5162_Eng.indb 17 2007-06-18 ｿﾀﾀ・11:48:04

18_ live

Audio On/Off setting in 4, 6, 7, 8, and 9-split modes and PIP mode

As in 16-split mode, when pressing the ENTER button in 4, 6, 7, 8, and 9-split modes and PIP mode, the selection cursor appears for you to select a channel. After selecting a channel, you can set the Audio to On or Off using the AUDIO button. According to the audio On/Off setting condition, the Audio icon of the selected channel changes to yellow and white.

FREEZING AND ZOOMING

Freeze function

The freeze function pauses the video image on the live screen and it is only available in the live mode. You can set this function to On or Off using the FREEZE button on the front panel or remote control.

Zoom function

The zoom function enlarges the selected area to double size, and it is only available in the single screen mode. When you press the ZOOM button on the front panel or remote control, the zooming area appears. Use the UP/DOWN/LEFT/RIGHT direction buttons to adjust the position for zooming. After selecting the Zoom area, press the ENTER button to enlarge the selected area in double size. To cancel the zooming function, press the ZOOM button again.

EVENT MONITORING

The event monitoring is used to display the channel that is synchronized with an event on the screen when a special event (Sensor/Motion/ Video Loss) occurs. The settings for event monitoring activation and event duration setup are done in the Monitoring on the menu. If you set the event monitoring interval to 5 seconds and an event occurs at CH 2 as shown in the picture, the system will display CH 2 in full screen for 5 seconds. If another event occurs within 5 seconds, it is also displayed together with the existing event. As shown in the picture, if we assume that both CH 1 and CH 3 events occur within 5 seconds (for example, after 4 seconds), after CH 2 event, these three events are displayed with split into 4 screens. If a new event does not occur during the event duration, the system will return to the previous live mode. Pressing the ALARM button during the event duration makes the event monitoring stop. When an event occurs, the ALARM LED is turned on. Press the ALARM button again to turn ALARM LED Off. At this time, the alarm s

etup is initialized, the event icon disappears, and the event monitoring is cancelled while in event monitoring. After alarming, the event recording resumes.

[ Event-driven screen changes in Event Monitoring ]

SHR-5162_Eng.indb 18 2007-06-18 ｿﾀﾀ・11:48:05

04 LIVE

live _19

SPOT-OUT MONITORING

Spot-out monitoring has nothing to do with the live screen output. It monitors a specific channel in full screen. After selecting Monitoring on the MENU, you can select a channel for monitoring in Spot Out Channel. You can also monitor all the channels at an interval of auto sequence time. In case of spot-out monitoring, the live screen icons do not appear. If the Spot Out Event Monitor is set to On, you can see the event channels. When the events occur sequentially, the channel o

f the camera that the last event has been issued is displayed. (In case of alarms, multiple channels are enabled.) When multiple cameras are connected, the camera with the smallest number is output on Spot-out channel.

In the live screen, you can select a spotout channel as described below:



Press the STOP button on the front panel or remote control and press a button out of 16 channels. The selected channel is set to a spot-out channel.



When you press the STOP button and then the MODE button within 2 seconds, the spot-out channel mode is changed to the change screen mode.

CAUTION



If the built-in HDD is not connected or it is out of order, the system

displays an error (

) saying “built-

in HDD error” at the top-left corner. In this case, you cannot perform recording, playback, and backup. So please contact the service personnel.



If the fans in the product do not properly operate or have some problem, the fan error message appears on the live screen as shown in the following picture. In this case, check whether the fans normally run or not. When the fans are recovered,

the Failure icon (

) that is displayed

at the top-

left corner disappears. In case of a fan failure, it can shorten the life of the product so please contact the service personnel.

A error occurs in the fan. Refer to the manual.

Fan Information

SHR-5162_Eng.indb 19 2007-06-18 ｿﾀﾀ・11:48:06

MENU SETUP

System

Camera

Monitoring

Record Mode

Event Record

Schedule

Backup

Network

Date/Time/Language Password Load Factory Default System Log Event Log System Information and Setup Storage Setup Export/Import the Configuration Remote Control Device

Move/Control Select Exit

Enter ID and Password

OK Cancel

Password

Admin

Admin Password

OK Cancel

Date Time Time Zone Time Synchronization Date Format Time Format Language DST Off

OK Cancel

Date/Time/Language Setup

2007-01-15

22:13:38 (GMT+08:00) Setup YYYY-MM-DD 24 Hours English Mar-last-Sun 01H ~ Oct-last-Sun 01H

20_ menu setup

menu setup

BEFORE USE



The menu structure is as follows:



Selection The yellow cursor is the selection bar. Use the Direction buttons on the front panel or remote control to move the cursor to a desired menu. If you press the ENTER button when the cursor is located in a desired menu, the screen displays the sub window. To select an item from the menu, press the ENTER button. On a drop-down menu, use the UP/DOWN direction buttons to move the cursor on your desired item.



OK and Cancel in each Setup window Once any changes are made in a setup window, they can be applied by selecting OK. When Cancel is selected, the changed settings are not applied and it returns to the upper menu.



MENU button When the MENU button is pressed in any of the Setup menus, it changes to the upper menu. If you press the MENU button in Live mode, the password window appears for user validation.



SEARCH, COPY, PTZ, POWER buttons in Live mode To perform the search, backup, PTZ controls, or shutdown function, press the following button in Live mode. Then the window asking for an ID and password appears for user validation.



The direction sign (► or ▼) right next to the title of menu or item leads you to press the displayed button on the front panel or remote control to go for sub item.

SYSTEM

Date/Time/Language Setup



Date

Press the ENTER button and use the LEFT or RIGHT direction button to move to year, month, and day. To change the value, use the UP or DOWN button. Press the ENTER button to confirm the setting.



Time

Press the ENTER button and use the LEFT or RIGHT direction button to move to hour, minute, and second. To change the value, use the UP or DOWN button. Press the ENTER button to confirm the setting.

SHR-5162_Eng.indb 20 2007-06-18 ｿﾀﾀ・11:48:08

Admin Password New Password



Confirm



Password Lock On Record Lock On User Password User Setup User1 New Password



Confirm



User Authority Setup Search Backup PTZ Shutdown

OK Cancel

Password

All Key Lock On

Automatic Time Synchronization On Time Server(IP) 203.248.240.103 Activate by Server(Master) On Last Synchronization Time

2007-01-26 12:39:12 Fail

OK Cancel

Time Synchronization Setup

05 MENU SETUP

menu setup _21

CAUTION

[Date/Time Change] After the date and time has been changed, the data recorded before the change can be removed. For example, if the current time is changed from 8 to 7, all the data recorded between 7 and 8 will be deleted.



ime Zone

t the local time zone based on the Greenwich

Mean Time (GMT).



Time Synchronization

The time of your DVR can be synchronized by a specified server. For this purpose, enter the IP address of the time server and determine the initiator of this activity.

- Automatic Time Synchronization

Synchronizes while gathering time information from the Time Server (IP)

- Activate by Server(Master) Time Synchronization is executed while more than two DVR devices are connected, and the operating DVR device connected to the server is set as standard.



Date Format

The system supports 3 types of formats: YYYY-MM-DD, DD-MM-YYYY, and MM-DDYYYY.



Time Format

he system supports 2 type of formats: 24 Hours

and 12 Hours(AM/PM).



Language

After selecting a language, on-screen display (OSD) menus are displayed in the selected language.



DST (Daylight Saving Time)

DST sets the clock one hour ahead the local standard time. This setting enables the system to display the time adjusted for DST. If the DST is set to Off, it does not apply. To set the DST, enter the start time and end time on the right. It allows you to set month, week (e.g. 1st, 2nd,

3rd, 4th, last), date, and time only.

Password

The factory default password for Admin and user privileges is “4321.” The Menu Setup window cannot be accessed by user privileges but by the Admin privilege. The Admin user can give users (User1 to User5) access rights to the selected functions. If you press Setup in User Authority, all the access rights are selected.



New Password

You can change the password by entering a new password value in this field. The input password is allowed up to 8 digits. Press the ENTER button and enter numbers using the NUMERIC buttons on the front panel or remote control. Press the ENTER button again for confirmation. Then the cursor moves to the New Password Confirm field.



Confirm

It confirms that the newly input password is correct. Enter the new password again in the field.



Password Lock

If it is set to On, a pop-up window for asking the password appears every time you select a menu. If it is set to Off, you can enter menus without entering the password.



Record Lock

If the Record Lock is set to On, a pop-up window, asking for the password appears while disabling the recording.



User Authority

You can select any of Search, Backup, PTZ, and Shutdown. If the user has no access right for Search, the user cannot enter the Search menu.



All Key Lock On

If you select this, the system will enter the live mode immediately. If you press any button on t

he front panel or remote control, the password input window appears. If the correct password is input, the lock function is deactivated.

[All Key Lock On] If you select this, the system immediately switches to the live mode and all buttons are locked.

If the user enters the selected function, he or she has to input the password first.

SHR-5162_Eng.indb 21 2007-06-18 ｿﾀﾀ・11:48:09

First Prev Next Last Exit

No. Event Log List Date/Time

339 Video Loss CH[4] 2007-03-10 10:00:29 338 Video Loss CH[6] 2007-03-10 10:00:29 337 Video Loss CH[7] 2007-03-10 10:00:29 336 Alarm Detection CH[3] 2007-03-10 10:00:29 335 Motion Detection CH[1] 2007-03-10 10:00:29 334 Alarm Detection CH[2] 2007-03-10 10:00:09 333 Video Loss CH[4] 2007-03-10 09:59:38 332 Video Loss CH[5] 2007-03-10 09:59:30

Event Log

MENU SETUP

System

Camera

Monitoring

Record Mode

Event Record

Schedule

Backup

Network

Date/Time/Language Password Load Factory Default System Log Event Log System Information and Setup Storage Setup HDD Mode Setup Remote Control Device

Move/Control Select Exit

Cancel

Sure to default Setting?

First Prev Next Last Exit

No. System Log List Date/Time

339 Setup Start (Local) 2007-03-10 10:00:29 338 Setup End (Local) 2007-03-10 10:00:29 337 Setup Start (Local) 2007-03-10 10:00:29 336 Setup End (Local) 2007-03-10 10:00:29 335 Time Change 2007-03-10 10:00:29 334 Play Back Start 2007-03-10 10:00:09 333 Power Failure Recorery 2007-03-10 09:59:38 332 System Start 2007-03-10 09:59:30

System Log

22_ menu setup

Load Factory Default

It is used to initialize all the settings to the factory default values. The recorded video data will not be removed. Select OK to start initialization.

System Log

The System Log is used to check the important history records by an administrator. The log data includes the system-related logs such as system start, system termination, menu setup change, and the like.

Available action buttons are:



First: Moves to the first log page.



Prev: Moves to the previous log page.



Next: Moves to the next log page.



Last: Moves to the recent log page.

The system logs are as follows:

System Start Starts the system.

Logout(Admin) Viewer Logout (Admin)

Logout(User) Viewer Logout (User)

Setup Start (Local)

Enters into the menu.

Setup End (Local)

Comes out of menu.

Setup (Remote): Viewer

Sets the menu.

Play Back Start Starts the playback.

Play Back End Ends the playback.

Power Failure Recovery

Returns the system after power interruption.

Time Change Changes the Date/Time.

Load Factory Default Initializes the system.

System Upgrade Changes the system S/W.

Disk Full No Space in the HDD

Backup Start Starts the backup.

Backup End Ends the backup.

Backup Stop Stops the backup.

Backup Fail Backup Failure

ATA HDD Erase Erases the ATA Data.

USB HDD Erase

Erases the USB HDD data.

USB MEMORY Erase

Erases the USB MEMORY data.

Overwrite Playback Stop

Stops the playback by overwrite.

Backup Stop(Overwrite)

Stops the backup by overwrite.

Event Log

It is used to check the recorded events like alarm, motion, video loss, and such.

The log data contains the event execution data and time.



First: Moves to the first log page.



Prev: Moves to the previous log page.



Next: Moves to the next log page.



Last: Moves to the recent log page.

The event logs are as follows:

Video Loss CH[N] Means the occurrence

of Channel [N] Video Loss.

Alarm Detection CH[N] Means the occurrence

of Channel [N] alarm.

otion Detection CH[N] Means the occurrence

of Channel [N] Motion.

SHR-5162_Eng.indb 22 2007-06-18 ｿﾀﾀ・11:48:11

System Information Software Version

B3.07-K1.40-V2.17_0702101326 Broadcast Format NTSC Mac Address 00:00:FO:54:FF:FF

OK Cancel

System Information and Setup

USB S/W Upgrade Version

83.07-K1.40-V2.17C_0703141732

Device Information Device No Used/Total Erase Usage ATA 1 295.00K/139.92G Internal USB Memory 1 0.00/494.98M Backup

Cancel

Storage Setup

Disk End Mode

OverWrite

Disk End Beep Off

Alarm Setup HDD Location Map

Exit

No. Model Capacity Status

1 ST3250823ACE 250.05G Good 2 ST3160212ACE 160.04G Good 3 DVD RW - 4 ST3250823ACE 250.05G Good

HDD Installation Information

NG None

Duration 10 sec

Cancel

Alarm Setup

Check None

Duration 10 sec

Exit

HDD Location Map

05 MENU SETUP

menu setup _23

System Information and Setup

This setup window provides the following setting items:



Software Version: Displays the current software version. The value cannot be changed.



Broadcast Format: Displays the current broadcast format (NTSC/PAL). The value cannot be changed.



Mac Address: 6-Byte hardware address. The value cannot be changed.



USB S/W Upgrade

You can update the software using a USB device. If there is no device, None is displayed. If the USB memory has an upgrade software, its version is displayed. To upgrade the software stored in the USB device, select the check box on the right and press OK.

Storage Setup

You can configure the storage device related settings.



Device Information

Displays the number, capacity, and usage of ATA and USB devices. (The total capacity displayed may be lower than the actual capacity because the DVR uses some portion of it for internal purpose.) After selecting Erase for each device, you can remove the data on it. In case of USB device, you can set the usage for extension or backup. If you change the usage of the device, the stored data will be removed.



Disk End Mode

Stop: Stops recording when the disk is full while recording is still in progress.

Overwrite: Deletes the previously recorded data to store new data when the disk is full during recording.



Disk End Beep

On: Beeps when the disk is full while recording.

- Off: Although the disk is full while recording, it doesn’t make beep sound.



HDD Installation Information

When you click (

), The HDD Installation Information displays on the screen. Then you can see the model name, the capacity, and the status of the HDD in your DVR. The status displays Good, Not good, and Check. In the status of Not good, you should replace the HDD. In the status of Check, you should replace the HDD or check periodically. After clicking the Alarm Setup, you can set the alarm and the duration while the status is Not good or Check. If you click the HDD location map, it displays the information about the HDD installation. When a problem occurs, you can see which HDD has a problem.

The capacity of the HDD may differently appear in the Storage Setup menu and HDD Installation Information menu.

SHR-5162_Eng.indb 23 2007-06-18 ｿﾀﾀ・11:48:14

Export the Configurations to USB Memory Mode

Export

File Name 07011000 Include N/W Settings

Cancel

Export/Import the Configuration

Apply

Device None

Cancel

Remote Control Device

Remocon On ID:00

ID Baudrate Parity Date Stop Duplex

000 9600 None 8 1 Half Duplex

24_ menu setup

CAUTION

When the Disk end mode is set to Overwrite and the HDD overwrites the data that was previously backed up, the backup start time may be changed or the backup process may be cancelled. [Disk Overwrite] When Overwrite is selected, the previous event data is to be deleted and the mode is also changed.

[Built-in HDD] This is a physical hard disk connected to the IDE cable inside the main body, and it stores data.

[External HDD] This is a physical hard disk connected to the port and jack on the rear of the main body, and it also stores data. This can be used as an extended hard disk or backup hard disk.



Extended HDD: Supplements the builtin HDD. It is located on the top of the built-in HDD.



Backup HDD: Used for backup of the data recorded on the HDD.

[ATA]: Built-in HDD This is a disk drive implementation that integrates the controller on the HDD itself. It is a physical hard disk connected to the IDE cable inside the main body.

[USB]: External HDD

(Extension HDD or backup HDD) This is used for external HDD connection. The external HDD is connected through this USB port on the front or rear panel.

Export/Import the Configuration

This menu is used to export or import the DVRrelated settings to/from the USB memory.

The related settings are as the following:



Mode: You can select any of Import and Export.



File Name: In case of Export, the file name is displayed. The file naming convention is YYMMDD00. “00” is the serial number so it increases by 1. To change the file name, press the ENTER button. You can change the name using the virtual keyboard.



File Open: In case of Import, you can select the file that you want to import from the USB memory after pressing the ENTER button. When the importing completes, your DVR automatically reboots.



Include N/W Settings: In case of Export, this flag is selected by default. But with Import, you can decide whether or not to copy the network settings. Be careful when you select this because it will remove the previous

network settings.

Remote Control Device

This menu enables you to use the Samsung system keyboard or remote control.



Device

It indicates a remote control device that is connected to the RS485 port.



This is a unique ID of the device. This ID is necessary to control multiple DVRs.



Baudrate

Baud rate for communicating with cameras. It should be the same as the baud rate of cameras for communication.



Parity

Select one of None, Even, and Odd.



Data

Select one of 7 and 8.



Stop

Select 1 or 2 for stop bit.



Duplex

elect one of Half Duplex and Full Duplex. (Data

exchanging method)



Remocon

Set the remote control to On or Off. You can set the ID of remote control to any of 0 to 99.

SHR-5162_Eng.indb 24 2007-06-18 ｿﾀﾀ・11:48:15

MENU SETUP

System

Camera

Monitoring

Record Mode

Event Record

Schedule

Backup

Network

Camera Configuration PTZ Device Screen Setup

Move/Control Select Exit

CancelOK9-16

Camera Config

Cam Video Audio Title Auto Seq 1 On Off CAM_01 5sec 2 On Off CAM_02 5sec 3 On Off CAM_03 5sec 4 On Off CAM_04 5sec 5 On Off CAM_05 5sec 6 On Off CAM_06 5sec 7 On Off CAM_07 5sec 8 On Off CAM_03 5sec

CancelOK

CapsLock Delete Back Space

05 MENU SETUP

menu setup _25

You cannot use the PTZ device and remote control device together at the same time due to communication problem. In PTZ control mode, the PTZ mode of DVR is canceled when the remote control is connected. On the contrary, the remote control is disconnected when the DVR switches to PTZ mode. Refer to the user manual of remote control to learn how to handle the PTZ device using the remote control.

CAMERA

The detailed items for camera menu are as shown in the picture:

Camera Configuration



Video

- On: The camera image from the selected channel appears.

Off: The camera image from the selected channel disappears.

Covert1: Displays the information except for the video information on the selected channel.

Covert2: Does not display any information.

The settings for audio, camera name, and auto sequence are not allowed for the channel whose video is set to Off.

In case of SHR-5082, only 8 channels are displayed.



Audio

On: You can hear the sound in the selected channel.

Off: You cannot hear the sound in the selected channel.

You can select only the number 1 to 4 channels to hear sound.



Title

You can name the camera of the selected channel. If you press the ENTER button, the virtual keyboard appears.

Virtual keyboard Use the Direction buttons to select a character and use the ENTER button to type the selected character. You can type up to 15 characters. No space is allowed f

or input. If you select CapsLock, the virtual

keyboard switches between upper case mode and lower case mode.



Auto Seq

You can set the auto sequencing interval for each channel. The setting applies in the live mode. When the value of a channel is set to Off, the channel is not displayed in the auto sequence mode.

SHR-5162_Eng.indb 25 2007-06-18 ｿﾀﾀ・11:48:16

CancelOK9-16

PTZ Device

Cam ID Protocol Baudrate Parity Data Stop 1 000n Samsung 38400 None 8 1 2 001 Vic. 38400 None 8 1 3 002 Pan. 19200 None 8 1 4 003 Dia. 38400 Even 8 1 5 004 None 38400 None 8 1 6 005 None 38400 None 8 1 7 006 None 38400 None 8 1 8 007 None 38400 None 8 1

Half Duplex

Serial Mode :

ExitDefault

Brightness

050

Contrast 050

Color 050

CancelOK

Monitoring

Event Monitoring Duration Off OSG Display Date On Time On Title On Status On Spot Out Channel CH1 Spot Out Event Monitor Off Monitor Out Dual OUT PB Channel Position Right Down Multi Channel Seq. 5sec

26_ menu setup

PTZ Device

You can configure the PTZ device related settings.



ID for PTZ camera. It can have any number among 0 to 255.



Protocol

Protocol that is supported by the PTZ device. Available protocols are Samsung, Vic., Pan., A

D, Phi., Ern., Pel-D, Pel-P, Vcl., Dia., Kal., and

Tech.



Baudrate

Available baud rates are 600, 1200, 2400, 4800, 9600, 19200, and 38400.



Parity

Select one of None, Even, and Odd.



Data

Select 7 or 8 for data bit.



Stop

Select 1 or 2 for stop bit.



Serial Mode

Select Half Duplex or Full Duplex for data exchanging method.

In case of SHR-5082, only 8 channels are displayed.

CAUTION

The above setting values must be the same as the ones of the PTZ device. For more details, please refer to the user manual for the PTZ device.

Screen Setup

It is used to set the brightness, contrast, and color for the camera image of each channel.

Place the cursor on the channel that you want to set the values for brightness, contrast, and color. When a channel is selected, its image appears on the right. For selection, press the ENTER button. Use the UP/DOWN direction buttons to change the value from 0 to 100. When Default is selected, the value 50 is to be assigned for each item of the selected channel.

In case of SHR-5082, only 8 channels are displayed.

MONITORING

You can configure the monitoring-related settings.



Event Monitoring

You can select any of Off, 3sec, 5sec, 10sec, 20sec, 30sec, and Continuous.

Off: Event monitoring does not work.

- 3sec, 5sec, 10sec, 20sec, and 30sec: Sets the screen duration period in the Auto Sequence (or auto sequence) mode.

Continuous: The event monitoring screen remains alive until you press the ALARM button.

SHR-5162_Eng.indb 26 2007-06-18 ｿﾀﾀ・11:48:22

CancelOK

Record Quality & Auto Deletion

Cam Normal Event Cam Normal Event 1 Level4 Level4 9 Level4 Level4 2 Level4 Level4 10 Level4 Level4 3 Level4 Level4 11 Level4 Level4 4 Level4 Level4 12 Level4 Level4 5 Level4 Level4 13 Level4 Level4 6 Level4 Level4 14 Level4 Level4 7 Level4 Level4 15 Level4 Level4 8 Level4 Level4 16 Level4 Level4

Off

Auto Deletion:

01 Day

MENU SETUP

System

Camera

Monitoring

Record Mode

Event Record

Schedule

Backup

Network

Record Quality & Auto Deletion Record Rate & Video Size Event Record Duration

Move/Control Select Exit

05 MENU SETUP

menu setup _27



OSG Display

- Date: The date is displayed on the screen

when it is set to On.

Time: The time is displayed on the screen when it is set to On.

Title: The camera name is displayed on the screen when it is set to On.

Status: Recording and event information, Audio sign, and PTZ sign are displayed on the screen when it is set to On.



Spot Out Channel

This is used to monitor a specific channel by connecting a monitor to the SPOT jack on the rear of the product. When you are using two monitors, one monitor can be set for spot out monitoring. This provides two kinds of functions: Displaying the spot out channel only and auto sequencing of all channels.

Auto sequence setup ranges from Ch 1 to Ch 16.

In the auto sequence mode, channels are changed in turn.

Duration period for auto sequence is the same as the one set in Camera Setup.



Spot Out Event Monitor

This is set for monitoring events from multiple channels.

Off: The event monitoring does not operate in the Spot Out channel.

3sec, 5sec, 10sec, 20sec, and 30sec: Sets the screen duration period in the Auto Sequence mode.

Continuous: Once the event monitoring starts, the screen remains alive until you press the ALARM button.



Monitor Out

Video output methods can be selected from Composite, VGA, and Dual output modes. System restarts after changing the Video output methods.

Composite video output: transfers the composite output signal.

VGA video output: transfers VGA output signal.

Dual video output: both the Composite and VGA video outputs are available to use.



PB Channel Position

You can designate the playback (PB) channel location in 9-split mode. Right Down: The playback channel is displayed at the lower right side of the screen. Center: The playback channel is displayed in the center of the screen.



Multi Channel Seq.

ou can set the Auto Sequence interval for split screens. Available intervals are 3, 5, 10, 20, and 30 seconds.

CAUTION

[Video Out] You may experience low display quality while the dual video output is in use. In this case, please switch it to the composite or VGA video output. VGA video output port is not available while the composite video output is set to use and vice versa. If the MODE and ZOOM buttons are pressed and hold for 5 seconds, the system restarts while alarming beep sound. The LED blinks while restarting and the video output mode is changed. (Composite output VGA output).



VGA output: 640x480 (60Hz)

RECORD MODE

The detailed list for record mode settings is as follows:

Record Quality & Auto Deletion

SHR-5162_Eng.indb 27 2007-06-18 ｿﾀﾀ・11:48:23

28_ menu setup



Record Quality

You can set the recording picture quality selecting of Level8(High) ~ Level1(Low).



Auto Deletion

If you select On, you can set the number of days for access restriction. If it is set to 3, you cannot search the data recorded at the time less than 3 days before.

In case of SHR-5082, only 8 channels are displayed.

Record Rate & Video Size

When you press the RECORD button, the record-related settings are applied.



IPS (Images per second)

You can set the image recording speed using this unit. This rate indicates how many images are recorded per second. With NTSC, you can select any of 30, 15, 7.5,

3.7, 1.8, 0.9 ips, and Off. In case of PAL, you can select any of 25, 12.5, 6.2, 3.1, 1.5, 0.7 ips, and Off.



Available IPS limits vary depending on the number of Video On cameras. Video On/Off settings are enabled in Camera Configuration.

If the resolution is set to CIF (Common Intermediate Format) and the number of Video On cameras is 9 to 16, the IPS limit is

7.5 ips for NTSC and 6.2 ips for PAL.

If the resolution is set to CIF and the number of Video On cameras is 5 to 8, the IPS limit is 15 ips for NTSC and 12.5 ips for PAL.

If the resolution is set to CIF and the number of Video On cameras is 1 to 4, the IPS limit is 30 ips for NTSC and 25 ips for PAL.

If the resolution is set to Half D1 and the number of Video On cameras is 9 to 16, the IPS limit is 3.7 ips for NTSC and 3.1 ips for PAL.

If the resolution is set to Half D1 and the number of Video On cameras is 5 to 8, the IPS limit is 7.5 ips for NTSC) and 6.2 ips for PAL.

If the resolution is set to Half D1 and the number of Video On cameras is 1 to 4, the IPS limit is 15 ips for NTSC and 12.5 ips for PAL.



Video Size

Select any of CIF and Half D1 (Half the horizontal resolution is sampled).

In case of SHR-5082, only 8 channels are displayed.

Event Record Duration

You can set the duration for event recording.



PreEve.

If the time is set in this field, it records the image from the time before an alarm to the event time. Available values are Off, 5, 10, 20, and 30sec.



PostEve.

If the time is set in this field, it records the image from the event time to the time after an alarm. Available values are Off, 5, 10, 20, 30sec, 1min, 3min, 10min, and 20min.

Pre-Event Section

Event time

Post-Event Section

NTSC

PAL

CancelOK

Record Rate & Video Size

Cam Normal Event Cam Normal Event 1 7.5 ips 7.5 ips 9 7.5 ips 7.5 ips 2 7.5 ips 7.5 ips 10 7.5 ips 7.5 ips

3 7.5 ips 7.5 ips 11 7.5 ips 7.5 ips 4 7.5 ips 7.5 ips 12 7.5 ips 7.5 ips 5 7.5 ips 7.5 ips 13 7.5 ips 7.5 ips 6 7.5 ips 7.5 ips 14 7.5 ips 7.5 ips 7 7.5 ips 7.5 ips 15 7.5 ips 7.5 ips 8 7.5 ips 7.5 ips 16 7.5 ips 7.5 ips

CIF(C)

Video Size:

CancelOK

Record Rate & Video Size

Cam Normal Event Cam Normal Event 1 6.2 ips 6.2 ips 9 6.2 ips 6.2 ips 2 6.2 ips 6.2 ips 10 6.2 ips 6.2 ips

3 6.2 ips 6.2 ips 11 6.2 ips 6.2 ips 4 6.2 ips 6.2 ips 12 6.2 ips 6.2 ips 5 6.2 ips 6.2 ips 13 6.2 ips 6.2 ips 6 6.2 ips 6.2 ips 14 6.2 ips 6.2 ips 7 6.2 ips 6.2 ips 15 6.2 ips 6.2 ips 8 6.2 ips 6.2 ips 16 6.2 ips 6.2 ips

CIF(C)

Video Size:

CancelOK

Event Record Duration

Cam PreEve. PostEve. Cam PreEve. PostEve. 1 Off 1min 9 Off 1min 2 Off 1min 10 Off 1min

3 Off 1min 11 Off 1min 4 Off 1min 12 Off 1min 5 Off 1min 13 Off 1min 6 Off 1min 14 Off 1min 7 Off 1min 15 Off 1min 8 Off 1min 16 Off 1min

SHR-5162_Eng.indb 28 2007-06-18 ｿﾀﾀ・11:48:24

05 MENU SETUP

menu setup _29

EVENT RECORD MODE

The detailed list for event mode settings is as follows:

Alarm Detection Setup



Sensor State

- Off: Sensor does not operate.

- N.O (Normal Open): Sensor remains open all the time. But if it gets closed, an alarm is issued. (A Contact)

- N.C (Normal Close): Sensor remains closed all the time. But if it gets open, an alarm is issued. (B Contact)



Cam

It is used to set a camera that synchronizes with the current sensor. The default setting follows the sensor number. A sensor can synchronize with multiple cameras so multiple values can be selected. You can set a preset for each camera to synchronize sensors with cameras. If a sensor triggers the corresponding camera, the camera can show you the preset location.



Alarm-Out

It is used to set the Alarm-Out location when any alarm occurs. Currently 5 Alarm Outs are available. Select an alarm-out to synchronize w

ith the current sensor. But multiple values can

be selected.



Duration

It is used to set the Alarm-Out duration. When an alarm occurs, the alarm is output for the preset time. You can select any of Off, 3sec, 5sec, 10sec, 20sec, 30sec, and Continuous.

In case of SHR-5082, only 8 channels are displayed.

Motion Detection Setup

You can configure the motion detection related settings. When the detection area is set, the system detects any motion in that area.



M.D State

Off: Motion detection does not operate.

- On: Motion detection is active.



Area

This is used to set the motion detection area. It is not allowed to set 4 extreme rows (Up, Down, Left, Right) because the display boundary regions can vary according to the monitor specification.

Select All: Selects the whole area.

- Select One: Selects a block unit for each time.

Select Quarter: Selects a quarter unit of the screen for each time.

Clear All: Clears the whole selection.

- Save & Exit: Saves the setting and exits.

- Exit: Exits without saving.

Select All

Select One

Select Quarter

Clear All

Save & Exit

Exit

CancelOK

Motion Detection Setup

Cam M.D State Area Sensitivity Alarm-Out Duration 1 Off Set Very High None 10sec 2 Off Set Very High None 10sec 3 Off Set Very High None 10sec 4 Off Set Very High None 10sec 5 Off Set Very High None 10sec 6 Off Set Very High None 10sec 7 Off Set Very High None 10sec 8 Off Set Very High None 10sec

9-16

CancelOK

Alarm Detection Setup

Sensor State Cam Alarm-Out Duration 1 Off 1 None 10sec 2 Off 2 None 10sec 3 Off 3 None 10sec 4 Off 4 None 10sec 5 Off 5 None

10sec

6 Off 6 None

10sec 7 Off 7 None 10sec 8 Off 8 None 10sec

9-16

MENU SETUP

System

Camera

Monitoring

Record Mode

Event Record

Schedule

Backup

Network

Alarm Detection Setup Motion Detection Setup Video Loss Detection Setup

Move/Control Select Exit

SHR-5162_Eng.indb 29 2007-06-18 ｿﾀﾀ・11:48:28

30_ menu setup



Sensitivity

This is used to set the sensitivity for motion detection. Available values are Low, Medium, and Very High.



Alarm-Out

It is used to set the Alarm-Out location when any alarm occurs. Currently 5 Alarm Outs are available. Select an alarm-out to synchronize w

ith the current sensor. But multiple values can

be selected.



Duration

It is used to set the Alarm-Out duration. When an alarm occurs, the alarm is output for the preset time. You can select any of Off, 3sec, 5sec, 10sec, 20sec, 30sec, and Continuous.

In case of SHR-5082, only 8 channels are displayed.

Video Loss Detection Setup

You can configure the video loss related settings. If any video loss is detected, the corresponding alarm will be issued.



Video Loss State

Off: Video loss detection does not operate.

- On: Video loss detection is active.



Alarm-Out

It is used to set the Alarm-Out location when any video loss is detected. Currently 5 Alarm Outs are available.



Duration

It is used to set the Alarm-Out duration. When an alarm occurs, the alarm is output for the preset time. You can select any of Off, 3sec, 5sec, 10sec, 20sec, 30sec, and Continuous.

In case of SHR-5082, only 8 channels are displayed.

SCHEDULE

You can configure the scheduling-related settings here.

Record Schedule

The scheduling is enabled by selecting days and time blocks. The default setting is Event Recording. Recording automatically starts according to the schedule.



CH >: Copies the value of Channel 1 to all the

channels after this is pressed.



0 to 23: Time values for horizontal row.



S to H: Days (Sunday to Saturday) and Holiday

(H).



ALL: Press this and it changes the overall

settings in the current window to Continuous, Event Record, and Both in order.



Event Recording

Recording automatically starts when an event (alarm, motion detection, and video loss) occurs within a setup time. Recording follows the settings configured in Event Record. For more information, see “Event Recording” in Chapter 7.



Continuous Recording

ecording follows the settings configured in

Record Mode. For furthermore information, see “Schedule Recording” in Chapter 7. It is displayed in yellow, while the event recording is displayed in blue and both recording in red. When nothing is assigned, it is displayed in gray.



Both(Continuous, Event)

Both recordings are applied at the same time.



Holiday

If you press Holiday, a calendar window appears for you to designate holidays. Place the cursor to a date and press the ENTER button, then you can set the date or Nth day of the month as a holiday. (You can also set both options as holidays.)

CancelOK

Video Loss Detection Setup

Cam Video Loss State Alarm-Out Duration 1 Off None 10sec 2 Off None 10sec 3 Off None 10sec 4 Off None 10sec 5 Off None 10sec 6 Off None 10sec 7 Off None 10sec 8 Off None 10sec

9-16

CancelOK

Record Schedule

Holiday

Continuous Recording Event Recording Both(Continuous, Event)

All S

M T W T F S H

Holiday Setup

Feb

Sun Mon Tue Wed Thu Fri Sat 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29

Feb / 08

Feb / 2nd / Thu

CancelOK

SHR-5162_Eng.indb 30 2007-06-18 ｿﾀﾀ・11:48:30

05 MENU SETUP

menu setup _31

In case of SHR-5082, only 8 channels are displayed.

Alarm Out Schedule

You can schedule the automatic output for alarms.

The scheduling is enabled by selecting alarms, days and time blocks. The default setting is Event Driven. For each alarm or beep, you can activate or deactivate alarming. In case of Event Driven, the alarm can be sent only when an event is issued.



AO >:

It indicates Alarm Out. All alarms are

changed according to Alarm1 when it pressed.



0 to 23: Time values for horizontal row.



S to H:

Days (Sunday to Saturday) and Holiday (H).



ALL: Press this and it changes the overall

settings in the current window to Off, On, and Event Driven.



Off: Sets not to issue an alarm during the setting time.



On:

Sets to issue an alarm during the setting time.



Event Driven: Sets to issue an alarm when an

event occurs during the setting time.



Holiday

If you press Holiday, a calendar window appears for you to designate holidays. Place the cursor to a date and press the ENTER button to complete designation. (When pressing the ENTER button again, the setting is cancelled.)

NETWORK

You can configure the network related settings for network connection.

IP Settings



Connection Mode

Select a network type that is connected to the main body of the product.

Static IP: When the main body is connected to the network using the static IPs.

Dynamic IP: When the main body is connected to the network using the dynamic IPs supplied by DHCP.

ADSL(PPPoE): When the main body is connected to the ADSL network using Pointto-Point Protocol over Ethernet (PPPoE).



Bandwidth

Select a network speed among Unlimited, 2 Mbps, 1.5 Mbps, 1 Mbps, 800 Kbps, 600 Kbps, 500 Kbps, 400 Kbps, 300 Kbps, and 128 Kbps. If the connection is made via ADSL, you can only select the bandwidth of 600 kbps or less.



Admin Password

It is used for connection between Smart Viewer and this product using the Admin privilege. The password can be input up to 8 digits. Press the ENTER button and type the numbers you want using the NUMERIC buttons. The default Admin password is “4321.”



User Password

It is used for connection between Smart Viewer and this product using the user privilege. The password can be input up to 8 digits. Press the ENTER button and type the numbers you want using the NUMERIC buttons. The default user password is “4321.” With the user privilege, you cannot access to both Menu Setup window in DVR and DVR Setup screen in Smart Viewer.

CAUTION

1. If the main body of the product is

connected to a high-speed network like LAN, it is recommended to set the higher bandwidth than 1 Mbps.

2. If the device is connected to

a network using ADSL or low bandwidth, set the bandwidth not to exceed 600Kbps, and set the r

ecording mode not to exceed CIF (standard). Setting up to a higher bandwidth or higher recording m

ode for the network environment supporting a low bandwidth may cause a network overload, therefore the connection to Smart Viewer or image monitoring may not operate properly.

3. When the connection mode is set

to ADSL, the bandwidth is fixed to 300Kbps.

In case of ADSL, the protocol type is fixed to TCP.

CancelOK

IP Settings

Connection Mode Static IP Bandwidth 2 Mbps Admin Password



User Password



IP 192.168.001.201 Gateway 192.168.001.001 Subnet Mask 255.255.255.000 DNS 168.126.036.001 ADSL User ID ID Password



CancelOK

Alarm Out Schedule

Ao Alarm 1 Alarm 2 Alarm 3 Alarm 4 Beep

Holiday

Off On Event Driven

All S

M T W T F S H

SHR-5162_Eng.indb 31 2007-06-18 ｿﾀﾀ・11:48:31

32_ menu setup



Set the IP address for the main body of the product for connecting to the network. If the connection mode is set to Static IP, type the IP address. If the connection mode is Dynamic IP or ADSL(PPPoE), the IP address allocated by the DHCP server or ADSL company automatically appears. In case of DHCP or ADSL connection failure, the value “000.000.000.000” is displayed. Then, press OK to retry connection for getting the IP address. If the connection failure continues, turn off the power for a while and reboot the system for retry.



Gateway

In case of Static IP, set the gateway address assigned. With Dynamic IP or ADSL, the address is automatically allocated.



Subnet Mask

Set the subnet mask address assigned.



DNS

Set the DNS address. The default value is “168.126.63.1.” If you have hard time to connect to the network when you are using DHCP or ADSL, contact the network manager or ADSL company personnel to set up a new DNS address.



ADSL User ID

If the product is connected to the ADSL network, input the user ID subscribed to the ADSL company. You can input the user ID using the virtual keyboard up to 40 letters irrespective of alphabets, numbers, and symbols.



Password

f the product is connected to the ADSL network, input the user password subscribed to the ADSL company. You can input the password using the virtual keyboard up to 40 letters irrespective of alphabets, numbers, and symbols.

CAUTION

In case of ADSL, the audio is not played on Smart Viewer. Be sure to set the IP, port, Subnet mask, gateway, and DNS to make Smart Viewer connected to the product. W

rong settings may result in not being connected to the product. Please contact the network manager or ADSL company personnel to get the correct setting values.

Transfer Protocol Settings

You have to configure the data transfer protocol related settings to use network for transferring data.



Protocol type.

Select any of TCP and UDP. If you have selected ADSL in IP Setup, only TCP is available. In this case, audio transmission is not available.



Port(TCP)

elect a number ranging from 554 to 998 using

the UP/DOWN direction buttons and the port number will change by 4. Once the first port number is determined, the following 3 numbers will change.



Port(UDP)

Select a number ranging from 8000 to 9760 using the UP/DOWN direction buttons and the port number will change by 160. Once the first number is determined, the following number will change.



Unicast/Multicast

Select any of Unicast and Multicast. Unicast is set by default. When you select Multicast, the multicast IP is activated and you can input the address ranging from 224.0.0.0 to 239.255.255.255 using the UP/DOWN direction buttons.



TTL

nter a number ranging from 0 to 255. You can input it only when Multicast is selected. The default value is “5.”



DDNS Site

Select a DDNS site. This DDNS setup is necessary to see the monitoring screens from the remote computer that is running Smart Viewer. Available values are Off, Samsung DDNS, dyndns.com, no-ip.com, and changeip. com. If you select Off, the IP will not be registered in DDNS.

If you select Samsung DDNS, register the TCP IP in DDNS that is operated by Samsung. To configure the DDNS-related settings in Smart Viewer, select Setup >

ite Setup > DVR Registration and set the

address type with MAC Address, and then register the MAC address that is displayed in the System Information and Setup menu. (or you can get the Ethernet address on the side label attached on the product.)

Using the free public DDNS web sites such as dyndns.com, no-ip.com, and changeip. com, you can acquire an URL by registering a dynamic IP. After this action completes, enter the host name, user name, and password in this window.

CancelOK

Transfer Protocol Settings

Protocol Type UDP Port(TCP) 554.555.556.557 Port(UDP) 8000-8159 Unicast/Multicast Unicast Multicast IP 224.126.063.001

TTL 005 DDNS Site Off Host Name

User Name User Password



SHR-5162_Eng.indb 32 2007-06-18 ｿﾀﾀ・11:48:32



If you set up the public DDNS (dyndns. c

om, no-ip.com, or changeip.com), it will take approximately 30 to 60 seconds to get the IP address for the host name (URL) to be updated in the DNS.



To connect this product to an IP router, you have to designate a port for this product in the setup menu of the router. This product has 4 ports for TCP communication. To use the DHCP function provided by the IP router to allocate the dynamic IP to the product, designate a port for the IP that has been allocated by the IP router setup menu. When using the IP router, it is recommended to use the fixed IP. For that purpose, set the IP address and port number to be allocated to the product, select Static IP in the connection mode and enter the IP address assigned to the IP router. For more information about using the IP router, see the user manual of the IP router or contact the manufacturer.

Callback Settings

This configuration is used to forward the callback messages to the IP where Smart Viewer is running. When any alarm, motion, or video loss events occur, the system automatically connects to the corresponding DVR to show the callback messages.



On/Off: Off is default. To use the callback function, choose On.



IP Address: Use the UP/DOWN direction buttons to set the TCP IP address of the PC where Smart Viewer is running.



Port(UDP): Use the UP/DOWN direction buttons to set a port number ranging from 7900 to 7999. The number changes by 1. You have to also set the port value in the Callback Connection menu for Smart Viewer setup.



Retry: Select a number ranging from 1 to 20. The number changes by 1.



Transfer Alarm In: Set it to On to display alarms on Smart Viewer.



Transfer Motion Detection: Set it to On to display motion detection events on Smart Viewer.



Transfer Video Loss: Set it to On to display video loss events on Smart Viewer.



Transfer System Log: Set it to On to display system logs such as critical system failures.

CAUTION

Even if this function is set to On, any callback message will not be created unless the settings for alarm, motion detection, and video loss are set in Event Record. To get the callback messages from Smart Viewer, click Callback.

Transfer Picture Settings

You can configure the video size and quality for transferring pictures.



Video Size: Select any of CIF and Half D1.



Quality: Select any of Very High, High, Standard, and Low.

05 MENU SETUP

menu setup _33

On/Off On IP Address 192.168.001.010 Port(UDP) 7900 Retry 05 Transfer Alarm In Off Transfer Motion Detection Off Transfer Video Loss Off Transfer System Log Off

Callback Settings

Cancel

Video Size CIF Quality Very High

Transfer Picture Settings

Cancel

SHR-5162_Eng.indb 33 2007-06-18 ｿﾀﾀ・11:48:33

34_ menu setup

CONFIGURING NETWORK

Port configuration for connecting Smart Viewer



To set the TCP port for DVR registration into Smart Viewer, the value should be the same as that of this product.



To use the IP router, you must forward the activated ports.

For TCP, set the assigned 4 ports in the IP Router.

For UDP, set the assigned 4 TCP ports and 160 UDP ports that is set in the IP Router.

In case of TCP transfer protocol

The ports allocated to the TCP will be used for connection control and stream transfer of Smart Viewer.

In case of UDP transfer protocol



The TCP ports will be used for Smart Viewer connection and the UDP ports will be used for stream transfer.



When Multicast is set

Both MultiCast IP and TTL fields are activated.

MultiCast IP is the group address (D-Class IP Address: 224.0.0.0 to 239.255.255.255) for multicast transfer.

TTL(Time To Live) indicates how many routers will pass for multicast transfer.

When you are not allowed to use multicast through the Network (LAN or ADSL) as both Set and Smart Viewer are installed, the message, “Not Connected” will be displayed on the Smart Viewer screen. Please change it to the setting for TCP or UDP.



Poor image problem in Smart Viewer

When the bandwidth of the network is smaller than the quantity of transfer stream packets, the displayed image is sometimes poor. Set the bandwidth in IP Settings to the value lower than the current setting. (In case of ADSL, it is recommended to set 300Kbps or 600Kbps for the bandwidth.)

If this effort is of no use, change the protocol type to TCP.

SHR-5162_Eng.indb 34 2007-06-18 ｿﾀﾀ・11:48:33

backup _35

06 BACKUP

If there is a predefined device connected, the window displays the device information like the free space and such. You can also use the BACKUP button on the front of your DVR.

To configure the related settings

1. Set the start date and time using the Direction buttons and the ENTER button.

2. Set the end date and time using the Direction buttons and the ENTER button.

3. Select a channel for backup using the Direction buttons and the ENTER button.

4. Optional: If you want to change the current

file name, use the virtual keyboard. The file name format is HHMM (maximum 4 digits) and the format of folder is YYYYMMDD.

5. When multiple devices are connected, press USB Memory at the bottom-left corner to

select a backup device. If you select the built-in CD or USB CD/DVD, the recording format is fixed to AVI. When Check is selected, the file size of the selected time and channel, and residual memory size of the device are displayed.

6. When all settings are complete, press Start to begin the backup process. When

the backup starts, the backup progress is displayed. If you select Stop on the progress window, the backup stops. If you select Exit, the screen changes to the upper menu without stopping the backup.

CAUTION

[In Backup Process] If you press Exit while the backup is in progress, the screen goes to the upper menu but it does not affect the backup process. The running speed of the product may be lowered while the backup is in progress. When performing backup on USB CD/ DVD or memory, you cannot use the actual capacity of the device because a p

art of the capacity is used for the system. This device doesn’t support the backup for memory cards, flash cards, and memory sticks such as SD, CF, MMC, etc. The virtual keyboard does not support the input of special characters or space. W

hen the CD or DVD is malfunctioning, its tray frequently opens and closes, and then the backup fails. In this case, retry the backup after exchanging the media.

WARNING

The backup data could be damaged by the surface state of the disk when using CD or DVD.

The file name is created with the start time of backup data. (YYYYMMDD)/(HHMM+ four digits of the serial number) The backup file can be separated in the following conditions:

- Different units in file size (1GB for DVD, 2GB for others)

- Change in recording conditions

- Discontinuous recording data

Codec is required to play an AVI backup file, which is also copied along with the installation file in the AVI backup process. Run a codec setup file, “MP4Codec.exe”, to install the codec on the PC. “INDEX.xml” is included in the AVI backup file, which enables you to check and enjoy a desired file at your convenient time. In case of USB external HDD and USB Flash Memory, the backup is available only with formatting FAT32 partition. To format FAT32, Format the device as FAT32 in the PC or erase the device in the Storage Setup menu, which enable to backup files.

In case of back-up devices, please check the compatibility list of the storage devices. The list of the compatible devices with Samsung DVR can be obtained from your vendor.

The backup of the AVI format may take longer depend on a number of the channel and the DVR operation environment (e.g. recording, network)

In case of SHR-5082, only 8 channels are displayed.

backup

Cancel

Start

Backup

Folder/Filename 20070131/ 1017

CD/DVD

Select / Free : 0 / 0 (0.00%) B

ackup Dev : CD/DVDW SH-S182D

Check

AVI

Start Date / Time End Date / Time

2007-01-31 10:17:10 2007-03-31 10:17:20

CH CH 1 CH 2 CH 3 CH 4 CH CH 5 CH 6 CH 7 CH 8 CH CH 9 CH 10 CH 11 CH 12 CH CH 13 CH 14 CH 15 CH 16

SHR-5162_Eng.indb 35 2007-06-18 ｿﾀﾀ・11:48:34

36_ PTZ camera control

PTZ CAMERA CONTROL MODE

You have to check that proper PTZ camera settings are allocated for PTZ device setup in the Camera menu.

In case of SHR-5082, only 8 channels are displayed.

hen the PTZ configuration is complete, the PTZ

sign (

PTZ

) appears on the live screen.



If you press the ENTER button in the split screen, a blue bar appears for selection handling. Use the Direction buttons to move this bar until you reach the channel having the PTZ sign, and press the PTZ button on the front panel or remote control to enter the PTZ Camera Control Mode. In PTZ Camera Control Mode, the color of the PTZ sign changes to yellow from white. In this mode, you can pan and tilt the camera, and zoom in the screen.



Another PTZ camera control is executed in a single screen. Press the channel number button on the front panel or remote control to select the PTZ-enabled channel and press

the PTZ button. In Single Screen PTZ Camera Control Mode, the PTZ sign changes to yellow from white. You can pan and tilt the camera, and zoom in the screen. It also supports the miscellaneous functions like Preset, Camera Menu, and etc.



Press the PTZ button in the live mode to cancel the PTZ camera control function. After cancellation, the PTZ sign on the Auto Sequences to white from yellow.



You cannot use the PTZ device and remote control device at the same time due to communication problems.



In PTZ control mode, the PTZ mode of DVR is canceled when the remote control is connected. When the remote control is disconnected, it changes to PTZ mode. Refer to the user manual for the remote control to control the PTZ device using the remote control.



When using the remote control that is run by Samsung protocol, the direct camera control is enabled.



If there is no PTZ control activity within maximum 5 minutes, the PTZ mode is automatically cancelled. Then it is controlled by the Smart Viewer.

BASIC PTZ OPERATIONS

When using a remote control, it is possible to control the camera with the remote control run by Samsung protocol. If there is no PTZ control for 5 minutes from the DVR, this mode is automatically cancelled. Then it is controlled by the Smart Viewer.

PTZ camera control

PTZ

TELE

WIDE

VIEW

PRESET

PTZ

TELE

WIDE

VIEW

PRESET

CancelOK

PTZ Device

9-16

Half Duplex

Serial Mode:

Cam ID Protocol Baudrate Parity Data Stop 1 000 Samsung 38400 None 8 1

2 001 Vic 38400 None 8 1 3 002 Pan. 19200 None 8 1 4 003 AD 38400 Even 8 1 5 004 Phi. 38400 None 8 1 6 005 Ern. 38400 None 8 1 7 006 Pel-D 19200 None 8 1 8 007 Pel-P 19200 None 8 1

2007 03 11 09:27:16

CAM 01

SHR-5162_Eng.indb 36 2007-06-18 ｿﾀﾀ・11:48:44

PTZ camera control _37

07 PTZ camera control



PAN

Use the LEFT/RIGHT buttons on the front panel or remote control in PTZ Camera Control Mode to control the camera horizontally.



TILT

Use the UP/DOWN buttons on the front panel o

r remote control in PTZ Camera Control Mode

to control the camera vertically.



ZOOM

Press the TELE/WIDE buttons on the front panel or remote control in PTZ Camera Control Mode to zoom in or out the image displayed.

PRESET SETUP

A preset is a specific position of the PTZ camera and you can store the positions up to 20.

For AD Protocol PTZ camera, you can store up to 7 presets only.

To set a preset

1. Press the PRESET button on the front panel

or remote control in Single Screen PTZ Camera Control Mode ad select Preset.

2. Press the ENTER button.

3. Press the RIGHT direction button to move

the cursor rightward and press the ENTER button. Now perform the PTZ operations to get the wanted position screen and press the ENTER button again to exit from the PTZ motion mode.

4. Press the ENTER button in the Position Name field to open the virtual keyboard.

ow enter the position name using the virtual

keyboard and press OK to confirm the input.

If you want to delete both position and position name, select Del that is located in the same row. If you press Del, all positions and position names are removed.

CAMERA MENU SETUP

The PTZ camera provides its own menu. This menu enables you to define several conditions for PTZ control.

Only the Pan. and Samsung protocol cameras are authorized for this setup.

o move to the menu screen, press the PRESET

button on the front panel or remote control in Single Screen PTZ Camera Control Mode.

To return to the upper menu, press the PRESET button.

PTZ

TELE WIDE

VIEW

PRESET

PTZ

TELE WIDE

VIEW

PRESET

Preset Camera Menu Exit

ExitNextPrev

No. Position Name Del

1 Del 2 Del 3 Del 4 Del 5 Del 6 Del 7 Del 8 Del

** MAIN MENU V2.0 **

CAMERA...

VIDEO SET... PRESET... AUTO SET... OTHER SET...

PTZ Control

SHR-5162_Eng.indb 37 2007-06-18 ｿﾀﾀ・11:48:54

38_ PTZ camera control

PRESET VIEW

The preset setup allows you to move to a preset position using the PTZ camera. Press the VIEW button on the front panel or remote control in Single Screen PTZ Camera Control Mode to select Preset.

Scroll down the cursor until it reaches the preset position that you want and you can check it from the screen to the right.

OTHER VIEW

Press the VIEW button on the front panel or remote control in Single Screen PTZ Camera Control Mode to use other viewing controls.

Samsung, Pan., Pel.-P, and Pel.-D protocol PTZ cameras support the following operations:



Samsung: Auto Pan/Scan/Pattern



Pan.: Auto Pan/Sequence/Sort



Pel.(P,D): Auto Scan/Frame Scan/ Pattern

After you select an operation, press the ENTER button. Then the selected operation is marked and starts moving. If you select the other operation during operation, the previous operation is unchecked and the selected operation is marked.

If you perform PTZ operations while an operation is in progress, or enter the Preset Setup or C

amera Menu Setup mode, the current operation is stopped and unchecked. Even though the system is restarted during operation, the set operation starts and remains marked.

PTZ

TELE WIDE

VIEW

PRESET

(Example: Samsung Protocol)

PTZ

TELE WIDE

VIEW

PRESET

Preset Auto Pan Scan Pattern EXIT

Samsung

Preset Auto Pan Sequence Sort EXIT

Pan.

Preset Auto Scan Frame Scan Pattern EXIT

Pel.

(For example, Samsung Protocol)

Preset

Exit

ExitNextPrev

No. Position Name

1 2 3 4 5 6 7 8

Auto Pan Scan Pattern

Preset

ExitAuto Pan Scan Pattern

SHR-5162_Eng.indb 38 2007-06-18 ｿﾀﾀ・11:49:10

recording _39

08 RECORDING

REC (NORMAL RECORDING)

Pressing the RECORD button starts recording as set in the Record Mode. Then the REC LED lights and the Recording icon appears on the screen. While recording on HDD is in progress, the HDD LED blinks. During recording, you can stop it by pressing the RECORD button again. If the recording stops, the REC LED goes out.

WARNING

If the work that needs to stop the recording (time change, file deletion, HDD connection/disconnection, etc.) is executed during recording, the current recording process stops.

RECORD SCHEDULE

While the Schedule Recording or Schedule/Event Recording is active, the schedule recording automatically starts. When a schedule recording is in progress, the Recording icon appears on the screen.

If Event Recording is active, the recording starts at each event. In this case, the recording is executed according to the settings (video size, recording quality, frame rate, pre-alarm, and post-alarm).

Even in case of an event, the event recording does not start when the event recording or schedule/event recording is set together with the schedule recording.

In case of SHR-5082, only 8 channels are displayed.

EVENT RECORDING

The followings are event recording cases:



Alarm Detection

Recording starts when the sensor state is set to N.O or N.C (MENU SETUP > Event Record > Alarm Detection Setup).



Motion Detection

Recording starts when the motion detection state is set to On (MENU SETUP > Event Record > Motion Detection Setup).



Video Loss Detection

Recording starts when the video loss state is set to On (MENU SETUP > Event Record > Video Loss Detection Setup).



Event Recording Mode

When an event occurs, this configures the recording pattern. When the Pre event is set to On, the system records images before any event. Likewise, when the Post-event is set to On, images are recorded after any event. For more information, refer to page 28, “Event Record Duration”

recording

CancelOK

Record Schedule

Holiday

Continuous Recording Event Recording Both(Continuous, Event)

All S

M T W T F S H

SHR-5162_Eng.indb 39 2007-06-18 ｿﾀﾀ・11:49:11

search & play _4140_ search & play

09 SEARCH & PLAY

BEFORE USE

When you press the SEARCH button, the Search window appears after user validation checkup. Available menus are like the following:



Calendar: Searches the recorded video images using the calendar to select the wanted time.



Event: Searches the recorded video images using events.



Date/Time: Searches the recorded video images using the input date and time.



Go To First: Searches the first recorded video image.



Go To Last: Searches the latest video image.



Backup: Searches the backup video images. It searches the images recorded on the USB HDD or USB memory. The AVI format backup files recorded on USB CD/DVD or built-in CD can be played on PC.

CALENDAR SEARCH

You can search the recorded video images using the calendar as shown in the picture.

In case of SHR-5082, only 8 channels are displayed.

To perform a calendar search

1. Use the Direction buttons to select each channel, then press the ENTER button.

If you press CH >, all channels are selected.

2. Use the Direction buttons and ENTER button to select the wanted year and month. If any recordings are stored for the selected month, the corresponding dates are highlighted in the calendar.

If you press or , the year value

changes.

3. Use the Direction buttons and ENTER button to mark the wanted dates.

4. Use the DOWN direction button to move to the time bar, and use the LEFT and RIGHT direction buttons to place the cursor to the wanted time block. Then press the ENTER button for selection.

The scales of time bar are displayed at 30 minutes each.

5. Press OK to search the wanted image data.

If the selected time block has no images, the system displays no picture.

EVENT SEARCH

This function searches recorded results such as normal recording, schedule recording, alarm recording, motion recording, and video loss recording on the channel and time basis.

In case of SHR-5082, only 8 channels are displayed.

search and play

Calendar

Event

Date/Time

Go to First

Go to Last

Backup

Move/Control Select Exit

CancelOK

Calendar

Sun Mon Tue Wed Thu Fri Sat

PrevFirst LastNext CancelStart

Event Search (Can Select 1 Event)

No. Date/Time Event Mode

SHR-5162_Eng.indb 40 2007-06-18 ｿﾀﾀ・11:49:15

search & play _4140_ search & play

09 SEARCH & PLAY

search & play _4140_ search & play

09 SEARCH & PLAY

To perform an event search

1. Use the UP/DOWN direction buttons to

place the cursor to the wanted channel and press the ENTER button. Then the recorded events are displayed below. Each event contains the date/time and event mode (normal recording, schedule recording, etc.).

Only one channel can be selected.

2. Use the DOWN direction button to move to the event table and press the ENTER button to select an event. The selected event is marked. Selection of multiple items is not allowed.

3. Use the Direction buttons to select Start then press the ENTER button. Then the recorded images are played on the screen.



To cancel the search, select Cancel and press the ENTER button. If events are listed in multiple pages, select First, Prev, Next, and Last to move to the corresponding page.



If you press the SEARCH button while an event recording is played. It returns to the Event Search menu. This lets you search other events easier and faster.

DATE TIME SEARCH

This function is used to search the video images for the specific time you want. Up to 16 channels can be searched at once.

In case of SHR-5082, only 8 channels are displayed.

To perform a date/time search

1. Use the UP/DOWN direction buttons to place the cursor to the wanted camera and press the ENTER button. The selected c

amera is marked. Selection of multiple items

is possible.

2. Use the DOWN direction button to move to

the time box. To set the time you want, press the ENTER button. Then the year value is highlighted for change. To change the value, use the UP/DOWN direction buttons. You can also change values for month, date, hour, minute, and second using the UP/ DOWN direction buttons. To move between items, use the LEFT/RIGHT buttons.

3. Now use the RIGHT direction button to move to Start and press the ENTER button. If the designated time has any recorded images, they are played on the screen. If multiple cameras are selected, they are played on 4, 9, or 16-split screen.

If you want to cancel the search, select Cancel and press the ENTER button.

GO TO FIRST SEARCH

This function is used to search the oldest recorded files for cameras. Up to 16 channels can be searched at once.

In case of SHR-5082, only 8 channels are displayed.

To perform this function

1. Use the UP/DOWN direction buttons to place the cursor to the wanted camera and press the ENTER button. The selected c

amera is marked. Selection of multiple items is possible. If you want to move to the next page for selecting the other cameras, press

9-16.

2. Now press Start to play the oldest images.

If multiple cameras are selected, they are played on 4, 9, or 16-split screen.

If you want to cancel the search, select

Cancel and press the ENTER button.

CancelStart

Date/Time

Cam. Start Date/Time End Date/Time

9-162007-03-10 08:38:58

2007-03-10 08:38:58 2007-03-11 09:43:51 2007-03-10 08:38:58 2007-03-11 09:43:51 2007-03-10 08:38:58 2007-03-11 09:43:51 2007-03-10 08:38:58 2007-03-11 09:43:51 2007-03-10 08:38:58

2007-03-11 09:43:51 2007-03-10 08:38:58 2007-03-11 09:43:51 2007-03-10 08:38:58 2007-03-11 09:43:51 2007-03-10 08:38:58 2007-03-11 09:43:51

Cancel

Start

Go to First

Cam. Start Date Start Time

9-16

2007-03-10 08:38:58 2007-03-10 08:38:58 2007-03-10 08:38:58 2007-03-10 08:38:58 2007-03-10 08:38:58 2007-03-10 08:38:58 2007-03-10 08:38:58 2007-03-10 08:38:58

SHR-5162_Eng.indb 41 2007-06-18 ｿﾀﾀ・11:49:16

search & play _4342_ search & play

09 SEARCH & PLAY

GO TO LAST SEARCH

In case of SHR-5082, only 8 channels are displayed.

To perform this function

1. Use the UP/DOWN direction buttons to

place the cursor to the wanted camera and press the ENTER button. The selected c

amera is marked. Selection of multiple items is possible. If you want to move to the next page for selecting the other cameras, press

9-16.

2. Now press Start to play the latest images.

If multiple cameras are selected, they are played on 4, 9, or 16-split screen.

If you want to cancel the search, select Cancel and press the ENTER button.

BACKUP SEARCH

This function is used to search the backup files on the backup devices. First of all, you have to select a back device from the pop-up menu.

To perform this function

1. Use the UP/DOWN direction buttons to

place the cursor to the wanted backup file and press the ENTER button. The selected backup file is marked. Selection of multiple items is possible.

2. After selections are made, use the DOWN direction button to select Start.

If multiple pages are available, select Prev or Next to move to the corresponding page.

CAUTION

AVI-format backup files cannot be played back on this DVR but only the PC Media Player can play the files.

PLAYBACK

In order to play the recorded file stored on the HDD, press the PLAY/PAUSE button. If you have played back a file by using the SEARCH button just before, the system would keep the playback information. Press the PLAY/PAUSE button again, the channel kept in memory is played. If you press the PLAY/PAUSE button when no playback is tried, the Search menu appears.

When the MENU SETUP window is displayed, pressing the PLAY/PAUSE button does not bring any operation. For playback operation, exit from the MENU first.

To stop playing a recorded file, press the STOP button. If you press the PLAY/PAUSE button again, the playback will resume from the point where the previous playback has stopped. When the data position reaches the end of HDD during playback, the playback will pause.

Cancel

Start

Go to Last

Cam. End Date End Time

9-16

2007-03-11 09:43:51 2007-03-11 09:43:51 2007-03-11 09:43:51 2007-03-11 09:43:51 2007-03-11 09:43:51 2007-03-11 09:43:51 2007-03-11 09:43:51 2007-03-11 09:43:51

Prev Next CancelStart

2007-03-02 11:04:34

Backup Search

(Can Select 1)

No. Folder/Filename

20070302/1104 20070303/1412 20070304/1645 20070304/1705 20070304/1905

2007-03-10 08:38:59

CAM_01

SHR-5162_Eng.indb 42 2007-06-18 ｿﾀﾀ・11:49:19

search & play _4342_ search & play

09 SEARCH & PLAY

search & play _4342_ search & play

09 SEARCH & PLAY



Playback mode You can change the screen display method using the MODE button and NUMERIC buttons as shown in the figure. The 16-split, 12+1 split, and 15+1 split screens are shown only in SHR-5162.

- Single screen: Comes up when you select

and play only 1 channel using the Search menu.

- 4-split screen: Comes up when you select

and play 2 to 4 channels using the Search menu.

- 9-split screen: Comes up when you select

and play 5 to 9 channels using the Search menu.

- 1

6-split screen: Comes up when you select

and play 16 channels using the Search menu.

- PIP screen: Comes up when you press the MODE button while playing on a single screen. (The main screen displays the playback channel, and the sub screen displays the live channel.) You can move the sub screen up or down using the UP/ DOWN direction buttons. When you press the ENTER button, a blue bar appears on the live screen. To change the channel in the sub screen, press the desired channel number using the NUMERIC buttons on the front panel or remote control.

- N+1 split screen: Shows x number of (N) live channels and 1 play channel on the screen. In the case of 9+1 split screen, you

can set the location of the play channel from the menu.



Speed play To play the recorded images at a faster speed, press the Fast Forward () or Fast Rewind ()

button during playback to see the screen at x2, x4, x8, x16, x32, and x64 speed forwardly or reversely.



Viewing still images If you press the Fast Forward () or Fast

ewind ()

button while the screen is paused, you can see still images forwardly or reversely. During reverse search, the interval between cuts may vary depending on the recording specification.



Audio playback Audio data can be played or recorded only in 4 channels (CH1, CH2, CH3, and CH4). So to hear the sound of the recorded file, change the channel to any of CH1, CH2, CH3, and CH4. In a split screen (5, 9, or 16-split screen), to select an audio channel, press the ENTER button and move the displayed blue bar to any of four channels. Using the AUDIO button, you can activate or deactivate the audio playback. When the audio function is active, the audio sign on the screen turns yellow. When the audio function is disabled, the audio sign on the screen turns white.

16/9/4 split

Live channel

Play channel

Mode button

Number buttons

Single PIP 8

+1 split 12 +1 split 15 +1 split

SHR-5162_Eng.indb 43 2007-06-18 ｿﾀﾀ・11:49:21

44_ Smart Viewer

INTRODUCTION

Smart Viewer is a program to be installed on your PC. Using this program, you can monitor the video and audio data in real time through the network environment without accessing the site where the product is installed.

MAIN FEATURES



MPEG-4 Video Compression: It provides good video quality.



G.711 Voice Compression: It provides good audio quality and use of directional MIC can improve the quality of remote voice.



Transmission of video/audio streams through RTP (Real-Time Transport P

rotocol): The real-time video playback feature

is excellent and the transmission speed is not lowered abruptly even in multi-user connection.



ommands & controls by RTSP (Real-Time

Streaming Protocol): It enables safety control

through the network.



Multiple transport protocols are supported (TCP/IP and UDP (Unicast, Multicast)).



Access to video and audio data by entering IP address only.



Real-time recording (*.dvr format) on PC and recorded video data conversion into frame unit (JPEG format).



Up to 3 users can connect to the DVR simultaneously. (If the multicast is used, up to 6 users can connect.)



A Smart Viewer can connect to 16 DVRs simultaneously.



The Smart Viewer is optimized for the resolution of 1024x768.

PC SPECIFICATION (RECOMMENDED)



OS: Win2000 and WinXP



Recommendation

- DVR Pentium 3, 1GHz or higher

- RAM 256 MB or higher

- VGA RAM 32Mb or higher

- DirectX 8.1 or higher

The number of playback frames may vary depending on the recording rate, video size, and PC specification. For the d

etailed specification, refer to Appendix 5.

Smart Viewer INSTALLATION

1. Insert the Smart Viewer program CD into the

CD ROM drive.

2. Open the Smart Viewer folder.

3. Execute the “Setup.exe” file.

4. Click Next >.

Smart Viewer

SHR-5162_Eng.indb 44 2007-06-18 ｿﾀﾀ・11:49:25

Smart Viewer _45

10 Smart Viewer

5. After reading the license agreement, click Yes to proceed to next step.

6. Set the destination folder to install the Smart Viewer program and click Next.

7. The installation process proceeds with setup

file installation and system setup.

8. When installation is complete, click Finish to

exit from the process.

Smart Viewer PROGRAM EXECUTION

Double-click the Smart Viewer icon on the Desktop to execute the program.

SHR-5162_Eng.indb 45 2007-06-18 ｿﾀﾀ・11:49:26

46_ Smart Viewer

Smart Viewer INITIAL SCREEN

2 3

1. This screen shows the monitoring sites.

2. Using these buttons, you can enter the Search mode in which you can search and play the remote video file that has been recorded on your DVR and enter the Monitoring mode for real-time monitoring.

These buttons minimize and exit the program.

It displays the current date, day, and time.

5. This button is used for connection to the preset DVR or site.

These buttons let you select the event message display window and camera connection state display window.

This window displays the event messages from the DVR in real time.

These buttons let you select the wanted split screen or auto sequencing screen.

This button opens the Setup Mode window to change the Smart Viewer settings. (Refer to “Setup Mode.”)

10.

This button lets you choose a favorite function when connecting to a site.

11.

This button is used for connecting to Callback.

12. These buttons enable you to perform the PTZ-related operations.

13.

These buttons display the status of the current channels.

14.

These buttons let you adjust the audio volume and video brightness/contrast, and save the video images.

SETUP MODE

SHR-5162_Eng.indb 46 2007-06-18 ｿﾀﾀ・11:49:30

Smart Viewer _47

10 Smart Viewer

1. These buttons enable you to select setup items for DVR Setup, Viewer Setup, Site Setup, and S/W Version.

In this box, you can set the details on each setup item.

Using this button, you can exit from the current window.

4. You can use buttons for saving the modified data, returning the previous settings, and exiting from the setup window.



Setup Item Selection buttons

- DVR Setup: Allows you to modify the

settings of the DVR.

- Viewer Setup: Allows you to configure the

settings of Smart Viewer.

- Site Setup: Allows you to set the DVR

information which includes the name, IP address, ID, and password for connection. It can also allow you to register DVRs into a site.

- S/W Version: Shows the software

information such as Smart Viewer version, system requirement, and the DVR system S/W version. You can remotely upgrade the system software.



Save/Cancellation of Revised Information

Click Apply to save the revised information and click Cancel to return the previous settings.



Closing the setup window

- Click X or Close to exit from the setup

window.

If any setting is revised, the following message box appears. If you press OK, the revised information is saved and the setup window exits. If you press CANCEL, the revised information is lost and the setup window exits.

DVR Setup

Click DVR Setup for configuring DVR-related settings. It means that you can remotely configure the settings of DVR using Smart Viewer. The DVR setup items are System, Camera/Audio, Monitoring, Recording, and Network.

You can access to DVR Setup with the Admin privilege. The button will not be activated when you are connected to the DVR with a user privilege.

1. The DVR names connected with the Admin privilege will be listed here. When connected to a DVR, the DVR name is displayed. When connected to a site, the names of DVRs with the Admin privilege are displayed. You can select a DVR to configure the settings of it.

2. It displays the setup menu for the selected DVR.



System

You can configure the system-related settings. F

or more details, see Chapter 5, “Menu Setup.”

- System Information It shows the information of the selected DVR.

SHR-5162_Eng.indb 47 2007-06-18 ｿﾀﾀ・11:49:32

48_ Smart Viewer

For more details, see Chapter 5, “Menu Setup.”

Admin Password You can change the Admin password related settings for control of DVR.

User Password You can change the user password related settings for control of DVR.

CAUTION

For the system password, you can input numeric values only up to 8 digits.



The Delete key and key combinations like CTRL+C and CTRL+V in the keyboard are not supported for input of system password.



For deletion of any input value, use the BACKSPACE key.



The default system password is “4321.”

Date/Time Setup Date/Time is used to set the information of DVR such as date, time, format, and DST.



If you change the values for date and t

ime, the DVR automatically disconnects the communication with Smart Viewer to apply the settings.



When updating the date and time for the DVR completes, you can connect Smart Viewer.



But, the values for display format and DST can be set without disconnection.

System Language You can set the display language for the DVR.



This change results in modification of display language on the DVR. The language of Smart Viewer is not changed.



Language specification is subject to change.

SHR-5162_Eng.indb 48 2007-06-18 ｿﾀﾀ・11:49:35

Smart Viewer _49

10 Smart Viewer

- Storage Setup It displays the information of the HDD that is contained in your DVR. Also you can d

etermine whether or not to repeat recording and make a beep sound when any disk failure happens.

- Remote Control Device You can configure the settings for the remote control that is installed in the DVR system. You can toggle between On and O

ff. The remote control ID can be set among

0 to 99.

If you have directly installed the remote control in the DVR system and activated the setup, PTZ controls are not enabled using Smart Viewer.



Camera

You can configure the camera-related settings. F

or more details, see Chapter 5, “Menu Setup.”

- Camera Configuration. This configures the camera-related settings such as video/audio availability, camera title, and auto sequencing interval for the DVR.

CAUTION



Only English is available for the title. If you enter the title in your local language and apply it, a warning message appears to ask you to retype it.



You can input the title up to 15 digits.



If you leave the title blank, a warning message appears to ask you to retype it.

SHR-5162_Eng.indb 49 2007-06-18 ｿﾀﾀ・11:49:39

50_ Smart Viewer



The Delete key and key combinations like CTRL+C and CTRL+V in the keyboard are not supported for input of camera title.



For deletion of any input value, use the BACKSPACE key.

PTZ Device You can configure the settings for PTZ cameras, which include camera ID, protocol, baud rate, parity, data bit, and stop bit.



Monitoring Setup

You can configure the monitoring-related settings. For more details, see Chapter 5, “Menu Setup.”



Recording

You can configure the recording-related settings. For more details, see Chapter 5, “Menu Setup.”

Record Quality and Auto Deletion You can configure the settings for recording quality and auto deletion.

- Record Rate & Video Size You can configure the settings for record rate (recording speed) and video size (resolution).

NTSC

PAL

- Event Record Duration You can configure the pre-event and postevent settings for event recording.

SHR-5162_Eng.indb 50 2007-06-18 ｿﾀﾀ・11:49:41

Smart Viewer _51

10 Smart Viewer

- Alarm Detection Setup It configures the settings for alarm recording.

More than one camera should be selected to apply the alarm.

Motion Detection Setup It configures the settings for recording through motion detection.

- Video Loss Setup It configures the video loss related settings.



Schedule

You can configure schedule-related settings. For more details, see Chapter 5, “Menu Setup.”

- Record Schedule

You can change the schedule recordingrelated settings.

- Alarm Out Schedule

You can change the alarming schedulerelated settings.

SHR-5162_Eng.indb 51 2007-06-18 ｿﾀﾀ・11:49:44

52_ Smart Viewer



Network

ou can configure the network-related settings.

For more details, see Chapter 5, “Menu Setup.”

- Network Password You can set both Admin password and user password for connecting to the DVR system through the network using Smart Viewer.

CAUTION



For the network password, you can input numeric values only up to 8 digits.



If you leave the password blank and apply it, a warning message appears to ask you to retype it.



The Delete key and key combinations like CTRL+C and CTRL+V in the keyboard are not supported for input of password.



For deletion of any input value, use the BACKSPACE key.



The default Admin password is “4321.”



The default user password is also “4321.”

IP Settings It configures the network IP settings for the DVR.

CAUTION



Be sure to inquire of the network manager about the settings.



Both ADSL ID and password can be input up to 40 letters including alphabets, numbers, and special characters.

Transfer Protocol Settings You can change the transfer protocol-related settings

- Callback Settings You can configure the callback-related settings for DVR.

- Picture Settings This configuration is used to set the video size and quality for transferring pictures.

SHR-5162_Eng.indb 52 2007-06-18 ｿﾀﾀ・11:49:48

Smart Viewer _53

10 Smart Viewer

Viewer Setup

Click Viewer Setup for configuring the Smart Viewer related settings. This Viewer Setup consists of 5 different items: Video Recording, File Converting, Sequence Time, OSD Display, and Auto Connection.

1. The currently displayed video data can be saved in a DVR format (*.dvr) file. The related settings are made here.

A DVR file can be converted into a JPEG or AVI file. The destination folders are determined here.

You can set the sequence time (or screen change time) interval for the auto sequence mode.

The OSD display on Smart Viewer can be decided here.

You can decide whether Smart Viewer automatically connects to the designated DVR or site when it starts running.

You can enable/disable alarming and set the alarming duration.

You can set the port for callback connection.

8. You can set the language for display.



Video Recording

Naming convention

When recording the currently displayed video data into DVR files, you can assign the file naming rule to DRV files.

Location

5162/5082

- Recording Time

You can set the maximum recording time when saving the video data. You can set the time ranging from 1 to 10 minutes. If the recording time exceeds the preset value, the program stops recording.



File Converting

5162/5082

You can convert a DVR file saved on your PC into JPEG or AVI. The default destination folder for file conversion is < Smart Viewer directory>\ frame.” You can change it on your own.



Sequence Time

In monitoring mode, when the screen change (auto sequence) mode is active, the camera channels change at an interval of this time. You can set the time ranging from 5 to 30 seconds.



OSD Display

You can set if OSD shall be displayed on each channel of Smart Viewer. However, the icons for audio, PTZ, recording, and alarm/motion event are normally displayed regardless of this setting.



Callback Connection

Set the port for callback connection.



Auto Connection

You can set if Smart Viewer is automatically connected to the selected DVR or site when starting the program. If you check Auto Connection Enable, available DVRs and sites are displayed in the pull-down list. After selecting one from the list, Smart Viewer connects to the selected DVR or site whenever it is started.

SHR-5162_Eng.indb 53 2007-06-18 ｿﾀﾀ・11:49:51

54_ Smart Viewer



Language

You can set the language to be displayed on Smart Viewer.

Site Setup

Click Site Setup for configuring the site-related settings. Smart Viewer connects to the DVR or site that has been registered here. A site can have multiple DVRs.

1. The registered DVRs are displayed.

2. You can use the buttons for adding/deleting/ editing DVRs.

Use the button to move the selected DVR to the selected site. But, if the selected DVR is set to ADSL Network, it cannot be moved to the site.

The registered sites are displayed.

5. You can use the buttons for adding/deleting/ editing sites.



DVR List

The DVRs that you want to connect using Smart Viewer are listed in DVR List. You can register a new DVR, or delete/edit the selected DVR. The name and IP/MAC address of the registered DVR are displayed. If the DVR uses a static IP, select Static IP in Address Type, enter the name of DVR in Name, and the IP address in IP Address. Set the port number in Port No. so that it matches the port number that you’ve set in the network menu of DVR. For connecting to the DVR, you need to set both Admin password and user password.

If your DVR uses a dynamic IP such as in a cable modem, VDSL, and PPPoE for ADSL, set the address in MAC Address. Set the port number in Port No. so that it matches the port number that you’ve set in the network menu of DVR.

SHR-5162_Eng.indb 54 2007-06-18 ｿﾀﾀ・11:49:53

Smart Viewer _55

10 Smart Viewer

If you have selected Use DDNS in the Network Settings menu of DVR or used an IP splitter to register a URL using DDNS, you can connect through the designated URL. I

f you want to connect through the URL,

select URL in Address Type and enter the URL set in URL. Set the port number in Port No. so that it matches the port number that you’ve set in the network menu of DVR.



The MAC address of DVR is written on the side label of the product. It is also found in the system information on the DVR setup menu.



If the DVR is connected to ADSL, a low network bandwidth is available. Accordingly, the transfer rate becomes low and Smart Viewer limitedly operates.



Smart Viewer can monitor up to 16 channels at the same time.



Smart Viewer can search or play one channel only.



The audio does not play.



The playback frame speed is 0.5 ips in average and it may vary depending on the number of channels and video size.

To delete an existing DVR, click Delete.

To delete a DVR from the list, click Delete. Then the following message appears. Click OK to confirm it.

When the DVR to be deleted is connected to Smart Viewer, the following message also appears. If you really want to delete the DVR, disconnect the DVR and retry to delete it.

To edit the existing DVR, click Modify.

After modifying the settings, click OK.

When the DVR to be modified is connected to Smart Viewer, the following message appears. If you really want to modify the DVR, disconnect the DVR and retry to modify it.



Site List

You can assign multiple DVRs (up to 9) to a site for control. You can register a new site and delete or edit the selected site in the registered list. After sites are correctly constructed, you can add or delete DVRs for the selected site.

To add a new site, click New.

After pressing New, the following window appears. You can enter the name of site and click OK.

SHR-5162_Eng.indb 55 2007-06-18 ｿﾀﾀ・11:49:55

56_ Smart Viewer

The site name can be input in both English and Korean up to maximum 10 letters.

To delete an existing site or DVR, use Delete.

After selecting a site or DVR and click Delete, the following message appears. Click OK to confirm it. After this action, the DVR name is deleted but the information of DVR is not removed.

When the site to be deleted is connected to Smart Viewer, the following message appears. If you really want to delete the site, disconnect the site and retry to delete it.

To edit an existing site, click Modify.

Change the site name.

When the site is connected to Smart Viewer, the following message appears. If you really want to modify the name of site, disconnect the site and retry to modify it.

When you select a DVR in the site list and click Modify, the following message appears. To edit the DVR, go to the DVR list.

To add a DVR to the site, select a DVR and click Add.

If you click Add, the selected DVR is added to the selected site. But the ADSL-enabled DVR cannot be added to the site. If you click Add to add a DVR while any site is not selected, a new site named “Site [0]” is created by default and the selected DVR is added in it. When you select the connected DVR and click Add, the following message appears. If you really want to add the DVR, disconnect the DVR and retry to add it.

S/W Version

When you click S/W Version, the program displays the software-related information such as Smart Viewer version, system requirements, and the version information on the connected DVRs.

You can also upgrade the DVR system software remotely, and import and export the DVR-related settings. Only the Admin user can perform these functions.

1. Displays the version and system requirements of Smart Viewer.

Displays the version and name of DVR if any DRV is connected to Smart Viewer. This area can also provide functions for remotely upgrading the DVR software, extracting, and recovering the DVR settings.

SHR-5162_Eng.indb 56 2007-06-18 ｿﾀﾀ・11:49:58

Smart Viewer _57

10 Smart Viewer



If a DVR is not connected to Smart Viewer, it is displayed in gray and “Not Connected” appears in the Status column.

For software upgrade, click the following button to open the DVR firmware file.

5162/5082

After selecting a firmware file, click Open and select Upgrade.

The progress of the upgrade is displayed at the bottom of the screen.

Smart Viewer enables you to extract the menu settings for the connected DVR. After selecting a DVR, click Export.

The DVR settings are stored into a data file (*.dat).

By clicking Import, the stored data file can be copied to your DVR to recover the settings.

If you want to recover the network settings also, check the following check box.

CAUTION



Be sure to stop all the DVR operations such as recording, Menu setup, backup, and playback before upgrading the DVR software.



During the software upgrade, don’t turn off the power of DVR. The software upgrade takes about 5 minutes.



If the software upgrade is accidentally suspended, the previous software is left intact.

You can download the upgraded DVR firmware from the CCTV part at www. samsung.com.

MONITORING MODE

To connect a DVR or site, select a DVR or site from the list and click the connection button as shown in the picture.

For this connection, you should have set the DVR information such as name, IP, and password in the Setup Mode. If you select a site, it enables connection to multiple DVRs contained in the site.

Connection Failure Cases

1. Password certification failure

SHR-5162_Eng.indb 57 2007-06-18 ｿﾀﾀ・11:50:00

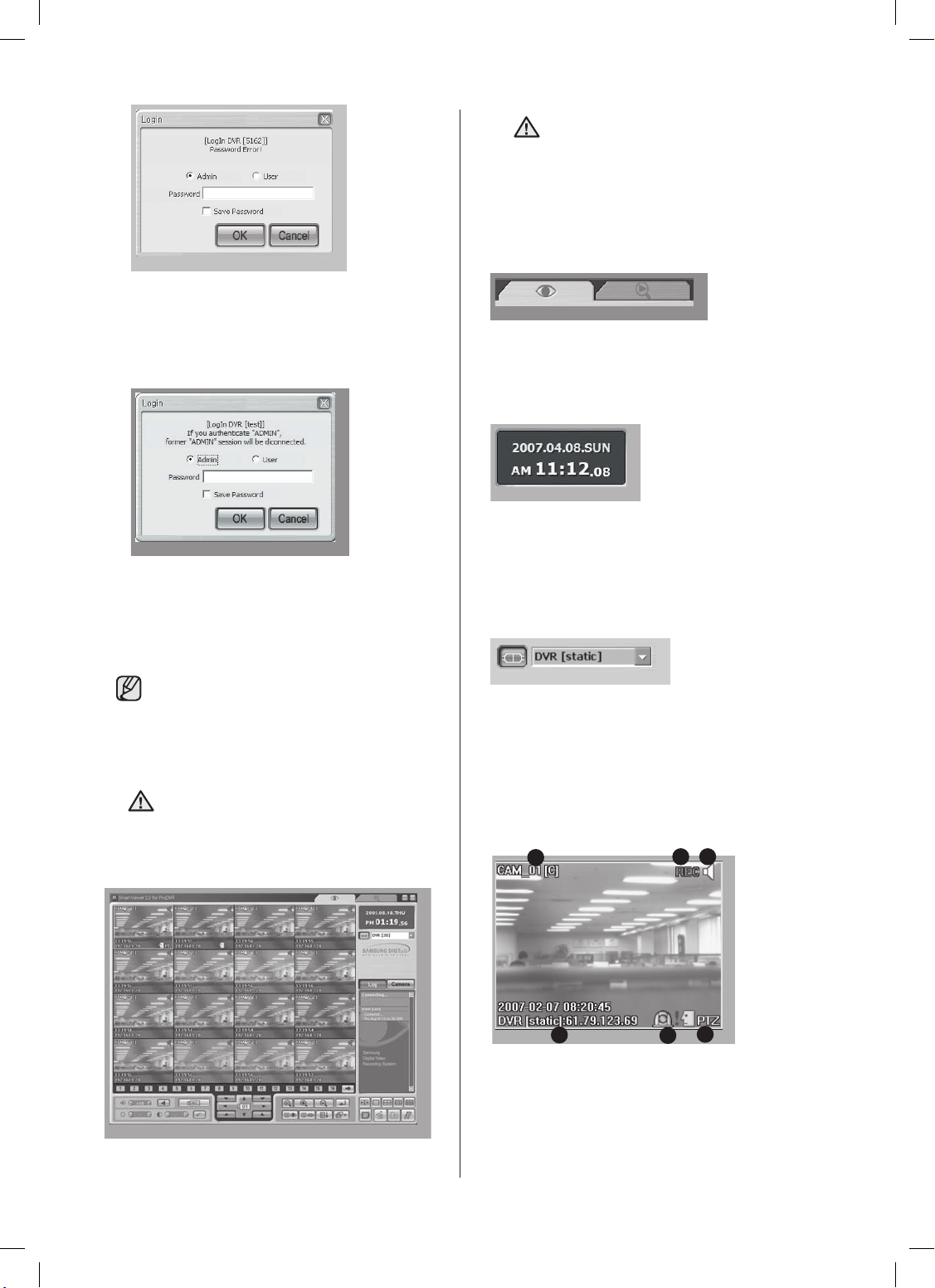

58_ Smart Viewer

If the network password of a DVR differs from the connection password set in Smart Viewer, a login message appears to let you input the correct password manually.

2. Duplicate Admin user connection

When the DVR that you want to connect to has been already occupied by an Admin user but you retry connection with the Admin privilege, the previously connected session is automatically disconnected.

The system allows simultaneous access to DVR by up to 3 users, which include one Admin privilege user and 2 user privilege users. (But in case of Multicast, up to 5 users are allowed.)

CAUTION

Once occupied by 3 users, the DVR does not permit more connection.

Connection Screen

CAUTION

If you change the settings such as video size and color quality while S

mart Viewer is running, Smart Viewer may fall into an unexpected state. In this case, you must terminate Smart Viewer.

Mode Conversion Button

These buttons enables you to switch between Monitoring mode and Search mode.

Time Information

When Smart Viewer is connected to a DVR, the current date, day, and time of the DVR are displayed. Otherwise, the current date, day, and time of your PC are displayed.

Connection Information

When Smart Viewer is connected to DVR, the connection button will display the connection status. If you click the connection button again, the DVR is disconnected.

OSD Information Display

2 3

1. The channel number, camera name, and video size are displayed. Available video sizes are (C)CIF, (N)Normal, and (L)Large.

If the video data of the current channel is being recorded on your PC, REC appears on the screen.

SHR-5162_Eng.indb 58 2007-06-18 ｿﾀﾀ・11:50:03

Smart Viewer _59

10 Smart Viewer

3. When audio signal is available, the audio mark appears.

It displays whether the PTZ controls are active.

The current channel alarm status is displayed.

The name and IP address of the connected DVR are displayed.



Clicking the speaker icon changes the audio On and Off.

: Audio Off : Audio On



When the audio function is disabled, the following icon is displayed.

: Audio Disabled



When the alarm or motion is detected, its status is displayed on the screen in real time with the corresponding icon.

: Motion Detection : Alarm Event



If you have set PTZ cameras for the DVR, the PTZ icon is displayed on the screen. Select a PTZ camera channel a

nd use the PTZ buttons for control. (For more information, refer to Chapter 5, “PTZ Camera Control.”)

Event Log Display Window

Click Log to activate the log display window. It displays the events such as alarms, connection events, and setup change events in real time.

The displayed events are:



Connecting..: When trying to connect to a DVR is in progress.



Connected..: When connection is made to a DVR.



Connection Failed: When connection to a DVR fails.



Disconnected..: When the DVR is disconnected.



Setup (Remote): When any DVR settings are changed by Smart Viewer.



Setup Start/End (Local): When the Menu Setup window for the DVR is started or ended.



Video Loss CH[N]: When a video loss in a channel is detected.



Time Change: When the date and time of the DVR are changed.



Load Factory Default: When the DVR system is initialized.



Network Change: When the DVR network setup is changed.



System Shutdown: When the DVR system is terminated.



HDD Format: When the HDD formatting is initialized.



isk Full: When there is no more space

in the HDD of DVR.



Power Failure Recovery: When the DVR resumes after power failure.



Backup Start/End/Fail/Stop: Backup f

or the DVR is started, finished, failed, or

stopped.



Network Traffic Busy: Data transport through the network is not smoothly going.



Access Denied (Limit Over): No more access is allowed because the connection limit is over.

CAUTION

When specific events such as time change, load factory default, network change, system shutdown, or HDD format are detected, Smart Viewer automatically terminates the connection.

SHR-5162_Eng.indb 59 2007-06-18 ｿﾀﾀ・11:50:04

60_ Smart Viewer

Camera Connection Indication Window

The window displays the connection state of DVR and the connected cameras.



Yellow: When Smart Viewer is successfully connected to a DVR. When the camera is connected for monitoring.



Black: When Smart Viewer cannot be connected to a DVR.



Blue: When Smart Viewer can connect to a DVR but it is disconnected now.

Screen Split Selection Buttons

The buttons present modes like full screen, single, 4-split, 9-split, and 16-split modes. You can change to any of them under monitoring.

Sequence Mode Button

When this button is selected, screens are switched at a preset interval. The interval can be set in Monitoring of Setup Menu. In Single Mode, the channel numbers are sequentially switched from 1 to 16. In Quad (4-split) Mode, the screens are changed like 1st 4 channels (1,2,3,4) --> 2nd 4 channels (5,6,7,8) --> 3rd 4 channels (9,10,11,12) --> 4th 4 channels (13,14,15,16). In 9-split Mode, the screens are changed from 9 channels (1,2,3,4,5,6,7,8,9) to 7 channels (10,11,12,13,14,15,16). In 16-split Mode, the screen refreshes at the preset interval.

Monitoring State Display

The screen split status and playing status are displayed on the screen.

: When monitoring in Quad Mode

: When monitoring in Single Mode

: Cameras are turned Off

The numbers in the screen icons indicate the screen positions in Smart Viewer.

: The orange icon indicates that the current

channel is connected to a specific camera.

: The gray icon indicates that the current

channel is connected to a camera but not displayed in the screen.

: The black icon with a slash indicates that

the current channel is not connected to any camera.

SHR-5162_Eng.indb 60 2007-06-18 ｿﾀﾀ・11:50:08

Smart Viewer _61

10 Smart Viewer

NEXT Button

When this button is clicked, next screen follows. In Single Mode, the channel numbers are sequentially switched from 1 to 16. In Quad (4-split) Mode, the screens are changed like 1st 4 channels (1,2,3,4) --> 2nd 4 channels (5,6,7,8) --> 3rd 4 channels (9,10,11,12)

--> 4th 4 channels (13,14,15,16). In 9-split Mode, the screens are changed from 9 channels (1,2,3,4,5,6,7,8,9) to 7 channels (10,11,12,13,14,15,16). In 16-split Mode, the screen is refreshed.

CALLBACK Button

If you press this button, the callback window is activated to receive event messages. When receiving a message, Smart Viewer automatically connects to the corresponding DVR. The messages are video loss events, alarm events, and motion detection events. You can decide whether the received event will bring up alarming sound or not.

FAVORITE Button

If you press this button, the favorite window is activated.

1. The cameras set for Favorite are displayed on the screen.

Clicking Delete removes a favorite setting. Clicking Delete All removes all the favorite settings.

Click this button to save the new favorite number and name.

Change favorites at the preset interval.



The FAVORITE button is available only when you connect to a site.



The FAVORITE settings are saved in the Config file even after you disconnect the site.



When you change the DVR list that makes the site in Setup, the FAVORITE settings are initialized.

Video Recording Button

If you select a channel and click REC, the video data will be saved in a DVR file on your PC. The directory, file naming convention, and recording time can be configured in Viewer Setup for Setup Mode. The saved video file can be played in Search mode. To stop recording, click this button again. But this action is possible in 10 seconds after the recording starts.

SHR-5162_Eng.indb 61 2007-06-18 ｿﾀﾀ・11:50:09

62_ Smart Viewer

Audio Volume Control Button

You can adjust the audio volume level (0 to 10) of a channel or mute it.

Video Brightness/Contrast Control Button

After selecting a channel, you can adjust the brightness and contrast levels (0 to 10) of video image using the control buttons (+,-). The default value is 5. To return the default settings, press the button on the right.



The adjusted audio volume, brightness, and contrast values are saved on your PC and remain unchanged even if Smart Viewer restarts.



The brightness and contrast adjustment may not work depending on the model.

PTZ Camera Control Buttons

You can handle the following PTZ operations after selecting a PTZ-enabled channel.



Panning Left/Right



Tilting Up/Down



Diagonal controls

The channel number is displayed at the center of PTZ control buttons.

31 2



Power Zoom

After the Power Zoom button is clicked, you can use the Zoom In and Out functions.



Zoom In/Out

The PTZ (Pan/Tilt/Zoom) controls are available in all cameras. But, this Power Zoom controls are supported by Samsung smart dome cameras only, and they support the tilting operation below 45°.

PRESET

If you press this button, the Preset setup window appears.

a. If you select a preset, the camera moves

to the preset position.

You can delete the selected preset or all presets.

You can save the new preset number and name.

AUTOPAN: The camera moves between starting and ending points.

SCAN: The camera moves circulating the preset positions.

PATTERN: The camera moves following the route that you have defined.

SHR-5162_Eng.indb 62 2007-06-18 ｿﾀﾀ・11:50:14

Smart Viewer _63

10 Smart Viewer

The preset function is supported by all cameras. You can set up to 20 presets. But an active directory (AD) protocol camera can have 7 presets. The names of 2,3, and 4 may vary depending on the camera vendor. And those functions may not be supported by some product.



Samsung cameras support those functions.



In case of Panasonic cameras, the names of AUTOPAN, SCAN, and PATTERN are as following:

SEQUENCE 3 AUTOPAN 4 SORT.



In case of PELCO cameras, the names of AUTOPAN, SCAN, and PATTERN are as following:

FRAME SCAN 3 AUTO SCAN

PATTERN.



The other cameras do not support those functions.

Self Menu Setup of PTZ device

1. You can configure the camera-related settings using the PTZ camera menu.

1. This is the camera self menu screen. The screen can be shown on Smart Viewer.

2. Use the Direction buttons for movement between menus.

3. The button operates the same as the ENTER button.

The Camera Menu Setup function is supported for Samsung and Panasonic cameras only.

CAUTION

When a DVR is using the PTZ camera controls, Smart Viewer cannot control the PTZ camera. The PTZ camera controls can be used by the Admin user.

SHR-5162_Eng.indb 63 2007-06-18 ｿﾀﾀ・11:50:16

64_ Smart Viewer

1. The screen shows the playback channels.

2. Click this to move to the Search mode for searching and playing the video files recorded.

Click this to move to the Remote mode for playing back the recorded DVR video images remotely.

Click this to move to the Local mode for playing back the DVR files recorded on your PC.

5. Use this calendar to select year, month, and date for search.

Use buttons for adjusting the audio volume and video brightness/contrast.

Click any of screen display modes.

8. Use buttons for recording, converting, printing, and setup.

Use buttons for playback of searched video file.

10.

Use the button to display the next screens in order.

11.

Use this button to renew the information about changing to channel/DVR, calendar, and time line.

12.

It shows the time line for displaying the time information for search of the recorded video data.



When connecting to a site, select a DVR for search.



ith a user privilege, you cannot access

the Search mode.

elect a site or DVR first and click the connection

button.

You can also select a DVR.

SEARCH MODE

The Search mode has two separate modes such as Remote mode to search/play the DVR video data, and Local mode to play the DVR files that have been saved in the designated directory on your PC.

SHR-5162_Eng.indb 64 2007-06-18 ｿﾀﾀ・11:50:19

Smart Viewer _65

10 Smart Viewer

Remote Mode

This mode transfers the video data recorded on DVR through the network for playback. Up to 4 channels are allowed for simultaneous search and playback. The video data is played at the position where the time bar is located.

When clicking this button, it changes to the Remote mode.

Calendar Window

If the video data has been recorded on a date, the date is distinguished in red. If you click the date, the recorded video information is displayed in the time line. If you select a date, it turns thick red. Clicking  changes to the previous month and clicking  changes to the next month.

Audio Volume, Video Brightness/ Contrast Buttons

Those buttons operate the same as the controls in Monitoring Mode. The brightness and contrast adjustment may not work depending on the model.

Screen Split Selection Buttons

You can use any of full screen, single, quad (4-split), 9-split, and 16-split modes.

In the Remote mode, 9-split mode is not available while in the Local mode, quad and 9-split modes are not available.

Video Save (Backup)/Video Conversion/Print/Setup

3 4

1. Video Save button

During playback (play/reverse play/fast forward/fast backward), if you select a channel and click this button, the video data is saved in a DVR file. (It is saved in the designated folder on your PC.) The directory, file naming convention, and recording time can be configured in Viewer Setup for Setup Mode. You can set the recording duration ranging from one minute to 10 minutes. To stop recording, click this button again. But this action is possible in 10 seconds after the recording starts. If the video file is not playing, this button e

nables you to perform backup, which brings

up the following window.

You can set the starting and ending times for backup and select a file format for saving. Clicking Start begins the backup process. The backup file is saved in the folder which was defined by Setup > Viewer Setup > Video Recording > Video Location. To stop the backup process, click Stop.

This function is enabled only when the playback actions are in progress.

SHR-5162_Eng.indb 65 2007-06-18 ｿﾀﾀ・11:50:21

66_ Smart Viewer

2. File Conversion button

When this button is clicked, the system converts a DVR file into JPEG or AVI format.

To perform this function

a. Click Open to select a DVR file to be

converted.

Select JPEG Frame or AVI Video.

c. Click Start to convert the file. To stop

conversion, click Stop.



If JPEG Frame is selected, the file is converted to “*.jpg” file after clicking Start. The converted JPG file is saved according to the preset route: Setup

> Viewer Setup > File Converting > Jpeg Location.



If AVI Video is selected, the file is converted to the “*.avi” file after clicking Start. The converted AVI file is saved according to the preset route: Setup

> Viewer Setup > File Converting > AVI Location.



In case of AVI backup, you need the divX codec for playing saved files. The divX codec can be found at www.divx. com.

3. Print button This button prints the playback screen that is now being displayed.

4. Setup Mode button

This button brings up the Setup Mode window.

5. Play buttons

3 4

6 7

1. Reverse Play: Performs Reverse Play

2. Play: Performs playback

3. Fast Backward: Reverse-plays faster

4. Stop: Stops playing

5. Fast Forward: Plays faster

6. Go to Last: Plays the latest (last) image in the time line

Step Backward: Performs one step reverse-play by one second

Step Forward: Performs one step forward by one second

Go to First: Plays the first image in the time line

During play (Play/RevPlay/FF/FB), disconnection or change to both Monitoring and Local modes is not permitted. Click Stop first before any change.

SHR-5162_Eng.indb 66 2007-06-18 ｿﾀﾀ・11:50:23

Smart Viewer _67

10 Smart Viewer

6. Time Line

It displays the recorded video data status on DVR after a date is selected. The normal mode displays the time ranging from 0 to 24 O’clock while the extension mode displays the time every 2 hours.

[Normal mode]



The channels that are being displayed on

the playback screen are distinguished on white background.



The highlighted time bar displays the

time range of the video image.



The time lines display the time division.



If you double-click an area of a time bar, it changes to the extension mode.



One column of time line represents one hour.



The colors of time lines change depending on the recording state: Green (normal), Red (Panic), Orange (Alarm), Blue (Motion), Yellow (Schedule), and Purple (Video Loss).

[Extension Mode]



Displays the time line of one hour before



Displays the time line of one hour after



If you double-click an area of a time bar, it changes to the normal mode.



Each time line represents 5 minutes.



The colors of time line change depending on the recording state: Green (normal), Red (Panic), Orange (Alarm), Blue (Motion), Yellow (Schedule), and Purple (Video Loss).

7. Next button

It operates the same as the Next button in the Monitoring mode.

You cannot change the channel while playing an image (Play/Reverse Play/Fast Forward/Fast Backward).

8. Reload button

It renews the recording time information in both the calendar and time line.

9. Local Mode

This mode is used to play the DVR file recorded in the directory on your PC. You can search and play only one channel. You can access the recorded files regardless of connection to DVR. Other functions than Calendar are the same as those of the Remote mode. The time information of local files is displayed at the first channel position in the time line together with the file name.

: Click this button to change to

the Local mode.

Only the DVR files saved with the audio being activated can be played with audio sound in the Local mode.

SHR-5162_Eng.indb 67 2007-06-18 ｿﾀﾀ・11:50:25

68_ appendix

appendix

PRODUCT SPECIFICATION

Specs Details Notes

Operating System

Embedded OS

Broadcasting

NTSC / PAL System

Input Voltage

AC 100 ~ 230V (PAL) AC 110 ~ 220V (NTSC)

Power Usage

60W

Video Video Input

Composite 16(8) Channel

- 1.0Vp-p

- 75Ω Hi Z Termination BNC Type Loop Through Out 16(8) Channel

- Auto Termination

Video Output

Composite 3 Channel

- Normal Video Output 1 Channel

- Spot Output 2 Channel

- BNC Type S-Video 1 Channel

- 1.0Vp-p VGA 1 Channel

Audio Audio Input

Mono 4 Channel

- -5dBm, 600

RCA Type

Audio Output

Mono 1 Channel

- -6dBm RCA Type

Live Screen Resolution &

Frame Speed

NTSC PAL

Resolution 720X480 720X576

Frame Rate

480ips(16Ch)/ 240ips(8Ch)

400ips(16Ch)/ 200ips(8Ch)

Display Mode

Single Screen Split Mode : 4, 6, 7, 8, 9, 16 split Mode sequence Freeze 2 X Zoom

SHR-5162_Eng.indb 68 2007-06-18 ｿﾀﾀ・11:50:25

11 APPENDIX

appendix _69

Specs Details Notes

Recording Compression

Method

Video : MPEG4 Audio : ADPCM

Resolution & Recording Specs

Resolution

Recording Specs

(Picture quality)

Highest Image Recording Speed

CIF(C) 352X240(NTSC) /352X288(PAL)

Level8(High) ~ Level1(Low)

30ips(NTSC)/ 25ips(PAL)

Half D1(N) 720X240(NTSC) /720X288(PAL)

Level8(High) ~ Level1(Low)

30ips(NTSC)/ 25ips(PAL)

Recording Mode

Normal Record  REC Key Programmed Recording  Schedule Table Event Recording

-Alarm Detection

-Motion Detection

-Video Loss

-Pre & Post Recording

Recording ips

NTSC : 0.9 / 1.8 / 3.7 / 7.5 / 15 / 30ips (True Recording ips: 0.938/1.875/3.75/7.5/15/30ips) PAL : 0.7 / 1.5 / 3.1 / 6.2 / 12.5 / 25ips (True Recording ips: 0.781/1.563/3.125/6.25/12.5/25i ps)

Save Internal

ATA HDD x 3(MAX) MAX HDD Size : 500GB x 3 = 1500GB

External

USB HDD

-MAX 1 (Not support USB hub)

-MAX HDD Size : 500GB

Play Back Search Mode

Calendar search Event search

- Alarm, Motion, Video Loss Date/time search Initial search Latest search Backup search

Resolution & Recording Specs

Resolution Recording Specs

8Ch 16Ch

CIF

15ips(NTSC)/12.5ips(PAL)

7.5ips(NTSC)/6.2ips(PAL)

Half D1(N)

7.5ips(NTSC)/6.2ips(PAL) 3.7ips(NTSC)/3.1ips(PAL)

Total 120/100 ips(CIF) 60/50ips (Half D1)

SHR-5162_Eng.indb 69 2007-06-18 ｿﾀﾀ・11:50:26

70_ appendix

Specs Details Notes

Display Mode

Single  1Channel Decoding 16 split (played cameras10-16) 9 split (played cameras 5-9) 4 split (played cameras 2-4) PIP  1 Channel Decoding + 1Channel Live Triplex 9 split  8 Channel Live + 1Channel PB Triplex 16 split 

15 Channel Live +1Channel PB

Play Back Play Mode

Play, Pause, Stop, 2x Digital Zoom Fast Forward/Fast Reverse

- 2x, 4x, 8x, 16x, 32x, 64x

Backup

USB External HDD USB CD/DVD Writer, Internal DVD USB memory USB HDD

-MAX 1 (Not support USB hub)

Network

Ethernet : 10/100 Base T, ADSL(PPPoE), DHCP

Serial Communication

RS-485  PTZ Device Control, Remote Control Device

Alarm

Input : 16 Channel Outout : 4 Channel Support external alarm reset

Remote Viewer

PC Detailed Specs

CPU : Pentium III, 1GHz or higher RAM : SDRAM 256MB or higher Graphic Accelerator : Graphic Memory 32MB or higher DirectX : 8.1 or higher

Supported Operating Systems

Win2000, WinXP

Function

Live Image Monitoring Mode Local File Search & Play Back Mode Remote File Search & Play Back Mode

Operating Temperature

0ºC to 40ºC (32ºF to 104ºF)

Storage Temperature

-20ºC to 60ºC (-4ºF to 140ºF)

Operating Humidity

20% to 85% RH

Storage Humidity

20% to 85% RH

Size (W x H x D)

430 x 88 x 400mm (16.93 x 3.46 x 15.75 inch)

Weight

~7.6kg (16.75 lb)

It needs extra software to support ATM/POS function. So please contact your vendor to obtain software.

SHR-5162_Eng.indb 70 2007-06-18 ｿﾀﾀ・11:50:26

11 APPENDIX

appendix _71

OUTLINE DRAWINGS



5082 Outline Drawings

SHR-5162_Eng.indb 71 2007-06-18 ｿﾀﾀ・11:50:31

72_ appendix



5162 Outline Drawings

SHR-5162_Eng.indb 72 2007-06-18 ｿﾀﾀ・11:50:38

11 APPENDIX

appendix _73

FACTORY DEFAULT

This returns the factory default settings.

The settings are made as follows;



Use System/Load Factory Default in MENU



In Live mode, press and hold down MODE and then PTZ on the fro

nt panel for 6 seconds to reset the

settings.

Classification

Detailed Items Factory Setup

System Setup

Time/Date/Language Date Format YYYY-MM-DD

Time Format 24 Hours

Language English

DST Off

Password Password 4321

Password Lock On

Record Lock Off

HDD Mode HDD repeat record Overwrite

HDD ending alarm Off

Camera Setup

Camera Config Video On

Audio Off

Title CAM_01 to

CAM_16 (SHR-5082 : 8)

Auto Seq. 5 sec

PTZ Device ID Camera No.

Protocol None

Baudrate 9600

Parity None

Data 8

Stop 1

Serial Mode Half Duplex

Screen Setup Brightness 50

Contrast 50

Color 50

SHR-5162_Eng.indb 73 2007-06-18 ｿﾀﾀ・11:50:39

74_ appendix

Classification

Detailed Items Factory Setup

Monitoring

Event Monitoring Duration Off

Date On

Time On

Title On

Status On

Spot Out Channel CH1

Spot Out Event Monitor Off

Monitor Out Dual Out

Play channel location Lower right-hand corner

Multi-channel change 5 seconds

ecord Mode

Setup

Record Quality & Auto Deletion

Normal Quality Level4

Event Quality Level4

Auto Deletion Off

Record Rate & Video Size

Normal Rate

7.5ips(NTSC)/6.2ips(PAL)

Event Rate

7.5ips(NTSC)/6.2ips(PAL)

Video Size CIF

Event Record Duration PreEvent Off

PostEvent 1 min.

Record Schedule

Continuous Recording Off

Event Recording On

vent Record

Setup

Alarm Detection Setup

Sensor State Off

Camera Camera No.

Alarm-Out None

Duration 10 sec

Motion Detection Setup M.D State Off

Area All Area

Sensitivity Very High

Alarm-Out None

Duration 10 sec

Video Loss Detection Setup

Off

Alarm-Out None

Duration 10 sec

OSD Display

SHR-5162_Eng.indb 74 2007-06-18 ｿﾀﾀ・11:50:40

11 APPENDIX

appendix _75

Classification

Detailed Items Factory Setup

Network

IP Settings

Connection Mode Static IP

Bandwidth 2Mbps

Admin Password 4321

User Password 4321

IP 192.168.001.200

Gateway 192.168.001.001

Subnet Mask 255.255.255.000

DNS 168.126.063.001

ADSL User ID ID

Password -

Transfer Protocol Settings

Protocol type UDP

Port(TCP) 554.555.556.557

Port(UDP) 8000-8159

Unicast / Multicast Unicast

Multicast IP 224.126.063.001

TTL 005

DDNS Site Off

Host Name -

User Name

User Password

Callback Settings

On / Off Off

IP Address 192.168.001.010

Port(UDP) 7900

Retry 05

Transfer Alarm In Off

Transfer Motion Detection Off

Transfer Video Loss Off

Transfer System Log Off

Transfer Picture Settings

Video Size

CIF

Quality Low

SHR-5162_Eng.indb 75 2007-06-18 ｿﾀﾀ・11:50:40

76_ appendix

TROUBLESHOOTING (FAQ)

PROBLEM SOLUTION

The system power is dead and LEDs on the front of the set do not operate at all.



Please check the power connection.



Check the power voltage.



f all your efforts as above end up with nothing, check

or exchange the power supply.

Video data remains in the system but some channels display no video data but turns all blue.



Check the image of the camera connected to the system. Improper input of camera may cause this symptom.



Check the camera power supply.



Sometimes, you see this symptom when the video data is connected with multisystems and the video signal from the video data distributor in use is weak. If it’s the case, you shall connect the camera images with your DVR directly to check or correct the symptom.

The RECORD button is pressed b

ut the REC LED does not light and

recording is not active.



Please check the HDD space.



Please check the Record Mode setup in MENU. It should be On.

Although all the LED operate on the front panel, the screen is blink or the display quality is low.



Please make sure the cable is connected. Video out may come out differently with the connected monitor. In short, Video Out is set to Composite Output but connected to VGA Input Monitor or vice versa. Then, keep pressing both the MODE button and the ZOOM button for 5 seconds to change the Video Out mode. You may experience low display quality while the dual video output is in use. In this case, please switch it to the composite or VGA video output.

The LEDs blink and the logo screen repeatedly appears.



This symptom may be resulted from the failure of HDD connection inside the DVR. Take off the cover and check HDD connection status. If HDD connection has no problem, please consult with the dealer.

You cannot enter MENU by forgotten password.



f you forget the password, you shall reset the DVR to

the values set at the factory. Keep pressing both the MODE button and the PTZ button for 5 seconds. The default password is “4321.”

The channel button does not operate in Live mode.



If the current screen is in Event Monitoring, the channel button does not operate. Then, press the ALARM button to terminate the current screen and select a channel.

The cursor cannot reach the starting point during Calendar Search.



Please check both the channel and date are left checked. Both shall be checked for play with Start. The cursor cannot reach the unrecorded date.

SHR-5162_Eng.indb 76 2007-06-18 ｿﾀﾀ・11:50:40

11 APPENDIX

appendix _77

PROBLEM SOLUTION

Alarms keep continuously issued so you cannot cancel using the ALARM button.



Press the MENU button and do the following:

To cancel Event Monitoring: Monitoring > Event

Monitoring Duration Off

To cancel Buzzer: Event Record > Alarm (Motion Detection/Video Loss) > Alarm-Out.

3) To cancel Event: Event Record > Alarm (Motion Detection/Video Loss) > State Off.

Pressing the PTZ button in Live mode receives no response.



Check the Protocol and other setup values through

enu > Camera > PTZ Device match with the PTZ

camera.

When you connect several IEEE1394 armored HDDs to the D

VR through Menu, the DVR cannot

recognize all the HDDs.



It requires time to recognize several armored HDDs. Please try again in a few minutes. If retrial makes no improvement, HDD could be abnormal. Please exchange the HDD.

“CLOCK BATTERY HAS FAILED” is displayed on the screen.



This message is displayed if the internal clock in DVR has problem.

DVR will not work in order to protect recorded data in HDDs. Please consult with an expert who works for the shop where you bought the product.

You cannot connect to the DVR through Smart Viewer.



Check if 3 Smart Viewer users are in connection with your DVR. The DVR allows no more than 3 users’ connection with Smart Viewer at a time.



Check the Network setup of your DVR.



Check Network cable connection.



When you use DHCP/ADSL(PPPoE) for connection, please check if you get the right DVR MAC Address.



If your DVR is connected to the ADSL network, please check if the bandwidth is set below 600 Kbps. If the Bandwidth for ADSL is set to high, the connection with Smart Viewer may be instable due to the heavy network load because the ADSL speed is low.

Smart Viewer in operation is disconnected.



If you change information such as time, network setup, HDD format, Default Setup, or HDD attachment or detachment for your DVR, the current Smart Viewer will be automatically disconnected.



Check the network connection. Smart Viewer, if disconnected from the network, will try reconnection up to 5 times. If it remains unconnected after 5 time trials, it will automatically give up connection.



As far as your DVR is connected to the ADSL network, you may be disconnected from Smart Viewer when the network conditions go

worse.

SHR-5162_Eng.indb 77 2007-06-18 ｿﾀﾀ・11:50:41

78_ appendix

PROBLEM SOLUTION

The Audio icon of Smart Viewer is left deactivated in Live mode. Setting Audio to On in the Camera menu of your DVR will make no difference.



If your PC has no Audio driver or has some problem with Audio play by an Audio driver, the Audio icon will be deactivated. Please check Audio driver installation status.

When selecting the channel which PTZ Camera is connected to in the Live mode of Smart Viewer, click the “Menu Control” button among PTZ setup buttons to enter the Function Menu mode in PTZ Camera, and return from the other channel, the PTZ related buttons have been initialized.



PTZ control is available in both Smart Viewer and your DVR. Other user might control the PTZ for your DVR to terminate the PTZ Camera Menu or Auto Pan/Scan/Pattern motions while you select the other channel. This may cause the initialization.

No Time Bar in the Search



Time Line can be converted into 2 modes, General (24 Hour Display) and Extension (2 Hour Display). In Extension mode, Time Bar may not be seen in the current time. Please enter General mode or click the LEFT or RIGHT button to search Time Bar.

“NO HDD” icon and error message pops up.



Please check the HDD connection status. If this problem persist without connection failure, contact the technical support for checking hard disk.

DVR device does not show what has been upgraded after adding a hard disk.



Make sure that the additional external HDD installed is one of the devices listed on the compatibility list of HDDs. The list of the compatible devices with Samsung DVR can be obtained from your vendor.

The connection status is not shown after connecting the external storage device, USB memory, USB HDD and such.



ake sure that the external storage device installed is

one of the storage devices listed on the compatibility list of storage devices. The list of the compatible devices with Samsung DVR can be obtained from your vendor.

SHR-5162_Eng.indb 78 2007-06-18 ｿﾀﾀ・11:50:41

11 APPENDIX

appendix _79

OPEN SOURCE LICENSE REPORT ON THE PRODUCT

This product uses software provided under the name of GPL and LGPL. You can receive the following GPL and LGPL source codes by email request to www.sec.co.kr.



GPL Software Kernel, Busybox, Sysvinit, dvd+rw-tools, cdrtools, dosfstools



LGPL Software gLibc, Inetutils

GNU GENERAL PUBLIC LICENSE

Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is i

ntended to guarantee your freedom to share and change free software to make sure the software is free for all its users. This General Public License applies to most of the Free Software Foundation’s software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Lesser General Public License instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs; and that you know you can do these things.

To protect your rights, we need to make restrictions that forbid anyone to deny you these r

ights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have. You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.

We protect your rights with two steps:

(1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software.

Also, for each author’s protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modified by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reflect on the original authors’ reputations. Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone’s free use or not licensed at all. The precise terms and conditions for copying, distribution and modification follow.

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICA

TION

0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The “Program”, below, refers to any such program or work, and a “work based on the Program” means either the Program or any derivative work under copyright law: that is to say, a work containing the Program or a portion of it, either verbatim or with modifications and/or translated into another language. (Hereinafter, translation is included without limitation in the term “modification”.) Each licensee is addressed as “you”.

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents

SHR-5162_Eng.indb 79 2007-06-18 ｿﾀﾀ・11:50:41

80_ appendix

constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.

1. You may copy and distribute verbatim copies of the Program’s source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and give any other recipients of the Program a copy of this License along with the Program. You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change.

b) You must cause any work that you distribute

or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.

c) If the modified program normally reads

commands interactively when run, you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception: if the Program itself is interactive but does not normally print such an announcement, your work based on the Program is not required to print an announcement.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Program, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim

rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Program.

In addition, mere aggregation of another work not based on the Program with the Program (or with a work based on the Program) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

3. You may copy and distribute the Program (or a work based on it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you also do one of the following:

a) Accompany it with the complete

corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,

b) Accompany it with a written offer, valid for

at least three years, to give any third party, for a charge no more than your cost of physically performing source distribution, a complete machine-readable copy of the corresponding source code, to be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange; or,

c) Accompany it with the information you

received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.)

The source code for a work means the preferred form of the work for making modifications to it. For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.

If distribution of executable or object code is made by offering access to copy from a d

esignated place, then offering equivalent access to copy the source code from the same place counts as distribution of the source code, even though third parties are not compelled to copy the source along with the object code.

4. You may not copy, modify, sublicense, or distribute the Program except as expressly provided under this License. Any attempt

SHR-5162_Eng.indb 80 2007-06-18 ｿﾀﾀ・11:50:41

11 APPENDIX

appendix _81

otherwise to copy, modify, sublicense or distribute the Program is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.

5. You are not required to accept this License, since you have not signed it. However, nothing else grants you permission to modify or distribute the Program or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Program (or any work based on the Program), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Program or works based on it.

6. Each time you redistribute the Program (or any work based on the Program), the recipient automatically receives a license from the original licensor to copy, distribute or modify the Program subject to these terms and conditions. You may not impose any further restrictions on the recipients’ exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties to this License.

7. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program.

If any portion of this section is held invalid or u

nenforceable under any particular circumstance, the balance of the section is intended to apply and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system, which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system

and a licensee cannot impose that choice. This section is intended to make thoroughly clear

what is believed to be a consequence of the rest of this License.

8. If the distribution and/or use of the Program is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Program under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

9. The Free Software Foundation may publish revised and/or new versions of the General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Program specifies a version number of this License which applies to it and “any later version”, you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Program does not specify a version number of this License, you may choose any version ever published by the Free Software Foundation.

10. If you wish to incorporate parts of the Program into other free programs whose distribution conditions are different, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

11. BECAUSE THE PROGRAM IS LICENSED

FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU. SHOULD THE PROGRAM PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING,

SHR-5162_Eng.indb 81 2007-06-18 ｿﾀﾀ・11:50:42

82_ appendix

REPAIR OR CORRECTION.

12. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE PROGRAM AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PROGRAM (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These T

erms to Your

New Programs

If you develop a new program, and you want it to be of the greatest possible use to the public, the best way to achieve this is to make it free software which everyone can redistribute and change under these terms. To do so, attach the following notices to the program. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the “copyright” line and a pointer to where the full notice is found. one line to give the program’s name and an idea of what it does. Copyright (C) yyyy name of author

This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with this program; if not, write to the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA. Also add information on how to contact you by electronic and paper mail.

If the program is interactive, make it output a short notice like this when it starts in an interactive mode:

Gnomovision version 69, Copyright (C) year name of author Gnomovision comes with ABSOLUTELY NO WARRANTY; for details type ‘show w’. This is free software, and you are welcome to redistribute it under certain conditions; type ‘show c’ for details.

The hypothetical commands ‘show w’ and ‘show c’ should show the appropriate parts of the General Public License. Of course, the commands you use may be called something other than ‘show w’ and ‘show c’; they could even be mouse-clicks or menu items--whatever suits your program.

You should also get your employer (if you work as a programmer) or your school, if any, to sign a “copyright disclaimer” for the program, if necessary. Here is a sample; alter the names:

Yoyodyne, Inc., hereby disclaims all copyright interest in the program ‘Gnomovision’ (which makes passes at compilers) written by James Hacker.

signature of Ty Coon, 1 April 1989 Ty Coon, President of Vice This General Public License does not permit incorporating your program into proprietary programs. If your program is a subroutine library, you may consider it more useful to permit linking proprietary applications with the library. If this is what you want to do, use the GNU Lesser General Public License instead of this License.

GNU LESSER GENERAL PUBLIC LICENSE

Version 2.1, February 1999 Copyright (C) 1991, 1999 Free Software Foundation, Inc. 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

[This is the first released version of the Lesser GPL. It also counts as the successor of the GNU Library Public License, version 2, hence the version number 2.1.]

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public Licenses are intended to guarantee your freedom to share

SHR-5162_Eng.indb 82 2007-06-18 ｿﾀﾀ・11:50:42

11 APPENDIX

appendix _83

and change free software to make sure the software is free for all its users.

This license, the Lesser General Public License, applies to some specially designated software p

ackages--typically libraries--of the Free Software Foundation and other authors who decide to use it. You can use it too, but we suggest you first think carefully about whether this license or the ordinary General Public License is the better strategy to use in any particular case, based on the explanations below.

When we speak of free software, we are referring to freedom of use, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for this service if you wish); that you receive source code or can get it if you want it; that you can change the software and use pieces of it in new free programs; and that

you are informed that you can do these things.

To protect your rights, we need to make restrictions that forbid distributors to deny you these rights or to ask you to surrender these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the library or if you modify it.

For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the rights that we gave you. You m

ust make sure that they, too, receive or can get the source code. If you link other code with the library, you must provide complete object files to the recipients, so that they can relink them with the library after making changes to the library and recompiling it. And you must show them these terms so they know their rights.

We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer you this license, which gives you legal permission to copy, distribute and/or modify the library.

To protect each distributor, we want to make it very clear that there is no warranty for the free library. Also, if the library is modified by someone else and passed on, the recipients should know that what they have is not the original version, so that the original author’s reputation will not be affected by problems that might be introduced by others.

Finally, software patents pose a constant threat to the existence of any free program. We wish to make sure that a company cannot effectively r

estrict the users of a free program by obtaining a restrictive license from a patent holder. Therefore, we insist that any patent license obtained for a version of the library must be consistent with the full freedom of use specified in this license.

Most GNU software, including some libraries, is covered by the ordinary GNU General Public License. This license, the GNU Lesser General Public License, applies to certain designated libraries, and is quite different from the ordinary

General Public License. We use this license for certain libraries in order to permit linking those libraries into non-free programs.

When a program is linked with a library, whether statically or using a shared library, the combination of the two is legally speaking a c

ombined work, a derivative of the original library. The ordinary General Public License therefore permits such linking only if the entire combination fits its criteria of freedom. The Lesser General P

ublic License permits more lax criteria for linking

other code with the library. We call this license the “Lesser” General Public

License because it does Less to protect the user’s freedom than the ordinary General Public License. It also provides other free software d

evelopers Less of an advantage over competing non-free programs. These disadvantages are the reason we use the ordinary General Public License for many libraries. However, the Lesser license provides advantages in certain special circumstances.

For example, on rare occasions, there may be a special need to encourage the widest possible use of a certain library, so that it becomes a de-facto standard. To achieve this, non-free programs must be allowed to use the library. A more frequent case is that a free library does the same job as widely used non-free libraries. In this case, there is little to gain by limiting the free library to free software only, so we use the Lesser General Public License.

In other cases, permission to use a particular library in non-free programs enables a greater number of people to use a large body of free software. For example, permission to use the GNU C Library in non-free programs enables many more people to use the whole GNU o

perating system, as well as its variant, the GNU/ Linux operating system.

Although the Lesser General Public License is Less protective of the users’ freedom, it does ensure that the user of a program that is linked with the Library has the freedom and the wherewithal to run that program using a modified version of the Library.

The precise terms and conditions for copying, distribution and modification follow. Pay close attention to the difference between a “work based on the library” and a “work that uses the library”. The former contains code derived from the library, whereas the latter must be combined with the library in order to run.

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICA

TION

0. This License Agreement applies to any

software library or other program which contains

SHR-5162_Eng.indb 83 2007-06-18 ｿﾀﾀ・11:50:42

84_ appendix

a notice placed by the copyright holder or other authorized party saying it may be distributed under the terms of this Lesser General Public L

icense (also called “this License”). Each licensee

is addressed as “you”. A “library” means a collection of software

functions and/or data prepared so as to be conveniently linked with application programs (which use some of those functions and data) to form executables.

The “Library”, below, refers to any such software library or work which has been distributed under these terms. A “work based on the Library” means either the Library or any derivative work under copyright law: that is to say, a work containing the Library or a portion of it, either verbatim or with modifications and/or translated straightforwardly into another language. (Hereinafter, translation is included without limitation in the term “modification”.)

“Source code” for a work means the preferred form of the work for making modifications to it. For a library, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control compilation and installation of the library.

Activities other than copying, distribution and modification are not covered by this License; they are outside its scope. The act of running a program using the Library is not restricted, and output from such a program is covered only if its contents constitute a work based on the Library (

independent of the use of the Library in a tool for writing it). Whether that is true depends on what the Library does and what the program that uses the Library does.

1. You may copy and distribute verbatim copies of the Library’s complete source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty; and distribute a copy of this License along with the Library.

You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

2. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and copy and distribute such modifications or work under the terms of Section 1 above, provided that you also meet all of these conditions:

The modified work must itself be a software library.

You must cause the files modified to carry prominent notices stating that you changed the files and the date of any change.

You must cause the whole of the work to

be licensed at no charge to all third parties under the terms of this License.

If a facility in the modified Library refers to a function or a table of data to be supplied by an application program that uses the facility, other than as an argument passed when the facility is invoked, then you must make a good faith effort to ensure that, in the event an application does not supply such function or table, the facility still operates, and performs whatever part of its purpose remains meaningful.

(For example, a function in a library to compute square roots has a purpose that is entirely well-defined independent of the application. Therefore, Subsection 2d requires that any application-supplied function or table used by this function must be optional: if the application does not supply it, the square root function must still compute square roots.)

These requirements apply to the modified work as a whole. If identifiable sections of that work are not derived from the Library, and can be reasonably considered independent and separate works in themselves, then this License, and its terms, do not apply to those sections when you distribute them as separate works. But when you distribute the same sections as part of a whole which is a work based on the Library, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it.

Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you; rather, the intent is to exercise the right to control the distribution of derivative or collective works based on the Library.

In addition, mere aggregation of another work not based on the Library with the Library (or with a work based on the Library) on a volume of a storage or distribution medium does not bring the other work under the scope of this License.

. You may opt to apply the terms of the ordinary

GNU General Public License instead of this License to a given copy of the Library. To do this, you must alter all the notices that refer to this License, so that they refer to the ordinary GNU General Public License, version 2, instead of to this License. (If a newer version than version 2 of the ordinary GNU General Public License has appeared, then you can specify that version instead if you wish.) Do not make any other change in these notices.

Once this change is made in a given copy, it is irreversible for that copy, so the ordinary GNU General Public License applies to all subsequent copies and derivative works made from that copy.

This option is useful when you wish to copy part

SHR-5162_Eng.indb 84 2007-06-18 ｿﾀﾀ・11:50:42

11 APPENDIX

appendix _85

of the code of the Library into a program that is not a library.

4. You may copy and distribute the Library (or a portion or derivative of it, under Section 2) in object code or executable form under the terms of Sections 1 and 2 above provided that you accompany it with the complete corresponding machine-readable source code, which must be distributed under the terms of Sections 1 and 2 above on a medium customarily used for software interchange.

If distribution of object code is made by offering access to copy from a designated place, then offering equivalent access to copy the source code from the same place satisfies the requirement to distribute the source code, even though third parties are not compelled to copy the source along with the object code.

5. A program that contains no derivative of any portion of the Library, but is designed to work with the Library by being compiled or linked with it, is called a “work that uses the Library”. Such a work, in isolation, is not a derivative work of the Library, and therefore falls outside the scope of this License.

However, linking a “work that uses the Library” with the Library creates an executable that is a derivative of the Library (because it contains portions of the Library), rather than a “work that uses the library”. The executable is therefore covered by this License. Section 6 states terms for distribution of such executables.

When a “work that uses the Library” uses material from a header file that is part of the Library, the object code for the work may be a derivative work of the Library even though the source code is not. Whether this is true is especially significant if the work can be linked w

ithout the Library, or if the work is itself a library. The threshold for this to be true is not precisely defined by law.

If such an object file uses only numerical parameters, data structure layouts and accessors, and small macros and small inline functions (ten lines or less in length), then the use of the object file is unrestricted, regardless of whether it is legally a derivative work. (Executables containing this object code plus portions of the Library will still fall under Section

6.) Otherwise, if the work is a derivative of the

Library, you may distribute the object code for the work under the terms of Section 6. Any executables containing that work also fall under Section 6, whether or not they are linked directly with the Library itself.

6. As an exception to the Sections above, you may also combine or link a “work that uses the Library” with the Library to produce a work

containing portions of the Library, and distribute that work under terms of your choice, provided that the terms permit modification of the work for the customer’s own use and reverse engineering for debugging such modifications.

You must give prominent notice with each copy of the work that the Library is used in it and that the Library and its use are covered by this License. You must supply a copy of this License. If the work during execution displays copyright n

otices, you must include the copyright notice for the Library among them, as well as a reference directing the user to the copy of this License. Also, you must do one of these things:

Accompany the work with the complete corresponding machine-readable source code for the Library including whatever changes were used in the work (which must be distributed under Sections 1 and 2 above); and, if the work is an executable linked with the Library, with the complete machine readable “work that uses the L

ibrary”, as object code and/or source code, so that the user can modify the Library and then relink to produce a modified executable containing the modified Library. (It is understood that the user who changes the contents of definitions files in the Library will not necessarily be able to recompile the application to use the modified definitions.)

Use a suitable shared library mechanism for linking with the Library. A suitable mechanism is one that (1) uses at run time a copy of the library already present on the user’s computer system, rather than copying library functions into the executable, and (2) will operate properly with a modified version of the library, if the user installs one, as long as the modified version is interfacecompatible with the version that the work was made with.

Accompany the work with a written offer, valid for at least three years, to give the same user the materials specified in Subsection 6a, above, for a charge no more than the cost of performing this distribution.

If distribution of the work is made by offering access to copy from a designated place, offer equivalent access to copy the above specified materials from the same place.

Verify that the user has already received a copy of these materials or that you have already sent this user a copy.

or an executable, the required form of the “work that uses the Library” must include any data and utility programs needed for reproducing the executable from it. However, as a special exception, the materials to be distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the

SHR-5162_Eng.indb 85 2007-06-18 ｿﾀﾀ・11:50:43

86_ appendix

executable. It may happen that this requirement contradicts

the license restrictions of other proprietary libraries that do not normally accompany the operating system. Such a contradiction means you cannot use both them and the Library together in an executable that you distribute.

7. You may place library facilities that are a work based on the Library side-by-side in a single library together with other library facilities not covered by this License, and distribute such a combined library, provided that the separate distribution of the work based on the Library and of the other library facilities is otherwise permitted, and provided that you do these two things:

Accompany the combined library with a copy of the same work based on the Library, uncombined with any other library facilities. This must be distributed under the terms of the Sections above.

Give prominent notice with the combined library of the fact that part of it is a work based on the Library, and explaining where to find the accompanying uncombined form of the same work.

8. You may not copy, modify, sublicense, link with, or distribute the Library except as expressly provided under this License. Any attempt otherwise to copy, modify, sublicense, link with, or distribute the Library is void, and will automatically terminate your rights under this License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance.

9. You are not required to accept this License, since you have not signed it. However, nothing e

lse grants you permission to modify or distribute the Library or its derivative works. These actions are prohibited by law if you do not accept this License. Therefore, by modifying or distributing the Library (or any work based on the Library), you indicate your acceptance of this License to do so, and all its terms and conditions for copying, distributing or modifying the Library or works based on it.

10. Each time you redistribute the Library (or any work based on the Library), the recipient automatically receives a license from the original l

icensor to copy, distribute, link with or modify the Library subject to these terms and conditions. You may not impose any further restrictions on the recipients’ exercise of the rights granted herein. You are not responsible for enforcing compliance by third parties with this License.

11. If, as a consequence of a court judgment or allegation of patent infringement or for any other

reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obligations under this License and any other p

ertinent obligations, then as a consequence you may not distribute the Library at all. For example, if a patent license would not permit royalty free redistribution of the Library by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Library.

If any portion of this section is held invalid or u

nenforceable under any particular circumstance, the balance of the section is intended to apply, and the section as a whole is intended to apply in other circumstances.

It is not the purpose of this section to induce you to infringe any patents or other property right claims or to contest validity of any such claims; this section has the sole purpose of protecting the integrity of the free software distribution system which is implemented by public license practices. Many people have made generous contributions to the wide range of software distributed through that system in reliance on consistent application of that system; it is up to the author/donor to decide if he or she is willing to distribute software through any other system and a licensee cannot impose that choice.

This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License.

12. If the distribution and/or use of the Library is restricted in certain countries either by patents or by copyrighted interfaces, the original copyright holder who places the Library under this License may add an explicit geographical distribution limitation excluding those countries, so that distribution is permitted only in or among countries not thus excluded. In such case, this License incorporates the limitation as if written in the body of this License.

13. The Free Software Foundation may publish revised and/or new versions of the Lesser General Public License from time to time. Such n

ew versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.

Each version is given a distinguishing version number. If the Library specifies a version number of this License which applies to it and “any later version”, you have the option of following the terms and conditions either of that version or of any later version published by the Free Software Foundation. If the Library does not specify a license version number, you may choose any version ever published by the Free Software

SHR-5162_Eng.indb 86 2007-06-18 ｿﾀﾀ・11:50:43

11 APPENDIX

appendix _87

Foundation.

14. If you wish to incorporate parts of the Library into other free programs whose distribution conditions are incompatible with these, write to the author to ask for permission. For software which is copyrighted by the Free Software Foundation, write to the Free Software Foundation; we sometimes make exceptions for this. Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally.

NO WARRANTY

15. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE LIBRARY, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE LIBRARY “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS T

O THE QUALITY AND PERFORMANCE OF THE LIBRARY IS WITH YOU. SHOULD THE LIBRARY PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION.

16. IN NO EVENT UNLESS REQUIRED BY APPLICABLE LAW OR AGREED TO IN WRITING WILL ANY COPYRIGHT HOLDER, OR ANY OTHER PARTY WHO MAY MODIFY AND/OR REDISTRIBUTE THE LIBRARY AS PERMITTED ABOVE, BE LIABLE TO YOU FOR DAMAGES, INCLUDING ANY GENERAL, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE LIBRARY (INCLUDING BUT NOT LIMITED TO LOSS OF DATA OR DATA BEING RENDERED INACCURATE OR LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

END OF TERMS AND CONDITIONS

How to Apply These T

erms to Your

New Libraries

If you develop a new library, and you want it to

be of the greatest possible use to the public, we recommend making it free software that everyone can redistribute and change. You can do so by permitting redistribution under these terms (or, alternatively, under the terms of the ordinary General Public License). To apply these terms, attach the following notices to the library. It is safest to attach them to the start of each source file to most effectively convey the exclusion of warranty; and each file should have at least the “copyright” line and a pointer to where the full notice is found. one line to give the library’s name and an idea of what it does. Copyright (C) year name of author

This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as published by the Free Software Foundation; either version

2.1 of the License, or (at your option) any later version.

This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without e

ven the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General Public License for more details.

You should have received a copy of the GNU Lesser General Public License along with this library; if not, write to the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA Also add information on how to contact you by electronic and paper mail. You should also get your employer (if you work as a programmer) or your school, if any, to sign a “copyright disclaimer” for the library, if necessary. Here is a sample; alter the names: Yoyodyne, Inc., hereby disclaims all copyright interest in the library ‘Frob’ (a library for tweaking knobs) written by James Random Hacker.

signature of Ty Coon, 1 April 1990 Ty Coon, President of Vice.

SHR-5162_Eng.indb 87 2007-06-18 ｿﾀﾀ・11:50:43

88_ appendix

OpenSSL LICENSE

* Copyright (c) 1998-2006 The OpenSSL Project. All rights reserved. * Redistribution and use in source and binary forms, with or without * modification, are permitted provided that the following conditions * are met: * 1. Redistributions of source code must retain the above copyright

* notice, this list of conditions and the following disclaimer. * 2. Redistributions in binary form must reproduce the above copyright

* notice, this list of conditions and the following disclaimer in * the documentation and/or other materials provided with the * distribution. * 3. All advertising materials mentioning features or use of this * software must display the following acknowledgment: * “This product includes software developed by the OpenSSL Project * for use in the OpenSSL Toolkit. (http://www. openssl.org/)” * 4. The names “OpenSSL Toolkit” and “OpenSSL Project” must not be used to * endorse or promote products derived from this software without * prior written permission. For written permission, please contact * openssl-core@openssl.org. * 5. Products derived from this software may not be called “OpenSSL” * nor may “OpenSSL” appear in their names without prior written * permission of the OpenSSL Project.

* 6. Redistributions of any form whatsoever must retain the following * acknowledgment: * “This product includes software developed by the OpenSSL Project * for use in the OpenSSL Toolkit (http://www. openssl.org/)” * THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT ‘‘AS IS’’ AND ANY * EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE * IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR * PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR * ITS CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,

* SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT * NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; * LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)

* HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, * STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) * ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED * OF THE POSSIBILITY OF SUCH DAMAGE. * ============================= * This product includes cryptographic software written by Eric Young * (eay@cryptsoft.com). This product includes software written by Tim * Hudson (tjh@cryptsoft.com). */ Original SSLeay License

-----------------------

/* Copyright (C) 1995-1998 Eric Young (eay@cryptsoft.com) * All rights reserved. * This package is an SSL implementation written * by Eric Young (eay@cryptsoft.com). * The implementation was written so as to conform with Netscapes SSL. * This library is free for commercial and noncommercial use as long as * the following conditions are aheared to. The following conditions * apply to all code found in this distribution, be it the RC4, RSA, * lhash, DES, etc., code; not just the SSL code. The SSL documentation * included with this distribution is covered by the same copyright terms * except that the holder is Tim Hudson (tjh@cryptsoft.com). * Copyright remains Eric Young’s, and as such any Copyright notices in * the code are not to be removed.

* If this package is used in a product, Eric Young should be given attribution * as the author of the parts of the library used. * This can be in the form of a textual message at program startup or * in documentation (online or textual) provided with the package. * Redistribution and use in source and binary forms, with or without * modification, are permitted provided that the following conditions * are met: * 1. Redistributions of source code must retain the copyright

* notice, this list of conditions and the following disclaimer. * 2. Redistributions in binary form must reproduce the above copyright

* notice, this list of conditions and the following disclaimer in the * documentation and/or other materials provided with the distribution. * 3. All advertising materials mentioning features or use of this software

* must display the following acknowledgement:

SHR-5162_Eng.indb 88 2007-06-18 ｿﾀﾀ・11:50:43

11 APPENDIX

appendix _89

* “This product includes cryptographic software written by * Eric Young (eay@cryptsoft.com)” * The word ‘cryptographic’ can be left out if the rouines from the library * being used are not cryptographic related :-). * 4. If you include any Windows specific code (or a derivative thereof) from * the apps directory (application code) you must include an acknowledgement: * “This product includes software written by Tim Hudson (tjh@cryptsoft.com)” * THIS SOFTWARE IS PROVIDED BY ERIC YOUNG ‘‘AS IS’’ AND * ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE * IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE * ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE * FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL * DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS * OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) * HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT * LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY * OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF

SHR-5162_Eng.indb 89 2007-06-18 ｿﾀﾀ・11:50:43

Samsung SHR-5162, SHR-5082 User Manual 2

Specifications and Main Features

Frequently Asked Questions

User Manual
