Samsung SHR-5042 User Manual

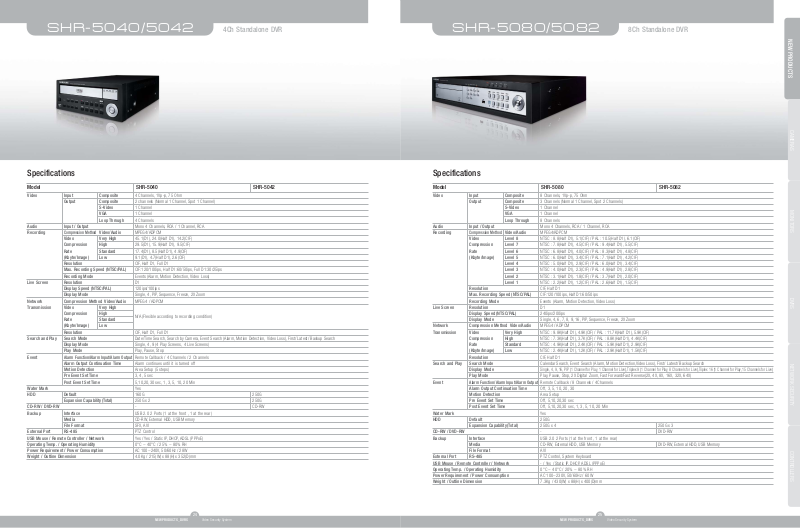

Specifications

Model SHR-5040 SHR-5042

Video Input Composite 4 Channels, 1Vp-p, 75 Ohm

Audio Input / Output Mono 4 Channels, RCA / 1 Channel, RCA
Recording

Live Screen Resolution D1

Network Compression Method Video/Audio MPEG4 / ADPCM
Transmission Video Very High

Search and Play Search Mode Date/Time Search, Search by Camera, Event Search (Alarm, Motion Detection, Video Loss), First/ Latest/ Backup Search

Event

Water Mark Yes
HDD Default 160G 250G

CD-RW / DVD-RW - CD-RW
Backup Interface USB 2.0 2 Ports (1 at the front , 1 at the rear)

External Port RS-485 PTZ Control
USB Mouse / Remote Controller / Network Yes / Yes / Static IP, DHCP, ADSL (PPPoE)
Operating Temp. / Operating Humidity 0°C ~ 40°C / 25% ~ 80% RH
Power Requirement / Power Consumption AC 100~240V, 50/60Hz / 28W
Weight / Outline Dimension 4.0Kg / 215(W) x 88(H) x 352(D)mm

Output Composite 2 channels (Normal 1 Channel, Spot 1 Channel)

Compression Method
Video Very High 45.1(D1), 24.0(Half D1), 14.2(CIF)
Compression High 29.5(D1), 15.9(Half D1), 9.5(CIF)
Rate Standard 17.4(D1), 8.5(Half D1), 4.9(CIF)
(Kbyte/Image) Low 9.1(D1), 4.7(Half D1), 2.6(CIF)
Resolution CIF, Half D1, Full D1
Max. Recording Speed (NTSC/PAL) CIF:120/100ips, Half D1:60/50ips, Full D1:30/25ips
Recording Mode Events (Alarm, Motion Detection, Video Loss)

Display Speed (NTSC/PAL) 120ips/100ips
Display Mode Single, 4, PIP, Sequence, Freeze, 2X Zoom

Compression High
Rate Standard
(Kbyte/Image) Low
Resolution CIF, Half D1, Full D1

Display Mode Single, 4, 9 (4 Play Screens, 4 Live Screens)
Play Mode Play, Pause, Stop
Alarm Function/Alarm Input/Alarm Output
Alarm Output Continuation Time Alarm continues until it is turned off
Motion Detection Area Setup (5 steps)
Pre Event Set Time 3, 4, 5 sec
Post Event Set Time 5,10,20,30 sec, 1, 3, 5, 10, 20 Min

Expansion Capability(Total) 250G x 2 250G

Media CD-RW, External HDD, USB Memory
File Format SFX, AVI

S-Video 1 Channel
VGA 1 Channel
Loop Through 4 Channels

Video/Audio MPEG4/ADPCM

N/A (Flexible according to recording condition)

Remote Callback / 4 Channels / 2 Channels
