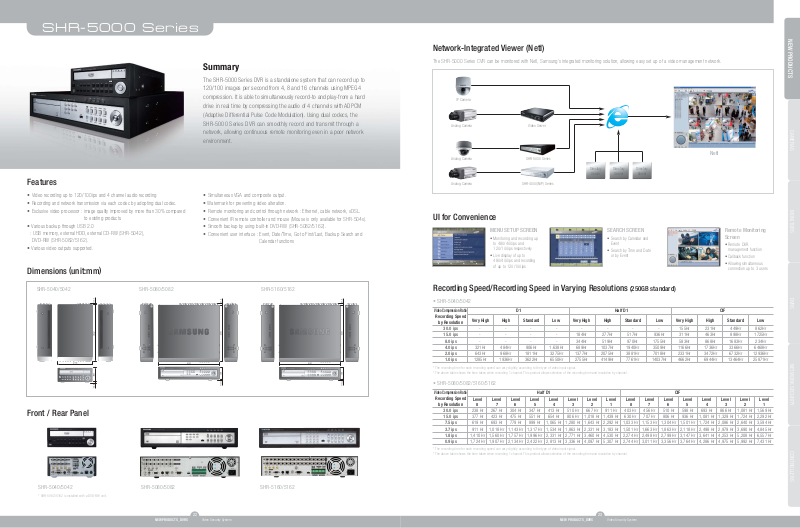

SHR-5000 Series
Network-Integrated Viewer (NetI)
Features
• Video recording up to 120/100ips and 4 channel audio recording
• Recording and network transmission via each codec by adopting dual codec.
• Exclusive video processor : image quality improved by more than 30% compared
to existing products.
• Various backup through USB 2.0
: USB memory, external HDD, external CD-RW (SHR-5042),
DVD-RW (SHR-5082/5162).
• Various video outputs supported.
Dimensions (unit:mm
)
Summary
The SHR-5000 Series DVR is a standalone system that can record up to
120/100 images per second from 4, 8 and 16 channels using MPEG4
compression. It is able to simultaneously record-to and play-from a hard
drive in real time by compressing the audio of 4 channels with ADPCM
(Adaptive Differential Pulse Code Modulation). Using dual codecs, the
SHR-5000 Series DVR can smoothly record and transmit through a
network, allowing continuous remote monitoring even in a poor network
environment.
• Simultaneous VGA and composite output.
• Watermark for preventing video alteration.
• Remote monitoring and control through network : Ethernet, cable network, xDSL.
• Convenient IR remote controller and mouse (Mouse is only available for SHR-504x).
• Smooth backup by using built-in DVD-RW (SHR-5082/5162).
• Convenient user interface : Event, Date/Time, Go to First/Last, Backup Search and
Calendar functions
The SHR-5000 Series CVR can be monitored with NetI, Samsung's integrated monitoring solution, allowing easy set up of a video management network.
IP Camera
Analog Camera
Analog Camera SHR-5000 Series
Analog Camera SHR-4000(N/P) Series
Video Server
Directory
Server
Directory
Server
Directory
Server
NetI
UI for Convenience
MENU SETUP SCREEN
• Monitoring and recording up
to 480/400ips and
120/100ips respectively
• Live display of up to
480/400ips and recording
of up to 120/100ips
SEARCH SCREEN
• Search by Calendar and
Event
• Search by Time and Date
or by Event
Remote Monitoring
Screen
• Remote DVR
management function
• Callback function
• Allowing simultaneous
connection up to 3 users
SHR-5040/5042 SHR-5080/5082 SHR-5160/5162
Front / Rear Panel
Recording Speed/Recording Speed in Varying Resolutions
(250GB standard)
• SHR-5040/5042
Video Compression Ratio
Recording Speed
by Resolution
30.0 ips - - - - - - - - 155Hr 231Hr 449Hr 862Hr
15.0 ips - - - - 184Hr 277Hr 517Hr 936Hr 311Hr 463Hr 898Hr 1725Hr
8.0 ips - - - - 344Hr 519Hr 970Hr 1755Hr 583Hr 868Hr 1683Hr 234Hr
4.0 ips 321Hr 484Hr 906Hr 1.638Hr 689Hr 1037Hr 1940Hr 3509Hr 1166Hr 1736Hr 3366Hr 6468Hr
2.0 ips 643Hr 968Hr 1811Hr 3275Hr 1377Hr 2075Hr 3881Hr 7018Hr 2331Hr 3472Hr 6732Hr 12936Hr
1.0 ips 1285Hr 1936Hr 3622Hr 6550Hr 2755Hr 4149Hr 7761Hr 14037Hr 4662Hr 6944Hr 13464Hr 25871Hr
* The recording time for each recording speed can vary slightly, according to the type of video input signal.
* The above table shows the time taken when recording 1 channel. This product allows selection of the recording time and resolution by channel.
Very High High Standard Low Very High High Standard Low Very High High Standard Low
D1 Half D1 CIF
• SHR-5080/5082/5160/5162
Video Compression Ratio
Recording Speed
by Resolution
30.0 ips 238 Hr 267 Hr 304 Hr 347 Hr 413 Hr 510 Hr 667 Hr 911 Hr 403 Hr 456 Hr 510 Hr 598 Hr 693 Hr 866 Hr 1,081 Hr 1,569 Hr
15.0 ips 377 Hr 423 Hr 475 Hr 551 Hr 654 Hr 806 Hr 1,018 Hr 1,439 Hr 630 Hr 707 Hr 806 Hr 936 Hr 1,081 Hr 1,329 Hr 1,724 Hr 2,292 Hr
7.5 ips 619 Hr 693 Hr 779 Hr 899 Hr 1,065 Hr 1,280 Hr 1,643 Hr 2,292 Hr 1,033 Hr 1,153 Hr 1,304 Hr 1,501 Hr 1,724 Hr 2,086 Hr 2,640 Hr 3,594 Hr
3.7 ips 911 Hr 1,018 Hr 1,143 Hr 1,317 Hr 1,534 Hr 1,863 Hr 2,331 Hr 3,183 Hr 1,501 Hr 1,663 Hr 1,863 Hr 2,118 Hr 2,498 Hr 2,979 Hr 3,690 Hr 4,845 Hr
1.8 ips 1,410 Hr 1,560 Hr 1,757 Hr 1,996 Hr 2,331 Hr 2,771 Hr 3,460 Hr 4,530 Hr 2,274 Hr 2,498 Hr 2,799 Hr 3,147 Hr 3,641 Hr 4,253 Hr 5,208 Hr 6,557 Hr
0.9 ips 1,724 Hr 1,907 Hr 2,134 Hr 2,422 Hr 2,813 Hr 3,336 Hr 4,097 Hr 5,307 Hr 2,744 Hr 3,011 Hr 3,356 Hr 3,764 Hr 4,286 Hr 4,975 Hr 5,992 Hr 7,431 Hr
* The recording time for each recording speed can vary slightly, according to the type of video input signal.
* The above table shows the time taken when recording 1 channel. This product allows selection of the recording time and resolution by channel.
Level Level Level Level Level Level Level Level Level Level Level Level Level Level Level Level
8765432187654321
Half D1 CIF
SHR-5040/5042
* SHR-5082/5162 is installed with a DVD-RW unit.
SHR-5080/5082 SHR-5160/5162
SHR-5040/5042
4Ch Standalone DVR
SHR-5080/5082
8Ch Standalone DVR
Specifications
Model SHR-5040 SHR-5042
Video Input Composite 4 Channels, 1Vp-p, 75 Ohm
Audio Input / Output Mono 4 Channels, RCA / 1 Channel, RCA
Recording
Live Screen Resolution D1
Network Compression Method Video/Audio MPEG4 / ADPCM
Transmission Video Very High
Search and Play Search Mode Date/Time Search, Search by Camera, Event Search (Alarm, Motion Detection, Video Loss), First/ Latest/ Backup Search
Event
Water Mark Yes
HDD Default 160G 250G
CD-RW / DVD-RW - CD-RW
Backup Interface USB 2.0 2 Ports (1 at the front , 1 at the rear)
External Port RS-485 PTZ Control
USB Mouse / Remote Controller / Network Yes / Yes / Static IP, DHCP, ADSL (PPPoE)
Operating Temp. / Operating Humidity 0°C ~ 40°C / 25% ~ 80% RH
Power Requirement / Power Consumption AC 100~240V, 50/60Hz / 28W
Weight / Outline Dimension 4.0Kg / 215(W) x 88(H) x 352(D)mm
Output Composite 2 channels (Normal 1 Channel, Spot 1 Channel)
Compression Method
Video Very High 45.1(D1), 24.0(Half D1), 14.2(CIF)
Compression High 29.5(D1), 15.9(Half D1), 9.5(CIF)
Rate Standard 17.4(D1), 8.5(Half D1), 4.9(CIF)
(Kbyte/Image) Low 9.1(D1), 4.7(Half D1), 2.6(CIF)
Resolution CIF, Half D1, Full D1
Max. Recording Speed (NTSC/PAL) CIF:120/100ips, Half D1:60/50ips, Full D1:30/25ips
Recording Mode Events (Alarm, Motion Detection, Video Loss)
Display Speed (NTSC/PAL) 120ips/100ips
Display Mode Single, 4, PIP, Sequence, Freeze, 2X Zoom
Compression High
Rate Standard
(Kbyte/Image) Low
Resolution CIF, Half D1, Full D1
Display Mode Single, 4, 9 (4 Play Screens, 4 Live Screens)
Play Mode Play, Pause, Stop
Alarm Function/Alarm Input/Alarm Output
Alarm Output Continuation Time Alarm continues until it is turned off
Motion Detection Area Setup (5 steps)
Pre Event Set Time 3, 4, 5 sec
Post Event Set Time 5,10,20,30 sec, 1, 3, 5, 10, 20 Min
Expansion Capability(Total) 250G x 2 250G
Media CD-RW, External HDD, USB Memory
File Format SFX, AVI
S-Video 1 Channel
VGA 1 Channel
Loop Through 4 Channels
Video/Audio MPEG4/ADPCM
N/A (Flexible according to recording condition)
Remote Callback / 4 Channels / 2 Channels
Specifications
Model SHR-5080 SHR-5082
Video Input Composite 8 Channels, 1Vp-p, 75 Ohm
Audio Input / Output Mono 4 Channels, RCA / 1 Channel, RCA
Recording
Live Screen Resolution D1
Network Compression Method Video/Audio MPEG4 / ADPCM
Transmission Video Very High NTSC : 9.8K(Half D1), 4.9K(CIF) / PAL : 11.7K(Half D1), 5.9K(CIF)
Search and Play Search Mode Calendar Search, Event Search (Alarm, Motion Detection,Video Loss), First/ Latest/ Backup Search
Event
Water Mark Yes
HDD Default 250G
CD-RW / DVD-RW - DVD-RW
Backup Interface USB 2.0 2 Ports (1 at the front , 1 at the rear)
External Port RS-485 PTZ Control, System Keyboard
USB Mouse / Remote Controller / Network - / Yes / Static IP, DHCP, ADSL (PPPoE)
Operating Temp. / Operating Humidity 0°C ~ 40°C / 20% ~ 80% RH
Power Requirement / Power Consumption AC 100~230V, 50/60Hz / 60W
Weight / Outline Dimension 7.3Kg / 430(W) x 88(H) x 400(D)mm
Output Composite 3 Channels (Normal 1 Channel, Spot 2 Channels)
Compression Method
Video Level 8 NTSC : 8.8(Half D1), 5.1(CIF) / PAL : 10.5(Half D1), 6.1(CIF)
Compression Level 7 NTSC : 7.8(Half D1), 4.5(CIF) / PAL : 9.4(Half D1), 5.5(CIF)
Rate Level 6 NTSC : 6.8(Half D1), 4.0(CIF) / PAL : 8.3(Half D1), 4.8(CIF)
(Kbyte/Image) Level 5 NTSC : 6.0(Half D1), 3.4(CIF) / PAL : 7.1(Half D1), 4.2(CIF)
Resolution CIF, Half D1
Max. Recording Speed (NTSC/PAL) CIF:120/100ips, Half D1:60/50ips
Recording Mode Events (Alarm, Motion Detection, Video Loss)
Display Speed (NTSC/PAL) 240ips/200ips
Display Mode Single, 4, 6, 7, 8, 9, 16, PIP, Sequence, Freeze, 2X Zoom
Compression High NTSC : 7.3K(Half D1), 3.7K(CIF) / PAL : 8.8K(Half D1), 4.4K(CIF)
Rate Standard NTSC : 4.9K(Half D1), 2.4K(CIF) / PAL : 5.9K(Half D1), 2.9K(CIF)
(Kbyte/Image) Low NTSC : 2.4K(Half D1), 1.2K(CIF) / PAL : 2.9K(Half D1), 1.5K(CIF)
Resolution CIF, Half D1
Display Mode
Play Mode Play, Pause, Stop, 2X Digital Zoom, Fast Forward/Fast Reverse(2X, 4X, 8X, 16X, 32X, 64X)
Alarm Function/Alarm Input/Alarm Output
Alarm Output Continuation Time Off, 3, 5, 10, 20, 30
Motion Detection Area Setup
Pre Event Set Time Off, 5,10,20,30 sec
Post Event Set Time Off, 5,10,20,30 sec, 1, 3, 5, 10, 20 Min
Expansion Capability(Total) 250G x 4 250G x 3
Media CD-RW, External HDD, USB Memory DVD-RW, External HDD, USB Memory
File Format AVI
S-Video 1 Channel
VGA 1 Channel
Loop Through 8 Channels
Video/Audio MPEG4/ADPCM
Level 4 NTSC : 5.0(Half D1), 2.9(CIF) / PAL : 6.0(Half D1), 3.4(CIF)
Level 3 NTSC : 4.0(Half D1), 2.3(CIF) / PAL : 4.9(Half D1), 2.8(CIF)
Level 2 NTSC : 3.1(Half D1). 1.8(CIF) / PAL : 3.7(Half D1), 2.0(CIF)
Level 1 NTSC : 2.2(Half D1), 1.2(CIF) / PAL : 2.6(Half D1), 1.5(CIF)
Single, 4, 9, 16, PIP (1 Channel for Play, 1 Channel for LIve),Triplex 9 (1 Channel for Play, 8 Channels for Live),Triplex 16 (1 Channel for Play, 15 Channels for Live)
Remote Callback / 8 Channels / 4Channels
SHR-5160/5162
16Ch Standalone DVR
Specifications
Model SHR-5160 SHR-5162
Video Input Composite 16 Channels, 1Vp-p, 75 Ohm
Audio Input / Output Mono 4 Channels, RCA / 1 Channel, RCA
Recording
Live Screen Resolution D1
Network Compression Method Video/Audio MPEG4 / ADPCM
Transmission Video Very High NTSC : 9.8K(Half D1), 4.9K(CIF) / PAL : 11.7K(Half D1), 5.9K(CIF)
Search and Play Search Mode Calendar Search, Event Search (Alarm, Motion Detection,Video Loss), First/ Latest/ Backup Search
Event
Water Mark Yes
HDD Default 250G
CD-RW / DVD-RW - DVD-RW
Backup Interface USB 2.0 2 Ports (1 at the front , 1 at the rear)
External Port RS-485 PTZ Control, System Keyboard
USB Mouse / Remote Controller / Network - / Yes / Static IP, DHCP, ADSL (PPPoE)
Operating Temp. / Operating Humidity 0°C ~ 40°C / 20% ~ 80% RH
Power Requirement / Power Consumption AC 100~230V, 50/60Hz / 60W
Weight / Outline Dimension 7.3Kg / 430(W) x 88(H) x 400(D)mm
Output Composite 3 Channels (Normal 1 Channel, Spot 2 Channels)
Compression Method
Video Level 8 NTSC : 8.8(Half D1), 5.1(CIF) / PAL : 10.5(Half D1), 6.1(CIF)
Compression Level 7 NTSC : 7.8(Half D1), 4.5(CIF) / PAL : 9.4(Half D1), 5.5(CIF)
Rate Level 6 NTSC : 6.8(Half D1), 4.0(CIF) / PAL : 8.3(Half D1), 4.8(CIF)
(Kbyte/Image) Level 5 NTSC : 6.0(Half D1), 3.4(CIF) / PAL : 7.1(Half D1), 4.2(CIF)
Resolution CIF, Half D1
Max. Recording Speed (NTSC/PAL) CIF:120/100ips, Half D1:60/50ips
Recording Mode Events (Alarm, Motion Detection, Video Loss)
Display Speed (NTSC/PAL) 480ips/400ips
Display Mode Single, 4, 6 ,7, 9, PIP, Sequence, Freeze, 2X Zoom
Compression High NTSC : 7.3K(Half D1), 3.7K(CIF) / PAL : 8.8K(Half D1), 4.4K(CIF)
Rate Standard NTSC : 4.9K(Half D1), 2.4K(CIF) / PAL : 5.9K(Half D1), 2.9K(CIF)
(Kbyte/Image) Low NTSC : 2.4K(Half D1), 1.2K(CIF) / PAL : 2.9K(Half D1), 1.5K(CIF)
Resolution CIF, Half D1
Display Mode
Play Mode Play, Pause, Stop, 2X Digital Zoom, Fast Forward/Fast Reverse(2X, 4X, 8X, 16X, 32X, 64X)
Alarm Function/Alarm Input/Alarm Output
Alarm Output Continuation Time Off, 3, 5, 10, 20, 30
Motion Detection Area Setup
Pre Event Set Time Off, 5,10,20,30 sec
Post Event Set Time Off, 5,10,20,30 sec, 1, 3, 5, 10, 20 Min
Expansion Capability(Total) 250G x 4 250G x 3
Media CD-RW, External HDD, USB Memory DVD-RW, External HDD, USB Memory
File Format AVI
S-Video 1 Channel
VGA 1 Channel
Loop Through 16 Channels
Video/Audio MPEG4/ADPCM
Level 4 NTSC : 5.0(Half D1), 2.9(CIF) / PAL : 6.0(Half D1), 3.4(CIF)
Level 3 NTSC : 4.0(Half D1), 2.3(CIF) / PAL : 4.9(Half D1), 2.8(CIF)
Level 2 NTSC : 3.1(Half D1). 1.8(CIF) / PAL : 3.7(Half D1), 2.0(CIF)
Level 1 NTSC : 2.2(Half D1), 1.2(CIF) / PAL : 2.6(Half D1), 1.5(CIF)
Single, 4, 9, 16, PIP (1 Channel for Play, 1 Channel for LIve),Triplex 9 (1 Channel for Play, 8 Channels for Live),Triplex 16 (1 Channel for Play, 15 Channels for Live)
Remote Callback / 16 Channels / 4Channels
