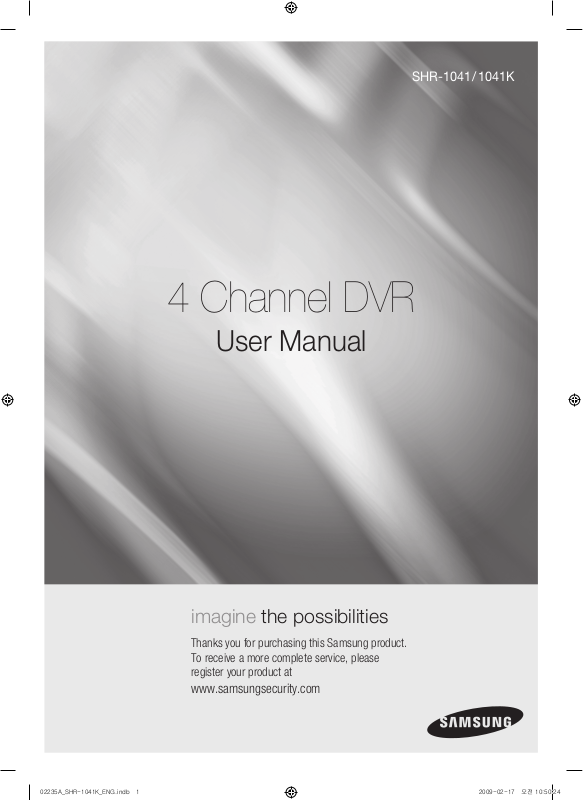

Samsung VKKF011NEX, SHR-1041 User Manual

4 Channel DVR

User Manual

SHR-1041/1041K

imagine the possibilities

Thanks you for purchasing this Samsung product. To receive a more complete service, please register your product at

www.samsungsecurity.com

overview

FEATURES

This product enables you to record 4 channels of camera image and voice source simultaneously. This feature provides an excellent picture quality for both real time monitoring and search.

You can also monitor remote videos or search for your previous recordings and change the menu settings of the

•

DVR via the network. As this product can bypass the Windows operating system to implement the DVR-speciﬁc operating system on its

•

hardware components, the overall operation is stable. This product compresses the 4 channels of camera input into a format of MPEG-4 before converting analog to

•

digital video, which enables you to make an effective use of your hard disk. You can use the remote control, mouse, search buttons on the front panel or a combination of them to perform

•

freeze, fast playback, backward playback as well as monitoring an event of detection such as time, motion and alarm.

It provides various recording modes including continuous, motion and alarm recordings.

•

Supports DDNS (use dynamic IP as like static IP)

•

USB Back Up

•

Separate resolution settings for each channel

•

Separate motion area settings for each channel

•

Supports a triplex tasking of Save and Remote View during a search.

•

Motion Detection Recording

•

Prevents unauthorized user control and data loss using the password system

•

Supports operations of the remote control and mouse

•

Ordinary BNC or DIY camera are supported

•

Real time recording in high quality and high frame rate (up to 30 frames: Based on 352 x 240)

•

Record and play in high quality (based on 704 x 480)

•

High/low speed search (search list/speed search)

•

Integrated alarm buzzer

•

Continuous recording in HDD Overwrite mode

•

2_ overview

IMPORTANT SAFETY INSTRUCTIONS

Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference.

Read these instructions.

1) Keep these instructions.

2) Heed all warnings.

3) Follow all instructions.

4) Do not use this apparatus near water.

5) Clean only with dry cloth.

6) Do not block any ventilation openings, Install in accordance with the manufacturer’s

7) instructions.

Do not install near any heat sources such as radiators, heat registers, stoves, or other

8) apparatus (including ampliﬁers) that produce heat.

Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has

9) two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. if the provided plug does not ﬁt into your outlet, consult an electrician for replacement of the obsolete outlet.

Protect the power cord from being walked on or pinched particularly at plugs, convenience

10) receptacles, and the point where they exit from the apparatus.

Only use attachments/accessories speciﬁed by the manufacturer.

11) Use only with the cart, stand, tripod, bracket, or table speciﬁed by the

12) manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Unplug this apparatus during lightning storms or when unused for long

13) periods of time.

Refer all servicing to qualiﬁed service personnel. Servicing is required when the apparatus has

14) been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

● OVERVIEW

English _3

4_ overview

overview

BEFORE START

This user’s manual provides Information for using DVR such as brief introduction, part names, functions, connection to other equipment, menu setup, and the like. You have to keep in mind the following notices:

•

SEC retains the copyright on this manual.

•

This manual cannot be copied without SEC’s prior written approval.

•

We are not liable for any or all losses to the product incurred by your use of non-standard product or violation of instructions mentioned in this manual.

•

If you want to open the case of your system for checking problems, please consult the expert from the shop where you bought the product.

•

You may download open source codes from the following website: www.samsungsecurity.com.

•

Before installing any external device such as external memory or HDD, please check the compatibility of the device with Samsung DVR. The list of the compatible devices with Samsung DVR can be obtained from your vendor.

•

Apparatus shall not be exposed to dripping or splashing and no objects ﬁlled with liquids, such as vases, shall be placed on the apparatus.

•

The Mains plug is used as a disconnect device and shall stay readily operable at any time.

Warning

❖

Battery

Exchanging a wrong battery in your product may cause an explosion. Therefore you must use the same type of battery as the one being used in the product. The following are the speciﬁcations of the battery you are using now.

•

Normal voltage: 3V

•

Normal capacity: 220mAh

•

Continuous standard load: 1.1uA Operating temperature: -20°C ~ +85°C

•

(-4°F ~ +185°F)

CALIFORNIA USA ONLY

This Perchlorate warning applies only to primary CR (Manganese Dioxide) Lithium coin cells in the product sold or distributed ONLY in California USA.

“Perchlorate Material - special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.”

❖

System Shutdown

Turning off the power while the product is in operation, or taking not permitted actions may cause damage to the hard drive or the product. Also it can cause a dysfunction to the hard disk while using the product. Please turn off the power using the Power button on the front of your DVR. After selecting <OK> in the pop-up menu, you can pull off the power cord. You may want to install a UPS system for safe operation in order to prevent damage caused by an unexpected power stoppage. (Any questions concerning UPS, consult your UPS retailer.)

❖

Operating Temperature

The guaranteed operating temperature range of this product is 0°C ~ 40°C (32°F ~ 104°F). This product may not work properly if you run right after a long period of storage at a temperature below the guaranteed one. When using the device after a long period of storage at low temperature, place the product at room temperature for a while and run it. Especially for the built-in HDD in the product, its guaranteed temperature range is 5°C ~ 55°C (41°F ~ 131°F). Likewise, the hard drive may not work at a temperature below the guaranteed one.

English _5

● OVERVIEW

Standards Approvals

DIGITAL VIDEO RECORDER SHR-1041

POWER

ALARM

REC

NETWORK

DISPLAY

of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15



equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Package Contents

Please unwrap the product, and place the product on a ﬂat place or in the place to be installed. Please check the following contents are included in addition to the main unit.

SHR-1041/1041K

SHR-1041 PS/2 Mouse Quick Guide

User Manual Remote Control/Battery(AAAX2) Ethernet Cable

SHR-1041K Only

Power Cable /Adaptor Standard Camera (2EA) Night-Vision Camera (2EA)

Camera Bracket (4EA) Sensor Connector (4EA) Camera Cable (4EA)

6_ overview

overview

CONTENTS

OVERVIEW

INSTALLATION

GETTING STARTED

LIVE

2 Features 3 Important Safety Instructions 4 Before Start 6 Contents

8 Part Names and Functions (Front) 9 Part Names and Functions (Rear) 10 Remote Controller 11 Standard Camera 12 Night-Vision Camera 13 Camera Bracket 14 Connecting with other Device

17 Starting the System 17 Login

18 Icons on the Live Screen 19 Live Screen Menu

BACKUP

21 Search

23 Archiving

English _7

● OVERVIEW

SETTINGS

24 System Setup 40 Record

WEB VIEWER

APPENDIX

44 Introduction 44 Connecting Web Viewer 46 Connecting DVR 48 Using Live Viewer 50 Remote Setup 52 Search

56 Product Speciﬁcation

installation

DIGITAL VIDEO RECORDER SHR-1041

POWER

ALARM

REC

NETWORK

DISPLAY

PART NAMES AND FUNCTIONS (FRONT)

Part Names Functions

POWER Used to turn on or off the system.

78 6

152 3 4

DISPLAY

Each time you press in Live mode, the screen will be switched in the sequence of 4-split, Single and Auto Sequence in order.

SERACH Goes to the search screen.

MENU Goes to the system menu screen.

DIRECTION ENTER

SPEED PLAYBACK

FREEZE RETURN

$%_+

)

(

: Used to select a system menu item.

: Selects and runs a menu item.

: Used for quick forward playback.

: Used for quick backward playback.

: Freezes the screen or resumes playing.

: Used to move one level up in the menu screen.

NETWORK

: Displays both network connection and data transfer status.

REC : Flashes while the recording is in progress.

LED

: Flashes if an event occurs.

ALARM

POWER

: Displays the status (ON/OFF) of power connection.

USB PORT Used to connect a USB storage device.

8_ installation

PART NAMES AND FUNCTIONS (REAR)

CH1

CH2

CH3

CH4

1 2 3 4

VIDEO IN

CAMERA IN

ALARM OUT

COM

VIDEO

OUT

AUDIO

OUT

VGA OUT

PS/2

MOUSE

NETWORK

DC 12V

1 2 3 4 5 6 7 8 9

Part Names Functions

VIDEO IN Composite video signal input port (BNC type port).

CAMERA IN RJ-11 port for camera input.

VIDEO OUT Composite video signal output port (BNC type port).

● INSTALLATION

AUDIO OUT

Audio signal output port (RCA jack).

VGA OUT Video output port for video output to a VGA monitor.

ALARM OUT Alarm output port

PS/2 MOUSE PS/2 type mouse connection port.

NETWORK

RJ-45 port for network connection.

DC INPUT (DC12V) Power connection port for 12V/4A adaptor

English _9

10_ installation

installation

REMOTE CONTROLLER

Switches to search mode for video search. At the moment,

you should select an authorized user and enter the password.

Turns on or off the system.

If you press a channel number in real time monitoring or

search mode, the camera’s input of the selected channel is

You will see various menu items including settings,

Used to move between menu items in searching for or playing

Selects a split mode. You can select one from full-screen,

SEARCH NAVIGATION

multi-split and sequence modes.

POWER

CHANNEL

displayed in full screen.

search and backup.

recorded video.

VIEW(DISP)

Performs the recording.

REC

BACKUP(ARCHIVING)

Switches to backup mode.

Used to separately control each DVR in a multi DVR system by setting a unique ID for each DVR.

PLAY

Plays the search screen or adjusts the speed.

RETURN

Cancels the setting and moves to the previous screen.

ENTER

Selects a menu item or applies your setting.

Changing the remote control ID

In a multi-DVR system using a single remote control, you can control only the DVR that matches the ID that you have set using the ID button.

Press the ID button to check the ID of each of "IR REMOTE CONTROLLER" and DVR.

The defaults are 00 for the SYSTEM ID and 00 for the REMOTE ID, respectively.



The REMOTE ID and the SYSTEM ID can only be checked in Live mode.



To change the REMOTE ID of the IR REMOTE CONTROLLER, press and hold the ID button while entering

a desired combination of two digits from 00 to 99. To change the ID of the DVR, refer to "CONTROL DEVICE > SYSTEM ID". (Page 36)

Press the ID button of the "IR REMOTE CONTROLLER" to check the ID.

If the system number deﬁned in "CONTROL DEVICE" is different from the number speciﬁed using the remote



control, no other button than the [ID] buttons will operate.

English _11

● INSTALLATION

STANDARD CAMERA

A surveillance camera is provided in addition to the main unit. Check the installation steps and the features of each camera.

Camera Part Names

Lens : Focal length of 3.8mm enables you to cover relatively longer range of monitoring.

Microphone : Transfers the onsite sound to the monitor.

Camera ﬁtting groove : Groove that is used to ﬁt the camera bracket.

There exist two grooves; one on the top and one on the bottom.

6-pin modular jack : Connects the camera to the monitor. See "Pin Setting" for the connection.

Sensor jack : Connects the sensor to the camera.

Speaker : Transfers out the audio signal incoming from the monitor.

Pin Setting

Speaker (-)

Video_Out

GND

Speaker (+)

Audio_Out / Alarm_Out

18V DC

Installing the

The camera can be installed on the wall, ceiling, shelf or a desired position using the provided bracket.

Select a position where you want to install the camera.

Make sure the selected position can sustain the weight of the camera.



Use the screw bolts (M4 X L15) to mount the camera bracket onto

the wall or ceiling.

Place the camera on the selected position and ﬁt the hole either on the top or the bottom of the camera into the ﬁxing bolt of the bracket, and turn the camera clockwise.

Camera

M4 x L15 sized screws

wall or ceiling

12_ installation

installation

NIGHT-VISION CAMERA

Equipped with the IR LED and the illumination sensor, enables you to monitor at night as well as in daytime. You can also use it indoors as well since it is designed for outdoor use.

Camera Part Names

Lens : Focal length of 3.8mm enables you to cover relatively longer range of monitoring.

Illunination Sensor : Detects incoming light to control the IR LED.

IR LED : This is an infrared LED that is controlled by the illumination sensor.

Camera ﬁtting groove : Groove that is used to ﬁt the camera bracket.

There exist two grooves; one on the top and one on the bottom.

Speaker : Transfers out the audio signal incoming from the monitor.

Sensor jack : Connects the sensor to the camera.

Microphone : Transfers the onsite sound to the monitor.

6-pin modular jack : Connects the camera to the monitor. See “Pin Setting” for the connection.

(page 11)

Installing the Night-Vision Camera

The camera can be installed on the wall, ceiling, shelf or a desired position using the provided bracket.

Select a position where you want to install the camera.

A place where it can tolerate 5 times of the total weight of the camera before



installing.

Use the screw bolts (M4 X L15) to mount the camera bracket onto the

wall or ceiling. Place the camera on the selected position and ﬁt the hole either on the

top or the bottom of the camera into the ﬁxing bolt of the bracket, and turn the camera clockwise.

M4 x L15 sized screws

wall or ceiling

English _13

● INSTALLATION

CAMERA BRACKET

Handle

The camera bracket can be used to install the camera on the wall, ceiling or shelf.

Camera Bracket Speciﬁcation

Use Indoor

Installation

Dimensions

Weight

Operating Temperature

Accessories

Wall or Ceiling

57(W) x 47.2(H) x 100.5(L) mm/

2.25(W) x1.86(H) x 3.95(L) inch

130g (0.29 lbs)

-10˚C ~ 50˚C (14˚F ~ 122˚F)

Screw (M4 X L15) : 3 pcs

Adjusting the Camera Bracket

Choose an installation site that can sufﬁciently support the weight of

the equipments to be installed. Attach the camera bracket to the wall using the supplied screws

(M4 X L15). 4x15 sized screws wall or ceiling.

Adjust the camera to target the video location and tighten the camera

bracket handle on the camera bracket. Install the camera on to the male screw of the camera bracket by rotating the camera in clockwise.

Loosen the handle by turning it in counter clockwise direction and then

adjust the camera position. Tighten the handle, turning it clock wise, and lock the camera in position.

Connect the camera cable to the camera.

Handle

14_ installation

installation

ALARM OUT

COM

PS/2

MOUSE

NETWORK

DC 12V

CH1

CH2

CH3

CH4

1 2 3 4

VIDEO IN

CAMERA IN

ALARM OUT

COM

VIDEO

OUT

AUDIO

OUT

VGA OUT

PS/2

MOUSE

NETWORK

DC 12V

CONNECTING WITH OTHER DEVICE

VIDEO IN

AUDIO OUT(AMP IN)

VIDEO OUT

CAMERA IN

(composite)

ALARM OUT

NETWORK

POWER

MOUSE

VIDEO OUT

(VGA)

Connecting Alarm Output and Relay

If activated, the alarm will output through the ALARM OUT port on the rear panel. Check the relay output type (Normal Open/Normal Close) and connect to the

appropriate port (NO/NC).

•

NO(Normal Open)

: Sensor is open in normal condition, it generates alarm if the

sensor is closed.

COM

: Connect the grounding cable.

NC(Normal Close)

: Sensor is closed in normal condition, it generates alarm if the

sensor is open by interruption.

Related Load

- AC : 125V 0.5A

- DC : 30V 1.0A

English _15

● INSTALLATION

Connecting to the Internet

DIGITAL VIDEO RECORDER SHR-1041

POWER

ALARM

REC

NETWORK

DISPLAY

Internet

Direct LAN (Fixed/Static IP)

IP Router or HUBCable/ADSL Modem

SHR-1041

LOCAL PC #1

Data Line : Video Line :

Connect LAN cable of Cable/ADSL modem or Direct Fixed/Static IP LAN Line to WAN port of IP Router.

Connect LAN ports of IP Router to Ethernet port SHR-1041 to be set up and to Ethernet port of Local PC

CAMERA

LOCAL PC #2

to use during setup. Connect Video cable of Camera to Monitor.

Turn on the Monitor power.

If you have a Static (Fixed) IP line or Dynamic IP line (Cable Modem or ADSL Modem) with one IP address (whether its



dynamic or ﬁ xed), but have more than one internet device to use (such as a PC and a SHR-1041 or several SHR-1041); you must use an IP Router (different from a simple Network Hub); You must set up the Router to work with the SHR-1041 and you must use a network capable PC within The local Router network to do the setup.

If you are using an existing Router which is already set up, you may not need to redo the basic setup of the Router



again, but it is highly recommended that you at least read all the instructions below and go through the steps. Whether you are using an existing Router or a new Router, you must go through the Port Forwarding portion of the setup.

installation

DIGITAL VIDEO RECORDER SHR-1041

POWER

ALARM

REC

NETWORK

DISPLAY

DIGITAL VIDEO RECORDER SHR-1041

POWER

ALARM

REC

NETWORK

DISPLAY

Connecting the Network

You can use the 10/100 Mbps Ethernet connector on the product to connect to the network. Connecting to the network enables you to perform various functions including remote monitoring, remote search and remote control.

DDNS Server

(websamsung.net)

Remote User PC #1 Remote User PC #N

Data Line : Video Line :

Internet

Cable/ADSL/VDSL

Direct LAN (Fixed/Static IP)

SHR-1041

CAMERA

IP Router or HUB

Local PC #1

Local PC #N

SHR-1041

16_ installation

getting started

CAM1 CAM2

CAM3

R OW

STARTING THE SYSTEM

Connect the power cable of the DVR to the wall outlet.

You will see the initialization screen.

The initialization process may take a while, depending on the condition of the DVR.

The Live screen appears.

● GETTING STARTED

To access a DVR or restricted menu, you should have logged in to the DVR.

If you start the system or try to access restricted menus, the login

dialog pops up.

Double-click any area on the screen or press the [ENTER] button on the



front panel to display the virtual keyboard. (Page 26)

Select a user and enter the password.

The default admin password is "4321".



Select <OK>.

If you have successfully logged in, the Live screen appears. The default screen is in 4-split mode with an option of continuous recording.

USER ADMIN

PASSWORD

OK CANCEL

2009/01/01 00:00:10

English _17

R OW

live

CAM1

R OW

ICONS ON THE LIVE SCREEN

The icons on the Live screen indicate the status of the system.

2009/01/01 00:00:10

Name Description

Camera Name Displays the name of the camera.

Recording Modes

Status Bar

To hide the status bar, set it to <OFF> in “SYSTEM SETUP>Display”. (Page 24)

2009/01/01 00:00:10

Indicates continuous recording.

Indicates alarm recording.

Indicates motion detection recording.

Indicates manual recording.

This box will turn green if an event recording is scheduled.

Displays the network connection status.

Displays the current time and date.

Displays the current operation of RECORD, HDD status and OVERWRITE setup.

18_ live

LIVE SCREEN MENU

CAM1 CAM2

CAM4CAM3

R OW

In Live mode, right-click any area or press the [MENU] button on the remote control to display the Live menu.

ARCHIVING

REC START

SEQUENCE

SYSTEM SETUP

RECORD SETUP

LOGOFF

SHUTDOWN

2009/01/01 00:00:10

● LIVE

Name Description

Searches for and plays recording data. Refer to “SEARCH”. (Page 21)

Searches for a backup device and perform the backup for each channel or at a

ARCHIVING

desired time. Refer to “ARCHIVING”. (Page 23)

REC START/STOP Starts/stops manual recording. (Page 43)

SEQUENCE

The screen will switch to Sequence mode. Refer to “SEQUENCE”. (Page 20)

SYSTEM SETUP

RECORD SETUP

LOGOFF

SHUTDOWN The system will shut down. (Page 4)

You can conﬁ gure the settings related to the system screen, camera name, sound, event and storage.

Refer to “SYSTEM SETUP”. (Page 24)

You can conﬁ gure the settings of scheduled recording and adjust the picture quality. Refer to “RECORD SETUP”. (Page 40)

Restricts access to any other menu than REC START/ STOP and SEQUENCE. Refer to “LOGOFF”. (Page 20)

English _19

live

CH1

CH2

CH3

CH2

CH3 CH4

CH4 CH5 CH6

CH2CH1

CAM1 CAM2

CAM4CAM3

R OW

CAM1 CAM2

CAM4CAM3

R OW

Sequence

The screen will switch to Sequence mode.

Press the [MENU] button on the front panel or right-click any area.

Select <SEQUENCE>.

The screen will switch to Sequence mode. Double-click any area or select <SEQUENCE> again to stop Sequence mode. Double-click it again to

switch back to split mode.

;

Press the [DISPLAY] button on the front panel or the [VIEW] button on the remote control to switch the mode to Split –



;

Single – Sequence in sequence.

Logoff

Restricts access to the system functions.

Press the [MENU] button on the front panel or right-click

any area. Select <LOGOFF>.

LOG OFF

You will see the "LOG OFF" dialog. Select one from <KEY LOCK> and <LOG OFF>.

KEY LOCK LOG OFF

You will see the conﬁ rmation window.

2009/01/01 00:00:10

KEY LOCK

Restricts use of buttons on the remote control and the front panel, and access to the Live menu. If you try to use a button on the front panel or the remote control, or access to the Live menu when you have set <KEY LOCK>, you will see the “SYSTEM” window.

To release the KEY LOCK, enter the password.



SYSTEM

USER ADMIN

PASSWORD

OK CANCEL

LOGOFF

Restricts access to SEARCH / ARCHIVING / SYSTEM SEPUP / RECORD SETUP / SHUTDOWN except for REC START and SEQUENCE. If you select <LOG OFF> and try to access the yellow-highlighted Live menu items of SEARCH / ARCHIVING / SYSTEM SETUP / RECORD SETUP / SHUTDOWN, you will see the “LOGIN” dialog.

20_ live

2009/01/01 00:00:10

CAM1 CAM2

CAM4CAM3

R OW

CAM1 CAM1

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

CAM1 CAM1

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

You can perform the search for recorded data by the time or by the search criteria such as an event.

Using the mouse may help easier selection of related items.

In Live screen, right-click any area.

The applicable menu appears.

ARCHIVING

REC START

SEQUENCE

SYSTEM SETUP

RECORD SETUP

LOGOFF

SHUTDOWN

2009/01/01 00:00:10

Click <SEARCH> in the menu or press [SEARCH] on the remote

control or the front panel. You will see the "LOGIN" dialog. You will see two options: <SEARCH BY TIME> and <SEARCH BY EVENT>. One cell in the time bar is equal to 15 minutes.

SEARCH BY TIME SEARCH BY EVENT

2009 1

S M T W T F S

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31

CH1 CH2 CH3 CH4

10 : 45 : 00 PLAY

● SEARCH

Search by Time

You can search for recording data on a speciﬁ c date or time. Using the mouse may help easier selection of related items.

Use the direction buttons (

and press the [ENTER] button. If any recording data is found for the search date, the recording portion in the time bar of each channel on that speciﬁ c time will be highlighted blue.

Set the date or time and select <PLAY>.

The selected data will be played.

$%_+

) to select a speciﬁ c date

SEARCH BY TIME SEARCH BY EVENT

2009 1

S M T W T F S

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31

CH1 CH2 CH3 CH4

10 : 45 : 00 PLAY

English _21

CAM2

CAM4CAM3

CHCH

CAM2

CAM4CAM3

CAM2

CAM4CAM3

CAM2

CAM4CAM3

CAM2

CAM4CAM3

CAM1 CAM1

CHCH

In a split screen, data of the selected channel will be

played. Use the play button bar on the bottom to adjust the speed.

Using the play button bar

•

When playback of the recoding data ends, a message of END OF VIDEO is displayed on the screen and a mark of <

[ ]

> is displayed in the status bar.

: Displays a list of channels available where you can switch the channel. (4-split, Channel 1, 2, 3, 4)

Plays backward in the following speed: (X2, X4, X8, X16, X32, X64)

Reduces the speed in forward playback.

Plays backward.

Starts or pauses playing temporarily.

Plays forward.

Plays forward in the following speed: (X2, X4, X8, X16, X32, X64) Reduces the speed in backward playback.

- : Returns to the previous screen.

To return to the previous screen, press the [RETURN] button on the remote control or the [ ] button

on the front panel.

2009/01/01 00:00:10 > x1

Search by Event

Select one from ALARM, MOTION, CONTINUOUS, OTHER and period for each channel to display information about the related data.

Using the mouse may help easier selection of related items.

Use the direction buttons (

event or period. Press <START> to start the search.

Information of DATE, TIME and LOG of the recording period will be displayed.

Double-click a desired item or use the direction buttons

(

$%_+

The selected data will be played.

$%_+

) to select a channel,

) to select one and press the [ENTER] button.

SEARCH BY TIME SEARCH BY EVENT

FROM

2009/01/01 00:00:01 2009/01/01 00:00:10

CH 1 CH 2 CH 3 CH 4

DATE TIME LOG

2009/01/01 00:00:10 LOCAL BEGIN:SEARCH:ADMIN 2009/01/01 00:00:09 CONTINUOUS RECORD START:CH 1 2009/01/01 00:00:08 MANUAL RECORD STOP:CH 1 2009/01/01 00:00:07 MANUAL RECORD START:CH 1 2009/01/01 00:00:06 CONTINUOUS RECORD STOP:CH 1 2009/01/01 00:00:05 LOCAL END:ARCHIVING:ADMIN 2009/01/01 00:00:04 LOCAL BEGIN:ARCHIVING:ADMIN

page 1 / 3

ALARM CONTINUOUS

START

MOTION OTHER

22_ search

backup

CAM1 CAM2

CAM4CAM3

R OW

CAM1 CAM1

CAM1

CAM1 CAM1

2008 / 10 / 27 16 : 15 : 26

START

2008 / 10 / 27 16 : 15 : 26

NO EXTERNAL DEVICE

ERASING&BURNING

CH 2

CH 3

CH 4

Include Log

CAM1 CAM1

You can check the backup data size and perform backup of a desired channel or at a desired time.

ARCHIVING

Using the mouse may help easier selection of related items.

In Live screen, right-click any area or press the [MENU] button

on the front panel or the remote control. The applicable menu appears.

Use the up/down button ($%/ENTER) to select <ARCHIVING>.

The backup window appears.

PREVIEW : Displays the size of a speciﬁ c backup data.

•

Include Audio : If selected, this will search for backup data

•

including audio ﬁ les. Include Log : If selected, this will search for backup data

•

including log information. DEVICE : Displays a connected backup device.

•

MODE

•

- ERASING & BURINING : If there remains data on the backup device, this will erase them and perform the backup.

- BURNING : If there remains data on the backup device, this will perform the backup on free space.

Use the direction buttons (

end times, and select <PREVIEW>. The "ARCHIVING PREVIEW" window appears.

ORIGINAL SIZE : Displays the backup data size for a speciﬁ c

•

period. CH : Displays the backup data size of the selected channel.

•

LOG : Displays the backup data size of the log ﬁ le.

•

Use the direction buttons (

and <MODE>, and click <START>. When done, goes back to the Archiving window.

$%_+

You must press the [RETURN] button for the item selected



using the <

> buttons before you can move to a different

/ENTER) to set the start and

menu item.

$%_+

/ENTER) to select <DEVICE>

ARCHIVING

REC START

SEQUENCE

SYSTEM SETUP

RECORD SETUP

LOGOFF

SHUTDOWN

2009/01/01 00:00:10

ARCHIVING

FROM TO

CH 1 CH 2 CH 3 CH 4

Include Audio Include Log

DEVICE MODE

ARCHIVING

FROM TO

CH 1 CH 2 CH 3 CH 4

DEVICE MODE

ARCHIVING

FROM TO

DEVICE MODE

2009 / 01 / 01 00 : 00 : 01 2009 / 01 / 01 00 : 00 : 10

NO EXTERNAL DEVICE

ERASING&BURNING

ARCHIVING PREVIEW

2008 / 10 / 27 16 : 15 : 26

ORIGINAL SIZE : 2M 872 K

2008 / 10 / 27 16 : 15 : 26

SIZE

CH 1 : 2M 475 K CH 2 : 0 K

Include Audio Include Log

CH 3 : 0 K CH 4 : 0 K LOG : 56B

NO EXTERNAL DEVICE

ERASING&BURNING

2008 / 10 / 27 16 : 15 : 26

Writing...

CH 2 CH 3 CH 4

25%

NO EXTERNAL DEVICE

STOP

ERASING&BURNING

● BACKUP

PREVIEW

START

PREVIEW

START

PREVIEW

START

English _23

settings

CAM1 CAM2

CAM4CAM3

R OW

CAM1 CAM2

CAM4CAM3

R OW

You can check or change the system related settings.

SYSTEM SETUP

You can conﬁ gure the settings of DISPLAY, CAMERA, SOUND, SYSTEM, EVENT/SENSOR and DISK MANAGE.

Display

You can conﬁ gure the settings of OSD and the monitor. Using the mouse may help easier selection of related items.



You must press the [RETURN] button for the item selected using the < different menu item.

In Live screen, right-click any area or press the [MENU] button on the front panel or the remote control.

Use the up/down buttons ($%/ENTER) to select <SYSTEM SETUP>. You will see the "LOGIN" dialog.

> buttons before you can move to a

ARCHIVING

REC START

SEQUENCE

SYSTEM SETUP

RECORD SETUP

LOGOFF

SHUTDOWN

2009/01/01 00:00:10

OSD

In the <SYSTEM SETUP> window, use the direction buttons (

$%_+

/ENTER) to select <DISPLAY>.

DISPLAY

SYSTEM

SYSTEM SETUP

CAMERA

EVENT/SENSOR

2009/01/01 00:00:10

SOUND

DISK MANAGE

24_ settings

In the <OSD> setup window, use the up/down buttons

CAM1 CAM1

($%/ENTER) to set a desired item.

STATUS BAR : Turns on or off the status bar on the

•

bottom of the Live screen. CAMERA TITLE : Turns on or off the display of a camera

•

name on the top left corner in the monitoring mode. EVENT ICON : Displays the recording status icon on

•

DISPLAY

OSD

MONITOR

STATUS BAR CAMERA TITLE EVENT ICON BORDER MOTION SENSOR DISPLAY MOTION COLOR LANGUAGE

ON ON ON ON

OFF

BLUE

ENGLISH

the top right corner. BORDER : Turns on or off the display of the border in a

•

APPLY UNDO

split mode. MOTION SENSOR DISPLAY : You can set the display

•

of the motion detection area to one of OFF/ACTIVE/INACTIVE. MOTION COLOR : Set the color of the motion among blue, green, red and yellow for detection area.

•

LANGUAGE : The player supports English, French and Spanish.

•

If you change the language setting, your changes will be applied after the system restarts.



Make your settings and click <APPLY> on the bottom.

Your settings will be applied.

MONITOR

In the <SYSTEM SETUP> window, use the direction

buttons ( Select <MONITOR> and use the up/down buttons

($%/ENTER) to select and set a desired item.

Make your settings and click <APPLY> on the bottom.

Your settings will be applied. When done, if you want to move to the previous menu, press the [RETURN] button on the front panel or

the remote control, or click < > on the top right corner.

$%_+

SEQUENCE DWELL : You can set the mode switch

•

interval for sequence dwell time.

1, 2, 3, 5, 10, 15, 20, 30, 40, 60 SEC



DEINTERACE MODE : It provides correcting option of

•

the screen trembling during playing in D1 size. ALARM POP-UP MODE : You can turn on or off the

•

/ ENTER) to select <DISPLAY>.

DISPLAY

OSD

SEQUENCE DWELL DEINTERACE MODE ALARM POP-UP MODE

MONITOR

ALARM POP-UP DWELL MOTION POP-UP MODE MOTION POP-UP DWELL 15 SEC

3 SEC

ON ON

5 SEC

OFF

APPLY UNDO

display of the alarm channel if an alarm occurs. ALARM POP-UP DWELL : You can set the duration of the alarm dwell time if an alarm occurs.

•

1, 2, 3, 5, 10, 15, 20, 30, 40, 60 SEC



MOTION POP-UP MODE : You can turn on or off the switching to the motion detecting channel’s full

•

screen mode if a motion is detected. MOTION POP-UP DWELL : You can set the dwell time of the motion pop-up.

•

This will display the motion popup for as much time as you speciﬁ ed and return to the split screen.

3, 5, 10, 15, 20, 30, 40, 60 SEC



If an alarm occurs or a motion is detected in more than one channel, the screen will switch to a split mode for the display.



● SETTINGS

English _25

26_ settings

settings

CAM1 CAM1

Camera

You can conﬁ gure the settings of CAMERA TITLE, COLOR SETUP and MOTION SENSOR, which will display on the DVR screen.

Using the mouse may help easier selection of related items.

different menu item.

In Live screen, right-click any area or press the [MENU]

You must press the [RETURN] button for the item selected using the <



button on the front panel or the remote control. Use the up/down buttons ($%/ENTER) to select

<SYSTEM SETUP>. You will see the "LOGIN" dialog.

> buttons before you can move to a

CAMERA

CAMERA TITLE

COLOR SETUP

MOTION SENSOR

COVERT

OFF

OFF OFF

3 4

OFF

TITLE

CAM1 CAM2 CAM3 CAM4

CAMERA TITLE

In the <SYSTEM SETUP> window, use the direction

buttons ( Select <CAMERA TITLE> and use the direction buttons

(

$%_+

•

When your settings are completed, click <APPLY> on the

$%_+

/ENTER) to select <CAMERA>.

/ ENTER) to select and set a desired item.

COVERT

- If set to <ON>, no information of the corresponding

channel will be displayed. However, it continues recording.

- If set to <OFF>, video input from the corresponding

camera will be displayed.

TITLE : Enter the name of the selected camera.

You can type in up to 11 bytes including spaces.



CAMERA

CAMERA TITLE

COLOR SETUP

MOTION SENSOR

VIRTUAL KEYBOARD

CAM1

@ # $ % ^ & * . -

└┘

1 2 3 4 5 6 7 8 9 0

A B C D E F G H I J

K L M N O P Q R S T

U V W X Y Z ( )

OK CANCEL

bottom. Your settings will be applied.

When done, if you want to move to the previous menu, press the [RETURN] button on the front panel or

the remote control, or click < > on the top right corner.

APPLY UNDO



APPLY UNDO

Using the Virtual Keyboard

Using the mouse may help easier selection of related items.

① Use the direction buttons (

press the [ENTER] button.

② Use the < > button to erase the previous character. ③ Use the < > button to toggle the letter case. ④ Complete your input and when done, click <OK> to close the virtual

keyboard.

$%_+

) to move to a desired character and

VIRTUAL KEYBOARD

CAM1

@ # $ % ^ & * . -

└┘

1 2 3 4 5 6 7 8 9 0

A B C D E F G H I J

K L M N O P Q R S T

U V W X Y Z ( )

OK CANCEL



English _27

● SETTINGS

COLOR SETUP

CAM1 CAM1

CAM1

CAM1 CAM1

In the <SYSTEM SETUP> window, use the direction

buttons ( Select <COLOR SETUP> and use the direction buttons

( If you select an item of which you want to change the

setting, you will see COLOR SETUP screen.

When your settings are completed, click <APPLY> on the

bottom. Your settings will be applied.

$%_+

You can adjust all settings from 0 to 100 for each channel in ﬁ ne



/ENTER) to select <CAMERA>.

/ENTER) to select a desired item.

tune mode, and the default is 50.

CHANNEL : Select a channel of which you want to set

•

the color. BRIGHTNESS : Adjusts the brightness of the monitor.

•

CONTRAST : Adjusts the contrast of the monitor.

•

TINT : Adjusts the luminance of the monitor.

•

COLOR : Adjusts the display color of the monitor.

•

CAMERA

CAMERA TITLE

COLOR SETUP

MOTION SENSOR

1 2 3 4

BRIGHTNESS

50 50 50 50

CONTRAST TINT COLOR

50 50 50 50

APPLY UNDO

50 50 50 50

50 50 50

MOTION SENSOR

This menu is enabled only if you have set the motion recording in “RECORD SETUP”.

In the <SYSTEM SETUP> window, use the left/right

buttons (_+) to select <CAMERA>. Select <MOTION SENSOR> and use the direction buttons

(

$%_+

•

/ ENTER) to set a desired item.

SENSITIVITY : Set the sensitivity of motion detection. You can adjust the sensitivity level from 1 to 10.

AREA : Select an area of motion to detect.

CHANNEL1BRIGHTNESS50CONTRAST50TINT50COLOR

CAMERA

CAMERA TITLE

COLOR SETUP

MOTION SENSOR

1 2 3 4

SENSITIVITY

5 5 5 5

AREA AREA AREA AREA

APPLY UNDO

28_ settings

settings

CAM1

MOTION SENSOR AREA

Select <AREA> on the right pane of the MOTION SENSOR window to display the MOTION SENSOR area setup screen. The borders of the selected MOTION SENSOR area cells will be shadowed.

Selecting an area with the mouse

❖

Click a desired cell or click a point and drag it to extend as much as you want.

- The selected area will be marked yellow.

Selecting an area on the front panel or

❖

the remote control

Click a cell and press the [ENTER] button, and use the direction buttons ( cell and press the [ENTER] button to select the area.

- The selected area will be marked yellow.

Area setup using the menu

❖

Right-click, or press the [RETURN] button on the front panel or the remote control to display the menu.

SELECT ALL : Selects all areas.

•

DESELECT ALL : Deselects all areas.

•

CANCEL : Cancels your settings.

•

SAVE & EXIT : Saves your settings and exits the menu.

•

EXIT : Exits the area setup menu.

•

$%_+

) to move to a desired

SELECT ALL

DESELECT ALL

CANCEL

SAVE & EXIT

EXIT

When your settings are completed, click <APPLY> on the bottom.

Your settings will be applied. When done, if you want to move to the previous menu, press the [RETURN] button on the front panel or

the remote control, or click < >on the top right corner.

Sound

You can conﬁ gure the settings of AUDIO and BUZZER. Using the mouse may help easier selection of related items.

different menu item.

In Live screen, right-click any area or press the [MENU] button on the front panel or the remote control. Use the up/down buttons ($%/ENTER) to select <SYSTEM SETUP>.

You will see the "LOGIN" dialog.

You must press the [RETURN] button for the item selected using the <



> buttons before you can move to a

English _29

● SETTINGS

AUDIO

CAM1 CAM1

In the <SYSTEM SETUP> window, use the direction

buttons ( Select <AUDIO> and use the up/down buttons

$%_+

/ENTER) to select <SOUND>.

($%/ENTER) to select and set a desired item.

LIVE AUDIO : Set the audio output.

•

However, the channel that is set to COVERT does not output



SOUND

AUDIO

LIVE AUDIO ON AUDIO MONITORING CHANNEL CH1

BUZZER

NETWORK AUDIO TX

sound. (page 26)

AUDIO MONITORING CHANNEL : Select an audio

•

APPLY UNDO

channel to monitor among voice signals incoming from audio ports 1 through 4.

NETWORK AUDIO TX : Turns on or off the function of the network audio output.

•

When your settings are completed, click <APPLY> on the bottom.

Your settings will be applied.

BUZZER

In the <SYSTEM SETUP> window, use the direction

buttons ( Select <BUZZER> and use the up/down buttons

($%/ENTER) to select and set a desired item.

When your settings are completed, click <APPLY> on the

bottom. Your settings will be applied.

When done, if you want to move to the previous menu, press the [RETURN] button on the front panel or

the remote control, or click < > on the top right corner.

$%_+

KEYPAD : Turns on or off the buzzer in manipulation of

•

/ENTER) to select <SOUND>.

the front buttons. REMOTE CONTROL : Turns on or off the buzzer in use

•

of the remote control.

SOUND

AUDIO

KEYPAD OFF REMOTE CONTROL OFF

BUZZER

APPLY UNDO

30_ settings

settings

CAM1 CAM1

System

You can conﬁ gure the settings of DATE/TIME, NETWORK, MAIL, USER MANAGEMENT, SYSTEM MANAGEMENT and CONTROL DEVICE.

Using the mouse may help easier selection of related items.

different menu item.

In Live screen, right-click any area or press the [MENU] button on the front panel or the remote control. Use the up/down buttons ($%/ENTER) to select <SYSTEM SETUP>.

You must press the [RETURN] button for the item selected using the <



> buttons before you can move to a

You will see the "LOGIN" dialog.

DATE/TIME

You can conﬁ gure the settings of the display time, time sync and time zone.

In the <SYSTEM SETUP> window, use the direction

buttons ( Select <DATE/TIME> and use the direction buttons

(

$%_+

•

$%_+

/ENTER) to select <SYSTEM>.

/ENTER) to select and set a desired item.

DATE TIME : Set the current time and date. DATE FORMAT : Set the date format.

YYYY/MM/DD, DD/MM/YYYY, MM/DD/YYYY



TIME FORMAT : Set the time format to either AM/PM 12 hours or 24 hours.

NETWORK TIME SERVER SETUP : Set the current time using the time server.

•

If you press the <SYNC.> button while connected to Internet, the time will be set from the time server. If the player has an existing recording data in the same time schedule, you are prompted to delete it.

Please check the followings if NTP does not work properly.



IP ADDRESS of NETWORK / GATEWAY ADDRESS of NETWORK / SUBNET MASK of NETWORK / 1ST DNS SERVER of NETWORK / 2ND DNS SERVER of NETWORK

TIME ZONE SETUP : Set the GMT standard time of your area.

•

D.S.T : Turn on or off the daylight saving time.

•

When your settings are completed, click <APPLY> on the bottom.

Your settings will be applied.

SYSTEM

DATE/TIME

NETWORK

MAIL

USER MANAGEMENT

SYSTEM MANAGEMENT

CONTROL DEVICE

DATE TIME DATE FORMAT TIME FORMAT

NETWORK TIME SERVER SETUP

TIME ZONE SETUP

2009 / 01 / 01 00 : 00 : 10

pool.ntp.org SYNC.

Europe / London ON

YYYY/MM/DD

24 HOUR

APPLY UNDO

D.S.T



If you want to change the time and date, you must have set DST to OFF.

+ 144 hidden pages
