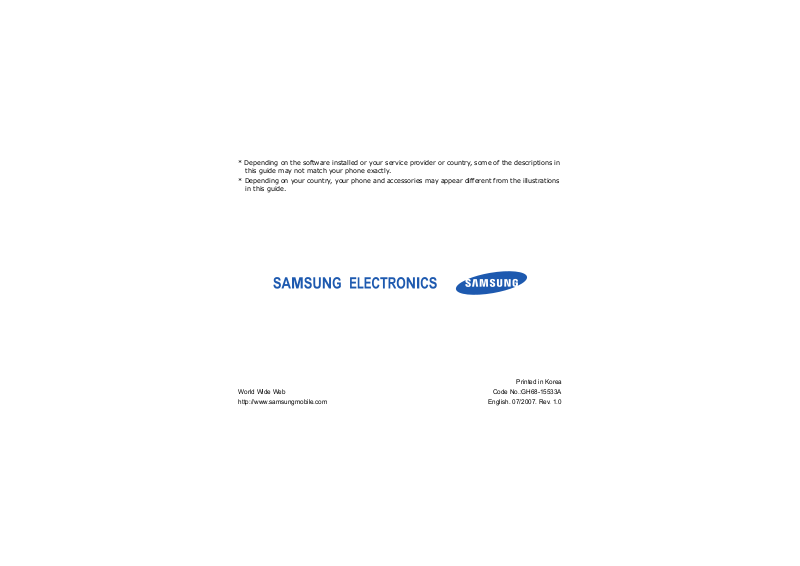

Page 1
* Depending on the software installed or your service provider or country, some of the descriptions in
this guide may not match your phone exactly.
* Depending on your country, your phone and accessories may appear different from the illustrations
in this guide.
Printed in Korea
World Wide Web
http://www.samsungmobile.com
Code No.:GH68-15533A
English. 07/2007. Rev. 1.0
Page 2
SGH-U708
User’s Guide
Page 3
Important safety
precautions
Failure to comply with the following
precautions may be dangerous or illegal.
Copyright information
• Bluetooth® is a registered trademark of the
Bluetooth SIG, Inc. worldwide.
Bluetooth QD ID: B012708
TM
•Java
• Picsel and Picsel Viewer
•Windows MediaPlayer
is a trademark or registered trademark
of Sun Microsystems, Inc.
Picsel Technologies, Inc.
trademark of Microsoft Corporation.
TM
are trademarks of
®
is a registered
Drive safely at all times
Do not use a hand-held phone while driving.
Park your vehicle first.
Switch off the phone when refuelling
Do not use the phone at a refuelling point
(service station) or near fuels or chemicals.
Switch off in an aircraft
Wireless phones can cause interference.
Using them in an aircraft is both illegal and
dangerous.
Switch off the phone near all medical
equipment
Hospitals or health care facilities may be
using equipment that could be sensitive to
external radio frequency energy. Follow any
regulations or rules in force.
Interference
All wireless phones may be subject to
interference, which could affect their
performance.
Page 4
Be aware of special regulations
Meet any special regulations in force in any
area and always switch off your phone
whenever it is forbidden to use it, or when it
may cause interference or danger.
Water resistance
Your phone is not water-resistant. Keep it
dry.
Sensible use
Use only in the normal position (held to your
ear). Avoid unnecessary contact with the
antenna when the phone is switched on.
Emergency calls
Key in the emergency number for your
present location, then press .
Keep your phone away from small
children
Keep the phone and all its parts, including
accessories, out of the reach of small
children.
Accessories and batteries
Use only Samsung-approved batteries and
accessories, such as headsets and PC data
cables. Use of any unauthorised accessories
could damage you or your phone and may
be dangerous.
• The phone could explode if the battery is
replaced with an incorrect type.
• Dispose of used batteries according to the
manufacturer’s instructions.
At very high volumes, prolonged
listening to a headset can damage
your hearing.
Use of authorised software
Use only Samsung-authorised software. The
use of any unauthorised software could
damage your phone.
Qualified service
Only qualified service personnel may repair
your phone.
For more detailed safety information, see
"Health and safety information" on page 33.
1
Page 5
About this Guide
This User’s Guide provides you with
condensed information about how to use
your phone.
In this guide, the following instruction icons
appear:
Indicates that you need to pay
careful attention to the subsequent
information regarding safety or
phone features.
→
Indicates that you need to press
the Navigation keys to scroll to the
specified option and then select it.
[ ] Indicates a key on the phone.
< > Indicates a soft key, whose function
2
For example, [ ]
is displayed on the phone screen.
For example, <
Select
>
Special
•3G
Your phone is capable of
operating in a 3G
environment, allowing
much greater data
transfer speed, video
streaming, and video
conferencing.
features of your phone
• Camera and camcorder
Use the camera module on
your phone to take a
photo or record a video.
• Synchronisation with
Windows Media Player
Transfer music files to
your phone directly from
Windows Media Player.
Page 6
• Music player
Play music files on your
phone.
•Java
Enjoy Java-based games
and download new games.
• Bluetooth
Transfer media files and
personal data, and
connect to other devices
using wireless Bluetooth
technology.
• File viewer
Open documents in
various formats on the
phone without corruption.
• Image editor
Edit or decorate your
photos.
• Digital data printing
Print images, messages,
and personal data directly
from your phone.
•Web browser
Access the wireless web to
get up-to-the-minute
information and a wide
variety of media content.
•Calendar
Keep track of your daily,
weekly, and monthly
schedule.
3
Page 7
Contents
Unpack 6
Make sure you have each item
Get started 6
First steps to operating your phone
Assemble and charge the phone ................. 6
Power on or off......................................... 7
Phone layout ............................................ 7
Keys and icons ......................................... 8
Access menu functions ............................ 11
Enter text .............................................. 12
Customise your phone............................. 14
Step outside the phone 16
Begin with call functions, camera, music player,
web browser, and other special features
Make or answer calls ............................... 16
Use the camera ...................................... 17
Play music ............................................. 18
Browse the web...................................... 20
Use Phonebook....................................... 21
Send messages ...................................... 21
4
View messages ....................................... 23
Use Bluetooth ......................................... 23
Switch applications .................................. 25
Menu functions 26
All menu options listed
Health and safety information 33
Page 8
Overview of menu functions
To access Menu mode, press [Centre] in Idle mode.
1 Call log
2 Phonebook
3 Music Player
4 Internet
1 Go to homepage
2 Enter URL
3 Bookmarks
4 Saved pages
5 History
6 Advanced
7 Browser settings
5 Messages
1 Create message
2 Inbox
3 Email inbox
4 Drafts
5 Outbox
6 Sentbox
7 My folders
8 Templates
9 Delete all
10 Messages settings
11 Memory status
6 My files
1 Images
2 Videos
3 Sounds
4 Games and more
5 Other files
6 Memory status
7 Calendar
8 Camera
9 Google
* Applications
1 Memo
2 Task
3 Voice recorder
4 World clock
5 Calculator
6 Converter
7 Timer
8 Stopwatch
9 RSS reader
10 SIM application
1
toolkit
0 Alarms
# Settings
1 Phone profiles
2 Time & date
3 Display & light
settings
4 Phone settings
5 Call settings
6 Security
7 Application settings
8 Network settings
9 Memory settings
10 Master reset
1. Available only if
supported by your USIM
or SIM card.
5
Page 9
Unpack
Make sure you have each item
• Phone
• Travel adapter
• Battery
•User’s Guide
You can obtain various accessories from
your local Samsung dealer.
• The items supplied with your phone
and the accessories available at your
Samsung dealer may vary, depending
on your country or service provider.
• Use the purchased accessories with
only Samsung-authorised devices. The
use of these accessories with other
devices could cause problems and any
repair costs would not be covered by
the warranty.
6
Get started
First steps to operating your phone
Assemble and charge the phone
To A C p o w er ou t l et
Page 10
Removing the battery cover
Phone layout
Front view
Earpiece
Power ke y
Front camera
lens
Power on or off
Switch on
Switch off
1. Open the phone.
2. Press and hold [ ].
3. If necessary, enter the
PIN and press
<
1. Open the phone.
2. Press and hold [ ].
Confirm
>.
Display
Menu access/
Confirm key
(Centre)
Left soft key
Video call key
Dial key
Volu me key s
Multi-function
Jack
Mouthpiece
Navigation keys
(Up/Down/Left/
Right)/Jog disc
Right soft key
Application switch key
Delete/Menu exit
key
Alphanumeric keys
Special function
keys
7
Page 11
Get started
Rear view
Mirror
Camera flash
Camera key
Memory card
slot
When you close the phone, it locks the
exposed keys to prevent any unwanted
phone operations from accidentally pressing
any of the keys. To unlock the keypad, press
Unlock
> and then <OK>.
<
8
Rear ca mera
lens
Keys and icons
Keys
Press and hold to switch the
phone on or off.
Perform the function indicated on
the bottom line of the display.
Make a video call.
Open the application switch
window to access other
applications without exiting the
current application.
In Idle mode, access your
favourite menus directly.
In Menu mode, scroll through
menu options. You can rotate the
jog disc to scroll through menu
options.
Page 12
In Idle mode, access Menu mode.
In Menu mode, select the
highlighted menu option or
confirm input.
Make or answer a call.
In Idle mode, retrieve the
numbers recently dialled, missed,
or received.
End a call.
Delete characters from the
display.
In Menu mode, cancel input and
return the phone to Idle mode.
Enter numbers, letters, and some
special characters.
In Idle mode, press and hold [1]
to access your voicemail server.
Press and hold [0] to enter an
international call prefix.
Enter special characters or
perform special functions.
In Idle mode, press and hold [ ]
to activate or deactivate the
Silent profile. Press and hold [ ]
to enter a pause between
numbers.
Adjust the phone volume.
In Idle mode, press and hold to
turn on the camera.
In Camera mode, take a photo or
record a video.
9
Page 13
Get started
Icons
The following icons may appear on the top
line of the screen to indicate your phone’s
status. Depending on your country or
service provider, the icons shown on the
display may vary.
Signal strength
Connecting to GPRS (2.5G)
network or transferring data in
GPRS (2.5G) network
Connecting to EDGE network or
transferring data in EDGE
network
Connecting to UMTS (3G)
network or transferring data in
UMTS (3G) network
Connecting to HSDPA (3G+)
network or transferring data in
HSDPA (3G+) network
Voice call in progress
10
Out of your service area
Video call in progress
Bluetooth active
Connected with PC via a USB
port
Memory card inserted
Browsing Internet
Connected to secured web page
New message:
• : Text message
• : Multimedia message
•: Email
•: Voicemail
•: Push message
• : Configuration message
Page 14
Profile setting:
•: Normal
•: Silent
•: Driving
•: Meeting
• : Outdoor
• : Offline
Battery power level
Access menu functions
Select an
option
Use menu
numbers
1. Press a desired soft key.
2. Press the Navigation keys
to move to the next or
previous option.
3. Press <
Select
or [Centre] to confirm the
function displayed or
option highlighted.
4. Press <
Back
up one level.
Press [ ] to return to
Idle mode.
Press the number key
corresponding to the option
you want.
>, <OK>,
> to move
11
Page 15
Get started
Enter text
Change the
text input
mode
Pinyin
mode
12
1. In the text entry screen,
press the right soft key.
2. Select the mode you
want.
To enter a word:
1. Press the keys
corresponding to the
Chinese phonetic spelling,
pinyin.
2. Press [Left] or [Right] to
select alternative pinyins.
3. Press [ ] for tones.
4. If necessary, press [Up]
or [Down] to find the
character you want.
5. Press [1]. Numbers are
added to each character.
6. Press the number key
corresponding to the
character.
Stroke
mode
Rapid character entry
When you enter a character,
words or phrases that are
frequently used with it display
automatically. This helps you
enter phrases or words with
minimal key presses.
To enter a word:
1. Press the keys
corresponding to a
character’s component
strokes.
2. If necessary, press [Up]
or [Down] to find the
character you want.
3. Press the number key
corresponding to the
character you want.
Page 16
Abc mode
T9 Abc
mode
Rapid character entry
When you enter a character,
words or phrases that are
frequently used with it display
automatically. This helps you
enter phrases or words with
minimal key presses.
To enter a word:
Press the appropriate key
until the character you want
appears on the display.
To enter a word:
1. Press [2] to [9] to start
entering a word.
2. Enter the whole word
before editing or deleting
characters.
3. When the word displays
correctly, press [ ] to
insert a space.
Otherwise, press [0] to
display alternative word
choices.
Number
mode
Symbol
mode
Other
operations
Press the keys corresponding
to the digits you want.
Press the corresponding
number key to select a
symbol.
•Press [1] to enter
punctuation marks or
special characters in Abc
mode or T9 Abc mode.
• Press [ ] to change case
or switch to Number mode
in Abc mode or T9 Abc
mode.
• Press [ ] to insert a
space.
• Press the Navigation keys
to move the cursor.
• Press [ ] to delete
characters one by one.
• Press and hold [ ] to
clear the entire display.
13
Page 17
Get started
Customise your phone
Display
language
Call ringer
melody
14
1. In Idle mode, press
[Centre] and select
Settings → Phone
settings → Language →
Screen text
2. Select a language.
3. Press <
To change the profile
properties:
1. In Idle mode, press
[Centre] and select
Settings → Phone
profiles
2. Scroll to the sound profile
you are using.
3. Press <
select
Select
.
Options
Edit
.
.
>.
> and
Key tone
volume
4. Select
Voice call
ringtone →
a category →
a ringtone.
5. Select
Video call
ringtone →
a category →
a ringtone.
6. Press <
select
Options
Save
> and
.
To change the sound profile:
1. In Idle mode, press
[Centre] and select
Settings → Phone
profiles
.
2. Select the profile you
want.
In Idle mode, press [ / ] to
adjust the key tone volume.
Page 18
Idle mode
wallpaper
Menu
shortcuts
1. In Idle mode, press
[Centre] and select
Settings → Display &
light settings →
Display settings →
Wallpaper → Pictures
→
Images
.
2. Select an image
category.
3. Select an image.
4. Press <
Set
>.
1. In Idle mode, press
[Centre] and select
Settings → Phone
settings → Shortcuts
2. Select a key.
3. Select a menu to be
assigned to the key.
Silent
profile
You can activate the Silent
profile to avoid disturbing
other people. In Idle mode,
press and hold [ ].
Phone lock
1. In Idle mode, press
[Centre] and select
Settings → Security →
Phone lock
.
2. Select On.
3. Enter a new 4- to 8-digit
password and press
<
Confirm
>.
4. Enter the new password
again and press
.
<
Confirm
>.
15
Page 19
Step outside the phone
Begin with call functions, camera, music player,
web browser, and other special features
Make or answer calls
Make a call
To make a voice call:
1. In Idle mode, enter an
area code and phone
number.
2. Press [ ].
Press [ / ] to adjust the
volume.
During a call, the
exposed keys are locked.
Press [Centre] to unlock
the keypad.
3. Press [ ] to end the
call.
Answer
a call
Use the
speakerphone
feature
To ma k e a v id e o c a ll :
1. In Idle mode, enter an
area code and phone
number.
2. Press [ ].
3. Press [ ] to end the
call.
1. When the phone rings,
press [ ].
If it is a video call, press
<
Show me
caller to see you via the
camera.
2. Press [ ] to end the
call.
During a voice call, press
[Centre] and then <
activate the speaker.
Press [Centre] again to
switch back to the earpiece.
> to allow the
Yes
> to
16
Page 20
Make a
multi-party
call
1. During a call, call the
second participant.
The first call is put on
hold.
2. Press <
select
Options
Join
.
> and
3. Repeat step 1 and 2 to
add more participants.
4. During a multi-party call:
•Press <
Options
and select
Split
>
to
have a private
conversation with one
participant.
•Press <
Options
and select
>
End →
Select participant →
a participant you
want to drop →
Drop
to drop one
participant.
5. Press [ ] to end the
multi-party call.
Use the camera
Take a
View a
1. In Idle mode, press and
hold [ ] to turn on the
camera.
2. Aim the lens at the
subject and make any
desired adjustments.
3. Press [Centre] or [ ] to
take a photo. The photo
is saved automatically.
4. Press < > to take
another photo.
1. In Idle mode, press
[Centre] and select
files → Images → My
photos
.
My
2. Select the photo you
want.
17
Page 21
Step outside the phone
18
Record
a video
View a
video
1. In Idle mode, press and
hold [ ] to turn on the
camera.
2. Press [1] to switch to
Recor d mode.
3. Press [Centre] or [ ] to
start recording.
4. Press [Centre] or [ ] to
stop recording. The video
is saved automatically.
5. Press <
Back
> to record
another video.
1. In Idle mode, press
[Centre] and select
My
files → Videos → My
video clips
.
2. Select the video you
want.
Play music
Copy music
files to the
phone
When inserting a memory card with a large
amount of files, your phone might work
rather slowly for a few minutes while
database updates. This may also affect some
phone functions. This problem is temporary
and is not a phone defect.
Use these methods:
• Download from the
wireless web.
• Download from a PC
using the optional
Samsung PC Studio. See
Samsung PC Studio
User’s Guide.
• Receive via Bluetooth.
• Copy to a memory card
and insert the card into
the phone.
• Synchronise music files
with Windows Media
Player. See the next
section.
Page 22
Synchronise
with
Windows
Media
Player
You can copy music files to
your phone by synchronising
with Windows Media Player
11.
1. In Idle mode, press
[Centre] and select
Settings → Phone
settings → USB
settings → Media
player
.
2. Connect your phone and
PC with an optional PC
data cable.
3. Select
Sync digital
media files to this
device
when a pop-up
window appears on your
PC.
4. Enter the name of your
phone and click
Finish
.
5. Select and drag the
music files you want to
the sync list.
6. Click
Start Sync
Play music
files
7. When synchronisation is
finished, disconnect the
phone from the PC.
1. In Idle mode, press
[Centre] and select
Music Player
.
2. Select a music category
→
a music file.
3. During playback, use the
following keys:
• Centre: pause or
resume playback.
• Left: return to the
previous file. Press
and hold to scan
backward in a file.
• Right: skip to the
next file. Press and
hold to scan forward
in a file.
19
Page 23
Step outside the phone
Create a
playlist
20
• Up: open the playlist.
• / : adjust the
volume.
• Jog disc: rotate to
scan forward or
backward in a file.
4. Press [Down] to stop
playback.
1. From the music player
screen, press <
and select
→ All → Playlists
2. Press <
select
Create playlist
Options
Open playlist
Options
> and
.
3. Enter the title of the
playlist and press
[Centre].
4. Press <
Back
> to return
to the list of music
categories.
5. Select a music category
and scroll to a music file.
6. Press <
Options
select
Add to playlist →
Selected
or
> and
Multiple
.
7. For Multiple, select the
files you want and press
<
Add
>.
8. Select the added playlist.
>
9. Press [Centre] to play
music.
Browse the web
.
Launch
the web
browser
Navigate
the web
In Idle mode, press < >.
The homepage of your
service provider opens.
• To scroll through browser
items, press [Up] or
[Down].
• To select an item, press
[Centre].
Page 24
• To return to the previous
page, press <
• To access browser
options, press
<
Use Phonebook
Add a
contact
1. In Idle mode, enter a
phone number and press
<
2. Select
Phonebook →
location →
3. For
number type.
4. Specify contact
information.
5. Press [Centre] or press
<
Save
contact.
Options
Options
Add to
Phone
Options
to save the
Back
>.
>.
>.
a memory
New
.
, select a
> and select
Find a
contact
1. In Idle mode, press
[Centre] and select
Phonebook
2. Enter the first few letters
of the name you want.
3. Select a contact.
4. Scroll to a number and
press [ ] to dial, or
press <
select
contact information.
Send messages
Send a text
message
1. In Idle mode, press
< > and select
message → Message
2. Enter the message text.
3. Press [Up] to move to the
recipient field.
Options
Edit
to edit
.
> and
Create
.
21
Page 25
Step outside the phone
Send a
multimedia
message
22
4. Enter destination
numbers.
5. Press <
select
Options
Send
to send the
> and
message.
1. In Idle mode, press < >
and select
message → Message
Create
.
2. Enter the message text.
3. Press <
Options
select
Add attachment
> and
.
4. Add a media file, contact,
calendar item, or
bookmark item.
5. Press <
select
Options
> and
Add subject
.
6. Enter the message
subject.
Send an
email
7. Press [Up] to move to the
recipient field.
8. Enter destination numbers
or email addresses.
9. Press <
select
Options
Send
> and
to send the
message.
1. In Idle mode, press
<> and select
message → Email
Create
.
2. Enter the email text.
3. Press <
Options
select
Add attachment
or
Create item
> and
.
4. Add a media file, contact,
calendar item, or
bookmark item.
5. Press [Up] to move to
the subject field.
6. Enter the email subject.
Page 26
7. Press [Up] to move to the
recipient field.
8. Enter email addresses.
9. Press <
select
email.
View messages
View a text
message
View a
multimedia
message
View an
email
1. In Idle mode, press
<> and select
2. Select a text message.
1. In Idle mode, press
<> and select
2. Select a multimedia
message.
1. In Idle mode, press
<> and select
inbox
2. Press <
select
Options
Send
to send the
.
Options
Download
> and
Inbox
Inbox
Email
> and
.
3. Select an email or a
header.
4. If you selected a header,
press <
Options
select
Retrieve
the body of the email.
Use Bluetooth
Your phone is equipped with Bluetooth
technology, enabling you to connect the
phone wirelessly to other Bluetooth devices
.
and exchange data with them, talk handsfree, or control the phone remotely.
.
Turn on
Bluetooth
1. In Idle mode, press
[Centre] and select
Settings → Network
settings → Bluetooth →
Activation → On
2. Select
My phone’s
visibility → On
other devices to locate
your phone.
> and
to view
.
to allow
23
Page 27
Step outside the phone
Search for
and pair
with a
Bluetooth
device
Send data
24
1. In Idle mode, press
[Centre] and select
Settings → Network
settings → Bluetooth →
My devices → Search
new device
.
2. Select a device.
3. Enter a Bluetooth PIN or
the other device’s
Bluetooth PIN, if it has
one, and press <OK>.
When the owner of the
other device enters the
same code, pairing is
complete.
1. Access an application,
such as
Phonebook, My
files, Calendar, Memo
or
Task
.
2. Select an item.
3. Press <
select
Send contact
Options
> and
detail via, Send via
Send → Bluetooth
Via bluetooth
.
, or
or
4. Search for and select a
device.
5. If necessary, enter the
Bluetooth PIN and press
<OK>.
Receive
data
1. When a device attempts
to access your phone,
press <
Yes
> to permit
the connection.
2. If necessary, press
<
Yes
> to confirm that
,
you are willing to receive.
Page 28
Switch applications
You can switch to other applications from a
menu, without closing the menu screen you
are using.
Switch to an
application
Available
applications
Close all
running
applications
1. While using a menu,
press [ ].
2. Select an application.
•
Call
: open the dialling
screen.
•
Messages
Messages
•
Internet
: access the
menu.
: launch the
web browser.
1. Press [ ].
2. Scroll to
3. Press <
End all?
Yes
>.
25
Page 29
Menu functions
All menu options listed
This section provides brief explanations of
menu functions on your phone.
Call log
Check the most recent calls dialled,
received, or missed.
Phonebook
Search for contact information stored in
Phonebook.
Music Player
Access and listen to all music files sorted by
criteria. You can also make your own music
playlists.
26
Internet
Menu Description
Go to
homepage
Enter URL Enter a URL address and
Bookmarks Save URL addresses in
Saved pages Access the list of pages
History Access the list of pages
Connect your phone to
the network and load the
homepage of the
wireless web service
provider.
access the associated
web page.
order to quickly access
web pages.
you have saved while
online.
you have accessed
recently.
Page 30
Menu Description
Advanced Clear the cache. Delete
cookies or set whether or
not they are stored.
Change the settings for
the web browser and
access version and
copyright information
about it.
Browser
settings
Select a connection
profile to be used for
accessing the wireless
web.
Messages
Menu Description
Create message Create and send text,
Inbox Access messages that
Email inbox Access emails that you
multimedia, or email
messages.
you have received.
have received.
Menu Description
Drafts Access messages that
you have saved to send
at a later time.
Outbox Access messages that
the phone is attempting
to send or has failed to
send.
Sentbox Access messages that
you have sent.
My folders Create new folders and
organise your messages.
Templates Make and use templates
of frequently used
messages or passages.
Delete all Delete messages in each
message folder all at
once.
Messages
settings
Set up various options
for using the messaging
services.
27
Page 31
Menu functions
Menu Description
Memory status Check information about
My files
Menu Description
Images, Videos,
Sounds, Other
files
Games and
more
Memory status Check information about
1. All rights and responsibilities for the Java-based games
embedded in your phone and media contents provided
by Samsung Fun Club, such as images, sounds, and
Java applications, belong to their respective owners.
28
the memory currently in
use.
1
Access media files and
other files stored in the
phone’s memory.
Access the embedded
Java games and
download Java
applications.
the memory currently in
use.
Calendar
Keep track of your schedule.
Camera
Use the camera embedded in your phone to
take photos and record videos.
Launch the Google search engine to find
information, news, images, or local services
from around the web. You can also use the
email service.
Applications
Menu Description
Memo Make memos for things
that are important and
manage them.
Task Make a list of tasks you
need to complete.
Page 32
Menu Description
Voice recorder Record voice memos and
any other sounds.
World clock Set your local time zone
and find out the current
time in another part of
the world.
Calculator Perform arithmetic
functions.
Converter Do conversions, such as
length and temperature.
Timer Set a period of time for
the phone to count
down.
Stopwatch Measure elapsed time.
RSS reader Save your favourite news
channels or blogs to
libraries and get the
latest news and updated
information from them
whenever you want.
Menu Description
SIM application
toolkit
Use a variety of
additional services
offered by your service
provider. Depending on
your USIM or SIM card,
this menu may be
available but labelled
differently.
Alarms
Set a wake-up call to wake you up in the
morning or an alarm to alert you to an event
at a specific time.
Settings
Menu Description
Phone profiles Change the sound
settings of the phone for
different events or
situations.
29
Page 33
Menu functions
Menu Description
Time & date Change the time and
date displayed on your
phone.
Display & light
settings
→
Display settings
→
Wallpaper
Display & light
settings
→
Display settings
→
Greeting
Change the background
image that is displayed
in Idle mode.
Enter the greeting that is
displayed briefly on the
display when the phone
is switched on.
message
Display & light
settings
→
Select a display style for
the main menu screen.
Display settings
→
Main menu
style
Display & light
settings
→
Display settings
→
Pop up list
Display the pop-up list
that shows the menu
options.
menu
30
Menu Description
Display & light
settings
→
Display settings
→
Dialling
Customise the settings
for the display while
dialling.
display
Display & light
settings
→
Display settings
→
Clock display
Select a clock type to be
displayed on the idle
screen. Selecting the
dual clock is avaliable
only when you add a
time zone of your choice
on the
World clock
menu.
Display & light
settings →
Light settings →
Adjust the brightness of
the display for varying
lighting conditions.
LCD brightness
Display & light
settings →
Light settings →
Backlight time
Select the length of time
the backlight or display
stays on when the phone
is not used.
Page 34
Menu Description
Display & light
settings →
Light settings →
Set how the phone
controls the use of the
keypad light.
Keypad l ight
Phone settings
→
Language
Select a language for the
display text. Also, select
Fuzzy pinyin pairs so that
you can easily enter
characters that are
similar in phonetic
spelling.
Phone settings
→
Shortcuts
Use the Navigation keys
as shortcuts to access
specific menus directly
from Idle mode.
Phone settings
→
Own number
Check your phone
numbers or assign a
name to each of the
numbers.
Phone settings
→
Volume key
function
Set how the phone
reacts if you press and
hold [ / ] when a call
comes in.
Menu Description
Phone settings
→
Slide settings
Set how the phone
reacts when you open it
for an incoming call, and
when you close it while
using a function.
Phone settings
→
USB settings
Select a USB mode that
will be used when you
connect your phone to
another device via USB
interface.
Call settings Set options for call
functions.
Security →
Phone lock
Activate your phone
password to protect your
phone against
unauthorised use.
Security → SIM
lock
Set the phone to work
only with the current
USIM or SIM card by
assigning a SIM lock
password.
31
Page 35
Menu functions
Menu Description
Security → PIN
lock
Activate your PIN to
protect your USIM or
SIM card against
unauthorised use.
Security →
Privacy lock
Lock access to
messages, files, call logs,
contacts, calendar,
memo, or tasks.
Security →
Fixed dialling
mode
Set the phone to restrict
calls to a limited set of
phone numbers, if
supported by your USIM
or SIM card.
Security →
Change phone
Change the phone
password.
password
Security →
Change the PIN.
Change PIN
code
Security →
Change the PIN2.
Change PIN2
code
32
Menu Description
Security →
Mobile tracker
Set the phone to send
the preset tracking
message to your family
or friends when someone
tries to use your phone
with another USIM or
SIM card. This feature
may be unavailable due
to certain features
supported by your
service provider.
Application
settings
Customise the settings
for using applications
available on the phone.
Network
settings →
Bluetooth
Network
settings →
Network
selection
Connect the phone
wirelessly to other
Bluetooth devices.
Select the network to be
used while roaming
outside of your home
area, or let the network
be chosen automatically.
Page 36
Menu Description
Network
settings →
Select the network you
use.
Network mode
Network
settings →
Preferred
networks
Network
settings →
Connections
Add a new network to
your preferred network
list, if your USIM or SIM
card supports it.
Create and customise
the profiles containing
the settings for
connecting your phone to
the network.
Memory
settings
Check information about
the memory currently in
use. You can also clear
the memory.
Master reset Reset the phone’s
settings you have
changed.
Health and safety information
SAR certification information
This phone meets European Union (EU)
requirements concerning exposure to radio waves.
Your mobile phone is a radio transmitter and
receiver. It is designed and manufactured to not
exceed the limits for exposure to radio-frequency
(RF) energy, as recommended by the EU Council.
These limits are part of comprehensive guidelines
and establish permitted levels of RF energy for the
general population. The guidelines were developed
by independent scientific organisations through the
periodic and thorough evaluation of scientific
studies. The limits include a substantial safety
margin designed to ensure the safety of all persons,
regardless of age and health.
The exposure standard for mobile phones employs
a unit of measurement known as Specific
Absorption Rate (SAR). The SAR limit
recommended by the EU Council is 2.0 W/kg.
1. The SAR limit for mobile phones used by the public is
2.0 watts/kil ogram (W/kg) averaged over ten grams of
body tissue. The limit incorporates a substantial margin
of safety to give additional protection for the public and
to account for any variations in measurements. The SAR
values may vary, depending on national reporting
requirements and the network band.
1
33
Page 37
Health and safety information
SAR tests are conducted using standard operating
positions with the phone transmitting at its highest
certified power level in all tested frequency bands.
Although the SAR is determined at the highest
certified power level, the actual SAR level of the
phone while operating can be well below the
maximum value. This is because the phone is
designed to operate at multiple power levels so as
to use only the power required to reach the
network. In general, the closer you are to a base
station, the lower the power output of the phone.
Precautions when using batteries
• Never use a charger or battery that is damaged
in any way.
• Use the battery only for its intended purpose.
• If you use the phone near the network’s base
station, it uses less power. Talk and standby
time are greatly affected by the signal strength
on the cellular network and the parameters set
by the service provider.
• Battery charging time depends on the remaining
battery charge, the type of battery, and the
charger used. The battery can be charged and
discharged hundreds of times, but it will
gradually wear out. When the operation time is
noticeably shorter than normal, it is time to buy
a new battery.
• If left unused, a fully charged battery will
discharge itself over time.
34
• Use only Samsung-approved batteries, and
recharge your battery only with Samsungapproved chargers. Disconnect the charger from
the power source when it is not in use. Do not
leave the battery connected to a charger for
more than a week, since overcharging may
shorten its life.
• Extreme temperatures will affect the charging
capacity of your battery: it may require cooling
or warming first.
• Do not leave the battery in hot or cold places
because the capacity and lifetime of the battery
will be reduced. Try to keep the battery at room
temperature. A phone with a hot or cold battery
may not work temporarily, even when the
battery is fully charged. Li-ion batteries are
particularly affected by temperatures below 0° C
(32° F).
• Do not short-circuit the battery. Accidental
short-circuiting can occur when a metallic object
like a coin, clip or pen causes a direct connection
between the + and – terminals of the battery
(metal strips on the battery). For example, do
not carry a spare battery in a pocket or bag
where the battery may contact metal objects.
Short-circuiting the terminals may damage the
battery or the object causing the shortcircuiting.
• Dispose of used batteries in accordance with
local regulations. Always recycle. Do not dispose
of batteries in a fire.
Page 38
Road safety
Your wireless phone gives you the powerful ability
to communicate by voice, almost anywhere,
anytime. But an important responsibility
accompanies the benefits of wireless phones, one
that every user must uphold.
When you are driving a car, driving is your first
responsibility. When using your wireless phone
while driving, follow local regulations in the country
or region you are in.
Operating environment
Remember to follow any special regulations in force
in the area you are in, and always switch off your
phone whenever it is forbidden to use it, or when it
may cause interference or danger.
When connecting the phone or any accessory to
another device, read its user’s guide for detailed
safety instructions. Do not connect incompatible
products.
As with other mobile radio transmitting equipment,
users are advised that for the satisfactory operation
of the equipment and for the safety of personnel, it
is recommended that the equipment should only be
used in the normal operating position (held to your
ear with the antenna pointing over your shoulder).
Electronic devices
Most modern electronic equipment is shielded from
radio frequency (RF) signals. However, certain
electronic equipment may not be shielded against
the RF signals from your wireless phone. Consult
the manufacturer to discuss alternatives.
Pacemakers
Pacemaker manufacturers recommend that a
minimum distance of 15 cm (6 inches) be
maintained between a wireless phone and a
pacemaker to avoid potential interference with the
pacemaker. These recommendations are consistent
with the independent research and
recommendations of Wireless Technology Research.
If you have any reason to suspect that interference
is taking place, switch off your phone immediately.
Hearing aids
Some digital wireless phones may interfere with
some hearing aids. In the event of such
interference, you may wish to consult your hearing
aid manufacturer to discuss alternatives.
Other medical devices
If you use any other personal medical devices,
consult the manufacturer of your device to
determine if it is adequately shielded from external
RF energy.
35
Page 39
Health and safety information
Your physician may be able to assist you in
obtaining this information.
Switch off your phone in health care facilities when
regulations posted in these areas instruct you to do
so.
Vehicles
RF signals may affect improperly installed or
inadequately shielded electronic systems in motor
vehicles. Check with the manufacturer or its
representative regarding your vehicle.
You should also consult the manufacturer of any
equipment that has been added to your vehicle.
Posted facilities
Switch off your phone in any facility where posted
notices require you to do so.
Potentially explosive environments
Switch off your phone when in any area with a
potentially explosive atmosphere, and obey all
signs and instructions. Sparks in such areas could
cause an explosion or fire resulting in bodily injury
or even death.
Users are advised to switch off the phone while at a
refuelling point (service station). Users are
reminded of the need to observe restrictions on the
use of radio equipment in fuel depots (fuel storage
and distribution areas), chemical plants, or where
blasting operations are in progress.
36
Areas with a potentially explosive atmosphere are
often but not always clearly marked. They include
the areas below decks on boats, chemical transfer
or storage facilities, vehicles using liquefied
petroleum gas, such as propane or butane, areas
where the air contains chemicals or particles, such
as grain, dust or metal powders, and any other
area where you would normally be advised to turn
off your vehicle engine.
Emergency calls
This phone, like any wireless phone, operates using
radio signals, wireless, and landline networks as
well as user-programmed functions, which cannot
guarantee connection in all conditions. Therefore,
you should never rely solely on any wireless phone
for essential communications like medical
emergencies.
To make or receive calls, the phone must be
switched on and in a service area with adequate
signal strength. Emergency calls may not be
possible on all wireless phone networks or when
certain network services and/or phone features are
in use. Check with local service providers.
To make an emergency call:
1. Switch on the phone.
2. Key in the emergency number for your present
location. Emergency numbers vary by location.
3. Press [ ].
Page 40
Certain features like Call Barring may need to be
deactivated before you can make an emergency
call. Consult this document and your local cellular
service provider.
Other important safety information
• Only qualified personnel should service the
phone or install the phone in a vehicle. Faulty
installation or service may be dangerous and
may invalidate any warranty applicable to the
device.
• Check regularly that all wireless phone
equipment in your vehicle is mounted and
operating properly.
• Do not store or carry flammable liquids, gases,
or explosive materials in the same compartment
as the phone, its parts, or accessories.
• For vehicles equipped with an air bag,
remember that an air bag inflates with great
force. Do not place objects, including installed or
portable wireless equipment, in the area over
the air bag or in the air bag deployment area.
Improperly installed wireless equipment could
result in serious injury if the air bag inflates.
• Switch off your phone before boarding an
aircraft. It is dangerous and illegal to use
wireless phones in an aircraft because they can
interfere with the operation of the aircraft.
• Failure to observe these instructions may lead to
the suspension or denial of telephone services to
the offender, or legal action, or both.
Care and maintenance
Your phone is a product of superior design and
craftsmanship and should be treated with care. The
suggestions below will help you fulfill any warranty
obligations and allow you to enjoy this product for
many years.
• Keep your phone and all its parts and
accessories out of the reach of small children
and pets. They may accidentally damage these
things or choke on small parts.
• Keep the phone dry. Precipitation, humidity, and
liquids contain minerals that corrode electronic
circuits.
• Do not use the phone with a wet hand. Doing so
may cause an electric shock to you or damage
to the phone.
• Do not use or store the phone in dusty, dirty
areas, as its moving parts may be damaged.
• Do not store the phone in hot areas. High
temperatures can shorten the life of electronic
devices, damage batteries, and warp or melt
certain plastics.
37
Page 41
Health and safety information
• Do not store the phone in cold areas. When the
phone warms up to its normal operating
temperature, moisture can form inside the
phone, which may damage the phone’s
electronic circuit boards.
• Do not drop, knock, or shake the phone. Rough
handling can break internal circuit boards.
• Do not use harsh chemicals, cleaning solvents,
or strong detergents to clean the phone. Wipe it
with a soft cloth.
• Do not paint the phone. Paint can clog the
device’s moving parts and prevent proper
operation.
• Do not put the phone in or on heating devices,
such as a microwave oven, stove, or radiator.
The phone may explode when overheated.
• When the phone or battery gets wet, the label
indicating water damage inside the phone
changes colour. In this case, phone repairs are
no longer guaranteed by the manufacturer's
warranty, even if the warranty for your phone
has not expired.
• If your phone has a flash or light, do not use it
too close to the eyes of people or animals. This
may cause damage to their eyes.
• Use only the supplied or an approved
replacement antenna. Unauthorised antennas or
modified accessories may damage the phone
and violate regulations governing radio devices.
38
• If the phone, battery, charger, or any accessory
is not working properly, take it to your nearest
qualified service facility. The personnel there will
assist you, and if necessary, arrange for service.
Loading...
