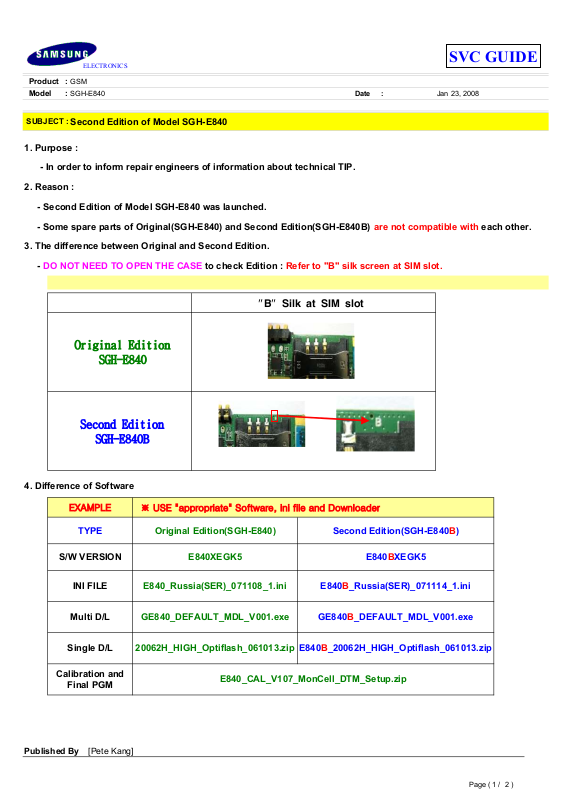

Samsung SGH-E840 Version: 01.23.2008. Schematic

SUBJECT :

ELECTRONICS

SVC GUIDE

Product :

Model :

GSM

SGH-E840

Date :

Jan 23, 2008

Second Edition of Model SGH-E840

1. Purpose :

- In order to inform repair engineers of information about technical TIP.

2. Reason :

- Second Edition of Model SGH-E840 was launched.

- Some spare parts of Original(SGH-E840) and Second Edition(SGH-E840B) are not compatible with each other.

3. The difference between Original and Second Edition.

DO NOT NEED TO OPEN THE CASE to check Edition : Refer to "B" silk screen at SIM slot.

-

"B" Silk at SIM slot

Original Edition

SGH-E840

Second Edition

SGH-E840B

4. Difference of Software

EXAMPLE

TYPE

S/W VERSION

Multi D/L

Single D/L 20062H_HIGH_Optiflash_061013.zip E840B_20062H_HIGH_Optiflash_061013.zip

Calibration and

Final PGM

※ USE "appropriate" Software, ini file and Downloader

Original Edition(SGH-E840)

E840XEGK5

Second Edition(SGH-E840B)

E840

B_Russia(SER)_071114_1.iniINI FILE E840_Russia(SER)_071108_1.ini

E840

GE840B_DEFAULT_MDL_V001.exeGE840_DEFAULT_MDL_V001.exe

E840_CAL_V107_MonCell_DTM_Setup.zip

BXEGK5

Published By

[Pete Kang]

Page ( 1 / 2 )

5. The way to distinguish Spare part

-

※ Above spare parts of Original and Second Edition are not compatible with each other.

Published By [Pete Kang]

Page ( 2 / 2 )
