Appendix Information
* Please refer to list
BUYER ELAUNIT - OPE PMO-WINDOWS PBA SUB-LIU
PANNEL PBA
SF-4700I/XAA JB96-01 141A JB72-00660A JB92-01049A
SF-4700I/XAC JB96-01141A JB72-00660A JB92-01049A
SF-4700I/XEC JB96-01141E JB72-00660D JB92-01049B
SF-4700I/XEP JB96-01141F JB72-00660E JB92-01049B
SF-4700I/XEU JB96-01141B JB72-00660A JB92-01049B
Exploded Views
Samsung Electronics
8-1
8. Exploded Views and Parts Lists
8-1. Main Assembly
Main Assembly Parts Lists
8-2. OPE Unit Assembly
OPE Unit Assembly Parts Lists
8-3. Mechanism Assembly
Mechanism Assembly Parts Lists
8-4. Scan Lower Assembly
Scan Lower Assembly Parts Lists
8-5. ASF Frame Assembly
ASF Frame Assembly Parts Lists
Exploded Views
Samsung Electronics8-2
8-1. Main Assembly
12
11
10
8
6
9-1
9-2
9
4-1
4-3
4-4
4-3
4-1
4-2
4
5
3
0
1
1-4
1-3
1-1
1-2
1-2-4
1-2-5
1-2-6
1-2-3
1-2-1
1-2-2
2
2-2
2-1
3-1
7
Exploded Views
Samsung Electronics
8-3
Main Assembly Parts Lists
Location No. Description SEC. Code Q’ty SA Remark
0 SET SF-4750 X
1 MEC-COVER TOP JB75-00179A 1 O
1-1 PMO-COVER TOP * 1 X
1-2 MEC-DOOR ASS’Y JB75-11 150F 1 O
1-2-1 PMO-DOOR * 1 X
1-2-2 PPR-SHEET DOOR * 1 X
1-2-3 PMO-GUIDE DOC L * 1 X
1-2-4 PMO-GUIDE DOC R * 1 X
1-2-5 SCREW-TAPTITE * 1 X
1-2-6 GEAR-PINION * 1 X
1-3 ELAM/MEDIO AUD-SPEAKER-ASS’Y JB96-01135B 1 O
1-4 SCREW-TAPTITE * 2 X
2 MEC-CHUTE JB75-00196A 1 O
2-1 PMO-DUMMY CHUTE * 1 X
2-2 PMO-CHUTE * 1 X
3 ELA UNIT-OPE refer the information 1 O
3-1 PMO-WINDOW PANNEL(LCD) refer the information 1 O
4 MEA ETC-WHITE ROLLER JG97-01035A 1 O
4-1 RING-C * 2 X
4-2 MEC-ROLLER CIS * 1 X
4-3 PMO-BUSHING WHITE * 2 X
4-4 PMO-GEAR DRIVER(B4) * 1 X
5 PRINT HEAD INK-M50 * 1 X
PRINT HEAD INK(C) * 1 X
6 MEA UNIT-MECHANISM(SEC) * 1 X
7 ELA UNIT-FRAME ASF * 1 X
8 SMPS-FV JB44-00008A 1 O
9 MEC-STACKER TX JB75-11152C 1 O
9-1 PMO-STACKER TX1 * 1 X
9-2 PMO-STACKER TX2 * 1 X
10 PBA SUB-LIU PBA refer the information 1 O
1 1 MEC-CASSETTE ASF JB75-00181A 1 O
12 ELAUNIT -FRAME SCAN LOWER JB96-01157A 1 0
S.A. : Service Available
O: Service available X: Service not available
Exploded Views
Samsung Electronics8-4
8-2. OPE Unit Assembly
1-19
1-20
2-3
1-17
1-18
1-16
1-5
1-4
1-8
1-11
1-12
1-7
1-15
1-10
1-6
1-13
1-14
1-10
1-1
1-3
1-2
1
2-12
2-5
2-11
2-6
2-10
2-4
2-14
2-9
2-13
2-2
2-15
2-12
2-7
2-1
2
0
Exploded Views
Samsung Electronics
8-5
OPE Unit Assembly Parts Lists
Location No. Description SEC. Code Q’ty SA Remark
0 ELA UNIT-OPE r e fe r th e i nf ormation 1 O
1 ELA HOU-OPE COVER * 1 X
1-1 PMO-OPE COVER * 1 X
1-2 PPR-COVER SHEET * 1 X
1-3 MPR-SHEET KEY * 1 X
1-4 RMO-RUBBER KEY TEL * 1 X
1-5 RMO-RUBBER KEY FUN * 1 X
1-6 RMO-RUBBER KEY ONE * 1 X
1-7 PMO-KEY CONTRAST * 1 X
1-8 PMO-KEY REPORT * 1 X ONLY 4750C
1-9 PMO-KEY TEL * 1 X
1-10 PMO-KEY MENU * 2 X
1-11 PMO-KEY START * 1 X
1-12 PMO-KEY STOP * 1 X
1-13 PMO-KEY OHD * 1 X
1-14 PMO-KEY ONE TOUCH * 1 X
1-15 PMO-KEY FUNCTION * 1 X
1-16 PBA SUB-OPE PBA JB92-01091A 1 O
1-17 SCREW-TAPPING * 9 X
1-18 SCREW-TAPTITE * 2 X
1-19 LCD DISPLAY JG07-20001A 1 O
1-20 PMO-WINDOWS PANNEL(LCD) r e fe r th e i nf ormation 1 O
2 ELA HOU-SCAN UPPER * 1 X
2-1 W/HARNESS-SCAN GND * 1 X
2-2 SPRING-ADF * 1 X
2-3 PMO-FRAME UPPER * 1 X
2-4 PMO-LEVER SENSOR * 1 X
2-5 PPR-SHEETADF * 1 X
2-6 RPR-RUBBER ADF * 1 X
2-7 MEC-PINCH * 1 X
2-8 PMO-ROLL PINCH * 2 X
2-9 PMO-SUPPORT ADF * 1 X
2-10 MEC-BRUSH ANTISTA TIC * 1 X
2-11 PMO-HOLDER RUBBER * 1 X
2-12 SCREW-TAPPING * 7 X
2-13 RPR-SPONGE ADF * 1 X
2-14 ICT-SHAFT PINCH * 1 X
2-15 MPR-GROUND SENSOR * 1 X
S.A. : Service Available
O: Service available X: Service not available
Exploded Views
Samsung Electronics8-6
8-3. Mechanism Assembly
14-4
13-1
10-1
10-2
10-4
10-3
10-3-4
10-3-3
10-3-1
10-3-2
10
10-3-4
6
4
5
3-1
3-4
3-2
3-3
3
14-2
14-3
14-5
14
14-1
14-8
14-6
14-7
8
13-2
13
9
7
5
11
12
1-3
1-1
1-2
1-4-1
1-4-3
1-4
1
2-4
2-7
2-10
2-5
2-6
2-8
2
2-1
2-2
0
2-5
1-4-2
2-9
Exploded Views
Samsung Electronics
8-7
Mechanism Assembly Parts Lists
Location No. Description SEC. Code Q’ty SA Remark
0 MEA UNIT MECHANISM(SEC) JB97-01285A 1 O
1 MEC-HOLDER ROLLER JB75-00205A 1 O
1-1 SPRING-ES ACTUATOR * 1 X
1-2 PMO-ACTUATOR FEED * 1 X
1-3 PMO-HOLDER ROLLER * 1 X
1-4 MEC-FRIC ROLLER * 4 X
1-4-1 SPRING-ES * 4 X
1-4-2 IRP-DEFLECTOR * 4 X
1-4-3 ICT-ROLLER FRICTION * 4 X
1-4-4 PMO-HOLDER FRICTION * 4 X
2 MEC-BRKT (LF MOTOR) JB75-00183A 1 O
2-1 SCREW-TAPTITE * 2 X
2-2 MOTOR-STEP LF JB31-10503A 1 O
2-3 MEC-PLATE LF * 1 X
2-4 GEAR-LF IDLE51 * 2 X
2-5 GEAR-LF IDLE75 * 1 X
2-6 RING-C * 1 X
2-7 BEARING-FEED L * 1 X
2-8 GEAR-DOUBLE 51/13(0.4/0.8) * 1 X
2-9 GEAR-IDLE SWING12(0.8) * 2 X
2-10 PMO-ARM(SWING GEAR 2X12) * 1 X
3 MEC-PULLEY IDLE JB75-11110A 1 O
3-1 SPRING-CC PULLEY * 1 X
3-2 ICT-SHAFT PULLEY IDLE * 1 X
3-3 PMO-PULLEY IDLE * 1 X
3-4 PMO-HOLDER PULLEY * 1 X
4 ICT-SHAFT CR JB70-40906A 1 O
5 SPRING-SHAFT CR JB61-70913A 2 O
6 MEA UNIT-CARRIAGE(SEC) JB97-01298A 1 O
7 BEARING-FEED R JB66-10002A 1 O
8 MEC-ROLLER FEED JB75-00062A 1 O
9 PPR-ENCODER JB72-00005A 1 O
10 MEC-FRAM BASE JB75-00170A 1 O
10-1 BELT-EXIT * 1 X
10-2 MEC-EXIT ROLLER * 1 X
10-3 MEC-HOLDER EXIT * 1 X
10-3-1 IPR-SPRING WHEEL * 1 X
10-3-2 PMO-HOLDER WHEEL * 1 X
10-3-3 MEA UNIT-WHEEL STAR * 6 X
10-3-4 SCREW-TAPPING * 2 X
10-4 MEC-SUB FRAME BASE * 1 X
11 ELAUNIT-C/R MOTOR JB96-01154A 1 O
12 PBA SUB-MAIN PBA JB92-01066C 1 O
13 MEC-FRAME MAIN * 1 X
S.A. : Service Available
O: Service available X: Service not available
Exploded Views
Samsung Electronics8-8
Location No. Description SEC. Code Q’ty SA Remark
13-1 IPR-FRAME MAIN * 1 X
13-2 SPRING-PS ENCODER * 1 X
14 MEC-FRAME HOME JB75-00174A 1 O
14-1 SPRING-CS * 2 X
14-2 SPRING-ES LATCH * 1 X
14-3 PMO-FRAME HOME * 1 X
14-4 PMO-LEVER LATCH * 1 X
14-5 PMO-SLED HOME * 1 X
14-6 RPR-RUBBER CAP HEAD * 2 X
14-7 PMO-HOLDER CAP * 2 X
14-8 RPR-RUBBER WIPE HEAD * 2 X
S.A. : Service Available
O: Service available X: Service not available
Exploded Views
Samsung Electronics
8-9
8-4. Scan Lower Assembly
0
13
13-3
13-1
13-2
13-5
13-8
13-6
13-3
13-5
13-7
13-6
11
12
10
3
2
2-1
2-2
2-3
8
9
7
6
7
1
1-5
1-1
1-4
1-6
1-3
1-7
1-2
4
5
5-6
5-5
5-5
5-1
5-2
5-3
Exploded Views
Samsung Electronics8-10
Scan LowerAssembly Parts Lists
Location No. Description SEC. Code Q’ty SA Remark
0 ELA UNIT-FRAME SCAN LOWER JB96-01157A 1 O
1 MEC-ROLLER ADF JG75-10016A 1 O
1-1 RING-C * 1 X
1-2 RING-C * 1 X
1-3 ICT-SHAFT ADF * 1 X
1-4 ICT-SPRING CLUTCH * 1 X
1-5 PMO-GEAR ADF * 1 X
1-6 PMO-BUSHING HOLDER * 1 X
1-7 MEC-ROLLER ADF * 1 X
2 MEA ETC-DRIVE ROLLER JG97-01040A 1 O
2-1 RING-C * 1 X
2-2 PMO-GEAR DRIVE * 1 X
2-3 PMO-DRIVE ROLLER * 1 X
3 PMO-SHAFT EXIT JG72-40042A 1 O
4 PMO-TIE STOPPER JG72-40717A 1 O
5 ELA UNIT-CIS JB96-01138A 1 O
5-1 CONTACT IMAGE SENSOR 0609-001125 1 O
5-2 SCREW-TAPPING * 1 X
5-3 W/HARNESS-CIS * 1 X
5-4 CBF HARNESS-CIS GND * 1 X
5-5 SPRING-CIS(C2) * 2 X
5-6 IPR-BRACKET CIS(D) * 1 X
6 PMO-BUSHING TX JB72-41372A 9 O
7 IPR-LOKER TX JB70-10958A 2 O
8 PMO-GUIDE FPC JB72-00424A 1 O
9 NPR-GROUND SPRING * 1 X
10 PMO-FRAME SCAN LOWER * 1 X
11 IPR-SUPPORT SCANNER * 1 X
12 SCREW-TAPPING * 4 X
13 ELA UNIT-SCAN MOTOR JB96-01140A 1 O
13-1 MOTOR-STEP JB73-00008A 1 O SF-4750
13-2 IPR-BRKE(SCAN MOTOR) * 1 X
13-3 RING-C * 3 X
13-4 SCREW-TAPTITE * 3 X
13-5 GEAR-IDLE25 * 2 X
13-6 GEAR-IDLE17/27 * 2 X
13-7 GEAR-IDLE20/33 * 1 X
13-8 GEAR-IDLE17/35 * 1 X
S.A. : Service Available
O: Service available X: Service not available
Exploded Views
Samsung Electronics
8-11

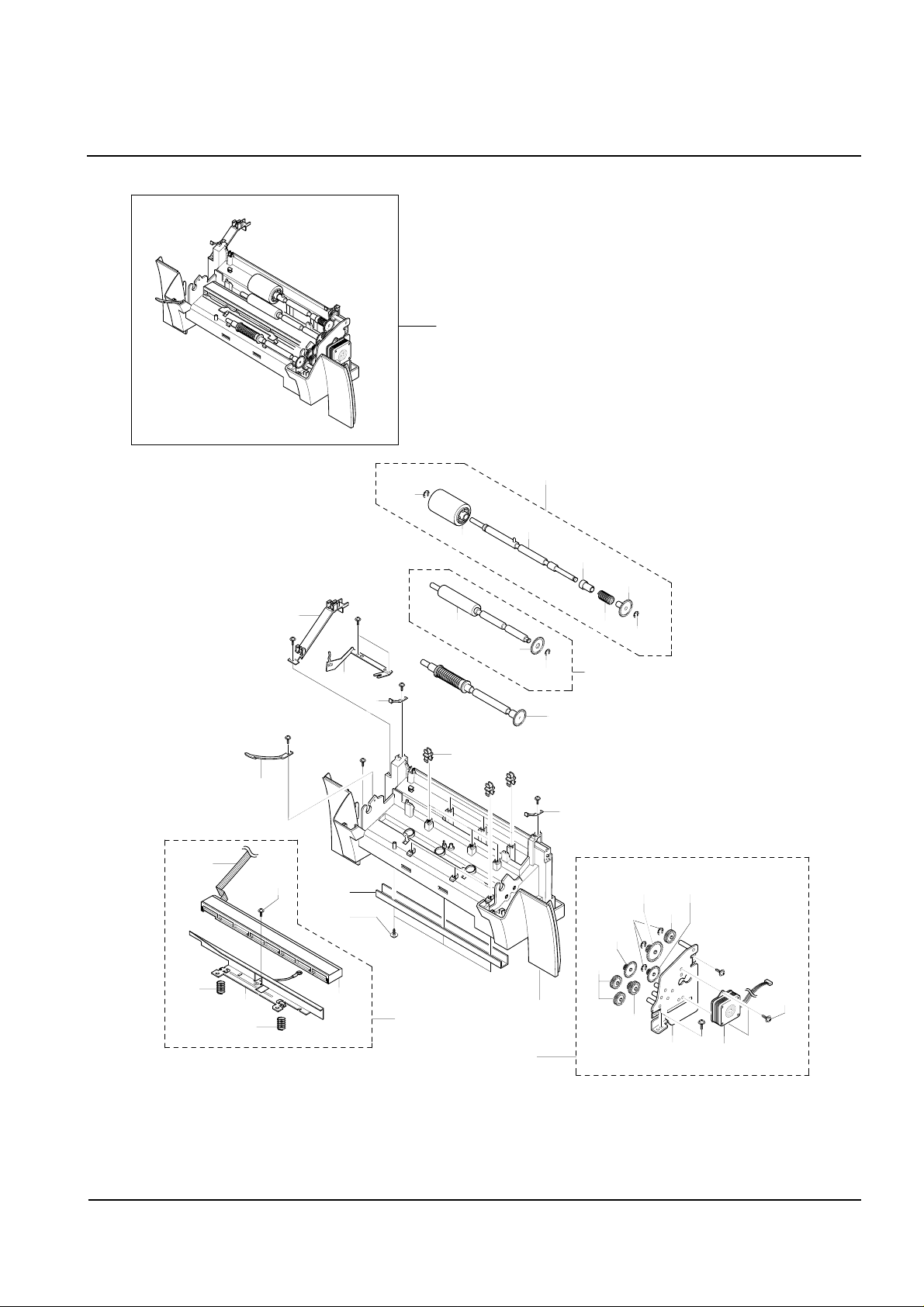

8-5. ASF Frame Assembly
0
5
8
9
10
12
11
13
14
15
7
6
22
23
21
24
30
28
26
31
32
29
18
27
20
16
19
36
35
33
34
3
4
39
38
37
2
1
40
S1
17
Exploded Views
Samsung Electronics8-12
Location No. Description SEC. Code Q’ty SA Remark
0 FRAME ASF ASS’Y*1X
1 FOOT * 2 X
2 PMO-FRAME ASF * 1 X
3 MPR-FELT UPPER JB74-00014A 1 O
4 MPR-FELT LOWER JB74-00015A 1 O
5 PMO-RX-STACKER MAIN * 1 X
6 PMO-STACKER(L) * 1 X
7 PMO-STACKER S JB72-41398C 1 O
8 MEC-CASSETTE ASF * 1 X
9 PMO-CASSETTE ASF * 1 X
10 PMO-GUIDE-SIDE * 1 X
11 PMO-GUIDE-EXTENSION * 1 X
12 PMO-GUIDE EXTENSION DUMM * 1 X
13 MPR-PAD FRICTION * 1 X
14 IPR-GUIDE SIDE(SPRING) * 2 X
15 PMO-ROLLER IDLER * 1 X
16 MEC-ROLLER DRIVE JB75-00187A 1 O
17 MEC ANTISTA TIC BRUSH * 1 X
18 PMO-CLUTCH ARM PIN * 1 X
19 PMO-GUIDE INNER * 1 X
20 E-RING * 2 X
21 MEA UNIT-PICKUP ROLLER JB97-01310A 1 O
22 PMO-SHAFT PICKUP(PC+GF) * 1 X
23 PMO-LEVER CASSETTE * 1 X
24 SPRING LEVER LOCKING * 1 X
25 GEAR-IDLE 32 * 1 X
26 GEAR-IDLER ASF * 1 X
27 GEAR-DOUBLE 25/28(0.8) * 1 X
28 GEAR-DOUBLE 20/14(0.8) * 1 X
29 MEC-ARM(SWING 1X12) * 1 X
30 PMO-ARM(SWING GEAR 1X12) * 1 X
31 GEAR-IDLE SWING12(0.8) * 1 X
32 IPR-WAVE WASHER * 1 X
33 MEC-GUIDE OUTER * 1 X
34 PMO-GUIDE OUTER * 1 X
35 IPR-PINCH ROLLER(SPRING) * 3 X
36 PMO-ROLLER PINCH * 3 X
37 RMO-BUCKLER FRICTION * 1 X
38 PMO-HOUSING BUCKLER * 1 X
39 PMO-GUIDE PAPER * 3 X
40 CBF HARNESS-CONN GND * 1 X
S1 SCREW-TAPPING * 1 X
S2 SCREW-TAPPING * 1 X
ASF Frame Assembly Parts Lists
S.A. : Service Available
O: Service available X: Service not available
