8. Exploded Views and Parts Lists
8-1. Total Assembly
8-2 SF150T
Exploded Views and Parts Lists
Total Assembly Parts Lists
Location No. Description SEC. Code Q'ty Remark
1 ASS'Y-OPE UNIT JF96-01296A 1
2 ASS’Y-TOP COVER JF96-01297A 1
3 SPACER JF72-40611A 1
4 GUIDE-TX JF72-41122Z 1
5 PBA-LIU JF92-00843Q 1
6 REAR-BRKT JF70-10681A 1
7 PBA-MAIN JF92-00842E 1
8 SMPS-V2, AC/DC JF44-10059A 1
9 ASS’Y-BASE UNIT JF96-01298A 1
10 ASS’Y-MAIN CHASSIS UNIT JF96-01253A 1
11 ASS’Y-HANDSET JF96-01262A 1
12 CURL-CORD JF39-60075A 1
S1 SCREW, TAPTITE, BH, +, M3, L8 6003-000015 11
S2 SCREW, TAPTITE, BH, +, M3, L6 6003-000261 2
S3 SCREW, TAPTITE, BH, +, M3, L6 6003-000115 2
Exploded Views and Parts Lists
8-2. Ass'y OPE Unit
SF150T 8-3
2
1
3
4
5
6
7
10
11
9
13
14
15
16
17
18
19
20
21
22
23
24
25
S1
S2
S3
26
8
12
27
Ass'y OPE Unit Parts Lists
Exploded Views and Parts Lists
8-4 SF150T
Location No. Description SEC. Code Q'ty Remark
ASS'Y-OPE UNIT JF96-01296A 1
1 OPE COVER JF72-42016Z 1
2 LCD-WINDOW JF75-11004F 1
3 KEY-ONETOUCH JF72-42021A 1
4 KEY-OHD JF72-42022A 1
5 KEY-STOP JF72-42029A 1
6 KEY-START JF72-42028A 1
7 KEY-TEL JF72-42026A 1
8 KEY-TAD(A) JF72-42056A 1
9 KEY-TAD(B) JF72-42057A 1
10 KEY-MENU JF72-42020A 1
11 KEY-RESOLUTION JF72-42018B 1
12 KEY-RECEIVE JF72-42017B 1
13 KEY-ANSWER JF72-42019M 1
14 RUBBER-CONTACT JF73-40521A 1
15 DISPLAY-LCD JF07-20061A 1
16 CBF-WIRE, MAIN-OPE, 18 P JF39-41081A 1
17 CBF-WIRE, LIU-OPE, 7 P JF39-40957A 1
18 PBA-OPE JF92-00844B 1
19 CHASSIS OPE UNIT JF70-10863A 1
20 BRKT-TPH UNIT JF70-10861B 1
21 GUIDE-TPH(R) JF70-10679A 1
22 PRINT HEAD-THERMAL JF47-30069B 1
23 PBA-P.EMPTY JF92-00704B 1
24 GUIDE-TPH(L) JF70-10679B 1
25 CBF-WIRE, MAIN-TPH, 14P JF39-40955A 1
26 BRUSH-ANTISTATIC JF75-10650A 1
27 FLAT CABLE, OPE-LCD JF39-41018A 1
S1 SCREW, TAPTITE, PWH, +, B, M2. 6003-000193 11
S2 SCREW-MACHINE, BH, +, M3, L4 6001-000125 4
S3 SCREW, TAPTITE, BH, +, B, M3, L 6003-000015 2
Exploded Views and Parts Lists
SF150T 8-5

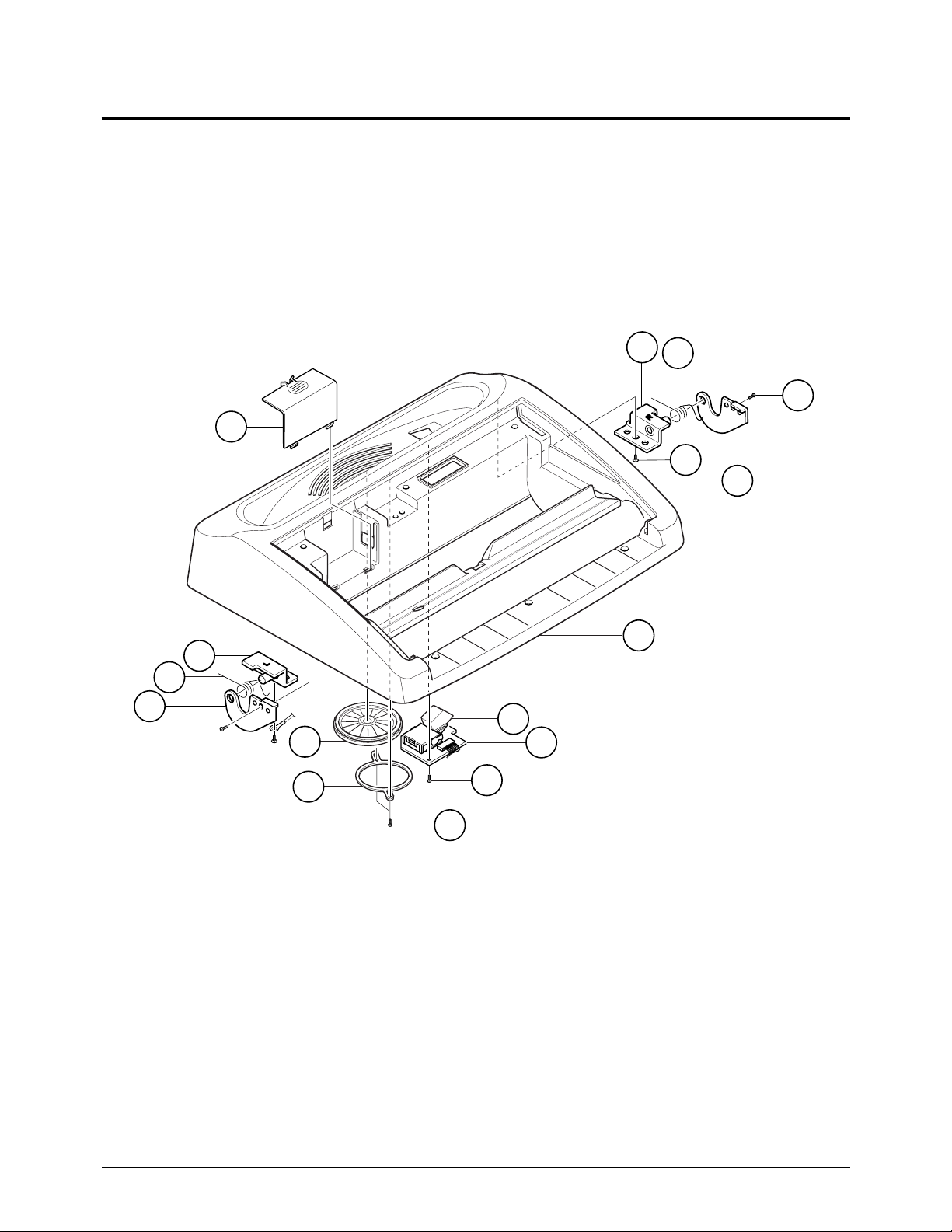

8-3. Ass'y COVER TOP
1
2
3
4
6
7
8
S1
9
10
S2
S3
S3
11
12
5
Exploded Views and Parts Lists
8-6 SF150T
Location No. Description SEC. Code Q'ty Remark
ASSEMBLY-COVER TOP JF96-01297A 1
1 TOP COVER JF72-42015A 1
2 HINGE-OPE(R) JF70-10676A 1
3 COVER-SPRING(R) JF70-40562A 1
4 HINGE-BRKT(R) JF70-10677A 1
5 BATTERY-COVER JF72-42027A 1
6 HINGE-BRKT(L) JF70-10677B 1
7 COVER-SPRING(L) JF70-40562B 1
8 HINGE-OPE(L) JF70-10676B 1
9 SWITCH-HOOK, 48 V, 200 mA 3409-000117 1
10 PBA-HOOK JF92-00845C 1
11 SPEAKER, 1 W, 8 OHM, 83dB 3001-001044 1
12 UNIT-FIXING BRKT GB70-10500A 1
S1 SCREW, TAPTITE, BH, +, M3, L6 6003-000261 3
S2 SCREW, TAPTITE, BH, +, M3, L8 6003-000015 2
S3 SCREW, TAPTITE, PWH, +, B, M2.5, L6 6003-000193 2
Ass'y COVER TOP Parts Lists
Exploded Views and Parts Lists
SF150T 8-7

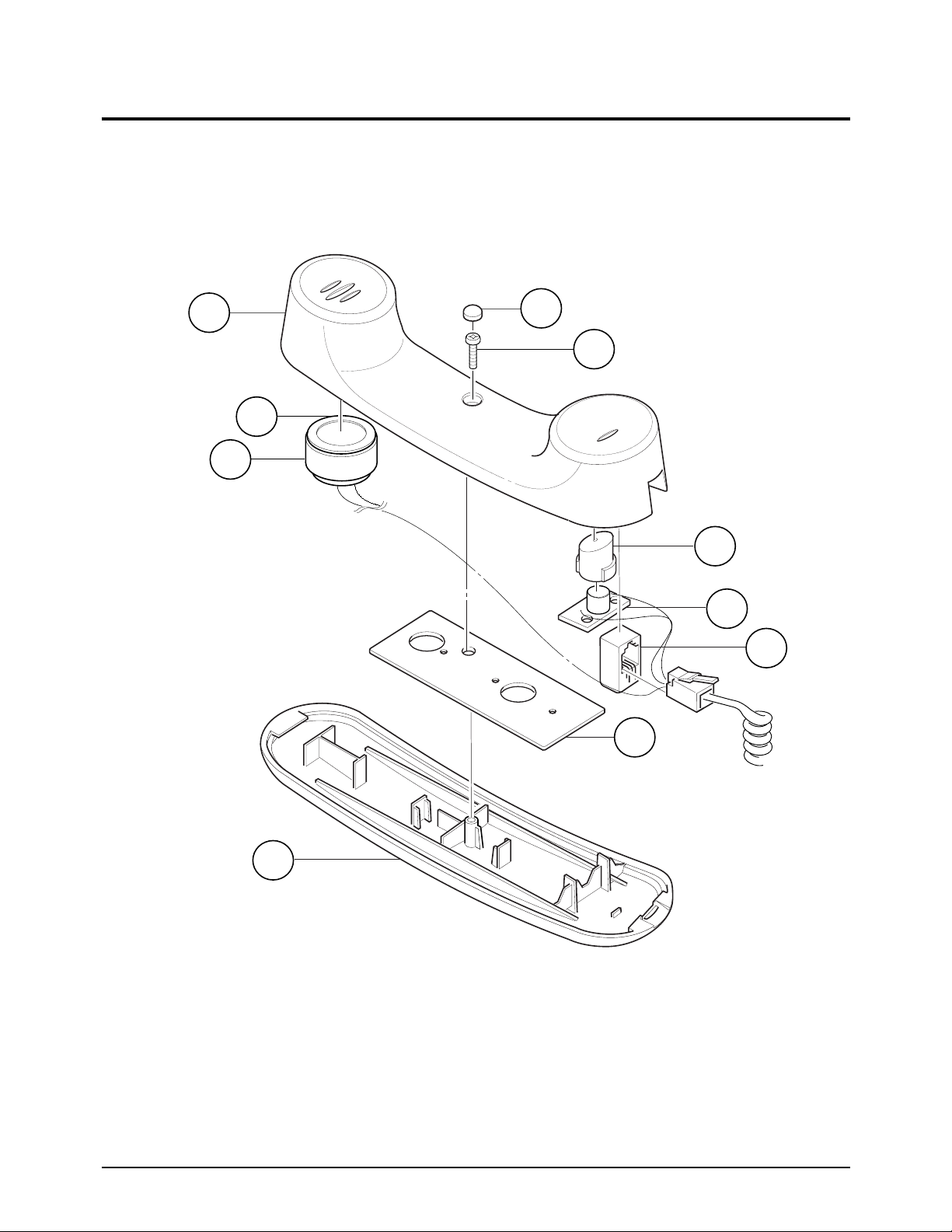

8-4. Ass’y Handset
3
2
S1
1
4
5
6
7
8
9
Exploded Views and Parts Lists
8-8 SF150T
Ass’y Handset Parts Lists
Location No. Description SEC. Code Q'ty Remark
ASS'Y-HANDSET JF96-01262A 1
1 HANDSET-LOWER JF72-42014A 1
2 AUDIO-RECEIVER, 160 OHM 3009-001001 1
3 HOLD-DUMMY GB72-40792A 1
4 RUBBER-MIC JF73-40501A 1
5 PBA-H/S MIC JF92-00625A 1
6 CBF-HARNESS JF39-40834A 1
7 WEIGHT-BALANCE JF70-10864A 1
8 HANDSET-UPPER JF72-42013A 1
9 RING-OP, ID17, OD35 6044-000138 1
S1 SCREW, TAPTITE, PH, +, B, M3, 6003-000168 1
Exploded Views and Parts Lists
SF150T 8-9
8-5. Ass'y Base
5
6
7
8
S1
2
1
3
4
10
9
Exploded Views and Parts Lists
8-10 SF150T
Ass'y Base Parts Lists
Location No. Description SEC. Code Q'ty Remark
ASS'Y-BASE JF96-01298A 1
1 CBF-WIRE, MAIN-CIS/MODE JF39-41062A 1
2 MICRO-SWITCH 3405-000166 1
3 STEP-MOTER, 7.5 DEG, 24 V 3101-000171 1
4 ASS’Y-MAIN CHASSIS UNIT JF96-01253A 1
5 BASE JF72-42025A 1
6 PBA-D’DET JF92-00888A 1
7 CBF-WIRE, HANDSET-LIU JF39-41066A 1
8 RUBBER-FOOT JF73-10002A 2
9 MIC-CONDENSOR 3003-000120 1
10 MIC-ADAPTER GB72-40770A 1
S1 SCREW, TAPTITE, BH, +, M3, L6 6003-000261 2
Exploded Views and Parts Lists
SF150T 8-11
8-6. Harness
1
2
3
11
3'
5
9
4
4'
6
8'
8
1'
2'
15
6'
4''
10'
11'
10
12
5'
7'
13
14
7
14'
Exploded Views and Parts Lists
8-12 SF150T
Harness Parts Lists
Location No. Description SEC. Code Q'ty Remark
1 CBF-WIRE, MAIN-TPH, 14 P JF39-40955A
2 CBF-WIRE, MAIN-OPE, 18 P JF39-41081A
3 CBF-WIRE, LIU-OPE, 7 P JF39-40957A
4 CBF-WIRE, MAIN-LIU, 22 P JF39-41063A
5 CBF-WIRE, LIU-HANDSET JF39-41066A
6 CBF-WIRE, MAIN-CIS/MODE JF39-41062A
7 CBF-WIRE, MAIN-D.DET, MIC, 5 P JF39-41078A
8 STEP-MOTER, 7.5 DEG, 24 V 3101-000171
9 CBF-WIRE, LIU-HOOK JF39-41080A
10 CBF-WIRE, POWER-MOTOR JF39-40963B
11 CBF-WIRE, POWER-TOP COVER JF39-40962B
12 CURL CORD JF39-60075A
13 CABLE CLAMP 6502-001026
14 CBF-WIRE, MAIN-BATTERY, 2 P JF39-41082A
15 CBF-WIRE, MAIN-SPEAKER, 2 P JF39-41079A
