Vacuum Cleaner
user manual
Before operating this unit, please read the instructions carefully. |
English |
For indoor use only. |
|
imagine the possibilities
Thank you for purchasing a Samsung product. To receive a more complete service,
please register your product at
www.samsung.com/register
safety information
SAFETY INFORMATION
WARNING
WARNING
•Before operating the appliance, please read this manual thoroughly and retain it for your reference.
•Because these following operating instructions cover various models, the characteristics of your vacuum cleaner may differ slightly from those described in this manual.
CAUTION/WARNING SYMBOLS USED
WARNING |
Indicates that a danger of death or serious injury exists. |
|
CAUTION Indicates that a risk of personal injury or material damage exists.
OTHER SYMBOLS USED
Represents something you must NOT do.
Represents something you must NOT disassemble.
Represents something you must NOT touch.
Represents something you must follow.
Indicates that you must disconnect the power plug from the socket.
Represents a ground is needed to prevent electric shock.
It is recommended that this symbol be handled by service man.
2_ safety information
safety information
IMPORTANT SAFEGUARDS
•Read all instructions carefully. Before switching on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate on the bottom of the cleaner.
•WARNING: Do not use the vacuum cleaner when rug or floor is wet.
Do not use to suck up water.
•Close supervision is necessary when any appliance is used by or near children. Do not allow the vacuum cleaner to be used as a toy. Do not allow the vacuum cleaner to run unattended at any time. Use the vacuum cleaner only for its intended use as described in these instructions.
•Do not use the vacuum cleaner without a dust bag.
Change the dust bag before it is full in order to maintain the best efficiency.
•Do not use the vacuum cleaner to pick up matches, live ashes or cigarette butts. Keep the vacuum cleaner away from stoves and other heat sources. Heat can deform and discolour the plastic parts of the unit.
•Avoid picking up hard, sharp objects with the vacuum cleaner as they may damage the cleaner parts. Do not stand on the hose assembly. Do not put weight on the hose. Do not block the suction or the exhaust port.
•Switch the vacuum cleaner off on the body of the machine before unplugging from the electrical outlet. Disconnect the plug from the electrical outlet before changing the dust bag or dust container. To avoid damage, please remove the plug by grasping the plug itself, not by pulling on the cord.
•This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
•The plug must be removed from the socket outlet before cleaning or maintaining the appliance.
•The use of an extension cord is not recommended.
•If your vacuum cleaner is not operating correctly, switch off the power supply and consult an authorized service agent.
•If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
•Don’t carry the vacuum cleaner by holding the hose.
Use the handle on the vacuum cleaner set.
•Unplug the cleaner when not in use. Turn off the power switch before unplugging.
safety information _3
assembling the cleaner |
05 |
Assembling the Cleaner |
05 |
|
|
operating the cleaner |
06 |
Power cord |
06 |
06 |
On/Off Switch |
06 |
Power control |
|
maintain tools and filter |
07 |
Using accessory |
07 |
08 |
Maintain floor tools |
09 |
Check filter indicator |
|
10 |
Changing the dust bag |
|
|
10 |
Cleaning inlet filter |
|
10 |
Cleaning outlet filter |
troubleshooting
11
4_ contents
OPTION |
assem01 bling theanercl
• Features may vary according to model. Refer to 5,6 page.
• For storage, park the floor nozzle.
CAUTION
assembling the cleaner _5
power cord
• When removing the plug from the electrical outlet, grasp the plug, not the cord.
on/off switch
power control
Body-control type
- HOSE
To reduce suction for leaning draperies, small rugs, and other light fabrics, pull the tap air until the hole is open
- BODY
To control power level, just slide the power control bottom right and left. Off = For stopping the vacuum cleaner.
Max = For hard floors and heavily soiled carpets.
6_ operating the cleaner

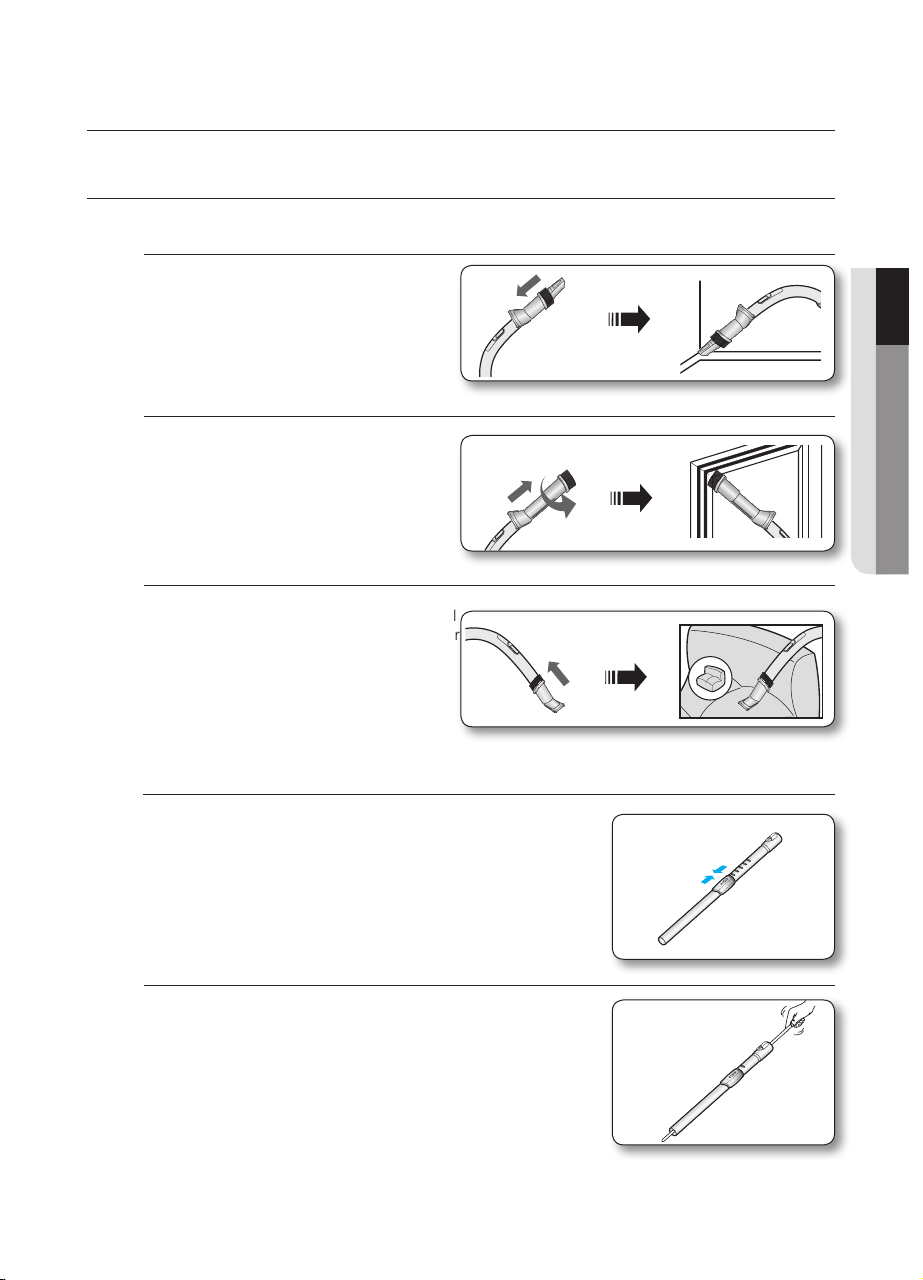

using accessory
too andls fi l
Accessory
•Push the accessory on to the end of the hose handle
maintain03
• Pull out and turn the dusting brush for cleaning delicate areas.
ter
• To use the upholstery tool, push the accessory on to the end of the hose handle in the opposite direction.
Pipe
• Adjust the length of the telescopic pipe by sliding the length control button located in the center of the telescopic pipe back and forth.
• To check for blockages, separate the telescopic pipe and adjust to shorten. This allows for easier removal of waste clogging the tube.
maintain tools and filter _7
maintain tools and filter
maintain floor tools
3Way Brush
• Adjust the inlet lever according to the floor surface.
Carpet Cleaning |
Floor Cleaning |
• Remove waste matter completely if the inlet is blocked.
Power Turbo Plus (Option)
For improved pick-up of pet hair and fibre on carpets.
Frequent vacuuming of hair or pet fur may cause a falling-off of the rotation due to matters tangled around the drum. In this case, clean the drum with care.
1. Push the Open button on the transparent screen cover to separate the cover.
2.Remove the brushbar from the transparent screen.
3.Remove waste matter such as dust and hair tangled around the brushbar using scissors.
8_ maintain tools and filter
4.Remove dust inside the brush housing using a dry duster or crevice tool.
5.Insert brushbar into rotating belt and assemble.
6.Click the transparent screen cover back into place to reassemble.
Parquet brush (Option)
Vacuum dust in wide area at once
• Remove waste matter completely if the inlet is blocked.
dust full indicator
Body-Control Type
When the “DUST FULL LAMP” light comes on, please change the DUST BAG as shown in the following illustrations.
dust full Lamp
maintain03 too andls fi l
ter
maintain tools and filter _9
maintain tools and filter
changing the dust bag
1 |
2 |
3 |
A used dust bag can be sealed by removing the paper from the adhesive strip and sealing the strip over the hole.
OPTIONAL
•For Cloth Bag
After using, if the cloth bag is full of dust, clean the cloth bag and use it again.
You can purchase dust bags in the shops where you bought this vacuum cleaner.
Micro bag or paper bag both can be used as you prefer(Micro-bag:VP-78M, Paper-bag:VP-90)
cleaning inlet filter
1 |
2 |
3 |
4 |
Don’t throw away the filter.
cleaning outlet filter
SILVER NANO HEPA H13 (Option)
1 |
2 |
3 |
4 |
5 |
• When the Assy Panel Control is pulled up very strongly, it is possible
CAUTION the Assy Panel Control is separated for the safety of the product. In this case, just reassemble the Assy Panel Control.
This is not a malfunction.
10_ maintain tools and filter
PROBLEM |
SOLUTION |
|
|
|
|
Motor dows not start. |
• Check cable, pulg and socket. |
|
• Leave to cool. |
||
|
||
|
|
|
Suction force is gradually |
• Check for blockage and remove. |
|
decreasing. |
||
|
||
|
|
|
Cord does not rewind fully. |
• Pull the cord out 2-3m and push down the cord rewind button. |
|
|
|
|
Vacuum cleaner dows not |
• Check hose and replace if required. |
|
pick up dirt. |
||
|
||
|
|
|
Low or decreasing suction |
• Please check filter and, if required, clean as illustrated in the |
|
|
instructions. |
|
|
|
This Vacuum cleaner is approved the following.
Electromagnetic Compatibility Directive : 2004/108/EEC
Low Voltage Directive : 2006/95/EC
trou04 blootinges h
troubleshooting _11
Dammsugare
bruksanvisning
Läs anvisningarna noga innan du börjar använda den här enheten. |
Swedish |
Endast för inomhusanvändning. |
|
imagine the possibilities
Tack för att du köpt en Samsung-produkt.
Vinn när du registrerar din produkt på
www.samsung.com/register
säkerhetsinformation
SäkERhETSINFORMATION
VARNING!
VARNING!
•Innan du använder apparaten bör du läsa den här handboken noga och spara den för framtida bruk.
•Din apparats egenskaper kan skilja sig något från de som beskrivs i denna handbok, eftersom boken täcker flera olika modeller.
FÖRSIKTIGHETS-/VARNINGSSYMBOLER SOM ANVÄNDS
VARNING! |
Anger att det föreligger risk för dödliga eller allvarliga skador. |
|
|
IAKTTAG |
Anger att det föreligger risk för personeller materialskada. |
FÖRSIKTIGHET! |
|
ÖVRIGA SYMBOLER SOM ANVÄNDS
Anger något som du INTE ska göra.
Anger något som du INTE ska plocka isär.
Anger något som du INTE ska röra.
Anger något som du måste följa.
Indikerar att du måste koppla bort elkontakten från uttaget.
Anger att en jordning krävs för att undvika elektriska stötar.
Anger att detta är något som bör åtgärdas av en servicetekniker.
2_ säkerhetsinformation
säkerhetsinformation
VIkTIGA SäkERhETSFÖRESkRIFTER
•Läs alla anvisningar noga. Innan du startar dammsugaren kontrollerar du att spänningen i det eluttag du använder motsvarar den som anges på märkplåten på dammsugarens undersida.
•VARNING! Använd inte dammsugaren om mattan eller golvet är blött.
Sug inte upp vatten.
•Noggrann övervakning är nödvändig om apparaten används av eller i närheten av barn. Låt inte barn leka med dammsugaren. Låt inte dammsugaren vara igång utan uppsikt. Använd dammsugaren endast till det den är avsedd för, vilket beskrivs i dessa anvisningar.
•Använd inte dammsugaren utan dammpåse.
Byt ut dammpåsen innan den är full för att bibehålla bästa effekt.
•Använd inte dammsugaren till att suga upp tändstickor, glödande aska eller cigarettfimpar. Håll dammsugaren borta från spisar och andra värmekällor. Värme kan deformera och missfärga enhetens plastdetaljer.
•Undvik att suga upp hårda, vassa föremål med dammsugaren eftersom de kan skada delar i den. Stå inte på dammsugarslangen. Ställ inga vikter på dammsugarslangen. Blockera inte insugseller utblåsvägar.
•Stäng av dammsugaren med knappen på maskinen innan du kopplar bort den från eluttaget. Dra ut stickkontakten från eluttaget innan du byter dammpåse eller dammbehållare. För att undvika skada ska du hålla i stickkontakten när du drar ut den från eluttaget. Dra inte i sladden.
•Den här enheten är inte avsedd att användas av personer (inklusive barn) med nedsatt fysisk eller psykisk funktion, eller för personer som saknar erfarenheter och kunskaper gällande användning av enheten.
Håll uppsyn över barn så att de inte leker med apparaten.
•Stickkontakten måste dras ut från eluttaget före rengöring eller underhåll av apparaten.
•Du rekommenderas att inte använda en förlängningssladd.
•Om dammsugaren inte fungerar på rätt sätt, stänger du av strömmen och kontaktar ett auktoriserat serviceombud.
•För att undvika risker måste skadade nätsladdar bytas ut av tillverkaren, dess serviceombud eller annan behörig person.
•Bär inte dammsugaren genom att hålla i dammsugarslangen. Använd handtaget på dammsugaren.
•Koppla bort dammsugaren när den inte används. Stäng av strömmen innan du kopplar bort den.
säkerhetsinformation _3
Innehåll
sÄTTA IhOp dAmmsUGAReN |
05 |
Sätta ihop dammsugaren |
05 |
|
|
ANVÄNdA dAmmsUGAReN |
06 |
Nätkabel |
06 |
06 |
PÅ/AV-knapp |
06 |
Effektkontroll |
|
sKÖTA RedsKAp OCh fIlTeR |
07 |
Använda tillbehör |
07 |
08 |
Sköta golvredskap |
09 |
Kontrollera filterindikatorn |
|
10 |
Byta dammpåsen |
|
|
10 |
Rengöra insugsfilter |
|
10 |
Rengöra utblåsfilter |
felsÖKNING
11
4_ Innehåll
sätta ihop dammsugaren
TILLVAL |
DAMMSUGAREN IhOP TTA S 01 Ä
•Funktioner kan variera beroende på modell.
Se sidan 5 och 6.
• Vid förvaring placerar du munstycket enligt bilden.
IAKTTAG
FÖRSIKTIGHET!
sätta ihop dammsugaren _5
använda dammsugaren
NÄTkAbEl
• När du drar ut stickkontakten från eluttaget ska du hålla i kontakten inte i sladden.
PÅ/AV-kNAPP
EFFEkTkONTROll
Kontrolltyp
– DAMMSUGARSLANG
För att minska suget vid rengöring av draperier, små mattor och annat i tunna tyger, drar du i reglaget tills hålet är öppet.
– HUVUDENHET
För att styra effektnivån, skjuter du kontrollknappen åt höger eller vänster. Off(Av) = Används för att stoppa dammsugaren.
Max = För hårda golv och svårt smutsade mattor.
6_ använda dammsugaren
