Samsung S803J Specifications

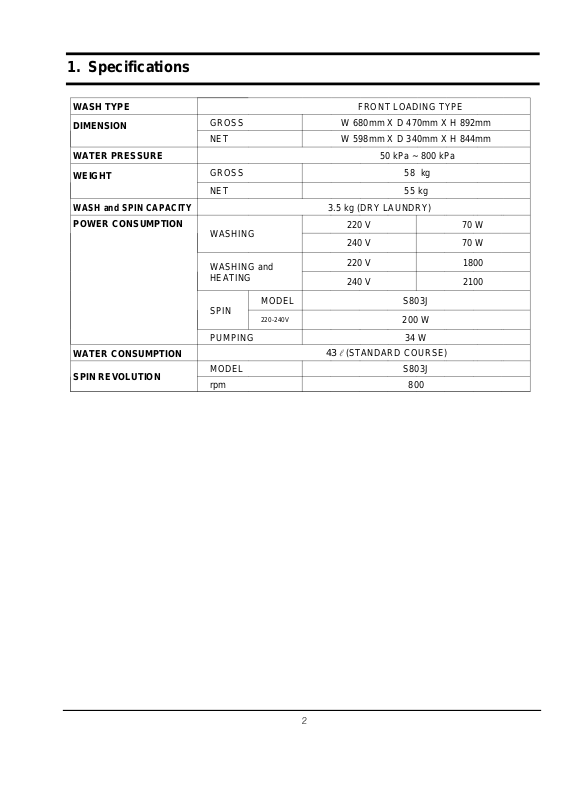

1. Specifications
WASH TYPE
DIMENSION
WATER PRESSURE
WEIGHT
WASH and SPIN CAPACITY
POWER CONSUMPTION
WATER CONSUMPTION
SPIN REVOLUTION
FRONT LOADING TYPE
GROSS W 680mm X D 470mm X H 892mm
NET W 598mm X D 340mm X H 844mm
50 kPa ~ 800 kPa
GROSS 58 kg
NET 55 kg
3.5 kg (DRY LAUNDRY)
220 V 70 W
WASHING
WASHING and
HEATING
MODEL S803J
SPIN
220-240V
PUMPING 34 W
MODEL S803J
rpm 800
240 V 70 W
220 V 1800
240 V 2100
200 W
43(STANDARD COURSE)
2. Safety Devices
We adapt 5 safety devices for users to use this wash machine safely.
1) Balancing device (ASSY-Main PCB)
When the lauandry is out of balance, to prevent the noises and vibrations, the unbalance
detecting sensor helps the laundry laid even and continue the dehydating process.
2) Anti-over water supply device
Because water supply value is broken, once water is supplied to the 2/3 level of the door, the
water supplied is drained automatically, Over -flow error (E3) is diplayed on the panel
3) Temperature-regulating device(thermistor)
To prevent over-heating over the temperature setted up, THERMISTOR senses the temperature of
the machine continuously and helps the wash machine to work at the temperature given by users.
4 Overheating- controlling system
Under the circumstances of THERMISTOR inferiority or abnormal condition, if wash-heater is
overheated, automatically, assy -thermal fuse cuts off the power supply to protect the machine to
keep it safe.
5) Delicate clothing safeguard function(ASSY-Main PCB)
To protect the clothings which is weak to high temperature, the wash machine senses the
temperature inside the washing tub. if the temperature rises over 50wool washing coure and
Delicate washing course display abnormal water temperature on the panel , after draining the
water.
