Page 1
User manual
SyncMaster
S19C200NY S19C200N
S19C200NW S19C200BW
S19C200BR S19C200NR
S20C200B S22C200NY
S22C200N S22C200B
S22C200BW S23C200B
S24C200BL
The color and the appearance may differ depending on
the product, and the specifications are subject to
change without prior notice to improve the performance.
BN46-00293A-03
Page 2
Table Of Contents
BEFORE USING
THE PRODUCT
7 Copyright
7 Icons used in this manual
7 Symbols for safety precautions
8 Cleaning
8 Cleaning
9 Securing the Installation Space
9 Precautions for storage
10 Safety Precautions
10 Electricity and Safety
11 Installation and Safety
13 Operation and Safety
16 Correct posture to use the product
PREPARATIONS 17 Checking the Contents
17 Removing the Packaging
18 Checking the Components
CONNECTING AND
USING A SOURCE
DEVICE
19 Parts
19 Frontal Buttons
21 Reverse Side
22 Installation
22 Attaching the Stand
23 Adjusting the Product Tilt
24 Installing a Wall-mount Kit or Desktop Stand
25 Anti-theft Lock
26 Before Connecting
26 Pre-connection Checkpoints
26 Connecting the Power
Table Of Contents
2
Page 3
Table Of Contents
27 Connecting and Using a PC
27 Connecting to a PC
28 Driver Installation
29 Setting Optimum Resolution

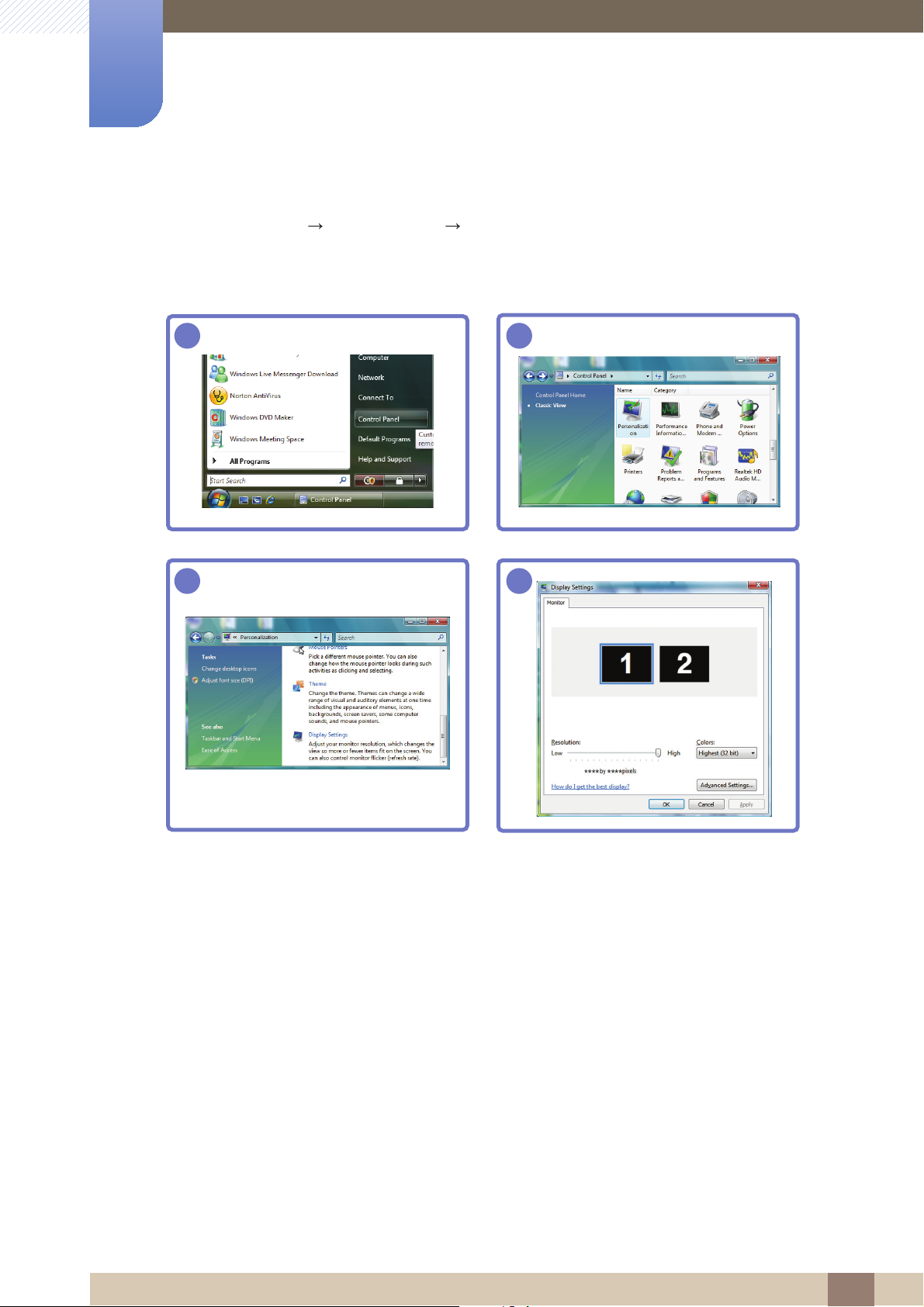

30 Changing the Resolution Using a PC
SCREEN SETUP 33 Brightness
33 Configuring Brightness
34 Contrast
34 Configuring Contrast
35 Sharpness
35 Configuring Sharpness
36 SAMSUNG MAGIC Bright
36 Configuring SAMSUNG MAGIC Bright
37 SAMSUNG MAGIC Angle
37 Configuring SAMSUNG MAGIC Angle
38 Image Size
38 Changing the Image Size
40 H-Position & V-Position
40 Configuring H-Position & V-Position
41 Coarse
41 Adjusting Coarse
42 Fine
42 Adjusting Fine
CONFIGURING
TINT
43 Red
43 Configuring Red
44 Green
44 Configuring Green
Table Of Contents
3
Page 4
Table Of Contents
45 Blue
45 Configuring Blue
46 Color Tone
46 Configuring the Color Tone Settings
47 Gamma
47 Configuring Gamma
RESIZING OR
RELOCATING THE
SCREEN
SETUP AND
RESET
48 Language
48 Changing the Language
49 Menu H-Position & Menu V-Position
49 Configuring Menu H-Position & Menu V-
Position
50 Display Time
50 Configuring Display Time
51 Transparency
51 Changing Transparency
52 Reset
52 Initializing Settings (Reset)
53 Eco Saving
53 Configuring Eco Saving
54 Off Timer
54 Configuring Off Timer
55 Turn Off After
55 Configuring Turn Off After
56 PC/AV Mode
56 Configuring PC/AV Mode
57 Key Repeat Time
57 Configuring Key Repeat Time
Table Of Contents
4
Page 5
Table Of Contents
58 Source Detection
58 Configuring Source Detection
59 Customized Key
59 Configuring Customized Key
INFORMATION
60 INFORMATION
60 Displaying INFORMATION
MENU AND
61 Configuring Brightness and Contrast in
OTHERS
INSTALLING THE
SOFTWARE
TROUBLESHOOTING
GUIDE
62 Magic Tune
62 What is MagicTune?
62 Installing the Software
63 Removing the Software
64 MultiScreen
64 Installing the Software
65 Removing the Software
66 Requirements Before Contacting
66 Testing the Product
66 Checking the Resolution and Frequency
66 Check the following.
the Initial Screen
Samsung Customer Service Center
68 Q & A
SPECIFICATIONS 70 General
80 PowerSaver
82 Standard Signal Mode Table
Table Of Contents
5
Page 6
Table Of Contents
APPENDIX 95 Contact SAMSUNG WORLD WIDE
96 Responsibility for the Pay Service (Cost
to Customers)
96 Not a product defect
96 A Product damage caused by customer's fault
96 Others
97 Correct Disposal
97 Correct Disposal of This Product (Waste
Electrical & Electronic Equipment)
98 Terminology
Table Of Contents
6
Page 7
Copyright
The contents of this manual are subject to change without notice to improve quality.
© 2012 Samsung Electronics
Samsung Electronics owns the copyright for this manual.
Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is
prohibited.
The SAMSUNG and SyncMaster logos are registered trademarks of Samsung Electronics.
Microsoft, Windows and Windows NT are registered trademarks of Microsoft Corporation.
Before Using the Product
VESA, DPM and DDC are registered trademarks of the Video Electronics Standards Association.
Icons used in this manual
The following images are for reference only. Real-life situations may
differ from what is shown in the images.
Symbols for safety precautions
Warning
Caution
A serious or fatal injury may result if instructions are not followed.
Personal injury or damage to properties may result if instructions are
not followed.
Activities marked by this symbol are prohibited.
Instructions marked by this symbol must be followed.
Before Using the Product
7
Page 8
Cleaning
Before Using the Product
Cleaning
Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched.
Take the following steps when cleaning.
1. Power off the monitor and computer.
2. Disconnect the power cord from the monitor.
Hold the power cable by the plug and do not touch the cable with wet
hands. Otherwise, an electric shock may result.
3. Wipe the monitor screen using a clean, soft and dry cloth.
z Do not apply a cleaning agent that contains alcohol,
solvent, or surfactant to the monitor.
!
z Do not spray water or detergent directly on the product.
4. Wet a soft and dry cloth in water and wring thoroughly to clean the
exterior of the monitor.
5. Connect the power cord to the product after cleaning the product.
6. Power on the monitor and computer.
!
Before Using the Product
8
Page 9
Before Using the Product
Securing the Installation Space
z Ensure some space around the product for ventilation. An internal temperature rise may cause fire
and damage the product. Be sure to allow the amount of space as shown below or greater when
installing the product.
The exterior may differ depending on the product.
10 cm
10 cm
10 cm 10 cm
10 cm
Precautions for storage
Be sure to contact Samsung Customer Service Center (page 95) if the inside of the monitor needs
cleaning. (Service fee will be charged.)
Before Using the Product
9
Page 10
Before Using the Product
!
Safety Precautions
Electricity and Safety
The following images are for reference only. Real-life situations may differ from what is shown in the
images.
Warning
Do not use a damaged power cord or plug, or a loose power socket.
z An electric shock or fire may result.
Do not plug many products into the same power socket.
z Otherwise, the socket may overheat and cause a fire.
Do not touch the power plug with wet hands.
z Otherwise, an electric shock may result.
Insert the power plug all the way in so it is not loose.
z An unstable connection may cause a fire.
!
Ensure you connect the power plug to a grounded power socket. (type 1
insulated devices only).
!
z An electric shock or injury may result.
Do not bend or pull the power cord with force. Do not weigh the power cord
down with a heavy object.
z A damaged power cord may cause an electric shock or fire.
Do not place the power cord or product near heat sources.
z An electric shock or fire may result.
Remove foreign substances such as dust around the plug pins and power socket
with a dry cloth.
z Otherwise, a fire may result.
Before Using the Product
10
Page 11
Before Using the Product
!
Caution
Do not unplug the power cord when the product is in use.
z The product may become damaged by an electric shock.
Do not use the power cord for products other than authorized products supplied
by Samsung.
z An electric shock or fire may result.
Keep the power socket where the power cord is connected unobstructed.
z If any problem occurs in the product, unplug the power cable to completely
!
cut the power to the product.
Power to the product cannot be completely cut off with the power button.
Hold the plug when disconnecting the power cord from the power socket.
z An electric shock or fire may result.
!
Installation and Safety
Warning
DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP
OF THE PRODUCT. DO NOT INSTALL THE PRODUCT NEAR HEAT SOURCES.
z Otherwise, a fire may result.
Avoid installing the product in a narrow space with bad ventilation, such as a
bookshelf or wall closet.
z Otherwise, a fire may result due to an increased internal temperature.
Keep the plastic packaging bag for the product in a place that cannot be reached
by children.
!
z Children may suffocate.
Before Using the Product
11
Page 12
Before Using the Product
!
Do not install the product on an unstable or vibrating surface (insecure shelf,
sloped surface, etc.).
z The product may fall and break or cause a personal injury.
z Using the product in an area with excess vibration may damage the product
or cause a fire.
Do not install the product in a vehicle or a place exposed to dust, moisture (water
drips, etc.), oil, or smoke.
!
Caution
z An electric shock or fire may result.
Do not expose the product to direct sunlight, heat, or a hot object such as a
stove.
z Otherwise, the product lifespan may be reduced, or a fire may result.
Do not install the product within the reach of young children.
z The product may fall and injure children.
Edible oil, such as soybean oil, can damage or deform the product. Do not install
the product in a kitchen or near a kitchen counter.
Take care not to drop the product when moving it.
z Otherwise, product failure or personal injury may result.
Do not set down the product on its front.
z The screen may become damaged.
When installing the product on a cabinet or shelf, make sure that the bottom
edge of the front of the product is not protruding.
z The product may fall and break or cause a personal injury.
z Install the product only on cabinets or shelves of the right size.
Before Using the Product
12
Page 13
Before Using the Product
!
!
SAMSUNG
!
Put down the product carefully.
z The product may fall and break or cause a personal injury.
!
Installing the product in an unusual place (a place exposed to a lot of fine
particles, chemical
station where the product should operate continuously for an extended period of
time) may seriously affect its performance.
z Be sure to consult Samsung Customer Service Center (page 95) before
installation if you want to install the product at such a place.
Operation and Safety
substances or extreme temperatures, or an airport or train
Warning
High voltage runs through the product. Do not attempt to disassemble, repair, or
modify the product on your own.
z An electric shock or fire may result.
z Contact Samsung Customer Service Center (page 95) for repair.
Before moving the product, turn off the power switch and disconnect the power
cable and all other connected cables.
z Otherwise, the power cord may be damaged and a fire or electric shock may
result.
If the product generates a strange noise, a burning smell, or smoke, remove the
power cord immediately and contact Samsung Customer Service Center (page
95).
z An electric shock or fire may result.
Do not let children hang from the product or climb on top of it.
z The product may fall, and your child may become injured or seriously
harmed.
If the product falls or the exterior is damaged, power off the product, remove the
power cord, and contact Samsung Customer Service Center (page 95).
z Otherwise, an electric shock or fire may result.
Before Using the Product
13
Page 14
Before Using the Product
!
!
Do not put a heavy object, toy, or sweets on top of the product.
z The product or heavy objects may fall as children try to reach for the toy or
sweets resulting in a serious injury.
During a lightning or thunderstorm, power off the product and remove the power
cable.
z An electric shock or fire may result.
Do not drop objects on the product or apply impact.
z An electric shock or fire may result.
Do not move the product by pulling the power cord or any cable.
z Otherwise, the cable may be damaged and product failure, an electric shock
or fire may result.
If a gas leakage is found, do not touch the product or power plug. Also, ventilate
the area immediately.
GAS
!
z Sparks can cause an explosion or fire.
Do not lift or move the product by pulling the power cord or any cable.
z Otherwise, the cable may be damaged and product failure, an electric shock
or fire may result.
Do not use or keep combustible spray or an inflammable substance near the
product.
!
z An explosion or fire may result.
Ensure the vents are not blocked by tablecloths or curtains.
z Otherwise, a fire may result from an increased internal temperature.
Before Using the Product
14
Page 15
Before Using the Product
!
-_-
!
100
Caution
Do not insert a metallic object (a chopstick, coin, hair pin, etc.) or inflammable
object (paper, match, etc.) into the vent or ports of the product.
z If water or any foreign substance enters the product, be sure to power off the
product, remove the power cord, and contact Samsung Customer Service
Center (page 95).
z Product failure, an electric shock or fire may result.
Do not place objects containing liquid (vases, pots, bottles, etc) or metallic
objects on top of the product.
z If water or any foreign substance enters the product, be sure to power off the
product, remove the power cord, and contact Samsung Customer Service
Center (page 95).
z Product failure, an electric shock or fire may result.
Leaving the screen fixed on a stationary image for an extended period of time
may cause afterimage burn-in or defective pixels.
z If you are not going to use the product for an extended period of time,
activate power-saving mode or a moving-picture screen saver.
Disconnect the power cord from the power socket if you do not plan on using the
product for an extended period of time (vacation, etc.).
z Otherwise, a fire may result from accumulated dust, overheating, an electric
shock, or electric leakage.
Use the product at the recommended resolution and frequency.
Otherwise,Your eyesight may deteriorate.
!
Looking at the screen too close for an extended period of time can deteriorate
your eyesight.
!
Do not hold the monitor upside-down or move it by holding the stand.
z The product may fall and break or cause a personal injury.
Do not use humidifiers or stoves around the product.
z An electric shock or fire may result.
Before Using the Product
15
Page 16
Before Using the Product
!
Rest your eyes for more than 5 minutes for every 1 hour of product use.
z Eye fatigue will be relieved.
!
Do not touch the screen when the product has been turned on for an extended
period of time as it will become hot.
Store the small accessories used with the product out of reach of children.
Exercise caution when adjusting the product angle or stand height.
z Otherwise, children's fingers or hands may become stuck and injured.
!
z Tilting the product excessively may cause it to fall and result in personal
injury.
Do not place heavy objects on the product.
z Product failure or personal injure may result.
Correct posture to use the product
Use the product in the correct posture as follows.
z Straighten your back.
z Allow a distance of 45 to 50cm between your eye and the screen, and look slightly
downward at the screen.
Keep your eyes directly in front of the screen.
z Adjust the angle so light does not reflect on the screen.
z Keep your forearms perpendicular to your upper arms and level with the back of
your hands.
z Keep your elbows at about a right angle.
z Adjust the height of the product so you can keep your knees bent at 90 degrees or
more, your heels attached to the floor, and your arms lower than your heart.
Before Using the Product
16
Page 17
Preparations
1
1.1 Checking the Contents
1.1.1 Removing the Packaging
1 Open the packaging box. Be careful not to damage the product when you open the packaging with
a sharp instrument.
2 Remove the styrofoam from the product.
3 Check the components and remove the styrofoam and plastic bag.
4 Store the box in a dry area so that it can be used when moving the product in the future.
This image is for reference only.
1 Preparations
17
Page 18
1
Preparations
1.1.2 Checking the Components
z Contact the dealer from whom you purchased the product if any item is missing.
z The appearance of the components and items sold separately may differ from the image shown.
Components
Quick setup guide
Power cable D-SUB cable (optional) DVI cable (optional)
Stand Stand Connector
Components may vary depending on the country.
(Not available in some locations)
Warranty card
User manual
1 Preparations
18
Page 19
Preparations
MENU
M
M
SAMSUNG
MAGIC
SAMSUNG
MAGIC
1
1.2 Parts
1.2.1 Frontal Buttons
The color and shape of parts may differ from what is shown. Specifications are subject to change
without notice to improve quality.
SAMSUNG
MAGIC
ANGLE
Key Guide
AUTO
Icons Description
z Open or close the onscreen display (OSD) menu, or return to the
parent menu.
z OSD control lock: Maintain the current settings, or lock the OSD
control to prevent unintended changes to settings.
Enable: To lock the OSD control, press the [ ] button for 10
seconds.
Disable: To unlock the locked OSD control, press the [ ] button
for more than 10 seconds.
If the OSD control is locked,
z Brightness and Contrast can be adjusted, and INFORMATION
can be viewed.
z The Customized Key function can be used by pressing the [ ]
button. (The Customized Key is available even when the OSD
control is locked.)
Configure Customized Key and press [ ]. The following options will
be enabled.
Angle - Bright - Eco Saving - Image Size
To configure Customized Key, go to SETUP&RESET
Customized Key and select the mode you want.
Move to the upper or lower menu or adjust the value for an option on the
OSD menu.
ENU
ENU
→
1 Preparations
19
Page 20
1
AUTO
AUTO
Preparations
Icons Description
Use this button to control the brightness and contrast of the screen.
Confirm a menu selection.
Pressing the [ ] button when the OSD menu is not displayed will
change the input source (Analog/DVI). If you power on the product or
change the input source by pressing the [ ] button, a message that
shows the changed input source will appear at the top left corner of the
screen.
This function is not available for products with an Analog interface
only.
Press the [ ] button to automatically adjust the screen settings.
z Changing the resolution in Display Properties will activate the
Auto Adjustment function.
Key Guide
z This function is only available in Analog mode.
Turn the screen on or off.
When a control button on the product is pressed, the Key Guide will be
displayed before the onscreen menu opens. (The guide shows the
function of the button pressed.)
To access the onscreen menu when the guide is displayed, press the
corresponding button again.
The Key Guide may vary depending on the function or product model.
Refer to the actual product.
1 Preparations
20
Page 21
1
Preparations
1.2.2 Reverse Side
The color and shape of parts may differ from what is shown. Specifications are subject to change
without notice to improve quality.
RGB INDVI IN
DVI IN RGB IN
Port Ports
Connect the power cord for your monitor to the POWER IN port on
the back of the product.
Connect to a PC using the DVI cable.
The [DVI IN] terminal is supplied for the digital (DVI)-dedicated
models only.
POWER IN
POWER IN
Connect to a PC using the D-SUB cable.
1 Preparations
21
Page 22
Preparations
1
1.3 Installation
1.3.1 Attaching the Stand
Before assembling the product, place the product down on a flat and stable surface so that the screen
is facing downwards.
Insert the Stand Connector into
the Stand in the direction shown
by the figure.
Place a soft cloth over the table
to protect the product and place
the product onto the cloth so
that the front of the product is
facing downwards.
The color and shape of parts may differ from what is shown. Specifications are subject to change
without notice to improve quality.
Check if the Stand Connector is
firmly connected.
Hold the main body of the
product with your hand as
shown by the figure.
Push the assembled stand into
the main body in the direction of
the arrow as shown in the figure.
Turn the connecting screw at the
bottom of the stand fully so that it
is completely fixed.
- Caution
Do not hold the product upside
down only by the stand.
1 Preparations
22
Page 23
1
Preparations
1.3.2 Adjusting the Product Tilt
The color and shape of parts may differ from what is shown. Specifications are subject to change
without notice to improve quality.
-1° (±2°) ~ 20° (±2°)
z You can adjust the tilt of your monitor.
z Hold the lower part of the product and adjust the tilt carefully.
1 Preparations
23
Page 24
1
2
3
B
4
A
B
Preparations
1.3.3 Installing a Wall-mount Kit or Desktop Stand
Before Installation
Power the product off and remove the power cable from the power socket.
Place a protective cloth or cushion on a flat
surface. Next, place the product with the face
down on top of the cloth or cushion.
Installing a Wall-mount Kit or Desktop Stand
1
Hold the main body of the product with your hand
as shown by the figure.
Pull the stand in the direction of the arrow as
shown in the figure to separate it.
A
Attach the wall-mount kit or desktop stand here
Bracket (sold separately)
Align the grooves and tightly fasten the screws on the bracket on the product with the corresponding
parts on the wall-mount kit or desktop stand you want to attach.
1 Preparations
24
Page 25
1
Preparations
Notes
z Using a screw longer than the standard length can damage the internal components of the
product.
z The length of screws required for a wall mount that does not comply with the VESA standards may
vary depending on the specifications.
z Do not use screws that do not comply with the VESA standards. Do not attach the wall-mount kit
or desktop stand using excessive force. The product may get damaged or fall and cause personal
injury. Samsung shall not be held liable for any damage or injury caused by using improper screws
or attaching the wall-mount kit or desktop stand using excessive force.
z Samsung shall not be held liable for any product damage or personal injury caused by using a wall-
mount kit other than the one specified or from an attempt to install the wall-mount kit on your own.
z To mount the product on a wall, ensure you purchase a wall-mount kit that can be installed 10cm
or farther away from the wall.
z Be sure to use a wall-mount kit that complies with the standards.
1.3.4 Anti-theft Lock
An anti-theft lock allows you to use the product securely even in public places. The locking device shape
and locking method depend on the manufacturer. Refer to the user guide provided with your anti-theft
locking device for details. The lock device is sold separately.
RGB INDVI IN
POWER IN
The color and shape of parts may differ from what is shown. Specifications are subject to change
without notice to improve quality.
To lock an anti-theft locking device:
1 Fix the cable of your anti-theft locking device to a heavy object such as a desk.
2 Put one end of the cable through the loop on the other end.
3 Insert the locking device into the anti-theft lock slot at the back of the product.
4 Lock the locking device.
z An anti-theft locking device can be purchased separately.
z Refer to the user guide provided with your anti-theft locking device for details.
z Anti-theft locking devices can be purchased at electronics retailers or online.
1 Preparations
25
Page 26
Connecting and Using a Source Device
2
2.1 Before Connecting
2.1.1 Pre-connection Checkpoints
z Before connecting a source device, read the user manual provided with it.
The number and locations of ports on source devices may differ from device to device.
z Do not connect the power cable until all connections are completed.
Connecting the power cable during connection may damage the product.
z Check the types of ports at the back of the product you want to connect.
2.2 Connecting the Power
RGB INDVI IN
POWER IN
z To use the product, connect the power cable to a power outlet and the [POWER IN] port on the
product.(The input voltage is switched automatically.)
POWER IN
2 Connecting and Using a Source Device
26
Page 27
Connecting and Using a Source Device
2
2.3 Connecting and Using a PC
2.3.1 Connecting to a PC
z Select a connection method suitable for your PC.
Connecting parts may differ in different products.
Connection Using the D-SUB Cable (Analog Type)
Do not connect the power cable before connecting all other cables. Ensure you connect a source
device first before connecting the power cable.
RGB IN
1
Connect the D-SUB cable to the [RGB IN] port on the back of the product and the RGB port on the PC.
2 Press [ ] to change the input source to Analog.
Connection Using the DVI Cable
This function is not available for products with an Analog interface only.
Do not connect the power cable before connecting all other cables. Ensure you connect a source
device first before connecting the power cable.
DVI IN
1 Connect the DVI cable to the [DVI IN] port on the back of the product and the DVI port on the PC.
2 Press [ ] to change the input source to DVI.
The [DVI IN] terminal is supplied for the digital (DVI)-dedicated models only.
2 Connecting and Using a Source Device
27
Page 28
2
Connecting and Using a Source Device
2.3.2 Driver Installation
z You can set the optimum resolution and frequency for this product by installing the corresponding
drivers.
z An installation driver is contained on the CD supplied with the product.
z If the file provided is faulty, visit the Samsung homepage (http://www.samsung.com) and
download the file.
1 Insert the user manual CD provided with the product into the CD-ROM drive.
2 Click "Windows Driver".
3 Follow the instructions given on the screen to proceed with installation.
4 Select your product model from the list of models.
5 Go to Display Properties and check that the resolution and refresh rate are appropriate.
Refer to your Windows OS manual for further details.
2 Connecting and Using a Source Device
28
Page 29
2
M
Connecting and Using a Source Device
2.3.3 Setting Optimum Resolution
An information message about setting optimum resolution will appear if you power on the product for the
first time after purchase.
Select a language on the product and change the resolution on your PC to the optimum setting.
The optimal resolution for this
monitor is as follows:
**** x **** **Hz
Use the above settings to set
the resolution on your PC.
English
EXIT
AUTO
1 Press [ ] to move to the language you want and press [ ].
2 To hide the information message, press [ ].
z If the optimum resolution is not selected, the message will appear up to three times for a specified
time even when the product is turned off and on again.
z The optimum resolution can also be selected in Control Panel on your PC.
ENU
2 Connecting and Using a Source Device
29
Page 30
2
Connecting and Using a Source Device
2.3.4 Changing the Resolution Using a PC
z Adjust the resolution and refresh rate in Control Panel on your PC to obtain optimum picture
quality.
z The picture quality of TFT-LCDs may degrade if the optimum resolution is not selected.
Changing the Resolution on Windows XP
Go to Control Panel Display Settings and change the resolution.
12
3
**********
**** ****
2 Connecting and Using a Source Device
30
Page 31
2
Connecting and Using a Source Device
Changing the Resolution on Windows Vista
Go to Control Panel Personalization Display Settings and change the resolution.
12
34
***********
***********
2 Connecting and Using a Source Device
31
Page 32
2
Connecting and Using a Source Device
Changing the Resolution on Windows 7
Go to Control Panel Display Screen Resolution and change the resolution.
12
34
2 Connecting and Using a Source Device
32
Page 33
Screen Setup
SAMSUNG
MAGIC
MENU
Custom
Off
Auto
Brightness
Contrast
Sharpness
Image Size
H-Position
SAMSUNG
MAGIC
Bright
SAMSUNG
MAGIC
Angle
AUTO
3
Configure the screen settings such as brightness.
3.1 Brightness
You can adjust the general brightness of the picture. (Range: 0~100)
A higher value will make the picture appear brighter.
z This menu is not available when Bright is set to Dynamic Contrast mode.
z This menu is unavailable when Eco Saving is set.
3.1.1 Configuring Brightness
1 Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2 Press [ ] to move to PICTURE and press [ ] on the product.
3 Press [ ] to move to Brightness and press [ ] on the product. The following screen will
appear.
4 Adjust the Brightness using the [ ] buttons.
3 Screen Setup
33
Page 34
Screen Setup
SAMSUNG
MAGIC
MENU
&XVWRP
2II
Auto
SAMSUNG
MAGIC
Bright
SAMSUNG
MAGIC
Angle
Brightness
Contrast
Sharpness
Image Size
H-Position
AUTO
3
3.2 Contrast
Adjust the contrast between the objects and background. (Range: 0~100)
A higher value will increase the contrast to make the object appear clearer.
This menu is not available when Bright is in Cinema or Dynamic Contrast mode.
3.2.1 Configuring Contrast
1 Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2 Press [ ] to move to PICTURE and press [ ] on the product.
3 Press [ ] to move to Contrast and press [ ] on the product. The following screen will
appear.
4 Adjust the Contrast using the [ ] buttons.
3 Screen Setup
34
Page 35
Screen Setup
SAMSUNG
MAGIC
MENU
Custom
Off
Auto
SAMSUNG
MAGIC
Bright
SAMSUNG
MAGIC
Angle
Brightness
Contrast
Sharpness
Image Size
H-Position
AUTO
3
3.3 Sharpness
Make the outline of objects more clear or blurry. (Range: 0~100)
A higher value will make the outline of objects clearer.
This menu is not available when Bright is in Cinema or Dynamic Contrast mode.
3.3.1 Configuring Sharpness
1 Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2 Press [ ] to move to PICTURE and press [ ] on the product.
3 Press [ ] to move to Sharpness and press [ ] on the product. The following screen will
appear.
4 Adjust the Sharpness using the [ ] buttons.
3 Screen Setup
35
Page 36
Screen Setup
SAMSUNG
MAGIC
MENU
SAMSUNG
MAGIC
یࡈ࣏ࢽ
ଥࢿ
SAMSUNG
MAGIC
Bright
Custom
Standard
Game
Cinema
Dynamic Contrast
SAMSUNG
MAGIC
Angle
Brightness
Contrast
Sharpness
Image Size
H-Position
AUTO
3

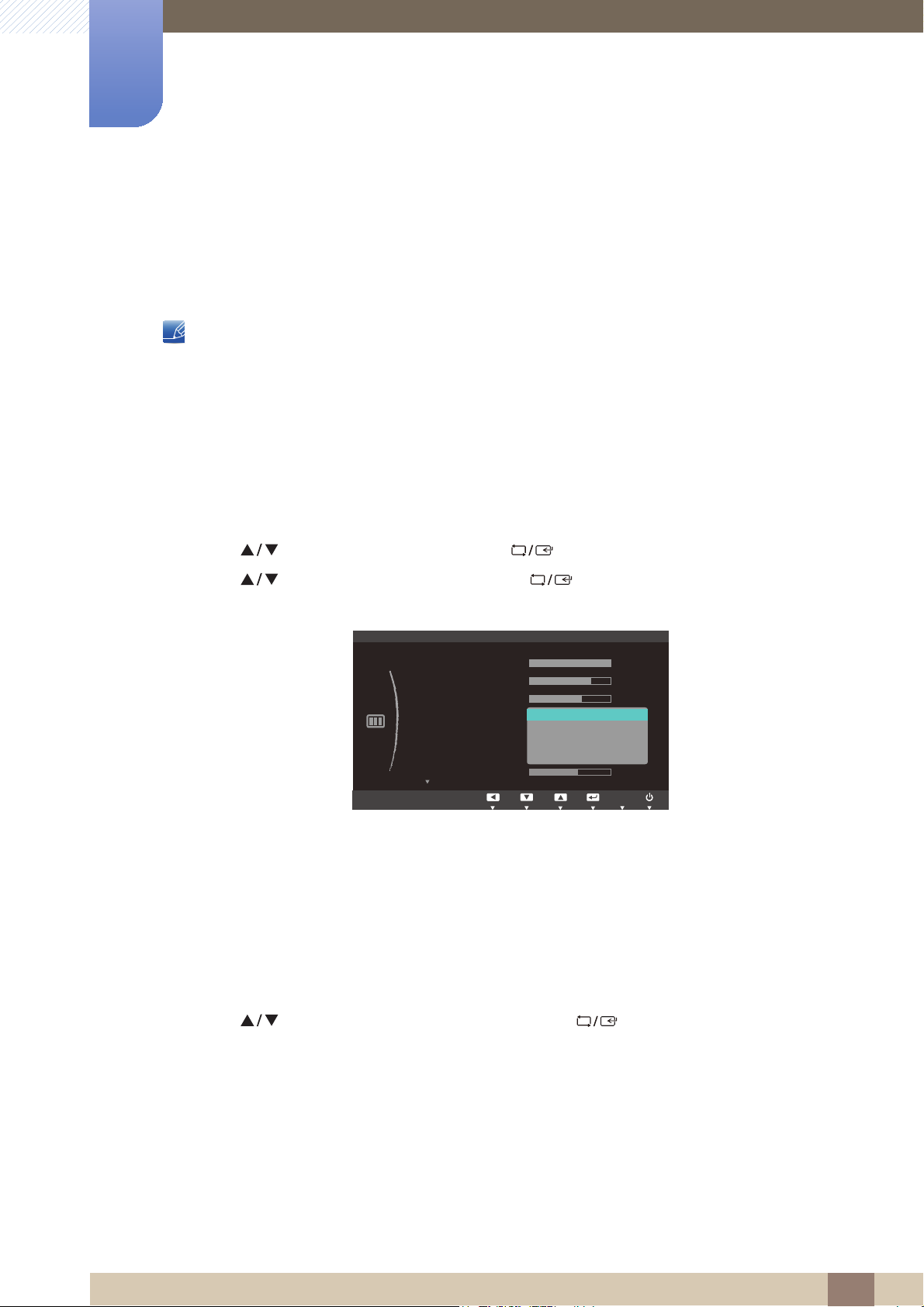

3.4 SAMSUNG MAGIC Bright
This menu provides an optimum picture quality suitable for the environment where the product will be
used.
z This menu is unavailable when Eco Saving is set.
z This menu is not available when Angle is enabled.
You can customize the brightness to suit your preferences.
3.4.1 Configuring SAMSUNG MAGIC Bright
1 Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2 Press [ ] to move to PICTURE and press [ ] on the product.
3 Press [ ] to move to Bright and press [ ] on the product. The following screen will
appear.
z Custom: Customize the contrast and brightness as required.
z Standard: Obtain a picture quality suitable for editing documents or using Internet.
z Game: Obtain a picture quality suitable for playing games that involve many graphic effects and
dynamic movements.
z Cinema: Obtain the brightness and sharpness of TVs suitable for enjoying video and DVD
content.
z Dynamic Contrast: Obtain balanced brightness through automatic contrast adjustment.
4 Press [ ] to move to the option you want and press [ ].
5 The selected option will be applied.
3 Screen Setup
36
Page 37
Screen Setup
SAMSUNG
MAGIC
SAMSUNG
MAGIC
MENU
SAMSUNG
MAGIC
یࡈ࣏ࢽ
ଥࢿ
SAMSUNG
MAGIC
Angle
Off
Lean Back Mode 1
Lean Back Mode 2
Standing Mode
Side Mode
Group View
Custom
SAMSUNG
MAGIC
Bright
Brightness
Contrast
Sharpness
Image Size
H-Position
AUTO
②
③
④
⑤
⑤
3

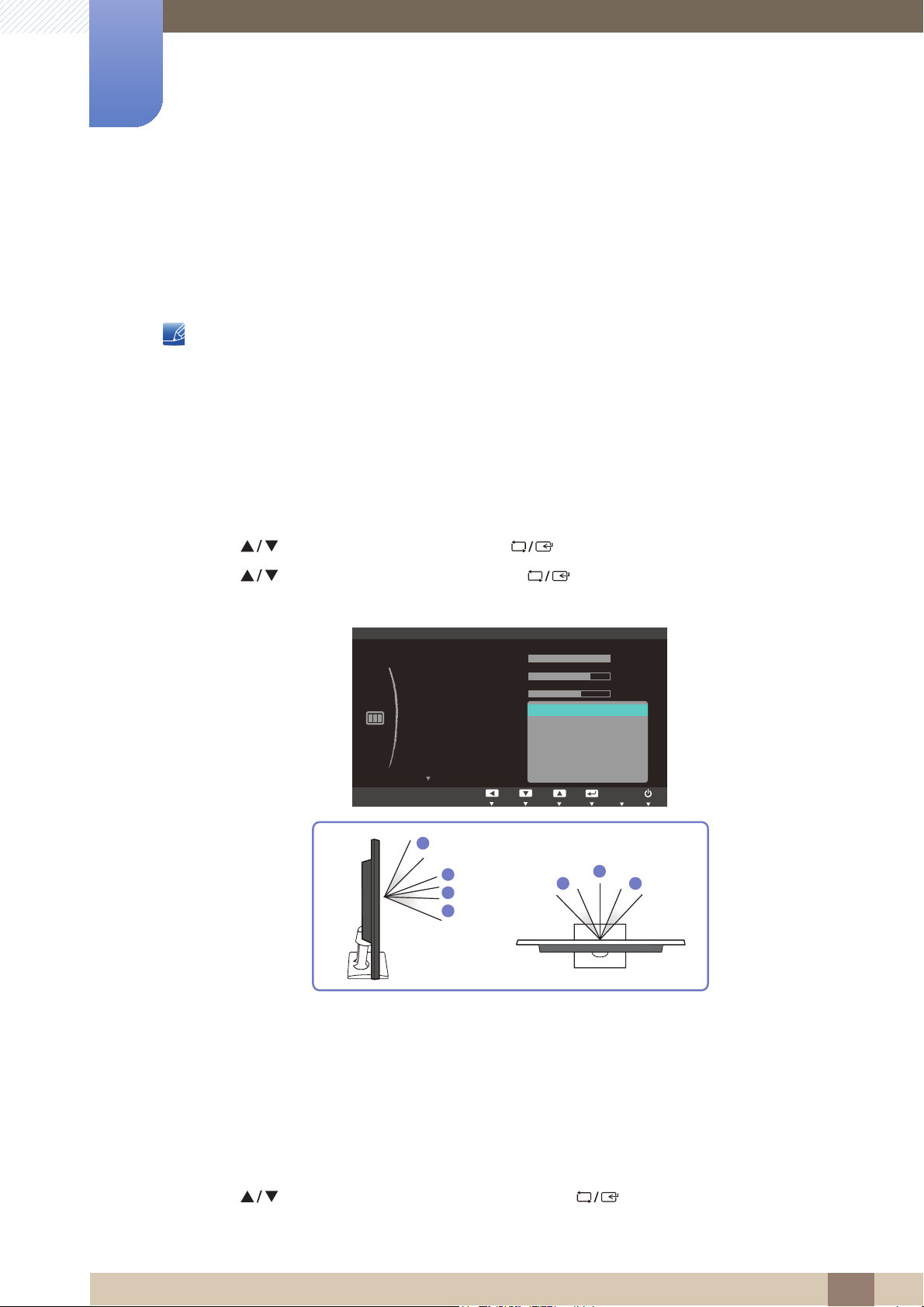

3.5 SAMSUNG MAGIC Angle
Angle allows you to configure the settings to obtain the optimum picture quality according to your
viewing angle.
z This menu is not available when Bright is in Cinema or Dynamic Contrast mode.
z This menu is not available for S19C200NY and S22C200NY models.
You can customize the angle to suit your preferences.
3.5.1 Configuring SAMSUNG MAGIC Angle
1 Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2 Press [ ] to move to PICTURE and press [ ] on the product.
3 Press [ ] to move to Angle and press [ ] on the product. The following screen will
appear.
4
1
2
3
1
5 5
z Off : Select this option to view directly in front of the product.
z Lean Back Mode 1 : Select this option to view from a place slightly lower than the product.
z Lean Back Mode 2 : Select this option to view from a place lower than Lean Back Mode 1.
z Standing Mode : Select this option to view from a place higher than the product.
z Side Mode : Select this option to view from either side of the product.
z Group View: Select this option for more than one viewer to view from places , , and .
z Custom: Lean Back Mode 1 will be applied by default if Custom is selected.
4 Press [ ] to move to the option you want and press [ ].
5 The selected option will be applied.
①
④
①
3 Screen Setup
37
Page 38
Screen Setup
MENU
Custom
Off
SAMSUNG
MAGIC
Bright
SAMSUNG
MAGIC
Angle
Brightness
Contrast
Sharpness
Image Size
H-Position
$XWR
:LGH
AUTO
Custom
Off
SAMSUNG
MAGIC
Bright
SAMSUNG
MAGIC
Angle
Brightness
Contrast
Sharpness
Image Size
H-Position
AUTO
Custom
Off
SAMSUNG
MAGIC
Bright
SAMSUNG
MAGIC
Angle
Brightness
Contrast
Sharpness
Image Size
H-Position
AUTO
3

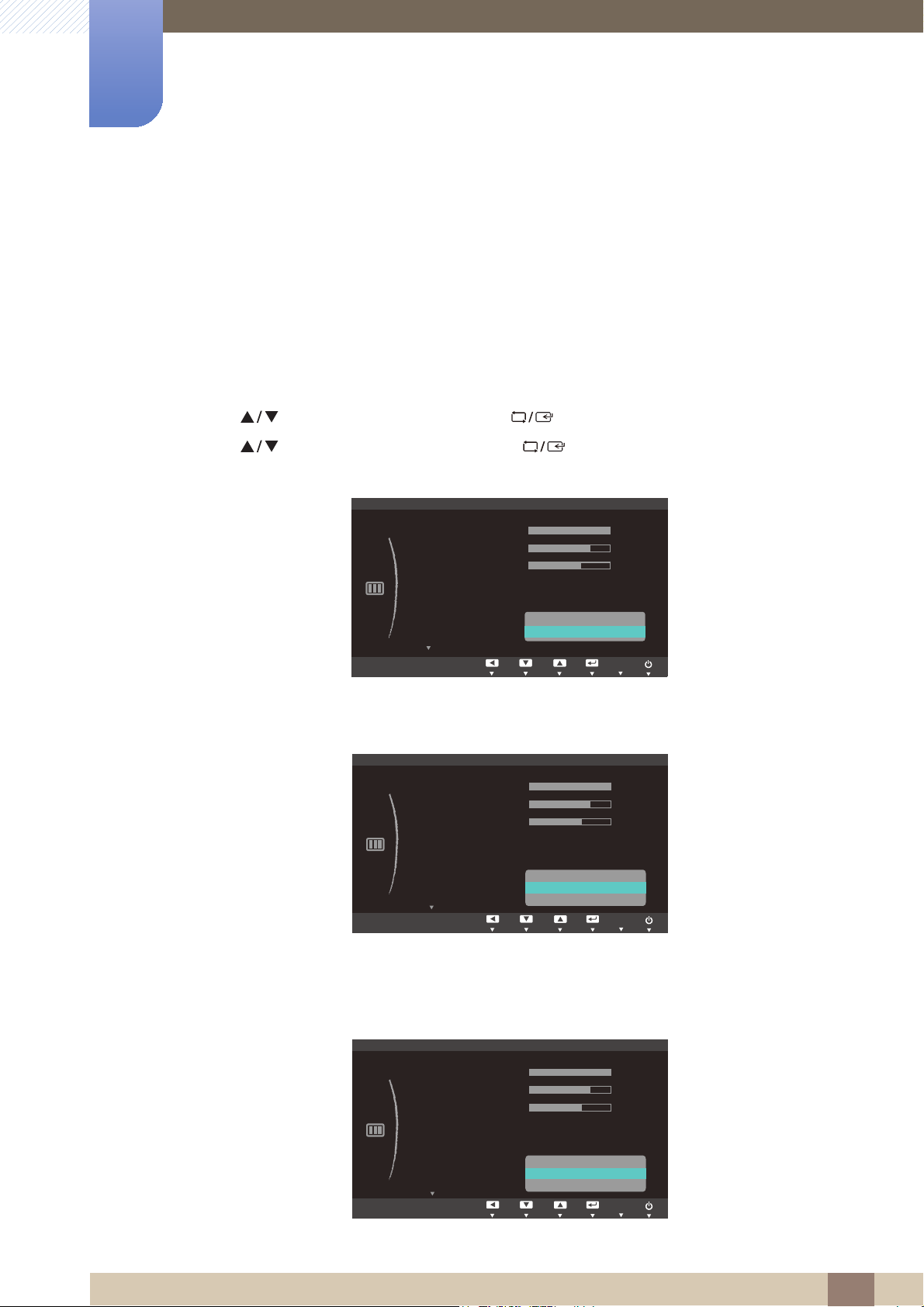

3.6 Image Size
Change the picture size.
3.6.1 Changing the Image Size
1 Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2 Press [ ] to move to PICTURE and press [ ] on the product.
3 Press [ ] to move to Image Size and press [ ] on the product. The following screen will
appear.
z Auto: Display the picture according to the aspect ratio of the input source.
z Wide: Display the picture in full screen regardless of the aspect ratio of the input source.
6FUHHQ)LW
z 4:3: Display the picture with an aspect ratio of 4:3. Suitable for videos and standard broadcasts.
z 16:9: Display the picture with an aspect ratio of 16:9.
z Screen Fit: Display the picture with the original aspect ratio without cutting off.
:LGH
6FUHHQ)LW
3 Screen Setup
38
Page 39
3
Screen Setup
z 4:3: Display the picture with an aspect ratio of 4:3. Suitable for videos and standard broadcasts.
z Wide: Display the picture in full screen regardless of the aspect ratio of the input
source.(S19C200NW/S19C200BW/S22C200BW)
z Screen Fit: Display the picture with the original aspect ratio without cutting off.
Changing the screen size is available when the following conditions are satisfied,except
S19C200NR and S19C200BR models.
z A digital output device is connected using the DVI cable.
z The input signal is 480p, 576p, 720p, or 1080p and monitor can display normally(not every
model can support all of these signals ).
z This can only be set when the external input is connected through DVI and PC/AV Mode is
set to AV.
4 Press [ ] to move to the option you want and press [ ].
5 The selected option will be applied.
3 Screen Setup
39
Page 40
Screen Setup
MENU
Custom
Off
Auto
SAMSUNG
MAGIC
Bright
SAMSUNG
MAGIC
Angle
Brightness
Contrast
Sharpness
Image Size
H-Position
AUTO
V-Position
Coarse
Fine
AUTO
3

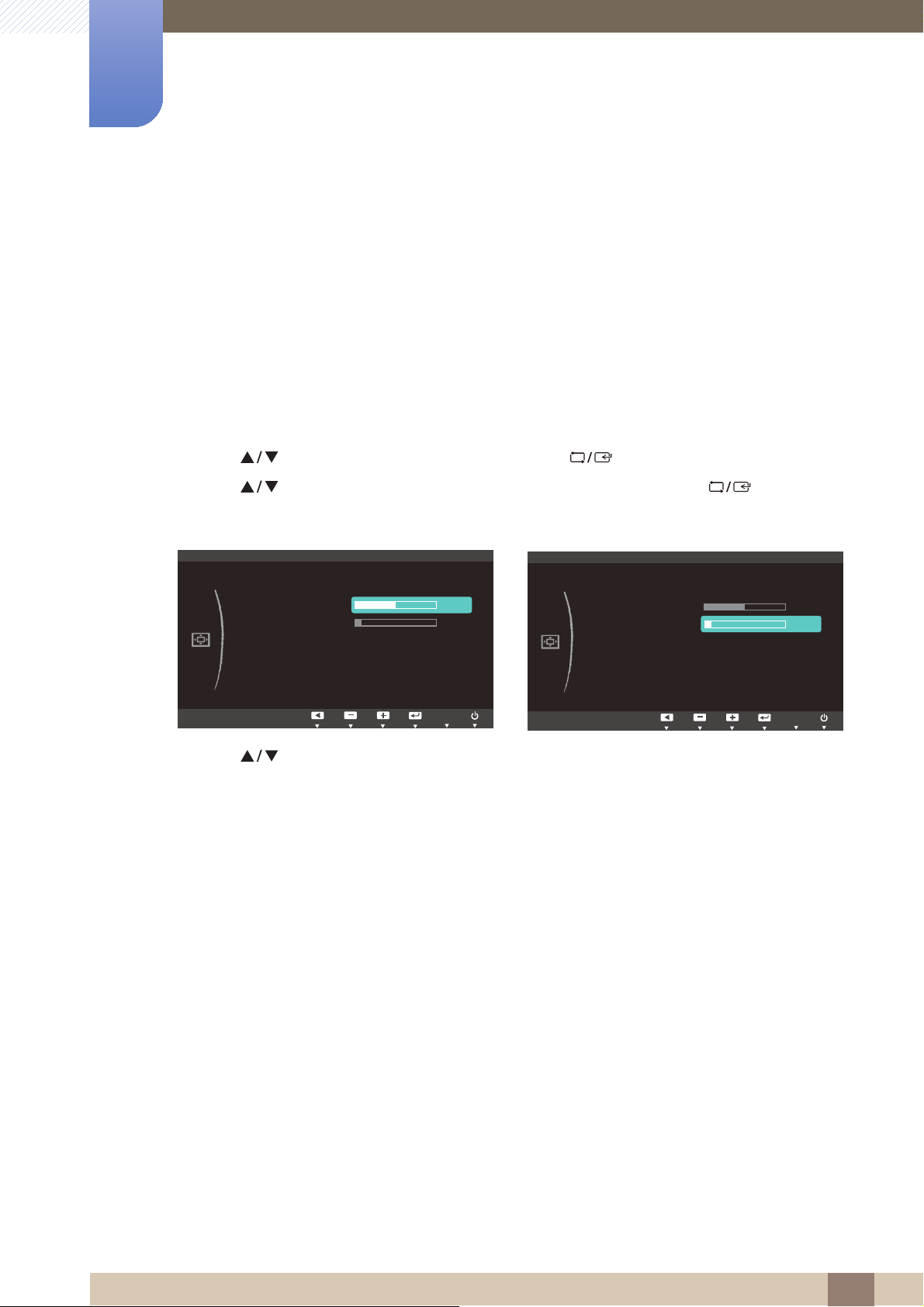

3.7 H-Position & V-Position
H-Position: Move the screen to the left or right.
V-Position: Move the screen up or down.
z This menu is available in Analog mode.
z This menu is only available when Image Size is set to Screen Fit in AV Mode. When a 480P or
576P or 720P or 1080P signal is input in AV mode and the monitor can display normally ,select
Screen Fit to adjust horizontal position in 0-6 levels.
3.7.1 Configuring H-Position & V-Position
1 Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2 Press [ ] to move to PICTURE and press [ ] on the product.
3 Press [ ] to move to H-Position or V-Position, and press [ ]. The following screen will
appear.
4 Press [ ] to configure H-Position or V-Position.
3 Screen Setup
40
Page 41
Screen Setup
MENU
V-Position
Coarse
Fine
AUTO
3
3.8 Coarse
Adjust the screen frequency.
This menu is available in Analog mode only.
3.8.1 Adjusting Coarse
1 Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2 Press [ ] to move to PICTURE and press [ ] on the product.
3 Press [ ] to move to Coarse and press [ ] on the product. The following screen will
appear.
4 Adjust the Coarse using the [ ] buttons.
3 Screen Setup
41
Page 42
Screen Setup
MENU
V-Position
Coarse
Fine
AUTO
3

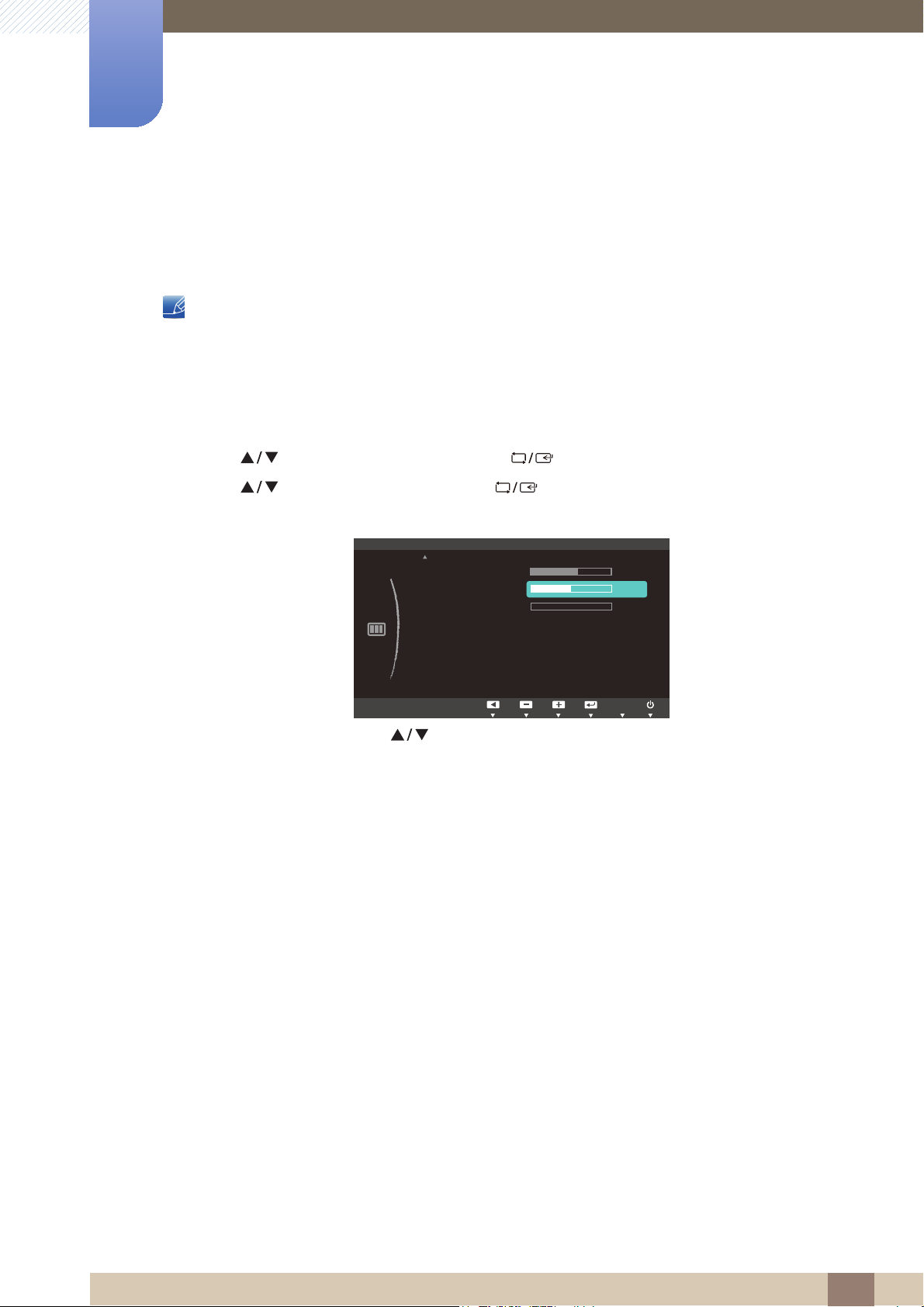

3.9 Fine
Fine-adjust the screen to obtain a vivid picture.
3.9.1 Adjusting Fine
1 Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2 Press [ ] to move to PICTURE and press [ ] on the product.
3 Press [ ] to move to Fine and press [ ] on the product. The following screen will appear.
This menu is available in Analog mode only.
4 Adjust the Fine using the [ ] buttons.
3 Screen Setup
42
Page 43
Configuring Tint
SAMSUNG
MAGIC
MENU
COLOR
:
:
:
:
:
Red
Green
Blue
Color Tone
Gamma
Mode1
Normal
AUTO
4
Adjust the tint of the screen. This menu is not available when Bright is set to Cinema or
Dynamic Contrast mode.
4.1 Red
Adjust the value of the color red in the picture. (Range: 0~100)
A higher value will increase the intensity of the color.
4.1.1 Configuring Red
1 Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2 Press [ ] to move to COLOR and press [ ] on the product.
3 Press [ ] to move to Red and press [ ] on the product. The following screen will appear.
4 Adjust the Red using the [ ] buttons.
4 Configuring Tint
43
Page 44
Configuring Tint
MENU
COLOR
:
:
:
:
:
Red
Green
Blue
Color Tone
Gamma
Mode1
Normal
AUTO
4

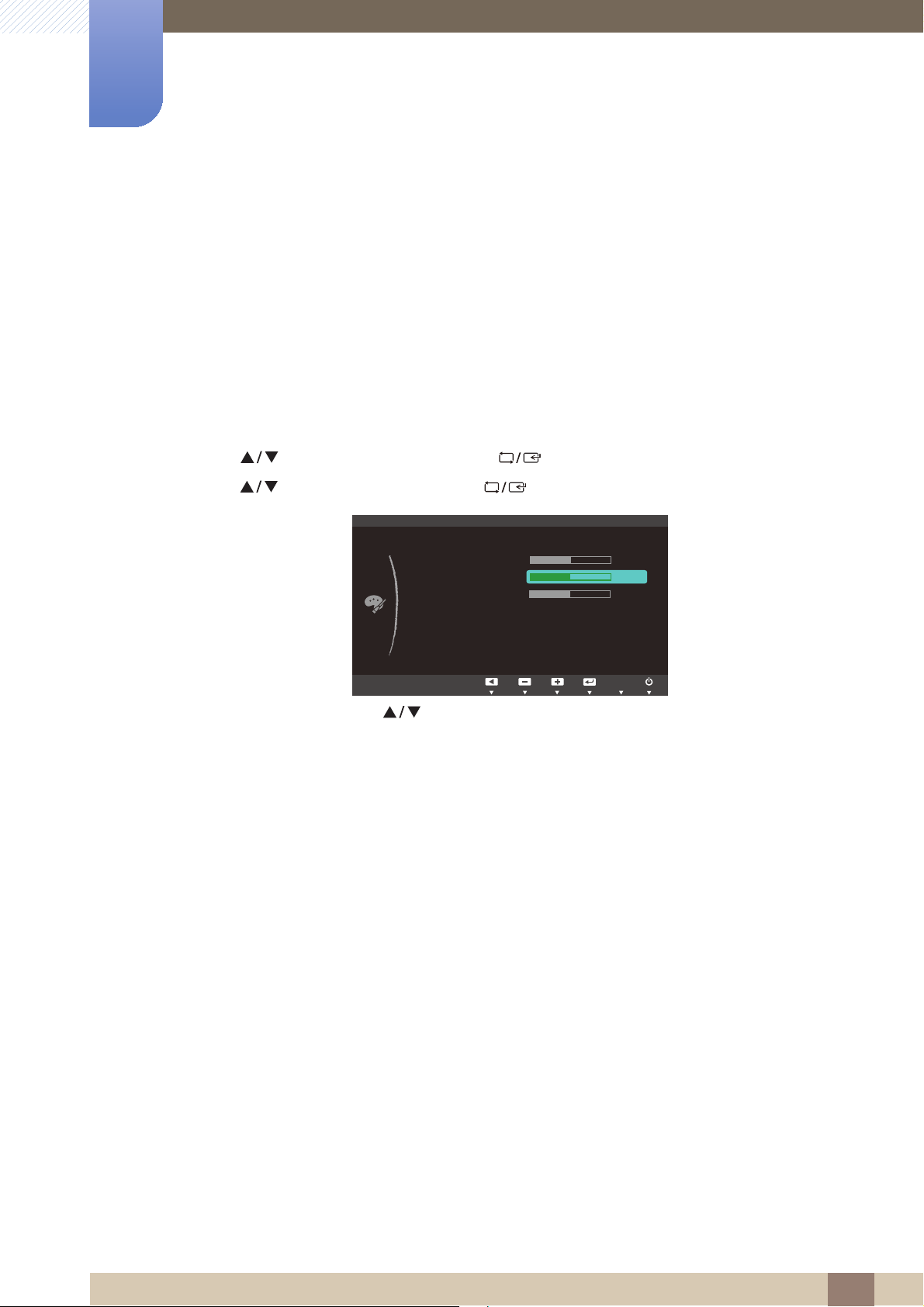

4.2 Green
Adjust the value of the color green in the picture. (Range: 0~100)
A higher value will increase the intensity of the color.
4.2.1 Configuring Green
1 Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2 Press [ ] to move to COLOR and press [ ] on the product.
3 Press [ ] to move to Green and press [ ] on the product. The following screen will appear.
4 Adjust the Green using the [ ] buttons.
4 Configuring Tint
44
Page 45
Configuring Tint
MENU
COLOR
:
:
:
:
:
Mode1
Normal
Red
Green
Blue
Color Tone
Gamma
AUTO
4
4.3 Blue
Adjust the value of the color blue in the picture. (Range: 0~100)
A higher value will increase the intensity of the color.
4.3.1 Configuring Blue
1 Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2 Press [ ] to move to COLOR and press [ ] on the product.
3 Press [ ] to move to Blue and press [ ] on the product. The following screen will appear.
4 Adjust the Blue using the [ ] buttons.
4 Configuring Tint
45
Page 46
Configuring Tint
SAMSUNG
MAGIC
MENU
COLOR
:
:
:
:
:
ֻҖ
ࣱ
&RRO
&RRO
1RUPDO
:DUP
:DUP
&XVWRP
Red
Green
Blue
Color Tone
Gamma
AUTO
4
4.4 Color Tone
Adjust the general color tone of the picture.
This menu is not available when Angle is enabled.
4.4.1 Configuring the Color Tone Settings
1 Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2 Press [ ] to move to COLOR and press [ ] on the product.
3 Press [ ] to move to Color Tone and press [ ] on the product. The following screen will
appear.
z Cool 2: Set the color temperature to be cooler than Cool 1.
z Cool 1: Set the color temperature to be cooler than Normal mode.
z Normal: Display the standard color tone.
z Warm 1: Set the color temperature to be warmer than Normal mode.
z Warm 2: Set the color temperature to be warmer than Warm 1.
z Custom: Customize the color tone.
4 Press [ ] to move to the option you want and press [ ].
5 The selected option will be applied.
4 Configuring Tint
46
Page 47
Configuring Tint
SAMSUNG
MAGIC
MENU
COLOR
:
:
:
:
:
ֻҖ
Normal
Mode1
Mode2
Mode3
Red
Green
Blue
Color Tone
Gamma
AUTO
4
4.5 Gamma
Adjust the mid-range brightness (Gamma) of the picture.
This menu is not available when Angle is enabled.
4.5.1 Configuring Gamma
1 Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2 Press [ ] to move to COLOR and press [ ] on the product.
3 Press [ ] to move to Gamma and press [ ] on the product. The following screen will
appear.
4 Press [ ] to move to the option you want and press [ ].
5 The selected option will be applied.
4 Configuring Tint
47
Page 48
Resizing or Relocating the Screen
MENU
20 sec
On
MENU SETTINGS
Language
Menu H-Position
Menu V-Position
Display Time
Transparency
'HXWVFK
(QJOLVK
(VSDxRO
)UDQoDLV
,WDOLDQR
0DJ\DU
3ROVNL
3RUWXJXrV
ƧNJLjLjǁƿǀ
6YHQVND
7UNoH
ଞ˲߭
∝䇁
AUTO
5
5.1 Language
Set the menu language.
z A change to the language setting will only be applied to the onscreen menu display.
z It will not be applied to other functions on your PC.
5.1.1 Changing the Language
1 Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2 Press [ ] to move to MENU SETTINGS and press [ ] on the product.
3 Press [ ] to move to Language and press [ ] on the product. The following screen will
appear.
ᣣᧄ⺆
4 Press [ ] to move to the language you want and press [ ].
5 The selected option will be applied.
5 Resizing or Relocating the Screen
48
Page 49
Resizing or Relocating the Screen
MENU
English
20 sec
On
MENU SETTINGS
Language
Menu H-Position
Menu V-Position
Display Time
Transparency
AUTO
5
5.2 Menu H-Position & Menu V-Position
Menu H-Position: Move the menu position to the left or right.
Menu V-Position: Move the menu position up or down.
5.2.1 Configuring Menu H-Position & Menu V-Position
1 Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2 Press [ ] to move to MENU SETTINGS and press [ ] on the product.
3 Press [ ] to move to Menu H-Position or Menu V-Position, and press [ ]. The following
screen will appear.
MENU SETTINGS
Language
Menu H-Position
Menu V-Position
Display Time
Transparency
4 Press [ ] to configure Menu H-Position or Menu V-Position.
English
20 sec
On
AUTO
5 Resizing or Relocating the Screen
49
Page 50
Resizing or Relocating the Screen
MENU
5
5.3 Display Time
Set the on-screen display (OSD) menu to automatically disappear if the menu is not used for a specified
period of time.
Display Time can be used to specify the time after which you want the OSD menu to disappear.
5.3.1 Configuring Display Time
1 Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2 Press [ ] to move to MENU SETTINGS and press [ ] on the product.
3 Press [ ] to move to Display Time and press [ ] on the product. The following screen will
appear.
MENU SETTINGS
Language
Menu H-Position
Menu V-Position
Display Time
Transparency
English
20 sec
VHF
VHF
On
VHF
VHF
AUTO
4 Press [ ] to move to the option you want and press [ ].
5 The selected option will be applied.
5 Resizing or Relocating the Screen
50
Page 51
Resizing or Relocating the Screen
MENU
5

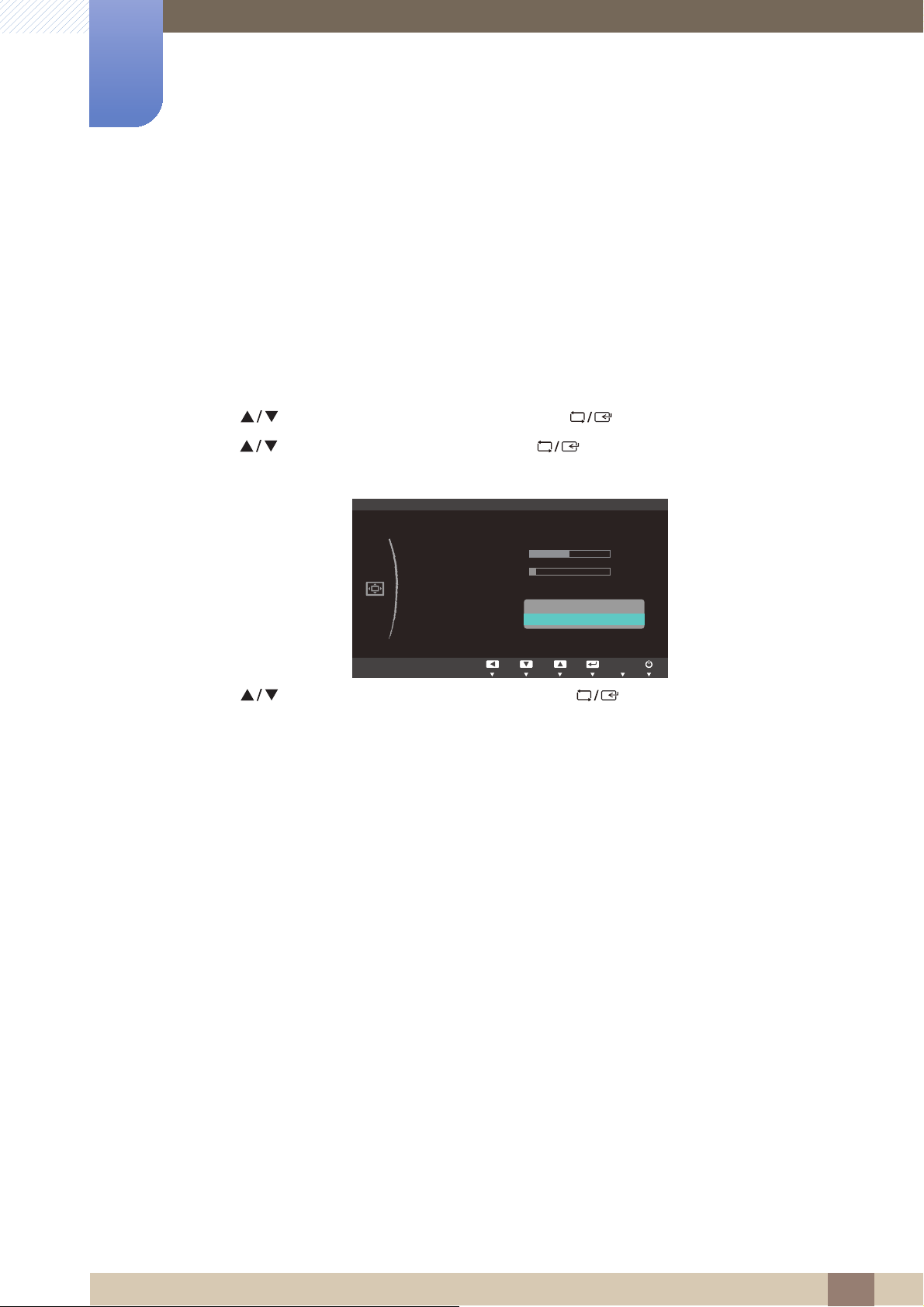

5.4 Transparency
Set the transparency for the menu windows:
5.4.1 Changing Transparency
1 Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2 Press [ ] to move to MENU SETTINGS and press [ ] on the product.
3 Press [ ] to move to Transparency and press [ ] on the product. The following screen will
appear.
MENU SETTINGS
Language
Menu H-Position
Menu V-Position
Display Time
Transparency
English
20 sec
On
Off
On
AUTO
4 Press [ ] to move to the option you want and press [ ].
5 The selected option will be applied.
5 Resizing or Relocating the Screen
51
Page 52
Setup and Reset
MENU
6
6.1 Reset
Return all the settings for the product to the default factory settings.
6.1.1 Initializing Settings (Reset)
1 Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2 Press [ ] to move to SETUP&RESET and press [ ] on the product.
3 Press [ ] to move to Reset and press [ ] on the product. The following screen will appear.
SETUP&RESET
Reset
Eco Saving
Off Timer
Turn Off After
PC/AV Mode
Key Repeat Time
Source Detection
Off
Off
Acceleration
Manual
Reset all settings?
Yes No
EXIT
AUTO
AUTO
4 Press [ ] to move to the option you want and press [ ].
5 The selected option will be applied.
6 Setup and Reset
52
Page 53
Setup and Reset
SAMSUNG
MAGIC
MENU
SETUP&RESET
Off
Off
Acceleration
Manual
Reset
Eco Saving
Off Timer
Turn Off After
PC/AV Mode
Key Repeat Time
Source Detection
ଥࢿ
ଥࢿ
Off
AUTO
6
6.2 Eco Saving
The Eco Saving function reduces power consumption by controlling the electric current used by the
monitor panel.
This menu is not available when Bright is in Dynamic Contrast mode.
6.2.1 Configuring Eco Saving
1 Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2 Press [ ] to move to SETUP&RESET and press [ ] on the product.
3 Press [ ] to move to Eco Saving and press [ ] on the product. The following screen will
appear.
z 75% : Change the monitor power consumption to 75% of the default level.
z 50% : Change the monitor power consumption to 50% of the default level.
z Off: Deactivate the Eco Saving function.
4 Press [ ] to move to the option you want and press [ ].
5 The selected option will be applied.
6 Setup and Reset
53
Page 54
Setup and Reset
MENU
6
6.3 Off Timer
You can set the product to automatically turn off.
6.3.1 Configuring Off Timer
1 Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2 Press [ ] to move to SETUP&RESET and press [ ] on the product.
3 Press [ ] to move to Off Timer and press [ ] on the product. The following screen will
appear.
SETUP&RESET
Reset
Eco Saving
Off Timer
Turn Off After
PC/AV Mode
Key Repeat Time
Source Detection
Off
Off
On
Acceleration
Manual
AUTO
z Off: Deactivate the off timer so that the product does not power off automatically.
z On: Activate the off timer so that the product powers off automatically.
4 Press [ ] to move to the option you want and press [ ].
5 The selected option will be applied.
6 Setup and Reset
54
Page 55
Setup and Reset
MENU
6
6.4 Turn Off After
The off timer can be set within a range of 1 to 23 hours. The product will automatically power off after the
specified number of hours.
This menu is available only when Off Timer is set to On.
6.4.1 Configuring Turn Off After
1 Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2 Press [ ] to move to SETUP&RESET and press [ ] on the product.
3 Press [ ] to move to Turn Off After and press [ ] on the product. The following screen will
appear.
SETUP&RESET
Reset
Eco Saving
Off Timer
Turn Off After
PC/AV Mode
Key Repeat Time
Source Detection
Off
On
Acceleration
Manual
10h
AUTO
4 Press [ ] to configure Turn Off After.
6 Setup and Reset
55
Page 56
Setup and Reset
MENU
SETUP&RESET
Off
Acceleration
Manual
Reset
Eco Saving
Off Timer
Turn Off After
PC/AV Mode
Key Repeat Time
Source Detection
On
10h
AUTO
6
6.5 PC/AV Mode
Set PC/AV Mode to AV. The picture size will be enlarged. This option is useful when you view a movie.
z This function does not support Analog mode.
z Supplied for the wide models only such as 16:9 or 16:10.
z If the monitor (when set to DVI) is in power saving mode or is displaying the message Check
Signal Cable, press the MENU button to display the On Screen Display (OSD). You can select PC
or AV.
6.5.1 Configuring PC/AV Mode
1 Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2 Press [ ] to move to SETUP&RESET and press [ ] on the product.
3 Press [ ] to move to PC/AV Mode and press [ ] on the product. The following screen will
appear.
PC/AV Mode
'9,
3&
$9
ೳ
AUTO
4 Press [ ] to move to the option you want and press [ ].
5 The selected option will be applied.
6 Setup and Reset
56
Page 57
Setup and Reset
MENU
SETUP&RESET
Off
Acceleration
Manual
Reset
Eco Saving
Off Timer
Turn Off After
PC/AV Mode
Key Repeat Time
Source Detection
On
10h
Acceleration
1 sec
2 sec
No Repeat
AUTO
6
6.6 Key Repeat Time
Control the response rate of a button when the button is pressed.
6.6.1 Configuring Key Repeat Time
1 Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2 Press [ ] to move to SETUP&RESET and press [ ] on the product.
3 Press [ ] to move to Key Repeat Time and press [ ] on the product. The following screen
will appear.
z Acceleration, 1 sec, or 2 sec can be selected. If No Repeat is selected, a command responds
only once when a button is pressed.
4 Press [ ] to move to the option you want and press [ ].
5 The selected option will be applied.
6 Setup and Reset
57
Page 58
Setup and Reset
MENU
SETUP&RESET
Off
Acceleration
Reset
Eco Saving
Off Timer
Turn Off After
PC/AV Mode
Key Repeat Time
Source Detection
On
10h
AUTO
6
6.7 Source Detection
You can activate Source Detection.
6.7.1 Configuring Source Detection
1 Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2 Press [ ] to move to SETUP&RESET and press [ ] on the product.
3 Press [ ] to move to Source Detection and press [ ] on the product. The following
screen will appear.
Auto
Manual
z Auto: The input source is automatically recognized.
z Manual: Manually select an input source.
4 Press [ ] to move to the option you want and press [ ].
5 The selected option will be applied.
6 Setup and Reset
58
Page 59
Setup and Reset
MENU
SETUP&RESET
Customized Key
SAMSUNG
MAGIC
SAMSUNG
MAGIC
6
6.8 Customized Key
You can customize Customized Key as follows.
6.8.1 Configuring Customized Key
1 Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2 Press [ ] to move to SETUP&RESET and press [ ] on the product.
3 Press [ ] to move to Customized Key and press [ ] on the product. The following screen
will appear.
SAMSUNG
Angle
$FFHOHUDWLRQ
MAGIC
SAMSUNG
Bright
MAGIC
2Q
Eco Saving
Image Size
AUTO
z Angle - Bright - Eco Saving - Image Size
4 Press [ ] to move to the option you want and press [ ].
5 The selected option will be applied.
6 Setup and Reset
59
Page 60
INFORMATION Menu and Others
MENU
7
7.1 INFORMATION
View the current input source, frequency and resolution.
7.1.1 Displaying INFORMATION
1 Press any button on the front of the product to display the Key Guide. Next, press [ ] to display
the corresponding menu screen.
2 Press [ ] to move to INFORMATION. The current input source, frequency and resolution will
appear.
COLOR
MENU SETTINGS
SETUP&RESET
Analog
**kHz **Hz NP
**** x ****
Optimal Mode
**** x **** **Hz
INFORMATION
The displayed menu items may vary depending on the model.
EXIT
AUTO
7 INFORMATION Menu and Others
60
Page 61
INFORMATION Menu and Others
7
7.2 Configuring Brightness and Contrast in the Initial Screen
Adjust the Brightness or Contrast setting using the [ ] buttons in the initial screen (where no OSD
menu is displayed).
1 Press any button on the front of the product (when no menu screen is displayed) to display the Key
guide. Next, press [ ]. The following screen will appear.
Brightness
100
Contrast
75
EXIT
2 Press the [ ] button to alternate between the Brightness and Contrast settings.
3 Adjust the Brightness or Contrast setting using the [ ] buttons.
7 INFORMATION Menu and Others
61
Page 62
Installing the Software
8
8.1 Magic Tune
8.1.1 What is MagicTune?
MagicTune is a software program that helps with monitor adjustments by providing comprehensive
descriptions of monitor functions and easy-to-understand guidelines.
You can adjust the product with the mouse and the keyboard without using the operating buttons of the
product.
8.1.2 Installing the Software
1 Insert the installation CD into the CD-ROM drive.
2 Select the MagicTune setup program.
If the pop-up screen for the software installation does not appear on the main screen, find and
double-click the MagicTune setup file on the CD-ROM.
3 Select the installation language and click [Next].
4 Complete the remaining software installation steps according to the instructions displayed on the
screen.
z The software may not work properly if you do not restart the computer after the installation.
z The MagicTune icon may not appear depending on the computer system and the product
specifications.
z If the shortcut icon does not appear, press the F5 key.
Restrictions and Problems with the Installation (MagicTune™)
The installation of MagicTune™may be affected by the graphics card, motherboard and the networking
environment.
System Requirements
OS
z Windows XP, Windows Vista, Windows 7
8 Installing the Software
62
Page 63
8
Installing the Software
8.1.3 Removing the Software
You can only remove MagicTune™ through [Add or Remove Programs] in Windows.
To remove MagicTune™, complete the following steps.
1 Click [Start] select [Settings], and select [Control Panel] from the menu.
For Windows XP, click [Start], and select [Control Panel] from the menu.
2 Double-click the [Add or Remove Programs] icon in the Control Panel.
3 In the [Add/Remove] window, find and select MagicTune™so that it is highlighted.
4 Click [Change or Remove Programs] to remove the software.
5 Select [Yes] to start removing MagicTune™.
6 Wait until a message box appears informing you that the software has been removed completely.
For technical support, the FAQ (frequently asked questions) or information about the software
upgrade for MagicTune™, please visit our website(http://www.samsung.com/us/consumer/
learningresources/monitor/magetune/pop_intro.html).
8 Installing the Software
63
Page 64
Installing the Software
8
8.2 MultiScreen
MultiScreen enables users to use the monitor by partitioning multiple sections.
8.2.1 Installing the Software
1 Insert the installation CD into the [CD-ROM drive].
2 Select the "MultiScreen" setup program.
If the pop-up screen for the software installation does not appear on the main screen, find and
double-click the "MultiScreen" setup file on the [CD-ROM].
3 When the Installation Wizard appears, click [Next].
MultiScreen
4 Follow the instructions given on the screen to proceed with installation.
Restrictions and Problems with the Installation (MultiScreen)
The "MultiScreen" installation may be affected by the [Graphics card], [Motherboard] and the [Networking
environment].
Operating System
"OS"
z "Windows 2000"
z "Windows XP Home Edition"
z "Windows XP Professional"
z "Windows Vista 32bit"
z "Windows 7 32bit"
"Hardware"
z At least 32MB of memory
z The software may not work properly if you do not restart the computer after the installation.
z The "MultiScreen" icon may not appear depending on the computer system and the product
specifications.
z If the shortcut icon does not appear, press the "F5" key.
For "MultiScreen", the operating systems "Windows 2000" or later is recommended.
z At least 60MB of free space on the hard disk drive
8 Installing the Software
64
64
Page 65
8
Installing the Software
8.2.2 Removing the Software
Click [Start], select [Settings]/[Control Panel], and then double-click [Add or Remove Programs].
Select "MultiScreen" from the program list and click the [Add/Delete] button.
8 Installing the Software
65
Page 66
Troubleshooting Guide
9
9.1 Requirements Before Contacting Samsung Customer Service Center
9.1.1 Testing the Product
Before calling Samsung Customer Service Center, test your product as follows. If the problem persists,
contact Samsung Customer Service Center.
Check if your product is operating normally by using the product test function.
If the screen is turned off and the power indicator blinks even though the product is properly connected
to a PC, perform a self-diagnosis test.
1 Power off both the PC and product.
2 Disconnect the cables from the product.
3 Power on the product.
4 If the message "Check Signal Cable" appears, the product is working normally.
9.1.2 Checking the Resolution and Frequency
For a mode that exceeds the supported resolution (refer to "10.3 Standard Signal Mode Table"), the
message "Not Optimum Mode" will appear for a short time.
9.1.3 Check the following.
The screen keeps switching on and off. Check the cable connection between the product
If the screen remains blank, check the PC system, video controller and cable.
Installation issue (PC mode)
and PC, and ensure the connectors are locked.
(Refer to "2.3 Connecting and Using a PC")
Screen issue
The power LED is off. The screen will not switch
on.
The message "Check Signal Cable" appears. Check that the cable is properly connected to the
Check that the power cable is connected
properly. (Refer to "2.3 Connecting and Using a
PC")
product. (Refer to "2.3 Connecting and Using a
PC")
Check that the device connected to the product is
powered on.
9 Troubleshooting Guide
66
Page 67
9
Troubleshooting Guide
Screen issue
"Not Optimum Mode" is displayed. This message appears if the signal from the
graphics card exceeds the maximum resolution or
frequency for the product.
Change the maximum resolution and frequency to
suit the product performance, referring to
Standard Signal Mode Table (page 82).
The images on the screen look distorted. Check the cable connection to the product (Refer
to "2.3 Connecting and Using a PC")
The screen is not clear. The screen is blurry. Adjust Coarse (page 41) and Fine (page 42).
Remove any accessories (video extension cable,
etc.) and try again.
Set the resolution and frequency to the
recommended level. (Refer to "10.1 General")
The screen appears unstable and shaky. Check that the resolution and frequency for the
There are shadows or ghost images left on the
screen.
The screen is too bright. The screen is too dark. Adjust Brightness (page 33) and Contrast (page
Screen color is inconsistent. Change the COLOR settings.
The colors on the screen have a shadow and are
distorted.
White does not really look white. Change the COLOR settings.
There is no image on the screen and the power
LED blinks every 0.5 to 1 second.
PC are within the range of resolution and
frequency compatible with the product. Next, if
required, change the settings, referring to
Standard Signal Mode Table (page 82) in this
manual and the INFORMATION menu on the
product.
34).
(Refer to " Configuring Tint")
Change the COLOR settings.
(Refer to " Configuring Tint")
(Refer to " Configuring Tint")
The product is operating in power-saving mode.
Press any key on the keyboard or move the
mouse to return to normal operating mode.
Source device issue
A beeping sound is heard when my PC is booting. If a beeping sound is heard when your PC is
booting, have your PC serviced.
9 Troubleshooting Guide
67
Page 68
Troubleshooting Guide
9
9.2 Q & A
Question Answer
How can I change the
frequency?
Set the frequency on your graphics card.
z Windows XP: Go to Control Panel Appearance and
Themes Display Settings Advanced Monitor,
and adjust Refresh rate under Monitor settings.
z Windows ME/2000: Go to Control Panel Display
Settings Advanced Monitor, and adjust Refresh rate
under Monitor settings.
z Windows Vista: Go to Control Panel Appearance and
Personalization Personalization Display Settings
Advanced Settings Monitor, and adjust Refresh rate
under Monitor settings.
z Windows 7: Go to Control Panel Appearance and
Personalization Display Screen Resolution
Advanced settings Monitor, and adjust Refresh rate under
Monitor settings.
9 Troubleshooting Guide
68
Page 69
9
Troubleshooting Guide
Question Answer
How can I change the
resolution?
How do I set power-saving
mode?
z Windows XP: Go to Control Panel Appearance and
Themes Display Settings, and adjust the resolution.
z Windows ME/2000: Go to Control Panel Display
Settings, and adjust the resolution.
z Windows Vista: Go to Control Panel Appearance and
Personalization Personalize Display Settings, and
adjust the resolution.
z Windows 7: Go to Control Panel Appearance and
Personalization Display Adjust Resolution, and adjust
the resolution.
z Windows XP: Set power-saving mode in Control Panel
Appearance and Themes Display Screen Saver
Settings or BIOS SETUP on the PC.
z Windows ME/2000: Set power-saving mode in Control Panel
Display Screen Saver Settings or BIOS SETUP on the
PC.
z Windows Vista: Set power-saving mode in Control Panel
Appearance and Personalization Personalize Screen
Saver Settings or BIOS SETUP on the PC.
z Windows 7: Set power-saving mode in Control Panel
Appearance and Personalization Personalize Screen
Saver Settings or BIOS SETUP on the PC.
Refer to the user manual for your PC or graphics card for further instructions on adjustment.
9 Troubleshooting Guide
69
Page 70
Specifications
10
10.1 General
Model Name S19C200NY S19C200N S19C200NW
Size 47 cm 47 cm 48 cm
Panel
Synchronization
Display Color 16.7M
Resolution
Maximum Pixel Clock 85MHz (Analog) 85MHz (Analog) 136MHz (Analog)
Power Supply
Display area
Pixel Pitch
Horizontal
Frequency
Vertical
Frequency
Optimum
Resolution
Maximum
Resolution
409.8 mm (H) x
230.4 mm (V)
0.300 mm (H) x
0.300 mm (V)
30 ~ 81 kHz
56 ~ 75 Hz
1366x768@60Hz 1440x900@60Hz
1366x768@60Hz 1440x900@75Hz
This product uses 100 to 240V.
Refer to the label at the back of the product as the standard voltage
can vary in different countries.
409.8 mm (H) x
230.4 mm (V)
0.300 mm (H) x
0.300 mm (V)
408.24 mm (H) x
255.15 mm (V)
0.2835 mm (H) x
0.2835 mm (V)
Signal connectors 15pin-to-15pin D-sub cable, Detachable
Without
Dimensions (W x
H x D) / Weight
VESA Mounting Interface
Environmental
considerations
Stand
With Stand
Operating
Storage
441.4 x 266.6 x 76.8 mm441.4 x 266.6 x 76.8 mm439.4 x 289.9 x 76.2
441.4 x 348.8 x 170
mm / 2.8 kg
100 mm x 100 mm
(For use with Specialty(Arm) Mounting hardware.)
Temperature : 10°C – 40°C (50°F – 104°F)
Humidity : 10 % – 80 %, non-condensing
Temperature : -20°C – 45°C (-4°F – 113°F)
Humidity : 5 % – 95 %, non-condensing
441.4 x 348.8 x 170
mm / 2.8 kg
mm
439.4 x 373.6 x 170
mm / 3.1 kg
10 Specifications
70
Page 71
10
Specifications
Model Name S19C200NY S19C200N S19C200NW
Plug-and-Play
Panel Dots (Pixels)
This monitor can be installed and used with any Plug-and-Play
compatible systems. Two-way data exchange between the monitor
and PC system optimizes the monitor settings. Monitor installation
takes place automatically. However, you can customize the
installation settings if desired.
Due to the nature of the manufacturing of this product,
approximately 1 pixel per million (1ppm) may be brighter or darker on
the LCD panel. This does not affect product performance.
10 Specifications
71
Page 72
10
Specifications
Model Name S19C200BW S19C200BR S19C200NR
Size 48 cm 48 cm 48 cm
Panel
Synchronization
Display Color 16.7M
Resolution
Maximum Pixel Clock
Power Supply
Display area
Pixel Pitch
Horizontal
Frequency
Vertical
Frequency
Optimum
Resolution
Maximum
Resolution
408.24 mm (H) x
255.15 mm (V)
0.2835 mm (H) x
0.2835 mm (V)
30 ~ 81 kHz
56 ~ 75 Hz
1440x900@60Hz 1280x1024@60Hz
1440x900@75Hz 1280x1024@75Hz
136MHz
(Analog,Digital)
This product uses 100 to 240V.
Refer to the label at the back of the product as the standard voltage
can vary in different countries.
376.32 mm (H) x
301.06 mm (V)
0.294 mm (H) x
0.294 mm (V)
135MHz
(Analog,Digital)
376.32 mm (H) x
301.06 mm (V)
0.294 mm (H) x
0.294 mm (V)
135MHz (Analog)
Signal connectors
Without
Dimensions (W x
H x D) / Weight
VESA Mounting Interface
Environmental
considerations
Stand
With Stand
Operating
Storage
15pin-to-15pin D-sub cable, Detachable
DVI-D to DVI-D connector, Detachable
439.4 x 289.9 x 76.2 mm407 x 336 x 77 mm 407 x 336 x 77 mm
439.4 x 373.6 x 170
mm / 3.1 kg
100 mm x 100 mm
(For use with Specialty(Arm) Mounting hardware.)
Temperature :10°C – 40°C (50°F – 104°F)
Humidity : 10 % – 80 %, non-condensing
Temperature : -20°C – 45°C (-4°F – 113°F)
Humidity : 5 % – 95 %, non-condensing
407 x 419 x 170 mm
/ 3.25 kg
15pin-to-15pin Dsub cable,
Detachable
407 x 419 x 170 mm
/ 3.25 kg
10 Specifications
72
Page 73
10
Specifications
Model Name S19C200BW S19C200BR S19C200NR
Plug-and-Play
Panel Dots (Pixels)
This monitor can be installed and used with any Plug-and-Play
compatible systems. Two-way data exchange between the monitor
and PC system optimizes the monitor settings. Monitor installation
takes place automatically. However, you can customize the
installation settings if desired.
Due to the nature of the manufacturing of this product,
approximately 1 pixel per million (1ppm) may be brighter or darker on
the LCD panel. This does not affect product performance.
10 Specifications
73
Page 74
10
Specifications
Model Name S20C200B S22C200NY S22C200N
Size 50 cm 54 cm 54 cm
Panel
Display area
442.8 mm (H) x
249.08 mm (V)
476.64 mm (H) x
268.11 mm (V)
476.64 mm (H) x
268.11 mm (V)
Pixel Pitch
Horizontal
Frequency
Synchronization
Vertical
Frequency
Display Color 16.7M
Optimum
Resolution
Resolution
Maximum
Resolution
Maximum Pixel Clock
Power Supply
Signal connectors
0.27675 mm (H) x
0.27675 mm (V)
30 ~ 81 kHz
56 ~ 75 Hz
1600x900@60Hz 1920x1080@60Hz
1600x900@60Hz 1920x1080@60Hz
136MHz
(Analog,Digital)
This product uses 100 to 240V.
Refer to the label at the back of the product as the standard voltage
can vary in different countries.
15pin-to-15pin Dsub cable,
Detachable
DVI-D to DVI-D
connector,
Detachable
0.24825 mm (H) x
0.24825 mm (V)
148MHz (Analog)
15pin-to-15pin D-sub cable, Detachable
0.24825 mm (H) x
0.24825 mm (V)
Without
Dimensions (W x
H x D) / Weight
VESA Mounting Interface
Environmental
considerations
Stand
With Stand
Operating
Storage
473.8 x 284 x 78.2 mm504.3 x 301.9 x 77.6 mm504.3 x 301.9 x 77.6
mm
473.8 x 367.1 x 170
mm / 2.65 kg
100 mm x 100 mm
(For use with Specialty(Arm) Mounting hardware.)
Temperature : 10°C – 40°C (50°F – 104°F)
Humidity : 10 % – 80 %, non-condensing
Temperature : -20°C – 45°C (-4°F – 113°F)
Humidity : 5 % – 95 %, non-condensing
504.3 x 385.35 x
185.0 mm / 3.5 kg
504.3 x 385.35 x
185.0 mm / 3.5 kg
10 Specifications
74
Page 75
10
Specifications
Model Name S20C200B S22C200NY S22C200N
Plug-and-Play
Panel Dots (Pixels)
This monitor can be installed and used with any Plug-and-Play
compatible systems. Two-way data exchange between the monitor
and PC system optimizes the monitor settings. Monitor installation
takes place automatically. However, you can customize the
installation settings if desired.
Due to the nature of the manufacturing of this product,
approximately 1 pixel per million (1ppm) may be brighter or darker on
the LCD panel. This does not affect product performance.
10 Specifications
75
Page 76
10
Specifications
Model Name S22C200B S22C200BW S23C200B
Size 54 cm 55 cm 58 cm
Panel
Synchronization
Display Color 16.7M
Resolution
Maximum Pixel Clock
Power Supply
Display area
Pixel Pitch
Horizontal
Frequency
Vertical
Frequency
Optimum
Resolution
Maximum
Resolution
476.64 mm (H) x
268.11 mm (V)
0.24825 mm (H) x
0.24825 mm (V)
30 ~ 81 kHz
56 ~ 75 Hz
1920x1080@60Hz 1680x1050@60Hz 1920x1080@60Hz
1920x1080@60Hz 1680x1050@60Hz 1920x1080@60Hz
148MHz
(Analog,Digital)
This product uses 100 to 240V.
Refer to the label at the back of the product as the standard voltage
can vary in different countries.
473.76 mm (H) x
296.1 mm (V)
0.282 mm (H) x
0.282 mm (V)
146MHz
(Analog,Digital)
509.76 mm (H) x
286.74 mm (V)
0.2655 mm (H) x
0.2655 mm (V)
148MHz
(Analog,Digital)
Signal connectors
Without
Dimensions (W x
H x D) / Weight
VESA Mounting Interface
Environmental
considerations
Stand
With Stand
Operating
Storage
15pin-to-15pin D-sub cable, Detachable
DVI-D to DVI-D connector, Detachable
504.3 x 301.9 x 77.6 mm502.4 x 329.8 x 77.4 mm542.9 x 321.4 x 76.3
mm
504.3 x 385.35 x
185.0 mm / 3.5 kg
100 mm x 100 mm
(For use with Specialty(Arm) Mounting hardware.)
Temperature : 10°C – 40°C (50°F – 104°F)
Humidity : 10 % – 80 %, non-condensing
Temperature : -20°C – 45°C (-4°F – 113°F)
Humidity : 5 % – 95 %, non-condensing
502.4 x 413.5 x 185
mm / 3.85 kg
542.9 x 404.65 x
185 mm / 3.25 kg
10 Specifications
76
Page 77
10
Specifications
Model Name S22C200B S22C200BW S23C200B
Plug-and-Play
Panel Dots (Pixels)
This monitor can be installed and used with any Plug-and-Play
compatible systems. Two-way data exchange between the monitor
and PC system optimizes the monitor settings. Monitor installation
takes place automatically. However, you can customize the
installation settings if desired.
Due to the nature of the manufacturing of this product,
approximately 1 pixel per million (1ppm) may be brighter or darker on
the LCD panel. This does not affect product performance.
10 Specifications
77
Page 78
10
Specifications
Model Name S24C200BL
Size 59 cm
Panel
Display area 521.28 mm (H) x 293.22 mm (V)
Pixel Pitch 0.2715 mm (H) x 0.2715 mm (V)
Horizontal
Frequency
Synchronization
Vertical
Frequency
Display Color 16.7M
Optimum
Resolution
Resolution
Maximum Pixel Clock 148MHz (Analog,Digital)
Power Supply
Signal connectors
Dimensions (W x
H x D) / Weight
Maximum
Resolution
Without
Stand
With Stand 554.6 x 412.35 x 185 mm / 4.1 kg
30 ~ 81 kHz
56 ~ 75 Hz
1920x1080@60Hz
1920x1080@60Hz
This product uses 100 to 240V.
Refer to the label at the back of the product as the standard voltage
can vary in different countries.
15pin-to-15pin D-sub cable, Detachable
DVI-D to DVI-D connector, Detachable
554.6 x 330.5 x 78.2 mm
VESA Mounting Interface
Operating
Environmental
considerations
Storage
Plug-and-Play
Panel Dots (Pixels)
The above specifications are subject to change without notice to improve quality.
100 mm x 100 mm
(For use with Specialty(Arm) Mounting hardware.)
Temperature : 10°C – 40°C (50°F – 104°F)
Humidity : 10 % – 80 %, non-condensing
Temperature : -20°C – 45°C (-4°F – 113°F)
Humidity : 5 % – 95 %, non-condensing
This monitor can be installed and used with any Plug-and-Play
compatible systems. Two-way data exchange between the monitor
and PC system optimizes the monitor settings. Monitor installation
takes place automatically. However, you can customize the
installation settings if desired.
Due to the nature of the manufacturing of this product,
approximately 1 pixel per million (1ppm) may be brighter or darker on
the LCD panel. This does not affect product performance.
10 Specifications
78
Page 79
10
Specifications
This device is a Class B digital apparatus.
10 Specifications
79
Page 80
Specifications
10
10.2 PowerSaver
The power-saving function of this product reduces power consumption by switching off the screen and
changing the color of the power LED if the product is not used for a specified period of time. The power
is not turned off in power-saving mode. To switch the screen back on, press any key on the keyboard or
move the mouse. Power-saving mode functions only when the product is connected to a PC that has a
power-saving function.
PowerSaver
Power Indicator On Blinking Off
Power Consumption
(S19C200NY)
Power Consumption
(S19C200N)
Power Consumption
(S19C200NW)
Power Consumption
(S19C200BW)
Power Consumption
(S19C200BR)
Power Consumption
(S19C200NR)
Power Consumption
(S20C200B)
Normal operation
mode
Typical 19 watts
Typical 19 watts
Typical 19 watts
Typical 19 watts
Typical 19 watts
Typical 19 watts
Typical 19 watts
Power saving mode
Less than 0.1watts
(Analog input condition)
Less than 0.1watts
(Analog input condition)
Less than 0.1watts
(Analog input condition)
Less than 0.1watts
(Analog input condition)
Less than 0.1watts
(Analog input condition)
Less than 0.1watts
(Analog input condition)
Less than 0.1watts
(Analog input condition)
(Power button)
Less than 0.1watts
(Analog input condition)
Less than 0.1watts
(Analog input condition)
Less than 0.1watts
(Analog input condition)
Less than 0.1watts
(Analog input condition)
Less than 0.1watts
(Analog input condition)
Less than 0.1watts
(Analog input condition)
Less than 0.1watts
(Analog input condition)
Power off
Power Consumption
(S22C200NY)
Power Consumption
(S22C200N)
Power Consumption
(S22C200B)
Power Consumption
(S22C200BW)
Typical 24 watts
Typical 24 watts
Typical 24 watts
Typical 24 watts
Less than 0.1watts
(Analog input condition)
Less than 0.1watts
(Analog input condition)
Less than 0.1watts
(Analog input condition)
Less than 0.1watts
(Analog input condition)
Less than 0.1watts
(Analog input condition)
Less than 0.1watts
(Analog input condition)
Less than 0.1watts
(Analog input condition)
Less than 0.1watts
(Analog input condition)
10 Specifications
80
Page 81
10
Specifications
PowerSaver
Power Consumption
(S23C200B)
Power Consumption
(S24C200BL)
The power consumption level can vary in different operating conditions or when settings are
changed.
To reduce the power consumption to 0 watts, turn off the power switch on the back of the product
or disconnect the power cable. Be sure to disconnect the power cable when you will not be using
the product for an extended period of time. To reduce the power consumption to 0 watts when the
power switch is not available, disconnect the power cable.
(S**C200** Model Power saving mode / Power off (Power button) : Max 0.25watts )
Normal operation
mode
Typical 25 watts
Typical 30 watts
Power saving mode
Less than 0.1watts
(Analog input condition)
Less than 0.1watts
(Analog input condition)
Power off
(Power button)
Less than 0.1watts
(Analog input condition)
Less than 0.1watts
(Analog input condition)
10 Specifications
81
Page 82
Specifications
10
10.3 Standard Signal Mode Table
z This product can be set to only one resolution for each screen size to obtain the optimum picture
quality due to the nature of the panel. Therefore, a resolution other than the specified resolution
may degrade the picture quality. To avoid this, it is recommended that you select the optimum
resolution specified for the screen size of your product.
z Check the frequency when you exchange a CDT monitor (connected to a PC) for an LCD monitor.
If the LCD monitor does not support 85Hz, change the vertical frequency to 60Hz using the CDT
monitor before you exchange it with the LCD monitor.
If a signal that belongs to the following standard signal modes is transmitted from your PC, the screen will
automatically be adjusted. If the signal transmitted from the PC does not belong to the standard signal
modes, the screen may be blank even though the power LED turns on. In such a case, change the
settings according to the following table by referring to the graphics card user manual.
S19C200NY
Horizontal
Resolution
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
VESA, 640 x 480 31.469 59.940 25.175 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
VESA, 1024 x 768 56.476 70.069 75.000 -/-
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1366 x 768 47.712 59.790 85.500 +/+
10 Specifications
82
Page 83
10
Specifications
S19C200N
Horizontal
Resolution
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
VESA, 640 x 480 31.469 59.940 25.175 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
VESA, 1024 x 768 60.023 75.029 78.750 +/+
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1366 x 768 47.712 59.790 85.500 +/+
10 Specifications
83
Page 84
10
Specifications
S19C200NW
Horizontal
Resolution
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
MAC, 1152 x 870 68.681 75.062 100.000 -/-
VESA, 640 x 480 31.469 59.940 25.175 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1152 x 864 67.500 75.000 108.000 +/+
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1280 x 800 49.702 59.810 83.500 -/+
VESA, 1440 x 900 55.935 59.887 106.500 -/+
VESA, 1440 x 900 70.635 74.984 136.750 -/+
10 Specifications
84
Page 85
10
Specifications
S19C200BW
Horizontal
Resolution
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
MAC, 1152 x 870 68.681 75.062 100.000 -/-
VESA, 640 x 480 31.469 59.940 25.175 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1152 x 864 67.500 75.000 108.000 +/+
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1280 x 800 49.702 59.810 83.500 -/+
VESA, 1440 x 900 55.935 59.887 106.500 -/+
VESA, 1440 x 900 70.635 74.984 136.750 -/+
10 Specifications
85
Page 86
10
Specifications
S19C200BR
Horizontal
Resolution
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
MAC, 1152 x 870 68.681 75.062 100.000 -/-
VESA, 640 x 480 31.469 59.940 25.175 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1152 x 864 67.500 75.000 108.000 +/+
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1280 x 800 49.702 59.810 83.500 -/+
VESA, 1280 x 960 60.000 60.000 108.000 +/+
VESA, 1280 x 1024 63.981 60.020 108.000 +/+
VESA, 1280 x 1024 79.976 75.025 135.000 +/+
10 Specifications
86
Page 87
10
Specifications
S19C200NR
Horizontal
Resolution
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
MAC, 1152 x 870 68.681 75.062 100.000 -/-
VESA, 640 x 480 31.469 59.940 25.175 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1152 x 864 67.500 75.000 108.000 +/+
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1280 x 800 49.702 59.810 83.500 -/+
VESA, 1280 x 960 60.000 60.000 108.000 +/+
VESA, 1280 x 1024 63.981 60.020 108.000 +/+
VESA, 1280 x 1024 79.976 75.025 135.000 +/+
10 Specifications
87
Page 88
10
Specifications
S20C200B
Horizontal
Resolution
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
MAC, 1152 x 870 68.681 75.062 100.000 -/-
VESA, 640 x 480 31.469 59.940 25.175 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1152 x 864 67.500 75.000 108.000 +/+
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1280 x 800 49.702 59.810 83.500 -/+
VESA, 1440 x 900 55.935 59.887 106.500 -/+
VESA, 1440 x 900 70.635 74.984 136.750 -/+
VESA, 1600 x 900 60.000 60.000 108.000 +/+
10 Specifications
88
Page 89
10
Specifications
S22C200NY
Horizontal
Resolution
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
MAC, 1152 x 870 68.681 75.062 100.000 -/-
VESA, 640 x 480 31.469 59.940 25.175 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1152 x 864 67.500 75.000 108.000 +/+
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1280 x 800 49.702 59.810 83.500 -/+
VESA, 1280 x 1024 63.981 60.020 108.000 +/+
VESA, 1280 x 1024 79.976 75.025 135.000 +/+
VESA, 1440 x 900 55.935 59.887 106.500 -/+
VESA, 1600 x 900 60.000 60.000 108.000 +/+
VESA, 1680 x 1050 65.290 59.954 146.250 -/+
VESA, 1920 x 1080 67.500 60.000 148.500 +/+
10 Specifications
89
Page 90
10
Specifications
S22C200N
Horizontal
Resolution
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
MAC, 1152 x 870 68.681 75.062 100.000 -/-
VESA, 640 x 480 31.469 59.940 25.175 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1152 x 864 67.500 75.000 108.000 +/+
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1280 x 800 49.702 59.810 83.500 -/+
VESA, 1280 x 1024 63.981 60.020 108.000 +/+
VESA, 1280 x 1024 79.976 75.025 135.000 +/+
VESA, 1440 x 900 55.935 59.887 106.500 -/+
VESA, 1600 x 900 60.000 60.000 108.000 +/+
VESA, 1680 x 1050 65.290 59.954 146.250 -/+
VESA, 1920 x 1080 67.500 60.000 148.500 +/+
10 Specifications
90
Page 91
10
Specifications
S22C200B
Horizontal
Resolution
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
MAC, 1152 x 870 68.681 75.062 100.000 -/-
VESA, 640 x 480 31.469 59.940 25.175 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1152 x 864 67.500 75.000 108.000 +/+
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1280 x 800 49.702 59.810 83.500 -/+
VESA, 1280 x 1024 63.981 60.020 108.000 +/+
VESA, 1280 x 1024 79.976 75.025 135.000 +/+
VESA, 1440 x 900 55.935 59.887 106.500 -/+
VESA, 1600 x 900 60.000 60.000 108.000 +/+
VESA, 1680 x 1050 65.290 59.954 146.250 -/+
VESA, 1920 x 1080 67.500 60.000 148.500 +/+
10 Specifications
91
Page 92
10
Specifications
S22C200BW
Horizontal
Resolution
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
MAC, 1152 x 870 68.681 75.062 100.000 -/-
VESA, 640 x 480 31.469 59.940 25.175 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1152 x 864 67.500 75.000 108.000 +/+
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1280 x 800 49.702 59.810 83.500 -/+
VESA, 1280 x 1024 63.981 60.020 108.000 +/+
VESA, 1280 x 1024 79.976 75.025 135.000 +/+
VESA, 1440 x 900 55.935 59.887 106.500 -/+
VESA, 1600 x 900 60.000 60.000 108.000 +/+
VESA, 1680 x 1050 65.290 59.954 146.250 -/+
10 Specifications
92
Page 93
10
Specifications
S23C200B
Horizontal
Resolution
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
MAC, 1152 x 870 68.681 75.062 100.000 -/-
VESA, 640 x 480 31.469 59.940 25.175 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1152 x 864 67.500 75.000 108.000 +/+
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1280 x 800 49.702 59.810 83.500 -/+
VESA, 1280 x 1024 63.981 60.020 108.000 +/+
VESA, 1280 x 1024 79.976 75.025 135.000 +/+
VESA, 1440 x 900 55.935 59.887 106.500 -/+
VESA, 1600 x 900 60.000 60.000 108.000 +/+
VESA, 1680 x 1050 65.290 59.954 146.250 -/+
VESA, 1920 x 1080 67.500 60.000 148.500 +/+
10 Specifications
93
Page 94
10
Specifications
S24C200BL
Horizontal
Resolution
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480 35.000 66.667 30.240 -/-
MAC, 832 x 624 49.726 74.551 57.284 -/-
MAC, 1152 x 870 68.681 75.062 100.000 -/-
VESA, 640 x 480 31.469 59.940 25.175 -/-
VESA, 640 x 480 37.861 72.809 31.500 -/-
VESA, 640 x 480 37.500 75.000 31.500 -/-
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600 48.077 72.188 50.000 +/+
VESA, 800 x 600 46.875 75.000 49.500 +/+
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1152 x 864 67.500 75.000 108.000 +/+
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1280 x 800 49.702 59.810 83.500 -/+
VESA, 1280 x 1024 63.981 60.020 108.000 +/+
VESA, 1280 x 1024 79.976 75.025 135.000 +/+
VESA, 1440 x 900 55.935 59.887 106.500 -/+
VESA, 1600 x 900 60.000 60.000 108.000 +/+
VESA, 1680 x 1050 65.290 59.954 146.250 -/+
VESA, 1920 x 1080 67.500 60.000 148.500 +/+
z Horizontal Frequency
The time required to scan a single line from the left to the right side of the screen is called a
horizontal cycle. The reciprocal number of a horizontal cycle is called horizontal frequency.
Horizontal frequency is measured in kHz.
z Vertical Frequency
Repeating the same picture dozens of times per second allows you to view natural pictures. The
repeat frequency is called "vertical frequency" or "refresh rate" and is indicated in Hz.
10 Specifications
94
Page 95
Appendix
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG
customer care center.
INDIA 1800 1100 11
3030 8282
1800 3000 8282
1800 266 8282
http://www.samsung.com
Appendix
95
Page 96
Appendix
Responsibility for the Pay Service (Cost to Customers)
When the service is requested, in spite of in warranty, we may charge you for a visit from a service
technician in the following cases.
Not a product defect
Cleaning of the product, Adjustment, Explanation, Re-installation and etc.
z If a service technician gives instructions on how to use product or simply adjusts options without
disassembling productU
z If a defect is caused by external environmental factors (Internet, Antenna, Wired Signal, etc.)
z If a product is reinstalled or devices are connected additionally after installing the purchased product
for the first timeU
z If a product is reinstalled to move to a different spot or to move to a different houseU
z If customer requests instructions on how to use because of another company's productU
z If customer requests instructions on how to use the network or another company's programU
z If customer requests software installation and setup for the productU
z If a service technician removes/cleans dusts or foreign materials inside of the productU
z If customer requests an installation additionally after purchasing a product through home-shopping
or online.
A Product damage caused by customer's fault
Product damage caused by customer's mishandling or wrong repairU
If a product damage is caused by;
z external impact or drop U
z use of supplies or separatly sold product unspecified by SamsungU
z repair from a person besides an engineer of outsourcing service company or partner of Samsung
Electronics Co., Ltd.
z remodeling or repairing the product by customer.
z using it with incorrect voltage or non-authorised electrical connectionsU
z not following the "cautions" in User Manual.
Others
z If product fails by natural disaster (lightning, fire, earthquake, flood damage, etc) U
z If consumable components are all used up (Battery, Toner, Fluorescent lights, Head, Vibrator, Lamp,
Filter, Ribbon, etc.)
If customer requests a service in case the product has no defect, service fee may be charged. So
please read User Manual first.
Appendix
96
Page 97
Appendix
Correct Disposal
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its
electronic accessories (e.g. charger, headset, USB cable) should not be disposed of
with other household waste at the end of their working life. To prevent possible harm to
the environment or human health from uncontrolled waste disposal, please separate
these items from other types of waste and recycle them responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product,
or their local government office, for details of where and how they can take these items
for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product and its electronic accessories should not be mixed with
other commercial wastes for disposal.
(India Only)
For more information on safe disposal and recycling visit our website www.samsung.com/in or
contact our Helpline numbers - 18002668282, 180030008282.
Appendix
97
Page 98
Appendix
Terminology
OSD(On Screen Display)
On screen display (OSD) allows you to configure on-screen settings to optimize the picture quality as
required. It allows you to change the screen brightness, tint, size and many other settings using
menus displayed on the screen.
Gamma
The Gamma menu adjusts the grey scale that represents middle tones on the screen. Adjusting the
brightness brightens the whole screen, but adjusting Gamma only brightens the medium brightness.
Grey scale
Scale refers to levels of color intensity that show variations of color change from darker areas to
brighter areas on the screen. Changes to the screen brightness are expressed with black and white
variation, and grey scale refers to the medium area between black and white. Changing the grey scale
through Gamma adjustment will change the medium brightness on the screen.
Scanning rate
Scanning rate, or refresh rate, refers to the frequency of screen refreshes. Screen data is transmitted
as it refreshes to display an image, although the refreshing is invisible to the naked eye. The number of
screen refreshes is called scanning rate and is measured in Hz. A scanning rate of 60Hz means that
the screen refreshes 60 times per second. The screen scanning rate depends on the performance of
the graphics cards in your PC and monitor.
Horizontal Frequency
Characters or images displayed on the monitor screen consist of numerous dots (pixels). Pixels are
