Page 1
User Manual
S19C170B
S22C170B
The color and the appearance may differ depending on
the product, and the specifications are subject to
change without prior notice to improve the performance.
Page 2
Table Of Contents
BEFORE USING THE
PRODUCT
PREPARATIONS 19 Checking the Contents
7 Copyright
7 Icons used in this manual
8 Cleaning
9 Securing the Installation Space
9 Precautions for storage
10 Safety Precautions
10 Symbols for safety precautions
11 Electricity and Safety
12 Installation and Safety
14 Operation

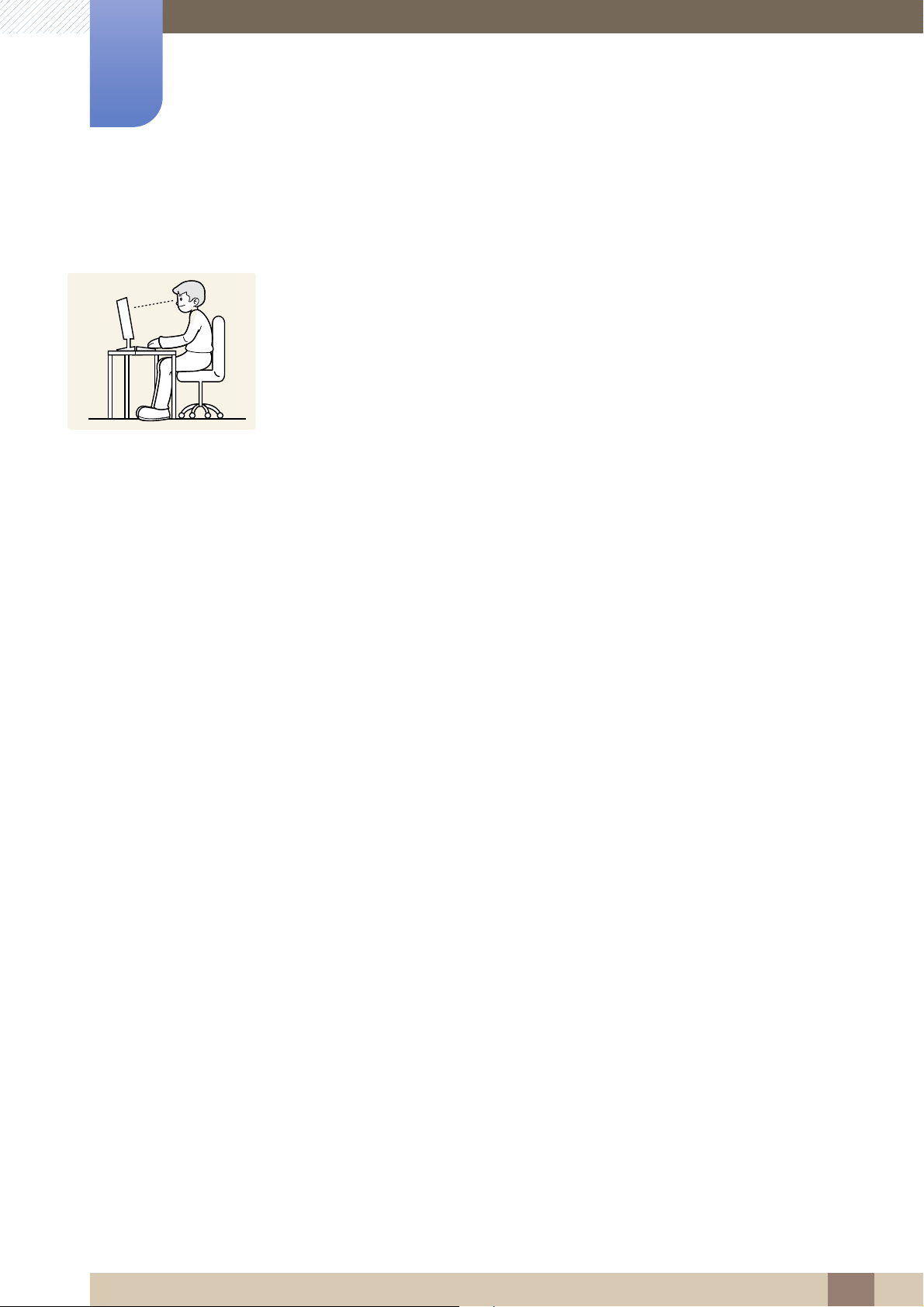

18 Correct posture to use the product
19 Removing the Packaging

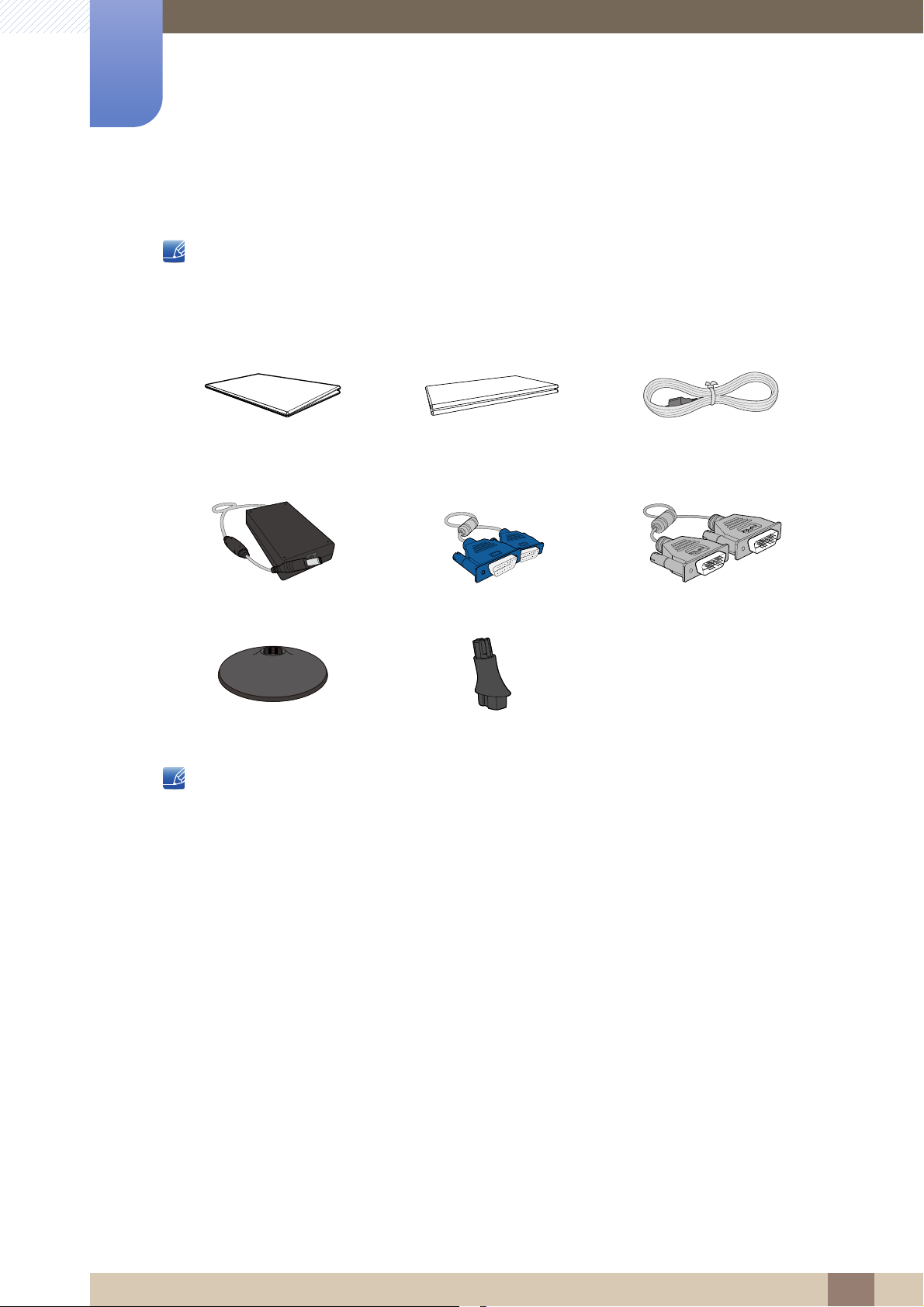

20 Checking the Components
CONNECTING AND USING
A SOURCE DEVICE
21 Parts

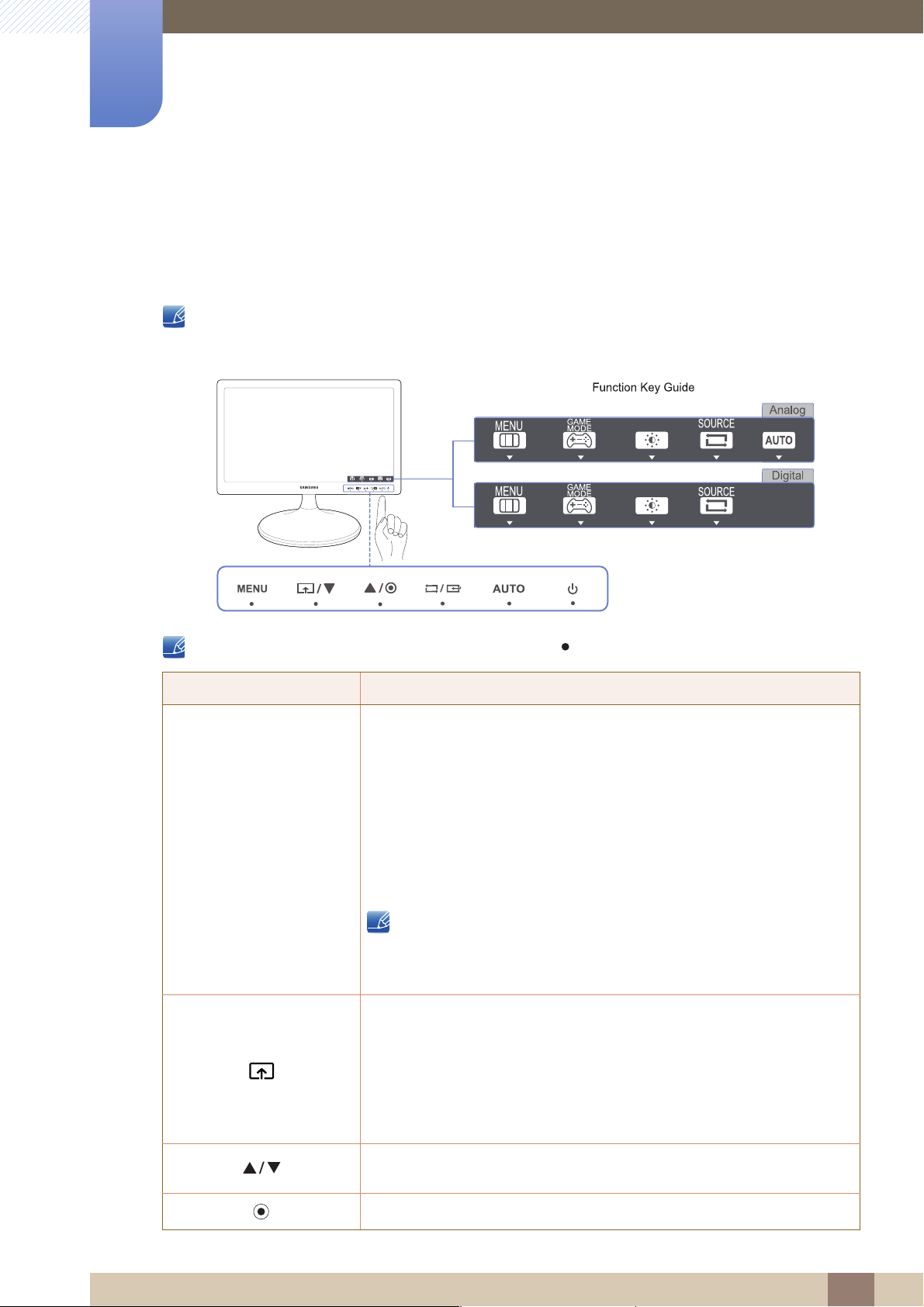

21 Frontal Button

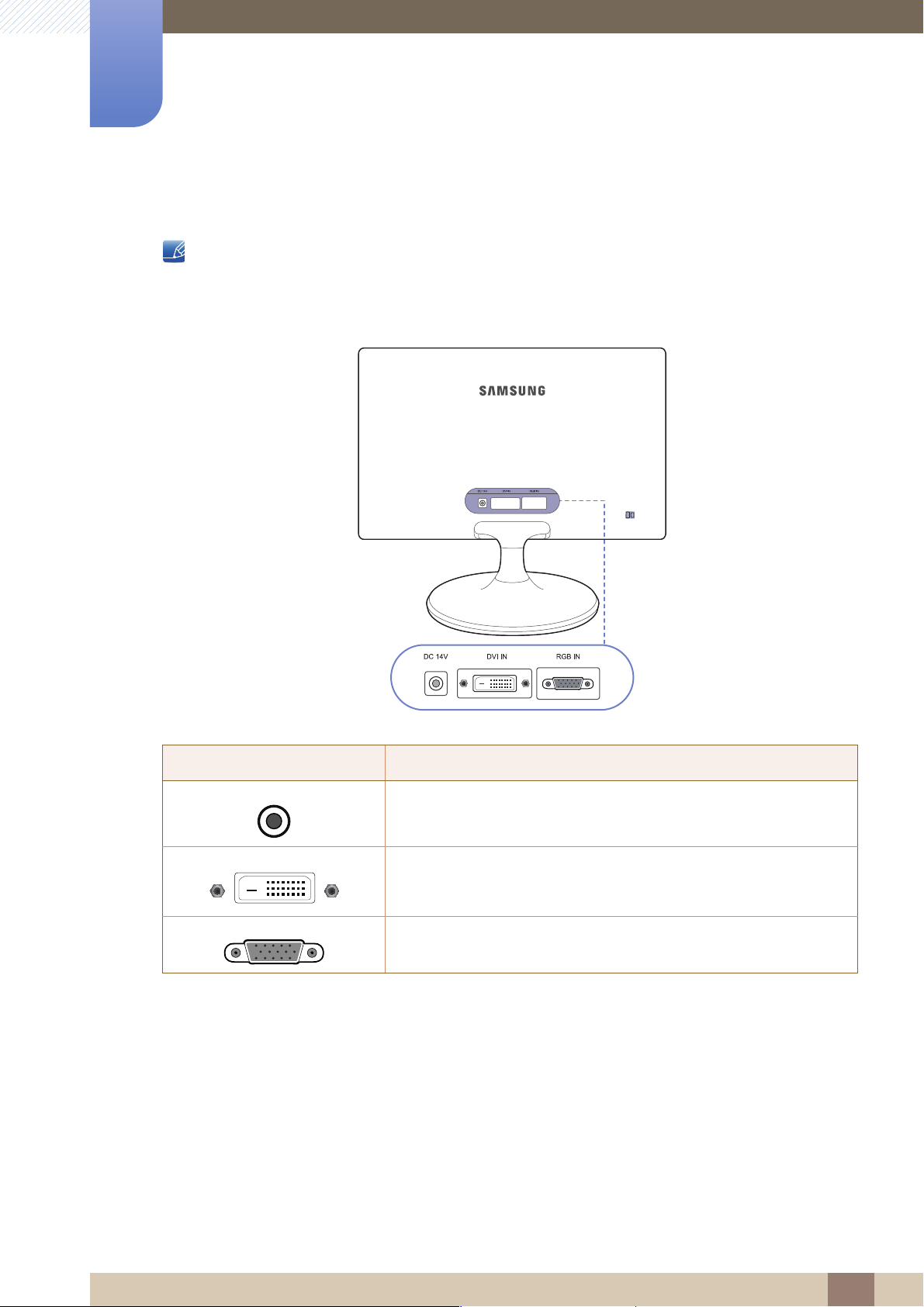

23 Reverse Side
24 Installation

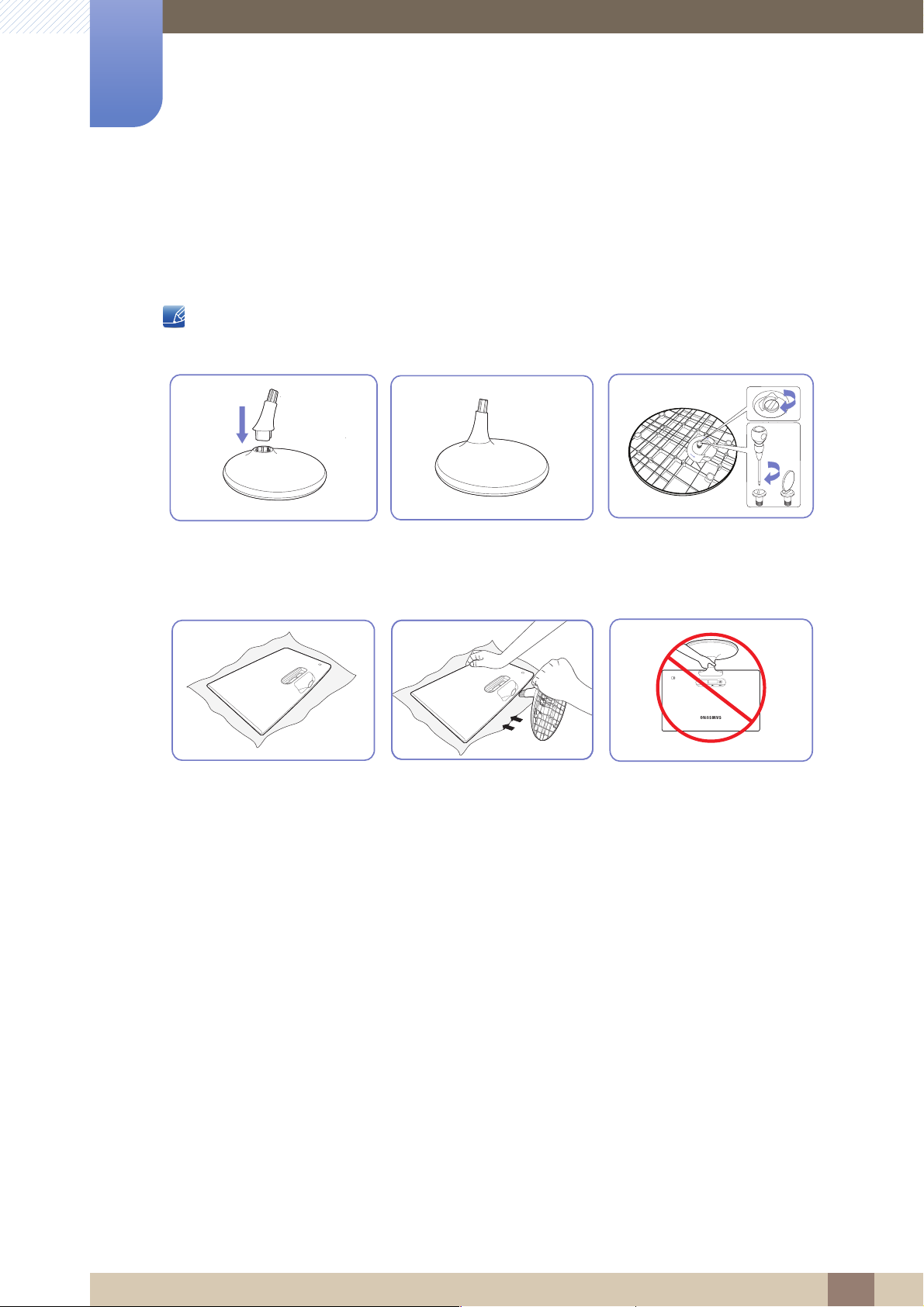

24 Attaching the Stand
25 Removing the Stand

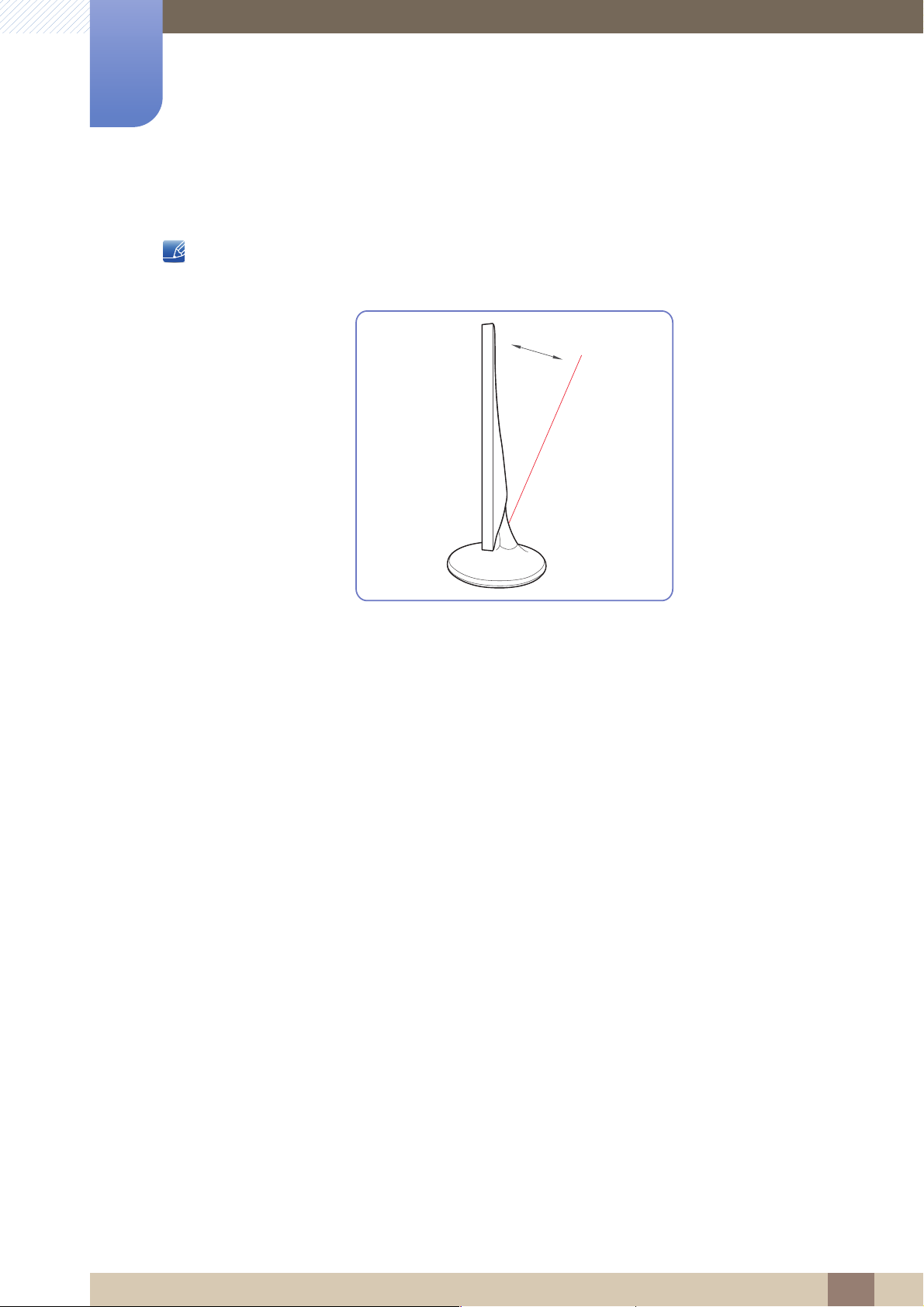

26 Adjusting the Product Tilt
27 Anti-theft Lock
28 Before Connecting
28 Pre-connection Checkpoints
Table Of Contents
2
Page 3
Table Of Contents
29 Connecting and Using a PC
29 Connection Using the D-SUB Cable (Analogue
Type)
30 Connection Using the DVI Cable
30 Connecting the Power
31 Driver Installation
32 Setting Optimum Resolution

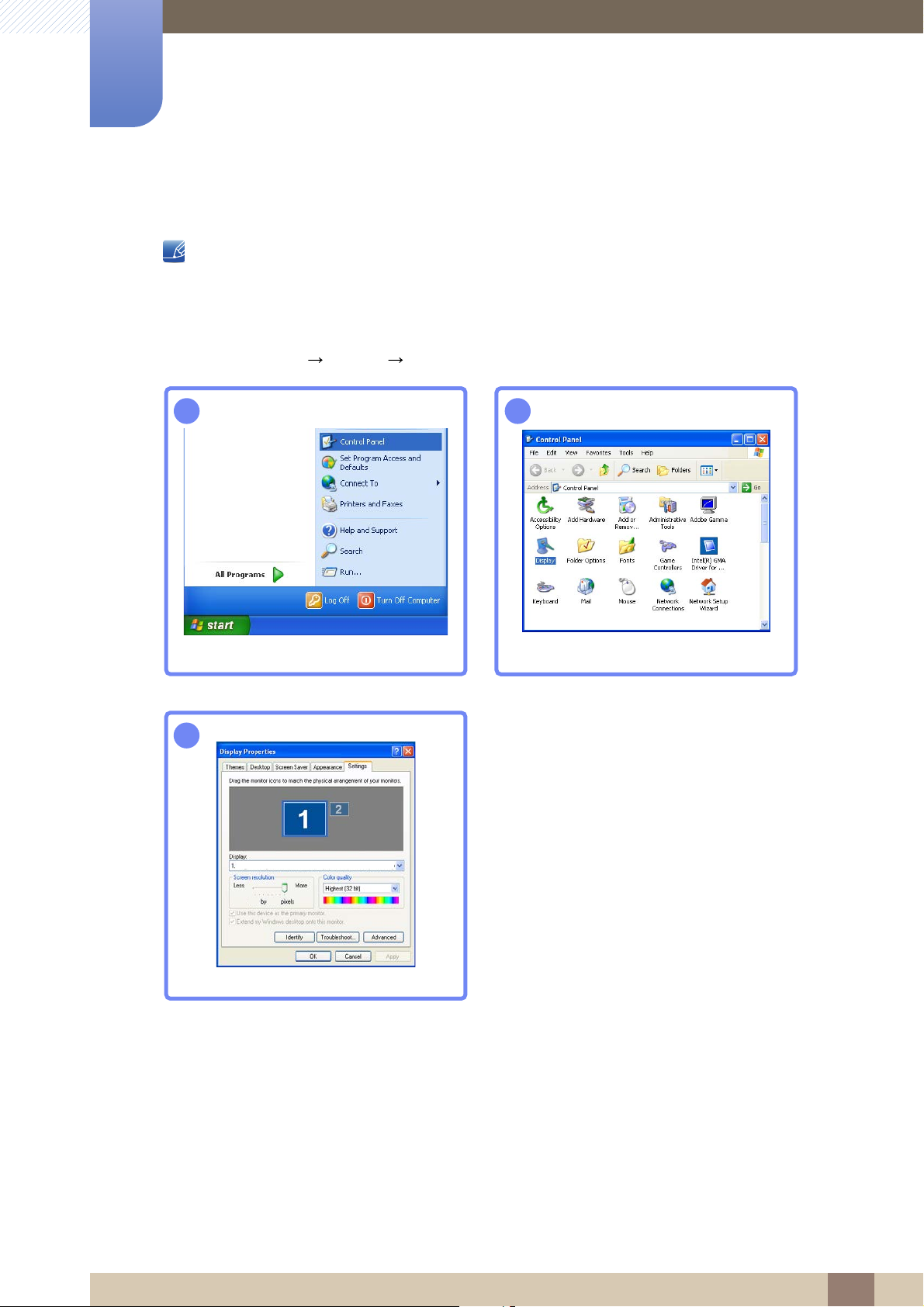

33 Changing the Resolution Using a PC
SCREEN SETUP 37 Brightness
37 Configuring Brightness
38 Contrast
38 Configuring Contrast
39 Sharpness
39 Configuring Sharpness
40 Game Mode
40 Configuring Contrast
41 SAMSUNG MAGIC Bright
41 Configuring SAMSUNG MAGIC Bright
42 SAMSUNG MAGIC Upscale
42 Configuring SAMSUNG MAGIC Upscale
43 Image Size
43 Changing the Image Size
45 H-Position & V-Position
45 Configuring H-Position & V-Position
47 Coarse
47 Adjusting Coarse
48 Fine
48 Adjusting Fine
CONFIGURING TINT 49 Red
49 Configuring Red
Table Of Contents
3
Page 4
Table Of Contents
50 Green
50 Configuring Green
51 Blue
51 Configuring Blue
52 Color Tone
52 Configuring the Color Tone Settings
53 Gamma
53 Configuring Gamma
COORDINATING OSD 54 Language
54 Configuring Language
55 Menu H-Position & Menu V-Position
55 Configuring Menu H-Position & Menu V-
Position
56 Display Time
56 Configuring Display Time
57 Transparency
57 Changing Transparency
SETUP AND RESET 58 Reset All
58 Initializing Settings (Reset All)
59 Eco Saving
59 Configuring Eco Saving
60 Off Timer
60 Configuring Off Timer
61 Configuring Turn Off After
62 PC/AV Mode
62 Configuring PC/AV Mode
63 Key Repeat Time
63 Configuring Key Repeat Time
Table Of Contents
4
Page 5
Table Of Contents
64 Source Detection
64 Configuring Source Detection
INFORMATION MENU AND
OTHERS
INSTALLING THE
SOFTWARE
TROUBLESHOOTING
GUIDE
65 INFORMATION
65 Displaying INFORMATION
66 Configuring Brightness and Contrast in
the Initial Screen
67 MagicTune
67 What is "MagicTune"?
67 Installing the Software
68 Removing the Software
69 Requirements Before Contacting
Samsung Customer Service Center
69 Testing the Product
69 Checking the Resolution and Frequency
69 Check the following.
72 Q & A
SPECIFICATIONS 74 General
76 PowerSaver
77 Standard Signal Mode Table
APPENDIX 79 Contact SAMSUNG WORLD WIDE
85 Responsibility for the Pay Service (Cost
to Customers)
85 Not a product defect
85 A Product damage caused by customer's fault
85 Others
87 Correct Disposal
87 Correct Disposal of This Product (Waste
Electrical & Electronic Equipment)
Table Of Contents
5
Page 6
Table Of Contents
88 Terminology
INDEX
Table Of Contents
6
Page 7
©
Copyright
The contents of this manual are subject to change without notice to improve quality.
Samsung Electronics owns the copyright for this manual.
Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is
prohibited.
Microsoft and Windows are registered trademarks of Microsoft Corporation.
VESA, DPM and DDC are registered trademarks of the Video Electronics Standards Association.
Before Using the Product
2013 Samsung Electronics
Icons used in this manual
The following images are for reference only. Real-life situations may
differ from what is shown in the images.
Before Using the Product
7
Page 8

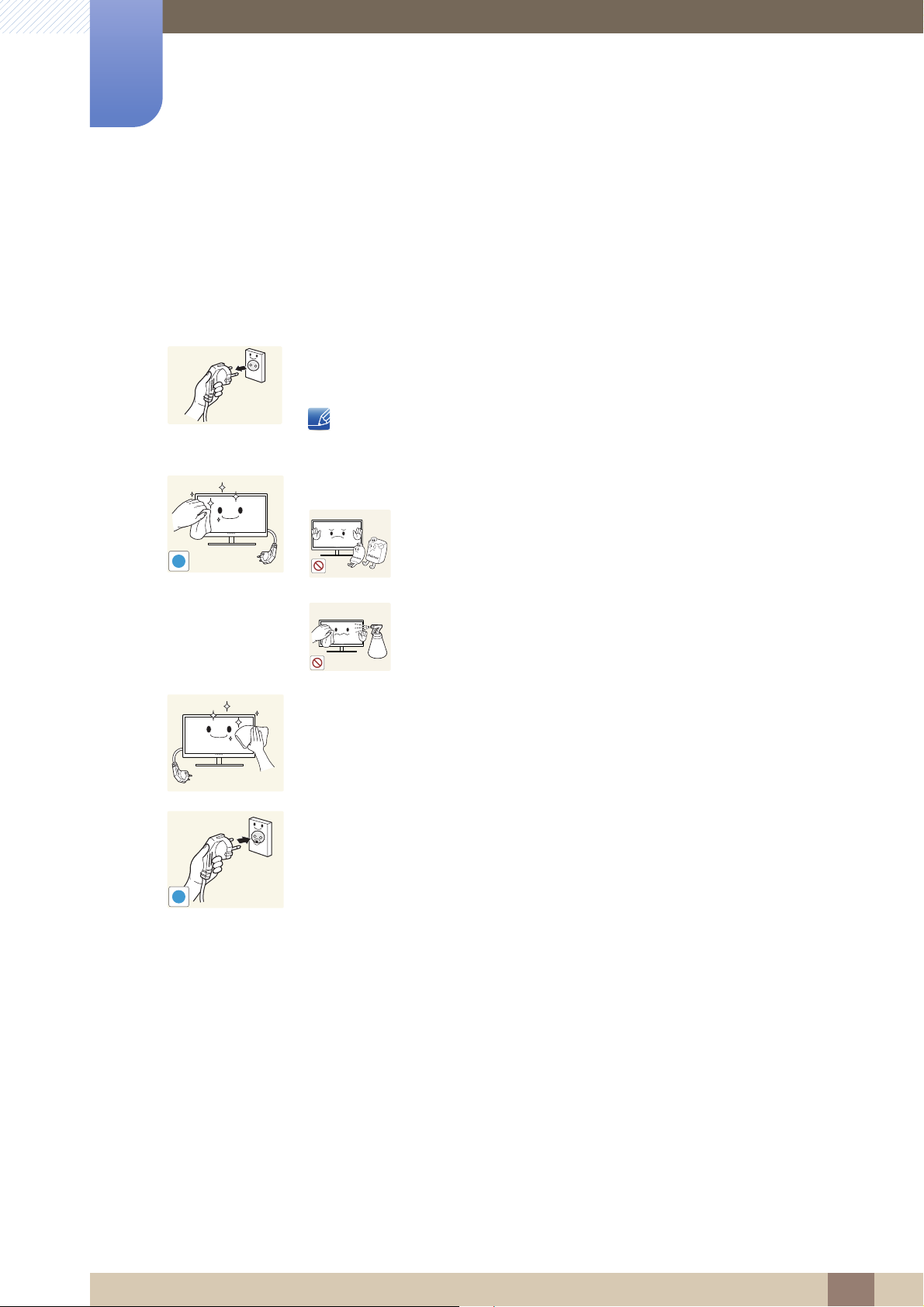

Cleaning
!
Before Using the Product
Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched.
Take the following steps when cleaning.
1. Power off the monitor and computer.
2. Disconnect the power cord from the monitor.
Hold the power cable by the plug and do not touch the cable with wet
hands. Otherwise, an electric shock may result.
3. Wipe the monitor with a clean, soft and dry cloth.
Do not apply a cleaning agent that contains alcohol,
solvent, or surfactant to the monitor.
!
Do not spray water or detergent directly on the product.
4. Wet a soft and dry cloth in water and wring thoroughly to clean the
exterior of the monitor.
5. Connect the power cord to the product after cleaning the product.
6. Power on the monitor and computer.
Before Using the Product
8
Page 9
Before Using the Product
10 cm10 cm
10 cm
10 cm
10 cm

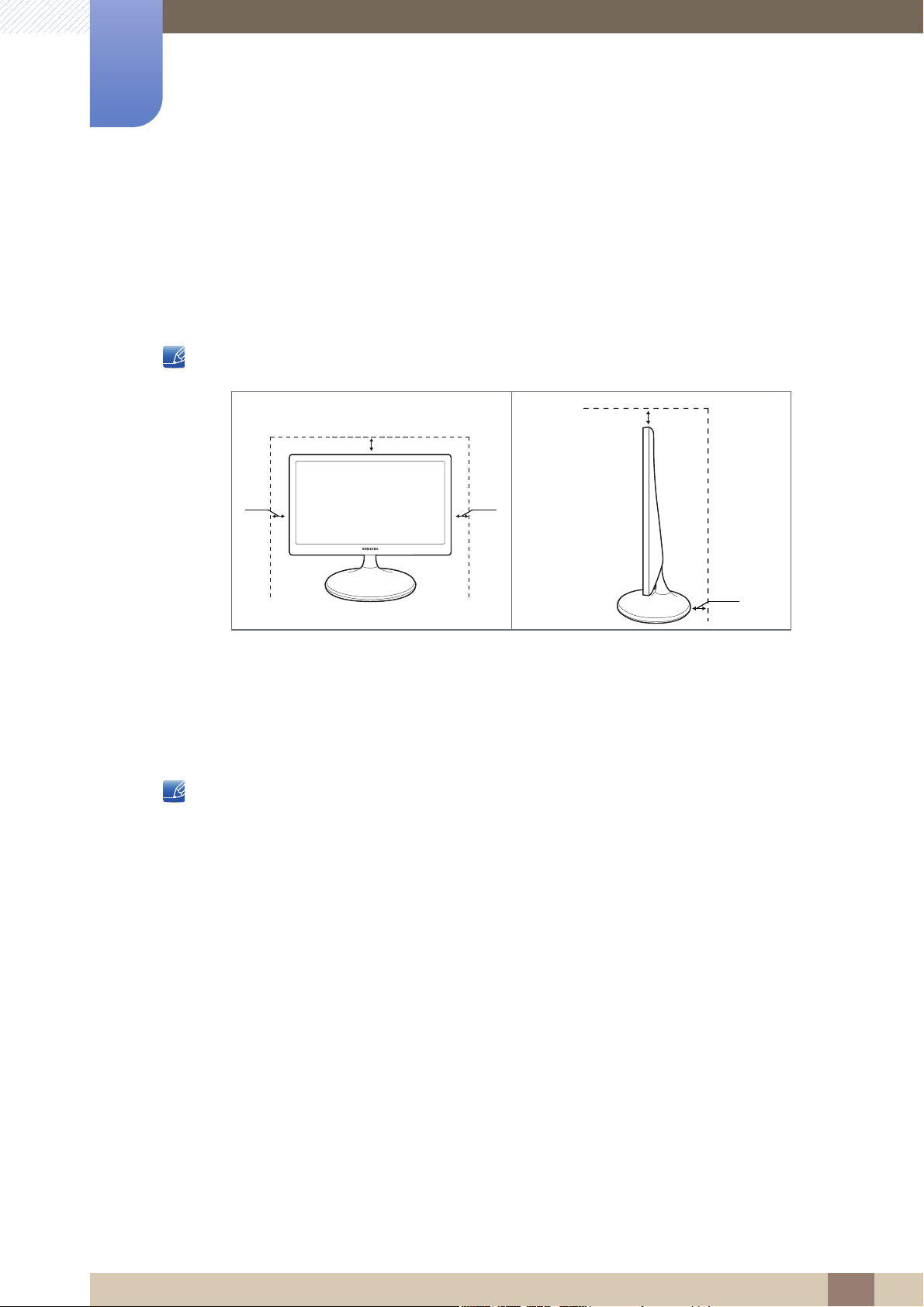

Securing the Installation Space
Ensure some space around the product for ventilation. An internal temperature rise may cause fire and
damage the product. Be sure to allow the amount of space as shown below or greater when installing
the product.
The exterior may differ depending on the product.
Precautions for storage
Be sure to contact Samsung Customer Service Center (page 79) if the inside of the monitor needs
cleaning. (Service fee will be charged.)
Before Using the Product
9
Page 10
Before Using the Product

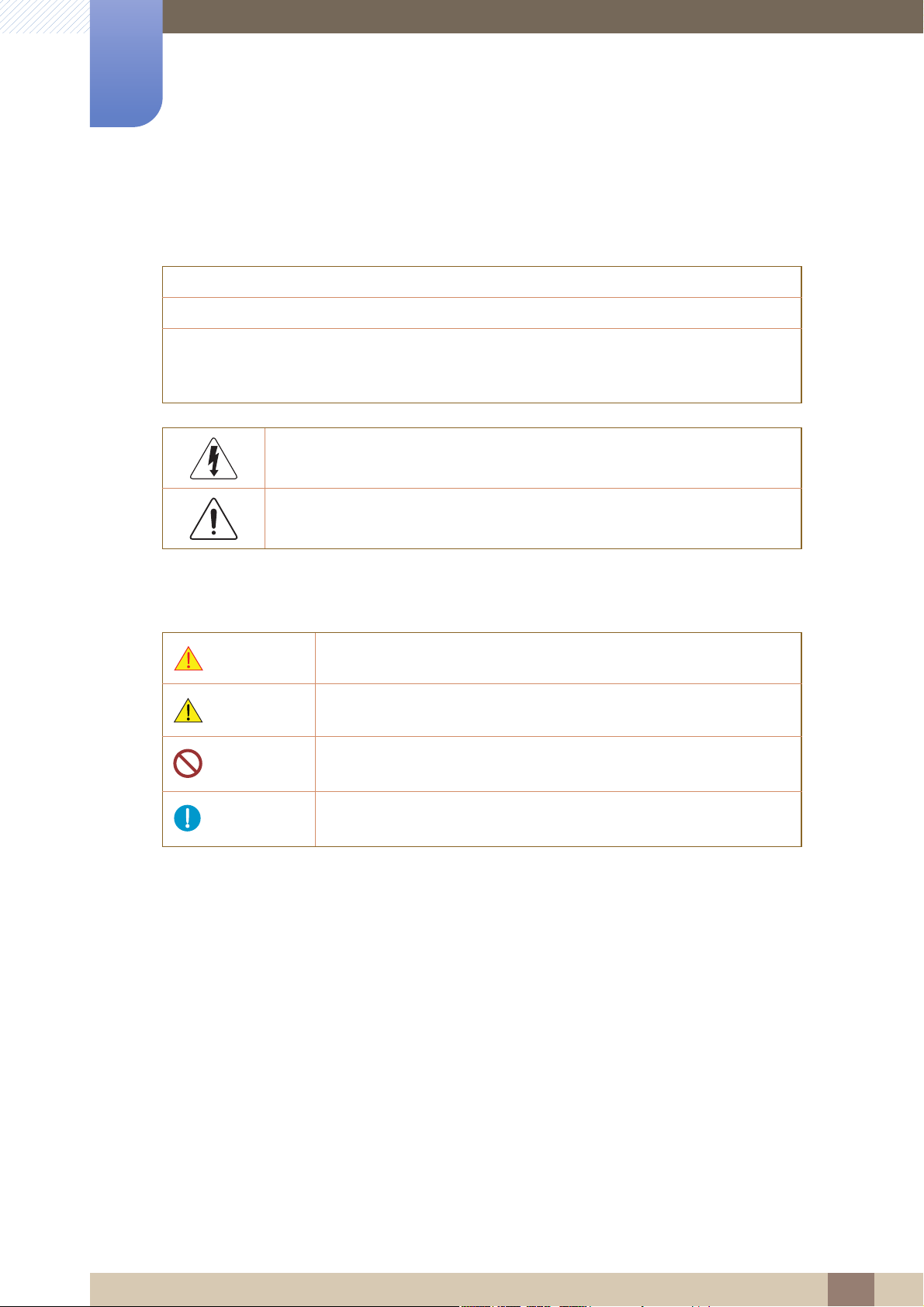

Safety Precautions
Caution: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR
BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO
This symbol indicates that high voltage is present inside. It is dangerous to
make any kind of contact with any internal part of this product.
This symbol alerts you that important literature concerning operation and
maintenance has been included with this product.
Caution
RISK OF ELECTRIC SHOCK DO NOT OPEN
QUALIFIED PERSONNEL.
Symbols for safety precautions
Warning
Caution
A serious or fatal injury may result if instructions are not followed.
Personal injury or damage to properties may result if instructions are
not followed.
Activities marked by this symbol are prohibited.
Instructions marked by this symbol must be followed.
Before Using the Product
10
Page 11
Before Using the Product
!
!
!

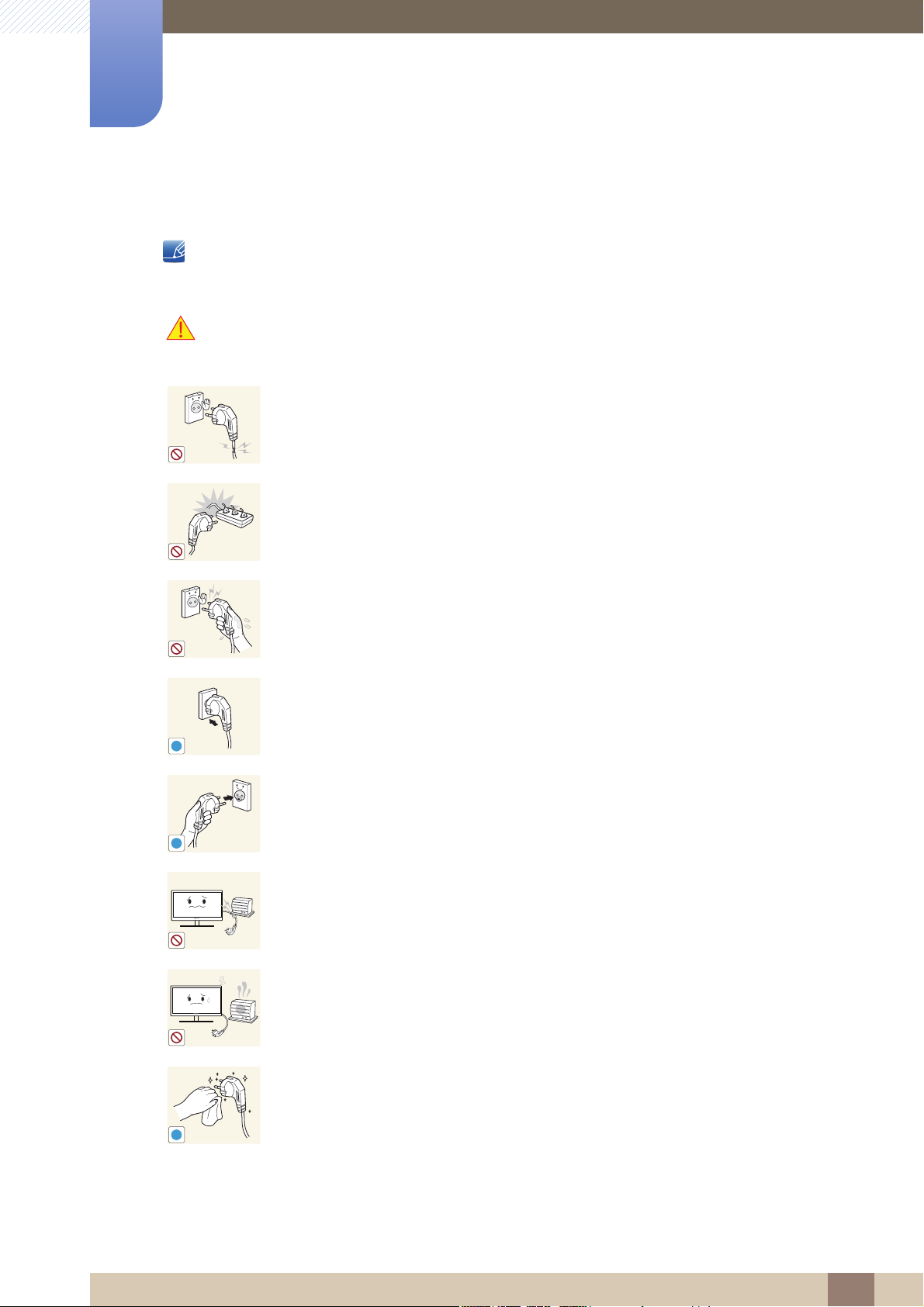

Electricity and Safety
The following images are for reference only. Real-life situations may differ from what is shown in the
images.
Warning
Do not use a damaged power cord or plug, or a loose power socket.
An electric shock or fire may result.
Do not plug many products into the same power socket.
Otherwise, the socket may overheat and cause a fire.
Do not touch the power plug with wet hands.
Otherwise, an electric shock may result.
Insert the power plug all the way in so it is not loose.
An unstable connection may cause a fire.
Connect the power plug to a grounded power socket (type 1 insulated devices
only).
An electric shock or injury may result.
Do not bend or pull the power cord with force. Do not weigh the power cord
down with a heavy object.
A damaged power cord may cause an electric shock or fire.
Do not place the power cord or product near heat sources.
An electric shock or fire may result.
Remove foreign substances such as dust around the plug pins and power socket
with a dry cloth.
Otherwise, a fire may result.
Before Using the Product
11
Page 12
Before Using the Product
!
!
!
!

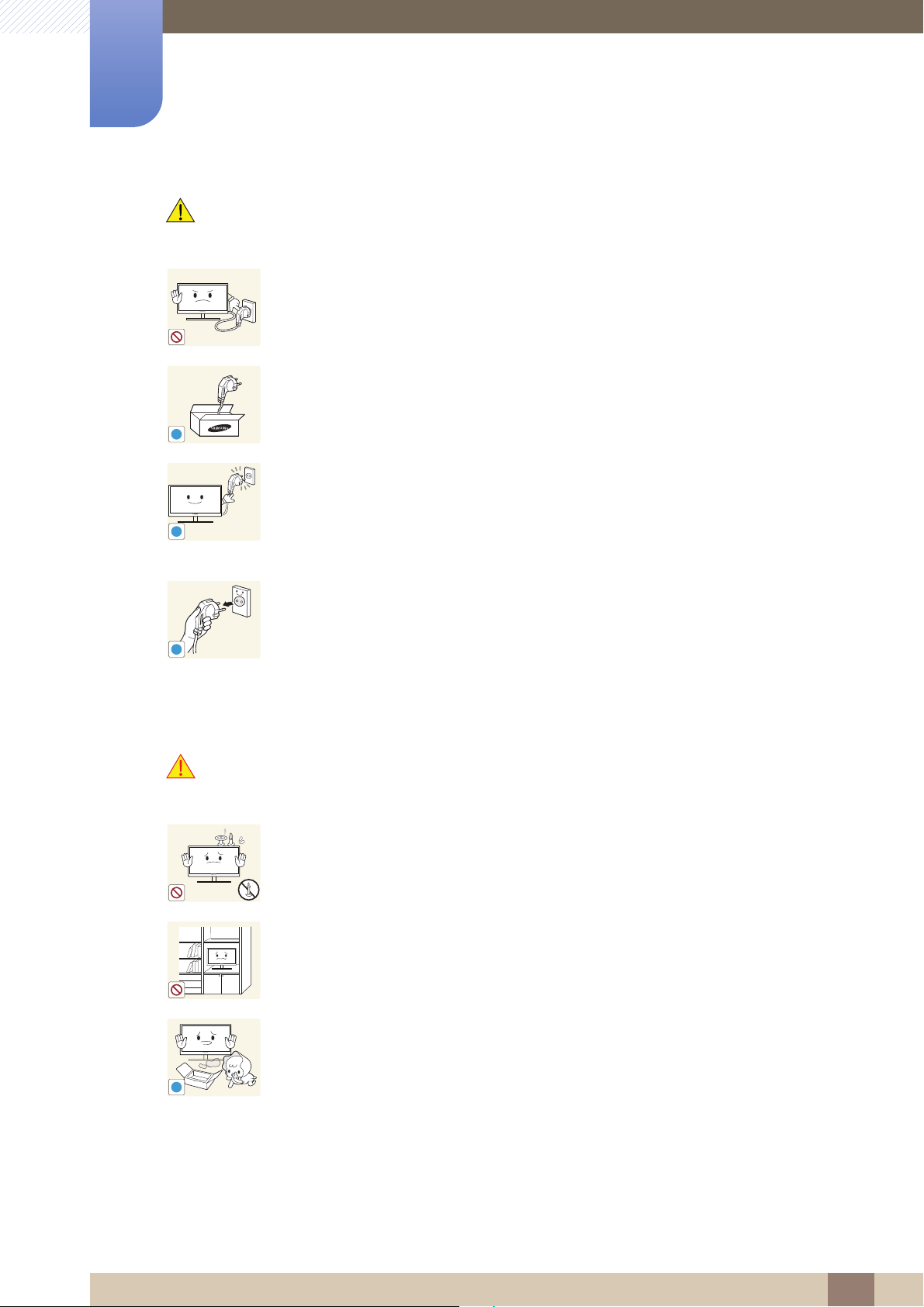

Caution
Do not unplug the power cord when the product is in use.
The product may become damaged by an electric shock.
Do not use the power cord for products other than authorized products supplied
by Samsung.
An electric shock or fire may result.
Keep the power socket where the power cord is connected unobstructed.
If any problem occurs in the product, unplug the power cable to completely
cut the power to the product.
Power to the product cannot be completely cut off with the power button.
Hold the plug when disconnecting the power cord from the power socket.
An electric shock or fire may result.
Installation and Safety
Warning
DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP
OF THE PRODUCT. DO NOT INSTALL THE PRODUCT NEAR HEAT SOURCES.
Otherwise, a fire may result.
Avoid installing the product in a narrow space with bad ventilation, such as a
bookshelf or wall closet.
Otherwise, a fire may result due to an increased internal temperature.
Keep the plastic packaging bag for the product in a place that cannot be reached
by children.
Children may suffocate.
Before Using the Product
12
Page 13
Before Using the Product
!
!

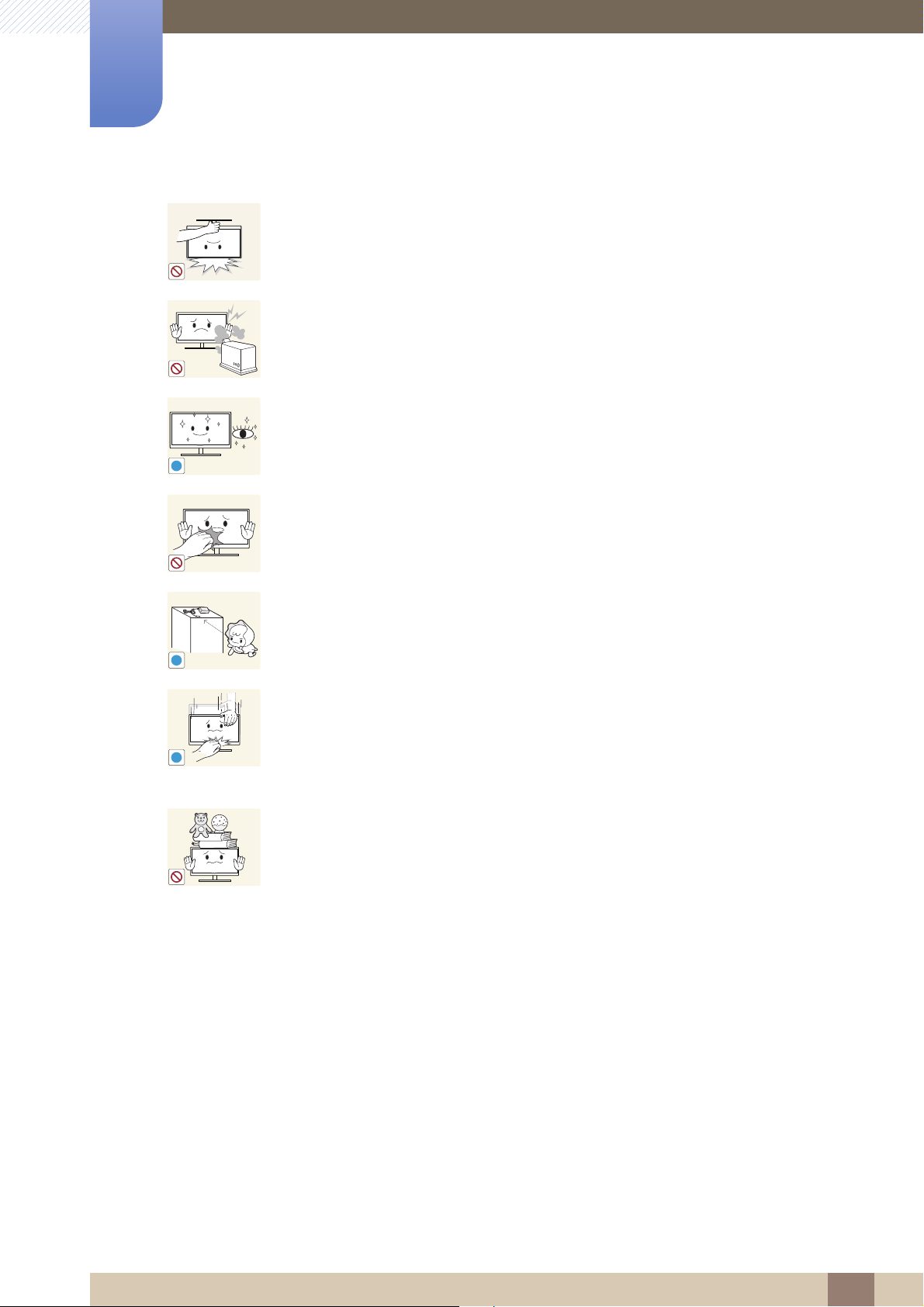

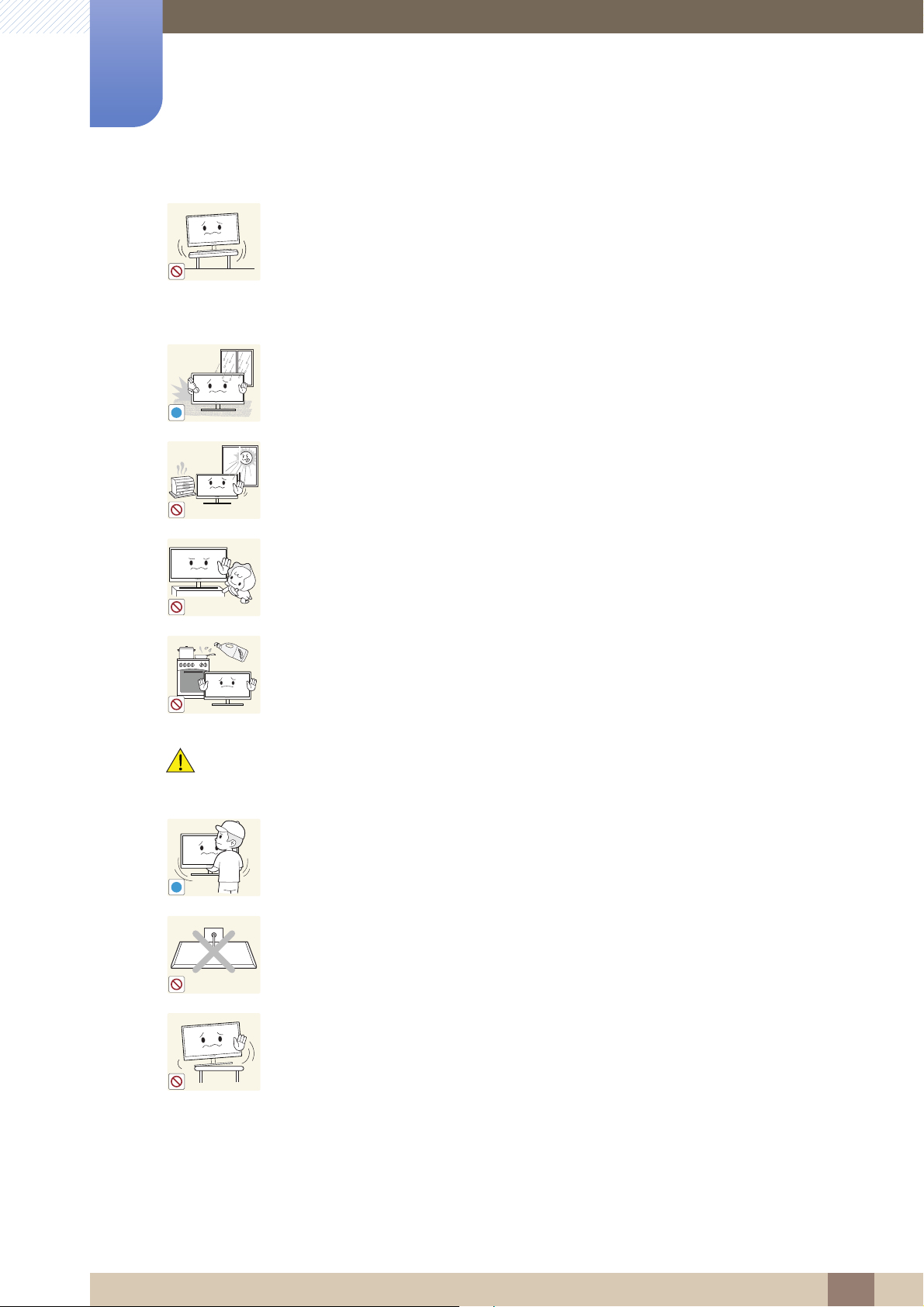

Do not install the product on an unstable or vibrating surface (insecure shelf,
sloped surface, etc.).
The product may fall and break or cause a personal injury.
Using the product in an area with excess vibration may damage the product
or cause a fire.
Do not install the product in a vehicle or a place exposed to dust, moisture (water
drips, etc.), oil, or smoke.
An electric shock or fire may result.
Do not expose the product to direct sunlight, heat, or a hot object such as a
stove.
Otherwise, the product lifespan may be reduced, or a fire may result.
Caution
Do not install the product within the reach of young children.
The product may fall and injure children.
Edible oil, such as soybean oil, can damage or deform the product. Do not install
the product in a kitchen or near a kitchen counter.
Take care not to drop the product when moving it.
Otherwise, product failure or personal injury may result.
Do not set down the product on its front.
The screen may become damaged.
When installing the product on a cabinet or shelf, make sure that the bottom
edge of the front of the product is not protruding.
The product may fall and break or cause a personal injury.
Install the product only on cabinets or shelves of the right size.
Before Using the Product
13
Page 14
Before Using the Product
!
SAMSUNG
!
!
!
Put down the product carefully.
The product may fall and break or cause a personal injury.
Installing the product in an unusual place (a place exposed to a lot of fine
particles, chemical substances or extreme temperatures, or an airport or train
station where the product should operate continuously for an extended period of
time) may seriously affect its performance.
Be sure to consult Samsung Customer Service Center (page 79) before
installation if you want to install the product at such a place.
Operation
Warning
High voltage runs through the product. Do not attempt to disassemble, repair, or
modify the product on your own.
An electric shock or fire may result.
Contact Samsung Customer Service Center (page 79) for repair.
Before moving the product, turn off the power switch and disconnect the power
cable and all other connected cables.
Otherwise, the power cord may be damaged and a fire or electric shock may
result.
If the product generates a strange noise, a burning smell, or smoke, remove the
power cord immediately and contact Samsung Customer Service Center (page
79).
An electric shock or fire may result.
Do not let children hang from the product or climb on top of it.
The product may fall, and your child may become injured or seriously
harmed.
If the product falls or the exterior is damaged, power off the product, remove the
power cord, and contact Samsung Customer Service Center (page 79).
Otherwise, an electric shock or fire may result.
Do not put a heavy object, toy, or sweets on top of the product.
The product or heavy objects may fall as children try to reach for the toy or
sweets resulting in a serious injury.
Before Using the Product
14
Page 15
Before Using the Product
!
!
!
GAS
!
100

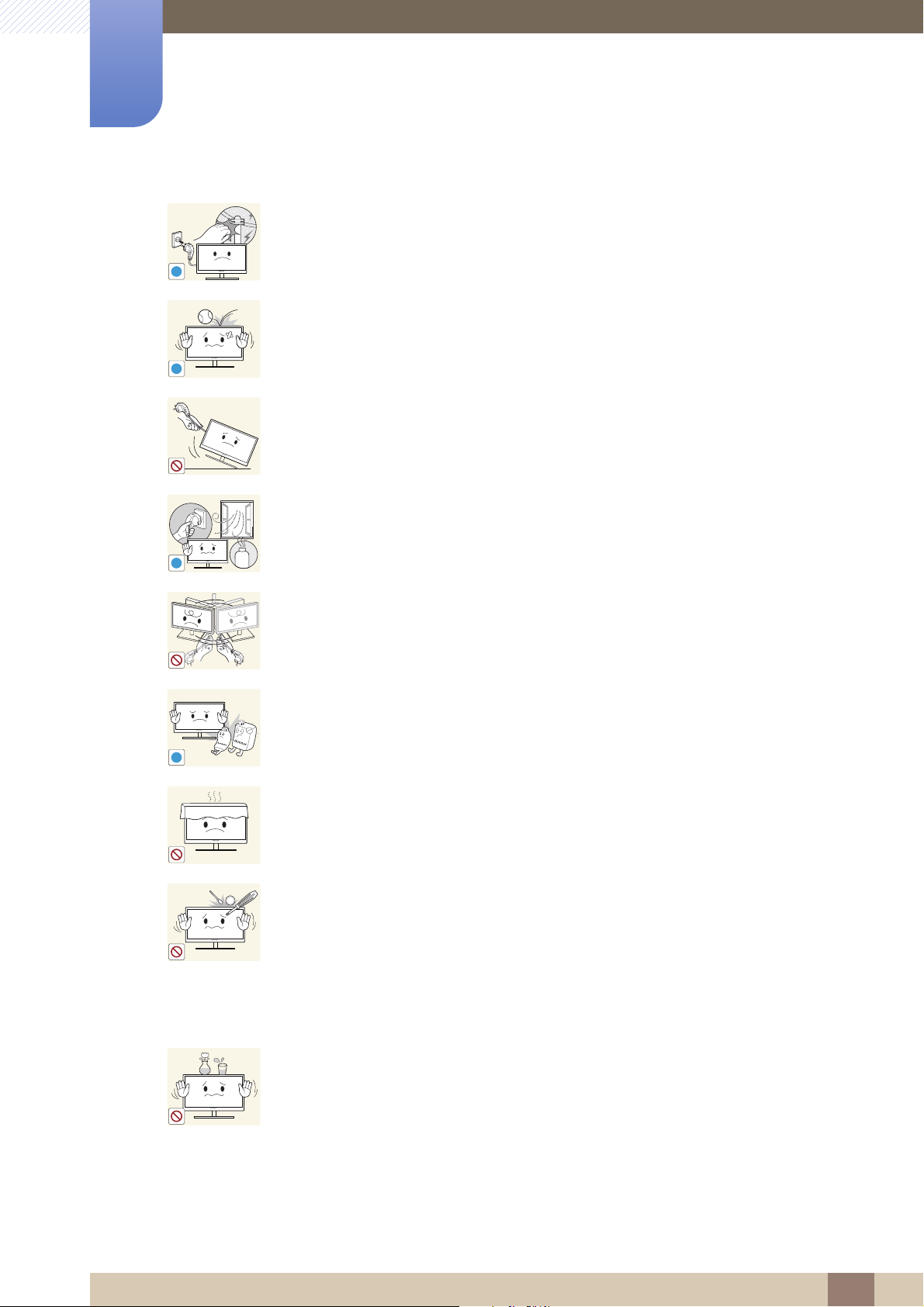

During a lightning or thunderstorm, power off the product and remove the power
cable.
An electric shock or fire may result.
Do not drop objects on the product or apply impact.
An electric shock or fire may result.
Do not move the product by pulling the power cord or any cable.
Otherwise, the power cable may be damaged and product failure, an electric
shock or fire may result.
If a gas leakage is found, do not touch the product or power plug. Also, ventilate
the area immediately.
Sparks can cause an explosion or fire.
Do not lift or move the product by the power cord or any cable.
Otherwise, the power cable may be damaged and product failure, an electric
shock or fire may result.
Do not use or keep combustible spray or an inflammable substance near the
product.
An explosion or fire may result.
Ensure the vents are not blocked by tablecloths or curtains.
Otherwise, a fire may result from an increased internal temperature.
Do not insert a metallic object (a chopstick, coin, hair pin, etc.) or inflammable
object (paper, match, etc.) into the vent or ports of the product.
If water or any foreign substance enters the product, be sure to power off the
product, remove the power cord, and contact Samsung Customer Service
Center (page 79).
Product failure, an electric shock or fire may result.
Do not place objects containing liquid (vases, pots, bottles, etc) or metallic
objects on top of the product.
If water or any foreign substance enters the product, be sure to power off the
product, remove the power cord, and contact Samsung Customer Service
Center (page 79).
Product failure, an electric shock or fire may result.
Before Using the Product
15
Page 16
Before Using the Product
!
-_-
!
!
!
!

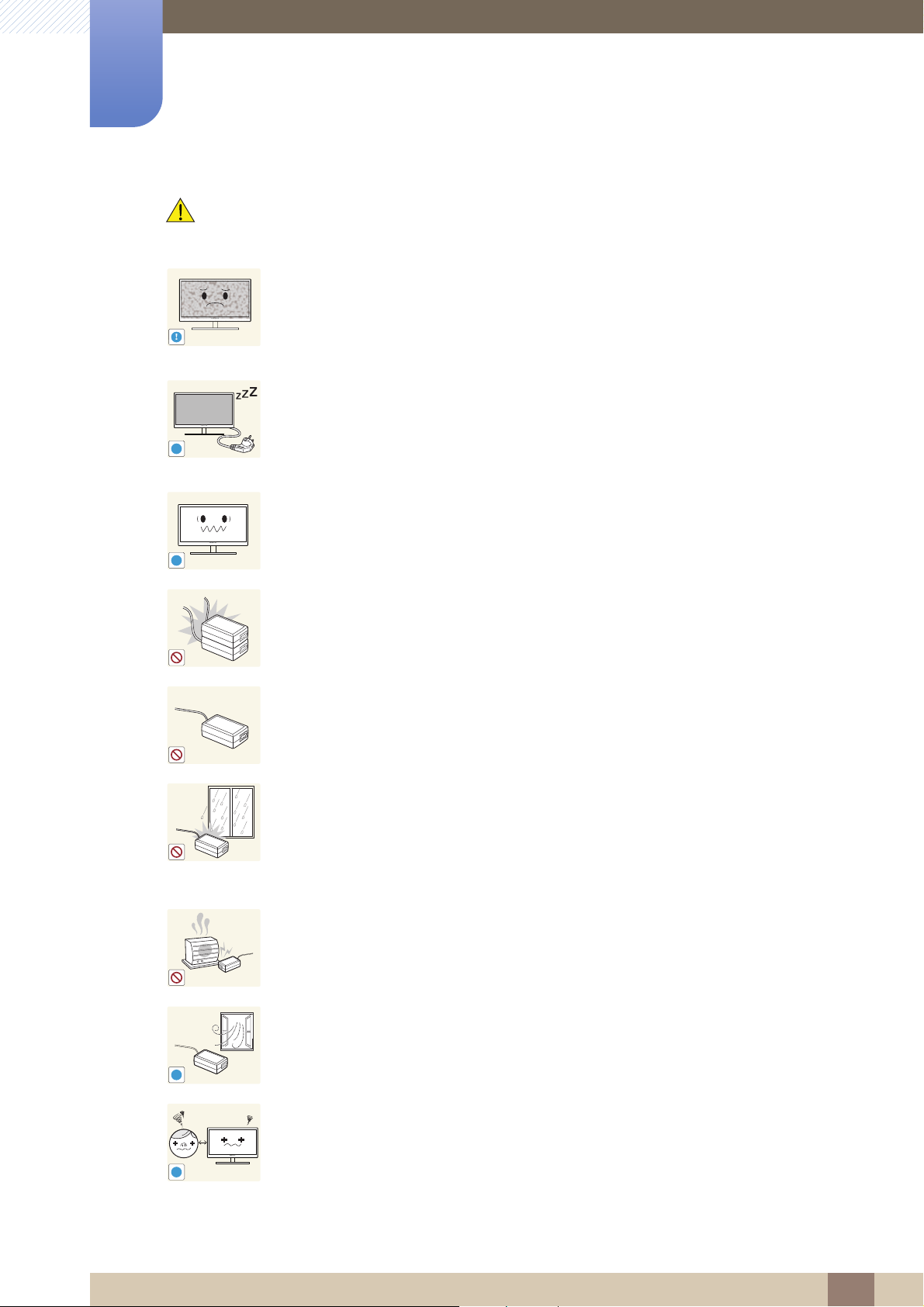

Caution
Leaving the screen fixed on a stationary image for an extended period of time
may cause afterimage burn-in or defective pixels.
If you are not going to use the product for an extended period of time,
activate power-saving mode or a moving-picture screen saver.
Disconnect the power cord from the power socket if you do not plan on using the
product for an extended period of time (vacation, etc).
Otherwise, a fire may result from accumulated dust, overheating, an electric
shock, or electric leakage.
Use the product at the recommended resolution and frequency.
Your eyesight may deteriorate.
Do not put DC power adapters together.
Otherwise, a fire may result.
Remove the plastic bag from the DC power adapter before you use it.
Otherwise, a fire may result.
Do not let water enter the DC power device or get the device wet.
An electric shock or fire may result.
Avoid using the product outdoors where it can be exposed to rain or snow.
Be careful not to get the DC power adapter wet when you wash the floor.
Do not put the DC power adapter near to any heating apparatus.
Otherwise, a fire may result.
Keep the DC power adapter in a well-ventilated area.
Looking at the screen too close for an extended period of time can deteriorate
your eyesight.
Before Using the Product
16
Page 17
Before Using the Product
!
!
!

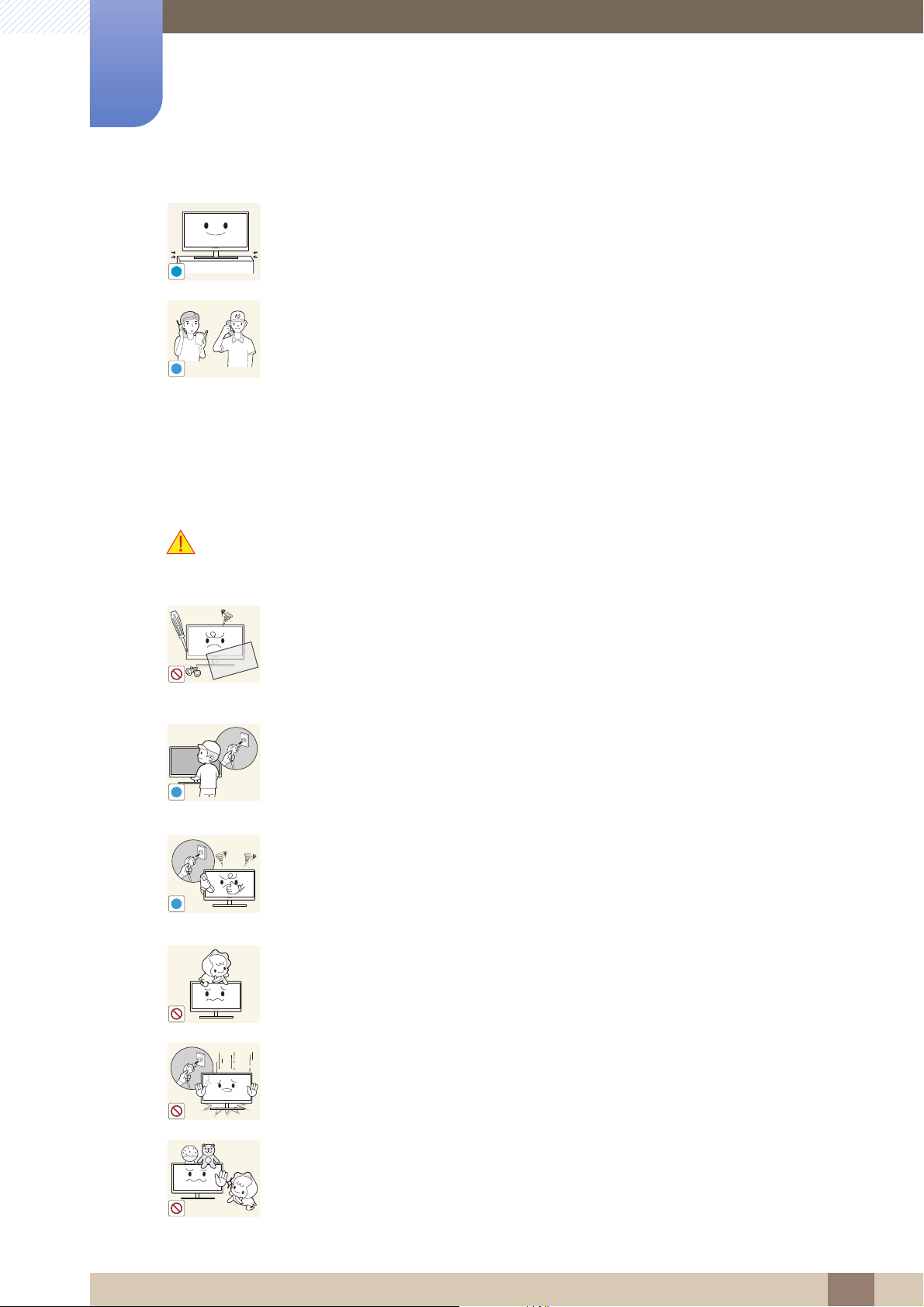

Do not hold the monitor upside-down or move it by holding the stand.
The product may fall and break or cause a personal injury.
Do not use humidifiers or stoves around the product.
An electric shock or fire may result.
Rest your eyes for more than 5 minutes for every 1 hour of product use.
Eye fatigue will be relieved.
Do not touch the screen when the product has been turned on for an extended
period of time as it will become hot.
Store the small accessories used with the product out of reach of children.
Exercise caution when adjusting the product angle or stand height.
Otherwise, children's fingers or hands may become stuck and injured.
Tilting the product excessively may cause it to fall and result in personal
injury.
Do not place heavy objects on the product.
Product failure or personal injure may result.
Before Using the Product
17
Page 18
Before Using the Product
50 cm
Correct posture to use the product
Use the product in the correct posture as follows:
Straighten your back.
Allow a distance of 45 to 50 cm between your eye and the screen, and look slightly
downward at the screen.
Keep your eyes directly in front of the screen.
Adjust the angle so light does not reflect on the screen.
Keep your forearms perpendicular to your upper arms and level with the back of
your hands.
Keep your elbows at about a right angle.
Adjust the height of the product so you can keep your knees bent at 90 degrees or
more, your heels attached to the floor, and your arms lower than your heart.
Before Using the Product
18
Page 19
Preparations
1
1.1 Checking the Contents

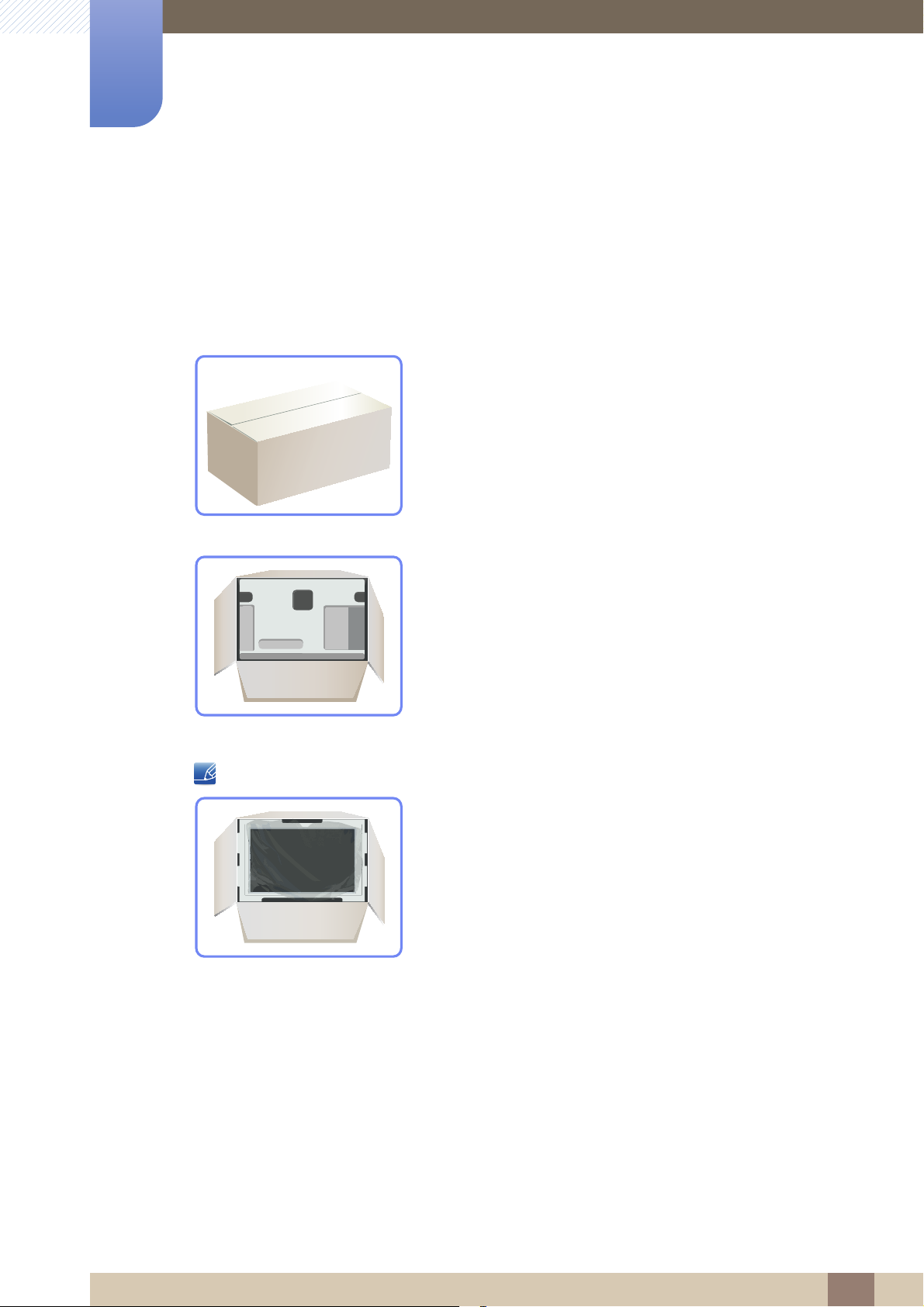

1.1.1 Removing the Packaging
1 Open the packaging box. Be careful not to damage the product when you open the packaging with
a sharp instrument.
2 Remove the styrofoam from the product.
3 Check the components and remove the styrofoam and plastic bag.
4 Store the box in a dry area so that it can be used when moving the product in the future.
This image is for reference only.
1 Preparations
19
Page 20
1
Preparations
1.1.2 Checking the Components
Contact the dealer from whom you purchased the product if any item is missing.
The appearance of the components and items sold separately may differ from the image shown.
Components
Quick setup guide Warranty card
(Not available in some locations)
DC power adapter D-SUB cable (optional) DVI cable (optional)
Stand base Stand neck
Components may vary depending on the country.
Power cable
1 Preparations
20
Page 21
Preparations
MENU
MENU
MENU
→
1
1.2 Parts
1.2.1 Frontal Button
The color and shape of parts may differ from what is shown.
Specifications are subject to change without notice to improve quality.
When pressing a button, please press the bottom of a “ ” displayed below its button label.
Icons Description
Open or close the onscreen display (OSD) menu, or return to the parent menu.
OSD control lock: Maintain the current settings, or lock the OSD
control to prevent unintended changes to settings.
Enable: To lock the OSD control, press and hold the [ ] button
for 10 seconds.
Disable: To unlock the OSD control, press and hold the [ ]
button for more than 10 seconds.
If the OSD control is locked,
Brightness and Contrast can be adjusted. Game Mode is available.
INFORMATION can be viewed.
Press to enable or disable Game Mode.
The items below are not available if the Game Mode function is enable.
PICTURE Contrast, Sharpness, MagicBright, MagicUpscale
COLOR
→
SETUP & RESET Eco Saving
Move to the upper or lower menu or adjust the value for an option on the
OSD menu.
Use this button to control the brightness and contrast of the screen.
1 Preparations
21
Page 22
1
AUTO
AUTO
Preparations
Icons Description
Confirm a menu selection.
Pressing the [ ] button when the OSD menu is not displayed will
change the input source (Analog/DVI). If you power on the product or
change the input source by pressing the [ ] button, a message that
shows the changed input source will appear at the top left corner of the
screen.
Press the [ ] button to automatically adjust the screen settings.
Changing the resolution in Display Properties will activate the
Auto Adjustment function.
Available only in Analog mode.
Function Key Guide
Turn the screen on or off.
When a control button on the product is pressed, the Function Key Guide
will be displayed before the onscreen menu opens.
(The guide shows the function of the button pressed.)
To access the onscreen menu when the guide is displayed, press the
corresponding button again.
The Function Key Guide may vary depending on the function or product
model.
Refer to the actual product.
The function buttons page shows if Game Mode is enabled.
[] : Off
[] : On
1 Preparations
22
Page 23
1
RGB IN
Preparations
1.2.2 Reverse Side
The color and shape of parts may differ from what is shown.
Specifications are subject to change without notice to improve quality.
Provided ports may vary depending on the product.
Port Description
DC 14V
Connects to the DC power adapter.
DVI IN
Connects to a source device via a DVI cable.
Connect to a PC using the D-SUB cable.
1 Preparations
23
Page 24
Preparations
1
1.3 Installation
1.3.1 Attaching the Stand
Before assembling the product, place the product down on a flat and stable surface so that the screen
is facing downwards.
Insert the stand neck into the
stand base in the direction
shown in the figure.
Place a soft cloth over the table
to protect the product and
place the product onto the
cloth so that the front of the
product is facing downwards.
Check that the stand neck is
firmly connected.
Hold the main body of the
product with your hand as
shown by the figure.
Push the assembled stand into
the main body in the direction
of the arrow as shown in the
figure.
Tightly fasten the connecting
screw at the bottom of the
stand base.
- Caution
Do not hold the product upside
down only by the stand.
1 Preparations
24
Page 25
1
Preparations

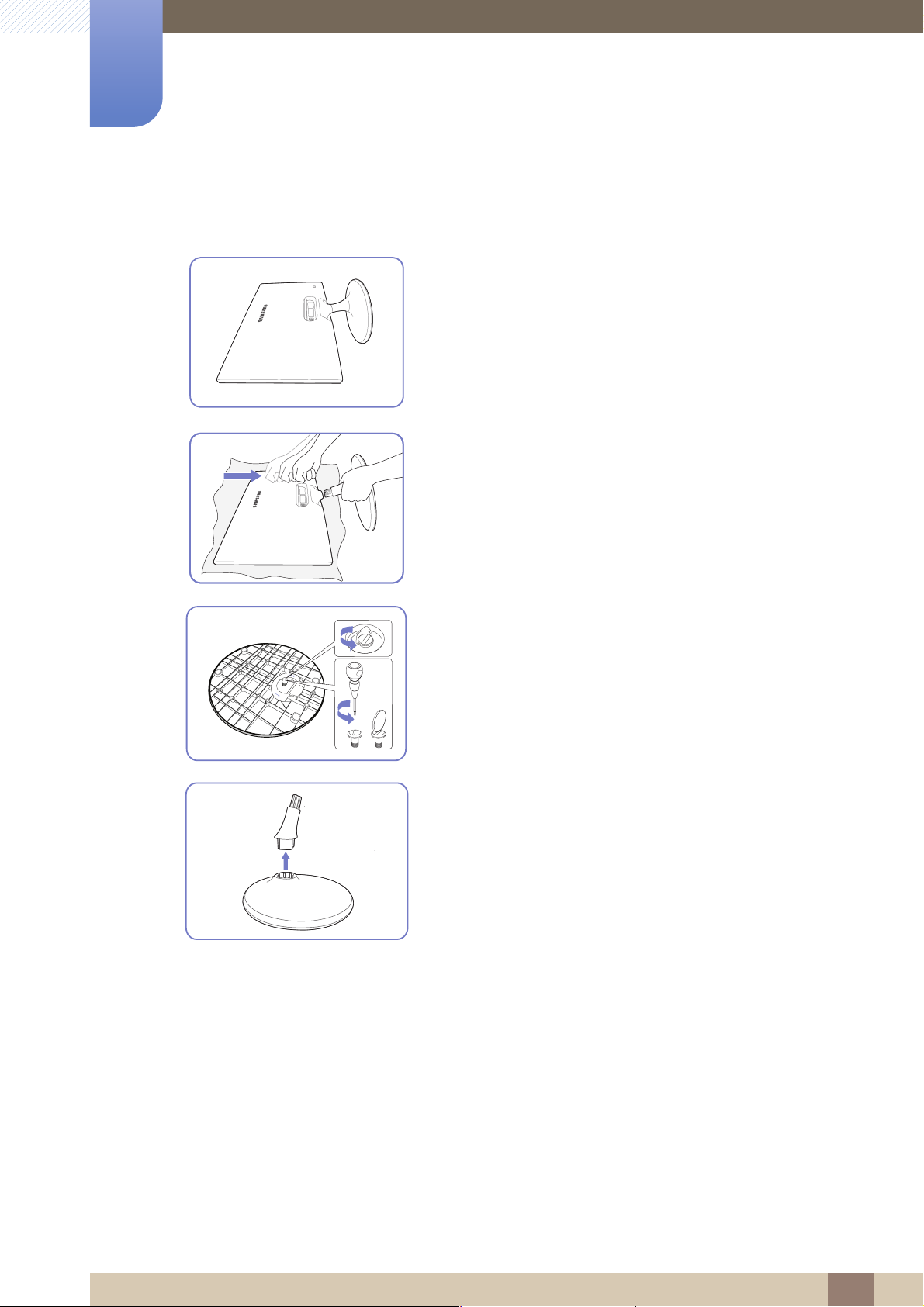

1.3.2 Removing the Stand
Place a soft cloth over the table to protect the product and
place the product onto the cloth so that the front of the product
faces downwards.
While holding the stand neck with one hand, pound the other
fisted hand down onto the top of the stand base in the direction
of the arrow to detach the stand base.
Turn the connecting screw at the bottom of the stand base to
separate it.
Remove the stand neck from the stand base by pulling it in the
direction of the arrow as shown in the figure.
1 Preparations
25
Page 26
1
-1° (±2°) ~ 20° (±2°)
Preparations
1.3.3 Adjusting the Product Tilt
The color and shape of parts may differ from what is shown. Specifications are subject to change
without notice to improve quality.
You can adjust the tilt of your monitor.
Hold the lower part of the product and adjust the tilt carefully.
1 Preparations
26
Page 27
1
Preparations

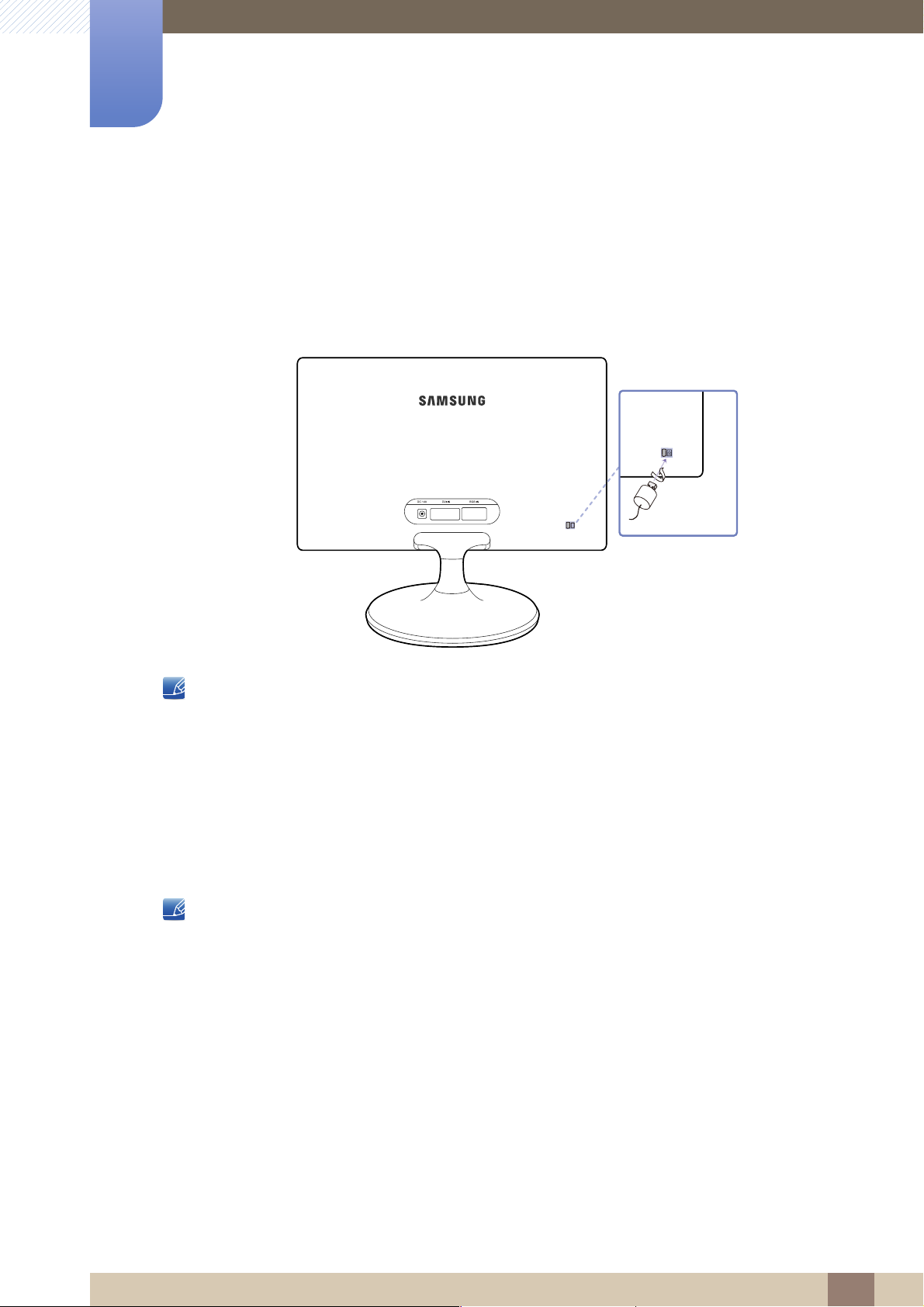

1.3.4 Anti-theft Lock
An anti-theft lock allows you to use the product securely even in public places. The locking device shape
and locking method depend on the manufacturer. Refer to the user guide provided with your anti-theft
locking device for details. The lock device is sold separately.
The color and shape of parts may differ from what is shown. Specifications are subject to change
without notice to improve quality.
To lock an anti-theft locking device:
1 Fix the cable of your anti-theft locking device to a heavy object such as a desk.
2 Put one end of the cable through the loop on the other end.
3 Insert the Kensington Lock into the security slot on the back of the display.
4 Lock the locking device.
An anti-theft locking device can be purchased separately.
Refer to the user guide provided with your anti-theft locking device for details.
Anti-theft locking devices can be purchased at electronics retailers or online.
1 Preparations
27
Page 28
Connecting and Using a Source Device
2
2.1 Before Connecting
2.1.1 Pre-connection Checkpoints
Before connecting a source device, read the user manual provided with it.
The number and locations of ports on source devices may differ from device to device.
Do not connect the power cable until all connections are completed.
Connecting the power cable during connection may damage the product.

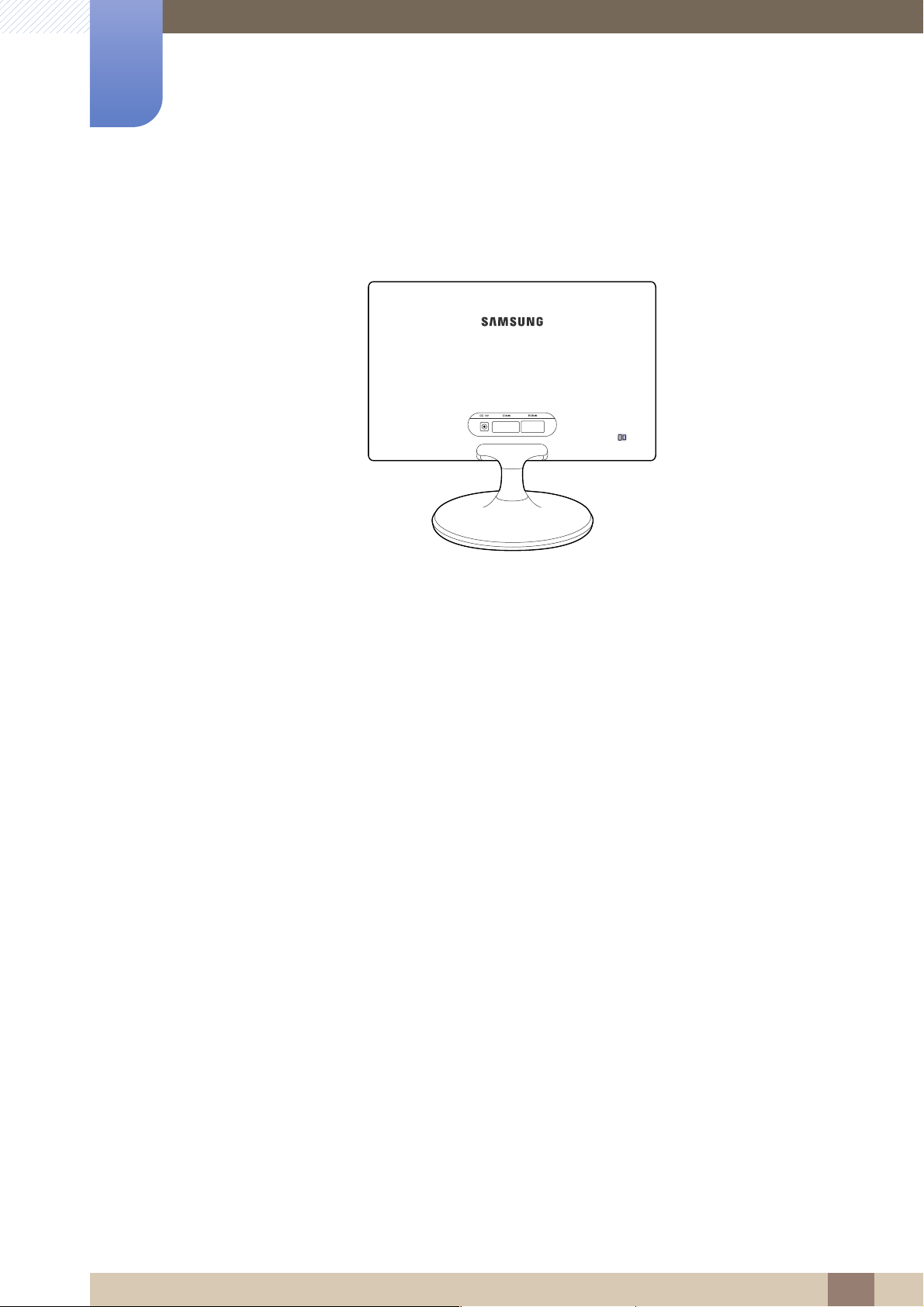

Check the types of ports at the back of the product you want to connect.
2 Connecting and Using a Source Device
28
Page 29
Connecting and Using a Source Device
RGB IN
2
2.2 Connecting and Using a PC
Select a connection method suitable for your PC.
Connecting parts may differ in different products.

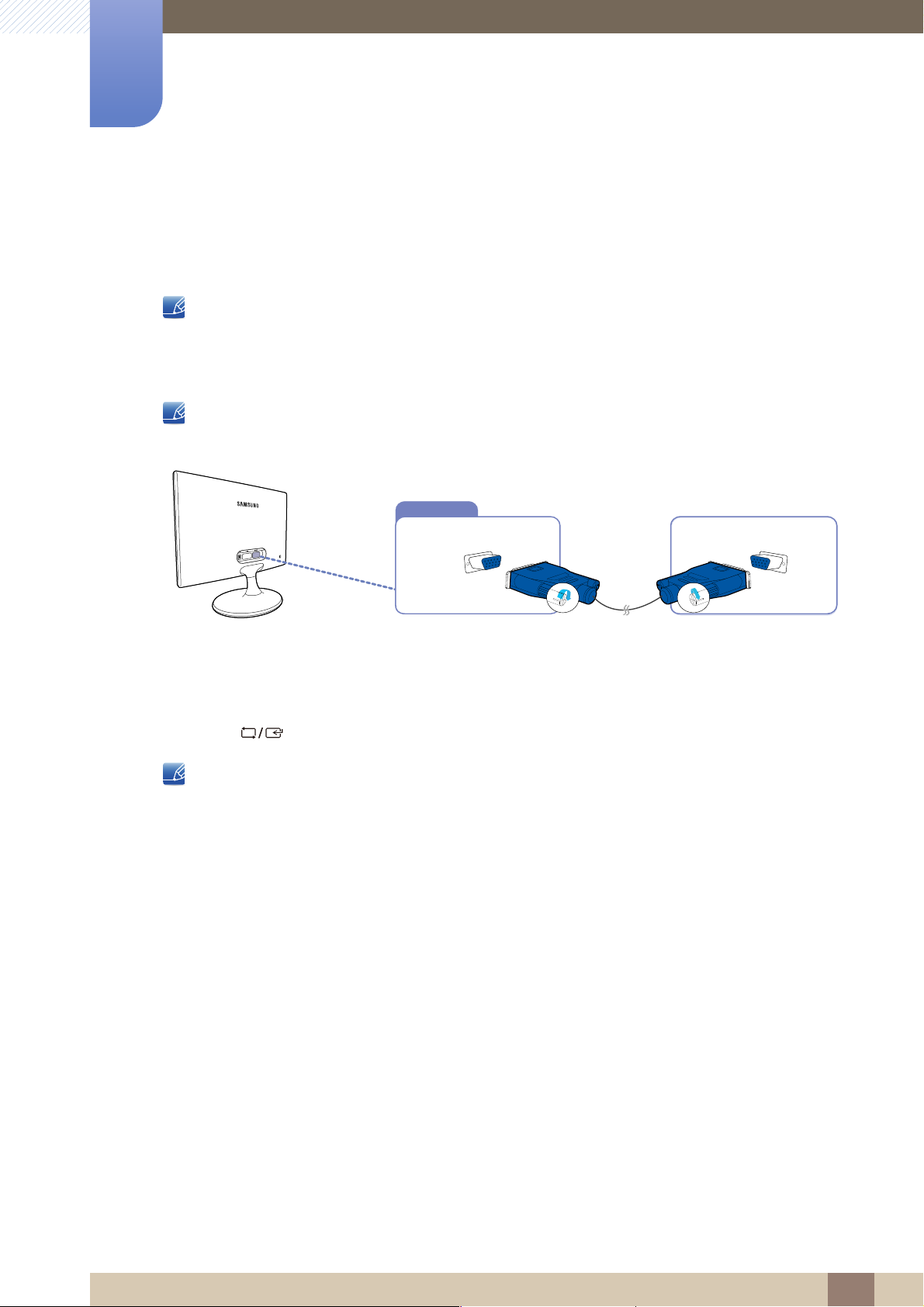

2.2.1 Connection Using the D-SUB Cable (Analogue Type)
Do not connect the power cable before connecting all other cables.
Ensure you connect a source device first before connecting the power cable.
1
Connect the D-SUB cable to the [RGB IN] port on the back of the product and the RGB port on the PC.
2 Connect the DC power adapter to the product and a power socket.
Next, turn on the power switch on the PC. (For details, refer to "2.2.3 Connecting the Power".)
3 Press [ ] to change the input source to Analog.
Provided ports may vary depending on the product.
2 Connecting and Using a Source Device
29
Page 30
2
DVI IN
DC 14V
Connecting and Using a Source Device

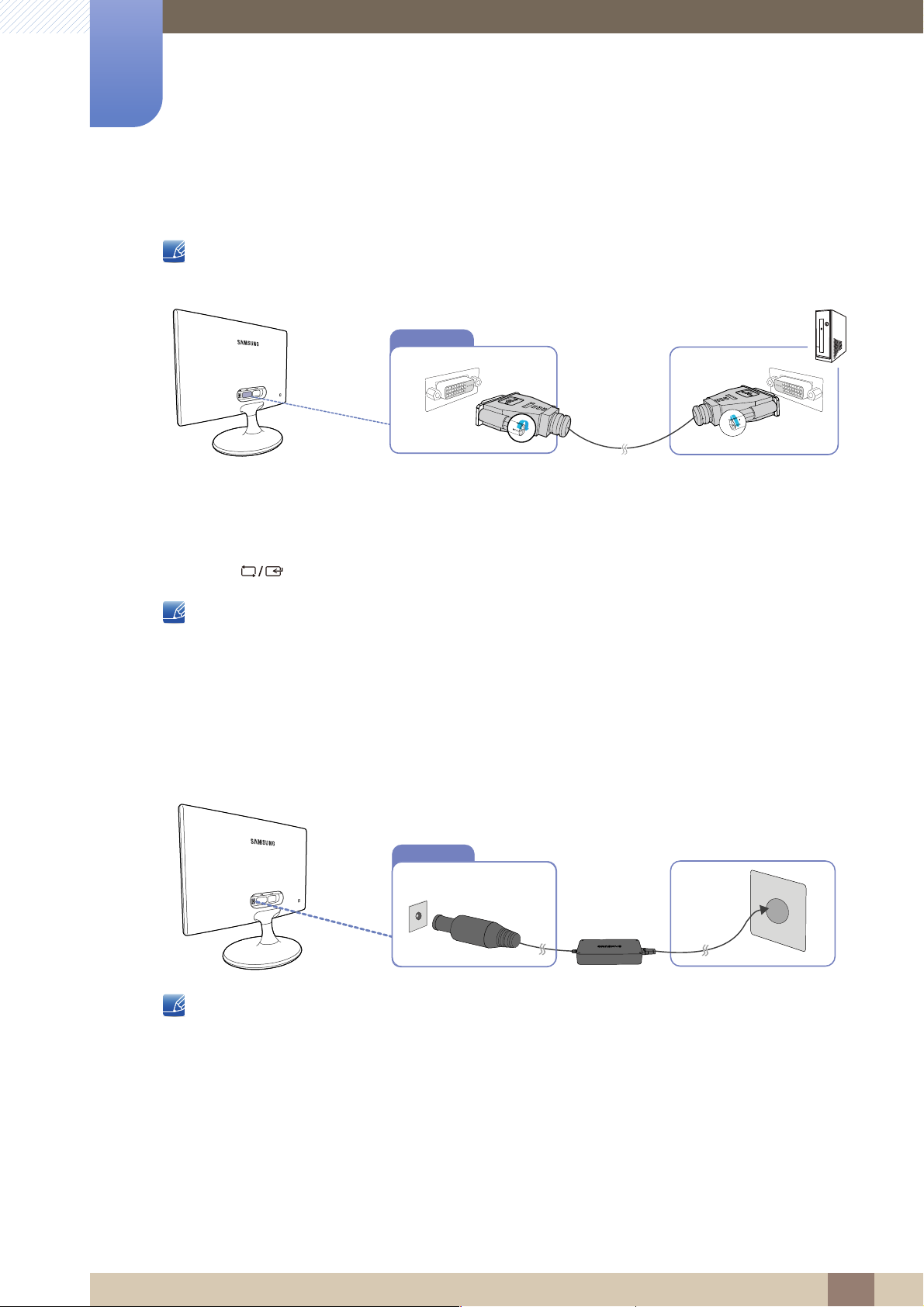

2.2.2 Connection Using the DVI Cable
Do not connect the power cable before connecting all other cables.
Ensure you connect a source device first before connecting the power cable.
1 Connect the DVI cable to the [DVI IN] port on the back of the product and the DVI port on the PC.
2 Connect the DC power adapter to the product and a power socket.
Next, turn on the power switch on the PC. (For details, refer to "2.2.3 Connecting the Power".)
3 Press [ ] to change the input source to DVI.
Provided ports may vary depending on the product.
2.2.3 Connecting the Power
Connect the power adapter to [DC 14V] jack on the rear of the product.
Connect the power cable to the DC power adapter. Next, connect the DC power adapter to the product.
Plug in the power cable to the power socket.
The input voltage is switched automatically.
2 Connecting and Using a Source Device
30
Page 31
2
Connecting and Using a Source Device

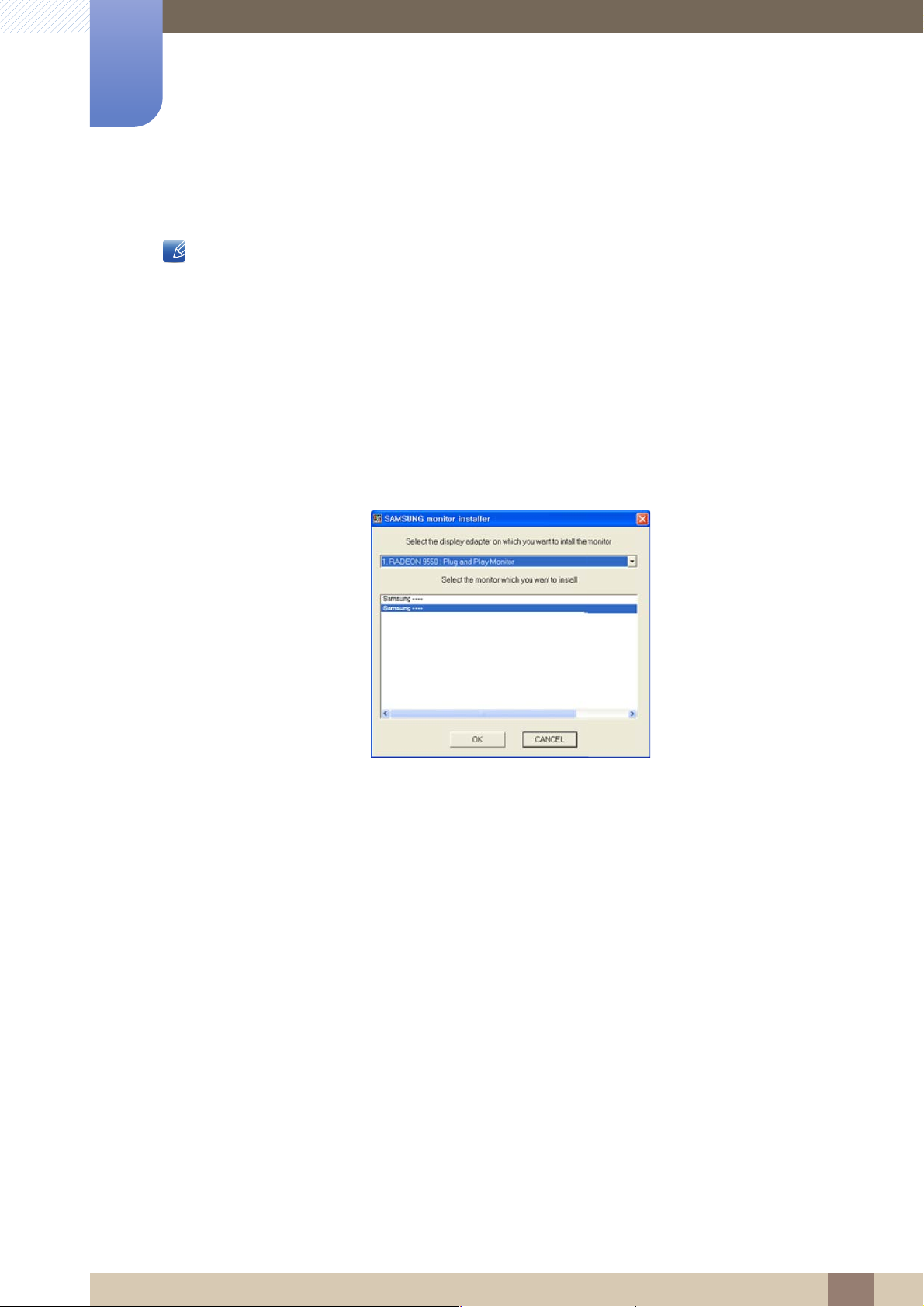

2.2.4 Driver Installation
You can set the optimum resolution and frequency for this product by installing the corresponding
drivers.
An installation driver is contained on the CD supplied with the product.
If the file provided is faulty, visit the Samsung homepage (http://www.samsung.com/) and
download the file.
1 Insert the user manual CD provided with the product into the CD-ROM drive.
2 Click "Windows Driver".
3 Follow the instructions given on the screen to proceed with installation.
4 Select your product model from the list of models.
5 Go to Display Properties and check that the resolution and refresh rate are appropriate.
Refer to your Windows OS manual for further details.
2 Connecting and Using a Source Device
31
Page 32
2
5HWXUQ
(QJOLVK
7KHRSWLPDOUHVROXWLRQIRUWKLV
PRQLWRULVDVIROORZV
****x**** **Hz
8VHWKHDERYHVHWWLQJVWRVHW
WKHUHVROXWLRQRQ\RXU3&
6HWXS*XLGH
M
Connecting and Using a Source Device

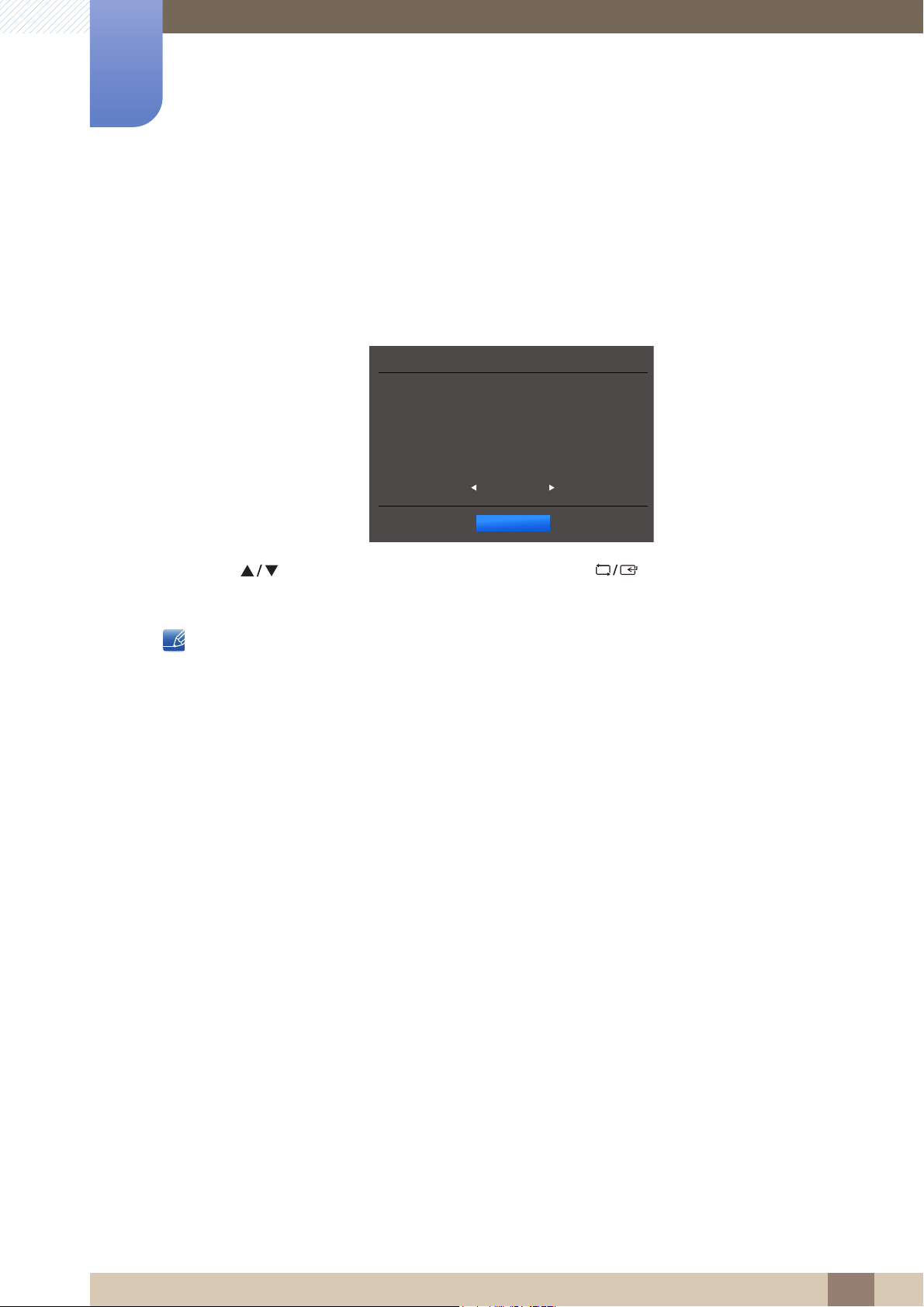

2.2.5 Setting Optimum Resolution
An information message about setting optimum resolution will appear if you power on the product for the
first time after purchase.
Select a language on the product and change the resolution on your PC to the optimum setting.
1 Press [ ] to move to the language you want and press [ ].
2 To hide the information message, press [ ].
If the optimum resolution is not selected, the message will appear up to three times for a specified
time even when the product is turned off and on again.
The optimum resolution can also be selected in Control Panel on your PC.
ENU
2 Connecting and Using a Source Device
32
Page 33
2
12
3
**** ****
**********
Connecting and Using a Source Device
2.2.6 Changing the Resolution Using a PC
Adjust the resolution and refresh rate in Control Panel on your PC to obtain optimum picture
quality.
The picture quality of TFT-LCDs may degrade if the optimum resolution is not selected.
Changing the Resolution on Windows XP
Go to Control Panel Display Settings and change the resolution.
2 Connecting and Using a Source Device
33
Page 34
2
12
34
***********
***********
Connecting and Using a Source Device

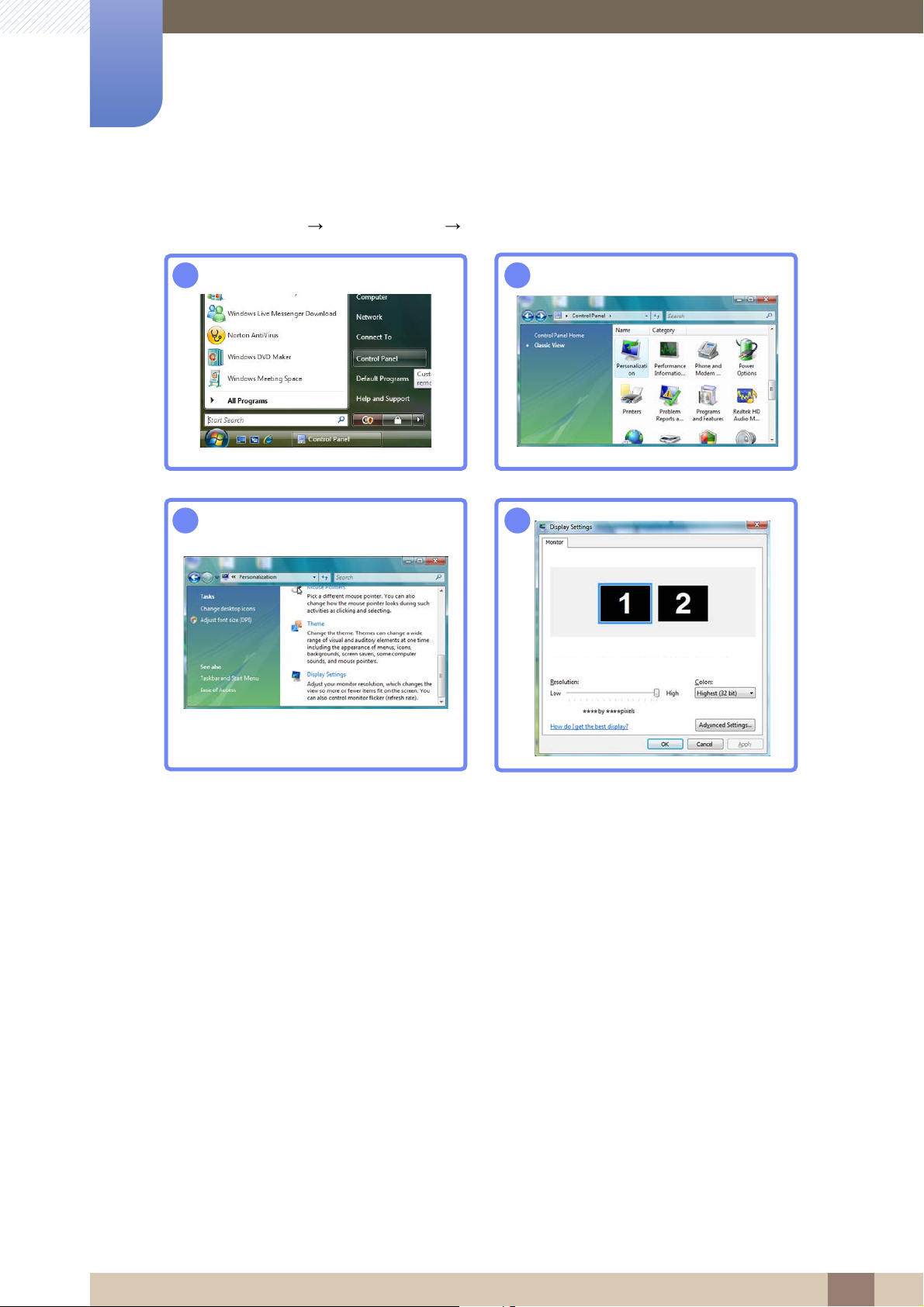

Changing the Resolution on Windows Vista
Go to Control Panel Personalization Display Settings and change the resolution.
2 Connecting and Using a Source Device
34
Page 35
2
12
34
Connecting and Using a Source Device

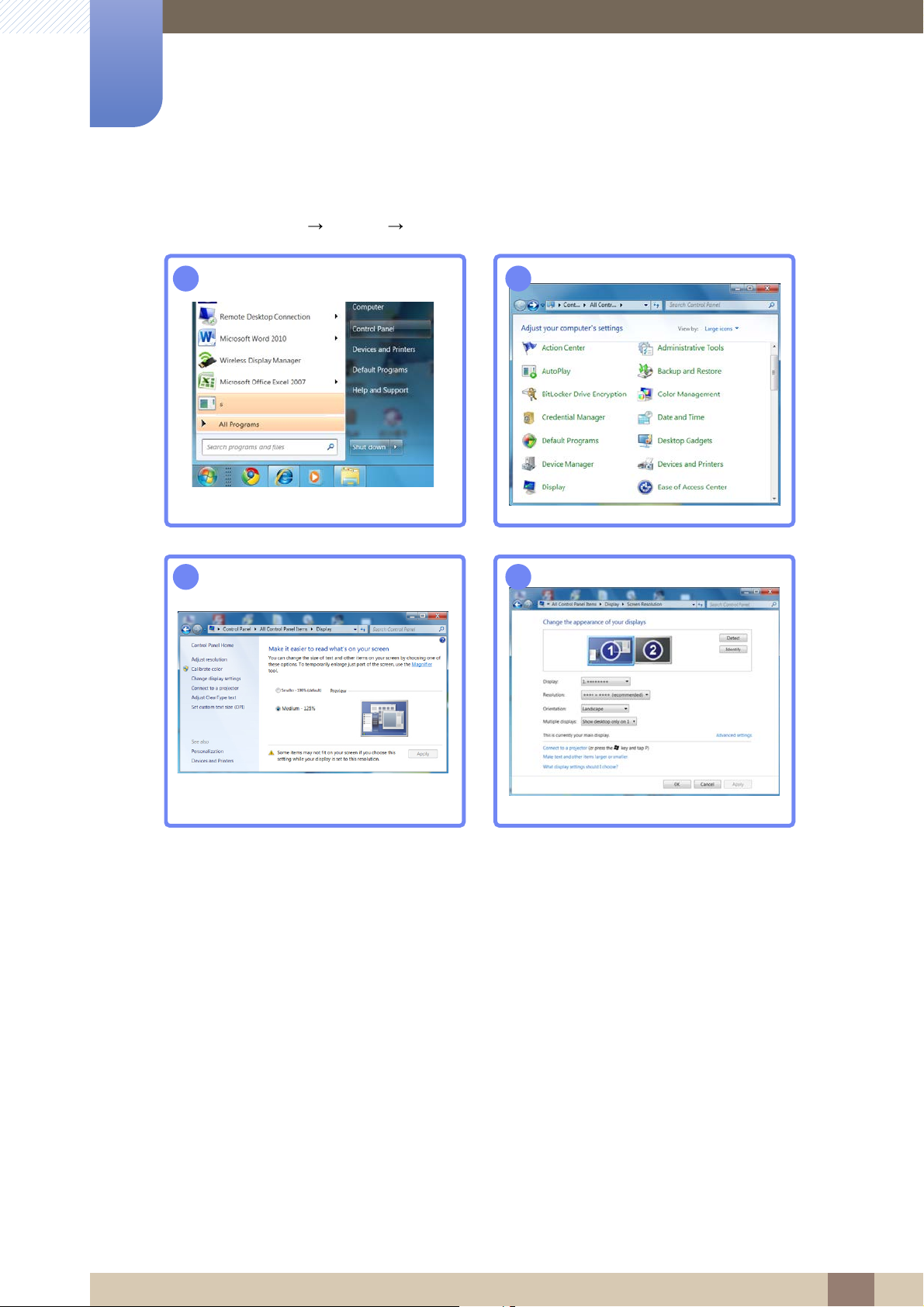

Changing the Resolution on Windows 7
Go to Control Panel Display Screen Resolution and change the resolution.
2 Connecting and Using a Source Device
35
Page 36
Connecting and Using a Source Device
12
34
5
2

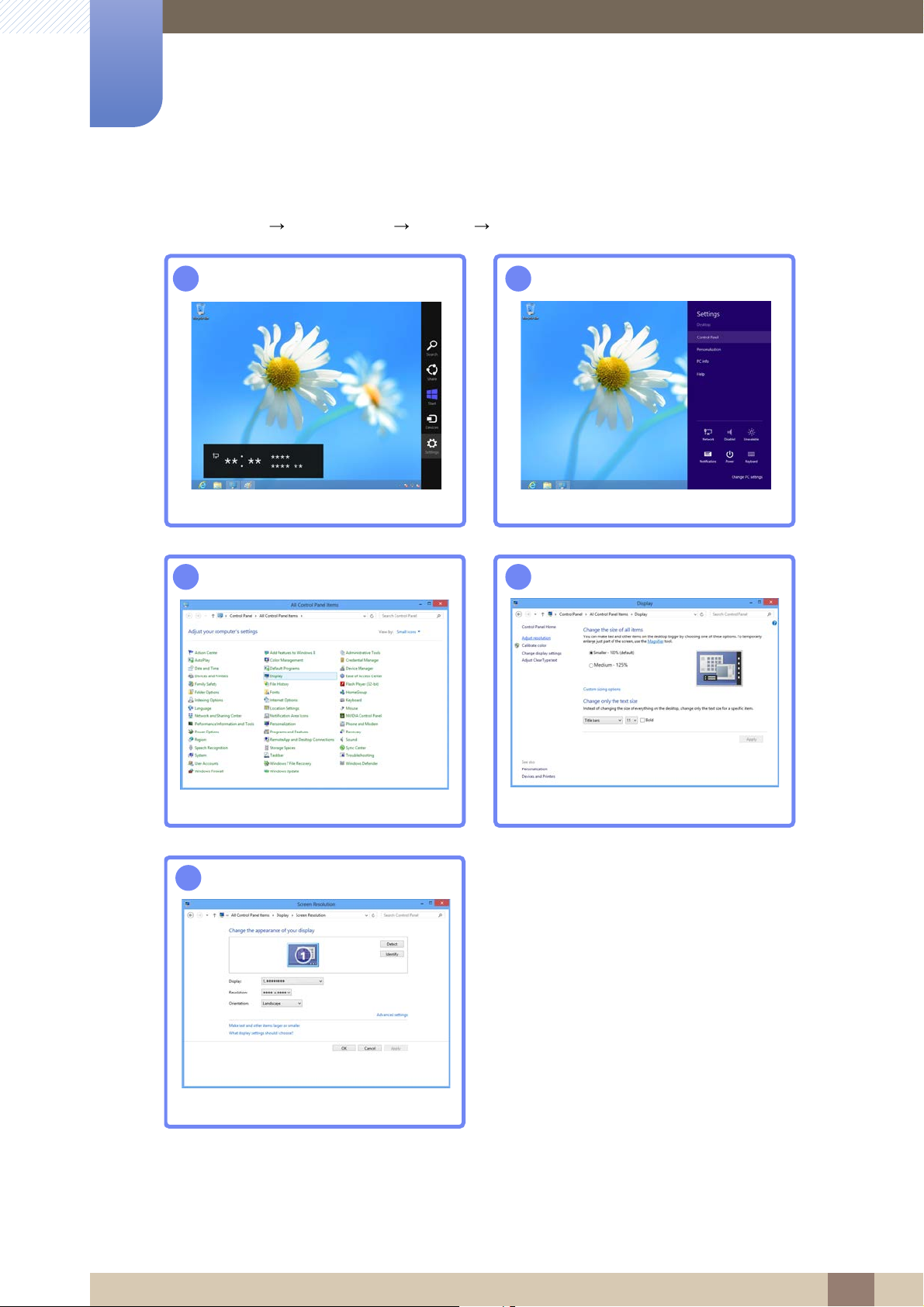

Changing the Resolution on Windows 8
Go to Settings Control Panel Display Screen Resolution and change the resolution.
2 Connecting and Using a Source Device
36
Page 37
Screen Setup
MENU
Brightness
Contrast
Sharpness
Game Mode
MagicBright
MagicUpscale
Image Size
100
75
60
Game Mode Off
Custom
Off
Wide
AUTO
Adjust the brightness
level. Values closer to
100 mean a brighter
screen.
3
Configure the screen settings such as brightness.
3.1 Brightness
You can adjust the general brightness of the picture. (Range: 0~100)
A higher value will make the picture appear brighter.
This menu is not available when MagicBright is set to Dynamic Contrast mode.
This menu is not available when Eco Saving is enabled.
3.1.1 Configuring Brightness
1 Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2 Press [ ] to move to PICTURE and press [ ] on the product.
3 Press [ ] to move to Brightness and press [ ] on the product.
The following screen will appear.
4 Adjust the Brightness using the [ ] buttons.
5 The selected option will be applied.
3 Screen Setup
37
Page 38
Screen Setup
MENU
100
75
60
Game Mode Off
Custom
Off
Wide
AUTO
Adjust the contrast
level. Values closer to
100 mean a bigger
light/dark contrast.
Brightness
Contrast
Sharpness
Game Mode
MagicBright
MagicUpscale
Image Size
3
3.2 Contrast
Adjust the contrast between the objects and background. (Range: 0~100)
A higher value will increase the contrast to make the object appear clearer.
This option is not available when MagicBright is in Cinema or Dynamic Contrast mode.
This menu is not available when Game Mode is enabled.
3.2.1 Configuring Contrast
1 Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2 Press [ ] to move to PICTURE and press [ ] on the product.
3 Press [ ] to move to Contrast and press [ ] on the product.
The following screen will appear.
4 Adjust the Contrast using the [ ] buttons.
5 The selected option will be applied.
3 Screen Setup
38
Page 39
Screen Setup
MENU
100
75
60
Game Mode Off
Custom
Off
Wide
AUTO
Adjust the sharpness
of the picture.
Values closer to 100
mean a sharper image.
Brightness
Contrast
Sharpness
Game Mode
MagicBright
MagicUpscale
Image Size
3
3.3 Sharpness
Make the outline of objects more clear or blurry. (Range: 0~100)
A higher value will make the outline of objects clearer.
This option is not available when MagicBright is in Cinema or Dynamic Contrast mode.
This menu is not available when MagicUpscale is in Mode1 or Mode2.
This menu is not available when Game Mode is enabled.
3.3.1 Configuring Sharpness
1 Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2 Press [ ] to move to PICTURE and press [ ] on the product.
3 Press [ ] to move to Sharpness and press [ ] on the product.
The following screen will appear.
4 Adjust the Sharpness using the [ ] buttons.
5 The selected option will be applied.
3 Screen Setup
39
Page 40
Screen Setup
MENU
100
75
AUTO
Optimizes image
settings for playing
games.
Brightness
Contrast
Sharpness
Game Mode
MagicBright
MagicUpscale
Image Size
Game Mode Off
Game Mode On
Always On
3
3.4 Game Mode
Configure the product screen settings for game mode.
Use this feature when playing games on a PC or when a game console such as PlayStation™ or Xbox™
is connected.
3.4.1 Configuring Contrast
1 Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2 Press [ ] to move to PICTURE and press [ ] on the product.
3 Press [ ] to move to Game Mode and press [ ] on the product.

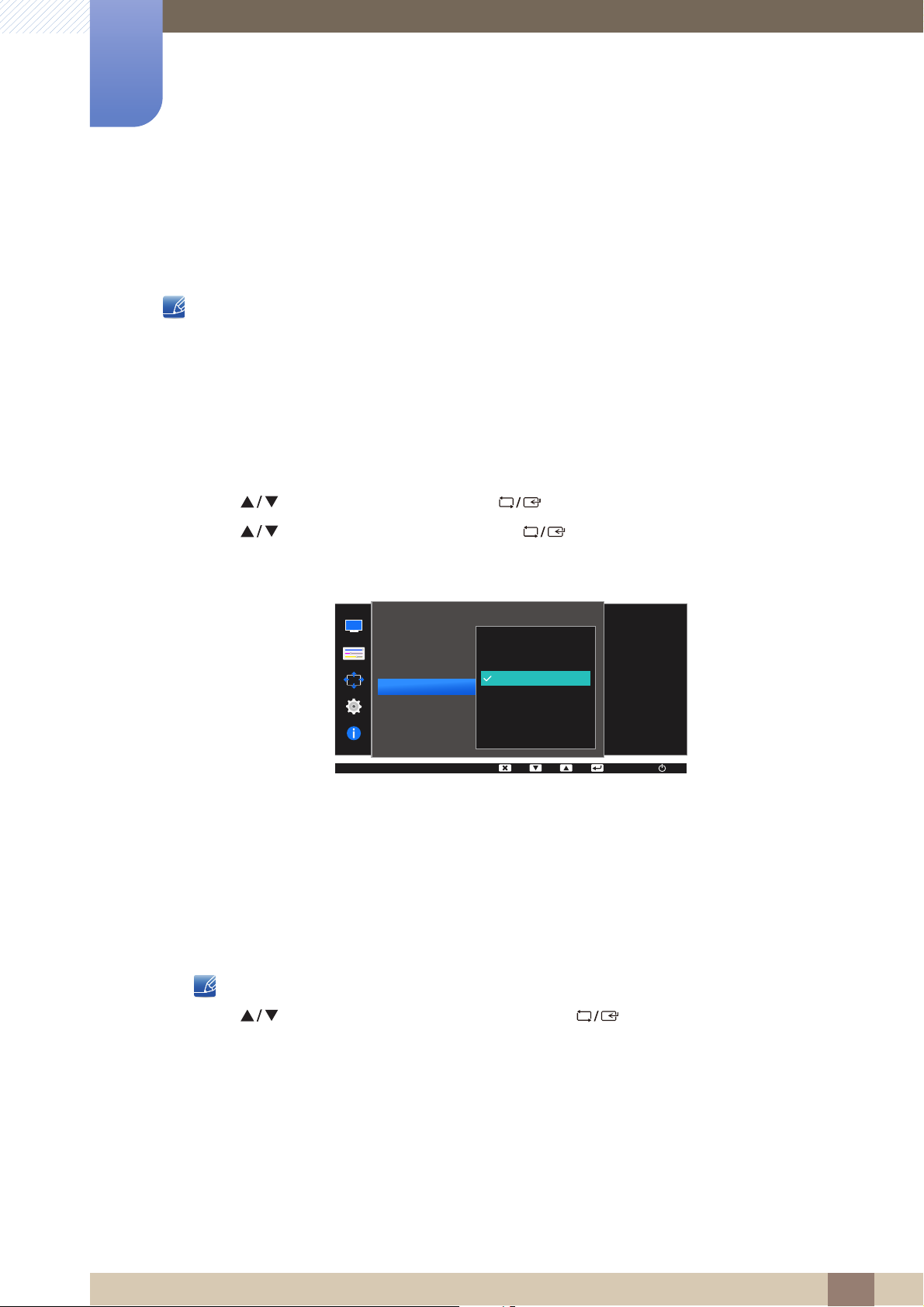

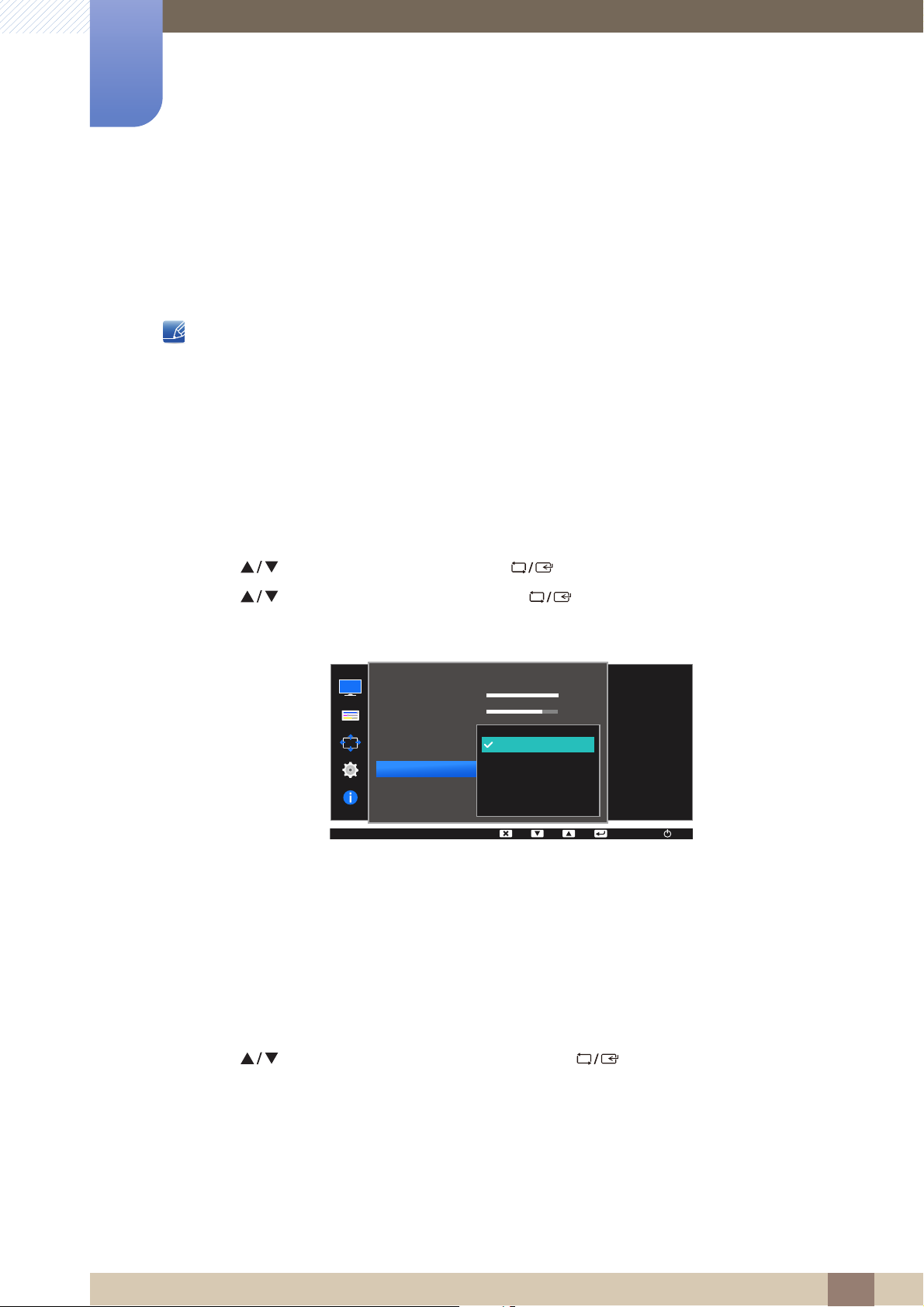

The following screen will appear.
4 Press [ ] to move to the option you want and press [ ].
5 The selected option will be applied.
When the monitor turns off, enters power-saving mode or changes input sources, Game Mode
turns Off even if it is set to On.
If you want to keep Game Mode enabled all the time, select Always On.
3 Screen Setup
40
Page 41
Screen Setup
MENU
100
75
60
50
50
2200
0
100
75
60
Custom
Off
Off
Wide
Custom
Standard
Cinema
Dynamic Contrast
AUTO
Set to an optimum
picture quality suitable
for the working
environment.
Brightness
Contrast
Sharpness
Game Mode
MagicBright
MagicUpscale
Image Size
3
3.5 SAMSUNG MAGIC Bright
This menu provides an optimum picture quality suitable for the environment where the product will be
used.
This menu is not available when Eco Saving is enabled.
This menu is not available when Game Mode is enabled.
You can customize the brightness to suit your preferences.
3.5.1 Configuring SAMSUNG MAGIC Bright
1 Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2 Press [ ] to move to PICTURE and press [ ] on the product.
3 Press [ ] to move to MagicBright and press [ ] on the product.
The following screen will appear.
Custom: Customize the contrast and brightness as required.
Standard: Obtain a picture quality suitable for editing documents or using Internet.
Game: Obtain a picture quality suitable for playing games that involve many graphic effects and
dynamic movements.
Cinema: Obtain the brightness and sharpness of TVs suitable for enjoying video and DVD
content.
Dynamic Contrast: Obtain balanced brightness through automatic contrast adjustment.
4 Press [ ] to move to the option you want and press [ ].
5 The selected option will be applied.
3 Screen Setup
41
Page 42
Screen Setup
MENU
100
75
60
Custom
Off
Off
Wide
AUTO
Off
Mode1
Mode2
Enhance picture detail
and vividness.
Brightness
Contrast
Sharpness
Game Mode
MagicBright
MagicUpscale
Image Size
3
3.6 SAMSUNG MAGIC Upscale
MagicUpscale function can enhance the layers of the picture details and the vividness of the picture.
The function has more obvious effects on low-resolution pictures.
This menu is not available when MagicBright is in Cinema or Dynamic Contrast mode.
This menu is not available when Game Mode is enabled.
3.6.1 Configuring SAMSUNG MAGIC Upscale
1 Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2 Press [ ] to move to PICTURE and press [ ] on the product.
3 Press [ ] to move to MagicUpscale and press [ ] on the product.
The following screen will appear.
Comparing with Mode1, Mode2 has a stronger effect.
4 Press [ ] to move to the option you want and press [ ].
5 The selected option will be applied.
3 Screen Setup
42
Page 43
Screen Setup
MENU
100
75
60
Game Mode Off
AUTO
Auto
Wide
Choose the
size and aspect
ratio of the
displayed on
screen.
Brightness
Contrast
Sharpness
Game Mode
MagicBright
MagicUpscale
Image Size
100
75
60
Game Mode Off
Wide
AUTO
Auto
Wide
4:3
16:9
Screen Fit
Choose the
size and aspect
ratio of the
displayed on
screen.
Brightness
Contrast
Sharpness
Game Mode
MagicBright
MagicUpscale
Image Size
3

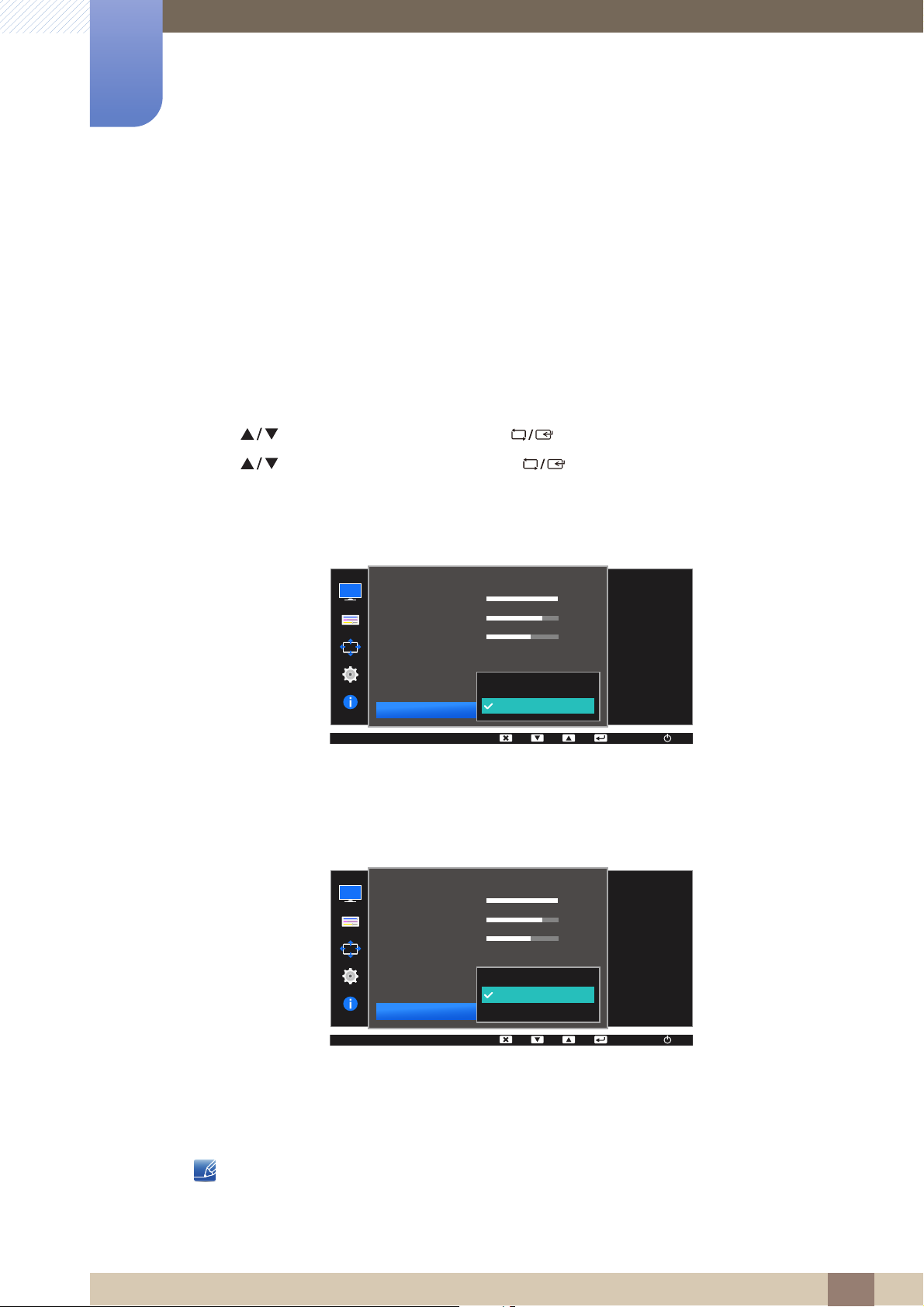

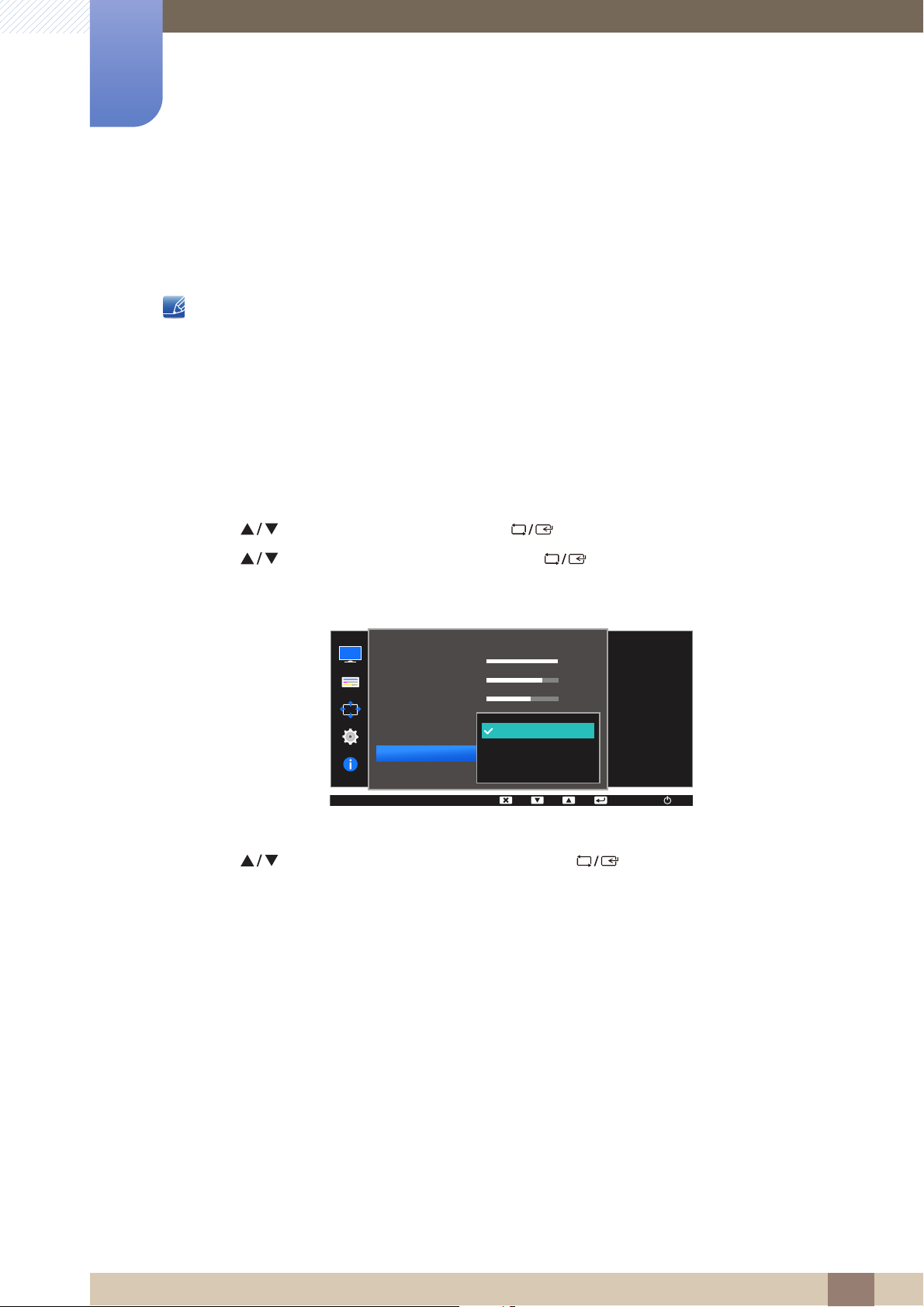

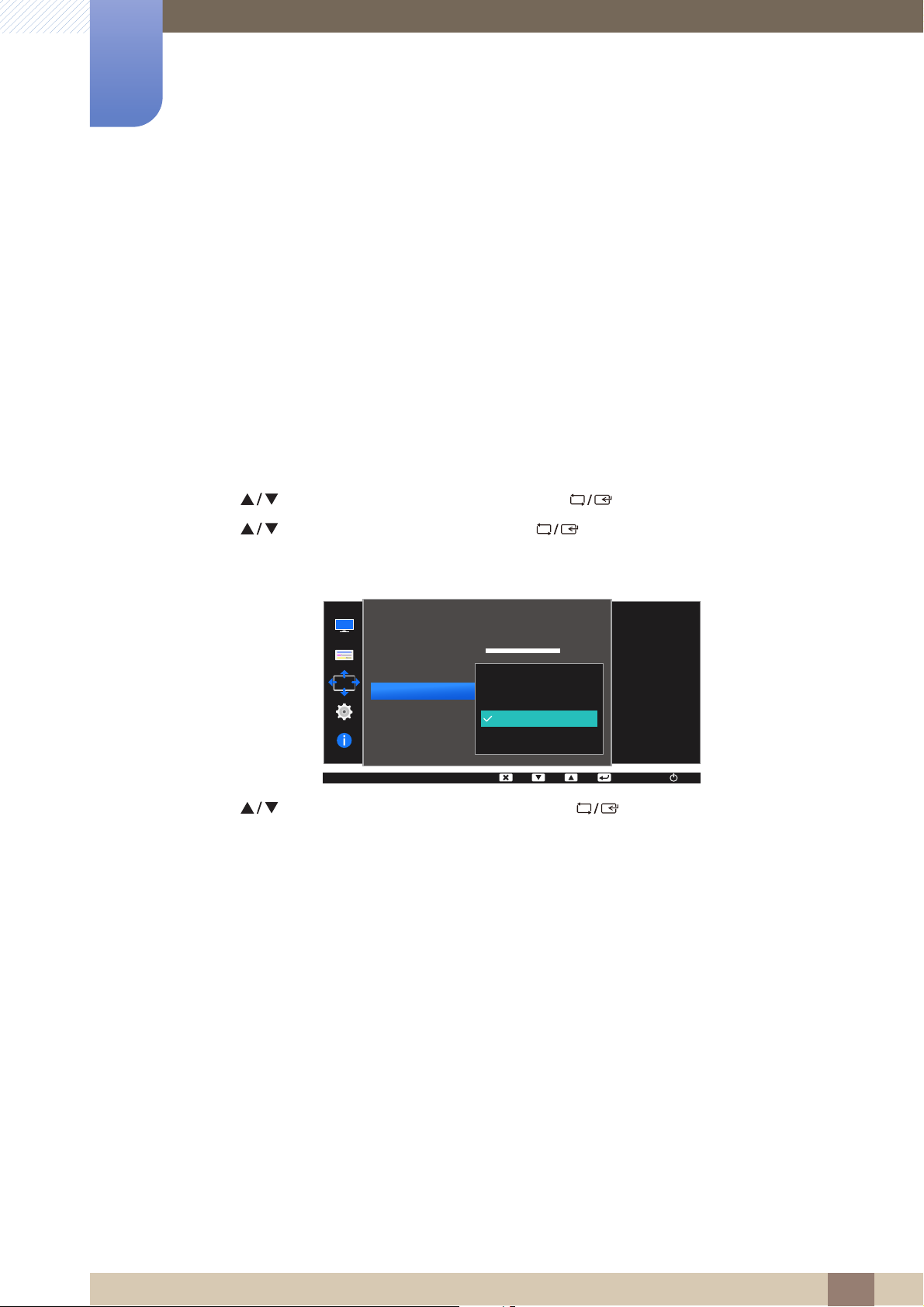

3.7 Image Size
Change the picture size.
3.7.1 Changing the Image Size
1 Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2 Press [ ] to move to PICTURE and press [ ] on the product.
3 Press [ ] to move to Image Size and press [ ] on the product.

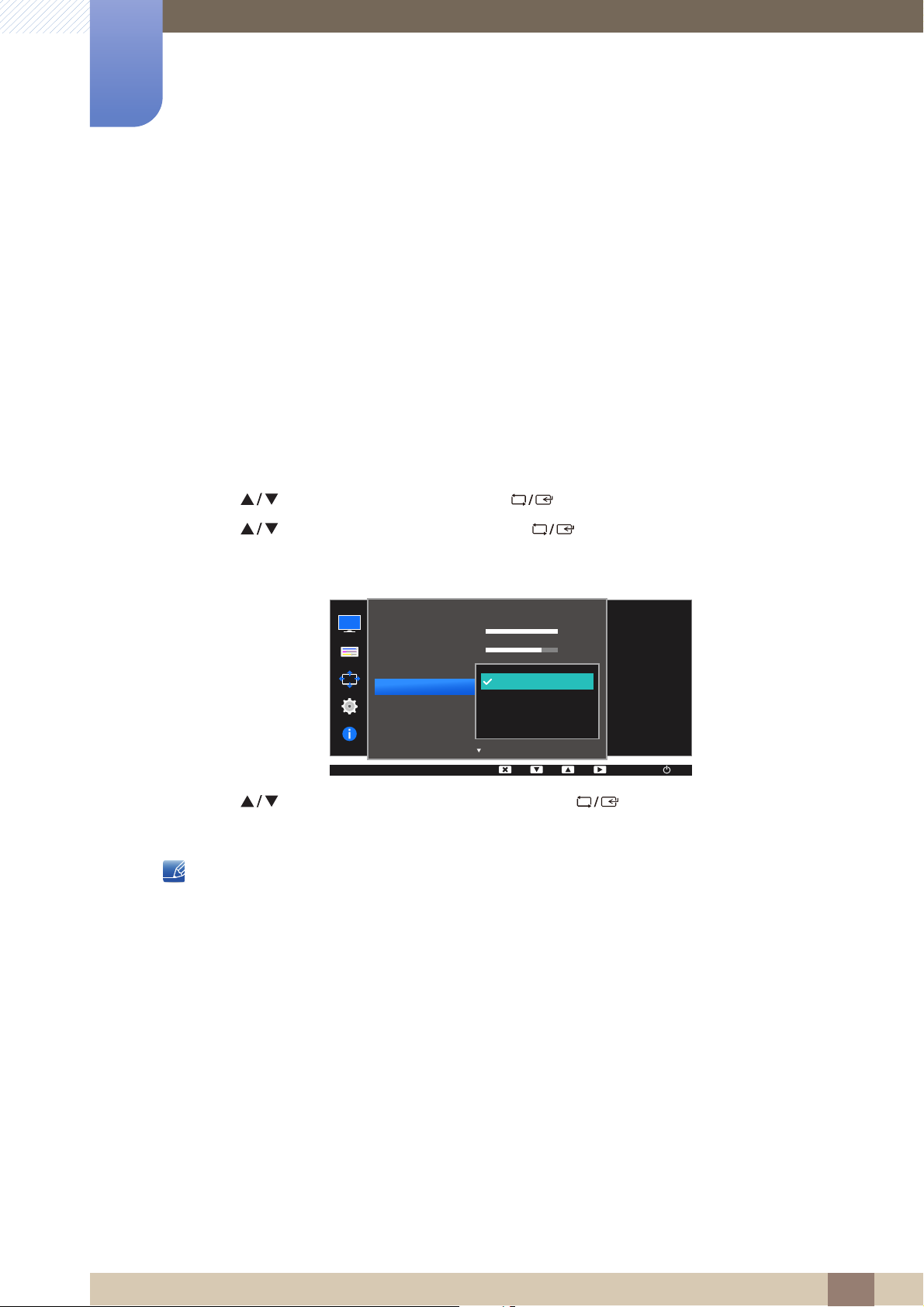

The following screen will appear.
In PC mode
Auto: Display the picture according to the aspect ratio of the input source.
Wide: Display the picture in full screen regardless of the aspect ratio of the input source.
In AV mode
4:3: Display the picture with an aspect ratio of 4:3. Suitable for videos and standard broadcasts.
16:9: Display the picture with an aspect ratio of 16:9.
Screen Fit: Display the picture with the original aspect ratio without cutting off.
Changing the screen size is available when the following conditions are satisfied.
The function may not be supported depending on the ports provided with the product.
A digital output device is connected using the DVI cable.
3 Screen Setup
43
Page 44
3
Screen Setup
The input signal is 480p, 576p, 720p, or 1080p and monitor can display normally
(Not every model can support all of these signals.).
This can only be set when the external input is connected through DVI and PC/AV Mode
is set to AV.
4 Press [ ] to move to the option you want and press [ ].
5 The selected option will be applied.
3 Screen Setup
44
Page 45
Screen Setup
MENU
AUTO
50
50
1792
0
H-Position
V-Position
Coarse
Fine
Move the image
displayed on the
screen to
the left or right.
50
50
1792
0
H-Position
V-Position
Coarse
Fine
Move the image
displayed on the
screen to
the up or down.
3

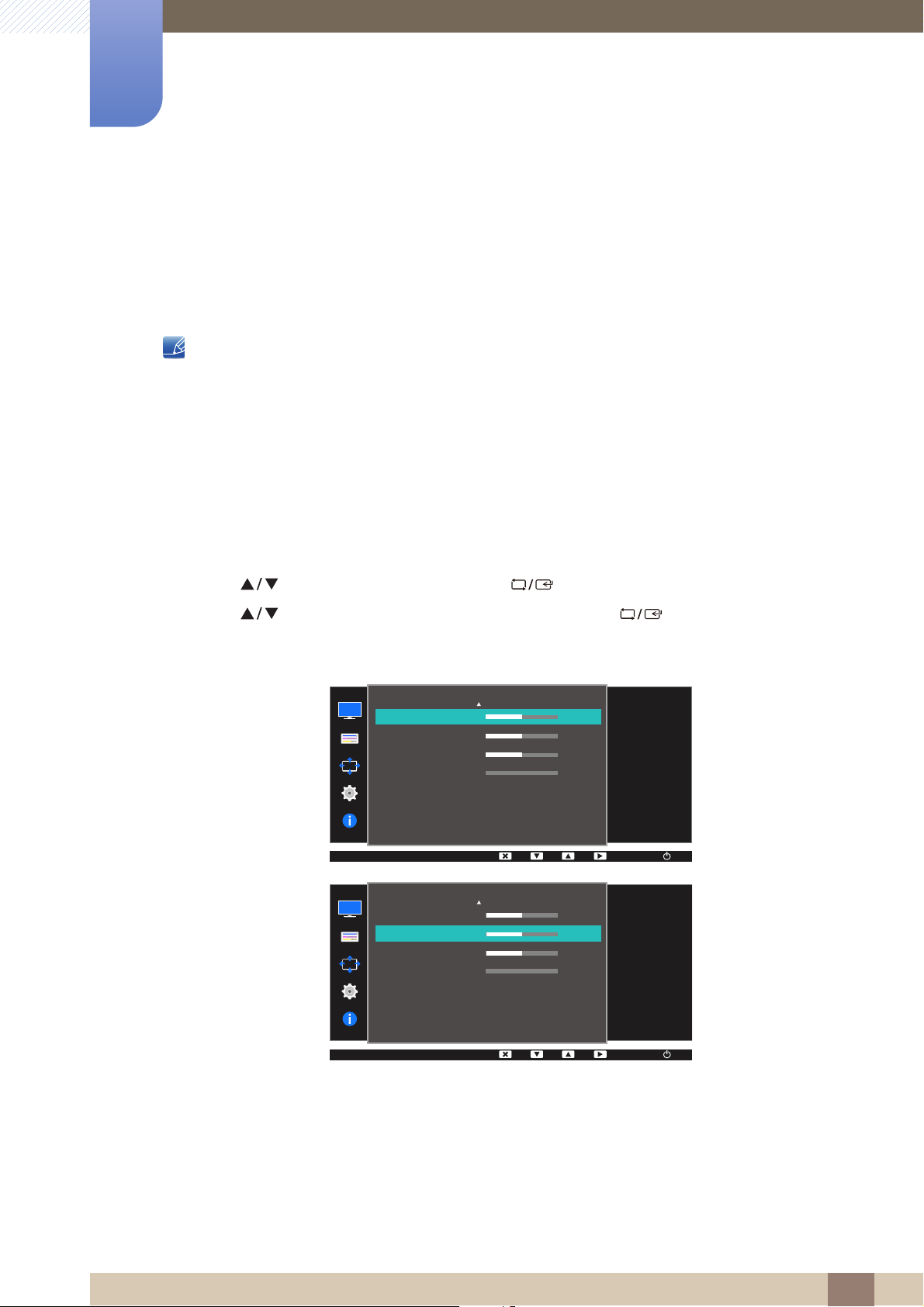

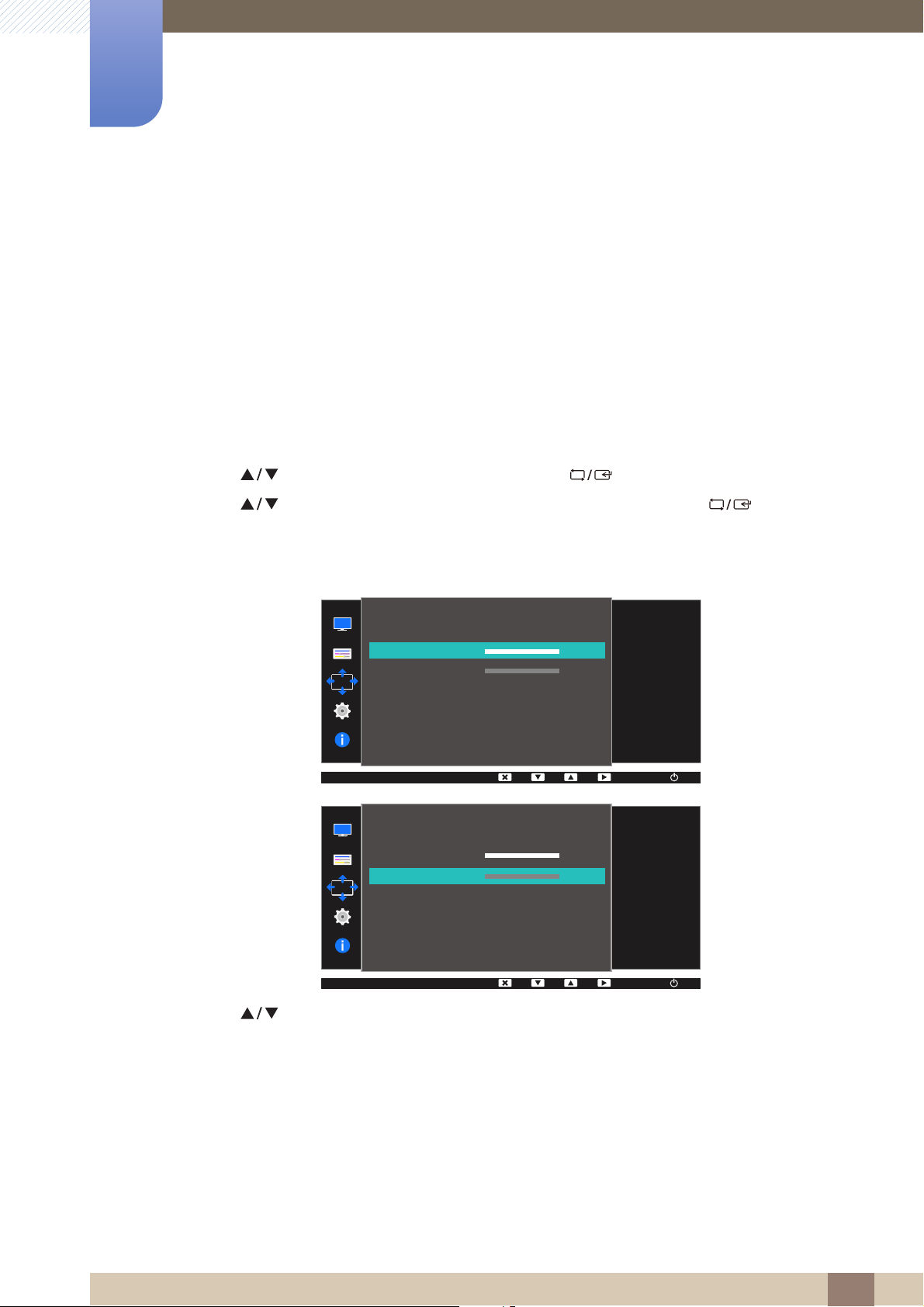

3.8 H-Position & V-Position
H-Position: Move the screen to the left or right.
V-Position: Move the screen up or down.
This menu is available in Analog mode only.
This menu is only available when Image Size is set to Screen Fit in AV Mode. When a 480P or
576P or 720P or 1080P signal is input in AV mode and the monitor can display normally, select
Screen Fit to adjust horizontal position in 0-6 levels.
3.8.1 Configuring H-Position & V-Position
1 Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2 Press [ ] to move to PICTURE and press [ ] on the product.

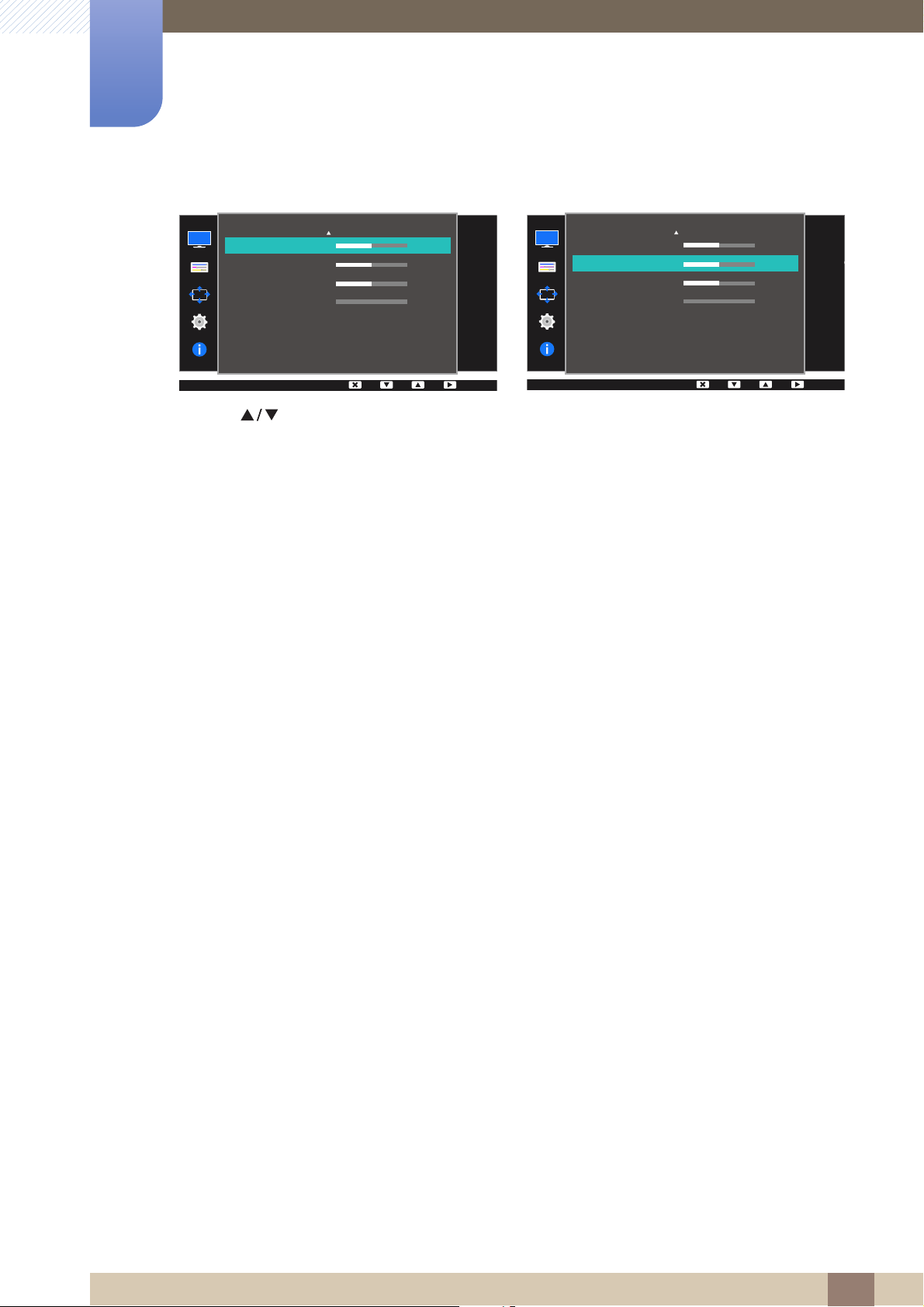

3 Press [ ] to move to H-Position or V-Position, and press [ ].

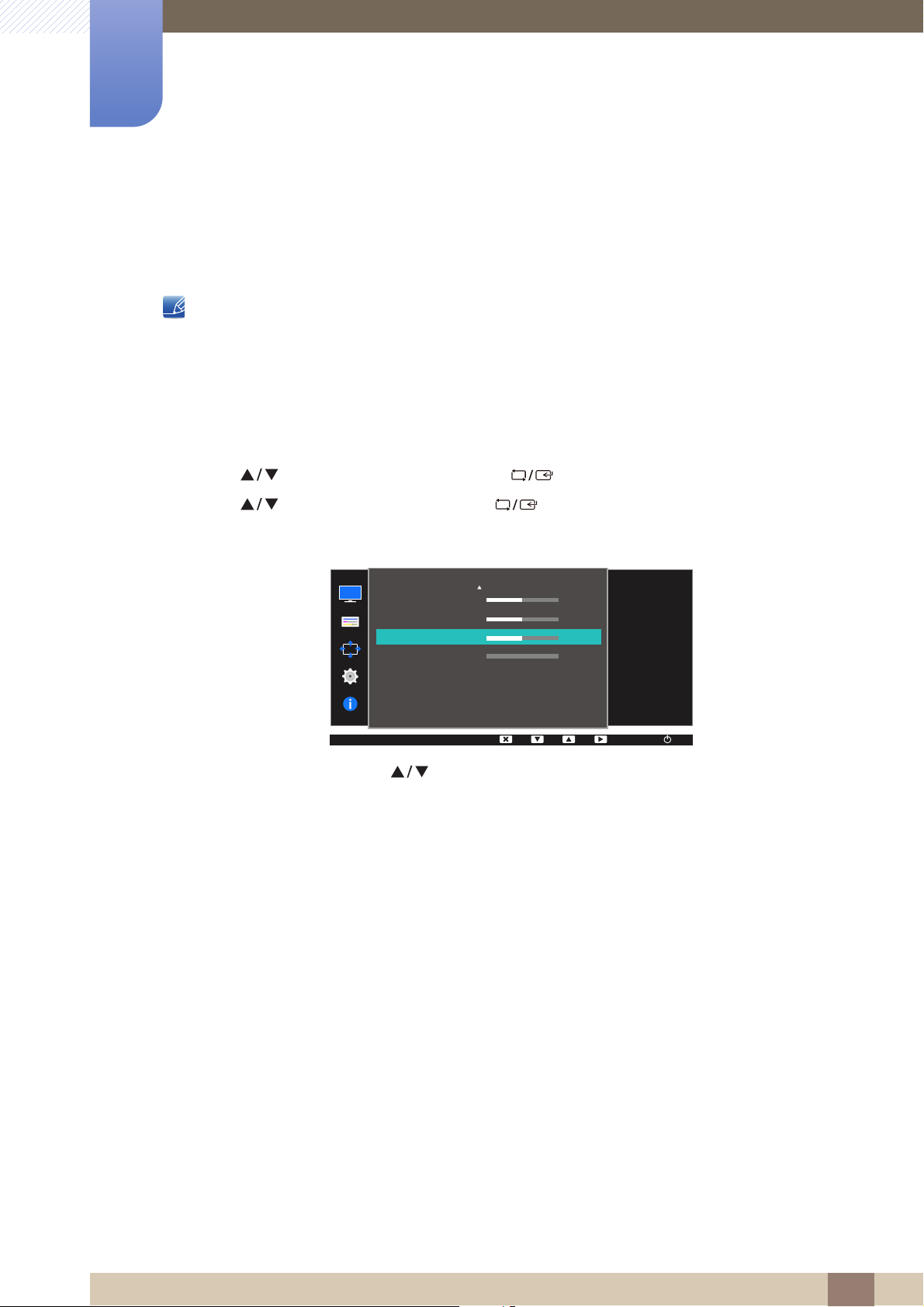

The following screen will appear.
AUTO
3 Screen Setup
45
Page 46
3
AUTO
50
50
1792
0
H-Position
V-Position
Coarse
Fine
Move the
displayed
screen to
the left or
AUTO
50
50
1792
0
H-Position
V-Position
Coarse
Fine
Move the
displayed
screen to
the up or d
Screen Setup
4 Press [ ] to configure H-Position or V-Position.
5 The selected option will be applied.
3 Screen Setup
46
Page 47
Screen Setup
MENU
AUTO
50
50
1792
0
H-Position
V-Position
Coarse
Fine
Adjust the screen
frequency
3
3.9 Coarse
Adjust the screen frequency.
This menu is available in Analog mode only.
3.9.1 Adjusting Coarse
1 Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2 Press [ ] to move to PICTURE and press [ ] on the product.
3 Press [ ] to move to Coarse and press [ ] on the product.
The following screen will appear.
4 Adjust the Coarse using the [ ] buttons.
5 The selected option will be applied.
3 Screen Setup
47
Page 48
Screen Setup
MENU
AUTO
50
50
1792
0
H-Position
V-Position
Coarse
Fine
Fine-tune the screen
to get a vivid picture.
3
3.10 Fine
Fine-adjust the screen to obtain a vivid picture.
3.10.1 Adjusting Fine
1 Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2 Press [ ] to move to PICTURE and press [ ] on the product.
3 Press [ ] to move to Fine and press [ ] on the product.
This menu is available in Analog mode only.
The following screen will appear.
4 Adjust the Fine using the [ ] buttons.
5 The selected option will be applied.
3 Screen Setup
48
Page 49
Configuring Tint
MENU
COLOR
Red
Green
Blue
Color Tone
Gamma
Adjust the red
saturation level.
Values closer to 100
mean greater
intensity for the color.
50
50
50
Normal
Mode1
4
Adjust the tint of the screen. This menu is not available when MagicBright is set to Cinema or
Dynamic Contrast mode. This menu is not available when Game Mode is enabled

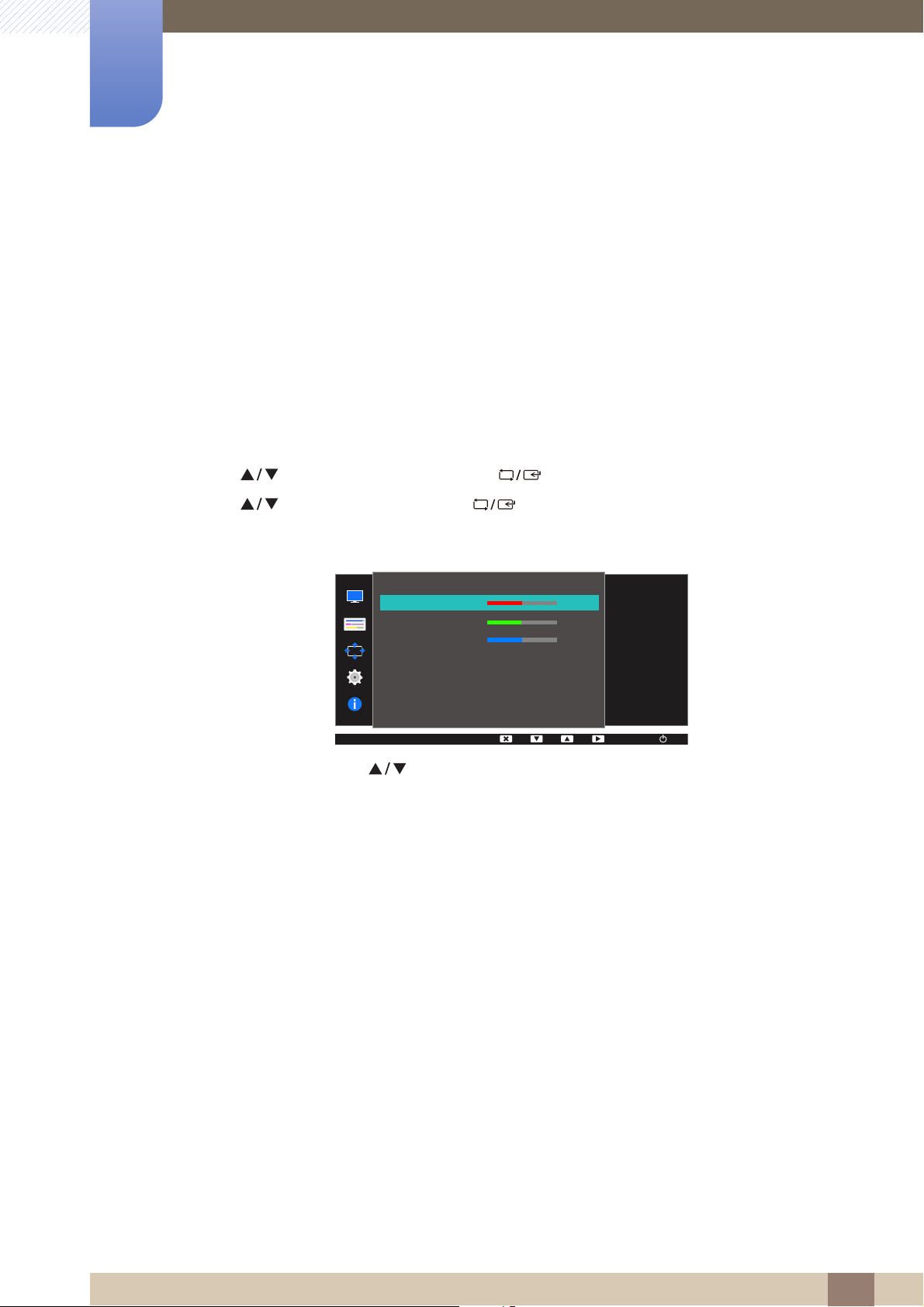

4.1 Red
Adjust the value of the color red in the picture. (Range: 0~100)
A higher value will increase the intensity of the color.
4.1.1 Configuring Red
1 Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2 Press [ ] to move to COLOR and press [ ] on the product.
3 Press [ ] to move to Red and press [ ] on the product.
The following screen will appear.
4 Adjust the Red using the [ ] buttons.
5 The selected option will be applied.
AUTO
4 Configuring Tint
49
Page 50
Configuring Tint
MENU
COLOR
Red
Green
Blue
Color Tone
Gamma
Adjust the green
saturation level.
Values closer to 100
mean greater
intensity for the color.
50
50
50
Normal
Mode1
AUTO
4
4.2 Green
Adjust the value of the color green in the picture. (Range: 0~100)
A higher value will increase the intensity of the color.

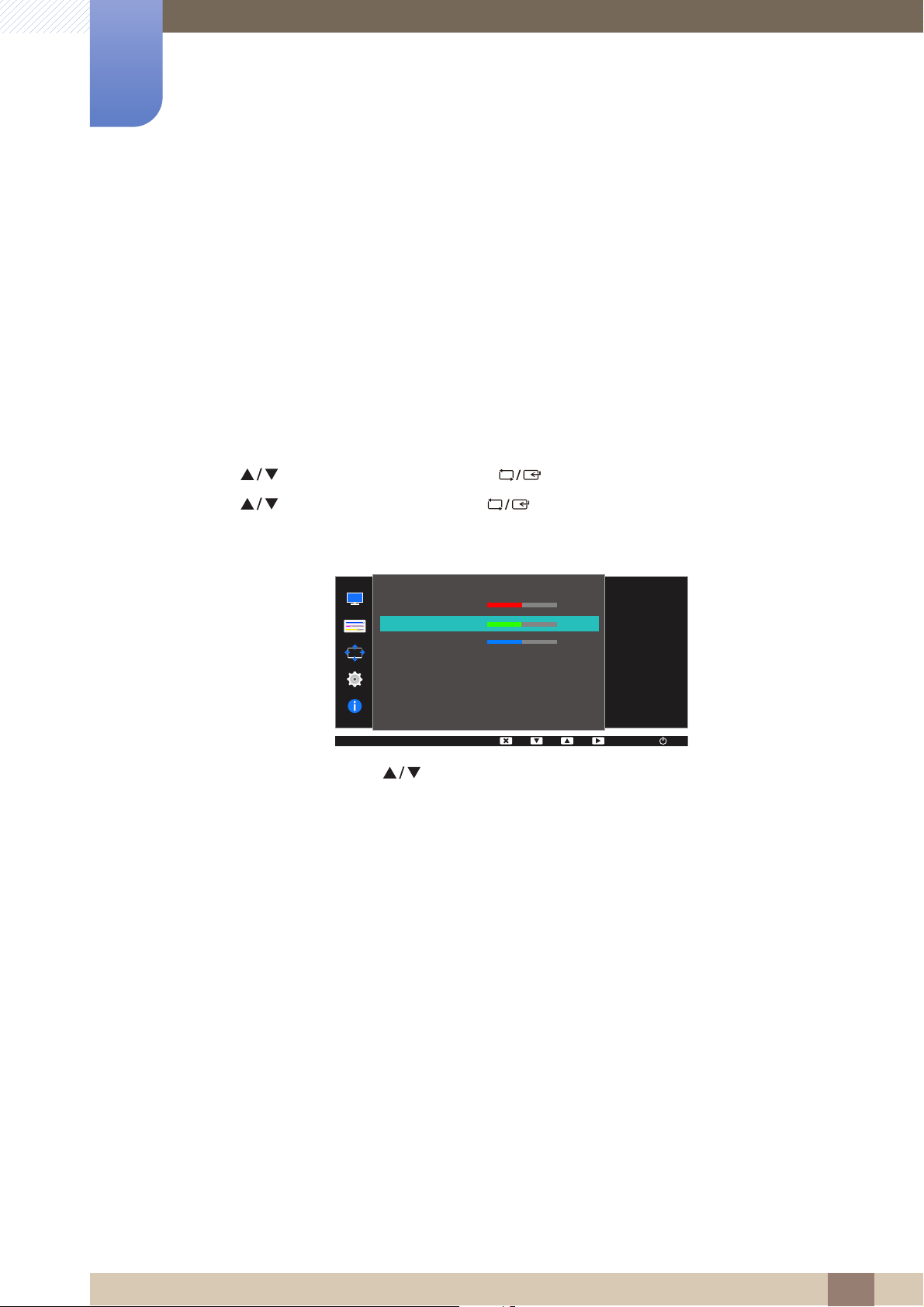

4.2.1 Configuring Green
1 Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2 Press [ ] to move to COLOR and press [ ] on the product.
3 Press [ ] to move to Green and press [ ] on the product.
The following screen will appear.
4 Adjust the Green using the [ ] buttons.
5 The selected option will be applied.
4 Configuring Tint
50
Page 51
Configuring Tint
MENU
COLOR
Red
Green
Blue
Color Tone
Gamma
50
50
50
Normal
Mode1
Adjust the blue
saturation level.
Values closer to 100
mean greater
intensity for the color.
4
4.3 Blue
Adjust the value of the color blue in the picture. (Range: 0~100)
A higher value will increase the intensity of the color.
4.3.1 Configuring Blue
1 Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2 Press [ ] to move to COLOR and press [ ] on the product.
3 Press [ ] to move to Blue and press [ ] on the product.
The following screen will appear.
4 Adjust the Blue using the [ ] buttons.
5 The selected option will be applied.
AUTO
4 Configuring Tint
51
Page 52
Configuring Tint
MENU
COLOR
50
50
50
Normal
Mode1
Red
Green
Blue
Color Tone
Gamma
Cool 2
Cool 1
Normal
Warm 1
Warm 2
Custom
Select a color tone
that best suits your
viewing needs.
4

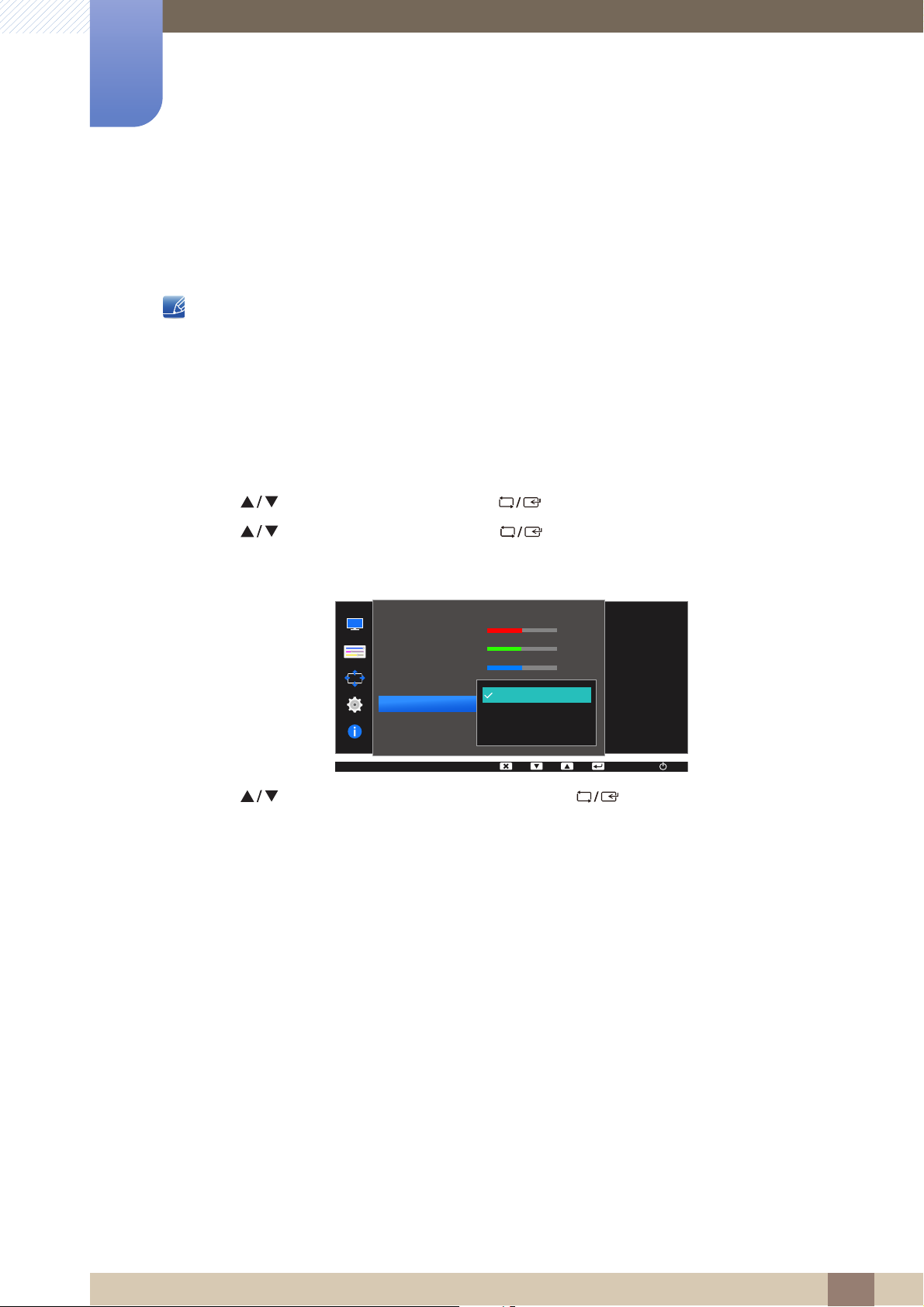

4.4 Color Tone
Adjust the general color tone of the picture.
This option is not available when MagicBright is in Cinema or Dynamic Contrast mode.
This menu is not available when Game Mode is enabled.
4.4.1 Configuring the Color Tone Settings
1 Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2 Press [ ] to move to COLOR and press [ ] on the product.
3 Press [ ] to move to Color Tone and press [ ] on the product.
The following screen will appear.
AUTO
Cool 2: Set the color temperature to be cooler than Cool 1.
Cool 1: Set the color temperature to be cooler than Normal mode.
Normal: Display the standard color tone.
Warm 1: Set the color temperature to be warmer than Normal mode.
Warm 2: Set the color temperature to be warmer than Warm 1.
Custom: Customize the color tone.
The function may not be supported depending on the ports provided with the product.
4 Press [ ] to move to the option you want and press [ ].
5 The selected option will be applied.
4 Configuring Tint
52
Page 53
Configuring Tint
MENU
COLOR
50
50
50
Normal
Mode1
Red
Green
Blue
Color Tone
Gamma
Mode1
Mode2
Mode3
Adjust the middle level
of luminance.
4
4.5 Gamma
Adjust the mid-range brightness (Gamma) of the picture.
This option is not available when MagicBright is in Cinema or Dynamic Contrast mode.
This menu is not available when Game Mode is enabled.
4.5.1 Configuring Gamma
1 Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2 Press [ ] to move to COLOR and press [ ] on the product.
3 Press [ ] to move to Gamma and press [ ] on the product.
The following screen will appear.
AUTO
4 Press [ ] to move to the option you want and press [ ].
5 The selected option will be applied.
4 Configuring Tint
53
Page 54
Coordinating OSD
MENU
MENU SETTINGS
AUTO
Deutsch
English
Español
Français
Italiano
Magyar
Language
Menu H-Position
Menu V-Position
Display Time
Transparency
Set the menu
language.
5

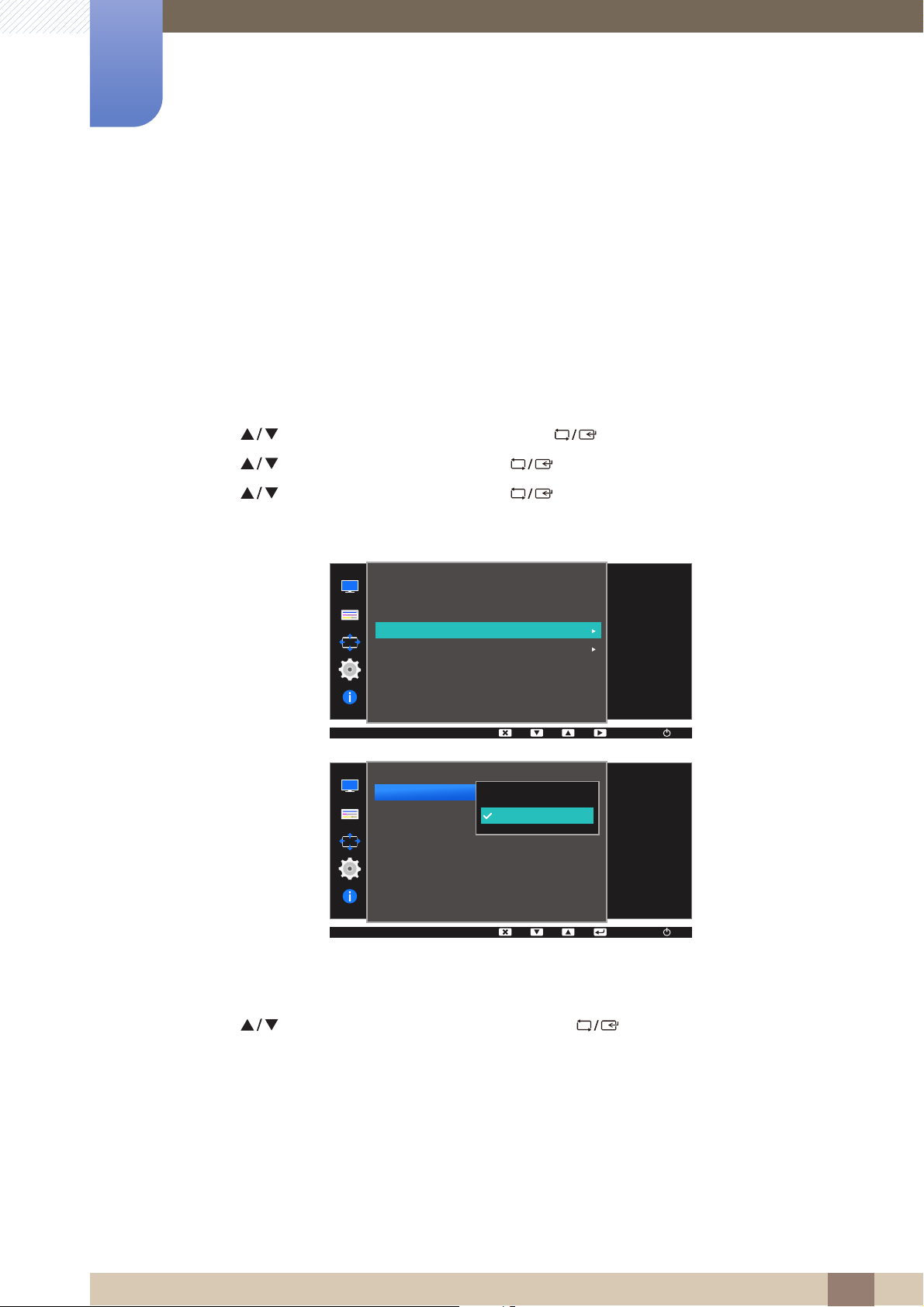

5.1 Language
Set the menu language.
A change to the language setting will only be applied to the onscreen menu display.
It will not be applied to other functions on your PC.
5.1.1 Configuring Language
1 Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2 Press [ ] to move to MENU SETTINGS and press [ ] on the product.
3 Press [ ] to move to Language and press [ ] on the product.
The following screen will appear.
4 Press [ ] to move to the language you want and press [ ].
5 The selected option will be applied.
5 Coordinating OSD
54
Page 55
Coordinating OSD
MENU
MENU SETTINGS
AUTO
Language
Menu H-Position
Menu V-Position
Display Time
Transparency
English
100
1
20 sec
On
Move the menu
position to the left or
right.
MENU SETTINGS
Language
Menu H-Position
Menu V-Position
Display Time
Transparency
English
100
1
20 sec
On
Move the menu
position up or down.
5
5.2 Menu H-Position & Menu V-Position
Menu H-Position: Move the menu position to the left or right.
Menu V-Position: Move the menu position up or down.
5.2.1 Configuring Menu H-Position & Menu V-Position
1 Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2 Press [ ] to move to MENU SETTINGS and press [ ] on the product.
3 Press [ ] to move to Menu H-Position or Menu V-Position, and press [ ] on the
product.
The following screen will appear.
AUTO
4 Press [ ] to configure Menu H-Position or Menu V-Position.
5 The selected option will be applied.
5 Coordinating OSD
55
Page 56
Coordinating OSD
MENU
MENU SETTINGS
English
100
2
20 sec
On
Language
Menu H-Position
Menu V-Position
Display Time
Transparency
5 sec
10 sec
20 sec
200 sec
AUTO
Set how long the menu
window will remain on
screen for when it is
not in use.
5
5.3 Display Time
Set the on-screen display (OSD) menu to automatically disappear if the menu is not used for a specified
period of time.
Display Time can be used to specify the time after which you want the OSD menu to disappear.
5.3.1 Configuring Display Time
1 Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2 Press [ ] to move to MENU SETTINGS and press [ ] on the product.
3 Press [ ] to move to Display Time and press [ ] on the product.
The following screen will appear.
4 Press [ ] to move to the option you want and press [ ].
5 The selected option will be applied.
5 Coordinating OSD
56
Page 57
Coordinating OSD
MENU
MENU SETTINGS
English
100
1
20 sec
On
Language
Menu H-Position
Menu V-Position
Display Time
Transparency
Off
On
Configure the
transparency of the
menu windows.
5

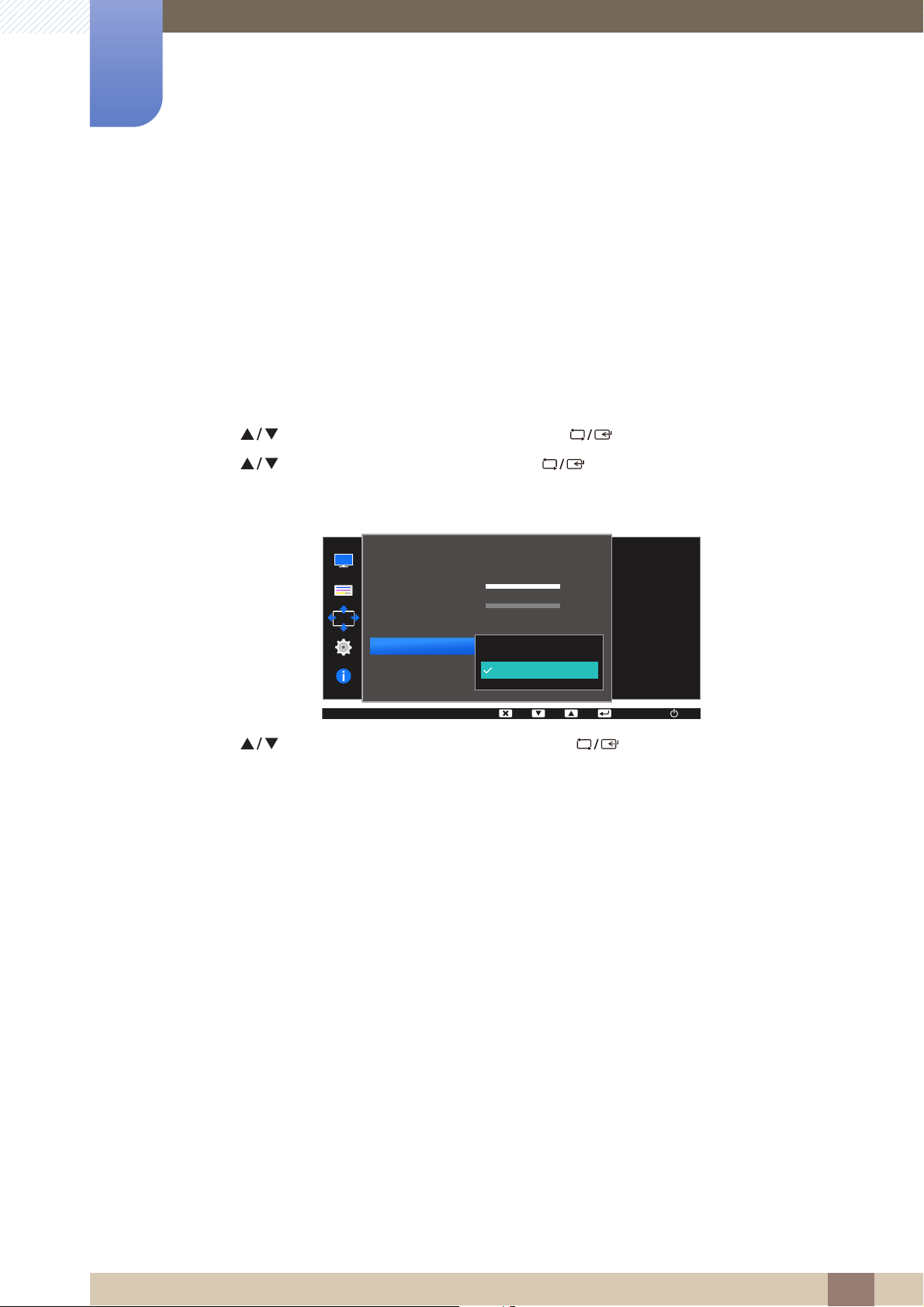

5.4 Transparency
Set the transparency for the menu windows:
5.4.1 Changing Transparency
1 Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2 Press [ ] to move to MENU SETTINGS and press [ ] on the product.
3 Press [ ] to move to Transparency and press [ ] on the product.
The following screen will appear.
4 Press [ ] to move to the option you want and press [ ].
5 The selected option will be applied.
AUTO
5 Coordinating OSD
57
Page 58
Setup and Reset
MENU
SETUP&RESET
Off
Acceleration
Auto
Reset All
Eco Saving
Off Timer
PC/AV Mode
Key Repeat Time
Source Detection
Return all the settings
for the product to the
default factory settings.
$OOWKHPHQXVHWWLQJVZLOOEHUHVHW
WRGHIDXOW
$UH\RXVXUH\RXZDQWWRUHVHW"
<HV 1R
AUTO
6

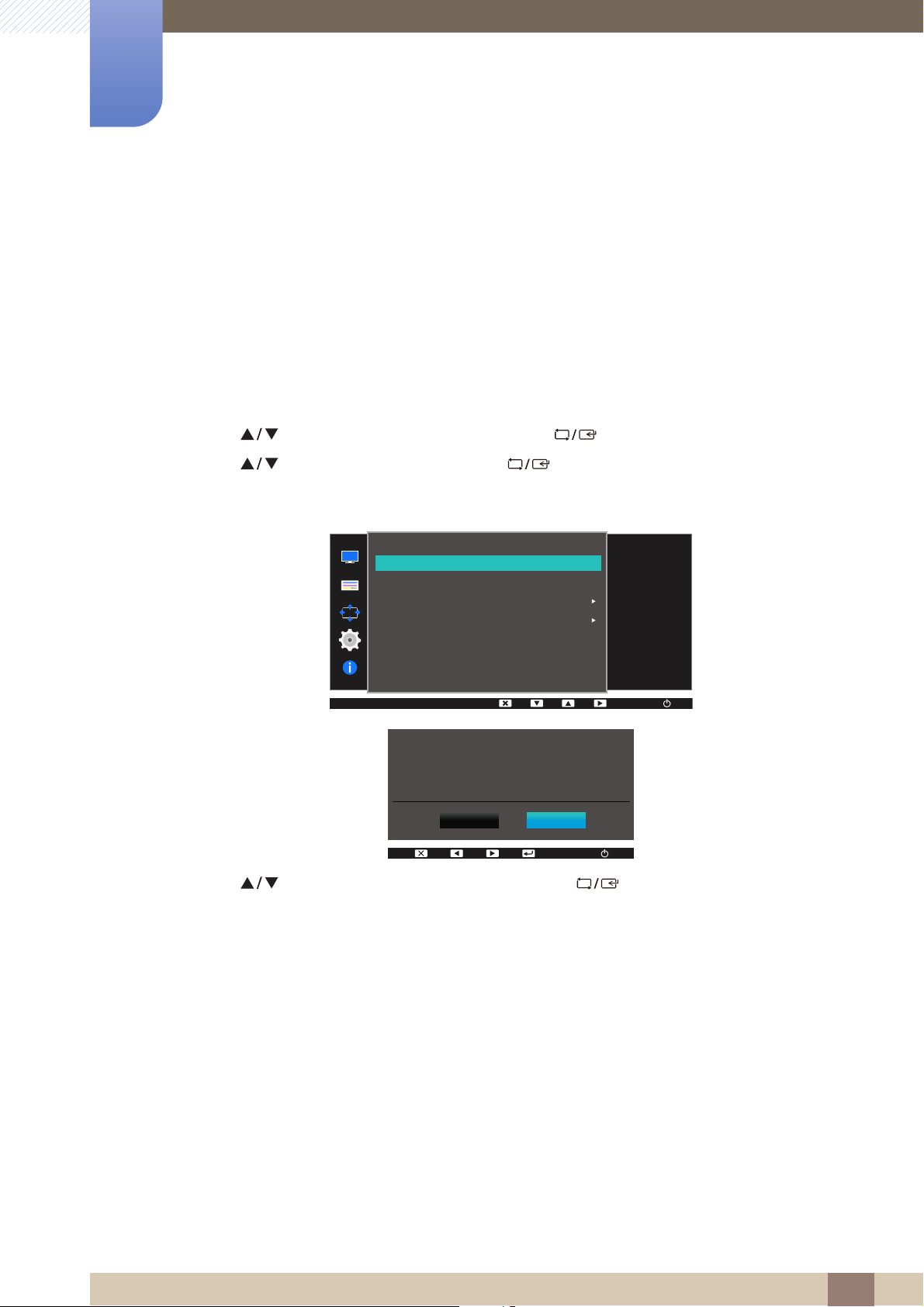

6.1 Reset All
Return all the settings for the product to the default factory settings.
6.1.1 Initializing Settings (Reset All)
1 Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2 Press [ ] to move to SETUP&RESET and press [ ] on the product.
3 Press [ ] to move to Reset All and press [ ] on the product.
The following screen will appear.
4 Press [ ] to move to the option you want and press [ ].
5 The selected option will be applied.
AUTO
6 Setup and Reset
58
Page 59
Setup and Reset
MENU
SETUP&RESET
Acceleration
Auto
75%
50%
Off
Reset All
Eco Saving
Off Timer
PC/AV Mode
Key Repeat Time
Source Detection
Adjust the power
consumption of the
product to save energy.
6

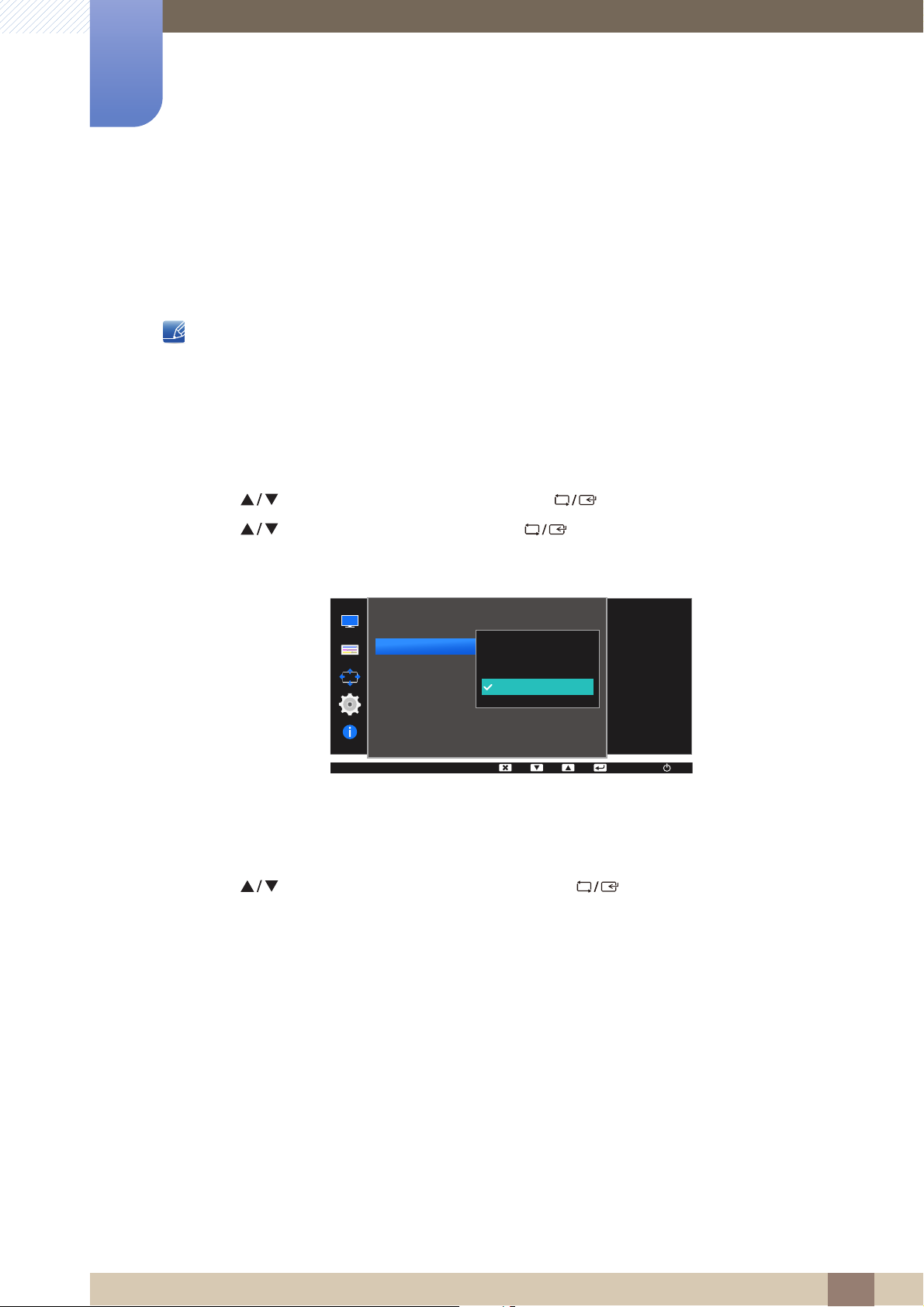

6.2 Eco Saving
The Eco Saving function reduces power consumption by controlling the electric current used by the
monitor panel.
This menu is not available when MagicBright is in Dynamic Contrast mode.
6.2.1 Configuring Eco Saving
1 Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2 Press [ ] to move to SETUP&RESET and press [ ] on the product.
3 Press [ ] to move to Eco Saving and press [ ] on the product.
The following screen will appear.
AUTO
75%: Change the monitor power consumption to 75% of the default level.
50%: Change the monitor power consumption to 50% of the default level.
Off: Deactivate the Eco Saving function.
4 Press [ ] to move to the option you want and press [ ].
5 The selected option will be applied.
6 Setup and Reset
59
Page 60
Setup and Reset
MENU
SETUP&RESET
Off
Acceleration
Auto
AUTO
Reset All
Eco Saving
Off Timer
PC/AV Mode
Key Repeat Time
Source Detection
Enable or disable the
Off Timer.
AUTO
Off Timer
Off Timer
Turn Off After
Off
On
Enable or disable the
Off Timer.
6
6.3 Off Timer
You can set the product to automatically turn off.

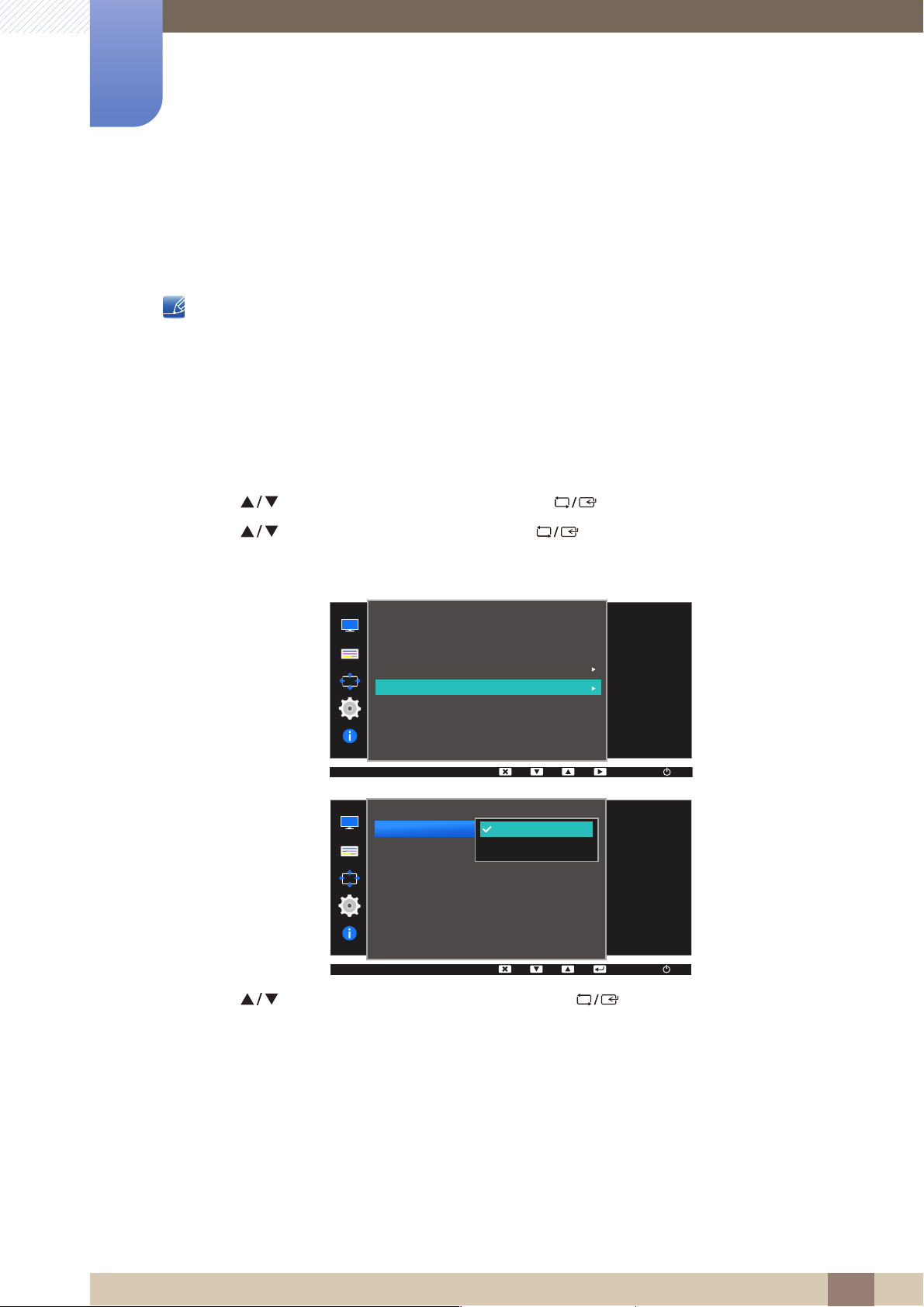

6.3.1 Configuring Off Timer
1 Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2 Press [ ] to move to SETUP&RESET and press [ ] on the product.
3 Press [ ] to move to Off Timer and press [ ] on the product.
4 Press [ ] to move to Off Timer and press [ ] on the product.
The following screen will appear.
Off: Deactivate the off timer so that the product does not power off automatically.
On: Activate the off timer so that the product powers off automatically.
5 Press [ ] to move to the option you want and press [ ].
6 The selected option will be applied.
6 Setup and Reset
60
Page 61
6
MENU
AUTO
Off Timer
Off Timer
Turn Off After
On
4h
Set the monitor to
automatically turn off
after a certain time
period.
Setup and Reset

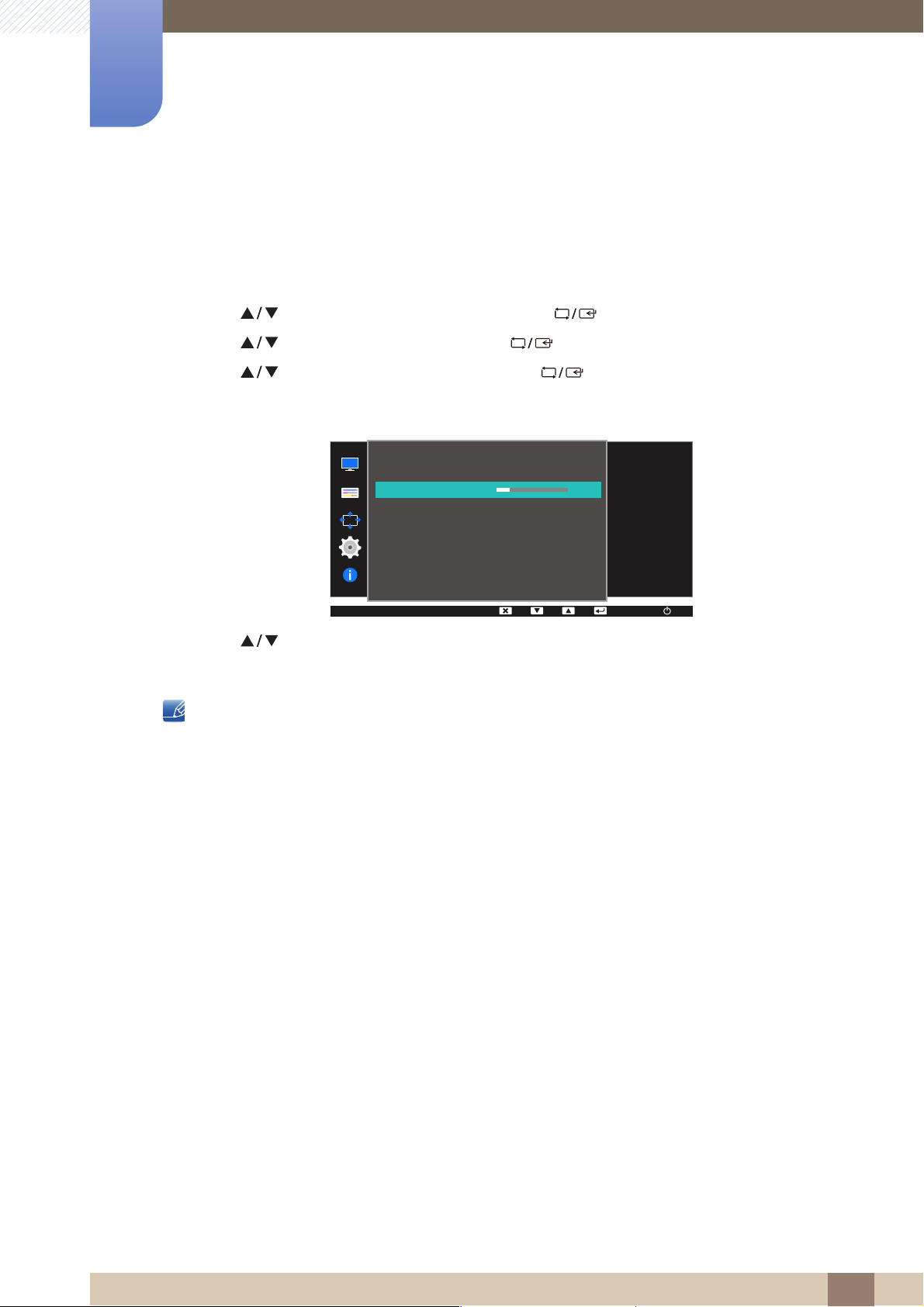

6.3.2 Configuring Turn Off After
1 Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2 Press [ ] to move to SETUP&RESET and press [ ] on the product.
3 Press [ ] to move to Off Timer and press [ ] on the product.
4 Press [ ] to move to Turn Off After and press [ ] on the product.
The following screen will appear.
5 Press [ ] to configure Turn Off After.
6 The selected option will be applied.
For products for the market in Europe, the Off Timer is set to automatically activate 4 hours after the
product powers on. This is done in accordance with power supply regulations. If you do not want the
timer to activate, go to MENU SETUP&RESET and set Off Timer to Off.
→
6 Setup and Reset
61
Page 62
Setup and Reset
MENU
SETUP&RESET
Off
Acceleration
Auto
Reset All
Eco Saving
Off Timer
PC/AV Mode
Key Repeat Time
Source Detection
Set to AV to enlarge
the picture.
PC/AV Mode
DVI
PC
AV
Select the PC/AV mode
for the DVI source.
6
6.4 PC/AV Mode
Set PC/AV Mode to AV. The picture size will be enlarged. This option is useful when you view a movie.
This function does not support Analog mode.
Supplied for the wide models only such as 16:9 or 16:10.
6.4.1 Configuring PC/AV Mode
1 Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2 Press [ ] to move to SETUP&RESET and press [ ] on the product.
3 Press [ ] to move to PC/AV Mode and press [ ] on the product.
The following screen will appear.
AUTO
AUTO
4 Press [ ] to move to the option you want and press [ ].
5 The selected option will be applied.
6 Setup and Reset
62
Page 63
Setup and Reset
MENU
SETUP&RESET
AUTO
Off
Acceleration
Auto
Acceleration
1 sec
2 sec
No Repeat
Reset All
Eco Saving
Off Timer
PC/AV Mode
Key Repeat Time
Source Detection
Configure the
response rate of a
is pressed.
6

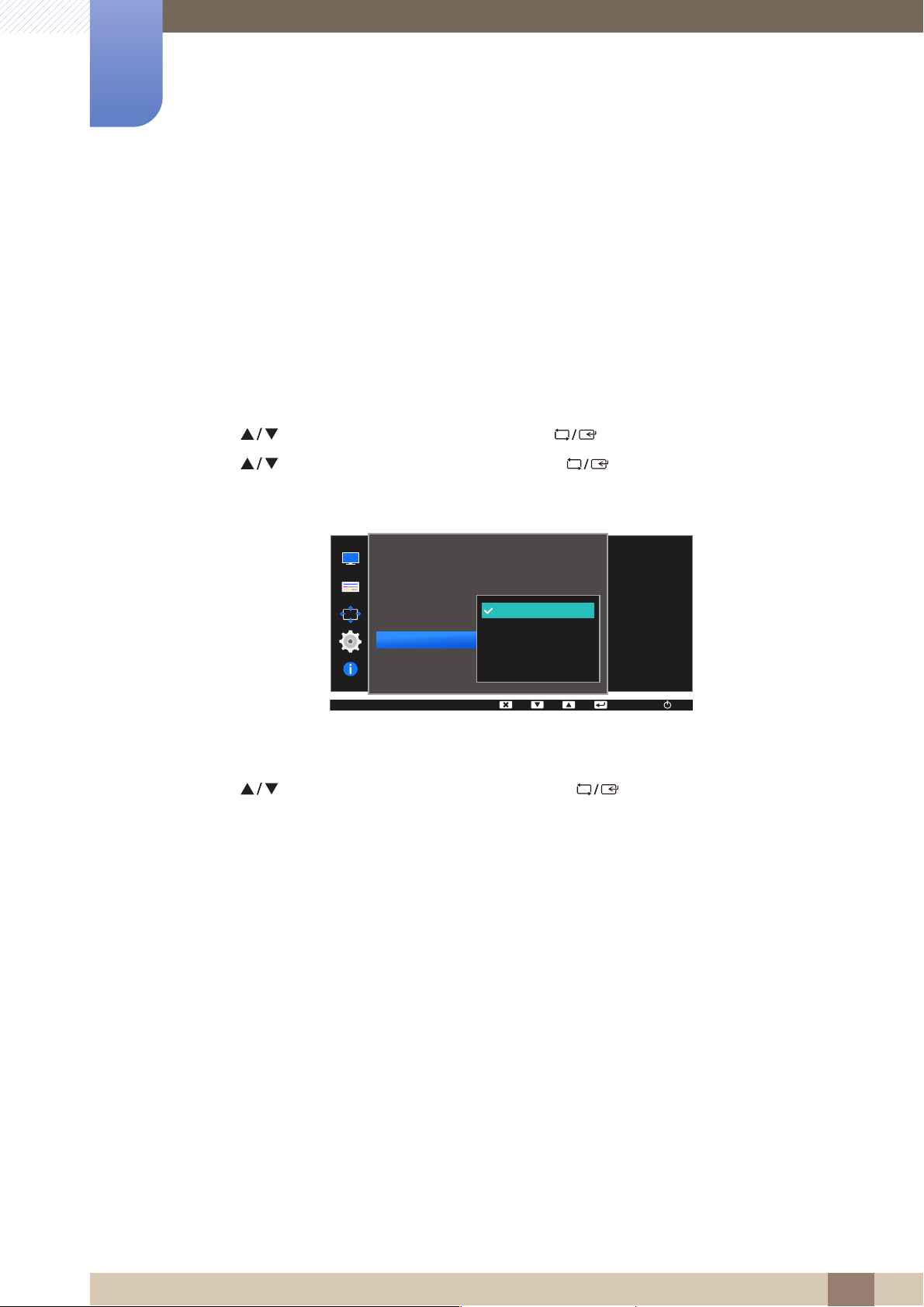

6.5 Key Repeat Time
Control the response rate of a button when the button is pressed.
6.5.1 Configuring Key Repeat Time
1 Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2 Press [ ] to move to SETUP&RESET and press [ ] on the product.
3 Press [ ] to move to Key Repeat Time and press [ ] on the product.
The following screen will appear.
button when the button
Acceleration, 1 sec, or 2 sec can be selected. If No Repeat is selected, a command responds
only once when a button is pressed.
4 Press [ ] to move to the option you want and press [ ].
5 The selected option will be applied.
6 Setup and Reset
63
Page 64
Setup and Reset
MENU
SETUP&RESET
Off
Auto
Auto
Manual
Reset All
Eco Saving
Off Timer
PC/AV Mode
Key Repeat Time
Source Detection
Decide how input
sources will be
detected.
6

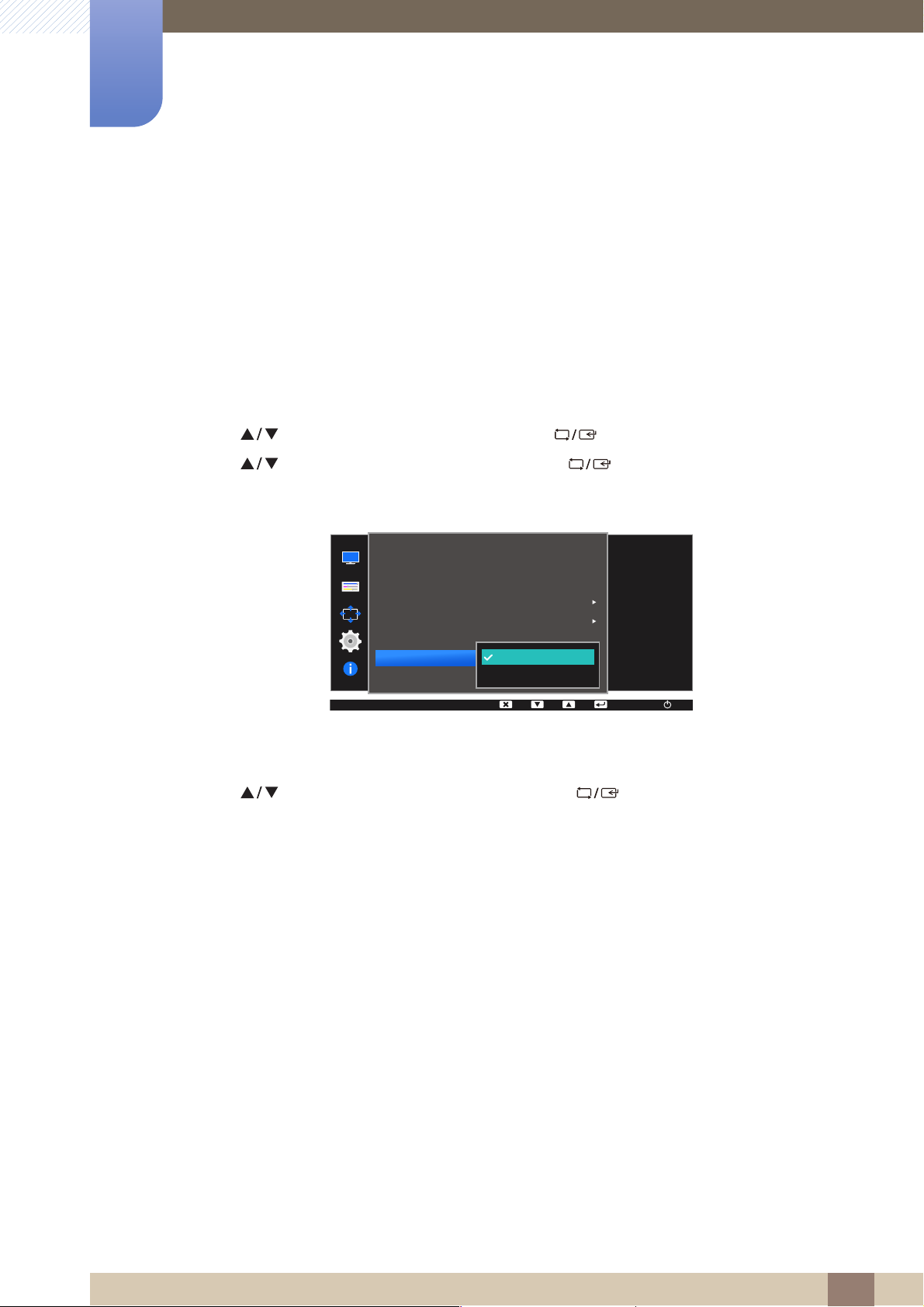

6.6 Source Detection
You can activate Source Detection.
6.6.1 Configuring Source Detection
1 Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2 Press [ ] to move to SETUP&RESET and press [ ] on the product.
3 Press [ ] to move to Source Detection and press [ ] on the product.
The following screen will appear.
Auto: The input source is automatically recognized.
Manual: Manually select an input source.
4 Press [ ] to move to the option you want and press [ ].
5 The selected option will be applied.
AUTO
6 Setup and Reset
64
Page 65
INFORMATION Menu and Others
MENU
INFORMATION
Analog
**kHz **Hz PP
**** x ****
Optimal Mode
**** x **** **Hz
COLOR
MENU SETTINGS
SETUP&RESET
INFORMATION
7

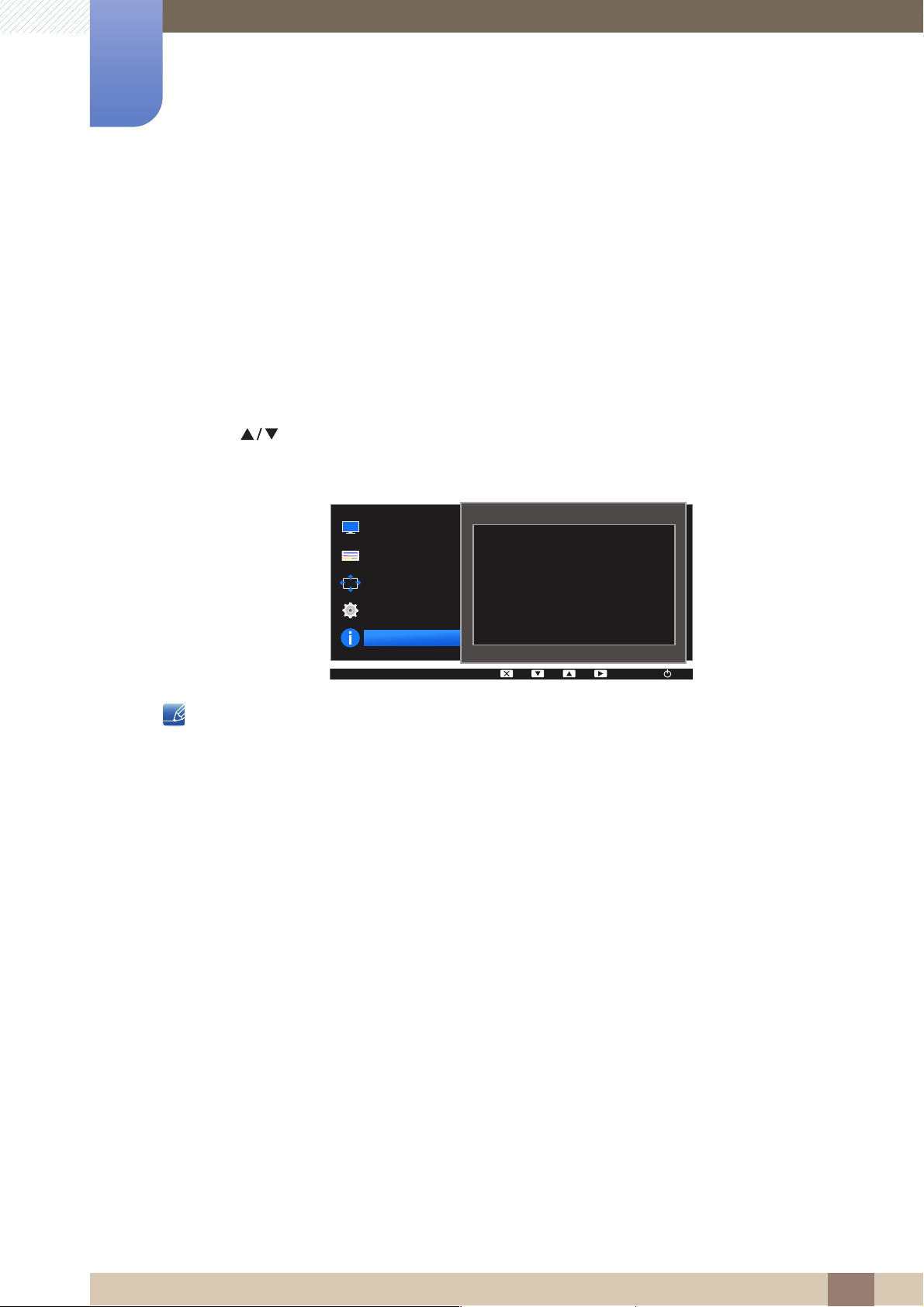

7.1 INFORMATION
View the current input source, frequency and resolution.
7.1.1 Displaying INFORMATION
1 Press any button on the front of the product to display the Function Key Guide.
Next, press [ ] to display the corresponding menu screen.
2 Press [ ] to move to INFORMATION.
The current input source, frequency and resolution will appear.
The displayed menu items may vary depending on the model.
AUTO
7 INFORMATION Menu and Others
65
Page 66
INFORMATION Menu and Others
Brightness
Contrast
75
100
7

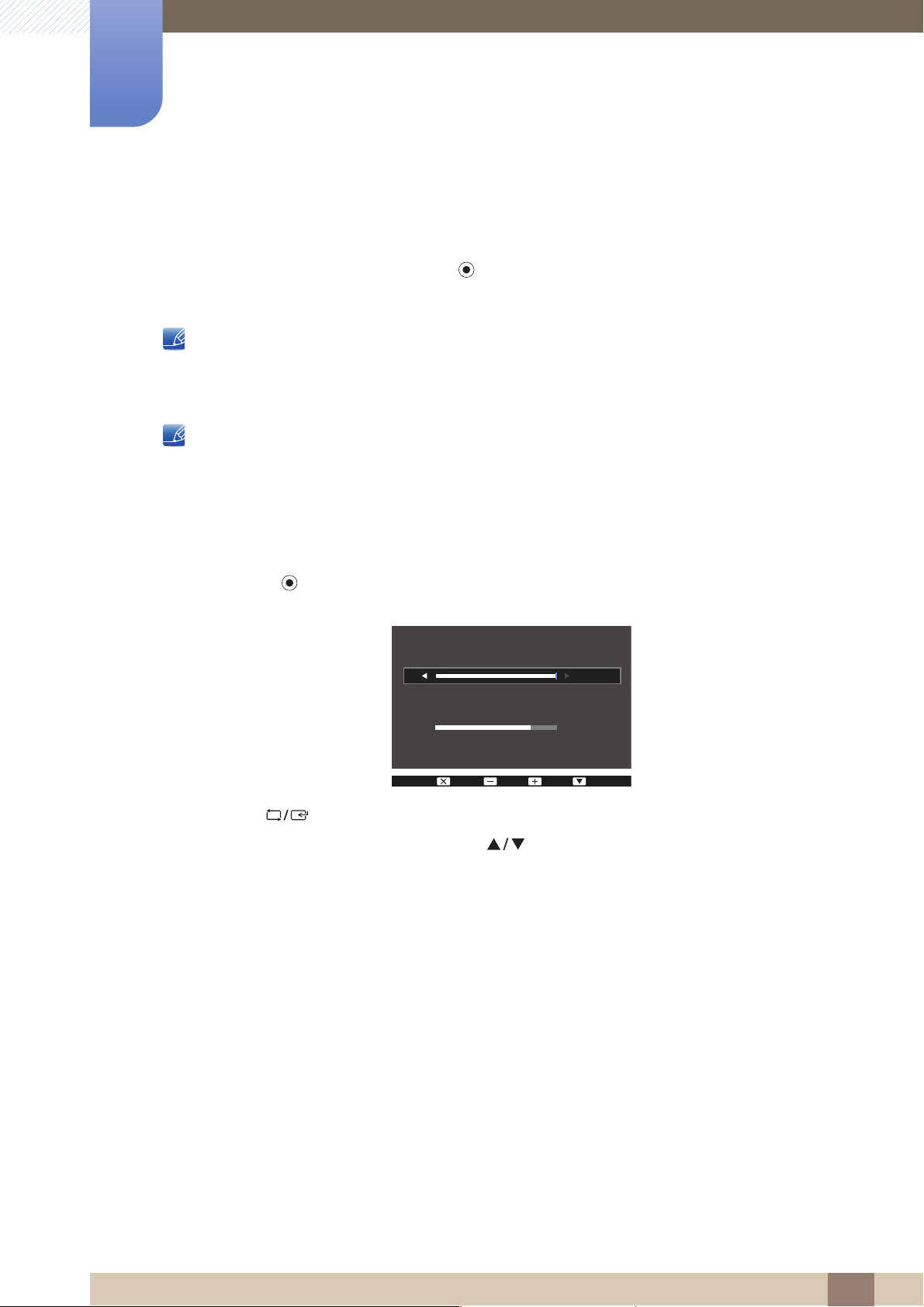

7.2 Configuring Brightness and Contrast in the Initial Screen
Adjust the Brightness, Contrast using the [ ] buttons when the initial screen (that displays no menu
screen) is displayed.
Brightness :
This menu is not available when MagicBright is set to Dynamic Contrast mode.
This menu is not available when Eco Saving is enabled.
Contrast :
This menu is not available when MagicBright is set to Cinema or Dynamic Contrast mode.
This menu is not available when Game Mode is enabled.
1 Press any button on the front of the product (when no menu screen is displayed) to display the
Function Key Guide.
Next, press [ ]. The following screen will appear.
2 Press the [ ] button to alternate between the Brightness and Contrast settings.
3 Adjust the Brightness, Contrast using the [ ] buttons.
7 INFORMATION Menu and Others
66
Page 67
Installing the Software
8
8.1 MagicTune
8.1.1 What is "MagicTune"?
"MagicTune" is a software program that helps with monitor adjustments by providing comprehensive
descriptions of monitor functions and easy-to-understand guidelines.
You can adjust the product with the mouse and the keyboard without using the operating buttons of the
product.
8.1.2 Installing the Software
1 Insert the installation CD into the CD-ROM drive.
2 Select the "MagicTune" setup program.
If the pop-up screen for the software installation does not appear on the main screen, find and
double-click the "MagicTune" setup file on the CD-ROM.
3 Select the installation language and click Next.
4 Complete the remaining software installation steps according to the instructions displayed on the
screen.
The software may not work properly if you do not restart the computer after the installation.
The "MagicTune" icon may not appear depending on the computer system and the product
specifications.
If the shortcut icon does not appear, press the F5 key.
Restrictions and Problems with the Installation ("MagicTune™")
The installation of "MagicTune™" may be affected by the Graphics Card, Motherboard and the
Networking Environment.
System Requirements
OS
Windows XP, Windows Vista, Windows 7, Windows 8
8 Installing the Software
67
Page 68
8
Installing the Software
8.1.3 Removing the Software
You can only remove "MagicTune™" through Add or Remove Programs in Windows.
To remove "MagicTune™", complete the following steps.
1 Click Start select Settings, and select Control Panel from the menu.
For Windows XP, click Start, and select Control Panel from the menu.
2 Double-click the Add or Remove Programs icon in the Control Panel.
3 In the Add/Remove window, find and select "MagicTune™" so that it is highlighted.
4 Click Change or Remove Programs to remove the software.
5 Select Yes to start removing "MagicTune™".
6 Wait until a message box appears informing you that the software has been removed completely.
For technical support, the FAQ (frequently asked questions) or information about the software
upgrade for "MagicTune™", please visit our website (http://www.samsung.com/us/consumer/
learningresources/monitor/magetune/pop_intro.html).
8 Installing the Software
68
Page 69
Troubleshooting Guide
9
9.1 Requirements Before Contacting Samsung Customer Service Center
9.1.1 Testing the Product
Before calling Samsung Customer Service Center, test your product as follows. If the problem persists,
contact Samsung Customer Service Center.
Check if your product is operating normally by using the product test function.
If the screen is turned off and the power indicator blinks even though the product is properly connected
to a PC, perform a self-diagnosis test.
1 Power off both the PC and product.
2 Disconnect the cables from the product.
3 Power on the product.
4 If the message Check Signal Cable appears, the product is working normally.
9.1.2 Checking the Resolution and Frequency
For a mode that exceeds the supported resolution (refer to "10.3 Standard Signal Mode Table"), the
message Not Optimum Mode will appear for a short time.
9.1.3 Check the following.
Installation issue (PC mode)
The screen keeps switching on and off. Check the cable connection between the product
If the screen remains blank, check the PC system, video controller and cable.
Issues Solutions
and PC, and ensure the connectors are locked.
(Refer to "2.2 Connecting and Using a PC")
9 Troubleshooting Guide
69
Page 70
9
Troubleshooting Guide
Screen issue
Issues Solutions
The screen will not switch on. Check that the power cable is connected
properly.
(Refer to "2.2 Connecting and Using a PC")
The message Check Signal Cable appears. Check that the cable is properly connected to the
product.
(Refer to "2.2 Connecting and Using a PC")
Check that the device connected to the product is
powered on.
Not Optimum Mode is displayed. This message appears when the signal from the
graphics card exceeds the maximum resolution or
frequency for the product.
Change the maximum resolution and frequency to
suit the product performance, referring to
Standard Signal Mode Table (page 77).
The images on the screen look distorted. Check the cable connection to the product
(Refer to "2.2 Connecting and Using a PC")
The screen is not clear. The screen is blurry. Adjust Coarse and Fine.
Remove any accessories (video extension cable,
etc.) and try again.
Set the resolution and frequency to the
recommended level.
The screen appears unstable and shaky. Check that the resolution and frequency for the
There are shadows or ghost images left on the
screen.
The screen is too bright. The screen is too dark. Adjust Brightness (page 37) and Contrast.
PC are within the range of resolution and
frequency compatible with the product. Next, if
required, change the settings, referring to
Standard Signal Mode Table (page 77) in this
manual and the INFORMATION menu on the
product.
Screen color is inconsistent. Change the COLOR settings.
(Refer to " Configuring Tint")
The colors on the screen have a shadow and are
distorted.
White does not really look white. Change the COLOR settings.
Change the COLOR settings.
(Refer to " Configuring Tint")
(Refer to " Configuring Tint")
9 Troubleshooting Guide
70
Page 71
9
Troubleshooting Guide
Issues Solutions

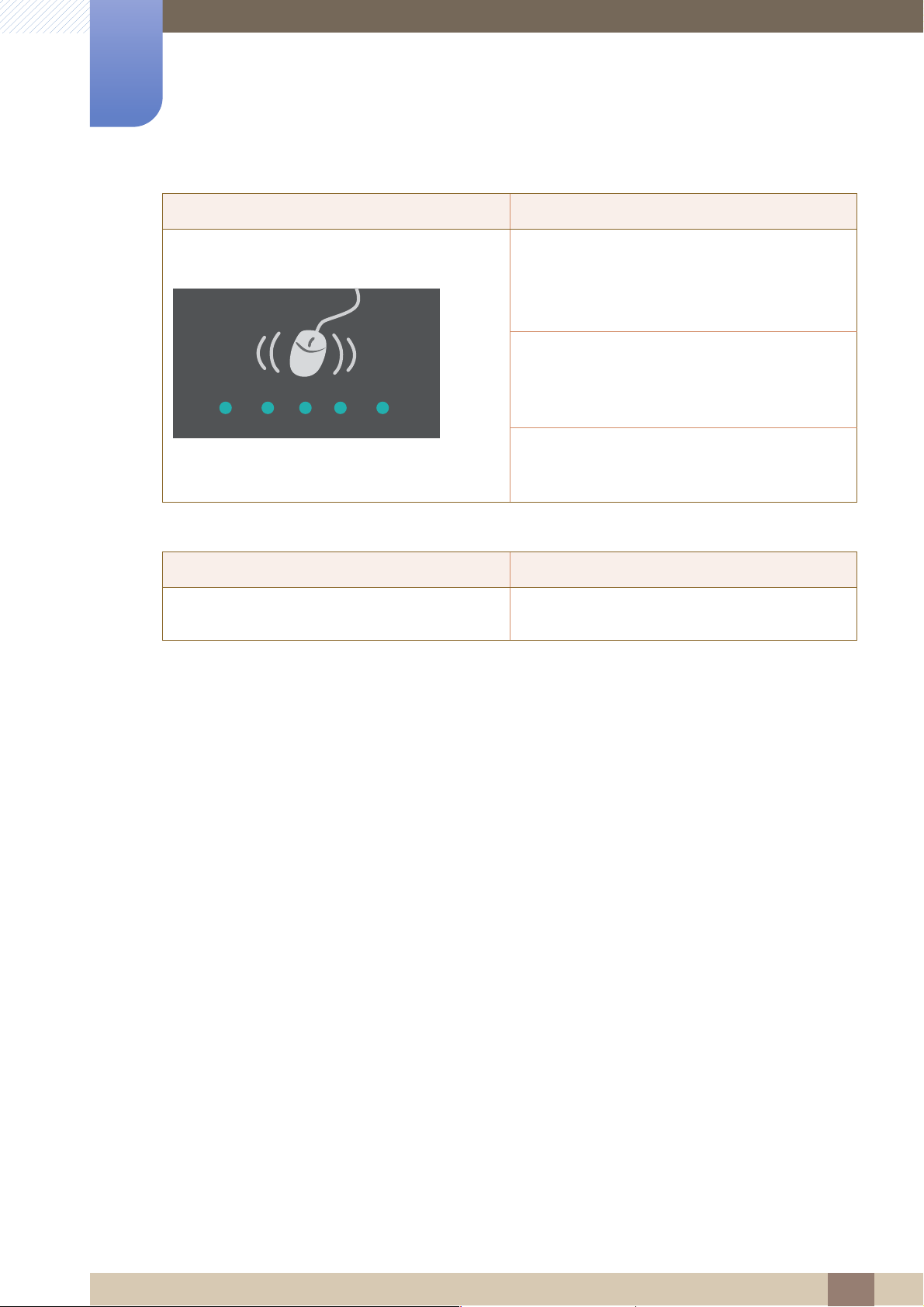

The screen displays the <power saving mode>
icon and goes black after five seconds.
Source device issue
Issues Solutions
A beeping sound is heard when my PC is booting. If a beeping sound is heard when your PC is
This icon will appear before the product goes to
power-saving mode.
To restore normal operation, click the mouse or
press any key on the keyboard.
When the product is in power-saving mode, the
screen will display <power saving mode> icon
immediately if you press this button, and will go to
power-saving mode again in five seconds.
When the screen is displaying the <power saving
mode> icon, the monitor will shut down if you
press this button.
booting, have your PC serviced.
9 Troubleshooting Guide
71
Page 72
Troubleshooting Guide
9
9.2 Q & A
Question Answer
How can I change the
frequency?
Set the frequency on your graphics card.
Windows XP: Go to Control Panel Appearance and
Themes Display Settings Advanced Monitor,
and adjust Refresh rate under Monitor settings.
Windows ME/2000: Go to Control Panel Display
Settings Advanced Monitor, and adjust Refresh rate
under Monitor settings.
Windows Vista: Go to Control Panel Appearance and
Personalization Personalization Display Settings
Advanced Settings Monitor, and adjust Refresh rate
under Monitor settings.
Windows 7: Go to Control Panel Appearance and
Personalization Display Screen Resolution
Advanced settings Monitor, and adjust Refresh rate under
Monitor settings.
Windows 8: Go to Settings Control Panel Appearance
and Personalization Display Screen Resolution
Advanced settings Monitor, and adjust Refresh rate under
Monitor settings.
9 Troubleshooting Guide
72
Page 73
9
Troubleshooting Guide
Question Answer
How can I change the
resolution?
How do I set power-saving
mode?
Windows XP: Go to Control Panel Appearance and
Themes Display Settings, and adjust the resolution.
Windows ME/2000: Go to Control Panel Display
Settings, and adjust the resolution.
Windows Vista: Go to Control Panel Appearance and
Personalization Personalize Display Settings, and
adjust the resolution.
Windows 7: Go to Control Panel Appearance and
Personalization Display Adjust Resolution, and adjust
the resolution.
Windows 8: Go to Settings Control Panel Appearance
and Personalization Display Adjust Resolution, and
adjust the resolution.
Windows XP: Set power-saving mode in Control Panel
Appearance and Themes Display Screen Saver
Settings or BIOS SETUP on the PC.
Windows ME/2000: Set power-saving mode in Control Panel
Display Screen Saver Settings or BIOS SETUP on the
PC.
Windows Vista: Set power-saving mode in Control Panel
Appearance and Personalization Personalize Screen
Saver Settings or BIOS SETUP on the PC.
Windows 7: Set power-saving mode in Control Panel
Appearance and Personalization Personalize Screen
Saver Settings or BIOS SETUP on the PC.
Windows 8: Set power-saving mode in Settings Control
Panel Appearance and Personalization Personalize
Screen Saver Settings or BIOS SETUP on the PC.
Refer to the user manual for your PC or graphics card for further instructions on adjustment.
9 Troubleshooting Guide
73
Page 74
Specifications
10
10.1 General
Model Name S19C170B S22C170B
Panel
Synchronization Horizontal
Display Color 16.7 M
Resolution Optimum
Input Signal, Terminated RGB Analog, DVI (Digital Visual Interface) Compliant Digital RGB
Size
Display area 409.8 mm (H) x 230.4 mm (V)
Pixel Pitch
Frequency
Vertical
Frequency
Resolution
Maximum
Resolution
47.0 cm
0.300 mm (H) x 0.300 mm (V)
30 ~ 81 kHz
56 ~ 75 Hz
1366 x 768 @ 60 Hz 1920 x 1080 @ 60 Hz
1366 x 768 @ 60 Hz 1920 x 1080 @ 60 Hz
0.7 Vp-p ± 5%
separate H/V sync, Composite, SOG
TTL level (V high ≥ 2.0V, V low ≤ 0.8V)
54.6 cm
476.64 mm (H) x 268.11 mm (V)
0.24825 mm (H) x 0.24825 mm (V)
Maximum Pixel Clock 85 MHz (Analog, Digital) 148 MHz (Analog,Digital)
Power Supply
Signal connectors D-sub connector
Dimensions
(W x H x D) /
Weight
Environmental
considerations
Without
Stand
With Stand 445 × 348 × 177 mm / 2.05 kg 512 × 385 ×177 mm / 2.80 kg
Operating Temperature : 10°C ~ 40°C (50°F ~ 104°F)
Storage Temperature : -20°C ~ 45°C (-4°F ~ 113°F )
This product supports 100-240 V. Since the standard voltage may differ
from country to country, please check the label on the back of the
product.
DVI-D connector
445 × 273 × 53 mm 512 × 311 × 53 mm
Humidity : 10 % – 80 %, non-condensing
Humidity : 5 % – 95 %, non-condensing
10 Specifications
74
Page 75
10
Specifications
Model Name S19C170B S22C170B
Plug-and-Play This monitor can be installed and used with any Plug-and-Play
compatible systems. Two-way data exchange between the monitor
and PC system optimizes the monitor settings. Monitor installation
takes place automatically. However, you can customize the
installation settings if desired.
Panel Dots (Pixels) Due to the nature of the manufacturing of this product, approximately
1 pixel per million (1ppm) may be brighter or darker on the LCD
panel.
This does not affect product performance.
The above specifications are subject to change without notice to improve quality.
This device is a Class B digital apparatus.
10 Specifications
75
Page 76
Specifications
10
10.2 PowerSaver
The power-saving function of this product reduces power consumption by switching off the screen and
controlling the power LED status if the product is not used for a specified period of time.
The power is not turned off in power-saving mode. To switch the screen back on, press any key on the
keyboard or move the mouse. Power-saving mode functions only when the product is connected to a
PC that has a power-saving function.
PowerSaver
Power Consumption
(S19C170B)
Power Consumption
(S22C170B)
The power consumption level can vary in different operating conditions or when settings are
changed.
To reduce the power consumption to 0 watts, turn off the power switch on the back of the product
or disconnect the power cable. Be sure to disconnect the power cable when you will not be using
the product for an extended period of time. To reduce the power consumption to 0 watts when the
power switch is not available, disconnect the power cable.
Normal Operation
mode
15 W
25 W
Power saving mode
Typical 0.3 W
Max 0.45 W
Typical 0.3 W
Max 0.45 W
Power off
(Power button)
Typical 0.3 W
Max 0.45 W
Typical 0.3 W
Max 0.45 W
10 Specifications
76
Page 77
Specifications
10
10.3 Standard Signal Mode Table
This product can be set to only one resolution for each screen size to obtain the optimum picture
quality due to the nature of the panel. Therefore, a resolution other than the specified resolution
may degrade the picture quality. To avoid this, it is recommended that you select the optimum
resolution specified for the screen size of your product.
Check the frequency when you exchange a CDT monitor (connected to a PC) for an LCD monitor.
If the LCD monitor does not support 85Hz, change the vertical frequency to 60Hz using the CDT
monitor before you exchange it with the LCD monitor.
If a signal that belongs to the following standard signal modes is transmitted from your PC, the screen will
automatically be adjusted. If the signal transmitted from the PC does not belong to the standard signal
modes, the screen may be blank even though the power LED turns on. In such a case, change the
settings according to the following table by referring to the graphics card user manual.
S19C170B
Horizontal
Resolution
IBM, 720 x 400 31.469 70.087 28.322 -/+
VESA, 640 x 480 31.469 59.940 25.175 -/-
MAC, 640 x 480
VESA, 640 x 480
VESA, 640 x 480
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600
VESA, 800 x 600 46.875
MAC, 832 x 624 49.726
VESA, 1024 x 768 48.363 60.004 65.000 -/-
Frequency
(kHz)
35.000
37.861
37.500
48.077
Vertical
Frequency
(Hz)
66.667 30.240 -/-
72.809 31.500 -/-
75.000 31.500 -/-
72.188 50.000 +/+
75.000
74.551 57.284
Pixel Clock
(MHz)
49.500 +/+
Sync Polarity
(H/V)
-/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1366 x 768 47.712 59.790 85.500 +/+
10 Specifications
77
Page 78
10
Specifications
S22C170B
Horizontal
Resolution
IBM, 720 x 400 31.469 70.087 28.322 -/+
MAC, 640 x 480
MAC, 832 x 624
MAC, 1152 x 870
VESA, 640 x 480 31.469 59.940 25.175
VESA, 640 x 480
VESA, 640 x 480
VESA, 800 x 600 35.156 56.250 36.000 +/+
VESA, 800 x 600 37.879 60.317 40.000 +/+
VESA, 800 x 600
VESA, 800 x 600 46.875
VESA, 1024 x 768 48.363 60.004 65.000 -/-
VESA, 1024 x 768 56.476 70.069 75.000 -/-
Frequency
(kHz)
35.000
49.726 74.551 57.284
68.681 75.062 100.000
37.861
37.500
48.077
Vertical
Frequency
(Hz)
66.667 30.240 -/-
72.809 31.500 -/-
75.000 31.500 -/-
72.188 50.000 +/+
75.000
Pixel Clock
(MHz)
49.500 +/+
Sync Polarity
(H/V)
-/-
-/-
-/-
VESA, 1024 x 768 60.023 75.029 78.750 +/+
VESA, 1152 x 864
VESA, 1280 x 720 45.000 60.000 74.250 +/+
VESA, 1280 x 800 49.702 59.810 83.500 +/+
VESA, 1280 x 1024
VESA, 1280 x 1024
VESA, 1440 x 900
VESA, 1600 x 900RB
VESA, 1680 x 1050 65.290 59.954 146.250
VESA, 1920 x 1080
Horizontal Frequency
The time required to scan a single line from the left to the right side of the screen is called a
horizontal cycle. The reciprocal number of a horizontal cycle is called horizontal frequency.
Horizontal frequency is measured in kHz.
Vertical Frequency
Repeating the same picture dozens of times per second allows you to view natural pictures.
The repeat frequency is called "vertical frequency" or "refresh rate" and is indicated in Hz.
67.500 75.000 108.000
63.981 60.020 108.000
79.976 75.025 135.000
55.935 59.887 106.500
60.000 60.000 108.000
67.500 60.000 148.500
+/+
+/+
+/+
-/+
+/+
-/+
+/+
10 Specifications
78
Page 79
Appendix
01 8000 112 112
Bogotá 600 12 72
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG
customer care cent
U.S.A 1-800-SAMSUNG (726-7864) http://www.samsung.com/us
CANADA 1-800-SAMSUNG (726-7864) http://www.samsung.com/ca
re.
NORTH AMERICA
(English)
http://www.samsung.com/ca_fr
(French)
LATIN AMERICA
ARGENTINE 0800 333 3733 http://www.samsung.com.ar
BOLIVIA 800-10-7260 http://www.samsung.com
BRAZIL 0800-124-421(Demais cidades e
regiões)
4004-0000 (Capitais e grandes
centros)
CHILE 800-SAMSUNG (726-7864) http://www.samsung.com/cl
COLOMBIA
COSTA RICA 0-800-507-7267 http://www.samsung.com/latin
DOMINICA 1-800-751-2676 http://www.samsung.com/latin
http://www.samsung.com.br
http://www.samsung.com/co
(Spanish)
http://www.samsung.com/latin_en
(English)
(Spanish)
http://www.samsung.com/latin_en
(English)
ECUADOR 1-800-10-7267 http://www.samsung.com/latin
(Spanish)
http://www.samsung.com/latin_en
(English)
EL SALVADOR 800-6225 http://www.samsung.com/latin
(Spanish)
http://www.samsung.com/latin_en
(English)
Appendix
79
Page 80
Appendix
LATIN AMERICA
GUATEMALA 1-800-299-0013 http://www.samsung.com/latin
(Spanish)
http://www.samsung.com/latin_en
(English)
HONDURAS 800-27919267 http://www.samsung.com/latin
(Spanish)
http://www.samsung.com/latin_en
(English)
JAMAICA 1-800-234-7267 http://www.samsung.com
NICARAGUA 001-800-5077267 http://www.samsung.com/latin
(Spanish)
http://www.samsung.com/latin_en
(English)
MEXICO 01-800-SAMSUNG (726-7864) http://www.samsung.com
PANAMA 800-7267 http://www.samsung.com/latin
(Spanish)
http://www.samsung.com/latin_en
(English)
PARAGUAY 009 800 542 0001 http://www.samsung.com.py
PERU 0-800-777-08 http://www.samsung.com/pe
PUERTO RICO 1-800-682-3180 http://www.samsung.com
TRINIDAD & TOBAGO 1-800-SAMSUNG (726-7864) http://www.samsung.com
URUGUAY 000 405 437 33 http://www.samsung.com
VENEZUELA 0-800-100-5303 http://www.samsung.com/ve
EUROPE
AUSTRIA 0810 - SAMSUNG
(7267864, € 0.07/min)
http://www.samsung.com
BELGIUM 02-201-24-18 http://www.samsung.com/be
(Dutch)
http://www.samsung.com/be_fr
(French)
BOSNIA 051 331 999 http://www.samsung.com
BULGARIA 07001 33 11 , share cost tariff http://www.samsung.com/bg
CROATIA 062 SAMSUNG (062 726 786) http://www.samsung.com/hr
CYPRUS 8009 4000 only from landline http://www.samsung.com/gr
Appendix
80
Page 81
Appendix
0 801-172-678*
lub +48 22 607-93-33 **
EUROPE
CZECH 800 - SAMSUNG (800-726786) http://www.samsung.com
Samsung Electronics Czech and Slovak, s.r.o. V Parku 2343/24, 148 00 -
Praha 4
DENMARK 70 70 19 70 http://www.samsung.com
EIRE 0818 717100 http://www.samsung.com
ESTONIA 800-7267 http://www.samsung.com/ee
FINLAND 030-6227 515 http://www.samsung.com
FRANCE 01 48 63 00 00 http://www.samsung.com/fr
GERMANY 0180 6 SAMSUNG bzw. http://www.samsung.com
0180 6 7267864*
(*0,20 €/Anruf aus dem dt. Festnetz, aus dem
Mobilfunk max. 0,60 €/Anruf)
GREECE 80111-SAMSUNG (80111 726
7864) only from land line
(+30) 210 6897691 from mobile
and land line
HUNGARY 06-80-SAMSUNG (726-7864) http://www.samsung.com/hu
ITALIA 800-SAMSUNG (726-7864) http://www.samsung.com
LATVIA 8000-7267 http://www.samsung.com/lv
LITHUANIA 8-800-77777 http://www.samsung.com/lt
LUXEMBURG 261 03 710 http://www.samsung.com
MONTENEGRO 020 405 888 http://www.samsung.com
NETHERLANDS 0900 - SAMSUNG
(0900-7267864) (€ 0,10/Min)
NORWAY 815 56480 http://www.samsung.com
POLAND
http://www.samsung.com/gr
http://www.samsung.com
http://www.samsung.com/pl
PORTUGAL 808 20 - SAMSUNG (808 20 7267) http://www.samsung.com
ROMANIA 08008 SAMSUNG (08008 726
SERBIA 011 321 6899 http://www.samsung.com/rs
7864) TOLL FREE No.
http://www.samsung.com/ro
Appendix
81
Page 82
Appendix
EUROPE
SLOVAKIA 0800 - SAMSUNG (0800-726 786) http://www.samsung.com
SPAIN 902172678 http://www.samsung.com
SWEDEN 0771 726 7864 (SAMSUNG) http://www.samsung.com
SWITZERLAND 0848-SAMSUNG
(7267864, CHF 0.08/min)
U.K 0330 SAMSUNG (7267864) http://www.samsung.com
CIS
ARMENIA 0-800-05-555 http://www.samsung.com
AZERBAIJAN 088-55-55-555 http://www.samsung.com
BELARUS 810-800-500-55-500 http://www.samsung.com
GEORGIA 0-800-555-555 http://www.samsung.com
KAZAKHSTAN 8-10-800-500-55-500
(GSM: 7799)
KYRGYZSTAN 00-800-500-55-500 http://www.samsung.com
MOLDOVA 0-800-614-40 http://www.samsung.com
MONGOLIA +7-800-555-55-55 http://www.samsung.com
http://www.samsung.com/ch
(German)
http://www.samsung.com/ch_fr
(French)
http://www.samsung.com
RUSSIA 8-800-555-55-55 http://www.samsung.com
TADJIKISTAN 8-10-800-500-55-500 http://www.samsung.com
UKRAINE 0-800-502-000 http://www.samsung.com/ua
(Ukrainian)
http://www.samsung.com/ua_ru
(Russian)
UZBEKISTAN 8-10-800-500-55-500 http://www.samsung.com
ASIA PACIFIC
AUSTRALIA 1300 362 603 http://www.samsung.com/au
CHINA 400-810-5858 http://www.samsung.com
HONG KONG (852) 3698 4698 http://www.samsung.com/hk
(Chinese)
http://www.samsung.com/hk_en
(English)
Appendix
82
Page 83
Appendix
ASIA PACIFIC
INDIA 1800 3000 8282
1800 266 8282
INDONESIA 0800-112-8888 (Toll Free)
(021) 56997777
JAPAN 0120-327-527 http://www.samsung.com
MALAYSIA 1800-88-9999 http://www.samsung.com/my
NEW ZEALAND 0800 SAMSUNG (0800 726 786) http://www.samsung.com/nz
PHILIPPINES 1-800-10-7267864 [PLDT]
1-800-8-7267864 [Globe landline
and Mobile]
02-4222111 [Other landline]
SINGAPORE 1800-SAMSUNG (726-7864) http://www.samsung.com/sg
TAIWAN 0800-32-9999 http://www.samsung.com/tw
THAILAND 0-2689-3232,
1800-29-3232
VIETNAM 1800 588 889 http://www.samsung.com
http://www.samsung.com/in
http://www.samsung.com/id
http://www.samsung.com/ph
http://www.samsung.com/th
MENA
ALGERIA 0800 100 100 http://www.samsung.com/n_africa
BAHRAIN 8000-4726 http://www.samsung.com/ae
(English)
http://www.samsung.com/ae_ar
(Arabic)
EGYPT 08000-726786 http://www.samsung.com
IRAN 021-8255 http://www.samsung.com
JORDAN 0800-22273
06 5777444
KUWAIT 183-2255 (183-CALL) http://www.samsung.com/ae
MOROCCO 080 100 2255 http://www.samsung.com
OMAN 800-SAMSUNG (726-7864) http://www.samsung.com/ae
http://www.samsung.com/Levant
(English)
(English)
http://www.samsung.com/ae_ar
(Arabic)
(English)
http://www.samsung.com/ae_ar
(Arabic)
Appendix
83
Page 84
Appendix
MENA
PAKISTAN 0800-Samsung (72678) http://www.samsung.com/pk/
QATAR 800-2255 (800-CALL) http://www.samsung.com/ae
(English)
http://www.samsung.com/ae_ar
(Arabic)
SAUDI ARABIA 920021230 http://www.samsung.com/sa
SYRIA 18252273 http://www.samsung.com/Levant
(English)
TUNISIA 80-1000-12 http://www.samsung.com/n_africa
TURKEY 444 77 11 http://www.samsung.com
U.A.E 800-SAMSUNG (726-7864) http://www.samsung.com
AFRICA
BOTSWANA 8007260000 http://www.samsung.com
BURUNDI 200 http://www.samsung.com
CAMEROON 7095-0077 http://www.samsung.com/africa_fr
COTE D’ IVOIRE 8000 0077 http://www.samsung.com/africa_fr
DRC 499999 http://www.samsung.com
GHANA 0800-10077
0302-200077
KENYA 0800 545 545 http://www.samsung.com
NAMIBIA 08 197 267 864 http://www.samsung.com
NIGERIA 0800-726-7864 http://www.samsung.com/africa_en
MOZAMBIQUE 847267864 / 827267864 http://www.samsung.com
RWANDA 9999 http://www.samsung.com
http://www.samsung.com/africa_en
SENEGAL 800-00-0077 http://www.samsung.com/africa_fr
SOUTH AFRICA 0860 SAMSUNG (726 7864) http://www.samsung.com
SUDAN 1969 http://www.samsung.com
TANZANIA 0685 88 99 00 http://www.samsung.com
UGANDA 0800 300 300 http://www.samsung.com
ZAMBIA 0211 350370 http://www.samsung.com
Appendix
84
Page 85
Appendix
Responsibility for the Pay Service (Cost to Customers)
When the service is requested, in spite of in warranty, we may charge you for a visit from a service
technician in the following cases.
Not a product defect
Cleaning of the product, Adjustment, Explanation, Re-installation and etc.
If a service technician gives instructions on how to use product or simply adjusts options without
disassembling product.
If a defect is caused by external environmental factors. (Internet, Antenna, Wired Signal, etc.)
If a product is reinstalled or devices are connected additionally after installing the purchased product
for the first time.
If a product is reinstalled to move to a different spot or to move to a different house.
If customer requests instructions on how to use because of another company's product.
If customer requests instructions on how to use the network or another company's program.
If customer requests software installation and setup for the product.
If a service technician removes/cleans dusts or foreign materials inside of the product.
If customer requests an installation additionally after purchasing a product through home-shopping
or online.
A Product damage caused by customer's fault
Product damage caused by customer's mishandling or wrong repair
If a product damage is caused by;
external impact or drop.
use of supplies or separately sold product unspecified by Samsung.
repair from a person besides an engineer of outsourcing service company or partner of Samsung
Electronics Co., Ltd.
remodeling or repairing the product by customer.
using it with incorrect voltage or non-authorised electrical connections.
not following the "cautions" in User Manual.
Others
If product fails by natural disaster. (lightning, fire, earthquake, flood damage, etc)
If consumable components are all used up. (Battery, Toner, Fluorescent lights, Head, Vibrator,
Lamp, Filter, Ribbon, etc.)
Appendix
85
Page 86
Appendix
If customer requests a service in case the product has no defect, service fee may be charged. So
please read User Manual first.
Appendix
86
Page 87
Appendix
Correct Disposal
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its
electronic accessories (e.g. charger, headset, USB cable) should not be disposed of
with other household waste at the end of their working life. To prevent possible harm to
the environment or human health from uncontrolled waste disposal, please separate
these items from other types of waste and recycle them responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product,
or their local government office, for details of where and how they can take these items
for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product and its electronic accessories should not be mixed with
other commercial wastes for disposal.
(India Only)
For more information on safe disposal and recycling visit our
website www.samsung.com/in or contact our Helpline numbers -
18002668282, 180030008282.
Appendix
87
Page 88
Appendix
Terminology
OSD (On Screen Display)
On screen display (OSD) allows you to customize on-screen settings to optimize the picture quality as
required. You can change the screen brightness, tint, size and many other settings using menus
displayed on the screen.
Gamma
The Gamma menu adjusts the grey scale that represents middle tones on the screen. Adjusting the
brightness brightens the whole screen, but adjusting Gamma only brightens the medium brightness.
Grey scale
Scale refers to levels of color intensity that show variations of color change from darker areas to
brighter areas on the screen. Changes to the screen brightness are expressed with black and white
variation, and grey scale refers to the medium area between black and white. Changing the grey scale
through Gamma adjustment will change the medium brightness on the screen.
Scanning rate
Scanning rate, or refresh rate, refers to the frequency of screen refreshes. Screen data is transmitted
as it refreshes to display an image, although the refreshing is invisible to the naked eye. The number of
screen refreshes is called scanning rate and is measured in Hz. A scanning rate of 60Hz means that
the screen refreshes 60 times per second. The screen scanning rate depends on the performance of
the graphics cards in your PC and monitor.
Horizontal Frequency
Characters or images displayed on the monitor screen consist of numerous dots (pixels). Pixels are
transmitted in horizontal lines, which are then arranged vertically to create an image. The horizontal
frequency is measured in kHz and represents how many times horizontal lines per second are
transmitted and displayed on the monitor screen. A horizontal frequency of 85 means that the
horizontal lines that make up an image are transmitted 85000 times per second. The horizontal
frequency is indicated in 85kHz.
Vertical Frequency
One image is made of numerous horizontal lines. The vertical frequency is measured in Hz and
represents how many images can be created per second by those horizontal lines. A vertical
frequency of 60 means that an image is transmitted 60 times per second. The vertical frequency is
also called "refresh rate" and affects screen flicker.
