Contents
Contents
Safety information 3
Important safety symbols and precautions: 5
CE Notice 5
Severe warning signs for transportation and site 6
Critical installation warnings 6
Installation cautions 10
Critical usage warnings 10
Usage cautions 15
Cleaning cautions 18
Critical disposal warnings 19
Additional tips for proper usage 20
Saving Energy Tips 21
This appliance is intended to be used in household and similar applications such as 21
Instructions about the WEEE 22
Installation 23
Refrigerator at a glance 23
Step-by-step installation 27
Operations 42
Feature panel 42
Temperature settings 46
Special features 47
Maintenance 50
Handle and care 50
Cleaning 52
Replacement 53
Troubleshooting 55
General 55
English2
Untitled-1 2 2016-03-08 2:30:51
Safety information
• Before using your new Samsung Refrigerator, please read this
manual thoroughly to ensure that you know how to operate the
features and functions that your new appliance offers safely and
efciently.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory, or mental capabilities,
or those who lack experience and knowledge, unless they have
been given supervision or instruction concerning the use of the
appliance by a person responsible for their safety.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
• Warnings and Important Safety Instructions in this manual do not
cover all possible conditions and situations that may occur.
It is your responsibility to use common sense, caution, and care
when installing, maintaining, and operating your appliance.
• Because these following operating instructions cover various
models, the characteristics of your refrigerator may differ slightly
Safety information
from those described in this manual and not all warning signs may
be applicable. If you have any questions or concerns, contact your
nearest service center or nd help and information online at www.
samsung.com.
• R-600a or R-134a is used as a refrigerant. Check the compressor
label on the rear of the appliance or the rating label inside the
fridge to see which refrigerant is used for your refrigerator. When
this product contains ammable gas (Refrigerant R-600a), contact
your local authority in regard to safe disposal of this product.
English 3
Untitled-1 3 2016-03-08 2:30:52
Safety information
• In order to avoid the creation of a ammable gas-air mixture
if a leak in the refrigerating circuit occurs, the size of the room
in which the appliance may be sited depends on the amount of
refrigerant used.
• Never start up an appliance showing any signs of damage. If in
Safety information
doubt, consult your dealer. The room must be 1 m³ in size for
every 8 g of R-600a refrigerant inside the appliance.
The amount of refrigerant in your particular appliance is shown on
the identication plate inside the appliance.
• Refrigerant squirting out of the pipes could ignite or cause an eye
injury. When refrigerant leaks from the pipe, avoid any naked
ames and move anything ammable away from the product and
ventilate the room immediately.
- Failing to do so may result in re or explosion.
• Do not store explosive substances such as aerosol cans with a
ammable propellant in this appliance.
English4
Untitled-1 4 2016-03-08 2:30:52
Important safety symbols and precautions:
Please follow all safety instructions in this manual. This manual uses
the following safety symbols.
WARNING
Hazards or unsafe practices that may result in severe personal injury,
property damage, and/or death.
CAUTION
Hazards or unsafe practices that may result in severe personal injury
and/or property damage.
NOTE
Useful information that helps users understand or benet from the
refrigerator.
These warning signs are here to prevent injury to you and others.
Please follow them carefully.
After reading this section, keep it in a safe place for future reference.
CE Notice
Safety information
This refrigerator has been determined to be in compliance with
the Low Voltage Directive (2006/95/EC), the Electromagnetic
Compatibility Directive (2004/108/EC), RoHS Directive (2011/65/
EU), Commission Delegated Regulation (EU) No 1060/2010 and the
Eco-Design Directive (2009/125/EC) implemented by Regulation (EC)
No 643/2009 of the European Union. (For products sold in European
Countries only.)
English 5
Untitled-1 5 2016-03-08 2:30:52
Safety information
Severe warning signs for transportation and site
WARNING
• When transporting and installing the appliance,care should be
taken to ensure that no parts of the refrigerating circuit are
damaged.
Safety information
- Refrigerant leaking from the pipe work could ignite or cause
an eye injury. If a leak is detected, avoid any naked ames
or potential sources of ignition and air the room in which the
appliance is standing for several minutes.
- This appliance contains a small amount of isobutane refrigerant
(R-600a), a natural gas with high environmental compatibility
that is, however, also combustible. When transporting and
installing the appliance, care should be taken to ensure that no
parts of the refrigerating circuit are damaged.
• When transporting and installing the refrigerator, do not touch the
water hose on the back side of the refrigerator.
- This may damage the refrigerator and as a result the water
dispenser can not be used.
Critical installation warnings
WARNING
• Do not install the refrigerator in a damp location or place where it
may come in contact with water.
- Deteriorated insulation on electrical parts may cause an electric
shock or re.
• Do not place this refrigerator in direct sunlight or expose it to the
heat from stoves, room heaters, or other appliances.
English6
Untitled-1 6 2016-03-08 2:30:52
• Do not plug several appliances into the same multiple power strip.
The refrigerator should always be plugged into its own individual
electrical outlet which has a voltage rating that matches the
voltage listed on the refrigerator’s rating plate.
- This provides the best performance and also prevents
overloading of house wiring circuits, which could cause a re
hazard from overheated wires.
• If the wall socket is loose, do not insert the power plug.
- There is a risk of electric shock of re.
• Do not use a power cord that has cracks or abrasion damage along
its length or at either end.
• Do not bend the power cord excessively or place heavy objects on
it.
• Do not pull or excessively bend the power cord.
• Do not twist or tie the power cord.
• Do not hook the power cord over a metal object, place a heavy
object on the power cord, insert the power cord between objects,
or push the power cord into the space behind the appliance.
• When moving the refrigerator, be careful not to roll over or
damage the power cord.
- This may result in an electric shock or re.
Safety information
• Never unplug your refrigerator by pulling on the power cord.
Always grip the plug rmly and pull straight out from the outlet.
- Damage to the cord may cause a short-circuit, re, and/or
electric shock.
• Do not use aerosols near the refrigerator.
- Using aerosols near the refrigerator may cause an explosion or
re.
• Do not install this appliance near a heater or inammable material.
English 7
Untitled-1 7 2016-03-08 2:30:52
Safety information
• Do not install this appliance in a location where gas may leak.
- This may result in an electric shock or re.
• This refrigerator must be properly located and installed in
accordance with the instructions in this manual before you use it.
• Connect the power plug in the proper position with the cord
Safety information
hanging down.
- If you connect the power plug upside down, the wire can get
cut off and cause a re or electric shock.
• Make sure that the power plug is not crushed or damaged by the
back of the refrigerator.
• Keep the packing materials out of reach of children.
- There is a risk of death from suffocation if a child puts the
packing materials on his or her head.
• The appliance must be positioned so that the plug is accessible
after installation.
- Failing to do so may result in an electric shock or re due to
electric leakage.
• Do not install this appliance in a humid, oily or dusty location, in a
location exposed to direct sunlight and water (rain drops).
- Deteriorated insulation of electrical parts may cause an electric
shock or re.
• If any dust or water is in the refrigerator, pull out power plug and
contact your Samsung Electronics service center.
- Otherwise there is a risk of re.
• Do not stand on top of the appliance or place objects (such as
laundry, lighted candles, lighted cigarettes, dishes, chemicals,
metal objects, etc.) on the appliance.
- This may result in an electric shock, re, problems with the
product, or injury.
English8
Untitled-1 8 2016-03-08 2:30:52
• You need to remove all the protective plastic lm before you
initially plug the product in.
• Children should be supervised to ensure that they do not play with
the snap rings used for door adjustment or the water tube clips.
- There is risk of death by suffocation if a child swallows a snap
ring or water tube clip. Keep the snap rings and water tube clips
out of children’s reach.
• The refrigerator must be safely grounded.
- Always make sure that you have grounded the refrigerator
before attempting to investigate or repair any part of the
appliance. Power leakages can cause severe electric shock.
• Never use gas pipes, telephone lines, or other potential lightning
attractors as an electrical ground.
- You must ground the refrigerator to prevent any power
leakages or electric shocks caused by current leakage from the
refrigerator.
- This may result in an electric shock, re, explosion, or problems
with the product.
• Plug the power plug into the wall socket rmly. Do not use a
damaged power plug, damaged power cord, or loose wall socket.
- This may result in an electric shock or re.
Safety information
• If the power cord is damaged, have it replaced immediately by the
manufacturer or one of its service agents.
• The fuse on the refrigerator must be changed by a qualied
technician or service company.
- Failing to do so may result in an electric shock or personal
injury.
English 9
Untitled-1 9 2016-03-08 2:30:52
Safety information
Installation cautions
CAUTION
• Allow sufcient space around the refrigerator and install it on a
at surface.
- If your refrigerator is not level, cooling efciency and durability
Safety information
• Allow the appliance to stand for 2 hours before loading foods after
• We strongly recommend you have a qualied technician or service
can be declined.
- Keep the ventilation space in the appliance enclosure or
mounting structure clear of obstructions.
installation and turning on.
company install the refrigerator.
- Failing to do so may result in an electric shock, re, explosion,
problems with the product, or injury.
Critical usage warnings
WARNING
• Do not insert the power plug into a wall socket with wet hands.
- This may result in an electric shock.
• Do not store articles on the top of the appliance.
- When you open or close the door, the articles may fall and
cause personal injury and/or material damage.
• Do not insert hands, feet or metal objects (such as chopsticks, etc.)
into the bottom or the back of the refrigerator.
- This may result in an electric shock or injury.
- Any sharp edges may cause a personal injury.
• Do not touch the inside walls of the freezer or products stored in
the freezer with wet hands.
- This may cause frostbite.
English10
Untitled-1 10 2016-03-08 2:30:52
• Do not put a container lled with water on the refrigerator.
- If spilled, there is a risk of re or electric shock.
• Do not keep volatile or ammable objects or substances (benzene,
thinner, propane gas, alcohol, ether, LP gas, and other such
products) in the refrigerator.
- This refrigerator is for storing food only.
- This may result in re or explosion.
• Children should be supervised to ensure that they do not play with
the appliance.
- Keep ngers out of “pinch point” areas. Clearances between the
doors and cabinet are necessarily small. Be careful when you
open the doors if children are in the area.
• Do not let children hang on the door or door bins. A serious injury
may occur.
• Do not let children go inside the refrigerator. They could become
trapped.
• Do not insert your hands into the bottom area under the appliance.
- Any sharp edges may cause personal injury.
• Do not store pharmaceutical products, scientic materials, or
temperature sensitive products in the refrigerator.
- Products that require strict temperature controls must not be
Safety information
stored in the refrigerator.
• Do not place or use electrical appliance inside the refrigerator/
freezer, unless they are of a type recommended by the
manufacturer.
• If you smell pharmaceutical or smoke, pull out power plug
immediately and contact your Samsung Electronics service center.
• If any dust or water is in Refrigerator, pull out power plug and
contact your Samsung Electronics service center.
- Otherwise there is a risk of re.
English 11
Untitled-1 11 2016-03-08 2:30:52
Safety information
• Do not let children step on a drawer.
- The drawer may break and cause them to slip.
• Do not leave the doors of the refrigerator open while the
refrigerator is unattended and do not let children enter inside the
refrigerator.
Safety information
• Do not allow babies or children go inside the drawer.
- It can cause death from suffocation by entrapment or personal
injury.
• Do not overll the refrigerator with food.
- When you open the door, an item may fall out and cause
personal injury or material damage.
• Do not spray volatile material such as insecticide onto the surface
of the appliance.
- As well as being harmful to humans, it may also result in an
electric shock, re, or problems with the product.
• Never put ngers or other objects into the water dispenser hole,
ice chute and ice maker bucket.
- It may cause a personal injury or material damage.
• Do not use or place any substances sensitive to temperature such
as ammable sprays, ammable objects, dry ice, medicine, or
chemicals near or inside of the refrigerator.
• Do not use a hair dryer to dry the inside of the refrigerator. Do
not place a lighted candle in the refrigerator for removing bad
odours.
- This may result in an electric shock or re.
• Fill the water tank, ice tray and water cubes only with potable
water (mineral water or puried water).
- Do not ll the tank with tea, juice or sports drink, this may
damage the refrigerator.
English12
Untitled-1 12 2016-03-08 2:30:52
• Do not stand on top of the appliance or place objects (such as
laundry, lighted candles, lighted cigarettes, dishes, chemicals,
metal objects, etc.) on the appliance. This may result in an electric
shock, re, problems with the product, or injury. Do not put a
container lled with water on the appliance.
- If spilled, there is a risk of re or electric shock.
• Do not use mechanical devices or any other means to accelerate
the defrosting process, other than those recommended by the
manufacturer.
• Do not damage the refrigerant circuit.
• Never stare directly at the UV LED lamp for long periods of time.
- This may result in eye strain due to the ultraviolet rays.
• Do not put fridge shelf in upside down. Shelf stopper could not
work.
- It may cause a personal injury because of glass shelf drop.
• Keep ngers out of “pinch point” areas. Clearances between the
doors and cabinet are necessarily small. Be careful when you open
the doors if children are in the area.
• If a gas leak is detected, avoid any naked ames or potential
sources of ignition, and air the room in which the appliance is
standing for several minutes.
Safety information
- Do not touch the appliance or power cord.
- Do not use a ventilating fan.
- A spark may result in explosion or re.
• Use only the LED Lamps provided by the manufacturer or its
service agents.
• Bottles should be stored tightly together so that they do not fall
out.
• This product is intended only for the storage of food in a domestic
environment.
English 13
Untitled-1 13 2016-03-08 2:30:52
Safety information
• Never put ngers or other objects into the water dispenser hole,
ice chute and ice maker bucket.
- It may cause a personal injury or material damage.
• Do not attempt to repair, disassemble, or modify the refrigerator
yourself.
Safety information
• Do not use any fuse (such as cooper, steel wire, etc.) other than a
standard fuse.
• If your refrigerator needs to be repaired or reinstalled, contact
your nearest service center.
- Failing to do so may result in an electric shock, re, problems
with the product, or injury.
• If the interior or exterior LED lamp has gone out, contact your
nearest service center.
• If the refrigerator emits a burning smell or smoke, unplug the
refrigerator immediately and contact your Samsung Electronics
service center.
- Failing to do so may result in an electric or re hazards.
• Pull the power plug out of the socket before changing the interior
lamps of the refrigerator.
- Otherwise, there is a risk of electric shock.
• If you experience difculty changing a non-LED light, contact a
Samsung service center.
• If the product is equipped with LED lamps, do not disassemble the
Lamp Covers and LED lamps yourself.
- Contact a Samsung service center.
• Plug the power plug into the wall socket rmly.
• Do not use a damaged power plug, damaged power cord or loose
wall socket.
- This may result in an electric shock or re.
English14
Untitled-1 14 2016-03-08 2:30:52
Usage cautions
CAUTION
• Do not re-freeze frozen foods that have thawed completely. Do
not place carbonated or zzy drinks in the freezer compartment.
Do not put bottles or glass containers in the freezer.
- When the contents freeze, the glass may break and cause
personal injury.
• Use only the ice maker provided with the refrigerator.
• Have the refrigerator’s water supply connected only to a potable
water supply. To operate the ice maker properly, water pressure of
20 ~ 125 psi (138 ~ 862 kPa) is required. If you will be away from
home for a long period of time (on vacation, for example) and
won’t be using the water or ice dispensers, close the water valve.
- Otherwise, water leakage may occur.
• If you won’t be using the refrigerator for a very long period of
time, (3 weeks or more) empty the refrigerator including the ice
Safety information
bucket, unplug it, close the water valve, wipe excess moisture
from the inside walls, and leave the doors open to prevent odors
and mold.
• To get the best performance from the product:
- Do not place food too close to the vents at the rear of the
refrigerator as this can obstruct free air circulation in the
refrigerator compartment.
- Wrap food up properly or place it in airtight containers before
putting it into the refrigerator.
- Do not place glass bottles or carbonated beverages into the
freezer. They can freeze and break. Broken beverage containers
can cause injury.
- Please observe maximum storage times and expiration dates of
frozen goods.
English 15
Untitled-1 15 2016-03-08 2:30:52
Safety information
- There is no need to disconnect the refrigerator from the power
supply if you will be away for less than three weeks. However,
if you will be away for more than three weeks, remove all the
food and ice in the ice bucket, unplug the refrigerator, close the
water valve, wipe excess moisture from the inside walls, and
Safety information
leave the doors open to prevent odors and mold.
• Do not place glass or bottles or carbonated beverages into the
freezer.
- The container may freeze and break, and this may result in
injury.
• Do not place carbonated or zzy drinks in the freezer
compartment. Do not put bottles or glass containers in the freezer.
- When the contents freeze, the glass may break and cause
personal injury and property damage.
• Service Warranty and Modication.
- Any changes or modications performed by a 3rd party on this
nished appliance are not covered under Samsung warranty
service, nor is Samsung responsible for safety issues that result
from 3rd party modications.
• Do not block the air vents inside the refrigerator.
- If the air vents are blocked, especially with a plastic bag, the
refrigerator can be over cooled. If a cooling period lasts too
long, the water lter may break and cause water leakage.
• Use only the ice-maker provided with the refrigerator.
• Wipe excess moisture from the inside and leave the doors open.
- Otherwise, odor and mold may develop.
• If the refrigerator is disconnected from the power supply, you
should wait for at least ve minutes before plugging it back in.
English16
Untitled-1 16 2016-03-08 2:30:52
• If you have a long vacation planned or do not intend to use the
refrigerator for a long period of time, (3 weeks or more) empty the
refrigerator including the ice bucket, pull out the power plug, close
the water valve, wipe excess moisture from the inside walls, and
leave the doors open to prevent odors and mold.
• When the refrigerator got wet by water, pull out the power plug
and contact your Samsung Electronics service center.
• Do not strike or apply excessive force to any glass surface.
- Broken glass may result in a personal injury and/or property
damage.
• Fill the water tank and ice cube trays with potable water only (tap
water, mineral water, or puried water).
- Do not ll the tank with tea or a sports drink. This may damage
the refrigerator.
• Be careful that your ngers are not caught in.
• If the refrigerator is ooded, make sure to contact your nearest
service center.
- There is a risk of electric shock or re.
• Do not store explosive substances such as aerosol cans with a
ammable propellant in this appliance.
Safety information
English 17
Untitled-1 17 2016-03-08 2:30:52
Safety information
Cleaning cautions
CAUTION
• Do not spray water directly on the inside or outside the
refrigerator.
- There is a risk of re or electric shock.
Safety information
• Do not use a hair dryer to dry the inside of the refrigerator.
• Do not place a lighted candle in the refrigerator to remove bad
odors.
- This may result in an electric shock or re.
• Do not spray cleaning products directly on the display.
- Printed letters on the display may come off.
• If any foreign substance such as water has entered the appliance,
unplug the power plug and contact your nearest service center.
- Failing to do so may result in an electric shock or re.
• Use a clean, dry cloth to remove any foreign matter or dust from
the power plug blades. Do not use a wet or damp cloth when
cleaning the plug.
- Otherwise, there is a risk of re or electric shock.
• Do not clean the appliance by spraying water directly onto it.
• Do not use benzene, thinner, or Clorox, Chloride for cleaning.
- They may damage the surface of the appliance and may cause a
re.
• Never put ngers or other objects into the dispenser hole.
- It may cause a personal injury or material damage.
• Before cleaning or performing maintenance, unplug the appliance
from the wall socket.
- Failing to do so may result in an electric shock or re.
English18
Untitled-1 18 2016-03-08 2:30:52
Critical disposal warnings
WARNING
• Please dispose of the packaging material from this product in an
environmentally friendly manner.
• Ensure that none of the pipes on the back of the refrigerator are
damaged prior to disposal.
• R-600a or R-134a is used as a refrigerant. Check the compressor
label on the rear of the appliance or the rating label inside the
fridge to see which refrigerant is used for your refrigerator. If this
refrigerator contains ammable gas (Refrigerant R-600a), contact
your local authority in regard to safe disposal of this product.
• When disposing of this refrigerator, remove the door/door seals
and door latch so that small children or animals cannot become
trapped inside. Children should be supervised to ensure that they
do not play with the appliance. If trapped inside, a child may get
hurt or suffocate to death.
Safety information
- If trapped inside, the child may become injury and suffocate to
death.
• Cyclopentane is used in the insulation. The gases in the insulation
material require a special disposal procedure. Please contact your
local authorities in regard to the environmentally safe disposal of
this product.
• Keep all packaging materials well out of the reach of children, as
packaging materials can be dangerous to children.
- If a child places a bag over his or her head, the child could
suffocate.
English 19
Untitled-1 19 2016-03-08 2:30:52
Safety information
Additional tips for proper usage
• In the event of a power failure, call the local ofce of your electric
company and ask how long the failure is going to last.
- Most power failures that are corrected in an hour or two will
not affect your refrigerator temperatures. However, you should
Safety information
• The refrigerator might not operate consistently (frozen contents
minimize the number of door openings while the power is off.
- Should the power failure last more than 24 hours, remove and
discard all frozen food.
can thaw or temperatures can become too warm in the frozen
food compartment) if sited for an extended period of time in a
location where ambient air temperatures are constantly below the
temperatures for which the appliance is designed.
• In case of particular foods, keeping it under refrigeration can have
a bad effect on preservation due to its properties.
• Your appliance is frost free, which means there is no need
to manually defrost your appliance. This will be carried out
automatically.
• Temperature rise during defrosting complies with ISO
requirements. If you want to prevent an undue rise in the
temperature of frozen food while the appliance defrosts, wrap the
frozen food in several layers of newspaper.
• Do not re-freeze frozen foods that have thawed completely.
• The temperature of two star section (sections) or compartment
(compartments) which have two star symbol (
) is slightly higher
than other freezer compartment (compartments).
The two star section (sections) or compartment (compartments) is
(are) based on the instruction and/or the condition as delivered.
English20
Untitled-1 20 2016-03-08 2:30:52
Saving Energy Tips
• Install the appliance in a cool, dry room with adequate ventilation.
Ensure that it is not exposed to direct sunlight and never put it
near a direct source of heat (a radiator, for example).
• Not to block any vents and grilles is recommended for energy
efciency.
• Allow warm food to cool down before placing it in the appliance.
• Put frozen food in the refrigerator to thaw. You can then use
the low temperatures of the frozen products to cool food in the
refrigerator.
• Do not keep the door of the refrigerator open for too long when
putting food in or taking food out. The shorter the time the door is
open, the less frost build-up you’ll have in the freezer.
• It is recommended to install the refrigerator with clearance to the
back and sides. This will help reduce power consumption and keep
your energy bills lower.
Safety information
• For the most efcient use of energy, please keep the all inner
ttings such as baskets, drawers, shelves on the position supplied
by manufacturer.
This appliance is intended to be used in household and similar applications such as
• staff kitchen areas in shops, ofces and other working
environments;
• farm houses and by clients in hotels, motels and other residential
type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.
English 21
Untitled-1 21 2016-03-08 2:30:52
Safety information
Instructions about the WEEE
Safety information
Correct Disposal of This Product (Waste Electrical & Electronic
Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates
that the product and its electronic accessories (e.g. charger,
headset, USB cable) should not be disposed of with other
household waste at the end of their working life. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, please separate these items from
other types of waste and recycle them responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they
purchased this product, or their local government ofce, for details
of where and how they can take these items for environmentally
safe recycling.
Business users should contact their supplier and check the terms
and conditions of the purchase contract. This product and its
electronic accessories should not be mixed with other commercial
wastes for disposal.
For information on Samsung’s environmental commitments and
product specic regulatory obligations e.g. REACH visit: samsung.
com/uk/aboutsamsung/samsungelectronics/corporatecitizenship/
data_corner.html
English22
Untitled-1 22 2016-03-08 2:30:53
Installation
Follow these instructions carefully to ensure a proper installation of this refrigerator and
to prevent accidents before using it.
WARNING
• Use the refrigerator only for its intended purpose as described in this manual.
• Any servicing must be performed by a qualied technician.
• Dispose of the product packaging material in compliance with the local regulations.
• To prevent electric shock, unplug the power cord before servicing or replacements.
Refrigerator at a glance
The actual appearance of your refrigerator may differ, depending on the model and the
country.
RS57K40*
04
Installation
08
01
02
03
05
06
07
English 23
Untitled-1 23 2016-03-08 2:30:53
Installation
RS53K44* (dispenser-featured models)
Installation
04
09
05
06
01
02
03
07
English24
Untitled-1 24 2016-03-08 2:30:53
RS53K46* (dispenser- and home bar-featured models)
04
09
01
02
03
05
06
10
07
01 Freezer shelves 02 Freezer guard 03 Dried food and meat
storage bin
04 Refrigerator guard 05 Egg container 06 Refrigerator shelves
Installation
07 Vegetable bin 08 Twist Ice maker * 09 Ice chute **
10 Beverage station *
* Applicable models only
** Dispenser models only
English 25
Untitled-1 25 2016-03-08 2:30:53
Installation
Optional accessories *
* Your refrigerator may not include optional accessories listed above. Provision of optional
Installation
accessories depends on the model and the country.
To secure more room for storage in the freezer compartment
Remove one or more optional accessories such as shelf or shelves, twist ice maker(s), ice
storage bins and their supports, all of which can be removed manually without a tool.
• These optional accessories do not affect thermal and mechanical performance.
• A declared storage volume of the freezer is based on the nonexistence of those
• For best energy efciency, make sure all of shelves, drawers, and baskets are placed in
Spacer: This helps keep the refrigerator cool.
Twist Ice Maker: Used to make ice.
optional accessories.
their original position.
English26
Untitled-1 26 2016-03-08 2:30:54
Step-by-step installation
STEP 1 Select a site
Site requirements:
• Solid, level surface without carpeting or ooring that may obstruct ventilation
• Away from direct sunlight
• Adequate room for opening and closing the door
• Away from a heat source
• Room for maintenance and servicing
• Temperature range: between 5 °C and 43 °C
Effective temperature range
The refrigerator is designed to operate normally in the temperature range specied by its
class rating.
Ambient Temperature range (°C)
Class Symbol
IEC 62552 (ISO 15502) ISO 8561
Extended Temperate SN +10 to +32 +10 to +32
Temperate N +16 to +32 +16 to +32
Subtropical ST +16 to +38 +18 to +38
Tropical T +16 to +43 +18 to +43
Installation
NOTE
The cooling performance and power consumption of the refrigerator may be affected
by the ambient temperature, the door-opening frequency, and the location of the
refrigerator. We recommend adjusting the temperature settings as appropriate.
English 27
Untitled-1 27 2016-03-08 2:30:54
Installation
A
B
C
D
01
02 02
04
05
06
07
08
03
Clearance
See the pictures and table below for space requirements for installation.
Depth “A” 747
Width “B” 912
Height “C” 1764
Overall Height “D” 1789
(unit: mm)
Installation
01 50 mm
02 160°
03 506 mm
04 1724 mm
05 600 mm
06 908 mm
07 73 mm
08 1155 mm
NOTE
The measurements in the above table may differ, depending on the measuring method.
Untitled-1 28 2016-03-08 2:30:54
English28
STEP 2 Spacing (applicable models only)
STEP 3 Flooring
1. Open the door and locate the provided
spacers (x2).
2. Unpack both spacers and attach them
to the rear of the refrigerator as shown.
They help ventilate air to the rear wall
and save power consumption.
• The surface to install the refrigerator
must support a fully loaded refrigerator.
• To protect the oor, put a large piece
of cardboard on each leg of the
refrigerator.
• Once the refrigerator is in its nal
position, do not move it unless
necessary to protect the oor. If you
have to, use a thick paper or cloth such
as old carpets along the movement
path.
NOTE
If the refrigerator cannot pass through the entrance due to its size, see the Door removal
for entrance section in the Installation chapter.
Installation
English 29
Untitled-1 29 2016-03-08 2:30:54
Installation
STEP 4 Adjust the levelling feet
• The refrigerator must be levelled on a at, solid oor. Failing to do so can cause
• Levelling must be performed with an empty refrigerator. Make sure no food items
• For safety reasons, adjust the front side a little higher than the rear side.
The refrigerator can be levelled using the rear legs that have a special screw (leveller) for
levelling purposes. Use a at-head screwdriver for levelling.
Installation
CAUTION
damage to the refrigerator or physical injury.
remain inside the refrigerator.
To adjust the height of the freezer side:
Insert a at-head screwdriver into the
leveller of the freezer-side rear leg. Turn
the leveller clockwise to raise, or turn it
counter clockwise to lower.
To adjust the height of the fridge side:
Insert a at-head screwdriver into the
leveller of the fridge-side rear leg. Turn
the leveller clockwise to raise, or turn it
counter clockwise to lower.
English30
Untitled-1 30 2016-03-08 2:30:54
STEP 5 Adjust the door height as well as the door gap
B
A
To adjust the height of a door
The height of a door can be adjusted using the clamp bolt on the bottom of the right-side
door.
1. Open the right-side door and locate the
clamp bolt on the bottom.
2. With the provided spanner, turn the
clamp nut (A) clockwise to loosen. Do
the following inside the door.
- To raise the door, turn the clamp bolt
(B) counter clockwise.
- To lower the door, turn the clamp
bolt (B) clockwise.
3. When complete, tighten the clamp nut
by turning it counter clockwise.
CAUTION
To prevent the bolt from being loose, make sure to tighten the clamp nut rmly.
Installation
Untitled-1 31 2016-03-08 2:30:55
English 31
Installation
1
A
B
A
STEP 6 Connect to a water source
• The water line must be connected by a qualied technician.
• The warranty for your refrigerator does not cover the water line installation. The
• Samsung takes no responsibility for the water line installation. If water leaks occur,
To connect the cold water pipe to the water ltering hose
• Make sure the water ltering hose is connected to a cold, potable water source pipe.
Installation
CAUTION
water line installation will be performed at your own costs unless the installation fee is
included in the retailer’s price.
contact the installer of the water line.
CAUTION
Connecting to the hot water pipe may cause the purier to malfunction.
1. Shut off the water supply by closing the
main water valve.
2. Locate the cold, potable water pipe (1).
3. Follow the Water Line Installation to
connect to the water pipe.
4. When connection is complete, open the
main water valve and dispense about
3 liters of water. This is to remove
impurities inside the pipe.
A. Close Main Water pipe
B. No gap
English32
Untitled-1 32 2016-03-08 2:30:55
To connect the water ltering hose to the water line
Remove cap
a
a
A
B
03
a
1. Loosen and remove the compression
nut (a) from the water line of the
refrigerator, and insert it to the water
ltering hose.
2. Tighten up the compression nut (a) to
connect the water ltering hose and the
water line.
3. Open the main water valve and check
for any leaks.
4. If there are no leaks, dispense about a
3 liters of water before actually using
A. Water Line from unit
the refrigerator to remove impurities
inside the water ltering system.
B. Water Line from Kit
To repair the water line
CAUTION
• The warranty for your refrigerator does not cover the water line installation. The
water line installation will be performed at your own costs unless the installation fee is
included in the retailer’s price.
• Samsung takes no responsibility for the water line installation. If water leaks occur,
contact the installer of the water line.
• The waterline must be repaired by a qualied professional. If you encounter a water
leak, contact a local Samsung service centre or the installer of the waterline.
Installation
Untitled-1 33 2016-03-08 2:30:55
English 33
Installation
STEP 7 Connect the water dispenser line (applicable models only)
Before installation (CoolSelect models only)
1. Remove any residual matter inside the purier.
2. Turn the main water supply on.
3. Run an approximate 3 litres of water through the dispenser for ushing reasons.
The water may look dark or ice may come out until the ushing is complete, which is
normal.
Parts and tools required
Installation
Water line xer and screws Pipe connector Water line
Installation (external dispenser line)
• Make sure you connect the coupler to the cold water tap. Connection to the hot water
• The warranty for your refrigerator does not cover the water line installation. The
• Samsung takes no responsibility for the water line installation. If water leaks occur,
• The water line must be repaired by a qualied professional. If you encounter a water
Purier lock-clip Purier
1. Assemble the water pipe line using
couplers.
2. Close the main water supply, and then
close the water tap.
3. Connect the coupler to the cold water
tap.
CAUTION
tap may cause the purier to be clogged and fail to operate normally.
water line installation will be performed at your own costs unless the installation fee is
included in the retailer’s price.
contact the installer of the water line.
leak, contact a local Samsung service centre or the installer of the water line.
English34
Untitled-1 34 2016-03-08 2:30:56
To mount the purier into place
To connect the water line to the refrigerator
1. Attach the lock clips (x2) to appropriate
positions under the sink, for instance.
Then, x the lock clips rmly using
screws.
CAUTION
Do not mount the purier on any part of
the refrigerator. This may damage the
refrigerator.
2. Insert the purier into the upper and
lower clips in the correct direction.
Make sure to check the vertical
direction of the purier.
Installation
1. Remove the compressor cover from the
refrigerator.
2. Connect the water line to the valve.
Make sure no water leaks.
3. Close the compressor cover.
4. Secure the water line to the rear wall of
the refrigerator using the clip.
CAUTION
Do not tighten the water line excessively.
Make sure the water line is not bent,
pinched, or squashed.
English 35
Untitled-1 35 2016-03-08 2:30:56
Installation
STEP 8 Door removal for entrance
If the refrigerator cannot pass through the entrance due to its size, follow these
instructions:
Tools required (not provided)
These tools are used for removing the doors.
Philips screwdriver Flat-heat
Disconnect the water line (applicable to dispenser- and home bar-featured models only)
Installation
screwdriver
Socket spanner
(10 mm)
1. Open the doors, and locate the screws
(x3) on the foot cover at the bottom of
the refrigerator.
2. Remove the screws, and then remove
the foot cover.
3. Pull out the water line to the front.
NOTE
The refrigerator’s water line is a water
circulation line that connects between the
water pipe from the water source and the
hoses from the water ltering system of
the refrigerator.
Allen spanner
(5 mm)
English36
Untitled-1 36 2016-03-08 2:30:57
B
A
4. To disconnect the hoses, press and hold
A
A
the transparent coupler (A) and detach
the water hose (B).
CAUTION
Do not apply excessive force to the
coupler. It may break.
Detach the doors
CAUTION
• The door may fall off or over and damage itself during any of these steps. To prevent
an accident, use extreme caution when performing these steps.
• For dispenser-featured models, make sure you have disconnected the water line before
detaching doors.
1. Use a Philips screwdriver to unscrew
the hinge covers (A) on the top of each
door.
2. Open the doors to loosen the hinges
and remove the hinge covers. Once the
covers are removed, close the doors.
Installation
3. Disconnect the electrical harness.
Untitled-1 37 2016-03-08 2:30:57
English 37
Installation
B
C
C
D
E
D
Installation
4. Unscrew the hinge screws (B) counter
clockwise, and remove the upper hinge
(C). Be careful as the door can fall on
you, causing physical injury.
5. Remove the hinges (C) on both sides.
6. Gently lift one door straight up from
the lower hinge (D). Use caution not
to pinch the water tubing and wire
harness on the door. Repeat this step on
the other door to remove.
7. Remove the lower hinge (D) from the
bracket (E) by gently lifting it up.
English38
Untitled-1 38 2016-03-08 2:30:58
Reattach the doors
B
A
D
C
E
CAUTION
• Before reattaching the doors, make sure all the electrical connectors are properly
connected.
• The freezer door must be reattached before the fridge door.
1. Hold the freezer door and hook to the
hinge at the bottom of the refrigerator.
2. Reinsert the water line (A) into place,
and then t the freezer door into the
lower hinge hole (B).
- Gently pull the water line back down
so that it runs straight with no kinks
or bends.
Installation
3. Insert the upper hinge shaft (C) into the
hole (D) on the top of the freezer door.
Make sure the hinge is level.
4. Tighten the screws (E) to x the hinge.
Untitled-1 39 2016-03-08 2:30:58
English 39
Installation
A
B
Installation
5. Reconnect the connectors.
6. Insert the hinge covers with the front
sides rst, and then tighten the screws.
Use a Philips screwdriver for this step.

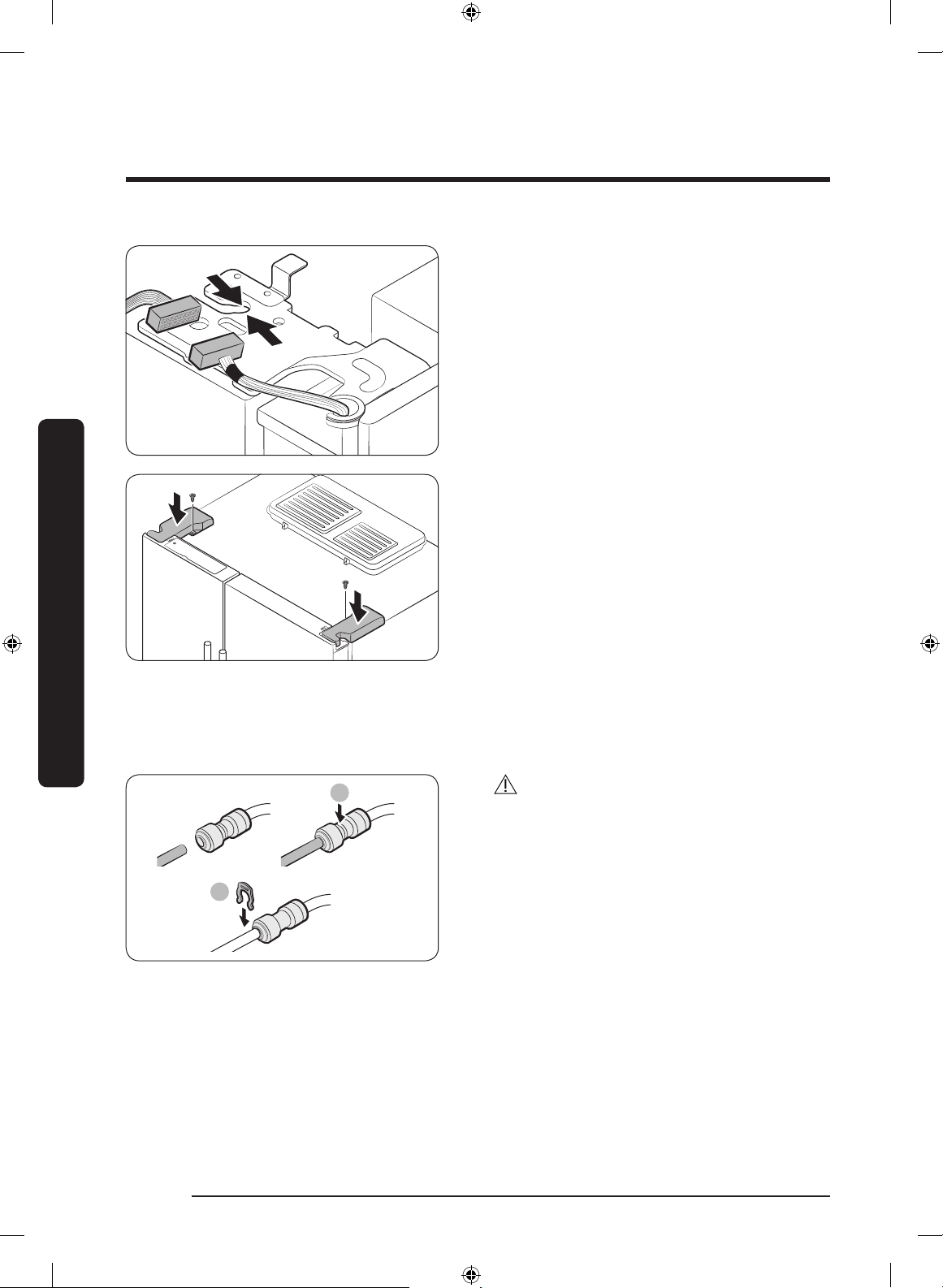

Reconnect the water hoses
Once the refrigerator has passed through the entrance, reconnect the water hoses and
insert the provided clips (x2) to tighten the coupler.
CAUTION
• Make sure the water hoses are
connected with matching colours.
• To prevent water leaks, each water
hose must be inserted fully to the
centre of the transparent coupler and
then must be clipped.
A. Center of transparent coupler
B. Clip A (1/4”) (6.35 mm)
English40
Untitled-1 40 2016-03-08 2:30:58
Reinsert the foot cover
Reinsert and tighten the foot cover with
the screws (x3).
STEP 9 Initial settings
By completing the following steps, the refrigerator should be fully functioning.
1. Plug the power cord into the wall socket to turn the refrigerator on.
2. Open the door, and check if the interior light lights up.
3. Set the temperature to the coldest, and wait for about an hour. Then, the freezer will be
slightly chilled, and the motor will run smoothly.
4. Wait until the refrigerator reaches the set temperature. Now the refrigerator is ready
for use.
Installation
STEP 10 Final check
When installation is complete, conrm that:
• The refrigerator is plugged into an electrical outlet and grounded properly.
• The refrigerator is installed on a at, level surface with a reasonable clearance from the
wall or the cabinet.
• The refrigerator is level and is sitting rmly on the oor.
• The door opens and closes freely, and the interior light turns on automatically when
you open the door.
English 41
Untitled-1 41 2016-03-08 2:30:58
Operations
Feature panel
RS53K44*/RS53K46*
RS57K40*
Operations
01
02
03
04
04
03
05
06
07
08
01
08
07
01 Vacation 02 Ice Maker Off * 03 Freezer
04 Power Freeze 05 Door Alarm * 06 Filter Reset *
07 Fridge 08 Control Lock
* Dispenser models only
English42
Untitled-1 42 2016-03-08 2:30:59
01 Vacation
If you are going on vacation or a business trip, or if you do not intend
to use the refrigerator for an extended time, use the vacation mode.
Press Vacation to turn off the fridge operation with the corresponding
indicator (
Vacation
NOTE
• It is strongly recommended to empty the fridge compartment and
make sure the door is closed.
• Make sure to empty the ice bucket.
02 Ice Maker Off (3 sec)
To disable ice making, press and hold for 3 seconds. In this mode, ice
Ice Maker Off
making is disabled even if you press the button.
Note that Ice Maker Off mode will be deactivated if you press and hold
the ice lever (marked “ICE” on the lever) for more than 5 seconds.
03 Freezer
You can manually adjust the freezing temperature for the freezer.
Freezer
Keep pressing Freezer to cycle through the temperature bar, and
select a desired temperature between -15 °C (5 °F) and -23 °C (-8 °F).
) on.
Operations
English 43
Untitled-1 43 2016-03-08 2:30:59
Operations
04 Power Freeze
Power Freeze speeds up the freezing process at maximum fan speed.
The freezer keeps running at full speed for several hours and then
returns to the previous temperature.
• To activate Power Freeze, press Power Freeze. For dispenserfeatured models, press and hold the button for 3 seconds. The
corresponding indicator (
speed up the freezing process for you.
Power Freeze
• To deactivate, press Power Freeze again. For dispenser-featured
models, press and hold the button for 3 seconds. The indicator turns
off, and the freezer returns to the previous temperature setting.
• To freeze large amounts of food, activate Power Freeze for at least
24 hours before putting food in the freezer.
Using Power Freeze increases power consumption. Make sure you turn
it off and return to the previous temperature if you do not intend to
use it.
) lights up, and the refrigerator will
NOTE
Operations
05 Door Alarm
Door Alarm
06 Filter Reset (3 sec)
Filter Reset
07 Fridge
The Fridge button can be used to set the fridge temperature, or to activate/deactivate
Power Cool.
Fridge
You can set the alarm for a reminder. If the door is left open for more
than 2 minutes, the alarm will sound with the alarm indicator blinking.
The alarm is enabled by factory default. To disable the alarm, press
Door Alarm. To enable, press Door Alarm again.
After replacing the lter, press and hold Filter Reset for 3 seconds to
reset the lter lifecycle.
You can manually adjust the cooling temperature for the fridge. Keep
pressing Fridge to cycle through the temperature bar, and select a
desired temperature between 1 °C (34 °F) and 7 °C (44 °F).
English44
Untitled-1 44 2016-03-08 2:30:59
08 Control Lock
To activate the Control Lock, press and hold Vacation and Fridge for
3 seconds. For dispenser-featured models, press and hold Control
Lock for 3 seconds. The controls on the display are disabled, and
Control Lock
neither the dispenser nor the icemaker operates even if you push the
corresponding lever.
To deactivate, press and hold Vacation and Fridge again for 3 seconds.
For dispenser-featured models, press and hold Control Lock again for
3 seconds.
Display Off
To save power consumption, the display turns off automatically if no button has been
pressed with the doors closed and the levers intact for a certain amount of time. If you
press any of the controls or push the lever, the display turns back on immediately.
Operations
English 45
Untitled-1 45 2016-03-08 2:30:59
Operations
Temperature settings
To ensure optimal performance, we recommend setting the temperature to -19 °C (-2 °F)
for the freezer, and 3 °C (37 °F) for the fridge.
Operations
Freezer
The freezer temperature can be adjusted
between -23 °C (-9 °F) and -15 °C (5 °F).
To change the temperature, keep pressing
Freezer until a desired temperature is
selected. The temperature changes by
1 scale unit.
• Recommended: -19 °C (-2 °F)
NOTE
Ice cream may melt at -15 °C (5 °F).
Fridge
The fridge temperature can be adjusted
between 1 °C (34 °F) and 7 °C (44 °F).
To change the temperature, keep pressing
Fridge until a desired temperature is
selected. The temperature changes by
1 scale unit.
• Recommended: 3 °C (37 °F)
The temperature of the freezer or fridge may rise if you open the door frequently, or a
large amount of food is put in the refrigerator. If this happens, the temperature display
blinks until the refrigerator returns to the specied temperature settings.
NOTE
If this blinking continues, disconnect the power cord and restart the refrigerator after
10 minutes.
English46
Untitled-1 46 2016-03-08 2:30:59
Special features
The refrigerator features user-oriented devices that you can use to benet from.

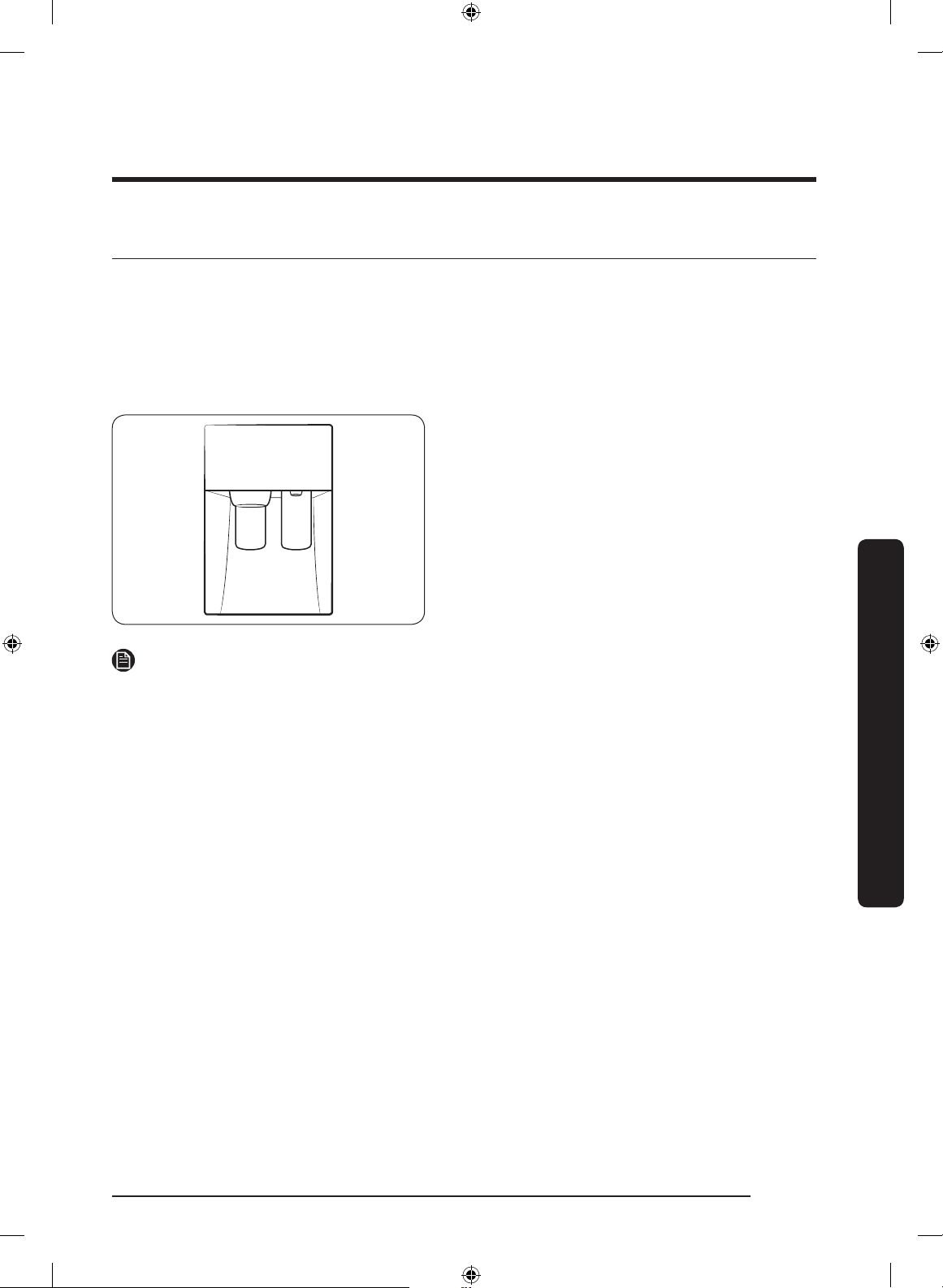

Water dispenser (applicable models only)
With the water dispenser, you can dispense water without opening the fridge door.
The dispenser offers two levers: the left-side lever for ice, and the right-side one for
water.
With the Ice Maker enabled,
1. Put a water glass on the left lever and
push it. Ice will be dispensed from the
dispenser.
2. Put the water glass on the right lever
and push it. Water will be dispensed
from the dispenser.
NOTE
• To prevent spills, wait 2 seconds before removing the glass after dispensing.
• The dispenser will stop dispensing if you keep pushing the dispenser lever for about
1 minute. To dispense more water, release and push the lever again.
• Make sure the glass is in line with the dispenser to prevent the dispensed water from
spilling out.
• If you do not use the water dispenser for 2-3 days, the dispensed water may have an
abnormal smell or taste. This is not a system failure. Discard the rst 1-2 glasses of
water.
Operations
English 47
Untitled-1 47 2016-03-08 2:30:59
Operations
A
Ice making (applicable models only)
Twist ice maker
Operations
1. Open the freezer door, and slide open
the ice tray.
2. Fill the tray with water up to the
maximum level (A) marked on the inner
rear of the tray.
3. Slide the tray back into position.
NOTE
• The ice making time depends on your
temperature settings.
• Make sure the ice cube storage bin is in
place under the ice tray.
• To dispense the ice cubes, turn the
handle of the bin to the right to empty
half of the ice cubes into the bin. Then,
turn it to the left to empty the other
half.
• Take out the bin by slightly twisting
and pulling to the front.
CAUTION
The ice maker is designed to make ice of
mineral or potable water only. Do not ll
any other liquids than mineral or potable
water with the ice tray.
English48
Untitled-1 48 2016-03-08 2:31:00
To secure more storage space (applicable models only)
If you need more storage room, remove
both the upper drawer and the bottom
drawer of the freezer. Then, insert the
provided bottom shelf for more storage.
NOTE
• Removal of the two drawers does
not affect thermal and mechanical
characteristics of the freezer.
• A declared storage volume of the
freezer is based on the conditions
where the two drawers are removed
and the bottom shelf is inserted.
Operations
English 49
Untitled-1 49 2016-03-08 2:31:00
Maintenance
Handle and care
Shelves (fridge/freezer)
• To remove a shelf, fully open the
corresponding door.
• The shelf must be unlocked rst. Hold
the front end of the shelf and gently lift
up to unlock the front half of the shelf,
and then pull out with both hands.
• If the door cannot fully open, slide out
the shelf half way to the front and turn
it over to remove.
CAUTION
• The shelf must be inserted correctly. Do
not insert upside down.
• Glass containers may scratch the
surface of glass shelves.
Maintenance
Door guard
English50
To remove a door guard, hold the front
sides of the bin and gently lift up to
remove.
Untitled-1 50 2016-03-08 2:31:00

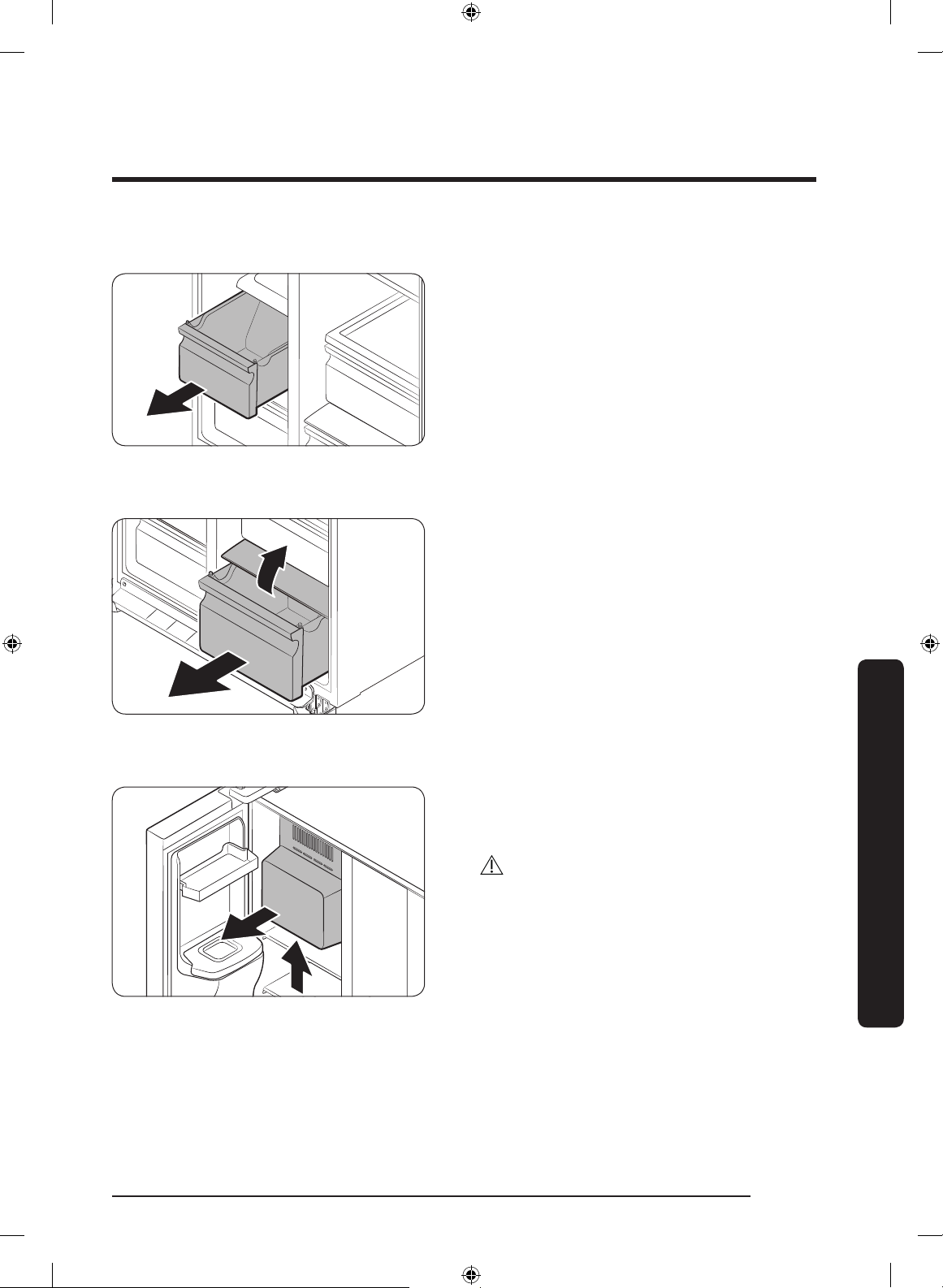

Drawers
Vegetable bin / Dry bins
Gently lift up the front of the drawer and
slide out.
To remove the vegetable bin from the
fridge or the dry bin from the freezer.
1. First, remove surrounding multipurpose
bins if necessary.
Icemaker bucket
To remove the ice bucket, hold the bottom
of the ice bucket with both hands and
gently pull out to the front.
CAUTION
Use caution when removing the ice bucket.
Ice may fall on you.
English 51
Maintenance
Untitled-1 51 2016-03-08 2:31:00
Maintenance
Cleaning
Interior and exterior
WARNING
• Do not use benzene, thinner, or home/car detergent such as Clorox™ for cleaning
purposes. They may damage the surface of the refrigerator and cause a re.
• Do not spray water onto the refrigerator. This may cause electric shock.
• Do not put ngers or other objects into the dispenser hole.
Regularly use a dry cloth to remove all foreign substances such as dust or water from the
power plug terminals and contact points.
1. Unplug the power cord.
2. Use a moistened, soft, lint-free cloth or paper towel to clean the refrigerator’s interior
and exterior.
3. When done, use a dry cloth or paper towel to dry well.
4. Plug in the power cord.
Maintenance
English52
Untitled-1 52 2016-03-08 2:31:00
Replacement
Water lter (applicable models only)
CAUTION
• Do not use third-party water lters. Use only Samsung-provided or -approved lters.
• Unapproved lters may leak and damage the refrigerator, causing electric shock.
Samsung holds no responsibility for any damage that may occur from use of third
party water lters.
• The lter indicator (
the water lter.
) turns red as a reminder that lets you know it is time to replace
1. Shut off the main water supply.
2. Connect the water supply line to the
inlet side of the lter to the end.
3. Connect the dispenser line to the outlet
side of the lter.
4. Check if there is any leak. If not, x the
lines with the clips.
5. Put the water lter into place and x it
with the clips.
6. Press and hold Filter Reset for 3
seconds to reset the lter lifecycle.
7. When replacing is complete, ush 1 litre
of water to remove impurities from the
water line.
Maintenance
CAUTION
When adjusting the length of the water
line tubing, make sure to smooth out the
cut surface at a right angle. This is to
prevent a water leak.
English 53
Untitled-1 53 2016-03-08 2:31:01
Maintenance
NOTE
• A newly installed lter may cause the water dispenser to spurt water briey. This is
because air has entered the waterline.
• This replacement process may involve the refrigerator to drip water onto the oor. If
this happens, wipe up with dry cloths.
Reverse osmosis water ltration system
The water pressure of the water supply system to a reverse osmosis water ltration
system must be between 35 psi and 120 psi (241 kPa and 827 kPa).
The water pressure of the reverse osmosis water ltration system to the refrigerator’s
cold water line must be at least 40 psi (276 kPa). If the water pressure is below the
specied:
• Check if the sediment lter in the reverse osmosis system is blocked. Replace the lter
if necessary.
• Rell the water tank in the reverse osmosis system with water.
• If your refrigerator has a water lter, it may further reduce the water pressure when
used in conjunction with a reverse osmosis system. Remove the water lter.
For more information or servicing, contact a licensed plumbing professional.
Ordering a new lter
To purchase a new water lter (part type: HAFEX/EXP), contact a local Samsung service
centre.
Lamps
Maintenance
The lamps are not user-serviceable. To replace the lamps of the refrigerator, contact a
local Samsung service centre.
English54
Untitled-1 54 2016-03-08 2:31:01
Troubleshooting
If you encounter an abnormal situation with the refrigerator, rst check the table below
and try the suggestions.
General
Symptom Action
• Make sure the power cord is connected properly.
• Make sure the temperature control is set correctly. Try
setting to a lower temperature.
• Make sure to keep the refrigerator away from direct sunlight
or a heat source. Failing to do so may affect the cooling
Does not operate or
cool.
Food in the fridge
freezes.
Emits noises.
performance.
• Make sure the refrigerator has enough room from the rear
and side walls or the cabinet. Failing to do so may affect the
cooling performance.
• Too much food may block the ventilation of the refrigerator.
To keep the refrigerator in normal operation, do not put too
much food inside.
• Check if the temperature control is set to the lowest
temperature. If so, change to a higher or the optimal
temperature.
• This happens if the ambient temperature is too low. Set the
temperature higher.
• Check if food containing a high portion of water is put in the
coldest area of the fridge or near the cooling vent. If this
happens, move the food to other shelves in the fridge.
• Make sure the refrigerator is installed on a stable, at
surface.
• Make sure the refrigerator has enough room from the rear
and side walls or the cabinet.
• Make sure to keep the refrigerator from impurities or foreign
objects inside or underneath.
• The refrigerator may produce a ticking sound from inside,
which occurs when the various accessories contract or
expand. This is not a system failure.
Troubleshooting
English 55
Untitled-1 55 2016-03-08 2:31:01
Troubleshooting
The front corners
and sides become
warm and form
condensation.
The ice maker does
not make ice.
The water dispenser
is not functioning.
Produces a bubbling
sound.
A bad smell comes
from inside the
refrigerator.
Troubleshooting
Frost forms on the
interior walls.
Condensation forms
on the interior walls
or around vegetables.
Symptom Action
• To prevent condensation from forming, the refrigerator
has heat-proof piping in the front corners. If the ambient
temperature rises, this equipment may not work effectively.
This is not a system failure.
• Make sure the door is closed properly. Condensation may
form if you leave the door open for some time.
• Condensation may form on the exterior surface of the
refrigerator if humid air comes into contact with the cool
surface of the refrigerator.
• You must wait for 12 hours until the refrigerator makes ice.
• Make sure the ice maker is not stopped while making ice.
• Make sure the water tank is lled with water.
• Check if the icemaker bucket contains ice clumps. In this case,
empty the icemaker bucket and try again.
• Check if the water tank is frozen. If so, select a higher fridge
temperature.
• Make sure the water tank is lled with water.
• Make sure the water tank is installed properly.
• Make sure the water lter is installed properly.
• The refrigerator makes this sound during the cooling process,
which is normal.
• Check for any spoiled food. We recommend cleaning the
refrigerator on a regular basis and remove any spoiled or
suspect food items.
• Make sure strong smelling food is wrapped up airtight.
• Make sure no food blocks the vents of the refrigerator. It is
also important to arrange food items evenly for ventilation.
• Make sure the door is closed properly.
• This happens when food containing a high portion of water is
stored uncovered, or the door has been left open for a while.
• Make sure food is covered or put in sealed containers.
English56
Untitled-1 56 2016-03-08 2:31:01
Symptom Action
What should I do if
the freezer door does
not close properly?
Check the following:
• Push the water dispenser lever to check the water supply.
• Push the ice dispenser lever to check the operation of the
auger motor in the ice maker assembly.
• Check if there are any objects that obstruct the auger motor
from running. If found, remove the objects and clear the
motor area.
• If the ice maker has not been used for an extended time, the
icemaker bucket may contain ice chunk that obstructs the
auger motor from running properly. In this case, remove and
empty the icemaker bucket, and try dispensing ice.
English 57
Untitled-1 57 2016-03-08 2:31:01
Troubleshooting
Memo
Untitled-1 58 2016-03-08 2:31:01
Memo
Untitled-1 59 2016-03-08 2:31:01
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the
SAMSUNG customer care center.
Country Contact Center Web Site
UK 0330 SAMSUNG (7267864) www.samsung.com/uk/support
EIRE 0818 717100 www.samsung.com/ie/support
DA68-03468A-01
Untitled-1 60 2016-03-08 2:31:01
Loading...
