Samsung RS7687FHCWW, RS7677FHCSL, RS7667FHCSP, RS7667FHCBC, RS7567THCBC-EU Operating Instructions

Refrigerator

user manual

RS7

*
RS54H*
RS57H*

imagine the possibilities

Thank you for purchasing a Samsung product.
To receive a more complete service,

please register your product at

www.samsung.com/register

Free Standing Appliance

DA68-02710A-05.indd 1DA68-02710A-05.indd 1 2013. 12. 26.  7:292013. 12. 26.  7:29

contents

SAFETY INFORMATION ················································································· 2

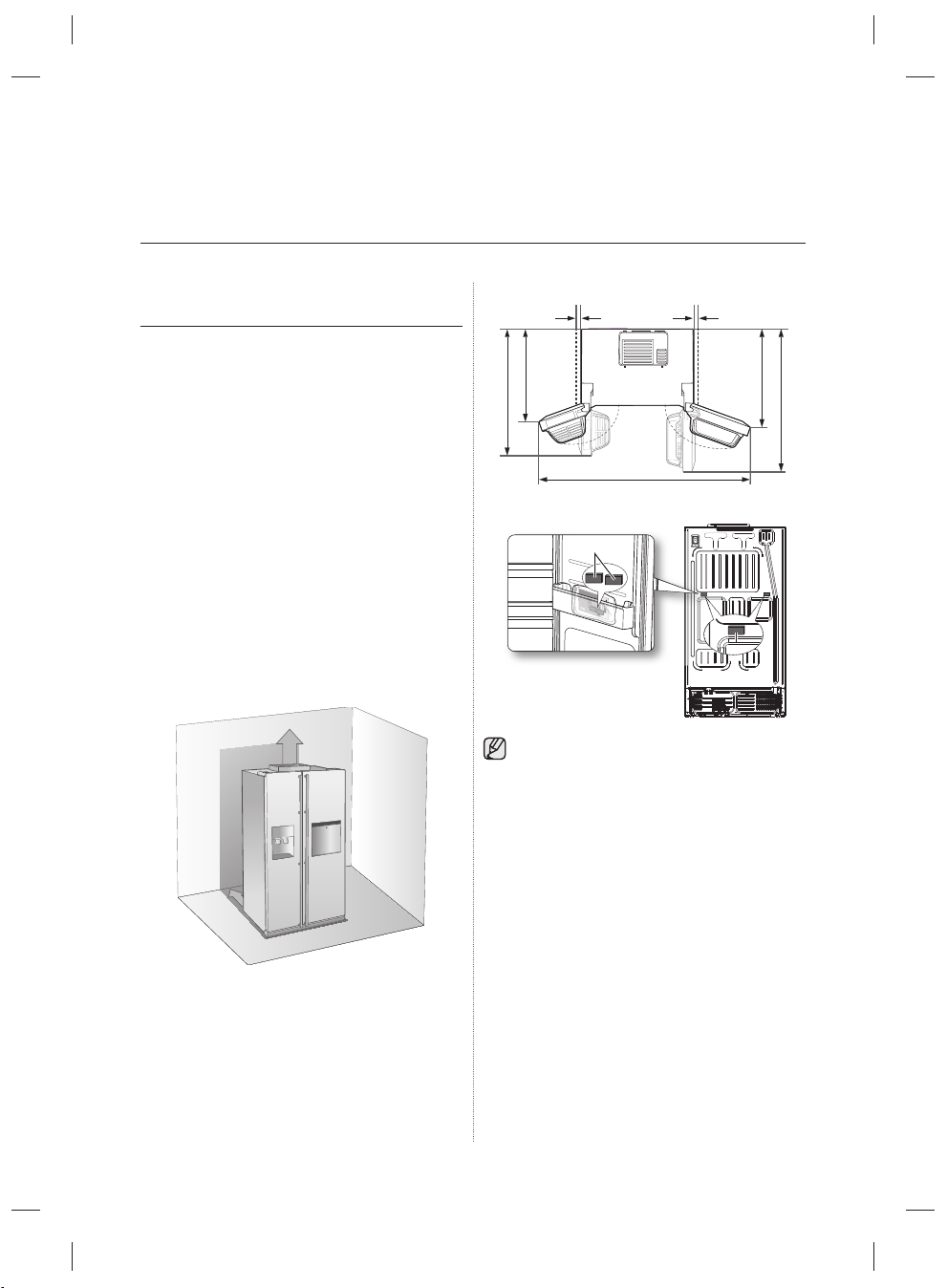

SETTING UP YOUR SIDE-BY-SIDE REFRIGERATOR ···································14

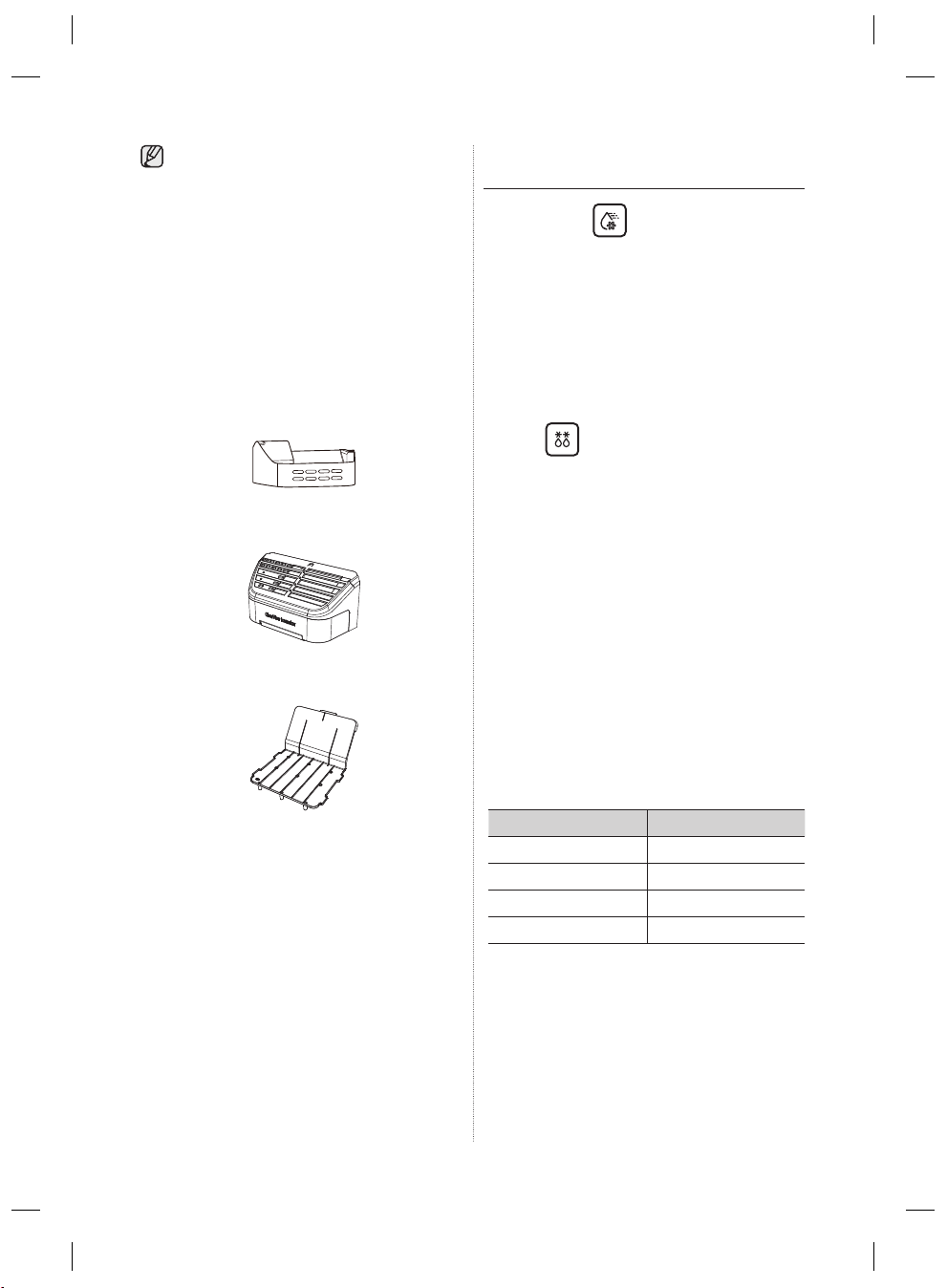

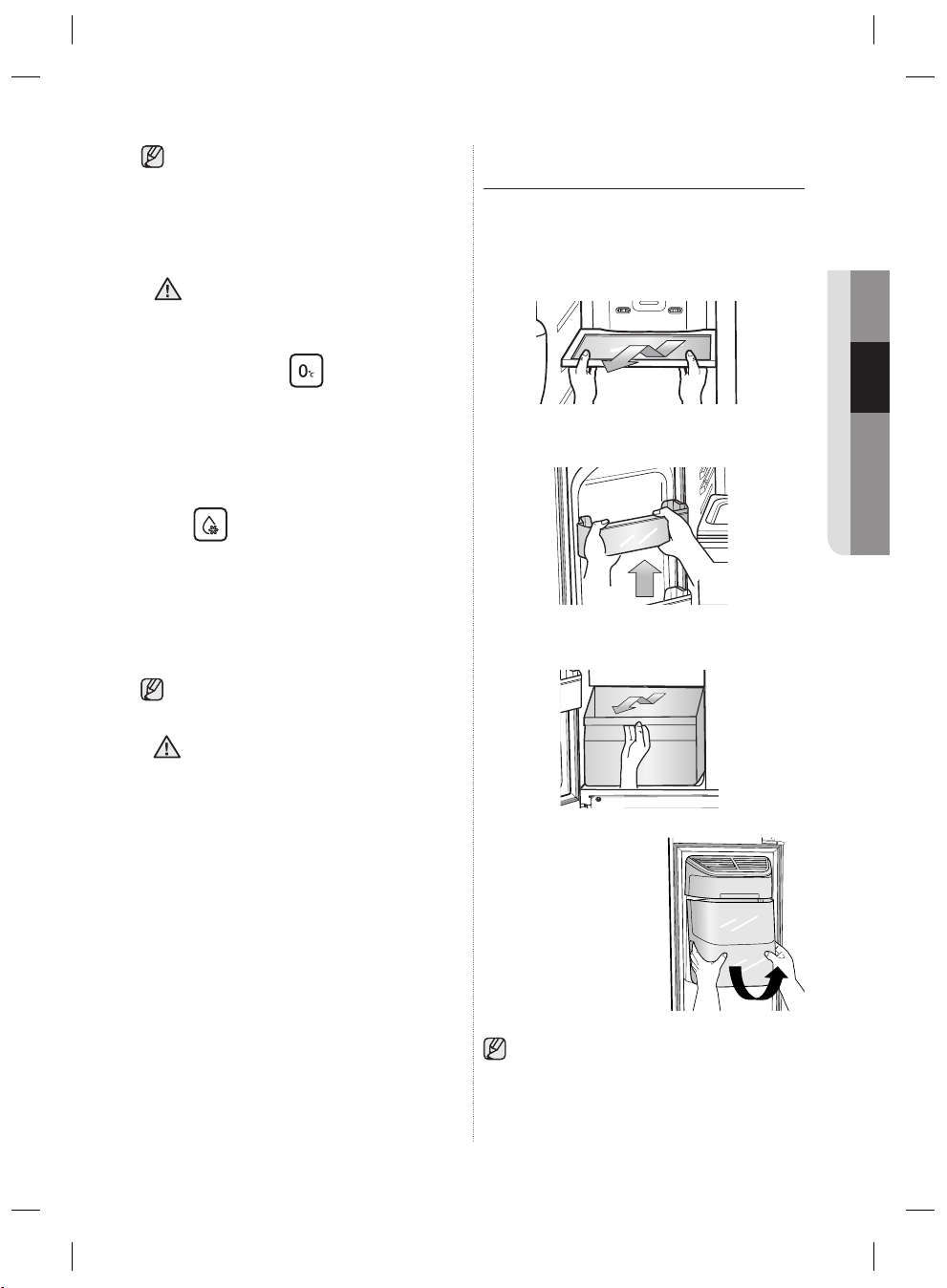

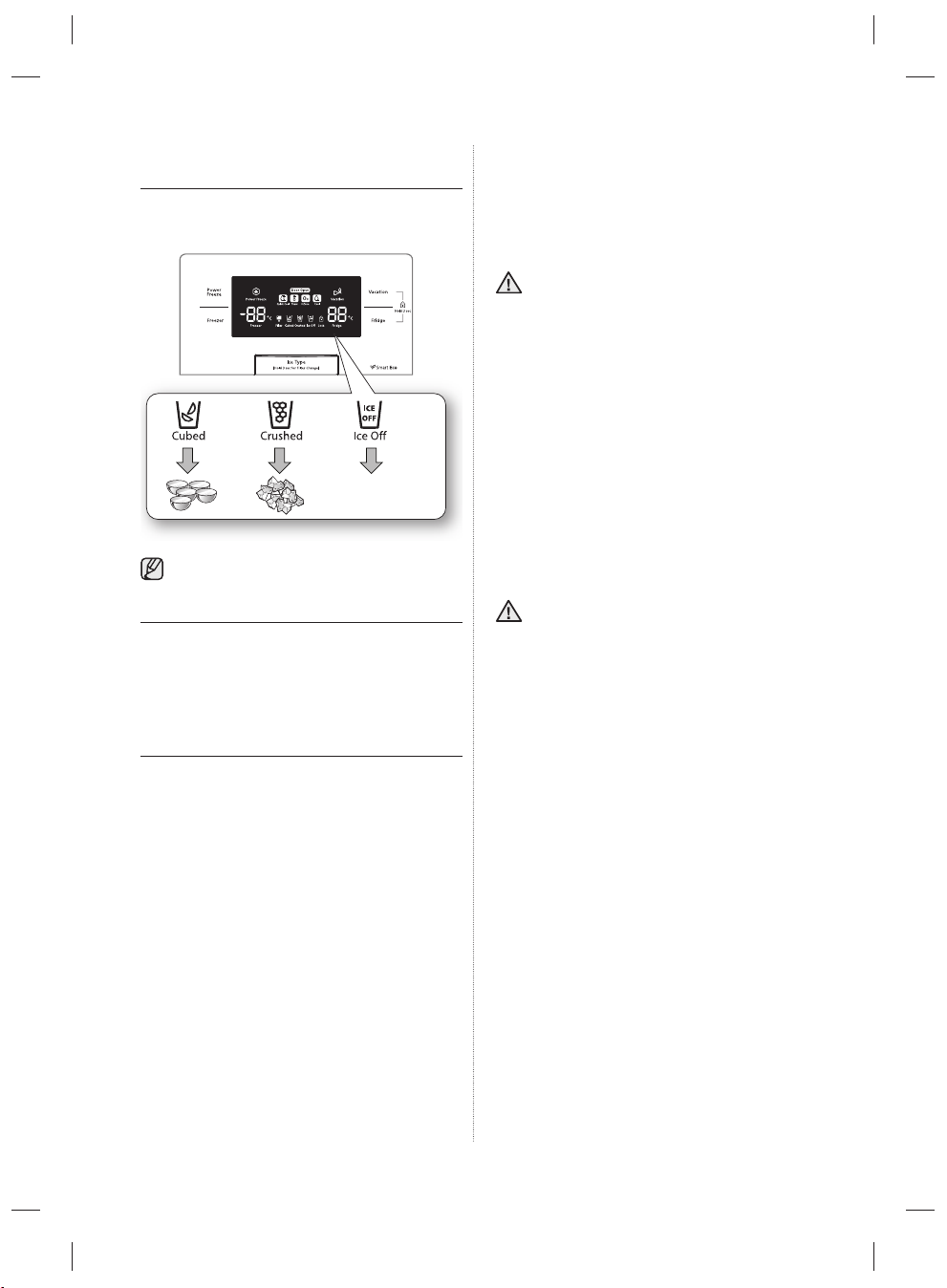

OPERATING THE SAMSUNG SIDE-BY-SIDE REFRIGERATOR ····················24

TROUBLESHOOTING ·····················································································34

safety information

SAFETY INFORMATION

• Before operating the
appliance, please read this
manual thoroughly and
retain it at a safe place near
the appliance for your future
reference.

• Use this appliance only for
its intended purpose as
described in this instruction
manual. This appliance is not
intended for use by persons
(including children) with
reduced physical, sensory
or mental capabilities, or
lack of experience and
knowledge, unless they have
been given supervision or
instruction concerning use

of the appliance by a person
responsible for their safety.

• Warnings and Important
Safety Instructions in this
manual do not cover all
possible conditions and
situations that may occur. It
is your responsibility to use
common sense, caution,
and care when installing,
maintaining, and operating
your appliance.

• Because these following
operating instructions
cover various models, the
characteristics of your
refrigerator may differ slightly
from those described in this
manual and not all warning
signs may be applicable.

English - 2

DA68-02710A-05.indd 2DA68-02710A-05.indd 2 2013. 12. 26.  7:292013. 12. 26.  7:29

If you have any questions
or concerns, contact your
nearest service center or fi nd
help and information online
at www.samsung.com.

Important safety symbols
and precautions :

Hazards or unsafe
practices that may

WARNING

result in severe
personal injury or
death.

Call the contact
center for help.

Note.

These warning signs are
here to prevent injury to you
and others.
Please follow them
carefully.
After reading this section,
keep it in a safe place for
future reference.

CAUTION

Hazards or unsafe
practices that may
result in minor

personal injury or
property damage.

Do NOT attempt.

Do NOT disassemble.

Do NOT touch.
Follow directions

carefully.
Unplug the power

plug from the wall
socket.

Make sure the
machine is grounded
to prevent electric
shock.

CE Notice

This product has been
determined to be in
compliance with the Low
Voltage Directive (2006/95/
EC), the Electromagnetic
Compatibility Directive
(2004/108/EC), RoHS Directive
(2011/65/EU), Commission
Delegated Regulation (EU)
No 1060/2010 and the Eco­Design Directive(2009/125/EC)
implemented by Regulation
(EC) No 643/2009 of the
European Union. (For products
sold in European Countries
only)

English - 3

DA68-02710A-05.indd 3DA68-02710A-05.indd 3 2013. 12. 26.  7:292013. 12. 26.  7:29

WARNING

SIGNS FOR
TRANSPORTATION
AND SITE

• When transporting and
installing the appliance,
care should be taken to
ensure that no parts of
the refrigerating circuit
are damaged.

- Refrigerant leaking from the
pipe work could ignite or
cause an eye injury.
If a leak is detected, avoid
any naked fl ames or
potential sources of ignition
and air the room in which
the appliance is standing for
several minutes.

• In order to avoid the
creation of a fl ammable gas­air mixture if a leak in the
refrigerating circuit occurs,
the size of the room in which
the appliance may be sited
depends on the amount of
refrigerant used.

• Never start up an appliance
showing any signs of
damage.
If in doubt, consult your
dealer. The room where the
refrigerator will be sited must

English - 4

SEVERE WARNING

be 1m³ in size for every 8g
of R600a refrigerant inside
the appliance.
The amount of refrigerant in
your particular appliance is
shown on the identifi cation
plate inside the appliance.

SEVERE WARNING

WARNING

SIGNS FOR
INSTALLATION

• Do not install the
refrigerator in a damp
place or place where it
may come in contact
with water.

- Deteriorated insulation of
electrical parts may cause
an electric shock or fi re.

• Do not place this refrigerator
in direct sunlight or expose
to the heat from stoves,
room heaters or other
appliance.

• Do not plug several
appliances into the same
multiple power board.
The refrigerator should
always be plugged into its
own individual electrical
which has a voltage rating

DA68-02710A-05.indd 4DA68-02710A-05.indd 4 2013. 12. 26.  7:292013. 12. 26.  7:29

that matched the rating
plate.

- This provides the best
performance and also
prevents overloading house
wiring circuits, which could
cause a fi re hazard from
overheated wires.

• If the wall socket is loose, do
not insert the power plug.

- There is a risk of electric
shock of fi re.

• Do not use a cord that
shows cracks or abrasion
damage along its length or
at either end.

• Do not bend the power cord
excessively or place heavy
articles on it.

• Do not use aerosols near the
refrigerator.

- Aerosols used near the
refrigerator may cause an
explosion or fi re.

• This refrigerator
must be properly
installed and located
in accordance with
the manual before it is
used.

• Connect the power plug in
proper position with the cord

hanging down.

- If you connect the power
plug upside down, wire can
get cut off and cause fi re or
electric shock.

• Make sure that the power
plug is not squashed or
damaged by the back of the
refrigerator.

• When moving the refrigerator,
be careful not to roll over or
damage the power cord.

- This constitutes a fi re hazard.

• The appliance must be
positioned so that the plug is
accessible after installation.

• The refrigerator must
be grounded.

- You must ground the
refrigerator to prevent any
power leakages or electric
shocks caused by current
leakage from the refrigerator.

• Never use gas pipes,
telephone lines or other
potential lightening rods as
ground.

- Improper use of the ground
plug can result in electric
shock.

• If the power cord is

English - 5

DA68-02710A-05.indd 5DA68-02710A-05.indd 5 2013. 12. 26.  7:292013. 12. 26.  7:29

damaged, have it
replaced immediately
by the manufacturer or
its service agent.

• The fuse on the refrigerator
must be changed by a
qualifi ed technician or
service company.

- Failing to do so may result
in electric shock or personal
injury.

CAUTION SIGNS FOR

CAUTION

• Allow the appliance to stand

INSTALLATION

• Keep ventilation
opening in the
appliance enclosure
or mounting structure
clear of obstruction.

for 2 hours after installation.

WARNING

• Do not store articles on the

• Do not put items fi lled with

• Do not let children hang on

• Do not leave the doors of

• Never put fi ngers or other

SIGNS FOR USING

• Do not insert the power
plug with wet hands.

top of the appliance.

- When you open or close the
door, the articles may fall
and cause personal injury
and/or material damage.

water on the refrigerator.

- If spilled, there is a risk of fi re
or electric shock.

the door.

- Failure to do so may cause
serious personal injury.

the refrigerator open while
the refrigerator is unattended
and do not let children enter
inside of the refrigerator.

- There is a risk of children
entrapment and serious
personal injury because of
low temperature.

objects into the dispenser
hole.

- Failure to do so may cause
personal injury or material
damage.

SEVERE WARNING

English - 6

DA68-02710A-05.indd 6DA68-02710A-05.indd 6 2013. 12. 26.  7:292013. 12. 26.  7:29

• Do not store volatile or
fl ammable substances such
as benzene, thinner, alcohol,
ether or LP gas in the
refrigerator.

- The storage of any of
such products may cause
explosions.

• Do not store low
temperature-sensitive
pharmaceuticals
products, scientifi c
materials or other low
temperature-sensitive
products in the
refrigerator.

- Products that require
strict temperature controls
must not be stored in the
refrigerator.

• Do not place or use
electrical appliance inside
the refrigerator, unless they
are of a type recommended
by the manufacturer.

• Do not use a hair dryer to dry
the inside of the refrigerator.
Do not place a lighted
candle in the refrigerator for
removing bad odors.

- This may result in electric
shock or fi re.

• Do not touch the inside walls
of the freezer or products
stored in the freezer with wet
hands.

- This may cause frostbite.

• Do not use mechanical
devices or any other means
to accelerate the defrosting
process, other than those
recommended by the
manufacturer.

• Do not damage the
refrigerant circuit.

• This product is intended
only for the storage
of food in a domestic
environment.

• Bottles should be stored
tightly together so that they
do not fall out.

• If a gas leak is detected,
avoid any naked fl ames or
potential sources of ignition
and air the room in which
the appliance is standing for
several minutes.

• Use only the LED Lamps
provided by manufacturer or
service agents.

• Children should be
supervised to ensure that
they do not play with and/or

English - 7

DA68-02710A-05.indd 7DA68-02710A-05.indd 7 2013. 12. 26.  7:292013. 12. 26.  7:29

climb into the appliance.

• Do not disassemble or
repair the refrigerator by
yourself.

- You run risk of causing a fi re,
malfunction and/or personal
injury.
In case of malfunction,
please contact your service
agents.

- Please contact your service
agents.

• If any dust or water is in
refrigerator, pull out power
plug and contact your
Samsung Electronics service
center.

- There is a risk of fi re.

• If the appliance
generates a strange
noise, a burning
or smell or smoke,
unplug the power
plug immediately and
contact your nearest
service center.

- Failing to do so may result
in electric or fi re hazards.
Keep ventilation opening in
the appliance enclosure or
mounting structure clear of
obstruction.

• If you experience diffi culty
when changing the light,
contact service agents.

• If the products equipped
with LED Lamp, do not
disassemble Lamp Cover
and LED Lamp by yourself.

CAUTION

• Do not place carbonated

English - 8

USING

• To get best
performance of
product,

- Do not place foods too
closely in front of the vents
at the rear of the appliance
as it can obstruct free air
circulation in the refrigerator
compartment.

- Wrap the food up properly or
place it in airtight containers
before put it into the
refrigerator.

or fi zzy drinks in the freezer
compartment.
Do not put bottles or glass
containers in the freezer.

- When the contents freeze,
the glass may break and

CAUTION SIGNS FOR

DA68-02710A-05.indd 8DA68-02710A-05.indd 8 2013. 12. 26.  7:292013. 12. 26.  7:29

cause personal injury and
property damage.

• Do not change the
functionality of or modify the
refrigerator.

- Changes or modifi cations
may result in personal injury
and/or property damage.
Any changes or
modifi cations performed by a
3 rd party on this completed
appliance is neither covered
under Samsung warranty
service, nor is Samsung
responsible for safety issues
and damages that result
from 3 rd party modifi cations.

• Do not block air holes.

- If the air holes are blocked,
especially with a plastic bag,
the refrigerator can be over
cooled. If this cooling period
lasts too long, the water fi lter
may break and cause water
leakage.

- Do not put any newly
introduced food for freezing
near to already food.

• Please observe maximum
storage times and expiry
dates of frozen goods.

• Fill water tank, ice tray, water
cubes only with potable

water.

• Use only the ice maker
provided with the refrigerator.

• The water supply to this
refrigerator must only be
installed/connected by a
suitably qualifi ed person and
connect to a potable water
supply only.

• In order to operate the
ice maker properly, water
pressure of 138 ~ 862
kPa(19.9 ~ 125.1 psi) is
required.

CAUTION SIGNS

CAUTION

FOR CLEANING AND
MAINTENANCE

• Do not directly spray
water inside or outside
the refrigerator.

- There is a risk of fi re or
electric shock.

• Do not spray infl ammable
gas near the refrigerator.

- There is a risk of explosion
or fi re.

• Do not spray cleaning
products directly on the
display.

English - 9

DA68-02710A-05.indd 9DA68-02710A-05.indd 9 2013. 12. 26.  7:292013. 12. 26.  7:29

- Printed letters on the display
may come off.

• Remove any foreign matter
or dust from the power plug
pins.
But do not use a wet or
damp cloth when cleaning
the plug, remove any foreign
material or dust from the
power plug pins.

- Otherwise there is a risk of
fi re or electric shock.

• Never put fi ngers or other
objects into the dispenser
hole and ice chute.

- It may cause personal injury
or material damage.

• Unplug the refrigerator
before cleaning
and performing
maintenance.

English - 10

WARNING

SIGNS FOR
DISPOSAL

• Ensure that none of
the pipes on the back
of the appliance are
damaged prior to
disposal.

• R600a or R134a is used as
a refrigerant.
Check the compressor label
on the rear of the appliance
or the rating label inside the
refrigerator to see which
refrigerant is used for your
refrigerator.
When this product contains
fl ammable gas (Refrigerant
R600a), contact your local
authority in regard to safe
disposal of this product.
Cyclopentane is used as a
insulation blowing gas.
The gases in insulation
material require special
disposal procedure.
Please contact your local
authorities in regard to the
environmentally safe disposal
of this product.
Ensure that none of the
pipes on the back of the
appliances are damaged
prior to disposal.

SEVERE WARNING

DA68-02710A-05.indd 10DA68-02710A-05.indd 10 2013. 12. 26.  7:292013. 12. 26.  7:29

The pipes shall be broke in
the open space.

• If the appliance contains iso­butane refrigerant (R600a),
a natural gas with high
environmental compatibility
that is, however, also
combustible.
When transporting and
installing the appliance,
care should be taken to
ensure that no parts of
the refrigerating circuit are
damaged.

• When disposing of
this product or other
refrigerators, remove the
door/door seals, door latch
so that small children or
animals cannot become
trapped inside.
Leave the shelves in place
so that children may not
easily climb inside.
Children should be
supervised to ensure that
they do not play with the old
appliance.

• Please dispose of the
packaging material for this
product in an environmentally
friendly manner.

ADDITIONAL TIPS
FOR PROPER
USAGE

• In the event of a power
failure, call the local offi ce
of your Electricity Company
and ask how long it is going
to last.

- Most power failures that are
corrected within an hour
or two will not affect your
refrigerator temperatures.
However, you should
minimize the number of door
openings while the power is
off.

- Should the power failure last
more than 2 hours, remove
all ice in the Ice Bucket.

- Should the power failure last
more than 24 hours, remove
all frozen food.

• If keys are provided with the
refrigerator, the keys should
be kept out of the reach of
children and not in vicinity of
the appliance.

• The appliance might
not operate consistently
(possibility of temperature
becoming too warm in
refrigerator) when sited
for an extended period of

English - 11

DA68-02710A-05.indd 11DA68-02710A-05.indd 11 2013. 12. 26.  7:292013. 12. 26.  7:29

time below the cold end of
the range of temperature
for which the refrigerating
appliance is designed.

• Do not store food which
spoils easily at low
temperature, such as
bananas, melons.

• Your appliance is frost free,
which means there is no
need to manually defrost
your appliance, as this will
be carried out automatically.

• Temperature rising during
the defrost can comply with
ISO requirement. But if you
want to prevent an undue
rise in the temperature of the
frozen food while defrosting
the appliance, please wrap
the frozen food in several
layers of newspaper.

• Any increase in temperature
of frozen food during
defrosting can shorten its
storage life.

Saving Energy Tips

- Install the appliance in a
cool, dry room with adequate
ventilation.
Ensure that it is not exposed
to direct sunlight and never
put it near a direct source of
heat (radiator, for example).

- Never block any vents or
grilles on the appliance.

- Allow warm food to cool
down before placing it in the
appliance.

- Put frozen food in the
refrigerator to thaw.
You can then use the low
temperatures of the frozen
products to cool food in the
refrigerator.

- Do not keep the door of
the appliance open for too
long when putting food in or
taking food out.
The shorter time for which
the door is open, the less ice
will form in the freezer.

- Clean the rear of the
refrigerator regularly.
Dust increases energy
consumption.

- Do not set temperature
colder than necessary.

- Ensure suffi cient air exhaust

English - 12

DA68-02710A-05.indd 12DA68-02710A-05.indd 12 2013. 12. 26.  7:292013. 12. 26.  7:29

at the refrigerator base
and at the back wall of the
refrigerator.
Do not cover air vent
openings.

- Allow clearance to the right,
left, back and top when
installing.
This will help reduce power
consumption and keep your
energy bills lower.

- For the most effi cient use
of energy, please keep the
all inner fi ttings such as
baskets, drawers, shelves
on the position supplied by
manufacturer.

English - 13

DA68-02710A-05.indd 13DA68-02710A-05.indd 13 2013. 12. 26.  7:292013. 12. 26.  7:29

setting up your side-by-side

Spacer

refrigerator

GETTING READY TO INSTALL
THE REFRIGERATOR

Congratulations on the purchase of your Samsung
Side-By-Side Refrigerator. We hope you will enjoy the
many state-of-the-art features and effi ciencies that
this new appliance has to offer.

Selecting the best location for the
refrigerator

• Select a location with easy access to the water
supply.

• Select a location without direct exposure to
sunlight.

• Select a location with level (or nearly level) fl ooring.

• Select a location with enough space for the
refrigerator doors to open easily.

• Overall space required in use. Refer to drawing and
dimension as below.

• Please ensure that appliance can be moved freely
in the event of maintenance & service.

25 mm

at least 50 mm at least 50 mm

732 mm

1027 mm

160º

160º

1724 mm

Spacer

Spacer(gray block) installation
For better performance, please certainly fi x the
spacer on the rear of unit when installing the
refrigerator. It is improving refrigerator performance.

777 mm

Spacer

1155 mm

Assembly Method

1. Take out packed spacer from the lowest guard of

50 mm

the fridge.

2. Check assembly location at the rear of Refrigerator
like picture

3. Locate spacer assembly location and put spacer
on the rear plate of Refrigerator.

English - 14

DA68-02710A-05.indd 14DA68-02710A-05.indd 14 2013. 12. 26.  7:292013. 12. 26.  7:29

When moving your
refrigerator

To prevent fl oor damage be
sure the front levelling legs are
in the up position (above the
fl oor).
Refer to ‘Levelling the
refrigerator’ in the manual (at
page 19).

To protect the fi nish of the
fl ooring, place the protection
sheet such as packing carton
under the refrigerator.

01 SETTING UP

CAUTION

Leg

When installing, servicing or cleaning
behind the refrigerator, be sure to pull the
unit straight out and push back in straight
after fi nishing.

Screw Driver

English - 15

DA68-02710A-05.indd 15DA68-02710A-05.indd 15 2013. 12. 26.  7:292013. 12. 26.  7:29

REMOVING THE REFRIGERATOR
DOORS

If your entrance won’t allow the refrigerator to pass
easily through it, you can remove the doors.

1. With the Freezer door closed, remove the upper
hinge cover

1

using a screwdriver, and then

disconnect the wires by gently pulling them apart

2

.

1. Removing the Front Leg Cover

First, open both the freezer and refrigerator doors,
and then take off the front leg cover by removing the
three screws counter-clockwise.

Separating the Water Supply Line from
the Refrigerator

1. Remove the water line by pressing the coupler 1
and pulling the water line

2

away.

water tube match
same colour.

1

2

Be careful
that the

1

2

2. Remove hinge screws
clockwise, and take off the upper hinge

3

by turning counter-

4

careful that the door does not fall on you as you
are removing it.

3

4

3. Next, remove the door from the lower hinge

6

carefully lifting the door straight up

6

5

.

Be careful not to pinch the water tubing and
wire harness on the door.

7

4. Remove the lower hinge

from the bracket 8

by gently lifting the lower hinge upwards.

. Be

5

by

2. Removing the freezer door

7

A few things to mention fi rst.

• Make sure that you lift the door straight up so the
hinges are not bent or broken.

8

• Be careful not to pinch the water tubing and wire
harness on the door.

• Place doors on a protected surface to prevent
scratching or damage.

English - 16

DA68-02710A-05.indd 16DA68-02710A-05.indd 16 2013. 12. 26.  7:292013. 12. 26.  7:29

Removing the Fridge Door

1. With the door closed, remove the upper hinge

2. Remove hinge screws

1

cover

using a screwdriver.

1

2

3

by turning counter-clockwise, and take off the

upper hinge

4

. Be careful that the door does not

and the ground screw

fall on you as you are removing it

REATTACHING THE
REFRIGERATOR DOORS

Once you have safely placed your refrigerator where
you plan for it to stay, it is time to put the doors back
on.

Reattaching the Freezer Door

1. Replace the freezer door by inserting the water

1

line

back into the lower corner of the door and
then into the hole on the lower hinge
Gently pull the water line back down so that it runs
straight, with no kinks or bends.

2

.

1

01 SETTING UP

2

3

4

3. Remove the door from the lower hinge 5 by

6

lifting the door straight up

4. Remove the lower hinge

.

7

from the bracket 8

by gently lifting the lower hinge upwards.

2

2. Insert the upper hinge shaft
the corner of the freezer door

3

into the hole on

4

.
Make sure the hinge is level between the upper
hinge hole
and reattach the hinge screws

5

and the hole of the cabinet 6

7

by turning in a
clockwise direction.
Reconnect the wires.

7

5

6

3

4

3. Place the front part of the upper hinge cover
on the front of the upper hinge

9

and reattach

with the screw.

8

8

9

English - 17

DA68-02710A-05.indd 17DA68-02710A-05.indd 17 2013. 12. 26.  7:292013. 12. 26.  7:29

Reattaching the Fridge Door

Center of transparent

coupler

clip A (1/4 in.)
(6.35 mm)

1. Insert the lower hinge 1 back into the lower
hinge bracket

2

.

Reattaching the Water Supply Line

1. Insert the water line 2 into the coupler

1

2

1

.

2. Fit the hole in the corner of the fridge door
over the lower hinge

3

4

3. Insert the upper hinge shaft
on the hinge
between the upper hinge hole
the top of the cabinet

9

screws

and the ground screw 10 by turning it

4

.

5

6

. Make sure the hinge is level

into the hole

7

8

and the hole on

. Then, reattach hinge

in a clock wise direction.

4. Place the front part of the upper hinge cover
on the front of the upper hinge

and reattach it

12

with the screw.

3

1

2

2. The Water Line must be fully Inserted to the center
of transparent coupler to prevent water leakage
from the dispenser.

3. Insert the 2 clips in the install pack and check that
each clip holds the line fi rmly.

Center of transparent

coupler

clip A (1/4 in.)
(6.35 mm)

Do not cut the water line.
Gently separate it from the coupler.

Reattaching the Front Leg Cover

Before attaching the cover, check water
connector for leakage.
Replace the front leg cover by turning the three

11

screws clockwise, as shown in the fi gure.

12

11

English - 18

DA68-02710A-05.indd 18DA68-02710A-05.indd 18 2013. 12. 26.  7:292013. 12. 26.  7:29

LEVELLING THE REFRIGERATOR

Now that the doors are back on the refrigerator, you
will want to make sure the refrigerator is level so you
can then make fi nal adjustments. If the refrigerator
is not level, it will not be possible to get the doors
perfectly even.

The front of the refrigerator is also adjustable.

When the Freezer door is lower than
the fridge

Insert a fl at-blade screwdriver into a notch on the
Leg, turn it clockwise or counter clockwise to level
the freezer.

Leg

Screw Driver

When the Freezer door is higher than
the fridge

Insert a fl at-blade screwdriver into a notch on the
Leg, turn it clockwise or counter clockwise to level
the fridge.

MAKING MINOR ADJUSTMENTS
TO THE DOORS

Remember, a level refrigerator is necessary for getting
the doors perfectly even. If you need help, review the
previous section on levelling the refrigerator.

When the door of the freezer
is higher than the fridge

Adjustment
part

In the process for adjusting both the doors is the
same. Open the doors and adjust them, one at a
time, as follows:

1. Unscrew the

1

nut

from the
lower hinge until
it reaches the
upper end of the

2

bolt

.

1

When you release the nut

, make sure that

you use the Allen wrench provided

2

the bolt

in a counter-clockwise direction.
You should then be able to unscrew the nut
with your fi ngers.

Wrench

3

1

Nut

3

to loosen

Bolt

2

1

01 SETTING UP

2. Adjust the

Wrench

3

Bolt

2

, the door will

Wrench

3

2

1

Nut

Bolt

Leg

Screw Driver

Refer to the next section for the best way to
make very minor adjustments to the doors.

height difference
between the
doors by turning

2

the bolt
clockwise
or counter clockwise

When you turn clockwise
move up.

3. After adjusting
the doors, turn

1

the nut
clockwise
until it reaches

.

the lower end
of the bolt, then
tighten the bolt again with the wrench
the nut in place

1

.

3

to fi x

If you do not secure the nut fi rmly, the bolt may
release.

English - 19

DA68-02710A-05.indd 19DA68-02710A-05.indd 19 2013. 12. 26.  7:292013. 12. 26.  7:29

CHECKING THE WATER

Ice Chute

DISPENSER LINE (OPTIONAL)

A water dispenser is just one of the helpful features
on your new Samsung refrigerator. To help promote
better health, the Samsung water fi lter removes
unwanted particles from your water. However, it
does not sterilize or destroy microorganisms. You
will need to purchase a water purifying system to do
that. In order for the icemaker to operate properly,
water pressure of 138 ~862 kPa is required. Under
normal conditions, a 170 cc paper cup can be fi lled
in 10 seconds. If the refrigerator is installed in an area
with low water pressure (below 138 kPa), you can
install a booster pump to compensate for the low
pressure. Make sure the water storage tank inside
the refrigerator is properly fi lled. To do this, press the
water dispenser lever until the water runs from the
water outlet. When using the Water Dispenser, Slight
noises can be generated from supplying water.

Water Line installation Kits are included. You can
fi nd it in one of the freezer drawers.

USING THE ICE MAKER (OPTIONAL)

(RS77*, RS54H*)

To Remove the Ice Bucket

-

Hold the handle as shown in fi gure1.

-

Slightly pull up the bottom part.

-

Take out the ice bucket slowly.

To Refi t The Ice Bucket

- Assemble it in the reverse
order of disassembly.

- Push the bucket in fi rmly until
you hear a clicking sound.

- When the bucket does not fi t
into its place, turn the gear
handle on its back by 90
degrees and reinstall it again
as shown in fi gure 2.

Normal Operation

-

Any sounds you hear when the ice
maker dumps ice into the bucket
are part of normal operation.

- Not dispensing ice for long
periods may cause ice
clumps in the ice bucket.
Remove the remaining ice
and empty the bucket.

- When ice does not come out,
Check for any ice stuck in the
chute and remove it.

-

The fi rst batch of ice cubes may
be small due to air in the pipe
after connection, any air will be
purged during normal use.

Figure1

Figure2

Ice Chute

- When ICE OFF blinks on the display panel,
reinsert the bucket and/or make sure it’s

CAUTION

installed properly.

- When the door is open, the Ice and water
dispenser do not work.

- If you close the door hard, it may cause
water spilling over the ice maker.

- To prevent dropping the ice bucket, use
both hands when removing it.

- To prevent injury, be sure to clean up any
ice or water that may have dropped on
the fl oor.

Do not let children hang on the ice dispenser

-
or on the bucket.
They may get hurt.

- Be sure not to put your hand or any object
into the ice chute.

It may cause personal injury or damage

mechanical parts.

Check the amount of water supplied
to the ice tray. (RS757*/ RS756*)

1. Lift up the icemaker cover and gently pull out.

2. When you press the Test button for 3 seconds,
the ice cube container is fi lled with water from the
water supply tap. Check to make sure the amount
of water is correct (see the illustration below).

If the water level is too low, the ice cubes will be

small. This is a water pressure problem from with
in the main water pipes, not the refrigerator.

1

Ice maker

Feeler Arm

Check the water level

Test button

2

DA68-02710A-05.indd 20DA68-02710A-05.indd 20 2013. 12. 26.  7:292013. 12. 26.  7:29

English - 20

INSTALLING THE WATER

Close Main

Water pipe

Close Main
Water pipe

NO GAP

Remove

cap

Water Line

from unit

Water Line

from Kit

No gap

Loosen a

DISPENSER LINE

For Interior model

Parts for water line Installation

2

1

Water line fi xer and screws

Pipe connector

3. Join the two pipes together using the compression
joint from the install kit ensuring that the joint is
water tight.

4. Join the other end of the install pipe to the main
water supply and turn on the water to check for
leaks.

Remove

Water Line

from unit

cap

Loosen a

01 SETTING UP

3

Water line

4

Clip

5

Water Filter

Connecting to the water supply line

1. fi rst, shut off the main water supply line.

2. locate the nearest cold, drinking water line.

3. follow the Water line Installation Instructions in the
installation kit.

CAUTION

The water line must be connected

to the cold water pipe. If it is connected

to the hot water pipe, it may cause the

purifi er to malfunction.

Close Main
Water pipe

Close Main
Water pipe

4. After connecting the water supply to the water
fi lter, turn your main water supply back on and
dispense about 1 L to clear and prime the water
fi lter.

NO GAP

Water Line

from Kit

Only connect the water line to a drinkable water
source.
If you have to repair or disassemble the water

No gap

line, cut off 6.5 mm of the plastic tubing to
make sure you get a snug, leak-free connection.

Before being used, the leakage in

CAUTION

• Samsung Warranty does not cover WATER LINE

• The cost of connection to a water supply is at the

• Please contact Plumber or Authorized Installer for

• If Water leakage occurs due to improper

these places should be examined

INSTALLATION.

customer expense, unless included in the delivery
charge (refer to the delivery agreement with the
seller)

the installation if needed.

installation, Please contact installer.

Connecting the water line to the
refrigerator

1. Remove the dust cap from the water line on the
rear of the unit and fi t a compression nut from the
install kit.

2. Remove the water pipe from the install kit and fi t a
compression nut to one end.

English - 21

DA68-02710A-05.indd 21DA68-02710A-05.indd 21 2013. 12. 26.  7:292013. 12. 26.  7:29

Remove any residual matter inside

Locking Clip

Insert Locking Clip After
tube seated

the purifi er. (Model with the coolselect
zone)

1. Turn ON the main water supply.

2. Run water through the dispenser until the water
runs clear (approximate 3 liter).

The initial dark discoloration of water and ice is
normal

INSTALLING THE WATER
DISPENSER LINE

For Exterior model

Parts for water line Installation

select the location where the purifi er is to
install. (Model with the purifi er)

- If you wish to reassemble the water inlet and outlet
sides of the purifi er during purifi er installation, see
the reference illustration.

- Cut the water line attached to the purifi er to the
appropriate place after measuring the distance
between the purifi er and the cold water tap.

COUPLER “A”

TAP

LINE OUTLET

Water line fi xer and screws

Water line

Purifi er lock-clip

Pipe connector

Purifi er

Connecting to the water supply line

Connect the water pipe with coupler and tap.

1. Close the main water tap.

2. Connect coupler “A” to the tap.

CAUTION

The water line must be connected to the cold

water pipe. If it is connected to the hot water
pipe, it may cause the purifi er to malfunction.

WARRANTY INFORMATION

This water line installation is not covered by the
refrigerator or ice maker manufacturer’s warranty.
Follow these instructions carefully to minimise the risk of
expensive water damage.

Note:

If the coupler does not fi t on the current tap, go
the nearest authorized service dealer and purchase the
right couplers fi ttings.

SIDE OF

PURIFIER

PURIFIER WATER

WATER INLET
SIDE OF PURIFIER

90 degree

CAUTION

Insert Locking Clip After
tube seated

COUPLER

Locking Clip

English - 22

DA68-02710A-05.indd 22DA68-02710A-05.indd 22 2013. 12. 26.  7:292013. 12. 26.  7:29

Remove any residual matter inside the
purifi er. (Model with the purifi er)

- Open the main water tap to check whether water
is running through the water tube on the water inlet
side of the purifi er.

- If water does not come out through the line, check
whether the tap is open.

- Leave the tap open until clean water is running
out and any residual matter that built up during
manufacturing has been removed.

OUTLET SIDE

OF PURIFIER

PURIFIER

Connect the water line to the
refrigerator.

- Remove the compressor cover of the refrigerator.

- Connect the water line to the valve, as shown in
the fi gure.

- When connected, check if there is any leakage.

If any, repeat the connection.

- Reattach the compressor cover of the refrigerator.

WATER LINE

CONNECTION NUT

01 SETTING UP

WATER

The initial dark discoloration of water and ice is
normal.

WATER LINE

Attach the purifi er lock-clip.

- Hold the purifi er lock-clip in the appropriate position
(under the sink for example) and fi x it tightly into
place where to screw.

PURIFIER LOCK-CLIP

Do not fi x the purifi er on the refrigerator

CAUTION

or rear of refrigerator, it may cause
material damage.

Secure the purifi er in position.

- Fix the purifi er in position, as shown in the fi gure on
the right.

INSTRUCTIONS
COMPRESSOR COVER OF
REFRIGERATOR

Secure the water line.

- Using clip ”A”, fi x the water
line to the wall (the back of
refrigerator).

- When the water line is
secure, make sure whether
the water line is not
excessively bent, pinched or
squashed.

CLIP A

WATER LINE

Removing any residual matter inside
the water supply line after installing
fi lter.

1. Turn ON the main water supply & turn OFF the

valve to the water supply line.

2. Run water through the dispenser until the water

runs clear (approximate 3 liter). This will clean the
water supply system and remove air from the lines.

3. Additional fl ushing may be required in some

households.

4. Open the refrigerator door and make sure there

are no water leaks coming from the water fi lter.

WATER TUBE

PURIFIER LOCK-CLIP

PURIFIER

A newly installed water fi lter cartridge may cause
water to briefl y spurt from the water dispenser.
This is due to air getting into the line. It should
pose no problem to operation.

English - 23

DA68-02710A-05.indd 23DA68-02710A-05.indd 23 2013. 12. 26.  7:292013. 12. 26.  7:29

operating the SAMSUNG
side-by-side refrigerator

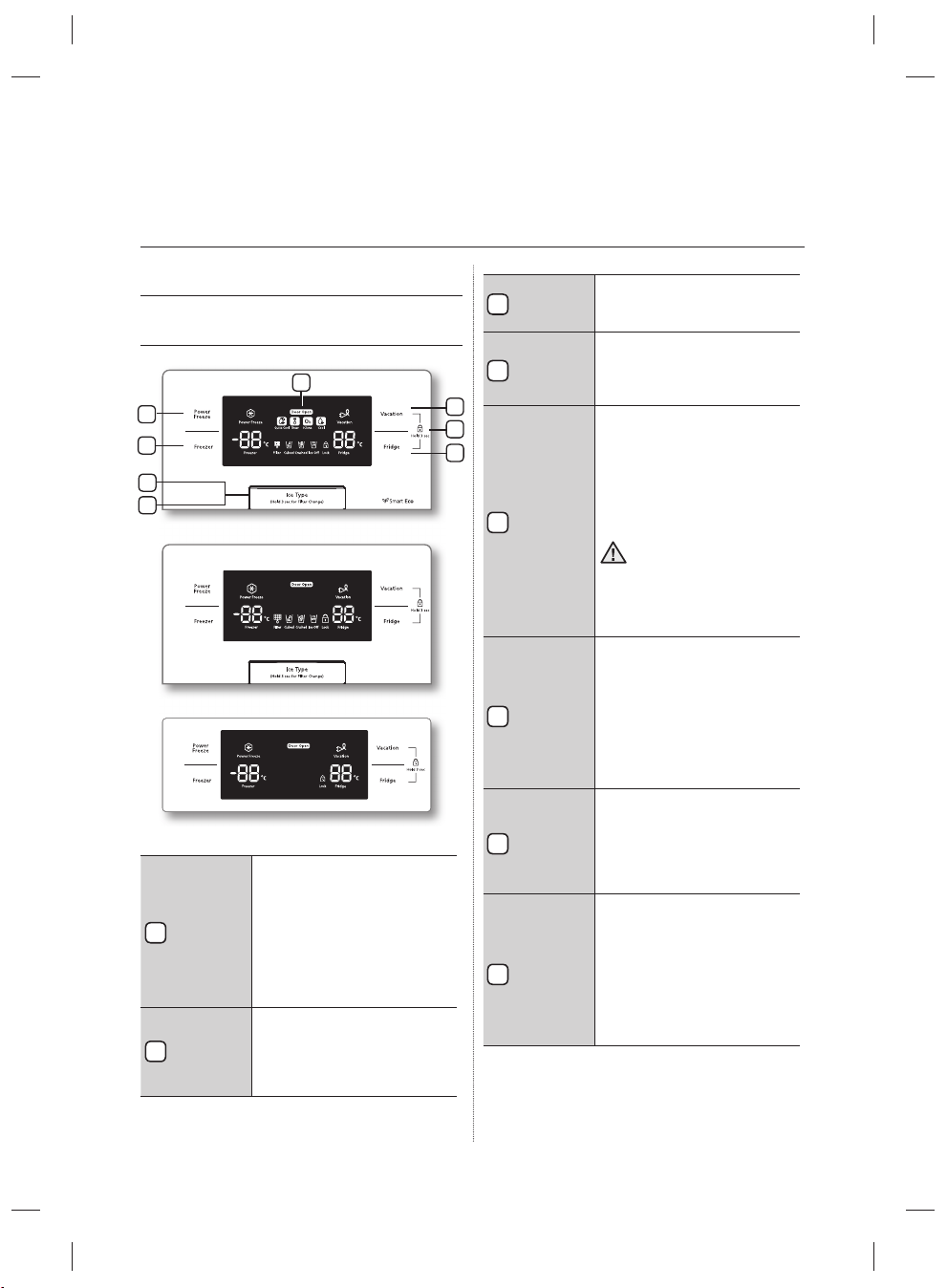

OPERATING THE REFRIGERATOR

USING THE CONTROL PANEL /
DIGITAL DISPLAY

COOLSELECT MODEL

8

1

2

3

4

DISPENSER MODEL

NORMAL MODEL

Speeds up the time needed
to freeze products in the

POWER
FREEZE

1

BUTTON

FREEZER

2

BUTTON

freezer. This can be helpful
if you need to quickly freeze
items that spoil easily or if the
temperature in the freezer
has warmed dramatically (For
example, if the door was left
open).

Press the Freezer button to
set the freezer to your desired
temperature, You can set the
temperature between -15°C
(6°F) and -23ºC (-10°F).

ICE TYPE

3

BUTTON

FILTER
CHANGE

4

5

6

7

BUTTON

VACATION

5

BUTTON

CHILD
LOCK

6

FUNCTION

FRIDGE

7

BUTTON

DOOR
OPEN

8

FUNCTION

Use this button to choose
Cubed, Crushed or to turn the
Ice feature off.

When you change the fi lter,
press this button for 3
seconds to reset the fi lter
schedule.

If you are going on vacation
or business trip or you do not
need to use the refrigerator,
press the Vacation button.
When you select vacation
button for fridge compartment
off, display LED of Vacation will
be on.

It is strongly requested to
remove foods in the fresh­food compartment and do
not leave the door open
when you select Vacation
function.

By pressing the Vacation
button and the Fridge button
simultaneously for 3 seconds,
all buttons will be locked. The
Water dispenser lever and
the Ice lever will not work
either. To cancel this function,
Press these two buttons for 3
seconds again.

Press the Fridge button to
set the fridge to your desired
temperature.
You can set temperature
between 1°C and 7°C (34°F
and 46°F).

1. If the fridge or the freezer
door is open, the "Door
Open" icon is lit.

2.

If the condition that

generates a door alarm is
satisfi ed because the fridge
or the freezer door is open,
the "Door Open" icon blinks.

English - 24

DA68-02710A-05.indd 24DA68-02710A-05.indd 24 2013. 12. 26.  7:292013. 12. 26.  7:29

When you use Power Freeze the energy
consumption of the refrigerator will increase.
Remember to turn it off when you don’t
need it and return the freezer to your original
temperature setting.
If you need to freeze large amount of food stuff,
activate Power Freeze function at least 20 hours
before.

Display Off Function

To energy conservation the Panel Display turns off
automatically under the following conditions:
When no button has been pressed, when no doors
are open, or when no Dispenser Lever has been
pushed.
However, the icon indicating your Vacation or Cubed
/ Crushed / Ice Off, will stay on.
When you press a button, open a door, or push
Dispenser Lever, the Panel Display will turn on again.
Except for the Ice Type button, all function buttons
will become operational after you remove your fi nger
from the button you are currently pressing.

CONTROLLING THE
TEMPERATURE

CONTROLLING THE FREEZER
TEMPERATURE

The freezer temperature can be set between -15°C
(6°F) and -23ºC (-10°F) to suit your particular
needs. Press the Freezer button repeatedly until the
desired temperature is shown in the temperature
display. Keep in mind that foods like ice cream may
melt at -16ºC (4°F).
The temperature display will move sequentially from

-15°C (6°F) and -23ºC (-10°F). When the display
reaches -23ºC (-10°F), it will begin again at -15ºC
(6°F).
Five seconds after the new temperature is set the
display will again show the actual current freezer
temperature. However, this number will change as
the Freezer adjusts to the new temperature.

When you place the SHELF-BOTTOM instead of
Bottom drawer, the SHELF-BOTTOM is two star
section (All models). The Bottom door guard in
the freezer is two star section.
(RSH7, RS77, RS7528, RS7527, RS54H,
RS57H models).
So, the Temperature in the two star sections are
slightly higher than other freezer compartment.

CONTROLLING THE FRIDGE
TEMPERATURE

The refrigerator temperature can be set between 7ºC
(46°F) and 1ºC (34°F) to suit your particular
needs. Press the Fridge button repeatedly until the
desired temperature is shown in the temperature
display.
The temperature control process for the Fridge works
just like the Freezer process.
Press the Fridge button to set your desired
temperature.
After a few seconds, the Fridge will begin tracking
towards the newly set temperature.
This will be refl ected in the digital display.

The temperature of the freezer or the refrigerator
may rise from opening the doors too frequently,
or if a large amount of warm or hot food is
placed in either side.
This may cause the digital display to blink.
Once the freezer and refrigerator return to their
normal set temperatures the blinking will stop.
If the blinking continues, you may need to “reset”
the refrigerator.
Try unplugging the appliance, wait about 10
minutes and then plug back in.

02 OPERATING

English - 25

DA68-02710A-05.indd 25DA68-02710A-05.indd 25 2013. 12. 26.  7:292013. 12. 26.  7:29

USING THE ICE AND COLD
WATER DISPENSER

Press the Ice Type button to select the type of ice
you want

No Ice

Select this if you want to
turn off the icemaker

Ice is made in cubes. When you select
“Crushed”, the icemaker grinds the ice cubes
into crushed ice.

Dispensing ice

Place your glass underneath the ice outlet and push
gently against the ice dispenser lever with your glass.
Make sure the glass is in line with the dispenser to
prevent the ice from bouncing out.

Using the Water Dispenser

Place a glass underneath the water outlet and
push gently against the water dispenser lever with
your glass. Make sure the glass is in line with the
dispenser to prevent the water from splashing out.

• Do not put your fi ngers, hands or any

WARNING

CAUTION

other unsuitable objects in the chute or
ice-maker bucket.

- It may result in personal injury or material
damage.

• Never put fi nger or any other objects in

the dispenser opening.

- It may cause injury.

• Use only the ice maker provided with the

refrigerator.

• The water supply to this refrigerator must

only be installed/connected by a suitably
qualifi ed person and connect to a potable
water supply only.

• In order to operate the ice maker properly,

water pressure of 138 ~ 862 kPa is
required.

• If you have a long vacation or business

trip and won’t use water or ice
dispensers, close the water valve.

- Otherwise, water leakage may occur.

• Wipe excess moisture from the inside and

leave the doors open.

- Otherwise, odor and mold may develop.

English - 26

DA68-02710A-05.indd 26DA68-02710A-05.indd 26 2013. 12. 26.  7:292013. 12. 26.  7:29

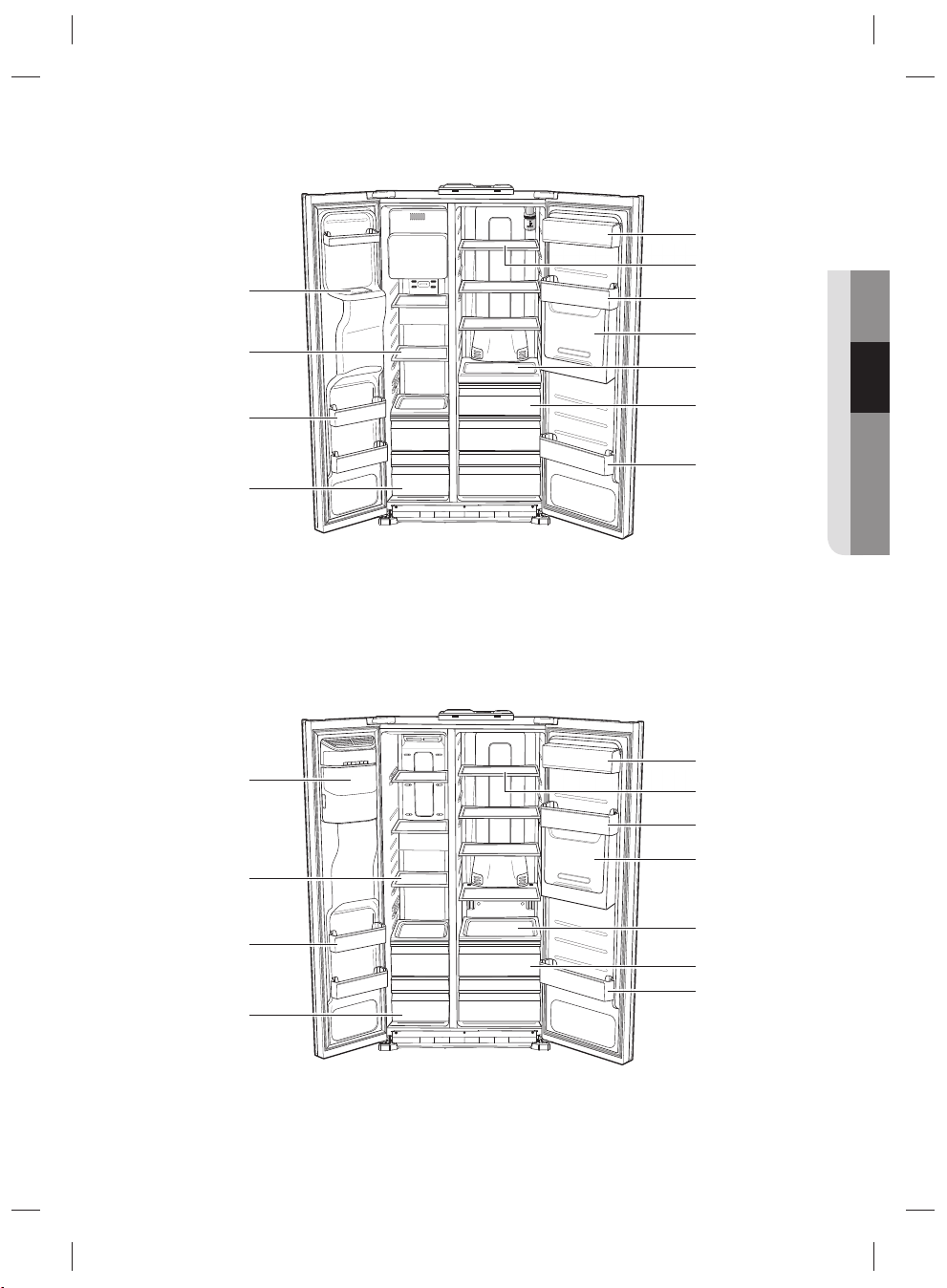

<RS757*/ RS756*>

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

(9)

(10)

(11)

(12)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

(9)

(10)

(11)

(1)

(2)

(3)

(4)

<RS77* / RS54H*>

(5)

(6)

(7)

(8)

(9)

(10)

(11)

02 OPERATING

(12)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

(9)

(10)

(11)

English - 27

DA68-02710A-05.indd 27DA68-02710A-05.indd 27 2013. 12. 26.  7:292013. 12. 26.  7:29

<RS772*/RS752*/RS57H*>

(2)

(3)

(4)

(5)

(6)

(7)

(9)

(10)

(11)

(2)

(5)

(6)

(7)

(3)

(4)

(9)

(10)

(11)

English - 28

DA68-02710A-05.indd 28DA68-02710A-05.indd 28 2013. 12. 26.  7:292013. 12. 26.  7:29

(1) Ice Chute

Do not put your fingers, hands or any

WARNING

other objects in the ice chute or the
ice maker bucket. This may result in
personal injury or material damage.

(2) Shelves

Can be used to store all types of frozen food.

(3) Door Bins

Can be used for small packages of frozen food.

(4) Drawers

Best used to store meats or dry foods.
Stored food should be wrapped securely using
foil or other suitable wrapping materials or
containers.

(5) Dairy Bin

Can be used to store smaller dairy items like
butter or margarine, yogurt or cream-cheese
bricks.

(6) Shelves

Designed to be crack-resistant.
They can be used to store all types of food and
drinks. Circular marks on the glass surface are a
normal phenomenon and can usually be wiped
clean with a damp cloth.

(8) Beverage Station (Optional)

Can be used to store the frequently used items,
such as canned beverages and snacks and
allows access to these items without opening
the refrigerator door.

(9) Moving Shelf (Optional)

Designed to move with foods easily.
It can be used to store all types food and drinks
need to move often.

(10) Fruit & Vegetable Drawer

Used to preserve the freshness of your stored
vegetables and fruits.
It has been specifically designed to control the
level of humidity within the drawer.

(11) Door Bins

Designed to handle large, bulky items such
as gallons of milk or other large bottles and
containers.

(12) Ice Maker Bucket

Designed to store lots of ice easily.

Do not put your fingers, hands or any

WARNING

other objects in the ice chute or the
ice maker bucket. This ma y result in
personal injury or material damage.

02 OPERATING

(7) Egg Tray

Best place to keep eggs.
Place the Egg Tray on the shelf for easy access.

English - 29

DA68-02710A-05.indd 29DA68-02710A-05.indd 29 2013. 12. 26.  7:292013. 12. 26.  7:29

For more space, you can store food with Guard
FRE-UPP instead of the ice bucket, and remove
the COVER-ICE MAKER.
If you remove the ice bucket, ICE OFF will blink
on the display panel.
Furthermore, you can remove the freezer Upper
drawer and Bottom drawer and locate the
‘SHELF-BOTTOM’ on the bottom of the freezer
since it does not affect thermal and mechanical
characteristics.
A declared storage volume of frozen food
storage compartment is calculated with "Guard
FRE-UPP", "SHELF-BOTTOM" positioned
and "COVER-ICE MAKER", "Upper Drawer",
"Bottom Drawer" removed.

GUARD FRE-UPP (Optional)

COVER-ICE MAKER

USING THE COOLSELECT
ZONE™ DRAWER (OPTIONAL)

Quick Cool

• You can use the Quick Cool feature with the
CoolSelect Zone

• “Quick Cool” allows 1~3 canned beverages to cool
within 60 min.

• To cancel this function, press the “Quick Cool”
button again. CoolSelect Zone
previous temperature.

• When “Quick Cool” ends, it returns to the “Cool”
temperature setting.

Thaw

• Drips loss and quality deterioration of meats
reduces the freshness of foods.

•

After “Thaw” is selected, warm and cold air is
alternately supplied into the CoolSelect Zone
Drawer.

• Depending on the weight of meat, thawing time
can be selected for 4 hrs, 6 hrs, 10 hrs, and 12 hrs
sequentially.

• When “Thaw” ends, CoolSelect Zone
returns to “Zero Zone” condition.

• When “Thaw “ ends, there are no juice in the meats
and they are half-freezed condition so it is easy to
cut them for cooking.

• To cancel this option, press any button except
“Thaw”.

• The approximate thawing time of meat and fi sh are
shown below. (Based on 1 inch thickness)

TM

.

TM

returns to the

TM

TM

display

SHELF-BOTTOM (Optional)

THAW TIME WEIGHT

4 hours 363 g (0.8 Ib)

6 hours 590 g (1.3 Ib)

10 hours 771 g (1.7 Ib)

12 hours 1000 g (2.2 Ib)

English - 30

DA68-02710A-05.indd 30DA68-02710A-05.indd 30 2013. 12. 26.  7:292013. 12. 26.  7:29

Depending on the size and thickness of meat
and fi sh, the thawing time may vary.
The above weight represents the total weight of
food in the CoolSelect Zone

TM

Drawer.
Ex) The total thawing time for 400 g frozen beef
and 600 g frozen chicken will be 10 hours.

WARNING

With the “Thaw” option, food which is not
needed to thaw in the CoolSelect Zone
Drawer should be removed.

TM

Zero Zone (0ºC)

• When “Zero Zone” is chosen, the temperature
of the CoolSelect Zone
regardless of the set refrigerator temperature.

• “Zero Zone” temperature helps keep meat or fi sh
fresh longer.

TM

Drawer is kept at 0 ºC

Cool

• When “Cool” is chosen, the temperature will be the
same as the set temperature of the refrigerator.
The digital panel shows the same temperature as
that of the display panel.

• The CoolSelect Zone
refrigerator space.

Depending on the beverages, the cool-down
time may vary.

TM

Drawer allows extra

REMOVING THE FREEZER
ACCESSORIES

Cleaning and rearranging the interior of the freezer is
simple.

1. Remove the Glass shelf by pulling the shelf out as
far as it will go. Then, gently lift it up and remove it.

2. Remove the door bin by holding the door bin with

both hands and then gently lift it up.

3. Remove the Plastic drawer by pulling it out and

slightly lifting it up.

02 OPERATING

WARNING

For “Quick Cool” option, food stored in
the CoolSelect Zone
removed.

TM

Drawer should be

4. ice bucket (freezer)

Remove the Icemaker

Bucket by lifting up and
pulling it out slowly.

• Grip the handle as

shown in the fi gure

• Lift the low part slightly

• Take the ice bucket out

slowly.

Do not use excessive force when removing the
cover.
Otherwise, the cover may break and cause
injury.

English - 31

DA68-02710A-05.indd 31DA68-02710A-05.indd 31 2013. 12. 26.  7:292013. 12. 26.  7:29

REMOVING THE FRIDGE
ACCESSORIES

1. Remove the spill Proof Glass Shelf by pulling the
shelf out as far as it will go. Then, gently lift it up
and gently remove it.

2. Remove the Vegetable & Fruit Drawer by
pressing on the indentations found on the inside
left and right sides of the Veggie Box/Dry Box
cover and remove by
pulling forward.

Holding the drawer with

one hand, lift it up a
little bit while pulling it
forward and take it out
of the refrigerator.

3. Remove the Gallon Door Bin by holding the bin
with both hands and gently lifting it up.

Before removing any
no food is in the way.
When possible, remove the food altogether to
reduce the risk of accidents.

accessories, make sure that

CLEANING THE REFRIGERATOR

Do not use Benzene, Thinner or Clorox™

WARNING

CAUTION

for cleaning. They may damage the surface
of the appliance and can create a risk of
fi r e .

Do not spray the refrigerator with water
while it is plugged in, as it may cause an
electric shock.
Do not clean the refrigerator with benzene,
thinner or car detergent for risk of fi re.

REPLACING THE INTERIOR
LIGHT

For LED lamp, please contact service engineer
to replace it.

CHANGING THE WATER FILTER

To reduce risk of water damage to your

WARNING

The “Filter Indicator” light lets you know when it is
time to change your water fi lter cartridge.
When the fi lter indicator light changes to red, it is time
to change the fi lter.
To give you some time to get a new fi lter, the light will
come on up just before the capacity of the current
fi lter runs out.
Changing the fi lter on time provides you with the
freshest, cleanest water from your fridge.

1. Remove the water fi lter from the box and put a

2. Place a sticker on the fi lter that dates six months

property DO NOT use generic brands of
water fi lers in your SAMSUNG Refrigerator.
USE ONLY SAMSUNG BRAND WATER
FILTERS. SAMSUNG will not be legally
responsible for any damage, including, but
not limited to property damage caused by
water leakage from use of a generic water
fi lter.
SAMSUNG Refrigerators are designed to
work ONLY WITH SAMSUNG Water Filter.

For Internal model

month indicator sticker on the fi lter as shown.

in the future. For example, if you are replacing the
water fi lter in March, put the “SEP” (September)
sticker on the fi lter to remind you to replace in
September. Normally fi lter life is about every 6
months.

English - 32

DA68-02710A-05.indd 32DA68-02710A-05.indd 32 2013. 12. 26.  7:292013. 12. 26.  7:29

3. Next, remove the fi xed cap by turning it counter
clockwise.

4. Remove the new fi lter’s protective cap and
remove the old fi lter.

5. Position and insert the new fi lter into the fi lter
housing. Slowly turn the water fi lter clockwise
90º to align with the indication mark on the cover,
locking the fi lter in position. Make sure that the
indicator is lined up with the “lock” position. Do
not over tighten.

1

Sticker
(month

indicator)

2

4

3

Cover fi lter

Align the
indication
mark with

5

lock position

For Exterior model

1. Shut off water supply.

2. Note the Flow direction on the fi lter.

3. Insert water supply tube into the inlet side of the

fi lter until the tube stop.

FLOW DIRECTION

7. Lastly, Dispense 1 L of water through water
dispenser and throw away. Make sure that water
fl ows clearly again before drinking.

02 OPERATING

A newly installed water fi lter cartridge may
cause water to briefl y spurt from the water
dispenser. This is due to air getting into the line.
It should pose no problem to operation.

Ordering replacement fi lters

To order more water fi lter cartridges, contact your
authorized Samsung dealer.

- Internal Filter - HAFIN2/EXP

- External Filter - HAFEX/EXP

WATER SUPPLY

INLET SIDE

Note : You must also ensure

that the cut is square
and not at any sort
of angle as this could
cause a leak

PERMEAT

4. After inserting tube, put together the clip strongly.
The Clip fi x the tube.

5. Turn on the water and check for leaks. If leaks
occur, repeat step 1,2,3,4. If leaks persist,
discontinue use and call your supporting dealer.

6. Once you have completed this process, hold the

Ice Type button for 3 seconds to reset the fi lter
schedule.

English - 33

DA68-02710A-05.indd 33DA68-02710A-05.indd 33 2013. 12. 26.  7:292013. 12. 26.  7:29

troubleshooting

PROBLEM SOLUTION

The refrigerator
does not work at all
or it does not chill
suffi ciently.

The food in the fridge is
frozen.

You hear unusual
noises or sounds.

The front corners of
the appliance are hot
and condensation is
occurring.

Ice is not dispensing.

You can hear water
bubbling in the
refrigerator.

There is a bad smell in
the refrigerator.

Frost forms on the
walls of the freezer.

Water dispenser is not
functioning.

• Check that the power plug is properly connected.

• Is the temperature control on the display panel set to the correct
temperature? Try setting it to a lower temperature.

• Is the refrigerator in direct sunlight or located too near a heat source?

• Is the back of the refrigerator too close to the wall and therefore keeping air
from circulating?

• Is the temperature control on the display panel set to the correct
temperature? Try setting it to a warmer temperature.

• Is the temperature in the room very low?

• Did you store the food with a high water content in the coldest part of the
fridge? Try moving those items into the body of the fridge instead of keeping
them in the CoolSelect Zone™ drawer.

• Check that the refrigerator is level and stable.

• Is the back of the refrigerator too close to the wall and therefore keeping air
from circulating?

• Was anything dropped behind or under the refrigerator?

• A “ticking” sound is heard from inside the refrigerator. This is normal and
occurs because various accessories are contracting or expanding in relation
to the temperature of the refrigerator interior.

• Some heat is normal as anti-condensators are installed in the front corners
of the refrigerator to prevent condensation.

• Is the refrigerator door ajar? Condensation can occur when you leave the
door open for a long time.

• Did you wait for 12 hours after installation of the water supply line before
making ice?

• Is the water line connected and the shut-off valve open?

• Did you manually stop the ice making function? Make sure Ice Type is set to
Cubed or Crushed.

• Is there any ice blocked within the ice maker bucket?

• Is the freezer temperature too warm? Try setting the freezer temperature
lower.

• This is normal. The bubbling comes from the refrigerant coolant liquid
circulating through the refrigerator.

• Has a food item spoiled?

• Make sure that strong smelling food (for example, fi sh) is wrapped so that it
is airtight.

• Clean out your freezer periodically and throw away any spoiled or suspect
food.

• Is the air vent blocked? Remove any obstructions so air can circulate freely.

• Allow suffi cient space between the foods stored for effi cient air circulation.

• Is the freezer door closed properly?

• Is the water line connected and the shut-off valve open?

• Has the water supply line tubing been crushed or kinked?
Make sure the tubing is free and clear of any obstruction.

• Is the water tank frozen because the refrigerator temperature is too low?
Try selecting a warmer setting on the main display panel.

English - 34

DA68-02710A-05.indd 34DA68-02710A-05.indd 34 2013. 12. 26.  7:292013. 12. 26.  7:29

memo

DA68-02710A-05.indd 35DA68-02710A-05.indd 35 2013. 12. 26.  7:292013. 12. 26.  7:29

Ambient Room Temperature Limits

This refrigerator is designed to operate in ambient temperatures specifi ed by its temperature
class marked on the rating plate.

Class Symbol Ambient Temperature range (°C)

Extended Temperate SN +10 to +32

Temperate N +16 to +32

Subtropical ST +16 to +38

Tropical T +16 to +43

Internal temperatures may be affected by such factors as the location of the refrigerator, ambient
temperature and the frequency with which you open the door. Adjust the
temperature as required to compensate for these factors.

Correct Disposal of This Product

English

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories
(e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their
working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal,
please separate these items from other types of waste and recycle them responsibly to promote the sustainable
reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government
offi ce, for details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG
customer care center.

COUNTRY CALL Web site

AUSTRALIA 1300 362 603 www.samsung.com/au

COLOMBIA

EIRE 0818 717 100 www.samsung.com

HONG KONG (852) 3698-4698

INDIA

MALAYSIA 1800-88-9999 www.samsung.com/my

NEW ZEALAND 0800 SAMSUNG (0800 726 786) www.samsung.com/nz

PANAMA 800-7267

PHILIPPINES

SINGAPORE 1800-SAMSUNG (726-7864) www.samsung.com/sg

SOUTH AFRICA 0860-SAMSUNG (726-7864) www.samsung.com

U.K 0330 SAMSUNG (726-7864) www.samsung.com

VIETNAM 1 800 588 889 www.samsung.com

1-800-8-7267864 [Globe landline and Mobile]

01 8000 112 112
Bogotá 600 12 72

1800 3000 8282

1800 266 8282

1-800-10-7267864 [PLDT]

02-4222111 [Other landline]

(Waste Electrical & Electronic Equipment)

www.samsung.com/co

www.samsung.com/hk

www.samsung.com/hk_en/

www.samsung.com/in

www.samsung.com/latin (Spanish)

www.samsung.com/latin_en (English)

www.samsung.com/ph

DA68-02710A-05

DA68-02710A-05.indd 36DA68-02710A-05.indd 36 2013. 12. 26.  7:292013. 12. 26.  7:29
