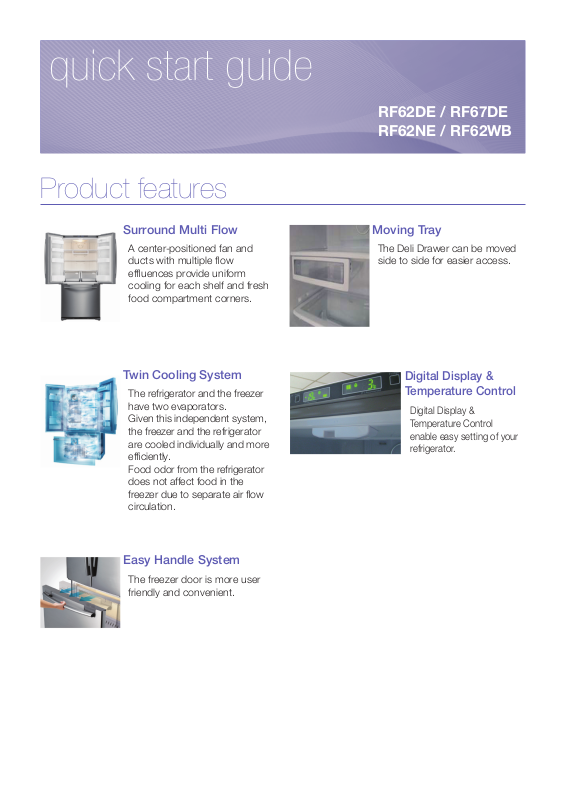

quick start guide
RF62DE / RF67DE
RF62NE / RF62WB
Product features
Surround Multi Flow
A center-positioned fan and ducts with multiple flow effluences provide uniform cooling for each shelf and fresh food compartment corners.
Moving Tray
The Deli Drawer can be moved side to side for easier access.
Twin Cooling System
The refrigerator and the freezer have two evaporators.
Given this independent system, the freezer and the refrigerator are cooled individually and more efficiently.
Food odor from the refrigerator does not affect food in the freezer due to separate air flow circulation.
Easy Handle System
The freezer door is more user friendly and convenient.
Digital Display & Temperature Control
Digital Display & Temperature Control enable easy setting of your refrigerator.
The Installation Space
150mm
100mm 100mm
Selecting the best location for the Refrigerator
•A Location with easy access to the water supply.
•A Location without direct exposure to sunlight.
•A Location with level (or nearly level) flooring.
•A Location with enough space for the Refrigerator doors to open easily.
•Allow sufficient space for air circulation of the internal cooling system.
If the Refrigerator does not have enough space, the internal cooling system may not work properly.
First thing! Make sure that you can easily move your Refrigerator to its final location by measuring doorways (both width and height), thresholds, ceilings, stairways, etc.
The following chart details the exact height and depth of Samsung French Door Refrigerator.
|
Model |
RF62HE/RF62QE |
RF67VB |
|
A |
|
RF62UB/ |
|
|
||
|
|
|
|
|
|
|
Capacity (ℓ) |
504.0 |
557.8 |
|
B |
|
Width (A) |
817 |
817 |
|
C |
|
without door (B) |
617 |
667 |
|
|
|
D |
E |
|||
Dimension |
Depth |
|
|
||
774 |
824 |
|
|
||
(mm) |
with door (C) |
|
|
||
without hinge (D) |
1743 |
1743 |
|
|
|
|
|
|
|||
|
Height |
1772 |
1772 |
|
|
|
with hinge (E) |
|
|
•Allow clearance to the right, left, back and top when installing.
This will help reduce power consumption and keep your energy bills lower.
•If you install the Refrigerator where is below 10ºC, it may not function optimally.
•Do not locate the refrigerator where the wet condition.
FLOORING
CAUTION For proper installation, this refrigerator must be placed on a level surface of hard material that is the same height as the rest of the flooring. This surface should be strong enough to support a fully loaded refrigerator, or approximately 106kg. To protect the finish of the flooring, cut a large section of the cardboard carton and place under the refrigerator where you are working. When moving the refrigerator, be sure to pull it straight out and return it to position by pushing it straight in.
Operating your French Door Refrigerator
Using the control panel
1 |
2 |
3 |
4 |
5 |
6 |
( |
1 |
) Ice Off Button |
When the Ice Off Button is pressed, ice will not be produced. |
|
Use this function only when it is needed. |
||||
|
|
|
||
|
|
|
|
|
|
|
|
Press this button to freeze food quickly. |
|
( |
2 |
) Power Freeze Button |
||
(Power Freeze will last 72 hours.) |
||||
|
|
|
||
|
|
|
|
|
|
|
|
Freezer temperature set button. |
|
|
|
|
||
( |
3 |
) Freezer Button |
Press this button to set the Freezer temp between -14ºC and -22ºC. |
|
|
|
|
(At initial power on, the default setting is -19ºC.) |
|
|
|
|
Fridge temperature set button. |
|
|
|
|
||
( |
4 |
) Fridge Button |
Press this button to set the Fridge temperature in 1ºC intervals between 7ºC and 1ºC. |
|
|
|
|
(At initial power on, the default setting is 3ºC.) |
|
|
|
|
Press this button to cool the food in the fridge quickly. |
|
( |
5 |
) Power Cool Button |
||
(Power Cool will shut off when -4ºC is reached or after 2 and a half hours. |
||||
|
|
|
||
|
|
|
|
|
|
|
|
Press the Energy Saver button for better energy efficiency. |
|
( 6 |
) E.Saver Button |
|||
If water drops appear on the doors, turn the Energy Saver function off. |
||||
|
|
|
|
