Samsung RF62HEVB User Manual [ru]

Refrigerator

user manual

imagine the possibilities

Thank you for purchasing a Samsung product.
To receive a more complete service,
please register your product at

www.samsung.com/register

English

Free Standing Appliance

DA68-01868T.indb 01DA68-01868T.indb 01 2011.7.4 9:22:1 PM2011.7.4 9:22:1 PM

safety information

SAFETY INFORMATION

• Before operating the appliance, please read this

manual thoroughly and retain it for your reference.

• Use this appliance only for its intended purpose

as described in this instruction manual. This
appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.

• Warnings and Important Safety Instructions in this

manual do not cover all possible conditions and
situations that may occur. It is your responsibility
to use common sense, caution, and care when
installing, maintaining, and operating your
appliance.

• Because these following operating instructions

cover various models, the characteristics of your
freezer may differ slightly from those described in
this manual.

Important safety symbols and
precautions:

Hazards or unsafe practices that may

WARNING

These warning signs are here to prevent injury to
you and others.
Please follow them explicitly.

result in severe personal injury or
death.

Hazards or unsafe practices that may
result in minor personal injury or

CAUTION

property damage.

Do NOT attempt.

Do NOT disassemble.

Do NOT touch.

Follow directions carefully.

Unplug the power plug from the wall
socket.

Make sure the machine is grounded to
prevent electric shock.

Call the contact center for help.

Note.

After reading this section, keep it in a safe place
for future reference.

CE Notice

This product has been determined to be in
compliance with the Low Voltage Directive
(2006/95/EC), the Electromagnetic Compatibility
Directive (2004/108/EC) and the Eco-Design
Directive(2009/125/EC) implemented by Regulation
(EC) No 643/2009 of the European Union.

SEVERE WARNING SIGNS
FOR TRANSPORTATION AND

WARNING

SITE

• When transporting and installing the

appliance, care should be taken to ensure
that no parts of the refrigerating circuit are

- Refrigerant leaking from the pipe work could

• In order to avoid the creation of a fl ammable

• Never start up an appliance showing any signs

damaged.

ignite or cause an eye injury. If a leak is detected,
avoid any naked fl ames or potential sources of
ignition and air the room in which the appliance is
standing for several minutes.

gas-air mixture if a leak in the refrigerating
circuit occurs, the size of the room in which the
appliance may be sited depends on the amount
of refrigerant used.

of damage. If in doubt, consult your dealer. The
room where the refrigerator will be sited must
be 1m³ in size for every 8g of R600a refrigerant
inside the appliance. The amount of refrigerant
in your particular appliance is shown on the
identifi cation plate inside the appliance.

SEVERE WARNING SIGNS

WARNING

FOR INSTALLATION

• Do not install the refrigerator in a damp

place or place where it may come in

- Deteriorated insulation of electrical parts may

• Do not place this refrigerator in direct sunlight or

• Do not plug several appliances into the same

contact with water.

cause an electric shock or fi re.

expose to the heat from stoves, room heaters or
other appliance.

multiple power board.
The refrigerator should always be plugged into
its own individual electrical which has a voltage

02_ safety information

DA68-01868T.indb 섹션1:02DA68-01868T.indb 섹션1:02 2011.7.4 9:22:1 PM2011.7.4 9:22:1 PM

rating that matched the rating plate.

- This provides the best performance and also

prevents overloading house wiring circuits, which
could cause a fi re hazard from overheated wires.

• If the wall socket is loose, do not insert the power

plug.

- There is a risk of electric shock of fi re.

• Do not use a cord that shows cracks or abrasion

damage along its length or at either end.

• Do not bend the power cord excessively or place

heavy articles on it.

• Do not use aerosols near the refrigerator.

- Aerosols used near the refrigerator may cause an

explosion or fi re.

• This refrigerator must be properly installed

and located in accordance with the manual

• Connect the power plug in proper position with

- If you connect the power plug upside down, wire

• Make sure that the power plug is not squashed

• When moving the refrigerator, be careful not to

- This constitutes a fi re hazard.

• The appliance must be positioned so that the

• Never use gas pipes, telephone lines or other

- Improper use of the ground plug can result in

• The fuse on the refrigerator must be changed by

- Failing to do so may result in electric shock or

before it is used.

the cord hanging down.

can get cut off and cause fi re or electric shock.

or damaged by the back of the refrigerator.

roll over or damage the power cord.

plug is accessible after installation.

• The refrigerator must be grounded.

- You must ground the refrigerator to

prevent any power leakages or electric
shocks caused by current leakage from
the refrigerator.

potential lightening rods as ground.

electric shock.

• If the power cord is damaged, have it

replaced immediately by the manufacturer
or its service agent.

a qualifi ed technician or service company.

personal injury.

CAUTION SIGNS FOR

CAUTION

INSTALLATION

• Keep ventilation opening in the appliance

enclosure or mounting structure clear of

• Allow the appliance to stand for 2 hours after

obstruction.

installation.

SEVERE WARNING SIGNS

WARNING

FOR USING

• Do not insert the power plug with wet

• Do not store articles on the top of the appliance.

- When you open or close the door, the articles

• Do not put items fi lled with water on the

- If spilled, there is a risk of fi re or electric shock.

• Do not let children hang on the door.

- Failure to do so may cause serious personal

• Do not leave the doors of the refrigerator open

- There is a risk of children entrapment and serious

• Never put fi ngers or other objects into the

- Failure to do so may cause personal injury or

• Do not store volatile or fl ammable substances

- The storage of any of such products may cause

• Do not store low temperature-sensitive

- Products that require strict temperature controls

• Do not place or use electrical appliance inside

• Do not use a hair dryer to dry the inside of the

- This may result in electric shock or fi re.

• Do not touch the inside walls of the freezer or

- This may cause frostbite.

• Do not use mechanical devices or any other

• Do not damage the refrigerant circuit.

• Bottles should be stored tightly together so that

• If a gas leak is detected, avoid any naked fl ames

hands.

may fall and cause personal injury and/or material
damage.

refrigerator.

injury.

while the refrigerator is unattended and do not let
children enter inside of the refrigerator.

personal injury because of low temperature.

dispenser hole.

material damage.

such as benzene, thinner, alcohol, ether or LP
gas in the refrigerator.

explosions.

pharmaceuticals products, scientifi c materials or
other low temperature-sensitive products in the
refrigerator.

must not be stored in the refrigerator.

the refrigerator, unless they are of a type
recommended by the manufacturer.

refrigerator. Do not place a lighted candle in the
refrigerator for removing bad odors.

products stored in the freezer with wet hands.

means to accelerate the defrosting process, other
than those recommended by the manufacturer.

• This product is intended only for the

storage of food in a domestic environment.

they do not fall out.

or potential sources of ignition and air the room
in which the appliance is standing for several

safety information _03

DA68-01868T.indb 섹션1:03DA68-01868T.indb 섹션1:03 2011.7.4 9:22:2 PM2011.7.4 9:22:2 PM

minutes.

• Use only the LED Lamps provided by

manufacturer or service agents.

• Children should be supervised to ensure that they

do not play with and/or climb into the appliance.

• Do not disassemble or repair the

- You run risk of causing a fi re, malfunction and/

- Failing to do so may result in electric or fi re

• If you experience diffi culty when changing the

• If the products equipped with LED Lamp, do

- Please contact your service agents.

• If any dust or water is in refrigerator, pull

- There is a risk of fi re.

CAUTION

- Wrap the food up properly or place it in airtight

• Do not place carbonated or fi zzy drinks in the

- When the contents freeze, the glass may break

• Do not change the functionality of or modify the

- Changes or modifi cations may result in personal

• Do not block air holes.

- If the air holes are blocked, especially with a

04_ safety information

refrigerator by yourself.

or personal injury. In case of malfunction, please
contact your service agents.

• If the appliance generates a strange noise,

a burning or smell or smoke, unplug the
power plug immediately and contact your
nearest service center.

hazards. Keep ventilation opening in the
appliance enclosure or mounting structure clear
of obstruction.

light, contact service agents.

not disassemble Lamp Cover and LED Lamp by
yourself.

out power plug and contact your Samsung
Electronics service center.

CAUTION SIGNS FOR USING

• To get best performance of product,

- Do not place foods too closely in front of

the vents at the rear of the appliance as
it can obstruct free air circulation in the
refrigerator compartment.

containers before put it into the refrigerator.

freezer compartment. Do not put bottles or glass
containers in the freezer.

and cause personal injury and property damage.

refrigerator.

injury and/or property damage. Any changes or
modifi cations performed by a 3rd party on this
completed appliance is neither covered under
Samsung warranty service, nor is Samsung
responsible for safety issues and damages that
result from 3rd party modifi cations.

plastic bag, the refrigerator can be over cooled. If
this cooling period lasts too long, the water fi lter
may break and cause water leakage.

- Do not put any newly introduced food for freezing

near to already food.

• Please observe maximum storage times and

expiry dates of frozen goods.

• Fill water tank, ice tray, water cubes only with

potable water.

• Use only the ice maker provided with the

refrigerator.

• The water supply to this refrigerator must only be

installed/connected by a suitably qualifi ed person
and connect to a potable water supply only.

• In order to operate the ice maker properly, water

pressure of 138 ~ 862kpa(1.4~8.8kgf/cm
required.

3

) is

CAUTION SIGNS
FOR CLEANING AND

CAUTION

MAINTENANCE

• Do not directly spray water inside or

- There is a risk of fi re or electric shock.

• Do not spray infl ammable gas near the

- There is a risk of explosion or fi re.

• Do not spray cleaning products directly on the

- Printed letters on the display may come off.

• Remove any foreign matter or dust from the

- Otherwise there is a risk of fi re or electric shock.

• Never put fi ngers or other objects into the

- It may cause personal injury or material damage.

outside the refrigerator.

refrigerator.

display.

power plug pins. But do not use a wet or damp
cloth when cleaning the plug, remove any foreign
material or dust from the power plug pins.

dispenser hole and ice chute.

• Unplug the refrigerator before cleaning and

performing maintenance.

SEVERE WARNING SIGNS

WARNING

FOR DISPOSAL

• Ensure that none of the pipes on the back

of the appliance are damaged prior to

• R600a or R134a is used as a refrigerant. Check

disposal.

the compressor label on the rear of the appliance
or the rating label inside the refrigerator to see
which refrigerant is used for your refrigerator.
When this product contains fl ammable gas
(Refrigerant R600a), contact your local authority

DA68-01868T.indb 섹션1:04DA68-01868T.indb 섹션1:04 2011.7.4 9:22:2 PM2011.7.4 9:22:2 PM

in regard to safe disposal of this product.
Cyclopentane is used as a insulation blowing gas.
The gases in insulation material require special
disposal procedure. Please contact your local
authorities in regard to the environmentally safe
disposal of this product. Ensure that none of the
pipes on the back of the appliances are damaged
prior to disposal. The pipes shall be broke in the
open space.

• If the appliance contains iso-butane refrigerant

(R600a), a natural gas with high environmental
compatibility that is, however, also combustible.
When transporting and installing the appliance,
care should be taken to ensure that no parts of
the refrigerating circuit are damaged.

• When disposing of this product or other

refrigerators, remove the door/door seals, door
latch so that small children or animals cannot
become trapped inside. Leave the shelves in
place so that children may not easily climb inside.
Children should be supervised to ensure that they
do not play with the old appliance.

• Please dispose of the packaging material for this

product in an environmentally friendly manner.

ADDITIONAL TIPS FOR
PROPER USAGE

• In the event of a power failure, call the local offi ce

of your Electricity Company and ask how long it
is going to last.

- Most power failures that are corrected within

an hour or two will not affect your refrigerator
temperatures. However, you should minimize the
number of door openings while the power is off.

- Should the power failure last more than 24 hours,

remove all frozen food.

• If keys are provided with the refrigerator, the keys

should be kept out of the reach of children and
not in vicinity of the appliance.

• The appliance might not operate consistently

(possibility of temperature becoming too warm
in refrigerator) when sited for an extended period
of time below the cold end of the range of

temperature for which the refrigerating appliance
is designed.

• Do not store food which spoils easily at low

temperature, such as bananas, melons.

• Your appliance is frost free, which means there is

no need to manually defrost your appliance, as
this will be carried out automatically.

• Temperature rising during the defrost can comply

with ISO requirement. But if you want to prevent
an undue rise in the temperature of the frozen
food while defrosting the appliance, please wrap
the frozen food in several layers of newspaper.

• Any increase in temperature of frozen food during

defrosting can shorten its storage life.

Saving Energy Tips

- Install the appliance in a cool, dry room with

adequate ventilation.
Ensure that it is not exposed to direct sunlight
and never put it near a direct source of heat
(radiator, for example).

- Never block any vents or grilles on the appliance.

- Allow warm food to cool down before placing it in

the appliance.

- Put frozen food in the refrigerator to thaw.

You can then use the low temperatures of the
frozen products to cool food in the refrigerator.

- Do not keep the door of the appliance open for

too long when putting food in or taking food out.
The shorter time for which the door is open, the
less ice will form in the freezer.

- Clean the rear of the refrigerator regularly. Dust

increases energy consumption.

- Do not set temperature colder than necessary.

- Ensure suffi cient air exhaust at the refrigerator

base and at the back wall of the refrigerator.
Do not cover air vent openings.

- Allow clearance to the right, left, back and top

when installing.
This will help reduce power consumption and
keep your energy bills lower.

contents

SETTING UP YOUR FREEZER ………………………………………………………………………………… 06

OPERATING YOUR SAMSUNG REFRIGERATOR …………………………………………………………… 15

TROUBLESHOOTING …………………………………………………………………………………………… 19

safety information _05

DA68-01868T.indb 섹션1:05DA68-01868T.indb 섹션1:05 2011.7.4 9:22:2 PM2011.7.4 9:22:2 PM

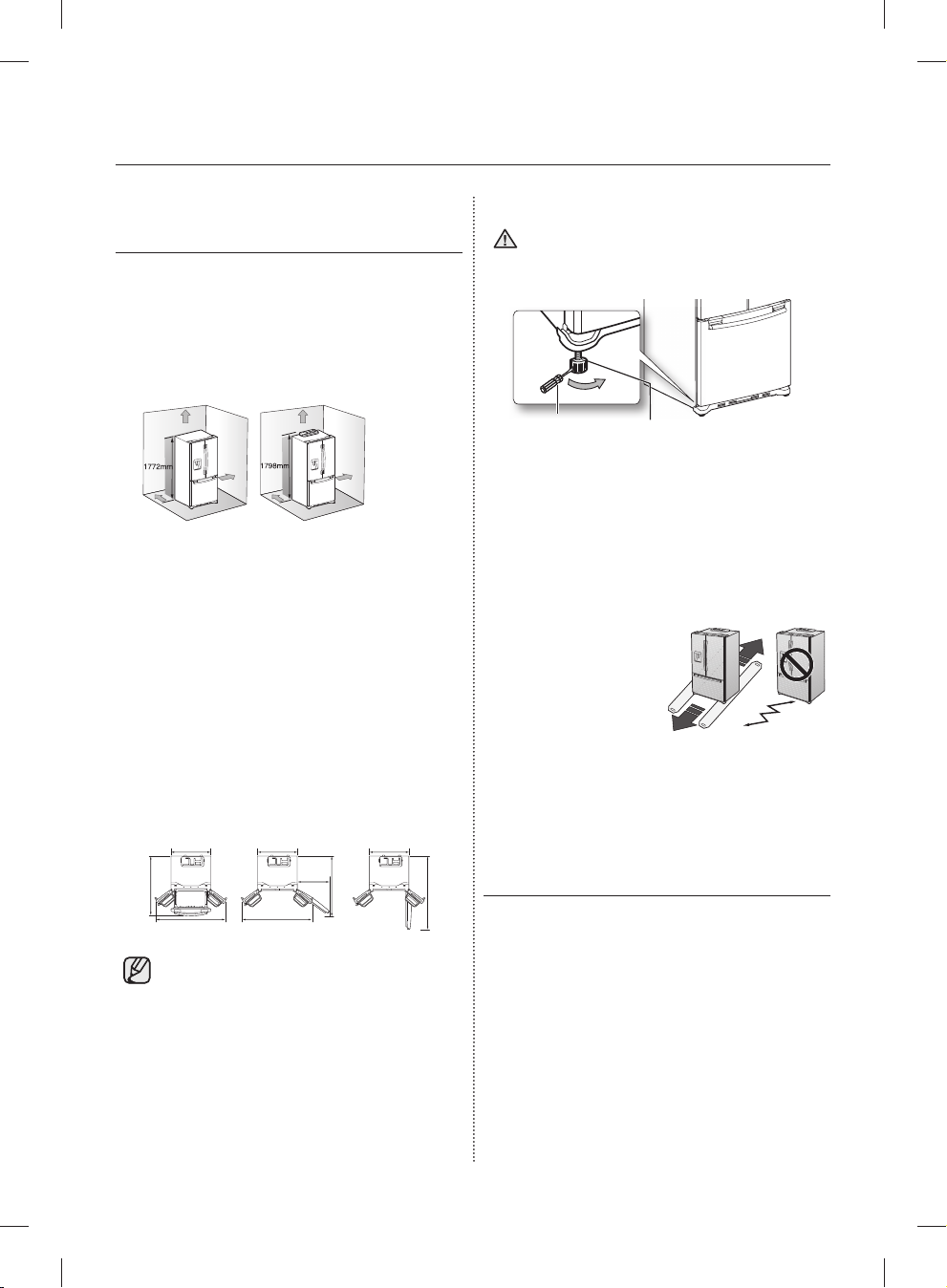

setting up your freezer

Drawer-Type

Swing-Type

GETTING READY TO INSTALL
THE REFRIGERATOR

Congratulations on your purchase of this Samsung
Refrigerator. We hope you enjoy the state-of-art
features and effi ciencies that this new appliance
offers.

Selecting the best location for the
Refrigerator

150mm

100mm

• A location with easy access to the water supply.

• A location without direct exposure to sunlight.

• A location with level (or nearly level) fl ooring.

• A location with enough space for the Refrigerator

doors to open easily.

• Allow suffi cient space to the right, left, back and

top for air circulation. If the Refrigerator does not
have enough space, the internal cooling system
may not work properly.

• Please ensure that appliance can be moved freely

in the event of maintenance & service.

First thing! Make sure that you can easily move
your Refrigerator to its fi nal location by measuring
doorways (both width and height), thresholds,
ceilings, stairways, etc.

817mm

RF62* : 1172mm
RF67* : 1222mm

100mm

100mm

150mm

817mm

100mm

817mm

665mm

RF62* : 1125mm
RF67* : 1175mm

RF62*:1455mm
RF67*:1505mm

When moving your refrigerator

To prevent fl oor damage be sure the front
leveling legs are in the up position(above the

CAUTION

fl oor). Refer to ‘Adjusting the doors’ in the
manual (on page 13)

Flat-blade

screwdriver(-)

Control Lever

FLOORING

For proper installation, this refrigerator must be
placed on a level surface of hard material that is the
same height as the rest of the fl ooring. This surface
should be strong enough to support a fully loaded
refrigerator, or approximately 106kg.

To protect the fi nish of the fl ooring, cut a large
section of the cardboard
carton and place under
the refrigerator where
you are working. When
moving the refrigerator,
be sure to pull it straight
out and return it to
position by pushing it
straight in.

INSTALLATION OF THE WATER
LINE (AUTO ICE MAKER
MODEL)

1492mm 1492mm

Drawer-Type

Swing-Type

• Allow clearance to the right, left, back and

top when installing. This will help reduce
power consumption and keep your energy
bills lower.

• If you install the Refrigerator where is below 10ºC,

it may not function in optimum level.

• Do not locate the refrigerator where the wet

condition.

Before you install the water line

• The water line installation is not warranted by the

refrigerator manufacturer.
So before you install the water line, read the
whole steps for installing and follow these
instructions carefully to minimize the risk of
expensive water damage.

• Banging pipes (water banging in the pipes) in

house plumbing can cause damage to fridge
parts and lead to water leakage or fl ooding. Call
a qualifi ed plumber to correct the problem before
installing the water supply line to the fridge.

06_ setting up06_ setting up

DA68-01868T.indb 섹션2:06DA68-01868T.indb 섹션2:06 2011.7.4 9:22:2 PM2011.7.4 9:22:2 PM

• To prevent burns and product damage, do not

90 degree

1. Cold Water line

2. Pipe Clamp.

3. Plastic line

4. Compression Nut

5. Compression Sleeve

6. Packing Nut

7. Shut Off Valve

8. Filter Cartridge

9. Cartridge Holder

Cartridge Holder

Clip

Filter
cartridge

Plastic line

(Provided)

1. Cold Water line

2. Pipe Clamp.

3. Plastic line

4. Compression Nut

5. Compression Sleeve

6. Packing Nut.

7. Shut Off Valve

hook up the water line to the hot water line.

• Do not install the water line in areas where

temperatures fall below freezing.

• When using any electrical device (such as a

power drill) during installation, be sure the device
is insulated or wired in a manner to prevent
electric shock.

• All installations must be in a accordance with

local plumbing code requirements.

• Water line Kit and water fi lter are not

covered by Samsung’s Warranty. The
manufacturer (or dealer, installer) of them is
responsible for any defects and all the loss
caused by water fi lter & water line kit.

• The fi lter should be replaced according to

manufacturer (or dealer)’s instruction.

• To order additional water fi lters, please contact

the manufacturer (or dealer) of the fi lter.

Check the accessories listed
below.

Water line fi xer and screws Pipe connector

Water line Fastner

- Refer to ‘MAKING MINOR
ADJUSTMENTS BETWEEN
DOORS’(on page 14)

Using the water fi lter (not provided)

• The water fi lter must be installed outside the

refrigerator.
It is not provided with your new
refrigerator. The fi lter cartridge (8)
and holder (9) kit can be purchased
from the retailer where you

Incorrect

purchased this refrigerator.

• Do not use copper line.

• Cut the tubing, making sure the

ends are square and clean.

Correct

Connect the water line to the fridge

• Connect the plastic line

on the back of your
fridge to the cartridge
holder outlet (fully insert
the plastic line to the
cartridge holder outlet).

• Insert plastic clip to the

cartridge holder inlet and
outlet.

• Turn water on and check

for any leakage.

• You can purchase the necessary fi lter

cartridge at the retailer where you
purchased this refrigerator. Make sure
you buy the SAMSUNG fi lter cartridge
(Replacement cartridge No : DA29­10105J) to ensure the best performance.

• Water line must be connected to drinkable water

only

• A compression fi tting and nut kit is supplied with

the unit and it is inside the fridge drawer.

• When pushing the Refrigerator back, make sure

you don’t roll over the power cord or water line
(Icemaker supply line)

Cartridge Holder

Plastic line

(Provided)

Clip

Filter
cartridge

01 SETTING UP

Connecting to water supply line

• Shut off the main water

supply line and turn the Ice

To use without the water fi lter
section

maker to the off position.

• Locate the nearest cold

drinking water line.

• Follow the instructions in the

water fi lter installation kit.

• After connecting the water

supply line to the Cartridge
Holder inlet and installing the
Filter Cartridge (insert plastic
line in fully).

• Turn on water supply and

fl ush 3L into a bucket to clear
the water fi lter.

DA68-01868T.indb 섹션2:07DA68-01868T.indb 섹션2:07 2011.7.4 9:22:3 PM2011.7.4 9:22:3 PM

1. Cold Water line

2. Pipe Clamp.

3. Plastic line

4. Compression Nut

5. Compression Sleeve

6. Packing Nut

7. Shut Off Valve

8. Filter Cartridge

9. Cartridge Holder

90 degree

Connecting to the water supply line

• Shut off the main water

supply line and turn the Ice
maker to the off position.

• Locate the nearest cold

water drinking line.

1. Cold Water line

2. Pipe Clamp.

3. Plastic line

4. Compression Nut

5. Compression Sleeve

6. Packing Nut.

7. Shut Off Valve

setting up _07setting up _07

1. First, shut off the main water supply line.

Close Main
Water pipe

Close Main
Water pipe

No gap

Remove

cap

Water Line

from unit

Water Line

from unit

No gap

Loosen a

2. Locate the nearest cold, drinking water line.

3. Follow the Water line Installation Instructions in

the installation kit.

CAUTION

The water line must be connected
to the cold water pipe. If it is
connected to the hot water
pipe, it may cause the purifi er to
malfunction.

Close Main
Water pipe

Close Main
Water pipe

No gap

Connecting the water line to the
refrigerator

1. Remove the cap from water line on the unit and

insert compression nut to the water line on the
unit after disassembling from provided water line.

2. Connect both water line from the unit and water

line in the kit.

3. Tighten the compression nut onto the

compression fi tting. There should be no gaps
between
(A, B & C )

4. Turn water on and check for any leakage.

Remove

cap

Loosen a

08_ setting up08_ setting up

Water Line

from unit

Water Line

from unit

No gap

Only connect the water line to a drinkable
water source.

If you have to repair or disassemble the
water line, cut off 6.5mm of the plastic tubing
to make sure you get a snug, leak-free
connection.

After the water supply has been installed

CAUTION

check all the joints to ensure there are no
leaks.

• Samsung Warranty does

not cover THE WATER
LINE INSTALLATION.

• The cost of the water

line installation is at the
customers expense, unless the retailer has
covered this expense in the delivery charge.

• Please contact a Plumber or Authorized Installer

for the installation if needed.

• If Water leakage occurs due to improper

installation, Please contact installer.

SETTING UP THE
REFRIGERATOR

Now that you have your new Refrigerator installed in
place, you are ready to set up and enjoy the features
and functions of the appliance. By completing the
following steps, your Refrigerator should be fully
operational.

1. Place the Refrigerator in an appropriate location

with reasonable clearance between the wall and
the Refrigerator. Refer to installation instructions
in this manual. (P8. Selecting the best location for
the Refrigerator)

2. Once the Refrigerator is plugged in, make sure

the interior light comes on when you open the
doors.

3. Set the Temperature control to the coldest

temperature and wait for an hour. The Freezer
will get slightly chilled and the motor will run
smoothly.

4. After powering the Refrigerator, it will take a few

hours to reach the appropriate temperature. You
can store food and drinks in the Refrigerator after
the temperature is suffi ciently cool.

DA68-01868T.indb 섹션2:08DA68-01868T.indb 섹션2:08 2011.7.4 9:22:4 PM2011.7.4 9:22:4 PM

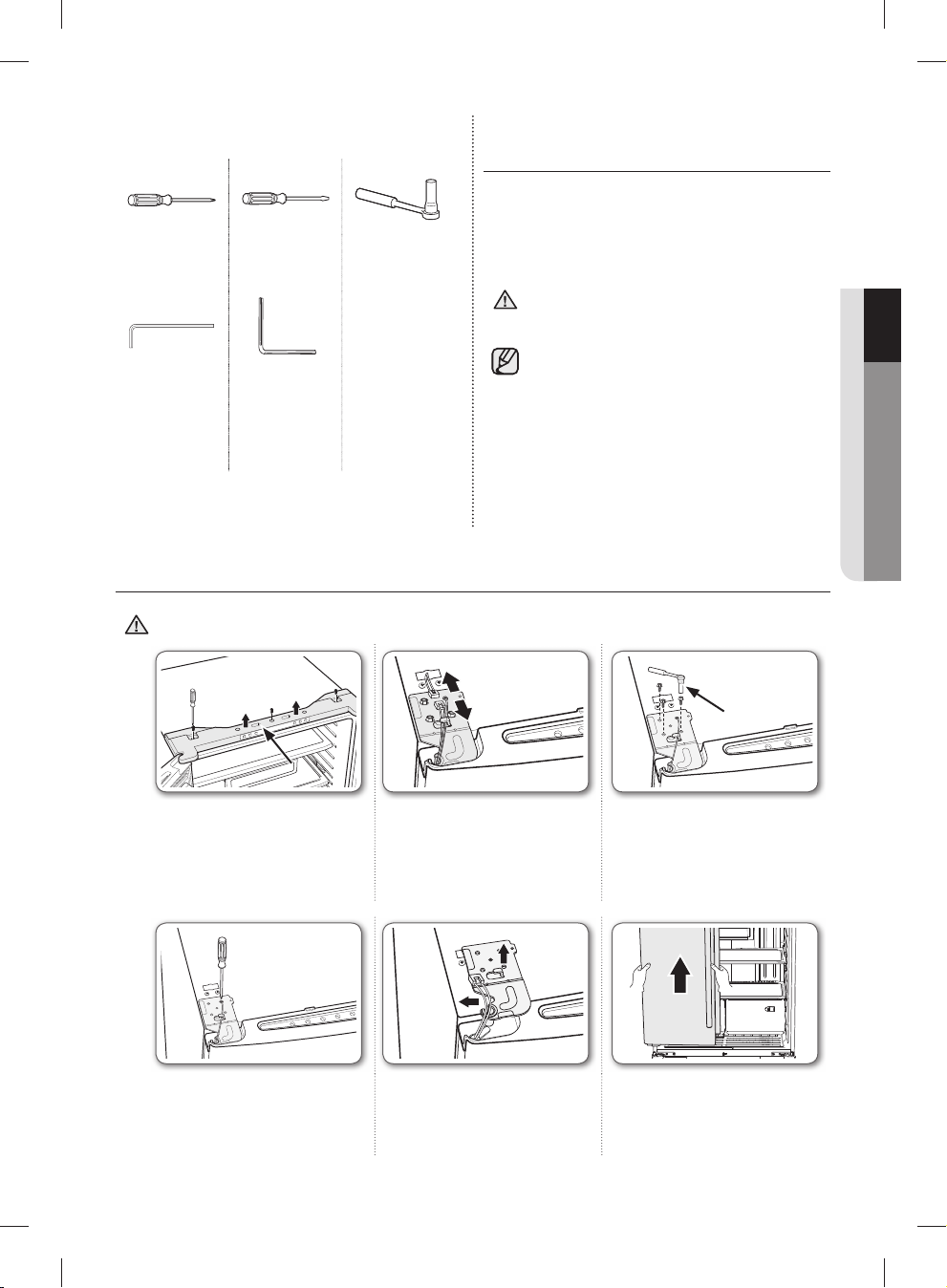

Required Tools (Not provided)

Top Table

Socket wrench

REMOVING THE
REFRIGERATOR DOORS

Some installations require door/drawer removal to
transport the Refrigerator to its fi nal location.

Phillips Head

Driver(+)

Hex Wrench

(Ø5mm)

(for Mid hinge)

Flat Head Driver(-) Socket Wrench

(10mm) (for bolts)

Hex wrench

(5/32 inch)

(for Mid hinge

shaft)

Disassembling the fridge door

Be careful not to drop and scratch the fridge door while removing the fridge door!

WARNING

Do not remove the door/drawer if it is not needed.
Before removing the door/drawer make sure you
read following items.

Disconnect power to the Refrigerator before

CAUTION

removing the door or drawer.

• Be careful not to drop, damage or scratch

the door/drawer while removing them.

• Be careful not to get injured while removing the

door/drawer.

• Reattach the door/drawer properly to avoid:

- Moisture from air leakage.

- Uneven door alignment.

- Wasting energy due to improper door seal.

01 SETTING UP

Socket wrench

Top Table

1. Remove the 3 screws

holding down the top table
and remove it.

2. Disconnect electric wire on

the top of the refrigerator.

3. Remove the 3 hex bolts

that hold the hinge on the
top of the refrigerator with
the 10mm socket wrench.

4. Remove the screw that

holds the ground wire with
a philips screwdriver(+).

5. Separate the hinge from

the electric wire and
ground wire as shown
above.

6. Lift the door straight up to

remove. Be careful not to
drop and scratch the doors
while removing them.

setting up _09setting up _09

DA68-01868T.indb 섹션2:09DA68-01868T.indb 섹션2:09 2011.7.4 9:22:4 PM2011.7.4 9:22:4 PM

Disassembling the freezer door

Middle Hinge

Middle Hinge

1. Separate the cap on the

middle hinge.

(DRAWER TYPE)

3. After opening the Freezer

door, lift the drawer box.

(SWING TYPE)

2. Remove the screw attached to the left and right middle

hinges with a philips screwdriver(+).
Remove the 2 hex head bolts attached to the left and right
middle hinges with an allen wrench(Ø5mm).

4. Remove 4 hex head bolts

from both sides with a
socket wrench(10mm)

5. Lift up the freezer door

from the rails. Be careful
not to drop and scratch
the freezer door.

3. Remove the Middle Hinge

connected to the Freezer.

4. Lift up the freezer door

from the hinge.
Be careful not to drop and
scratch the freezer door.

Reassembleing the door

To reassemble the door, assemble parts in revers oder.

CAUTION

10_ setting up10_ setting up

DA68-01868T.indb 섹션2:10DA68-01868T.indb 섹션2:10 2011.7.4 9:22:5 PM2011.7.4 9:22:5 PM

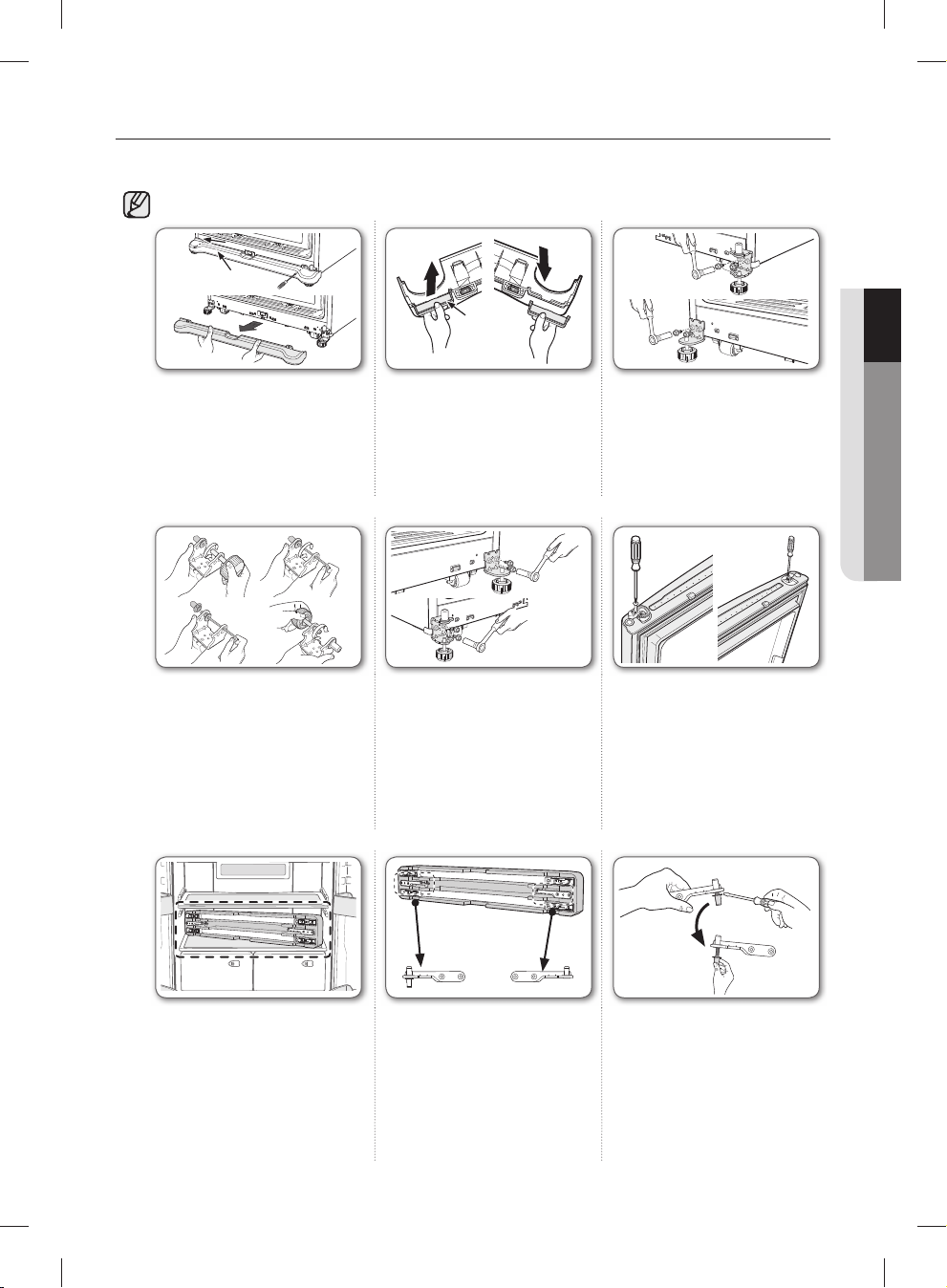

How to reverse the door (OPTION)

Cap

Cover

Cap

Unplug the refrigerator or disconnect the power.

Refer to the page 9, 10 for disassembling the door.

Cap

Cover

1. Remove 2 screws.

2. Separate front leg Cover.

3. Separate the Cap of the

front leg Cover. (pull out
inside of Cap)

4. Insert the Cap on the other

side of the front leg Cover.

01 SETTING UP

Cap

5. Remove 2 bolts of each

hinge with the 10mm
wrench.

6. Place them in front of each

side.

7. Separate low hinge shaft

by using 5/32” wrench and
disassemble low hinge leg
by turning it colockwise,
and then assemble the low
hinge by turning it over.

10. The middle hinge for

reversing a door can be
found in the fridge.

8. Reattach the former right

hinge on the left side and
the former left hinge on the
right side by using 2bolts.

11. Change the middle hinges

assembled at refrigerator
to the middle hinges in the
fridge with handles.

9. Separate stopper by

removing 1 screw on the
right lower side of freezer
and assemble the stopper
on the left side by reversing
it.

12. Use the black hinge

cap of the middle hinge
assembled at refrigerator.
Then place it at the bottom
of the left middle hinge
supplied separately.

Use the Flat-blade screwdriver(-).

setting up _11setting up _11

DA68-01868T.indb 섹션2:11DA68-01868T.indb 섹션2:11 2011.7.4 9:22:6 PM2011.7.4 9:22:6 PM

13. Place the hole in the

bottom of the freezer door
over the low hinge.

14. Replace the middle hinge connected to the freezer.

15. Insert and tighten the screw into the left and right middle

hinges with a philips screwdriver(+). Insert and tighten the 2
hex head bolts into the left and right middle hinges with an
allen wrench(Ø5mm).

16. Replace the cap on the middle hinge.

17. Place the hole in the

bottom of the left door
over the middle hinge.

20. Insert and tighten the

ground screw into the left
and right upper hinges with
a philips screwdriver(+).

18. Insert the left upper hinge

shaft into the hole on the
corner of the fridge door.

21. Connect the electronic

wire on the top of the
refrigerator.

19. Insert the upper hinges

into the holes at the top of
the door.
Insert and tighten the 3
hex head bolts into the left
and right upper hinges with
a socket wrench(10mm).

22. Position the top table in

place. Insert and tighten
the 3 screws into the
top table with a philips
screwdriver(+).

12_ setting up12_ setting up

DA68-01868T.indb 섹션2:12DA68-01868T.indb 섹션2:12 2011.7.4 9:22:8 PM2011.7.4 9:22:8 PM

ADJUSTING THE DOORS

When the left
side is lower.

When the left
side is higher.

Screwdriver(-)

Control Lever

Screwdriver(-)

After putting the doors back on the Refrigerator,
make sure the Refrigerator is level so that you can
make fi nal adjustments.

If the Refrigerator is not level, it will not be possible
to get the doors perfectly even.

Also it is possible to sweat in the refrigerator and ask
more energy bills.

For example, when the left side is lower than the
right side, insert a fl at-blade screwdriver into a notch
on the left control lever, and turn it clockwise or
counter clockwise to level the door.

Turning it clockwise to raise the refrigerator and
counterclockwise to lower it.

For the left side is higher, do it with right lever.

Both control levers must be surely touching
the fl oor to avoid the possible personal injury

CAUTION

or property damage because of tipping.

When the left

When the left
side is lower.

side is higher.

01 SETTING UP

Screwdriver(-)

Control Lever

Screwdriver(-)

setting up _13setting up _13

DA68-01868T.indb 섹션2:13DA68-01868T.indb 섹션2:13 2011.7.4 9:22:9 PM2011.7.4 9:22:9 PM

MAKING MINOR ADJUSTMENTS

When the left door

is lower than the

right door.

Adjustment

part

When the left door
is higher than the
right door.

Adjustment
part

BETWEEN DOORS

Remember, a level Refrigerator is necessary for
getting the doors perfectly even. If you need
help, review the previous section on leveling the
Refrigerator.

When the left door

is lower than the

right door.

Adjustment

part

When the left door
is higher than the
right door.

Adjustment
part

1. Pull out the freezer drawer ( 1 ), then you can see
the middle hinge ( 2 ) .

2. Insert the supplied hex wrench ( 3 ) into the shaft
( 4 ) of the middle hinge.

3. Please adjust the height by turning the hex
wrench ( 3 ) clockwise (

) or counter-

clockwise ( ).

When you turn the hex wrench counter­clockwise ( ), the door will move up.

Only the left-door height is adjustable for
Swing-Type.

1. After adjusting the doors, please insert the
supplied fastener ( 5 ) using Pliers ( 6 ) in the gap
between the hinge-grommet ( 7 ) and the middle
hinge ( 8 ). The number of fasteners you’ll need to
insert depends on the gap.

2 fastener are enclosed with the refrigerator.

The thickness of each fastener is 1.0mm.

2

3

4

1

3

14_ setting up14_ setting up

DA68-01868T.indb 섹션2:14DA68-01868T.indb 섹션2:14 2011.7.4 9:22:10 PM2011.7.4 9:22:10 PM

operating your samsung

option

refrigerator

1

PARTS AND FEATURES

Use this page to become more familiar with the
parts and features of the Refrigerator.

Fridge

Ice Off Button

When the Ice Off button is pressed, ice will not be
produced.

Use this function only when it is needed.

2

Power Freeze

Press the Power Freeze Button. (Refer to the
picture.)

- The power Freeze light on the display goes on
(see the arrow mark) and this function begins to
operate regardless of the set freezer temperature.

02 OPERATING

option

Freezer

Drawer Type Swing Type

USING THE CONTROL PANEL

1

2

3

4

5

Press the Power Freeze Button again to cancel this
function.

- The light goes off and it operates at the set
freezer temperature again.

- The Power Freeze function operates for 72 hours
regardless of the set temperature.

When you use this function, the energy
consumption will increase. This function must
be activated before putting large amount of
food stuff in the freezer compartment at least
48 hours before.

3

Freezer

If you want to control the freezer temperature, follow
as below.

Press the Freezer Button (Refer the picture)

- The temperature can be set in 1ºC interval
between -25ºC and -14ºC.

6

operating _15operating _15

DA68-01868T.indb 섹션3:15DA68-01868T.indb 섹션3:15 2011.7.4 9:22:10 PM2011.7.4 9:22:10 PM

When selecting the temperature, the set temperature
is displayed initially for 5 seconds, then the actual
temperature is displayed.

(There may be slight difference between the set
temperature and displayed actual temperature,
but it will be corrected to the set temperature
automatically.)

- The Freezer temperature will change

depending on the number of door
openings, quantity of food, ambient

- The temperature display will blink when freezer

(Blinking will stop when the refrigerator reaches
normal temperature. If for some reason it does not
stop after a long period of time, contact a Samsung
service center.)

4

If you want to control the fridge temperature, follow
as below.

Press the Fridge Button (Refer the picture)

- The temperature can be set in 1ºC interval

When selecting the fridge temperature, the set
temperature is displayed initially for 5 seconds, then
the actual temperature is displayed.

(There may be slight difference between the set
temperature and displayed actual temperature,
but it will be corrected to the set temperature
automatically.)

- Temperature of each shelve or container in the

- The temperature display will blink when fridge

temperature, etc.

temperature increases due to frequent door
opening, keeping warm food, etc.

Fridge

between 1ºC and 7ºC.

- The Fridge temperature will change

depending on the number of door
openings, quantity of food, ambient
temperature, etc.

fridge may be different.

temperature is increases due to frequent door
opening, keeping warm food, etc.

(Blinking will stop when the refrigerator reaches
normal temperature. If for some reason it does not
stop after a long period of time, contact a Samsung
service center.)

5

Power Cool

Press the Power Cool Button. (Refer to the picture.)

- The Power cool light on the display goes on
(see the arrow mark) and this function begins to
operate regardless of the set fridge temperature.

Press the Power Cool Button again to cancel this
function.

- The light goes off and it operates at the set fridge
temperature again.

The Power Cool function operates for 2 and a
half hours regardless of the set temperature.

6

E.Saver Button

Press the Energy Saver button for better energy
effi ciency. If water drops appear on the doors, turn
the Energy Saver function off.

MAKING ICE

Auto Ice Maker Model

The ice maker will produce 8
cubes per cycle - approximately
100~130 cubes in a 24-hour
period, depending on freezer
compartment temperature,
room temperature, number of
door openings and other use
conditions. Throw away the fi rst few batches of
ice to allow the water line to clear. Be sure nothing
interferes with the sweep of the feeler arm. When the
bin fi lls to the level of the feeler arm, the icemaker
will stop producing ice.

After the icemaker has been turned on again, there
will be a time delay before the icemaker resumes
operation.

It is normal for several cubes to be joined together.

If ice is not used frequently, old ice cubes will
become cloudy, taste stale and shrink. So if you
don’t want to make ice, press the Ice Off button.

16_ operating16_ operating

DA68-01868T.indb 섹션3:16DA68-01868T.indb 섹션3:16 2011.7.4 9:22:13 PM2011.7.4 9:22:13 PM

Twist Ice Maker Model

1

2

4

3

1

2

3

3

1

2

1

2

2

1

1. Pull out the Ice-cube trays.

2. Fill trays up to the water level mark(arrow).

3. Put the Ice-cube trays back in position. And close

the freezer door.

4. Once the water has become frozen, turn the dials

on the Ice cube trays to empty Ice cubes into the
storage bin.

1

3

2

4

3. Vegetable & Fruit Drawers

To remove - Pull the drawer out

To replace - Insert the drawer

to full extension.
Tilt up the front of
the drawer and pull
straight out.

into the frame rails
and push back into
place.

The drawers need to be removed before the
glass shelf above them can be lifted out.

To get the best energy effi ciency of this
product, please leave all selves, drawers
and baskets on their original position like as
illustration in page 15

1

2

02 OPERATING

REMOVING AND RELOCATING
THE FRIDGE ACCESSORIES

1. Door Bins

To remove - Simply lift the bin up
and pull straight out.

To replace - Slide it in above the

CAUTION

Dust removal method -Remove the guard and wash
in water.

2. Fridge shelves

To remove - When pulling out the

To replace - When pushing in the shelf, if it does not

CAUTION

desired location and
push down until it
stops.

Injury may occur if the door bins are not fi rmly
inserted. Do not allow children to play with
bins. Sharp corners of the bins may cause
injury.

Empty the bin before adjusting it.

shelf, if it does not
slide out easily, lift it
up slightly and pull
out again.

slide in easily, lift it up slightly and push
in again.

The Glass shelves are heavy.

Use special care when removing them.

REMOVING THE FREEZER
ACCESSORIES

1. Pull Out Drawer

To remove - Pull the drawer out to full extension.

Open the freezer door fully and remove the drawer.

To replace - Place the drawer onto the rails by tilting

1

1

2. Freezer Drawer Bin

Swing-Type

To remove - Pull the drawer out

To replace - Place the bin into the
rail assembly.

When replacing, place the drawer
bin holder into the hole of the rail

Tilt up rear of drawer and lift straight
out. (Refer to picture 1 & 2)

it up. Lower the drawer into place until it
is horizontal and slide the drawer in.
(Refer to picture 3)

2

2

fully. Tilt up the rear
of the bin and lift it
out to remove.

3

3

1

2

operating _17operating _17

DA68-01868T.indb 섹션3:17DA68-01868T.indb 섹션3:17 2011.7.4 9:22:13 PM2011.7.4 9:22:13 PM

Drawer-Type

Drawer

To remove the drawer - Pull the drawer out fully. Tilt

up the rear of the bin and lift
it out to remove.

To relocate the drawer - Place the bin into the rail

assembly.

Do not put anything other than water in the

CAUTION

water tank.

• Do not put anything other than water in the water
tank.

• Fill with water up to 4.0L. If the water is fi lled up
above the mark, it can spill out when the door
opens and closes.

• Push the cap until you hear a click.

Drawer

(RF67****)

Do not allow children to play with the

CAUTION

refrigerator, as they could injure themselves or
damage the refrigerator.

Do not sit on the Freezer door. The door may
break. Do not allow children to climb into the
Freezer basket.

If you remove the divider to clean the basket
bin, you must reinstall the divider using 1

WARNING

screw after cleaning to prevent children from
getting trapped inside the basket.

USING THE WATER DISPENSER
(OPTION)

You can easily obtain chilled water with the water
dispenser without opening the refrigerator door. In
addition, you can save electricity by reducing the
number of times the door is opened by more than
30%.

Filling the water tank

You can fi ll the water with the water tank sitting
inside of the refrigerator or you can remove the
water tank to fi ll the water.

Method 1

After opening the cap, Fill the water. If you pour the
water too fast, water may overfl ow.

Method 2

1. Release the lock on the both side of the water

tank to remove the lid on the water tank.

2. Fill the water in the water tank.

Getting water from the dispenser

Place a glass underneath the water
outlet and push it gently against
the water dispenser lever with your
glass. Blue light will turn on when
you push the lever.

• Make sure the glass is in

line with the dispenser to prevent the water

• Water dispenser may not be abailable depending

from splashing out.

on the model.

When the water dispenser is not in
use, the following is recommended

Fix the water supply device tightly into the fi xing
hole.

The door will not be closed automatically when the
water supply device is pulled out for a long time
because of cold leaking.

CLEANING THE REFRIGERATOR

Do not use Benzene, Thinner or Clorox™ for
cleaning. They may damage the surface of the

WARNING

appliance and can create a risk of fi re.

Do not spray the refrigerator with water while
it is plugged in, as it may cause an electric
shock. Do not clean the refrigerator with

CAUTION

benzene, thinner or car detergent for risk of
fi r e .

CHANGING THE INTERIOR
LIGHTS

Changing the LED Type Lighting

Do not disassemble or replace the LED type
Lighting.

CAUTION

To change the LED Type Lighting contact Samsung
service center or your authorized Samsung dealer.

18_ operating18_ operating

DA68-01868T.indb 섹션3:18DA68-01868T.indb 섹션3:18 2011.7.4 9:22:14 PM2011.7.4 9:22:14 PM

troubleshooting

PROBLEM SOLUTION

The Refrigerator does
not work at all or it does
not chill suffi ciently.

The food in the
Refrigerator is frozen.

You hear unusual noise
or sounds.

The front corners and
horizontal hinged section
of the appliance are hot
and condensation is
occurring.

Ice Maker is not
producing ice.

You hear water bubbling
in the Refrigerator.

There is a bad smell in
the Refrigerator.

Frost forms on the walls
of the Freezer.

• Check that the power plug is properly connected.

• Is the temperature control on the display panel set to the correct

temperature?
Try setting it to a lower temperature.

• Is the refrigerator in direct sunlight or located near a heat source?

• Is the back of the refrigerator so close to the wall that air cannot keep

circulating? (Refer to page 10 for the best location.)

• Is the temperature control on the display set to the correct

temperature?
Try setting it to a warmer temperature.

• Is the temperature in the room too low?

• Did you store the food too close to the air vent at the back of the

refrigerator? Move the food away from the air vent.

• Check that the refrigerator is level and stable.

• Is the back of the refrigerator too close to the wall and therefore

keeping air from circulating?

• Was anything dropped behind or under the refrigerator?

• A “ticking” sound is heard from inside the refrigerator. It is normal and

occurs because various accessories are contracting or expanding
according to the temperature of the refrigerator interior.

• Some heat is normal as anti-condensators are installed in the horizontal

hinged section of the refrigerator to prevent condensation.

• Is the refrigerator door ajar? Condensation can occur when you leave

the door open for a long time.

• Did you wait for 12 hours after installation of the water supply line

before making ice?

• Is the water line connected and the shut-off valve opened?

• Did you manually stop the ice making function?

• Is the freezer temperature too warm? Try setting the freezer

temperature lower.

• This is normal. The bubbling comes from the refrigerator coolant liquid

circulating through the refrigerator.

• Check for spoiled food.

• Foods with strong odors (for example, fi sh) should be tightly covered.

• Clean out your freezer periodically and throw away any spoiled or

suspicious food.

• Is the air vent blocked? Remove any obstructions so air can circulate

freely.

• Allow suffi cient space between the foods stored for effi cient air

circulation.

• Is the freezer drawer closed properly?

04 TROUBLESHOOTING

troubleshooting _19troubleshooting _19

DA68-01868T.indb 섹션4:19DA68-01868T.indb 섹션4:19 2011.7.4 9:22:16 PM2011.7.4 9:22:16 PM

Ambient Room Temperature Limits

This fridge/freezer is designed to operate in ambient temperatures specifi ed by its temperature
class marked on the rating plate.

Class Symbol Ambient Temperature range(°C)

Extended Temperate SN +10 to +32

Temperate N +16 to +32

Subtropical ST +16 to +38

Tropical T +16 to +43

NOTE: Internal temperatures may be affected by such factors as the location of the fridge/

freezer, ambient temperature and the frequency with which you open the door. Adjust
the temperature as required to compensate for these factors.

Correct Disposal of This Product

English

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories
(e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their
working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal,
please separate these items from other types of waste and recycle them responsibly to promote the sustainable
reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government
offi ce, for details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This
product and its electronic accessories should not be mixed with other commercial wastes for disposal.

(Waste Electrical & Electronic Equipment)

In an effort to promote recycling this user manual is printed on recycled paper.

DA68-01868T.indb 섹션4:20DA68-01868T.indb 섹션4:20 2011.7.4 9:22:17 PM2011.7.4 9:22:17 PM
