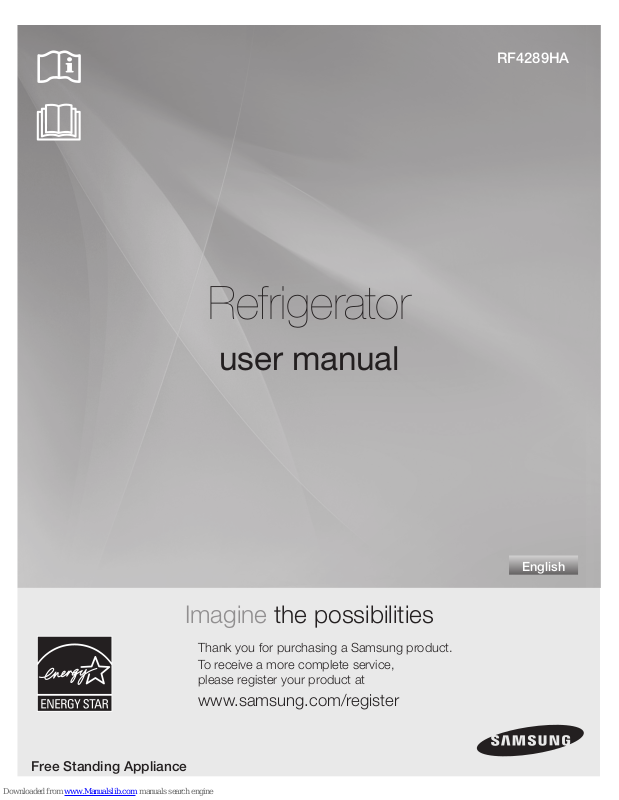

Samsung RF4289HARS, RF4289HA User Manual

Free Standing Appliance
Refrigerator
user manual
Imagine the possibilities
Thank you for purchasing a Samsung product. To receive a more complete service,
please register your product at
www.samsung.com/register
RF4289HA
02_ Safety information
SAFETY INFORMATION
Before using your new Samsung French Door Refrigerator, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers safely and efficiently.
This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or those who lack experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
Because the following instructions cover various models, the characteristics of your refrigerator may differ slightly from the refrigerator described in this manual. If you have any question, contact us at 1-800-SAMSUNG or find help and information online at www.samsung.com.
Important safety symbols and precautions:
WARNING
Hazards or unsafe practices that may result in severe personal injury or death.
CAUTION
Hazards or unsafe practices that may result in minor personal injury or property damage.
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions carefully.
Unplug the power plug from the wall socket.
Make sure the refrigerator is grounded to prevent electric shock.
Call the contact center for help.
Note.
These warning signs are here to prevent injury to you and others.
Please follow them carefully.
After reading this section, keep it in a safe place for future reference.
SEVERE WARNING SIGNS FOR INSTALLATION
• Do not install the refrigerator in a damp place or place where it may come in contact with water.
- Deteriorated insulation of electrical parts may
cause an electric shock or fire.
• Do not place this refrigerator in direct sunlight or expose to the heat from stoves, room heaters or other appliance.
• Do not plug several appliances into the same multiple power strip. The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the voltage listed on the refrigerator's rating plate.
- This provides the best performance and also prevents overloading house wiring circuits, which could cause a fire hazard from overheated wires.
• If the wall socket is loose, do not insert the power plug.
- There is a risk of electric shock of fire.
• Do not use a cord that shows cracks or abrasion damage along its length or at either end.
• Do not bend the power cord excessively or place heavy articles on it.
• Never unplug your refrigerator by pulling on the power cord. Always grip plug firmly and pull straight out from the outlet.
- Damage to the cord may cause a short-circuit, fire and/or electric shock.
• Do not use aerosols near the refrigerator.
- Aerosols used near the refrigerator may cause an explosion or fire.
• This refrigerator must be properly installed and located in accordance with the manual before it is used.
• Connect the power plug in proper position with the cord hanging down.
- If you connect the power plug upside down, the wire can get cut off and cause a fire or electric shock.
Safety Information
WARNING
Safety information _03
• When moving the refrigerator, be careful not to roll over or damage the power cord.
- This constitutes a fire hazard.
• Make sure that the power plug is not squashed or damaged by the back of the refrigerator.
• Keep the packing materials out of reach of children.
- There is a risk of death from suffocation if a child puts the packing materials on his or her head.
• The appliance must be positioned so that the plug is accessible after installation.
• You need to remove all the protective plastic film before you initially plug the product in.
• The refrigerator must be safely grounded
- Always make sure that you have grounded
the refrigerator before attempting to investigate or repair any part of the appliance. Power leakages can cause severe electric shock.
• Never use gas pipes, telephone lines or other potential lightning attractors as an electrical ground.
- Improper use of the grounding plug can result in a risk of electric shock. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord should be AC115-120 V, 10 A, or more. If a grounding adapter is used, make sure the receptacle box is fully grounded.
• If the power cord is damaged, have it replaced immediately by the manufacturer or its service agent.
CAUTION SIGNS FOR INSTALLATION
• Allow sufficient space to install the refrigerator on a flat surface.
- If your refrigerator is not level, the internal cooling
system may not work correctly.
• Keep the ventilation space in the appliance enclosure or mounting structure clear of obstruction.
• Allow the appliance to stand for 2 hours after installation.
SEVERE WARNING SIGNS FOR USING
• Do not insert the power plug with wet hands.
• Do not store articles on the top of the
appliance.
- When you open or close the door, the articles
may fall and cause personal injury and/or material damage.
• Do not put a container filled with water on the refrigerator.
- If spilled, there is a risk of fire or electric shock.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not let children hang on the door. A serious injury may occur.
• Do not let children enter inside of the refrigerator. There is a risk of children entrapment.
• Do not insert your hands into the bottom area under the appliance.
- Any sharp edges may cause personal injury.
• Do not let children step on a drawer’s cover.
- The drawer may break and cause them to slip.
• Do not overfill the refrigerator with food.
- When you open the door, an item may fall out and cause personal injury or material damage.
• Do not touch the inside walls of the freezer or products stored in the freezer with wet hands.
- This may cause frostbite.
• Never put fingers or other objects into the water dispenser hole, ice chute, or ice maker bucket.
- It may cause personal injury or material damage.
• Do not spray flammable gas near the refrigerator.
- There is a risk of explosion or fire.
• Do not store volatile or flammable substances in the refrigerator.
- The storage of benzene, thinner, alcohol, ether, LP gas and other such products may cause explosions.
• Do not store pharmaceuticals products, scientific materials, or temperature sensitive products in the refrigerator.
- Products that require strict temperature controls must not be stored in the refrigerator.
• Do not place or use an electrical appliance inside the refrigerator, unless it is of a type recommended by the manufacturer.
• Do not use mechanical devices or any other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
WARNING
CAUTION
04_ Safety information
• Do not disassemble or repair the refrigerator by yourself.
- You run risk of causing a fire, malfunction and/or
personal injury.
- When the interior or exterior LED lamp has gone
out, please contact your service agents.
• Children should be supervised to ensure that they do not play with the appliance.
• Bottles should be stored tightly together so that they do not fall out.
• This product is intended only for the storage of food in a domestic environment.
• If a gas leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes.
• Use only the LED Lamps provided by manufacturer or service agents.
• If there are burning smells or smoke, pull out power plug immediately and contact your Samsung Electronics service center.
• If you experience difficulty when changing the light, contact a service agent.
• If the product is equipped with LED Lamps, do not disassemble the Lamp Cover and LED Lamp by yourself.
- Please contact your service agents.
• If any dust or water is in refrigerator, pull out the power plug and contact your Samsung Electronics service center.
- Otherwise there is a risk of fire.
CAUTION SIGNS FOR USING
• Do not re-freeze frozen foods that have thawed completely. Do not place carbonated or fizzy drinks in the freezer compartment. Do not put bottles or glass containers in the freezer.
- When the contents freeze, the glass may break
and cause personal injury.
• Service warranty and Modification.
- Any changes or modifications performed by a 3rd party on this finished appliance are not covered under Samsung warranty service, nor can Samsung be responsible for safety issues that result from 3rd party modifications.
• Do not block air holes.
- If the air holes are blocked, especially with a plastic
bag, the refrigerator can be over cooled. If this cooling period lasts too long, the water filter may break and cause water leakage.
• If the refrigerator is disconnected from the power supply, you should wait for at least five minutes before plugging it back.
• If you have a long vacation planned or the refrigerator is not to be used for a long period of time, you must empty the refrigerator and pull out the power plug.
- Letting the refrigerator run for a long time without using it can cause the insulation to deriorate and may cause a fire.
- Wipe excess moisture from the inside and leave the doors open. Otherwise, odor and mold may develop.
• To get the best performance from the product:
- Do not place foods too close to the vents at the rear of the appliance as it can obstruct free air circulation in the refrigerator compartment.
- Wrap food up properly or place it in airtight containers before putting it into the refrigerator.
• Fill the water tank, ice tray, and water cubes only with potable water.
• If the product is flooded, make sure to contact your nearest service center.
- There is a risk of electric shock or fire.
CAUTION SIGNS FOR CLEANING
• Do not directly spray water on the inside or outside the refrigerator.
- There is a risk of fire or electric shock.
• Remove any foreign matter or dust from the power plug pins. Do not use a wet or damp cloth when cleaning the plug.
- Otherwise, there is a risk of fire or electric shock.
• Unplug the refrigerator before cleaning or making repairs.
CAUTION
CAUTION
Safety information _05
SEVERE WARNING SIGNS FOR DISPOSAL
• Risk of child entrapment. Before you throw away your old refrigerator or freezer:
- Take off the doors.
- Leave the shelves in place so that children can not
easily climb inside.
• Please dispose of the packaging material from this product in an environmentally friendly manner.
• Leave the shelves in place so that children can not easily climb inside. Ensure that none of the pipes on the back of the appliance are damaged prior to disposal.
• When disposing of this refrigerator, remove the door/door seals and door latch so that small children or animals cannot become trapped inside. Children should be supervised to ensure that they do not play with the appliance.
• Cyclopentane is used as in the insulation. The gases in the insulation material require a special disposal procedure. Please contact your local authorities in regard to the environmentally safe disposal of this product. Ensure that none of the pipes on the back of the refrigerator are damaged prior to disposal.
Contents
SETTING UP YOUR FRENCH DOOR REFRIGERATOR ……………………………………………………… 06
OPERATING YOUR FRENCH DOOR REFRIGERATOR ………………………………………………………… 13
TROUBLESHOOTING ……………………………………………………………………………………………… 79
WARRANTY ………………………………………………………………………………………………………… 81
WARNING
06_ setting up
Setting up your French Door Refrigerator
GETTING READY TO INSTALL THE REFRIGERATOR
Congratulations on your purchase of the Samsung French Door Refrigerator.
We hope you enjoy the state-of-art features and efficiencies that this new appliance offers.
Selecting the best location for the refrigerator
• A location with easy access to the water supply.
• A location without direct exposure to sunlight.
• A location with a leveled floor.
• A location with enough space for the refrigerator
doors to open easily.
• Allow sufficient space to the right, left, back and top for air circulation.
• Plaease ensure that appliance can be moved freely in the event of maintenance & service.
If the refrigerator does not have enough space, the internal cooling system may not work properly.
If your refrigerator has an ice maker, allow extra space at the back for the water line connections.
When you install the refrigerator next to a fixed wall, you need a minimum clearance of 3 ¾” (95mm) between the refrigerator and wall to allow the door to swing open.
First thing! Make sure that you can easily move your refrigerator to its final location by measuring doorways (both width and height), thresholds, ceilings, stairways, etc.
The following chart details the exact height and depth of this Samsung French Door Refrigerator.
Model
Depth
“A”
Width “B”
Height
“C”
Overall
Height “D”
Depth “E”
RF4289HA
29½”
(749 mm)
35
(912 mm)
68” (1742
mm)
69
(1768 mm)
36¼”
(922 mm)
• Allow clearance to the right, left, back and top when installing. This will help reduce power consumption and keep your energy bills lower.
• Do not install the refrigerator where the temperature will go below 50ºF (10ºC).
• Do not locate the refrigerator where it may become wet.
When moving your refrigerator
To prevent floor damage, be sure the front adjusting legs are in the up position (above the floor). Refer to ‘Adjusting the doors’ in the manual (on page 9).
FLOORING
For proper installation, this refrigerator must be placed on a leveled surface of hard material that is the same height as the rest of the flooring. This surface should be strong enough to support a fully loaded refrigerator, or approximately 359lbs (165kg). To protect the finish of the flooring, cut a large section of the cardboard carton and place it under the refrigerator where you are working. When moving a refrigerator, you need to pull and push it straight forwards or back. Do not wiggle it from side to side.
3 inches
3/4
2 inches
2 inches
EE
CC
A
A
BB
DD
CAUTION
Flat-blade screw
driver(-)
Control Lever
setting up _07
01 SETTING UP
ACCESSORIES AND REQUIRED TOOLS
The following accessories are included with your refigerator:
Hex wrench Fastener
Compression
fitting
Compression
nut
Required Tools (Not provided)
You need the following tools to complete the installation of your refirgerator:
Philips screwdriver (+)
Flat-blade screwdriver
(-)
Socket wrench
(10mm)
Pliers Allen wrench (3/16”) (5mm)
REMOVING THE REFRIGERATOR DOORS
Some installations require door removal to transport the refrigerator to its final location. Do not remove the door/drawer if you don't need to. If you do not need to remove the refrigerator doors, go to Adjusting the Level on page 8. If you need to remove the doors. continue below. Before removing the door/drawer, make sure you read the following items:
Disconnect power to the refrigerator before removing the door or drawer.
• Be careful not to drop, damage or scratch the door/drawer while removing them.
• Be careful not to get injured while removing the door/drawer.
• Reattach the door/drawer properly to avoid:
- Moisture from air leakage.
- Uneven door alignment.
- Wasting energy due to improper door seal.
Disassemble the refrigerator doors
Be careful not to drop and scratch the doors while removing the doors.
Disassemble the refrigerator doors

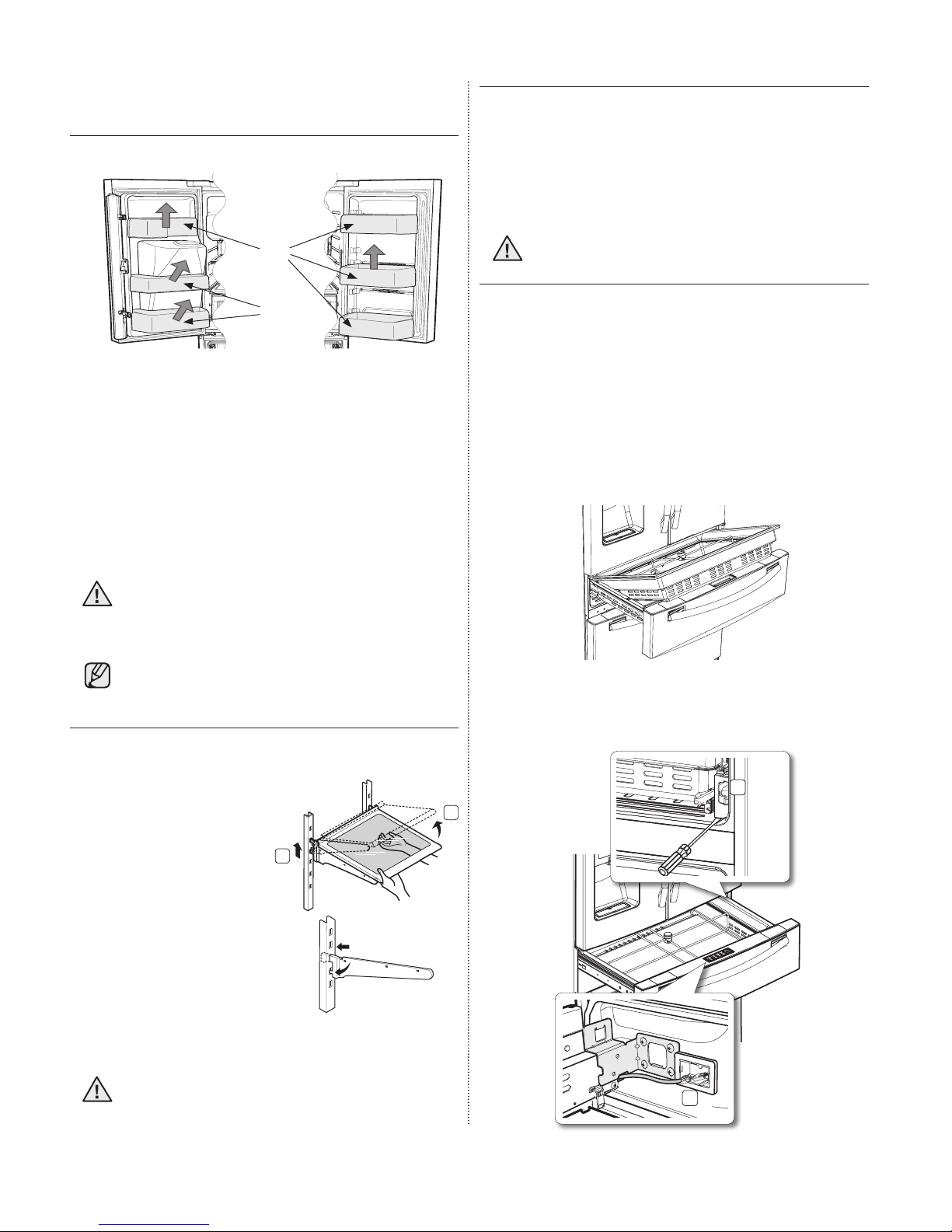

1. With the door opened, remove the cap top table ( 1 ) with a flat-blade screwdriver (-), and close the door. Remove the 3 screws holding down the top table ( 2 ) and turn it with several wires connected.
2. Disconnect one connector ( 3 ) on the right side door and one connector ( 4 ) on the left side door. Remove the water line ( 5 ) while pressing the dark gray color part ( 6 ) of the water line coupler.
If a red clip is on the coupler, it must be removed before removing the tube.
WARNING
CAUTION
WARNING
1
2
4
5
6
3
Red Clip
(1/4")
08_ setting up
3. Remove the 3 hex head bolts ( 7 ) attached to
the upper left and right door hinges with a socket wrench (10mm). Remove the ground screw ( 8 ) attached to the upper left and right door hinges with a philips screwdriver (+). Remove the upper left and right door hinges ( 9 ).
4. Lift the door straight up to remove.
5. Remove the screw ( 10 ) attached to the lower left
and right door hinges with a philips screwdriver (+). Remove the 2 hex head bolts ( 11 ) attached to the lower left and right door hinges with an allen wrench (3/16”). Remove the lower left and right door hinges ( 12 ).
REATTACHING THE REFRIGERATOR DOORS
To reattach the fridge doors, assemble parts in reverse order.
DISASSEMBLE THE FLEX DOOR
1. Take out the Flex Zone ( 1 ) by lifting it up.
2. Take off the cover ( 2 ) w/harness with a flat-blade
screwdriver (-).
3. Disconnect the housing connector.
4. Remove 2 hex head bolts from sides with a socket
wrench (10mm).
5. Lift up the Flex door from the rails.
Allen wrench
12
10
11
Socket wrench
7
8
9
1
2
setting up _09
01 SETTING UP
ASSEMBLE THE FLEX DOOR
To reattach the flex doors, assemble parts in reverse order.
DISASSEMBLE THE FREEZER DRAWER
1. Take out the upper
drawer by lifting it up.
2. Remove the tilting pocket ( 1 ) by pulling both support guards ( 2 ) aside. And take out both support guards by pulling them aside.
3. Take out the lower basket ( 3 ) by lifting the basket up from the rail system.
4. Remove 4 hex head bolts from both sides with a socket wrench (10mm).
5. Lift up the freezer door from the rails.
ASSEMBLE THE FREEZER DRAWER
To reattach the freezer drawer, assemble parts in reverse order.
ADJUSTING THE LEVEL
Make sure the refrigerator is level so that you can make final adjustments. Use a level to test if the refigerator is level both side to side and back to front. If the refrigerator is not level, it will not be possible to get the doors perfectly even, which may cause moisture condensation and increased energy bills. Below is an example of how to level the refrigerator if the left side of the refrigerator is lower than the right side.
How to adjust the level
1. Disassemble the freezer drawer. (See to page 8)
2. Remove the two screws
( 1 ) attached to the cover leg front ( 2 ) with a Philips screwdriver (+).
3. Remove the cover leg front ( 2 ) by lifting the bottom part of the cover leg front up and pulling it out.
4. Insert a flat-blade screwdriver (-) into a notch on the left control lever, and turn it count clockwise to level the refrigerator. (You turn the lever clockwise to lower the refrigerator and counterclockwise to raise it.)
Both control levers must be touching the floor to avoid possible personal injury or property damage because of tipping.
1
2
3
2
1
flat-blade screwdriver(-)
Control Lever
CAUTION
10_ setting up
If the right side is lower, perform the same procedure, but with the right control lever.
It is difficult to remove the cover leg front from the refrigerator, so we do not recommend making small adjustments wIth the control lever. Instead, refer to the next page for the best way to make minor adjustments to the doors.
MAKING MINOR ADJUSTMENTS BETWEEN DOORS
Remember, a leveled refrigerator is necessary for getting the doors perfectly even. If you need help, review the previous section on leveling the refrigerator.
The left door is fixed. To make minor adjustments between doors, adjust only the right door.
1. Pull out the Flex Zone door ( 1 ) to expose the lower hinge ( 2 ).
2. Insert the supplied allen wrench (3/16”) ( 3 ) into the shaft ( 4 ) of the lower hinge.
3. Please adjust the height by turning the hex wrench ( 3 ) clockwise (
DOWN
) or counter-clockwise (
UP
).
When you turn the hex wrench counter­clockwise (
), the door will move up.
1. After adjusting the doors, please insert the supplied fastener ( 6 ) using a pliers ( 5 ) in the gap between the hinge-grommet ( 7 ) and the lower hinge ( 8 ). The number of fastener you’ll need to insert depends on the gap.
2 fastener are enclosed with the refrigerator. The thickness of each fastener is 0.04”.
ADJUSTING THE FREEZER DRAWER LEVEL
1. Locate the height-adjuster ( 1 ) in the freezer drawer. Unscrew the 8 Phillips screws ( 2 ) slightly to loosen the door.
2. Loosen the controller screw ( 3 ) with a Phillips screwdriver(+).
3
1
2
3
4
Adjustment part
Fixed part
Freezer Drawer
Adjustment part
1
2
3
setting up _11
01 SETTING UP
3. Find the best level to align the door slope.
• After adjustment, tighten the controller screw ( 3 )
and then philips screws.
CHECKING THE WATER DISPENSER LINE
A water dispenser with a filter is one of the helpful features on your new refrigerator. To help promote better health, the water filter removes unwanted particles from your water. However, it does not sterilize or destroy microorganisms. You may need to purchase a water purifying system to do that.
In order for the ice maker to operate properly, a water pressure of 20~125 psi is required.
Under normal conditions, a 170 cc (5.75 oz.) cup can be filled in about 10 seconds.
If the refrigerator is installed in an area with low water pressure (below 20psi), you can install a booster pump to compensate for the low pressure.
After you have connected the water line, make sure the water storage tank inside the refrigerator is properly filled. To do this, press the water dispenser lever until the water runs from the water outlet.
Water line installation kits are available at extra cost from your dealer. We recommend using a water line installation kit that contains copper tubing and ¼” compression nut.
Connecting to the water supply line
1. First, shut off the main water
supply.
2. Locate the nearest cold water drinking line and
install the pipe clamp and shut off valve.
3. Connect the water line installation kit to shut off
valve.
INSTALLING THE WATER LINE
Connecting the water supply line to the refrigerator.
There are several items that you need to purchase to complete this connection.
You may find these items sold as a kit at your local hardware store.
Use Copper Tubing Use Plastic Tubing
• ¼” copper tubing
• ¼” compression nut (2pc)
• Ferrule (2pc)
• ¼” plastic tubing
→ Molded end(Bulb)
• ¼” compression nut (2pc)
Example) The slope is about 0.08inch (2mm) as shown below.
- Rotate the height adjuster to -2.0 to reduce the door slope.
Slope
Reference
plane
Pipe clamp
Cold water line
Shut off valve
Shut off valve
Pipe clamp
Cold water line
Water line installation kit
12_ setting up
1. Slip the compression nut ( A ) through the supplied plastic tubing ( A ).
2. Tighten the compression nut ( A ) onto the 1/4”
compression fitting.
- If you are using copper tubing, slip the compression nut ( B ) (not supplied) and ferrule (not supplied) on copper tubing (not supplied) as shown.
- If you are using plastic tubing ( B ) , insert the molded end (Bulb) of the plastic tubing ( B ) into the compression fitting.
Do not use without the molded end(Bulb) of the plastic tubing ( B ).
3. Tighten the compression nut ( B ) onto the compression fitting. Do not over-tighten the compression nut ( B ) .
4. Turn water on and check for any leakage. If you find water drops or leakage in the connection areas, turn off the main water supply. Check the connections and, if nescessary, tighten.
5. Flush 1 gallon of water through the filter before drinking or using the water from the refrigerator. (Flush approximately 6 minutes.) To flush, press a large glass or cup against the water dispenser lever. Fill the glass, empty it into the kitchen sink after it is filled, and then repeat.
6. After you turn on the refrigerator, let the ice maker
make ice for 1 to 2 days. Over that period of time, throw out the first 1 or 2 buckets of ice the freezer makes to ensure all impurities have been removed from the water line.
Only connect the water line to a drinkable water source. If you have to repair or disassemble the water line, cut off 1/4“ of the plastic tubing to make sure you get a snug, leak-free connection.
COMPLETING THE SET UP
Now that you have your new refrigerator installed in place, you are ready to set up and enjoy the features and functions of the appliance. By completing the following steps, your refrigerator should be fully operational.
1. Make sure your refrigerator is in an appropriate
location with reasonable clearance between it and the wall. Refer to installation instructions in this manual.
2. Once the refrigerator is plugged in, make sure the
interior light comes on when you open the doors.
3. Set the Temperature control to the coldest
temperature and wait for an hour. The freezer will get slightly chilled and the motor will run smoothly. Reset the refrigerator and freezer to the temperatures you want.
4. After you plug the refrigerator in, it will take a few
hours to reach the appropriate temperature. You can store food and drinks in the refrigerator after the temperature is sufficiently cool.
Plastic tubing
(A) (Supplied)
Ferrule (Not
supplied)
Compression nut (A) (1/4”) (Supplied)
Compression fitting (Supplied)
Molded end(Bulb)
Compression nut (B) (1/4”) (Not supplied)
or
Copper tubing
(Not supplied)
Plastic tubing (B) (Not supplied)
Household water supply line
Refrigerator
CAUTION
operating _13
02 OPERATING
Operating your French Door Refrigerator
COMMON RESTRICTIONS AND PRECAUTIONS
1. English is a default language for the Display and languages not being supported may not displayed on
the screen.
2. For the periodic updates of Weather or News, it may cause network traffics when the Display is not
being used.
3. When there are softwares newly updated by Samsung, they will be automatically updated and it will be
informed to the User.
DIGITAL PANEL
CPU Marvel Aspen CPU(ARM) OS Linux 2.6.28
RAM 256MB LCD 8" TFT-LCD(800*480)
ROM 512MB NETWORKS IEEE802.11 b/g
USING FIRST TIME
• When using the product first time after the installation, the following touch panel calibration screen appears on the Display Panel. According to the procedure appeared on the screen, tap on the center of the cross accurately. If the center is not properly pointed, the cross mark appears repeatedly.
After completing the touch screen calibration, its Home Screen will appear on the Display Panel. The touch panel calibration screen may appear again after the software update being completed.
HOME SCREEN
• The Home screen is the starting point of setting all functions. Also, when the
icon is selected
at all menus, it moves to the Home screen right away. On the center of the Home screen, the basic refrigerator information such as Time / Weather / Temperature / Dispenser Selection will show. The indicator icons at the left top of the Screen shows various information of the fridge and the bottom menus are the gates to each function.
14_ operating
Indicator Icons (At the left-top of the Screen)
1. Network Signal Strength : 5 Level (off - 1 - 2 - 3 - 4)
2. Volume Level : 5 Level (off - 1 - 2 - 3 - 4)
3. Filter Status : 3 Level (blue - pink - red)
4. Schedule Alarm
5. S/W Update Notice
6. Energy Saver
7. Door Alarm
8. Ice Off
9. Dispenser Lock
10. Smart Grid-Level
Date/Time, Freezer/fridge temperature, Dispenser selection, Current weather(At the center of the Screen)
1. Date/Time : Indicates the current date and time.
2. Freezer/Fridge temperature : It shows the current freezer/fridge temperature. When the freezer/fridge
temperature is pressed, the temperature setting screen will be displayed.
3. Dispenser : It shows the current status of the dispenser. When the current status of the dispenser is
pressed, the ice type selection screen will be displayed.
4. Weather : indicates the current weather. The Home screen background image changes in 8 modes
based on the current weather and time. (Clear, Cloudy, Snow, Rain) x (Day, Night)
Menu Description (At the bottom of the Screen)
1. Memo : You can save or check necessary memos.

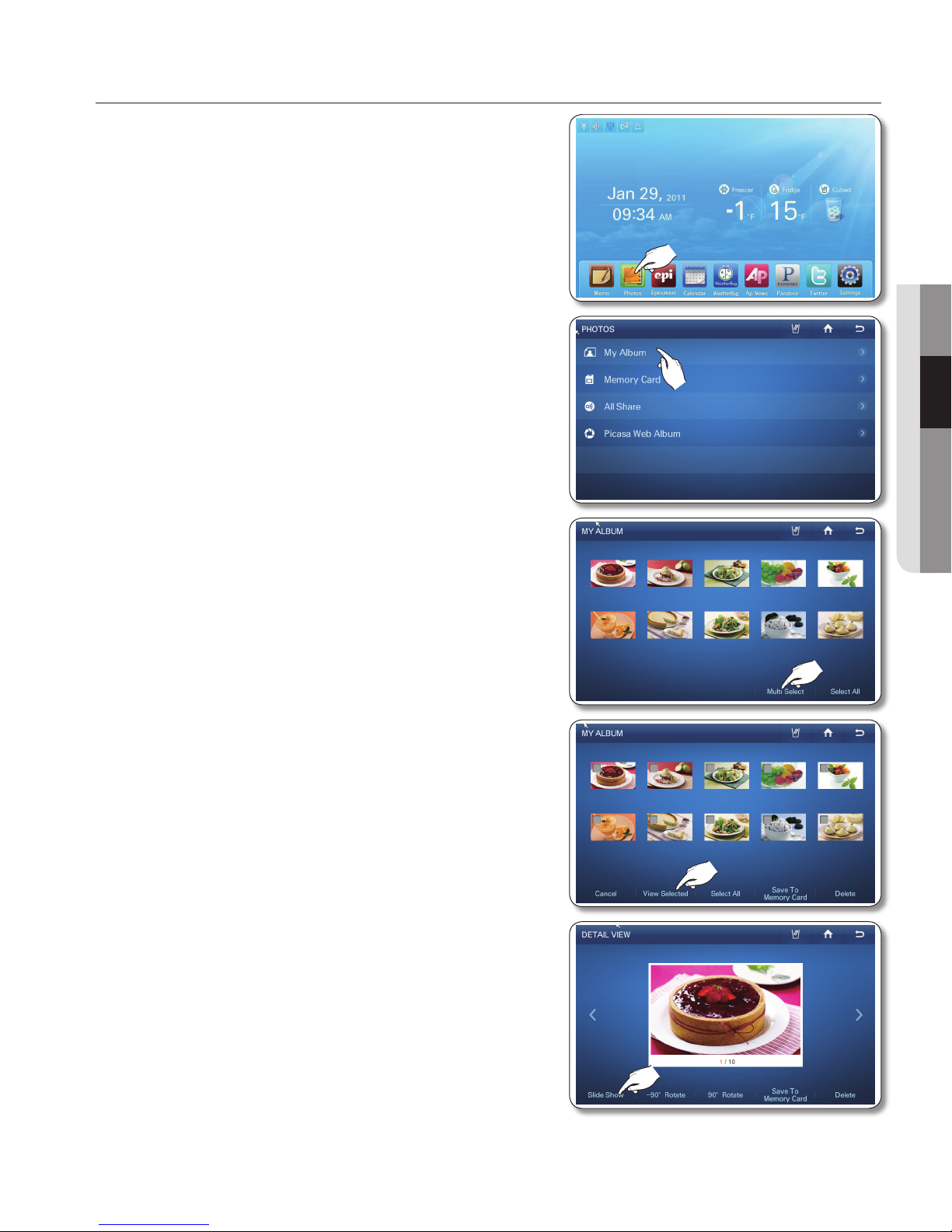

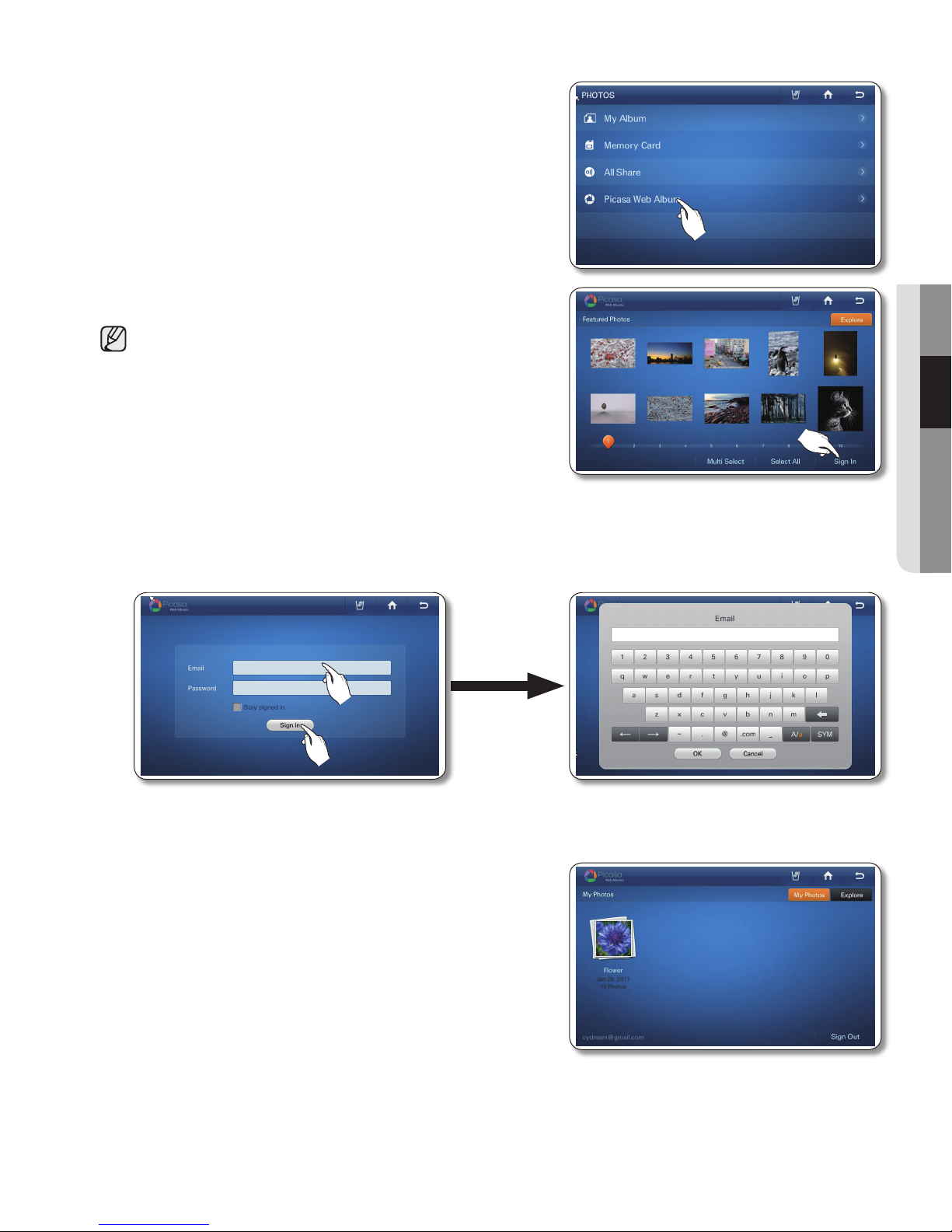

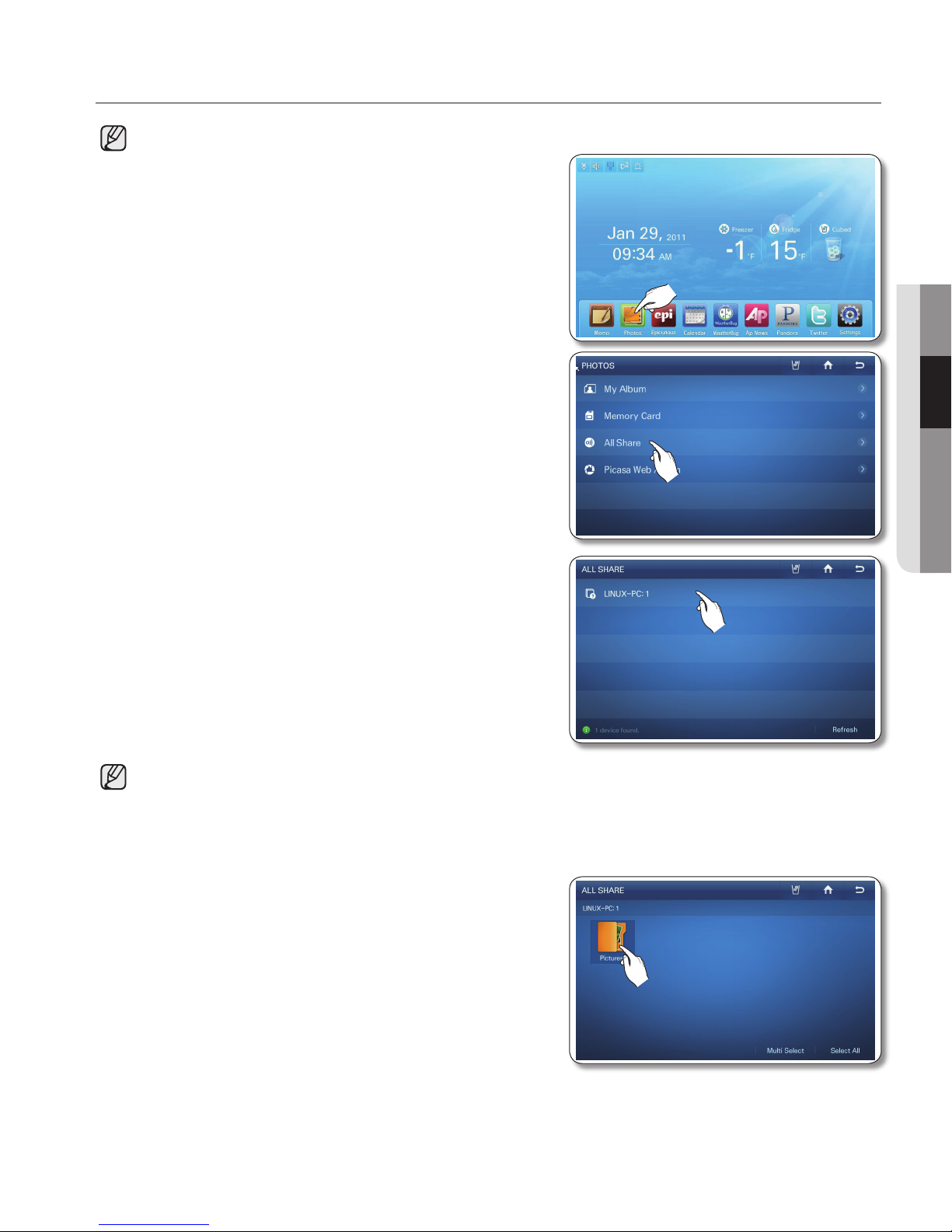

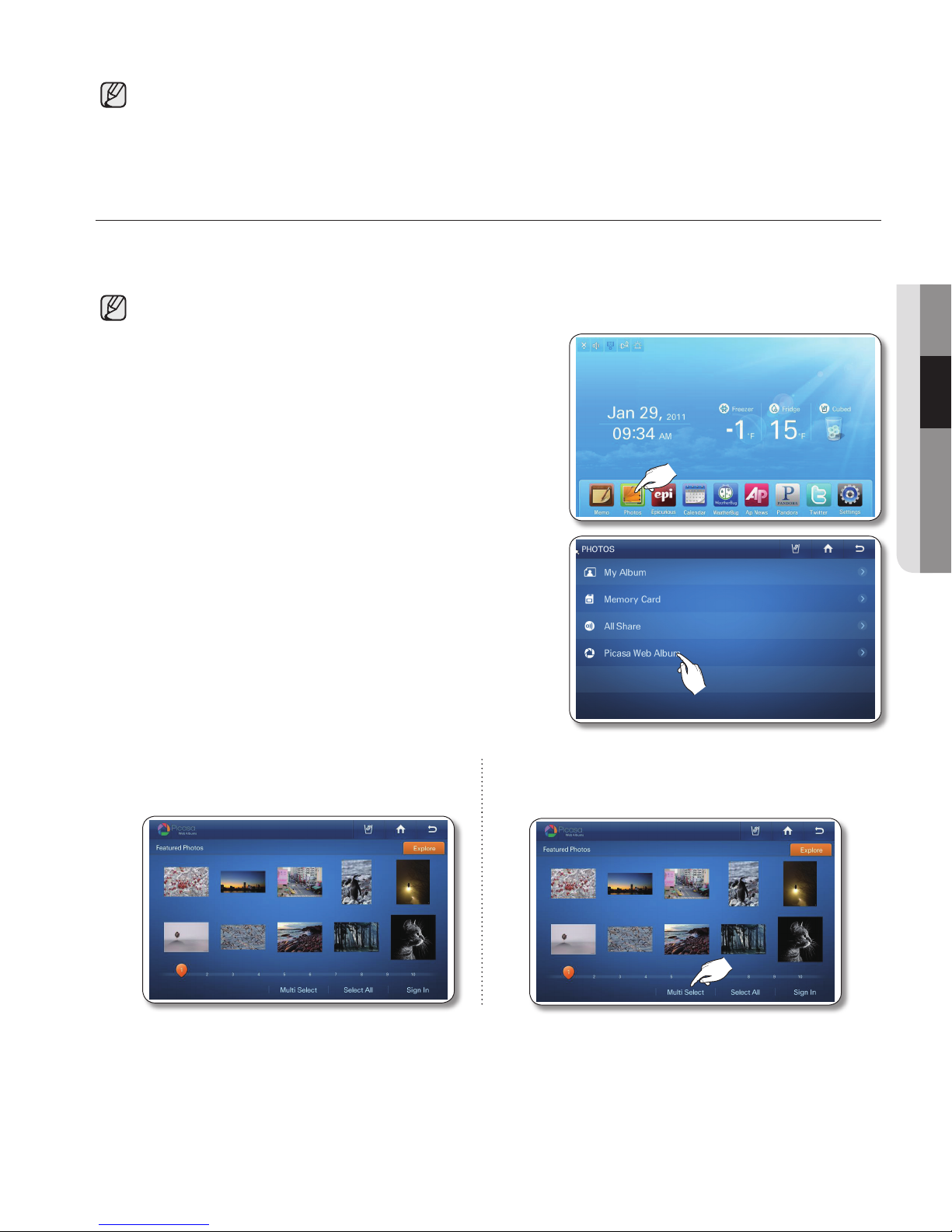

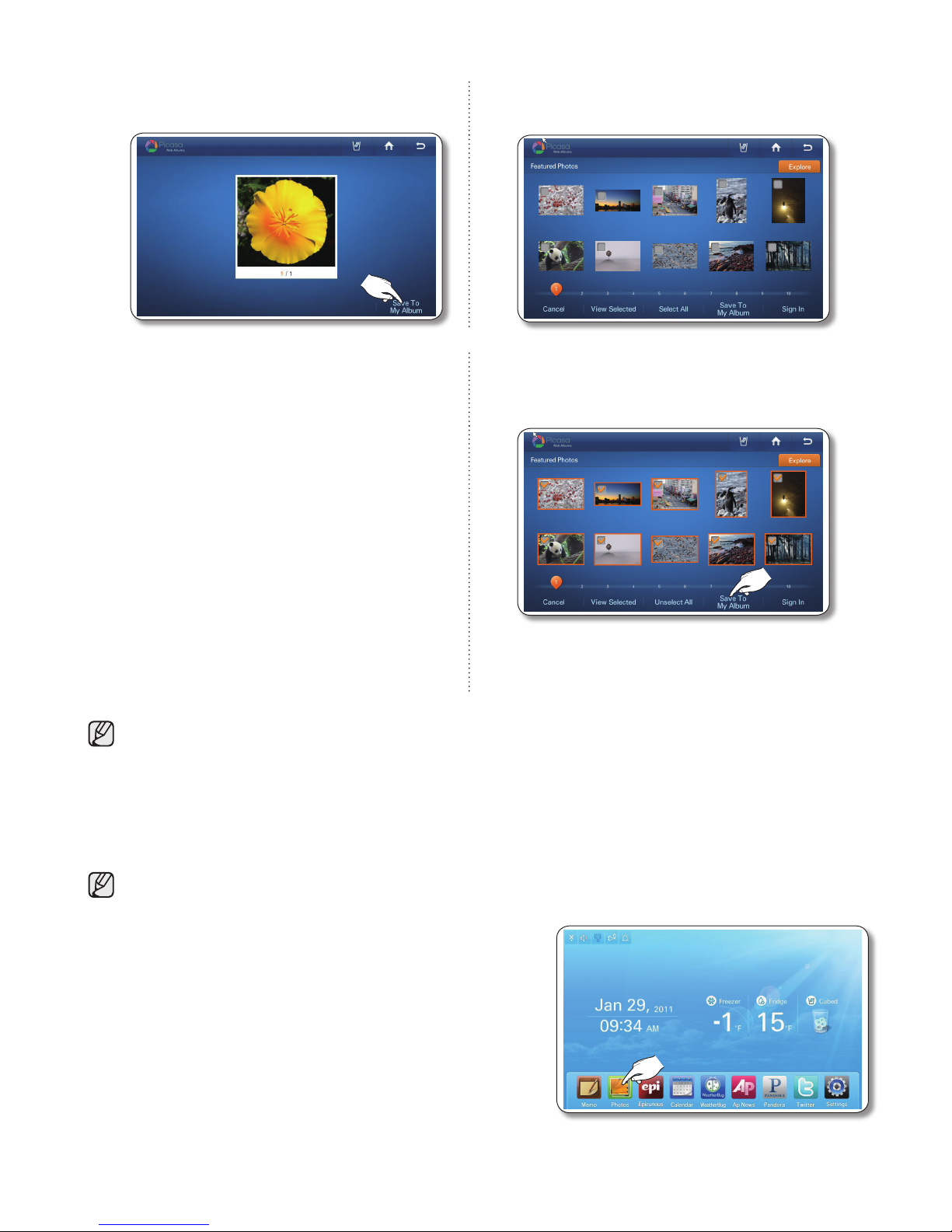

2. Photos : You can manage the stored photos, and can bring photos from the external devices such as
memory cards or mobile phones and from the Internet.

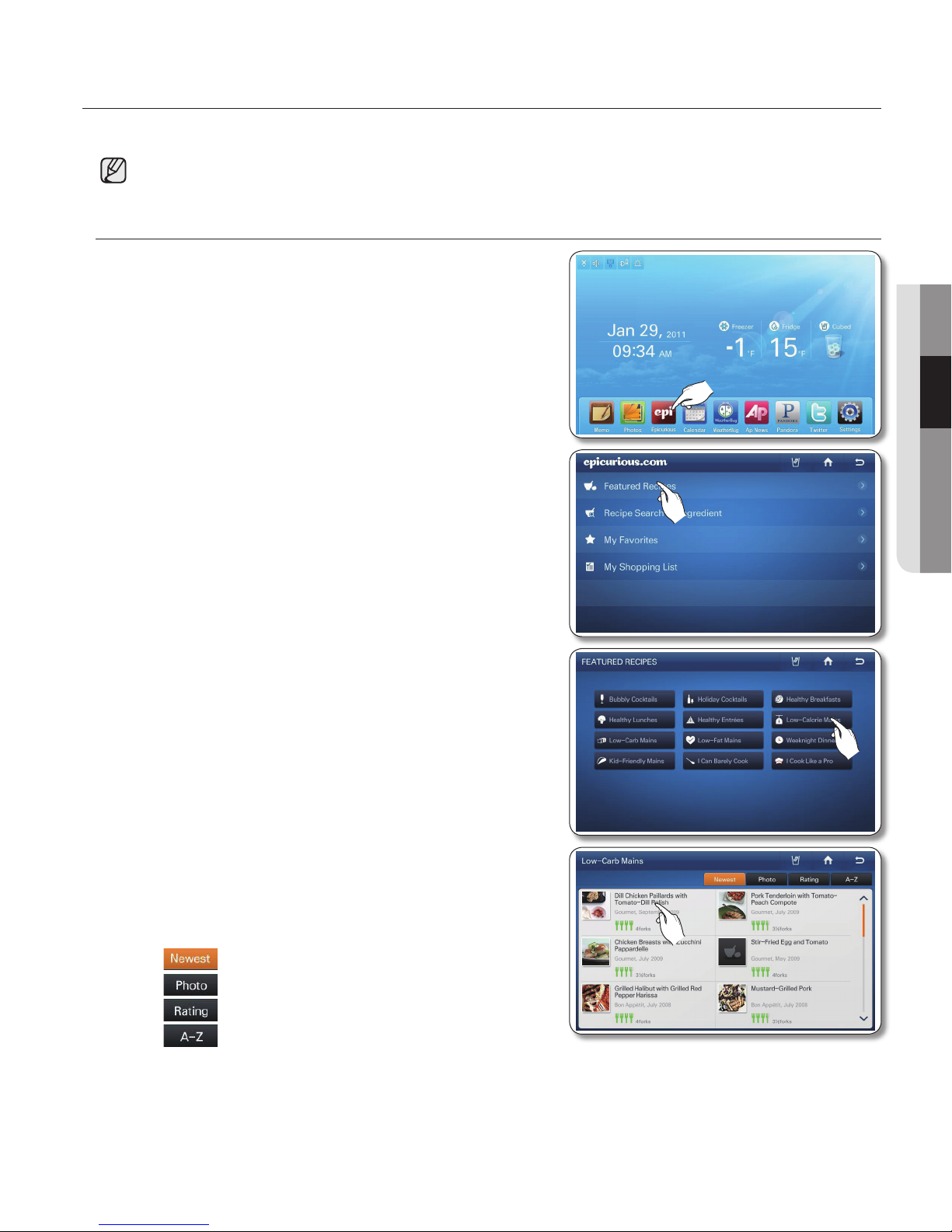

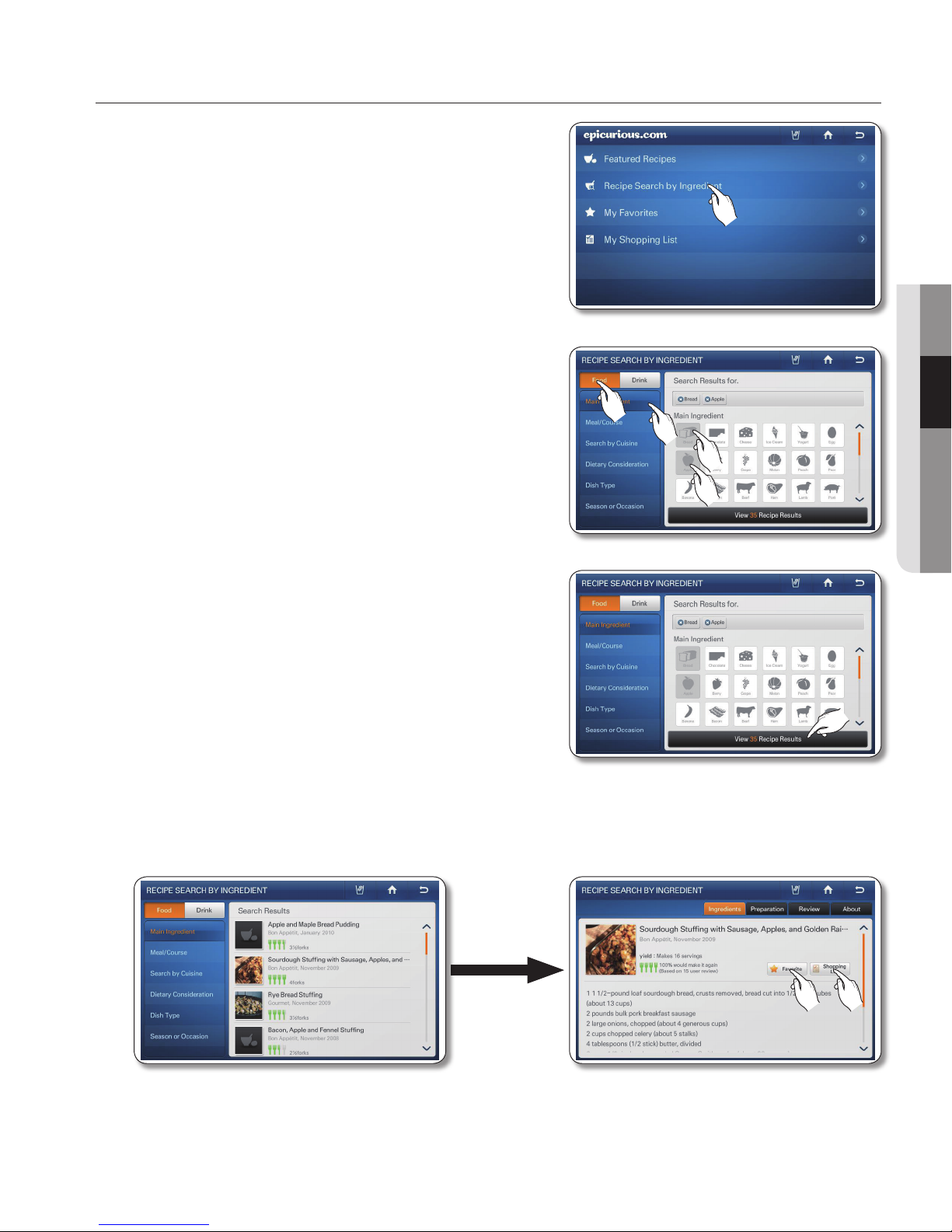

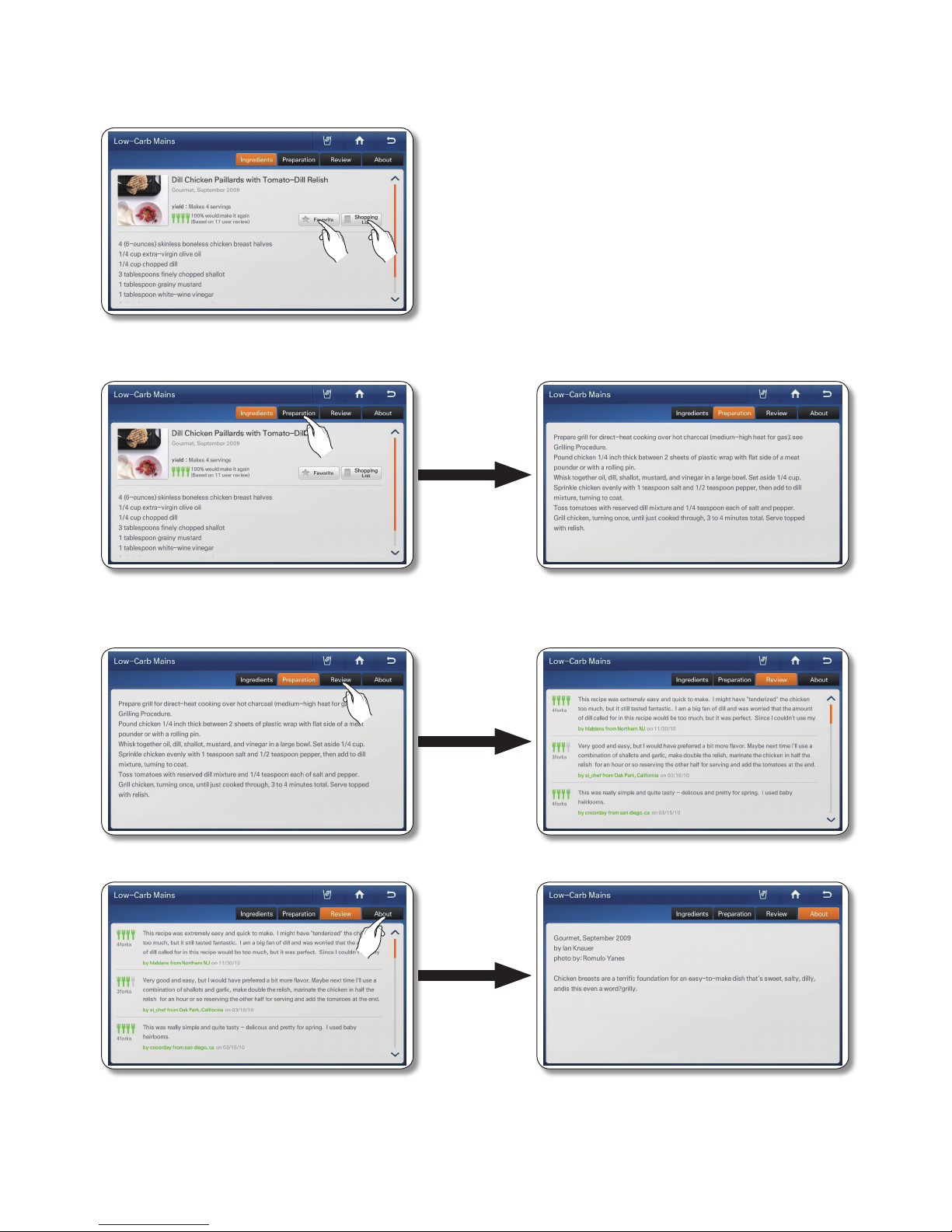

3. Epicurious : It shows the food recipe.
4. Calendar : You can check your schedule stored in the Google Calendar.

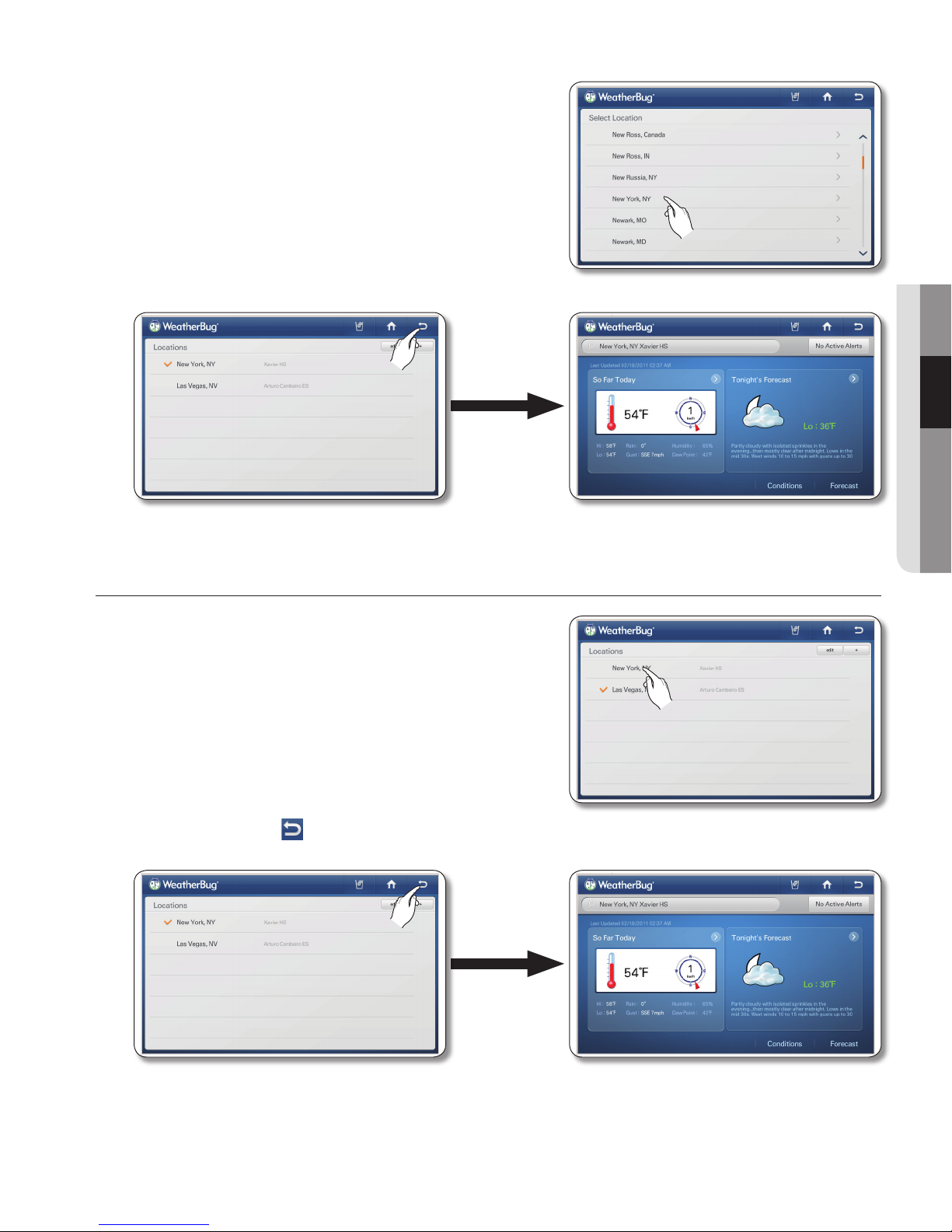

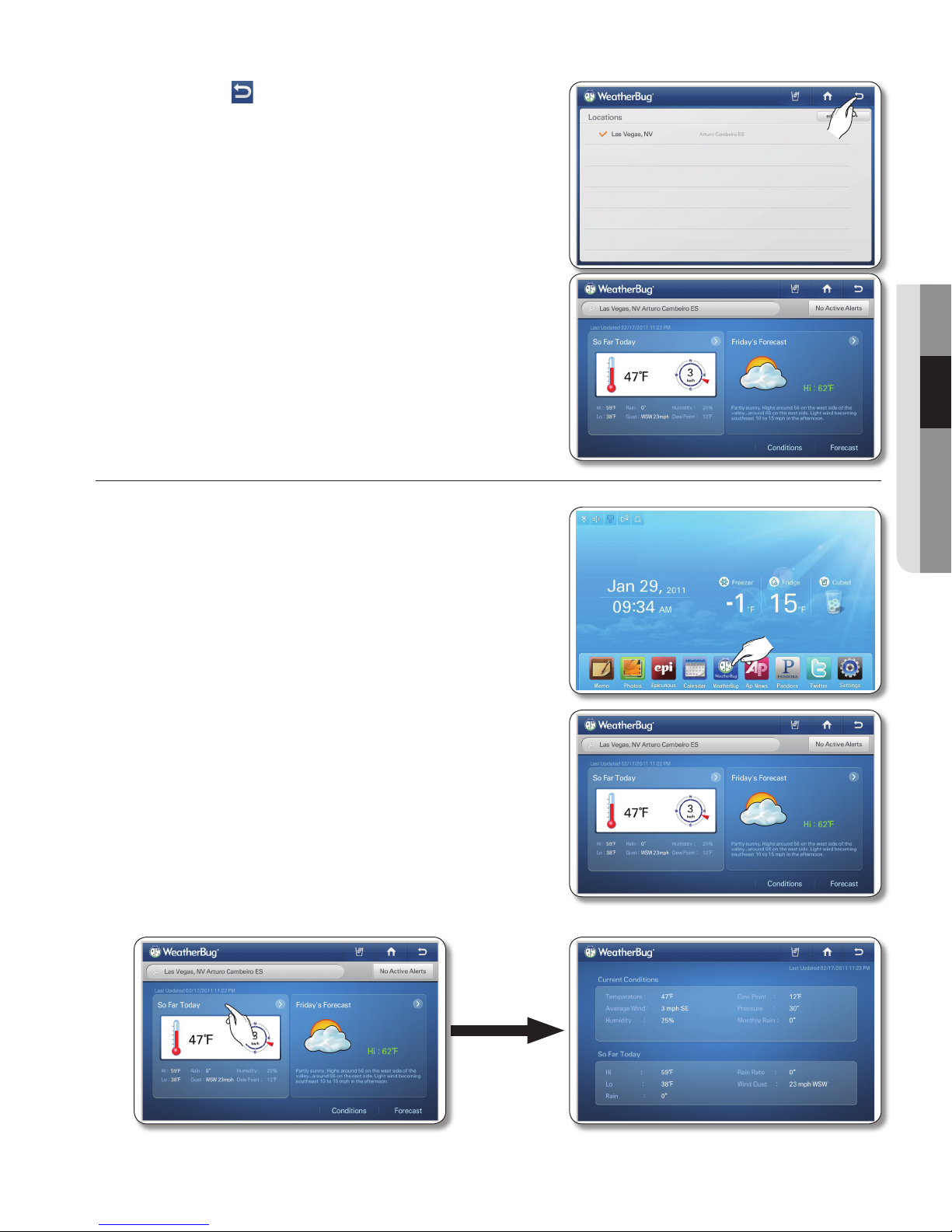

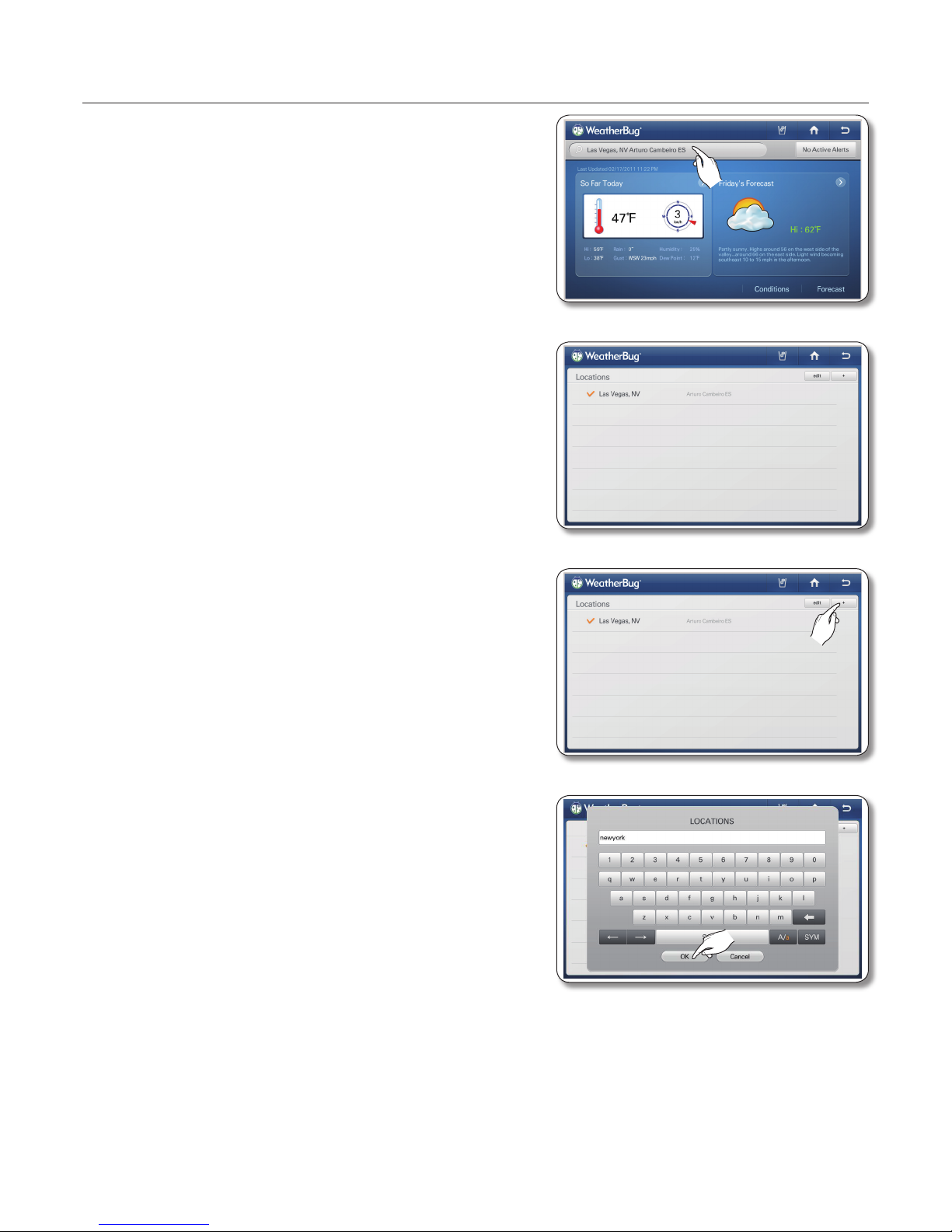

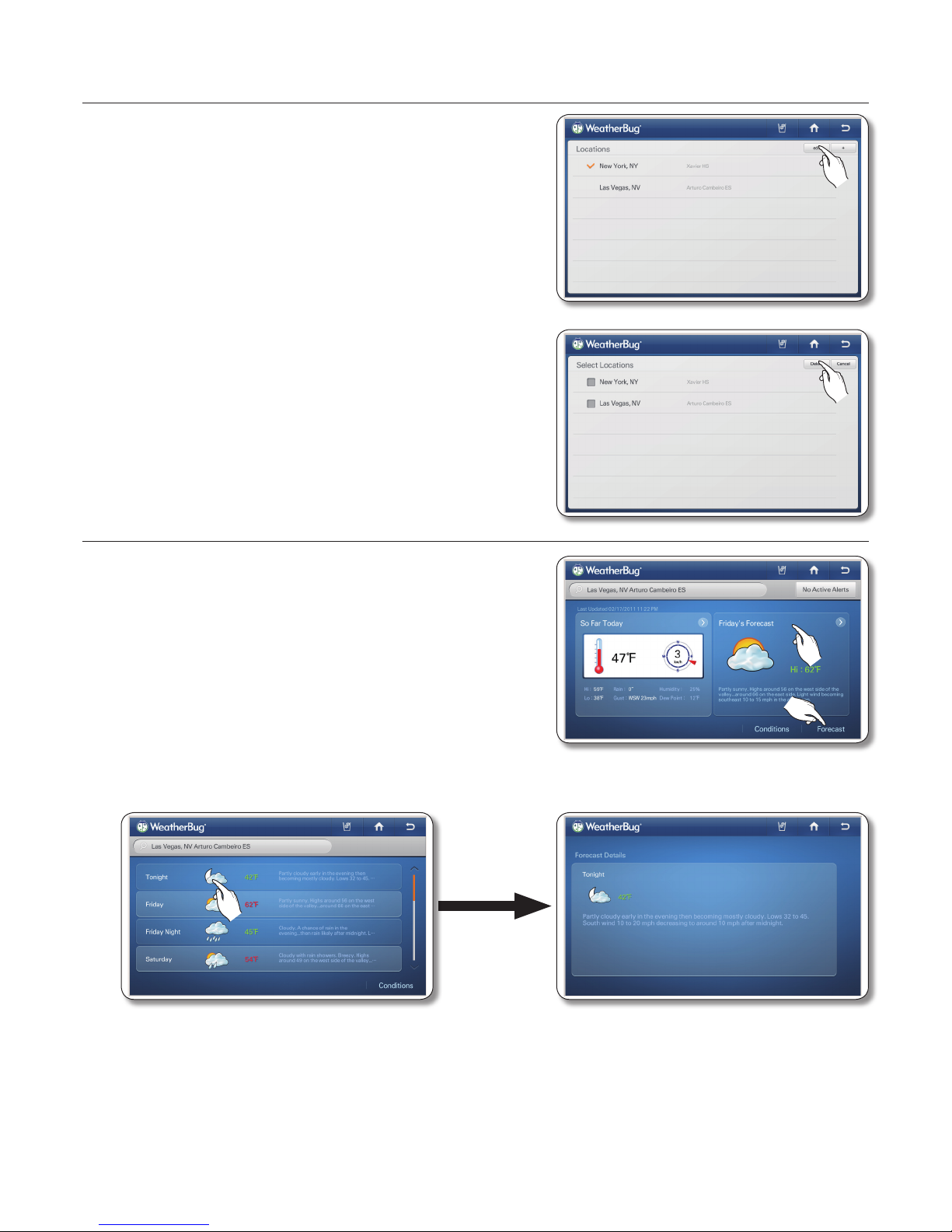

5. WeatherBug : It shows the current weather and weather forecast.

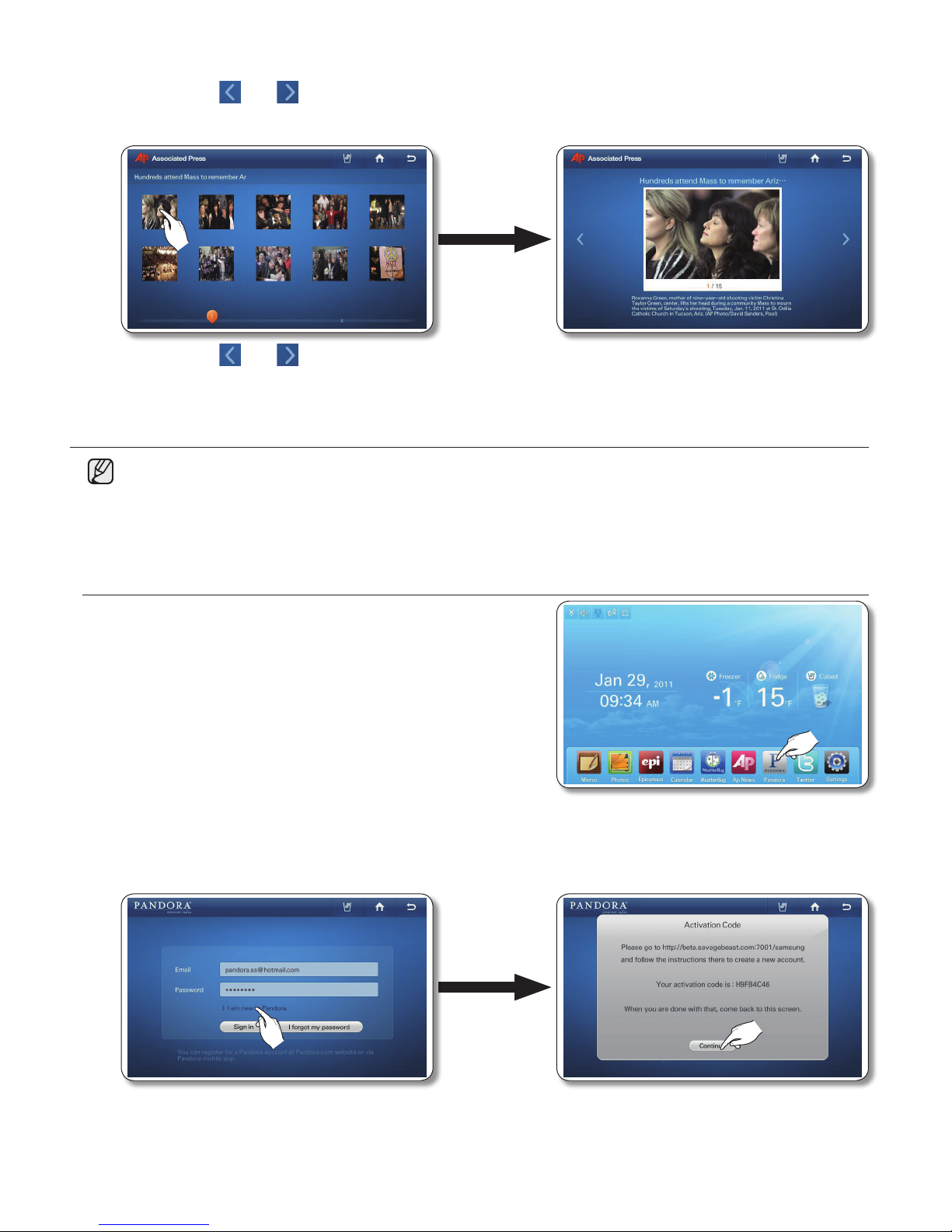

6. AP News : It shows the internet news.

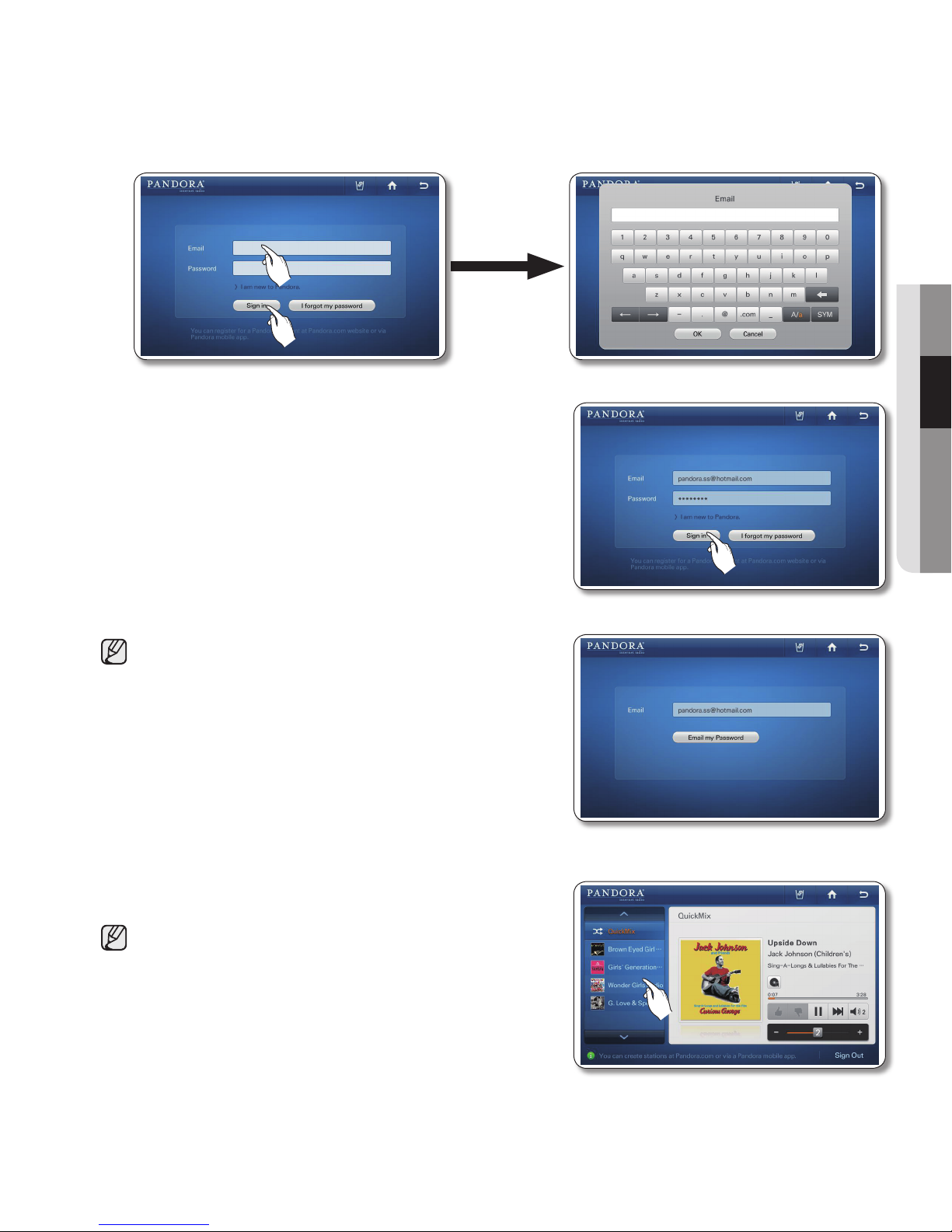

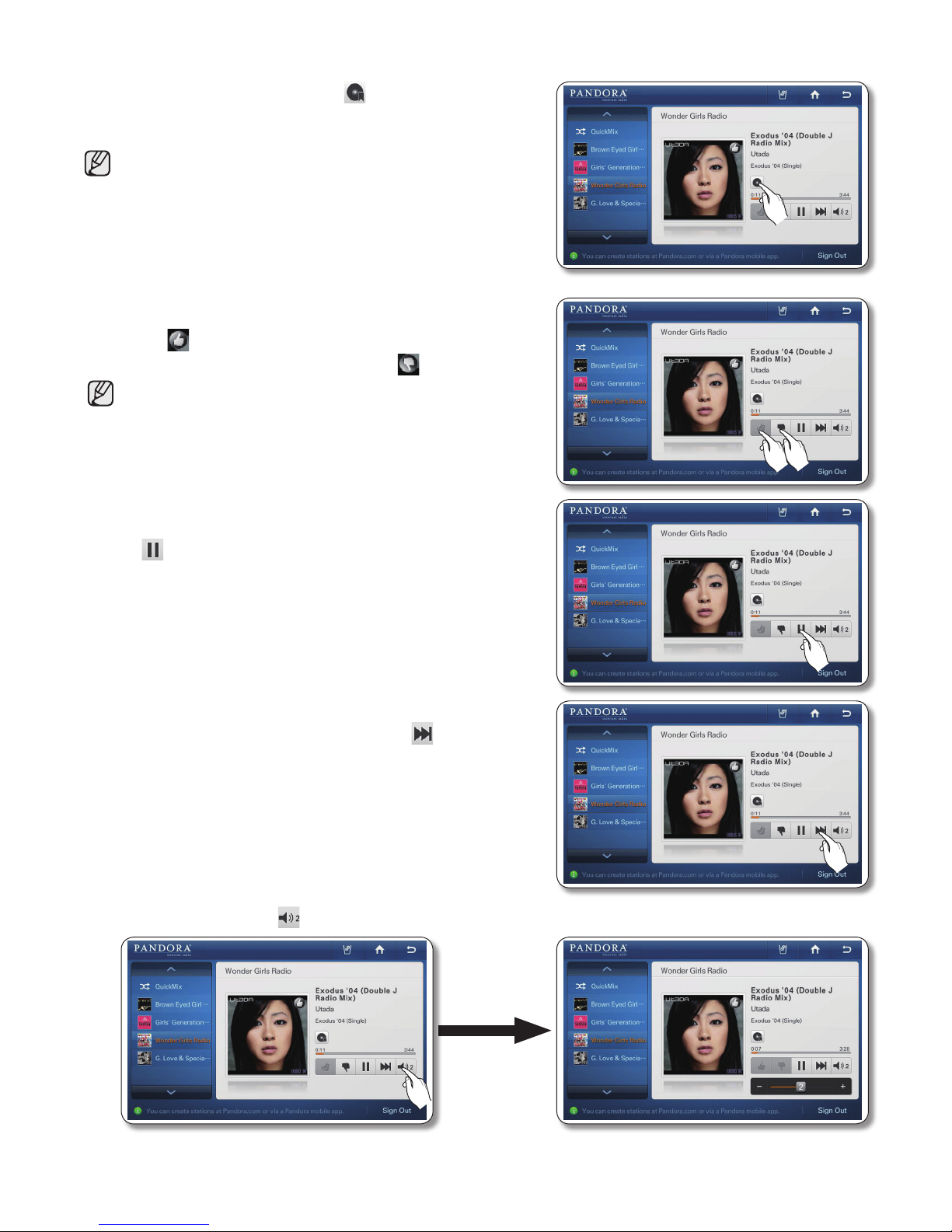

7. Pandora : It plays the Internet radio.
8. Twitter : It shows the twitter messages.

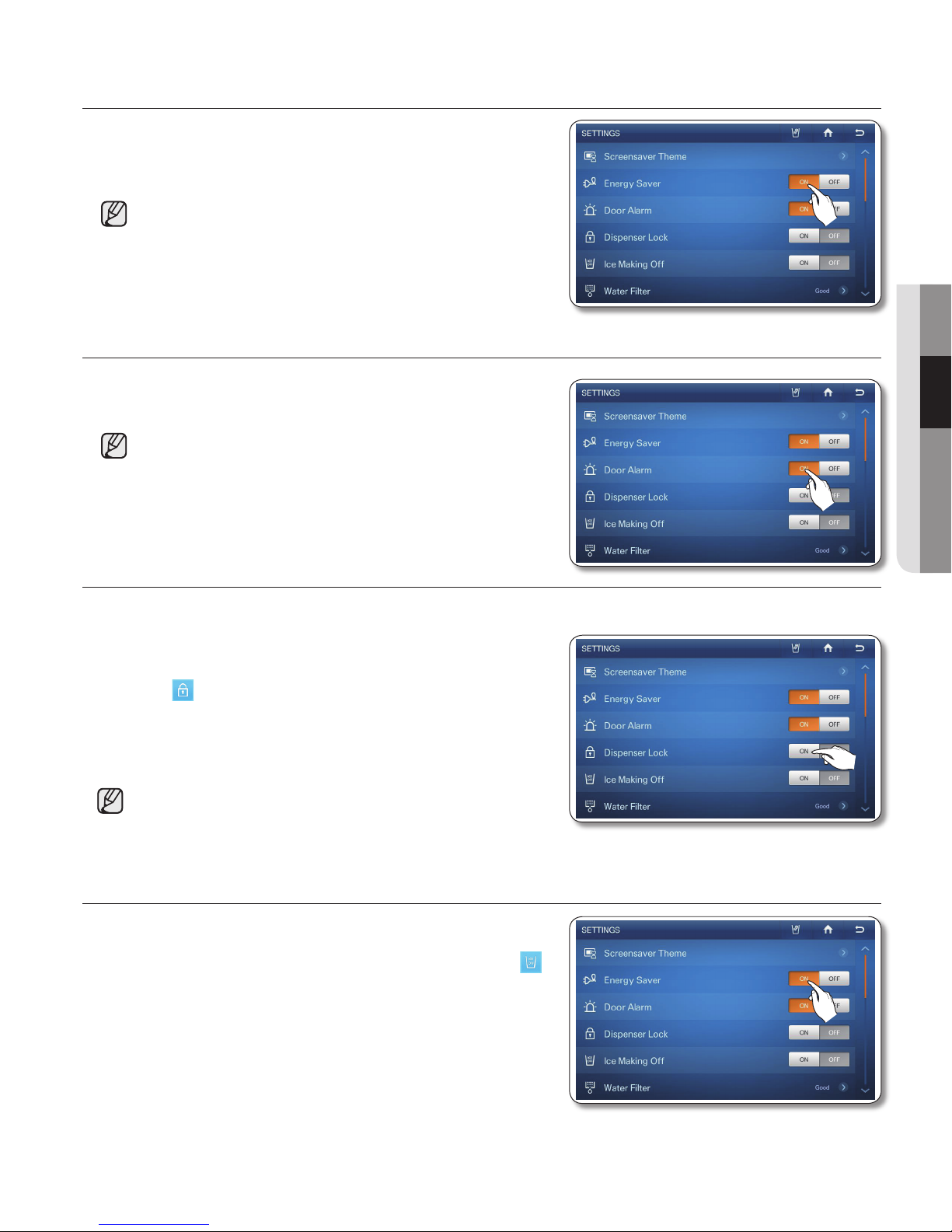

9. Settings : You can set the Various settings.
1 2 3 4 5 6 7 8 9 10
<Wireless network connected>
<Wireless network disconnected>
operating _15
02 OPERATING
SETTING THE FREEZER/FRIDGE TEMPERATURE
The temperature control allows you to set the freezer and the fridge temperatures. Use the following instructions to change and set these temperatures.
1. Touch the Freezer/Fridge temperature on the Home screen.
• When ice cream is stored at a temperature above 4°F (-16°C) in the freezer, it may melt.
•

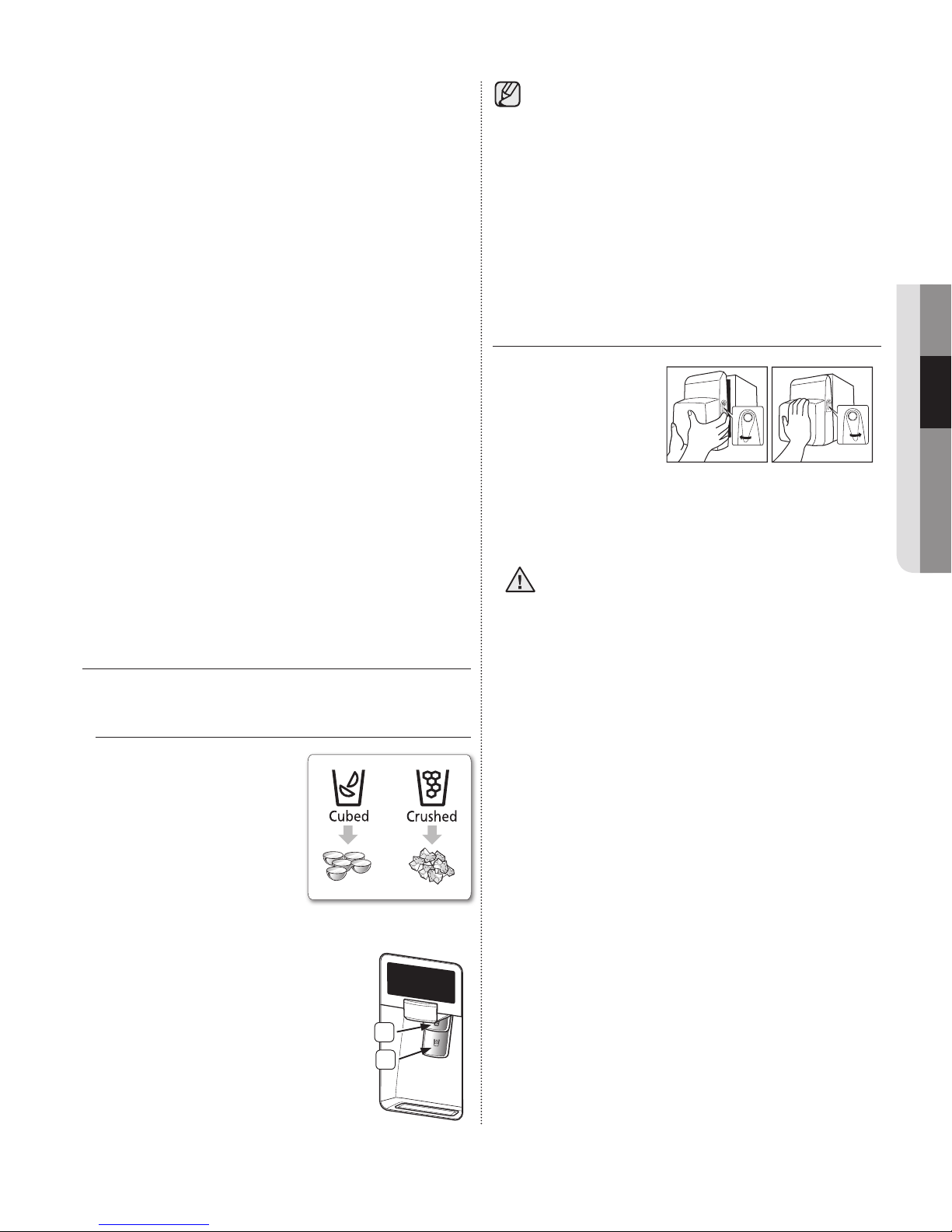

: You can set the dispenser type. (Cubed/Crushed)
•
: You can move the home screen.
•
: You can move the preview screen.
2. Choose the desired freezer and/or fridge temperatures using the temperature buttons; then touch the Save button.
Freezer : Fahrenheit : -8°F ~ 8°F(Default: -2 °F) Celsius : -22 °C ~ -14 °C(Default: -19 °C) Fridge : Fahrenheit : 34°F ~ 46°F(Default: 38°F), Celsius : 1°C ~ 7°C(Default: 3°C)
16_ operating
• The freezer or fridge temperature may change depending on the door opening/closing frequencies, the food quantity, the ambient temperature, etc.
• Temperatures vary at each food storage section in the freezer and refrigerator compartments.
• When the room temperature increases, there can be an “Abnormally High Temperature” pop-up. In this case, when the Freezer and the Fridge temperatures become normal, the pop-up will be automatically cancelled. But, when the pop-up is not cancelled after a long operation time, please contact your nearest repair center.
SETTING THE POWER FREEZE/POWER COOL
The Power Freeze and Power Cool functions can be used to quickly lower the temperature of the freezer and fridge compartments. Use the following instructions to activate these functions.
1. Touch the Freezer/Fridge temperature on the Home
screen.
2. Touch the Power Freezer (
) and/or Power Cool ( ) button(s); then touch the Save button.
• To cancel the Power Freeze and the Power Cool, press the [Power Freeze] or the [Power Cool] button again or select a Temperature Setting button.
• Energy consumption increases during Power Freeze and/or Power Cool usage.
• When the question icon (
) is selected, its function description screen pops up. And, the [OK]
button is selected on the popup screen, it goes back to the Temperature Display Screen.
• When you turn on Power Freeze/Power Cool, the refrigerator’s compressor speeds up and is louder than during normal operation.
operating _17
02 OPERATING

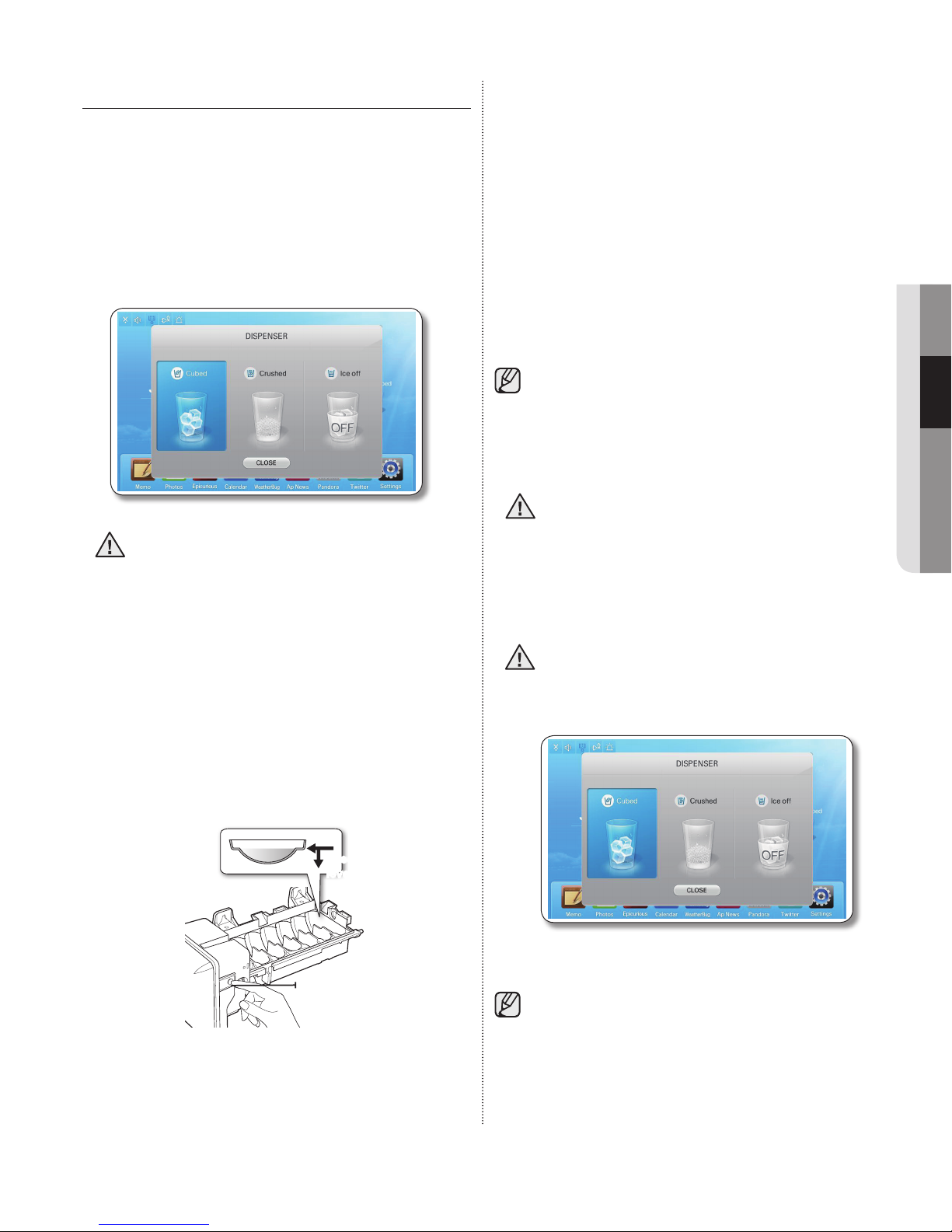

SETTING THE DISPENSER
You can select the ice type.
1. Touch the dispenser status on the Home screen.
2. Touch the desired dispenser type; then touch the CLOSE button.
• Touch the Ice Off, if you don't want to make more ice.
• When the Ice Off is set, the Ice Off indicator icon (
) appears on the left top of the Home screen.
• We recommend you stop ice making if the following occur:
- There is enough ice in the ice bucket.
- You want to save water and energy.
- Water is not being supplied to the refrigerator.
• If the ice maker function is ON, and the water line is not connected, there will be a water valve noise from back of the unit. Touch the Ice Off on the DISPENSER select box.
3. Place glass in dispenser to dispense selected ice or water.(refer to HOW TO USE THE DISPENSER)
18_ operating
DOOR OPEN ALARM
When the fridge / fridge door remains open over 2 minutes, a warning window pops up with alarm sounds. After the first alarming, it repeats every minute. And, it stops when closing both doors. If the Door Alarm OFF is selected on the Settings function, alarming does not occur.
MEMO
This feature can be used to leave a memo for yourself or someone else.
How to leave a new memo.
1. Touch the Memo button on the Home screen.
2. Touch the New button.
operating _19
02 OPERATING
3. Select the messaging tools as needed by touching
the buttons upper the message screen. Enter the message contents with the selected tools.
•
: Select to input a memo in pen mode.(your
finger or a smooth-tip pen such as a style pen.)
•
: Select to input a memo in keyboard mode.
•
: Select to erase a memo.
•
: Select pen or erase thickness.
•
: Select pen color.
• Up to 80 memos can be saved.
• Press the Keyboard icon and touch on the location to write a
memo. Then the keyboard pops up on the Display. The number of letters that can be input on the Keyboard are limited not to exceed the size of the memo.
4. Touch the Save button after entering all the
information.
• When selecting the Attach to Home Screen button, the stored memo displays on the Home screen.
20_ operating
• The memo being displayed on the Home screen can be put away by touching the Detach button or can be temporarily hidden by touching the Hide Memo button.
How to show the memo(s).
1. Touch the Memo button on the Home screen.
2. Choose the desired memo to show. 2. To see multiple memos, press the Multi
Select button.
• When pressing the Select All button, the Multi Selection screen shows.
• When there are multiple pages with many memos, there will be page numbers on the bottom of the screen. And, when pressing the page number, the screen shifts to the related page.
• The menu being displayed on the main screen is indicated with the red tack.
• The written memos will show as thumbnails. The order of the written memos can be changed by
drag and drop.
operating _21
02 OPERATING
3. Check the saved memo. 3. Choose the desired memos to show.
• In the Detail View screen, you can delete it or attach/detach it on the Home screen.
• When pressing the Select All button, all the memos on the current page will be selected and the Select All button will shift to the Unselect All button.
• To go out of the Multi Select screen, press the Cancel button.
• When the stored memos are many, there will be page numbers on the bottom of the screen. And, when pressing the page number, the screen shifts to the related page.
4. Touch the View Selected button.
5. Check the saved memo by using the
and
buttons.
• In the Detail View screen, you can delete it or attach/detach it on the Home screen.
22_ operating
How to delete the memo(s).
1. Touch the Memo button on the Home screen.
2. Choose the desired memo to delete. 2. To delete multiple memos, press the Multi
Select button.
3. Touch the Delete button. 3. Choose the desired memos to delete.
operating _23
02 OPERATING
4. Touch the Yes button. 4. Touch the Delete button.
5. Touch the Yes button.
PHOTOS
Photos can be uploaded from a Memory card/DLNA device/Picasa Web Album into the My Album of this refrigerator.
How to Copy Photos from Memory Card to My Album
1. Pull out the cover over the card slot and move it to the side.
2. Insert the memory card (SD/SDHC/MMC/HS MMC) with images saved into the card slot.
The "A SD/MMC card is connected" message appears on the screen.
256
MB
24_ operating
• The Memory slot is only for SD/SDHC/MMC/HS MMC type memory cards.
• It reads only JPEG(JPG) images.
• The Panel has a capacity of about 300 photos.
• When saving photos from a memory card to the panel, the photo size is automatically changed to
800 x 480 pixels, regardless of the original size.
• If there are many photos saved on the Memory card, it will take awhile for the preview function to load.
• If the Memory Card is removed while transferring images, the My Album only shows the images that have completed transfer. If not a single image has completely transferred, it returns to the photos screen.
• The saved images are fit to the screen size. Depending on the size of an image, there may be black bars on the top or sides.
• A Memory Card is not supplied with the refrigerator.
• Depending on the type of SD/SDHC/MMC/HS MMC memory cards, there may be some that are be
unreadable.
1. Touch the Photos button on the Home screen.
2. Touch the Memory Card on the photos list.
operating _25
02 OPERATING
3. Choose the desired photo to save in the My
Album.
3. To store multiple photos, press the Multi
Select button.
• When pressing the Select All button, the
Multi Selection screen shows.
•
When there are multiple pages with many photos, there will be page numbers on the bottom of the screen. And, when pressing the page number, the screen shifts to the related page.
• This function also applies to the <All
Share> and <Picasa Web Album> functions.
• When there are folders in the Memory Card, the folder icons will appear on the screen.
• When you select the folder, you will see the photos stored in it.
• At the lower tree folders, you can move to its upper tree folder by selecting the '..' icon.
4. Touch the Save To My Album button. 4. Choose the desired photos to save in the
My Album.
26_ operating
• When the photo is selected, it will display its detail information.
• Larger photo sizes will take longer to upload.
• When pressing the Select All button, all the photos on the current page will be selected and the Select All button will shift to the Unselect All button.
• When you press the View Selected button, you will see its larger version.
• To go out of the Multi Select screen press the Cancel button.
• To delete the check mark on the selected photo, select the target photo again.
• When there are multiple pages with many photos, there will be page numbers on the bottom of the screen.
• When moving to other folders with photos selected, the selected photos will be automatically unselected.
• When selecting the folder name above the thumb-nail (Preview Photo), it moves to the related folder.
• This function also applies to the <All Share> and <Picasa Web Album> functions.
5.
The " Save To My Album" appears on the screen while uploading photo from the Memory Card.
5. Touch the Save To My Album button.
• Larger photo sizes will take longer to upload.
6. The " Save To My Album" appears on the
screen while uploading photos from the Memory Card.
• Larger photo sizes will take longer to upload.
7. Take out the Memory Card from the slot.
Loading...
+ 60 hidden pages
