Samsung RF26HFENDWW/AA-01, RF26HFENDWW/AA-00, RF26HFENDSR/AA-03, RF26HFENDSR/AA-02, RF26HFENDSR/AA-01 Owner’s Manual

...

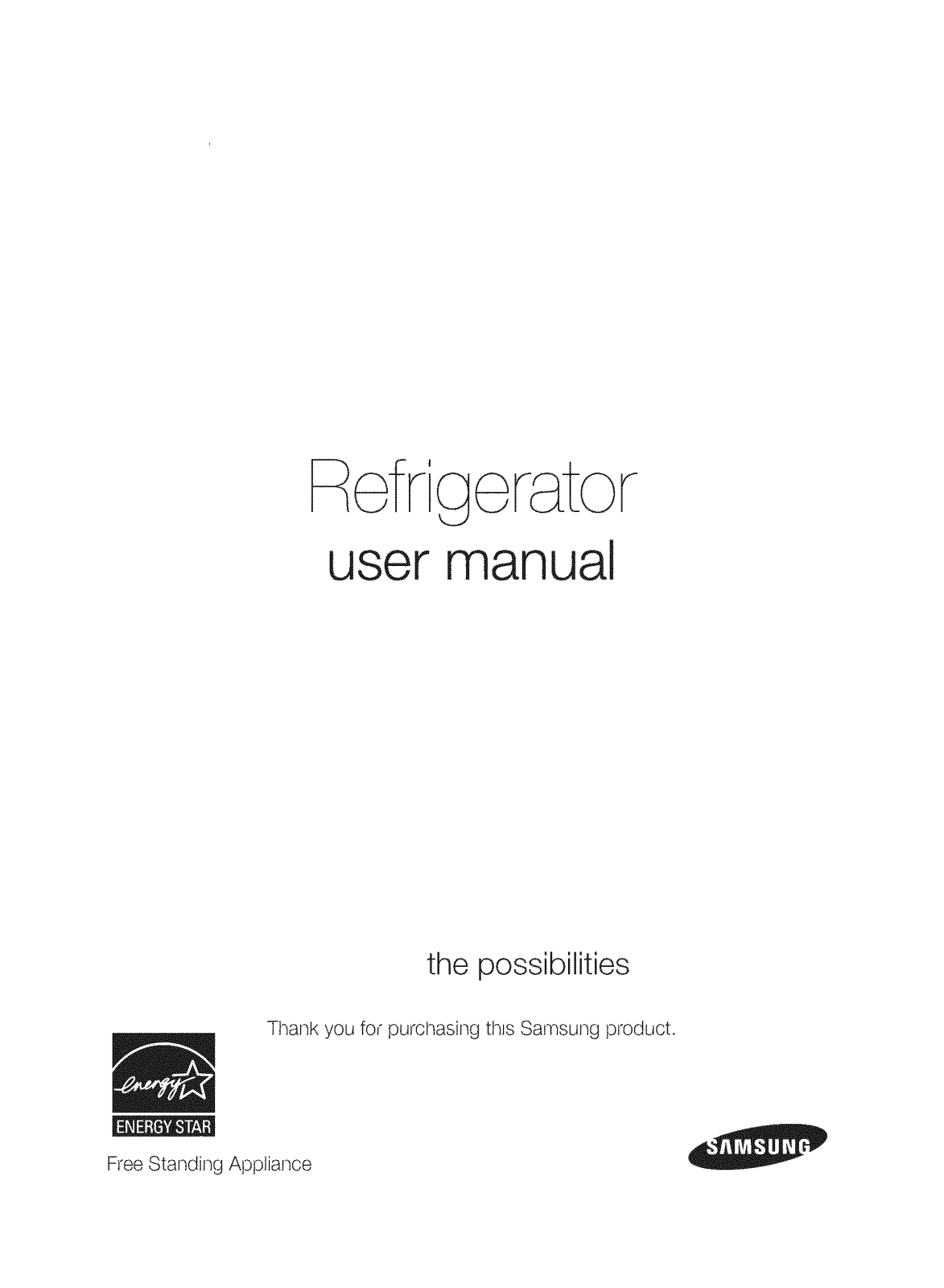

user manual

the possibilities

Thank you foJ"purc!_asing this Samsung pi'oduct.

R'ee Standing Appliance

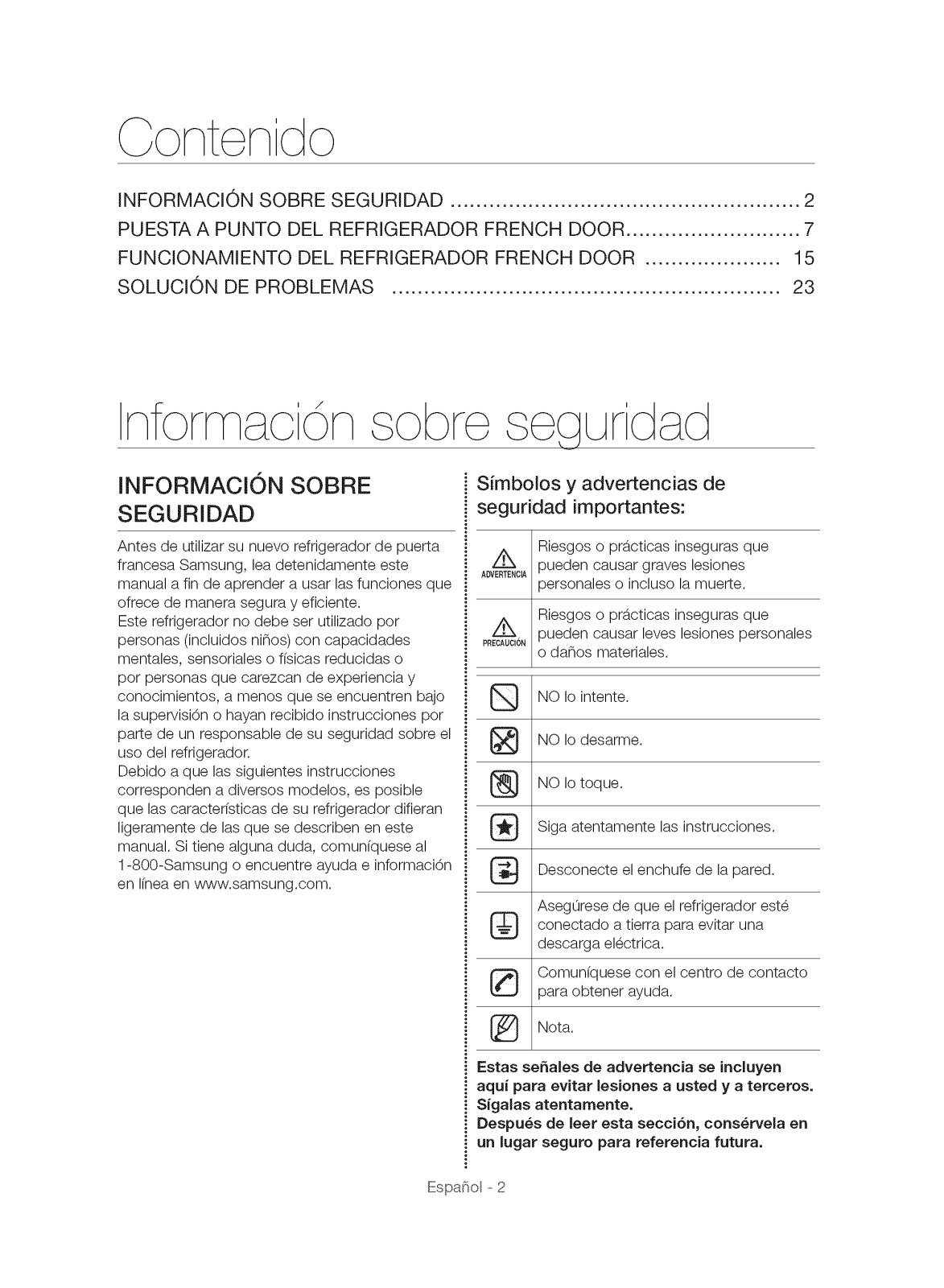

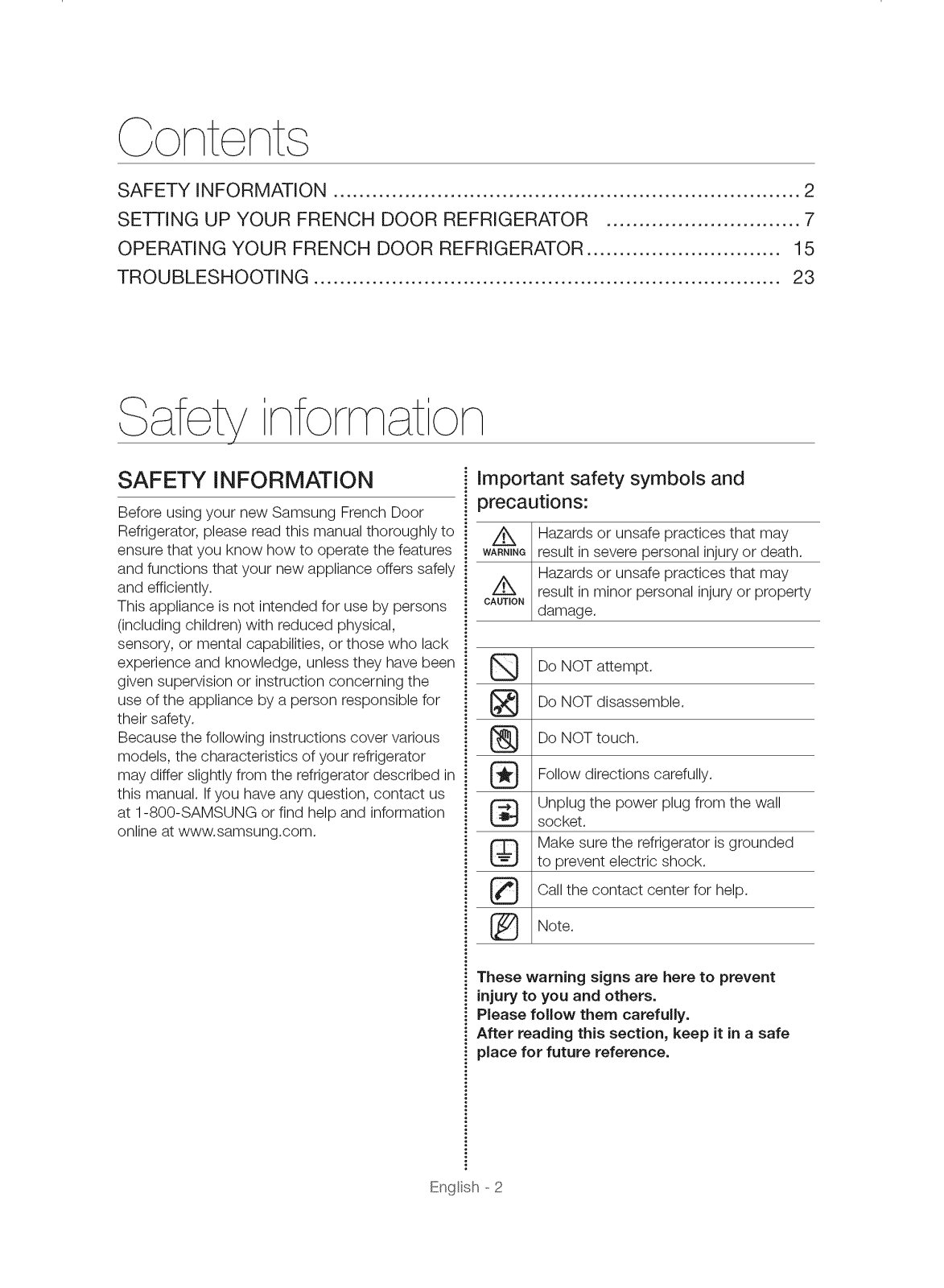

SAFETYINFORMATION........................................................................2

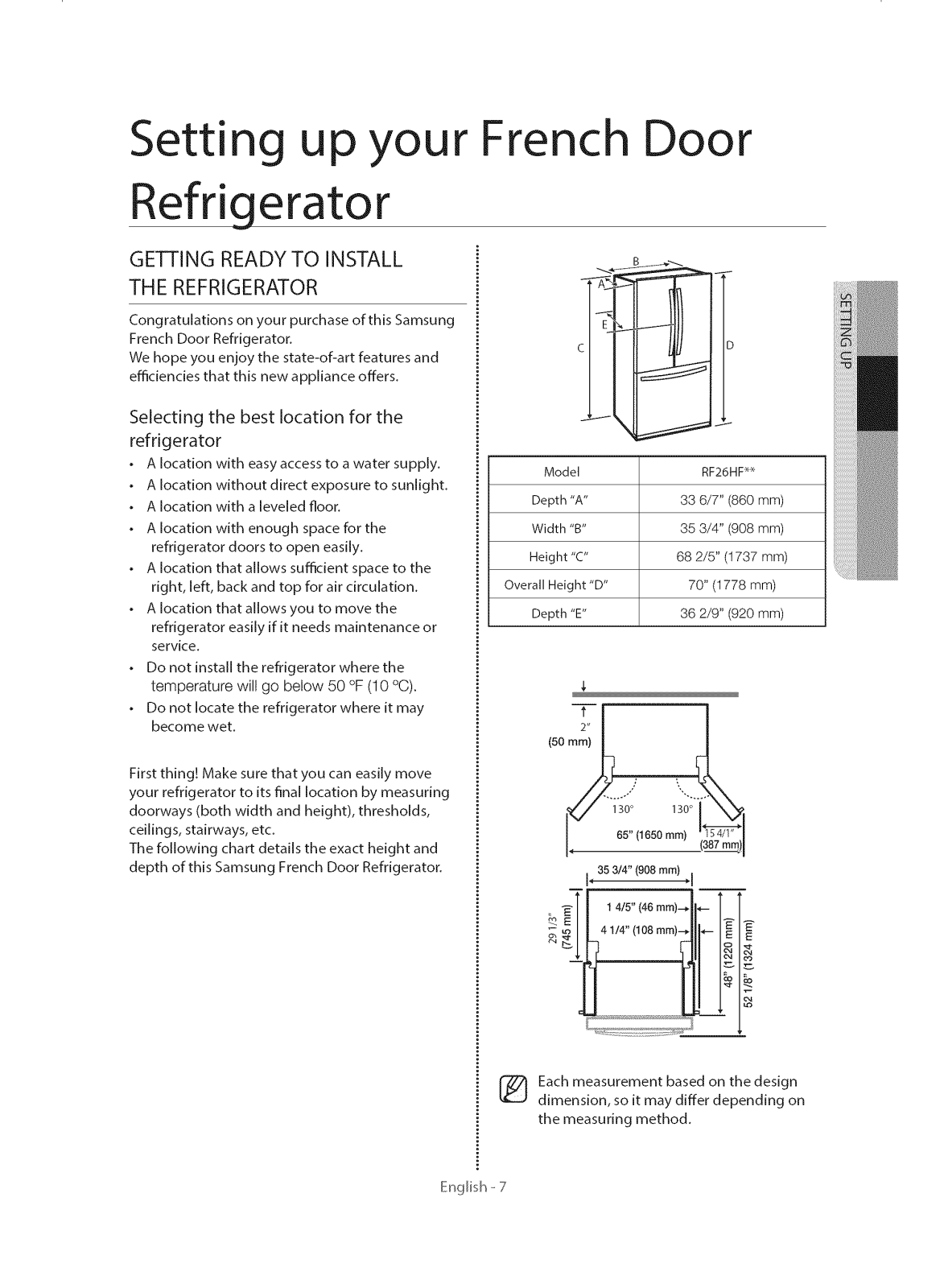

SE-rrINGUPYOURFRENCHDOORREFRIGERATOR..............................7

OPERATINGYOURFRENCHDOORREFRIGERATOR.............................. 15

TROUBLESHOOTING........................................................................ 23

nforrn on

SAFETY INFORMATION

Before using your new Samsung French Door Refrigerator, please read this manual thoroughly to

ensure that you know how to operate the features and functions that your new appliance offers safely and efficiently.

This appliance is not intended for use by persons (including children) with reduced physical,

sensory, or mental capabilities, or those who lack experience and knowledge, unless they have been given supervision or instruction concerning the

use of the appliance by a person responsible for their safety.

Because the following instructions cover various models, the characteristics of your refrigerator may differ slightly from the refrigerator described in

this manual. If you have any question, contact us at 1-800-SAMSUNG or find help and information

online at www.samsung.com.

Important safety symbols and precautions:

ARZ_N_N Hazards or unsafe practices that may

w G result in severe personal injury or death.

Hazards or unsafe practices that may

Z_ result in minor personal injury or property

CAUTION

damage.

Do NOT attempt.

Do NOT disassemble.

Do NOT touch.

Follow directions carefully.

Unplug the power plug from the wall

socket.

Make sure the refrigerator is grounded

to prevent electric shock. Call the contact center for help.

Note.

These warning signs are here to prevent injury to you and others.

Please follow them carefully. After reading this section, keep it in a safe

place for future reference.

Englsh - 2

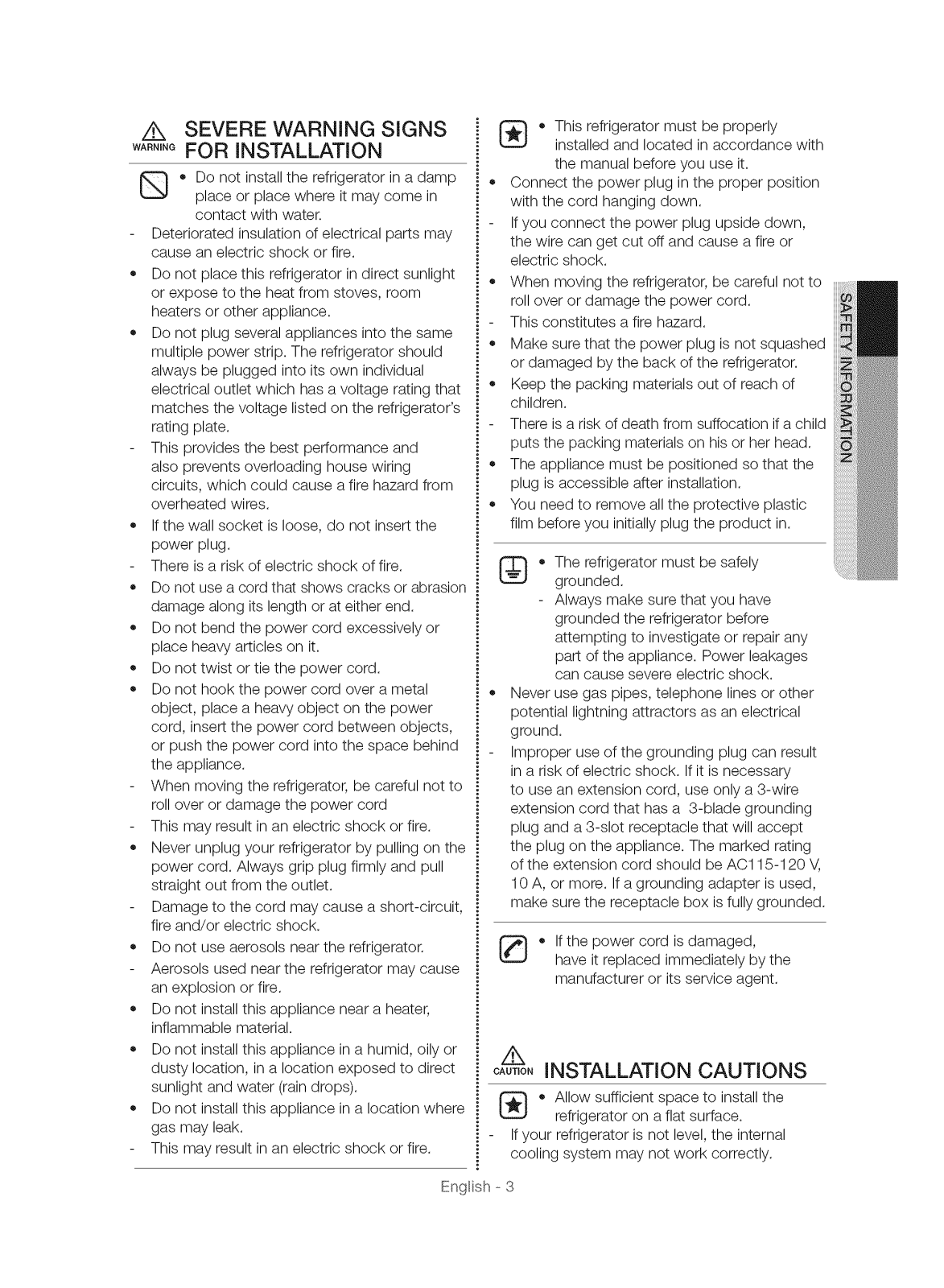

/_ SEVERE WARNING SIGNS

WA.N,NGFOR INSTALLATION

• Do not install the refrigerator in a damp

place or place where it may come in contact with water.

Deteriorated insulation of electrical parts may

cause an electric shock or fire.

• Do not place this refrigerator in direct sunlight or expose to the heat from stoves, room

heaters or other appliance.

• Do not plug several appliances into the same

multiple power strip. The refrigerator should

always be plugged into its own individual electrical outlet which has a voltage rating that

matches the voltage listed on the refrigerator's rating plate.

This provides the best performance and also prevents overloading house wiring

circuits, which could cause a fire hazard from overheated wires.

• If the wall socket is loose, do not insert the

power plug.

There is a risk of electric shock of fire.

• Do not use a cord that shows cracks or abrasion damage along its length or at either end.

• Do not bend the power cord excessively or

place heavy articles on it.

• Do not twist or tie the power cord.

• Do not hook the power cord over a metal object, place a heavy object on the power

cord, insert the power cord between objects, or push the power cord into the space behind

the appliance. When moving the refrigerator, be careful not to

roll over or damage the power cord

This may result in an electric shock or fire.

• Never unplug your refrigerator by pulling on the

power cord. Always grip plug firmly and pull

straight out from the outlet.

Damage to the cord may cause a short-circuit,

fire and/or electric shock.

• Do not use aerosols near the refrigerator. Aerosols used near the refrigerator may cause

an explosion or fire.

• Do not install this appliance near a heater,

inflammable material.

• Do not install this appliance in a humid, oily or dusty location, in a location exposed to direct

sunlight and water (rain drops).

• Do not install this appliance in a location where gas may leak.

This may result in an electric shock or fire.

Engl sh- 3

• This refrigerator must be properly

installed and located in accordance with

• Connect the power plug in the proper position

• When moving the refrigerator, be careful not to

• Make sure that the power plug is not squashed

• Keep the packing materials out of reach of

• The appliance must be positioned so that the

• You need to remove all the protective plastic

CAUTION

the manual before you use it.

with the cord hanging down.

Ifyou connect the power plug upside down, the wire can get cut off and cause a fire or electric shock.

roll over or damage the power cord. This constitutes a fire hazard.

or damaged by the back of the refrigerator.

children. There is a risk of death from suffocation if a child

puts the packing materials on his or her head.

plug is accessible after installation.

film before you initially plug the product in.

[_ • The refrigerator must be safely

grounded. Always make sure that you have

grounded the refrigerator before attempting to investigate or repair any part of the appliance. Power leakages

can cause severe electric shock.

Never use gas pipes, telephone lines or other

potential lightning attractors as an electrical ground.

Improper use of the grounding plug can result

in a risk of electric shock. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding

plug and a 3-slot receptacle that will accept the plug on the appliance. The marked rating

of the extension cord should be AC115-120 V,

10 A, or more. Ifa grounding adapter is used,

make sure the receptacle box is fully grounded.

• Ifthe power cord is damaged,

have it replaced immediately by the manufacturer or its service agent.

Z_ INSTALLATION CAUTIONS

• Allow sufficient space to install the refrigerator on a flat surface.

Ifyour refrigerator is not level, the internal

cooling system may not work correctly.

• Keeptheventilationspaceintheappliance

• Do not store volatile or flammable substances

enclosureormountingstructureclearof obstruction.

• Allowtheappliancetostandfor2hoursafter installation.

• Werecommendyouhaveinstalledthisrefrigerator

• Do not store pharmaceuticals products,

byaqualifiedtechnicianorservicecompany. Failingtodosomayresultinanelectricshock,

fire,explosion,problemswiththeproduct,or

injury.

• Do not place or use an electrical appliance

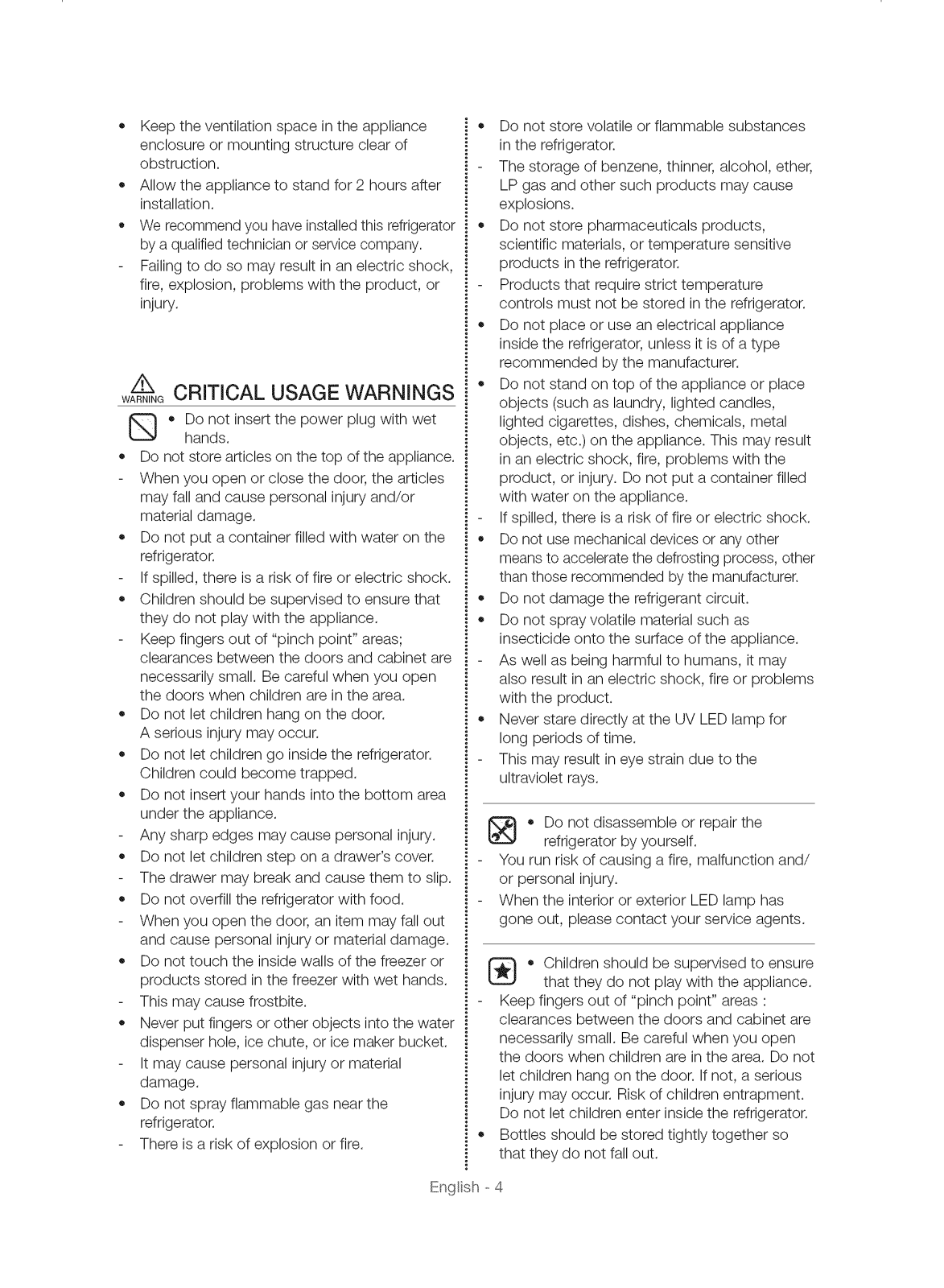

CRITICAL USAGE WARNINGS

WARNING

• Do not insert the power plug with wet

hands.

Do not store articles on the top of the appliance.

When you open or close the door, the articles

may fall and cause personal injury and/or material damage.

Do not put a container filled with water on the refrigerator.

If spilled, there is a risk of fire or electric shock.

• Children should be supervised to ensure that

they do not play with the appliance.

Keep fingers out of "pinch point" areas; clearances between the doors and cabinet are

necessarily small. Be careful when you open

the doors when children are in the area.

Do not let children hang on the door.

A serious injury may occur.

• Do not let children go inside the refrigerator. Children could become trapped.

Do not insert your hands into the bottom area under the appliance.

Any sharp edges may cause personal injury.

Do not let children step on a drawer's cover.

The drawer may break and cause them to slip.

• Do not overfill the refrigerator with food.

When you open the door, an item may fall out

and cause personal injury or material damage. Do not touch the inside walls of the freezer or

products stored in the freezer with wet hands.

This may cause frostbite.

Never put fingers or other objects into the water dispenser hole, ice chute, or ice maker bucket.

It may cause personal injury or material damage.

Do not spray flammable gas near the refrigerator.

There is a risk of explosion or fire.

• Do not stand on top of the appliance or place

• Do not use mechanical devices or any other

• Do not damage the refrigerant circuit.

• Do not spray volatile material such as

• Never stare directly at the UV LED lamp for

in the refrigerator.

The storage of benzene, thinner, alcohol, ether,

LP gas and other such products may cause explosions.

scientific materials, or temperature sensitive products inthe refrigerator.

Products that require strict temperature controls must not be stored in the refrigerator.

inside the refrigerator, unless it is of a type recommended by the manufacturer.

objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal

objects, etc.) on the appliance. This may result in an electric shock, fire, problems with the

product, or injury. Do not put a container filled with water on the appliance.

If spilled, there is a risk of fire or electric shock.

means to accelerate the defrosting process, other than those recommended by the manufacturer.

insecticide onto the surface of the appliance.

As well as being harmful to humans, it may

also result in an electric shock, fire or problems with the product.

long periods of time.

This may result in eye strain due to the

ultraviolet rays.

• Do not disassemble or repair the

refrigerator by yourself.

You run risk of causing a fire, malfunction and/

or personal injury.

When the interior or exterior LED lamp has

gone out, please contact your service agents.

• Children should be supervised to ensure

that they do not play with the appliance.

Keep fingers out of "pinch point" areas : clearances between the doors and cabinet are

necessarily small. Be careful when you open

the doors when children are in the area. Do not

let children hang on the door. If not, a serious injury may occur. Risk of children entrapment. Do not let children enter inside the refrigerator.

Bottles should be stored tightly together so

that they do not fall out.

Englsh - 4

• Thisproductisintendedonlyforthestorageof foodinadomesticenvironment.

• Ifagasleakisdetected,avoidanynaked flamesorpotentialsourcesofignitionandair

theroominwhichtheapplianceisstandingfor severalminutes.

Donottouchtheapplianceorpowercord. Donotuseaventilatingfan.

Asparkmayresultinexplosionorfire.

• UseonlytheLEDLampsprovidedby

manufacturerorserviceagents.

• Ifthereareburningsmellsorsmoke,pull

outpowerplugimmediatelyandcontact yourSamsungElectronicsservice center.

Ifyouexperiencedifficultywhenchangingthe light,contactaserviceagent.

• IftheproductisequippedwithLEDLamps, donotdisassembletheLampCoverandLED

Lampbyyourself. Pleasecontactyourserviceagents.

• Ifanydustorwaterisinrefrigerator,pullout thepowerplugandcontactyourSamsung

Electronicsservicecenter.

Otherwisethereisariskoffire.

/'_ USAGE CAUTIONS

CAUTION

• Do not re-freeze frozen foods that have thawed completely. Do not place

carbonated or fizzy drinks in the freezer compartment. Do not put bottles or

glass containers in the freezer.

When the contents freeze, the glass may break and cause personal injury.

• Use only the ice maker provided with the refrigerator. The water supply to this refrigerator

must only be installed/connected by a suitably

qualified person and connected to a potable water supply only. In order to operate the

ice maker properly, water pressure of 20 125psi is required. If you have a long vacation

or business trip and won't use water or ice dispensers, close the water valve.

Otherwise, water leakage may occur.

• Wipe excess moisture from the inside and leave the doors open.

Otherwise, odor and mold may develop.

by a 3rd party on this finished appliance are not covered under Samsung warranty service, nor can Samsung be

responsible for safety issues that result

• Do not block air holes.

• If the refrigerator is disconnected from the

• If you have a long vacation planned or the

• To get the best performance from the product:

• Fill the water tank, ice tray, and water cubes

CAUTION

• Do not use a hair dryer to dry the inside of the

from 3rd party modifications.

Ifthe air holes are blocked, especially with a plastic bag, the refrigerator can be over cooled. Ifthis cooling period lasts too long, the water

filter may break and cause water leakage.

power supply, you should wait for at least five minutes before plugging it back in.

refrigerator is not to be used for a long period

of time, you must empty the refrigerator and

pull out the power plug.

Letting the refrigerator run for a long time without using it can cause the insulation to deteriorate and may cause a fire.

Wipe excess moisture from the inside and

leave the doors open. Otherwise, odor and

mold may develop.

Do not place foods too close to the vents at the rear of the appliance as it can obstruct free

air circulation in the refrigerator compartment. Wrap food up properly or place it in airtight

containers before putting it into the refrigerator.

only with potable water.

• Ifthe product is flooded, make sure to

contact your nearest service center.

There is a risk of electric shock or fire.

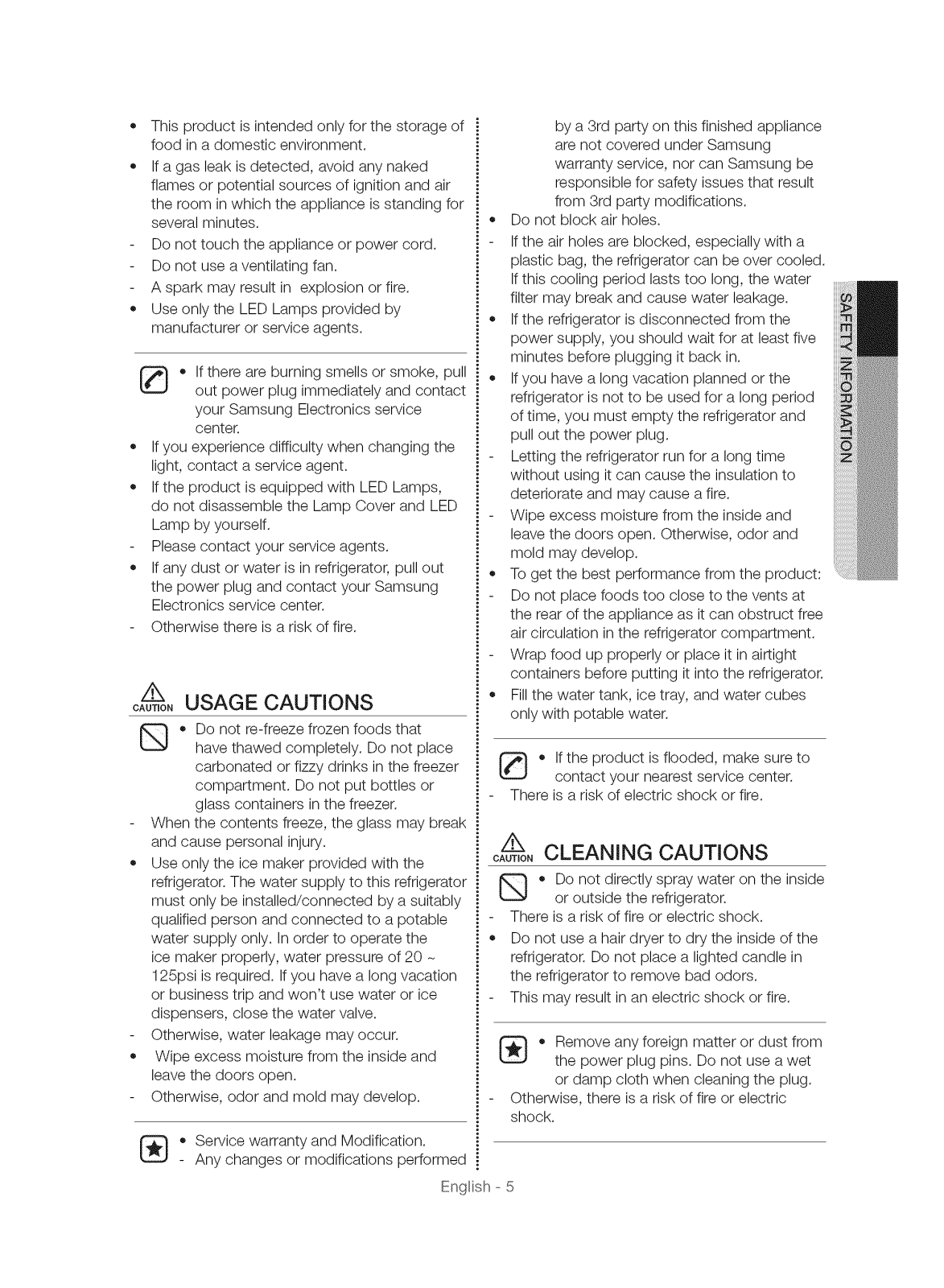

,4k CLEANING CAUTIONS

• Do not directly spray water on the inside

or outside the refrigerator.

There is a risk of fire or electric shock.

refrigerator. Do not place a lighted candle in the refrigerator to remove bad odors.

This may result in an electric shock orfire.

• Remove any foreign matter or dust from the power plug pins. Do not use a wet

or damp cloth when cleaning the plug.

Otherwise, there is a risk of fire or electric shock.

• Service warranty and Modification.

- Any changes or modifications performed Engl sh- 5

• Unplug the refrigerator before cleaning

or making repairs.

• This product contains chemicals known

WARNING

to the State of California to cause cancer and reproductive toxicity.

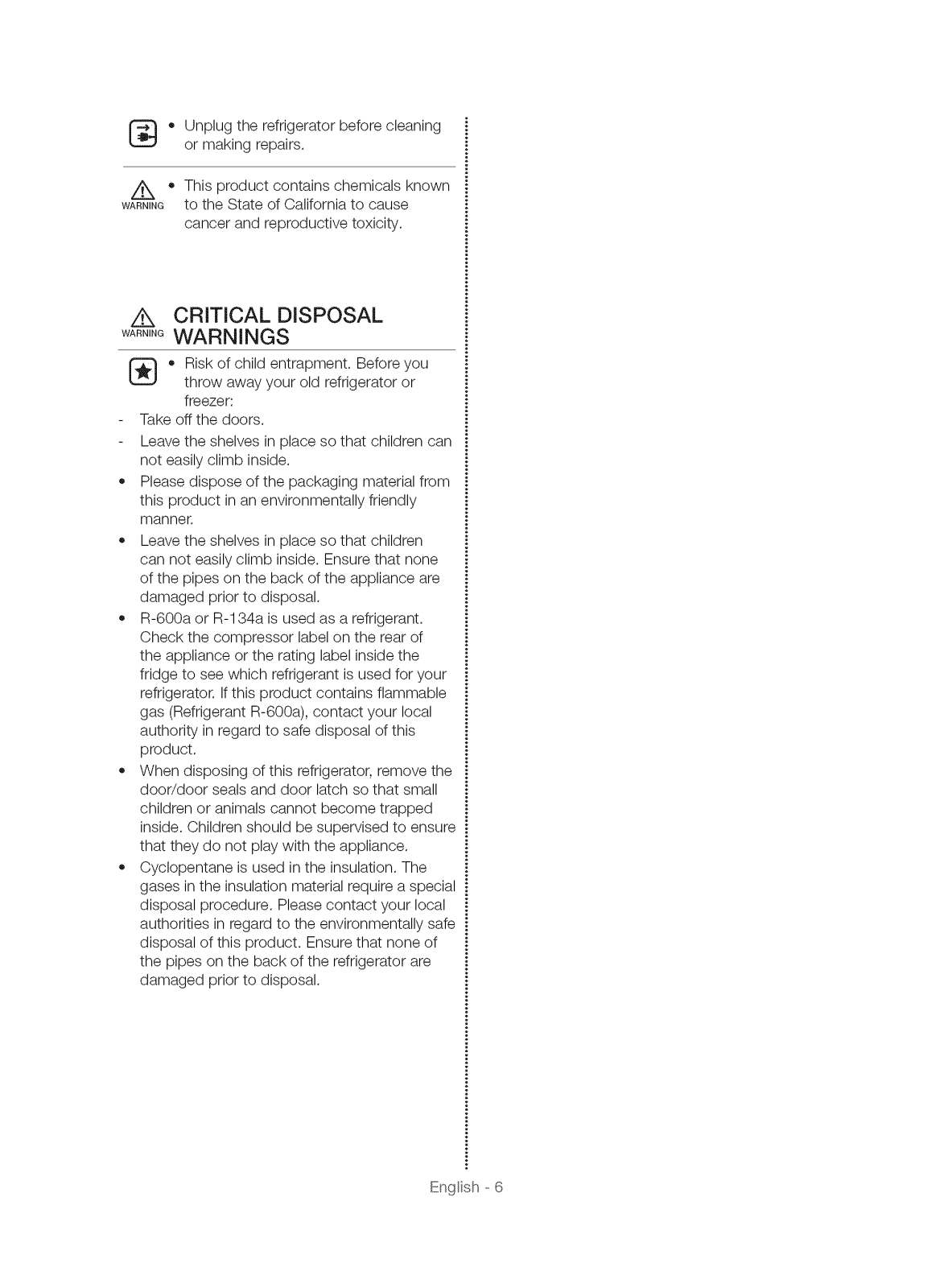

CRITICAL DISPOSAL

WARN,NGWARNINGS

• Risk of child entrapment. Before you

throw away your old refrigerator or freezer:

Take off the doors.

Leave the shelves in place so that children can not easily climb inside.

• Please dispose of the packaging material from this product in an environmentally friendly

manner.

• Leave the shelves in place so that children

can not easily climb inside. Ensure that none of the pipes on the back of the appliance are

damaged prior to disposal.

• R-6OOa or R-134a is used as a refrigerant.

Check the compressor label on the rear of

the appliance or the rating label inside the fridge to see which refrigerant is used for your

refrigerator. Ifthis product contains flammable gas (Refrigerant R-6OOa),contact your local

authority in regard to safe disposal of this product.

• When disposing of this refrigerator, remove the

door/door seals and door latch so that small children or animals cannot become trapped

inside. Children should be supervised to ensure

that they do not play with the appliance.

• Cyclopentane is used in the insulation. The

gases in the insulation material require a special disposal procedure. Please contact your local authorities in regard to the environmentally safe

disposal of this product. Ensure that none of

the pipes on the back of the refrigerator are

damaged prior to disposal.

Englsh - 6

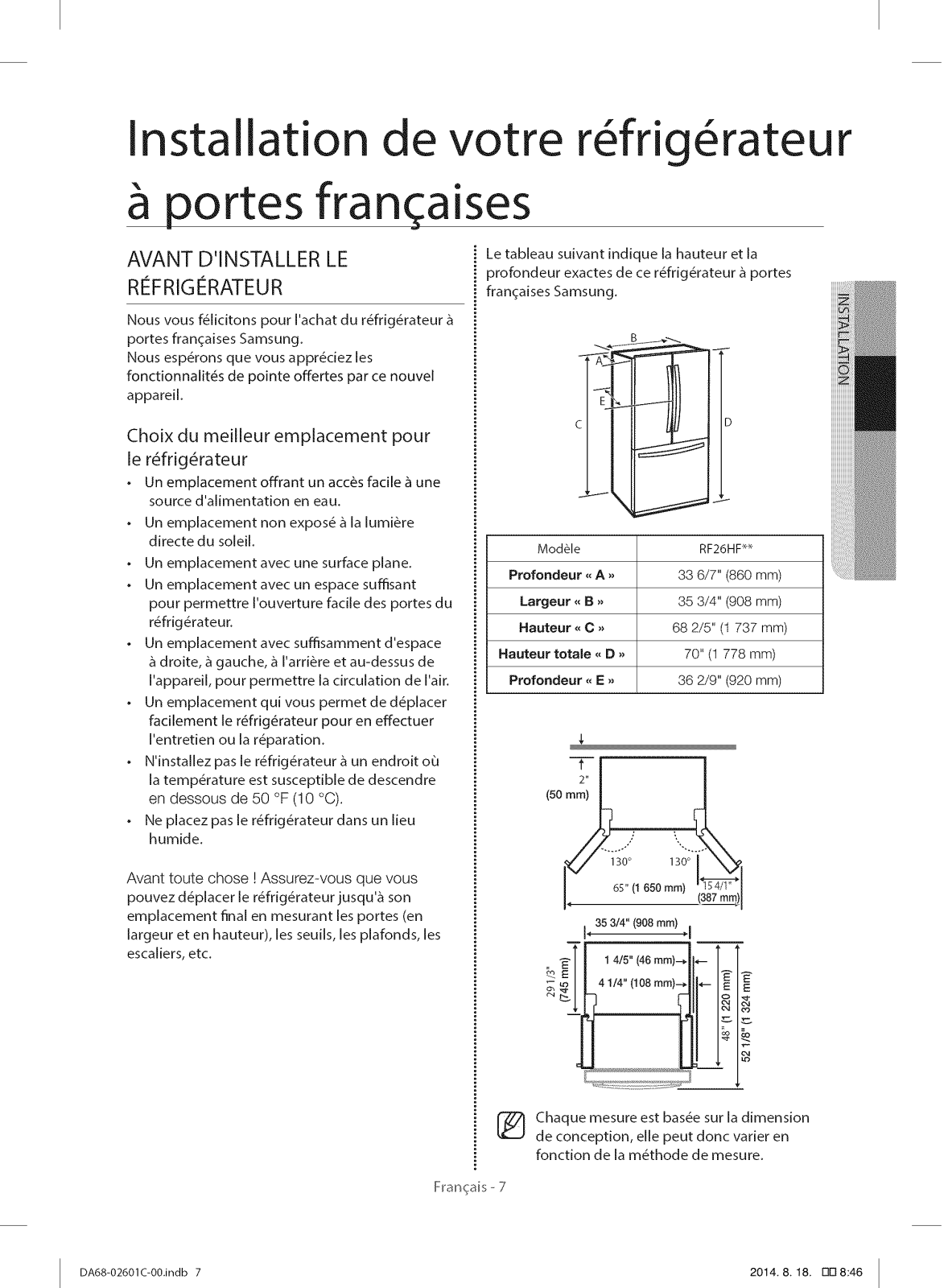

Setting up your Refrigerator

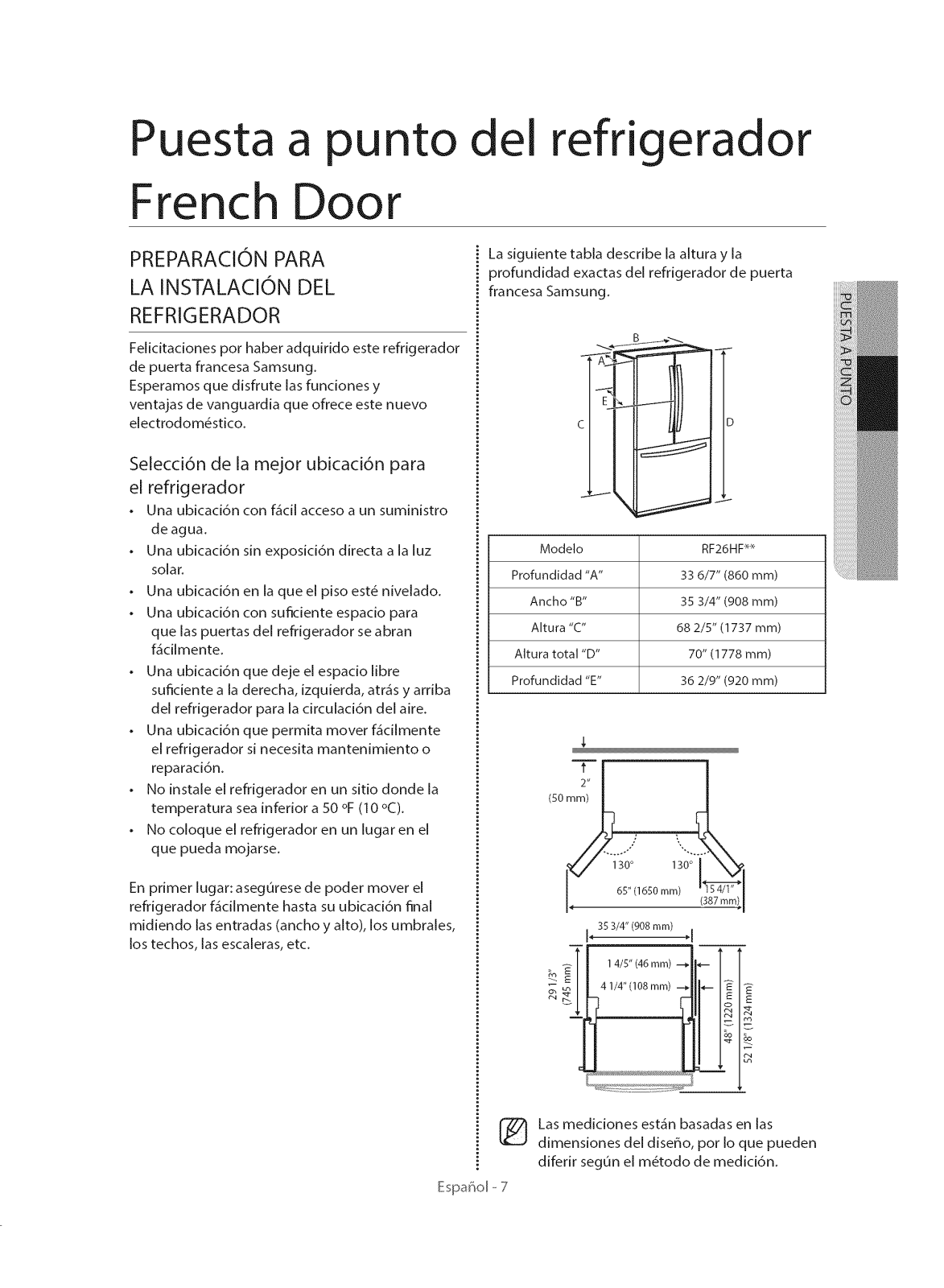

GETTING READY TO INSTALL THE REFRIGERATOR

Congratulations on your purchase of this Samsung French Door Refrigerator.

We hope you enjoy the state-of-art features and efficiencies that this new appliance offers.

Selecting the best location for the refrigerator

• A location with easy access to a water supply.

• A location without direct exposure to sunlight.

• A location with a leveled floor.

• A location with enough space for the refrigerator doors to open easily.

• A location that allows sufficient space to the right, left, back and top for air circulation.

• A location that allows you to move the refrigerator easily if it needs maintenance or

service.

• Do not install the refrigerator where the

temperature will go below 50 °F (10 °C).

• Do not locate the refrigerator where it may become wet.

French

Model

Depth "A"

Width "B"

Height "C"

Overall Height "D"

Depth "E"

Door

RF26HF××

33 6/7" (860 mm)

35 3/4" (908 mm)

68 2/5" (1737 mm)

70" (1778 mm)

36 2/9" (920 ram)

First thing! Make sure that you can easily move your refrigerator to its final location by measuring

doorways (both width and height), thresholds, ceilings, stairways, etc.

The following chart details the exact height and depth of this Samsung French Door Refrigerator.

English- 7

, 65"(1850m!) I_

1435314"(908mm) ,I

14'°"°mm' ll"LT

o, .-

I l-/i/

Each measurement based on the design dimension, so it may differ depending on

the measuring method.

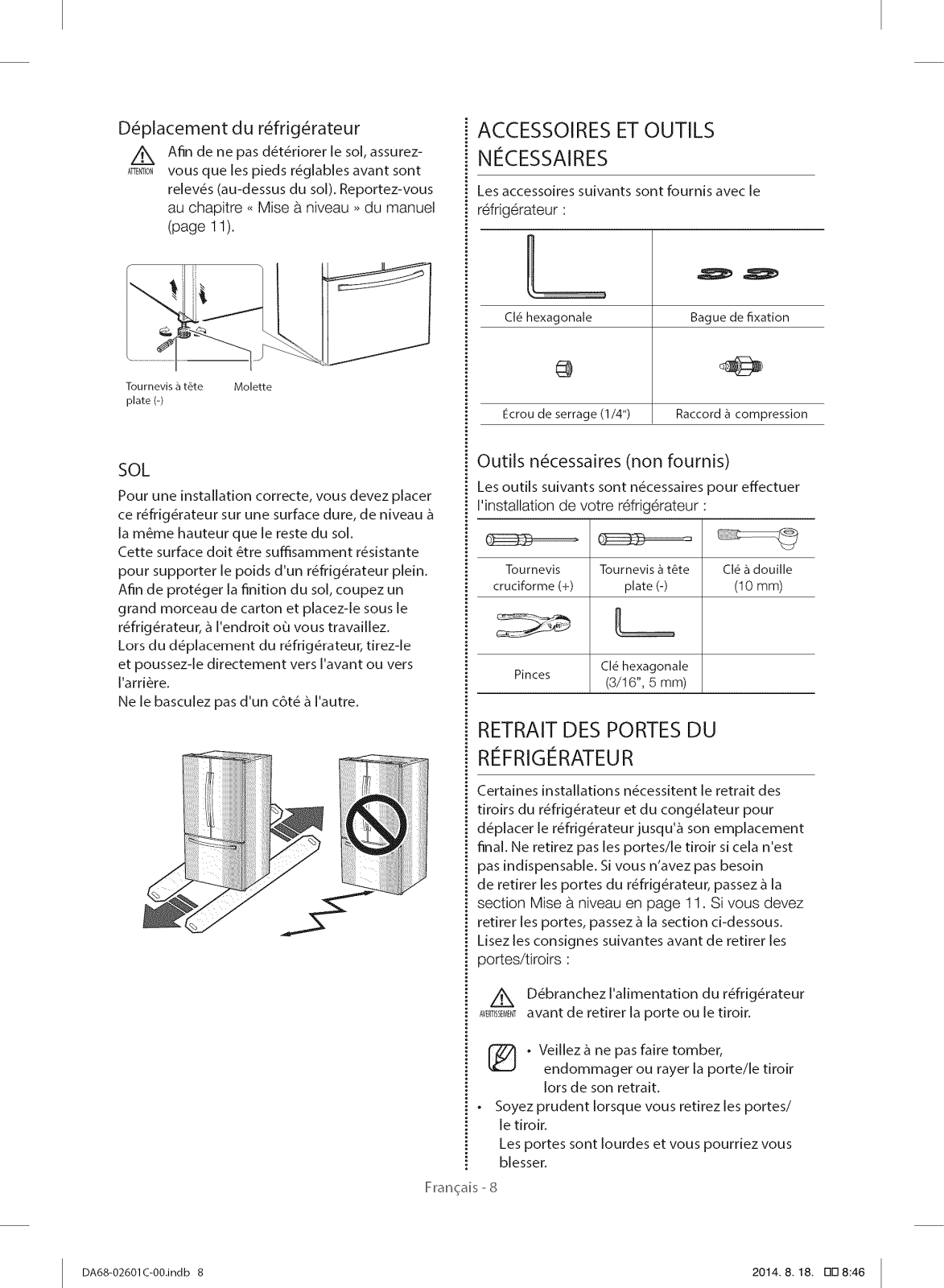

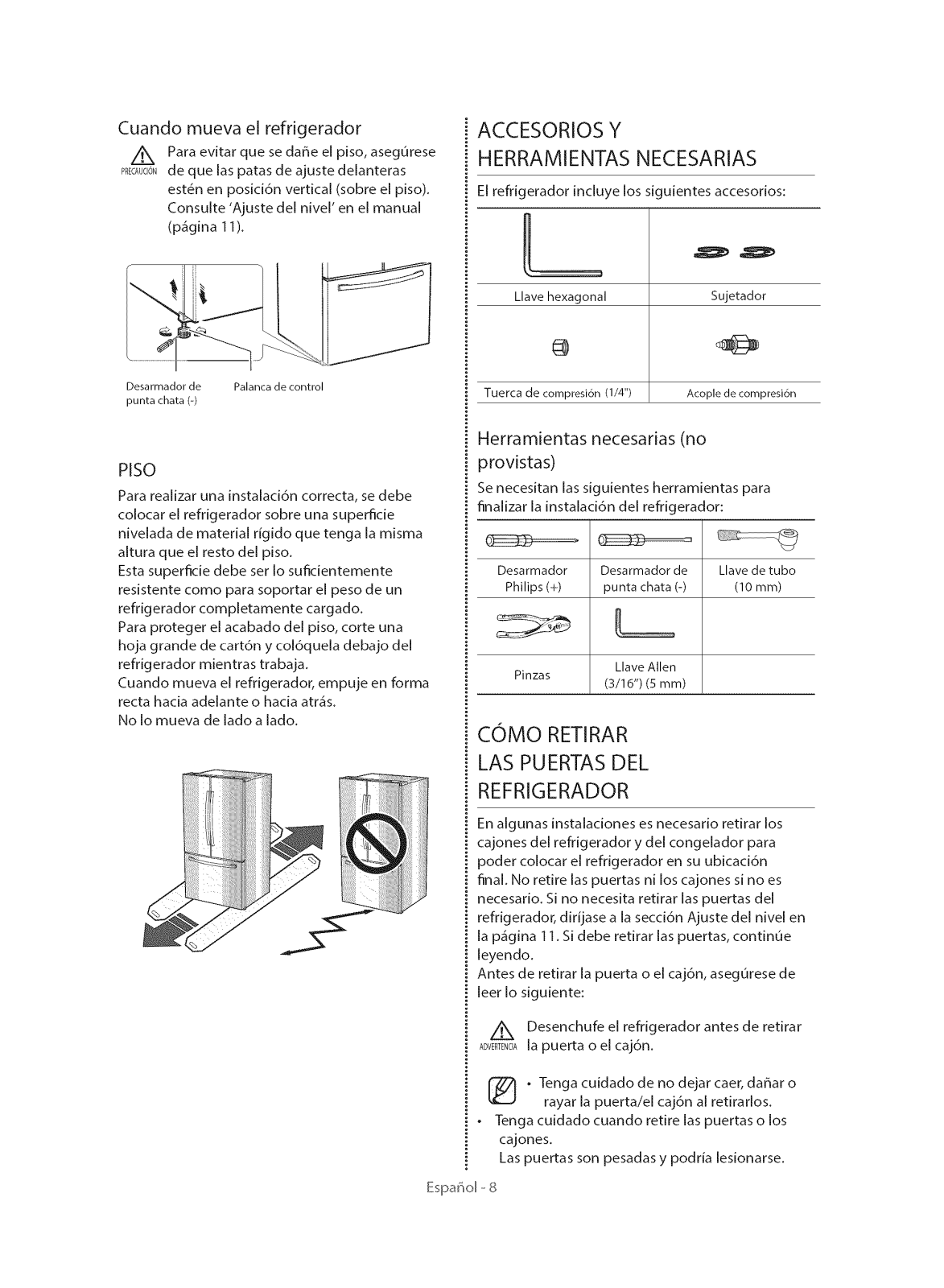

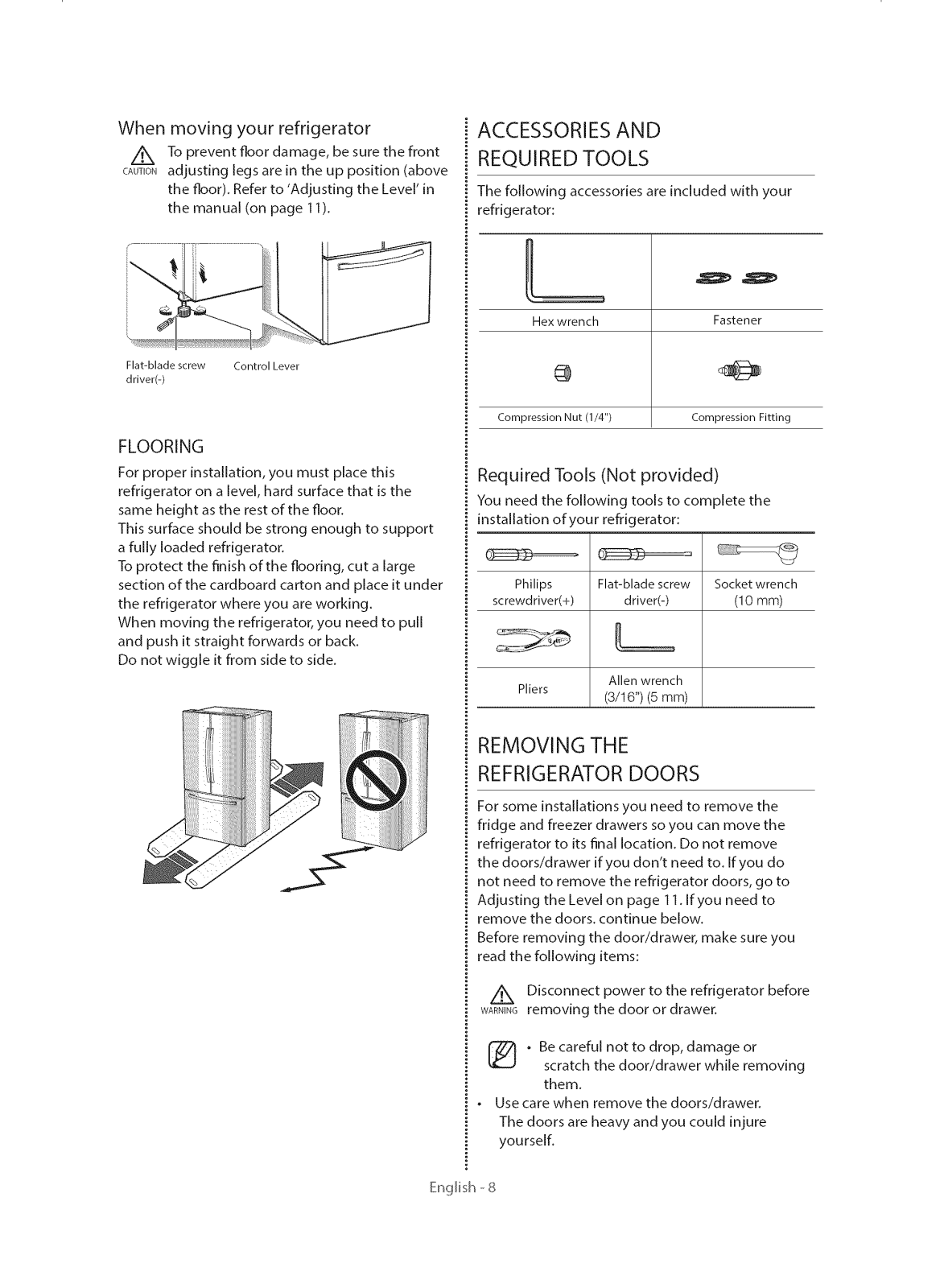

When moving your refrigerator

To prevent floor damage, be sure the front

CAUTIONadjusting legs are in the up position (above

the floor). Refer to 'Adjusting the Level' in the manual (on page 11).

Flat-blade screw Control Lever

driver(-)

FLOORING

For proper installation, you must place this refrigerator on a level, hard surface that is the

same height as the rest of the floor. This surface should be strong enough to support

a fully loaded refrigerator. To protect the finish of the flooring, cut a large

section of the cardboard carton and place it under the refrigerator where you are working.

When moving the refrigerator, you need to pull and push it straight forwards or back. Do not wiggle Jt from side to side.

ACCESSORIES AND

REQUIRED TOOLS

The following accessories are included with your

refrigerator:

Hex wrench Fastener

Compression Nut (1/4") Compression Fitting

Required Tools (Not provided)

You need the following tools to complete the

installation of your refrigerator:

Philips Flat-blade screw Socket wrench

screwdriver(+) driver(-) (10 mm)

Pliers

Allen wrench

(3/16") (5 mm)

REMOVING THE REFRIGERATOR DOORS

For some installations you need to remove the

fndge and freezer drawers so you can move the

refrigerator to its final location. Do not remove

the doors/drawer if you don't need to. If you do

not need to remove the refrigerator doors, go to

Adjusting the Level on page 11. If you need to

remove the doors, continue below. Before removing the door/drawer, make sure you

read the following items:

Disconnect power to the refrigerator before

WARNINGremoving the door or drawer.

[_ • Be careful not to drop, damage or

scratch the door/drawer while removing

them.

Use care when remove the doors/drawer.

The doors are heavy and you could injure yourself.

English-8

Reattachthedoors/drawerproperlytoavoid: Moisturefromairleakage. Unevendooralignment.

Wastingenergyduetoimproperdoorseal.

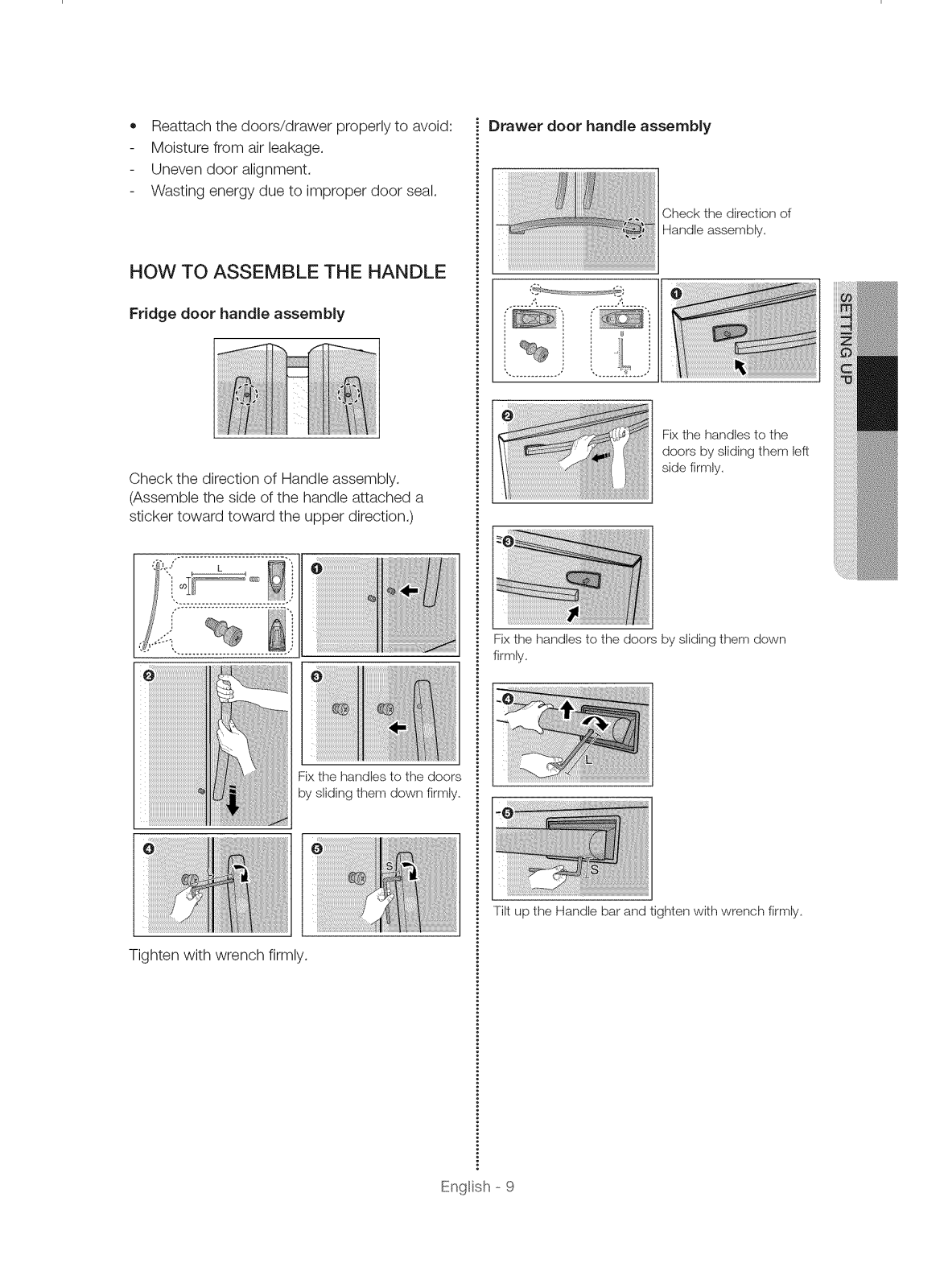

HOW TO ASSEMBLE THE HANDLE

Fridge door handle assembly

Check the direction of Handle assembly. (Assemble the side of the handle attached a

sticker toward toward the upper direction.)

!iii_!iiiiW_iiii!i_iiiiiiiiii!iiiiiiiiiiiiiiiiiiiiiilW!i

Drawer door handle assembly

Check the direction of Handle assembly.

Fix the handles to the doors by sliding them left side firmly.

Fix the handles to the doors by sliding them down

firmly,

Tighten with wrench firmly.

Fixthe handlesto the doors by slidingthem down firmly,

Tilt up the Handle bar and tighten with wrench firmly,

Engl sh- 9

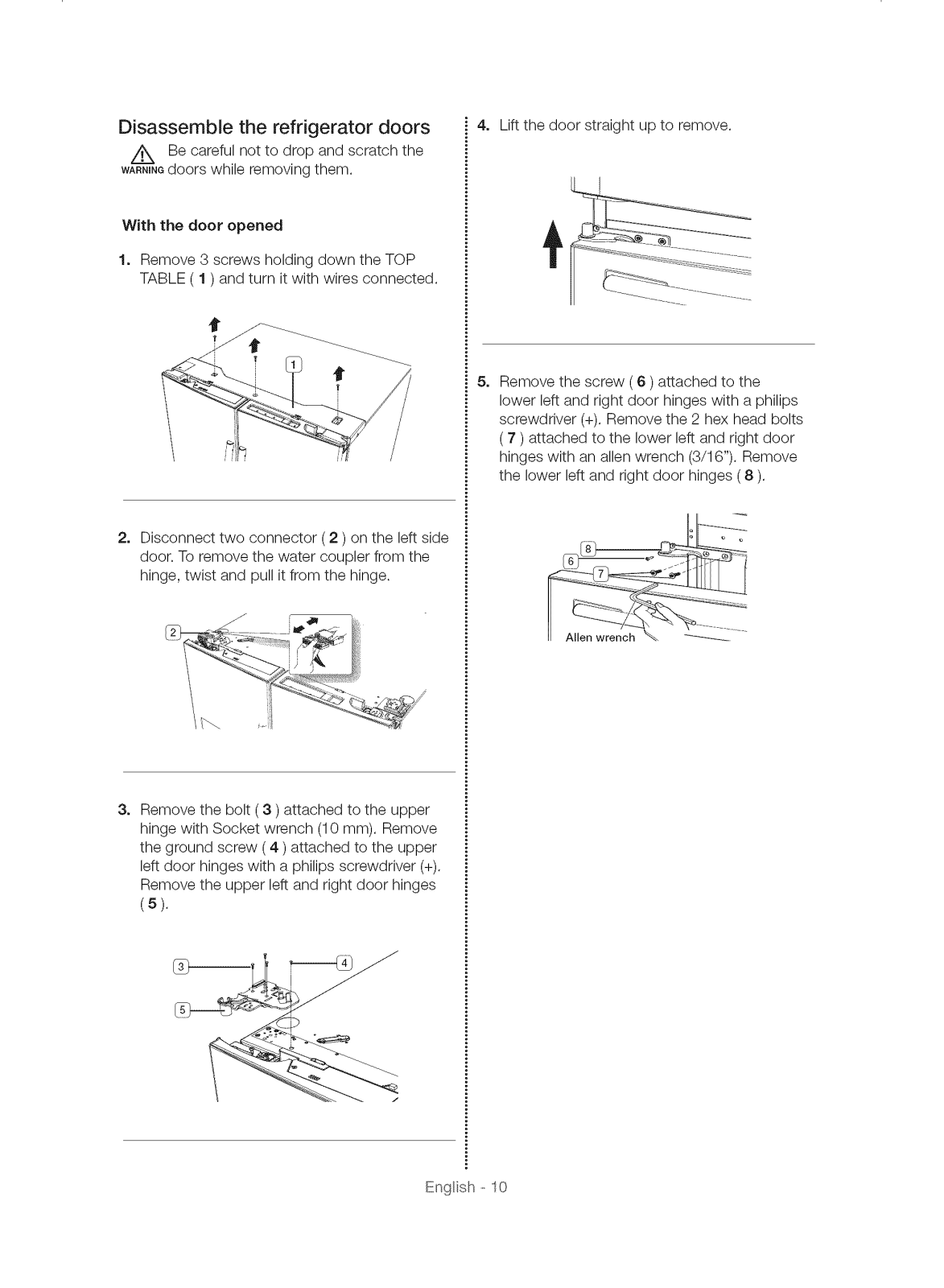

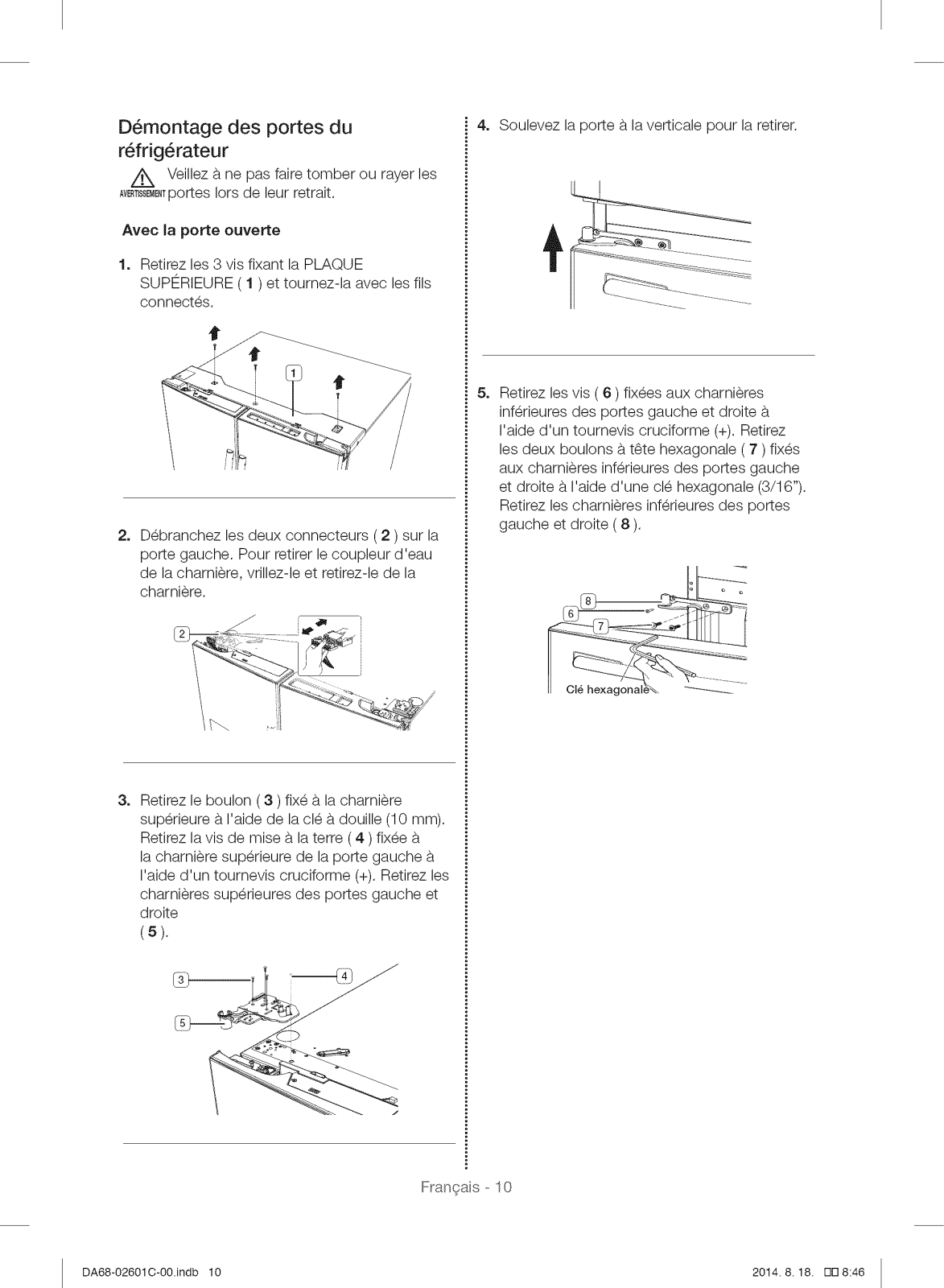

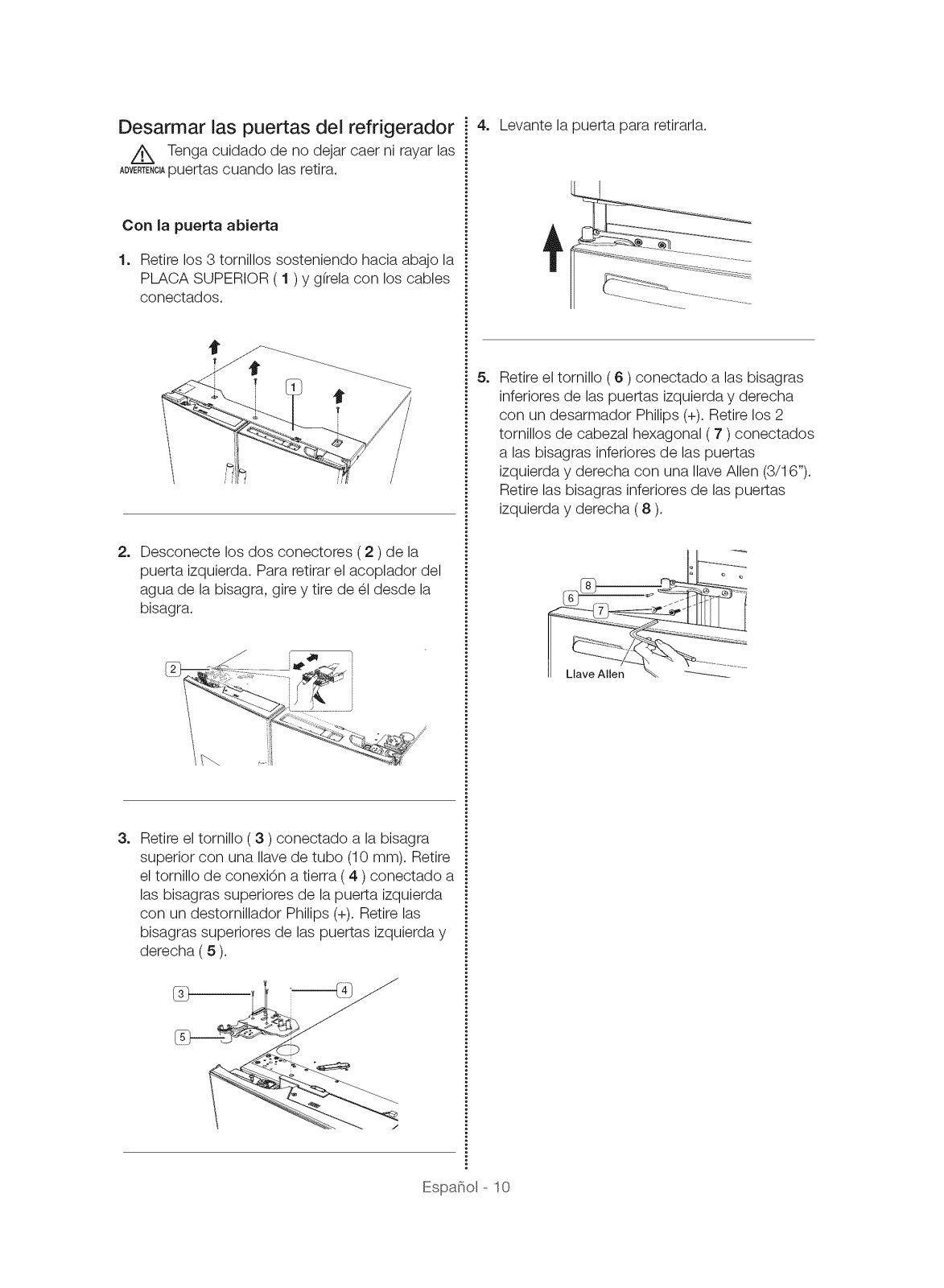

Disassemble the refrigerator doors

z_ Be careful not to drop and scratch the

WAR,_,Gdoors while removing them.

With the door opened

1. Remove 3 screws holding down the TOP TABLE ( 1 ) and turn it with wires connected.

2. Disconnect two connector (2 ) on the left side door. To remove the water coupler from the

hinge, twist and pull it from the hinge.

4. Lift the door straight up to remove.

5. Remove the screw ( 6 ) attached to the lower left and right door hinges with a philips

screwdriver (+). Remove the 2 hex head bolts ( 7 ) attached to the lower left and right door hinges with an allen wrench (3/16"). Remove

the lower left and right door hinges (8 ).

3. Remove the bolt (3 )attached to the upper hinge with Socket wrench (10 mm). Remove

the ground screw ( 4 ) attached to the upper

left door hinges with a philips screwdriver (+). Remove the upper left and right door hinges

(5).

Engl sh - 10

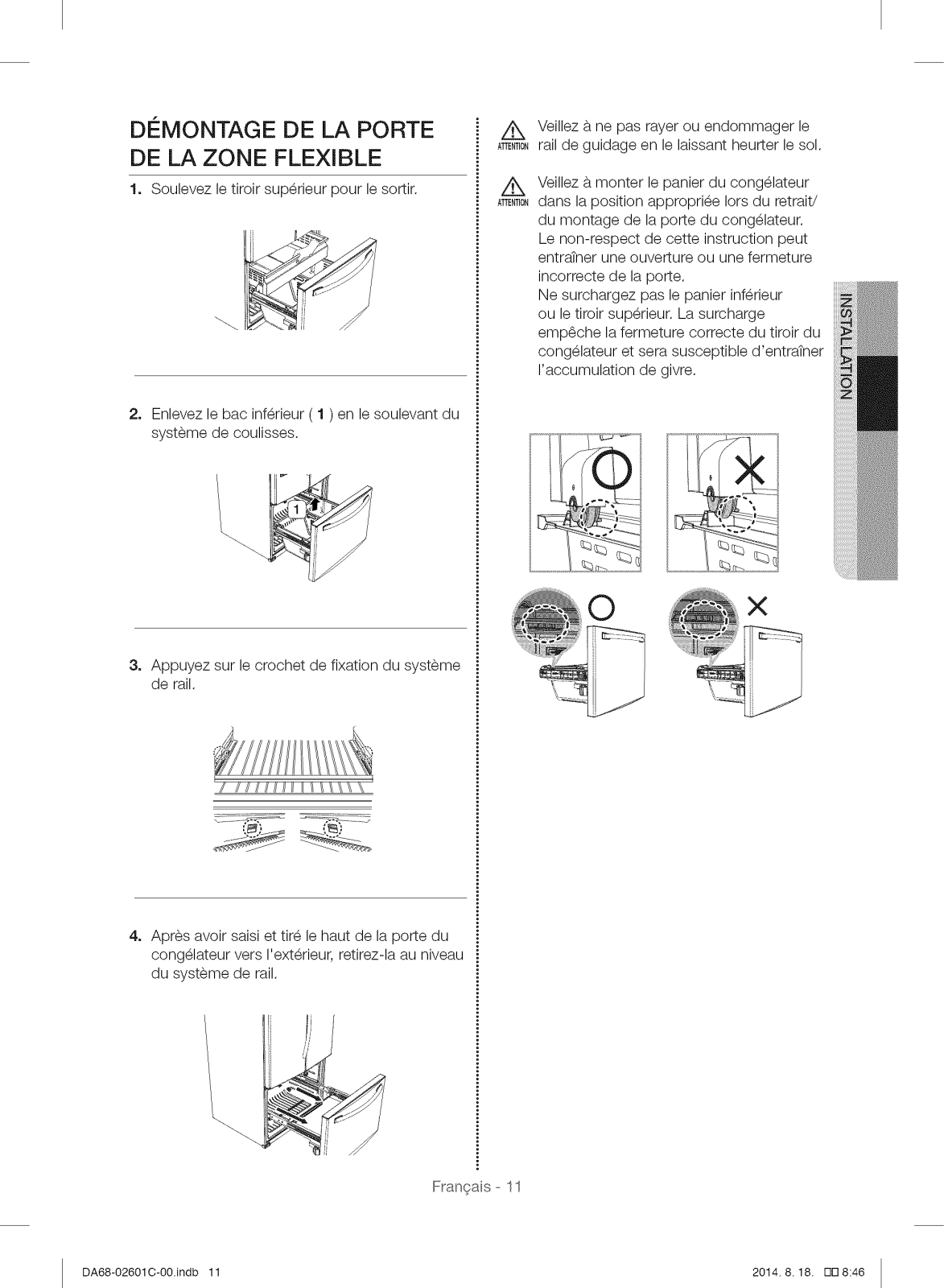

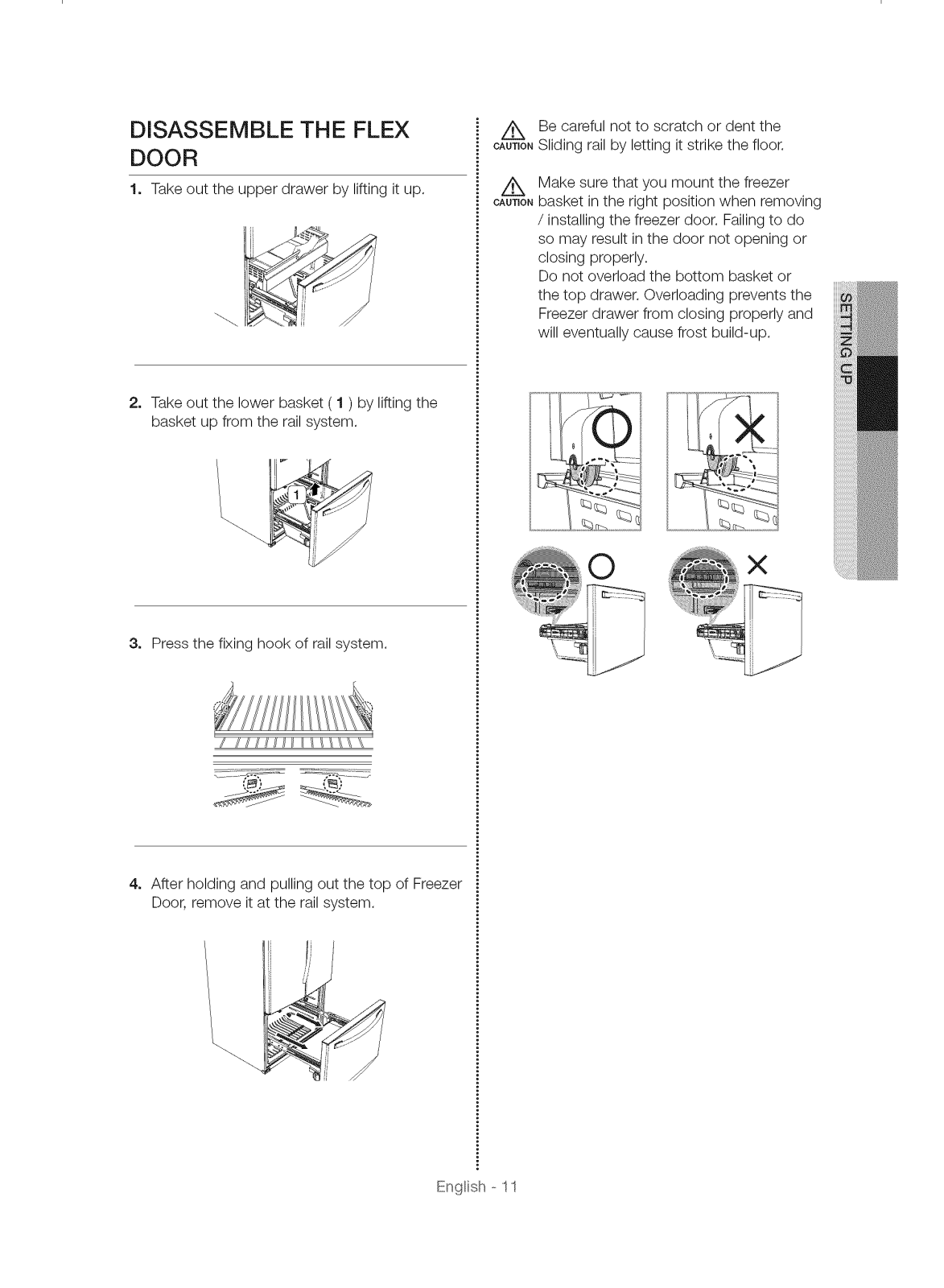

DISASSEMBLE THE FLEX DOOR

1. Take out the upper drawer by lifting it up.

2. Take out the lower basket ( 1 ) by lifting the basket up from the rail system.

3. Press the fixing hook of rail system.

Z_ Be careful not to scratch or dent the

CAUTIONSliding rail by letting it strike the floor.

Z_ Make sure that you mount the freezer

CAUTIONbasket in the right position when removing

/ installing the freezer door. Failing to do

so may result inthe door not opening or closing properly.

Do not overload the bottom basket or

the top drawer. Overloading prevents the

Freezer drawer from closing properly and will eventually cause frost build-up.

4. After holding and pulling out the top of Freezer Door, remove it at the rail system.

Engl sh - 11

ASSEMBLE THE FREEZER

DRAWER

To reattach the drawer after you have moved the fridge to its final location, assemble parts in

reverse order.

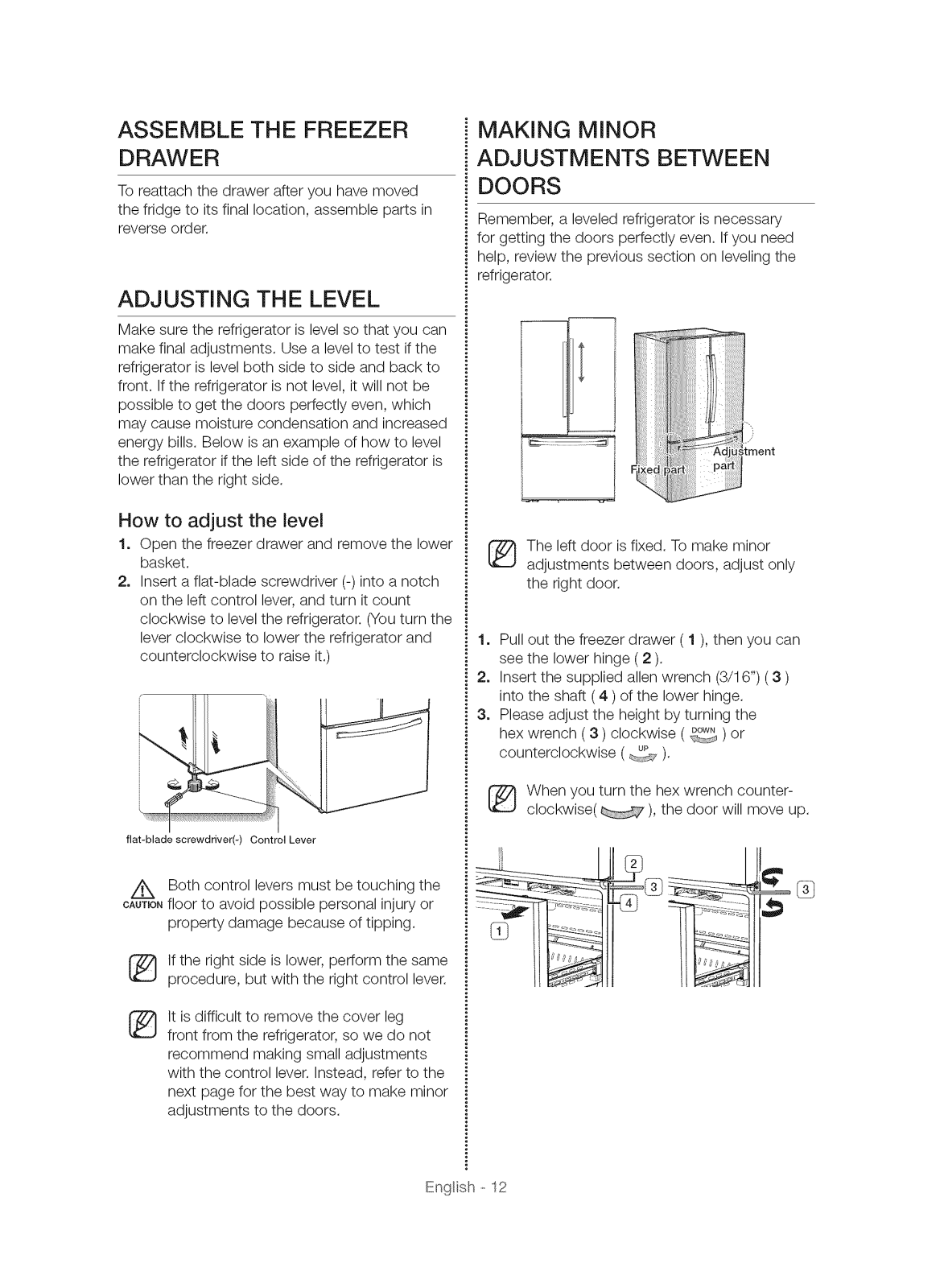

ADJUSTING THE LEVEL

Make sure the refrigerator is level so that you can make final adjustments. Use a level to test if the

refrigerator is level both side to side and back to front. Ifthe refrigerator is not level, it will not be

possible to get the doors perfectly even, which may cause moisture condensation and increased

energy bills. Below is an example of how to level the refrigerator ifthe left side of the refrigerator is

lower than the right side.

How to adjust the level

1. Open the freezer drawer and remove the lower basket.

2. Insert a flat-blade screwdriver (-)into a notch on the left control lever, and turn it count clockwise to level the refrigerator. (You turn the

lever clockwise to lower the refrigerator and counterclockwise to raise it.)

MAKING MINOR

ADJUSTMENTS BETWEEN

DOORS

Remember, a leveled refrigerator is necessary

for getting the doors perfectly even. If you need

help, review the previous section on leveling the refrigerator.

ment

[_ The left door is fixed. To make minor

adjustments between doors, adjust only the right door.

1. Pull out the freezer drawer ( 1 ), then you can see the lower hinge (2 ).

2. Insert the supplied allen wrench (3/16") ( 3 ) into the shaft ( 4 ) of the lower hinge.

3. Please adjust the height by turning the

hex wrench ( 3 ) clockwise ( .... )

counterclockwise ( b_ ).

_J_'_szJ or

flat-blade screwdriver(-) Control Lever

Z_ Both control levers must be touching the

CAUTIONfloor to avoid possible personal injury or

property damage because of tipping.

[_ f the right side is lower, perform the same

procedure, but with the right control lever.

It is difficult to remove the cover leg

front from the refrigerator, so we do not

recommend making small adjustments with the control lever. Instead, refer to the

next page for the best way to make minor adjustments to the doors.

Engl sh - 12

When you turn the hex wrench counter- clockwise( ), the door will move up.

4.Afteradjustingthedoors,insertthesupplied fastener(6)usingapliers(5)inthegap

betweenthehinge-grommet(2)andthelower hinge(8).Thenumberoffastenersyou'llneed

toinsertdependsonthegap.

2fastenerareenclosedwiththe

refrigerator.

Thethicknessofeachfasteneris0.04".

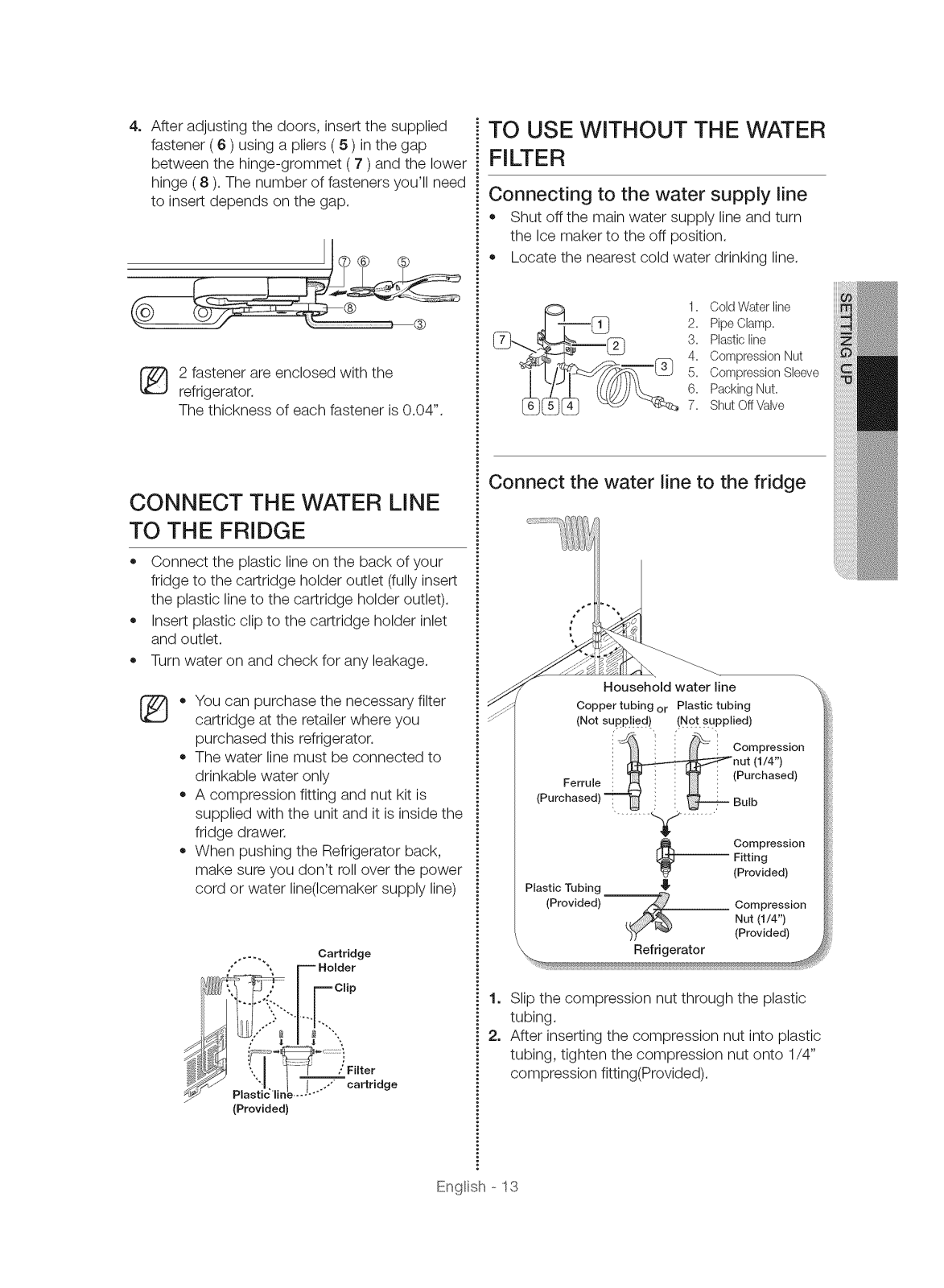

CONNECT THE WATER LINE TO THE FRIDGE

+ Connect the plastic line on the back of your

fridge to the cartridge holder outlet (fully insert the plastic line to the cartridge holder outlet).

+ Insert plastic clip to the cartridge holder inlet

and outlet.

+ Turn water on and check for any leakage.

+ You can purchase the necessary filter

cartridge at the retailer where you purchased this refrigerator.

+ The water line must be connected to

drinkable water only

+ A compression fitting and nut kit is

supplied with the unit and it is inside the fridge drawer.

+ When pushing the Refrigerator back,

make sure you don't roll over the power cord or water line(Icemaker supply line)

Ca_ridge

TO USE WITHOUT THE WATER

FILTER

Connecting to the water supply line

+ Shut off the main water supply line and turn

the Ice maker to the off position.

+ Locate the nearest cold water drinking line.

1. Cold Water line

2. Pipe Clamp.

3. Plastic line

4. Compression Nut

5. Compression Sleeve

6. Packing Nut.

7. Shut OffValve

Connect the water line to the fddge

Household water line

Copper tubing or Plastic tubing (Not su£pl ed! !N0t supplied)

i + Compression

i _nut (1/4")

Ferrule (Purchased)

(Purchased) Bulb

Plastic Tubing

(Provided)

-- Fitting

__ Compression

Refrigerator

Compression (Provided)

Nut (1/4")

(Provided)

1. Slip the compression nut through the plastic tubing.

2. After inserting the compression nut into plastic tubing, tighten the compression nut onto 1/4"

compression fitting(Provided).

Eng+sh - 13

Donotovertightenthecompressionnut.

+ UsingCopperTubing

Slipthecompressionnutandferruleoncopper

tubingasshown.

+ UsingPlasticTubing

Insertthemoldedend(Bulb)oftheplastic

tubingintothecompressionfitting.

z_ Donotusewithoutthemoldedend(Bulb)

CAUTIONoftheplastictubing.

3oTightenthecompressionnutontothe

compressionfitting.

4.Turnwateronandcheckforanyleakage.

+ Water line must be connected to

drinkable water only.

+ When pushing the Refrigerator back,

make sure you don't roll over the power

cord or water line (Icemaker supply line).

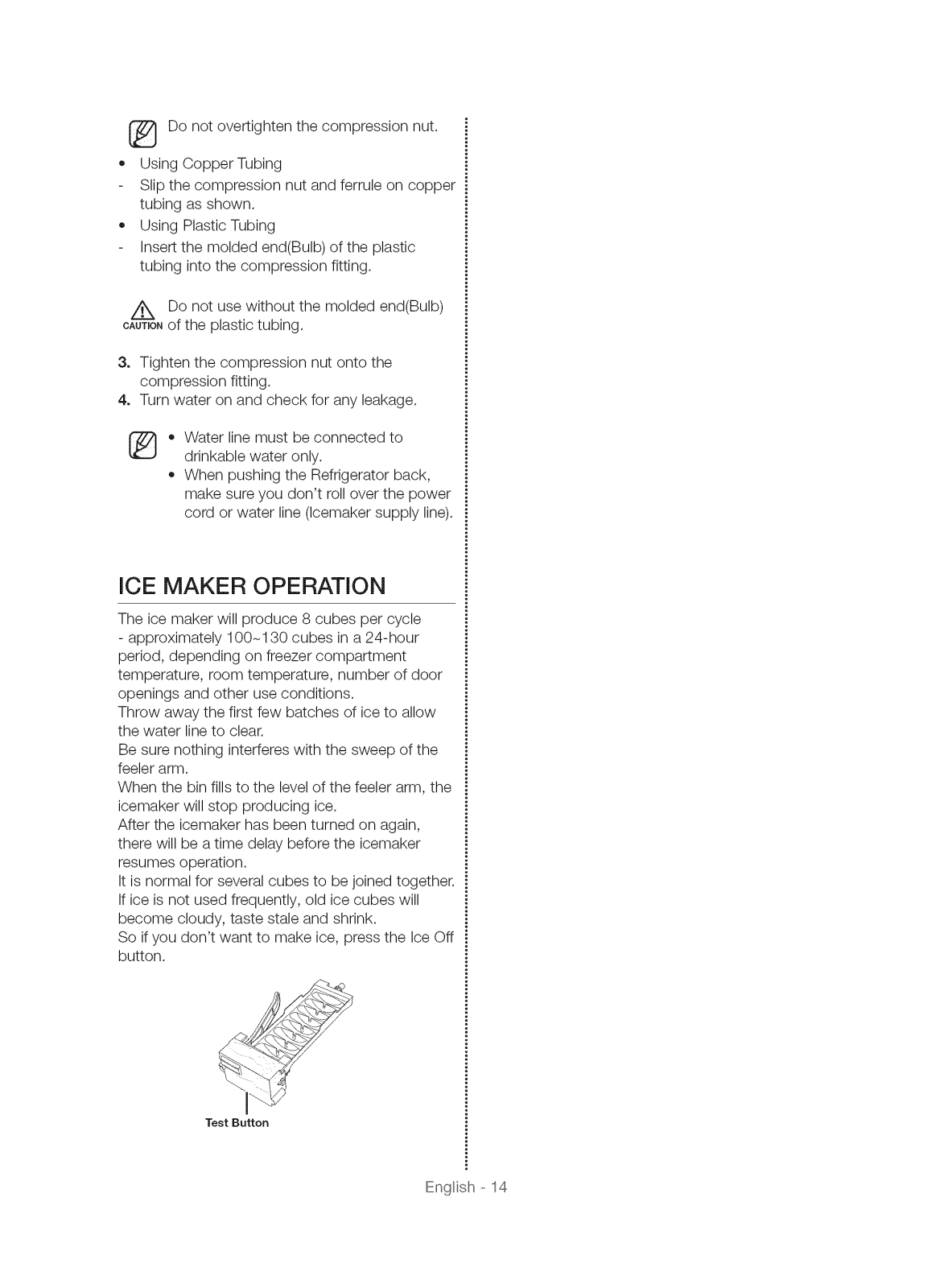

ICE MAKER OPERATION

The ice maker will produce 8 cubes per cycle

- approximately 100+130 cubes in a 24-hour period, depending on freezer compartment

temperature, room temperature, number of door openings and other use conditions.

Throw away the first few batches of ice to allow the water line to clear.

Be sure nothing interferes with the sweep of the

feeler arm. When the bin fills to the level of the feeler arm, the icemaker will stop producing ice. After the icemaker has been turned on again, there will be a time delay before the icemaker

resumes operation.

It is normal for several cubes to be joined together.

Ifice is not used frequently, old ice cubes will become cloudy, taste stale and shrink. So if you don't want to make ice, press the Ice Off

button.

Test Button

Eng+sh - 14

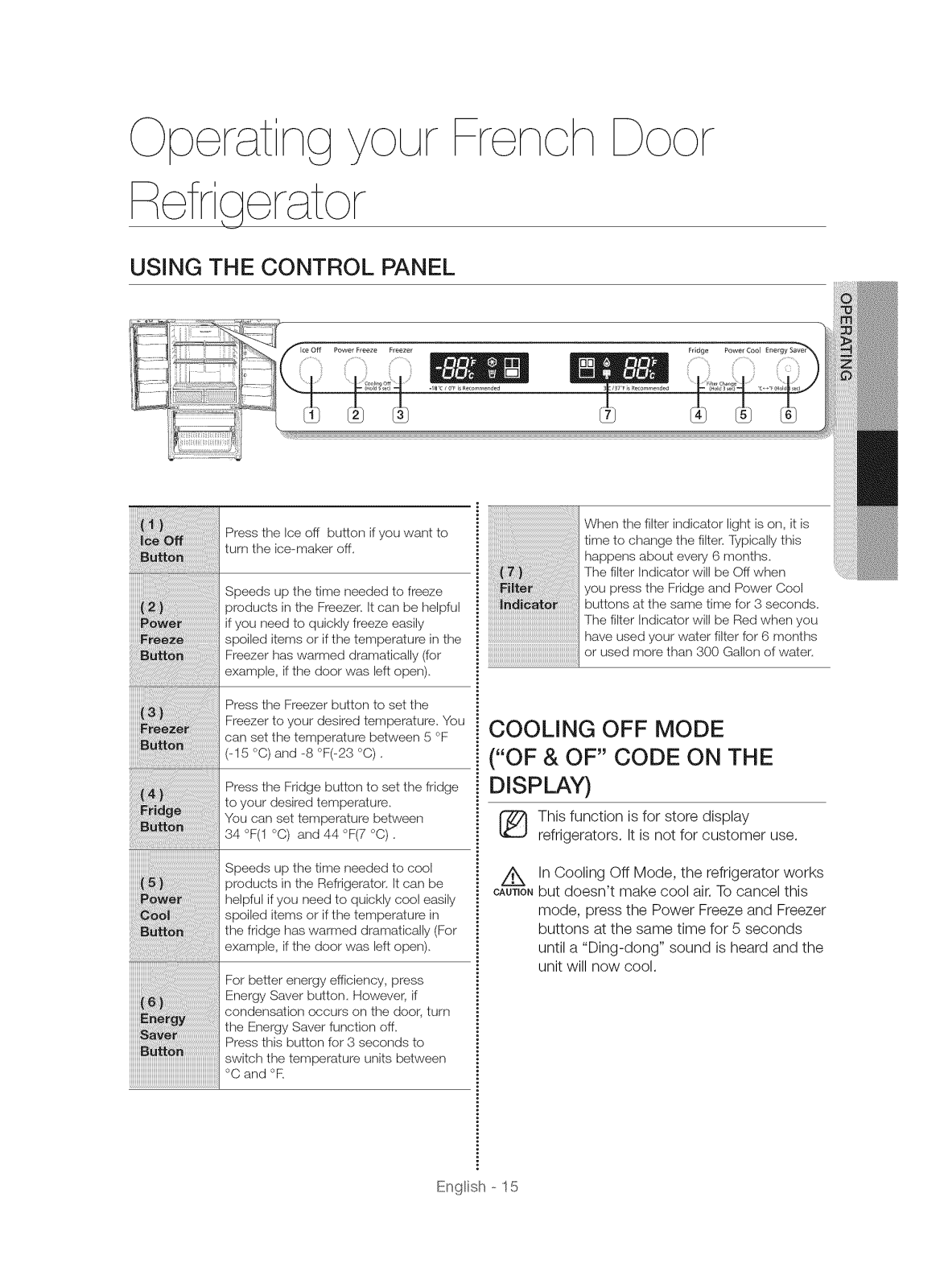

USING THE CONTROL PANEL

PowerFreeze

French OOF

Press the Ice off button if you want to turn the ice--maker off,

Speeds up the time needed to freeze

)roducts in the Freezer. It can be helpful

if you need to quickly freeze easily spoiled items or if the temperature in the Freezer has warmed dramatically (for example, ifthe door was left open),

Press the Freezer button to set the Freezer to your desired temperature. You can set the temperature between 5 °F

(-15 °C) and -8 °%23 °C),

Press the Fridge button to set the fridge to your desired temperature, You can set temperature between

34 °F(1 °C) and 44 °F(7 °C).

Speeds up the time needed to cool

)roducts in the Refrigerator, It can be helpful if you need to quickly cool easily spoiled items or if the temperature in the fridge has warmed dramatically (For example, ifthe door was left open),

For better energy efficiency, press Energy Saver button, However, if cendensalion occurs on the door, turn the Energy Saver function off,

Press this button for 3 seconds to switch the temperature units between

°C and °R

When the filter indicator light is on, it is time to change the filter, Typically this

happens about every 6 months,

The filter Indicator will be Off when you press the Fridge and Power Cool

buttons at the same time for 3 seconds.

The filter Indicator will be Red when you

have used your water filter for 6 months

or used more than 300 Gallon of water,

COOLING OFF MODE

("OF & OF" CODE ON THE

DISPLAY)

This function is for store display

refrigerators. It is not for customer use.

In Cooling Off Mode, the refrigerator works

CAUTIONbut doesn't make cool air. To cancel this

mode, press the Power Freeze and Freezer buttons at the same time for 5 seconds

until a "Ding-dong" sound is heard and the unit will now cool.

Engl sh - 15

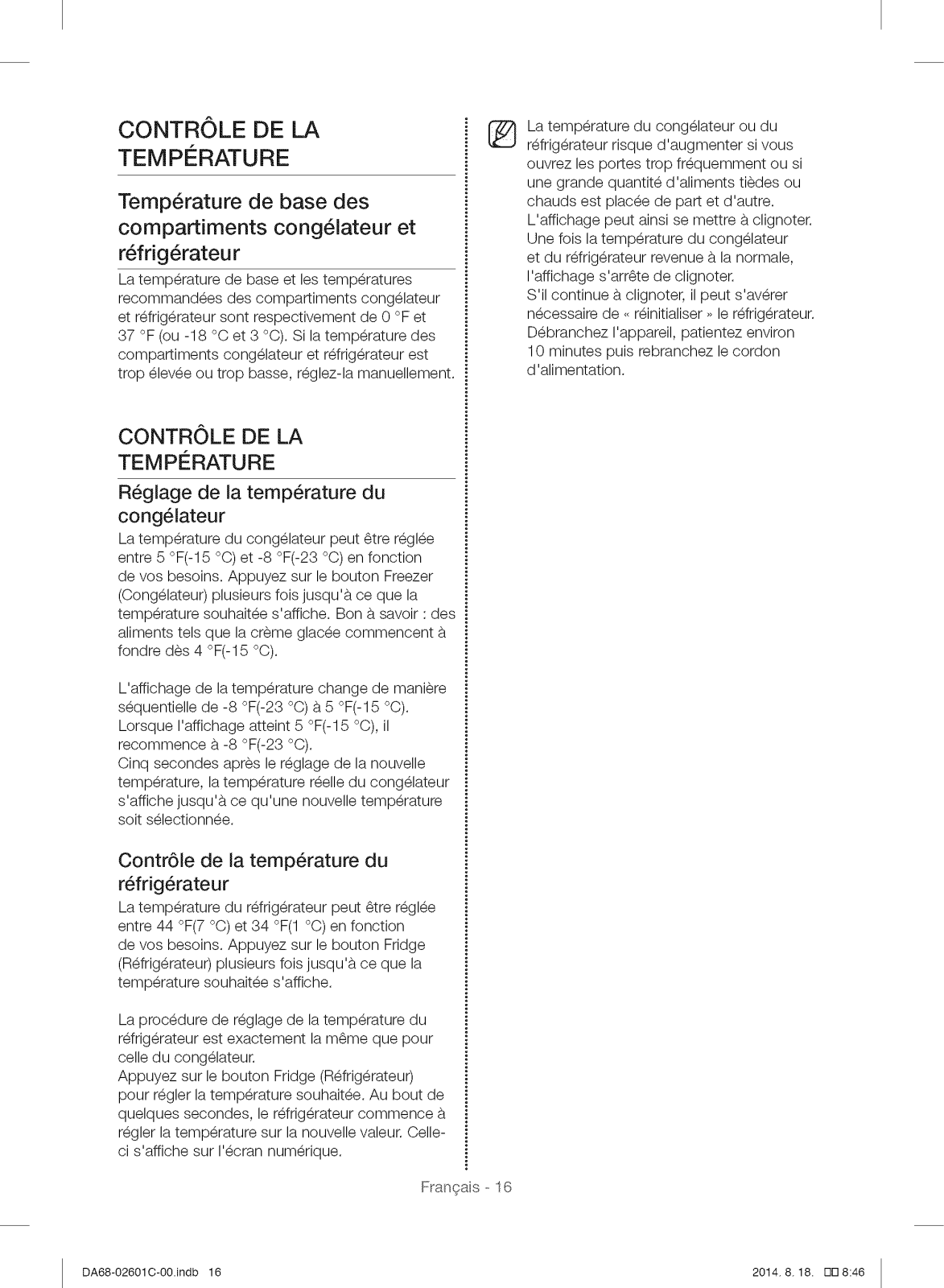

CONTROLLING THE TEMPERATURE

Basic temperature of Freezer and Refrigerator Compartments

The basic temperature and recommended temperatures of the Freezer and Refrigerator

Compartments are 0 °F and 37 °F(or -18 °C and 3 °C) respectively. If the temperature of the

Freezer and Refrigerator Compartments are too

high or low, adjust the temperature manually.

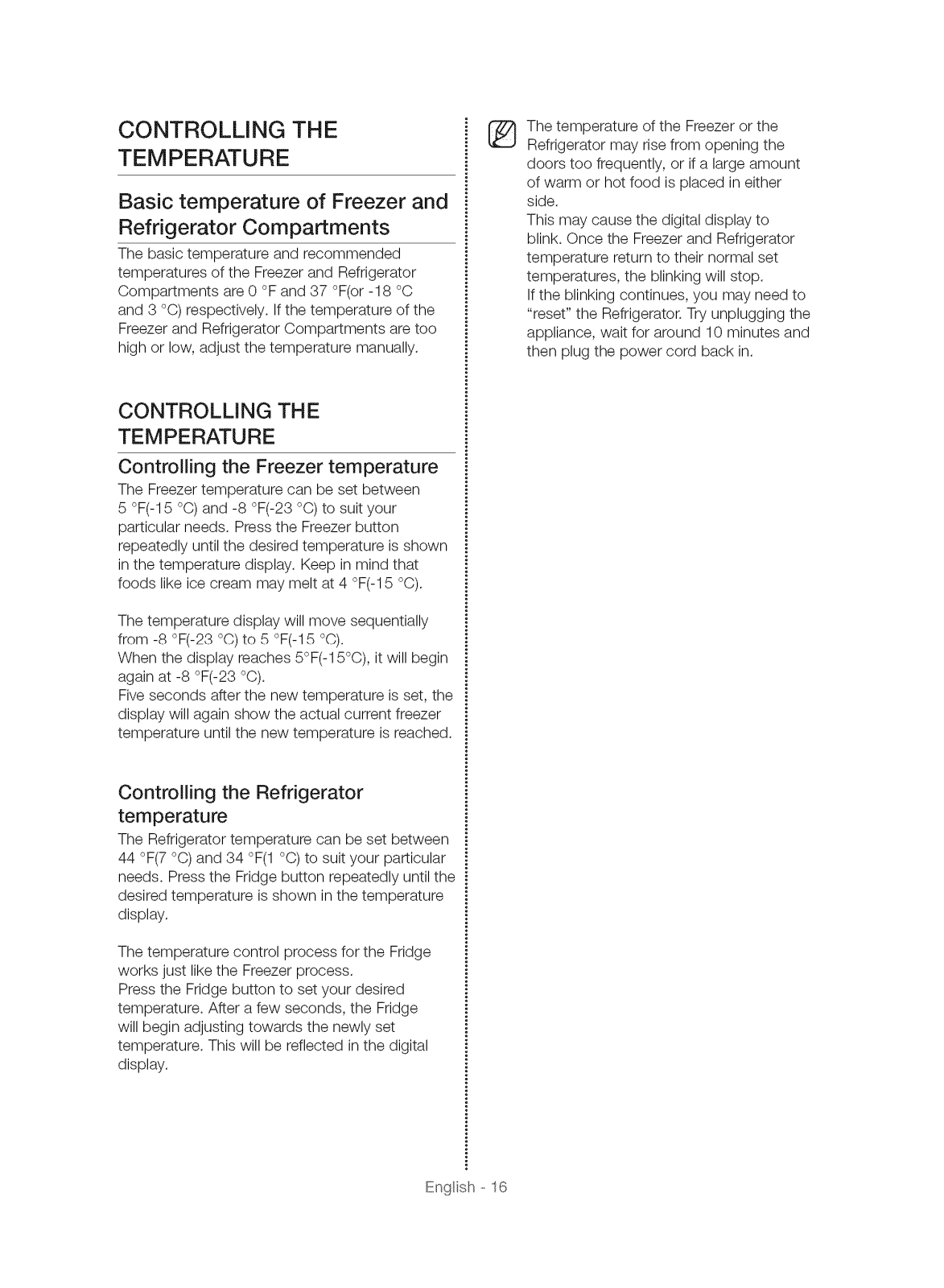

CONTROLLING THE TEMPERATURE

Controlling the Freezer temperature

The Freezer temperature can be set between 5 °F(-15 °C) and -8 °F(-23 °C) to suit your particular needs. Press the Freezer button

repeatedly until the desired temperature is shown in the temperature display. Keep in mind that

foods like ice cream may melt at 4 °F(-15 °C).

The temperature display will move sequentially from -8 °F(-23 °O) to 5 °F(-15 o©).

When the display reaches 5°F(-15°C), it will begin again at -8 °F(-23 °O).

Five seconds after the new temperature isset, the

display will again show the actual current freezer temperature until the new temperature is reached.

The temperature of the Freezer or the

Refrigerator may rise from opening the doors too frequently, or if a large amount

of warm or hot food is placed in either side.

This may cause the digital display to blink. Once the Freezer and Refrigerator temperature return to their normal set

temperatures, the blinking will stop. If the blinking continues, you may need to

"reset" the Refrigerator. Try unplugging the appliance, wait for around 10 minutes and then plug the power cord back in.

Controlling the Refrigerator temperature

The Refrigerator temperature can be set between 44 °F(7 °O) and 34 °F(1 °O) to suit your particular needs. Press the Fridge button repeatedly until the

desired temperature is shown in the temperature display.

The temperature control process for the Fridge works just like the Freezer process.

Press the Fridge button to set your desired

temperature. After a few seconds, the Fridge will begin adjusting towards the newly set

temperature. This will be reflected in the digital display.

Engl sh - 16

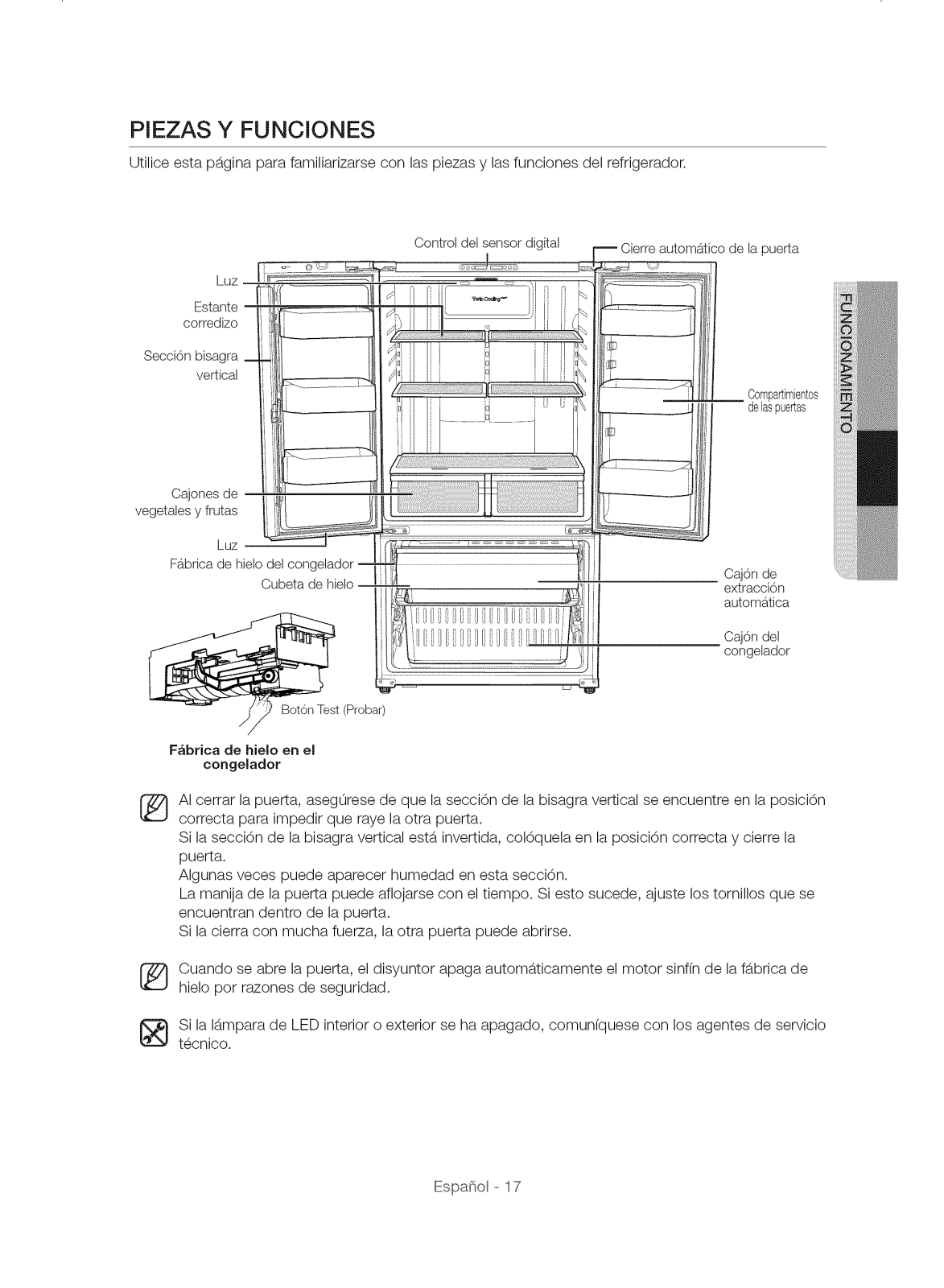

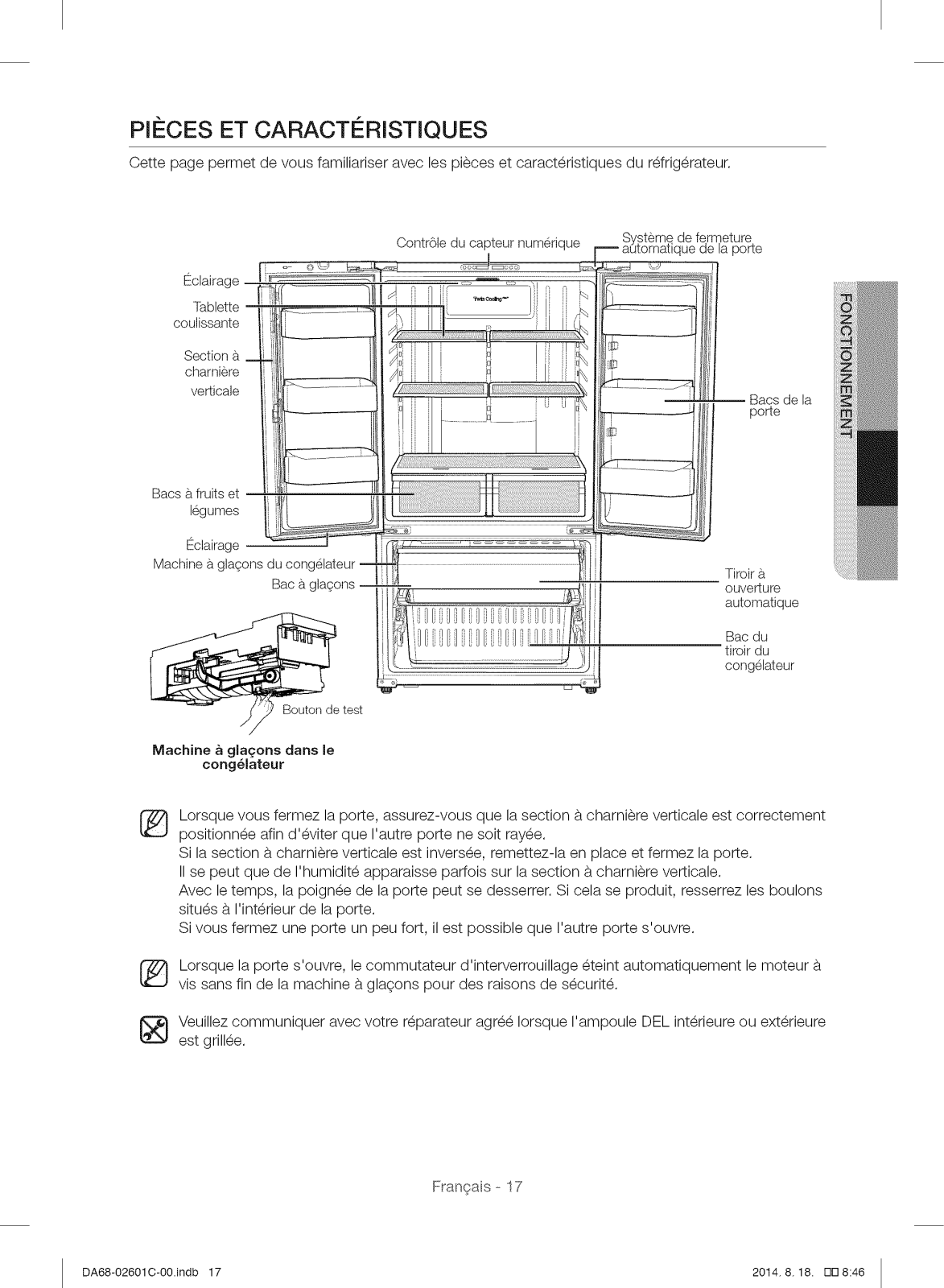

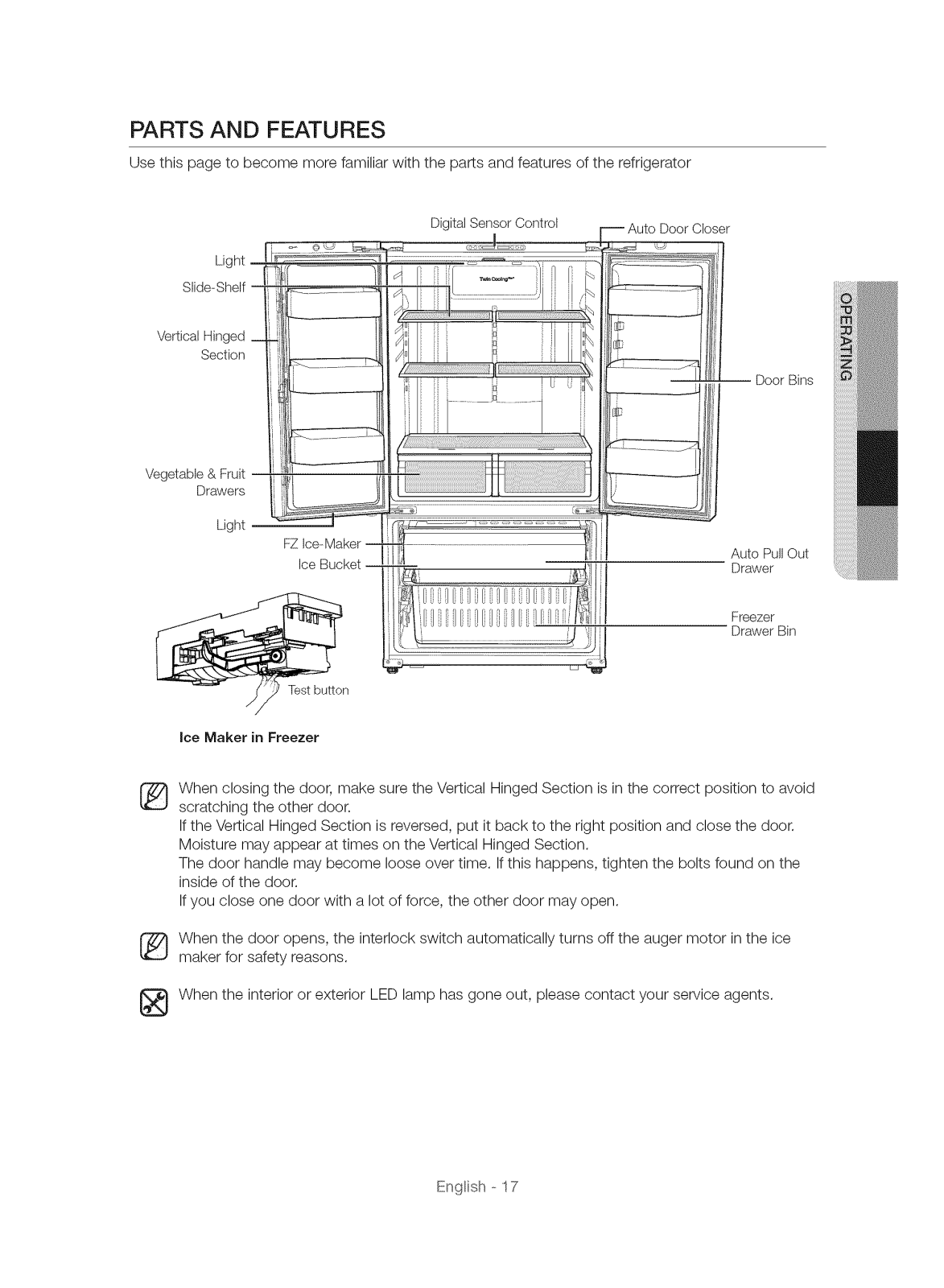

PARTS AND FEATURES

Use this page to become more familiar with the parts and features of the refrigerator

Light

Slide-Shelf

Vertical Hinged _

Section

Vegetable& Fruit

Drawers

DigitalSensorControl

i[ i

Door Closer

,,ght .....

IceBucketIill1 _,i

Ice Maker in Freezer

When closing the door, make sure the Vertical Hinged Section is in the correct position to avoid

scratching the other door.

Ifthe Vertical Hinged Section is reversed, put it back to the right position and close the door. Moisture may appear at times on the Vertical Hinged Section.

The door handle may become loose over time. If this happens, tighten the bolts found on the

inside of the door. Ifyou close one door with a lot of force, the other door may open.

Door Bins

Auto Pull Out

Drawer

Freezer Drawer Bin

When the door opens, the interlock switch automatically turns off the auger motor in the ice

maker for safety reasons.

When the interior or exterior LED lamp has gone out, please contact your service agents.

Engl sh - 17

REMOVING THE REFRIGERATOR

ACCESSORIES

1. Door Bins & Dairy Compartment

• Door Bins To remove - Simply lift the bin up and pull straight

out. To relocate - Slide it in above the desires location

and push down until it stops.

Injury may occur ifthe door bins are not

firmly assembled.

Do not allow children to play with bins. Sharp

corners of the bins may cause injury.

2. Tempered Glass shelves

To remove - Tilt up the front of the shelf in the direction shown ( 1 ) and lift it up vertically ( 2 ).

Pull the shelf out.

To relocate - Tilt the front of the shelf up and guide the shelf hooks into the slots at a desired

height. Then lower the front of the shelf so that the hooks can drop into the slots.

A The Tempered Glass shelves are heavy.

CAiN Use special care when removing them.

3. Vegetable & Fruit Drawers

To remove - Pull the drawer out to full extension. Tilt up the front of the drawer and pull straight out.

To relocate - Insert the drawer into the frame rails and push back into place.

A The drawers need to be removed before

CAUTIONthe glass shelf above them can be lifted

out.

Z_ Do not adjust a bin full of food. Remove

CAUTIONthe food first.

Dust removal method - Remove the guard and

wash in water.

I,,?;7 -1.......

Using the doors

Ensure that the doors close all the way and are

securely sealed. When the refrigerator door is only partially open,

it will automatically close. But, the door will stay

open when opened more than the auto close

range and you must close it manually.

Engl sh - 18

REMOVING THE REFRIGERATOR

ACCESSORIES

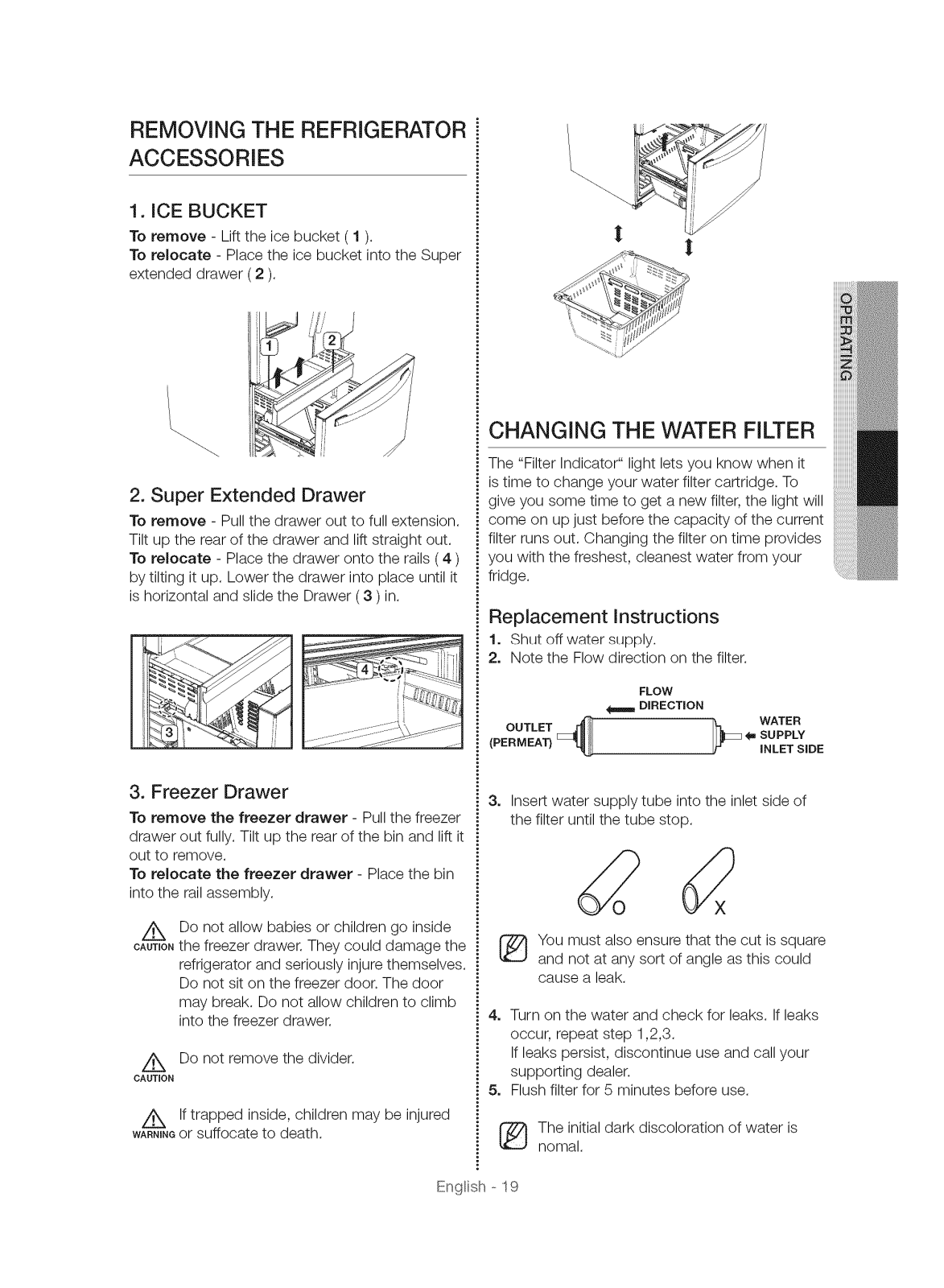

1. ICE BUCKET

To remove - Lift the ice bucket ( 1 ). To relocate - Place the ice bucket into the Super

extended drawer ( 2 ).

2. Super Extended Drawer

To remove - Pull the drawer out to full extension. Tilt up the rear of the drawer and lift straight out.

To relocate - Place the drawer onto the rails ( 4 ) by tilting it up. Lower the drawer into place until it

is horizontal and slide the Drawer ( 3 ) in.

CHANGING THE WATER FILTER

The "Filter Indicator" light lets you know when it is time to change your water filter cartridge. To

give you some time to get a new filter, the light will come on up just before the capacity of the current

filter runs out. Changing the filter on time provides you with the freshest, cleanest water from your fridge.

Replacement Instructions

1. Shut off water supply.

2. Note the Flow direction on the filter.

FLOW

DiRECTiON

OUTLET

(PERMEAT) _ll_[j___: _ _ SUPPLY

_,_ WATER

,_ NLET S DE

3. Freezer Drawer

To remove the freezer drawer - Pullthe freezer drawer out fully. Tilt up the rear of the bin and lift it

out to remove. To relocate the freezer drawer - Place the bin

into the rail assembly.

Z_ Do not allow babies or children go inside

CAUTIONthe freezer drawer. They could damage the

refrigerator and seriously injure themselves. Do not sit on the freezer door. The door

may break. Do not allow children to climb into the freezer drawer.

Z_ Do not remove the divider.

CAUTION

Z_ If trapped inside, children may be injured

WARNINGor suffocate to death.

Engl sh - 19

3. Insert water supply tube into the inlet side of the filter until the tube stop.

You must also ensure that the cut is square

and not at any sort of angle as this could cause a leak.

4. Turn on the water and check for leaks. If leaks occur, repeat step 1,2,3.

If leaks persist, discontinue use and call your

supporting dealer.

5. Flush filter for 5 minutes before use.

The initial dark discoloration of water is

nomal.

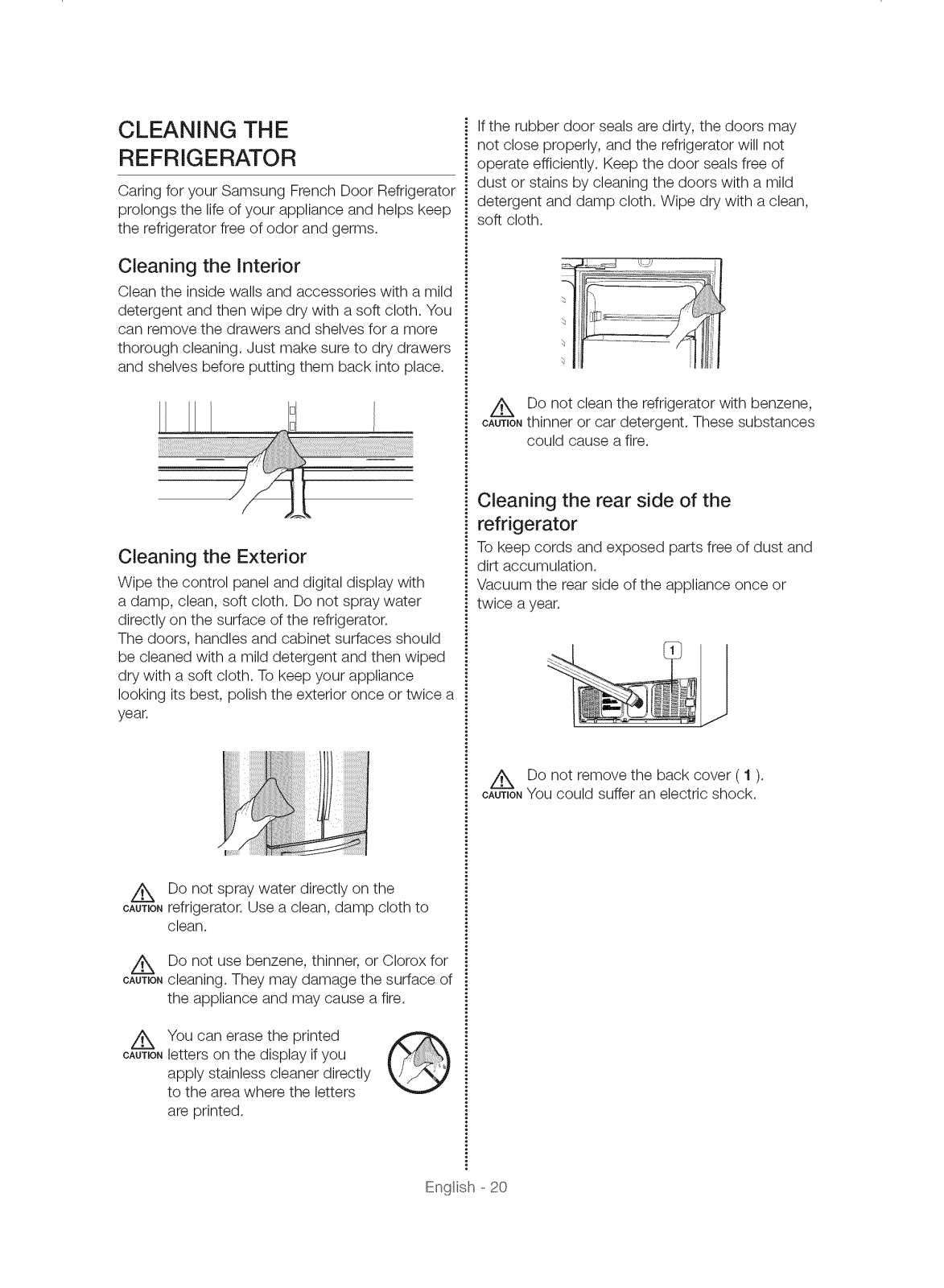

CLEANING THE

REFRIGERATOR

Caring for your Samsung French Door Refrigerator prolongs the life of your appliance and helps keep

the refrigerator free of odor and germs.

Cleaning the Interior

Clean the inside walls and accessories with a mild detergent and then wipe dry with a soft cloth. You

can remove the drawers and shelves for a more thorough cleaning. Just make sure to dry drawers

and shelves before putting them back into place.

Cleaning the Exterior

Wipe the control panel and digital display with a damp, clean, soft cloth. Do not spray water

directly on the surface of the refrigerator. The doors, handles and cabinet surfaces should

be cleaned with a mild detergent and then wiped dry with a soft cloth. To keep your appliance

looking its best, polish the exterior once or twice a year.

Ifthe rubber door seals are dirty, the doors may not close properly, and the refrigerator will not

operate efficiently. Keep the door seals free of dust or stains by cleaning the doors with a mild

detergent and damp cloth. Wipe dry with a clean, soft cloth.

Do not clean the refrigerator with benzene,

CAUTIONthinner or car detergent. These substances

could cause a fire.

Cleaning the rear side of the refrigerator

To keep cords and exposed parts free of dust and dirt accumulation.

Vacuum the rear side of the appliance once or twice a year.

Z_ Do not spray water directly on the

CAUTIONrefrigerator. Use a clean, damp cloth to

clean.

Do not use benzene, thinner, or Clorox for

CAUTIONcleaning. They may damage the surface of

the appliance and may cause a fire.

You can erase the printed

CAUTIONletters on the display if you

apply stainless cleaner directly

to the area where the letters

are printed.

Engl sh - 20

A Do not remove the back cover ( 1 ).

CAiN YOUcould suffer an electric shock.

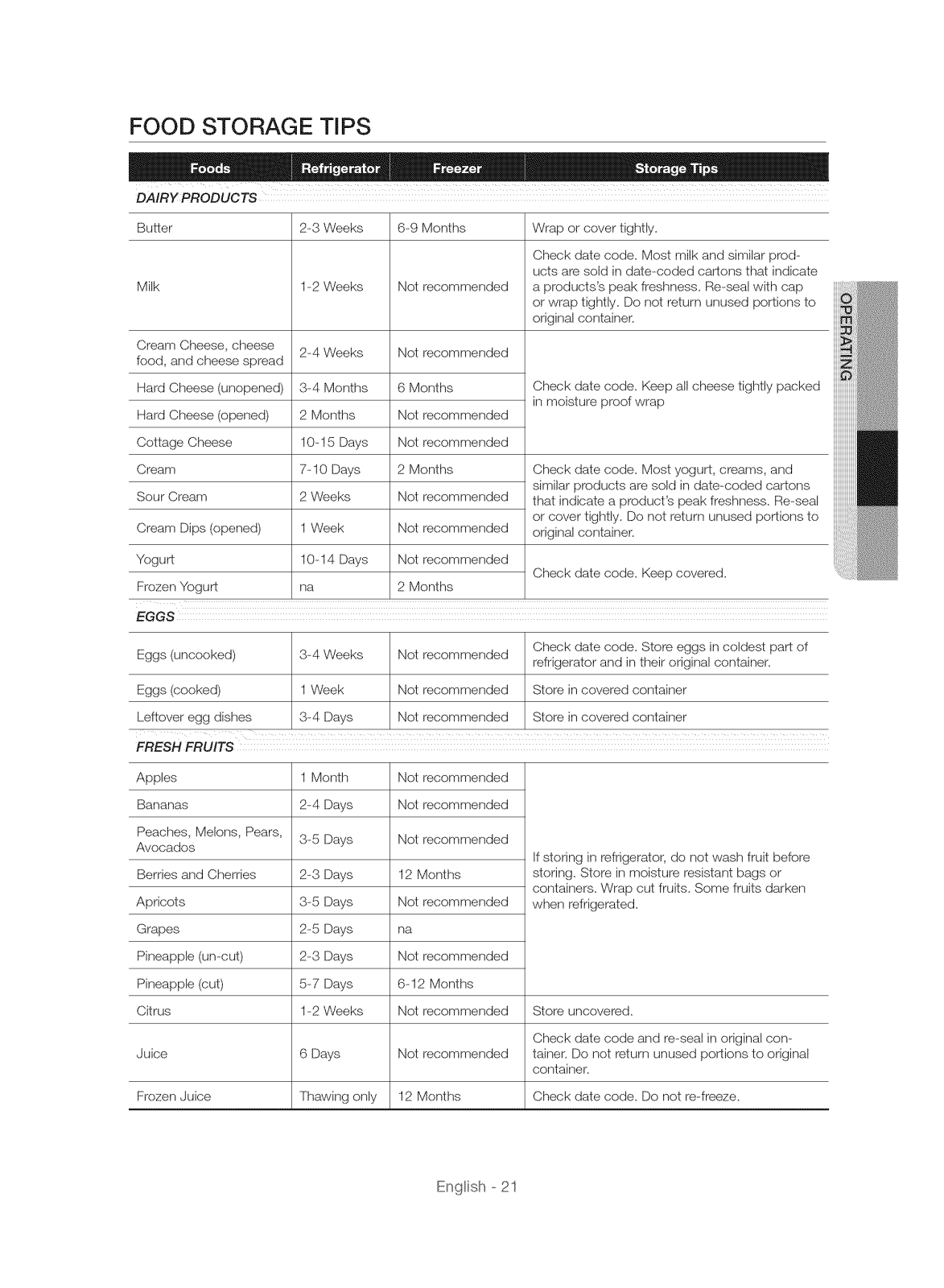

FOOD STORAGE TIPS

DAIRY PRODUOTS

Butter 2-3 Weeks 6-9 Months Wrap or cover tightly.

Check date code, Most milk and similar prod-

Milk 1-2 Weeks Not recommended a products's peak freshness, Re-seal with cap

Cream Cheese, cheese food, and cheese spread

Hard Cheese (unopened)

Hard Cheese (opened)

Cottage Cheese

Cream

Sour Cream

Cream Dips (opened)

Yegurt

2-4 Weeks

3-4 Months 2 Months

10-15 Days

7-10 Days 2 Weeks

I Week

10-14 Days

Not recommended

6 Months Not recommended Not recommended 2 Months Not recommended

Not recommended

Frozen Yogurt na 2 Months

EGGS

Eggs (uncooked) 3-4 Weeks Not recommended refrigerator and in their original container,

Eggs (cooked) I Week Not recommended Store in covered container Leftover egg dishes 3-4 Days Not recommended Store in covered container

FRESH FRUITS

Apples

Bananas

Peaches, Melons, Pears,

Avocados

Berries and Cherries

Apricots

Grapes Pineapple (un-cut) Pineapple (cut)

Citrus Store uncovered,

I Month

2-4 Days

3-5 Days

2-3 Days 3-5 Days 2-5 Days 2-3 Days 5-7 Days

1-2 Weeks

Not recommended Not recommended

Not recommended

12 Months Not recommended na Not recommended 6-12 Months Not recommended

Juice 6 Days Not recommended tainer, Do not return unused portions to original

Frozen Juice Thawing only 12 Months Check date code. Do not re--freeze.

ucts are sold in date-ceded cartons that indicate

or wrap tightly, Do not return unused portions to original container.

Check date code, Keep all cheese tightly packed in moisture proof wrap

Check date code. Most yogurt, creams, and similar products are sold in date--coded cartons that indicate a product's peak freshness, Re-seal or cover tightly. Do not return unused portions to original container.

Check date code. Keep covered,

Check date code. Store eggs in coldest part of

If storing in refrigerator, do not wash fruit before storing, Store in moisture resistant bags or containers, Wrap cut fruits, Some fruits darken

when refrigerated,

Check date code and re-seal in original con

container,

Engl sh - 21

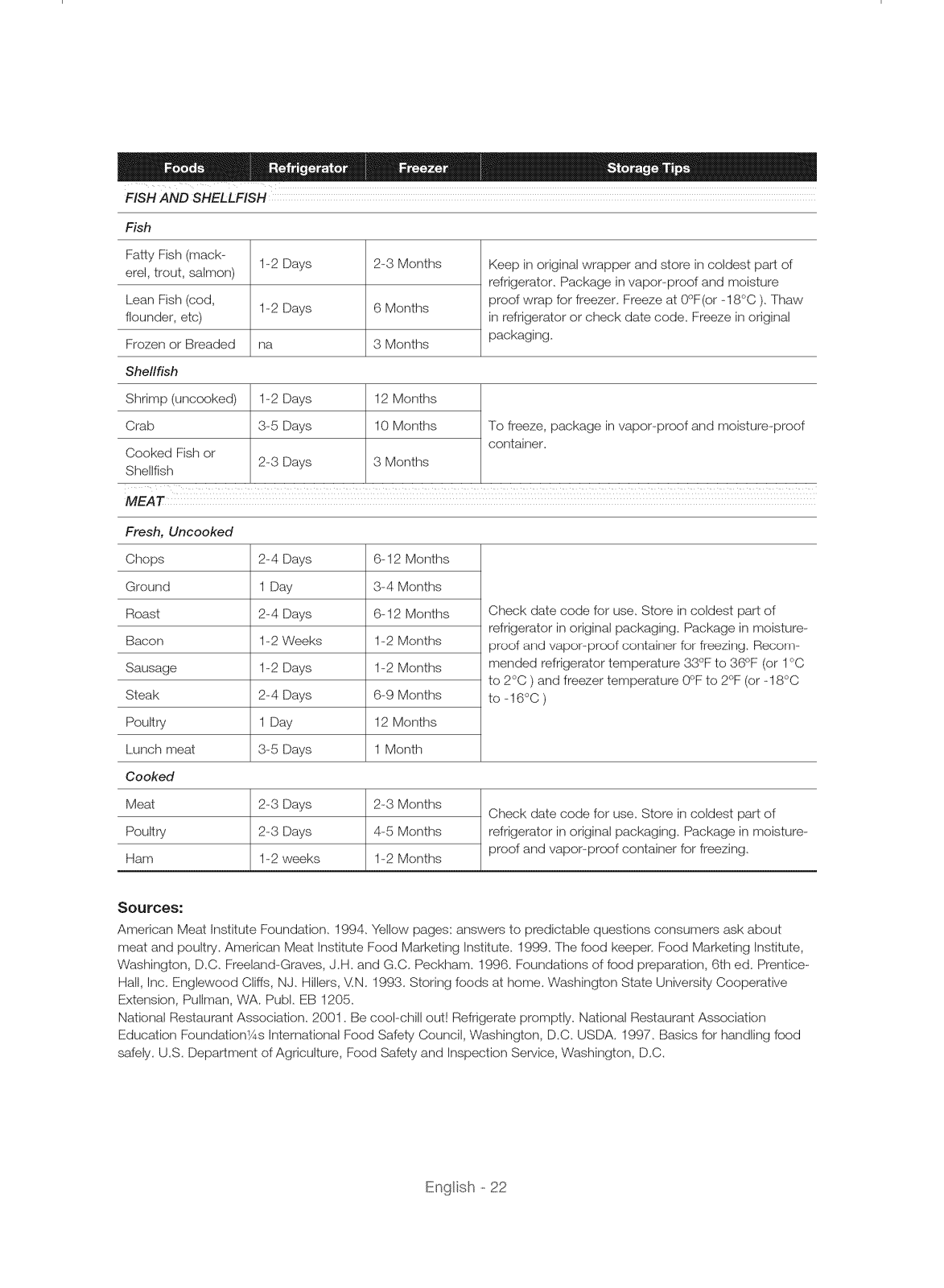

Fish

Fatty Fish (mack- erel, trout, salmon)

Lean Fish (cod, flounder, etc)

Frozen or Breaded Shellfish

Shrimp (uncooked) Crab

Cooked Fish or Shellfish

MEAT

Fresh, Uncooked

Chops Ground

Roast Bacon

Sausage Steak

Poultry Lunch meat

Cooked

Meat

Poultry Ham

1-2 Days 2-3 Months

1-2 Days 6 Months

na 3 Months

1-2 Days 12 Months

3-5 Days 10 Months

2-3 Days 3 Months

2-4 Days

1 Day

2-4 Days

i-2 Weeks

1-2 Days

2-4 Days

I Day

3-5 Days

2-3 Days 2-3 Days

1-2 weeks

6-12 Months

3-4 Months 6-12 Months

1-2 Months 1-2 Months

6-9 Months

12 Months I Month

2-3 Months 4-5 Months

1-2 Months

Keep in original wrapper and store in coldest part of refrigerator. Package in vapor-proof and moisture proof wrap for freezer. Freeze at 0°F(or -18°C ). Thaw in refrigerator or check date code. Freeze in original packaging.

To freeze, package in vapor-proof and moisture proof container.

Check date code for use. Store in coldest part of refrigerator in original packaging. Package in moisture-- proof ai_d vapor-proof coIitailler for freezing. Recom- mended refrigerator temperature 33°F to 36°F (or 1°C to 2°C ) and freezer temperature 0°F to 2°F (or -18°C to -16°0 )

Check date code for use. Store in coldest part of refrigerator in original packaging. Package in moisture-- proof and vapor-proof container for freezing.

Sources: American Meat institute Foundation. 1994. Yellow pages: answers to predictable questions consumers ask about

meat and poultry. American Meat Institute Food Marketing Institute. 1999. The food keeper. Food Marketing Institute, Washington, D.C. Freeland-Graves, J.H. and G.C. Peckham. 1996. Foundations of food preparation, 6th ed. Prentice-- Hall, Inc. Englewood Cliffs, NJ. Hillers, V.N. 1993. Storing foods at home. Washington State University Cooperative Extension, Pullman, WA. Publ. EB 1205. National Restaurant Association. 2001. Be cool-chill out! Refrigerate promptly. National Restaurant Association Education Foundation_As Interrlational Food Safety Council, Washington, D.C. USDA. 1997. Basics for handling food safely. U.S. Department of Agriculture, Food Safety and Inspection Service, Washington, D.C.

Engl sh - 22

Trout eChootng

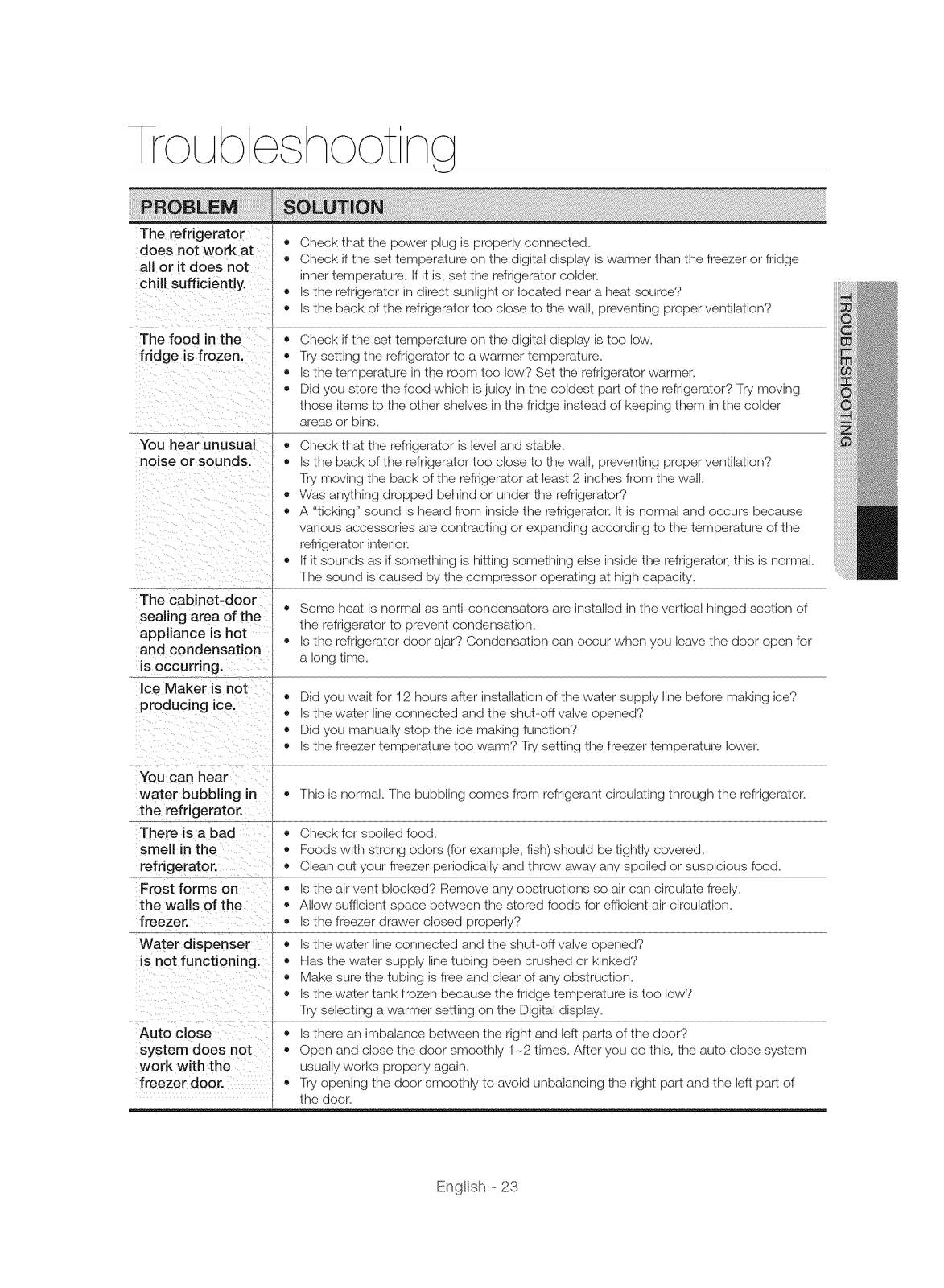

The refrigerator i

does not work at ! • Check that the power plug is properly connected.

all or it does not • Check if the set temperature on the digital display is warmer than the freezer or fndge Ch surf cent y. i inner temperature. If it is, set the refrigerator colder.

The food in the,

fridge is frozen. ! •

You hear unusual I "

noise or sounds. I "

The cabinet-door I sealing area of the i "

appliance is hot I • and condensation i

.__s Occurnng. ---4

Ice Maker is not •

preducing ice, i •

• E

, * Is the refrigerator in direct sunlight or located near a heat source? i • Is the back of the refrigerator too close to the wall, preventingproperventilation?

Check if the set temperature on the digital display is too low.

Try setting the refrigerator to a warmer temperature.

i "

Is the temperature in the room too low? Set the refrigerator warmer. Did you store the food which is juicy in the coldest part of the refrigerator? Ti'y moving

those items to the other shelves in the fndge instead of keeping them in the colder

areas or bins.

-i

Check that the refrigerator is level and stable. Is the back of the refrigerator too close to the wall, preventing proper ventilation?

Ti'y moving the back of the refrigerator at least 2 inches from the wall.

Was anything dropped behind or under the refrigerator? A "ticking" sound is heard from inside the refrigerator. It is normal and occurs because

various accessories are contracting or expanding according to the temperature of the

refrigerator interior.

I ®

If it sounds as if something is hitting something else inside the refrigerator, this is normal.

The sound is caused by the compressor operating at high capacity.

Some heat is normal as anti-condensators are installed in the vertical hinged section of

the refdgeraior to prevent condensation.

Is the refrigerator door ajar? Condensaiion can occur when you leave the door open for

a long time.

Did you wait for 12 hours after installation of the water supply line before making ice? Is the water line connected and the shut-off valve opened?

i •

Did you manua,y stop the ice making function?

Is the freezer temperature too warm? Try setting the freezer temperature lower.

[

water bubbling in I " This is normal. The bubbling comes from refngerant circulating through the refrigerator. the refrigerator, i

smell in the I " Foods with strong odors (for example, fish) should be tightly covered. refrigerator, i • Clean out your freezer periodically and throw away any spoiled or suspicious food.

Frost forms on _ * Is the air vent blocked? Remove any obstructions so air carl circulate freely. the wal!s Of the I " Allow sufficient space between the stored foods for efficient air circulation. freezer. I • Is the freezer drawer closed properly?

Water dispenser I * Is the water line connected and the shut-off valve opened?

is not functioning. I • Has the water supply line tubing been crushed or kinked?

- ........................................ I

Auto close • Is there an imbalance between the right and left parts of the door? system does not i " Open and close the door smoothly 1-_2 times. After you do this. the auto close system work with the I usually works properly again.

freezer door. I _ T_y opening the door smoothly to avoid unbalancing the right part and the left part of

I Make sure the tubir_g is free arid clear of any obstruction.

Is the water tank frozen because the fridge temperature is too low?

i T_y selecting a warmer setting on the Digital display.

I the door.

Engl sh - 23

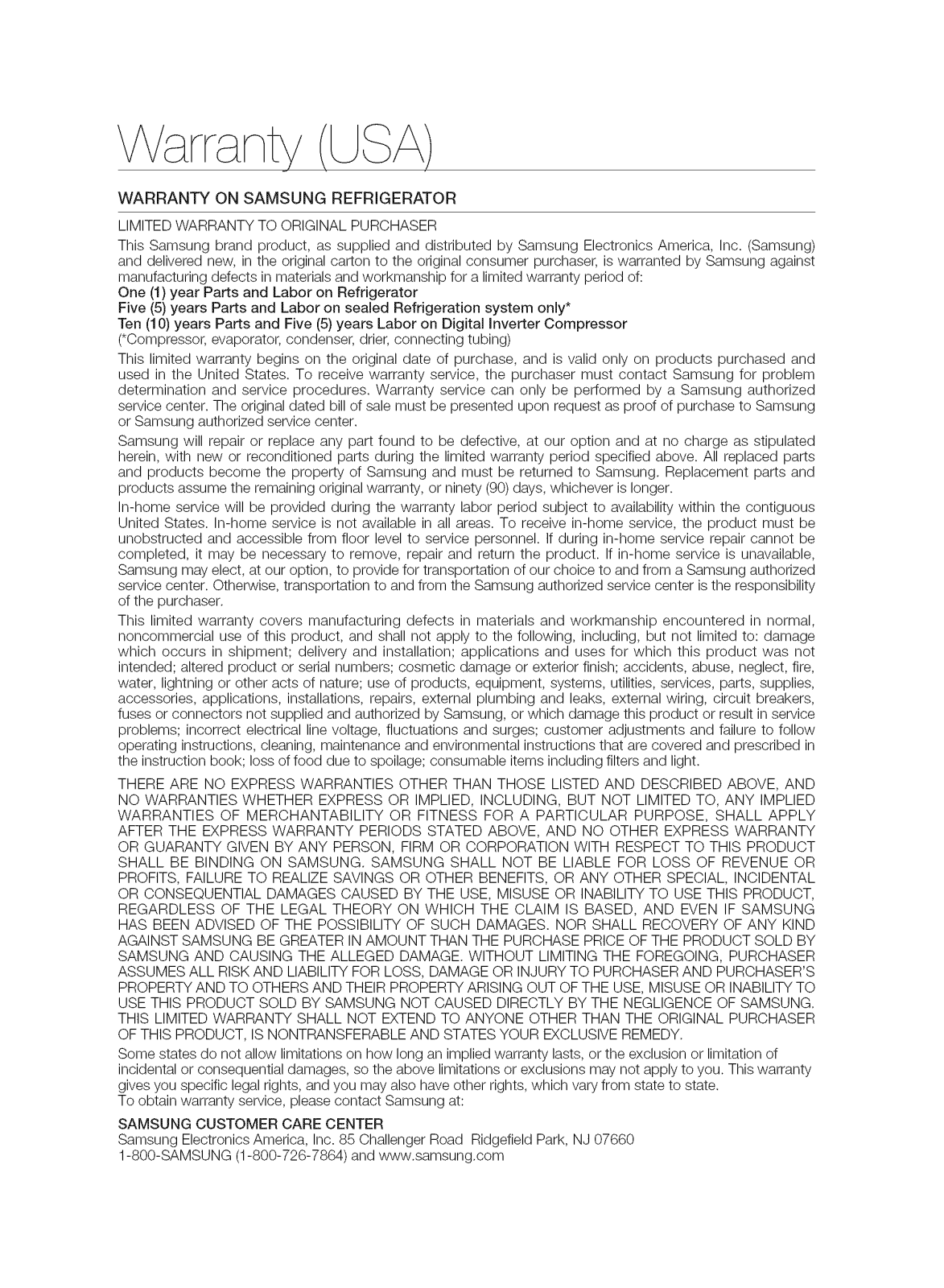

WARRANTY ON SAMSUNG REFRIGERATOR

LIMITED WARRANTY TO ORIGINAL PURCHASER This Samsung brand product, as supplied and distributed by Samsung Electronics America, Inc. (Samsung)

and delivered new, in the original carton to the original consumer purchaser, is warranted by Samsung against manufacturing defects in materials and workmanship for a limited warranty period of: One (1) year Parts and Labor on Refrigerator Five (5) years Parts and Labor on sealed Refrigeration system only* Ten (10) years Parts and Five (5) years Labor on Digital inverter Compressor (*Compressor, evaporator, condenser, drier, connecting tubing)

This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the United States. To receive warranty service, the purchaser must contact Samsung for problem determination and service procedures. Warranty service can only be performed by a Samsung authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to Samsung or Samsung authorized service center.

Samsung will repair or replace any part found to be defective, at our option and at no charge as stipulated herein, with new or reconditioned parts during the limited warranty period specified above. All replaced parts and products become the property of Samsung and must be returned to Samsung. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer.

In-home service will be provided during the warranty labor period subject to availability within the contiguous United States. In-home service is not available in all areas. To receive in-home service, the product must be unobstructed and accessible from floor level to service personnel. If during in-home service repair cannot be completed, it may be necessary to remove, repair and return the product. If in-home service is unavailable, Samsung may elect, at our option, to provide for transportation of our choice to and from a Samsung authorized service center. Otherwise, transportation to and from the Samsung authorized service center is the responsibility of the purchaser.

This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, noncommercial use of this product, and shall not apply to the following, including, but not limited to: damage which occurs in shipment; delivery and installation; applications and uses for which this product was not intended; altered product or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning or other acts of nature; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external plumbing and leaks, external wiring, circuit breakers, fuses or connectors not supplied and authorized by Samsung, or which damage this product or result in service problems; incorrect electrical line voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions, cleaning, maintenance and environmental instructions that are covered and prescribed in the instruction book; loss of food due to spoilage; consumable items including filters and light.

THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO WARRANTIES WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED

WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY AFTER THE EXPRESS WARRANTY PERIODS STATED ABOVE, AND NO OTHER EXPRESS WARRANTY

OR GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR

PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT,

REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY

SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO PURCHASER AND PURCHASER'S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO

USE THIS PRODUCT SOLD BY SAMSUNG NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF SAMSUNG. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER

OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY. Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of

incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. To obtain warranty service, please contact Samsung at:

SAMSUNG CUSTOMER CARE CENTER Samsung Electronics America, Inc. 85 Challenger Road Ridgefield Park, NJ 07660

1-800-SAMSUNG (1-800-726-7864) and www.samsung.com

+ 56 hidden pages
