Plasma TV

user manual

imagine the possibilities

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/register

Model _____________ Serial No. _____________

BN68-02903A-00

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and speciﬁcations may be changed without notice.

User Instructions

• Screen Image retention

Do not display a still image (such as on a video game or when hooking up a PC to this PDP) on the plasma monitor panel for more than 2 hours

as it can cause screen image retention. This image retention is also known as “screen burn”. To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.

• Heat on the top of the Plasma TV

The top side of the product may be hot after long period of use as heat dissipates from the panel through the vent hole in the upper part of the

product. This is normal and does not indicate any defect or operation failure of the product. However, children should be prevented from touching the upper part of the product.

• The product is making a “cracking” noise.

A “cracking” noise may occur when the product contracts or expands due to a change in the surrounding environment such as temperature or

humidity. This is normal and not a defect of the unit.

• Cell Defects

The PDP uses a panel consisting of 2,360,000(HD-level) to 6,221,000(FHD-level) pixels which require sophisticated technology to produce. However,

there may be a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

• Avoid operating the TV at temperatures below 41°F (5°C)

• A still image displayed too long may cause permanent damage to the PDP Panel. Watching the Plasma TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and centre of

the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause similar effects to the screen. Damages caused by the above effect are not covered by the Warranty.

• After-images on the Screen.

Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images. To prevent this effect, reduce the “brightness” and “contrast” when displaying still images for a long time.

• Warranty

Warranty does not cover any damage caused by image retention. Burn-in is not covered by the warranty.

Securing the Installation Space

Keep the required distance between the product and other objects (e.g. walls) to ensure proper ventilation. Failing to do so may result in ﬁre or a problem with the product due to an increase in the internal temperature of the product.

When using a stand or wall-mount, use parts provided by Samsung Electronics only.

✎

If you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling.

The appearance may differ depending on the product.

✎

Installation with a stand. Installation with a wall-mount.

10 cm

English

10 cm

Contents

Getting Started

Connections

Basic Features

Advanced Features

4 Accessories 5 Viewing the Control Panel 6 Viewing the Remote Control 7 Connecting to an Antenna 7 Plug & Play (Initial Setup)

8 Connecting to an AV Device 10 Connecting to an Audio Device 10 Changing the Input Source

11 How to Navigate Menu 11 Channel Menu 13 Picture Menu 19 Sound Menu 21 Setup Menu 23 Support Menu

24 Connecting to a PC 25 Network Connection 32 Media Play 39 Anynet+ 43 Internet@TV 47 AllShare

Other Information



This function can be used by pressing the

TOOLS

TOOLS button on the remote control.

49 Analogue Channel Teletext Feature 50 Assembling the Cables 51 Installing the Wall Mount 52 Securing the TV to the wall 53 Troubleshooting 55 Speciﬁcations 57 Index

Check the Symbol!

Note One -Touch Button

Indicates additional information. Check here for instructions on how to open

the relevant submenu within the OSD (on

screen display).

English

Getting Started

Accessories

✎

Please make sure the following items are included with your PDP TV. If any items are missing, contact your dealer.

✎

The items’ colours and shapes may vary depending on the models.

y Remote Control & Batteries (AAA x 2) y Owner’s Instructions y Warranty Card / Safety Guide (Not available in some locations)

M4 x L12

y Blanking Bracket & Screw (1EA) y Component Adapter y AV Adapter (2EA)

y Component Sound in Adapter y Holder-Wire (3EA) y Holder-Wire stand

y Cable Tie

y Cleaning Cloth

✎

For best cable connection to this product, be sure to use cables with a maximum thickness as below:

y Maximum thickness - 0.55 inches (14mm)

English

Viewing the Control Panel

✎

The product colour and shape may vary depending on the model.

Remote control sensor

Power Indicator

Speakers

Remote control sensor Aim the remote control towards this spot on the TV.

Power Indicator Blinks and turns off when the power is on and lights up in standby mode.

SOURCE







(Power)



Toggles between all the available input sources. In the on-screen menu, use this button as you would use the ENTER button on the remote control.

Displays an on-screen menu, the OSD (on screen display) of your TV’s features. Adjusts the volume. In the OSD, use the

and ► buttons on the remote control. Changes the channels. In the OSD, use the

▼ and ▲ buttons on the remote control. Turns the TV on or off.





buttons as you would use the ◄

buttons as you would use the

01 Getting Started

Standby mode

Do not leave your TV in standby mode for long periods of time (when you are away on holiday, for example). A small amount of electric power is still consumed even when switch is turned off. It is best to unplug the power cord.

English

Getting Started

Turns the TV on and off.

Displays and selects the available video

sources (p. 10).

Have direct access to channels.

Alternately select Teletext ON, Double,

Mix or OFF.

Adjusts the volume.

Opens the OSD.

Displays the Content View, which

includes Channel Manager, Internet@

TV, Media Play, AllShare and 3D.

Quickly select frequently used functions.

Returns to the previous menu.

Viewing the Remote Control

POWER ON/OFF

SOURCE

MUTE

CHLIST

PRE-CH

INTERNET

@ TV

INFO

EXIT

TTX/MIX

CONTENT

TOOLS

RETURN

Turns the remote control light on or off. When on, the buttons become illuminated for a moment when pressed. (Using the remote control with this button set to ON will reduce the battery usage time.)

Returns to the previous channel.

To mute all TV output sound.

Changes channels.

Displays channel list on the screen (p. 13).

Link to various internet services (p. 43).

Displays information on the TV screen.

Selects the on-screen menu items and changes the values seen on the menu.

Exits the menu.

These buttons are for the Channel

Manager, Internet@TV, Media Play

menu, etc.

Use these buttons in Media Play and

Anynet+ modes (p. 32, 39)

(: Controls recording for Samsung

recorders that have the Anynet+ feature)

Installing batteries (Battery size: AAA)

A B C D

MEDIA.P HDMI

P.SIZEP.MODE

✎

NOTE

Use the remote control within 23 feet from the TV.

Bright light may affect the per formance of the remote

control. Avoid using nearby special fluorescent light or neon signs.

The colour and shape may vary depending on the model.

SRS

MEDIA.P: Displays Media Play (p. 32). HDMI: Selects the HDMI mode directly. 3D: Activate 3D mode/menu (p. 17). P.MODE: Press to select the picture

mode (p. 13).

P.SIZE: Selects the picture size (p. 15). SRS: Selects SRS TruSurround HD

mode (p. 20).

English

Connecting to an Antenna

When the TV is initially powered on, basic settings proceed automatically.

✎

Preset: Connecting the power cord and antenna.

VHF/UHF Antenna

Cable

Plug & Play (Initial Setup)

When the TV is initially powered on, a sequence of on-screen prompts will assist in conﬁguring basic settings. Press the

POWER button. Plug & Play is available only when the Input source is set to TV.

✎

To return to the previous step, press the Red button.

Selecting a language

Selecting Store Demo

or Home Use

Selecting an area

Selecting a channel The channel search will start and end automatically.

Setting the Clock

Viewing the HD

Connection Guide. Enjoy your TV.

Press the ▲ or ▼ button, then press the ENTER Select the desired OSD (On Screen Display) language. Press the ◄ or ► button, then press the ENTER button.

y Select the Home Use mode. Store Demo Mode is for retail

environments.

y To return the unit’s settings from Store Demo to Home Use

(standard): Press the volume button on the TV. When you see the volume OSD, press and hold MENU for 5 sec.

Press the ENTER Press the ENTER button to conﬁrm your choice.

✎

Press the ENTER button at any time to interrupt the memorisation process.

✎

After all the available channels are stored, the message Set current date and time is displayed.

Press the ENTER Select the Day, Month, Year, Hour, or Minute by pressing the ◄ or ► button. Set the Day, Month, Year, Hour, or Minute by pressing the ▲ or ▼ button.

✎

You can also set the Day, Month, Year, Hour and Minute by pressing the number buttons on the remote control.

The connection method for the best HD screen quality is displayed.

Press the ENTER



button. Select the appropriate area by pressing the ▲ or ▼ button.



button.



button.



button.

ANT OUT

POWER

01 Getting Started

If You Want to Reset This Feature...

Select Setup - Plug & Play (Initial Setup). Enter your 4 digit PIN number. The default PIN number is “0-0-0-0.” If you want to change the PIN number, use the Change PIN function.

English

ConnectionsConnections

R-AUDIO-L

Connecting to an AV Device

Using an HDMI or HDMI/DVI cable: HD connection (up to 1080p)

Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver, cable box, STB satellite receiver

DVD / Blu-ray

player

HDMI OUT

ARC

WhiteRed

✎

HDMI IN 1(DVI), 2(ARC), 3, 4, PC/DVI AUDIO IN

For better picture and audio quality, connect to a digital device using an HDMI cable.

An HDMI cable supports digital video and audio signals, and does not require an audio cable.

– To connect the TV to a digital device that does not support HDMI output, use an HDMI/DVI and audio cables.

The picture may not display normally (if at all) or the audio may not work if an external device that uses an older

version of HDMI mode is connected to the TV. If such a problem occurs, ask the manufacturer of the external device about the HDMI version and, if out of date, request an upgrade.

Be sure to use an HDMI cable with a thickness of 14 mm or less.

Be sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a connection error may

occur. A basic high-speed HDMI cable or one with ethernet is recommended. This product does not support the

ethernet function via HDMI. This product supports the 3D and ARC (Audio Return Channel) functions via an HDMI cable. Note that the

ARC function is supported by the HDMI IN 2(ARC) port only.

– If 3D Auto View is set to On, some functions such as Internet@TV may be disabled. In this case, set

3D Auto View or 3D Mode to Off.

The ARC function allows digital audio to output via the HDMI IN 2(ARC) port. It can be enabled only when the

TV is connected with an audio receiver that supports the ARC function.

DVD / Blu-ray

player

DVI OUT

AUDIO OUT

English

Using a Component (up to 1080p) or Audio/Video (480i only) Cable

Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR

W R

VIDEO OUT AUDIO OUT

R-AUDIO-L

VCR

02 Connections

Red White

Yellow

DVD / Blu-ray player

AUDIO OUT

✎

To obtain the best picture quality, the Component connection is recommended over the A/V connection.

R-AUDIO-L

COMPONENT OUT

PR PB Y

Input Cables (Sold Separately)

HDMI HDMI-DVI Component Composite (AV) Coaxial (RF) VGA

Red White

RGB

Red Blue Green

English

Connections

R-AUDIO-L

Connecting to an Audio Device

Using an Optical (Digital) or Audio (Analogue) Cable Connection

Available devices: digital audio system, ampliﬁer, DVD home theatre

AUDIO IN

Red White

✎

DIGITAL AUDIO OUT (OPTICAL)

When a Digital Audio System is connected to the DIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume

of both the TV and the system.

5.1 CH (channel) audio is available when the T V is connected to an external device supporting 5.1 CH.

When the receiver (amplifier or DVD home theatre) is set to on, you can hear sound output from the TV’s

optical jack. When the TV is receiving a DTV signal, the TV will send 5.1 CH sound to the amplifier or DVD home theatre. When the source is a digital component such as a DVD / Blu-ray player / cable box / STB (Set-Top-Box) satellite receiver and is connected to the T V via HDMI, only 2 CH audio will be heard from the amplifier or DVD home theatre. If you want to hear 5.1 CH audio, connect the digital audio out jack from your DVD / Blu-ray player / cable box / STB satellite receiver directly to an amplifier or home theatre.

✎

AUDIO OUT: Connects to the audio input jacks on your amplifier / DVD home theatre.

When connecting, use the appropriate connector.

When an audio amplifier is connected to the AUDIO OUT jacks: Decrease the volume of the TV and adjust the

volume level with the Amplifier’s volume control.

OPTICAL

ampliﬁer / DVD home

theatre

digital audio system

Changing the Input Source

Source List

Use to select TV or an external input sources such as a DVD / Blu-ray player / cable box / STB satellite receiver.

■ TV / AV1 / AV2 / Component / PC /

HDMI1/DVI / HDMI2 / HDMI3 / HDMI4 / USB

✎

In the Source List, connected inputs will be highlighted.

✎

PC always stay activated.

English

SOURCE

Edit Name

■ VCR / DVD / Cable STB / Satellite STB / PVR STB /

AV Receiver / Game / Camcorder / PC / DVI PC / DVI Devices / TV / IPTV / Blu-ray / HD DVD / DMA: Name

the device connected to the input jacks to make your input source selection easier.

✎

When a PC with a resolution of 1920 x 1080 @ 60Hz is connected to the HDMI IN 1(DVI) port, you should set to DVI PC mode under Edit Name.

✎

When connecting an HDMI/DVI cable to the HDMI

IN 1(DVI) port, you should set to DVI PC or DVI

Devices mode under Edit Name.

Basic Features

SOU

RCE

WER

ON/OFF

MUTE

TOOLS

CHLI

@ TV

TTX/MI

PRE-CH

How to Navigate Menu

Before using the TV, follow the steps below to learn how to navigate the menu and select and adjust different functions.

Channel Menu

03 Basic Features

 Seeing Channels

NTENT

INF

EXIT







RETURN

The main menu options appear on the screen:

Picture, Sound, Channel, Setup, Input, Application, Support.

button. Press ENTER to access the

sub-menu. Select the desired submenu with

the ▲ or ▼ button. Adjust the value of an item with the

◄ or ► button. The adjustment in the OSD may differ depending on the selected menu.

Press ENTER to complete the conﬁguration.

Press EXIT.

1 ENTER / Direction button: Move the cursor and

select an item. Conﬁrm the setting.

2 RETURN button: Returns to the previous menu. 3 MENU button: Displays the main on-screen menu. 4 EXIT button: Exits the on-screen menu.

How to Operate the OSD (On Screen Display)

The access step may differ depending on the selected menu.

▲ / ▼ Select an icon with the ▲ or ▼

ENTER

▲ / ▼

◄ / ►

ENTER

EXIT

Channel Manager

Delete or set favourite channels. Select a channel in the Channels, My Channels or Scheduled screen.

Channels

All

Zoom Select  Page

■

Channels: Shows the channel list according to

channel type.





My Channels: Shows the group of the channel.

■

Scheduled: Shows all the currently reserved

programmes.

✎

Using the colour buttons with the Channel Manager

Green (Zoom): Enlarges or shrinks a channel

number.

Yellow (Select): Selects multiple channel lists.

Select desired channels and press the Yellow button to set all the selected channels at the same time. The



mark appears to the left of the selected channels.



(Page): Move to next or previous page.



(Tools): Displays the Channel Manager option

menu. (The options menus may differ depending on the situation.)

Channel Status Display Icons

Icons Operations

A channel selected.



A channel set as a Favourite.



A locked channel.



A reserved programme.



1 C -- 2 * C --

Edit My Channels Lock

4 C --

Timer Viewing

5 C --

Edit Channel Name Sort

6 C --

Delete

7 C --

8 C -- 9 \ C --



Tools

C --

▼

English

Basic Features

 Using Favourite Channels





My Channels

(In Channel Manager) Shows all favourite channels.

■ Edit My Channels channels to desired my channels group.

✎

The “” symbol will be displayed and the channel will be set as a My Channels.

1. Select a channel and press the TOOLS button.

2. Add or delete a channel in the my channel groups

you want among 1, 2, 3 and 4.

One or more groups can be selected.

3. After you have changed the settings, the channel list

for each group can be viewed in My Channels.

My Channels



My Channel 1

My Channel 2 My Channel 3 My Channel 4

: You can set the selected

Air or Cable channel mode

6 C - 7 * C --

8 *

9 C - 10 C - 12 C - 13 C --

C --

Manual Store

Scans for a channel manually and stores in the TV.

■ Programme, Colour System, Sound System, Channel, Search: If there is abnormal sound or no sound, reselect the sound standard required.

✎

Channel mode

P (programme mode): When tuning is complete,

the broadcasting stations in your area have been assigned to position numbers from P0 to P99. You can select a channel by entering the position number in this mode.

C (aerial channel mode) / S (cable channel mode):

These two modes allow you to select a channel by entering the assigned number for each aerial broadcasting station or cable channel.

 Editing Channels

Channel Manager Option Menu (in Channel Manager)

1. Select a channel and press the TOOLS button.

2. Edit the channel name using the Edit Channel Name

menu.

■ Edit Channel Name: Assign your own channel name.

 Other Features

Zoom Select  Page



Tools

Programme mode

 Returning Channels

Area

You can change the area for channels.

Auto Store

Scans for a channel automatically and stores in the TV.

✎

Automatically allocated programme numbers may not correspond to actual or desired programme numbers. If a channel is locked using the Child Lock function, the PIN input window appears.

Channel Manager

Channel Manager Option Menu Set each channel using the Channels menu options (Lock /

Unlock, Timer Viewing, Sort, Delete, Select All / Deselect All). Option menu items may differ depending on the channel

status.

1. Select a channel and press the TOOLS button.

2. Select a function and change its settings.

■ Lock / Unlock: Lock a channel so that the channel cannot be selected and viewed.

✎

NOTE

This function is available only when the Child Lock

is set to On. The PIN input screen appears. Enter your 4-digit PIN,

the default of which is “0-0-0-0.” Change the PIN using the Change PIN option.

English

■ Timer Viewing: You can set a desired channel to be displayed automatically at the reserved time. Set the current time ﬁrst to use this function.

■ Sort: This operation allows you to change the programme numbers of the stored channels. This operation may be necessary after using the auto store.

■ Delete: You can delete a channel to display the channels you want.

■ Select All / Deselect All: Select all the channels or deselect all the selected channels in the channel manager.

Scheduled

(in Channel Manager) You can view, modify or delete a show you have reserved to

watch.

■ Change Info: Change a show you have reserved to watch.

■ Cancel Schedules: Cancel a show you have reserved to watch.

■ Information: Display a show you have reserved to watch. (You can also change the reservation information.)

■ Select All / Deselect All: Select or deselect all reserved programmes.

Channel List

You can see all the channels searched.

CHLIST

Picture Menu

 Changing the Preset Picture Mode

Mode

Select your preferred picture type.

■ Dynamic: Suitable for a bright room.

■ Standard: Suitable for a normal environment.

■ Relax: Suitable for reducing eye strain.

✎

Relax is not available in PC mode.

■ Movie: Suitable for watching movies in a dark room.

 Adjusting Picture Settings

P.MODE

Cell Light / Contrast / Brightness / Sharpness / Colour / Tint (G/R)

Your television has several setting options for picture quality control.

✎

NOTE

In analogue TV, AV modes of the PAL system, the

Tint (G/R) function is not available. In PC mode, you can only make changes to Cell

Light, Contrast and Brightness. Settings can be adjusted and stored for each

external device connected to the TV.

03 Basic Features

Fine Tune

If the signal is weak or distorted, ﬁne tune the channel manually.

✎

Fine tuned channels are marked with an asterisk “*.”

✎

To reset the fine-tuning, select Reset.

 Economical Solutions

Eco Solution

■ Energy Saving (Off / Low / Medium / High / Picture



Off)

in order to reduce power consumption. If you select Picture Off, the screen is turned off, but the sound remains on. Press any button except volume button to turn on the screen. Until the screen turns on again, a distorted picture will be displayed for about 4 seconds.

■ Eco Sensor (Off / On): To enhance your power savings; the picture settings will automatically adapt to the light in the room.

✎

If you adjust the Cell Light, the Eco Sensor will be set to Off.

: This adjust the brightness of the TV

English

Basic Features

Min Cell Light: When Eco sensor is On, the minimum screen brightness can be adjusted manually.

✎

If Eco Sensor is On, the display brightness may change (become slightly darker or brighter) depending on the surrounding light intensity.

■ No-Signal Power Off (Off / 15 min / 30 min / 60 min): To avoid unnecessary energy consumption, set how long you want the TV to remain on if it’s not receiving a signal.

✎

Disabled when the PC is in power saving mode.

 Changing the Picture Options

Advanced Settings

(available in Standard / Movie mode) You can adjust the detailed setting for the screen including

colour and contrast.

✎

In PC mode, you can only make changes to Dynamic Contrast, Gamma and White Balance.

Advanced Settings

Black Tone : Off ► Dynamic Contrast : Medium Gamma : 0

Expert Pattern : Off

RGB Only Mode : Off Colour Space : Native White Balance

■ Black Tone (Off / Dark / Darker / Darkest): Select the black level to adjust the screen depth.

■ Dynamic Contrast (Off / Low / Medium / High): Adjust the screen contrast.

■ Gamma: Adjust the primary colour intensity.

■ Expert Pattern (Off / Pattern1 / Pattern2): By running the Expert Pattern function, the picture can be calibrated without a generator or ﬁlter. If the OSD menu disappears or a menu other than the Picture menu is opened, the calibration is saved and the Expert Pattern window disappears.

✎

While the Exper t Pattern is running, sound is not outputted.

▼



Move



Enter



Return

■ RGB Only Mode (Off / Red / Green / Blue): You can adjust Colour or Tint (G/R) of Red, Green or Blue for the picture from an external device (DVD player, home theatre, etc.).

■ Colour Space (Auto / Native / Custom): Adjust the range of colours available to create the image. To adjust

Colour, Red, Green, Blue and Reset, set Colour Space to Custom.

■ White Balance: Adjust the colour temperature for a more natural picture.

R-Offset / G-Offset / B-Offset: Adjust each colour’s (red, green, blue) darkness.

R-Gain / G-Gain / B-Gain: Adjust each colour’s (red, green, blue) brightness.

Reset: Resets the White Balance to it’s default settings.

■ 10p White Balance (Off / On): Controls the white balance in 10 point interval by adjusting the red, green, and blue brightness.

✎

Available when the picture mode is set to Movie and when the external input is set to all input.

✎

Some external devices may not support this function.

Interval: Select interval to adjust. Red: Adjust the red level. Green: Adjust the green level. Blue: Adjust the blue level. Reset: Resets the 10p White Balance to its default

settings.

■ Flesh Tone: Emphasize pink “Flesh Tone.”

■ Edge Enhancement (Off / On): Emphasize object boundaries.

■ xvYCC (Off / On): Setting the xvYCC mode on increases detail and colour space when watching movies from an external device (e.g. DVD player) connected to the HDMI or Component IN jacks.

✎

Available when the picture mode is set to Movie and when the external input is set to HDMI or Component.

✎

Some external devices may not support this function.

English

Picture Options

✎

In PC mode, you can only make changes to the Colour Tone, Size and Screen Burn Protection.

Picture Options

Colour Tone : Normal ► Size : 16:9 Digital Noise Filter : Auto MPEG Noise Filter : Auto

HDMI Black Level : Normal

Film Mode : Off Motion Judder Canceller : Standard

■ Colour Tone (Cool / Normal / Warm1 / Warm2)

✎

Warm1 or Warm2 will be deactivated when the picture mode is Dynamic.

✎

Settings can be adjusted and stored for each external device connected to an input on the T V.

■ Size: Your cable box/satellite receiver may have its own set of screen sizes as well. However, we highly recommend you use 16:9 mode most of the time.

16:9 : Adjusts the picture size to 16:9 for DVDs or wide broadcasting.

Wide Zoom: Magniﬁes the picture size more than 4:3.

✎

Adjusts the Position by using ▲, ▼ buttons.

Zoom: Magniﬁes the 16:9 wide pictures vertically to ﬁt the screen size.

✎

Adjusts the Position or Size by using ▲, ▼ button.

4:3 : The default setting for a movie or normal broadcasting.

✎

Do not watch in 4:3 format for a long time. Traces of borders displayed on the left, right and centre of the screen may cause image retention(screen burn) which are not covered by the warranty.

Screen Fit: Displays the full image without any cut-off when HDMI (720p / 1080i / 1080p) or Component (1080i / 1080p) signals are inputted.

▼



Move



Enter



Return

P.SIZE

✎

NOTE

When Double (, ) mode has been set in PIP

(Picture-in-Picture), the Picture Size cannot be set. Depending on the input source, the picture size

options may vary. The available items may differ depending on the

selected mode. In PC mode, only 16:9 and 4:3 modes can be

adjusted. Settings can be adjusted and stored for each

external device connected to an input on the T V. After selecting Screen Fit in HDMI (1080i / 1080p)

or Component (1080i / 1080p) mode: Adjusts the Position or Size by using ▲, ▼, ◄, ► button.

If you use the Screen Fit function with HDMI 720p

input, 1 line will be cut at the top, bottom, left and right as in the overscan function.

■ Digital Noise Filter (Off / Low / Medium / High / Auto / Auto Visualisation / Demo): When the broadcast signal is weak, some static and ghosting may appear. Select one of the options until the best picture is displayed.

Auto Visualisation: When changing analogue channels, displays the intensity of the current signal and deﬁnes the screen noise ﬁlter.

■ MPEG Noise Filter (Off / Low / Medium / High / Auto): Reduces MPEG noise to provide improved picture quality.

■ HDMI Black Level (Normal / Low): Selects the black level on the screen to adjust the screen depth.

✎

Available only in HDMI mode (RGB signals).

■ Film Mode (Off / Auto1 / Auto2 / Cinema Smooth): Sets the TV to automatically sense and process ﬁlm signals from all sources and adjust the picture for optimum quality.

✎

An 1080p 24Hz HDMI signal must be input to use the Cinema Smooth function.

✎

Available in TV, AV, COMPONENT (480i / 1080i) and HDMI (480i / 1080i).

■ Motion Judder Canceller (Off / Standard / Smooth / Demo): Removes drag from fast scenes with a lot of movement to provide a clearer picture.

✎

If Motion Judder Canceller is Demo, you can compare the difference between on and off modes.

03 Basic Features

English

Basic Features

■ Screen Burn Protection: To reduce the possibility of screen burn, this unit is equipped with screen burn prevention technology. The Time setting allows you to programme the time between movement of the picture in minutes.

Pixel Shift (Off / On): Using this function, you can minutely move pixels on the PDP in horizontal or vertical direction to minimize after image on the screen.

✎

Optimum condition for pixel shift

Item

Horizontal 0~4 4

Vertical 0~4 4

Time (minute) 1~4 min 4 min

✎

The Pixel Shift value may differ depending on the monitor size (inches) and mode.

✎

This function is not available in the Screen Fit mode.

Auto Protection Time (10 min / 20 min / 40 min / 1 hour / Off): If the screen remains idle with a still image

for a certain period of time deﬁned by the user, the screen saver is activated to prevent the formation of ghost images on the screen.

Scrolling: This function removes after-images on the screen by moving all the pixels on the PDP according to a pattern. Use this function when there are remaining after images or symbols on the screen, especially when you displayed a still image on the screen for a long time.

✎

The after-image removal function has to be executed for a long time (approximately 1 hour) to effectively remove after-images on the screen. If the after-image is not removed after performing the function, repeat the function again.

✎

Press any key on the remote control to cancel this feature.

Side Grey (Light / Dark): When you watch TV with the screen ratio set to 4:3, the screen is prevented from any damage by adjusting the white balance on both extreme left and right sides.

TV/AV/Component/

HDMI/PC

 Viewing TV using the 3D function

IMPORTANT SAFETY INFORMATION. READ THE FOLLOWING WARNINGS BEFORE YOU OR YOUR CHILD USE THE 3D FUNCTION

WARNING



As the TV turns on, the left and right sides of 3D

pictures may overlap more than usual. It may take time until the picture quality is optimized.

The 3D effect may be experienced differently

depending on the viewer. You may not notice the 3D effect at all if you have a prescription for one eye that is very different from the other eye.

Parents’ careful super vision is required particularly

when children or teenagers view 3D images. Photosensitive Seizure Warning and Other Health

Risks

– Some viewers may experience an epileptic seizure

or stroke when exposed to certain ﬂashing images or lights contained in certain television pictures or video games. If you or any of your relatives has a history of epilepsy or strokes, please consult with a medical specialist before using the 3D function.

– Do not watch 3D pictures when you feel

incoherent, sleepy, tired or sick. Avoid watching 3D pictures for long hours.

– Even those without a personal or family history

of epilepsy or stroke may have an undiagnosed condition that can cause “photosensitive epileptic seizures.”

– If you experience any of the following symptoms

immediately stop watching 3D pictures and consult a medical specialist: (1) altered vision; (2)

lightheadedness; (3) dizziness; (4) involuntary movements such as eye or muscle twitching; (5) confusion; (6) nausea; (7) loss of awareness; (8) convulsions; (9) cramps; and/or (10) disorientation. Parents should monitor and ask

their children about the above symptoms-children and teenagers may be more likely than adults to experience these symptoms.

Note that watching TV while sitting too close to the

screen for an extended period of time may weaken your eyesight.

Note that watching TV while wearing 3D Active

Glasses for an extended period of time may cause a headache or fatigue. If you feel headache, fatigue or dizziness, stop watching TV and rest.

English

Some 3D pictures may startle viewers. The pregnant,

elderly, epileptic and those suffering from serious physical conditions are advised to avoid utilizing the unit’s 3D functionality.

We don’t recommend watching 3D if you are in bad

physical condition, need sleep or have been drinking liquor.

Please take care to be aware of the world around

you. This product is designed to be immersive. DO NOT use this product near open stairwells, cables, balconies, or other objects that can be tripped over, run into, knocked down, broken or fallen over. Being startled or deluding yourself into thinking that the 3D images are real may cause you to crush a nearby object or get injured trying to move your body.

Do not use the 3D Active Glasses for any other

purpose than for which it was designed. Wearing the with an HDMI/DVI for any other purpose (as general spectacles, sunglasses, protective goggles, etc.) may physically harm you or weaken your eyesight.

Immersive video can potentially have adverse effects

on the user including motion sickness, perceptual after effects, disorientation, eye strain, and decreased postural stability. Take frequent breaks to lessen the potential of these effects, as is commonly suggested for other items, such as keyboards and computer monitors, that you may tend to fixate or concentrate on. If your eyes show signs of fatigue or dryness or if you have any of the above symptoms, immediately discontinue use of this device and do not resume using it for at least thirty minutes after the symptoms have subsided.

The ideal viewing distance should be three times

or more the height of the screen. We recommend sitting with viewer’s eyes on a level with the screen.

Do not disassemble, or attempt to repair or modify

your 3D active glasses by yourself.

– Do not use them if broken or damaged.

Be careful not to let the temple ends of the 3D active

glasses harm your eye.

This exciting new feature enables you to view 3D content. In order to fully enjoy this feature, you must purchase a pair of Samsung 3D Active Glasses (SSG-2100AB, SSG-2200AR, SSG-2200KR) to view 3D video.

Samsung 3D Active Glasses are sold separately. For more detailed purchasing information, contact the retailer where you purchased this TV.

3D emitter

✎

The LED on the 3D emitter blinks only when sending a 3D signal.

✎

If there is any obstacle between the emitter and 3D Active Glasses, the proper 3D effect may not be obtained.

■ 3D Mode: Select the 3D input format.

✎

If you want to feel the 3D effect fully, please wear the 3D Active Glasses first, and then select 3D Mode from the list below that provides the best 3D viewing experience.

✎

When watching 3D images, turn on 3D Active Glasses.

3D Mode Operation Off Turns the 3D function off.

2D → 3D

Side by Side

Top & Bottom

Line by Line

Vertical Stripe

Checker Board

Frequency

Changes a 2D image to 3D. Displays two images next to

each other. Displays one image above

another. Displays the images for the left

and right eye alternately in rows. Displays the images for the

left and right eye alternately in columns.

Displays the images for the left and right eye alternately in pixels.

Displays the images for the left and right eye alternately in frames.

03 Basic Features

English

Basic Features

✎

“Side by Side” and “Top & Bottom” are available when the resolution is 720p, 1080i and 1080p in DTV, HDMI and USB mode or when set to PC and the PC is connected through an HDMI/DVI cable.

✎

“Vertical Strip”, “Line by Line” and “Checker Board” are available when the resolution is set to PC and the PC is connected through an HDMI/ DVI cable.

✎

“Frequency” displays the frequency (60Hz only) when the resolution is set to PC.

■ 3D → 2D (Off / On): Displays the image for the left eye only.

✎

This function is deactivated when 3D Mode set to “2D → 3D” or Off.

■ 3D View point: The overall adjustment of 3D perspective.

✎

This function is deactivated when 3D Mode set to “2D → 3D” or Off.

■ Depth: Adjusts focus / depth in “2D → 3D” mode.

✎

This function is only activated when the 3D Mode is “2D → 3D”.

■ Picture Correction: Adjusts the images for the left and right eye.

■ 3D Auto View (Off / On): If 3D Auto View is set to On, a “Side by Side” format HDMI signal with one of the resolutions below is automatically switched to 3D. Here, correct 3D information must be sent from the HDMI 1.3 transmitter.

✎

If a 3D failure occurs due to a 3D information error, set 3D Auto View to Off and manually select a 3D Mode using the 3D button or corresponding menu.

✎

Support resolution (16:9 only)

Resolution Frequency (Hz)

1280 x 720p 50 / 60 Hz 1920 x 1080i 50 / 60 Hz

1920 x 1080p 24 / 30 / 50 / 60 Hz

Resolution supported for HDMI PC mode

The resolution for HDMI PC mode is optimized to 1920 x 1080 input.

An input resolution other than 1920 x 1080 may not be displayed properly in 3D display or full screen mode.

How to watch the 3D image

To watch in 3D, wear 3D glasses and press the power button on the glasses.

Viewing 3D TV motion pictures for long periods may cause eye fatigue and/or dizziness.

Cancel



Move



Enter



Exit

3D3D

Using the LEFT / RIGHT keys on the remote control,

select the icon suitable for the picture on screen.



Move



Enter





Move



1. Press the CONTENT button, then the Content View menu will appear.

2. Press the ◄ or ► button, then select 3D. To watch in 3D, wear 3D Active Glasses and press the

power button on the glasses.

3. Select OK, then press the ENTER

4. Using the ◄ or ► buttons on your remote control,

selects the 3D Mode of the image you want to view.

✎

Some 3D modes may not be available depending on the format of the image source.

Supported formats and operating speciﬁcations for HDMI 1.4

✎

The 3D formats indicated below are recommended by the HDMI association and must be supported.

Source signal format Standard HDMI 1.4 3D

1920x1080p@24Hz x 2 1920x2205p@24Hz 1280x720p@60Hz x 2 1280x1470p@60Hz 1280x720p@50Hz x 2 1280x1470p@50Hz

The mode is automatically switched to 3D in one of the source signal formats above.

For the HDMI 1.4@24Hz format, the TV is optimized as follows:

– Judder Reduction Display Mode: When Motion

Judder Canceller is set to Smooth, you can watch a smooth picture without judder.

Enter



Exit



Exit

button.

English

Before using 3D function...

✎

NOTE

You may notice a small amount of screen flickering

when watching 3D images in poor light conditions (from a strobe light, etc.), or under a fluorescent lamp (50Hz ~ 60Hz) or 3 wavelength lamp. If so, dim the light or turn the lamp off.

3D mode is automatically disabled in following cases:

when changing a channel or the input source, or accessing Media Play or Internet@TV.

Some Picture functions are disabled in 3D mode.

PIP and data broadcast is not supported in 3D

mode. Data broadcasts (MHEG / MHP) are not supported

in 3D mode. 3D Active Glasses from other manufacturers may not

be supported. The 3D Active Glasses may not work properly if there

is any other 3D product or electronic devices turned on near the glasses or TV. If there is a problem, keep other electronic devices as far away as possible from the 3D Active Glasses.

When watching pictures from a 50Hz 3D source with

its Game mode On, visually-sensitive viewers may see some flicker on bright images.

Photos of Media Play are shown in “2D → 3D”

mode only. If you lie on your side while watching TV with 3D

active glasses, the picture may look dark or may not be visible.

Be sure to stay within the viewing angle and optimum

TV viewing distance when watching 3D pictures.

– Otherwise, you may not be able to enjoy proper 3D

effects.

Picture Reset (OK / Cancel)

Resets your current picture mode to its default settings.

 Setting up the TV with Your PC

Set the input source to PC.

Auto Adjustment

Adjust frequency values/positions and ﬁne tune the settings automatically.

✎

Not available when connecting with an HDMI/DVI cable.



Screen

■ Coarse / Fine: Removes or reduces picture noise. If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (Coarse) and Finetune again. After the noise has been reduced, readjust the picture so that it is aligned to the centre of screen.

■ Position: Adjust the PC screen position with direction button (▲ / ▼ / ◄ / ►).

■ Image Reset: Resets the image to default settings. Using Your TV as a Computer (PC) Display

Setting Up Your PC Software (Based on Windows XP)

Depending on the version of Windows and the video card, the actual screens on your PC may differ in which case the same basic set-up information will almost always be applied. (If not, contact your computer manufacturer or Samsung Dealer.)

1. Click on “Control Panel” on the Windows start menu.

2. Click on “Appearance and Themes” in the “Control

Panel” window and a display dialog-box will appear.

3. Click on “Display” and a display dialog box will appear.

4. Navigate to the “Settings” tab on the display dialog-box.

y The correct size setting (resolution) [Optimum: 1920 X

1080 pixels]

y If a vertical-frequency option exists on your display

settings dialog box, the correct value is “60” or “60 Hz”. Otherwise, just click “OK” and exit the dialog box.

Sound Menu

 Changing the Preset Sound Mode

SRS TheaterSound

■ Standard: Selects the normal sound mode.

■ Music: Emphasizes music over voices.

■ Movie: Provides the best sound for movies.

■ Clear Voice: Emphasizes voices over other sounds.

■ Amplify: Increase the intensity of high-frequency sound to allow a better listening experience for the hearing impaired.



03 Basic Features

English

Basic Features

 Adjusting Sound Settings

Equalizer

Adjusts the sound mode (standard sound mode only).

■ Balance L/R: Adjusts the balance between the right and left speaker.

■ 100Hz / 300Hz / 1kHz / 3kHz / 10kHz (Bandwidth Adjustment): Adjusts the level of speciﬁc bandwidth frequencies.

■ Reset: Resets the equalizer to its default settings.

 Sound Systems, Etc.

SRS TruSurround HD (Off / On)

(standard sound mode only) This function provides a virtual 5.1 channel

surround sound experience through a pair of speakers using HRTF (Head Related Transfer Function) technology.



SRS

✎

When Speaker Select is set to External Speaker.

TV Speaker: Off, External Speaker: On

✎

When Speaker Select is set to TV Speaker.

TV Speaker: On, External Speaker: On

✎

If there is no video signal, both speakers will be mute.

SPDIF Output

SPDIF (Sony Philips Digital InterFace) is used to provide digital sound, reducing interference going to speakers and various digital devices such as a DVD player.

■ Audio Format: During the reception of a digital TV broadcast, you can select the Digital Audio output (SPDIF) format from the options PCM or Dolby Digital.

■ Audio Delay: Correct audio-video sync problems, when watching TV or video, and when listening to digital audio output using an external device such as an AV receiver (0ms ~ 250ms).

Sound Reset (OK / Cancel)

Reset all sound settings to the factory defaults.

SRS TruDialog (Off / On)

(standard sound mode only) This function allows you to increase the intensity of a voice

over background music or sound effects so that dialog can be heard more clearly.

Auto Volume (Off / Normal / Night)

To equalize the volume level on each channel, set to Normal.

■ Night: This mode provides an improved sound experience compared to Normal mode, making almost no noise. It is useful at night.

Speaker Select (External Speaker / TV Speaker)

A sound echo may occur due to a difference in decoding speed between the main speaker and the audio receiver. In this case, set the TV to External Speaker.

✎

When Speaker Select is set to External Speaker, the volume and MUTE buttons will not operate and the sound settings will be limited.



 Dual







Default

Automatic

change

Dual

Automatic

change

Dual

 Selecting the Sound Mode

When you set to Dual -, the current sound mode is displayed on the screen.

Audio

Type

Stereo

NICAM Stereo

✎

✎ ✎

Mono Mono

Stereo

Dual

Mono Mono

Stereo

Dual

If the stereo signal is weak and an automatic switching occurs, then switch to the mono.

Only activated in stereo sound signal.

Only available when the Input source is set to TV.

Dual -

Stereo  Mono



Dual

Mono  Stereo Mono  Dual

 Dual  



English

Setup Menu

 Setting the Time

Time

■ Clock: Setting the clock is for using various timer features of the TV.



The current time will appear every time you press the INFO button.

✎

If you disconnect the power cord, you have to set the clock again.

✎

You can set the Day, Month, Year, Hour and Minute directly by pressing the number buttons on the remote control.

 Using the Sleep Timer

■ Sleep Timer TV after a preset period of time. (Off, 30, 60, 90, 120, 150 and 180 minutes).

✎

 Setting the On / Off Timer



To cancel Sleep Timer, select Off.

: Automatically shuts down the

Contents (when the Source is set to USB): Select a folder in the USB device containing music or photo ﬁles to be played when the TV is turned on automatically.

✎

NOTE

If there is no music file on the USB device or the

folder containing a music file is not selected, the Timer function does not operate correctly.

When there is only one photo file in the USB

device, the Slide Show will not play. If a folder name is too long, the folder cannot be

selected. Each USB you use is assigned its own folder.

When using more than one of the same type of USB, make sure the folders assigned to each USB have different names.

Repeat: Select Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun or Manual to set at you convenience. If you

select Manual, you can set up the day you want to activate the timer.

✎

The  mark indicates the day is selected.

✎

Auto Power Off (available only when the TV is turned on by Timer): The TV will be automatically turned off after 3 hours of being left idle to prevent overheating.

 Locking Programmes

03 Basic Features

■ Timer 1 / Timer 2 / Timer 3: Three different on / off timer settings can be made. You must set the clock ﬁrst.

Timer 1

On Time

▲

Inactivate

▼

Off Time

Inactivate

Volume

Repeat

On Time / Off Time: Set the hour, minute, and activate / inactivate. (To activate timer with the setting you’ve chosen, set to Activate.)

Volume: Set the desired volume level. Source: Select TV or USB content to be played when

the TV is turned on automatically. (USB can be selected only when a USB device is connected to the TV)

Channel (when the Source is set to TV): Select the desired channel.

Source Channel

10 TV 1

Once

00 00

Sun Mon Tue Wed Thu Fri Sat



Move

Adjust 

Enter



Return

Security

✎

The PIN input screen appears before the setup screen.

✎

Enter your 4-digit PIN, the default of which is “0-0-0-0.” Change the PIN using the Change PIN option.

■ Child Lock (Off / On): Lock channels in Channel Manager, to prevent unauthorized users, such as children, from watching unsuitable programme.

✎

Available only when the Input source is set to TV.

■ Change PIN: Change your personal ID number required to set up the TV.

✎

If you forget the PIN code, press the remote control buttons in the following sequence, which resets the PIN to “0-0-0-0”: POWER (off) →

MUTE → 8 → 2 → 4 → POWER (on).

English

Basic Features

 Other Features

Menu Language

Set the menu language.

Network (Network Type / Network Setup / Network Test / SWL(Samsung Wireless Link) / SWL connect)

For details on setting up options, refer to the “Network Connection” instructions (p. 25).

General

■ Game Mode (Off / On): When connecting to a game console such as PlayStation™ or Xbox™, you can enjoy a more realistic gaming experience by selecting game mode.

✎

NOTE

Precautions and limitations for game mode

– To disconnect the game console and connect

another external device, set Game Mode to Off in the setup menu.

– If you display the TV menu in Game Mode, the

screen shakes slightly.

Game Mode is not available when the input source

is set to TV or PC. After connecting the game console, set Game Mode

to On. Unfortunately, you may notice reduced picture quality.

If Game Mode is On:

– Picture mode is set to Standard and Sound mode

is set to Movie.

– Equalizer is not available.

■ BD Wise (Off / On): Provides the optimal picture quality for Samsung DVD, Blu-ray and Home Theatre products which support BD Wise. When BD Wise is turned On, the picture mode is automatically changed to the optimal resolution.

✎

Available when connecting Samsung products that support BD Wise through a HDMI cable.

■ Menu Transparency (Bright / Dark): Set the Transparency of the menu.

■ Melody (Off / Low / Medium / High): Set so that a melody plays when the TV is turned on or off.

✎

Melody will be deactivated when the FastStart is On.

■ FastStart (Off / On): When the TV is powered on, the screen will come on quickly with this feature.

Wireless Remote Control

Turn wireless remote controls on or off or give permission to wireless remote controls.

 Picture In Picture (PIP)



PIP

You can watch the TV tuner and one external video source simultaneously. PIP (Picture-in-Picture) does not function in the same mode.

✎

NOTE

For PIP sound, refer to the Sound Select

instructions. If you turn the T V off while watching in PIP mode, the

PIP window will disappear. You may notice that the picture in the PIP window

becomes slightly unnatural when you use the main screen to view a game or karaoke.

While Internet@T V is in operation, the PIP function

cannot be used. PIP settings

Main picture Sub picture Component, HDMI1/DVI,

HDMI2, HDMI3, HDMI4, PCTV, AV1, AV2

■ PIP (Off / On): Activate or deactivate the PIP function.

■ Source (TV, AV1, AV2): You can select a source of the sub-picture.

■ Channel: Select the channel for the sub-screen.



/ /

■ Size ( picture.

■ Position ( sub-picture.

✎

In Double ( / ) mode, Position cannot be selected.

■ Sound Select (Main / Sub): You can choose the desired sound (Main / Sub) in PIP mode.

/ 



/  /  / ): Select a position for the

): Select a size for the sub-

English

Support Menu

Self Diagnosis

✎

Self Diagnostic might take few seconds, this is part of the normal operation of the TV.

■ Picture Test (Yes / No): Use to check for picture problems.

■ Sound Test (Yes / No): Use the built-in melody sound to check for sound problems.

✎

If you hear no sound from the TV’s speakers, before per forming the sound test, make sure

Speaker Select is set to TV Speaker in the Sound menu.

✎

The melody will be heard during the test even if Speaker Select is set to External Speaker or the sound is muted by pressing the MUTE button.

■ Troubleshooting: If the TV seems to have a problem, refer to this description.

✎

If none of these troubleshooting tips apply, contact the Samsung customer service centre.

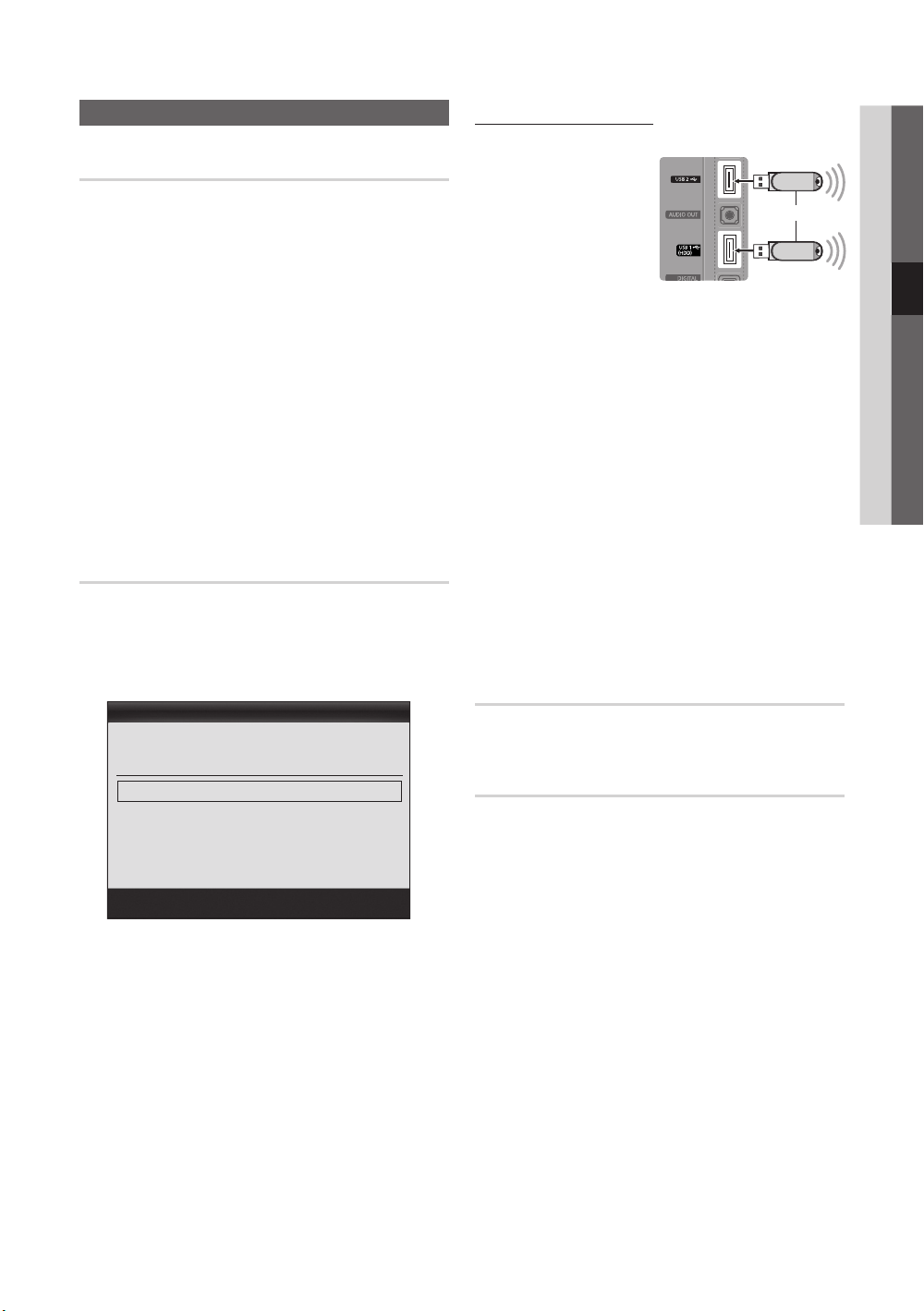

Software Upgrade

Software Upgrade can be performed by network

connection or downloading the latest ﬁrmware from “www. samsung.com,” to a USB memory device.

Current Version the software already installed in the TV.

✎

Software is represented as “Year/Month/Day_Version.”

Software Upgrade

Current Version 2010/01/18_000001

Installing the Latest Version

■ By USB: Insert a USB drive containing the ﬁrmware upgrade ﬁle, downloaded from “www. samsung.com,” into the TV. Please be careful not to disconnect the power or remove the USB drive until upgrades are complete. The TV will be turned off and on automatically after completing the ﬁrmware upgrade. When software is upgraded, video and audio settings you have made will return to their default settings. We advise you to write down your settings so that you can easily reset them after the upgrade.

■ By Online: Upgrade the software using the Internet.

✎

First, configure your network. For detailed procedures on using the Network Setup, refer to the “Network Connection” instructions.

✎

If the internet connection doesn’t operate properly, the connection may be broken. Please retry downloading. If the problem persists, download by USB and upgrade.

■ Alternative Software (backup): Displays the software version downloaded through By Online. During the software upgrading, When the Upgrade will discontinue from last step, this function be activated.

TV Rear Panel

USB Drive

HD Connection Guide

Refer to this information when connecting external devices to the TV.

04 Advanced Features

By USB ► By Online

Alternative Software ----/--/--_------



Move



Enter



Return

Contact Samsung

View this information when your TV does not work properly or when you want to upgrade the software. You can ﬁnd information regarding our call centres, and how to download products and software.

English

Advanced Features

Using an HDMI/DVI Cable / a D-sub Cable

Display Modes (D-Sub and HDMI/DVI Input)

Optimal resolution is 1920 X 1080 @ 60 Hz.

Mode Resolution

IBM

MAC

VESA CVT

VESA DMT

VESA GTF

VESA DMT / DTV CEA

640 x 350 720 x 400

640 x 480 832 x 624

1152 x 870

720 x 576 1152 x 864 1280 x 720 1280 x 960

640 x 480

800 x 600

800 x 600 1024 x 768 1024 x 768 1024 x 768 1152 x 864

1280 x 1024 1280 x 1024

1280 x 720 1280 x 800 1280 x 800 1280 x 960 1360 x 768 1440 x 900 1440 x 900

1680 x 1050

1280 x 720

1280 x 1024

1920 x 1080p 67.500 60.000 148.500 +/+

Horizontal Frequency

(KHz)

31.469

35.000

49.726

68.681

35.910

53.783

56.456

75.231

31.469

37.861

37.500

37.879

48.077

46.875

48.363

56.476

60.023

67.500

63.981

79.976

45.000

49.702

62.795

60.000

47.712

55.935

70.635

65.290

52.500

74.620

Connecting to a PC

Vertical Frequency

(Hz)

70.086

70.087

66.667

74.551

75.062

59.950

59.959

74.777

74.857

59.940

72.809

75.000

60.317

72.188

75.000

60.004

70.069

75.029

75.000

60.020

75.025

60.000

59.810

74.934

60.000

60.015

59.887

74.984

59.954

70.000

DVI OUT

AUDIO OUT

PC OUT

Pixel Clock Frequency

(MHz)

25.175

28.322

30.240

57.284

100.000

32.750

81.750

95.750

130.000

25.175

31.500

40.000

50.000

49.500

65.000

75.000

78.750

108.000

135.000

74.250

83.500

106.500

108.000

85.500

106.500

136.750

146.250

89.040

128.943

Sync Polarity

(H / V)

+/-

-/+

-/-

-/+

-/-

-/+/+ +/+ +/+

-/-

-/+/+ +/+ +/+ +/+ +/+

-/+

-/+ +/+ +/+

-/+

-/-

✎

NOTE

For HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack.

The interlace mode is not supported.

The set might operate abnormally if a non-standard video format is selected.

Separate and Composite modes are supported. SOG(Sync On Green) is not supported.

English

Network Connection

You can set up your TV so that it can access the Internet through your local area network (LAN) using a wired or wireless connection.

 Connecting to a Wired Network

You can attach your TV to your LAN using cable in three ways:

y You can attach your TV to your LAN by connecting the LAN port on the back of your TV to an external modem using a Cat

5 cable. See the diagram below.

04 Advanced Features

The Modem Port on the Wall

y You can attach your TV to your LAN by connecting the LAN port on the back of your TV to a IP Sharer which is connected

to an external modem. Use Cat 5 cable for the connection. See the diagram below.

The Modem Port on the Wall

y Depending on how your network is conﬁgured, you may be able to attach your TV to your LAN by connecting the LAN

port on the back of your TV directly to a network wall outlet using a Cat 5 cable. See the diagram below. Note that the wall outlet is attached to a modem or router elsewhere in your house.

The LAN Port on the Wall

External Modem

(ADSL / VDSL / Cable TV)

External Modem

(ADSL / VDSL / Cable TV)

LAN CableModem Cable

IP Sharer

(having DHCP server)

LAN CableLAN CableModem Cable

TV Rear Panel

LAN Cable

If you have a Dynamic Network, you should use an ADSL modem or router that supports Dynamic Host Conﬁguration Protocol (DHCP). Modems and routers that support DHCP automatically provide the IP address, subnet mask, gateway, and DNS values your TV needs to access the Internet so you don’t have to enter them manually. Most home networks are Dynamic Networks.

Some networks require a Static IP address. If your network requires a Static IP address, you must enter the IP address, subnet mask, gateway, and DNS values manually on your TV’s Cable Setup Screen when you set up the network connection. To get the IP address, subnet mask, gateway, and DNS values, contact your Internet Service Provider (ISP). If you have a Windows computer, you can also get these values through your computer.

✎

You can use ADSL modems that support DHCP if your network requires a Static IP address. ADSL modems that support DHCP also let you use Static IP addresses.

English

Advanced Features

Network Setup (Auto)

Use the Automatic Network Setup when connecting your TV to a network that supports DHCP. To set up your TV’s cable network connection automatically, follow these steps:

How to set up automatically

1. Connect your TV to your LAN as described in the

previous section.

2. Turn on your TV, press the MENU button on your

remote, use the ▲ or ▼ button to select Setup, and then press the ENTER

3. Use the ▲ or ▼ button to select Network in the Setup

menu, and then press the ENTER Network screen appears.

Network Type : Wired ► Network Setup Network Test

SWL(Samsung Wireless Link) : Off SWL connect

4. On the Network screen, select Network Type.

5. Set Network Type to Wired.

6. Select Network Setup. The Network Setup screen

appears.

Internet Protocol Setup : Auto ►

IP Address : Subnet Mask : Gateway :

DNS : Auto

DNS Server :



button.

Network



Move

Network Setup



button. The



Enter



Return

Network Setup (Manual)

Use the Manual Network Setup when connecting your TV to a network that requires a Static IP address.

Getting the Network Connection Values

To get the Network connection values on most Windows computers, follow these steps:

1. Right click the Network icon on the bottom right of the screen.

2. In the pop-up menu that appears, click Status.

3. On the dialog that appears, click the Support tab.

4. On the Support Tab, click the Details button. The

Network connection values are displayed.

How to set up manually

To set up your TV’s cable network connection manually, follow these steps:

1. Follow Steps 1 through 6 in the “How to set up automatically” procedure.

2. Set Internet Protocol Setup to Manual.

3. Press the ▼ button on your remote to go to the ﬁrst

entry ﬁeld.

4. Enter the IP Address, Subnet Mask, Gateway, and DNS Server values. Use the number buttons on your

remote to enter numbers and the arrow buttons to move from one entry ﬁeld to another.

5. When done, press the RETURN button on your remote.

6. Select Network Test to check the Internet connectivity.



Move



Enter



Return

7. Set Internet Protocol Setup to Auto.

8. Auto acquires and enters the needed Internet values

automatically.

9. When done, press the RETURN button on your remote.

10. Select Network Test to check the Internet connectivity.

11. If the Network Function has not acquired the network

connection values, go to the directions for Manual.

English

 Connecting to a Wireless Network

To connect your TV to your network wirelessly, you need a wireless router or modem and a Samsung Wireless LAN Adapter (WIS09ABGN, WIS09ABGN2, WIS10ABGN), which you connect to your TV’s back or side panel USB jack. See the illustration below.

To use the SWL(Samsung Wireless Link) function, connect to the USB 1 (HDD) port.

✎

TV Rear Panel

The LAN Port on the Wall

Wireless IP Sharer

(AP having DHCP Server)

04 Advanced Features

LAN Cable

Samsung’s Wireless LAN adapter is sold separately and is offered by selected retailers, E-commerce sites and Samsungparts. com. Samsung’s Wireless LAN adapter supports the IEEE 802.11A/B/G and N communication protocols. Samsung recommends using IEEE 802.11N. When you play the video over a IEEE 802.11B/G connection, the video may not play smoothly.

✎

NOTE

You must use the “Samsung Wireless LAN Adapter” (WIS09ABGN, WIS09ABGN2, WIS10ABGN) to use a wireless

network. Samsung’s Wireless LAN Adapter is sold separately. The Samsung Wireless LAN Adapter is offered by select

retailers, Ecommerce sites and Samsungparts.com. To use a wireless network, your TV must be connected to a wireless IP sharer. If the wireless IP sharer supports

DHCP, your TV can use a DHCP or static IP address to connect to the wireless network. Select a channel for the wireless IP sharer that is not currently being used. If the channel set for the wireless IP sharer

is currently being used by another device nearby, this will result in interference and communication failure. If you apply a security system other than the systems listed blow, it will not work with the TV.

If Pure High-throughput (Greenfield) 802.11N mode is selected and the Encryption type is set to WEP, TKIP or TKIP-

AES (WPS2Mixed) for your AP, Samsung TVs will not support a connection in compliance with new Wi-Fi certification specifications.

If your AP supports WPS (Wi-Fi Protected Setup), you can connect to the network via PBC (Push Button

Configuration) or PIN (Personal Identification Number). WPS will automatically configure the SSID and WPA key in either mode.

If your router, modem, or device isn’t certified, it may not connect to the TV via the “Samsung Wireless LAN Adapter.”

Connection Methods: You can setup the wireless network connection six ways.

– Samsung Auto Conﬁguration – PBC (WPS) – Auto Setup (Using the Auto Network Search function) – Manual Setup – SWL(Samsung Wireless Link) – Ad-Hoc

The Samsung Wireless LAN Adapter may not be recognized or work properly when connecting via a USB hub or via

a USB extension cable other than the one available from Samsung.

Samsung Wireless

LAN Adapter

English

Advanced Features

Notice

The picture may appear corrupted or have static for some channels when the TV is connected to the Samsung Wireless LAN Adapter. In such a case, establish a connection using one of the following methods or connect the Samsung Wireless LAN Adapter using a USB cable in a place that is not affected by radio interference.

Method 1 Method 2

Connect using the USB right angle adapter

Connect via an extension cable

✎

The Samsung Wireless LAN Adapter should be installed in an interference-free area in order to avoid interference between the adapter and tuner.

Network Setup (Samsung Auto Conﬁguration)

This function is available in APs (Access Points) that support Samsung Auto Conﬁguration. If your AP does not support Auto Conﬁguration, you can connect through PBC (WPS), auto, or manually.

✎

This function is available when SWL(Samsung Wireless Link) is set to Off.

✎

You can check for equipment that suppor ts Samsung Auto Configuration on www.samsung.com.

How to set up using Samsung Auto Conﬁguration

1. Place the AP and TV next to each other and turn them

on.

✎

Because the booting time of applications dif fer, you may have to wait for approximately 2 minutes.

✎

If the LAN cable connected the WAN port of AP during Samsung Auto Configuration, you are able to complete until internet connection test. If you do not connect, Samsung Auto configuration will check only device connecting of AP (Not check internet).

2. After 2 minutes, connect the Samsung Wireless LAN Adapter to the TV. When the Samsung Wireless LAN Adapter is established, the pop-up window appears.

3. As soon as a connection is established, place the AP in parallel with the Samsung Wireless LAN Adapter giving a gap no larger than 25cm.

4. Wait until the connection is automatically established.

✎

If Samsung Auto Configuration does not connect your TV to your AP, a pop-up window appears on the screen notifying you of the failure. Reset the AP, and then try again. If the connection fails again, choose one of the other connection setup methods, PBC (WPS), auto, or manual.

5. After the connection is established, locate the sharer at the desired location.

✎

If the AP settings have been changed or it is the first time you use the new AP after purchase, you need to set up again beginning from Step 1.

English

Network Setup (PBC (WPS))

How to set up using PBC (WPS)

If your router has a PBC (WPS) button, follow these steps:

1. Connect your TV to your LAN as described in the previous section.

2. Turn on your TV, press the MENU button on your remote, use the ▲ or ▼ button to select Setup, and then press the ENTER

3. Use the ▲ or ▼ button to select Network in the Setup menu, and then press the ENTER

4. On the Network screen, select Network Type.

5. Set Network Type to Wireless.

6. Select Network Setup. The Network Setup screen

appears.

Select a Network : Not Selected ► Internet Protocol Setup : Auto

IP Address : Subnet Mask : Gateway :

DNS : Auto

DNS Server :

7. Press the Red button on your remote.

8. Press the PBC (WPS) button on your router within 2

minutes. Your TV player automatically acquires all the network setting values it needs and connects to your network.

9. After the network connection is set up, press the

RETURN button to exit the Network Setup screen.



button.

Network Setup

PBC(WPS)



Move



button.



Enter



Return

Network Setup (Auto)

Most wireless networks have an optional security system that requires devices that access the network to transmit an encrypted security code called an Access or Security Key. The Security Key is based on a Pass Phrase, typically a word or a series of letters and numbers of a speciﬁed length you were asked to enter when you set up security for your wireless network. If you use this method of setting up the network connection, and have a Security Key for your wireless network, you will have to enter the Pass Phrase during the setup process.

How to set up automatically

To set up the wireless connection automatically, follow these steps:

1. Follow Steps 1 through 6 in the “How to set up using PBC (WPS)” procedure.

2. Press the ▼ button to select Internet Protocol Setup, and then press the ENTER ▼ button to select Auto, and then press the ENTER button.

3. Press the ▲ button to go to Select a Network, and then press the ENTER searches for available wireless networks. When done, it displays a list of the available networks.

4. In the list of networks, press the ▲ or ▼ button to select a network, and then press the ENTER

✎

If the AP is set to Hidden (Invisible), you have to select Add Network and enter the correct Network Name (SSID) and Security Key to establish the connection.

5. If the Security/PIN pop-up appears, go to Step 6. If the Network Connecting Screen appears, go to Step 10.

6. Press the ▲ or ▼ button to select Security or PIN. For most home networks, you would select Security (for Security Key). The Security Screen appears.



button. Press the ▲ or



button. The Network function



button.

04 Advanced Features

Network Setup

Security Key

0 entered

0~9

Lower case Delete Space



Enter

Number



Return

English

A B C D E F G

H I J K L M N

O P Q R S T U

V W X Y Z



Move

Advanced Features

7. On the Security screen, enter your network’s Pass Phrase.

✎

You should be able to find the Pass Phrase on one of the set up screens you used to set up your router or modem.

8. To enter the Pass Phrase, follow these general directions:

– Press the number buttons on your remote to enter

numbers.

– Use the direction buttons on your remote to move

from button to button on the Security Key screen.

– Press the Red button to change case or display

symbols/characters.

– To a enter letter or symbol, move to the letter or

symbol, and then press the ENTER

– To delete the last letter or number you entered, press

the Green button on your remote.

9. When done, press the Blue button on your remote. The Network Connecting screen appears.

10. Wait until the connection conﬁrmation message is displayed, and then press the ENTER

Network Setup screen re-appears.

11. To test the connection, press the RETURN button to

select Network Test, and then press the ENTER button.



button.



button. The



Network Setup (Ad-Hoc)

You can connect to a mobile device without an access point through the “Samsung Wireless LAN Adapter” by using a peer to peer network.

✎

This function is available when SWL(Samsung

Wireless Link) is set to Off.

How to connect to new Ad-hoc device

1. Follow Steps 1 through 6 in the “How to set up using

PBC (WPS)” (p. 29).

2. Choose Select a Network. A list of devices/networks appears.

3. While in the device list, press the Blue button on the remote.

✎

The message Ad-hoc is a direct Wi-Fi

connection with cell phone or PC. The existing network system may have limited functionality. Do you want to change the network connection? is displayed.

4. Input the generated Network Name (SSID) and Security Key into the device you want to connect.

How to connect an existing Ad-hoc device

1. Follow Steps 1 through 6 in the “How to set up using

PBC (WPS)” (p. 29).

2. Choose Select a Network. The Device/Network list appears.

3. Select the device you want in the Device list.

4. If security key is required, input the security key.

✎

If network doesn’t operate normally, check the Network Name (SSID) and Security Key again. An incorrect Security Key may cause a malfunction.

Network Setup (Manual)

If the other methods do not work, you need to enter the Network setting values manually.

Getting the Network Connection Values

To get the Network connection values on most Windows computers, follow these steps:

1. Right click the Network icon on the bottom right of the screen.

2. In the pop-up menu, click Status.

3. On the dialog that appears, click the Support tab.

4. On the Support tab, click the Details button. The

Network settings are displayed.

English

How to set up manually

To enter the Network connection values manually, follow these steps:

1. Follow Steps 1 through 6 in the “How to set up using PBC (WPS)” (p. 29).

2. Press the ▼ button to select Internet Protocol Setup, and then press the ENTER or ▼ button to select Manual, and then press the

ENTER button.

3. Press the ▼ button to go to the ﬁrst entry ﬁeld (IP

Address).

4. Use the number buttons to enter numbers.

5. When done with each ﬁeld, use the ► button to move

successively to the next ﬁeld. You can also use the other arrow buttons to move up, down, and back.

6. Enter the IP Address, Subnet Mask, and Gateway values.

7. Press the ▲ or ▼ button to go to DNS.

8. Press the ▼ button to go to the ﬁrst DNS entry ﬁeld.

9. When done, press the ▲ button to go to Select a Network. Select your network, and then press the

ENTER



button.

10. Go to Step 4 in the “How to set up automatically” (p.

29), and follow the directions from that point on.



button. Press the ▲

SWL(Samsung Wireless Link)

This function lets you connect a Samsung device that supports the PBC (WPS) to your TV. You can connect devices to the TV even if a sharer is not connected to the TV.

✎

To use the Internet@TV, the AP (access point) must be connected to the wireless network.

✎

If a Samsung Wireless LAN Adapter is connected to the

USB 2 port, the network may not operate normally. We

recommend to connecting it to the USB 1 (HDD) port.

✎

Only sharers using the 2.4 Ghz band are supported. Sharers using the 5 Ghz band are not supported.

SWL connect

You can directly connect a device that supports the PBC (WPS) to the TV.

✎

This function is available when SWL(Samsung

Wireless Link) is set to On.

How to connect Samsung Wireless Link

For the procedures to establish a connection, refer to the following:

1. Follow Steps 1 through 5 in the “How to set up using PBC (WPS)” (p. 29).

2. Select SWL(Samsung Wireless Link) by using the ▼ button and press the ENTER

3. Select SWL connect by using the ▼ button and press the ENTER

4. If the “Press the PBC button on the PBC(WPS) supported device to connect within 120 seconds.”

message appears, press the PBC button on the device to connect.

5. If the device is connected properly to the TV after starting count on message box then message box will be disappeared automatically.

If Your TV Fails to Connect to the Internet

Your TV may not be able to connect to the Internet because your ISP has permanently registered the MAC address (a unique identifying number) of your PC or modem, which it then authenticates each time you connect to the Internet as a way of preventing unauthorized access. As your TV has a different MAC address, your ISP can not authenticate its MAC address, and your TV can not connect.

To resolve this problem, ask your ISP about the procedures required to connect devices other than a PC (such as your TV) to the Internet.

If your Internet service provider requires an ID or password to connect to the Internet, your TV may not be able to connect to the Internet. If this is the case, you must enter your ID or password when connecting to the Internet.

The internet connection may fail because of a ﬁrewall problem. If this is the case, contact your Internet service provider.

If you cannot connect to the Internet even after you have followed the procedures of your Internet service provider, please contact Samsung Electronics at 1-800-SAMSUNG.



button.

✎

For more information, refer to the wireless network setup manual of the device to be connected.

✎

If the connection fails, please retry after 2 minutes.



button to turn it On.

04 Advanced Features

English

Advanced Features

SUM

Media Play

MEDIA.P

Enjoy photos, music and/or movie ﬁles saved on a USB Mass Storage Class (MSC) device and/or your PC.

MediaPlay

Videos

Change Device

View Devices



Enter

 Connecting a USB Device

1. Turn on your TV.

2. Connect a USB device containing photo, music and/or movie ﬁles to the USB 1

(HDD) or USB 2 jack on the side of the TV.

3. When USB is connected to the TV, popup window appears. Then you can select Media Play.

TV Rear Panel

USB Drive

 Connecting to the PC through network

You can play pictures, music and videos saved on your PC through a network connection in the Media Play mode.

✎

If you use Media Play through saved file on your PC, you should download “PC Share Manager” and users manual from “www.samsung.com.”



Return

TV Rear Panel

Samsung

Wireless

LAN Adapter

LAN Cable

Wireless IP sharer

LAN Cable

LAN

LAN Cable

External Modem

(ADSL/VDSL/Cable TV)

Modem Cable

LAN Cable

1. For more information on how to conﬁgure your network, refer to “Network Connection” (p. 25).

– You are recommended to locate both TV and PC in same subnet. The ﬁrst 3 parts of the subnet address of the TV and

the PC IP addresses should be the same and only the last part (the host address) should be changed. (e.g. IP Address:

123.456.789.**)

2. Using a LAN cable, connect between the external modem and the PC onto which the Samsung PC Share Manager programme will be installed.

– You can connect the TV to the PC directly without connecting it through a Sharer (Router).

English

✎

No supported functions when connecting to the PC through network:

The Background Music and Background Music Setting functions.

Sorting files by preference in the Photos, Music, and Videos folders.

The  (REW) or  (FF) button while a movie is playing.

✎

The Divx DRM, Multi-audio, embedded caption does not supported.

✎

Samsung PC Share manager should be permitted by the firewall programme on your PC.

✎

When you use Media Play mode through a network connection, According to functions of the provided server:

The sorting method may vary.

The scene search function may not be supported.

The Play Continuously function, which resumes playing of a video, may not be supported.

– The Play Continuously function does not support multiple users. (It will have only memorised the point where the

most recent user stopped playing.)

The ◄ or ► button may not work depending on the content information.

You may experience file stuttering while playing a video in Media Play through a network connection.

✎

It might not work properly with unlicenced multimedia files.

✎

Need-to-Know List before using Media Play

MTP (Media Transfer Protocol) is not supported.

The file system supports FAT16, FAT32 and NTFS.

Certain types of USB Digital camera and audio devices may not be compatible with this TV.

Media Play only supports USB Mass Storage Class (MSC) devices. MSC is a Mass Storage Class Bulk-Only

Transport device. Examples of MSC are Thumb drives, Flash Card Readers and USB HDD (USB HUB are not supported). Devices should be connected directly to the TV’s USB port.

Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data.

SAMSUNG is not responsible for any data file damage or data loss. Connect a USB HDD to the dedicated port, USB 1 (HDD) port.

Do not disconnect the USB device while it is loading.

The higher the resolution of the image, the longer it takes to display on the screen.

The maximum supported JPEG resolution is 15360X8640 pixels.

For unsupported or corrupted files, the “Not Supported File Format” message is displayed.

If the files are sorted by Basic View, up to 1000 files can be displayed in each folder.

MP3 files with DRM that have been downloaded from a non-free site cannot be played. Digital Rights Management

(DRM) is a technology that supports the creation of content, the distribution and management of the content in an integrated and comprehensive way, including the protection of the rights and interests of the content providers, the prevention of the illegal copying of contents, as well as managing billings and settlements.

If more than 2 PTP devices are connected, you can only use one at a time.

If more than two MSC devices are connected, some of them may not be recognized. A USB device that requires high

power (more than 500mA or 5V) may not be supported. If an over-power warning message is displayed while you are connecting or using a USB device, the device may not

be recognized or may malfunction. If the TV has been no input during time set in Auto Protection Time, the Screensaver will run.

The power-saving mode of some external hard disk drives may be released automatically when connected to the T V.

If a USB extension cable is used, the USB device may not be recognized or the files on the device may not be read.

If a USB device connected to the TV is not recognized, the list of files on the device is corrupted or a file in the list is

not played, connect the USB device to the PC, format the device and check the connection. If a file deleted from the PC is still found when Media Play is run, use the “Empty the Recycle Bin” function on the PC

to permanently delete the file.

04 Advanced Features

English

Advanced Features

Movie 01.avi

00:04:03 / 00:07:38 1/1

SUM

 Screen Display

Move to the ﬁle you desired using the up/down/right/left buttons and then press the ENTER or  (Play) button. The ﬁle is played.

✎

Supports the View Devices and Home in Media Play homepage.

You can ascertain the selected

Information:

ﬁle name and the number of ﬁles

and page.

Sort List Section:

Displays sorting standard.

Sorting standard is

✎

different depending on the contents.

Videos

SUM

Change Device

/Movie 01.avi 1/1

Movie 01.avi

Movie 03.avi

Movie 05.avi

Movie 07.avi

Movie 09.avi

Jan.10.2010

Movie 02.avi

Movie 04.avi

Movie 06.avi

Movie 08.avi

Movie 10.avi



Select Sorting

Jan.10.2010



Tools

Page

Operation Buttons

Red (Change Device): Selects a connected device. Green (Preference): Sets the ﬁle preference. (not supported in Basic view) Yellow (Select): Selects multiple ﬁles from ﬁle list. Selected ﬁles are marked with a symbol. Blue (Sorting): Selects the sort list.



Tools: Displays the option menu.

Using the  (REW) or  (FF) button, ﬁle list can move to next or previous page.

✎

File List Section: You can conﬁrm the ﬁles and groups that is sorted by each category.

Videos

Playing Video

1. Press the ◄ or ► button to select Videos, then press the ENTER

2. Press the ◄/►/▲/▼ button to select the desired ﬁle in the ﬁle list.

3. Press the ENTER

– The selected ﬁle is displayed on the top with its playing time. – If video time information is unknown, play time and progress bar are not displayed. – During playing the video, you can search using the ◄ and ► button.

✎

In this mode, you can enjoy movie clips contained on a Game, but you cannot play the Game itself.

y Supported Subtitle Formats

MPEG-4 time-based text .ttxt XML

SubViewer .sub string-based Micro DVD .sub or .txt string-based



button or  (Play) button.

Name File extension Format

SAMI .smi HTML

SubRip .srt string-based



button in the Media Play menu.



Chaptering



Jump



Tools



Return

English

y Supported Video Formats

File Extension Container Video Codec Resolution

Divx 3.11 / 4.x / 5.1 / 6.0 1920x1080 6 ~ 30 8

*.avi

*.mkv

*.asf ASF

*.wmv ASF Window Media Video v9 1920x1080 6 ~ 30 25 WMA

*.mp4 MP4

*.3gp 3GPP

*.vro

*.mpg

*.mpeg

*.ts *.tp

*.trp

AVI

MKV

VRO VOB

XviD 1920x1080 6 ~ 30 8

H.264 BP / MP / HP 1920x1080 6 ~ 30 25

MPEG4 SP / ASP 1920x1080 6 ~ 30 8

Motion JPEG 800x600 6 ~ 30 8

Divx 3.11 / 4.x / 5.1 / 6.0 1920x1080 6 ~ 30 8

XviD 1920x1080 6 ~ 30 8

H.264 BP / MP / HP 1920x1080 6 ~ 30 25

MPEG4 SP / ASP 1920x1080 6 ~ 30 8

Motion JPEG 800x600 6 ~ 30 8

H.264 BP / MP / HP 1920x1080 6 ~ 30 25

XVID 1920x1080 6 ~ 30 8

H.264 BP / MP / HP 1920x1080 6 ~ 30 25

MPEG4 SP / ASP 1920x1080 6 ~ 30 8

MPEG1 1920x1080 24 / 25 / 30 30

MPEG2 1920x1080 24 / 25 / 30 30

MPEG1 1920x1080 24 / 25 / 30 30

H.264 1920x1080 6 ~ 30 25

MPEG2 1920x1080 24 / 25 / 30 30

H.264 1920x1080 6 ~ 30 25

VC1 1920x1080 6 ~ 30 25

Frame rate

(fps)

Bit rate (Mbps)

04 Advanced Features

Audio Codec

MP3 / AC3 / LPCM /

ADPCM / DTS Core

MP3 / AC3 / LPCM /

ADPCM / WMA

MP3 / ADPCM / AACMPEG4 SP / ASP 1920x1080 6 ~ 30 8

ADPCM / AAC / HE-AAC

AC3 / MPEG / LPCM

AC3 / MPEG / LPCM / AACMPEG2 1920x1080 24 / 25 / 30 30

AC3 / AAC / MP3 / DD+ /

HE-AAC

Other Restrictions

✎

NOTE

If there are problems with the contents of a codec, the codec will not be suppor ted.

If the information for a Container is incorrect and the file is in error, the Container will not be able to play

correctly. Sound or video may not work if the contents have a standard bitrate/frame rate above the compatible Frame/sec

listed in the table above. If the Index Table is in error, the Seek (Jump) function is not supported.

Video Decoder Audio Decoder

• Supports up to H.264, Level 4.1

• H.264 FMO / ASO / RS, VC1 SP / MP / AP L4 and AVCHD are not supported.

• XVID, MPEG4 SP, ASP :

– Below 1280 x 720: 60 frame max – Above 1280 x 720: 30 frame max

• GMC 2 over is not supported.

• H.263 is not supported.

• Only Samsung Techwin MJPEG is supported.

• Supports up to WMA 7, 8, 9, STD

• WMA 9 PRO does not support 2 channel excess multi channel or lossless audio.

• WMA sampling rate 22050Hz mono is not supported.

English

Advanced Features

Image1024.jpg 1024x768 2010/2/1 3/15

SUM

3/15

I Love you

Jhon

Music 1

No Singer

Music 2

No Singer

Music 3

No Singer

Music 4

No Singer

Music 5

No Singer

I Love You

Jhon

1st Album Pop 2010

4.2MB

01:10 / 04:02

SUM

Movie 01.avi

00:04:03 / 00:07:38 1/1

SUM

Playing movie ﬁle continuously (Resume Play)

If you exit the playing videos function, it can be played later from the point where it was stopped.

✎

If you press the ENTER (Chaptering) button during playing the file, you can explore scene divided into 5 chapters you want.

✎

If the index information is damaged or unsupported, you will not be able to use the Chaptering function.

1. Select the movie ﬁle you want to play continuously by pressing

the ◄ or ► button to select it from the ﬁle list section.

2. Press the

3. Select Play Continuously (Resume Play) by pressing the Blue

button. The Movie will begin to play from where it was stopped.

Music

Playing Music

1. Press the ◄ or ► button to select Music, then press the

ENTER

2. Press the ◄/►/▲/▼ button to select the desired ﬁle in the ﬁle

list.

3. Press the ENTER

✎

Only displays the files with MP3 and PCM file extension. Other file extensions are not displayed, even if they are saved on the same USB device.



(Play) / ENTER button.

✎

The Blue button is available when resuming play.

✎

If the Cont. movie play help function is set to On in the Settings menu, a pop-up message will appear when you resume play a movie file.



button in the Media Play menu.



button or  (Play) button.

– During playing the music, you can search using the ◄ and ►

button.

–



(REW) and  (FF) buttons do not function during play.

Play continuously

Resumes playing from the last viewed scene.

Play continuously



Chaptering



Pause





Jump

Playlist

Jump



Tools



Return



Return

✎

If the sound is strange when playing MP3 files, adjust the Equalizer in the Sound menu. (An over-modulated MP3 file may cause a sound problem.)

✎

You can create My Playlist selecting the desired music in the file, and can play My Playlist.

Photos

Viewing a Photo (or Slide Show)

1. Press the ◄ or ► button to select Photos, then press the

ENTER



button in the Media Play menu.

2. Press the ◄/►/▲/▼ button to select the desired ﬁle in the ﬁle

list.

3. Press the ENTER

✎

– While a photo list is displayed, press the

ENTER button on the remote control to start slide show.

– All ﬁles in the ﬁle list section will be displayed in the slide show. – During the slide show, ﬁles are displayed in order from

currently being shown.

Music files can be automatically played during the Slide Show if the Background Music is set to On.

The BGM Mode cannot be changed until the BGM has finished loading.

English



button or  (Play) button.



(Play) /

Normal



Pause



Previous/Next



Tools



Return

 Playing the Multiple Files

1/1

/Movie 01.avi

SUM

Movie 01.avi

Jan.10.2010

Movie 03.avi

Movie 05.avi

Movie 07.avi

Movie 09.avi

Movie 02.avi

Movie 04.avi

Movie 06.avi

Movie 08.avi

Movie 10.avi

04 Advanced Features

Playing the selected video/music/photo ﬁles

1. Press the Yellow button in the ﬁle list to select the desired ﬁle.

Videos

2 les selected Page

2. Repeat the above operation to select multiple ﬁles.

✎

NOTE

The  mark appears to the left of the selected files.

To cancel a selection, press the Yellow button again.

To deselect all selected files, press the TOOLS button

and select Deselect All.

3. Press the TOOLS button and select Play Selected Contents.

Change Device

Select Sorting



Playing the video/music/photo ﬁle group

1. While a ﬁle list is displayed, move to the any ﬁle in desired group.

2. Press the TOOLS button and select Play Current Group.

 Media Play Additional Function

Sorting the ﬁle list

Press the Blue button in the ﬁle list to sort the ﬁles.

Category Operations Videos Music Photos

Basic View

Title

Preference

Latest Date

Earliest Date

Artist

Album

Genre

Mood

Monthly

It shows whole folder. You can view the photo by selecting the folder.

It sorts and displays the ﬁle title in Symbol/Number/Alphabet/Special order.

It sorts and displays the ﬁle by preference. You can change the ﬁle preference in the ﬁle list section using the Green button.

It sorts and shows ﬁles by latest date.

It sorts and shows ﬁles by earliest date.

It sorts the music ﬁle by artist in alphabetical.

It sorts the music ﬁle by album in alphabetical order.

It sorts music ﬁles by the genre.

It sorts music ﬁles by the mood. You can change the music mood information.

It sorts and shows photo ﬁles by month. It sorts only by month (from January to December) regardless of year.

  

 



Tools

English

Advanced Features

Videos/Music/Photos Play Option menu

During playing a ﬁle, press the TOOLS button.

Category Operations Videos Music Photos Title You can move the other ﬁle directly. Repeat Mode You can play movie and music ﬁles repeatedly. Picture Size You can adjust the picture size for preference.

Picture Setting You can adjust the picture setting. (p. 13 ~ 19) Sound Setting You can adjust the sound setting. (p. 19, 20) Subtitle Setting You can play the video ﬁle with subtitle. This function only works if the subtitles are the same

Audio You can enjoy video in one of supported languages as required. The function is only enabled

Stop Slide Show / Start Slide Show

Slide Show Speed You can select the slide show speed during the slide show. Slide Show Effect You can set variously the slide show effect. Background Music You can set and select background music when watching a slide show. Zoom You can zoom into images in full screen mode. Rotate You can rotate images in full screen mode. Home Background You can move the ﬁle to the Media Play desktop. Information You can see detailed information about the played ﬁle.

ﬁle name as the video ﬁle.

when stream-type ﬁles which support multiple audio formats are played. You can start or stop a slide show.

Settings

Using the Setup Menu

■ Background Setting: Select to display the background you want.

■ Cont. movie play help (Resume Play) (On / Off): Select to display the help pop-up message for continuous movie playback.

■ Get the DivX® VOD registration code: Shows the registration code authorized for the TV. If you connect to the DivX web site and register the registration code with a personal account, you can download VOD registration ﬁle. If you play the VOD registration using Media Play, the registration is completed.

✎

For more information on DivX® VOD, visit “www.DivX.com.”

■ Get the DivX® VOD deactivation code: When DivX® VOD is not registered, the registration deactivation code is displayed. If you execute this function when DivX® VOD is registered, the current DivX® VOD registration is deactivated.

■ Information: Select to view information about the connected device.

        



     

  

English

Anynet+

ARC

04 Advanced Features

What is Anynet+?

Anynet+ is a function that enables you to control all connected Samsung devices that support Anynet+ with your Samsung TV’s remote. The Anynet+ system can be used only with Samsung devices that have the Anynet+ feature. To be sure your Samsung device has this feature, check if there is an Anynet+ logo on it.

To connect to Home Theatre

TV Rear Panel

1. Connect the HDMI IN (1(DVI), 2(ARC), 3 or 4) jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using an HDMI cable.

2. Connect the HDMI IN jack of the home theatre and the HDMI OUT jack of the corresponding Anynet+ device using an HDMI cable.

✎

NOTE

Connect the Optical cable between the DIGITAL AUDIO OUT (OPTICAL) jack on your TV and the Digital Audio Input

on the Home Theatre. The ARC function enables digital output of sound using the HDMI IN 2(ARC) port and can only be operated when

the TV is connected to an audio receiver that supports the ARC function. When following the connection above, the Optical jack only outputs 2 channel audio. You will only hear sound from

the Home Theatre’s Front, Left and Right speakers and the subwoofer. If you want to hear 5.1 channel audio, connect the DIGITAL AUDIO OUT (OPTICAL) jack on the DVD / Satellite Box (i.e. Anynet Device 1 or 2) directly to the Amplifier or Home Theatre, not the TV.

Connect only one Home Theatre.

You can connect an Anynet+ device using the HDMI cable. Some HDMI cables may not support Anynet+ functions.

Anynet+ works when the AV device supporting Anynet+ is in the standby or on status.

Anynet+ supports up to 12 AV devices in total. Note that you can connect up to 3 devices of the same type.



Optical

Adapter

Optical

Cable

Home Theatre Anynet+ Device 1

HDMI CableHDMI Cable

HDMI Cable

Anynet+ Device

2, 3, 4

English

Advanced Features

Anynet+ Menu

The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected to the TV.

Anynet+ Menu Description

View TV Changes Anynet+ mode to TV broadcast mode.

Device List Shows the Anynet+ device list.

(device_name) MENU Shows the connected device menus. E.g. If a DVD recorder is connected, the disc menu of

(device_name) INFO Shows the play menu of the connected device. E.g. If a DVD recorder is connected, the

Recording: (*recorder) Starts recording immediately using the recorder. (This is only available for devices that

Stop Recording: (*recorder) Stops recording.

Receiver Sound is played through the receiver.

If more than one recording device is connected, they are displayed as (*recorder) and if only one recording device is connected, it will be represented as (*device_name).

 Setting Up Anynet+

■ Setup Anynet+ (HDMI-CEC) (Off / On): To use the Anynet+ Function, Anynet+ (HDMI-CEC) must be set to On.

✎

When the Anynet+ (HDMI-CEC) function is disabled, all the Anynet+ related operations are deactivated.

Auto Turn Off (No / Yes): Setting an Anynet+ Device to turn off automatically when the TV is turned off.

✎

The active source on the T V must be set to TV to use the Anynet+ function.

✎

Even if an external device is still recording, it may turn off.

the DVD recorder will appear.

play menu of the DVD recorder will appear.

support the recording function.)

 Switching between Anynet+ Devices

1. Anynet+ devices connected to the TV are listed.

✎

If you cannot find a device you want, press the Red button to refresh the list.

2. Select a device and press the ENTER

✎

Only when you set Anynet+ (HDMI-CEC) to On in the Application menu, the Device List menu appears.

Switching to the selected device may take up to 2 minutes. You cannot cancel the operation during the switching

operation. If you have selected external input mode by pressing the SOURCE button, you cannot use the Anynet+ function.

Make sure to switch to an Anynet+ device by using the Device List.



button. You can switch to the selected device.

English

 Recording

You can make a recording of a TV Programme using a Samsung recorder.

1. Select Recording.

✎

When there are more than two recording devices

When multiple recording devices are connected, the recording devices are listed. Select one recording device in

the Device List.

✎

When the recording device is not displayed, select Device List and press the Red button to search devices.

2. Press the EXIT button to exit.

✎

You can record the source streams by selecting Recording: (device_name).

✎

Pressing the  (REC) button will record whatever you are currently watching. If you are watching video from another device, the video from the device is recorded.

✎

Before recording, check whether the antenna jack is properly connected to the recording device. To properly connect an antenna to a recording device, refer to the recording device’s users manual.

 Listening through a Receiver

You can listen to sound through a receiver (i.e Home Theatre) instead of the TV Speaker.

1. Select Receiver and set to On.

2. Press the EXIT button to exit.

✎

If your receiver supports audio only, it may not appear in the device list.

✎

The receiver will work when you have properly connected the optical in jack of the receiver to the

DIGITAL AUDIO OUT (OPTICAL) jack of the TV.

✎

When the receiver (i.e Home Theatre) is set to On, you can hear sound output from the TV’s Optical jack. When the source is a digital component such as a DVD and is connected to the TV via HDMI, only 2 channel sound will be heard from the receiver.

✎

NOTE

You can only control Anynet+ devices using the TV remote control, not the buttons on the T V.

The TV remote control may not work under certain conditions. If this occurs, reselect the Anynet+ device.

The Anynet+ functions do not operate with other manufacturers’ products.

Using the ARC function

You can listen to sound through a receiver connected HDMI cable without the need for a separate optical cable.

1. Select Receiver and set to On.

2. Press the EXIT button to exit.

✎

To use the ARC function, a receiver which supports the HDMI-CEC and ARC features must be connected to the

HDMI IN 2(ARC) port.

✎

To disable the ARC function, set the Receiver to Off. Even if the T V transmits the ARC signal continuously, the receiver will be blocked from receiving the signal.

04 Advanced Features

English

Advanced Features

 Troubleshooting for Anynet+

Problem Possible Solution

Anynet+ does not work. • Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only.

I want to start Anynet+. • Check if the Anynet+ device is properly connected to the TV and check if the Anynet+ (HDMI-CEC) is set to

I want to exit Anynet+. • Select View TV in the Anynet+ menu.

The message “Connecting to Anynet+ device...” appears on the screen.

The Anynet+ device does not play. • You cannot use the play function when Plug & Play (Initial setup) is in progress.

• Connect only one receiver (home theatre).

• Check if the Anynet+ device power cord is properly connected.

• Check the Anynet+ device’s Video/Audio/HDMI cable connections.

• Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu.

• Check whether the TV remote control is in TV mode.

• Check whether it is Anynet+ exclusive remote control.

• Anynet+ doesn’t work in certain situations. (Searching channels, operating Media Play or Plug & Play (Initial setup), etc.)

• When connecting or removing the HDMI cable, please make sure to search devices again or turn your TV off and on again.

• Check if the Anynet+ Function of Anynet+ device is set on.

On in the Anynet+ Setup menu.

• Press the TOOLS button to display the Anynet+ menu and select a menu you want.

• Press the SOURCE button on the TV remote control and select a device other than Anynet+ devices.

• Press P

• You cannot use the remote control when you are conﬁguring Anynet+ or switching to a view mode.

• Use the remote control when the Anynet+ setting or switching to view mode is complete.

/

tuner-embedded Anynet+ device is not connected.)

, and PRE-CH to change the TV mode. (Note that the channel button operates only when a

The connected device is not displayed.

The TV Programme cannot be recorded.

The TV sound is not output through the receiver.

• Check whether or not the device supports Anynet+ functions.

• Check whether or not the HDMI cable is properly connected.

• Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu.

• Search Anynet+ devices again.

• You can connect an Anynet+ device using the HDMI cable only. Some HDMI cables may not support Anynet+ functions.

• If it is terminated by an abnormal situation such as disconnecting the HDMI cable or power cord or a power failure, please repeat the device scan.

• Check whether the antenna jack on the recording device is properly connected.

• Connect the optical cable between TV and the receiver.

• The ARC function enables digital output of sound using the HDMI IN 2(ARC) port and can only be operated when the TV is connected to an audio receiver that supports the ARC function.

English

 Getting Started with Internet@TV

Internet@TV

04 Advanced Features

INTERNET

@ TV

✎

NOTE

Configure the network settings before using Internet@TV. For more information, refer to “Network Connection” (p.

Internet@TV brings useful and entertaining contents and services directly from the web to your TV.

Samsung Apps Settings

Recommended

My Applications

25). Unsupported fonts within the provider’s content will not display normally.

Slow responses and/or interruptions may occur, depending on your network conditions.

English may be only supported in application depending on region.

This feature is not available in some locations.

If you experience a problem using a application, please contact the content provider.

According to circumstances of the contents provider, an application’s updates or the application itself may be

discontinued. Depending on your country’s regulations, some applications may have limited service or not be suppor ted.

Screen Display

Settings

Recommended

My Applications



Mark as Favourite Sort by

Controls:

• Red (Login): To log in to Internet@TV.

• B Green (Mark as Favourite): To mark the applications as a favourite.

• Blue (Sort by): To sort the applications.

•  Return: To return to the previous menu.

The colour buttons may work differently depending on the application.

✎

by Date 1/1



Return

Recommended Applications: Displays the recommended service by Samsung. You are not able to add or delete a service in this list.

Downloaded Applications: Displays the downloaded applications through the Samsung Apps.

Displays the current channel.

TV Screen:

Information:

Displays notices, new

applications, and

advertisements brought to

you by Samsung product

introductions.

Application service:

You can experience

various service by provided

samsung.

Samsung Apps

Internet@TV Settings:

Edit and conﬁgure applications

and Internet@TV settings.

by Date 1/1



Return

English

Advanced Features

admin

Account Login

For a application with multiple account, use ◄ and ► to access the different account.

User account :

Password :

Create [0~9] Enter PIN

✎

For a more enjoyable application experience, register and log in to your account.

✎

For instructions on creating an account, refer to

Settings → Internet@TV ID → Create.

1. Press the Red button in Internet@TV home page.

2. Select desired User account, then press the ENTER

button.

✎

If you want create account, press Red button; then create account OSD window appear.

3. Enter the Password.

✎

When login succeeds, User account will be displayed on the screen.

 Setting up Internet@TV

Settings

Create IDs and conﬁgure Internet@TV settings from this screen. Highlight Settings using ▲ and ▼ buttons and press the ENTER button.

Settings

▪ System setup

▪ Internet@TV ID ▪ Service Manager ▪ Properties

▪ Ticker Autorun : Off

▪ Channel Bound Service : Off ▪ Change the Service Lock password ▪ Reset



Cancel





Return

■ System Setup Ticker Autorun (Off / On): Enable/disable ticker autorun

upon powering on the TV.

✎

The Ticker application provides useful News, Weather, and Stock Market information. The Ticker application on Internet@TV must be downloaded to use this feature.

✎

Depending on your country, the Ticker application may have different service or not be supported.

Channel Bound Service (Off / On): Some channels support applications as an Internet data service, allowing you to access the Internet service while watching TV.

✎

Only available if supported by the broadcaster.

Change the Service Lock password

✎

The default password set is “0-0-0-0.”

✎

If you forget the password, press the following sequence of remote control buttons to reset the password to “0-0-0-0”: POWER (off) → MUTE → 8 → 2 → 4 → POWER (on).

Reset: Resets Internet@TV settings to factory default settings.

■ Internet@TV ID You can use this menu when creating, deleting the

account. You can control your account including contents site’s account information.

✎

Account is only for internet@TV.

Create: Create an account and link it with desired applications.

✎

NOTE

Account will be made less than 10.

Maximum number of characters is 8.

Manager

– Service Site: Register login information for service

sites. – Change Password: Change account password. – Delete: Delete the account.

■ Service Manager: Delete and lock applications installed to Internet@TV.

Lock: Lock the application.

✎

Accessing a locked application requires the password.

Delete: Delete the application.

■ Properties: Display information about Internet@TV. Use the Check the speed of your internet connection option to test your network connection.

English

 Using the Internet@TV service

You Tube

Samsung Apps

Samsung Apps is a store for downloading applications to be

used on Samsung TV/AV equipment. Users can enjoy a variety of contents like videos, music,

photos, games, useful information etc. using the downloaded applications.

Additional applications will be available hereafter.

Samsung Apps

What’s New? Video Sports Lifestyle Information Other

My Page

Help

✎

Using the colour buttons with the Samsung Apps.

Red (Login): To log in to the internet service.

Green (Thumbnail View): To change the view

mode.

Blue (Sor t by): To sort the widgets by Featured,

Most downloaded, Most recent or Name.



Return: Moves to previous menu.

Featured Most downloaded Most recent Name

YouTube

TV store Test User002

Free



Return

Using the Samsung Apps by category

The following categories are available:

y What’s New?: Displays newly registered applications. y Video: Displays various video media such as movies, TV

shows and short length videos.

y Sports: Displays various sports media such as match

information, images and short length video.

y Lifestyle: Includes various lifestyle media services such

as music, personal photo management tools and social networking such as Facebook and Twitter.

y Information: Includes various information services such

as news, stocks and weather.

y Other: Includes other miscellaneous services. y My Page: My Page offers information about already

installed applications on the TV like detailed information, download contents etc. It can allows delete or lock the applications.

y Help: If you have questions about Internet@TV, check

this section ﬁrst.

04 Advanced Features

English

Advanced Features

Troubleshooting for internet@TV

Problem Possible Solution

Some application contents only have English. How can I change the language?

Some application services do not work.

When a network error occurred, I can’t use other menus except setting menu.

 Help Website

✎

Approaching step may be changed later on.

✎

It can be different links for special countries.

Country Website

UAE www.samsung.com → Consumer → television → Internet@TV Australia www.samsung.com → Consumer → television → Internet@TV China www.samsung.com → 个人消费产品 → 电视产品 → Internet@TV India www.samsung.com → consumer products → television → Internet@TV Indonesia www.samsung.com → Produk → television → Internet@TV Japan Malaysia www.samsung.com → Consumer → television → Internet@TV NewZealand www.samsung.com → Consumer → television → Internet@TV Philippines www.samsung.com → Consumer → television → Internet@TV Singapore www.samsung.com → Consumer → television → Internet@TV Taiwan www.samsung.com → 個人消費産品 → 電視 → Internet@TV Thailand Vietnam www.samsung.com → sản phẩm nghe nhìn → máy thu hình → Internet@TV South Africa www.samsung.com → Consumer → television → Internet@TV

www.samsung.com → 製品情報 → 液晶ディスプレイ → Internet@TV

www.samsung.com → ผลิตภัณฑ์ → โทรทัศน์ → Internet@TV

Application content language may be different from application user interface language.

It depends on service provider.

Check with that service provider. Refer to help website for application service provider information.

If network connection doesn’t work, your service might be limited. Because all of function except setting menu are needed to connect internet.

English

AllShare

AllShare™

3/7

 About AllShare

AllShare connects your TV, mobile phones and other

devices which are compatible through a network. On your TV, you can view call arrivals, SMS messages and schedules set on your mobile phones. In addition, you can play media contents including videos, photos and music saved on your mobile phones or the other devices (such as your PC) by controlling them on the TV via the network. Additionally, you can use your TV as a monitor for your mobile when browsing a web page.

✎

For more information, visit “www.samsung.com” or contact the Samsung call centre. Mobile devices may need additional software installation. For details, refer to each device’s user’s guide.

 Setting Up AllShare

Setup

■ Message (On / Off): Enables or disables the message function (for call arrivals, SMS messages and schedules set on your mobile phones).

■ Media (On / Off): Enables or disables the media function. When the media function is on, it plays videos, photos and music from a mobile phone or other device that supports AllShare.

■ ScreenShare (On / Off): Enables or disables the ScreenShare function for using mobile phone as a remote control.

■ TV name: Sets the TV name so you can ﬁnd it easily on a mobile device.

✎

If you select User Input, you can type on the TV using the OSK (On Screen Keyboard).

Setup

Message : On

Media : On

Message

Media

ScreenShare : On

TV name : Home TV

ScreenShare

Message / Media / ScreenShare

Shows a list of mobile phones or connected devices which have been set up with this TV for using the Message, Media, or ScreenShare function.

✎

The Media function is available in all mobile devices which support AllShare.

■ Allowed / Denied: Allows/Blocks the mobile phone.

■ Delete: Deletes the mobile phone from the list.

✎

This function only deletes the name of the mobile from the list. If the deleted mobile device is turned on or trys to connect to the TV, it may appear on the list again.

Using the Message Function

Using this function, you view call arrivals, SMS messages and schedules set on the mobile phone through the alarm window while watching TV.

✎

NOTE

To disable the alarm window, set Message to Off in

Setup of AllShare. If OK is selected, or if OK is not selected after the

message has appeared three times, the message will be deleted. The message is not deleted from the mobile phone.

The alarm window can be displayed while using

some applications such as Media Play etc. To view the contents of a message, switch to TV viewing mode.

When a message from an unknown mobile phone is

displayed, select the mobile phone on the message menu in AllShare and select Denied to block the phone.

Message View

If a new SMS message arrives while you are watching TV, the alarm window appears. If you click the OK button, the contents of the message are displayed.

✎

You can configure the viewing settings for SMS messages on your mobile phones. For the procedures, refer to the mobile phone manual.

✎

Some types of characters may be displayed as blank or broken characters.

04 Advanced Features



Select



Return



Exit

Setup



Return

English

Advanced Features

Call Arrival Alarm

If a call arrives while you are watching TV, the alarm window appears.

Schedule Alarm

While you are watching TV, the alarm window appears to display the registered event.

✎

You can configure viewing settings for schedule contents on your mobile phones. For the procedures, refer to the mobile phone manual.

✎

Some special characters may be displayed as blank or broken characters.

Using the Media Function

An alarm window appears informing the user that the media contents (videos, photos, music) sent from a mobile phone will be displayed on your TV. The contents are played automatically 3 seconds after the alarm window appears. If you press the RETURN or EXIT button when the alarm window appears, the media contents are not played.

✎

NOTE

If the media function executes for the first time,

the warning popup window appears. Press the

ENTER button to select Allow, then you can use

Media function on that device.

“Unknown Device 0” is requesting that the media le be allowed to play. If you wish to allow the media le to be played at your device, please press “Allow”, otherwise press “Deny”. You can also change the setting (or resetting) of this feature at “AllShare Setup”.

Warning: Please note that if your device is connected to unsecured or unfamiliar network, unwanted or inappropriate contents might be played. If you are not sure about the network's identity or content’s appropriateness, we strongly recommend that you do not “Allow” the request to play.

DenyAllow

To turn off the media contents transmission from

the mobile phone, set Media to Off in the AllShare setup.

Contents may not be played on your TV depending

on their resolution and format. The ENTER and ◄ / ► buttons may not work

depending on the type of media content. Using the mobile device, you can control the media

playing. For details, refer to each mobile’s user’s guide.

When you want to play media contents from

your PC, select the PC icon on the main display of AllShare. Then the TV’s Media Play menu automatically changes. For more detail information, refer to “Media Play” (p. 32).

Using ScreenShare Function

Screenshare displays the same web page as provide in mobile. Using ScreenShare, you can open the various contents saved in a mobile phone. For example, the image below displays an access page for contents from a mobile. You can read the mobile’s various ﬁles and view the phone book and calendar on the TV. Also, in phone book, you can make a call to other person, or can send to SMS.

✎

NOTE

In Samsung mobile, ScreenShare must be installed

and the supporting application must be executed; then you can use the ScreenShare function.

Available buttons on your remote control may vary

for each page. Doc Viewer can read files in doc format, but cannot

modify them. The screen display may differ depending on the

connected device.

My Mobile

Contacts Calendar Doc viewer



Select Return

Using your Samsung phone to control your TV Simply

Before you can use this feature, you must connect to a Samsung mobile phone that supports ScreenShare functions. When operating the TV with your mobile phone, only the POWER, supported.

✎

Even if you keep pressing down on a control button (channel or volume) on the mobile phone, the value will only go up or down by one unit.



, P/ and MUTE buttons are

English

Other Information

Analogue Channel Teletext Feature

The index page of the Teletext service gives you information on how to use the service. For Teletext information to be displayed correctly, channel reception must be stable. Otherwise, information may be missing or some pages may not be displayed.

✎

You can change Teletext pages by pressing the numeric buttons on the remote control.



(Teletext on/mix/off): Activates the Teletext mode for the current channel. Press the button twice to overlap the Teletext mode with the current broadcasting screen. Press it one more time to exit teletext.



(store): Stores the Teletext

pages.



(size): Displays the teletext on the upper half of the screen in double-size. To move the text to the lower half of the screen, press it again. For normal display, press it once again.



(hold): Holds the display at the current page, in the case that there are several secondary pages that follow automaticially. To undo, press it again.

Colour buttons (red, green, yellow, blue): If the FASTEXT system is used by the broadcasting company, the different topics on a Teletext page are colour-coded and can be selected by pressing the coloured buttons. Press the colour corresponding to the topic of your choice. A new colourcoded page is displayed. Items can be selected in the same way. To display the previous or next page, press the corresponding coloured button.



(mode): Selects the Teletext mode (LIST/ FLOF).

If pressed during LIST mode, switches the mode to List save mode. In List save mode, you can save a Teletext page into a list using the



available sub-page.



(store) button.

(sub-page): Displays the

SOURCE

TTX/MIX

TOOLS

RETURN

A B C D

PRE-CH

CHLIST

INFO

EXIT



(page up): Displays the next



(page down): Displays the



(index): Displays the index

(contents) page at any time while

you are viewing Teletext.



(reveal): Displays the hidden

text (answers to quiz games, for

example). To display the normal



(cancel): Shrinks the Teletext

display to overlap with the current

Typical Teletext page

Part Contents

A Selected page

B Broadcasting channel

C Current page number

D Date and time. E Text. F Status information.

Teletext page.

previous Teletext page.

screen, press it again.

number.

identity.

or search indications.

FASTEXT information.

broadcast.

05 Other Information

English

Other Information

Assembling the Cables

Stand Type

Enclose the cables in the Cable Tie so that the cables are not visible through the transparent stand.

Wall-Mount Type

✎

Do not pull the cables too hard when arranging them. This may cause damage to the product’s connection terminals.

English

Installing the Wall Mount

Assembling the Blanking Bracket

When installing the TV onto a wall, attach the Blanking Bracket as shown.

Blanking Bracket

Installing the Wall Mount Kit

The wall mount kit (sold separately) allows you to mount the TV on the wall. For detailed information on installing the wall mount, see the instructions provided with the wall mount. Contact a technician for

assistance when installing the wall mount bracket. Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the

TV on your own.

Wall Mount Kit Speciﬁcations (VESA)

✎

The wall mount kit is not supplied, but sold separately.

Install your wall mount on a solid wall perpendicular to the ﬂoor. When attaching to other building materials, please contact your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.

✎

NOTE

Standard dimensions for wall mount kits are shown in the table below.

When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided.

Do not use screws that do not comply with the VESA standard screw specifications.

Do not use screws that are longer than the standard dimension or do not comply with the VESA standard screw

specifications. Screws that are too long may cause damage to the inside of the TV set. For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ

depending on the wall mount specifications. Do not fasten the screws that are too strongly; this may damage the product or cause the product to fall, leading to

personal injury. Samsung is not liable for these kinds of accidents. Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or

the consumer fails to follow the product installation instructions. Our 63” model do not comply with VESA Specifications. Therefore, you should use our dedicated wall mount kit for

this model. Do not mount the TV at more than a 15 degree tilt.

Product Family inches

42~50 400 X 400

VESA Spec.

(A * B)

Standard Screw Quantity

05 Other Information

58~63 600 X 400

PDP -TV

✎

Unscrew the hole around before installing Wall-Mount on the wall.

70~79 800 X 400

80~ 1400 X 800

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock.

M8 4

English

Other Information

Securing the TV to the wall

Caution: Pulling, pushing, or climbing onto the TV may cause the TV to fall. In particular, ensure that your children do not hang over or destabilize the TV; doing so may cause the TV to tip over, resulting in serious injuries or death. Follow all safety precautions provided in the included Safety Flyer. For added stability and safety, install the anti-fall device as follows.

 To Avoid the TV from Falling

1. Put the screws into the clamps and ﬁrmly fasten them onto the wall.

Conﬁrm that the screws have been ﬁrmly installed onto the wall.

✎

You may need additional material such as an anchor depending on the type of wall.

✎

Since the necessary clamps, screws, and string are not supplied, please purchase these additionally.

2. Remove the screws from the back centre of the TV, put the screws into the clamps, and then fasten the screws onto the TV again.

✎

Screws may not be supplied with the product. In this case, please purchase the screws of the following specifications.

3. Connect the clamps ﬁxed onto the TV and the clamps ﬁxed onto the wall with a strong cable and then tie the string tightly.

✎

NOTE

Install the TV near to the wall so that it does not fall backwards.

It is safe to connect the string so that the clamps fixed on the

wall are equal to or lower than the clamps fixed on the TV. Untie the string before moving the TV.

4. Verify all connections are properly secured. Periodically check connections for any sign of fatigue for failure. If you have any doubt about the security of your connections, contact a professional installer.

Wall

English

Troubleshooting

If you have any questions about the TV, ﬁrst refer to this list. If none of these troubleshooting tips apply, please visit “www. samsung.com,” then click on Support, or contact the call centre listed on the back-cover of this manual.

Issues Solutions and Explanations

Picture Quality First of all, please perform the Picture Test and conﬁrm that your TV is properly displaying test image.

The TV image does not look as good as it did in the store.

The picture is distorted: macro block error, small block, dots, pixelization

Colour is wrong or missing. • If you’re using a component connection, make sure the component cables are connected to the

There is poor colour or brightness. • Adjust the Picture options in the TV menu. (go to Picture mode / Colour / Brightness / Sharpness)

There is a dotted line on the edge of the screen.

The picture is black and white. • If you are using an AV composite input, connect the video cable (yellow) to the Green jack of

When changing channels, the picture freezes or is distorted or delayed.

Sound Quality First of all, please perform the Sound Test to conﬁrm that your TV audio is properly operating.

There is no sound or the sound is too low at maximum volume.

The picture is good but there is no sound. • Set the Speaker Select option to TV Speaker in the sound menu (p. 20).

The speakers are making an inappropriate noise.

(go to MENU - Support - Self Diagnosis - Picture Test) (p. 23) If the test image is properly displayed, the poor picture may caused by the source or signal.

• If you have an analogue cable/set top box, upgrade to a digital set top box. Use HDMI or Component cables to deliver HD (high deﬁnition) picture quality.

• Cable/Satellite subscribers: Try HD stations from the channel line up.

• Antenna connection: Try HD stations after performing Auto programme.

Many HD channels are up scaled from SD(Standard Deﬁnition) contents.

✎

• Adjust the Cable/Set top box video output resolution to 1080i or 720p.

• Make sure you are watching the TV at the minimum recommended distance based on the size and deﬁnition of the signal.

• Compression of video contents may cause picture distortion especially in fast moving pictures such as sports and action movies.

• Low signal level or bad quality can cause picture distortion. This is not a TV issue.

• Mobile phones used close to the TV (cca up to 1m) may cause noise in picture on analogue and digital TV.

correct jacks. Incorrect or loose connections may cause colour problems or a blank screen.

(p. 13)

• Adjust Energy Saving option in the TV menu. (go to MENU - Picture - Eco Solution - Energy Saving) (p. 13)

• Try resetting the picture to view the default picture settings. (go to MENU - Picture - Picture Reset) (p. 19)

• If the picture size is set to Screen Fit, change it to 16:9 (p. 15).

• Change cable/set top box resolution.

component input 1 on the TV.

• If connected with a cable box, please try to reset the cable box. Reconnect the AC cord and wait until the cable box reboots. It may take up to 20 minutes.

• Set the output resolution of the cable box to 1080i or 720p.

(go to MENU - Support - Self Diagnosis - Sound Test) (p. 23) If the audio is OK, the sound problem may caused by the source or signal.

• Please check the volume the of external device connected to your TV.

• If you are using an external device, make sure the audio cables are connected to the correct audio input jacks on the TV.

• If you are using an external device, check the device’s audio output option (ex. you may need to change your cable box’s audio option to HDMI when you have a HDMI connected to your TV).

• If you are using a DVI to HDMI cable, a separate audio cable is required.

• If your TV has a headphone jack, make sure there is nothing plugged into it.

• Check the cable connections. Make sure a video cable is not connected to an audio input.

• For antenna or cable connections, check the signal strength. Low signal level may cause sound distortion.

05 Other Information

English

Other Information

Issues Solutions and Explanations

No Picture, No Video

The TV won’t turn on. • Make sure the AC power cord is securely plugged in to the wall outlet and the TV.

The TV turns off automatically. • Ensure the Sleep Timer is set to Off in the Setup menu (p. 21).

There is no picture/Video. • Check cable connections (remove and reconnect all cables connected to the TV and external

RF(Cable/Antenna) Connection

The TV is not receiving all channels. • Make sure the Antenna cable is connected securely.

The picture is distorted: macro block error small block, dots, pixelization

PC Connection

A “Mode Not Supported” message appears.

“PC” is always shown on the source list, even if a PC is not connected.

The video is OK but there is no audio. • If you are using a HDMI connection, check the audio output setting on your PC.

• Make sure the wall outlet is working.

• Try pressing the POWER button on the TV to make sure the problem is not the remote. If the TV turns on, refer to “The remote control does not work” below.

• If your PC is connected to the TV, check your PC power settings.

• Make sure the AC power cord is plugged in securely to the wall outlet and the TV.

• When watching TV from an antenna or cable connection, the TV will turn off after 10 ~ 15 minutes if there is no signal.

devices).

• Set your external devices’ (Cable/Set top Box, DVD, Blu-ray etc) video outputs to match the connections to the TV input. For example, if an external device’s output is HDMI, it should be connected to an HDMI input on the TV.

• Make sure your connected devices are powered on.

• Be sure to select the TV’s correct source by pressing the SOURCE button on the TV remote.

• Please try Plug & Play (Initial setup) to add available channels to the channel list. Go to MENU - Setup - Plug & Play (Initial setup) and wait for all available channels to be stored (p. 7).

• Verify the Antenna is positioned correctly.

• Compression of video contents may cause picture distortion, especially with fast moving pictures such as sports and action movies.

• A low signal can cause picture distortion. This is not a TV issue.

• Set your PC’s output resolution and frequency so they match the resolutions supported by the TV (p. 24).

• This is normal; “PC” is always shown on the source list, regardless of whether a PC is connected.

Network Connection (Depending on Models)

Wireless network connection failed. • Samsung Wireless USB dongle is required to use a wireless network.

Others

The remote control does not work. • Replace the remote control batteries with the poles (+/–) in the right direction.

Plasma TV is making humming noise. • Plasma TVs typically make a soft humming sound. This is normal. It’s caused by the electrical charges

Image Retention (Burn In) Issue. • To minimize the possibility of screen burn, this unit is equipped with screen burn reduction technology.

The cable/set top box remote control doesn’t turn the TV on or off, or adjust the volume.

English

• Make sure the Network Connection is set to Wireless (p. 27).

• Make sure the TV is be connected to a wireless IP sharer (router).

• Clean the sensor’s transmission window on the remote.

• Try pointing the remote directly at the TV from 5~6 feet away.

that are used to create the images on the screen.

• If the humming sound is loud, you may have set the brightness on the TV too high. Try setting the brightness lower.

• You can also have loud humming if the back of your Plasma TV is too close to a wall or other hard surface. Also try rerouting your connection cables.

• Improper installation of wall mount can create excessive noise.

Pixel Shift technology enables you to set picture movement up / down (Vertical Line) and side to side (Horizontal Dot).

• Programme the Cable/Set top box remote control to operate the TV. Refer to the Cable/Set user manual for the SAMSUNG TV code.

Issues Solutions and Explanations

A “Mode Not Supported” message appears.

There is a plastic smell from the TV. • This smell is normal and will dissipate over time.

The TV is tilted to the side. • Remove the base stand from the TV and reassemble it.

There are difﬁculties assembling the stand base.

The channel menu is greyed out. (unavailable)

Your settings are lost after 30 minutes or every time the TV is turned off.

You have intermittent loss of audio or video.

You see small particles when you look closely at the edge of the frame of the TV.

The PIP menu is not available. • PIP functionality is only available when you are using a HDMI, PC or components source (p. 22).

You turned the TV off 45 minutes ago, and it turned on again.

There are recurrent picture/sound issues. • Check and change the signal/source.

A reaction may occur between the rubber cushion pads on the base stand and the top ﬁnish of some furniture.

• Check the supported resolution of the TV, and adjust the external device’s output resolution accordingly. Refer to the resolution settings on page 24 of this manual.

• Make sure the TV is placed on a ﬂat surface. It is necessary to use magnetized screw driver if you cannot remove the screws from the TV.

• The Channel menu is only available when the TV source is selected.

• If the TV is in the Store Demo mode, it will reset audio and picture settings every 30 minutes. Change the settings from Store Demo mode to Home Use mode in the Plug & Play (Initial setup) procedure. Press the SOURCE button to select TV mode, and go to MENU → Setup → Plug & Play (Initial setup) → ENTER

• Check the cable connections and reconnect them.

• Loss of audio or video can be caused by using overly rigid or thick cables. Make sure the cables are ﬂexible enough for long term use. If mounting the TV to the wall, we recommend using cables with 90 degree connectors.

• This is part of the product’s design and is not a defect.

• It is normal. The TV operates the OTA (Over The Aerial) function itself to upgrade ﬁrmware downloaded whilst your watching TV.

• To prevent this, use felt pads on any surface of the TV that comes in direct contact with furniture.



. (p. 7)

05 Other Information

✎

Some of above pictures and functions are available at specific models only.

Speciﬁcations

Panel native 1920 x 1080

Environmental Considerations Operating Temperature Operating Humidity Storage Temperature Storage Humidity

Stand Swivel (Left / Right) -20˚ ~ 20˚ Model Name PS50C7000 PS63C7000 Screen Size 50 inches 63 inches Sound

(Output) 10W x 2 15W x 2 Dimensions (WxDxH)

Body With stand

Weight Without Stand With Stand

✎

Design and specifications are subject to change without prior notice.

✎

For information about power supply, and more about power consumption, refer to the label attached to the product.

1211.0 X 35.9 X 749.0 mm

1211.0 X 227.0 X 808.5 mm

24.5 kg

29.2 kg

10°C to 40°C (50°F to 104°F) 10% to 80%, non-condensing

-20°C to 45°C (-4°F to 113°F) 5% to 95%, non-condensing

1498.0 X 35.9 X 911 mm

1498.0 X 342 X 964.5 mm

38 kg

44.6 kg

English

Other Information

 Licence

Without producing harmful VOC (Volatile Organic Compounds), Samsung’s Eco-friendly “Crystal Design” expresses colour gradation thanks to our dual injection technology.

TheaterSound, SRS and the symbol are trademarks of SRS Labs, Inc. TheaterSound technology is incorporated under licence form SRS Labs, Inc.

Manufactured under licence from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under licence under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the Symbol are registered trademarks. & DTS 2.0+ Digital Out and the DTS logos are trademarks of DTS, Inc. Product Includes software. © DTS, Inc. All Rights Reserved.

DivX Certiﬁed to play DivX video up to HD 1080p, including premium content.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX,Inc. This is an ofﬁcial DivX Certiﬁed device that plays DivX video. Visit www.divx. com for more information and software tools to convert your ﬁles into DivX video. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certiﬁed® device must be registered in order to play DivX Video-on-Demand (VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD. Pat. 7,295,673; 7,460,688; 7,519,274

Open Source Licence Notice

In the case of using open source software, Open Source Licences are available on the product menu. Open Source Licence Notice is written only English.

English

Index

05 Other Information

AllShare 47 Amplify 19 Anynet+ 39

AUDIO OUT 10

Auto Adjustment 19 Auto Volume 20

Background Music 38 Balance L/R 20 Basic View 37 Batteries 6 Black Tone 14 Blanking Bracket 51 Brightness 13

Cable Tie 4 Change PIN 21 Channel Menu 11 Clock 21 Colour Tone 15 Component 9 Connecting to a PC 24 Connecting to an Audio Device 10

DIGITAL AUDIO OUT 10, 39

DivX® VOD 38 D-sub 24 Dynamic 13 Dynamic Contrast 14

Eco Sensor 13 Edit Name 10 Editing Channels 12 Energy Saving 13 Equalizer 20 External Speaker 20

Favourite Channel 12 Film Mode 15 Fine Tune 13 Flesh Tone 14 Frequency 24

HDMI 8, 39 Home Theatre 10, 39

Installation Space 2 Internet@TV 43

Language 22 Licence 56 Lock 12

Media Play 32 Melody 22 Menu Transparency 22 Music 36

Navigate 11 Network Connection 25 Network Setup 26

ON/OFF button 6

Optimal resolution 24

Password 44 Photos 36 Picture Size 15, 38 PIP (Picture in Picture) 22 Plug & Play 7 Power Indicator 5

Receiver 41 Recording 41 Remote Control 6 Repeat Mode 38 RGB Only Mode 14 Rotate 38

Select All 13 Self Diagnosis 23 Sharpness 13 Sleep Timer 21 Slide Show 36 Software Upgrade 23 Source List 10 Speaker Select 20 Speciﬁcations 55 Standby mode 5 Symbol 3

Timer 21 Title 37 Tools 3 Troubleshooting 53 TV Speaker 20

USB Drive 23, 32

VCR 9 Video Formats 35 Videos 34 Volume 5

Wall Mount 51 Warm 15 White Balance 14

English

This page is intentionally

left blank.

Samsung PS63C7000YR, PS-63C700, PS50C7000YR User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
