Plasma TV
user manual
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please
register your product at
www.samsung.com/global/register
Model Serial No.
Contact SAMSUNG WORLD-WIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG
customer care centre.
Country Customer Care Centre Web Site
AUSTRALIA 1300 362 603 www.samsung.com/au
CHINA
HONG KONG 3698-4698 www.samsung.com/hk
INDIA
INDONESIA 0800-112-8888 www.samsung.com/id
JAPAN 0120-327-527 www.samsung.com/jp
MALAYSIA 1800-88-9999 www.samsung.com/my
NEW ZEALAND 0800 SAMSUNG (0800 726 786) www.samsung.com/nz
PHILIPPINES 1800-10-SAMSUNG(726-7864) www.samsung.com/ph
SINGAPORE 1800-SAMSUNG(726-7864) www.samsung.com/sg
SOUTH AFRICA 0860-SAMSUNG(726-7864 ) www.samsung.com/za
TAIWAN 0800-329-999 www.samsung.com/tw
THAILAND
TURKEY 444 77 11 www.samsung.com/tr
U.A.E
VIETNAM 1 800 588 889 www.samsung.com/vn
800-810-5858
400-810-5858
010-6475 1880
3030 8282
1800 110011
1-800-3000-8282
1800-29-3232
02-689-3232
800-SAMSUNG (726-7864)
8000-4726
www.samsung.com/cn
www.samsung.com/in
www.samsung.com/th
www.samsung.com/ae
BN68-01753A-01
English - 2
User Instructions
Screen Image retention
Do not display a still image (such as on a video game or when hooking up a PC to this PDP) on the
plasma monitor panel for more than 2 hours as it can cause screen image retention. This image
retention is also known as “screen burn”. To avoid such image retention, reduce the degree of
brightness and contrast of the screen when displaying a still image.
Height
The PDP can normally operate only under 2000m in height. It might abnormally function at a place
over 2000m in height so do not install and operate there.
Heat on the top of the PDP TV
The top side of the product may be hot after long period of use as heat dissipates from the panel
through the vent hole in the upper part of the product. This is normal and does not indicate any defect
or operation failure of the product. However, children should be prevented from touching the upper
part of the product.
The product is making a ‘cracking’ noise.
A ‘cracking’ noise may occur when the product contracts or expands due to a change of surrounding
environment such as temperature or humidity. This is normal and not a defect of the unit.
Cell Defects
The PDP uses a panel consisting of 1,230,000(SD-level) to 3,150,000(HD-level) pixels which require
sophisticated technology to produce. However, there may be few bright or dark pixels on the screen.
These pixels will have no impact on the performance of the product.
Avoid operating the TV at temperatures below 5°C(41°F)
A still image displayed too long may cause permanent damage to the PDP Panel.
Afterimage on the Screen.
Displaying still images from Video games and PC for longer than a certain period of time may
produce partial afterimages. To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when
displaying still images.
Warranty
- Warranty does not cover any damage caused by image retention.
- Burn-in is not covered by the warranty.
Installation
Be sure to contact an authorized service centre, when installing your set in a location with heavy
dust, high or low temperatures, high humidity, chemical substance and where it operates continually
such as the airport, the train station etc. Failure to do so may cause a serious damage to your set.
Watching the PDP TV in 4:3 format for a long period of time may leave traces
of borders displayed on the left, right and centre of the screen caused by the
difference of light emission on the screen. Playing a DVD or a game console
may cause similar effect to the screen. Damages caused by the above effect are
not covered by the Warranty.
Without producing harmful VOC (Volatile Organic Compounds),
Samsung’s Eco-friendly “Crystal Design” expresses color gradation
thanks to our dual injection technology.
© 2008 Samsung Electronics Co., Ltd. All rights reserved.
English - 3
Contents
General Information
User Instructions ............................................. 2
Checking Parts ................................................4
Using the Stand-Base ..................................... 4
Control Panel .................................................5
Connection Panel ............................................6
Viewing the Remote Control ..........................8
Operation
Switching Your Television On and Off ............. 9
Viewing the Menus ..........................................9
Plug & Play Feature ...................................... 10
Using the TOOLS Button .............................. 11
Viewing External Signal Sources .................. 11
Editing Device Names ................................... 11
Channel Control
Storing Channels Automatically .................... 12
Storing Channels Manually ........................... 12
Adding / Locking Channels ...........................13
Sorting the Stored Channels ......................... 14
Assigning Names to Channels ...................... 14
Fine Tuning Channel Reception .................... 15
Picture Control
Changing the Picture Standard ..................... 15
Customizing the Picture Settings .................. 16
Conguring Detailed Settings on the Picture
Picture Options ............................................. 18
Resetting the Picture Settings to the
Factory Defaults ............................................ 20
.... 16
Sound Control
Sound Features ............................................ 20
Selecting the Sound Mode
(depending on the model) ............................. 22
Connecting Headphones (Sold separately) ..22
Function Description
Time Features ............................................... 23
Language / Light Effect / Melody /
Entertainment / Energy Saving ..................... 24
Viewing the Picture in Picture (PIP) .............. 25
PC Display
Setting up Your PC Software
(Based on Windows XP) ............................... 26
Input Mode (PC) ............................................ 26
Setting the PC ............................................... 27
WISELINK Pro
Using the WISELINK Pro Function ...............28
Using the WISELINK Pro Menu .................... 29
Using and Sorting Photo List ........................ 31
Viewing a Photo or Slide Show ..................... 32
Using and Sorting the Music List .................. 34
Playing a Music ............................................. 35
Using and Sorting the Movie List ..................36

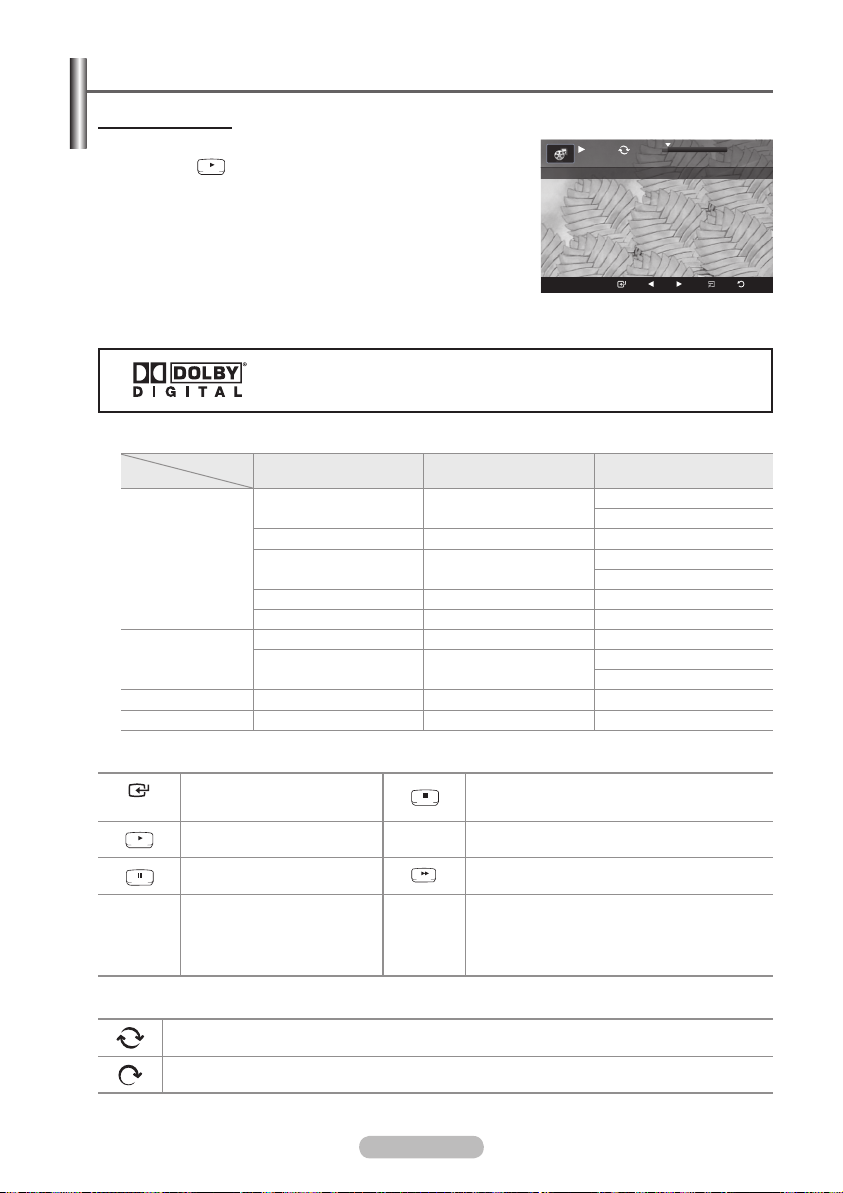

Playing a Movie ............................................ 37
Deleting the Photo/Music/Movie File ............. 38
Using the Setup Menu .................................. 39
WISELINK Pro-DLNA
Setting the DLNA Network ............................ 40
Installing the DLNA Application ..................... 41
Using the DLNA Application .......................... 42
Using the DLNA Function .............................. 46
Content Library
Using the Content Library .............................47
Using the TV Memory Contents .................... 48
Using Additional Content Using External
USB Memory Storage ................................... 49
Network Settings
Network Connection ...................................... 50
Cable Network Setup .................................... 52
Product Guide ............................................... 53
About Anynet+
What is Anynet+? ..........................................54
Connecting Anynet+ Devices ........................ 54
Setting Up Anynet+ ....................................... 55
Scanning and Switching between
Anynet+ Devices ........................................... 55
Recording ...................................................... 56
Listening through a Receiver ........................57
Check Points before Requesting Service ..... 57
Appendix
Teletext Feature (depending on the model) .. 58
Wall Mount Kit Specications (VESA) ........... 60
Preparing before installing
Wall- Mount on the wall ................................. 61
How to assemble the Stand-Base
(depending on the model) ............................. 61
Securing the TV to the Wall ..........................62
Troubleshooting ............................................63
Specications ................................................ 64
Symbols
Press
☛ ➢
Important
Note
English - 4
Checking Parts
Owner’s Instructions Remote Control/
Warranty Card/ Safety Guide
Manual (Not available in all
locations)
S-Video Cable Antenna Cable Component Cables Audio Cables Video Cable
PC Cable PC Audio Cable HDMI Cable HDMI/DVI Cable LAN Cable
AAA Batteries
Holder-Ring (4ea)
(Refer to page 61)
Sold Separately
Power Cord Cloth-Clean
Program CD
Using the Stand-Base
Two or more people should carry
➢
the PDP. Never lay the PDP on the
floor because of possible damage
to the screen. Always keep the
PDP upright.
The PDP can rotate 20 degrees in
right and left directions.
-20° ~ 20°
English - 5
Control Panel
Front Panel
The product colour and shape may vary depending on the model.
➢
1
SOURCE
Toggles between all the available input sources
(TV, AV1, AV2, S-Video, Component1,
Component2, PC, HDMI1, HDMI2, HDMI3,
HDMI4).
In the on-screen menu, use this button as
➢
you would use the ENTER button on the
remote control.
2
MENU
Press to see an on-screen menu of your TV’s
features.
3
+ VOL –
Press to increase or decrease the volume. In
the on-screen menu, use the + VOL – buttons
as you would use the ◄ and ► buttons on the
remote control.
4
CH
Press to change channels.
In the on-screen menu, use the CH
buttons as you would use the ▲ and ▼
buttons on the remote control.
5
POWER INDICATOR
Blinks and turns off when the power is on and
lights up in stand-by mode.
6
REMOTE CONTROL SENSOR
Aim the remote control towards this spot on
the TV.
7
SPEAKERS
8 (
POWER)
Touch the silver sensor below the (
turn the TV on and off.
Front Panel buttons
Touch each button to
operate.
) mark to
Silver sensor
English - 6
Connection Panel
Side Panel
1
2
or
3
4
The product colour and shape may vary depending on the model.
➢
Whenever you connect an audio or video system to your set, ensure that all elements are
☛
switched off.
When connecting an external device, match the colour of the connection terminal to the cable.
1
HDMI IN 4
Connect to the HDMI jack of a device with
HDMI output.
2
WISELINK PRO
Connect a USB mass storage device to view
photo files (JPEG) and play audio files (MP3).
3
AV IN 2(S-VIDEO or VIDEO / AUDIO R/L)
Video (S-Video or Video) and audio inputs for
external devices, such as a camcorder or VCR.
4
Headphones jack
You can connect a set of headphones if you
wish to watch a television programme without
disturbing the other people in the room.
Prolonged use of headphones at a high
➢
volume may damage your hearing.
Continued...
English - 7
Rear Panel
8
or
9
1
or
Cable Television
Network
2
5
6
The product colour and shape may vary depending on the model.
➢
☛
Whenever you connect an audio or video system to your set, ensure that all elements are switched off.
When connecting an external device, match the colour of the connection terminal to the cable.
1 ANT IN
75Ω Coaxial connector for Aerial/Cable Network.
2 SERVICE
Connector for service.
3 AUDIO OUT(AUDIO R/L)
Connect RCA audio signals from the TV to an
external source, such as Audio equipment.
4 COMPONENT IN 1, 2
Audio (AUDIO L/R) and video (Y/PB/PR) inputs
for Component.
5 PC IN(PC) / AUDIO
Connect to the video and audio output jack on
your PC.
6 AV IN 1(VIDEO / AUDIO R/L)
Connect RCA cable to an appropriate external
A/V device such as VCR, DVD or Camcorder.
7 HDMI IN 1, 2, 3
- No additional Audio connection is needed
for an HDMI to HDMI connection.
- When using an HDMI/DVI cable connection,
you must use the HDMI IN 2 jack.
What is HDMI?
➢
- “ High Definition Multimedia interface”
allows the transmission of high
definition digital video data and multiple
channels of digital audio.
4
- The HDMI/DVI terminal supports DVI
connection to an extended device with
the appropriate cable (not supplied).
The difference between HDMI and DVI
is that the HDMI device is smaller in
size, has the HDCP (High Bandwidth
Digital Copy Protection) coding feature
installed, and supports multi - channel
digital audio.
DVI IN (HDMI 2) AUDIO R/L
DVI audio outputs for external devices.
8 POWER IN
Connect the supplied power cord.
9
LAN
Connect a LAN cable to this port to connect to
the Network. (See page 40)
Supported modes for HDMI/DVI and Component
HDMI/DVI 50Hz X X X O O O O
HDMI/DVI 60Hz X O X X O O O
Component O O O O O O O
37
480i 480p 576i 576p 720p 1080i 1080p
English - 8
Viewing the Remote Control
1
POWER button
(turns the TV on and off)
2
Selects the TV mode directly
3
Number buttons for direct
channel access
4
One/Two-digit channel
selection
5
Temporary sound switch-off
6
Volume increase
Volume decrease
7
Available source selection
8
Channel control button
(Refer to page 13)
9
Use to quickly select
frequently used functions.
0
Operate the Content Library,
WISELINK Pro, Product
Guide menus.
!
Use to see information on
the current broadcast
@
Use these buttons in the
Channel list and WISELINK
Pro, etc.
$
Press to select the optional
display and sound modes for
sports, cinema and games.
%
Use these buttons in the
Channel list, WISELINK Pro
and Anynet+.
^
ON/OFF
Press to backlight the
buttons on the remote.
This function is convenient
for using at night or when
the room is dark. (Using the
remote control with the
ON/OFF( ) light button set
to On will reduce the battery
usage time.)
&
Previous channel
*
Next channel
Previous channel
(
Displays the main on-screen
menu.
)
This function enables you to
view and play photo (JPEG)
and audio files (MP3) from
an external device. (See
page 31 (JPEG), 34 (MP3),
36 (Movie))
a
Returns to the previous
menu
b
Exit the on-screen menu
c
Picture size selection
d
Picture effect selection
(Refer to page 15)
e
Use to view content library
f
Selects the HDMI mode
directly.
Teletext Functions
(Refer to page 58)
2
Exit from the teletext display
(depending on the model)
7
Teletext mode selection
(LIST/FLOF)
8
Teletext store
9
Teletext size
!
Teletext reveal
@
Fastext topic selection
#
Teletext display/mix both
teletext information and the
normal broadcast
&
Teletext sub page
* P :Teletext next page
P :Teletext previous page
(
Teletext index
a
Teletext hold
b
Teletext cancel
The performance of the remote control may be affected by bright light.
➢
Continued...
English - 9
Installing Batteries in the Remote Control
1 Lift the cover at the back of the remote control upward as shown in the
figure.
2 Install two AAA size batteries.
Make sure to match the “+” and “–” ends of the batteries with the
➢
diagram inside the compartment.
Using the remote control with the ON/OFF( ) light button set to
On will reduce the battery usage time.
3 Close the cover as shown in the figure.
Remove the batteries and store them in a cool and dry place if you
➢
won’t be using the remote control for a long time. The remote control
can be used up to about 23 feet from the TV.
If the remote control doesn’t work! Check the following:
➢
1. Is the TV power on?
2. Are the plus and minus ends of the batteries reversed?
3. Are the batteries drained?
4. Is there a power cut, or is the power cord unplugged?
5. Is there a special fluorescent light or a neon sign nearby?
Switching Your Television On and Off
The mains lead is attached to the rear of the television.
1 Plug the mains lead into an appropriate socket.
The main voltage is indicated on the rear of the television and the frequency is 50 or 60Hz.
➢
2 Press the (Power) button (On/Off) on the front of the television or press the POWER button on
the remote control to switch the television on. The channel that you were watching last is re-selected
automatically. If you have not yet stored any channels, no clear picture appears. Refer to “Storing
Channels Automatically” on page 12 or “Storing Channels Manually” on page 12~13.
If the television is initially powered on, several basic customer settings proceed automatically.
➢
Refer to “Plug & Play Feature” on page 10.
3 To switch the television off, press the (Power) button (On/Off) on the front of the television or press
the POWER button on the remote control.
Viewing the Menus
1 Press the MENU button.
The main menu is displayed on the screen.
Its left side has five icons: Picture, Sound, Channel, Setup,
and Input.
2 Press the ▲ or ▼ button to select one of the icons.
Press the ENTER button to access the icon’s sub-menu.
3 Press the ▲ or ▼ button to move to items in the menu.
Press the ENTER button to enter items in the menu.
4 Press the ▲/▼/◄/► button to change the selected items.
Press the RETURN button to return to the previous menu.
5 Press the EXIT button to exit from the menu.
T V
Mode :
Cell Light 7
Contrast 95
Brightness 45
Sharpness 20
Colour 50
Tint G 50 R 50
Detailed Settings
More
Move
Standard
Enter Exit
English - 10
Plug & Play Feature
When the television is initially powered on, several basic
customer settings proceed automatically and subsequently.
The following settings are available.
The Screen Saver is activated if there is no operating signal for
➢
longer than 15 minutes.
1 If the television is in standby mode, press the POWER button
Plug & Play
Start Plug & Play.
OK
Enter
on the remote control. The message Start Plug & Play. is
displayed. Press the ENTER button. Language menu is displayed.
2 Select the appropriate language by pressing the ▲ or ▼ button. Press the ENTER button. The
message Select ‘Home Use’ when installing this TV in your home. is displayed.
The Screen Saver is activated if there is no remote control key input for longer than 1 minute
➢
while Plug & Play is running.
3 Press the ◄ or ► button to select Store Demo or Home Use, then press the ENTER button. The
message Check antenna input is displayed.
The default selection is Home Use.
➢
We recommend setting the TV to Home Use mode for the best picture in your home
environment.
Store Demo mode is only intended for use in retail environments.
If the unit is accidentally set to Store Demo mode and you want to return to Home Use
(Standard): Press the Volume button. When the volume OSD is displayed, press and hold
the MENU button for 5 seconds.
4 Make sure that the antenna is connected to the TV.
Press the ENTER button. Area menu is displayed.
5 Select your country or area by pressing the ▲ or ▼ button, then press the ENTER button. Auto
Store menu is displayed.
6 Press the ENTER button to start search the channels.
The channel search will start and end automatically. After all the available channels are stored,
Clock Set menu is automatically displayed.
To stop the search before it has finished, press the ENTER button with Stop selected.
➢
7 Press the ◄ or ► button to select Month, Day, Year, Hour, Minute or am/pm. Set these by pressing
the ▲ or ▼ button.
You can set the Month, Day, Year, Hour, and Minute directly by pressing the numeric buttons
➢
on the remote control.
8 Press the ENTER button to confirm your setting. The message Enjoy your viewing is displayed.
When you have finished, press the ENTER button.
Even if the ENTER button is not pressed, the message will automatically disappear after several
➢
seconds.
If you want to reset this feature …
1 Press the MENU button to display the menu.
2 Press the ▲ or ▼ button to select Setup, then press the
ENTER button.
3 Press the ENTER button again to select Plug & Play.
The message Start Plug & Play. is displayed.
T V
Plug & Play
Language : English
Time
Cable Network Setup
Light Effect :
Melody : Off
Entertainment : Off
Energy Saving : Off
PIP
Move
Setup
In Watching TV
Enter
Continued...
Exit
English - 11
Using the TOOLS Button
You can use the TOOLS button to select your frequently used functions quickly and easily.
The “Tools” menu changes depending on which external input mode you are viewing.
1 Press the TOOLS button.
The Tools menu will appear.
2 Press the ▲/▼ button to select a menu, then press the ENTER button.
3 Press the ▲/▼/◄/►/ENTER buttons to display, change, or
use the selected items.
For a more detailed description of each function, refer to the
corresponding page.
• Anynet+(HDMI-CEC), see page 55
• Picture Mode, see page 15
• Sound Mode, see page 20
• Sleep Timer, see page 23
• SRS TS XT, see page 21
• Energy Saving, see page 24
• Dual I-II, see page 22
• PIP, see pages 25
• Auto Adjustment, see page 27
Anynet+ (HDMI-CEC)
Picture Mode : Standard
Sound Mode : Custom
Sleep Timer : Off
SRS TS XT : Off
Energy Saving : Off
Dual I-II : Mono
Move
Tools
Enter
Viewing External Signal Sources
Exit
You can switch between viewing signals from connected
equipment, such as a VCR, DVD, Set-Top Box, and the TV
source (broadcast or cable).
1 Press the MENU button to display the menu.
2 Press the ▲ or ▼ button to select Input, then press the
T V
Source List :
Edit Name
Anynet+ (HDMI-CEC)
WISELINK Pro (USB/DLNA)
Content Library
Product Guide
Input
TV
ENTER button.
3 Press the ENTER button again to select Source List.
Move
Move
Move
Source List
Edit Name
Enter
Enter
Cable STB
Satellite STB
PVR STB
AV Receiver
Enter
4 Press the ▲ or ▼ button to select the signal source, then
press the ENTER button.
Available signal sources:
TV, AV1, AV2, S-Video,
Component1, Component2, PC, HDMI1, HDMI2, HDMI3,
HDMI4
You can choose only those external devices that are
➢
connected to the TV.
Editing Device Names
You can give a name to the external source.
1 Press the MENU button to display the menu.
2 Press the ▲ or ▼ button to select Input, then press the
ENTER button.
3 Press the ▲ or ▼ button to select Edit Name, then press the
ENTER button.
4 Press the ▲ or ▼ button to select the external source to be
edited, then press the ENTER button.
T V
TV
AV1 :−−−−−
AV2 :−−−−−
S-Video :−−−−−
Component1 :−−−−−
Component2 :−−−−−
PC :−−−−−
More
T V
AV1 :−−−−
AV2 : −−−−
S-Video : −−−−
Component1 : −−−−
Component2 : −−−−
PC : −−−−
HDMI1 : −−−−
More
5 Select the required device by pressing ▲ or ▼, then press the ENTER button.
Available device names:
VCR, DVD, Cable STB, Satellite STB, PVR STB, AV Receiver, Game,
Camcorder, PC, TV, IPTV, Blu-Ray, HD DVD, DMA.
6 Press the EXIT button to exit.
When a PC with a resolution of 1920 x 1080@60Hz is connected to the HDMI IN 2 port, you should
➢
set the HDMI2 mode to PC in the Edit Name of the Input mode.
−−−−−
VCR
DVD
▼
Return
Return
Return
English - 12
Storing Channels Automatically
You can scan for the frequency ranges available to you
(availability depends on your country).
Automatically allocated programme numbers may not
correspond to actual or desired programme numbers.
However you can sort numbers manually and clear any
channels you do not wish to watch.
T V
Area : Asia/W.Europe
Auto Store
Manual Store
Channel Manager
Sort
Name
Fine Tune
Channel
1 Press the MENU button to display the menu.
2 Press the ▲ or ▼ button to select Channel, then press the
ENTER button.
3 Press the ENTER button to select Area.
T V
4 Select your area by pressing the ▲ or ▼ button, then press the
ENTER button.
5 Press the ▲ or ▼ button to select Auto Store, then press the
ENTER button.
6 Press the ENTER button again to start the search.
Move
Enter
Channel
Area : Asia/W.Europe
Auto Store
Manual Store
Channel Manager
Sort
Name
Fine Tune
The search will end automatically.
To stop the search before it has finished, press the
➢
RETURN or the ENTER button.
Move
Enter
Storing Channels Manually
You can store television channels, including those received
via cable networks.
When storing channels manually, you can choose:
Whether or not to store each of the channels found.
The programme number of each stored channel which you
wish to identify.
1 Press the MENU button to display the menu.
2 Press the ▲ or ▼ button to select Channel, then press the
ENTER button.
3 Press the ▲ or ▼ button to select Manual Store, then press the ENTER button.
4 Select the required option by pressing the ▲ or ▼ button, then press the ENTER button.
5 When you are satisfied with your setting, press the ENTER button.
6 Press the EXIT button to exit.
Programme (Programme number to be assigned to a channel)
− Press the ▲ or ▼ button until you find the correct number.
You can also select the channel number directly by pressing the numeric buttons (0~9) on the
➢
remote control.
Colour System: Auto/PAL/SECAM/NTSC 4.43/NTSC 3.58
− Press the ▲ or ▼ button to select the required colour standard.
Sound System: BG/DK/I/M
− Press the ▲ or ▼ button to select the required sound standard.
Channel (When you know the number of the channel to be stored)
− Press the ▲ or ▼ button to select
C (Air channel) or S (Cable channel).
− Press the ► button, then press the ▲ or ▼ button to select the required number.
You can also select the channel number directly by pressing the numeric buttons (0~9) on the
➢
remote control.
If there is abnormal sound or no sound, re-select the sound standard required.
➢
Search (When you do not know the channel numbers)
− Press the ▲ or ▼ button to start the search.
− The tuner scans the frequency range until the first channel or the channel that you selected is
received on the screen.
Store (When you store the channel and associated programme number)
− Set to OK by pressing the ENTER button.
T V
Area :
Auto Store
Manual Store
Channel Manager
Sort
Name
Fine Tune
Move
Channel
Asia/W.Europe
Enter
Continued...
Return
Return
Return
English - 13
Channel mode
☛
P (Programme mode): When completing tuning, the broadcasting stations in your area have
been assigned to position numbers from P00 to P99. You can select a channel by entering the
position number in this mode.
C (Air channel mode): You can select a channel by entering the assigned number to each air
broadcasting station in this mode.
S (Cable channel mode): You can select a channel by entering the assigned number for each
cable channel in this mode.
Adding / Locking Channels
Using the Channel Manager, you can conveniently add or lock
channels.
1 Press the MENU button to display the menu.
2 Press the ▲ or ▼ button to select Channel, then press the
ENTER button.
3 Press the ▲ or ▼ button to select Channel Manager, then
press the ENTER button.
Adding channels
Using the Channel List, you can add channels.
4 Press the ENTER button again to select Channel List.
5 Move to the ( ) field by pressing the ▲/▼/◄/► buttons,
select a channel to be added, and press the ENTER button to
add the channel.
If you press the ENTER button again, the ( ) symbol
➢
next to the channel disappears and the channel is not
added.
Locking channels
This feature allows you to prevent unauthorized users, such as
children, from watching unsuitable programmes by muting out
video and audio.
6 Press the ▲ or ▼ button to select Child Lock, then press the
ENTER button.
7 Select On by pressing the ▲ or ▼ buttons, then press the
ENTER button.
8 Press the ▲ or ▼ button to select Channel List, then press the
ENTER button.
9 Move to the ( ) field by pressing the ▲/▼/◄/► buttons, select
a channel to be locked, and press the ENTER button.
If you press the ENTER button again, the ( ) symbol next
➢
to the channel disappears and the channel lock is canceled.
A blue screen is displayed when Child Lock is activated.
➢
10 Press the EXIT button to exit.
T V
Area :
Auto Store
Manual Store
Channel Manager
Sort
Name
Fine Tune
Move
T V
Channel Manager
Channel List
Child Lock : Off
Move
Channel List
P 1 C 4
Prog.
0
C -
-
1 C 2
2 C 83
3 C 80
4 C 7
5 C 89
6 C 90
7 C 11
8 C 12
9 C 13
Add Lock
Move Enter
Page
Channel
Asia/W.Europe
Enter
Enter
Return
Return
Return
1/10
▲
▼
You can select these options simply by pressing the CH LIST
➢
button on the remote control.
English - 14
Sorting the Stored Channels
This operation allows you to change the programme numbers
of the stored channels.
T V
This operation may be necessary after using the auto store.
1 Press the MENU button to display the menu.
2 Press the ▲ or ▼ button to select Channel, then press the
ENTER button.
3 Press the ▲ or ▼ button to select Sort, then press the ENTER
button.
4 Select the channel that you wish to move by pressing the ▲ or
▼ button, then press the ENTER button.
T V
5 Select the number of the programme to which the channel is to
be moved by pressing the ▲ or ▼ button.
Press the ENTER button. The channel is moved to its new
position and all other channels are shifted accordingly.
6 Repeat steps 4 to 5 until you have moved all the channels to
the required programme numbers.
7 Press the EXIT button to exit.
Assigning Names to Channels
Channel names will be assigned automatically when channel
information is broadcast. These names can be changed,
allowing you to assign new names.
1 Press the MENU button to display the menu.
2 Press the ▲ or ▼ button to select Channel, then press the
ENTER button.
3 Press the ▲ or ▼ button to select Name, then press the
ENTER button.
4 Press the ▲ or ▼ button to select the channel to be assigned
to a new name, then press the ENTER button.
5 Press the ▲ or ▼ button to select a letter, a number, or a
symbol (Results in this sequence: A~Z, 0~9, +, -, *, /, blank).
Move on to the previous or next letter by pressing the ◄ or ►
button, then press the ENTER button.
6 Repeat steps 4 to 5 for each channel to be assigned to a new
name.
7 Press the EXIT button to exit.
T V
T V
Channel
Area :
Auto Store
Manual Store
Channel Manager
Sort
Name
Fine Tune
Prog. Ch. Name
0 C−−
1 C2
2 C83
3 C80
4 C7
Area :
Auto Store
Manual Store
Channel Manager
Sort
Name
Fine Tune
Prog. Ch. Name
0 C−− −−−−−
1 C2 −−−−−
2 C83 −−−−−
3 C80 −−−−−
4 C7 −−−−−
Asia/W.Europe
Move
Enter
Sort
Move
Enter
Channel
Asia/W.Europe
Move
Enter
Name
A
Move Adjust
Return
Return
Return
Return
English - 15
Fine Tuning Channel Reception
If the reception is clear, you do not have to fine tune the channel, as this is done automatically
during the search and store operation.
If the signal is weak or distorted, you may have to fine tune the channel manually.
1 Press the MENU button to display the menu.
2 Press the ▲ or ▼ button to select Channel, then press the
ENTER button.
3 Press the ▲ or ▼ button to select Fine Tune, then press the
ENTER button.
4 To obtain a sharp, and clear picture and good sound quality,
press the ◄ or ► button until you reach the optimal setting.
Press the ENTER button.
Press the INFO button. Fine Tune Store will change the
➢
colour of the Channel OSD (On Screen Display) from
white to red and add the “ * ” mark.
To reset the fine tuning to 0, select Reset by pressing the
➢
▲ or ▼ button. Press the ENTER button.
5 Press the EXIT button to exit.
T V
Area :
Auto Store
Manual Store
Channel Manager
Sort
Name
Fine Tune
P 1 *
0
Adjust
Move
Fine Tune
Channel
Reset
Save
Asia/W.Europe
Enter
Return
Return
Changing the Picture Standard
You can select the type of picture which best corresponds to
your viewing requirements.
1 Press the MENU button to display the menu.
2 Press the ENTER button to select Picture.
3 Press the ENTER button again to select Mode.
4 Select the required mode by pressing the ▲ or ▼ button, then
press the ENTER button.
Available modes:
Dynamic, Standard, Movie
5 Press the EXIT button to exit.
Choose Dynamic for viewing the TV during the day or
➢
when there is bright light in the room.
Choose Standard for general TV watching mode.
Choose Movie when viewing the movie.
You can select these options simply by pressing the P.MODE
➢
button on the remote control.
Easy Setting
1 Press the TOOLS button on the remote control.
2 Press the ▲ or ▼ button to select Picture Mode.
3 Press the ◄ or ► button to select the required option.
4 Press the EXIT or TOOLS button to exit.
Anynet+ (HDMI-CEC)
PictureMode ◄ Standard ►
Sound Mode : Custom
Sleep Timer : Off
SRS TS XT : Off
Energy Saving : Off
Dual I-II
T V
Mode :
Cell Light 7
Contrast 95
Brightness 45
Sharpness 20
Colour 50
Tint G 50 R 50
Detailed Settings
More
T V
Mode :
Cell Light 7
Contrast 95
Brightness 45
Sharpness 20
Colour 50
Tint G 50 R 50
Detailed Settings
More
: Mono
Move Adjust
Move
Move
Tools
Standard
Enter
Standard
Dynamic
Standard
Movie
Enter
Return
Return
Exit
English - 16
Customizing the Picture Settings
Your television has several setting options that allow you to
control the picture quality.
1 Press the MENU button to display the menu.
2 Press the ENTER button to select Picture.
3 Press the ENTER button again to select Mode.
4 Select the required mode by pressing the ▲ or ▼ button, then
press the ENTER button.
Available modes:
Dynamic, Standard, Movie
5 Select the required option by pressing the ▲ or ▼ button, then
press the ENTER button.
6 When you are satisfied with your setting, press the ENTER
button.
T V
Mode :
Cell Light 7
Contrast 95
Brightness 45
Sharpness 20
Colour 50
Tint G 50 R 50
Detailed Settings
More
Move
Cell Light 7
Move Adjust
7 Press the EXIT button to exit.
Cell Light – Contrast – Brightness – Sharpness – Colour – Tint
In TV, AV, S-Video modes of the PAL system, you cannot use the Tint function.
➢
In PC mode, you can only make changes to Cell Light, Contrast, and Brightness.
➢
Press the ◄ or ► button until you reach the optimal setting.
Configuring Detailed Settings on the Picture
You can set detailed picture settings.
1 Press the MENU button to display the menu.
2 Press the ENTER button to select Picture.
3 Press the ▲ or ▼ button to select Detailed Settings, then
press the ENTER button.
4 Select the required option by pressing the ▲ or ▼ button, then
press the ENTER button.
Available options:
Black Adjust, Dynamic Contrast, Gamma,
Colour Space, White Balance, Flesh Tone, Edge Enhancement,
xvYCC.
5 When you are satisfied with your setting, press the ENTER button.
6 Press the EXIT button to exit.
Detailed Settings is available in Standard or Movie mode.
➢
In PC mode, you can only make changes to Dynamic
➢
Contrast, Gamma and White Balance from among the
Detailed Settings items
Black Adjust: Off/Low/Medium/High
You can directly select the black level on the screen to adjust
the screen depth.
Dynamic Contrast: Off/Low/Medium/High
You can adjust the screen contrast so that the optimal contrast is provided.
Gamma: -3 ~ +3
You can adjust the middle brightness of pictures.
Press the ◄ or ► button until you reach the optimal setting.
T V
Mode :
Cell Light 7
Contrast 95
Brightness 45
Sharpness 20
Colour 50
Tint G 50 R 50
Detailed Settings
More
Move
T V
Black Adjust :
Dynamic Contrast : Medium
Gamma : 0
Colour Space : Native
White Balance
Flesh Tone : 0
Edge Enhancement
xvYCC
Move
Standard
Enter
Return
Standard
Enter
Detailed Settings
Off
: On
: Off
Enter
Return
Return
Return
English - 17
Colour Space : Auto/Native/Custom
Colour space is a colour matrix composed of red, green and blue colours.
Select your favorite colour space to experience the most natural colour.
− Auto: Auto Colour Space automatically adjusts to the most natural colour tone based on program sources.
− Native: Native Colour Space offers deep and rich colour tone.
− Custom: Adjusts the colour range to suit your preference. (see “Customizing the Colour Space”)
Customizing the Colour Space
Colour: Red/Green/Blue/Yellow/Cyan/Magenta
Adjusts the Colour range to suit your preference.
Colour is available when Colour Space is set to Custom.
Press the ▲ or ▼ button to select Red, Green, Blue, Yellow, Cyan or Magenta.
Press the ENTER button.
− Red/Green/Blue: In Colour, you can adjust the RGB values for the selected colour.
Press the ▲ or ▼ button to select Red, Green or Blue to change it. Press the ENTER button.
Press the ◄ or ► button to decrease or increase the value of a particular item.
Press the ENTER button.
− Reset: Resets the colour space to the default values.
White Balance: R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain/Reset
You can adjust the colour temperature for more natural picture colours.
R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain:
Changing the adjustment value will refresh the adjusted screen.
Select the required option by pressing the ▲ or ▼ button, then press the ENTER button.
Press the ◄ or ► button until you reach the optimal setting.
Reset: The previously adjusted white balance will be reset to the factory defaults.
Flesh Tone:-15~+15
You can emphasize the pink tone in the picture.
Press the ◄ or ► button until you reach the optimal setting.
Changing the adjustment value will refresh the adjusted screen.
➢
Edge Enhancement: Off/On
You can emphasize object boundaries.
xvYCC: Off/On
Setting the
external device (ie. DVD player) connected to the HDMI or Component IN jacks. You must set the
Picture Mode to Movie to enjoy this feature.
➢xvYCC is available when the picture mode is set to Movie, and the external input is set to
➢The xvYCC is available when the picture mode is set to Movie mode.
xvYCC mode to On increases detail and colour space when watching movies from an
Component or HDMI mode.
English - 18
Picture Options
You can set detailed picture settings.
1 Press the MENU button to display the menu.
2 Press the ENTER button to select Picture.
T V
More
Picture Options
Reset : OK
3 Press the ▲ or ▼ button to select Picture Options, then press
the ENTER button.
4 Select the required option by pressing the ▲ or ▼ button, then
press the ENTER button.
5 When you are satisfied with your setting, press the ENTER
button.
6 Press the EXIT button to exit.
In PC mode, you can only make changes to the Color Tone,
➢
Size and Screen Burn Protection from among the items in
Picture Options.
Colour Tone: Cool2/Cool1/Normal/Warm1/Warm2
When the picture mode is set to Dynamic or Standard,
➢
Warm1 and Warm2 cannot be selected.
Size: 16:9/Wide Zoom/Zoom/4:3/Just Scan
T V
Move
Picture Options
Move
Enter
Normal
Enter
Colour Tone :
Size : 16:9
Digital NR : Auto
DNle : Off
HDMI Black Level : Normal
Movie Plus : Low
Blue Only Mode : Off
Screen Burn Protection
You can select the picture size which best corresponds to your
viewing requirements.
: Sets the picture to 16:9 wide mode.
− 16:9
−
Wide Zoom: Magnify the size of the picture more than 4:3.
Move the screen up/down using the ▲ or ▼ button after
selecting the by pressing the ► or ENTER button.
Zoom: Magnify the size of the picture vertically on screen.
−
: Sets the picture to 4:3 normal mode.
− 4:3
Just Scan: Use this function to see the full image without any cutoff when HDMI(720p/1080i/
−
1080p),Component(1080i/1080p) signals are input.
After selecting Just Scan in HDMI (1080i/1080p) or Component (1080i/1080p) mode:
Press the ◄ or ► button to select , then press the ENTER button.
Press the ▲, ▼, ◄ or ► button to move the picture.
Reset: Press the ◄ or ► button to select Reset, then press the ENTER button.
You can initialize the setting.
With the HDMI Just Scan picture size, depending on the AV devices, the screen may be cut off
➢
or a specific colour appears on the screen.
For an HDMI (1080p) connection of 24, 25, 30, 50, and 60 Hz, and for a Component (1080p)
➢
connection of 50 and 60Hz, only the input source is supported.
You can change the picture size simply by pressing the P.SIZE button on the remote control.
➢
Depending on the input source, the picture size options may vary.
➢
The items available may differ depending on the selected mode.
➢
When Double ( , ) mode has been set in PIP, the Picture Size cannot be set.
➢
In PC Mode, only 16:9 and 4:3 mode can be adjusted.
➢
Positioning and Sizing the screen using Zoom
− Resizing the screen using the
Zoom enables the positioning and sizing of the screen to up/down
direction using the ▲ or ▼ button as well as the screen size.
− Move the screen up/down using the ▲ or ▼ button after selecting the
by pressing the ◄ or ►
button.
− Resize the screen vertically using the ▲ or ▼ button after selecting the
by pressing the ◄ or ►
button.
Digital NR: Off/Low/Medium/High/Auto
If the signal received by the television is weak, you can activate this feature to reduce any static and
ghosting that may appear on the screen.
When the signal is weak, select one of the other options until the best picture is displayed.
➢
Return
Return
Continued...
English - 19
DNIe: Off/Demo/On
This TV includes the DNIe function so as to provide a high visual quality. If you set DNIe to on, you
can view the screen with the DNIe feature activated. If you set the DNIe to Demo, you can view the
applied DNIe and normal pictures on the screen, for demonstration purposes. Using this function, you
can view the difference in the visual quality.
DNIeTM (Digital Natural Image engine)
➢
This feature brings you more detailed image with 3D noise reduction, detail enhancement,
contrast enhancement and white enhancement. New image compensation Algorithm gives
brighter, clearer, more detailed image to you. DNIeTM technology will fit every signal into your
eyes.
DNIe is only available in Dynamic mode.
➢
HDMI Black Level: Normal/Low
Using this function, you can adjust the image quality when the screen burn (appearance of black
level, low contrast, low colour, etc.) is encountered by the HDMI input for RGB limited range (16 to
235).
This function is active only when the external input connects to HDMI(RGB signals).
➢
Movie Plus: Off/Low/Medium/High/Demo
You can view more natural skin and clear text even in fast moving scenes.
Use this function when watching movies.
➢
This function is not available in Wide Zoom and Zoom modes.
➢
This function is not available when PIP is set to On.
➢
It is not supported in HDMI 1080p/24Hz, 25Hz, 30Hz mode.
➢
It is not supported in Game mode of Entertainment.
➢
Blue Only Mode: Off/On
This function is for AV device measurement experts. This function displays the blue signal only by
removing the red and green signals from the video signal so as to provide a Blue Filter effect that is
used to adjust the Colour and Tint of video equipment such as DVD players, Home Theaters, etc.
Using this function, you can adjust the Colour and Tint to preferred values appropriate to the signal
level of each video device using the Red/Green/Blue/Cyan/Magenta/Yellow Colour Bar Patterns,
without using an additional Blue Filter.
Blue Only Mode is available when the picture mode is set to Movie or Standard.
➢
Screen Burn Protection
To reduce the possibility of screen burn, this unit is equipped
with screen burn prevention technology. This technology
enables you to set picture movement up/down (Vertical Line)
and side to side (Horizontal Dot). The Time setting allows
you to program the time between movement of the picture in
minutes.
−
Pixel Shift: Using this function, you can minutely move
pixels on the PDP in horizontal or vertical direction to
minimize after image on the screen.
− Set
Pixel Shift to On by pressing the ▲ or ▼ button, then press the ENTER button.
− Select the required option by pressing the ▲ or ▼ button, then press the
Available options:
Optimum condition for pixel shift;
➢
Horizontal Dot 4 4
Vertical Line 4 4
Time (minute) 4 4 min
The Pixel Shift value may differ depending on the monitor size (inches) and mode.
➢
This function is not available in the Just Scan mode.
➢
Horizontal Dot, Vertical Line, Time
PC TV/AV/Component/HDMI
T V
Screen Burn Protection
Pixel Shift
White
Scrolling
Side Gray : Dark
Move
ENTER button.
Enter
Return
Continued...
English - 20
− White: This function helps remove after images on the screen by changing the colour of pixels
to white. Use this function when there are remaining after images or symbols on the screen
especially when you displayed a still image on the screen for a long time.
−
Scrolling: This function helps remove after images on the screen by moving all the pixels on the
PDP according to a pattern. Use this function when there are remaining after images or symbols
on the screen especially when you displayed a still image on the screen for a long time.
−
Side Gray: When you watch TV with the screen ratio of 4:3, the screen is prevented from any
damage by adjusting the white balance on both extreme left and right sides.
Dark: When you set the screen ratio to 4:3, it darkens the left and right sides.
Light: When you set the screen ratio to 4:3, it brightens the left and right sides.
To remove after images on the screen, use either White or Scrolling function. Although both of
➢
the two functions remove after images on the screen, Scrolling is more effective.
The after image removal function has to be executed for a long time (approximately 1 hour) to
➢
effectively remove after images on the screen. If after image is not improved after the execution
of the function, repeat the function again.
Press any button on the remote control to cancel this feature.
➢
Resetting the Picture Settings to the Factory Defaults
You can set detailed picture settings.
1 Press the MENU button to display the menu.
2 Press the ENTER button to select Picture.
T V
More
Picture Options
Reset : OK
3 Press the ▲ or ▼ button to select Reset, then press the
ENTER button.
4 Press the ▲ or ▼ button to select OK or Cancel then press
the ENTER button.
Move
Each mode can be reset.
➢
Sound Features
1 Press the MENU button to display the menu.
2 Press the ▲ or ▼ button to select Sound, then press the
ENTER button.
3 Select the required option by pressing the ▲ or ▼ button, then
press the ENTER button.
Available options:
Mode, Equalizer, SRS TS XT, Auto Volume,
TV Speaker, Sound Select
4 When you are satisfied with your setting, press the ENTER
button.
5 Press the EXIT button to exit.
Mode: Standard/Music/Movie/Speech/Custom
You can select the type of special sound effect to be used when watching a given broadcast.
Choose Standard for the TV standard factory settings.
➢
Choose Music when watching the music videos or concerts.
Choose Movie when watching movies.
Choose Speech when watching a show that is mostly dialog(i.e., news).
Choose Custom to recall your personalized settings.
Easy Setting
1 Press the TOOLS button on the remote control.
2 Press the ▲ or ▼ button to select Sound Mode.
3 Press the ◄ or ► button to select the required option.
4 Press the EXIT or TOOLS button to exit.
T V
Mode :
Equalizer
SRS TS XT : Off
Auto Volume : Off
TV Speaker : On
Sound Select : Main
Move
Anynet+ (HDMI-CEC)
Picture Mode : Standard
SoundMode ◄ Custom ►
Sleep Timer : Off
SRS TS XT : Off
Energy Saving : Off
Dual I-II : Mono
Move Adjust
Tools
Cancel
Enter
Sound
Custom
Enter
Continued...
OK
Return
Return
Exit
English - 21
Equalizer: Balance/100Hz/300Hz/1KHz/3KHz/10KHz
T V
Equalizer
The television has several settings which allow you to control
the sound quality.
R/L Sound Balance Adjustment:
➢
To adjust the sound balance of the R/L speakers.
Bandwidth Adjustment(100Hz, 300Hz, 1KHz,
3KHz, 10KHz)
: To adjust the level of different
bandwidth frequencies.
If you make any changes to these settings, the sound
➢
standard is automatically switched to Custom.
R
+
0
-
L
Balance 100Hz 300Hz 1KHz 3KHz 10KHz
Move Adjust
SRS TS XT: Off/On
TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel
content over two speakers. TruSurround delivers a compelling, virtual surround sound experience
through any two-speaker playback system, including internal television speakers. It is fully compatible
with all multichannel formats.
If the sound is abnormal while TV is playing music, please adjust the equalizer and SRS TS
➢
XT(Off/On).
TruSurround XT, SRS and Symbol are trademarks of SRS Labs, Inc.
TruSurround XT technology is incorporated under license from SRS Labs, Inc.
+
0
-
Return
Easy Setting
1 Press the TOOLS button on the remote control.
2 Press the ▲ or ▼ button to select SRS TS XT.
3 Press the ◄ or ► button to select Off or On.
4 Press the EXIT or TOOLS button to exit.
Anynet+ (HDMI-CEC)
Picture Mode : Standard
Sound Mode : Custom
Sleep Timer : Off
SRSTSXT ◄ Off ►
Energy Saving : Off
Dual I-II : Mono
Move Adjust
Tools
Auto Volume: Off/On
Each broadcasting station has its own signal conditions, and so it is not easy to adjust the volume
every time the channel is changed. This feature lets you automatically adjust the volume of the
desired channel by lowering the sound output when the modulation signal is high or by raising the
sound output when the modulation signal is low.
TV Speaker: Off/On
If you want to hear the sound through separate speakers, cancel the internal amplifier.
The – + and MUTE buttons do not operate when the TV Speaker is set to Off.
➢
When TV Speaker is set to Off, you can operate only Sound Select (in PIP mode) in Sound
➢
menu.
Sound Select: Main/Sub
When the PIP feature is activated, you can listen to the sound of the sub (PIP) picture.
−
Main: Used to listen to the sound of the main picture.
−
Sub: Used to listen to the sound of the sub picture.
Exit
English - 22
Selecting the Sound Mode (depending on the model)
The DUAL I-II button displays/controls the processing and output of the audio signal. When power
is switched on, the mode is automatically preset to either “DUAL-I” or “Stereo”, depending on the
current transmission.
Easy Setting
1 Press the TOOLS button on the remote control.
2 Press the ▲ or ▼ button to select Dual I-II.
3 Press the ◄ or ► button to select the required option.
4 Press the EXIT or TOOLS button to exit.
Type of broadcast On-screen indication
Regular broadcast
(Standard audio)
Regular + NICAM Mono NICAM
NICAM
Stereo
NICAM Stereo
Mono (Normal use)
NICAM
Stereo
Mono
(Normal)
Mono
(Normal)
Anynet+ (HDMI-CEC)
Picture Mode : Standard
Sound Mode : Custom
Sleep Timer : Off
SRS TS XT : Off
Energy Saving : Off
DualI-II ◄ Mono ►
Move Adjust Exit
Tools
NICAM DUAL-I/II
Regular broadcast
A2
Stereo
➢
(Standard audio)
Bilingual or DUAL-I/II DUAL I DUAL II
Stereo Stereo
If the receiving conditions deteriorate, listening will be easier if the mode is set to Mono.
NICAM
DUAL-1
NICAM
DUAL-2
Mono (Normal use)
(Forced mono)
Mono
(Normal)
Mono
If the stereo signal is weak and automatic switching occurs, switch to Mono.
This function is only available in TV mode.
Connecting Headphones (Sold separately)
You can connect a set of headphones to your set if you wish to watch a TV program without
disturbing other people in the room.
When you insert the head set jack into the corresponding
➢
port, you can operate only Auto Volume and Sound
Select(in PIP mode) in Sound menu.
Prolonged use of headphones at a high volume may
➢
damage your hearing.
You will not hear sound from the speakers when you
➢
connect headphones to the TV.
The headphone volume and TV volume are adjusted
➢
separately.
TV Side Panel
English - 23
Time Features
1 Press the MENU button to display the menu.
T V
2 Press the ▲ or ▼ button to select Setup, then press the
ENTER button.
3 Press the ▲ or ▼ button to select Time, then press the
ENTER button.
4 Select the required option by pressing the ▲ or ▼ button, then
press the ENTER button.
Available options:
Clock Set, Sleep Timer, Timer1, Timer2,
Timer3
5 When you are satisfied with your setting, press the ENTER
T V
button.
6 Press the EXIT button to exit.
Clock Set
You can set the television clock so that the current time is
Plug & Play
Language : English
Time
Cable Network Setup
Light Effect :
Melody : Off
Entertainment : Off
Energy Saving : Off
PIP
Clock Set :
Sleep Timer : Off
Timer1 : Inactivated
Timer2 : Inactivated
Timer3 : Inactivated
Move
Setup
Time
In Watching TV
Enter
−−:−− am
displayed when pressing the INFO button on the remote
control. You must also set the time if you wish to use the
automatic on or off timers.
− Press the ◄ or ► button to select
Month, Day, Year, Hour,
Move
Enter
Minute, or am/pm.
Set these by pressing the ▲ or ▼ button.
You can set the Month, Day, Year, Hour, and Minute directly by pressing the numeric buttons
➢
on the remote control.
In the event of a power interruption or the set being turned off at the supply, the settings for the
➢
Clock will be lost.
Sleep Timer
You can select a time period of between 30 and 180 minutes after which the television automatically
switches to standby mode.
− Select the preset time interval (
Off, 30, 60, 90, 120, 150, 180) for staying on by pressing
the ▲ or ▼ button.
Easy Setting
1 Press the TOOLS button on the remote control.
2 Press the ▲ or ▼ button to select Sleep Timer.
3 Press the ◄ or ► button to select the minute, then press the
ENTER button.
4 Press the EXIT or TOOLS button to exit.
Anynet+ (HDMI-CEC)
Picture Mode : Standard
Sound Mode : Custom
SleepTimer ◄ Off ►
SRS TS XT : Off
Energy Saving : Off
Dual I-II : Mono
Move Adjust
Tools
Timer1 / Timer2 / Timer3
You can set the On/Off timers so that the television will switch on or off automatically at the time you
select.
You must set the clock first.
☛
− Press the ◄ or ► button to select the required item below.
Press the ▲ or ▼ button to adjust to the setting satisfied.
On Time : Select hour, minute, am/pm, and Inactivate/ Activate.
(To activate timer with the setting satisfied, set to Activate.)
Off Time : Select hour, minute, am/pm, and Inactivate/ Activate.
(To activate timer with the setting satisfied, set to Activate.)
Volume : Select the required volume level.
Programme : When the On Time is active, you can turn on a specific channel.
Repeat : Select Once, Everyday, Mon ~ Fri, Mon ~ Sat, or Sat ~ Sun.
You can set the hour, and minute directly by pressing the number buttons on the remote control.
➢
Auto Power Off
☛
When you set the timer “On”, the TV will eventually turn off, if no controls are operated for 3 hours
after the TV was turned on by timer. This function is only available in timer “On” mode and prevents
overheating, which may occur if a TV is on for too long time.
Return
Return
Exit
English - 24
Language / Light Effect / Melody / Entertainment / Energy Saving
1 Press the MENU button to display the menu.
2 Press the ▲ or ▼ button to select Setup, then press the
ENTER button.
3 Select the required option by pressing the ▲ or ▼ button, then
press the ENTER button.
4 When you are satisfied with your setting, press the ENTER
button.
5 Press the EXIT button to exit.
T V
Plug & Play
Language : English
Time
Cable Network Setup
Light Effect :
Melody : Off
Entertainment : Off
Energy Saving : Off
PIP
Move
Setup
In Watching TV
Enter
Language
It is variable depending on the model. When you start using the television for the first time, you must
select the language which will be used for displaying menus and indications.
Light Effect: Off / In Standby / In Watching TV / Always
You can turn on/off the blue LED on the front of TV according to the situation. Use it for saving power
or when the LED dazzles your eyes.
−
Off: The blue LED is always off.
−
In Standby: The blue LED lights while in Standby mode and it turns off when your TV is turned on.
−
In Watching TV: The blue LED lights when watching TV and it turns off when your TV is turned off.
−
Always: The blue LED always lights.
Set the Light Effect to Off to reduce the power consumption.
➢
Melody: Off/Low/Medium/High
The TV power on/off melody sound can be adjusted.
The Melody does not play
➢
− When no sound is output from the TV because the
− When no sound is output from the TV because the
− When the TV is turned off by
Sleep Timer function.
MUTE button has been pressed.
– + (Volume) button has been pressed.
Entertainment: Off/Sports/Cinema/Game
Entertainment mode enables you to select the optimal display and sound for sports, cinema and
games.
−
Off: Switches the Entertainment function off.
−
Sports: Provides the optimal picture and sound quality for sports.
−
Cinema: Provides the optimal picture and sound quality for movie watching.
You can experience a richer picture and enhanced sound.
−
Game: Provides the optimal picture and sound quality for games. This mode accelerates the
playing speed when using an external game console connected to the TV.
If you set any of the three Entertainment modes to On, the settings will be locked and can not
➢
be adjusted. If you want to make Picture and Sound mode adjustments, the Entertainment mode
must be turned off.
The Entertainment settings are saved for each input source.
➢
The Entertainment mode is not available at PC source.
➢
Energy Saving: Off/Low/Medium/High
This feature adjusts the screen brightness depending on the surrounding lighting conditions.
- Off: Switches off the Energy Saving mode.
- Low: Operates in standard mode regardless of the surrounding illumination.
- Medium: Enters medium power saving mode regardless of the surrounding illumination.
- High: Enters maximum power saving mode regardless of the surrounding illumination.
Tools
Easy Setting
1 Press the TOOLS button on the remote control.
2 Press the ▲ or ▼ button to select Energy Saving.
3 Press the ◄ or ► button to select the required option.
4 Press the EXIT or TOOLS button to exit.
Anynet+ (HDMI-CEC)
Picture Mode : Standard
Sound Mode : Custom
Sleep Timer : Off
SRS TS XT : Off
EnergySaving ◄ Off ►
Dual I-II : Mono
Move Adjust
Return
Exit
English - 25
Viewing the Picture in Picture (PIP)
You can display a sub picture within the main picture. In this
way you can watch TV program or monitor the video input
T V
from any connected devices.
1 Press the MENU button to display the menu.
2 Press the ▲ or ▼ button to select Setup, then press the
ENTER button.
3 Press the ▲ or ▼ button to select PIP, then press the ENTER
button.
4 Select the required option by pressing the ▲ or ▼ button, then
press the ENTER button.
Available options:
PIP, Source, Size, Position, Programme
T V
5 When you are satisfied with your setting, press the ENTER
button.
6 Press the EXIT button to exit.
PIP: Off/On
You can activate or deactivate the PIP function.
Main Picture Sub Picture
Component1, 2
HDMI1, 2, 3, 4
PC
TV
AV1, AV2
Source: TV/AV1/AV2
You can select a source of the sub-picture.
Size: / /
You can select a size of the sub-picture.
If main picture is in PC and Component mode, Size is not available.
➢
Position: / / /
You can select a position of the sub-picture.
In Double( , ) mode, Position cannot be selected.
➢
Programme
You can select a channel of the sub-picture only when the Source is set to TV.
Move
Move
Setup
In Watching TV
Enter
PIP
Enter
Return
Return
Plug & Play
Language : English
Time
Cable Network Setup
Light Effect :
Melody : Off
Entertainment : Off
Energy Saving : Off
PIP
PIP : On
Source : TV
Size :
Position :
Programme : P 1
Easy Setting
1 Press the TOOLS button on the remote control.
2 Press the ▲ or ▼ button to select PIP, then press the
ENTER button.
3 Press the ◄ or ► button to select On.
4 Select the required option by pressing the ▲ or ▼ button.
5 Press the EXIT or TOOLS button to exit.
Anynet+ (HDMI-CEC)
Picture Mode : Standard
Sound Mode : Custom
Sleep Timer : Off
SRS TS XT : Off
Energy Saving : Off
PIP
Auto Adjustment
Move
PIP ◄ Off ►
Source : TV
Programme : P1
Size :
Position :
Move Adjust
Tools
Enter
PIP
Exit
Return
English - 26
Setting up Your PC Software (Based on Windows XP)
The Windows display-settings for a typical computer are shown below. But the actual screens on your
PC will probably be different, depending upon your particular version of Windows and your particular
video card. But even if your actual screens look different, the same, basic set-up information will apply
in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)
1 Right click the mouse on the Windows Desktop, then click on
Properties. The Display Properties will be displayed.
2 Click on Settings tab, then set the Display Mode with reference
to the Display Modes Table. You do not need to change the
Colours settings.
3 Click on Advanced. A new settings dialog box will be displayed.
4 Click on the Monitor tab, then set the Screen refresh rate with
reference to the Display Modes Table. Set the Vertical Frequency
and Horizontal Frequency individually if you can do so instead of
setting the Screen refresh rate.
5 Click on OK to close the window, then Click on OK button to
the Display Properties window. Automatic re-booting may
commence at this moment.
Input Mode (PC)
Both screen position and size will vary depending on the type of PC monitor and its resolution.
The table below shows all of the display modes that are supported:
D-Sub Input
Mode Resolution
IBM
VESA
CVT 1920 x 1080RB 66.587 59.934 138.500
640 x 350
720 x 400
640 x 480
640 x 480
640 x 480
800 x 600
800 x 600
800 x 600
1024 x 768
1024 x 768
1024 x 768
1280 x 1024
1280 x 1024
1360 x 768
1600 x 1200
Horizontal
Frequency (kHz)
31.469
31.469
31.469
37.861
37.500
37.879
48.077
46.875
48.363
56.476
60.023
63.981
79.976
47.712
75.000
HDMI/DVI Input
Mode Resolution
640 x 480
800 x 600
VESA
CEA 1920 x 1080p 67.500 60.000 148.500 + / +
1024 x 768
1280 x 1024
1360 x 768
1600 x 1200
Horizontal
Frequency (kHz)
31.469
37.879
48.363
63.981
47.712
75.000
When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.
The interlace mode is not supported.
The set might operate abnormally if a non-standard video format is selected.
Separate and Composite modes are supported. SOG is not supported.
Vertical
Frequency (Hz)
70.086
70.087
59.940
72.809
75.000
60.317
72.188
75.000
60.004
70.069
75.029
60.020
75.025
60.015
60.000
Vertical
Frequency (Hz)
59.940
60.317
60.004
60.020
60.015
60.000
Pixel Clock
Frequency (MHz)
25.175
28.322
25.175
31.500
31.500
40.000
50.000
49.500
65.000
75.000
78.750
108.000
135.000
85.500
162.000
Pixel Clock
Frequency (MHz)
25.175
40.000
65.000
108.000
85.500
162.000
Sync Polarity
(H/V)
+ / -
- / +
- / -
- / -
- / + / +
+ / +
+ / +
- / -
- / + / +
+ / +
+ / +
+ / +
+ / +
+ / -
Sync Polarity
(H/V)
- / + / +
- / + / +
+ / +
+ / +
English - 27
Setting the PC
Preset to the PC mode by pressing the SOURCE button.
➢
1 Press the MENU button to display the menu.
2 Press the ENTER button to select Picture.
3 Select the required option by pressing the ▲ or ▼ button, then
press the ENTER button.
Available options:
Auto Adjustment, Screen Adjustment
4 When you are satisfied with your setting, press the ENTER
button.
5 Press the EXIT button to exit.
Auto Adjustment
Auto adjustment allows the PC screen of set to self-adjust to
the incoming PC video signal.
The values of fine, coarse and position are adjusted
automatically.
T V
Please wait.
Standard
Enter
Return
Mode :
Cell Light 7
Contrast 95
Brightness 45
Sharpness 20
Auto Adjustment
Screen Adjustment
Detailed Settings
More
Move
Auto Adjustment in Progress
Easy Setting
1 Press the TOOLS button on the remote control.
2 Press the ▲ or ▼ button to select Auto Adjustment, then
press the ENTER button.
Screen Adjustment: Coarse/Fine/Position/Image Reset
Coarse/Fine
The purpose of picture quality adjustment is to remove or
reduce picture noise.
If the noise is not removed by Fine-tuning alone, then adjust
the frequency as best as possible (coarse) and Fine-tune
again.
After the noise has been reduced, re-adjust the picture so that
it is aligned on the center of screen.
1 Press the ▲ or ▼ button to select Coarse or Fine, then
press the ENTER button.
2 Press the ◄ or ► button to adjust the screen quality,
vertical stripes may appear or the picture may be blurry.
Press the ENTER button.
Position
Adjust the PC’s screen positioning if it does not fit the TV
screen.
1 Adjust the position by pressing the ▲/▼/◄/► button.
2 Press the ENTER button.
Image Reset
You can replace all image settings with the factory default
values.
Anynet+ (HDMI-CEC)
Picture Mode : Standard
Sound Mode : Custom
Sleep Timer : Off
SRS TS XT : Off
Energy Saving : Off
PIP
Auto Adjustment
Move
T V
T V
Tools
Enter
Screen Adjustment
Coarse 50
Fine 75
Position
Image Reset
Move
Move
Enter
Position
Enter
Image Reset is completed.
Exit
Return
Return
English - 28
Using the WISELINK Pro Function
1 Press the POWER button to turn the TV on.
TV Side Panel
2 Connect a USB device containing photo, music
and/or movie les to the WISELINK Pro jack (USB
jack) on the side of the TV.
If y ou en te r the W ISELI NK Pr o mod e wit h no
➣
USB device connected the message No external
storage device found. Check the connection
status. will appear. In this case, insert the USB
device, exit the screen by pressing the W.LINK
USB Drive
but t o n on the re m ote c o n t rol a n d enter th e
WISELINK Pro screen again.
MTP (Media Transfer Protocol) is not supported.
➣
The le system only supports FAT16/32 (The NTFS le system is not supported).
➣
Certain types of USB Digital camera and audio devices may not be compatible with this TV.
➣
WISELINK Pro only supports USB Mass Storage Class devices (MSC). MSC is a Mass Storage
➣
Class Bulk-Only Transport device. Examples of MSC are Thumb drives and Flash Card Readers
(Both USB HDD and HUB are not supported.)
Please connect directly to the USB port of your TV. If you are using a separate cable connection,
➣
there may be a USB Compatibility problem.
Before connecting your device to the TV, please back up your les to prevent them from damage or
➣
loss of data. SAMSUNG is not responsible for any data le damage or data loss.
Do not disconnect the USB device while it is loading.
➣
MSC supports MP3 and JPEG les, while a PTP device supports JPEG les only.
➣
The sequential jpeg format is supported.
➣
The higher the resolution of the image, the longer it takes to display on the screen.
➣
The maximum supported JPEG resolution is 15360x8640 pixels.
➣
For unsupported or corrupted les, the Not Supported File Format message is displayed.
➣
If the number of photo les exceeds 4000 (or the number of music les exceeds 3000), any les
➣
exceeding the 4000 limit may not be displayed in the Photo List (or Music List).
MP3 files with DRM that have been downloaded from a non-free site cannot be played. Digital
➣
Rights Management (DRM) is a technology that supports the creation of content, the distribution and
management of the content in an integrated and comprehensive way, including the protection of the
rights and interests of the content providers, the prevention of the illegal copying of contents, as well
as managing billings and settlements.
When moving to a photo, loading may take a few seconds. At this point, the loading icon will appear
➣
at the screen.
English - 29
Using the WISELINK Pro Menu
This function enables you to view and listen to photo, music and/or movie files saved on a USB Mass
Storage Class (MSC) device.
Entering the WISELINK Pro Menu
1 Press the MENU button. Press the ▲ or ▼ button to select
WISELINK Pro
Input, then press the ENTER button.
2 Press the ▲ or ▼ button to select WISELINK Pro (USB/
DLNA), then press the ENTER button.
The WISELINK Pro menu is diplayed.
➢
Photo Music Setup
SUM
Press the W.LINK button on the remote control to display the
WISELINK Pro menu.
3 Press the Red button, then press the ▲ or ▼ button to select the corresponding USB Memory
Device (i.e. if connected through a hub). Press the ENTER button.
➢ This function differs depending on the USB Memory Device connected to TV.
➢ The selected USB device name appears at the bottom left of the screen.
4 Press the ◄ or ► button to select an icon (Photo, Music, Movie, Setup), then press the ENTER
button.
➢ To exit WISELINK Pro mode, press the W.LINK button on the remote control.
➢ You can enjoy game movies. (Not support game program)
Movie
SUM
851.98MB/995.00MB Free
Device
Exit
Using the Remote Control Button in WISELINK Pro Menu
Button Operations
▲/▼/◄/►
(Wheel)
Move the cursor and select an item.
Select the currently selected item. While playing a slide show, movie, or music le:
(ENTER)
- Pressing the ENTER button during play pauses the play.
- Pressing the ENTER button during pause resumes the play.
Play or pause the Slide Show, Music or Movie le.
RETURN
TOOLS
Return to the previous menu.
Run various functions from the Photo, Music and Movie menus.
Stop the current slide show, Music or Movie le.
Jump to previous group / Jump to next group.
Show le information.
Exit WISELINK Pro mode.
(TV)
EXIT
Stop WISELINK Pro mode and Returns to TV mode.
Stop the current function and return to the WISELINK Pro main menu.
English - 30
Screen Display
Option
5
3
6
Preference
Monthly
2
Timeline
4
SUM
Currently selected photo
1
Shows the currently selected photo.
Current Sort Standard
2
Press the ▲ or ▼ button to change the standard for sorting photos. (Monthly, Timeline, Color,
bg_water 1.jpg
Month : Jul
Date : Jul.18.2008
Color : Blue
Composition :
Folder : backgrounds
Favourltes :
Jan Nov
★ ★ ★
Device Favorites Settings Select Jump
1File(s) Selected
1
▲
Composition, Folder, Preference)
The item that is selected as the sorting standing is highlighted in the Photo Information Window.
View Groups
3
Shows the sorting groups. The sorting group including the currently selected photo is highlighted.
Current Device
4
Shows the currently selected device name. Press the Red button t o select a device.
Item Selection Information
5
Shows the number of photos that are selected by pressing the Yellow button.
Help Items
6
Red(Device) button: Selects a connected device.
•
Green(Favorites Settings) button: Changes the favorites setting for the selected photo. Press
•
this button repeatedly until the desired value appears. (Refer to page 31)
Yellow(Select) button: Selects photos from the photo list. Selected photos are marked with a
•
symbol on the left.
(Jump) button: Jumps to the previous sorting group / Jumps to the next sorting group.
•
TOOLS(Option) button: Displays the Slide Show, Play Current Group, Delete, Change
•
Group Info (in Color or Composition group),Information or Remove Safely menus.
English - 31
Using and Sorting Photo List
RETURN
RETURN
RETURN
You can sort photos in the Photo List by a particular standard.
1 Press the ▲ or ▼ button to select a sorting standard in the
Photo list.
The photos are sorted according to the newly selected
➣
sorting standard.
To move to the previous / next group, press the
➣
(REW) or
2 Press the
(FF) button.
(Play) / ENTER button to start the Slide Show
in the order selected by the user.
The information of a photo le is automatically set.
➣
The Composition and Color information extracted from a photo le may be different from what
➣
Preference
Monthly
Timeline
SUM
you selected.
Photo information is automatically set. You can change the Color, Composition, and Favorites.
➣
Photos for which information cannot be displayed are set as Unclassied.
➣
PTP does not support folder sort mode.
➣
Sorting Standard for the Photo List
Monthly
It sorts and shows photos in the le by month. It sorts only by month (from January to December)
regardless of year.
Timeline
It sorts and shows photos by date. It sorts by year and month from the earliest photo.
Color
It sorts photos by color. You can change the photo color information.
Color options: Red, Yellow, Green, Blue, Magenta, Black, Gray, Unclassied.
➣
Composition
It sorts photos by composition. You can change the compositional information of photos.
Composition options: (horizontal), (vertical), (object), (perspective), (pattern),
➣
Unclassied.
Folder
It sorts photos by folder. If there are many folders in USB, the photo les are shown in order
in each folder. The photo le in the Root folder is shown rst and the others are shown in
alphabetical order by name.
Preference
It Sorts photos by preference (Favourite). You can change the photo preferences.
Changing the Favourites setting
➣
Select the desired photo in the Photo list, then press the Green button repeatedly until the desired
setting appears.
Favorite options:
➣
★★★, ★★★, ★★★, ★★★
bg_water 1.jpg
Month : Jul
Date : Jul.18.2008
Color : Blue
Composition :
Folder : backgrounds
Favourltes :
★ ★ ★
Jan Nov
Device Favorites Settings Select Jump
▲
Option
Photo List Option Menu
Slide Show
Using this menu, you can play a Slide Show using the photo
les on the USB memory device.
Play Current Group
Using this menu, you can play a Slide Show using only the
photo les in the currently selected sorting group.
Delete
Using this menu, you can delete the selected photo files.
SUM
Preference
Monthly
Timeline
bg_water 1.jpg
Month : Jul
Date : Jul.18.2008
Color : Blue
Composition :
Folder : backgrounds
Favourltes :
Jan Nov
Device Favorites Settings Select Jump
★ ★ ★
▲
Slide Show
Play Current Group
Delete
Information
▼
Option
English - 32
Change Group
RETURN
RETURN
RETURN
RETURN
RETURN
RETURN
You can change the Color and Composition information of photo les.
The group information of the current le is updated and the le is moved to the new group.
➣
To change the information of multiple les, select the les you want by pressing the yellow button.
➣
Information
The photo le information including the order of the le in the current directory, the name, the
size, the resolution, the date modied and the path is displayed.
You can view the information of photo les during a SlideShow using the same procedures.
➣
Alternatively, select a photo from the photo list and press
➣
the INFO button to view the information.
Remove Safely
You can remove the device safely from the TV.
Viewing a Photo or Slide Show
Viewing a Slide Show
1 Press the ◄ or ► button to select the desired photo in the Photo list.
20/22
440x440 2.0KB 2008/1/1
2 Press the TOOLS button.
3 Press the ▲ or ▼ button to select Slide Show, then press the
ENTER button.
All files in the photo list will be used for the Slide Show.
➢
During the slide show, files are displayed in order from the
➢
currently shown file.
The Slide Show progresses in the order sorted in the Photo list.
➢
Music files can be automatically played during the Slide Show if
➢
the Background Music is set to On. (Refer to page 33)
While a photo list is displayed, press the
(Play)/ ENTER
SUM
Slide Show Previous Next Option Return
button on the remote control to start slide show.
Slide Show Control Buttons
➢
(ENTER)
Play/Pauses the Slide Show. TOOLS Run various functions from the Photo menus.
Play the Slide Show. Change the SlideShow playing speed.
Pause the Slide Show. ◄/► Go to the previous or next photo.
Exit Slide Show and return to the photo list.
Playing current group
1 Press the ▲ or ▼ button to select a sorting standard.
(
Monthly, Timeline, Color, Composition, Folder, Preference)
2 Press the press the
(REW) or
(FF) button to select the desired group.
3 Press the TOOLS button.
4 Press the ▲ or ▼ button to select Play Current Group, then press the ENTER button.
Only the photos in the sorting group including the selected files will be used for the Slide Show.
➢
English - 33
To perform a Slide Show with only the selected files
RETURN
RETURN
RETURN
1 Press the ◄ or ► button to select the desired photo in the Photo list.
2 Press the yellow button. Repeat the above operation to select multiple photos.
The mark appears on the top of the left of the selected photo.
➢
If you select one file, the Slide Show will not be performed.
➢
To deselect all selected files, press the TOOLS button and select Deselect All.
➢
3 Press the
➢
(Play) / ENTER button
The selected files will be used for the Slide Show.
Slide Show Option Menu
Stop Slide Show / Start Slide Show
You can start or stop a SlideShow.
Rotate
You can rotate photos saved on a USB memory device.
Whenever you press the ◄ button, it rotates by 270˚, 180˚,
➣
90˚, and 0˚.
Whenever you press the ► button, it rotates by 90˚, 180˚,
➣
270˚, and 0˚.
If you have select Zoom, the Rotate deactivated.
➣
Tools
Stop Slide Show
Rotate
Zoom
Slide Show Speed : Normal
Background Music : Off
Background Music Setting
Information
Remove Safely
Move
Enter
Zoom
You can magnify photos saved on a USB memory device. (x1 → x2 → x4)
To move the enlarged photo image, press the ENTER button, then press the ▲/▼/◄/► buttons.
➣
Note that when the enlarged picture is smaller than the original screen size, the location change
function doesn’t work.
The enlarged le is not saved.
➣
Slide Show Speed
You can select the slide show speed.
You can select the Slide Show speed only during a slide show.
➣
You can also change the speed of the Slide Show by pressing the
➣
(REW) or
(FF) button
during the Slide Show.
BackgroundMusic→On/Off
If you set Background Music to On, the background music will be played when viewing photos
one by one or in a Slide Show.
If you set Background Music to On, a screen appears immediately where you can set the
Background Music.
To use this feature, there must be music and photo les stored on the USB device.
Background Music Setting
You can select background music when watching a SlideShow.
If you turn off the Background Music, even if the Background Music Settings have been set
➣
up, the background music will not be played.
Loading music les is needed to change BGM mode. Play music les in music category to load.
➣
• BGM Mode → Mood/Selected File/Shuffle
• BGM Mood → Energetic/Rhythmical/Sad/Exciting/Calm
If you set BGM Mode to Mood, you can select a mood.
➣
You cannot select a mood not part of the music les on the USB memory device.
➣
• Select Music File
If you set BGM Mode to Selected File, you can select a music le.
➣
Information
The photo le information is displayed.
Remove Safely
You can remove the device safely from the TV.
Exit
English - 34
Using and Sorting the Music List
RETURN
RETURN
You can sort music les in the Music List by a particular standard.
1 Press the ▲ or ▼ button to select a sorting standard in the
Music list.
Music les are sorted according to the newly selected
➣
sorting standard.
To move to the previous / next group, press the
➣
or
(FF) button.
(REW)
2 Press the ENTER button to start playing music in the order
selected by the user.
The information of the music les is automatically set.
➣
The Mood information extracted from a music le may differ from the expectations of the user.
➣
Music information is automatically set. You can change the Mood and Favourite.
➣
Music files for which information cannot be displayed are set to Unclassified.
➣
If there is no title information for a music file, the filename is displayed.
➣
If no information is available for the Genre, Artist, Album, or Year, the corresponding item is
➣
displayed as blank.
Sorting Standard for the Music List
Title: It sorts the Music titles in alphabetical order, and shows the music file.
Artist: It sorts the music file by artist in alphabetical order.
Mood: It sorts music files by the mood. You can change the music mood information.
Mood options: Energetic, Rhythmical, Sad, Exciting, Calm, Unclassied.
➣
Genre: It sorts music files by the genre.
Folder: It sorts music files by the folder. If there are many folders in USB, the files are shown in order
in each folder.
The music file in the Root folder is shown first and the others are shown in alphabetical order by
name.
Preference: It sorts music files by preference (Favourite). You can change the music files
preferences.
Changing the Favourites setting
➣
Select the desired music le in the Music list, then press the Green button repeatedly until the
desired setting appears.
To change the information of multiple les, select les by pressing the yellow button.
➣
Favorite options:
➣
★★★, ★★★, ★★★, ★★★
Music List Option Menu
Play Current Group: Using this menu, you can only play music files in the currently selected sorting
group.
Delete: Using this menu, you can delete the selected music
files.
Change Group: You can change the mood information of
music files. The group information of the current file is updated
and the file is moved to the new group.
To change the information of multiple les, select les by
➣
pressing the yellow button.
Information: The music file information including the order of
the file in the current directory, the name, the size, the date
modified and the path is displayed.
You can view the information of music les during a
➣
SlideShow using the same procedures.
Alternatively, select a music le from the music list and
➣
press the INFO button to view the information.
Remove Safely: You can remove the device safely from the TV.
Music
Thanks
Jee
Album 1
2008
Pop
Energetic ★★★
Preference
Title
Artist
SUM
I Love You
Sad ★★★
F G H
▲
Device Favorites Settings Select Jump
Music
Thanks
Jee
Album 1
2008
Pop
Sad ★★★
Artist
Mood
Genre
SUM
I Love You
Sad ★★★
Rhythmical Sad Exciting Calm ...
▲
Device Favorites Settings Select Jump
Better than yesterday
Darby
Album 2
2008
Pop
Calm ★★★
I J L P S T V
Better than yesterday
Play Current Group
Delete
Darby
Change Group
Album 2
2008
Information
Pop
Exciting ★★★
▼
Catherine
Album 3
2008
Pop
Catherine
Album 3
2005
Pop
Option
Option
English - 35
Playing a Music
RETURN
RETURN
RETURN
RETURN
RETURN
RETURN
RETURN
RETURN
RETURN
Playingamusicle
1 Pressing the ◄ or ► button to select a music le to be played.
2 Press the
This menu only shows les with the MP3 le extension.
➣
(Play) / ENTER button.
Files with other le extensions are not displayed, even if
they are saved on the same USB device.
(REW) or
➣
The selected le is displayed at the top with its playing time.
➣
To adjust the music volume, press the VOL
➣
(FF) buttons do not function during play.
or VOL
button on the remote control. To mute the sound,
press the MUTE button on the remote control.
The playing duration of a music le may be displayed as ‘00:00:00’ if its playing time information
➣
is not found at the start of the le.
Music Play Control Buttons
➢
7/14 00:01:15 00:05:41
I Love You
SUM
Pause Previous Next Option Return
(ENTER)
Play/Pauses the music file.
Exit play mode and return to the music list.
Play the music file. TOOLS Run various functions from the Music menus.
Pause the music file. ◄/► Play the previous or next music file.
Music function information icon
➢
When all music files in the folder (or the selected file) are repeated. Repeat Mode is On.
When all music files in the folder (or the selected file) are played once. Repeat Mode is Off.
Playing the music group
1 Press the ▲ or ▼ button to select a sorting standard.
(Title, Artist, Mood, Genre, Folder, Preference)
2 Press the
(REW) or
(FF) button to select the desired group.
3 Press the TOOLS button.
4 Press the ▲ or ▼ button to select Play Current Group, then press the ENTER button.
The music les in the sorting group including the selected le are played.
➣
Playingtheselectedmusicles
1 Press the ◄ or ► button to select the desired music le in the music list.
2 Press the yellow button. Repeat the above operation to select multiple music les.
The mark appears to the left of the selected music le.
➣
3 Press the
Only the selected le is played.
➣
(Play) / ENTER button.
Music Play Option Menu
RepeatMode→On/Off
You can play music les repeatedly.
Information
The music file information is displayed.
Remove Safely
You can remove the device safely from the TV.
Tools
Repeat Mode ◄ On ►
Information
Remove Safely
Move
Adjust
Exit
English - 36
Using and Sorting the Movie List
RETURN
RETURN
RETURN
You can sort movies in the Movie List by a particular standard.
1 Press the ▲ or ▼ button to select a sorting standard in the
Movie list.
The movie les are sorted according to the newly
➣
Movie
selected sorting standard.
To move to the previous / next group, press the
➣
(REW) or
2 Press the
(FF) button.
(Play) / ENTER buttonto play the movie in
the order selected by the user.
The movies are sorted according to the newly selected
➣
Preference
SUM
sorting standard.
Movie information is automatically set. You can change the Favourites.
➣
Sorting Standard for the Movie List
Title
It sorts and displays the Movie titles in symbol, Number, alphabet, special order.
Timeline
It sorts and shows movies by date. It sorts by year and month from the earliest movie.
Folder
If there are many folders in USB, the movies files are shown in order in each folder. The movie file in
the Root folder is shown first and the others are shown in alphabetical order by name.
Preference
It sorts movies by preference. (Favorite) You can change the movie preferences.
Changing the Favourites setting
➣
Select the desired movie le in the movie list, then press the Green button repeatedly until the
desired setting appears.
Favorite options:
➣
★★★, ★★★, ★★★, ★★★
MyNeighbor Totoro...bed.avi
Date : Jul.04.2008
Folder : totoro
Favourltes :
SYMBOL
Title
Timeline
Device Favorites Settings Select Jump
★ ★ ★
ENG
A
▲
M□
Option
Movie List Option Menu
Play Current Group
Using this menu, you can only play movie files in the currently
selected sorting group.
Delete
Using this menu, you can delete the selected movie files.
Information
The movie file information including the order of the file in the
current directory, the name, the size, the date modified and
the path is displayed.
Alternatively, select a movie le from the movie list and
➣
press the INFO button to view the information.
Remove Safely
You can remove the device safely from the TV.
Movie
SUM
Preference
Title
Timeline
MyNeighbor Totoro...bed.avi
Date : Jul.04.2008
Folder : totoro
Favourltes :
★ ★ ★
SYMBOL
ENG
A
▲
Device Favorites Settings Select Jump
Play Current Group
Delete
Information
Remove Safely
M□
Option
English - 37
Playing a Movie
RETURN
RETURN
RETURN
RETURN
Playingamoviele
1 Pressing the ◄ or ► button to select a movie to be played.
2 Press the
The selected le is played.
➣
The selected le is displayed at the top with its playing time.
➣
The playing duration of a movie le may be displayed as
➣
(Play) / ENTER button.
‘00:00:00’ if its playing time information is not found at the
start of the le.
You can watch exciting gaming multimedia les, but the
➣
gaming function is not supported.
Movie doesn’t support subtitles. (for example, not support smi, srt and sub les, etc and not support
➣
subtites included in movie les)
Manufactured under license from Dolby Laboratories. Dolby and the doubleD symbol are trademarks of Dolby Laboratories.
Supported Video Formats
➣
Extension
F i l e
avi
mp4
mpg MPEG2 1920X1080 AC3
vro / vob MPEG2 1920X1080 AC3
Video Decoder Resolution Audio codec
Xvid 800X600
H.264 MP 1920X1080 AC3
MPEG4 SP 800X600
MPEG4 ASP 800X600 ADPCM
MJPEG 800X600 PCM
H.264 BP 1920X1080 AAC
H.264 MP 1920X1080
1/2 00:00:48 00:23:05
ABC.avi
SUM
Pause -20sec +20sec Option Return
PCM
ADPCM
PCM
ADPCM
PCM
AAC
Video Play Control Buttons
➢
(ENTER)
Play/Pauses the movie file.
Play the movie file. TOOLS Run various functions from the movie menus.
Pause the movie file. Change the playing speed.
◄/► Skip forwards or
◄/►
backwards through the
movie file in 20 second
intervals.
Movie function information icon
➢
When all movie files in the folder (or the selected file) are repeated. Repeat Mode is On.
When all movie files in the folder (or the selected file) are played once. Repeat Mode is Off.
▲/▼
Exit play mode and return to the movie list.
Play the next file or the previous file.
English - 38
Playing the movie group
RETURN
RETURN
RETURN
RETURN
1 Press the ▲ or ▼ button to select a sorting standard. (Title, Timeline, Folder, Preference)
2 Press the
(REW) or
(FF) button to select the desired group.
3 Press the TOOLS button.
4 Press the ▲ or ▼ button to select Play Current Group, then press the ENTER button.
Playingtheselectedmovieles
1 Press the ◄ or ► button to select the desired movie le in the movie list.
2 Press the yellow button. Repeat the above operation to select multiple movie les.
The mark appears to the left of the selected movie le.
➣
3 Press the
Only the selected le is played.
➣
(Play) / ENTER button.
Playing movie continuously
If you exit playing movie, playing it continuously later is possible.
With Play continuously function, you can watch movie without watching again from beginning or
bothering searching.
1 Select movie le you want to Play continuously by pressing ◄ or ► button from the Movie List.
2 Press the
(Play) / ENTER button.
3 Select play continuously by pressing Blue button.
Movie will begin to play from where it was stopped being played.
➣
If Cont. movie play help function was set On, a pop-up message will appear when you play
➣
movie le you want to Play continuously. (Refer to page 39)
4 To exit WISELINK Pro mode, press the W.LINK button on the remote control.
Movie Play Option Menu
Repeat Mode
You can play the movie repeatedly.
Picture Size
•
Fit: Play video at the TV screen size.
•
Original: Play video at the original size.
Information
Tools
Repeat Mode ◄ On ►
Picture Size : Fit
Information
Remove Safely
Move
Adjust
Exit
The music file information is displayed.
Remove Safely
You can remove the device safely from the TV.
Deleting the Photo/Music/Movie File
1 Press the ◄ or ► button to select the desired le in the Photo/
Music/Movie list.
To delete multiple les, select les by pressing the yellow
➣
button.
2 Press the TOOLS button.
3 Press the ▲ or ▼ button to select Delete
(or Delete Selected File), then press the ENTER button.
4 Press the ◄ or ► button to select OK, then press the ENTER
button.
The le is deleted.
➣
When a read-only le is deleted, the ThisFileisread-onlyle.Deleteit? message appear.
➣
Read-only les among multiple les cannot be deleted.
➣
If you select Cancel, the deletion is cancelled.
➣
While removing les, don’t remove the USB memory device.
➣
You cannot remove the PTP-connected digital camera picture les.
➣
You cannot recover deleted movie les.
➣
SUM
Preference
Monthly
Timeline
bg_water 1.jpg
Month : Jul
Date : Jul.18.2008
Color : Blue
Composition :
Folder : backgrounds
Favourltes :
Jan Nov
Device Favorites Settings Select Jump
★ ★ ★
▲
Slide Show
Play Current Group
Delete
Information
▼
Option
English - 39
Using the Setup Menu
Setup displays the user settings of the WISELINK Pro menu.
1 Press the W.LINK button on the remote control to display the
WISELINK Pro menu.
2 Press the ◄ or ► button to select Setup, then press the
ENTER button.
3 Press the ▲ or ▼ button to select the desired option.
4 Press the ◄ or ► button to select the option, then press the
ENTER button.
To exit WISELINK Pro mode, press the W.LINK button on
➣
the remote control.
Slide Show Speed → Fast/Slow/Normal
Select to control the slide show speed.
Music Repeat Mode → On/Off
Select to repeatedly play music les.
Movie Repeat Mode → On/Off
Select to repeatedly play movie les.
Cont. movie play help → On/Off
Select to display the help pop-up message for continuous
movie playback.
Screen Saver Run Time → 1 min/3 min/5 min
Select to set the waiting time before the screen saver appears.
Information
Select to viewing the information of the connected device.
Remove Safely
You can remove the device safely from the TV.
SUM
SUM
WISELINK Pro
Photo Music Setup
Setup
Slide Show Speed ◄ Normal ►
Music Repeat Mode : On
Movie Repeat Mode : On
Cont. movie play help : On
Screen Saver Run Time : 5 min
Information
Remove Safely
SUM
SETUP
Movie
Device Move Adjust Return
851.98MB/995.00MB Free
Device
Exit
English - 40
Setting the DLNA Network
DLNA allows you to watch videos and pictures saved on your PC on your TV through a network
connection in WISELINK Pro mode. This removes the need to copy them to a USB storage device and
then connect the device to your TV. To use DLNA, the TV must be connected to the network and the
DLNA application must be installed on your PC.
Network Connections Diagram
TV Rear Panel
External Modem
(ADSL/VDSL/Cable TV)
LAN Cable
1
PC
LAN Cable
2
3
1 Connect the LAN port on the rear panel of the TV to the external modem with a LAN Cable.
2 Connect the PC to which the DLNA PC Share Manager program will be installed and the external
modem using a LAN cable.
3 Connect the LAN port on the wall and the external modem with a Modem Cable.
Connecting to the Network
1 When connecting to the network is complete, set up the network on the TV (see page 50).
A Wireless Internet connection does not support DLNA.
➣
The rst 3 digits (subnet address) of the IP addresses of the TV and the PC must be the same
➣
(e.g. IP Address: 123.456.789.XX )
2 Run a Network Test to check the network settings.
Modem Cable
The Modem Port on the
Wall
English - 41
Installing the DLNA Application
To play content on the PC on the TV, you have to rst install the application.
System Requirements
1 Insert the Program CD supplied with this TV into your PC.
2 20MB of free hard disk space is needed for the program installation.
Supported Formats
1 Image :JPEG (jpg, jpeg)
2 Audio : MP3 (mp3)
3 Video : MPEG1(mpg, mpeg), MPEG2 PS/TS(mpg, mpeg, trp, ts, tp), divx(mpg, mpeg, avi),
Install the application
1 Run the Setup.exe le on the Program CD supplied with the product.
2 Install the SAMSUNG PC Share Manager as shown in the gures below.
If you share les, up to 20MB of hard disk drive space is required for each 100 les.
➣
If you cancel le sharing, the hard disk drive space used for the thumbnail information is also
➣
freed.
MPEG4 / H.264 (mpg, mpeg)
Alternatively, you can download the le from www.samsung.com.
➣
3 When the installation is complete, the PC Share Manager icon appears on your Desktop.
Double-click the icon to run the program.
➣
English - 42
Using the DLNA Application
The Program Screen Layout
2
3 4
1
5
6
7
8
1 Menus: The following application menus are provided : File, Share, Server, and Help.
2 Click to share the selected PC server folder.
3 Click to cancel sharing.
4 Click to refresh the PC folder and les.
5 Click to synchronize the share status (see page 44)
6 The folders and les of the PC to be shared are listed.
7 Folders shared by the user are listed.
8 PC server name shown on the device list of the WISELINK Pro: Click to change the name.
File
Property: Shows information on the selected le or folder.
Method 1: Select a le or folder and select the File menu and
then select the Property sub-menu.
Method 2: Select a le or folder, right-click over the selected
le or folder and then select Property from the
pop-up menu.
English - 43
Exit: Exits the DLNA application.
If you select Exit without applying the changes after
changing the shared status, a message will appear
asking if you want to apply the changed settings to
the PC. Select Yes to apply the changes and exit the
application.
Share
Sharing a Folder
You can share a folder from your PC to the TV. The maximum
number of folders that can be shared is 32.
Your PC will operate as a server to the TV.
➣
Method 1: Select a folder in My Computer, select the Share
menu and then select the Share Folder submenu.
Method 2: Select a folder in
My Computer, right-click over
the selected folder and then select Share Folder
from the pop-up menu.
Method 3: Locate the mouse pointer over a folder in the
My Computer folder list in the left pane and
drag&drop the folder into the Shared Folders pane.
If a message appears asking you to conrm the
shared folder, select Yes.
English - 44
Cancelling a Shared Folder
You can cancel a shared folder on your PC. Select a folder
from the Shared Folder pane and select Unshare Folder.
Method 1: Select a folder from the Shared Folder pane,
select the Share menu and then select Unshare
Folder.
Method 2: Select a folder from the
Shared Folder pane,
right-click over the selected folder and then select
Unshare Folder from the pop-up menu.
Method 3: Locate the mouse pointer over a folder in the
Shared Folder pane and drag&drop the folder into
the My Computer pane. If a message appears
asking you to conrm the cancelation, select Yes.
Applying the Current Settings
Perform this when synchronization is necessary due to a new
shared folder or canceling a shared folder. The Set Changed
State menu applies changes to shared folders to the data
saved with the PC share program.
Since applying changes to the internal data is a timeconsuming process, this function enables users to apply
changes to the data only when required.
Until the Set Changed State menu is selected, the changed
state of the shared folder is not applied to the server.
Changes to the shared folders are not applied to your PC until
you select the Set Changed State menu.
Method 1: Select the Share menu and select the Refresh DB
sub-menu.
Method 2
: Click the Set Changed State icon.
Setting the Access Permission
To enable the TV to nd your PC, the TV must be set to Set
Device Policy in the Access Permission Settings window.
In addition, the PC server and the TV must be on the same
subnet.
Method: Select the Share menu and select Set Device
Policy.
Rejected items are represented in gray.
➣
You can change the access permissions by using
➣
the Allow Accept / Deny button.
To delete an item, select the item and select Delete
➣
Item.
English - 45
Server
Server
You can run or stop using your PC as a server.
Start Server at Windows start
You can determine whether to start the PC server automatically
when Windows starts.
Change server name
You can rename the PC server. Enter a new name and click
OK. The new name will appear at the top right of the window
and will appear on the TV.
Help
Version
The program version information message box appears.
English - 46
Using the DLNA Function
Using the DLNA Menu
DLNA (Digital Living Network Alliance) enables content saved on a DLNA server (usually your PC)
connected to your TV or over a network to be played.
WISELINK Pro enables playing content saved on a USB memory device connected to the TV, while DLNA
enables playing content saved on a DLNA server (your PC) connected to your TV or over the network.
The procedures to use the content are the same as those for WISELINK Pro.
If you install the PC share manager program supplied with the TV onto a PC, you can have the PC
➣
perform the role of a DLNA server over the network.
Press the W.LINK button on the remote control to display the DLNA menu.
1
2 Press the ◄ or ►button to select an icon (Photo, Music, Movie, Setup), then press the ENTER
button.
To exit DLNA mode, press the W.LINK button on the remote control.
➣
Photo List option menu
Sorting Photo List / Viewing the Information / Rotating the Photo le / Viewing a Slide Show
–
During a Slide Show option menu
Play & Pause / Slide Show Speed / Zoom / Rotate
–
Music
Music List option menu
Sorting Music List / Viewing the Information / Playing a music le
–
While Playing a Music File option menu
Play & Pause / Repeat Mode
–
Movie
Movie List option menu
Sorting Movie List / Viewing the Information / Playing a Movie le
–
While Playing a Movie File option menu
Play & Pause / Repeat Mode
–
Setup
Slide Show Speed / Music Repeat Mode / Movie Repeat Mode / Screen Saver Run Time / Information
–
/ Remove Safely : You can remove the device safely from the TV.
DLNA does not support the following functions.
➣
The Background Music and Background Music Setting functions.
–
Sorting les by preference in the Photo, Music, and Movie folders.
–
The Change Group Info function.
–
The Delete function.
–
The Safe Remove function.
–
The REW/FF ( / ) key functions while a movie is playing.
–
The Skip (◄/► keys) or Pause function may not work while a movie is playing for the DLNA of other
➣
manufacturers, depending on the corresponding content information.
The playing time may not be displayed while a movie is playing.
➣
English - 47
Using the Content Library
The Content Library enables you to view or play the built-in contents on the TV or stored on your USB
device.
The Delete, Move and Update functions will not work with the built-in content on the TV.
➣
Using the Content Library Menu
1 Press the MENU button. Press the ▲ or ▼ button to select
Input, then press the ENTER button.
2 Press the ▲ or ▼ button to select Content Library, then
press the ENTER button.
The Content Library main menu is displayed.
➣
Press the CONTENT button on the remote control to display
the Content Library menu.
T V
Source List :
Edit Name
Anynet+ (HDMI-CEC)
WISELINK Pro (USB/DLNA)
Content Library
Product Guide
Move
Input
TV
Enter
Return
3 Press the ◄ or ► button to select an icon (Gallery, Cooking,
Children, Fitness), then press the ENTER button.
To return to TV mode, press the button on the remote
➣
control.
The Screen Saver is activated if there is no remote control
➣
key input for longer than 10 minutes.
Using the Remote Control Button in Content Library Menu
Button Operations
▲/▼/◄/►
(Wheel)
(ENTER)
RETURN
EXIT
(TV)
Move the cursor and select an item.
Select the currently selected item.
Return to the previous menu.
Stop the current function and return to the Content Library main menu.
Stop Content Library mode and Returns to TV mode.
Keys that provide functions are described on the corresponding page.
CONTENT
You can control the volume of the played content.
Exit Content Library mode.
Content Library
Gallery
Gallery
Cooking Children Fitness
Setup
USB
Return
Exit
English - 48
Using the TV Memory Contents
Gallery
Art/Relaxation/Party
This function plays a SlideShow with high resolution images and background music and produces various
atmospheres. Using the Gallery function of the TV, you can change your home atmosphere.
Press the yellow button to playback all imageries.
➣
There is default music for each for the Art, Relaxation, and Party options.
➣
Press INFO button to see the credit and detail information for the imagery. Press INFO button again
➣
or press ► button for the credit information to go away.
The copyrights of the Gallery contents and all issues related to them are reserved by Gallery Player,
➣
Inc.
For additional Gallery contents, check for information through www.samsung.com. Please refer to
➣
the Using Additional Content Using External USB Memory Storage section (page 49) to see how
to play additional imagery.
Cooking
Starters / Main Courses / Desserts
You can view various recipes that you can then easily follow step by step. Enjoy these contents which
give you great ideas for meals.
The recipes introduced in the Cooking contents on the Samsung TV are based on recipes published
➣
by Anness Publishing.
The copyrights of the Cooking contents and all issues related to them are reserved by Practical
➣
Pictures.
Children
Story / Song / Play
This is educational and interactive content that children can watch repeatedly. Enjoy existing stories,
songs and games with the Boowa and Kwala characters.
The copyrights of the Children contents and issues related to them are reserved by UpToTen.
➣
Fitness (Not available in all locations)
Basic Stretches / Massage
This is benecial health management content that provides stretching and massage exercises that can be
enjoyed by the whole family.
The Basic Stretches contents for the Samsung TV are based on the book Stretching by Suzanne
➣
Martin which is published by DK and the Massage contents are based on the books published by
Anness Publishing.
The copyrights to Basic Stretches are reserved by the DK Publishing Company. The copyrights to
➣
the Massage content are reserved by Practical Pictures. All issues related to copyrights are reserved
by the corresponding company.
Using the Remote Control Button in Fitness menu
Button Operations
◄/►
(Wheel)
(ENTER)
Screen Saver Run Time
Select to set the waiting time before the screen saver appears.
Press the yellow button to select Setup in the Content Library main menu.
View to previous step / View to next step
Play or pause (in Basic and Advanced Stretches)
English - 49
Using Additional Content Using External USB Memory Storage
You can download contents onto a USB memory device and play them on your TV.
Playing and Exiting New Content
1 Press the Red button in the Content Library main menu.
The USB Browser main screen is displayed.
➣
A list of les saved on the USB device is displayed.
➣
2 Press the ▲ or ▼ button to move to the le (or folder) you want
to play. Press the ENTER button.
The selected content is played.
➣
The use of contents is the same as in using the TV memory
➣
contents.
To return to the USB browser main screen, press the EXIT button.
➣
To exit Content Library mode, press the CH / button on
the remote control.
Content Library only supports USB Mass Storage Class
➣
devices (MSC). MSC is a Mass Storage Class Bulk-Only
Transport device. Examples of MSC are Thumb drives and
Flash Card Readers
(Both USB HDD and HUB are not supported.)
Take care as removing the USB memory device while saving data to the USB memory device may
cause the data to be lost.
Downloading New Contents
New content other than the built-in contents will be provided via the Samsung.com website with or without
charge.
Downloading Content
1 Visit the www.samsung.com website and open the Content Library page.
2 Enter the product number (UDN, Unique Device Number) when it is asked.
3 Select a content item in the Contents Download page.
4 Download the contents onto the USB memory device.
Content Library only supports USB Mass Storage Class devices (MSC). MSC is a Mass
➣
Storage Class Bulk-Only Transport device. Examples of MSC are Thumb drives and Flash
Card Readers (Both USB HDD and HUB are not supported.)
5 Go to Content Library main menu by pressing CONTENT button or choosing Content Library
(MenuApplicationContent Library)
6 Plug the USB memory into USB port on the side of the TV.
Content Library
Gallery
Content Library
Gallery
Sub Item : 2
Gallery
Cooking Children Fitness
Setup
USB
Return
USB
Gallery
Cooking
Children
Fitness
TV Memory
Show UDN
Exit
▼ ▲
Return
1/1 >>
<<
Finding a product number (Unique Device Number, UDN)
1 Insert the USB memory into the USB port on the side of the TV.
2 In the USB Browser main screen, press the Green button (Show UDN).
3 The 18-digit number on the screen is the product code.
Provided Content
Additional contents are available on www.samsung.com.
English - 50
Network Connection
LAN Connection for a DHCP Environment
The procedures to set up the network using Dynamic Host Conguration Protocol (DHCP) are described
below. Since an IP address, subnet mask, gateway, and DNS are automatically allocated when DHCP is
selected, you do not have to enter them manually.
TV Rear Panel
The Modem Port on
the Wall
1 Connect the LAN port on the rear panel of the TV and the external modem with a LAN Cable.
2 Connect the LAN port on the wall and the external modem with a Modem Cable.
You can connect the LAN via a Sharer (Router).
External Modem
(ADSL/VDSL/Cable TV)
2
Modem Cable
LAN Cable
1
IP Sharer
External Modem
The Modem Port on
the Wall
You can connect the LAN port and the TV directly depending on your network status.
The LAN Port on
the Wall
The terminals (the position of the port and the type) of the external device may differ depending on
➣
(ADSL/VDSL/
Cable TV)
LAN Cable
LAN Cable
LAN Cable
Modem Cable
TV Rear Panel
TV Rear Panel
the manufacturer.
If the IP address allocation by the DHCP server has failed, turn the external modem off, turn it on
➣
again after at least 10 seconds and then try again.
For the connections between the external modem and the Sharer (Router), refer to the owner’s
➣
manual of the corresponding product.
You can connect the TV to the LAN directly without connecting it through a Sharer (Router)
➣
You cannot use a manual-connection-type ADSL modem because it does not support DHCP. You
➣
have to use an automatic-connection-type ADSL modem.
English - 51
LAN Connection for Static IP Environment
The procedures to set up the network using a static IP address are described below. You have to manually
enter the IP address, subnet mask, gateway, and DNS that are provided by your Internet Service Provider
(ISP).
TV Rear Panel
The LAN Port on
the Wall
LAN Cable
1
1 Connect the LAN port on the rear panel of the TV and the LAN port on the wall using the LAN cable.
You can connect the LAN via a Sharer (Router).
The LAN Port on the
Wall
LAN Cable
The terminals (the position of the port and the type) of the external device may differ depending on
➣
IP Sharer
LAN Cable
TV Rear Panel
the manufacturer.
If you are using a static IP address, your ISP will inform you of the IP address, subnet mask,
➣
gateway, and DNS. You must enter these values to complete the network settings. If you do not
know the values, ask your network administrator.
For the information on how to congure and connect a Sharer (Router), refer to the owner’s manual
➣
for the corresponding product.
You can connect the TV to the LAN directly without connecting it through a Sharer (Router).
➣
If you use an IP Sharer (IP Router) that supports DHCP, you can set up the device as either DHCP
➣
or static IP.
For the procedures to use a static IP address, ask your Internet Service Provider.
➣
English - 52
Cable Network Setup
Auto Setup
If you connect the LAN cable and it supports DHCP, the Internet
Protocol (IP) Settings are automatically congured.
Please check if the LAN cable is connected. (See page 50)
➣
1 Press the MENU button to display the menu.
Press the ▲ or ▼ button to select Setup, then press the
ENTER button.
2 Press the ▲ or ▼ button to select Cable Network Setup,
then press the ENTER button.
3 Press the ENTER button to select Internet Protocol Setup.
4 Press the ▲ or ▼ button to select Auto Setup, then press the
ENTER button.
The Internet Protocol is set automatically.
➣
Select Network Test to check the network connectivity.
➣
Press the
EXIT button to exit.
Manual Setup
To connect the TV to the LAN using a static IP address, you must
set up the Internet Protocol (IP).
Please check if the LAN cable is connected. (See page 50)
➣
1 Press the ENTER button to select Internet Protocol Setup.
2 Press the ▲ or ▼ button to select Manual Setup, then press
the ENTER button.
3 Press the ▲, ▼, ◄ or ► button to move to an item, and press
the numeric button to congure the selected item. Press the
ENTER button.
Select Network Test to check the network connectivity.
➣
Press the EXIT button to exit.
T V
Internet Protocol Setup : Auto Setup
Network Test
IP Address :
Subnet Mask :
Gateway :
DNS Server :
Internet Protocol Setup :
Network Test
IP Address :
Subnet Mask :
Gateway :
DNS Server :
Move
Plug & Play
Language : English
Time
Cable Network Setup
Light Effect :
Melody : Off
Entertainment : Off
Energy Saving : Off
PIP
Cable Network Setup
Move
Cable Network Setup
0~9
Setup
Move
Enter
Manual Setup
0 0 0
0
0 0 0
0
0 0 0
0
0 0 0
0
Enter
Manual Setup
0 0 0
0
0 0 0
0
0 0 0
0
0 0 0
0
Number Enter
In Watching TV
Return
Exit
Return
Network Test
You can test or conrm the network connection status after setting
up the network.
1 Press the ▲ or ▼ button to select Network Test, then press
the ENTER button.
The current network settings will appear.
➣
Press the
EXIT button to exit.
Internet Protocol Setup :
Network Test
IP Address :
Subnet Mask :
Gateway :
DNS Server :
Move
Cable Network Setup
Manual Setup
0 0 0
0
0 0 0
0
0 0 0
0
0 0 0
0
Enter
Return
When unable to connect to a wired network
1. If your Internet service provider has registered the MAC address of the device used to connect to the
Internet for the rst time and authenticates the MAC address each time you connect to the Internet,
your TV may not be able to connect to the Internet as the MAC address differs from that of the device
(PC) used to connect to the Internet the rst time. In this case, ask your Internet service provider
about the procedures to connect devices other than your PC (such as your TV) to the Internet.
2. If your Internet service provider requires an ID or password to connect to the Internet (network), your
TV may not be able to connect to the Internet. In this case, you have to enter your ID or password
when connecting to the Internet using an Internet Sharer (Router).
3. The internet connection may fail due to a rewall problem. In this case, contact your Internet service
provider.
If you cannot connect to the Internet even if you have followed the procedures of your Internet service
provider, please contact a Samsung Electronics Service Center.
English - 53
Product Guide
The Product Guide gives you information on the most important features of this TV.
1 Press the MENU button to display the menu.
Press the ▲ or ▼ button to select Input, then press the
ENTER button.
2 Press the ▲ or ▼ button to select Product Guide, then press
the ENTER button.
3 Press the ◄ or ► button to select a Guide (Picture Quality,
Entertainment or Connectivity) and press the ENTER
button.
4 You can navigate the Product Guide screen by using the ◄ and ► buttons.
Picture Quality Full HD 1080p
Ultra FilterBrightTM
100Hz Dual Scan
(63")
Entertainment Content Library
Entertainment Mode
Connectivity WISELINK Pro
DLNA
4HDMI
Anynet+
5 Press the EXIT button to exit.
T V
Source List :
Edit Name
Anynet+ (HDMI-CEC)
WISELINK Pro (USB/DLNA)
Content Library
Product Guide
Move
Input
TV
Enter
Return
Using the Remote Control Button in Product Guide Menu
Button Operations
Yellow Button Shows the contents of the Product Guide sequentially. (AutoPlay)
▲/▼/◄/►
(Wheel)
(ENTER)
Move the cursor and select an item.
Select the currently selected item.
RETURN Return to the previous menu.
EXIT Stop the current function and return to the Product Guide main menu.
(TV)
Stop Content Library mode and Returns to TV mode.
English - 54

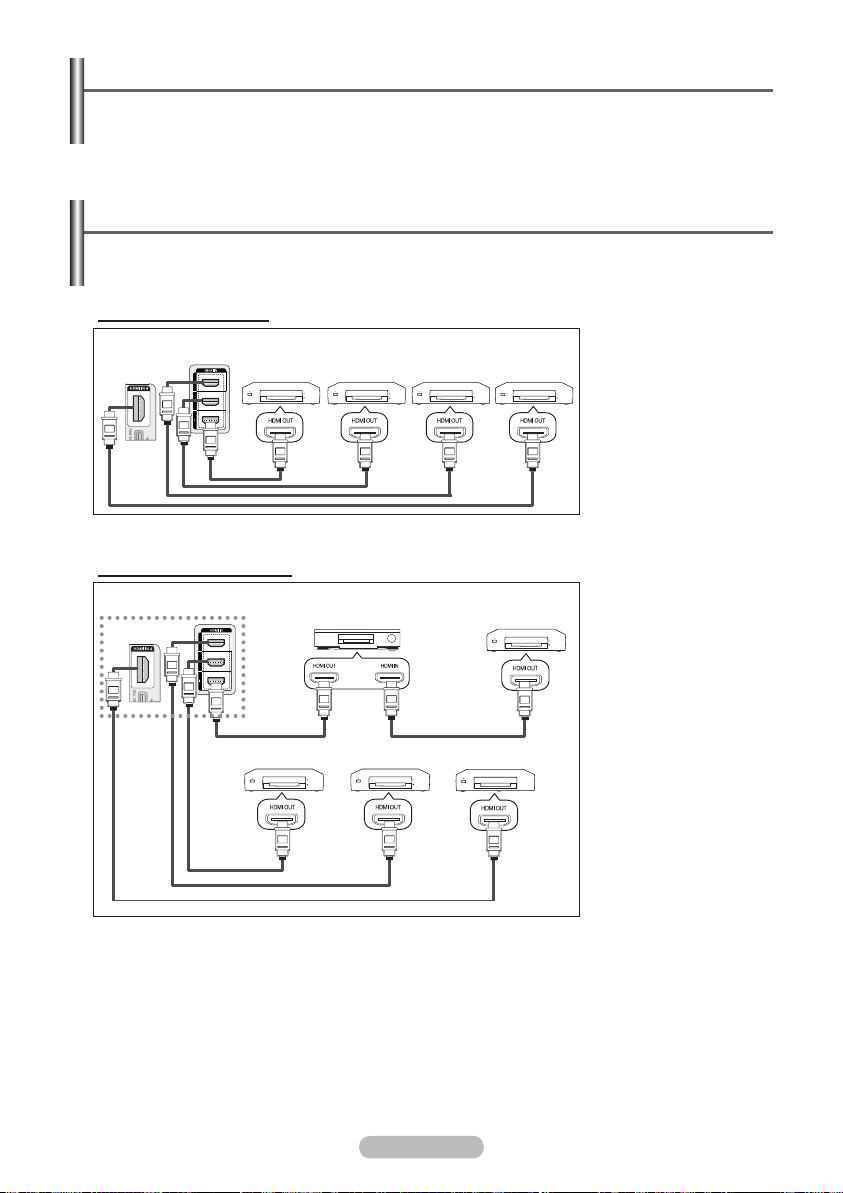

What is Anynet+?
Anynet+ is an AV network system that enables an easy-to-use AV interface for users by controlling all
connected AV devices through the Anynet+ menu when Samsung Electronics AV devices are connected.
Connecting Anynet+ Devices
The Anynet+ system supports AV devices supporting Anynet+ only.
Check if there is an Anynet+ mark on the AV device to be connected to the TV.
To directly connect to TV
TV
Anynet+
Device 1
HDMI 1.3 Cable
HDMI 1.3 Cable
To connect to Home Theater
TV
HDMI 1.3 Cable
Anynet+ Device 2
Anynet+
Device 2
Home Theater
Anynet+ Device 3
HDMI 1.3 Cable
Anynet+
Device 3
HDMI 1.3 Cable
Anynet+ Device 1
HDMI 1.3 Cable
Anynet+ Device 4
Anynet+
Devic 4
Connect the [HDMI IN 1],
[HDMI IN 2], [HDMI IN 3], or
[HDMI IN 4] jack on the TV
and the HDMI OUT jack of
the corresponding Anynet+
device using the HDMI
cable.
1 Connect the [HDMI IN 1],
[HDMI IN 2], [HDMI IN 3],
or [HDMI IN 4] jack on the
TV and the HDMI OUT
jack of the corresponding
Anynet+ device using the
HDMI cable.
2 Connect the HDMI IN jack
of the home theater and
the HDMI OUT jack of the
corresponding Anynet+
device using the HDMI
cable.
HDMI 1.3 Cable
Connect only one receiver.
➢
You can connect an Anynet+ device using the HDMI Cable. Some HDMI cables may not support
➢
Anynet+ functions.
Anynet+ works when the AV device supporting Anynet+ is in the Standby or On status.
➢
Anynet+ supports up to 10 AV devices in total. Note that you can connect up to 3 devices of the same
➢
type.
HDMI 1.3 Cable
HDMI 1.3 Cable
English - 55
Setting Up Anynet
The following settings are to use Anynet+ functions.
Using the Anynet+ Function
1 Press the MENU button to display the menu.
Press the ▲ or ▼ button to select Input, then press the
ENTER button.
2 Press the ▲ or ▼ button to select Anynet+ (HDMI-CEC), then
press the ENTER button.
3 Press the ▲ or ▼ button to select Setup, then press the
ENTER button.
4 Press the ▲ or ▼ button to select Anynet+ (HDMI-CEC),
then press the ENTER button.
5 Press the ▲ or ▼ button to select On, then press the ENTER
button.
The Anynet+ (HDMI-CEC) function is enabled.
➢
If you select Off, Anynet+ (HDMI-CEC) is disabled.
➢
+
TV P 1
View TV
Select Device
Record
Menu on Device
Device Operation
Receiver :Off
Setup
Move
Enter
Return
Setup
Anynet+ (HDMI-CEC)
Auto Turn Off
Searching Connections
: Off
: Off
Enter ReturnMove
Turning an Anynet+ Device Off Automatically when the TV is Turned Off
4 Press the ▲ or ▼ button to select Auto Turn Off, then press
the ENTER button.
5 Press the ▲ or ▼ button to select Yes, then press the
ENTER button.
The Auto turn off function is enabled.
➢
If you select No, the Auto turn off function is canceled.
➢
Press the EXIT button to exit.
The Select Device setting of the TV remote control is to be set
➢
to TV to use the Anynet+ function.
If you set Auto Turn Off to Yes, connected external devices are also turned off when the TV is turned
➢
off. However, if the device is recording, it may not be turned off.
When the Anynet+ (HDMI-CEC) function is disabled, all the Anynet+ related operations are
➢
deactivated.
Anynet+ (HDMI-CEC)
Auto Turn Off
Searching Connections
Setup
: On
: : Off
Enter ReturnMove
Off
On
No
Yes
Scanning and Switching between Anynet+ Devices
1 Press the MENU button to display the menu. Press the ▲ or
▼ button to select Input, then press the ENTER button.
2 Press the ▲ or ▼ button to select Anynet+ (HDMI-CEC),
then press the ENTER button.
3 Press the ▲ or ▼ button to select Select Device, then press
the ENTER button.
4 Press the ▲ or ▼ button to select to a particular device and
press the ENTER button.
It is switched to the selected device.
5 If you cannot find a device you want, press the ▲ or ▼ button to
select Searching Connections, then press the ENTER button.
The meassage Configuring Anynet+ connection is
displayed. When searching devices completes, the connected
devices are listed in the Anynet+ menu.
Switching to the selected devices may take up to 2 minutes.
➢
You cannot cancel the operation during the switching
operation.
The time required to scan for devices is determined by the
➢
number of connected devices.
When the device scan is complete, the number of found devices is not displayed.
➢
Although the TV automatically scans devices when it is turned on using the POWER button, devices
➢
connected when the TV is on or under a specific circumstance are not displayed in the device list.
Therefore select Searching Connections menu to search devices.
If you have selected external input mode by pressing the SOURCE button, you cannot use the
➢
Anynet+ function. Make sure to switch to an Anynet+ device by using the TOOLS button.
TV P 1
View TV
Select Device
Record
Menu on Device
Device Operation
Receiver :Off
Setup
Move
Enter
Return
Anynet+ (HDMI-CEC)
Auto Turn Off
Searching Connections
: Yes
Setup
: On
Enter ReturnMove
DVDR1
DVDR2
DVD1
DVD2
Continued...
English - 56
Anynet+ Menu
The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected
to the TV.
Anynet+ Menu Description
View TV Switches from Anynet+ to TV broadcast mode.
Select Device Your TV connects to the corresponding device.
Record Starts a recording. (This menu works only for a device supporting
Menu on Device Shows the menu of the connected device.
Device Operation Shows the play control menu of the connected device.
Receiver Sound is output through the receiver.
Setup You can set the environment for using Anynet+.
TV Remote Control Buttons Available in Anynet+ Mode
Device Type Operating Status Available Buttons
Anynet+ Device
Device with built-in Tuner
Audio Device When Receiver is activated
The Anynet+ function only works when the remote control is set to TV.
➢
The button works only while in the recordable state.
➢
You cannot control Anynet+ devices using the buttons on the side of the TV. You can control Anynet+
➢
devices only using the TV remote control.
The TV remote control may not work under certain conditions. In this case, re-select the Anynet+
➢
device.
The Anynet+ functions don’t operate for the products from other manufacturers.
➢
In Anynet+ mode, the colour buttons may not work properly.
➢
The , operations may differ depending on the device.
➢
recording.)
Example. When a DVD Recorder is connected, the DVD Recorder’s
title menu appears.
Example. When a DVD Recorder is connected, the play control
menu of the DVD Recorder appears.
After switching to the
device, when the menu of
the corresponding device is
displayed on the screen.
After switching to the device,
while playing a file
After switching to the device,
when you are watching a TV
program
Numeric buttons
▲/▼/◄/►/ENTER buttons
Colour buttons
EXIT button
(Backward search)
(Forward search)
(Stop)
/ (Play/Pause)
P / button
/ button
MUTE button
Recording
You can make a recording of a TV program using a recorder.
Press the button.
Recording begins. (Only when the Anynet+ enabled recording device is connected.)
The current TV program is recorded in the Watching TV status. If you are watching video from
➢
another device, the video from the device is recorded.
You can also record the source streams by selecting Record after pressing the TOOLS button.
➢
English - 57
Listening through a Receiver
You can listen to sound through a receiver instead of the TV speaker.
1 Press the MENU button to display the menu. Press the ▲ or ▼ button to
select Input, then press the ENTER button.
2 Press the ▲ or ▼ button to select Anynet+ (HDMI-CEC), then press the
ENTER button.
3 Press the ▲ or ▼ button to select Receiver, then press the ENTER button.
Press the ◄ or ► button to select to On, then press the ENTER button.
Now you can listen to sound through the receiver.
4 Press the EXIT button to exit.
When the receiver is set to On, you can listen to the TV sound through the
➢
2-channel receiver.
If the receiver is exclusively for a home theater only (supporting audio only), it may not appear in the
➢
device list.
In case of a content with copyright problem, listening through the receiver may not properly operate.
➢
When executing WISELINK Pro, the listening through the receiver may not work properly.
➢
When listening through the receiver, there are restrictions for using the PIP and audio-related menu.
➢
TV P 1
View TV
Select Device
Record
Menu on Device
Device Operation
Receiver :On
Setup
Move
Return
Enter
Check Points before Requesting Service
Symptom Solution
Anynet+ does not work. ■ Check if the device is an Anynet+ device. The Anynet+ system
I want to start Anynet+. ■ Check if the Anynet+ device is properly connected to the TV and
I want to exit Anynet+. ■ Select View TV in Anynet+ menu.
The Connecting to Anynet+
device… message appears
on the screen.
The Anynet+ device does
not play.
The connected device is not
displayed.
The TV program cannot be
recorded.
supports Anynet+ devices only.
■ Connect only one receiver.
■ Check if the Anynet+ device power cord is properly connected.
■
Check the Anynet+ device’s Video/Audio/HDMI 1.3 Cable connections.
■ Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+
setup menu.
■ Check whether the TV remote control is in TV mode.
■ Check whether it is Anynet+ exclusive remote control.
■ Anynet+ doesn’t work at a certain condition. (Searching channels,
Operating WISELINK Pro)
check if the Anynet+ (HDMI-CEC) is set to On in the Anynet+ Setup
menu.
■ Press the
press the TOOLS button to show the Anynet+ menu and select a
menu you want.
■ Press the
device other than Anynet+ devices.
■ You cannot use the remote control when you are configuring Anynet+
or switching to a view mode.
■ Use the remote control when the Anynet+ setting or switching to view
mode is complete.
You cannot use the play function when an auto channel scan is in
progress. Stop the currently running function.
■ Check whether or not the device supports Anynet+ functions.
■ Check whether or not the HDMI 1.3 Cable is properly connected.
■ Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+
setup menu.
■ Search Anynet+ devices again.
■ You can connect an Anynet+ device using the HDMI 1.3 Cable only.
Some HDMI cables may not support Anynet+ functions.
Check whether the antenna jack on the recording device is properly
connected.
TV button on the TV remote control to switch to TV. Then
SOURCE button on the TV remote control and select a
English - 58
Teletext Feature (depending on the model)
Most television stations provide written information services via teletext. The index page of the
teletext service gives you information on how to use the service. In addition, you can select
various options to suit your requirements by using the remote control buttons.
For teletext information to be displayed correctly, channel reception must be stable. Otherwise,
☛
information may be missing or some pages may not be displayed.
1 (exit)
Exit from the teletext display
2 (store)
Used to store the teletext pages.
3 (size)
Press to display the double-size letters in the upper half of the
screen. For lower half of the screen, press it again.
To display normal screen, press it once again.
4 (reveal)
Used to display the hidden text (answers to quiz games, for
example). To display normal screen, press it again.
5 Coloured buttons (red/green/yellow/blue)
If the FASTEXT system is used by a broadcasting company, the
different topics covered on a teletext page are colour-coded and
can be selected by pressing the coloured buttons. Press one of
them corresponding to the required. The page is displayed with
other coloured information that can be selected in the same way.
To display the previous or next page, press the corresponding
coloured button.
6 (teletext on/mix)
Press to activate teletext mode after selecting the channel
providing the teletext service. Press it twice to overlap the teletext
with the current broadcasting screen.
7 (sub-page)
Used to display the available sub-page.
8 (page up)
Used to display the next teletext page.
9 (page down)
Used to display the previous teletext page.
0 (mode)
Press to select the teletext mode (LIST/FLOF).
If you press it in the LIST mode, it switches into the List save
mode.
In the List save mode, you can save teletext page into list using
the (store) button.
! (index)
Used to display the index (contents) page at any time while you are viewing teletext.
@ (hold)
Used to hold the display on a given page if the selected page is linked with several secondary pages
which follow on automatically. To resume, press it again.
# (cancel)
Used to display the broadcast when searching for a page.
You can change teletext pages by pressing the numeric buttons
➢
on the remote control.
Continued...
English - 59
The teletext pages are organized according to six categories:
Part Contents
A
B
C
D
E
F
Teletext information is often divided between several pages
➢
displayed in sequence, which can be accessed by:
Entering the page number
Selecting a title in a list
Selecting a coloured heading (FASTEXT system)
Press the TV button to exit from the teletext display.
➢
Selected page number.
Broadcasting channel identity.
Current page number or search indications.
Date and time.
Text.
Status information.
FASTEXT information.
English - 60
Wall Mount Kit Specifications (VESA)
Install your wall mount on a solid wall perpendicular to the floor.
When attaching to other building materials, please contact your nearest dealer.
If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.
Product Family inch VESA Spec. (A * B) Standard Screw Quantity
23 ~ 26 200 * 100 M4
32 ~ 40 200 * 200 M6
46 ~ 52
LCD-TV
57
57 ~ 70 800 * 400
80 ~ 1400 * 800
42 ~ 58
PDP-TV
We provided the standard dimensions for wall mount kits as shown in the table above.
➢
When purchasing our wall mount kit, a detailed installation manual and all parts necessary for
➢
assembly are provided.
Do not use screws longer than the standard dimension, as they may cause damage to the inside of
➢
the TV set.
For wall mounts that do not comply with the VESA standard screw specifications, the length of the
➢
screws may differ depending on their specifications.
Do not use screws that do not comply with the VESA standard screw specifications.
➢
Do not use fasten the screws too strongly, this may damage the product or cause the product to fall,
leading to personal injury. Samsung is not liable for these kinds of accidents.
Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall
➢
mount is used or the consumer fails to follow the product installation instructions.
Our 57” and 63” models do not comply with VESA Specifications. Therefore, you should use our
➢
dedicated wall mount kit for this model.
Do not exceed 15 degrees tilt when mounting this TV.
➢
Do not install your Wall Mount Kit while your TV is turned on.
It may result in personal injury due to electric shock.
63
63 ~ 70 800 * 400 4
80 ~ 1400 * 800 4
400 * 400
600 * 400
700 * 400
(No VESA)
400 * 400
600 * 400
676 * 407
(No VESA)
M8
M8
4
4
6
English - 61
Preparing before installing Wall- Mount on the wall
Case A. Installing SAMSUNG Wall-Mount Case B. Installing other company’s Wall-Mount
1 Install Wall Mount with the torque range of 15kgf·cm or less. Make sure that parts can be damaged if
the torque is out of the specified range.
2 Accessory Kit contains Holder–Ring [] for installing other company’s Wall-Mount on Samsung TV.
(Case B)
How to assemble the Stand-Base (depending on the model)
Using the screws for securing the stand base and the TV, firmly attach the TV to the stand base.
(The exterior of the set may be different from the picture.)
Warning
Firmly secure the stand to the TV before moving it, as the stand may fall
and could cause serious injury.
Two or more people should carry the TV. Never lay the TV on the
➢
floor because of possible damage to the screen.
Always store the TV upright.
English - 62
Securing the TV to the Wall
Caution: Pulling, pushing, or climbing on the TV may cause the TV to fall. In particular, ensure
your children do not hang over or destabilize the TV; doing so may cause the TV to tip over,
causing serious injuries or death. Follow all safety precautions provided on the included
Safety Flyer. For added stability, install the anti-fall device for safety purposes, as follows.
To avoid the TV from falling:
1 Put the screws into the clamps and firmly fasten them onto
the wall. Confirm that the screws have been firmly installed
onto the wall.
You may need additional material such as an anchor
➢
depending on the type of wall.
Since the necessary clamps, screws, and string are
➢
not supplied, please purchase these additionally.
2 Remove the screws from the center back of the TV, put the
screws into the clamps, and then fasten the screws onto
the TV again.
Screws may not be supplied with the product. In this
➢
case, please purchase the screws of the following
specifications.
wall
3 Connect the clamps fixed onto the TV and the clamps fixed
onto the wall with a strong string and then tie the string
tightly.
Install the TV near to the wall so that it does not fall
➢
backwards.
It is safe to connect the string so that the clamps fixed
➢
on the wall are equal to or lower than the clamps fixed
on the TV.
Untie the string before moving the TV.
➢
4 Verify all connections are properly secured. Periodically
check connections for any sign of fatigue for failure.
If you have any doubt about the security of your
connections,contact a professional installer.
wall
English - 63
Troubleshooting
Before contacting the Samsung after-sales service, perform the following simple checks.
If you cannot solve the problem using the instructions below, note the model and serial number of
the television and contact your local dealer.
No sound or picture
Check that the mains lead has been connected to a wall socket.
Check that you have pressed the (Power) button (On/Off) on the front panel or press the POWER
button on the remote control.
Check the picture contrast and brightness settings.
Check the volume.
Check if TV Speaker is set to Off.
Normal picture but no sound
Check the volume.
Check whether the volume MUTE button on the remote control has been pressed.
No picture or black and white picture
Adjust the colour settings.
Check that the broadcast system selected is correct.
Sound and picture interference
Try to identify the electrical appliance that is affecting the television, then move it further away.
Plug the television into a different main socket.
Blurred or snowy picture, distorted sound
Check the direction, location and connections of your aerial.
This interference often occurs due to the use of an indoor aerial.
Remote control malfunctions
Replace the remote control batteries.
Clean the upper edge of the remote control (transmission window).
Check that the “+” and “–” ends of the batteries are inserted correctly.
Check that the batteries are drained.
Screen is black and power indicator light blinks steadily
On your computer check; Power, Signal Cable.
The TV is using its power management system.
Move the computer’s mouse or press any key on the keyboard.
On your equipment check (STB, DVD, etc) ; Power, Signal Cable.
Press the Source button on the panel or remote control.
Turn the TV off and on.
The damaged picture appears in the corner of the screen.
If Just Scan is selected in some external devices, the damaged picture may appear in the corner of
the screen. This symptom is caused by external devices, not TV.
The "Resets all settings to the default values" message appears.
This appears when you press and hold the EXIT button for a while. The product settings are reset to
the factory defaults.
Specifications
Model Name
Screen Size (Diagonal)
PC Resolution
Sound (Output)
Dimension (WxHxD)
Body
With stand
Weight
Body
With stand
Environmental Considerations
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
This device is a Class B digital apparatus.
➢
Design and specifications are subject to change without prior notice.
For the power supply and Power Consumption, refer to the label attached to the product.
PS63A750
63 inch
1920 x 1080 @ 60 Hz
15W x 2
1531 x 932 x 99 mm
1531 x 1005 x 418 mm
67 kg
84 kg
50 °F to 104 °F (10 °C to 40 °C)
10% to 80%, non-condensing
-4 °F to 113 °F (-20 °C to 45 °C)
5% to 95%, non-condensing
English - 64
This page is intentionally
left blank.
Loading...
