Samsung PS-50P7HD, PS-42P7HD User Manual

PDP-TELEVISION
(PLASMA

DISPLAY PANEL)

Owner’s Instructions

Before operating the unit,

please read this manual thoroughly,

and retain it for future reference.

ON-SCREEN MENUS

Picture In Picture (PIP)

Energy Saving

TELETEXT

SRS TruSurroundXT

Digital Natural Image engine

Digital Terrestrial Receiver

Register your product at www.samsung.com/global/register

(Option)

User Instructions

◆ Screen Image retention

Do not display a still image (such as on a video game or when hooking up a PC to this PDP) on the plasma
monitor panel for more than 2 hours as it can cause screen image retention. This image retention is also known
as “screen burn”. To avoid such image retention, reduce the degree of brightness and contrast of the screen when
displaying a still image.

◆ Height

The PDP can normally operate only under 2000m in height. It might abnormally function at a place over 2000m in
height so do not install and operate there.

◆ Heat on the top of the PDP TV

The top side of the product may be hot after long period of use as heat dissipates from the panel through the vent
hole in the upper part of the product. This is normal and does not indicate any defect or operation failure of the
product. However, children should be prevented from touching the upper part of the product.

◆ The product is making a ‘cracking’ noise.

A ‘cracking’ noise may occur when the product contracts or expands due to a change of surrounding environment
such as temperature or humidity. This is normal and not a defect of the unit.

◆ Cell Defects

The PDP uses a panel consisting of 1,230,000(SD-level) to 3,150,000(HD-level) pixels which require sophisticated
technology to produce. However, there may be few bright or dark pixels on the screen.
These pixels will have no impact on the performance of the product.

◆ Avoid operating the TV at temperatures below 5°C(41°F)

◆ A still image displayed too long may cause permanent damage to the PDP Panel.

◆ Afterimage on the Screen.

Displaying still images from Video games and PC for longer than a certain period of time may produce partial
afterimages. To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images.

◆ Warranty

- Warranty does not cover any damage caused by image retention.

- Burn-in is not covered by the warranty.

◆ Installation

Be sure to contact an authorized service centre, when installing your set in a location with heavy dust, high or low
temperatures, high humidity, chemical substance and where it operates continually such as the airport, the train
station etc. Failure to do so may cause a serious damage to your set.

Watching the PDP TV in 4:3 format for a long period of time may leave traces of borders
displayed on the left, right and centre of the screen caused by the difference of light emission
on the screen.
Playing a DVD or a game console may cause similar effect to the screen.
Damages caused by the above effect are not covered by the Warranty.

Checking Parts

Warranty Card/

Owner’s

Instructions

Power Cord

➢

Remote Control/

AAA Batteries

Ferrite Core for

Power Cord

(PS-42P7HD)

Ferrite Core
(Power Cord, Antenna Cable, Side AV)

The ferrite core is used to shield the cable from
interference. When connecting a cable, open
the ferrite core and clip it around the cable.

Registration Card/

Safety Guide Manual

Ferrite Core for

Power Cord/

Antenna Cable/

(PS-50P7HD)

Side AV

Cloth-Clean

S-VIDEO Cable

PC Cable

© 2006 Samsung Electronics Co., Ltd. All rights reserved.

English - 2

Sold Separately

HDMI Cable

Scart Cable PC Audio Cable HDMI/DVI Cable

Antenna Cable

Component Cables

(RCA)

Contents

ENERAL INFORMATION

◆ G

■ User Instructions ................................................................................................... 2

■ Checking Parts...................................................................................................... 2

■ Control Panel (depending on the model) .............................................................. 5

■ Connection Panel (depending on the model) ....................................................... 6

■ Using the Stand-Base ........................................................................................... 8

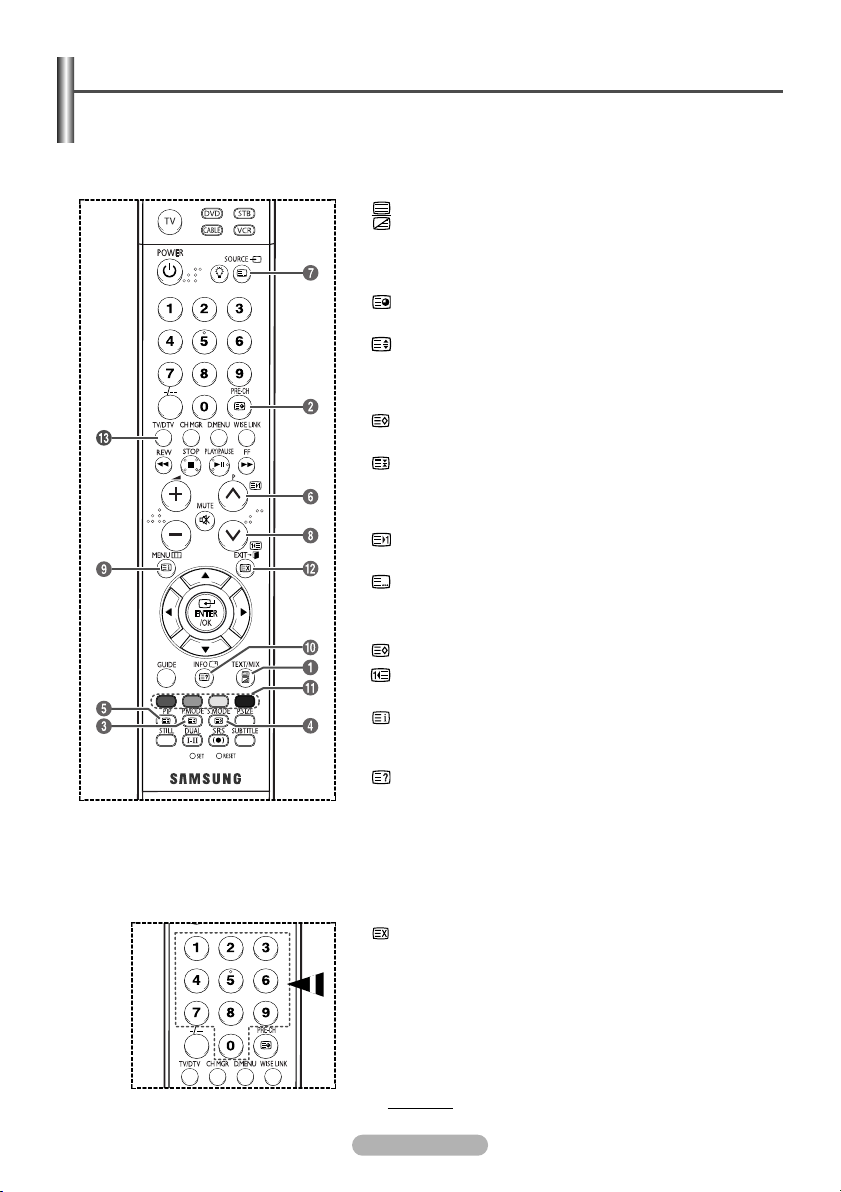

■ Viewing the Remote Control (depending on the model)....................................... 8

■ Installing Batteries in the Remote Control ............................................................ 9

◆ OPERATION

■ Switching Your Television On and Off ................................................................... 9

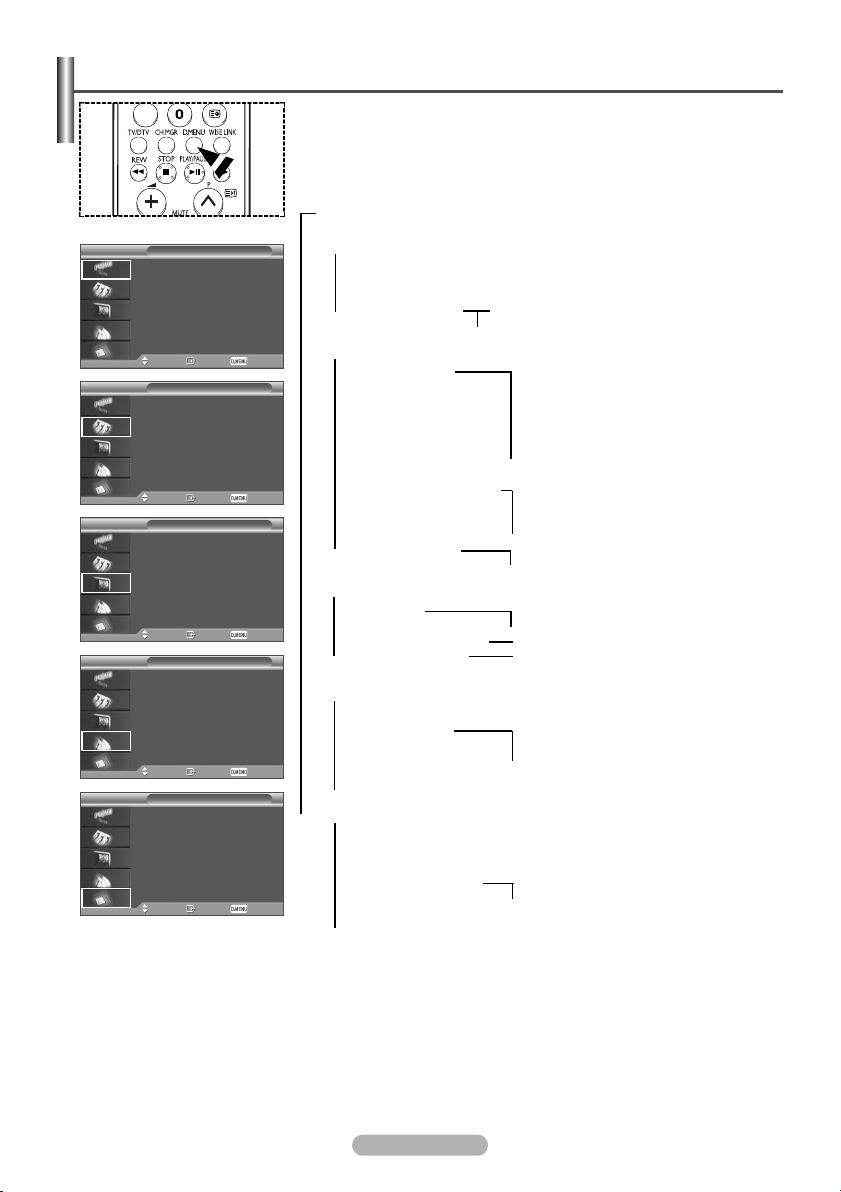

■ Viewing the Menus................................................................................................ 10

■ Freezing the Current Picture................................................................................. 10

■ Plug & Play Feature .............................................................................................. 11

■ Viewing an External Signal Source....................................................................... 12

■ Editing Device Names........................................................................................... 12

◆ CHANNEL CONTROL (ANALOG TV)

■ Storing Channels Automatically ............................................................................ 13

■ Storing Channels Manually ................................................................................... 14

■ Adding / Locking Channels ................................................................................... 15

■ Sorting the Stored Channels................................................................................. 16

■ Assigning Names to Channels.............................................................................. 16

■ Fine Tuning Channel Reception............................................................................ 17

■ LNA (Low Noise Amplifier) .................................................................................... 17

◆ PICTURE CONTROL

■ Changing the Picture Standard............................................................................. 18

■ Customizing the Picture Settings .......................................................................... 18

■ Selecting the Picture Size ..................................................................................... 19

■ Digital NR .............................................................................................................. 20

■ SMD ...................................................................................................................... 20

■ DNIe Demo ........................................................................................................... 20

■ Viewing the Picture in Picture (PIP)...................................................................... 21

◆ SOUND CONTROL

■ Sound Features..................................................................................................... 22

◆ FUNCTION DESCRIPTION

■ Time Features ....................................................................................................... 23

■ Language .............................................................................................................. 24

■ Blue Screen........................................................................................................... 24

■ Melody................................................................................................................... 24

■ Energy Saving....................................................................................................... 24

■ Using Game Mode ................................................................................................ 24

■ Screen Burn Protection......................................................................................... 25

■ Setting the Blue Eye ............................................................................................. 25

◆ PC DISPLAY

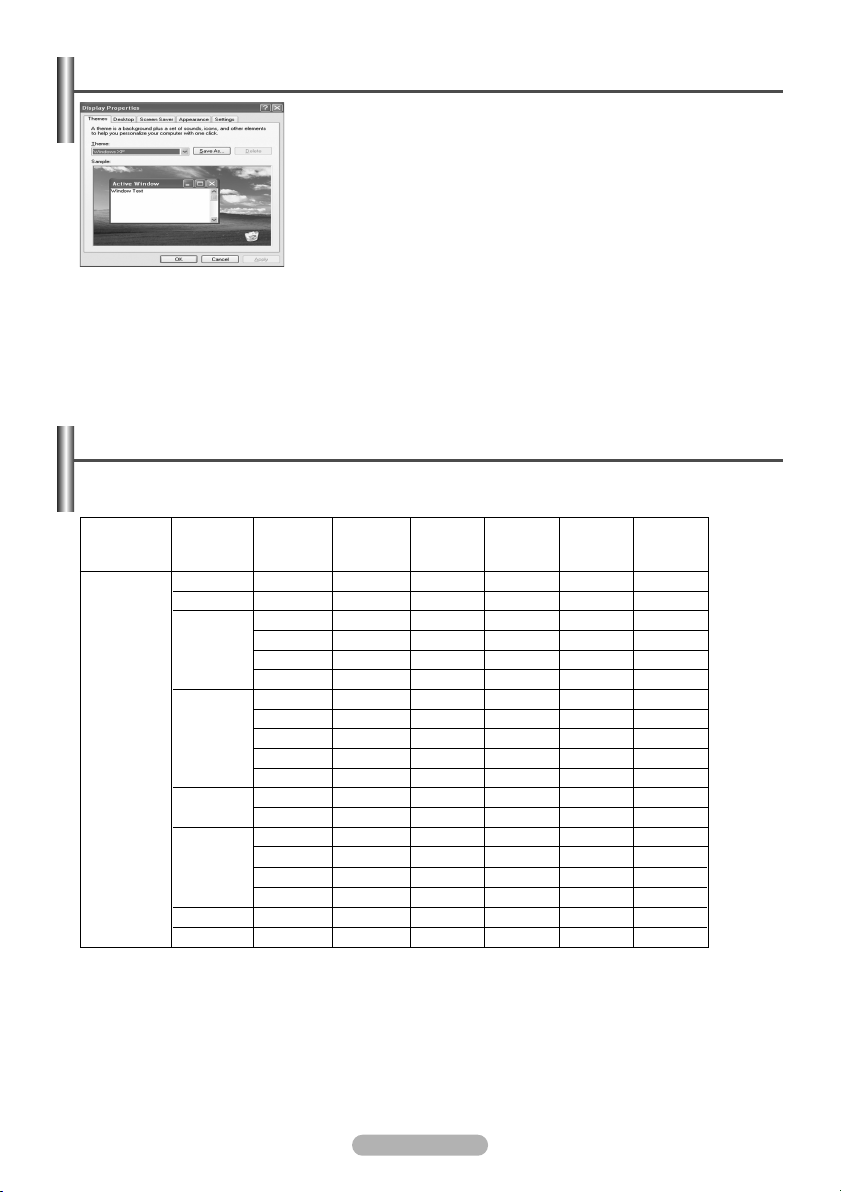

■ Setting up Your PC Software (Based on Windows XP)........................................ 26

■ Input Mode (PC).................................................................................................... 26

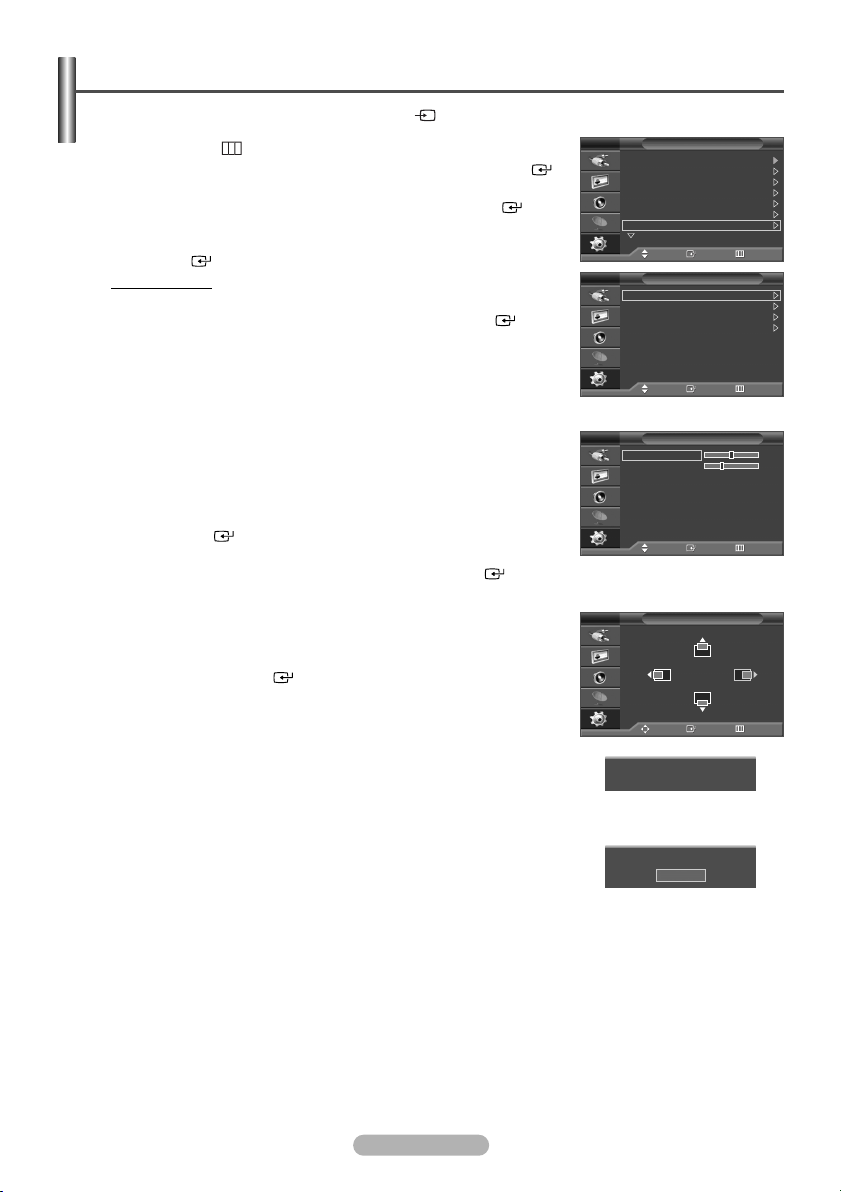

■ Setting the PC....................................................................................................... 27

continued...

English - 3

Contents

ISELINK

◆ W

■ Using the WISE LINK Function ........................................................................................ 28

■ Using the WISELINK Mode .............................................................................................. 29

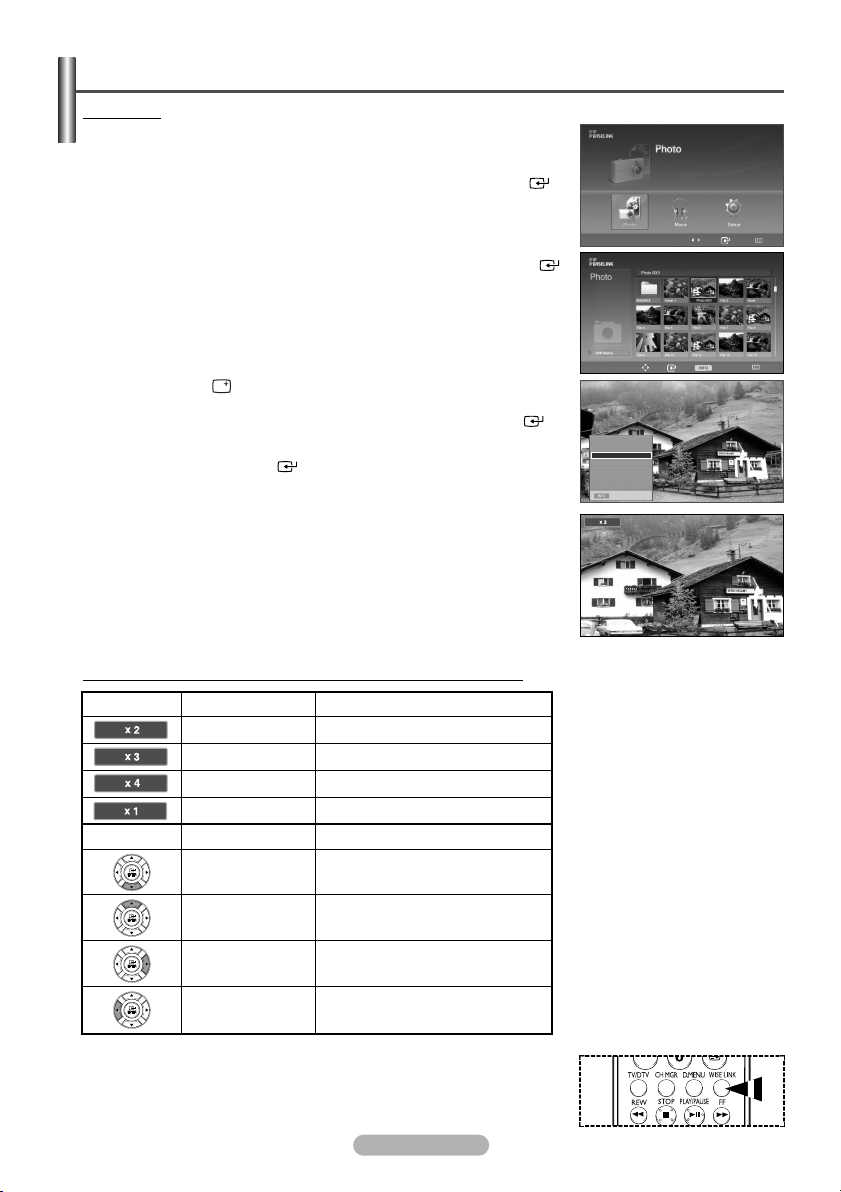

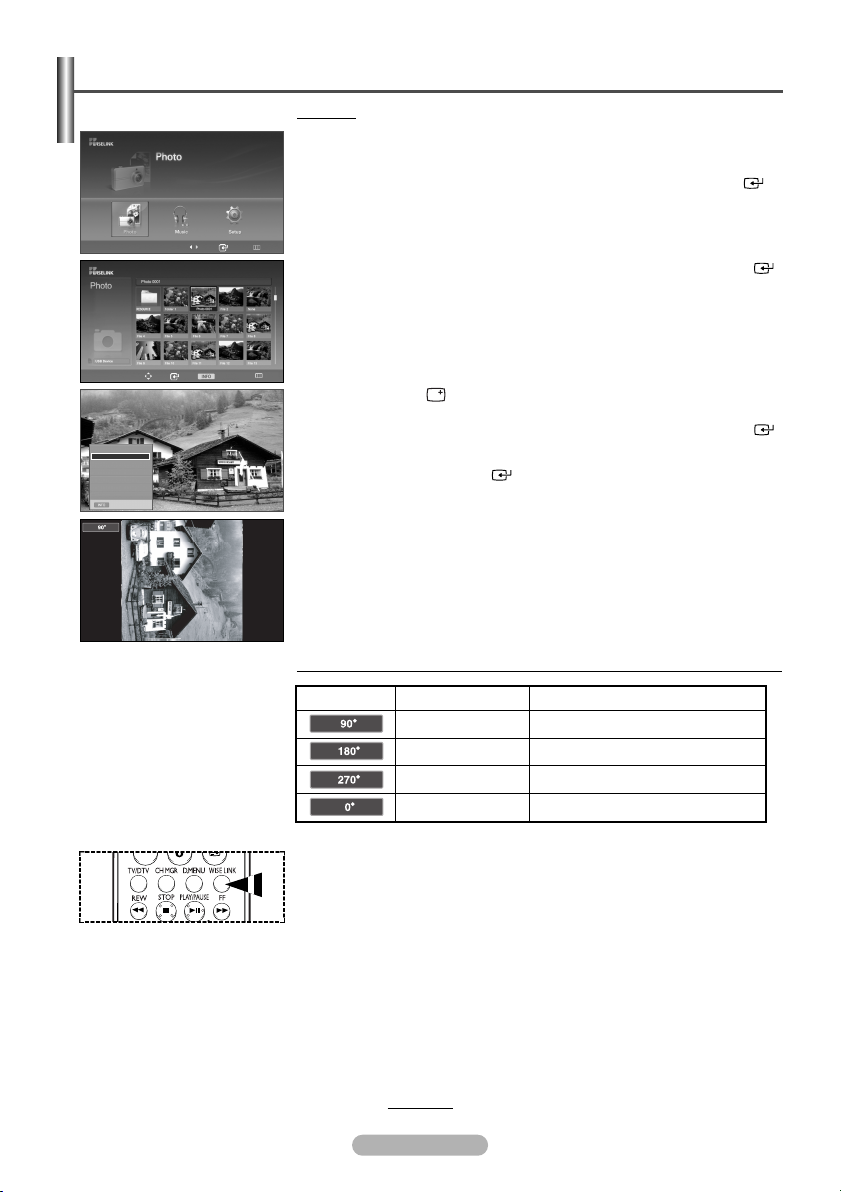

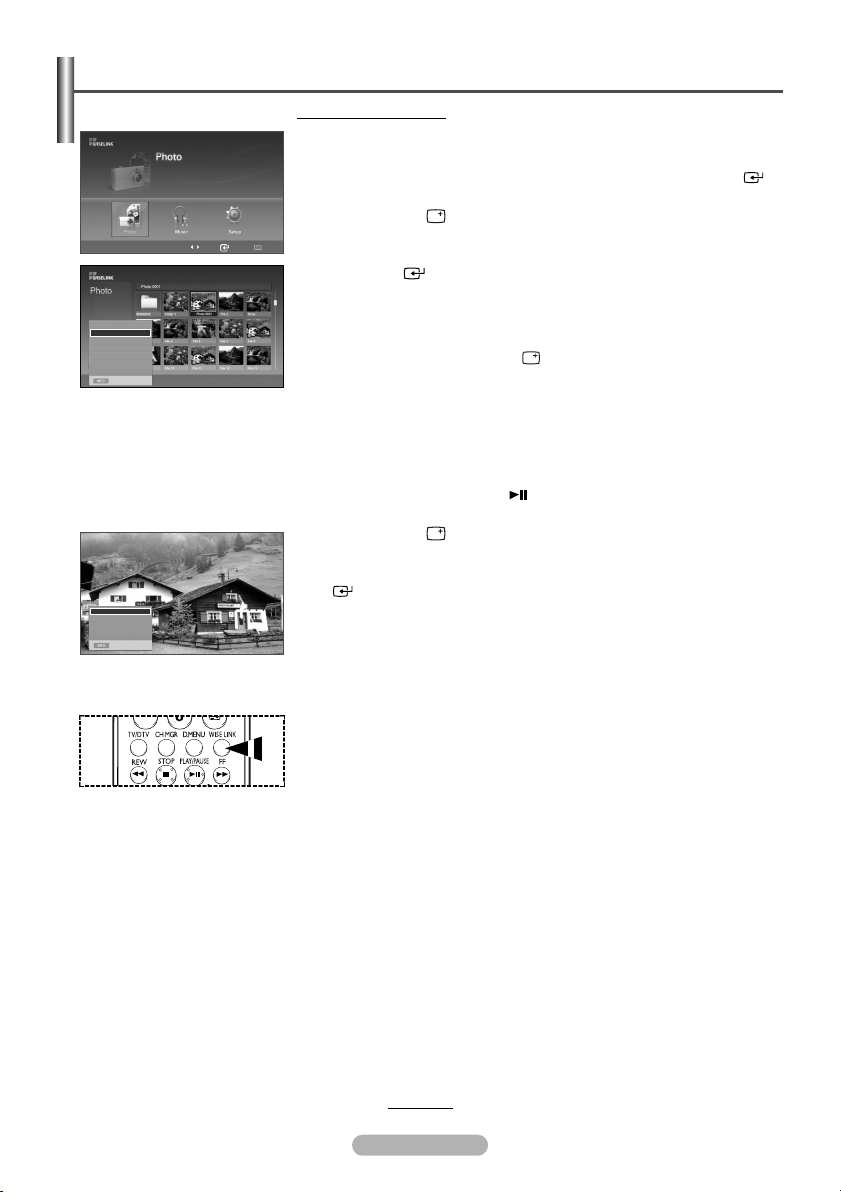

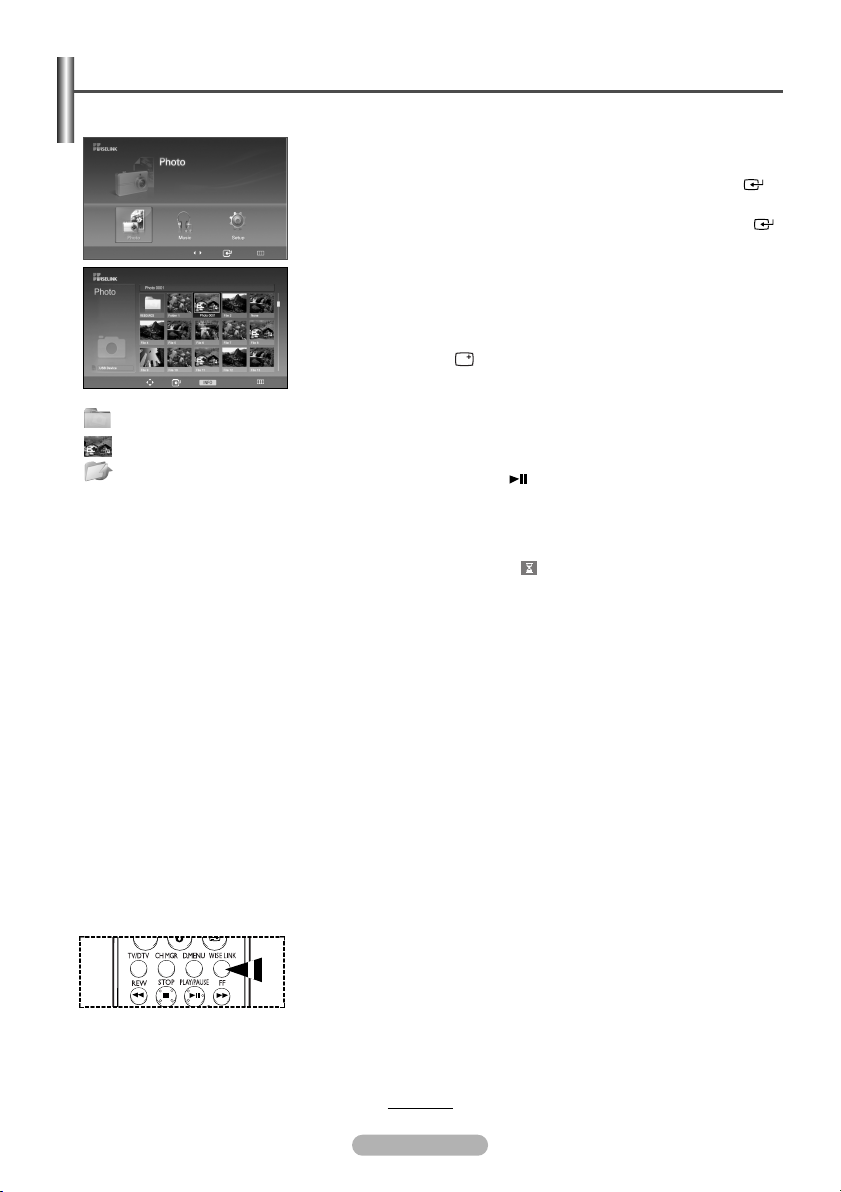

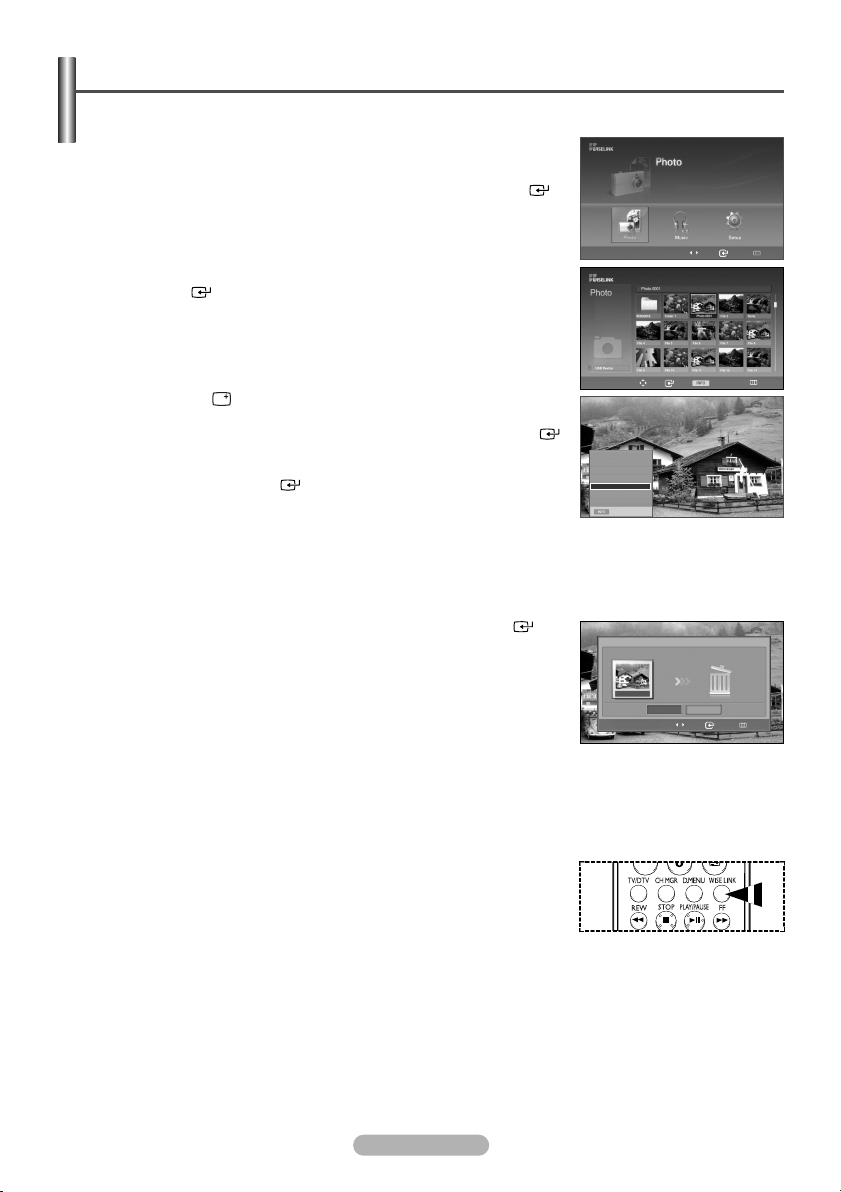

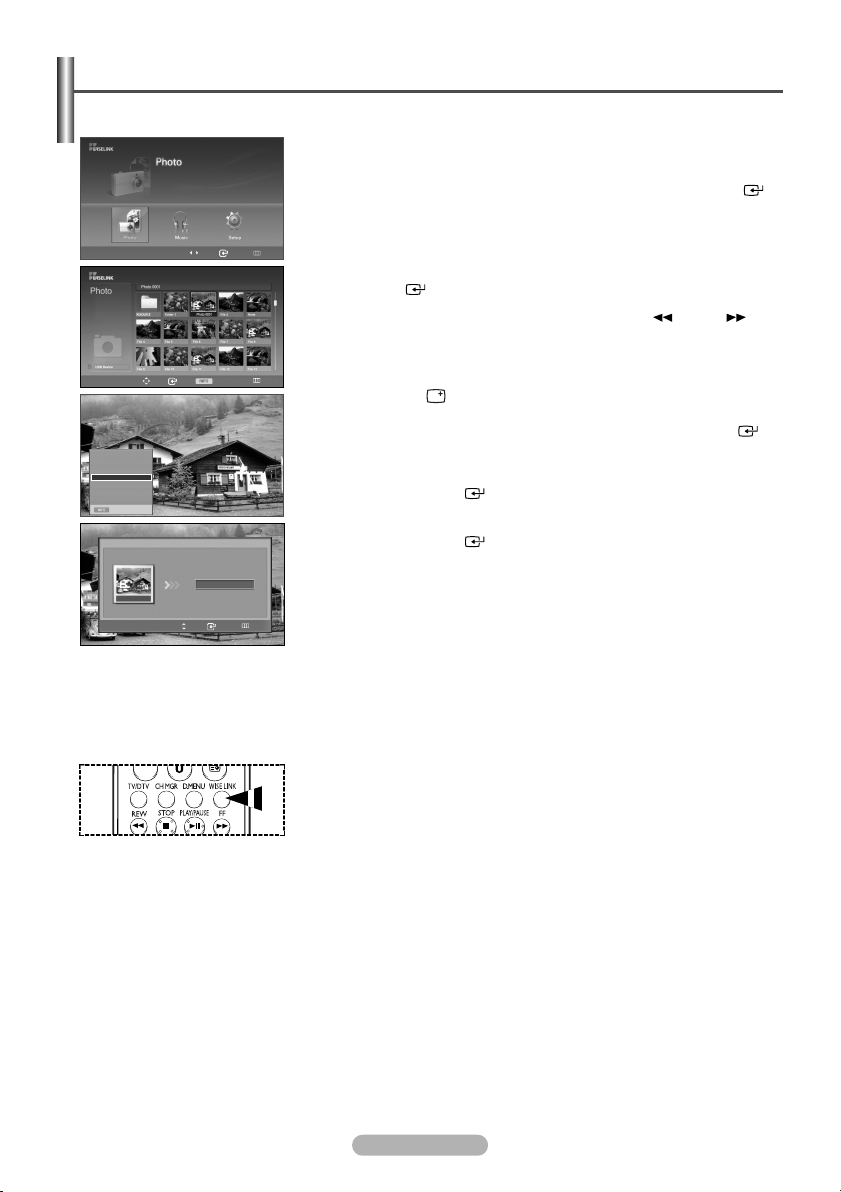

■ Using the Photo (JPEG) List............................................................................................. 30

■ Copying Photo Files........................................................................................................... 36

■ Deleting Photo Files........................................................................................................... 37

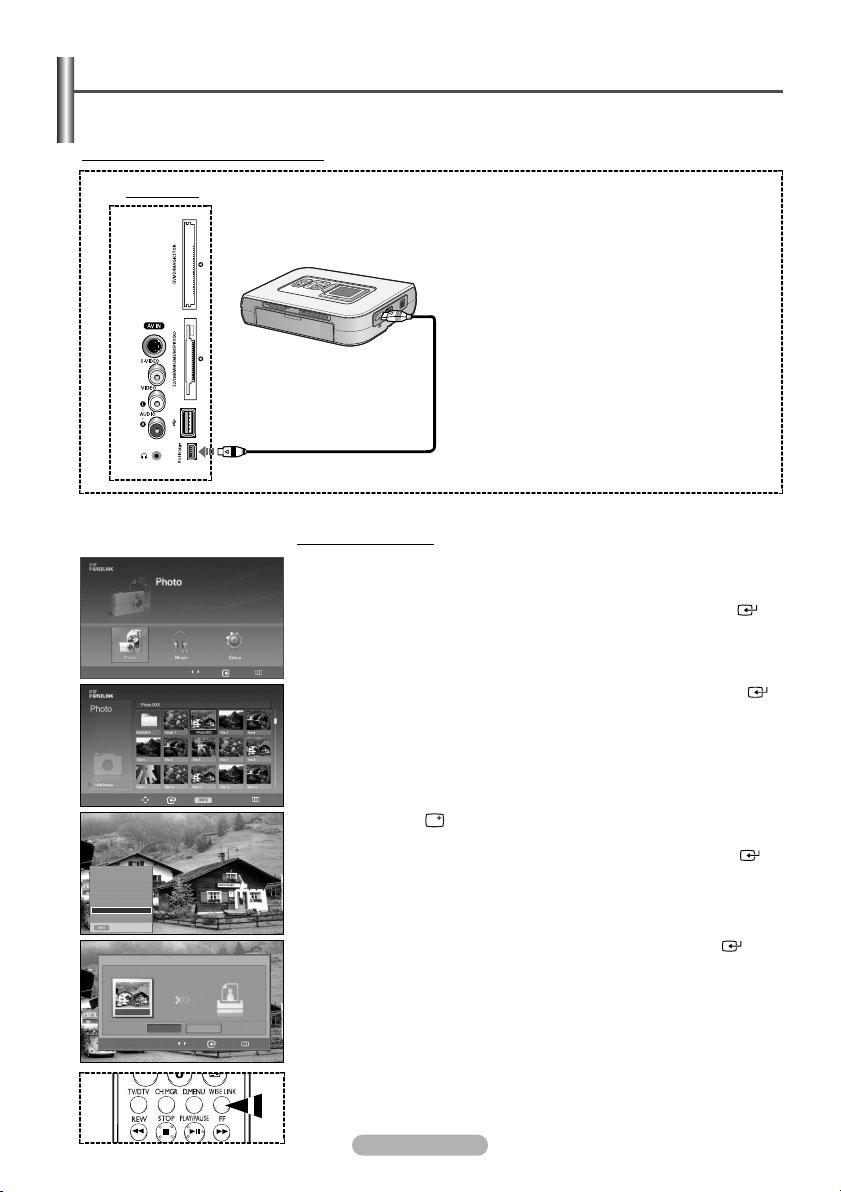

■ Printing the Photo Image................................................................................................... 38

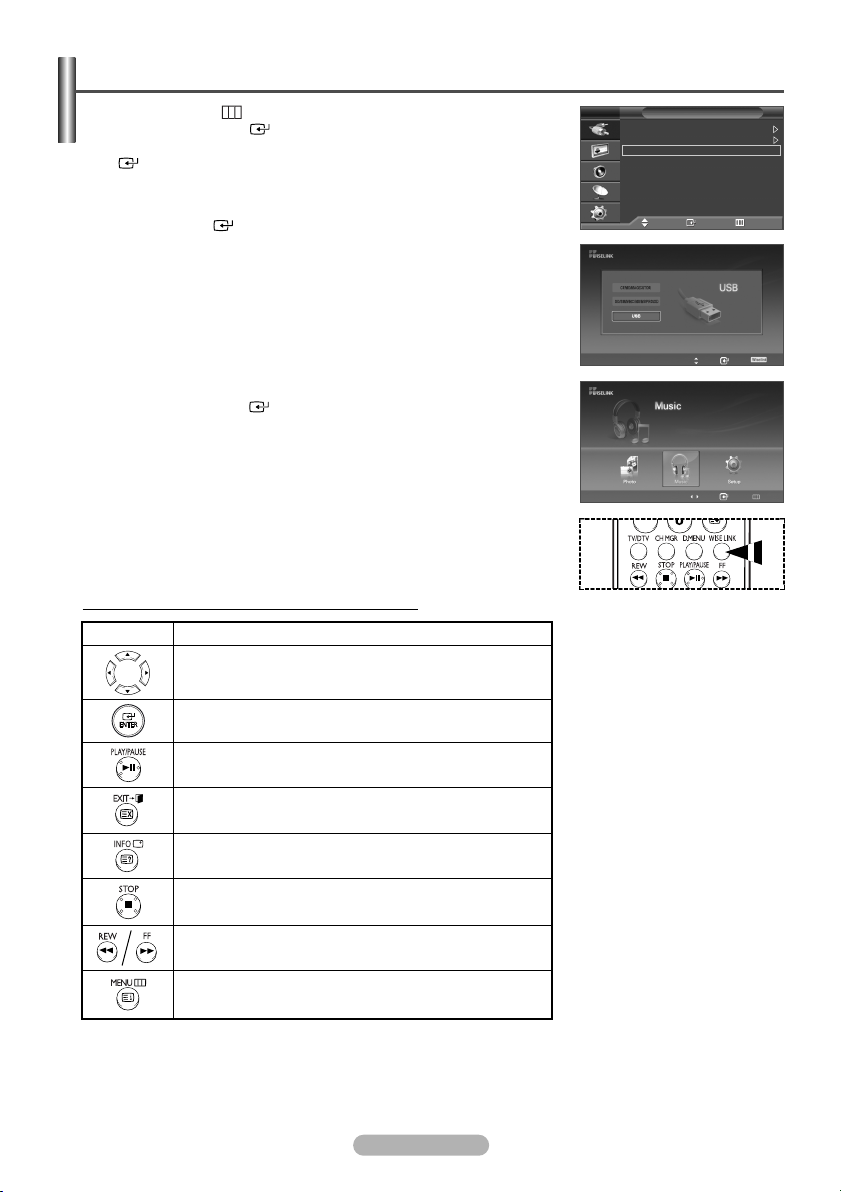

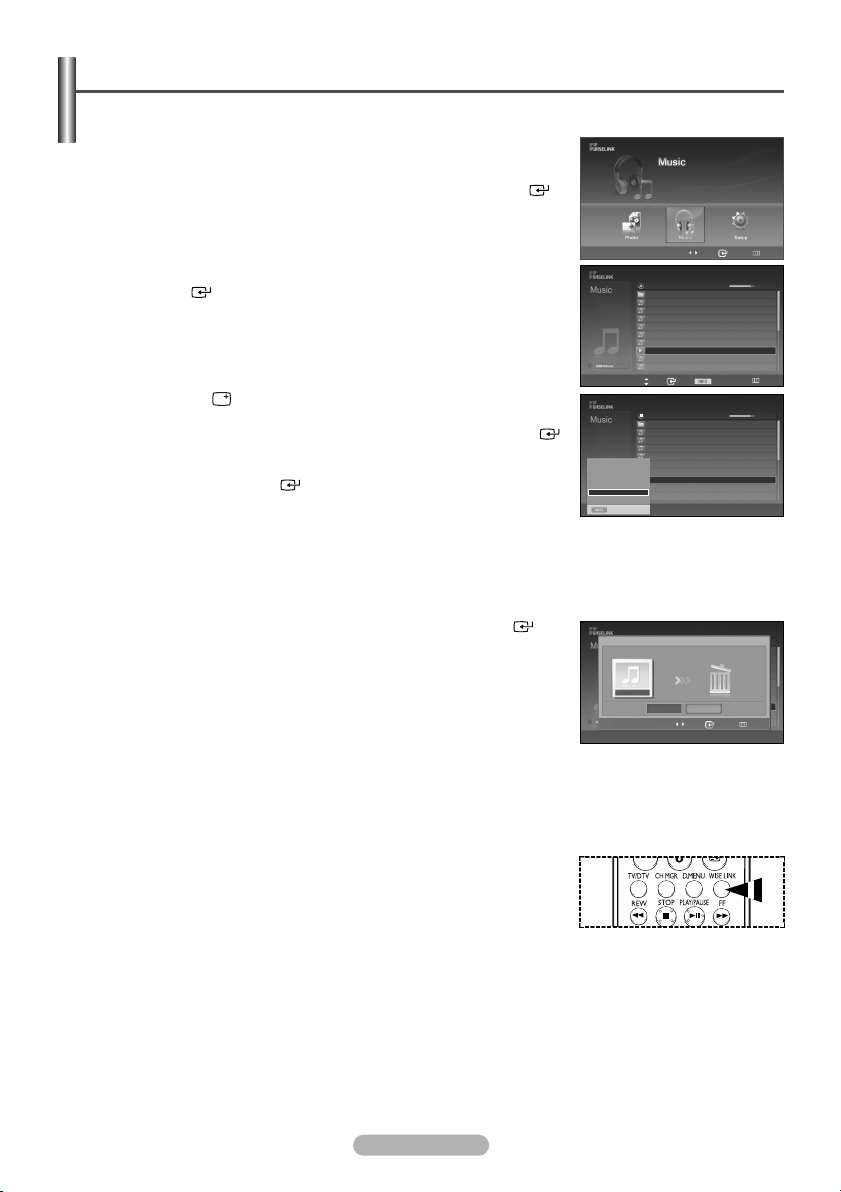

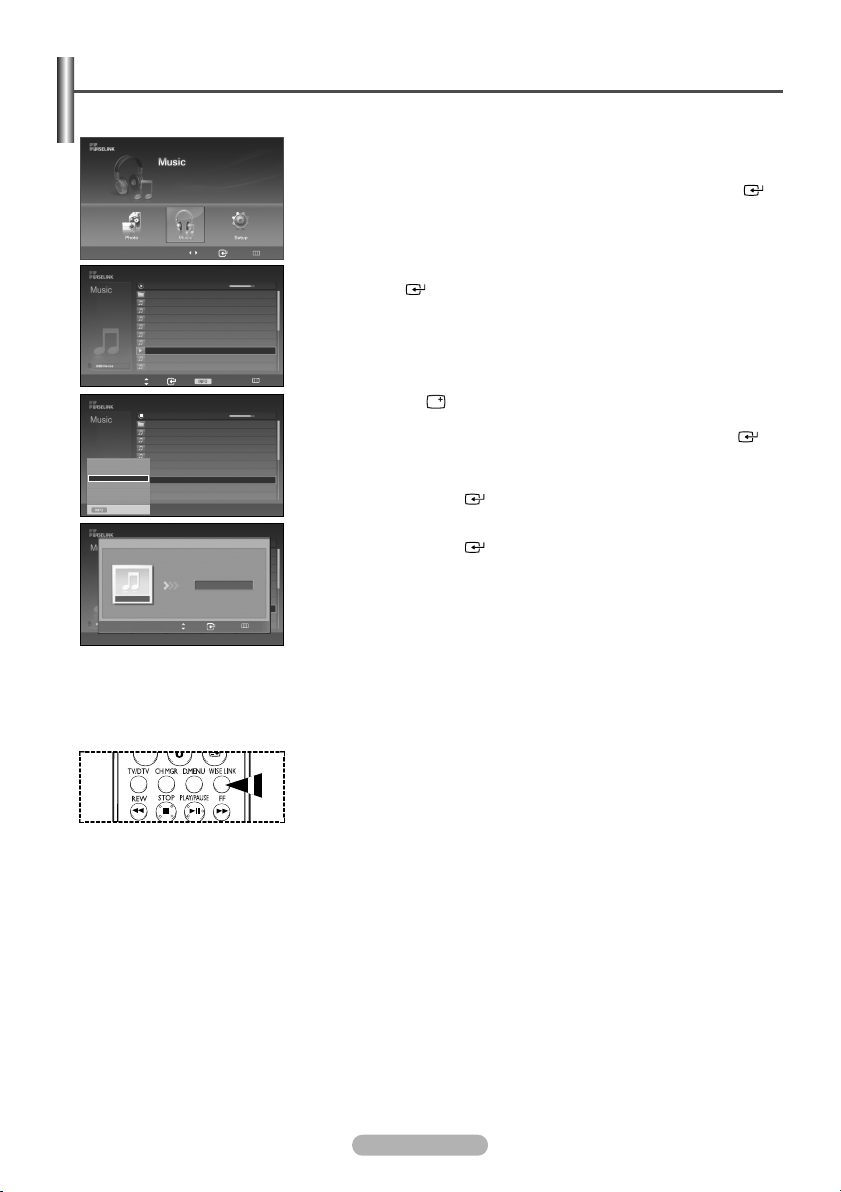

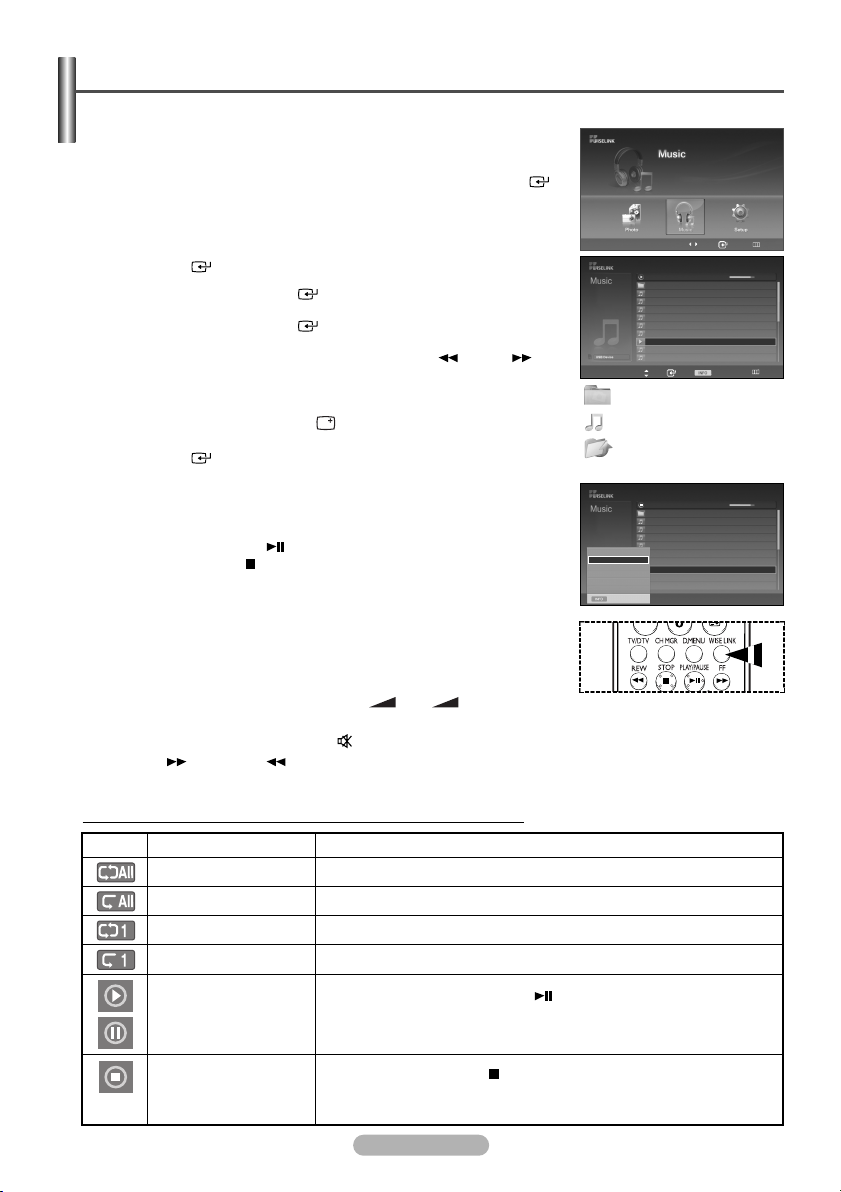

■ Using the Music (MP3) List ............................................................................................... 39

■ Copying Music Files........................................................................................................... 40

■ Deleting Music Files........................................................................................................... 41

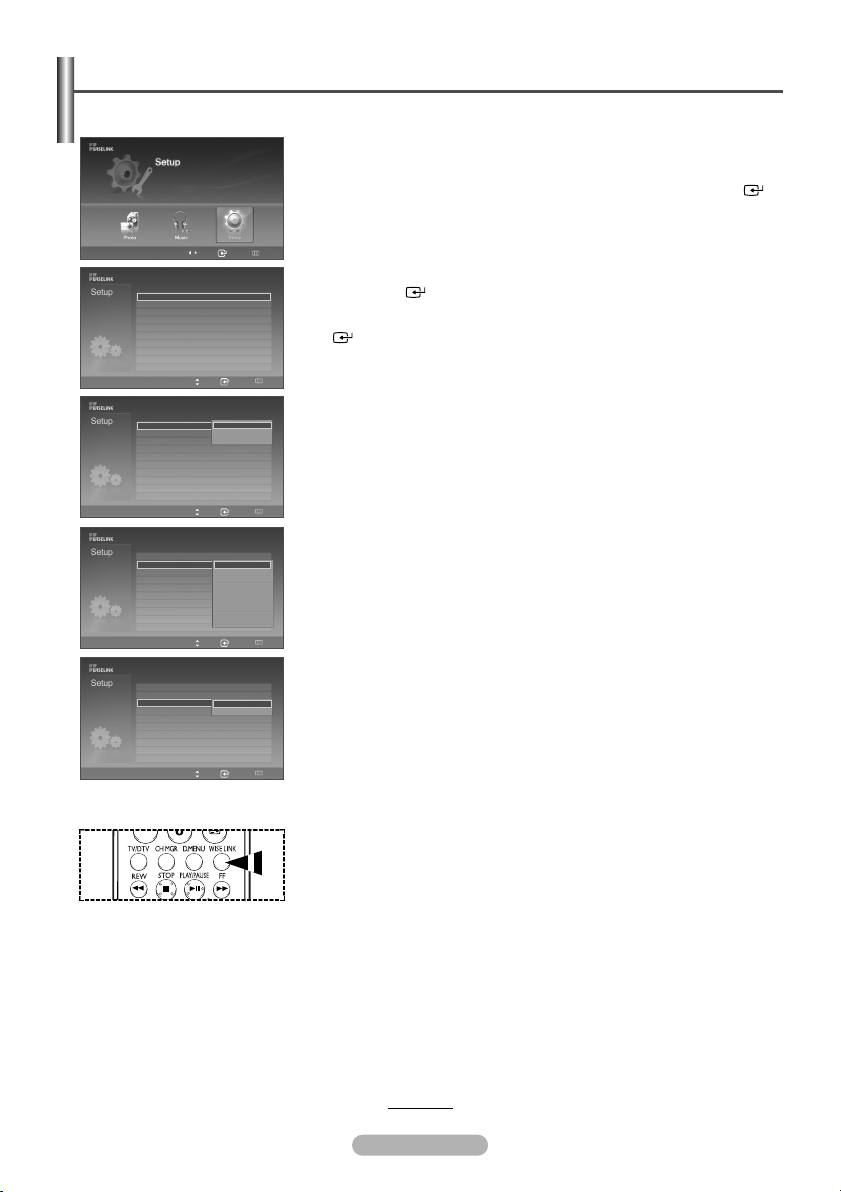

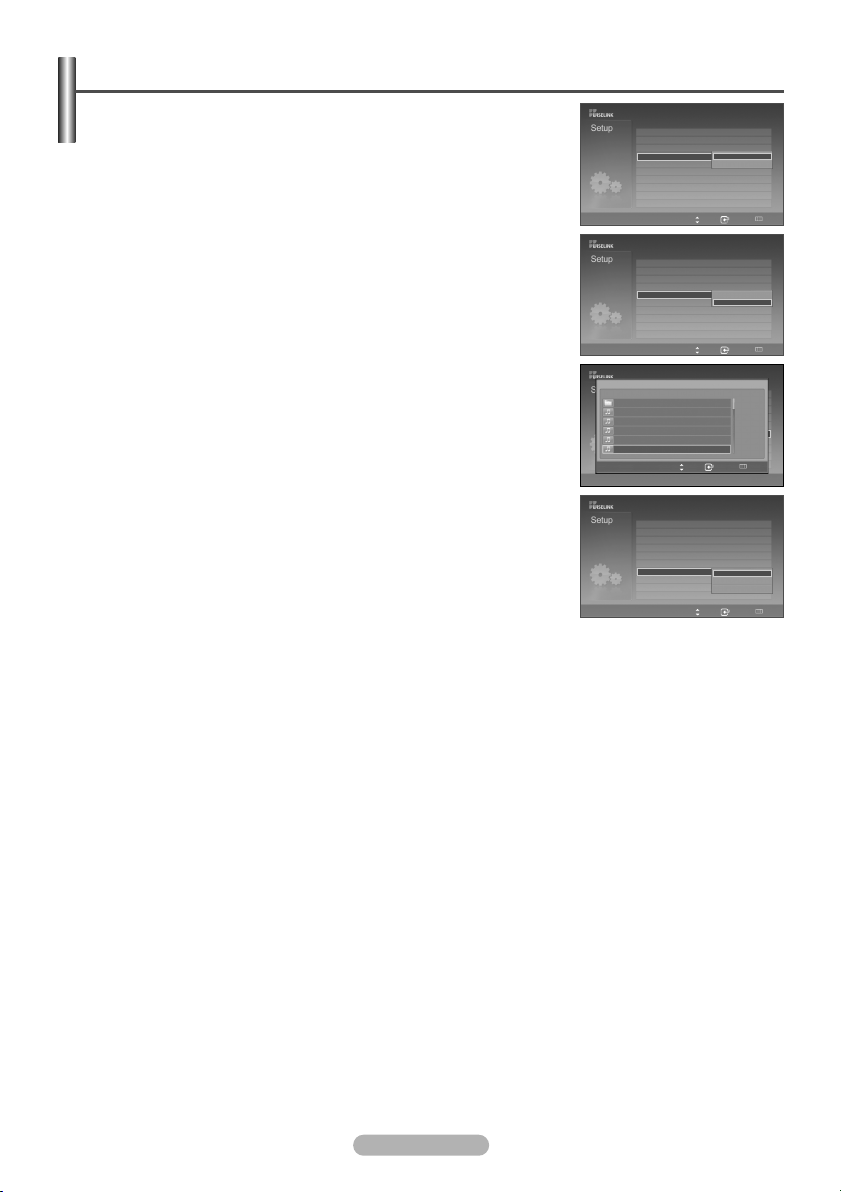

■ Using the Setup Menu....................................................................................................... 42

◆ USING THE DTV FEATURE

■ Previewing the DTV Menu System (depending on the model) ...................................... 44

■ Updating the Channel Manager Automatically ................................................................ 45

■ Updating the Channel Manager Manually ....................................................................... 45

■ Editing Your Favourite Channels ...................................................................................... 46

■ Viewing Channel Manager................................................................................................ 48

■ Displaying Programme Information .................................................................................. 48

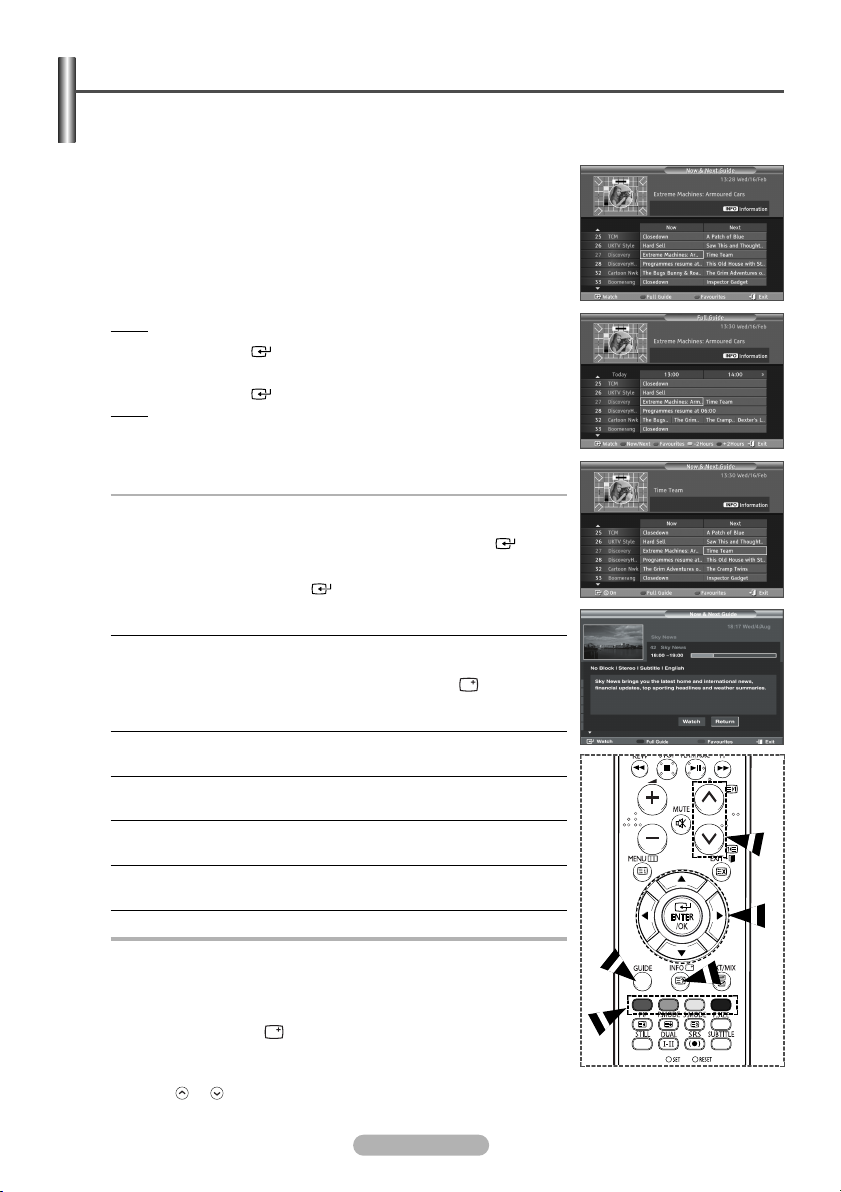

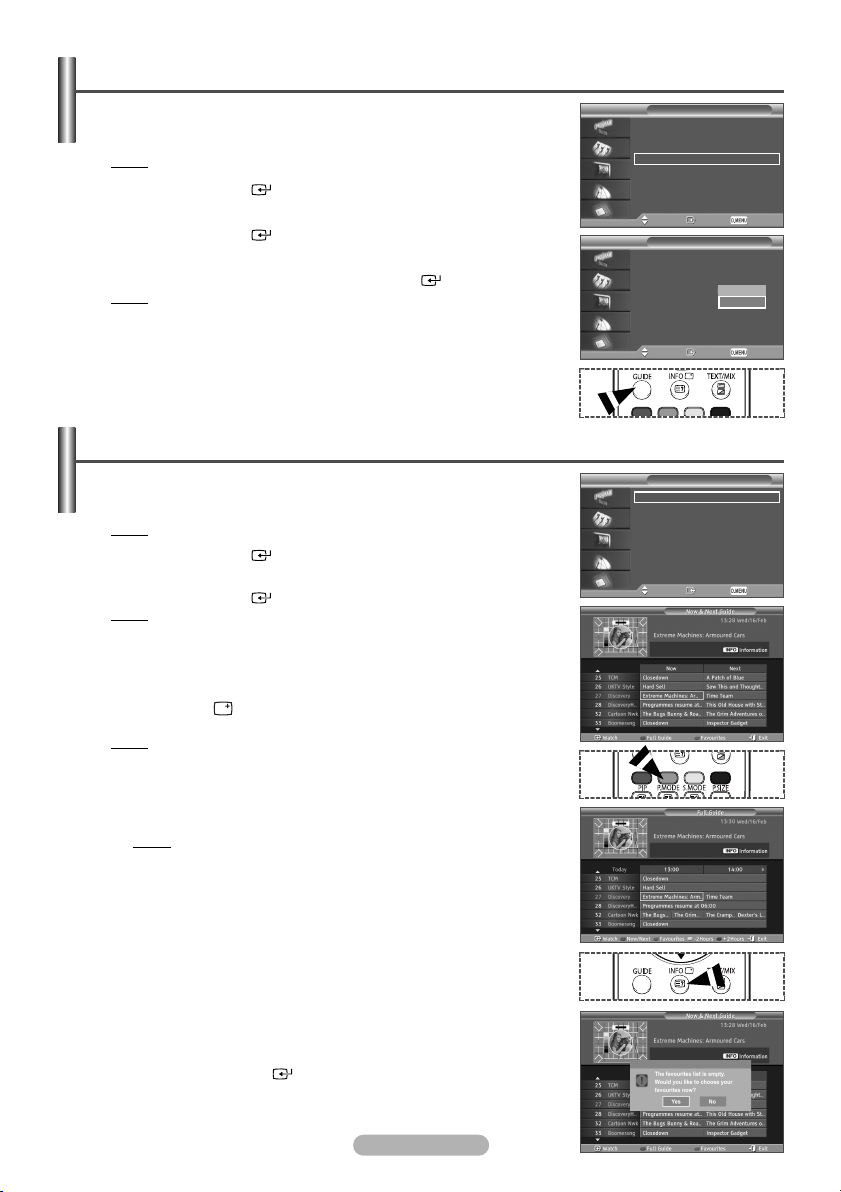

■ Viewing the EPG (Electronic Programme Guide) Information........................................ 49

■ Using the Scheduled List................................................................................................... 50

■ Setting the Default Guide .................................................................................................. 51

■ Viewing All Channels and Favourite Channels................................................................ 51

■ Choosing Your Language.................................................................................................. 52

■ Adjusting the Translucency Level..................................................................................... 52

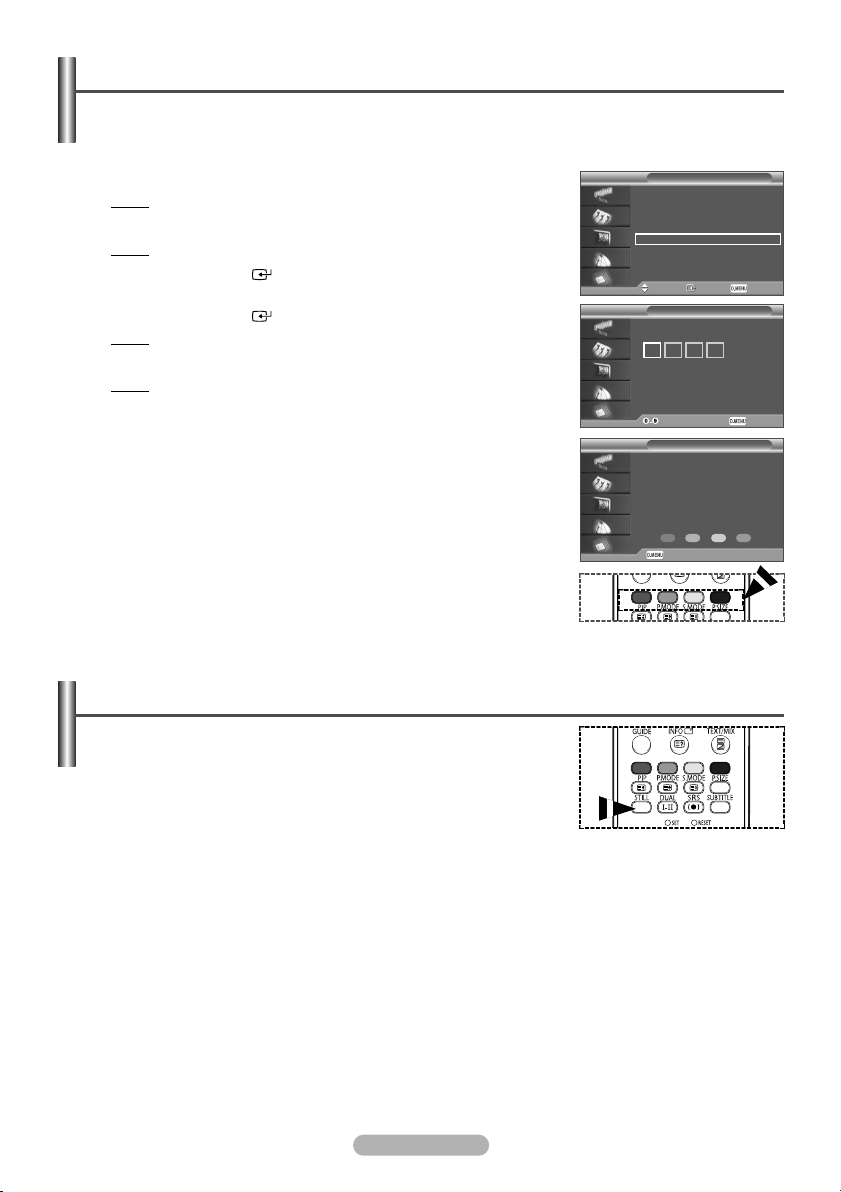

■ Setting up the Parental Lock............................................................................................. 53

■ Using the Preferred Features............................................................................................ 54

■ Checking the Product Information .................................................................................... 54

■ Checking the Signal Information....................................................................................... 55

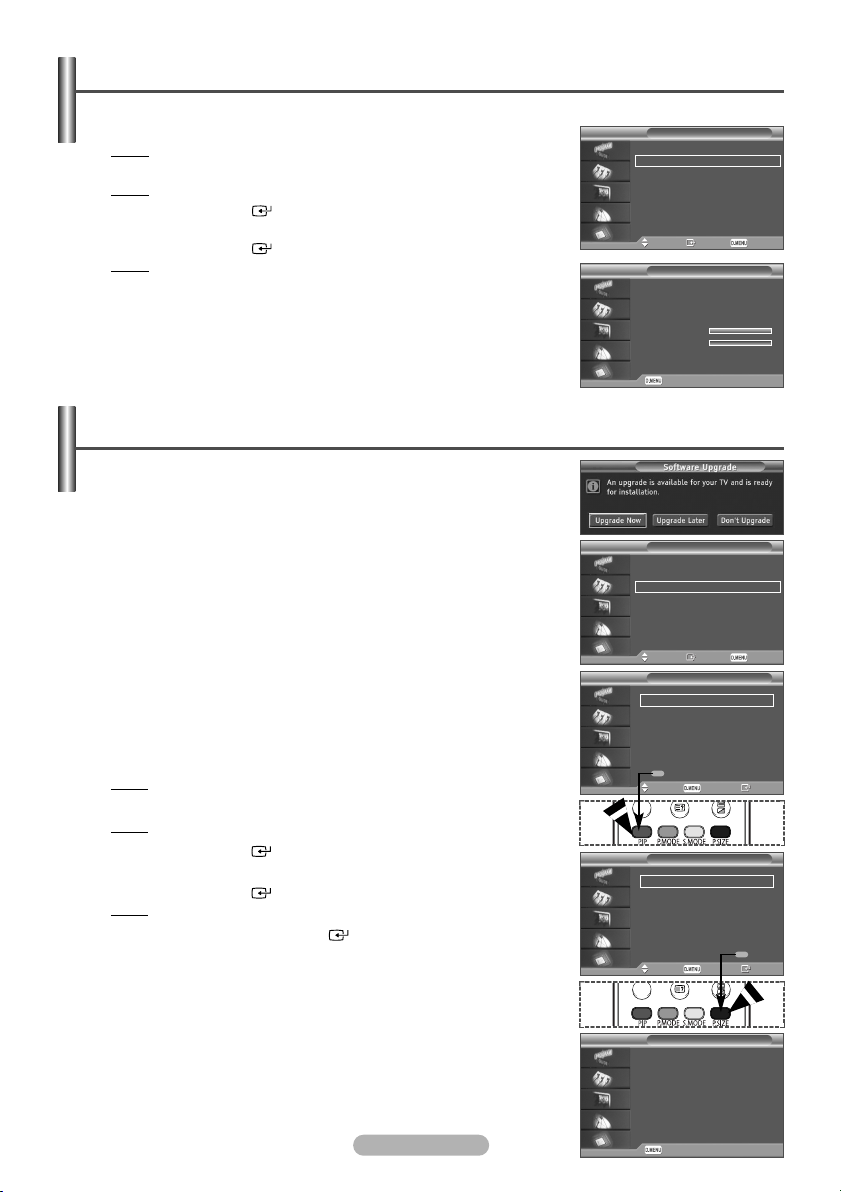

■ Upgrading the Software (Option)...................................................................................... 55

■ Viewing Common Interface............................................................................................... 56

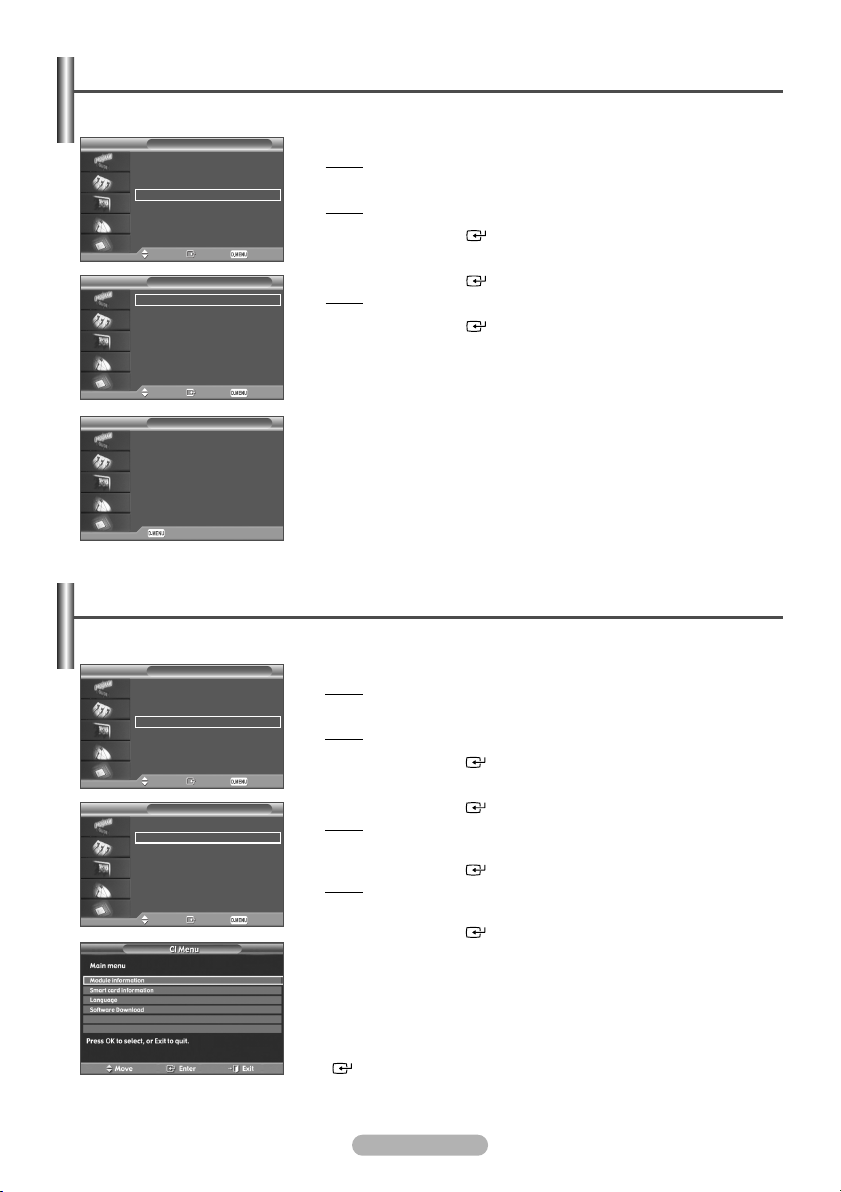

■ Selecting the CI (Common Interface) Menu .................................................................... 56

■ Resetting............................................................................................................................. 57

■ Freezing the Current Picture............................................................................................. 57

◆ APPENDIX

■ Teletext Feature (depending on the model) .......................................................... 58

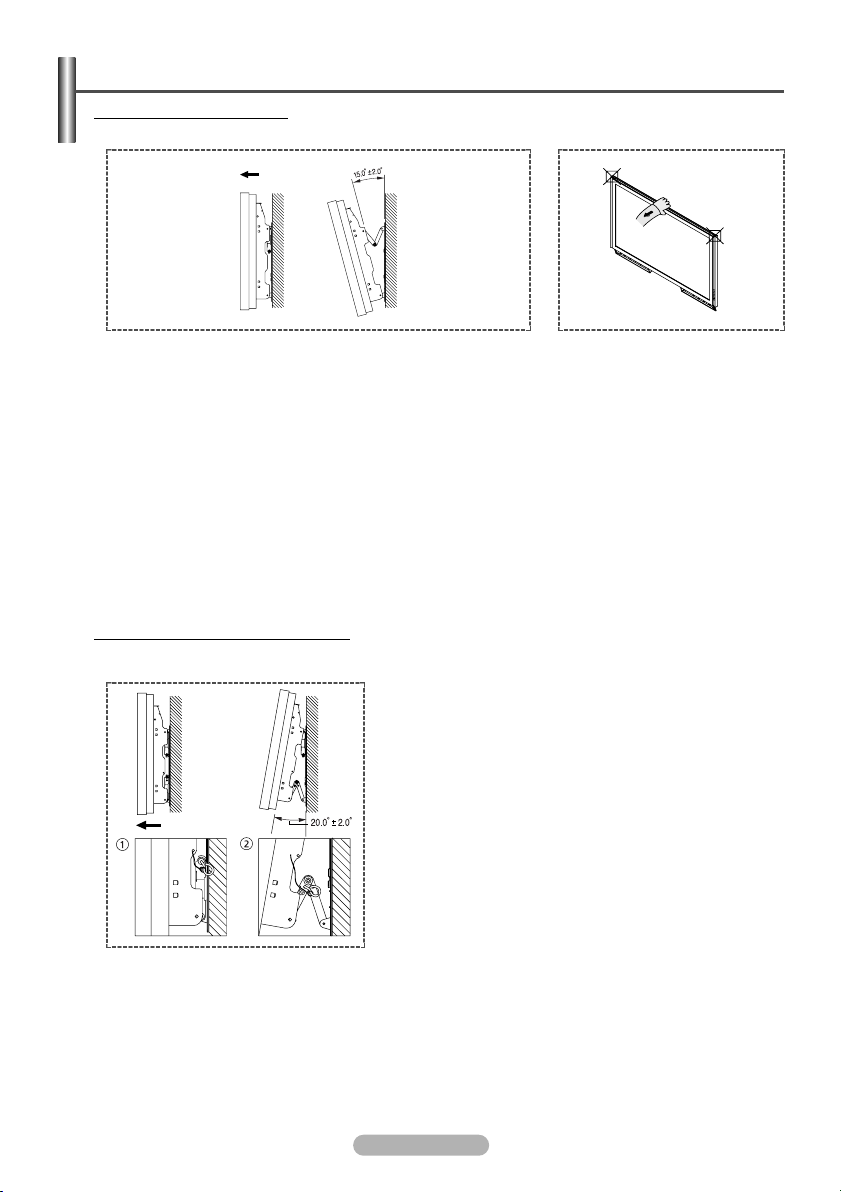

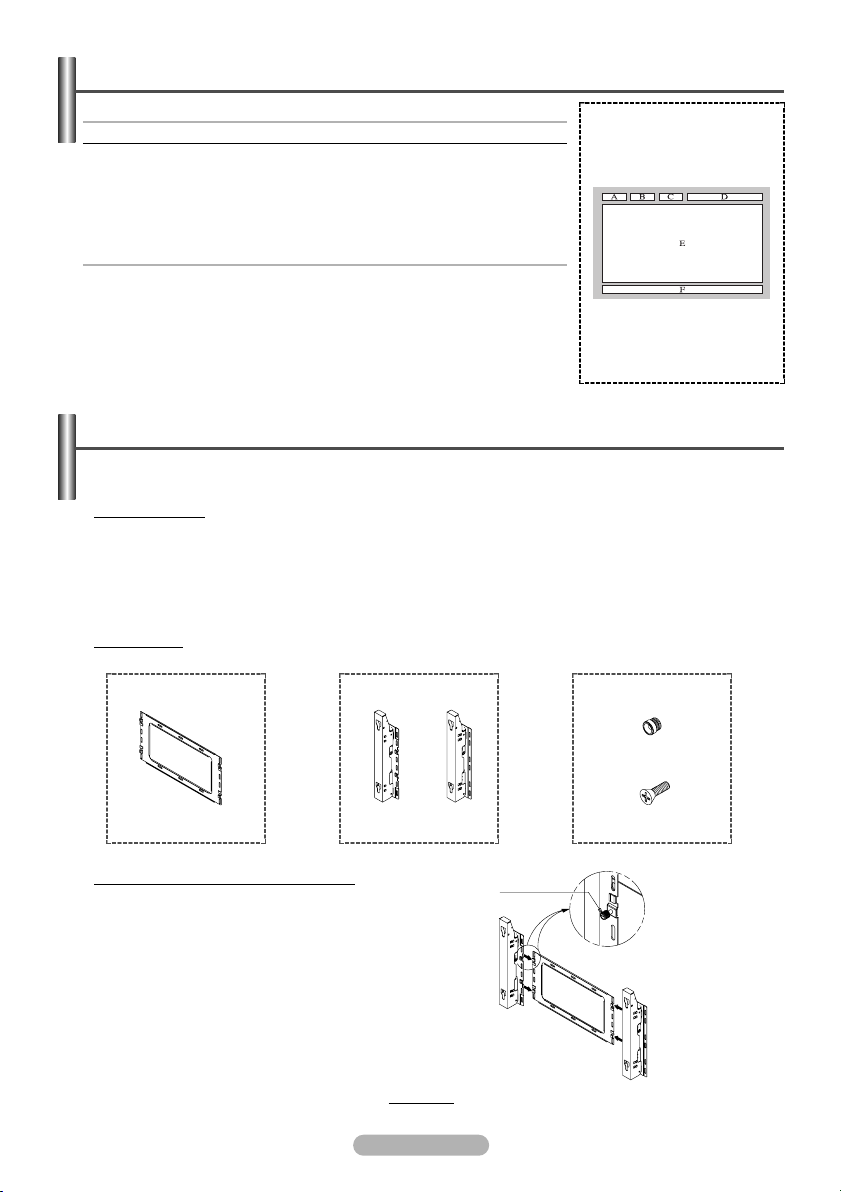

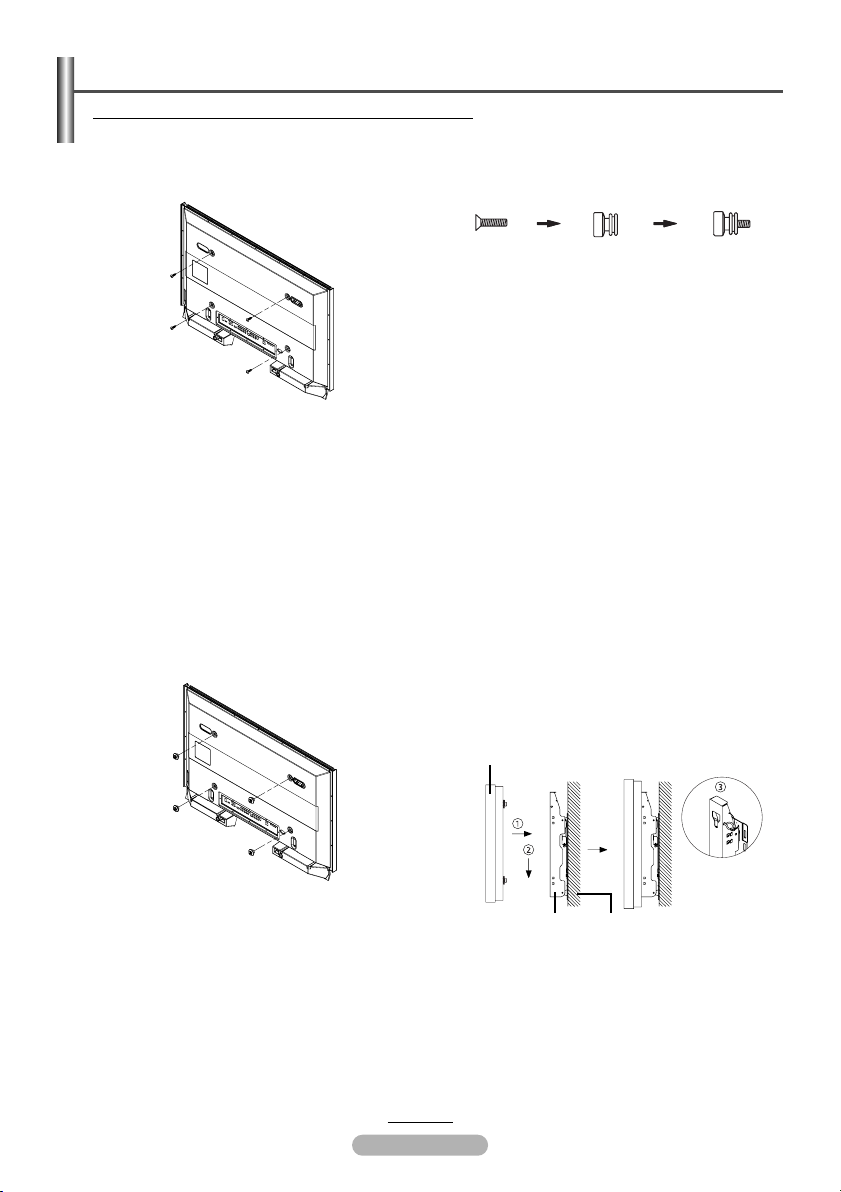

■ How to Install the Wall Mount Bracket.................................................................. 59

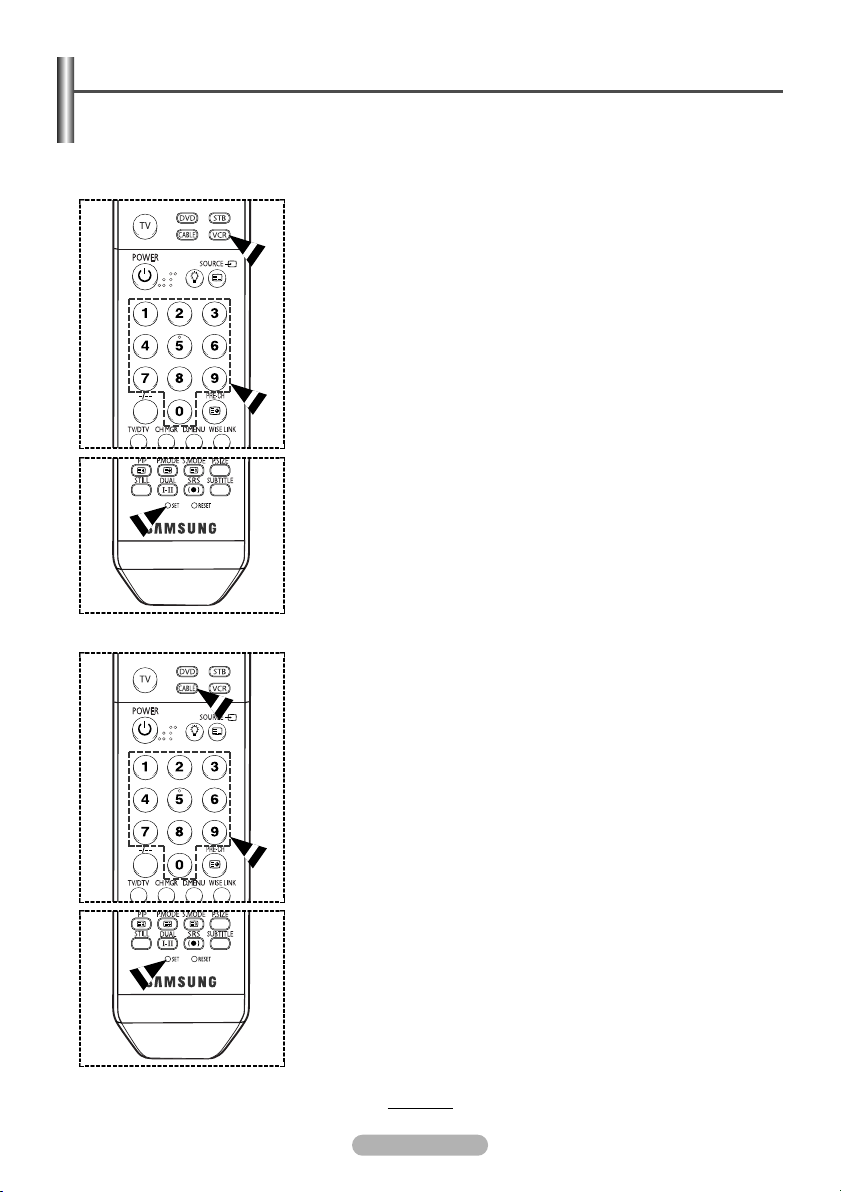

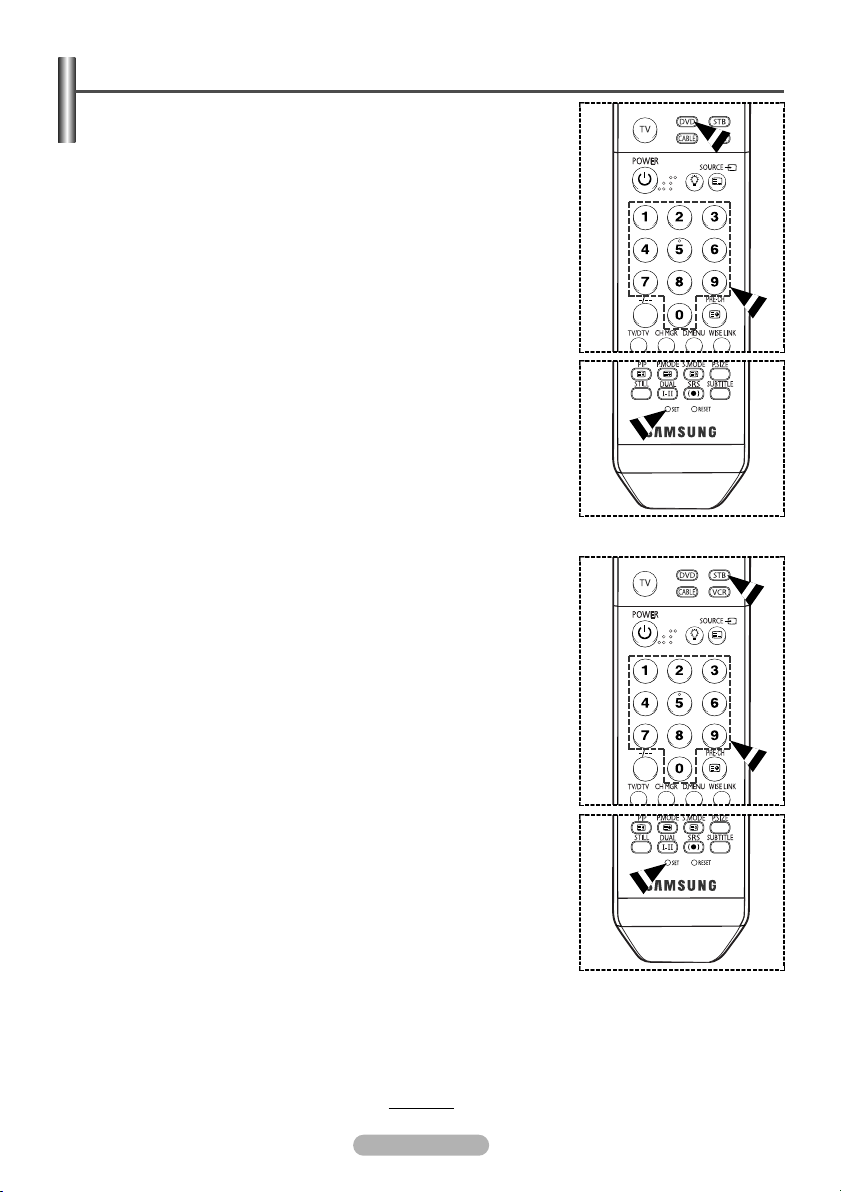

■ Setting Up Your Remote Control........................................................................... 62

■ Troubleshooting..................................................................................................... 67

Symbols

☛

➢

Press Important Note

English - 4

Control Panel

The product colour and shape may vary depending on the model.

➢

(depending on the model)

Front (or Side) Panel

1

SOURCE

Displays a menu of all of the available input sources
(TV, Ext.1, Ext.2, AV, S-Video, Component, PC,
HDMI1, HDMI2, and DTV).

2

MENU

Press to see the on-screen menu of your TV’s
features.

-

3

4

+

Press to decrease or increase the volume.
In the on-screen menu, use the
you use the œ and √ buttons on the remote control.

C/P.

Press to change channels. In the on-screen menu,
use the C/P. buttons as you use the
… and † buttons on the remote control.

-

+

buttons as

5

6

7

(ENTER)

Press to confirm a selection.

(Power) button

Press to turn the TV on and off.

Power Indicator

- Power Off: Blue

- Power On: Off

Remote Control Sensor

Aim the remote control towards this spot on the TV.

Speakers

Press the MENU button once in DTV mode, then the DTV menu is displayed.

➢

English - 5

Connection Panel

The product colour and shape may vary depending on the model.

➢

(depending on the model)

Side Panel

3

1

or

4

5

6

2

1 S-VIDEO or VIDEO / AUDIO L/R

-Video (S-Video or Video) and audio inputs for external devices, such as a camcorder or VCR.

2 headphones jack

-You can connect a set of headphones if you wish to watch a television programme without disturbing the other
people in the room.

Prolonged use of headphones at a high volume may damage your hearing.

➢

3

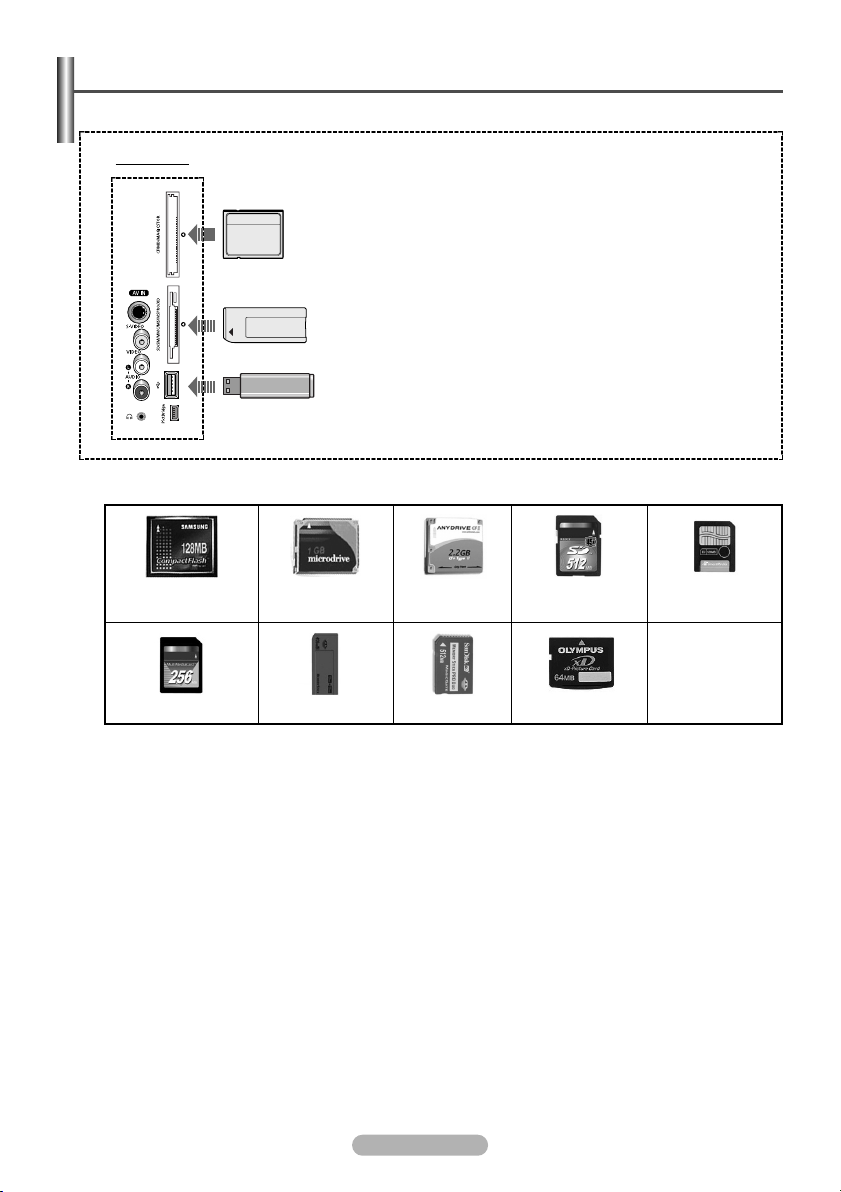

CF/MAGICSTOR

Insert an

CF/MD/MAGICSTOR

4

SD/SM/MMC/MS/MSPRO/XD

Insert an

SD/SM/MMC/MS/MSPRO/XD

5

(

USB Mass Storage Class)

Connect an USB mass storage device to view photo files (JPEG) and play audio files (MP3). (Refer to page 28)

6

PictBridge

Connect a printer with PictBridge support (sold separately). (Refer to page 38)

Some printers supporting PictBridge may not be compatible with this TV.

➢

memory card into the slot. (Refer to page 28)

memory card into the slot. (Refer to page 28)

continued...

English - 6

Connection Panel

The product colour and shape may vary depending on the model.

➢

Rear Panel

(depending on the model)

30

@

!

8

Whenever you connect an audio or video system to your set, ensure that all elements are switched off.

☛

When connecting an external device, match the colour of the connection terminal to the cable.

☛

1 Common Interface Slot

- Insert CI (Common Interface) card into the slot.

Connecting CI (Common Interface) CARD

- When not inserting “CI CARD” in some channels,

“Scrambled Signal” is displayed on the screen.

- The pairing information containing a telephone number, CI

CARD ID, Host ID, and other information will be displayed
in about 2~3 minutes. If an error message is displayed,
please contact your service provider.

- When the channel information configuration has finished,

the message “Updating Completed” is displayed, indicating
that the channel list is now updated.

You must obtain a CI CARD from a local cable service

➢

provider. Remove the CI CARD by carefully pulling it out
with your hands since dropping the CI CARD may cause
damage to it.

2 ANT IN VHF/UHF (75Ω)

-75Ω Coaxial connector for Aerial/Cable Network.

3 Connecting external Audio Devices

- Connect RCA audio signals from the TV to an external
source, such as Audio equipment.

4 DIGITAL AUDIO OUT (OPTICAL)

- Connect to a Digital Audio Component.

5 DTV SERVICE

- Connector for service only.

6 COMPONENT IN

-Video (Y/PB/PR) and audio (AUDIO L/R) inputs for
Component.

7 PC IN / AUDIO

- Connect to the video and audio output jack on your PC.

8 HDMI IN 2

- Connect to the HDMI jack of a device with HDMI output.

9 EXT 1, EXT 2

- Inputs or outputs for external devices, such as
VCR, DVD, video game device or video
disc players.

9

or

or

2

Cable Television

Network

5

7

6

Input/Output Specification

0 HDMI 1/DVI IN

! SERVICE

@ POWER IN

➢

English - 7

4

Connector

EXT 1
EXT 2

- Connect to the HDMI jack of a device with HDMI output.
These inputs can also be used as a DVI connection with
separate analog audio inputs. An optional HDMI/DVI cable
will be necessary to make this connection. When using the
optional HDMI/DVI adapter, the DVI analog audio inputs on
your TV allow you to receive left and right audio from your
DVI device. (Not compatible with PC)

- When connecting this product via HDMI or DVI to a
Set Top Box, DVD Player or Games Console etc, make
sure that it has been set to a compatible video output
mode as shown in the table below. Failure to observe this
may result in picture distortion, image breakup or no
picture.

- Do not attempt to connect the HDMI/DVI connector to a
PC or Laptop Graphics Card. (This will result in a blank
screen being displayed)

DVI AUDIO IN L/R

- DVI audio outputs for external devices.

Input

Video

✔✔✔✔✔✔

Please insert the
card as shown

Only TV or DTV output is available.

✔

- Connector for service only.

- Connect the supplied power cord.

Supported modes for HDMI/DVI and Component

480i

480p
HDMI/DVI 50Hz
HDMI/DVI 60Hz
Component

X
X
O

576i

O

X

O

X

O

O

1

Output

Video + Audio (L/R)S-Video RGBAudio (L/R)

Output you can choose.

576p

720p

O
X
O

1080i

O

O

O

O

O

O

Using the Stand-Base

Two or more people should carry the PDP.

➢

Never lay the PDP on the floor because of
possible damage to the screen.
Always keep the PDP upright.

The PDP can rotate 20 degrees in right and

➢

left directions.

-20° ~ 20°

Viewing the Remote Control

The performance of the remote control may be affected by bright light.

➢

This is a special remote control for the visually impaired persons, and has Braille points.

➢

(depending on the model)

11

POWER button
(turns the TV on and off)

22

Number buttons for direct
channel access

33

One/Two-digit channel
selection

44

Channel control button
(Refer to pages 14~16)

55

Selects the TV and DTV mode
directly

66

Volume increase
Volume decrease

77

Temporary sound switch-off

88

Displays the main on-screen
menu

99

Electronic Program Guide
(EPG) display

00

Picture-In-Picture On/Off

!!

Picture effect selection
(Refer to page 18)

@@

Picture freeze

##

Sound mode selection

$$

Remote control setup

%%

Selects a target device to be
controlled by the Samsung
remote control (TV, DVD,
STB, CABLE, VCR)

^^

Available source selection

&&

Press to backlight the VOL,
CH, MUTE and the active
source button (TV, DVD,
CABLE, STB, VCR) on the
remote.

**

Previous channel

((

DTV menu display

))

This function enables you to
view and play photo (JPEG)
and audio files (MP3) from an
external device.
(Refer to page 30 (JPEG),
39 (MP3))

aa

VCR/DVD Function
(Rewind, Stop, Play/Pause,
Fast/Forward)

English - 8

bb

cc
dd
ff

gg
hh
ii

jj
kk
ll

Teletext Functions

(Refer to page 58)

55

88
00
!!
^^

**
bb

cc
ee
ff

gg
ii

Next channel

Previous channel
Exit the on-screen menu
Control the cursor in the menu
Use to see information on the
current broadcast
Fastext topic selection
Picture size selection
Sound effect selection
(Refer to page 22)
Digital subtitle display
TruSurround XT mode button
If your remote control is not
functioning properly, take out
the batteries and press the
reset button for about 2~3
seconds.
Re-insert the batteries and
try using the remote control
again.

Exit from the teletext display
(depending on the model)
Teletext index
Teletext hold
Teletext size selection
Teletext mode selection
(LIST/FLOF)
Teletext sub page
P:Teletext next page
P:Teletext previous page
Teletext cancel
Teletext reveal
Teletext display/mix both
Pressing TEXT/MIX selects
Teletext, Double, or Mix mode
in sequence.
Fastext topic selection
Teletext store

Installing Batteries in the Remote Control

1 Lift the cover at the back of the remote control upward as shown in the

figure.

2 Install two AAA size batteries.

Make sure to match the “+” and “–” ends of the batteries with the

➢

diagram inside the compartment.

3 Close the cover as shown in the figure.

Remove the batteries and store them in a cool and dry place if you

➢

won’t be using the remote control for a long time. The remote control
can be used up to about 23 feet from the TV. (Assuming typical TV
usage, the batteries last for about one year.)

If the remote control doesn’t work! Check the following:

➢

1. Is the TV power on?

2. Are the plus and minus ends of the batteries reversed?

3. Are the batteries drained?

4. Is there a power cut, or is the power cord unplugged?

5. Is there a special fluorescent light or a neon sign nearby?

Switching Your Television On and Off

The main lead is attached to the rear of the television.

1 Plug the main lead into an appropriate socket.

The main voltage is indicated on the rear of the television and the frequency is 50 or 60Hz.

➢

2 Press the (Power) button (On/Off) on the front of the television or press the POWER ()button on the remote

control to switch the television on. The programme that you were watching last is re-selected automatically.
If you have not yet stored any channels, no clear picture appears. Refer to “Storing Channels Automatically”
on page 13 or “Storing Channels Manually” on page 14.

If the television is initially powered on, several basic customer settings proceed automatically.

➢

Refer to “Plug & Play Feature” on page 11.

3 To switch the television off, press the (Power) button (On/Off) on the front of the television or press the

POWER ()button on the remote control.

4 To switch the TV on, press the (Power) button (On/Off) on the front of the TV or press the POWER ()button

or number buttons on the remote control.

English - 9

Viewing the Menus

TV

Source List : TV
Edit Name
WISELINK

Input

Move Enter Exit

1 Press the MENU ()button.

The main menu is displayed on the screen.
Its left side has five icons: Input, Picture, Sound, Channel, and Setup.

2 Press the … or † button to select one of the icons.

Press the ENTER/OK ()button to access the icon’s sub-menu.

3 Press the … or † button to move to items in the menu.

Press the ENTER/OK ()button to enter items in the menu.

4 Press the …/†/œ/√ button to change the selected items.

Press the MENU ()button to return to the previous menu.

5 Press the EXIT () button to exit from the menu.

Freezing the Current Picture

You can freeze the picture when watching a television programme simply by
pressing the STILL button. To return to normal viewing, press it again.

This function will automatically cancel five minutes later.

➢

English - 10

Plug & Play Feature

When the television is initially powered on, several basic customer settings proceed automatically and subsequently.
The following settings are available.

1 If the television is in standby mode, press the POWER () button

on the remote control. The message to start Plug & Play is displayed.

The Language menu will automatically appear after several seconds.

2

3 Select the appropriate language by pressing the

… or †

button.
Press the ENTER/OK () button. The message to check the connected
status of the antenna is displayed.

4 Make sure that the antenna is connected to the TV.

Press the ENTER/OK () button. The Country menu is displayed.

… or †

5 Select your country or area by pressing the

button.
Press the ENTER/OK () button. The menu to select channels is
displayed.

6 To start channel store, press the ENTER/OK () button.

The search will end automatically. The TV will begin memorizing all of the
available channels.
Press the ENTER/OK () button to set the clock.

7 Press the œ or √ button to select the hour or minute.

… or †

Set these by pressing the

You can enter the hours or minutes by using the numeric buttons on the

➢

remote control.

button.

8 Press the ENTER/OK () button to confirm your setting.

The DTV channel scan menu appears and the DTV channel is automatically
updated.

If the DTV channel is updated, the Source in the source list of the Input

➢

menu is automatically changed to DTV.

For detailed descriptions about DTV channel update, refer to page 45 of

➢

this manual.

Plug & Play

Start Plug & Play

OK

Enter Exit

Plug & Play

Language

Move Enter Skip

Country

Move Enter Skip

Auto Store

English

Deutsch
Français

Italiano
Svenska

Plug & Play

Check antenna input.

OK

Enter Skip

Plug & Play

Belgium

France

Germany

Italy

Plug & Play

--

P1 C

Start

Enter Skip

Plug & Play

Clock Set --:

40 MHz

0 %

--

If you want to reset this feature …

1 Press the MENU () button to display the menu.

2

Press the … or † button to select Setup, then press the
button.

3 Press the ENTER/OK () button again to select Plug & Play.

The message to start Plug & Play is displayed.

ENTER/OK ()

English - 11

Enter Skip

Plug & Play

Clock Set 00 : 00

Move Adjust Enter Skip

Scanning for digital services...

Services found : 24 Channel : 38

Skip

TV

Plug & Play
Language : English
Time

Game Mode : Off

Blue Screen : Off
Melody : Off

PC

More

Move Enter Return

Plug & Play

35%

Stop

Setup

Viewing an External Signal Sources

You can switch between viewing signals from connected equipment, such as a VCR, DVD, Set-Top Box, and the TV
source (air or cable).

TV

Source List : TV
Edit Name
WISELINK

Input

1 Press the MENU () button to display the menu.

2

Press the

ENTER/OK ()

button to select Source List.

3 Press the ENTER/OK () button again.

… or †

button to select the signal source, then press the

PC, HDMI1, HDMI2, and DTV

TV

TV

Ext.1 :
Ext.2 :
AV :
S-Video :
Component :
PC :

More

Move Enter Return

Source List

----

----

----

----

----

----

Move Enter Return

4 Press the

ENTER/OK () button.

vailable signal sources:TV, Ext.1, Ext.2, AV, S-Video, Component,

A

You can select these options simply by pressing the SOURCE ()

➢

button on the remote control.

To watch television programme again, press the TV/DTV button and

➢

select the channel number required.

Editing Device Names

You can give a name to the external source.

TV

Source List : TV
Edit Name
WISELINK

Input

1 Press the MENU () button to display the menu.

Press the

2

3 Press the … or † button to select Edit Name, then press the

ENTER/OK () button.

4 Press the

then press the ENTER/OK () button.

5 Select the required device by pressing

ENTER/OK () button.

vailable signal names: VCR, DVD, D-VHS, Cable STB, HD STB,

A

TV

Ext.1 :

Ext.2 :
AV :
S-Video :
Component :
PC :
HDMI1 :
HDMI2 :

Move Enter Return

Edit Name

-----

----

-----

VCR

-----

DVD

-----

D-VHS

----

Cable STB

----

----

----

Move Enter Return

6 Press the EXIT button to exit.

ENTER/OK ()

… or †

button to select the external source to be edited,

button.

… or †

, then press the

Satellite STB, AV Receiver, DVD
Receiver, Game, Camcorder, DVD Combo,
DHR (DVD HDD Recorder), and PC.

English - 12

Storing Channels Automatically

Not available in DTV or external input mode.

➢

You can scan for the frequency ranges available to you (availability depends on your country). Automatically allocated
programme numbers may not correspond to actual or desired programme numbers. However you can sort numbers
manually and clear any channels you do not wish to watch.

1 Press the MENU () button to display the menu.

2 Press the … or † button to select Channel, then press the

ENTER/OK () button.

Press the

3

4

Select your country by pressing the … or † button, then press the

ENTER/OK ()

ENTER/OK ()

button again. The available countries are listed.

button.

5 Press the … or † button to select Auto Store, then press the

ENTER/OK () button.

6

Press the

ENTER/OK ()

button again to start the search. The search will

end automatically.

To stop the search before it has finished, press the MENU () or the

➢

ENTER/OK () button.

TV

Channel

Country : Belgium
Auto Store
Manual Store
Channel Manager
Sort
Name
Fine Tune
LNA : Off

Move Enter Return

Auto Store

--

P1 C

Enter Return

Start

40 MHz

0 %

English - 13

Storing Channels Manually

Not available in DTV or external input mode.

➢

You can store television channels, including those received via cable networks.
When storing channels manually, you can choose:

◆ Whether or not to store each of the channels found.

◆ The programme number of each stored channel which you wish to identify.

TV

TV

◆ Programme (Programme number to be assigned to a channel)

-

Press the

Channel

Country : Belgium
Auto Store
Manual Store
Channel Manager
Sort
Name
Fine Tune
LNA : Off

Move Enter Return

Manual Store

Programme : P 1
Colour System : AUTO
Sound System : BG
Channel : C 4
Search : 62 MHz
Store : ?

Move Enter Return

… or †

button until you find the correct number.

◆ Colour System: AUTO/PAL/SECAM/NTSC4.43

-

Press the

… or †

button to select the required colour standard.

◆ Sound System: BG/DK/I/L
Press the

-

… or †

button to select the required sound standard.

◆ Channel (When you know the number of the channel to be stored)

-

Press the

-

Press the √ button, then press the

➢
➢

… or †

button to select C (Air channel) or S (Cable channel).

You can also select the channel number directly by pressing the numeric buttons (0~9).
If there is abnormal sound or no sound, re-select the sound standard required.

◆ Search (When you do not know the channel numbers)
Press the

-

-

The tuner scans the frequency range until the first channel or the channel that you selected is received

… or †

button to start the search.

on the screen.

◆ Store (When you store the channel and associated programme number)
Set to OK by pressing the ENTER/OK ()button.

-

Channel mode

☛

◆ P (Programme mode): When completing tuning, the broadcasting stations in your area have been assigned

to position numbers from P00 to P99. You can select a channel by entering the position number in this mode.

◆ C (Air channel mode): You can select a channel by entering the assigned number to each air broadcasting
station in this mode.

◆ S (Cable channel mode): You can select a channel by entering the assigned number for each cable channel
in this mode.

1 Press the MENU () button to display the menu.

2 Press the … or † button to select Channel, then press the ENTER/OK ()

button.

… or †

3 Press the

ENTER/OK ()button.

4 Select the required option by pressing the

ENTER/OK () button.

button to select Manual Store, then press the

… or †

button, then press the

5 When you are satisfied with your setting, press the ENTER/OK ()

button.

6 Press the EXIT button to exit.

… or †

button to select the required number.

English - 14

Adding / Locking Channels

Not available in DTV or external input mode.

➢

Using the Channel Manager, you can conveniently lock or add channels.

1 Press the MENU () button to display the menu.

Press the … or † button to select Channel, then press the ENTER/OK ()

2

button.

3 Press the

ENTER/OK () button.

◆ Adding channels

Using the Channel Manager, you can add channels.

4 Select the Channel Manager by pressing the ENTER/OK () button.

5 Move to the

be added, and press the ENTER/OK () button to add the channel.

➢

◆ Locking channels

This feature allows you to prevent unauthorized users, such as children,
from watching unsuitable programmes by muting out video and audio.

4 Press the … or † button to select Child Lock, then press the ENTER/OK

() button.

5 Select On by pressing the … or † buttons, then press the ENTER/OK ()

button.

6 Press the … or † buttons to select the Channel Manager, then press the

ENTER/OK () button.

7 Move to the

be locked, and press the ENTER/OK () button.

➢

➢

8 Press the EXIT button to exit.

… or †

button to select Channel Manager, then press the

field by pressing the

()

If you press the ENTER/OK () button again, the

…/†/œ/

√ buttons, select a channel to

()

symbol next

to the channel disappears and the channel is not added.

()

field by pressing the

If you press the ENTER/OK () button again, the

…/†/œ/

√ buttons, select a channel to

()

symbol next

to the channel disappears and the channel lock is canceled.

A blue screen is displayed when Child Lock is activated.

TV

Country : Belgium
Auto Store
Manual Store
Channel Manager
Sort
Name
Fine Tune
LNA : Off

Move Enter Return

TV

Channel Manager

Channel Manager
Child Lock : Off

Move Enter Return

Channel Manager

P1 C 1

Prog.

0 C

--

1C 1
2C 3
3C 5
4C 8
5C 9
6C 10
7C 11
8C 12
9S 12

Add Lock

Move Enter

Page Exit

Channel

1 / 10

You can select these options simply by pressing the CH MGR button

➢

on the remote control.

English - 15

Sorting the Stored Channels

Not available in DTV or external input mode.

➢

This operation allows you to change the programme numbers of the stored channels.
This operation may be necessary after using the auto store.

TV

TV

Channel

Country : Belgium
Auto Store
Manual Store
Channel Manager
Sort
Name
Fine Tune
LNA : Off

Move Enter Return

Sort

Prog. Ch. Name

0C

--

1C 4

2C 74
3C 75
4S 1

Move Enter Return

1 Press the MENU () button to display the menu.

Press the … or † button to select Channel, then press the ENTER/OK ()

2

button.

3

Press the … or † button to select Sort, then press the
button.

4 Select the channel that you wish to move by pressing the

then press the ENTER/OK () button.

5 Select the number of the programme to which the channel is to be moved by

… or †

pressing the

button.
Press the ENTER/OK () button. The channel is moved to its new
position and all other channels are shifted accordingly.

6 Repeat steps 4 to 5 until you have moved all the channels to the required

programme numbers.

7 Press the EXIT button to exit.

Assigning Names to Channels

Not available in DTV or external input mode.

➢

Channel names will be assigned automatically when channel information is broadcast.
These names can be changed, allowing you to assign new names.

TV

TV

Channel

Country : Belgium
Auto Store
Manual Store
Channel Manager
Sort
Name
Fine Tune
LNA : Off

Move Enter Return

Name

Prog. Ch. Name

0C

-- -----

1C 4

2C 74
3C 75
4S 1

Move Adjust Return

-----

A

-----

-----

-----

1 Press the MENU () button to display the menu.

2 Press the … or † button to select Channel, then press the ENTER/OK

() button.

3 Press the … or † button to select Name, then press the ENTER/OK ()

button.

4 Press the … or † button to select the channel to be assigned to a new

name, then press the ENTER/OK () button.

5 Press the … or † button to select a letter (A~Z), a number (0~9), or a

symbol. Move on to the previous or next letter by pressing the œ or √
button, then press the ENTER/OK () button.

6 Repeat steps 4 to 5 for each channel to be assigned to a new name.

7 Press the EXIT button to exit.

ENTER/OK ()

… or †

button,

English - 16

Fine Tuning Channel Reception

Not available in DTV or external input mode.

➢

If the reception is clear, you do not have to fine tune the channel, as this is done automatically during the search and
store operation.
If the signal is weak or distorted, you may have to fine tune the channel manually.

1 Press the MENU () button to display the menu.

2

Press the … or † button to select Channel, then press the

ENTER/OK ()

3

Press the … or † button to select Fine Tune, then press the

button.

ENTER/OK () button.

4 To obtain a sharp and clear picture and good sound quality, press the

œ or √ button until you reach the optimal setting.
Press the

ENTER/OK ()

To reset the fine tuning to 0, select Reset by pressing the

➢

button. Press the ENTER/OK () button.

button.

… or †

5 Press the EXIT button to exit.

Fine Tune Store will change the colour of the Channel OSD (On Screen

➢

Display) from White to Red and add the “*” mark.

TV

P1

P1
Mono

Channel

Country : Belgium
Auto Store
Manual Store
Channel Manager
Sort
Name
Fine Tune
LNA : Off

Move Enter Return

Fine Tune

*

Reset

Adjust Save Return

*

+

3

LNA (Low Noise Amplifier)

This function is very useful in the situation that the TV is used in weak signal.
LNA amplifies the TV signal in the weak signal area, a low-noise preamplifier boosts the incoming signal.

1 Press the MENU () button to display the menu.

Press the … or † button to select Channel, then press the ENTER/OK ()

2

button.

3 Press the

… or †

button to select LNA, then press the ENTER/OK ()

button.

4 Select Off or On by pressing the … or † button, then press the ENTER/OK

() button.

5 Press the EXIT button to exit.

Depending on areas, factory mode of LNA, will be set up as On or Off.

➢

TV

Channel

Country : Belgium
Auto Store
Manual Store
Channel Manager
Sort
Name
Fine Tune
LNA : Off

Move Enter Return

English - 17

Changing the Picture Standard

You can select the type of picture which best corresponds to your viewing requirements.

TV

TV


Mode : Dynamic
Size : Auto Wide
Digital NR : On
SMD : On
DNIe Demo : Off
PIP

Move Enter Return

Mode : Dynamic

Contrast 100
Brightness 50
Sharpness 75
Colour 55

Tint G 50 R 50

Colour Tone : Cool1
Reset

Mode

Dynamic

Standard

Movie

Custom

Move Enter Return

1 Press the MENU () button to display the menu.

2

Press the … or † button to select Picture, then press the
button.

3 Press the ENTER/OK () button twice.

4 Select the required mode by pressing the … or † button, then press the

ENTER/OK () button.

Available modes: Dynamic, Standard, Movie, and Custom

The setting values may vary depending on the input source.

➢

(ex. RF, Video, Component, PC, or HDMI)

5 Press the EXIT button to exit.

You can select these options simply by pressing the P.MODE button on the

➢

remote control.

◆ Choose Dynamic for viewing the TV during the day or when there is

➢

bright light in the room.

◆ Choose Standard for the standard factory settings.

◆ Choose Movie when viewing the movie.

◆ Choose Custom if you want to adjust the settings according to personal

preference.

Customizing the Picture Settings

Your television has several setting options that allow you to control the picture quality.

TV

TV


Mode : Dynamic
Size : Auto Wide
Digital NR : On
SMD : On
DNIe Demo : Off
PIP

Move Enter Return

Mode : Dynamic
Contrast 100
Brightness 50
Sharpness 75
Colour 55

Tint G 50 R 50

Colour Tone : Cool1

Reset

Mode

Cool2

Cool1

Normal
Warm1
Warm2

Move Enter Return

1 Press the MENU () button to display the menu.

Press the … or † button to select Picture, then press the ENTER/OK ()

2

button.

3 Press the ENTER/OK () button twice.

4 Select the required mode by pressing the … or † button, then press the

ENTER/OK () button.

vailable modes: Dynamic, Standard, Movie, and Custom

A

5 Select the required option by pressing the … or † button, then press the

ENTER/OK () button.

6 When you are satisfied with your setting, press the ENTER/OK () button.

7 Press the EXIT button to exit.

◆ Contrast – Brightness – Sharpness – Colour – Tint (NTSC only)

◆ Contrast – Brightness – Colour : PC Mode

Press the œ or √ button until you reach the optimal setting.

◆ Colour Tone: Cool2/Cool1/Normal/Warm1/Warm2

◆ Reset: You can return to the factory defaults picture settings.

The reset function is set for each picture mode and colour tone.

➢

ENTER/OK ()

English - 18

Selecting the Picture Size

You can select the picture size which best corresponds to your viewing requirements.

1 Press the MENU () button to display the menu.

Press the … or † button to select Picture, then press the

2

ENTER/OK () button.

3 Press the … or † button to select Size, then press the ENTER/OK ()

TV

Mode : Dynamic
Size : Auto Wide
Digital NR : On
SMD : On
DNIe Demo : Off
PIP

button.

4 Select the required option by pressing the … or † button, then press the

ENTER/OK () button.

vailable options: Auto Wide, 16:9, Wide 4:3, Zoom, 4:3

A

◆ Auto Wide

: Expanding and pulling up the picture from 4:3 to 16:9

ratio.

TV

Auto Wide
16:9
Wide 4:3
Zoom
4:3

◆ 16:9:Sets the picture to 16:9 wide mode.

◆ Wide 4:3

Magnify the size of the picture more than

4:3

.

:

Move the screen up/down using the … or † button after
selecting the by pressing the √ or ENTER/OK ()
button.

Magnify the size of the picture vertically on screen.

:

◆ Zoom

◆ 4:3:Sets the picture to 4:3 normal mode.

5 Press the EXIT button to exit.

You can change the picture size simply by pressing the P.SIZE button

➢

on the remote control.
If you change the picture size when PIP is On, PIP will automatically be

➢

turned Off.
Depending on the input source, the picture size options may vary.

➢

The items available may differ depending on the selected mode.

➢

Positioning and Sizing the screen using Zoom

◆ Resizing the screen using the Zoom enables the positioning and sizing of the screen to up/down direction

using the … or † button as well as the screen size.

◆ Move the screen up/down using the … or † button after selecting the by pressing the œ or √ button.

◆ Resize the screen vertically using the … or † button after selecting the by pressing the œ or √ button.


Move Enter Return

Size

Move Enter Return

English - 19

Digital NR / SMD / DNIe Demo

TV

◆ Digital NR:On/Off

If the signal received by the television is weak, you can activate this feature to reduce any static and ghosting
that may appear on the screen.

◆ SMD(Smooth Motion Driver)

If you set SMD to On, you can view more natural skin and clear text even in fast moving scenes.

➢

◆ DNIe Demo

This TV includes the DNIe function so as to provide a high visual quality.
If you set DNIe Demo to On, you can view an applied DNIe and a normal picture on the screen, for demonstration
purposes. Using this function, you can view the difference in the visual quality.

➢

➢


Mode : Dynamic
Size : Auto Wide
Digital NR : On
SMD : On
DNIe Demo : Off
PIP

Move Enter Return

1 Press the MENU () button to display the menu.

2

Press the … or † button to select Picture, then press the ENTER/OK ()
button.

3 Select the required option by pressing the

ENTER/OK () button.

vailable options: Mode, Size, Digital NR, SMD, DNIe Demo, PIP

A

… or †

button, then press the

4 When you are satisfied with your setting, press the ENTER/OK () button.

5 Press the EXIT button to exit.

:

On/Off

SMD is not available in PC mode.

:

On/Off

DNIeTM(Digital Natural Image engine)

This feature brings you more detailed image with 3D noise reduction, detail enhancement, contrast
enhancement and white enhancement. New image compensation Algorithm gives brighter, clearer, more
detailed image to you. DNIeTMtechnology will fit every signal into your eyes.

DNIe Demo is not available in PC mode.

English - 20

Viewing the Picture in Picture (PIP)

Not available in DTV mode.

➢

You can display a sub picture within the main picture. In this way you can watch TV program or monitor the video
input from any connected devices.

1 Press the MENU () button to display the menu.

2

Press the … or † button to select Picture, then press the ENTER/OK ()
button.

ress the

3

P

… or †

button to select PIP, then press the ENTER/OK ()

button.

… or †

4 Select the required option by pressing the

button, then press the

ENTER/OK () button.

Available options:

PIP(On/Off), Source, Position, Programme

5 When you are satisfied with your setting, press the ENTER/OK () button.

6 Press the EXIT button to exit.

:

On/Off

◆ PIP

You can activate or deactivate the PIP function.

You can select these options simply by pressing the PIP button on the

➢

remote control.

◆ Source

◆ Position

◆ Programme

:

You can select a source of the sub-picture.

You can select a position of the sub-picture.

You can select a channel of the sub-picture only when the Source is set to

TV.

TV/Ext.1/Ext.2/AV/S-Video

:

/ / /

TV

Mode : Dynamic
Size : Auto Wide
Digital NR : On
SMD : On
DNIe Demo : Off
PIP

PIP : On

Source : AV

Position :

Programme : P 1


Move Enter Return

PIP

Move Enter Return

Table of PIP Settings

Sub

Main

TV
Ext.1
Ext.2
AV
S-Video
Component
PC
HDMI1
HDMI2

TV

X - This PIP combination is not available.
O - This PIP combination is available.

Ext.1

X
X
X
X
X
X
O
O
O

Ext.2

X
X
X
X
X
X
O
O
O

X
X
X
X
X
X
O
O
O

AV

S-Video

X
X
X
X
X
X
O
O
O

X
X
X
X
X
X
X
O
O

PC

X
X
X
X
X
X
X
X
X

English - 21

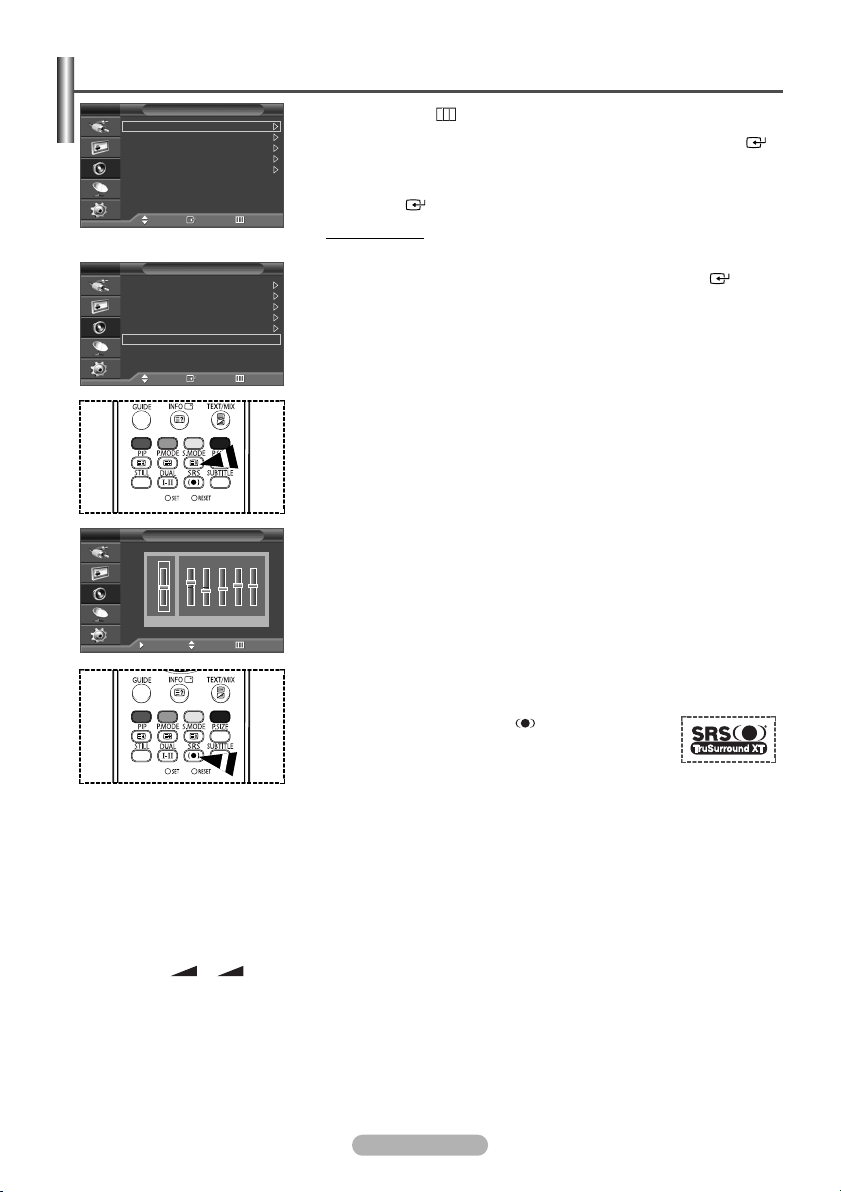

Sound Features

TV

< If Game Mode is On >

TV

TV

Sound

Mode : Custom
Equalizer
SRS TSXT : Off
Auto Volume : Off
Internal Mute : Off

Reset

Move Enter Return

Sound

Mode : Custom
Equalizer
SRS TSXT : Off
Auto Volume : Off
Internal Mute : Off
Reset

Move Enter Return

Equalizer

R

+

0

-

L

Balance

100Hz 300Hz 1KHz 3KHz 10KHz

Move Adjust Return

1 Press the MENU () button to display the menu.

2 Press the … or † button to select Sound, then press the ENTER/OK ()

button.

3 Select the required option by pressing the … or † button, then press the

ENTER/OK () button.

Available options

: Mode, Equalizer,

Internal Mute

SRS TSXT

, Reset

(If Game Mode is On)

, Auto Volume,

4 When you are satisfied with your setting, press the ENTER/OK () button.

5 Press the EXIT button to exit.

◆ Mode: Standard/Music/Movie/Speech/Custom
You can select the type of special sound effect to be used when watching a
given broadcast.

You can select these options simply by pressing the S.MODE button

➢

on the remote control.

◆ Equalizer: Balance/100Hz/300Hz/1KHz/3KHz/10KHz
The television has several settings which allow you to control the sound quality.

If you make any changes to these settings, the sound mode is

➢

automatically switched to Custom.

◆ SRS TSXT: On/Off

+

0

-

TruSurround XT is a patented SRS technology that solves the problem of
playing 5.1 multichannel content over two speakers. TruSurround delivers a
compelling, virtual surround sound experience through any two-speaker
playback system, including internal television speakers. It is fully compatible
with all multichannel formats.

You can select these options simply by pressing the SRS button

➢

on the remote control.

TruSurround XT, SRS and Symbol are trademarks

➢

of SRS Labs, Inc. TruSurround XT technology is
incorporated under license from SRS Labs, Inc.

◆ Auto Volume: On/Off
Each broadcasting station has its own signal conditions, and so it is not easy to adjust the volume every time
the channel is changed. This feature lets you automatically adjust the volume of the desired channel by lowering
the sound output when the modulation signal is high or by raising the sound output when the modulation signal
is low.

◆ Internal Mute: On/Off
If you want to hear the sound through separate speakers, cancel the internal amplifier.

The +, - and MUTE buttons do not operate when the Internal Mute is set to On.

➢

◆ Reset

If Game Mode is On,

the Reset Sound function is activated. Selecting the Reset function after setting the equalizer

resets the equalizer setting to the factory defaults.

English - 22

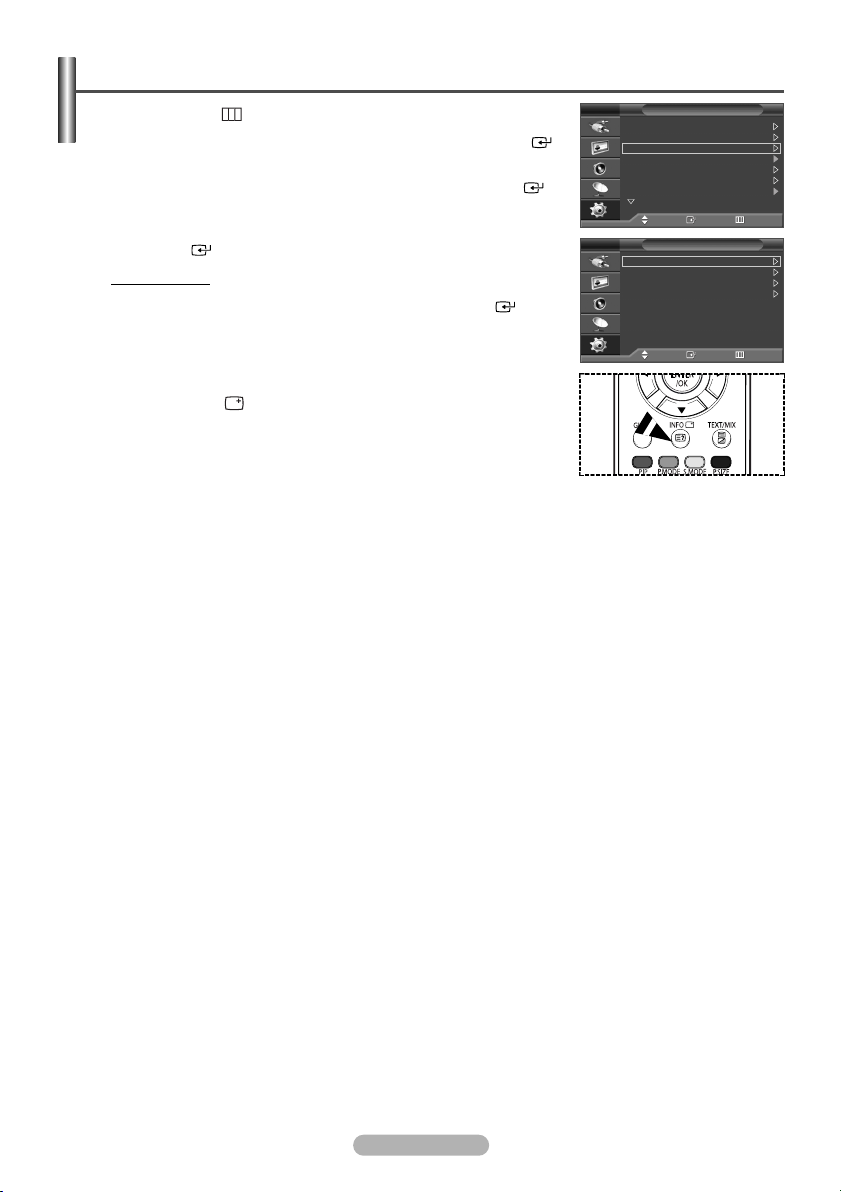

Time

Features

1 Press the MENU () button to display the menu.

2 Press the … or † button to select Setup, then press the ENTER/OK ()

button.

3 Press the … or † button to select Time, then press the ENTER/OK ()

button.

… or †

4 Select the required option by pressing the

button, then press the

ENTER/OK () button.

Available options: Clock Set, Sleep Timer, On Timer, Off Timer

5 When you are satisfied with your setting, press the ENTER/OK () button.

TV

Plug & Play
Language : English
Time

Game Mode : Off

Blue Screen : Off
Melody : Off

PC

TV

Clock Set 00 : 00
Sleep Timer : Off
On Timer 00 : 00 Off
Off Timer 00 : 00 Off

Setup

More

Move Enter Return

Time

6 Press the EXIT button to exit.

◆ Clock Set

Move Enter Return

You can set the television clock so that the current time is displayed when
pressing the INFO ()button on the remote control. You must also set the
time if you wish to use the automatic on or off timers.

-

Press the œ or √ button to select Hour or Minute.

Set these by pressing the

You can set the hour and minute directly by pressing the numeric buttons on the remote control.

➢

In the event of a power interruption or the set being turned off at the supply, the settings for the Clock will be

➢

lost.

… or †

button.

◆ Sleep Timer

You can select a time period of between 30 and 180 minutes after which the television automatically switches to
standby mode.

-

Select the preset time interval (Off, 30, 60, 90, 120, 150, or 180) for staying on by pressing the

… or †

button.

If the sleep timer is not yet set, Off is displayed. If it is already set, the remaining time before which the

➢

television switches to standby mode is displayed.

◆ On Timer / Off Timer

You can set the On/Off timers so that the television will switch on or off automatically at the time you select.

You must set the clock first.

☛

-

On Timer: Select Hour, Minute, Programme, or Volume by pressing the œ or √ button.

Set these by pressing the
To activate On Timer with the setting satisfied, set Activation to Yes by

You can set the hour and minute directly by pressing the numeric buttons on the

➢

remote control.

-

Off Timer: Select Hour or Minute by pressing the œ or √ button.

Set these by pressing the
To activate Off Timer with the setting satisfied, set Activation to Yes by

You can set the hour and minute directly by pressing the numeric buttons on the

➢

remote control.

Auto Power Off

☛

When you set the timer “On”, the TV will eventually turn off, if no controls are operated for 3 hours after the TV

… or †

… or †

button.

button.

… or †

… or †

button.

was turned on by timer. This function is only available in timer “On” mode and prevents overheating, which may
occur if a TV is on for too long time.

button.

English - 23

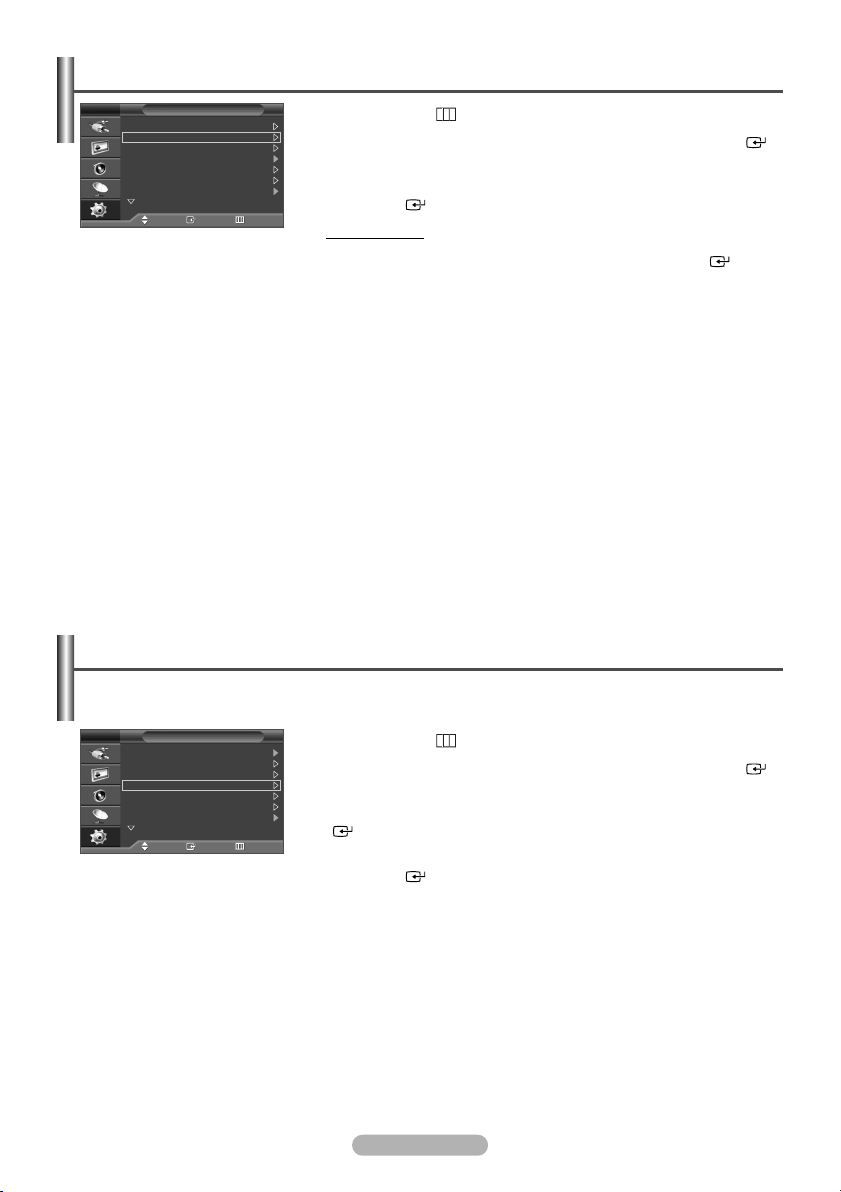

Language / Blue Screen / Melody / Energy Saving

TV

Plug & Play
Language : English
Time

Game Mode : Off

Blue Screen : Off Melody : Off

PC

◆

Language

It is variable depending on the model. When you start using the television for the first time, you must select the
language which will be used for displaying menus and indications.

◆

Blue Screen: On/Off
If no signal is being received or the signal is very weak, a blue screen automatically replaces the noisy picture
background. If you wish to continue viewing the poor picture, you must set the Blue Screen to Off.

◆

Melody: On/Off You can hear melody sound when the television is powered on or off.

◆ Energy Saving

This feature adjusts the screen brightness depending on the surrounding lighting conditions.

Off

: Switches off the Energy Saving mode.

Low

:

Medium
High

Setup

1 Press the MENU () button to display the menu.

2 Press the … or † button to select Setup, then press the ENTER/OK ()

button.

More

Move Enter Return

3 Select the required option by pressing the

ENTER/OK () button.

Available options

: Language, Blue Screen, Melody, Energy Saving

… or †

4 When you are satisfied with your setting, press the ENTER/OK () button.

5 Press the EXIT button to exit.

: Off/Low/Medium/High

Operates in standard mode regardless of the surrounding illumination.

Enters Medium power saving mode regardless of the surrounding illumination.

:

:

Enters maximum power saving mode regardless of the surrounding illumination.

button, then press the

Using Game Mode

When connecting to a game console such as PlayStationTMor XboxTM, you can enjoy a more realistic gaming
experience by selecting game menu.

TV

Plug & Play

Language : English
Time
Game Mode : Off
Blue Screen : Off
Melody : Off

PC

Setup

More

Move Enter Return

1 Press the MENU () button to display the menu.

2 Press the … or † button to select Setup, then press the ENTER/OK ()

button.

3 Press the … or † button to select Game Mode, then press the ENTER/OK

() button.

4 Select Off or On by pressing the … or † button, then press the

ENTER/OK () button.

5 Press the EXIT button to exit.

To disconnect the game console and connect another external device, cancel game mode in the setup menu.

➢

If you display the TV menu in Game mode, the screen shakes slightly.

➢

Game Mode is not available in TV mode.

➢

If Game Mode is On :

➢

◆ Picture Mode is automatically changed to Custom and users cannot change the mode.

◆ Sound Mode is automatically changed to Custom and users cannot change the mode.

◆ The Reset Sound function is activated. Selecting the Reset function after setting the equalizer resets the

equalizer setting to the factory defaults.

English - 24

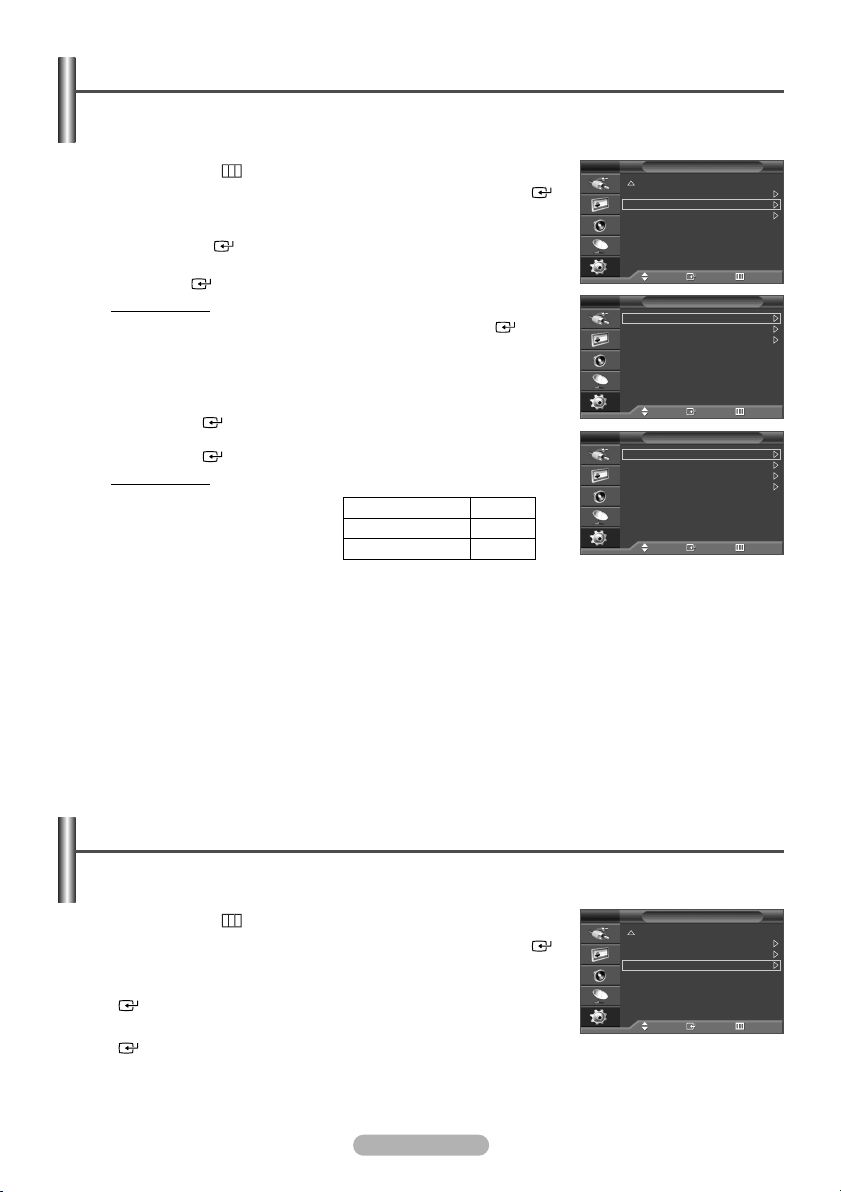

Screen Burn Protection

To reduce the possibility of screen burn, this unit is equipped with screen burn prevention technology. This technology
enables you to set picture movement up/down (Vertical Line) and side to side (Horizontal Dot). The Time setting
allows you to program the time between movement of the picture in minutes.

1 Press the MENU () button to display the menu.
2 Press the … or † button to select Setup, then press the ENTER/OK ()

button.

… or †

3 Press the

button to select Screen Burn Protection, then press

TV

Energy Saving : Off

Screen Burn Protection

Blue Eye : On

the ENTER/OK () button.

… or †

4 Select the required option by pressing the

button, then press the

ENTER/OK () button.

Available options: Pixel Shift, All White, Signal Pattern

5 When you are satisfied with your setting, press the ENTER/OK () button.

6 Press the EXIT button to exit.

TV

Pixel Shift

All White

Signal Pattern

◆ Pixel Shift:Using this function, you can minutely move pixels on the PDP

in horizontal or vertical direction to minimize after image on the screen.

Set Pixel Shift to On by pressing the

-

ENTER/OK ()button.

-

Select the required option by pressing the
ENTER/OK ()button.

Available options: Horizontal Dot, Vertical Line, Time

Optimum condition for pixel shift;

➢

… or †

button, then press the

… or †

button, then press the

Horizontal Dot

Vertical Line

Time (minute)

TV

Pixel Shift : On
Horizontal Dot : 4
Vertical Line : 4
Time : 4

4
4

4

◆ All White: This function helps remove after images on the screen by changing the colour of pixels to white.
Use this function when there are remaining after images or symbols on the screen especially when
you displayed a still image on the screen for a long time.

◆ Signal Pattern: This function helps remove after images on the screen by moving all the pixels on the PDP

according to a pattern. Use this function when there are remaining after images or symbols
on the screen especially when you displayed a still image on the screen for a long time.

To remove after images on the screen, use either “

➢

Although both of the two functions remove after images on the screen, “
The after image removal function has to be executed for a long time (approximately 1 hour) to effectively

➢

remove after images on the screen.

All White

” or “

Signal Pattern

Signal Pattern

” function.

If after image is not improved after the execution of the function, repeat the function again.
Press any button on the remote control to cancel this feature.

➢

Setup

More

Move Enter Return

Screen Burn Protection

Move Enter Return

Pixel Shift

Move Enter Return

” is more effective.

Setting the Blue Eye

You can set the power of Blue LED to be on. If the power is off when Blue Eye is off, the Blue LED goes off after
5 seconds. This will save power and reduce eye fatigue.

1 Press the MENU () button to display the menu.

2 Press the … or † button to select Setup, then press the ENTER/OK ()

button.

3 Press the … or † button to select Blue Eye, then press the ENTER/OK

()button.

4 Select Off or On by pressing the … or † button, then press the ENTER/OK

()button.

◆ Off

: LED(Blue) will not come on.

◆ On:LED(Blue) will come on after you turn the TV off.

5 Press the EXIT button to exit.

English - 25

TV

Energy Saving : Off

Screen Burn Protection

Blue Eye : On

Setup

More

Move Enter Return

Setting up Your PC Software (Based on Windows XP)

The Windows display-settings for a typical computer are shown below.
But the actual screens on your PC will probably be different, depending upon
your particular version of Windows and your particular video card. But even if
your actual screens look different, the same, basic set-up information will apply
in almost all cases. (If not, contact your computer manufacturer or Samsung
Dealer.)

1 Right click the mouse on the Windows Desktop, then click on Properties.

The Display Properties will be displayed.

2 Click on Settings tab, then set the Display Mode with reference to the

Display Modes Table. You do not need to change the Colours settings.

3 Click on Advanced. A new settings dialog box will be displayed.
4 Click on the Monitor tab, then set the Screen refresh rate with reference to

the Display Modes Table. Set the Vertical Frequency and Horizontal
Frequency individually if you can do so instead of setting the

Screen refresh rate.

5 Click on OK to close the window, then Click on OK button to the Display

Properties window. Automatic re-booting may commence at this moment.

Input Mode (PC)

Both screen position and size will vary depending on the type of PC monitor and its resolution.
The table below shows all of the display modes that are supported:

Video Signal

IBM PC / AT

Compatible

◆ The interlace mode is not supported.

◆ The television might operate abnormally if a non-standard video format is selected.

◆ 480i/p, 576i/p, 720p, or 1080i is not available in PC mode.

◆ For the PS-42P7HD, PC text quality is optimum in XGA mode (1024 x 768@60Hz).

◆ For the PS-50P7HD, PC text quality is optimum in WXGA mode (1360 x 768@60Hz).

(The three pixels each on the left and right are grayed at the resolution setting of 1360x768@60Hz. This is not a
mechanical problem but a result caused by the pixel difference between the standard resolution and the PDP
panel.)

This device is a Class B digital apparatus.

➢

Resolution

(Dot X Line)

640 x 350
720 x 400

640 x 480

800 x 600

848 x 480

1024 x 768

1280 x 720
1360 x 768

Vertical

frequency

(Hz)

70.086

70.087

59.940

70.000

72.809

75.000

56.250

60.317

70.000

72.188

75.000

60.000

74.769

60.004

70.069

72.000

75.029

59.855

60.015

Horizontal
frequency

(kHz)

31.469

31.469

31.469

35.000

37.861

37.500

35.156

37.879

43.750

48.077

46.875

31.020

37.684

48.363

56.476

57.672

60.023

44.772

47.712

English - 26

Vertical
polarity

N
P
N

N/P

N
N

N/P

P

N/P

P
P
P
P
N
N

N/P

P
N
P

Horizontal

polarity

P
N
N

N/P

N
N

N/P

P

N/P

P
P
P
N
N
N

N/P

P
P
P

PS-42P7HD

(N: Negative / P: Positive)

✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔

PS-50P7HD

✔
✔
✔
✔
✔
✔
✔
✔
✔
✔
✔

✔
✔
✔
✔
✔
✔

Setting the PC

Preset to the PC mode by pressing the SOURCE () button.

➢

1 Press the MENU () button to display the menu.
2 Press the … or † button to select Setup, then press the ENTER/OK ()

button.

Press the

… or †

3

button.

4

Select the required option by pressing the
ENTER/OK ()

button to select PC, then press the

… or †

button.

Available options: Image Lock, Position, Auto Adjustment, Image

Reset

5 When you are satisfied with your setting, press the ENTER/OK ()

button.

6 Press the EXIT button to exit.

◆ Image Lock: Coarse/Fine

The purpose of picture quality adjustment is to remove or reduce picture
noise.
If the noise is not removed by Fine-tuning alone, then adjust the frequency
as best as possible (coarse) and Fine-tune again.
After the noise has been reduced, re-adjust the picture so that it is aligned
on the center of screen.

Press the

… or †

1

ENTER/OK ()

2

Press the

button to select Coarse or Fine, then press the

button.

œ or √

button to adjust the screen quality, vertical stripes may

appear or the picture may be blurry. Press the

ENTER/OK ()

button, then press the

ENTER/OK ()

button.

TV

Plug & Play

Language : English
Time
Game Mode : Off
Blue Screen : Off
Melody : Off
PC

TV

Image Lock
Position
Auto Adjustment
Image Reset

TV

Coarse 50
Fine 40

Setup

More

Move Enter Return

PC

Move Enter Return

Image Lock

Move Enter Return

◆ Position:

Adjust the PC’s screen positioning if it does not fit the TV screen.

Adjust the position by pressing the …/†/œ/√button.

1

2

Press the

ENTER/OK ()

button.

◆ Auto Adjustment:

Auto adjustment allows the PC screen of set to self-adjust to the incoming
PC video signal.
The values of fine, coarse and position are adjusted automatically.

◆ Image Reset:

You can replace all image settings with the factory default values.

English - 27

TV

Move Enter Return

Auto Adjustment in progress

Please wait

Image Reset has completed.

Return

Position

Using the WISE LINK Function

This function enables you to view and listen to photo (JPEG) and audio files (MP3) saved on a memory device.

Side Panel

´

´

Œ

◆ Supported Memory Cards

Compact Flash (CF) Micro Driver (MD) MAGICSTOR

Multimedia Card (MMC) Memory Stick MSPRO

Some types of Memory Cards or USB hosts, depending on the manufactorer, may not be supported.

➢

◆ Do not apply excessive force when you insert/eject the memory card or USB device.

◆ Do not place the memory card or USB device near a strong electro-magnetic device.

◆ Do not allow metal substances to come in contact with the terminals on the memory card.

◆ Do not bend, drop or apply strong shock to memory cards or USB devices.

◆ Only alphanumeric characters must be used as a filename (photo, music). The filename with non-alphanumeric

characters is displayed with “???”.

◆ If a filename is too long, the filename is represented as follows: “filename...+.jpg” or “filename...+.mp3”.

◆ The file system only supports FAT16/32.

◆ Certain types of USB Digital camera and audio devices may not be compatible with this TV.

◆ WISELINK only supports the USB Mass Storage Class device (MSC). MSC is a Mass Storage Class Bulk-Only

Transport device. Examples of MSC are Thumb drives and Flash Card Readers.

◆ Before inserting your memory card or USB device into the TV, please back up your files.
SAMSUNG is not responsible for any data file damage or data loss.

◆ The data files in memory cards might be erased due to electrostatic discharge (EST), loose contact, or dust.

◆ When turning the system on and switching to WISELINK Mode when memory devices are inserted into all the

Parallel, USB, Memory 1 and 2 Slots, some memory devices may not be recognized by the system. In this case,
separate and reinstall the memory device in question.

ΠUSB

- Insert an USB device containing JPEG and/or MP3 files
into the WISELINK jack (USB jack) on the side of the TV.

´ Memory card

- Insert a memory card containing JPEG and/or MP3
files into the slot on the side of the TV first.

-Insert an SD/SM/MMC/MS/MSPRO/XD memory
card into Memory slot 1.

-Insert an CF/MD/MAGICSTOR memory card into
Memory slot 2.

Secure Digital Card

(SD Card)

XD

Smart Media Card

This product supports USB devices that have only 512byte data block size.

➢

English - 28

Using the WISELINK Mode

1 Press the MENU () button to display the menu.

Press the ENTER/OK () button to select Input.
Press the … or † button to select WISELINK, then press the ENTER/OK
() button.

Press the

… or †

2

ENTER/OK ()

the

button to select a corresponding memory device, then press

button.

A menu for selecting the Photo or Music files or setup function on a selected
memory device will be displayed

Press the

œ or √

3

press the

button to select an icon (Photo, Music or Setup), then

ENTER/OK ()

.

button.

To exit WISELINK mode, press the WISELINK button on the remote control.

Press the WISELINK button on the remote control to turn on the WISELINK

➢

mode.

Using the Remote Control Button in WISELINK Menu

Button

Operations

Move the cursor and select an item.

TV

Source List : TV
Edit Name
WISELINK

Input

Move Enter Return

Move Enter Exit

Move Enter Return

Select the currently selected item.

Play or pause the Slide Show or MP3 file.

Stop the current function and return to the previous
high-level menu.

Run various functions from the Photo and Music menus.

Stop the current slide show or MP3 file.

Page Up or Down (file list item)

Return to the previous menu

English - 29

Using the Photo (JPEG) List

You can play back the JPEG files saved on a memory device in various ways.

1 After switching the mode to WISELINK, select a memory device that you

have installed. (Refer to page 29)

2 Press the œ or √ button to select Photo, then press the ENTER/OK ()

button. JPEG files and existing folders are displayed.

Move Enter Return

219x171
6 KBytes
May 05,2006
3/130

Move Enter Photo Menu Return

: Folder icon

: Photo icon

: Move to the previous folder

stage icon

œœ

1/10 Page

√√

3 Press the …

button.

➢

➢

➢

➢

➢

To exit WISELINK mode, press the WISELINK button on the remote control.

➢

➢

➢
➢

➢

➢

➢
➢

/†/œ/

√ buttons to select a file, then press the ENTER/OK ()

Pressing the button over a photo icon displays the currently selected
photo in full screen. However, JPEG files smaller than 640x480 pixels
are zoomed-in at 4 times their original size.
(e.g. If a photo’s original size is 200x200 pixels  It is displayed at
800x800 pixels)

Press the INFO () button and select View to view a photo image at
its original size.

Pressing the button over a folder icon shows the JPEG files included in
the folder.

While a full screen is displayed, œ/√ buttons will let you see another
photo image in the same folder.

Press the PLAY/PAUSE () button when a Photo icon is selected to
start a Slide Show.

Moving to a photo may take a few seconds because the file needs to
be loaded. At this point, the icon will appear.

This menu shows only the files whose extension is jpeg (or jpg). Files
with other formats such as gif or tiff will not be displayed.

Fifteen thumbnail photos are displayed per page.

The thumbnails are numbered from left to right and from top to bottom,
from 1 to 15.

Folders are displayed first and they are followed by all JPEG files in the
current folder. The folders and JPEG files are sorted in alphabetical
order.

If the photo is displayed in full screen, you can zoom in and out or
rotate the photo on the screen. (Refer to pages 34~35)

It takes a while to show JPEG files as thumbnail images.

WISELINK for this product supports JPEG files up to 8K x 8K pixels.
For progressive JPEG files or files whose size exceeds 8MB, the photo
will be displayed as a thumbnail only. When trying to view a progressive
JPEG file, the “Not supported mode” message will appear. When
trying to view a file exceeding 8MB, the “This file is too large
to decode” message will appear.

Press the WISELINK button on the remote control to turn on the WISELINK

➢

mode.

continued...

English - 30

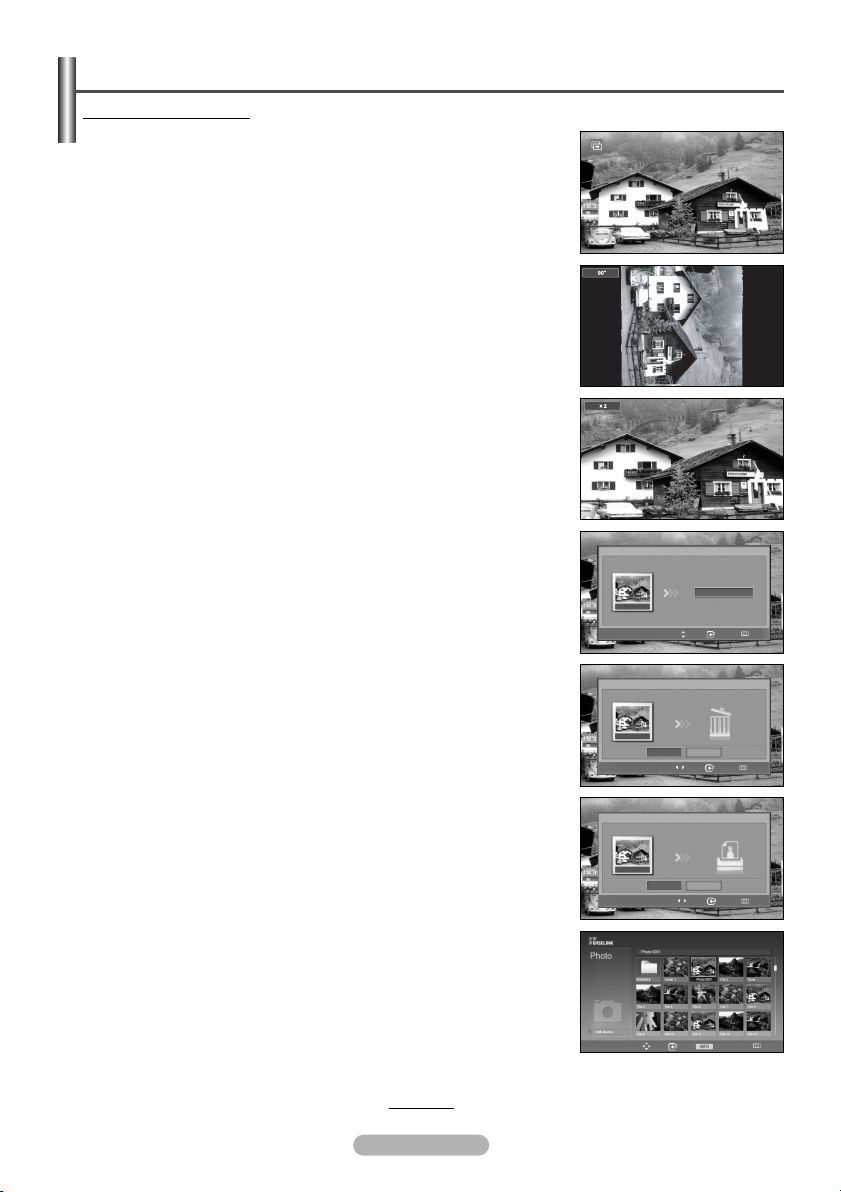

Using the Photo (JPEG) List

Using the Options Menu

◆

Slide Show:

Starts a slide show.
(Refer to “Viewing a Slide Show” on page 32)

◆

Rotate:

You can rotate images in full screen mode.
Images are rotated in the order of 90°, 180°, 270° and 0° (original state).
(Refer to “Rotating” on page 34)

You cannot save a rotated image.

➢

◆

Zoom:

You can zoom into images in full screen mode.
Images are zoomed in on in the order of X2, X3, X4 and X1 (original size).
(Refer to “Zooming-In” on page 35)

You cannot save a zoomed-in on image.

➢

◆

Copy, Copy All files:
You can copy image files to a different memory card.
(Refer to “Copying Photo Files” on page 36)

Choose a device for file copy.


Copy

MS

Move Enter Return

◆

Delete, Delete All Files:
You can delete selected image files.
(Refer to “Deleting Photo Files” on page 37)

◆

Print:

You can print image files directly with your printer.
(Refer to “Printing the Photo Image” on page 38)

◆

List:

Displays the stored files and folders and file info.

The “File Error” message appears on the screen in the following

➢

situations:
When the file actually has an error
If the target memory cannot be written to when copying files
If the target memory has not enough space when copying files

continued...

English - 31

219x171
6 KBytes
May 05,2006
3/130

Delete

Do you want to delete the file?


Yes

No

Move Enter Return

Print

Do you want to print the file?


Yes

No

Move Enter Return

Move Enter Photo Menu Return

œœ

1/10 Page

√√

Using the Photo (JPEG) List

iewing a Slide Show

V

1 After switching the mode to WISELINK, select a memory device that you

have installed. (Refer to page 29)

2 Press the œ or √ button to select Photo, then press the ENTER/OK ()

button. JPEG files and existing folders are displayed.

3 Press the INFO () button to display the option (View, Slide Show,

Copy, Copy All Files, Delete, Delete All Files, Print).

4 Press the … or † button to select Slide Show, then press the

ENTER/OK () button.

√√

Slide show displays all JPEG files in the selected folder at a pre-set

➢

speed.

During the slide show, files are displayed in order from the currently

➢

shown file. Press the INFO () button to run slide show.

MP3 files can be automatically played during the slide show if the

➢

“Default Background Music” is set to “On”. To enable this function, MP3
files and other photo files must be located in the same folder on the
memory device.

To run the slide show repeatedly, change the setting by referring to

➢

page 42.

Press the PLAY/PAUSE () button when a Photo icon is selected to

➢

start a Slide Show.

5 Press the INFO () button during slide show to set the option (Speed,

Background Music, Background Music Setting, List).

6 Press the … or † button to select the option, then press the ENTER/OK

() button.

219x171
6 KBytes
May 05,2006
3/130

View
Slide Show
Copy
Copy All Files
Delete
Delete All Files
Print

Exit

Speed
Background Music
Background Music Setting
List

Exit

Move Enter Return

œœ

1/10 Page

Press the WISELINK button on the remote control to turn on the WISELINK

➢

mode.

continued...

English - 32

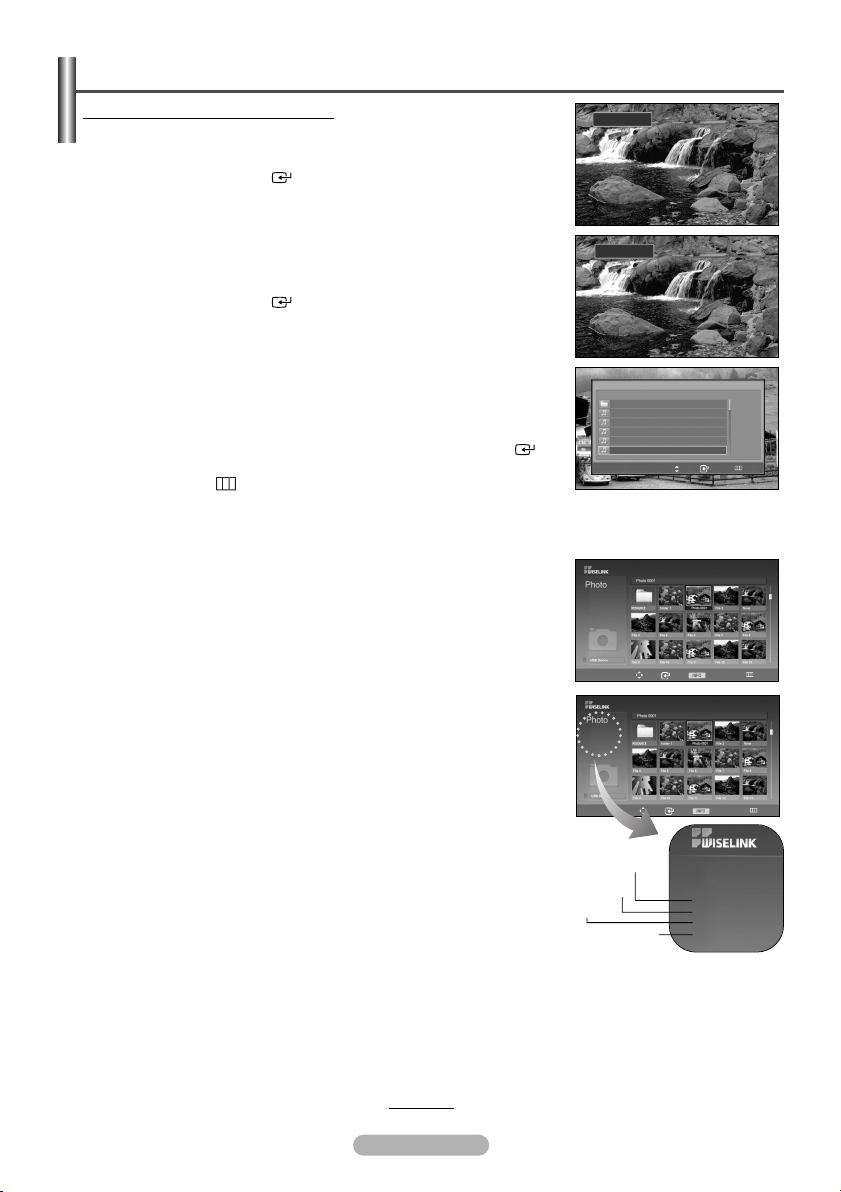

Using the Photo (JPEG) List

Using the Menu during a Slide Show

◆

Speed:

Select to control the slide show speed.

Each time the ENTER/OK () button is pressed, the speed changes
repeatedly. (Normal  Slow  Fast)

◆

Background Music:

Select to choose whether you want to play MP3 file during a slide show.
Each time the ENTER/OK () button is pressed, the background music
activation changes repeatedly. (On  Off)

◆

Background Music Setting:

While the slow show is in progress, MP3 files and folders under the same
directory are displayed.
Select a folder using the … or † buttons and press the ENTER/OK ()
button. The selected folder will be highlighted.
Press the MENU () button again to return to the slide show screen.
The selected background music is played.

If you turn Off the Background Music, even if the Background Music

➢

Settings have been set up, the background music will not be played.

◆

List:

JPEG files and existing folders are displayed. To exit WISELINK mode,
press the WISELINK button on the remote control. Press the EXIT button to
switch to the WISELINK start screen where another memory card can be
selected.

When selecting a photo file, the photo file information is displayed on

➢

the left in the TV screen, such as the resolution, the size, the date
modified and the order of the file in the current directory.

Fast

On

Background Music Setting

Choose file for background music.

RESOURCE 1/1 Page

Swan Song feat.TBNY

Beatles-Yesterday

Fall in Love

Tom Waits-Time

Chuk Mangione-Feel So good

219x171
6 KBytes
May 05,2006
3/130

Move Enter Photo Menu Return

219x171
6 KBytes
May 05,2006
3/130

03:48

02:20

05:30

04:28

05:10

Selected file

: 1

04:20

Move Enter Return

œœ

1/10 Page

1/10 Page

œœ

√√

√√

continued...

English - 33

Move Enter Photo Menu Return

Resolution

File Size

Date modified

Order of the file in the
current directory


219x171
6 KBytes
May 05,2006
3/130

Using the Photo (JPEG) List

Rotating

1 After switching the mode to WISELINK, select a memory device that you

have installed. (Refer to page 29)

2 Press the œ or √ button to select Photo, then press the ENTER/OK ()

button. JPEG files and existing folders are displayed.

Move Enter Return

/†/œ/

Rotating directly from 90 degrees to 270 degrees is not allowed.
When rotating a photo, the edge of the photo may not be displayed on
the screen.

The rotated file is not saved.

219x171
6 KBytes
May 05,2006
3/130

Slide Show
Rotate
Zoom
Copy
Delete
Print
List

Move Enter Photo Menu Return

Exit

3 Press the …

œœ

1/10 Page

√√

button. Pressing the button over a photo icon shows the currently selected
photo in full screen.

4 Press the INFO () button to display the option (Slide Show, Rotate,

Zoom, Copy, Delete, Print, List).

Press the … or † button to select Rotate, then press the ENTER/OK ()
button.

Each time the ENTER/OK () button is pressed, the photo rotates
repeatedly. (90°  180°  270°  0°)

➢
➢

To exit WISELINK mode, press the WISELINK button on the remote control.

➢

√ buttons to select a file, then press the ENTER/OK ()

The Rotating function information icon (Displayed at the top left of the screen).

Icon

Press the WISELINK button on the remote control to turn on the WISELINK

➢

mode.

Current OSD

Rotating (90°)

Rotating (180°)

Rotating (270°)

Rotating (0°)

To rotate a photo by 90 degrees

To rotate a photo by 180 degrees

To rotate a photo by 270 degrees

To rotate a photo by original

Function

continued...

English - 34

Using the Photo (JPEG) List

Zooming-In

1 After switching the mode to WISELINK, select a memory device that you

have installed. (Refer to page 29)

2 Press the œ or √ button to select Photo, then press the ENTER/OK ()

button. JPEG files and existing folders are displayed.

/†/œ/

3 Press the …

button.
Pressing the button over a photo icon shows the currently selected photo in
full screen.

4 Press the INFO () button to display the option (Slide Show, Rotate,

Zoom, Copy, Delete, Print, List).

Press the … or † button to select Zoom, then press the ENTER/OK ()
button.

Each time the ENTER/OK () button is pressed, the photo size increases.
(X1  X2  X3  X4)

• X2: Zoom-in to the photo X2.

• X3: Zoom-in to the photo X3.

• X4: Zoom-in to the photo X4.

• X1: Restore the photo to its original size.

To move the enlarged photo image up/down/left/right, press the …
buttons.

To exit WISELINK mode, press the WISELINK button on the remote control.

√ buttons to select a file, then press the ENTER/OK ()

/†/œ/

√

219x171
6 KBytes
May 05,2006
3/130

Slide Show
Rotate
Zoom
Copy
Delete
Print
List

Exit

Move Enter Return

œœ

1/10 Page

Move Enter Photo Menu Return

√√

Zoom function information icon (Displayed at the top left of the screen).

Current OSDIcon

Zoom (x 2)

Zoom (x 3)

Zoom (x 4)

Zoom (x 1)

Zoom-in to a photo x2.

Zoom-in to a photo x3.

Zoom-in to a photo x4.

Restore a photo to its original size.

Button

Pan Down

Pan Up

Pan Right

Pan Left

Press the WISELINK button on the remote control to turn on the WISELINK

➢

mode.

Pan down to view the lower
part of a zoomed-in photo.

Pan up to view the upper part of a
zoomed-in photo.

Pan right to view the right side of a
zoomed-in photo.

Pan left to view the left side of a
zoomed-in photo.

Function

Function

English - 35

Copying Photo Files

You can copy files between different memory devices installed.

1 After switching the mode to WISELINK, select a memory device that you

have installed. (Refer to page 29)

2 Press the œ or √ button to select Photo, then press the ENTER/OK ()

button.
The corresponding files and existing folders are displayed.

Move Enter Return

3 Press the …/†/œ/√ buttons to select a file to be copied, then press the

œœ

1/10 Page

√√

219x171
6 KBytes
May 05,2006
3/130

ENTER/OK () button.

To select a file on the next page, press the REW () or FF ()

➢

button.

Slide Show
Rotate
Zoom
Copy
Delete
Print
List

Move Enter Photo Menu Return

Exit

Copy

Choose a device for file copy.


MS

Move Enter Return

4 Press the INFO () button to display the option (Slide Show, Rotate,

Zoom, Copy, Delete, Print, List).

Press the … or † button to select Copy, then press the ENTER/OK ()
button.

To copy all files, press the … or † button to select Copy All Files, then
press the ENTER/OK () button.

5 Press the … or † button to select another connected memory device, then

press the ENTER/OK () button.
The selected file (or all files) is copied to the selected memory device.

You can only copy from a memory device to another device inserted in

➢

a different slot. For example, from Memory Slot 1 to Slot 2 or USB.

Since copying all files may take some time depending on the size of the

➢

files, please wait until copying is complete. Take care not to remove the
memory card while copying the contents because it may damage the
memory card or cause the loss of the data saved on the card.

Press the WISELINK button on the remote control to turn on the WISELINK

➢

mode.

English - 36

Deleting Photo Files

You can remove any files saved on a memory device.

1 After switching the mode to WISELINK, select a memory device that you

have installed. (Refer to page 29)

2 Press the œ or √ button to select Photo, then press the ENTER/OK ()

button.
The corresponding files and existing folders are displayed.

/†/œ/

3 Press the …

ENTER/OK () button.

√ buttons to select a file to be deleted, then press the

219x171
6 KBytes
May 05,2006
3/130

Move Enter Return

œœ

1/10 Page

√√

4 Press the INFO () button to display the option (Slide Show, Rotate,

Zoom, Copy, Delete, Print, List).

Press the … or † button to select Delete, then press the ENTER/OK ()
button.
To delete all files, press the … or † button to select Delete All Files,
then press the ENTER/OK () button.

Since a memory card reads or writes data based on a file system,

➢

repeatedly copying or deleting operations, may increase the access
time or read or the write operation may fail displaying the “Check your
memory card” message on the screen. In this case, format the
memory card, and copy and delete data on your computer rather than
on the memory card if possible.

5 Press the œ or √ button to select Yes, then press the ENTER/OK ()

button.
Selected file or All files are deleted.

The selected file (or all files) is deleted.

➢

The deleted files cannot be recovered.

➢

Since deleting all files may take some time depending on the size,

➢

please wait until the deletion is complete. Take care not to remove the
memory card during the operation as it may damage the memory card
or cause the loss of the data saved on the card.

Press the WISELINK button on the remote control to turn on the WISELINK

➢

mode.

Slide Show
Rotate
Zoom
Copy
Delete
Print
List

Exit


Move Enter Photo Menu Return

Delete

Do you want to delete the file?

Yes

No

Move Enter Return

English - 37

Printing the Photo Image

By connecting the TV to printers with PictBridge support (sold separately), you can send photo images from the
memory device directly to the printer with a few simple operations.

T

o Connect a Printer Using a USB Cable

Side Panel

Œ

Turn your printer power off.

´

Connect an USB cable (sold separately)
between the PictBridge jack on the TV

PictBridge-supporting
Photo Printer

USB Cable

Some printers supporting PictBridge may not be compatible with this TV.

➢

o Print a Photo Image

T

1 After switching the mode to WISELINK, select a memory device that you

have installed. (Refer to page 29)

Press the

2

œ or √

button. JPEG files and existing folders are displayed.

and the USB jack on the printer.

ˇ

Turn your printer’s power on.

button to select Photo, then press the

ENTER/OK ()

219x171
6 KBytes
May 05,2006
3/130

Slide Show
Rotate
Zoom
Copy
Delete
Print
List

Move Enter Photo Menu Return

Exit

Print

Do you want to print the file?


Yes

Move Enter Return

Move Enter Return

œœ

1/10 Page

No

3

Press the …/†/œ/√buttons to select a file, then press the

√√

button.

Pressing the button over a photo icon shows the currently selected

➢

photo in full screen.

Pressing the button over a folder icon shows the JPEG files included in

➢

the folder.

Press the

4

INFO ()

button to display the option (Slide Show, Rotate,

Zoom, Copy, Delete, Print, List).

… or †

Press the

button to select Print, then press the

button.

5

Press the

œ or √

button to select Yes, then press the

ENTER/OK ()
button.
The selected photo image will be printed.

To exit WISELINK mode, press the WISELINK button on the remote control.

Note that the edge of the image might be cut and may not be printed

➢

depending on your printer model.

The printed image may be smaller than the original size.

➢

Press the WISELINK button on the remote control to turn on the WISELINK

➢

mode.

English - 38

ENTER/OK ()

ENTER/OK ()

Using the Music (MP3) List

You can play back the MP3 files saved on a memory device in various ways.

1 After switching the mode to WISELINK, select a memory device that you

have installed. (Refer to page 29)

2 Press the œ or √ button to select Music, then press the ENTER/OK ()

button. MP3 files and existing folders are displayed.

3 Press the … or † buttons to select a file to be played, then press the

ENTER/OK () button.

Pressing the ENTER/OK () button while a music file is highlighted

➢

immediately plays the music file.
Pressing the ENTER/OK () button while a folder is highlighted

➢

shows the music files in the folder.
To select a file on the next page, press the REW () or FF ()

➢

button.

4 To select all files, press the INFO () button to display the music menu.

Press the … or † button to select Play All Files, then press the
ENTER/OK () button.
All the MP3 files under the same folder will be played.

To play back the files repeatedly, change the setting by referring to

➢

page 43.

5 Press the PLAY/PAUSE () button while playing an MP3 file to pause the

file. Press the STOP () button to stop playback.

To exit WISELINK mode, press the WISELINK button on the remote control.

This menu shows only the files whose extension is mp3. Files with

➢

other extensions are not displayed, even if they have been saved on
the same memory device.

The selected file is displayed on the top of the screen with its playing

➢

time.
To adjust the music volume, press the + or - button on the

➢

remote control.

To mute the sound, press the MUTE () button on the remote control.

FF () and REW () functions do not work during the play. When

➢

those buttons are pressed, the play stops.

Music function information icon (Displayed at the top left of the screen).

Current OSDIcon

Function

(Music) All Repeat When all music files in the folder are repeated.

(Music) All When all music files in the folder are played once.

(Music) One Repeat When a music file is repeated.

(Music) One

(Music) Play/Pause

When a music file is played once.

When pressing the PLAY/PAUSE ()button on the remote control
while music is playing. The music stops and the ‘Play’ text appears at the
top of the screen.

Move Enter Return

Nat King Cole-Fly me to the moon

RESOURCE

5 Mbytes

Folder 1

May 07,2006

001 Swan Song feat.TBNY

8/95

002 Beatles-Yesterday

003 Fall in Love

004 Tom Waits-Time

005 Chuk Mangione-Feel So good

006 Nat King Cole-Fly me to the moon

007 Ryuichi Sakamoto-Rain

008 Bon jovi-This ain’t a love song

Move Enter Music Menu Return

: Folder icon

: Music list icon

: Move to the previous

folder stage icon

Nat King Cole-Fly me to the moon

RESOURCE

5 Mbytes

Folder 1

May 07,2006

001 Swan Song feat.TBNY

8/95

002 Beatles-Yesterday

003 Fall in Love

Play

004 Tom Waits-Time

Play All Files

005 Chuk Mangione-Feel So good

Copy

006 Nat King Cole-Fly me to the moon

Copy All Files

007 Ryuichi Sakamoto-Rain

Delete

008 Bon jovi-This ain’t a love song

Delete All Files

Exit

Press the WISELINK button

➢

on the remote control to turn
on the WISELINK mode.

œœ

œœ

1/10 Page

1/10 Page

00:04:00

00:04:00

√√

√√

(Music) Stop

When pressing the STOP ()button on the remote control when music
is stopped. The music resumes and the ‘Stop’ text appears at the top of
the screen.

English - 39

Copying Music Files

You can copy files between different memory devices installed.

1 After switching the mode to WISELINK, select a memory device that you

have installed. (Refer to page 29)

2 Press the œ or √ button to select Music, then press the ENTER/OK ()

button.
The corresponding files and existing folders are displayed.

Move Enter Return

3 Press the … or † button to select a file to be copied, then press the

œœ

1/10 Page

√√

œœ

00:04:00

1/10 Page

00:04:00

ENTER/OK () button.

4 Press the INFO () button to display the option (Play, Play All Files,

√√

Copy, Copy All Files, Delete, Delete All Files).
Press the … or † button to select Copy, then press the ENTER/OK ()
button.

To copy all files, press the … or † button to select Copy All Files, then
press the ENTER/OK () button.

5 Press the … or † button to select another connected memory device, then

œœ

1/10 Page

√√

00:04:00

press the ENTER/OK () button.
The selected file (or all files) is copied to the selected memory device.

MS

You can only copy from a memory device to another device inserted in

➢

a different slot. For example, from Memory Slot 1 to Slot 2 or USB.

Since copying all files may take some time depending on the size of the

➢

files, please wait until copying is complete. Take care not to remove the
memory card while copying the contents because it may damage the
memory card or cause the loss of the data saved on the card.

5 Mbytes
May 07,2006
8/95

5 Mbytes
May 07,2006
8/95

Play
Play All Files
Copy
Copy All Files
Delete
Delete All Files

Exit

5 Mbytes
May 07,2006
8/95

Nat King Cole-Fly me to the moon

RESOURCE

Folder 1

001 Swan Song feat.TBNY

002 Beatles-Yesterday

003 Fall in Love

004 Tom Waits-Time

005 Chuk Mangione-Feel So good

006 Nat King Cole-Fly me to the moon

007 Ryuichi Sakamoto-Rain

008 Bon jovi-This ain’t a love song

Move Enter Music Menu Return

Nat King Cole-Fly me to the moon

RESOURCE

Folder 1

001 Swan Song feat.TBNY

002 Beatles-Yesterday

003 Fall in Love

004 Tom Waits-Time

005 Chuk Mangione-Feel So good

006 Nat King Cole-Fly me to the moon

007 Ryuichi Sakamoto-Rain

008 Bon jovi-This ain’t a love song

Copy

Nat King Cole-Fly me to the moon

RESOURCE

Choose a device for file copy.

Folder 1

001 Swan Song feat.TBNY

002 Beatles-Yesterday

003 Fall in Love

004 Tom Waits-Time

006 Nat King

005 Chuk Mangione-Feel So good

006 Nat King Cole-Fly me to the moon

007 Ryuichi Sakamoto-Rain

008 Bon jovi-This ain’t a love song

Move Enter Return

Press the WISELINK button on the remote control to turn on the WISELINK

➢

mode.

English - 40

Deleting Music Files

You can remove any files saved on a memory device.

1 After switching the mode to WISELINK, select a memory device that you

have installed. (Refer to page 29)

2 Press the œ or √ button to select Music, then press the ENTER/OK ()

button.
The corresponding files and existing folders are displayed.

3 Press the … or † button to select a file to be deleted, then press the

ENTER/OK () button.

4 Press the INFO () button to display the option (Play, Play All Files,

Copy, Copy All Files, Delete, Delete All Files).
Press the … or † button to select Delete, then press the ENTER/OK ()
button.
To delete all files, press the … or † button to select Delete All Files,
then press the ENTER/OK () button.

Since a memory card reads or writes data based on a file system,

➢

repeatedly copying or deleting operations, may increase the access
time or read or the write operation may fail displaying the “Check your
memory card” message on the screen. In this case, format the
memory card, and copy and delete data on your computer rather than
on the memory card if possible.

5 Press the œ or √ button to select Yes, then press the ENTER/OK ()

button.
Selected file or All files are deleted.

The selected file (or all files) is deleted.

➢

The deleted files cannot be recovered.

➢

Since deleting all files may take some time depending on the size,

➢

please wait until the deletion is complete. Take care not to remove the
memory card during the operation as it may damage the memory card
or cause the loss of the data saved on the card.

5 Mbytes
May 07,2006
8/95

5 Mbytes
May 07,2006
8/95

Play
Play All Files
Copy
Copy All Files
Delete
Delete All Files

5 Mbytes
May 07,2006
8/95

Nat King Cole-Fly me to the moon

RESOURCE

Folder 1

001 Swan Song feat.TBNY

002 Beatles-Yesterday

003 Fall in Love

004 Tom Waits-Time

005 Chuk Mangione-Feel So good

006 Nat King Cole-Fly me to the moon

007 Ryuichi Sakamoto-Rain

008 Bon jovi-This ain’t a love song

Move Enter Music Menu Return

Nat King Cole-Fly me to the moon

RESOURCE

Folder 1

001 Swan Song feat.TBNY

002 Beatles-Yesterday

003 Fall in Love

004 Tom Waits-Time

005 Chuk Mangione-Feel So good

006 Nat King Cole-Fly me to the moon

007 Ryuichi Sakamoto-Rain

008 Bon jovi-This ain’t a love song

Exit

Delete

Nat King Cole-Fly me to the moon

RESOURCE

Do you want to delete the file?

Folder 1

001 Swan Song feat.TBNY

002 Beatles-Yesterday

003 Fall in Love

004 Tom Waits-Time

006 Nat King

005 Chuk Mangione-Feel So good

006 Nat King Cole-Fly me to the moon

Yes
007 Ryuichi Sakamoto-Rain

008 Bon jovi-This ain’t a love song

Move Enter Return

Move Enter Return

œœ

1/10 Page

00:04:00

œœ

1/10 Page

00:04:00

œœ

1/10 Page

00:04:00

No

√√

√√

√√

Press the WISELINK button on the remote control to turn on the WISELINK

➢

mode.

English - 41

Using the Setup Menu

Setup displays the user settings of the WISELINK menu

1 After switching the mode to WISELINK, select a memory device that you

have installed. (Refer to page 29)

2 Press the œ or √ button to select Setup, then press the ENTER/OK ()

button. The Setup menu is displayed.

Move Enter Return

3 Press the … or † button to select an item you want, then press the

Slide Show Speed : Fast

Slide Show Effect : No Transition

Slide Show Repeat : Off

Music Repeat : Off

Background Music : On

Background Music Setting

Screen Saver : Off

VERSION P42E-13

Move Enter Return

Slide Show Speed : Fast

Slide Show Effect : No Transition

Slide Show Repeat : Off

Music Repeat : Off

Background Music : On

Background Music Setting

Screen Saver : Off

VERSION P42E-13

Slide Show Speed : Fast

Slide Show Effect : No Transition

Slide Show Repeat : Off

Music Repeat : Off

Background Music : On

Background Music Setting

Screen Saver : Off

VERSION P42E-13

Slide Show Speed : Fast

Slide Show Effect : No Transition

Slide Show Repeat : Off

Music Repeat : Off

Background Music : On

Background Music Setting

Screen Saver : Off

VERSION P42E-13

Fast

Normal

Slow

Move Enter Return

No Transition

Wipe Down

Blinds Horizontal

Split Horizontal In

Split Horizontal Out

Checkerboard Down

Random Bars Horizontal

Dissolve

Random Transition

Move Enter Return

Off

On

Move Enter Return

√
√
√
√
√
√
√

ENTER/OK () button.

4 Press the … or † button to select the option, then press the ENTER/OK

() button.

◆

Slide Show Speed:

Select to control the slide show speed.
You can select Fast, Normal or Slow.

◆

Slide Show Effect:

You can experience various types of slide show effect.
You can select No Transition, Wipe Down, Blinds Horizontal,

Split Horizontal In, Split Horizontal Out, Checkerboard
Down, Random Bars Horizontal, Dissolve, or Random Transition.

◆

Slide Show Repeat:
On: Repeats the slide show from the beginning when all the files in the

folder have been displayed.

Off: Exits a slide show. It returns to Photo list after all the files in the folder

have been displayed.

Press the WISELINK button on the remote control to turn on the WISELINK

➢

mode.

continued...

English - 42

Using the Setup Menu

◆

Music Repeat:
On: Plays back a music file or all music files repeatedly.

Off: Doesn’t play back repeatedly.

◆

Background Music:

Select to determine whether to play an MP3 file during a slide show.
You can select Music On or Music Off.

◆

Background Music Setting:

While the slide show is in progress, change the Background Music Setting to
listen to a music file.
Select an MP3 file as the background music.

◆

Screen Saver:

Select to set the waiting time before the screen saver is run when no button
is pressed.
You can select from Off (Do Not Use), 5min or 10min.

To prevent a residual image on the screen, the time to run the Screen

➢

Saver is set to 10min by default. Users can change the setting to Off,
5min or 10min according to user requirements.

Slide Show Speed : Fast

Slide Show Effect : No Transition

Slide Show Repeat : Off

Music Repeat : Off

Background Music : On

Background Music Setting

Screen Saver : Off

VERSION P42E-13

Slide Show Speed : Fast

Slide Show Effect : No Transition

Slide Show Repeat : Off

Music Repeat : Off

Background Music : On

Background Music Setting

Screen Saver : Off

VERSION P42E-13

Background Music Setting

Choose file for background music.

Slide Show Speed : Fast

Slide Show Effect : No Transition

RESOURCE 1/1 Page

Slide Show Repeat : Off

Swan Song feat.TBNY

Music Repeat : Off

Beatles-Yesterday

Background Music : On

Fall in Love

Background Music Setting

Tom Waits-Time

Screen Saver : Off

Chuk Mangione-Feel So good

Slide Show Speed : Fast

Slide Show Effect : No Transition

Slide Show Repeat : Off

Music Repeat : Off

Background Music : On

Background Music Setting

Screen Saver : Off

VERSION P42E-13

Off

On

Move Enter Return

Off

On

Move Enter Return

03:48

02:20

05:30

04:28

05:10

Selected file

: 1

04:20

Move Enter Return

Off

5min

10min

Move Enter Return

English - 43

Previewing the DTV Menu System

Available in DTV mode.

➢

Preset to the DTV mode by using the TV/DTV button on your remote control.

To help you navigate around the on-screen menu system and adjust the
various settings available, refer to the following illustration.

Press the D.MENU button on your remote control.

➞

➞

➞

➞

➞

Guide

➞

Now & Next Guide

➞

Full Guide

➞

Scheduled List

➞

Default Guide

Preference

➞

OSD Language

➞

Translucency Level

➞

Parental Lock

Feature

➞

Subtitle

➞

Subtitle Language

➞

Audio Language

Channel

➞

Auto Store

➞

Manual Store

➞

Edit Favourite Channels

➞

Channel Manager

System

➞

Product Information

➞

Signal Information

➞

Software Upgrade

➞

Common Interface

➞

Reset

Guide

Now & Next Guide
Full Guide
Scheduled List
Default Guide : Full Guide

Move Enter Exit

Preference

OSD Language : English
Translucency Level : Medium
Parental Lock

Move Enter Exit

Feature

Subtitle : Off

Subtitle Language

Audio Language

Move Enter Exit

Channel

Auto Store
Manual Store
Edit Favourite Channels
Channel Manager

Move Enter Exit

System

Product Information
Signal Information
Software Upgrade

Common Interface

Reset

Move Enter Exit

























(depending on the model)

Now/Next

➞

Full Guide

➞

English

➞
➞

Deutsch

➞

Español

➞

Français

➞

Italiano

➞

Svenska

➞

Suomi

High

➞
➞

Medium

➞

Low

➞

Opaque
Parental Rating

➞
➞

Change PIN

➞

Off

➞

On

➞

English

➞

English

➞

Channel

➞

Frequency

➞

Bandwidth

➞

Application Info.

➞

CI Menu

The sub-items of the CI Menu may vary depending on the CAM model.

➢

(refer to page 56)

English - 44

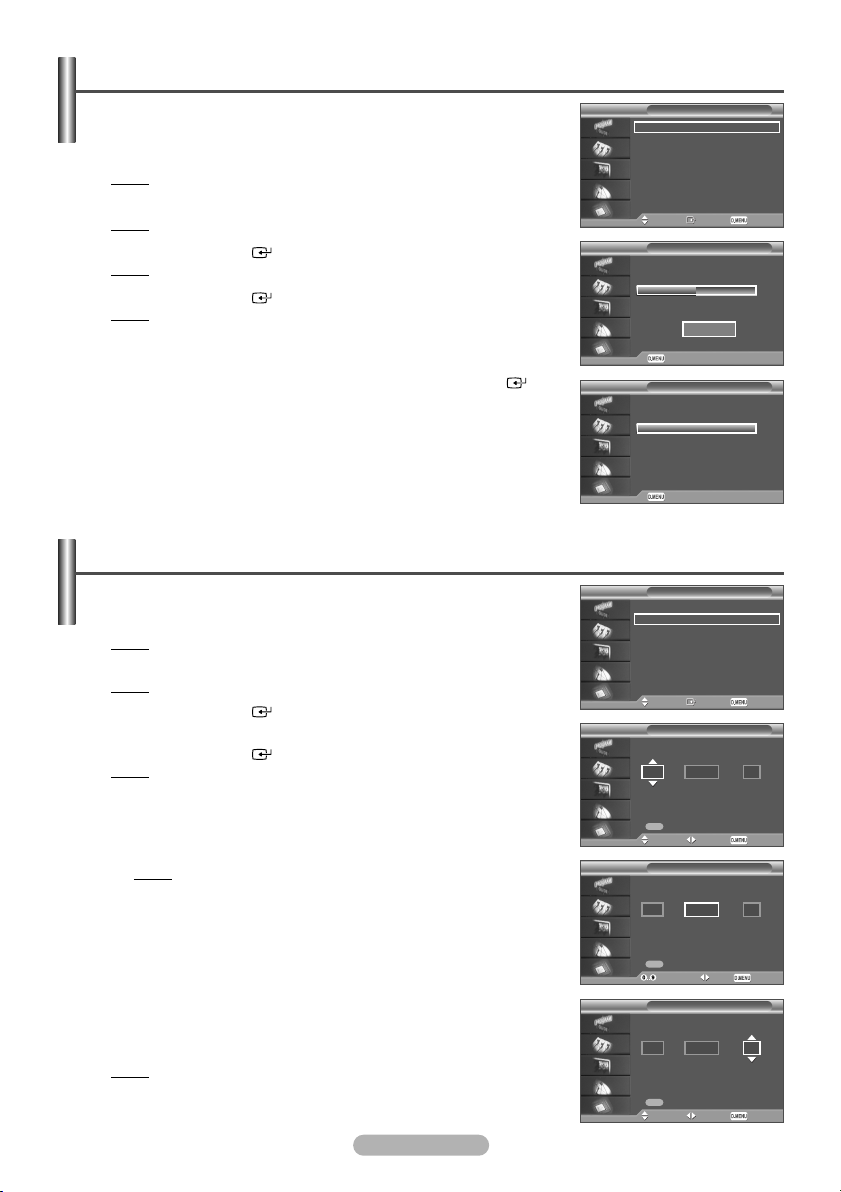

Updating the Channel Manager Automatically

You can update the channel manager when the broadcaster adds new Services
or if you move the TV to a new location.

1 Press the D.MENU button.

Result

: The DTV menu is displayed.

2 Press the … or † button to select Channel.

: The Channel menu is displayed.

Result

3 Press the ENTER/OK () button.

: The Auto Store is displayed.

Result

4 Press the ENTER/OK () button again to start the search.

: When it has finished, the number of scanned services will be

Result

displayed.

◆ The existing favourite channel manager will not be deleted when the
channel list is updated.

◆ To stop the scan before it has finished, press the ENTER/OK ()
button with Stop selected.

5 Press the D.MENU button to return to the previous menu or press the EXIT

button to return to normal viewing.

If the signal status is poor, “No service found! Check the aerial

➢

connection.” message is displayed.

Updating the Channel Manager Manually

You can specify the channel or frequency for a fast channel search.

1 Press the D.MENU button.

Result

: The DTV menu is displayed.

2 Press the … or † button to select Channel.

3 Press the ENTER/OK () button.

4 Press the … or † button to select Manual Store.

5 Press the œ or √ button to select Channel, Frequency, or Bandwidth.

6 Press the red button to start the scan for digital services.

7 Press the D.MENU button to return to the previous menu or press the

: The Channel menu is displayed.

Result

Press the ENTER/OK () button.
Result: The Manual Store is displayed.

◆ Channel

Press the ▲, ▼ or numeric buttons (0~9) to select a channel.
The available channels are 5~12, 21~69.

: The corresponding frequency for the selected channel is

Result

automatically set.

◆ Frequency

You can specify the frequency (KHz) using the numeric buttons (0~9).
If you do not know the exact frequency, follow the above step to select
the frequency automatically using channel.

◆ Bandwidth

Press the ▲ or ▼ button to select a bandwidth.
The available bandwidths are 7 and 8 MHz.

: When it has finished,channels are updated in the channel manager.

Result

EXIT button to return to normal viewing.

English - 45

Channel

Auto Store
Manual Store
Edit Favourite Channels
Channel Manager

Move Enter Return

Auto Store

Scanning for digital services...

Services found : 24 Channel : 38

Stop

Return

Auto Store

Scanning for digital services...

Services found : 30 Channel : 68

Update Channel List...

Return

Channel

Auto Store
Manual Store
Edit Favourite Channels
Channel Manager

Move Enter Return

Manual Store

Channel

Frequency Bandwidth

21

474000

Search

Adjust Move Return

Manual Store

Channel

Frequency Bandwidth

21

474000

Search

Enter freq. Move Return

Manual Store

Channel

Frequency Bandwidth

21

474000

Search

Adjust Move Return

KHz

KHz

KHz

35%

100%

8

8

8

MHz

MHz

MHz











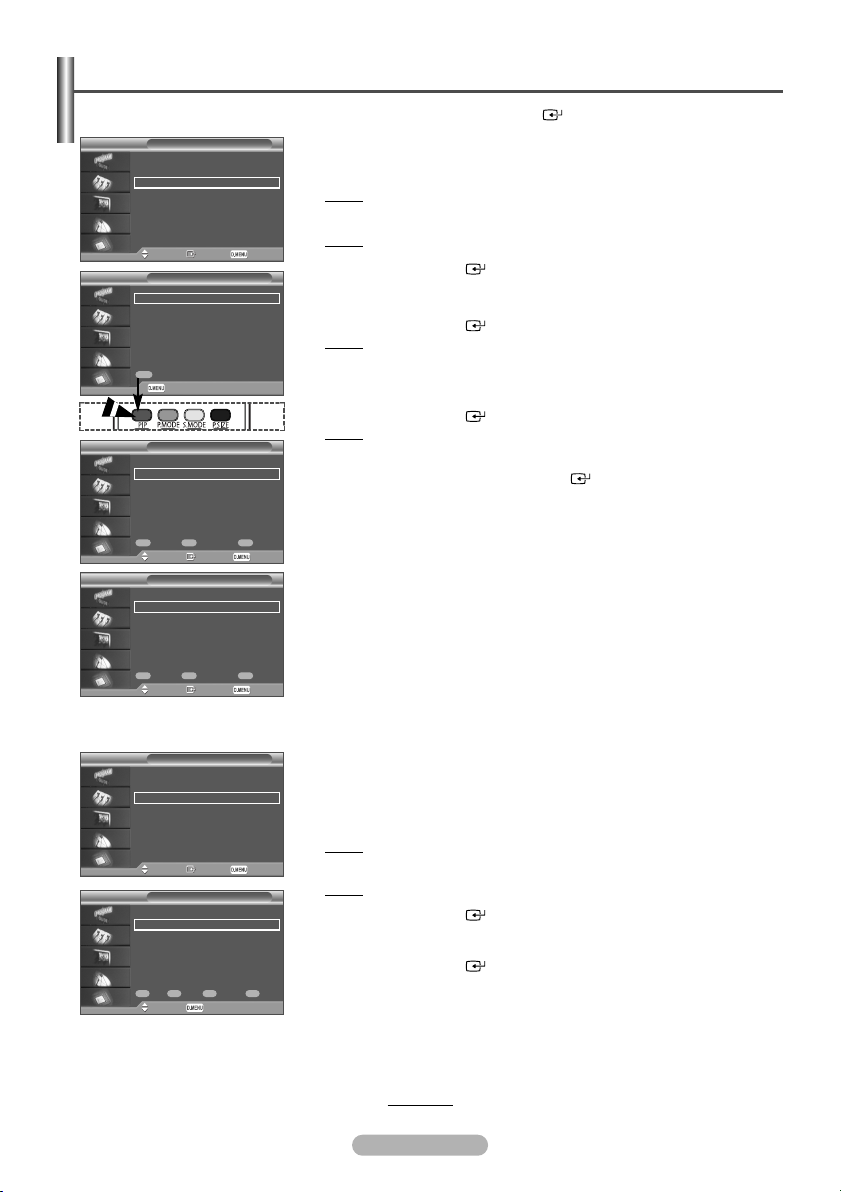

Editing Your Favourite Channels

In the case of DTV mode, OK or Select can be used as the ENTER/OK () button.

➢

Channel

Auto Store
Manual Store
Edit Favourite Channels
Channel Manager

Move Enter Return

Edit Favourite Channels

(no channels)

Add Channels

Return

Edit Favourite Channels

▲

2 BBC TWO
5 Five
7 BBC THREE
15 abc1
16 QVC

▼

Select All

Select None Preview

Move Select Return

Edit Favourite Channels

▲

2 BBC TWO ★
5 Five

7 BBC THREE
15 abc1
16 QVC

▼

Select All

Select None Preview

Move Select Return

You can edit your favourite channels using the colour buttons.




1 Press the D.MENU button.




: The DTV menu is displayed.

Result

2 Press the … or † button to select Channel.

: The Channel menu is displayed.

Result

3 Press the ENTER/OK () button.

4 Press the ▲ or ▼ button to select Edit Favourite Channels.

5 Press the ENTER/OK () button.

: The Edit Favourite Channels menu is displayed.

Result

6 Press the red button to display all currently stored channels.

7 Press the ▲ or ▼ button to select a channel you want.

Press the ENTER/OK () button.

:A★ icon is shown next to the selected channel and the channel will

Result

be added to the favourites list.

➢

◆ To undo, press the ENTER/OK () button again.

◆ Select All : Select all channels currently displayed.

◆ Select None : Deselect all selected channels.

◆ Preview : Displays (a) currently selected channel(s).

➢

The Favourite Channels settings have been completed.

8 Press the D.MENU button to return to the previous menu or press the EXIT

button to return to normal viewing.

Channel

Auto Store
Manual Store
Edit Favourite Channels
Channel Manager

Move Enter Return

Edit Favourite Channels

2 BBC TWO ★
7 BBC THREE ★
15 abc1 ★

Add

Move Preview Delete

Move Return

◆ Add



You can use this function when one or more favourite channels have



been selected.




1 Press the D.MENU button.

: The DTV menu is displayed.

Result

2 Press the … or † button to select Channel.

Result: The Channel menu is displayed.

3 Press the ENTER/OK () button.

4 Press the ▲ or ▼ button to select Edit Favourite Channels.

5 Press the ENTER/OK () button.

continued...

English - 46

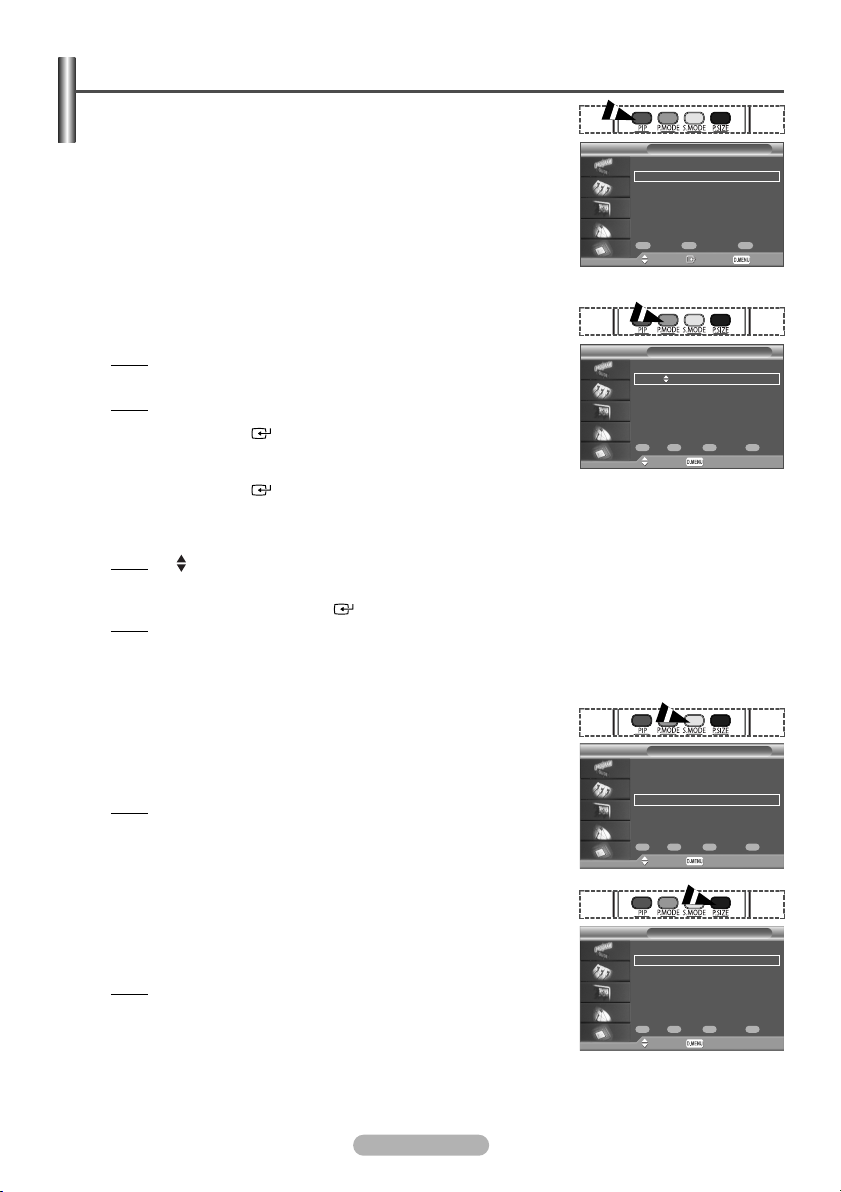

Editing Your Favourite Channels

6 Press the red button in the Edit Favourite Channels menu.

To add more channels, refer to the step 7 on the previous page.

➢ ◆ To add all channels to the favourites channel manager,

press the red button.

◆ To remove all channels, press the green button.

◆ Preview : Displays (a) currently selected channel(s).

◆ Press the CH MGR button to display the favourite channel manager.

7 Press the D.MENU button to return to the previous menu or press the

EXIT button to return to normal viewing.

◆ Move

1 Press the D.MENU button.

2 Press the … or † button to select Channel.

3 Press the ENTER/OK () button.

4 Press the ▲ or ▼ button to select Edit Favourite Channels.

5 Press the ENTER/OK () button.

6 Press the ▲ or ▼ button to select the required channel.

7 Press the green button.

8 Press the ▲ or ▼ button to select the channel that you want to move,

9 Press the D.MENU button to return to the previous menu or press the

: The DTV menu is displayed.

Result

: The Channel menu is displayed.

Result

:A icon is displayed on the left side of the channel name.

Result

then press the green or ENTER/OK () button.

: The channel is moved to its new position.

Result

EXIT button to return to normal viewing.

Edit Favourite Channels

▲

2 BBC TWO ★
5 Five

7 BBC THREE ★
15 abc1 ★
16 QVC

▼

Select All

Select None Preview

Move Select Return

Edit Favourite Channels

2 BBC TWO ★
7 BBC THREE ★
15 abc1 ★

Add

Drop Preview Delete

Move Return

◆ Preview

1 In the Edit Favourite Channels menu, select the channel to be

previewed by pressing the … or † button.

2 Press the yellow button.

: Displays currently selected channel.

Result

3 Press the D.MENU button to return to the previous menu or press the

EXIT button to return to normal viewing.

◆ Delete

1 In the Edit Favourite Channels menu, select the channel to be

deleted from the favourite channels list by pressing the … or † button.

2 Press the blue button.

: The selected channel and number will be deleted.

Result

To add a deleted channel back in to the favourite channel manager,

➢

see Add on page 46.

3 Press the D.MENU button to return to the previous menu or press the

EXIT button to return to normal viewing.

English - 47

Edit Favourite Channels

2 BBC TWO ★
7 BBC THREE ★
15 abc1 ★

Add

Move Preview Delete

Move Return

Edit Favourite Channels

2 BBC TWO ★
7 BBC THREE ★

Add

Move Preview Delete

Move Return

Viewing Channel Manager

You can display a list of all channels or your favourite channels.

Channel

Auto Store
Manual Store
Edit Favourite Channels
Channel Manager

Move Enter Return

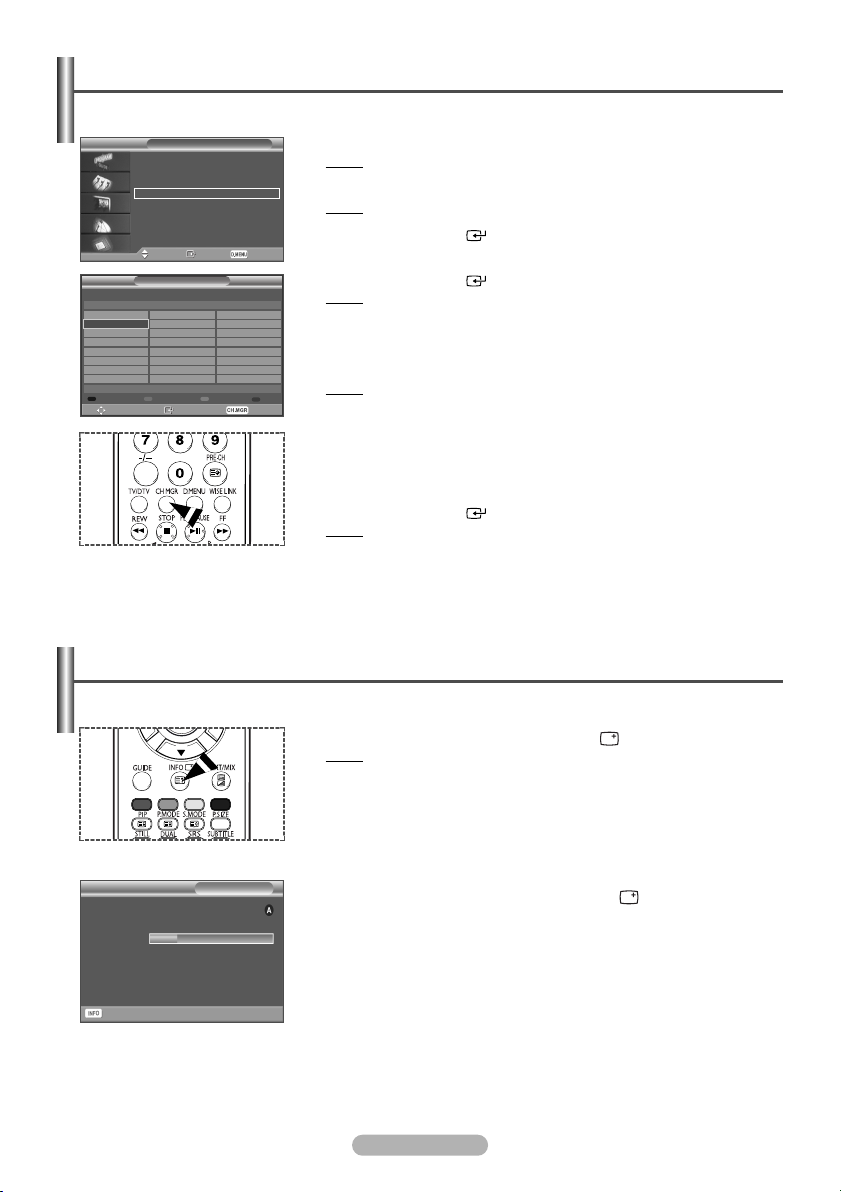

BBC TWO

1. Test Card ‘M’...

2. BBC TWO

3. Vida003b

4. Vida004b

5. Vida005b

6. Vida006b

7. BBC THREE

30. CBBC Channel

Channel Manager

40. BBC NEWS24

51. BBCi
800 ARD-MHP-DATA
801 ARD-OnLine-K..
802 BBC ONE
803 MDR FERNSE..
804 NDR FERNSEH..
805 Vida002b

Previous Page

Next Page Favourites Exit

Move Watch Exit

All Channels

806 arte

1 Press the D.MENU button.





2 Press the … or † button to select Channel.



: The DTV menu is displayed.

Result

: The Channel menu is displayed.

Result

3 Press the ENTER/OK () button.

4 Press the ▲ or ▼ button to select Channel Manager.

Press the ENTER/OK () button.

: The channel manager is displayed.

Result

It can be displayed simply by pressing the CH MGR button.

➢

5 Press the yellow button to toggle between your favourite channels and all

channels.

:Your favourite channels are only displayed if they were previously

Result

set in the Edit Favourite Channels menu (refer to pages
46~47).

6 Press the red or green button to display the previous or next channel

manager page.

7 Press the ▲ or ▼ button to select a channel to be tuned.

Press the ENTER/OK () button.

: The channel number, name and an icon are displayed in the top

Result

left corner while changing the channel. The channel number and
name are displayed if the channel is one of the all channels, and
a icon if the channel is one of the favourite channels.

8 Press the blue or CH MGR button to exit from the channel manager.

Displaying Programme Information

While viewing a channel, additional information about the current programme may be displayed.

1 AFDO, 16:9

AFDO, 16:9

No Block

SD

Stereo

Subtitle

English

Exit

21:49 Sat 1 May

All Channels

14:20 - 14:33

Contains video with AFD O; coded frame
is 16:9

1 While viewing a programme, press the INFO () button.

2 To exit from banner information, press the INFO () button.

: The programme information is displayed.

Result

The information is displayed:

➢

- Parental Rating

- Video Type: SD, HD, Radio

- Audio Type: MPEG, Dolby-AC3

- Existence of Teletext or DVB Subtitle

- Audio Language

English - 48

Viewing the EPG (Electronic Programme Guide) Information

The EPG (Electronic Programme Guide) information is provided by the broadcasters. Programme entries may appear
blank or out of date as a result of the information broadcast on a given channel. The display will dynamically update
as soon as new information becomes available.

◆ Now & Next Guide

For the six channels indicated in the left-hand column, displays the Current
programme and the Next programme information.

◆ Full Guide

Displays the programme information as time ordered One hour segments.
Two hours of programme information is displayed which may be scrolled
forwards or backwards in time.

1 Press the D.MENU button.

2 Press the ENTER/OK () button to select Guide.

3 Press the ▲ or ▼ button to select Now & Next Guide or Full Guide.

4To Then

: The DTV menu is displayed.

Result

Press the ENTER/OK () button.
Result: The selected guide menu is displayed.

You can also display the guide menu simply by pressing the GUIDE

➢

button.

Watch a programme ◆ Select a programme by
in the EPG list pressing the ▲/▼/œ/√ button.

If the next program is selected, it is scheduled with the clock icon

➢

displayed. If the ENTER/OK () button is pressed again, the scheduling
is canceled with the clock icon gone.
For details about scheduling programmes, refer to the next page.

View programme ◆ Select a programme of your choice
information by pressing the ▲/▼/œ/√ button.

Toggle between the Now & ◆ Press the red button repeatedly.
Next Guide or Full Guide

Display the Favourites ◆ Press the green button repeatedly.
and the All Channels list

Scrolls backwards quickly ◆ Press the yellow button repeatedly.
(2 hours).

Scrolls forward quickly ◆ Press the blue button repeatedly.
(2 hours).

Exit the guide ◆ Press the Exit button.

◆ Press the ENTER/OK () button.

◆ Press the INFO () button when

the programme of your choice is
highlighted.

◆ Information such as the channel number, programme title and

➢

running time, status bar, and brief summary of the highlighted
programme will be displayed in the top right corner of the screen.
If there is a lengthy summary, “…” will be displayed.
Press the INFO ()button for the full summary text.

◆ Six channels are displayed. To scroll between channels, move to a
channel using the ▲ or ▼ button. To display page by page, use the

P or button.

English - 49

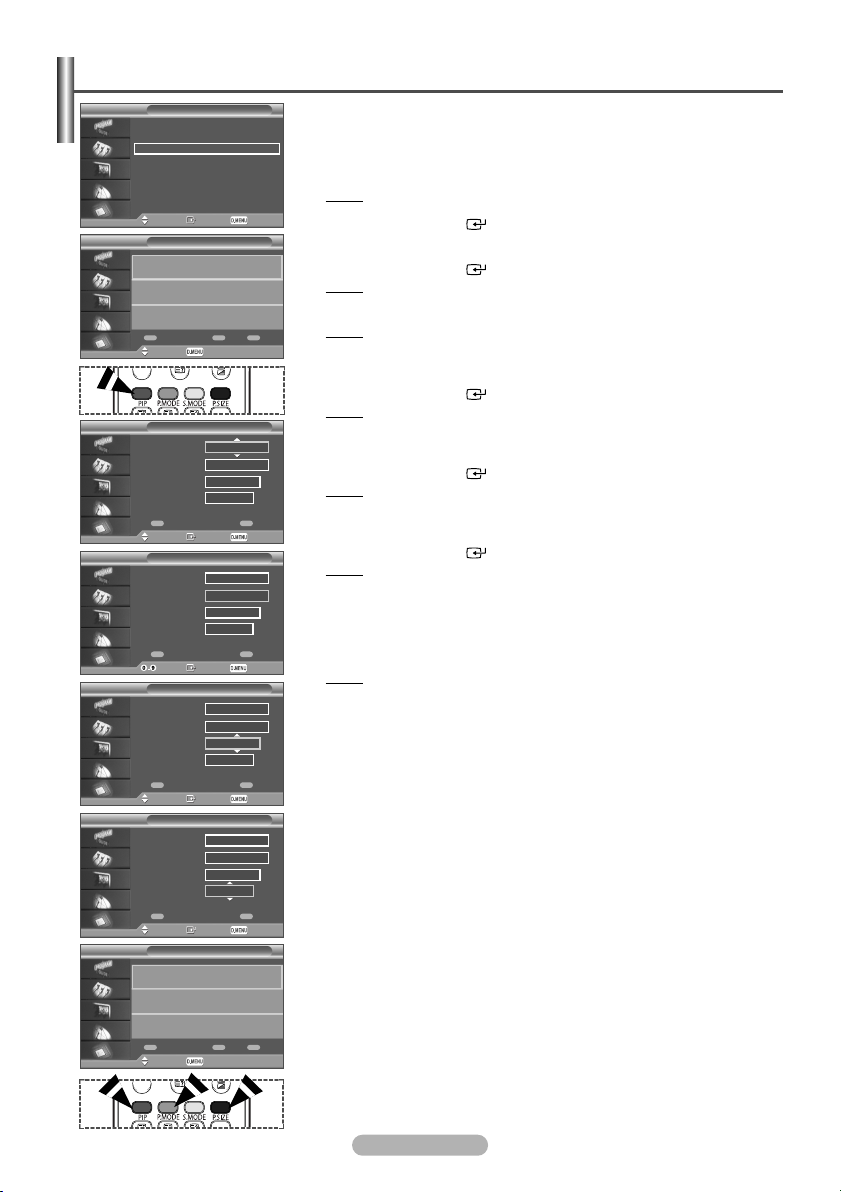

Using the Scheduled List

Guide

Now & Next Guide
Full Guide
Scheduled List
Default Guide : Full Guide

Move Enter Return

Scheduled List

Thursday 22 Apr 15:30 ~ 18:00 Once
2 BBC TWO Animal Park

Thursday 22 Apr 20:00 ~ 21:00 Once
2 BBC TWO The Hairy Biker’s

Add Programme Edit Delete

Move Return

Scheduled List

Channel

Time

Date

Thu 03 Mar 2006

Frequency

Save

Adjust Move Return

Scheduled List

Channel

Time

Date

Thu 03 Mar 2006

Frequency

Save

Edit Move Return

Scheduled List

Channel

Time

Date

Thu 03 Mar 2006

Frequency

Save

Adjust Move Return

Scheduled List

Channel

Time

Date

Thu 03 Mar 2006

Frequency

Save

Adjust Move Return

Scheduled List

Thursday 22 Apr 15:30 ~ 18:00 Once
2 BBC TWO Animal Park

Thursday 22 Apr 20:00 ~ 21:00 Once
2 BBC TWO The Hairy Biker’s

QVC

15 : 20 to --:--

Once

QVC

15 : 20 to --:--

Once

QVC

15 : 20 to --:--

Once

QVC

15 : 20 to --:--

Once

Cancel

Cancel

Cancel

Cancel




If you make a scheduled viewing list of programs you may like to see, the
channel will be automatically switched to the scheduled program at the
scheduled time even if you are watching another program.

1 Press the D.MENU button.

Result: The DTV menu is displayed.

2 Press the ENTER/OK () button to select Guide.

3 Select the Scheduled List by pressing the … or † button.

Press the ENTER/OK () button.

: The selected guide menu is displayed.

Result

4 Press the red button to add a new programme.

: The menu for adding a programme is displayed with Channel

Result

selected.

5 Press the ▲ or ▼ button to select the required channel.

Press the ENTER/OK () button.

: The Time is selected.

Result

6 Enter the start and stop time of the programme by pressing the numeric

button. You also can use ▲ or ▼ button to select time.
Press the ENTER/OK () button.

: The Date is selected automatically, even if any button is not

Result

pressed.

7 Press the ▲ or ▼ button to select the required date.

Press the ENTER/OK () button.

: The Frequency is selected.

Result

8 Press the ▲ or ▼ button to select the required frequency (Once, Daily, or

Weekly).

9 When you are satisfied with your settings, save the adjusted schedule by

pressing the red button.

: The scheduled list is displayed again.

Result

10 If you want to edit the scheduled programme, select a programme by

pressing the ▲ or ▼ button. Press the green button.
If necessary, select the programme to be deleted by pressing the ▲ or ▼
button. Press the blue button.

11 Repeat step 4 to 9 for other programme to be added to the scheduled list.

When watching analog TV, the reserved DTV channel cannot be changed.

➢

The channel is only changed automatically to the reserved channel when
you are watching DTV.

The more simple and easy way for scheduling programmes, refer to the

➢

step 4 on page 49.

Scheduling programme only functions with the television already turned on,

➢

and not from standby mode.
For details about switching the television on and off automatically, refer to
page 23.

Add Programme

Move Return

Edit Delete

English - 50

Setting the Default Guide

You can preset the default guide style.

1 Press the D.MENU button.

: The DTV menu is displayed.

Result

2 Press the ENTER/OK () button to select Guide.

3 Press the ▲ or ▼ button to select Default Guide.

Press the ENTER/OK () button.

4 Select the required option (Now & Next Guide or Full Guide) by

pressing the … or † button. Press the ENTER/OK () button.

: The selected option for Default Guide is displayed on the EPG

Result

menu and the channel list appears.

5 Press the D.MENU button to return to the previous menu or press the EXIT

button to return to normal viewing.

Viewing All Channels and Favourite Channels

In the EPG menu, you can display all channels or favourite channels.

1 Press the D.MENU button.

2 Press the ENTER/OK () button to select Guide.

3 Press the ▲ or ▼ button to select Now & Next Guide or Full Guide.

4 Press the green button repeatedly to toggle between the all and favourite

5 Select a programme of your choice by pressing the ▲/▼/œ/√ button.

6 Press the INFO () button to display information about the highlighted

7When the favourite channel manager has not been set up:

8 Press the D.MENU button to return to the previous menu or press the EXIT

➢

: The Guide menu is displayed.

Result

Press the ENTER/OK () button.

: The selected guide menu is displayed.

Result

channels list.

programme.
Result: The available programme information is displayed.

◆ The favourites list is empty. Would you like to choose

your favourites now? message is displayed.

◆ Select Yes.
: The Edit Favourite Channels menu is displayed. If you

Result

select No, all channels will remain unchanged.

◆ To edit the favourite channels, refer to pages 46~47 for more details.

button to return to normal viewing.

◆ All Channels is the list of channels that have been scanned by the
channel manager update. All channels are displayed in the all channel
mode.

◆ Favourites (favourite channels) is the list of channels that has been
set in the Edit Favourite Channels menu (refer to pages 46~47).

◆ When there is no channel information, the No Data message will be
displayed and you will not be able to change the channel even if you
press the ENTER/OK () button.
When the No Data message appears and you cannot change the
channel, press the channel number directly using the numeric buttons.

Now & Next Guide
Full Guide
Scheduled List
Default Guide : Full Guide

Now & Next Guide
Full Guide
Scheduled List

Default Guide : Full Guide

Guide

Move Enter Return

Guide

Now/Next

Full Guide

Move Enter Return

Guide

Now & Next Guide
Full Guide
Scheduled List
Default Guide : Full Guide

Move Enter Return







English - 51

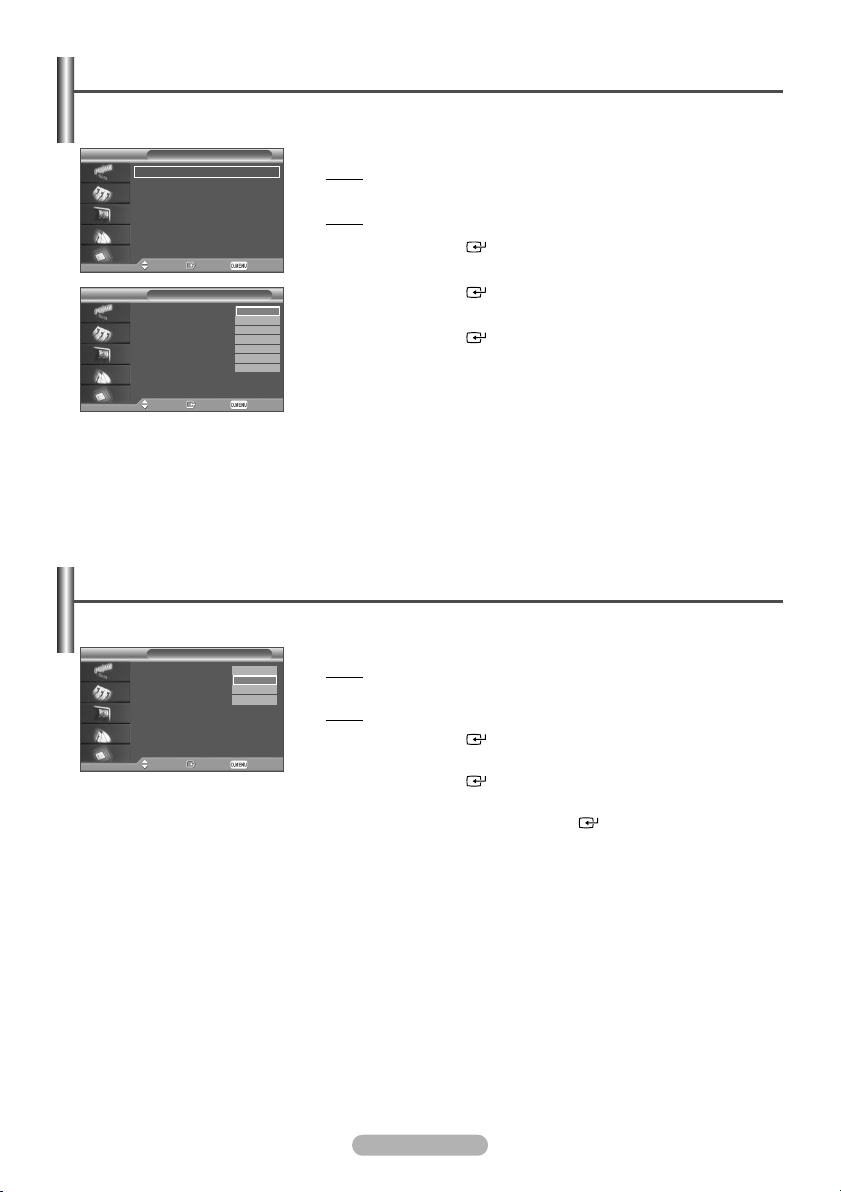

Choosing Your Language

When you start using your DTV for the first time, you must select the language which will be used for displaying
menus and indications.

Preference

OSD Language : English
Translucency Level : Medium
Parental Lock

1 Press the D.MENU button.





2 Press the … or † button to select Preference.

: The DTV menu is displayed.

Result

: The Preference menu is displayed.

Result

3 Press the ENTER/OK () button.

Move Enter Return

Preference

OSD Language : English

Translucency Level : Medium
Parental Lock

4 Press the ▲ or ▼ button to select OSD Language.

Press the ENTER/OK () button.

English

Deutsch

5 Select a particular language by pressing the ▲ or ▼ button repeatedly.

Español
Français
Italiano
Svenska
Suomi

Press the ENTER/OK () button to change the setting.

6 Press the D.MENU button to return to the previous menu or press the

EXIT button to return to normal viewing.

Move Enter Return

Adjusting the Translucency Level

You can set the translucency of the on-screen menu.

Preference

OSD Language : English

Translucency Level : Medium

Parental Lock

Move Enter Return

High

Medium

Low
Opaque

1 Press the D.MENU button.

: The DTV menu is displayed.

Result

2 Press the … or † button to select Preference.

Result

: The Preference menu is displayed.

3 Press the ENTER/OK () button.

4 Press the ▲ or ▼ button to select Translucency Level.

Press the ENTER/OK () button.

5 Select the required option(High, Medium, Low, or Opaque) by pressing

the … or † button. Press the ENTER/OK () button to change the
setting.

6 Press the D.MENU button to return to the previous menu or press the EXIT

button to return to normal viewing.

English - 52

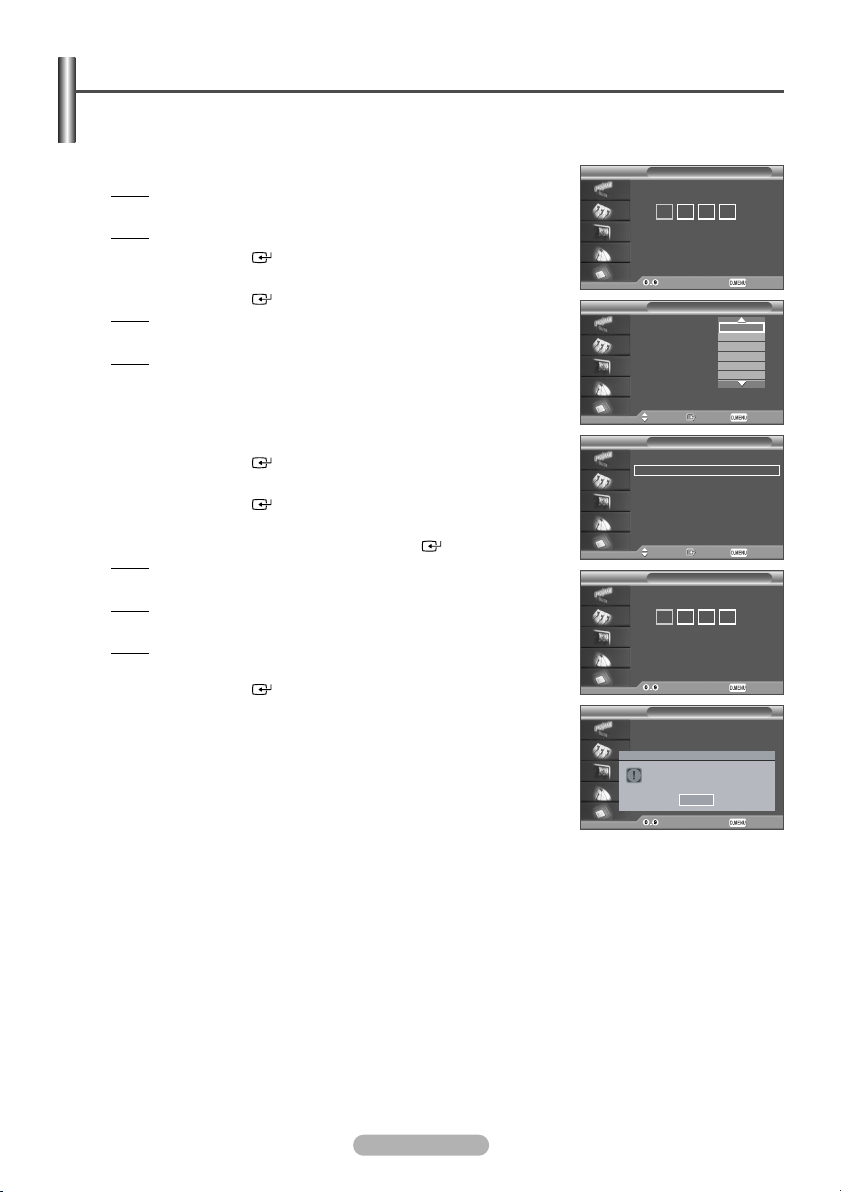

Setting up the Parental Lock

This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by a
4-digit PIN (Personal Identification Number) code that is defined by the user.
The on-screen menu will instruct you to assign a PIN code (you can change it later, if necessary).

1 Press the D.MENU button.

: The DTV menu is displayed.

Result

2 Press the … or † button to select Preference.

Result

: The Preference menu is displayed.

3 Press the ENTER/OK () button.

4 Press the … or † button to select Parental Lock.

Press the ENTER/OK () button.
Result

: The Enter PIN is displayed.

5 Enter your current 4-digit PIN code by using the numeric buttons (0~9).

Result

: The Parental Lock menu are displayed with the Parental

Rating selected.

➢

◆ The default PIN code for a new TV set is 0000.

◆ If you enter an invalid PIN code,the Invalid PIN code.

Please try again. message is displayed.

6 Press the ENTER/OK () button.

7 Press the … or † button to select the age rating you want to lock out.

Press the ENTER/OK () button.

8 If you want to change the PIN code,select Change PIN by

pressing the … or † button. Press the ENTER/OK () button.
Result

: The Enter New PIN is displayed.

9 Enter your new PIN code by using the numeric buttons (0~9).

Result

: The Confirm New PIN is displayed.

10 Re-enter your new PIN code to confirm by using the numeric buttons (0~9).

Result

: The Your PIN code has been changed successfully

message is displayed.

11 Press the ENTER/OK () button.

12 Press the D.MENU button to return to the previous menu or press the EXIT

button to return to normal viewing.

If you forget the PIN code, press the remote control buttons in the following

➢

sequence, which resets the PIN to 0-0-0-0 : POWER (Off), MUTE, 8, 2, 4,
POWER (On)

Parental Lock

Enter PIN

Enter PIN

Parental Lock

Parental Rating :

Change PIN

Move Enter Return

Parental Rating : No Block
Change PIN

Move Enter Return

Enter New PIN

Enter PIN

Confirm New PIN

Your PIN code has been changed
successfully.

Enter PIN

No Block

3
4
5
6
7

Parental Lock

Change PIN

Change PIN

OK

Return

Return

Return

English - 53

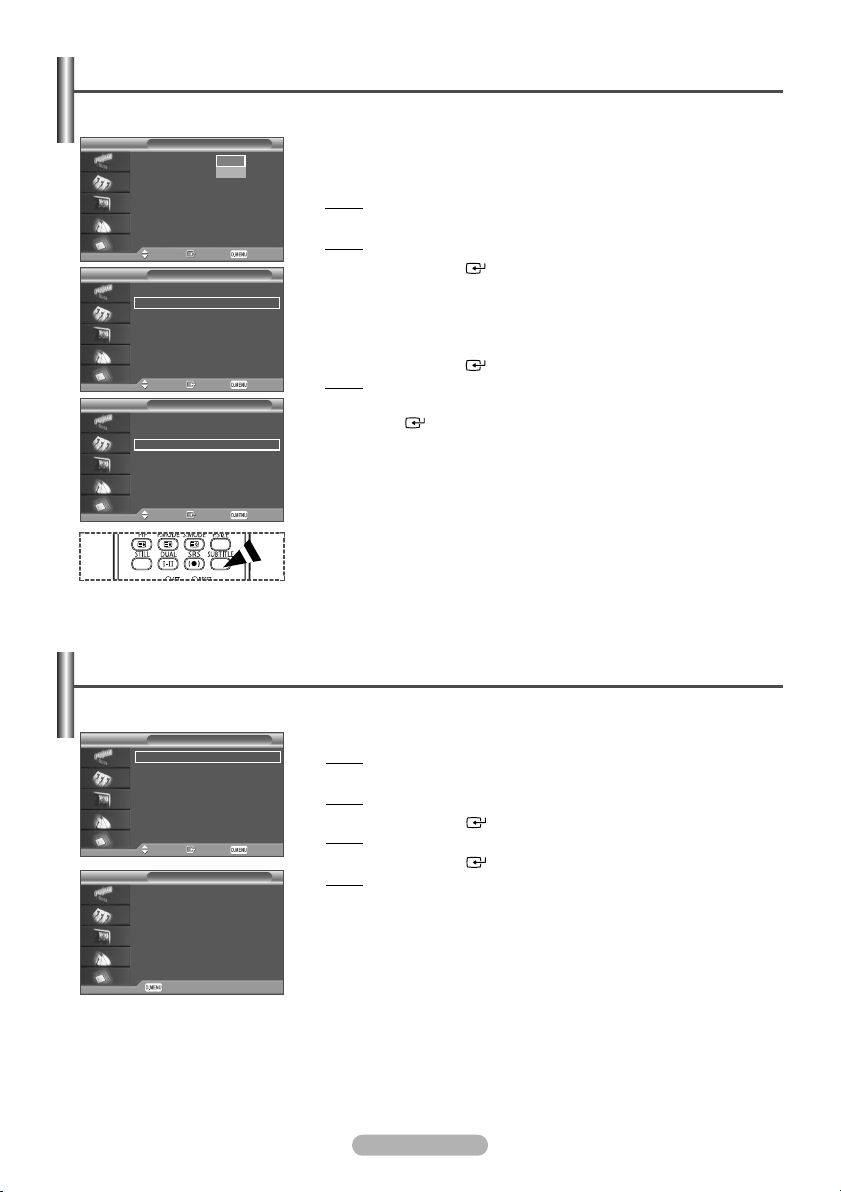

Using the Preferred Features

You can use various settings to suit your personal preferences.

Feature

Feature

Feature

Off

On

Subtitle : Off

Subtitle Language

Audio Language

Move Enter Return

Subtitle : On
Subtitle Language
Audio Language

Move Enter Return

Subtitle : On
Subtitle Language
Audio Language

Move Enter Return

◆ Activating/deactivating the subtitle

◆ Changing the default value for subtitle and audio languages

1 Press the D.MENU button.

: The DTV menu is displayed.

Result

2 Press the ▲ or ▼ button to select Feature.

: The Feature menu is displayed.

Result

3 Press the ENTER/OK () button.



4 Select your required menu by pressing the ▲ or ▼ button.

◆ Subtitle



◆ Subtitle Language

◆ Audio Language

5 Press the ENTER/OK () button.

: The options of the selected menu are displayed.

Result

6 Select the required option by pressing the ▲ or ▼ button, and press the



ENTER/OK () button to change the setting.

◆ Subtitle : On or Off



◆ Subtitle Language

◆ Audio Language

7 Press the D.MENU button to return to the previous menu or press the EXIT

button to return to normal viewing.

You can select these options simply by pressing the SUBTITLE button

➢

on the remote control.

Checking the Product Information

You can view your product information. For service or repair, please contact a Samsung approved dealer.

System

Product Information
Signal Information
Software Upgrade
Common Interface
Reset

Move Enter Return

Product Information

Software Version : T_MUSTDFR0_1007
Firmware Version : T_STDEU7_100c

Return

1 Press the D.MENU button.





2 Press the … or † button to select System.




3 Press the ENTER/OK () button.

: The DTV menu is displayed.

Result

Result: The System menu is displayed.

: The Product Information is selected.

Result

4 Press the ENTER/OK () button again.

Result: The product information menu is displayed.

- Software Version

- Firmware Version

5 Press the D.MENU button to return to the previous menu or press the EXIT

button to return to normal viewing.

English - 54

Checking the Signal Information

You can get information about the signal status.

1 Press the D.MENU button.

: The DTV menu is displayed.

Result

2 Press the … or † button to select System.

Result: The System menu is displayed.

3 Press the ENTER/OK () button.
4 Press the … or † button to select Signal Information.

Press the ENTER/OK () button.

: The technical information for signal status is displayed.

Result

- Service

- Service ID

- Multiplex

- Network

- Bit Error level

- Signal Strength

5 Press the D.MENU button to return to the previous menu or press the EXIT

button to return to normal viewing.

Upgrading the Software (Option)

To keep your product up-to-date with new Digital Television features then
software upgrades are periodically broadcast as part of the normal Television
signal. It will automatically detect these signals and display the software upgrade
banner. You are given the option to install the upgrade.

◆ Upgrade Now

If you select Upgrade Now, the iDTV immediately installs the new
upgrade and then restarts.

◆ Upgrade Later

If you select Upgrade Later, the upgrade is postponed until the next
restart or channel change some 90 minutes later, when the upgrade
dialog appears again.

◆ Don’t Upgrade

If you select Don’t Upgrade, the iDTV does not perform the upgrade
and the software upgrade banner is not displayed again. The upgrade is
still stored internally, to subsequently upgrade to the new version then
the following sequence of steps are performed.

1 Press the D.MENU button.

Result

: The DTV menu is displayed.

2 Press the … or † button to select System.

Result

: The System menu is displayed.

3 Press the ENTER/OK () button.

4 Press the ▲ or ▼ button to select Software Upgrade.

Press the ENTER/OK () button.
Result

:The information for Software Upgrade is displayed.

5 If necessary, press the ENTER/OK () button again to display the

software version information.

6 Press the D.MENU button to return to the Software Upgrade menu.

7 To switch to an alternative version, press the red button.

Press the blue button to reset, activate the upgrade and restart.

8 Press the D.MENU button to return to the previous menu or press the EXIT

button to return to normal viewing.

System

Product Information
Signal Information
Software Upgrade
Common Interface
Reset

Move Enter Return

Signal Information

Service : ?
Service ID : 0000
Multiplex : ? (TSID 0000,ONID 0000)
Network : ? (ID 0000)
Bit Error level : 10
Signal Strength : 0

Return

System

Product Information
Signal Information
Software Upgrade
Common Interface
Reset

Move Enter Return

Software Upgrade

Current Software: T_MUSTDFR0_1007

Default

Alternative Software: T_MUSTDFR0_1000

(New version)

Switch Default Software

Move Return Info

Software Upgrade

Current Software: T_MUSTDFR0_1007

Default

Alternative Software: T_MUSTDFR0_1000

(New version) New Default

Move Return Info

Software Upgrade

Software Version: T_MUSTDFR0_1007
Date: 28 Apr 2006

Confirm













English - 55

Return

Viewing Common Interface

This contains information on CAM inserted in the CI slot and displays it.

System

Product Information
Signal Information
Software Upgrade
Common Interface
Reset

1 Press the D.MENU button.





2 Press the … or † button to select System.




: The DTV menu is displayed.

Result

: The System menu is displayed.

Result

3 Press the ENTER/OK () button.

Move Enter Return

Common Interface

Application Info.
CI Menu

4 Press the … or † button to select Common Interface.

Press the ENTER/OK () button.

: The Application Info. is selected.

Result



5 Press the ENTER/OK () button to display the information for your

application.

6 Press the D.MENU button to return to the previous menu or press the EXIT

Move Enter Return

Application Info.

Type : CA
Manufacturer : Canal Plus
Info : Top Up TV

Return

button to return to normal viewing.

Selecting the CI (Common Interface) Menu

This helps the user select an item from the CAM-supported menu.

System

Product Information
Signal Information
Software Upgrade
Common Interface
Reset

Move Enter Return

Common Interface

Application Info.
CI Menu

Move Enter Return

1 Press the D.MENU button.





2 Press the … or † button to select System.




: The DTV menu is displayed.

Result

: The System menu is displayed.

Result

3 Press the ENTER/OK () button.

4 Press the … or † button to select Common Interface.

Press the ENTER/OK () button.

: The technical information for signal status is displayed.

Result



5 Press the … or † button to select CI Menu.

Press the ENTER/OK () button.

: The options of the selected menu are displayed.

Result

6 Select the required option by pressing the … or † button.

Press the ENTER/OK () button.

7 Press the D.MENU button to return to the previous menu or press the EXIT

button to return to normal viewing.

Select the CI Menu based on the menu PC Card.

➢

In the case of DTV mode, OK or Select can be used as the ENTER/OK

➢

() button.

English - 56

Resetting

You can reset the values stored to the factory default values.

The Reset operation deletes all channel information and user preferences returning all values to their default

➢

factory state.

1 Press the D.MENU button.

Result

: The DTV menu is displayed.

2 Press the … or † button to select System.

: The System menu is displayed.

Result

3 Press the ENTER/OK () button.

4 Press the … or † button to select Reset.

Press the ENTER/OK () button.

Result

: The Enter PIN is displayed.

5 Enter your current 4-digit PIN code by using the numeric buttons (0~9).

Result

: The warning message is displayed.All values will be reset by

pressing the coloured buttons (red,green, yellow,and blue) in turn.

6 Press the D.MENU button to return to the previous menu or press the EXIT

button to return to normal viewing.

The default PIN of a new TV set is “0-0-0-0”.

➢

When PIN is changed in Parental Lock, the PIN for resetting automatically

➢

changes.

System

Product Information
Signal Information
Software Upgrade
Common Interface
Reset

Move Enter Return

Enter PIN

Reset

Enter PIN

Reset

WARNING: All channel settings and user

preferences will be lost and returned to the

factory defaults. It is recommended that a

reset is performed only when serious

problems are experienced.

Return

Return







Freezing the Current Picture

You can freeze the picture when watching a television programme simply by
pressing the STILL button. To return to normal viewing, press it again.

To prevent screen burn-in, this function will automatically cancel after

➢

5 minutes.

English - 57

Teletext Feature (depending on the model)

Most television stations provide written information services via teletext. The index page of the teletext service gives
you information on how to use the service. In addition, you can select various options to suit your requirements by
using the remote control buttons.

For teletext information to be displayed correctly, channel reception must be stable. Otherwise, information may

☛

be missing or some pages may not be displayed.

ŒŒ

(teletext on/mix)

Press once : Displaying Screen in the teletext mode
Press twice : Displaying the split Screen
Press three times : Displaying the overlapped Screen

´´

(sub-page)

Used to display the available sub-page.

ˇˇ

(size)

Press to display the double-size letters in the upper half of the
screen. For lower half of the screen, press it again.
To display normal screen, press it once again.

¨¨

(store)

Used to store the teletext pages.

ˆˆ

(hold)

Used to hold the display on a given page if the selected page is
linked with several secondary pages which follow on automatically.
To resume, press it again.

ØØ

(page up)

Used to display the next teletext page.

∏∏

(mode)

Press to select the teletext mode (LIST/FLOF).
If you press it in the LIST mode, it switches into the List save mode.
In the List save mode, you can save teletext page into list using the

(store) button.

””

(page down)

Used to display the previous teletext page.

’’

(index)

Used to display the index (contents) page at any time while you are
viewing teletext.

˝˝

(reveal)

Used to display the hidden text (answers to quiz games, for
example). To display normal screen, press it again.

ÔÔ

Coloured buttons (red/green/yellow/blue)

If the FASTEXT system is used by a broadcasting company, the different topics covered on a teletext page are
colour-coded and can be selected by pressing the coloured buttons. Press one of them corresponding to the
required. The page is displayed with other coloured information that can be selected in the same way.
To display the previous or next page, press the corresponding coloured button.



(cancel)

Used to display the broadcast when searching for a page.

ÒÒ

TV/DTV (exit)

Exit from the teletext display (depending on the model)

You can change teletext pages by pressing the numeric buttons on

➢

the remote control.

continued...

English - 58

Teletext Feature

The teletext pages are organized according to six categories:

Part Contents

A Selected page number.

B Broadcasting channel identity.
C Current page number or search indications.
D Date and time.

EText.

F Status information.

Teletext information is often divided between several pages displayed in

➢

sequence, which can be accessed by:

◆ Entering the page number

◆ Selecting a title in a list

◆ Selecting a coloured heading (FASTEXT system)

Press the TV/DTV button to exit from the teletext display.

➢

(depending on the model)

FASTEXT information.

How to Install the Wall Mount Bracket

This installation guide may be different from the PDP User’s manual.

➢

Please refer to the proper installation guide for your product.

Installation Notes

◆ Contact a technician for installing the wall bracket.

◆ Samsung Electronics is not responsible for any damages to the product or harm to customers when the

installation is done by the customer.

◆ This product is for installing on cement walls. The product may not stay in place when installed on plaster or
wood.

◆ The package contents and parts supplied for the wall mount are subject to change without prior notice.

Mounting Kits

◆ Please use only the parts and components provided for wall mount installation.

Wall Mount Bracket

ASSY-HINGE

Screws

1EA

How to assemble the W

1 The wall mount bracket is delivered separately.

Please tighten the captive screw in the direction
of the arrow after assembling the bracket.
Install the Wall Mount Bracket after the screws
are securely inserted into the wall.

all Mount Bracket

LEFT :1EA RIGHT :1EA

ASSY-HINGE

continued...

English - 59

Captive Screws

(LEFT)

Separate ASSY-HINGE
into Left and Right.

Plastic Hanger : 4 EA

SCREW : 4 EA

Wall Mount Bracket

ASSY-HINGE
(RIGHT)

How to Install the Wall Mount Bracket

Instructions on Securing the SET to the W

The exterior of the SET may be different than the picture. (Assembly and installation of the plastic hanger is

➢

the same.)

1 Remove the screws from the back of the PDP. 2 Use the screw and assemble the plastic hanger.

3 Tighten the screws of the plastic hanger (shown

in picture 2) to the back side of the PDP.

all Mount Bracket

☛

4 Remove the Safety Pins. Fasten the 4 plastic

(Please refer to the following picture.)

1 Please ask the installers to install the wall

mount bracket.

2 Please be sure to check if the plastic hanger is

completely secured on both the left and right
side after hanging the SET on the wall mount
bracket.

3 Please avoid catching your fingers while

installing and adjusting the angle.

4 Please tightly secure the wall mount bracket to

the wall to avoid injury from a falling SET.

(#)

latches assembled at step
the PDP using the guide holes of the wall mount,

(!)

and hook

push
the wall mount as illustrated. Secure the PDP by
inserting the Safety Pins, not to fall from the wall
mount.

PDP panel

(@)

on the back side of

down to secure the PDP on

continued...

English - 60

Wall attachment

panel bracket

Wall

How to Install the Wall Mount Bracket

Adjust Mounting Angle

How to

Please secure the mounting bracket on the wall surface after setting its angle at 0°

➢

1 Secure the SET to the wall mount bracket.

(Please refer to the following instructions.)

2 Set the angle by pulling the upper end of the SET attached to

bracket in the direction of the arrow. (Refer to the illustration
on the right.)

3 The angle can be adjusted from 0° to 15° by ±2°.

Connecting External Devices to the PDP

To connect external devices such as a DVD or a Home Theater System to the PDP, please refer to following

➢

instructions:

1 Be sure to remove the safety pins underneath the PDP.

If the safety pins are not removed, the angle cannot be

➢

adjusted. Any attempt to do so may cause damage to
the PDP.

2 Hold onto the bottom of the PDP and pull forward fully as

directed by the arrow as illustrated) to adjust the angle.
(0°~20° by 2°) Insert the Safety Pins to the front guide
holes on both sides as illustrated in figure

Viewing the PDP after connecting the external devices

➢

Remove the Safety Pins to adjust the angle to 0°, and
then secure the Safety Pins again.

For safety, be sure to secure the PDP using the safety

☛

pins. If the safety pins are not used, the PDP may fall,
causing serious injury.

Hold onto the middle of the PDP to
adjust the angle (not the sides of
the PDP).

@

.

English - 61

Setting Up Your Remote Control

After it has been set up properly, your remote control can operate in five different modes: TV, VCR, Cable, DVD, or
Set-Top Box. Pressing the corresponding button on the remote control allows you to switch between these modes,
and control whichever piece of equipment you choose.

The remote control might not be compatible with all DVD Players, VCRs, Cable boxes, and Set-Top Boxes.

➢

Setting Up the Remote to Operate Your VCR

1 Turn off your VCR.

Press the VCR button on your TV’s remote control.

2

3 Press the SET button on your TV’s remote control.

4 Using the number buttons on your remote control, enter three digits of the

VCR code listed on page 64 of this manual for your brand of VCR. Make
sure you enter three digits of the code, even if the first digit is a “0”. (If more
than one code is listed, try the first one.)

5 Press the POWER button on the remote control. Your VCR should turn on if

your remote is set up correctly.

If your VCR does not turn on after set-up, repeat steps 2, 3 and 4, but try
one of the other codes listed for your brand of VCR. If no other codes are
listed, try each VCR code, 000 through 080.

Note on Using Remote Control Modes: VCR
When your remote control is in “VCR” mode, the volume buttons still control your
TV’s volume.

Setting Up the Remote to Operate Your Cable Box

1 Turn off your cable box.

Press the CABLE button on your TV’s remote control.

2

3 Press the SET button on your

4 Using the number buttons on your remote control, enter three digits of the

cable box code listed on page 65 of this manual for your brand of cable box.
Make sure you enter three digits of the code, even if the first digit is a “0”.
(If more than one code is listed, try the first one.)

5 Press the POWER button on the remote control.

Your cable box should turn on if your remote is set up correctly.

If your cable box does not turn on after set-up, repeat steps 2, 3 and 4, but
try one of the other codes listed for your brand of cable box. If no other
codes are listed, try each code, 000 through 046.

Note on Using Remote Control Modes: Cable Box
When your remote control is in “CABLE” mode, the volume buttons still control
your TV’s volume.

continued...

English - 62

TV’s

remote control.

Setting Up Your Remote Control

Setting Up the Remote to Operate Your DVD

1 Turn off your DVD.

Press the DVD button on your TV’s remote control.

2

TV’s

3 Press the SET button on your

4 Using the number buttons on your remote control, enter three digits of the

DVD code listed on page 66 of this manual for your brand of DVD. Make
sure you enter three digits of the code, even if the first digit is a “0”. (If more
than one code is listed, try the first one.)

5 Press the POWER button on the remote control.

Your DVD should turn on if your remote is set up correctly.

If your DVD does not turn on after set-up, repeat steps 2, 3 and 4, but try
one of the other codes listed for your brand of DVD. If no other codes are
listed, try each code, 000 through 141.

Note on Using Remote Control Modes: DVD
When your remote control is in “DVD” mode, the volume buttons still control your
TV’s volume.

Setting Up the Remote to Operate Your Set Top Box

1 Turn off your STB.

Press the STB button on your TV’s remote control.

2

3 Press the SET button on your

4 Using the number buttons on your remote control, enter three digits of the

STB code listed on page 65 of this manual for your brand of STB. Make
sure you enter three digits of the code, even if the first digit is a “0”. (If more
than one code is listed, try the first one.)

5 Press the POWER button on the remote control.

Your STB should turn on if your remote is set up correctly.

If your STB does not turn on after set-up, repeat steps 2, 3 and 4, but try
one of the other codes listed for your brand of STB. If no other codes are
listed, try each code, 000 through 074.

remote control.

TV’s

remote control.

Note on Using Remote Control Modes: STB
When your remote control is in “STB” mode, the volume buttons still control your
TV’s volume

continued...

English - 63

Setting Up Your Remote Control

Remote Control Codes

VCR

Brand

SAMSUNG
ADMIRAL
AIWA
AKAI
AUDIO DYNAMICS
BELL&HOWELL
BROKSONIC
CANDLE
CANON
CITIZEN
COLORTYME
CRAIG
CURTIS MATHES
DAEWOO
DB
DIMENSIA
DYNATECH
ELECTROHOME
EMERSON

FISHER
FUNAI
GENERAL ELECTRIC
GO VIDEO
LG(Goldstar)
HARMAN KARDON
HITACHI
INSTANT REPLAY
JC PENNEY
JCL
KENWOOD
KLH
LIOYD
LOGIK
LXI
JVC
MAGNAVOX
MARANTZ
MARTA
KONIA
ORION
MEI
MEMOREX
MGA
MIDLAND
MINOLTA

Code

000 001 002 003 004 005 077 078 079
020
025
004 027 032
007 026
018
022
002 003 006 008 015 055
021 056
002 003 006 008 015 055
007
002 024
002 007 008 017 021 025 056 064 066
003 010 011 012 013 014 015 016
007 026
017
025
034
001 003 006 021 022 025 030 032 034 040 047 050
052 060 063 065 066 067 069 073
018 024 028 029 048 051 061
025
002 005 017 021 056
002
006 007 008 009 010
007
019 025 041 042 074
021
002 007 018 019 021 026 037 041 054 056
007 008 018 021 026 037
007 008 018 026 037
070
025
038
025
081 082 083
021 056 059
007 008 018 021 026 037 062
006
036
073 074 075 076
021
006 021 024 025
034
005
019 041 075

Brand

MITSUBISHI
MONTGOMERY WARD
MTC
MULTITECH
NEC
OPTIMUS
PANASONIC
PENTAX
PENTEX RESEARCH+
PHILCO
PHILIPS
PIONEER
PORTLAND
PROSCAN
QUARTZ
QUASAR
RADIO SHACK/REALISTIC
RCA
SANSUI
SANYO
SCOTT
SEARS
SHARP
SHIMTOM
SIGNATURE
SONY
SYLVANIA
SYMPHONIC
TANDY
TASHIKA
TATUNG
TEAC
TECHNICS
TEKNIKA
TMK
TOSHIBA
TOTEVISION
UNITECH
VECTOR RESEARCH
VICTOR
VIDEO CONCEPTS
VIDEOSONIC
WARDS
YAMAHA
ZENITH

Code

019 034 041 046
020
002 025
002 005 025 038
007 008 018 026 037 062 064
020
021 056 071 072
019 041 075
008
021 056 059
021 080
019 026 039 053
015 049 055
017
018
021 056
006 018 020 021 024 025 029 034 048 056
002 017 019 021 035 041 043 057 068 076
026
018 024
003 047 052 067
006 018 019 024 028 029 041 048 051
020 034 045 015
027 033 038 058
025
027 033 044
021 025 056 059
025
018 025
006
037
025 037 068
021
006 021 025 031
066
003 019 029 051 052
002 006
002
007 026
026
007 026
002
002 003 006 019 020 021 024 025 034 038 041
007 008 018 026 037
023 027 033

continued...

English - 64

Setting Up Your Remote Control

CABLE BOX

Brand

SAMSUNG
GI
HAMLIN
HITACHI
JERROLD
MACOM
MAGNAVOX
OAK
PANASONIC
PHILIPS
PIONEER
RCA
REGAL

SAMSUNG SET-TOP BOX

Product

Ground wave STB
Satellite STB
CABLE STB
STB DVD COMBO
Satellite STB HDD COMBO Standard

SET-TOP BOX

Brand

ALPHASTAR
ANAM
CHANNEL MASTER
CROSSDIGITAL
CHAPARRAL
DIRECT TV

DAEWOO
DISH NETWORK SYSTEM
DISHPRO
DRAKE
DX ANTENNA
ECHOSTAR
EXPRESSVU
GOI
GE
GENERAL INSTRUMENT
HTS
HOME CABLE
HITACHI
HUGHES NETWORK
IQ
IQ PRISM
JANEIL
JERROID
JVC

Code

000 001 002 003 004 005 006 007
041
003 024 031
025 030
038 039
025 030
019 023 028
026
003 022 027 037 044
019 021 023 028
004 018 020 044
014 022 040
003

Code

001 002
003
004
008
009

Code

023
043
018 034
019
035
015 016 017 019 022 045 060 061 062 065 066 067
068
074
069 070
069
018 024 032
027
025 069 070 071
069
069
065
046 047 048 063 064
069
056
022
015 017
020
020
059
063
069 070

Brand

REGENCY
SA
SCIENTIFIC ATLAN
SPRUCER
STARGATE 2000
SYLVANIA
TEXSCAN
TOCOM
UNIVERSAL
VIEWSTAR
WARNER AMEX
ZENITH

Product

Satellite STB HDD COMBO Premium
CABLE STB HDD COMBO Standard
CABLE STB HDD COMBO Premium
Ground wave STB HDD COMBO Standard
Ground wave STB HDD COMBO Premium

Brand

LG(Goldstar)
MAGNAVOX
MEMOREX
MOTOROLA
MACOM
MITSUBISHI
NEXT LEVEL
PHILIPS
PRIMESTAR
PANASONIC
PAYSAT
PROSCAN
RCA
RADIOSHACK
REALISTIC
STS
STAR TRAK
SKY
SKY LIFE
SHACK
STAR CHOICE
SONY
TOSHIBA
ULTIMATE TV
UNIDEN
ZENITH

Code

015 023
042 043
042 043
022
036
016
016
032
033 034
019 021 023 028
046
017 029 035 037 045

Code

010
011
012
013
014

Code

044 073
016 021 036 038 039 040 041 042
016
064
018
015
047 048 064
015 016 017 021 033 036 038 039 040 041 042 067
046 049 050 063
058 059 061 062
016
065 066
051 052 053 065 066
064
057
020 027
026
031
005 006 007
064
064
054 060
015 017 028 029 030 072
060 066
016 021 037 055 056 057
024 031 068

continued...

English - 65

Setting Up Your Remote Control

SAMSUNG DVD

Product

DVD
DVDR
BD Record
VCR COMBO
VCR Record
DHR COMBO

DVD

Brand

ANAM
AUDIOVOX
AUDIOLOGIC
ANABA
APEX DIGITAL
AIWA
BROKSONIC
BLAUPUNKT
B&K
CURTIS MATHES
CYBER HOME
CLARION
CIRRUS
CINEVISION
DAEWOO
DENON
FARENHEIT
FISHER
GPX
GO VIDEO
GE
GREENHILL
HITACHI
HITEKER
HOYO
HARMAN / KARDON
IRT
INTEGRA
JBL
JVC
JATON
KENWOOD
KISS
KONKA
KLH
LG(Goldstar)
LOEWE
LASONIC
MOBILE AUTHORITY
MEMOREX
MALATA
MAGNAVOX
MINTEK
MONYKA

Code

000 001 002
003 004
005 006
007 008 009 010 011
012
013

Code

030
075
085
072
070 071 074 086 083 084 088 111 112
114
062
074
122 123
027
065 077 078 079 082
080 125
081
095
066
146
067 068
090
060
061 089 133 135
069 074
074
064 113
071
073
091 110
089
092
091
022 033 115 116
073
051 108 109
073
059 100 106 107
074 075
025 031
057
058
054
055
056
076 093
074 094
073

Product

Home Theater VCR COMBO
HDD Record COMBO
TWIN TRAY COMBO
STB DVD COMBO
DVD Receiver
AV Receiver

Brand

NORCENT
NEXT BASE
NEC
NANTAUS
NESA
OPTOMEDIA ELECTRONICS
OPTIVIEW
ONKYO
PHILCO
PRINCETON
PROSCAN
PANASONIC
PHILIPS
ROTEL
RIO
RCA
RAITE
ROWA
SAMPO
SONY
SHERWOOD
SVA
SYLVANIA
SHARP
SANSUI
SANYO
SHINSONIC
SANYO
THOMSON
TOSHIBA
TECHNICS
TVIEW
TOKAI
TEAC
TECHWOOD
TREDEX
URBAN CONCEPTS
VENTURER
VOCOPRO
YAMAHA
YAMAKAWA
XWAVE
ZENITH

Code

014 015 016
017
018
019
020
021

Code

048 049 050
052
053
144
074
105
072
076 092 119
044 045
046 047
023
024 034 124 134 136 137 138
036 076
117 118
120
023 035 074 075 131 132
073
038
104
026 029 126 127 128 129 130 141
039 041
042
043 093
140
062
062
094
090
145
028 062 076
139
072
073
096
097
098 099 101
076
075
102
032 063
040 073
103
076 121

English - 66

Troubleshooting

Before contacting the Samsung after-sales service, perform the following simple checks.
If you cannot solve the problem using the instructions below, note the model and serial number of the television and
contact your local dealer.

No sound or picture

◆ Check that the mains lead has been connected to a wall socket.

◆ Check that you have pressed the (Power) button (On/Off) on the front panel or press the POWER ()

button on the remote control.

◆ Check the picture contrast and brightness settings.

◆ Check the volume.

◆ Check if Internal Mute is set to ON.

Normal picture but no sound

◆ Check the volume.

◆ Check whether the volume MUTE ()button on the remote control has been pressed.

No picture or black and white picture

◆ Adjust the colour settings.

◆ Check that the broadcast system selected is correct.

Sound and picture interference

◆ Try to identify the electrical appliance that is affecting the television, then move it further away.

◆ Plug the television into a different main socket.

Blurred or snowy picture, distorted sound

◆ Check the direction, location and connections of your aerial.
This interference often occurs due to the use of an indoor aerial.

Remote control malfunctions

◆ Replace the remote control batteries.

◆ Clean the upper edge of the remote control (transmission window).

◆ Check that the “+” and “–” ends of the batteries are inserted correctly.

◆ Check that the batteries are drained.

Screen is black and power indicator light blinks steadily

◆ On your computer check; Power, Signal Cable.

◆ The TV is using its power management system.

◆ Move the computer’s mouse or press any key on the keyboard.

◆ On your equipment check (STB, DVD, etc) ; Power, Signal Cable.

◆ The TV is using its power management system.

◆ Press the Source button on the panel or remote control.

◆ Turn the TV off and on.

English - 67

This page is intentionally

left blank.

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with
separate collection systems)

This marking shown on the product or its literature, indicates that it should not
be disposed with other household wastes at the end of its working life. To
prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate this from other types of wastes and recycle it
responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this
product, or their local government office, for details of where and how they can
take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and
conditions of the purchase contract. This product should not be mixed with
other commercial wastes for disposal.

Contact SAMSUNG WORLD-WIDE

If you have any questions or comments relating to Samsung products,
please contact the SAMSUNG customer care centre.

Country

BELGIUM
CZECH REPUBLIC
DENMARK
FINLAND
FRANCE
GERMANY
HUNGARY
ITALIA
LUXEMBURG
NETHERLANDS
NORWAY
POLAND
PORTUGAL
RUSSIA
SLOVAKIA
SPAIN
SWEDEN
U.K
UKRAINE

Customer Care Centre 

02 201 2418
844 000 844
38 322 887
09 693 79 554
08 25 08 65 65 (€ 0,15/Min)
01805 - 121213 (€ 0,12/Min)
06 40 985 985
199 153 153
02 261 03 710
0900 20 200 88 (€ 0,10/Min)
231 627 22
0 801 801 881
80 8 200 128
8-800-200-0400
0850 123 989
902 10 11 30
08 585 367 87
0870 242 0303
8-800-502-0000

Web Site

www.samsung.com/be
www.samsung.com/cz
www.samsung.com/dk
www.samsung.com/fi
www.samsung.com/fr
www.samsung.de
www.samsung.com/hu
www.samsung.com/it
www.samsung.lu
www.samsung.com/nl
www.samsung.com/no
www.samsung.com/pl
www.samsung.com/pt
www.samsung.ru
www.samsung.com/sk
www.samsung.com/es
www.samsung.com/se
www.samsung.com/uk
www.samsung.com/ur

BN68-00889Q-01
