Plasma TV

user manual

BN68-01757D-00

imagine the possibilities

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/global/register

Model Serial No.

User Instructions

Screen Image retention



Do not display a still image (such as on a video game or when hooking up a PC to this PDP) on the plasma monitor panel for more than 2 hours as it can cause screen image retention. This image retention is also known as “screen burn”. To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.

Height



The PDP can normally operate only under 2000m in height. It might abnormally function at a place over 2000m in height so do not install and operate there.

Heat on the top of the PDP TV



The top side of the product may be hot after long period of use as heat dissipates from the panel through the vent hole in the upper part of the product. This is normal and does not indicate any defect or operation failure of the product. However, children should be prevented from touching the upper part of the product.

The product is making a ‘cracking’ noise.



A ‘cracking’ noise may occur when the product contracts or expands due to a change of surrounding environment such as temperature or humidity. This is normal and not a defect of the unit.

Cell Defects



The PDP uses a panel consisting of 1,230,000(SD-level) to 3,150,000(HD-level) pixels which require sophisticated technology to produce. However, there may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

Avoid operating the TV at temperatures below 5°C(41°F)



A still image displayed too long may cause permanent damage to the PDP Panel.



Watching the PDP TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and centre of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause similar effect to the screen. Damages caused by the above effect are not covered by the Warranty.

Afterimage on the Screen.



Displaying still images from Video games and PC for longer than a certain period of time may produce partial afterimages. To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images.

Warranty



- Warranty does not cover any damage caused by image retention.

- Burn-in is not covered by the warranty.

Installation



Be sure to contact an authorized service centre, when installing your set in a location with heavy dust, high or low temperatures, high humidity, chemical substance and where it operates continually such as the airport, the train station etc. Failure to do so may cause a serious damage to your set.

Digital TV (DVB-T) Notice

1. FUNCTIONALITIES RELATED TO DIGITAL TV (DVB) ARE ONLY AVAILABLE IN COUNTRIES OR AREAS WHERE

DVB-T (MPEG2 AND MPEG4 AVC) DIGITAL TERRESTRIAL SIGNALS ARE BROADCAST. DVB-T is the European

consortium standard for the broadcast transmission of digital terrestrial television. Please check with your local dealer about the availability of DVB-T service in your area.

Although this TV set meets the current DVB-T standards as of [August, 2008], compatibility with future DVB-T digital

terrestrial broadcast cannot be guaranteed.

3. Some Digital TV functions may not be available or operate correctly in some countries or regions.

4. For more information, please contact your local SAMSUNG customer care centre.

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. (See back cover for more informations.)

English - 2

English

Connecting and Preparing Your TV

User Instructions .................................................................2

■

Checking Parts ....................................................................4

■

Using the Stand-Base .........................................................4

■

How to assemble the Stand-Base

■

(depending on the model) ...................................................4

Viewing the Control Panel ...................................................5

■

Viewing the Connection Panel.............................................6

■

Remote Control ...................................................................8

■

Installing Batteries in the Remote Control ...........................9

■

Switching On and Off...........................................................9

■

Placing Your Television in Standby Mode ............................9

■

Viewing the Menus ............................................................10

■

Using the TOOLS Button ...................................................10

■

Using the Wheel button .....................................................10

■

Plug & Play Feature ..........................................................11

■

Channel Control

Storing Channels and channel ......................................... 11

■

Managing Channels ..........................................................14

■

Picture Control

Changing and Resetting the Picture Settings ....................15

■

Viewing Picture-in-Picture .................................................19

■

Setting up the TV with your PC .........................................19

■

PC Display .........................................................................20

■

Sound Control

Changing the Sound Standard ..........................................21

■

Selecting the Sound Mode ................................................22

■

Function Description

Conguring the Setup Menu ..............................................23

■

Setting the Time ................................................................26

■

Network Connection ..........................................................27

■

Network Setup ...................................................................29

■

Source List / Edit Name .....................................................31

■

Product Guide ...................................................................31

■

WISELINK Pro-DLNA

Setting the DLNA Network .................................................44

■

Installing the DLNA Application .........................................44

■

Using the DLNA Application ..............................................46

■

Using the DLNA Function ..................................................49

■

Content Library

Activating the Content Library ...........................................50

■

Using the Content Library ..................................................51

■

Using Additional Content Using External USB Memory

■

Storage ..............................................................................52

About Anynet

Connecting Anynet+ Devices ............................................53

■

Setting Up Anynet+............................................................54

■

Scanning and Switching between Anynet+ Devices..........54

■

Recording ..........................................................................55

■

Listening through a Receiver (Home theater) ...................56

■

Troubleshooting for Anynet+ ............................................56

■

InfoLive

Using InfoLive ....................................................................57

■

Using the Weather Service ................................................58

■

Using the News Service ....................................................58

■

Using the Stock Service ....................................................59

■

InfoLive Setup ...................................................................60

■

Recommendations for Use

Teletext Feature .................................................................61

■

Wall Mount Kit Specications (VESA) ...............................62

■

Auto Wall-Mount Adjustment (Sold separately) ................63

■

Preparing before installing Wall- Mount on the wall ..........64

■

Securing the TV to the Wall ...............................................64

■

Troubleshooting .................................................................65

■

Specications ....................................................................66

■

Additional Terms of Service ...............................................67

■

WISELINK Pro

Connecting a USB Device .................................................32

■

Using the WISELINK Pro Function ....................................33

■

Using and Sorting Photo List .............................................35

■

Viewing a Photo or Slide Show .........................................36

■

Using and Sorting the Music List .......................................38

■

Playing a Music .................................................................39

■

Using and Sorting the Movie List .......................................40

■

Playing a Movie File ..........................................................41

■

Deleting the Photo/Music/Movie File .................................42

■

Picture/Music Settings Using WISELINK Pro ....................43

■

Using the Setup Menu .......................................................43

■

N O T

Symbol Press Note One-Touch Button TOOLS

English - 3

Connecting and Preparing Your TV

Checking Parts

Owner’s Instructions Remote Control/

Holder-Ring (4ea) (Refer to page 60)

Ferrite Core (Power Cord)

The ferrite core is used to shield the cable from interference. When connecting a cable, open the ferrite core and clip it around the cable near the plug.

AAA Batteries

Program CD Ferrite Core for

Power Cord Cloth-Clean

Power Cord (2ea)

Using the Stand-Base

Two or more people should carry the PDP. Never lay the PDP on the floor

because of possible damage to the screen. Always keep the PDP upright. The PDP can rotate 20 degrees in right and left directions.

Cover-Bottom / Screws (2ea)

(PS50A756)

-20° ~ 20°

How to assemble the Stand-Base (depending on the model)

Using the 6 screws for securing the stand base and the monitor, firmly attach the monitor to the stand base. (The exterior of the set may be different than the picture.)

Warning

Firmly secure the stand to the TV before moving it, as the stand may fall and could cause serious injury.

Two or more people should carry the TV.

Never lay the TV on the floor because of possible damage to the screen. Always store the TV upright.

English - 4

In case of installing your TV on the wall, close the cover (1) on the stand-base connection part using two screws for hiding.

English - 5

Viewing the Control Panel

The product colour and shape may vary depending on the model.

Front Panel buttons

Touch each button to operate.

SOURCE

Toggles between all the available input sources

(TV, Ext1, Ext2, AV, S-Video, Component, PC, HDMI1,

HDMI2/DVI

Press to see an on-screen menu of your TV’s features.

– +

Press to increase or decrease the volume. In the on-screen

menu, use the – + buttons as you would use the ◄

and ► buttons on the remote control.

Press to change channels. In the on-screen menu, use

the C/P. buttons as you would use the ▲ and ▼ buttons on the remote control.

POWER INDICATOR

Blinks and turns off when the power is on and lights up in

stand-by mode.

REMOTE CONTROL SENSOR

Aim the remote control towards this spot on the TV.

, HDMI3, HDMI4, USB, DLNA).

In the on-screen menu, use this button as you would use the ENTER button on the remote control.

C/P.

8 (

Touch the silver sensor below the (

SPEAKERS

POWER)

) mark to turn the TV

on and off.

Silver sensor

Viewing the Connection Panel

Rear Panel

Cable Television

Network

The product colour and shape may vary depending on the model.

Whenever you connect an audio or video system to your set, ensure that all elements are switched off.

When connecting an external device, match the colour of the connection terminal to the cable.

POWER IN

Connect the supplied power cord.

COMPONENT IN

Audio (AUDIO L/R) and video (Y/P

Component.

LAN

Connect a LAN cable to this port to connect to the Network.

PC IN(PC) / AUDIO

Connect to the video and audio output jack on your PC.

EXT 1, EXT 2

Inputs or outputs for external devices, such as VCR, DVD, video game device or video disc players.

Input/Output Specification

Connector

EXT 1 ✔ ✔ ✔

EXT 2 ✔ ✔ Output you can choose.

DIGITAL AUDIO OUT (OPTICAL)

Video Audio(L/R) RGB

Connect to a Digital Audio Component.

AUDIO OUT(AUDIO R/L)

Connect RCA audio signals from the TV to an external source, such as Audio equipment.

SERVICE

Input Output

5 7 96

B/PR) inputs for

Video + Audio(L/R)

Only TV or DTV output is

available.

HDMI IN 1, 2, 3

- No additional Audio connection is needed for an HDMI to HDMI connection.

- When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.

What is HDMI?

High Definition Multimedia interface allows the

transmission of high definition digital video data and multiple channels of digital audio.

- The HDMI/DVI terminal supports DVI connection to an extended device with the appropriate cable (not supplied). The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports multi - channel digital audio.

DVI IN(HDMI2) AUDIO L/R

DVI audio outputs for external devices.

ANT IN

75Ω Coaxial connector for Aerial/Cable Network.

Supported modes for HDMI/DVI and Component

HDMI/DVI 50Hz X X X O O O O HDMI/DVI 60Hz X O X X O O O

Component O O O O O O O

83 4

480i 480p 576i 576p 720p 1080i 1080p

− Connector for service.

English - 6

English - 7

Side Panel

The product colour and shape may vary depending on the model.

COMMON INTERFACE Slot

Insert CI (Common Interface) card into the slot. (refer to page 25)

− When not inserting

Signal is displayed on the screen.

− The pairing information containing a telephone number, CI

CARD ID, Host ID, and other information will be displayed in about 2~3 minutes. If an error message is displayed, please contact your service provider.

− When the channel information configuration has finished,

the message Updating Completed is displayed, indicating that the channel list is now updated.

Insert the CI-Card in the direction marked on it.

HDMI IN 4

Connect to the HDMI jack of a device with HDMI output.

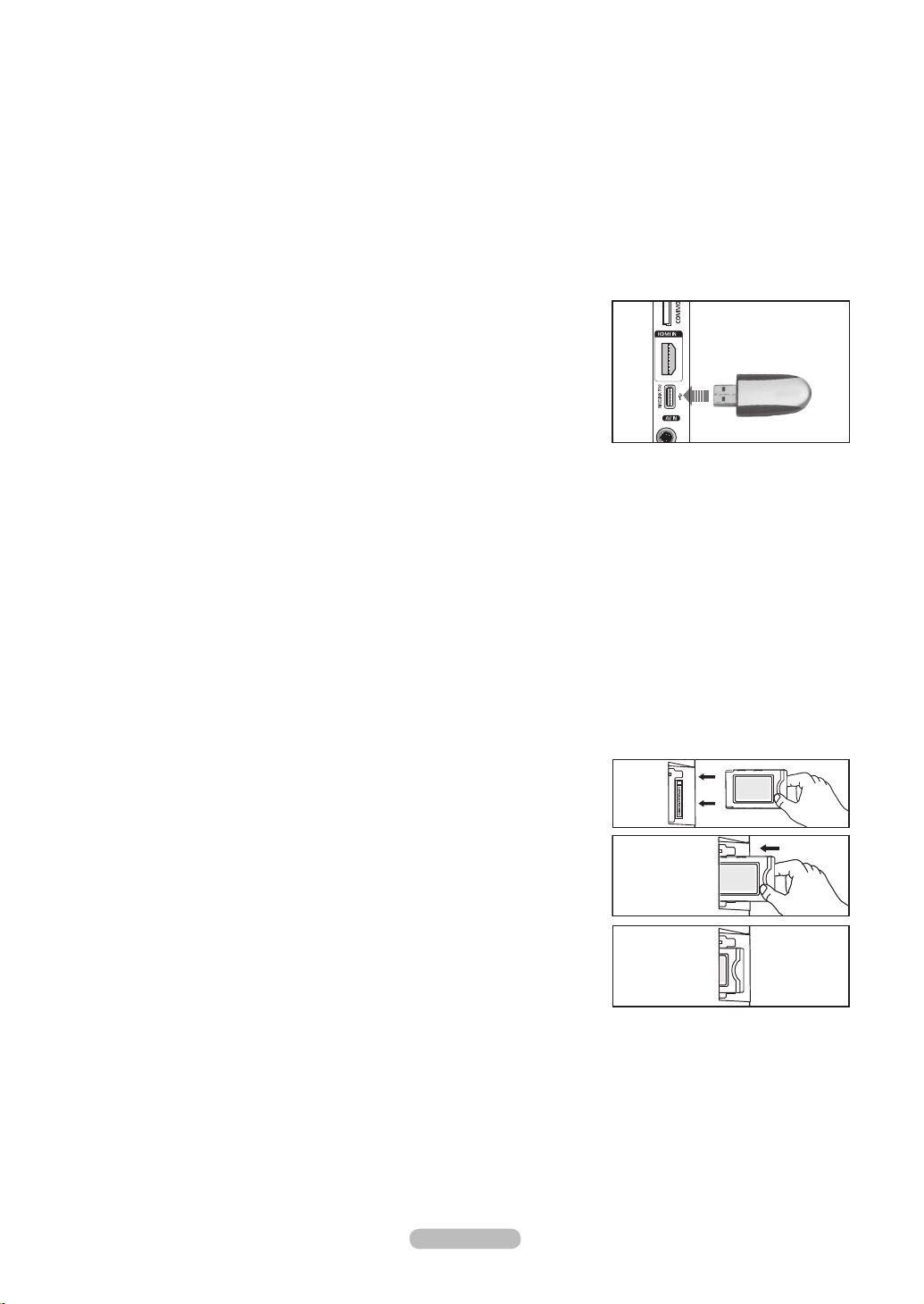

WISELINK PRO

Connect a USB mass storage device to view and play photo files (JPEG), audio files (MP3) and movie files. You can connect to SAMSUNG’s network wirelessly.

S-VIDEO or VIDEO / AUDIO L/R

Video (S-Video or Video) and audio inputs for external devices, such as a camcorder or VCR.

CI CARD in some channels, Scramble

HEADPHONES JACK

You can connect a set of headphones if you wish to watch a television programme without disturbing the other people in the room.

Prolonged use of headphones at a high volume may

damage your hearing.

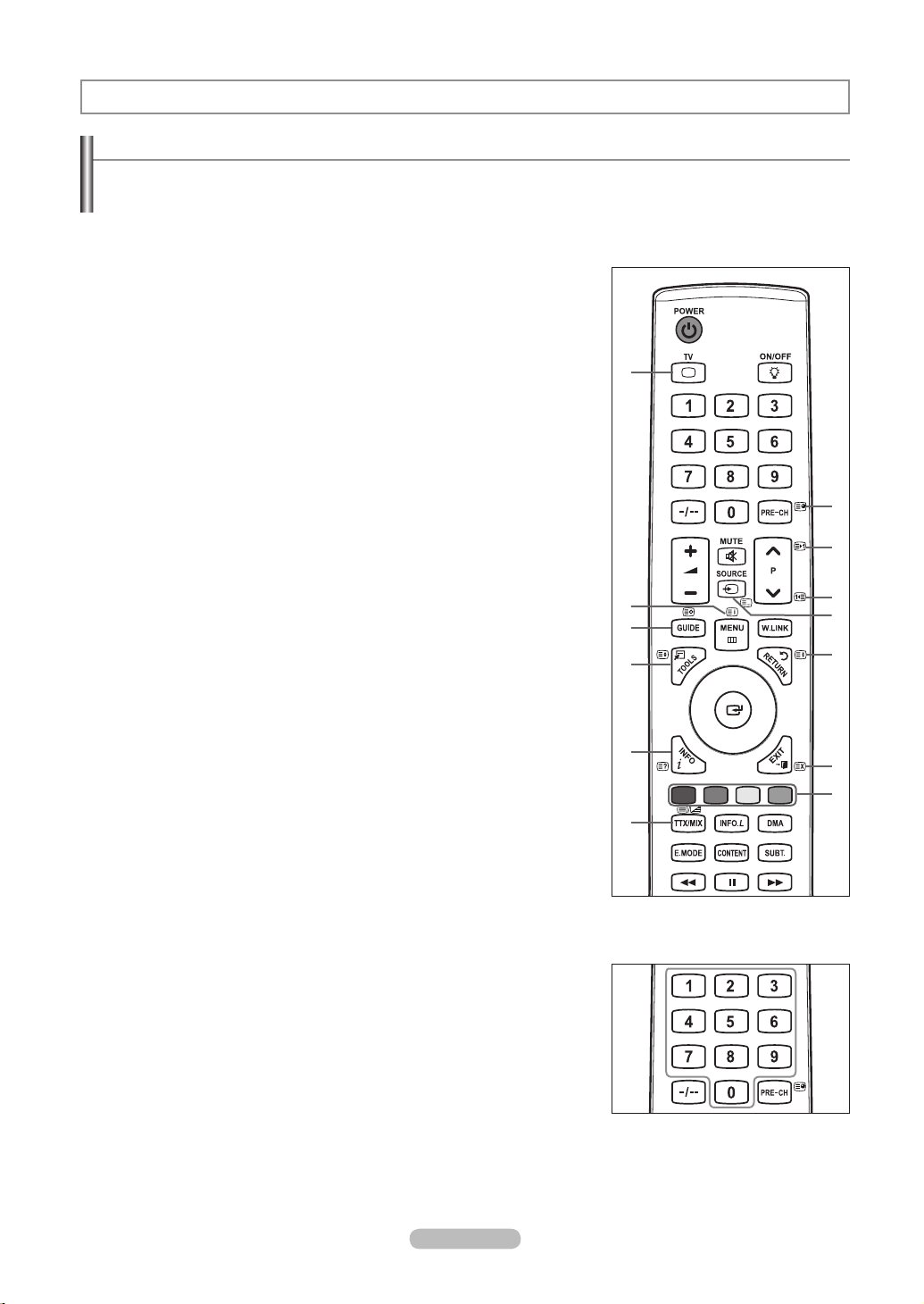

Remote Control

You can use the remote control up to a distance of about 23 feet from the TV.

The performance of the remote control may be affected by bright light.

POWER button

(turns the TV on and off)

Selects the TV mode directly.

Number buttons for direct channel

access

One or more digit channel selection

Temporary sound switch-off

Available source selection

Volume increase

Volume decrease

Electronic Program Guide (EPG)

display

Use to quickly select frequently used

functions.

Control the cursor in the menu

Use to see information on the

current broadcast

Use these buttons in the Channel

list and WISELINK, etc.

Press to select the optional display

and sound modes for sports, cinema and games.

Use these buttons in the Channel

list, WISELINK Pro and Anynet+.

ON/OFF

Press to backlight the buttons on the

remote. This function is convenient for using at night or when the room is dark. (Using the remote control with the ON/OFF( ) light button set to On will reduce the battery usage time.)

Previous channel

Next channel

Previous channel

(

Displays the main on-screen menu

)

This function enables you to view

and play photo (JPEG) , audio files (MP3) and movie files from an external device.

Returns to the previous menu

Exit the on-screen menu

Press to use the News, Stock

Market and Weather Forecast information services available over the network.

d Use this when connecting a

SAMSUNG DMA (Digital Media Adapter) device through an HDMI interface and switching to DMA mode. (The DMA button is optional.) For more information on the operating procedures, refer to the user manual of the DMA. This button is available when Anynet+(HDMI-CEC) is On (see page 54)

This function enables you to view

Content Library.

Digital subtitle display

Teletext Functions

Exit from the teletext display

(depending on the model)

Teletext mode selection (LIST/

FLOF)

Teletext store

Teletext size

Teletext reveal

Fastext topic selection

Teletext display/mix both teletext

information and the normal broadcast

Teletext sub page

P :Teletext next page

P :Teletext previous page

(

Teletext index

Teletext hold

Teletext cancel

English - 8

English - 9

Installing Batteries in the Remote Control

Lift the cover at the back of the remote control upward as shown in the gure.

Install two AAA size batteries.

Make sure to match the ‘+’ and ‘–’ ends of the batteries with the diagram

inside the compartment.

Close the cover.

Remove the batteries and store them in a cool, dry place if you won’t be

using the remote control for a long time. Using the remote control with the ON / OFF @ light button set to on will

reduce the battery usage time.

If the remote control doesn’t work, check the following:

1. Is the TV power on?

2. Are the plus and minus ends of the batteries reversed?

3. Are the batteries drained?

4. Is there a power outage or is the power cord unplugged?

5. Is there a special uorescent light or neon sign nearby?

Switching On and Off

The mains lead is attached to the rear of your set.

Plug the mains lead into an appropriate socket.

The standby indicator lights up on your set.

Press the POWERP button on your set.

You also can press the POWERP button or the TV button on the remote control to turn the TV on.

The programme that you were watching last is reselected automatically.

Press the numeric button (0~9) or channel up / down (< / >) button on the remote control or >C/P.P< button on your set.

When you switch the set on for the very rst time, you will be asked to choose language in which the menus are to be

displayed.

To switch your set off, press the POWERP button again.

Placing Your Television in Standby Mode

Your set can be placed in standby mode in order to reduce the power consumption. The standby mode can be useful when you wish to interrupt viewing temporarily (during a meal, for example).

Press the POWERP button on the remote control.

The screen is turned off and a red standby indicator appears on your set.

To switch your set back on, simply press the POWERP, numeric buttons (0~9), TV button or channel up / down (< / >) button again.

Do not leave your set in standby mode for long periods of time (when you are away on holiday, for example). It is best to

unplug the set from the mains and aerial.

Viewing the Menus

1. With the power on, press the MENU button. The main menu appears on the

screen. The menu’s left side has icons: Picture, Sound, Channel, Setup, Input, Application.

Press the ▲ or ▼ button to select one of the icons. Then press the ENTERE

button to access the icon’s sub-menu.

Press the EXIT button to exit.

The on-screen menus disappear from the screen after about one minute.

Using the TOOLS Button

You can use the TOOLS button to select your frequently used functions quickly and easily. The Tools menu changes depending on which external input mode you are viewing.

Press the TOOLS button. The Tools menu will appear.

Press the ▲ or ▼ button to select a menu.

Press the ▲ / ▼ / ◄ / ► / ENTERE buttons to display, change, or use the

selected items. For a more detailed description of each function, refer to the corresponding page.

Anynet+ (HDMI-CEC): see page 53

• Picture Size: see page 17

• Picture Mode: see page 15

• Sound Mode: see page 21

• Sleep Timer: see page 26

• SRS TS XT: see page 21

• Energy Saving: see page 25

• Dual l ll: see page 22

• PIP: see page 19

• Auto Adjustment: see page 19

•


Mode

Cell Light : 7

Contrast : 95

Brightness : 45

Sharpness : 50

Colour : 50

Tint (G / R) : G50 / R50

Detailed Settings

Tools

Anynet+ (HDMI-CEC)

Picture Size : Auto Wide

Picture Mode : Standard

Sound Mode : Custom

Sleep Timer : Off

SRS TS XT : Off

Energy Saving : Off

Dual l ll : Mono

Move E Enter e Exit

Standard

Using the Wheel button

To increase the channel number, turn the wheel clockwise when the Channel



Display is displayed. To decrease the channel number, turn the wheel counterclockwise.

To turn the volume up, turn the wheel clockwise when the Volume



Control window is displayed. To turn the volume down, turn the wheel counterclockwise.

To move to a lower menu, turn the wheel clockwise when the menu Display is



displayed. To move to a higher menu, turn the wheel counterclockwise.

English - 10

English - 11

Plug & Play Feature

When the TV is initially powered on, basic settings proceed automatically and subsequently.

Press the POWER button on the remote control. The message The Menu Language, Store Demo, Channels and Time will be set. is displayed.

Press the ENTER automatically displayed. Press the ENTER

Select the appropriate language by pressing the ▲ or ▼ button. Press the

ENTER

Press the ◄ or ► button to select Store Demo or Home Use, then the ENTER

N N N

button to conrm your choice.

We recommend setting the TV to Home Use mode for the best picture in your home environment. Store Demo mode is only intended for use in retail environments.

If the unit is accidentally set to Store Demo mode and you want to return to Home Use (Standard): Press the Volume

button, then Select the OSD Language. menu is

button.

The Menu Language, Store Demo, Channels and Time will be set.

button.

button on the TV. When the volume OSD is displayed, press and hold the MENU button on the TV for 5 seconds. The Screen Saver is activated if there is no remote control key input for longer than 1 minute while Plug & Play is

running. The Screen Saver is activated if there is no operating signal for longer than 15 minutes.

Press the ENTERE button. Select the appropriate country by pressing the ▲ or ▼ button. Press the ENTERE button to

conrm your choice.

Press the ▲ or ▼ button to select the channel source to memorize. Press the ENTER

Digital & Analogue: Digital and Analogue channels.

button to select Start.

Digital: Digital channels. Analogue: Analogue channels.

The channel search will start and end automatically.

Press the ENTER

After all the available channels are stored, the message Set the Clock Mode. is displayed.

Press the ENTERE button. Press the ▲ or ▼ button to select Auto, then Press the ENTERE button.

If you select Manual, Set current date and time is displayed. (See page 26)

If you have received a digital signal, the time will be set automatically. If not, see page 26 to set the clock.

The message Enjoy your viewing is displayed. When you have nished, press the ENTER

button at any time to interrupt the memorization process.

button.

Plug & Play

E Enter

If you want to reset this feature...

Press the MENU button to display the menu. Press the ▲ or ▼ button to select

Setup, then press the ENTER

Press the ENTER

Enter your 4 digit PIN number. The default PIN number of a new TV set is

button.

button again to select Plug & Play.

‘0-0-0-0’.

If you want to change PIN number, refer to 23 page.

The Plug & Play feature is only available in the TV mode.

Channel Control

Storing Channels and channel

Country

❑

Analogue Channel: You can change the country for analogue channels.



Digital Channel: You can change the country for digital channels.



The PIN number input screen appears. Enter your 4 digit PIN number.

Setup

Plug & Play  ►

Language : English

Time

Network Selection : Cable

Wireless Network Setup

Cable Network Setup

Child Lock : On

Change PIN

Channel

Country

Auto Store

Manual Store

Full Guide

Mini Guide

Default Guide : Mini Guide

Channel List

Channel Mode : Added Ch.

 ►

Auto Store

❑

You can scan for the frequency ranges available to you (and availability depends on your country). Automatically allocated programme numbers may not correspond to actual or desired programme numbers.

Digital & Analogue: Digital and Analogue channels.

• Digital: Digital channels.

• Analogue: Analogue channels.

•

Scans for all channels with active broadcast stations and stores them in the TV’s memory.

If you want to stop Auto Store, press the ENTER

The Stop Auto Store? message will be displayed.

Select Yes by pressing the ◄ or ► button, then press the ENTER

If a channel is locked using the Child Lock function, the PIN input window appears.

Manual Store

❑

Scans for a channel manually and stores it in the TV’s memory.

If a channel is locked using the Child Lock function, the PIN input window appears.

Digital Channel



Manual store for digital channels.

Channel: Set the Channel number using the ▲, ▼ or number (0~9) buttons.

• Frequency: Set the frequency using the number buttons.

• Bandwidth: Set the bandwidth using the ▲, ▼ or number (0~9) buttons.

•

When it has nished, channels are updated in the channel list.

Analogue Channel



Manual store for analogue channel.

Programme (Programme number to be assigned to a channel): Sets the programme number using the ▲, ▼ or number

• (0~9) buttons.

ColourSystem→Auto/PAL/SECAM/NTSC4.43

•

Sound System → BG / DK / I / L: Sets the sound system value using the ▲ or ▼ button.

• Channel (When you know the number of the channel to be stored): Press the ▲ or ▼ button to select C (Air channel) or S

• (Cable channel). Press the ► button, then press the ▲, ▼ or number (0~9) buttons to select the required number.

You can also select the channel number directly by pressing the number (0~9) buttons.

If there is abnormal sound or no sound, reselect the sound standard required.

Search (When you do not know the channel numbers): Press the ▲ or ▼ button to start the search. The tuner scans the

•

frequency range until the rst channel or the channel that you selected is received on the screen.

Store (When you store the channel and associated programme number): Set to OK by pressing the ENTER

•

Channel mode

P (Programme mode): When completing tuning, the broadcasting stations in your area have been assigned to position

numbers from P00 to P99. You can select a channel by entering the position number in this mode. C (Air channel mode): You can select a channel by entering the assigned number to each air broadcasting station in

this mode. S (Cable channel mode): You can select a channel by entering the assigned number for each cable channel in this

mode.

button.

: Sets the colour system value using the ▲ or ▼ button.

button.

Full Guide / Mini Guide

❑

The EPG (Electronic Programme Guide) information is provided by the broadcasters. Programme entries may appear blank or out of date as a result of the information broadcast on a given channel. The display will dynamically update as soon as new information becomes available.

For the detailed procedures on using Full Guide and Mini Guide, refer to

the descriptions on page 13. You can also display the guide menu simply by pressing the GUIDE button.

(To congure the Default Guide, refer to the descriptions.)

Full Guide:



is displayed which may be scrolled forwards or backwards in time. Mini Guide:



the current programme onwards according to the programme starting time order.

Displays the programme information as time ordered One hour segments. Two hours of programme information

The information of each programme is displayed by each line on the current channel Mini Guide screen from

English - 12

English - 13

Default Guide

❑

Mini Guide / Full Guide:



You can decide whether to display either the Mini

Guide or the Full Guide when the GUIDE button on the remote control is

Channel

Fine Tune

Signal Information

LNA : Off

pressed.

Channel List

❑

For the detailed procedures on using the Channel List, refer to the descriptions on pages 14~15.

Channel Mode

❑

When the press the P >/< button, Channels will be switched within the selected channel list. Added Ch.: Channels will be switched within the memorized channel list.



Favourite Ch.: Channels will be switched within the favourite channel list.



Fine Tune

❑

If the reception is clear, you do not have to ne tune the channel, as this is done automatically during the search and store operation. If the signal is weak or distorted, you may have to ne tune the channel manually.

Fine tuned channels that have been saved are marked with an asterisk * on the right-hand side of the channel number in

the channel banner.

To reset the ne-tuning, select Reset by pressing the ▲ or ▼ button and then press the ENTER

Only Analogue TV channels can be ne tuned.

Signal Information

❑

button.

You can get information about the signal status.

If the signal status is poor, the Weak or No Signal message is displayed.

While viewing a Digital channel, this function can be selected.

The technical information for signal status is displayed.

- Frequency / Service ID / Multiplex / Network / Bit error level / Signal Strength

►

LNA→Off/On

❑

If the TV is operating in a weak-signal area, the LNA (Low Noise Amplier) function can improve the reception (a low-noise preamplier boosts the incoming signal).

While viewing an Analogue channel, this function can be selected.

Using the Full / Mini Guide

Full Guide

900 f tn 901 ITV Play 902 Kerrang! 903 Kiss 903 oneword 903 Smash Hits!

▼

Watch

DTV Cable 900 f tn 2:10 Tue 1 Jun Freshmen On Campus 2:00 - 2:30

No Detailed Information

Today 2:00 - 3:00 3:00 - 4:00

Freshmen O..

Street Hypn.. Mint Extra Loaded Fresh 40 with Dynamite MC The Distillery Smash Hits! Sunday

Information



No Information

No Information Kisstory No Information

Mini Guide +24 Hours Exit

Select a programme by pressing the ▲/▼/◄/► button.

▲/▼/◄/►,

(ENTER)

If the next progrmme is selected, it is scheduled with the clock icon displayed. If the ENTER button is pressed again, press the ▲/▼/◄/► button to select Cancel Schedules, the scheduling is canceled with the clock icon gone. For details about scheduling programmes, refer to the section.

RED Toggle between the Mini Guide or Full Guide.

GREEN

YELLOW

Full Guide: Scroll backwards quickly (24 hours). Mini Guide: Display next page quickly.

Full Guide: Scroll forwards quickly (24 hours). Mini Guide: Display previous page quickly.

BLUE Exit the guide.

INFO button for the detailed information. Channel Number, Running Time, Status Bar, Parental Level,

INFO

Video Quality Information (HD/SD), Sound Modes, Subtitle or Teletext, languages of Subtitle or Teletext and brief summary of the highlighted programme are included on the detailed information. “…” will be appeared if the summary is long.

Mini Guide DTV Cable 900 f tn

▼

2:00 2:30 5:00

Watch

Freshmen On Campus

Street Hypnosis Booze Britain

Information



Full Guide Next Page Exit

Managing Channels

Using this menu, you can Add / Delete or set Favourite channels and use the programme guide for digital broadcasts.

Select a channel in the All Channels, Added Channels ,Favourites or

Programmed screen by pressing the ▲ / ▼ buttons, and pressing the ENTERE button. Then you can watch the selected channel.

All Channels:



Added Channels:



Favourites:



Programmed:



Shows all currently available channels.

Shows all added channels.

Shows all favourite channels.

Shows all current reserved programmes.

Mini Guide

Default Guide : Mini Guide

Channel

Channel List

Channel Mode : Added Ch.

Fine Tune

Signal Information

LNA : Off

Using the Colour buttons with the Channel List

Red (Channel Type): Toggle between your TV, Radio, Data / Other and All.

Green (Zoom): Enlarges or shrinks a channel number.

Yellow (Select): Selects multiple channel lists.

TOOLS (Option): Displays the Delete (or Add), Add to Favourite (or Delete

from Favourite), Lock (or Unlock), Timer Viewing, Edit Channel Name, Sort, Edit Channel Number, Select All, Deselect All or Auto Store menu.

(The Options menus may differ depending on the situation.)

Channel Status Display Icons

An Analogue channel.

A channel set as a Favourite.

♥

A locked channel.

A channel selected by pressing the yellow button.

(

A programme currently being broadcast.

)

A reserved programme

824 UKTV Gold

Added Channels

825 UKTV style

A 1 C --

A 2 C A 3 ♥ C A 4 C A 5 C A 6 C A 7 C A 8 C

All



Channel Type Zoom Select

Option

Channel List Option Menu (in All Channels / Added Channels / Favourites)

Press the TOOLS button to use the option menu.

Option menu items may differ depending on the channel status.

Add / Delete



You can delete or add a channel to display the channels you want.

All deleted channels will be shown on All Channels menu.

A gray-coloured channel indicates the channel has been deleted.

The Add menu only appears for deleted channels.

You can also delete a channel to the Added Channels or Favourite menu

in the same manner.

Add to Favourite / Delete to Favourite



You can set channels you watch frequently as favourites.

The ♥ symbol will be displayed and the channel will be set as a favourite.

All favourite channels will be shown on Favourite menu.

Lock / Unlock



You can lock a channel so that the channel cannot be selected and viewed. This function is available only when the Child Lock is set to on. (see page 23)

The PIN number input screen appears. Enter your 4 digit PIN number.

The default PIN number of a new TV set is 0-0-0-0. You can change the PIN, by selecting Change PIN from the menu.

The \ symbol will be displayed and the channel will be locked.

Timer Viewing



If you reserve a programme you want to watch, the channel is automatically switched to the reserved channel in the Channel

List; even when you are watching another channel. To reserve a programme , set the current time rst. (See page 26.)

Only memorized channels can be reserved.

You can set the channel, month, day, year, hour and minute directly by pressing the number buttons on the remote

control. Reserving a programme will be shown on Programmed menu.

Digital Programme Guide and Viewing Reservation

When a digital channel is selected, and you press the ► button, the Programme Guide for the channel appears. You can

reserve a programme according to the procedures described above.

824 UKTV Gold

All Channels

825 UKTV style

A 1 C --

A 2 C A 3 C A 4 C A 5 C A 6 C A 7 C A 8 C

All



Channel Type Zoom Select

Delete Add to Favourite Lock Timer Viewing Edit Channel Name Sort

▼

Option

English - 14

English - 15

Edit Channel Name (only analogue channel)



Channels can labeled so that their call letters appear whenever the channel is selected.

The names of digital broadcasting channels are automatically assigned and cannot be labeled.

Edit Channel Number (only digital channel)



You can also edit the channel number by pressing the number buttons on the remote control.

Sort



This operation allows you to change the programme numbers of the stored channels. This operation may be necessary after using the auto store.

The function is only available in Analouge.

Select All / Deselect All



Select All: You can select all the channels in the channel list.

•

Deselect All: You can deselect all the selected channels in the channel list.

•

You can perform the add / delete, add to Favourites / delete from Favourites, or lock / unlock function for multiple

channels at the same time. Select the required channels and press the yellow button to set all the selected channels at the same time.

The c mark appears to the left of the selected channels.

You can only select Deselect All when there is a selected channel.

Auto Store



For further details on setting up options, refer to page 11.

If a channel is locked using the Child Lock function, the PIN input window appears.

Channel List Option Menu (in Programmed )

You can view, modify or delete a reservation.

Press the TOOLS button to use the option menu.

Change Info: Select to change a viewing reservation.



Cancel Schedules: Select to cancel a viewing reservation.



Information: Select to view a viewing reservation. (You can also change



the reservation information.) Select All: Select all reserved programmes.



Programmed

1 / 1 / 2008

13:59 5 TV1 Quincy, M.E

18:59 2 TV3 The Equalizer

20:59 2 TV3 McMillan & Wife

21:59 2 TV3 M.Spillane’s mike Hammer

All



Channel Type Zoom Select

Change Info

Cancel Schedules Information Select All

Option Information

Picture Control

Changing and Resetting the Picture Settings

Mode

❑

You can select the type of picture which best corresponds to your viewing requirements.

Dynamic: Selects the picture for high-definition in a bright room.



Standard: Selects the picture for the optimum display in a normal



environment. Movie: Selects the picture for viewing movies in a dark room.



Press the TOOLS button to display Tools menu.

You can also set the picture mode by selecting Tools→PictureMode.

Cell Light / Contrast / Brightness / Sharpness / Colour / Tint(G/R)

❑

Your television has several setting options that allow you to control the picture quality. Cell Light: Adjusts the pixel brightness. 10 is brightest.



Contrast: Adjusts the contrast level of the picture.



Brightness: Adjusts the brightness level of the picture.



Sharpness: Adjusts the edge definition of the picture.



Colour: Adjusts Colour saturation of the picture.




Mode : Standard

Cell Light : 7

Contrast : 95

Brightness : 45

Sharpness : 50

Colour : 50

Tint(G/R) : G50 / R50

Detailed Settings

►

Tint(G/R): Adjusts the Colour tint of the picture.



Select a picture mode to be adjusted rst. The adjusted values are saved for each picture mode.

When you make changes to Cell Light, Contrast, Brightness, Sharpness, Colour or Tint(G/R), the OSD will be

adjusted accordingly. In Analogue TV, Ext., AV, S-Video modes of the PAL system, you cannot use the Tint Function.

In PC mode, you can only make changes to Cell Light, Contrast and Brightness.

Settings can be adjusted and stored for each external device you have connected to an input of the TV.

The energy consumed during use can be signicantly reduced if the level of brightness of the picture is reduced, and then

this will reduce the overall running cost.

Detailed Settings

❑

Samsung’s new TVs allow you to make even more precise picture settings than previous models. See below to adjust detailed picture settings.

Detailed Settings is available in Standard or Movie mode.

In PC mode, you can only make changes to Dynamic Contrast, Gamma

and White Balance from among the Detailed Settings items.

BlackAdjust→Off/Low/Medium/High



Colour : 50

Tint (G / R) : G50 / R50


DetailedSettings  ►

Picture Options

Picture Reset

You can select the black level on the screen to adjust the screen depth.

DynamicContrast→Off/Low/Medium/High



You can adjust the screen contrast so that the optimal contrast is provided.

Gamma



You can adjust the Primary Colour (Red, Green, Blue) Intensity.

Colour Space



Colour Space is a colour matrix composed of red, green and blue colours. Select your favourite Colour Space to experience the most natural colour.

Auto: Auto Colour Space automatically adjusts to the most natural colour tone based on programme sources.

•

Native: Native Colour Space offers deep and rich colour tone.

•

Custom: Adjusts the colour range to suit your preference.

•

Customizing the Colour Space

Colour→Red/Green/Blue/Yellow/Cyan/Magenta

Adjusts the Colour range to suit your preference. Colour is available when Colour Space is set to Custom.

Red / Green / Blue: In Colour, you can adjust the RGB values for the selected colour.

Reset: Resets the colour space to the default values.

White Balance



You can adjust the colour temperature for more natural picture colours.

R-Offset / G-Offset / B-Offset / R-Gain / G-Gain / B-Gain: Changing the adjustment value will refresh the adjusted screen.

• Reset: The previously adjusted white balance will be reset to the factory defaults.

•

Flesh Tone



You can emphasize the pink ‘esh tone’ in the picture.

Changing the adjustment value will refresh the adjusted screen.

EdgeEnhancement→Off/On



You can emphasize object boundaries in the picture.

xvYCC→Off/On



Setting the xvYCC mode to on increases detail and colour space when watching movies from an external device (i.e. DVD player).

xvYCC is available when the picture mode is set to Movie, and the external input is set to HDMI or Component mode.

If xvYCC function is active, PIP cannot be selected.

Picture Options

❑

In PC mode, you can only make changes to the Colour Tone, Size and

Screen Burn Protection from among the items in Picture Options.

Colour Tone→Cool2 / Cool1 / Normal / Warm1 / Warm2



You can select the most comfortable colour tone to your eyes.

The adjusted values are stored according to the selected Picture mode.

Warm1 or Warm2 is only activated when the picture mode is Movie.

English - 16

Tint (G / R) : G50 / R50

Detailed Settings


PictureOptions  ►

Picture Reset

English - 17

Size



You can select the picture size which best corresponds to your viewing requirements.

Press the TOOLS button to display Tools menu.

You can also set the size by selecting Tools→PictureSize.

Auto Wide: Automatically adjusts the picture size to the 16:9 aspect ratio.

•

16:9

: Adjusts the picture size to 16:9 appropriate for DVDs or wide broadcasting.

• Wide Zoom: Magnify the size of the picture more than 4:3.

•

Zoom: Magnies the 16:9 wide picture (in the vertical direction) to t the screen size.

• 4:3: This is the default setting for a video movie or normal broadcasting.

• Just Scan: Use the function to see the full image without any cutoff when HDMI (720p / 1080i / 1080p)

• or Component (1080i / 1080p) signals are input.

Depending on the input source, the picture size options may vary.

The items available may differ depending on the selected mode.

In PC Mode, only 16:9 and 4:3 mode can be adjusted.

Settings can be adjusted and stored for each external device you have connected to an input of the TV.

Temporary image retention may occur when viewing a static image on the set for more than two hours.

Wide Zoom: Press the ► button to select Position, then press the ENTER

move the screen up / down. Then press the ENTER Zoom: Press the ► button to select Position, then press the ENTER

picture up and down. Then press the ENTER

button.

button. Press the ► button to select Size, then press the ENTER

button. Press the ▲ or ▼ button to

button. Press the ▲ or ▼ button to move the

button. Press the ▲ or ▼ button to magnify or reduce the picture size in the vertical direction. Then press the

ENTER After selecting Just Scan in HDMI (1080i / 1080p) or Component (1080i / 1080p) mode: Select Position by pressing

button.

the ◄ or ►button. Use the ▲, ▼, ◄ or ► button to move the picture.

Reset: Press the ◄ or ► button to select Reset, then press the ENTER

If you use the Just Scan function with HDMI 720p input, 1 line will be cut at the top, bottom, left and right as in the

button. You can initialize the setting.

overscan function. When Double ( , ) mode has been set in PIP, the Picture Size cannot be set.

Screen Mode→16:9 / Wide Zoom / Zoom / 4:3



When setting the picture size to Auto Wide in a 16:9 wide TV, you can determine the picture size you want to see the 4:3 WSS (Wide Screen Service) image or nothing. Each individual European country requires different picture size so this function is intended for users to select it.

16:9

: Sets the picture to 16:9 wide mode.

• Wide Zoom: Magnify the size of the picture more than 4:3.

• Zoom: Magnify the size of the picture vertically on screen.

• 4:3: Sets the picture to 4:3 normal mode.

•

This function is available in Auto Wide mode.

This function is not available in PC, Component or HDMI mode.

Digital NR→Off / Low / Medium / High / Auto



If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen.

When the signal is weak, select one of the other options until the best picture is displayed.

DNIe→Off / Demo / On



This TV includes the DNIe function so as to provide a high visual quality. If you set DNIe to on, you can view the screen with the DNIe feature activated. If you set the DNIe to Demo, you can view the applied DNIe and normal pictures on the screen, for demonstration purposes. Using this function, you can view the difference in the visual quality.

DNIe™ (Digital Natural Image engine)

DNIe™

This feature brings you more detailed image with 3D noise reduction, detail enhancement, contrast enhancement and white enhancement. New image compensation Algorithm gives brighter, clearer, more detailed image to you. DNIe™ technology will

t every signal into your eyes.

This function is not available in Movie and Standard mode.

HDMI Black Level→Normal / Low



You can directly select the black level on the screen to adjust the screen depth.

This function is active only when the external input connects to HDMI (RGB signals).

Real100HzDemo→Off/On



You can get a clear distinction between Real 100Hz and 50Hz, especially when watching fast moving scenes. Therefore, when seeing slow moving scenes, you will not be able to distinguish between Real 100Hz and 50Hz. Demo 100Hz works only with 50Hz signal. Real 100Hz demo mode is provided for shop demonstration with special pictures.

Movie Plus→Off / Low / Medium / High / Demo



You can view more natural skin and clear text even in fast moving scenes.

Use this function when watching movies.

This function is not available in Wide Zoom and Zoom modes.

This function is not available when PIP is set to On.

It is not supported in HDMI 1080p/24Hz, 25Hz, 30Hz mode.

Blue Only Mode→Off / On



This function is for AV device measurement experts. This function displays the blue signal only by removing the red and green signals from the video signal so as to provide a Blue Filter effect that is used to adjust the Colour and Tint of video equipment such as DVD players, Home Theaters, etc. Using this function, you can adjust the Colour and Tint to preferred values appropriate to the signal level of each video device using the Red / Green / Blue / Cyan / Magenta / Yellow Colour Bar Patterns, without using an additional Blue Filter.

Blue Only Mode is available when the picture mode is set to Movie or Standard.

Screen Burn Protection



To reduce the possibility of screen burn, this unit is equipped with screen burn prevention technology. This technology enables you to set picture movement up/down (Vertical Line) and side to side (Horizontal Dot). The Time setting allows you to program the time between movement of the picture in minutes.

Pixel Shift: Using this function, you can minutely move pixels on the PDP in horizontal or vertical direction to minimize after

• image on the screen.

Set Pixel Shift to On by pressing the ▲ or ▼ button, then press the ENTER button.

Select the required option by pressing the ▲ or ▼ button, then press the ENTER button.

Available options: Horizontal Dot, Vertical Line, Time.

Optimum condition for pixel shift;

PC TV/Ext/AV/Component/HDMI

Horizontal Dot 4 4

Vertical Line 4 4

Time (minute) 4 2 min

The Pixel Shift value may differ depending on the monitor size (inches) and mode.

This function is not available in the Just Scan mode.

All White: This function helps remove after images on the screen by changing the colour of pixels to white. Use this

• function when there are remaining after images or symbols on the screen especially when you displayed a still image on the screen for a long time.

Scrolling: This function helps remove after images on the screen by moving all the pixels on the PDP according to a

• pattern Use this function when there are remaining after images or symbols on the screen especially when you displayed a still image on the screen for a long time.

Side Gray: When you watch TV with the screen ratio of 4:3, the screen is prevented from any damage by adjusting the

• white balance on both extreme left and right sides.

Dark: When you set the screen ratio to 4:3, it darkens the left and right sides.

Light: When you set the screen ratio to 4:3, it brightens the left and right sides.

PictureReset→ResetPictureMode/Cancel

❑

Resets all picture settings to the default values.

Select a picture mode to be reset. The reset is performed for each picture mode.

English - 18

English - 19

Viewing Picture-in-Picture

You can display a sub picture within the main picture of set programme or video input. In this way, you can watch the picture of set programme or video input from any connected equipment while watching the main picture.

You may notice that the picture in the PIP window becomes slightly unnatural

when you use the main screen to view a game or karaoke. Press the TOOLS button to display Tools menu.

You can also congure PIP related settings by selecting Tools→PIP.

PIP→Off / On

❑

You can activate or deactivate the PIP function.

Main picture Sub picture

Component HDMI 1, HDMI2/DVI, HDMI 3,

HDMI 4 PC



Source

You can select a source of the sub-picture.

Size → / /



You can select a size of the sub-picture.

If main picture is in HDMI mode, Size is available.

Position → / / /



You can select a position of the sub-picture.

In Double ( , ) mode, Position cannot be selected.

Channel



You can select a channel of the sub-picture only when the Source is set to TV.

Press the TOOLS button to display Tools menu. You can also set the picture mode by selecting Tools→PIP

TV, Ext.1, Ext.2, AV

Entertainment : Off

Energy Saving : Off

Setup

PIP  ►

Software Upgrade

Common Interface

PIP

PIP : On

Source : TV

Size :

Position :

Channel : ATV 11

Move E Enter R Return

Setting up the TV with your PC

Preset: Press the SOURCE button to select PC mode.

Auto Adjustment

❑

Auto Adjustment allows the PC screen of set to self-adjust to the incoming PC

video signal. The values of ne, coarse and position are adjusted automatically.

This function does not work in DVI-HDMI mode.

Press the TOOLS button to display Tools menu.

You can also set the Auto Adjustment by selecting Tools→Auto

Adjustment.

Screen

❑

Coarse / Fine:



The purpose of picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (Coarse) and Fine-tune again. After the noise has been reduced, readjust the picture so that it is aligned on the center of screen.

PC Position:



Adjust the PC’s screen positioning if it does not t the TV screen.

Press the ▲ or ▼ button to adjusting the

Vertical-Position. Press the ◄ or ► button to adjust the Horizontal-Position.

Image Reset:



You can replace all image settings with the factory default values.


Brightness : 45

Sharpness : 50

Auto Adjustment

Screen

Detailed Settings

Picture Options

Picture Reset

►

PC Display

Setting Up Your PC Software (Based on Windows XP)

The Windows display-settings for a typical computer are shown below. The actual screens on your PC will probably be different, depending upon your particular version of Windows and your particular video card. However, even if your actual screens look different, the same basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)

First, click on ‘Control Panel’ on the Windows start menu.

When the control panel window appears, click on ‘Appearance and Themes’ and a display dialog-box will appear.

When the control panel window appears, click on ‘Display’ and a display dialogbox will appear.

Navigate to the ‘Settings’ tab on the display dialog-box. The correct size setting (resolution)

Optimum: 1920 X 1080 pixels If a vertical-frequency option exists on your display settings dialog box, the

correct value is ‘60’ or ‘60 Hz’. Otherwise, just click ‘OK’ and exit the dialog box.

Display Modes

Both screen position and size will vary depending on the type of PC monitor and its resolution. The resolutions in the table are recommended.

D-Sub Input



Mode Resolution

IBM

VESA

CVT 1920 x 1080RB 66.587 59.934 138.500 + / -

640 x 350 720 x 400 640 x 480 640 x 480 640 x 480 800 x 600 800 x 600

800 x 600 1024 x 768 1024 x 768 1024 x 768

1280 x 1024 1280 x 1024

1360 x 768

1600 x 1200

Horizontal

Frequency (kHz)

31.469

37.861

37.500

37.879

48.077

46.875

48.363

56.476

60.023

63.981

79.976

47.712

75.000

Vertical Frequency

(Hz)

70.086

70.087

59.940

72.809

75.000

60.317

72.188

75.000

60.004

70.069

75.029

60.020

75.025

60.015

60.000

Frequency (MHz)

Pixel Clock

25.175

28.322

25.175

31.500

40.000

50.000

49.500

65.000

75.000

78.750

108.000

135.000

85.500

162.000

Sync Polarity

(H / V)

+ / -

- / +

- / -

- / + / + + / + + / +

- / -

- / + / + + / + + / + + / + + / +

HDMI / DVI Input



Mode Resolution

640 x 480 800 x 600

VESA

CEA 1920 x 1080p 67.500 60.000 148.500 + / +

When using an HDMI / DVI cable connection, you must use the HDMI IN 2 jack.

The interlace mode is not supported.

The set might operate abnormally if a non-standard video format is selected.

Separate and Composite modes are supported. SOG is not supported.

Too long or low quality VGA cable can cause picture noise at high resolution modes (1920x1080).

1024 x 768

1280 x 1024

1360 x 768

1600 x 1200

Horizontal

Frequency (kHz)

31.469

37.879

48.363

63.981

47.712

75.000

English - 20

Vertical Frequency

(Hz)

59.940

60.317

60.004

60.020

60.015

60.000

Pixel Clock

Frequency (MHz)

25.175

40.000

65.000

108.000

85.500

162.000

Sync Polarity

(H / V)

- / + / +

- / + / + + / + + / +

English - 21

Sound Control

Changing the Sound Standard

Mode→Standard/Music/Movie/Speech/Custom

❑

You can select the type of special sound effect to be used when watching a given broadcast.

Press the TOOLS button to display Tools menu.

You can also congure the sound mode by selecting Tools→Sound

Mode.

Equalizer

❑

The sound settings can be adjusted to suit your personal preferences. Mode: You can select a sound mode to suit your personal preferences.



Balance: Controls the balance between the right and left speakers.



100Hz / 300Hz / 1kHz / 3kHz / 10kHz (Bandwidth Adjustment): To adjust the level of different bandwidth frequencies



Reset: Resets the equalizer settings to the default values.



SRSTruSurroundXT→Off/On

❑

TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multichannel formats.

Press the TOOLS button to display Tools menu.

You can also set the SRS TruSurround XT by selecting Tools→SRSTSXT.

TruSurround XT, SRS and Symbol are trademarks of SRS Labs, Inc. TruSurround XT

technology is incorporated under license from SRS Labs, Inc.

Sound

Mode : Custom

Equalizer

SRS TruSurround XT : Off

Audio Language : ----

Audio Format : ----

Audio Description

Auto Volume : Off

Select Speaker : TV Speaker

 ►

Audio Language

❑

You can change the default value for audio languages. Displays the language information for the incoming stream.

While viewing a digital channel, this function can be selected.

You can only select the language among the actual languages being broadcast.

AudioFormat→MPEG/DolbyDigital

❑

When sound is emitted from both the main speaker and the audio receiver, a sound echo may occur due to the decoding speed difference between the main speaker and the audio receiver. In this case, use the TV Speaker function.

While viewing a digital channel, this function can be selected.

You can only select the language among the actual languages being broadcast.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Audio Description

❑

This is an auxiliary audio function that provides an additional audio track for visually challenged persons. This function handles the Audio Stream for the AD (Audio Description), when it is sent along with the Main audio from the broadcaster. Users can turn the Audio Description On or Off and control the volume.

AudioDescription→Off/On: Turn the audio description function on or off.



Volume: You can adjust the audio description volume.



Volume is active when Audio Description is set to On.

While viewing a Digital channel, this function can be selected.

Auto Volume→Off/On

❑

Each broadcasting station has its own signal conditions, and so it is not easy to adjust the volume every time the channel is changed. This feature lets you automatically adjust the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low.

SelectSpeaker→ExternalSpeaker/TVSpeaker

❑

If you want to hear the sound through separate speakers, cancel the internal

amplier.

The – +, MUTE buttons do not operate when the TV Speaker is set to Off.

If you select External Speaker in the Select Speaker menu, the sound settings will be limited.

TV's Internal Speakers Audio Out (Optical, L / R Out) to Sound System

TV / Ext. / AV / S-Video / Component / PC / HDMI TV / Ext. / AV / S-Video / Component / PC / HDMI

TV Speaker Speaker Output Sound Output

External Speaker Mute Sound Output

Video No Signal Mute Mute

Sound Select

❑

When the PIP feature is activated, you can listen to the sound of the sub (PIP) picture. Main: Used to listen to the sound of the main picture.



Sub: Used to listen to the sound of the sub picture.



Press the TOOLS button to display Tools menu.

You can also set the sound of the sub picture by selecting Tools→PIP→SoundSelect.

Sound Reset

❑

Reset All / Reset Sound Mode / Cancel:



You can restore the Sound settings to the factory defaults.

Select Speaker : TV Speaker

Sound Select : Main

Sound

SoundReset  ►

Selecting the Sound Mode

You can set the sound mode in the Tools menu. When you set to Dual l ll, the current sound mode is displayed on the screen.

Type of broadcast

Regular broadcast

(Standard audio)

Regular + NICAM Mono

NICAM Stereo

Stereo

If the stereo signal is weak and an automatic switching occurs, then switch to the mono.

This function is only activated in stereo sound signal. It is deactivated in mono sound signal.

This function is only available in TV mode.

NICAM-Stereo

NICAM Dual-I/II

Regular broadcast

(Standard audio)

Bilingual or DUAL-I/II

Stereo Stereo

On-screen indication

Mono (Normal use)

NICAM

NICAM Stereo

NICAM Dual-1

Mono (Normal use)

Dual I Dual II

NICAM

Dual-2

(Forced mono)

English - 22

Mono

(Normal)

Mono

(Normal)

Mono

(Normal)

Mono

Tools

Anynet+ (HDMI-CEC)

Picture Size : Auto Wide

Picture Mode : Standard

Sound Mode : Custom

Sleep Timer : Off

SRS TS XT : Off

Energy Saving : Off

Dual l ll ◄ Mono ►

Move L Adjust e Exit

English - 23

Function Description

ConguringtheSetupMenu

❑

Language

You can set the menu language.

❑

ChildLock→Off/On

This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by muting out video and audio.

Before the setup screen appears, the PIN number input screen appears. Enter your 4 digit PIN number.

The default PIN number of a new TV set is 0-0-0-0. You can change the PIN by selecting Change PIN from the menu.

You can lock some channels in Channel List. (refer to page 14)

Child Lock is available only in TV mode. .

❑

Change PIN

You can change your personal ID number that is required to set up the TV.

Before the setup screen appears, the PIN number input screen appears. Enter your 4 digit PIN number.

The default PIN number of a new TV set is 0-0-0-0.

If you forget the PIN code, press the remote control buttons in the following sequence, which resets the PIN to 0-0-0-0: POWER (Off), MUTE, 8, 2, 4, POWER (On).

❑

ParentalLock→ParentalRating

This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by a 4-digit

PIN (Personal Identication Number) code that is dened by the user.

In the Parental Rating screen, congure the parental ratings.

Before the setup screen appears, the PIN number input screen appears. Enter your 4 digit PIN number.

The default PIN number of a new TV set is 0-0-0-0. You can change the PIN by selecting Change PIN from the menu.

When the parental ratings are set, the \ symbol is displayed.

Allow All: Press to unlock all TV ratings. Block All: Press to lock all TV ratings.

Plug & Play

Setup

Language : English ►

Time

Network Selection : Cable

Wireless Network Setup

Cable Network Setup

Child Lock : On

Change PIN

Parental Lock

❑

Subtitle

You can activate and deactivate the subtitles. Use this menu to set the Subtitle Mode. Normal under the menu is the basic subtitle and Hard of hearing is the subtitle for a hearing-impaired person.



Subtitle→Off/On: Switches subtitles off or on.

Mode→Normal/Hardofhearing



Subtitle Language: Set the subtitle language.

If the programme you are watching does not support the Hard of hearing function, Normal automatically activates even though Hard of hearing mode is selected.

English is the default in cases where the selected language is unavailable in the broadcast.

You can select these options simply by pressing the SUBT. button on the remote control.

❑

Teletext Language

You can set the Teletext language by selecting the language type.

English is the default in cases where the selected language is unavailable in the broadcast.

: Sets the subtitle mode.

+ 53 hidden pages

Samsung PS50A756, PS63A756 User Manual [ru]

User Instructions

Contents

Connecting and Preparing Your TV

Checking Parts

Using the Stand-Base

How to assemble the Stand-Base (depending on the model)

Viewing the Control Panel

Viewing the Connection Panel

Remote Control

Installing Batteries in the Remote Control

Switching On and Off

Placing Your Television in Standby Mode

Viewing the Menus

Using the TOOLS Button

Using the Wheel button

Plug & Play Feature

Channel Control

Storing Channels and channel

Managing Channels

Picture Control

Changing and Resetting the Picture Settings

Viewing Picture-in-Picture

Setting up the TV with your PC

PC Display

Sound Control

Changing the Sound Standard

Selecting the Sound Mode

Function Description
