Page 1

PDP-TELEVISION CONTENTS

1. Precaution

2. Product Specification

3. Disassembly & Reassembly

4. Troubleshooting

5. Exploded View & Part List

6. Wiring Diagram

SERVICE

Manual

PS42A450P2 PS50A450P2

PDP-TELEVISION

Chassis : F53A(P_Europe_HD)_Pyrope Model : PS42A450P2XUA

PS50A450P2XUA

Refer to the service manual in the GSPN (see the rear cover) for the more information.

Page 2

This Service Manual is a property of Samsung Electronics Co.,Ltd.

Any unauthorized use of Manual can be punished under applicable

International and/or domestic law.

Printed in Korea

AA82-05154A

Area Web Site

North America service.samsungportal.com

Latin America latin.samsungportal.com

CIS cis.samsungportal.com

Europe europe.samsungportal.com

China china.samsungportal.com

Asia asia.samsungportal.com

Mideast & Africa mea.samsungportal.com

GSPN (Global Service Partner Network)

Page 3

Table of Contents

Chapter 1 Precaution

■ 1-1 Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

■ 1-2 Servicing Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

■ 1-3 Static Electricity Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

■ 1-4 Installation Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

Chapter 2 Product Specification

■ 2-1 Product Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

■ 2-2 Specifications Analysis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

■ 2-3 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

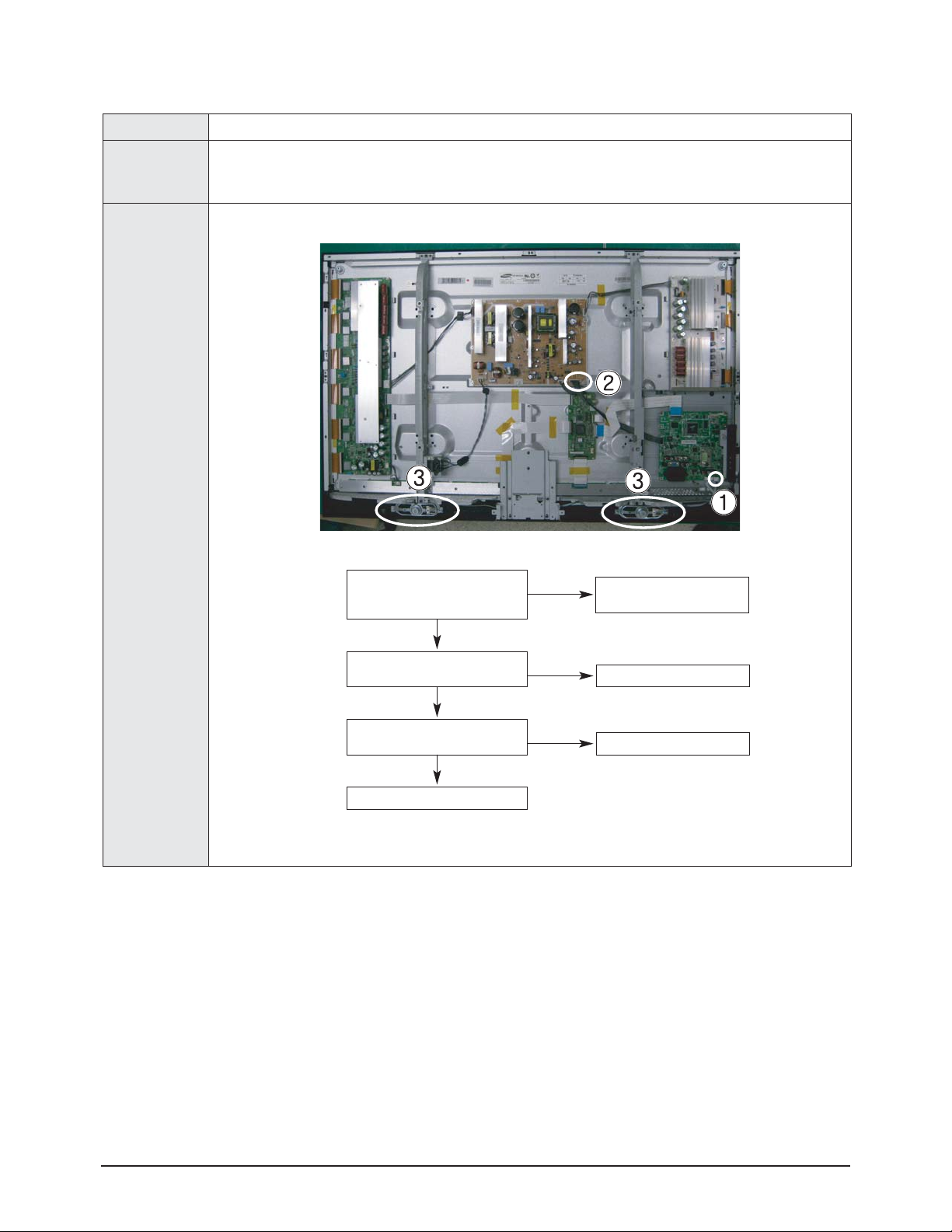

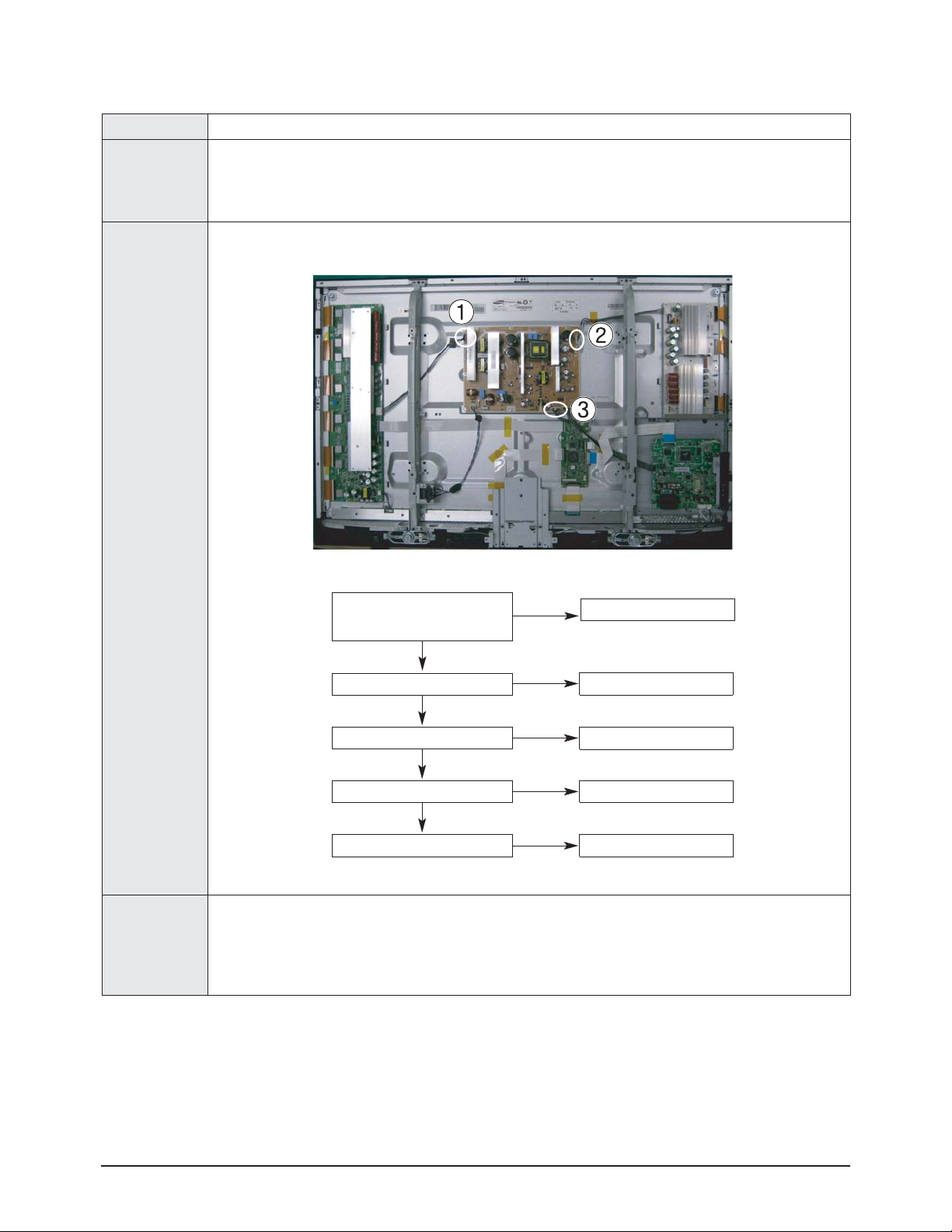

Chapter 3 Disassembly & Reassembly

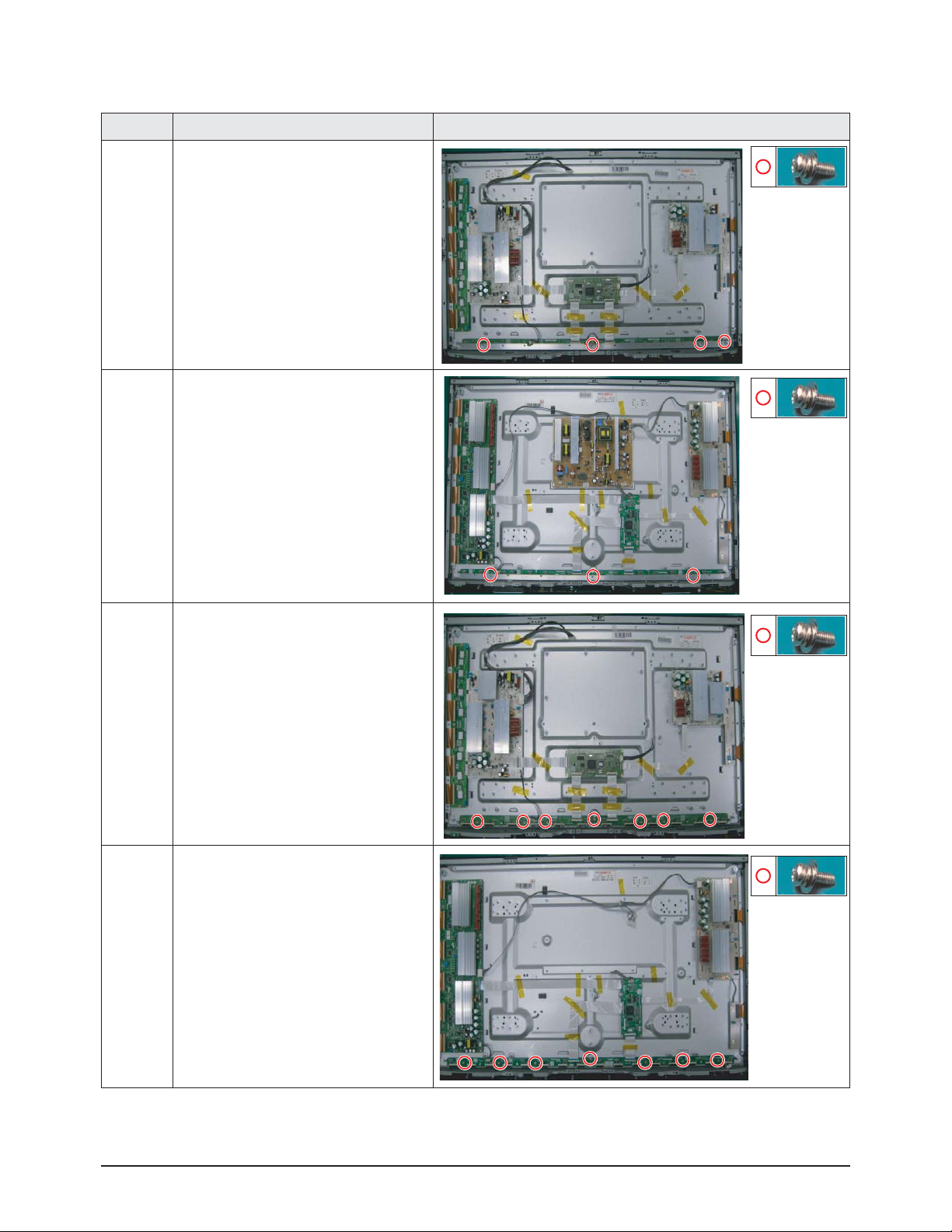

■ 3-1 Overall Disassembly & Reassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

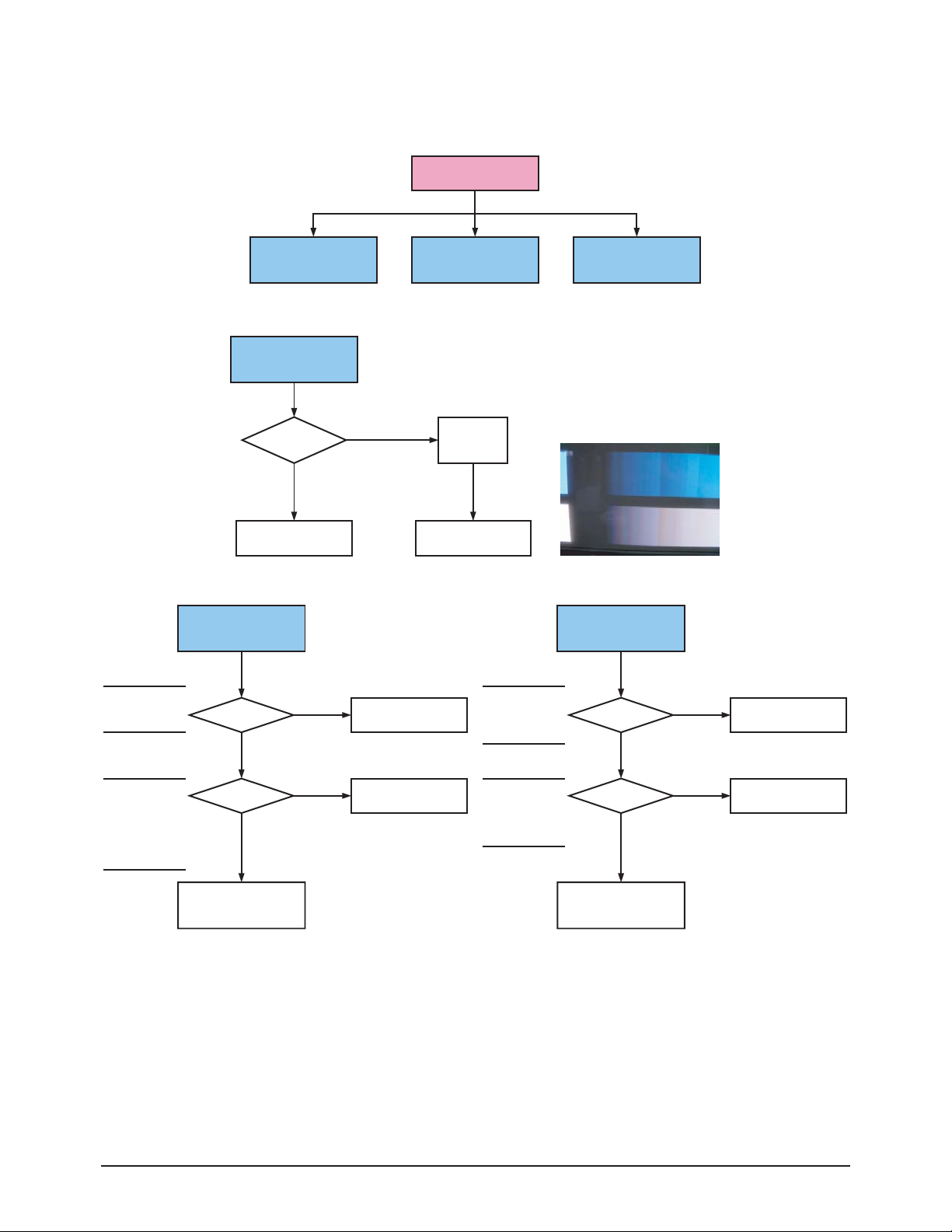

Chapter 4 Troubleshooting

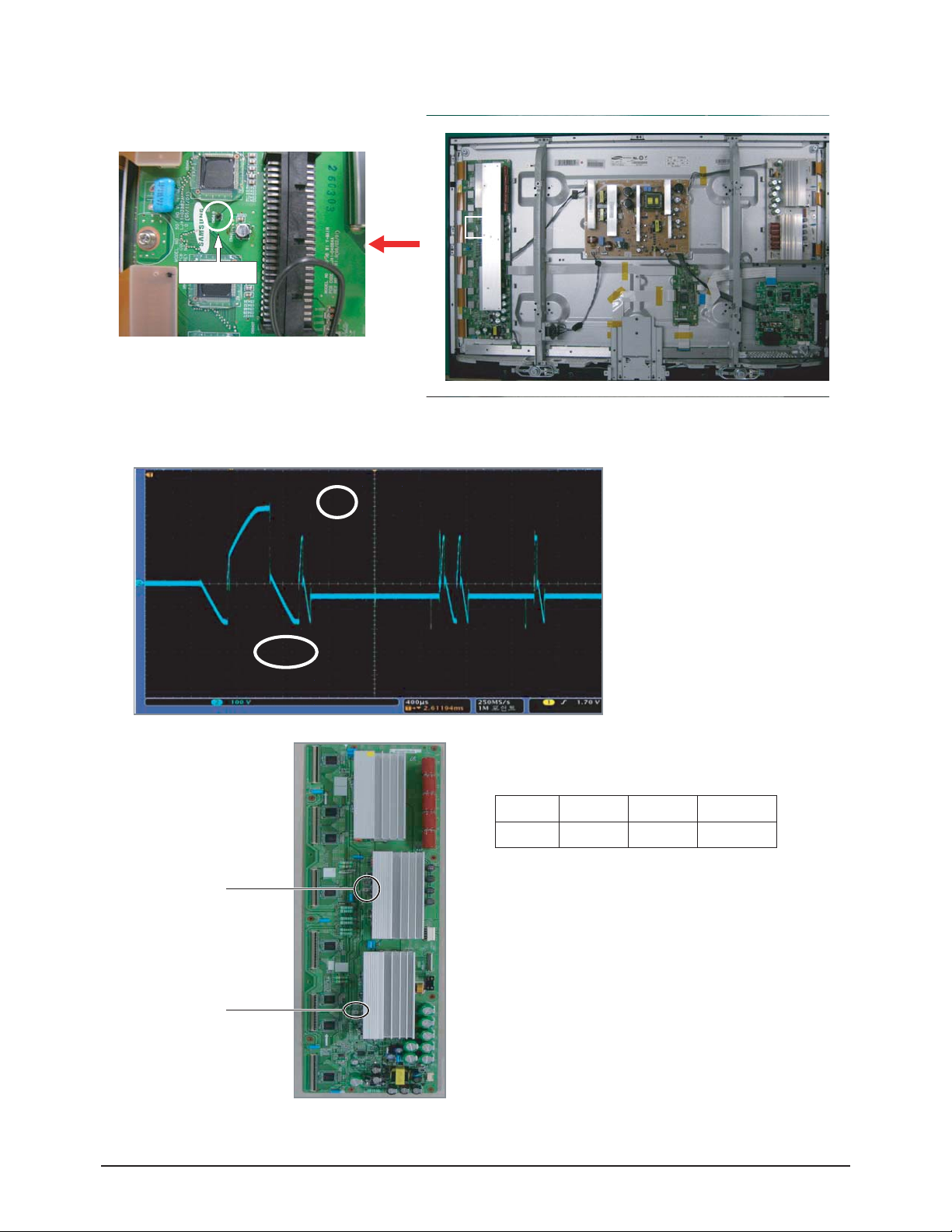

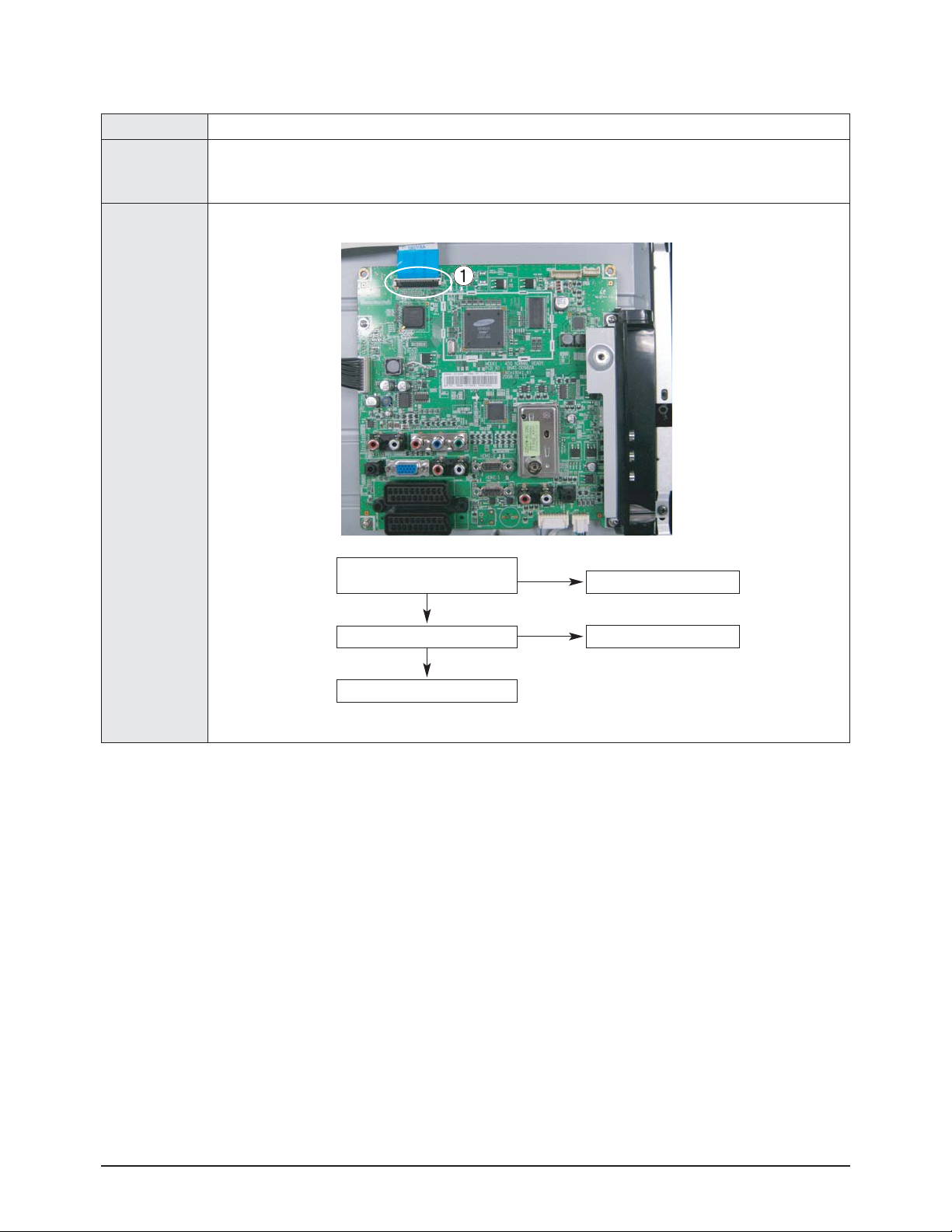

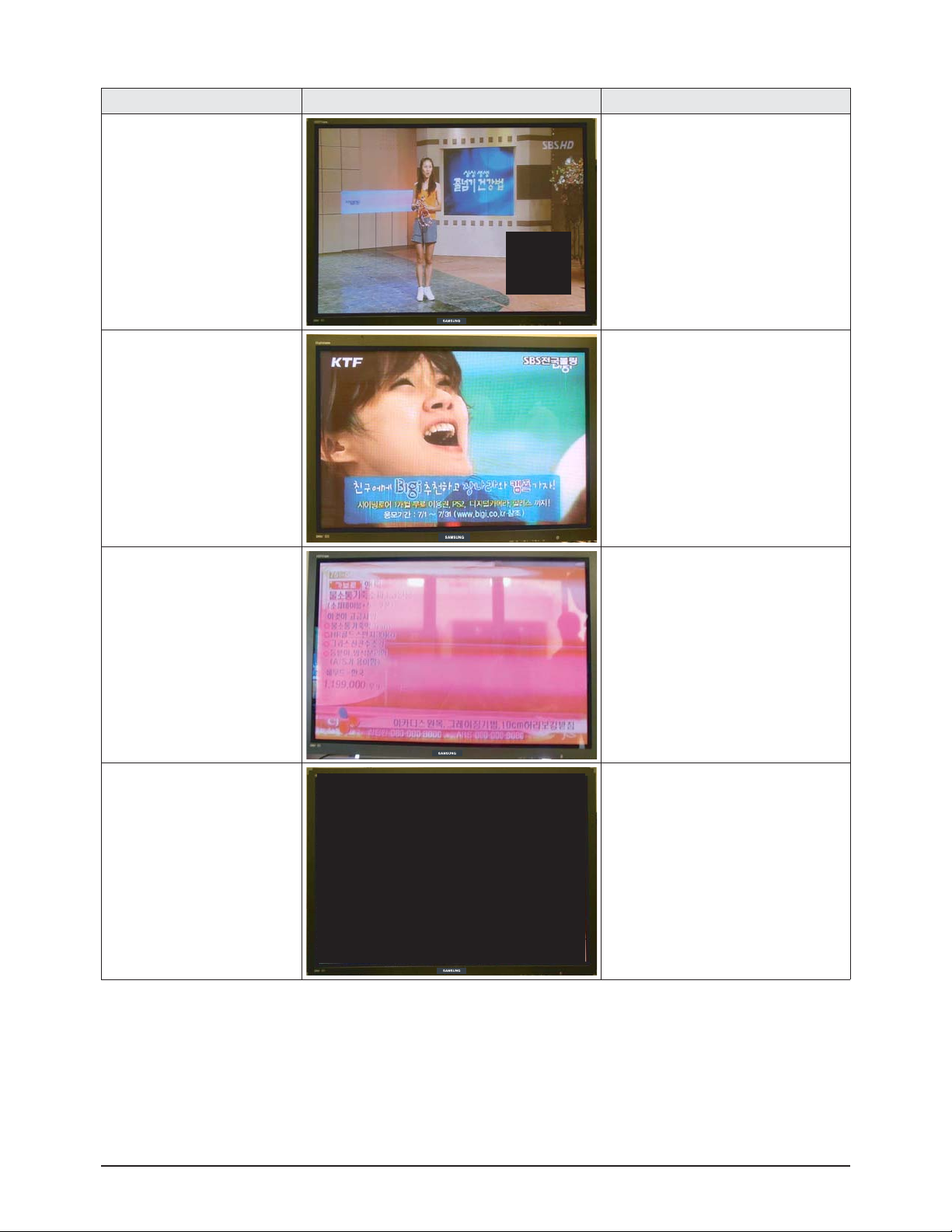

■ 4-1 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

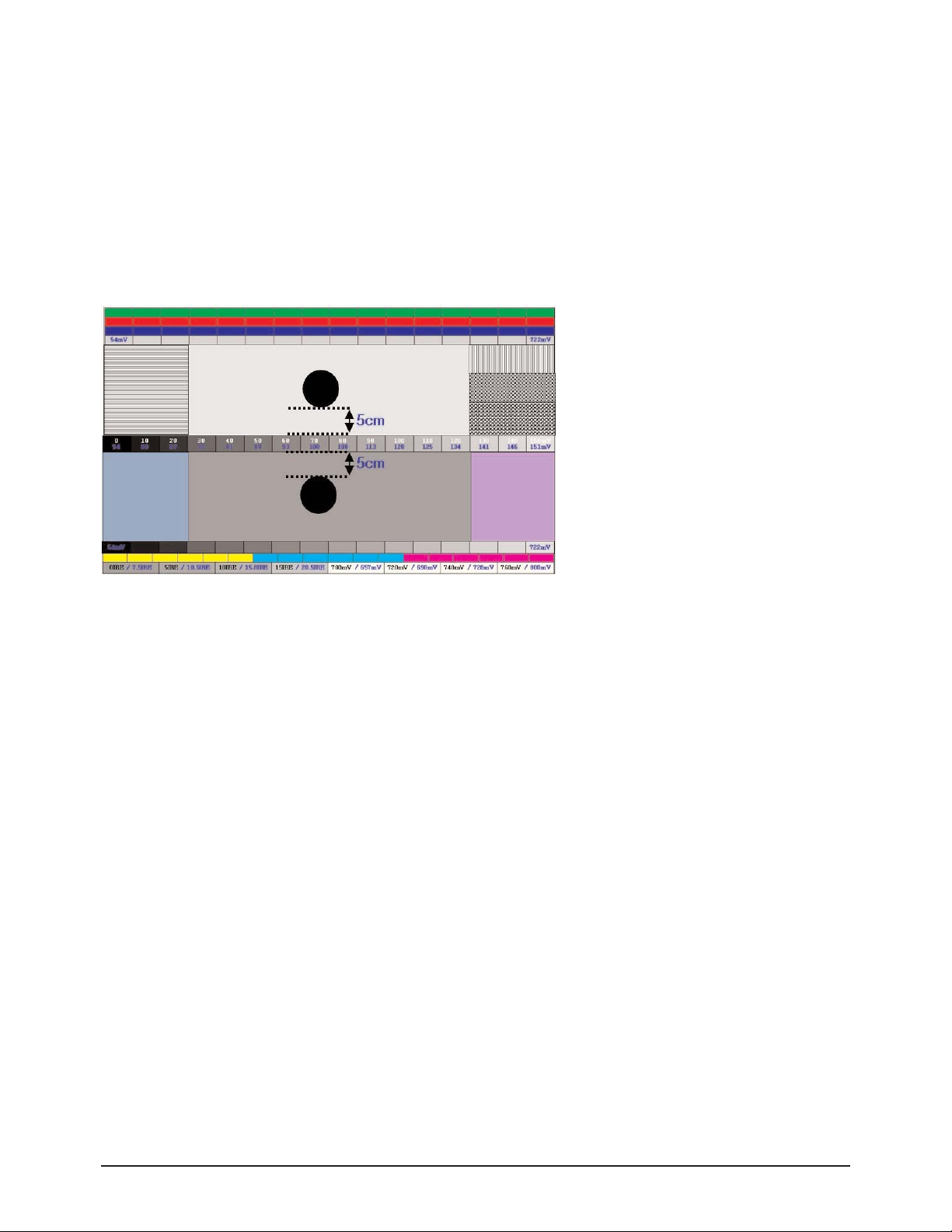

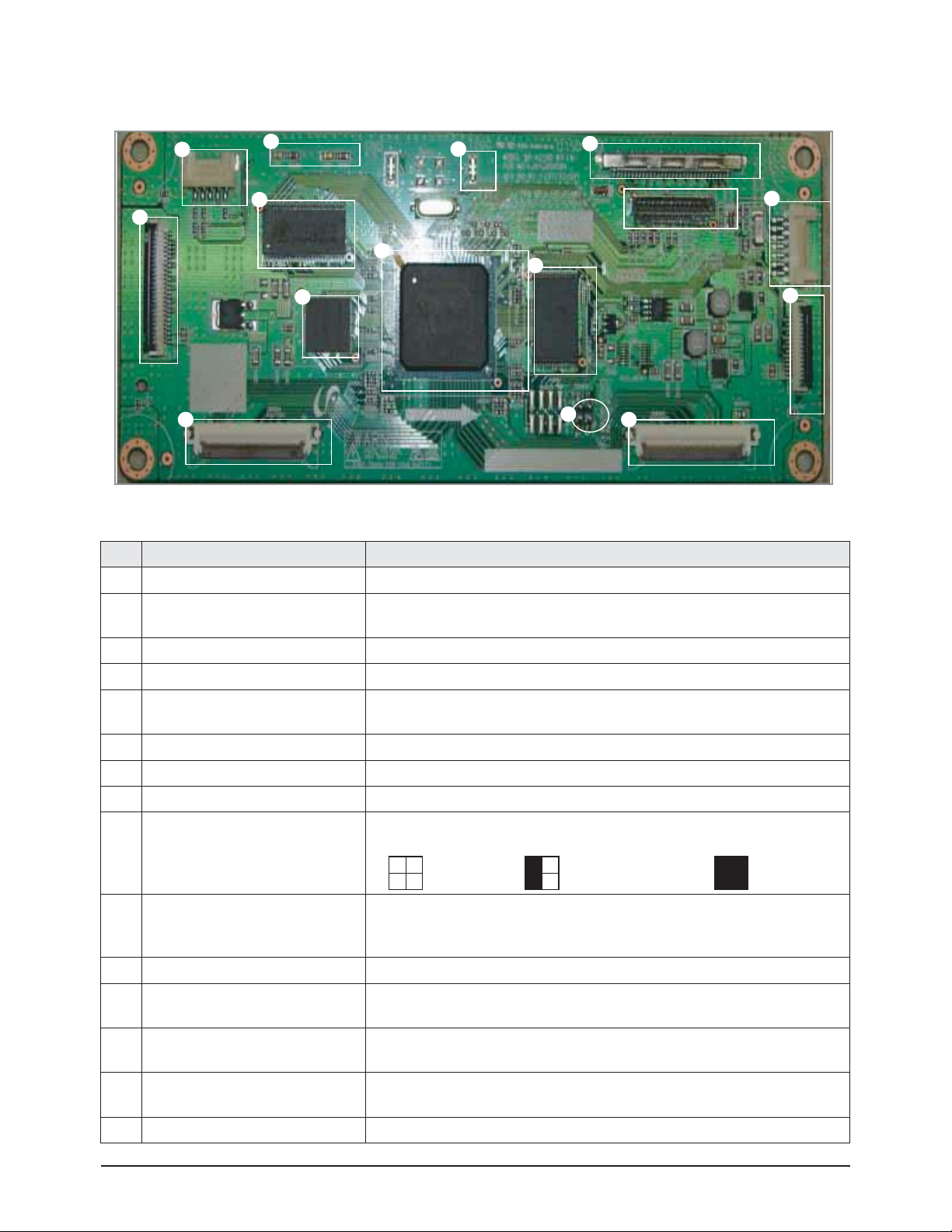

■ 4-2 Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20

■ 4-3 Upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-34

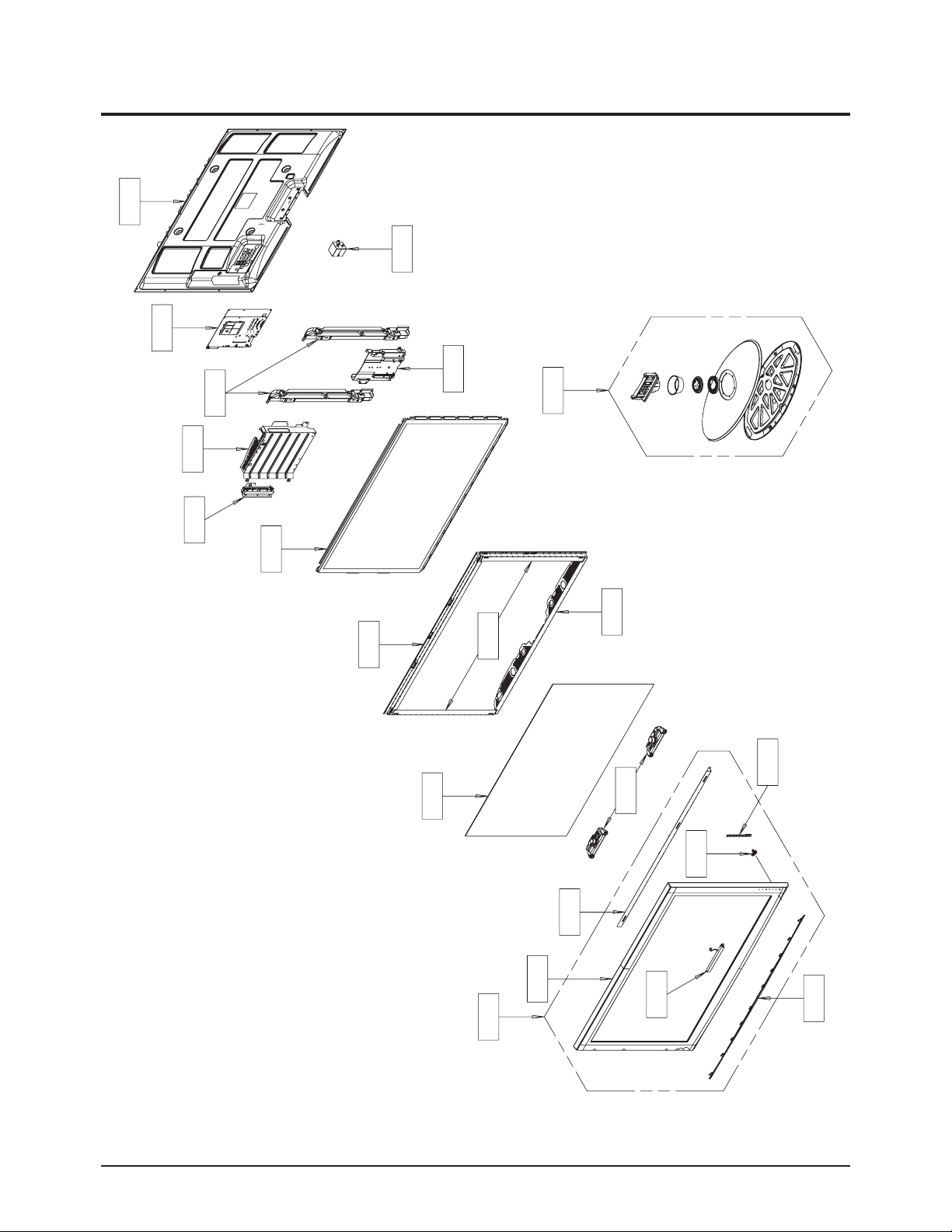

Chapter 5 Exploded View & Part List

■ 5-1 PS42A450P2XUA Exploded View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

■ 5-2 PS50A450P2XUA Exploded View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3

■ 5-3 PS42A450P2XUA Service Item . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

■ 5-4 PS50A450P2XUA Service Item . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6

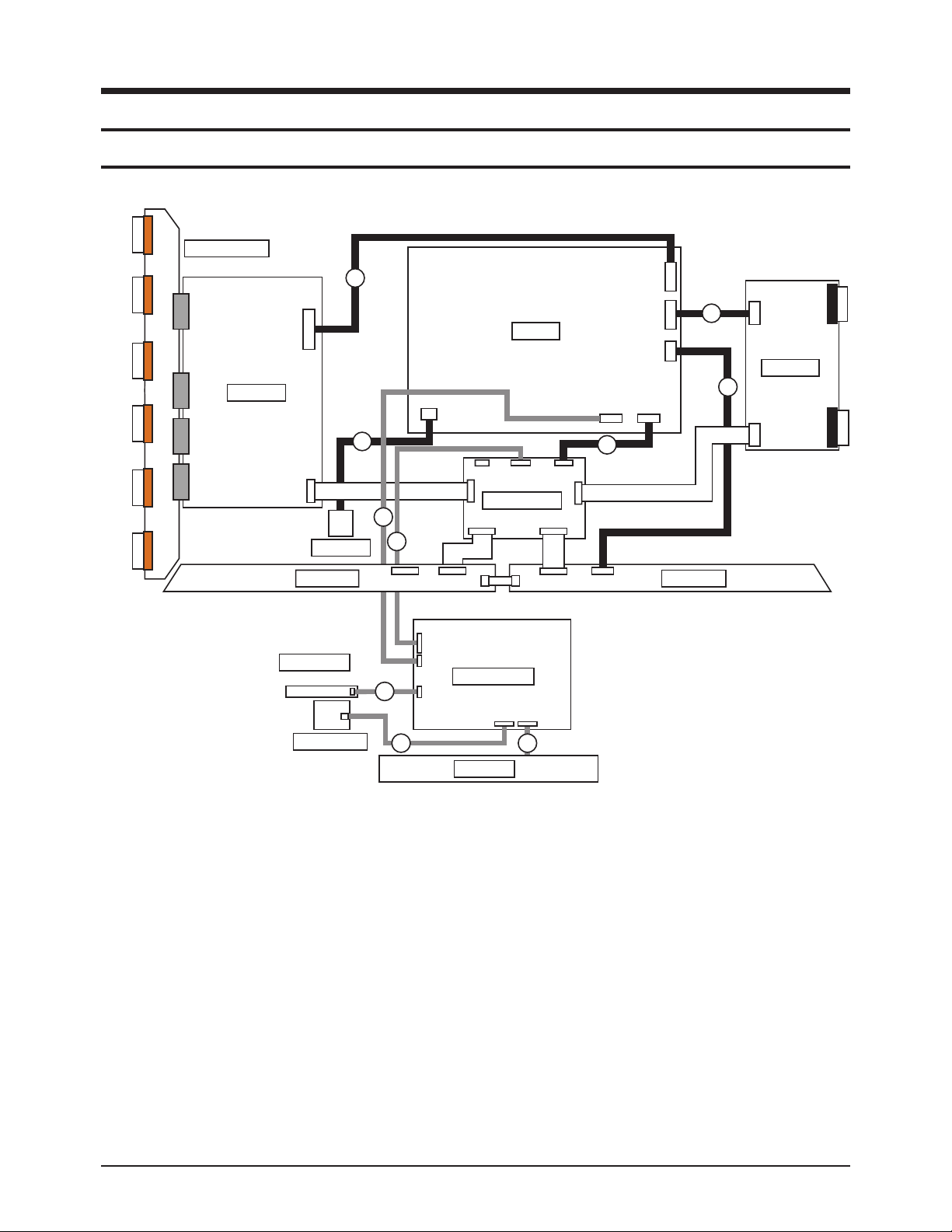

Chapter 6 Wiring Diagram

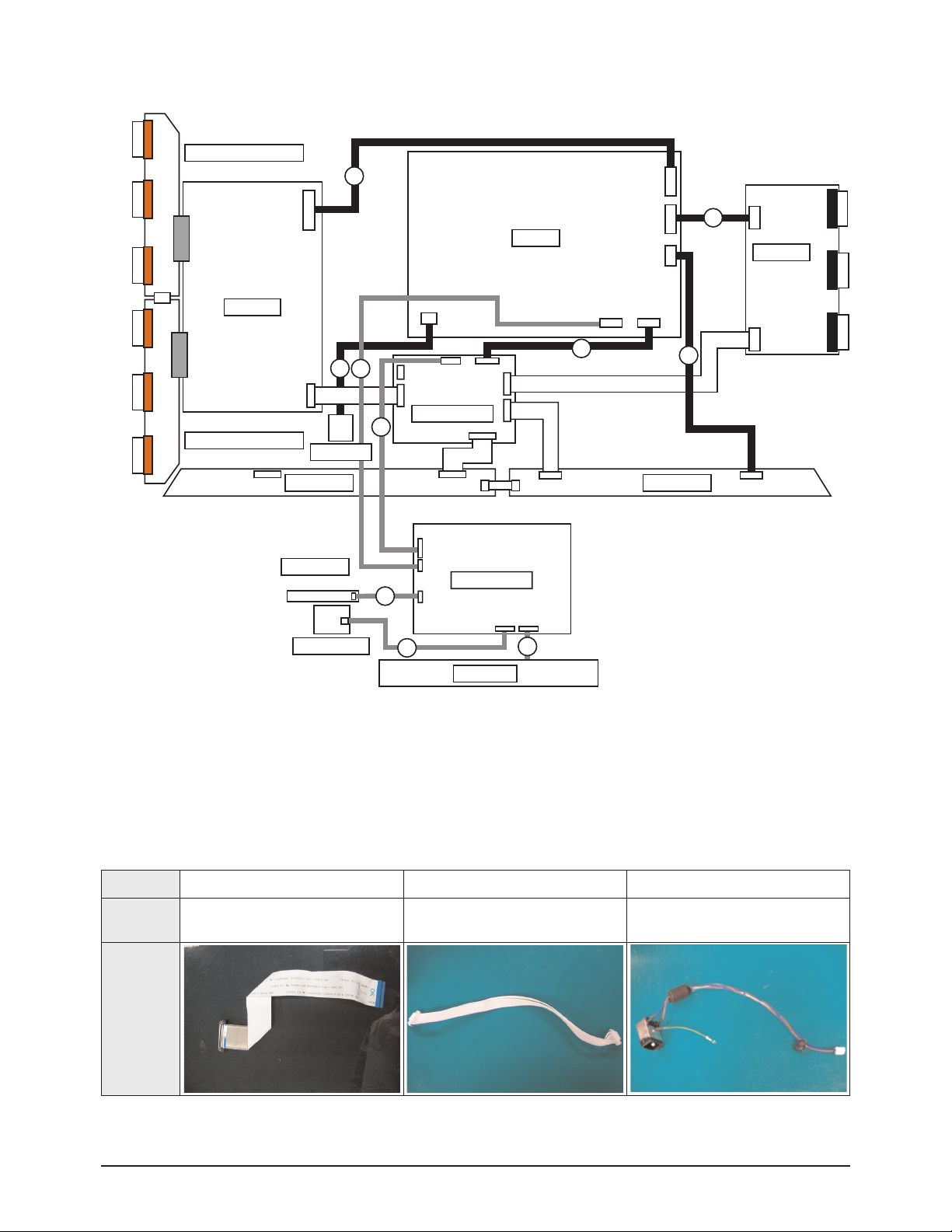

■ 6-1 Overall Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

Page 4

1. Make sure all protective devices are properly installed including non-metallic handles and compartment covers when installing or re-installing the chassis or chassis assemblies.

2. Make sure that no gaps exist between the cabinets for children to insert their fingers in to prevent children from receiving electric shocks. Gaps mentioned above include ventilation holes between the PDP module and the cabinet mask, and the improper installation of the rear cabinet.

Errors may occur when the resistance is below 1.0 ㏁ or over 5.2 ㏁.

In these cases, make sure that the device is repaired before sending it back to the customer.

3. Check for Electricity Leakage (Figure 1-1) Warning: Do not use an insulated transformer for checking the leakage. Use only those current leakage testers or mirroring systems that comply with ANSIC 101.1 and the Underwriter Laboratory's specifications (UL1410,

59.7).

Fig. 1-1 AC Leakage Test

4. Ahigh voltage is maintained within the specified limits using safety parts, calibration and tolerances. When voltage exceeds the specified limits, check each special part.

5. Warning for Engineering Changes: Never make any changes or additions to the circuit design or the internal part for this product. Ex: Do not add any audio or video accessory connectors. This might cause physical damage. Furthermore, any changes or additions to the original design/engineering will invalidate the warranty.

6. Warning - Hot Chassis: Some TV chassis are directly connected to one end of the AC power cord for electrical reasons. Without insulated transformers, the product can only be repaired safely when the chassis is connected to the earth end of the AC power source.

To make sure the AC power cord is properly connected, follow the instructions below. Use the voltmeter to measure the voltage between the chassis and the earth ground. If the measurement is over 1.0V, unplug the AC power cord and change the polarity before reinserting it. Measure the voltage between the chassis and the ground again.

7. Some TV chassis are shipped with an additional secondary grounding system. The secondary system is adjacent to the AC power line. These two grounding systems are separated in the circuit using an unbreakable/unchangeable insulation material.

8. When any parts, material or wiring appear overheated or damaged, replace them with new immediately. When any damage or overheating is detected, correct this immediately and make a regular check of possible errors.

9. Check for the original shape of the lead, especially that of the antenna wiring, any sharp edges, the AC power and the high voltage power. Carefully check if the wiring is too tight, incorrectly placed or loose. Never change the space between the part and the printed circuit board. Check the AC power cord for possible damages. Keep the part or the lead away from any heat-emitting materials.

Precaution

Samsung Electronics 1-1

To avoid possible damage, electric shocks or exposure to radiation, follow the instructions below with regard to safety, installation, service and ESD.

1. Precaution

1-1 Safety Precautions

(READING SHOULD

DEVICE UNDER

TEST

EXPOSED METAL

2-WIRE CORD

ALSO TEST WITH

PLUG REVERSED (USING AC ADAPTER PLUG AS REQUIRED)

TEST ALL

SURFACES

LEAKAGE CURRENT

TESTER

NOT BE ABOVE

0.5mA)

EARTH

GROUND

Page 5

10. Safety Indication: Some electrical circuits or device related materials require special attention to their safety features, which cannot be viewed by the naked eye. If an original part is replaced with another irregular one, the safety or protective features will be lost even if the new one has a higher voltage or more watts.

Critical safety parts should be bracketed with ( ). Use only regular parts for replacements (in particular, flame resistance and dielectric strength specifications). Irregular parts or materials may cause electric shock or fire.

Precaution

1-2 Samsung Electronics

Page 6

1. The service instructions are printed on the cabinet, and should be followed by any service personnel.

2. Make sure to unplug the AC power cord from the power source before starting any repairs. (a) Remove or re-install parts or assemblies. (b) Disconnect the electric plug or connector, if any. (c) Connect the test part in parallel with the electrolytic capacitor.

3. Some parts are placed at a higher position than the printed board. Insulated tubes or tapes are used for this purpose. The internal wiring is clamped using buckles to avoid contact with heat emitting parts. These parts are installed back to their original position.

4. After the repair, make sure to check if the screws, parts or cables are properly installed. Make sure no damage is caused to the repaired part and its surroundings.

5. Check for insulation between the blade of the AC plug and that of any conductive materials (i.e. the metal panel, input terminal, earphone jack, etc).

6. Insulation Check Process: Unplug the power cord from the AC source and turn the switch on. Connect the insulating resistance meter (500v) to the AC plug blade.

The insulating resistance between the blade of the AC plug and that of the conductive material should be more

than 1 ㏁.

7. Any B+ interlock should not be damaged. If the metal heat sink is not properly installed, no connection to the AC power should be made.

8. Make sure the grounding lead of the tester is connected to the chassis ground before connecting to the positive lead. The ground lead of the tester should be removed last.

9. Beware of risks of any current leakage coming into contact with the high-capacity capacitor.

10. The sharp edges of the metal material may cause physical damage, so protect yourself by wearing gloves during the repair.

11. Due to the nature of plasma display panels, partial afterimages may appear if a still picture is displayed on the screen for a long period of time. This is caused by brightness deterioration due to the storage effect of the panel, and to prevent this from happening, we recommend that the brightness and contrast are reduced. (e.g.) Contrast: 25, Brightness: 50

Precaution

Samsung Electronics 1-3

Warning 1: First carefully read the "Safety Instruction" in this service manual.

When there is a conflict between the service and the safety instructions, follow the safety instruction at all times.

Warning 2: Any electrolytic capacitor with the wrong polarity will explode.

1-2 Servicing Precautions

Page 7

1-3 Static Electricity Precautions

1. Some semi-conductive ("solid state") devices are vulnerable to static electricity. These devices are known as ESD. ESD includes the integrated circuit and the field effect transistor. To avoid any materials damage from electrostatic shock, follow the instructions described below.

2. Remove any static electricity from your body by connecting the earth ground before handling any semi-conductive parts or assemblies. Alternatively, wear a dischargeable wrist-belt. (Make sure to remove any static electricity before connecting the power source - this is a safety instruction for avoiding electric shock)

3. Remove the ESD assembly and place it on a conductive surface such as aluminum foil to prevent accumulating static electricity.

4. Do not use any Freon-based chemicals. Such chemicals will generate static electricity that causes damage to the ESD.

5. Use only grounded-tip irons for soldering purposes.

6. Use only anti-static solder removal devices. Most solder removal devices do not support an anti-static feature. Asolder removal device without an anti-static feature can store enough static electricity to cause damage to the ESD.

7. Do not remove the ESD from the protective box until the replacement is ready. Most ESD replacements are covered with lead, which will cause a short to the entire unit due to the conductive foam, aluminum foil or other conductive materials.

8. Remove the protective material from the ESD replacement lead immediately after connecting it to the chassis or circuit assembly.

9. Take extreme caution in handling any uncovered ESD replacements. Actions such as brushing clothes or lifting your leg from the carpet floor can generate enough static electricity to damage the ESD.

Precaution

1-4 Samsung Electronics

CAUTION

These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

Page 8

Precaution

Samsung Electronics 1-5

1-4 Installation Precautions

1. For safety reasons, more than two people are required for carrying the product.

2. Keep the power cord away from any heat emitting devices, as a melted covering may cause fire or electric shock.

3. Do not place the product in areas with poor ventilation such as a bookshelf or closet. The increased internal temperature may cause fire.

4. Bend the external antenna cable when connecting it to the product. This is a measure to protect it from being exposed to moisture. Otherwise, it may cause a fire or electric shock.

5. Make sure to turn the power off and unplug the power cord from the outlet before repositioning the product. Also check the antenna cable or the external connectors if they are fully unplugged. Damage to the cord may cause fire or electric shock.

6. Keep the antenna far away from any high-voltage cables and install it firmly. Contact with the high-voltage cable or the antenna falling over may cause fire or electric shock.

7. When connecting the RF antenna, check for a DTV receiving system and install a separate DTV reception antenna for areas with no DTV signal.

8. When installing the product, leave enough space (4") between the product and the wall for ventilation purposes. Arise in temperature within the product may cause fire.

9. When moving a PDP with removable speakers, detach the speakers first before moving the main body. Moving the PDP main body without separating the speakers may cause the speakers to detach, possibly causing damage or injury.

Page 9

1-6 Samsung Electronics

MEMO

Page 10

Product Specification

Samsung Electronics 2-1

2. Product Specification

2-1 Product Specification

Features

Block Specification Major IC Remark

RF Tuner HTM-60/235S xuguang

PDP Module Samsung SDI W3 42"HD/50"HD SAMSUNG SDI

Power Input Voltage: AC 100~240V, 50/60Hz

Video

Scaler

A7MD186B MSTAR

Video Decoder

Sound

Sound AMP NTP3100 Neo Fidelity

Audio CODEC UPD61211GM

Cabinet P450 Design

Specification

Model PS42A450P2 PS50A450P2

Screen Size 42 Inches (16:9) 50 Inches (16:9)

Dimensions (WxHxD) 1055 x 724.9 x 315.9 mm (With Stand) 1230.2 x 812.7 x 315.9 mm (With Stand)

Weight 36.8 kg (With Stand) 44.5 kg (With Stand)

Voltage AC 100~240V, 50/60Hz

Colour System PAL, SECAM, NTSC4.43, NTSC 3.58

Sound System BG, DK, I, M

PC Resolution 1024 x 768 @ 85Hz 1365 x 768 @ 60Hz

ANTENNA input AIR IN (75Ωunbalanced)

VIDEO input

SCART1, SCART2

AV, S-VIDEO

COMPONENT IN (480i/P, 576i/P, 720P, 1080i)

PC IN (MINI D-SUB 15P)

HDMI1, HDM2, HDM3 (480P 60Hz, 576P 50Hz, 720P 50/60Hz, 1080i/P 50/60Hz)

AUDIO input

SCART1, SCART2

Component

DVI

Audio Output AUDIO (L/R), Headphone

Speaker Output 10W + 10W

Page 11

Items SubItems

450P 410C

PS50A450P2 PS42A450P2 PS-50C67HD (Lily2-50HD) PS-42C67HD (Lily2-42HD)

Design

Basic Info

Inch 50" 42" 50" 42"

Chassis Name F53A F53A F33B F33B

Cabinet Name P450 P450 C9 C9

Additional

Feature

IDTV / Ready Ready Ready IDTV IDTV

Motion Judder Canceller No No No No

Speaker Type (Hidden/Side/Array) 2/1 2/1 1/0 1/0

USB spec (Side) No No No No

F. Memory No No No No

UI Smart Smart Smart Smart

DCM No No No No

DLNA No No No No

RSS No No No No

Woofer No No No No

Wi-Fi No No No No

Optical Link No No No No

Wheel Key No No No No

3D No No No No

ACE2 Yes Yes No No

100Hz Yes Yes No No

1080p (24Hz) Input Yes Yes No No

H.264 No No No No

Finland Cable DTV No No No No

HDMI-CEC Yes Yes No No

HDMI Version (1,2/1.3) 1.2 1.2 1.2 1.2

HDMI Rear / Side 2/1 2/1 2/0 2/0

SORT TBD TBD TBD TBD

Picture Size(WSS) TBD TBD TBD TBD

Clone Remote Controller Yes Yes Yes Yes

Auto-Wallmount Support Yes Yes Yes Yes

Analog audio Out (L/R) 1 1 1 1

Remote Controller (Model Code) TM96 TM96 TM95 TM95

Video

Screen Size(inches) 50" 42" 50" 42"

Resolution(Number of Pixels) 1365 x 768 1024 x 768 1365 x 768 1024 x 768

Brightness 1500cd/m2 1500cd/m2 1500cd/m2 1500cd/m2

Ultra FilterBright No No No No

Anti Reflection Yes Yes No No

Contrast Ratio 15000:1 15000:1 15000:1 15000:1

Screen Aspect Ratio(16:9/4:3) 16:9 16:9 16:9 16:9

Viewing Angle over 175o (H/V) over 175o (H/V) over 175o (H/V) over 175o (H/V)

DNIe Yes Yes Yes Yes

Number of colors(expressed) 281T 281T 281T 281T

Grey Level(Gradation) 65536 65536 65536 65536

Cinema Progressive (Film mode) Yes Yes Yes Yes

Digital Comb Filter 3D 3D 3D 3D

Digital Noise Reduction Yes Yes Yes Yes

Low Noise Amplifier No No No No

Audio

Sound Effect System SRS TruSurround XT SRS TruSurround XT SRS TruSurround XT SRS TruSurround XT

Speaker TBD TBD TBD TBD

Sound output (RMS) 10W x 2 10W x 2 10W x 2 10W x 2

Product Specification

2-2 Samsung Electronics

2-2 Specifications Analysis

※○: application, X: non-application

Page 12

Product Specification

Samsung Electronics 2-3

Feature

Anti Burn-in Technology

Yes (APS, All white,

Signal pattern)

Yes (APS, All white,

Signal pattern)

Yes (APS, All white,

Signal pattern)

Yes (APS, All white,

Signal pattern)

Power Saving

"Yes (Off / High / Middle /

Low)Multi Brightness Mode

"Yes (Off / High / Middle /

Low)Multi Brightness Mode

"Yes (Off / High / Middle /

Low)Multi Brightness Mode

"Yes (Off / High / Middle /

Low)Multi Brightness Mode

Picture-In-Picture Yes Yes Yes Yes

Clock & On/Off Timer Yes Yes Yes Yes

Sleep Timer Yes (Max 180Min) Yes (Max 180Min) Yes (Max 180Min) Yes (Max 180Min)

Teletext(TTX) 1.5(1000P) 1.5(1000P) 1.5(1000P) 1.5(1000P)

V-Chip No No No No

Blue Screen On/Off No No No No

Melody On-Off Yes Yes Yes Yes

Plug & Play Yes Yes Yes Yes

Absent Power Off Yes Yes Yes Yes

Auto Power Off Yes (15Min after No Signal) Yes (15Min after No Signal) Yes (15Min after No Signal) Yes (15Min after No Signal)

OSD Language 21-Language 21-Language 21-Language 21-Language

Favorite Channel List No No No No

Still Picture No No No No

Sports Mode / Game mode Yes Yes Yes Yes

System

Tuners

HTM-6C/235S,HTM-

6C/235S,PAL

BG,DK,I,SECAM,181CH,38.9MHz

,2.5V,75 ohm,

75ohm,DIN,ASYMM,5V,TR,

38.9MHz,33V

HTM-6C/235S,HTM-

6C/235S,PAL

BG,DK,I,SECAM,181CH,38.9MHz

,2.5V,75 ohm,

75ohm,DIN,ASYMM,5V,TR,

38.9MHz,33V

NTSC 4.43, PAL-B/G, D/K, I, I/I', SECAM-B/G, D/K, L/L`, AV Multi

NTSC 4.43, PAL-B/G, D/K, I, I/I',

SECAM-B/G, D/K, L/L`, AV Multi

POD (Digital Cable Ready) No No No No

Input & Output

(sid0e)

Composite (AV) 1 1 0 0

Y/C (S-Video) 1 1 0 0

Headphone(Earphone) 1 1 0 0

WISELINK (Multi Memory Slot) No No No No

WISELINK (USB) No No No No

(HDMI) 1 1 0 0

PictBridge No No No No

Input & Output

(back)

RF input 1 1 1 1

RF output No No No No

Composite (AV) No No No No

S-Video No No No No

Component (Y/Pb/Pr) 1 1 1 1

Euro Scart 2 2 2 2

PC input (D-sub) 1 1 1 1

HDMI 2 2 1 1

Motorized Mount Control Yes Yes Yes Yes

Video Monitor Out No No No No

Audio Monitor Out 1 1 1 1

Digital Audio (Coaxial) No No No No

Digital Audio (Optical) Yes Yes Yes Yes

Power

Power Supply 220~240V (50/60Hz) 220~240V (50/60Hz) 220~240V (50/60Hz) 220~240V (50/60Hz)

Operation Power Consumption TBD TBD TBD TBD

Stand-By Power Consumption UNDER 3W UNDER 3W UNDER 3W UNDER 3W

Master S/W TBD TBD TBD TBD

Energy Star Yes Yes Yes Yes

Panel Life Time 60,000 hrs 60,000 hrs 60,000 hrs 60,000 hrs

Accessory

Remote Control TM96B TM96B TM96 TM96

RF Cable No No No No

User Manual Yes Yes Yes Yes

Battery 2EA(AAA) 2EA(AAA) 2EA(AAA) 2EA(AAA)

Power Cable Yes Yes Yes Yes

Stand Yes Yes Yes Yes

Speaker Integraded Integraded Integraded Integraded

Page 13

Product Specification

2-4 Samsung Electronics

2-3 Accessories

Accessories Item Item code Remark

Supplied Accessories

Remote Control

Batteries

BN59-00685A

4301-000103

Samsung Service center

Power Cord 3903-000145

Owner's Instructions BN68-01417F

Warranty Card

Registration Card

Safety Guide Manual

AA68-03724B

AA68-03242K

Ferrite Core for

Earphone/Power Cord

3301-001110

Ferrite Core for

S-VIDEO/Power Cord

3301-001305

Accessories that can be purchased

additionally

HDMI Cable

3000mm

BN39-00641A

Electronics Store/

Internal shopping mall

HDMI/DVI cable

3000mm

BN39-00643A

Component Cables BN39-00279A

Scart Cable None

PC Cable 1830mm

PC Audio Cable BN39-00115A

Antenna Cable 2000mm

Page 14

Part Name Description Description Photo

Cover

Rear

① Remove 4 screws. ( )

: M8,L16,ZPC(BLK),SWRCH18A,WP

② Remove 11 screws. ( )

: BH,+,B,M4,L3,ZPC(BLK)

③ Remove 6 screws. ( )

: PH,+,WSP,S,M4,L35,ZPC(BLK)

④ Remove 3 screws. ( )

: BH,+,S,M4,L10,ZPC(BLK)

⑤ Remove the Cover Rear.

: Please lay the PDP unit face down on a

soft surface when removing the stand.

Disassembly & Reassembly

Samsung Electronics 3-1

3. Disassembly & Reassembly

3-1 Overall Disassembly & Reassembly

3-1-1 Separation of ASSY COVER P-REAR

Notice

- Be sure to separate the power cord before disassembling the unit.

- Discharge the capacitors first when separating PCB's with high capacity capacitors such as SMPS, X Main Board, YMain Board, etc. (Aspark may be generated by the electric charge, and there is danger of electronic shock.)

- Check that the cables are properly connected referring to the circuit diagram when disassembling or assembling the unit taking care not to damage the cables.

- Take care not to scratch the Glass Filter in the front.

- Assemble the boards in the reverse order of the disassembly.

- The plasma must be layed down on a flat padded surface for disassembly and reassembly.

3-1-2 Separation of ASSY PCB MISC-MAIN

Part Name Description Description Photo

Main

Board

① Detach all connectors from the Main

Board.

② Remove 6 screws.

: PH,+,WWP,M3,L8,NI PLT

③ Remove the Main Board.

Page 15

Disassembly & Reassembly

3-2 Samsung Electronics

3-1-3 Separation of FILTER-EMI AC LINE

Part Name Description Description Photo

FILTER-

EMI

AC LINE

① Detach connector from Main SMPS.

② Remove 1 screws. ( )

: BH,+,S,M4,L10,ZPC(BLK)

③ Remove FILTER-EMI AC LINE.

3-1-4 Separation of BRACKET-PCB

Part Name Description Description Photo

Bracket

PCB

① Remove 2 screw. ( )

: BH,+,B,M4,L3,ZPC(BLK)

② Remove 1 screws. ( )

: BH,+,S,M4,L10,ZPC(BLK)

③ Remove 1 screws. ( )

: BH,+,S,M4,L10,ZPC(BLK)

④ Remove the BRACKET-PCB.

Page 16

Disassembly & Reassembly

Samsung Electronics 3-3

3-1-5 Separation of BRACKET-PCB

Part Name Description Description Photo

Bracket

PCB

① Remove 2 screw. ( )

: BH,+,B,M4,L3,ZPC(BLK)

② Remove 2 screws. ( )

: BH,+,S,M4,L10,ZPC(BLK)

① Remove 2 screws. ( )

: BH,+,S,M4,L10,ZPC(BLK)

② Remove 2 screws. ( )

: BH,+,S,M4,L10,ZPC(BLK)

Page 17

Disassembly & Reassembly

3-4 Samsung Electronics

3-1-6 Separation of ASSY BRACKET P-WALL

Part Name Description Description Photo

42"

Wall

Bracket

① Remove 2 screws. ( )

: BH,+,B,M4,L3,ZPC(BLK)

② Remove 2 screws. ( )

: BH,+,S,M4,L10,ZPC(BLK)

③ Remove 4 screws. ( )

: BH,+,S,M4,L10,ZPC(BLK)

④ Remove Wall Bracket.

: Please lay the PDP panel face down

on a soft surface when separating front cover.

50"

Wall

Bracket

① Remove 2 screws. ( )

: BH,+,B,M4,L3,ZPC(BLK)

② Remove 2 screws. ( )

: BH,+,S,M4,L10,ZPC(BLK)

③ Remove 4 screws. ( )

: BH,+,S,M4,L10,ZPC(BLK)

④ Remove Wall Bracket.

: Please lay the PDP panel face down

on a soft surface when separating front cover.

Page 18

Disassembly & Reassembly

Samsung Electronics 3-5

3-1-7 Separation of ASSY SPEAKER P

Part Name Description Description Photo

42"

Speaker

① Remove 4 screws.

: BH,+,WP,B,M4.0,L3,ZPC(BLK),

SWRCH18A

② Remove the Speaker.

50"

Speaker

① Remove 4 screws.

: BH,+,WP,B,M4.0,L3,ZPC(BLK),

SWRCH18A

② Remove the Speaker.

3-1-8 Separation of ASSY BLUE P

Part Name Description Description Photo

42"

① Detach all connectors from the

Assy Blue p.

50"

① Detach all connectors from the

Assy Blue p.

Disconnect

Page 19

Disassembly & Reassembly

3-6 Samsung Electronics

3-1-10 Separation of ASSY PDP MODULE P-LOGIC MAIN BOARD

Part Name Description Description Photo

42"

Logic

Board

① Detach all connectors from the Logic

Main Board.

② Remove 4 screws.

: WSP,PH,+,M3,L8,NI PLT

③ Remove the Logic Main Board.

50"

Logic

Board

① Detach all connectors from the Logic

Main Board.

② Remove 4 screws.

: WSP,PH,+,M3,L8,NI PLT

③ Remove the Logic Main Board.

3-1-9 Separation of SMPS-PDP TV

Part Name Description Description Photo

42"/50"

SMPS

① Detach all connectors from the SMPS.

② Remove 8 screws.

: PH,+,WWP,M3,L8,NI PLT

③ Remove the SMPS.

: Wear gloves when handling the power

board as there may be some remaining electrical charge in the capacitor. Specifically, avoid touching any part of the capacitor.

Page 20

Disassembly & Reassembly

Samsung Electronics 3-7

3-1-11 Separation of ASSY PDP MODULE P-X MAIN BOARD

Part Name Description Description Photo

Flat Cable

① Detach all Connectors from the X-Main

Board.

※ To separate the Flat Cable of the

X-Board, press the upper and the lower sides of the connector.

42"

X-Main

Board

① Remove 6 screws.

: PH,+,WWP,M3,L8,NI PLT

② Remove the X-Main Board.

50"

X-Main

Board

① Remove 7 screws.

: PH,+,WWP,M3,L8,NI PLT

② Remove the X-Main Board.

Page 21

Disassembly & Reassembly

3-8 Samsung Electronics

3-1-12 Separation of ASSY PDP MODULE P-Y MAIN BOARD

Part Name Description Description Photo

Flat Cable

① Detach the 6 scan board connectors

from the panel by pulling the holder from both the top and bottom ends.

42"

Y-Scan

Board

① Remove 3 screws.

: PH,+,WWP,M3,L8,NI PLT

50"

Y-Scan

Board

① Remove 5 screws.

: PH,+,WWP,M3,L8,NI PLT

Page 22

Disassembly & Reassembly

Samsung Electronics 3-9

Part Name Description Description Photo

50"

Y-Main

Board

① Remove 9 screws.

: PH,+,WWP,M3,L8,NI PLT

② Detach all connectors from the Y-Main Board.

42"

Y-Main

Board

① Remove 4 screws.

: PH,+,WWP,M3,L8,NI PLT

② Detach all connectors from the Y-Main Board.

Page 23

Disassembly & Reassembly

3-10 Samsung Electronics

3-1-13 Separation of ASSY PDP MODULE P-ADDRESS BUFFER BOARD

Part Name Description Description Photo

42"

Still Bar

① Remove 4 screws.

: PH,+,WWP,M3,L8,NI PLT

② Remove the Still Bar.

50"

Still Bar

① Remove 3 screws.

: PH,+,WWP,M3,L8,NI PLT

② Remove the Still Bar.

42" Buffer Board

① Detach the all connectors from the

buffer board.

② Remove 7 screws.

: PH,+,WWP,M3,L8,NI PLT

③ Remove the E-Board and F-Board.

50" Buffer Board

① Detach the all connectors from the

buffer board.

② Remove 7 screws.

: PH,+,WWP,M3,L8,NI PLT

③ Remove the E-Board and F-Board.

Page 24

Disassembly & Reassembly

Samsung Electronics 3-11

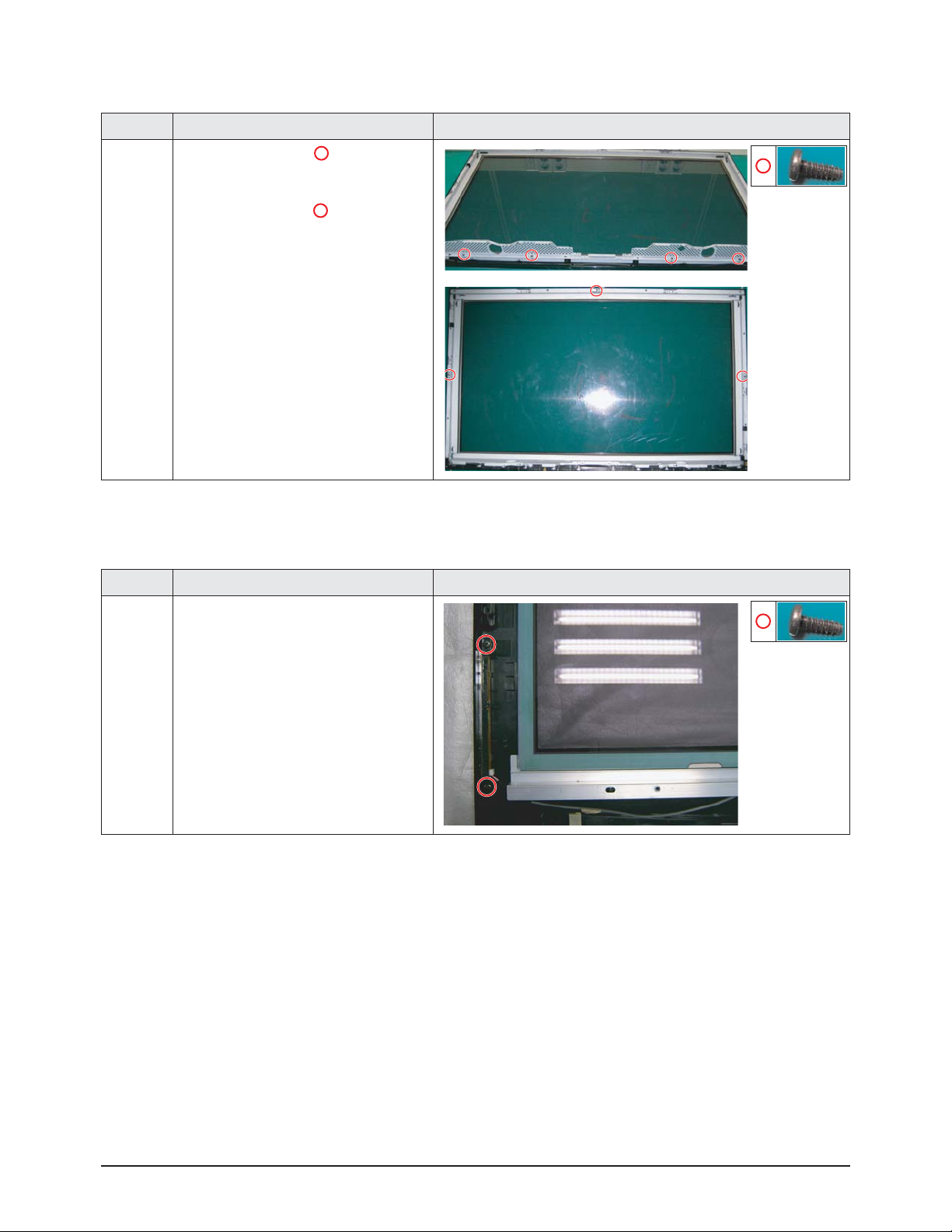

3-1-15 Separation of ASSY PCB FUNCTION

Part Name Description Description Photo

Function

Board

① Remove 2 screws.

: BH,+,B,M4,L3,ZPC(BLK)

② Remove the Function Board.

3-1-14 Separation of ASSY PANEL BRACKETS

Part Name Description Description Photo

Panel

Brackets

① Remove 4 screws. ( )

: BH,+,B,M4,L3,ZPC(BLK)

② Remove 3 screws. ( )

: BH,+,S,M4,L10,ZPC(BLK)

③ Remove the Side Panel Brackets.

Page 25

3-12 Samsung Electronics

MEMO

Page 26

Troubleshooting

Samsung Electronics 4-1

4-1-1 First Checklist for Troubleshooting

1. Check the various cable connections first.

- Check to see if there is a burnt or damaged cable.

- Check to see if there is a disconnected or loose cable connection.

- Check to see if the cables are connected according to the connection diagram.

2. Check the power input to the Main Board.

3. Check the voltage in and out between the SMPS ↔ Main Board, between the SMPS ↔ X, YMain Board, and between the Logic Boards.

4. Troubleshooting

4-1 Troubleshooting

Page 27

Troubleshooting

4-2 Samsung Electronics

4-1-2 Checkpoints by Error Mode

■

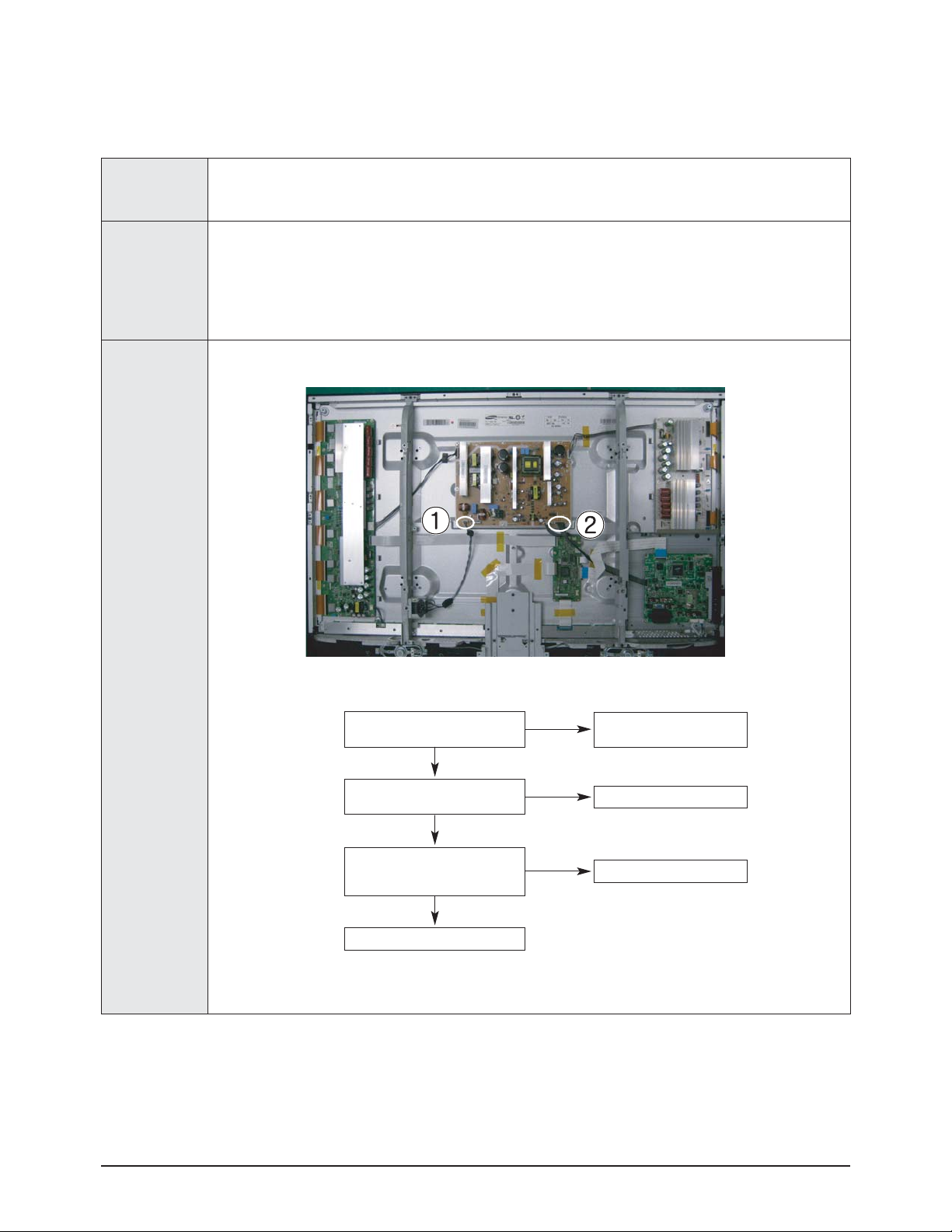

No Power

Symptom

- The LEDs on the front panel do not work when connecting the power cord.

- The SMPS relay does not work when connecting the power cord.

- The unit appears to be dead.

Major Checklist

The SMPS relay or the LEDs on the front panel does not work when connecting the power cord if the cables are improperly connected or the Main Board or SMPS is not functioning. In this case, check the following:

- Check the internal cable connection.

- Check the fuses.

- Check the output voltage of the SMPS.

- Replace the Main Board.

Troubleshooting

Procedures

Is the AC IN socket connector and

the Main SMPS CN800 connected?

The AC IN socket connector and

the Main SMPS CN800 connected

Is the Fuse (F801S) of the Main

SMPS Power Input Part blown?

Replace Fuse (F801S)

Replace the Main SMPS

CN801

Check the STD5V vOLTAGE

Check PS_ON voltage if it is 0V

Replace the Main Board

①

②

Yes

Page 28

Troubleshooting

Samsung Electronics 4-3

■

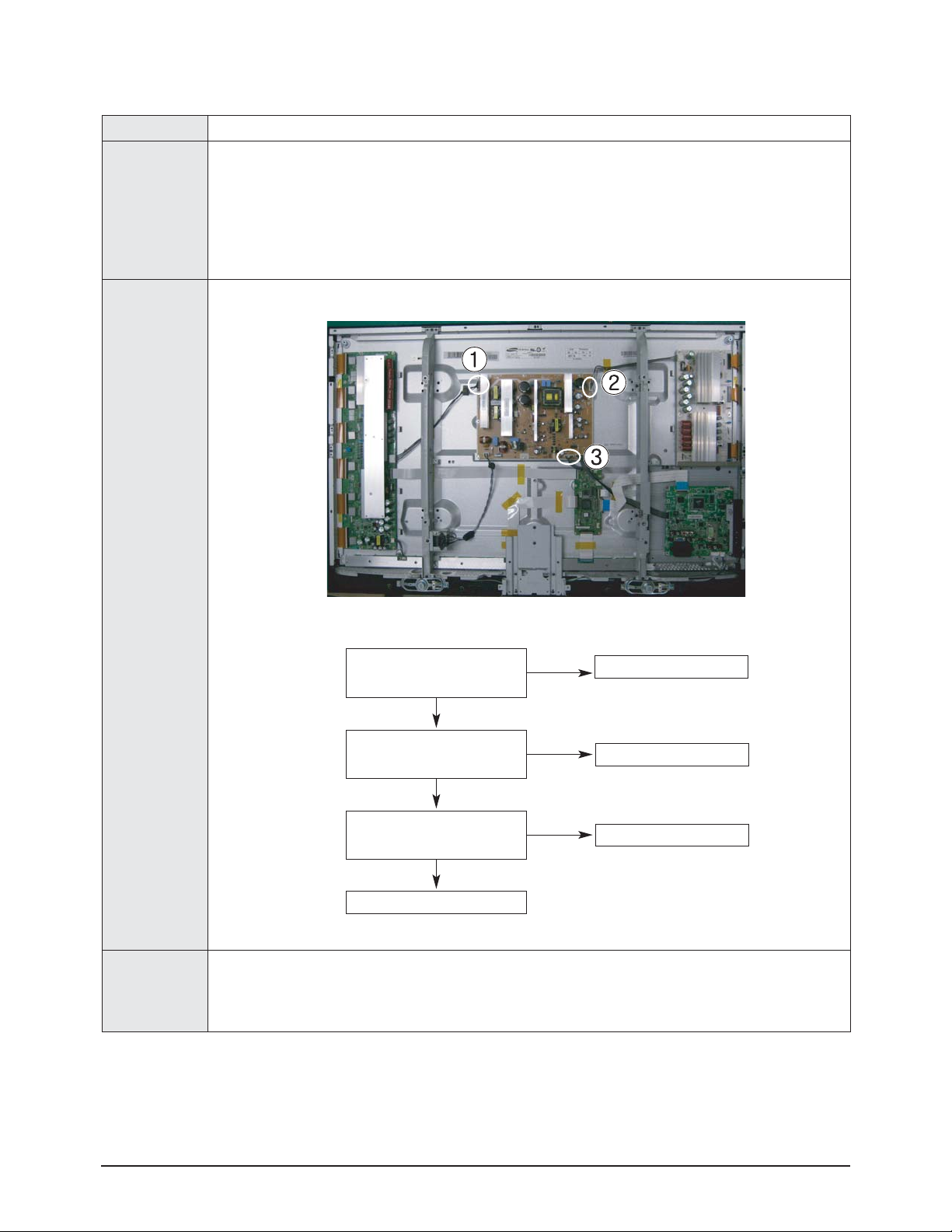

When the unit is repeatedly turning on and off

Symptom - The SMPS relay is repeatedly turning on and off.

Major Checklist

In general, the SMPS relay repeatedly turns on and off by the protection function due to a defect on a board connected to the SMPS.

- Disconnect all cables from the SMPS, operate the SMPS alone and check if the SMPS works properly and if each voltage output is correct.

- If the symptom continues even when SMPS is operated alone, replace the SMPS.

- If the symptom is not observed when operating the SMPS alone, find any defective assemblies by connecting the cables one by one.

Troubleshooting

Procedures

Caution

When separating and connecting the cables such as CN810, CN809, CN808, CN807 of the Main SMPS, CN4701 of the X Main Board, and CN5707 of the Y Main Board, a spark may be generated by the electric charge of the high capacity capacitor. Therefore, wait some time after disconnecting the power cord from the unit.

Does the symptom continue when

connecting the power after removing

CN810 from the SMPS?

Replace the Y Main Board

Does the symptom continue when

connecting the power after removing

CN809 from the SMPS?

Replace the X Main Board

Replace the Logic Board

Does the symptom continue when

connecting the power after removing

CN807 from the SMPS?

Replace the SMPS

①

②

③

Yes

Page 29

Troubleshooting

4-4 Samsung Electronics

■

No Picture (When audio is normal)

Symptom - Audio is normal but no picture is displayed on the screen.

Major Checklist

- This may happen when the Main Board is functioning but the X, YMain Board, Logic Board, or Y Buffer Boards are not.

- The output voltage of the Main SMPS.

- This may happen when the LVDS cable connecting the Main Board and the Logic Board is disconnected.

Troubleshooting

Procedures

Caution

Are the Vs and Va voltages normal after

removing all cables from the SMPS?

(CN810, CN809, CN808, CN807)

Replace the SMPS

Yes

Did problem improve?

Replace the Y Main Board

Replace the X Main Board

Replace the Logic Board

Replace the Y Scan Board

Yes

Page 30

Troubleshooting

Samsung Electronics 4-5

■■

No Sound

Symptom - Video is normal but there is no sound.

Major Checklist

- When the speaker connectors are disconnected or damaged.

- When the sound processing part of the Main Board is not functioning.

- Speaker defect.

Troubleshooting

Procedures

Is the cable connection between the

Main Board and the speaker

properly connected?

Connect the cable properly or

replace the cable, if necessary.

Is the output voltage of SMPS normal?

(CN801 #13)

Replace the SMPS

Replace the Main Board

Is the speaker output terminal

of the Main Board normal?

Replace the Speaker

①

②

③

Yes

Page 31

Troubleshooting

4-6 Samsung Electronics

■

No Video

Symptom - Anormal/cable network analog broadcast screen is blank or abnormal but OSD is OK.

Major Checklist

- Check the antenna connection settings (Air: NTSC / ATSC, Cable: NTSC)

- Check the CVBS cable connection.

- Check the power input of the Main board.

Troubleshooting

Procedures

Is the antenna connection setting

properly configured?

Configure properly

Replace the SMPS

Check CN6002_P pin2 for +33V

Replace the Main Board

①

Yes

Page 32

Troubleshooting

Samsung Electronics 4-7

■

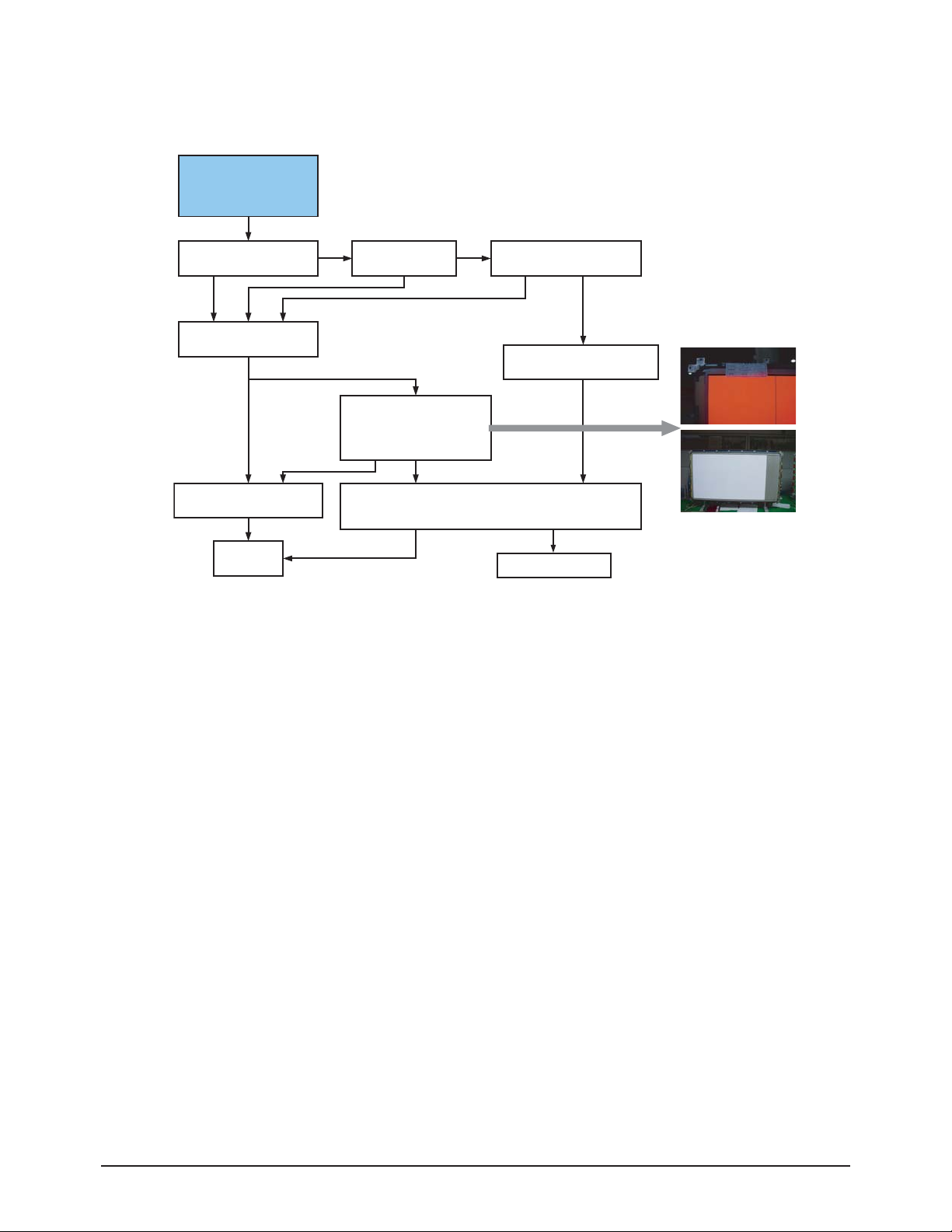

SMPS Troubleshooting

Power ON

STD_5V

Normal PS-ON

Abnormal

Normal VS-ON

Abnormal

Multi

Abnormal

Check the ICB802, DB864, FB801, F801S

Check the SUB2, QX801,QX802

Check the

Abnormal

Check the SUB1,QS801,QS802

5.3V : ICX808, QX806 12V : ICX803 VG : ICX805 18Vamp : ICX804

Normal

Check the Other board (Image Board or Driver Board) or Cable.

Page 33

Troubleshooting

4-8 Samsung Electronics

Condition Name Description Related Board No Voltage Output Operating Voltage don't exist PSU No Display Operating Voltage exist, but an Image doesn't exist on screen Y-MAIN, X-MAIN, Logic Main, Cable Abnormal Display Abnormal Image(not open or short) is no screen Y-MAIN, X-MAIN, Logic Main Sustain Open Some horizontal lines don't exist on screen Scan IC, FPC of X/Y Sustain Short Some horizontal lines appear to be linked on screen Scan IC, FPC of X/Y Address Open Some vertical lines don't exist on screen Logic Main, Logic Buffer, TCP Address Short Some vertical lines appear to be linked on screen Logic Main, Logic Buffer, TCP

■

Drive Board Troubleshooting

1) Troubleshooting Summary

Page 34

Troubleshooting

Samsung Electronics 4-9

2) Troubleshooting Procedure in Abnormal Conditions

① No Display

▶ No Display is related with Y-MAIN, X-MAIN, Logic Main and so on.

This page shows you how to check the boards, and the following pages show you how to find the defective board.

No Display

[ Logic Main ]

LED Blinks

Check the LED

YES NO

Check if internal is

Check if any address

data output is detected

Default Black

[ Y-MAIN ]

Check necessary points

[ Logic Main ]

Check if power is supplied

YES NO

operation

MICOM operation

Check the ASIC

Control Signal output

Check if the data

and control signals

between DDR & ASIC

( 5V, 3.3V )

Check the

are normal

[ X-MAIN ]

Check necessary points

Check the

power connectivity

Check the FUSE

Check the

input voltage

If the input voltage is

abnormal, replace the

PSU and check it

again as this indicates

a PSU output error

[ X-MAIN ]

Check several points

FUSE

FET/

DIODE

X-MAIN

Normal State

OPEN

Replace the Board

SHORT

Replace the Board

F5000 for VDD F5801 for Vs F5800 for VCC

Q5500, Q5200, Q5201, Q5202, Q5203, Q5400, Q5401, Q5402, Q5300, D5105 D5104, D5103, Q5101, D5101, Q5100

[ Y-MAIN ]

Check several points

FUSE

FET/

DIODE

Y-MAIN

Normal State

OPEN

SHORT

Replace the Board

F4001 for VCC F4003 for Vs F4005 for VDD F4004 for Ve

Q4002, Q4202, Q4004, D4014, D4013, Q4003 Q4101, Q4001, D4018, Q4007, Q4006, Q4005 D4011, D4004

Page 35

Troubleshooting

4-10 Samsung Electronics

② Abnormal Display(Abnormal Image is on Screen.(except abnormality in Sustain or Address))

▶ Abnormal Display is related with Y-MAIN, X-MAIN, Logic Main and so on.

This page shows you how to check the boards, and the following pages show you how to find the defective board.

Abnormal

Display

F5000 for VDD F5801 for Vs F5800 for VCC

[ Logic Main ]

LED Blinks

( action of Vsync )

YES

Replace the Board

[ Y-MAIN ]

Check several points

FUSE

[ Logic Main ]

Observation of

abnormal display

Regular

abnormal

pattern

OPEN

Check necessary points

Replace the Board

[ Y-MAIN ]

Logic Main

Normal State

Replace Panel

F4001 for VCC F4003 for Vs F4005 for VDD F4004 for Ve

[ X-MAIN ]

Check necessary points

[ X-MAIN ]

Check several points

FUSE

OPEN

Replace the Board

Q5500, Q5200, Q5201, Q5202, Q5203, Q5400, Q5401, Q5402, Q5300, Q5101, Q5100

FET

Y-MAIN

Normal State

SHORT

Replace the Board

Q4002, Q4202, Q4004, Q4003 Q4101, Q4001, Q4007, Q4006, Q4005

FET

X-MAIN

Normal State

SHORT

Replace the Board

Page 36

Troubleshooting

Samsung Electronics 4-11

③ Sustain Open (some horizontal lines don't exist on screen)

④ Sustain Short (some horizontal lines appear to be linked on Video)

[ Y-FPC ]

Sustain Open

After Changing Y-buffer,

recheck the status

Done

(Defect is from Y-buffer)

Replace the Panel

There is a defect on the FPC

[ Y-FPC ]

(Discharging in unwanted Scan line)

Sustain Short

After Changing Y-buffer,

recheck the status

Done

(Defect is from Y-buffer)

Replace the Panel

There is a defect on the FPC

Page 37

Troubleshooting

4-12 Samsung Electronics

⑤ Address Open, Short

▶ Address Open and Short is related with Logic Main, Logic Buffer, FFC, TCP film and so on.

This page shows you how to check the boards, and the following pages show you how to find the defective board.

[ Logic Main ]

Address Open/Short

Check the LED operation

Check if the internal mode

screen is normal

Reload the data onto the

MICOM and recheck it

Check the detailed waveform

and control the signal waveform

DONE

Check if a specific TCP Block screen is displayed abnormally

Check the

Video Board

Check if there is an open or

short circuit on the Buffer Board

and the Logic Main address

data output section.

Check the FFC connection status

Replace Logic Main /

Address Buffer (E or F) /

check the DDR Input voltage.

check the DDR Vref Input voltage.

check the Voltage Divider.

FFC

Replace the Panel

(Vref)

Page 38

Troubleshooting

Samsung Electronics 4-13

■

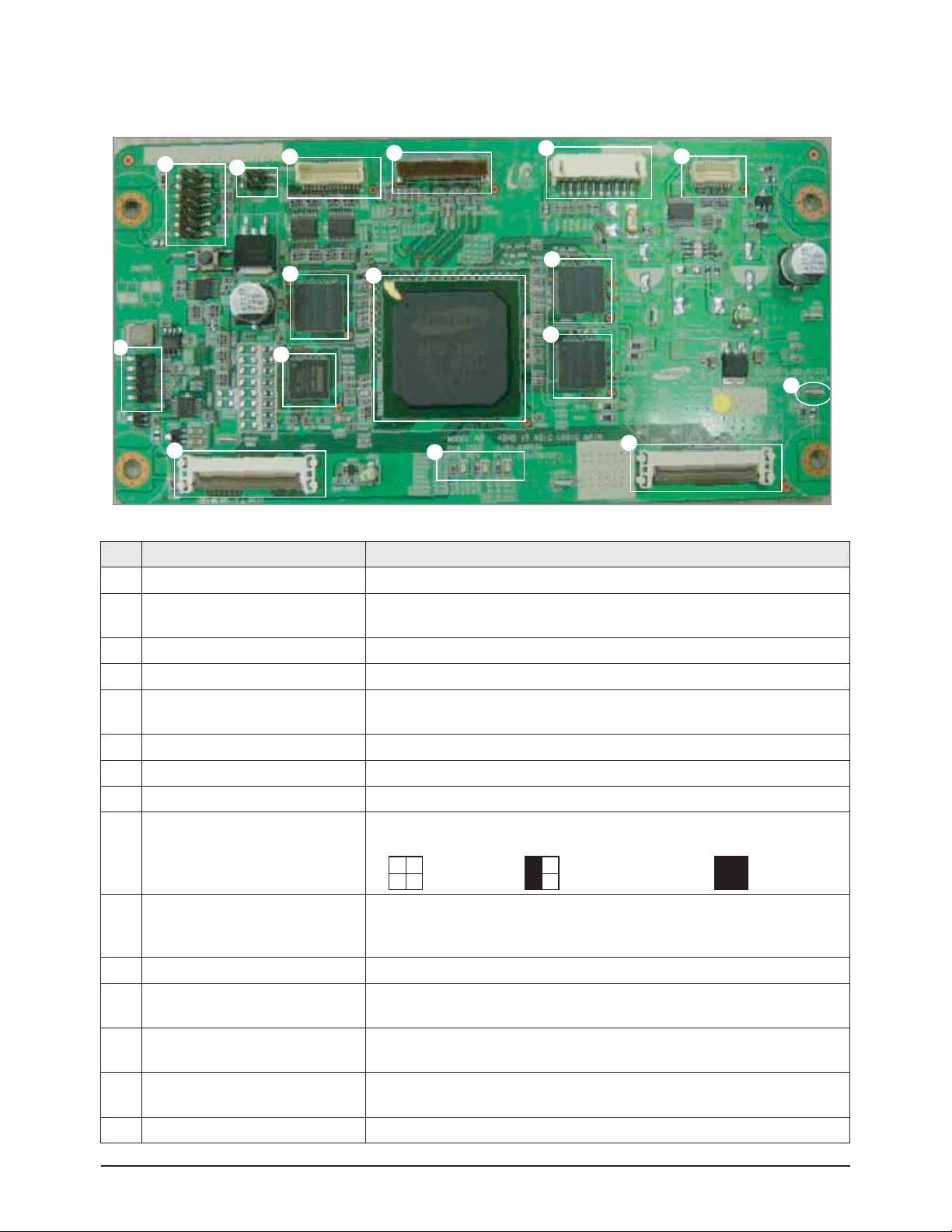

Logic board Troubleshooting

Item Name Description

1 Y Connector The connector to output the Y Drive Board control signal. 2 LVDS Connector

The connector to receive LVDS-encoded RGB, H, V, DATAEN, and DCLK inputs

from the Video Board. 3 Power Connector The connector to receive power (5V) for the Logic Board. 4 X Connector The connector to output the X Drive Board control signal.

5 ASIC Chip

The main processor that generates and outputs the logic drive signal and the

address data. 6 DDR Memory for MENCON The memory to save the Address output data to. 7 SDR Memory for Frame Delay The memory to save FCR-applied data to. 8 JTAG Port The port for uCOM communication

9 Start Screen Option Pin

Select the NTSC/PALMode Rolling Option for the initial screen (CN2007)

Internal Black Internal NTSC Mode (Rolling) Internal PALMode (Rolling)

MICOM Loading 5 Pin Connector or

UART Communication Connector

The connector to load the MICOM drive program by connecting GA-WRITER. This

connector is also used to load and adjust 512K data and to connect the key-scan

board.

11 Flash Memory The flash memory to save the MICOM data to. 12 Buffer Connection Connector

The connector to output the address data and the control signal to the E-buffer

Board at the bottom.

13 Operation LED

The LED indicating that the Sync and clock signals have been received normally

by the Logic Board (Normal Status: It blinks at 0.5 second interval.)

14 Buffer Connection Connector

The connector to output the address data and the control signal to the F-buffer

Board at the bottom.

15 V-TOGG The V-SYNC Output Pin

50" Logic Board

ྛ

ྠ

ྡ

ྙ

ྚ

ྞ

ྟ

ྜྷ

ྞ

ྣ

ྤ

ྥ

ڏ ڎ

ڍ ڌ

ڏ ڎ

ڍ ڌ

ྦ

ྜ

ྦྷ

ڏ ڎ

ڍ ڌ

Page 39

Troubleshooting

4-14 Samsung Electronics

Item Name Description

1 Y Connector The connector to output the Y Drive Board control signal. 2 LVDS Connector

The connector to receive LVDS-encoded RGB, H, V, DATAEN, and DCLK inputs

from the Video Board. 3 Power Connector The connector to receive power (5V) for the Logic Board. 4 X Connector The connector to output the X Drive Board control signal.

5 ASIC Chip

The main processor that generates and outputs the logic drive signal and the

address data. 6 DDR Memory for MENCON The memory to save the Address output data to. 7 SDR Memory for Frame Delay The memory to save FCR-applied data to. 8 JTAG Port The port for uCOM communication

9 Start Screen Option Pin

Select the NTSC/PALMode Rolling Option for the initial screen (CN2007)

Internal Black Internal NTSC Mode (Rolling) Internal PALMode (Rolling)

MICOM Loading 5 Pin Connector or

UART Communication Connector

The connector to load the MICOM drive program by connecting GA-WRITER. This

connector is also used to load and adjust 512K data and to connect the key-scan

board.

11 Flash Memory The flash memory to save the MICOM data to. 12 Buffer Connection Connector

The connector to output the address data and the control signal to the E-buffer

Board at the bottom.

13 Operation LED

The LED indicating that the Sync and clock signals have been received normally

by the Logic Board (Normal Status: It blinks at 0.5 second interval.)

14 Buffer Connection Connector

The connector to output the address data and the control signal to the F-buffer

Board at the bottom.

15 V-TOGG The V-SYNC Output Pin

42" Logic Board

ྡྷ

ྤ

ྦྷ

ྚ

ྟ

ྙ

ྜྷ

ྣ

ྞ

ڏ ڎ

ڍ ڌ

ྠ

ྦ

ྤ

ڏ ڎ

ڍ ڌ

ྛ

ྜ

ڏ ڎ

ڍ ڌ

Page 40

Troubleshooting

Samsung Electronics 4-15

1) Definition of a Logic Circuit ALogic Circuit consists of a Logic Main Board, which decodes the video signal encoded on the Video Board, outputs the address data signal, and generates and outputs the X, Y drive signals, and an Address Buffer Board which buffers and outputs the address data output signal to the TCP IC.

2) Waveform for Normal Operations When the PDP and the Logic Board are normal, the Operating LED blinks at a half second interval. In this case, the V-SYNC and data signals are output normally.

In case of problems with the product, please refer to the troubleshooting procedures described below.

① Visual Inspection: Check if the Operating LED on the Logic Main blinks at a half second interval.

▶ If the frequency of the blinking is too fast or slow, it means that the MICOM has failed to process the data properly.

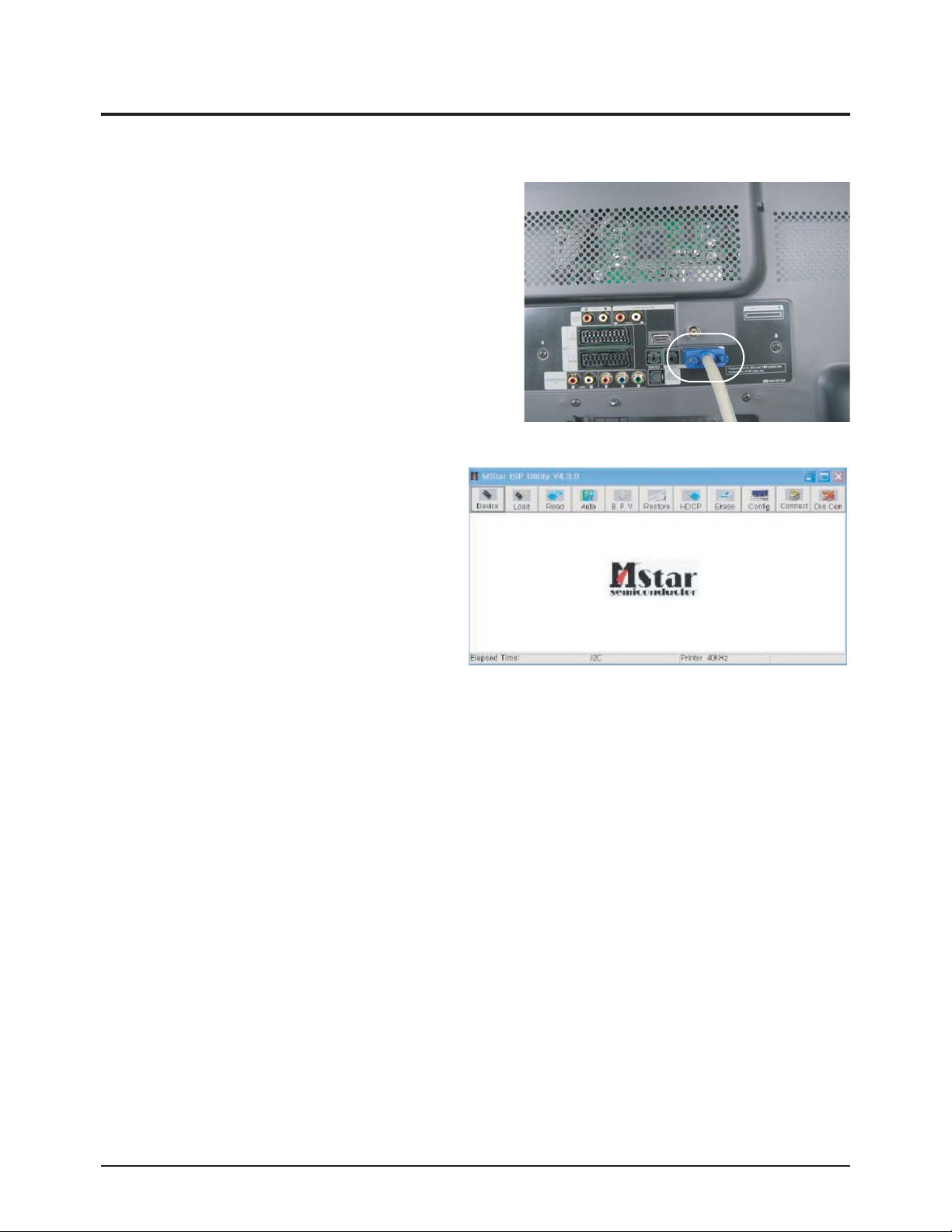

Therefore, you have to reload the data onto the MICOM. Load the data using GA-WRITER when the power is connected to the module.

② If no problem is found during the Visual Inspection, check if the drive waveform and the address data outputs are normal using

an oscilloscope. (Checkpoint: The DAMPING R-NET part output of each data output terminal.)

▶ If no drive waveform or address output is measured, this means that there is a drive problem due to MICOM data corruption,

which was the reason in the Visual Inspection. Therefore, in this case, reload the data as you did in the Visual Inspection.

▶ When data output is measured but it is abnormal, and the drive waveform is abnormal, it is probably due to a short-circuit of

the hardware. If the address data is abnormal, the screen may be abnormal due to abnormal data output by an abnormal operation of the DDR memory due to an abnormal Vref voltage, or the screen may be abnormal due to a short-circuit in the ass'y inside the board. You have to conduct a short-circuit test for each case.

▶ If the Vref voltage (the voltage of the Voltage Divider) is lower than 1.25V, check the resistance of the resistance output part

and check if the circuit is normal. If the Vref voltage is normal, the screen operates normally.

▶ If the screen is abnormal, even though the Vref voltage is normal, check if there is a short circuit by conducting a

short-circuit test. If a short-circuit is found, repair it. If the short-circuit is an internal one, replace the board.

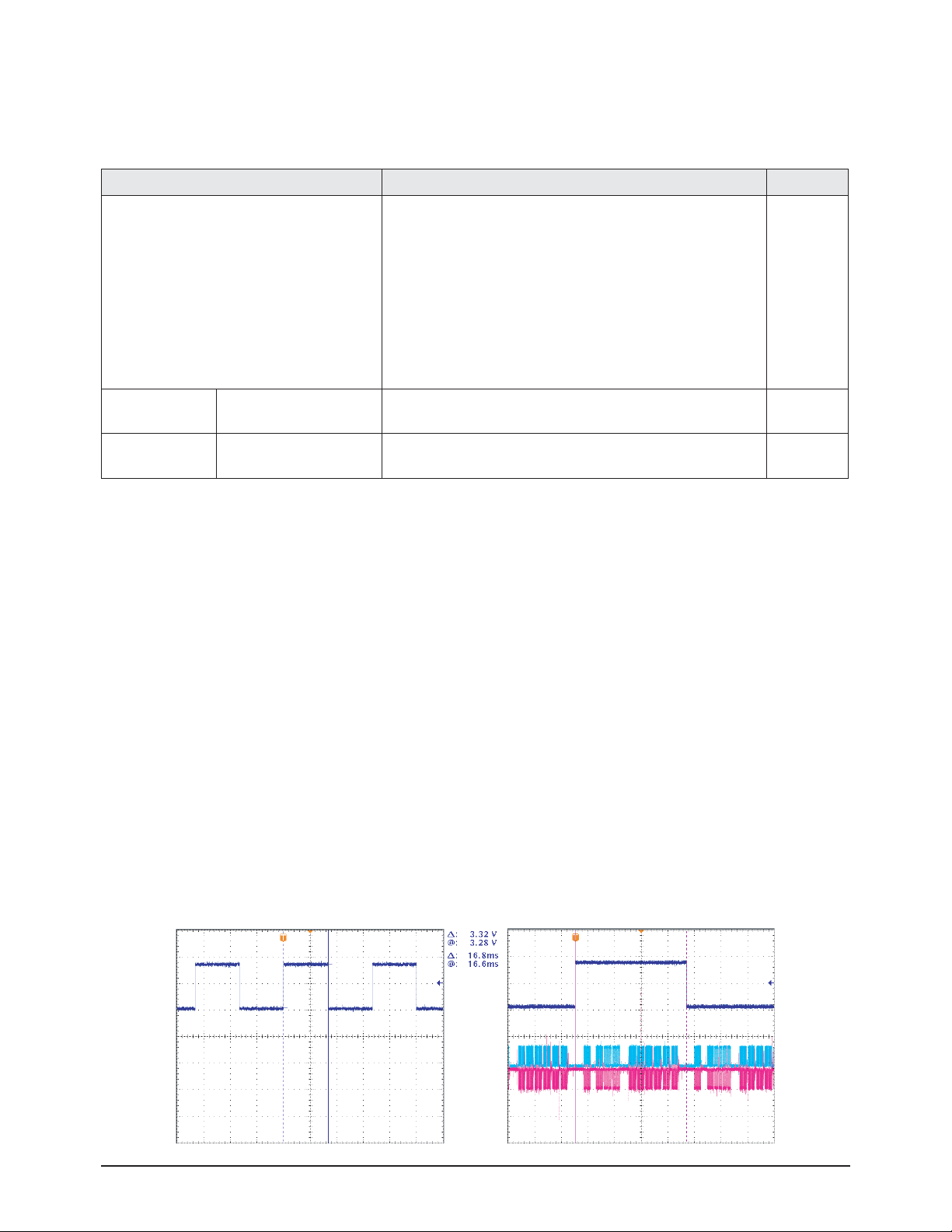

▶The following waveforms represent normal V-sync and address data output waveforms.

Logic Board Function Remarks

Logic Main

- Abuilt-in LVDS for video signal processing (W/L, Error Diffusion, APC, FCR, etc.) adopted and 1 ASIC chip.

- Outputs the Address Drive IC control signal and data signal to the Buffer Board.

- Outputs the X and Y Drive Board control signals.

- Monitors the major drive voltages (MICOM circuit part) ; Detects any surge voltage to protect the drive circuit.

- Temperature Adaptive Operating Mode (Low Temperature / Room Temperature / High Temperature) ; Optimizes discharges depending on the temperature.

Buffer Board Lower Part E Buffer Board Delivers the data and the control signals to the bottom left TCP. Single Scan

Lower Part F Buffer Board Delivers the data and the control signals to the bottom right TCP.

Page 41

Troubleshooting

4-16 Samsung Electronics

3) Troubleshooting Procedure in Abnormal Conditions

① No Display

② Abnormal Display

YES NO

[ Logic Main ]

Check if power is supplied

( 5V, 3.3V )

Check if internal is

Default Black

Check if any address

data output is detected

[ Logic Main ]

Address Open/Short

Check the LED operation

Check the LED

operation

YES NO

Check the

MICOM operation

Check the ASIC

Control Signal output

Check if the data

and control signals

between DDR & ASIC

are normal

Check the

power connectivity

Check the FUSE

Check the

input voltage

If the input voltage is

abnormal, replace the

PSU and check it

again as this indicates

a PSU output error

Check if the internal mode

screen is normal

Reload the data onto the

MICOM and recheck it

Check the detailed waveform

and control the signal waveform

DONE

Check if a specific TCP Block screen is displayed abnormally

Check the

Video Board

Check if there is an open or

short circuit on the Buffer Board

and the Logic Main address

data output section.

Check the FFC connection status

check the DDR Input voltage.

Replace Logic Main /

Address Buffer (E or F) /

FFC

(Vref)

check the DDR Vref Input voltage.

check the Voltage Divider.

Replace the Panel

Page 42

Troubleshooting

Samsung Electronics 4-17

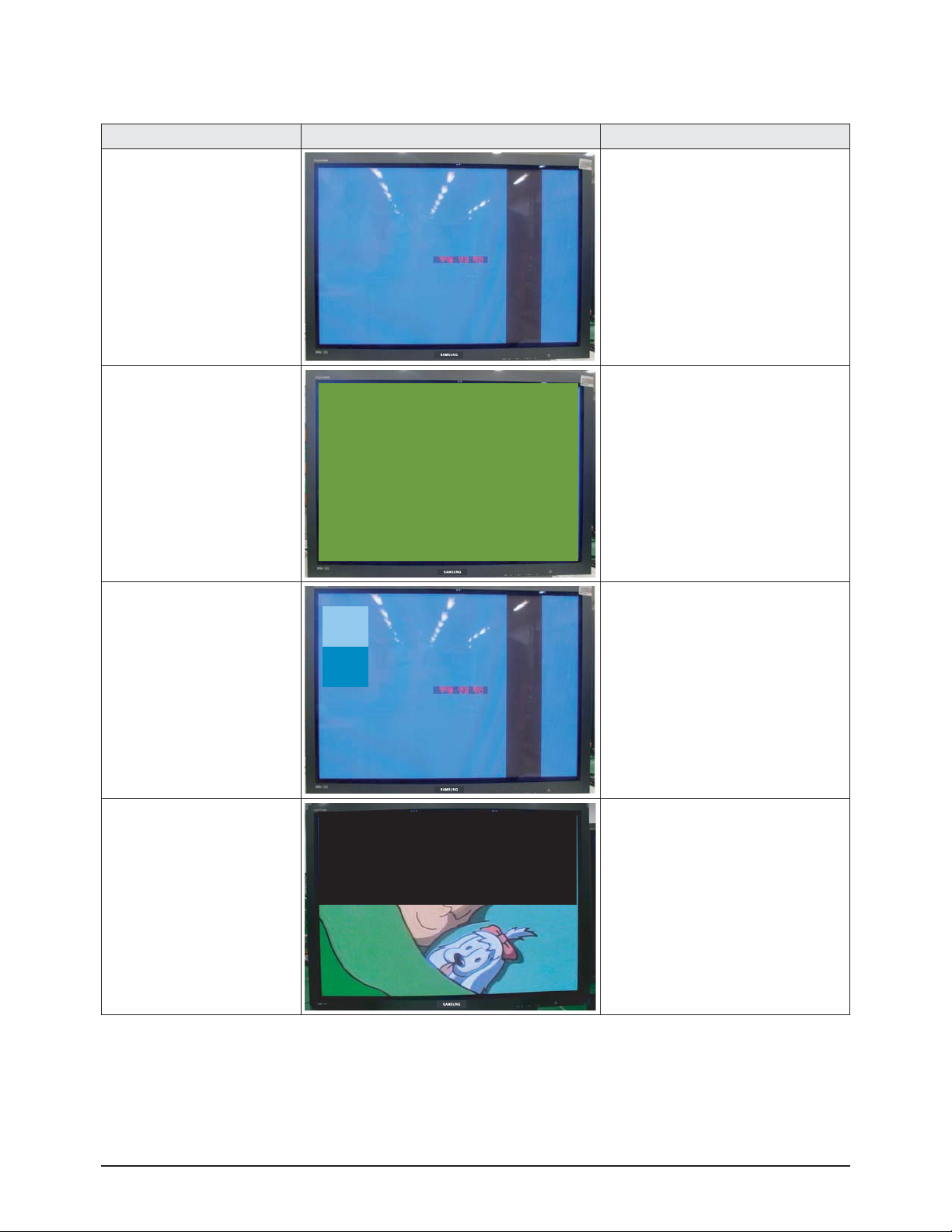

4-1-3 Faults and Corrective Actions

Symptom Related Image Causes and Countermeasures

Ablank vertical cell (block) appears on the screen.

Address buffer defect

- Replace the corresponding upper/lower buffers (E, F)

COF defect (burnt)

- Replace the module

Agreen screen appears when the TV is turned on.

The Scale is not reseting

- Replace the Main board

The OSD box appears but there is no text.

Incorrect program version

- Check the version of each program

- Replace the Main board

Ablank upper (or lower) block appears on the screen.

Upper/Lower Y Buffer defect

- Replace the corresponding upper/lower buffers (E, F)

Page 43

Troubleshooting

4-18 Samsung Electronics

Symptom Related Image Causes and Countermeasures

Either the main or sub picture does not appear.

Replace the Main board

Avertical green line appears on the screen.

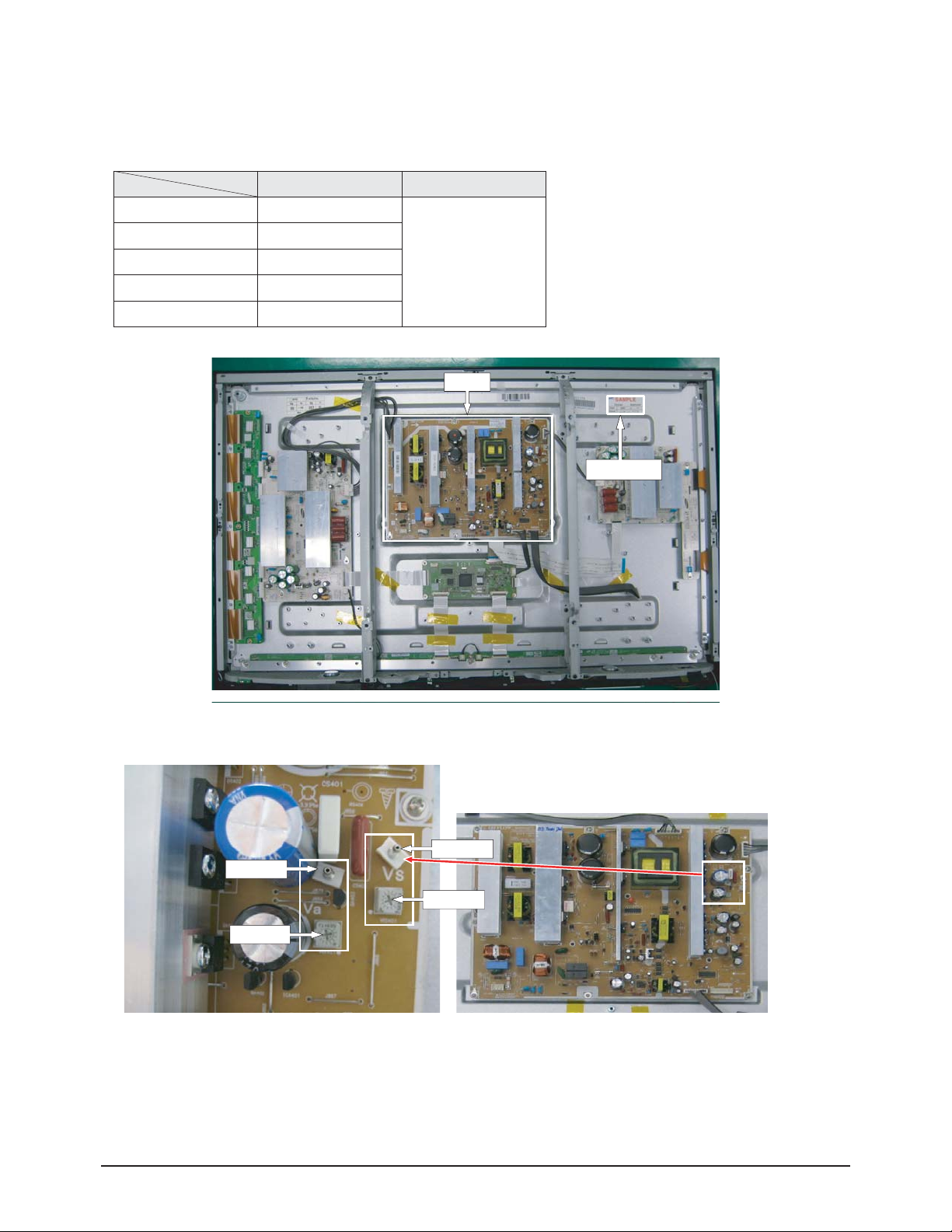

The SMPS voltage is incorrect

- Adjust the SMPS voltage according to

the voltage printed on the module label

Dim screen (blurred in red) X-Main board defect

- Replace the X-Main board

Ablank screen appears - Replace the Y-Main board

Page 44

Troubleshooting

Samsung Electronics 4-19

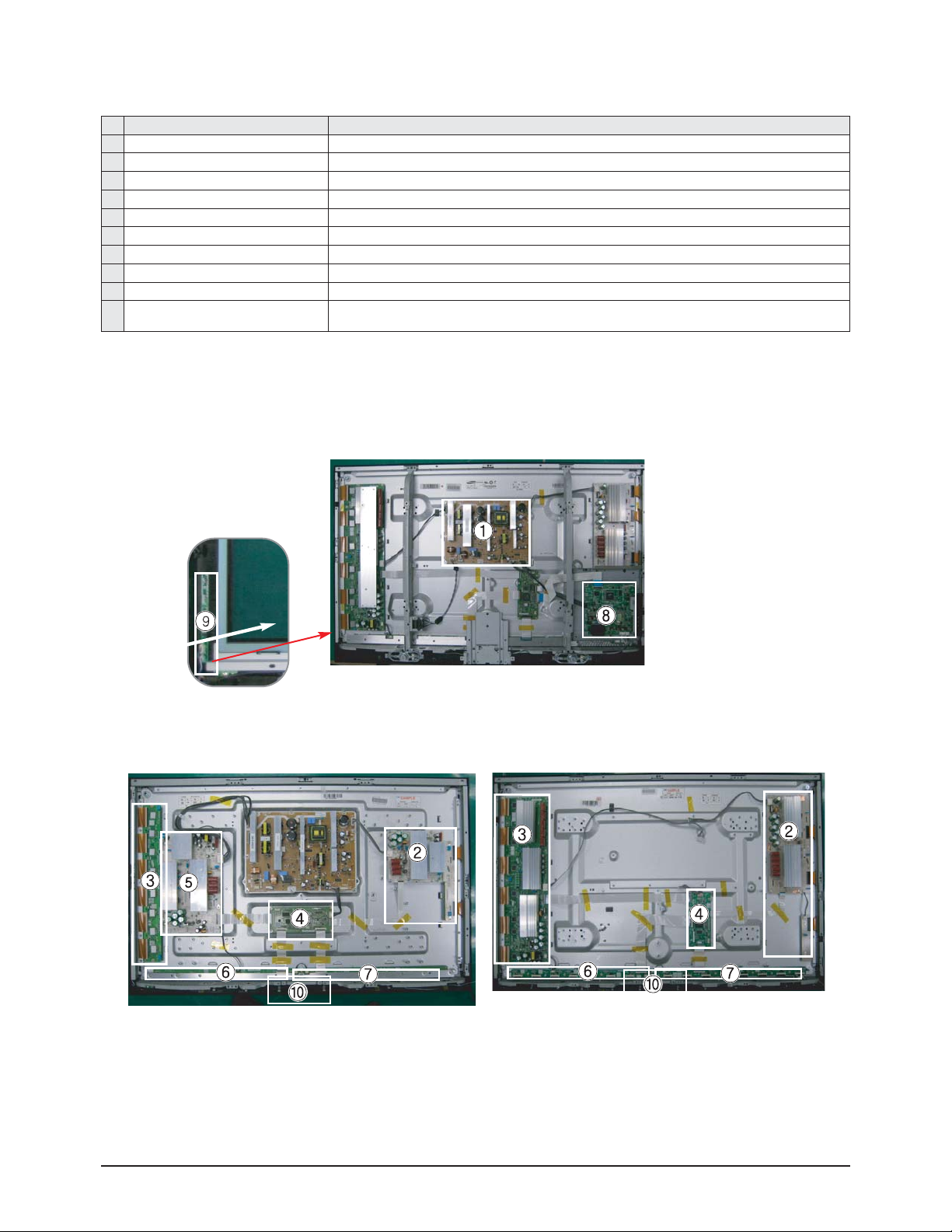

4-1-4 Troubleshooting Procedures by assembly

No Assembly Major Symptoms

1 SMPS-PDP TV No power, Blank screen, the Relay repeats On and Off. 2 ASSY PDP MODULE P-X-MAIN Blank screen 3 ASSY PDP MODULE P-Y-MAIN Blank screen 4 ASSY PDP MODULE P-LOGIC MAIN Blank screen, Screen noise 5 ASSY PDP MODULE P-X-MAIN BUFFER Row Bar screen is blank 6 ASSY PDP MODULE P-ADDRESS E BUFFER Corresponding Buffer Board block screen is blank. 7 ASSY PDP MODULE P-ADDRESS F BUFFER Corresponding Buffer Board block screen is blank. 8 ASSY PCB MISC-MAIN No Power, Abnormal screen for each input source, PIP screen trouble, Sound trouble 9 ASSY BOARD P-FUNCTION The side function key does not work properly

10 ASSYBLUE P

The side function key does not work properly. The remote control does not work properly, the LED does not work properly.

Page 45

Troubleshooting

4-20 Samsung Electronics

4-2 Adjustment

4-2-1 Service Instruction

■ Before Performing After Sales Services

1. Check if the measurement and test equipment is working properly.

2. Secure sufficient work space for disassembling the product.

3. Prepare a soft pad for disassembling the product.

■ Service adjustment item after replacement of Board <If adjustment equipment is available>

① PDP Option of Factory Mode → set the Factory Data Type item as the suitable value of relevant model. ② Adjust Calibration of Factory Mode for each mode. ③ Adjust White Balance of Factory Mode.

① Write down the value of HDMI White Balance of Factory Mode before replacing Board. ② PDP Option of Factory Mode → set the Factory Data Type item as the suitable value of relevant model. ③ Set the value of HDMI White Balance with the value written down before.

Page 46

Troubleshooting

Samsung Electronics 4-21

4-2-2 How to Access Service Mode

1. General Remote

1) Stand by

- Europe: →→→

2. Factory Remote

1) You can enter as pushing Display + Factory in state of power-on.

2) Push Factory Key again, and you can enter Aging mode. Push Factory Key again, and you can go back Factory mode. (Factory ↔ Aging)

3) Push Display + 3 Speed Key, and you can enter aging mode.

3. Settings when entering Factory mode

- Sharp Screen (Dynamic), Color Tone (Cool1), Factory (Dynamic CE Off)

4. The contents to change when entering Service Mode

5. Adjustment Procedures

- Channel ▲▼Key: Select an item.

- Volume ◀▶ Key: Adjust the value up or down.

- MENU Key: Save the changes to the EEPROM and return to the higher-level mode.

- Using the Numeric (0~9) keys, you can select a channel.

- Using the SOURCE key, you can switch AV modes.

5. Initial SERVICE MODE DISPLAY State

※ The version of the firmware displayed at the bottom of the screen may differ and the firmware is subject to change for the

improvement of product functions.

※ If you have adjusted the settings in Service Mode, you have to reset the product.

Panel On Time(Hour) 00003 L24E_DS TV P1

1.Option Table(Service) 023A 7805 0401 3309 0801 0401

2. WB Adjust

3.Information 4. Advanced Menu Checksum

T-PRP42PEUMD-0000.0

Nov 19 2007 Month/Day/Year 12:51:42 Hour/Min/Sec

INFO POWER ONMENU MUTE

No Item Mode Remark

1 Picture Mode Dynamic 2 Color Tone Mode Cool 1 3 Picture Size Wide 4 Dynamic Contrast Off 5 Digital NR Off 6 PIP Off 7 Gama Off OSD is ON

Page 47

Troubleshooting

4-22 Samsung Electronics

4-2-3 Factory Data

★★

The underlined are items applied during the service adjustment. None of the others should be adjusted.

1. Option Table(Service)

NO Item

DEFAULT

OPTION

OPTIONS

1 Factory Reset 2 Country Default 3 Ready Off On/Off 4 Panel Inch 50 19/22/23/26/27/32/37/40/42/46/50/52/57 5 Dimm Type INT 6 Panel Type 32CMO 7 Model Option Carnelian Amber/Coral/Jade/Tanzanite/Pyrope/Carnelian 8 Anynet+ Off On/Off 9 Light Effect On On/Off

10 TTX On ON/Off

11 TTX List FLOF List/FLOF 12 TTX Group Lang OSD W Europe/E Europe/Russia/Greek/Turkey/Arab/Farsi/ArabHbrw/Lang OSD 13 Carrier Mute Off On/Off 14 High Devi Off On/Off 15 Volume Curve Small 16 Hot Plug On On/Off 15 HotPlugCtrl On On/Off 16 HotPlugDelay 12 0-63 17 Auto Power On On/Off 18 LNA Menu Off On/Off

19 Hotel Option Off

"Off or opens the ""Hotel Option"" sub page with the following items:Hotel Mode Off (Off/On)Power on Channel 1 (0-99)Power on Volume 10 (0-99)Max Volume 100 (0-

99)OffPower On Source TV/EXT1/AV2/S-Video1/SVideo2/Component1/Component2/PC/HDMI2/HDMI3/HDMI4/Wise LinkVideoMute CH1 2 (0-

99)VideoMute CH2 2 (0-99)VideoMute CH3 2 (0-99)" 20 D.Gamma OFF OFF; 0.85 32; 0.95 32; 0.85; 0.88; 0,90; 0,93; 0,95; 0,98; 22_19 21 PC Ident On On/Off

22 Language English

"English/Germany/French/Italia/Spain/Netherland/Portuguese/Greek/Czech/Serbian/Croatian/Ro

manian/Hungarian/Polish/Russian/Bulgarian/Turkish/Swedish/Norwgian/Danish/Finnish" 23 Ch Table SESK SUWON/SESK/SEH/TTSEC/SEIN/SDMA/TTSED/SAVINA/Lang OSD 24 DDR Etron 25 Shop Mode Off On/Off 26 Nordic On On/Off 27 NT Conversion Off

28 Control

"Opens the ""Control"" sub page with the following items:WM Calib : OffEDID ProtectEDID

TypeEDID WriteWB DataEEPROM ResetLogic Download" 29 PDP Filter 50" EU SPU

50" EU MRT/50" EU MESH/50" EU SPU/50" EAMRT/50" EA MESH/50" EA SPU/42" EU

MRT/42" EU MESH/42" EU SPU/42" EAMRT/42" EA MESH/42" EA SPU 30 PDP Group L25E_DS L25E_DS/L24E_RS/L25E_RS/L24E_DS 31 Spread Spectrum

Page 48

Troubleshooting

Samsung Electronics 4-23

2. WB Adjust

No Item Sub Page

1 Calibration

AV Calibration Failure/Success

COMP Calibration Failure/Success

PC Calibration Failure/Success

HDMI Calibration Failure/Success

2 White Balance

Sub Bright 128 Red Offset 128

Green Offset 128

Blue Offset 128

Sub Contrast 128

Red Gain 128

Green Gain 128

Blue Gain 128

3 EPAStandard

Std Contr 80 Std Bright 45 Std Sharp 50

Std Color 50

Std Tint 50

Std Backlight 7

4 Movie WB

WB Movie On/Off

Color Mode Dynamic/Movie/Standard

Color Tone Cool1/Normal/Warm1/Warm2/Cool2

MSub Brigh 128 MSub Contr 128 W1_RGAIN 128

W1_BGAIN 128 W1_ROFFS 128 W2_RGAIN 128

W2_BGAIN 128 W2_ROFFS 128 W2_BOFFS 128 NO_RGAIN 128

NO_BGAIN 128 NO_ROFFS 128 NO_BOFFS 128

C2_RGAIN 128

C2_BGAIN 128 C2_ROFFS 128

C2_BOFFS 128 Movie Contr 128 Movie Brigh 128 Movie Color 128

Movie Sharp 128

Movie Tint 50

Mv BkLight 128

M.Gamma OFF; 0.85; 0.88; 0.90; 0.93; 0,95; 0,98; 22_19

Page 49

Troubleshooting

4-24 Samsung Electronics

4. Advanced Menu

NO Item SUB PAGE SUB PAGE

1 MST68981

ADC Calibration

CVBS Y Offs 128

CVBS Y Gain 128

Ana Y/G Offs 127

Ana U/B Offs 127 Ana V/R Offs 127

Ana Y/G Gain 82

Ana U/B Gain 82 Ana V/R Gain 82

RGB R Offs 65 RGB G Offs 65

RGB B Offs 65 RGB R Gain 111 RGB G Gain 111

RGB B Gain 111

Calibration Target

AV ADC Target

Low 17 Hight 234 Delta 3

Comp ADC Target

Low 17 Hight 234 Delta 3

Pc ADC Target

Low 17 Hight 234 Delta 3

All RGB Target

Low 2 Hight 235 Delta 1

IPC/MJC

Picture Enhance

Sharpness

H1 Gain 30 H2 Gain 24 H3 Gain 16 H4 Gain 16 V1 Gain 24 V2 Gain 20 D1 Gain 16

D2 Gain 16 Over Shoot2 20 Over Shoot3 20

Under Shoot2 20 Under Shoot3 20

Sub Color 60

Page 50

Troubleshooting

Samsung Electronics 4-25

NO Item SUB PAGE SUB PAGE

2 Option Block

FBE

Pattern Select 0

B-Slope Gain 80

B-Tilt Min 20

B-Tilt Max 150

LFunc-Basis 110

Hfunc-Basis 120 Mean-Offset1 30 Mean-Offset2 235

Mean Slope 112

ACR Offset 15

ACR Th1 20 ACR Th2 120

Skin Enable 1

Skin Uv 125

MSkin Uv 125

Sub Color 145

MSub Color 135

FRCS

FRCM

PDPLOGIC

Pattren Select 0-31

CCD Sw Off/On

CCD Strengh Th 0-31

BRE Sw Off/On FRC Repeat Mode Off/On FRC DBG MarkOn 0-15

FRC Bypass Off/On

CCD L Gain 0-31

CCD U Gain 0-31

Panel Type 82

Panel Inch 50 HD Panel Ver. Nicam Threshold

Logic Sw Ver. 07Y 10M 23D

Panel Temp + 43

Page 51

Troubleshooting

4-26 Samsung Electronics

NO Item SUB PAGE SUB PAGE

3 Sound

Saturation Mute Off/On

FM Prescale 26 AM Prescale 24

Nicam Prescale 24

FM M Prescale 20

SC1 Vol 20 SC2 Vol 20

Audio Delay On/Off

Audio Delay Time 8

Ch1 BW 2 Ch2 BW 1

Num of Check 1

Num of Double Check 5

Mono Weight 1

Stereo Weight 1

Dual Weight 1

BG M2S Threshold 144

DK M2S Threshold 80

BG S2M Threshold 176

DK S2M Threshold 0

FINE VOL 20

Detection Threshold

Carier1 Treshold

BG Amp On Thr 5 BG NSR On Thr 13 DK Amp On Thr 5 DK NSR On Thr 13

I Amp On Thr 5

I NSR On Thr 13 M Amp On Thr 5 M NSR On Thr 13

Carier2 Treshold

BG Amp On Thr 4

BG NSR On Thr 11 DK Amp On Thr 4 DK NSR On Thr 11

Nicam Treshold

BG SIG_ERR On Thr 95 BG SIG_ERR Off Thr 84 DK SIG_ERR On Thr 95 DK SIG_ERR Off Thr 84

I SIG_ERR On Thr 95

I SIG_ERR Off Thr 84 L SIG_ERR On Thr 95 L SIG_ERR Off Thr 84

Ext Volume Scale 0

Ext Prescale Speaker 0

R2E Scart2 Offset 0

NPT 3000

Page 52

Troubleshooting

Samsung Electronics 4-27

NO Item SUB PAGE SUB PAGE

3 NPT 3000

NTP Master Volume 30

NTP PWM Modulation 254

NTP DRC Tresh 17

NTP Speaker EQ On/Off

4 YC Delay

PAL BG 4 PAL DK 4

PAL I 4 SECAM BG 5 SECAM DK 5

SECAM L 4 NTSC 358 17 NTSC 443 1

AV PAL 1

AV SECAM 2

AV NT443 1

AV PAL60 17

5 Adjust

Video Mute Time 8

Dynamic Dimming Off/On

Dynamic CE On/Off

LNAPlus

RF dB 1 Level 4 RF dB 2 Level 10 RF dB 3 Level 20 RF dB 4 Level 33

Megazine LNA Off/On DTV WatchDog Off/On Main WatchDog Off/On

UART Select Main/iDTV/LVDS On Debug Mode MSTAR/RunTime/Normal/NONE

BackEndMute Off/On

Tuner Select ALPS_SLIM/SEMCO_SLIM/SEMCO_CABLE/ALPS_OLD

Tuner TOPSemco 10

Tuner TOPAlps 13

PixelShift Test Off/On

FBE Select FBE2X/FBE

Hp Detect High/Low

????? OK

D WatchDog Count 0

PDP FRC On/Off

Visual Test Off/On

6 Bus Stop

7 Defect Log

LogList1 Shows the defect Log if any LogList2 Shows the defect Log if any LogList3 Shows the defect Log if any

Page 53

Troubleshooting

4-28 Samsung Electronics

4-2-4 Service Adjustment

■

White Balance - Calibration

If picture color is wrong, do calibration first. Execute calibration in Factory Mode (AV mode example):

1. Source : VIDEO (AV mode)

2. Setting Video Mode (Timing) : PAL Video (MODE : #2)

3. Setting pattern : Pattern #24 (Chess Pattern)

4. Use Equipment : K-7256 or Equipment of equality level

5. Work order:

1) Enter Factory Mode and select "2. WB Adjust"

→ "Calibration"

2) Select "AV CALIBRATION" and press the right button on the remocon ( ▶ )

3) After completing calibration, the "Success..." message will be displayed next by "AV CALIBRATION"

For Component/HDMI mode use resolution of 1280x720/60Hz (MODE: #6) For PC mode use resolution of 1024x768/60Hz (MODE: #21)

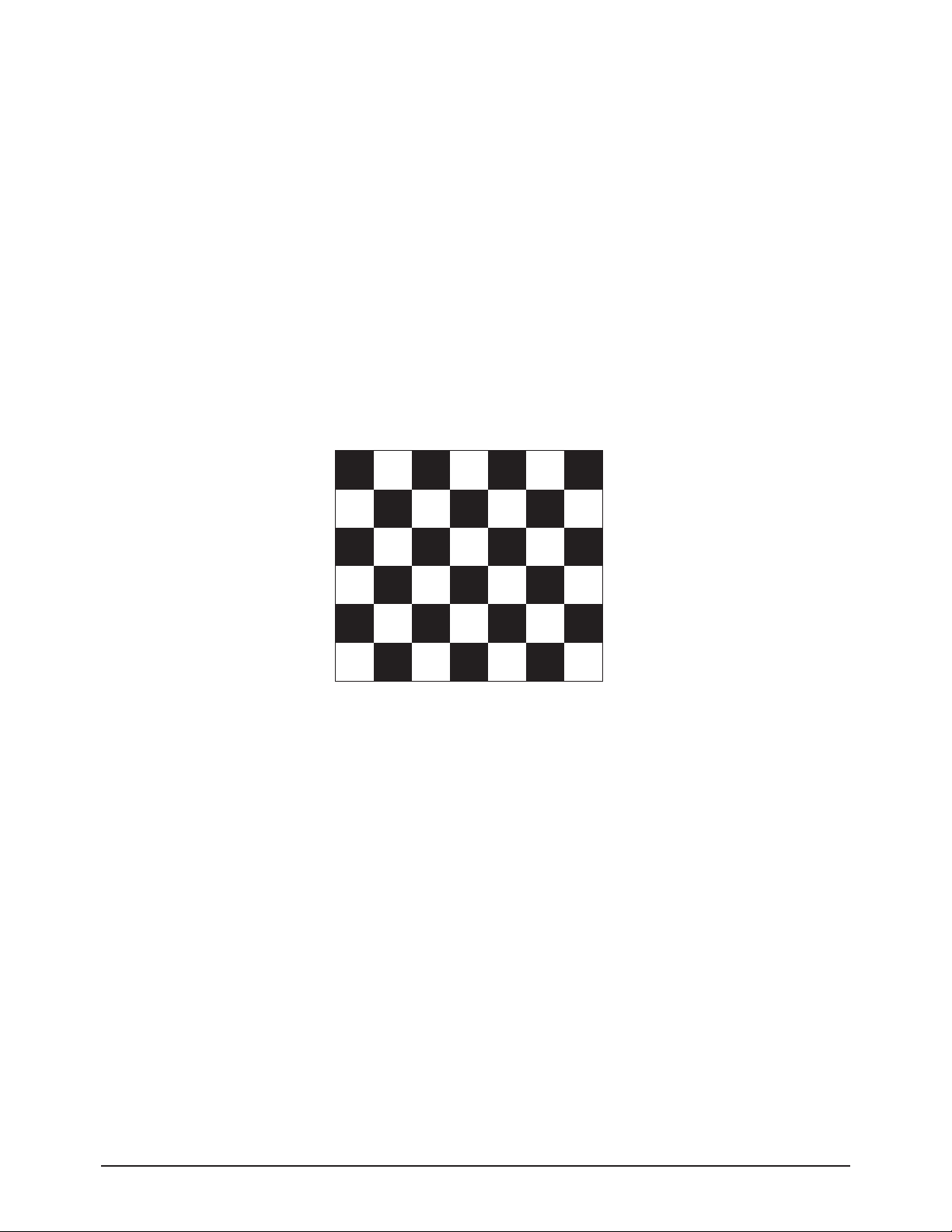

( Chess Pattern )

Page 54

Troubleshooting

Samsung Electronics 4-29

■

White Balance - Adjustment

If picture color is wrong, check White Balance condition. Equipment : CA210, Patten : Toshiba

Adjust W/B in Factory Mode Sub brightness and R/G/B Offset controls low light region

Sub contrast and R/G/B Gain controls high light region Source AV : PALcomposite, Component : 1280*720/60Hz,

HDMI[DVI] : 1280*720/60Hz

[ Test Pattern : MSPG-945 Series Pattern #16 ]

* Color temperature

1500K +/-500, -6 ~-20 MPCD

* Color coordinate

H/L : 270/280 +/- 2 L/L : 270/280 +/- 3, 2.1 Ft +/-0.05 Ft

( SAMSUNG WHITE BALANCE Adjustment PATTERN with FPD )

■

Conditions for Measurement

1. On the basis of toshiba ABLpattern : High Light level (57 IRE)

- INPUT SIGNAL GENERATOR : MSPG-925LTH * Mode No 2 : 744X484@60 Hz

No 6 : 1280X720@60 Hz No 21 : 1024X768@60 Hz

* Pattern No 36 : 16 Color Pattern

No 16 : Toshiba ABL Pattern

2. Optical measuring device : CA210 (FL) Please use the MSPG-925 LTH generator for model PS-42Q96HD, PS-50Q96HD.

Page 55

Troubleshooting

4-30 Samsung Electronics

■

Method of Adjustment

1. Adjust the white balance of AV, Component and DVI Modes.

(AV

→ Component)

a) Set the input to the mode in which the adjustment will be made (RF → DTV → PC → DVI).

* Input signal - VIDEO Mode : Model #2 (744*484 Mode), Pattern #16

- DTV, DVI Mode : Model #6 (1280*720 Mode), Pattern #16

- HDMI Mode : Model #6 (1280*720 Mode), Pattern #16 b) Enter factory color control, confirm the data. c) Adjust the low light. (Refer to table 1, 2 in adjustment position by mode)

- Adjust sub - Brightness to set the 'Y' value.

- Adjust red offset ('x') and blue offset ('y') to the color coordinates.

* Do not adjust green offset data.

d) Adjust the high light. (Refer to table 1, 2 in adjustment position by mode)

- Adjust red gain ('x') and blue gain ('y') to the color coordinates.

* Do not adjust the green gain and sub-contrast (Y) data.

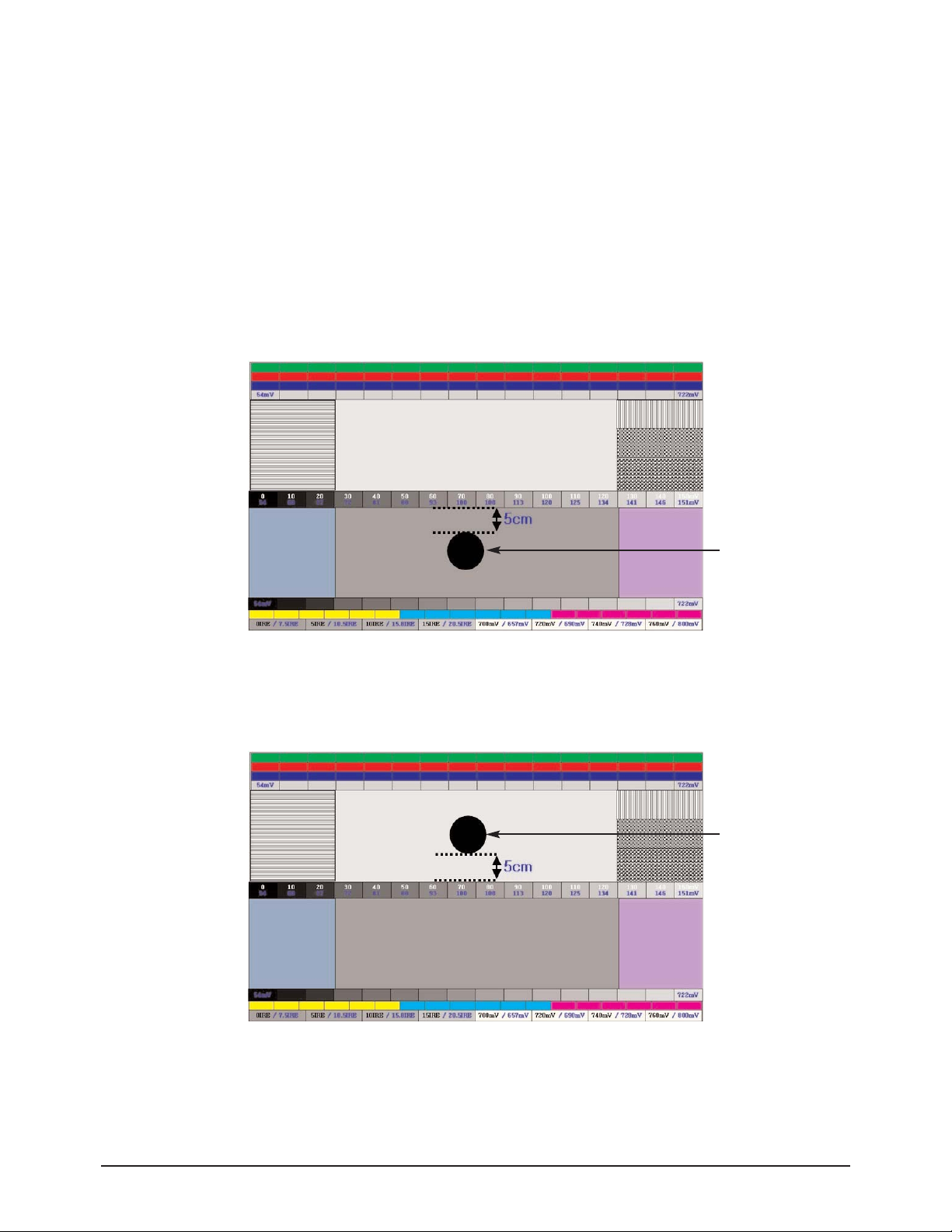

( SAMSUNG WHITE BALANCE Adjustment PATTERN with FPD )

Low light Measurement point

Hight light Measurement point

Page 56

Troubleshooting

Samsung Electronics 4-31

Replaced assembly items Check Items

ASSY PCB MISC-MAIN

1) Auto Program

2) White Balance Adjust SMPS-PDP TV Vs, Va voltage check and adjust ASSY PDP MODULE P-LOGIC MAIN

Not to be adjusted

ASSY PDP MODULE P-X-MAIN ASSY PDP MODULE P-Y-MAIN ASSY PDP MODULE P-ADDRESS E BUFFER ASSY PDP MODULE P-ADDRESS F BUFFER

* PDP 50" Check items listed after changing each

Replaced assembly items Check Items

ASSY PCB MISC-MAIN

1) Auto Program

2) White Balance Adjust SMPS-PDP TV Vs, Va voltage check and adjust ASSY PDP MODULE P-LOGIC MAIN

Not to be adjusted

ASSY PDP MODULE P-X-MAIN ASSY PDP MODULE P-Y-MAIN ASSY PDP MODULE P-X-MAIN BUFFER ASSY PDP MODULE P-ADDRESS E BUFFER ASSY PDP MODULE P-ADDRESS F BUFFER

※ When replacing the SMPS or PDP panel, you have to check the voltage printed on the panel sticker and adjust it.

4-2-5 Replacements & Calibration

* PDP 42" Check items listed after changing each

Page 57

Troubleshooting

4-32 Samsung Electronics

2. Apoint of adjusting SMPS-MAIN voltage.

Value Board Adjustment

Vs 210

SMPS

Va 63

Vset -

Ve 94

Vscan -190

■

Voltage Adjustment

1. After replacing the SMPS or PDPpanel, you must adjust the voltage referring to the voltage label printed on the panel. (If you do not adjust the voltage, an abnormal discharge symptom may appear.)

SMPS

Voltage Label

Va Adjustment

Vs Adjustment

Vs Test point

Page 58

Troubleshooting

Samsung Electronics 4-33

■

Y-RR and Y-FR controls

For the Drive Waveform, adjust the Main Reset (Rising Ramp and Falling Ramp) in the F/W pattern as shown by the figure.

Vs Vsc_l Ve Va

205V -190V 100V 56V(FIX)

< Voltage Adjustment Specifications >

Y-Main

Test Point

Rising ramp

Yrr

Yfr

Falling ramp

Page 59

Troubleshooting

4-34 Samsung Electronics

4-3 Upgrade

4-3-1 How to Update Flash ROM (with RS-232C Cable)

▶▶

Please upgrade set only when standby.

1. Installthe Flash Downloader

ConnectSet(Service Jack)and Jig Cable to execute Program Update.

2. Flash Downloader program update

- Turn on the TV Set

- Click "Connect" icon on the MSTAR tool.

- Click "Read", and Choose a new S/W.

- Click "Auto", and "Run"

Page 60

Troubleshooting

Samsung Electronics 4-35

4-3-2 How to Check the Version of the Program

1. Procedures for checking in the Factory Menu. When entering Factory Mode, the version of the software is displayed at the bottom of the menu as described on page 4-17.

S/W Version

Panel On Time(Hour) 00003 L24E_DS TV P1

1.Option Table(Service) 023A 7805 0401 3309 0801 0401

2. WB Adjust

3.Information 4. Advanced Menu Checksum

T-PRP42PEUMD-0000.0

Nov 19 2007 12:51:42

Page 61

Samsung Electronics5-1

Exploded View & Part List

5. Exploded View & Part List

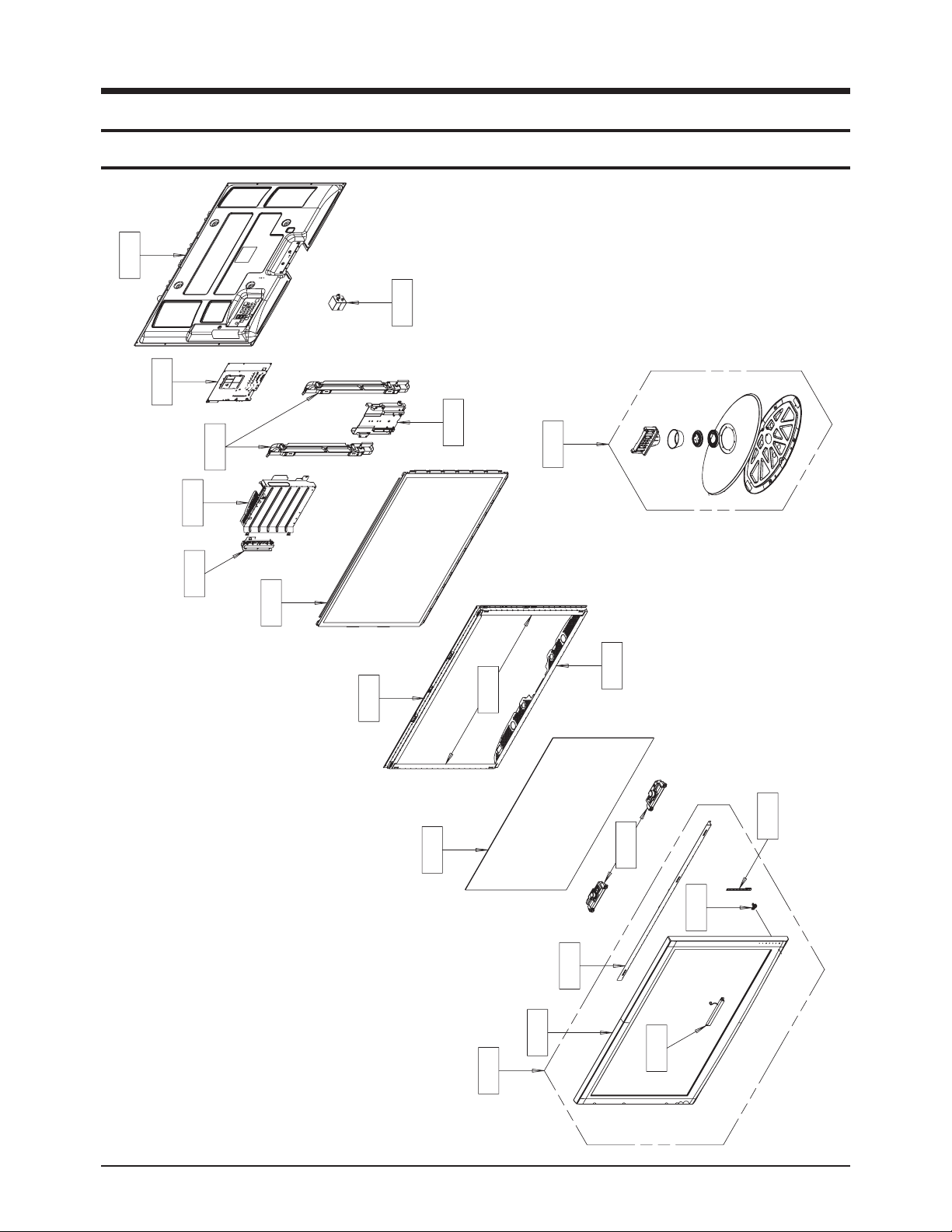

5-1 PS42A450P2XUA Exploded View

M0013

T0079

M0523

M0125

M0523

M0027

M0412

T0165

T0044

M0149

T0456

M0150

M0146

M0145

T0175

T0603

T0003

M0150

M0112

M0102

Page 62

5-2Samsung Electronics

Exploded View & Part List

Loc. No. Code No. Description Specification Q'ty SA/SNA Remark

M0013 BN96-06771F ASSY COVER P-REAR 42P450,PCM,0.5,BKM-P70 1 S.A

M0027 BN96-05835A ASSY STAND P-BASE -,42Q9/42C9,-,ABS,SF-0 1 S.A

M0102 BN96-04802A ASSY BLU P Bordeaux Plus,BACK LIGHT UNIT 1 S.A

M0112 BN63-04695B COVER-FRONT PYROPE,ABS+PMMA,-,-,-,HB,-,B 1 S.N.A

M0125 BN96-07190A ASSY INLET P Pyrope,350mm,IG-N06BES1,250 1 S.A

M0145 BN96-07248B ASSY BOARD P-FUNCTION&IR PYROPE,CT5000-5 1 S.A

M0146 BN96-06750A ASSY BRACKET P-FILTER SIDE P450 42Inch,S 2 S.N.A

M0149 BN96-06749A ASSY BRACKET P-FILTER TOP P450 42Inch,SA 1 S.N.A

M0150 BN96-06751B ASSY BRACKET P-FILTER BOTTOM 42P410,EO,S 1 S.N.A

M0150 BN96-06748A ASSY BRACKET P-SUPPORT FILTER P410 42Inc 1 S.N.A

M0412 BN96-06697A ASSY BRACKET P-PCB Spinel 50,,SECC,T0.6, 1 S.N.A

M0523 BN96-06753A ASSY BRACKET P-SUPPORT STAND P410 42Inch 1 S.N.A

M0523 BN96-06756A ASSY BRACKET P-WALL P410 42Inch,SECC T1. 2 S.N.A

T0003 BN96-08187A ASSY COVER P-FRONT PYROPE,,ABS+PMMA,HB,B 1 S.A

T0044 BN96-06642A ASSY PDP MODULE P PL42AX030A,42HD W3,W3, 1 S.A

T0079 BN94-01671C ASSY PCB MISC-MAIN PS42A450P2XRU,CIS,wit 1 S.A

T0165 BN96-06696F ASSY COVER P-AV 42P450 1 S.N.A

T0175 BN96-07192B ASSY SPEAKER P 8ohm,P450 42inch,PDP,10W, 1 S.A

T0456 BN67-00188A GLASS-FILTER EMI 42" C7 HD,Sputter,with 1 S.A

T0603 BN64-00628A WINDOW-RMC 50P9,PC,VIOLET 1 S.N.A

Page 63

Samsung Electronics5-3

Exploded View & Part List

5-2 PS50A450P2XUA Exploded View

M0013

T0079

T0152

M0412

M0125

M0523

M0027

T0165

T0044

M0149

T0456

M0150

M0146

M0020

T0175

T0603

M0150

T0003

M0112

M0102

T0056

Page 64

5-4Samsung Electronics

Exploded View & Part List

Loc. No. Code No. Description Specification Q'ty SA/SNA Remark

M0013 BN96-06772J ASSY COVER P-REAR 50P450,PCM,0.5,BKM-P70 1 S.A

M0020 BN96-07248C ASSY BOARD P PYROPE,CT5000-5710C,TOUCH F 1 S.A

M0027 BN96-04714B ASSY STAND P-BASE -,C9/Q9,-,ABS HB SF-05 1 S.A

M0102 BN96-04802A ASSY BLU P Bordeaux Plus,BACK LIGHT UNIT 1 S.A

M0112 BN63-04222E COVER-FRONT 50P450,ABS+PMMA,-,-,-,HB,BK2 1 S.N.A

M0125 BN96-07190B ASSY INLET P Spinel,450mm,IG-N06BES4,250 1 S.A

M0146 BN96-06692A ASSY BRACKET P-FILTER SIDE P450 50inch,S 2 S.N.A

M0149 BN96-06690A ASSY BRACKET P-FILTER TOP P450 50inch,SA 1 S.N.A

M0150 BN96-06694B ASSY BRACKET P-FILTER BOTTOM 50P450,EO,S 1 S.N.A

M0150 BN96-06689A ASSY BRACKET P-SUPPORT FILTER Spinel 50" 1 S.N.A

M0412 BN96-06697A ASSY BRACKET P-PCB Spinel 50,,SECC,T0.6, 1 S.N.A

M0523 BN96-06753B ASSY BRACKET P-SUPPORT STAND P410 50Inch 1 S.N.A

T0003 BN96-06770F ASSY COVER P-FRONT 50P450,ABS+PMMA,HB,BK 1 S.A

T0044 BN96-06641A ASSY PDP MODULE P PL50HW031A,50HD W3,W3 1 S.A

T0056 BN63-04459A COVER-DECORATION P450-50,PC+ABS,V0,BK23 1 S.N.A

T0079 BN94-01670C ASSY PCB MISC-MAIN PS50A451P1XRU 1 S.A

T0152 BN96-06773A ASSY BRACKET P-WALL RIGHT P450 50Inch,,S 2 S.A

T0165 BN96-06696F ASSY COVER P-AV 42P450 1 S.N.A

T0175 BN96-07192C ASSY SPEAKER P 8ohm,P450/P550 50inch,PDP 1 S.A

T0456 BN67-00197A GLASS-FILTER EMI 50 W2, C9,Sputter, wit 1 S.A

T0603 BN64-00628A WINDOW-RMC 50P9,PC,VIOLET 1 S.N.A

Page 65

Samsung Electronics5-5

Exploded View & Part List

5-3 PS42A450P2XUA Service Item

Loc. No. Code No. Description Specification Q'ty Remark

M0013 BN96-06771F ASSY COVER P-REAR 42P450,PCM,0.5,BKM-P70 1

M0027 BN96-05835A ASSY STAND P-BASE -,42Q9/42C9,-,ABS,SF-0 1

M0154 BN96-06760A ASSY PDP P-Y-MAIN BUFFER PL42AX030A,42HD 1

M2893 BN39-00802C LEAD CONNECTOR HPT4264H,UL1617#22,24P/24 1

T0003 BN96-08187A ASSY COVER P-FRONT PYROPE,,ABS+PMMA,HB,B 1

T0037 BN96-06761A ASSY PDP P-LOGIC MAIN PL42AX030A,42HD W3 1

T0038 BN96-06762A ASSY PDP P-ADDRESS E-BUFFER PL42AX030A,4 1

T0039 BN96-06763A ASSY PDP P-ADDRESS F-BUFFER PL42AX030A,4 1

T0044 BN96-06642A ASSY PDP MODULE P PL42AX030A,42HD W3,W3, 1

T0045 BN96-06757A ASSY PDP P-X-MAIN BOARD PL42AX030A,42HD 1

T0045 BN96-06758A ASSY PDP P-X-MAIN BUFFER PL42AX030A,42HD 1

T0074 BN59-00685A REMOCON TM-96B,49,EUROPE_READY-450 1

T0079 BN94-01671C ASSY PCB MISC-MAIN PS42A450P2XRU,CIS,wit 1

T0175 BN96-07192B ASSY SPEAKER P 8ohm,P450 42inch,PDP,10W, 1

T0262 BN96-06759A ASSY PDP P-Y-MAIN BOARD PL42AX030A,42HD 1

T0764 BN44-00206A SMPS-PDP TV W3 PDP SMPS,SEM,AC/DC,406.6W 1

※ This is the list which is available to repair the real material at the time of service.

Page 66

5-6Samsung Electronics

Exploded View & Part List

5-4 PS50A450P2XUA Service Item

Loc. No. Code No. Description Specification Q'ty Remark

M0013 BN96-06772J ASSY COVER P-REAR 50P450,PCM,0.5,BKM-P70 1

M0027 BN96-04714B ASSY STAND P-BASE -,C9/Q9,-,ABS HB SF-05 1

M2893 BN39-00881A LEAD CONNECTOR LILLY 42"/50",UL1007#26,U 1

T0003 BN96-06770F ASSY COVER P-FRONT 50P450,ABS+PMMA,HB,BK 1

T0037 BN96-06766A ASSY PDP P-LOGIC MAIN PL50HW031A,50HD W3 1

T0044 BN96-06641A ASSY PDP MODULE P PL50HW031A,50HD W3,W3 1

T0045 BN96-06764A ASSY PDP P-X-MAIN BOARD PL50HW031A,50HD 1

T0074 BN59-00685A REMOCON TM-96B,49,EUROPE_READY-450 1

T0079 BN94-01670C ASSY PCB MISC-MAIN PS50A451P1XRU 1

T0175 BN96-07192C ASSY SPEAKER P 8ohm,P450/P550 50inch,PDP 1

T0262 BN96-06765A ASSY PDP P-Y-MAIN BOARD PL50HW031A,50HD 1

T0764 BN44-00207A SMPS-PDP TV W3 PDP SMPS,SEM,AC/DC,486.6W 1

※ This is the list which is available to repair the real material at the time of service.

Page 67

Samsung Electronics5-7

MEMO

Page 68

Wiring Diagram

Samsung Electronics 6-1

6. Wiring Diagram

6-1 Overall Wiring

<42" Overall Wiring>

CN5401

CN5402

CN5403

CN5501

CN5502

CN5503

Y-MAIN SCAN

CN5407

CN5408

Y-DRIVE

CN5409

CN5412

CN5707

CN5701

E-BUFFER

FUNCTION

AC-INLET

CN1

CN3

CN810

CN4002

CN809

CN4701

SMPS

CN808

X-DRIVE

CN800

CN2000CN2001CN2006

CN2002

LOGIC BOARD

CN2028

CN2004

CN801

CN2003

CN807

CN4001

CN4004

CN2500CN2509

CN2202_HD

CN1101

CN2510

CN2610

CN2600

CN2609

F-BUFFER

MAIN BOARD

CN1605_PDP

CN1606

CN1203

POWER SW

8 9

SPEAKER

Page 69

<50" Overall Wiring>

※ The code number of cable(Lead-connector) can be changed, see "5. Exploded View & Part List."

Wiring Diagram

6-2 Samsung Electronics

Use

① LVDS 31P-30P ② POWER 24P ⑪ AC_INPUT

Code BN39-00859A BN39-00881A

42" - 2901-001378 50" - 2901-001340


CN5401

CN5402

CN5403

CN5412

CN5501

CN5502

CN5503

Y-MAIN SCAN(HIGH)

CN5707

CN5407

Y-DRIVE

CN5507

CN5701

Y-MAIN SCAN(LOW)

FUNCTION

AC-INLET

E-BUFFER

CN3

CN1

CN810

CN809

CN4002

CN4701

SMPS

CN2609

X-DRIVE

CN4004

CN4001

CN4000

CN808

CN800

CN2006

CN2002

LOGIC BOARD

CN2202_HD

CN1101

CN2004

CN2500CN2509

CN2000CN2001

CN2510

CN2003

CN2005

CN2600

CN2610

CN801

CN807

F-BUFFER

MAIN BOARD

CN1605_PDP

CN1606

CN1203

POWER SW

SPEAKER

Page 70

Wiring Diagram

Samsung Electronics 6-3

①

CN6002_P(MAIN B'D)↔ CN2014(LOGIC B'D)

Pin No. Signal Pin No. Signal

1 SDA_PDP_LOGIC 16 FBE_ODD_TXCLK+_P

2 FGND 17 FBE_ODD_TXCLK-_P

3 SCL_PDP_LOGIC 18 FGND

4 START_OPT 19 FBE_ODD_TX2+_P

5 LOGIC_TX_P 20 FBE_ODD_TX2-_P

6 FGND 21 FGND

7 LOGIC_RX_P 22 FBE_ODD_TX1+_P

8 FGND 23 FBE_ODD_TX1-_P

9 3D_SYNC 24 FGND

10 NC 25 FBE_ODD_TX0+_P

11 WP_I2C_READY 26 FBE_ODD_TX0-_P

12 FGND 27 FBE_ODD_TX4+

13 FBE_ODD_TX3+_P 28 FBE_ODD_TX4-

14 FBE_ODD_TX3-_P 29 FBE_ODD_TX5+

15 FGND 30 FBE_ODD_TX5-

②

CN1001(MAIN B'D) ↔ CN801(SMPS)

Pin No. Signal Pin No. Signal

1 NC 13 B5V

2 PS_ON 14 B5V

3 FGND 15 B5V

4 A5V 16 B5V

5 FGND 17 FGND

6 FGND 18 FGND

7 B13VS 19 FGND

8 B13VS 20 B13V

9 FGND 21 B13V

10 FGND 22 B13V

11 FGND 23 NC

12 FGND 24 NC

6-1-1 Pin Connection

③

CN810(SMPS)

↔

CN5800(Y B'D)

Pin No. Signal

1 Vg

2 GND

3 Va

4 GND

5 Vs

6 Vs

④

CN809(SMPS)

↔

CN4005(X B'D)

Pin No. Signal

1 Vg

2 GND

3 GND

4 Vs

5 Vs

⑦

CN2101_L(MAIN B'D)

↔

SPEAKER

Pin No. Signal

1 R+

2 R-

3 L+

4 L-

⑧

CN800(SMPS)

↔

AC INLET

Pin No. Signal

1 AC Neutral

2 NC

3 AC Live

⑤

CN807(SMPS)

↔

CN2000(LOGIC B'D)

Pin No. Signal

1 STD5V

2 VS_ON

3 NC

4 PS_ON

5 GND

6 D5.3V

7 GND

8 GND

9 D5.3V

10 D5.3V

⑥

CN3002(MAIN B'D)

↔

POWER&IR&FUNCTION

Pin No. Signal

1 IR

2 FGND

3 A5V

4 LED_STB

5 BUZZER

6 KEY_INPUT1

7 KEY_INPUT2

8 FGND

9 B5V

10 LED_CNTR

Page 71

Wiring Diagram

6-4 Samsung Electronics

42" Loc. No. 50" Loc. No. Description

CN5401 CN5401 Horizontal Y-scan line(1~128) of Module and Y-Main Scan Connect

CN5402 CN5402 Horizontal Y-scan line(129~256) of Module and Y-Main Scan Connect

CN5403 CN5403 Horizontal Y-scan line(256~384) of Module and Y-Main Scan Connect

- CN5512 Y-Main Scan(High) and Y-Main Scan(Low) Connect

CN5501 CN5501 Horizontal Y-scan line(384~512) of Module and Y-Main Scan Connect

CN5502 CN5502 Horizontal Y-scan line(512~640) of Module and Y-Main Scan Connect

CN5503 CN5503 Horizontal Y-scan line(640~768) of Module and Y-Main Scan Connect

CN5407 CN5407 Upper Y-Drive and Y-Main Scan Connect

CN5507 CN5507 Lower Y-Drive and Y-Main Scan Connect

CN5707 CN5707 Vs(205V),Vg(15v) Power input connect(6Pin) of Y-Drive

CN5701 CN5701 Y-Drive control signal from Logic Board

CN810 CN810 Vs(205V),Vg(15v) Power input connect(6Pin) of SMPS for Y-Drive

CN809 CN809 Vs(205V),Vg(15v) Power input connect(6Pin) of SMPS for X-Drive

CN808 CN808 Va(63V) ,5.3V Power input connect(3Pin) of SMPS for F-Buffer

CN807 CN807 Power input connect(10pin) for Logic Board

CN801 CN801 Image signal(LVDS) connect(41pin) from Main Board

CN800 CN800 AC Power input connect from AC-inlet

CN4002 CN4002 Horizontal X-scan line of Module and X-scan Connect(first Block)

CN4001 CN4001 Horizontal X-scan line of Module and X-scan Connect(second Block)

- CN4000 Horizontal X-scan line of Module and X-scan Connect(third Block)

CN2000 CN2000 Power input connect(10pin) of Logic Board from SMPS

CN2001 CN2001 Image signal(LVDS) connect(41pin) of Logic board from Main Board

CN2002 CN2002 Y-Drive control signal of Logic Board

CN2004 CN2005 Address Data(684th~1366th) connect for F-Buffer board

CN2028 CN2004 Address Data(1st~683th) connect for E-Buffer board

CN2500 CN2500 Address Data(1st~683th) connect from Logic Board

CN2510 CN2510 Power input connect from F-Buffer Board

CN2610 CN2610 Power input connect to E-Buffer Board

CN2600 CN2600 Address Data(684th~1366th) connect from Logic board

CN2609 CN2609 Va(63V) ,5.3V Power input connect(3Pin) from SMPS

CN1101 CN1101 Power input connect(24Pin) from SMPS

CN2202_HD CN2202_HD Image signal(LVDS) connect(30pin) for Logic board

CN1605_PDP CN1605_PDP Function input(source,ch up/down...) connect on Main board

CN1606 CN1606 Power SW input connect on Main Board

CN1203 CN1203 Speak out connect on Main Board

6-1-2 Connector role
